This document discusses the Openstack Neutron networking-bgpvpn project, which provides a Neutron API and service plugin that allows tenants to interconnect their Openstack networks and routers with BGP/MPLS VPNs. The API exposes constructs like BGPVPNs, network associations, and router associations. It works with drivers for Neutron/OVS, OpenDaylight, OpenContrail, and others. The goal is to provide a common way for tenants to control interconnections in a controller-agnostic manner. The project is part of Openstack and OPNFV, and provides a model for integrating telco functionality into Openstack.

1. 1

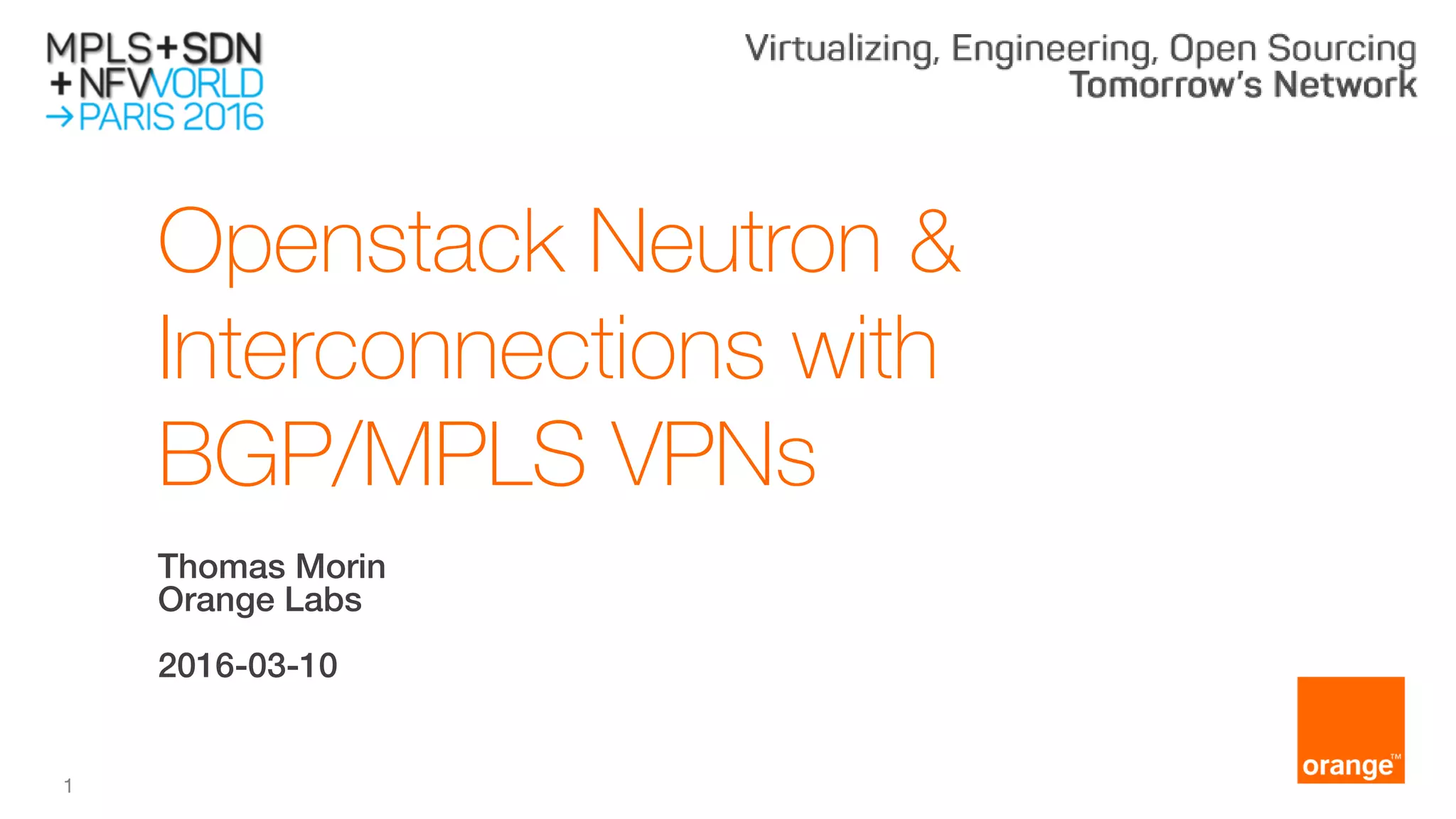

Openstack Neutron &
Interconnections with
BGP/MPLS VPNs
Thomas Morin
Orange Labs
2016-03-10

2. 2

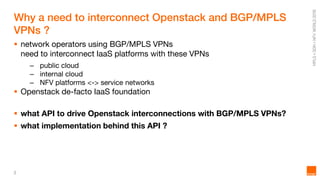

Why a need to interconnect Openstack and BGP/MPLS
VPNs ?
 network operators using BGP/MPLS VPNs
need to interconnect IaaS platforms with these VPNs
– public cloud
– internal cloud
– NFV platforms <-> service networks
 Openstack de-facto IaaS foundation
 what API to drive Openstack interconnections with BGP/MPLS VPNs?
 what implementation behind this API ?

3. 3

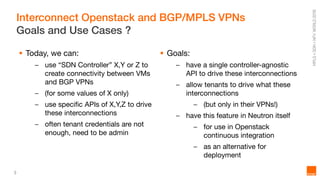

Interconnect Openstack and BGP/MPLS VPNs
Goals and Use Cases ?
 Today, we can:
– use “SDN Controller” X,Y or Z to
create connectivity between VMs
and BGP VPNs
– (for some values of X only)
– use specific APIs of X,Y,Z to drive
these interconnections
– often tenant credentials are not
enough, need to be admin
 Goals:
– have a single controller-agnostic
API to drive these interconnections
– allow tenants to drive what these
interconnections
– (but only in their VPNs!)
– have this feature in Neutron itself
– for use in Openstack
continuous integration
– as an alternative for
deployment

4. 4
Openstack Neutron networking-bgpvpn project
A Neutron API to drive BGP VPN interconnections
 What it is about ?
– a service plugin that inserts into Neutron and exposes
an API for BGPVPN Interconnection
– tenant “I want Network X to be interconnected with BGPVPN foo”
– how is an interconnection defined through the API realized ?
– depends on the driver ! (see next slides)
 A bit of history
– API proposal started 2+ years ago
– lead by Nachi Ueno and Pedro Marques)
– Effort re-started one year ago by Orange
– with an opensourced implementation as a starting point
– Triggered interest around Openstack Vancouver summit
– Welcome in Openstack “big tent” / Neutron “stadium”
– Creation of the Openstack networking-bgpvpn project in June 2015

5. 5
dataplane
(vswitch/ vrouter)
Neutron BGP VPN Interconnections service plugin
Overview
Neutron
Backend X
(e.g. Neutron+Bagpipe, OpenDaylight,
OpenContrail, Nuage)
BGP
Peers
VMs… …
driver for
backend X
BGP
VPN
routes
packets carried
over MPLS
toward VPNs
API
BGPVPN
Service Plugin





driver for
X…

6. 6

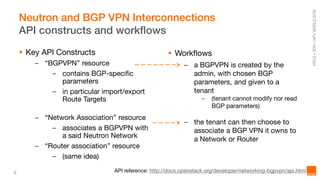

Neutron and BGP VPN Interconnections
API constructs and workflows
 Key API Constructs
– “BGPVPN” resource
– contains BGP-specific
parameters
– in particular import/export
Route Targets
– “Network Association” resource
– associates a BGPVPN with
a said Neutron Network
– “Router association” resource
– (same idea)
 Workflows
– a BGPVPN is created by the
admin, with chosen BGP
parameters, and given to a
tenant
– (tenant cannot modify nor read
BGP parameters)
– the tenant can then choose to
associate a BGP VPN it owns to
a Network or Router
API reference: http://docs.openstack.org/developer/networking-bgpvpn/api.html

7. 7

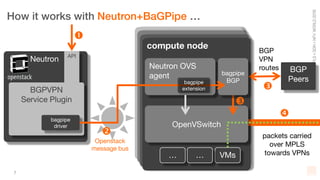

How it works with Neutron+BaGPipe …
Neutron
compute node
BGP
Peers
VMs… …
BGP
VPN
routes
packets carried
over MPLS
towards VPNs
API
BGPVPN
Service Plugin


bagpipe
driver OpenVSwitch
Neutron OVS
agent bagpipe
BGP

Openstack
message bus

bagpipe
extension

8. 8

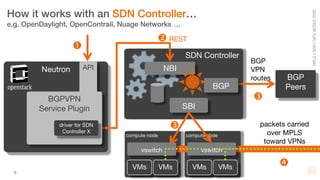

Neutron
SDN Controller
BGP
Peers
driver for
backend X
BGP
VPN
routes
packets carried
over MPLS
toward VPNs
API
BGPVPN
Service Plugin

 REST


How it works with an SDN Controller…
e.g. OpenDaylight, OpenContrail, Nuage Networks …
driver for SDN
Controller X
compute node
VMs
NBI
BGP
SBI

VMs
compute node
VMs VMs
vswitch vswitch

9. 9

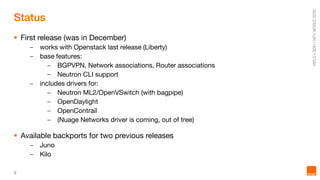

Status
 First release (was in December)
– works with Openstack last release (Liberty)
– base features:
– BGPVPN, Network associations, Router associations
– Neutron CLI support
– includes drivers for:
– Neutron ML2/OpenVSwitch (with bagpipe)
– OpenDaylight
– OpenContrail
– (Nuage Networks driver is coming, out of tree)
 Available backports for two previous releases
– Juno
– Kilo

10. 10

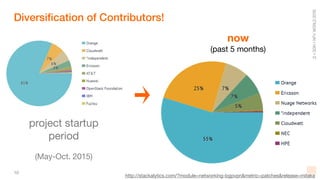

Diversification of Contributors!
http://stackalytics.com/?module=networking-bgpvpn&metric=patches&release=mitaka
project startup
period
(May-Oct. 2015)
now
(past 5 months)

11. 11

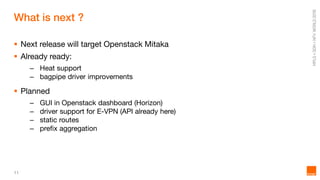

What is next ?
 Next release will target Openstack Mitaka
 Already ready:
– Heat support
– bagpipe driver improvements
 Planned
– GUI in Openstack dashboard (Horizon)
– driver support for E-VPN (API already here)
– static routes
– prefix aggregation

12. 12

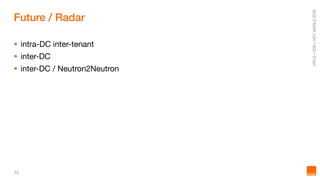

Future / Radar
 intra-DC inter-tenant
 inter-DC
 inter-DC / Neutron2Neutron

13. 13
A word on OPNFV
 Openstack networking-bgpvpn project has a peer project “SDNVPN” in OPNFV
 The Neutron BGPVPN Interconnection service plugin and the OpenDaylight
driver are part of OPNFV very recent release (Brahmaputra, March 1st)
 OPNFV triggered very useful contributions around Openstack work
– installer support
– Fuel
– APEX/RDOManager
– functional testing (Tempest, Functest)
 More to come this year
 OPNFV can be a strong catalyzer for “Telco“ work in Openstack

14. 14

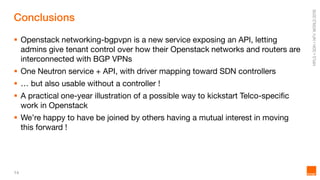

Conclusions
 Openstack networking-bgpvpn is a new service exposing an API, letting
admins give tenant control over how their Openstack networks and routers are
interconnected with BGP VPNs
 One Neutron service + API, with driver mapping toward SDN controllers
 … but also usable without a controller !
 A practical one-year illustration of a possible way to kickstart Telco-specific
work in Openstack
 We’re happy to have be joined by others having a mutual interest in moving
this forward !
