1. INTERFACING TECHNIQUE WITH 8085
ANALOG TO DIGITAL CONVERTER[0808/0809]

2. ADC0808-N

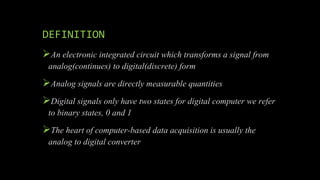

3. DEFINITION
An electronic integrated circuit which transforms a signal from
analog(continues) to digital(discrete) form
Analog signals are directly measurable quantities
Digital signals only have two states for digital computer we refer
to binary states, 0 and 1
The heart of computer-based data acquisition is usually the
analog to digital converter

4. Basically this device is digital volt meter
Digital Systems require discrète digital data
Digital computers require signals to be in digital form whereas
most instrumentation transducers have an output signal in
analogue form.
ADC conversion is therefore required at the interface between
analogue transducers and the digital computer

5. Microprocessors can only perform complex processing on
digitized signals
ADC Provides a link between the analog world of transducers
and the digital world of signal processing and data handling.

6. There are many different types of analog to digital converters
Each offers something in the way of
Speed
Cost
Power dissipation
complexity
Counter type
Successive approximation
There are many types such as flash type and sigma-delta but we
will cover these two types

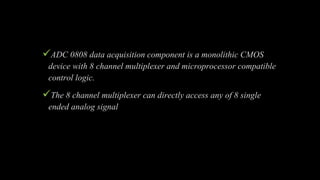

7. ADC 0808 data acquisition component is a monolithic CMOS
device with 8 channel multiplexer and microprocessor compatible
control logic.
The 8 channel multiplexer can directly access any of 8 single
ended analog signal

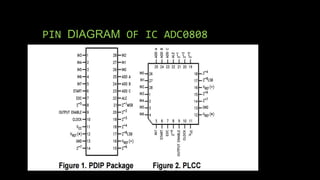

8. PIN DIAGRAM OF IC ADC0808

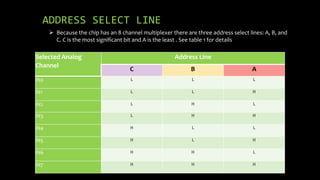

9. Selected Analog
Channel
Address Line
C B A
IN0 L L L
IN1 L L H
IN2 L H L
IN3 L H H
IN4 H L L
IN5 H L H
IN6 H H L
IN7 H H H
ADDRESS SELECT LINE
 Because the chip has an 8 channel multiplexer there are three address select lines: A, B, and
C. C is the most significant bit and A is the least . See table 1 for details

10. ALE [ADDRESS LATCH ENABLE]
ALE is required to load the selected address lines into the
ADC. Once loaded the multiplexer sends the appropriate channel to
the converter on the chip. The ALE should be pulsed for at least
100ns in order for the addresses to get loaded properly. As with all
control signals it is required to have an input value of Vcc - 1.5 up
to 15V for a high and 1.5V down to -0.3V for a low.

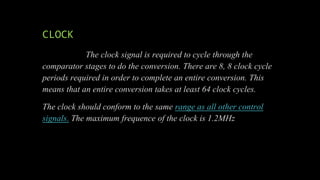

11. CLOCK
The clock signal is required to cycle through the
comparator stages to do the conversion. There are 8, 8 clock cycle
periods required in order to complete an entire conversion. This
means that an entire conversion takes at least 64 clock cycles.
The clock should conform to the same range as all other control
signals. The maximum frequence of the clock is 1.2MHz

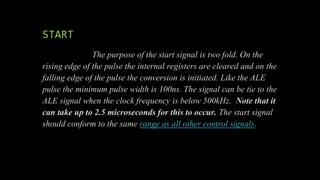

12. START
The purpose of the start signal is two fold. On the
rising edge of the pulse the internal registers are cleared and on the
falling edge of the pulse the conversion is initiated. Like the ALE
pulse the minimum pulse width is 100ns. The signal can be tie to the
ALE signal when the clock frequency is below 500kHz. Note that it
can take up to 2.5 microseconds for this to occur. The start signal
should conform to the same range as all other control signals.

13. OE [OUTPUT ENABLE]
The Output Enable signal causes the ADC to actually
output the digital values on the output lines. The ADC stores the
data in a tri-state output latch until the next conversion is started,
but the data is only output when enabled. In this implementation the
OE signal is pulsed high one clock cycle after the EOC signal goes
high and remains high until the data is safely stored into the desired
register in the FPGA. The OE signal should conform to the
same range as all the other control signals.

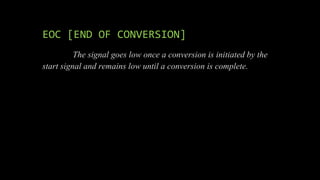

14. EOC [END OF CONVERSION]
The signal goes low once a conversion is initiated by the
start signal and remains low until a conversion is complete.

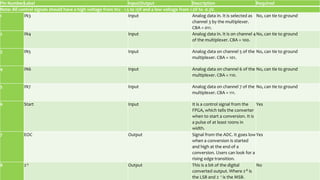

15. Pin NumberLabel Input/Output Description Required
Note: All control signals should have a high voltage from Vcc - 1.5 to 15V and a low voltage from 1.5V to -0.3V.
1 IN3 Input Analog data in. It is selected as
channel 3 by the multiplexer.
CBA = 011.
No, can tie to ground
2 IN4 Input Analog data in. It is on channel 4
of the multiplexer. CBA = 100.
No, can tie to ground
3 IN5 Input Analog data on channel 5 of the
multiplexer. CBA = 101.
No, can tie to ground
4 IN6 Input Analog data on channel 6 of the
multiplexer. CBA = 110.
No, can tie to ground
5 IN7 Input Analog data on channel 7 of the
multiplexer. CBA = 111.
No, can tie to ground
6 Start Input It is a control signal from the
FPGA, which tells the converter
when to start a conversion. It is
a pulse of at least 100ns in
width.
Yes
7 EOC Output Signal from the ADC. It goes low
when a conversion is started
and high at the end of a
conversion. Users can look for a
rising edge transition.
Yes
8 2-5 Output This is a bit of the digital
converted output. Where 2-8 is
the LSB and 2 -1 is the MSB.
No

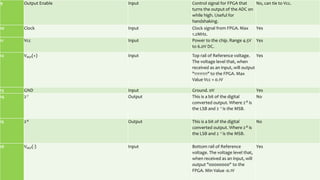

16. 9 Output Enable Input Control signal for FPGA that
turns the output of the ADC on
while high. Useful for
handshaking.
No, can tie to Vcc.
10 Clock Input Clock signal from FPGA. Max
1.2MHz.
Yes
11 Vcc Input Power to the chip. Range 4.5V
to 6.0V DC.
Yes
12 VREF(+) Input Top rail of Reference voltage.
The voltage level that, when
received as an input, will output
"11111111" to the FPGA. Max
Value Vcc + 0.1V
Yes
13 GND Input Ground. 0V Yes
14 2-7 Output This is a bit of the digital
converted output. Where 2-8 is
the LSB and 2 -1 is the MSB.
No
15 2-6 Output This is a bit of the digital
converted output. Where 2-8 is
the LSB and 2 -1 is the MSB.
No
16 VREF(-) Input Bottom rail of Reference
voltage. The voltage level that,
when received as an input, will
output "00000000" to the
FPGA. Min Value -0.1V
Yes

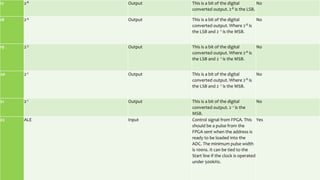

17. 17 2-8 Output This is a bit of the digital
converted output. 2-8 is the LSB.
No
18 2-4 Output This is a bit of the digital
converted output. Where 2-8 is
the LSB and 2 -1 is the MSB.
No
19 2-3 Output This is a bit of the digital
converted output. Where 2-8 is
the LSB and 2 -1 is the MSB.
No
20 2-2 Output This is a bit of the digital
converted output. Where 2-8 is
the LSB and 2 -1 is the MSB.
No
21 2-1 Output This is a bit of the digital
converted output. 2-1 is the
MSB.
No
22 ALE Input Control signal from FPGA. This
should be a pulse from the
FPGA sent when the address is
ready to be loaded into the
ADC. The minimum pulse width
is 100ns. It can be tied to the
Start line if the clock is operated
under 500kHz.
Yes

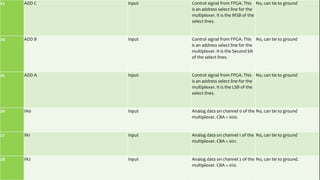

18. 23 ADD C Input Control signal from FPGA. This
is an address select line for the
multiplexer. It is the MSB of the
select lines.
No, can tie to ground
24 ADD B Input Control signal from FPGA. This
is an address select line for the
multiplexer. It is the Second bit
of the select lines.
No, can tie to ground
25 ADD A Input Control signal from FPGA. This
is an address select line for the
multiplexer. It is the LSB of the
select lines.
No, can tie to ground
26 IN0 Input Analog data on channel 0 of the
multiplexer. CBA = 000.
No, can tie to ground
27 IN1 Input Analog data on channel 1 of the
multiplexer. CBA = 001.
No, can tie to ground
28 IN2 Input Analog data on channel 2 of the
multiplexer. CBA = 010.
No, can tie to ground.

19. BLOCK DIAGRAM OF IC ADC0808

20. BLOCK DIAGRAM OF ADC[0800]

21. INTERFACING BLOCK WITH 8085

22. FEATURES OF 0808/0809
28 PIN
Resolution-8 bits
High accuracy
High conversion speed[100ms at 640kHz]
8-channel multiplexer with latched control logic
Output meet TTL voltage level specifications
Latched Tri-state output
Clock Frequency 10kHz to 1280kHz
