1. IMS – IP MULTIMEDIA
SUBSYSTEM
Structure, Architectural nodes & Session Establishment
flow
By

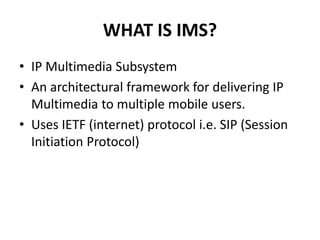

2. WHAT IS IMS?
• IP Multimedia Subsystem
• An architectural framework for delivering IP
Multimedia to multiple mobile users.
• Uses IETF (internet) protocol i.e. SIP (Session
Initiation Protocol)
6. IMS ARCHITECTURE Continued….
• Definition: IMS is an architecture designed to
support the control layer for packet based
services.
• Types of IMS nodes:
– DATABASE ELEMENTS (HSS, SLF)
– IMS CONTROL ELEMENTS (P-CSCF, I-CSCF, S-CSCF)
– CONTROL PLANE INTERWORKING ELEMENTS
(MGCF, BGCF, S-GW)
7. IMS ARCHITECTURE Continued….
• DATABASE ELEMENTS:
HSS:
subscriber data & authentication data
location register
IMS service profile processing
accessed by S-CSCF & I-CSCF
Uses diameter protocol
SLF:
accessed by S-CSCF & I-CSCF
Which HSS stores the user data when 1 or more HSS is present
in the network
Query contains identification of user
Response contains the required specific HSS

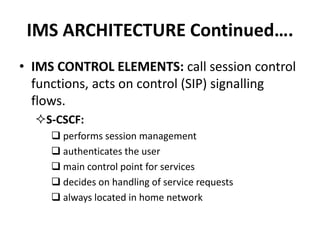

8. IMS ARCHITECTURE Continued….
• IMS CONTROL ELEMENTS: call session control
functions, acts on control (SIP) signalling
flows.
S-CSCF:
performs session management
authenticates the user
main control point for services
decides on handling of service requests
always located in home network

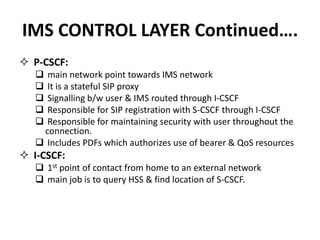

9. IMS CONTROL LAYER Continued….
P-CSCF:
main network point towards IMS network
It is a stateful SIP proxy
Signalling b/w user & IMS routed through I-CSCF
Responsible for SIP registration with S-CSCF through I-CSCF
Responsible for maintaining security with user throughout the
connection.
Includes PDFs which authorizes use of bearer & QoS resources
I-CSCF:
1st point of contact from home to an external network
main job is to query HSS & find location of S-CSCF.

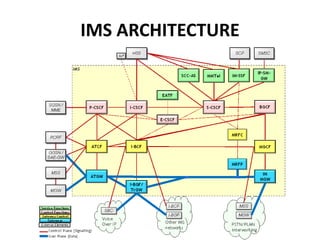

10. IMS ARCHITECTURE Continued….
• CONTROL PLANE INTERWORKING ELEMENTS:
MGCF:
Enables communication b/w IMS & CS users
controls media channels
BGCF: responsible for choosing where a breakout to
the CS domain occurs.
S-GW:
used to connect signaling networks such as SCTP/IP based &
SS7 networks
performs signaling conversion
