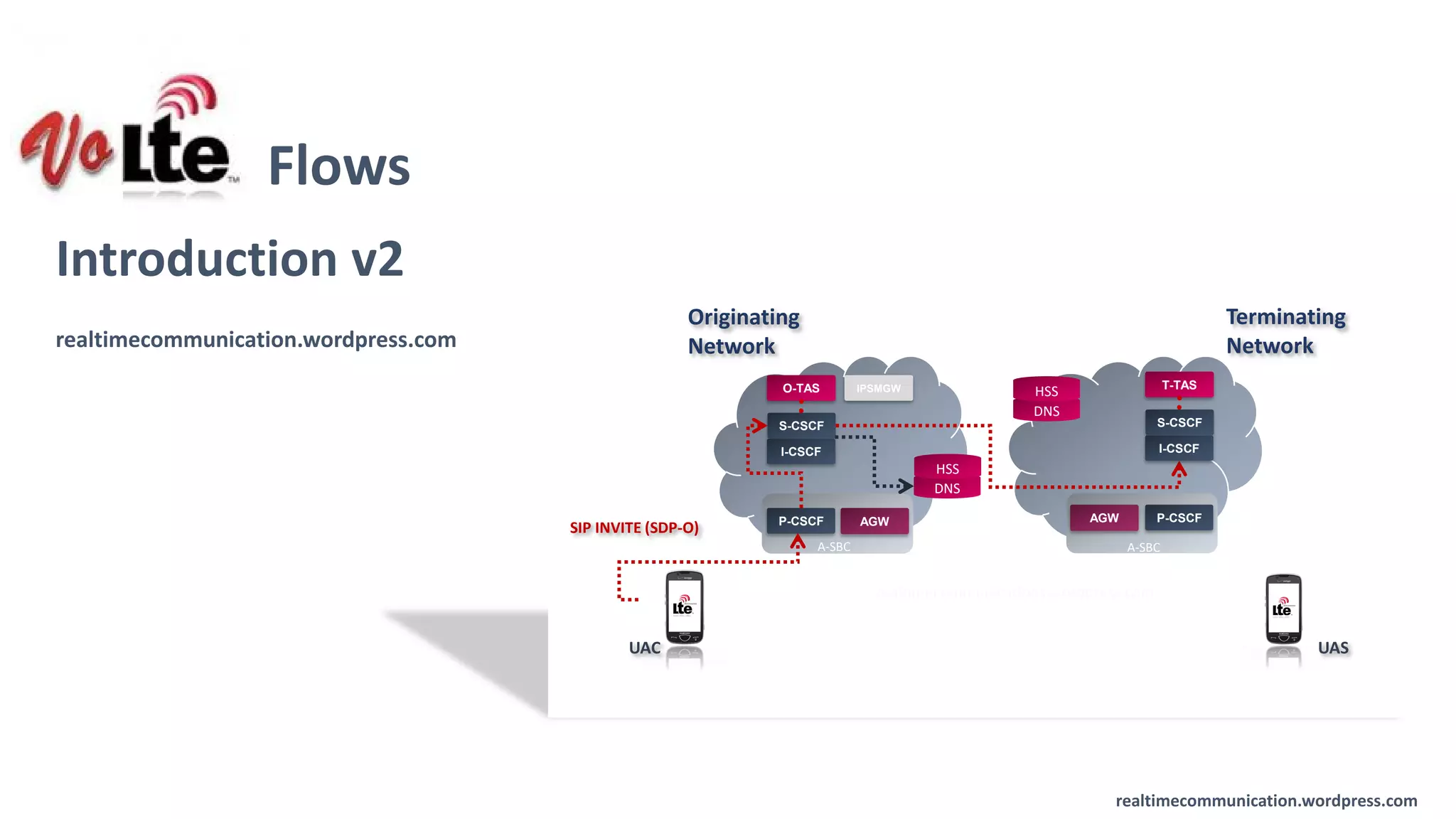

VoLTE Flows
Introduction v2
UASUAC
SIP INVITE (SDP-O)
Terminating
Network
Originating
Network
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS IPSMGW
DNS
HSS
DNS
HSS
P-CSCF
S-CSCF
I-CSCF
T-TAS
A-SBC
AGWAGW
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com

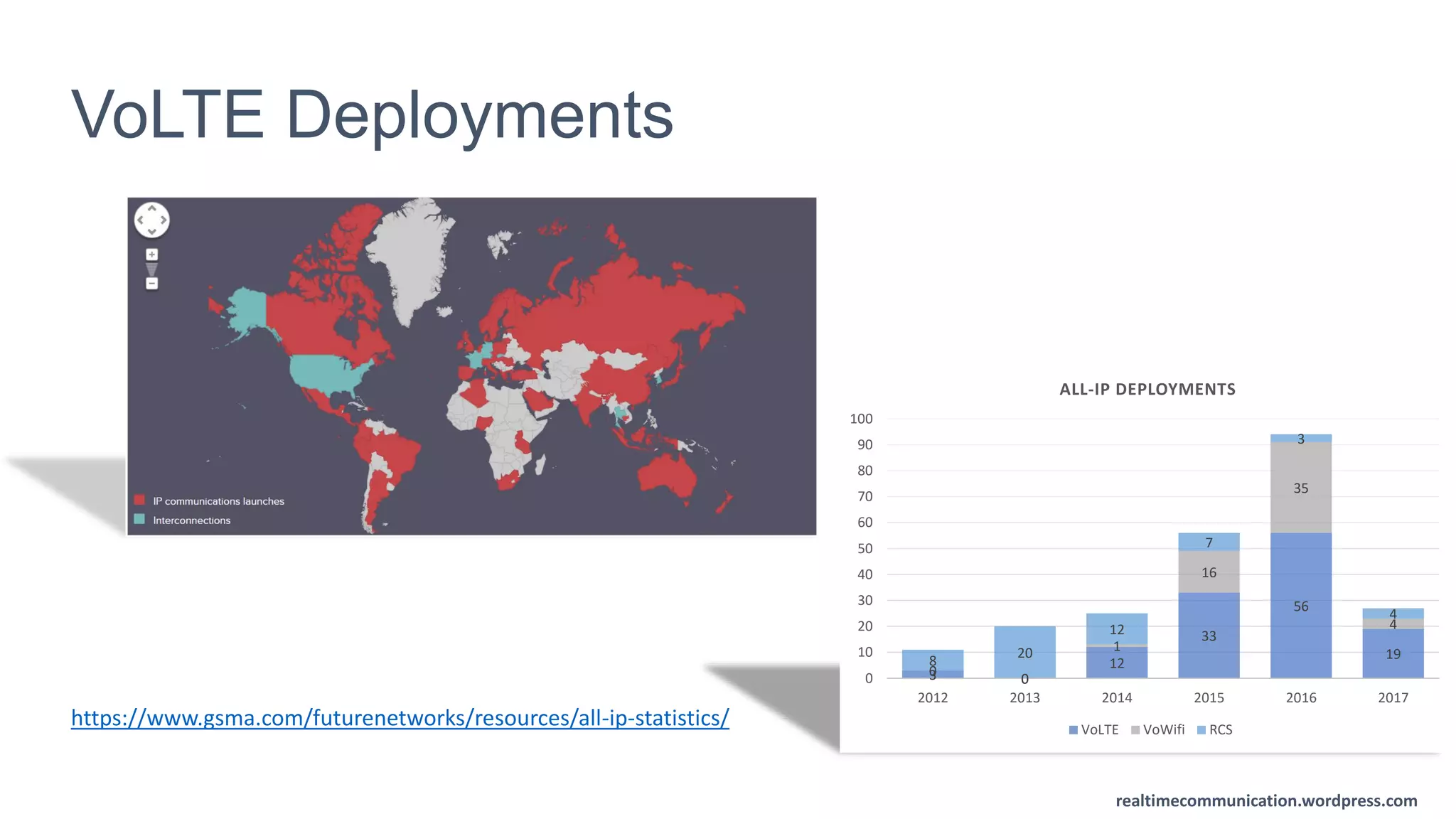

VoLTE Deployments
https://www.gsma.com/futurenetworks/resources/all-ip-statistics/
3 0
12
33
56
16
0 0
1
16
35
3
8 20
12
7
3
3
0
10
20
30
40
50
60
70
80
90
100
2012 2013 2014 2015 2016 2017
ALL-IP DEPLOYMENTS
VoLTE VoWifi RCS
3 0
12
33
56
19
0
0
1
16
35
4
8
20
12
7
3
4
0
10
20
30
40
50
60
70
80
90
100
2012 2013 2014 2015 2016 2017
ALL-IP DEPLOYMENTS
VoLTE VoWifi RCS
realtimecommunication.wordpress.com

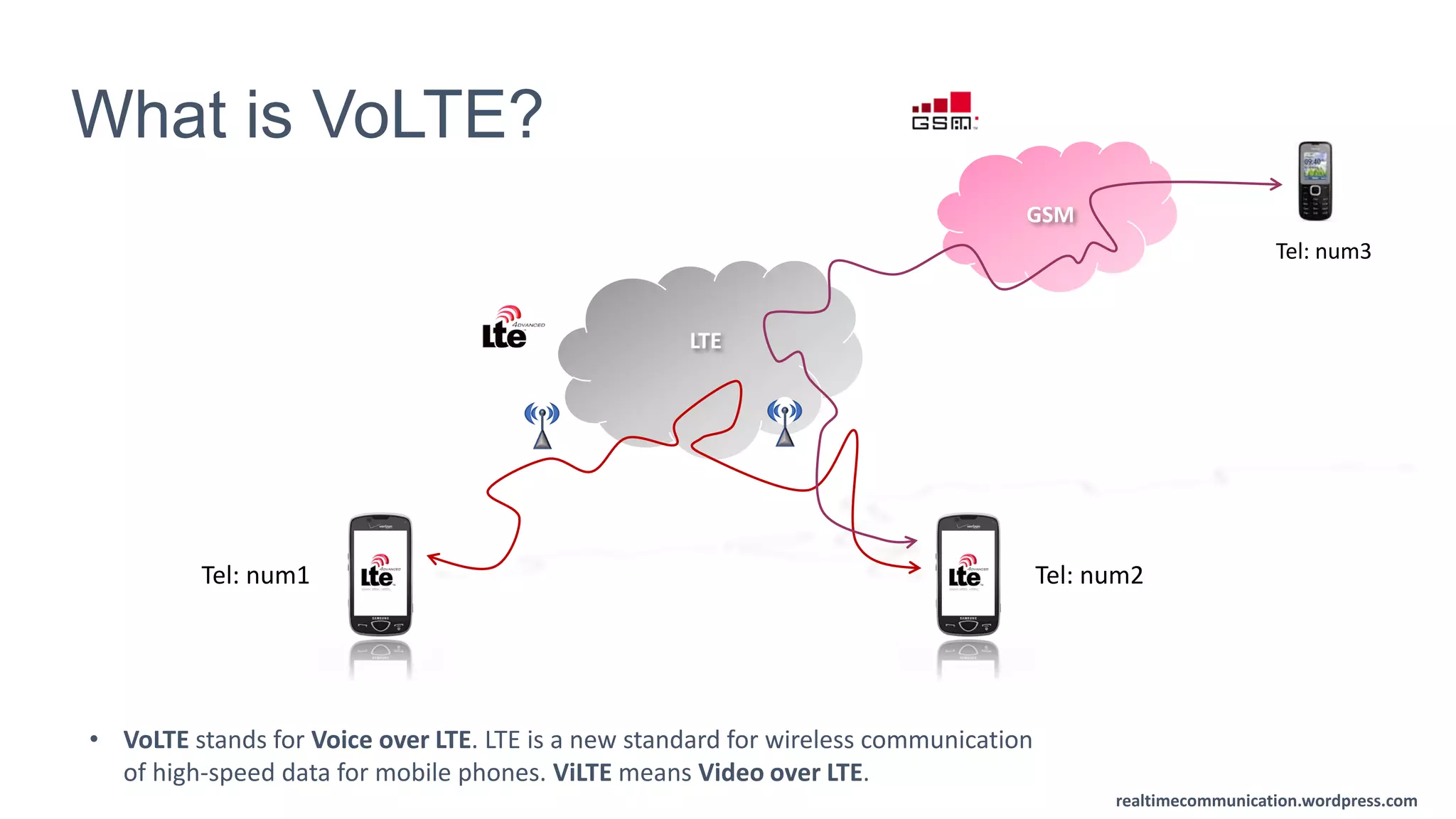

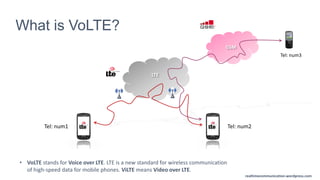

What is VoLTE?
LTE
Tel: num1 Tel: num2
GSM
Tel: num3
• VoLTE stands for Voice over LTE. LTE is a new standard for wireless communication
of high-speed data for mobile phones. ViLTE means Video over LTE.
realtimecommunication.wordpress.com

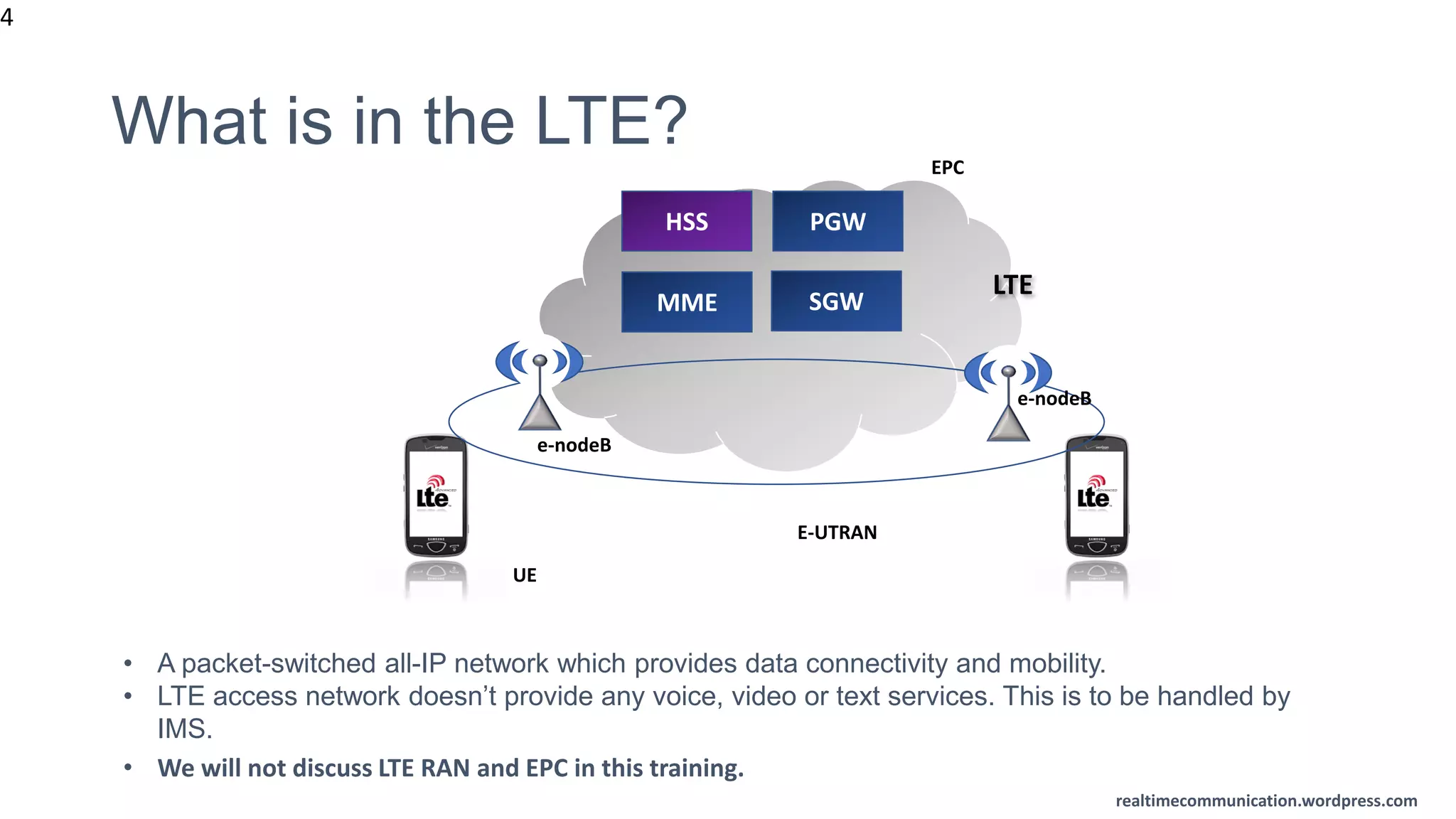

What is in the LTE?
4
LTE
• A packet-switched all-IP network which provides data connectivity and mobility.
• LTE access network doesn’t provide any voice, video or text services. This is to be handled by
IMS.
e-nodeB
e-nodeB
EPC
MME SGW
PGW
E-UTRAN
HSS
UE
• We will not discuss LTE RAN and EPC in this training.
realtimecommunication.wordpress.com

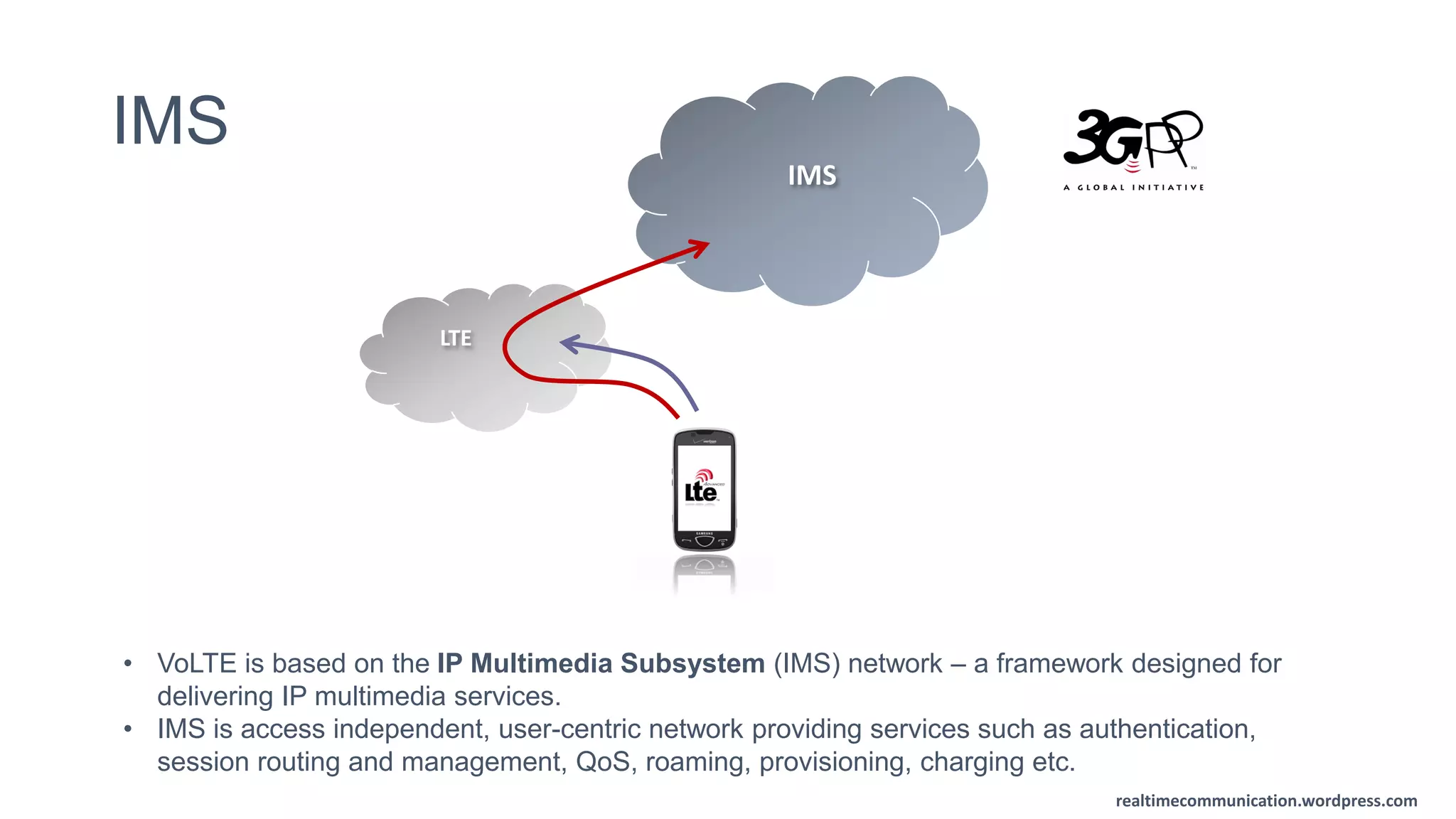

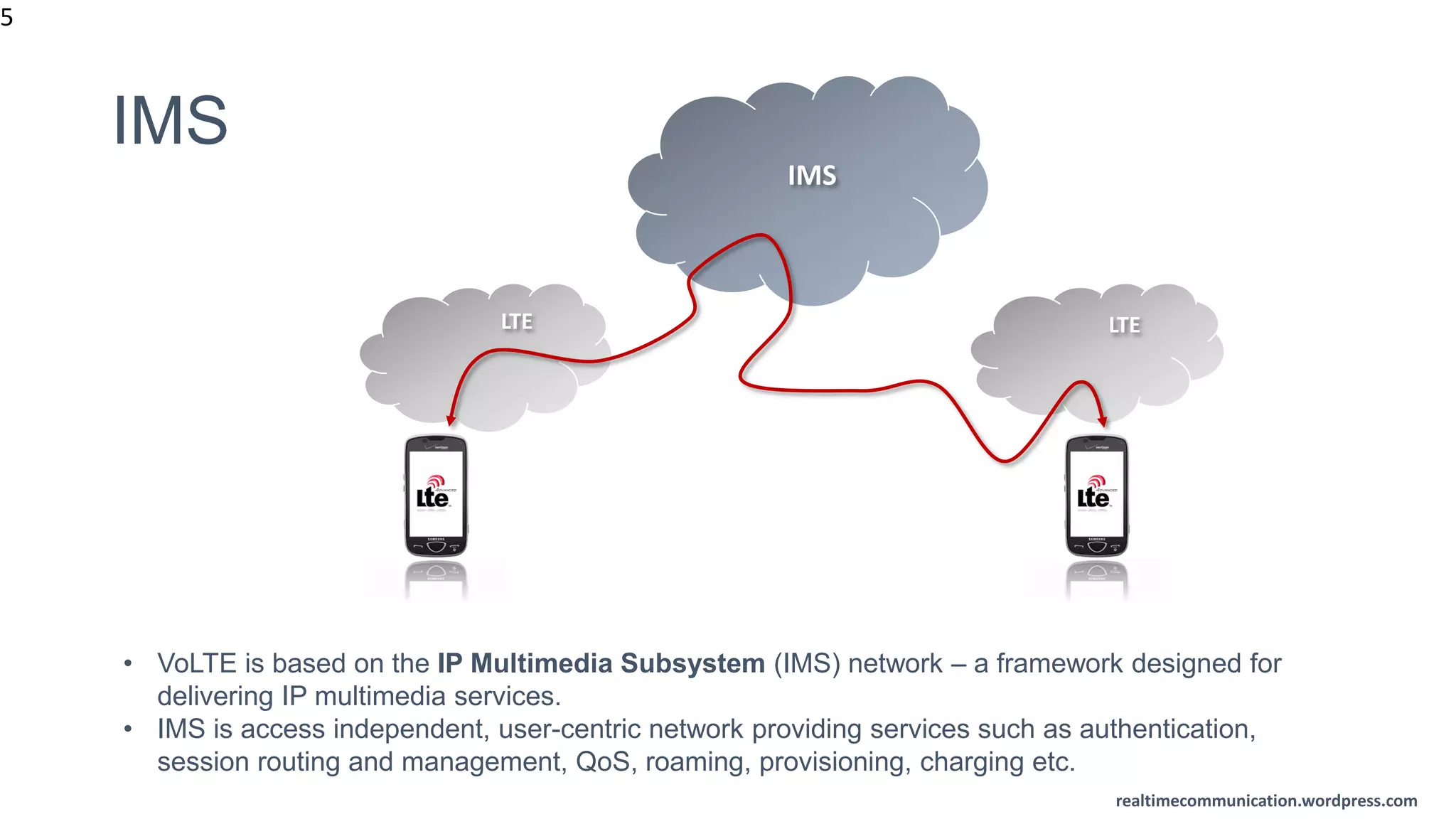

IMS
5
LTE
• VoLTE is based on the IP Multimedia Subsystem (IMS) network – a framework designed for
delivering IP multimedia services.
• IMS is access independent, user-centric network providing services such as authentication,
session routing and management, QoS, roaming, provisioning, charging etc.
LTE
IMS
realtimecommunication.wordpress.com

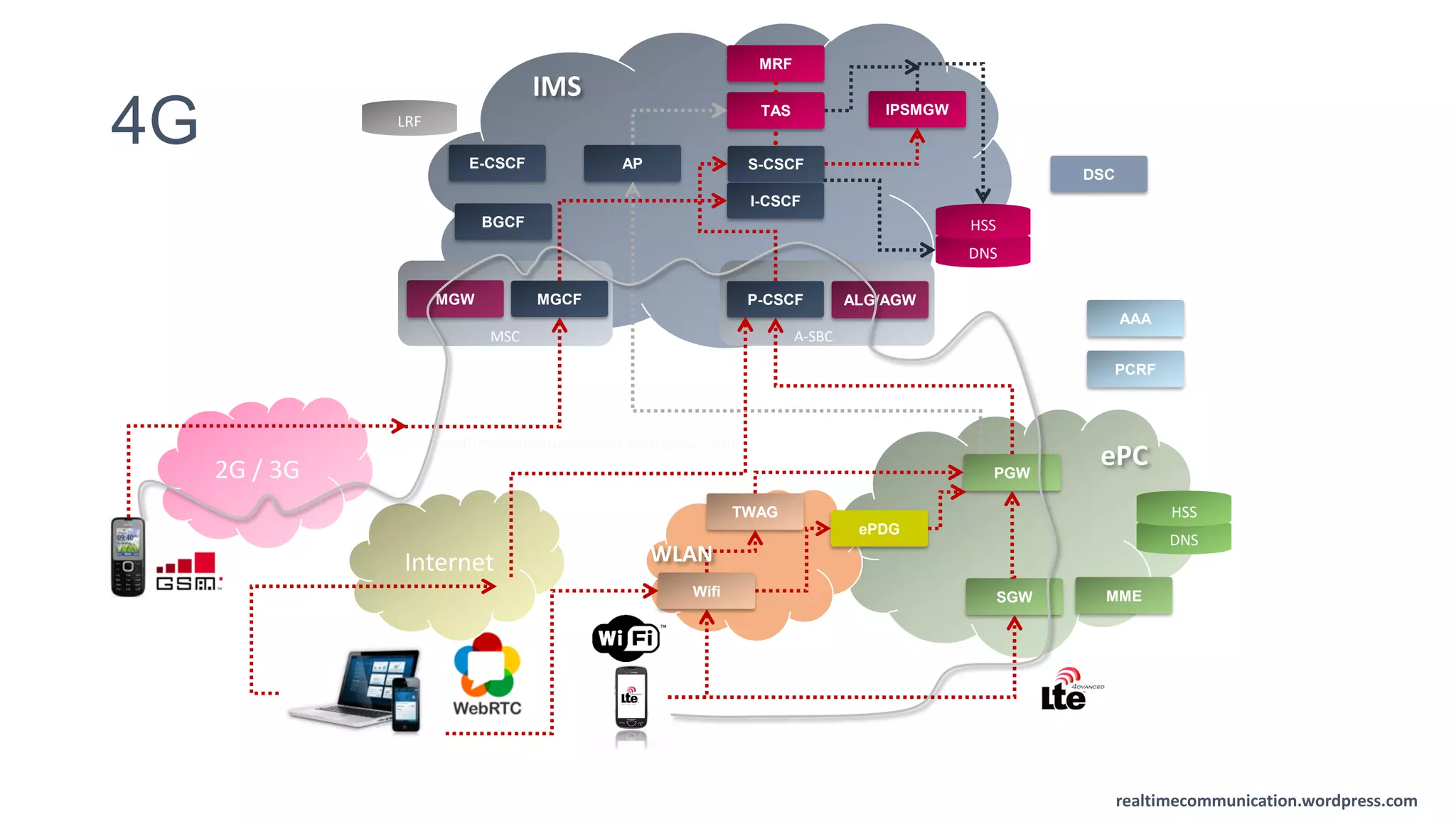

4G
IMS
P-CSCF
S-CSCF
I-CSCF
A-SBC
TAS IPSMGW
DNS
HSS
ALG/AGW
MRF
AP
SGW
PGW
DNS
HSS
ePDG
2G / 3G
AAA
PCRF
DSC
MGCF
MSC
MGW
TWAG
Wifi MME
Internet
ePC
WLAN
E-CSCF
BGCF
LRF
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com

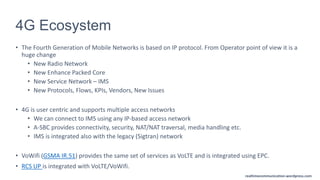

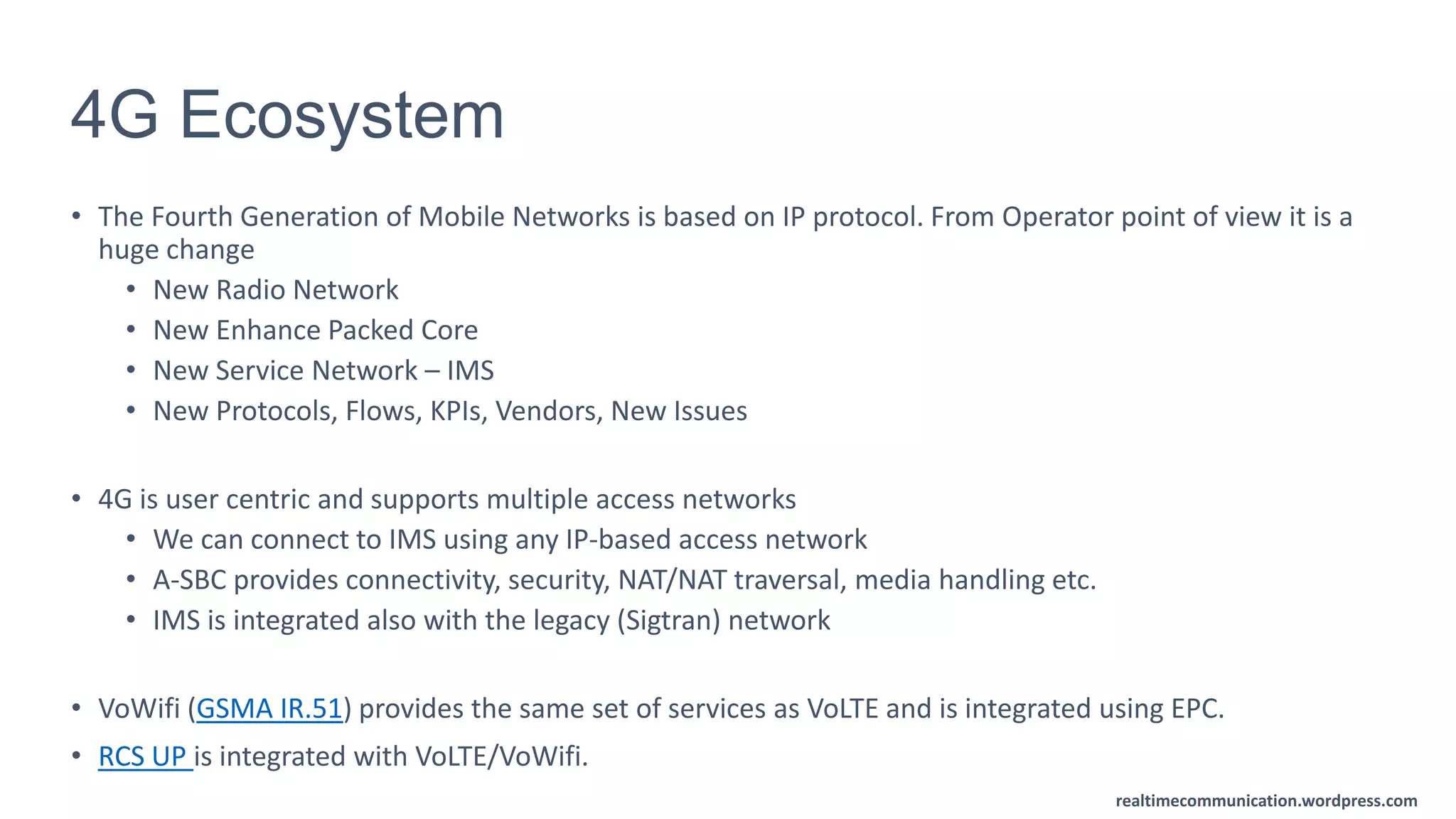

4G Ecosystem
• The Fourth Generation of Mobile Networks is based on IP protocol. From Operator point of view it is a
huge change
• New Radio Network
• New Enhance Packed Core
• New Service Network – IMS
• New Protocols, Flows, KPIs, Vendors, New Issues
• 4G is user centric and supports multiple access networks
• We can connect to IMS using any IP-based access network
• A-SBC provides connectivity, security, NAT/NAT traversal, media handling etc.
• IMS is integrated also with the legacy (Sigtran) network
• VoWifi (GSMA IR.51) provides the same set of services as VoLTE and is integrated using EPC.
• RCS UP is integrated with VoLTE/VoWifi.
realtimecommunication.wordpress.com

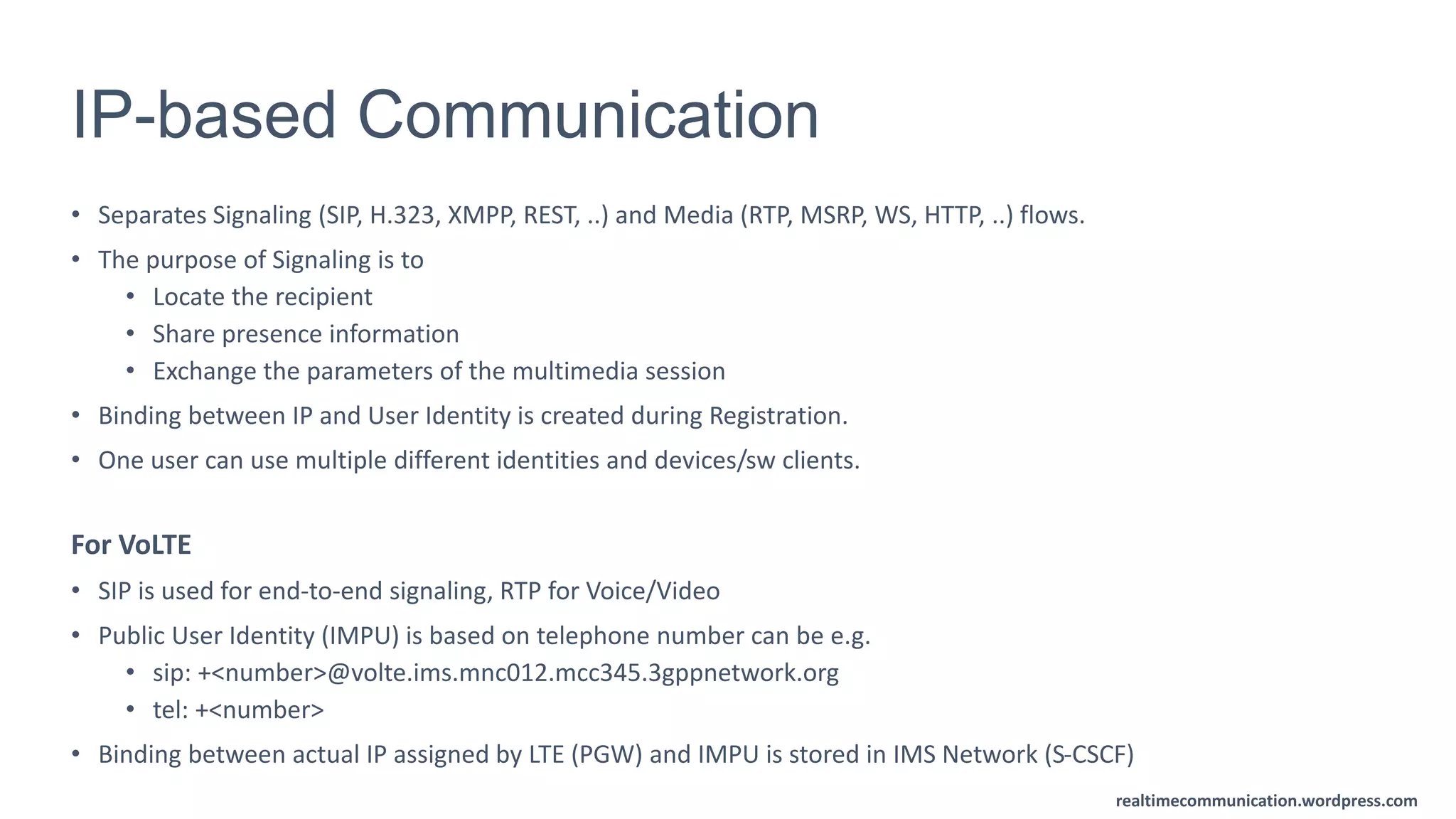

IP-based Communication
• Separates Signaling (SIP, H.323, XMPP, REST, ..) and Media (RTP, MSRP, WS, HTTP, ..) flows.
• The purpose of Signaling is to
• Locate the recipient
• Share presence information
• Exchange the parameters of the multimedia session
• Binding between IP and User Identity is created during Registration.
• One user can use multiple different identities and devices/sw clients.
For VoLTE
• SIP is used for end-to-end signaling, RTP for Voice/Video
• Public User Identity (IMPU) is based on telephone number can be e.g.
• sip: +<number>@volte.ims.mnc012.mcc345.3gppnetwork.org
• tel: +<number>
• Binding between actual IP assigned by LTE (PGW) and IMPU is stored in IMS Network (S-CSCF)
realtimecommunication.wordpress.com

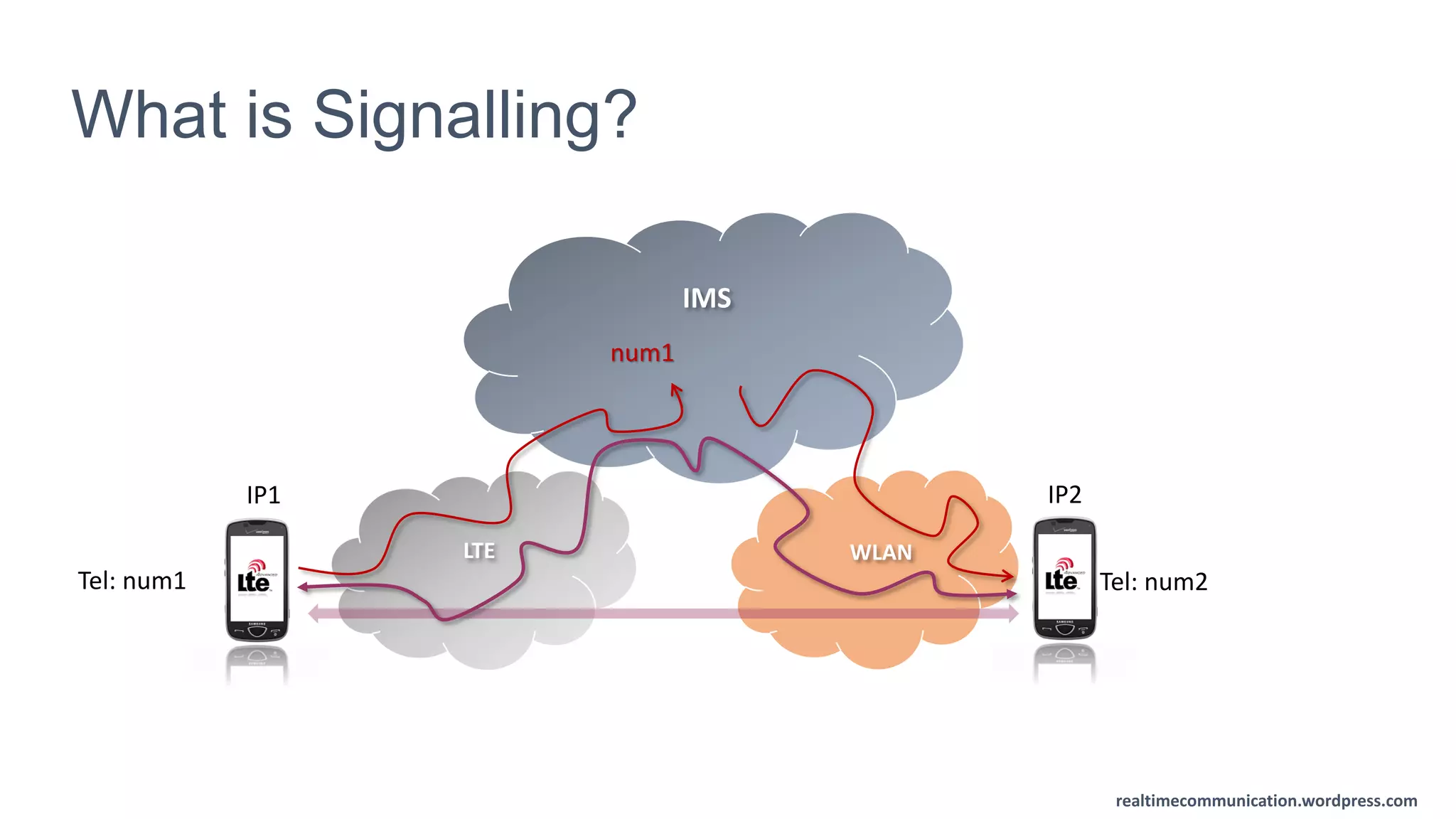

What is Signalling?
LTE
IP2IP1
Tel: num1 Tel: num2
IMS
WLAN
num1
realtimecommunication.wordpress.com

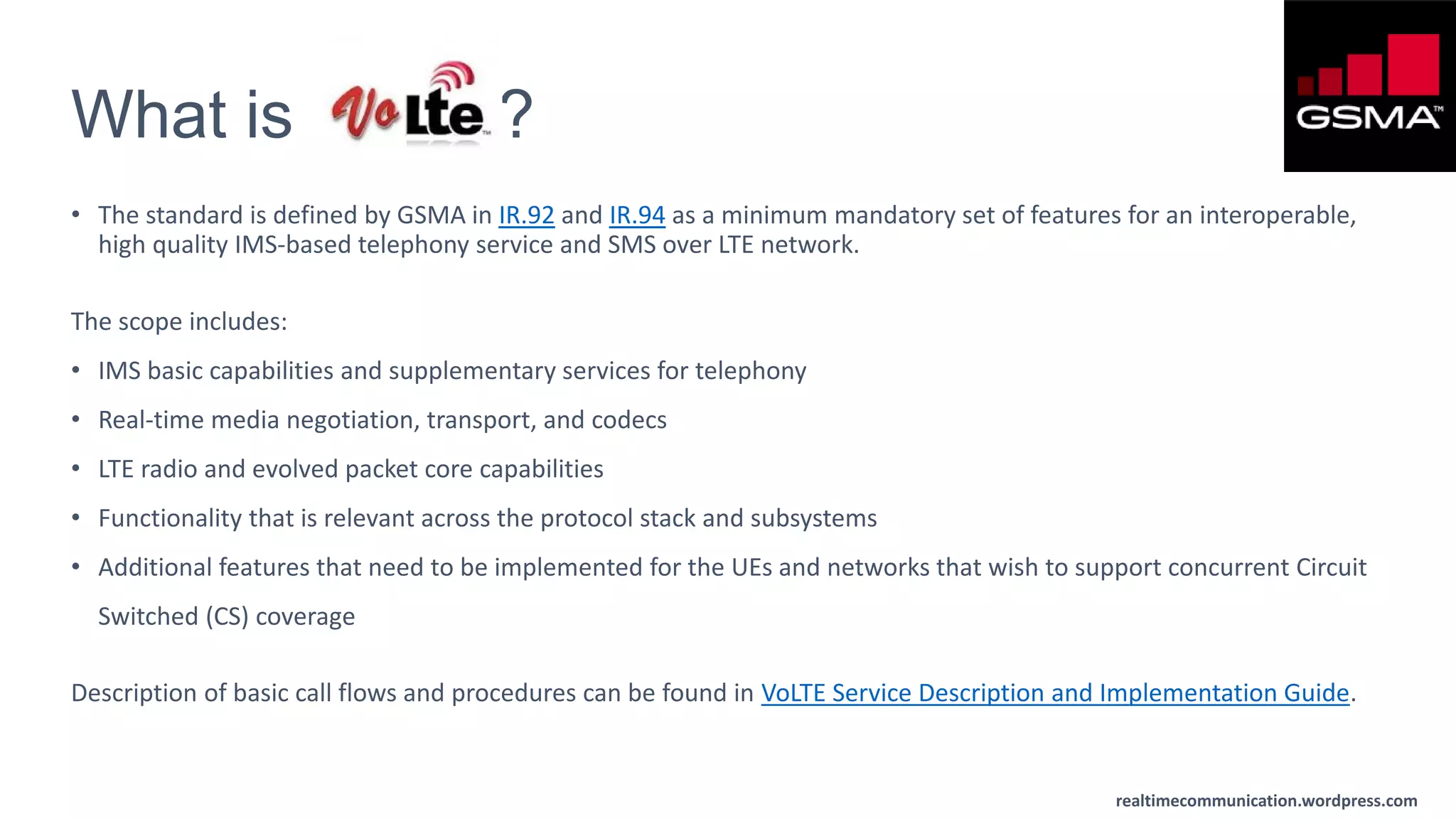

What is ?
• The standard is defined by GSMA in IR.92 and IR.94 as a minimum mandatory set of features for an interoperable,
high quality IMS-based telephony service and SMS over LTE network.
The scope includes:
• IMS basic capabilities and supplementary services for telephony
• Real-time media negotiation, transport, and codecs
• LTE radio and evolved packet core capabilities
• Functionality that is relevant across the protocol stack and subsystems
• Additional features that need to be implemented for the UEs and networks that wish to support concurrent Circuit
Switched (CS) coverage
Description of basic call flows and procedures can be found in VoLTE Service Description and Implementation Guide.
realtimecommunication.wordpress.com
IMS
LTE
• VoLTE is based on the IP Multimedia Subsystem (IMS) network – a framework designed for
delivering IP multimedia services.
• IMS is access independent, user-centric network providing services such as authentication,
session routing and management, QoS, roaming, provisioning, charging etc.
IMS
realtimecommunication.wordpress.com

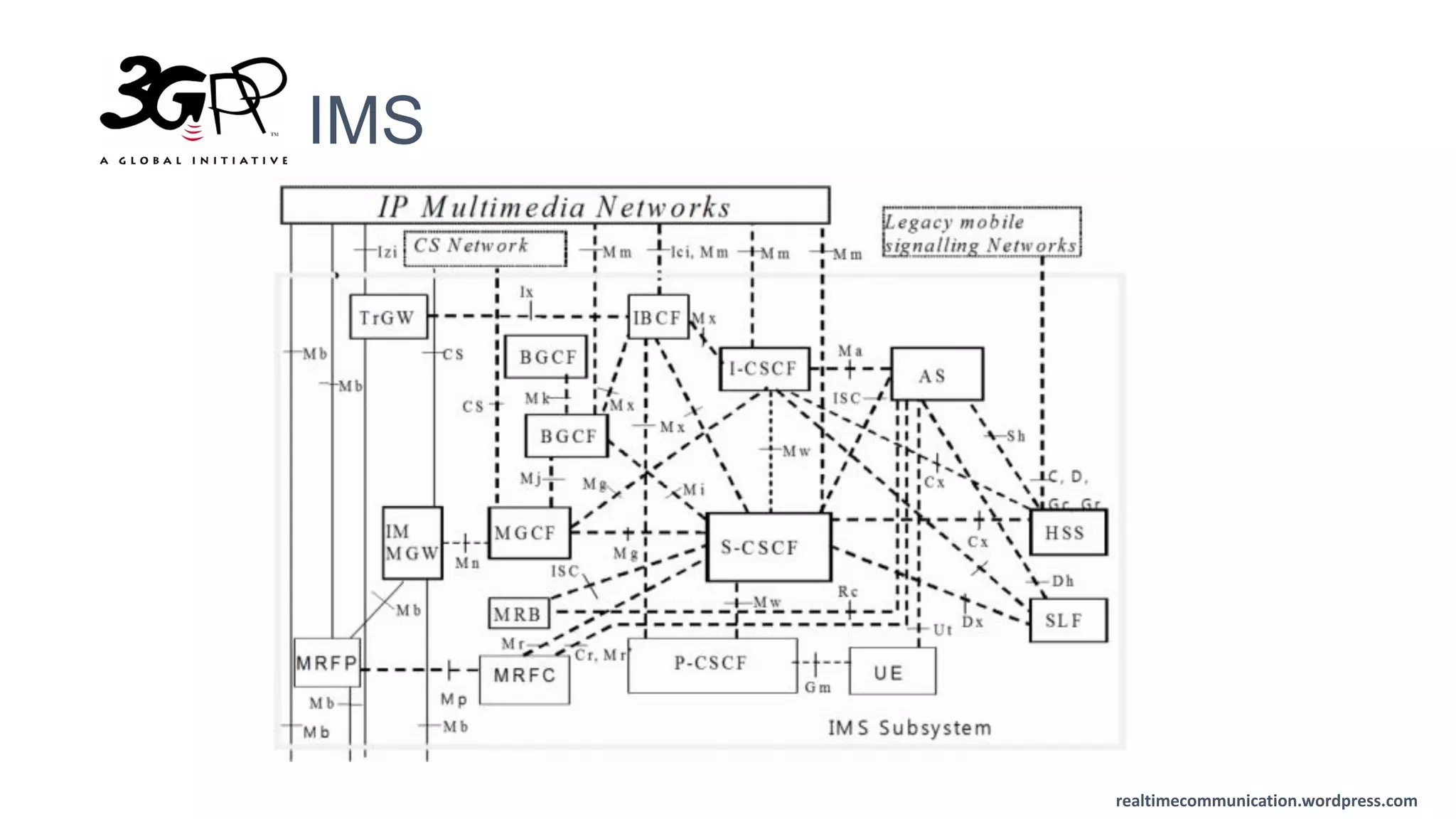

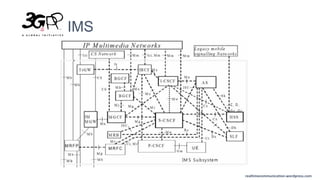

3GPP IMS
realtimecommunication.wordpress.com

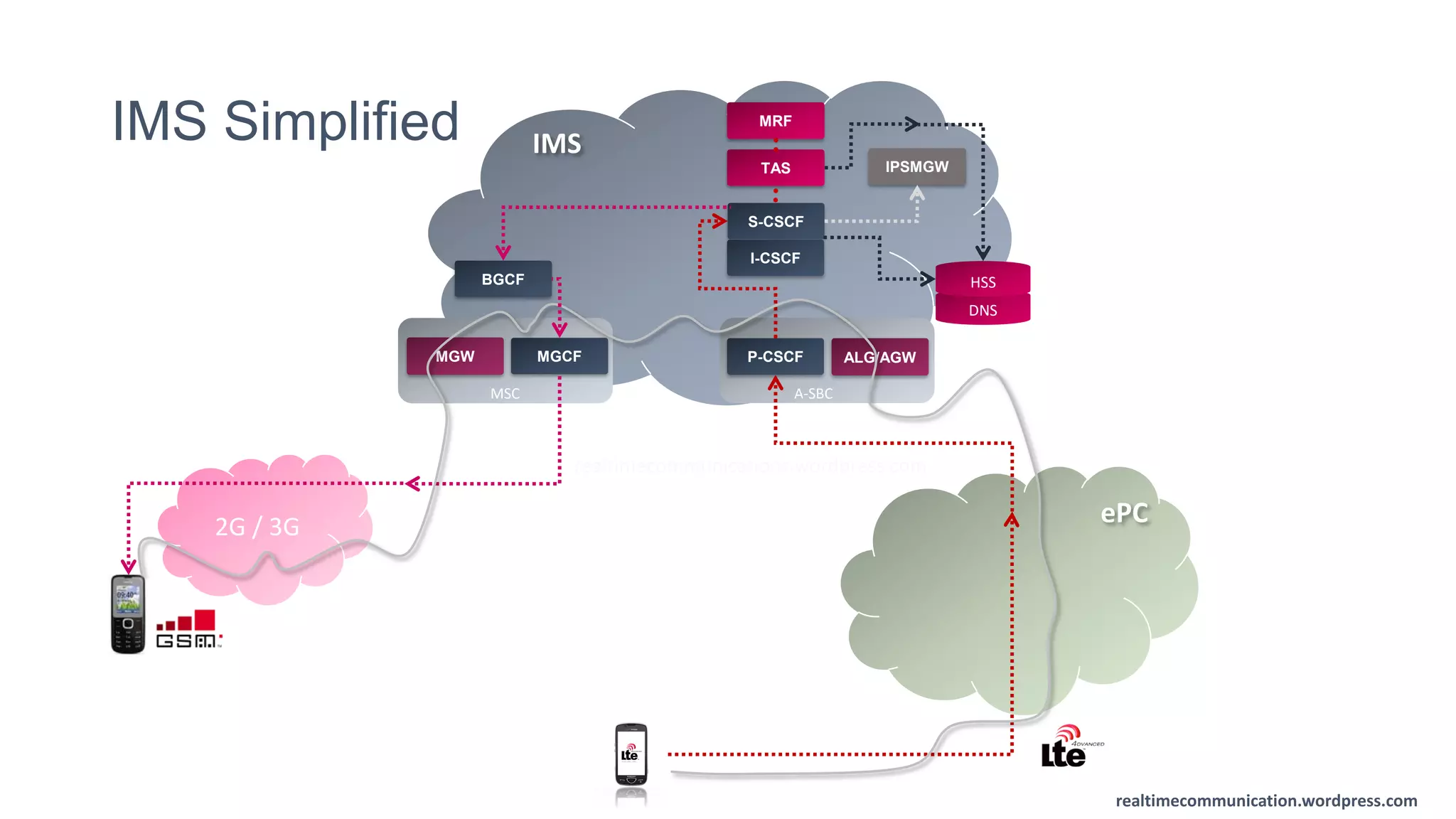

IMS Simplified IMS
P-CSCF
S-CSCF
I-CSCF
A-SBC
TAS IPSMGW
DNS
HSS
ALG/AGW
MRF
2G / 3G
MGCF
MSC
MGW
ePC
BGCF
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com

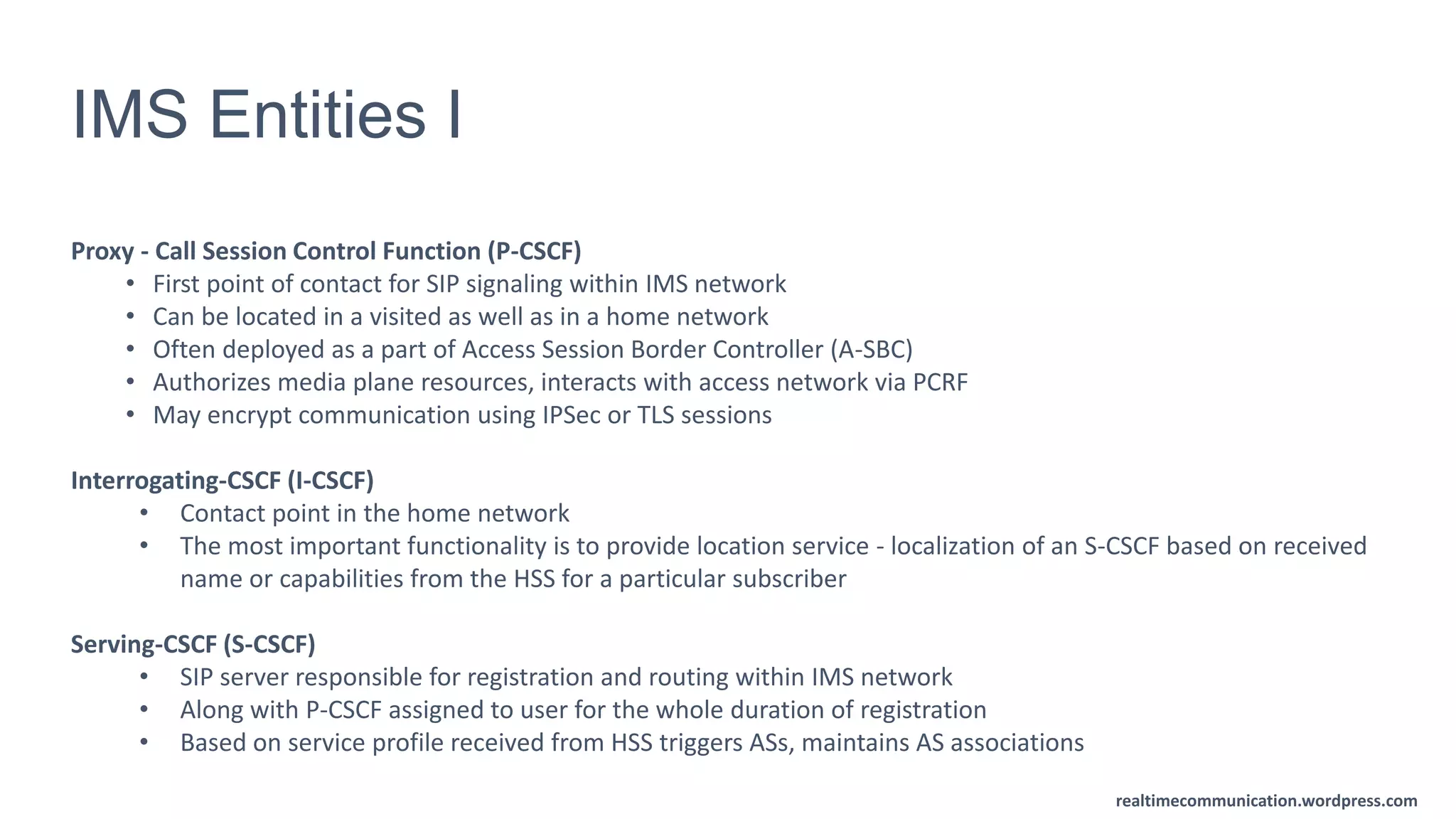

IMS Entities I
Proxy - Call Session Control Function (P-CSCF)
• First point of contact for SIP signaling within IMS network
• Can be located in a visited as well as in a home network
• Often deployed as a part of Access Session Border Controller (A-SBC)
• Authorizes media plane resources, interacts with access network via PCRF
• May encrypt communication using IPSec or TLS sessions
Interrogating-CSCF (I-CSCF)
• Contact point in the home network
• The most important functionality is to provide location service - localization of an S-CSCF based on received
name or capabilities from the HSS for a particular subscriber
Serving-CSCF (S-CSCF)
• SIP server responsible for registration and routing within IMS network
• Along with P-CSCF assigned to user for the whole duration of registration
• Based on service profile received from HSS triggers ASs, maintains AS associations
realtimecommunication.wordpress.com

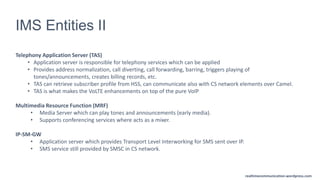

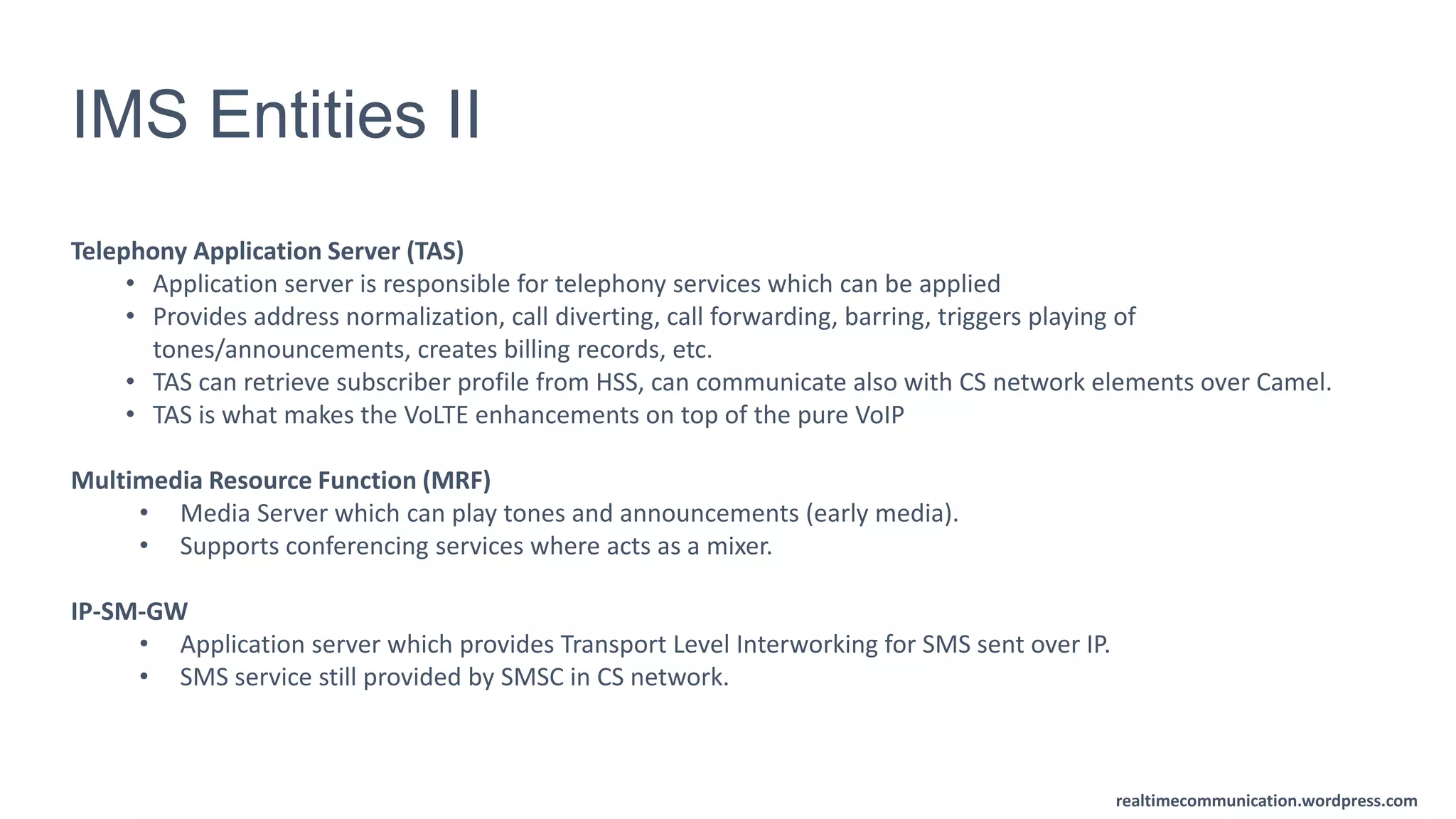

IMS Entities II
Telephony Application Server (TAS)
• Application server is responsible for telephony services which can be applied
• Provides address normalization, call diverting, call forwarding, barring, triggers playing of
tones/announcements, creates billing records, etc.
• TAS can retrieve subscriber profile from HSS, can communicate also with CS network elements over Camel.
• TAS is what makes the VoLTE enhancements on top of the pure VoIP
Multimedia Resource Function (MRF)
• Media Server which can play tones and announcements (early media).
• Supports conferencing services where acts as a mixer.
IP-SM-GW
• Application server which provides Transport Level Interworking for SMS sent over IP.
• SMS service still provided by SMSC in CS network.
realtimecommunication.wordpress.com

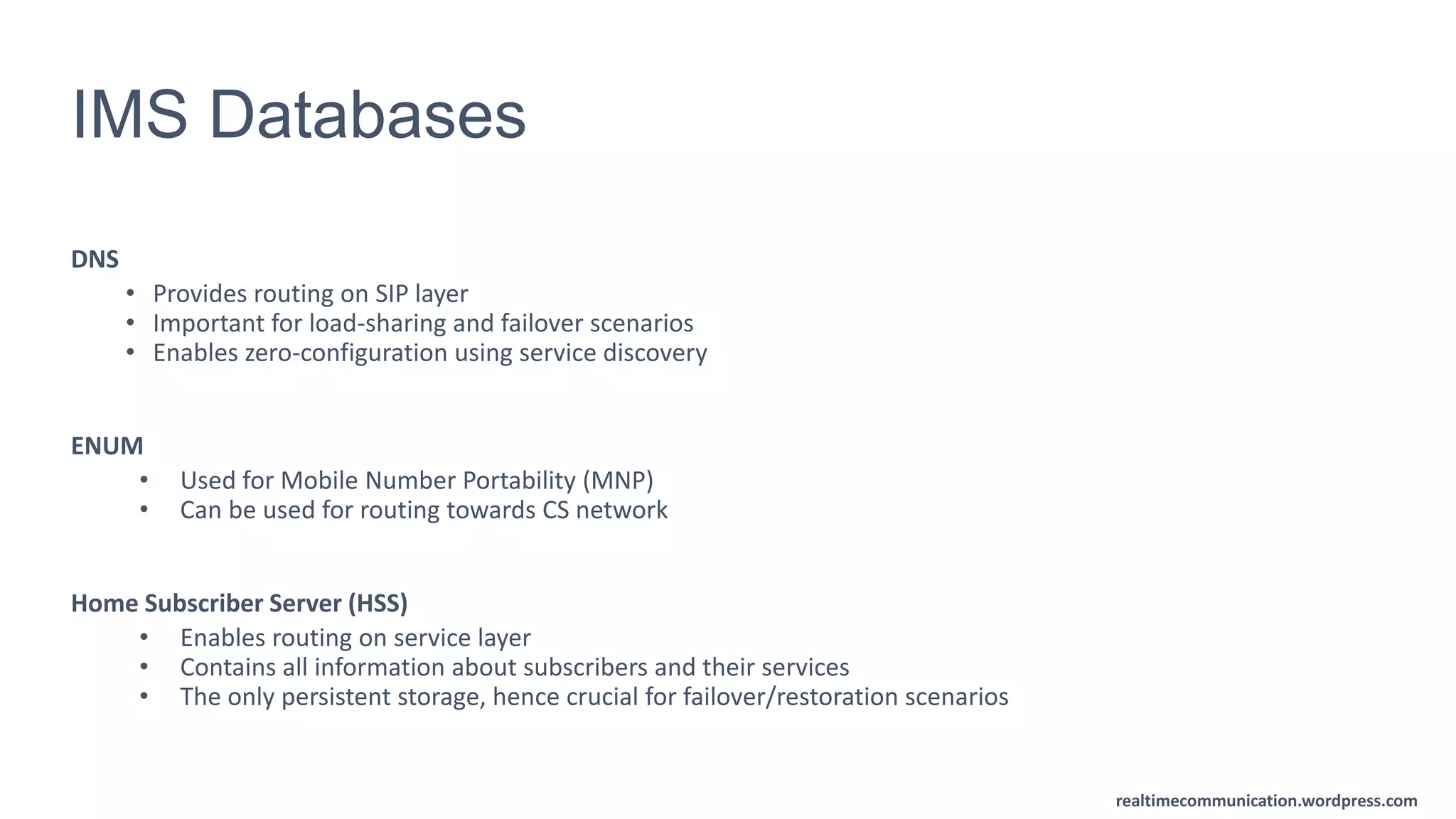

IMS Databases
DNS
• Provides routing on SIP layer
• Important for load-sharing and failover scenarios
• Enables zero-configuration using service discovery
ENUM
• Used for Mobile Number Portability (MNP)
• Can be used for routing towards CS network
Home Subscriber Server (HSS)
• Enables routing on service layer
• Contains all information about subscribers and their services
• The only persistent storage, hence crucial for failover/restoration scenarios
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com
LTE

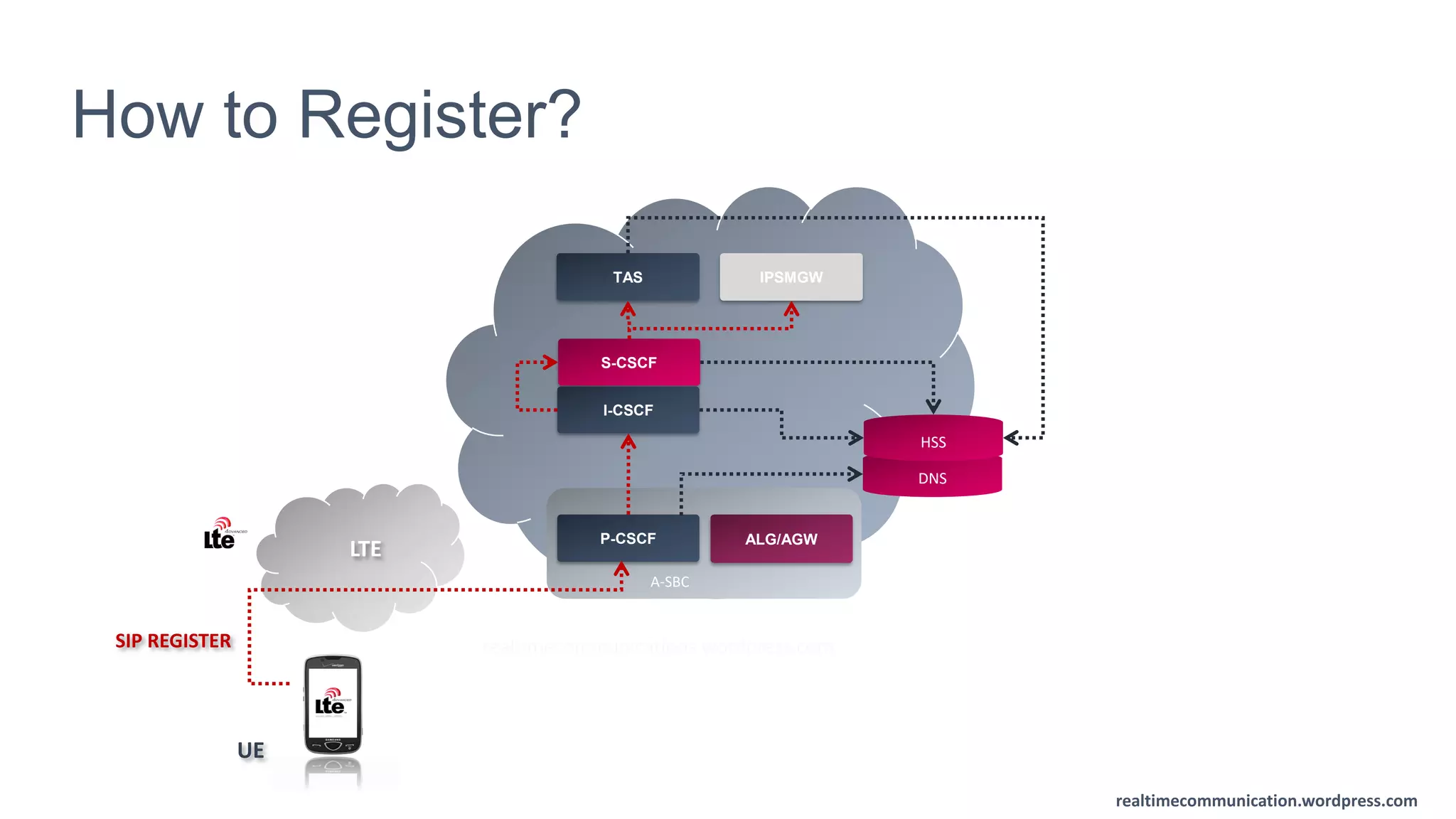

How to Register?
UE
SIP REGISTER
P-CSCF
S-CSCF
I-CSCF
A-SBC
TAS IPSMGW
DNS
HSS
ALG/AGW
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com

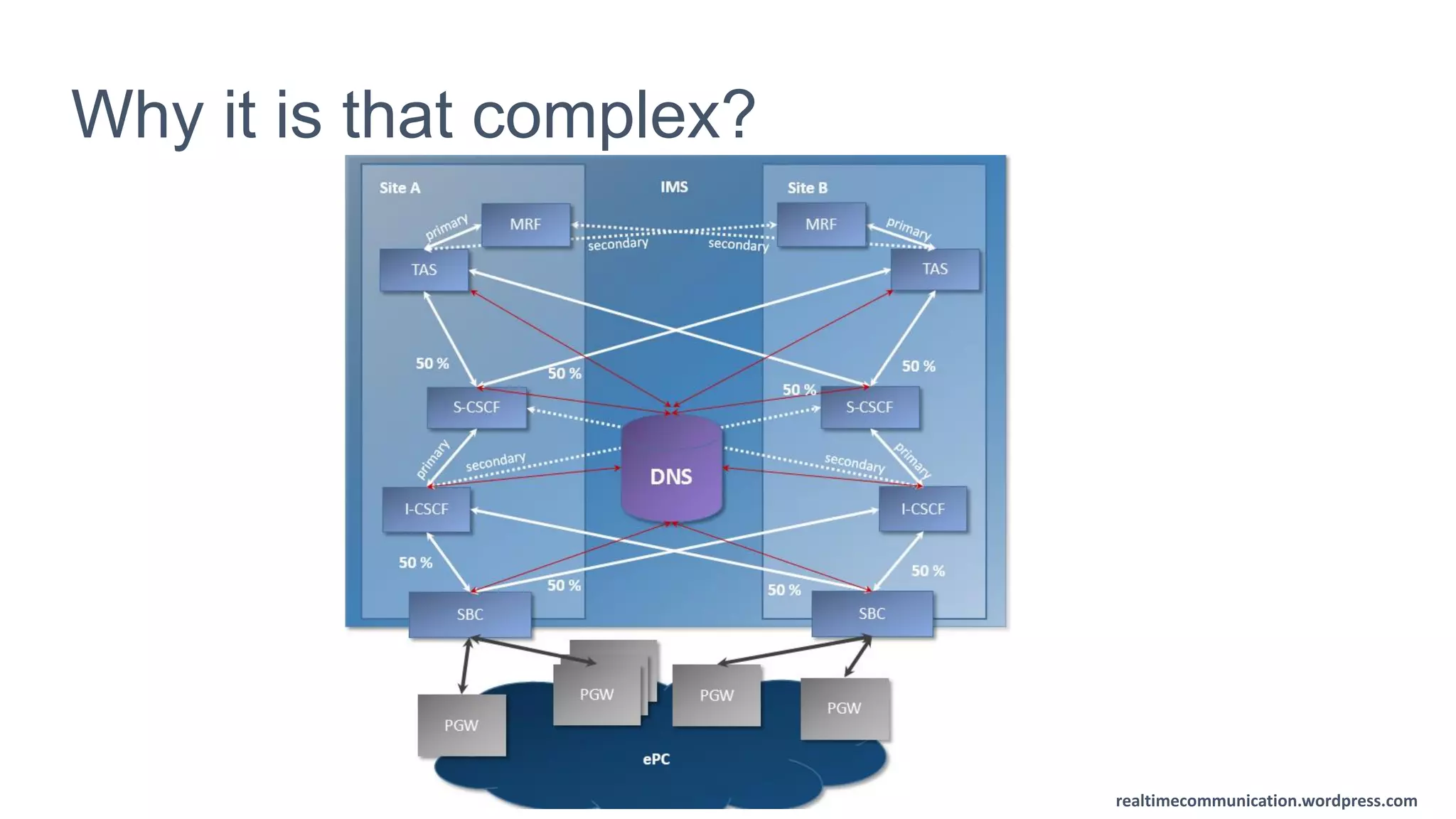

Why it is that complex?
realtimecommunication.wordpress.com

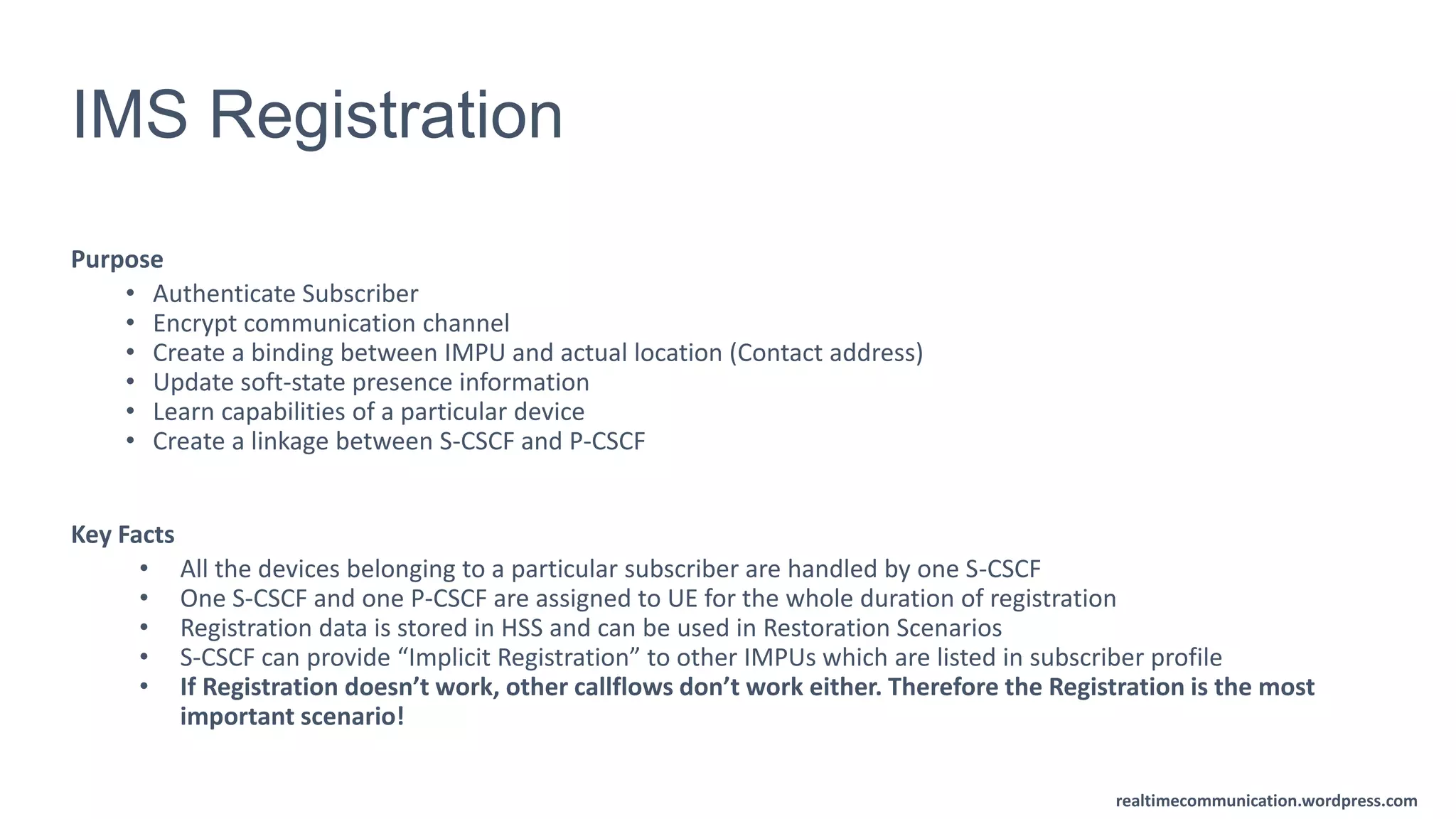

IMS Registration
Purpose
• Authenticate Subscriber
• Encrypt communication channel
• Create a binding between IMPU and actual location (Contact address)
• Update soft-state presence information
• Learn capabilities of a particular device
• Create a linkage between S-CSCF and P-CSCF
Key Facts
• All the devices belonging to a particular subscriber are handled by one S-CSCF
• One S-CSCF and one P-CSCF are assigned to UE for the whole duration of registration
• Registration data is stored in HSS and can be used in Restoration Scenarios
• S-CSCF can provide “Implicit Registration” to other IMPUs which are listed in subscriber profile
• If Registration doesn’t work, other callflows don’t work either. Therefore the Registration is the most
important scenario!
realtimecommunication.wordpress.com

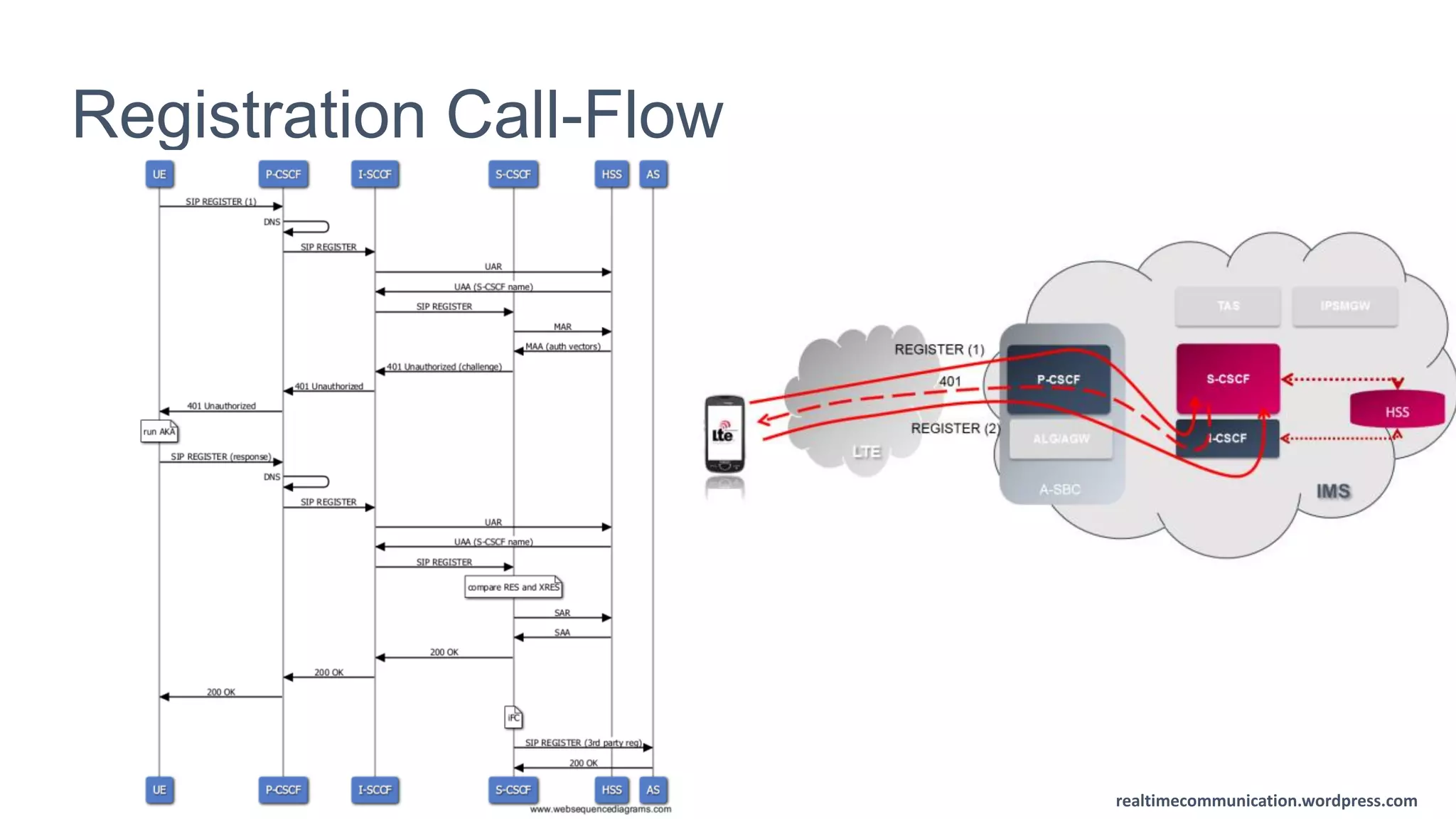

Registration Call-Flow
realtimecommunication.wordpress.com

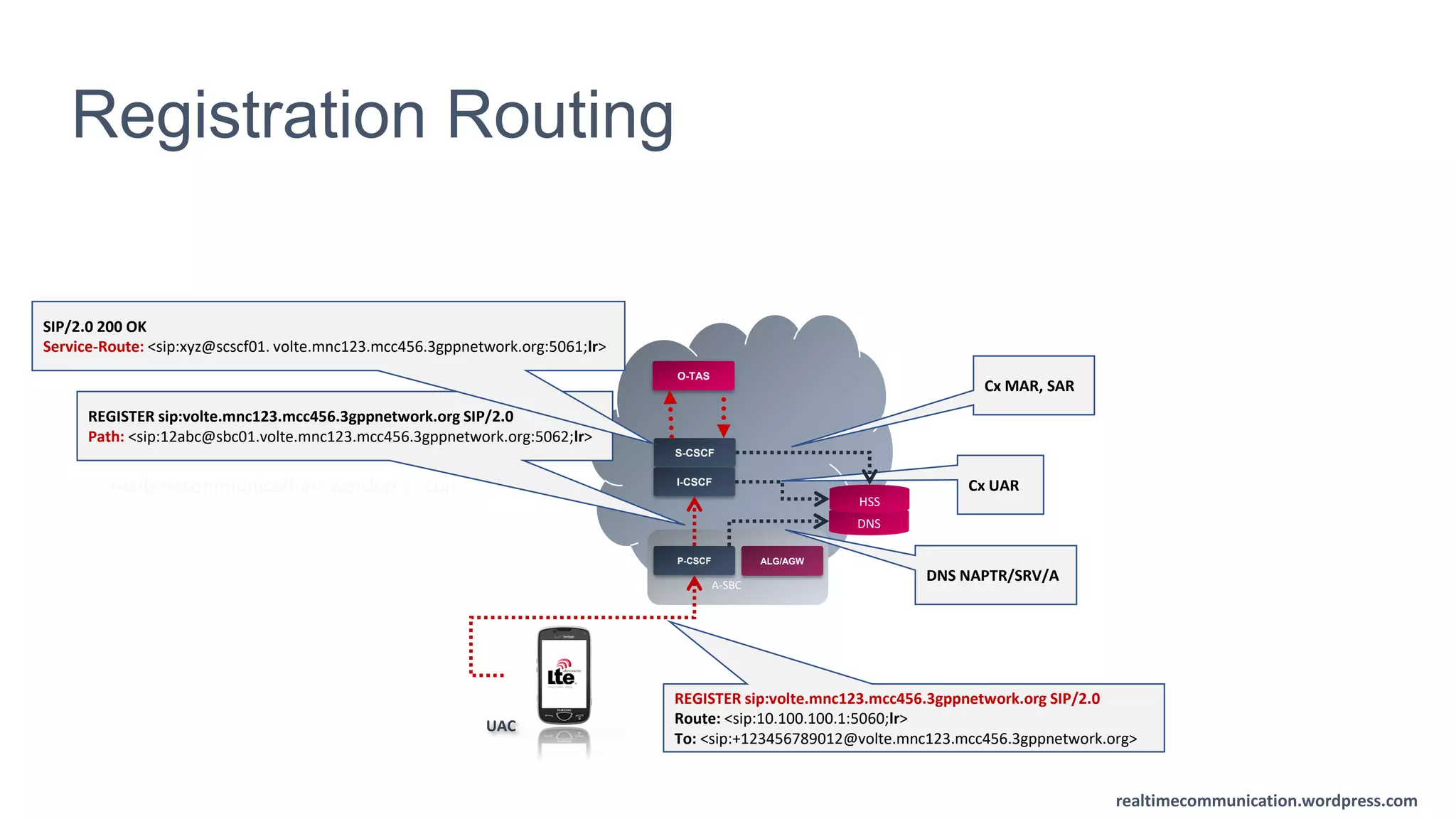

Registration Routing
UAC
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS
DNS
HSS
ALG/AGW
DNS NAPTR/SRV/A
REGISTER sip:volte.mnc123.mcc456.3gppnetwork.org SIP/2.0
Route: <sip:10.100.100.1:5060;lr>
To: <sip:+123456789012@volte.mnc123.mcc456.3gppnetwork.org>
REGISTER sip:volte.mnc123.mcc456.3gppnetwork.org SIP/2.0
Path: <sip:12abc@sbc01.volte.mnc123.mcc456.3gppnetwork.org:5062;lr>
Cx UAR
Cx MAR, SAR
SIP/2.0 200 OK
Service-Route: <sip:xyz@scscf01. volte.mnc123.mcc456.3gppnetwork.org:5061;lr>
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

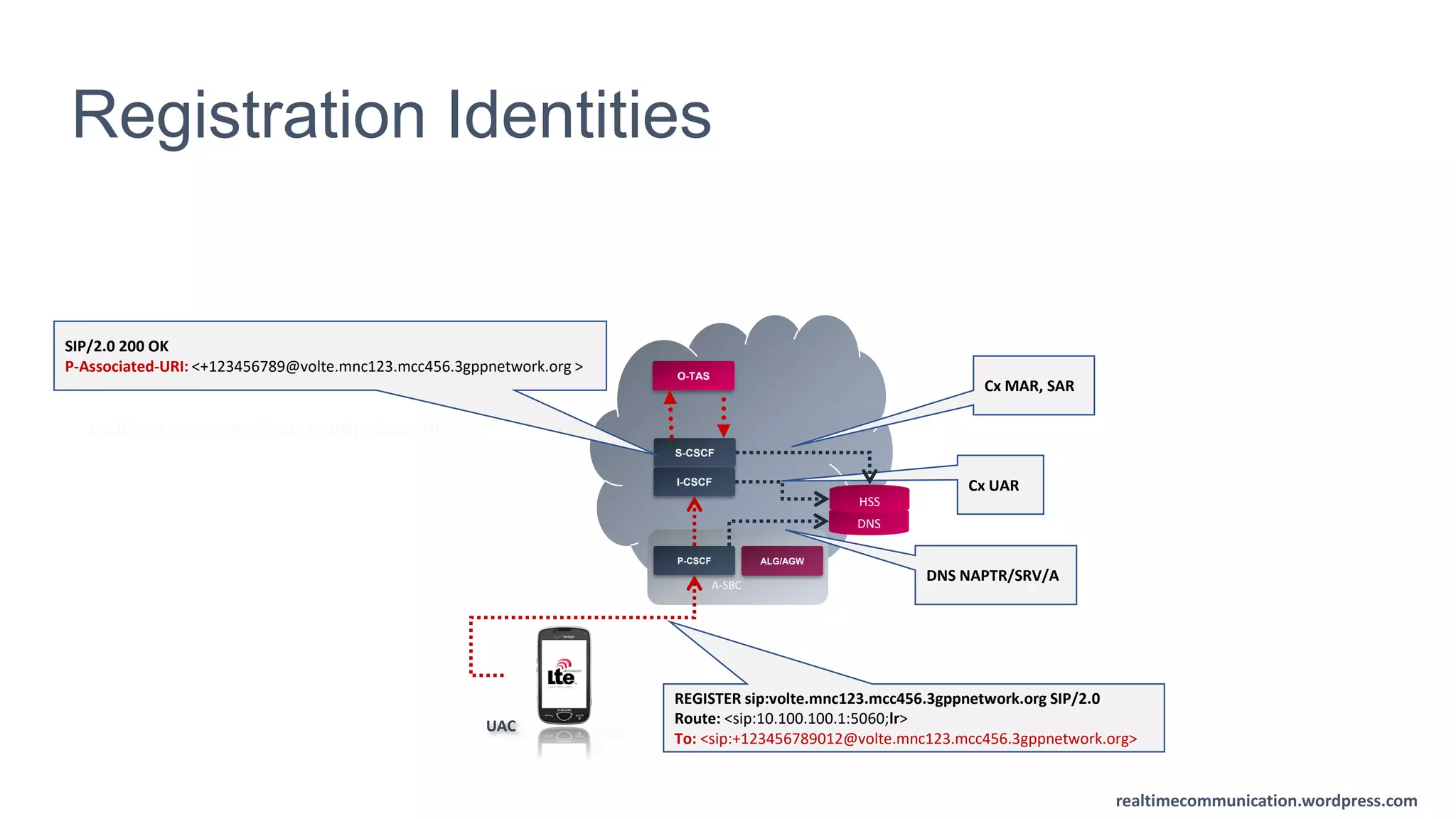

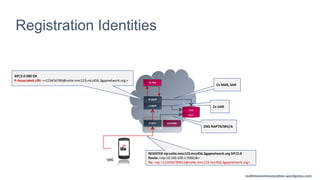

Registration Identities
UAC
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS
DNS
HSS
ALG/AGW
DNS NAPTR/SRV/A
REGISTER sip:volte.mnc123.mcc456.3gppnetwork.org SIP/2.0
Route: <sip:10.100.100.1:5060;lr>
To: <sip:+123456789012@volte.mnc123.mcc456.3gppnetwork.org>
SIP/2.0 200 OK
P-Associated-URI: <+123456789@volte.mnc123.mcc456.3gppnetwork.org >
Cx UAR
Cx MAR, SAR
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com

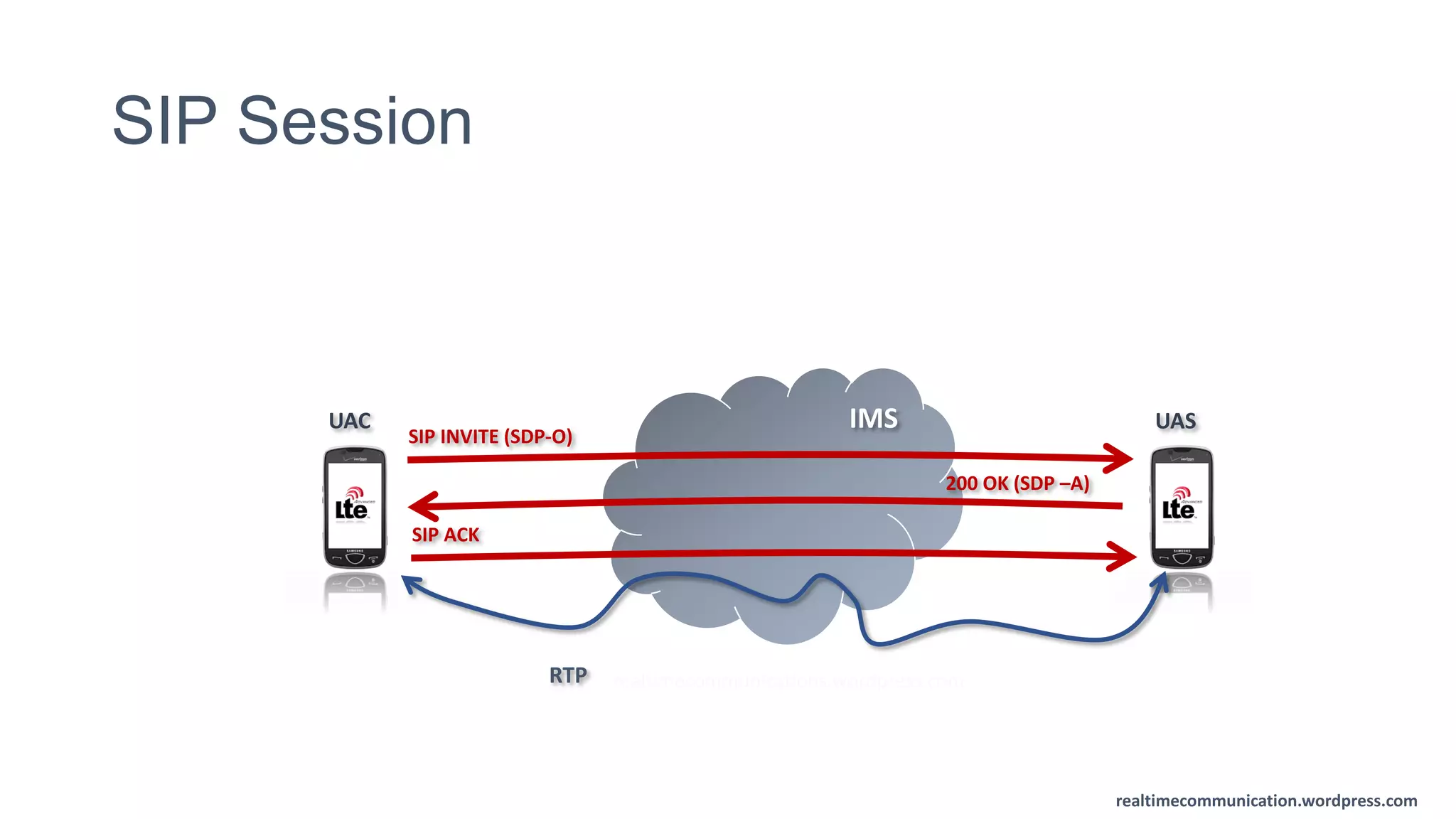

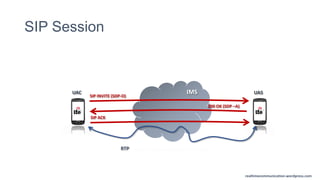

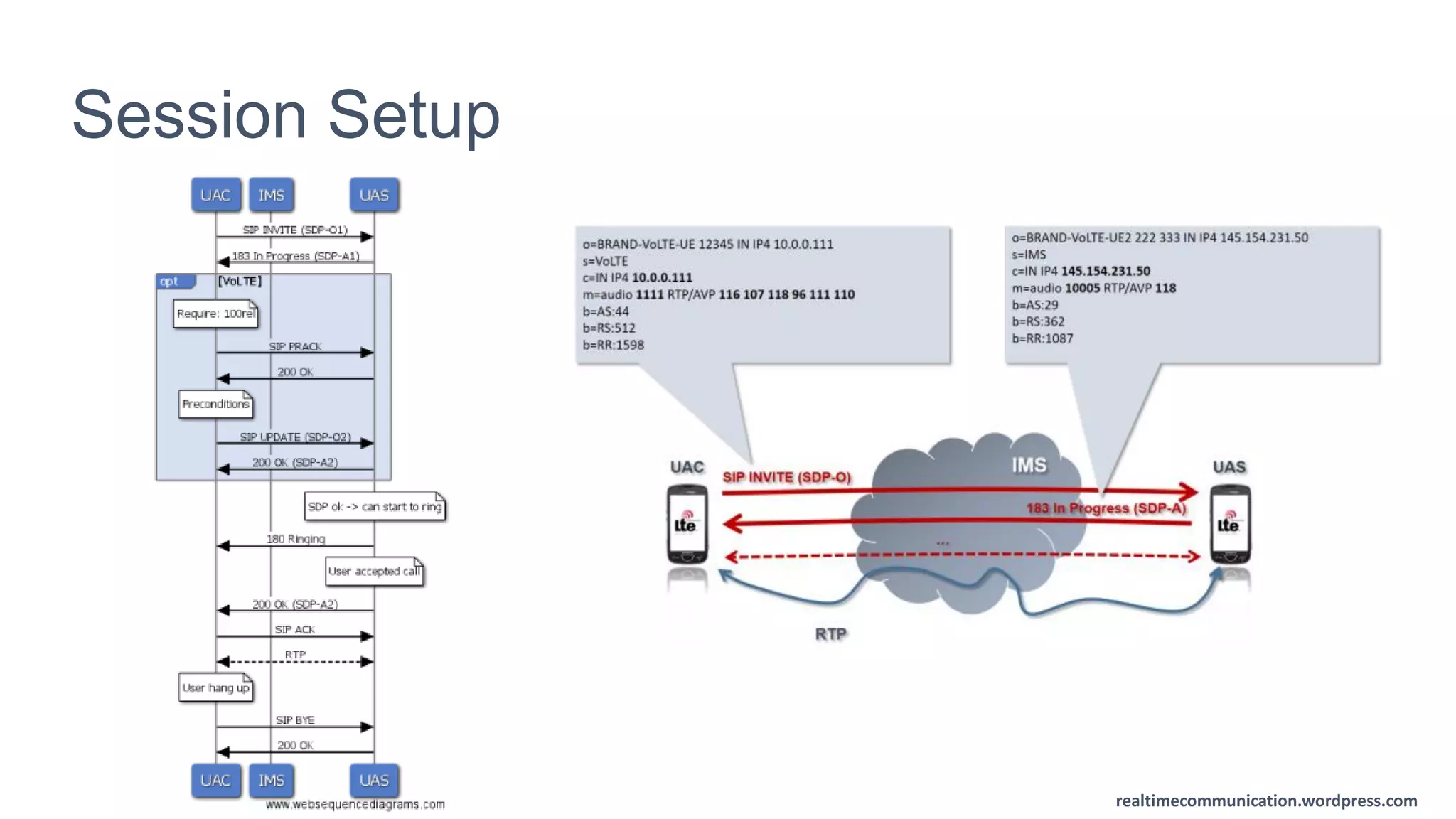

SIP Session
IMS
RTP
UASUAC
SIP INVITE (SDP-O)
200 OK (SDP –A)
SIP ACK
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com

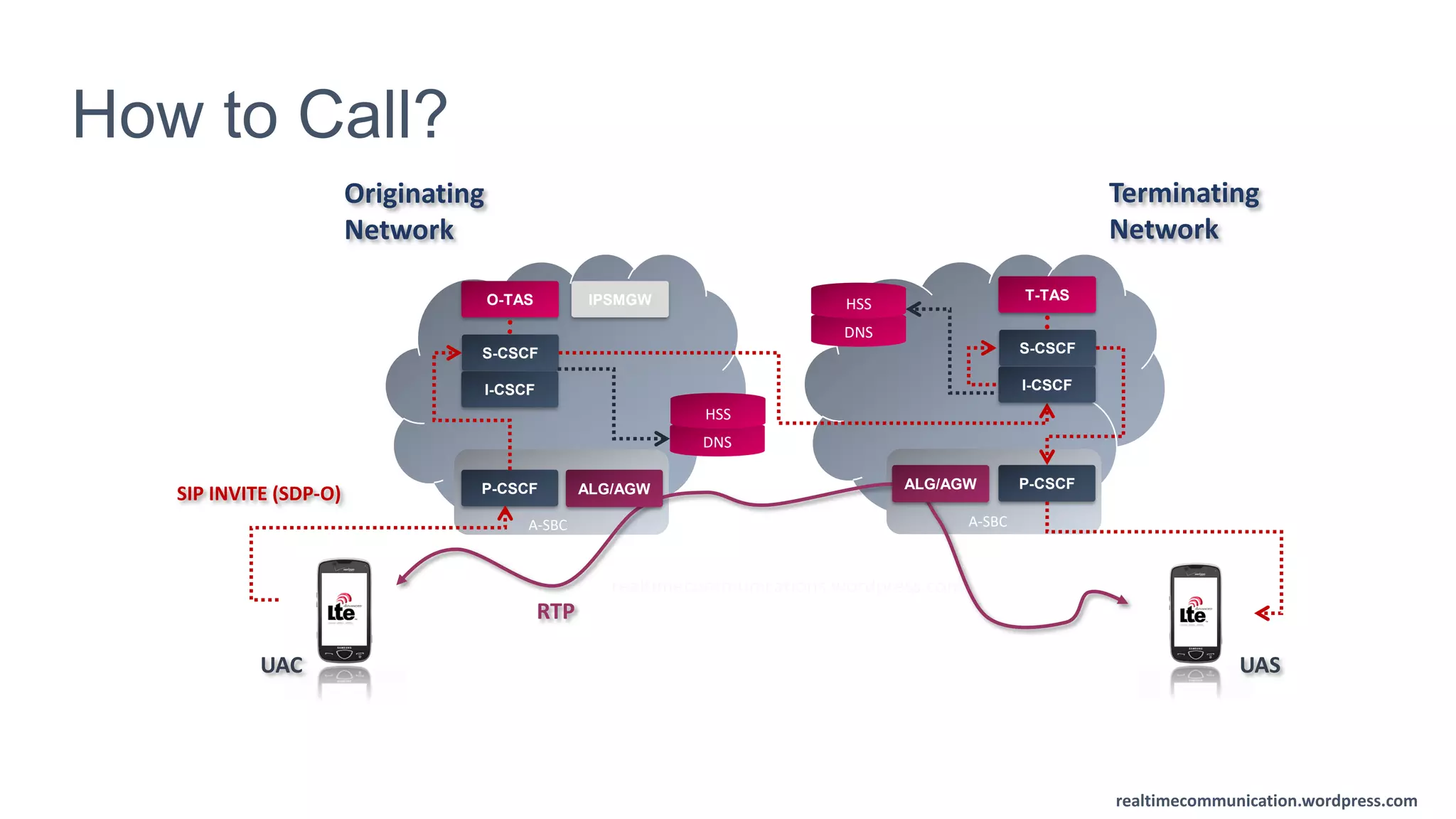

How to Call?
RTP
UASUAC
SIP INVITE (SDP-O)
Terminating
Network
Originating
Network
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS IPSMGW
DNS
HSS
DNS
HSS
P-CSCF
S-CSCF
I-CSCF
T-TAS
A-SBC
ALG/AGWALG/AGW
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

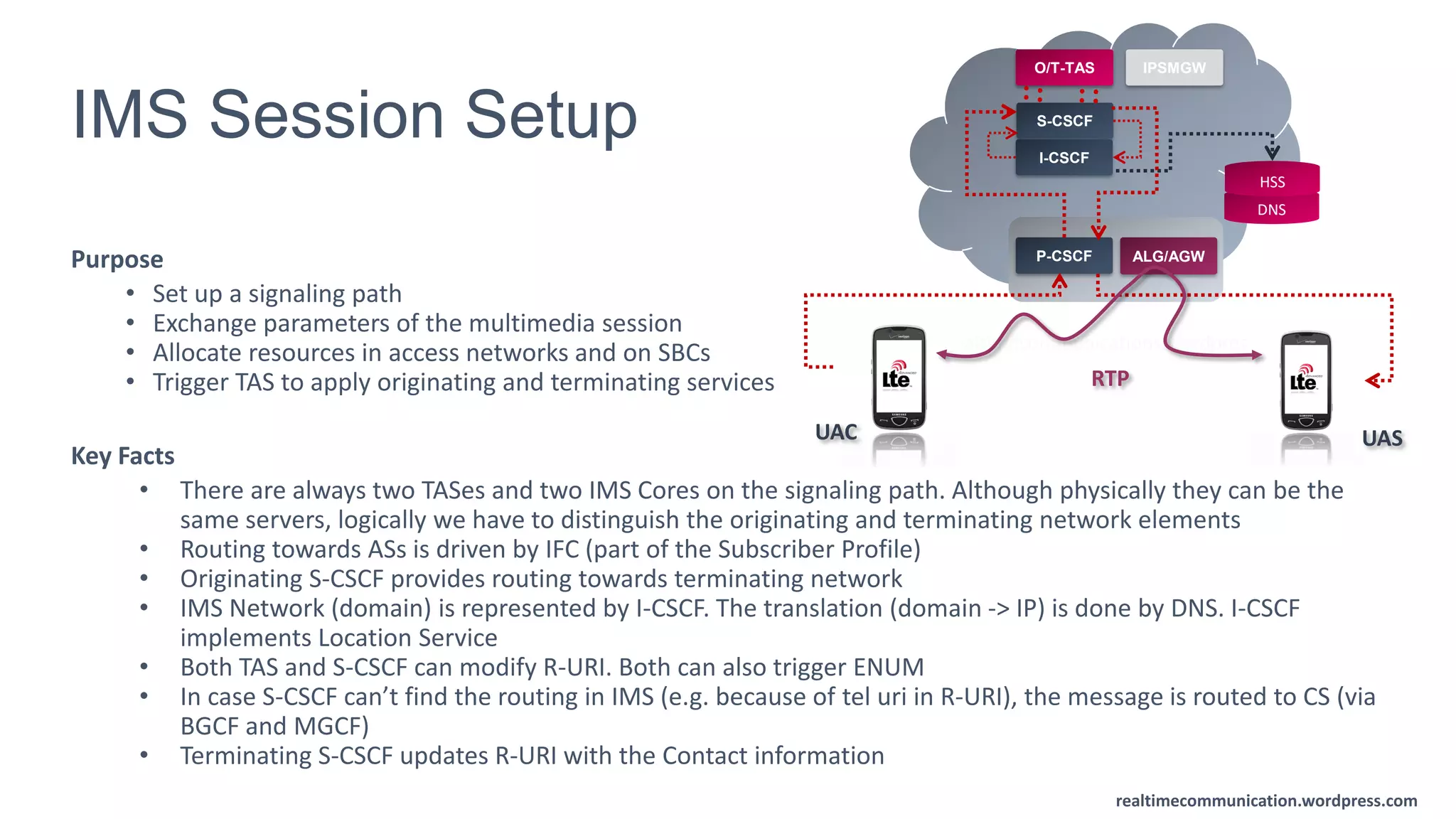

IMS Session Setup
Purpose
• Set up a signaling path
• Exchange parameters of the multimedia session
• Allocate resources in access networks and on SBCs
• Trigger TAS to apply originating and terminating services
Key Facts
• There are always two TASes and two IMS Cores on the signaling path. Although physically they can be the
same servers, logically we have to distinguish the originating and terminating network elements
• Routing towards ASs is driven by IFC (part of the Subscriber Profile)
• Originating S-CSCF provides routing towards terminating network
• IMS Network (domain) is represented by I-CSCF. The translation (domain -> IP) is done by DNS. I-CSCF
implements Location Service
• Both TAS and S-CSCF can modify R-URI. Both can also trigger ENUM
• In case S-CSCF can’t find the routing in IMS (e.g. because of tel uri in R-URI), the message is routed to CS (via
BGCF and MGCF)
• Terminating S-CSCF updates R-URI with the Contact information
realtimecommunications.wordpress.com
RTP
UASUAC
P-CSCF
S-CSCF
I-CSCF
O/T-TAS IPSMGW
DNS
HSS
ALG/AGW

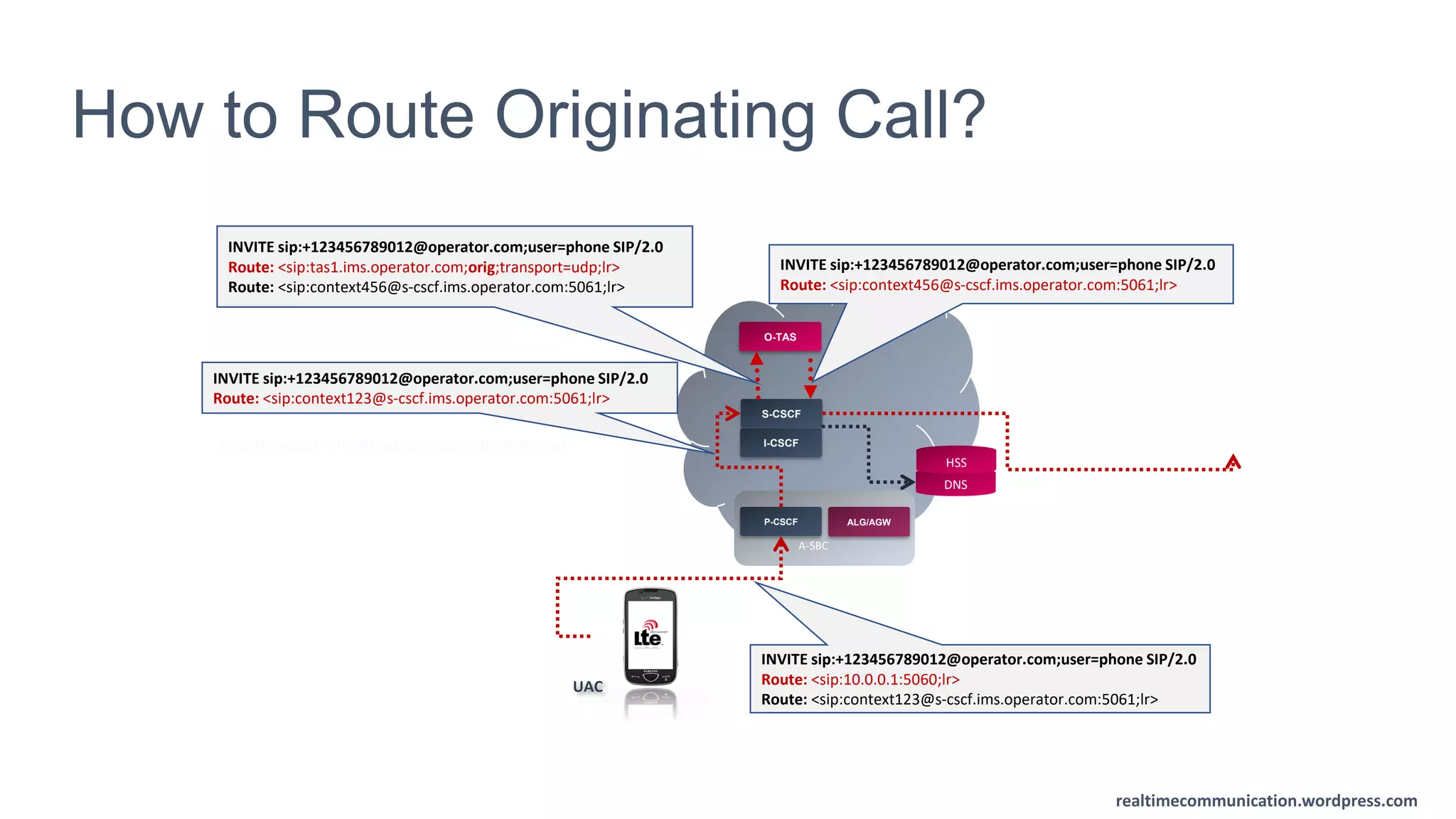

realtimecommunication.wordpress.com
UAC
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS
DNS
HSS
ALG/AGW
INVITE sip:+123456789012@operator.com;user=phone SIP/2.0
Route: <sip:context456@s-cscf.ims.operator.com:5061;lr>
INVITE sip:+123456789012@operator.com;user=phone SIP/2.0
Route: <sip:10.0.0.1:5060;lr>
Route: <sip:context123@s-cscf.ims.operator.com:5061;lr>
INVITE sip:+123456789012@operator.com;user=phone SIP/2.0
Route: <sip:context123@s-cscf.ims.operator.com:5061;lr>
INVITE sip:+123456789012@operator.com;user=phone SIP/2.0
Route: <sip:tas1.ims.operator.com;orig;transport=udp;lr>
Route: <sip:context456@s-cscf.ims.operator.com:5061;lr>
How to Route Originating Call?
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

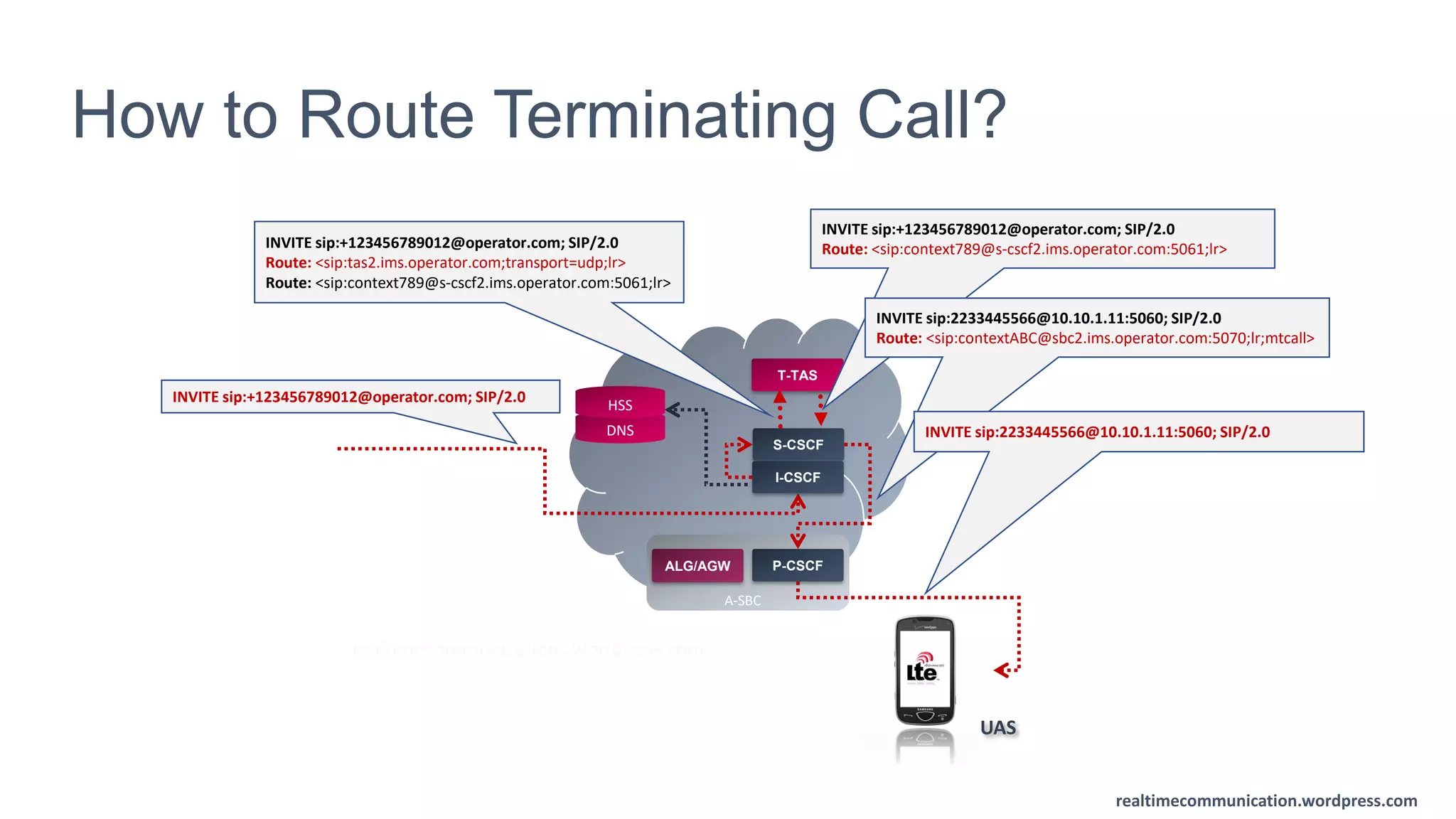

How to Route Terminating Call?
UAS
DNS
HSS
P-CSCF
S-CSCF
I-CSCF
T-TAS
A-SBC
ALG/AGW
INVITE sip:+123456789012@operator.com; SIP/2.0
INVITE sip:+123456789012@operator.com; SIP/2.0
Route: <sip:tas2.ims.operator.com;transport=udp;lr>
Route: <sip:context789@s-cscf2.ims.operator.com:5061;lr>
INVITE sip:+123456789012@operator.com; SIP/2.0
Route: <sip:context789@s-cscf2.ims.operator.com:5061;lr>
INVITE sip:2233445566@10.10.1.11:5060; SIP/2.0
Route: <sip:contextABC@sbc2.ims.operator.com:5070;lr;mtcall>
INVITE sip:2233445566@10.10.1.11:5060; SIP/2.0
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com

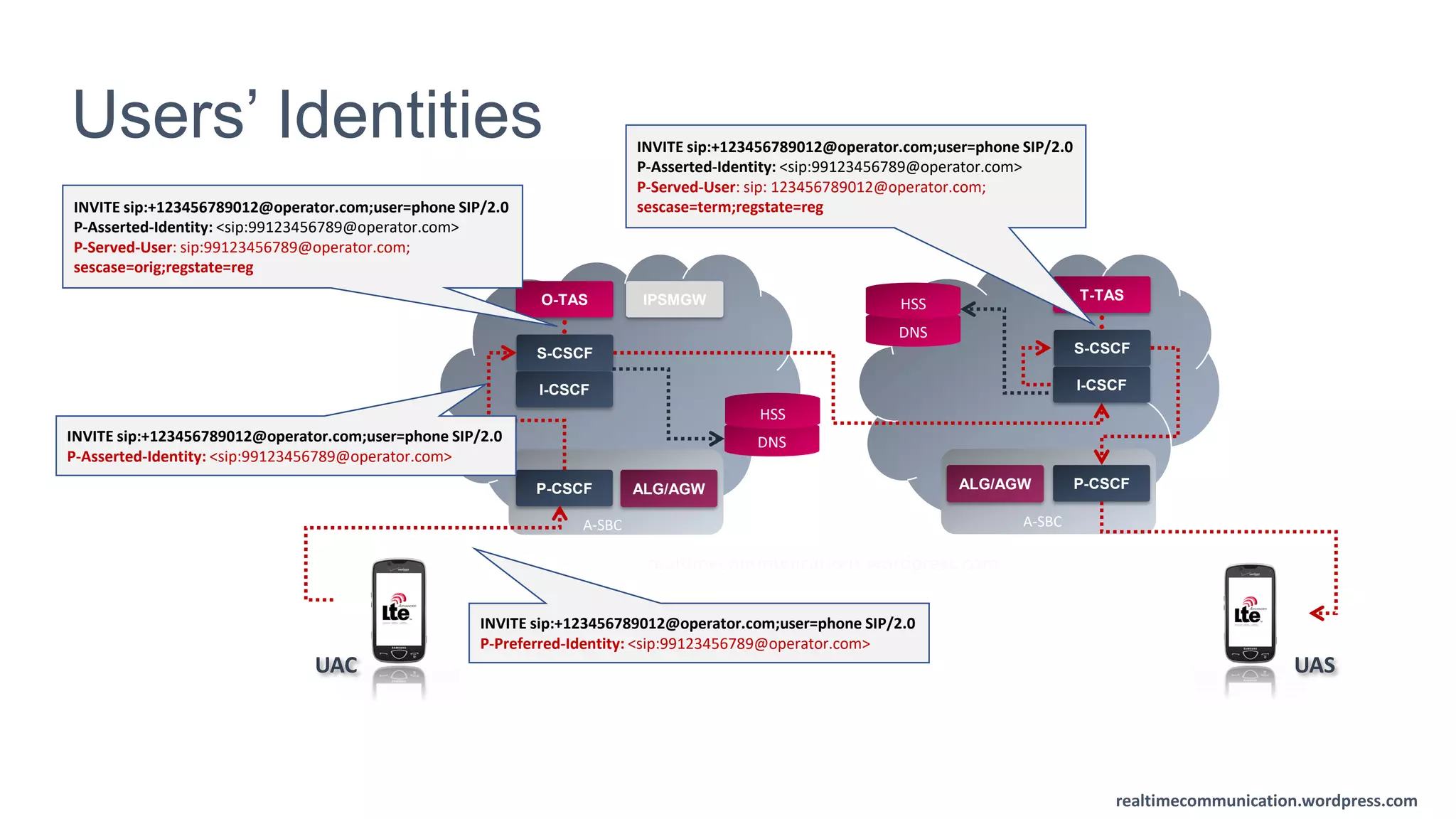

Users’ Identities
UASUAC
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS IPSMGW
DNS
HSS
DNS
HSS
P-CSCF
S-CSCF
I-CSCF
T-TAS
A-SBC
ALG/AGWALG/AGW
INVITE sip:+123456789012@operator.com;user=phone SIP/2.0
P-Preferred-Identity: <sip:99123456789@operator.com>
INVITE sip:+123456789012@operator.com;user=phone SIP/2.0
P-Asserted-Identity: <sip:99123456789@operator.com>
INVITE sip:+123456789012@operator.com;user=phone SIP/2.0
P-Asserted-Identity: <sip:99123456789@operator.com>
P-Served-User: sip:99123456789@operator.com;
sescase=orig;regstate=reg
INVITE sip:+123456789012@operator.com;user=phone SIP/2.0
P-Asserted-Identity: <sip:99123456789@operator.com>
P-Served-User: sip: 123456789012@operator.com;
sescase=term;regstate=reg
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com
Session Setup
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

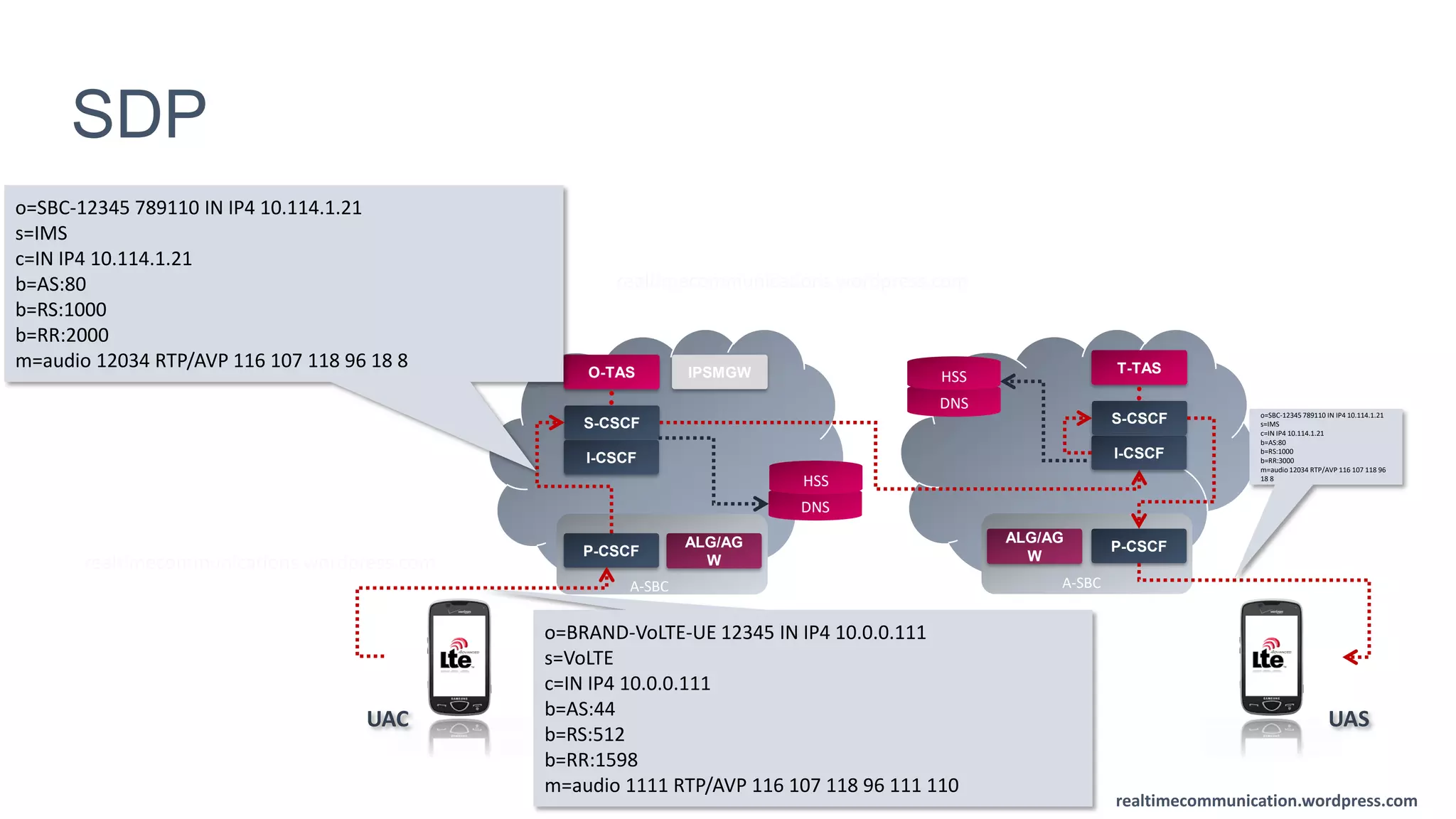

SDP
realtimecommunication.wordpress.com UASUAC
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS IPSMGW
DNS
HSS
DNS
HSS
P-CSCF
S-CSCF
I-CSCF
T-TAS
A-SBC
ALG/AG
W
ALG/AG
W
o=BRAND-VoLTE-UE 12345 IN IP4 10.0.0.111
s=VoLTE
c=IN IP4 10.0.0.111
b=AS:44
b=RS:512
b=RR:1598
m=audio 1111 RTP/AVP 116 107 118 96 111 110
o=SBC-12345 789110 IN IP4 10.114.1.21
s=IMS
c=IN IP4 10.114.1.21
b=AS:80
b=RS:1000
b=RR:2000
m=audio 12034 RTP/AVP 116 107 118 96 18 8
o=SBC-12345 789110 IN IP4 10.114.1.21
s=IMS
c=IN IP4 10.114.1.21
b=AS:80
b=RS:1000
b=RR:3000
m=audio 12034 RTP/AVP 116 107 118 96
18 8
realtimecommunications.wordpress.com
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com

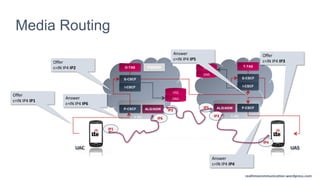

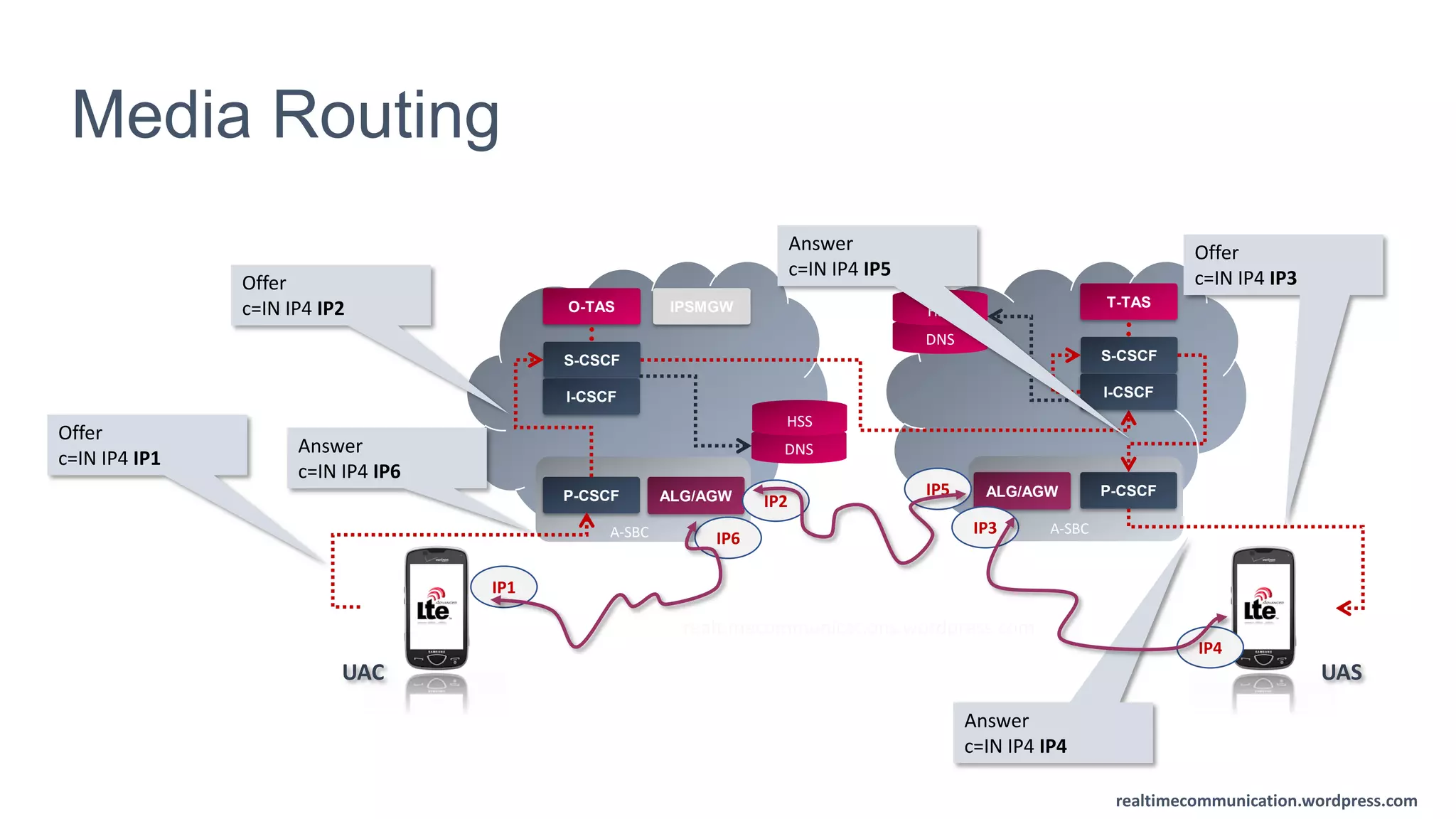

Media Routing
UASUAC
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS IPSMGW
DNS
HSS
DNS
HSS
P-CSCF
S-CSCF
I-CSCF
T-TAS
A-SBC
ALG/AGWALG/AGW
Offer
c=IN IP4 IP1
Offer
c=IN IP4 IP2
Offer
c=IN IP4 IP3
Answer
c=IN IP4 IP5
Answer
c=IN IP4 IP6
IP1
Answer
c=IN IP4 IP4
IP6
IP2
IP5
IP3
IP4
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

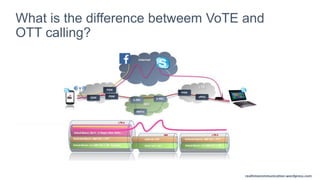

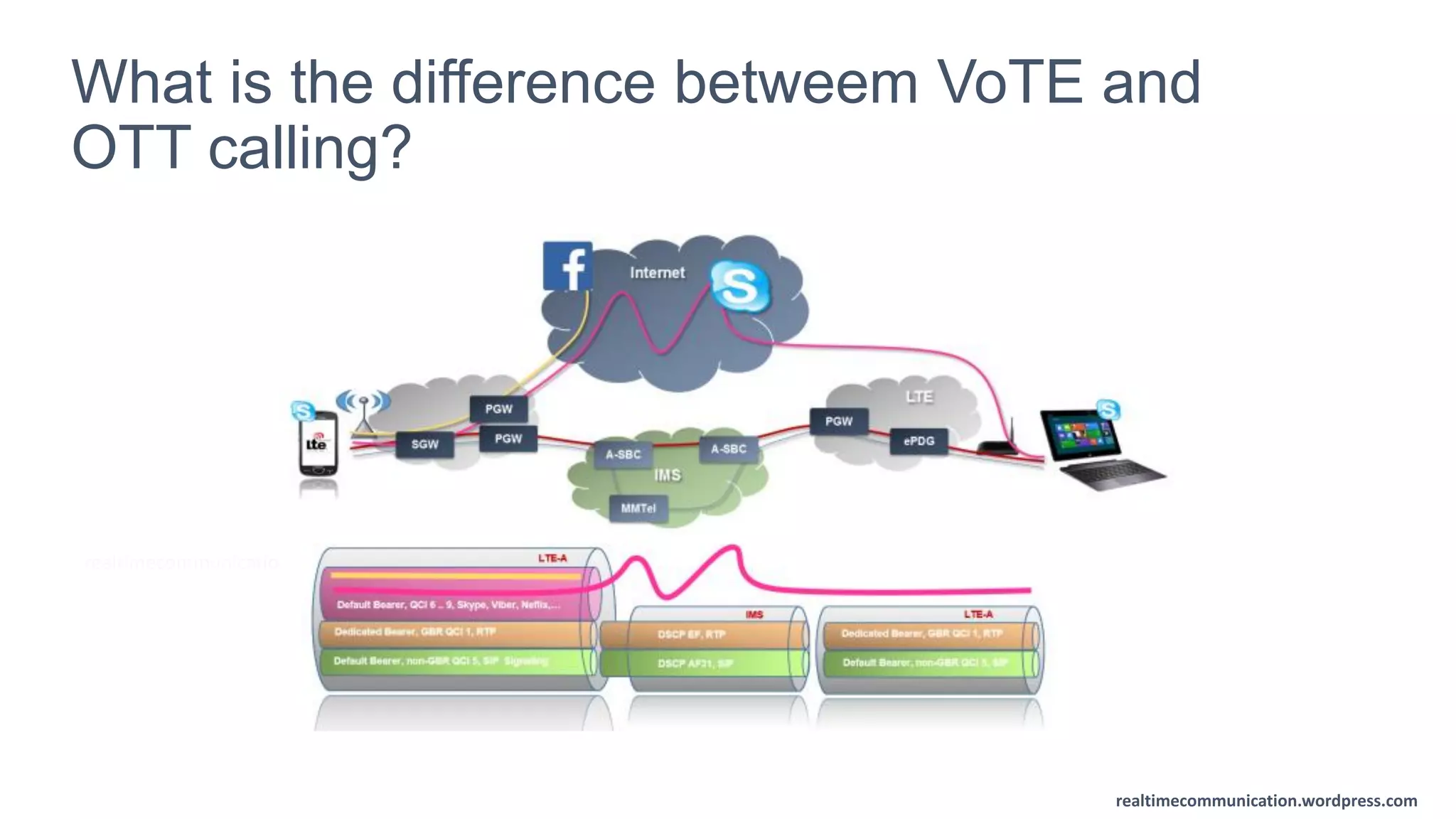

What is the difference betweem VoTE and
OTT calling?
realtimecommunications.wordpress.com
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

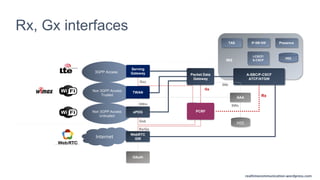

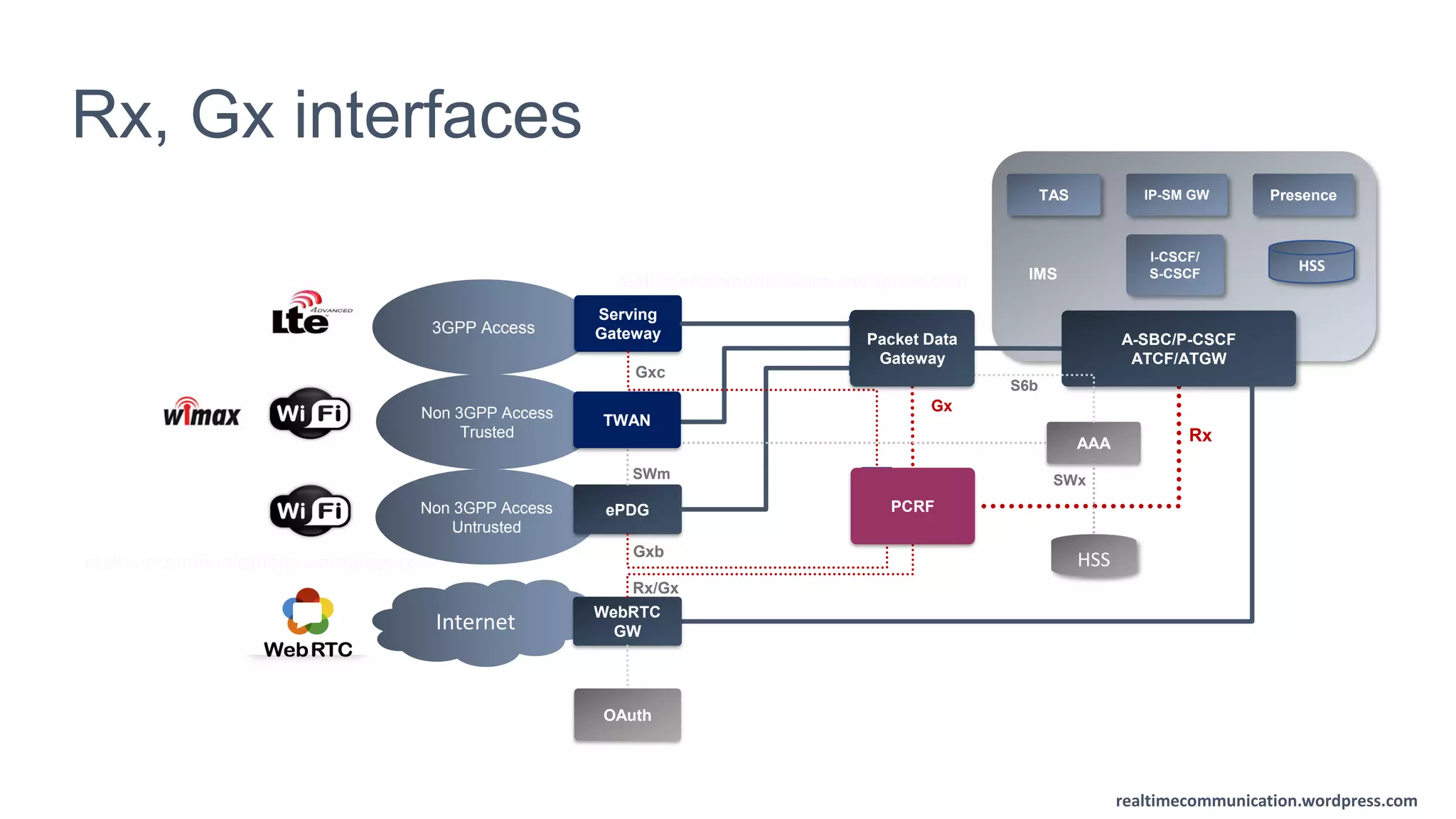

Rx, Gx interfaces
realtimecommunications.wordpress.com
realtimecommunications.wordpress.com
Non 3GPP Access
Untrusted
ePDG
3GPP Access
Serving
Gateway
S5
S2b
SWn
SWx
A-SBC/P-CSCF
ATCF/ATGW
TAS IP-SM GW
Rx
I-CSCF/
S-CSCF
AAA
Presence
HSS
Non 3GPP Access
Trusted
Internet
HSS
WebRTC
GW
OAuth
IMS
Gx
Rx/Gx
Gxc
SWm SWx
S6b
Gxb
TWAN
Packet Data
Gateway
PCRF
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

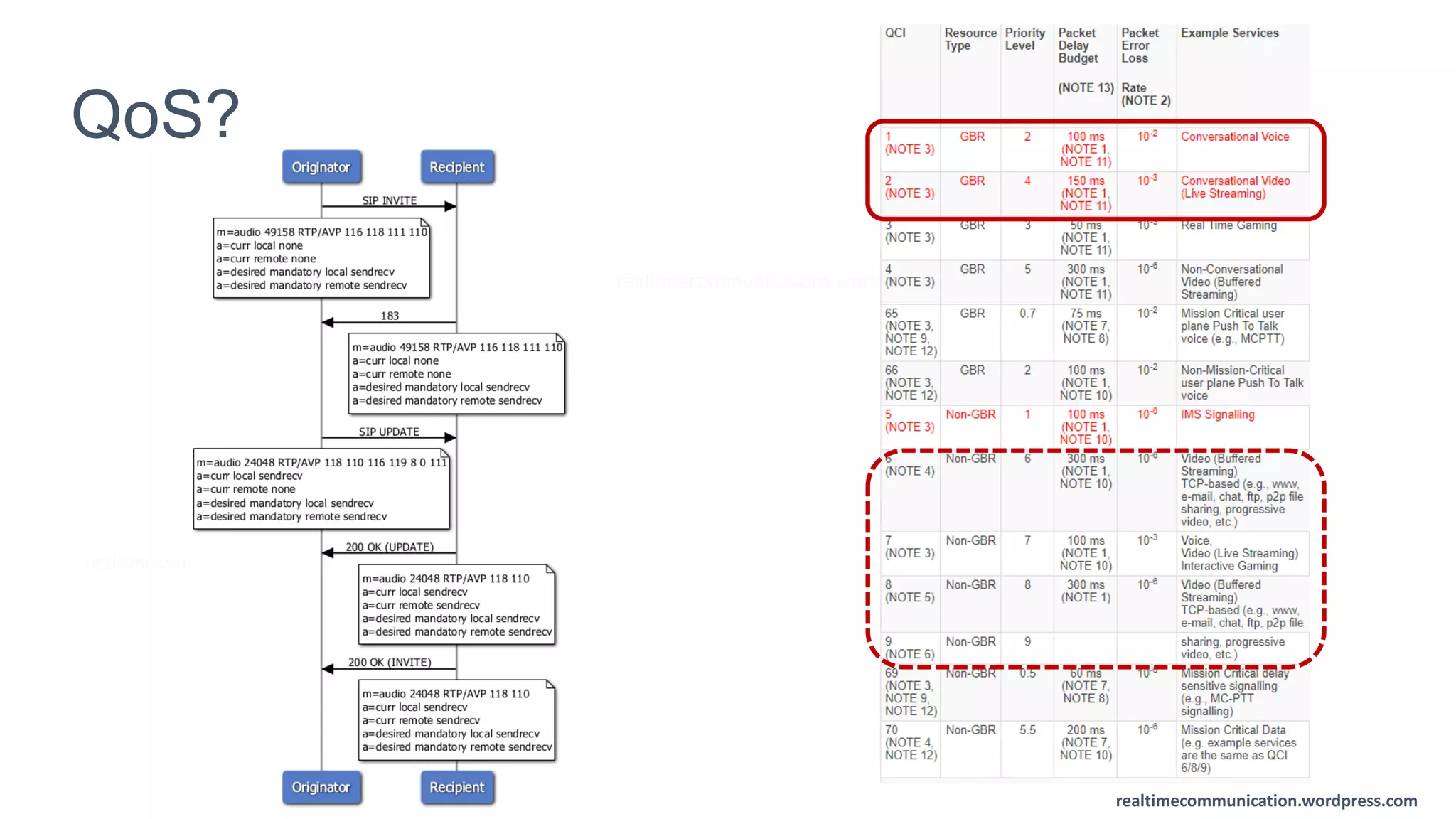

QoS?
realtimecommunications.wordpress.com
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com

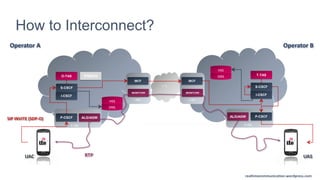

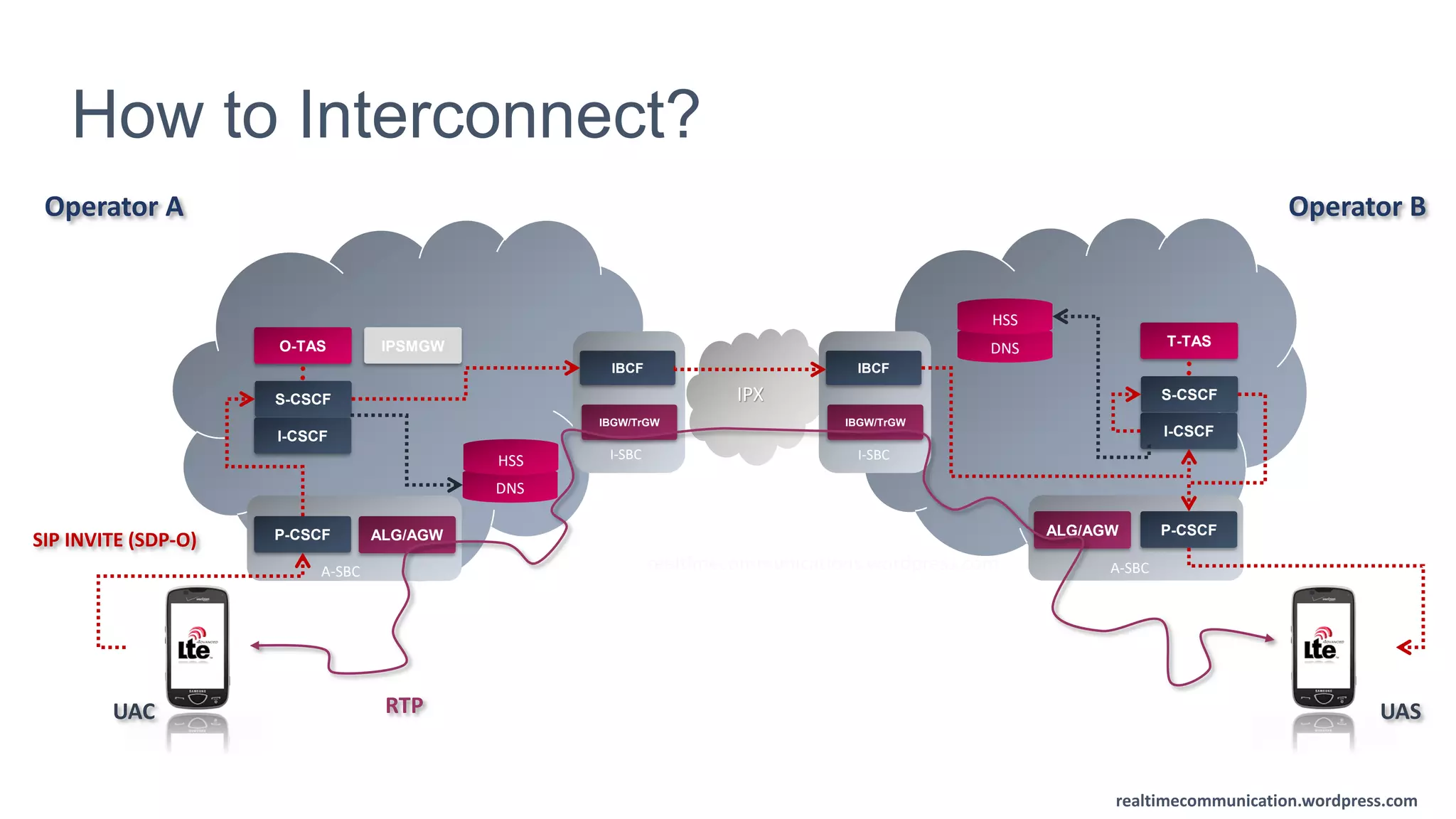

How to Interconnect?
IPX
RTP UASUAC
SIP INVITE (SDP-O)
Operator BOperator A
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS IPSMGW
DNS
HSS
DNS
HSS
P-CSCF
S-CSCF
I-CSCF
T-TAS
A-SBC
ALG/AGWALG/AGW
IBCF
I-SBC
IBGW/TrGW
IBCF
IBGW/TrGW
I-SBC
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

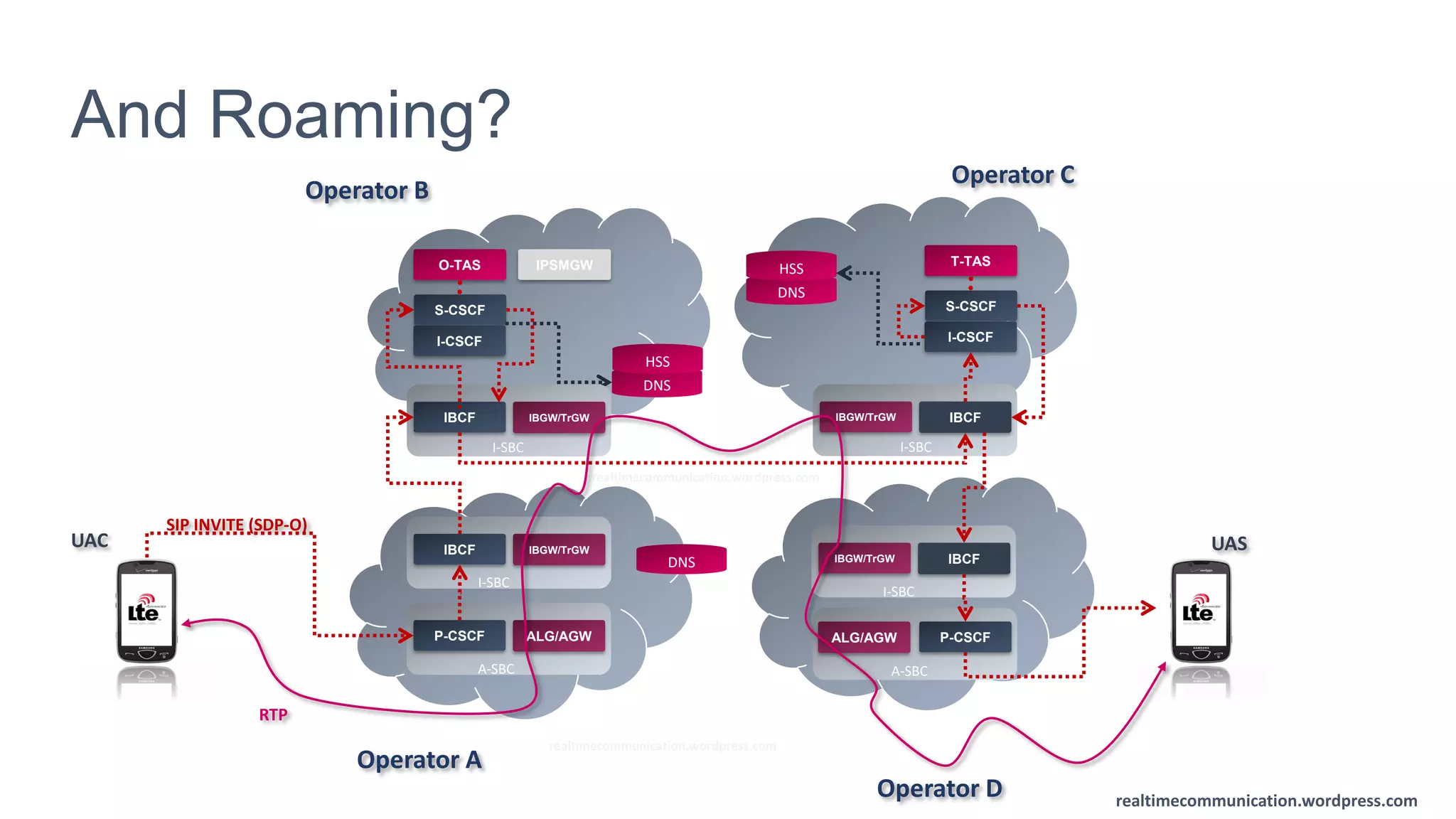

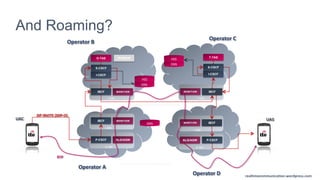

And Roaming?
realtimecommunication.wordpress.com
RTP
UASUAC
SIP INVITE (SDP-O)
Operator C
Operator B
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS IPSMGW
DNS
HSS
DNS
HSS
P-CSCF
S-CSCF
I-CSCF
T-TAS
A-SBC
ALG/AGWALG/AGW
IBCF
I-SBC
IBGW/TrGW
IBCF
I-SBC
IBGW/TrGW
DNS IBGW/TrGW
I-SBC
IBCF
IBGW/TrGW
I-SBC
IBCF
Operator A
Operator D
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

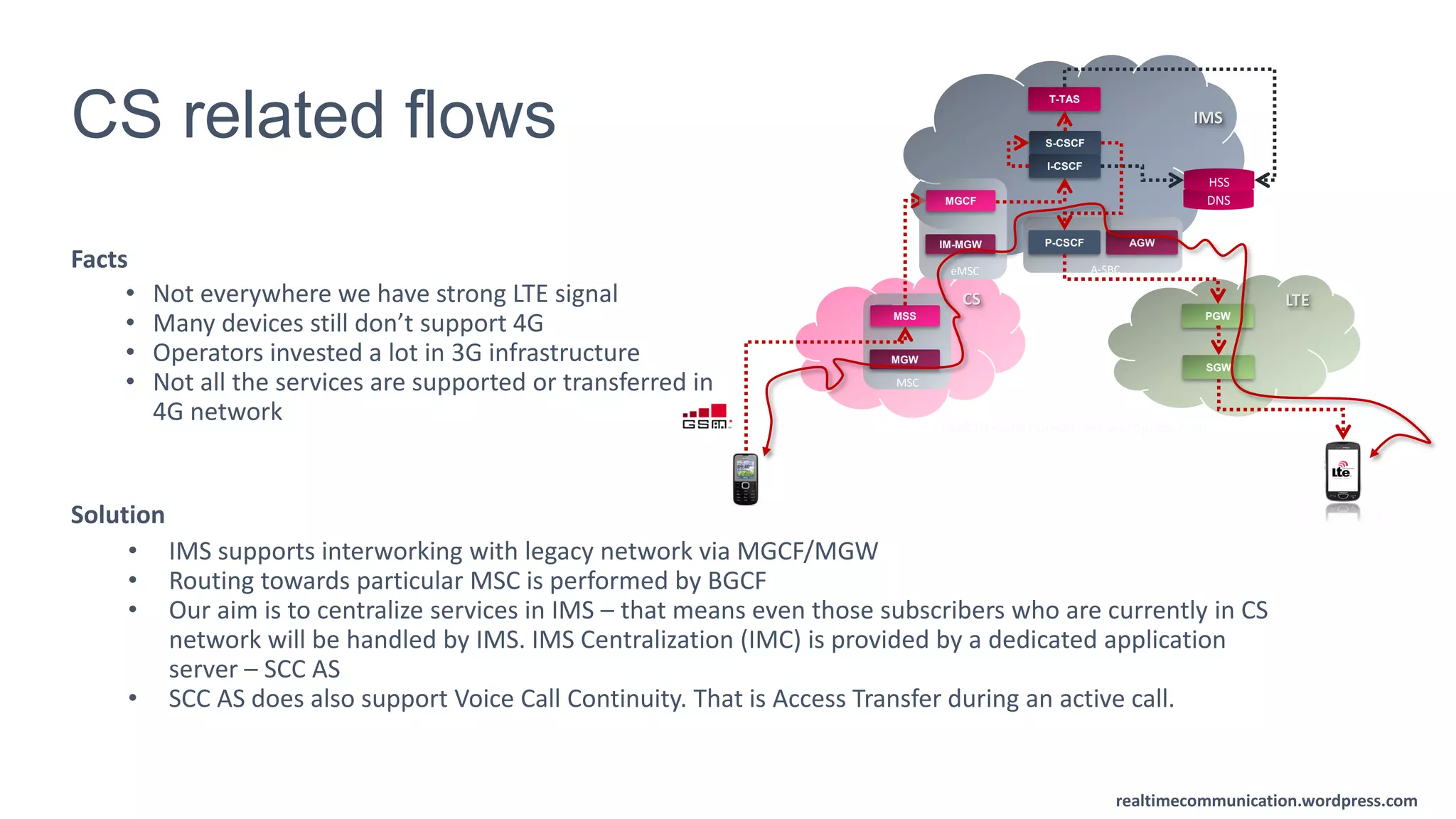

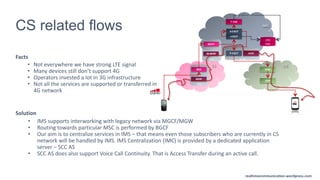

CS related flows
Facts
• Not everywhere we have strong LTE signal
• Many devices still don’t support 4G
• Operators invested a lot in 3G infrastructure
• Not all the services are supported or transferred in
4G network
Solution
MSS
CS
IMS
P-CSCF
A-SBC
AGW
MGW
LTE
S-CSCF
I-CSCF
T-TAS
DNS
HSS
PGW
SGW
MSC
MGCF
IM-MGW
eMSC
realtimecommunications.wordpress.com
realtimecommunication.wordpress.com
• IMS supports interworking with legacy network via MGCF/MGW
• Routing towards particular MSC is performed by BGCF
• Our aim is to centralize services in IMS – that means even those subscribers who are currently in CS
network will be handled by IMS. IMS Centralization (IMC) is provided by a dedicated application
server – SCC AS
• SCC AS does also support Voice Call Continuity. That is Access Transfer during an active call.
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

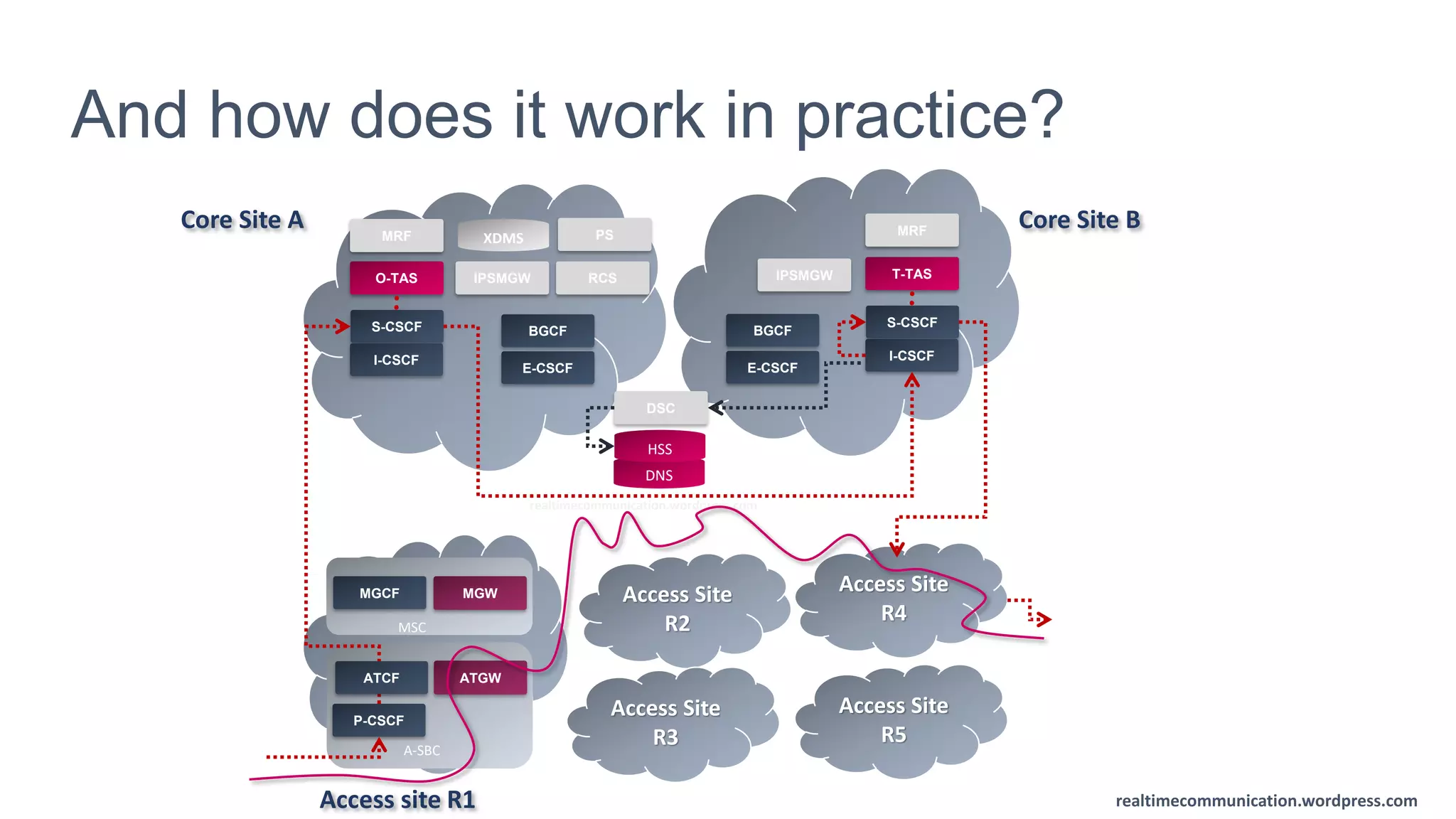

And how does it work in practice?
Access Site
R4
realtimecommunication.wordpress.com
Core Site A
P-CSCF
S-CSCF
I-CSCF
A-SBC
O-TAS IPSMGW
DNS
HSS
S-CSCF
I-CSCF
T-TAS
ATGW
I-SBC
Access site R1
Access Site
R5
Access Site
R2
Access Site
R3
RCS
MRF
BGCF
MGCF
MSC
MGW
PSXDMS
Core Site B
E-CSCF
DSC
MRF
BGCF
E-CSCF
IPSMGW
ATCF
realtimecommunication.wordpress.com
realtimecommunication.wordpress.com

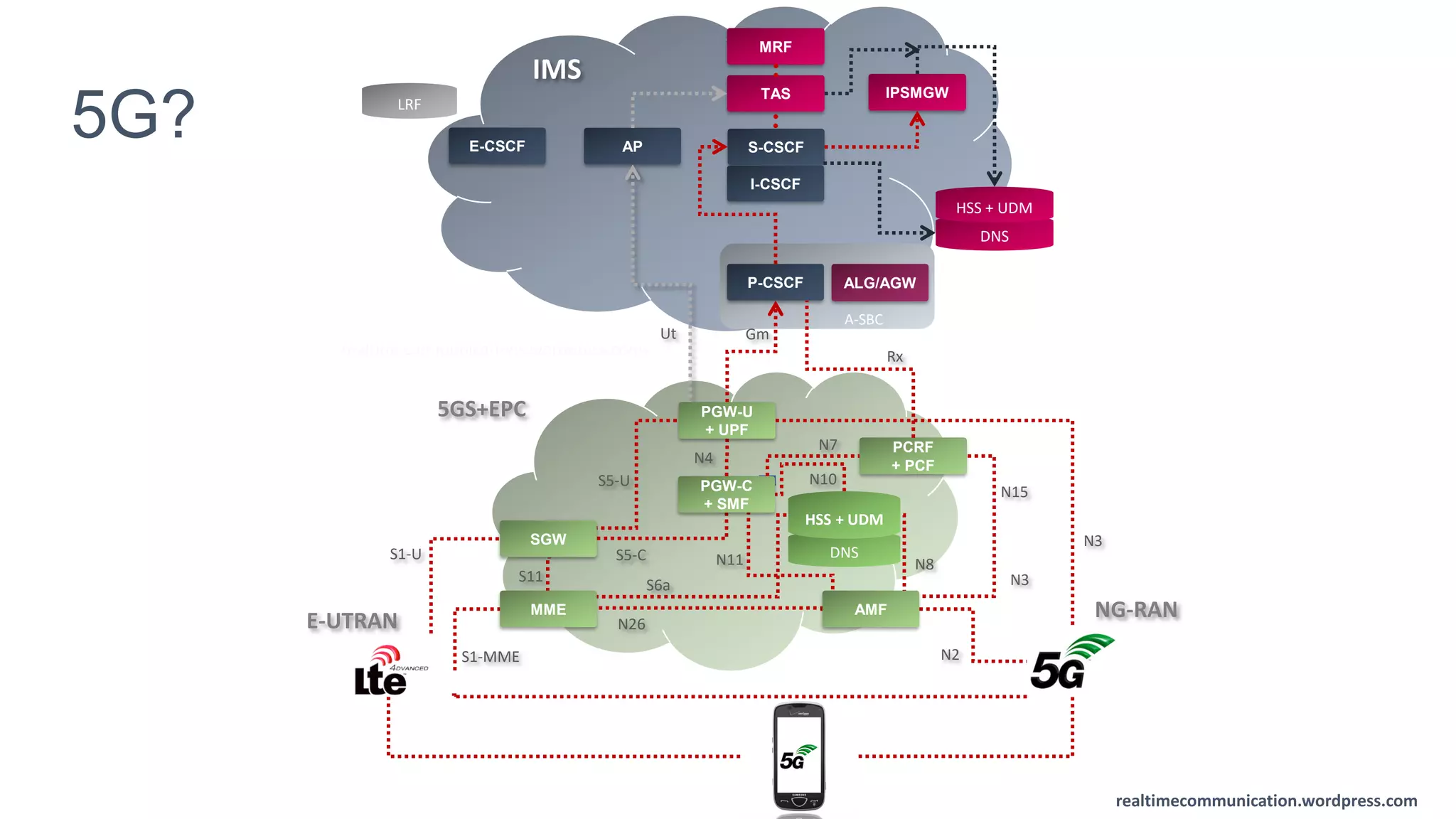

IMS
P-CSCF
S-CSCF
I-CSCF
A-SBC
TAS IPSMGW
DNS
HSS + UDM
ALG/AGW
MRF
AP
PCRF
+ PCF
E-CSCF
LRF
realtimecommunications.wordpress.coms
E-UTRAN NG-RAN
5GS+EPC
S1-MME
S1-U
S11
S6a
N26
N2
N3
N3
N11S5-C
Rx
N8
N15
N4
Ut Gm
N10
SGW
PGW-U
+ UPF
DNS
HSS + UDM
MME AMF
S5-U
N7
PGW-C
+ SMF
5G?
realtimecommunication.wordpress.com

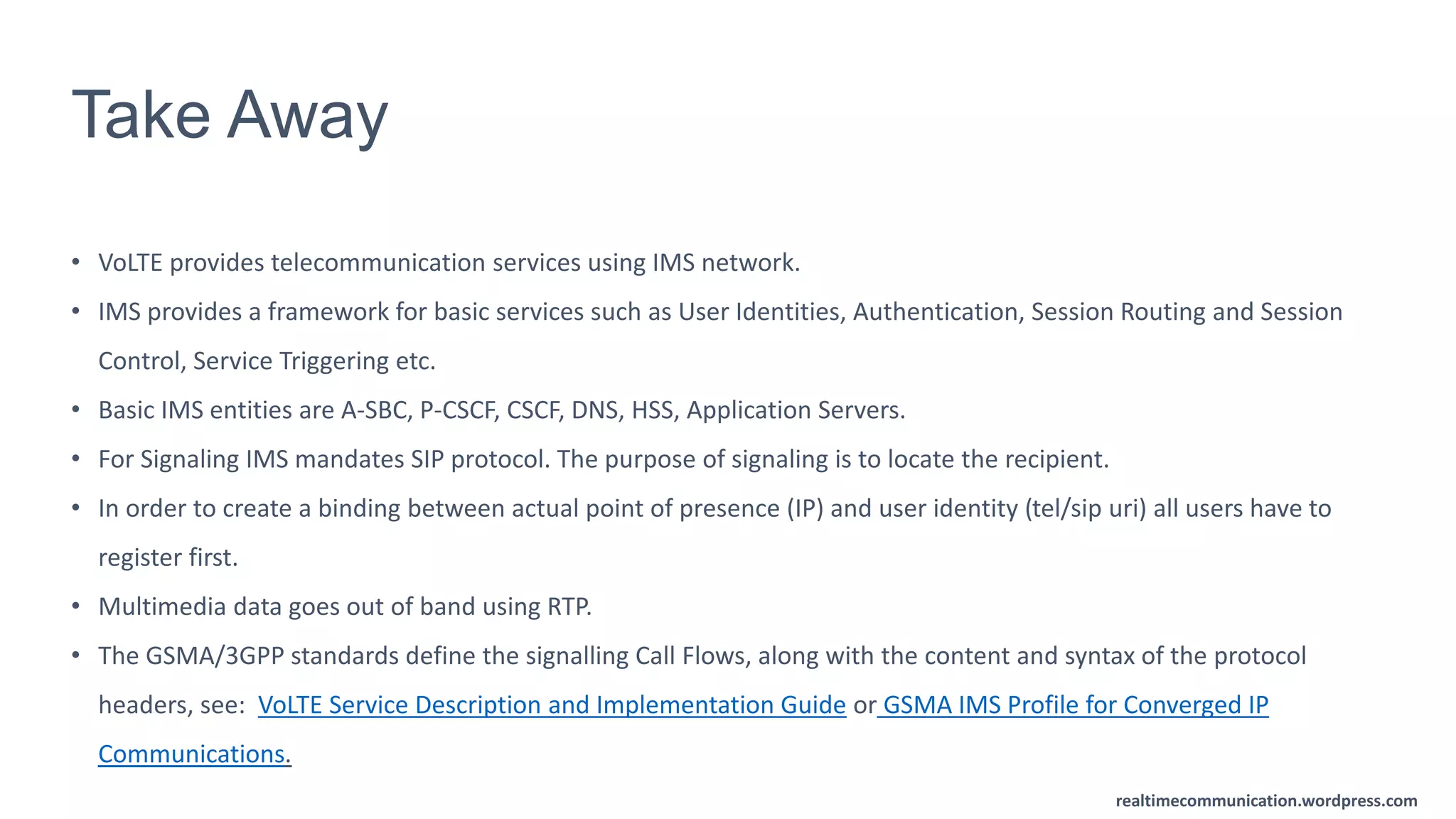

Take Away
• VoLTE provides telecommunication services using IMS network.
• IMS provides a framework for basic services such as User Identities, Authentication, Session Routing and Session
Control, Service Triggering etc.
• Basic IMS entities are A-SBC, P-CSCF, CSCF, DNS, HSS, Application Servers.
• For Signaling IMS mandates SIP protocol. The purpose of signaling is to locate the recipient.
• In order to create a binding between actual point of presence (IP) and user identity (tel/sip uri) all users have to
register first.
• Multimedia data goes out of band using RTP.
• The GSMA/3GPP standards define the signalling Call Flows, along with the content and syntax of the protocol
headers, see: VoLTE Service Description and Implementation Guide or GSMA IMS Profile for Converged IP
Communications.
realtimecommunication.wordpress.com

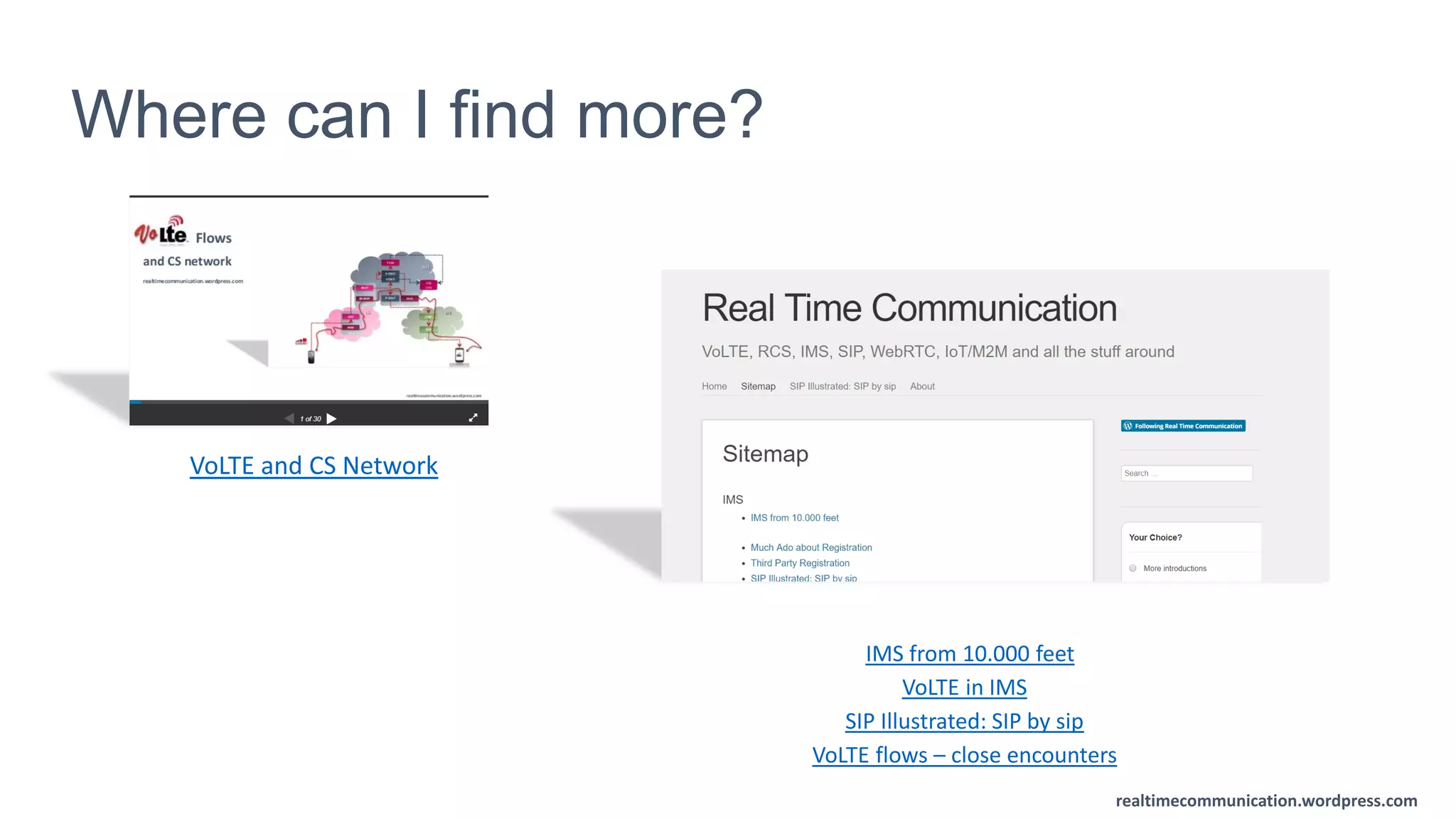

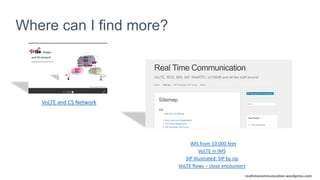

Where can I find more?
VoLTE and CS Network
IMS from 10.000 feet
VoLTE in IMS
SIP Illustrated: SIP by sip
VoLTE flows – close encounters
realtimecommunication.wordpress.com
Thank you!

More Related Content

What's hot

UMTS/LTE/EPC Call Flows for CSFB
UMTS/LTE/EPC Call Flows for CSFBUMTS/LTE/EPC Call Flows for CSFB
UMTS/LTE/EPC Call Flows for CSFB
Justin MA (馬嘉昌)

VoLTE Interfaces , Protocols & IMS Stack
VoLTE Interfaces , Protocols & IMS StackVoLTE Interfaces , Protocols & IMS Stack
VoLTE Interfaces , Protocols & IMS Stack
Vikas Shokeen

2G / 3G / 4G / IMS / 5G Overview with Focus on Core Network
2G / 3G / 4G / IMS / 5G Overview with Focus on Core Network2G / 3G / 4G / IMS / 5G Overview with Focus on Core Network
2G / 3G / 4G / IMS / 5G Overview with Focus on Core Network
Hamidreza Bolhasani

Lte default and dedicated bearer / VoLTE
Lte default and dedicated bearer / VoLTELte default and dedicated bearer / VoLTE
Lte default and dedicated bearer / VoLTE
manish_sapra

SRVCC (Single Radio Voice Call Continuity) in VoLTE & Comparison with CSFB
SRVCC (Single Radio Voice Call Continuity) in VoLTE & Comparison with CSFBSRVCC (Single Radio Voice Call Continuity) in VoLTE & Comparison with CSFB
SRVCC (Single Radio Voice Call Continuity) in VoLTE & Comparison with CSFB
Vikas Shokeen

Simplified Call Flow Signaling: 2G/3G Voice Call
Simplified Call Flow Signaling: 2G/3G Voice CallSimplified Call Flow Signaling: 2G/3G Voice Call
Simplified Call Flow Signaling: 2G/3G Voice Call
3G4G

volte ims network architecture tutorial - Explained
volte ims network architecture tutorial - Explained volte ims network architecture tutorial - Explained
volte ims network architecture tutorial - Explained
Vikas Shokeen

IMS Core Elements
IMS Core ElementsIMS Core Elements
IMS Core Elements
Kent Loh

3 g call flow
3 g call flow3 g call flow
3 g call flow
Ashish Aggarwal

Gsm architecture, gsm network identities, network cases, cell planning, and c...
Gsm architecture, gsm network identities, network cases, cell planning, and c...Gsm architecture, gsm network identities, network cases, cell planning, and c...
Gsm architecture, gsm network identities, network cases, cell planning, and c...
Zorays Solar Pakistan

Mobile Networks Overview (2G / 3G / 4G-LTE)
Mobile Networks Overview (2G / 3G / 4G-LTE)Mobile Networks Overview (2G / 3G / 4G-LTE)
Mobile Networks Overview (2G / 3G / 4G-LTE)
Hamidreza Bolhasani

Call flows
Call flowsCall flows
LTE Architecture and LTE Attach
LTE Architecture and LTE AttachLTE Architecture and LTE Attach
LTE Architecture and LTE Attach
aliirfan04

Csfb (circuit switch fall back)
Csfb (circuit switch fall back)Csfb (circuit switch fall back)
Csfb (circuit switch fall back)
Rishi Mahajan

VoLTE Voice over LTE Explained - Complete End to End VoLTE Overview - What is...
VoLTE Voice over LTE Explained - Complete End to End VoLTE Overview - What is...VoLTE Voice over LTE Explained - Complete End to End VoLTE Overview - What is...
VoLTE Voice over LTE Explained - Complete End to End VoLTE Overview - What is...
Vikas Shokeen

CS-Core Mobile Network (General)
CS-Core Mobile Network (General)CS-Core Mobile Network (General)
CS-Core Mobile Network (General)
Hamidreza Bolhasani

Simplified Call Flow Signaling: Registration - The Attach Procedure
Simplified Call Flow Signaling: Registration - The Attach ProcedureSimplified Call Flow Signaling: Registration - The Attach Procedure
Simplified Call Flow Signaling: Registration - The Attach Procedure
3G4G

2 g data call flow
2 g data call flow2 g data call flow
2 g data call flow
Alfred Ongere

Basic GSM Call Flows
Basic GSM Call FlowsBasic GSM Call Flows
Basic GSM Call Flows
emyl97

LTE KPI and PI Formula_NOKIA.pdf
LTE KPI and PI Formula_NOKIA.pdfLTE KPI and PI Formula_NOKIA.pdf
LTE KPI and PI Formula_NOKIA.pdf
VahidZibakalam3


What's hot (20)

UMTS/LTE/EPC Call Flows for CSFB
UMTS/LTE/EPC Call Flows for CSFBUMTS/LTE/EPC Call Flows for CSFB
UMTS/LTE/EPC Call Flows for CSFB

VoLTE Interfaces , Protocols & IMS Stack
VoLTE Interfaces , Protocols & IMS StackVoLTE Interfaces , Protocols & IMS Stack
VoLTE Interfaces , Protocols & IMS Stack

2G / 3G / 4G / IMS / 5G Overview with Focus on Core Network
2G / 3G / 4G / IMS / 5G Overview with Focus on Core Network2G / 3G / 4G / IMS / 5G Overview with Focus on Core Network
2G / 3G / 4G / IMS / 5G Overview with Focus on Core Network

Lte default and dedicated bearer / VoLTE
Lte default and dedicated bearer / VoLTELte default and dedicated bearer / VoLTE
Lte default and dedicated bearer / VoLTE

SRVCC (Single Radio Voice Call Continuity) in VoLTE & Comparison with CSFB
SRVCC (Single Radio Voice Call Continuity) in VoLTE & Comparison with CSFBSRVCC (Single Radio Voice Call Continuity) in VoLTE & Comparison with CSFB
SRVCC (Single Radio Voice Call Continuity) in VoLTE & Comparison with CSFB

Simplified Call Flow Signaling: 2G/3G Voice Call
Simplified Call Flow Signaling: 2G/3G Voice CallSimplified Call Flow Signaling: 2G/3G Voice Call
Simplified Call Flow Signaling: 2G/3G Voice Call

volte ims network architecture tutorial - Explained
volte ims network architecture tutorial - Explained volte ims network architecture tutorial - Explained
volte ims network architecture tutorial - Explained

IMS Core Elements
IMS Core ElementsIMS Core Elements
IMS Core Elements

3 g call flow
3 g call flow3 g call flow
3 g call flow

Gsm architecture, gsm network identities, network cases, cell planning, and c...
Gsm architecture, gsm network identities, network cases, cell planning, and c...Gsm architecture, gsm network identities, network cases, cell planning, and c...
Gsm architecture, gsm network identities, network cases, cell planning, and c...

Mobile Networks Overview (2G / 3G / 4G-LTE)
Mobile Networks Overview (2G / 3G / 4G-LTE)Mobile Networks Overview (2G / 3G / 4G-LTE)
Mobile Networks Overview (2G / 3G / 4G-LTE)

Call flows
Call flowsCall flows
Call flows

LTE Architecture and LTE Attach
LTE Architecture and LTE AttachLTE Architecture and LTE Attach
LTE Architecture and LTE Attach

Csfb (circuit switch fall back)
Csfb (circuit switch fall back)Csfb (circuit switch fall back)
Csfb (circuit switch fall back)

VoLTE Voice over LTE Explained - Complete End to End VoLTE Overview - What is...
VoLTE Voice over LTE Explained - Complete End to End VoLTE Overview - What is...VoLTE Voice over LTE Explained - Complete End to End VoLTE Overview - What is...
VoLTE Voice over LTE Explained - Complete End to End VoLTE Overview - What is...

CS-Core Mobile Network (General)
CS-Core Mobile Network (General)CS-Core Mobile Network (General)
CS-Core Mobile Network (General)

Simplified Call Flow Signaling: Registration - The Attach Procedure
Simplified Call Flow Signaling: Registration - The Attach ProcedureSimplified Call Flow Signaling: Registration - The Attach Procedure
Simplified Call Flow Signaling: Registration - The Attach Procedure

2 g data call flow
2 g data call flow2 g data call flow
2 g data call flow

Basic GSM Call Flows
Basic GSM Call FlowsBasic GSM Call Flows
Basic GSM Call Flows

LTE KPI and PI Formula_NOKIA.pdf
LTE KPI and PI Formula_NOKIA.pdfLTE KPI and PI Formula_NOKIA.pdf
LTE KPI and PI Formula_NOKIA.pdf


Similar to VoLTE flows - basics

VoLTE_SRVCC_E2Erevised
VoLTE_SRVCC_E2ErevisedVoLTE_SRVCC_E2Erevised
VoLTE_SRVCC_E2Erevised
Amit Deshmukh

3GPP IMS
3GPP IMS3GPP IMS
pdfslide.net_ims-basics-standardization-ims-components-and-ip-multimedia-subs...
pdfslide.net_ims-basics-standardization-ims-components-and-ip-multimedia-subs...pdfslide.net_ims-basics-standardization-ims-components-and-ip-multimedia-subs...
pdfslide.net_ims-basics-standardization-ims-components-and-ip-multimedia-subs...
AliAlwesabi

Digital network lecturer4
Digital network  lecturer4Digital network  lecturer4
Digital network lecturer4
Jumaan Ally Mohamed

Jun5 kassa-adhoc net-arch-vo_lte
Jun5 kassa-adhoc net-arch-vo_lteJun5 kassa-adhoc net-arch-vo_lte
Jun5 kassa-adhoc net-arch-vo_lte
João Ramos

pdfslide.net_ims-enabling-services-wherever-the-customer-and-whatever-the-acc...
pdfslide.net_ims-enabling-services-wherever-the-customer-and-whatever-the-acc...pdfslide.net_ims-enabling-services-wherever-the-customer-and-whatever-the-acc...
pdfslide.net_ims-enabling-services-wherever-the-customer-and-whatever-the-acc...
AliAlwesabi

Reliance jio 4G & Volte
Reliance jio 4G & VolteReliance jio 4G & Volte
Reliance jio 4G & Volte
Marlabs

IMS and WebRTC Workshop Tropo
IMS and WebRTC Workshop TropoIMS and WebRTC Workshop Tropo
IMS and WebRTC Workshop Tropo
Alan Quayle

Vo ip sip
Vo ip sipVo ip sip
Vo ip sip
Iazon Danelia

AN OVERVIEW OF VOICE OVER INTERNET PROTOCOL (VOIP
AN OVERVIEW OF VOICE OVER INTERNET PROTOCOL (VOIPAN OVERVIEW OF VOICE OVER INTERNET PROTOCOL (VOIP
AN OVERVIEW OF VOICE OVER INTERNET PROTOCOL (VOIP
Sean Flores

Frafos ABC SBC - Secure peering
Frafos ABC SBC - Secure peeringFrafos ABC SBC - Secure peering
Frafos ABC SBC - Secure peering
stefansayer

8 the path to voice over lte - vo lte
8 the path to voice over lte - vo lte8 the path to voice over lte - vo lte
8 the path to voice over lte - vo lte
CPqD

Release 5 arch and beyond v06
Release 5 arch and beyond v06Release 5 arch and beyond v06
Release 5 arch and beyond v06
reza-nasrollah

Ims, Ip Multimedia System
Ims, Ip Multimedia SystemIms, Ip Multimedia System
Ims, Ip Multimedia System
manymbaboy

Monetizing the 4G Investment (Mobile Data, and VoLTE Roaming and Interworking)
Monetizing the 4G Investment (Mobile Data, and VoLTE Roaming and Interworking)Monetizing the 4G Investment (Mobile Data, and VoLTE Roaming and Interworking)
Monetizing the 4G Investment (Mobile Data, and VoLTE Roaming and Interworking)
Dialogic Inc.

Service Broker for VOIP IMA WebRTC and old telecom networks
Service Broker for VOIP IMA WebRTC and old telecom networksService Broker for VOIP IMA WebRTC and old telecom networks
Service Broker for VOIP IMA WebRTC and old telecom networks
ALTANAI BISHT

VoWifi 03 - vowifi epdg aaa and architecture (pdf ppt)
VoWifi 03 - vowifi epdg aaa and architecture (pdf ppt)VoWifi 03 - vowifi epdg aaa and architecture (pdf ppt)
VoWifi 03 - vowifi epdg aaa and architecture (pdf ppt)
Vikas Shokeen

Rich communication suite
Rich communication suite Rich communication suite
Rich communication suite
ALTANAI BISHT

IMS IP multimedia subsystem presentation
IMS IP multimedia subsystem presentationIMS IP multimedia subsystem presentation
IMS IP multimedia subsystem presentation
Waldir R. Pires Jr

Ims in ngn
Ims in ngnIms in ngn
Ims in ngn
中琳 李中琳


Similar to VoLTE flows - basics (20)

VoLTE_SRVCC_E2Erevised
VoLTE_SRVCC_E2ErevisedVoLTE_SRVCC_E2Erevised
VoLTE_SRVCC_E2Erevised

3GPP IMS
3GPP IMS3GPP IMS
3GPP IMS

pdfslide.net_ims-basics-standardization-ims-components-and-ip-multimedia-subs...
pdfslide.net_ims-basics-standardization-ims-components-and-ip-multimedia-subs...pdfslide.net_ims-basics-standardization-ims-components-and-ip-multimedia-subs...
pdfslide.net_ims-basics-standardization-ims-components-and-ip-multimedia-subs...

Digital network lecturer4
Digital network  lecturer4Digital network  lecturer4
Digital network lecturer4

Jun5 kassa-adhoc net-arch-vo_lte
Jun5 kassa-adhoc net-arch-vo_lteJun5 kassa-adhoc net-arch-vo_lte
Jun5 kassa-adhoc net-arch-vo_lte

pdfslide.net_ims-enabling-services-wherever-the-customer-and-whatever-the-acc...
pdfslide.net_ims-enabling-services-wherever-the-customer-and-whatever-the-acc...pdfslide.net_ims-enabling-services-wherever-the-customer-and-whatever-the-acc...
pdfslide.net_ims-enabling-services-wherever-the-customer-and-whatever-the-acc...

Reliance jio 4G & Volte
Reliance jio 4G & VolteReliance jio 4G & Volte
Reliance jio 4G & Volte

IMS and WebRTC Workshop Tropo
IMS and WebRTC Workshop TropoIMS and WebRTC Workshop Tropo
IMS and WebRTC Workshop Tropo

Vo ip sip
Vo ip sipVo ip sip
Vo ip sip

AN OVERVIEW OF VOICE OVER INTERNET PROTOCOL (VOIP
AN OVERVIEW OF VOICE OVER INTERNET PROTOCOL (VOIPAN OVERVIEW OF VOICE OVER INTERNET PROTOCOL (VOIP
AN OVERVIEW OF VOICE OVER INTERNET PROTOCOL (VOIP

Frafos ABC SBC - Secure peering
Frafos ABC SBC - Secure peeringFrafos ABC SBC - Secure peering
Frafos ABC SBC - Secure peering

8 the path to voice over lte - vo lte
8 the path to voice over lte - vo lte8 the path to voice over lte - vo lte
8 the path to voice over lte - vo lte

Release 5 arch and beyond v06
Release 5 arch and beyond v06Release 5 arch and beyond v06
Release 5 arch and beyond v06

Ims, Ip Multimedia System
Ims, Ip Multimedia SystemIms, Ip Multimedia System
Ims, Ip Multimedia System

Monetizing the 4G Investment (Mobile Data, and VoLTE Roaming and Interworking)
Monetizing the 4G Investment (Mobile Data, and VoLTE Roaming and Interworking)Monetizing the 4G Investment (Mobile Data, and VoLTE Roaming and Interworking)
Monetizing the 4G Investment (Mobile Data, and VoLTE Roaming and Interworking)

Service Broker for VOIP IMA WebRTC and old telecom networks
Service Broker for VOIP IMA WebRTC and old telecom networksService Broker for VOIP IMA WebRTC and old telecom networks
Service Broker for VOIP IMA WebRTC and old telecom networks

VoWifi 03 - vowifi epdg aaa and architecture (pdf ppt)
VoWifi 03 - vowifi epdg aaa and architecture (pdf ppt)VoWifi 03 - vowifi epdg aaa and architecture (pdf ppt)
VoWifi 03 - vowifi epdg aaa and architecture (pdf ppt)

Rich communication suite
Rich communication suite Rich communication suite
Rich communication suite

IMS IP multimedia subsystem presentation
IMS IP multimedia subsystem presentationIMS IP multimedia subsystem presentation
IMS IP multimedia subsystem presentation

Ims in ngn
Ims in ngnIms in ngn
Ims in ngn


Recently uploaded

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus
Zilliz

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday
Ivanti

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data
Ivo Velitchkov

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)
Javier Junquera

Dandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity serverDandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity server
Antonios Katsarakis

The Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptxThe Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptx
operationspcvita

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead
Wask

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota
Fwdays

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
Neo4j

Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframeDigital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Precisely

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)
Jakub Marek

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides
DanBrown980551


Recently uploaded (20)

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)

Dandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity serverDandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity server

The Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptxThe Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptx

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph

Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframeDigital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides


VoLTE flows - basics
