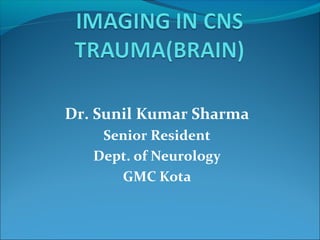

1. Dr. Sunil Kumar Sharma
Senior Resident
Dept. of Neurology
GMC Kota

2. Aim
To understand Indications and select the appropriate
imaging modality
To identify common traumatic emergency
abnormalities of brain.
To determine an immediate life threatening
abnormality on a CNS imaging

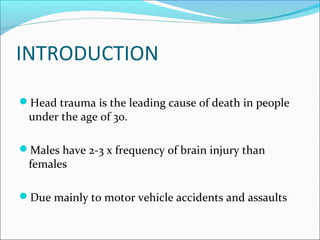

3. INTRODUCTION
Head trauma is the leading cause of death in people
under the age of 30.
Males have 2-3 x frequency of brain injury than
females
Due mainly to motor vehicle accidents and assaults

4. OUTLINE
Classification of traumatic brain injury
Clinical indications for imaging
Imaging technique
Extraaxial hemorrhage
Intraaxial injury
Brain herniations

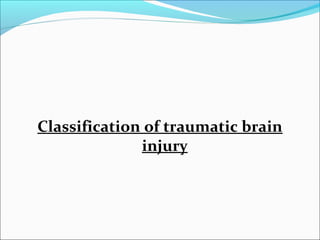

5. Classification of traumatic brain
injury

6. Traumatic Brain Injury

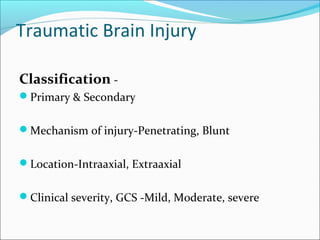

Classification -
Primary & Secondary
Mechanism of injury-Penetrating, Blunt
Location-Intraaxial, Extraaxial
Clinical severity, GCS -Mild, Moderate, severe

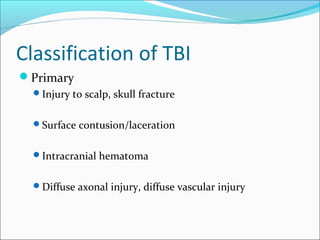

7. Classification of TBI
Primary
Injury to scalp, skull fracture
Surface contusion/laceration
Intracranial hematoma
Diffuse axonal injury, diffuse vascular injury

8. Contd..

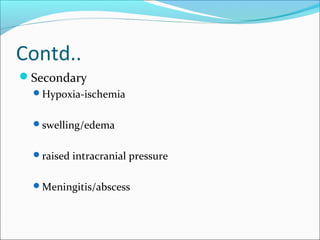

Secondary
Hypoxia-ischemia
swelling/edema
raised intracranial pressure
Meningitis/abscess

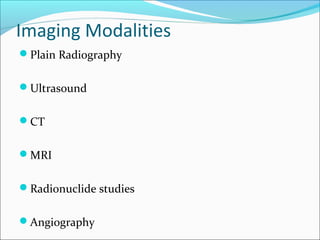

10. Imaging Modalities
Plain Radiography
Ultrasound
CT
MRI
Radionuclide studies
Angiography

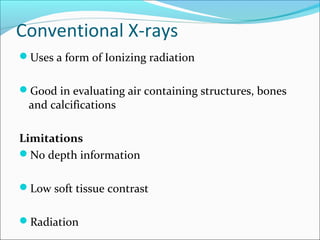

11. Conventional X-rays
Uses a form of Ionizing radiation
Good in evaluating air containing structures, bones
and calcifications
Limitations
No depth information
Low soft tissue contrast
Radiation

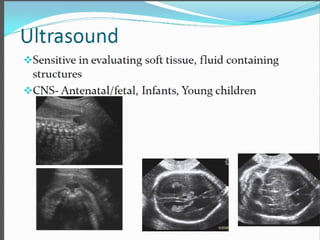

13. Computed Tomography
Uses Ionizing radiation.
Cross-sectional image
Principle based on differential x-ray beam
attenuation by tissue
Image contrast, displayed as Gray scale –
Density/attenuation
Low attenuation-Darker
High Attenuation-Whiter

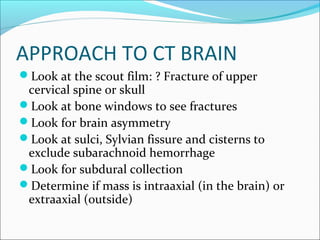

14. APPROACH TO CT BRAIN
Look at the scout film: ? Fracture of upper
cervical spine or skull
Look at bone windows to see fractures
Look for brain asymmetry
Look at sulci, Sylvian fissure and cisterns to
exclude subarachnoid hemorrhage
Look for subdural collection
Determine if mass is intraaxial (in the brain) or
extraaxial (outside)

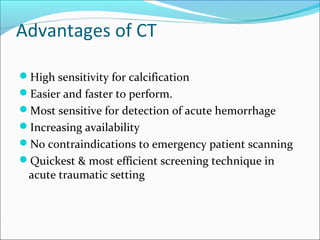

15. Advantages of CT
High sensitivity for calcification
Easier and faster to perform.
Most sensitive for detection of acute hemorrhage
Increasing availability
No contraindications to emergency patient scanning
Quickest & most efficient screening technique in
acute traumatic setting

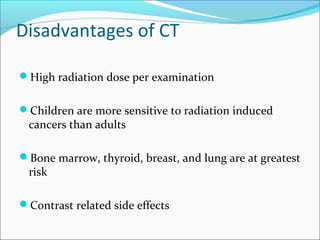

16. Disadvantages of CT
High radiation dose per examination
Children are more sensitive to radiation induced
cancers than adults
Bone marrow, thyroid, breast, and lung are at greatest
risk
Contrast related side effects

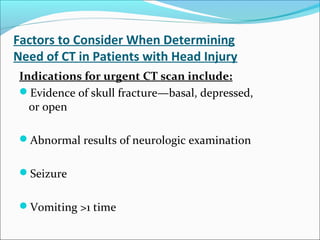

17. Factors to Consider When Determining
Need of CT in Patients with Head Injury
Indications for urgent CT scan include:
Evidence of skull fracture—basal, depressed,
or open
Abnormal results of neurologic examination
Seizure
Vomiting >1 time

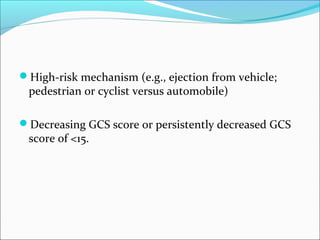

18. High-risk mechanism (e.g., ejection from vehicle;
pedestrian or cyclist versus automobile)
Decreasing GCS score or persistently decreased GCS
score of <15.

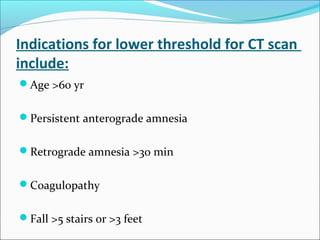

19. Indications for lower threshold for CT scan
include:
Age >60 yr
Persistent anterograde amnesia
Retrograde amnesia >30 min
Coagulopathy
Fall >5 stairs or >3 feet

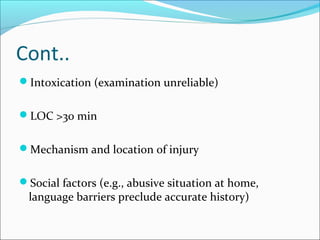

20. Cont..
Intoxication (examination unreliable)
LOC >30 min
Mechanism and location of injury
Social factors (e.g., abusive situation at home,
language barriers preclude accurate history)

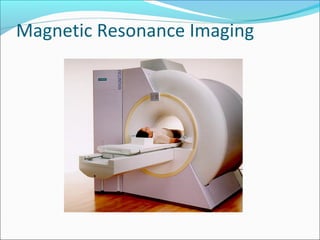

21. Magnetic Resonance Imaging

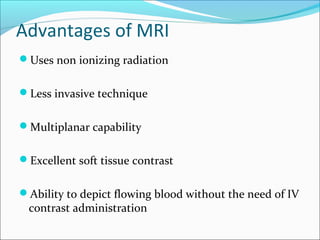

22. Advantages of MRI
Uses non ionizing radiation
Less invasive technique
Multiplanar capability
Excellent soft tissue contrast
Ability to depict flowing blood without the need of IV
contrast administration

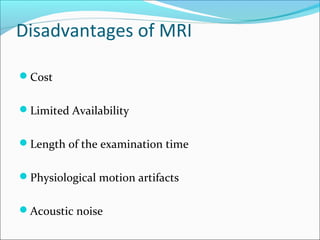

23. Disadvantages of MRI
Cost
Limited Availability
Length of the examination time
Physiological motion artifacts
Acoustic noise

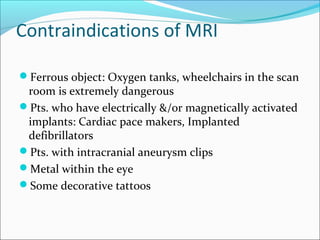

24. Contraindications of MRI
Ferrous object: Oxygen tanks, wheelchairs in the scan
room is extremely dangerous
Pts. who have electrically &/or magnetically activated
implants: Cardiac pace makers, Implanted
defibrillators
Pts. with intracranial aneurysm clips
Metal within the eye
Some decorative tattoos

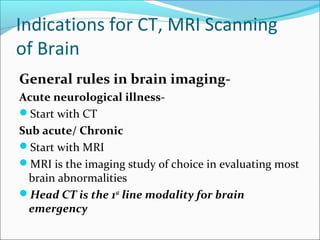

25. Indications for CT, MRI Scanning
of Brain
General rules in brain imaging-
Acute neurological illness-
Start with CT
Sub acute/ Chronic
Start with MRI
MRI is the imaging study of choice in evaluating most
brain abnormalities
Head CT is the 1st
line modality for brain
emergency

26. Cont…

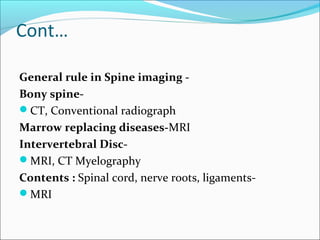

General rule in Spine imaging -
Bony spine-
CT, Conventional radiograph
Marrow replacing diseases-MRI
Intervertebral Disc-
MRI, CT Myelography
Contents : Spinal cord, nerve roots, ligaments-
MRI

27. Extraaxial Injury
Skull fracture
Epidural hematoma
Subdural hematoma
Subarachnoid hemorrhage

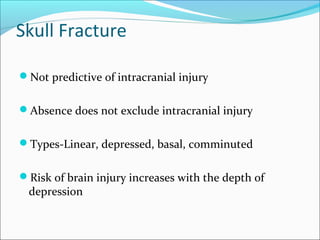

28. Skull Fracture
Not predictive of intracranial injury
Absence does not exclude intracranial injury
Types-Linear, depressed, basal, comminuted
Risk of brain injury increases with the depth of
depression

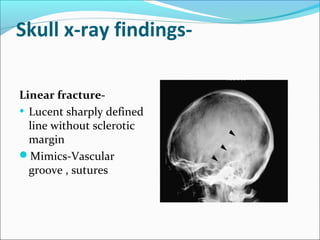

29. Skull x-ray findings-
Linear fracture-
• Lucent sharply defined
line without sclerotic
margin
Mimics-Vascular
groove , sutures

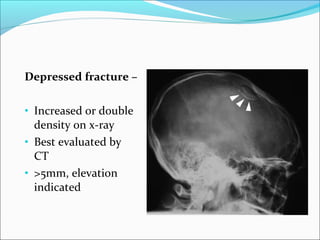

30. Depressed fracture –
• Increased or double
density on x-ray
• Best evaluated by
CT
• >5mm, elevation
indicated

31. Epidural Hematoma
Blood collection within potential space between skull
inner table & dura mater
75 % at the temporal region
Usually (99%)at the coup side
Majority have Skull fracture 85-95% ; In children
often absent
Mostly arterial bleed ,Due to laceration of the middle
meningeal artery or dural veins
Expands and present rapidly -Tense distension

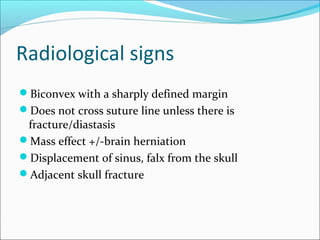

32. Radiological signs
Biconvex with a sharply defined margin
Does not cross suture line unless there is
fracture/diastasis
Mass effect +/-brain herniation
Displacement of sinus, falx from the skull
Adjacent skull fracture

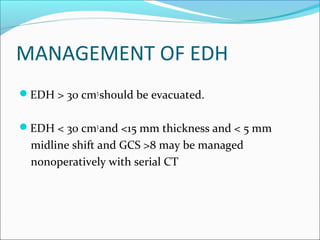

34. MANAGEMENT OF EDH
EDH > 30 cm3
should be evacuated.
EDH < 30 cm3
and <15 mm thickness and < 5 mm
midline shift and GCS >8 may be managed
nonoperatively with serial CT

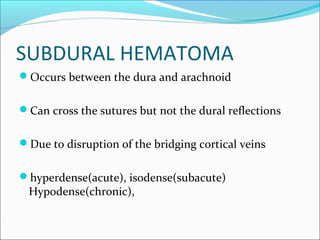

35. SUBDURAL HEMATOMA
Occurs between the dura and arachnoid
Can cross the sutures but not the dural reflections
Due to disruption of the bridging cortical veins
hyperdense(acute), isodense(subacute)
Hypodense(chronic),

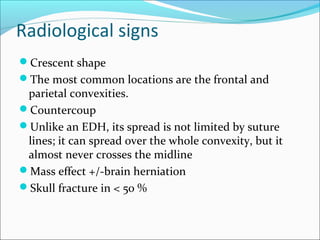

36. Radiological signs
Crescent shape
The most common locations are the frontal and
parietal convexities.
Countercoup
Unlike an EDH, its spread is not limited by suture
lines; it can spread over the whole convexity, but it
almost never crosses the midline
Mass effect +/-brain herniation
Skull fracture in < 50 %

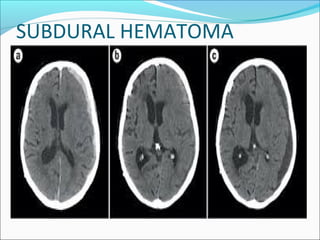

37. SUBDURAL HEMATOMA

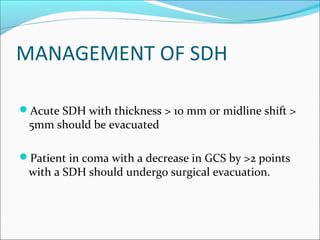

38. MANAGEMENT OF SDH
Acute SDH with thickness > 10 mm or midline shift >
5mm should be evacuated
Patient in coma with a decrease in GCS by >2 points
with a SDH should undergo surgical evacuation.

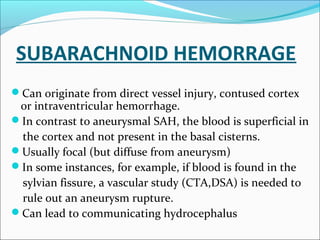

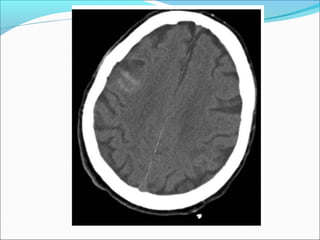

39. SUBARACHNOID HEMORRAGE
Can originate from direct vessel injury, contused cortex
or intraventricular hemorrhage.
In contrast to aneurysmal SAH, the blood is superficial in
the cortex and not present in the basal cisterns.
Usually focal (but diffuse from aneurysm)
In some instances, for example, if blood is found in the
sylvian fissure, a vascular study (CTA,DSA) is needed to
rule out an aneurysm rupture.
Can lead to communicating hydrocephalus

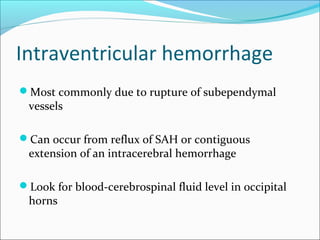

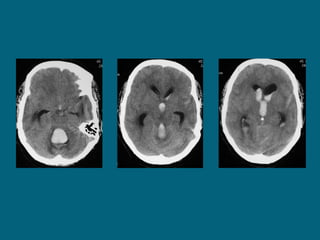

41. Intraventricular hemorrhage
Most commonly due to rupture of subependymal
vessels
Can occur from reflux of SAH or contiguous
extension of an intracerebral hemorrhage
Look for blood-cerebrospinal fluid level in occipital
horns

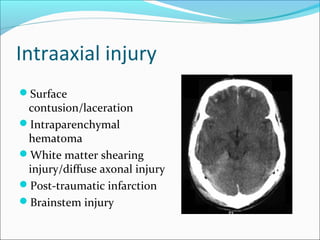

43. Intraaxial injury
Surface
contusion/laceration
Intraparenchymal
hematoma
White matter shearing
injury/diffuse axonal injury
Post-traumatic infarction
Brainstem injury

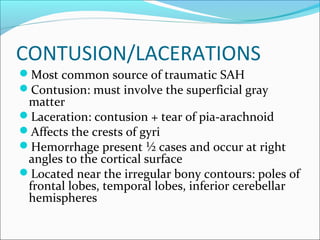

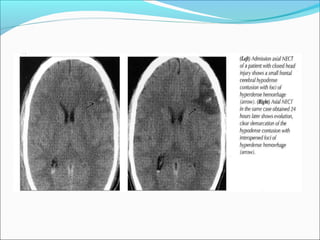

44. CONTUSION/LACERATIONS
Most common source of traumatic SAH
Contusion: must involve the superficial gray
matter
Laceration: contusion + tear of pia-arachnoid
Affects the crests of gyri
Hemorrhage present ½ cases and occur at right
angles to the cortical surface
Located near the irregular bony contours: poles of
frontal lobes, temporal lobes, inferior cerebellar
hemispheres

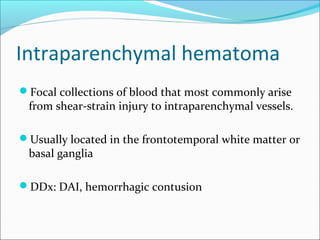

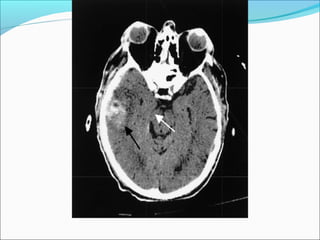

46. Intraparenchymal hematoma
Focal collections of blood that most commonly arise
from shear-strain injury to intraparenchymal vessels.
Usually located in the frontotemporal white matter or
basal ganglia
DDx: DAI, hemorrhagic contusion

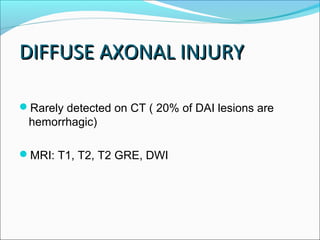

48. DIFFUSE AXONAL INJURYDIFFUSE AXONAL INJURY
Rarely detected on CT ( 20% of DAI lesions are
hemorrhagic)
MRI: T1, T2, T2 GRE, DWI

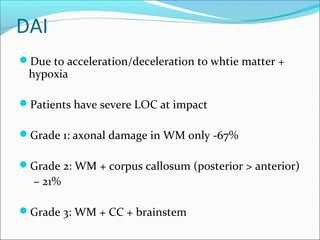

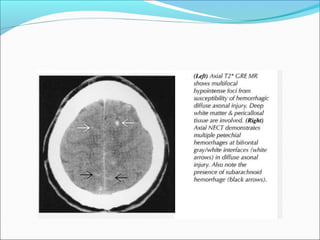

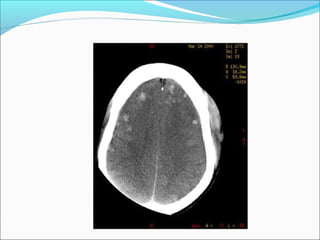

49. DAI
Due to acceleration/deceleration to whtie matter +
hypoxia
Patients have severe LOC at impact
Grade 1: axonal damage in WM only -67%
Grade 2: WM + corpus callosum (posterior > anterior)
– 21%
Grade 3: WM + CC + brainstem

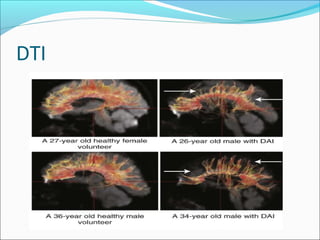

52. DTI

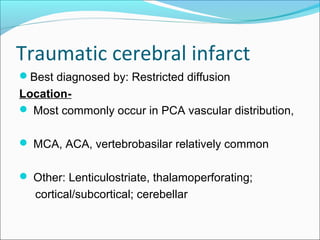

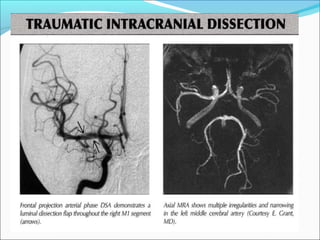

54. Traumatic cerebral infarct
Best diagnosed by: Restricted diffusion
Location-
 Most commonly occur in PCA vascular distribution,
 MCA, ACA, vertebrobasilar relatively common
 Other: Lenticulostriate, thalamoperforating;
cortical/subcortical; cerebellar

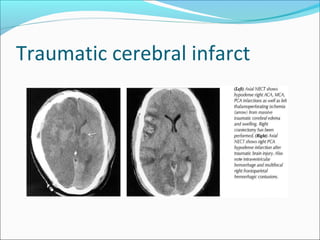

55. Traumatic cerebral infarct

57. SUBFALCIAL HERNIATION
Subfalcial: displacement of the cingulate gyrus under
the free edge of the falx along with the pericallosal
arteries.
Can lead to anterior cerebral artery infarction

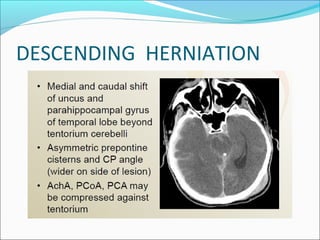

58. DESCENDING HERNIATION

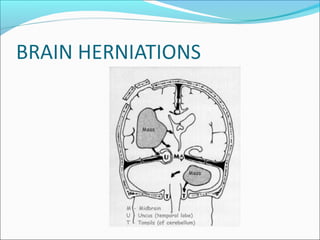

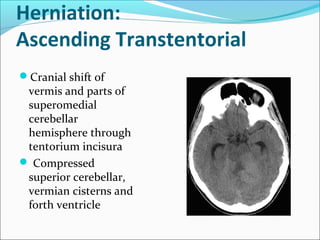

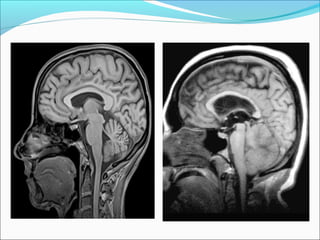

59. Herniation:
Ascending Transtentorial
Cranial shift of
vermis and parts of
superomedial
cerebellar
hemisphere through
tentorium incisura
 Compressed
superior cerebellar,
vermian cisterns and
forth ventricle

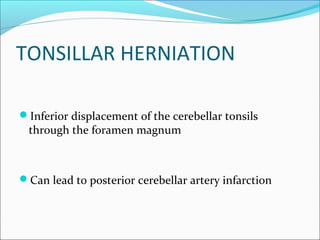

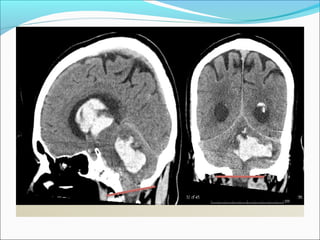

61. TONSILLAR HERNIATION
Inferior displacement of the cerebellar tonsils
through the foramen magnum
Can lead to posterior cerebellar artery infarction

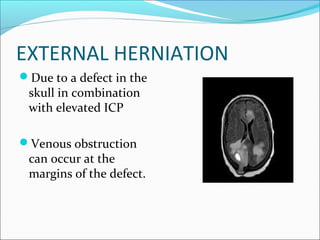

63. EXTERNAL HERNIATION
Due to a defect in the
skull in combination
with elevated ICP
Venous obstruction
can occur at the
margins of the defect.

64. Conclusions

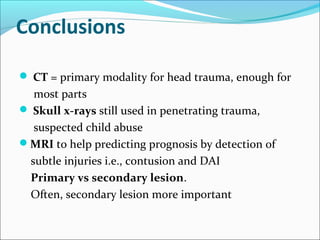

 CT = primary modality for head trauma, enough for
most parts
 Skull x-rays still used in penetrating trauma,
suspected child abuse
MRI to help predicting prognosis by detection of
subtle injuries i.e., contusion and DAI
Primary vs secondary lesion.
Often, secondary lesion more important

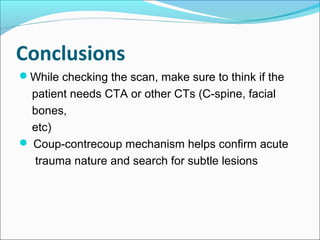

65. Conclusions
While checking the scan, make sure to think if the
patient needs CTA or other CTs (C-spine, facial
bones,
etc)
 Coup-contrecoup mechanism helps confirm acute
trauma nature and search for subtle lesions

66. Thank you
Thank you

67. References
Osborn Diagnostic Imaging Brain-2004
Bradley’s Neurology in Clinical Practice 6’th edition
2012
Slideshare.com
Radiopedia.com
