Ct head

This document discusses head trauma and various types of brain injuries seen on CT imaging. It provides details on: 1) Classification of head injuries as mild, moderate or severe based on Glasgow Coma Scale. It also describes primary injuries that occur at the time of trauma versus secondary injuries that develop later. 2) Common primary brain injuries seen on CT such as epidural hematomas, subdural hematomas, skull fractures, cerebral contusions, and diffuse axonal injury. 3) Guidelines for use of head CT in traumatic brain injury patients based on American College of Radiology criteria, New Orleans Criteria, and Canadian Head CT Rule. 4) Features of various types of skull fractures,

Embed presentation

Downloaded 118 times
CT Head in Primary Effects of CNS Trauma Dr. Manmohan Shrestha

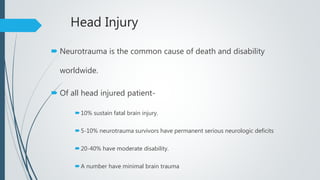

Head Injury  Neurotrauma is the common cause of death and disability worldwide.  Of all head injured patient- 10% sustain fatal brain injury. 5-10% neurotrauma survivors have permanent serious neurologic deficits 20-40% have moderate disability. A number have minimal brain trauma

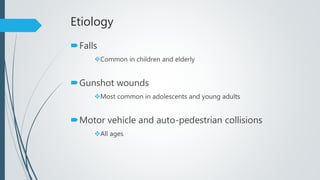

Etiology Falls Common in children and elderly Gunshot wounds Most common in adolescents and young adults Motor vehicle and auto-pedestrian collisions All ages
Classification of Head Trauma Using GCS Mild/Minor (GCS-13-15) Moderate (GCS 9-12) Severe (GCS <=8) Pathoetiologically Primary injuries – occur at the time of initial trauma. Secondary injuries – which occur later

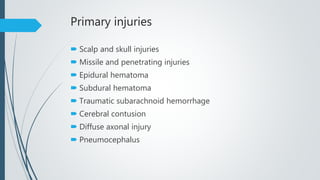

Primary injuries  Scalp and skull injuries  Missile and penetrating injuries  Epidural hematoma  Subdural hematoma  Traumatic subarachnoid hemorrhage  Cerebral contusion  Diffuse axonal injury  Pneumocephalus

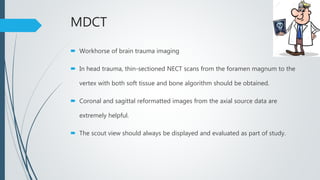

MDCT  Workhorse of brain trauma imaging  In head trauma, thin-sectioned NECT scans from the foramen magnum to the vertex with both soft tissue and bone algorithm should be obtained.  Coronal and sagittal reformatted images from the axial source data are extremely helpful.  The scout view should always be displayed and evaluated as part of study.

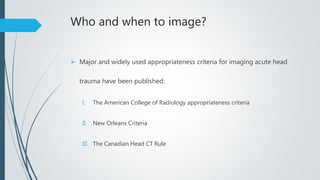

Who and when to image?  Major and widely used appropriateness criteria for imaging acute head trauma have been published: I. The American College of Radiology appropriateness criteria II. New Orleans Criteria III. The Canadian Head CT Rule

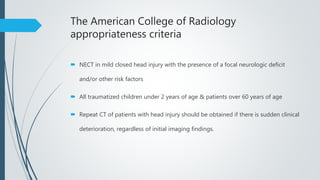

The American College of Radiology appropriateness criteria  NECT in mild closed head injury with the presence of a focal neurologic deficit and/or other risk factors  All traumatized children under 2 years of age & patients over 60 years of age  Repeat CT of patients with head injury should be obtained if there is sudden clinical deterioration, regardless of initial imaging findings.

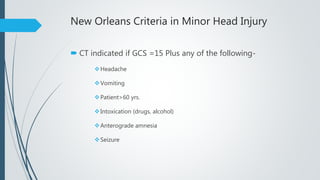

New Orleans Criteria in Minor Head Injury  CT indicated if GCS =15 Plus any of the following- Headache Vomiting Patient>60 yrs. Intoxication (drugs, alcohol) Anterograde amnesia Seizure
The Canadian Head CT Rule in Mild Head Trauma  Inclusion criteria  Patient has suffered minor head trauma with resultant:  loss of consciousness  GCS 13-15  confusion  amnesia after the event  Exclusion criteria  anticoagulant medication or bleeding disorder  age <16 years  seizure

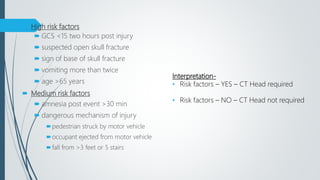

 High risk factors  GCS <15 two hours post injury  suspected open skull fracture  sign of base of skull fracture  vomiting more than twice  age >65 years  Medium risk factors  amnesia post event >30 min  dangerous mechanism of injury pedestrian struck by motor vehicle occupant ejected from motor vehicle fall from >3 feet or 5 stairs Interpretation- • Risk factors – YES – CT Head required • Risk factors – NO – CT Head not required

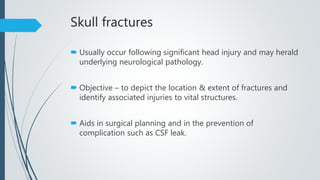

Skull fractures  Usually occur following significant head injury and may herald underlying neurological pathology.  Objective – to depict the location & extent of fractures and identify associated injuries to vital structures.  Aids in surgical planning and in the prevention of complication such as CSF leak.

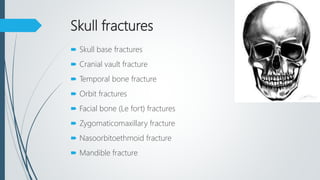

Skull fractures  Skull base fractures  Cranial vault fracture  Temporal bone fracture  Orbit fractures  Facial bone (Le fort) fractures  Zygomaticomaxillary fracture  Nasoorbitoethmoid fracture  Mandible fracture

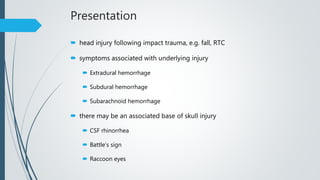

Presentation  head injury following impact trauma, e.g. fall, RTC  symptoms associated with underlying injury  Extradural hemorrhage  Subdural hemorrhage  Subarachnoid hemorrhage  there may be an associated base of skull injury  CSF rhinorrhea  Battle’s sign  Raccoon eyes
Battle’s sign  also called mastoid ecchymosis,  is an indication of fracture of middle cranial fossa of the skull  consists of bruising over the mastoid process, as a result of extravasation of blood along the path of the posterior auricular artery.
Racoon eyes/Panda eyes sign  Periorbital ecchymosis  Sign of  Basal skull fracture  Subgaleal hematoma  Craniotomy that ruptured the meninges

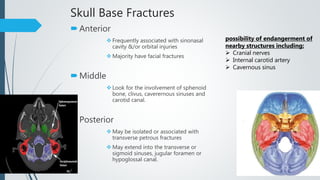

Skull Base Fractures Anterior  Frequently associated with sinonasal cavity &/or orbital injuries  Majority have facial fractures Middle  Look for the involvement of sphenoid bone, clivus, caverernous sinuses and carotid canal. Posterior  May be isolated or associated with transverse petrous fractures  May extend into the transverse or sigmoid sinuses, jugular foramen or hypoglossal canal. possibility of endangerment of nearby structures including:  Cranial nerves  Internal carotid artery  Cavernous sinus

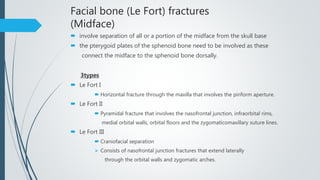

Facial bone (Le Fort) fractures (Midface)  involve separation of all or a portion of the midface from the skull base  the pterygoid plates of the sphenoid bone need to be involved as these connect the midface to the sphenoid bone dorsally. 3types  Le Fort I  Horizontal fracture through the maxilla that involves the piriform aperture.  Le Fort II  Pyramidal fracture that involves the nasofrontal junction, infraorbital rims, medial orbital walls, orbital floors and the zygomaticomaxillary suture lines.  Le Fort III  Craniofacial separation  Consists of nasofrontal junction fractures that extend laterally through the orbital walls and zygomatic arches.

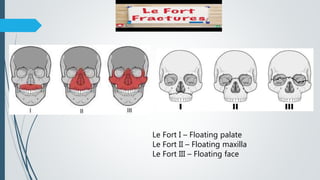

Le Fort I – Floating palate Le Fort II – Floating maxilla Le Fort III – Floating face

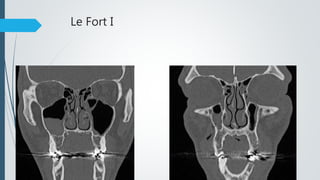

Le Fort I
Le Fort II

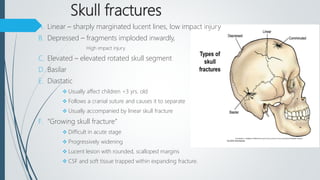

Skull fractures A. Linear – sharply marginated lucent lines, low impact injury B. Depressed – fragments imploded inwardly, High impact injury. C. Elevated – elevated rotated skull segment D. Basilar E. Diastatic  Usually affect children <3 yrs. old  Follows a cranial suture and causes it to separate  Usually accompanied by linear skull fracture F. “Growing skull fracture”  Difficult in acute stage  Progressively widening  Lucent lesion with rounded, scalloped margins  CSF and soft tissue trapped within expanding fracture.

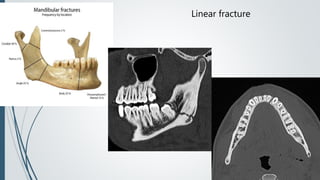

Linear fracture

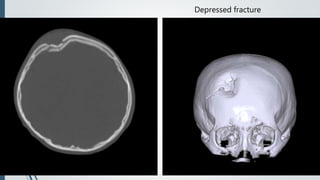

Depressed fracture

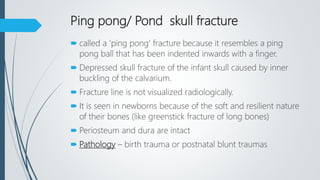

Ping pong/ Pond skull fracture  called a 'ping pong' fracture because it resembles a ping pong ball that has been indented inwards with a finger.  Depressed skull fracture of the infant skull caused by inner buckling of the calvarium.  Fracture line is not visualized radiologically.  It is seen in newborns because of the soft and resilient nature of their bones (like greenstick fracture of long bones)  Periosteum and dura are intact  Pathology – birth trauma or postnatal blunt traumas
Elevated fracture

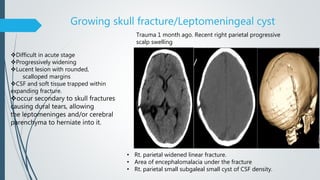

Growing skull fracture/Leptomeningeal cyst Trauma 1 month ago. Recent right parietal progressive scalp swelling Difficult in acute stage Progressively widening Lucent lesion with rounded, scalloped margins CSF and soft tissue trapped within expanding fracture. occur secondary to skull fractures causing dural tears, allowing the leptomeninges and/or cerebral parenchyma to herniate into it. • Rt. parietal widened linear fracture. • Area of encephalomalacia under the fracture • Rt. parietal small subgaleal small cyst of CSF density.

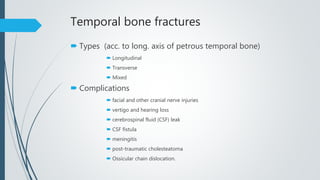

Temporal bone fractures  Types (acc. to long. axis of petrous temporal bone)  Longitudinal  Transverse  Mixed  Complications  facial and other cranial nerve injuries  vertigo and hearing loss  cerebrospinal fluid (CSF) leak  CSF fistula  meningitis  post-traumatic cholesteatoma  Ossicular chain dislocation.

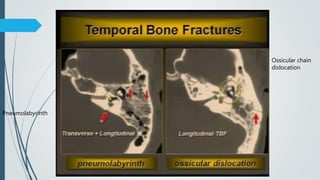

Pneumolabyrinth Ossicular chain dislocation
Skull Fractures !! When to worry ?? Overlies a dural venous sinus Overlies the middle meningeal artery Overlies “eloquent cortex” ( Sensory-Motor cortex) Depressed > “table-width” Open/compound Traverses Internal carotid artery canal Temporal bone fractures.

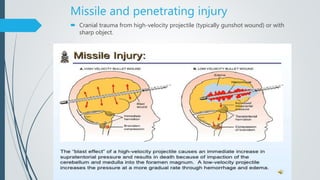

Missile and penetrating injury  Cranial trauma from high-velocity projectile (typically gunshot wound) or with sharp object.

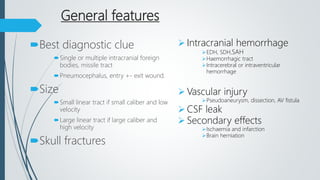

General features Best diagnostic clue Single or multiple intracranial foreign bodies, missile tract Pneumocephalus, entry +- exit wound. Size Small linear tract if small caliber and low velocity Large linear tract if large caliber and high velocity Skull fractures  Intracranial hemorrhage EDH, SDH,SAH Haemorrhagic tract Intracerebral or intraventricular hemorrhage  Vascular injury Pseudoaneurysm, dissection, AV fistula  CSF leak  Secondary effects Ischaemia and infarction Brain herniation

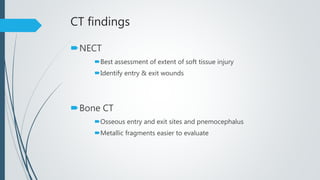

CT findings NECT Best assessment of extent of soft tissue injury Identify entry & exit wounds Bone CT Osseous entry and exit sites and pnemocephalus Metallic fragments easier to evaluate
Coup-Contrecoup Injury damage is located both at the site of impact and on the opposite side of the head

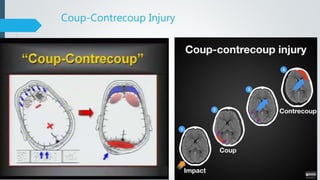

Coup-Contrecoup Injury
Subgaleal hematoma  Under aponeurosis (galea) of occipitofrontalis muscle.  External to periosteum  Not limited by sutures  Can be extensive, even life threatening

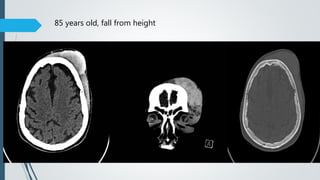

85 years old, fall from height

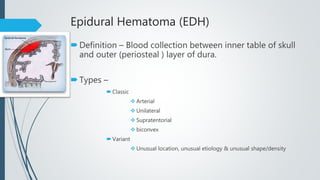

Epidural Hematoma (EDH) Definition – Blood collection between inner table of skull and outer (periosteal ) layer of dura. Types –  Classic  Arterial  Unilateral  Supratentorial  biconvex  Variant  Unusual location, unusual etiology & unusual shape/density

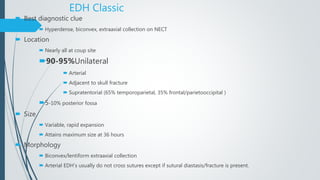

EDH Classic  Best diagnostic clue  Hyperdense, biconvex, extraaxial collection on NECT  Location  Nearly all at coup site 90-95%Unilateral  Arterial  Adjacent to skull fracture  Supratentorial (65% temporoparietal, 35% frontal/parietooccipital ) 5-10% posterior fossa  Size  Variable, rapid expansion  Attains maximum size at 36 hours  Morphology  Biconvex/lentiform extraaxial collection  Arterial EDH’s usually do not cross sutures except if sutural diastasis/fracture is present.
Etiology Most often near Middle Meningeal Artery groove Associated abnormalities Skull fracture in 95%, may cross MMA groove Presentation Classic lucid interval – 50% of cases Initial LOC – Subsequent asymptomatic time – Symptom or coma onset Headache, nausea, vomiting, seizures, focal neurological deficits

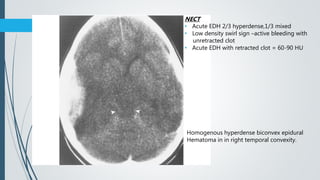

Homogenous hyperdense biconvex epidural Hematoma in in right temporal convexity. NECT • Acute EDH 2/3 hyperdense,1/3 mixed • Low density swirl sign –active bleeding with unretracted clot • Acute EDH with retracted clot = 60-90 HU

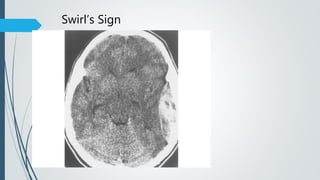

Swirl’s Sign
Figure - Delayed epidural hematoma. A, Acute subdural hematoma over the left parietal convexity. Note the small hemorrhagic contusion in the left parietal lobe. B, The patient has undergone craniectomy and drainage of the subdural hematoma. Note the new posterior parieto-occipital epidural hematoma. Posterior fossa EDH – delayed symptom onset, slow expansion, increased mortality

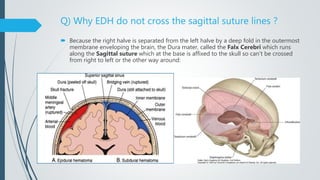

Q) Why EDH do not cross the sagittal suture lines ?  Because the right halve is separated from the left halve by a deep fold in the outermost membrane enveloping the brain, the Dura mater, called the Falx Cerebri which runs along the Sagittal suture which at the base is affixed to the skull so can't be crossed from right to left or the other way around:

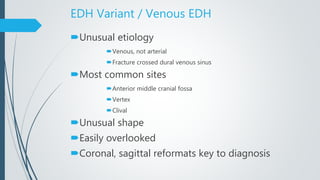

EDH Variant / Venous EDH Unusual etiology Venous, not arterial Fracture crossed dural venous sinus Most common sites Anterior middle cranial fossa Vertex Clival Unusual shape Easily overlooked Coronal, sagittal reformats key to diagnosis

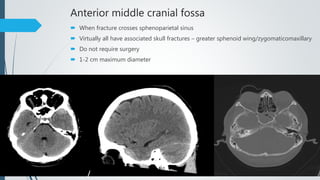

Anterior middle cranial fossa  When fracture crosses sphenoparietal sinus  Virtually all have associated skull fractures – greater sphenoid wing/zygomaticomaxillary  Do not require surgery  1-2 cm maximum diameter
Vertex EDH  Uncommon  Linear &/or diastatic fracture crosses superior sagittal sinus  Usually crosses midline

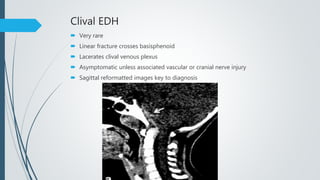

Clival EDH  Very rare  Linear fracture crosses basisphenoid  Lacerates clival venous plexus  Asymptomatic unless associated vascular or cranial nerve injury  Sagittal reformatted images key to diagnosis

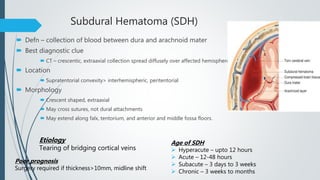

Subdural Hematoma (SDH)  Defn – collection of blood between dura and arachnoid mater  Best diagnostic clue  CT – crescentic, extraaxial collection spread diffusely over affected hemisphere  Location  Supratentorial convexity> interhemispheric, peritentorial  Morphology  Crescent shaped, extraaxial  May cross sutures, not dural attachments  May extend along falx, tentorium, and anterior and middle fossa floors. Etiology Tearing of bridging cortical veins Age of SDH  Hyperacute – upto 12 hours  Acute – 12-48 hours  Subacute – 3 days to 3 weeks  Chronic – 3 weeks to months Poor prognosis Surgery required if thickness>10mm, midline shift

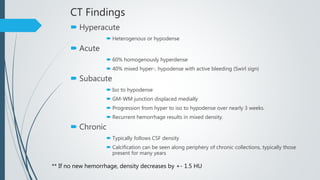

CT Findings  Hyperacute  Heterogenous or hypodense  Acute  60% homogenously hyperdense  40% mixed hyper-, hypodense with active bleeding (Swirl sign)  Subacute  Iso to hypodense  GM-WM junction displaced medially  Progression from hyper to iso to hypodense over nearly 3 weeks.  Recurrent hemorrhage results in mixed density.  Chronic  Typically follows CSF density  Calcification can be seen along periphery of chronic collections, typically those present for many years ** If no new hemorrhage, density decreases by +- 1.5 HU

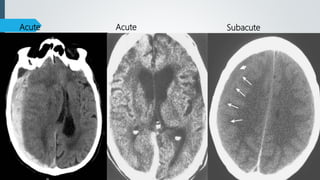

Acute SubacuteAcute

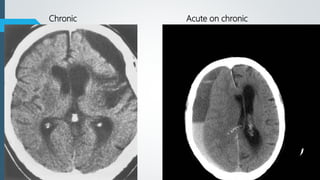

Chronic Acute on chronic

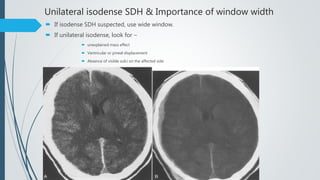

Unilateral isodense SDH & Importance of window width  If isodense SDH suspected, use wide window.  If unilateral isodense, look for –  unexplained mass effect  Ventricular or pineal displacement  Absence of visible sulci on the affected side

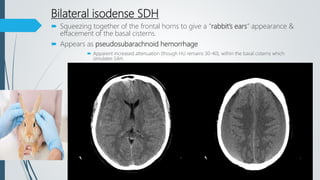

Bilateral isodense SDH  Squeezing together of the frontal horns to give a “rabbit’s ears” appearance & effacement of the basal cisterns.  Appears as pseudosubarachnoid hemorrhage  Apparent increased attenuation (though HU remains 30-40), within the basal cisterns which simulates SAH.

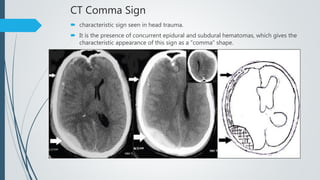

CT Comma Sign  characteristic sign seen in head trauma.  It is the presence of concurrent epidural and subdural hematomas, which gives the characteristic appearance of this sign as a "comma" shape.
Traumatic Subarachnoid Hemorrhage  Circle of Willis floats in CSF in Subarachnoid space

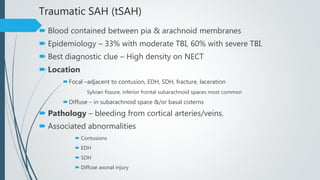

Traumatic SAH (tSAH)  Blood contained between pia & arachnoid membranes  Epidemiology – 33% with moderate TBI, 60% with severe TBI.  Best diagnostic clue – High density on NECT  Location Focal –adjacent to contusion, EDH, SDH, fracture, laceration Sylvian fissure, inferior frontal subarachnoid spaces most common Diffuse – in subarachnoid space &/or basal cisterns  Pathology – bleeding from cortical arteries/veins.  Associated abnormalities  Contusions  EDH  SDH  Diffuse axonal injury

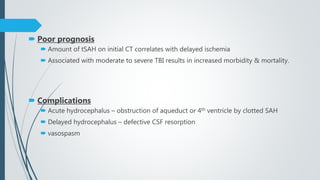

 Poor prognosis  Amount of tSAH on initial CT correlates with delayed ischemia  Associated with moderate to severe TBI results in increased morbidity & mortality.  Complications  Acute hydrocephalus – obstruction of aqueduct or 4th ventricle by clotted SAH  Delayed hydrocephalus – defective CSF resorption  vasospasm

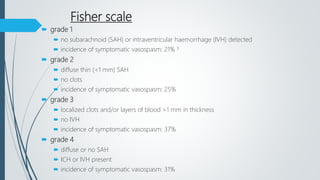

Fisher scale  grade 1  no subarachnoid (SAH) or intraventricular haemorrhage (IVH) detected  incidence of symptomatic vasospasm: 21% 3  grade 2  diffuse thin (<1 mm) SAH  no clots  incidence of symptomatic vasospasm: 25%  grade 3  localized clots and/or layers of blood >1 mm in thickness  no IVH  incidence of symptomatic vasospasm: 37%  grade 4  diffuse or no SAH  ICH or IVH present  incidence of symptomatic vasospasm: 31%

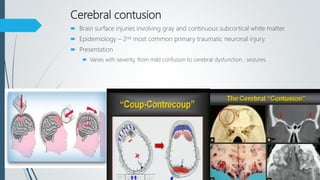

Cerebral contusion  Brain surface injuries involving gray and continuous subcortical white matter.  Epidemiology – 2nd most common primary traumatic neuronal injury.  Presentation  Varies with severity, from mild confusion to cerebral dysfunction , seizures.

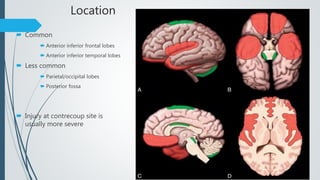

Location  Common  Anterior inferior frontal lobes  Anterior inferior temporal lobes  Less common  Parietal/occipital lobes  Posterior fossa  Injury at contrecoup site is usually more severe
Morphology Early Patchy ill-defined superficial foci of punctate or linear hemorrhage along gyral crests. 24-48 hours Existing lesions enlarge & become more hemorrhagic, new lesions may appear. Chronic Encephalomalacia with volume loss Multiple, bilateral lesions in 90% of cases.

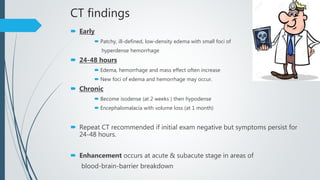

CT findings  Early  Patchy, ill-defined, low-density edema with small foci of hyperdense hemorrhage  24-48 hours  Edema, hemorrhage and mass effect often increase  New foci of edema and hemorrhage may occur.  Chronic  Become isodense (at 2 weeks ) then hypodense  Encephalomalacia with volume loss (at 1 month)  Repeat CT recommended if initial exam negative but symptoms persist for 24-48 hours.  Enhancement occurs at acute & subacute stage in areas of blood-brain-barrier breakdown

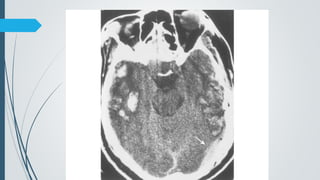

Hemorrhagic contusions with surrounding edema

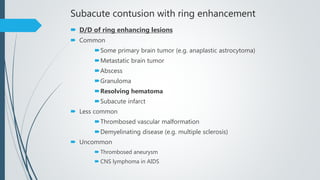

Subacute contusion with ring enhancement  D/D of ring enhancing lesions  Common Some primary brain tumor (e.g. anaplastic astrocytoma) Metastatic brain tumor Abscess Granuloma Resolving hematoma Subacute infarct  Less common Thrombosed vascular malformation Demyelinating disease (e.g. multiple sclerosis)  Uncommon  Thrombosed aneurysm  CNS lymphoma in AIDS

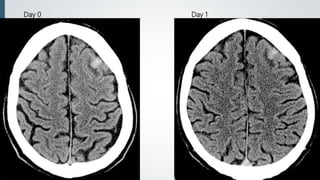

Day 0 Day 1

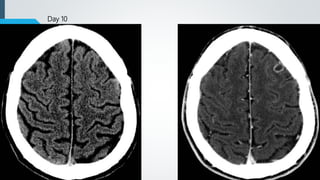

Day 10
Diffuse Axonal Injury (DAI)  Traumatic axonal stretch injury.  Most common primary traumatic neuronal injury  Etiology  caused by rotational forces that produce shear strain, resulting in tissue damage. Shear strain is maximum at the junction of tissues with different densities, such as the gray–white junction  Best diagnostic clue  Microbleeds  Punctate lesions at corticomedullary junction, corpus callosum, deep gray matter, brainstem.  Location  GM-WM interface specially frontotemporal lobes.  Corpus callosum (3/4 splenium, posterior body)  Brainstem, specially dorsolateral midbrain & upper pons  Deep GM, internal/external capsule, tegmentum, fornix, corona radiata, cerebellar peduncles.
Presentation  Transient LOC, retrograde amnesia  LOC at moment of impact  Immediate coma typical  Greater impairment than with cerebral contusions, intracerebral hematoma, extra axial hematomas  Symptoms are disproportionate to imaging findings.  Prognosis  Clinical abnormality may persist for months or longer – headache, memory and cognitive impairment, personality change.  Severe DAI rarely causes death – 90% may remain in persistent vegetative state  Brainstem damage associated with immediate or early death  Neurocognitive deficits may persist in 100% of severe, 67% of moderate and 10 % of mild TBI

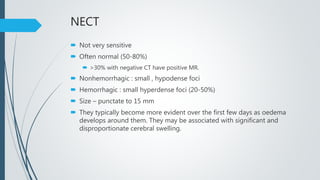

NECT  Not very sensitive  Often normal (50-80%)  >30% with negative CT have positive MR.  Nonhemorrhagic : small , hypodense foci  Hemorrhagic : small hyperdense foci (20-50%)  Size – punctate to 15 mm  They typically become more evident over the first few days as oedema develops around them. They may be associated with significant and disproportionate cerebral swelling.

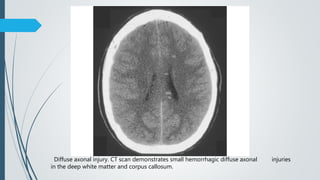

Diffuse axonal injury. CT scan demonstrates small hemorrhagic diffuse axonal injuries in the deep white matter and corpus callosum.

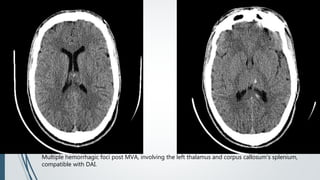

Multiple hemorrhagic foci post MVA, involving the left thalamus and corpus callosum's splenium, compatible with DAI.
Pneumocephalus Presence of air within skull Called pneumatocele if focal Location – Extracerebral : Epidural, subdural, subarachnoid Intracerebral : Brain parenchyma, cerebral ventricles Intravesicular : Arteries, veins, venous sinuses.

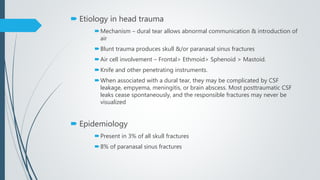

 Etiology in head trauma Mechanism – dural tear allows abnormal communication & introduction of air Blunt trauma produces skull &/or paranasal sinus fractures Air cell involvement – Frontal> Ethmoid> Sphenoid > Mastoid. Knife and other penetrating instruments. When associated with a dural tear, they may be complicated by CSF leakage, empyema, meningitis, or brain abscess. Most posttraumatic CSF leaks cease spontaneously, and the responsible fractures may never be visualized  Epidemiology Present in 3% of all skull fractures 8% of paranasal sinus fractures
NECT  Very low density (-1000 HU)  Epidural Do not move with change of head position  Subdural Often forms air-fluid levels Moves with change of head position.  Subarachnoid Multifocal, non-confluent Droplet-shaped, often within sulci  Intraventricular Rarely in isolation  Intravascular Most often venous, arterial rare usually fatal.

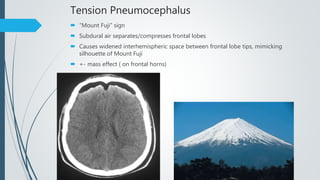

Tension Pneumocephalus  “Mount Fuji” sign  Subdural air separates/compresses frontal lobes  Causes widened interhemispheric space between frontal lobe tips, mimicking silhouette of Mount Fuji  +- mass effect ( on frontal horns)
Ct head

More Related Content

PDF
Neuro-imaging in Emergency Conditions
byRathachai Kaewlai

PPT
Head Trauma Ct Evaluation
bysalahrad

PDF
Traumatic Brain Injury Pearls and Pitfalls (2014)
byRathachai Kaewlai

PPT
Head ct scan general part one
byREKHAKHARE

PDF
Imaging of Head Trauma Part 2
byRathachai Kaewlai

PPTX
CT brain in emergencies ... for ER doctors
byMohamed Shaaban

PDF
Ep. 1 Head CT Scan - dr. Hana Larassati.pdf
byjunlianty

PPTX
Blood Can Be Very Very Bad - CMC Neuroimaging Case Studies
bySean M. Fox

Neuro-imaging in Emergency Conditions
byRathachai Kaewlai

Head Trauma Ct Evaluation
bysalahrad

Traumatic Brain Injury Pearls and Pitfalls (2014)
byRathachai Kaewlai

Head ct scan general part one
byREKHAKHARE

Imaging of Head Trauma Part 2
byRathachai Kaewlai

CT brain in emergencies ... for ER doctors
byMohamed Shaaban

Ep. 1 Head CT Scan - dr. Hana Larassati.pdf
byjunlianty

Blood Can Be Very Very Bad - CMC Neuroimaging Case Studies
bySean M. Fox


What's hot

PPTX
Imaging in SAH
bySarath Menon

PPT
CT Imaging of Cerebral Ischemia and Infarction
bySakher Alkhaderi

PPTX
Presentation2.pptx. posterior fossa tumour
byAbdellah Nazeer

PPT
Imaging in stroke
byDeepak Garg

PPTX
Basic approach to brain CT Dr. Muhammad Bin Zulfiqar
byDr. Muhammad Bin Zulfiqar

PPT
How to read a brain ct scan moderate
byGauhar Azeem

PPT
Diagnostic Imaging of Stroke
byMohamed M.A. Zaitoun

PPT
Imaging in head trauma
bySCGH ED CME

PPTX
Presentation1.pptx, radiological imaging of cerebello pontine angle mass lesi...
byAbdellah Nazeer

PPTX
Imaging in stroke
byikramdr01

PPT
Imaging In Trauma
byDr. Himadri Sikhor Das

PPTX
Ich imaging mbs kota
byNeurologyKota

PPTX
CT anatomy of Neck Spaces RV
byRoshan Valentine

PPT
A systematic approach to possible case of brain
byREKHAKHARE

PPTX
Imaging in stroke
byikramdr01

PPT
Diagnostic Neuroradiology
bySumit Prajapati

PPTX
Imaging in spinal dysraphism
byPooja Saji

PPTX
Ct skull base
byFaculty of Medicine Ain Shams University

PPTX
Ct of the larynx
byMuhammadSherwani

PPTX
Intracranial hemorrhage dr.manohar
byTeleradiology Solutions

Imaging in SAH
bySarath Menon

CT Imaging of Cerebral Ischemia and Infarction
bySakher Alkhaderi

Presentation2.pptx. posterior fossa tumour
byAbdellah Nazeer

Imaging in stroke
byDeepak Garg

Basic approach to brain CT Dr. Muhammad Bin Zulfiqar
byDr. Muhammad Bin Zulfiqar

How to read a brain ct scan moderate
byGauhar Azeem

Diagnostic Imaging of Stroke
byMohamed M.A. Zaitoun

Imaging in head trauma
bySCGH ED CME

Presentation1.pptx, radiological imaging of cerebello pontine angle mass lesi...
byAbdellah Nazeer

Imaging in stroke
byikramdr01

Imaging In Trauma
byDr. Himadri Sikhor Das

Ich imaging mbs kota
byNeurologyKota

CT anatomy of Neck Spaces RV
byRoshan Valentine

A systematic approach to possible case of brain
byREKHAKHARE

Imaging in stroke
byikramdr01

Diagnostic Neuroradiology
bySumit Prajapati

Imaging in spinal dysraphism
byPooja Saji

Ct skull base
byFaculty of Medicine Ain Shams University

Ct of the larynx
byMuhammadSherwani

Intracranial hemorrhage dr.manohar
byTeleradiology Solutions


Similar to Ct head

PPTX
Head trauma
byVrishit Saraswat

PPTX
Neuroimaging in Traumatic Brain Injury: Primary effects of CNS Trauma
byDr. Aryan (Anish Dhakal)

PPTX
Cns trauma
byNeeraj Patange

PPTX
Craniocerebral trauma 1
byDrLokesh Mahar

PPTX
headinjuries-160310203838.pptx
bysavitri49

PDF
CT Evaluation for Brain. Postgraduate Teaching Hospital
byMedicNerd

PPTX
Head injury
byasifnaveed1

PPTX
HEAD INJURY bestt.pptx
bySamuelAbebe11

PPTX
Head trauma
byIsa Basuki

PPTX
Head injuries
bySajal Twanabasu

PPTX
HEAD INJURY basic for MBBS STUDENTS .pptx
byVijay Kumar

PPTX
head injury.pptx
byGrkReddy2

PPTX
CT imaging in Head trauma checklist features
byccd96t8vvm

PPTX
ACUTE TRAUMATIC BRAIN INJURY - PRESENTATION AND MANAGEMENT
bydrsurjeetkm

PPTX
Head injury
byLaith Ali

PDF
HEAD INJURY BY. DR SHIVAM PANDEY.pdf
byDr shivam Pandey

PPT
Head injury (2)
byMeklelle university

PPTX
Head trauma and it's surgical managent in casualties
bymuminzubair78

PPTX
1) Neurosurgery / neuro/ brain tissues dissection
byayeshashabirfsd

PPT
Head injuries
byzafar.iqbal

Head trauma
byVrishit Saraswat

Neuroimaging in Traumatic Brain Injury: Primary effects of CNS Trauma
byDr. Aryan (Anish Dhakal)

Cns trauma
byNeeraj Patange

Craniocerebral trauma 1
byDrLokesh Mahar

headinjuries-160310203838.pptx
bysavitri49

CT Evaluation for Brain. Postgraduate Teaching Hospital
byMedicNerd

Head injury
byasifnaveed1

HEAD INJURY bestt.pptx
bySamuelAbebe11

Head trauma
byIsa Basuki

Head injuries
bySajal Twanabasu

HEAD INJURY basic for MBBS STUDENTS .pptx
byVijay Kumar

head injury.pptx
byGrkReddy2

CT imaging in Head trauma checklist features
byccd96t8vvm

ACUTE TRAUMATIC BRAIN INJURY - PRESENTATION AND MANAGEMENT
bydrsurjeetkm

Head injury
byLaith Ali

HEAD INJURY BY. DR SHIVAM PANDEY.pdf
byDr shivam Pandey

Head injury (2)
byMeklelle university

Head trauma and it's surgical managent in casualties
bymuminzubair78

1) Neurosurgery / neuro/ brain tissues dissection
byayeshashabirfsd

Head injuries
byzafar.iqbal


More from macshrestha

PPTX
Cerebral/Pial Arteriovenous Malformation (AVM)
bymacshrestha

PPTX
Hepatic peliosis
bymacshrestha

PPTX
Ankle joint pathology imaging
bymacshrestha

PPTX
Cns tuberculoma
bymacshrestha

PPTX
Benign bone tumors
bymacshrestha

PPTX
Dural venous sinus thrombosis for Radiology & Imaging
bymacshrestha

PPTX
Empyema necessitans
bymacshrestha

PPTX
Extraskeletal Mesenchymal Chondrosarcoma
bymacshrestha

PPTX
Brain abscess
bymacshrestha

PPTX
Choledochal cyst
bymacshrestha

PPTX
Pulmonary metastases
bymacshrestha

PPTX
Simple bone cyst
bymacshrestha

Cerebral/Pial Arteriovenous Malformation (AVM)
bymacshrestha

Hepatic peliosis
bymacshrestha

Ankle joint pathology imaging
bymacshrestha

Cns tuberculoma
bymacshrestha

Benign bone tumors
bymacshrestha

Dural venous sinus thrombosis for Radiology & Imaging
bymacshrestha

Empyema necessitans
bymacshrestha

Extraskeletal Mesenchymal Chondrosarcoma
bymacshrestha

Brain abscess
bymacshrestha

Choledochal cyst
bymacshrestha

Pulmonary metastases
bymacshrestha

Simple bone cyst
bymacshrestha


Recently uploaded

PDF
Safe and Comfortable Plagiocephaly Helmet Solutions| Plagiocephaly Helmet Tre...
byHope Abilitation Medical Center

PPTX
Sympathetic Nervous System in Pain Medicine | Anatomy, CRPS & Sympathetic Blo...
byDaradia: The Pain Clinic

PPTX
Pharmacokinetic Aspects of Drug Metabolism and Excretion”
byhsinchana866

PPTX
muscles of facial expressions and mastication.pptx
byClevin Aswani

PDF
The Doctor's Balance Sheet By Dr Kanhu Charan Patro
byKanhu Charan

PPTX
Template for presentation of patients at the MDT Meeting
byNasri937947

PDF
Artículo Biomol Interaction between ZMIZ2 and AR promotes prostate cancer pro...
bySebastianCastrillon10

PPTX
PERI-PROSTHETIC FRACTURE NAIL-PLATE CONSTRUCT [NPC].pptx
bydrashraf369

PPTX
Atrial Fibrillation and difference with Atrial flutter
byrashamarei

PPTX
History and Evolution of Microbiology.pptx
byVijayaRengan4

PPTX
THE STUDY OF MIND content intro and basics.pptx
byLakshmiPrasanthi11

PPTX
TOMOGRAPHY PRINCIPLE & EQUIPMENTS.pptx..
byMuntasir9

PPTX
ANTIMICROBIAL STEWARDSHIP PROGRAME Vijay.pptx
byVIJAYARengan1

PDF
Management of medication MOM PHARMACY Training NABH 6th Edition.pdf
byannapurnakaja1

PPTX
LOW DOSE RADIATHERAPY (LDRT) IN OSTEOARTHRITIS
byKanhu Charan

PPTX
Cardiovascular Disease ppt. S.Y D-Pharm.
byAkshata Jain

PPTX
ANATOMY AND PHYSIOLOGY OF THYROID GLAND / TRIANGLEs RELATED TO THYROID GLAND/...
byDr Sushil Gyawali

PPTX
Fresh Empanelment of Private Hospitals under CGHS 22 Dec 25 Presentation
bybillingkohakadehospi

PDF
Preparing Medicare Cost Reports Seems Easy Until It's Not
byNMP Professional Services, Inc

PPTX
Fracture, Cleavage , Lustre examples.pptx
byDr Aparna, GJPIASR Anand

Safe and Comfortable Plagiocephaly Helmet Solutions| Plagiocephaly Helmet Tre...
byHope Abilitation Medical Center

Sympathetic Nervous System in Pain Medicine | Anatomy, CRPS & Sympathetic Blo...
byDaradia: The Pain Clinic

Pharmacokinetic Aspects of Drug Metabolism and Excretion”
byhsinchana866

muscles of facial expressions and mastication.pptx
byClevin Aswani

The Doctor's Balance Sheet By Dr Kanhu Charan Patro
byKanhu Charan

Template for presentation of patients at the MDT Meeting
byNasri937947

Artículo Biomol Interaction between ZMIZ2 and AR promotes prostate cancer pro...
bySebastianCastrillon10

PERI-PROSTHETIC FRACTURE NAIL-PLATE CONSTRUCT [NPC].pptx
bydrashraf369

Atrial Fibrillation and difference with Atrial flutter
byrashamarei

History and Evolution of Microbiology.pptx
byVijayaRengan4

THE STUDY OF MIND content intro and basics.pptx
byLakshmiPrasanthi11

TOMOGRAPHY PRINCIPLE & EQUIPMENTS.pptx..
byMuntasir9

ANTIMICROBIAL STEWARDSHIP PROGRAME Vijay.pptx
byVIJAYARengan1

Management of medication MOM PHARMACY Training NABH 6th Edition.pdf
byannapurnakaja1

LOW DOSE RADIATHERAPY (LDRT) IN OSTEOARTHRITIS
byKanhu Charan

Cardiovascular Disease ppt. S.Y D-Pharm.
byAkshata Jain

ANATOMY AND PHYSIOLOGY OF THYROID GLAND / TRIANGLEs RELATED TO THYROID GLAND/...
byDr Sushil Gyawali

Fresh Empanelment of Private Hospitals under CGHS 22 Dec 25 Presentation
bybillingkohakadehospi

Preparing Medicare Cost Reports Seems Easy Until It's Not
byNMP Professional Services, Inc

Fracture, Cleavage , Lustre examples.pptx
byDr Aparna, GJPIASR Anand


Ct head

  • 1.
    CT Head inPrimary Effects of CNS Trauma Dr. Manmohan Shrestha
  • 2.
    Head Injury  Neurotraumais the common cause of death and disability worldwide.  Of all head injured patient- 10% sustain fatal brain injury. 5-10% neurotrauma survivors have permanent serious neurologic deficits 20-40% have moderate disability. A number have minimal brain trauma
  • 3.
    Etiology Falls Common in childrenand elderly Gunshot wounds Most common in adolescents and young adults Motor vehicle and auto-pedestrian collisions All ages
  • 4.
    Classification of HeadTrauma Using GCS Mild/Minor (GCS-13-15) Moderate (GCS 9-12) Severe (GCS <=8) Pathoetiologically Primary injuries – occur at the time of initial trauma. Secondary injuries – which occur later
  • 5.
    Primary injuries  Scalpand skull injuries  Missile and penetrating injuries  Epidural hematoma  Subdural hematoma  Traumatic subarachnoid hemorrhage  Cerebral contusion  Diffuse axonal injury  Pneumocephalus
  • 6.
    MDCT  Workhorse ofbrain trauma imaging  In head trauma, thin-sectioned NECT scans from the foramen magnum to the vertex with both soft tissue and bone algorithm should be obtained.  Coronal and sagittal reformatted images from the axial source data are extremely helpful.  The scout view should always be displayed and evaluated as part of study.
  • 7.
    Who and whento image?  Major and widely used appropriateness criteria for imaging acute head trauma have been published: I. The American College of Radiology appropriateness criteria II. New Orleans Criteria III. The Canadian Head CT Rule
  • 8.
    The American Collegeof Radiology appropriateness criteria  NECT in mild closed head injury with the presence of a focal neurologic deficit and/or other risk factors  All traumatized children under 2 years of age & patients over 60 years of age  Repeat CT of patients with head injury should be obtained if there is sudden clinical deterioration, regardless of initial imaging findings.
  • 9.
    New Orleans Criteriain Minor Head Injury  CT indicated if GCS =15 Plus any of the following- Headache Vomiting Patient>60 yrs. Intoxication (drugs, alcohol) Anterograde amnesia Seizure
  • 10.
    The Canadian HeadCT Rule in Mild Head Trauma  Inclusion criteria  Patient has suffered minor head trauma with resultant:  loss of consciousness  GCS 13-15  confusion  amnesia after the event  Exclusion criteria  anticoagulant medication or bleeding disorder  age <16 years  seizure
  • 11.
     High riskfactors  GCS <15 two hours post injury  suspected open skull fracture  sign of base of skull fracture  vomiting more than twice  age >65 years  Medium risk factors  amnesia post event >30 min  dangerous mechanism of injury pedestrian struck by motor vehicle occupant ejected from motor vehicle fall from >3 feet or 5 stairs Interpretation- • Risk factors – YES – CT Head required • Risk factors – NO – CT Head not required
  • 12.
    Skull fractures  Usuallyoccur following significant head injury and may herald underlying neurological pathology.  Objective – to depict the location & extent of fractures and identify associated injuries to vital structures.  Aids in surgical planning and in the prevention of complication such as CSF leak.
  • 13.
    Skull fractures  Skullbase fractures  Cranial vault fracture  Temporal bone fracture  Orbit fractures  Facial bone (Le fort) fractures  Zygomaticomaxillary fracture  Nasoorbitoethmoid fracture  Mandible fracture
  • 14.
    Presentation  head injuryfollowing impact trauma, e.g. fall, RTC  symptoms associated with underlying injury  Extradural hemorrhage  Subdural hemorrhage  Subarachnoid hemorrhage  there may be an associated base of skull injury  CSF rhinorrhea  Battle’s sign  Raccoon eyes
  • 15.
    Battle’s sign  alsocalled mastoid ecchymosis,  is an indication of fracture of middle cranial fossa of the skull  consists of bruising over the mastoid process, as a result of extravasation of blood along the path of the posterior auricular artery.
  • 16.
    Racoon eyes/Panda eyessign  Periorbital ecchymosis  Sign of  Basal skull fracture  Subgaleal hematoma  Craniotomy that ruptured the meninges
  • 17.
    Skull Base Fractures Anterior Frequently associated with sinonasal cavity &/or orbital injuries  Majority have facial fractures Middle  Look for the involvement of sphenoid bone, clivus, caverernous sinuses and carotid canal. Posterior  May be isolated or associated with transverse petrous fractures  May extend into the transverse or sigmoid sinuses, jugular foramen or hypoglossal canal. possibility of endangerment of nearby structures including:  Cranial nerves  Internal carotid artery  Cavernous sinus
  • 19.
    Facial bone (LeFort) fractures (Midface)  involve separation of all or a portion of the midface from the skull base  the pterygoid plates of the sphenoid bone need to be involved as these connect the midface to the sphenoid bone dorsally. 3types  Le Fort I  Horizontal fracture through the maxilla that involves the piriform aperture.  Le Fort II  Pyramidal fracture that involves the nasofrontal junction, infraorbital rims, medial orbital walls, orbital floors and the zygomaticomaxillary suture lines.  Le Fort III  Craniofacial separation  Consists of nasofrontal junction fractures that extend laterally through the orbital walls and zygomatic arches.
  • 20.
    Le Fort I– Floating palate Le Fort II – Floating maxilla Le Fort III – Floating face
  • 21.
  • 22.
  • 23.
    Skull fractures A. Linear– sharply marginated lucent lines, low impact injury B. Depressed – fragments imploded inwardly, High impact injury. C. Elevated – elevated rotated skull segment D. Basilar E. Diastatic  Usually affect children <3 yrs. old  Follows a cranial suture and causes it to separate  Usually accompanied by linear skull fracture F. “Growing skull fracture”  Difficult in acute stage  Progressively widening  Lucent lesion with rounded, scalloped margins  CSF and soft tissue trapped within expanding fracture.
  • 24.
  • 25.
  • 26.
    Ping pong/ Pondskull fracture  called a 'ping pong' fracture because it resembles a ping pong ball that has been indented inwards with a finger.  Depressed skull fracture of the infant skull caused by inner buckling of the calvarium.  Fracture line is not visualized radiologically.  It is seen in newborns because of the soft and resilient nature of their bones (like greenstick fracture of long bones)  Periosteum and dura are intact  Pathology – birth trauma or postnatal blunt traumas
  • 28.
  • 29.
    Growing skull fracture/Leptomeningealcyst Trauma 1 month ago. Recent right parietal progressive scalp swelling Difficult in acute stage Progressively widening Lucent lesion with rounded, scalloped margins CSF and soft tissue trapped within expanding fracture. occur secondary to skull fractures causing dural tears, allowing the leptomeninges and/or cerebral parenchyma to herniate into it. • Rt. parietal widened linear fracture. • Area of encephalomalacia under the fracture • Rt. parietal small subgaleal small cyst of CSF density.
  • 30.
    Temporal bone fractures Types (acc. to long. axis of petrous temporal bone)  Longitudinal  Transverse  Mixed  Complications  facial and other cranial nerve injuries  vertigo and hearing loss  cerebrospinal fluid (CSF) leak  CSF fistula  meningitis  post-traumatic cholesteatoma  Ossicular chain dislocation.
  • 31.
  • 32.
    Skull Fractures !! Whento worry ?? Overlies a dural venous sinus Overlies the middle meningeal artery Overlies “eloquent cortex” ( Sensory-Motor cortex) Depressed > “table-width” Open/compound Traverses Internal carotid artery canal Temporal bone fractures.
  • 33.

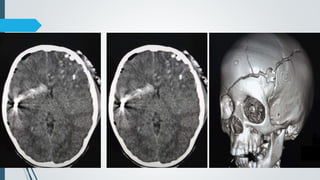

    Missile and penetratinginjury  Cranial trauma from high-velocity projectile (typically gunshot wound) or with sharp object.
  • 34.
    General features Best diagnosticclue Single or multiple intracranial foreign bodies, missile tract Pneumocephalus, entry +- exit wound. Size Small linear tract if small caliber and low velocity Large linear tract if large caliber and high velocity Skull fractures  Intracranial hemorrhage EDH, SDH,SAH Haemorrhagic tract Intracerebral or intraventricular hemorrhage  Vascular injury Pseudoaneurysm, dissection, AV fistula  CSF leak  Secondary effects Ischaemia and infarction Brain herniation
  • 35.
    CT findings NECT Best assessmentof extent of soft tissue injury Identify entry & exit wounds Bone CT Osseous entry and exit sites and pnemocephalus Metallic fragments easier to evaluate
  • 37.
    Coup-Contrecoup Injury damage islocated both at the site of impact and on the opposite side of the head
  • 38.
  • 39.
    Subgaleal hematoma  Underaponeurosis (galea) of occipitofrontalis muscle.  External to periosteum  Not limited by sutures  Can be extensive, even life threatening
  • 40.
    85 years old,fall from height
  • 41.
    Epidural Hematoma (EDH) Definition– Blood collection between inner table of skull and outer (periosteal ) layer of dura. Types –  Classic  Arterial  Unilateral  Supratentorial  biconvex  Variant  Unusual location, unusual etiology & unusual shape/density
  • 42.
    EDH Classic  Bestdiagnostic clue  Hyperdense, biconvex, extraaxial collection on NECT  Location  Nearly all at coup site 90-95%Unilateral  Arterial  Adjacent to skull fracture  Supratentorial (65% temporoparietal, 35% frontal/parietooccipital ) 5-10% posterior fossa  Size  Variable, rapid expansion  Attains maximum size at 36 hours  Morphology  Biconvex/lentiform extraaxial collection  Arterial EDH’s usually do not cross sutures except if sutural diastasis/fracture is present.
  • 43.
    Etiology Most often nearMiddle Meningeal Artery groove Associated abnormalities Skull fracture in 95%, may cross MMA groove Presentation Classic lucid interval – 50% of cases Initial LOC – Subsequent asymptomatic time – Symptom or coma onset Headache, nausea, vomiting, seizures, focal neurological deficits
  • 44.
    Homogenous hyperdense biconvexepidural Hematoma in in right temporal convexity. NECT • Acute EDH 2/3 hyperdense,1/3 mixed • Low density swirl sign –active bleeding with unretracted clot • Acute EDH with retracted clot = 60-90 HU
  • 45.
  • 46.
    Figure - Delayedepidural hematoma. A, Acute subdural hematoma over the left parietal convexity. Note the small hemorrhagic contusion in the left parietal lobe. B, The patient has undergone craniectomy and drainage of the subdural hematoma. Note the new posterior parieto-occipital epidural hematoma. Posterior fossa EDH – delayed symptom onset, slow expansion, increased mortality
  • 47.
    Q) Why EDHdo not cross the sagittal suture lines ?  Because the right halve is separated from the left halve by a deep fold in the outermost membrane enveloping the brain, the Dura mater, called the Falx Cerebri which runs along the Sagittal suture which at the base is affixed to the skull so can't be crossed from right to left or the other way around:
  • 48.
    EDH Variant /Venous EDH Unusual etiology Venous, not arterial Fracture crossed dural venous sinus Most common sites Anterior middle cranial fossa Vertex Clival Unusual shape Easily overlooked Coronal, sagittal reformats key to diagnosis
  • 49.
    Anterior middle cranialfossa  When fracture crosses sphenoparietal sinus  Virtually all have associated skull fractures – greater sphenoid wing/zygomaticomaxillary  Do not require surgery  1-2 cm maximum diameter
  • 50.
    Vertex EDH  Uncommon Linear &/or diastatic fracture crosses superior sagittal sinus  Usually crosses midline
  • 51.
    Clival EDH  Veryrare  Linear fracture crosses basisphenoid  Lacerates clival venous plexus  Asymptomatic unless associated vascular or cranial nerve injury  Sagittal reformatted images key to diagnosis
  • 52.
    Subdural Hematoma (SDH) Defn – collection of blood between dura and arachnoid mater  Best diagnostic clue  CT – crescentic, extraaxial collection spread diffusely over affected hemisphere  Location  Supratentorial convexity> interhemispheric, peritentorial  Morphology  Crescent shaped, extraaxial  May cross sutures, not dural attachments  May extend along falx, tentorium, and anterior and middle fossa floors. Etiology Tearing of bridging cortical veins Age of SDH  Hyperacute – upto 12 hours  Acute – 12-48 hours  Subacute – 3 days to 3 weeks  Chronic – 3 weeks to months Poor prognosis Surgery required if thickness>10mm, midline shift
  • 53.
    CT Findings  Hyperacute Heterogenous or hypodense  Acute  60% homogenously hyperdense  40% mixed hyper-, hypodense with active bleeding (Swirl sign)  Subacute  Iso to hypodense  GM-WM junction displaced medially  Progression from hyper to iso to hypodense over nearly 3 weeks.  Recurrent hemorrhage results in mixed density.  Chronic  Typically follows CSF density  Calcification can be seen along periphery of chronic collections, typically those present for many years ** If no new hemorrhage, density decreases by +- 1.5 HU
  • 54.
  • 55.
  • 56.
    Unilateral isodense SDH& Importance of window width  If isodense SDH suspected, use wide window.  If unilateral isodense, look for –  unexplained mass effect  Ventricular or pineal displacement  Absence of visible sulci on the affected side
  • 57.
    Bilateral isodense SDH Squeezing together of the frontal horns to give a “rabbit’s ears” appearance & effacement of the basal cisterns.  Appears as pseudosubarachnoid hemorrhage  Apparent increased attenuation (though HU remains 30-40), within the basal cisterns which simulates SAH.
  • 58.
    CT Comma Sign characteristic sign seen in head trauma.  It is the presence of concurrent epidural and subdural hematomas, which gives the characteristic appearance of this sign as a "comma" shape.
  • 59.
    Traumatic Subarachnoid Hemorrhage Circle of Willis floats in CSF in Subarachnoid space
  • 60.
    Traumatic SAH (tSAH) Blood contained between pia & arachnoid membranes  Epidemiology – 33% with moderate TBI, 60% with severe TBI.  Best diagnostic clue – High density on NECT  Location Focal –adjacent to contusion, EDH, SDH, fracture, laceration Sylvian fissure, inferior frontal subarachnoid spaces most common Diffuse – in subarachnoid space &/or basal cisterns  Pathology – bleeding from cortical arteries/veins.  Associated abnormalities  Contusions  EDH  SDH  Diffuse axonal injury
  • 61.
     Poor prognosis Amount of tSAH on initial CT correlates with delayed ischemia  Associated with moderate to severe TBI results in increased morbidity & mortality.  Complications  Acute hydrocephalus – obstruction of aqueduct or 4th ventricle by clotted SAH  Delayed hydrocephalus – defective CSF resorption  vasospasm
  • 62.
    Fisher scale  grade1  no subarachnoid (SAH) or intraventricular haemorrhage (IVH) detected  incidence of symptomatic vasospasm: 21% 3  grade 2  diffuse thin (<1 mm) SAH  no clots  incidence of symptomatic vasospasm: 25%  grade 3  localized clots and/or layers of blood >1 mm in thickness  no IVH  incidence of symptomatic vasospasm: 37%  grade 4  diffuse or no SAH  ICH or IVH present  incidence of symptomatic vasospasm: 31%
  • 65.
    Cerebral contusion  Brainsurface injuries involving gray and continuous subcortical white matter.  Epidemiology – 2nd most common primary traumatic neuronal injury.  Presentation  Varies with severity, from mild confusion to cerebral dysfunction , seizures.
  • 66.
    Location  Common  Anteriorinferior frontal lobes  Anterior inferior temporal lobes  Less common  Parietal/occipital lobes  Posterior fossa  Injury at contrecoup site is usually more severe
  • 67.
    Morphology Early Patchy ill-defined superficialfoci of punctate or linear hemorrhage along gyral crests. 24-48 hours Existing lesions enlarge & become more hemorrhagic, new lesions may appear. Chronic Encephalomalacia with volume loss Multiple, bilateral lesions in 90% of cases.
  • 68.
    CT findings  Early Patchy, ill-defined, low-density edema with small foci of hyperdense hemorrhage  24-48 hours  Edema, hemorrhage and mass effect often increase  New foci of edema and hemorrhage may occur.  Chronic  Become isodense (at 2 weeks ) then hypodense  Encephalomalacia with volume loss (at 1 month)  Repeat CT recommended if initial exam negative but symptoms persist for 24-48 hours.  Enhancement occurs at acute & subacute stage in areas of blood-brain-barrier breakdown
  • 69.
    Hemorrhagic contusions withsurrounding edema
  • 71.
    Subacute contusion withring enhancement  D/D of ring enhancing lesions  Common Some primary brain tumor (e.g. anaplastic astrocytoma) Metastatic brain tumor Abscess Granuloma Resolving hematoma Subacute infarct  Less common Thrombosed vascular malformation Demyelinating disease (e.g. multiple sclerosis)  Uncommon  Thrombosed aneurysm  CNS lymphoma in AIDS
  • 72.
  • 73.
  • 74.
    Diffuse Axonal Injury(DAI)  Traumatic axonal stretch injury.  Most common primary traumatic neuronal injury  Etiology  caused by rotational forces that produce shear strain, resulting in tissue damage. Shear strain is maximum at the junction of tissues with different densities, such as the gray–white junction  Best diagnostic clue  Microbleeds  Punctate lesions at corticomedullary junction, corpus callosum, deep gray matter, brainstem.  Location  GM-WM interface specially frontotemporal lobes.  Corpus callosum (3/4 splenium, posterior body)  Brainstem, specially dorsolateral midbrain & upper pons  Deep GM, internal/external capsule, tegmentum, fornix, corona radiata, cerebellar peduncles.
  • 75.
    Presentation  Transient LOC,retrograde amnesia  LOC at moment of impact  Immediate coma typical  Greater impairment than with cerebral contusions, intracerebral hematoma, extra axial hematomas  Symptoms are disproportionate to imaging findings.  Prognosis  Clinical abnormality may persist for months or longer – headache, memory and cognitive impairment, personality change.  Severe DAI rarely causes death – 90% may remain in persistent vegetative state  Brainstem damage associated with immediate or early death  Neurocognitive deficits may persist in 100% of severe, 67% of moderate and 10 % of mild TBI
  • 76.
    NECT  Not verysensitive  Often normal (50-80%)  >30% with negative CT have positive MR.  Nonhemorrhagic : small , hypodense foci  Hemorrhagic : small hyperdense foci (20-50%)  Size – punctate to 15 mm  They typically become more evident over the first few days as oedema develops around them. They may be associated with significant and disproportionate cerebral swelling.
  • 77.
    Diffuse axonal injury.CT scan demonstrates small hemorrhagic diffuse axonal injuries in the deep white matter and corpus callosum.
  • 78.
    Multiple hemorrhagic focipost MVA, involving the left thalamus and corpus callosum's splenium, compatible with DAI.
  • 79.
    Pneumocephalus Presence of airwithin skull Called pneumatocele if focal Location – Extracerebral : Epidural, subdural, subarachnoid Intracerebral : Brain parenchyma, cerebral ventricles Intravesicular : Arteries, veins, venous sinuses.
  • 80.
     Etiology inhead trauma Mechanism – dural tear allows abnormal communication & introduction of air Blunt trauma produces skull &/or paranasal sinus fractures Air cell involvement – Frontal> Ethmoid> Sphenoid > Mastoid. Knife and other penetrating instruments. When associated with a dural tear, they may be complicated by CSF leakage, empyema, meningitis, or brain abscess. Most posttraumatic CSF leaks cease spontaneously, and the responsible fractures may never be visualized  Epidemiology Present in 3% of all skull fractures 8% of paranasal sinus fractures
  • 81.
    NECT  Very lowdensity (-1000 HU)  Epidural Do not move with change of head position  Subdural Often forms air-fluid levels Moves with change of head position.  Subarachnoid Multifocal, non-confluent Droplet-shaped, often within sulci  Intraventricular Rarely in isolation  Intravascular Most often venous, arterial rare usually fatal.
  • 83.
    Tension Pneumocephalus  “MountFuji” sign  Subdural air separates/compresses frontal lobes  Causes widened interhemispheric space between frontal lobe tips, mimicking silhouette of Mount Fuji  +- mass effect ( on frontal horns)

Editor's Notes
