2. Content
1. Flow diagram
2. What is frequency modulation?
3. Frequency modulation index
4. Significant-sidebands Spectrum
5. Types of FM
6. Generation of FM using PM
7. Advantages and disadvantages
8. Comparison with FM and PM
9. Applications
3. Modulation
Pulse Wave
Modulation
Amplitude
Modulation
Continuous Wave
Modulation
Linear Modulation
Non-Linear
Modulation
Frequency
Modulation
Phase Modulation
4. What is frequency modulation?
When the frequency of carrier wave is changed in
accordance with the message signal, The process is called
frequency modulation.
In FM the carrier amplitude remain constant the carrier
frequency varies
It is a type of Angle modulation
Why Frequency modulation is called nonlinear-modulation?
5.
6. FM modulation index
• FM modulation index is equal to the ratio of the
frequency deviation to the modulating frequency.
• Thus the formula for the modulation index for FM
is simply given by that shown below:
Frequency Deviation
Modulating Frequency
And also,
7. Significant Sidebands – Spectrum
• The table below shows the number of significant
sidebands for various modulation
No of sidebands 1% of
unmodulated carrier
Bandwidth
0.1 2 2fm
0.3 4 4fm
0.5 4 4fm
1.0 6 6fm
2.0 8 8fm
5.0 16 16fm
10.0 28 28fm
Example:
For = 5,
16 sidebands
(8 pairs).
8. Types of FM
Narrow band FM
1. Narrow band FM is defined as the situation where the
modulation index is small.
2. From the table of Bessel functions it may be seen that for
small , ( 0.3) there is only the carrier and significant
sidebands, i.e. BW = 2fm.
FM with 0.3 is referred to as narrowband FM (NBFM).
3. Maximum modulating frequency is usually 3kHz
4. maximum frequency deviation is =75 kHz.
9. Types of FM
Wide band FM
1. Wideband FM is defined as the situation where the
modulation index is larger.
2. For > 0.3 there are more than 2 significant sidebands. As
increases the number of sidebands increases. This is referred
to as wideband FM (WBFM).
3. Modulation frequencies extend from 30 Hz to 15 kHz.
4. Maximum permissible deviation is=75 kHz.
5. Wideband FM system need large bandwidth, typically 15 times
that of narrowband FM system.
10. Generation of FM using PM
Modulating Wave x(t) FM Wave
Integrator
Phase
Modulator
Carrier
Oscillator
dtt x ) (
Eccos(2fct)
11. Advantages
1. Amplitude of the frequency modulated wave remains
unaffected.
2. Large decrease in noise, hence increase in S/N ratio.
3. Noise may reduce by increasing deviation.
4. Frequency allocation allows for a guard band which
reduces adjacent channel interference.
5. Operate In Very high frequency (VHF).

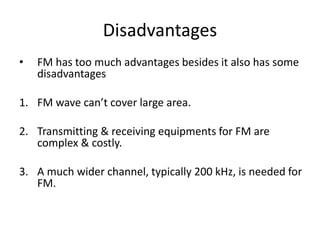

12. Disadvantages
• FM has too much advantages besides it also has some
disadvantages
1. FM wave can’t cover large area.
2. Transmitting & receiving equipments for FM are
complex & costly.
3. A much wider channel, typically 200 kHz, is needed for
FM.
13. Comparison of FM with PM
Sr.
No.
FM PM
1 Frequency deviation is proportional to
modulating voltage
Phase deviation is proportional
to the modulating voltage
2 Noise immunity is better than AM and PM Noise immunity is better than
AM but worse than FM
3 SNR is better than PM SNR is worse than FM
4 FM is widely used for radio broadcasting PM is only used in some mobile
systems
5 It is possible to receive FM on PM receive It is possible to receive PM on
FM receive
6 Modulation index is proportional to
modulating voltage as well as the modulating
frequency .
Modulation index is
proportional to modulating
voltage

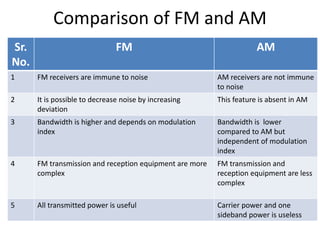

14. Comparison of FM and AM
Sr.
No.
FM AM
1 FM receivers are immune to noise AM receivers are not immune
to noise
2 It is possible to decrease noise by increasing
deviation
This feature is absent in AM
3 Bandwidth is higher and depends on modulation
index
Bandwidth is lower
compared to AM but
independent of modulation
index
4 FM transmission and reception equipment are more
complex
FM transmission and
reception equipment are less
complex
5 All transmitted power is useful Carrier power and one
sideband power is useless
15. FM Radio
FM radio uses a modulation index, m > 1, and this is called wideband FM. As its name
suggests the bandwidth is much larger than AM.
In national radio broadcasts using FM, the frequency deviation of the carrier fc , is
chosen to be 75kHz, and the information baseband is the high fidelity range 20Hz to
15kHz.
BW of FM radio=2(75k+15k)
=180khz
Applications:

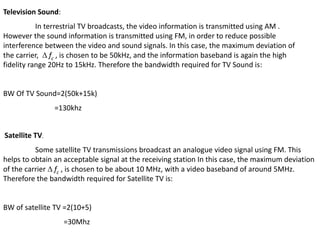

16. Television Sound:
In terrestrial TV broadcasts, the video information is transmitted using AM .
However the sound information is transmitted using FM, in order to reduce possible
interference between the video and sound signals. In this case, the maximum deviation of
the carrier, fc , is chosen to be 50kHz, and the information baseband is again the high
fidelity range 20Hz to 15kHz. Therefore the bandwidth required for TV Sound is:
BW Of TV Sound=2(50k+15k)
=130khz
Satellite TV.
Some satellite TV transmissions broadcast an analogue video signal using FM. This
helps to obtain an acceptable signal at the receiving station In this case, the maximum deviation
of the carrier fc , is chosen to be about 10 MHz, with a video baseband of around 5MHz.
Therefore the bandwidth required for Satellite TV is:
BW of satellite TV =2(10+5)
=30Mhz
17. References
• http://www.silabs.com/Marcom%20Documents/Resources/FMTutorial.pdf
• http://en.wikibooks.org/wiki/Communication_Systems/Frequency_Modulati
on
• http://www.radio-electronics.com/info/rf-technology-design/fm-frequency-modulation/
spectrum-bandwidth-sidebands.php
• http://searchnetworking.techtarget.com/definition/frequency-modulation
• https://www.youtube.com/watch?v=SmW4z76KgNQ
• https://www.standrews.ac.uk/~www_pa/Scots_Guide/RadCom/part12/page
1.html
• Analog and digital communication system by Sanjay Sharma.
• Modern digital and analog communication systems by B.P. Lathi
Editor's Notes
Because frequency will be changed according to the baseband signal
Because FM receiver may be filtered with amplitude limiters to remove the amplitude variation caused by noise this makes FM reception a good deal to immune noise.
In AM this feature is absent
98.3 channel’s some interference will be get in both adjacent channels compare with FM in AM it will be very high
88Mhz to 108Mhz
Delta f=k e & delta f= k e
Refer advantages
Refer advantages
Application
Vice-versa
M=k e /f & M=k e
