AAS can be used to determine over 70 different elements in solution, or directly in solid samples via electro thermal vaporization.
Atomic Absorption Spectroscopy is a very common technique for detecting metals and metalloids in samples.
It is very reliable and simple to use.
It also measures the concentration of metals in the sample.
Atomic Absorption Spectroscopy is an analytical technique that measures the concentration of an element by measuring the amount of light that is absorbed at a characteristic wavelength when it passes through cloud of atoms
As the number of atoms in the light path increases, the amount of light absorbed increases.
Applications: Presence of metals as an impurity or in alloys can be perform.
Level of metals could be detected in tissue samples like Aluminum in blood and Copper in brain tissues.
Due to wear and tear there are different sorts of metals which are given in the lubrication oils which could be determined for the analysis of conditions of machines.
Determination of elements in the agricultural samples.
Water sample analysis (e.g. Ca, Mg, Fe, Si, Al, Ba content).
Food sample analysis.
Analysis of animal feedstuffs (e.g. Mn, Fe, Cu, Cr, Se, Zn).
Analysis of additives in lubricating oils and greases (Ba, Ca, Na, Li, Zn, Mg). analysis of soils.
Clinical sample analysis (blood samples: whole blood, plasma, serum; Ca, Mg, Li, Na, K, Fe).
Analysis of Environmental samples such as- drinking water, ocean water, soil.
Pharmaceutical sample Analysis: Estimation of zinc in insulin preparation, calcium in calcium salt is done by using AAS. Principle: The sample, in solution, is aspirated as a spray into a chamber, where it is mixed with air and fuel.

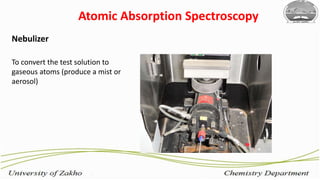

This mixture passes through baffles, here large drops fall and are drained off. Only fine droplets reach the flame.

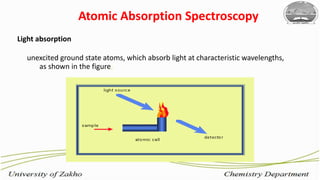

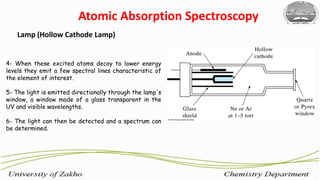

Light from the hollow-cathode lamp passes through the sample of ground-state atoms in the flame.
The amount of light absorbed is proportional to the concentration.
The element being determined must be reduced to the elemental state, vaporized, and imposed in the beam of the radiation in the source.
When a ground-state atom absorbs light energy, an excited atom is produced.
The excited atom then returns to the ground state, emitting light of the same energy as it absorbed.
The flame sample thus contains a dynamic population of ground-state and excited atoms, both absorbing and emitting radiant energy. The emitted energy from the flame will go in all directions, and it will be a steady emission.
Because the purpose of the instrument is to measure the amount of light absorbed, the light detector must be able to distinguish between the light beam emitted by the hollow cathode lamp and that emitted by excited atoms in the flame.
Atomic Absorption Spectrophotometry - AAS
It relate with the spectrophotometry. The components and the uses of each of them are detailed. The ultimate goal of using this spectrometry and the uses of them also explained well.
Atomic absorption spectroscopy lec
Atomic absorption spectroscopy is a technique used to detect metals and some non-metals in samples. It works by vaporizing the sample in a flame or graphite furnace and measuring the absorption of light at specific wavelengths that are characteristic of different elements. The amount of light absorbed can then be used to determine the concentration of those elements in the original sample. It is a common, reliable, and simple method that can analyze over 60 different elements at very low concentrations.
AAS.ppt
This document discusses atomic spectroscopy techniques for metal analysis. It introduces principles of atomic spectroscopy including absorption, emission, and fluorescence. Instrumentation for atomic absorption spectroscopy, inductively coupled plasma atomic emission spectroscopy, and x-ray fluorescence spectroscopy are described. Factors for selecting the proper atomic spectroscopy technique for a given application are also covered.
Atomic absorption-spectrometry
Atomic absorption spectrometry is an analytical technique that measures the concentration of elements in a sample by converting them to gaseous atoms and measuring how much light of a specific wavelength they absorb. It works by vaporizing the sample using a flame or heating and passing light from a hollow cathode lamp of the element through it. The amount of light absorbed is proportional to the concentration of the element and is measured using a detector. It has various applications in fields like clinical analysis, environmental monitoring, pharmaceuticals, mining and more. The document provides details on how atomic absorption spectrometry works and the components involved like the light source, atomization methods, and calibration.
Atomic absorption-spectrometry
Atomic absorption spectrometry is an analytical technique that measures the concentration of elements in a sample by converting them into gaseous atoms and measuring how much light of a specific wavelength they absorb. It can detect down to parts per billion and is used in clinical, environmental, pharmaceutical, industrial, and mining applications. The technique works by vaporizing the sample using a flame or heating and passing light from a hollow cathode lamp of the element through the vapor, then measuring the absorption with a detector. It provides a sensitive and specific way to determine concentrations of metals and other elements in various materials.
APA seminar
Atomic absorption spectroscopy is a quantitative analytical technique used to determine the concentration of metallic elements in a sample. It works by measuring the absorption of light passing through atoms of the element of interest that have been atomized in a flame. The amount of light absorbed is directly proportional to the number of ground state atoms present, which allows the technique to be used for quantitative analysis. The instrument consists of a hollow cathode lamp, burner, monochromator, and photomultiplier tube to measure absorption. Applications include determining trace elements in biological samples and quantifying metals in foods, soils, and industrial samples.
AAS.pptx
Atomic absorption spectroscopy (AAS) is a technique used to determine the concentration of metal elements in samples. It works by vaporizing the sample in a flame and measuring the absorption of light from a lamp at specific wavelengths corresponding to elements. The instrument is calibrated using standards of known concentration to create a calibration curve relating absorption to concentration. Absorption measurements of samples can then be used to determine unknown concentrations by reference to the calibration curve.
Presentation biological techinque copy
Atomic absorption spectroscopy is a common technique for detecting metals and metalloids in samples. It works by measuring the absorption of light by free metallic ions in a flame. The instrument uses a hollow cathode lamp to produce light of a specific wavelength, and a burner to atomize the liquid sample and produce free atoms. It can be used to quantitatively analyze over 62 elements in various materials like water, soil, biological samples, and ceramics. Some key applications include analyzing heavy metals in blood and urine, determining nutrient levels in foods, and measuring metal concentrations in groundwater.
AAS interference.pptx
introduction
Interference is a phenomena
that leads to changes (either positive or negative) in intensity of the analyte signal in spectroscopy.
Interferences in atomic absorption spectroscopy fall into two basic categories, namely, non-spectral and spectral.
1. spectral 2. Non Spectral ( Matrix interference, chemical interference, ionization interference)
PRINCIPLE - atomic absorpion spectroscopy
Atoms of the analyte have a fixed number of electrons.
If the light of a specific wavelength is passed through a flame containing that atom, electrons present in different energy levels, known as orbitals, absorb a certain wavelength and excite to higher energy levels.
The extent of absorption ά the number of ground-state atoms in the flame.
Only for information- The ground state is more stable than the excited state. The electrons spontaneously return back to the ground state. It emits the same amount of radiant energy. This process is called fluorescence. Fluorescence is used in atomic emission spectroscopy.
Brief note on - Instrumentation
The basic components of atomic absorption are:
Light source
Chopper
Atomizer
Burners
flames
Monochromators
Detectors
Amplifier
Readout devices
WORKING PROCESS
Calibration
Quantitative analysis in AAS
Safety measures
Important questions and answer
Atomic absorption
Atomic absorption spectroscopy is an analytical technique used to determine the concentration of metal elements in solutions. It works by vaporizing the sample into atoms and measuring how much light of a specific wavelength is absorbed. The technique was largely developed in the 1950s and can analyze over 70 metal elements. It uses a light source, atomizer like a flame or graphite furnace to vaporize samples, monochromator, and detector. Flame atomic absorption is common but graphite furnace offers greater sensitivity for smaller sample sizes.
Atomic absorption spectroscopy
Atomic absorption spectroscopy is an analytical technique that measures the concentration of elements in samples. It works by vaporizing the sample into free atoms and passing light from a hollow cathode lamp of the target element through the vapor. The amount of light absorbed is proportional to the concentration of the element. The technique has various applications in fields like clinical analysis, environmental monitoring, and mining. It involves preparing samples, calibrating the instrument using standards, and accounting for potential interferences from other elements or molecules.
Atomic absorption spectroscopy
Atomic absorption spectrometry analyzes samples by breaking them down into atoms and measuring the absorption of light of a specific wavelength by those atoms. It works by vaporizing a sample in a flame and passing light from a hollow cathode lamp of the element being analyzed through the flame. The extent to which light is absorbed is proportional to the number of ground state atoms present and can be used to determine the elemental composition of a sample. Key components of an AAS instrument include the hollow cathode lamp light source, the flame atomizer and fuel system to vaporize samples, a monochromator to select the wavelength of light, and a photomultiplier detector to measure light absorption.
Instru booklet
Atomic absorption spectroscopy is an analytical technique that measures the concentration of metals and metalloids in samples. It works by heating the sample to atomize it and measuring the absorption of light from a hollow cathode lamp of the element of interest. The amount of absorption is proportional to the concentration of the element. The technique has high sensitivity and specificity. It is used in applications like clinical analysis, environmental monitoring, pharmaceutical analysis, and industrial quality control. Potential interferences include chemical bonding and ionization of elements.
Similar to Flame Atomic Absorption Spectroscopy (20)
Atomic absorption & flame emission spectrophotometry by Dr. Anurag Yadav
Atomic absorption & flame emission spectrophotometry by Dr. Anurag Yadav
Recently uploaded
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills of Minnesota developed a method to convert waste into high-value dry fertilizer, significantly enriching soil quality. By providing farmers with a valuable resource derived from waste, Travis Hills helps enhance farm profitability while promoting environmental stewardship. Travis Hills' sustainable practices lead to cost savings and increased revenue for farmers by improving resource efficiency and reducing waste.
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
The technology uses reclaimed CO₂ as the dyeing medium in a closed loop process. When pressurized, CO₂ becomes supercritical (SC-CO₂). In this state CO₂ has a very high solvent power, allowing the dye to dissolve easily.
在线办理(salfor毕业证书)索尔福德大学毕业证毕业完成信一模一样
学校原件一模一样【微信：741003700 】《(salfor毕业证书)索尔福德大学毕业证》【微信：741003700 】学位证，留信认证（真实可查，永久存档）原件一模一样纸张工艺/offer、雅思、外壳等材料/诚信可靠,可直接看成品样本，帮您解决无法毕业带来的各种难题！外壳，原版制作，诚信可靠，可直接看成品样本。行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备。十五年致力于帮助留学生解决难题，包您满意。
本公司拥有海外各大学样板无数，能完美还原。
1:1完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。材料咨询办理、认证咨询办理请加学历顾问Q/微741003700
【主营项目】
一.毕业证【q微741003700】成绩单、使馆认证、教育部认证、雅思托福成绩单、学生卡等！
二.真实使馆公证(即留学回国人员证明,不成功不收费)
三.真实教育部学历学位认证（教育部存档！教育部留服网站永久可查）
四.办理各国各大学文凭(一对一专业服务,可全程监控跟踪进度)
如果您处于以下几种情况：
◇在校期间，因各种原因未能顺利毕业……拿不到官方毕业证【q/微741003700】
◇面对父母的压力，希望尽快拿到；
◇不清楚认证流程以及材料该如何准备；
◇回国时间很长，忘记办理；
◇回国马上就要找工作，办给用人单位看；
◇企事业单位必须要求办理的
◇需要报考公务员、购买免税车、落转户口
◇申请留学生创业基金
留信网认证的作用:
1:该专业认证可证明留学生真实身份
2:同时对留学生所学专业登记给予评定
3:国家专业人才认证中心颁发入库证书
4:这个认证书并且可以归档倒地方
5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息
6:个人职称评审加20分
7:个人信誉贷款加10分
8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才
bordetella pertussis.................................ppt
Bordettela is a gram negative cocobacilli spread by air born drop let
Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...
Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...University of Maribor
Slides from talk:
Aleš Zamuda: Remote Sensing and Computational, Evolutionary, Supercomputing, and Intelligent Systems.
11th International Conference on Electrical, Electronics and Computer Engineering (IcETRAN), Niš, 3-6 June 2024
Inter-Society Networking Panel GRSS/MTT-S/CIS Panel Session: Promoting Connection and Cooperation
https://www.etran.rs/2024/en/home-english/SAR of Medicinal Chemistry 1st by dk.pdf
In this presentation include the prototype drug SAR on thus or with their examples .
Syllabus of Second Year B. Pharmacy
2019 PATTERN.
如何办理(uvic毕业证书)维多利亚大学毕业证本科学位证书原版一模一样
原版纸张【微信：741003700 】【(uvic毕业证书)维多利亚大学毕业证】【微信：741003700 】学位证，留信认证（真实可查，永久存档）offer、雅思、外壳等材料/诚信可靠,可直接看成品样本，帮您解决无法毕业带来的各种难题！外壳，原版制作，诚信可靠，可直接看成品样本。行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备。十五年致力于帮助留学生解决难题，包您满意。
本公司拥有海外各大学样板无数，能完美还原海外各大学 Bachelor Diploma degree, Master Degree Diploma
1:1完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。材料咨询办理、认证咨询办理请加学历顾问Q/微741003700
留信网认证的作用:
1:该专业认证可证明留学生真实身份
2:同时对留学生所学专业登记给予评定
3:国家专业人才认证中心颁发入库证书
4:这个认证书并且可以归档倒地方
5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息
6:个人职称评审加20分
7:个人信誉贷款加10分
8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才
Deep Software Variability and Frictionless Reproducibility
Deep Software Variability and Frictionless ReproducibilityUniversity of Rennes, INSA Rennes, Inria/IRISA, CNRS
The ability to recreate computational results with minimal effort and actionable metrics provides a solid foundation for scientific research and software development. When people can replicate an analysis at the touch of a button using open-source software, open data, and methods to assess and compare proposals, it significantly eases verification of results, engagement with a diverse range of contributors, and progress. However, we have yet to fully achieve this; there are still many sociotechnical frictions.
Inspired by David Donoho's vision, this talk aims to revisit the three crucial pillars of frictionless reproducibility (data sharing, code sharing, and competitive challenges) with the perspective of deep software variability.
Our observation is that multiple layers — hardware, operating systems, third-party libraries, software versions, input data, compile-time options, and parameters — are subject to variability that exacerbates frictions but is also essential for achieving robust, generalizable results and fostering innovation. I will first review the literature, providing evidence of how the complex variability interactions across these layers affect qualitative and quantitative software properties, thereby complicating the reproduction and replication of scientific studies in various fields.
I will then present some software engineering and AI techniques that can support the strategic exploration of variability spaces. These include the use of abstractions and models (e.g., feature models), sampling strategies (e.g., uniform, random), cost-effective measurements (e.g., incremental build of software configurations), and dimensionality reduction methods (e.g., transfer learning, feature selection, software debloating).
I will finally argue that deep variability is both the problem and solution of frictionless reproducibility, calling the software science community to develop new methods and tools to manage variability and foster reproducibility in software systems.
Exposé invité Journées Nationales du GDR GPL 2024
Compexometric titration/Chelatorphy titration/chelating titration
Classification
Metal ion ion indicators
Masking and demasking reagents
Estimation of Magnisium sulphate
Calcium gluconate
Complexometric Titration/ chelatometry titration/chelating titration, introduction, Types-
1.Direct Titration
2.Back Titration
3.Replacement Titration
4.Indirect Titration
Masking agent, Demasking agents
formation of complex
comparition between masking and demasking agents,
Indicators/Metal ion indicators/ Metallochromic indicators/pM indicators,
Visual Technique,PM indicators (metallochromic), Indicators of pH, Redox Indicators
Instrumental Techniques-Photometry
Potentiometry
Miscellaneous methods.
Complex titration with EDTA.
Authoring a personal GPT for your research and practice: How we created the Q...
Thematic analysis in qualitative research is a time-consuming and systematic task, typically done using teams. Team members must ground their activities on common understandings of the major concepts underlying the thematic analysis, and define criteria for its development. However, conceptual misunderstandings, equivocations, and lack of adherence to criteria are challenges to the quality and speed of this process. Given the distributed and uncertain nature of this process, we wondered if the tasks in thematic analysis could be supported by readily available artificial intelligence chatbots. Our early efforts point to potential benefits: not just saving time in the coding process but better adherence to criteria and grounding, by increasing triangulation between humans and artificial intelligence. This tutorial will provide a description and demonstration of the process we followed, as two academic researchers, to develop a custom ChatGPT to assist with qualitative coding in the thematic data analysis process of immersive learning accounts in a survey of the academic literature: QUAL-E Immersive Learning Thematic Analysis Helper. In the hands-on time, participants will try out QUAL-E and develop their ideas for their own qualitative coding ChatGPT. Participants that have the paid ChatGPT Plus subscription can create a draft of their assistants. The organizers will provide course materials and slide deck that participants will be able to utilize to continue development of their custom GPT. The paid subscription to ChatGPT Plus is not required to participate in this workshop, just for trying out personal GPTs during it.
Applied Science: Thermodynamics, Laws & Methodology.pdf
When I was asked to give a companion lecture in support of ‘The Philosophy of Science’ (https://shorturl.at/4pUXz) I decided not to walk through the detail of the many methodologies in order of use. Instead, I chose to employ a long standing, and ongoing, scientific development as an exemplar. And so, I chose the ever evolving story of Thermodynamics as a scientific investigation at its best.
Conducted over a period of >200 years, Thermodynamics R&D, and application, benefitted from the highest levels of professionalism, collaboration, and technical thoroughness. New layers of application, methodology, and practice were made possible by the progressive advance of technology. In turn, this has seen measurement and modelling accuracy continually improved at a micro and macro level.
Perhaps most importantly, Thermodynamics rapidly became a primary tool in the advance of applied science/engineering/technology, spanning micro-tech, to aerospace and cosmology. I can think of no better a story to illustrate the breadth of scientific methodologies and applications at their best.
Thornton ESPP slides UK WW Network 4_6_24.pdf
ESPP presentation to EU Waste Water Network, 4th June 2024 “EU policies driving nutrient removal and recycling
and the revised UWWTD (Urban Waste Water Treatment Directive)”
Immersive Learning That Works: Research Grounding and Paths Forward
We will metaverse into the essence of immersive learning, into its three dimensions and conceptual models. This approach encompasses elements from teaching methodologies to social involvement, through organizational concerns and technologies. Challenging the perception of learning as knowledge transfer, we introduce a 'Uses, Practices & Strategies' model operationalized by the 'Immersive Learning Brain' and ‘Immersion Cube’ frameworks. This approach offers a comprehensive guide through the intricacies of immersive educational experiences and spotlighting research frontiers, along the immersion dimensions of system, narrative, and agency. Our discourse extends to stakeholders beyond the academic sphere, addressing the interests of technologists, instructional designers, and policymakers. We span various contexts, from formal education to organizational transformation to the new horizon of an AI-pervasive society. This keynote aims to unite the iLRN community in a collaborative journey towards a future where immersive learning research and practice coalesce, paving the way for innovative educational research and practice landscapes.
20240520 Planning a Circuit Simulator in JavaScript.pptx
Evaporation step counter work. I have done a physical experiment.
(Work in progress.)
The use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptx
Although Artemia has been known to man for centuries, its use as a food for the culture of larval organisms apparently began only in the 1930s, when several investigators found that it made an excellent food for newly hatched fish larvae (Litvinenko et al., 2023). As aquaculture developed in the 1960s and ‘70s, the use of Artemia also became more widespread, due both to its convenience and to its nutritional value for larval organisms (Arenas-Pardo et al., 2024). The fact that Artemia dormant cysts can be stored for long periods in cans, and then used as an off-the-shelf food requiring only 24 h of incubation makes them the most convenient, least labor-intensive, live food available for aquaculture (Sorgeloos & Roubach, 2021). The nutritional value of Artemia, especially for marine organisms, is not constant, but varies both geographically and temporally. During the last decade, however, both the causes of Artemia nutritional variability and methods to improve poorquality Artemia have been identified (Loufi et al., 2024).
Brine shrimp (Artemia spp.) are used in marine aquaculture worldwide. Annually, more than 2,000 metric tons of dry cysts are used for cultivation of fish, crustacean, and shellfish larva. Brine shrimp are important to aquaculture because newly hatched brine shrimp nauplii (larvae) provide a food source for many fish fry (Mozanzadeh et al., 2021). Culture and harvesting of brine shrimp eggs represents another aspect of the aquaculture industry. Nauplii and metanauplii of Artemia, commonly known as brine shrimp, play a crucial role in aquaculture due to their nutritional value and suitability as live feed for many aquatic species, particularly in larval stages (Sorgeloos & Roubach, 2021).
原版制作(carleton毕业证书)卡尔顿大学毕业证硕士文凭原版一模一样
原版纸张【微信：741003700 】【(carleton毕业证书)卡尔顿大学毕业证】【微信：741003700 】学位证，留信认证（真实可查，永久存档）offer、雅思、外壳等材料/诚信可靠,可直接看成品样本，帮您解决无法毕业带来的各种难题！外壳，原版制作，诚信可靠，可直接看成品样本。行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备。十五年致力于帮助留学生解决难题，包您满意。
本公司拥有海外各大学样板无数，能完美还原海外各大学 Bachelor Diploma degree, Master Degree Diploma
1:1完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。材料咨询办理、认证咨询办理请加学历顾问Q/微741003700
留信网认证的作用:
1:该专业认证可证明留学生真实身份
2:同时对留学生所学专业登记给予评定
3:国家专业人才认证中心颁发入库证书
4:这个认证书并且可以归档倒地方
5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息
6:个人职称评审加20分
7:个人信誉贷款加10分
8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才
Recently uploaded (20)
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
Basics of crystallography, crystal systems, classes and different forms
Basics of crystallography, crystal systems, classes and different forms
bordetella pertussis.................................ppt
bordetella pertussis.................................ppt
aziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobel
Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...
Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...
Deep Software Variability and Frictionless Reproducibility
Deep Software Variability and Frictionless Reproducibility
Compexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titration
Authoring a personal GPT for your research and practice: How we created the Q...
Authoring a personal GPT for your research and practice: How we created the Q...
Applied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdf
Immersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths Forward
20240520 Planning a Circuit Simulator in JavaScript.pptx
20240520 Planning a Circuit Simulator in JavaScript.pptx
The use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptx
The use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptx
Flame Atomic Absorption Spectroscopy
- 1. 1 INSTRUMENTALANALYSIS LAB. Mr Haydar A.M.S BSc, MSc Faculty of Science Chemistry Department Email: Haydar.kovly@gmail.com

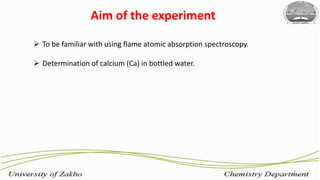

- 3. Aim of the experiment 3 To be familiar with using flame atomic absorption spectroscopy. Determination of calcium (Ca) in bottled water.

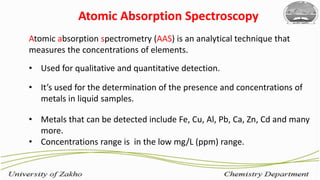

- 4. 4 Atomic Absorption Spectroscopy Atomic absorption spectrometry (AAS) is an analytical technique that measures the concentrations of elements. • Used for qualitative and quantitative detection. • It’s used for the determination of the presence and concentrations of metals in liquid samples. • Metals that can be detected include Fe, Cu, Al, Pb, Ca, Zn, Cd and many more. • Concentrations range is in the low mg/L (ppm) range.

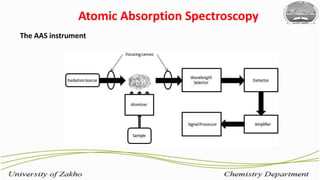

- 5. 5 The AAS instrument Atomic Absorption Spectroscopy
- 6. Flame Atomic Absorption Spectroscopy: 6 The technique requires a liquid sample to be aspirated, aerosolized, and mixed with combustible gases, such as acetylene and air or acetylene and nitrous oxide. The mixture is ignited in a flame whose temperature ranges from 2100 to 2800 ºC. Atomic Absorption Spectroscopy
- 7. Flame Atomic Absorption Spectroscopy: •When metals are exposed to heat, they absorb light that emit from the source. •Each metal absorbs light at a characteristic frequency. For example: Metal Zn Fe Cu Ca Na λ (nm) 214 248 325 423 589 Atomic Absorption Spectroscopy

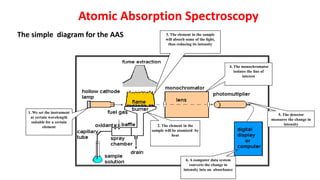

- 8. 1. We set the instrument at certain wavelength suitable for a certain element 2. The element in the sample will be atomized by heat 4. The monochromator isolates the line of interest 3. The element in the sample will absorb some of the light, thus reducing its intensity 5. The detector measures the change in intensity 6. A computer data system converts the change in intensity into an absorbance The simple diagram for the AAS Atomic Absorption Spectroscopy
- 9. Light absorption 9 unexcited ground state atoms, which absorb light at characteristic wavelengths, as shown in the figure. Atomic Absorption Spectroscopy

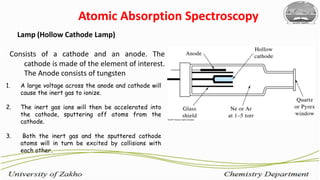

- 10. Lamp (Hollow Cathode Lamp) 10 Consists of a cathode and an anode. The cathode is made of the element of interest. The Anode consists of tungsten 1. A large voltage across the anode and cathode will cause the inert gas to ionize. 2. The inert gas ions will then be accelerated into the cathode, sputtering off atoms from the cathode. 3. Both the inert gas and the sputtered cathode atoms will in turn be excited by collisions with each other. Atomic Absorption Spectroscopy
- 11. Lamp (Hollow Cathode Lamp) 11 4- When these excited atoms decay to lower energy levels they emit a few spectral lines characteristic of the element of interest. 5- The light is emitted directionally through the lamp's window, a window made of a glass transparent in the UV and visible wavelengths. 6- The light can then be detected and a spectrum can be determined. Atomic Absorption Spectroscopy

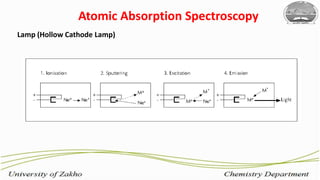

- 12. Lamp (Hollow Cathode Lamp) 12 Atomic Absorption Spectroscopy

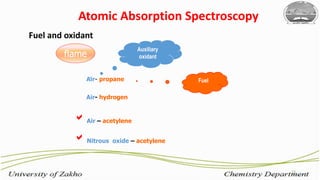

- 13. 13 Fuel and oxidant flame b Air – acetylene Air- propane Air- hydrogen b Nitrous oxide – acetylene Auxiliary oxidant Fuel Atomic Absorption Spectroscopy

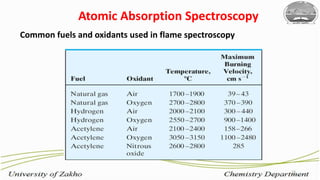

- 14. 14 Common fuels and oxidants used in flame spectroscopy Atomic Absorption Spectroscopy

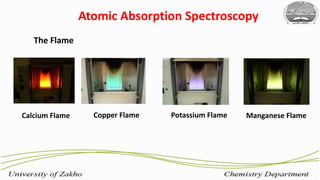

- 15. 15 The Flame Calcium Flame Copper Flame Potassium Flame Manganese Flame Atomic Absorption Spectroscopy

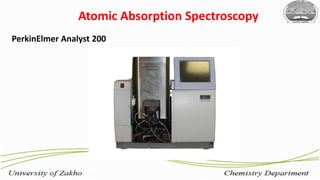

- 16. 16 Atomic Absorption Spectroscopy PerkinElmer Analyst 200

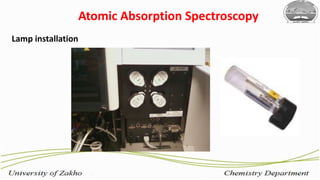

- 17. 17 Atomic Absorption Spectroscopy Lamp installation
- 18. 18 Atomic Absorption Spectroscopy Nebulizer To convert the test solution to gaseous atoms (produce a mist or aerosol)

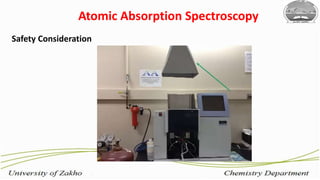

- 19. 19 Atomic Absorption Spectroscopy Safety Consideration

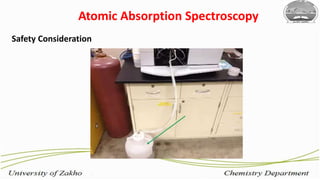

- 20. 20 Atomic Absorption Spectroscopy Safety Consideration
- 21. 21 Atomic Absorption Spectroscopy Safety Consideration Dealing carefully with gas cylinder and air compressor.
