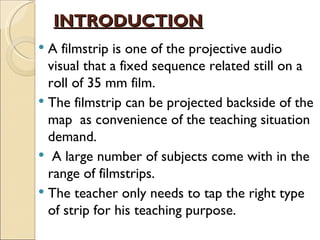

INTRODUCTION
 A filmstrip is one of the projective audio
  visual that a fixed sequence related still on a
  roll of 35 mm film.
 The filmstrip can be projected backside of the
  map as convenience of the teaching situation
  demand.
 A large number of subjects come with in the
  range of filmstrips.
 The teacher only needs to tap the right type
  of strip for his teaching purpose.

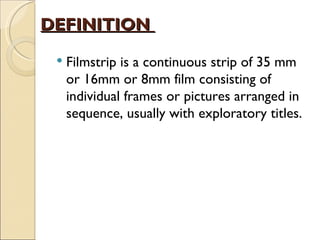

DEFINITION
    Filmstrip is a continuous strip of 35 mm
     or 16mm or 8mm film consisting of
     individual frames or pictures arranged in
     sequence, usually with exploratory titles.

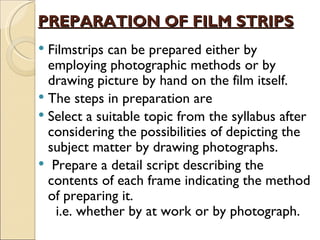

PREPARATION OF FILM STRIPS
 Filmstrips can be prepared either by
  employing photographic methods or by
  drawing picture by hand on the film itself.
 The steps in preparation are
 Select a suitable topic from the syllabus after
  considering the possibilities of depicting the
  subject matter by drawing photographs.
 Prepare a detail script describing the
  contents of each frame indicating the method
  of preparing it.
   i.e. whether by at work or by photograph.

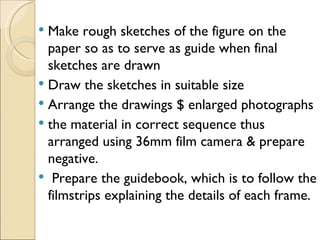

 Make rough sketches of the figure on the
  paper so as to serve as guide when final
  sketches are drawn
 Draw the sketches in suitable size
 Arrange the drawings $ enlarged photographs
 the material in correct sequence thus
  arranged using 36mm film camera & prepare
  negative.
 Prepare the guidebook, which is to follow the
  filmstrips explaining the details of each frame.

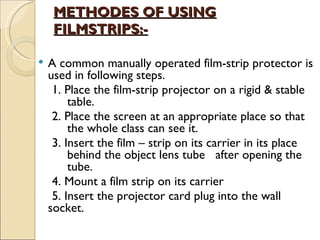

METHODES OF USING
     FILMSTRIPS:-

   A common manually operated film-strip protector is
    used in following steps.
      1. Place the film-strip projector on a rigid & stable
          table.
      2. Place the screen at an appropriate place so that
          the whole class can see it.
      3. Insert the film – strip on its carrier in its place
          behind the object lens tube after opening the
          tube.
      4. Mount a film strip on its carrier
      5. Insert the projector card plug into the wall
    socket.

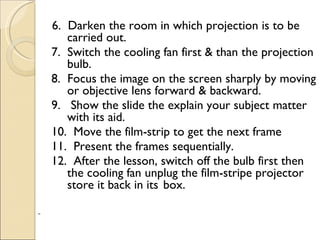

6. Darken the room in which projection is to be
       carried out.
    7. Switch the cooling fan first & than the projection
       bulb.
    8. Focus the image on the screen sharply by moving
       or objective lens forward & backward.
    9. Show the slide the explain your subject matter
       with its aid.
    10. Move the film-strip to get the next frame
    11. Present the frames sequentially.
    12. After the lesson, switch off the bulb first then
       the cooling fan unplug the film-stripe projector
       store it back in its box.

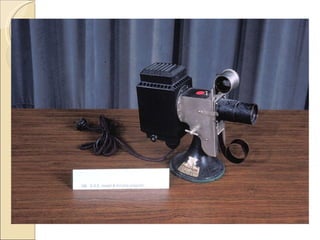

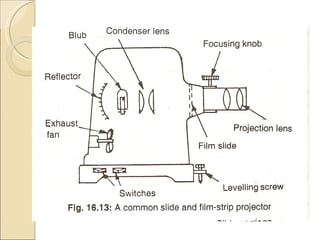

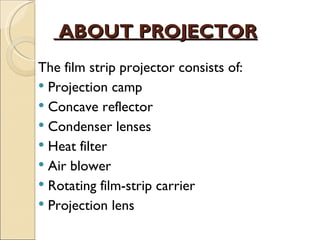

ABOUT PROJECTOR
The film strip projector consists of:
 Projection camp
 Concave reflector
 Condenser lenses
 Heat filter
 Air blower
 Rotating film-strip carrier
 Projection lens

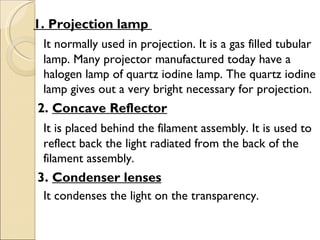

1. Projection lamp
 It normally used in projection. It is a gas filled tubular
 lamp. Many projector manufactured today have a
 halogen lamp of quartz iodine lamp. The quartz iodine
 lamp gives out a very bright necessary for projection.
 2. Concave Reflector
 It is placed behind the filament assembly. It is used to
 reflect back the light radiated from the back of the
 filament assembly.
 3. Condenser lenses
 It condenses the light on the transparency.

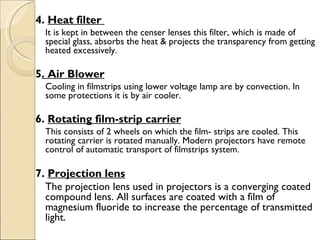

4. Heat filter
     It is kept in between the censer lenses this filter, which is made of
     special glass, absorbs the heat & projects the transparency from getting
     heated excessively.

5. Air Blower
     Cooling in filmstrips using lower voltage lamp are by convection. In
     some protections it is by air cooler.

6. Rotating film-strip carrier
     This consists of 2 wheels on which the film- strips are cooled. This
     rotating carrier is rotated manually. Modern projectors have remote
     control of automatic transport of filmstrips system.

7. Projection lens
  The projection lens used in projectors is a converging coated
  compound lens. All surfaces are coated with a film of
  magnesium fluoride to increase the percentage of transmitted
  light.

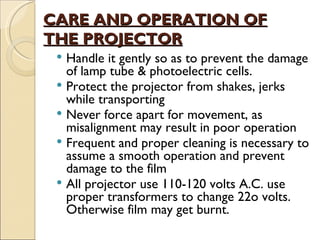

CARE AND OPERATION OF
THE PROJECTOR
  Handle it gently so as to prevent the damage
   of lamp tube & photoelectric cells.
  Protect the projector from shakes, jerks
   while transporting
  Never force apart for movement, as
   misalignment may result in poor operation
  Frequent and proper cleaning is necessary to
   assume a smooth operation and prevent
   damage to the film
  All projector use 110-120 volts A.C. use
   proper transformers to change 22o volts.
   Otherwise film may get burnt.
   Check all the cables and connections frequently and
    replace damage cables and plug.
   Always hold the film by edges and with slight
    tension.
   Do not trail the film on the floor or table as it may
    lead to scratches.
   Use carbon tetra chloride to clear films but never
    use it for color films.
   The lens and the two glass plates through with the
    filmstrip pass may be clean with a soft camel
    hairbrush.
   In the projector , lamp should not be switched on
    unless the blower is operating
        Switching order ON (1) Blower (2) lamp
        Switching order OFF (1) lamp (2) Blower

WHERE FILM STRIP CAN
  BE PROJECTED
Film strip can be projected on the
 Screen
 Wall
 Paper screen
 Back side the map etc…

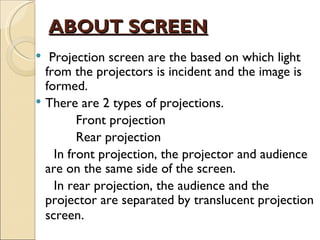

ABOUT SCREEN
  Projection screen are the based on which light
  from the projectors is incident and the image is
  formed.
 There are 2 types of projections.
         Front projection
         Rear projection
    In front projection, the projector and audience
  are on the same side of the screen.
    In rear projection, the audience and the
  projector are separated by translucent projection
  screen.
TYPE OF SCREEN
   Matte screen :
                    This screen is ideal for indoor & outdoors. the screen
    surface when it gets dirty can be washed using soap and with sponge.

 Beaded screen :
                 On the surface of write plastic base tiny glass
    beads of diameter about 0.1 mm are spread. The intrinsic
    brightness of image formed on beaded screen is very high.

   Processed metallic surface screens:
                There are special screen of wide viewing angle,
    with corrugated surface and coated with phosphorescent
    substances.

   A beaded screen, of either per table type or fixed is ideal. But
    for general purpose and use in indoors and outdoors, mettle
    screen may be preferred.

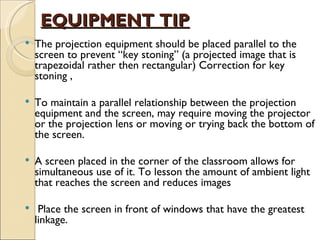

EQUIPMENT TIP
   The projection equipment should be placed parallel to the
    screen to prevent “key stoning” (a projected image that is
    trapezoidal rather then rectangular) Correction for key
    stoning ,

   To maintain a parallel relationship between the projection
    equipment and the screen, may require moving the projector
    or the projection lens or moving or trying back the bottom of
    the screen.

   A screen placed in the corner of the classroom allows for
    simultaneous use of it. To lesson the amount of ambient light
    that reaches the screen and reduces images

    Place the screen in front of windows that have the greatest
    linkage.

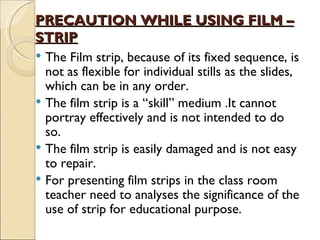

PRECAUTION WHILE USING FILM –
STRIP
 The Film strip, because of its fixed sequence, is
  not as flexible for individual stills as the slides,
  which can be in any order.
 The film strip is a “skill” medium .It cannot
  portray effectively and is not intended to do
  so.
 The film strip is easily damaged and is not easy
  to repair.
 For presenting film strips in the class room
  teacher need to analyses the significance of the
  use of strip for educational purpose.
 Determine the lessons that could be effectively
  illustrated with a strip.
 Preview film strip before using them.
 Show again any part of the film strips needing
  move specific study.
 Use film strip to stimulate emotions built attitude
  and to point out us problem.
 Use a pointer to direct attention to specific
  details on screen.
AVAILABILITY
 Many useful filmstrips are available in:-
 The state department of education
 Public museum
 City libraries
 Municipal Education Department
 A wonderful inspiring as well as informative
  series of 20 film –strip entitled “Bring India to
  your class –room” has been recently by the Al
  Mervyns studio Bombay.

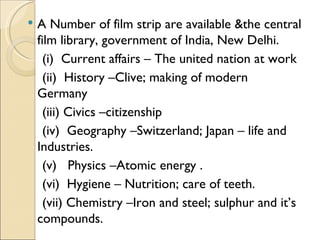

   A Number of film strip are available &the central
    film library, government of India, New Delhi.
      (i) Current affairs – The united nation at work
      (ii) History –Clive; making of modern
    Germany
      (iii) Civics –citizenship
      (iv) Geography –Switzerland; Japan – life and
    Industries.
      (v) Physics –Atomic energy .
      (vi) Hygiene – Nutrition; care of teeth.
      (vii) Chemistry –Iron and steel; sulphur and it’s
    compounds.
ADVANTAGE
   It is an economical visual materials
   It is easy to make and convenient to handle and carry.
   Takes up little space and can be easily stored.
   Provides a logical sequence to the teaching procedure and the
    individual picture on the strip can be kept before the student
    for a length of time.
   Film –strip can be projected on the screen or wall or paper
    screen as the convenience and the teaching situation demands.
   It is available both in color & blank & white.
   Good to use – afterward, have a discussion to see whether
    people have understood the subject.

    DISADVANTAGES
    Its frame connect be remove or substitute .It this becomes
      necessary them the strip can be cut into slides & mounted.

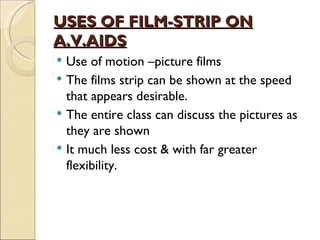

USES OF FILM-STRIP ON
A.V.AIDS
 Use of motion –picture films
 The films strip can be shown at the speed
  that appears desirable.
 The entire class can discuss the pictures as
  they are shown
 It much less cost & with far greater
  flexibility.

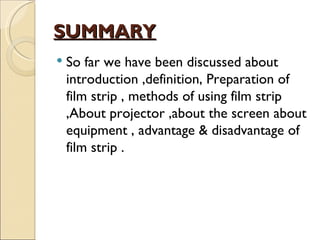

SUMMARY
   So far we have been discussed about
    introduction ,definition, Preparation of
    film strip , methods of using film strip
    ,About projector ,about the screen about
    equipment , advantage & disadvantage of
    film strip .


Film strip ok
