The document discusses assessing the energy efficiency of pumps and fans through on-site performance testing. Key parameters that are measured for pumps include flow rate, head, power, and efficiency. Various methods for measuring flow are described, such as the tracer method, ultrasonic meters, tank filling, and installing an online flow meter. Opportunities to improve pumping system efficiency include operating at the best efficiency point, minimizing restrictions, and proper maintenance. Performance testing of fans similarly determines flow, power input, and pressure rise. Generic opportunities to improve fan efficiency also focus on operating conditions and maintenance.

1. Energy Efficiency : AS RUN PERFORMANCE ASSESSMENT OF PUMPS AND FANS D PAWAN KUMAR

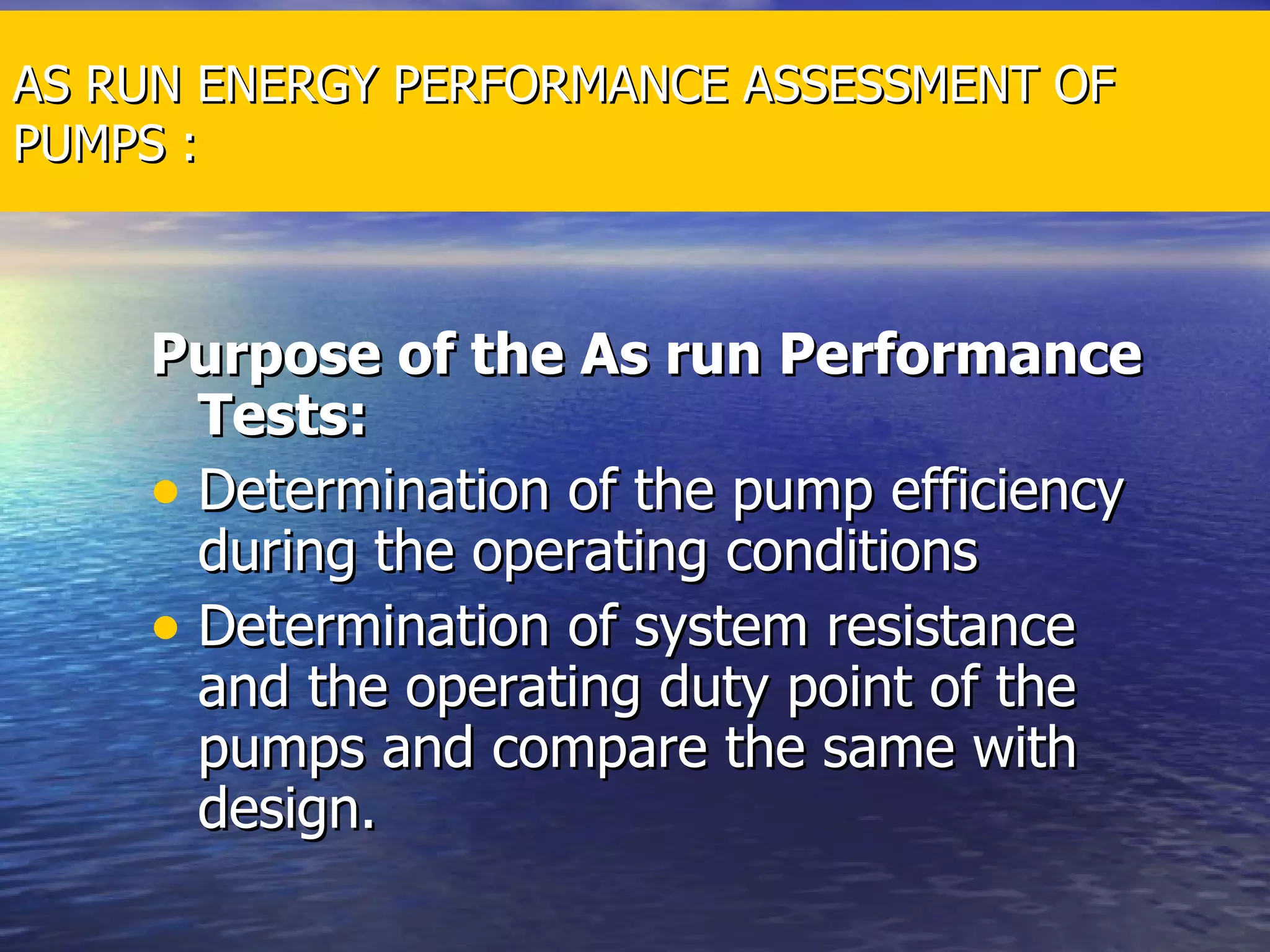

2. AS RUN ENERGY PERFORMANCE ASSESSMENT OF PUMPS : Purpose of the As run Performance Tests: Determination of the pump efficiency during the operating conditions Determination of system resistance and the operating duty point of the pumps and compare the same with design.

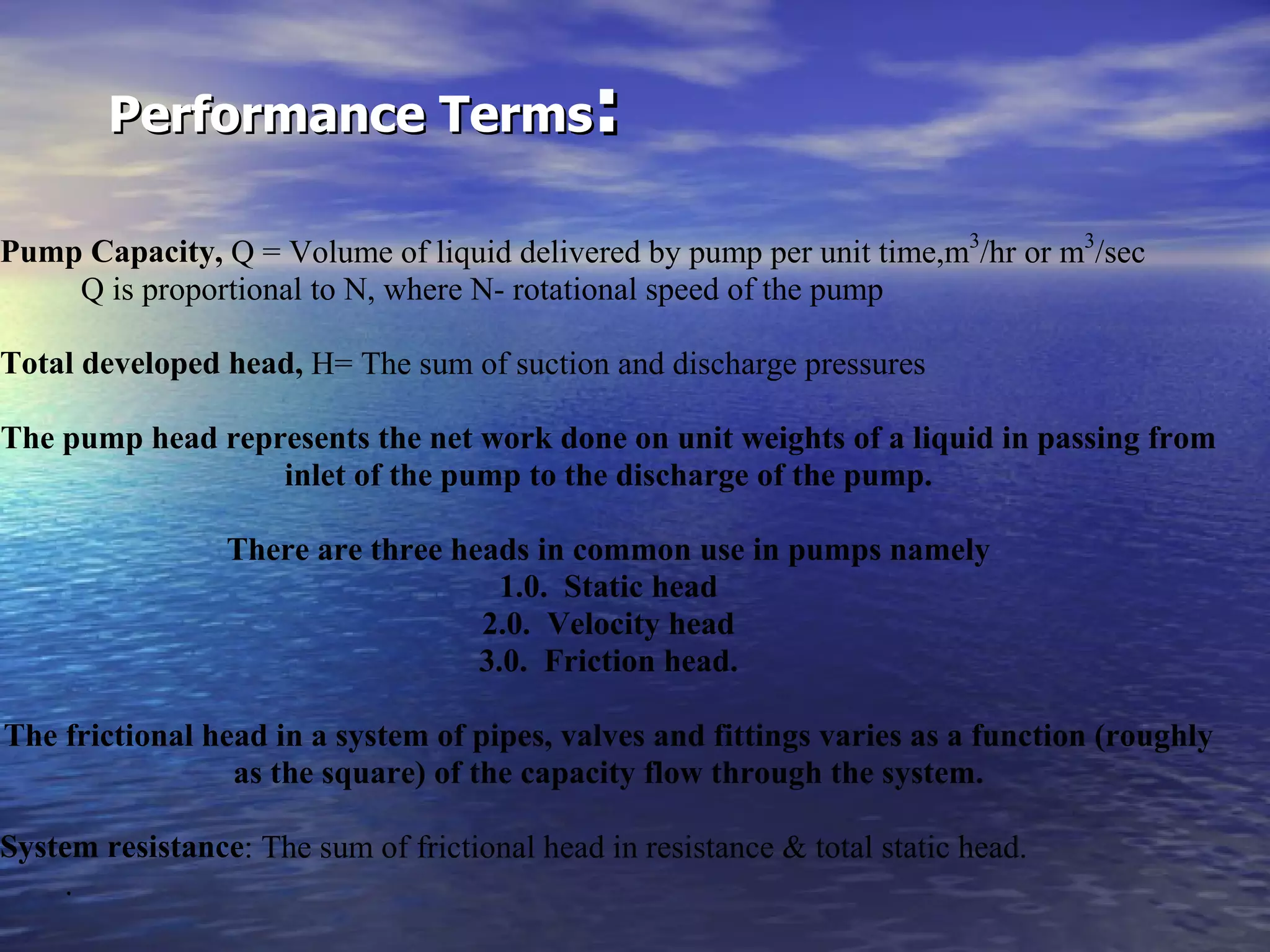

3. Performance Terms :

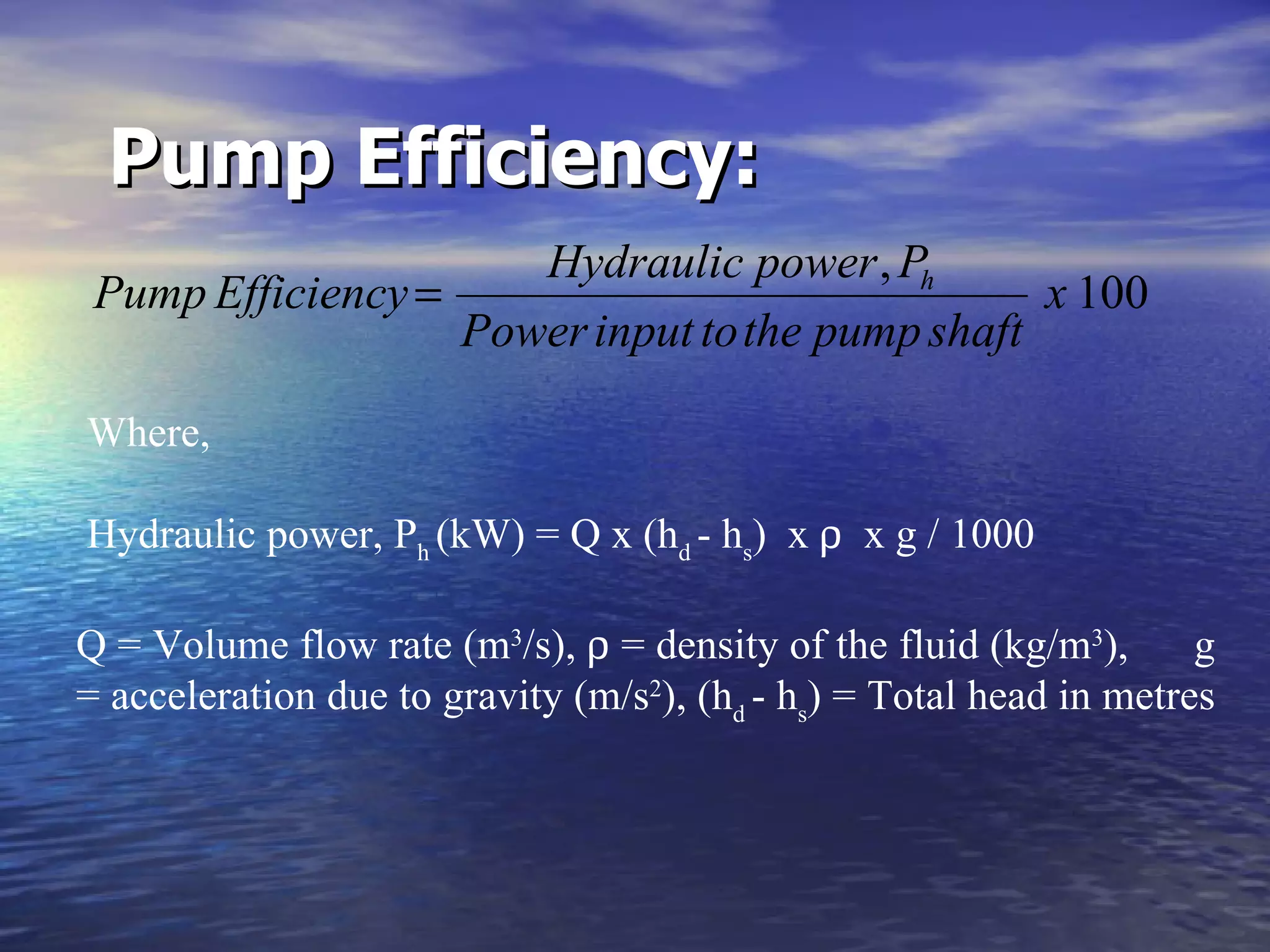

4. Pump Efficiency: Where, Hydraulic power, P h (kW) = Q x (h d - h s ) x  x g / 1000 Q = Volume flow rate (m 3 /s),  = density of the fluid (kg/m 3 ), g = acceleration due to gravity (m/s 2 ), (h d - h s ) = Total head in metres

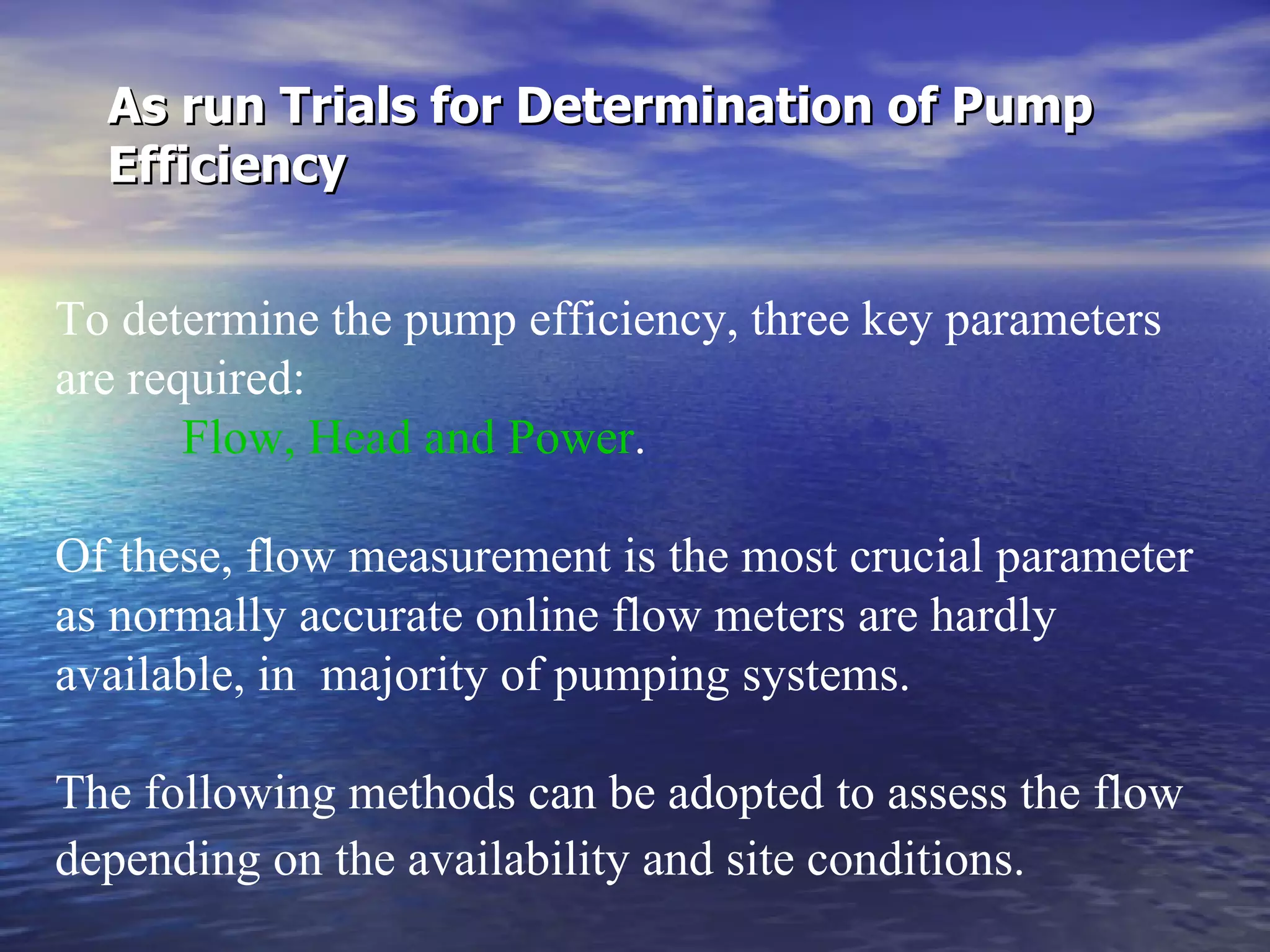

5. As run Trials for Determination of Pump Efficiency To determine the pump efficiency, three key parameters are required: Flow, Head and Power . Of these, flow measurement is the most crucial parameter as normally accurate online flow meters are hardly available, in majority of pumping systems. The following methods can be adopted to assess the flow depending on the availability and site conditions.

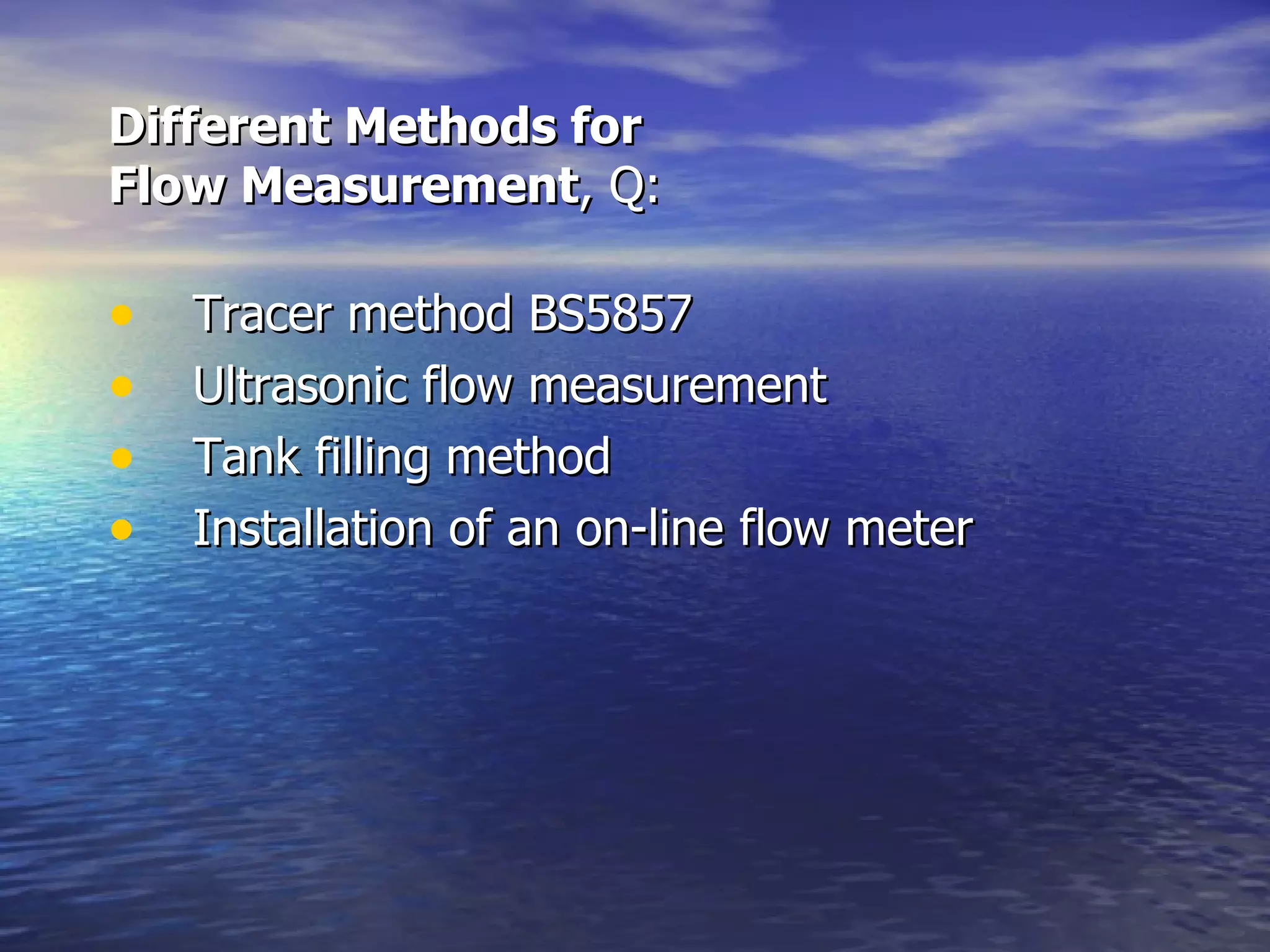

6. Different Methods for Flow Measurement , Q: Tracer method BS5857 Ultrasonic flow measurement Tank filling method Installation of an on-line flow meter

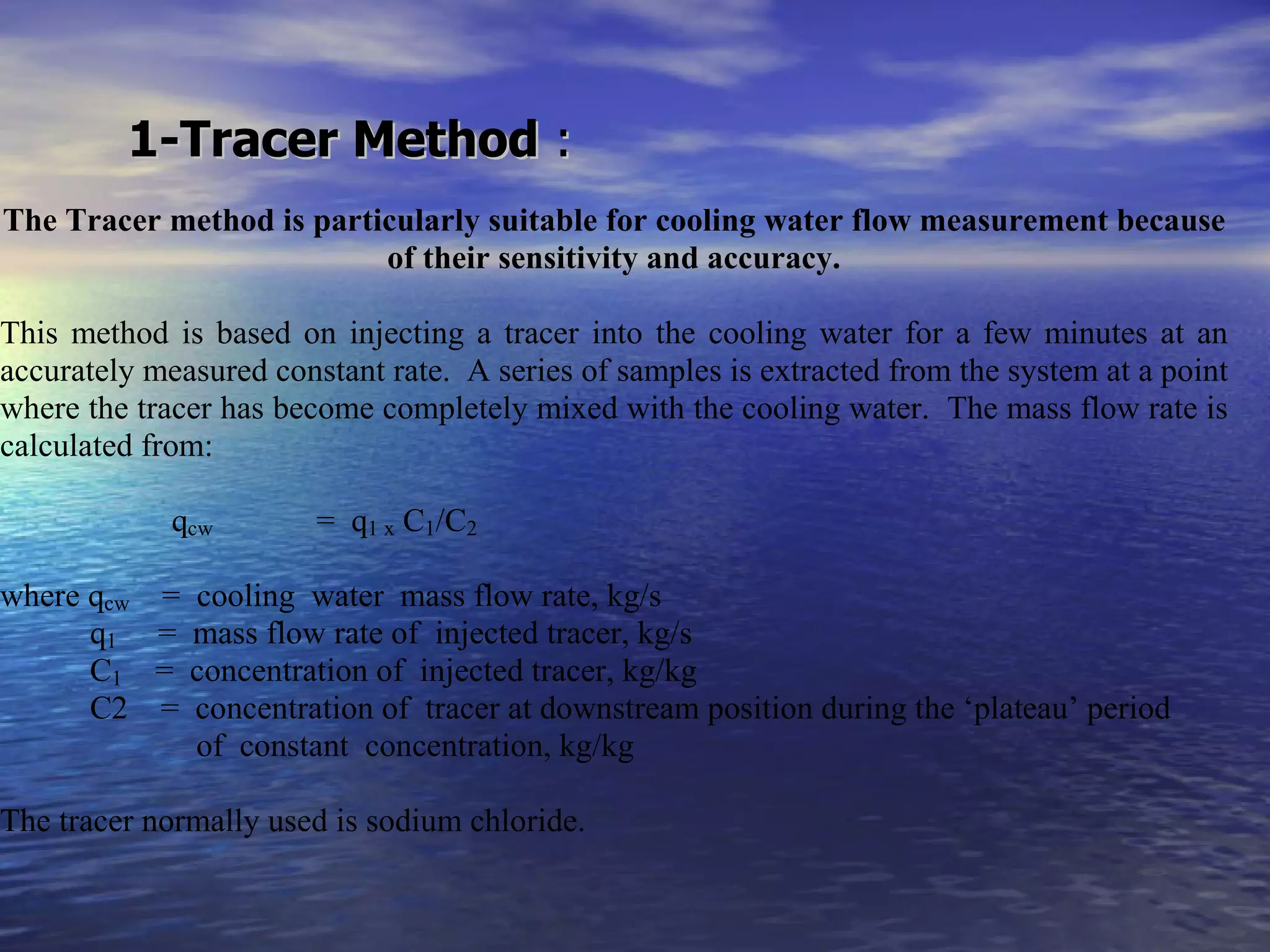

7. 1-Tracer Method :

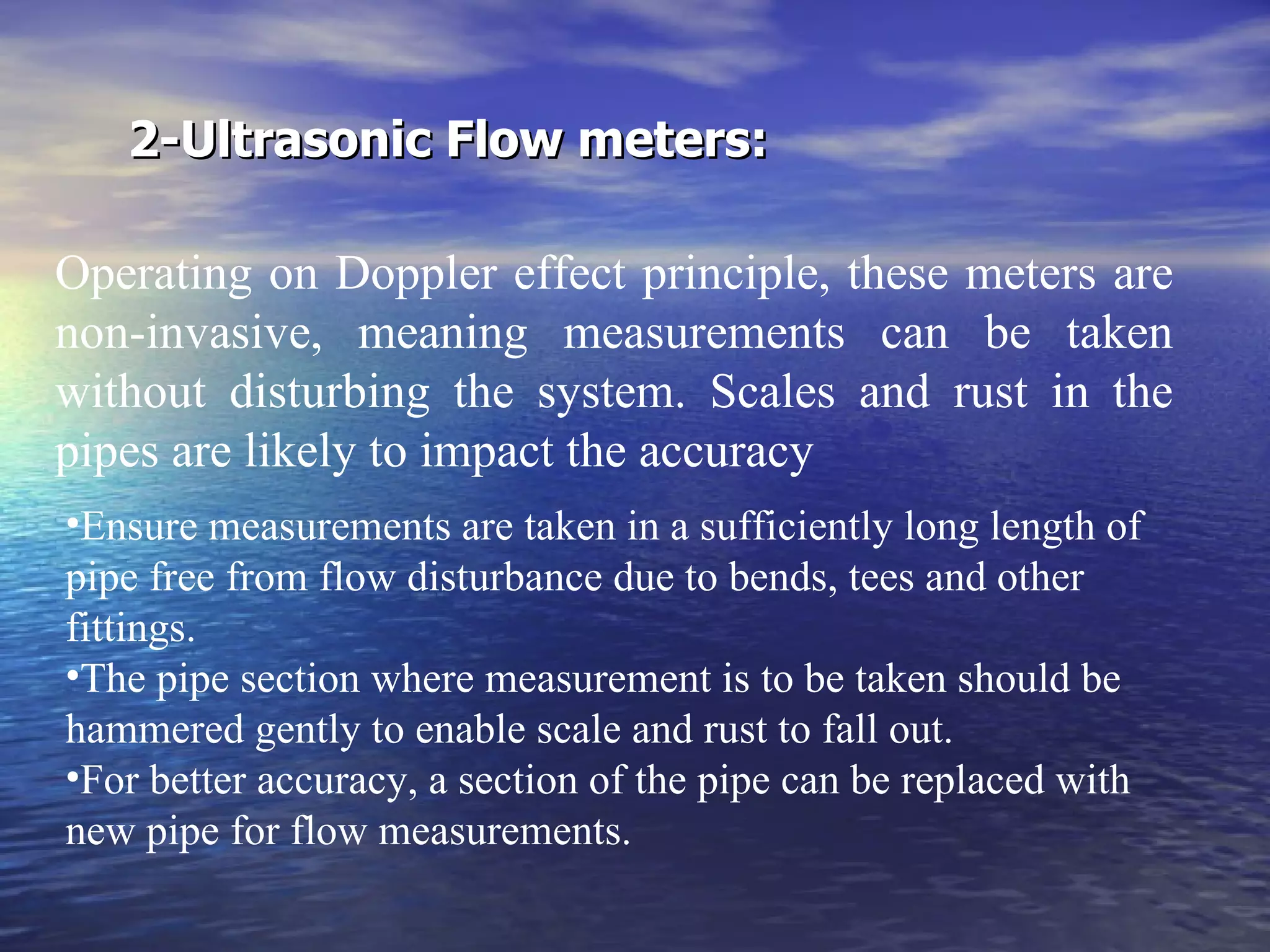

8. 2-Ultrasonic Flow meters: Operating on Doppler effect principle, these meters are non-invasive, meaning measurements can be taken without disturbing the system. Scales and rust in the pipes are likely to impact the accuracy Ensure measurements are taken in a sufficiently long length of pipe free from flow disturbance due to bends, tees and other fittings. The pipe section where measurement is to be taken should be hammered gently to enable scale and rust to fall out. For better accuracy, a section of the pipe can be replaced with new pipe for flow measurements.

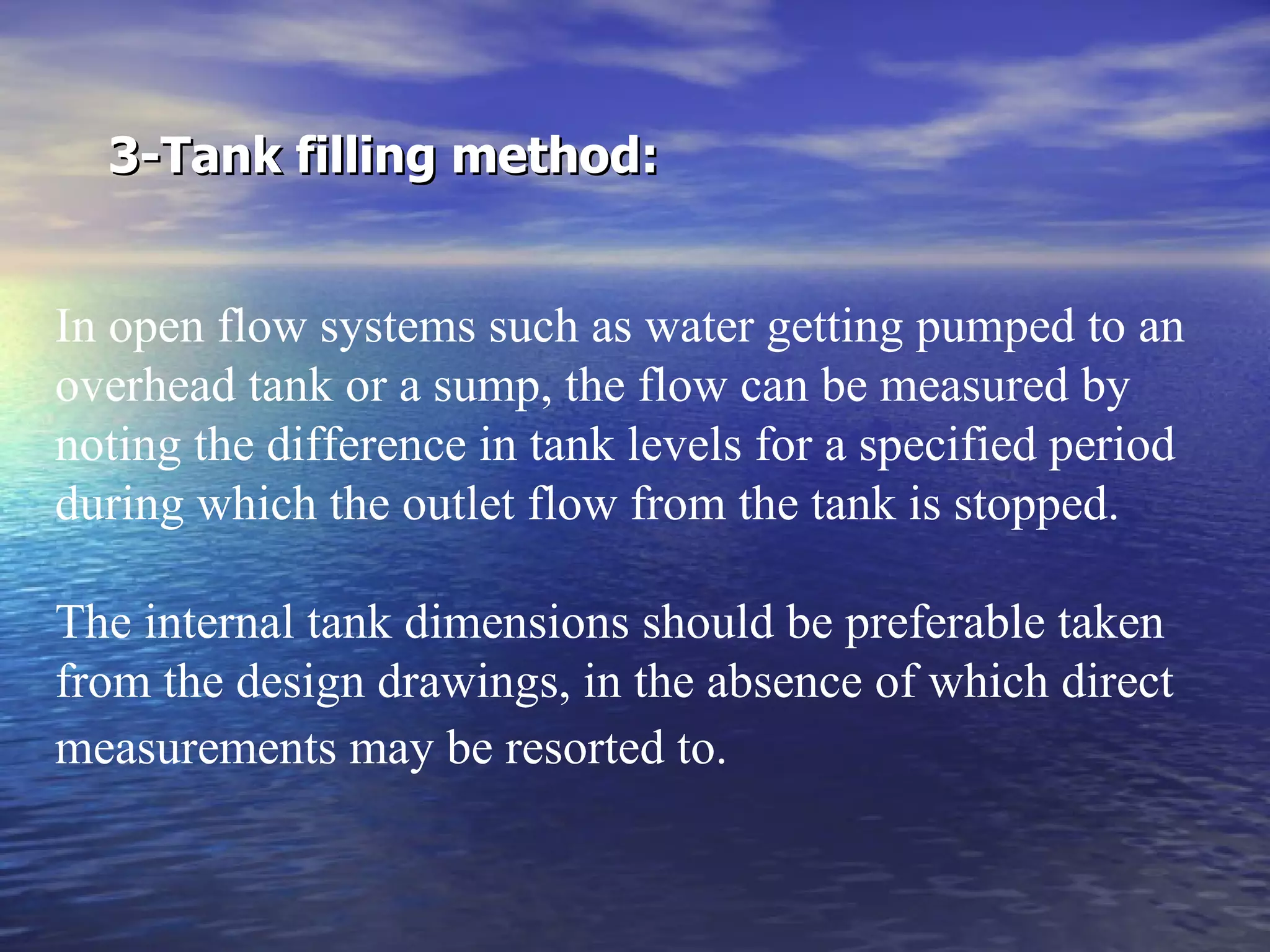

9. 3-Tank filling method: In open flow systems such as water getting pumped to an overhead tank or a sump, the flow can be measured by noting the difference in tank levels for a specified period during which the outlet flow from the tank is stopped. The internal tank dimensions should be preferable taken from the design drawings, in the absence of which direct measurements may be resorted to.

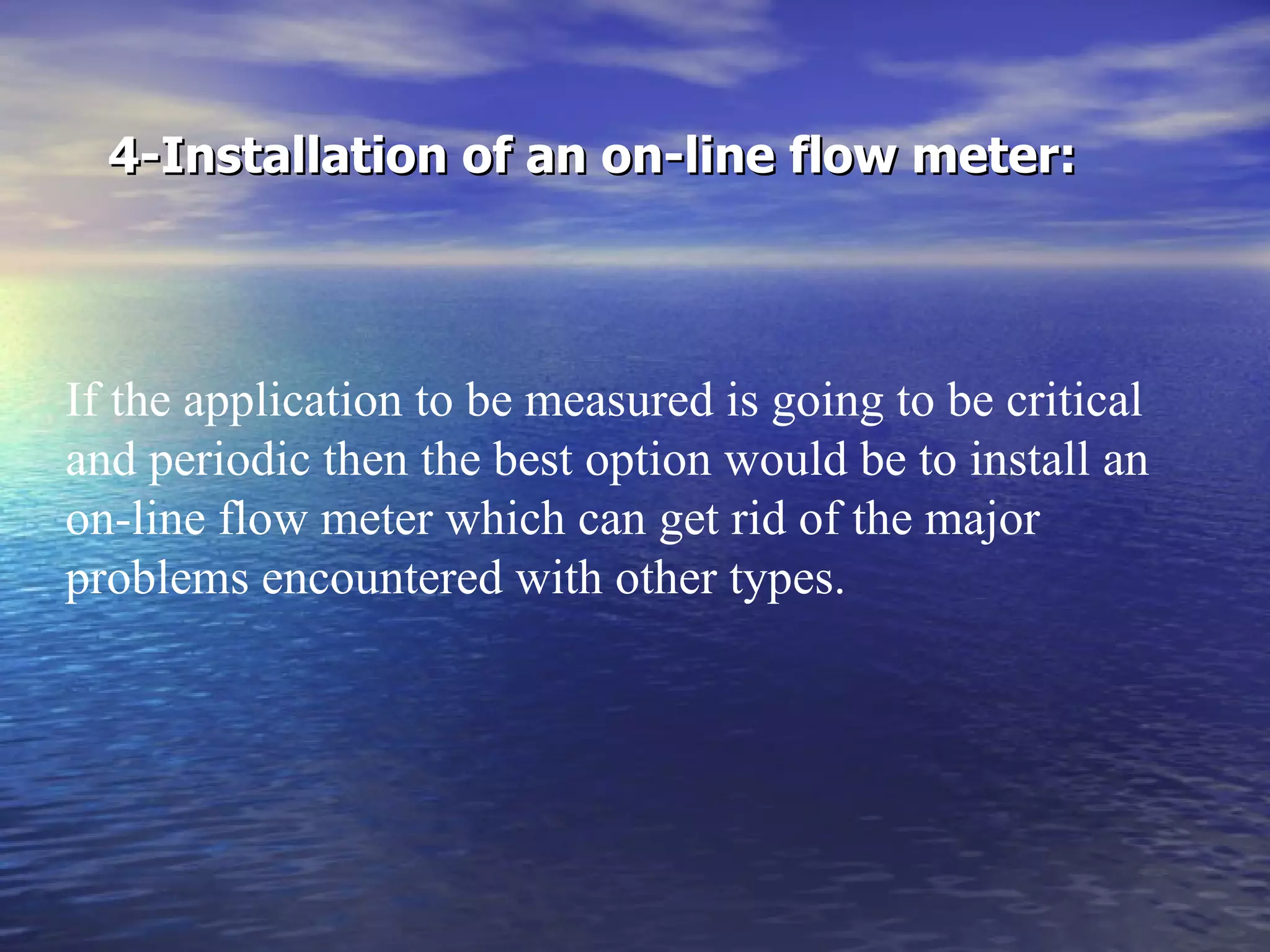

10. 4-Installation of an on-line flow meter: If the application to be measured is going to be critical and periodic then the best option would be to install an on-line flow meter which can get rid of the major problems encountered with other types.

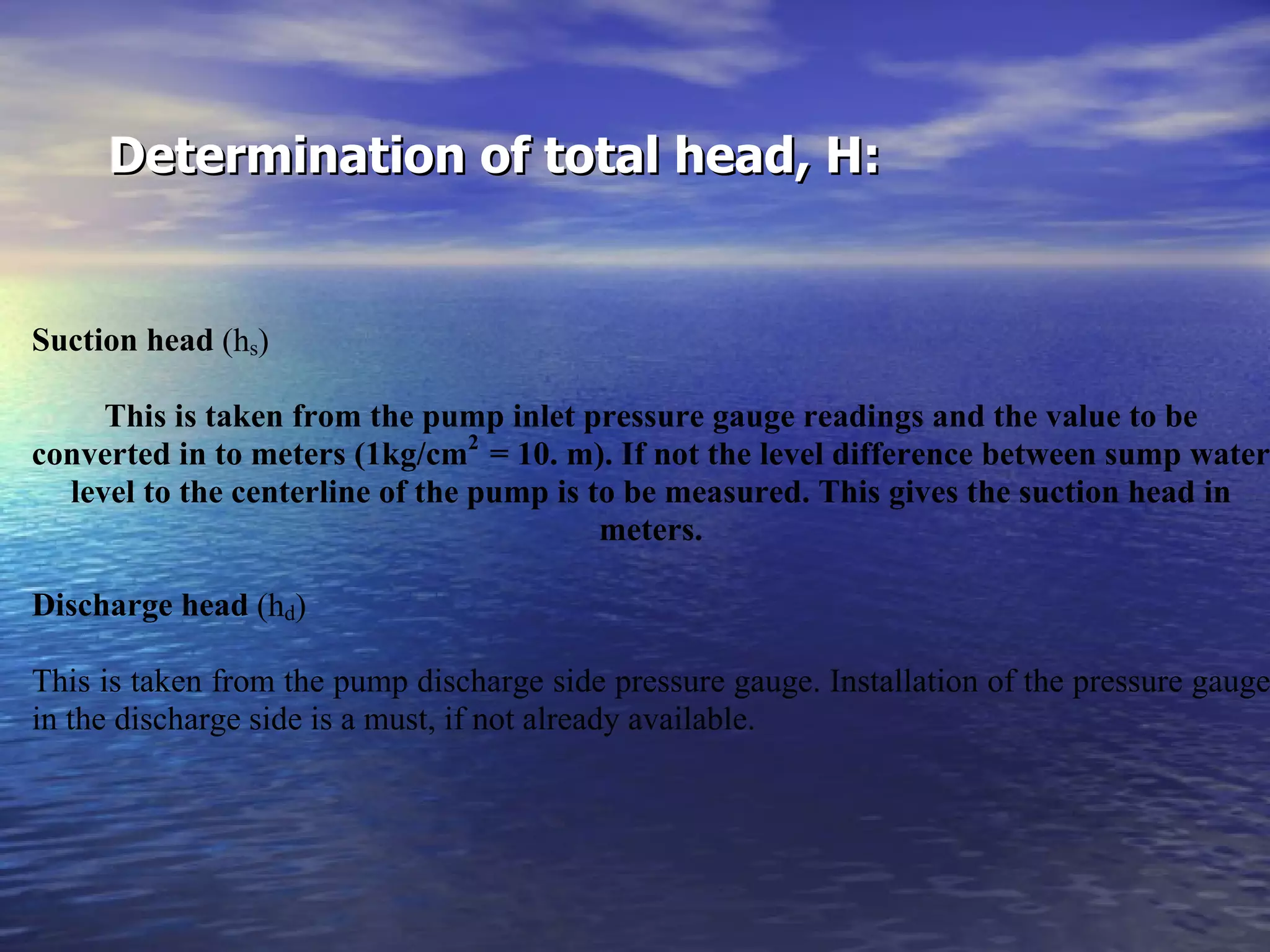

11. Determination of total head, H:

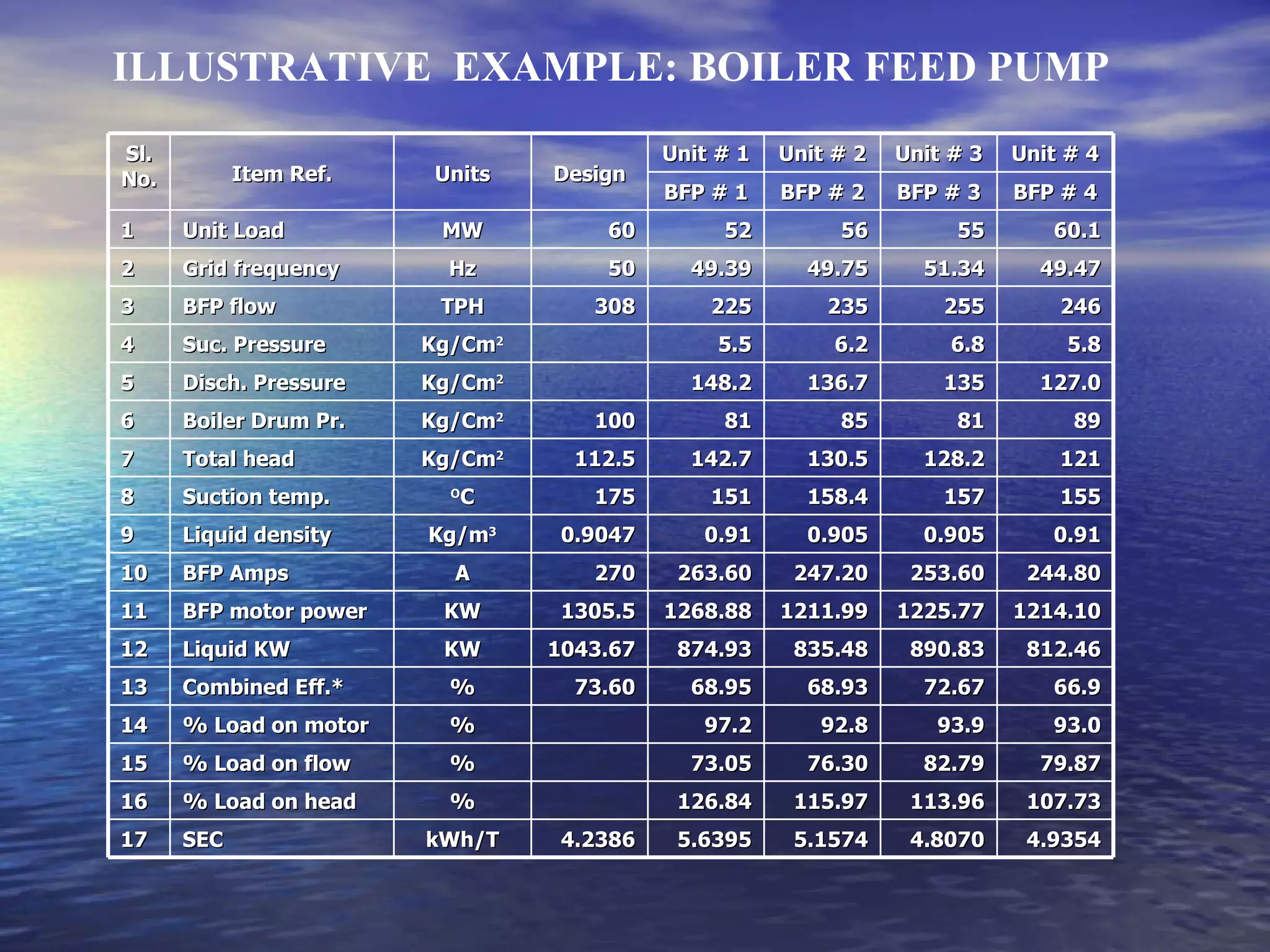

12. ILLUSTRATIVE EXAMPLE: BOILER FEED PUMP Sl. No. Item Ref. Units Design Unit # 1 Unit # 2 Unit # 3 Unit # 4 BFP # 1 BFP # 2 BFP # 3 BFP # 4 1 Unit Load MW 60 52 56 55 60.1 2 Grid frequency Hz 50 49.39 49.75 51.34 49.47 3 BFP flow TPH 308 225 235 255 246 4 Suc. Pressure Kg/Cm 2 5.5 6.2 6.8 5.8 5 Disch. Pressure Kg/Cm 2 148.2 136.7 135 127.0 6 Boiler Drum Pr. Kg/Cm 2 100 81 85 81 89 7 Total head Kg/Cm 2 112.5 142.7 130.5 128.2 121 8 Suction temp. O C 175 151 158.4 157 155 9 Liquid density Kg/m 3 0.9047 0.91 0.905 0.905 0.91 10 BFP Amps A 270 263.60 247.20 253.60 244.80 11 BFP motor power KW 1305.5 1268.88 1211.99 1225.77 1214.10 12 Liquid KW KW 1043.67 874.93 835.48 890.83 812.46 13 Combined Eff.* % 73.60 68.95 68.93 72.67 66.9 14 % Load on motor % 97.2 92.8 93.9 93.0 15 % Load on flow % 73.05 76.30 82.79 79.87 16 % Load on head % 126.84 115.97 113.96 107.73 17 SEC kWh/T 4.2386 5.6395 5.1574 4.8070 4.9354

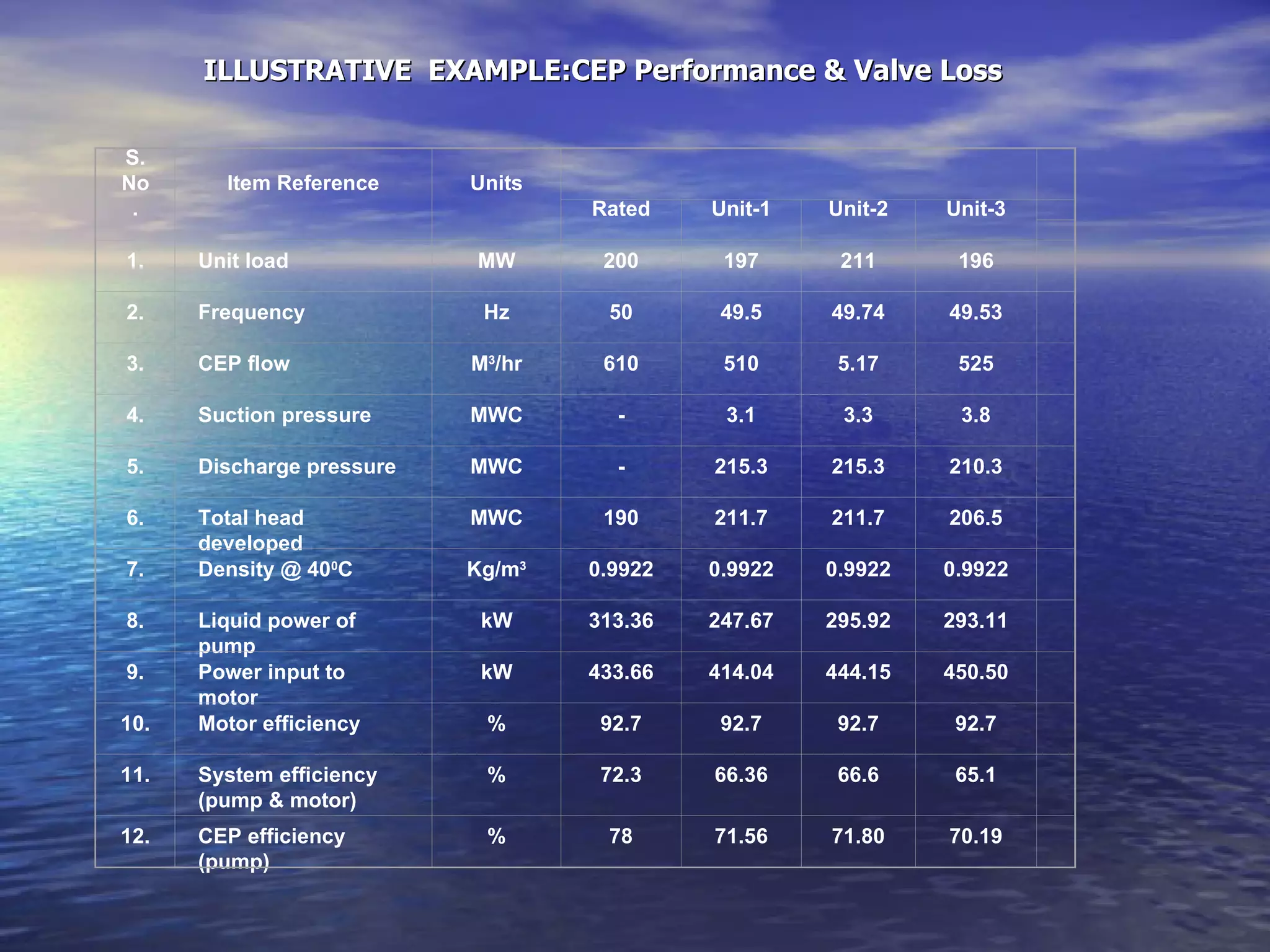

13. ILLUSTRATIVE EXAMPLE:CEP Performance & Valve Loss S. No. Item Reference Units Rated Unit-1 Unit-2 Unit-3 1. Unit load MW 200 197 211 196 2. Frequency Hz 50 49.5 49.74 49.53 3. CEP flow M 3 /hr 610 510 5.17 525 4. Suction pressure MWC - 3.1 3.3 3.8 5. Discharge pressure MWC - 215.3 215.3 210.3 6. Total head developed MWC 190 211.7 211.7 206.5 7. Density @ 40 0 C Kg/m 3 0.9922 0.9922 0.9922 0.9922 8. Liquid power of pump kW 313.36 247.67 295.92 293.11 9. Power input to motor kW 433.66 414.04 444.15 450.50 10. Motor efficiency % 92.7 92.7 92.7 92.7 11. System efficiency (pump & motor) % 72.3 66.36 66.6 65.1 12. CEP efficiency (pump) % 78 71.56 71.80 70.19

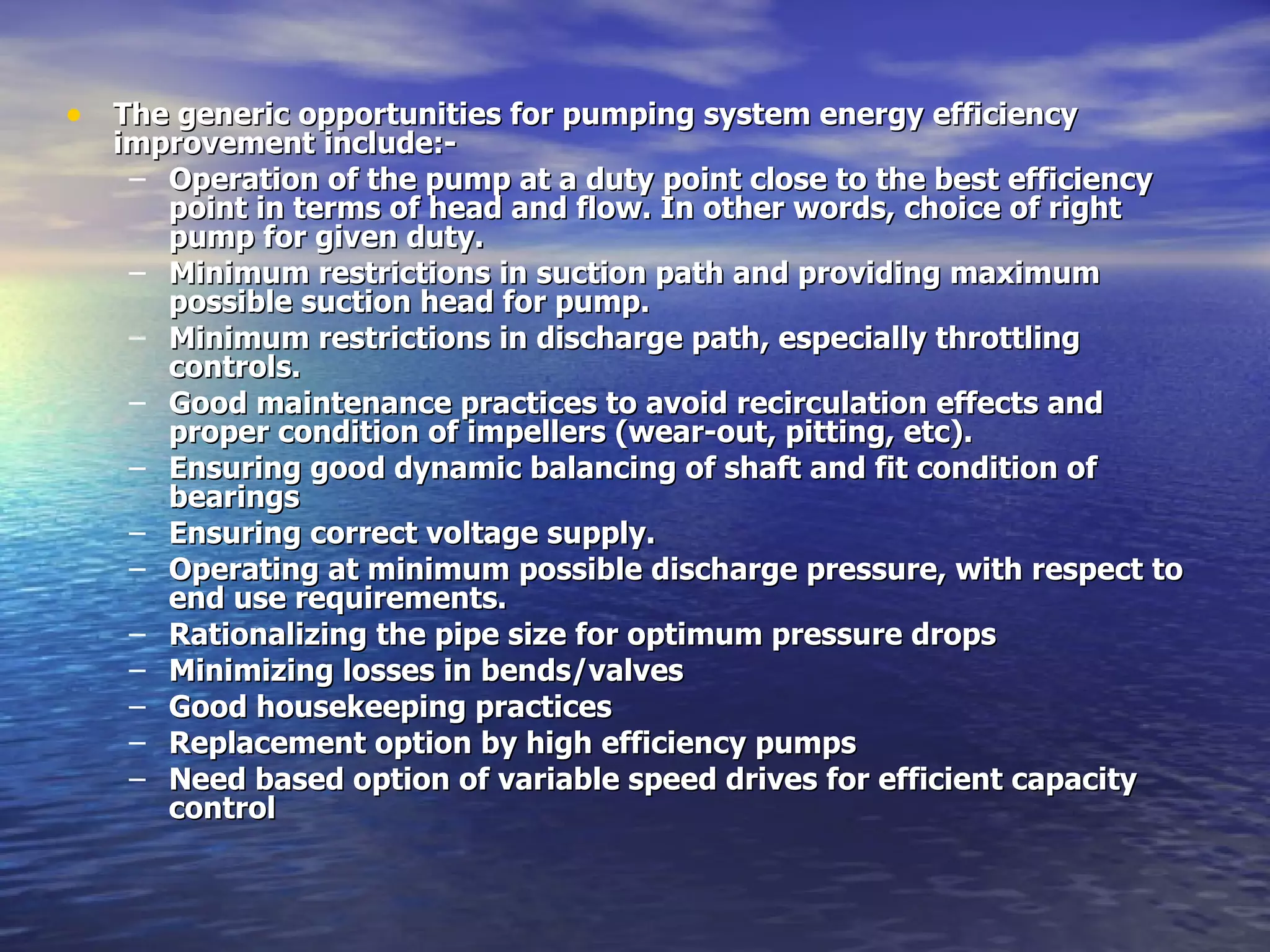

14. The generic opportunities for pumping system energy efficiency improvement include:- Operation of the pump at a duty point close to the best efficiency point in terms of head and flow. In other words, choice of right pump for given duty. Minimum restrictions in suction path and providing maximum possible suction head for pump. Minimum restrictions in discharge path, especially throttling controls. Good maintenance practices to avoid recirculation effects and proper condition of impellers (wear-out, pitting, etc). Ensuring good dynamic balancing of shaft and fit condition of bearings Ensuring correct voltage supply. Operating at minimum possible discharge pressure, with respect to end use requirements. Rationalizing the pipe size for optimum pressure drops Minimizing losses in bends/valves Good housekeeping practices Replacement option by high efficiency pumps Need based option of variable speed drives for efficient capacity control

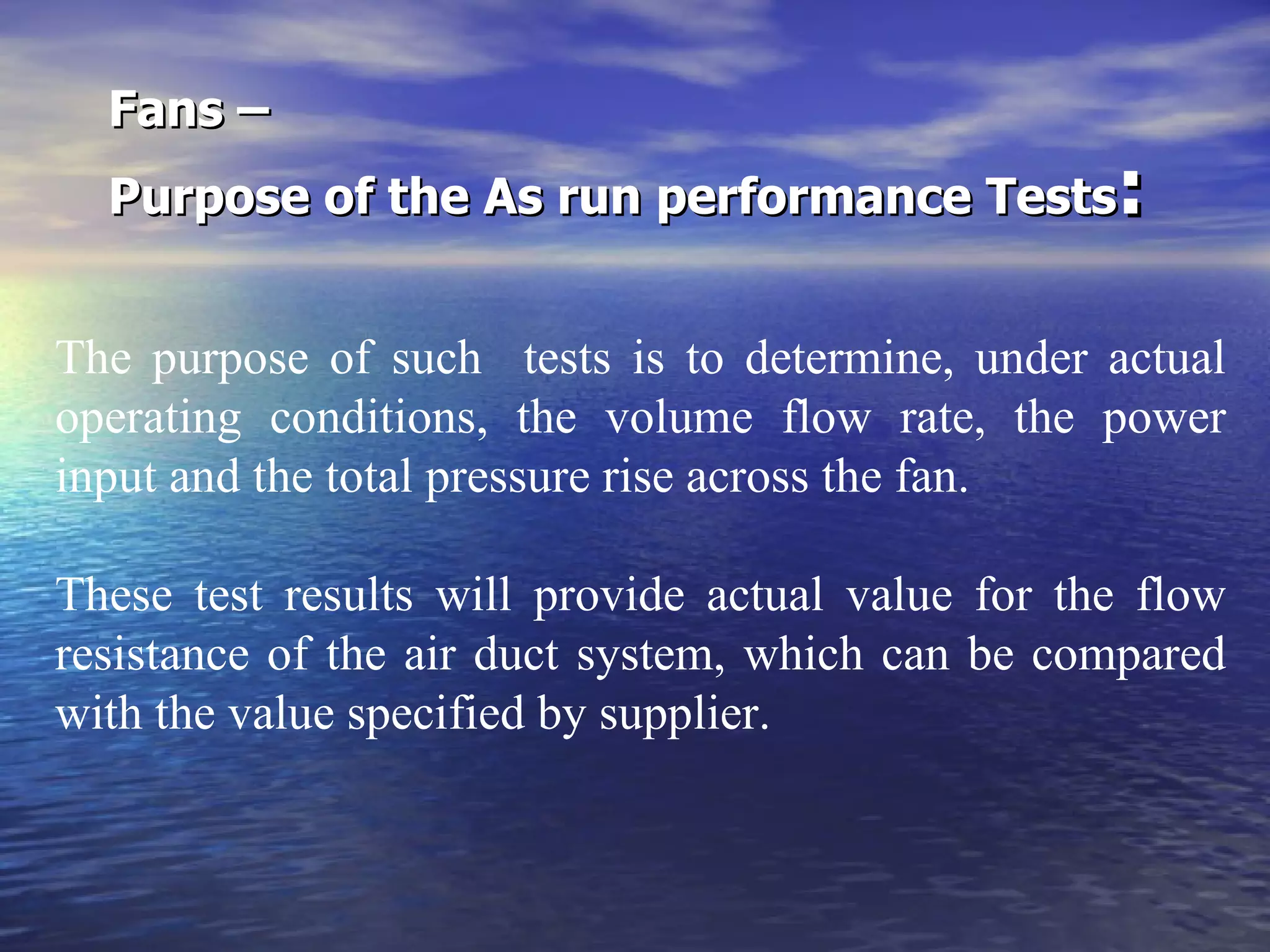

15. Fans – Purpose of the As run performance Tests : The purpose of such tests is to determine, under actual operating conditions, the volume flow rate, the power input and the total pressure rise across the fan. These test results will provide actual value for the flow resistance of the air duct system, which can be compared with the value specified by supplier.

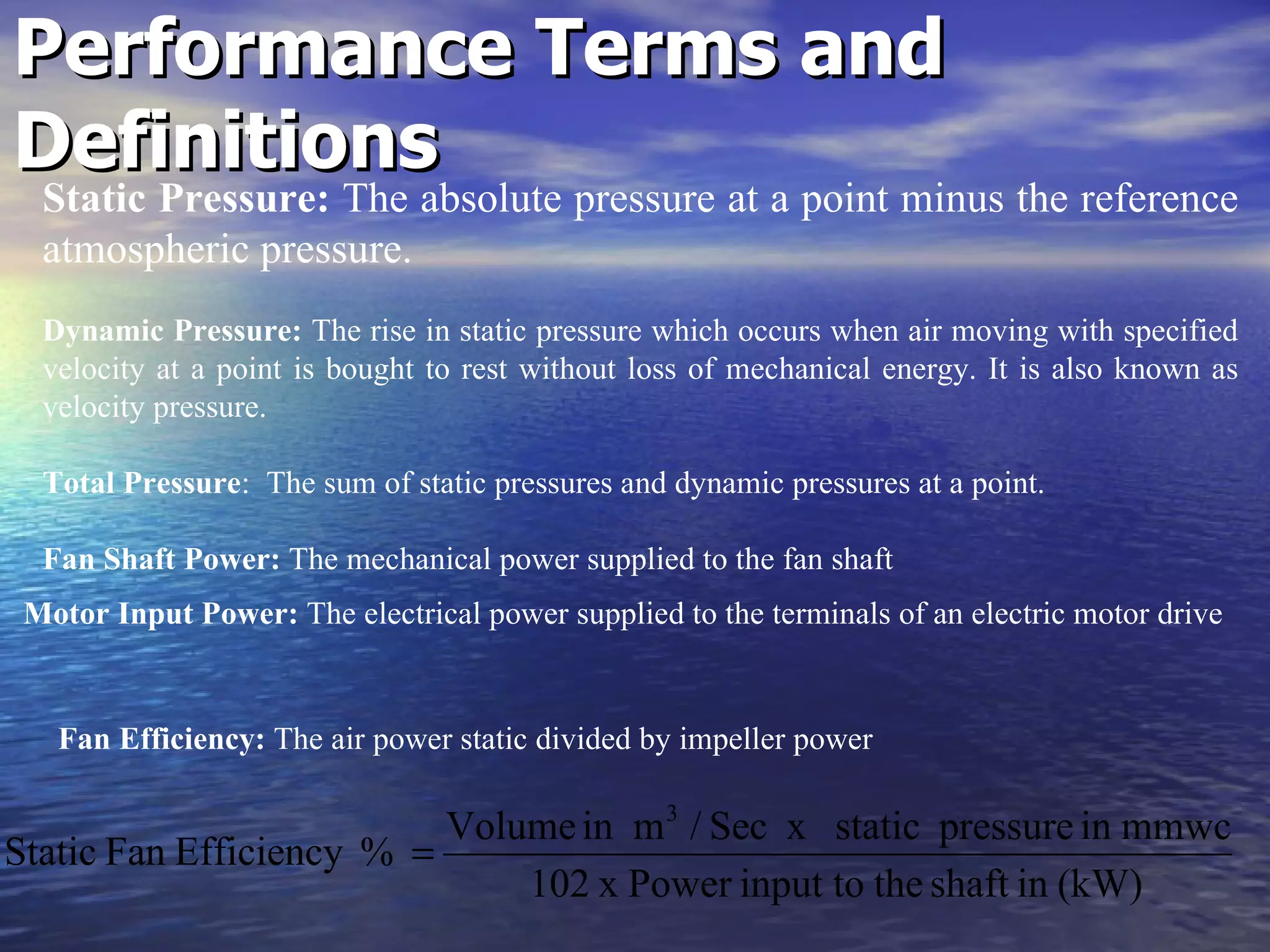

16. Performance Terms and Definitions Fan Efficiency: The air power static divided by impeller power Static Pressure: The absolute pressure at a point minus the reference atmospheric pressure. Dynamic Pressure: The rise in static pressure which occurs when air moving with specified velocity at a point is bought to rest without loss of mechanical energy. It is also known as velocity pressure. Total Pressure : The sum of static pressures and dynamic pressures at a point. Fan Shaft Power: The mechanical power supplied to the fan shaft Motor Input Power: The electrical power supplied to the terminals of an electric motor drive

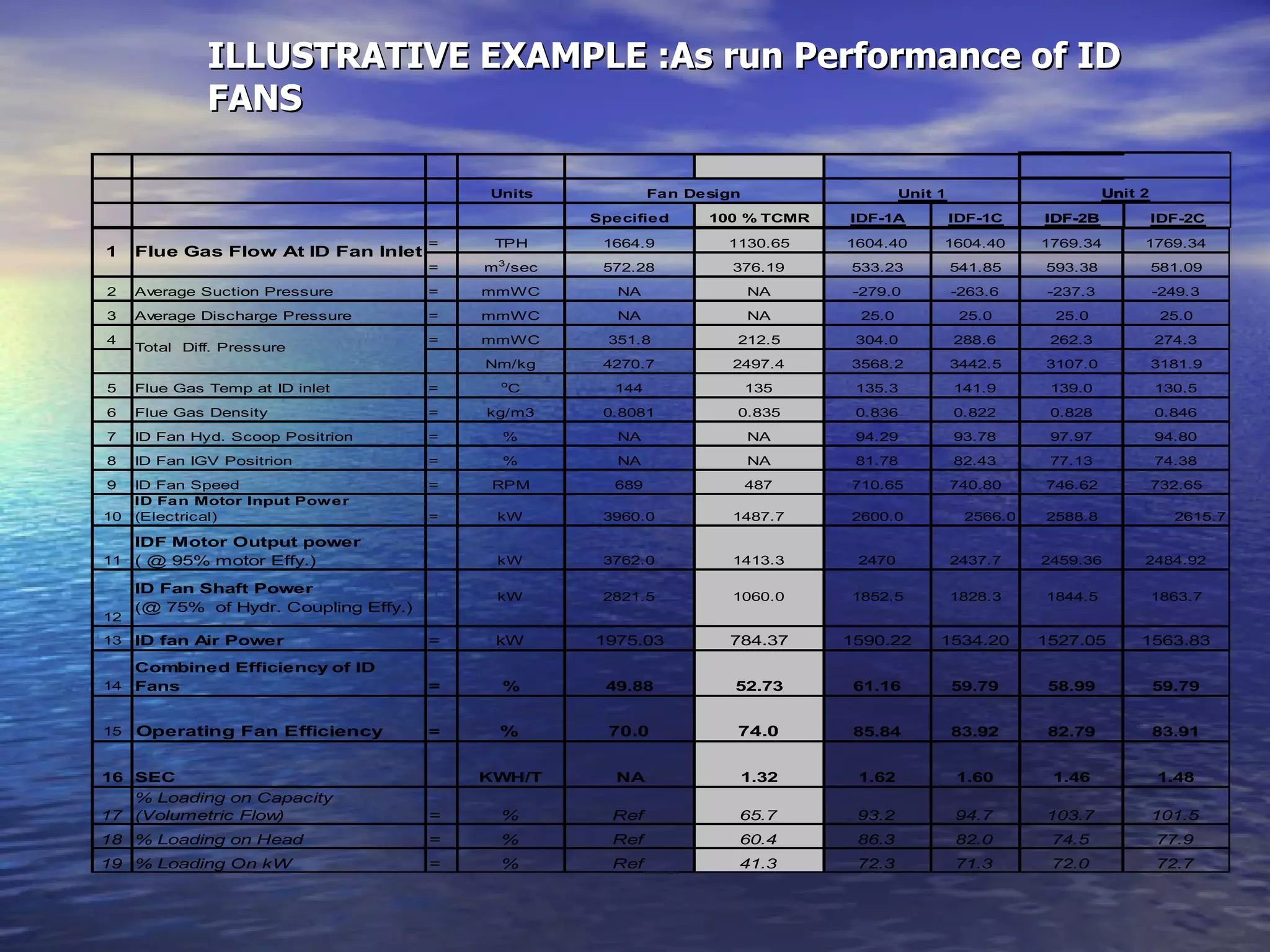

17. ILLUSTRATIVE EXAMPLE :As run Performance of ID FANS

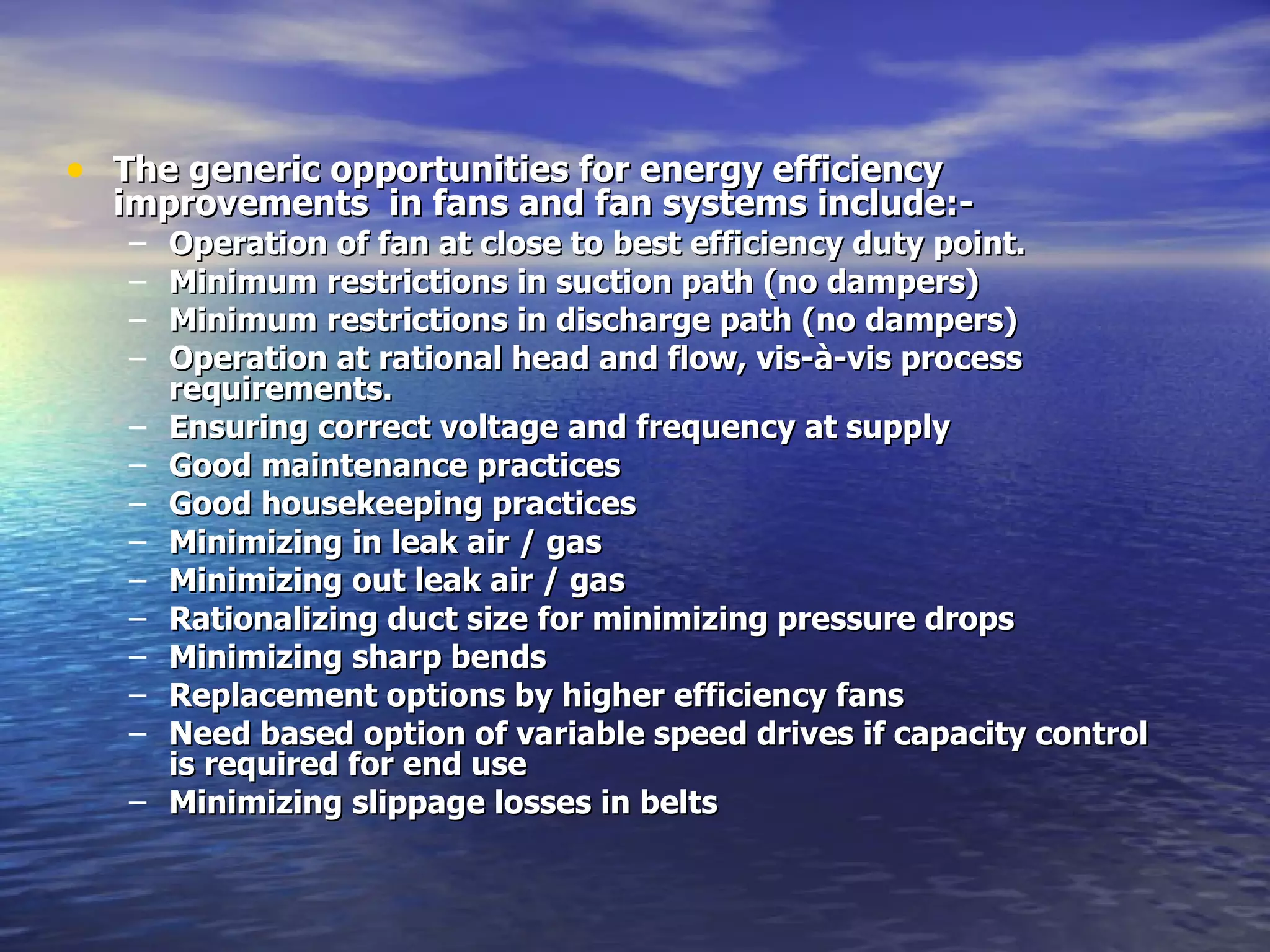

18. The generic opportunities for energy efficiency improvements in fans and fan systems include:- Operation of fan at close to best efficiency duty point. Minimum restrictions in suction path (no dampers) Minimum restrictions in discharge path (no dampers) Operation at rational head and flow, vis-à-vis process requirements. Ensuring correct voltage and frequency at supply Good maintenance practices Good housekeeping practices Minimizing in leak air / gas Minimizing out leak air / gas Rationalizing duct size for minimizing pressure drops Minimizing sharp bends Replacement options by higher efficiency fans Need based option of variable speed drives if capacity control is required for end use Minimizing slippage losses in belts
