Egl (engineering graphics lab)

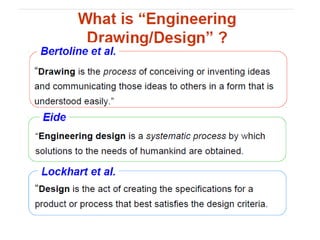

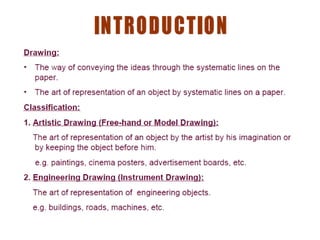

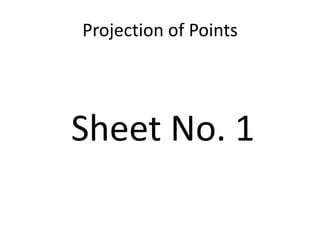

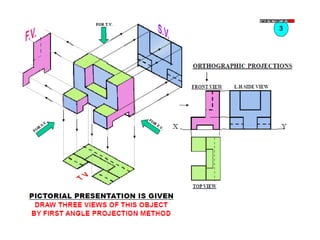

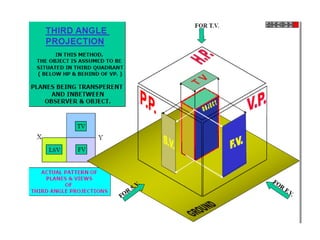

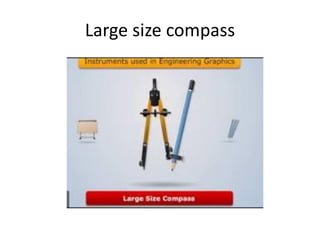

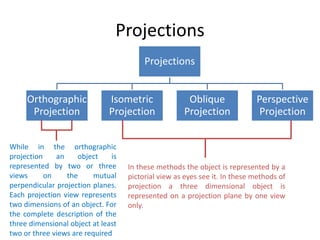

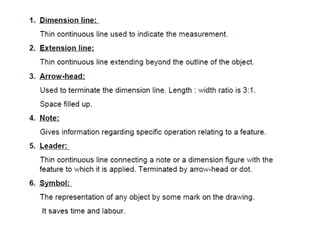

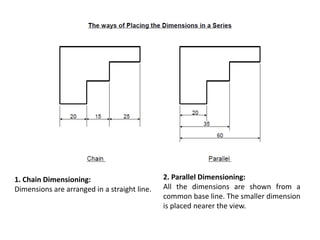

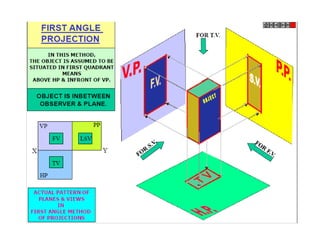

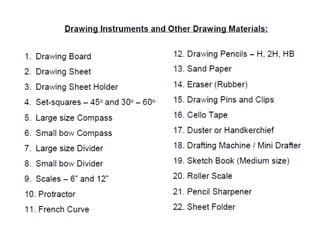

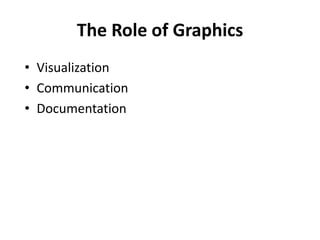

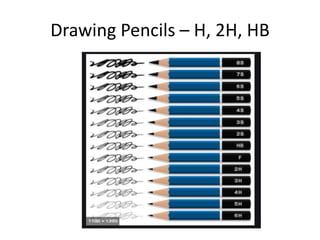

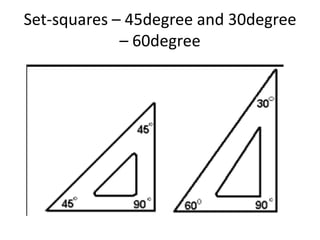

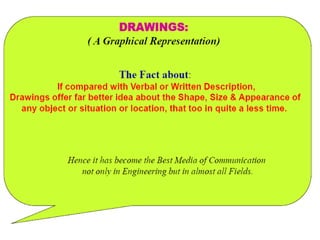

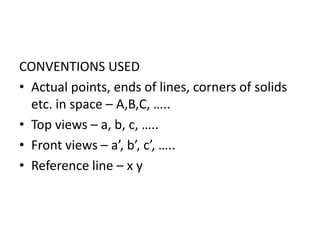

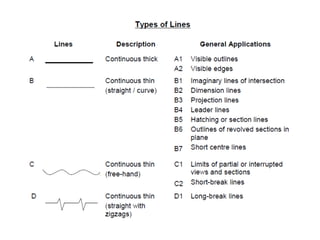

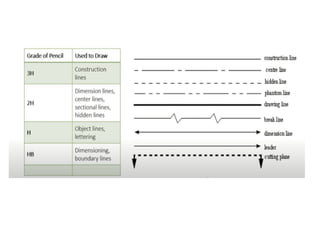

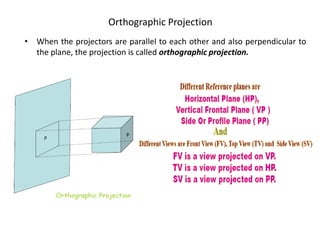

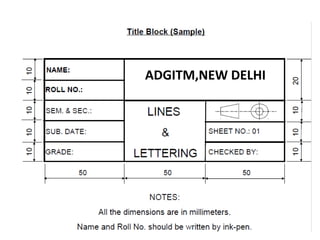

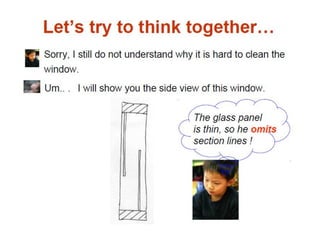

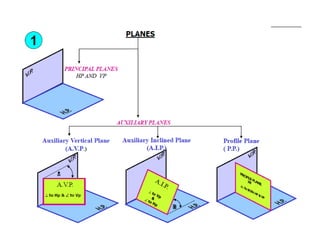

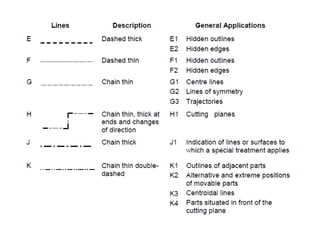

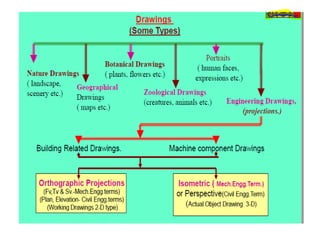

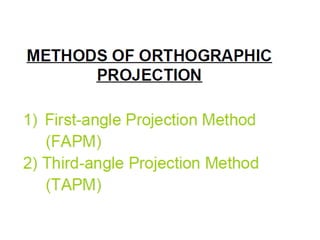

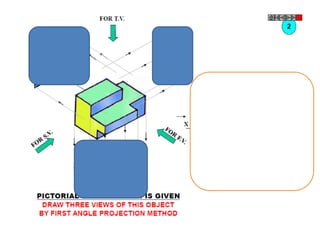

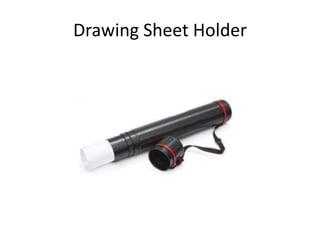

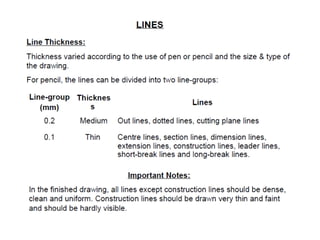

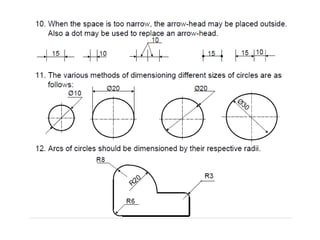

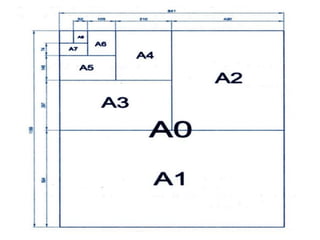

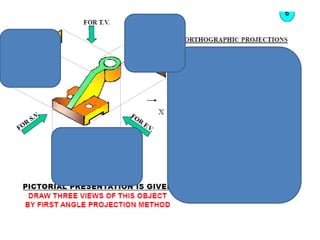

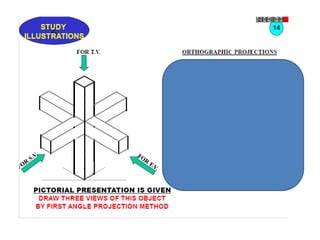

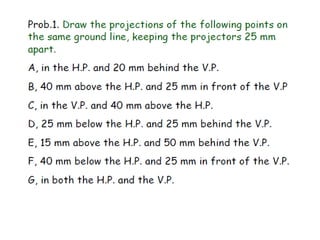

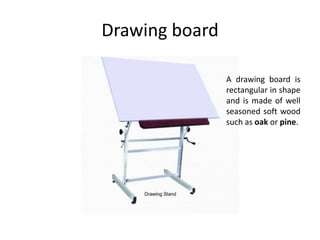

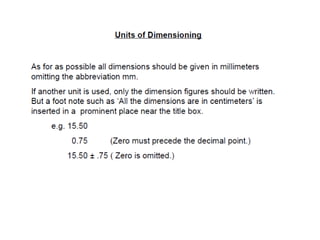

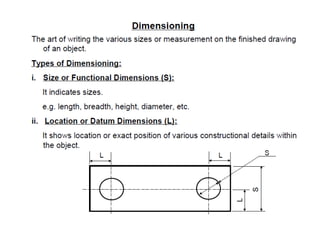

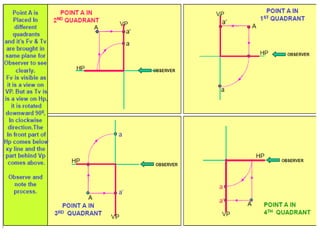

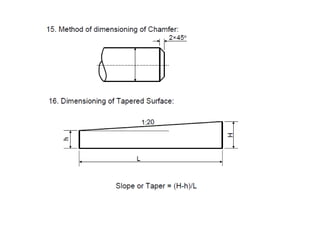

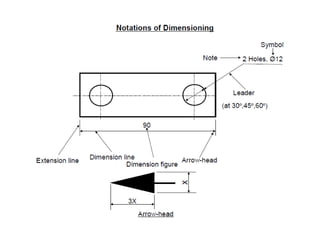

The document provides an overview of drafting tools and techniques used to create technical drawings. It discusses the role of graphics in visualization, communication and documentation. It then lists common drafting tools like a drawing board, T-square, protractor, pencils, and a drafting machine. It also covers different dimensioning styles, scales used in drawings, orthographic and multi-view projections, and conventions for labeling points and views.
