PP1 Project 3 Feasibility study

This document is a feasibility study for a proposed 37-storey residential development project located in Selangor, Malaysia. It outlines the project description, including site details, schematic designs, accommodation schedules, construction specifications, and financial calculations such as total construction cost and gross development value. The study provides a comprehensive overview of project implementation planning, consisting of timelines and organized segmentation of various building elements and facilities.

Embed presentation

Downloaded 53 times
Professional Practice & Entrepreneurship 1 (ARC 70303) Assignment 3: Feasibility Study Teo Kean Hui (0310165) Instructor: Ar. Zahari Zubir
Table of content 1.0 Introduction Proposed Project Design 2.0 Project Description 2.1 Site 2.2 Schematic Design Drawings 2.3 Schedule of Accommodation 2.3.1 Building Programme and Area 3.0 Specifications for building structure and architectural elements 4.0 Specifications for external and internal, finishes and fittings 4.1 Schedule of External and Internal Finishes 4.2 Schedule of Sanitaryware 4.3 Schedule of Ironmongeries Feasibility Calculations 5.0 Schedule of Accommodation 5.1 Gross Development Value (GDV) calculation 5.2 Building Total Construction Cost (TCC) calculation Project Implementation Planning 6.0 Program timeline 7.0 Conclusion
1.0 Introduction This report is to provide schematic drawings, building feasibility calculations and project implementation planning. The report consists of description for the proposed project design with schematic drawings plans, sections, elevations and perspectives. The specifications of structures and finishes will be shown as an overall standard used for the proposed design. The proposal will provide an estimation feasibility calculation of total construction cost (TCC) and gross development value (GDV) to have an overview of the profit of this proposed project. Last part of the report will consist a list of task with timeline estimation as an overview of the entire project from beginning to completion. Below are the building proposed 37 storeys residential development building consist of: 1. Basement parking - 2 storeys 2. Elevated parking - 8 storeys 3. Facility - 1 storeys 4. Residential - 27 storeys
2.0 Project Description 2.1 Site The client invested over a big land consisting multiple lots located in PJS 5, MUKIM PETALING, DAERAH PETALING, SELANGOR DARUL EHSAN aim to develop into master planning of multiple shops and high rise residential. The proposed project is in Phase 2 where building sits partially on LOT PT9194 and LOT PT9195. Proposed two towers of 27 storeys residential Block A and Block B from level 9 to level 35. One facility floor at level 8 consisting gym, swimming pool, multi-purpose hall, surau and management office; 2 levels of basement carpark and 8 levels of elevated car park. The land size is 160418.49 sqft (14903.38 sqm). Proposed site Location PlanKey Plan

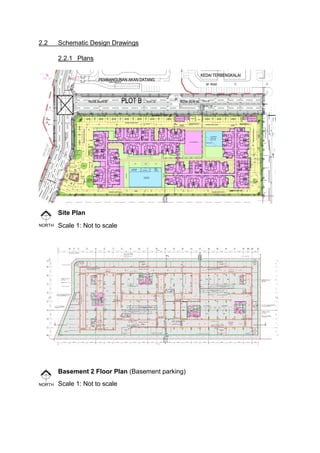

2.2 Schematic Design Drawings 2.2.1 Plans Site Plan Scale 1: Not to scale Basement 2 Floor Plan (Basement parking) Scale 1: Not to scale

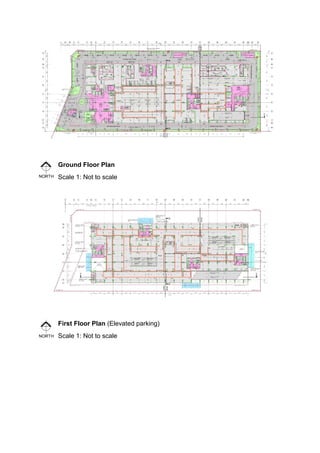

Ground Floor Plan Scale 1: Not to scale First Floor Plan (Elevated parking) Scale 1: Not to scale

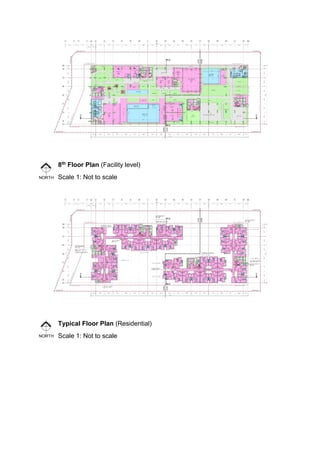

8th Floor Plan (Facility level) Scale 1: Not to scale Typical Floor Plan (Residential) Scale 1: Not to scale

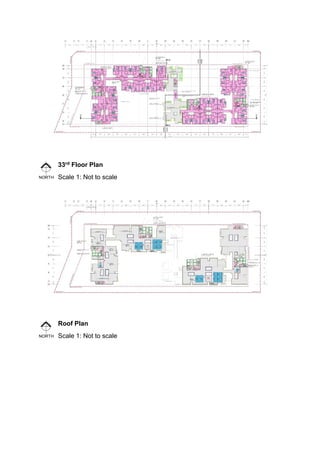

33rd Floor Plan Scale 1: Not to scale Roof Plan Scale 1: Not to scale

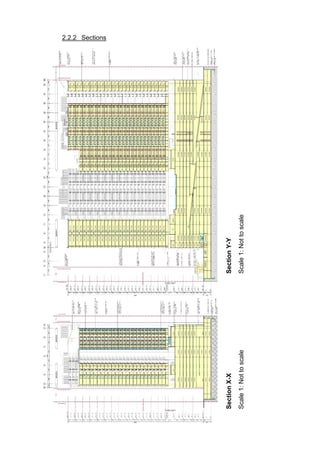

SectionX-XSectionY-Y Scale1:NottoscaleScale1:Nottoscale 2.2.2 Sections

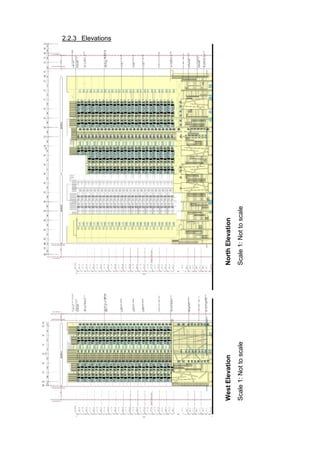

WestElevationNorthElevation Scale1:NottoscaleScale1:Nottoscale 2.2.3 Elevations

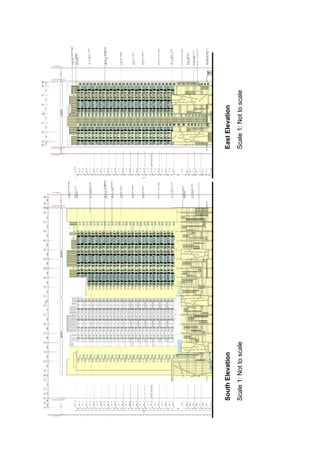

SouthElevationEastElevation Scale1:NottoscaleScale1:Nottoscale
2.2.4 Perspectives Perspective 1 Perspective 2
Perspective 3 Perspective 4

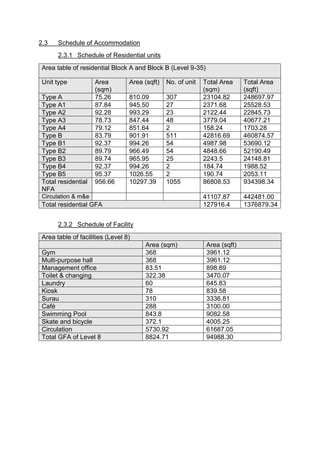

2.3 Schedule of Accommodation 2.3.1 Schedule of Residential units Area table of residential Block A and Block B (Level 9-35) Unit type Area (sqm) Area (sqft) No. of unit Total Area (sqm) Total Area (sqft) Type A 75.26 810.09 307 23104.82 248697.97 Type A1 87.84 945.50 27 2371.68 25528.53 Type A2 92.28 993.29 23 2122.44 22845.73 Type A3 78.73 847.44 48 3779.04 40677.21 Type A4 79.12 851.64 2 158.24 1703.28 Type B 83.79 901.91 511 42816.69 460874.57 Type B1 92.37 994.26 54 4987.98 53690.12 Type B2 89.79 966.49 54 4848.66 52190.49 Type B3 89.74 965.95 25 2243.5 24148.81 Type B4 92.37 994.26 2 184.74 1988.52 Type B5 95.37 1026.55 2 190.74 2053.11 Total residential NFA 956.66 10297.39 1055 86808.53 934398.34 Circulation & m&e 41107.87 442481.00 Total residential GFA 127916.4 1376879.34 2.3.2 Schedule of Facility Area table of facilities (Level 8) Area (sqm) Area (sqft) Gym 368 3961.12 Multi-purpose hall 368 3961.12 Management office 83.51 898.89 Toilet & changing 322.38 3470.07 Laundry 60 645.83 Kiosk 78 839.58 Surau 310 3336.81 Café 288 3100.00 Swimming Pool 843.8 9082.58 Skate and bicycle 372.1 4005.25 Circulation 5730.92 61687.05 Total GFA of Level 8 8824.71 94988.30
Area table of facilities (Level G) Area (sqm) Area (sqft) Guard house 41.36 445.19 Refuse Chamber 112.72 Mail room 127.2 1369.17 Lounge 429.38 4621.80 Tadika & Taska 193.62 2084.11 Electrical sub-division room 652.75 7026.14 Shop 27.78 299.02 2.3.3 Schedule of Elevated car parking Area table of elevated carpark (Level G-7) Level Area (sqm) Area (sqft) G 7311.26 78697.67 1 8529.28 91808.32 2 8824.71 94988.30 3 8824.71 94988.30 4 8824.71 94988.30 5 8824.71 94988.30 6 8824.71 94988.30 7 8824.71 94988.30 Total GFA 68788.8 740435.76 2.3.4 Schedule of Basement car parking Area table of basement carpark (Level B2-B1) Level Area (sqm) Area (sqft) B1 13402.68 1215377.24 B2 13402.68 2335766.19 2.3.5 Roof area Area table of roof (Level 36) Area (sqm) Area (sqft) 4371.24 47051.59

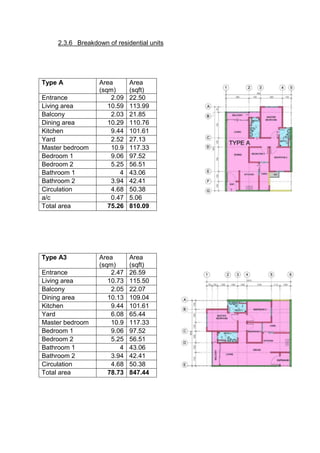

2.3.6 Breakdown of residential units Type A Area (sqm) Area (sqft) Entrance 2.09 22.50 Living area 10.59 113.99 Balcony 2.03 21.85 Dining area 10.29 110.76 Kitchen 9.44 101.61 Yard 2.52 27.13 Master bedroom 10.9 117.33 Bedroom 1 9.06 97.52 Bedroom 2 5.25 56.51 Bathroom 1 4 43.06 Bathroom 2 3.94 42.41 Circulation 4.68 50.38 a/c 0.47 5.06 Total area 75.26 810.09 Type A3 Area (sqm) Area (sqft) Entrance 2.47 26.59 Living area 10.73 115.50 Balcony 2.05 22.07 Dining area 10.13 109.04 Kitchen 9.44 101.61 Yard 6.08 65.44 Master bedroom 10.9 117.33 Bedroom 1 9.06 97.52 Bedroom 2 5.25 56.51 Bathroom 1 4 43.06 Bathroom 2 3.94 42.41 Circulation 4.68 50.38 Total area 78.73 847.44

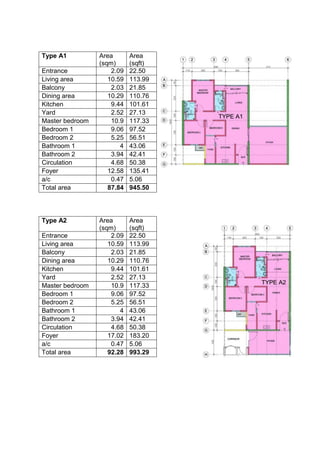

Type A1 Area (sqm) Area (sqft) Entrance 2.09 22.50 Living area 10.59 113.99 Balcony 2.03 21.85 Dining area 10.29 110.76 Kitchen 9.44 101.61 Yard 2.52 27.13 Master bedroom 10.9 117.33 Bedroom 1 9.06 97.52 Bedroom 2 5.25 56.51 Bathroom 1 4 43.06 Bathroom 2 3.94 42.41 Circulation 4.68 50.38 Foyer 12.58 135.41 a/c 0.47 5.06 Total area 87.84 945.50 Type A2 Area (sqm) Area (sqft) Entrance 2.09 22.50 Living area 10.59 113.99 Balcony 2.03 21.85 Dining area 10.29 110.76 Kitchen 9.44 101.61 Yard 2.52 27.13 Master bedroom 10.9 117.33 Bedroom 1 9.06 97.52 Bedroom 2 5.25 56.51 Bathroom 1 4 43.06 Bathroom 2 3.94 42.41 Circulation 4.68 50.38 Foyer 17.02 183.20 a/c 0.47 5.06 Total area 92.28 993.29

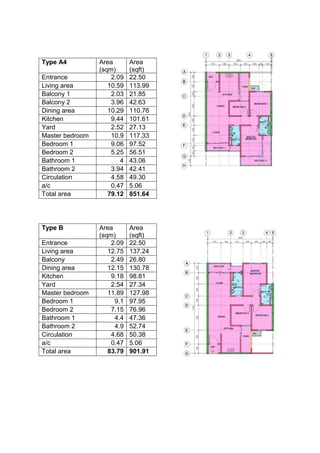

Type B Area (sqm) Area (sqft) Entrance 2.09 22.50 Living area 12.75 137.24 Balcony 2.49 26.80 Dining area 12.15 130.78 Kitchen 9.18 98.81 Yard 2.54 27.34 Master bedroom 11.89 127.98 Bedroom 1 9.1 97.95 Bedroom 2 7.15 76.96 Bathroom 1 4.4 47.36 Bathroom 2 4.9 52.74 Circulation 4.68 50.38 a/c 0.47 5.06 Total area 83.79 901.91 Type A4 Area (sqm) Area (sqft) Entrance 2.09 22.50 Living area 10.59 113.99 Balcony 1 2.03 21.85 Balcony 2 3.96 42.63 Dining area 10.29 110.76 Kitchen 9.44 101.61 Yard 2.52 27.13 Master bedroom 10.9 117.33 Bedroom 1 9.06 97.52 Bedroom 2 5.25 56.51 Bathroom 1 4 43.06 Bathroom 2 3.94 42.41 Circulation 4.58 49.30 a/c 0.47 5.06 Total area 79.12 851.64

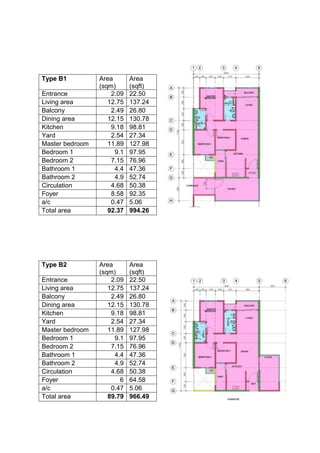

Type B2 Area (sqm) Area (sqft) Entrance 2.09 22.50 Living area 12.75 137.24 Balcony 2.49 26.80 Dining area 12.15 130.78 Kitchen 9.18 98.81 Yard 2.54 27.34 Master bedroom 11.89 127.98 Bedroom 1 9.1 97.95 Bedroom 2 7.15 76.96 Bathroom 1 4.4 47.36 Bathroom 2 4.9 52.74 Circulation 4.68 50.38 Foyer 6 64.58 a/c 0.47 5.06 Total area 89.79 966.49 Type B1 Area (sqm) Area (sqft) Entrance 2.09 22.50 Living area 12.75 137.24 Balcony 2.49 26.80 Dining area 12.15 130.78 Kitchen 9.18 98.81 Yard 2.54 27.34 Master bedroom 11.89 127.98 Bedroom 1 9.1 97.95 Bedroom 2 7.15 76.96 Bathroom 1 4.4 47.36 Bathroom 2 4.9 52.74 Circulation 4.68 50.38 Foyer 8.58 92.35 a/c 0.47 5.06 Total area 92.37 994.26

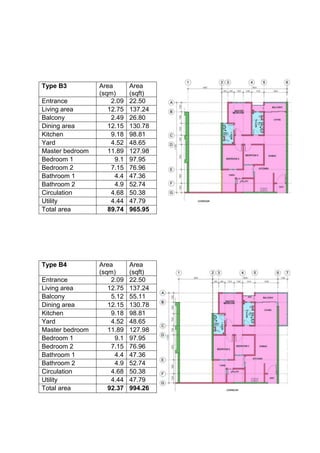

Type B4 Area (sqm) Area (sqft) Entrance 2.09 22.50 Living area 12.75 137.24 Balcony 5.12 55.11 Dining area 12.15 130.78 Kitchen 9.18 98.81 Yard 4.52 48.65 Master bedroom 11.89 127.98 Bedroom 1 9.1 97.95 Bedroom 2 7.15 76.96 Bathroom 1 4.4 47.36 Bathroom 2 4.9 52.74 Circulation 4.68 50.38 Utility 4.44 47.79 Total area 92.37 994.26 Type B3 Area (sqm) Area (sqft) Entrance 2.09 22.50 Living area 12.75 137.24 Balcony 2.49 26.80 Dining area 12.15 130.78 Kitchen 9.18 98.81 Yard 4.52 48.65 Master bedroom 11.89 127.98 Bedroom 1 9.1 97.95 Bedroom 2 7.15 76.96 Bathroom 1 4.4 47.36 Bathroom 2 4.9 52.74 Circulation 4.68 50.38 Utility 4.44 47.79 Total area 89.74 965.95

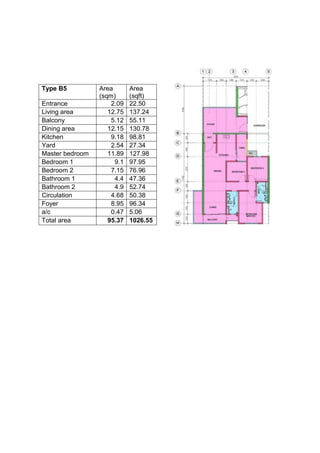

Type B5 Area (sqm) Area (sqft) Entrance 2.09 22.50 Living area 12.75 137.24 Balcony 5.12 55.11 Dining area 12.15 130.78 Kitchen 9.18 98.81 Yard 2.54 27.34 Master bedroom 11.89 127.98 Bedroom 1 9.1 97.95 Bedroom 2 7.15 76.96 Bathroom 1 4.4 47.36 Bathroom 2 4.9 52.74 Circulation 4.68 50.38 Foyer 8.95 96.34 a/c 0.47 5.06 Total area 95.37 1026.55
3.0 Schedule of Building Structure and Architectural Elements Item Description 1 Sub-structure a) Earthwork Excavation works to engr's detail b) Piling 300mm ø RC piles @ 30m penetration depth c) WBLFF 2000mm thk RC raft foundation, ground beam, ground slab, anti-termite membrane and damp-proof membrane 2 Super-structure a) Frame RC Grade 40 column, beams, wall and lift core b) Upper floor RC Grade 40 floor slab and water-proofing membrane at wet zone. c) Staircase RC Grade 40 staircase with cement render d) Roof RC flat roof RC gutter and UPVC rainwater downpipe Lightweight and steel trusses e) Door and windows Solid timber panel door at entrance, honeycomb timber panel door to bedroom and bathroom. Powder coated aluminium door frame and good quality ironmongeries. Tempered glass double leaf entrance to lobby at lounge PC aluminium windows and sliding doors f) Wall Pre-cast RC wall on external wall 115mm thk brick wall with 19mm cement plastering on both side for internal wall Tempered lass with mile steel powder coated railing to balcony 3 Finishes a) Wall Refer to schedule of finishes b) Floor Refer to schedule of finishes c) Ceiling Refer to schedule of finishes 4 Fittings Quality Sanitary appliances and fittings 5 External with boundary Refuse chamber, guardhouse and brick fencing 6 M&E Services Electrical points, tv points, aircond points, water heater points and telephone/ internet points Rain water harvesting tank Cold and how water plumbing and sanitary plumbing Solar panel, lift
4.0 Specifications for External, Internal, Finishes and Fittings 4.1 Schedule of External Finishes and Internal Finishes Surface Finishes 1 External wall Cement plaster with weathershield paint, one undercoat sealer and two finishing coats paint 2 Internal wall Cement plaster with emulsion paint, one undercoat sealer and two finishing coats paint 3 External Ceiling Skim coat surface with emulsion paint, two finishing coats paint 4 Internal Ceiling Skim coat surface with emulsion paint, two finishing coats paint 5 Metal work & external railing Powder coated metal works and external railing 6 RC roof Sikalastic 560 (High Standard System), liquid applied, elastic, UV Resistant, Green Label Certified Low VOC, Arcylic - Polyurethane Hybrid Dipersions based waterproofing membrane consist of a primer coat, a body coat then follow by Sika Reemat Standard reinforcement and finish with another 2 coats laid to fall slab. 7 Rainwater downpipe Unplasticised PVC pipes and fittings to BS:4514 with solvent welded joints including short length, running joints and fix- ing paper clip, brackets and hangers.

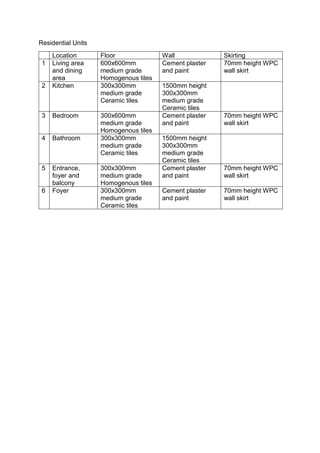

Residential Units Location Floor Wall Skirting 1 Living area and dining area 600x600mm medium grade Homogenous tiles Cement plaster and paint 70mm height WPC wall skirt 2 Kitchen 300x300mm medium grade Ceramic tiles 1500mm height 300x300mm medium grade Ceramic tiles 3 Bedroom 300x600mm medium grade Homogenous tiles Cement plaster and paint 70mm height WPC wall skirt 4 Bathroom 300x300mm medium grade Ceramic tiles 1500mm height 300x300mm medium grade Ceramic tiles 5 Entrance, foyer and balcony 300x300mm medium grade Homogenous tiles Cement plaster and paint 70mm height WPC wall skirt 6 Foyer 300x300mm medium grade Ceramic tiles Cement plaster and paint 70mm height WPC wall skirt

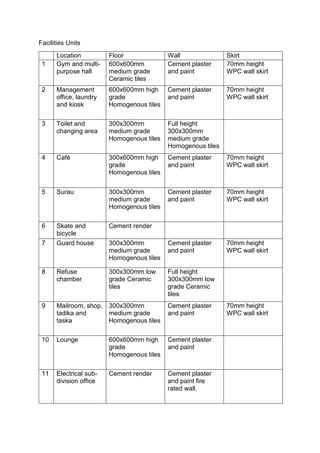

Facilities Units Location Floor Wall Skirt 1 Gym and multi- purpose hall 600x600mm medium grade Ceramic tiles Cement plaster and paint 70mm height WPC wall skirt 2 Management office, laundry and kiosk 600x600mm high grade Homogenous tiles Cement plaster and paint 70mm height WPC wall skirt 3 Toilet and changing area 300x300mm medium grade Homogenous tiles Full height 300x300mm medium grade Homogenous tiles 4 Café 300x600mm high grade Homogenous tiles Cement plaster and paint 70mm height WPC wall skirt 5 Surau 300x300mm medium grade Homogenous tiles Cement plaster and paint 70mm height WPC wall skirt 6 Skate and bicycle Cement render 7 Guard house 300x300mm medium grade Homogenous tiles Cement plaster and paint 70mm height WPC wall skirt 8 Refuse chamber 300x300mm low grade Ceramic tiles Full height 300x300mm low grade Ceramic tiles 9 Mailroom, shop, tadika and taska 300x300mm medium grade Homogenous tiles Cement plaster and paint 70mm height WPC wall skirt 10 Lounge 600x600mm high grade Homogenous tiles Cement plaster and paint 11 Electrical sub- division office Cement render Cement plaster and paint fire rated wall.

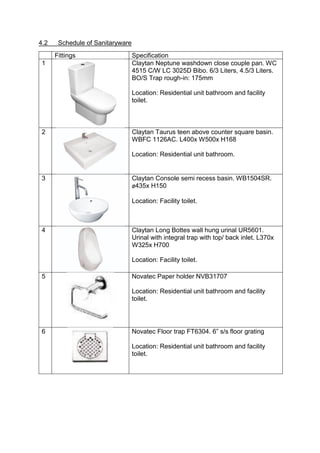

4.2 Schedule of Sanitaryware Fittings Specification 1 Claytan Neptune washdown close couple pan. WC 4515 C/W LC 3025D Bibo. 6/3 Liters, 4.5/3 Liters. BO/S Trap rough-in: 175mm Location: Residential unit bathroom and facility toilet. 2 Claytan Taurus teen above counter square basin. WBFC 1126AC. L400x W500x H168 Location: Residential unit bathroom. 3 Claytan Console semi recess basin. WB1504SR. ø435x H150 Location: Facility toilet. 4 Claytan Long Bottes wall hung urinal UR5601. Urinal with integral trap with top/ back inlet. L370x W325x H700 Location: Facility toilet. 5 Novatec Paper holder NVB31707 Location: Residential unit bathroom and facility toilet. 6 Novatec Floor trap FT6304. 6” s/s floor grating Location: Residential unit bathroom and facility toilet.

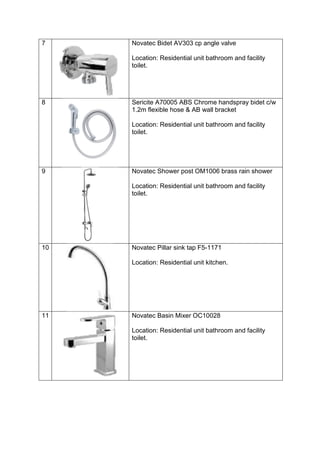

7 Novatec Bidet AV303 cp angle valve Location: Residential unit bathroom and facility toilet. 8 Sericite A70005 ABS Chrome handspray bidet c/w 1.2m flexible hose & AB wall bracket Location: Residential unit bathroom and facility toilet. 9 Novatec Shower post OM1006 brass rain shower Location: Residential unit bathroom and facility toilet. 10 Novatec Pillar sink tap F5-1171 Location: Residential unit kitchen. 11 Novatec Basin Mixer OC10028 Location: Residential unit bathroom and facility toilet.

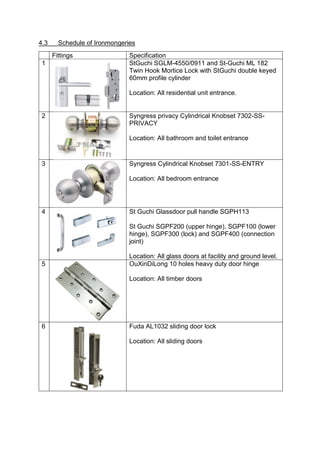

4.3 Schedule of Ironmongeries Fittings Specification 1 StGuchi SGLM-4550/0911 and St-Guchi ML 182 Twin Hook Mortice Lock with StGuchi double keyed 60mm profile cylinder Location: All residential unit entrance. 2 Syngress privacy Cylindrical Knobset 7302-SS- PRIVACY Location: All bathroom and toilet entrance 3 Syngress Cylindrical Knobset 7301-SS-ENTRY Location: All bedroom entrance 4 St Guchi Glassdoor pull handle SGPH113 St Guchi SGPF200 (upper hinge), SGPF100 (lower hinge), SGPF300 (lock) and SGPF400 (connection joint) Location: All glass doors at facility and ground level. 5 OuXinDiLong 10 holes heavy duty door hinge Location: All timber doors 6 Fuda AL1032 sliding door lock Location: All sliding doors

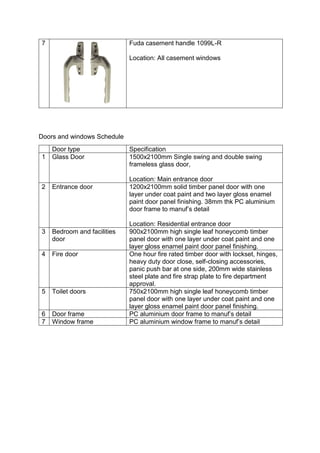

7 Fuda casement handle 1099L-R Location: All casement windows Doors and windows Schedule Door type Specification 1 Glass Door 1500x2100mm Single swing and double swing frameless glass door, Location: Main entrance door 2 Entrance door 1200x2100mm solid timber panel door with one layer under coat paint and two layer gloss enamel paint door panel finishing. 38mm thk PC aluminium door frame to manuf’s detail Location: Residential entrance door 3 Bedroom and facilities door 900x2100mm high single leaf honeycomb timber panel door with one layer under coat paint and one layer gloss enamel paint door panel finishing. 4 Fire door One hour fire rated timber door with lockset, hinges, heavy duty door close, self-closing accessories, panic push bar at one side, 200mm wide stainless steel plate and fire strap plate to fire department approval. 5 Toilet doors 750x2100mm high single leaf honeycomb timber panel door with one layer under coat paint and one layer gloss enamel paint door panel finishing. 6 Door frame PC aluminium door frame to manuf’s detail 7 Window frame PC aluminium window frame to manuf’s detail

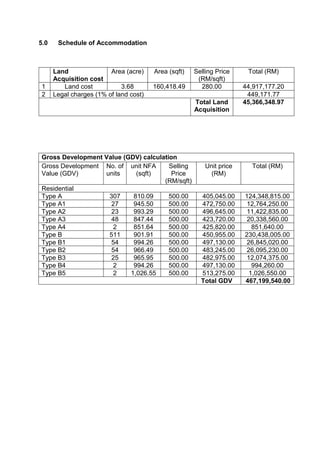

5.0 Schedule of Accommodation Land Acquisition cost Area (acre) Area (sqft) Selling Price (RM/sqft) Total (RM) 1 Land cost 3.68 160,418.49 280.00 44,917,177.20 2 Legal charges (1% of land cost) 449,171.77 Total Land Acquisition 45,366,348.97 Gross Development Value (GDV) calculation Gross Development Value (GDV) No. of units unit NFA (sqft) Selling Price (RM/sqft) Unit price (RM) Total (RM) Residential Type A 307 810.09 500.00 405,045.00 124,348,815.00 Type A1 27 945.50 500.00 472,750.00 12,764,250.00 Type A2 23 993.29 500.00 496,645.00 11,422,835.00 Type A3 48 847.44 500.00 423,720.00 20,338,560.00 Type A4 2 851.64 500.00 425,820.00 851,640.00 Type B 511 901.91 500.00 450,955.00 230,438,005.00 Type B1 54 994.26 500.00 497,130.00 26,845,020.00 Type B2 54 966.49 500.00 483,245.00 26,095,230.00 Type B3 25 965.95 500.00 482,975.00 12,074,375.00 Type B4 2 994.26 500.00 497,130.00 994,260.00 Type B5 2 1,026.55 500.00 513,275.00 1,026,550.00 Total GDV 467,199,540.00

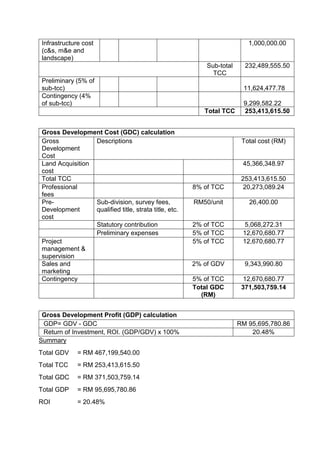

Total Construction Cost (TCC) calculation Total Construction Cost (TCC) No. of unit unit NFA (sqft) Building Constructio n Cost (RM/sqft) TCC/unit (RM) Total (RM) Residential Type A 307 810.09 150.00 121,513.50 37,304,644.50 Type A1 27 945.50 150.00 141,825.00 3,829,275.00 Type A2 23 993.29 150.00 148,993.50 3,426,850.50 Type A3 48 847.44 150.00 127,116.00 6,101,568.00 Type A4 2 851.64 150.00 127,746.00 255,492.00 Type B 511 901.91 150.00 135,286.50 69,131,401.50 Type B1 54 994.26 150.00 149,139.00 8,053,506.00 Type B2 54 966.49 150.00 144,973.50 7,828,569.00 Type B3 25 965.95 150.00 144,892.50 3,622,312.50 Type B4 2 994.26 150.00 149,139.00 298,278.00 Type B5 2 1,026.55 150.00 153,982.50 307,965.00 Facilities No. of unit Area (sqft) Building Constructio n Cost (RM/sqft) Total (RM) Gym 1 3,961.12 150.00 594,168.00 Multipurpose hall 1 3,961.12 150.00 594,168.00 Management office 1 898.89 150.00 134,833.50 Toilet & changing 1 3,470.07 120.00 416,408.40 Laundry 1 645.83 150.00 96,874.50 Kiosk 1 839.58 150.00 125,937.00 Surau 1 3,336.81 150.00 500,521.50 Café 1 3,100.00 150.00 465,000.00 Pool 1 9,082.58 120.00 1,089,909.60 Skate and bicycle 1 372.10 100.00 37,210.00 Mail room 1 1,369.17 100.00 136,917.00 Lounge 1 4,621.80 120.00 554,616.00 Tadika & Taska 1 2,084.11 120.00 250,093.20 Electrical sub- division room 1 7,026.14 100.00 702,614.00 Shop 1 299.02 120.00 35,882.40 Guard house 1 445.19 120.00 53,422.80 Refuse Chamber 1 1,213.31 100.00 121,331.00 Roof 47,051.59 70.00 3,293,611.30 Elevated parking Parking 740,435.76 70.00 51,830,503.20 Basement parking 288,530.21 100.00 28,853,021.00 Substructure 144,265.11 10.00 1,442,651.10
Infrastructure cost (c&s, m&e and landscape) 1,000,000.00 Sub-total TCC 232,489,555.50 Preliminary (5% of sub-tcc) 11,624,477.78 Contingency (4% of sub-tcc) 9,299,582.22 Total TCC 253,413,615.50 Gross Development Cost (GDC) calculation Gross Development Cost Descriptions Total cost (RM) Land Acquisition cost 45,366,348.97 Total TCC 253,413,615.50 Professional fees 8% of TCC 20,273,089.24 Pre- Development cost Sub-division, survey fees, qualified title, strata title, etc. RM50/unit 26,400.00 Statutory contribution 2% of TCC 5,068,272.31 Preliminary expenses 5% of TCC 12,670,680.77 Project management & supervision 5% of TCC 12,670,680.77 Sales and marketing 2% of GDV 9,343,990.80 Contingency 5% of TCC 12,670,680.77 Total GDC (RM) 371,503,759.14 Gross Development Profit (GDP) calculation GDP= GDV - GDC RM 95,695,780.86 Return of Investment, ROI. (GDP/GDV) x 100% 20.48% Summary Total GDV = RM 467,199,540.00 Total TCC = RM 253,413,615.50 Total GDC = RM 371,503,759.14 Total GDP = RM 95,695,780.86 ROI = 20.48%

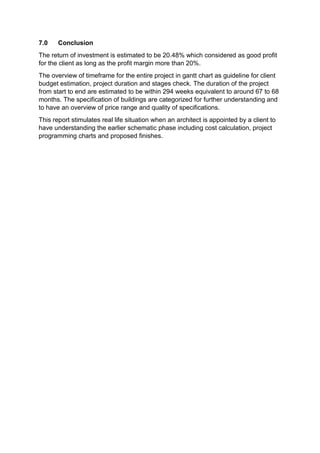

7.0 Conclusion The return of investment is estimated to be 20.48% which considered as good profit for the client as long as the profit margin more than 20%. The overview of timeframe for the entire project in gantt chart as guideline for client budget estimation, project duration and stages check. The duration of the project from start to end are estimated to be within 294 weeks equivalent to around 67 to 68 months. The specification of buildings are categorized for further understanding and to have an overview of price range and quality of specifications. This report stimulates real life situation when an architect is appointed by a client to have understanding the earlier schematic phase including cost calculation, project programming charts and proposed finishes.
