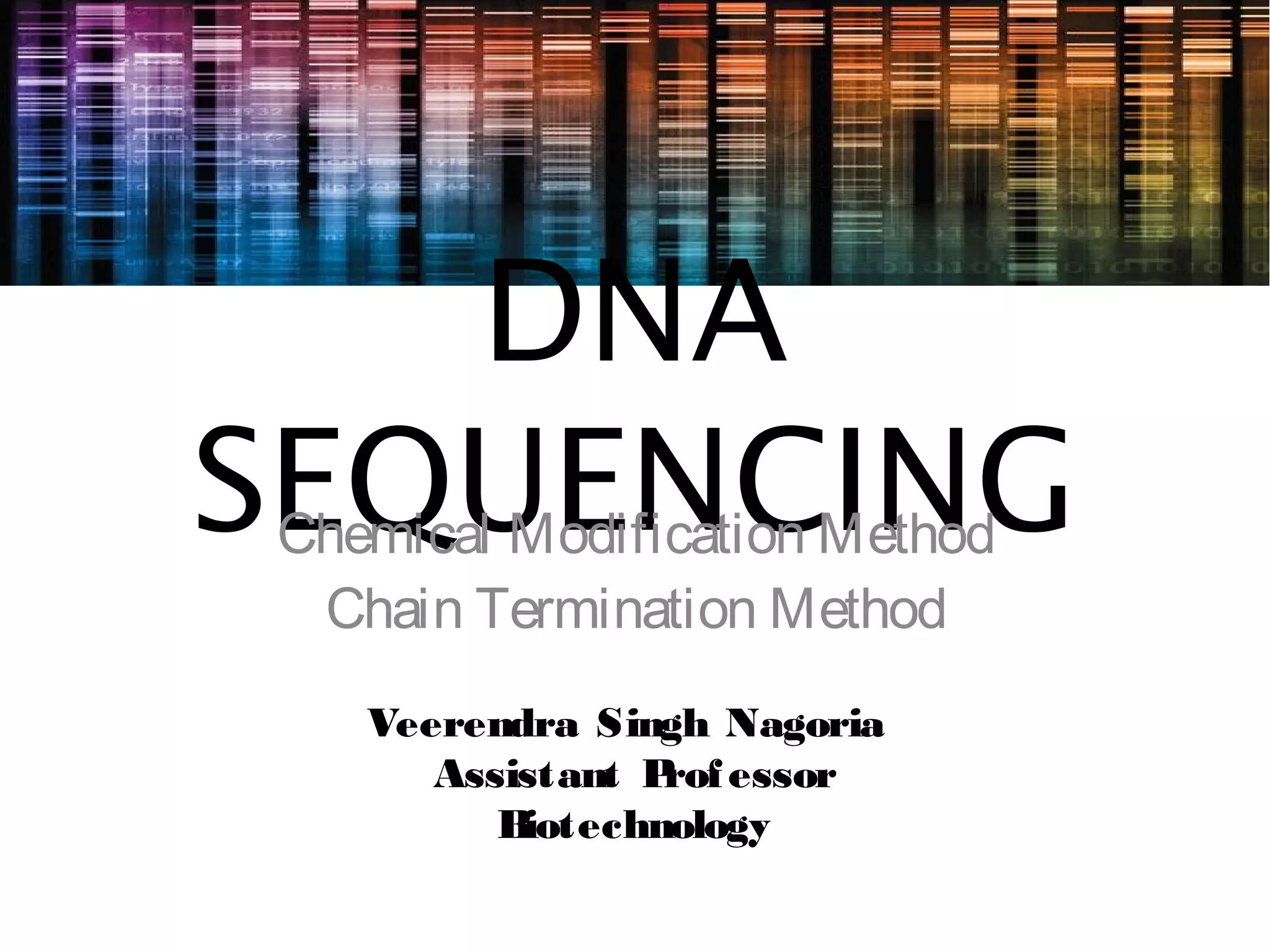

1. DNA
SEQUENCINGChemical Modification Method
Chain Termination Method
Veerendra Singh Nagoria
Assistant Professor
Biotechnology

2. ObjectivesObjectives
• What is DNA Sequencing ?
• History of development
• Basic Methods- Chain
termination and Chemical
modification method

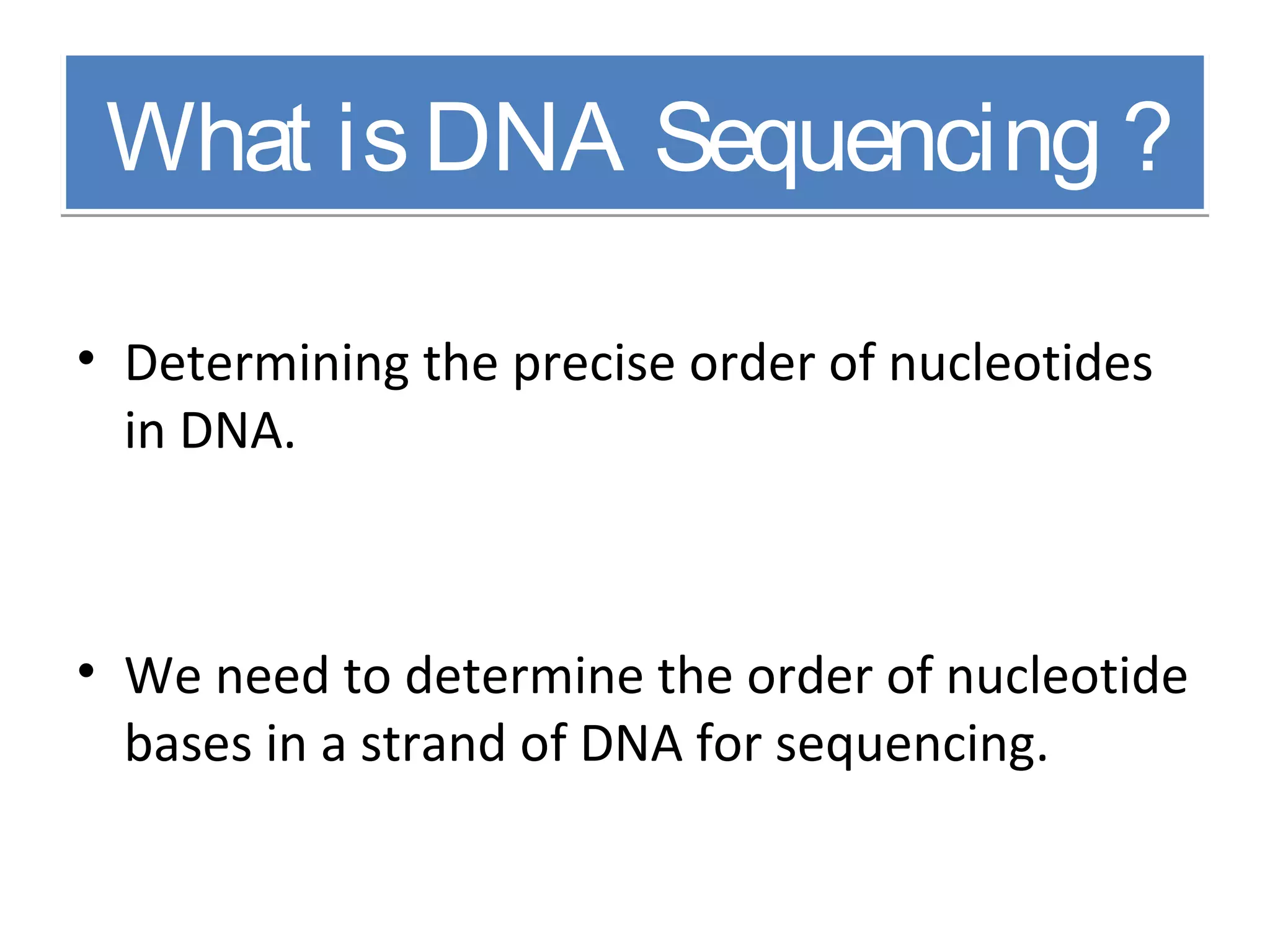

3. What isDNA Sequencing ?What isDNA Sequencing ?
• Determining the precise order of nucleotides
in DNA.
• We need to determine the order of nucleotide
bases in a strand of DNA for sequencing.

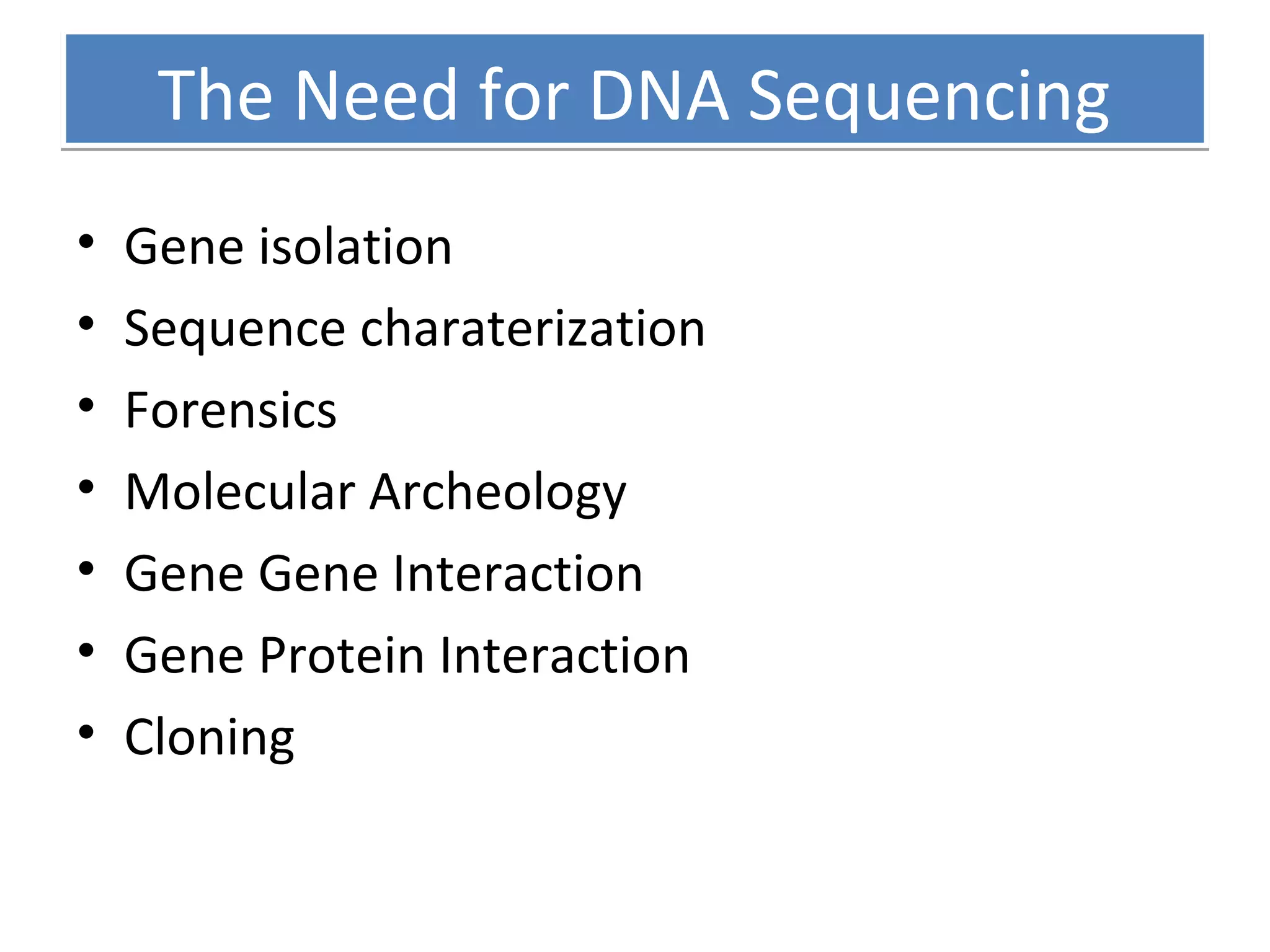

4. The Need for DNA SequencingThe Need for DNA Sequencing
• Gene isolation
• Sequence charaterization
• Forensics
• Molecular Archeology
• Gene Gene Interaction
• Gene Protein Interaction
• Cloning

5. DNADNA
• Deoxyribonucleic Acid
• Stores genetic information
• Four different nucleotides A,T,G,C
• DNA comprises of a long molecule analogous to a chain,
while the links of the chain are called Nucleotides

6. Historical TimelineHistorical Timeline
1870 – Miescher discovers DNA
1940 - Avery: Proposes DNA as ‘Genetic Material’
1953 – Watson & Crick “double helical structure”
1970 - Wu: Sequences λ Cohesive End DNA
1977 – Sanger: Dideoxy Chain Termination
1977 – Gilbert: Chemical Degradation
1986 – Partial Automation
1990 – Cycle Sequencing, Improved Sequencing Enzymes,
Improved fluorescent detection schemes
2002 – NGS: 454 , pyro sequencing

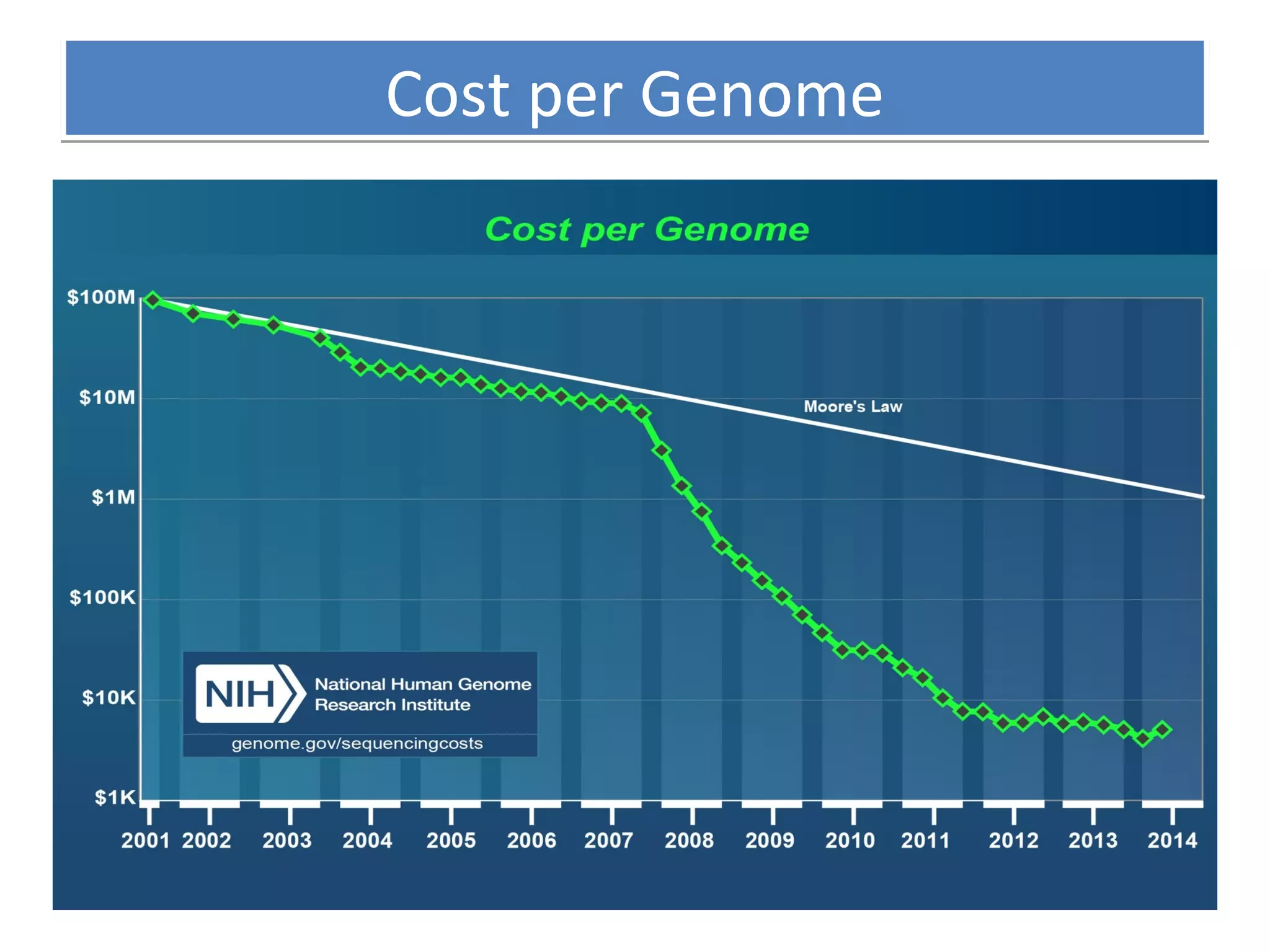

7. Cost per GenomeCost per Genome

8. Cost per MegabasesCost per Megabases

9. Cost Data (source NHGRI)Cost Data (source NHGRI)
Date Cost per Mb Cost per Genome
Sep-01 $5,292.39 $95,263,072
Mar-02 $3,898.64 $70,175,437
Sep-02 $3,413.80 $61,448,422
Mar-03 $2,986.20 $53,751,684
Oct-03 $2,230.98 $40,157,554
Jan-04 $1,598.91 $28,780,376
Apr-04 $1,135.70 $20,442,576
Jul-04 $1,107.46 $19,934,346
Oct-04 $1,028.85 $18,519,312
Jan-05 $974.16 $17,534,970
Apr-05 $897.76 $16,159,699
Jul-05 $898.90 $16,180,224
Oct-05 $766.73 $13,801,124
Jan-06 $699.20 $12,585,659
Apr-06 $651.81 $11,732,535
Jul-06 $636.41 $11,455,315
Oct-06 $581.92 $10,474,556
Jan-07 $522.71 $9,408,739
Apr-07 $502.61 $9,047,003
Jul-07 $495.96 $8,927,342
Oct-07 $397.09 $7,147,571
Jan-08 $102.13 $3,063,820
Apr-08 $15.03 $1,352,982
Date Cost per Mb Cost per Genome
Oct-08 $3.81 $342,502
Jan-09 $2.59 $232,735
Apr-09 $1.72 $154,714
Jul-09 $1.20 $108,065
Oct-09 $0.78 $70,333
Jan-10 $0.52 $46,774
Apr-10 $0.35 $31,512
Jul-10 $0.35 $31,125
Oct-10 $0.32 $29,092
Jan-11 $0.23 $20,963
Apr-11 $0.19 $16,712
Jul-11 $0.12 $10,497
Oct-11 $0.09 $7,743
Jan-12 $0.09 $7,666
Apr-12 $0.07 $5,901
Jul-12 $0.07 $5,985
Oct-12 $0.07 $6,618
Jan-13 $0.06 $5,671
Apr-13 $0.06 $5,826
Jul-13 $0.06 $5,550
Oct-13 $0.06 $5,096
Jan-14 $0.04 $4,008
Apr-14 $0.05 $4,920

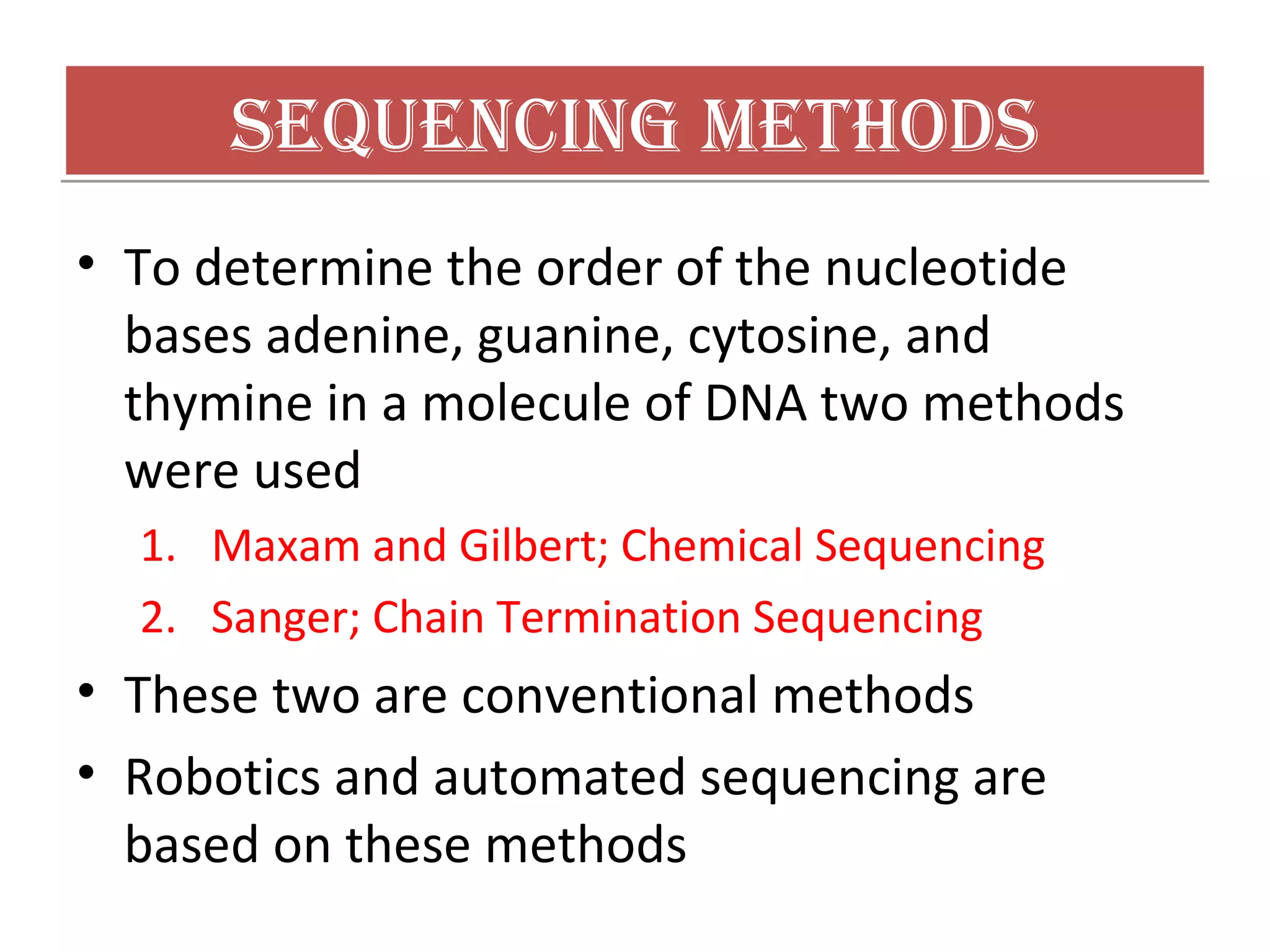

10. Sequencing MethodSSequencing MethodS
• To determine the order of the nucleotide
bases adenine, guanine, cytosine, and
thymine in a molecule of DNA two methods
were used
1. Maxam and Gilbert; Chemical Sequencing
2. Sanger; Chain Termination Sequencing
• These two are conventional methods
• Robotics and automated sequencing are
based on these methods

11. Maxam and Gilbert MethodMaxam and Gilbert Method
• In 1976–1977, Allan Maxam and Walter Gilbert
developed a DNA sequencing method based on
chemical modification of DNA and subsequent
cleavage at specific bases
I. Chemical Modification of DNA; radioactive labeling
at one 5' end of the DNA (typically by a kinase
reaction using gamma-32
P ATP)
II. Purification of the DNA fragment to be sequenced
III. Chemical treatment generates breaks in DNA
IV. Run on the gel

12. Chemical Modification and CleavageChemical Modification and Cleavage
• Ploy nucleotide Kinase radioactive label at one
5' end of the DNA using gamma-32
P
5′ G A C G T G C A A C G A A 3′
32
P 5′ G A C G T G C A A C G A A 3′

13. Chemical Modification and CleavageChemical Modification and Cleavage
• Base Modification using Dimethyl sulphate
– Purine
• Adenine
• Guanine
– Only DMS------- G
– DMS+ Formic acid-------G+A
• Cleavage of Sugar Phosphate backbone using
Piperidine

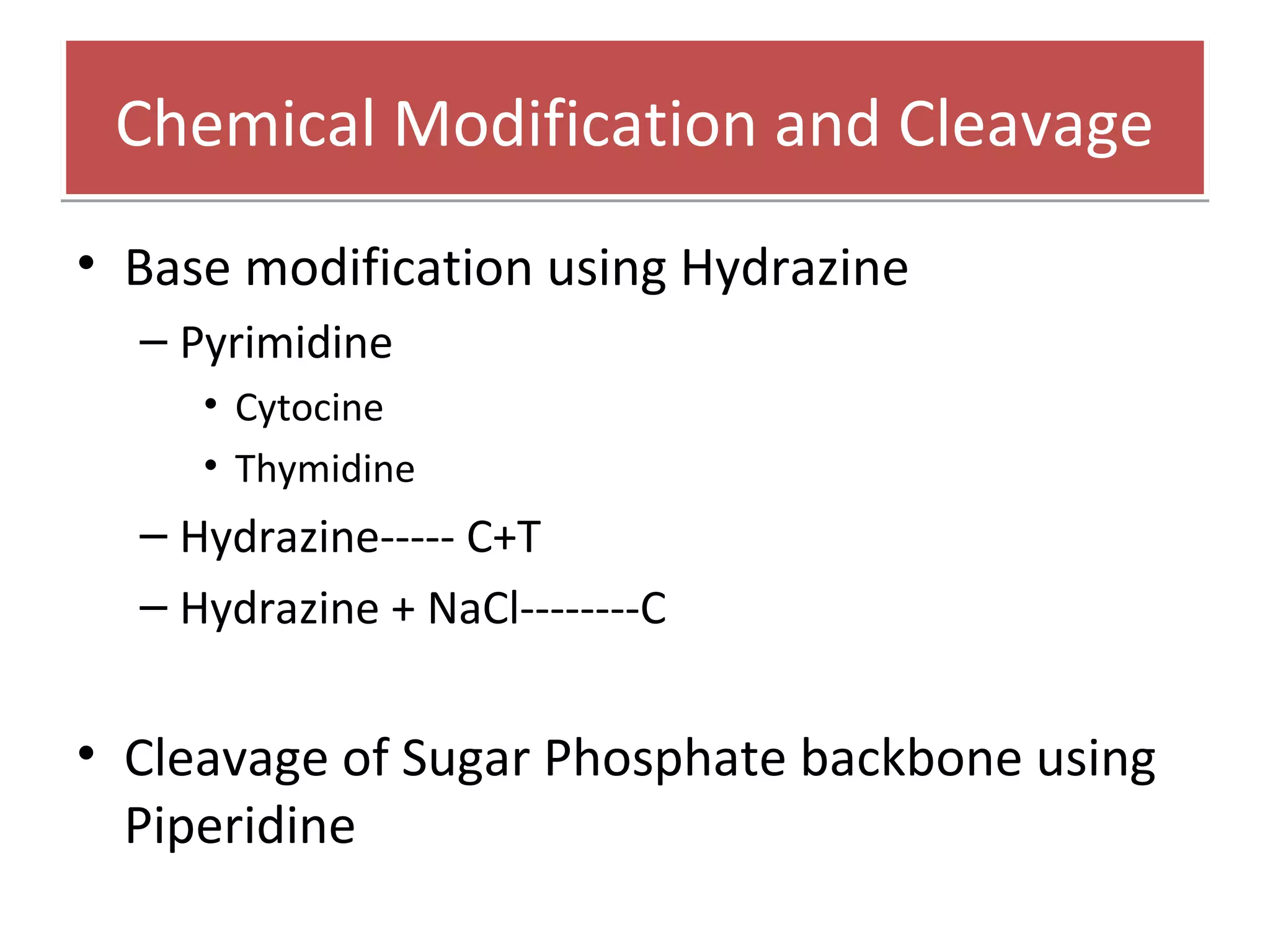

14. Chemical Modification and CleavageChemical Modification and Cleavage
• Base modification using Hydrazine
– Pyrimidine
• Cytocine
• Thymidine
– Hydrazine----- C+T
– Hydrazine + NaCl--------C
• Cleavage of Sugar Phosphate backbone using
Piperidine

15. DMS
G
G
G
G
FA
G
A
G
G
A
G
A
A
H
C
T
T
C
T
C
C
T
H+S
C
C
C
C
Maxam Gilbert SequencingMaxam Gilbert Sequencing
32
P 5′ G A C G T G C A A C G A 3′

16. Sequencing gels are read from bottom to top (5 to 3 ).′ ′
G G+A T+C C
3′
A
G
C
A
A
C
G
T
G
C
A
G
5′
Longer fragments
Shortest fragments
G
A
Maxam-Gilbert SequencingMaxam-Gilbert Sequencing
32
P 5′ G A C G T G C A A C G A 3′

17. Maxam Gilbert Sequencing: Process SummarizedMaxam Gilbert Sequencing: Process Summarized
1. Label 5’- end of DNA
2. Aliqot DNA sample in 4 tubes
3. Perform base modification reaction
4. Perform Cleavage reaction
5. Perform Gel Electrophoresis
6. Perform Autoradiography
7. Interpret results

18. Sanger; Chain Termination Sequencing
• It is PCR based method
• A modified DNA replication reaction
• Growing chains are terminated by
dideoxynucleotides

19. The 3 -OH group necessary for formation of the phosphodiester bond is missing in ddNTPs′

20. ddATP + ddA
four dNTPs dAdGdCdTdGdCdCdCdG
ddCTP + dAdGddC
four dNTPs dAdGdCdTdGddC
dAdGdCdTdGdCddC
dAdGdCdTdGdCdCddC
ddGTP + dAddG
four dNTPs dAdGdCdTddG
dAdGdCdTdGdCdCdCddG
ddTTP + dAdGdCddT
four dNTPs dAdGdCdTdGdCdCdCdG
A
C
G
T
Sanger; Chain Termination SequencingSanger; Chain Termination Sequencing
A G C T G C C C G

21. Sequencing gels are read from bottom to top (5 to 3 )′ ′
G A T C
3′
G
G
T
A
A
A
T
C
A
T
G
5′
Longer fragments
Shorter fragments
ddG
ddG
Chain Termination SequencingChain Termination Sequencing

22. Sanger Sequencing: An Example
5’-TACACGATCGA-3’
3’-ATGTGCTAGCT-5’
Denature the sequence
Use only forward primer i.e. using 3’-5

23. 3’-ATGTGCTAGCT-5’
5’-T-3’
5’-TACACGAT-3’
Amplification in ddTTPAmplification in ddTTP
3’-ATGTGCTAGCT-5’
5’-TA-3’
5’-TACA-3’
5’-TACACGA-3’
5’-TACACGATCGA-3’
Amplification in ddATPAmplification in ddATP
Amplification in dGTTPAmplification in dGTTP Amplification in ddCTPAmplification in ddCTP
3’-ATGTGCTAGCT-5’
5’-TACACG-3’
5’-TACACGATCG-3’
3’-ATGTGCTAGCT-5’
5’-TAC-3’
5’-TACAC-3’
5’-TACACGATC-3’

24. Reading Sequence
BAND ddATP ddTTP ddGTP ddCTP
12 bp
11 bp
10 bp
9 bp
8 bp
7 bp
6 bp
5 bp
4 bp
3 bp
2 bp
1 bp
3’
5’ 5’
3’

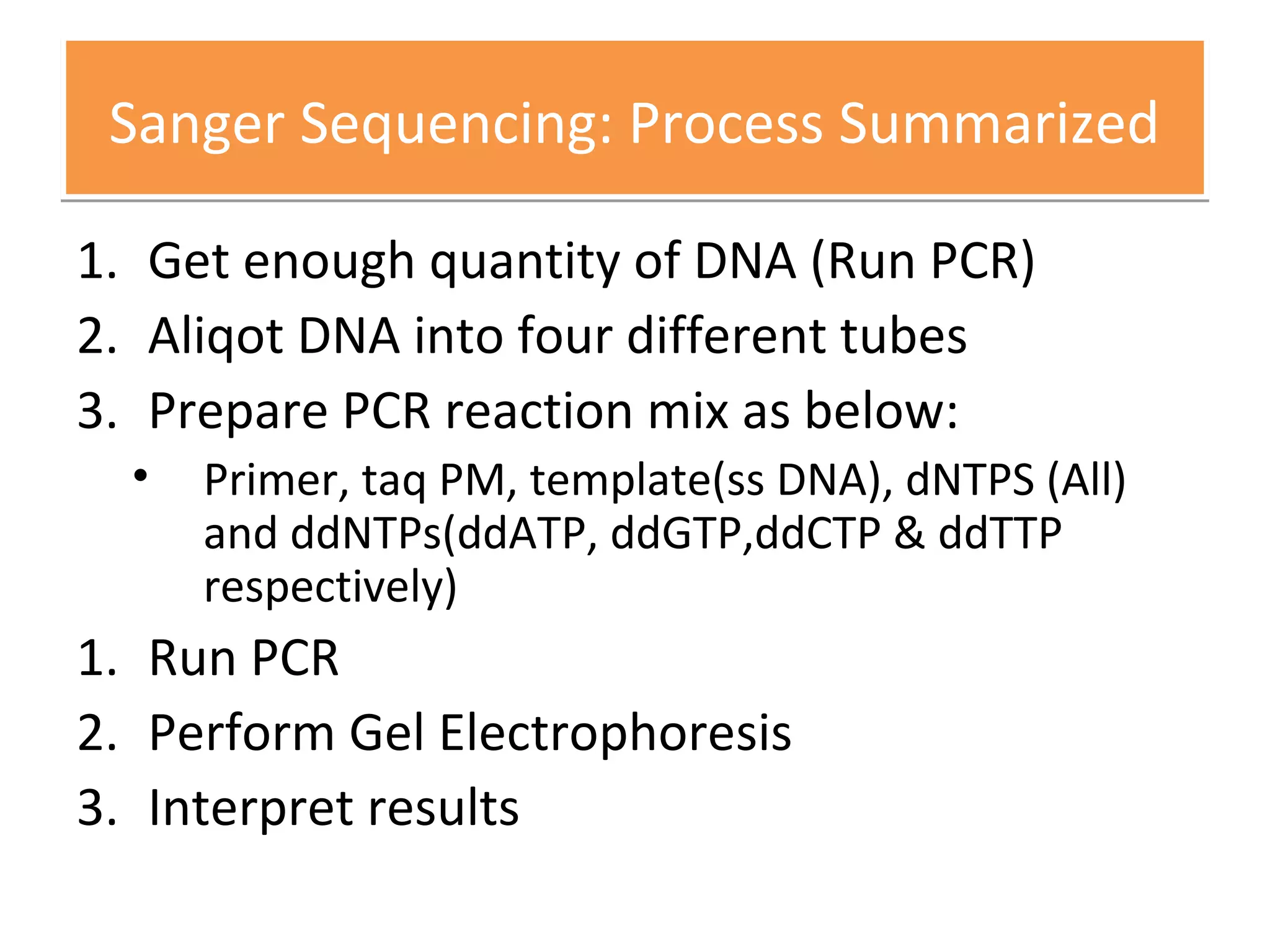

25. Sanger Sequencing: Process SummarizedSanger Sequencing: Process Summarized
1. Get enough quantity of DNA (Run PCR)
2. Aliqot DNA into four different tubes
3. Prepare PCR reaction mix as below:
• Primer, taq PM, template(ss DNA), dNTPS (All)
and ddNTPs(ddATP, ddGTP,ddCTP & ddTTP
respectively)
1. Run PCR
2. Perform Gel Electrophoresis
3. Interpret results
