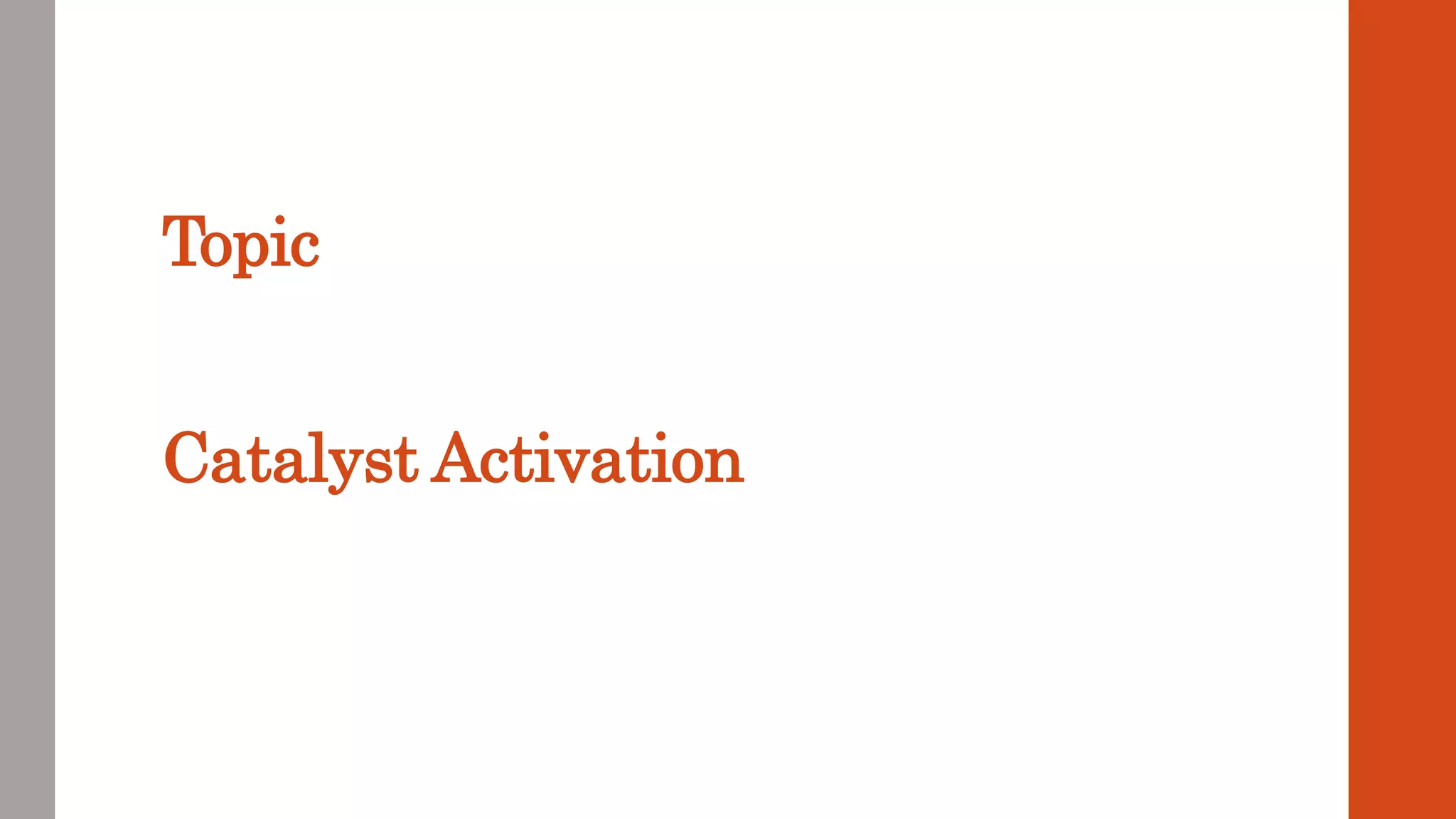

Topic
Catalyst Activation

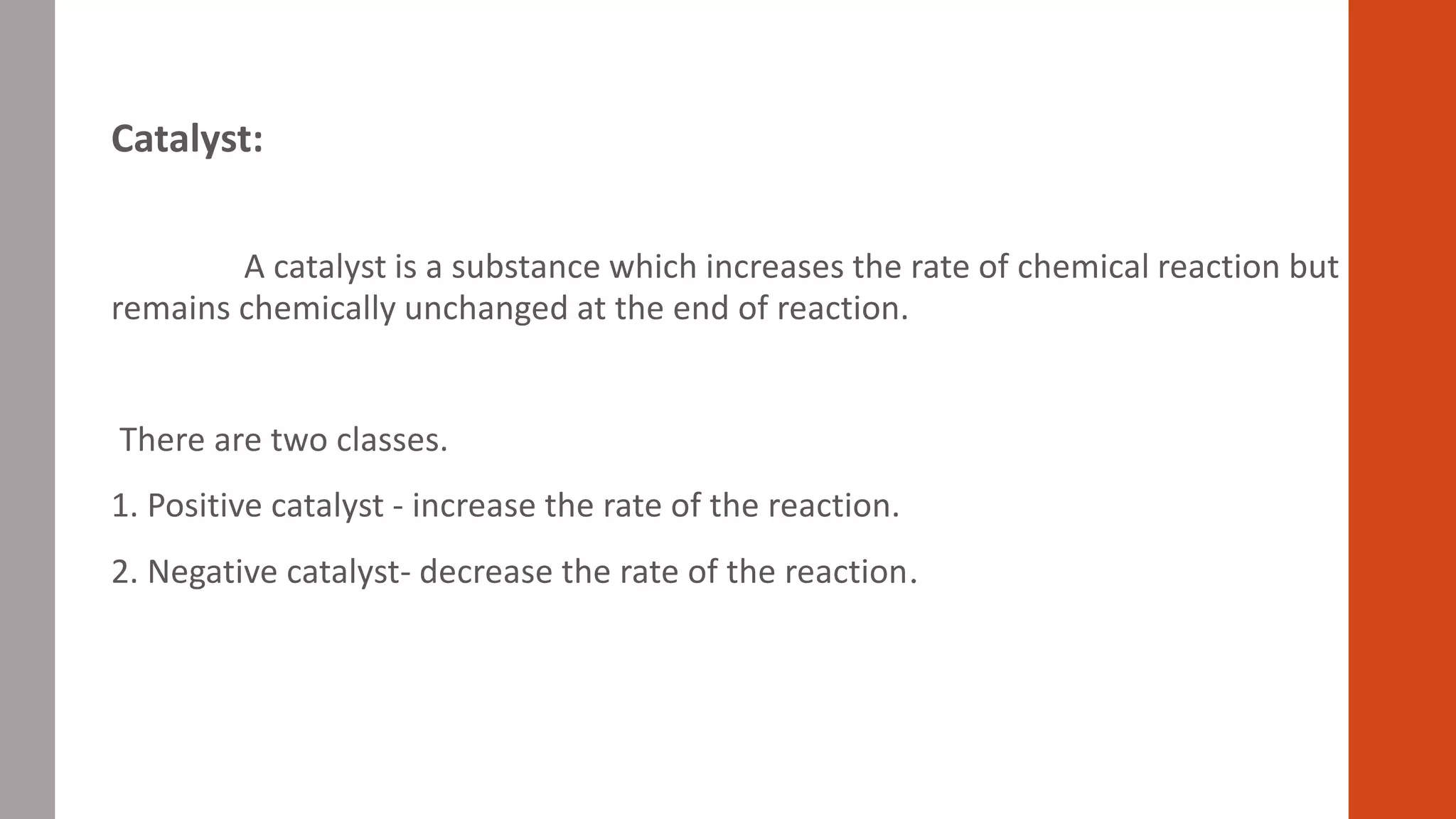

Catalyst:
A catalyst is a substance which increases the rate of chemical reaction but
remains chemically unchanged at the end of reaction.
There are two classes.
1. Positive catalyst - increase the rate of the reaction.
2. Negative catalyst- decrease the rate of the reaction.

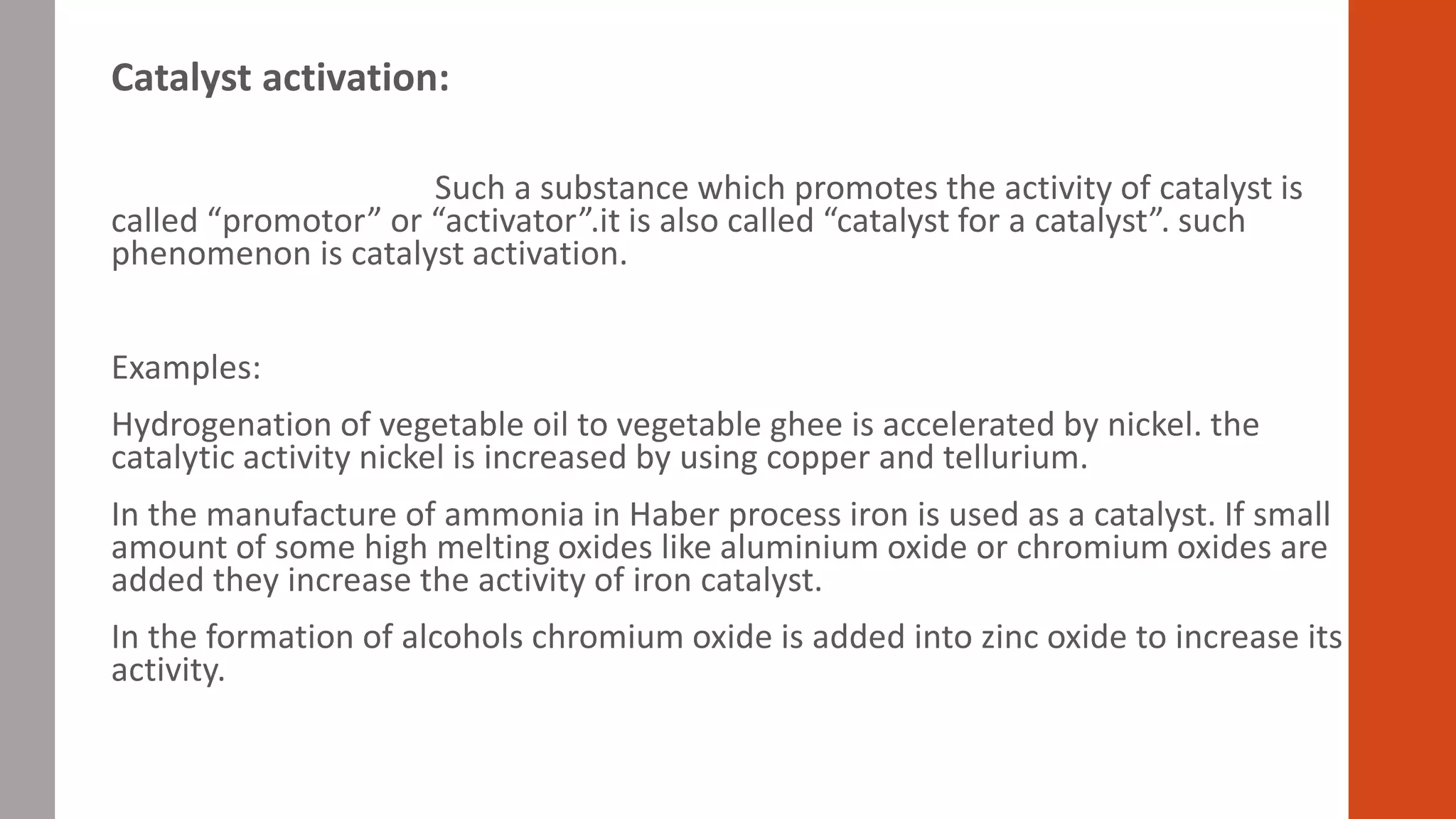

Catalyst activation:
Such a substance which promotes the activity of catalyst is
called “promotor” or “activator”.it is also called “catalyst for a catalyst”. such
phenomenon is catalyst activation.
Examples:
Hydrogenation of vegetable oil to vegetable ghee is accelerated by nickel. the
catalytic activity nickel is increased by using copper and tellurium.
In the manufacture of ammonia in Haber process iron is used as a catalyst. If small
amount of some high melting oxides like aluminium oxide or chromium oxides are
added they increase the activity of iron catalyst.
In the formation of alcohols chromium oxide is added into zinc oxide to increase its
activity.

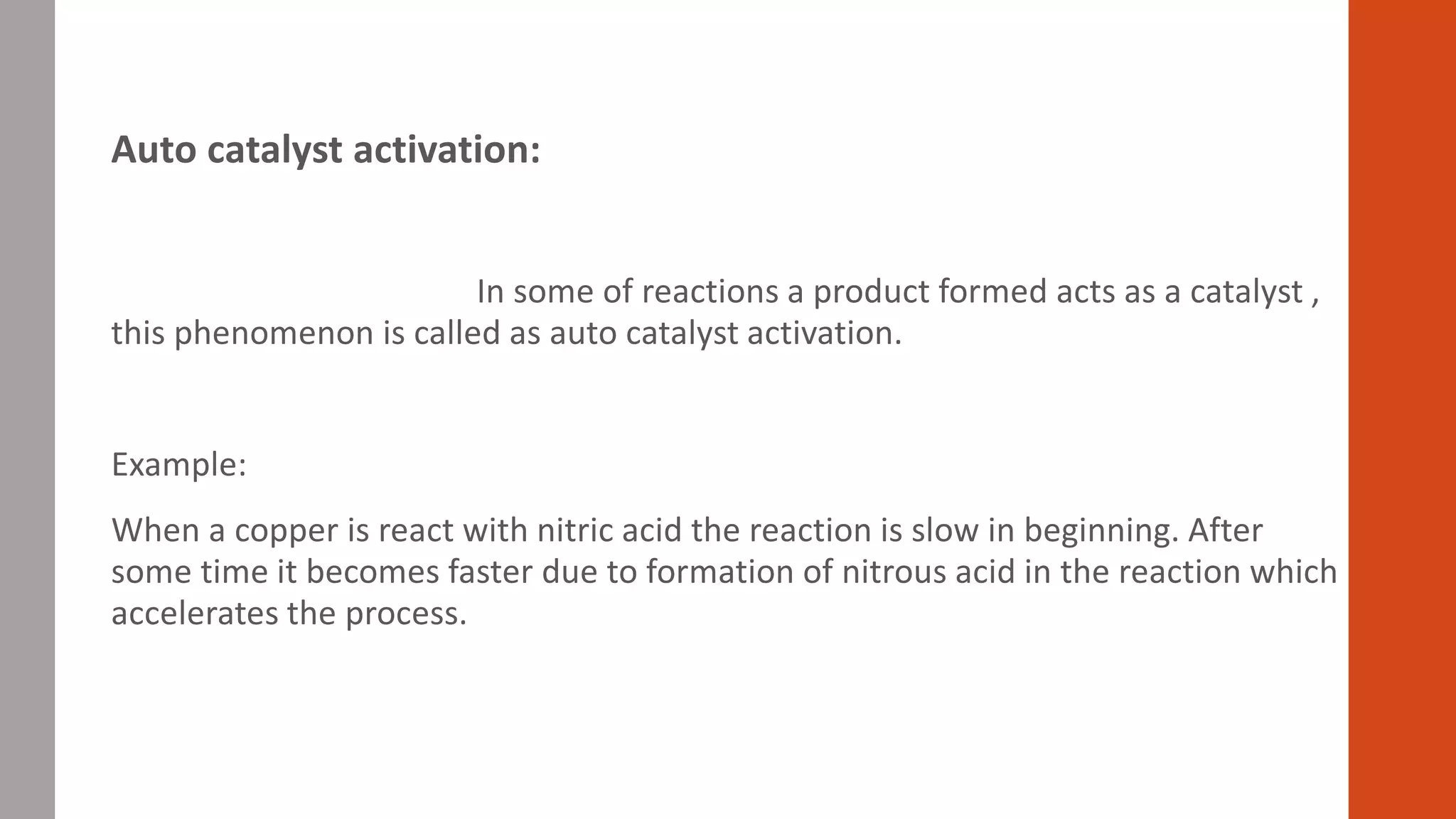

Auto catalyst activation:
In some of reactions a product formed acts as a catalyst ,
this phenomenon is called as auto catalyst activation.
Example:
When a copper is react with nitric acid the reaction is slow in beginning. After
some time it becomes faster due to formation of nitrous acid in the reaction which
accelerates the process.
Catalytic Activity:
A catalyst should be able to pass through the catalytic cycle
multiple times. Higher the number of times the catalyst passes through this cycle,
higher is the activity of the catalyst.
The number of times that a catalyst can go through this cycle converting substrate
molecule to product molecules is defined as the “turnover number”.
In homogeneous systems, the “turnover frequency” is defined as the number of
molecules of substrate converted into product per second.
It depends upon adsorption of reactants on the surface of catalyst.

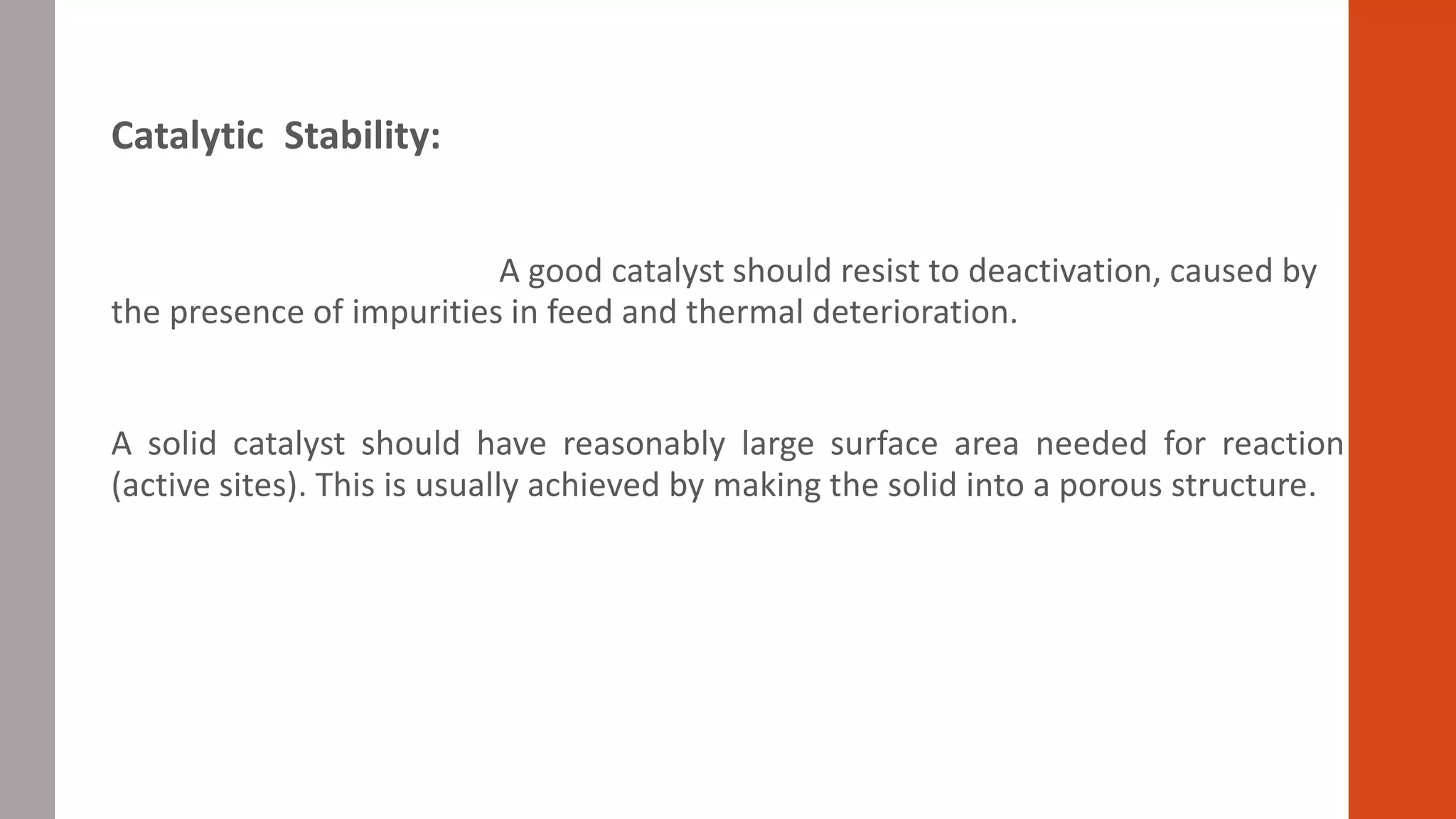

Catalytic Stability:
A good catalyst should resist to deactivation, caused by
the presence of impurities in feed and thermal deterioration.
A solid catalyst should have reasonably large surface area needed for reaction
(active sites). This is usually achieved by making the solid into a porous structure.
Catalyst activation enhance by two methods:
1. Modify catalyst
2. Modify process
1. Change material(different promotors)
optimize catalyst(promotor level , density , strength)
2. Change reaction conditions(temp , pressure , flowrate)
modify reactor(geometry , type)

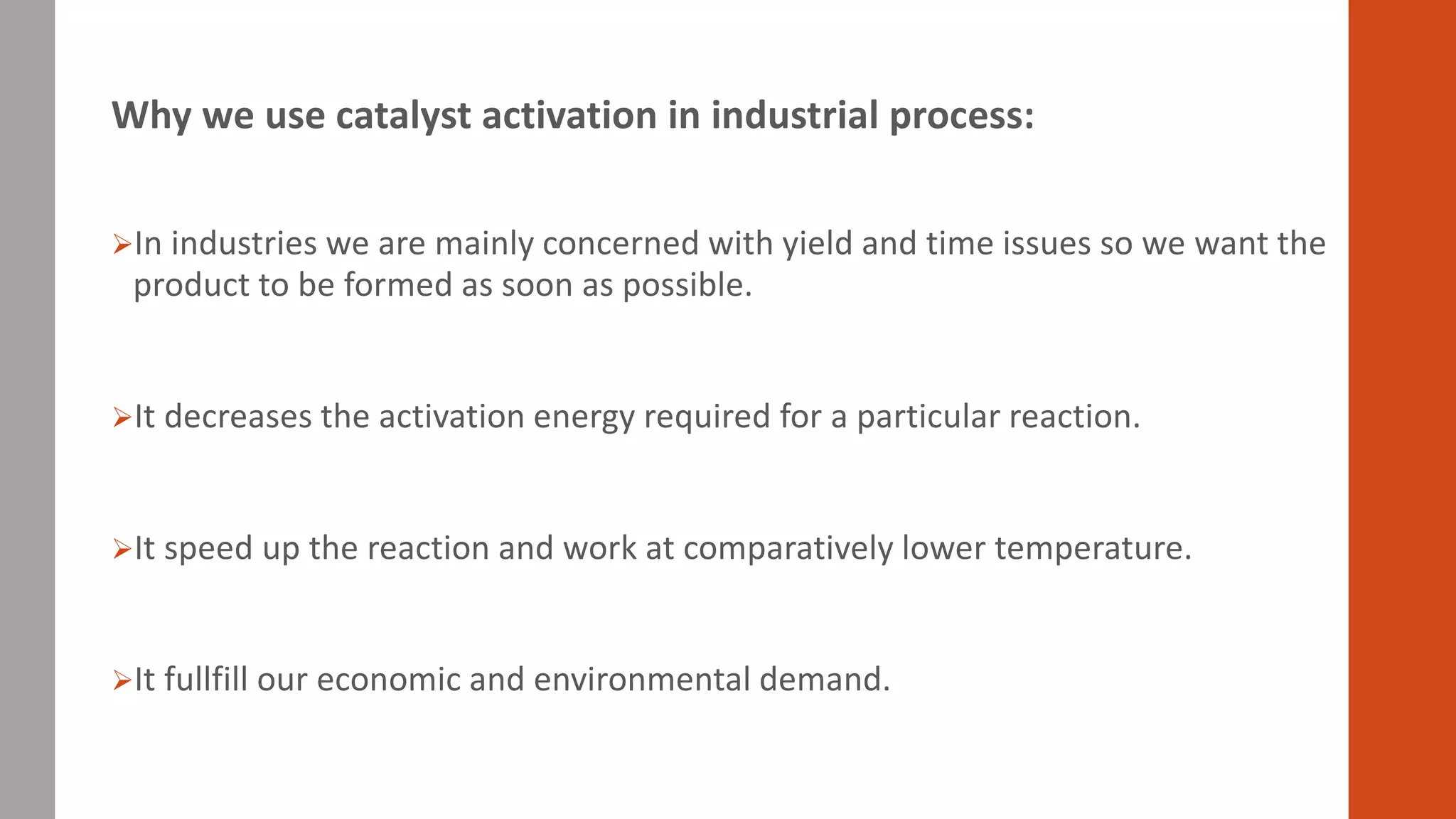

Why we use catalyst activation in industrial process:
In industries we are mainly concerned with yield and time issues so we want the
product to be formed as soon as possible.
It decreases the activation energy required for a particular reaction.
It speed up the reaction and work at comparatively lower temperature.
It fullfill our economic and environmental demand.

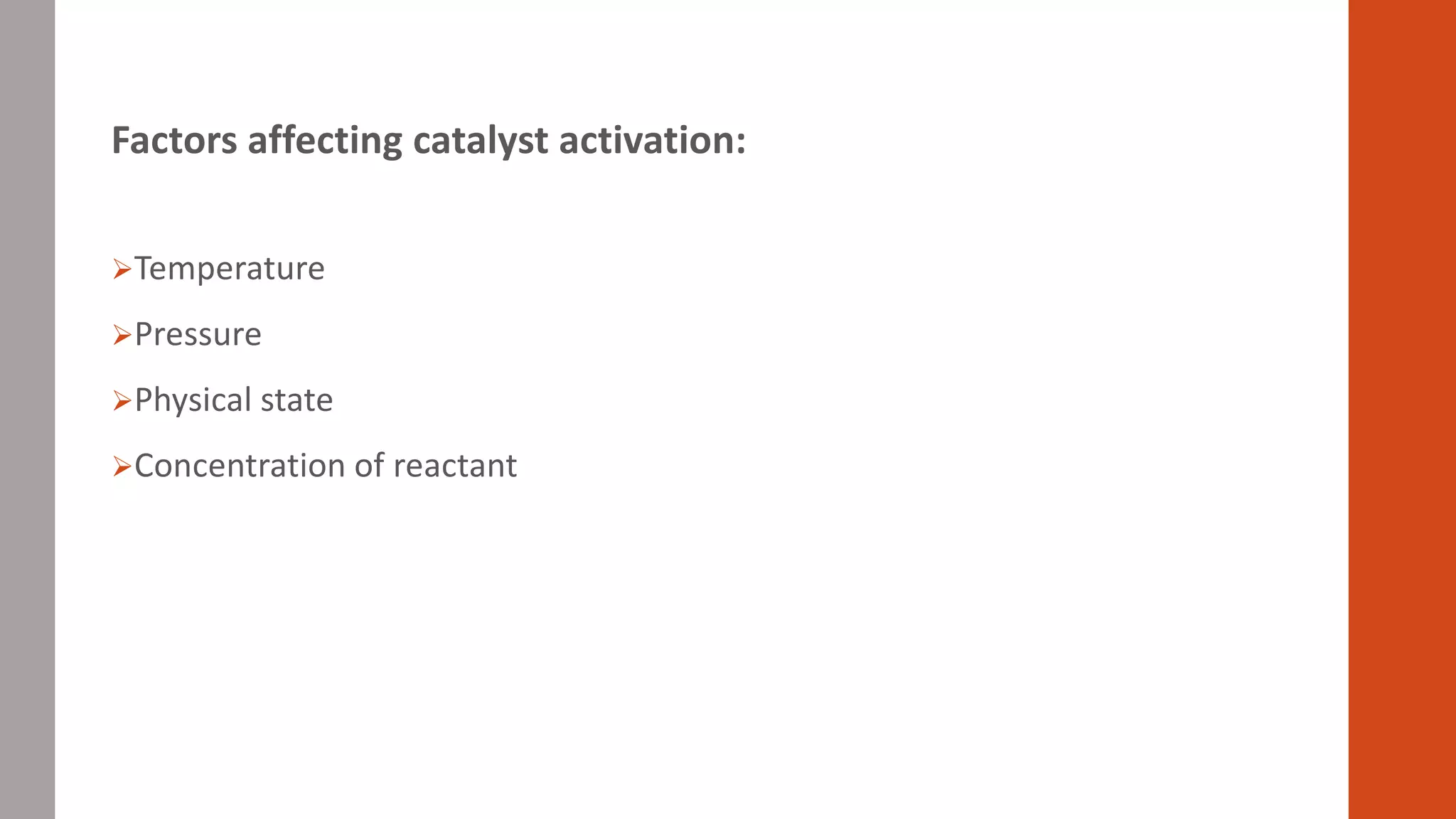

Factors affecting catalyst activation:
Temperature
Pressure
Physical state
Concentration of reactant

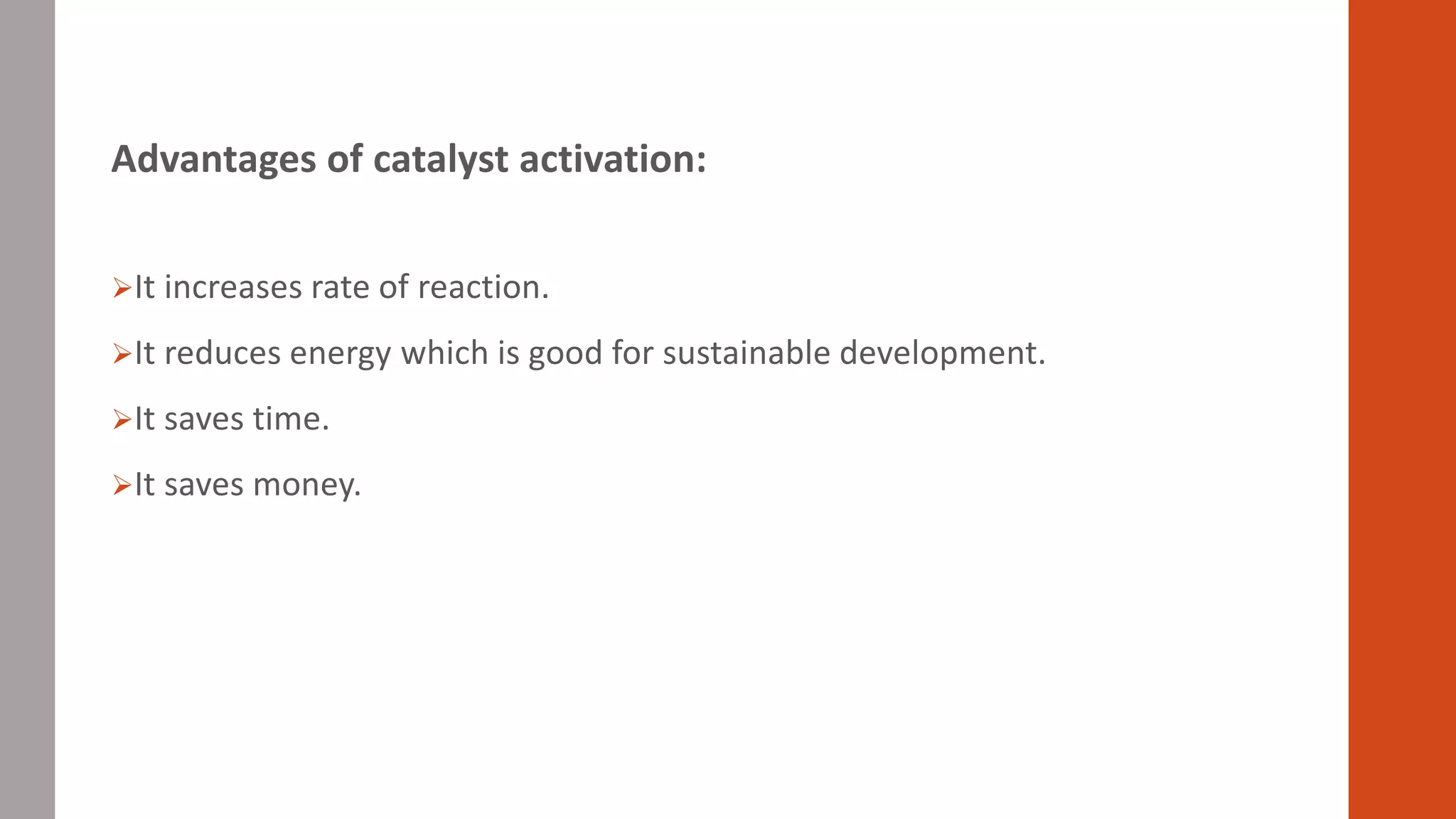

Advantages of catalyst activation:
It increases rate of reaction.
It reduces energy which is good for sustainable development.
It saves time.
It saves money.
Catalyst activation

More Related Content

What's hot

Catalyst & Catalysis
Catalyst & CatalysisCatalyst & Catalysis
Catalyst & Catalysis
Nofal Umair

Catalyst preparation methods
Catalyst preparation methodsCatalyst preparation methods
Catalyst preparation methods
9495094029

Deactivation and regeneration of catalysts and heterogeneous reaction kinetic...
Deactivation and regeneration of catalysts and heterogeneous reaction kinetic...Deactivation and regeneration of catalysts and heterogeneous reaction kinetic...
Deactivation and regeneration of catalysts and heterogeneous reaction kinetic...
Bapi Mondal

Metal alkene complexes.ppt
Metal alkene complexes.pptMetal alkene complexes.ppt
Metal alkene complexes.ppt
DrGeetaTewari

Basic concepts in electrochemistry
Basic concepts in electrochemistryBasic concepts in electrochemistry
Basic concepts in electrochemistry
Dagobert Aldus

Homogenous catalysis
Homogenous catalysisHomogenous catalysis
Homogenous catalysis
KeerthanaD21

Pericyclic reactions
Pericyclic reactionsPericyclic reactions
Pericyclic reactions
bapu thorat

green chemistry catalysis
green chemistry catalysisgreen chemistry catalysis
green chemistry catalysis
irine32

Catalysis
CatalysisCatalysis
Catalysis
Joel Cornelio

Heterogeneous catalysis-Fundamentals
Heterogeneous catalysis-FundamentalsHeterogeneous catalysis-Fundamentals
Heterogeneous catalysis-Fundamentals
Sana Jamshaid (사나 잠셰드)

Catalysts characteristics seminar
Catalysts characteristics seminarCatalysts characteristics seminar
Catalysts characteristics seminar
Mahaswari Jogia

Organometallic compounds
Organometallic compoundsOrganometallic compounds
Organometallic compounds
Arvind Singh Heer

Adsorption isotherm
Adsorption isothermAdsorption isotherm
Adsorption isotherm
balpreet singh

Catalysis lecture 3
Catalysis lecture 3Catalysis lecture 3
Catalysis lecture 3
Dr. Rabiul Hussain

Metal alkyne compledes
Metal alkyne compledesMetal alkyne compledes
Metal alkyne compledes
DrGeetaTewari

Nitration
NitrationNitration
Nitration
Ali Hassan

Catalyst
CatalystCatalyst
Catalyst
ravikumar s

Hydrogenation, catalytic hydrogenation
Hydrogenation, catalytic hydrogenationHydrogenation, catalytic hydrogenation
Hydrogenation, catalytic hydrogenation
AishwaryaRajput8

What is catalysis, its type and its application
What is catalysis, its type and its applicationWhat is catalysis, its type and its application
What is catalysis, its type and its application
Lovnish Thakur


What's hot (20)

catalysis
catalysiscatalysis
catalysis

Catalyst & Catalysis
Catalyst & CatalysisCatalyst & Catalysis
Catalyst & Catalysis

Catalyst preparation methods
Catalyst preparation methodsCatalyst preparation methods
Catalyst preparation methods

Deactivation and regeneration of catalysts and heterogeneous reaction kinetic...
Deactivation and regeneration of catalysts and heterogeneous reaction kinetic...Deactivation and regeneration of catalysts and heterogeneous reaction kinetic...
Deactivation and regeneration of catalysts and heterogeneous reaction kinetic...

Metal alkene complexes.ppt
Metal alkene complexes.pptMetal alkene complexes.ppt
Metal alkene complexes.ppt

Basic concepts in electrochemistry
Basic concepts in electrochemistryBasic concepts in electrochemistry
Basic concepts in electrochemistry

Homogenous catalysis
Homogenous catalysisHomogenous catalysis
Homogenous catalysis

Pericyclic reactions
Pericyclic reactionsPericyclic reactions
Pericyclic reactions

green chemistry catalysis
green chemistry catalysisgreen chemistry catalysis
green chemistry catalysis

Catalysis
CatalysisCatalysis
Catalysis

Heterogeneous catalysis-Fundamentals
Heterogeneous catalysis-FundamentalsHeterogeneous catalysis-Fundamentals
Heterogeneous catalysis-Fundamentals

Catalysts characteristics seminar
Catalysts characteristics seminarCatalysts characteristics seminar
Catalysts characteristics seminar

Organometallic compounds
Organometallic compoundsOrganometallic compounds
Organometallic compounds

Adsorption isotherm
Adsorption isothermAdsorption isotherm
Adsorption isotherm

Catalysis lecture 3
Catalysis lecture 3Catalysis lecture 3
Catalysis lecture 3

Metal alkyne compledes
Metal alkyne compledesMetal alkyne compledes
Metal alkyne compledes

Nitration
NitrationNitration
Nitration

Catalyst
CatalystCatalyst
Catalyst

Hydrogenation, catalytic hydrogenation
Hydrogenation, catalytic hydrogenationHydrogenation, catalytic hydrogenation
Hydrogenation, catalytic hydrogenation

What is catalysis, its type and its application
What is catalysis, its type and its applicationWhat is catalysis, its type and its application
What is catalysis, its type and its application


Similar to Catalyst activation

Catalysis lecture 2
Catalysis lecture 2Catalysis lecture 2
Catalysis lecture 2
Dr. Rabiul Hussain

Catalyst
CatalystCatalyst
Catalyst
shanmuga priya

Chemical reaction engineering
Chemical reaction engineeringChemical reaction engineering
Chemical reaction engineering
Nurul Ain

Catalysis and catalysts - Introduction and application
Catalysis and catalysts - Introduction and applicationCatalysis and catalysts - Introduction and application
Catalysis and catalysts - Introduction and application
Manoj Mohapatra

Catalysts and catalysts classification based on physical state
Catalysts and catalysts classification based on physical stateCatalysts and catalysts classification based on physical state
Catalysts and catalysts classification based on physical state
nidacommunications

Catalysis
Catalysis Catalysis
Catalysis
MyreneJaplos

Chapter 5 enzymes
Chapter 5   enzymesChapter 5   enzymes
Chapter 5 enzymesJiapei Tan

Catalysis- Physical Chemistry
Catalysis-  Physical ChemistryCatalysis-  Physical Chemistry
Catalysis- Physical Chemistry
Sanchit Dhankhar

Catalysis.pptx
Catalysis.pptxCatalysis.pptx
Catalysis.pptx
GaziJahirulISlam1

Catalysis III C presentation for measurement
Catalysis III C presentation for measurementCatalysis III C presentation for measurement
Catalysis III C presentation for measurement
RONALDARTILLERO1

Catalysis and Catalyst.pptx
Catalysis and Catalyst.pptxCatalysis and Catalyst.pptx
Catalysis and Catalyst.pptx
IyerVasundhara

Ezyme-Honors5.ppt
Ezyme-Honors5.pptEzyme-Honors5.ppt
Ezyme-Honors5.ppt
RAJATGUPTA127033

Rate and extent of reaction
Rate and extent of reactionRate and extent of reaction
Rate and extent of reaction
Siyavula

Catalysis
CatalysisCatalysis
Catalysis
PRAVIN SINGARE

Lecture 18.1- Rate Factors
Lecture 18.1- Rate FactorsLecture 18.1- Rate Factors
Lecture 18.1- Rate Factors
Mary Beth Smith


Similar to Catalyst activation (20)

Catalysis lecture 2
Catalysis lecture 2Catalysis lecture 2
Catalysis lecture 2

Catalyst
CatalystCatalyst
Catalyst

Chemical reaction engineering
Chemical reaction engineeringChemical reaction engineering
Chemical reaction engineering

Catalysis and catalysts - Introduction and application
Catalysis and catalysts - Introduction and applicationCatalysis and catalysts - Introduction and application
Catalysis and catalysts - Introduction and application

Catalysts and catalysts classification based on physical state
Catalysts and catalysts classification based on physical stateCatalysts and catalysts classification based on physical state
Catalysts and catalysts classification based on physical state

Catalysis
Catalysis Catalysis
Catalysis

Catalysis
CatalysisCatalysis
Catalysis

Chapter 5 enzymes
Chapter 5   enzymesChapter 5   enzymes
Chapter 5 enzymes

Catalysis- Physical Chemistry
Catalysis-  Physical ChemistryCatalysis-  Physical Chemistry
Catalysis- Physical Chemistry

Catalysis.pptx
Catalysis.pptxCatalysis.pptx
Catalysis.pptx

Catalysis III C presentation for measurement
Catalysis III C presentation for measurementCatalysis III C presentation for measurement
Catalysis III C presentation for measurement

As rate
As rateAs rate
As rate

Unit 9 achapter11
Unit 9 achapter11Unit 9 achapter11
Unit 9 achapter11

Catalysis and Catalyst.pptx
Catalysis and Catalyst.pptxCatalysis and Catalyst.pptx
Catalysis and Catalyst.pptx

kinetika
kinetikakinetika
kinetika

Ezyme-Honors5.ppt
Ezyme-Honors5.pptEzyme-Honors5.ppt
Ezyme-Honors5.ppt

Rate and extent of reaction
Rate and extent of reactionRate and extent of reaction
Rate and extent of reaction

Catalysis
CatalysisCatalysis
Catalysis

Rate of reaction2
Rate of reaction2Rate of reaction2
Rate of reaction2

Lecture 18.1- Rate Factors
Lecture 18.1- Rate FactorsLecture 18.1- Rate Factors
Lecture 18.1- Rate Factors


More from Usman Shah

Pneumatic and hydraulic conveying
Pneumatic and hydraulic conveyingPneumatic and hydraulic conveying
Pneumatic and hydraulic conveying
Usman Shah

Pelletization and granulation
Pelletization and granulationPelletization and granulation
Pelletization and granulation
Usman Shah

Particulate technology (electrostatic precipitator)
Particulate technology (electrostatic precipitator)Particulate technology (electrostatic precipitator)
Particulate technology (electrostatic precipitator)
Usman Shah

Particle size distribution
Particle size distributionParticle size distribution
Particle size distribution
Usman Shah

Flow pattern of fluids
Flow pattern of fluidsFlow pattern of fluids
Flow pattern of fluids
Usman Shah

Cyclone separator
Cyclone separatorCyclone separator
Cyclone separator
Usman Shah

Belt conveyors and elevators
Belt conveyors and elevatorsBelt conveyors and elevators
Belt conveyors and elevators
Usman Shah

Assignment cre lab
Assignment cre labAssignment cre lab
Assignment cre lab
Usman Shah

Group 2
Group 2Group 2
Group 2
Usman Shah

Group 1
Group 1Group 1
Group 1
Usman Shah

Jamshaid ppt
Jamshaid pptJamshaid ppt
Jamshaid ppt
Usman Shah

Intro to reactor design
Intro to reactor designIntro to reactor design
Intro to reactor design
Usman Shah

Differential method of analysis of data
Differential method of analysis of dataDifferential method of analysis of data
Differential method of analysis of data
Usman Shah

Difference between batch,mixed flow & plug-flow reactor
Difference between  batch,mixed flow & plug-flow reactorDifference between  batch,mixed flow & plug-flow reactor
Difference between batch,mixed flow & plug-flow reactor
Usman Shah

Cre24
Cre24Cre24
Cre24
Usman Shah

Cre ppt
Cre pptCre ppt
Cre ppt
Usman Shah

Cre ppt saud
Cre ppt saudCre ppt saud
Cre ppt saud
Usman Shah

Batch reactor designing
Batch reactor designingBatch reactor designing
Batch reactor designing
Usman Shah

What is cre
What is creWhat is cre
What is cre
Usman Shah

What are resins
What are resinsWhat are resins
What are resins
Usman Shah


More from Usman Shah (20)

Pneumatic and hydraulic conveying
Pneumatic and hydraulic conveyingPneumatic and hydraulic conveying
Pneumatic and hydraulic conveying

Pelletization and granulation
Pelletization and granulationPelletization and granulation
Pelletization and granulation

Particulate technology (electrostatic precipitator)
Particulate technology (electrostatic precipitator)Particulate technology (electrostatic precipitator)
Particulate technology (electrostatic precipitator)

Particle size distribution
Particle size distributionParticle size distribution
Particle size distribution

Flow pattern of fluids
Flow pattern of fluidsFlow pattern of fluids
Flow pattern of fluids

Cyclone separator
Cyclone separatorCyclone separator
Cyclone separator

Belt conveyors and elevators
Belt conveyors and elevatorsBelt conveyors and elevators
Belt conveyors and elevators

Assignment cre lab
Assignment cre labAssignment cre lab
Assignment cre lab

Group 2
Group 2Group 2
Group 2

Group 1
Group 1Group 1
Group 1

Jamshaid ppt
Jamshaid pptJamshaid ppt
Jamshaid ppt

Intro to reactor design
Intro to reactor designIntro to reactor design
Intro to reactor design

Differential method of analysis of data
Differential method of analysis of dataDifferential method of analysis of data
Differential method of analysis of data

Difference between batch,mixed flow & plug-flow reactor
Difference between  batch,mixed flow & plug-flow reactorDifference between  batch,mixed flow & plug-flow reactor
Difference between batch,mixed flow & plug-flow reactor

Cre24
Cre24Cre24
Cre24

Cre ppt
Cre pptCre ppt
Cre ppt

Cre ppt saud
Cre ppt saudCre ppt saud
Cre ppt saud

Batch reactor designing
Batch reactor designingBatch reactor designing
Batch reactor designing

What is cre
What is creWhat is cre
What is cre

What are resins
What are resinsWhat are resins
What are resins


Recently uploaded

Nuclear Power Economics and Structuring 2024
Nuclear Power Economics and Structuring 2024Nuclear Power Economics and Structuring 2024
Nuclear Power Economics and Structuring 2024
Massimo Talia

Runway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptxRunway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptx
SupreethSP4

CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxCFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
R&R Consult

Gen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdfGen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdf
gdsczhcet

space technology lecture notes on satellite
space technology lecture notes on satellitespace technology lecture notes on satellite
space technology lecture notes on satellite
ongomchris

Standard Reomte Control Interface - Neometrix
Standard Reomte Control Interface - NeometrixStandard Reomte Control Interface - Neometrix
Standard Reomte Control Interface - Neometrix
Neometrix_Engineering_Pvt_Ltd

CME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional ElectiveCME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional Elective
karthi keyan

power quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptxpower quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptx
ViniHema

Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&BDesign and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Sreedhar Chowdam

Planning Of Procurement o different goods and services
Planning Of Procurement o different goods and servicesPlanning Of Procurement o different goods and services
Planning Of Procurement o different goods and services
JoytuBarua2

Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdfGoverning Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf
WENKENLI1

Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Dr.Costas Sachpazis

ethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.pptethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.ppt
Jayaprasanna4

The Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdfThe Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdf
Pipe Restoration Solutions

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
thanhdowork

ASME IX(9) 2007 Full Version .pdf
ASME IX(9)  2007 Full Version       .pdfASME IX(9)  2007 Full Version       .pdf
ASME IX(9) 2007 Full Version .pdf
AhmedHussein950959

The role of big data in decision making.
The role of big data in decision making.The role of big data in decision making.
The role of big data in decision making.
ankuprajapati0525

NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...
Amil Baba Dawood bangali

H.Seo, ICLR 2024, MLILAB, KAIST AI.pdf
H.Seo,  ICLR 2024, MLILAB,  KAIST AI.pdfH.Seo,  ICLR 2024, MLILAB,  KAIST AI.pdf
H.Seo, ICLR 2024, MLILAB, KAIST AI.pdf
MLILAB

Fundamentals of Electric Drives and its applications.pptx
Fundamentals of Electric Drives and its applications.pptxFundamentals of Electric Drives and its applications.pptx
Fundamentals of Electric Drives and its applications.pptx
manasideore6


Recently uploaded (20)

Nuclear Power Economics and Structuring 2024
Nuclear Power Economics and Structuring 2024Nuclear Power Economics and Structuring 2024
Nuclear Power Economics and Structuring 2024

Runway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptxRunway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptx

CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxCFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx

Gen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdfGen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdf

space technology lecture notes on satellite
space technology lecture notes on satellitespace technology lecture notes on satellite
space technology lecture notes on satellite

Standard Reomte Control Interface - Neometrix
Standard Reomte Control Interface - NeometrixStandard Reomte Control Interface - Neometrix
Standard Reomte Control Interface - Neometrix

CME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional ElectiveCME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional Elective

power quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptxpower quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptx

Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&BDesign and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B

Planning Of Procurement o different goods and services
Planning Of Procurement o different goods and servicesPlanning Of Procurement o different goods and services
Planning Of Procurement o different goods and services

Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdfGoverning Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf

Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...

ethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.pptethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.ppt

The Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdfThe Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdf

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...

ASME IX(9) 2007 Full Version .pdf
ASME IX(9)  2007 Full Version       .pdfASME IX(9)  2007 Full Version       .pdf
ASME IX(9) 2007 Full Version .pdf

The role of big data in decision making.
The role of big data in decision making.The role of big data in decision making.
The role of big data in decision making.

NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...

H.Seo, ICLR 2024, MLILAB, KAIST AI.pdf
H.Seo,  ICLR 2024, MLILAB,  KAIST AI.pdfH.Seo,  ICLR 2024, MLILAB,  KAIST AI.pdf
H.Seo, ICLR 2024, MLILAB, KAIST AI.pdf

Fundamentals of Electric Drives and its applications.pptx
Fundamentals of Electric Drives and its applications.pptxFundamentals of Electric Drives and its applications.pptx
Fundamentals of Electric Drives and its applications.pptx


Catalyst activation

  • 1.

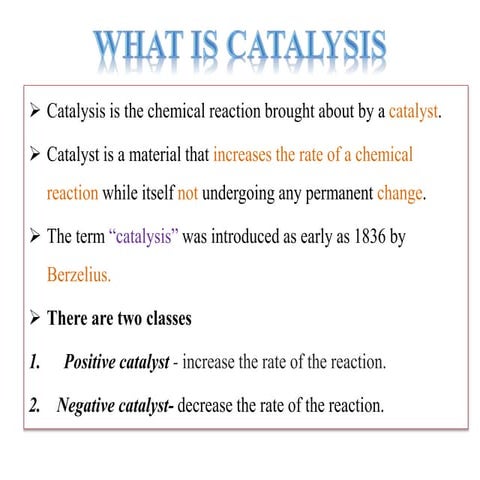

  • 3. Catalyst: A catalyst is a substance which increases the rate of chemical reaction but remains chemically unchanged at the end of reaction. There are two classes. 1. Positive catalyst - increase the rate of the reaction. 2. Negative catalyst- decrease the rate of the reaction.
  • 4. Catalyst activation: Such a substance which promotes the activity of catalyst is called “promotor” or “activator”.it is also called “catalyst for a catalyst”. such phenomenon is catalyst activation. Examples: Hydrogenation of vegetable oil to vegetable ghee is accelerated by nickel. the catalytic activity nickel is increased by using copper and tellurium. In the manufacture of ammonia in Haber process iron is used as a catalyst. If small amount of some high melting oxides like aluminium oxide or chromium oxides are added they increase the activity of iron catalyst. In the formation of alcohols chromium oxide is added into zinc oxide to increase its activity.
  • 5. Auto catalyst activation: In some of reactions a product formed acts as a catalyst , this phenomenon is called as auto catalyst activation. Example: When a copper is react with nitric acid the reaction is slow in beginning. After some time it becomes faster due to formation of nitrous acid in the reaction which accelerates the process.
  • 6. Catalytic Activity: A catalyst should be able to pass through the catalytic cycle multiple times. Higher the number of times the catalyst passes through this cycle, higher is the activity of the catalyst. The number of times that a catalyst can go through this cycle converting substrate molecule to product molecules is defined as the “turnover number”. In homogeneous systems, the “turnover frequency” is defined as the number of molecules of substrate converted into product per second. It depends upon adsorption of reactants on the surface of catalyst.
  • 7. Catalytic Stability: A good catalyst should resist to deactivation, caused by the presence of impurities in feed and thermal deterioration. A solid catalyst should have reasonably large surface area needed for reaction (active sites). This is usually achieved by making the solid into a porous structure.
  • 8. Catalyst activation enhance by two methods: 1. Modify catalyst 2. Modify process 1. Change material(different promotors) optimize catalyst(promotor level , density , strength) 2. Change reaction conditions(temp , pressure , flowrate) modify reactor(geometry , type)
  • 9. Why we use catalyst activation in industrial process: In industries we are mainly concerned with yield and time issues so we want the product to be formed as soon as possible. It decreases the activation energy required for a particular reaction. It speed up the reaction and work at comparatively lower temperature. It fullfill our economic and environmental demand.
  • 10. Factors affecting catalyst activation: Temperature Pressure Physical state Concentration of reactant
  • 11. Advantages of catalyst activation: It increases rate of reaction. It reduces energy which is good for sustainable development. It saves time. It saves money.
