1. UNIT-II
BUSINESS ANALYSIS
By
M.Dhilsath Fathima

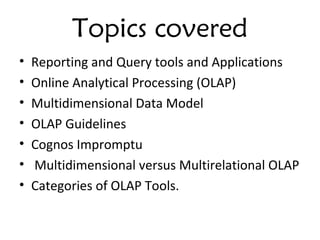

2. Topics covered
• Reporting and Query tools and Applications
• Online Analytical Processing (OLAP)
• Multidimensional Data Model

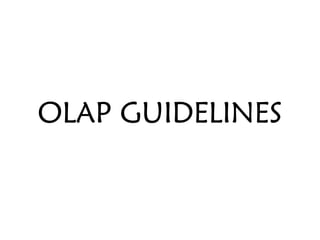

• OLAP Guidelines
• Cognos Impromptu
• Multidimensional versus Multirelational OLAP
• Categories of OLAP Tools.

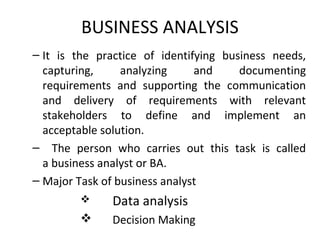

3. BUSINESS ANALYSIS
– It is the practice of identifying business needs,
capturing, analyzing and documenting
requirements and supporting the communication
and delivery of requirements with relevant
stakeholders to define and implement an
acceptable solution.
– The person who carries out this task is called
a business analyst or BA.
– Major Task of business analyst
 Data analysis
 Decision Making

4. Applications of Business analysis

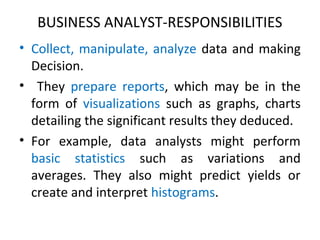

5. BUSINESS ANALYST-RESPONSIBILITIES
• Collect, manipulate, analyze data and making
Decision.
• They prepare reports, which may be in the
form of visualizations such as graphs, charts
detailing the significant results they deduced.
• For example, data analysts might perform
basic statistics such as variations and
averages. They also might predict yields or
create and interpret histograms.

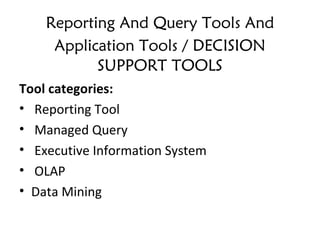

6. Reporting And Query Tools And
Application Tools / DECISION
SUPPORT TOOLS
Tool categories:
• Reporting Tool
• Managed Query
• Executive Information System
• OLAP
• Data Mining

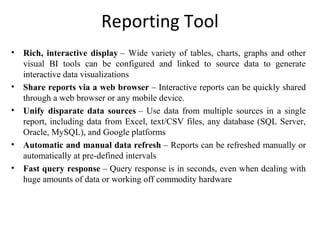

7. Reporting Tool
• Rich, interactive display – Wide variety of tables, charts, graphs and other
visual BI tools can be configured and linked to source data to generate
interactive data visualizations
• Share reports via a web browser – Interactive reports can be quickly shared
through a web browser or any mobile device.
• Unify disparate data sources – Use data from multiple sources in a single
report, including data from Excel, text/CSV files, any database (SQL Server,
Oracle, MySQL), and Google platforms
• Automatic and manual data refresh – Reports can be refreshed manually or
automatically at pre-defined intervals
• Fast query response – Query response is in seconds, even when dealing with
huge amounts of data or working off commodity hardware

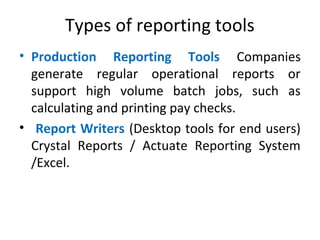

8. Types of reporting tools
• Production Reporting Tools Companies
generate regular operational reports or
support high volume batch jobs, such as
calculating and printing pay checks.
• Report Writers (Desktop tools for end users)
Crystal Reports / Actuate Reporting System
/Excel.

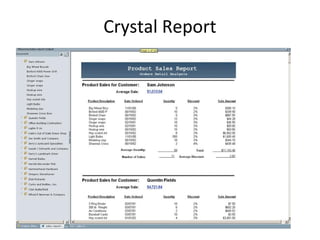

9. Crystal Report

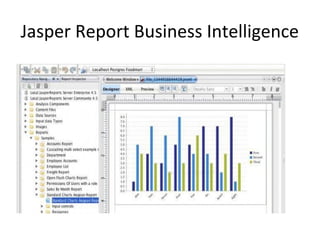

10. Jasper Report Business Intelligence

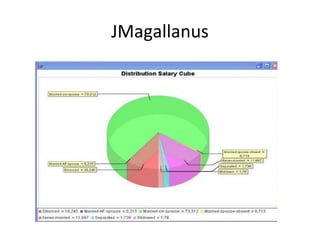

11. JMagallanus

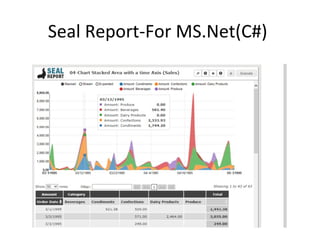

12. Seal Report-For MS.Net(C#)

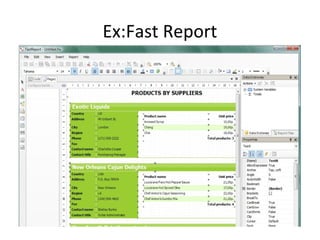

13. Ex:Fast Report

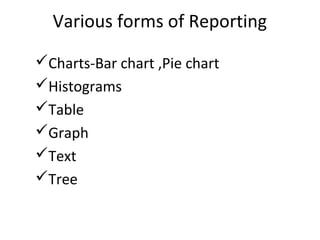

14. Various forms of Reporting
Charts-Bar chart ,Pie chart
Histograms
Table
Graph
Text
Tree

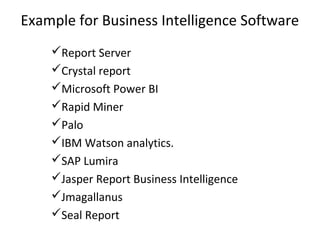

15. Example for Business Intelligence Software
Report Server
Crystal report
Microsoft Power BI
Rapid Miner
Palo
IBM Watson analytics.
SAP Lumira
Jasper Report Business Intelligence
Jmagallanus
Seal Report

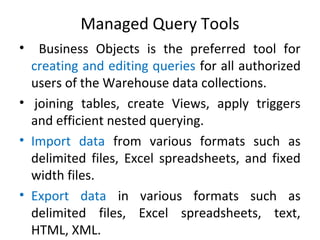

16. Managed Query Tools
• Business Objects is the preferred tool for
creating and editing queries for all authorized
users of the Warehouse data collections.
• joining tables, create Views, apply triggers
and efficient nested querying.
• Import data from various formats such as
delimited files, Excel spreadsheets, and fixed
width files.
• Export data in various formats such as
delimited files, Excel spreadsheets, text,
HTML, XML.

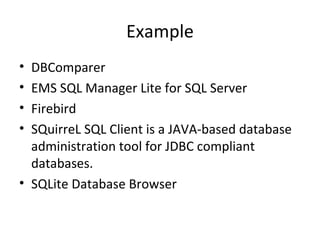

19. Example
• DBComparer
• EMS SQL Manager Lite for SQL Server
• Firebird
• SQuirreL SQL Client is a JAVA-based database
administration tool for JDBC compliant
databases.
• SQLite Database Browser

20. OLAP Tools
• Provide an intuitive way to view corporate
data.
• Provide navigation through the hierarchies and
dimensions with the single click.
• Aggregate data along common business
subjects or dimensions.
• Users can perform OLAP operations such as
drill down, Roll up, Slice,Dice, Pivot.

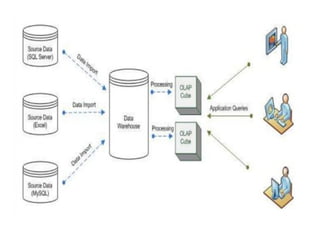

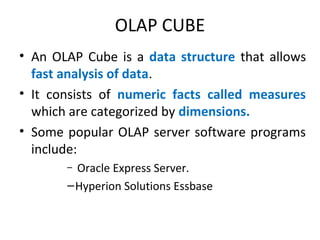

22. OLAP CUBE
• An OLAP Cube is a data structure that allows
fast analysis of data.
• It consists of numeric facts called measures
which are categorized by dimensions.
• Some popular OLAP server software programs
include:
– Oracle Express Server.
–Hyperion Solutions Essbase

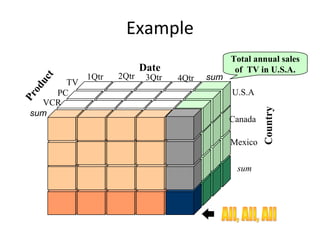

23. Total annual sales
of TV in U.S.A.Date
Product
Country
sum
sum
TV
VCR
PC
1Qtr 2Qtr 3Qtr 4Qtr
U.S.A
Canada
Mexico
sum
Example

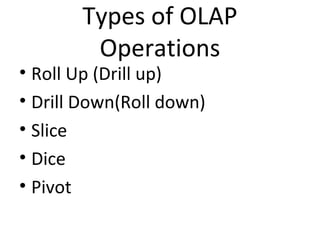

24. Types of OLAP
Operations
• Roll Up (Drill up)
• Drill Down(Roll down)
• Slice
• Dice
• Pivot

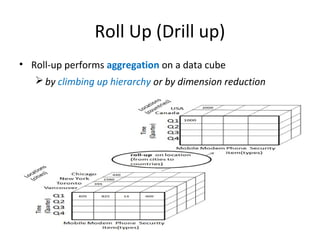

25. Roll Up (Drill up)
• Roll-up performs aggregation on a data cube
by climbing up hierarchy or by dimension reduction

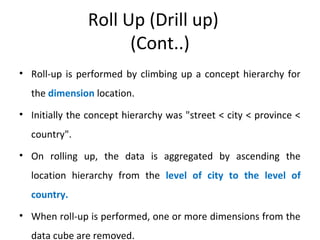

26. Roll Up (Drill up)
(Cont..)
• Roll-up is performed by climbing up a concept hierarchy for
the dimension location.

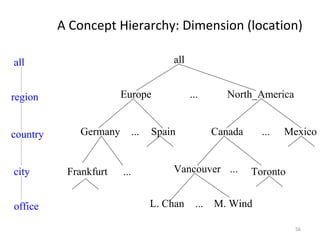

• Initially the concept hierarchy was "street < city < province <
country".
• On rolling up, the data is aggregated by ascending the
location hierarchy from the level of city to the level of
country.
• When roll-up is performed, one or more dimensions from the
data cube are removed.

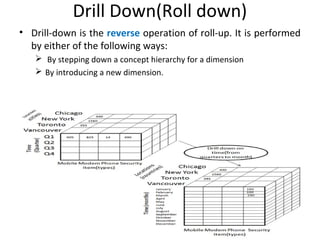

27. Drill Down(Roll down)
• Drill-down is the reverse operation of roll-up. It is performed
by either of the following ways:
 By stepping down a concept hierarchy for a dimension
 By introducing a new dimension.

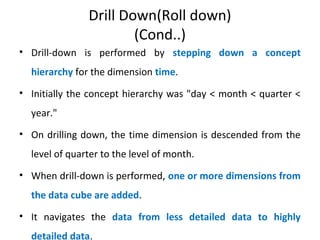

28. Drill Down(Roll down)
(Cond..)
• Drill-down is performed by stepping down a concept
hierarchy for the dimension time.
• Initially the concept hierarchy was "day < month < quarter <
year."
• On drilling down, the time dimension is descended from the
level of quarter to the level of month.
• When drill-down is performed, one or more dimensions from
the data cube are added.
• It navigates the data from less detailed data to highly
detailed data.

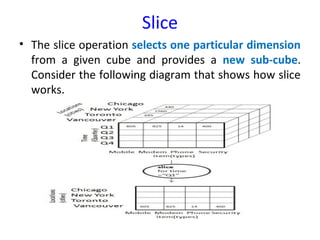

29. Slice
• The slice operation selects one particular dimension
from a given cube and provides a new sub-cube.
Consider the following diagram that shows how slice
works.

30. Slice(Cont..)
• Here Slice is performed for the
dimension "time" using the criterion
time = "Q1".
• It will form a new sub-cube by selecting
one or more dimensions.

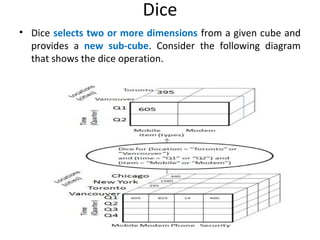

31. Dice
• Dice selects two or more dimensions from a given cube and
provides a new sub-cube. Consider the following diagram
that shows the dice operation.

32. Dice(Cont..)
• The dice operation on the cube based on the
following selection criteria involves three
dimensions.
• (location = "Toronto" or "Vancouver")
• (time = "Q1" or "Q2")
• (item =" Mobile" or "Modem")

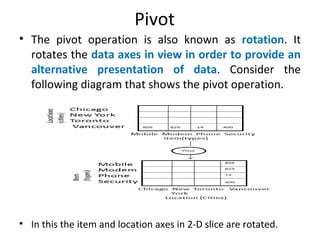

33. Pivot
• The pivot operation is also known as rotation. It
rotates the data axes in view in order to provide an
alternative presentation of data. Consider the
following diagram that shows the pivot operation.
• In this the item and location axes in 2-D slice are rotated.

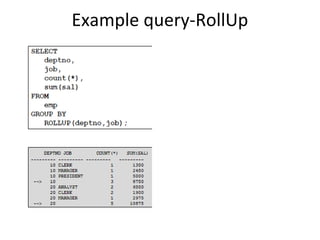

34. Example query-RollUp

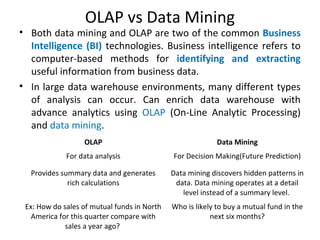

35. OLAP vs Data Mining
• Both data mining and OLAP are two of the common Business
Intelligence (BI) technologies. Business intelligence refers to
computer-based methods for identifying and extracting
useful information from business data.
• In large data warehouse environments, many different types
of analysis can occur. Can enrich data warehouse with
advance analytics using OLAP (On-Line Analytic Processing)
and data mining.
OLAP Data Mining
For data analysis For Decision Making(Future Prediction)
Provides summary data and generates
rich calculations
Data mining discovers hidden patterns in
data. Data mining operates at a detail
level instead of a summary level.
Ex: How do sales of mutual funds in North
America for this quarter compare with
sales a year ago?
Who is likely to buy a mutual fund in the
next six months?

36. DATA MINING
• Data mining is the field of computer science which,
deals with extracting interesting patterns from large
sets of data. It combines many methods from
artificial intelligence, neural network, machine
learning, statistics and database management.
• Data mining is also known as Knowledge Discovery
in data (KDD).
• Data mining usually deals with following four tasks:
association ,clustering, classification, regression.

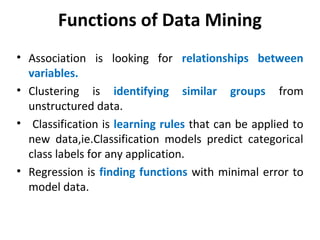

37. Functions of Data Mining
• Association is looking for relationships between
variables.
• Clustering is identifying similar groups from
unstructured data.
• Classification is learning rules that can be applied to
new data,ie.Classification models predict categorical
class labels for any application.
• Regression is finding functions with minimal error to
model data.

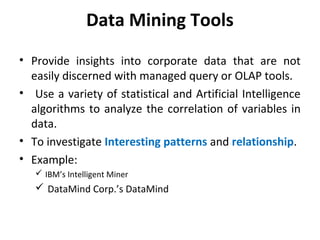

38. Data Mining Tools
• Provide insights into corporate data that are not
easily discerned with managed query or OLAP tools.
• Use a variety of statistical and Artificial Intelligence
algorithms to analyze the correlation of variables in
data.
• To investigate Interesting patterns and relationship.
• Example:
 IBM’s Intelligent Miner
 DataMind Corp.’s DataMind

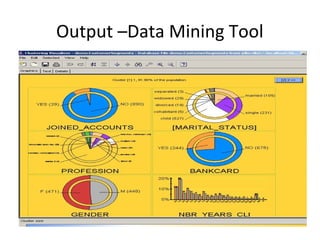

39. Output –Data Mining Tool

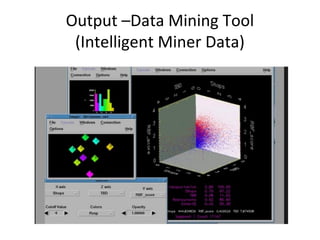

40. Output –Data Mining Tool
(Intelligent Miner Data)

41. Executive Information System
Tools
• It is a type of management information system and decision support
system that facilitates and supports senior executives to perform data
analysis and decision-making needs.
• It provides easy access to internal and external information relevant
to organizational goals.
• It is an integrated tool to perform querying, reporting, OLAP analysis, Data
mining functions.
• EIS Apps highlight exceptions to business activity or rules by using color-
coded graphics. To Build customized, graphical decision support Tasks. .

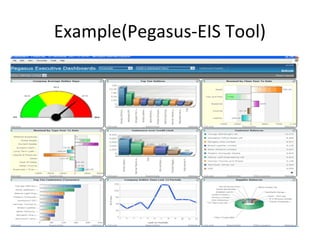

42. Example(Pegasus-EIS Tool)

43. Example(Pegasus-EIS Tool)

44. Example(Pegasus-EIS Tool)

45. Dash board in vehicle

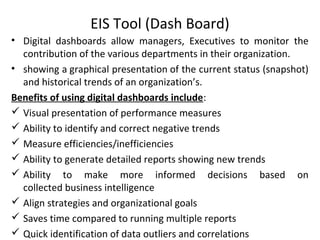

46. EIS Tool (Dash Board)
• Digital dashboards allow managers, Executives to monitor the
contribution of the various departments in their organization.
• showing a graphical presentation of the current status (snapshot)
and historical trends of an organization’s.
Benefits of using digital dashboards include:
 Visual presentation of performance measures
 Ability to identify and correct negative trends
 Measure efficiencies/inefficiencies
 Ability to generate detailed reports showing new trends
 Ability to make more informed decisions based on
collected business intelligence
 Align strategies and organizational goals
 Saves time compared to running multiple reports
 Quick identification of data outliers and correlations

47. * Reference: http://www.arborsoft.com/essbase/wht_ppr/coddTOC.html* Reference: http://www.arborsoft.com/essbase/wht_ppr/coddTOC.html
What Is OLAP?
• Online Analytical Processing - coined by EF
Codd in 1994 and contracted by Arbor
Software*
• Generally synonymous with earlier terms such as
Decisions Support, Business Intelligence,
Executive Information System
• OLAP = Multidimensional Database

48. 48
Strengths of OLAP
• It is a powerful visualization paradigm
• It provides fast, interactive response times
• It is good for analyzing time series data
• It can be useful to find some clusters and outliers
• Many vendors offer OLAP tools

49. 49
Use/Nature of OLAP Analysis
• Performs Aggregation -- (total sales, percent-to-
total)
• Performs Comparison -- Budget vs. Expenses
• Performs Ranking -- Top 10 customers, quartile
analysis
• Access to detailed and aggregate data
• Complex criteria specification
• Visualization

50. 50

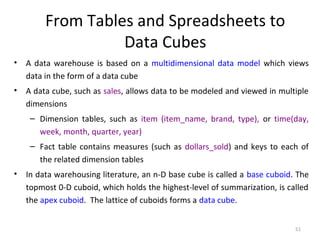

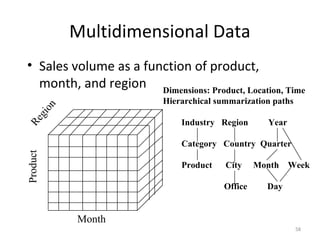

MULTI-DIMENSIONAL DATA MODEL

51. 51
From Tables and Spreadsheets to
Data Cubes
• A data warehouse is based on a multidimensional data model which views
data in the form of a data cube
• A data cube, such as sales, allows data to be modeled and viewed in multiple
dimensions
– Dimension tables, such as item (item_name, brand, type), or time(day,
week, month, quarter, year)
– Fact table contains measures (such as dollars_sold) and keys to each of
the related dimension tables
• In data warehousing literature, an n-D base cube is called a base cuboid. The
topmost 0-D cuboid, which holds the highest-level of summarization, is called
the apex cuboid. The lattice of cuboids forms a data cube.

52. 52

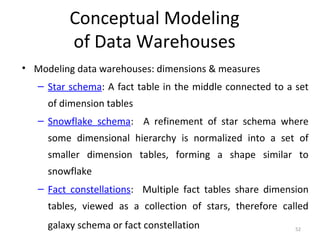

Conceptual Modeling
of Data Warehouses
• Modeling data warehouses: dimensions & measures
– Star schema: A fact table in the middle connected to a set
of dimension tables
– Snowflake schema: A refinement of star schema where
some dimensional hierarchy is normalized into a set of
smaller dimension tables, forming a shape similar to
snowflake
– Fact constellations: Multiple fact tables share dimension
tables, viewed as a collection of stars, therefore called
galaxy schema or fact constellation

53. 53

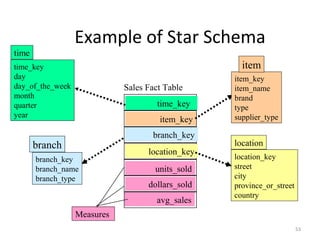

Example of Star Schema
time_key
day
day_of_the_week
month
quarter
year
time
location_key
street
city
province_or_street
country
location
Sales Fact Table
time_key
item_key
branch_key
location_key
units_sold
dollars_sold
avg_sales
Measures
item_key
item_name
brand
type
supplier_type
item
branch_key
branch_name
branch_type
branch

54. 54

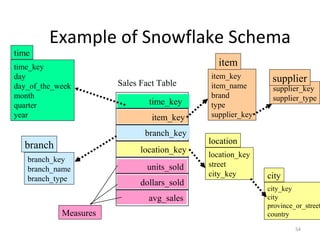

Example of Snowflake Schema
time_key
day
day_of_the_week
month
quarter
year
time
location_key
street
city_key
location
Sales Fact Table
time_key
item_key
branch_key
location_key
units_sold
dollars_sold
avg_sales
Measures
item_key
item_name
brand
type
supplier_key
item
branch_key
branch_name
branch_type
branch
supplier_key
supplier_type
supplier
city_key
city
province_or_street
country
city

55. 55

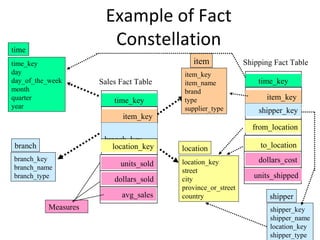

Example of Fact
Constellation
time_key
day
day_of_the_week
month
quarter
year
time
location_key
street
city
province_or_street
country
location
Sales Fact Table
time_key
item_key
branch_key
location_key
units_sold
dollars_sold
avg_sales
Measures
item_key
item_name
brand
type
supplier_type
item
branch_key
branch_name
branch_type
branch
Shipping Fact Table
time_key
item_key
shipper_key
from_location
to_location
dollars_cost
units_shipped
shipper_key
shipper_name
location_key
shipper_type
shipper

56. 56
A Concept Hierarchy: Dimension (location)
all
Europe North_America
MexicoCanadaSpainGermany
Vancouver
M. WindL. Chan
...
......
... ...
...
all
region
office
country
TorontoFrankfurtcity

57. 57

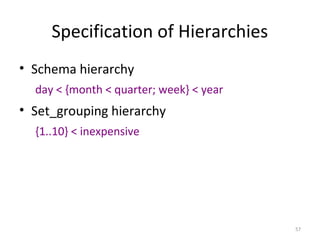

Specification of Hierarchies
• Schema hierarchy
day < {month < quarter; week} < year
• Set_grouping hierarchy
{1..10} < inexpensive

58. 58
Multidimensional Data
• Sales volume as a function of product,
month, and region
ProductRegion
Month
Dimensions: Product, Location, Time
Hierarchical summarization paths
Industry Region Year
Category Country Quarter
Product City Month Week
Office Day

59. CLASSIFICATION
OF
OLAP TOOLS/SERVER

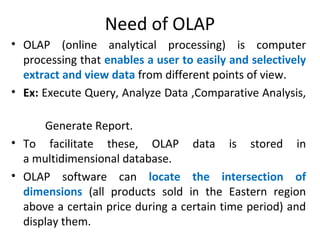

60. Need of OLAP
• OLAP (online analytical processing) is computer
processing that enables a user to easily and selectively
extract and view data from different points of view.
• Ex: Execute Query, Analyze Data ,Comparative Analysis,
Generate Report.
• To facilitate these, OLAP data is stored in
a multidimensional database.
• OLAP software can locate the intersection of
dimensions (all products sold in the Eastern region
above a certain price during a certain time period) and
display them.

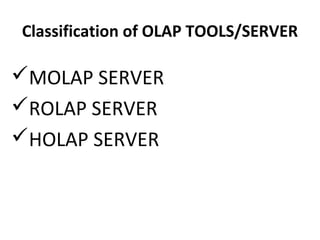

61. Classification of OLAP TOOLS/SERVER
MOLAP SERVER
ROLAP SERVER
HOLAP SERVER

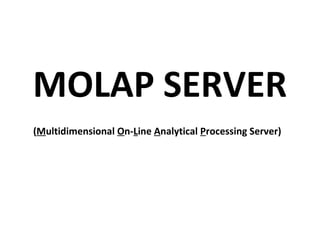

62. MOLAP SERVER
(Multidimensional On-Line Analytical Processing Server)

63. MOLAP Architecture
Database
Server
Meta Data
Request
Processing
MOLAP
Server
Load
Result
SQL
Front End Tool
Result
Set
Info
Request

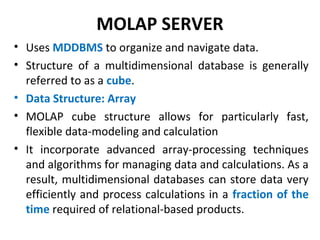

64. MOLAP SERVER
• Uses MDDBMS to organize and navigate data.
• Structure of a multidimensional database is generally
referred to as a cube.
• Data Structure: Array
• MOLAP cube structure allows for particularly fast,
flexible data-modeling and calculation
• It incorporate advanced array-processing techniques
and algorithms for managing data and calculations. As a
result, multidimensional databases can store data very
efficiently and process calculations in a fraction of the
time required of relational-based products.

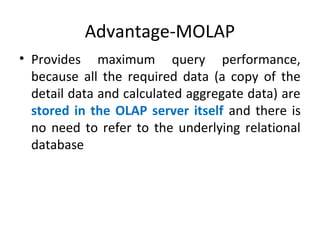

65. Advantage-MOLAP
• Provides maximum query performance,
because all the required data (a copy of the
detail data and calculated aggregate data) are
stored in the OLAP server itself and there is
no need to refer to the underlying relational
database

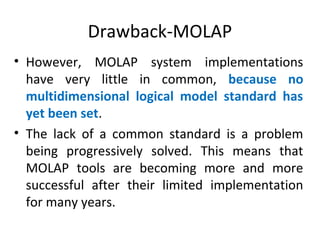

66. Drawback-MOLAP
• However, MOLAP system implementations
have very little in common, because no
multidimensional logical model standard has
yet been set.
• The lack of a common standard is a problem
being progressively solved. This means that
MOLAP tools are becoming more and more
successful after their limited implementation
for many years.

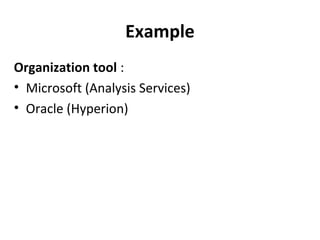

67. Example
Organization tool :
• Microsoft (Analysis Services)
• Oracle (Hyperion)

68. ROLAP Server
(Relational On-Line Analytical Processing Server)

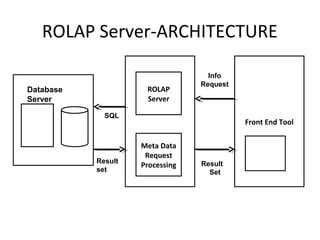

69. ROLAP Server-ARCHITECTURE
Database
Server
Meta Data
Request
Processing
ROLAP
Server
Result
set
SQL
Front End Tool
Result
Set
Info
Request

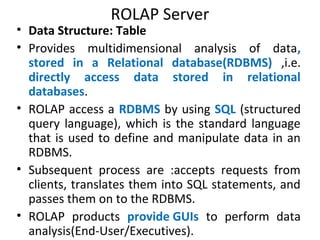

70. ROLAP Server
• Data Structure: Table
• Provides multidimensional analysis of data,
stored in a Relational database(RDBMS) ,i.e.
directly access data stored in relational
databases.
• ROLAP access a RDBMS by using SQL (structured
query language), which is the standard language
that is used to define and manipulate data in an
RDBMS.
• Subsequent process are :accepts requests from
clients, translates them into SQL statements, and
passes them on to the RDBMS.
• ROLAP products provide GUIs to perform data
analysis(End-User/Executives).

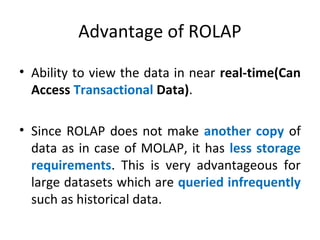

71. Advantage of ROLAP
• Ability to view the data in near real-time(Can
Access Transactional Data).
• Since ROLAP does not make another copy of
data as in case of MOLAP, it has less storage
requirements. This is very advantageous for
large datasets which are queried infrequently
such as historical data.

72. Drawback of ROLAP
• Compared to MOLAP the query response
time and Processing time is also typically
slower because everything is stored on
relational database and not locally on
the OLAP server.

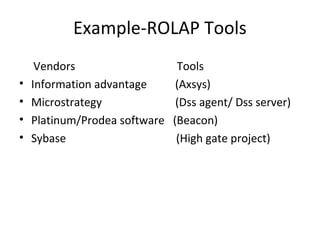

73. Example-ROLAP Tools
Vendors Tools
• Information advantage (Axsys)
• Microstrategy (Dss agent/ Dss server)
• Platinum/Prodea software (Beacon)
• Sybase (High gate project)

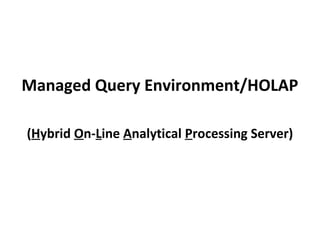

74. Managed Query Environment/HOLAP
(Hybrid On-Line Analytical Processing Server)

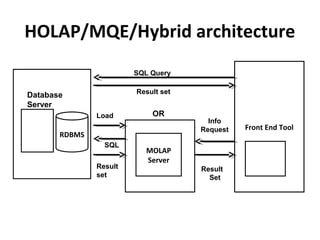

75. HOLAP/MQE/Hybrid architecture
RDBMS
Database
Server
MOLAP
Server
Result
set
SQL
Front End Tool
Result
Set
Info
Request
Load
Result set
SQL Query
OR

76. Managed Query Environment/HOLAP
• HOLAP(Hybrid OLAP) a combination of both
ROLAP and MOLAP can provide
multidimensional analysis simultaneously of
data stored in a multidimensional database
and in a relational database(RDBMS).

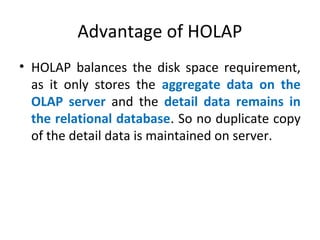

77. Advantage of HOLAP
• HOLAP balances the disk space requirement,
as it only stores the aggregate data on the
OLAP server and the detail data remains in
the relational database. So no duplicate copy
of the detail data is maintained on server.

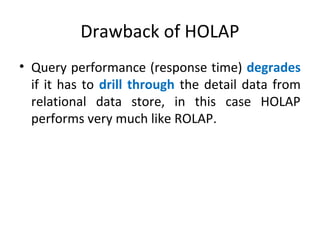

78. Drawback of HOLAP
• Query performance (response time) degrades
if it has to drill through the detail data from
relational data store, in this case HOLAP
performs very much like ROLAP.

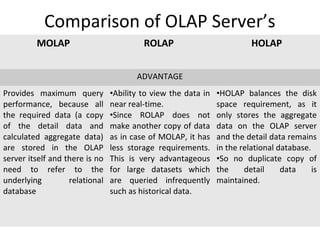

79. Comparison of OLAP Server’s
MOLAP ROLAP HOLAP
ADVANTAGE
Provides maximum query
performance, because all
the required data (a copy
of the detail data and
calculated aggregate data)
are stored in the OLAP
server itself and there is no
need to refer to the
underlying relational
database
•Ability to view the data in
near real-time.
•Since ROLAP does not
make another copy of data
as in case of MOLAP, it has
less storage requirements.
This is very advantageous
for large datasets which
are queried infrequently
such as historical data.
•HOLAP balances the disk
space requirement, as it
only stores the aggregate
data on the OLAP server
and the detail data remains
in the relational database.
•So no duplicate copy of
the detail data is
maintained.

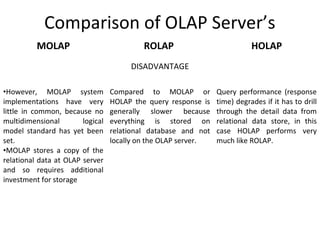

80. Comparison of OLAP Server’s
MOLAP ROLAP HOLAP
DISADVANTAGE
•However, MOLAP system
implementations have very
little in common, because no
multidimensional logical
model standard has yet been
set.
•MOLAP stores a copy of the
relational data at OLAP server
and so requires additional
investment for storage
Compared to MOLAP or
HOLAP the query response is
generally slower because
everything is stored on
relational database and not
locally on the OLAP server.
Query performance (response
time) degrades if it has to drill
through the detail data from
relational data store, in this
case HOLAP performs very
much like ROLAP.

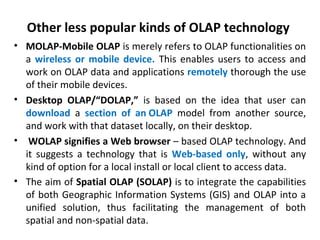

81. Other less popular kinds of OLAP technology
• MOLAP-Mobile OLAP is merely refers to OLAP functionalities on
a wireless or mobile device. This enables users to access and
work on OLAP data and applications remotely thorough the use
of their mobile devices.
• Desktop OLAP/“DOLAP,” is based on the idea that user can
download a section of an OLAP model from another source,
and work with that dataset locally, on their desktop.
• WOLAP signifies a Web browser – based OLAP technology. And
it suggests a technology that is Web-based only, without any
kind of option for a local install or local client to access data.
• The aim of Spatial OLAP (SOLAP) is to integrate the capabilities
of both Geographic Information Systems (GIS) and OLAP into a
unified solution, thus facilitating the management of both
spatial and non-spatial data.

82. OLAP GUIDELINES

83. • Dr. E.F. Codd, the “father” of the
relational model, has formulated a
list of guide lines and requirements
as the basis for selecting OLAP
systems/Server.

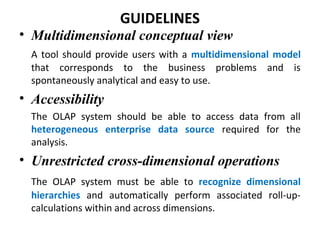

84. GUIDELINES
• Multidimensional conceptual view
A tool should provide users with a multidimensional model
that corresponds to the business problems and is
spontaneously analytical and easy to use.
• Accessibility
The OLAP system should be able to access data from all
heterogeneous enterprise data source required for the
analysis.
• Unrestricted cross-dimensional operations
The OLAP system must be able to recognize dimensional
hierarchies and automatically perform associated roll-up-
calculations within and across dimensions.

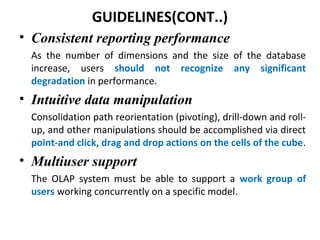

85. GUIDELINES(CONT..)
• Consistent reporting performance
As the number of dimensions and the size of the database
increase, users should not recognize any significant
degradation in performance.
• Intuitive data manipulation
Consolidation path reorientation (pivoting), drill-down and roll-
up, and other manipulations should be accomplished via direct
point-and click, drag and drop actions on the cells of the cube.
• Multiuser support
The OLAP system must be able to support a work group of
users working concurrently on a specific model.

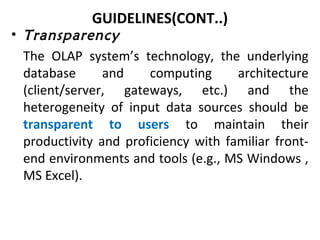

86. GUIDELINES(CONT..)
• Transparency
The OLAP system’s technology, the underlying
database and computing architecture
(client/server, gateways, etc.) and the
heterogeneity of input data sources should be
transparent to users to maintain their
productivity and proficiency with familiar front-
end environments and tools (e.g., MS Windows ,
MS Excel).

87. GUIDELINES(CONT..)
• Client/server architecture
The OLAP system has to conform to client/server
architectural principles for maximum price and
performance, flexibility, adaptively and interoperability.
• Flexible reporting
The ability to arrange rows, columns and cells in a
fashion that facilitates analysis by spontaneous visual
presentation of analytical reports must exist.

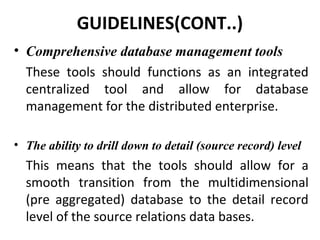

88. GUIDELINES(CONT..)
• Comprehensive database management tools
These tools should functions as an integrated
centralized tool and allow for database
management for the distributed enterprise.
• The ability to drill down to detail (source record) level
This means that the tools should allow for a
smooth transition from the multidimensional
(pre aggregated) database to the detail record
level of the source relations data bases.

89. COGNOS IMPROMPTU

90. Cognos Impromptu
• Impromptu is an interactive database reporting
tool from IBM- Cognos Corporation.
• Provides Flexible data warehousing and
database reporting solution.
• Cognos Impromptu is an intuitive, user-friendly
system that enables non-technical personnel
(Power User) to quickly and easily design and
distribute business intelligence reports
• Easy-to-use graphical user interface.

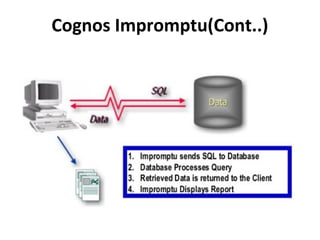

91. Cognos Impromptu(Cont..)

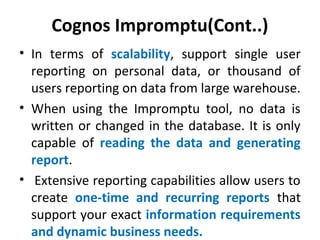

92. Cognos Impromptu(Cont..)
• In terms of scalability, support single user
reporting on personal data, or thousand of
users reporting on data from large warehouse.
• When using the Impromptu tool, no data is
written or changed in the database. It is only
capable of reading the data and generating
report.
• Extensive reporting capabilities allow users to
create one-time and recurring reports that
support your exact information requirements
and dynamic business needs.

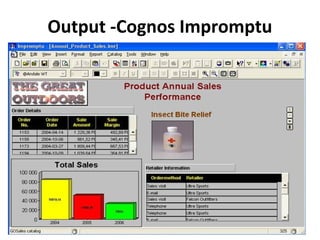

93. Output -Cognos Impromptu

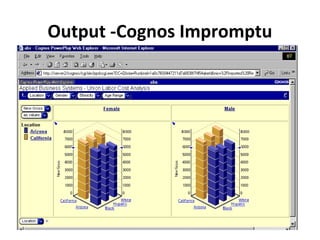

94. Output -Cognos Impromptu

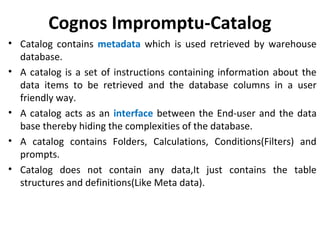

95. Cognos Impromptu-Catalog
• Catalog contains metadata which is used retrieved by warehouse
database.
• A catalog is a set of instructions containing information about the
data items to be retrieved and the database columns in a user
friendly way.
• A catalog acts as an interface between the End-user and the data
base thereby hiding the complexities of the database.
• A catalog contains Folders, Calculations, Conditions(Filters) and
prompts.
• Catalog does not contain any data,It just contains the table
structures and definitions(Like Meta data).

96. Cognos Impromptu-Catalog
A catalog contains:
 Folders—meaningful groups of information representing
columns from one or more tables
 Columns—individual data elements that can appear in one
or more folders
 Calculations—expressions used to compute required
values from existing data.
 Conditions—used to filter information so that only a
certain type of information is displayed
 Prompts—pre-defined selection criteria prompts that
users can include in reports they create  Other
components, such as metadata, a logical database name,
join information, and user classes

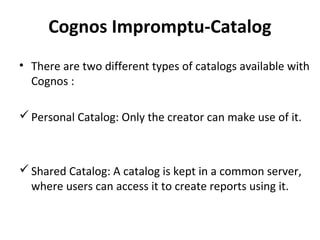

97. Cognos Impromptu-Catalog
• There are two different types of catalogs available with
Cognos :
Personal Catalog: Only the creator can make use of it.
Shared Catalog: A catalog is kept in a common server,
where users can access it to create reports using it.

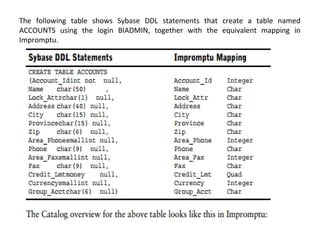

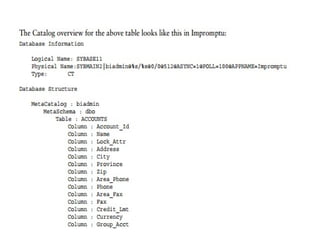

98. The following table shows Sybase DDL statements that create a table named
ACCOUNTS using the login BIADMIN, together with the equivalent mapping in
Impromptu.

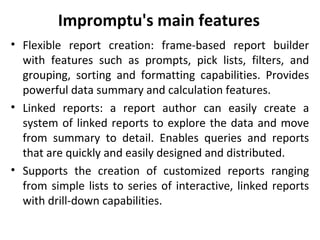

100. Impromptu's main features
• Flexible report creation: frame-based report builder
with features such as prompts, pick lists, filters, and
grouping, sorting and formatting capabilities. Provides
powerful data summary and calculation features.
• Linked reports: a report author can easily create a
system of linked reports to explore the data and move
from summary to detail. Enables queries and reports
that are quickly and easily designed and distributed.
• Supports the creation of customized reports ranging
from simple lists to series of interactive, linked reports
with drill-down capabilities.

101. Impromptu's main features(Cont..)
• Powerful summaries and calculations.
• Supports the creation of one-time and
recurring reports.
• Advanced reporting options let users build a
wide variety of reports: grouped lists,
crosstabs, charts and more.
• Provides a variety of output formats including
PDF and formatted Excel spreadsheets.

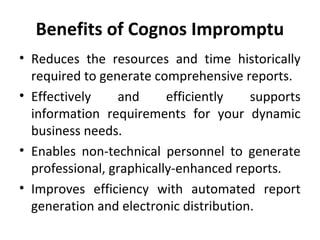

102. Benefits of Cognos Impromptu
• Reduces the resources and time historically
required to generate comprehensive reports.
• Effectively and efficiently supports
information requirements for your dynamic
business needs.
• Enables non-technical personnel to generate
professional, graphically-enhanced reports.
• Improves efficiency with automated report
generation and electronic distribution.
