Bidirectional Bus Modelling
- 1.
- 2. Agenda • Bus driversand Bus contention • Different signal strength • Modelling equivalence with actual analog model • Practical example of modelling
- 3.
- 4.

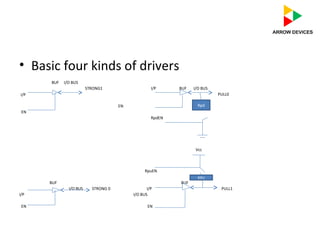

- 5. • Basic fourkinds of drivers BUF I/O BUS STRONG1 I/P BUF I/O BUS PULL0 EN EN RpdEN RpuEN BUF BUF I/O BUS STRONG 0 I/P PULL1 I/P I/O BUS EN EN I/P Rpd RPU Vcc

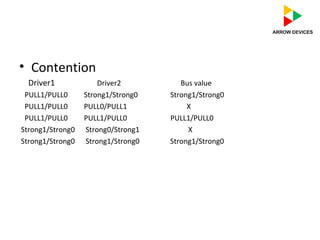

- 6. • Contention Driver1 Driver2Bus value PULL1/PULL0 Strong1/Strong0 Strong1/Strong0 PULL1/PULL0 PULL0/PULL1 X PULL1/PULL0 PULL1/PULL0 PULL1/PULL0 Strong1/Strong0 Strong0/Strong1 X Strong1/Strong0 Strong1/Strong0 Strong1/Strong0

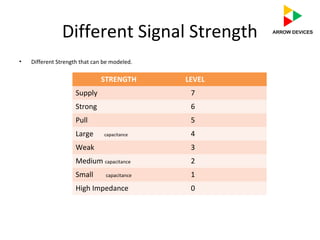

- 7. Different Signal Strength •Different Strength that can be modeled. STRENGTH LEVEL Supply 7 Strong 6 Pull 5 Large capacitance 4 Weak 3 Medium capacitance 2 Small capacitance 1 High Impedance 0
- 8. Analog Models • SupplyStrength: Diagram Syntax in Verilog BUF I/O BUS supply1 pwr_on ip(Supply) supply0 pwr_off EN

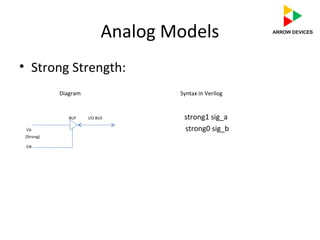

- 9. Analog Models • StrongStrength: Diagram Syntax in Verilog BUF I/O BUS strong1 sig_a i/p strong0 sig_b (Strong) EN

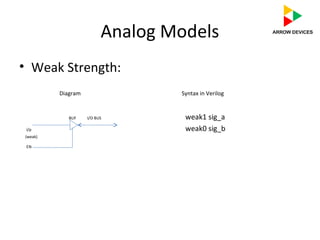

- 10. Analog Models • WeakStrength: Diagram Syntax in Verilog BUF I/O BUS weak1 sig_a i/p weak0 sig_b (weak) EN

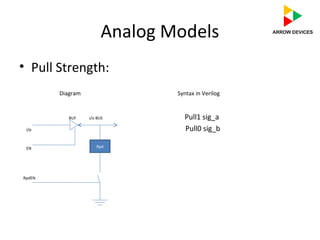

- 11. Analog Models • PullStrength: Diagram Syntax in Verilog BUF i/o BUS Pull1 sig_a i/p Pull0 sig_b EN RpdEN Rpd
- 12. Signal Modeling Rules •Same strength but opposite logic value leads to bus contention in bus i.e. x • Higher strength always override the lower strength Examples: Pull0 Pull0 Pull0 X Weak1 Pull1
- 13. Example • USB2 RemoteWakeup What is USB2 Remote wakeup ?? -- If there are no transfers/bus is idle then usb2 device/host can go to sleep mode -- If device starts the host wakeup then that’s called Remote wakeup Protocol of Remote wakeup: -- Host drives Bus to idle Dp = 0 , Dm = 0. -- Device drive Dp = 0 and Dm = 1 for 15 ms -- Host will detect for 1 ms and drive Dp = 0 and Dm = 1 for 20 ms Chance of contention: -- If you see initially Dm = 0 and after that device needs to drive Dm = 1 -- If strength of Dm is same for host and device will same , it will lead to Bus contention on Dm line

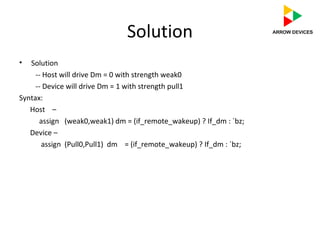

- 14. Solution • Solution -- Hostwill drive Dm = 0 with strength weak0 -- Device will drive Dm = 1 with strength pull1 Syntax: Host – assign (weak0,weak1) dm = (if_remote_wakeup) ? If_dm : `bz; Device – assign (Pull0,Pull1) dm = (if_remote_wakeup) ? If_dm : `bz;
