The document outlines the USB (Universal Serial Bus) design principles, including its architecture, goals, and features that enhance PC peripheral connectivity. It highlights key attributes such as ease of use, low cost, robust error handling, and support for various data transfer types. Additionally, it provides technical details regarding the USB protocol, power management, and the operational characteristics of USB devices and hosts.

1. USB
Universal Serial Bus

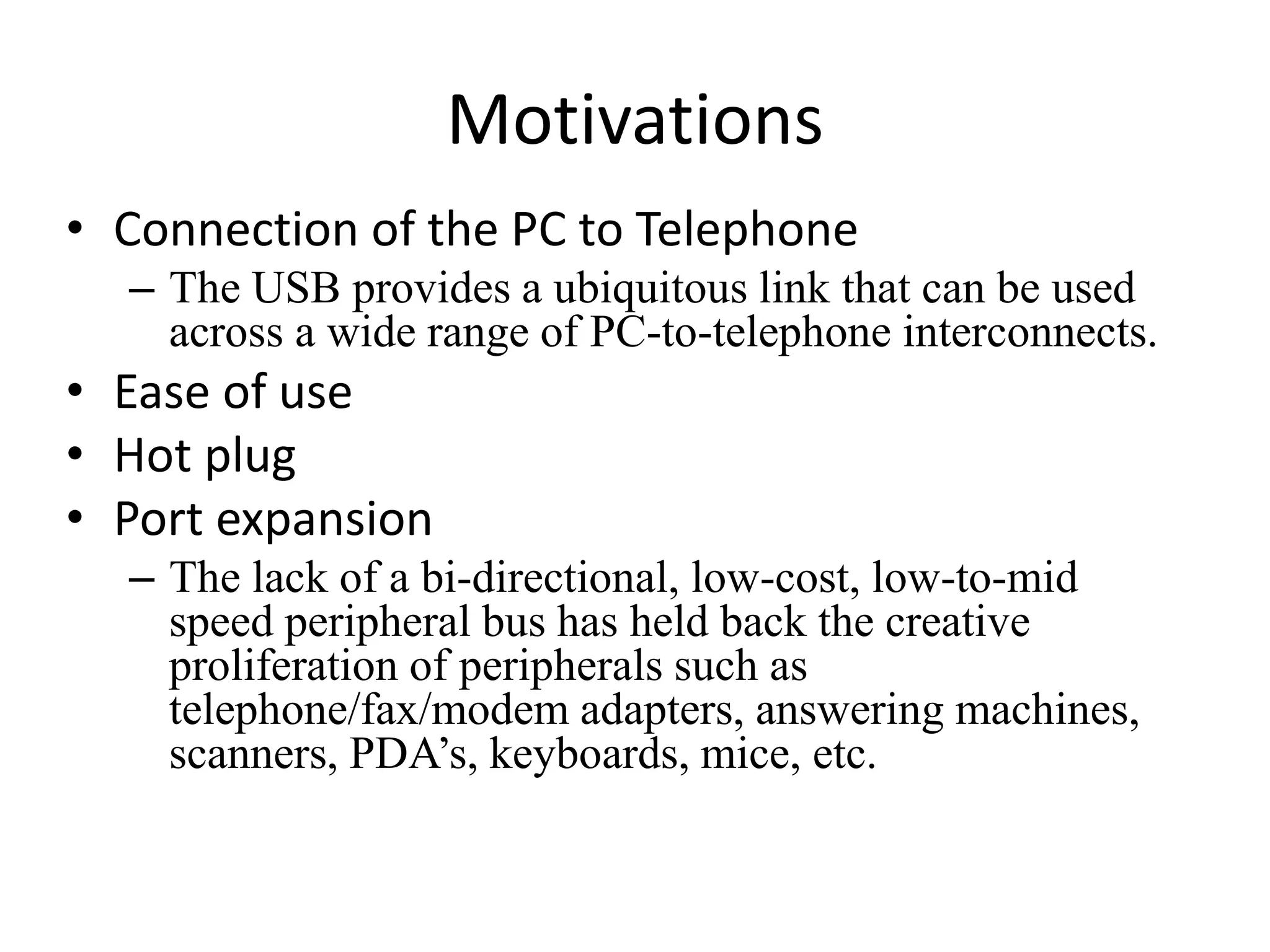

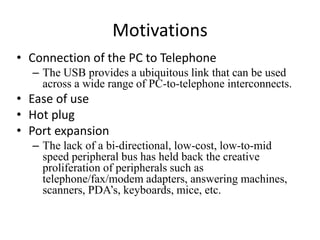

2. Motivations
• Connection of the PC to Telephone
– The USB provides a ubiquitous link that can be used
across a wide range of PC-to-telephone interconnects.
• Ease of use
• Hot plug
• Port expansion
– The lack of a bi-directional, low-cost, low-to-mid
speed peripheral bus has held back the creative
proliferation of peripherals such as
telephone/fax/modem adapters, answering machines,
scanners, PDA’s, keyboards, mice, etc.

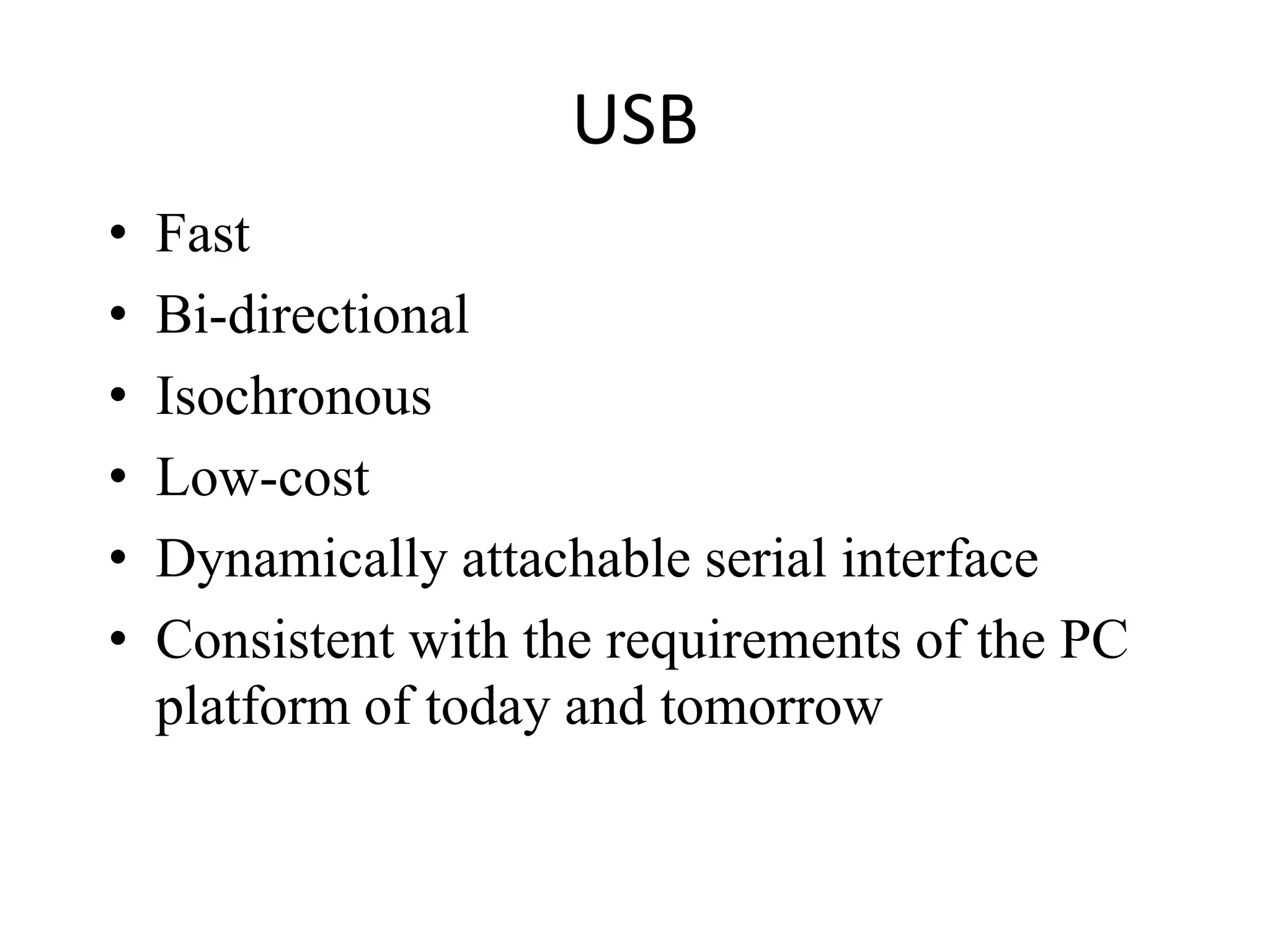

3. USB
• Fast
• Bi-directional
• Isochronous
• Low-cost
• Dynamically attachable serial interface
• Consistent with the requirements of the PC
platform of today and tomorrow

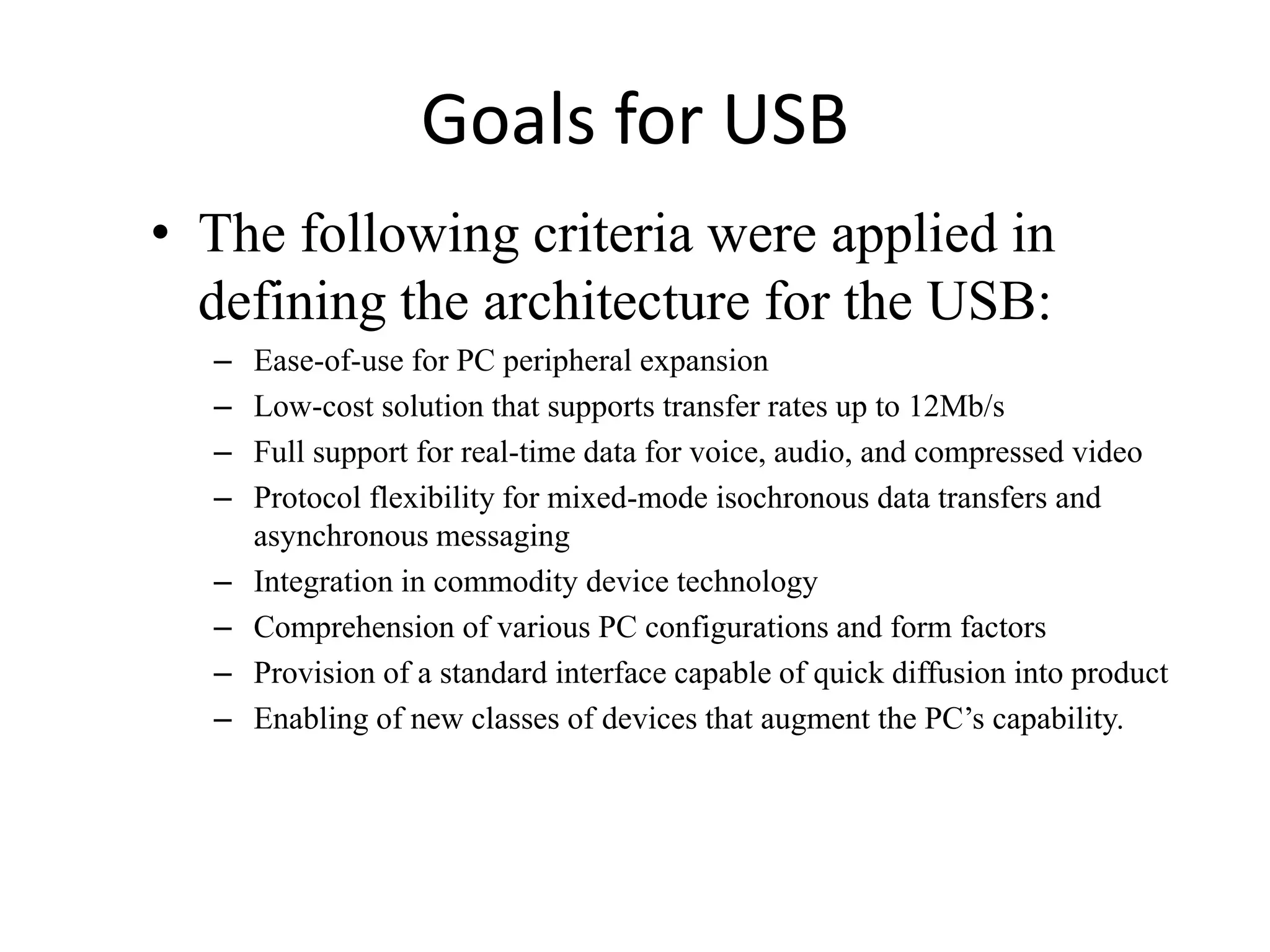

4. Goals for USB
• The following criteria were applied in
defining the architecture for the USB:
– Ease-of-use for PC peripheral expansion
– Low-cost solution that supports transfer rates up to 12Mb/s
– Full support for real-time data for voice, audio, and compressed video
– Protocol flexibility for mixed-mode isochronous data transfers and
asynchronous messaging
– Integration in commodity device technology
– Comprehension of various PC configurations and form factors
– Provision of a standard interface capable of quick diffusion into product
– Enabling of new classes of devices that augment the PC’s capability.

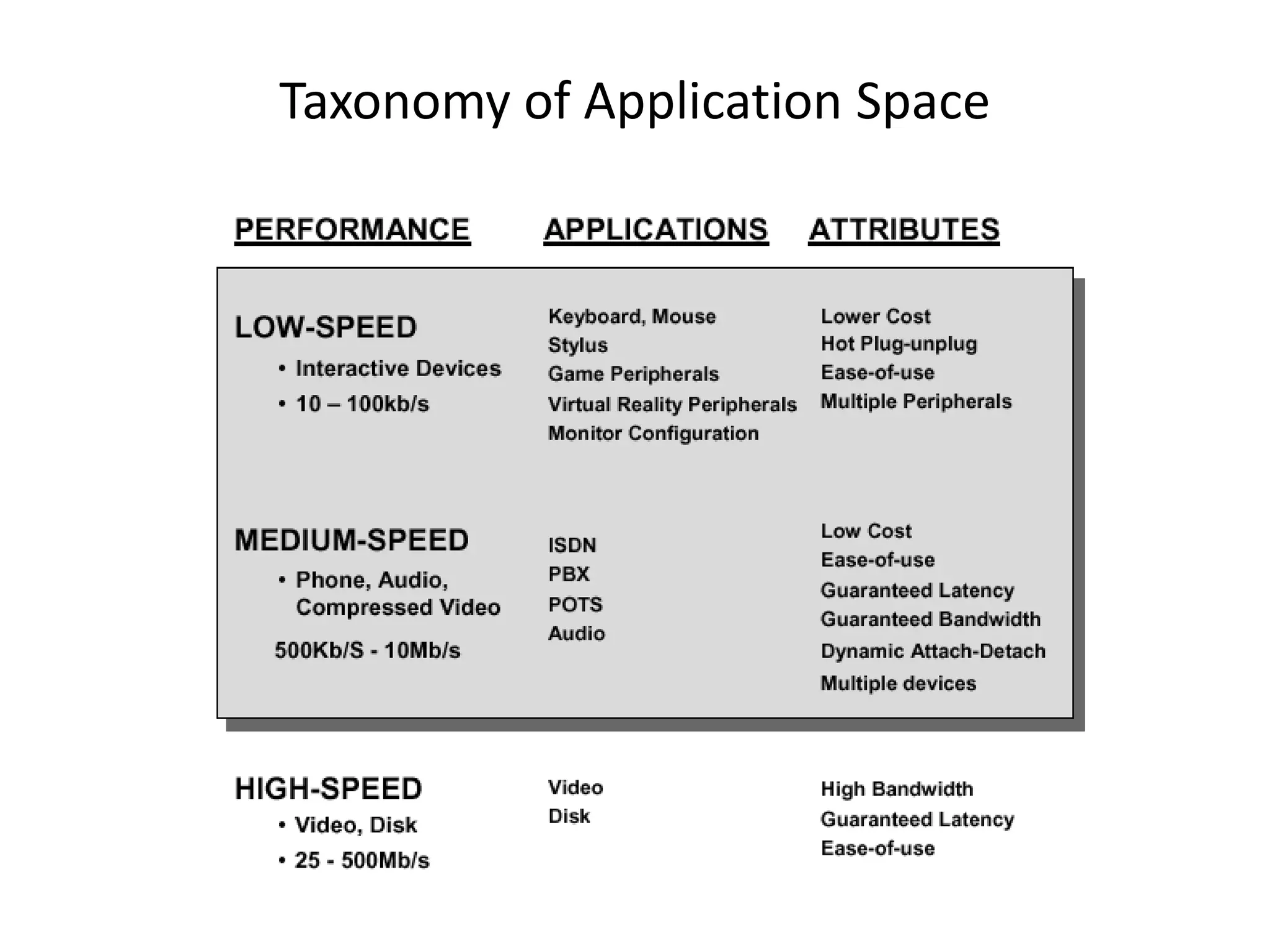

5. Taxonomy of Application Space

6. Feature list

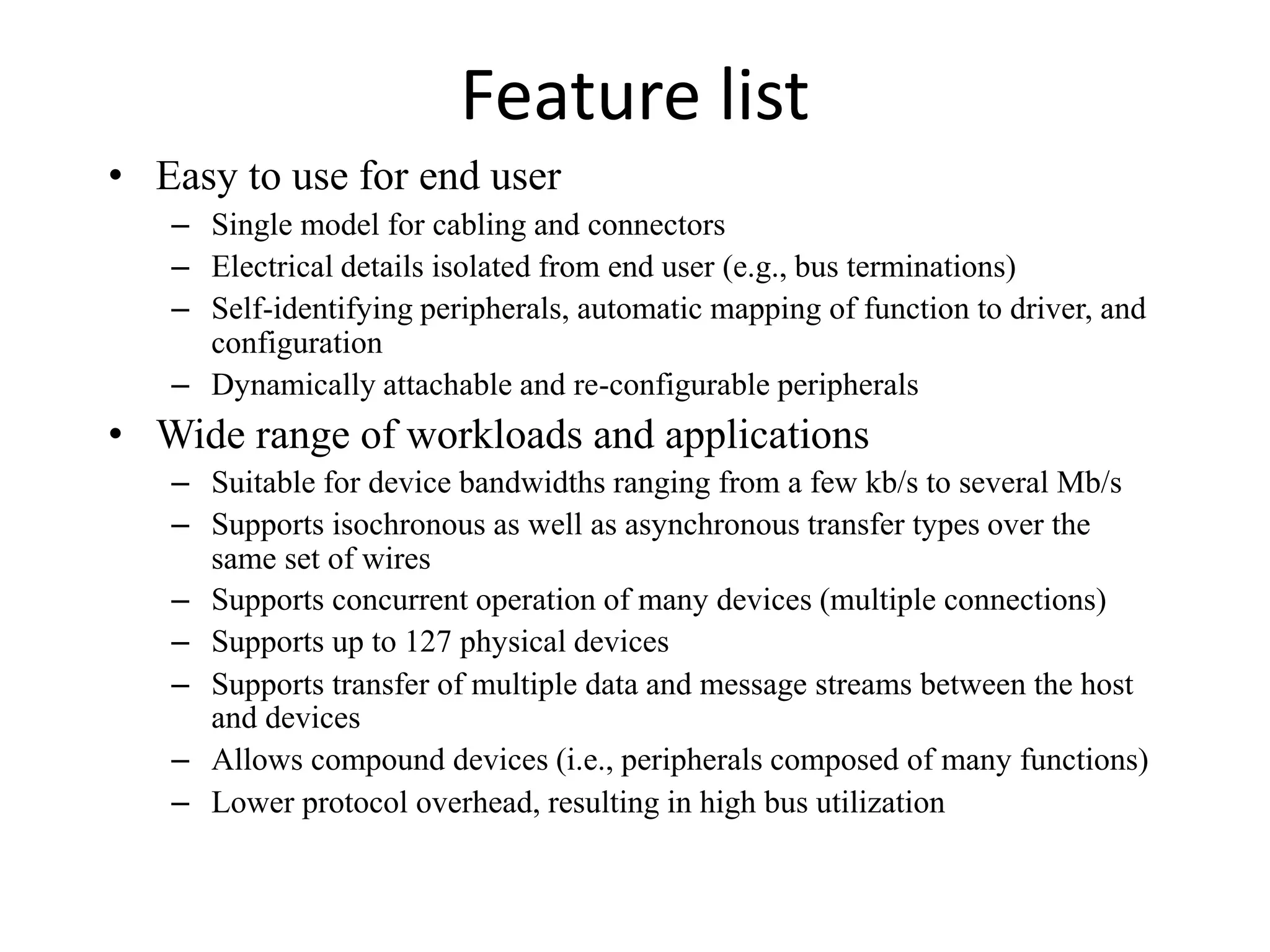

• Easy to use for end user
– Single model for cabling and connectors
– Electrical details isolated from end user (e.g., bus terminations)
– Self-identifying peripherals, automatic mapping of function to driver, and
configuration
– Dynamically attachable and re-configurable peripherals
• Wide range of workloads and applications
– Suitable for device bandwidths ranging from a few kb/s to several Mb/s
– Supports isochronous as well as asynchronous transfer types over the
same set of wires
– Supports concurrent operation of many devices (multiple connections)
– Supports up to 127 physical devices
– Supports transfer of multiple data and message streams between the host
and devices
– Allows compound devices (i.e., peripherals composed of many functions)
– Lower protocol overhead, resulting in high bus utilization

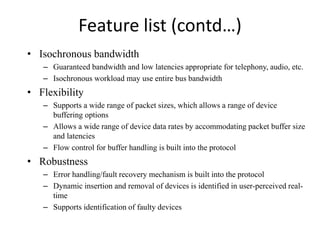

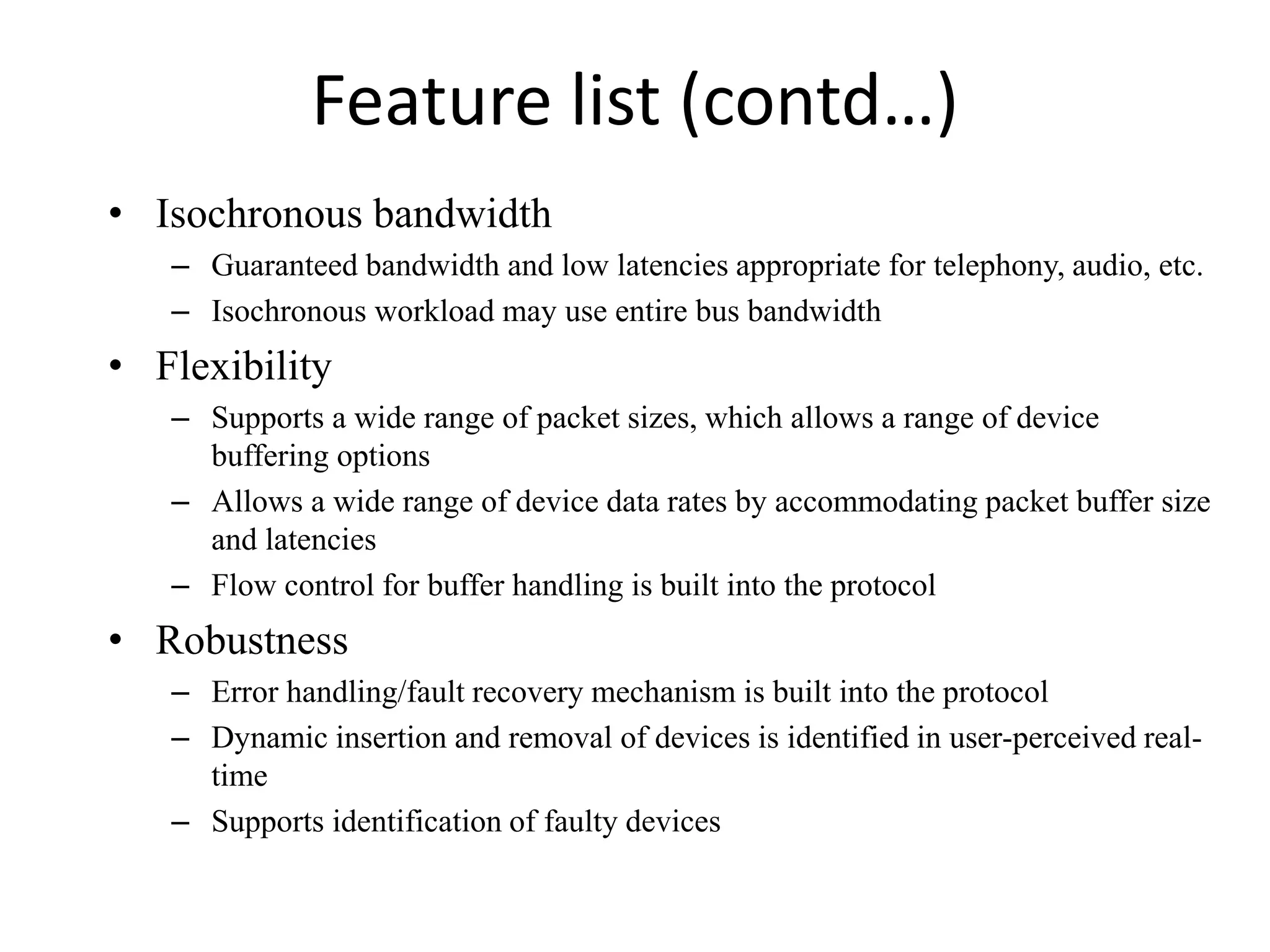

7. Feature list (contd…)
• Isochronous bandwidth
– Guaranteed bandwidth and low latencies appropriate for telephony, audio, etc.
– Isochronous workload may use entire bus bandwidth
• Flexibility
– Supports a wide range of packet sizes, which allows a range of device
buffering options
– Allows a wide range of device data rates by accommodating packet buffer size
and latencies
– Flow control for buffer handling is built into the protocol
• Robustness
– Error handling/fault recovery mechanism is built into the protocol
– Dynamic insertion and removal of devices is identified in user-perceived real-
time
– Supports identification of faulty devices

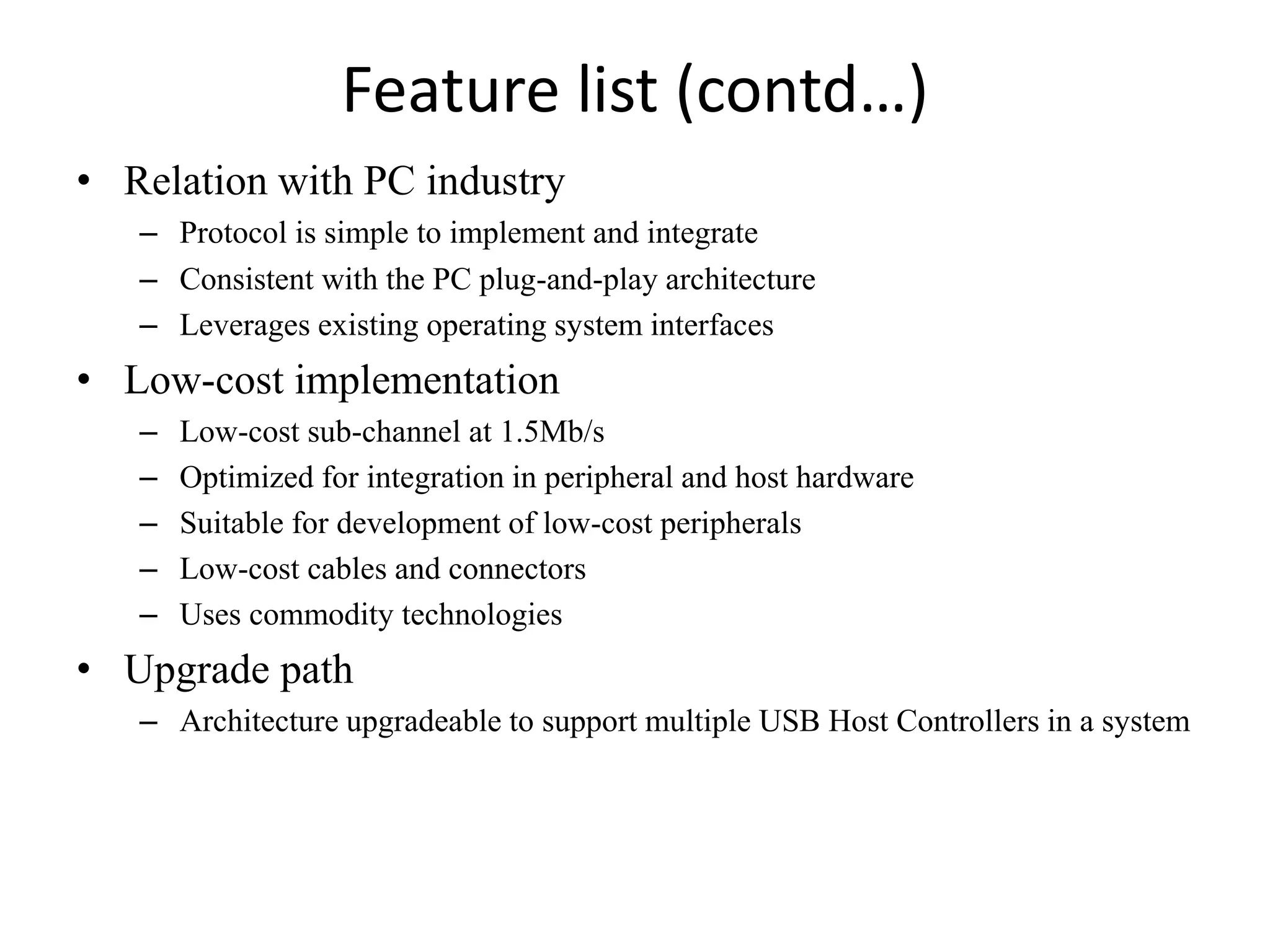

8. Feature list (contd…)
• Relation with PC industry
– Protocol is simple to implement and integrate
– Consistent with the PC plug-and-play architecture
– Leverages existing operating system interfaces
• Low-cost implementation
– Low-cost sub-channel at 1.5Mb/s
– Optimized for integration in peripheral and host hardware
– Suitable for development of low-cost peripherals
– Low-cost cables and connectors
– Uses commodity technologies
• Upgrade path
– Architecture upgradeable to support multiple USB Host Controllers in a system

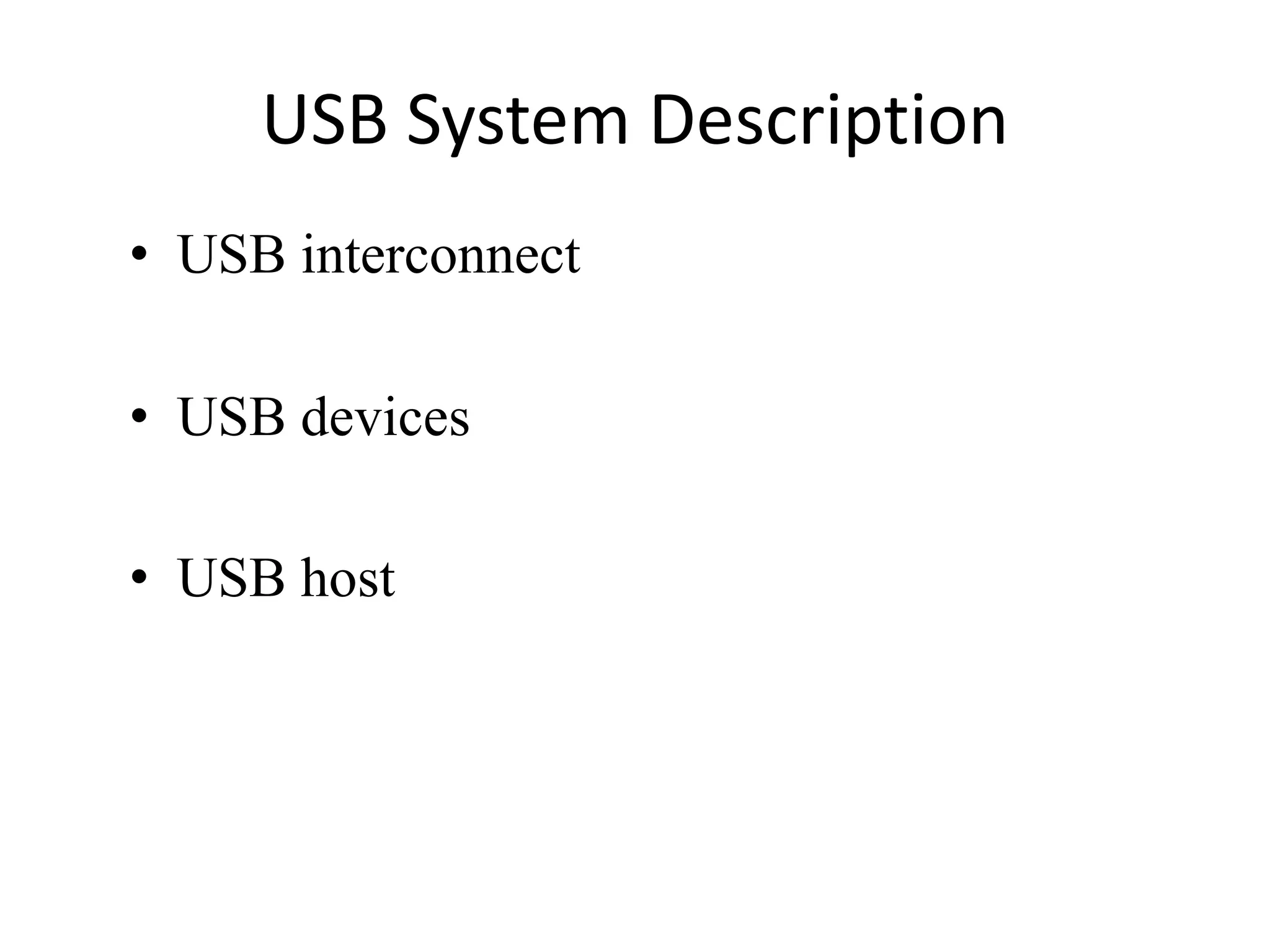

9. USB System Description
• USB interconnect
• USB devices
• USB host

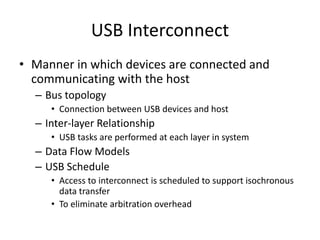

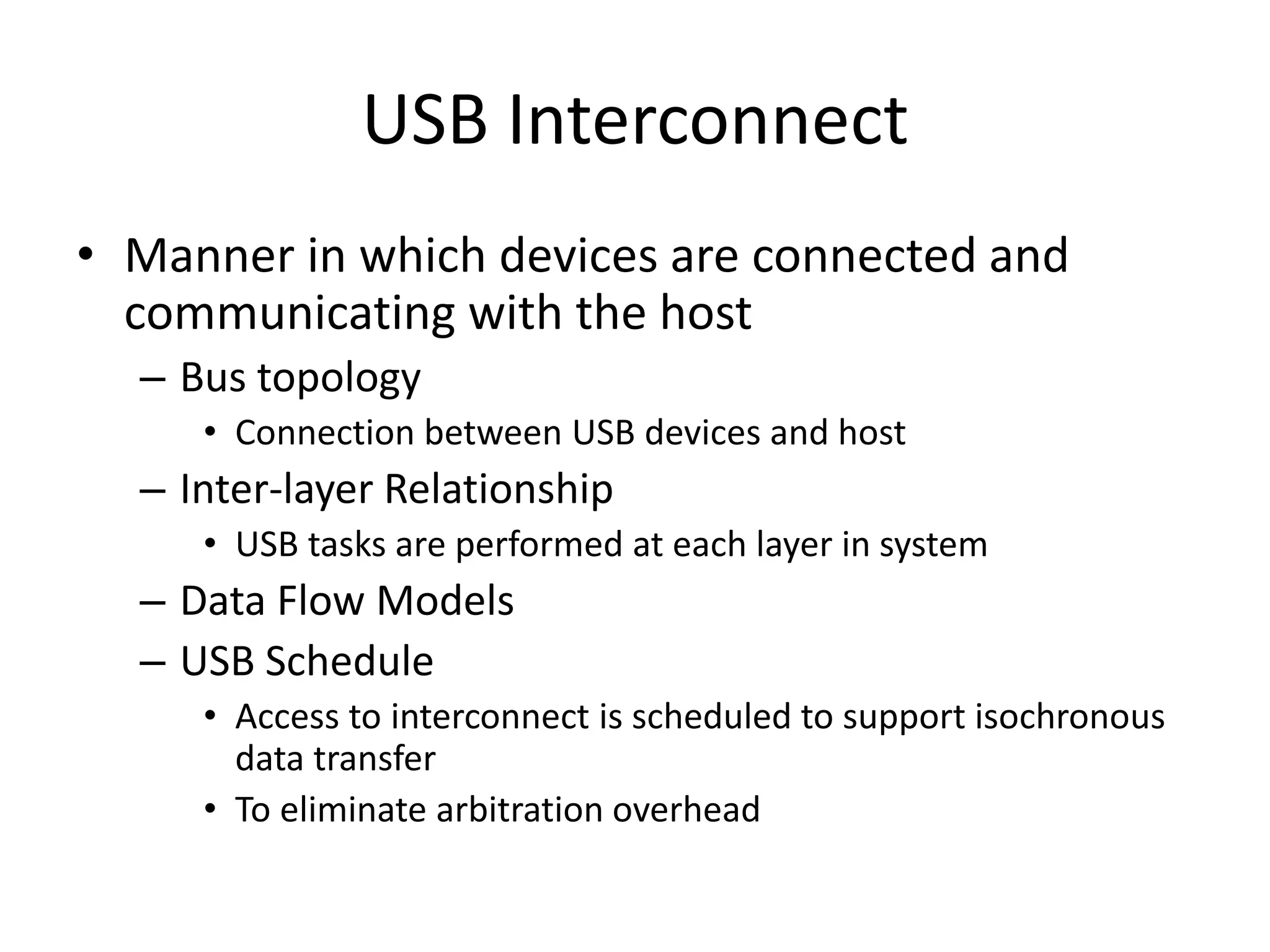

10. USB Interconnect
• Manner in which devices are connected and
communicating with the host
– Bus topology
• Connection between USB devices and host
– Inter-layer Relationship
• USB tasks are performed at each layer in system
– Data Flow Models
– USB Schedule
• Access to interconnect is scheduled to support isochronous
data transfer
• To eliminate arbitration overhead

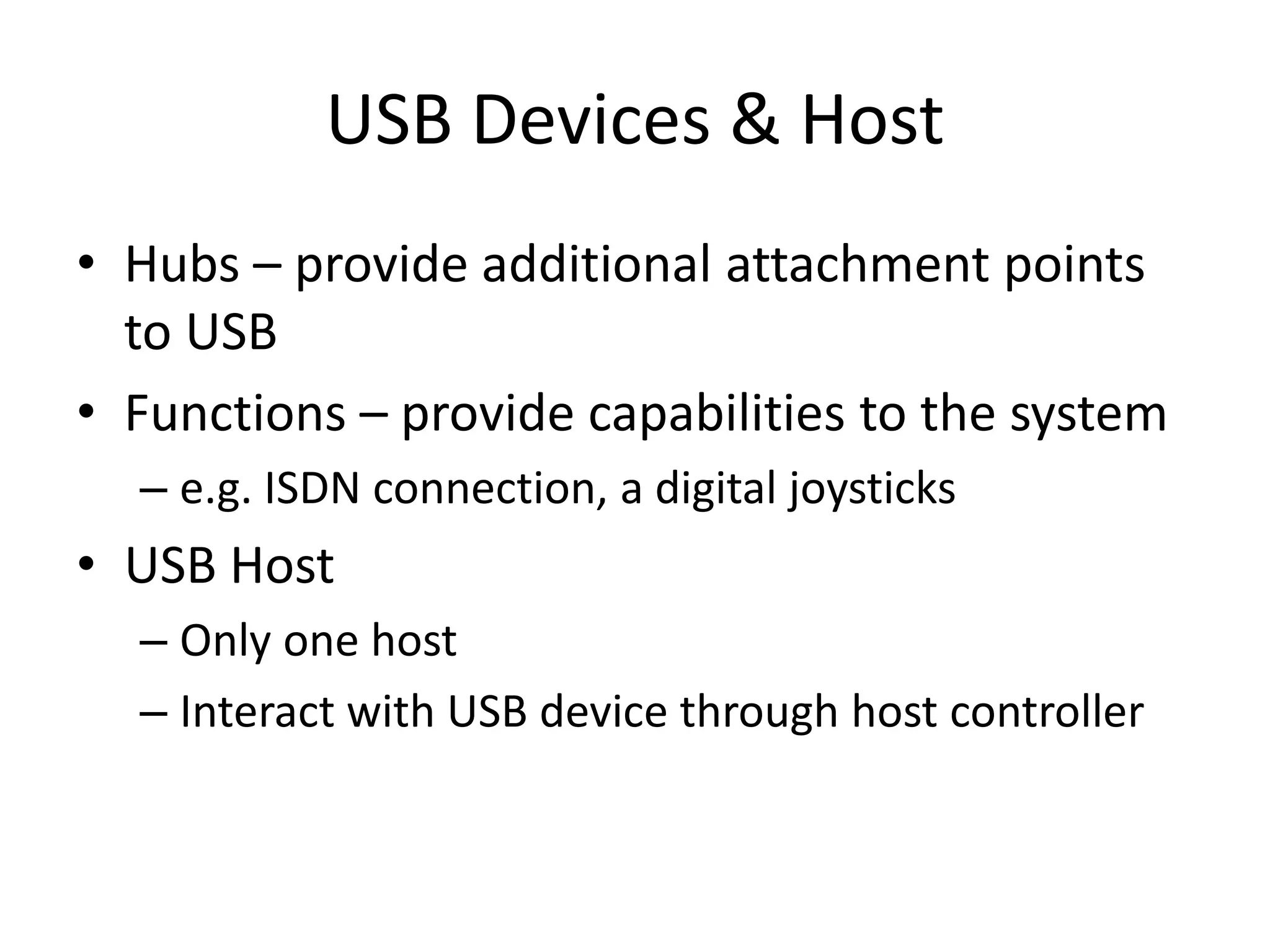

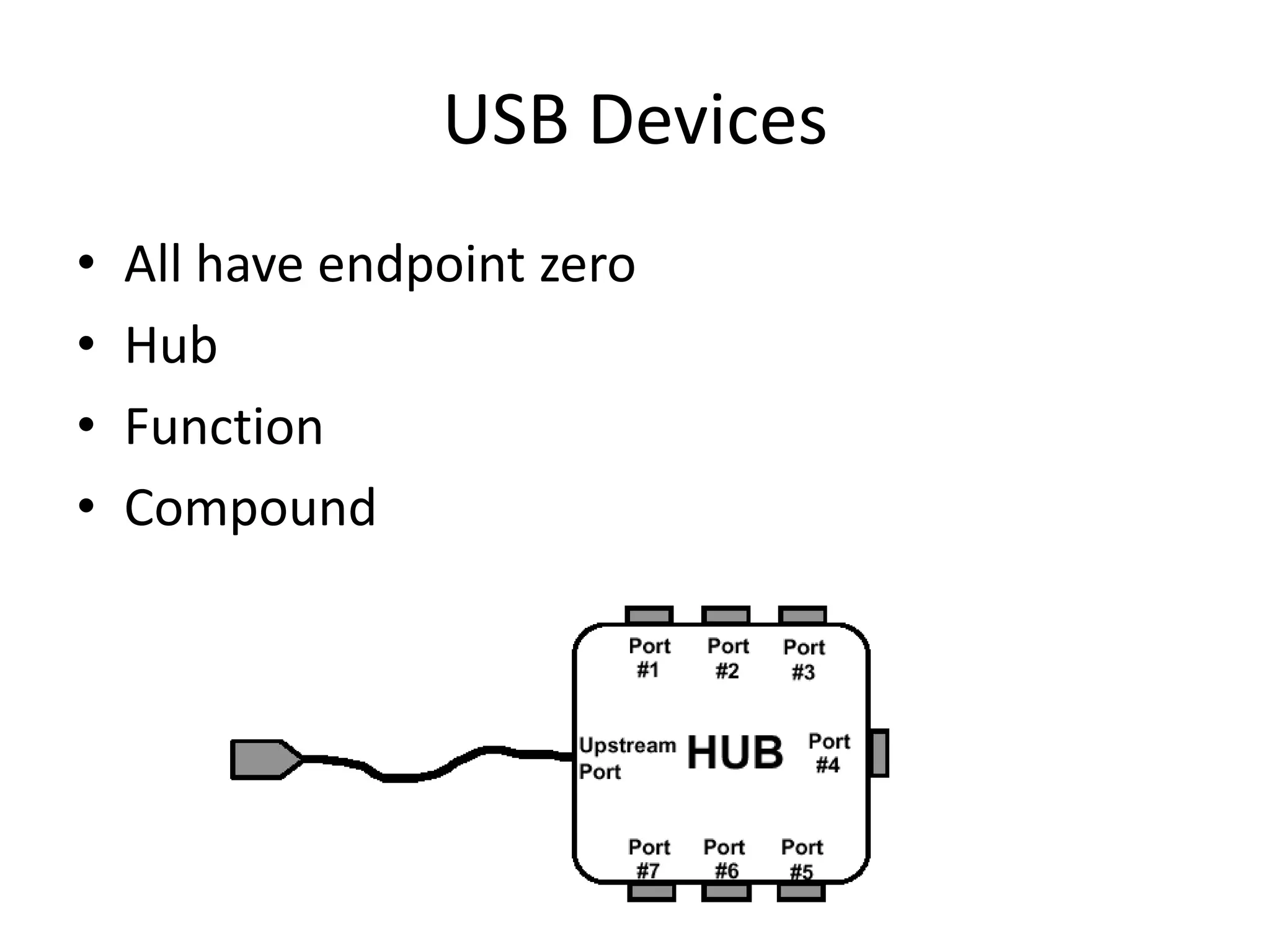

11. USB Devices & Host
• Hubs – provide additional attachment points
to USB
• Functions – provide capabilities to the system
– e.g. ISDN connection, a digital joysticks
• USB Host
– Only one host
– Interact with USB device through host controller

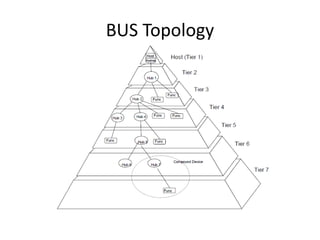

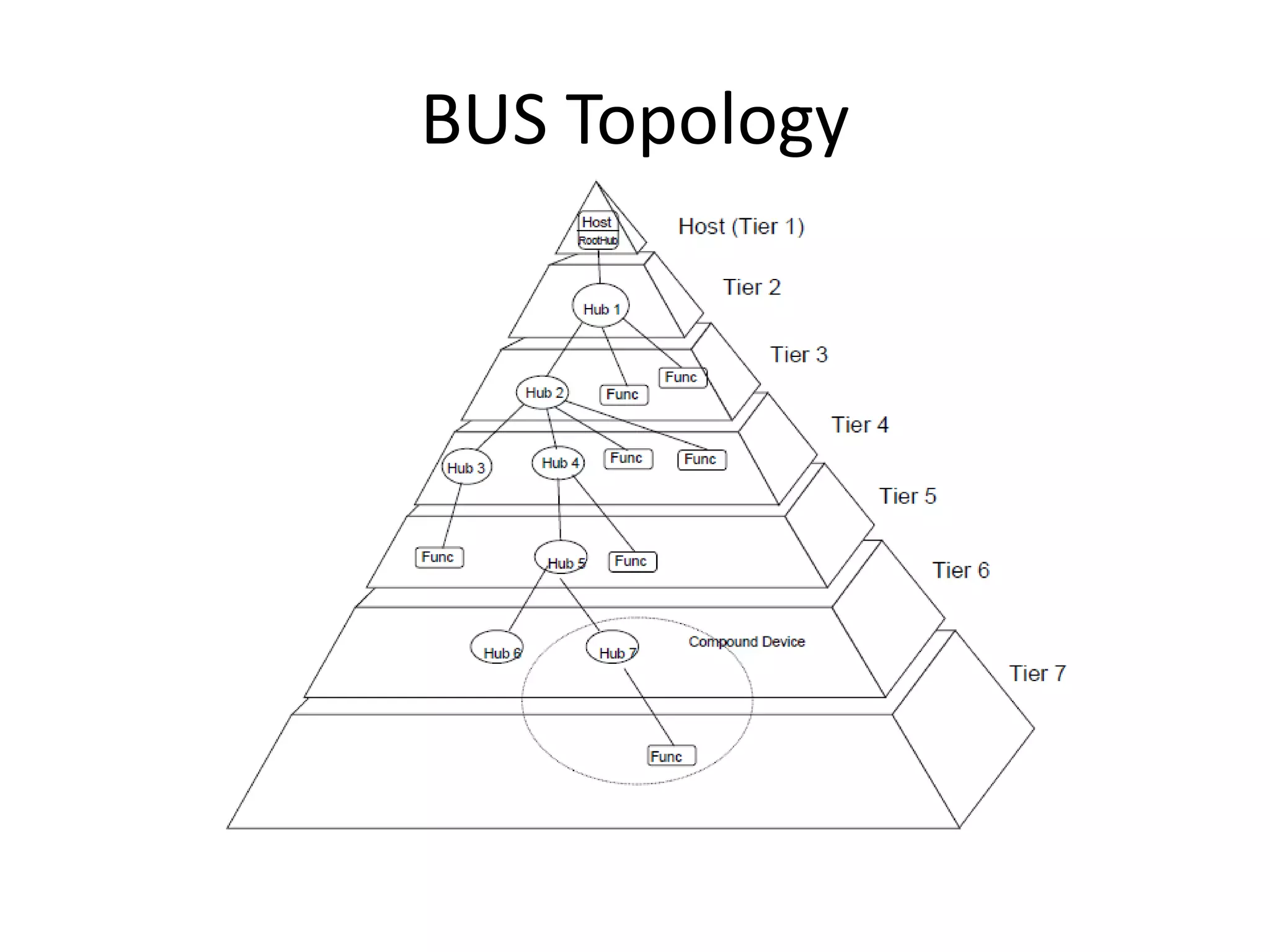

12. BUS Topology

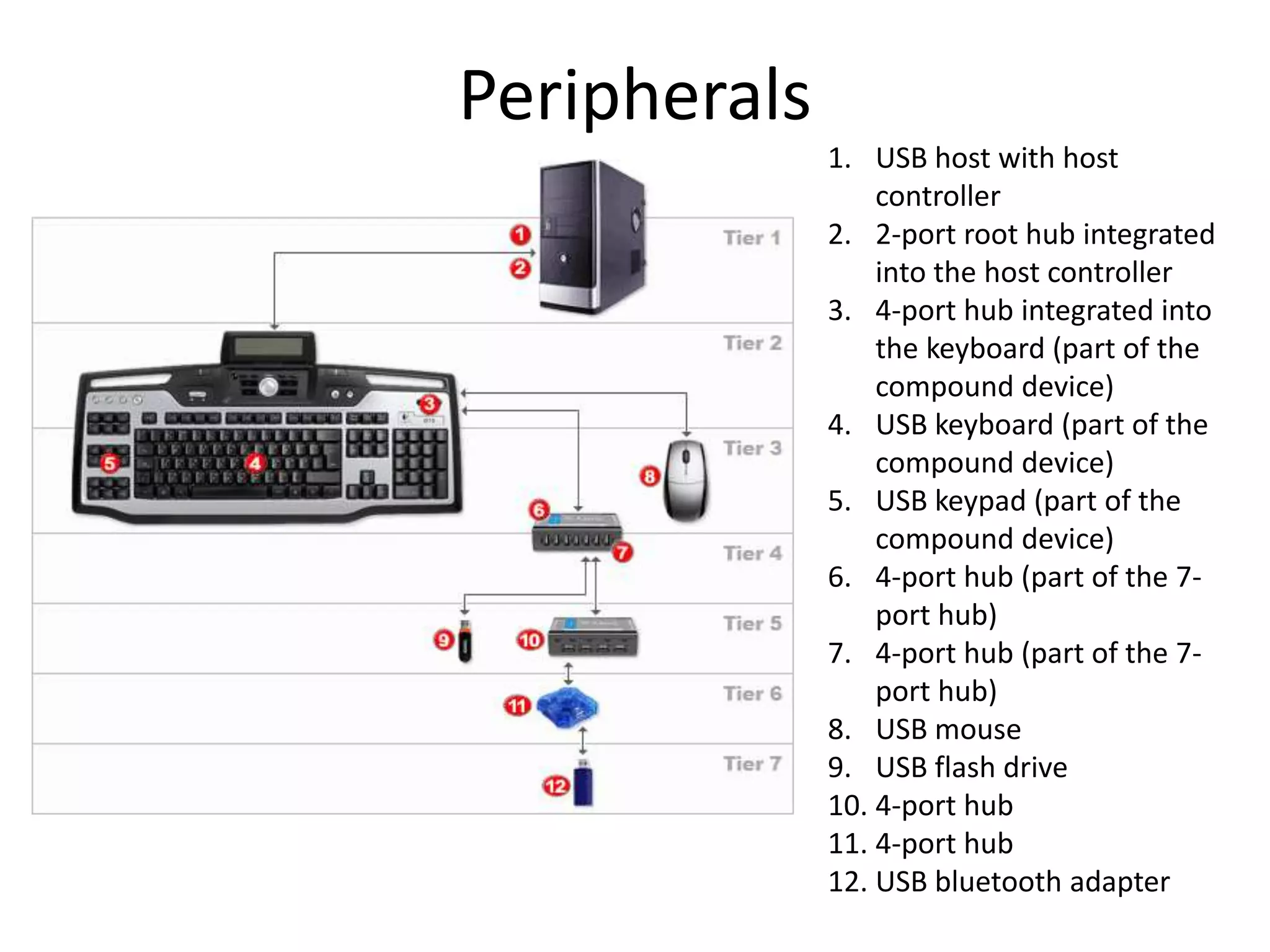

13. Peripherals
1. USB host with host
controller
2. 2-port root hub integrated
into the host controller
3. 4-port hub integrated into
the keyboard (part of the
compound device)
4. USB keyboard (part of the
compound device)
5. USB keypad (part of the
compound device)
6. 4-port hub (part of the 7-
port hub)
7. 4-port hub (part of the 7-
port hub)
8. USB mouse
9. USB flash drive
10. 4-port hub
11. 4-port hub
12. USB bluetooth adapter

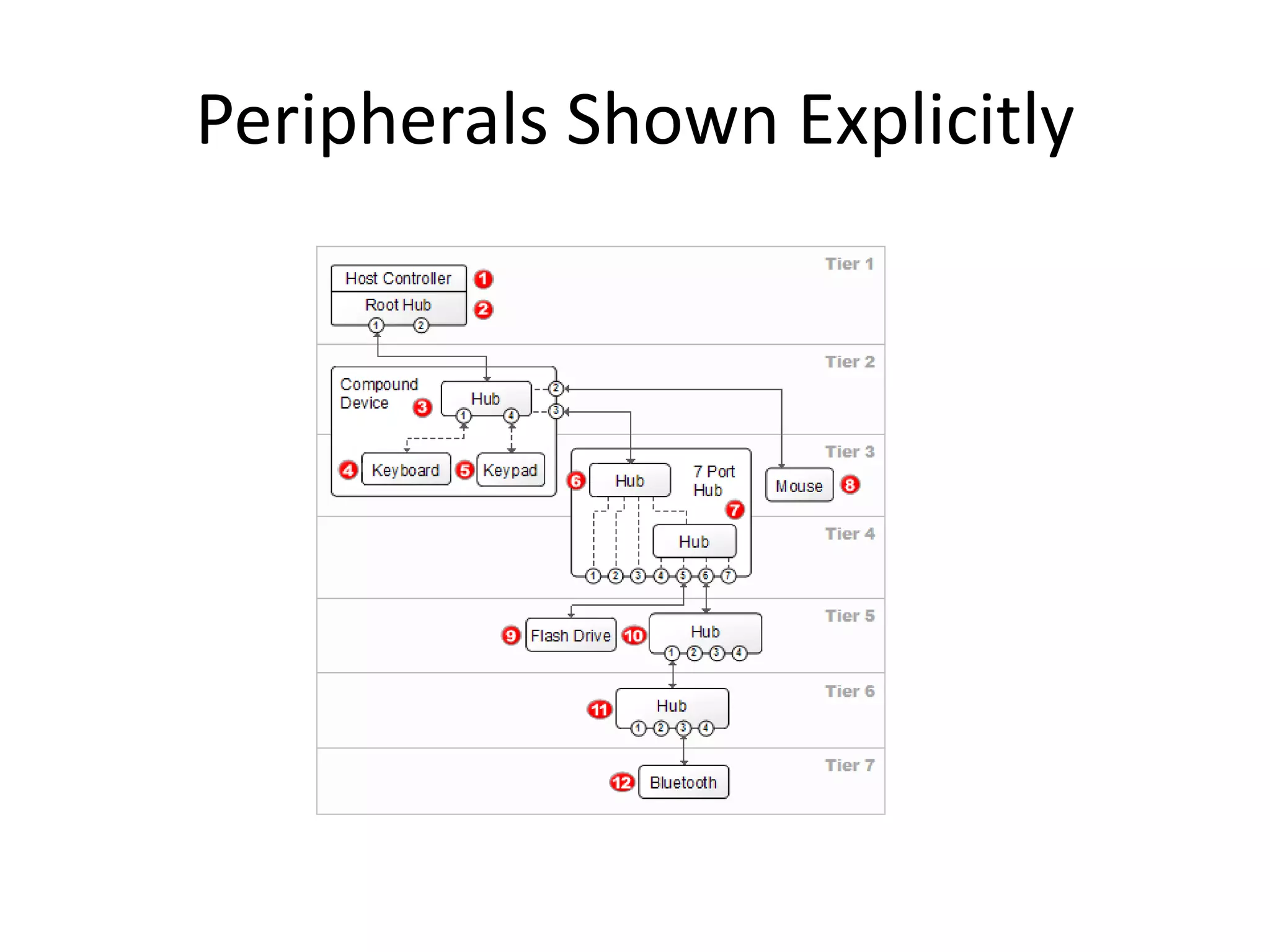

14. Peripherals Shown Explicitly

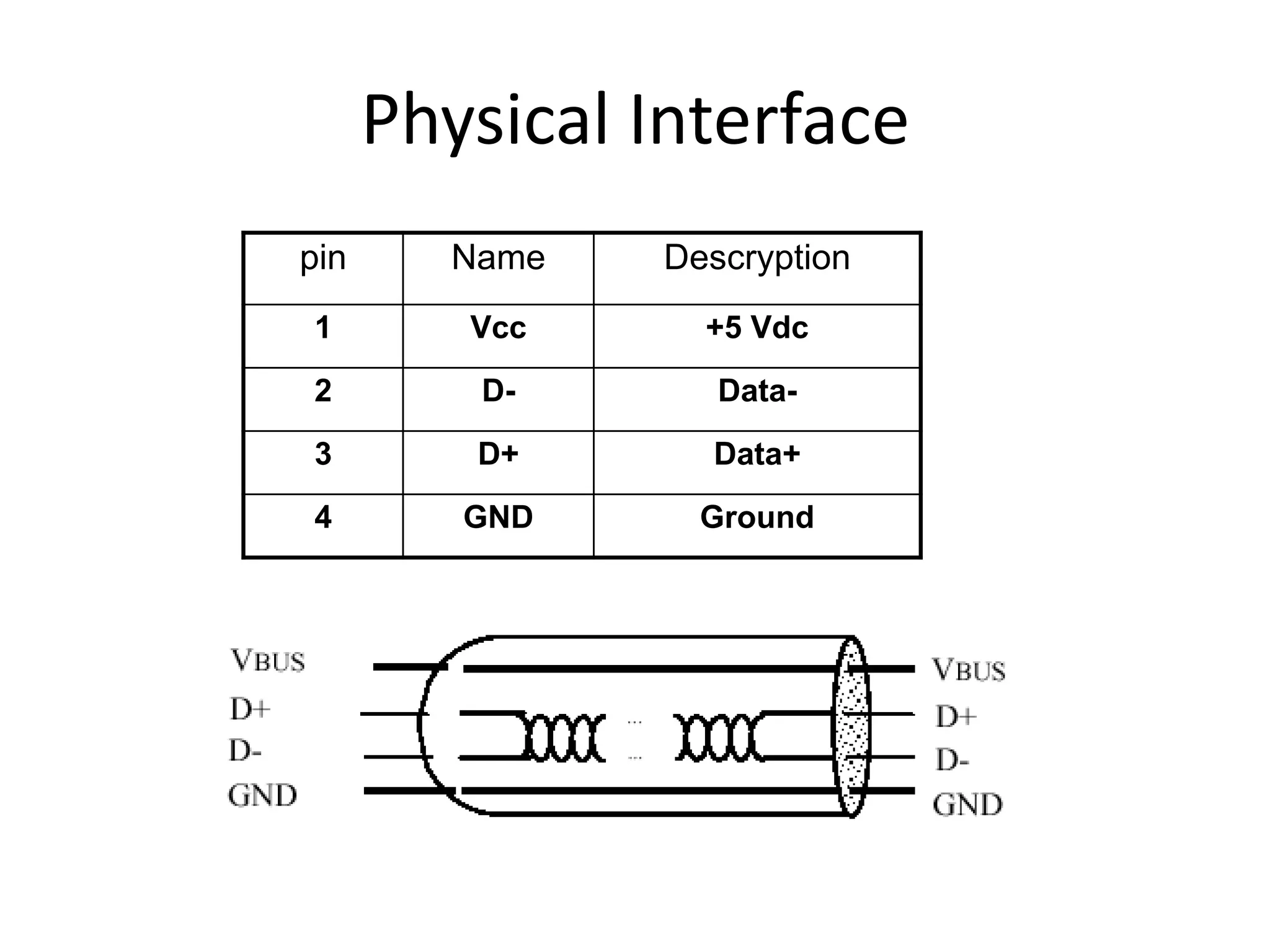

15. Physical Interface
pin Name Descryption
1 Vcc +5 Vdc
2 D- Data-
3 D+ Data+
4 GND Ground

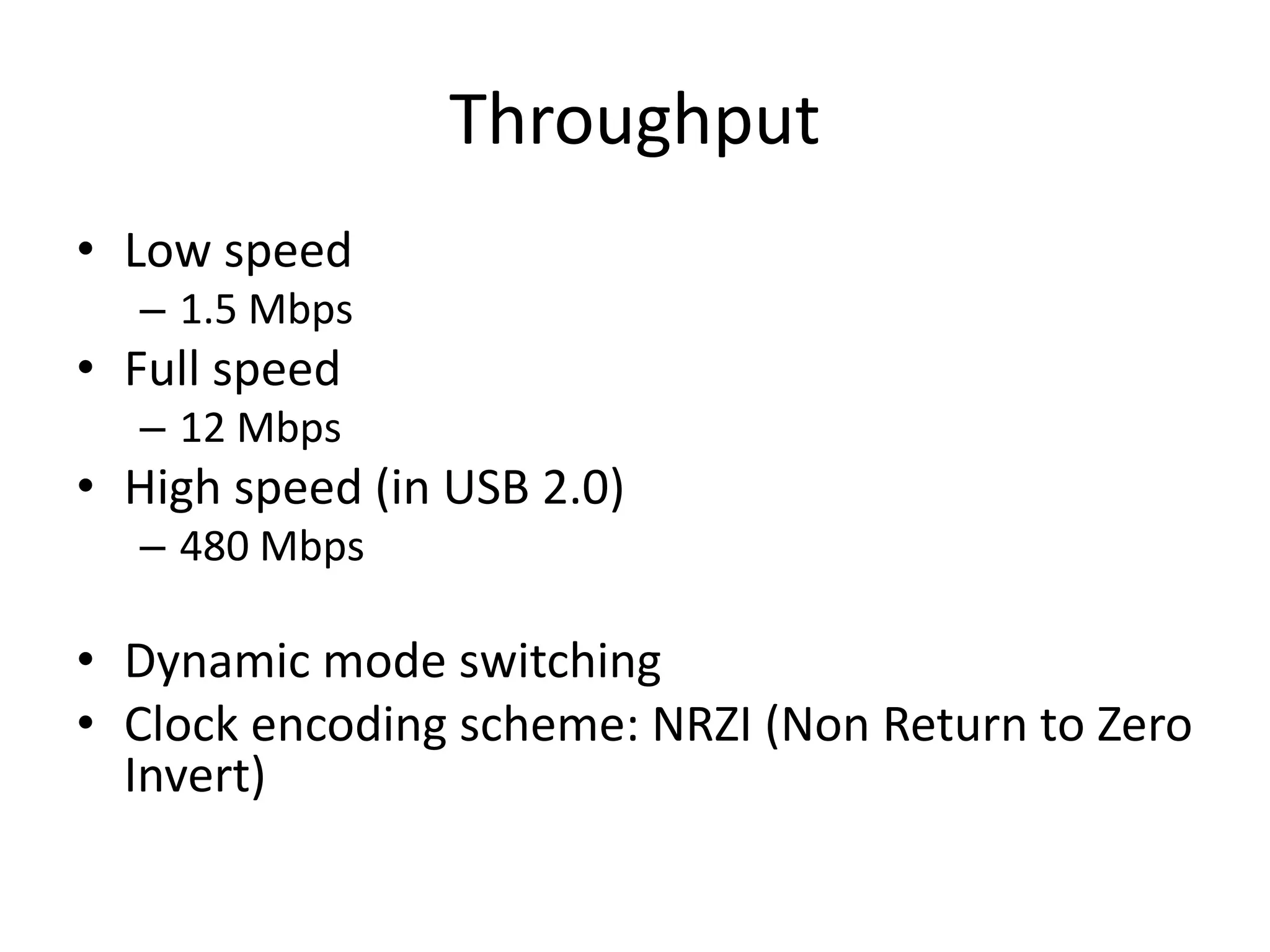

16. Throughput
• Low speed
– 1.5 Mbps
• Full speed
– 12 Mbps
• High speed (in USB 2.0)
– 480 Mbps
• Dynamic mode switching

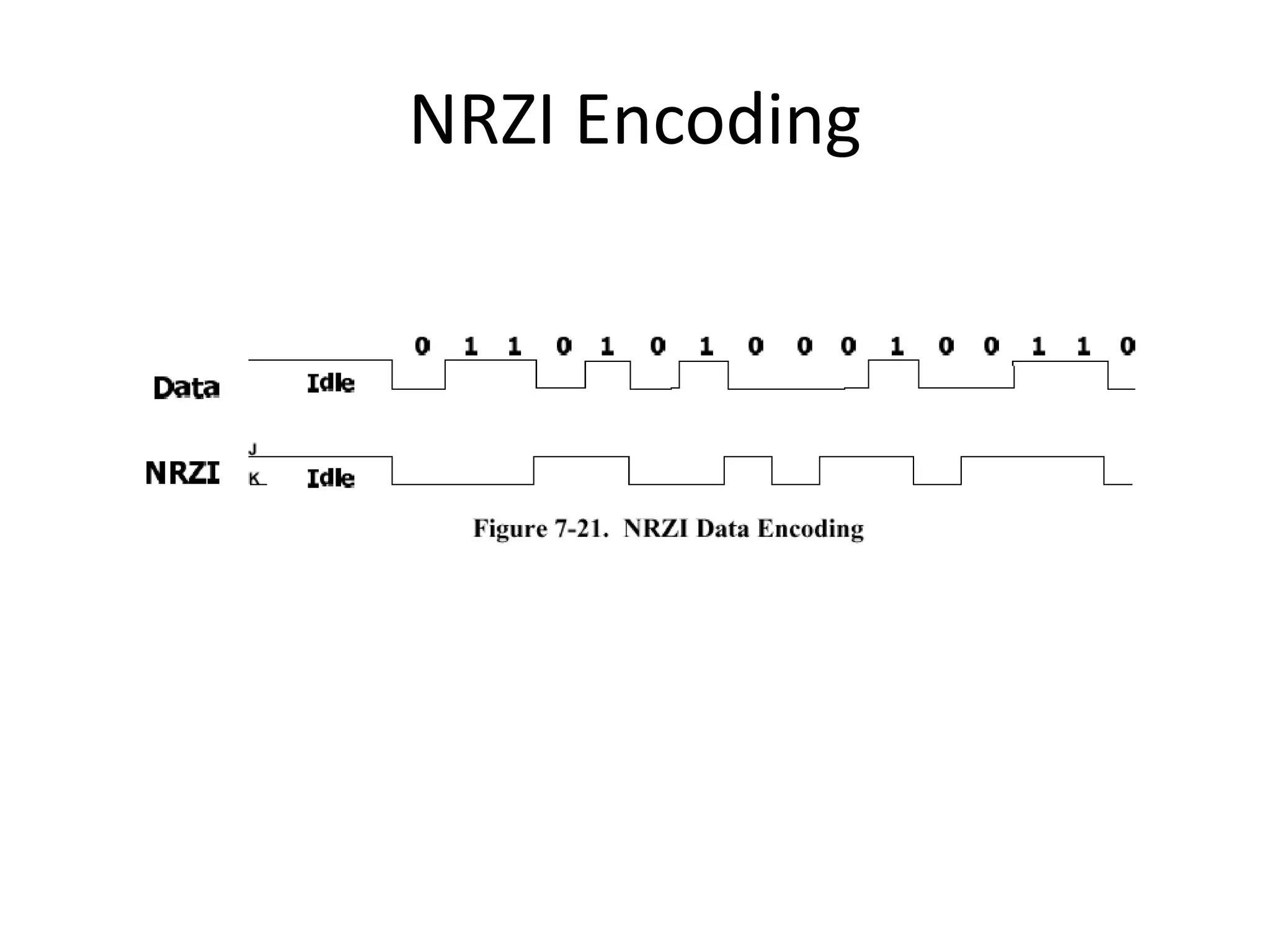

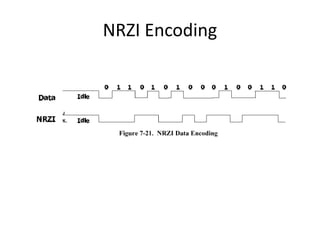

• Clock encoding scheme: NRZI (Non Return to Zero
Invert)

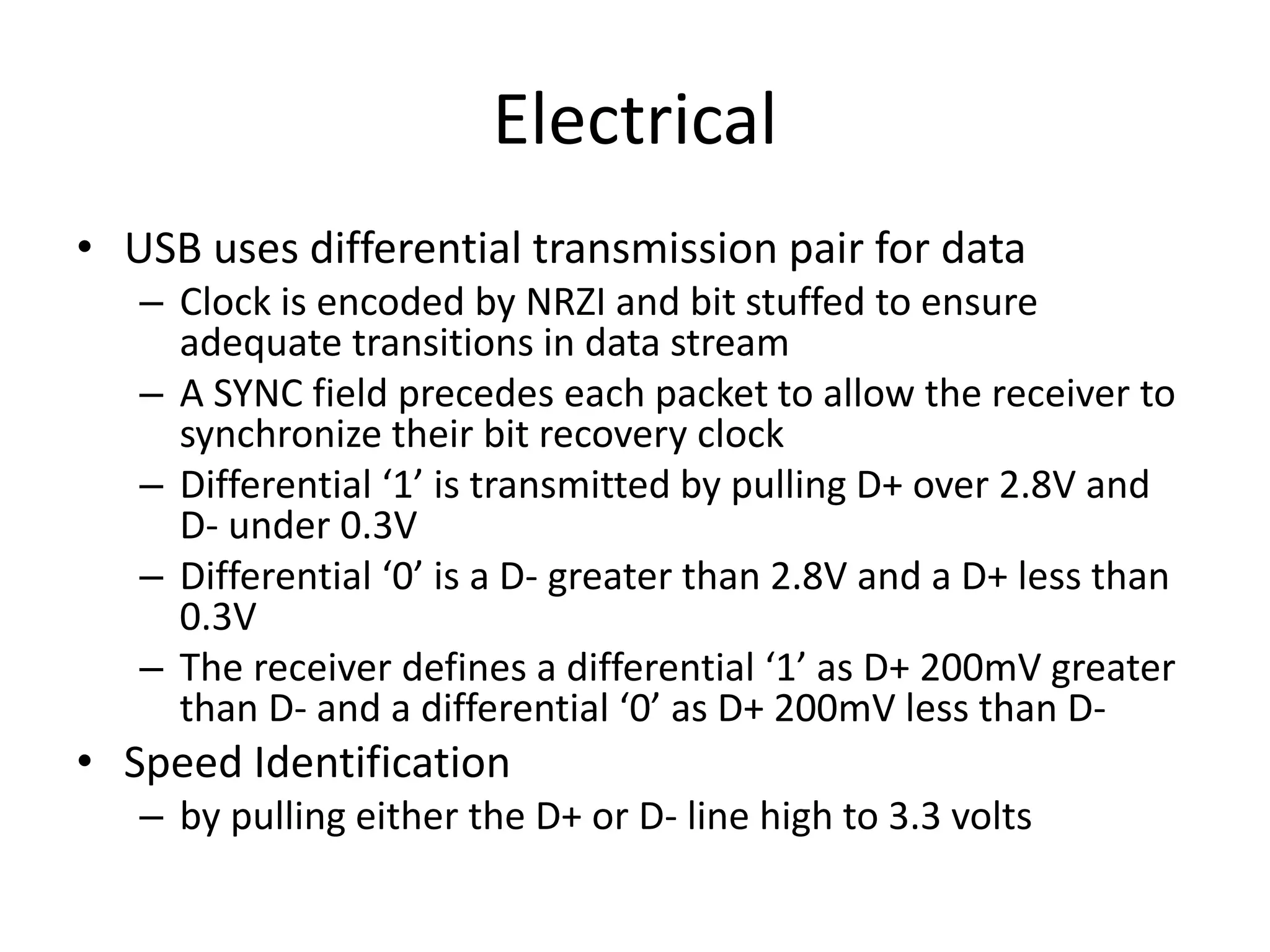

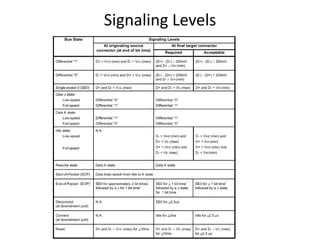

17. Electrical
• USB uses differential transmission pair for data

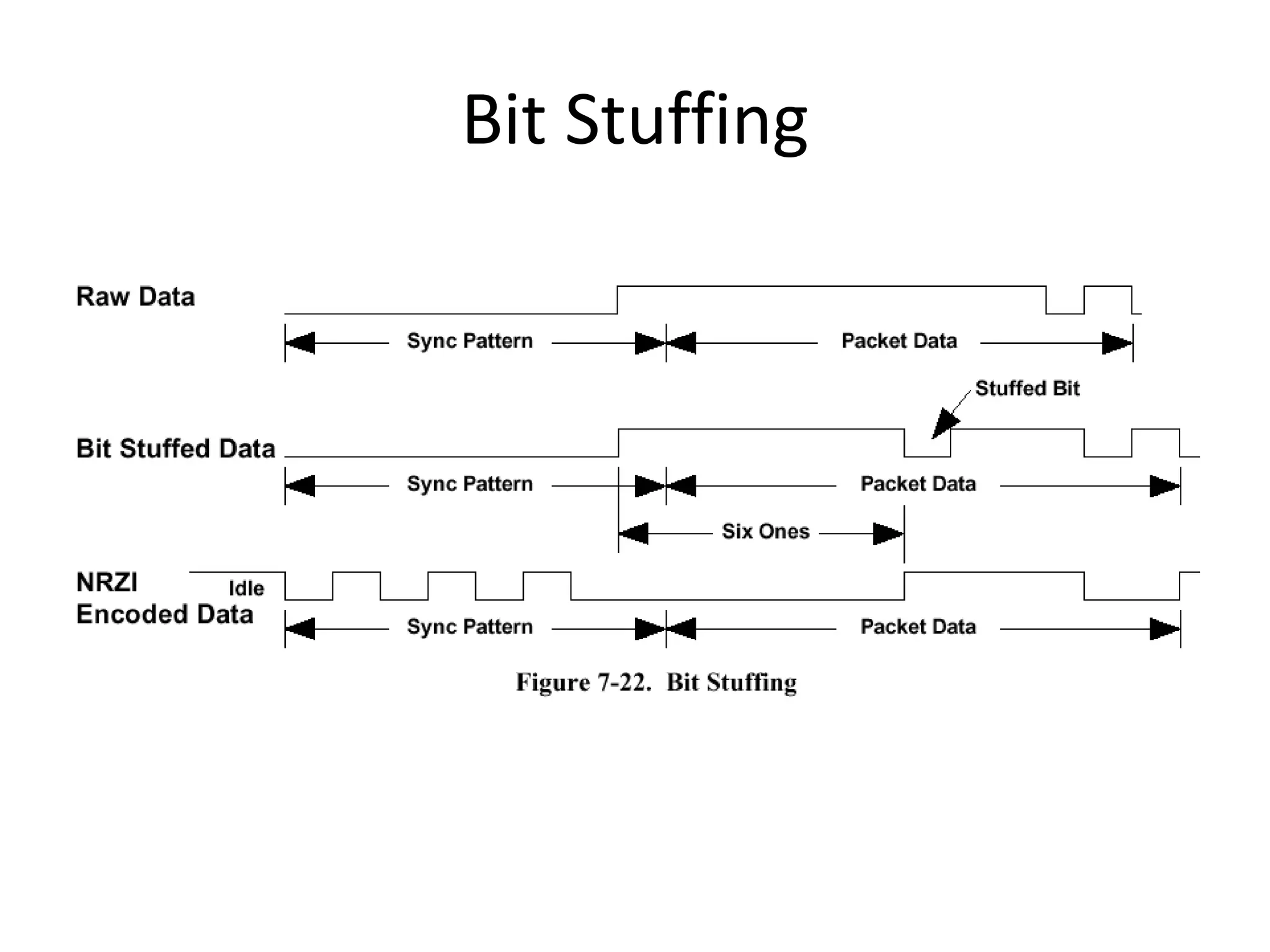

– Clock is encoded by NRZI and bit stuffed to ensure
adequate transitions in data stream
– A SYNC field precedes each packet to allow the receiver to
synchronize their bit recovery clock
– Differential ‘1’ is transmitted by pulling D+ over 2.8V and
D- under 0.3V
– Differential ‘0’ is a D- greater than 2.8V and a D+ less than
0.3V
– The receiver defines a differential ‘1’ as D+ 200mV greater
than D- and a differential ‘0’ as D+ 200mV less than D-
• Speed Identification
– by pulling either the D+ or D- line high to 3.3 volts

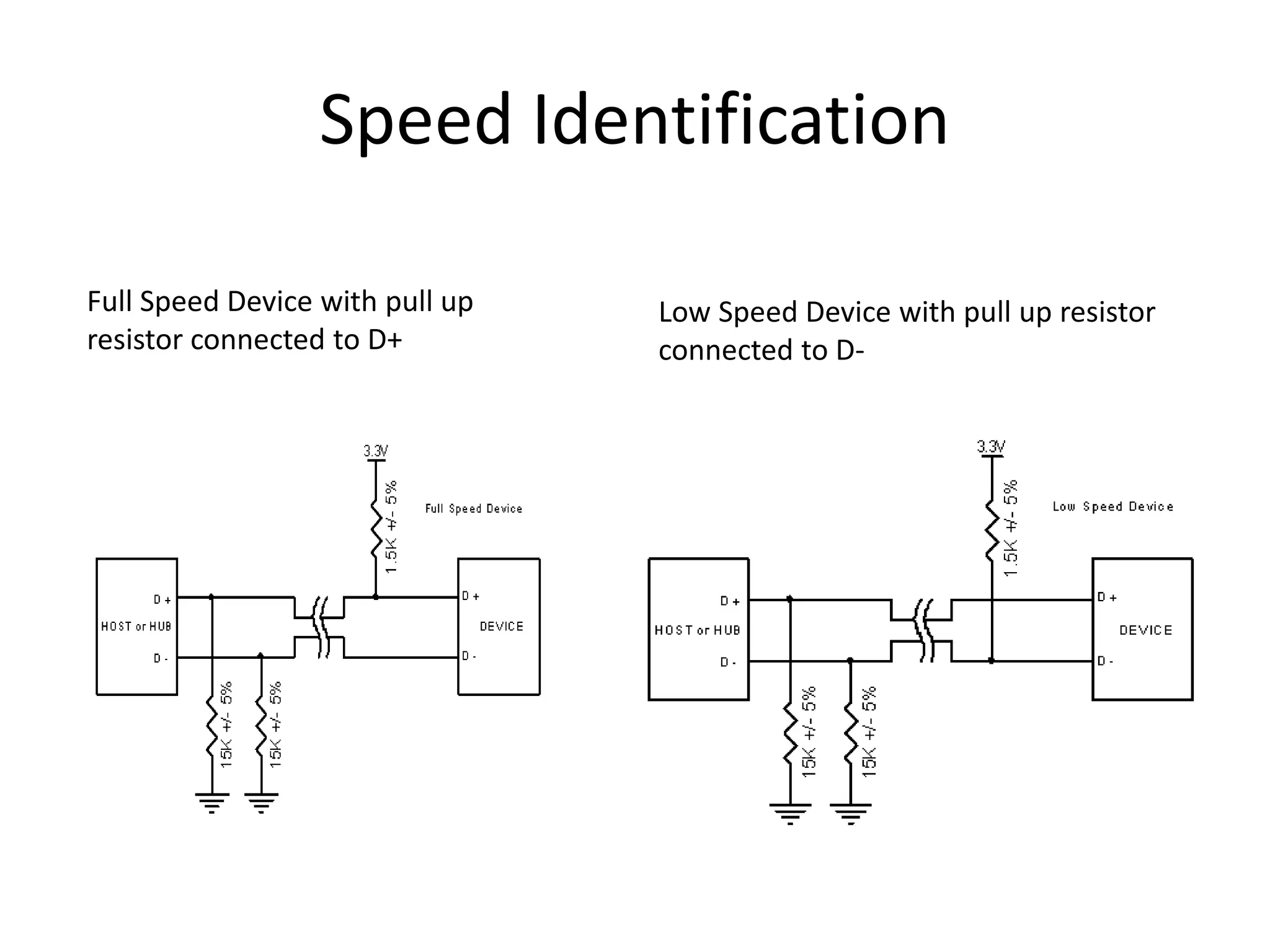

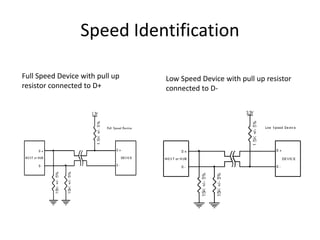

18. Speed Identification
Full Speed Device with pull up
resistor connected to D+
Low Speed Device with pull up resistor
connected to D-

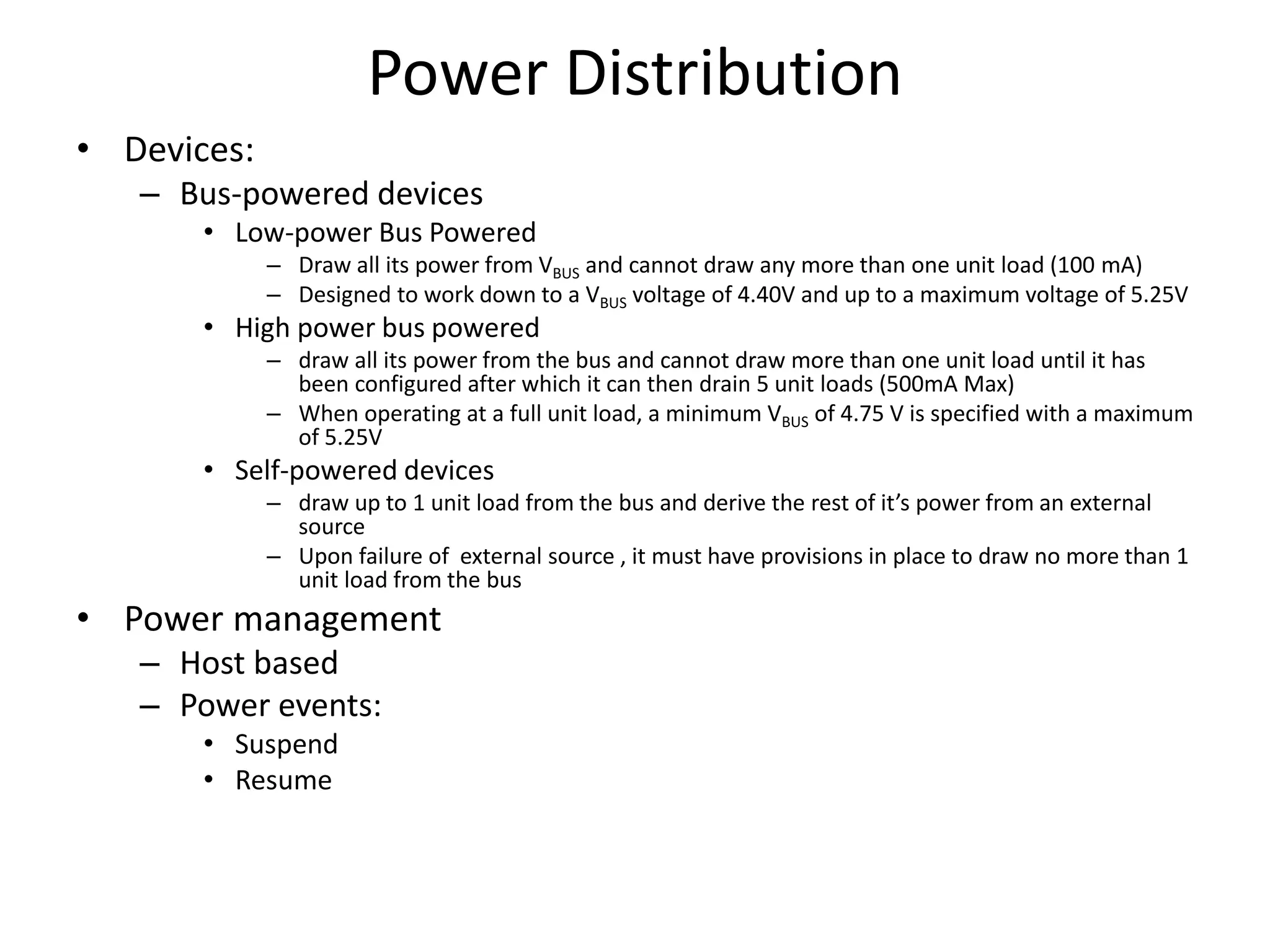

19. Power Distribution
• Devices:
– Bus-powered devices
• Low-power Bus Powered
– Draw all its power from VBUS and cannot draw any more than one unit load (100 mA)
– Designed to work down to a VBUS voltage of 4.40V and up to a maximum voltage of 5.25V
• High power bus powered
– draw all its power from the bus and cannot draw more than one unit load until it has
been configured after which it can then drain 5 unit loads (500mA Max)
– When operating at a full unit load, a minimum VBUS of 4.75 V is specified with a maximum
of 5.25V
• Self-powered devices
– draw up to 1 unit load from the bus and derive the rest of it’s power from an external
source
– Upon failure of external source , it must have provisions in place to draw no more than 1
unit load from the bus
• Power management
– Host based
– Power events:
• Suspend
• Resume

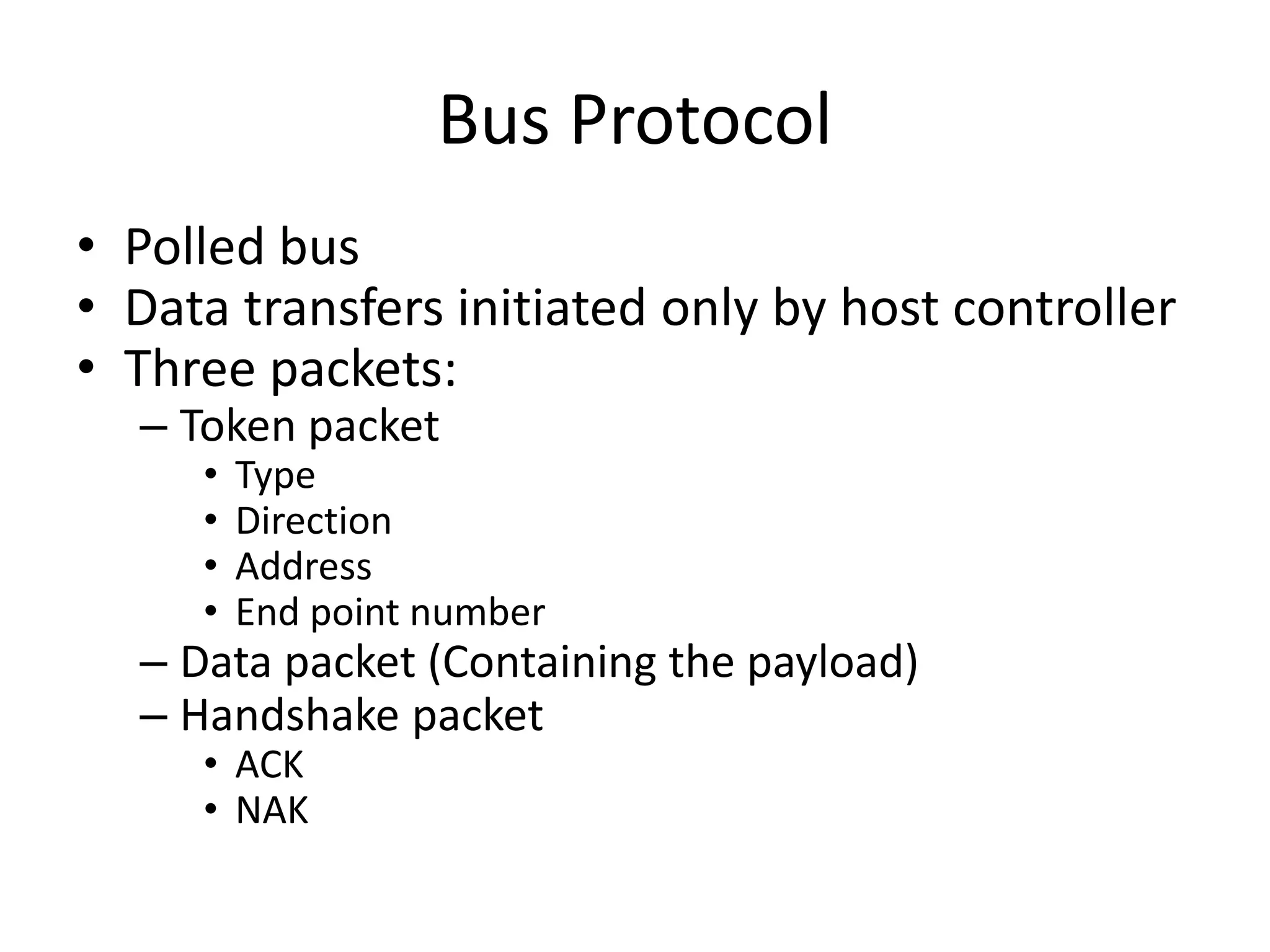

20. Bus Protocol
• Polled bus
• Data transfers initiated only by host controller
• Three packets:
– Token packet
• Type
• Direction
• Address
• End point number
– Data packet (Containing the payload)
– Handshake packet
• ACK
• NAK

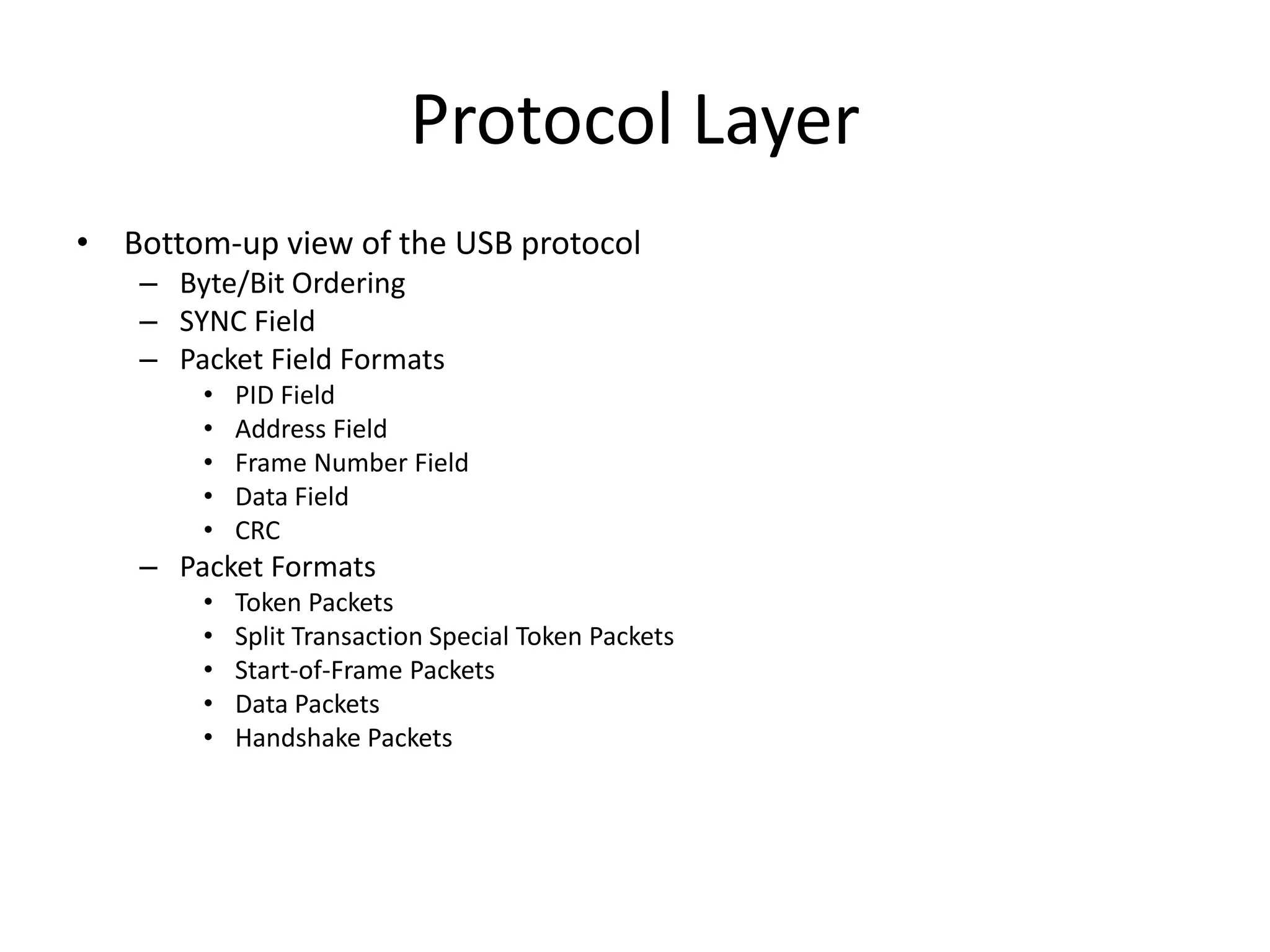

21. Protocol Layer
• Bottom-up view of the USB protocol
– Byte/Bit Ordering
– SYNC Field
– Packet Field Formats
• PID Field
• Address Field
• Frame Number Field
• Data Field
• CRC
– Packet Formats
• Token Packets
• Split Transaction Special Token Packets
• Start-of-Frame Packets
• Data Packets
• Handshake Packets

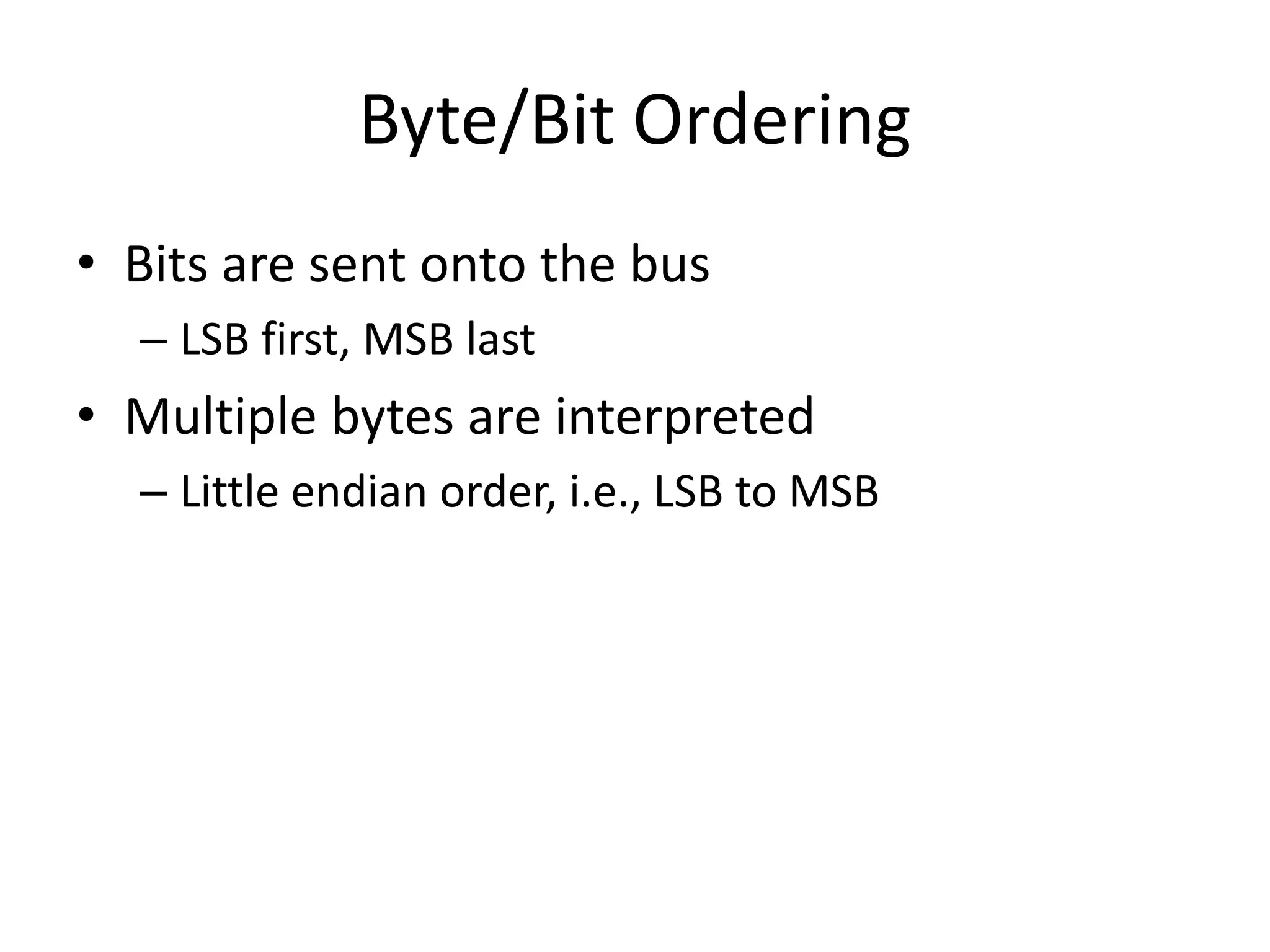

22. Byte/Bit Ordering
• Bits are sent onto the bus
– LSB first, MSB last
• Multiple bytes are interpreted
– Little endian order, i.e., LSB to MSB

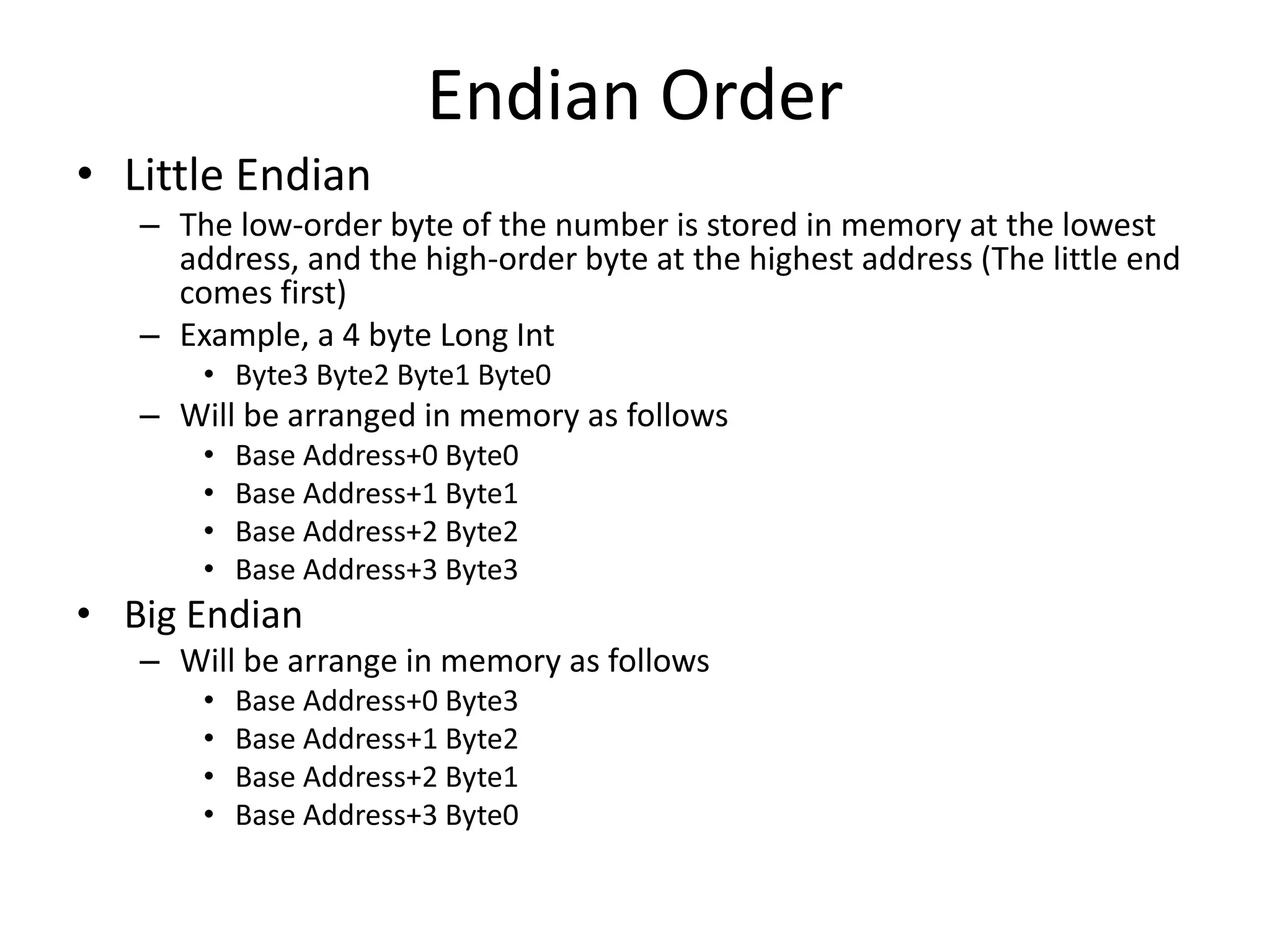

23. Endian Order
• Little Endian
– The low-order byte of the number is stored in memory at the lowest
address, and the high-order byte at the highest address (The little end
comes first)
– Example, a 4 byte Long Int
• Byte3 Byte2 Byte1 Byte0
– Will be arranged in memory as follows
• Base Address+0 Byte0
• Base Address+1 Byte1
• Base Address+2 Byte2
• Base Address+3 Byte3
• Big Endian
– Will be arrange in memory as follows
• Base Address+0 Byte3
• Base Address+1 Byte2
• Base Address+2 Byte1
• Base Address+3 Byte0

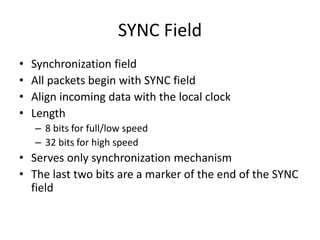

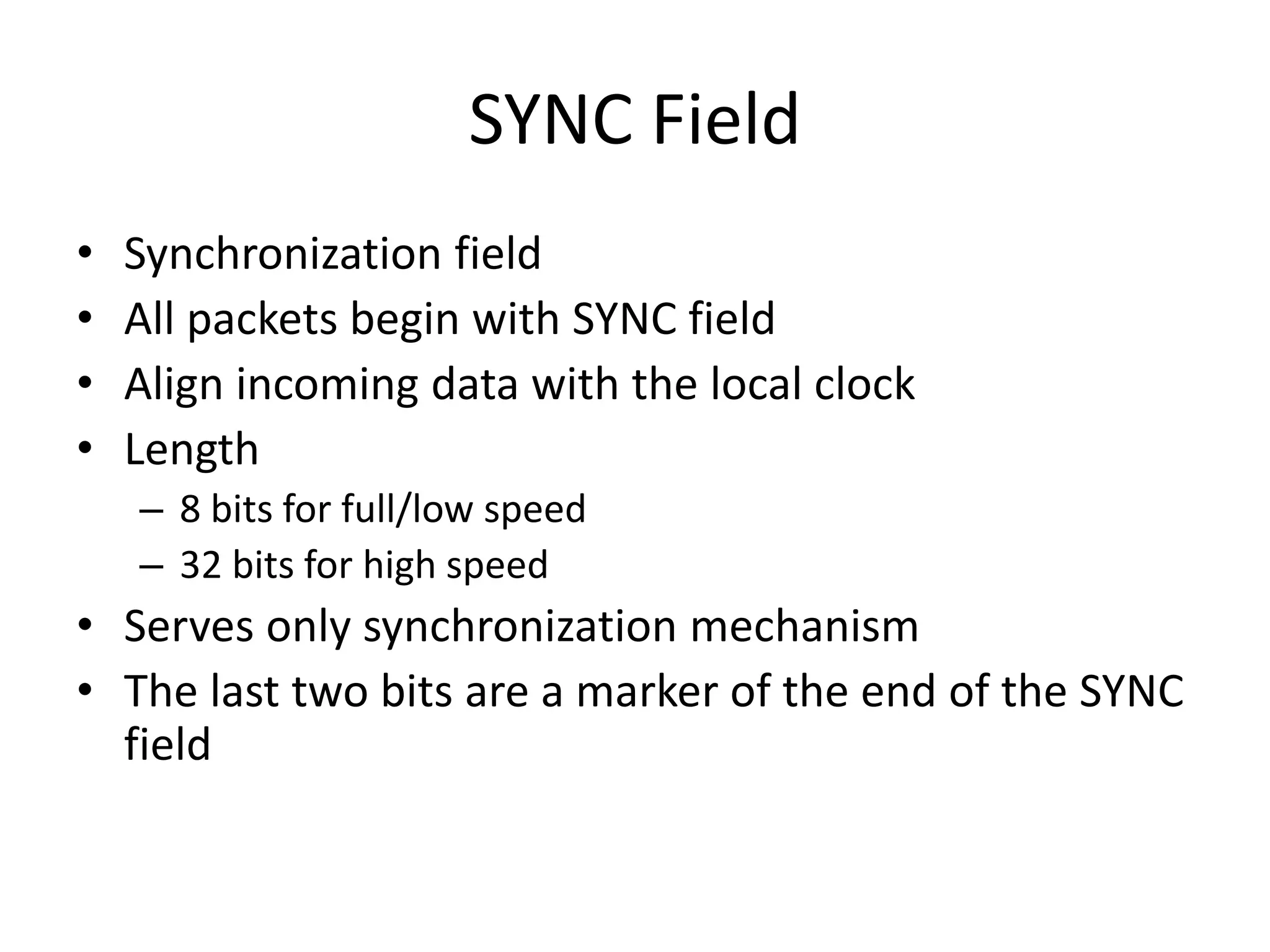

24. SYNC Field
• Synchronization field
• All packets begin with SYNC field
• Align incoming data with the local clock
• Length
– 8 bits for full/low speed
– 32 bits for high speed
• Serves only synchronization mechanism
• The last two bits are a marker of the end of the SYNC
field

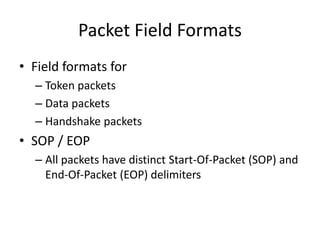

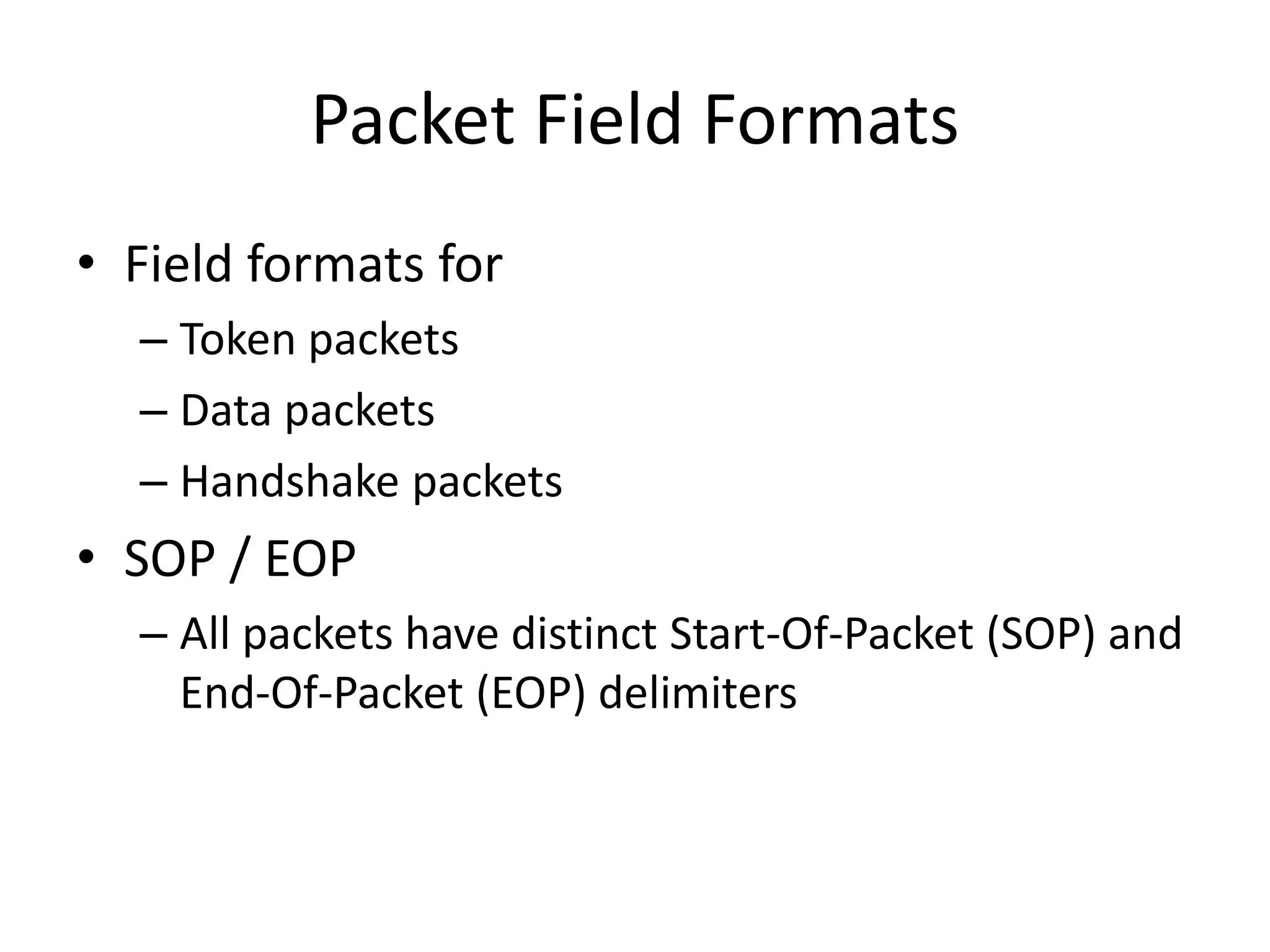

25. Packet Field Formats
• Field formats for
– Token packets
– Data packets
– Handshake packets
• SOP / EOP
– All packets have distinct Start-Of-Packet (SOP) and
End-Of-Packet (EOP) delimiters

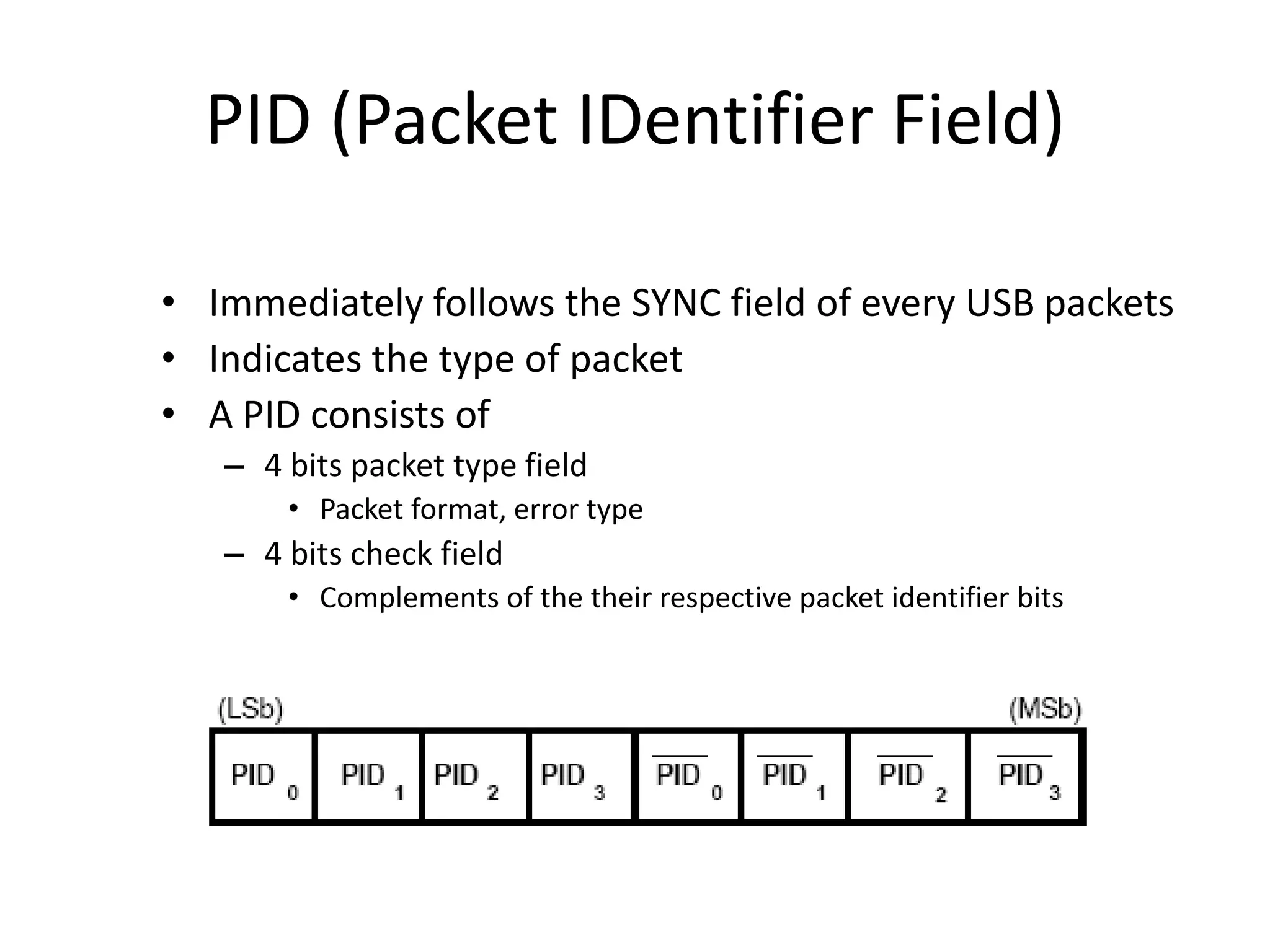

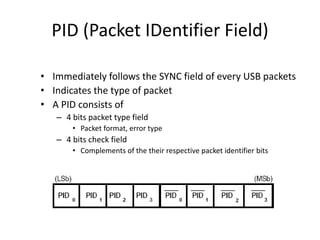

26. PID (Packet IDentifier Field)
• Immediately follows the SYNC field of every USB packets
• Indicates the type of packet
• A PID consists of
– 4 bits packet type field
• Packet format, error type
– 4 bits check field
• Complements of the their respective packet identifier bits

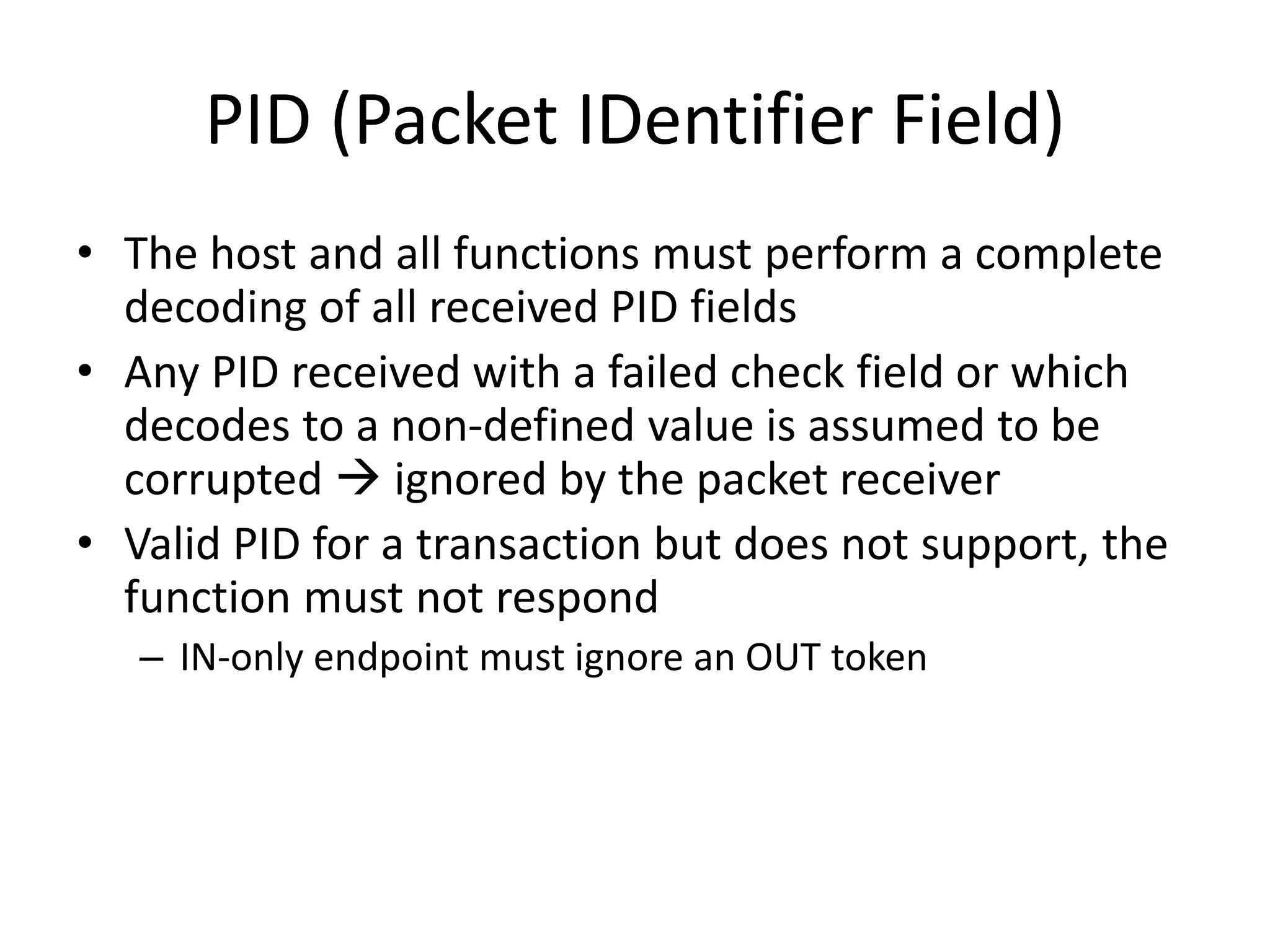

27. PID (Packet IDentifier Field)
• The host and all functions must perform a complete
decoding of all received PID fields
• Any PID received with a failed check field or which
decodes to a non-defined value is assumed to be
corrupted  ignored by the packet receiver
• Valid PID for a transaction but does not support, the
function must not respond
– IN-only endpoint must ignore an OUT token

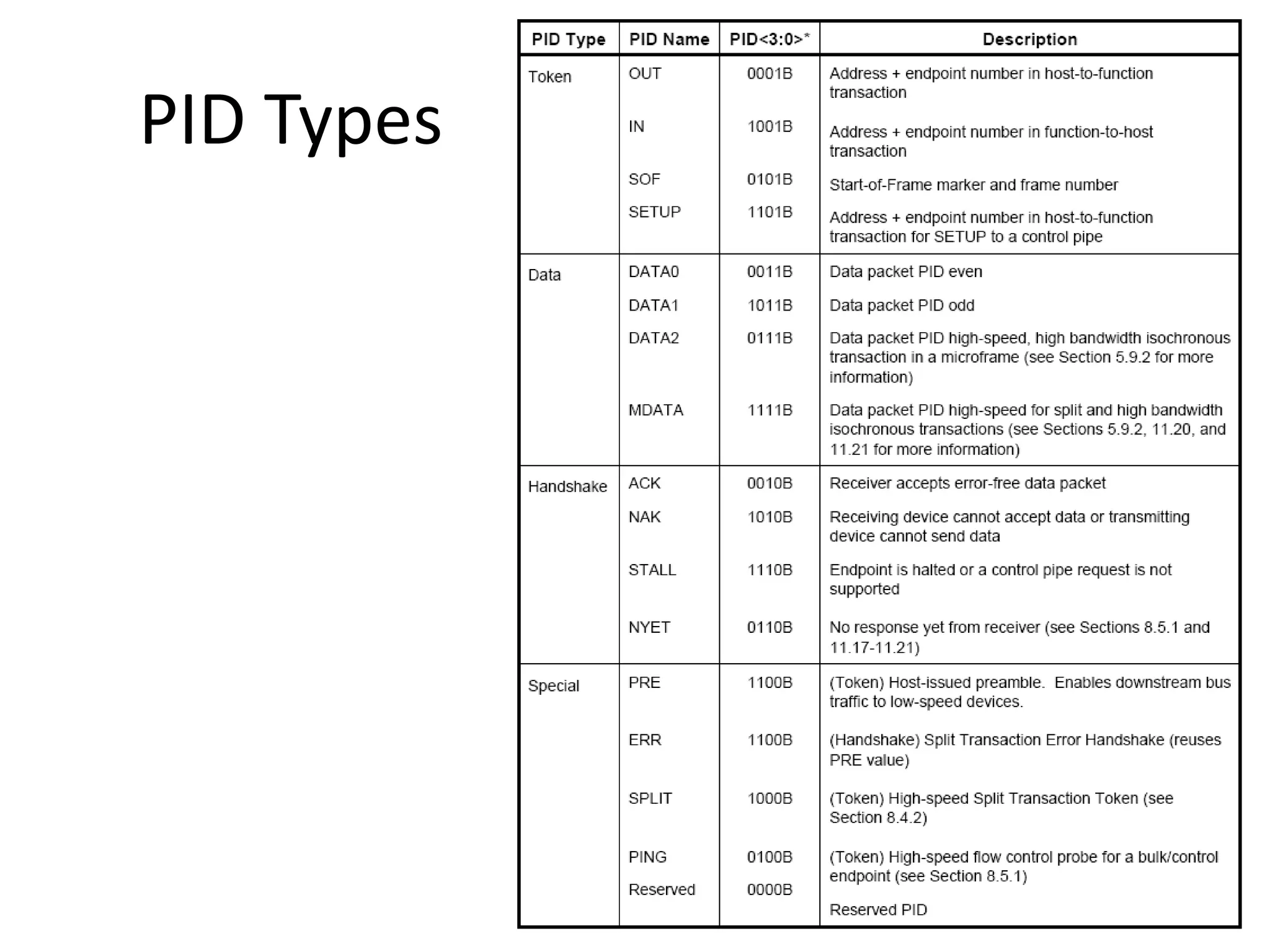

28. PID Types

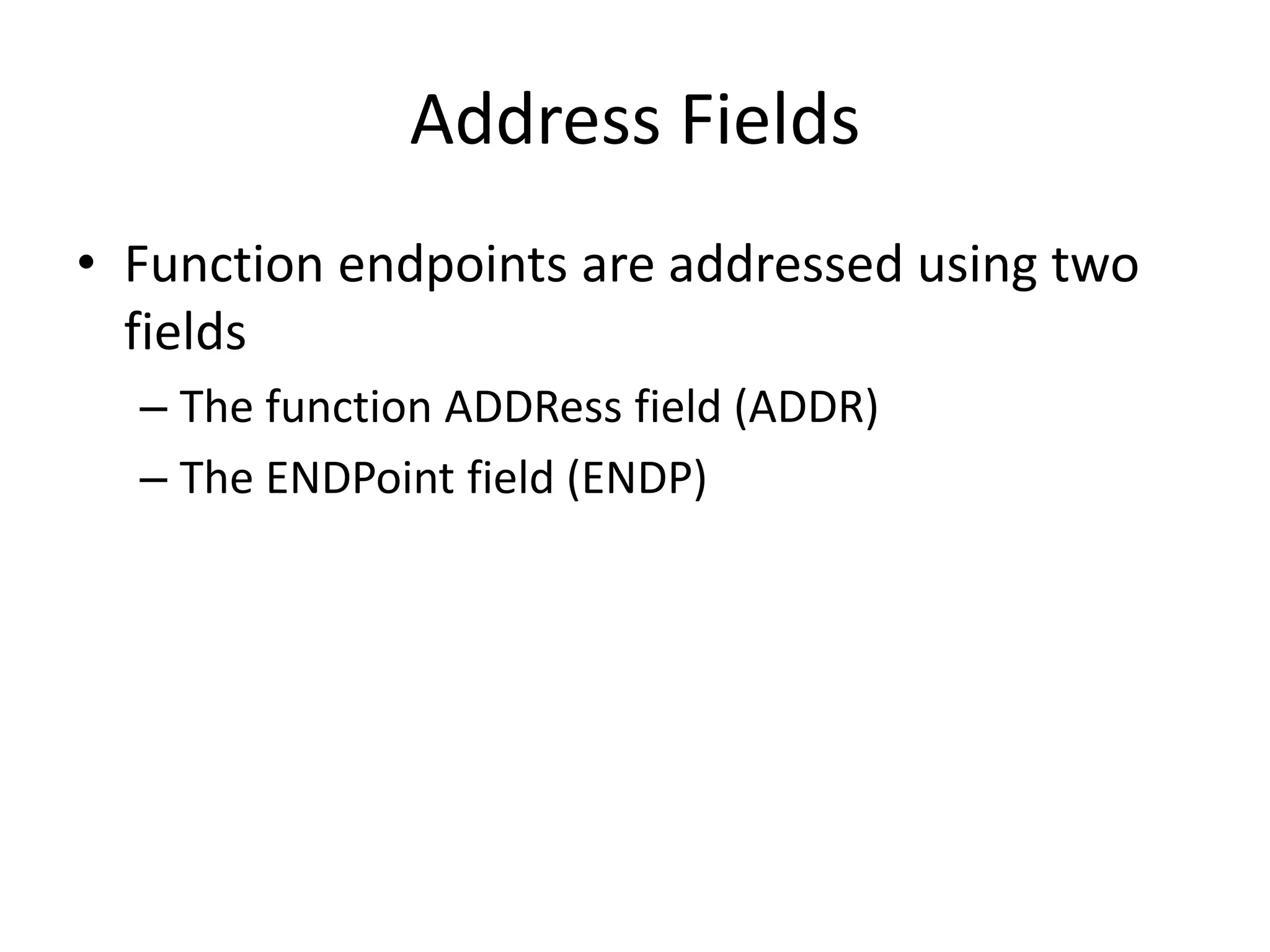

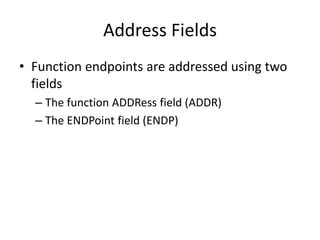

29. Address Fields
• Function endpoints are addressed using two
fields
– The function ADDRess field (ADDR)
– The ENDPoint field (ENDP)

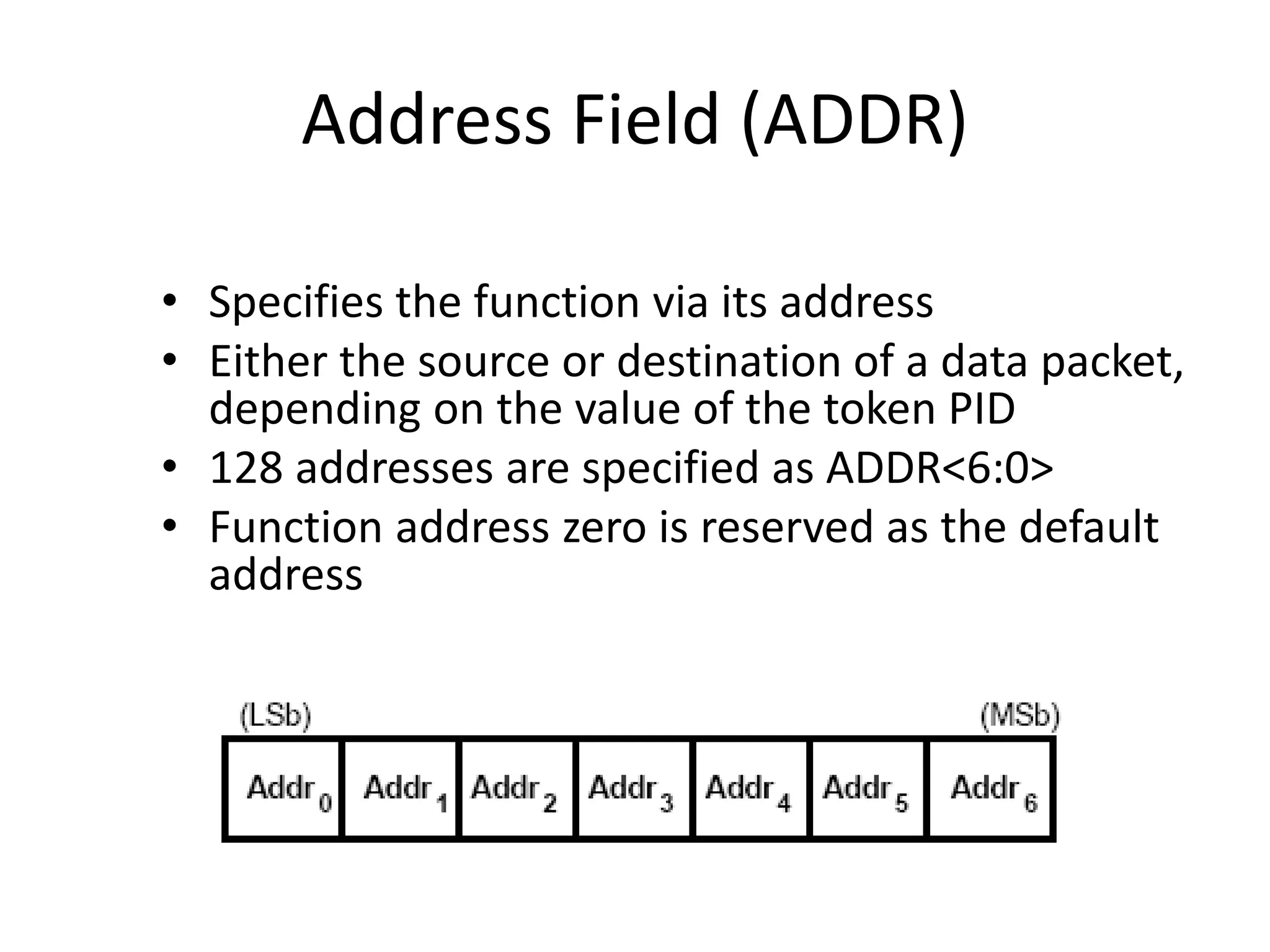

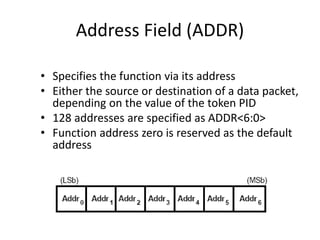

30. Address Field (ADDR)
• Specifies the function via its address
• Either the source or destination of a data packet,
depending on the value of the token PID
• 128 addresses are specified as ADDR<6:0>
• Function address zero is reserved as the default
address

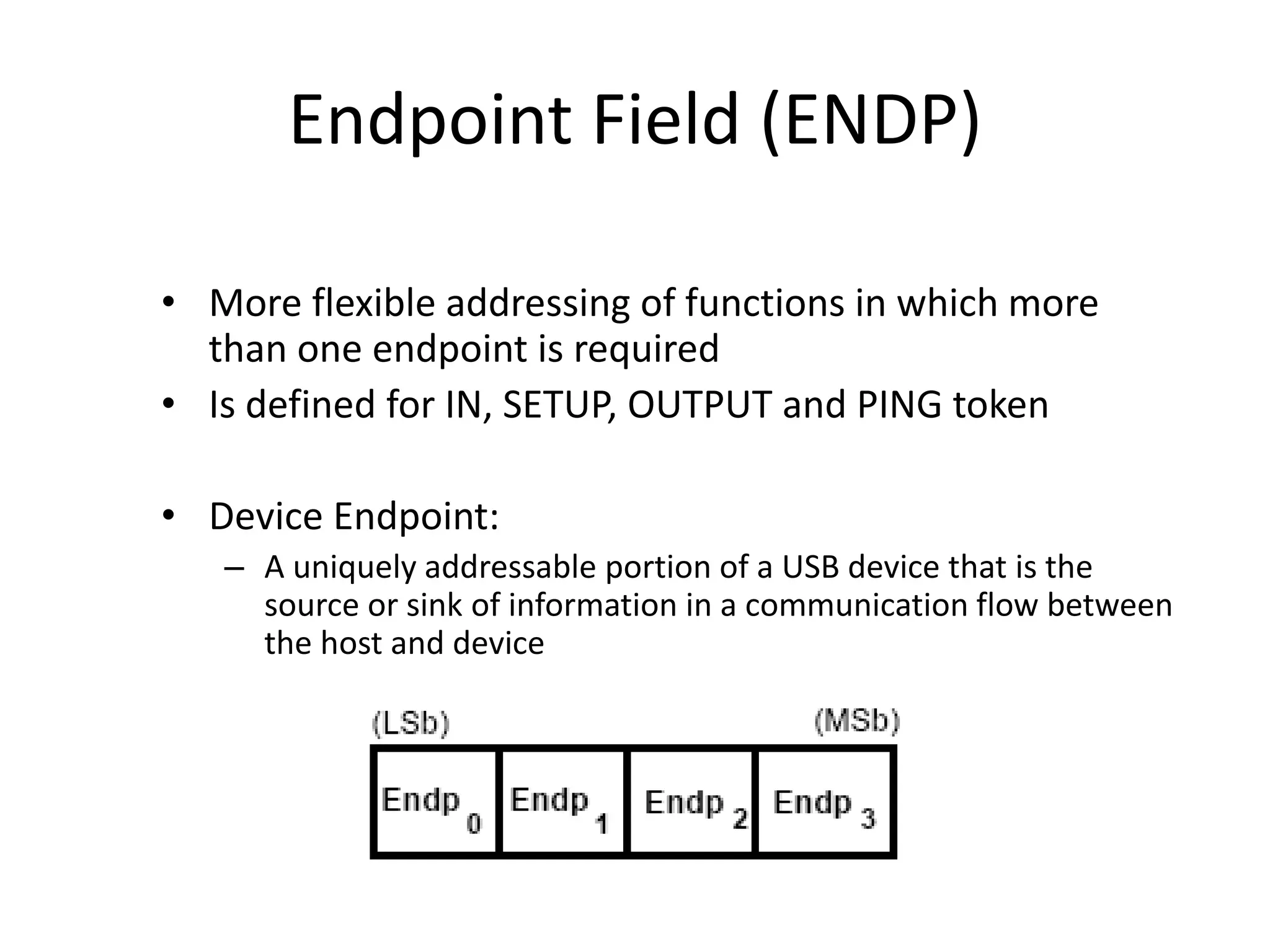

31. Endpoint Field (ENDP)
• More flexible addressing of functions in which more
than one endpoint is required
• Is defined for IN, SETUP, OUTPUT and PING token
• Device Endpoint:
– A uniquely addressable portion of a USB device that is the
source or sink of information in a communication flow between
the host and device

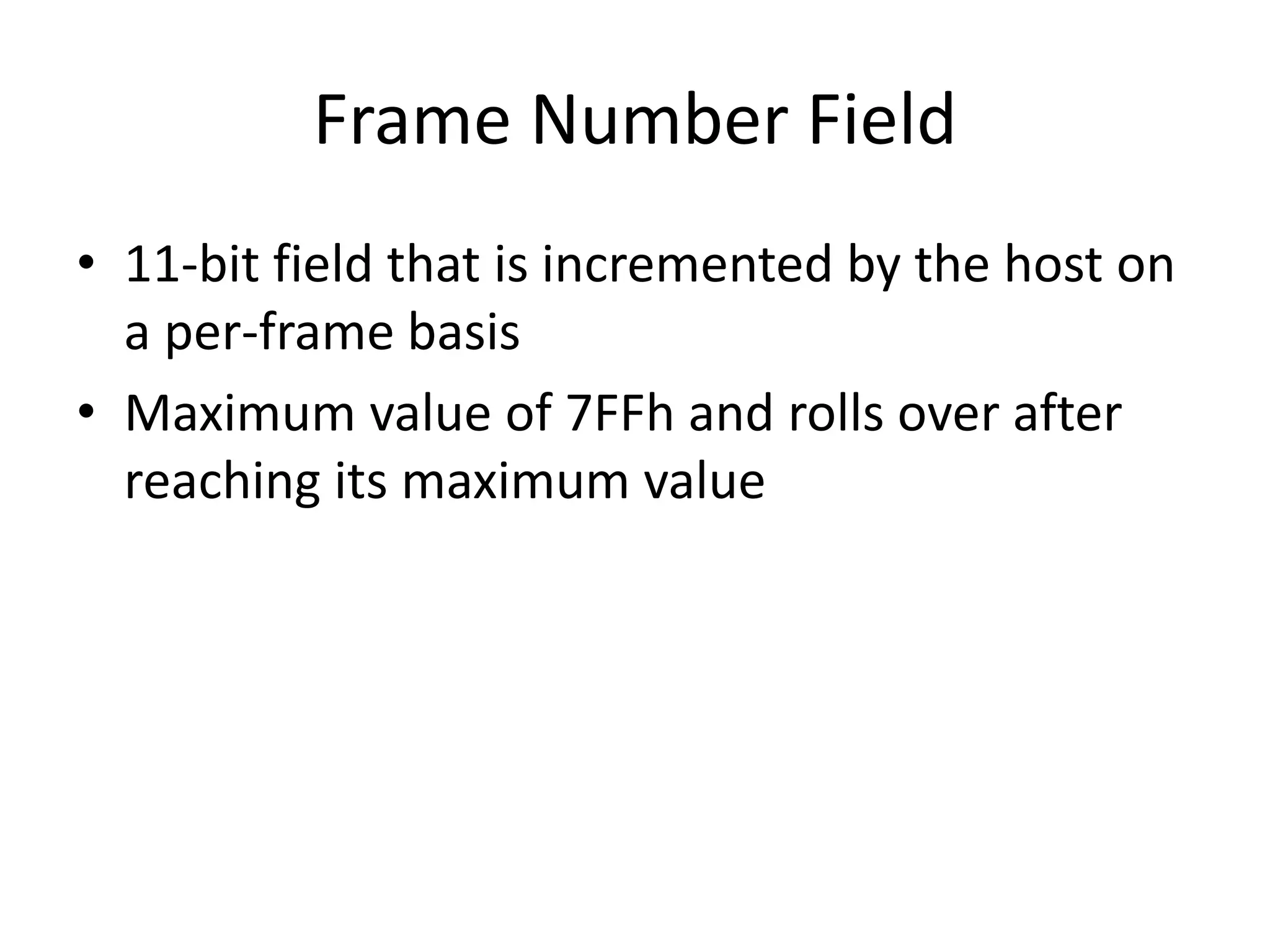

32. Frame Number Field
• 11-bit field that is incremented by the host on
a per-frame basis
• Maximum value of 7FFh and rolls over after
reaching its maximum value

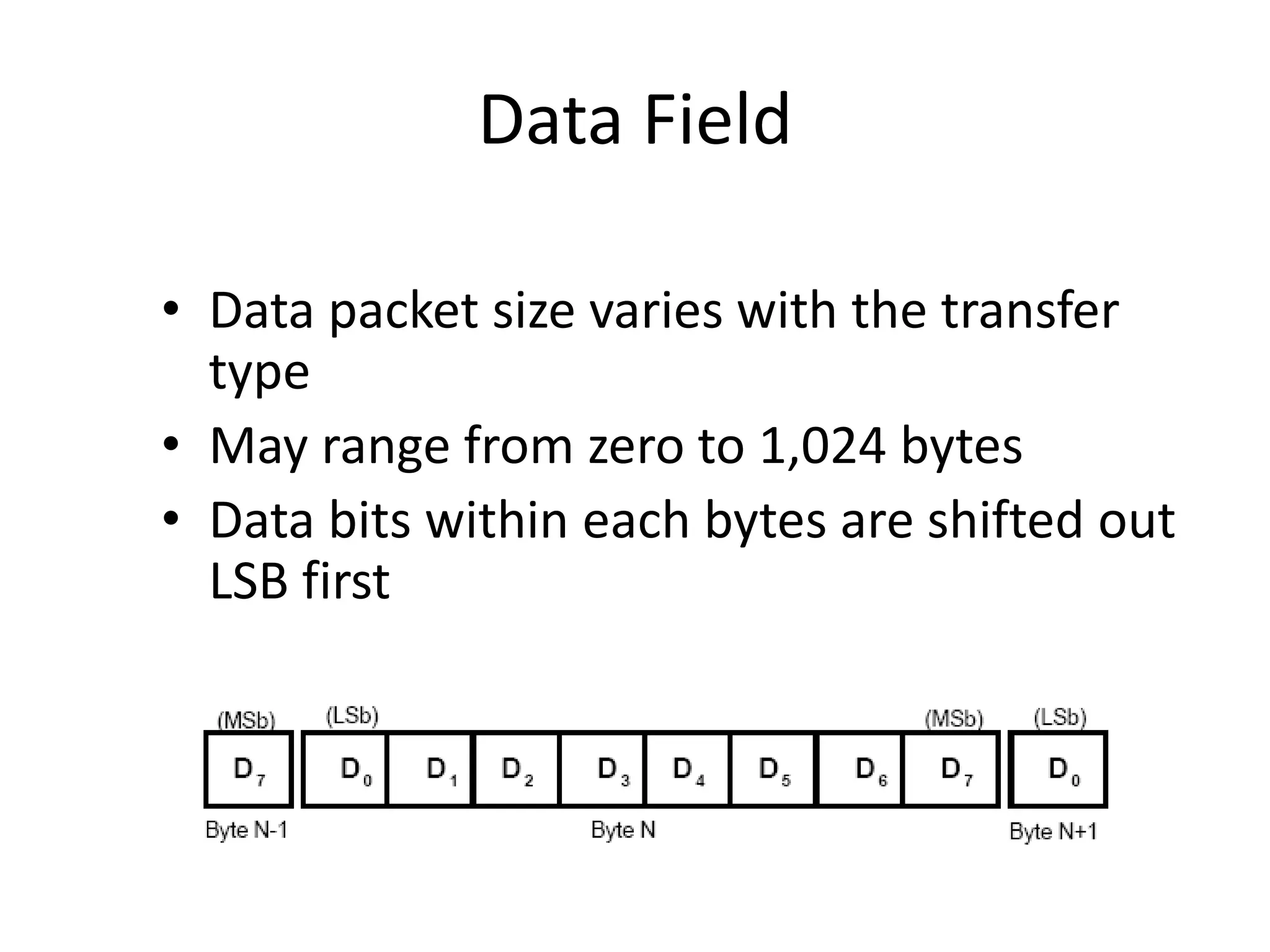

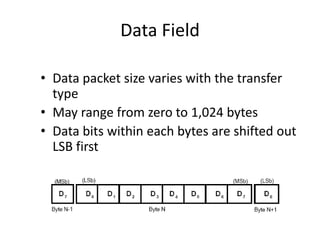

33. Data Field
• Data packet size varies with the transfer
type
• May range from zero to 1,024 bytes
• Data bits within each bytes are shifted out
LSB first

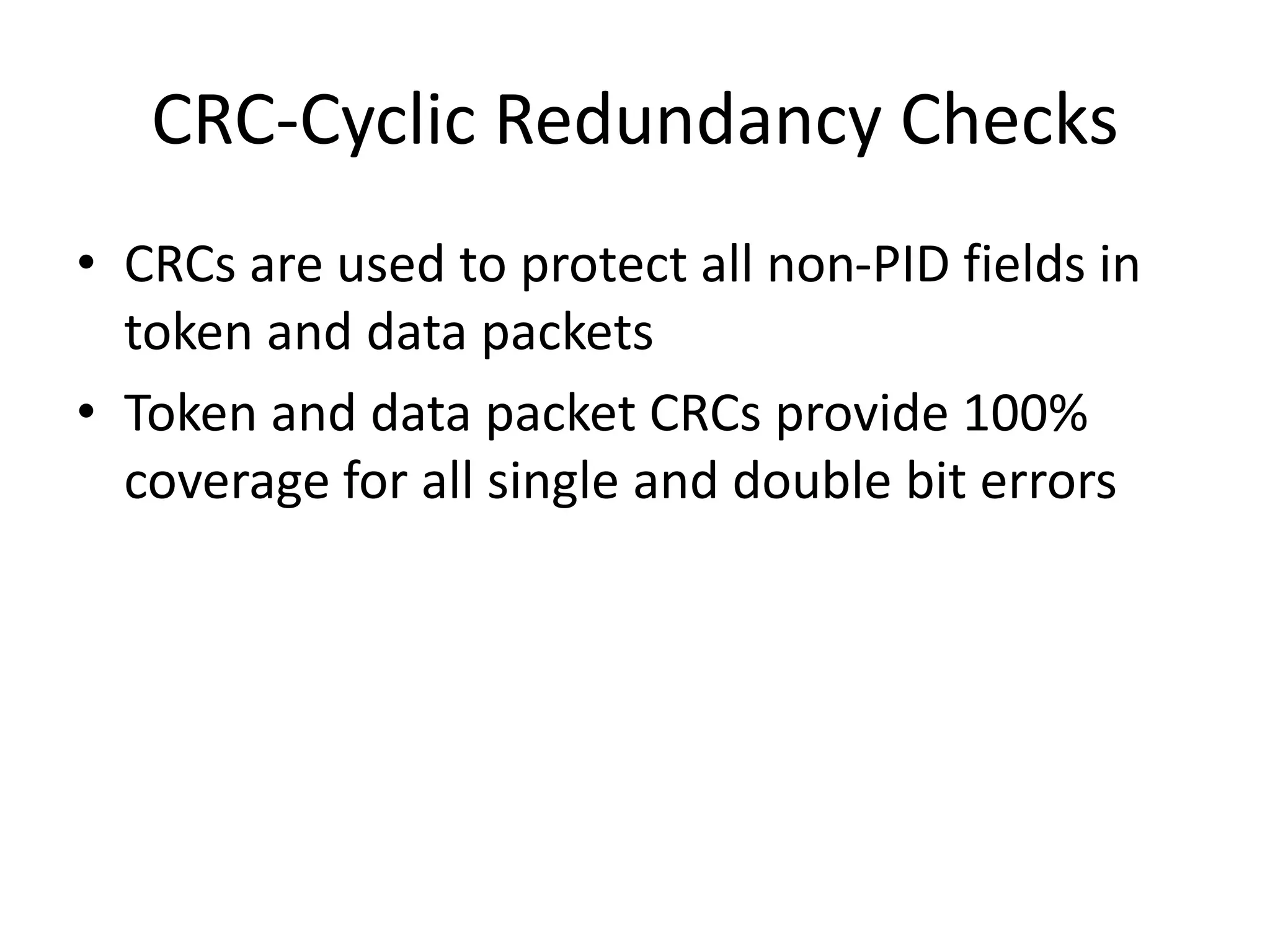

34. CRC-Cyclic Redundancy Checks
• CRCs are used to protect all non-PID fields in
token and data packets
• Token and data packet CRCs provide 100%
coverage for all single and double bit errors

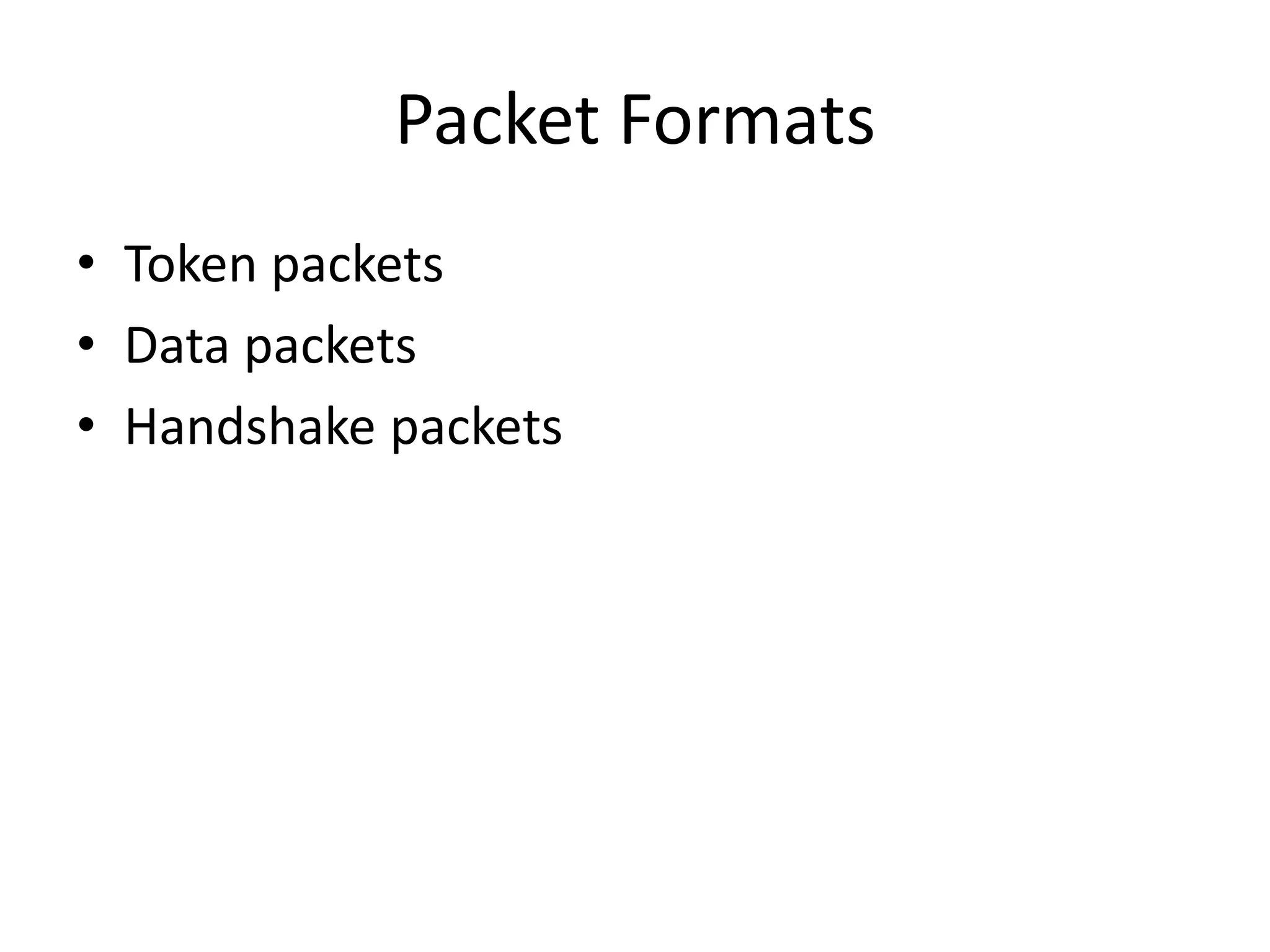

35. Packet Formats
• Token packets
• Data packets
• Handshake packets

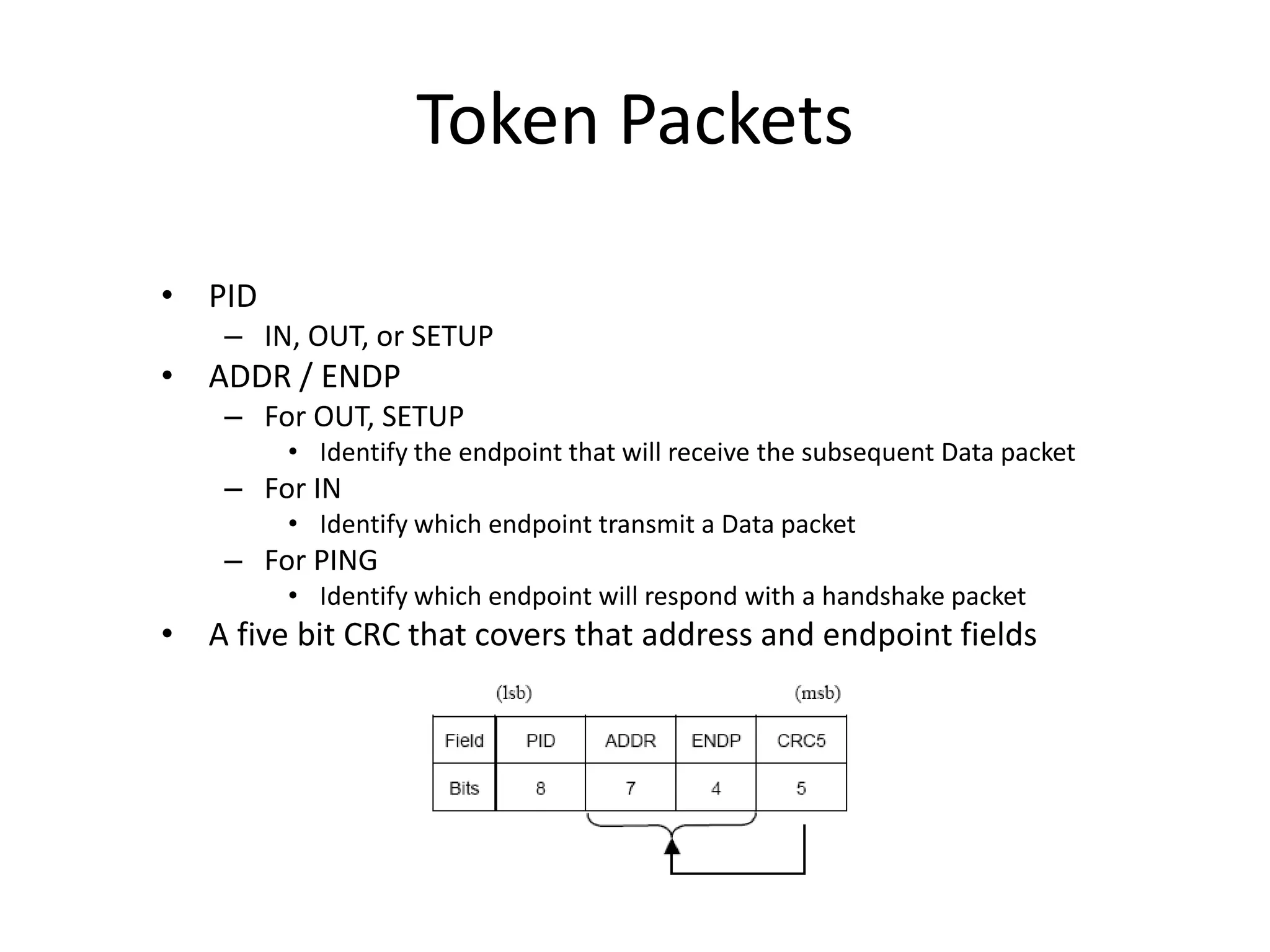

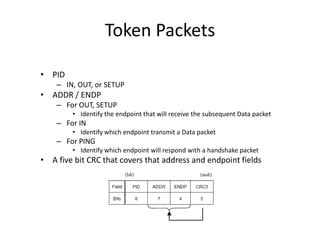

36. Token Packets
• PID
– IN, OUT, or SETUP
• ADDR / ENDP
– For OUT, SETUP
• Identify the endpoint that will receive the subsequent Data packet
– For IN
• Identify which endpoint transmit a Data packet
– For PING
• Identify which endpoint will respond with a handshake packet
• A five bit CRC that covers that address and endpoint fields

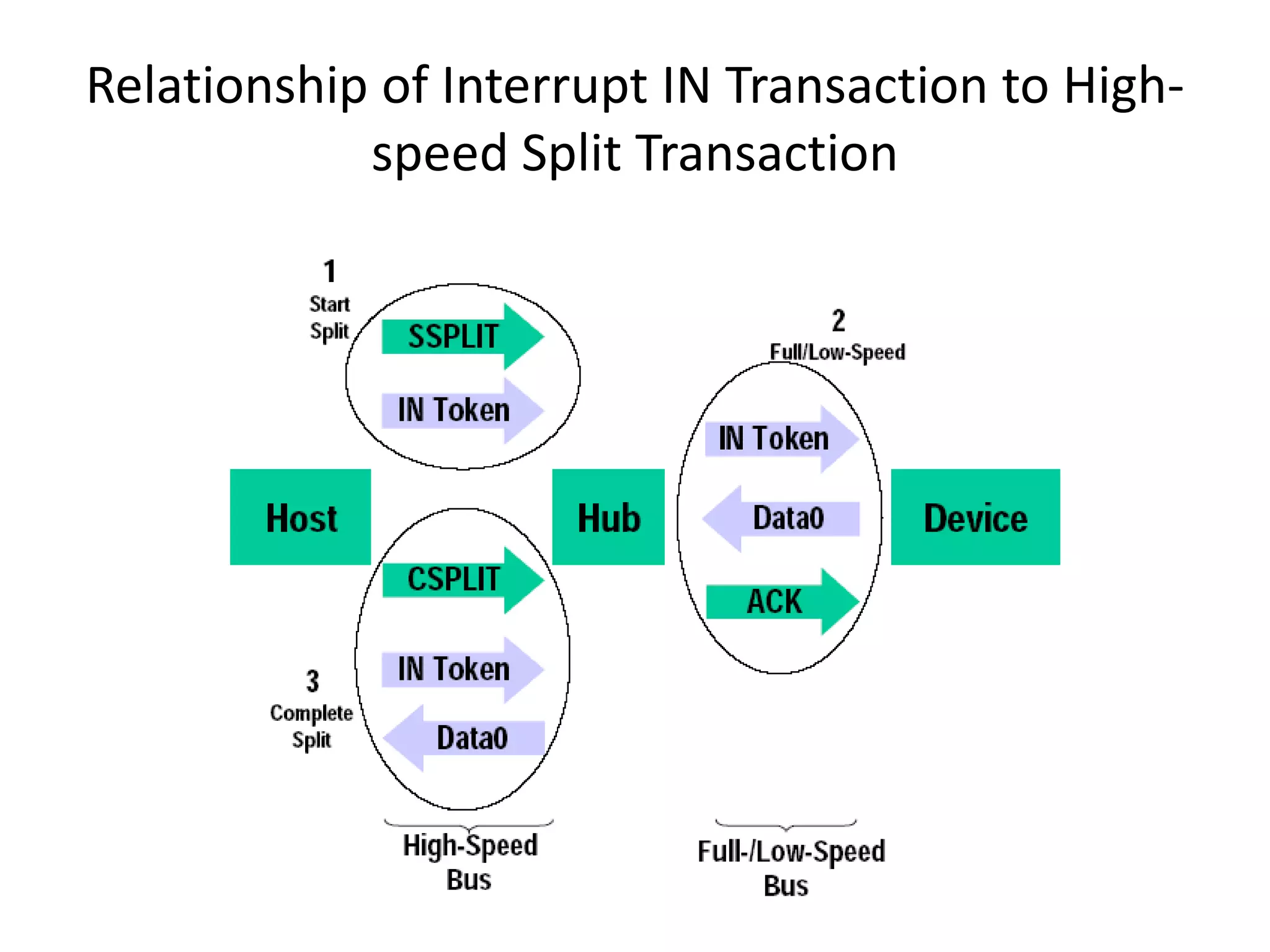

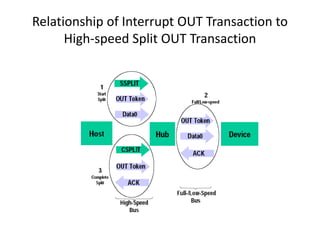

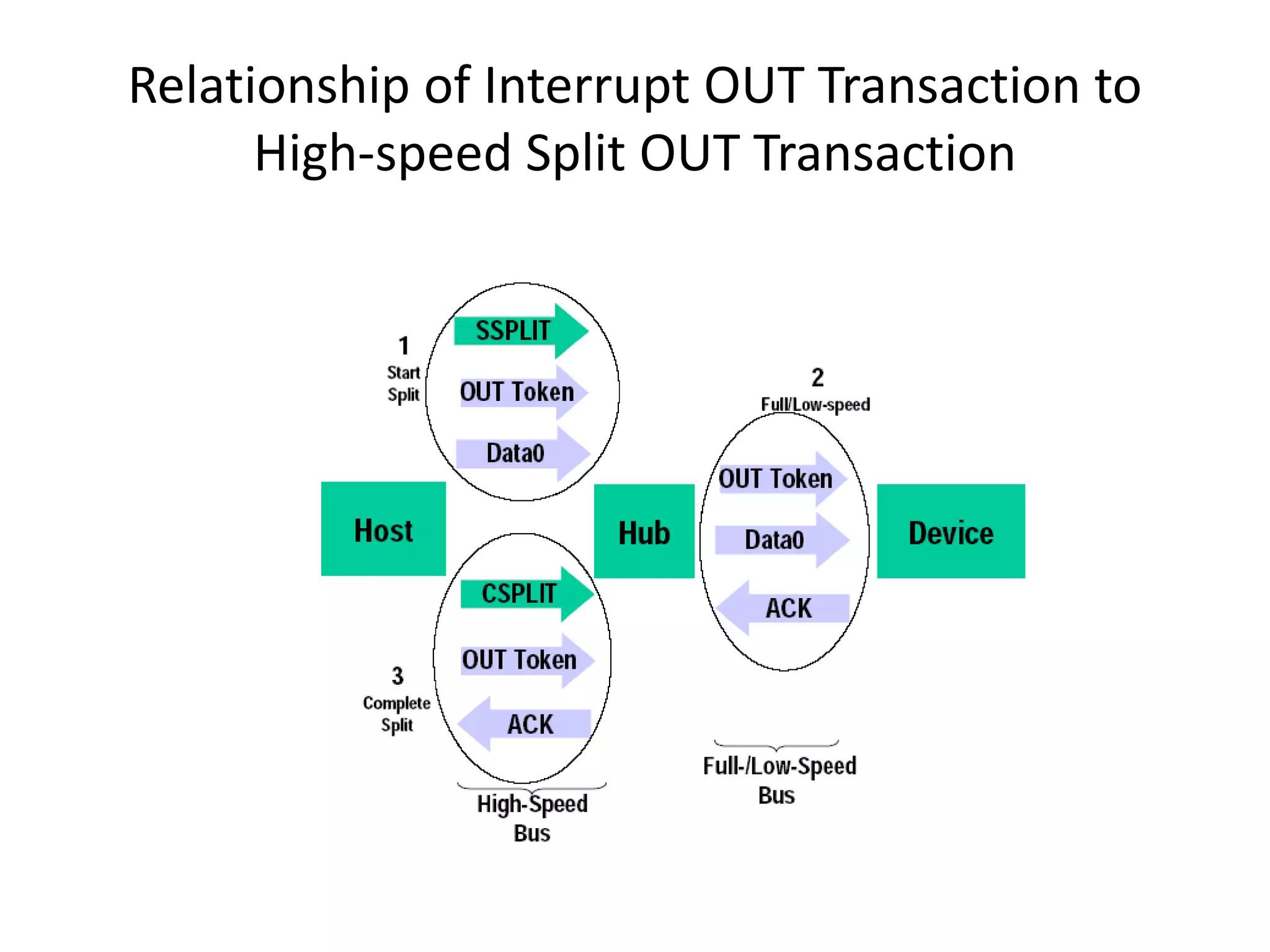

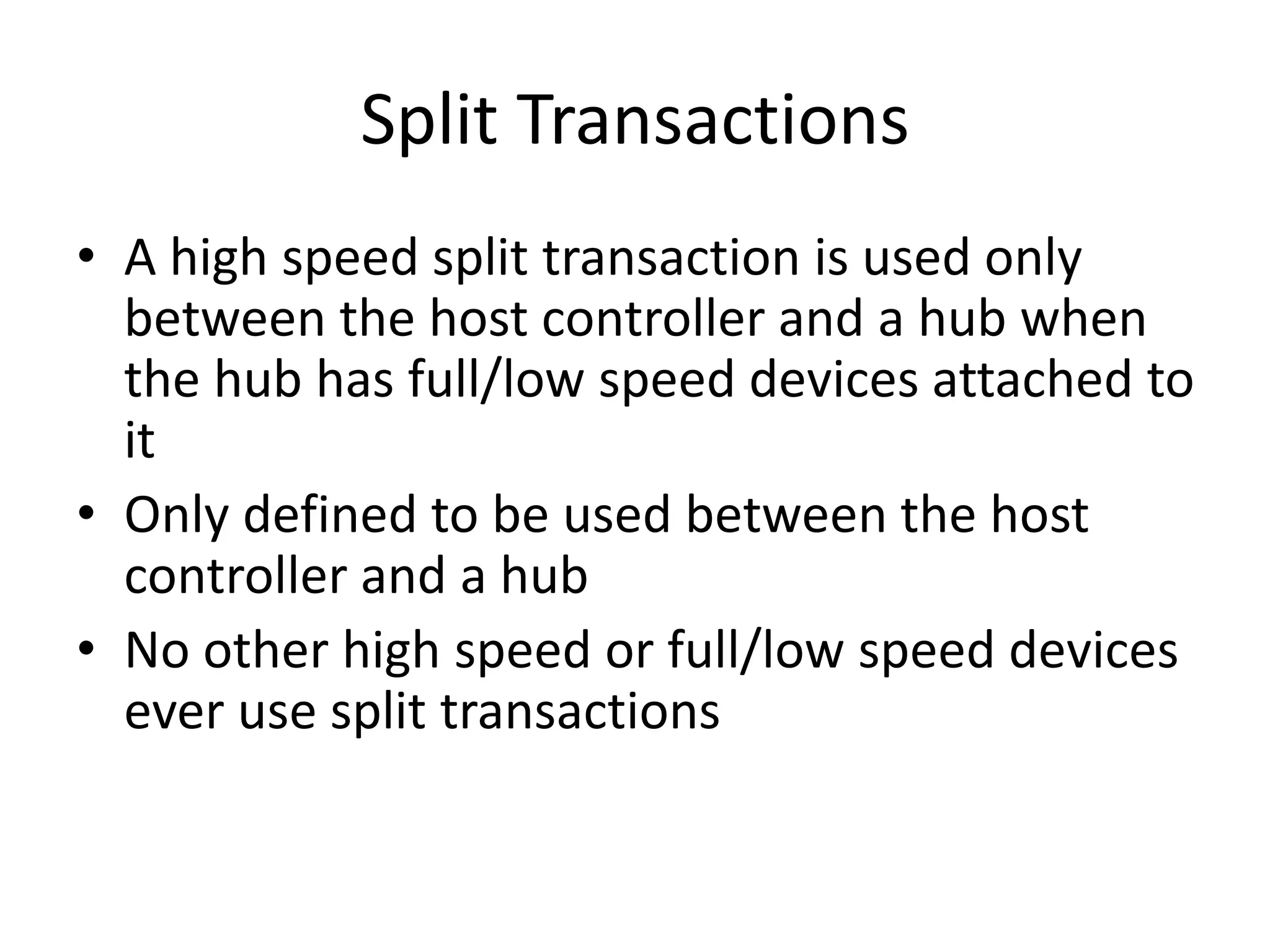

37. Split Transactions
• A high speed split transaction is used only
between the host controller and a hub when
the hub has full/low speed devices attached to
it
• Only defined to be used between the host
controller and a hub
• No other high speed or full/low speed devices
ever use split transactions

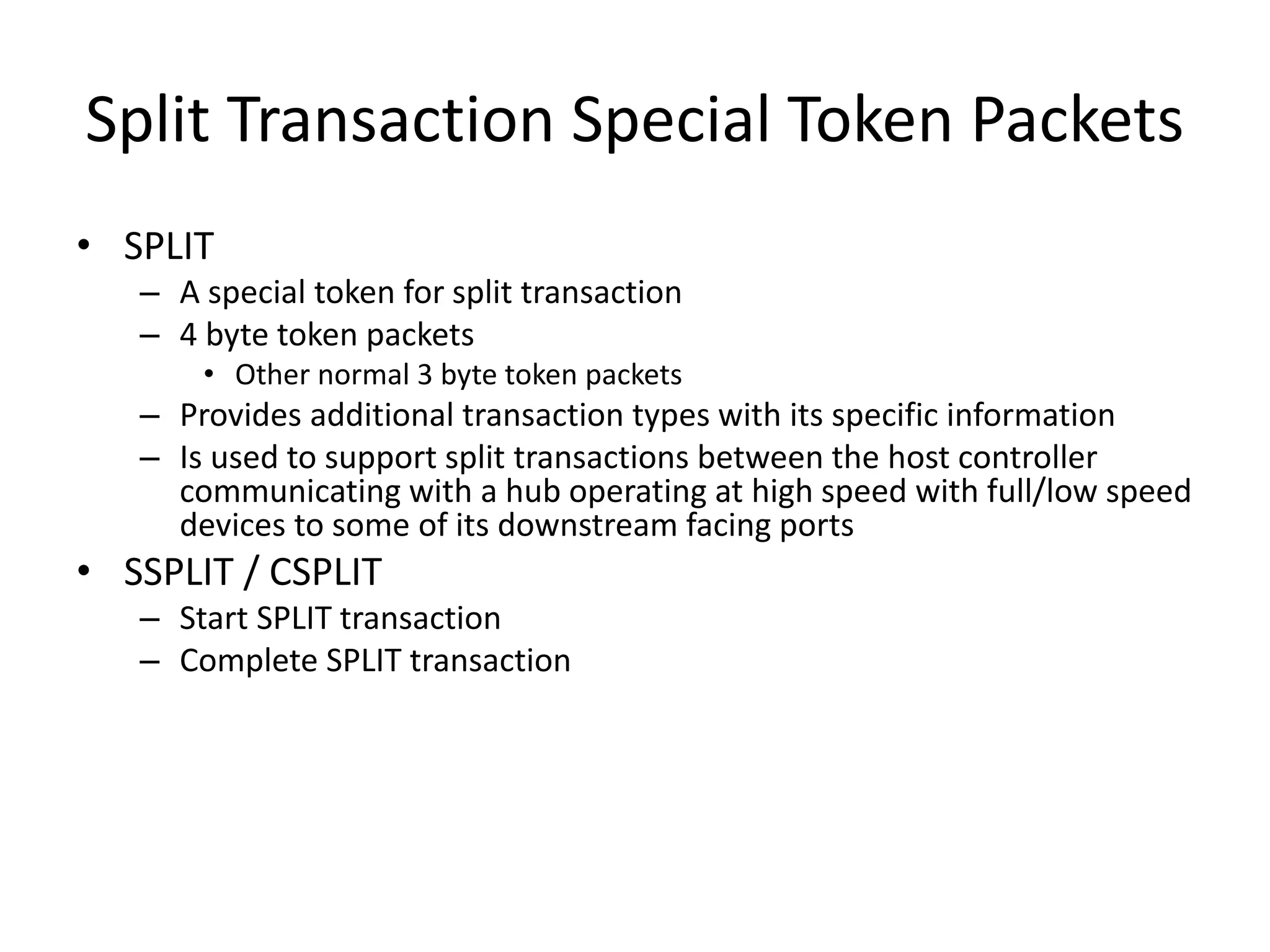

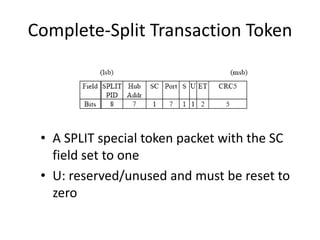

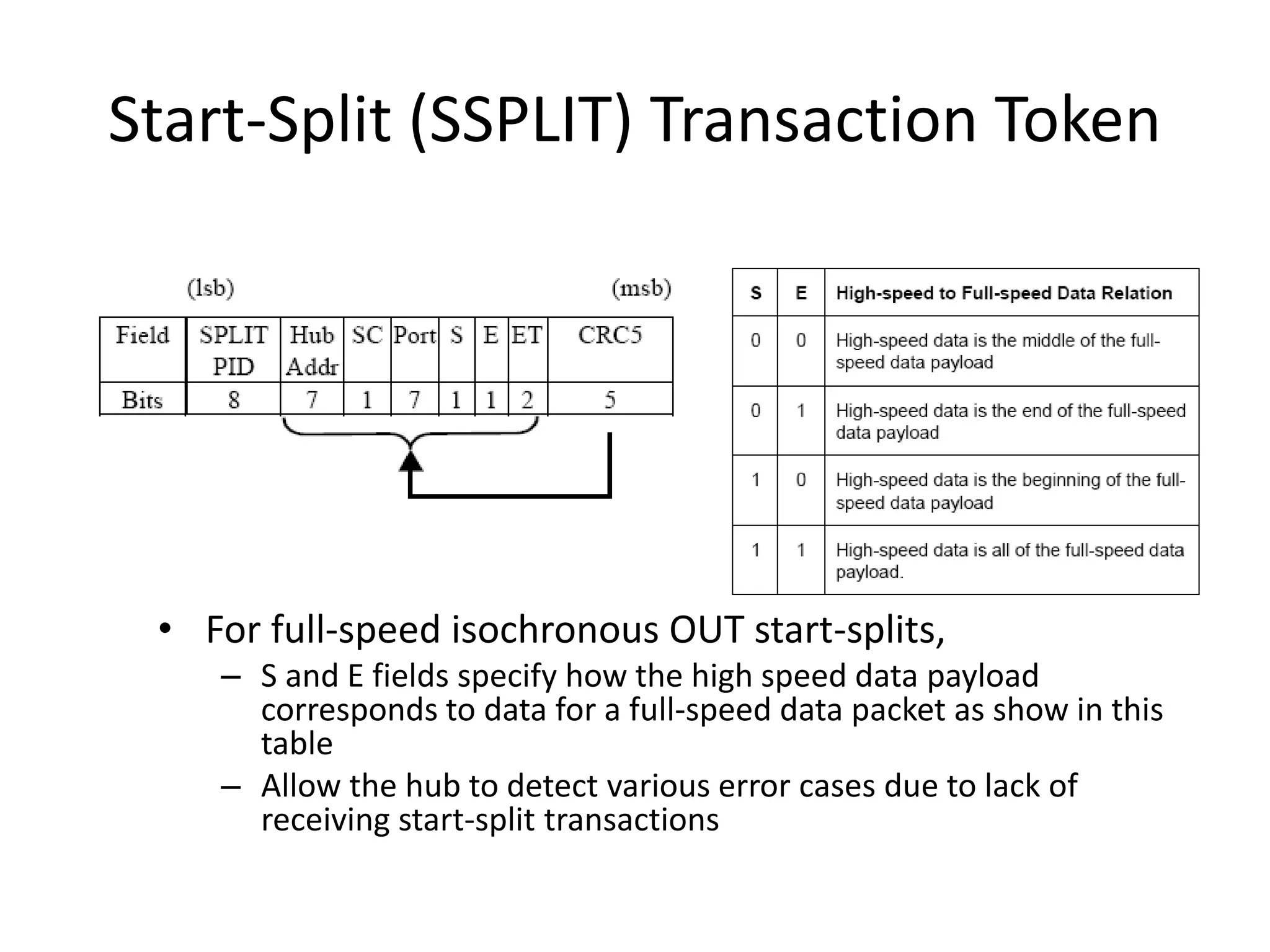

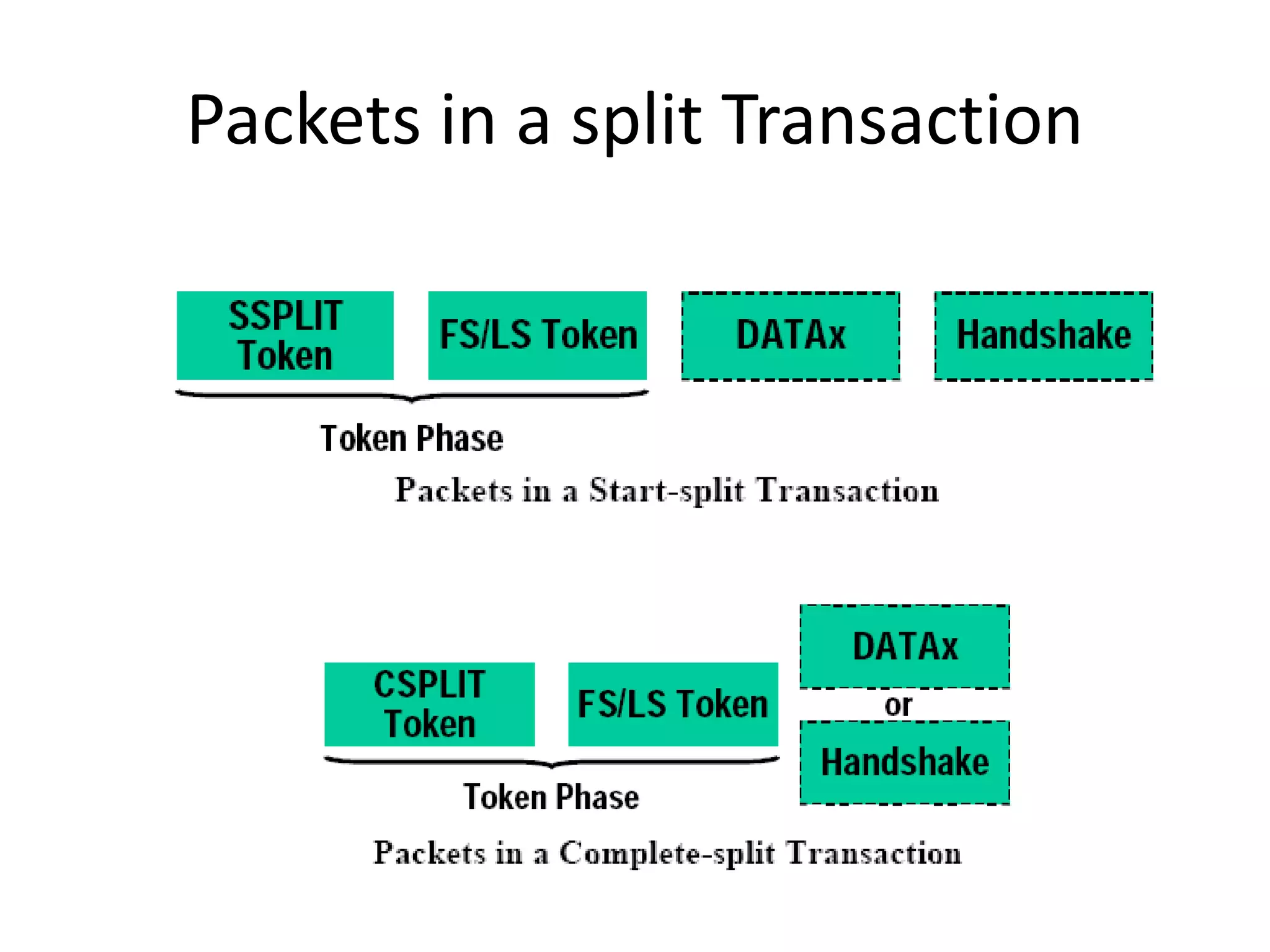

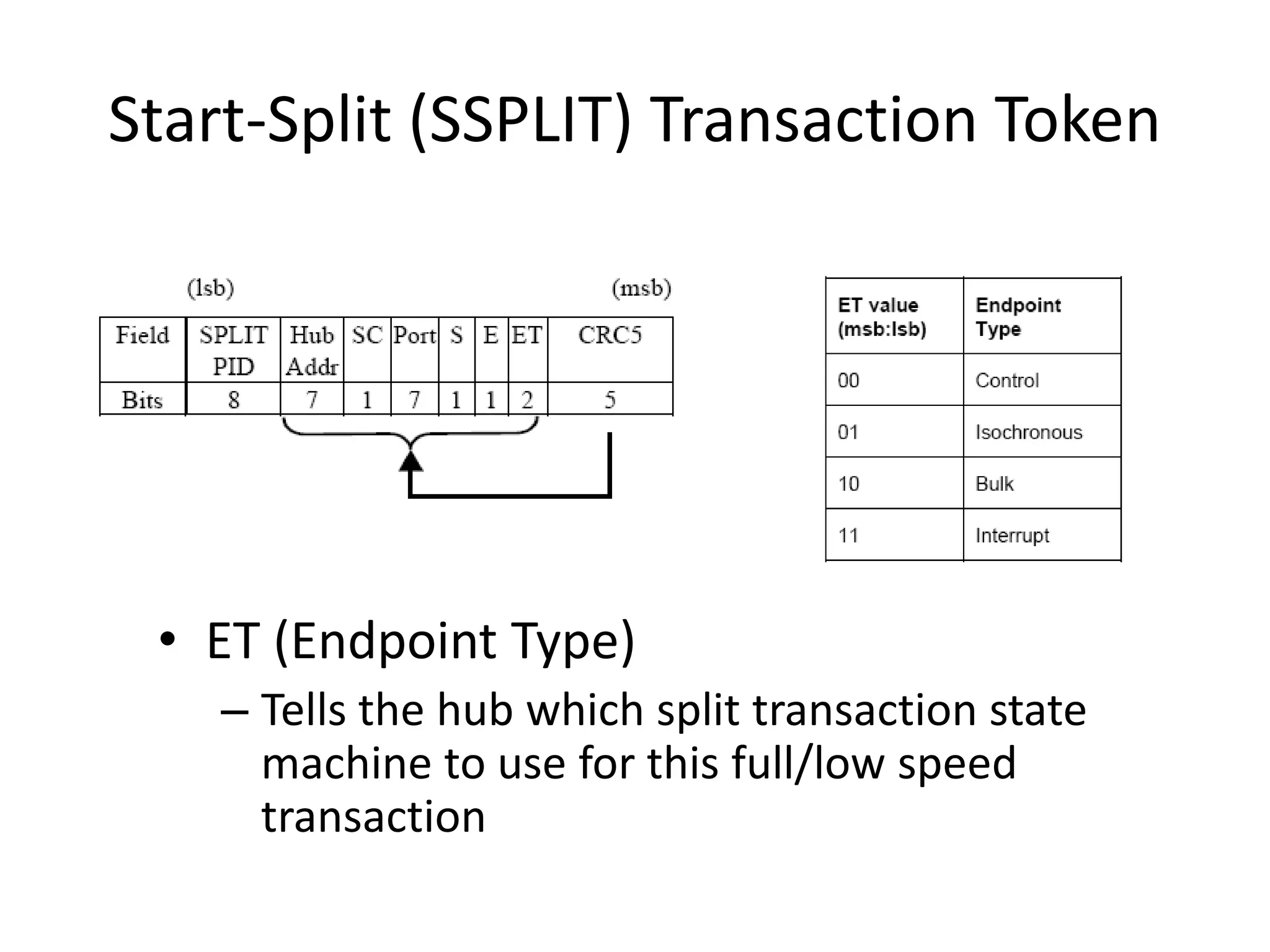

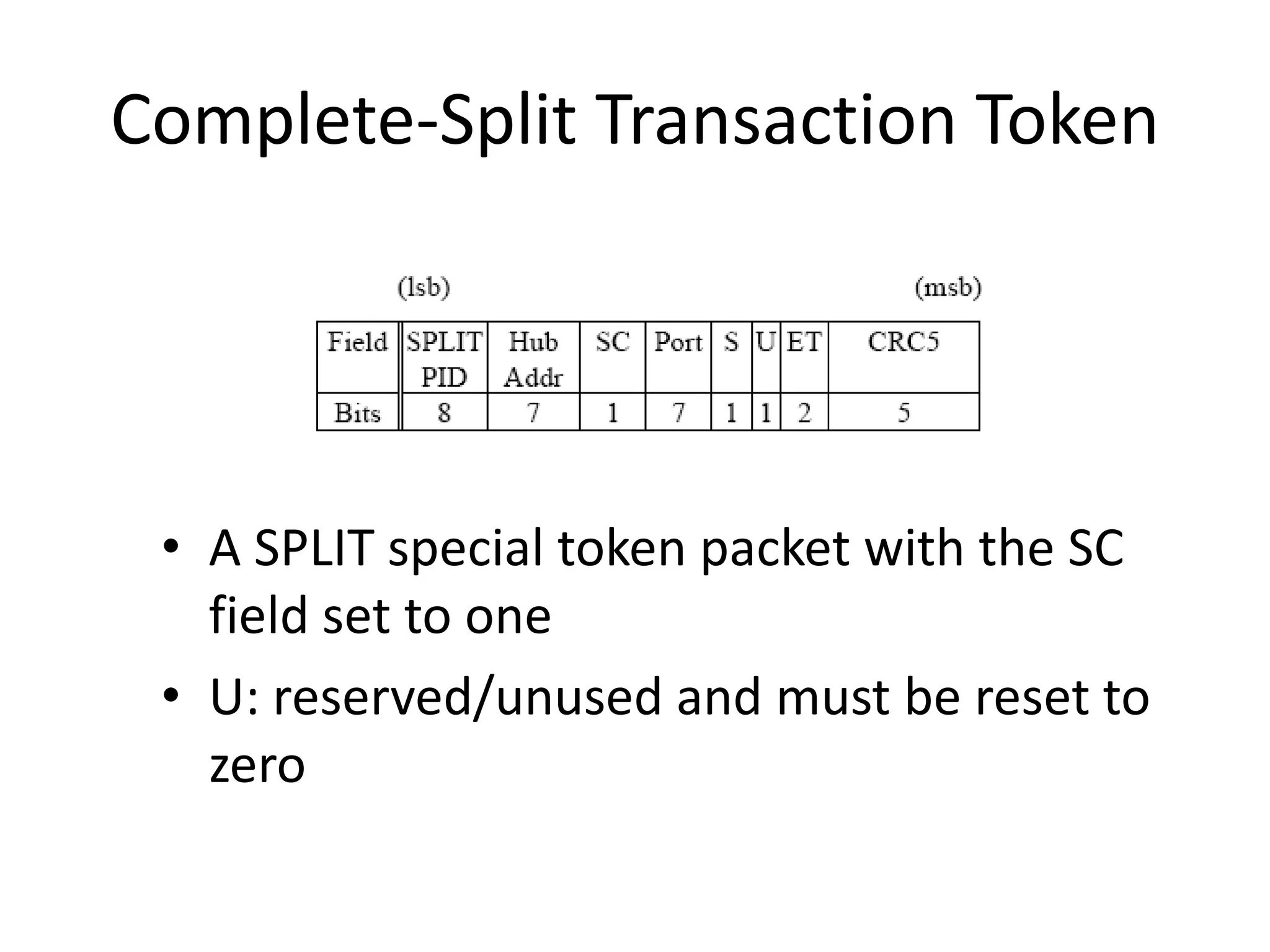

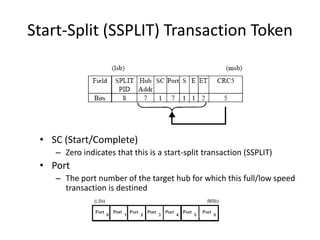

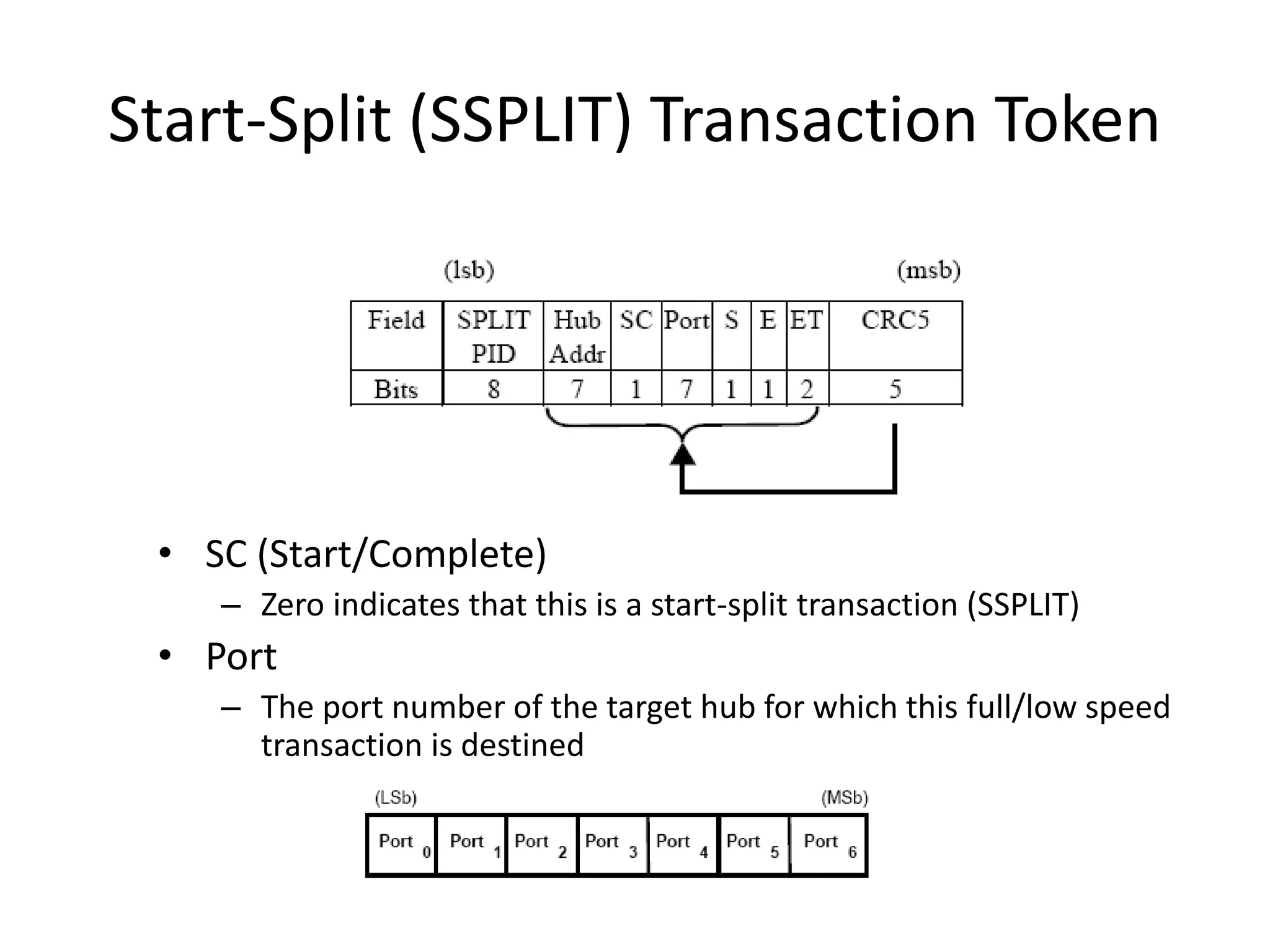

38. Split Transaction Special Token Packets
• SPLIT
– A special token for split transaction
– 4 byte token packets
• Other normal 3 byte token packets
– Provides additional transaction types with its specific information
– Is used to support split transactions between the host controller
communicating with a hub operating at high speed with full/low speed
devices to some of its downstream facing ports
• SSPLIT / CSPLIT
– Start SPLIT transaction
– Complete SPLIT transaction

39. Packets in a split Transaction

40. Relationship of Interrupt IN Transaction to High-
speed Split Transaction

41. Relationship of Interrupt OUT Transaction to
High-speed Split OUT Transaction

42. Start-Split (SSPLIT) Transaction Token
• SC (Start/Complete)
– Zero indicates that this is a start-split transaction (SSPLIT)
• Port
– The port number of the target hub for which this full/low speed
transaction is destined

43. Start-Split (SSPLIT) Transaction Token
• For full-speed isochronous OUT start-splits,
– S and E fields specify how the high speed data payload
corresponds to data for a full-speed data packet as show in this
table
– Allow the hub to detect various error cases due to lack of
receiving start-split transactions

44. Start-Split (SSPLIT) Transaction Token
• ET (Endpoint Type)
– Tells the hub which split transaction state
machine to use for this full/low speed
transaction

45. Complete-Split Transaction Token
• A SPLIT special token packet with the SC
field set to one
• U: reserved/unused and must be reset to
zero

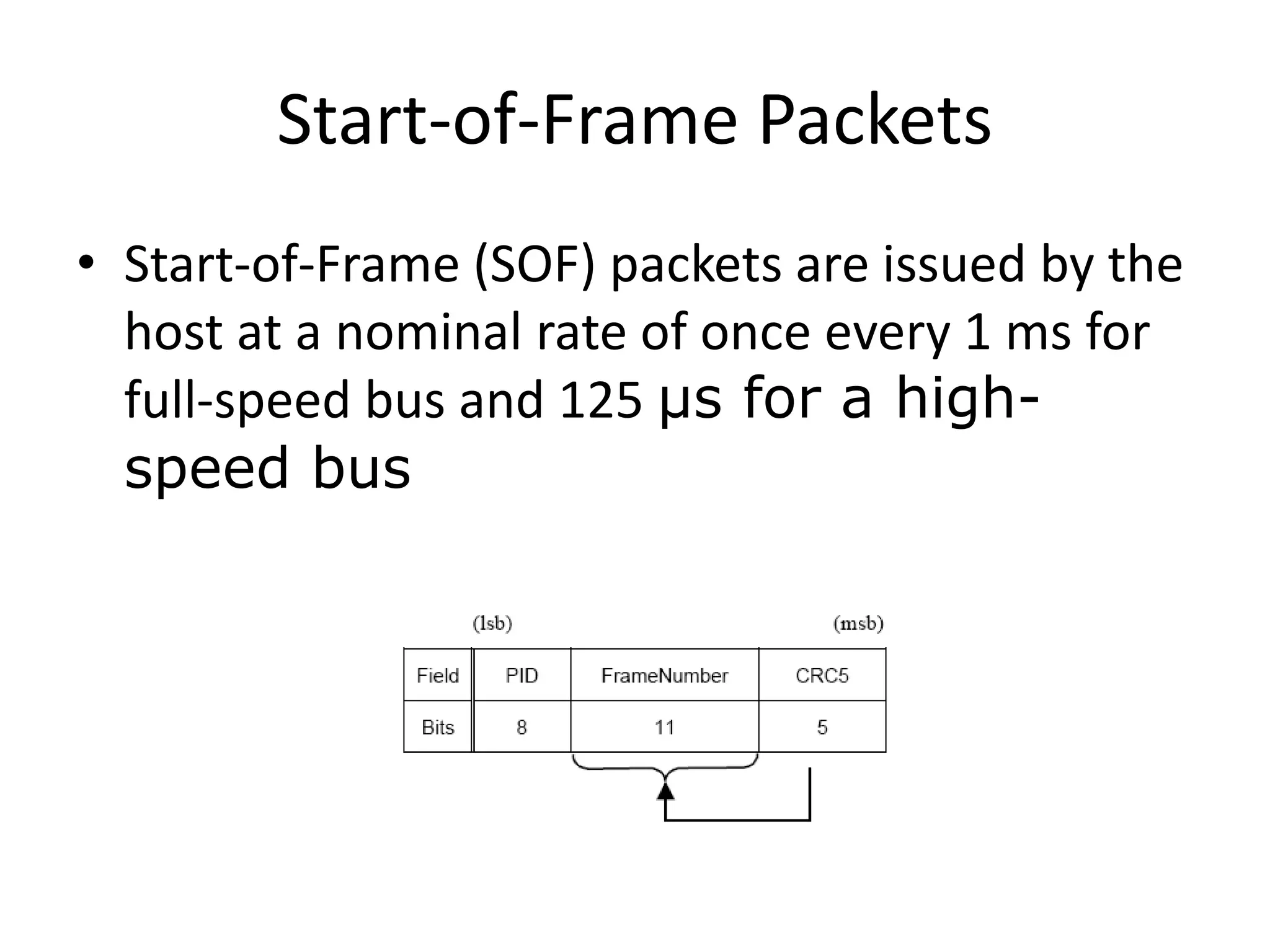

46. Start-of-Frame Packets
• Start-of-Frame (SOF) packets are issued by the
host at a nominal rate of once every 1 ms for
full-speed bus and 125 μs for a high-
speed bus

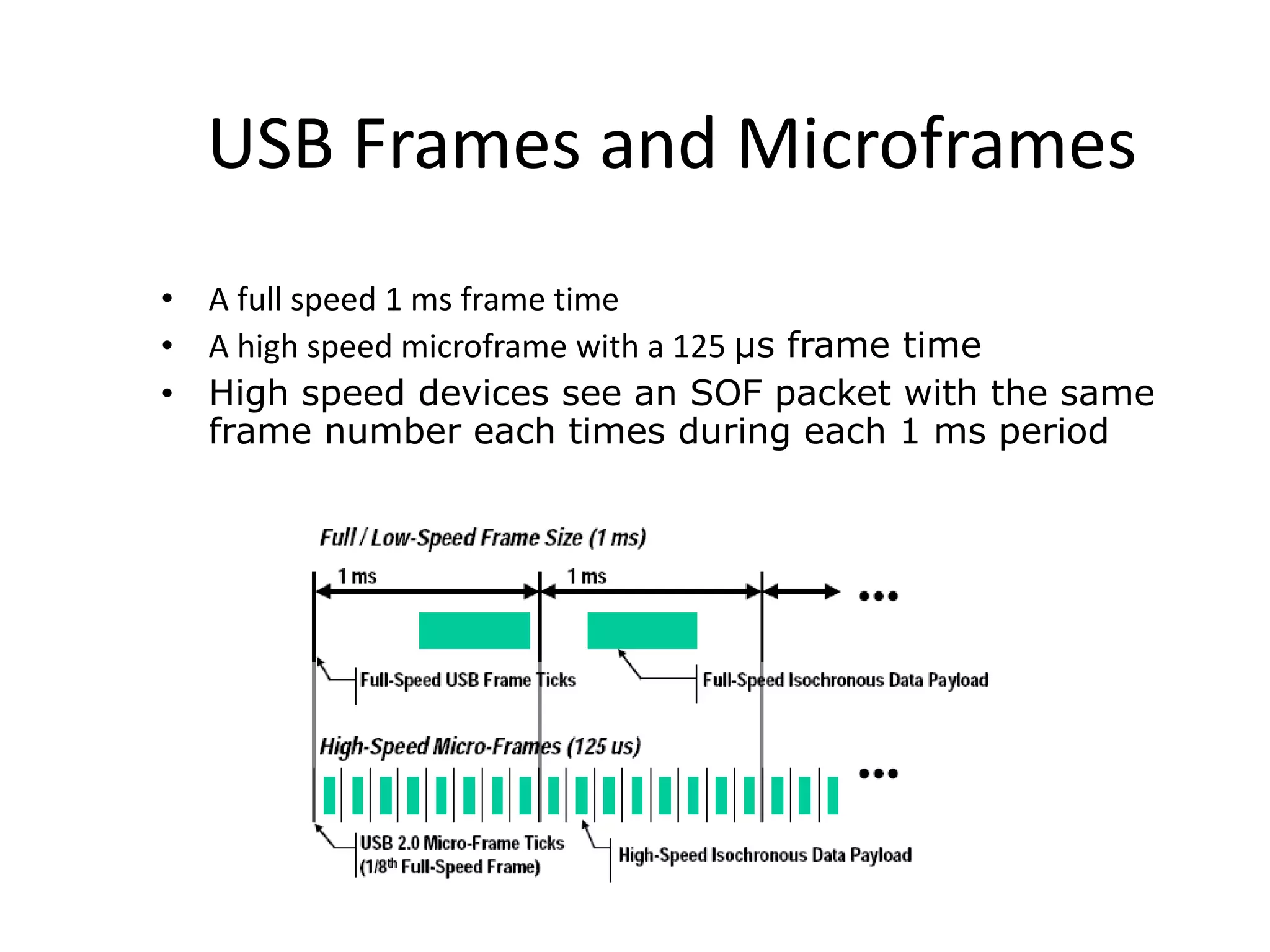

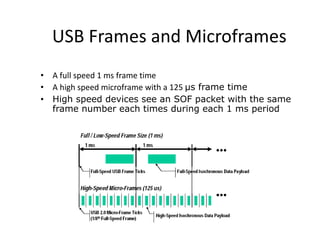

47. USB Frames and Microframes
• A full speed 1 ms frame time
• A high speed microframe with a 125 μs frame time
• High speed devices see an SOF packet with the same
frame number each times during each 1 ms period

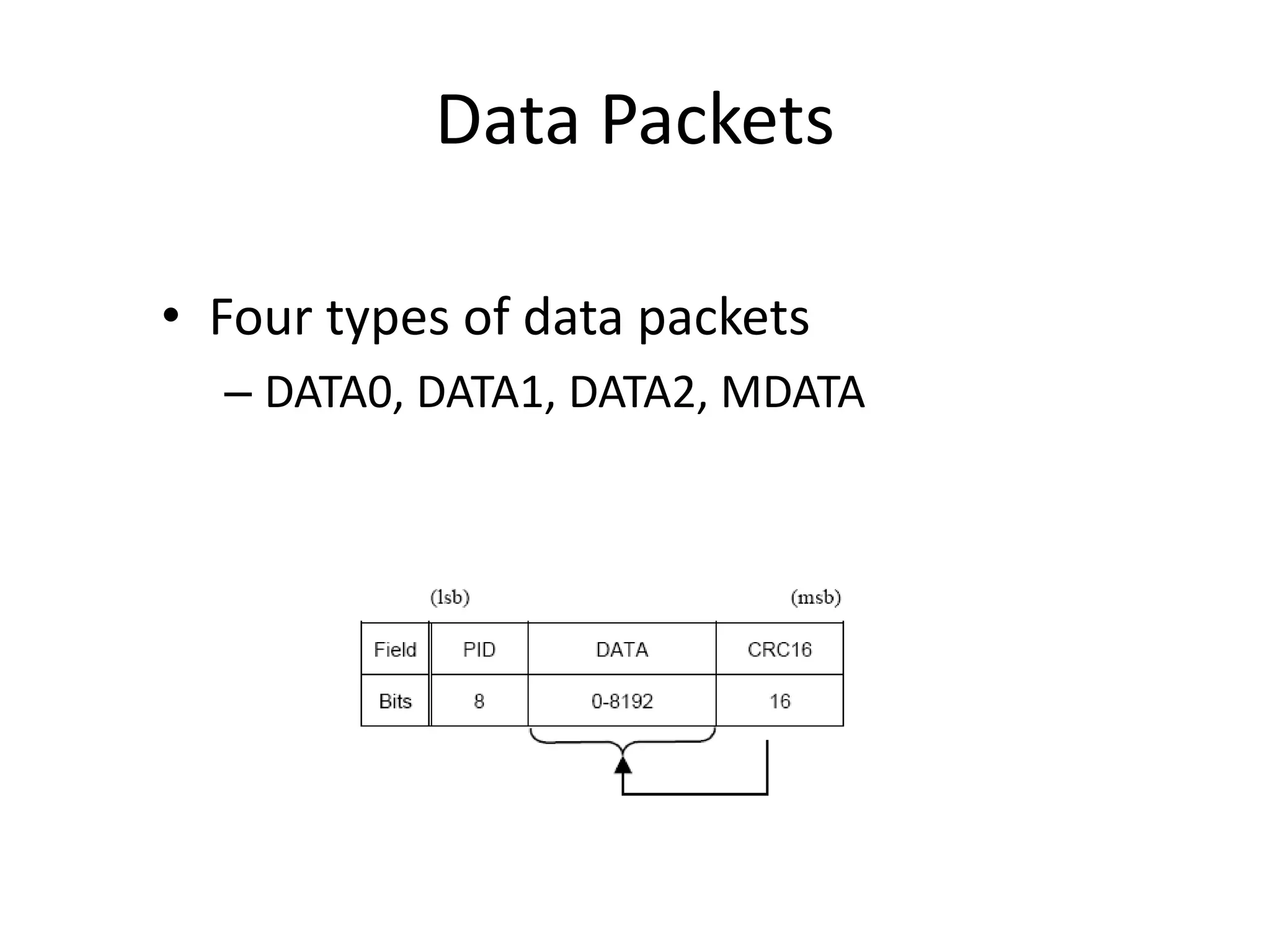

48. Data Packets
• Four types of data packets
– DATA0, DATA1, DATA2, MDATA

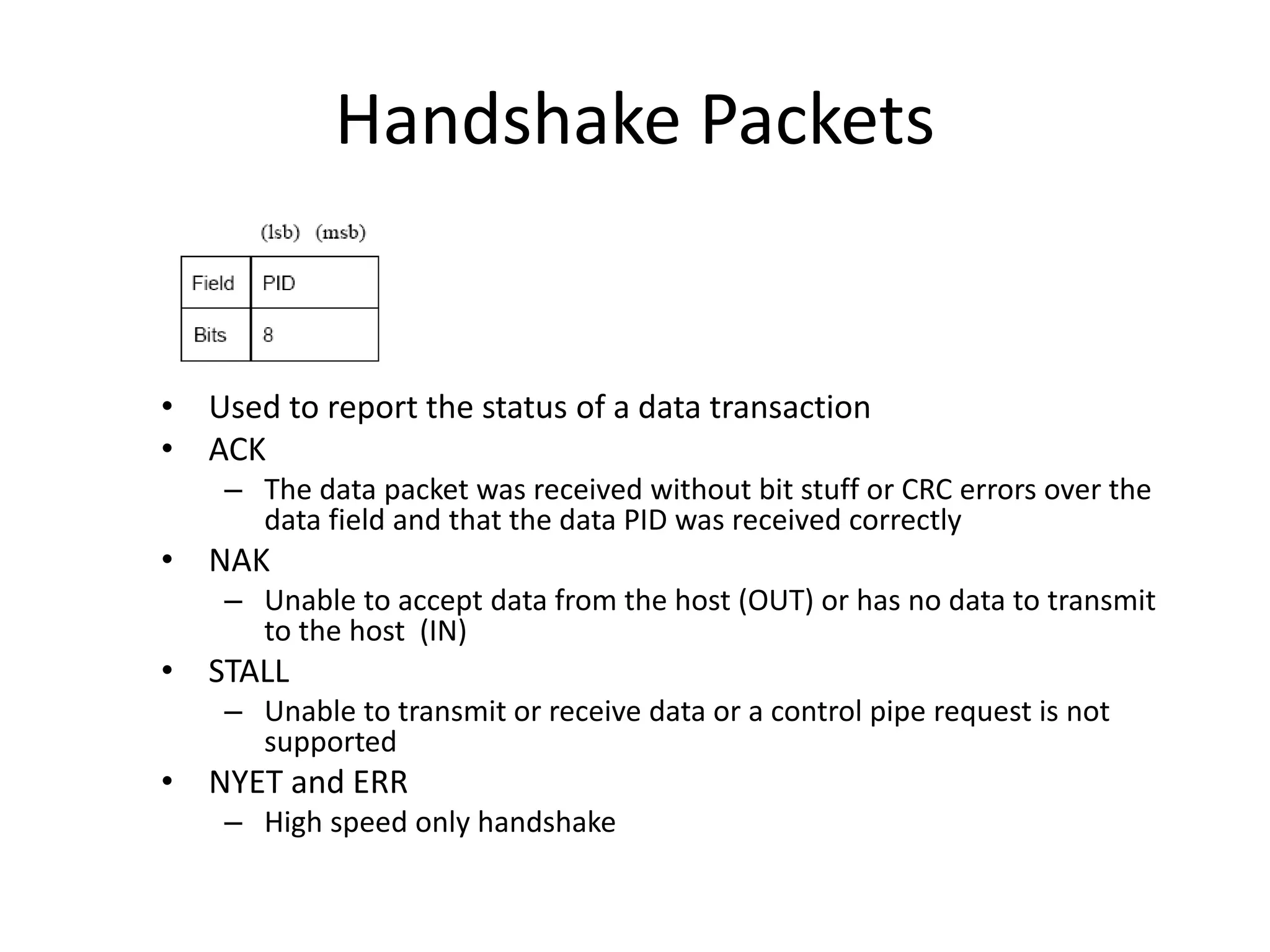

49. Handshake Packets
• Used to report the status of a data transaction
• ACK
– The data packet was received without bit stuff or CRC errors over the
data field and that the data PID was received correctly
• NAK
– Unable to accept data from the host (OUT) or has no data to transmit
to the host (IN)
• STALL
– Unable to transmit or receive data or a control pipe request is not
supported
• NYET and ERR
– High speed only handshake

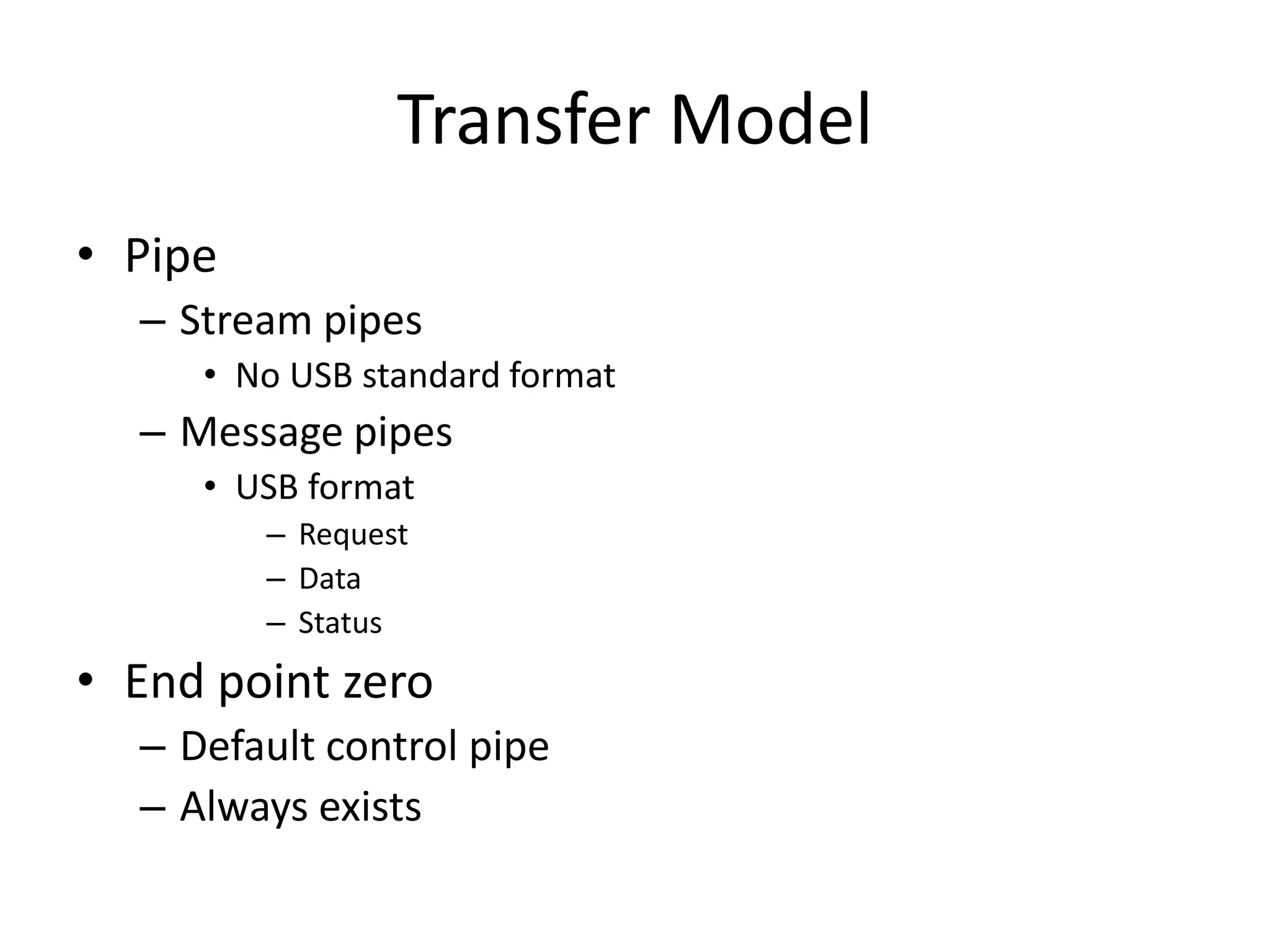

50. Transfer Model
• Pipe
– Stream pipes
• No USB standard format
– Message pipes
• USB format
– Request
– Data
– Status
• End point zero
– Default control pipe
– Always exists

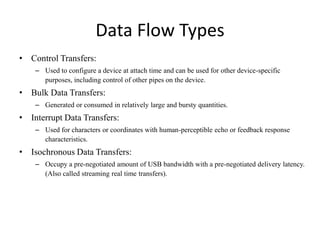

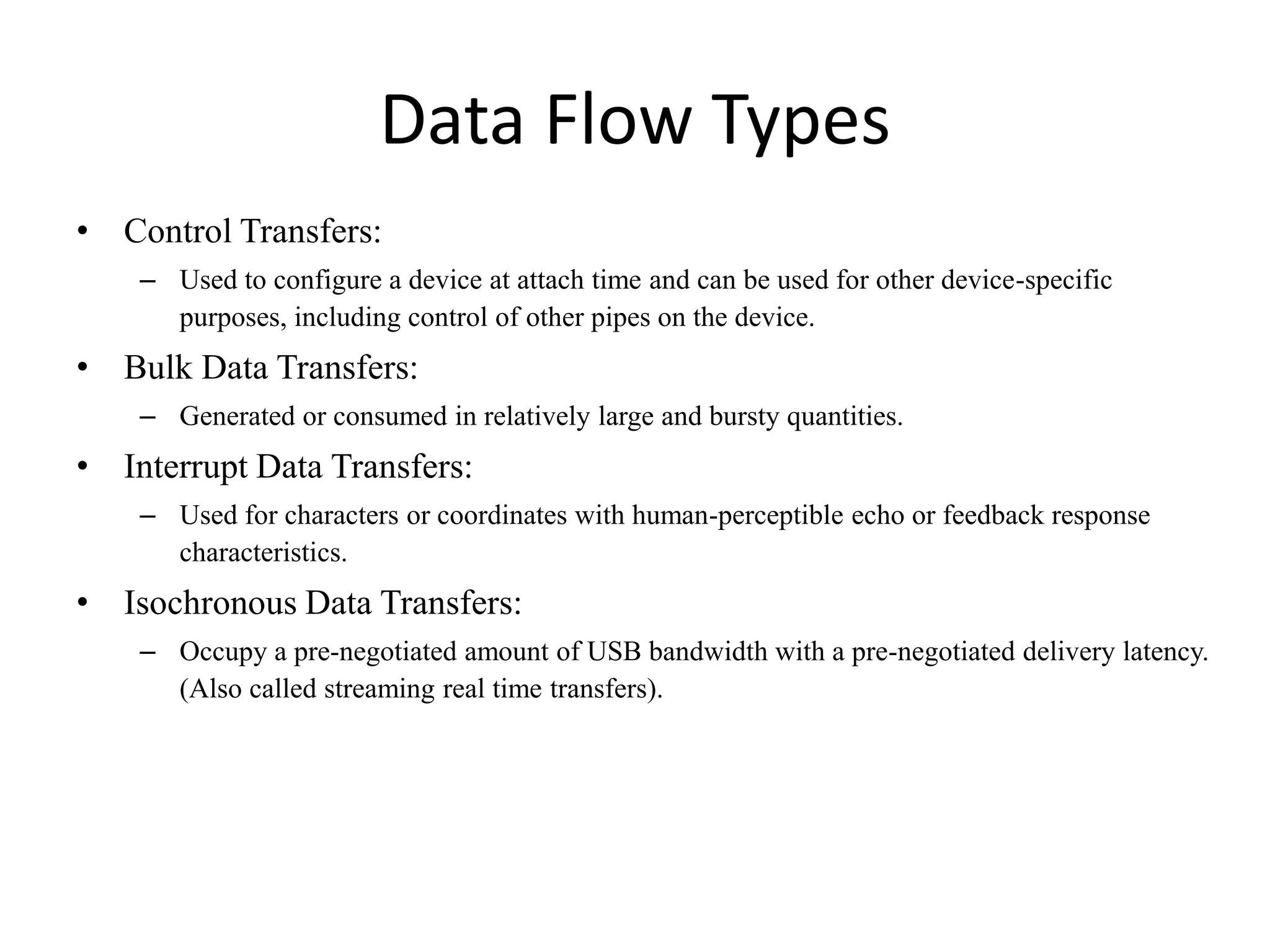

51. Data Flow Types
• Control Transfers:
– Used to configure a device at attach time and can be used for other device-specific
purposes, including control of other pipes on the device.
• Bulk Data Transfers:
– Generated or consumed in relatively large and bursty quantities.
• Interrupt Data Transfers:
– Used for characters or coordinates with human-perceptible echo or feedback response
characteristics.
• Isochronous Data Transfers:
– Occupy a pre-negotiated amount of USB bandwidth with a pre-negotiated delivery latency.
(Also called streaming real time transfers).

52. USB Devices
• All have endpoint zero
• Hub
• Function
• Compound

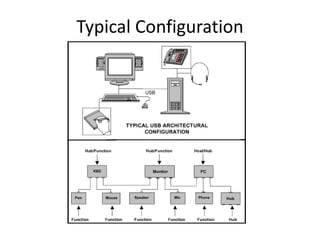

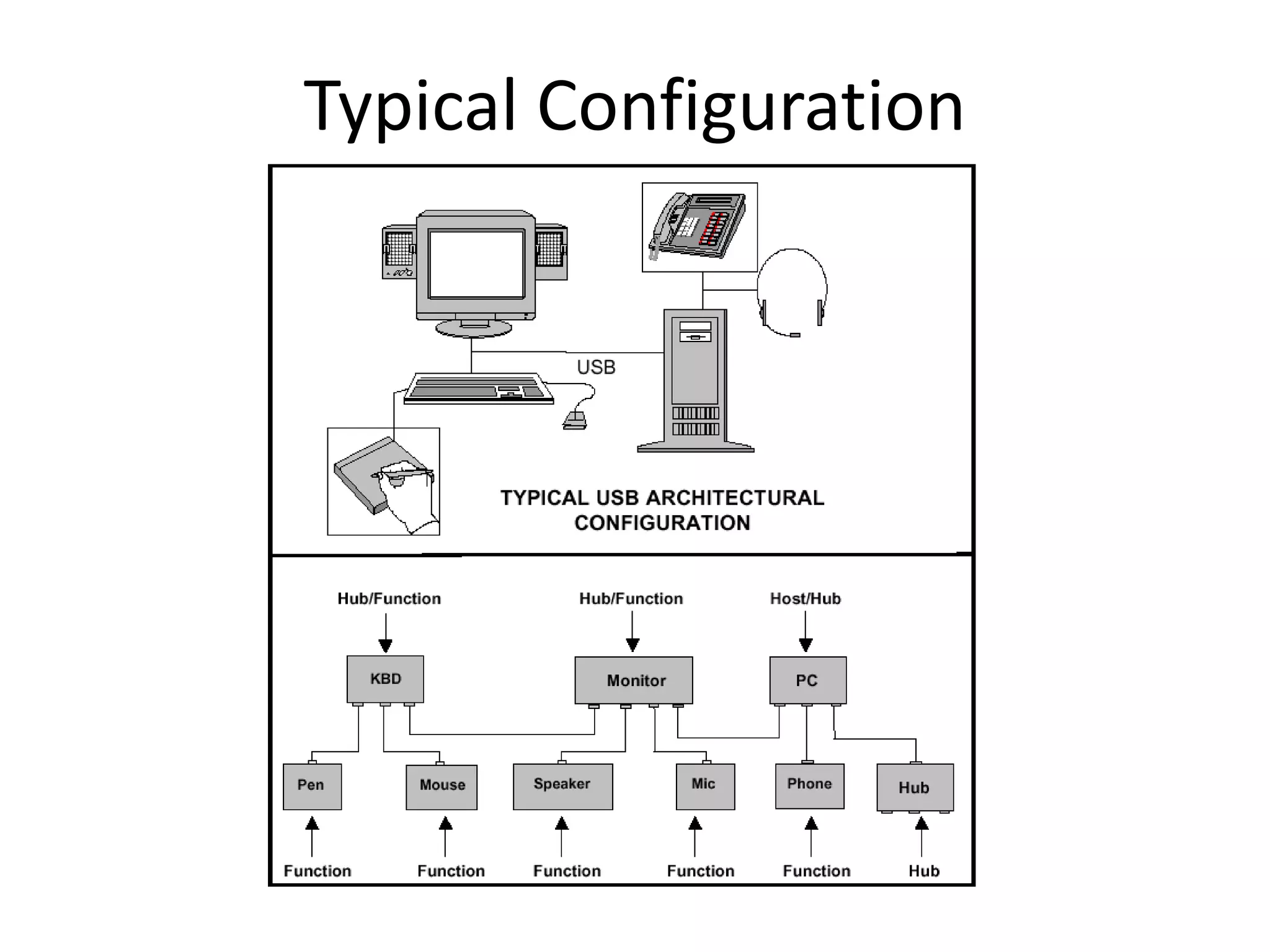

53. Typical Configuration

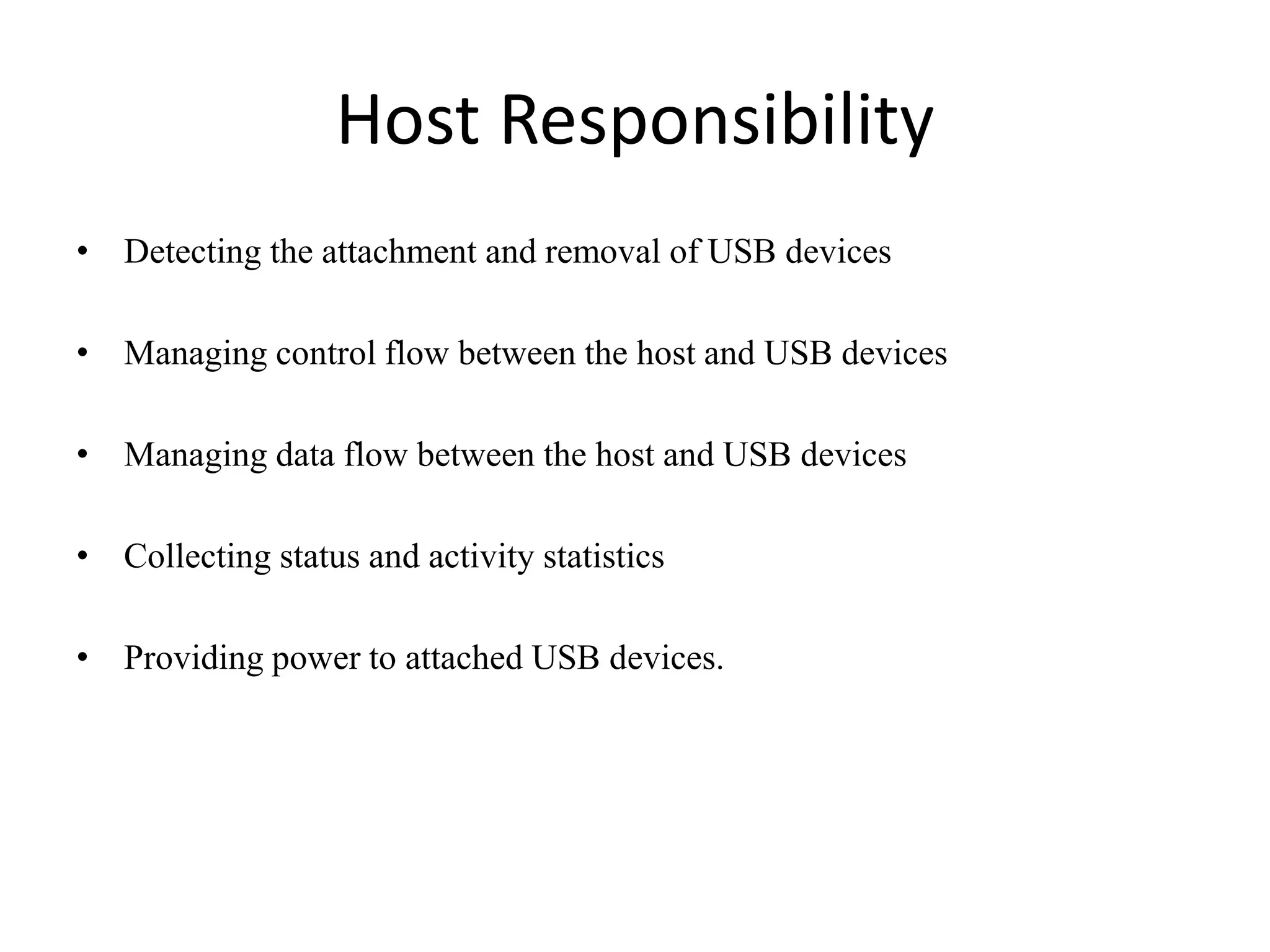

54. Host Responsibility
• Detecting the attachment and removal of USB devices
• Managing control flow between the host and USB devices
• Managing data flow between the host and USB devices
• Collecting status and activity statistics
• Providing power to attached USB devices.

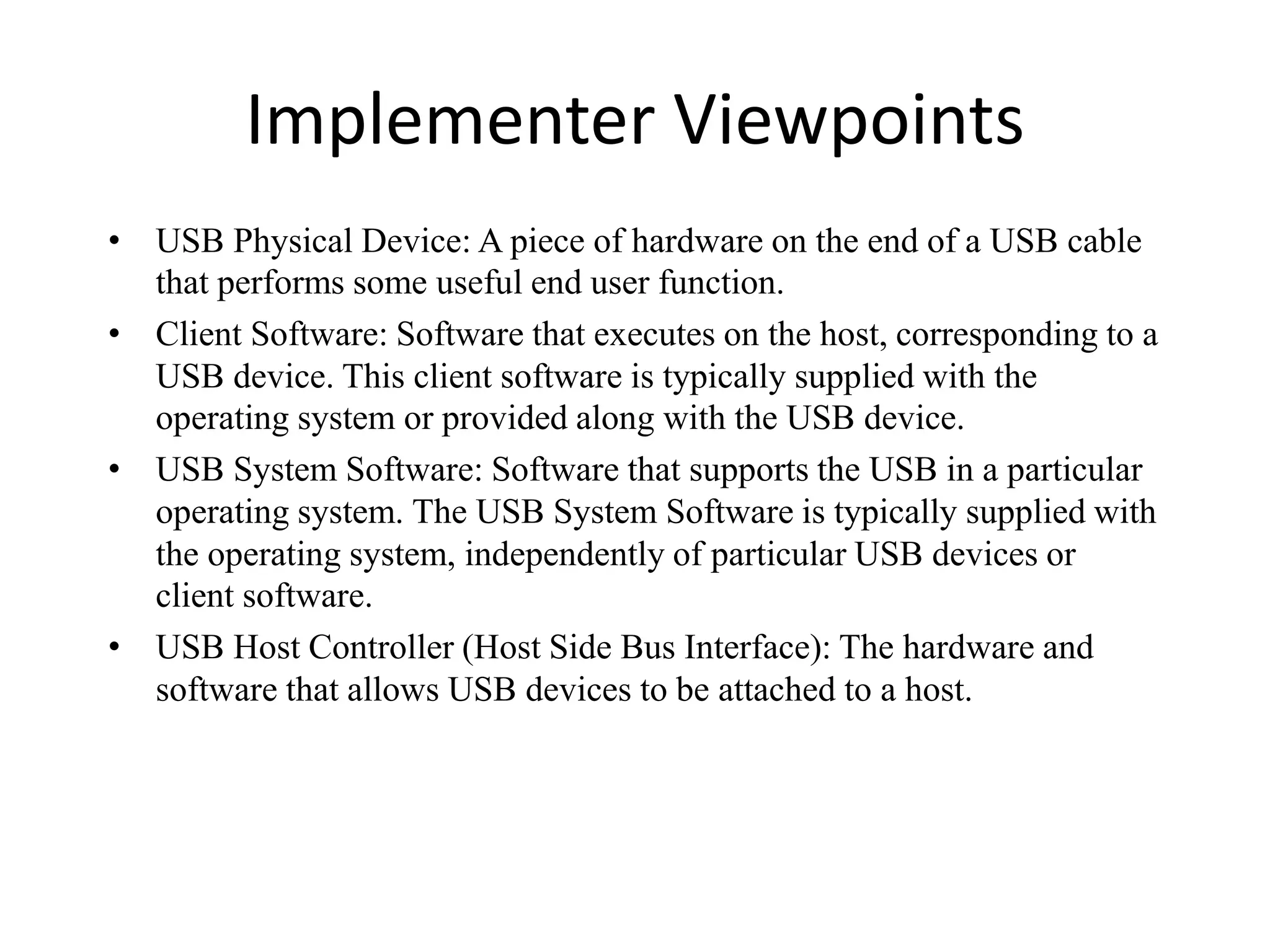

55. Implementer Viewpoints
• USB Physical Device: A piece of hardware on the end of a USB cable
that performs some useful end user function.
• Client Software: Software that executes on the host, corresponding to a
USB device. This client software is typically supplied with the
operating system or provided along with the USB device.
• USB System Software: Software that supports the USB in a particular
operating system. The USB System Software is typically supplied with
the operating system, independently of particular USB devices or
client software.
• USB Host Controller (Host Side Bus Interface): The hardware and
software that allows USB devices to be attached to a host.

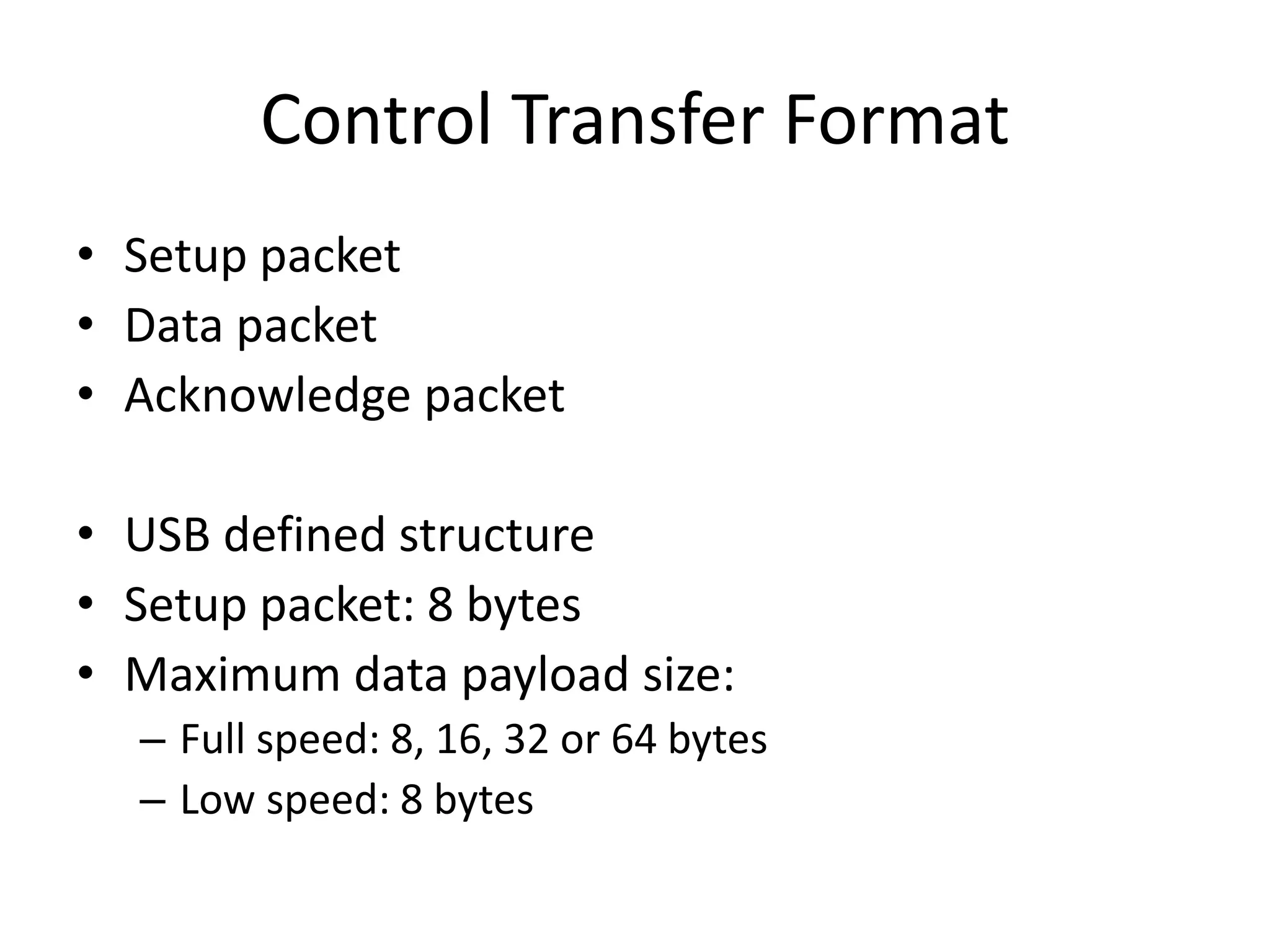

56. Control Transfer Format
• Setup packet
• Data packet
• Acknowledge packet
• USB defined structure
• Setup packet: 8 bytes
• Maximum data payload size:
– Full speed: 8, 16, 32 or 64 bytes
– Low speed: 8 bytes

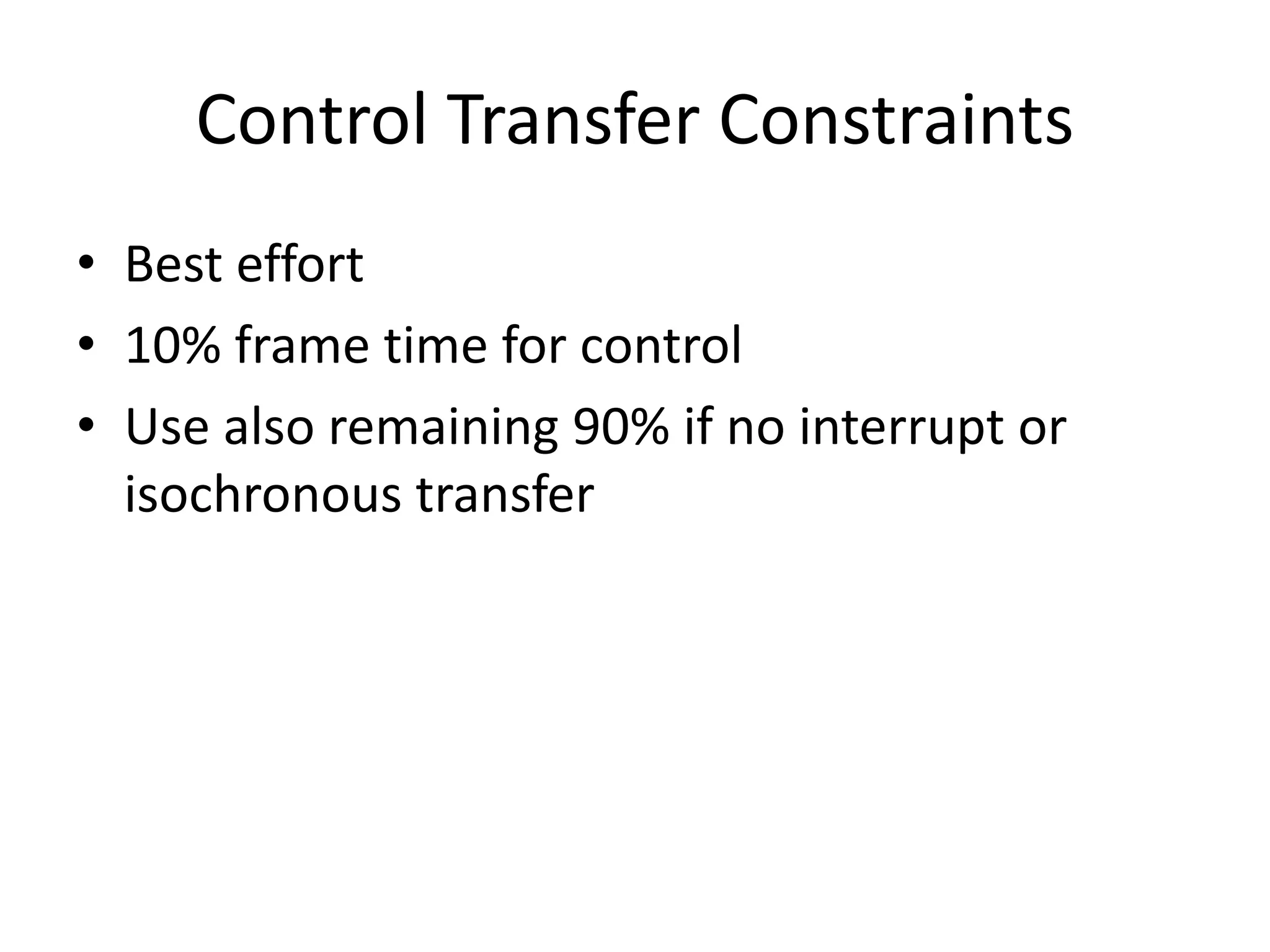

57. Control Transfer Constraints
• Best effort
• 10% frame time for control
• Use also remaining 90% if no interrupt or
isochronous transfer

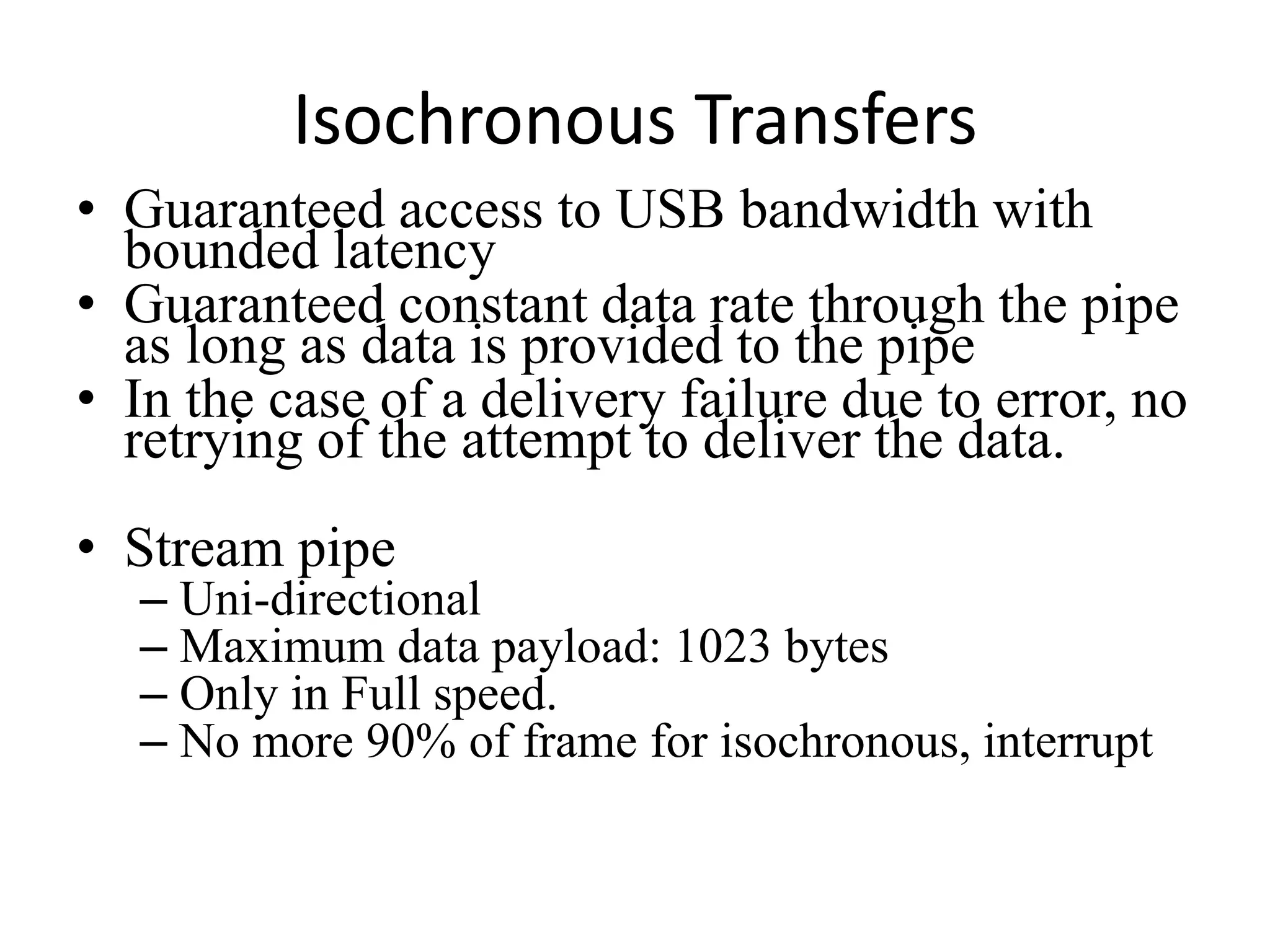

58. Isochronous Transfers
• Guaranteed access to USB bandwidth with
bounded latency
• Guaranteed constant data rate through the pipe
as long as data is provided to the pipe
• In the case of a delivery failure due to error, no
retrying of the attempt to deliver the data.
• Stream pipe
– Uni-directional
– Maximum data payload: 1023 bytes
– Only in Full speed.
– No more 90% of frame for isochronous, interrupt

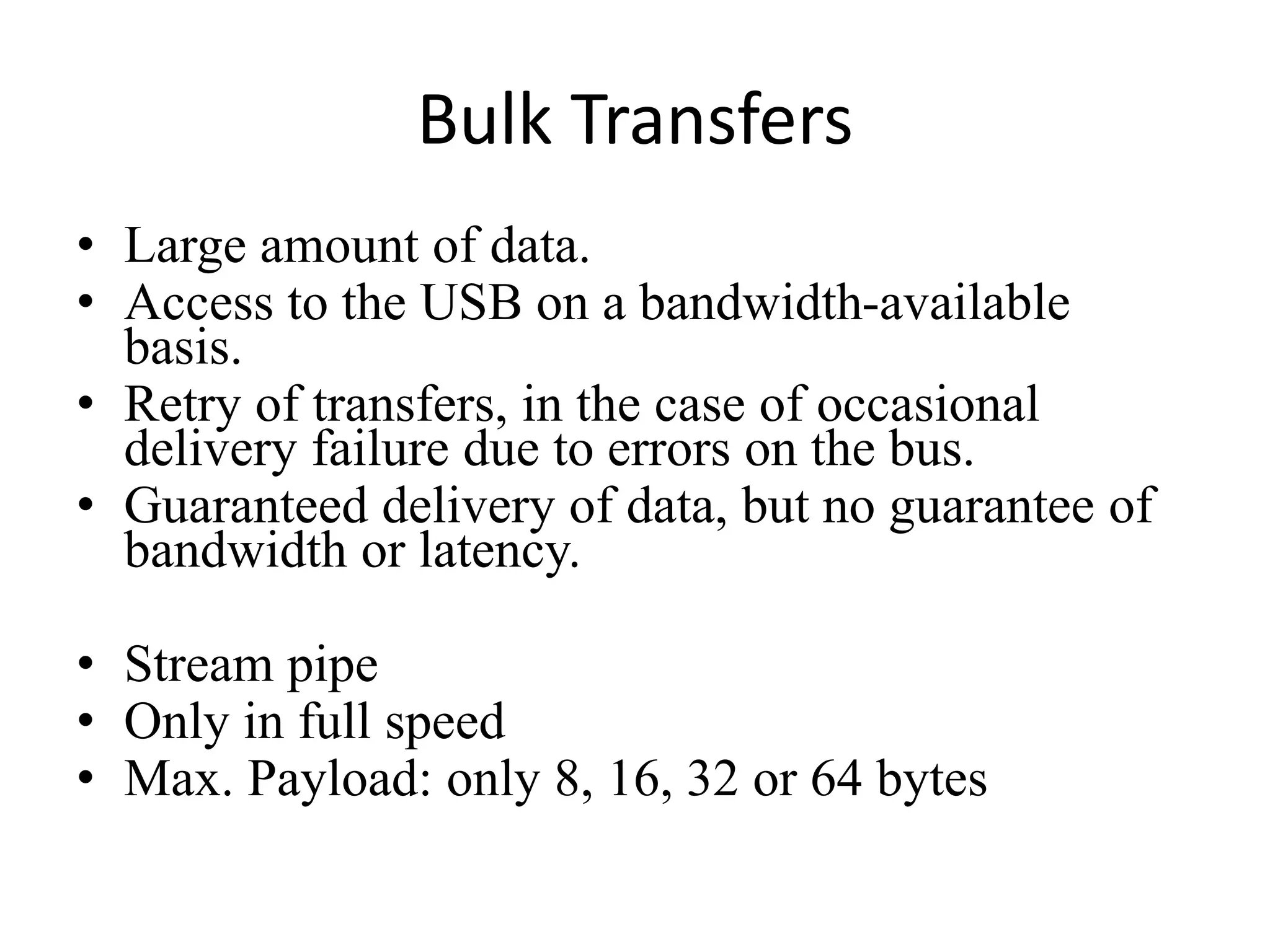

59. Bulk Transfers
• Large amount of data.
• Access to the USB on a bandwidth-available
basis.
• Retry of transfers, in the case of occasional
delivery failure due to errors on the bus.
• Guaranteed delivery of data, but no guarantee of
bandwidth or latency.
• Stream pipe
• Only in full speed
• Max. Payload: only 8, 16, 32 or 64 bytes

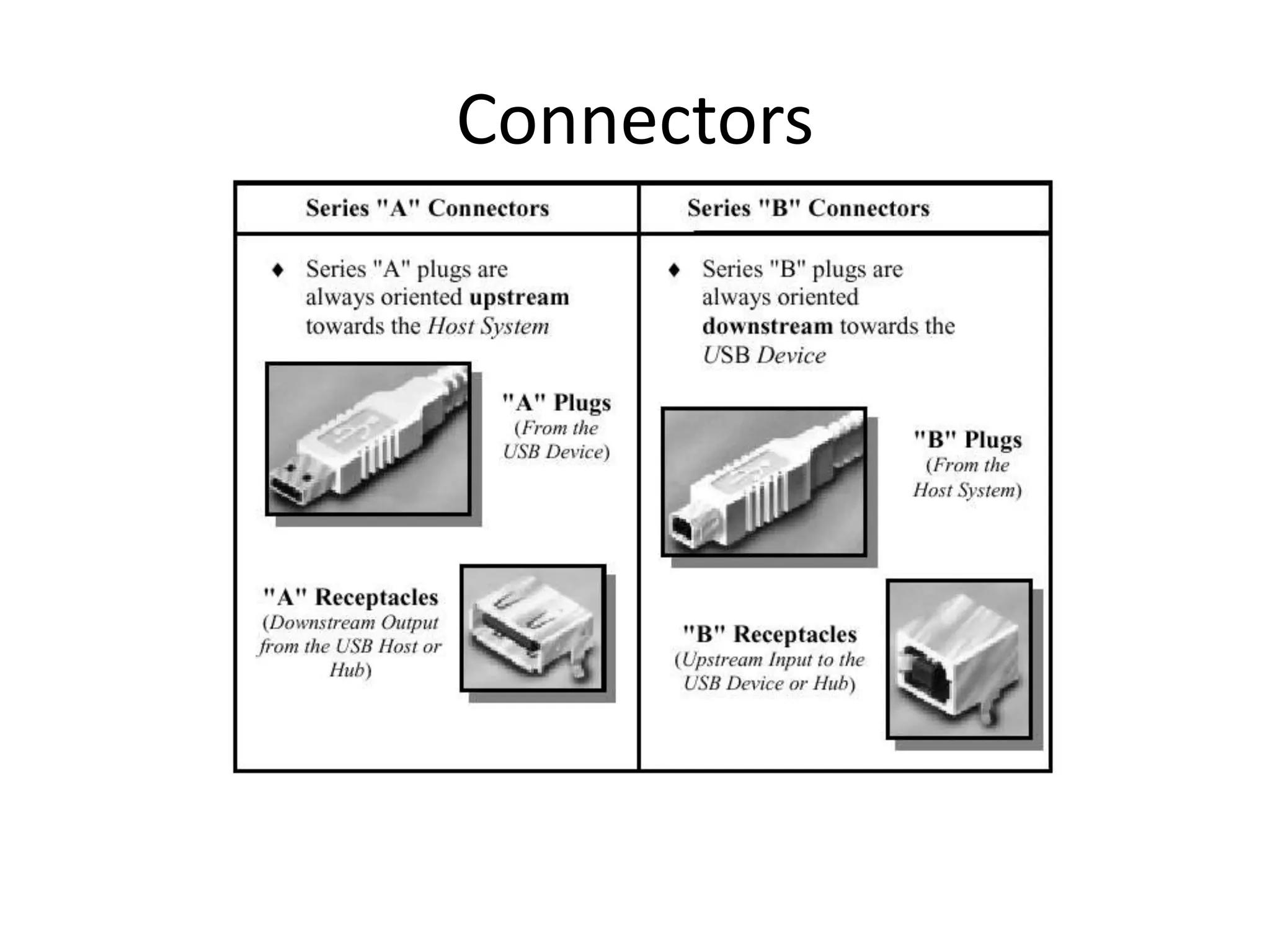

60. Connectors

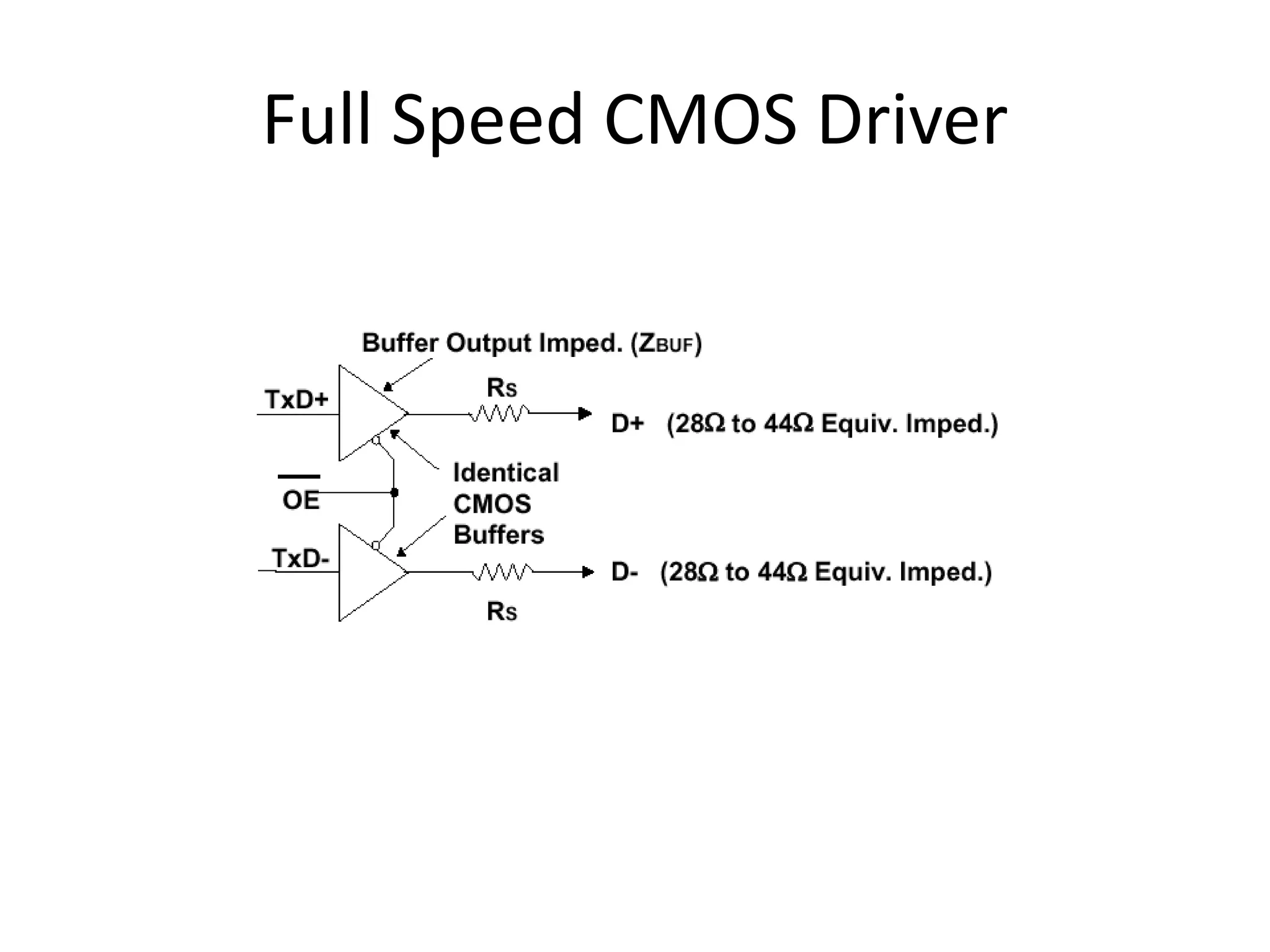

61. Full Speed CMOS Driver

62. NRZI Encoding

63. Bit Stuffing

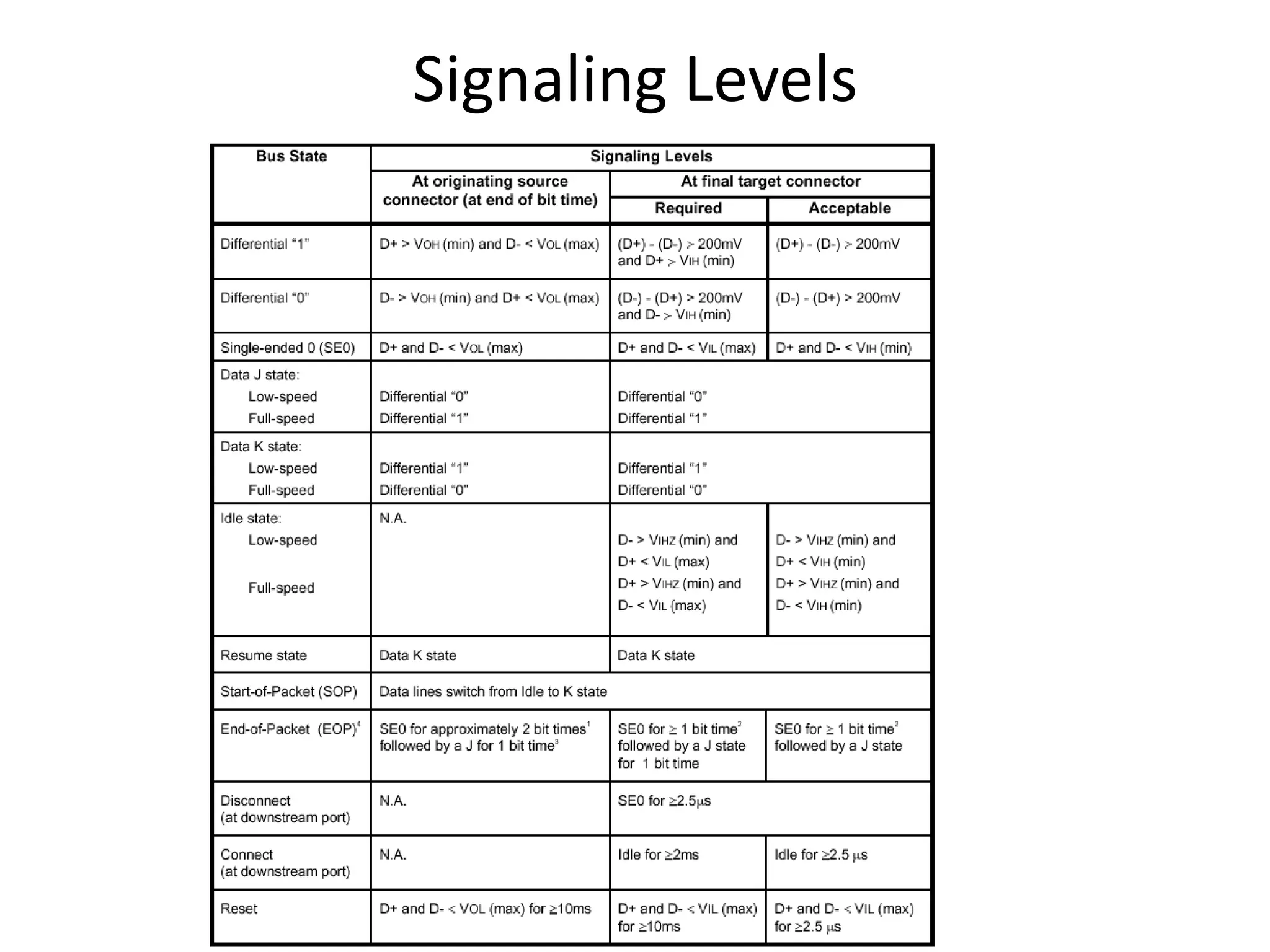

64. Signaling Levels
