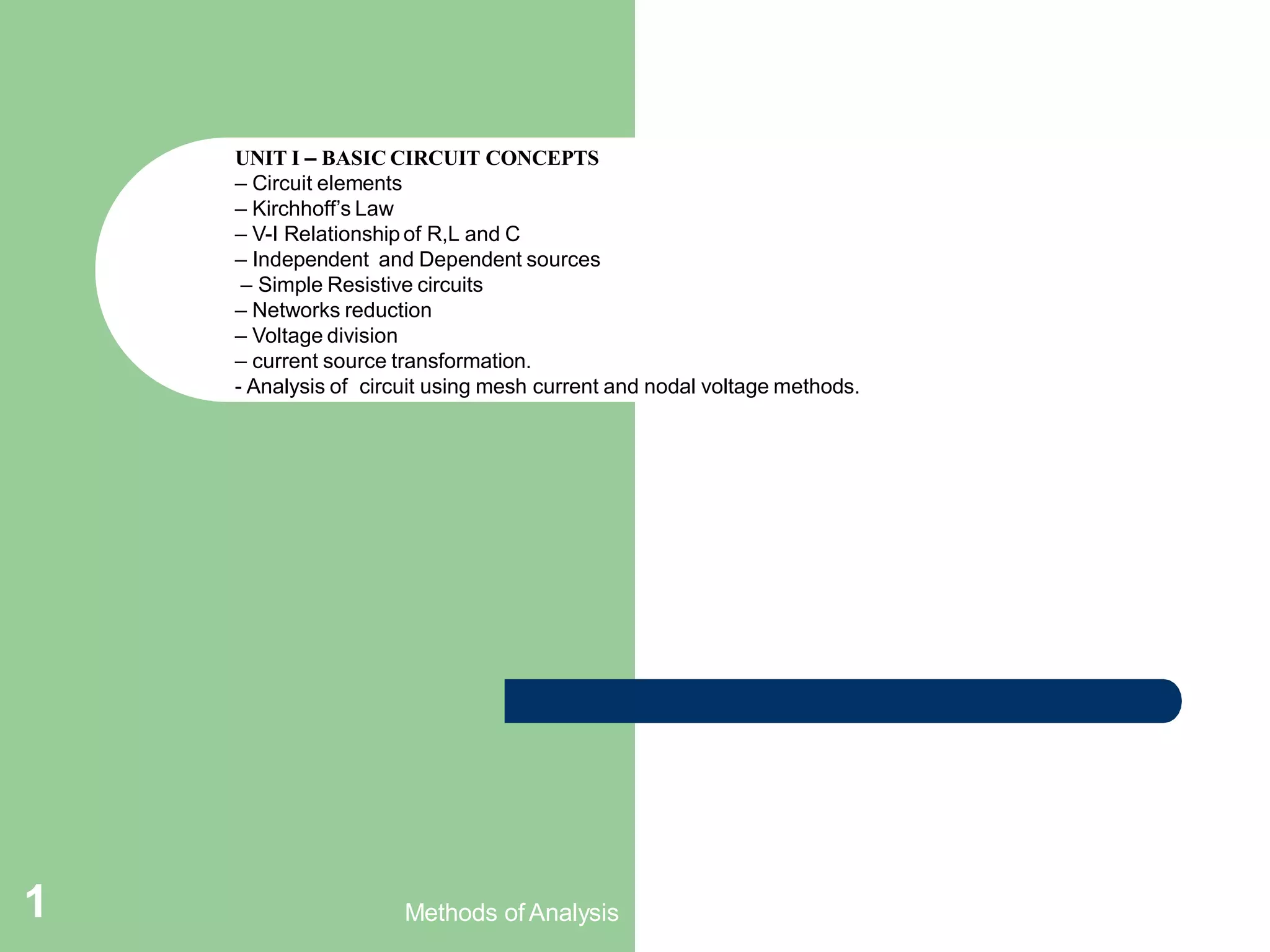

1. UNIT I – BASIC CIRCUIT CONCEPTS
– Circuit elements
– Kirchhoff’s Law
– V-I Relationship of R,L and C
– Independent and Dependent sources
– Simple Resistive circuits
– Networks reduction
– Voltage division
– current source transformation.
- Analysis of circuit using mesh current and nodal voltage methods.
Methods of Analysis
1

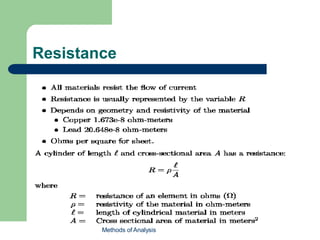

2. Resistance
Methods of Analysis

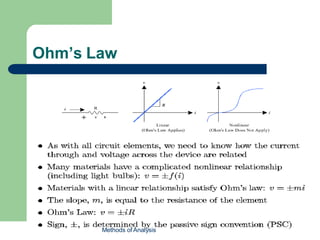

3. Ohm’s Law
Methods of Analysis

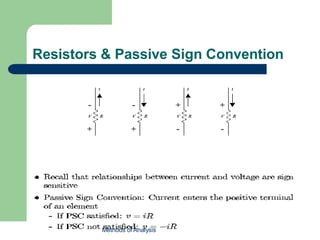

4. Resistors & Passive Sign Convention
Methods of Analysis

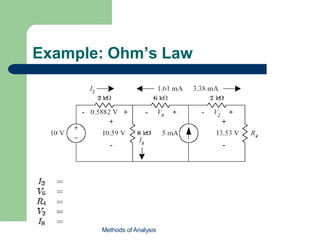

5. Example: Ohm’s Law
Methods of Analysis

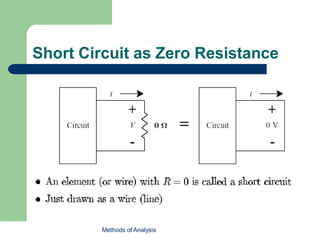

6. Short Circuit as Zero Resistance
Methods of Analysis

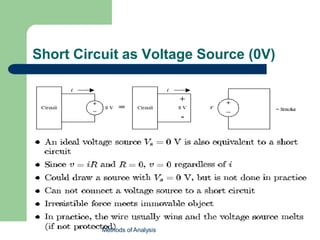

7. Short Circuit as Voltage Source (0V)
Methods of Analysis

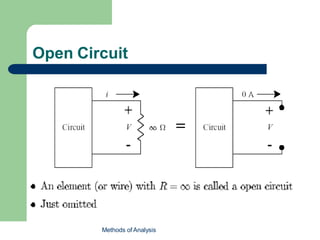

8. Open Circuit
Methods of Analysis

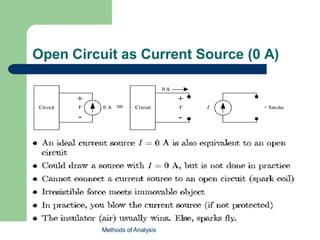

9. Open Circuit as Current Source (0 A)
Methods of Analysis

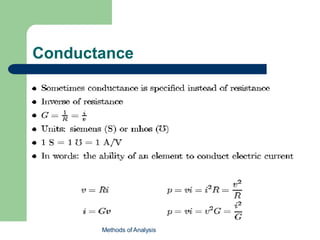

10. Conductance
Methods of Analysis

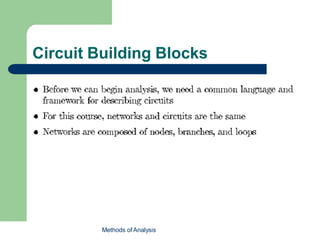

11. Circuit Building Blocks
Methods of Analysis

12. Branches
Methods of Analysis

13. Nodes
Methods of Analysis

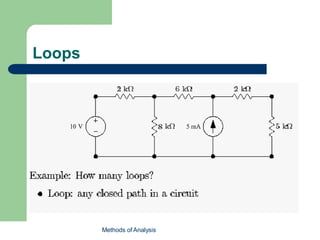

14. Loops
Methods of Analysis

15. Overview of Kirchhoff’s Laws
Methods of Analysis

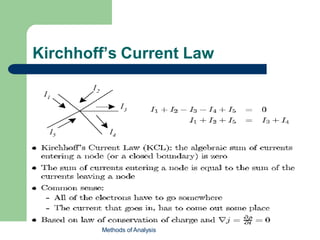

16. Kirchhoff’s Current Law
Methods of Analysis

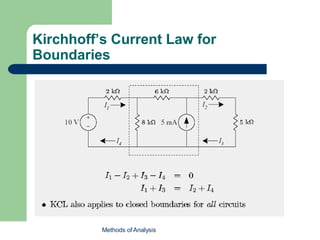

17. Kirchhoff’s Current Law for
Boundaries
Methods of Analysis

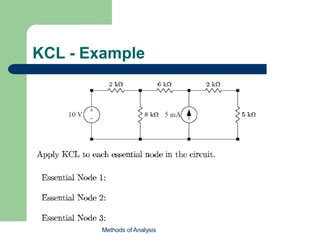

18. KCL - Example
Methods of Analysis

19. Ideal Current Sources: Series
Methods of Analysis

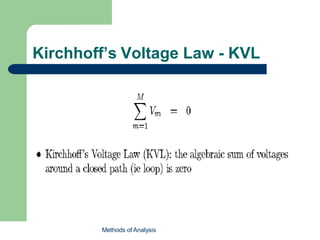

20. Kirchhoff’s Voltage Law - KVL
Methods of Analysis

21. KVL - Example
Methods of Analysis

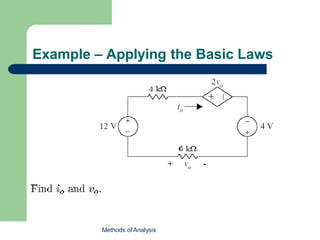

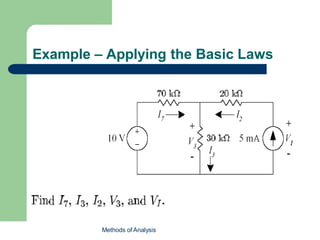

22. Example – Applying the Basic Laws
Methods of Analysis

23. Example – Applying the Basic Laws
Methods of Analysis

24. Example – Applying the Basic Laws
Methods of Analysis

25. Resistors in Series
Methods of Analysis

26. Resistors in Parallel
Methods of Analysis

27. Resistors in Parallel
Methods of Analysis

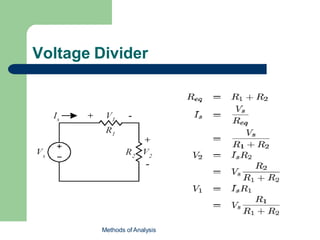

28. Voltage Divider
Methods of Analysis

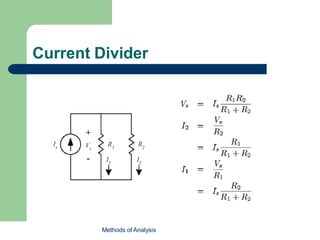

29. Current Divider
Methods of Analysis

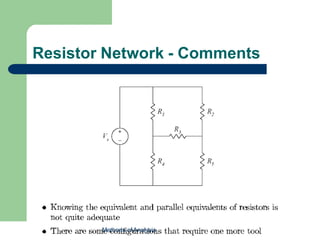

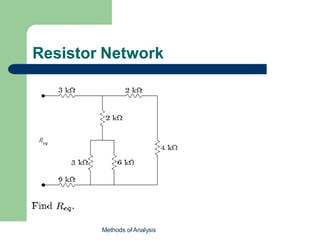

30. Resistor Network
Methods of Analysis

31. Resistor Network - Comments
Methods of Analysis

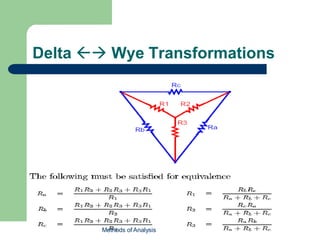

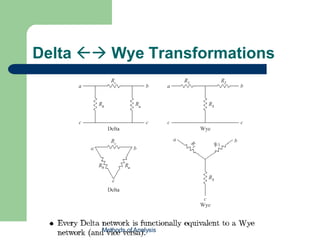

32. Delta  Wye Transformations
Methods of Analysis

33. Delta  Wye Transformations
Methods of Analysis

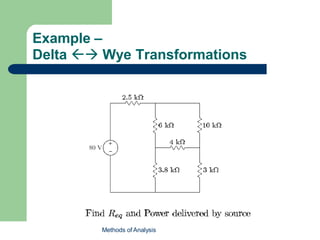

34. Example –
Delta  Wye Transformations
Methods of Analysis

35. Methods of Analysis

36. Methods of Analysis

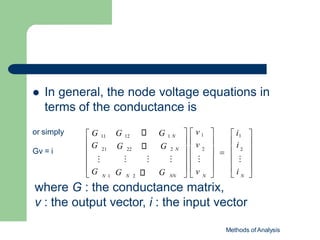

Methods of Analysis

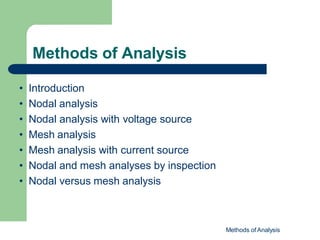

• Introduction
• Nodal analysis
• Nodal analysis with voltage source
• Mesh analysis
• Mesh analysis with current source
• Nodal and mesh analyses by inspection
• Nodal versus mesh analysis

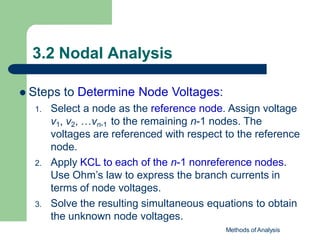

37. 3.2 Nodal Analysis
Methods of Analysis
 Steps to Determine Node Voltages:
1. Select a node as the reference node. Assign voltage
v1, v2, …vn-1 to the remaining n-1 nodes. The
voltages are referenced with respect to the reference
node.
2. Apply KCL to each of the n-1 nonreference nodes.
Use Ohm’s law to express the branch currents in
terms of node voltages.
3. Solve the resulting simultaneous equations to obtain
the unknown node voltages.

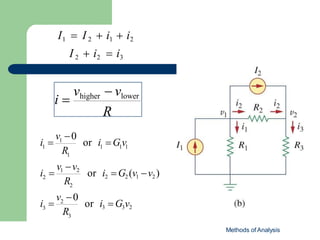

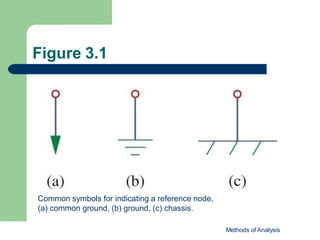

38. Figure 3.1
Common symbols for indicating a reference node,
(a) common ground, (b) ground, (c) chassis.
Methods of Analysis

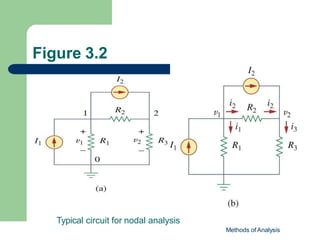

39. Figure 3.2
Methods of Analysis
Typical circuit for nodal analysis

40. I1  I 2  i1  i2
I 2  i2  i3
i 
vhigher  vlower
R
3
Methods of Analysis
2
3
2
2
1 1
1
1
1
1
R
R
R
or i3 G3v2
v 0
i 
or i2 G2 (v1 v2 )
v1 v2
i 
or i Gv
v 0
i 

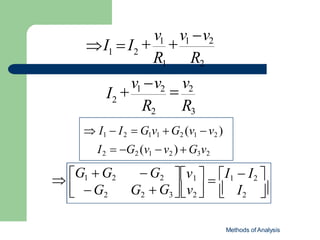

41. R2 R3
2

v1

v1 v2
2
1
I
R1 R2

v1 v2

v2
I  I
 I1  I2  G1v1 G2 (v1 v2 )
I2  G2 (v1 v2 )  G3v2

 I2
v1   I1  I2 

  G3 

v2 

G2 G2
 G1  G2  G2
Methods of Analysis

42. Example 3.1

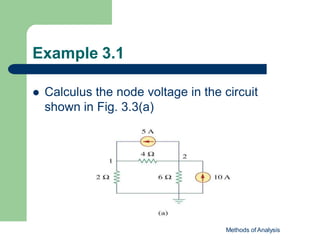

 Calculus the node voltage in the circuit
shown in Fig. 3.3(a)
Methods of Analysis

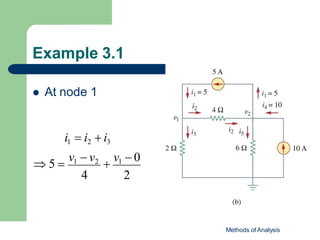

43. Example 3.1
Methods of Analysis
 At node 1
i1  i2  i3
 5 
v1  v2

v1  0
4 2

44. Example 3.1
Methods of Analysis
 v1

v2  0
4 6
 5 
v2

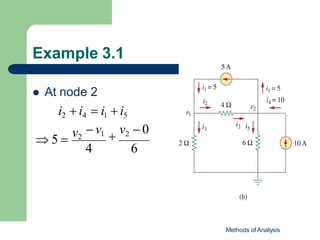

 At node 2
i2  i4  i1  i5

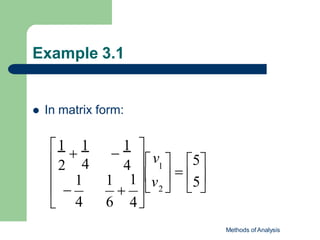

45. Example 3.1

Methods of Analysis
  


 
5

5
4
4 6
4
1 1
2 4 
 2   
1
1v 
 In matrix form:
1

1

1 
v

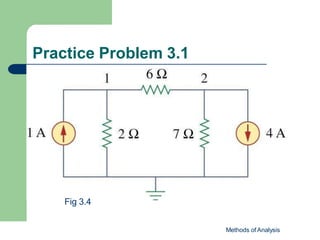

46. Practice Problem 3.1
Methods of Analysis
Fig 3.4

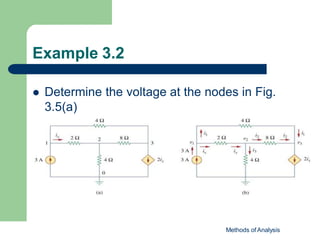

47. Example 3.2
 Determine the voltage at the nodes in Fig.
3.5(a)
Methods of Analysis

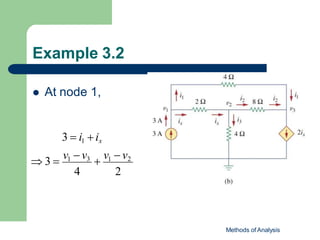

48. Example 3.2
Methods of Analysis
 At node 1,
3  i1 ix
 3 
v1  v3

v1  v2
4 2

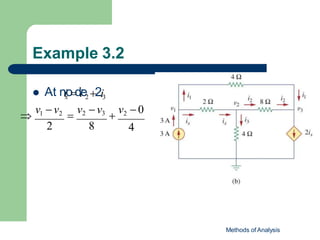

49. Example 3.2
Methods of Analysis
4

v1  v2

v2  v3

v2 0
2 8
2i3
 At nix
odie2

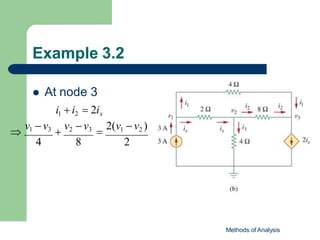

50. Example 3.2
 At node 3
i1  i2  2ix

v1  v3

v2 v3

2(v1  v2 )
4 8 2
Methods of Analysis

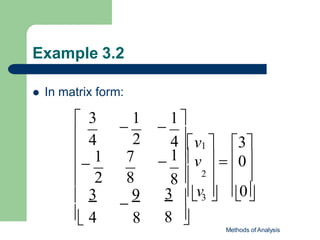

51. Example 3.2

Methods of Analysis
8 
1


 4

 2 8
3

9
8
2
1 7
 4
 In matrix form:
 3

1

1
3
1
  

3 v  0
  v  0
8  2   
4v  3

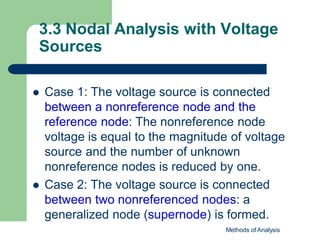

52. 3.3 Nodal Analysis with Voltage
Sources
Methods of Analysis
 Case 1: The voltage source is connected
between a nonreference node and the
reference node: The nonreference node
voltage is equal to the magnitude of voltage
source and the number of unknown
nonreference nodes is reduced by one.
 Case 2: The voltage source is connected
between two nonreferenced nodes: a
generalized node (supernode) is formed.

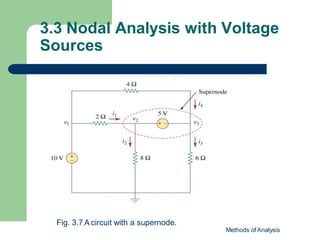

53. 3.3 Nodal Analysis with Voltage
Sources
i1  i4  i2  i3 
v1  v2

v1  v3

v2  0

v3 
0 2 4 8 6
 v2  v3  5
Fig. 3.7 A circuit with a supernode.
Methods of Analysis

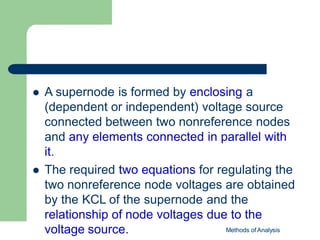

54.  A supernode is formed by enclosing a
(dependent or independent) voltage source
connected between two nonreference nodes
and any elements connected in parallel with
it.
 The required two equations for regulating the
two nonreference node voltages are obtained
by the KCL of the supernode and the
relationship of node voltages due to the
voltage source. Methods of Analysis

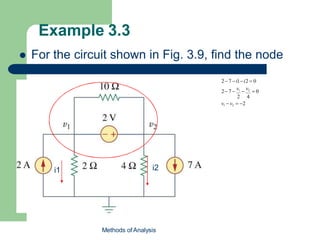

55. Example 3.3
 For the circuit shown in Fig. 3.9, find the node
2 7 i1i2  0
2 7 
v1

v2
 0
2 4
v1  v2  2
Methods of Analysis
i1 i2

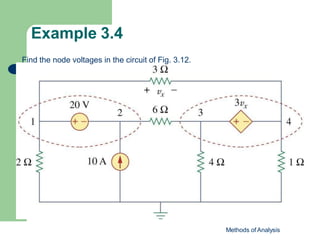

56. Example 3.4
Methods of Analysis
Find the node voltages in the circuit of Fig. 3.12.

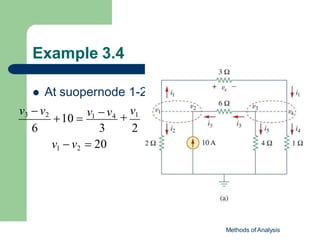

57. Example 3.4
 At suopernode 1-2,
6
Methods of Analysis
3 2
v1  v2  20
10 
v1  v4
v3  v2

v1

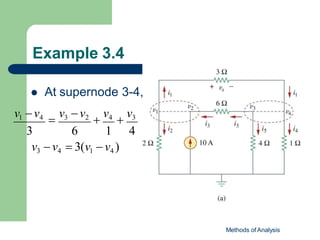

58. Example 3.4
Methods of Analysis
 At supernode 3-4,
v1 v4

v3 v2

v4

v3
3 6 1 4
v3  v4  3(v1  v4 )

59. 3.4 Mesh Analysis
Methods of Analysis
 Mesh analysis: another procedure for
analyzing circuits, applicable to planar circuit.
 A Mesh is a loop which does not contain any
other loops within it

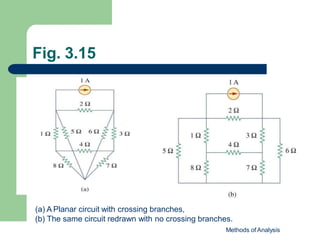

60. Fig. 3.15
(a) A Planar circuit with crossing branches,
(b) The same circuit redrawn with no crossing branches.
Methods of Analysis

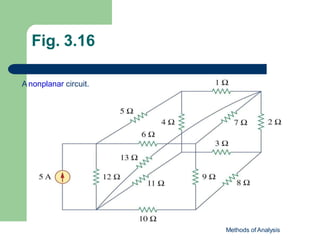

61. Fig. 3.16
A nonplanar circuit.
Methods of Analysis

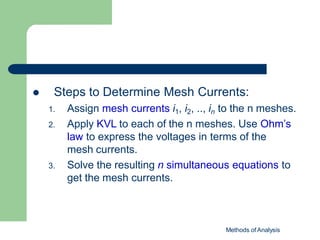

62.  Steps to Determine Mesh Currents:
1. Assign mesh currents i1, i2, .., in to the n meshes.
2. Apply KVL to each of the n meshes. Use Ohm’s
law to express the voltages in terms of the
mesh currents.
3. Solve the resulting n simultaneous equations to
get the mesh currents.
Methods of Analysis

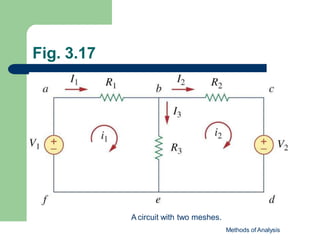

63. Fig. 3.17
Methods of Analysis
A circuit with two meshes.

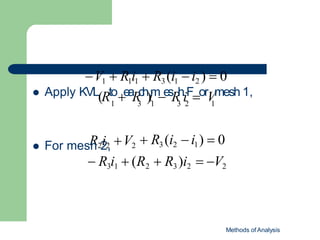

64. 1 3 1 3 2 1
Methods of Analysis
 Apply KVL(RtoeaRch)im
esRh.
iForVmesh 1,
V1  R1i1  R3 (i1  i2 )  0
 R3i1  (R2  R3 )i2  V2
 For mesR
h22
i2
, V2  R3 (i2  i1)  0

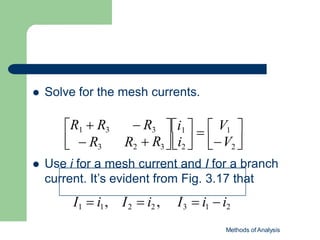

65.  Solve for the mesh currents.

V2


i1    V1 

  R3 

i2 

 R3 R2
R1  R3  R3
 Use i for a mesh current and I for a branch
current. It’s evident from Fig. 3.17 that
I1  i1, I2  i2 , I3  i1  i2
Methods of Analysis

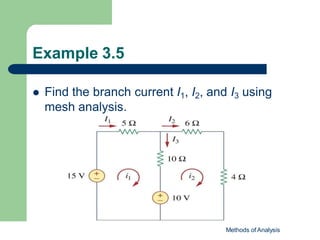

66. Example 3.5
 Find the branch current I1, I2, and I3 using
mesh analysis.
Methods of Analysis

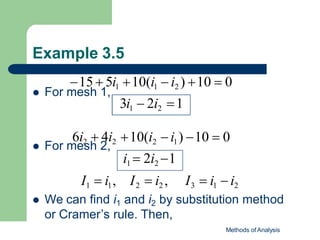

67. Example 3.5
 For mesh 1,
 For mesh 2,
15  5i1 10(i1  i2 ) 10  0
3i1  2i2 1
10(i2  i1) 10  0
i1  2i2 1
6i2  4i2
I1  i1, I2  i2 , I3  i1  i2
 We can find i1 and i2 by substitution method
or Cramer’s rule. Then,
Methods of Analysis

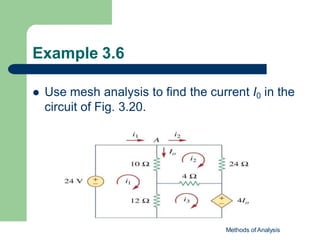

68. Example 3.6
 Use mesh analysis to find the current I0 in the
circuit of Fig. 3.20.
Methods of Analysis

69. Example 3.6

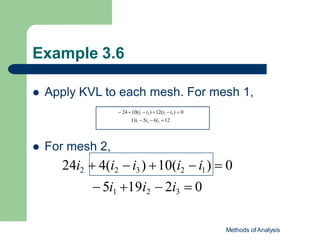

 Apply KVL to each mesh. For mesh 1,
 2410(i1  i2 ) 12(i1 i3 )  0
11i1  5i2  6i3 12
 For mesh 2,
24i2  4(i2  i3 ) 10(i2  i1)  0
 5i1 19i2  2i3  0
Methods of Analysis

70. Example 3.6
 For mesh 3,
 In matrix from Eqs. (3.6.1) to (3.6.3) become
we can calculus i1, i2 and i3 by Cramer’s rule,
and find I0.
I 1  i 2 ,
 i1 )  4 ( i3  i 2 )  0
At node A, I 0 
4 ( i1  i 2 )  12 ( i3
 i1  i 2  2 i3  0
4 I 0  12 ( i3  i1 )  4 ( i3  i 2 )  0

 0 

Methods of Analysis

  1 2 
 
i3 

 2 i2    0 
 11  5  6 i1  12 
 5 19
 1

71. 3.5 Mesh Analysis with Current
Sources
Fig. 3.22 A circuit with a current source.
Methods of Analysis

72.  Case 1
Methods of Analysis
– Current source exist only in one mesh
– One mesh variable is reduced
 Case 2
– Current source exists between two meshes, a
super-mesh is obtained.
i1   2A

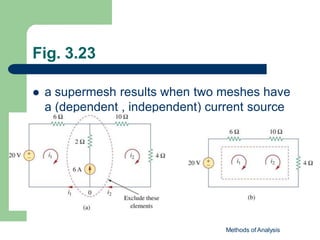

73. Fig. 3.23
 a supermesh results when two meshes have
a (dependent , independent) current source
in common.
Methods of Analysis

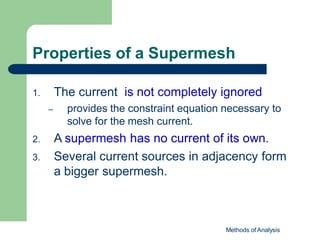

74. Properties of a Supermesh
Methods of Analysis
1. The current is not completely ignored
– provides the constraint equation necessary to
solve for the mesh current.
2. A supermesh has no current of its own.
3. Several current sources in adjacency form
a bigger supermesh.

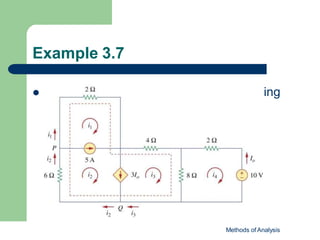

75. Example 3.7
 For the circuit in Fig. 3.24, find i1 to i4 using
mesh analysis.
Methods of Analysis

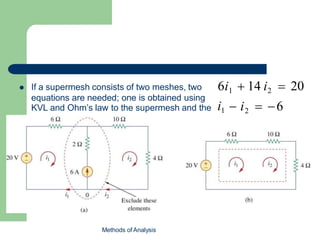

76.  If a supermesh consists of two meshes, two
equations are needed; one is obtained using
KVL and Ohm’s law to the supermesh and the i1
other is obtained by relation regulated due to
the current source.
 i2  6
6i1  14 i2  20
Methods of Analysis

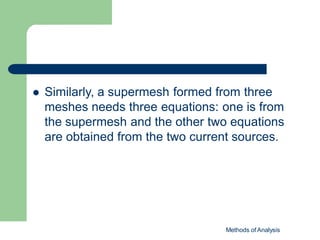

77.  Similarly, a supermesh formed from three
meshes needs three equations: one is from
the supermesh and the other two equations
are obtained from the two current sources.
Methods of Analysis

78. 8 (i3  i4 )  2 i4  10  0
 8 (i3  i4 )  6 i2  0
 5
 i4
2 i1  4 i3
i1  i2 
i2  i3 
Methods of Analysis

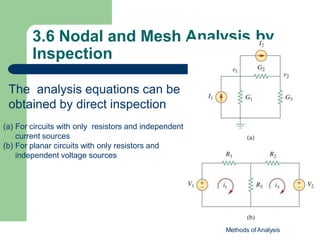

79. 3.6 Nodal and Mesh Analysis by
Inspection
The analysis equations can be
obtained by direct inspection
(a) For circuits with only resistors and independent
current sources
(b) For planar circuits with only resistors and
independent voltage sources
Methods of Analysis

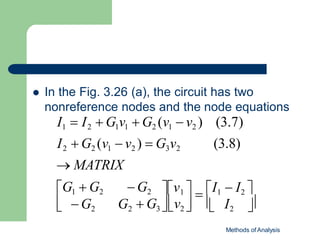

80.  In the Fig. 3.26 (a), the circuit has two
nonreference nodes and the node equations
Methods of Analysis


(3.7)
(3.8)
I2
v1   I1  I2 

  G3


v2


 G2 G2
G1  G2 G2
I1  I2  G1v1  G2 (v1  v2 )
I2  G2 (v1  v2 )  G3v2
 MATRIX

81.  In general, the node voltage equations in
terms of the conductance is
Methods of Analysis


 
   

    
N N
  v   i 
G
G
 G
 G
  ⁝   ⁝ 
 ⁝
 i 
2
 i1
  v 1 
  v 
2
2
N 1
21 G 22 G 2 N
⁝ ⁝ ⁝
N NN
G 1 N
 G 11 G 12
or simply
Gv = i
where G : the conductance matrix,
v : the output vector, i : the input vector

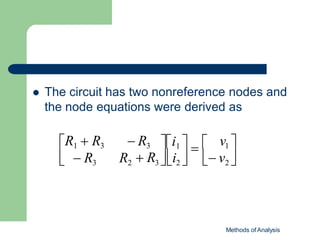

82.  The circuit has two nonreference nodes and
the node equations were derived as
Methods of Analysis

 v2


v1 
i1   

  R3 

i2 

 R3 R2
R1  R3  R3

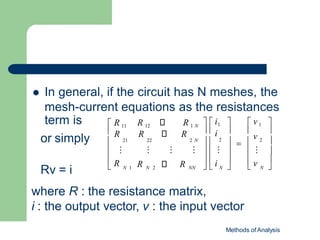

83.  In general, if the circuit has N meshes, the
mesh-current equations as the resistances
Methods of Analysis

   

     
N
v
  i   v 
R
R
 R
 ⁝
  ⁝ 
 ⁝
2
  i1   v 1 
  i   
2 

N 1 N 2 NN N
R 12 R 1 N
 R R R
21 22 2 N
⁝ ⁝ ⁝
 R 11
term is
or simply
Rv = i
where R : the resistance matrix,
i : the output vector, v : the input vector

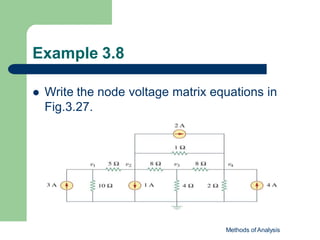

84. Example 3.8
 Write the node voltage matrix equations in
Fig.3.27.
Methods of Analysis

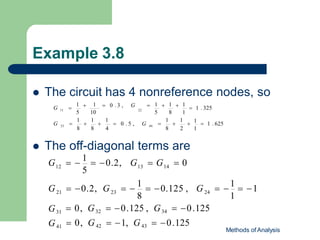

85. Example 3.8
 The circuit has 4 nonreference nodes, so
 The off-diagonal terms are
1 1
8 2 1
1 1 1
8 8 4
44
33
11
 
1
 1 . 625
   0 . 5 , G 
G 
1  1  0 . 3 , G  1  1  1
5 10 22
5 8 1
G   1 . 325
1
Methods of Analysis
 
1
 1
8
5
24
23
21
14
12 13
 0, G32  0.125 , G34  0.125
 0, G42  1, G43  0.125
G31
G41
G  0.2, G  
1
 0.125 , G
G  
1
 0.2, G  G  0

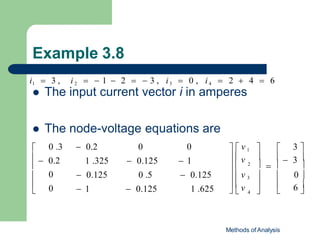

86. Example 3.8
Methods of Analysis
i1  3 , i 2   1  2   3 , i3  0 , i4  2  4  6
 The input current vector i in amperes
 The node-voltage equations are






 
 
  
 6 
   
0 
  3 
3 




 0
 1
 0.125
1 .625
0
0
  0.2
0 .3  0.2 0
1 .325  0.125
 0.125 0 .5
 1  0.125 4
  v
  v 3
  v
  v 1
2

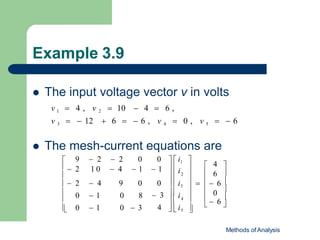

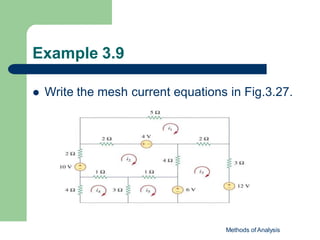

87. Example 3.9
 Write the mesh current equations in Fig.3.27.
Methods of Analysis

88. Example 3.9
Methods of Analysis
 The input voltage vector v in volts
 The mesh-current equations are
v 1  4 , v 2  10  4  6 ,
v 3   12  6   6 , v 4  0 , v 5   6


 

 




  

 6

 


 9  2  2 0 0
  2 1 0  4  1  1

  2  4 9 0 0
 0  1 0 8
0  1 0  3
0
6
4
4
4 
 
 i5
 3   i
2
  i3     6 
  i 
  i1 

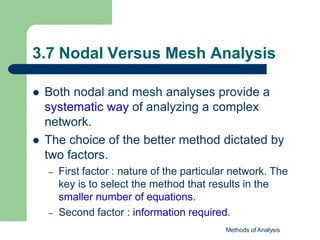

89. 3.7 Nodal Versus Mesh Analysis
Methods of Analysis
 Both nodal and mesh analyses provide a
systematic way of analyzing a complex
network.
 The choice of the better method dictated by
two factors.
– First factor : nature of the particular network. The
key is to select the method that results in the
smaller number of equations.
– Second factor : information required.

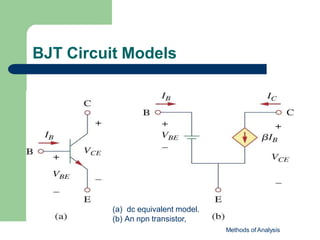

90. BJT Circuit Models
(a) dc equivalent model.
(b) An npn transistor,
Methods of Analysis

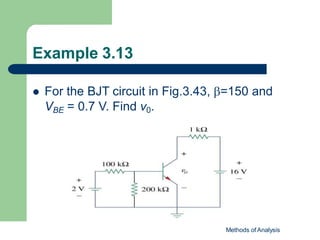

91. Example 3.13
 For the BJT circuit in Fig.3.43, =150 and
VBE = 0.7 V. Find v0.
Methods of Analysis

92. Example 3.13
 Use mesh analysis or nodal analysis
Methods of Analysis

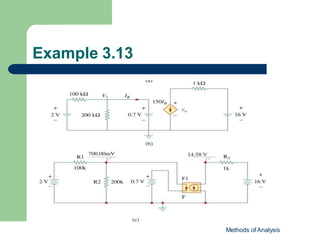

93. Example 3.13
Methods of Analysis

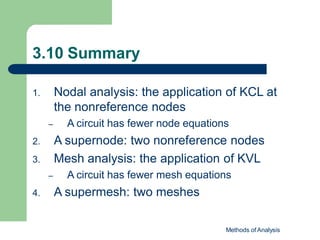

94. 3.10 Summary
Methods of Analysis
1. Nodal analysis: the application of KCL at
the nonreference nodes
– A circuit has fewer node equations
2. A supernode: two nonreference nodes
3. Mesh analysis: the application of KVL
– A circuit has fewer mesh equations
4. A supermesh: two meshes

95. UNIT II – SINUSOIDAL STEADY STATE ANALYSIS
–-Phasor
– Sinusoidal steady state response concepts of impedance and admittance
– Analysis of simple circuits
– Power and power factors
–– Solution of three phase balanced circuits and three phase unbalanced circuits
–-Power measurement in three phase circuits.
9
Methods of Analysis
95

96. Sinusoidal Steady State
Response

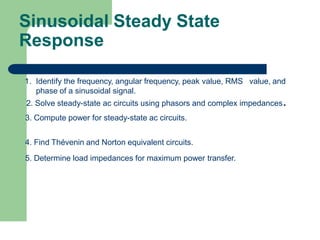

97. Sinusoidal Steady State
Response
1. Identify the frequency, angular frequency, peak value, RMS value, and
phase of a sinusoidal signal.
2. Solve steady-state ac circuits using phasors and complex impedances.
3. Compute power for steady-state ac circuits.
4. Find Thévenin and Norton equivalent circuits.
5. Determine load impedances for maximum power transfer.

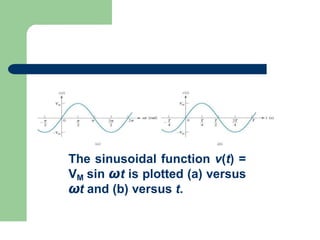

98. The sinusoidal function v(t) =
VM sin ωt is plotted (a) versus
ωt and (b) versus t.

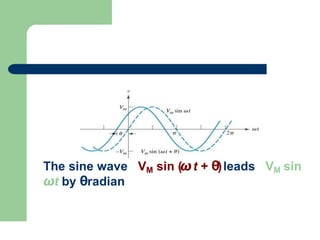

99. The sine wave VM sin (ωt + θ)leads VM sin
ωt by θradian

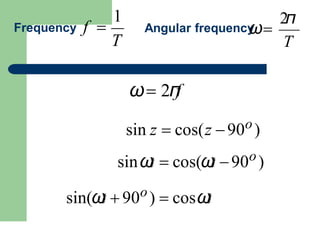

100. T
2π
Angular frequency
ω
T
Frequency f 
ω 2π
f
sin z  cos(z 90o)
sinω
t  cos(ω
t 90o)
sin(ω
t  90o)  cosω
t
1

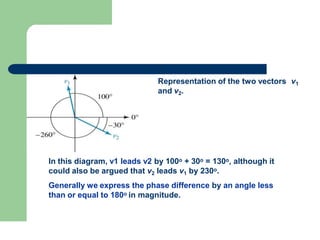

101. Representation of the two vectors v1
and v2.
In this diagram, v1 leads v2 by 100o + 30o = 130o, although it
could also be argued that v2 leads v1 by 230o.
Generally we express the phase difference by an angle less
than or equal to 180o in magnitude.

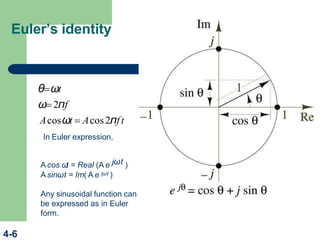

102. Euler’s identity
θωt
ω2πf
Acosωt  Acos2πft
In Euler expression,
A cos ω
t = Real (A e jωt )
A sinωt = Im( A e jωt )
Any sinusoidal function can
be expressed as in Euler
form.
4-6

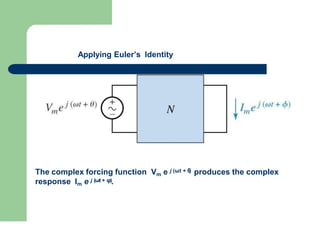

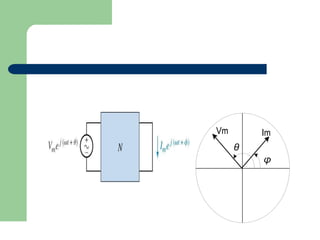

103. The complex forcing function Vm e j (ωt + θ
) produces the complex
response Im e j (ωt + φ).
Applying Euler’s Identity

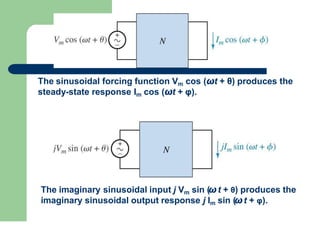

104. The sinusoidal forcing function Vm cos (ωt + θ) produces the
steady-state response Im cos (ωt + φ).
The imaginary sinusoidal input j Vm sin (ωt + θ) produces the
imaginary sinusoidal output response j Im sin (ωt + φ).

105. Re(Vm e j (ωt + θ
) ) → Re(Im e j (ω
t + φ
))
Im(Vm e j (ωt + θ
) ) → Im(Im e j (ω
t + φ
))

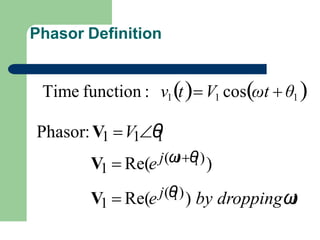

106. Phasor Definition
Time function : v1tV1 cosωt  θ1 
Phasor:V1 V1θ
1
V1  Re(e j(ω
tθ
1))
V1  Re(e j(θ
1)) by droppingω
t

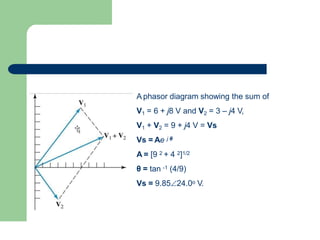

107. A phasor diagram showing the sum of
V1 = 6 + j8 V and V2 = 3 – j4 V,
V1 + V2 = 9 + j4 V = Vs
Vs = Ae j θ
A = [9 2 + 4 2]1/2
θ = tan -1 (4/9)
Vs = 9.8524.0o V.

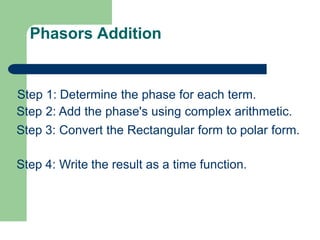

108. Phasors Addition
Step 1: Determine the phase for each term.
Step 2: Add the phase's using complex arithmetic.
Step 3: Convert the Rectangular form to polar form.
Step 4: Write the result as a time function.

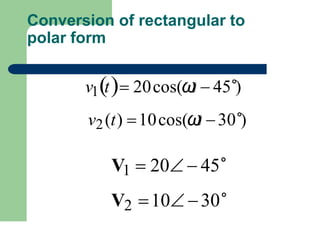

109. Conversion of rectangular to
polar form
v1t 20cos(ω
t  45∘)
v2(t) 10cos(ω
t 30∘)
V1  20  45∘
V2 10 30∘

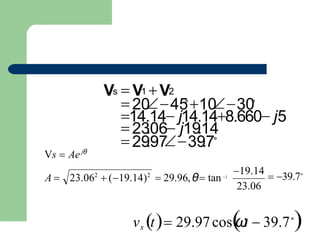

110. vs t 29.97cos
ω
t  39.7∘

19.14
 39.7∘
23.06
 (19.14)2
 29.96,θ tan1
Vs  Aejθ
A  23.062
 29
.97
39
.7∘
 20
45
∘
10
30
∘
 23
.06 j19
.14
14.14 j14.148.660 j5
Vs  V1 V2

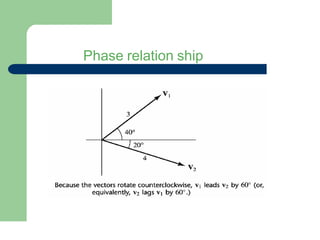

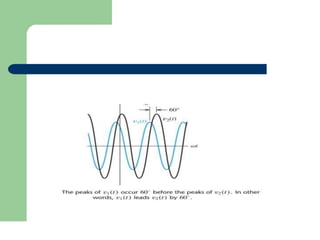

111. Phase relation ship

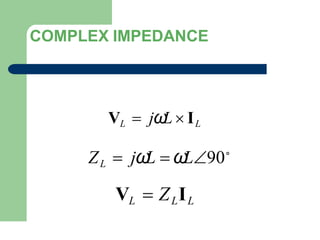

113. COMPLEX IMPEDANCE
VL  jω
L  IL
ZL  jω
L  ω
L90∘
VL  ZLIL

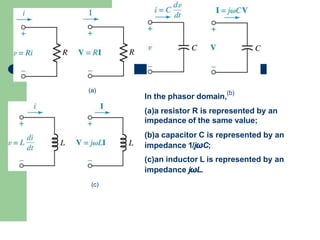

114. In the phasor domain,
(b)
(a)
(c)
(a)a resistor R is represented by an
impedance of the same value;
(b)a capacitor C is represented by an
impedance 1/jωC;
(c)an inductor L is represented by an
impedance jωL.

115. d Ve
dt dt
 Zc
 jωCVe jωt
jωt
jωt
1
I jωC
I  jω CV 
V

d V
I  C  C
V  Ve
Zc is defined as the impedance of a capacitor
The impedance of a capacitor is 1/jC.

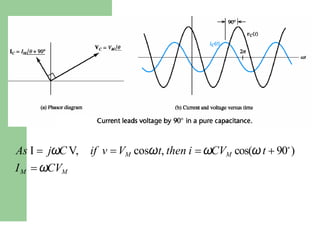

As I  jωC V, if v  V cosωt, then i  ωCVcos(ωt  90∘
)

116. As I  jωC V,
IM  ωCVM
if v VM cosωt, then i  ωCVM cos(ωt  90∘
)

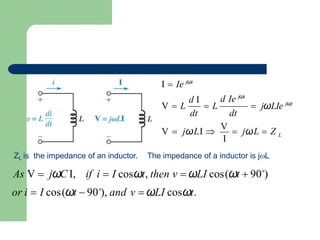

117. L
I  Ie jωt
V  jωLI 
V
 jωL  Z
dt
 L  jωLIe jωt
d Ie jωt
dt
d I
V  L
As V  jωC I, if i  I cosωt, then v  ωLI cos(ωt  90∘
)
or i  I cos(ωt  90∘
), and v  ωLI cosωt.
I
ZL is the impedance of an inductor. The impedance of a inductor is jL

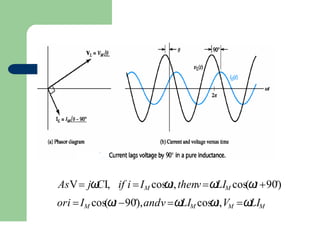

118. AsV jω
CI, if i IM cosω
t,thenvω
LIM cos(ω
t 90∘
)
ori IM cos(ω
t 90∘
),andv ω
LIM cosω
t,VM ω
LIM

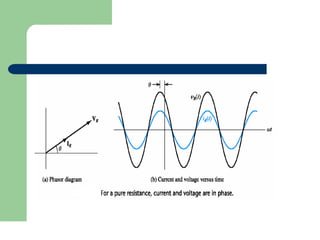

120.   j
1

1
  90∘
Z 
C
1
jωC ωC ωC
VL  ZLIL
ZL  jω
L  ω
L90∘
VR  RIR
Complex Impedance in Phasor
Notation
VC  ZCIC

121. θ
φ

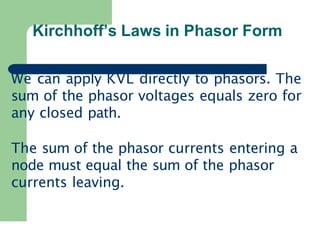

122. Kirchhoff’s Laws in Phasor Form
We can apply KVL directly to phasors. The
sum of the phasor voltages equals zero for
any closed path.
The sum of the phasor currents entering a
node must equal the sum of the phasor
currents leaving.

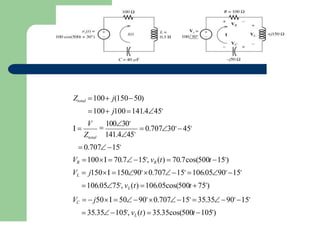

123.  0.70730∘
45∘
141.445∘
I 
V

10030∘
 0.70715∘
VR 100I  70.715∘
, vR (t)  70.7cos(500t 15∘
)
VL  j150I 15090∘
0.70715∘
106.0590∘
15∘
106.0575∘
, vL(t) 106.05cos(500t 75∘
)
VC   j50I  5090∘
0.70715∘
 35.3590∘
15∘
 35.35105∘
, vL(t)  35.35cos(500t 105∘
)
Ztotal
Ztotal 100 j(15050)
100 j100141.445∘

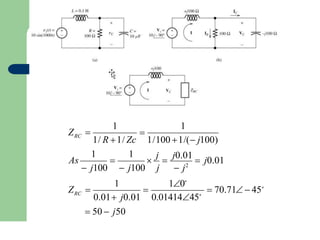

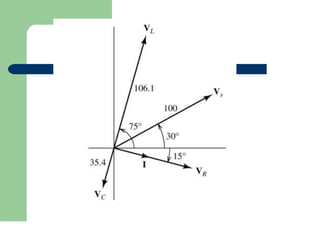

125. 1
1 1
1/100 1/( j100)
1
1
Z
As
RC
RC
 50  j50
 
j

j0.01
 j0.01
1/ R 1/ Zc
Z 
   70.71  45∘
0.01 j0.01 0.0141445∘
 j100  j100 j  j2
10∘


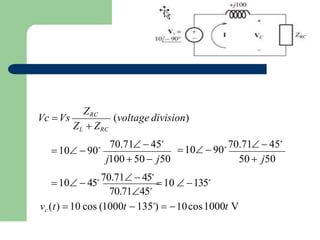

126. j100  50  j50 50  j50
ZRC
ZL  ZRC
Vc Vs
70.7145∘
vc (t) 10 cos (1000t  135∘
)  10cos1000t V
10  45∘ 70.71  45∘
 10  135∘
(voltage division)
70.71  45∘
10  90∘ 70.71  45∘
10  90∘

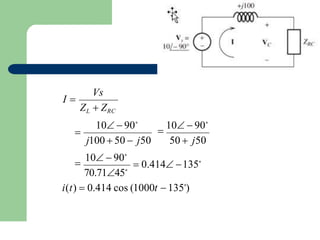

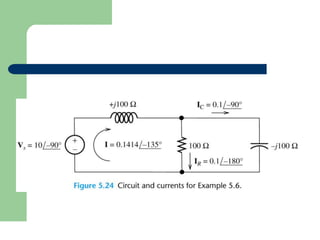

127.  0.414 135∘
70.7145∘

10  90∘

10  90∘
10  90∘

i(t)  0.414 cos (1000t  135∘
)
j100  50  j50 50  j50
Vs
I 
ZL  ZRC

128.  0.1  45∘
100
 0.1 135∘

10 135∘
I
R
I
iR (t)  0.1cos (1000t  45∘
) A

VC

10 135∘

10 135∘
Zc  j100 100  90∘
C
iR (t)  0.1cos (1000t 135∘
)

VC
R

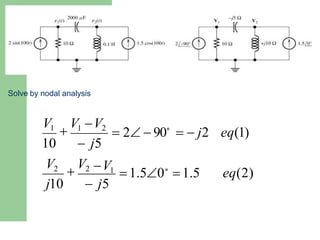

130. Solve by nodal analysis
eq(2)
j10  j5
eq(1)
V2

V2
V1

V1 V2
10  j5
V1
 1.50∘
 1.5
 2  90∘
  j2

131. 16.133.69∘
63.43∘
j
  j,
1
 j
1  j
As
1

1

j

j j j
eq(2)
eq(1)
1
V2

16.129.74∘
v1 16.1cos(100t 29.74∘
) V
0.1 j0.2 0.223663.43∘
3 j2 3.633.69∘
V 
0.1V1  j0.2V1  j0.2V2   j2
(0.1 j0.2)V1  j0.2V2   j2
Fromeq(2)
 j0.2V1  j0.1V2 1.5
SolvingV1 by eq(1)2eq(2)
(0.1 j0.2)V1  3 j2
Fromeq(1)

V2 V1
1.50∘
1.5
j10  j5
 290∘
  j2
V1

V1 V2
10  j5

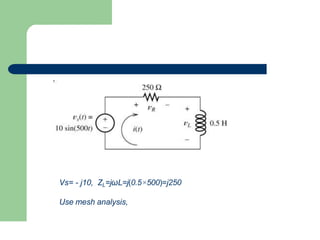

132. Vs= - j10, ZL=jωL=j(0.5×500)=j250
Use mesh analysis,

133.  45∘
  0.028   90 ∘
250  j250 353 .3345∘
 j10 10  90 ∘
I 
I  0.028   135 ∘
i  0.028 cos( 500 t  135 ∘
)A
VL  I  Z L  (0.028   135 ∘
)  250 90 ∘
 7  45∘
vL (t)  7 cos( 500 t  45∘
) V
VR  I  R  (0.028   135 ∘
)  250  7  135 ∘
vR (t)  7 cos( 500 t  135 ∘
)
 Vs  VR  VZ  0
 ( j10 )  I  250  I  ( j250 )  0

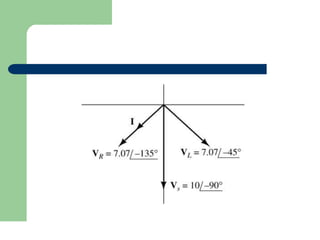

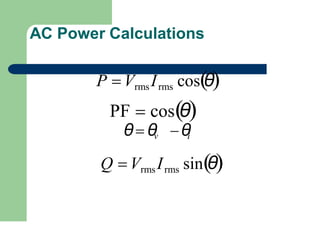

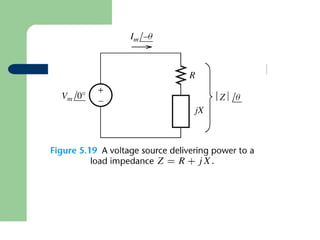

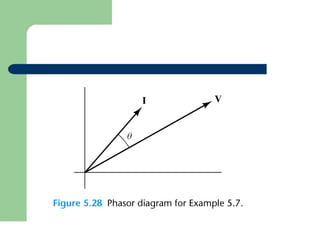

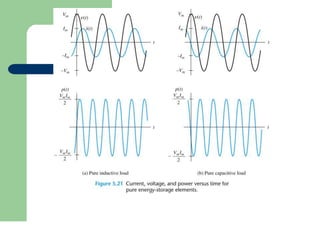

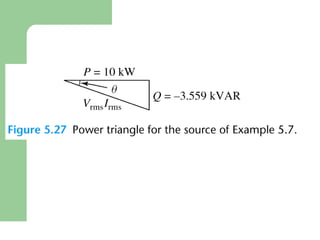

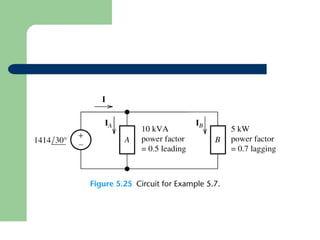

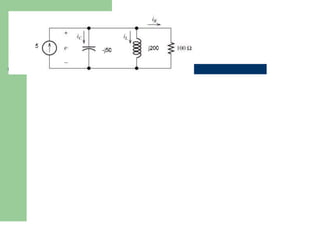

141. AC Power Calculations
P  Vrms Irms cosθ
PF  cosθ
θ θ
v θ
i
Q  Vrms Irms sinθ

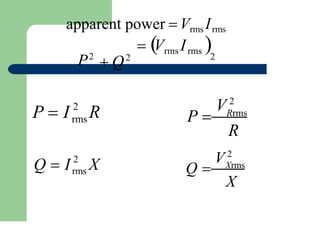

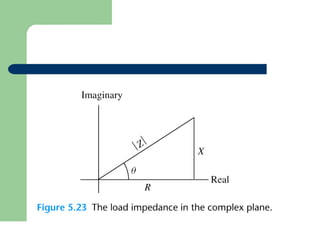

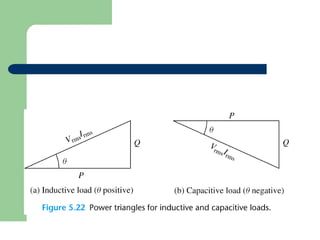

142. apparent power  Vrms Irms
P2
 Vrms Irms 2
 Q2
R
2
rms
P  I
X
2
rms
Q  I
R
V 2
P  Rrms
X
V 2
Q  Xrms

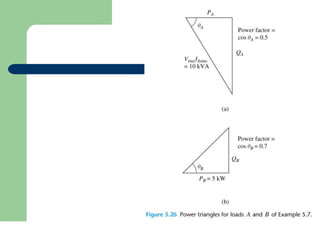

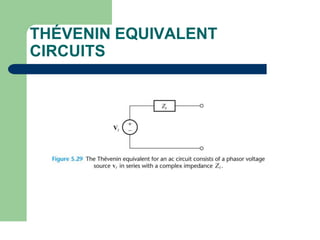

151. THÉVENIN EQUIVALENT
CIRCUITS

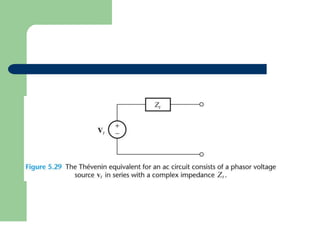

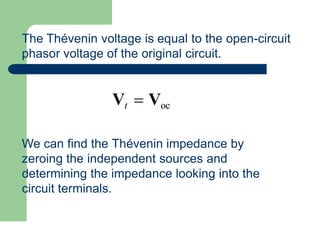

152. The Thévenin voltage is equal to the open-circuit
phasor voltage of the original circuit.
Vt  Voc
We can find the Thévenin impedance by
zeroing the independent sources and
determining the impedance looking into the
circuit terminals.

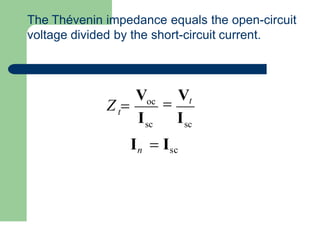

153. The Thévenin impedance equals the open-circuit
voltage divided by the short-circuit current.
sc
sc
oc
I I
V

Vt
t
Z 

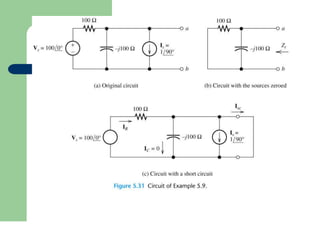

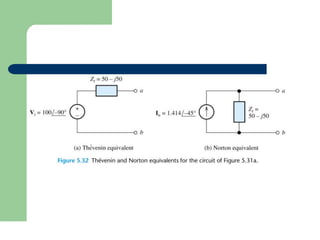

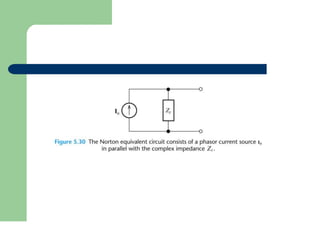

In  Isc

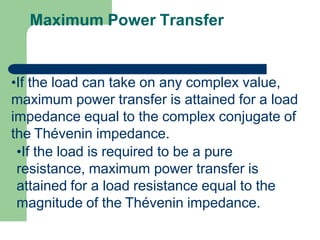

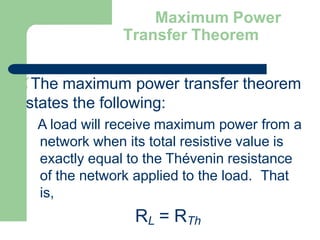

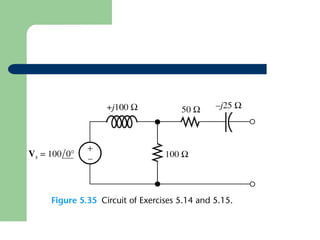

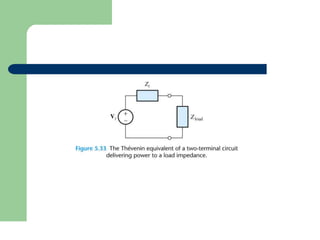

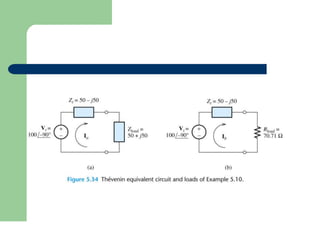

158. Maximum Power Transfer
•If the load can take on any complex value,
maximum power transfer is attained for a load
impedance equal to the complex conjugate of
the Thévenin impedance.
•If the load is required to be a pure
resistance, maximum power transfer is
attained for a load resistance equal to the
magnitude of the Thévenin impedance.

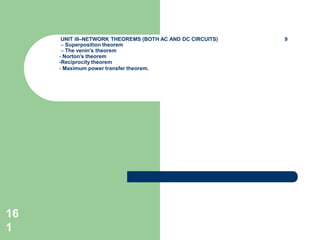

161. UNIT III–NETWORK THEOREMS (BOTH AC AND DC CIRCUITS) 9
– Superposition theorem
– The venin’s theorem
- Norton’s theorem
-Reciprocity theorem
- Maximum power transfer theorem.
16
1

162. 9.1 – Introduction
 This chapter introduces important
fundamental theorems of network analysis.
They are the
Superposition theorem
Thévenin’s theorem
Norton’s theorem
Maximum power transfer theorem
Substitution Theorem
Millman’s theorem
Reciprocity theorem

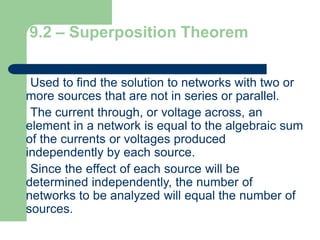

163. 9.2 – Superposition Theorem
Used to find the solution to networks with two or
more sources that are not in series or parallel.
The current through, or voltage across, an
element in a network is equal to the algebraic sum
of the currents or voltages produced
independently by each source.
Since the effect of each source will be
determined independently, the number of
networks to be analyzed will equal the number of
sources.

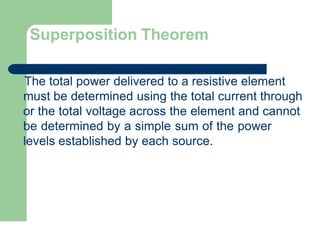

164. Superposition Theorem
The total power delivered to a resistive element
must be determined using the total current through
or the total voltage across the element and cannot
be determined by a simple sum of the power
levels established by each source.

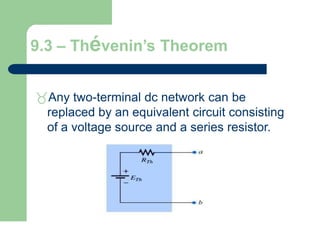

165. 9.3 – Thévenin’s Theorem
Any two-terminal dc network can be
replaced by an equivalent circuit consisting
of a voltage source and a series resistor.

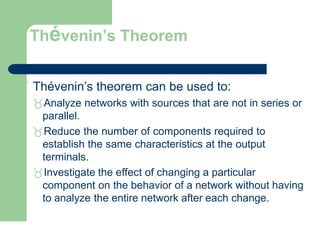

166. Thévenin’s Theorem
 Thévenin’s theorem can be used to:
Analyze networks with sources that are not in series or
parallel.
Reduce the number of components required to
establish the same characteristics at the output
terminals.
Investigate the effect of changing a particular
component on the behavior of a network without having
to analyze the entire network after each change.

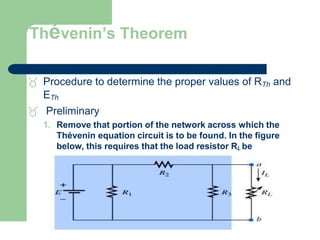

167. Thévenin’s Theorem
 Procedure to determine the proper values of RTh and
ETh
 Preliminary
1. Remove that portion of the network across which the
Thévenin equation circuit is to be found. In the figure
below, this requires that the load resistor RL be
temporarily removed from the network.

168. Thévenin’s Theorem

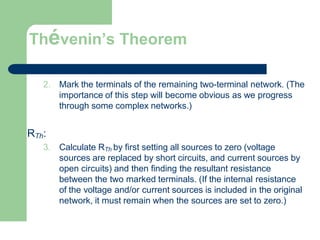

2. Mark the terminals of the remaining two-terminal network. (The
importance of this step will become obvious as we progress
through some complex networks.)
RTh:
3. Calculate RTh by first setting all sources to zero (voltage
sources are replaced by short circuits, and current sources by
open circuits) and then finding the resultant resistance
between the two marked terminals. (If the internal resistance
of the voltage and/or current sources is included in the original
network, it must remain when the sources are set to zero.)

169. Thévenin’s Theorem
ETh:

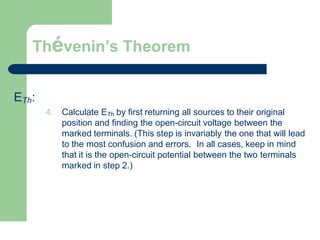

4. Calculate ETh by first returning all sources to their original
position and finding the open-circuit voltage between the
marked terminals. (This step is invariably the one that will lead
to the most confusion and errors. In all cases, keep in mind
that it is the open-circuit potential between the two terminals
marked in step 2.)

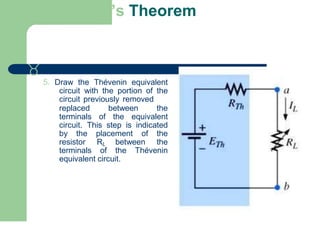

170. ’s Theorem

5. Draw the Thévenin equivalent
circuit with the portion of the
circuit previously removed
replaced between the
terminals of the equivalent
circuit. This step is indicated
by the placement of the
resistor RL between the
terminals of the Thévenin
equivalent circuit.
Insert Figure 9.26(b)

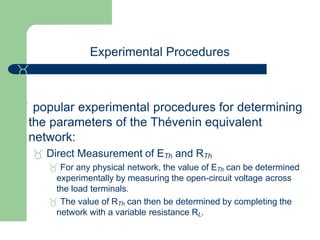

171. Experimental Procedures

 popular experimental procedures for determining
the parameters of the Thévenin equivalent
network:
 Direct Measurement of ETh and RTh
 For any physical network, the value of ETh can be determined
experimentally by measuring the open-circuit voltage across
the load terminals.
 The value of RTh can then be determined by completing the
network with a variable resistance RL.

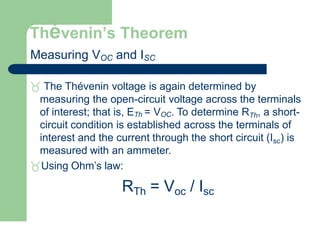

172. Thévenin’s Theorem
Measuring VOC and ISC
 The Thévenin voltage is again determined by
measuring the open-circuit voltage across the terminals
of interest; that is, ETh = VOC. To determine RTh, a short-
circuit condition is established across the terminals of
interest and the current through the short circuit (Isc) is
measured with an ammeter.
Using Ohm’s law:
RTh = Voc / Isc

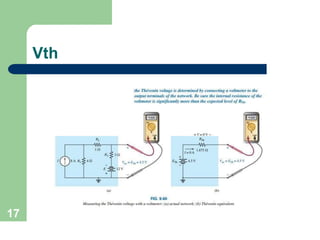

173. Vth
17

174. Rth
17

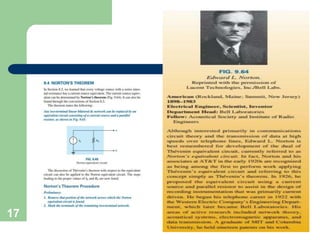

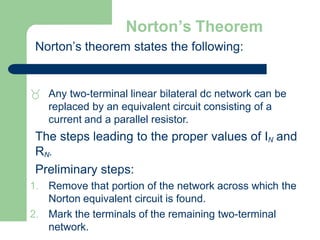

175. Norton’s Theorem
Norton’s theorem states the following:
 Any two-terminal linear bilateral dc network can be
replaced by an equivalent circuit consisting of a
current and a parallel resistor.
The steps leading to the proper values of IN and
RN.
Preliminary steps:
1. Remove that portion of the network across which the
Norton equivalent circuit is found.
2. Mark the terminals of the remaining two-terminal
network.

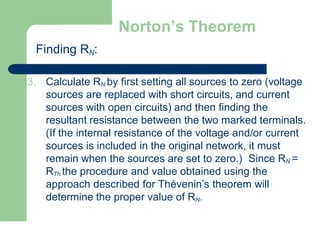

176. Norton’s Theorem
Finding RN:
3. Calculate RN by first setting all sources to zero (voltage
sources are replaced with short circuits, and current
sources with open circuits) and then finding the
resultant resistance between the two marked terminals.
(If the internal resistance of the voltage and/or current
sources is included in the original network, it must
remain when the sources are set to zero.) Since RN =
RTh the procedure and value obtained using the
approach described for Thévenin’s theorem will
determine the proper value of RN.

177. Norton’s Theorem
Finding IN :
4. their
original position and then finding the short-circuit
current between the marked terminals. It is the same
current that would be measured by an ammeter
placed between the marked terminals.
Conclusion:
5. Draw the Norton equivalent circuit with the portion of
the circuit previously removed replaced between the
terminals of the equivalent circuit.

178. 17

179. Maximum Power
Transfer Theorem
The maximum power transfer theorem
states the following:
A load will receive maximum power from a
network when its total resistive value is
exactly equal to the Thévenin resistance
of the network applied to the load. That
is,
RL = RTh

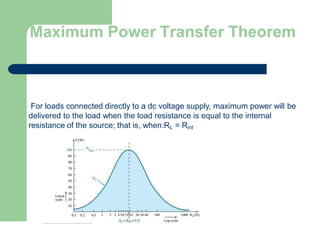

180. Maximum Power Transfer Theorem
For loads connected directly to a dc voltage supply, maximum power will be
delivered to the load when the load resistance is equal to the internal
resistance of the source; that is, when:RL = Rint

181. Reciprocity Theorem

The reciprocity theorem is applicable only to
single-source networks and states the following:
 The current I in any branch of a network, due to a
single voltage source E anywhere in the network, will
equal the current through the branch in which the
source was originally located if the source is placed in
the branch in which the current I was originally
measured.
 The location of the voltage source and the resulting current
may be interchanged without a change in current

182. UNIT IV - TRANSIENT RESPONSE FOR DC CIRCUITS
–– Transient response of RL, RC and RLC
–– Laplace transform for DC input with sinusoidal input.

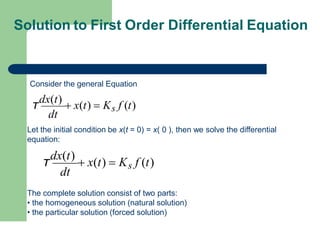

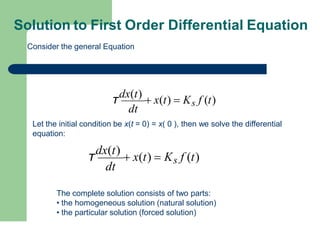

183. Solution to First Order Differential Equation
dt
τ
dx(t)
 x(t)  Ks f (t)
Consider the general Equation
dt
Let the initial condition be x(t = 0) = x( 0 ), then we solve the differential
equation:
τ
dx(t)
 x(t)  Ks f (t)
The complete solution consists of two parts:
• the homogeneous solution (natural solution)
• the particular solution (forced solution)

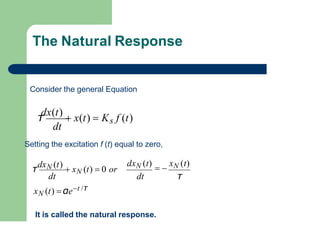

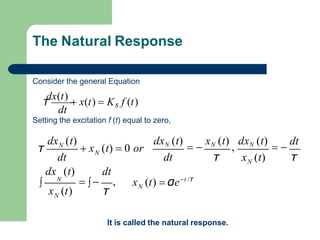

184. The Natural Response
τ
τ
N
x (t)  αet /τ
N
N
τ x (t) τ
N
N
x (t)
dt dt
dx (t) dxN (t)
 
xN (t)
,
dxN (t)
 
dt
 x (t)  0 or
dx (t) dt
 N
   ,
Consider the general Equation
dt
Setting the excitation f (t) equal to zero,
τ
dx(t)
 x(t)  Ks f (t)
It is called the natural response.

185. The Forced Response
τ
dxF (t)
 xF (t)  KS F
Consider the general Equation
Setting the excitation f (t) equal to F, a constant for t 0
dt
τ
dx(t)
 x(t)  Ks f (t)
dt
xF (t)  KS F for t 0
It is called the forced response.

186. t /τ
αe  x()
 αet /τ KS F
Consider the general Equation
dt
The complete response is:
• the natural response +
• the forced response
x  xN (t)  xF (t)
τ
dx(t)
 x(t)  Ks f (t)

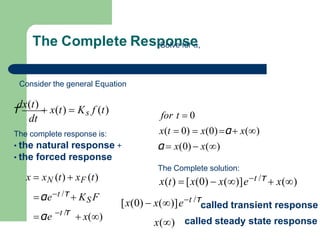

The Complete Resp
So
olv
n
e f
s
ore
,
for t  0
x(t  0)  x(0)α x()
α x(0)  x()
The Complete solution:
x(t)  [x(0)  x()]et /τ  x()
[x(0)  x()]et /τ
called transient response
x() called steady state response

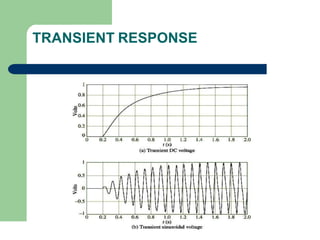

187. TRANSIENT RESPONSE

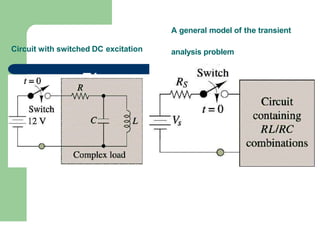

188. Figu
Circuit with switched DC excitation
A general model of the transient
analysis problem

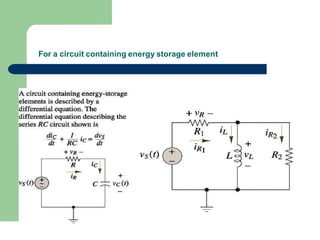

189. For a circuit containing energy storage element

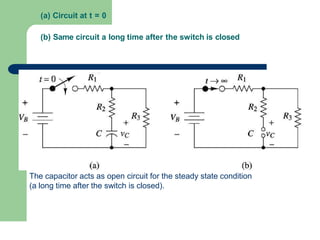

190. (a) Circuit at t = 0
(b) Same circuit a long time after the switch is closed
The capacitor acts as open circuit for the steady state condition
(a long time after the switch is closed).

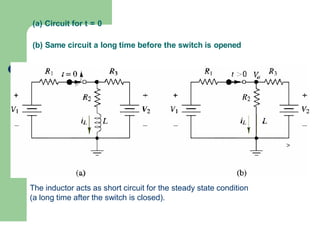

191. (a) Circuit for t = 0
(b) Same circuit a long time before the switch is opened
The inductor acts as short circuit for the steady state condition
(a long time after the switch is closed).

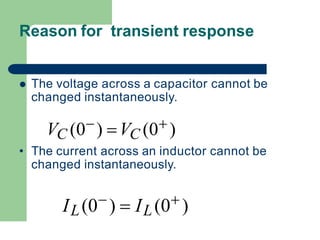

192. Reason for transient response
 The voltage across a capacitor cannot be
changed instantaneously.
VC (0) VC (0 )
• The current across an inductor cannot be
changed instantaneously.
IL(0)  IL(0 )

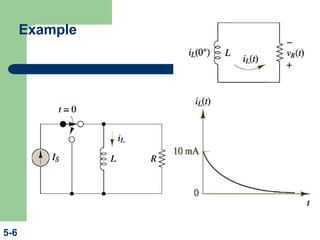

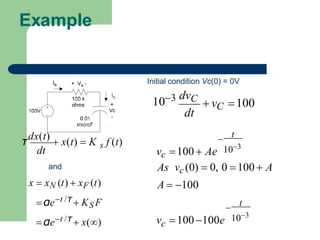

193. 5-6
Example

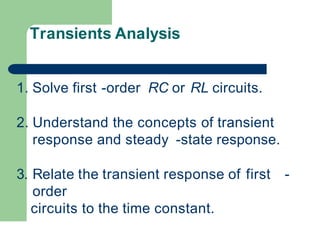

194. Transients Analysis
1. Solve first -order RC or RL circuits.
2. Understand the concepts of transient
response and steady -state response.
3. Relate the transient response of first -
order
circuits to the time constant.

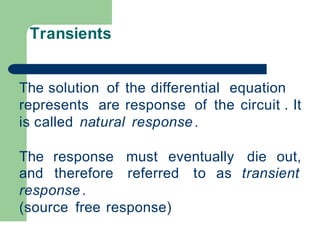

195. Transients
The solution of the differential equation
represents are response of the circuit . It
is called natural response .
The response must eventually die out,
to as transient
and therefore referred
response .
(source free response)

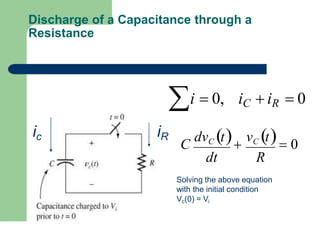

196. Discharge of a Capacitance through a
Resistance
ic iR
iC  iR  0
i  0,
C
dvC t
vC t 0
dt R
Solving the above equation
with the initial condition
Vc(0) = Vi

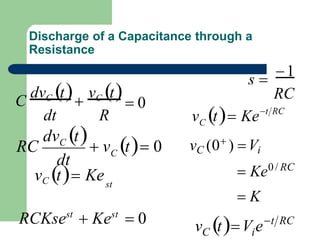

197.     0
R
dt
t

vC t
C
dvC
 v t 0
dt
dv t
RC C
C
vC t Kest
RCKsest
 Kest
 0
Discharge of a Capacitance through a
Resistance
s 
1
RC
t RC
C
v t Ke
vC (0
) Vi
 Ke0/ RC
 K
t RC
i
C
v tV e

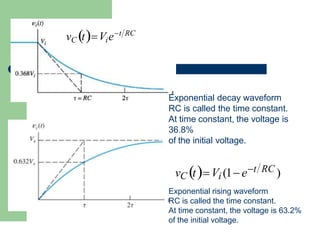

198. vC tViet RC
Exponential decay waveform
RC is called the time constant.
At time constant, the voltage is
36.8%
of the initial voltage.
vC tVi (1 et RC )
Exponential rising waveform
RC is called the time constant.
At time constant, the voltage is 63.2%
of the initial voltage.

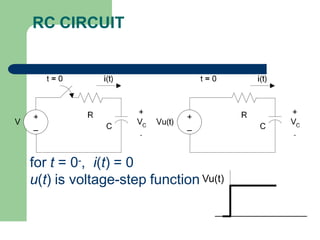

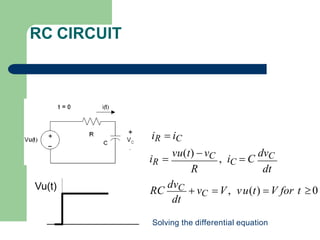

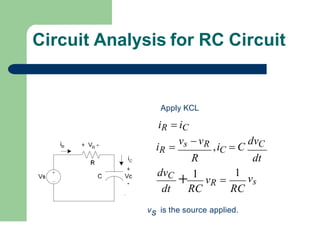

199. RC CIRCUIT
for t = 0-, i(t) = 0
u(t) is voltage-step function Vu(t)

200. RC CIRCUIT
Vu(t)
iR  iC
iR 
vu(t)  vC , iC  C
dvC
R dt
dt
RC
dvC  vC  V, vu(t)  V for t 0
Solving the differential equation

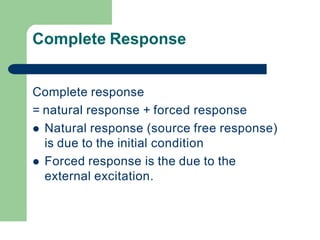

201. Complete Response
Complete response
= natural response + forced response
 Natural response (source free response)
is due to the initial condition
 Forced response is the due to the
external excitation.

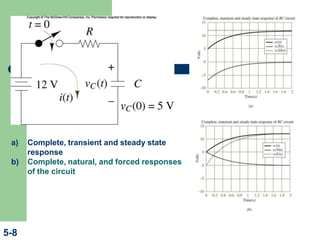

202. Fi
5-8
a) Complete, transient and steady state
response
b) Complete, natural, and forced responses
of the circuit

203. Circuit Analysis for RC Circuit
Apply KCL
iR  iC
iR 
vs  vR ,iC  C
dvC
R dt
dt RC RC
dvC 1
vs
 1
vR 
vs is the source applied.

204. Solution to First Order Differential Equation
τ
dx(t)
 x(t)  Ks f (t)
Consider the general Equation
dt
Let the initial condition be x(t = 0) = x( 0 ), then we solve the differential
equation:
τ
dx(t)
 x(t)  Ks f (t)
dt
The complete solution consist of two parts:
• the homogeneous solution (natural solution)
• the particular solution (forced solution)

205. The Natural Response
dt
xN (t) αet /τ
dxN (t)
 
xN (t)
dt τ
τ
dxN (t)
 xN (t)  0 or
Consider the general Equation
dt
Setting the excitation f (t) equal to zero,
τ
dx(t)
 x(t)  Ks f (t)
It is called the natural response.

206. The Forced Response
τ
dxF (t)
 xF (t)  KS F
Consider the general Equation
dt
Setting the excitation f (t) equal to F, a constant for t 0
τ
dx(t)
 x(t)  Ks f (t)
dt
xF (t)  KS F for t 0
It is called the forced response.

207. The Complete Response
Consider the general Equation
The complete response is:
• the natural response +
• the forced response
x  xN (t)  xF (t)
 αet /τ KS F
 αet /τ x()
dt
s
τ
dx(t)
 x(t)  K f (t)
x()
Solve for ,
for t  0
x(t  0)  x(0)α x()
α x(0)  x()
The Complete solution:
x(t)  [x(0)  x()]et /τ  x()
[x(0)  x()]et /τ
called transient response
called steady state response

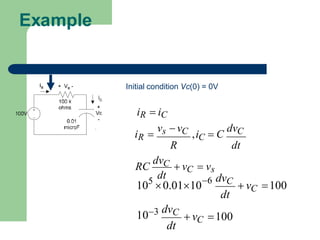

208. Example
Initial condition Vc(0) = 0V
iR  iC
iR 
vs  vC ,iC  C
dvC
R dt
dt
RC
dvC  vC  vs
 vC 100
103 dvC
 vC 100
5
10 0.01106 dvC
dt
dt

209. Example
Initial condition Vc(0) = 0V
As vc(0)  0, 0 100  A
A  100
vc 100  Ae 103

t

t
c
v 100 100e 103
dt
s
τ
dx(t)
 x(t)  K f (t)
and
x  xN (t)  xF (t)
αet /τ KS F
αet /τ x()
 vC 100
103 dvC
dt

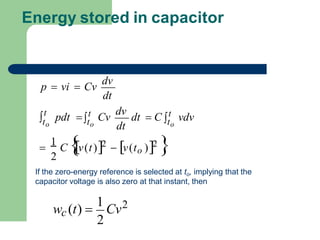

210. Energy stored in capacitor
dt
dt
to to
to

1
C 
v(t)2  v(to )2 

t
pdt 
t Cv
dv
dt  C 
t vdv
p  vi  Cv
dv
2
If the zero-energy reference is selected at to, implying that the
capacitor voltage is also zero at that instant, then
2
wc (t) 
1
Cv2

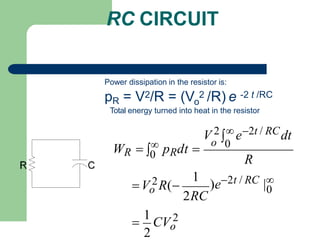

211. Power dissipation in the resistor is:
o
pR = V2/R = (V 2 /R) e -2 t /RC
0
0
V 2
 e2t / RCdt
o 0
2
2RC
)e2t / RC |
1
o

1
CV 2
o
V 2R(
WR   pRdt 
R
RC CIRCUIT
Total energy turned into heat in the resistor

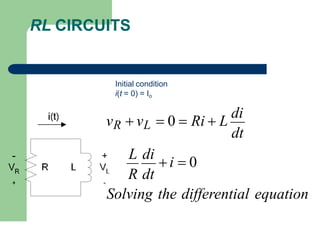

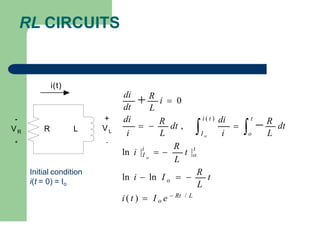

212. RL CIRCUITS
Initial condition
i(t = 0) = Io
R dt
Solving the differential equation
dt
L di
i  0
vR  vL  0  Ri  L
di

213. RL CIRCUITS
L
R
-
VR
+
+
VL
-
i(t)
Initial condition
i(t = 0) = Io
i ( t )  I o e  Rt / L
o
t
t |o
i
t
o
i ( t ) di
I
L
ln i  ln I  
R
t
L
R
L
 R
dt
i
L
 
R
dt ,
i
dt
di
L
 R
i  0
di
o
ln i |I  
o
 


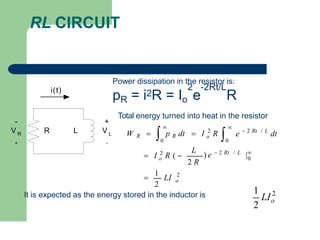

214. RL CIRCUIT
L
R
-
V R
+
+
V L
-
i(t)
Power dissipation in the resistor is:
2 -2Rt/L
pR = i2R = Io e R
Total energy turned into heat in the resistor
2
0
/ L
|
0
 2 Rt / L
2
0
2

1
LI
2 R
) e  2 Rt
o
o
 I 2
R ( 
o
L
dt
e
 

W R   p R dt  I R
It is expected as the energy stored in the inductor is 2
1
2
o
LI

215. RL CIRCUIT Vu(t)
R +
L VL
-
i(t)
+
_
Vu(t)
R
dt
Ldi
 dt
Ri  L
di
V
V  Ri
Integrating both sides,
L
ln(V  Ri)  t  k
i 
V

V
e Rt / L
, for t  0
R R
where L/R is the time constant

or
V
L
[ln(V  Ri )  lnV ]  t
R
V  Ri
 e Rt / L
R
L
i(0 )  0,thus k   lnV

216. DC STEADY STATE
The steps in determining the forced response for
with dc sources are:
1. Replace capacitances with open circuits.
2. Replace inductances with short circuits.
3. Solve the remaining circuit .
RL or RC circuits

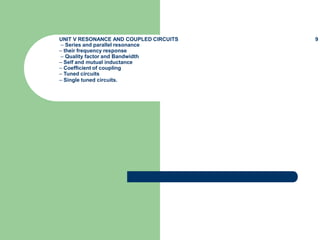

217. UNIT V RESONANCE AND COUPLED CIRCUITS 9
– Series and parallel resonance
– their frequency response
– Quality factor and Bandwidth
– Self and mutual inductance
– Coefficient of coupling
– Tuned circuits
– Single tuned circuits.

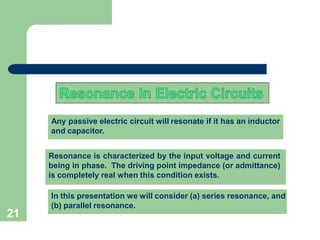

218. 21
Any passive electric circuit will resonate if it has an inductor
and capacitor.
Resonance is characterized by the input voltage and current
being in phase. The driving point impedance (or admittance)
is completely real when this condition exists.
In this presentation we will consider (a) series resonance, and
(b) parallel resonance.

219. 21

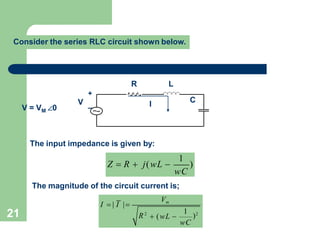

Consider the series RLC circuit shown below.
R L
C
I
+
V _
M
V = V ∠0
The input impedance is given by:
1
)
wC
Z  R  j(wL 
The magnitude of the circuit current is;
1
)2
Vm
R2
wC
I  | I |
 (wL 

220. 22

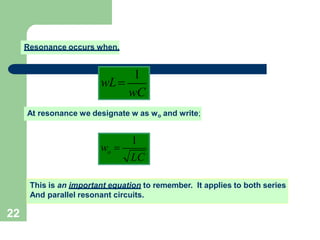

Resonance occurs when,
1
wC
wL
At resonance we designate w as wo and write;
o
1
LC
w 
This is an important equation to remember. It applies to both series
And parallel resonant circuits.

221. 22
Series Resonance

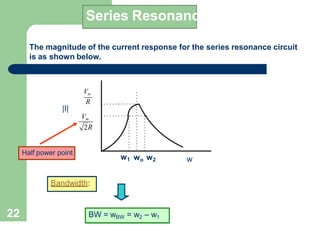

The magnitude of the current response for the series resonance circuit
is as shown below.
Vm
R
Vm
2R
w
|I|
w1 wo w2
Bandwidth:
BW = wBW = w2 – w1
Half power point

222. 22
Series Resonance

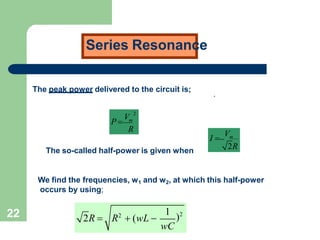

The peak power delivered to the circuit is;
2
V
P  m
R
The so-called half-power is given when
I 
Vm
2R
.
We find the frequencies, w1 and w2, at which this half-power
occurs by using;
1
)2
wC
2R  R2
 (wL 

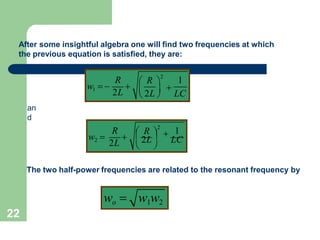

223. After some insightful algebra one will find two frequencies at which
the previous equation is satisfied, they are:
R 1
 R 
2
w1  
2L
  2L  
LC
 
an
d
1
R  R 
2
w2 
2L
  2L  
LC
 
The two half-power frequencies are related to the resonant frequency by
wo  w1w2
22

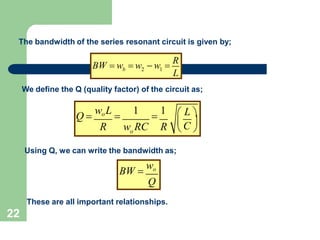

224. The bandwidth of the series resonant circuit is given by;
b 2 1
L
BW  w  w  w 
R
We define the Q (quality factor) of the circuit as;
o
 L 
Q 
woL

1

1
R w RC R  C 
 
Using Q, we can write the bandwidth as;
BW 
wo
Q
These are all important relationships.
22

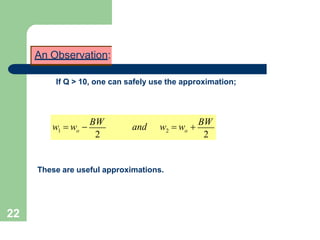

225. An Observation:
If Q > 10, one can safely use the approximation;
2
22
2
1 o 2 o
w  w 
BW
and w  w 
BW
These are useful approximations.

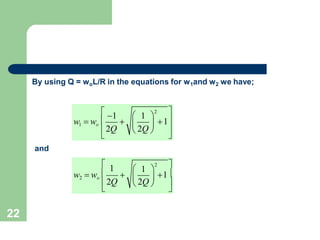

226. By using Q = woL/R in the equations for w1and w2 we have;
 1 
 1 
2
w2  wo
    1
2Q  2Q  
 

22
 1  1 
2
w1  wo
 
  1
2Q  2Q  
 
and

227. An Example Illustrating Resonance:
Case 1:
Case 2:
Case 3:
ks
s2
 2s  400
s2
 5s  400
ks
s2
22
 10s  400
ks

228. An Example Illustrating Resonance:
22
Case 1:
Case 2:
Case 3:
s2
 2s  400(s 1 j19.97)(s 1 j19.97)
s2
 5s  400 (s  2.5  j19.84)(s  2.5  j19.84)
s2
10s  400 (s  5  j19.36)(s  5  j19.36)

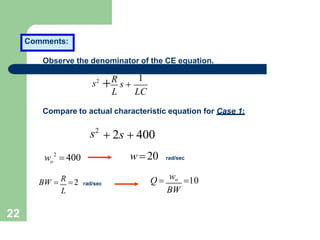

229. Comments:
Observe the denominator of the CE equation.
1
s2
L LC
R
s 
Compare to actual characteristic equation for Case 1:
s2
 2s  400
o
w 2
 400 w  20
R
BW   2
L
wo
22
Q  10
BW
rad/sec
rad/sec

230. 23

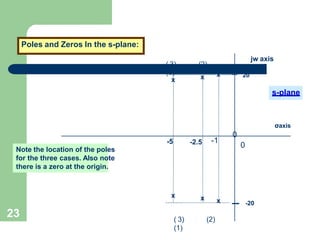

Poles and Zeros In the s-plane:
s-plane
jw axis
σaxis
0
0
20
-20
x
x
x x x
x
( 3) (2)
(1)
(2)
( 3)
(1)
-5 -2.5 -1
Note the location of the poles
for the three cases. Also note
there is a zero at the origin.

231. The frequency response starts at the origin in the s-plane.
At the origin the transfer function is zero because there is
a
zero at the origin.
As you get closer and closer to the complex pole, which
has a j parts in the neighborhood of 20, the response
starts
to increase.
The response continues to increase until we reach w = 20.
From there on the response decreases.
We should be able to reason through why the response
has the above characteristics, using a graphical approach.
23

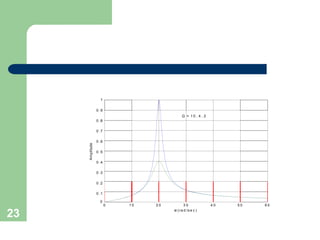

232. 23
0 1 0 2 0 4 0 5 0 6 0
0
1
0 .9
0 .8
0 .7
0 .6
0 .5
0 .4
0 .3
0 .2
0 .1
3 0
w (ra d /s e c )
Amplitude
Q = 1 0 , 4 , 2

233. 23

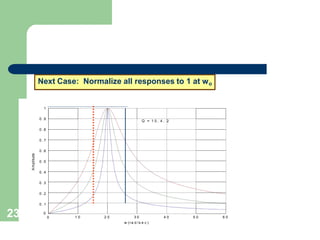

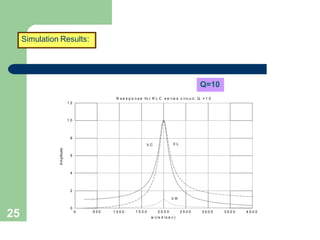

Next Case: Normalize all responses to 1 at wo
1 0 2 0 4 0 5 0 6 0
0
0
1
0 .9
0 .8
0 .7
0 .6
0 .5
0 .4
0 .3
0 .2
0 .1
3 0
w (ra d /s e c )
A
mplitude
Q = 1 0 , 4 , 2

234. 23

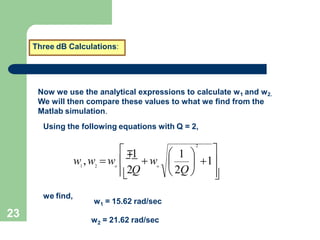

Three dB Calculations:
Now we use the analytical expressions to calculate w1 and w2.
We will then compare these values to what we find from the
Matlab simulation.
Using the following equations with Q = 2,


  1
2Q
w ,w w 
2
 1 
 2Q 
 w
1 2 o
∓1
o
we find,
1
w = 15.62 rad/sec
2
w = 21.62 rad/sec

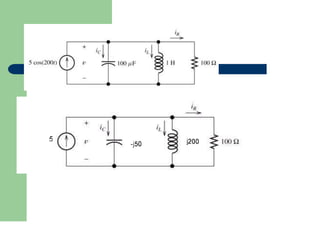

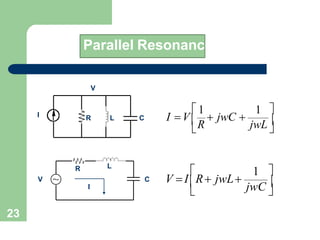

235. Parallel Resonance
I R L C
V
I
R L
C
V


I V R
 jwC 
jwL
1 1 

23

V I R jwL
jwC
 1 

236.  
jwL
R
I V
1
 jwC 
1 

jwC
1 
V I

R jwL



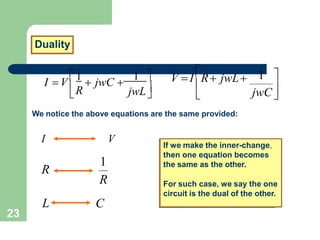

We notice the above equations are the same provided:
I V
R
1
R
C
L
If we make the inner-change,
then one equation becomes
the same as the other.
For such case, we say the one
circuit is the dual of the other.
Duality
If we make the inner-change,
then one equation becomes
the same as the other.
For such case, we say the one
circuit is the dual of the other.
23

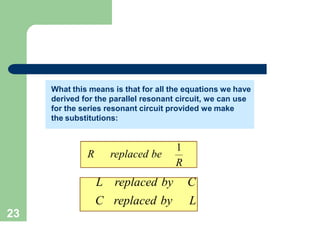

237. What this means is that for all the equations we have
derived for the parallel resonant circuit, we can use
for the series resonant circuit provided we make
the substitutions:
R replaced be
1
R
L replaced by C
C replaced by L
What this means is that for all the equations we have
derived for the parallel resonant circuit, we can use
for the series resonant circuit provided we make
the substitutions:
23
What this means is that for all the equations we have
derived for the parallel resonant circuit, we can use
for the series resonant circuit provided we make
the substitutions:

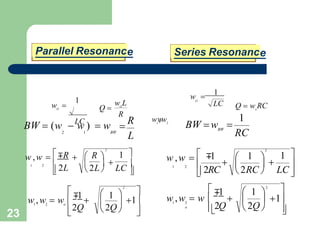

238. 23
Parallel Resonance Series Resonance
R
w L
Q  O
LC
O
1
w  LC
w 
1
O
o
Q  w RC
L

R
BW  (w  w )  w
2 1 BW
RC
BW
BW w 
1

  
1 

2L
 
LC

2
 R 
w ,w  
1 2 
2L
∓R

2RC
w ,w 
1 2 
 ∓
1
 


LC 

1 
 2RC 

1
2

1 2
ww
,w







1
 1
2
 
2Q  2Q 
1 2 o
w ,w  w 
∓1



   1
 2Q 
2Q
w ,w  w 
1 2
o
∓1  1 
2

239. 23

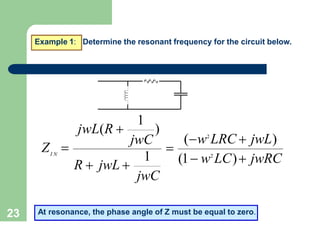

Example 1: Determine the resonant frequency for the circuit below.
(1 w2
LC) jwRC
(w2
LRC  jwL)
jwC
jwC
I N
R  jwL 
Z  
1
jwL(R  )
1
At resonance, the phase angle of Z must be equal to zero.

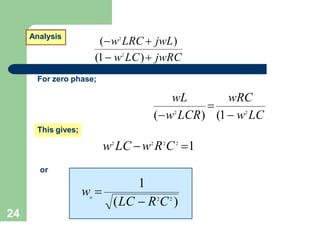

240. (w2
LRC  jwL)
Analysis
(1 w2
LC) jwRC
For zero phase;
wL wRC
24

(w2
LCR) (1 w2
LC
This gives;
w2
LC w2
R2
C2
1
or
o
1
(LC  R2
C2
)
w 

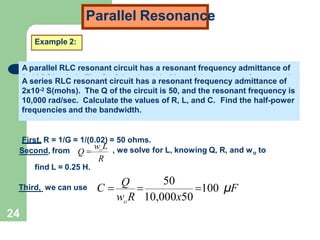

241. Parallel Resonance
Example 2:
A parallel RLC resonant circuit has a resonant frequency admittance of
2x10-2 S(mohs). The Q of the circuit is 50, and the resonant frequency is
10,000 rad/sec. Calculate the values of R, L, and C. Find the half-power
frequencies and the bandwidth.
First, R = 1/G = 1/(0.02) = 50 ohms.
Second, from
R
w L
Q  O
o
, we solve for L, knowing Q, R, and w to
find L = 0.25 H.
Third, we can use 100 μF
O
w R 10,000x50
C 
Q

50
2x10-2 S(mohs). The Q of the circuit is 50, and the resonant frequency is
10,000 rad/sec. Calculate the values of R, L, and C. Find the half-power
frequencies and the bandwidth.
A parallel RLC resonant circuit has a resonant frequency admittance of
A series RLC resonant circuit has a resonant frequency admittance of
2x10-2 S(mohs). The Q of the circuit is 50, and the resonant frequency is
10,000 rad/sec. Calculate the values of R, L, and C. Find the half-power
frequencies and the bandwidth.
24

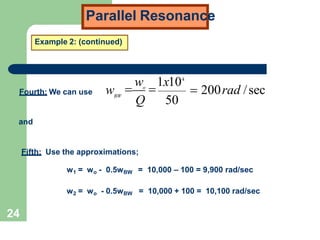

242. Parallel Resonance
Example 2: (continued)
Fourth: We can use  200rad /sec
24
Q 50
w 1x104
wBW
 o

and
Fifth: Use the approximations;
w1 = wo - 0.5wBW = 10,000 – 100 = 9,900 rad/sec
w2 = wo - 0.5wBW = 10,000 + 100 = 10,100 rad/sec

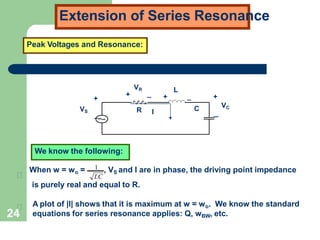

243. 24
Extension of Series Resonance
Peak Voltages and Resonance:
VS R
L
C
+
_ I
VR
+ + +
_ _
VC
_
We know the following:
When w = wo = 1 , VS and I are in phase, the driving point impedance
LC
is purely real and equal to R.
A plot of |I| shows that it is maximum at w = wo. We know the standard
equations for series resonance applies: Q, wBW, etc.

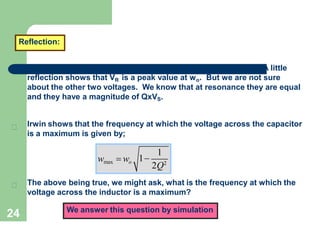

244. 24
Reflection:
A little
reflection shows that VR is a peak value at wo. But we are not sure
about the other two voltages. We know that at resonance they are equal
and they have a magnitude of QxVS.
1
2Q2
wmax  wo 1
The above being true, we might ask, what is the frequency at which the
voltage across the inductor is a maximum?
We answer this question by simulation
Irwin shows that the frequency at which the voltage across the capacitor
is a maximum is given by;

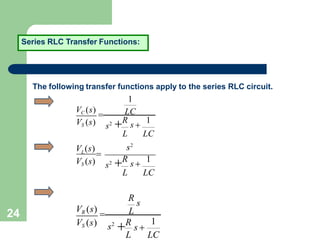

245. 24
Series RLC Transfer Functions:
VS (s) s2
The following transfer functions apply to the series RLC circuit.
1
VC (s)
 LC
V (s)
R
s 
1
L LC
s2
VS (s) s2
L

R
s 
1
L LC
1
R
s
VS (s) s2
L LC
VR (s)
 L
R
s 

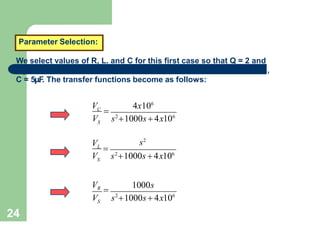

246. 24
Parameter Selection:
We select values of R, L. and C for this first case so that Q = 2 and
o ,
C = 5μF
. The transfer functions become as follows:
S
V 4x106
V
C

s2
1000s  4x106
s2
S
V
V
L

s2
1000s  4x106
1000s
S
VR

V s2
1000s  4x106

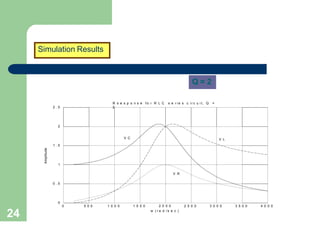

247. 24
0 5 0 0 1 0 0 0 1 5 0 0 2 5 0 0 3 0 0 0 3 5 0 0 4 0 0 0
0
0 . 5
1
1 . 5
2
2 . 5
2 0 0 0
w ( r a d / s e c )
Amplitude
V C V L
V R
R s e s p o n s e f o r R L C s e r i e s c i r c u i t , Q =
2
Simulation Results
Q = 2

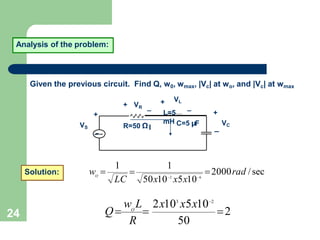

248. 24
Analysis of the problem:
VS
mH C=5 μF
+
_
R=50 ΩI
+ V +
_ _
R
VL
L=5 +
_
VC
Given the previous circuit. Find Q, w0, wmax, |Vc| at wo, and |Vc| at wmax
Solution: 2000rad /sec
1
1
O

w 
LC 50x102
x5x106
2
50
R
w L 2x103
x5x102
Q O


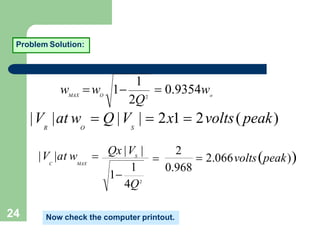

249. 24
Problem Solution:
o
O
MAX
1
2Q2
 0.9354w
w w 1
|V |at w  Q |V |  2x1  2volts(peak)
R O S
 2.066voltspeak)
1
4Q2
Qx |V | 2
S
0.968

1
|V |at w 
C MAX
Now check the computer printout.

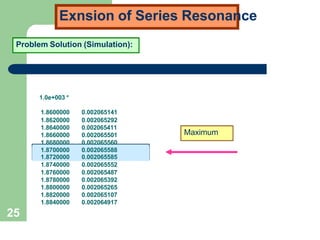

250. Exnsion of Series Resonance
Problem Solution (Simulation):
1.0e+003 *
1.8600000 0.002065141
1.8620000 0.002065292
1.8640000 0.002065411
1.8660000 0.002065501
1.8680000 0.002065560
1.8700000 0.002065588
1.8720000 0.002065585
1.8740000 0.002065552
1.8760000 0.002065487
1.8780000 0.002065392
1.8800000 0.002065265
1.8820000 0.002065107
1.8840000 0.002064917
25
Maximum

251. 25
Simulation Results:
0 5 0 0 1 0 0 0 3 0 0 0 3 5 0 0 4 0 0 0
0
2
4
6
8
1 0
1 2
1 5 0 0 2 0 0 0 2 5 0 0
w (ra d /s e c )
A
mplitude
V C V L
V R
R s e s p o n s e fo r R L C s e ri e s c irc u it, Q = 1 0
Q=10

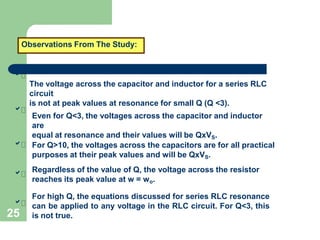

252. Observations From The Study:





25
The voltage across the capacitor and inductor for a series RLC
circuit
is not at peak values at resonance for small Q (Q <3).
Even for Q<3, the voltages across the capacitor and inductor
are
equal at resonance and their values will be QxVS.
For Q>10, the voltages across the capacitors are for all practical
purposes at their peak values and will be QxVS.
Regardless of the value of Q, the voltage across the resistor
reaches its peak value at w = wo.
For high Q, the equations discussed for series RLC resonance
can be applied to any voltage in the RLC circuit. For Q<3, this
is not true.

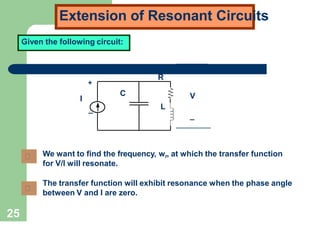

253. Extension of Resonant Circuits
Given the following circuit:
I
+
_
+
_
V
C
R
L
25
We want to find the frequency, wr, at which the transfer function
for V/I will resonate.
The transfer function will exhibit resonance when the phase angle
between V and I are zero.

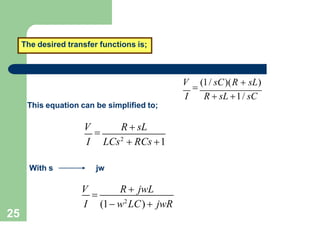

254. The desired transfer functions is;
V

(1/ sC)(R  sL)
I R  sL 1/ sC
This equation can be simplified to;
V

R  sL
I LCs2
 RCs 1
With s jw
V

R  jwL
I (1 w2
LC)  jwR
25

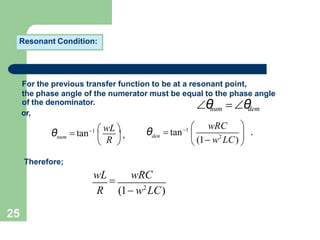

255. Resonant Condition:
For the previous transfer function to be at a resonant point,
the phase angle of the numerator must be equal to the phase angle
θ
num θ
dem
num
θ  tan1  wL 
 
of the denominator.
or,
 R  , 2
den
θ  tan1  wRC 
 (1 w LC) 
 
.
Therefore;
wL

wRC
R (1 w2
LC)
25

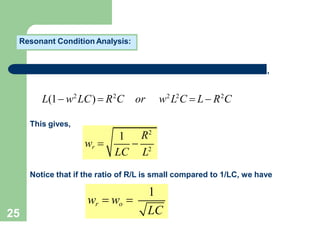

256. 25
Resonant Condition Analysis:
,
L(1 w2
LC)  R2
C or w2
L2
C  L R2
C
This gives,
1 R2
LC L2
wr  
Notice that if the ratio of R/L is small compared to 1/LC, we have
1
LC
wr  wo 

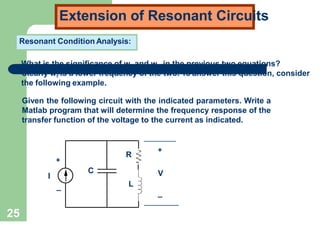

257. 25
Extension of Resonant Circuits
Resonant Condition Analysis:
What is the significance of w and w in the previous two equations?
Clearly wr is a lower frequency of the two. To answer this question, consider
the following example.
Given the following circuit with the indicated parameters. Write a
Matlab program that will determine the frequency response of the
transfer function of the voltage to the current as indicated.
I
+
_
+
_
V
C
R
L

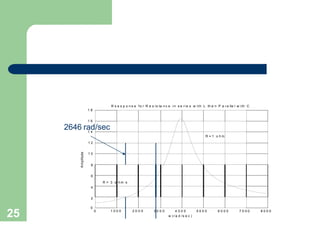

258. 25 0 6 0 0 0 7 0 0 0 8 0 0 0
0
1 2
1 0
8
6
4
2
1 4
0 0 0 4 0 0 0 5 0 0 0
w ( r a d /s e c )
A
mplitude
R s e s p o n s e fo r R e s is ta n c e i n s e r ie s w ith L th e n P a r a lle l w i th C
1 8
1 6
2646 rad/sec
R = 1 o h m
R = 3 o h m s
1 0 0 0 2 0 0 0 3
