1. Automatic Generation
of UML Sequence Diagrams
from Test Counterexamples
Daniel Carballa1
, Laura M. Castro1
1Universidade da Coruña (Spain)
ACM SIGPLAN Erlang Workshop
Nara, 23th September 2016
ACM SIGPLAN Erlang Workshop (2016) QC to UML 1 / 27

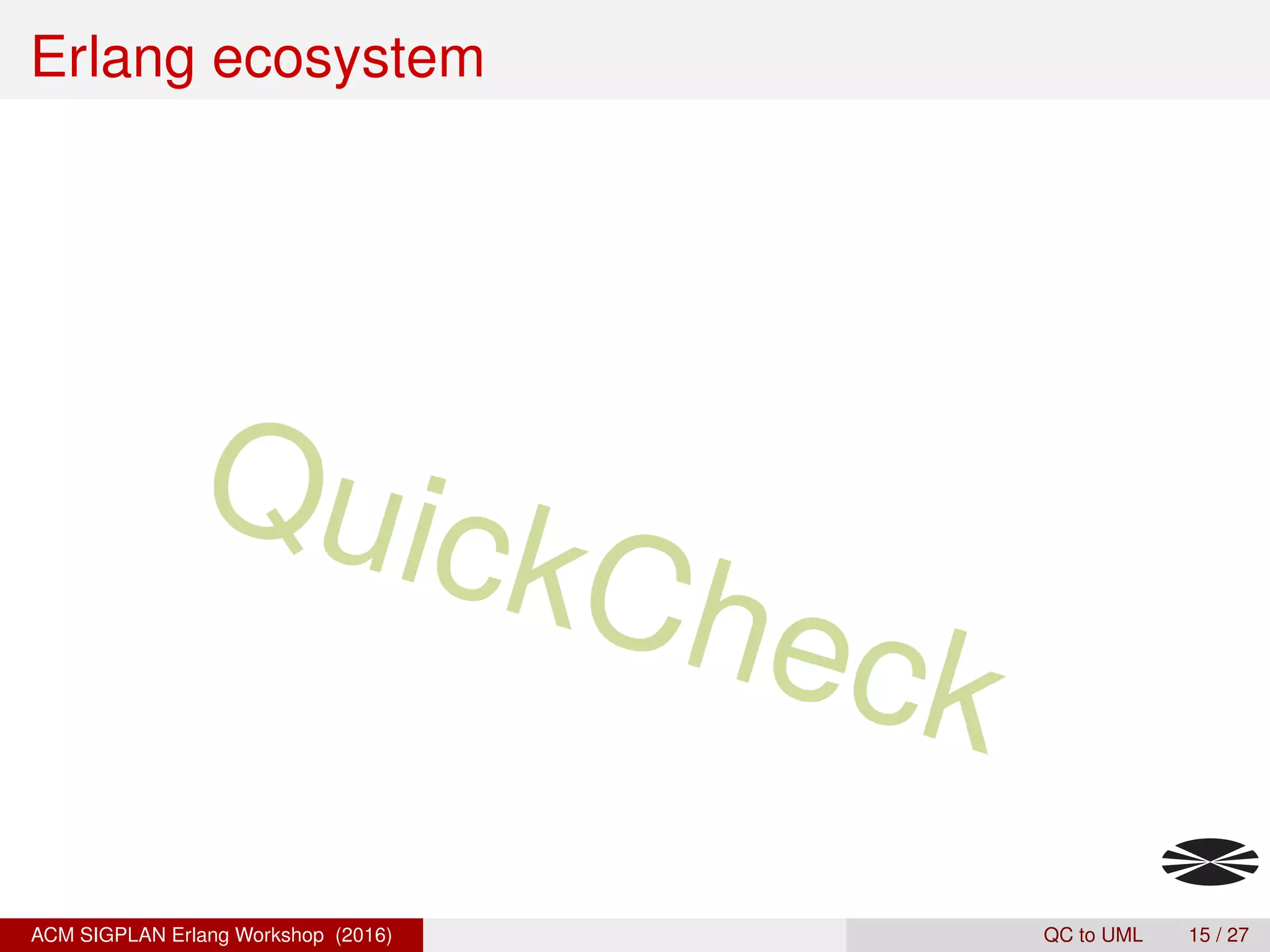

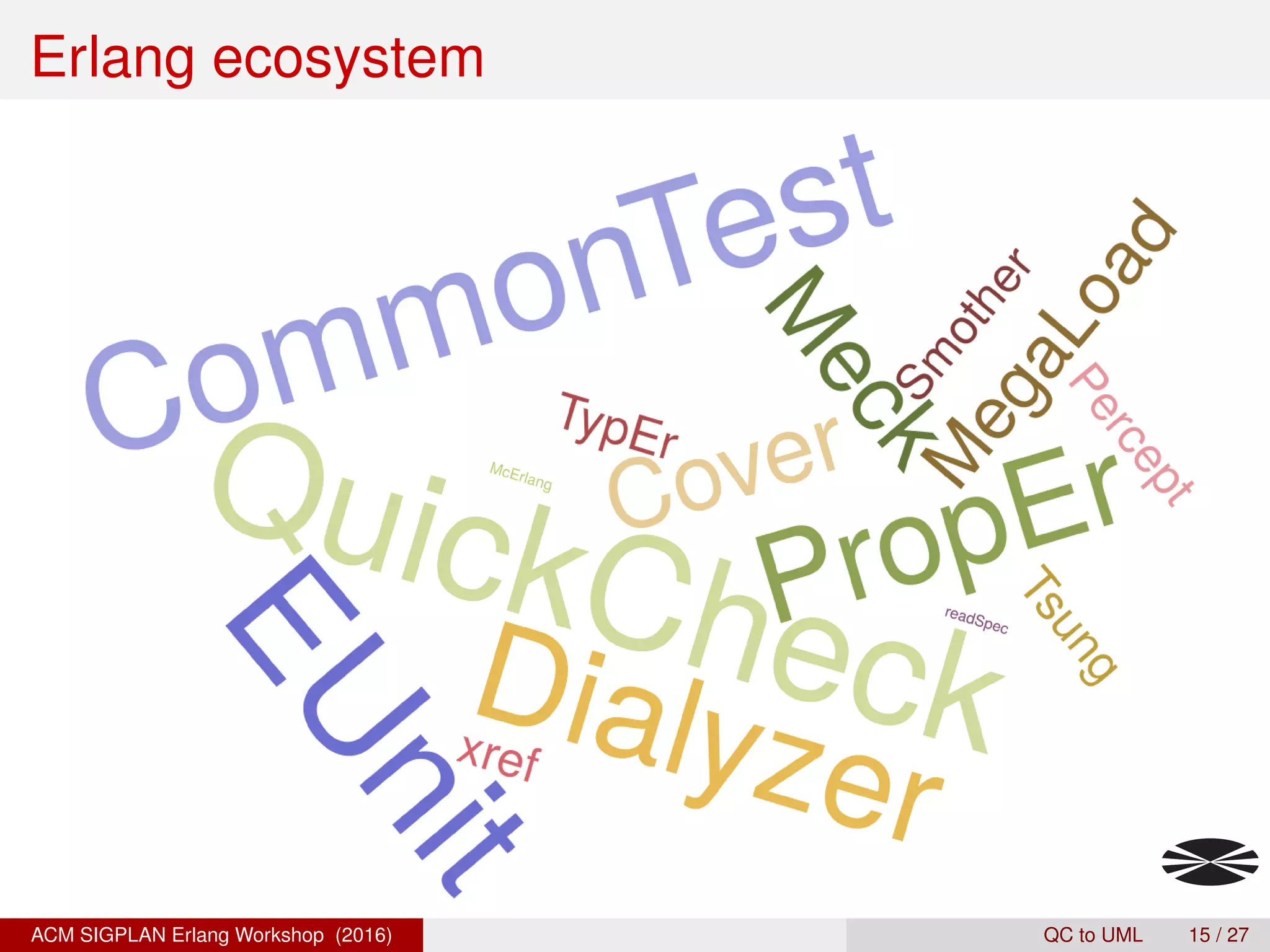

15. Erlang ecosystem
ACM SIGPLAN Erlang Workshop (2016) QC to UML 15 / 27

16. Erlang ecosystem
ACM SIGPLAN Erlang Workshop (2016) QC to UML 15 / 27

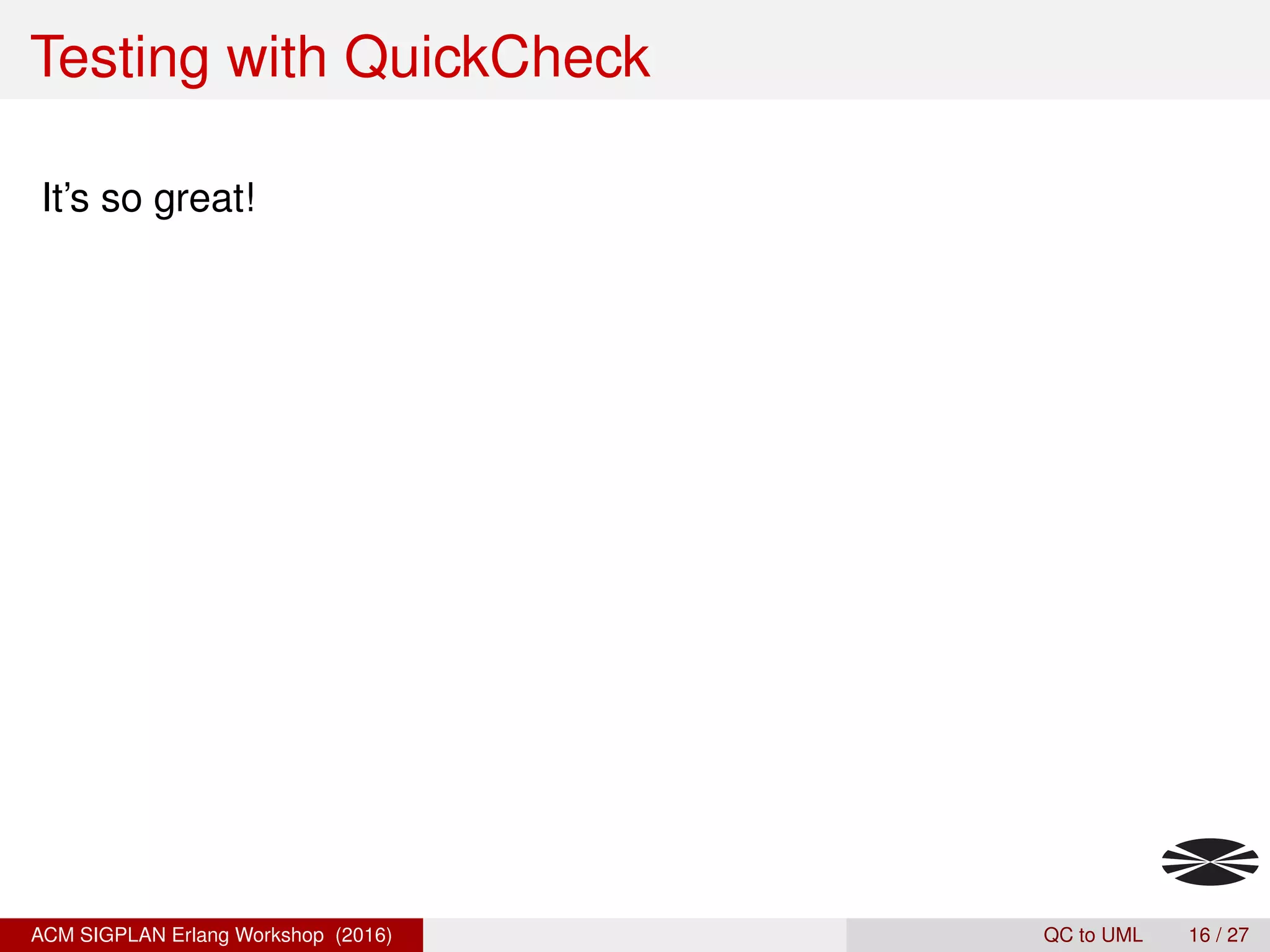

17. Testing with QuickCheck
It’s so great!
ACM SIGPLAN Erlang Workshop (2016) QC to UML 16 / 27

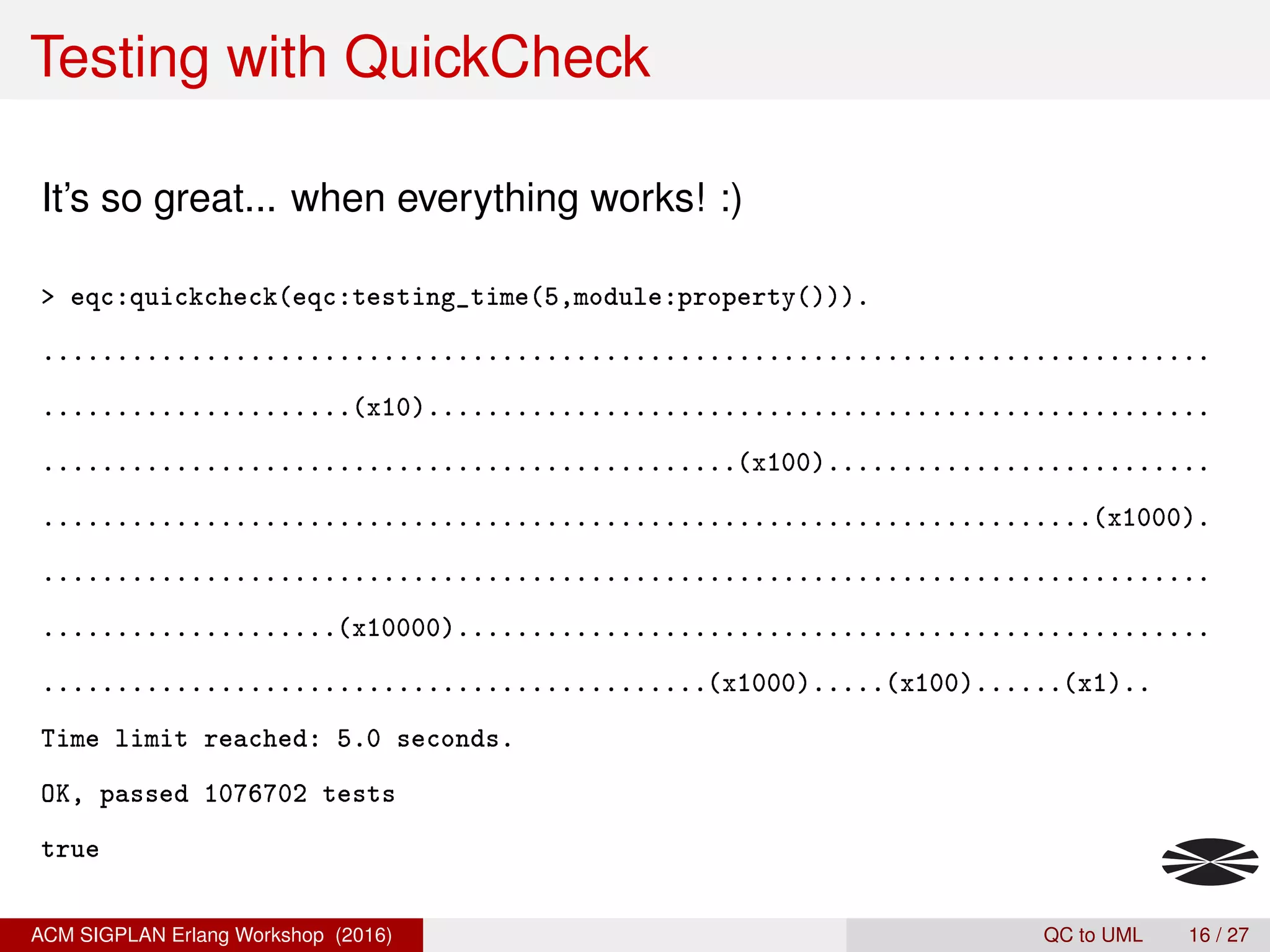

18. Testing with QuickCheck
It’s so great... when everything works! :)
> eqc:quickcheck(eqc:testing_time(5,module:property())).
...............................................................................
.....................(x10).....................................................
...............................................(x100)..........................
.......................................................................(x1000).
...............................................................................
....................(x10000)...................................................
.............................................(x1000).....(x100)......(x1)..
Time limit reached: 5.0 seconds.
OK, passed 1076702 tests
true
ACM SIGPLAN Erlang Workshop (2016) QC to UML 16 / 27

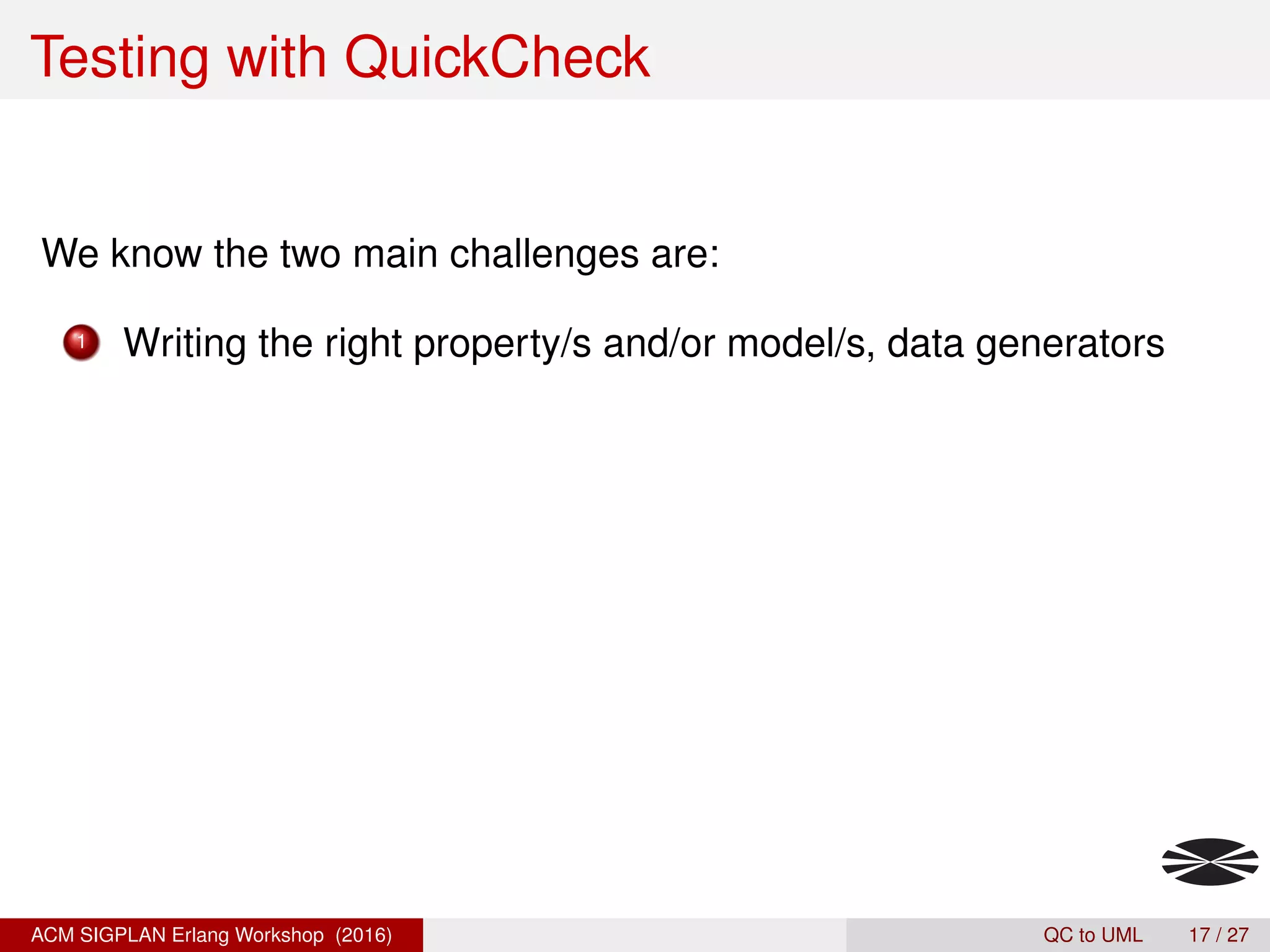

19. Testing with QuickCheck
We know the two main challenges are:
1 Writing the right property/s and/or model/s, data generators
ACM SIGPLAN Erlang Workshop (2016) QC to UML 17 / 27

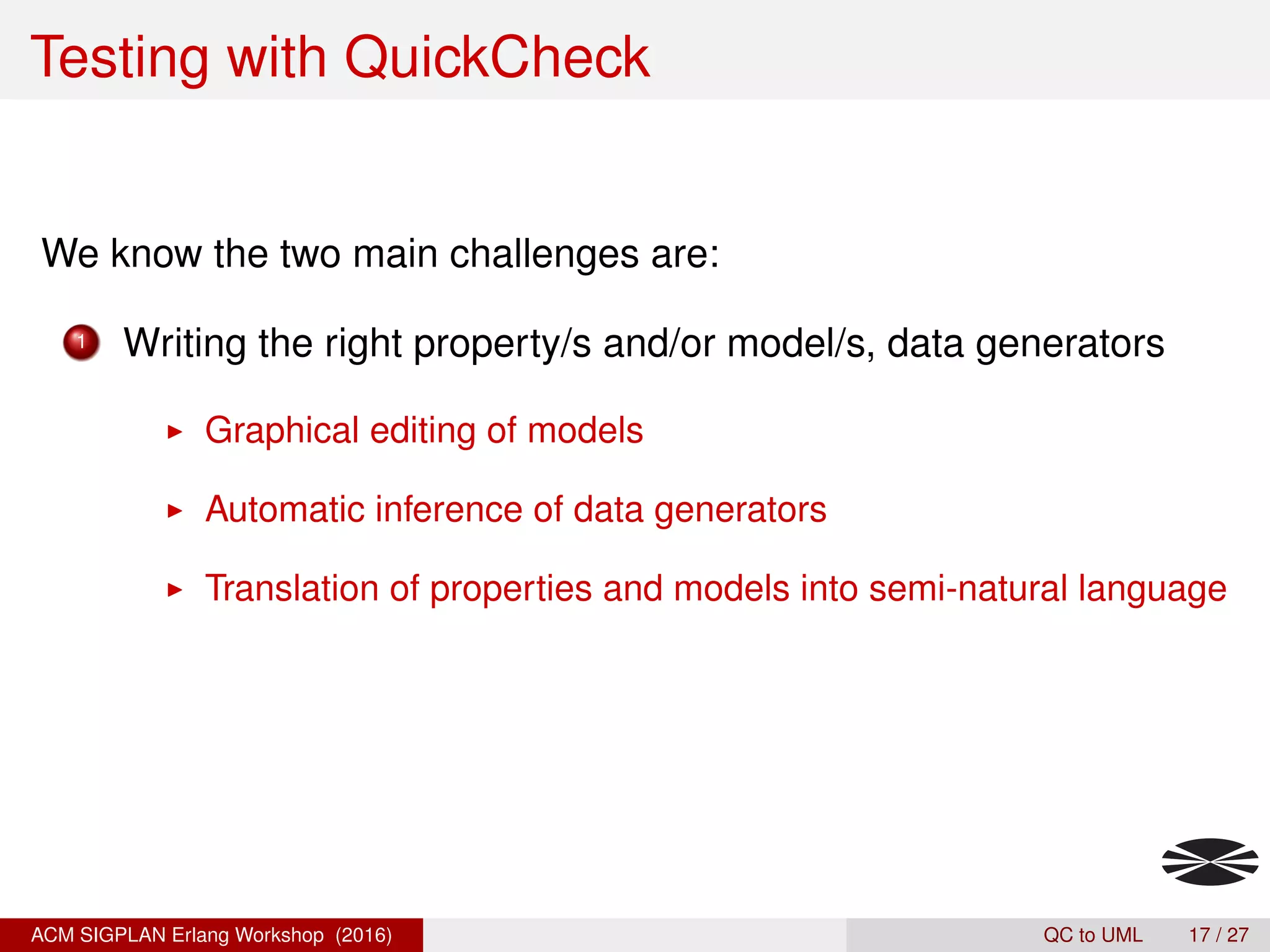

20. Testing with QuickCheck
We know the two main challenges are:
1 Writing the right property/s and/or model/s, data generators
Graphical editing of models
Automatic inference of data generators
Translation of properties and models into semi-natural language
ACM SIGPLAN Erlang Workshop (2016) QC to UML 17 / 27

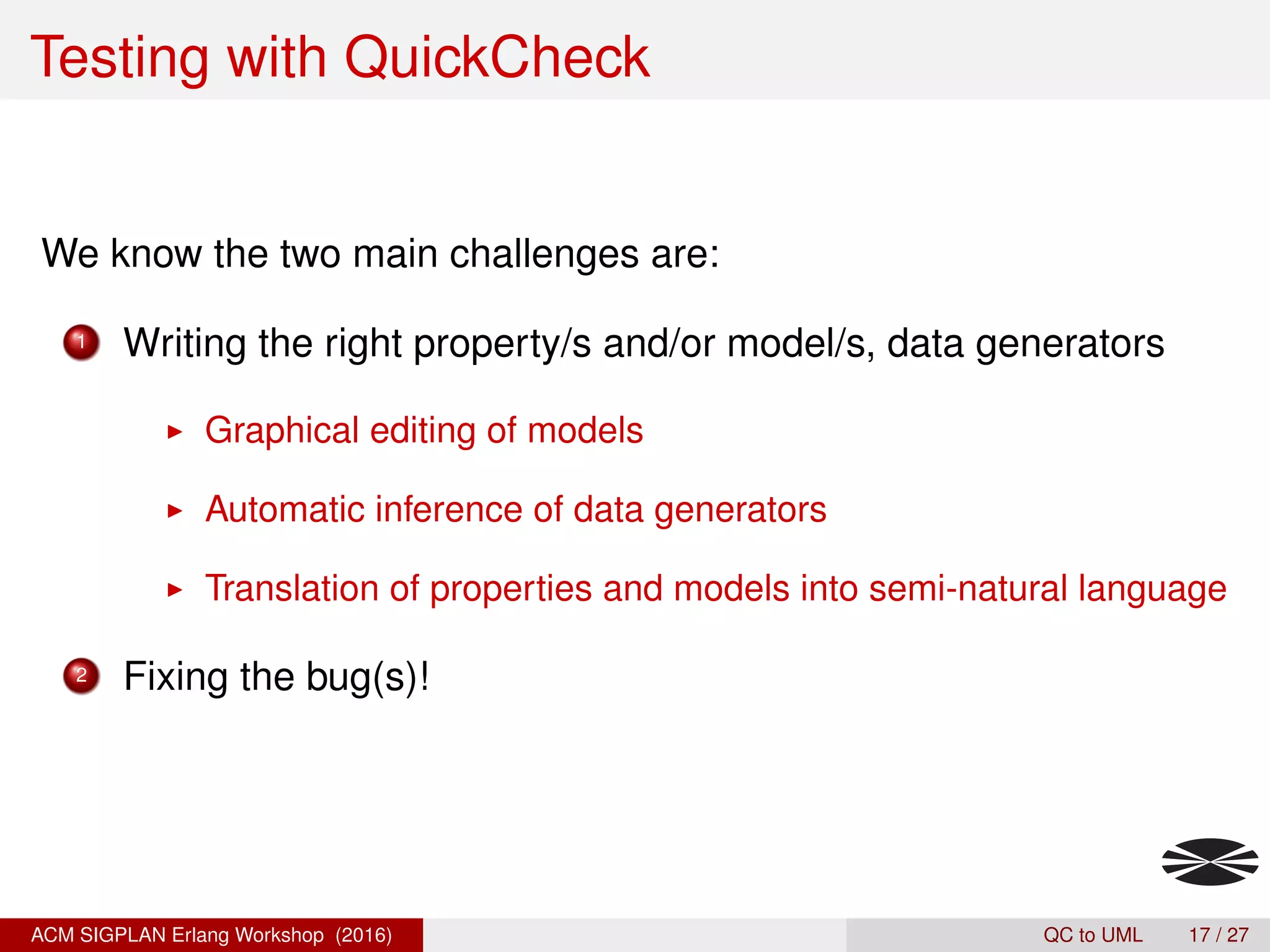

21. Testing with QuickCheck
We know the two main challenges are:
1 Writing the right property/s and/or model/s, data generators
Graphical editing of models
Automatic inference of data generators
Translation of properties and models into semi-natural language
2 Fixing the bug(s)!
ACM SIGPLAN Erlang Workshop (2016) QC to UML 17 / 27

22. Testing with QuickCheck
We know the two main challenges are:
1 Writing the right property/s and/or model/s, data generators
Graphical editing of models
Automatic inference of data generators
Translation of properties and models into semi-natural language
2 Fixing the bug(s)! (i.e. interpreting counterexamples)
ACM SIGPLAN Erlang Workshop (2016) QC to UML 17 / 27

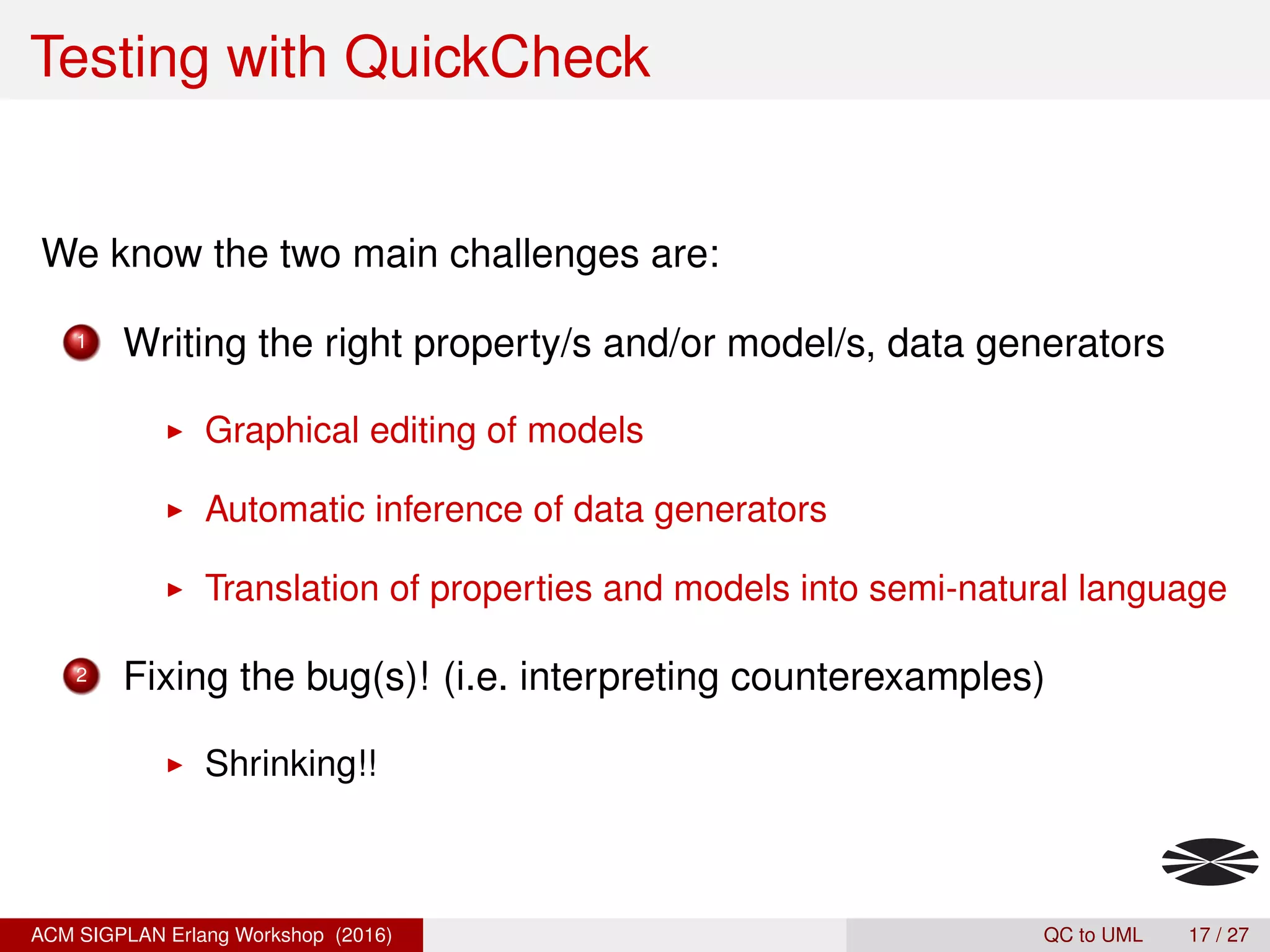

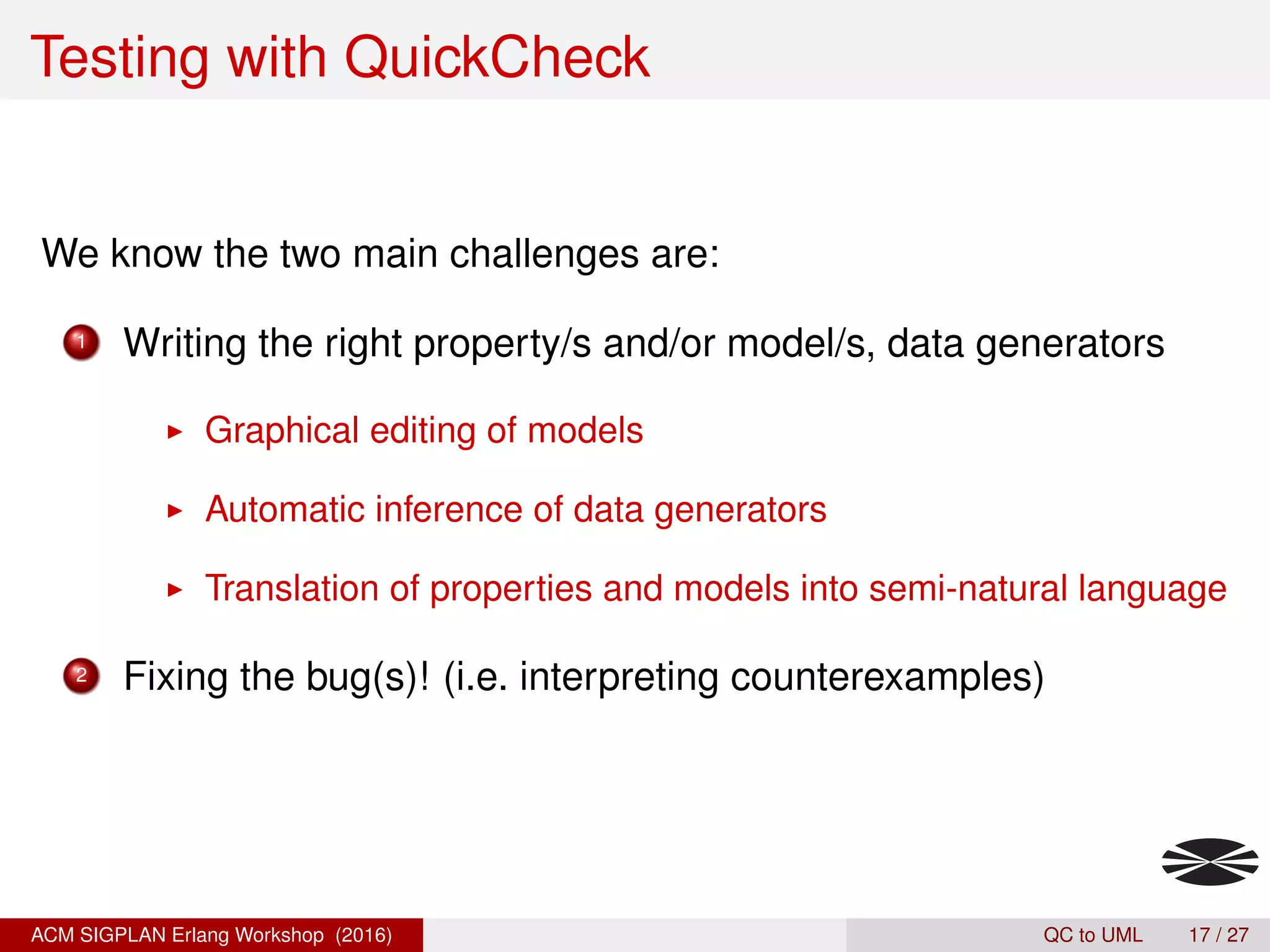

23. Testing with QuickCheck
We know the two main challenges are:
1 Writing the right property/s and/or model/s, data generators
Graphical editing of models
Automatic inference of data generators
Translation of properties and models into semi-natural language
2 Fixing the bug(s)! (i.e. interpreting counterexamples)
Shrinking!!
ACM SIGPLAN Erlang Workshop (2016) QC to UML 17 / 27

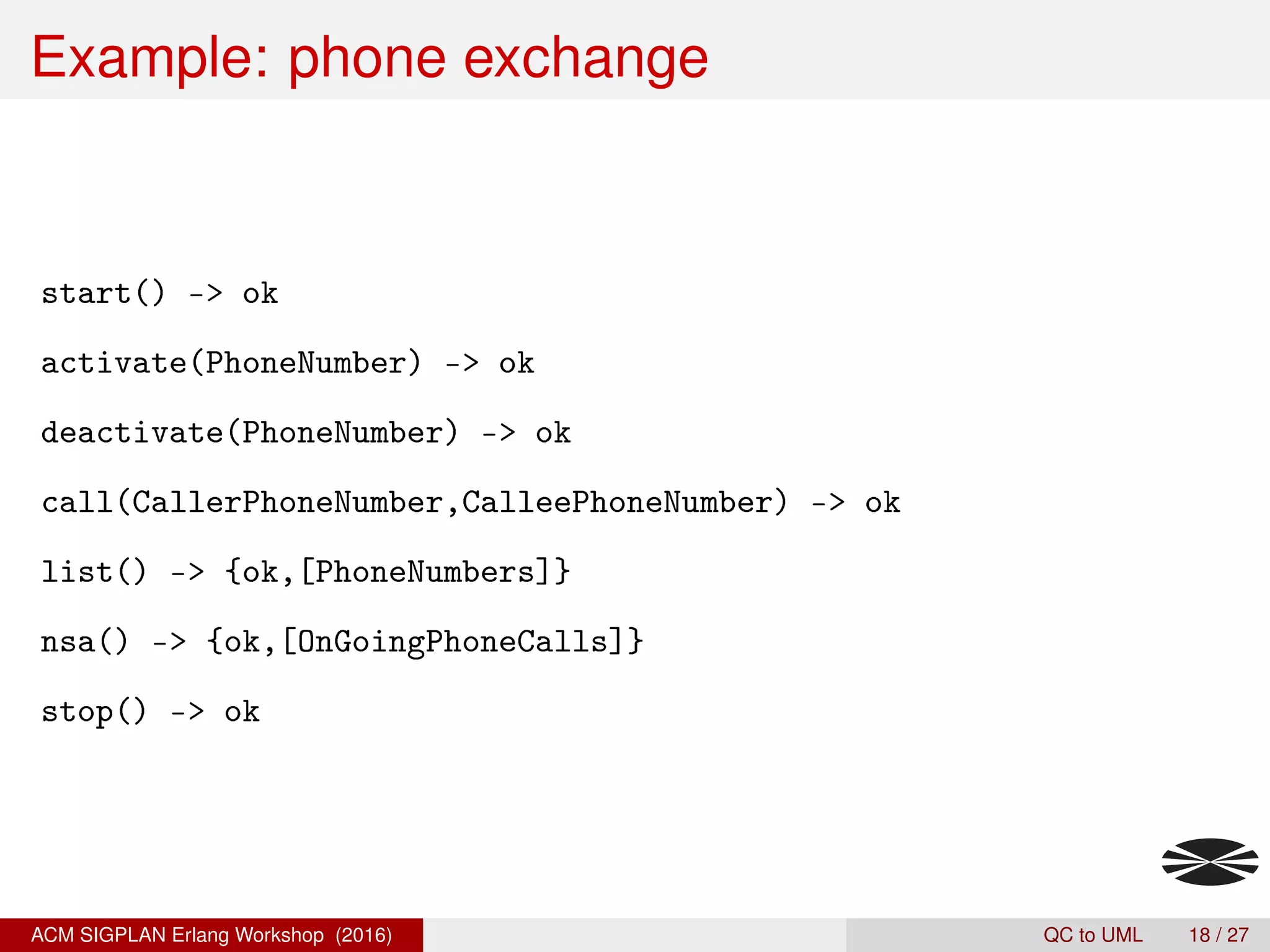

24. Example: phone exchange
start() -> ok
activate(PhoneNumber) -> ok
deactivate(PhoneNumber) -> ok
call(CallerPhoneNumber,CalleePhoneNumber) -> ok
list() -> {ok,[PhoneNumbers]}
nsa() -> {ok,[OnGoingPhoneCalls]}
stop() -> ok
ACM SIGPLAN Erlang Workshop (2016) QC to UML 18 / 27

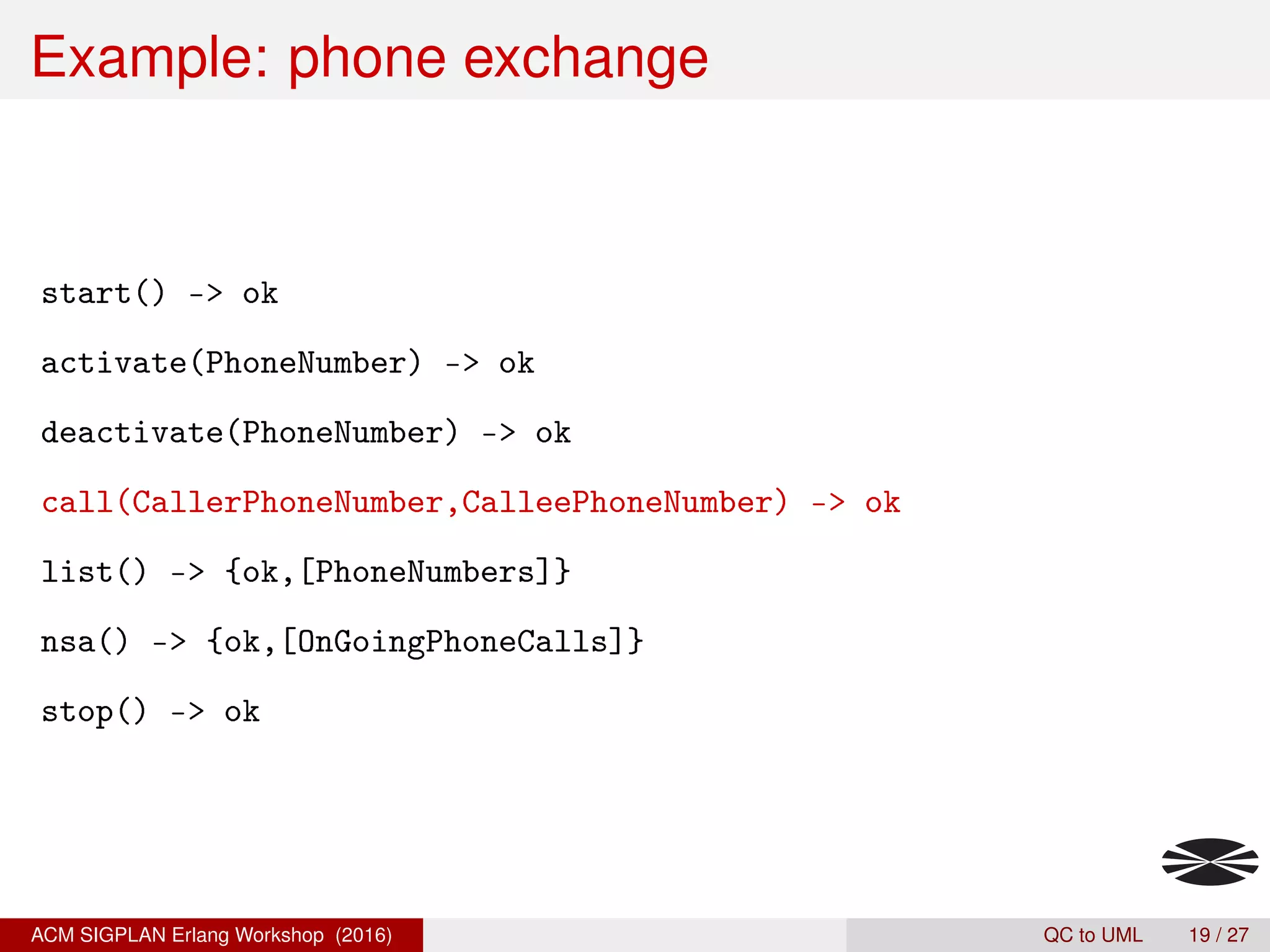

25. Example: phone exchange
start() -> ok
activate(PhoneNumber) -> ok
deactivate(PhoneNumber) -> ok
call(CallerPhoneNumber,CalleePhoneNumber) -> ok
list() -> {ok,[PhoneNumbers]}
nsa() -> {ok,[OnGoingPhoneCalls]}
stop() -> ok
ACM SIGPLAN Erlang Workshop (2016) QC to UML 19 / 27

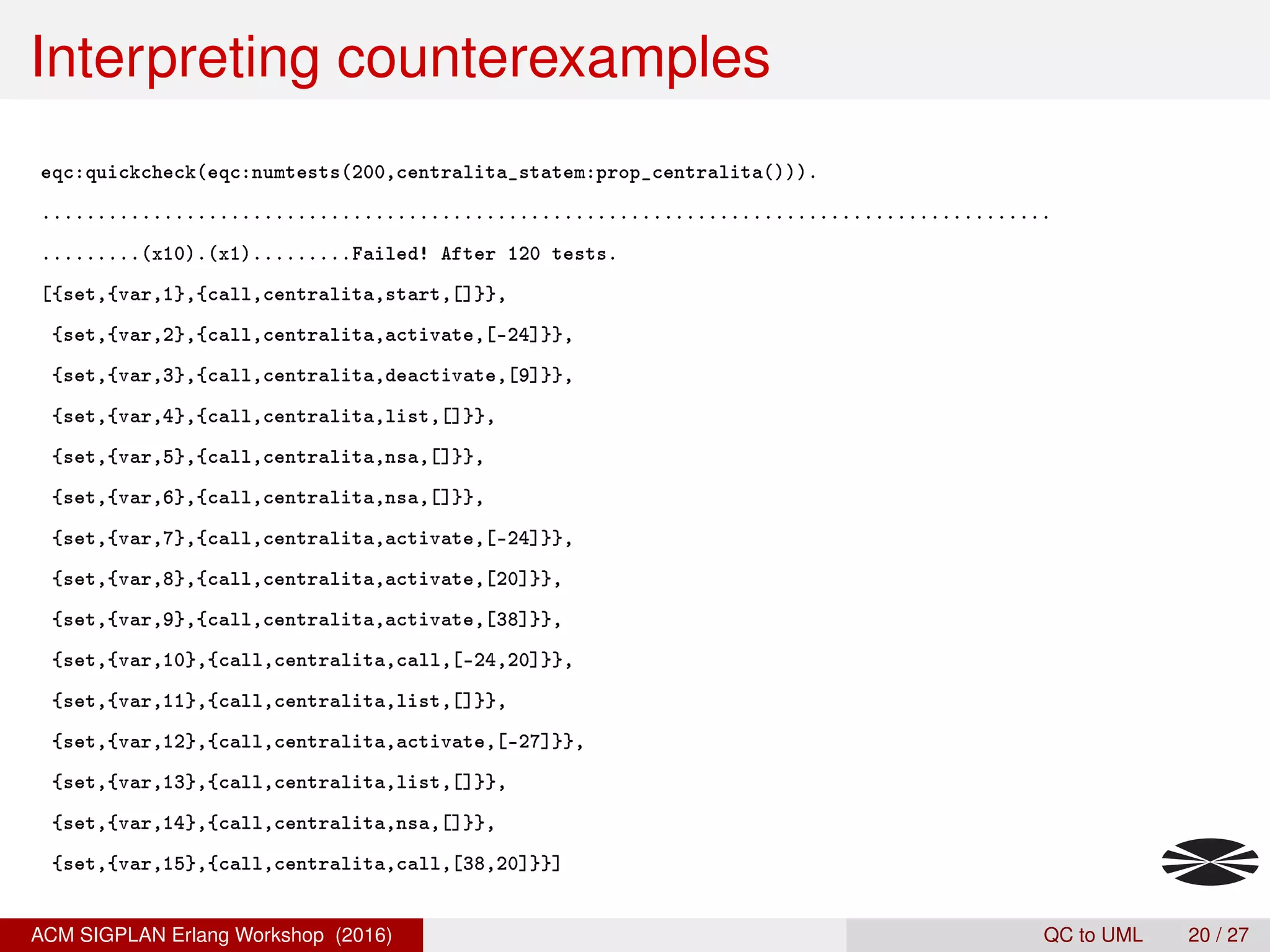

26. Interpreting counterexamples
eqc:quickcheck(eqc:numtests(200,centralita_statem:prop_centralita())).
...........................................................................................
.........(x10).(x1).........Failed! After 120 tests.
[{set,{var,1},{call,centralita,start,[]}},
{set,{var,2},{call,centralita,activate,[-24]}},
{set,{var,3},{call,centralita,deactivate,[9]}},
{set,{var,4},{call,centralita,list,[]}},
{set,{var,5},{call,centralita,nsa,[]}},
{set,{var,6},{call,centralita,nsa,[]}},
{set,{var,7},{call,centralita,activate,[-24]}},
{set,{var,8},{call,centralita,activate,[20]}},
{set,{var,9},{call,centralita,activate,[38]}},
{set,{var,10},{call,centralita,call,[-24,20]}},
{set,{var,11},{call,centralita,list,[]}},
{set,{var,12},{call,centralita,activate,[-27]}},
{set,{var,13},{call,centralita,list,[]}},
{set,{var,14},{call,centralita,nsa,[]}},
{set,{var,15},{call,centralita,call,[38,20]}}]
ACM SIGPLAN Erlang Workshop (2016) QC to UML 20 / 27

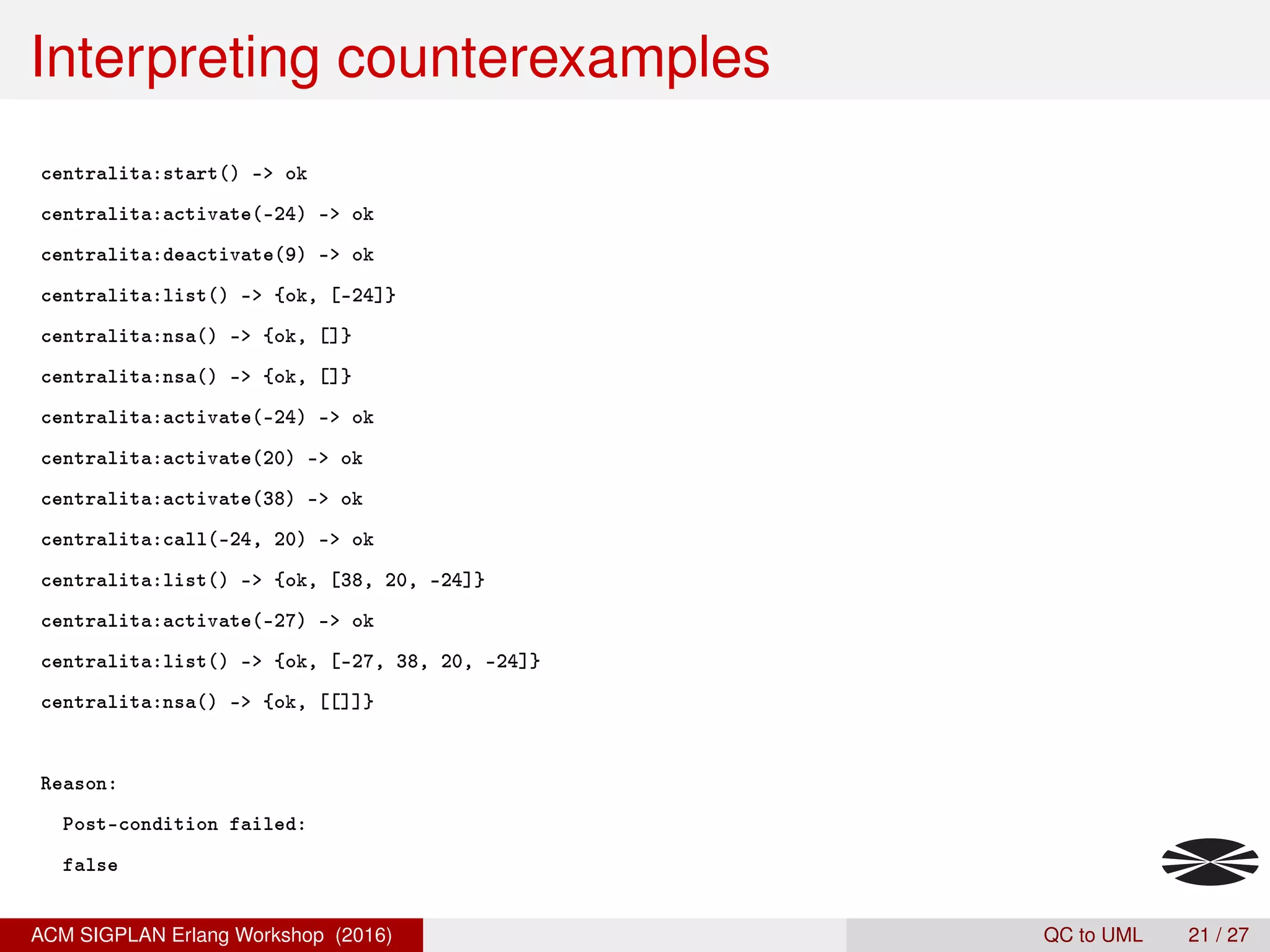

27. Interpreting counterexamples
centralita:start() -> ok
centralita:activate(-24) -> ok
centralita:deactivate(9) -> ok
centralita:list() -> {ok, [-24]}
centralita:nsa() -> {ok, []}
centralita:nsa() -> {ok, []}
centralita:activate(-24) -> ok
centralita:activate(20) -> ok
centralita:activate(38) -> ok
centralita:call(-24, 20) -> ok
centralita:list() -> {ok, [38, 20, -24]}
centralita:activate(-27) -> ok
centralita:list() -> {ok, [-27, 38, 20, -24]}
centralita:nsa() -> {ok, [[]]}
Reason:
Post-condition failed:
false
ACM SIGPLAN Erlang Workshop (2016) QC to UML 21 / 27

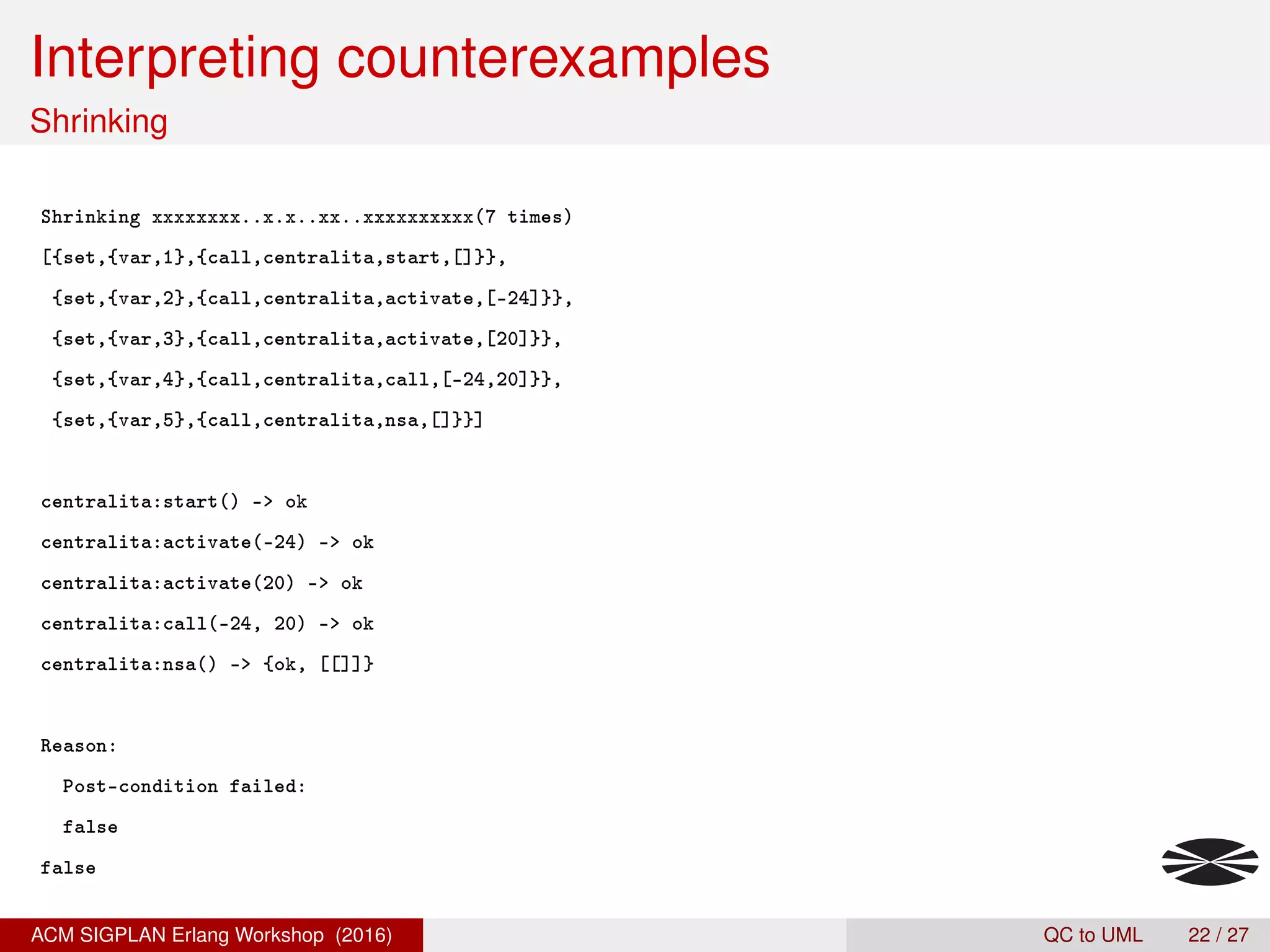

28. Interpreting counterexamples
Shrinking
Shrinking xxxxxxxx..x.x..xx..xxxxxxxxxx(7 times)
[{set,{var,1},{call,centralita,start,[]}},
{set,{var,2},{call,centralita,activate,[-24]}},
{set,{var,3},{call,centralita,activate,[20]}},
{set,{var,4},{call,centralita,call,[-24,20]}},
{set,{var,5},{call,centralita,nsa,[]}}]
centralita:start() -> ok
centralita:activate(-24) -> ok
centralita:activate(20) -> ok
centralita:call(-24, 20) -> ok
centralita:nsa() -> {ok, [[]]}
Reason:
Post-condition failed:
false
false
ACM SIGPLAN Erlang Workshop (2016) QC to UML 22 / 27

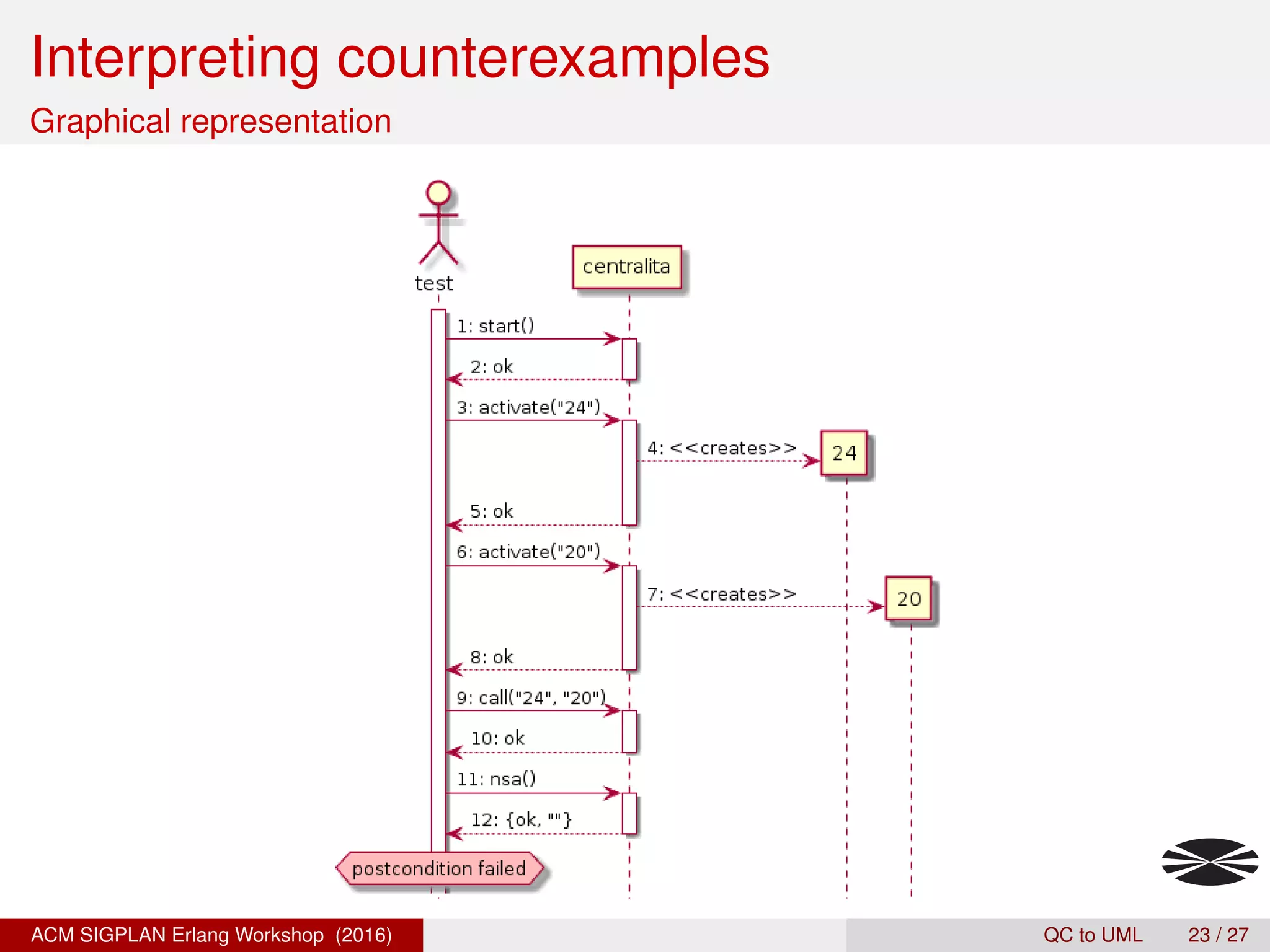

29. Interpreting counterexamples
Graphical representation
ACM SIGPLAN Erlang Workshop (2016) QC to UML 23 / 27

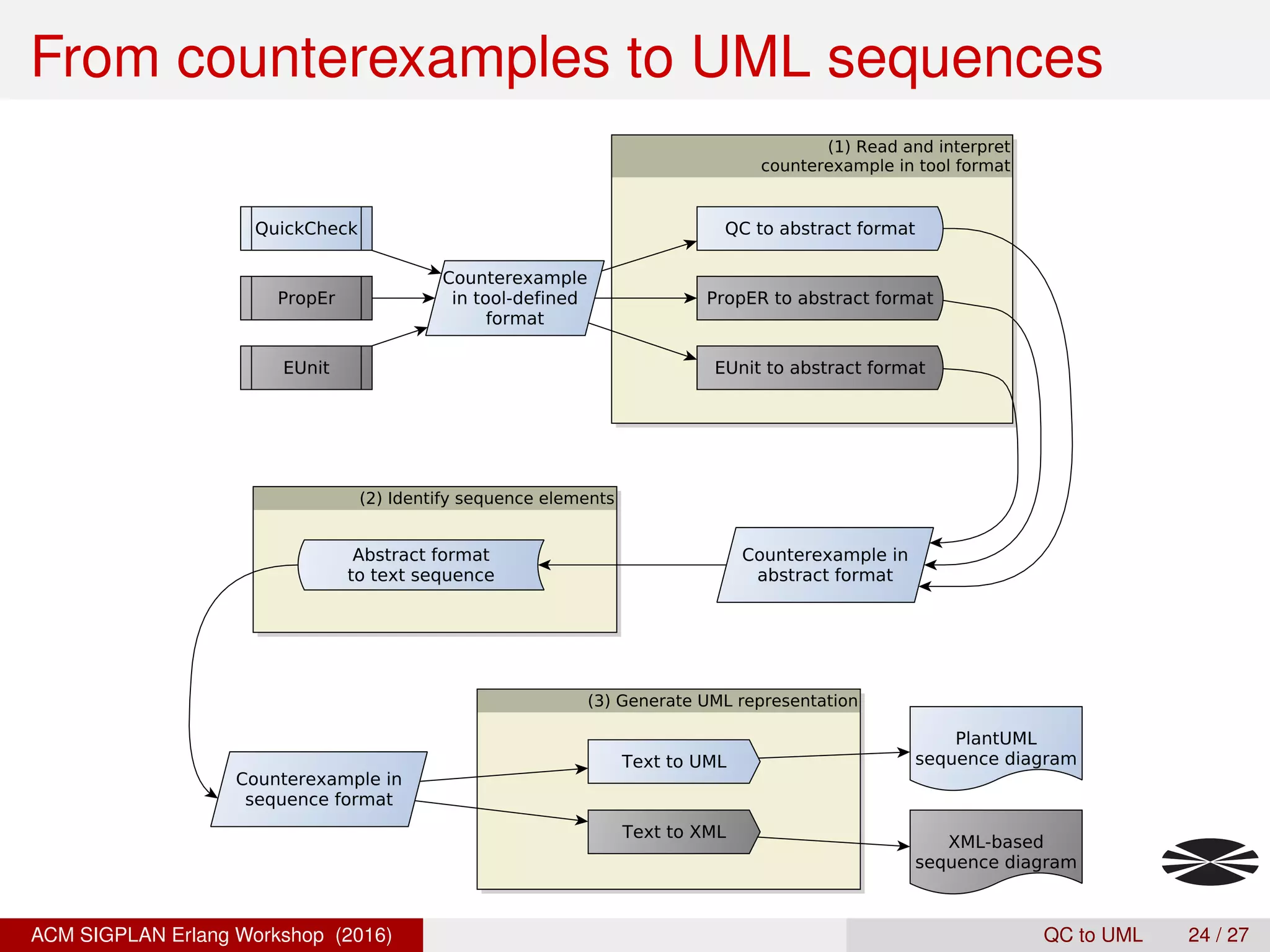

30. From counterexamples to UML sequences
ACM SIGPLAN Erlang Workshop (2016) QC to UML 24 / 27

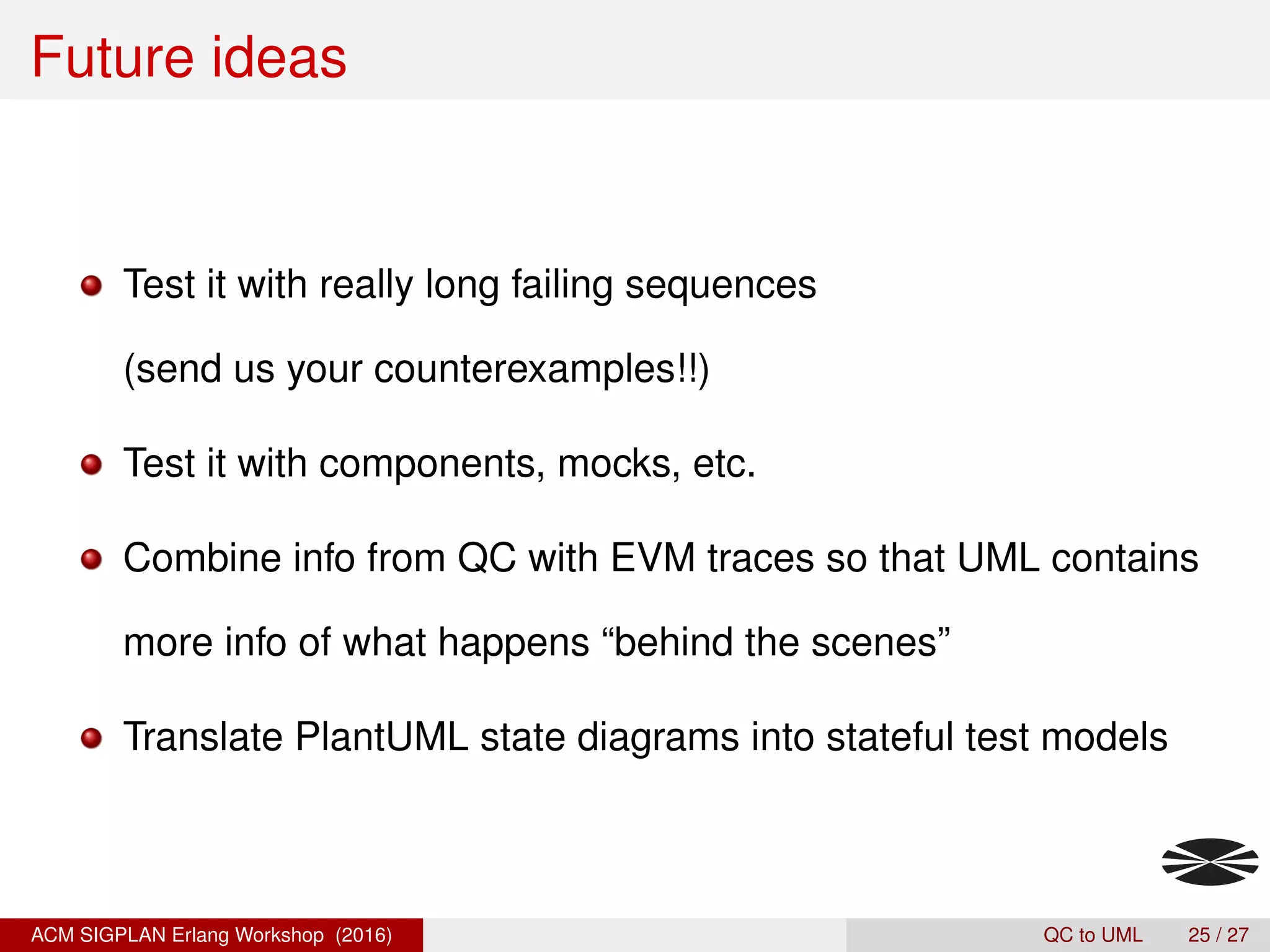

31. Future ideas
Test it with really long failing sequences
(send us your counterexamples!!)
Test it with components, mocks, etc.
Combine info from QC with EVM traces so that UML contains
more info of what happens “behind the scenes”
Translate PlantUML state diagrams into stateful test models
ACM SIGPLAN Erlang Workshop (2016) QC to UML 25 / 27

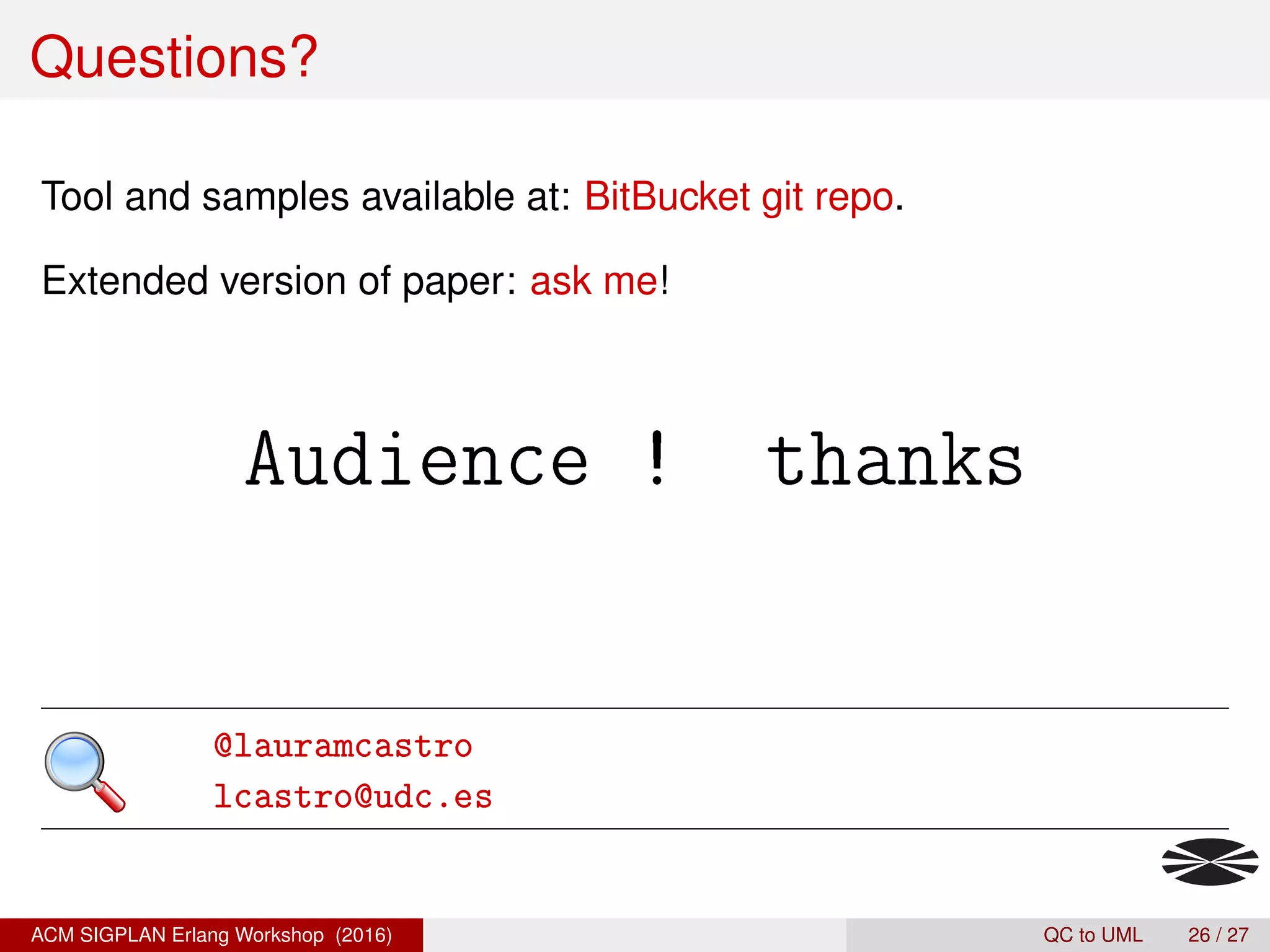

32. Questions?
Tool and samples available at: BitBucket git repo.
Extended version of paper: ask me!
Audience ! thanks
@lauramcastro
lcastro@udc.es
ACM SIGPLAN Erlang Workshop (2016) QC to UML 26 / 27

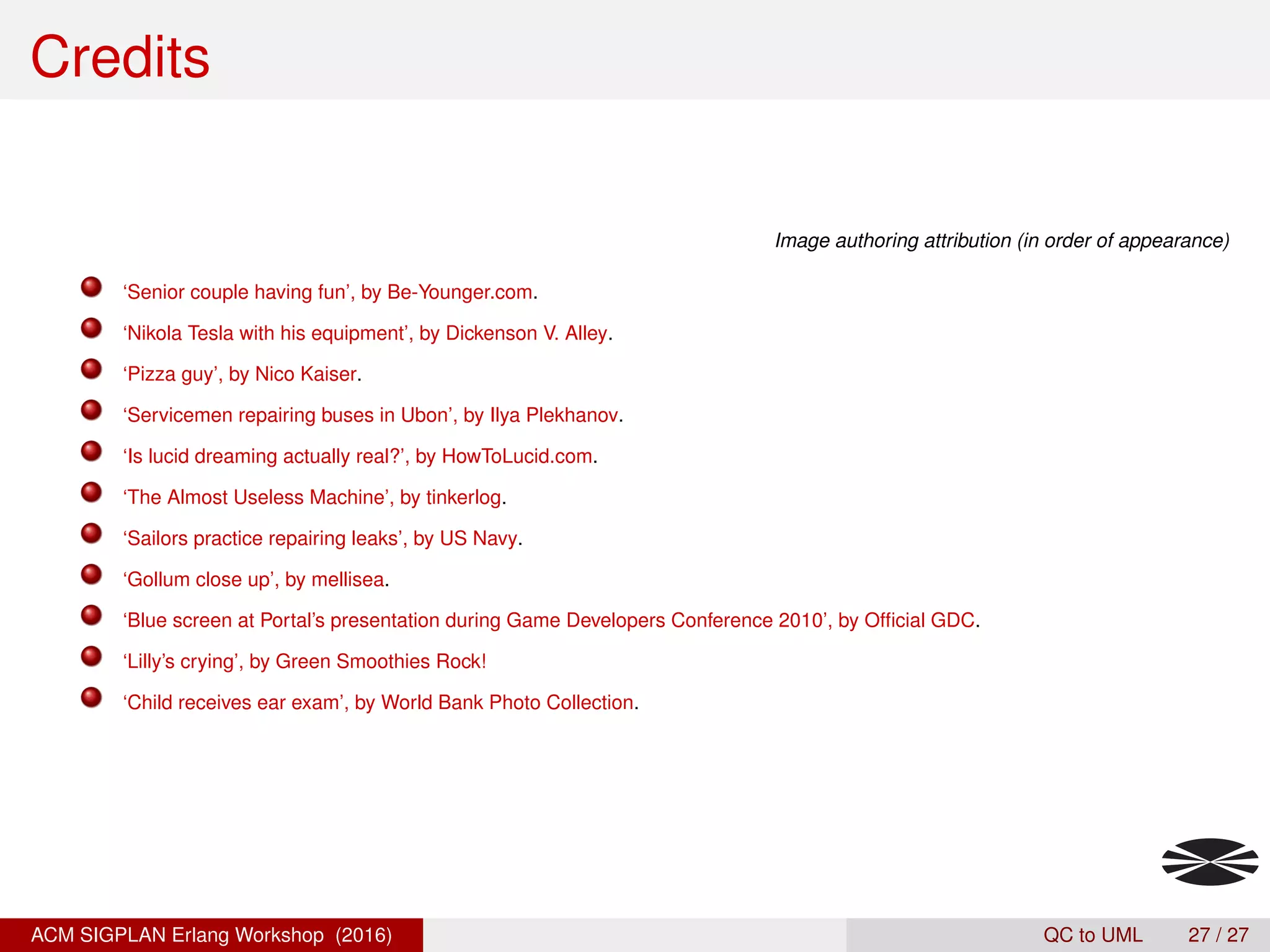

33. Credits
