This document discusses automated testing of Simulink/Stateflow controllers for automotive software. It presents an approach using black box search-based testing to generate test cases for closed-loop and open-loop controllers. The approach uses fitness functions to evaluate test results and provide failure explanation and detection. Case studies on industrial models demonstrate generating test inputs that reveal failures and visualizing the input space to explain under what conditions failures are likely to occur. The approach aims to help engineers test complex models without manual oracles or dealing with tool incompatibilities.

1. .lusoftware verification & validation
VVS
Automated Testing of Hybrid
Simulink/Stateflow Controllers
Industrial Case Studies
Reza Matinnejad
Shiva Nejati
Lionel Briand
SnT Centre/University of Luxembourg

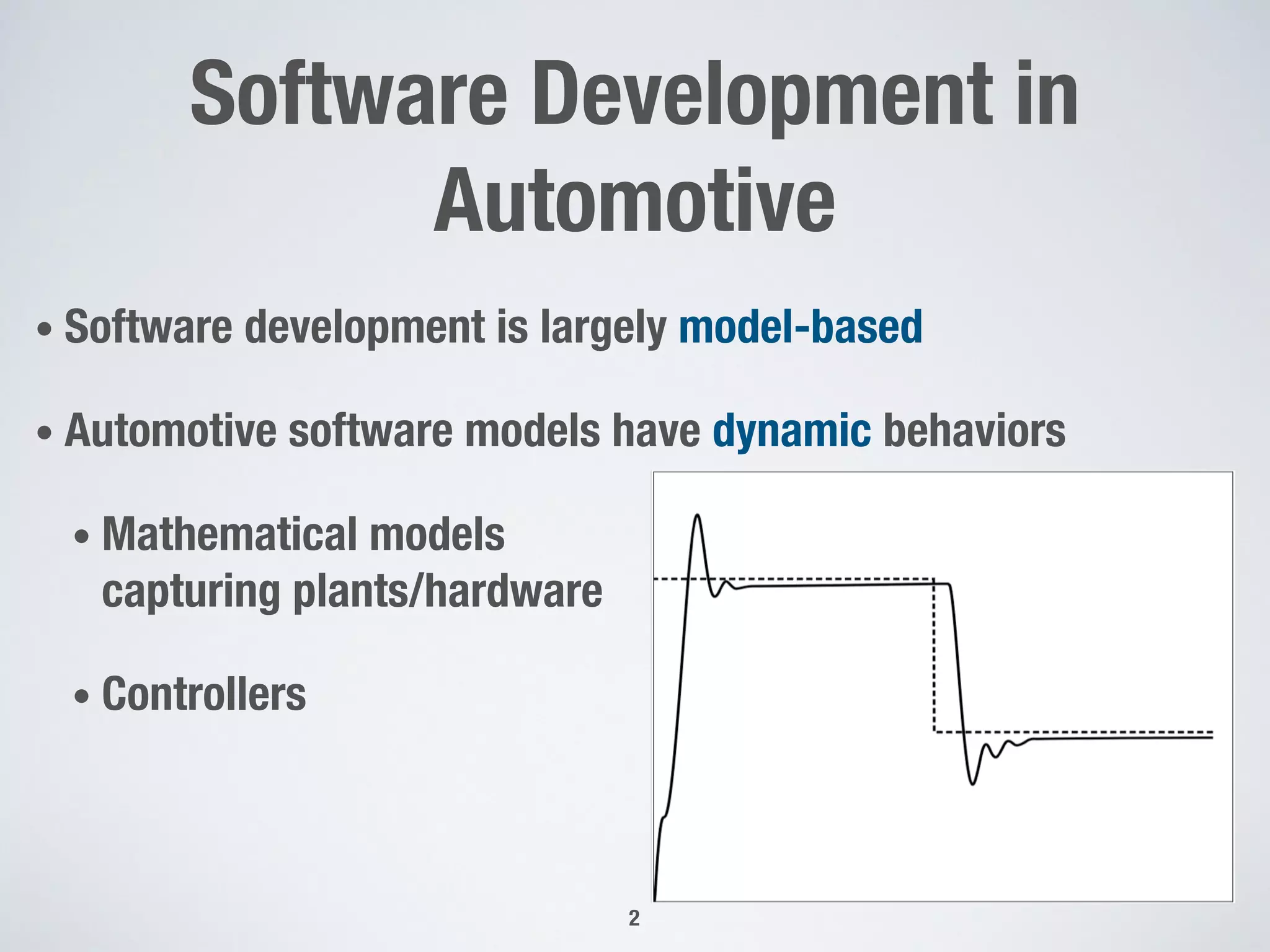

2. Software Development in
Automotive
• Software development is largely model-based
• Automotive software models have dynamic behaviors
• Mathematical models
capturing plants/hardware
• Controllers
2

3. Two Types of Controllers
• Open loop controllers
• Closed loop controllers
3
Controller
Actuator Sensor
Plant
Input
Controller
Actuator
Plant
Input
Disturbances
Disturbances

4. Open Loop vs Closed Loop
• Closed loop controllers – PID controllers
• More expensive
• More accurate and self-adaptive
• Always present in large and critical cyber-physical systems
• Open loop controllers – State-based models
• Less expensive
• Often controls timing behaviors
• Is combined with closed-loop controllers
4

5. Simulink/Stateflow Models
• Heterogeneous
• Continuous behavior
• Are used for
• simulation
• algorithm design testing
• code generation
5
Time-Continuous
Simulink Model Hardware
Model
Network Model

6. Existing Simulink Testing Tools
• Control theory techniques
• Synthesis of linear PID controllers
• Automated test case generation
• Based on (formal) assertions or structural code coverage
• Automated verification
• Model checking or theorem proving
6

7. Limitations
• Automotive models are rarely linear
• Automatable test oracles may not be available or sufficient
• Test oracles are in many cases manual
• Structural coverage may not help reveal faults
• White box approaches have incompatibility issues
• Scalability issues
7

8. Black Box Search Based
Testing of Simulink
8
Solution Generation
Fitness computation
• Explorative
• Exploitative
Model Input
Spec
Input
Signals
Input Signals
• Simulate the model
• Compute Fitness functions
on outputs
Simulink
Model Fitness
values
Model
Simulation
ut
als
Output
Signal(s)
[SSBSE 2013, ASE 2014, ESEC/FSE 2015,
IST J 2015, ICSE 2016]

9. Fitness Functions – Closed Loop
• Generic requirements
• Stability, responsiveness and smoothness
• Maximizing (quantitative) fitness functions to generate
failure
9
InitialDesired
(ID)
Desired ValueI (input)
Actual Value (output)
FinalDesired
(FD)
time
T/2 T
Smoothness
Responsiveness
Stability

10. Fitness Functions – Closed Loop
• Specific requirements
• E.g., ``The contact between caliper and disk should occur
within 32ms’’
caliper position à disk position à
10
⌃[0,32]⇤((x  x0 + ✏) ^ (x x0 ✏))
x x0
Min{Max{Max{|x(t) (x0 + ✏)|, |x(t) (x0 ✏)|}}t0tT }
Translation [Abbas et. al. TECS 2013]

11. Fitness Functions – Open Loop
• Failure patterns
• Output diversity
11
0.0 1.0 2.00.0 1.0 2.0
-1.0
-0.5
0.0
0.5
1.0
Time Time
0.0
0.25
0.50
0.75
1.0

12. Output of Our Approach
• Failure Explanation
• A characterization of the input space showing under what
input conditions the system is likely to fail
• Visualized by diagrams or regression trees
• Failure Detection
• Individual test cases revealing failures
• A set of test input signals
12

13. Case studies
• A mixed of closed loop and open loop controllers, and plant
models
• Developed by BOSCH
• Publicly available
• A large plant model – a mathematical continuous model
• Developed by an automotive company
13

14. Failure Explanation – Heatmap
Diagram
14
L
R

15. Failure Explanation – Regression
Tree
15
All Points
Count
Mean
Std Dev
2384
1.016e+10
4.898e+11
c_gear>=1.0279
Count
Mean
Std Dev
1997
25167.822
135651.79
Count
Mean
Std Dev
387
6.257e+10
1.216e+12
t0>=0.0029462
Count
Mean
Std Dev
1631
4550.4502
55698.046
t0<0.0029462
Count
Mean
Std Dev
366
117044.69
276423.68
c_gear<1.0279

16. Failure Detection – Closed Loop
16
0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.080.0
0.042
0.044
0.046
0.048
0.050
0.052
⌃[0,32]⇤((x  x0 + ✏) ^ (x x0 ✏))Test Input violating:
time
position

17. Failure Detection – Open Loop
17
0 1.0 2.0 0 1.0 2.0
0
4.0
-4.0
-8.0
0
1.5
-1.5
1.0
-1.0
0.5
-0.5
2.0
-2.0
-6.0
10
5
10
6
Time Time
Test inputs exhibiting ``instability” and ``grow to infinity”
failure patterns

18. Summary of Lessons Learned
• Generating test cases is not enough
• It is important to help engineers with input space exploration
and failure explanation
18
All Points
Count
Mean
Std Dev
2384
1.016e+10
4.898e+11
c_gear>=1.0279
Count
Mean
Std Dev
1997
25167.822
135651.79
Count
Mean
Std Dev
387
6.257e+10
1.216e+12
t0>=0.0029462
Count
Mean
Std Dev
1631
4550.4502
55698.046
t0<0.0029462
Count
Mean
Std Dev
366
117044.69
276423.68
c_gear<1.0279

19. Summary of Lessons Learned
• Engineers do not always have specific and precise
requirements at hand
• We generate test cases that reveal violation of both specific
requirements and (estimated) failure patterns
19
0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.080.0
0.042
0.044
0.046
0.048
0.050
0.052
0 1.0 2.0
0
1.5
-1.5
1.0
-1.0
0.5
-0.5
10
5
Time

20. Summary of Lessons Learned
• Incompatibility issues or manual overhead is a major obstacle
for adoption of current Simulink testing tools
• Our approach is black box and has no overhead
• Time performance of our approach is acceptable
20

21. Our Tools
• SimCoTest
Simulink Controller Tester
https://sites.google.com/site/simcotesttool/
• CoCoTest
Continuous Controller Tester
https://sites.google.com/site/cocotesttool/
21
