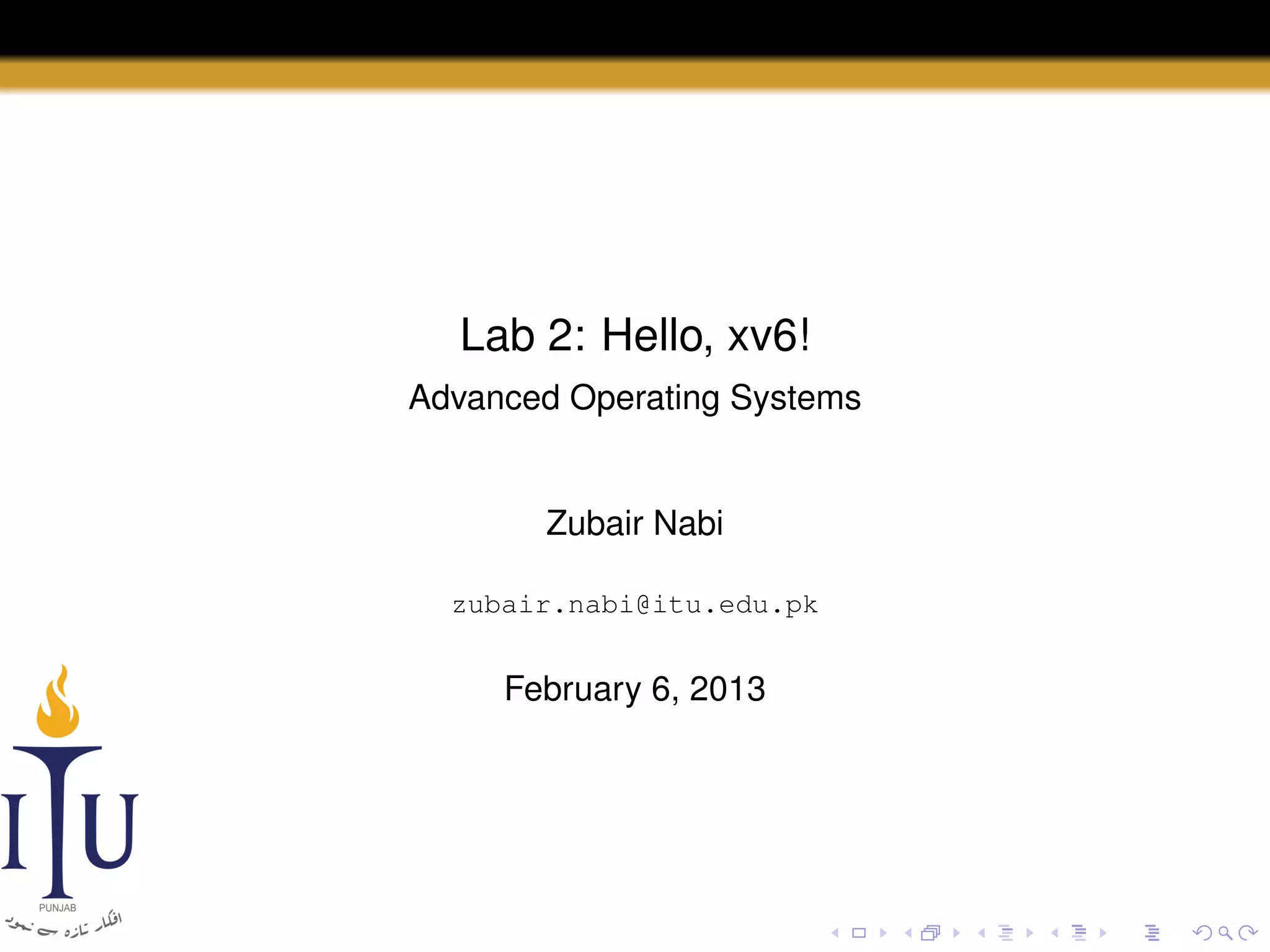

1. Lab 2: Hello, xv6!
Advanced Operating Systems
Zubair Nabi
zubair.nabi@itu.edu.pk
February 6, 2013

2. V6
•
•
•
•
Sixth Edition Unix a.k.a. Version 6 Unix
First public release of Unix out of Bell Labs
Designed for DEC PDP-11*
Original source code still available:
http://minnie.tuhs.org/cgi-bin/utree.pl
• Bible: Commentary on UNIX 6th Edition by John Lions (http:
//www.lemis.com/grog/Documentation/Lions/)

3. xv6
• Reimplementation of V6 in ANSI C out of MIT for x86 systems
• The entire source code can be converted to a PDF via make
print
• Textbook/commentary: xv6: a simple, Unix-like teaching
operating system
• Online: http://pdos.csail.mit.edu/6.828/2012/
xv6/book-rev7.pdf

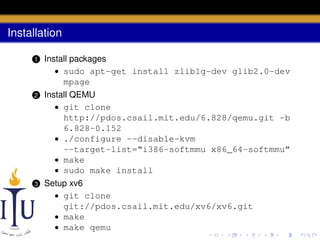

4. Installation
1
Install packages
• sudo apt-get install zlib1g-dev glib2.0-dev
mpage
2
Install QEMU
• git clone
http://pdos.csail.mit.edu/6.828/qemu.git -b
6.828-0.152
• ./configure --disable-kvm
--target-list=“i386-softmmu x86_64-softmmu”
• make
• sudo make install
3
Setup xv6
• git clone
git://pdos.csail.mit.edu/xv6/xv6.git
• make
• make qemu

5. OS in a nutshell
1
Manages low-level hardware;
2
Multiplexes the hardware;
3
Provides controlled ways for process interaction.

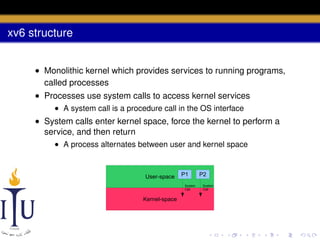

6. xv6 structure
• Monolithic kernel which provides services to running programs,
called processes
• Processes use system calls to access kernel services
• A system call is a procedure call in the OS interface
• System calls enter kernel space, force the kernel to perform a
service, and then return
• A process alternates between user and kernel space
User-space
P1
System
Call
Kernel-space
P2
System
Call

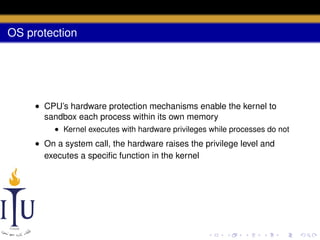

7. OS protection
• CPU’s hardware protection mechanisms enable the kernel to
sandbox each process within its own memory
• Kernel executes with hardware privileges while processes do not
• On a system call, the hardware raises the privilege level and
executes a specific function in the kernel

8. xv6 system calls
System call
fork()
exit()
wait()
kill(pid)
getpid()
sleep(n)
exec(filename, *argv)
sbrk(n)
open(filename, flags)
Description
Create process
Terminate current process
Wait for a child process to exit
Terminate process pid
Return current process’s id
Sleep for n seconds
Load a file and execute it
Grow process’s memory by n
bytes
Open a file; flags indicate read/write

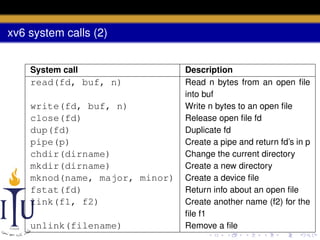

9. xv6 system calls (2)
System call
read(fd, buf, n)
write(fd, buf, n)
close(fd)
dup(fd)
pipe(p)
chdir(dirname)
mkdir(dirname)
mknod(name, major, minor)
fstat(fd)
link(f1, f2)
unlink(filename)
Description
Read n bytes from an open file
into buf
Write n bytes to an open file
Release open file fd
Duplicate fd
Create a pipe and return fd’s in p
Change the current directory
Create a new directory
Create a device file
Return info about an open file
Create another name (f2) for the
file f1
Remove a file

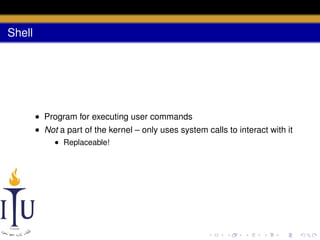

10. Shell
• Program for executing user commands
• Not a part of the kernel – only uses system calls to interact with it
• Replaceable!

11. Process
• A combination of user-space memory (instructions, data, and
stack) and per-process kernel state
• xv6 takes care of register management
• Each process can be identified through its pid, a positive integer

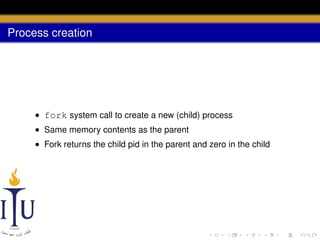

12. Process creation
• fork system call to create a new (child) process
• Same memory contents as the parent
• Fork returns the child pid in the parent and zero in the child

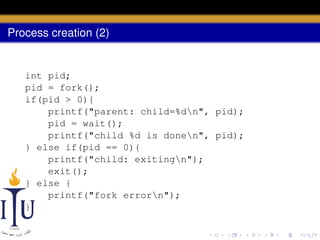

13. Process creation (2)
int pid;
pid = fork();
if(pid > 0){
printf("parent: child=%dn", pid);
pid = wait();
printf("child %d is donen", pid);
} else if(pid == 0){
printf("child: exitingn");
exit();
} else {
printf("fork errorn");
}

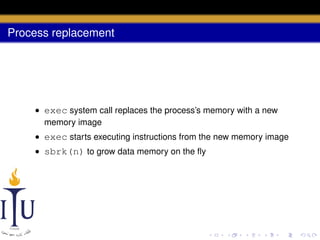

14. Process replacement
• exec system call replaces the process’s memory with a new
memory image
• exec starts executing instructions from the new memory image
• sbrk(n) to grow data memory on the fly

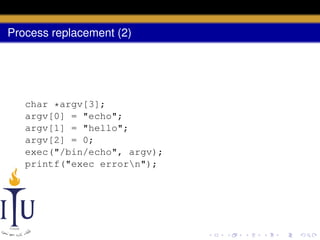

15. Process replacement (2)
char *argv[3];
argv[0] = "echo";
argv[1] = "hello";
argv[2] = 0;
exec("/bin/echo", argv);
printf("exec errorn");

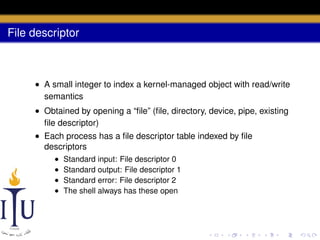

16. File descriptor
• A small integer to index a kernel-managed object with read/write
semantics
• Obtained by opening a “file” (file, directory, device, pipe, existing
file descriptor)
• Each process has a file descriptor table indexed by file
descriptors
•
•
•
•
Standard input: File descriptor 0
Standard output: File descriptor 1
Standard error: File descriptor 2
The shell always has these open

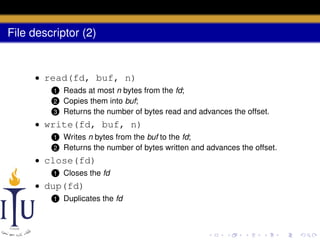

17. File descriptor (2)
• read(fd, buf, n)
Reads at most n bytes from the fd;
Copies them into buf;
3 Returns the number of bytes read and advances the offset.
1
2
• write(fd, buf, n)
1
2
Writes n bytes from the buf to the fd;
Returns the number of bytes written and advances the offset.
• close(fd)
1
Closes the fd
• dup(fd)
1
Duplicates the fd

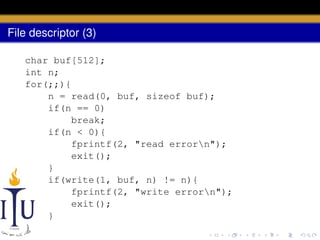

18. File descriptor (3)
char buf[512];
int n;
for(;;){
n = read(0, buf, sizeof buf);
if(n == 0)
break;
if(n < 0){
fprintf(2, "read errorn");
exit();
}
if(write(1, buf, n) != n){
fprintf(2, "write errorn");
exit();
}
}

19. Input redirection
char *argv[2];
argv[0] = "cat";
argv[1] = 0;
if(fork() == 0) {
close(0);
open("input.txt", O_RDONLY);
exec("cat", argv);
}

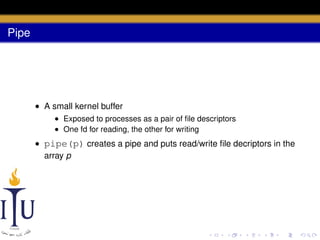

20. Pipe
• A small kernel buffer
• Exposed to processes as a pair of file descriptors
• One fd for reading, the other for writing
• pipe(p) creates a pipe and puts read/write file decriptors in the
array p

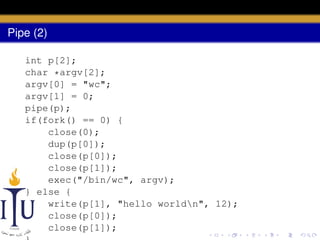

21. Pipe (2)
int p[2];
char *argv[2];
argv[0] = "wc";
argv[1] = 0;
pipe(p);
if(fork() == 0) {
close(0);
dup(p[0]);
close(p[0]);
close(p[1]);
exec("/bin/wc", argv);
} else {
write(p[1], "hello worldn", 12);
close(p[0]);
close(p[1]);

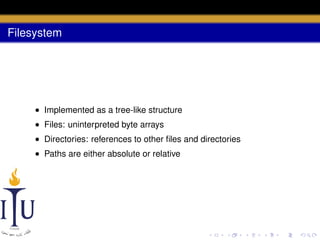

22. Filesystem
• Implemented as a tree-like structure
• Files: uninterpreted byte arrays
• Directories: references to other files and directories
• Paths are either absolute or relative

23. Filesystem (2)
• fstat(fd) system call retrieves information about the object
that the fd maps to
• Fills up the following struct:
#define T_DIR 1 // Directory
#define T_FILE 2 // File
#define T_DEV 3 // Device
struct stat {
short type; // Type of file
int dev; // File system’s disk device
uint ino; // Inode number
short nlink; // Number of links to file
uint size; // Size of file in bytes
};

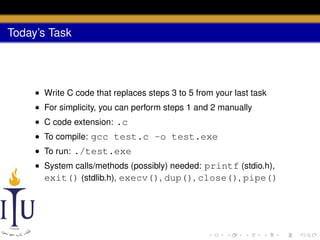

24. Today’s Task
• Write C code that replaces steps 3 to 5 from your last task
• For simplicity, you can perform steps 1 and 2 manually
• C code extension: .c
• To compile: gcc test.c -o test.exe
• To run: ./test.exe
• System calls/methods (possibly) needed: printf (stdio.h),
exit() (stdlib.h), execv(), dup(), close(), pipe()

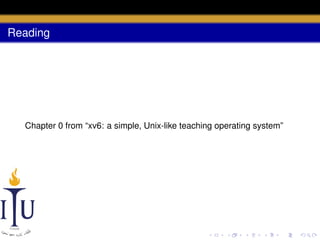

25. Reading
Chapter 0 from “xv6: a simple, Unix-like teaching operating system”
