Os lab final

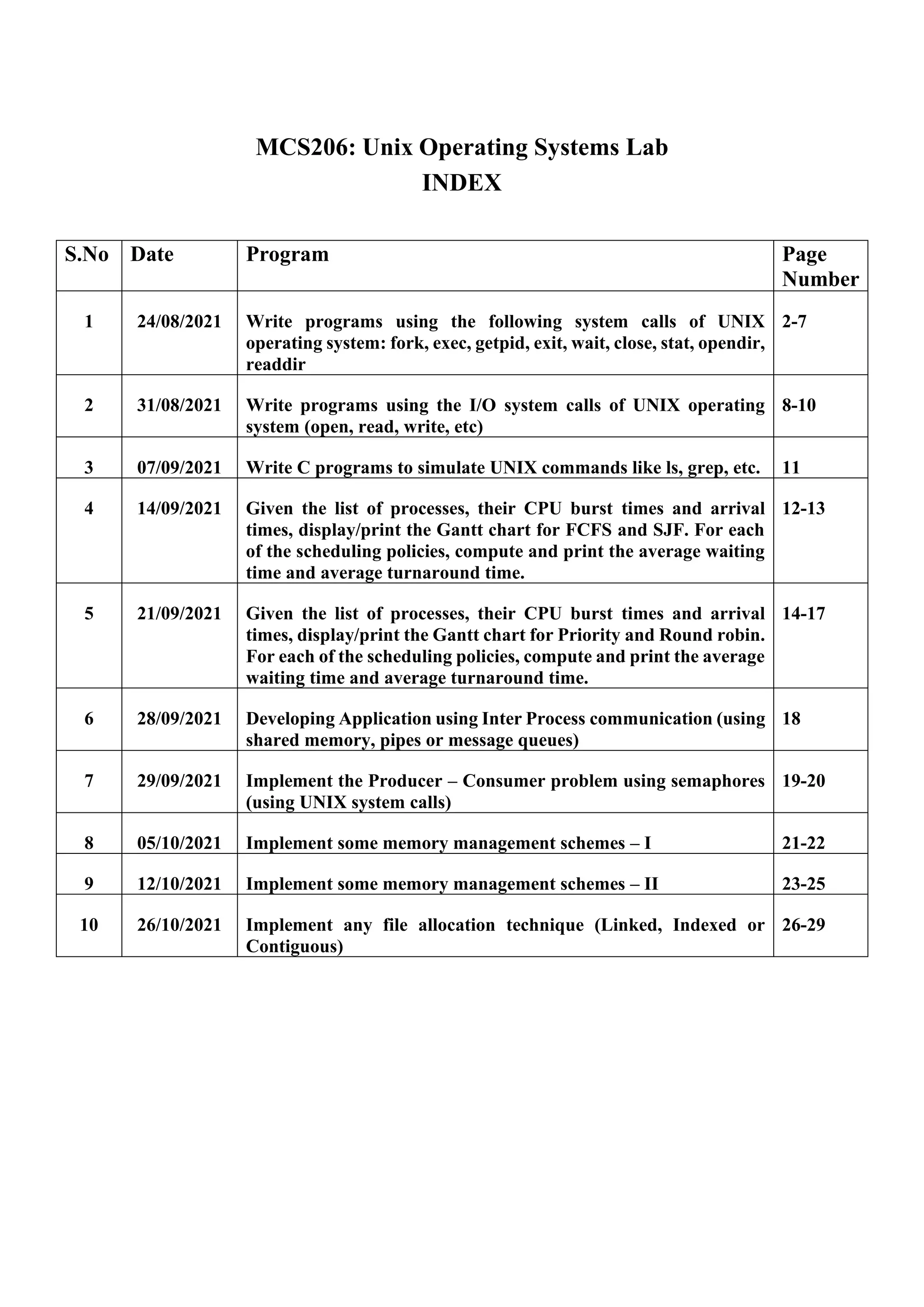

MCS206: Unix Operating Systems Lab
INDEX
S.No Date Program Page
Number
1 24/08/2021 Write programs using the following system calls of UNIX
operating system: fork, exec, getpid, exit, wait, close, stat, opendir,
readdir
2-7
2 31/08/2021 Write programs using the I/O system calls of UNIX operating
system (open, read, write, etc)
8-10
3 07/09/2021 Write C programs to simulate UNIX commands like ls, grep, etc. 11
4 14/09/2021 Given the list of processes, their CPU burst times and arrival
times, display/print the Gantt chart for FCFS and SJF. For each
of the scheduling policies, compute and print the average waiting
time and average turnaround time.
12-13
5 21/09/2021 Given the list of processes, their CPU burst times and arrival
times, display/print the Gantt chart for Priority and Round robin.
For each of the scheduling policies, compute and print the average
waiting time and average turnaround time.
14-17
6 28/09/2021 Developing Application using Inter Process communication (using
shared memory, pipes or message queues)
18
7 29/09/2021 Implement the Producer – Consumer problem using semaphores
(using UNIX system calls)
19-20
8 05/10/2021 Implement some memory management schemes – I 21-22
9 12/10/2021 Implement some memory management schemes – II 23-25
10 26/10/2021 Implement any file allocation technique (Linked, Indexed or
Contiguous)
26-29

2 | P a g e
Experiment No: 1 Write programs using the following system calls of UNIX operating
system: fork, exec, getpid, exit, wait, close, stat, opendir, readdir
AIM: Write programs using the following system calls of UNIX operating system:
fork, exec, getpid, exit, wait, close, stat, opendir, readdir
PROCEDURE:
a) fork(): Existing process can start a new process using fork() system call. It takes no arguments.
• If fork() returns a negative value, the creation of a child process was unsuccessful.
• If the child process is created successfully,
Once the child process has been created, then both the parent and child continue execution from
inside the fork() call. This means that the next action for both processes is to return from fork() with
its return value.
o fork() returns a zero to the child process.
o fork() returns the process ID of the child process, to the parent as shown below
The prototype for the fork() system call
#inciude <unistd.h>
pid_t fork(void);
b) getpid() system call: A process can use function getpid() to retrieve the process ID assigned to this
process.
c) exec() system call:
When you use the shell to run a command (ls, say) then at some point the shell will execute a fork() call to
get a new process running. Having done that, how does the shell then get ls to run in the child process instead
of the duplicate copy of the shell, which is what will be running immediately after the fork() call?
The solution in this case is to use an exec() system call. The simplest version of exec(). The prototype of
execv() system call is
int execv(pathname, argv);
The prototype for execv() shows that it only takes two parameters, the first is the full pathname to the
command to execute and the second is the argv value you want to pass into the new program.
ALGORITHM:
STEP 1: Start the program.
STEP 2: Declare the variables pid,pid1,pid2.
STEP 3: Call fork() system call to create process.

3 | P a g e
STEP 4: If pid==-1, exit.
STEP 5: if pid == 0 , and print the process id of child and execute hello.c program.
STEP 6: else , print the process id of parent
STEP 7:Stop the program
Program:
#include <stdio.h>
#include <sys/types.h>
#include <unistd.h>
int main(int argc, char *argv[])
{
pid_t p;
p = fork();
if(p==-1)
{
printf(“There is an error while calling fork()”);
}
if(p==0)
{
printf(“We are in the child process with pid = %dn”,getpid());
printf(“Calling hello.c from child processn”);
char *args[] = {“Hello”, “C”, “Programming”, NULL};
execv(“./hello”, args);
}
else
{
printf(“We are in the parent process with pid=%d”,getpid());
}
return 0;
}
Output:
We are in Parent Process with pid=4790
We are in Child Process with pid = 4791
Calling hello.c from child process
We are in hello.c
Wait() and exit() system calls
d) wait() system call:
The answer to the question of what the parent process does while the child process runs is quite simple —
either it waits for the child process to terminate or it just gets on with whatever else it needs to do.
In order to wait for a child process to terminate, a parent process will just execute a wait() system call. This
call will suspend the parent process until any of its child processes terminates, at which time the wait() call
returns and the parent process can continue.
The prototype for the wait() call is:
#include <sys/wait.h>
pid_t wait(int *status);
The return value from wait is the PID of the child process which terminated. The parameter to wait() is a
pointer to a location which will receive the child’s exit status value when it terminates.

4 | P a g e
e) exit() system call:
When a process terminates it executes an exit() system call, either directly in its own code, or indirectly via
library code. The prototype for the exit() call is:
#include <std1ib.h>
void exit(int status);
The exit() call has no return value as the process that calls it terminates and so could not receive a value
anyway. Notice, however, that exit() does take a parameter value — status.
exit() also returns the status parameter value to the parent process via the location pointed to by the wait()
parameter.
Program:
#include<stdio.h>
#include<sys/wait.h>
#include<unistd.h>
int main()
{
if (fork()== 0)
printf(“HC: hello from childn”);
else
{
printf(“HP: hello from parent, parent will start waiting for child to terminaten”);
wait(NULL);
printf(“CT: child has terminatedn”);
}
printf(“Byen”);
return 0;
}

5 | P a g e
Ouput:
HP: hello from parent, parent will start waiting for child to terminate
HC: hello from child
HC: Bye
CT: child has terminated // this sentence does
// not print before HC
// because of wait.
Bye
f) opendir ( ), readdir() system calls
DESCRIPTION:
The opendir( ) function opens a directory stream corresponding to the directory named by the d_name
argument. The directory stream is positioned at the first entry. The readdir( ) function returns a pointer to a
structure representing the directory entry at the current position in the directory stream specified by the
argument dir, and positions the directory stream at the next entry
PROGRAM: using opendir ( ), readdir ( ) system calls
#include <dirent.h>
#include <stdio.h>
int main(void)
{
DIR *d;
struct dirent *dir;
d = opendir(“.”);
if (d)
{
while ((dir = readdir(d)) != NULL)
{
printf(“%sn”, dir->d_name);
}
closedir(d);
}
return(0);
}
OUTPUT:
student@NNRG310:~/oslab$ cc dirsystemcalls.c
student@NNRG310:~/oslab$ ./a.out
f1.txt
f2.txt
.
fcfs.c
system calls programs.docx
sjf.c
a.out
.~lock.system calls programs.docx#
read.c

6 | P a g e
write.c
close.c
rr.c
dirsystemcalls.c
priority.c
f4.txt
f3.txt
..
open.c
g) stat ( ) system call
DESCRIPTION:
int stat(const char *path, struct stat *buf);
These functions return information about a file. No permissions are required on the file itself, but — in the
case of stat() and lstat() — execute (search) permission is required on all of the directories in path that lead
to the file.
PROGRAM: using stat ( ) system call
#include <unistd.h>
#include <stdio.h>
#include <sys/stat.h>
int main(int argc, char **argv)
{
if(argc!=2)
return 1;
struct stat fileStat;
if(stat(argv[1],&fileStat) < 0)
return 1;
printf(“Information for %sn”,argv[1]);
printf(“---------------------------n”);
printf(“File Size: tt%ld bytesn”,fileStat.st_size);
printf(“Number of Links: t%dn”,fileStat.st_nlink);
printf(“File inode: tt%lun”,fileStat.st_ino);
printf(“File Permissions: t”);
printf( (S_ISDIR(fileStat.st_mode)) ? “d” : “-“);
printf( (fileStat.st_mode & S_IRUSR) ? “r” : “-“);
printf( (fileStat.st_mode & S_IWUSR) ? “w” : “-“);
printf( (fileStat.st_mode & S_IXUSR) ? “x” : “-“);
printf( (fileStat.st_mode & S_IRGRP) ? “r” : “-“);
printf( (fileStat.st_mode & S_IWGRP) ? “w” : “-“);
printf( (fileStat.st_mode & S_IXGRP) ? “x” : “-“);
printf( (fileStat.st_mode & S_IROTH) ? “r” : “-“);
printf( (fileStat.st_mode & S_IWOTH) ? “w” : “-“);
printf( (fileStat.st_mode & S_IXOTH) ? “x” : “-“);
printf(“nn”);
return 0;
}
OUTPUT:
student@NNRG310:~/oslab$ cc stat.c
student@NNRG310:~/oslab$ ./a.out read.c
Information for read.c

7 | P a g e
------------------------------------------------
File Size: 455 bytes
Number of Links: 1
File inode: 794292
File Permissions: -rw-rw-r—

8 | P a g e
Experiment- 2
AIM: Write programs using the I/O system calls of UNIX/LINUX operating system
a) open ( ) system call
DESCRIPTION:
Used to open the file for reading, writing or both. This function returns the file descriptor or in case of
an error -1. The number of arguments that this function can have is two or three. The third argument is used
only when creating a new file. When we want to open an existing file only two arguments are used.
PROGRAM: using open ( ) system call
//using open() system call
#include<stdio.h>
#include<fcntl.h>
#include<errno.h>
extern int errno;
int main()
{
int fd=open("f3.txt",O_RDONLY | O_CREAT);
printf("fd=%dn",fd);
if (fd==-1)
{
printf("error Number %dn",errno);
perror("program");
}
return 0;
}
OUTPUT:
student@NNRG310:~/oslab$ cc open.c
fd=3
b) read ( ) system call
DESCRIPTION:
Syntax:
size_t read (int fd, void* buf, size_t cnt);
From the file indicated by the file descriptor fd, the read() function reads cnt bytes of input into the memory
area indicated by buf. A successful read() updates the access time for the file.
PROGRAM: using read ( ) system call
// read system Call read.c file
#include<stdio.h>
#include <fcntl.h>
#include<stdlib.h>
#include <unistd.h>
int main()
{
int fd,sz;
char *c = (char *) calloc(100, sizeof(char));
fd = open("f3.txt", O_RDONLY);
if (fd==-1)

9 | P a g e
{
perror("r1");
exit(1);
}
sz=read(fd,c,13);
printf("called read(%d, c, 10). returned that" " %d bytes were read.n", fd, sz);
c[sz] = '0';
printf("Those bytes are as follows: %sn", c);
return 0;
}
OUTPUT:
ca> f3.txt
From the file indicated by the file descriptor fd, the read() function reads cnt bytes of input into the memory
area indicated by buf.
student@NNRG310:~/oslab$ cc read.c
called read(3, c, 10). returned that 13 bytes were read.
Those bytes are as follows: From the file
c) write ( ) system call
DESCRIPTION:
size_t write (int fd, void* buf, size_t cnt);
Writes cnt bytes from buf to the file or socket associated with fd. If cnt is zero, write ( ) simply returns 0
without attempting any other action.
PROGRAM: using write ( ) system call
// C program to illustrate
// write system Call
#include<stdio.h>
#include <fcntl.h>
#include<stdlib.h>
#include <unistd.h>
#include<string.h>
int main( )
{
int sz;
int fd = open("f4.txt", O_WRONLY | O_CREAT | O_TRUNC, 0644);
if (fd ==-1)
{
perror("r1");
exit(1);
}
sz = write(fd, "hello linux", strlen("hello linux"));
printf("called write(%d, "hello linux", %d). It returned %dn", fd,
strlen("hello linux"), sz);
close(fd);
return 0;
}
OUTPUT:
student@NNRG310:~/oslab$ cc write.c

10 | P a g e
called write(3, "hello linux", 11). It returned 11
student@NNRG310:~/oslab$ cat f4.txt
hello linux
d) close ( ) system call
DESCRIPTION:
int close(int fd);
Tells the operating system you are done with a file descriptor and Close the file which pointed by fd.
PROGRAM: using close ( ) system call
// C program to illustrate close system Call
#include<stdio.h>
#include <fcntl.h>
#include<stdlib.h>
#include <unistd.h>
int main()
{
int fd1 = open("f3.txt", O_RDONLY);
if (fd1==-1)
{
perror("c1");
exit(1);
}
printf("opened the fd = % dn", fd1);
// Using close system Call
if (close(fd1)==-1)
{
perror("c1");
exit(1);
}
printf("closed the fd.n");
return 0;
}
OUTPUT:
opened the fd = 3
closed the fd.

11 | P a g e
Experiment No: 3
AIM: Write C programs to simulate UNIX commands like ls, grep, etc.
PROCEDURE:
a) grep command: The grep filter searches a file for a particular pattern of characters, and displays all lines
that contain that pattern.
Example:
if geekfile.txt contains the data below:
unix is great os. unix is opensource. unix is free os. learn operating system.
Then the following command
$grep -c "unix" geekfile.txt
will give ouput:
2
as option -c prints only a count of the lines that match a pattern
b) ls command
ls command lists all files and subdirectories
Program:
#include<stdio.h>
#include<dirent.h>
main()
{
char dirname[10];
DIR*p;
struct dirent *d;
printf("Enter directory namen");
scanf("%s",dirname);
p=opendir(dirname);
if(p==NULL)
{
perror("Cannot find directory");
exit(-1);
}
while(d=readdir(p))
printf("%sn",d->d_name);
}
Output:
All files and subdirectories of current directory

12 | P a g e
Experiment No: 4
AIM: Given the list of processes, their CPU burst times and arrival times, display/printthe Gantt chart for
FCFS and SJF. For each of the scheduling policies, compute and print the average waiting time and average
turnaround time.
PROCEDURE
a) FCFS CPU scheduling
DESCRIPTION:
For FCFS scheduling algorithm, read the number of processes/jobs in the system, their CPU burst times. The
scheduling is performed on the basis of arrival time of the processes irrespective of their other parameters.
Each process will be executed according to its arrival time. Calculate the waiting time and turnaround time of
each of the processes accordingly.
Program:
#include <stdio.h>
int main()
{
int n;
printf("enter number of process ");
scanf("%d",&n);
int bt[n],i,wt[n],sumwt=0,ta[n],sumta=0;
wt[0]=0;
printf("enter the cpu burst time");
for(i=0;i<n;i++)
{
scanf("%d",&bt[i]);
wt[i+1]=bt[i]+wt[i];
ta[i]=wt[i]+bt[i];
sumwt=sumwt+wt[i];
sumta=sumta+ta[i];
}
printf("average waiting time = %dn",sumwt/n);
printf("average turn around time = %d",sumta/n);
return 0;
}
Output:
enter number of process 3
enter the cpu burst time
24
3
3
average waiting time = 17
average turn around time = 27

13 | P a g e
b) SJF CPU scheduling
DESCRIPTION:
For SJF(Shortest Job First) scheduling algorithm, read the number of processes/jobs in the system, their CPU
burst times. Arrange all the jobs in order with respect to their burst times. There may be two jobs in queue
with the same execution time, and then FCFS approach is to be performed. Each process will be executed acco
ding to the length of its burst time. Then calculate the waiting time and turnaround time of each of the processes
accordingly.
Program:
#include <stdio.h>
int main()
{
int n;
scanf("%d",&n);
int bt[n],i,j,wt[n],sumwt=0,ta[n],sumta=0;
wt[0]=0;
printf("enter the cpu burst time");
for(i=0;i<n;i++)
{
scanf("%d",&bt[i]);
}
for(i=0;i<n;i++)
{
for(j=i+1;j<n;j++)
{
if(bt[i] > bt[j])
{
int temp=bt[i];
bt[i]=bt[j];
bt[j]=temp;
}
}
}
wt[0]=0;
for(i=0;i<n;i++)
{
wt[i+1]=bt[i]+wt[i];
ta[i]=wt[i]+bt[i];
sumwt=sumwt+wt[i];
sumta=sumta+ta[i];
}
return 0;
}
Output:
enter number of process
4

14 | P a g e
6
8
7
3

15 | P a g e
Experiment No: 5:
AIM: Given the list of processes, their CPU burst times and arrival times, display/printthe Gantt chart for
Priority and Round robin. For each of the scheduling policies, compute and print the average waiting time and
average turnaround time.
a) Priority CPU Scheduling
DESCRIPTION:
For priority scheduling algorithm, read the number of processes/jobs in the system, their CPU burst times, and
the priorities. Arrange all the jobs in order with respect to their priorities. There may be two jobs in queue with
the same priority, and then FCFS approach is to be performed. Each process will be executed according to its
priority. Calculate the waiting time and turnaround time of each of the processes accordingly.
Program:
#include <stdio.h>
struct process
{
int prio,bt;
};
int main()
{
int n;
scanf("%d",&n);
int i,j,wt[n],sumwt=0,ta[n],sumta=0;
struct process p[n],temp;
printf("enter the cpu burst time and their priorities");
for(i=0;i<n;i++)
{
scanf("%d%d", &p[i].bt,&p[i].prio);
}
for(i=0;i<n;i++)
{
for(j=i+1;j<n;j++)
{
if(p[i].prio > p[j].prio)
{
temp=p[i];
p[i]=p[j];
p[j]=temp;
}
}
}
wt[0]=0;
for(i=0;i<n;i++)
{
wt[i+1]=wt[i]+p[i].bt;
ta[i]=wt[i]+p[i].bt;
sumwt=sumwt+wt[i];
sumta=sumta+ta[i];

16 | P a g e
}
return 0;
}
Output:
5
enter the cpu burst time and their priorities
10 3
1 1
2 4
1 5
5 2
b) Round Robin Scheduling
DESCRIPTION:
For round robin scheduling algorithm, read the number of processes/ jobs in the system, their CPU burst times,
and the size of the time slice. Time slices are assigned to each process in equal portions and in circular order,
handling all processes execution. This allows every process to get an equal chance.
Here in the program, waiting time is calculated by using the below formula
waitingTime=CompletionTime-CPUBurstTime
Program:
#include<stdio.h>
int main()
{
int n;
scanf("%d",&n);
int i,j,bt[n],rem[n],wt[n],sumwt=0,ta[n],sumta=0,quantum;
printf("enter the cpu burst time ");
for(i=0;i<n;i++)
{
scanf("%d",&bt[i]);
rem[i]=bt[i];
}
printf("enter time quantum");
scanf("%d",&quantum);
int t = 0; // Current time
// Keep traversing processes in round robin manner until all of them are not done.
while (1)
{
int flag=1;
for (int i = 0 ; i < n; i++)

17 | P a g e
{
// If reamining burst time of a process is greater than 0 then only need to process further
if (rem[i] > 0)
{
flag=0; // There is a pending process
if (rem[i] > quantum)
{
t += quantum;
rem[i] = rem[i]-quantum;
}
else
{
t = t + rem[i];
wt[i] = t - bt[i];
sumwt=sumwt+wt[i];
sumta=sumta+t;
// As the process gets fully executed make its remaining burst time = 0
rem[i] = 0;
}
}
}
// If all processes are done
if (flag == 1)
break;
}
return 0;
}
Output:
3
10 5 8
enter time quantum
2

18 | P a g e
Experiment No: 6:
a) Developing Application using Inter Process communication using pipes
AIM: Program to write and read two messages using pipe.
Algorithm:
Step 1 − Create a pipe.
Step 2 − Send a message to the pipe.
Step 3 − Retrieve the message from the pipe and write it to the standard output.
Step 4 − Send another message to the pipe.
Step 5 − Retrieve the message from the pipe and write it to the standard output.
Program:
#include<stdio.h>
#include<unistd.h>
int main()
{
int pipefds[2];
int returnstatus;
char writemessages[2][20]={"Hi", "Hello"};
char readmessage[20];
returnstatus = pipe(pipefds);
if (returnstatus == -1)
{
printf("Unable to create pipen");
return 1;
}
printf("Writing to pipe - Message 1 is %sn", writemessages[0]);
write(pipefds[1], writemessages[0], sizeof(writemessages[0]));
read(pipefds[0], readmessage, sizeof(readmessage));
printf("Reading from pipe – Message 1 is %sn", readmessage);
printf("Writing to pipe - Message 2 is %sn", writemessages[0]);
write(pipefds[1], writemessages[1], sizeof(writemessages[0]));
read(pipefds[0], readmessage, sizeof(readmessage));
printf("Reading from pipe – Message 2 is %sn", readmessage);
return 0;
}
Output:
Writing to pipe - Message 1 is Hi
Reading from pipe – Message 1 is Hi
Writing to pipe - Message 2 is Hi
Reading from pipe – Message 2 is Hell

19 | P a g e
Experiment No: 7
AIM: To Implement the Producer – Consumer problem using semaphores (using UNIX system calls)
DESCRIPTION: The producer consumer problem is a synchronization problem. There is a fixed size buffer
and the producer produces items and enters them into the buffer. The consumer removes the items from the
buffer and consumes them. A producer should not produce items into the buffer when the consumer is
consuming an item from the buffer and vice versa. So the buffer should only be accessed by the producer or
consumer at a time.
PROGRAM: Producer – Consumer problem using semaphores
#include<stdio.h>
#include<stdlib.h>
int mutex=1,full=0,empty=3,x=0;
int main()
{
int n;
void producer();
void consumer();
int wait(int);
int signal(int);
printf("n1.Producern2.Consumern3.Exit");
while(1)
{
printf("nEnter your choice:");
scanf("%d",&n);
switch(n)
{
case 1: if((mutex==1)&&(empty!=0))
producer();
else
printf("Buffer is full!!");
break;
case 2: if((mutex==1)&&(full!=0))
consumer();
else
printf("Buffer is empty!!");
break;
case 3:
exit(0);
}
}
return 0;
}
int wait(int s)
{
return (--s);
}
int signal(int s)
{
return(++s);

20 | P a g e
}
void producer()
{
mutex=wait(mutex);
full=signal(full);
empty=wait(empty);
x++;
printf("nProducer produces the item %d",x);
mutex=signal(mutex);
}
void consumer()
{
mutex=wait(mutex);
full=wait(full);
empty=signal(empty);
printf("nConsumer consumes item %d",x);
x--;
mutex=signal(mutex);
}
OUTPUT:
student@NNRG310:~/oslab$ cc pc.c
1.Producer
2.Consumer
3.Exit
Enter your choice:1
Producer produces the item 1
Enter your choice:2
Consumer consumes item 1
Enter your choice:2
Buffer is empty!!
Enter your choice:1
Enter your choice:1
Enter your choice:2
Enter your choice:2
Enter your choice:2
Buffer is empty!!
Enter your choice:3
student@NNRG310:~/oslab$

21 | P a g e
Experiment No: 8 Implement some memory management schemes – I
IMPLEMENTATION OF THE FIFO PAGE REPLACEMENT ALGORITHMS
AIM:
To write a UNIX C program to implement FIFO page replacement algorithm.
DESCRIPTION :
The FIFO Page Replacement algorithm associates with each page the time when that page was brought into
memory. When a page must be replaced, the oldest page is chosen . There is not strictly necessary to record
the time when a page is brought in. By creating a FIFO queue to hold all pages in memory and by replacing
the page at the head of the queue. When a page is brought into memory, insert it at the tail of the queue.
ALGORITHM:
1. Start the process
2. Declare the size with respect to page length
3. Check the need of replacement from the page to memory
4. Check the need of replacement from old page to new page in memory
5. Format queue to hold all pages
6. Insert the page require memory into the queue
7. Check for bad replacement and page fault
8. Get the number of processes to be inserted
9. Display the values
10. Stop the process
PROGRAM:
#include<stdio.h>
main()
{
int i, j, k, f, pf=0, count=0, rs[25], m[10], n;
printf("n Enter the length of reference string -- ");
scanf("%d",&n);
printf("n Enter the reference string -- ");
for(i=0;i<n;i++)
scanf("%d",&rs[i]);
printf("n Enter no. of frames -- ");
scanf("%d",&f);
for(i=0;i<f;i++)
m[i]=-1;
printf("n The Page Replacement Process is -- n");
for(i=0;i<n;i++)
{
for(k=0;k<f;k++)
{
if(m[k]==rs[i])
break;
}
if(k==f)
{
m[count++]=rs[i];
pf++;
}
for(j=0;j<f;j++)

22 | P a g e
printf("t%d",m[j]);
if(k==f)
printf("tPF No. %d",pf);
printf("n");
if(count==f)
count=0;
}
printf("n The number of Page Faults using FIFO are %d",pf);
}
OUTPUT
Enter the length of reference string – 20
Enter the reference string -- 7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
Enter no. of frames -- 3
The Page Replacement Process is –
7 -1 -1 PF No. 1
7 0 -1 PF No. 2
7 0 1 PF No. 3
2 0 1 PF No. 4
2 0 1
2 3 1 PF No. 5
2 3 0 PF No. 6
4 3 0 PF No. 7
4 2 0 PF No. 8
4 2 3 PF No. 9
0 2 3 PF No. 10
0 2 3
0 2 3
0 1 3 PF No. 11
0 1 2 PF No. 12
0 1 2
0 1 2
7 1 2 PF No. 13
7 0 2 PF No. 14
7 0 1 PF No. 15
The number of Page Faults using FIFO are 15
RESULT:
Thus a UNIX C program to implement FIFO page replacement is executed successfully.

23 | P a g e
Experiment No: 9: Implement some memory management schemes -II
a) IMPLEMENTATION OF LRU PAGE REPLACEMENT ALGORITHM
AIM: To write UNIX C program a program to implement LRU page replacement algorithm.
DESCRIPTION:
The Least Recently Used replacement policy chooses to replace the page which has not been referenced for
the longest time. This policy assumes the recent past will approximate the immediate future. The operating
system keeps track of when each page was referenced by recording the time of reference or by maintaining a
stack of references.
ALGORITHM:
1. Start the process
2. Declare the size
3. Get the number of pages to be inserted
4. Get the value
5. Declare counter and stack
6. Select the least recently used page by counter value
7. Stack them according the selection.
8. Display the values
9. Stop the process
PROGRAM:
#include<stdio.h>
main()
{
int i, j , k, min, rs[25], m[10], count[10], flag[25], n, f, pf=0, next=1;
printf("Enter the length of reference string -- ");
scanf("%d",&n);
printf("Enter the reference string -- ");
for(i=0;i<n;i++)
{
scanf("%d",&rs[i]);
flag[i]=0;
}
printf("Enter the number of frames -- ");
scanf("%d",&f);
for(i=0;i<f;i++)
{
count[i]=0;
m[i]=-1;
}
printf("nThe Page Replacement process is -- n");
for(i=0;i<n;i++)
{
for(j=0;j<f;j++)
{
if(m[j]==rs[i])
{
flag[i]=1;
count[j]=next;

24 | P a g e
next++;
}
}
if(flag[i]==0)
{
if(i<f)
{
m[i]=rs[i];
count[i]=next;
next++;
}
else
{
min=0;
for(j=1;j<f;j++)
if(count[min] > count[j])
min=j;
m[min]=rs[i];
count[min]=next;
next++;
}
pf++;
}
for(j=0;j<f;j++)
printf("%dt", m[j]);
if(flag[i]==0)
printf("PF No. -- %d" , pf);
printf("n");
}
printf("nThe number of page faults using LRU are %d",pf);
}
OUTPUT
Enter the length of reference string -- 20
Enter the reference string -- 7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0 1 7 0 1
Enter the number of frames -- 3
The Page Replacement process is --
7 -1 -1 PF No. -- 1
7 0 -1 PF No. -- 2
7 0 1 PF No. -- 3
2 0 1 PF No. -- 4
2 0 1
2 0 3 PF No. -- 5
2 0 3
4 0 3 PF No. -- 6
4 0 2 PF No. -- 7
4 3 2 PF No. -- 8
0 3 2 PF No. -- 9
0 3 2
0 3 2
1 3 2 PF No. -- 10
1 3 2
1 0 2 PF No. -- 11

25 | P a g e
1 0 2
1 0 7 PF No. -- 12
1 0 7
1 0 7
The number of page faults using LRU are 12
RESULT:
Thus a UNIX C program to implement LRU page replacement is executed successfully.

26 | P a g e
Experiment No: 10: Implement any file allocation technique (Linked, Indexed or Contiguous)
a) SEQUENTIAL FILE ALLOCATION
AIM: To implement sequential file allocation technique.
ALGORITHM:
Step 1: Start the program.
Step 2: Get the number of files.
Step 3: Get the memory requirement of each file.
Step 4: Allocate the required locations to each in sequential order.
a). Randomly select a location from available location s1= random(100);
b). Check whether the required locations are free from the selected location.
c). Allocate and set flag=1 to the allocated locations.
Step 5: Print the results fileno, length , Blocks allocated.
Step 6: Stop the program
PROGRAM:
#include<stdio.h>
int main()
{
int f[50],i,st,j,len,c,k;
for(i=0;i<50;i++)
f[i]=0;
printf("n Enter the starting block & length of file");
scanf("%d%d",&st,&len);
for(j=st;j<(st+len);j++)
{
if(f[j]==0)
{
f[j]=1;
printf("n%d->%d",j,f[j]);
}
else
{
printf("Block already allocated");
break;
}
}
if(j==(st+len))
printf("n the file is allocated to disk");
}
Output:
Enter the starting block & length of file
4 5
4->1
5->1
6->1
7->1
8->1
The file is allocated to disk

27 | P a g e
b) LINKED FILE ALLOCATION AIM:
AIM: To write a C program to implement File Allocation concept using the technique Linked List
Technique.
ALGORITHM:
Step 1: Start the Program
Step 3: Allocate the required locations by selecting a location randomly
Step 4: Check whether the selected location is free.
Step 5: If the location is free allocate and set flag =1 to the allocated locations.
Step 6: Print the results file no, length, blocks allocated.
Step 7: Stop the execution
PROGRAM:
#include<stdio.h>
main()
{
int f[50],p,i,j,k,a,st,len,n,c; clrscr();
for(i=0;i<50;i++)
f[i]=0;
printf("Enter how many blocks that are already allocated");
scanf("%d",&p);
printf("nEnter the blocks no.s that are already allocated");
for(i=0;i<p;i++)
{
scanf("%d",&a);
f[a]=1;
}
printf("Enter the starting index block & length");
scanf("%d%d",&st,&len);
k=len;
for(j=st;j<(k+st);j++)
{
if(f[j]==0)
{
f[j]=1;
printf("n%d->%d",j,f[j]);
}
else
{
printf("n %d->file is already allocated",j); k++;
}
}
}
OUTPUT:
Enter how many blocks are already allocated 3
Enter the blocks no’s that are already allocated 4 7 9
Enter the starting index block & length 3 7
3-> 1

28 | P a g e
4-> File is already allocated 5->1
6->1
11->1
12->1
RESULT:
Thus the program to implement the linked file allocation was executed successfully
c) INDEXED FILE ALLOCATION
AIM: To write a C program to implement file Allocation concept using the indexed allocation Technique
ALGORITHM:
Step 1: Start the Program
Step 3: Get the memory requirement of each file.
Step 4: Allocate the required locations by selecting a location randomly. Step 5: Print the results file
no,length, blocks allocated.
Step 6: Stop the execution.
PROGRAM
#include<stdio.h>
int f[50],i,k,j,inde[50],n,c,count=0,p;
main()
{
for(i=0;i<50;i++)
f[i]=0;
x:
printf("enter index blockt");
scanf("%d",&p);
if(f[p]==0)
{
f[p]=1;
printf("enter no of files on indext");
scanf("%d",&n);
}
else
{
printf("Block already allocatedn");
goto x;
}
for(i=0;i<n;i++)
scanf("%d",&inde[i]);
for(i=0;i<n;i++)
if(f[inde[i]]==1)
{
printf("Block already allocated");
goto x;
}
for(j=0;j<n;j++)
f[inde[j]]=1;

29 | P a g e
printf("n allocated");
printf("n file indexed");
for(k=0;k<n;k++)
printf("n %d->%d:%d",p,inde[k],f[inde[k]]);
}
OUTPUT:
Enter index block 9
Enter no of files on index 3 1 2 3
Allocated
File indexed 9-> 1:1
9-> 2:1
9->3:1
RESULT :
Thus the program to implement the indexed file allocation was executed successfully

Os lab final

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Os lab final

Similar to Os lab final (20)

More from LakshmiSarvani6

More from LakshmiSarvani6 (6)

Recently uploaded

Recently uploaded (20)

Os lab final
