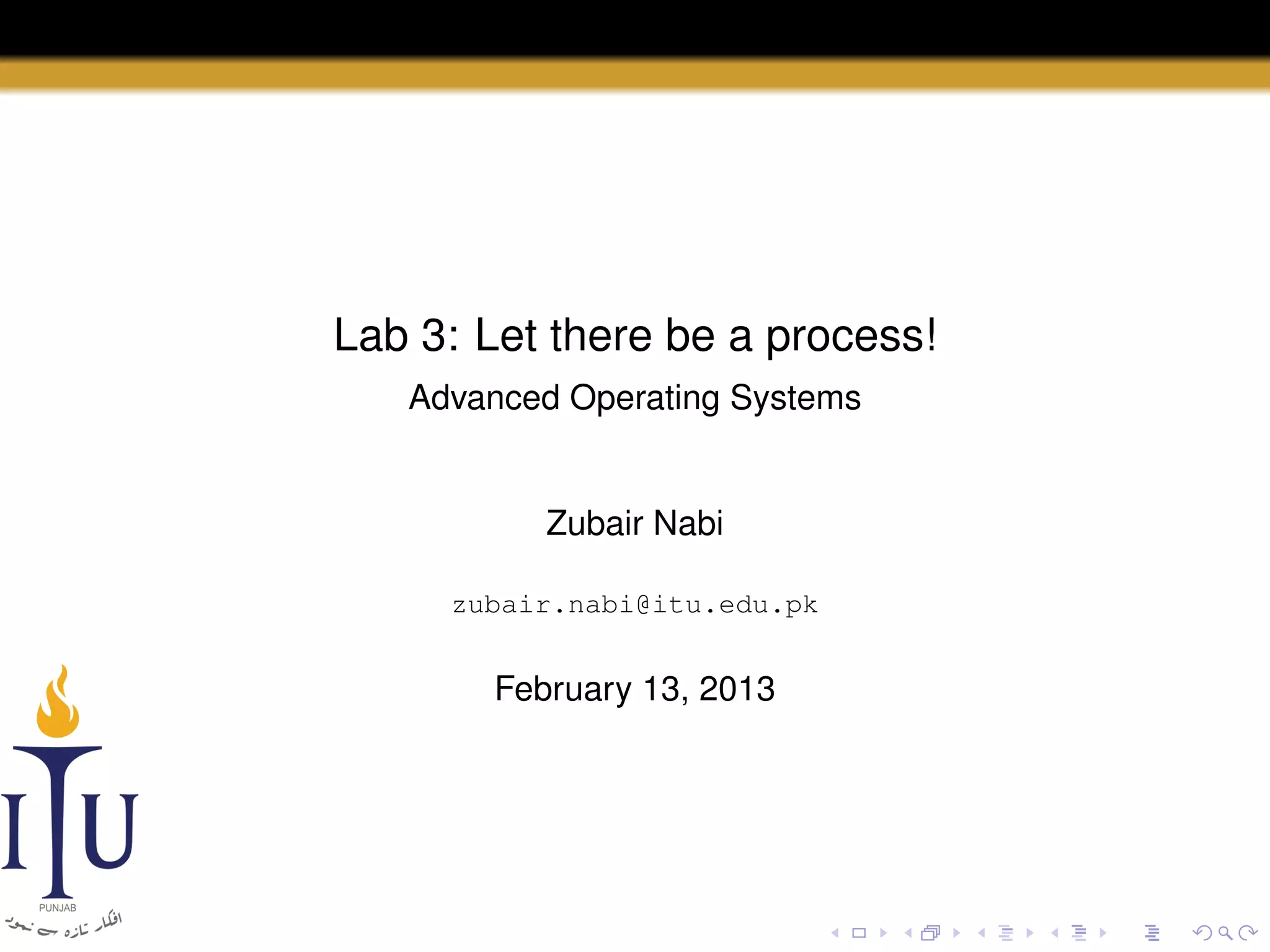

1. Lab 3: Let there be a process!
Advanced Operating Systems
Zubair Nabi
zubair.nabi@itu.edu.pk
February 13, 2013

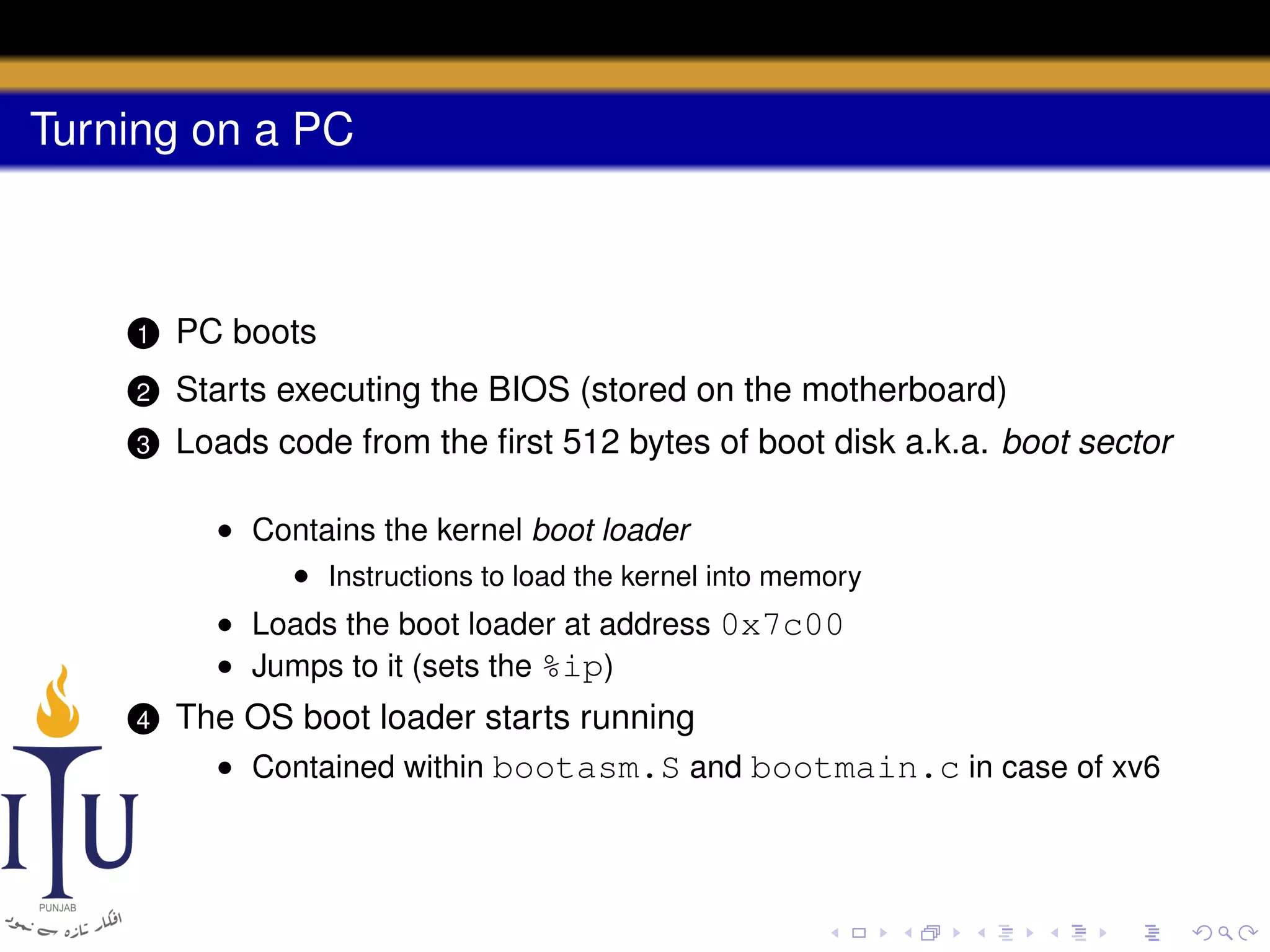

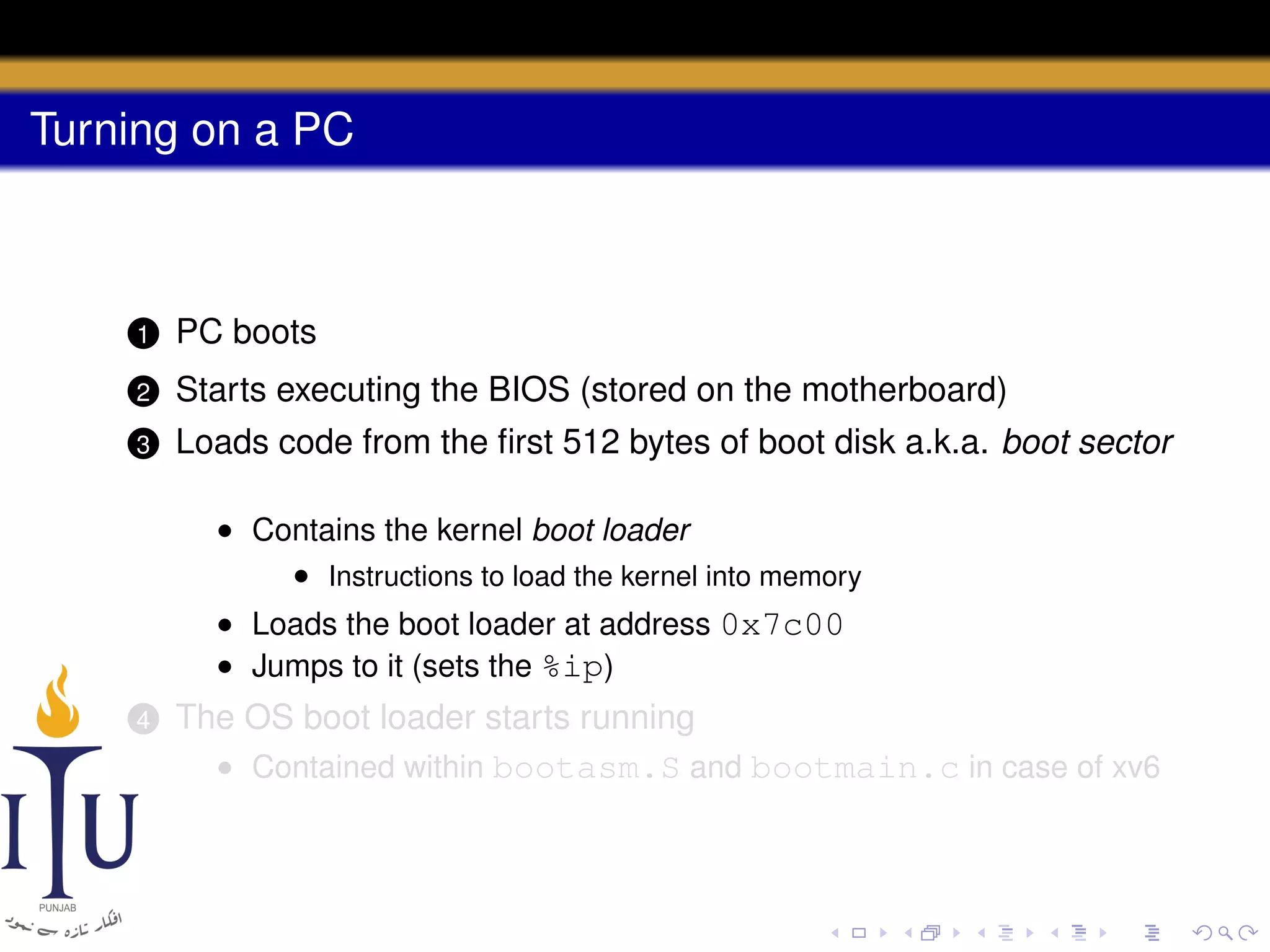

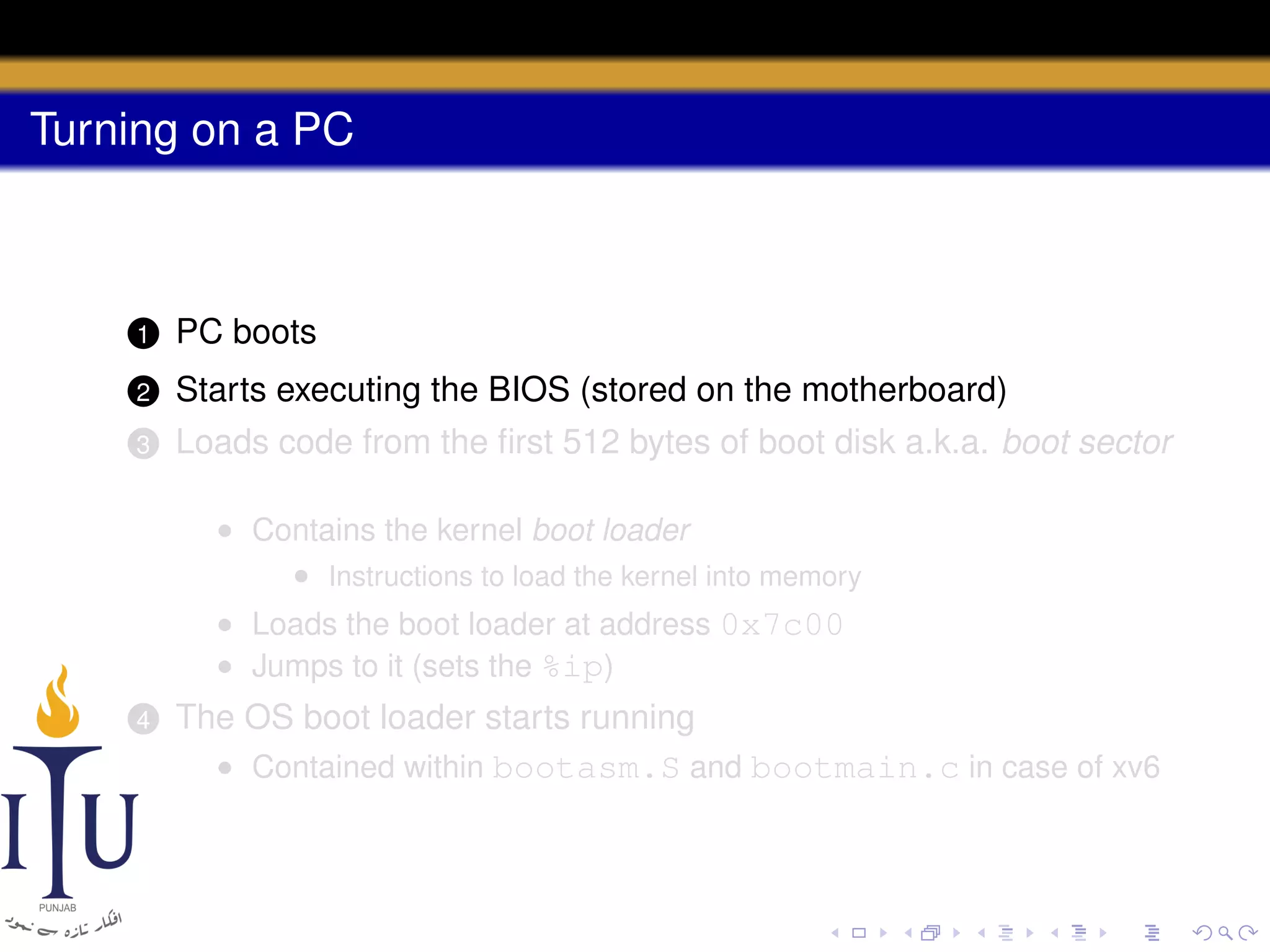

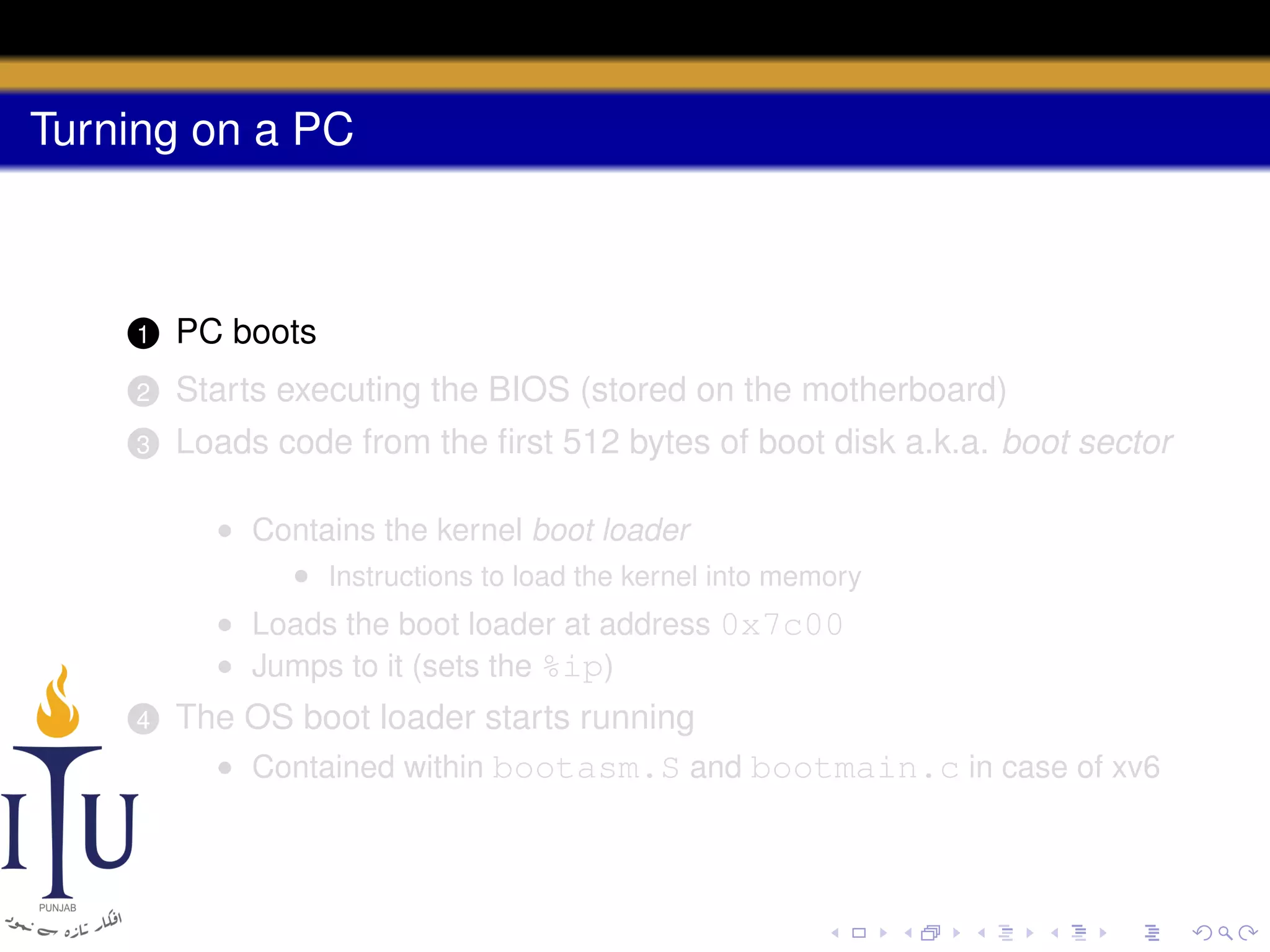

2. Turning on a PC
1
PC boots
2
Starts executing the BIOS (stored on the motherboard)
3
Loads code from the first 512 bytes of boot disk a.k.a. boot sector
• Contains the kernel boot loader
• Instructions to load the kernel into memory
• Loads the boot loader at address 0x7c00
• Jumps to it (sets the %ip)
4
The OS boot loader starts running
• Contained within bootasm.S and bootmain.c in case of xv6

3. Turning on a PC
1
PC boots
2
Starts executing the BIOS (stored on the motherboard)
3
Loads code from the first 512 bytes of boot disk a.k.a. boot sector
• Contains the kernel boot loader
• Instructions to load the kernel into memory
• Loads the boot loader at address 0x7c00
• Jumps to it (sets the %ip)
4
The OS boot loader starts running
• Contained within bootasm.S and bootmain.c in case of xv6

4. Turning on a PC
1
PC boots
2
Starts executing the BIOS (stored on the motherboard)
3
Loads code from the first 512 bytes of boot disk a.k.a. boot sector
• Contains the kernel boot loader
• Instructions to load the kernel into memory
• Loads the boot loader at address 0x7c00
• Jumps to it (sets the %ip)
4
The OS boot loader starts running
• Contained within bootasm.S and bootmain.c in case of xv6

5. Turning on a PC
1
PC boots
2
Starts executing the BIOS (stored on the motherboard)
3
Loads code from the first 512 bytes of boot disk a.k.a. boot sector
• Contains the kernel boot loader
• Instructions to load the kernel into memory
• Loads the boot loader at address 0x7c00
• Jumps to it (sets the %ip)
4
The OS boot loader starts running
• Contained within bootasm.S and bootmain.c in case of xv6

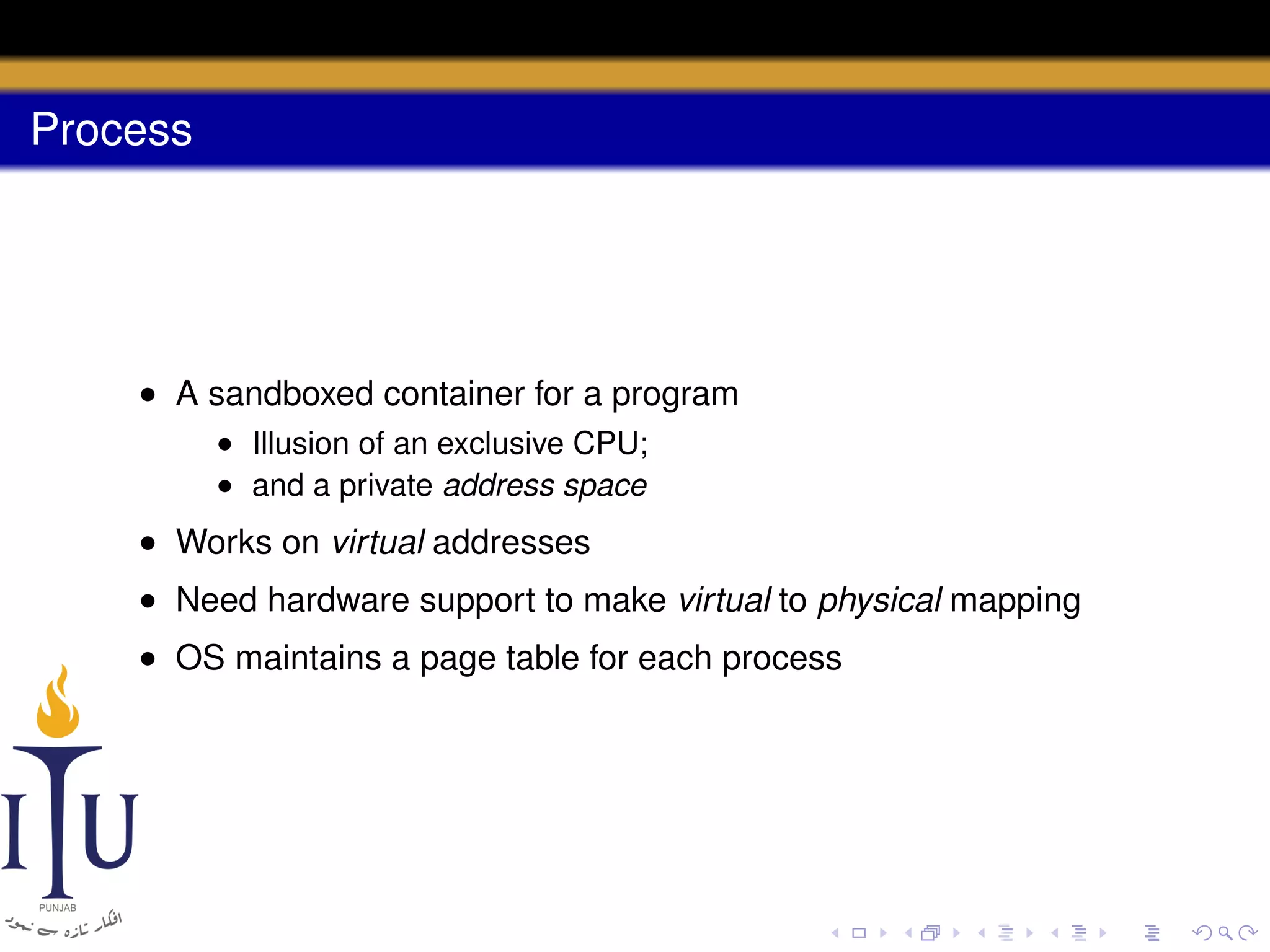

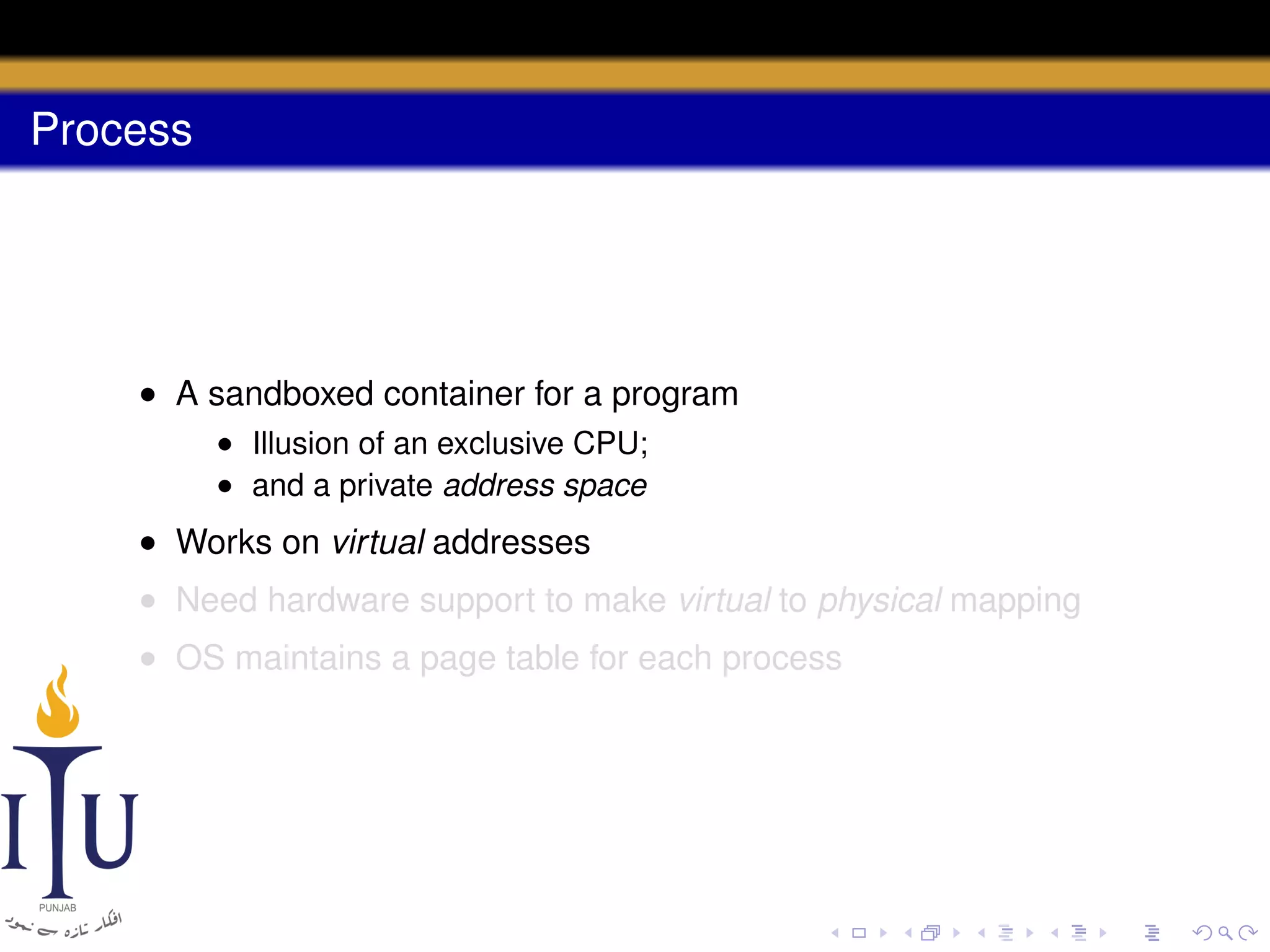

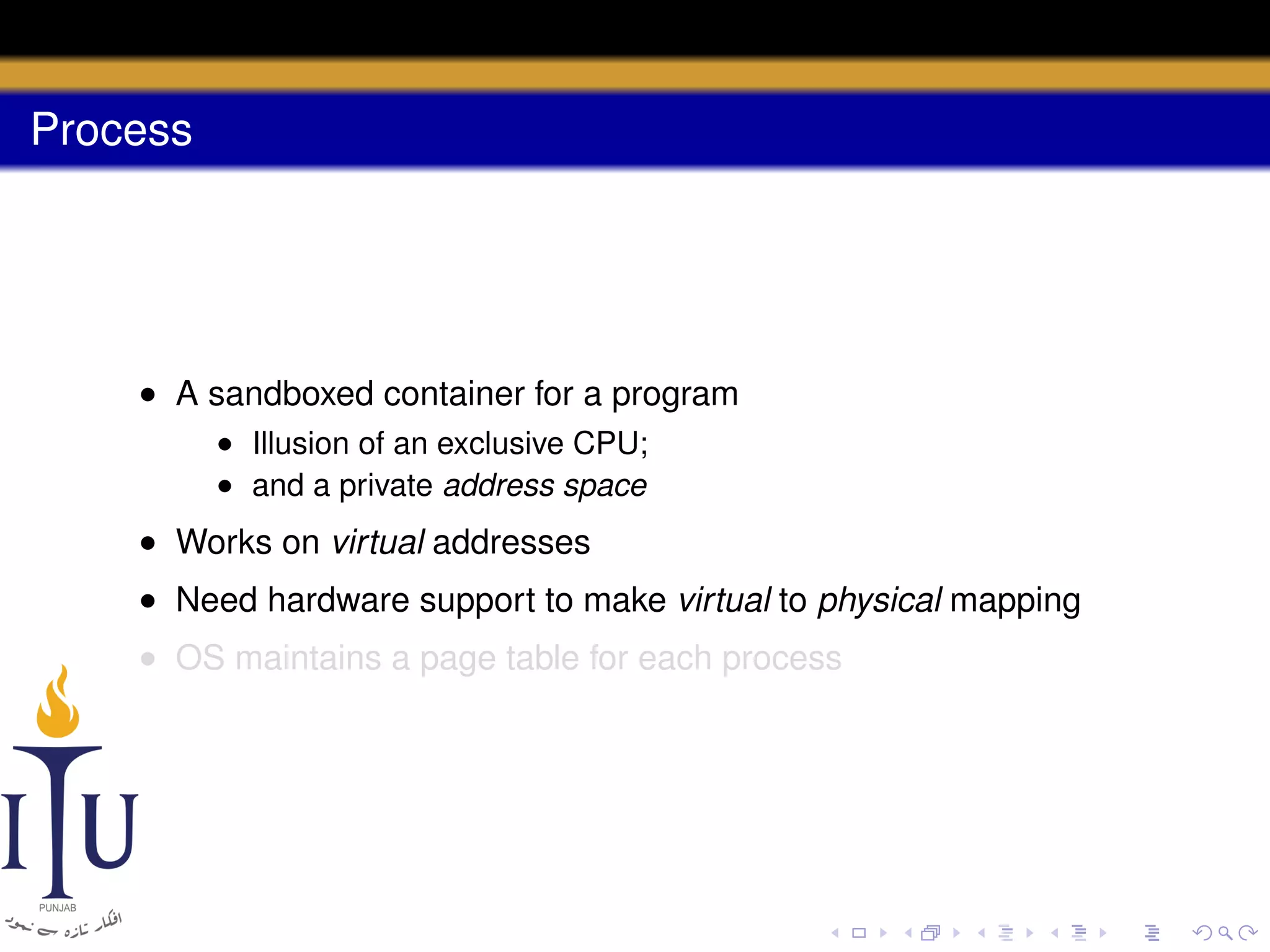

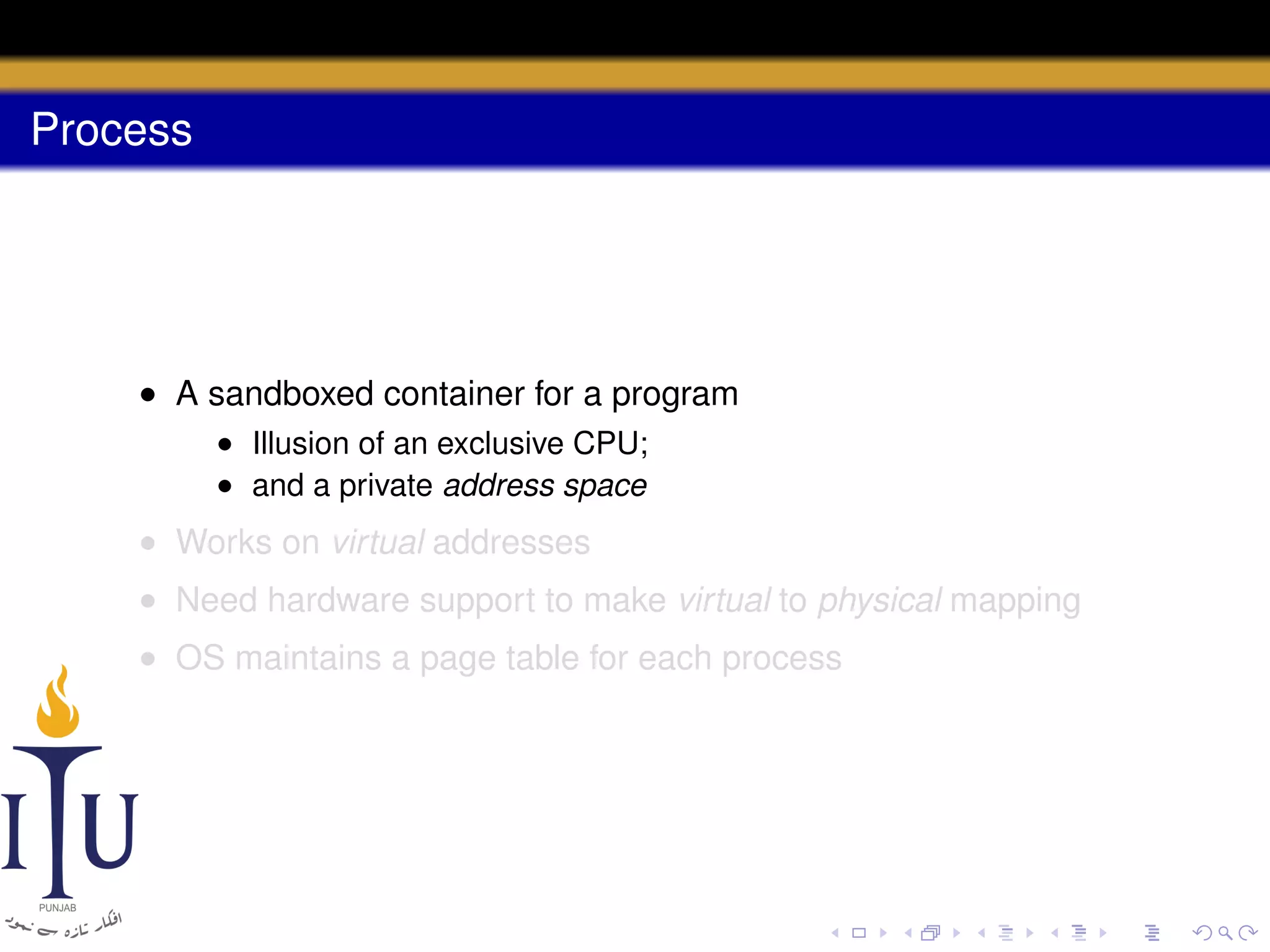

6. Process
• A sandboxed container for a program
• Illusion of an exclusive CPU;
• and a private address space
• Works on virtual addresses
• Need hardware support to make virtual to physical mapping
• OS maintains a page table for each process

7. Process
• A sandboxed container for a program
• Illusion of an exclusive CPU;
• and a private address space
• Works on virtual addresses
• Need hardware support to make virtual to physical mapping
• OS maintains a page table for each process

8. Process
• A sandboxed container for a program
• Illusion of an exclusive CPU;
• and a private address space
• Works on virtual addresses
• Need hardware support to make virtual to physical mapping
• OS maintains a page table for each process

9. Process
• A sandboxed container for a program
• Illusion of an exclusive CPU;
• and a private address space
• Works on virtual addresses
• Need hardware support to make virtual to physical mapping
• OS maintains a page table for each process

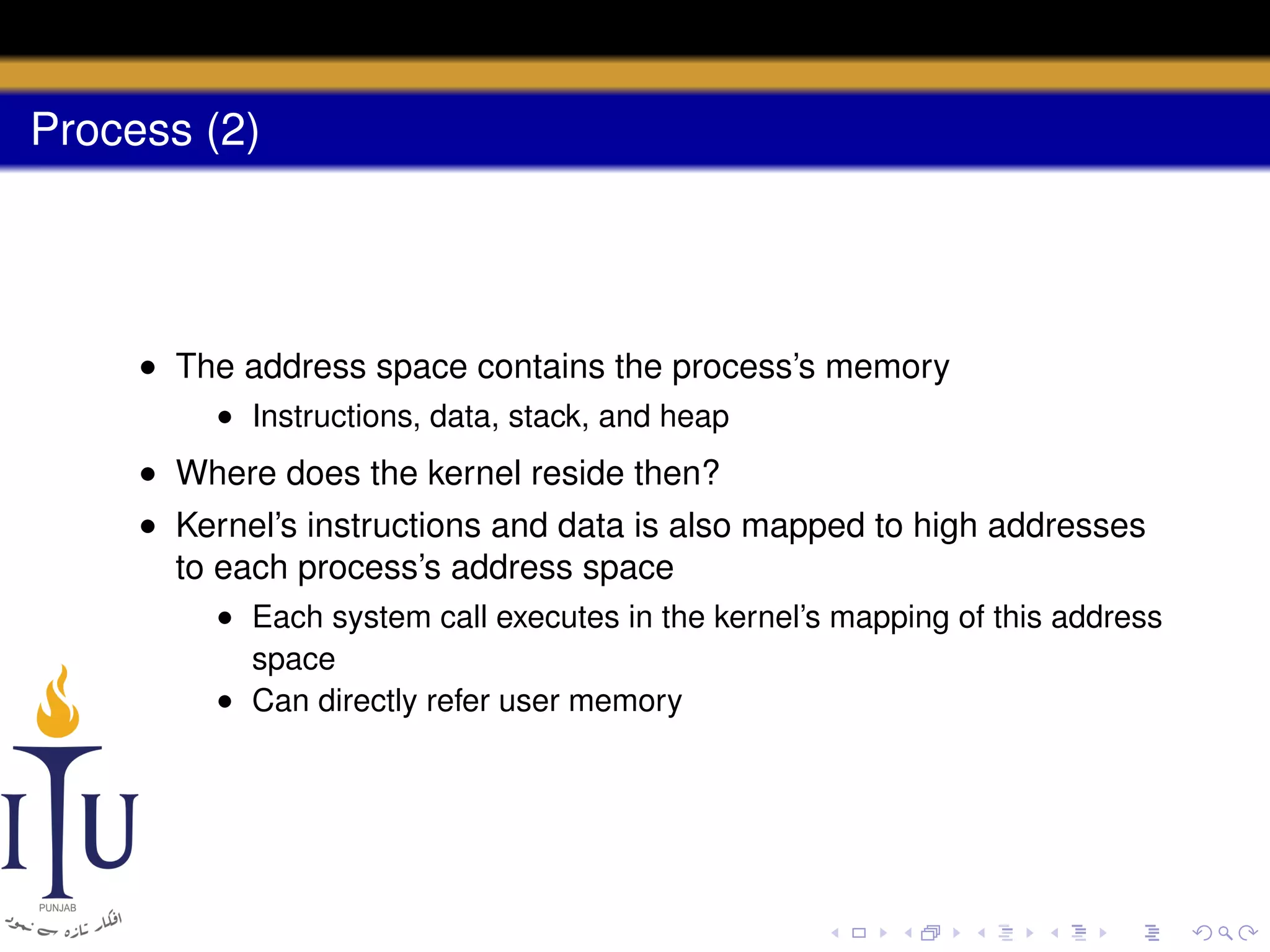

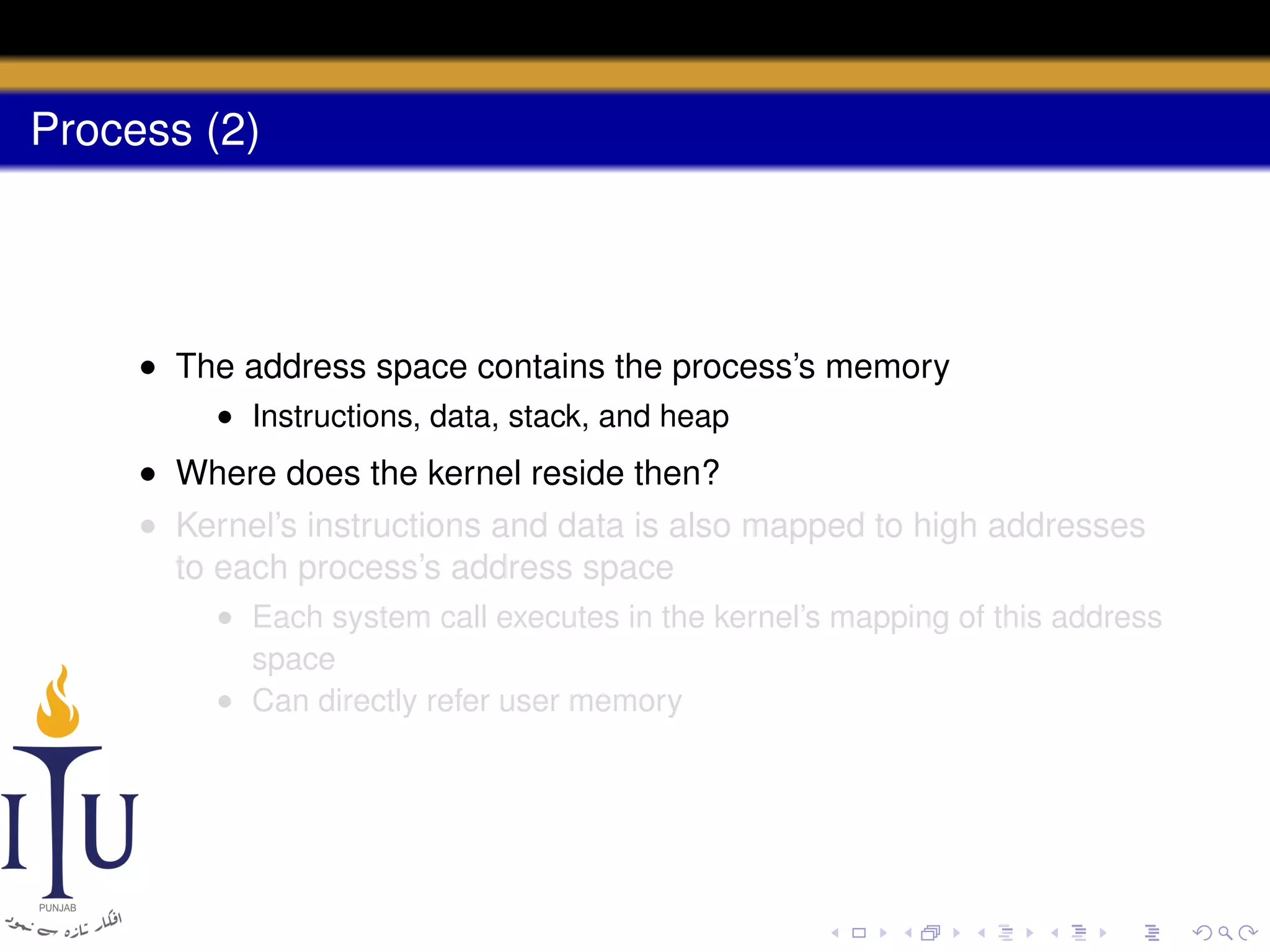

10. Process (2)
• The address space contains the process’s memory
• Instructions, data, stack, and heap
• Where does the kernel reside then?
• Kernel’s instructions and data is also mapped to high addresses
to each process’s address space
• Each system call executes in the kernel’s mapping of this address
space
• Can directly refer user memory

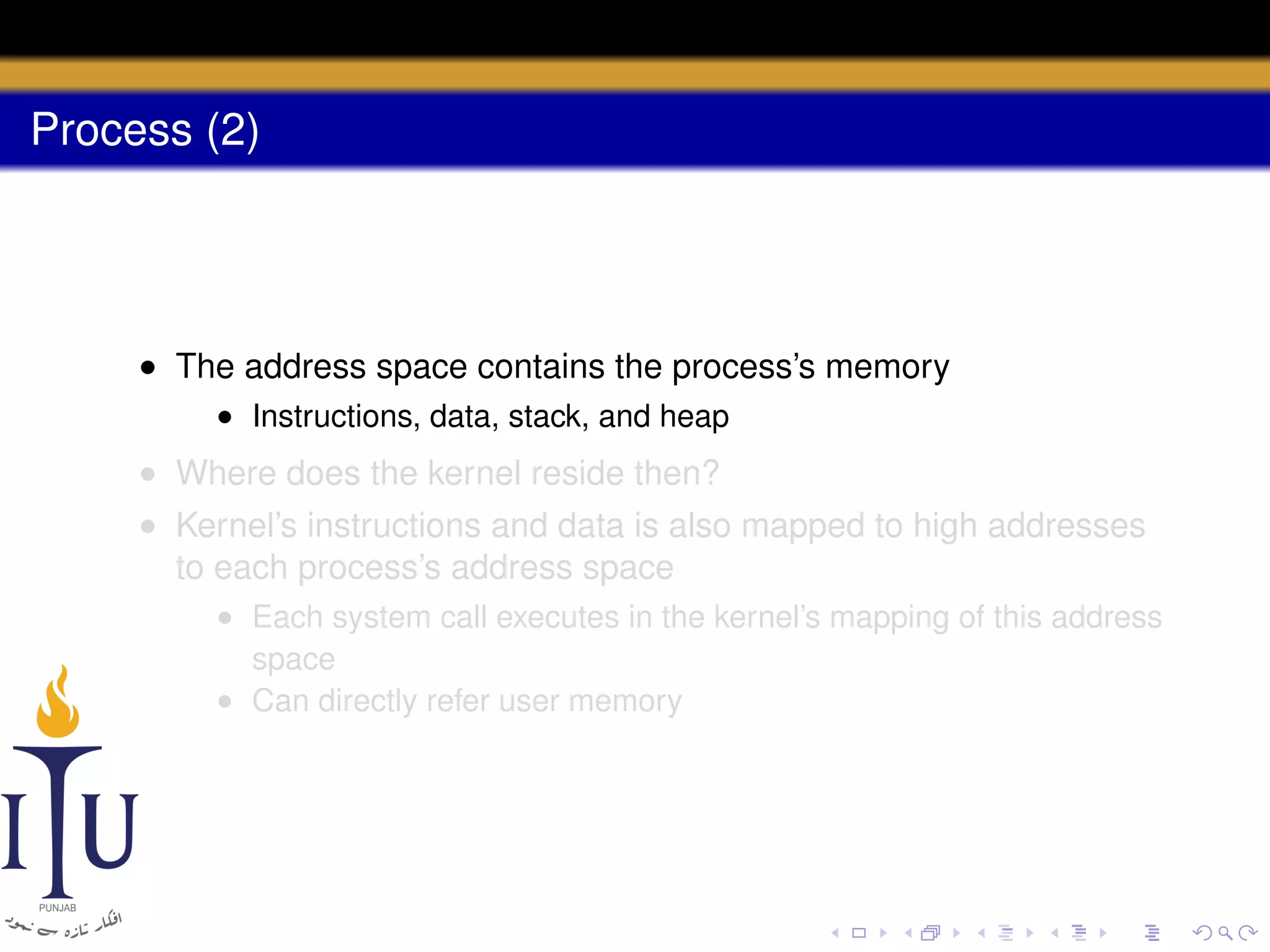

11. Process (2)
• The address space contains the process’s memory
• Instructions, data, stack, and heap
• Where does the kernel reside then?
• Kernel’s instructions and data is also mapped to high addresses
to each process’s address space
• Each system call executes in the kernel’s mapping of this address
space
• Can directly refer user memory

12. Process (2)
• The address space contains the process’s memory
• Instructions, data, stack, and heap
• Where does the kernel reside then?
• Kernel’s instructions and data is also mapped to high addresses
to each process’s address space
• Each system call executes in the kernel’s mapping of this address
space
• Can directly refer user memory

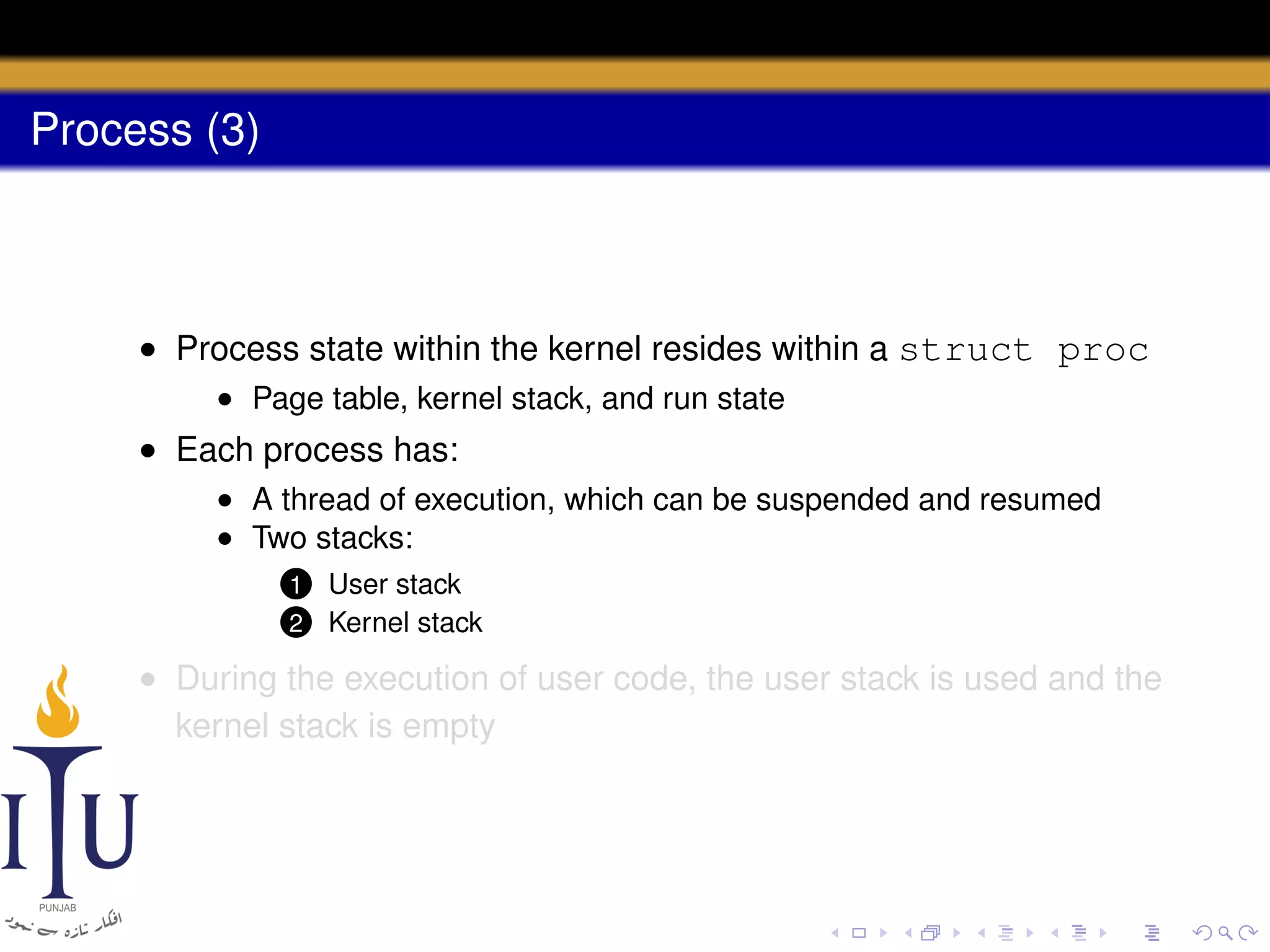

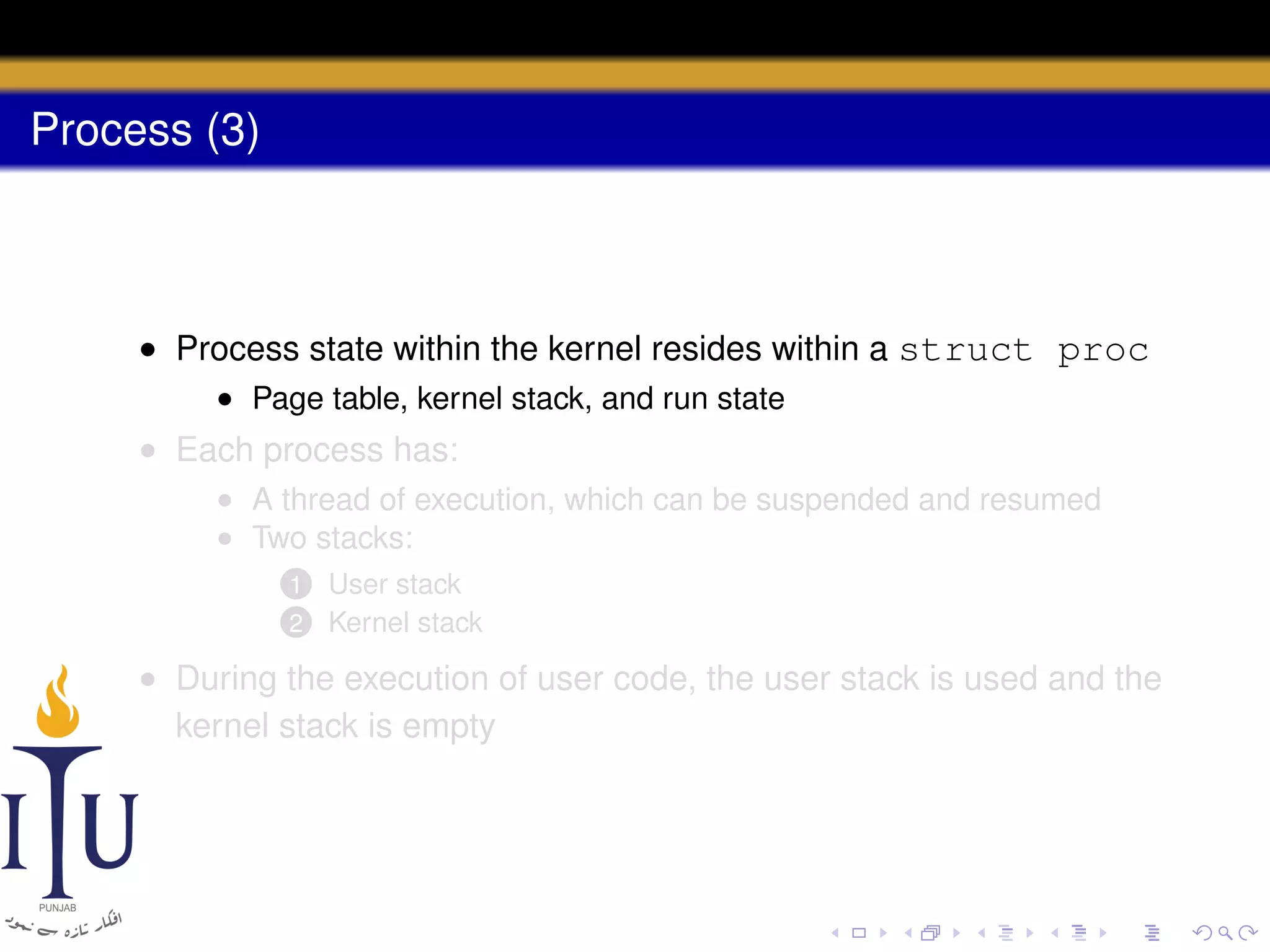

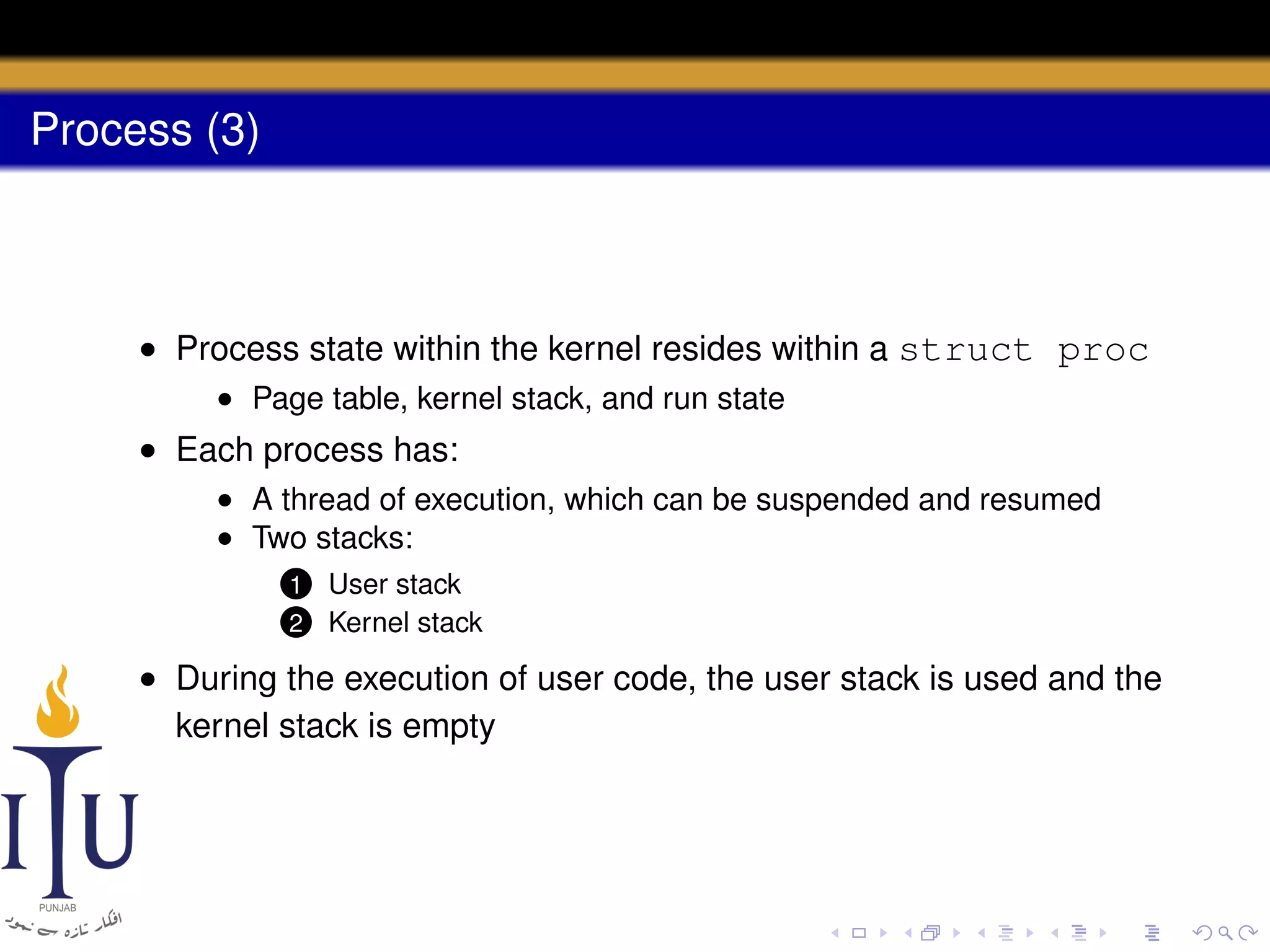

13. Process (3)
• Process state within the kernel resides within a struct proc
• Page table, kernel stack, and run state
• Each process has:
• A thread of execution, which can be suspended and resumed
• Two stacks:
1
2
User stack
Kernel stack
• During the execution of user code, the user stack is used and the
kernel stack is empty

14. Process (3)
• Process state within the kernel resides within a struct proc
• Page table, kernel stack, and run state
• Each process has:
• A thread of execution, which can be suspended and resumed
• Two stacks:
1
2
User stack
Kernel stack
• During the execution of user code, the user stack is used and the
kernel stack is empty

15. Process (3)
• Process state within the kernel resides within a struct proc
• Page table, kernel stack, and run state
• Each process has:
• A thread of execution, which can be suspended and resumed
• Two stacks:
1
2
User stack
Kernel stack
• During the execution of user code, the user stack is used and the
kernel stack is empty

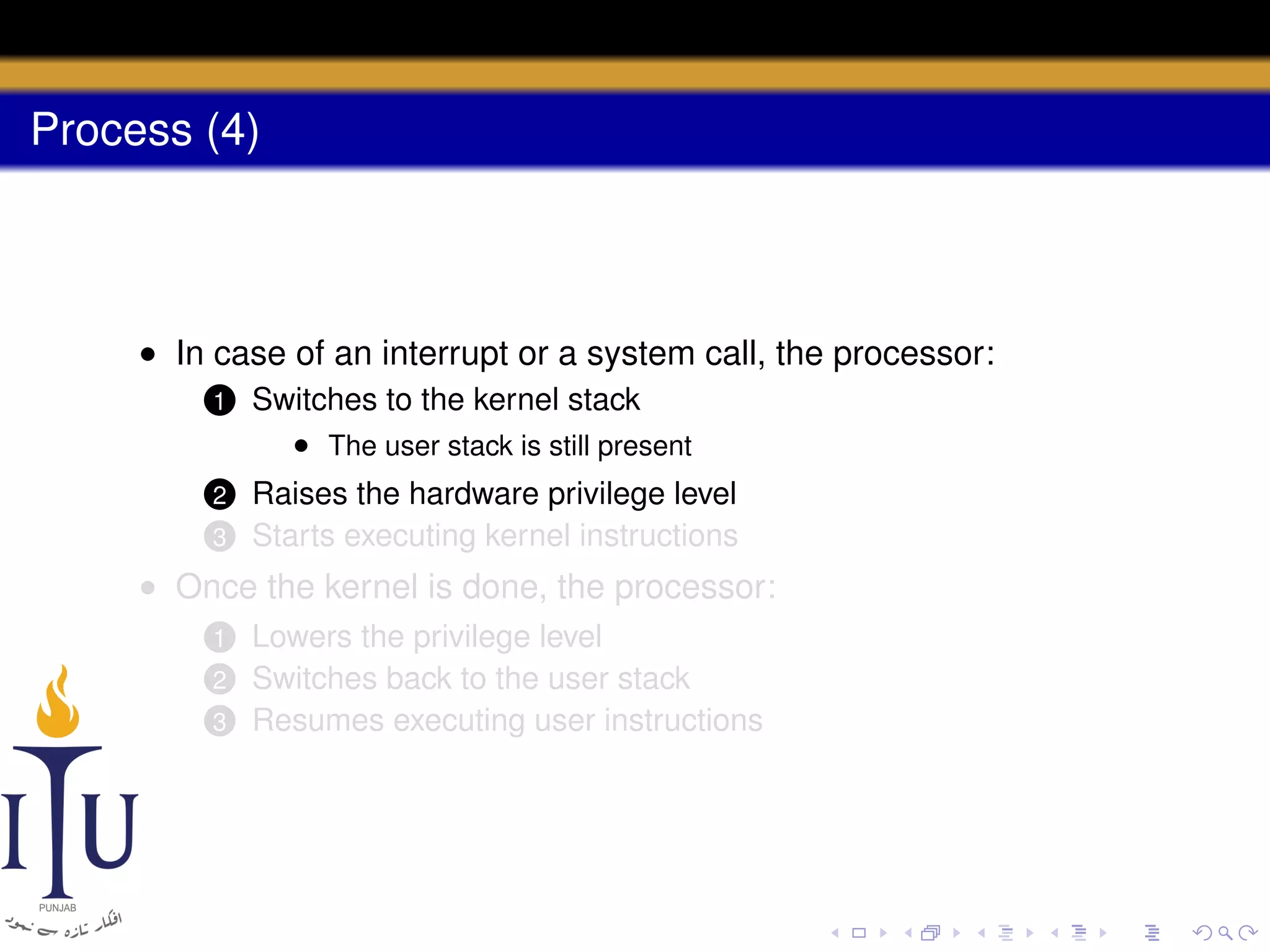

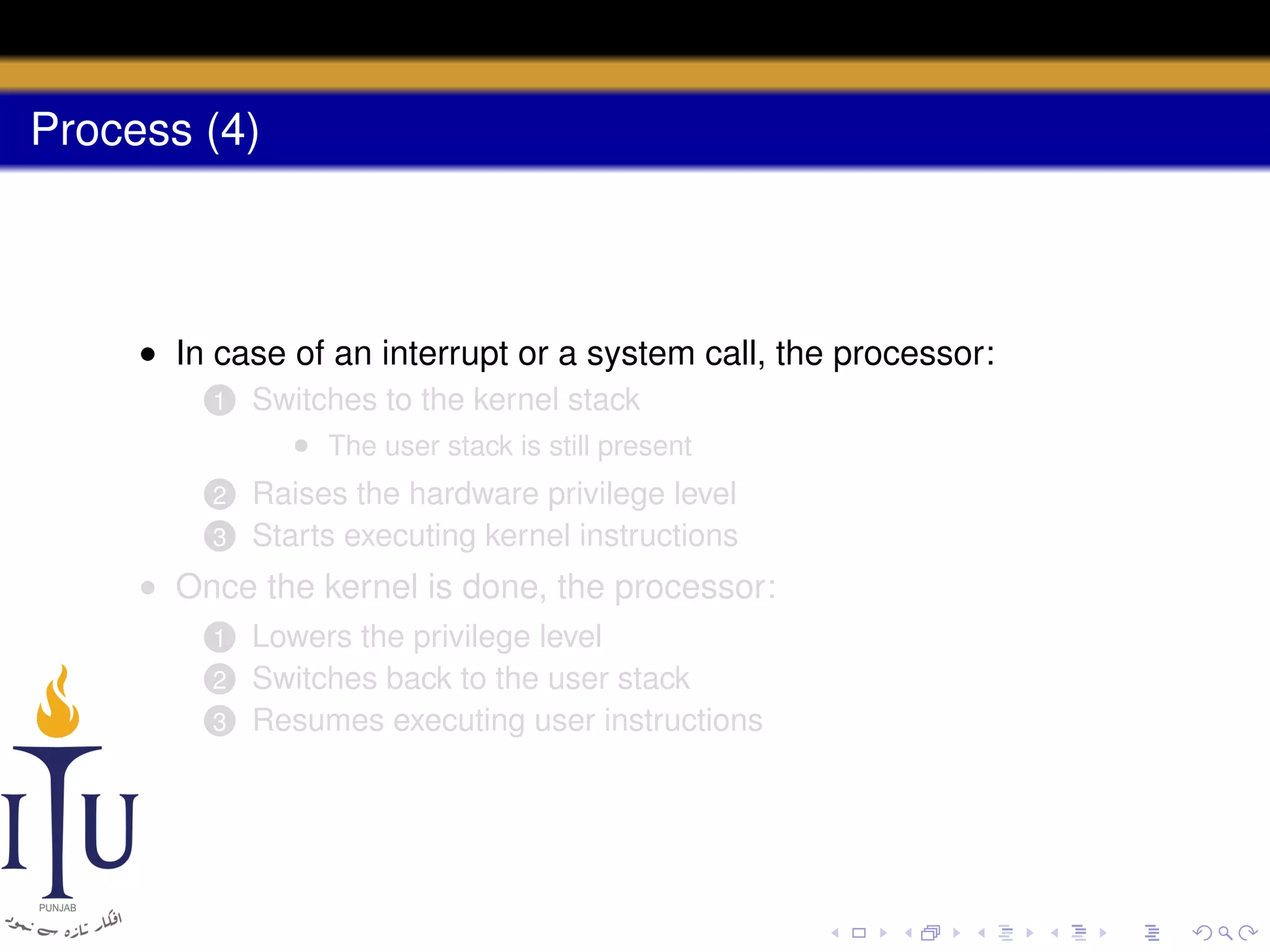

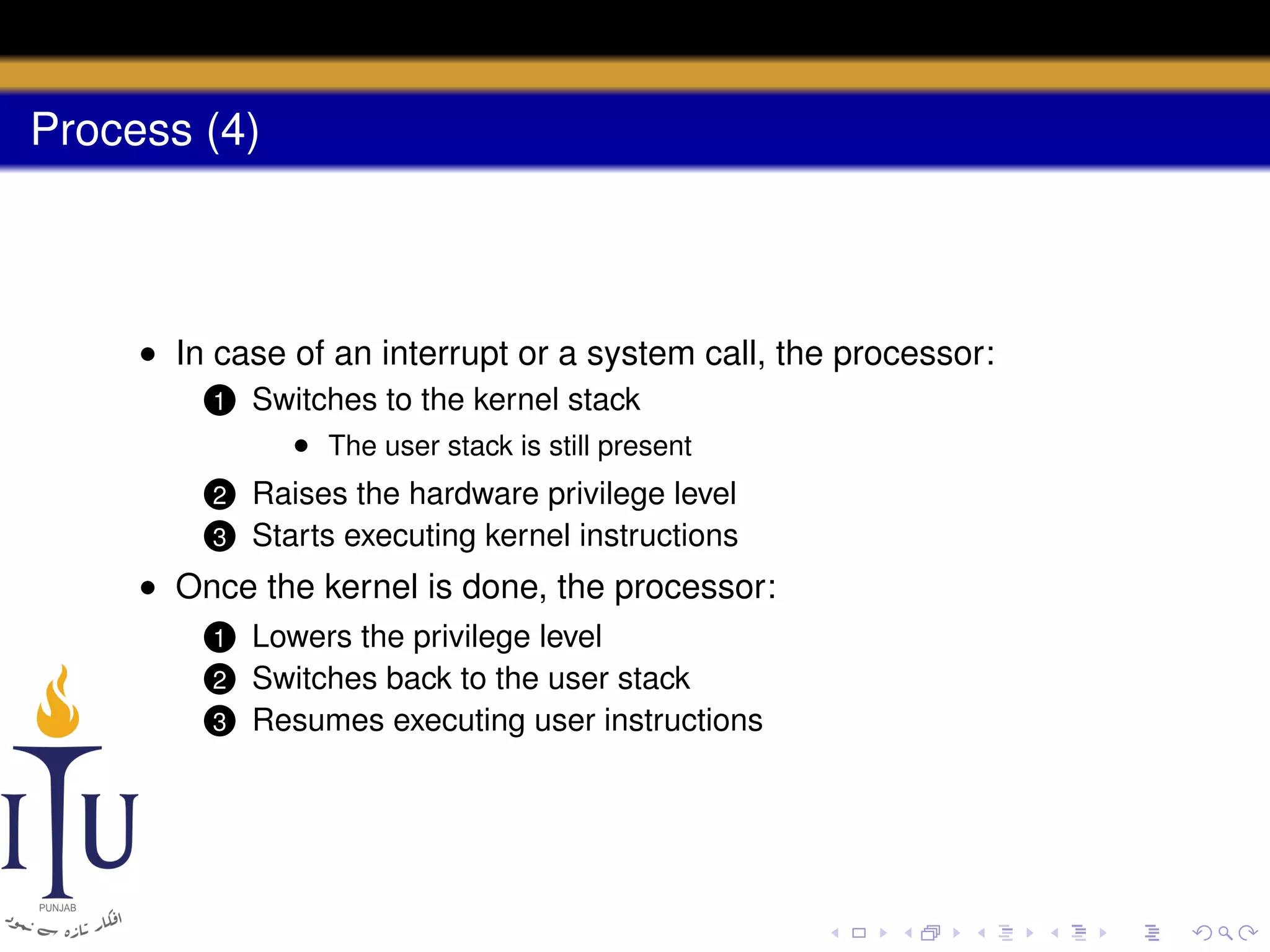

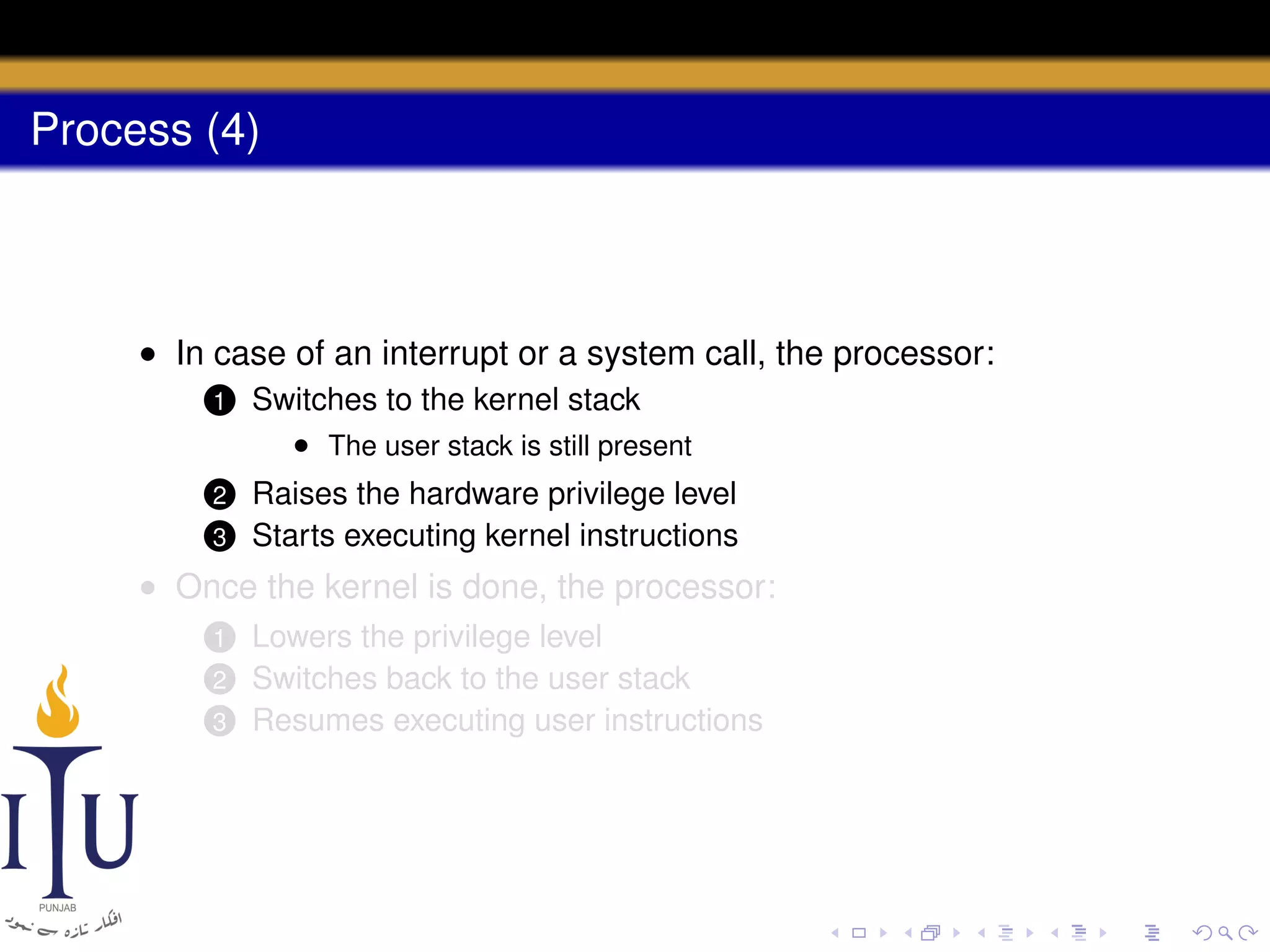

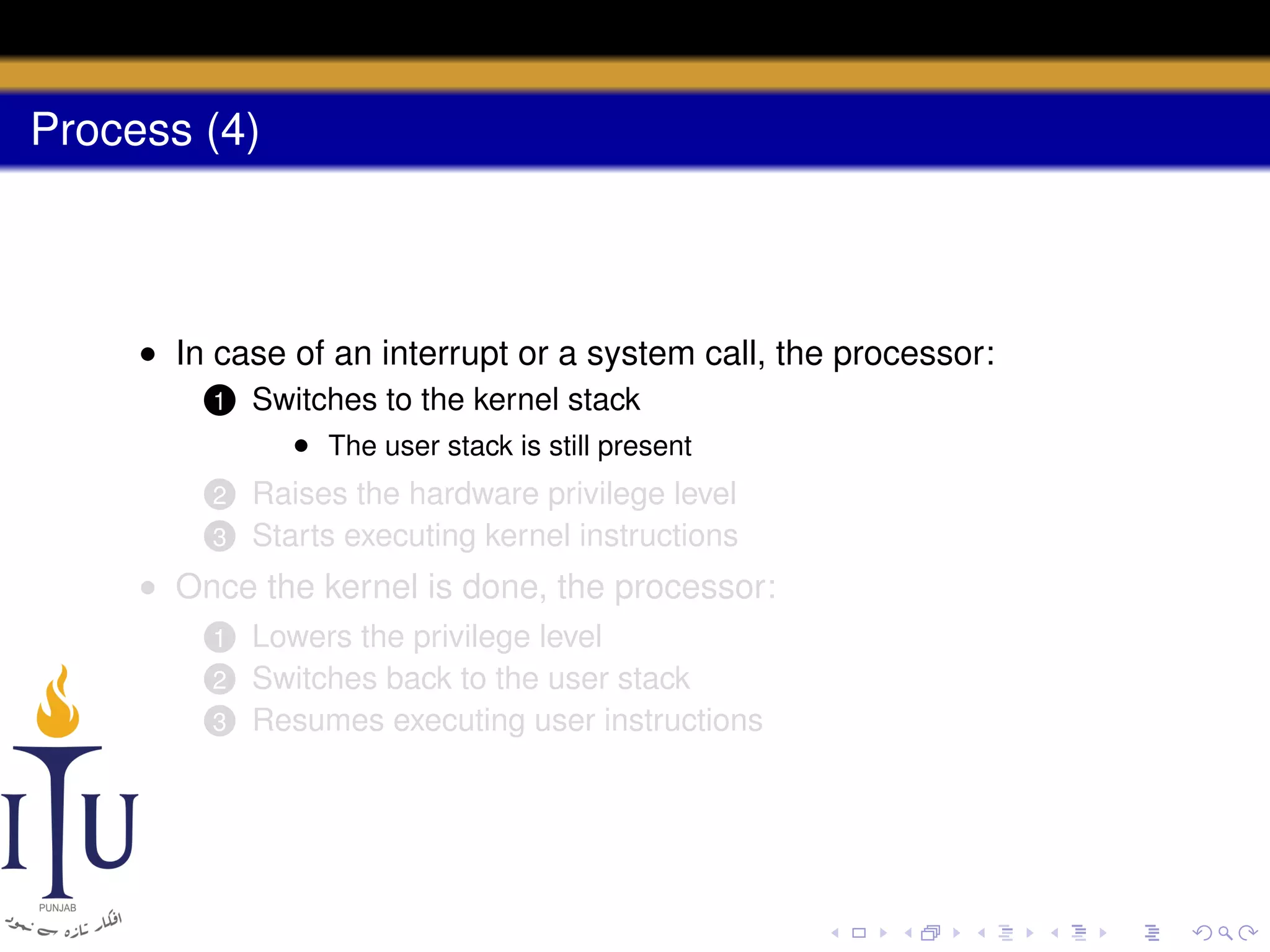

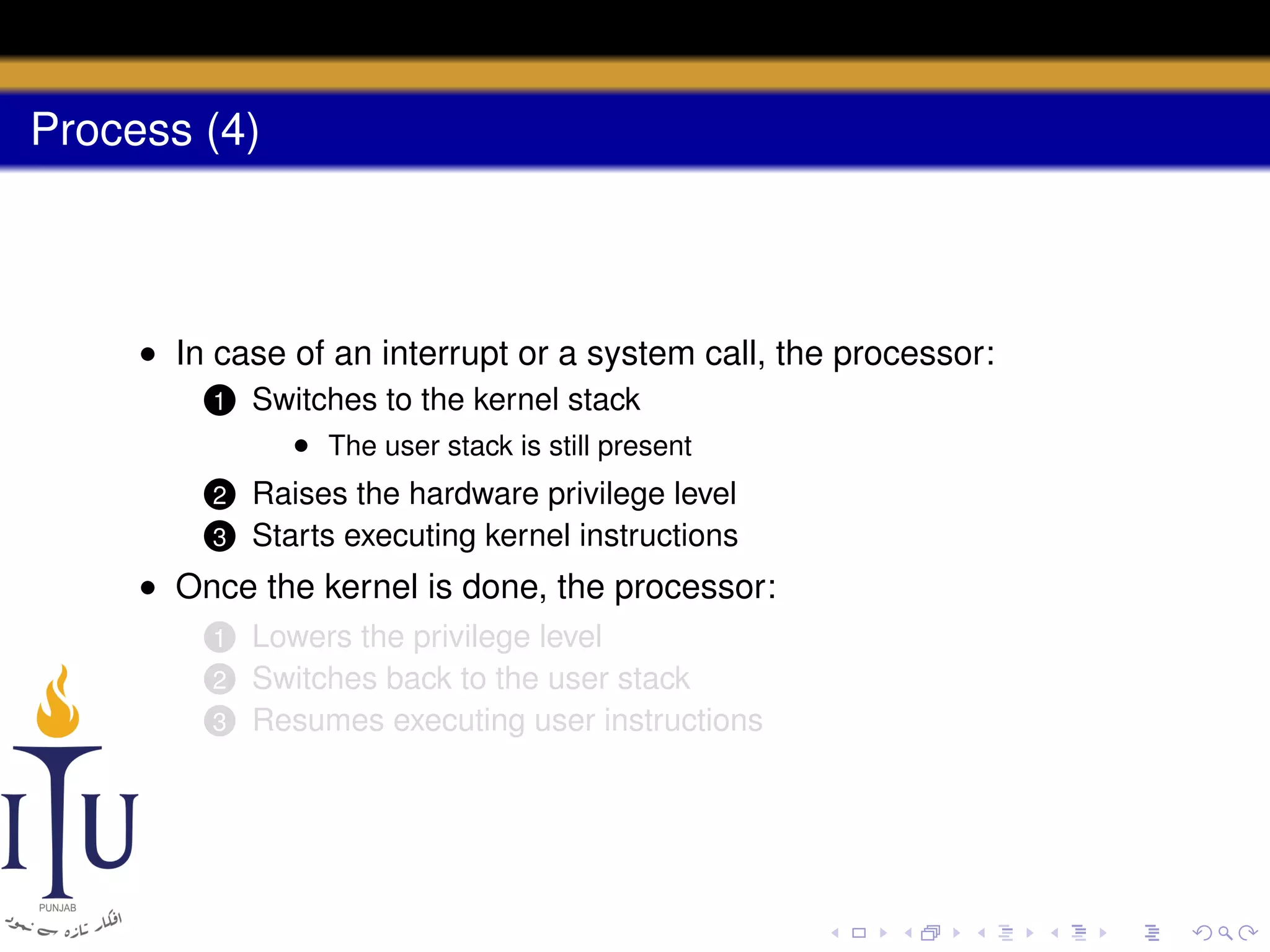

16. Process (4)
• In case of an interrupt or a system call, the processor:
1
Switches to the kernel stack
• The user stack is still present
2
Raises the hardware privilege level
Starts executing kernel instructions
3
• Once the kernel is done, the processor:
Lowers the privilege level
Switches back to the user stack
3 Resumes executing user instructions
1
2

17. Process (4)
• In case of an interrupt or a system call, the processor:
1
Switches to the kernel stack
• The user stack is still present
2
Raises the hardware privilege level
Starts executing kernel instructions
3
• Once the kernel is done, the processor:
Lowers the privilege level
Switches back to the user stack
3 Resumes executing user instructions
1
2

18. Process (4)
• In case of an interrupt or a system call, the processor:
1
Switches to the kernel stack
• The user stack is still present
2
Raises the hardware privilege level
Starts executing kernel instructions
3
• Once the kernel is done, the processor:
Lowers the privilege level
Switches back to the user stack
3 Resumes executing user instructions
1
2

19. Process (4)
• In case of an interrupt or a system call, the processor:
1
Switches to the kernel stack
• The user stack is still present
2
Raises the hardware privilege level
Starts executing kernel instructions
3
• Once the kernel is done, the processor:
Lowers the privilege level
Switches back to the user stack
3 Resumes executing user instructions
1
2

20. Process (4)
• In case of an interrupt or a system call, the processor:
1
Switches to the kernel stack
• The user stack is still present
2
Raises the hardware privilege level
Starts executing kernel instructions
3
• Once the kernel is done, the processor:
Lowers the privilege level
Switches back to the user stack
3 Resumes executing user instructions
1
2

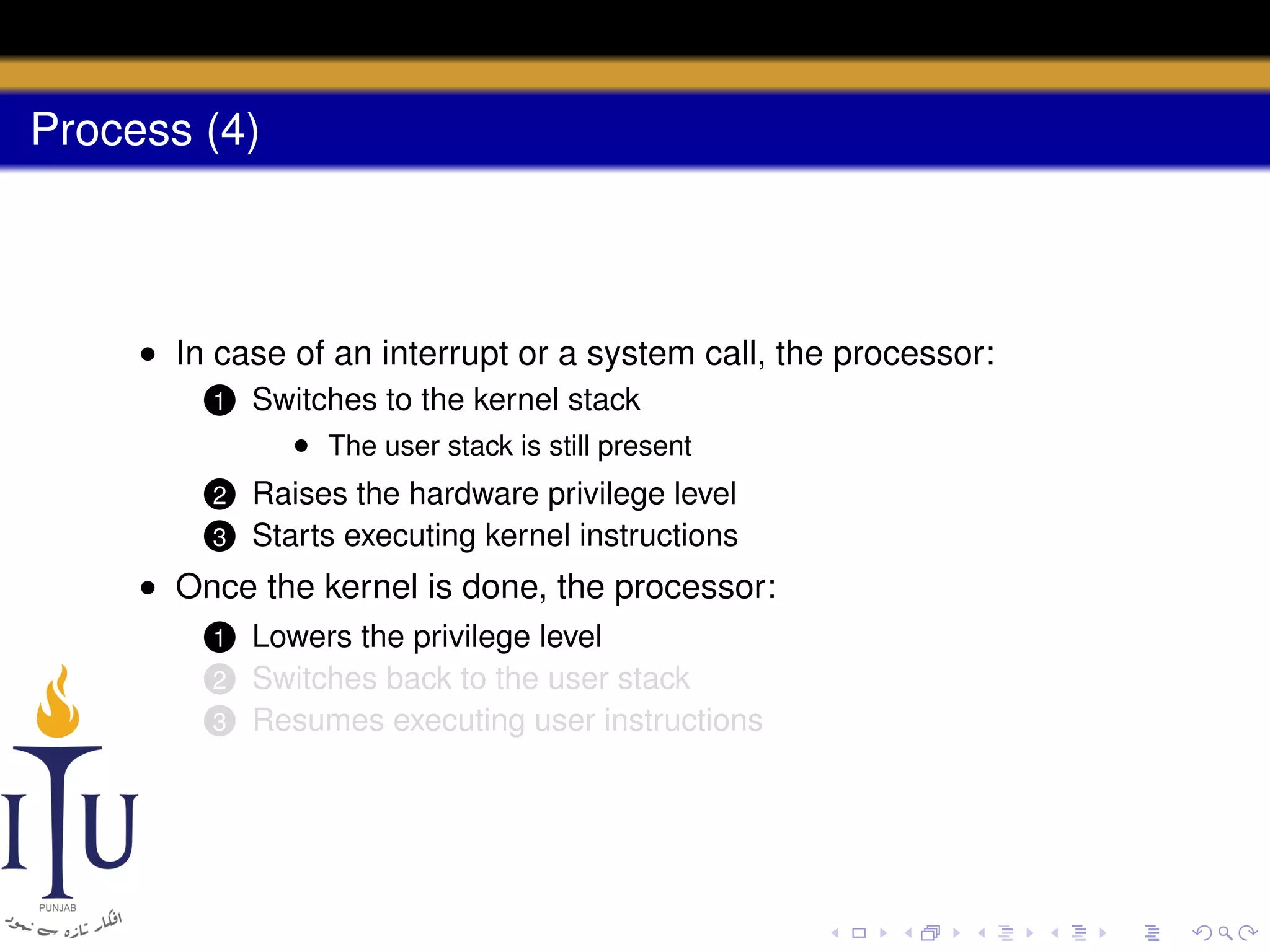

21. Process (4)
• In case of an interrupt or a system call, the processor:
1
Switches to the kernel stack
• The user stack is still present
2
Raises the hardware privilege level
Starts executing kernel instructions
3
• Once the kernel is done, the processor:
Lowers the privilege level
Switches back to the user stack
3 Resumes executing user instructions
1
2

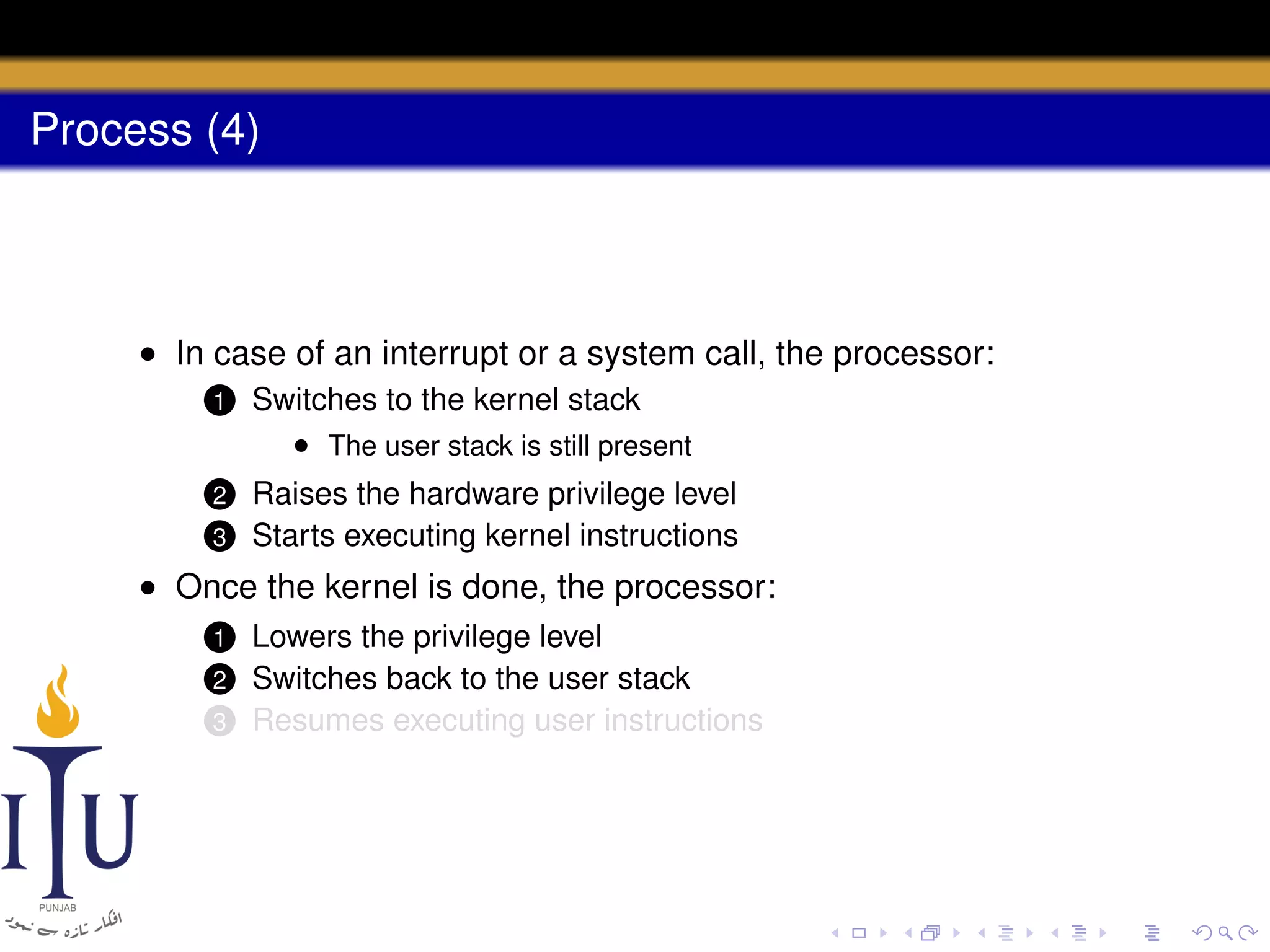

22. Process (4)
• In case of an interrupt or a system call, the processor:
1
Switches to the kernel stack
• The user stack is still present
2
Raises the hardware privilege level
Starts executing kernel instructions
3
• Once the kernel is done, the processor:
Lowers the privilege level
Switches back to the user stack
3 Resumes executing user instructions
1
2

23. Process (4)
• In case of an interrupt or a system call, the processor:
1
Switches to the kernel stack
• The user stack is still present
2
Raises the hardware privilege level
Starts executing kernel instructions
3
• Once the kernel is done, the processor:
Lowers the privilege level
Switches back to the user stack
3 Resumes executing user instructions
1
2

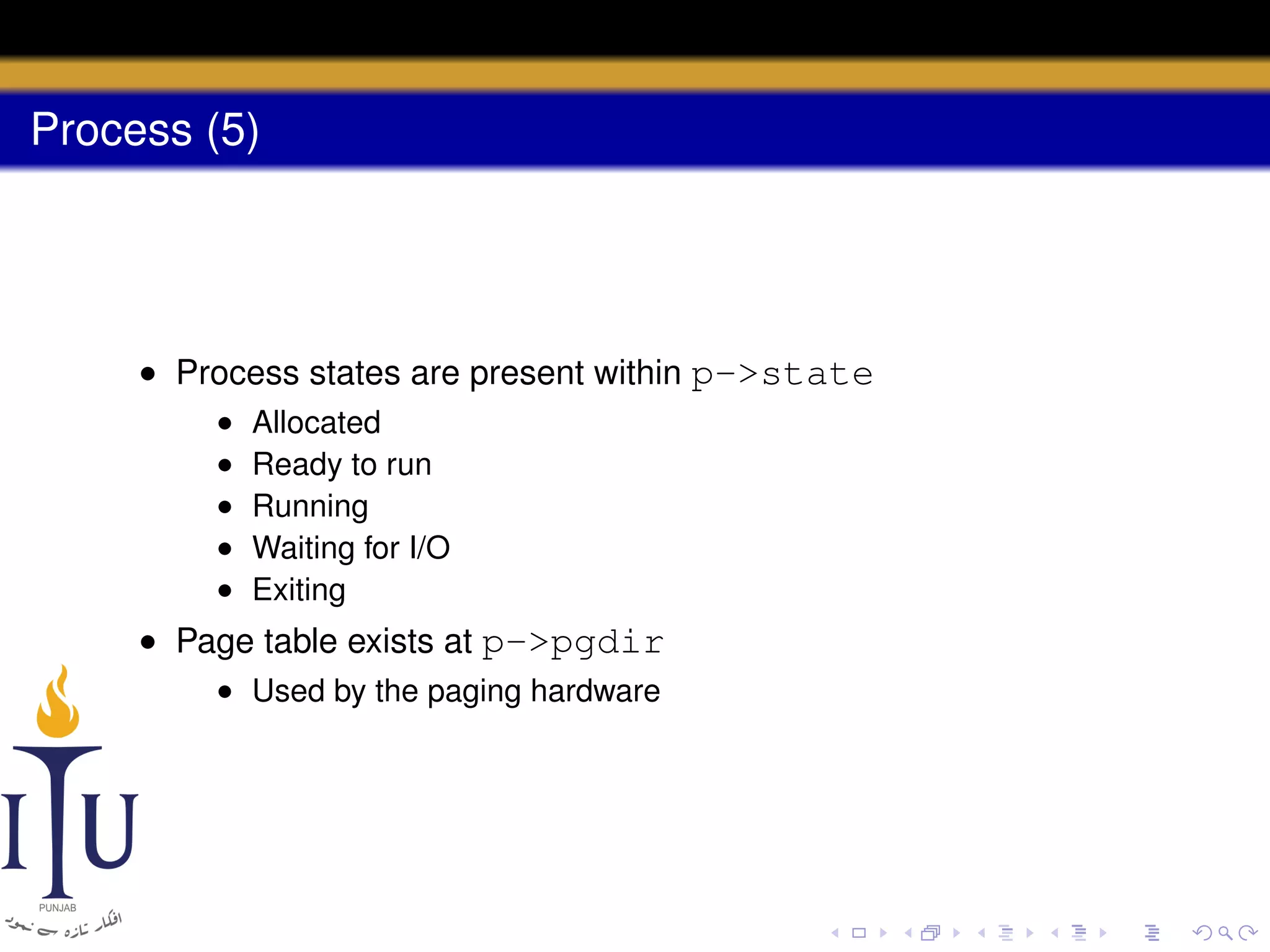

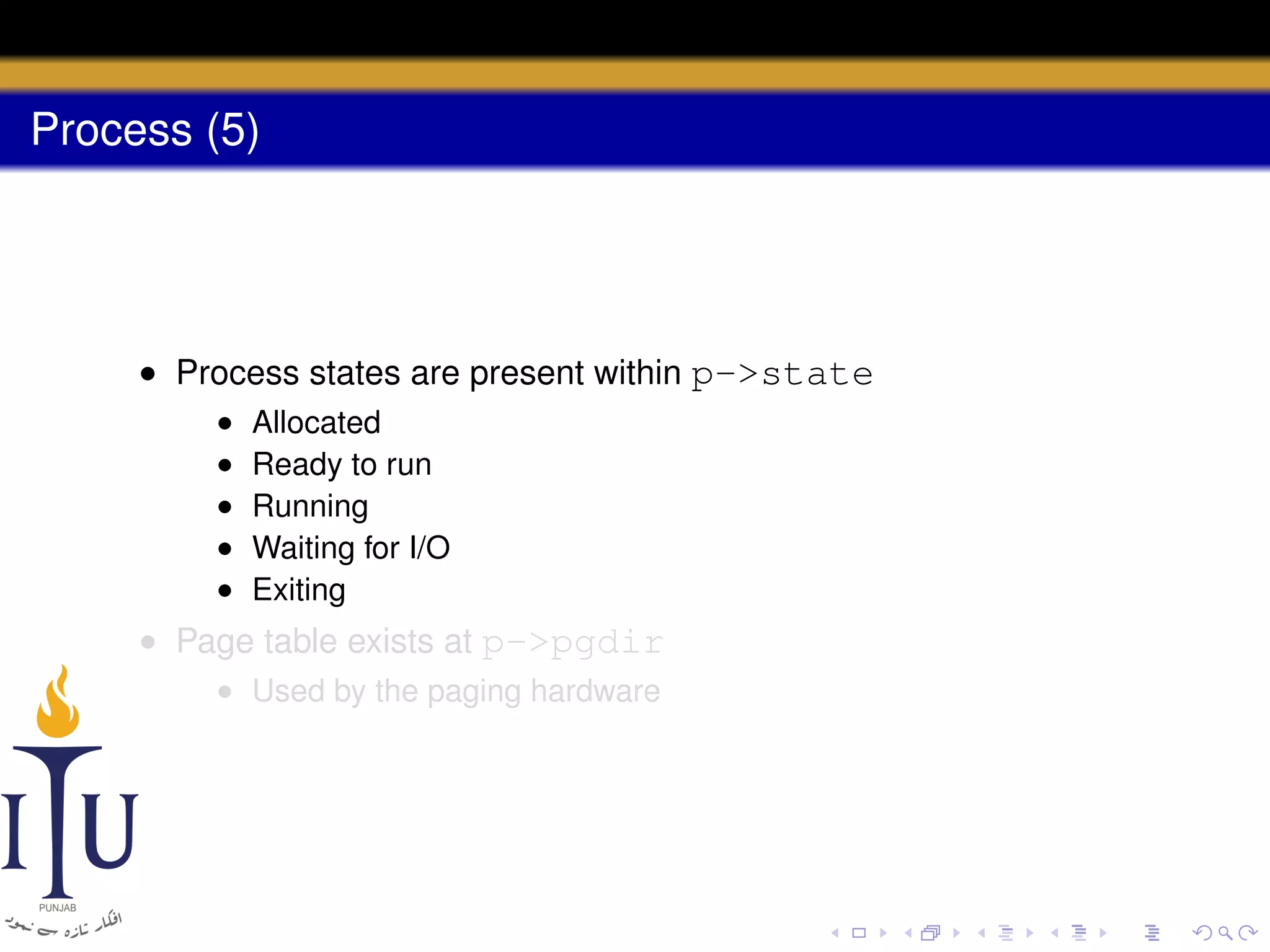

24. Process (5)
• Process states are present within p->state
•
•
•
•
•
Allocated
Ready to run
Running
Waiting for I/O
Exiting
• Page table exists at p->pgdir
• Used by the paging hardware

25. Process (5)
• Process states are present within p->state
•
•
•
•
•
Allocated
Ready to run
Running
Waiting for I/O
Exiting
• Page table exists at p->pgdir
• Used by the paging hardware

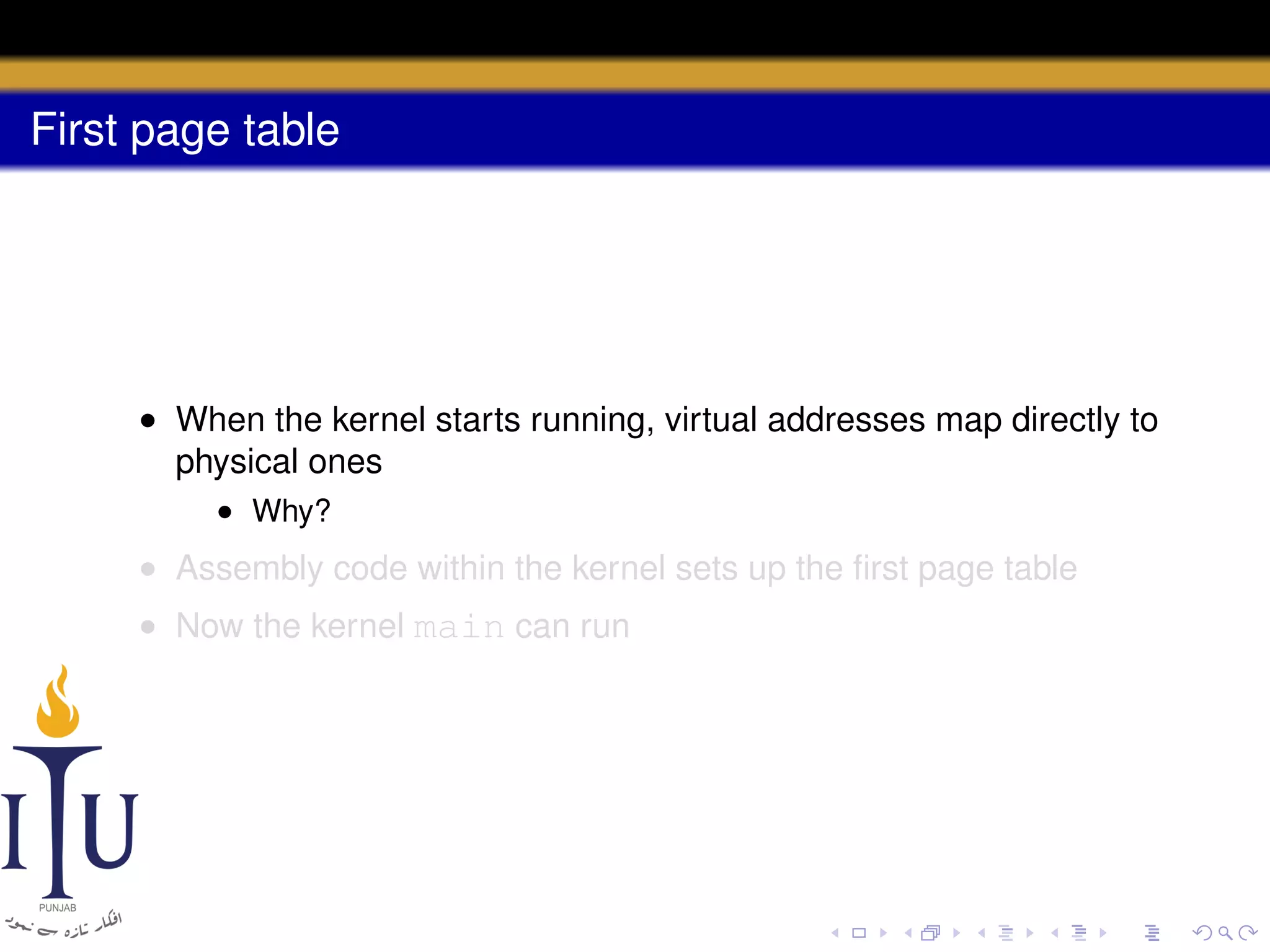

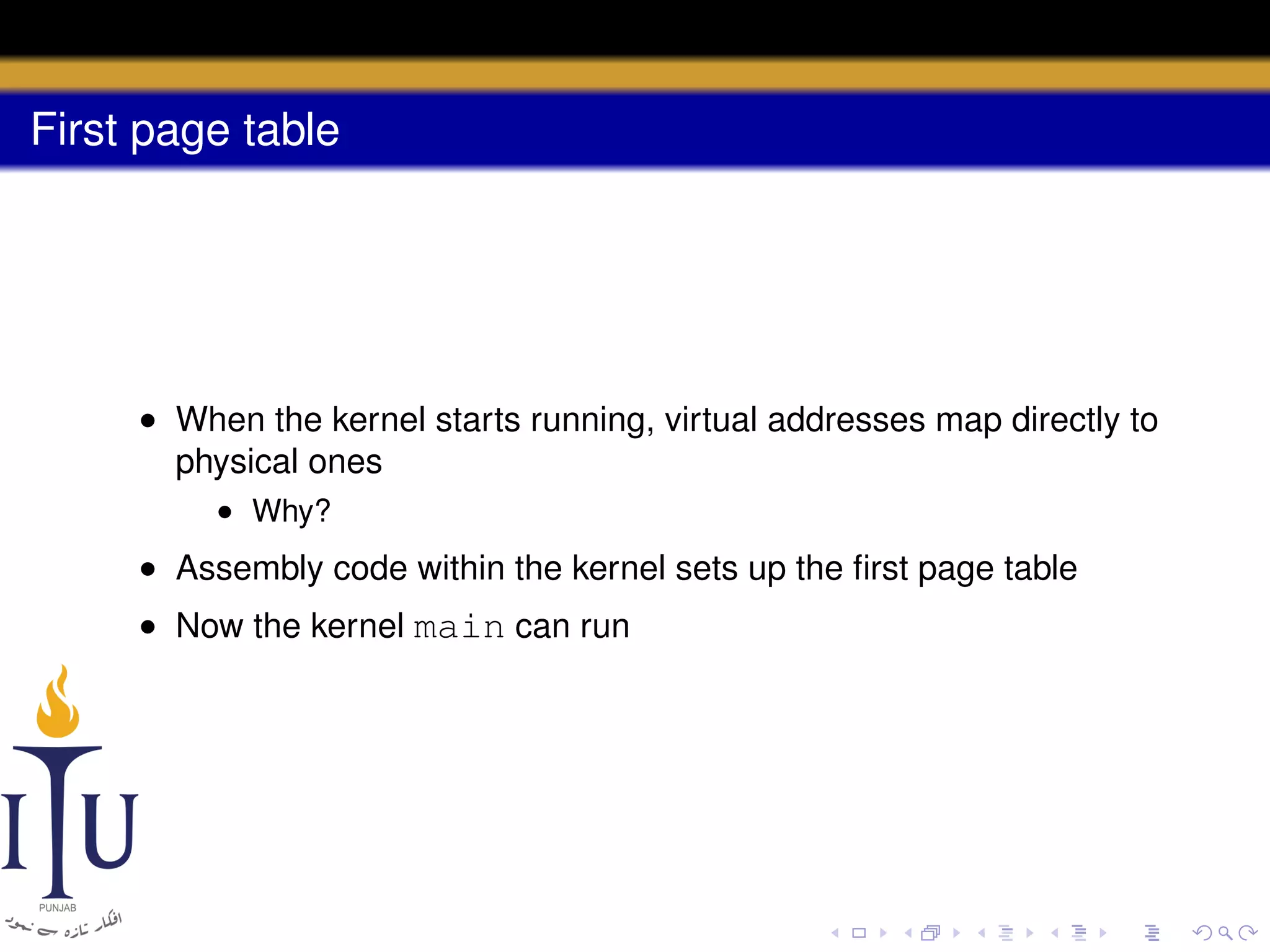

26. First page table
• When the kernel starts running, virtual addresses map directly to
physical ones
• Why?
• Assembly code within the kernel sets up the first page table
• Now the kernel main can run

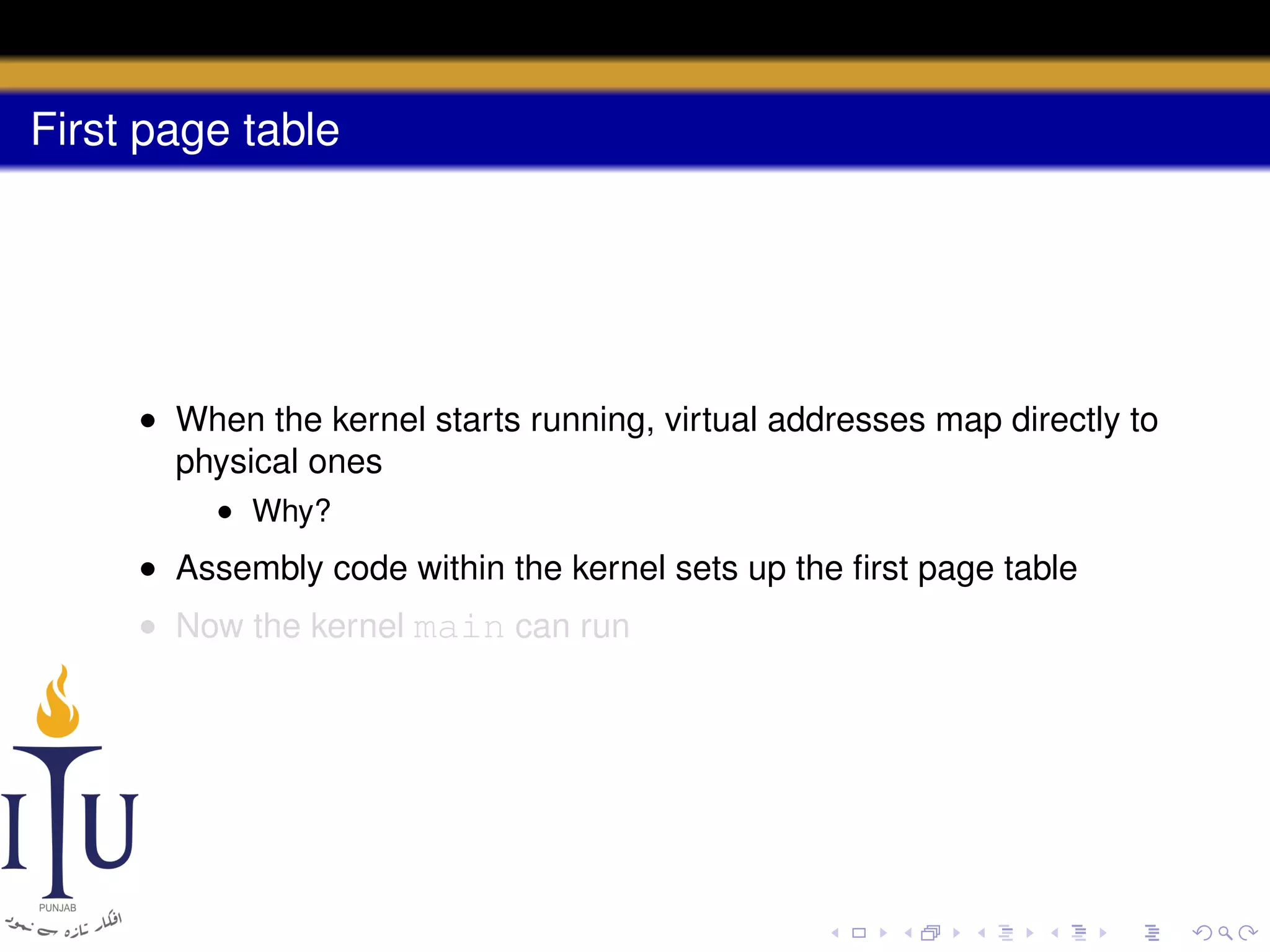

27. First page table
• When the kernel starts running, virtual addresses map directly to
physical ones
• Why?
• Assembly code within the kernel sets up the first page table
• Now the kernel main can run

28. First page table
• When the kernel starts running, virtual addresses map directly to
physical ones
• Why?
• Assembly code within the kernel sets up the first page table
• Now the kernel main can run

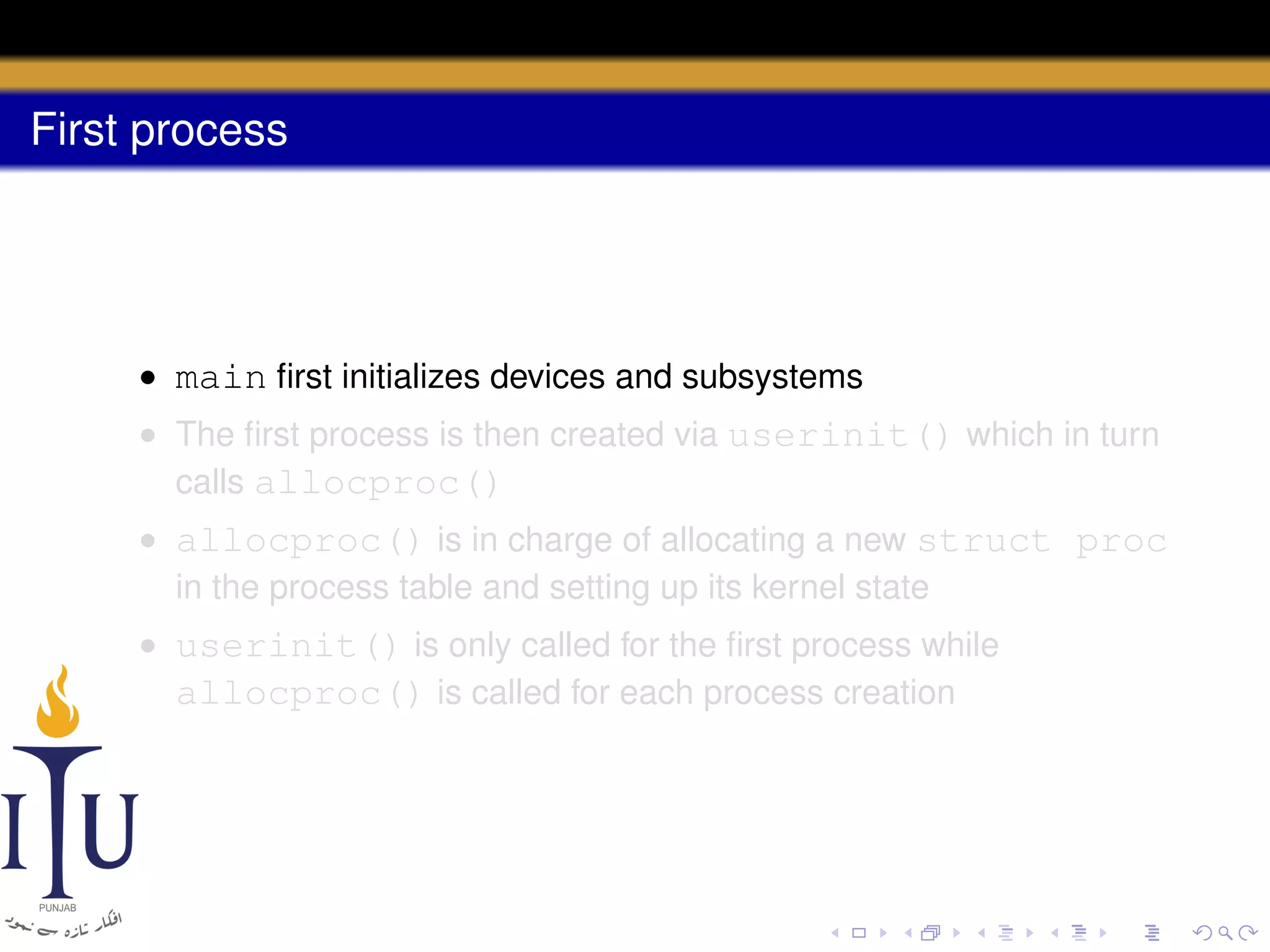

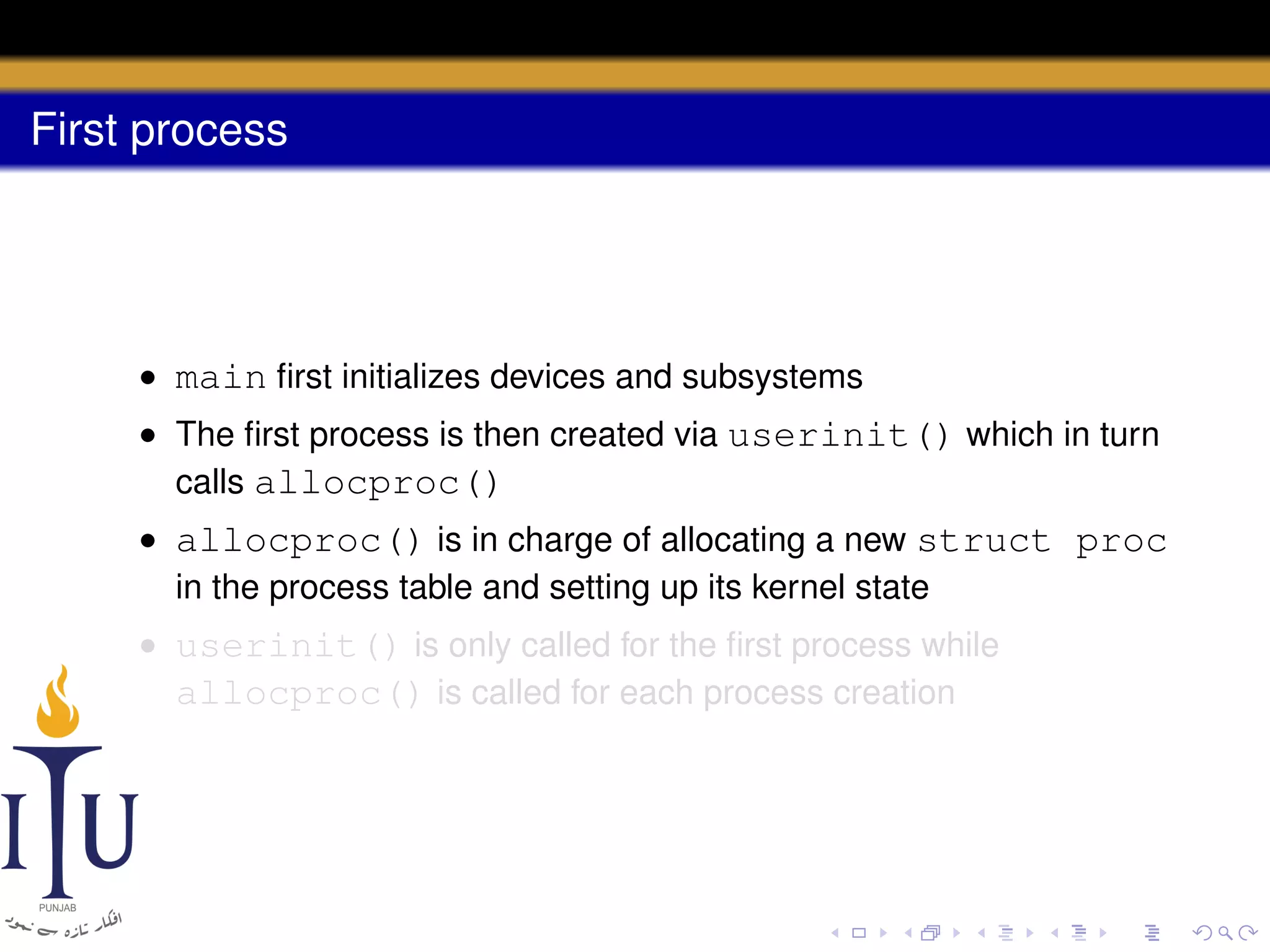

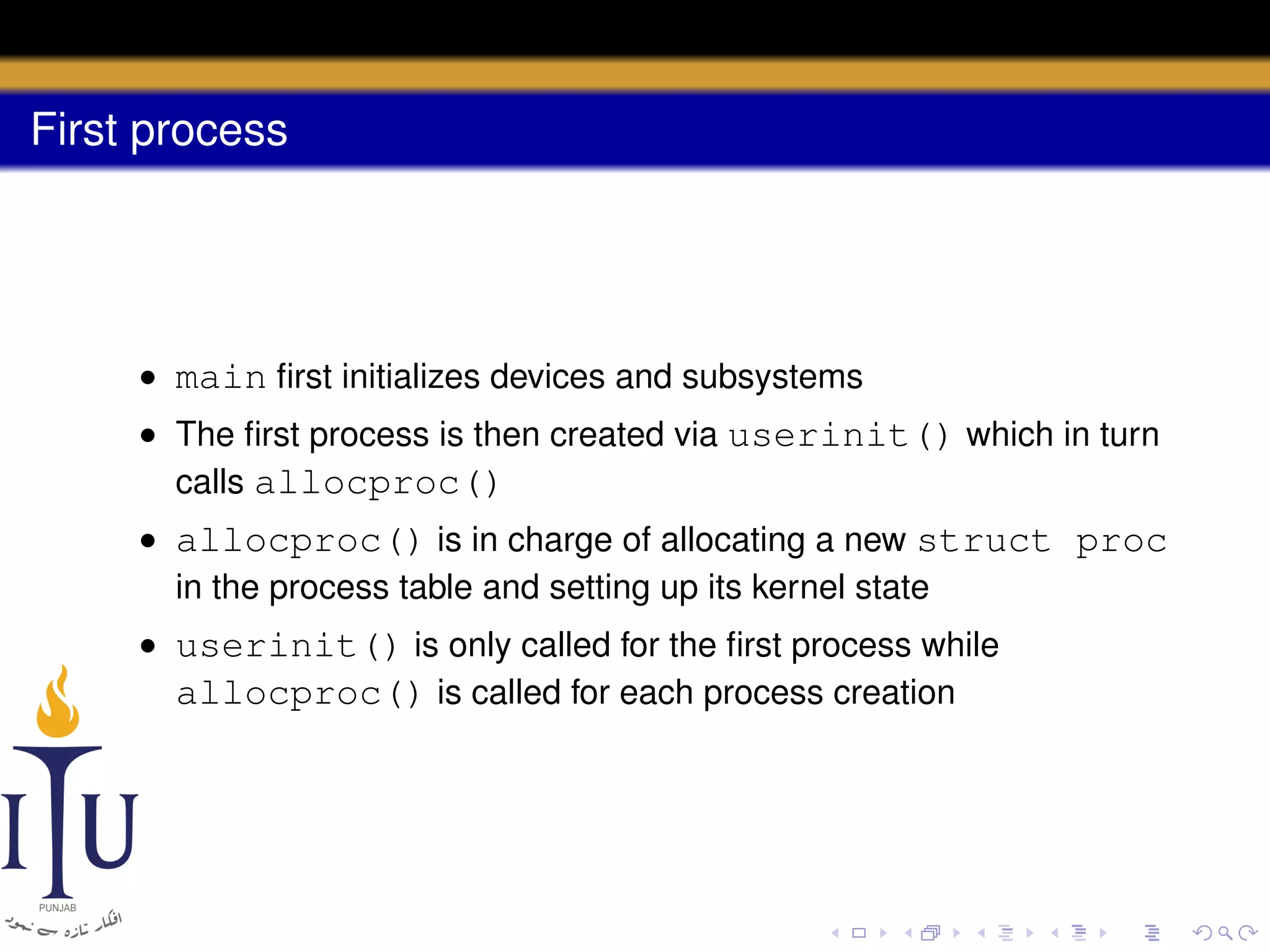

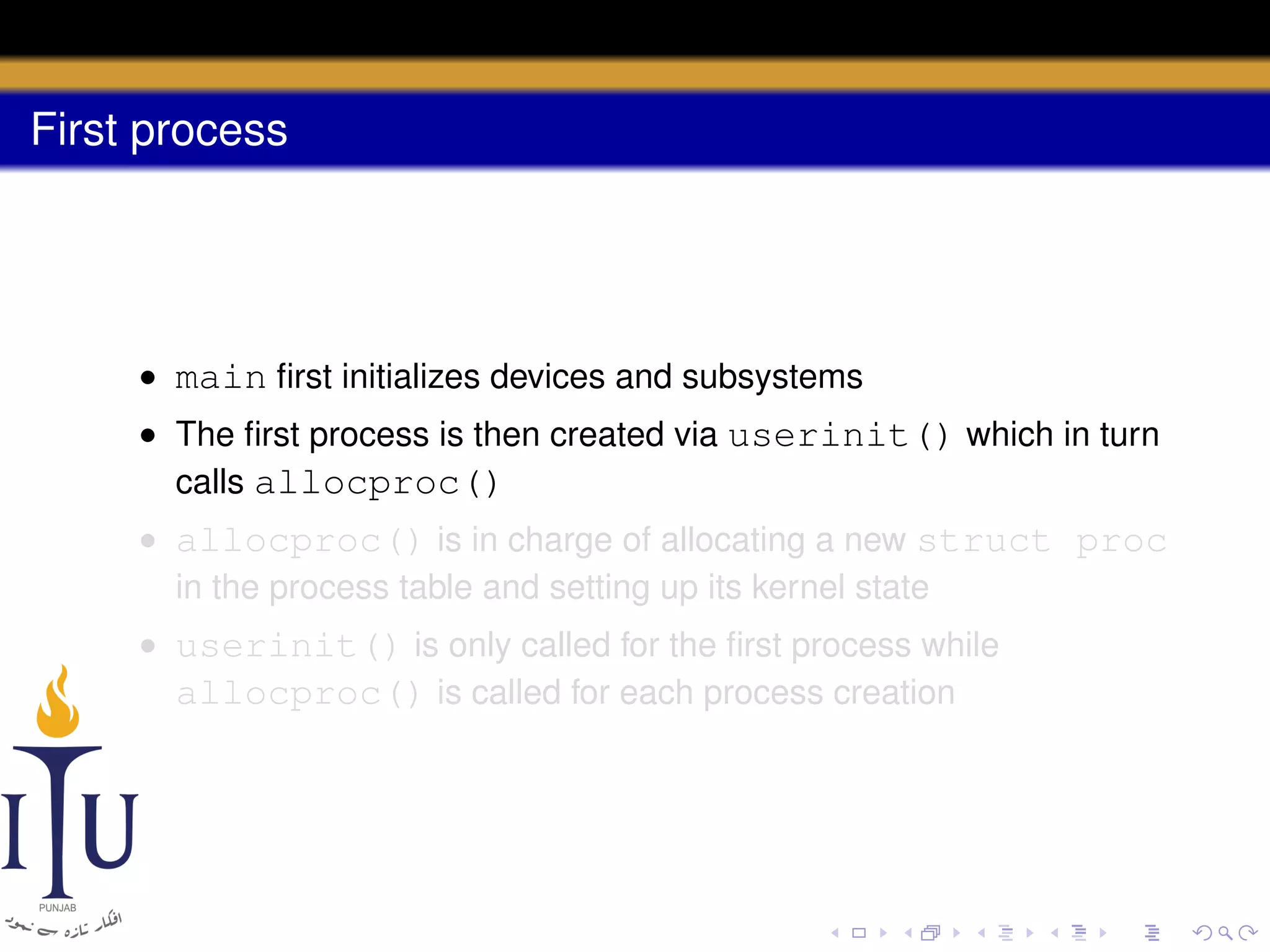

29. First process
• main first initializes devices and subsystems
• The first process is then created via userinit() which in turn
calls allocproc()
• allocproc() is in charge of allocating a new struct proc
in the process table and setting up its kernel state
• userinit() is only called for the first process while
allocproc() is called for each process creation

30. First process
• main first initializes devices and subsystems
• The first process is then created via userinit() which in turn
calls allocproc()
• allocproc() is in charge of allocating a new struct proc
in the process table and setting up its kernel state
• userinit() is only called for the first process while
allocproc() is called for each process creation

31. First process
• main first initializes devices and subsystems
• The first process is then created via userinit() which in turn
calls allocproc()
• allocproc() is in charge of allocating a new struct proc
in the process table and setting up its kernel state
• userinit() is only called for the first process while
allocproc() is called for each process creation

32. First process
• main first initializes devices and subsystems
• The first process is then created via userinit() which in turn
calls allocproc()
• allocproc() is in charge of allocating a new struct proc
in the process table and setting up its kernel state
• userinit() is only called for the first process while
allocproc() is called for each process creation

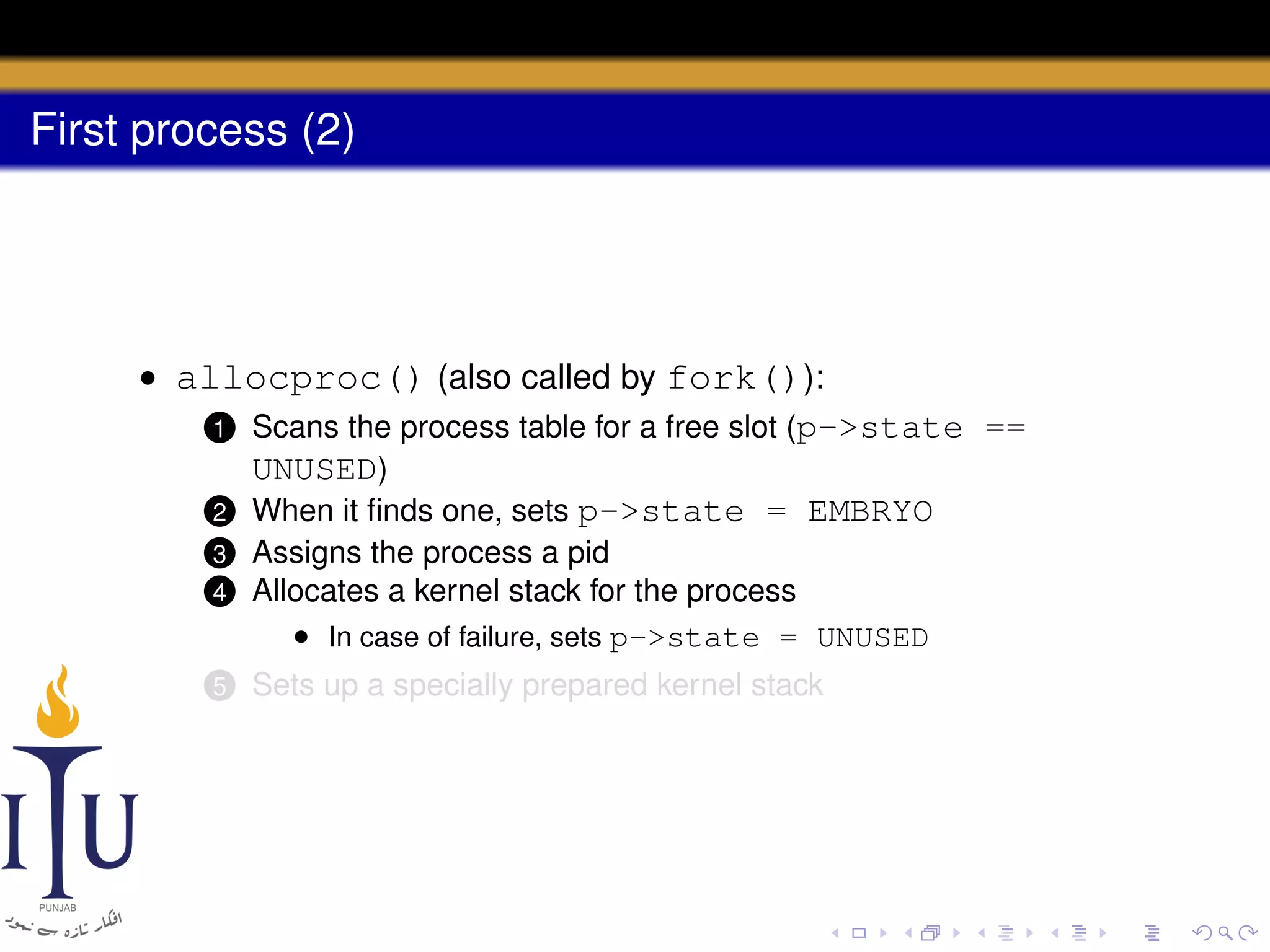

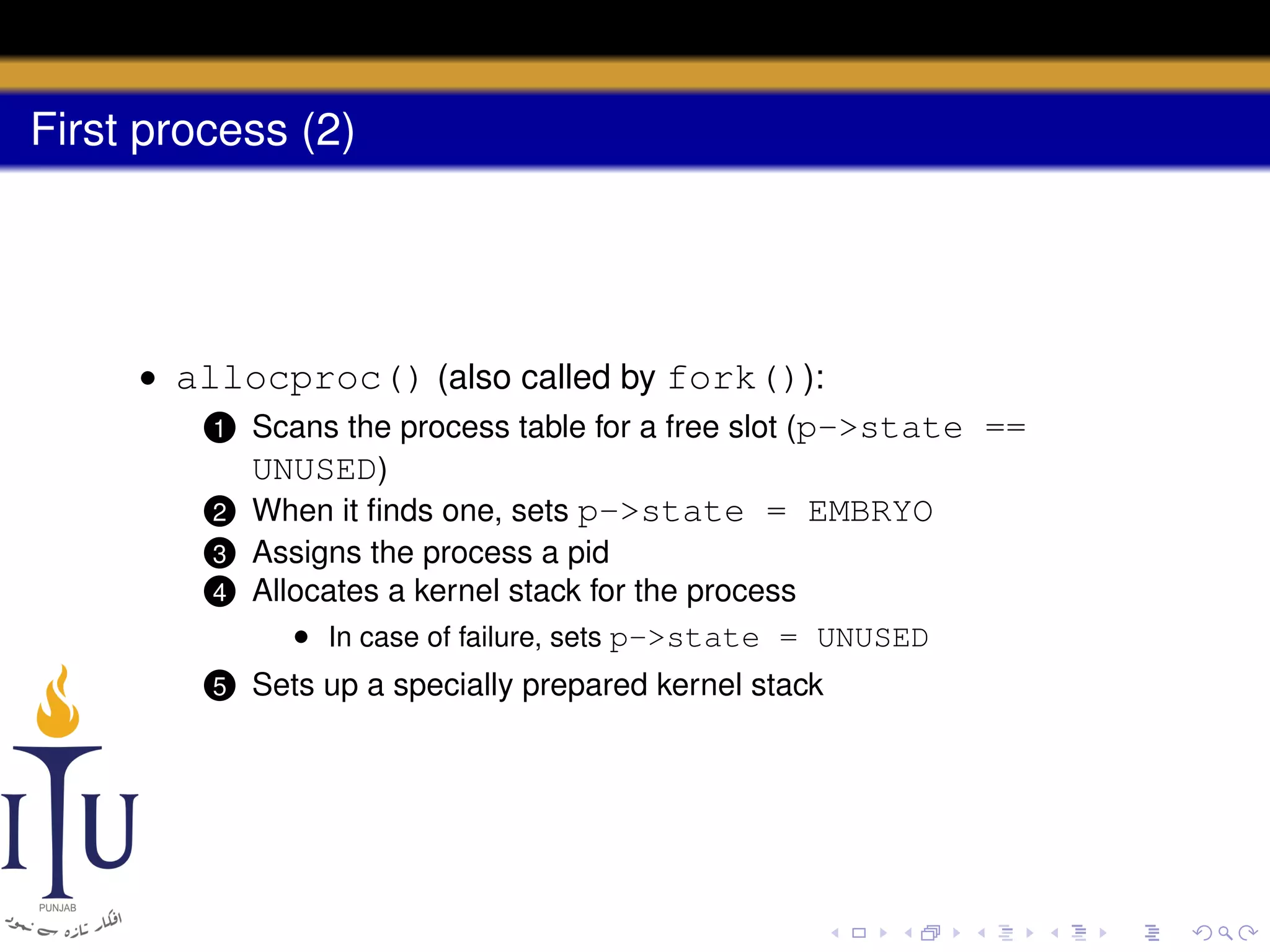

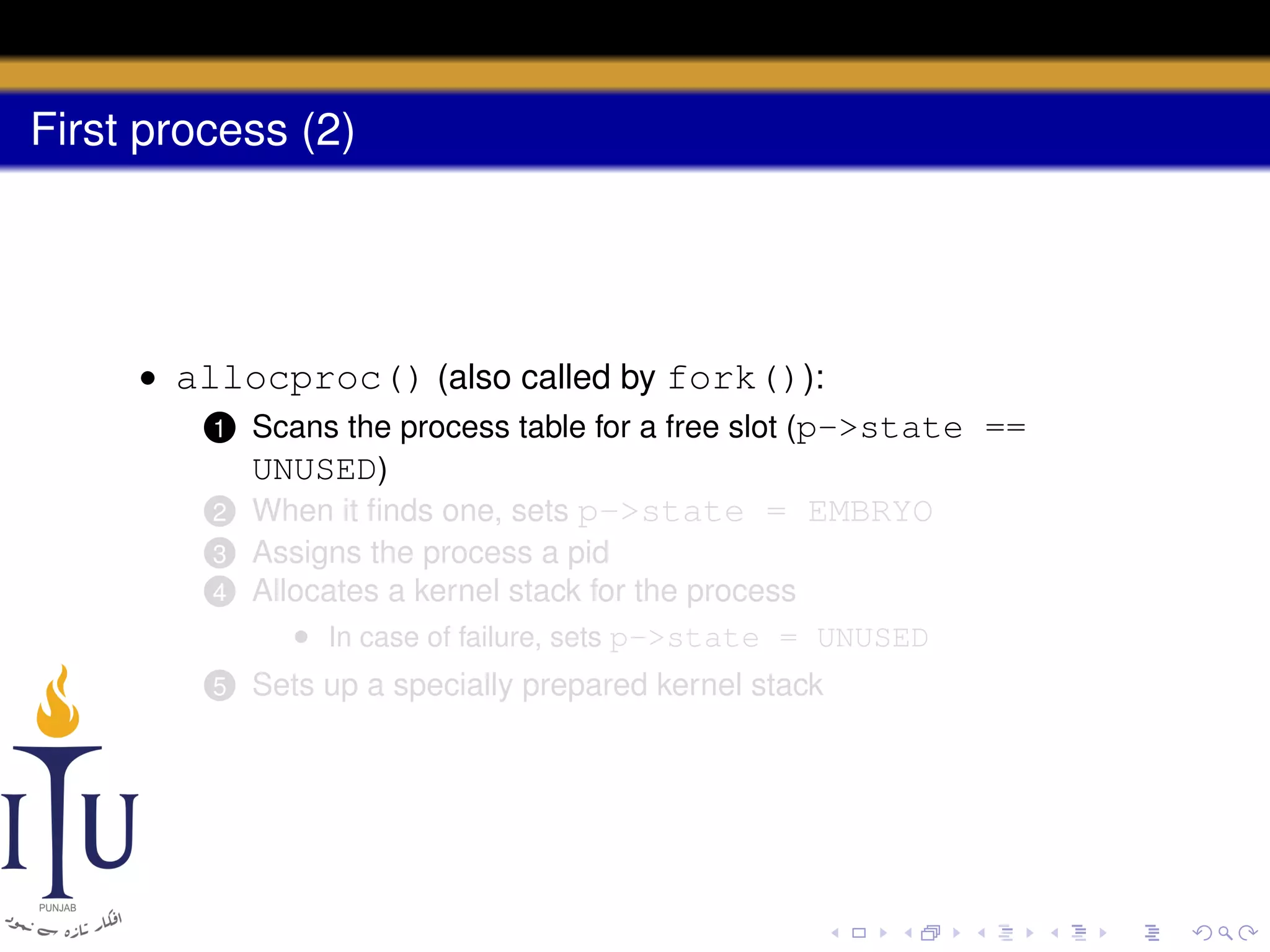

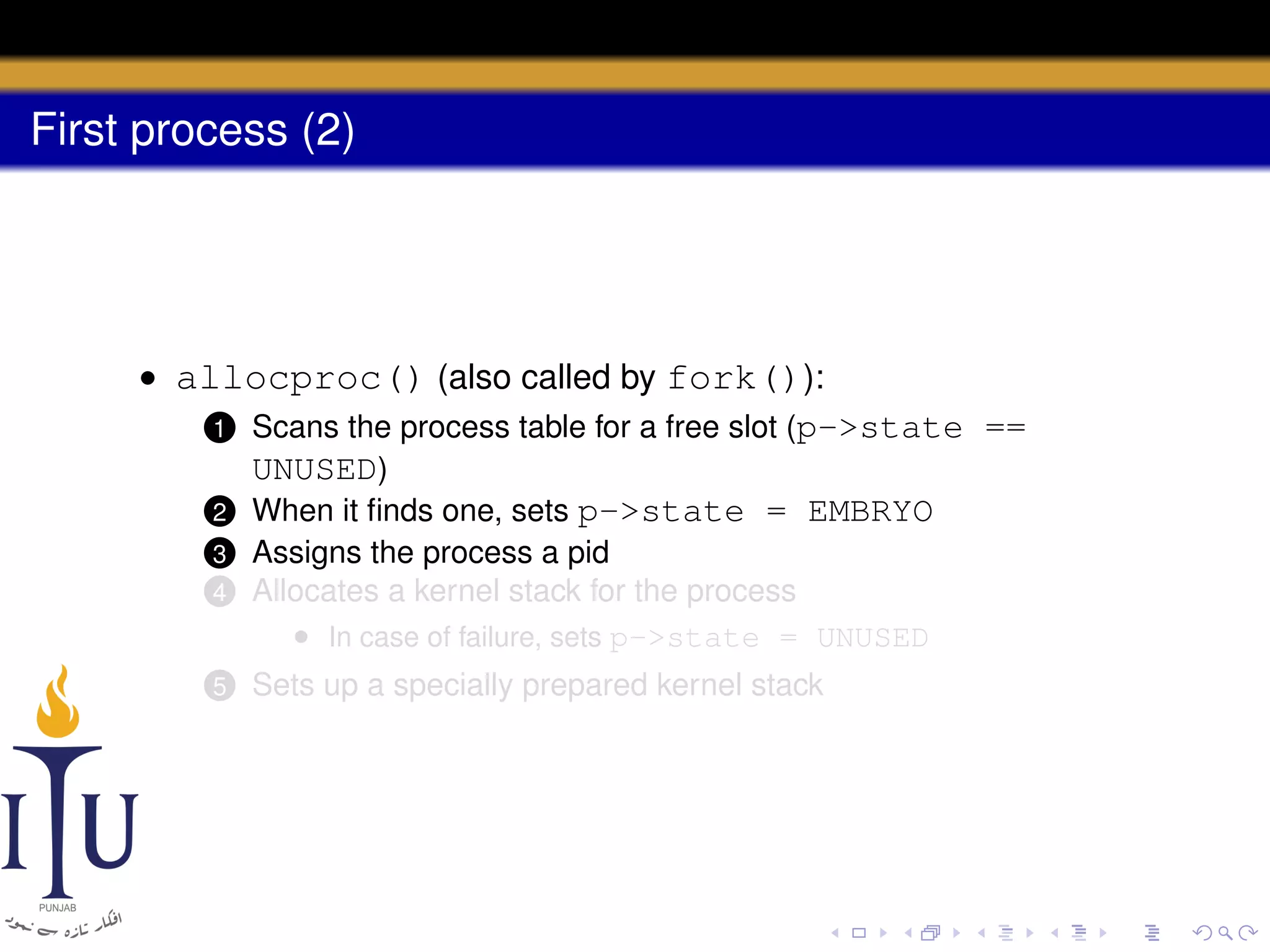

33. First process (2)
• allocproc() (also called by fork()):
1 Scans the process table for a free slot (p->state ==
UNUSED)
2 When it finds one, sets p->state = EMBRYO
4
Assigns the process a pid
Allocates a kernel stack for the process
• In case of failure, sets p->state = UNUSED
5
Sets up a specially prepared kernel stack
3

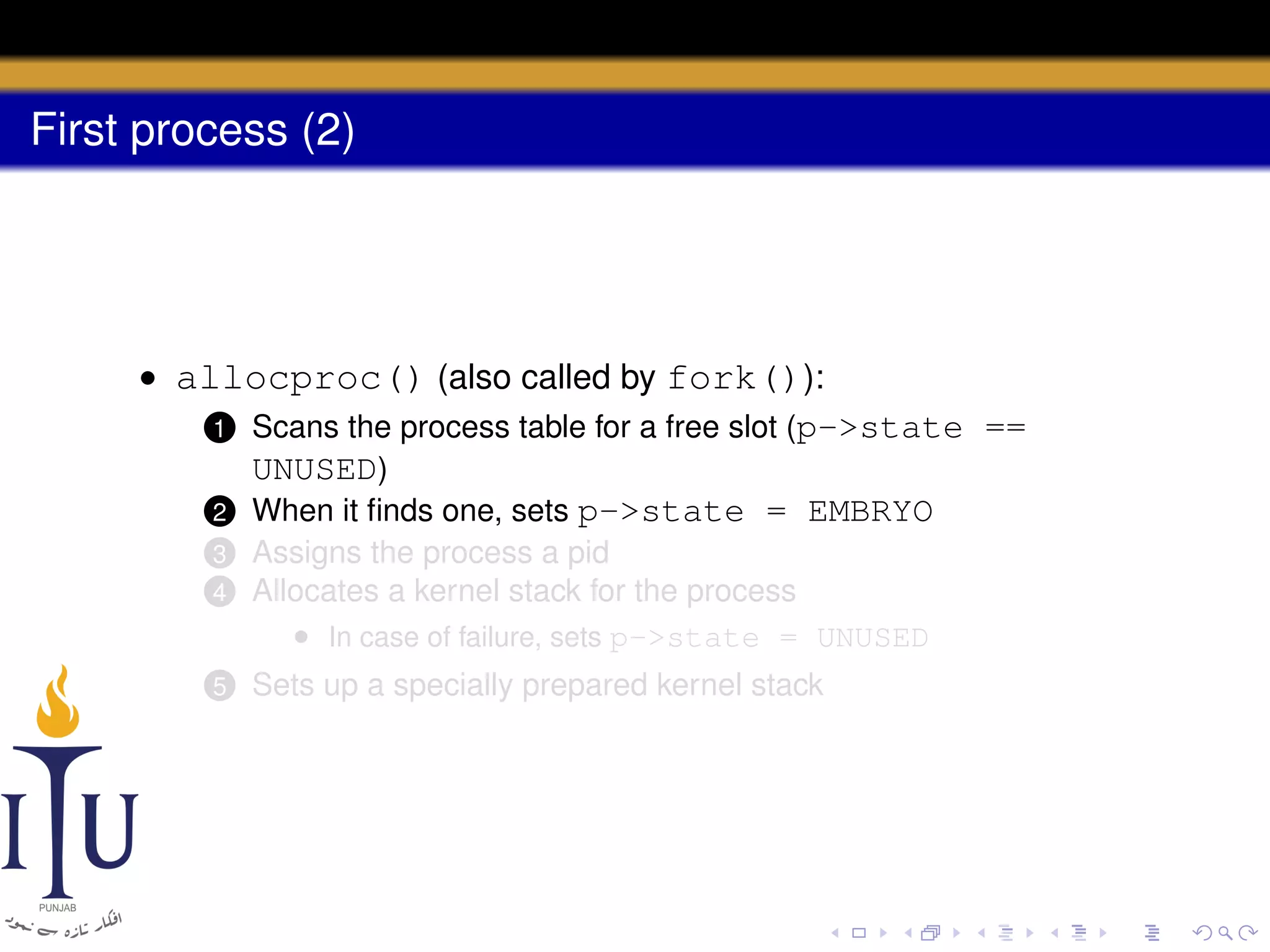

34. First process (2)
• allocproc() (also called by fork()):
1 Scans the process table for a free slot (p->state ==
UNUSED)
2 When it finds one, sets p->state = EMBRYO
4
Assigns the process a pid
Allocates a kernel stack for the process
• In case of failure, sets p->state = UNUSED
5
Sets up a specially prepared kernel stack
3

35. First process (2)
• allocproc() (also called by fork()):
1 Scans the process table for a free slot (p->state ==
UNUSED)
2 When it finds one, sets p->state = EMBRYO
4
Assigns the process a pid
Allocates a kernel stack for the process
• In case of failure, sets p->state = UNUSED
5
Sets up a specially prepared kernel stack
3

36. First process (2)
• allocproc() (also called by fork()):
1 Scans the process table for a free slot (p->state ==
UNUSED)
2 When it finds one, sets p->state = EMBRYO
4
Assigns the process a pid
Allocates a kernel stack for the process
• In case of failure, sets p->state = UNUSED
5
Sets up a specially prepared kernel stack
3

37. First process (2)
• allocproc() (also called by fork()):
1 Scans the process table for a free slot (p->state ==
UNUSED)
2 When it finds one, sets p->state = EMBRYO
4
Assigns the process a pid
Allocates a kernel stack for the process
• In case of failure, sets p->state = UNUSED
5
Sets up a specially prepared kernel stack
3

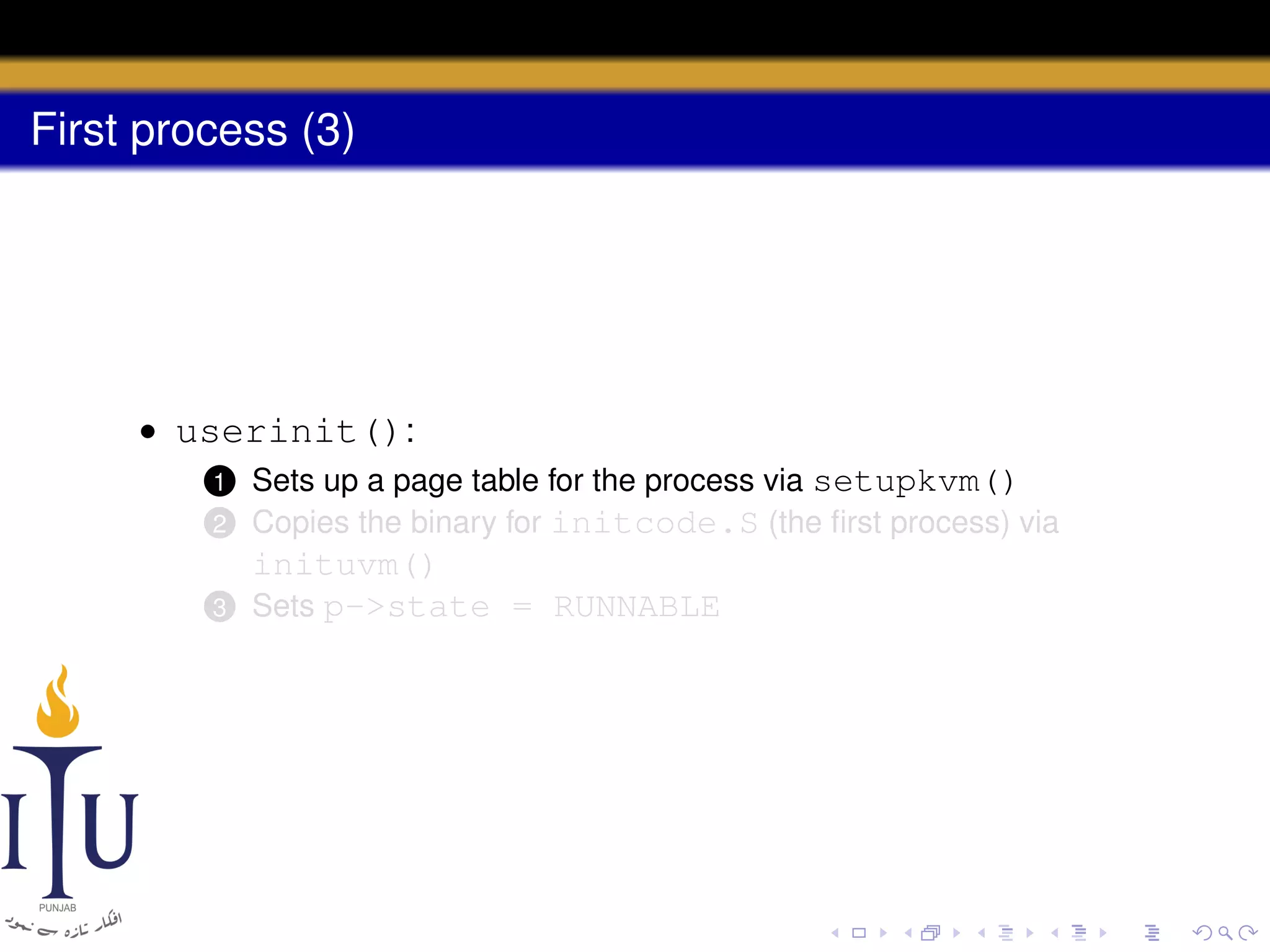

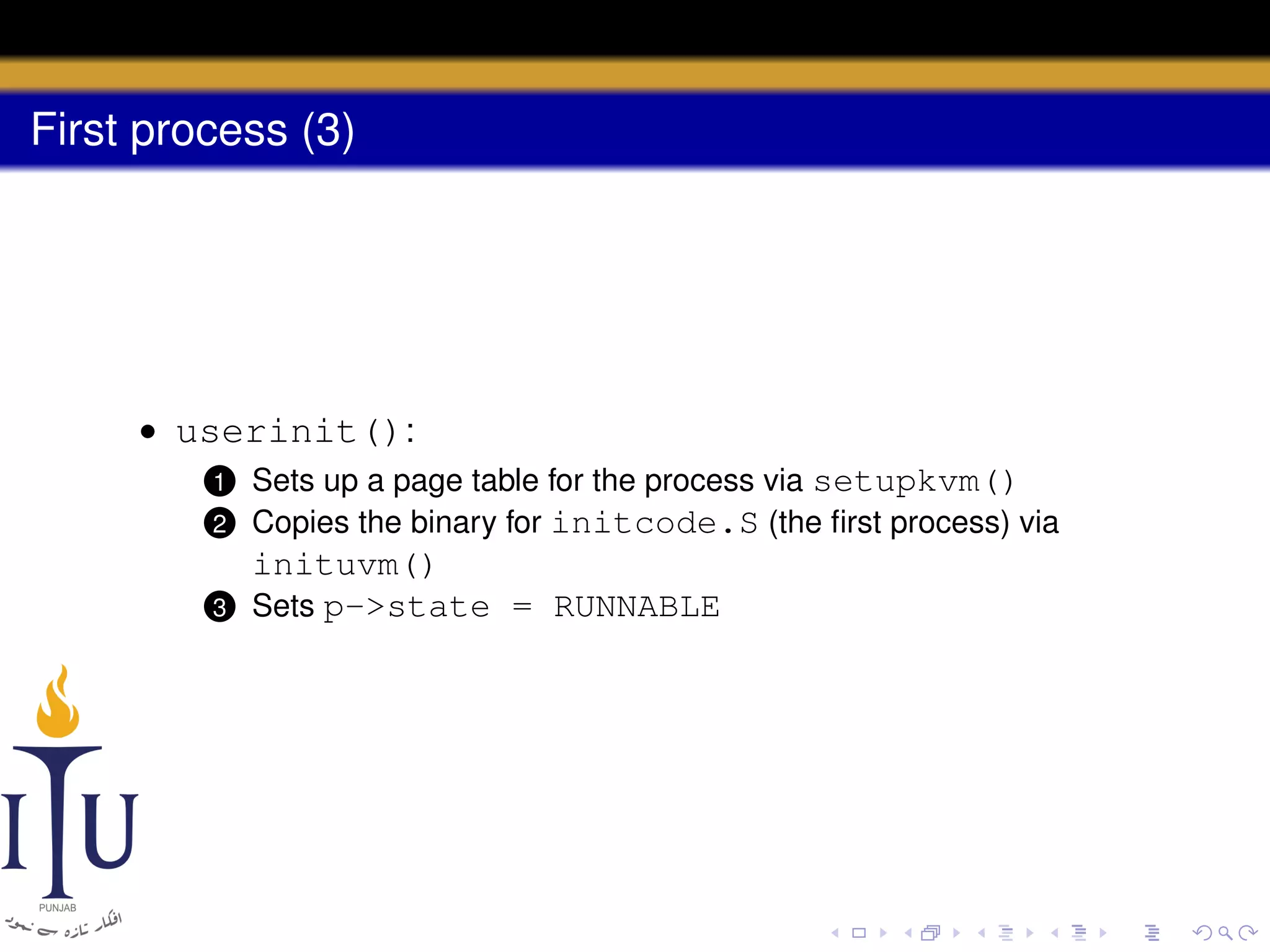

38. First process (3)
• userinit():
2
Sets up a page table for the process via setupkvm()
Copies the binary for initcode.S (the first process) via
3
inituvm()
Sets p->state = RUNNABLE
1

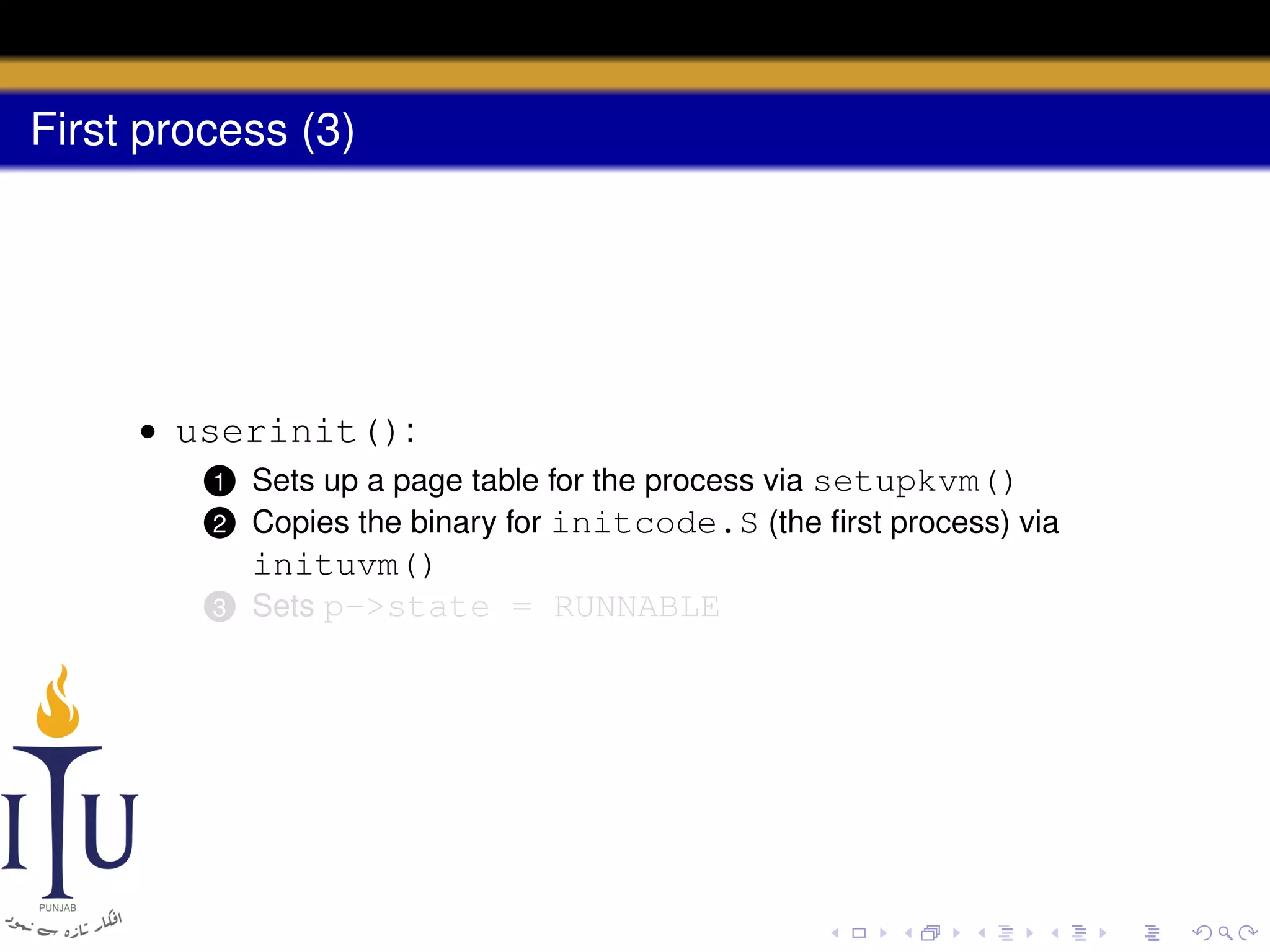

39. First process (3)
• userinit():
2
Sets up a page table for the process via setupkvm()
Copies the binary for initcode.S (the first process) via
3
inituvm()
Sets p->state = RUNNABLE
1

40. First process (3)
• userinit():
2
Sets up a page table for the process via setupkvm()
Copies the binary for initcode.S (the first process) via
3
inituvm()
Sets p->state = RUNNABLE
1

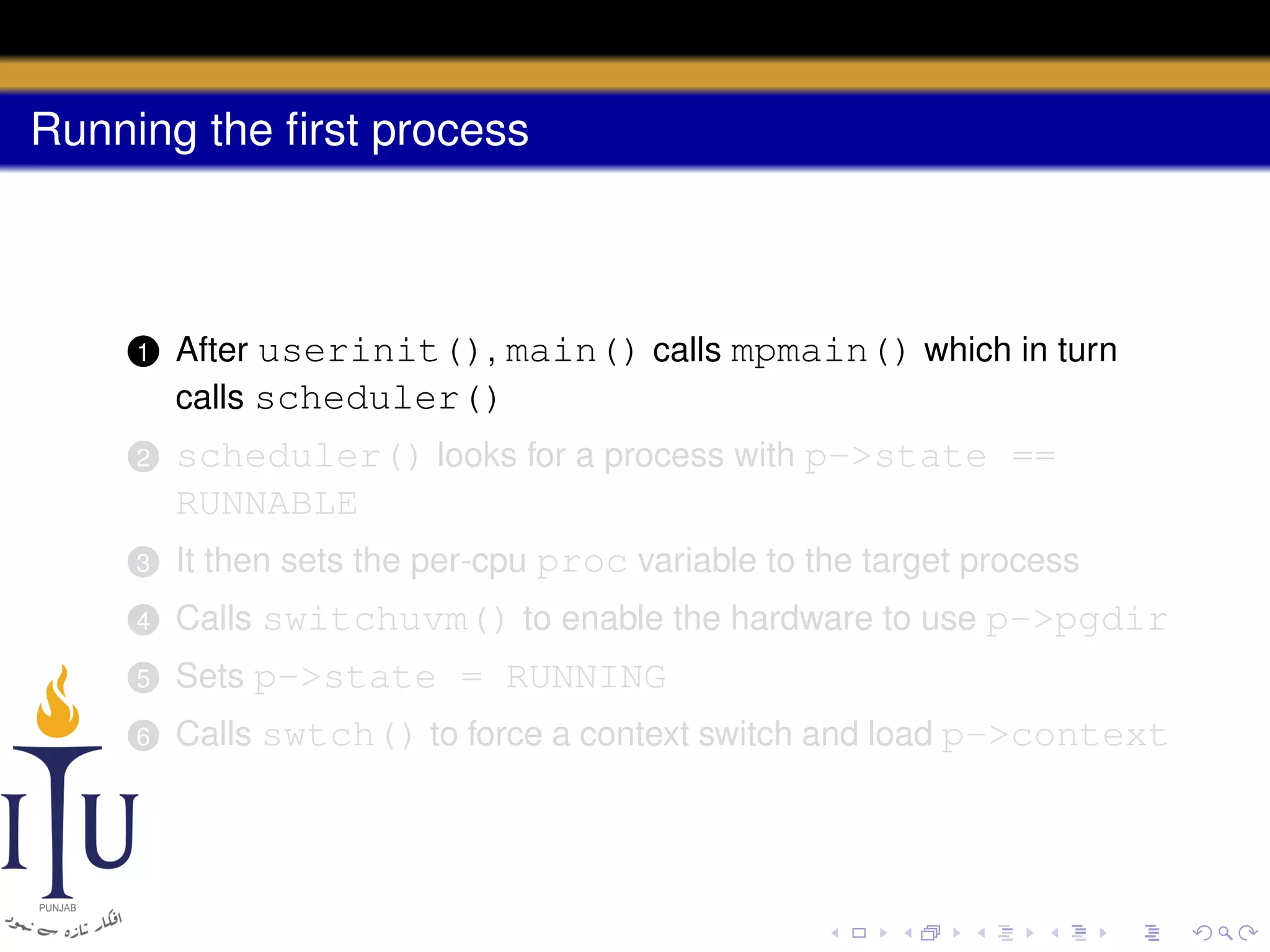

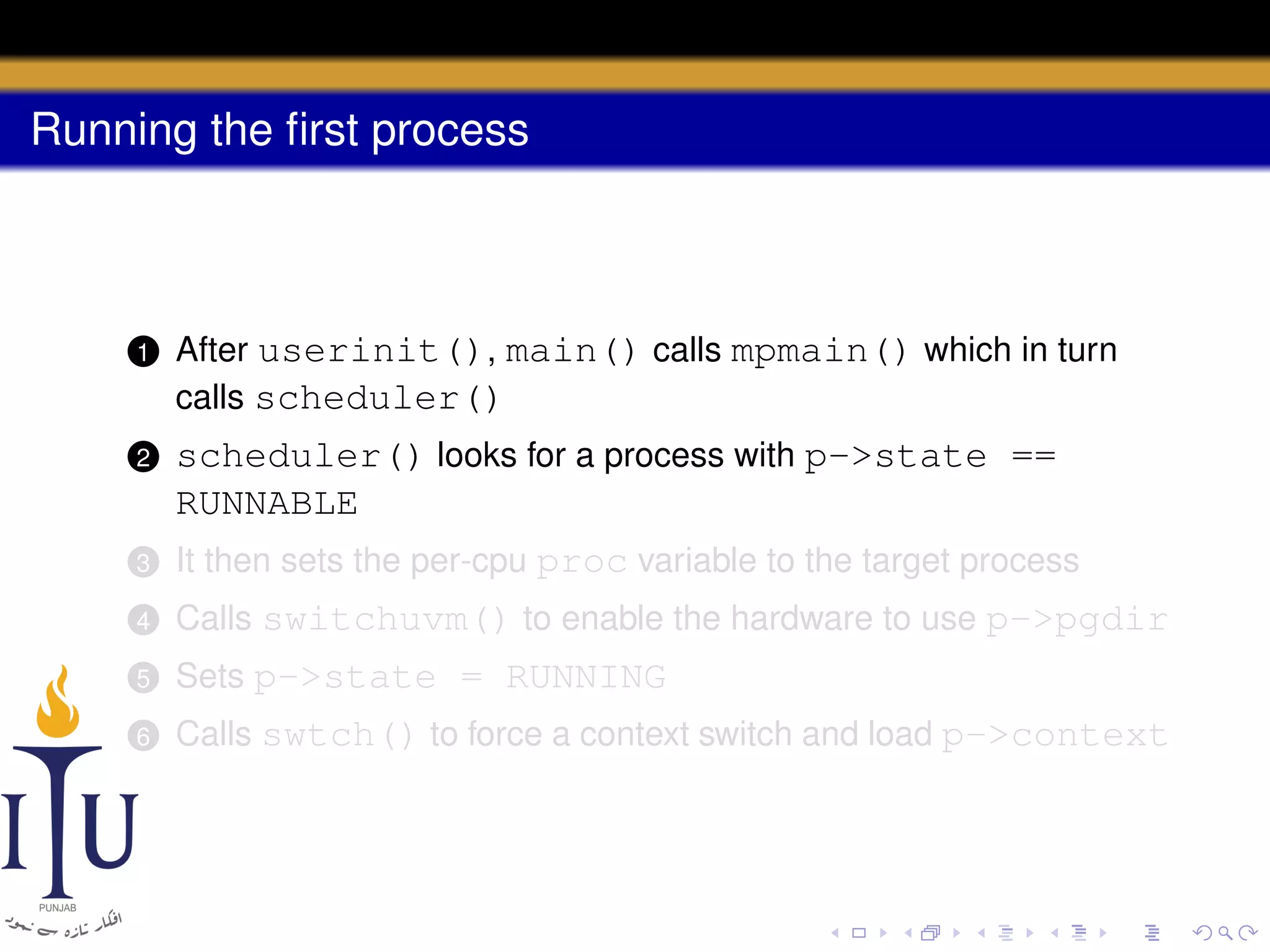

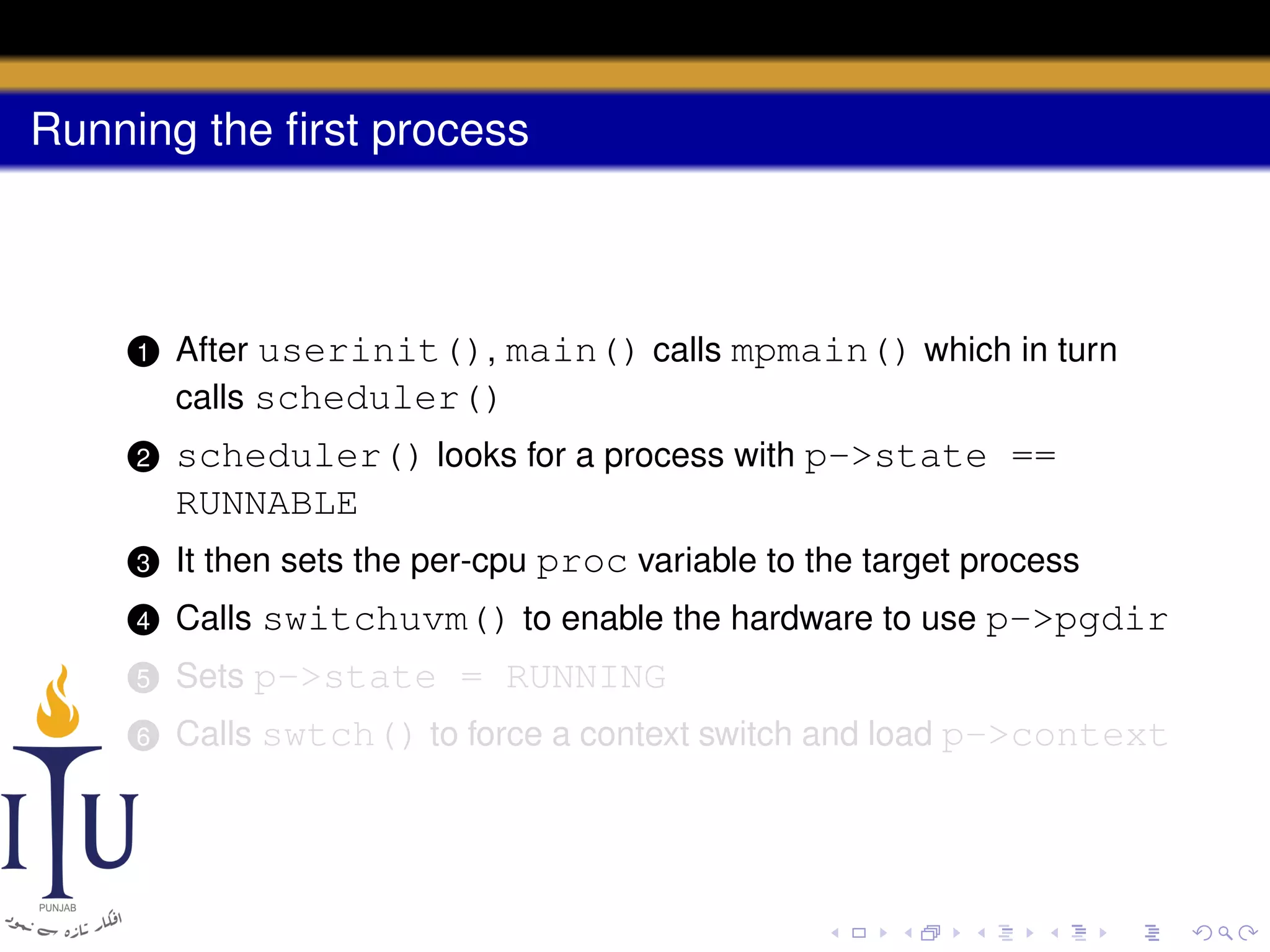

41. Running the first process
1
After userinit(), main() calls mpmain() which in turn
calls scheduler()
2
scheduler() looks for a process with p->state ==
RUNNABLE
3
It then sets the per-cpu proc variable to the target process
4
Calls switchuvm() to enable the hardware to use p->pgdir
5
Sets p->state = RUNNING
6
Calls swtch() to force a context switch and load p->context

42. Running the first process
1
After userinit(), main() calls mpmain() which in turn
calls scheduler()
2
scheduler() looks for a process with p->state ==
RUNNABLE
3
It then sets the per-cpu proc variable to the target process
4
Calls switchuvm() to enable the hardware to use p->pgdir
5
Sets p->state = RUNNING
6
Calls swtch() to force a context switch and load p->context

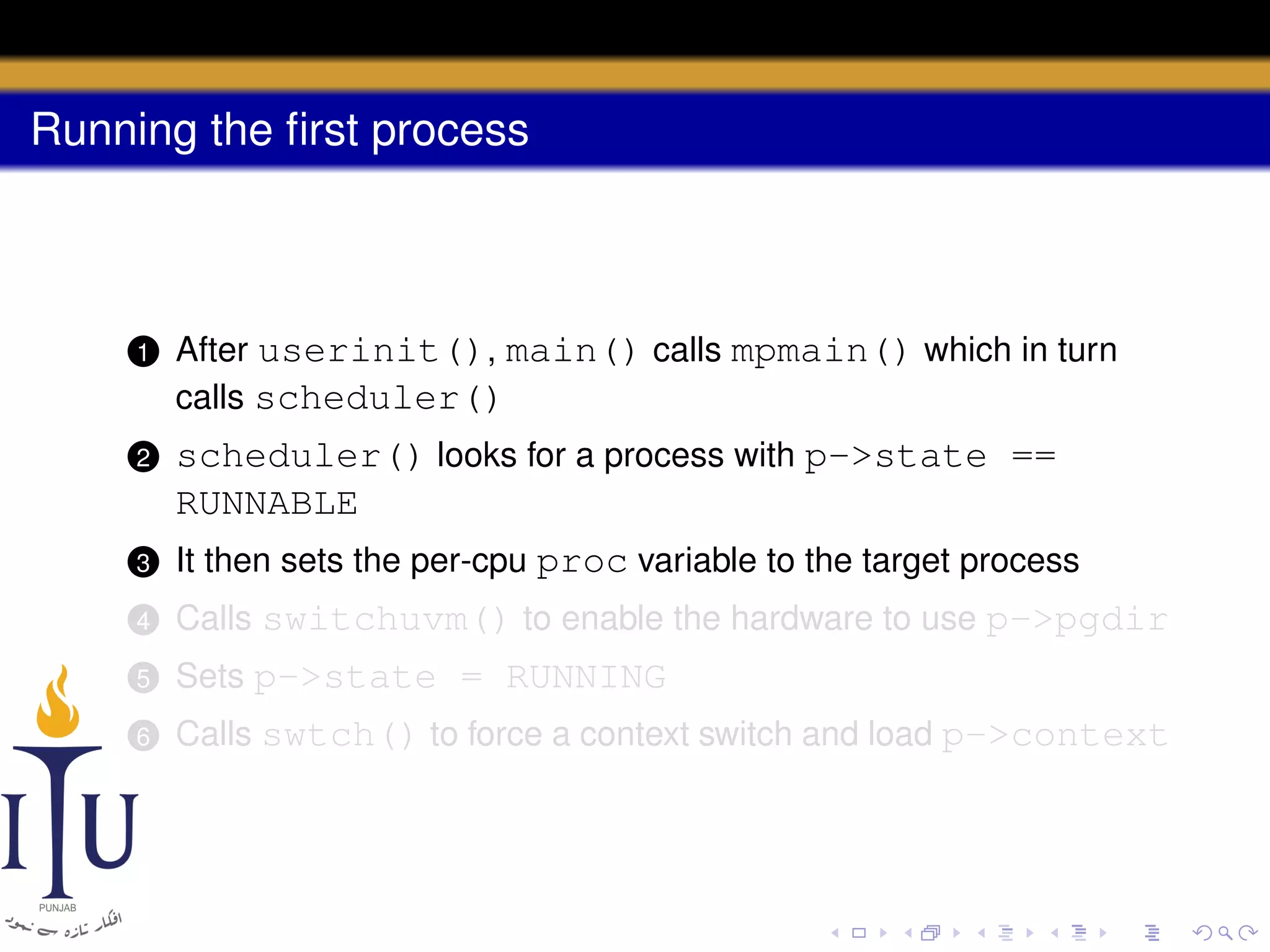

43. Running the first process
1
After userinit(), main() calls mpmain() which in turn
calls scheduler()
2
scheduler() looks for a process with p->state ==
RUNNABLE
3
It then sets the per-cpu proc variable to the target process
4
Calls switchuvm() to enable the hardware to use p->pgdir
5
Sets p->state = RUNNING
6
Calls swtch() to force a context switch and load p->context

44. Running the first process
1
After userinit(), main() calls mpmain() which in turn
calls scheduler()
2
scheduler() looks for a process with p->state ==
RUNNABLE
3
It then sets the per-cpu proc variable to the target process
4
Calls switchuvm() to enable the hardware to use p->pgdir
5
Sets p->state = RUNNING
6
Calls swtch() to force a context switch and load p->context

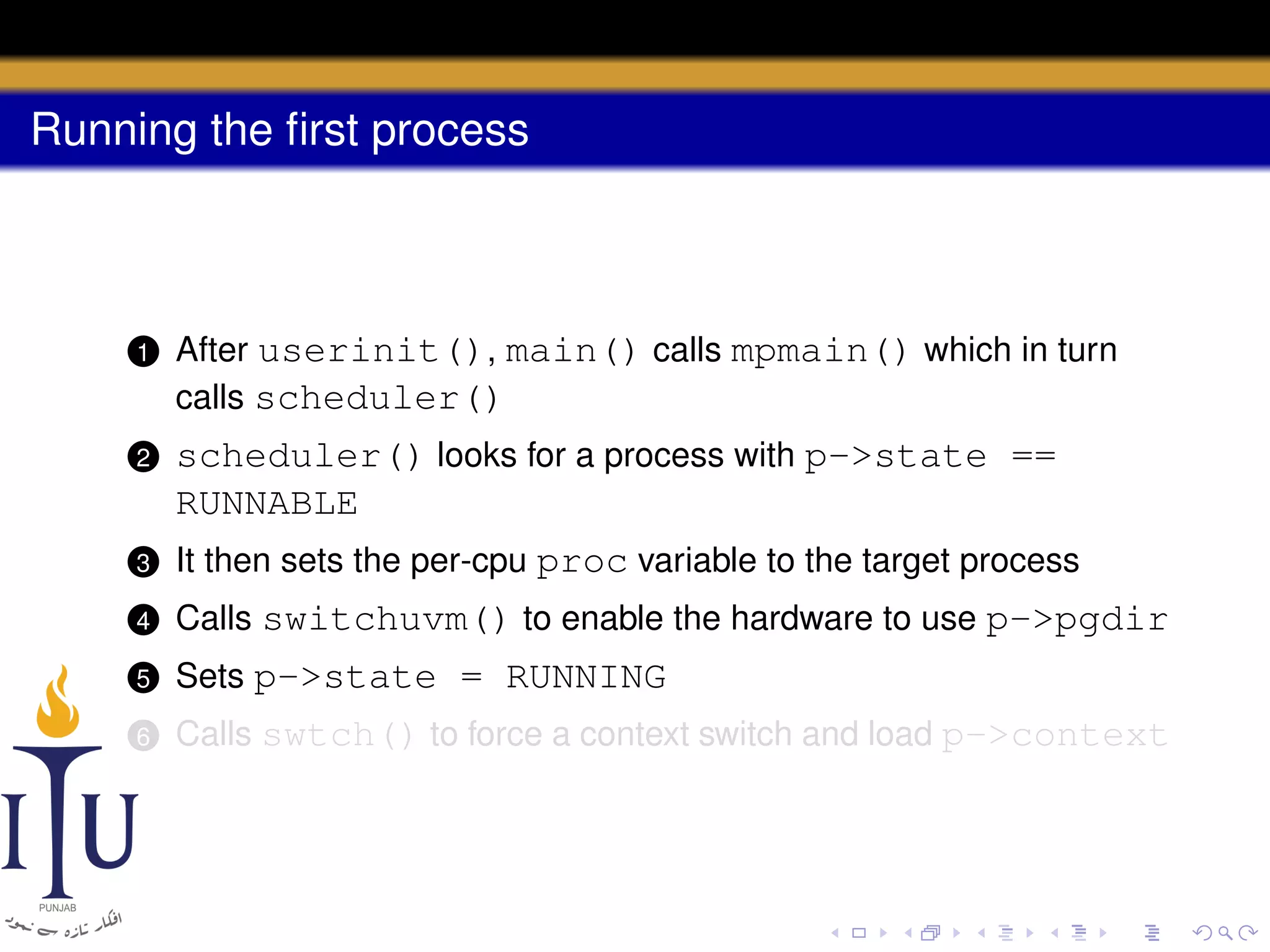

45. Running the first process
1
After userinit(), main() calls mpmain() which in turn
calls scheduler()
2
scheduler() looks for a process with p->state ==
RUNNABLE
3
It then sets the per-cpu proc variable to the target process
4
Calls switchuvm() to enable the hardware to use p->pgdir
5
Sets p->state = RUNNING
6
Calls swtch() to force a context switch and load p->context

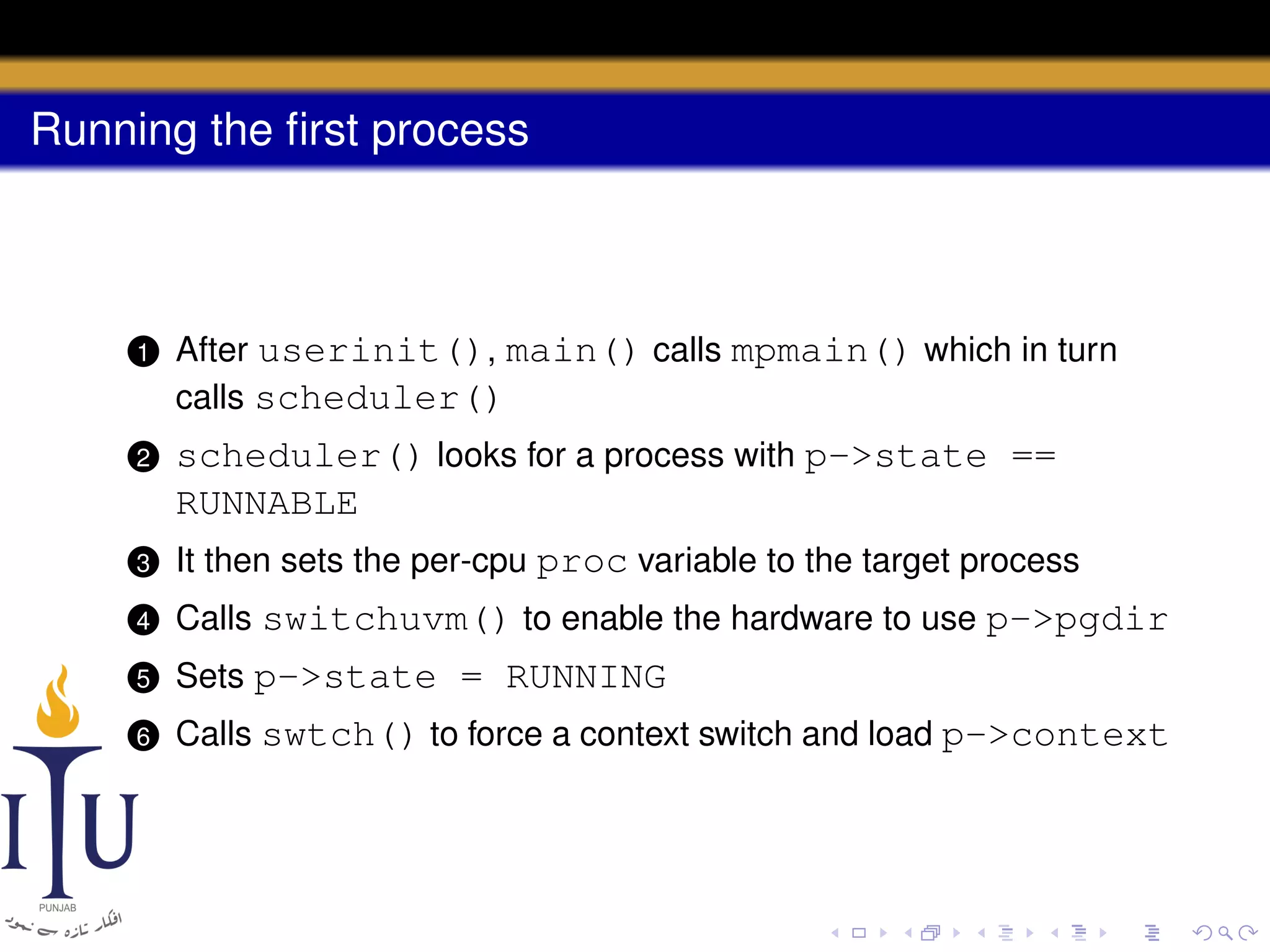

46. Running the first process
1
After userinit(), main() calls mpmain() which in turn
calls scheduler()
2
scheduler() looks for a process with p->state ==
RUNNABLE
3
It then sets the per-cpu proc variable to the target process
4
Calls switchuvm() to enable the hardware to use p->pgdir
5
Sets p->state = RUNNING
6
Calls swtch() to force a context switch and load p->context

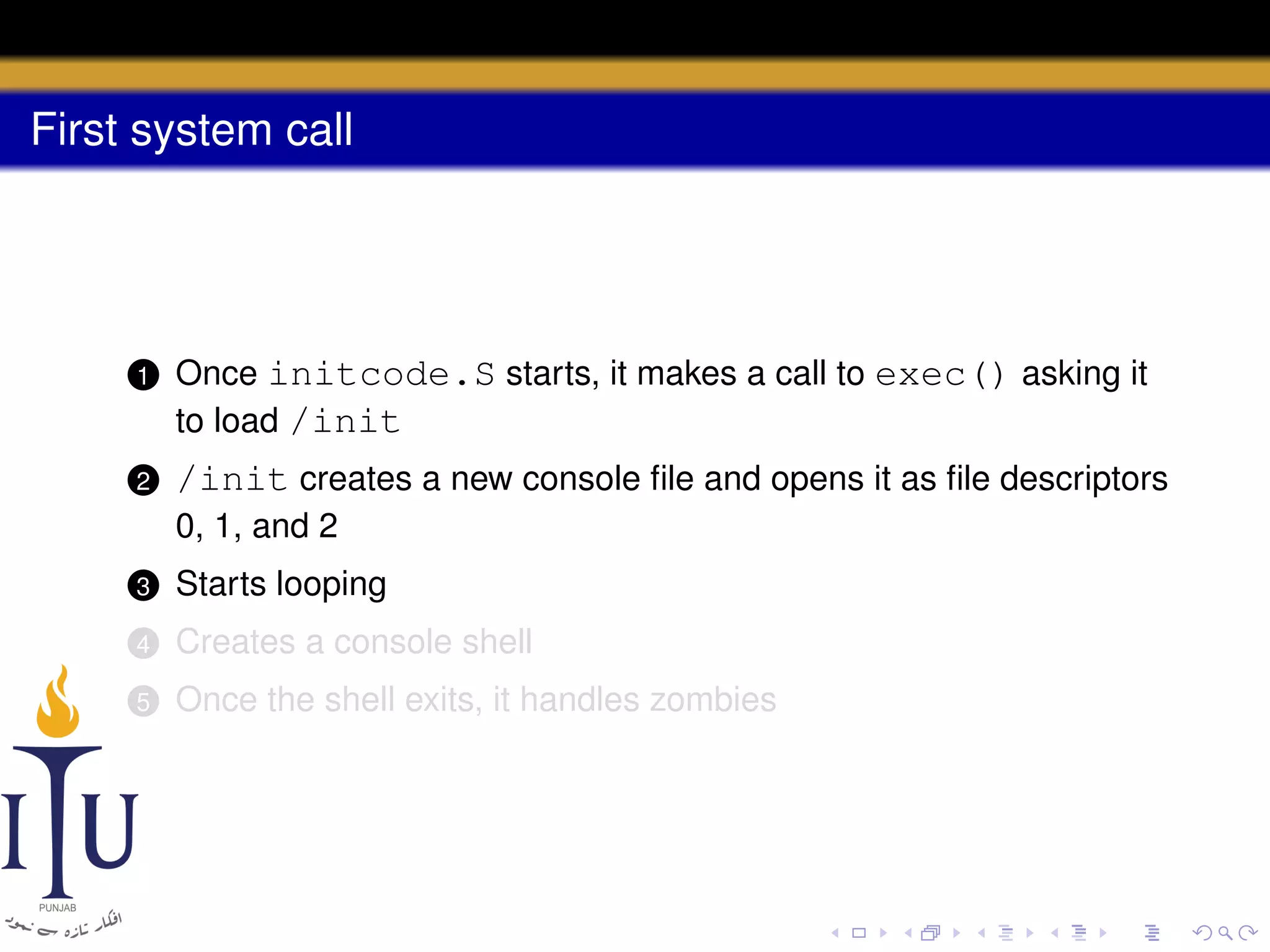

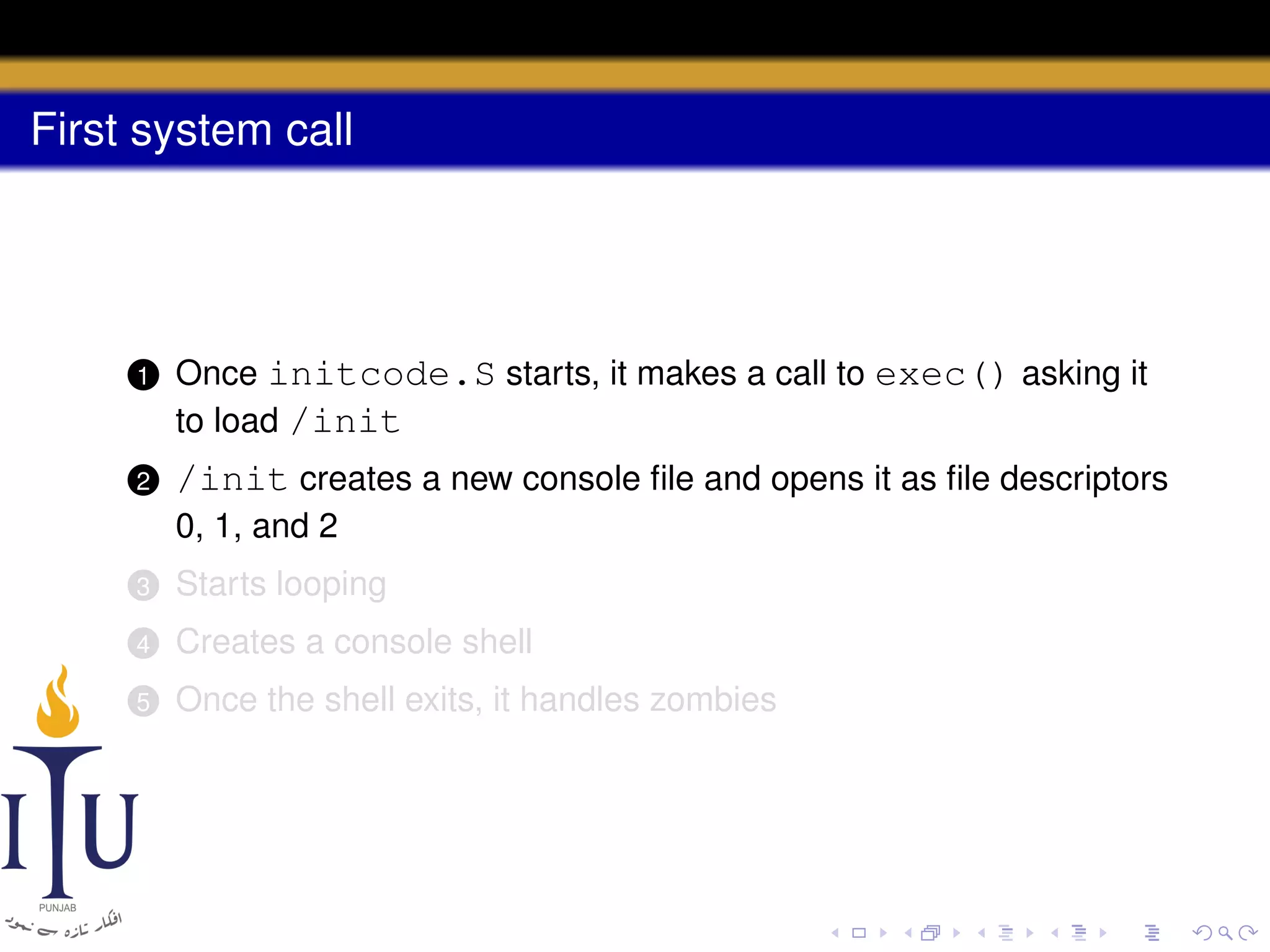

47. First system call
1
Once initcode.S starts, it makes a call to exec() asking it
to load /init
2
/init creates a new console file and opens it as file descriptors
0, 1, and 2
3
Starts looping
4
Creates a console shell
5
Once the shell exits, it handles zombies

48. First system call
1
Once initcode.S starts, it makes a call to exec() asking it
to load /init
2
/init creates a new console file and opens it as file descriptors
0, 1, and 2
3
Starts looping
4
Creates a console shell
5
Once the shell exits, it handles zombies

49. First system call
1
Once initcode.S starts, it makes a call to exec() asking it
to load /init
2
/init creates a new console file and opens it as file descriptors
0, 1, and 2
3
Starts looping
4
Creates a console shell
5
Once the shell exits, it handles zombies

50. First system call
1
Once initcode.S starts, it makes a call to exec() asking it
to load /init
2
/init creates a new console file and opens it as file descriptors
0, 1, and 2
3
Starts looping
4
Creates a console shell
5
Once the shell exits, it handles zombies

51. First system call
1
Once initcode.S starts, it makes a call to exec() asking it
to load /init
2
/init creates a new console file and opens it as file descriptors
0, 1, and 2
3
Starts looping
4
Creates a console shell
5
Once the shell exits, it handles zombies

52. xv6
Your operating system is up and running now!

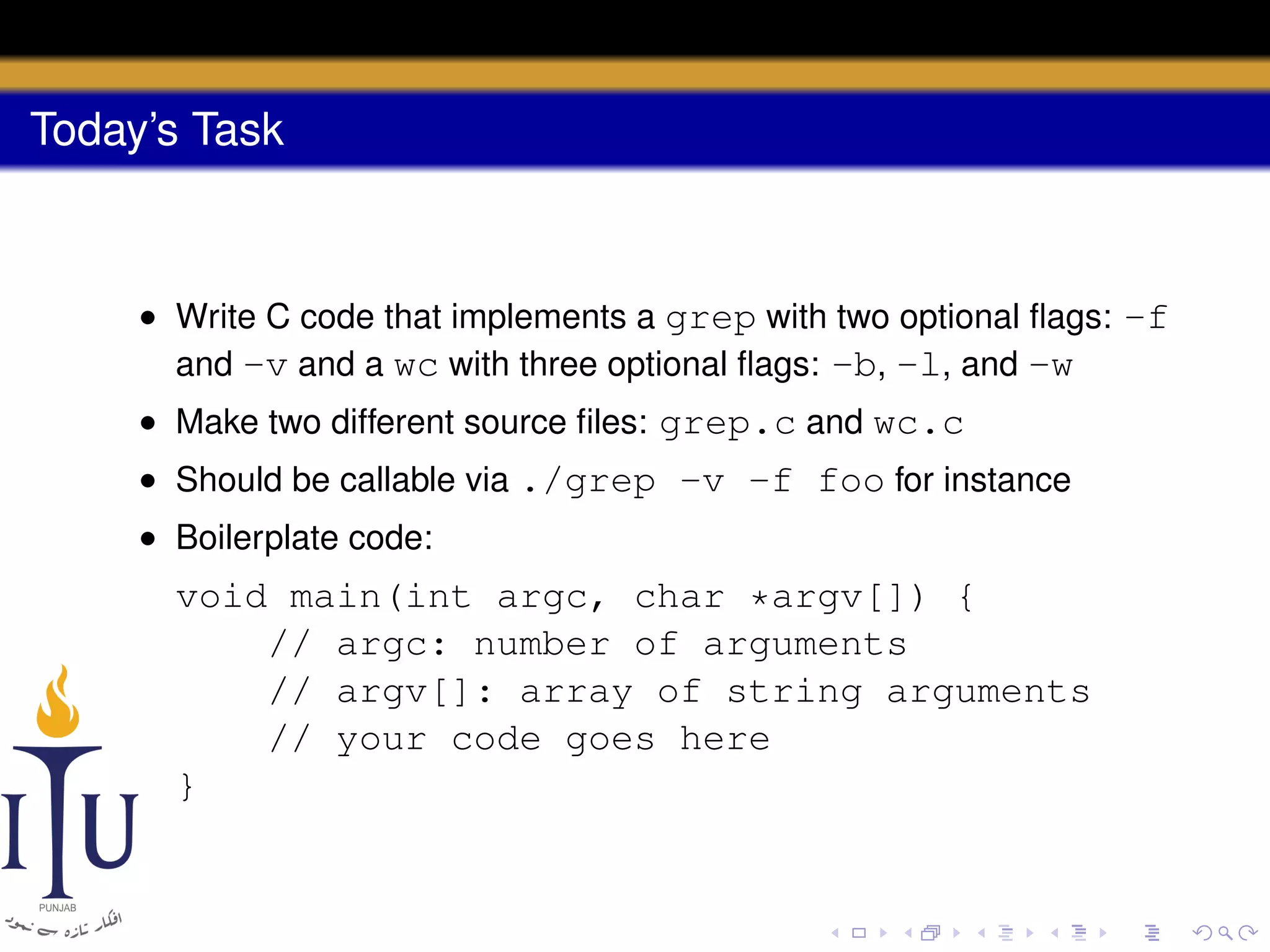

53. Today’s Task
• Write C code that implements a grep with two optional flags: -f
and -v and a wc with three optional flags: -b, -l, and -w
• Make two different source files: grep.c and wc.c
• Should be callable via ./grep -v -f foo for instance
• Boilerplate code:
void main(int argc, char *argv[]) {
// argc: number of arguments
// argv[]: array of string arguments
// your code goes here
}

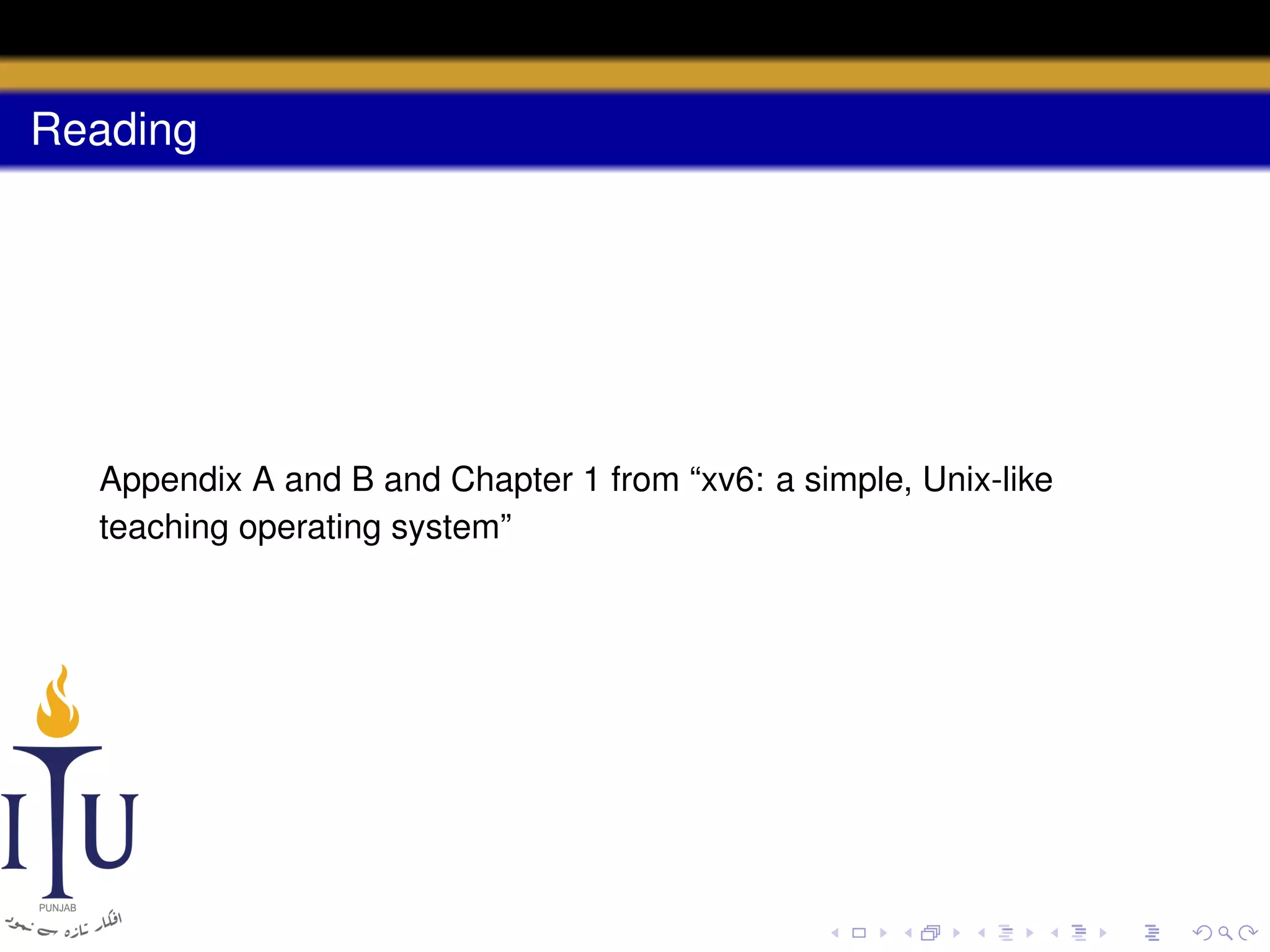

54. Reading
Appendix A and B and Chapter 1 from “xv6: a simple, Unix-like
teaching operating system”
