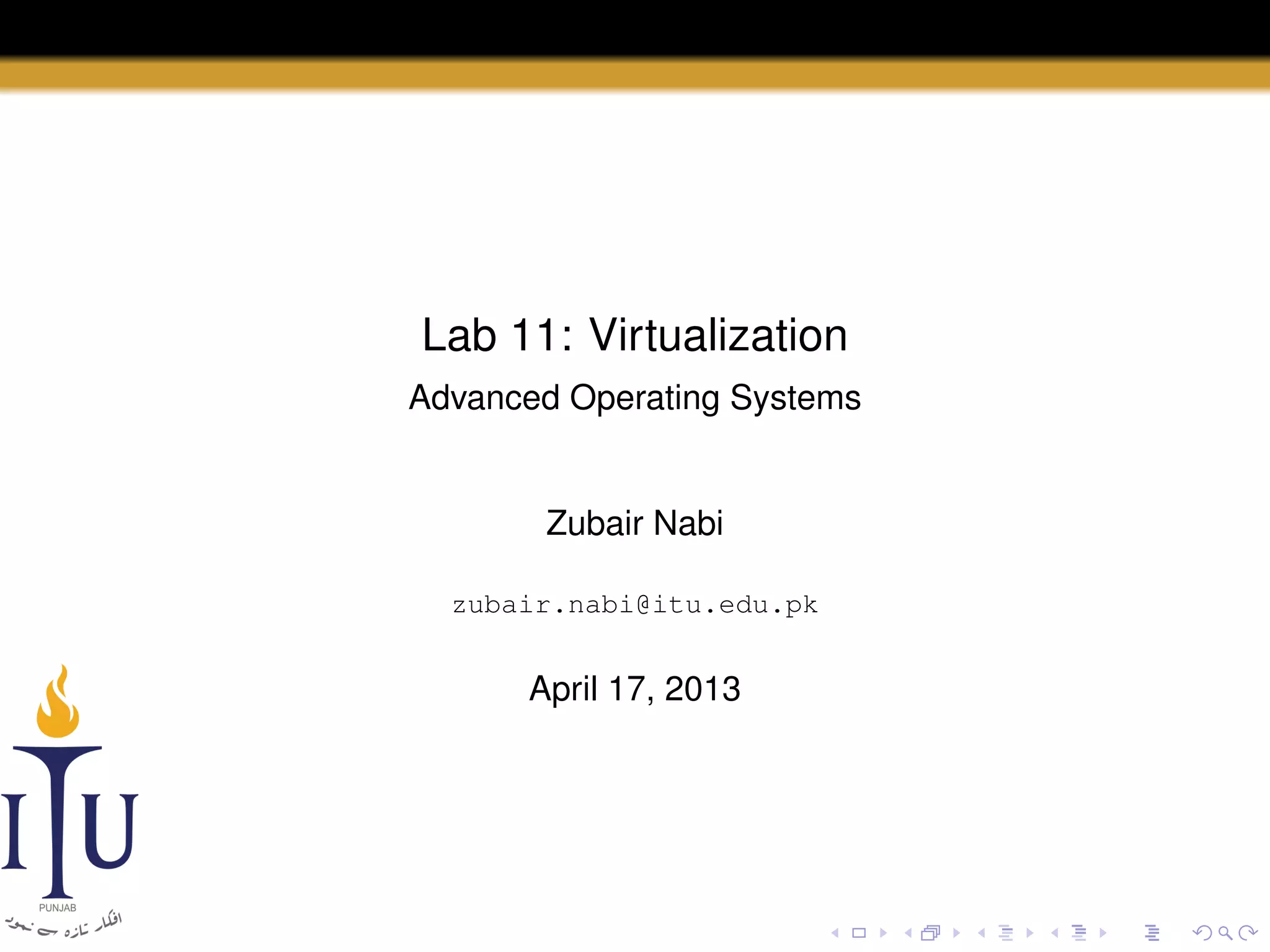

1. Lab 11: Virtualization
Advanced Operating Systems
Zubair Nabi
zubair.nabi@itu.edu.pk
April 17, 2013

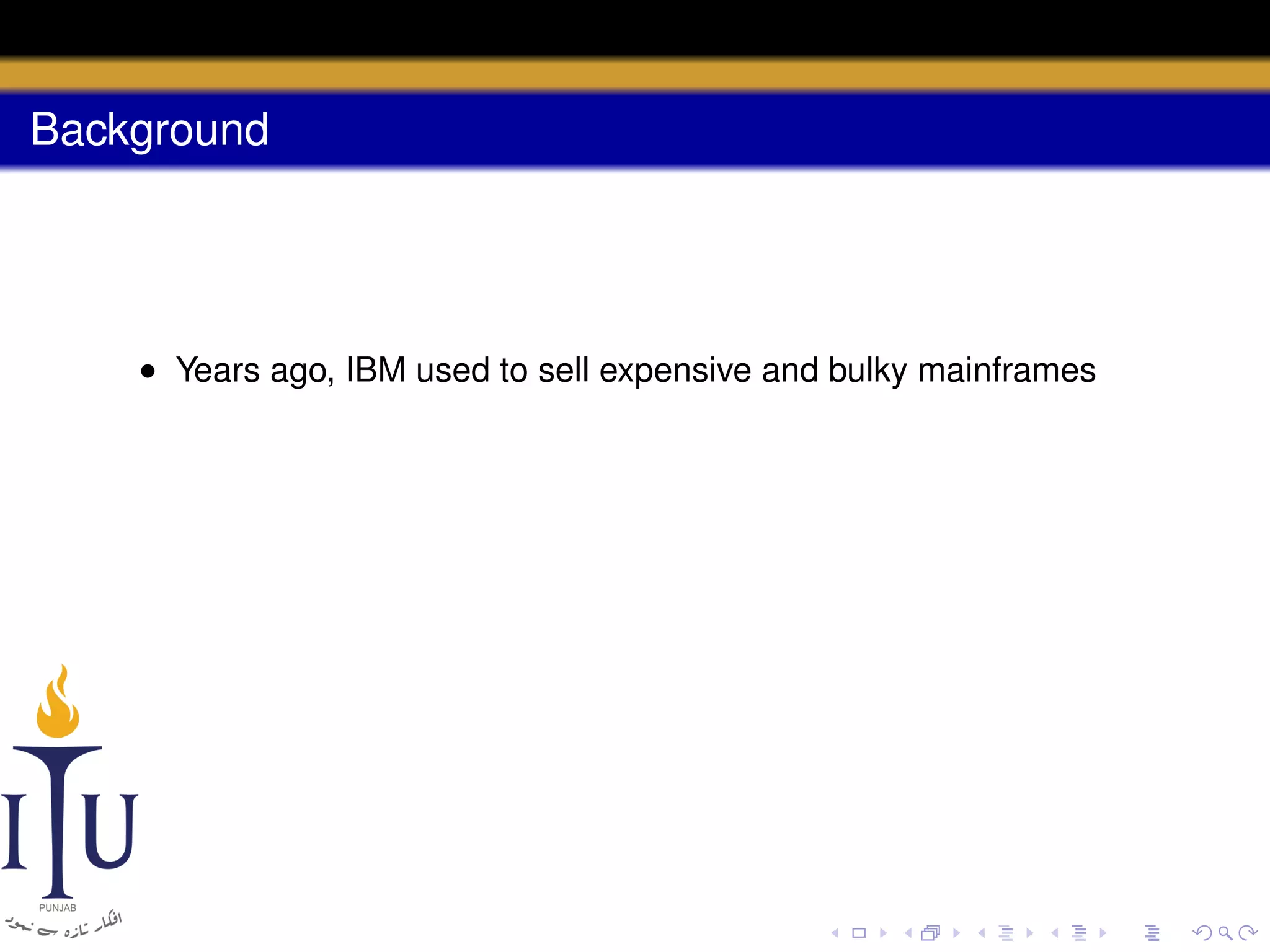

2. Background
• Years ago, IBM used to sell expensive and bulky mainframes

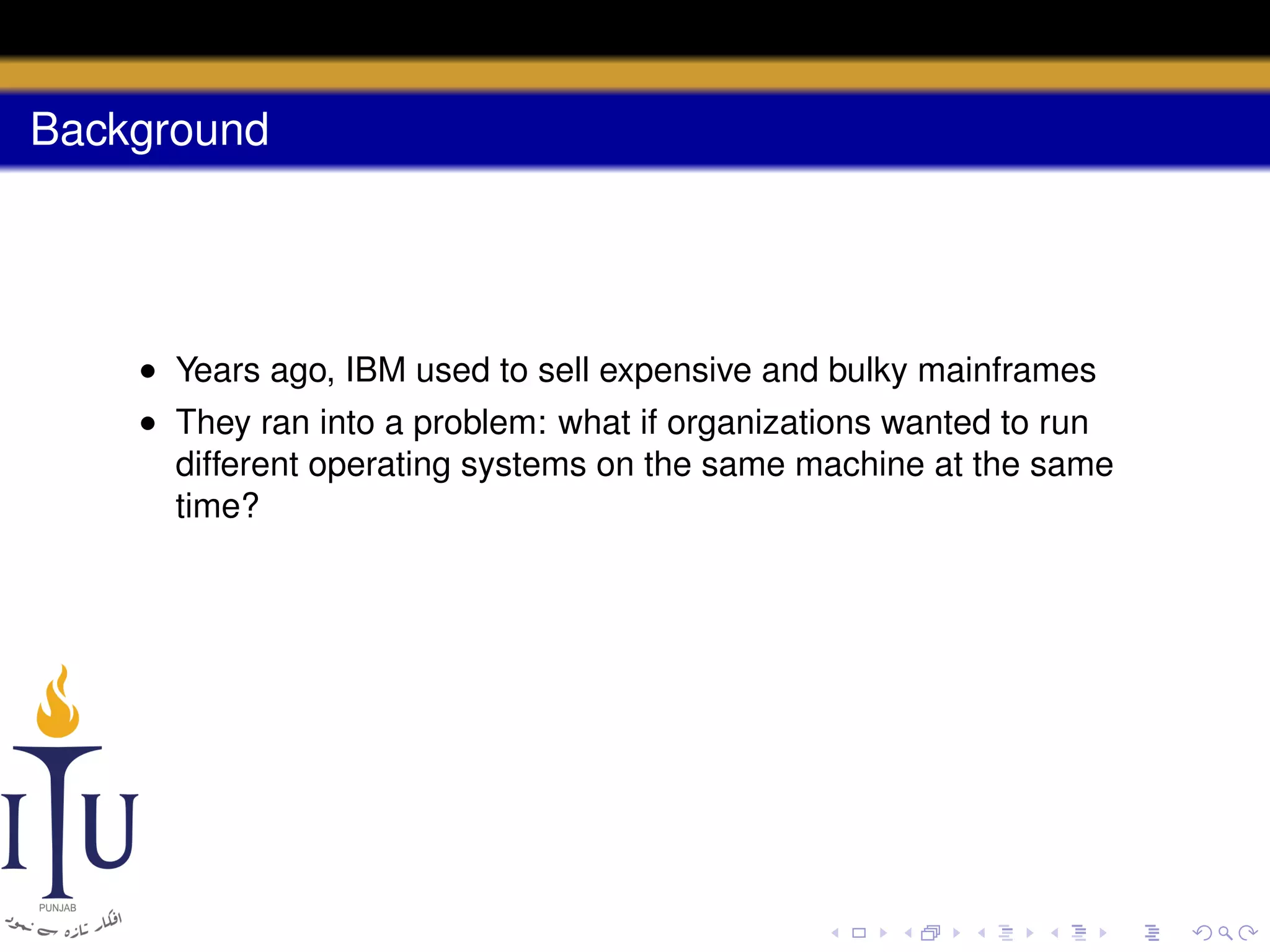

3. Background
• Years ago, IBM used to sell expensive and bulky mainframes
• They ran into a problem: what if organizations wanted to run
different operating systems on the same machine at the same
time?

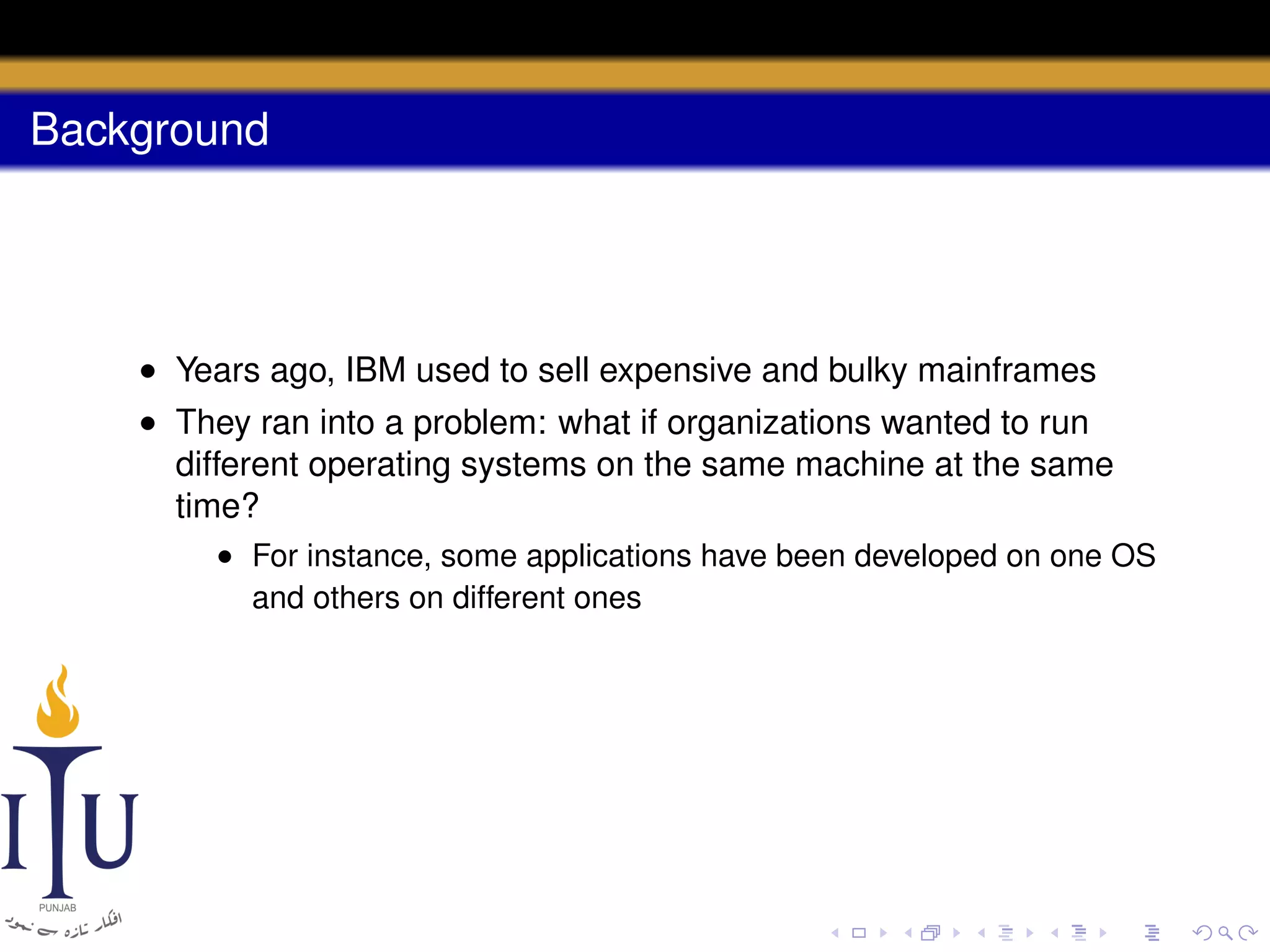

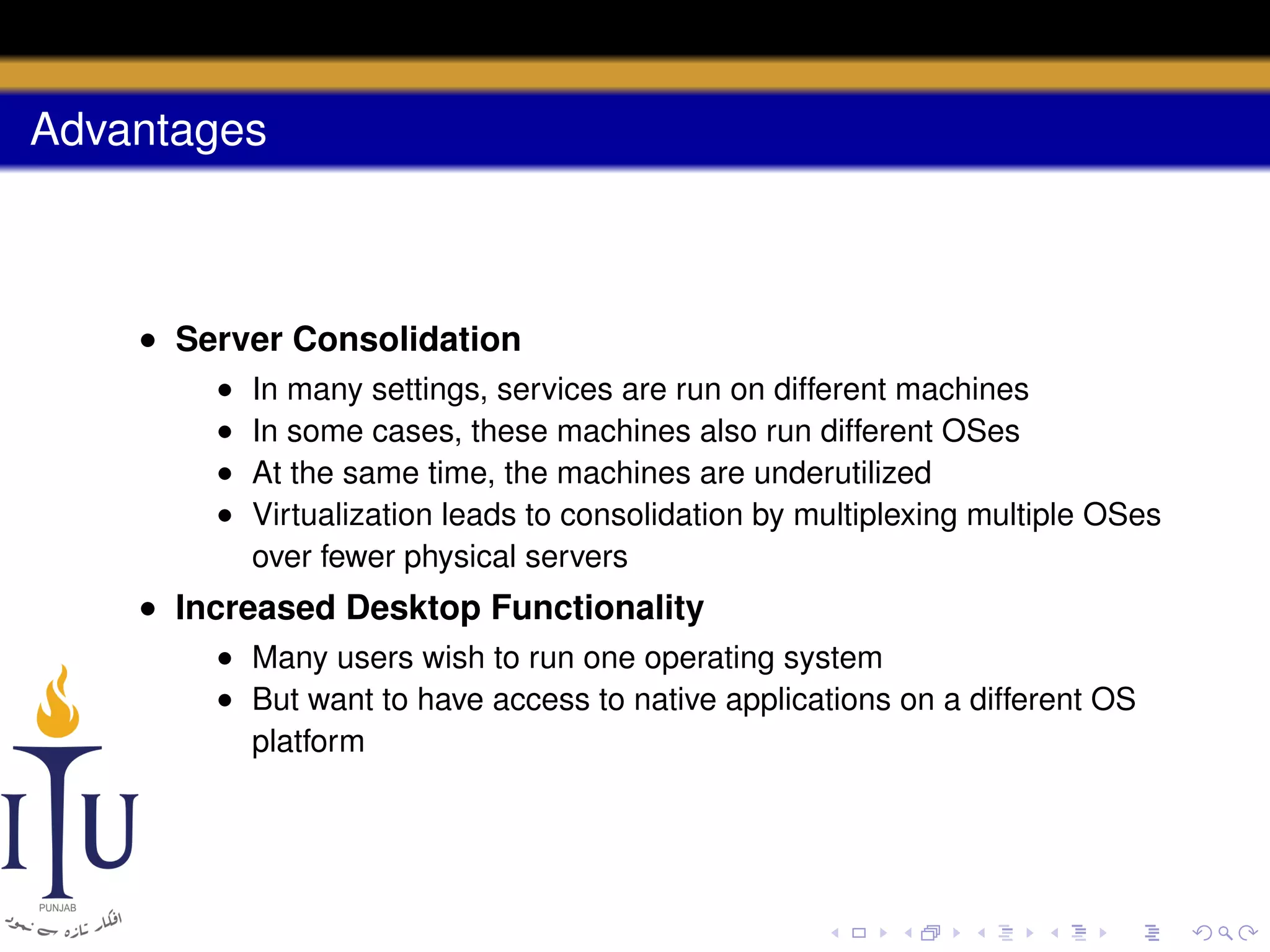

4. Background
• Years ago, IBM used to sell expensive and bulky mainframes
• They ran into a problem: what if organizations wanted to run
different operating systems on the same machine at the same
time?
• For instance, some applications have been developed on one OS
and others on different ones

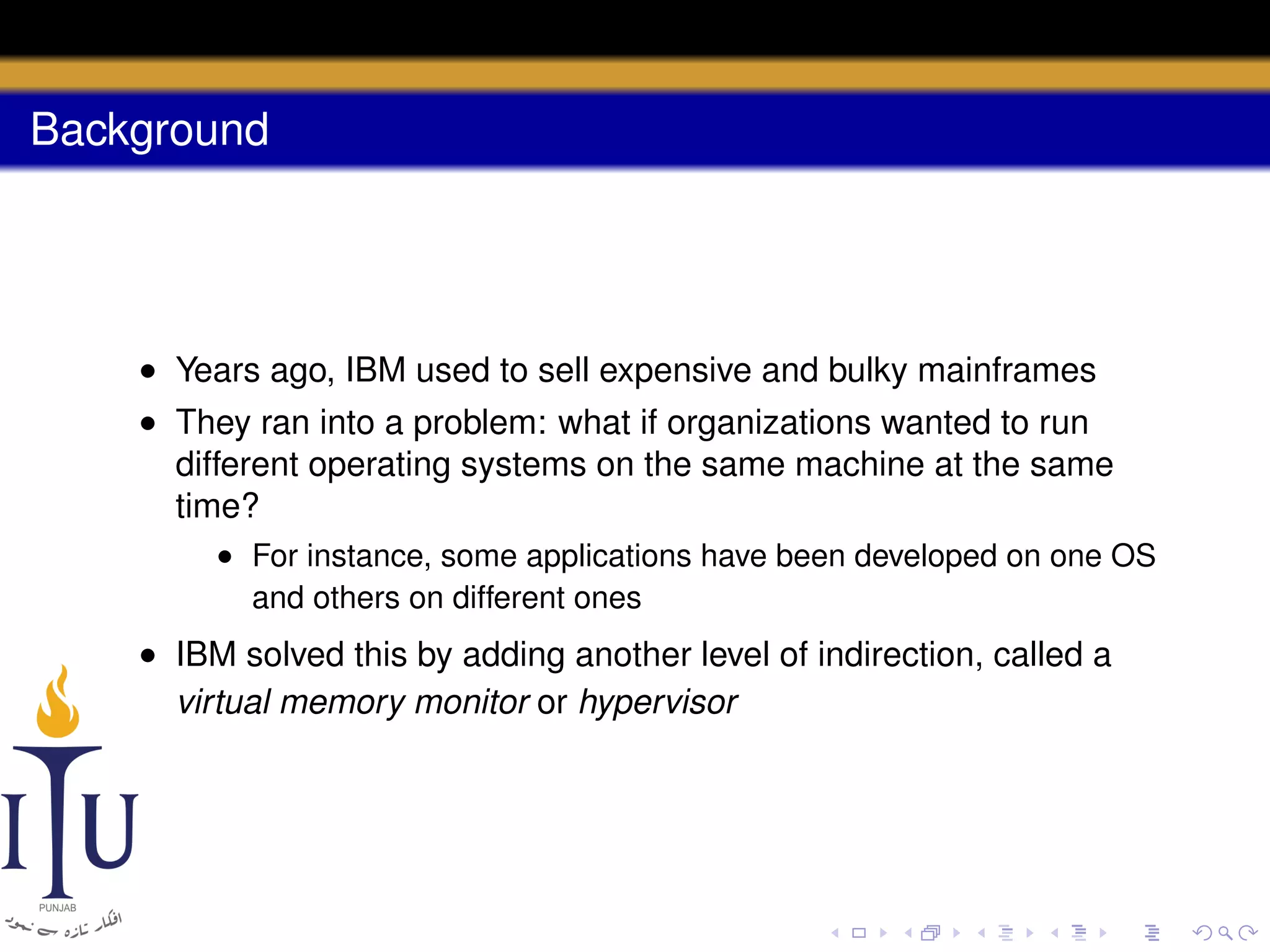

5. Background
• Years ago, IBM used to sell expensive and bulky mainframes
• They ran into a problem: what if organizations wanted to run
different operating systems on the same machine at the same
time?
• For instance, some applications have been developed on one OS
and others on different ones
• IBM solved this by adding another level of indirection, called a
virtual memory monitor or hypervisor

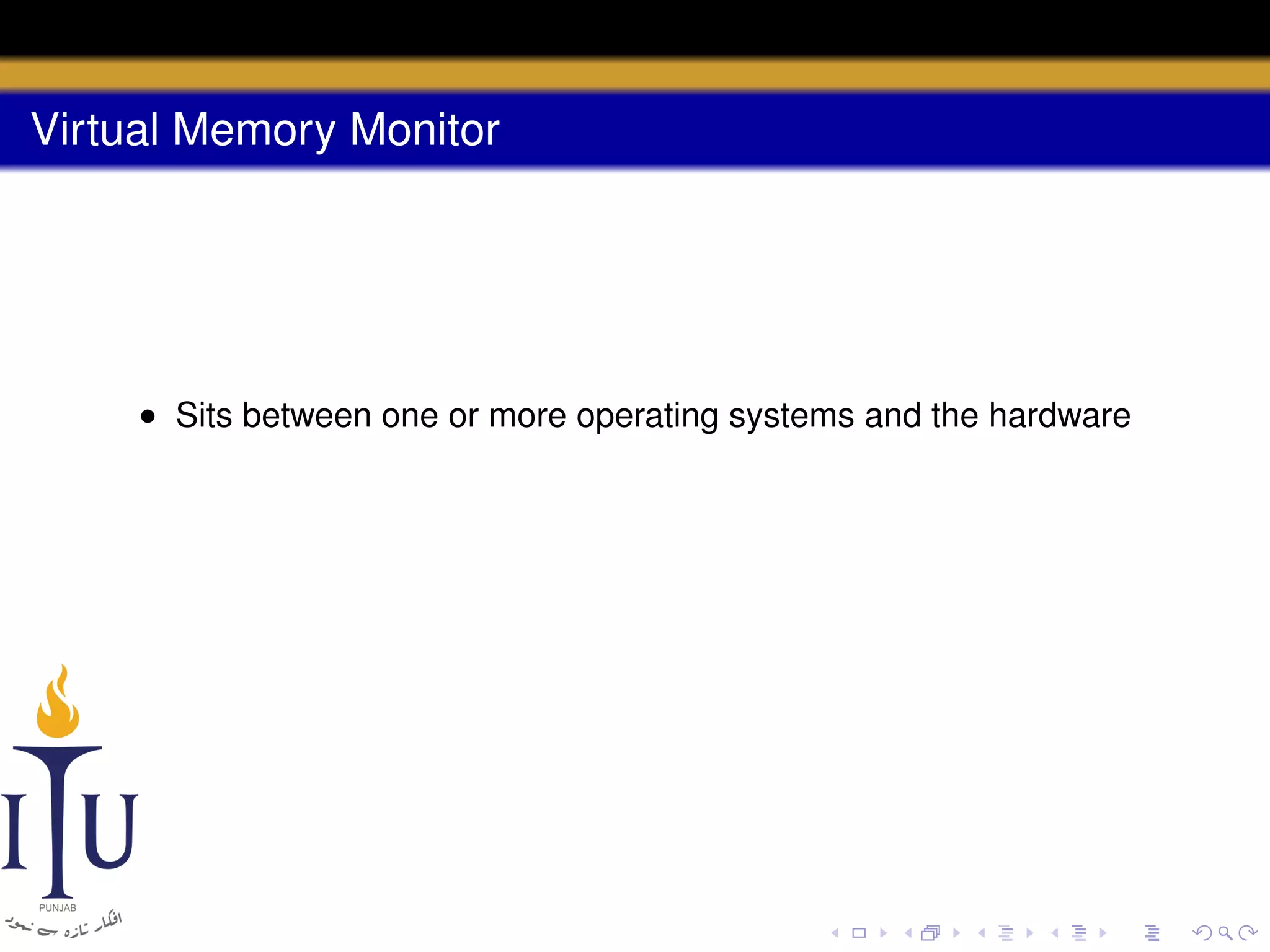

6. Virtual Memory Monitor
• Sits between one or more operating systems and the hardware

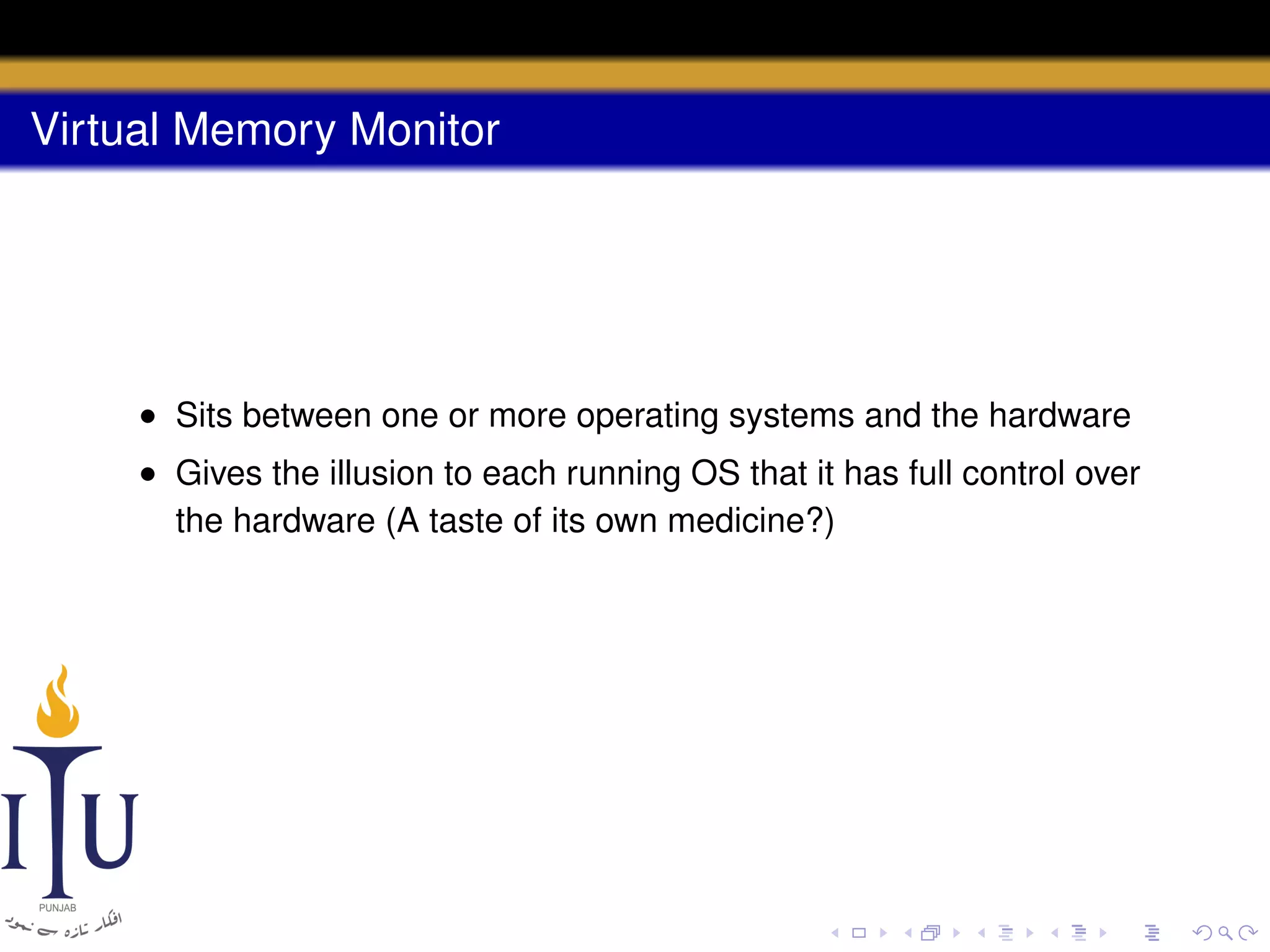

7. Virtual Memory Monitor
• Sits between one or more operating systems and the hardware
• Gives the illusion to each running OS that it has full control over
the hardware (A taste of its own medicine?)

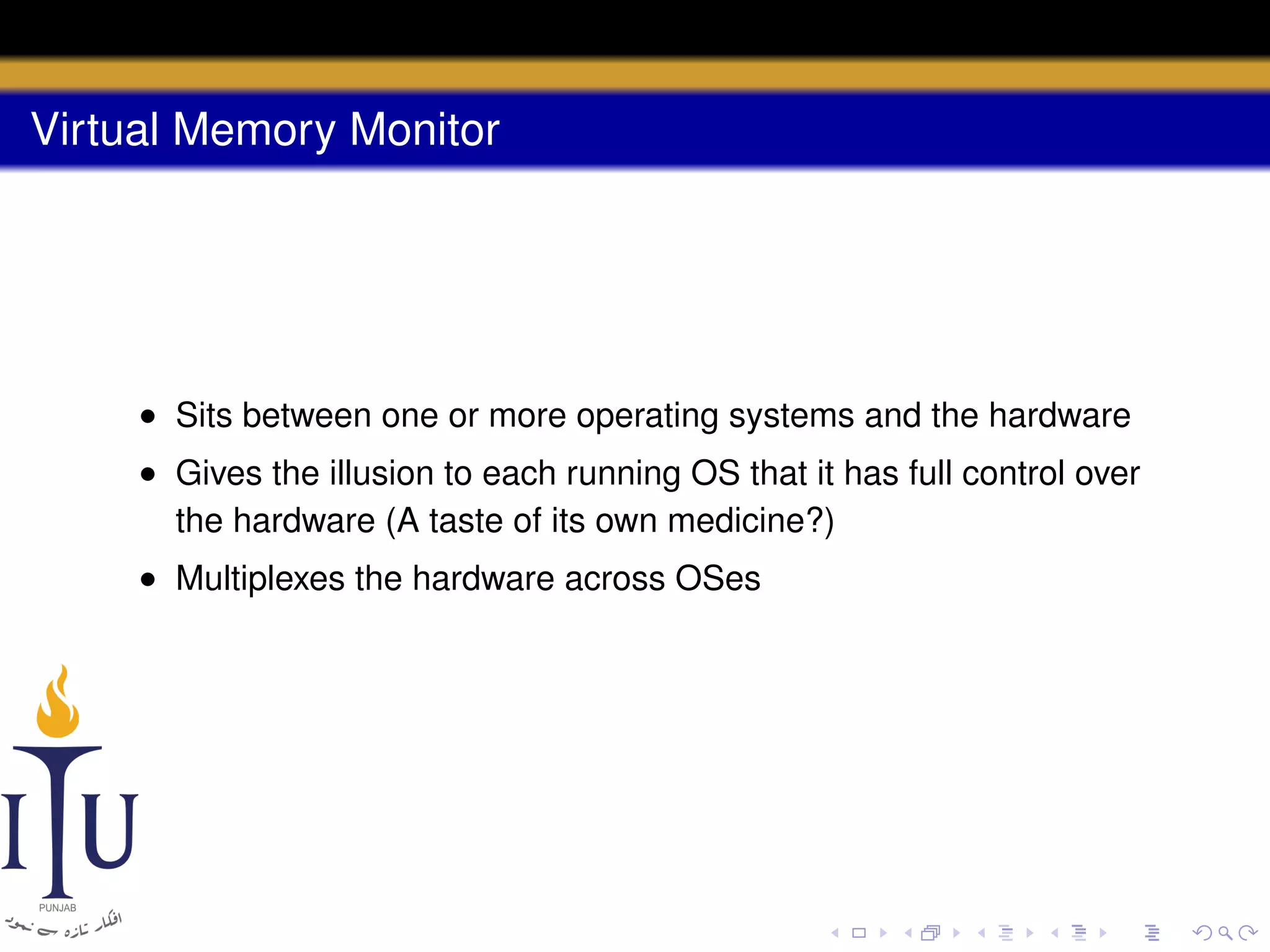

8. Virtual Memory Monitor
• Sits between one or more operating systems and the hardware
• Gives the illusion to each running OS that it has full control over
the hardware (A taste of its own medicine?)
• Multiplexes the hardware across OSes

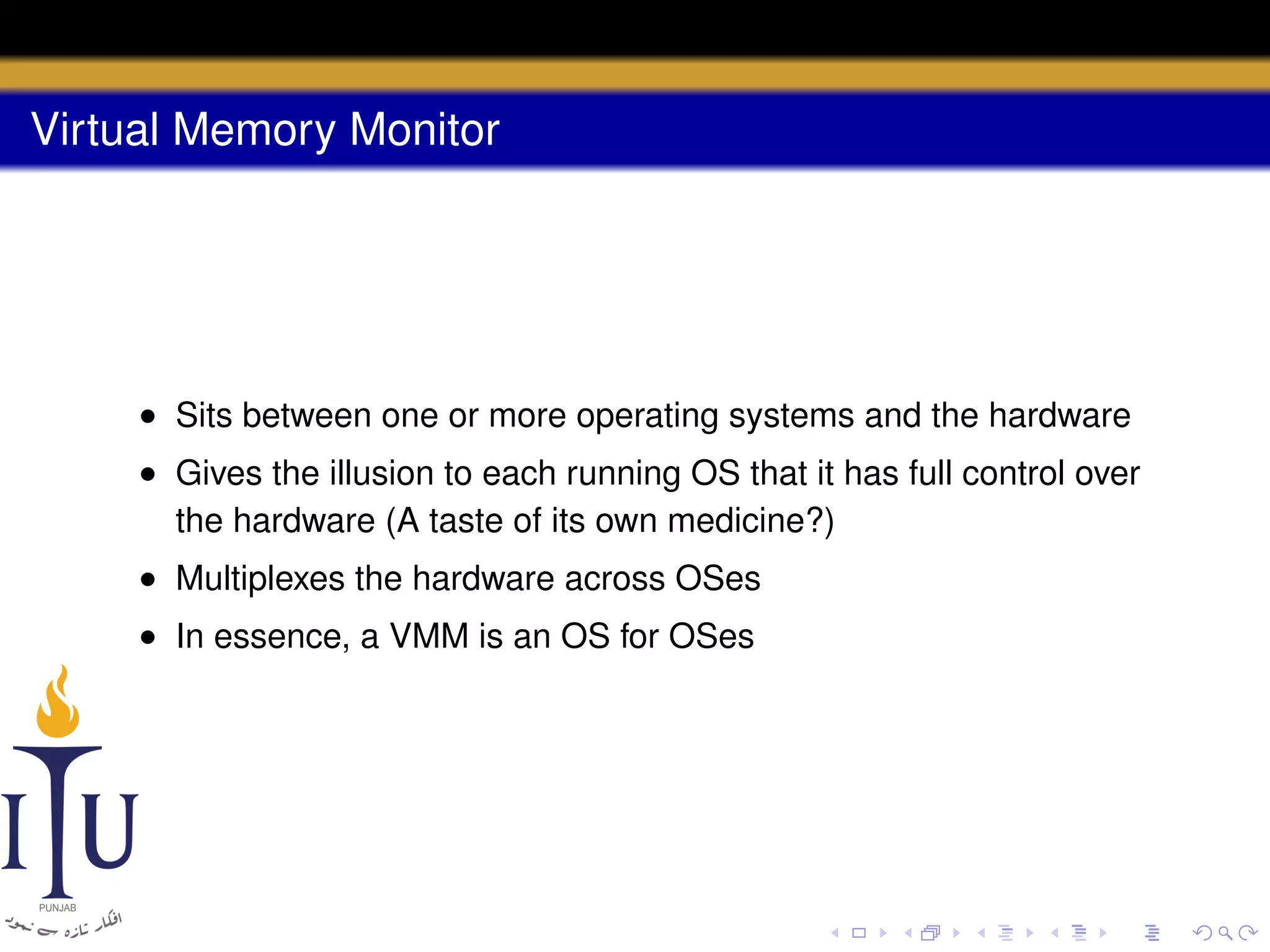

9. Virtual Memory Monitor
• Sits between one or more operating systems and the hardware
• Gives the illusion to each running OS that it has full control over
the hardware (A taste of its own medicine?)
• Multiplexes the hardware across OSes
• In essence, a VMM is an OS for OSes

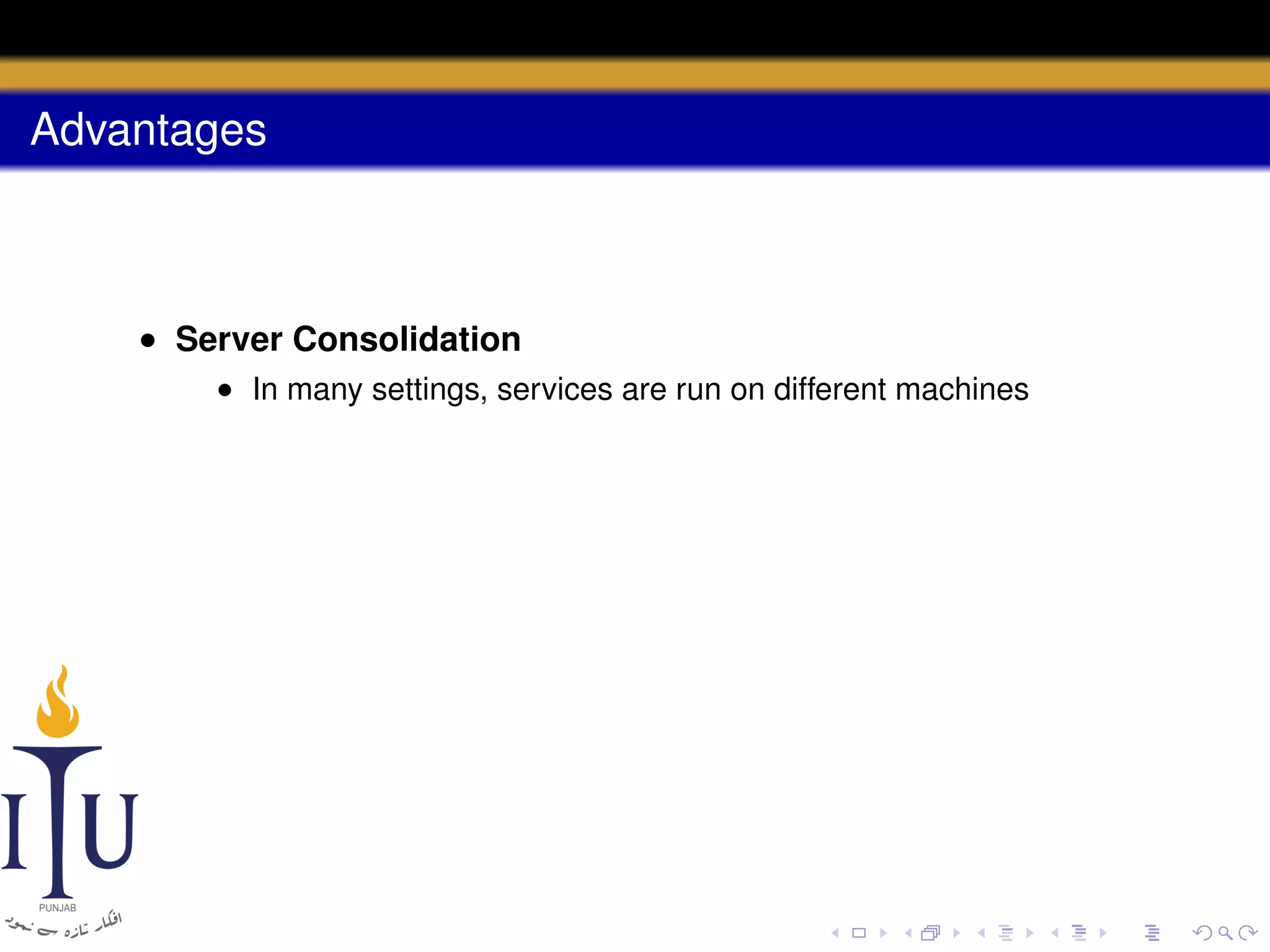

10. Advantages
• Server Consolidation
• In many settings, services are run on different machines

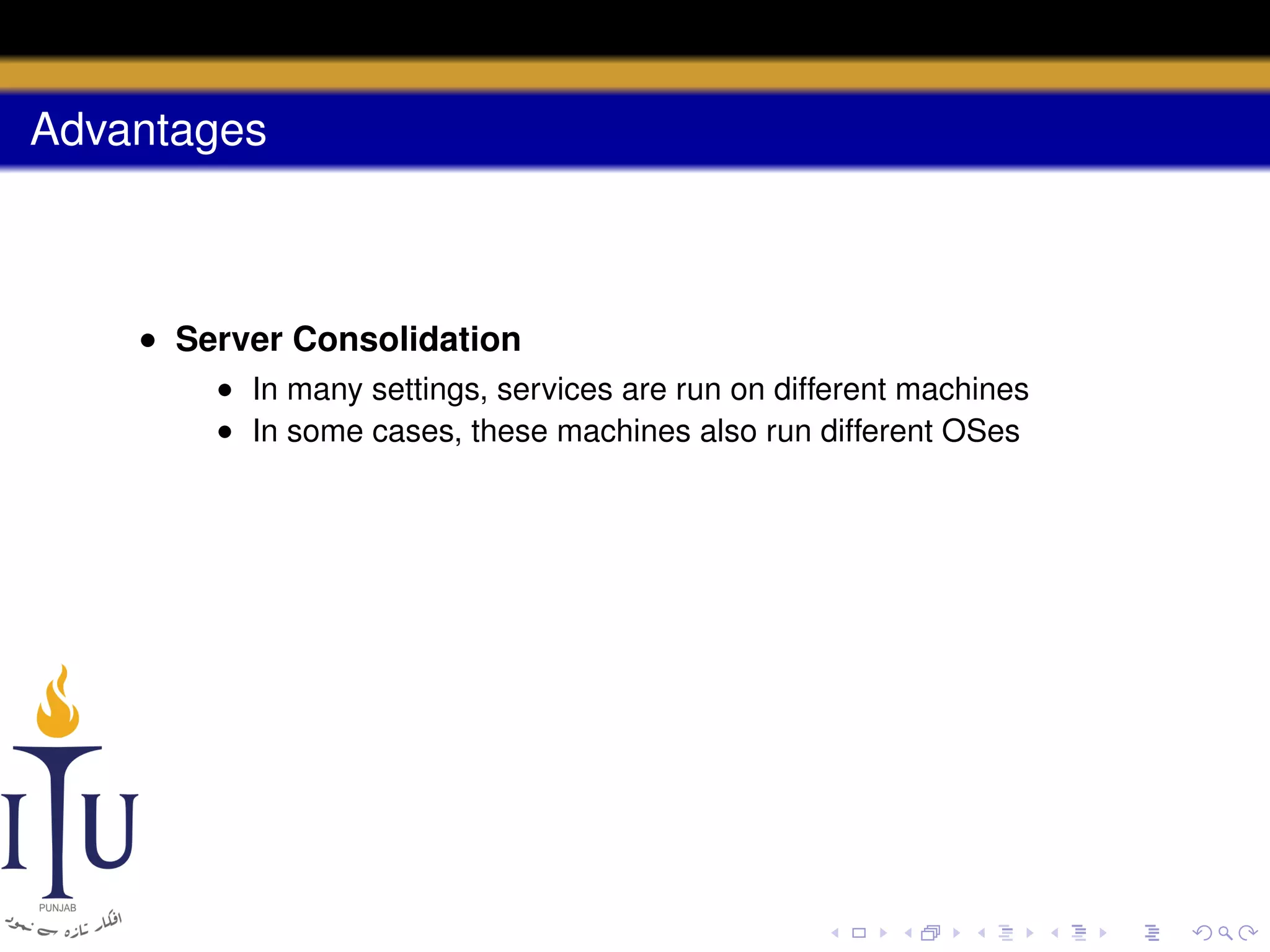

11. Advantages
• Server Consolidation
• In many settings, services are run on different machines
• In some cases, these machines also run different OSes

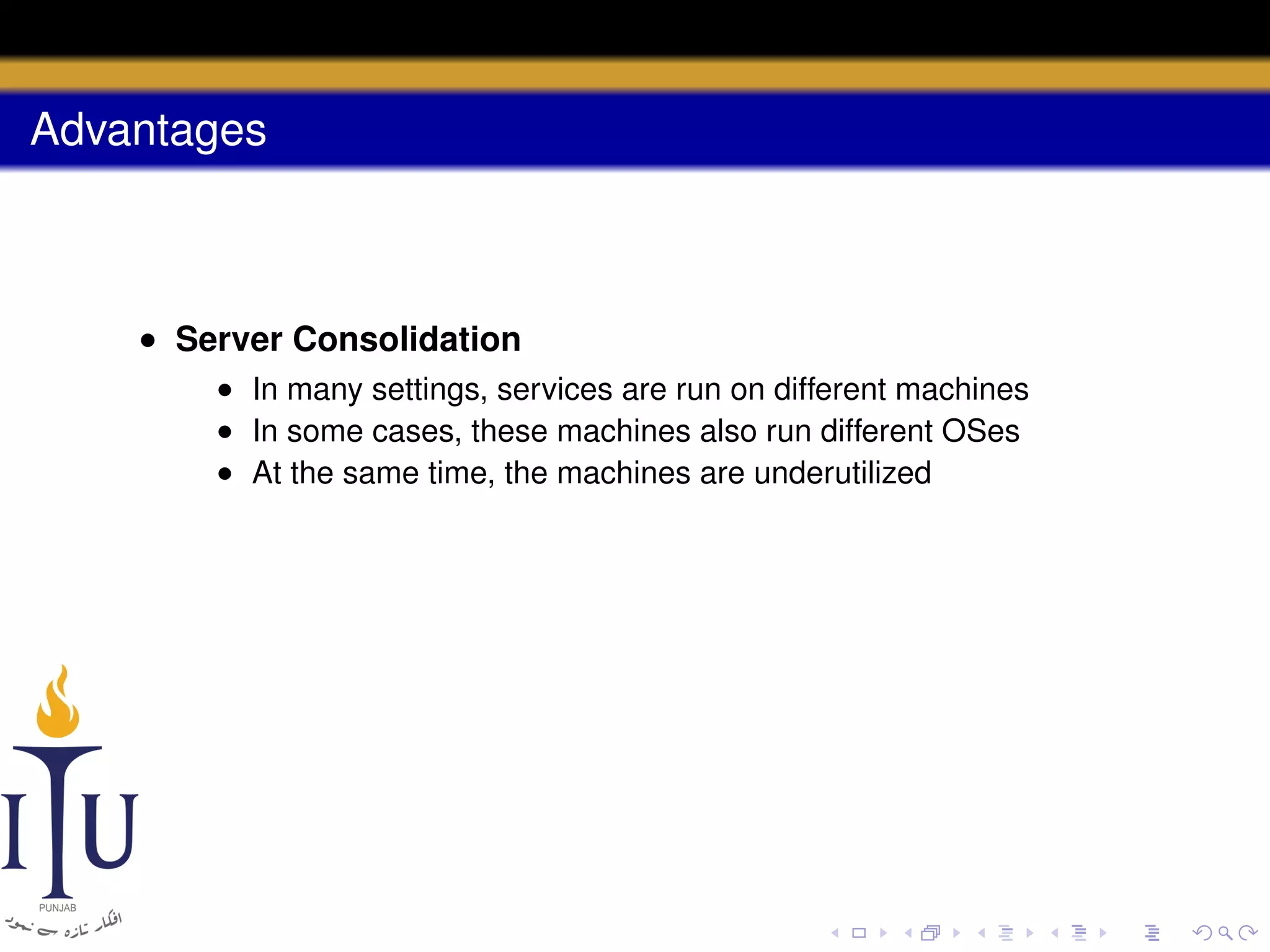

12. Advantages
• Server Consolidation
• In many settings, services are run on different machines
• In some cases, these machines also run different OSes
• At the same time, the machines are underutilized

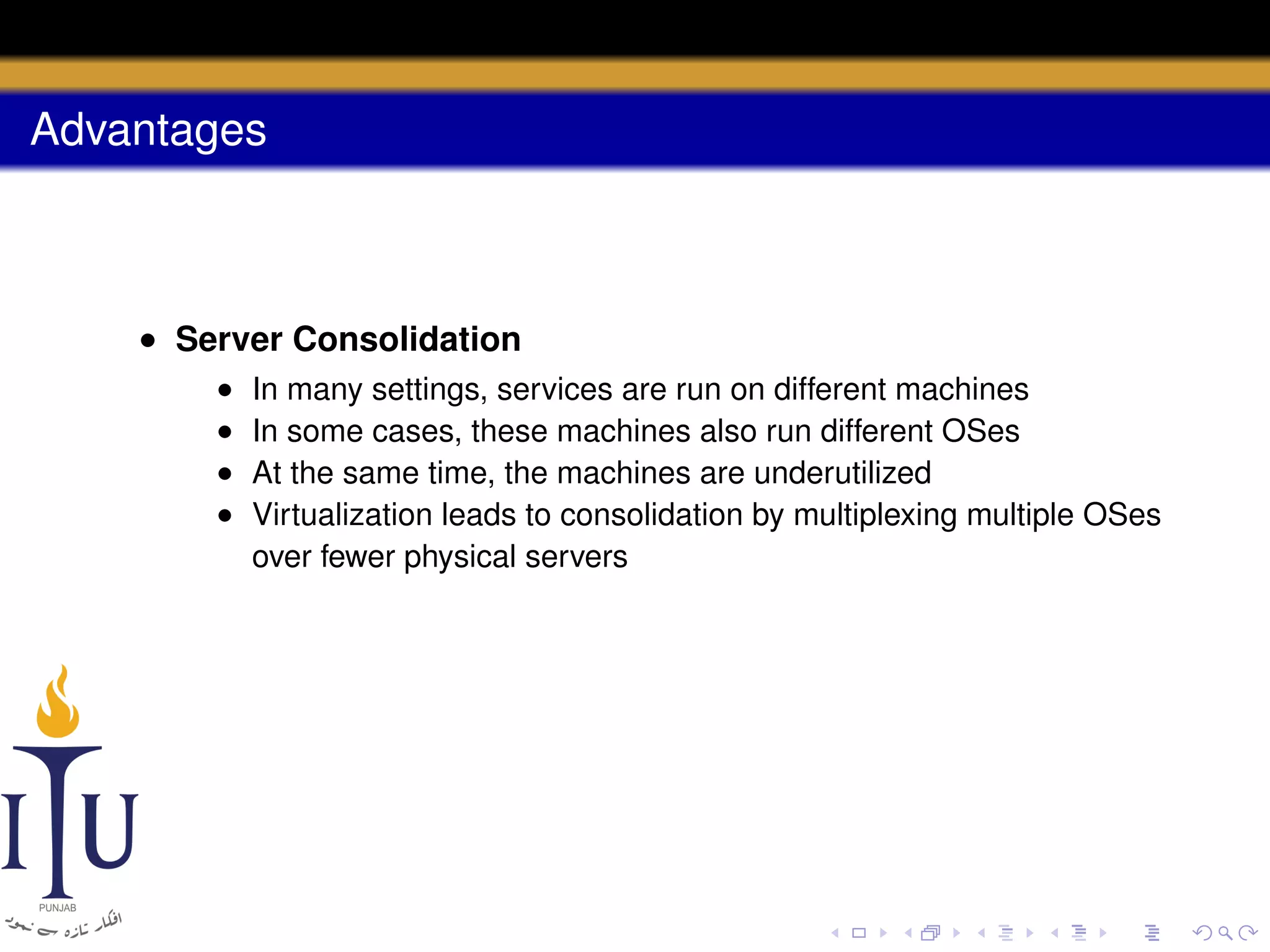

13. Advantages
• Server Consolidation
•
•
•
•
In many settings, services are run on different machines
In some cases, these machines also run different OSes
At the same time, the machines are underutilized
Virtualization leads to consolidation by multiplexing multiple OSes
over fewer physical servers

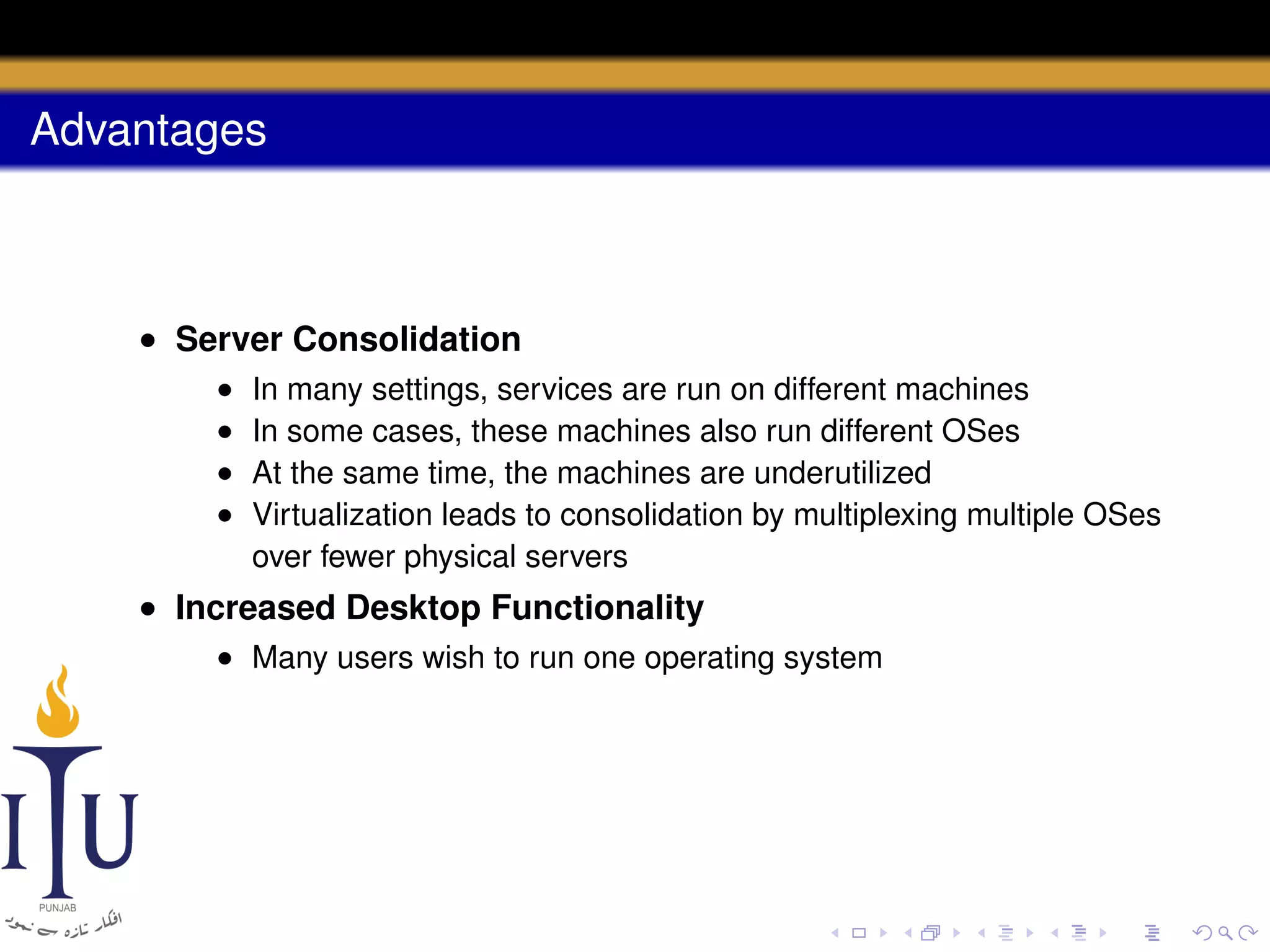

14. Advantages
• Server Consolidation
•
•
•
•
In many settings, services are run on different machines
In some cases, these machines also run different OSes
At the same time, the machines are underutilized
Virtualization leads to consolidation by multiplexing multiple OSes
over fewer physical servers
• Increased Desktop Functionality
• Many users wish to run one operating system

15. Advantages
• Server Consolidation
•
•
•
•
In many settings, services are run on different machines
In some cases, these machines also run different OSes
At the same time, the machines are underutilized
Virtualization leads to consolidation by multiplexing multiple OSes
over fewer physical servers
• Increased Desktop Functionality
• Many users wish to run one operating system
• But want to have access to native applications on a different OS
platform

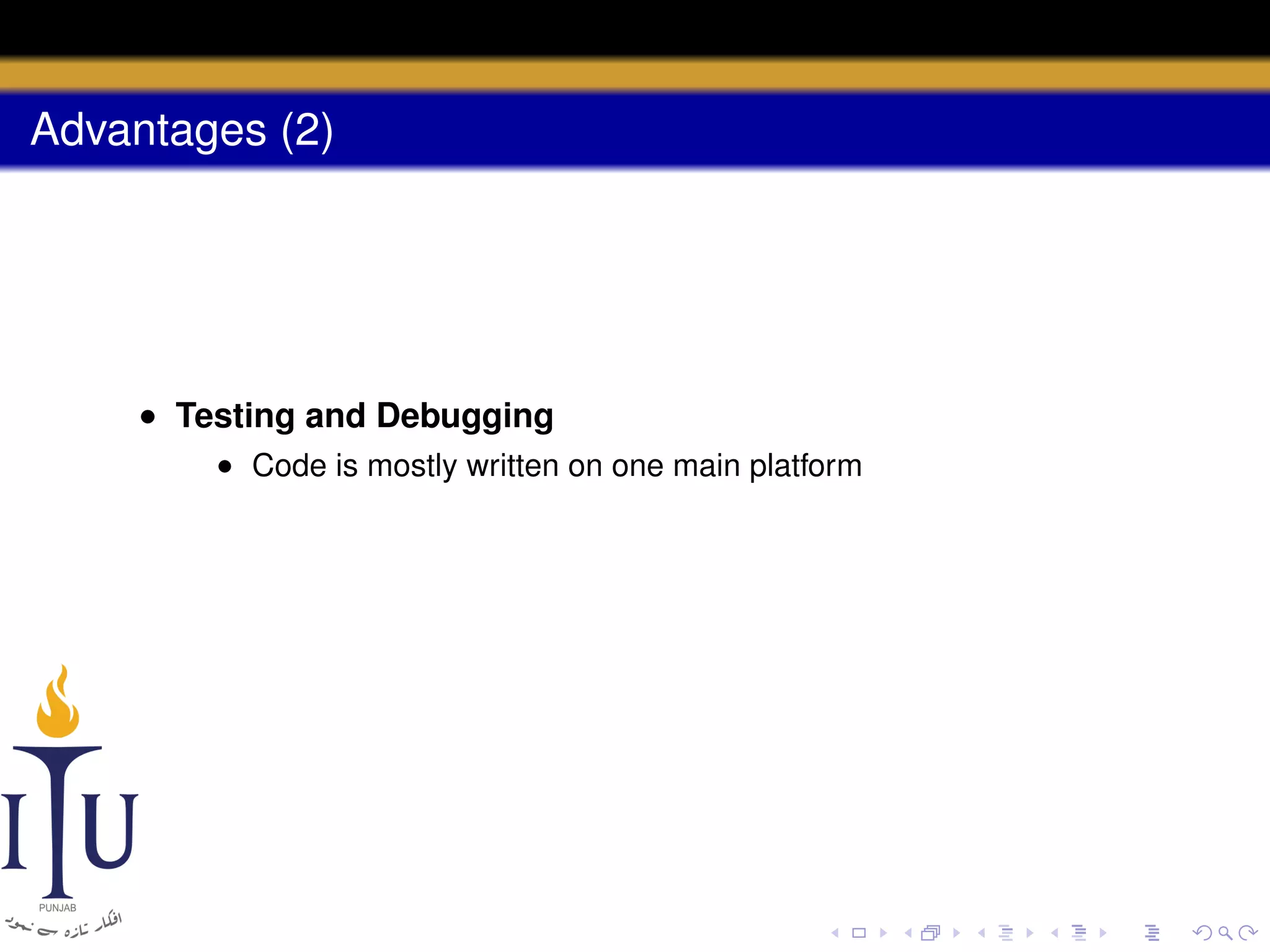

16. Advantages (2)
• Testing and Debugging
• Code is mostly written on one main platform

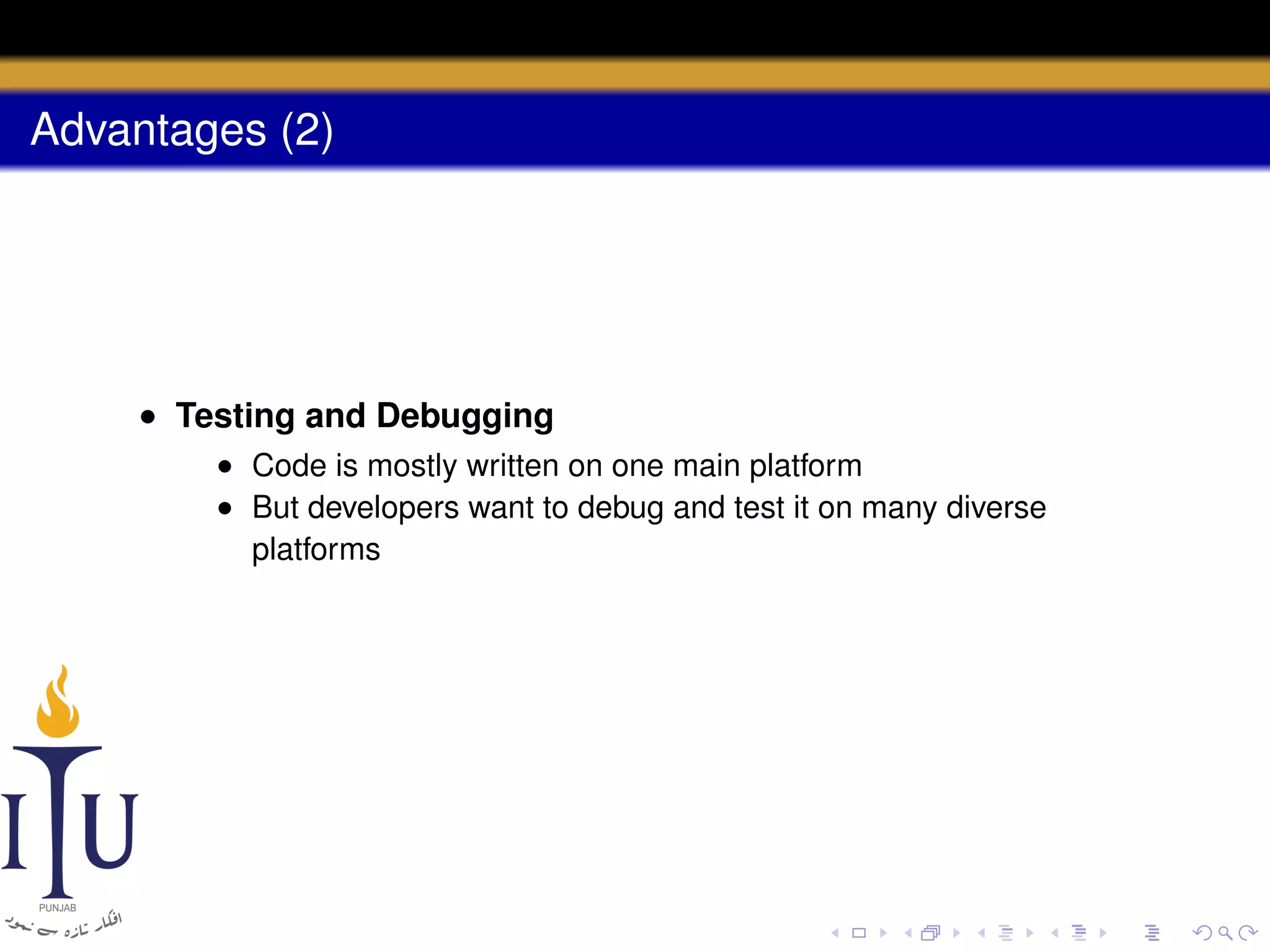

17. Advantages (2)
• Testing and Debugging
• Code is mostly written on one main platform
• But developers want to debug and test it on many diverse
platforms

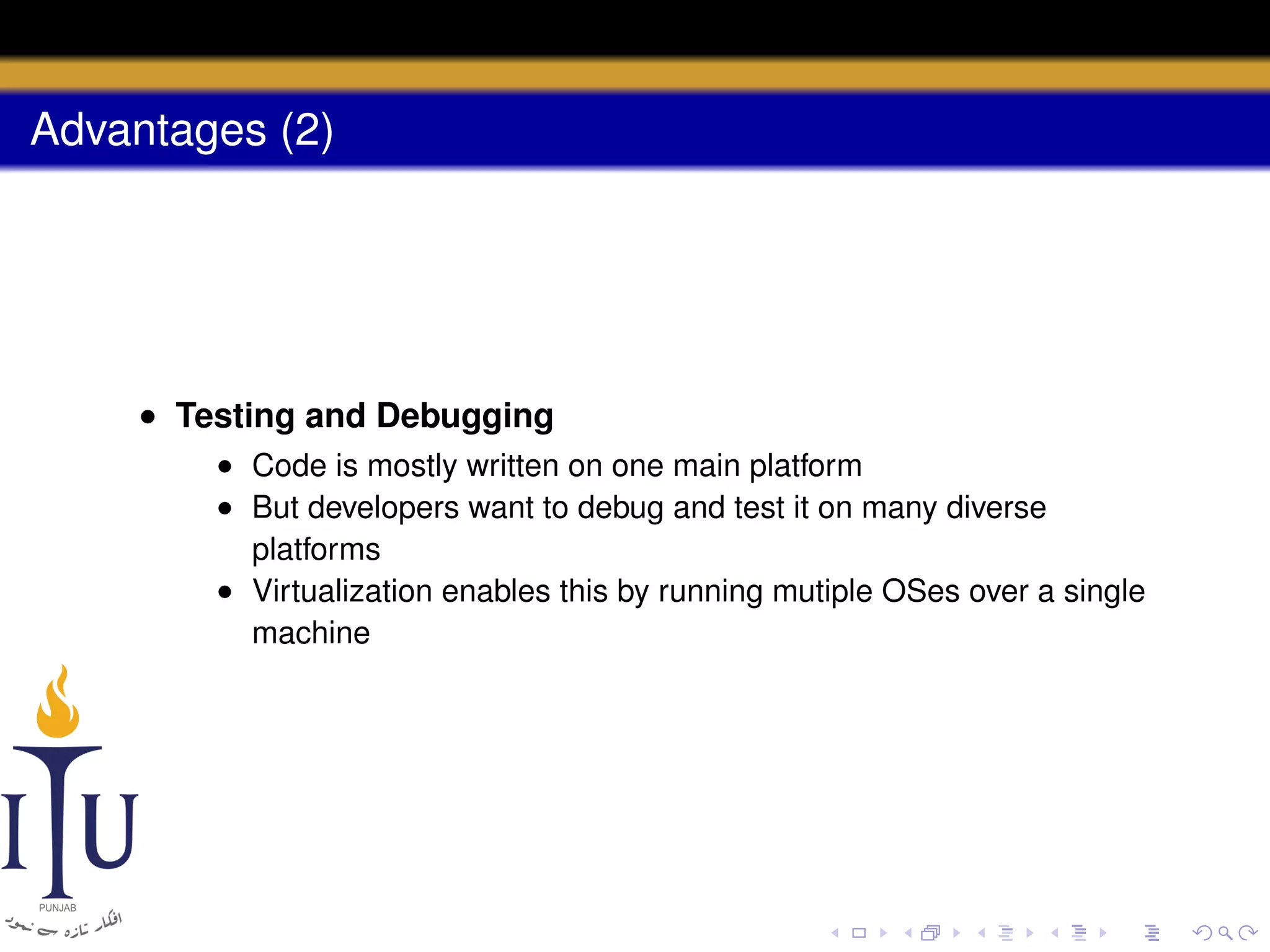

18. Advantages (2)
• Testing and Debugging
• Code is mostly written on one main platform
• But developers want to debug and test it on many diverse
platforms
• Virtualization enables this by running mutiple OSes over a single
machine

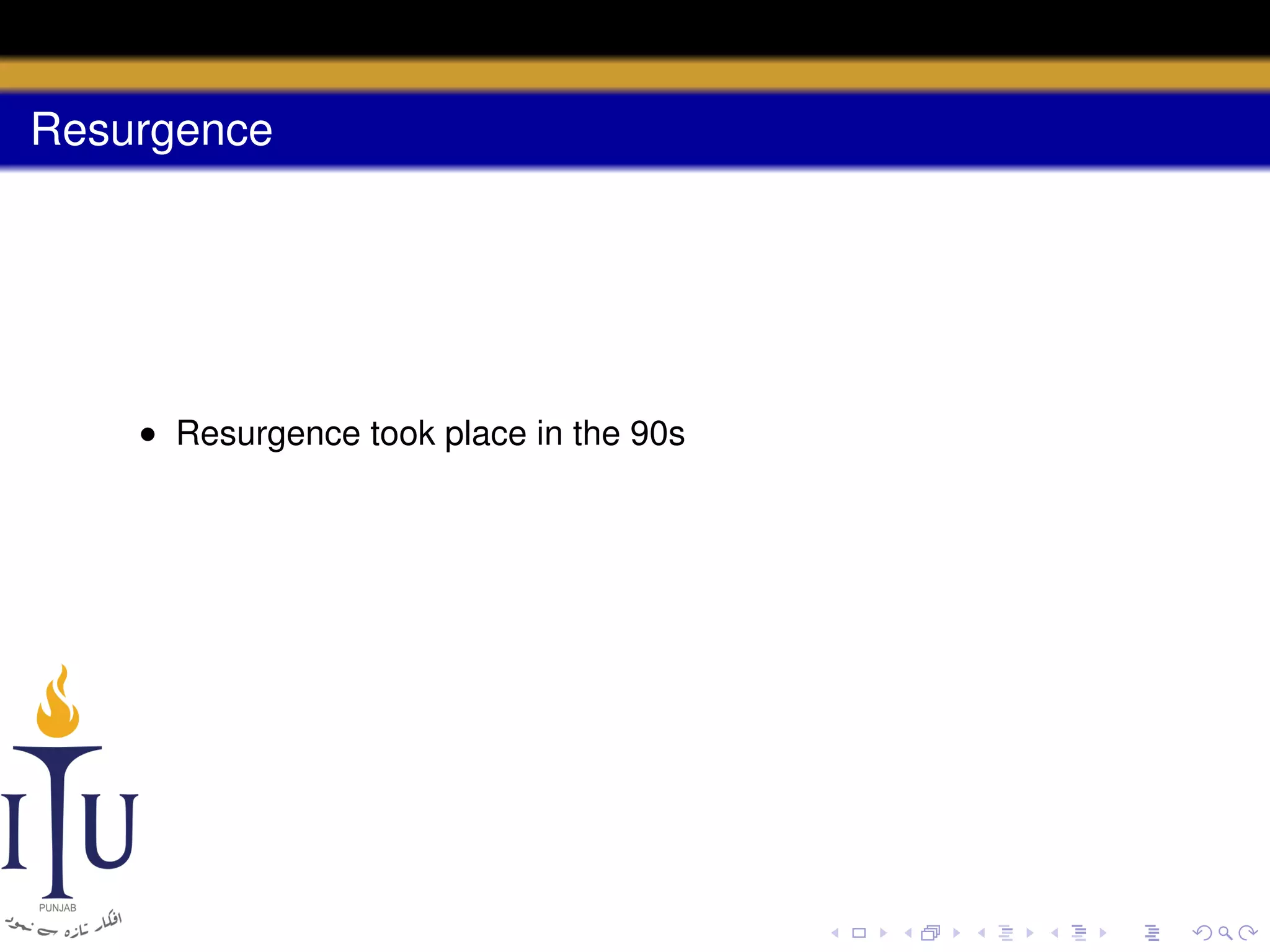

19. Resurgence
• Resurgence took place in the 90s

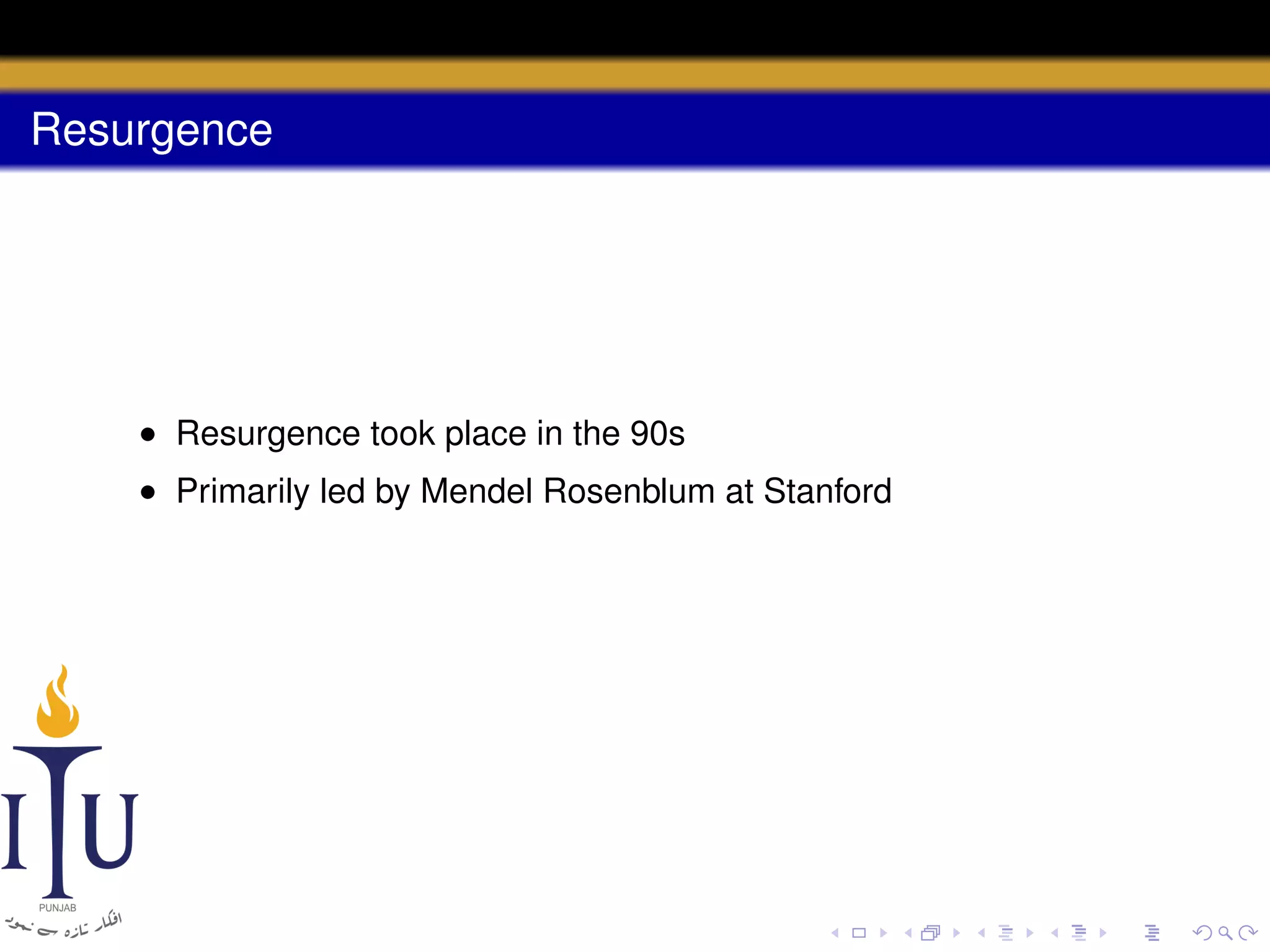

20. Resurgence
• Resurgence took place in the 90s
• Primarily led by Mendel Rosenblum at Stanford

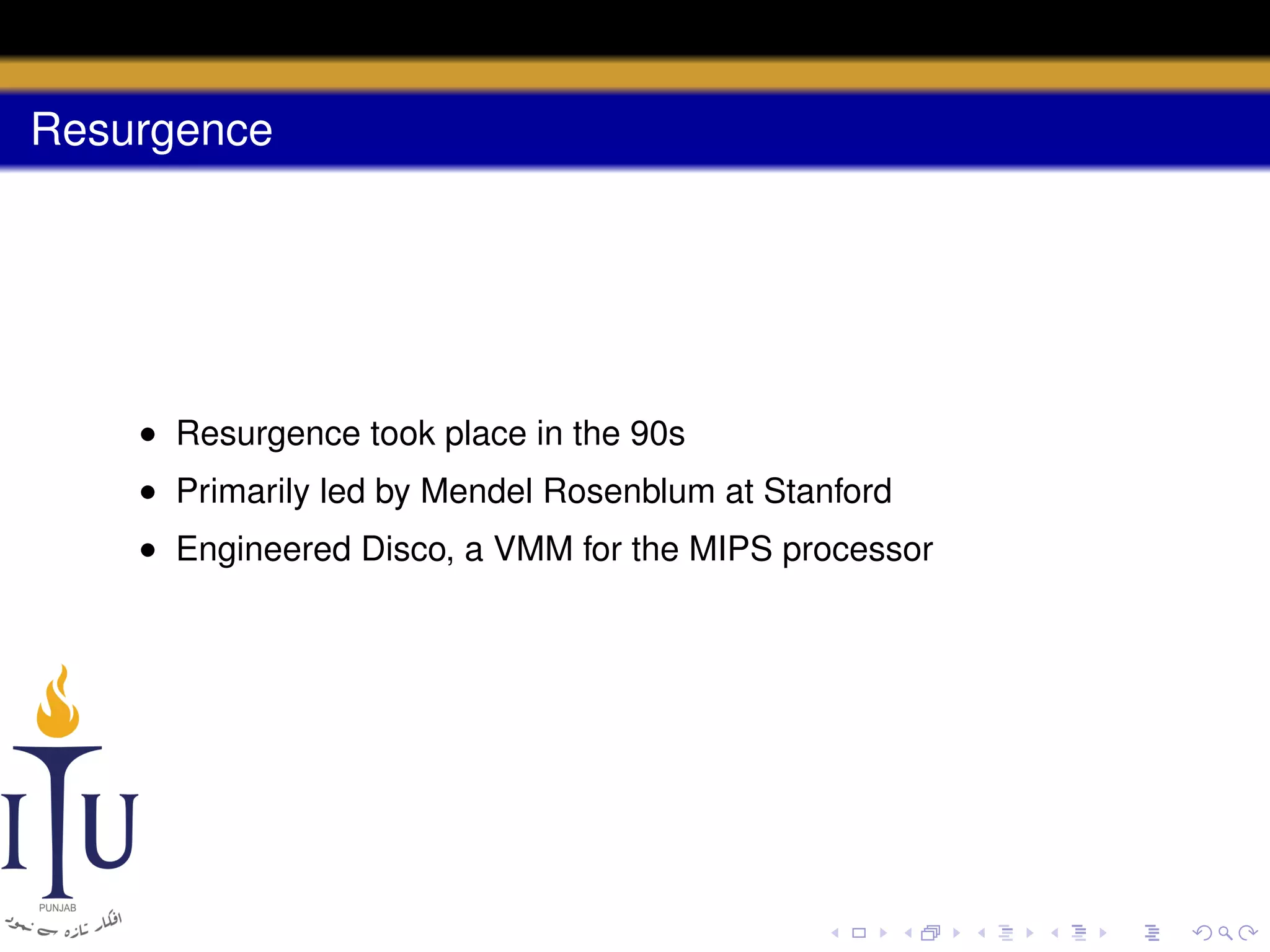

21. Resurgence
• Resurgence took place in the 90s
• Primarily led by Mendel Rosenblum at Stanford
• Engineered Disco, a VMM for the MIPS processor

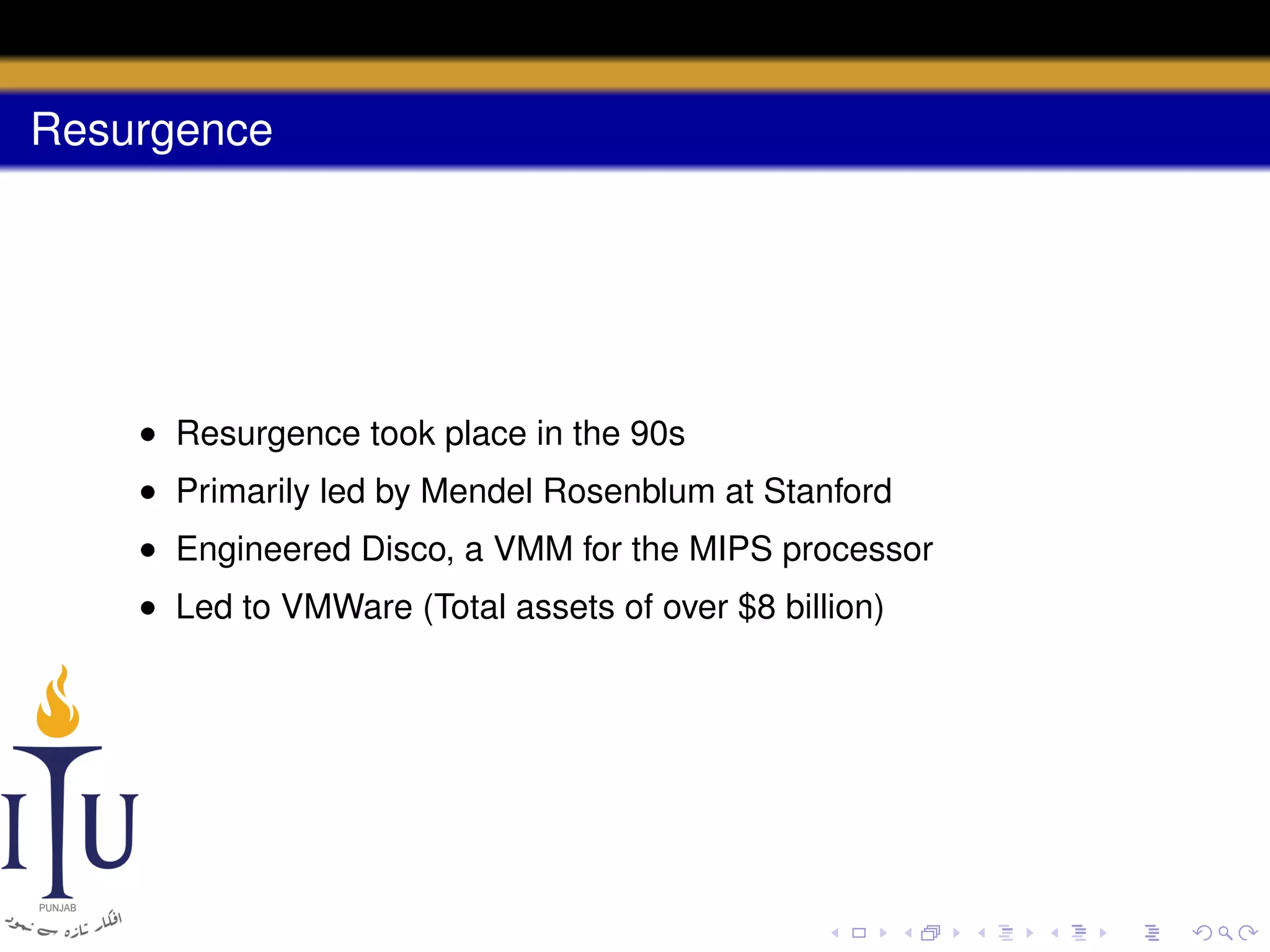

22. Resurgence
• Resurgence took place in the 90s
• Primarily led by Mendel Rosenblum at Stanford
• Engineered Disco, a VMM for the MIPS processor
• Led to VMWare (Total assets of over $8 billion)

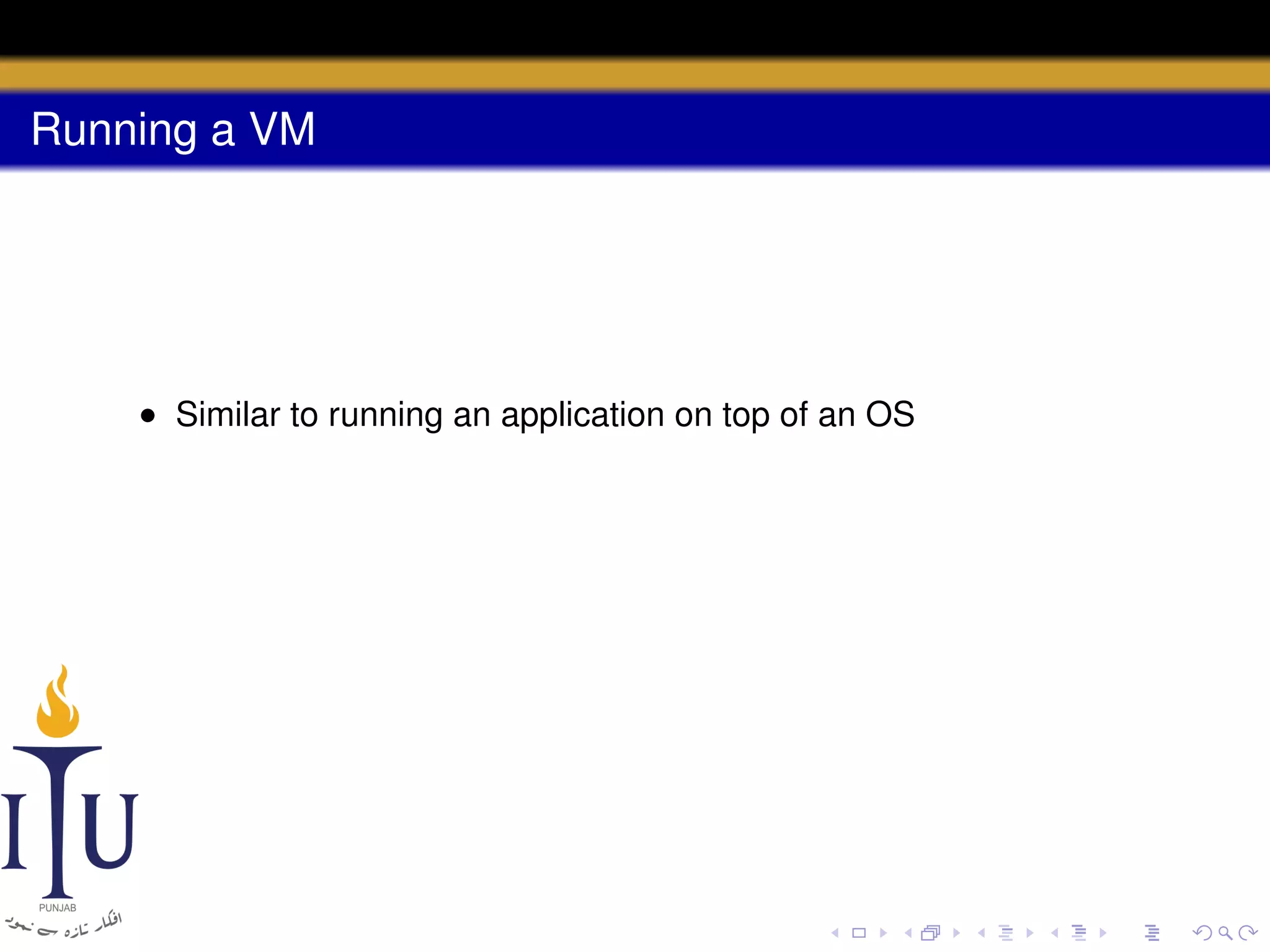

23. Running a VM
• Similar to running an application on top of an OS

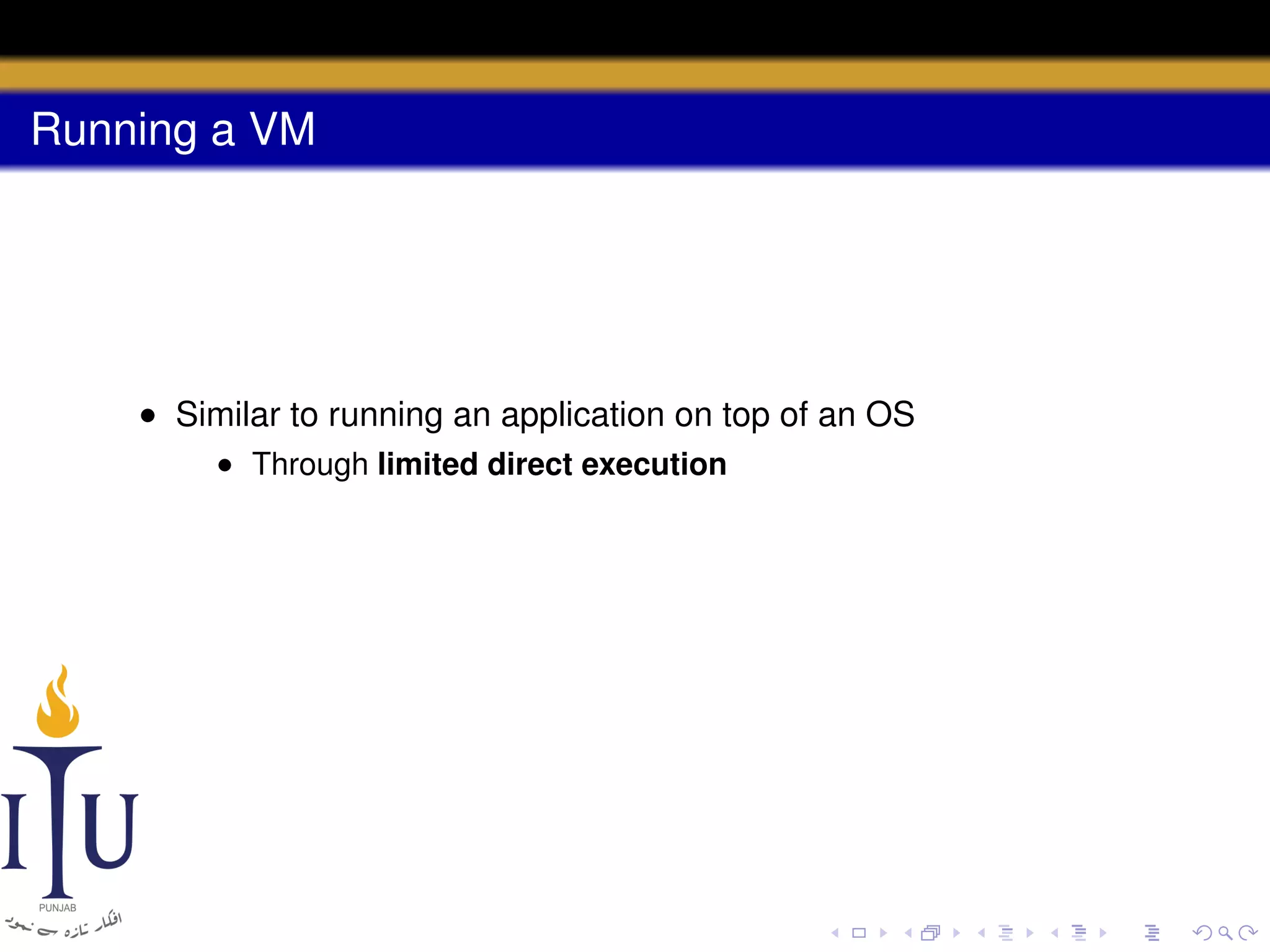

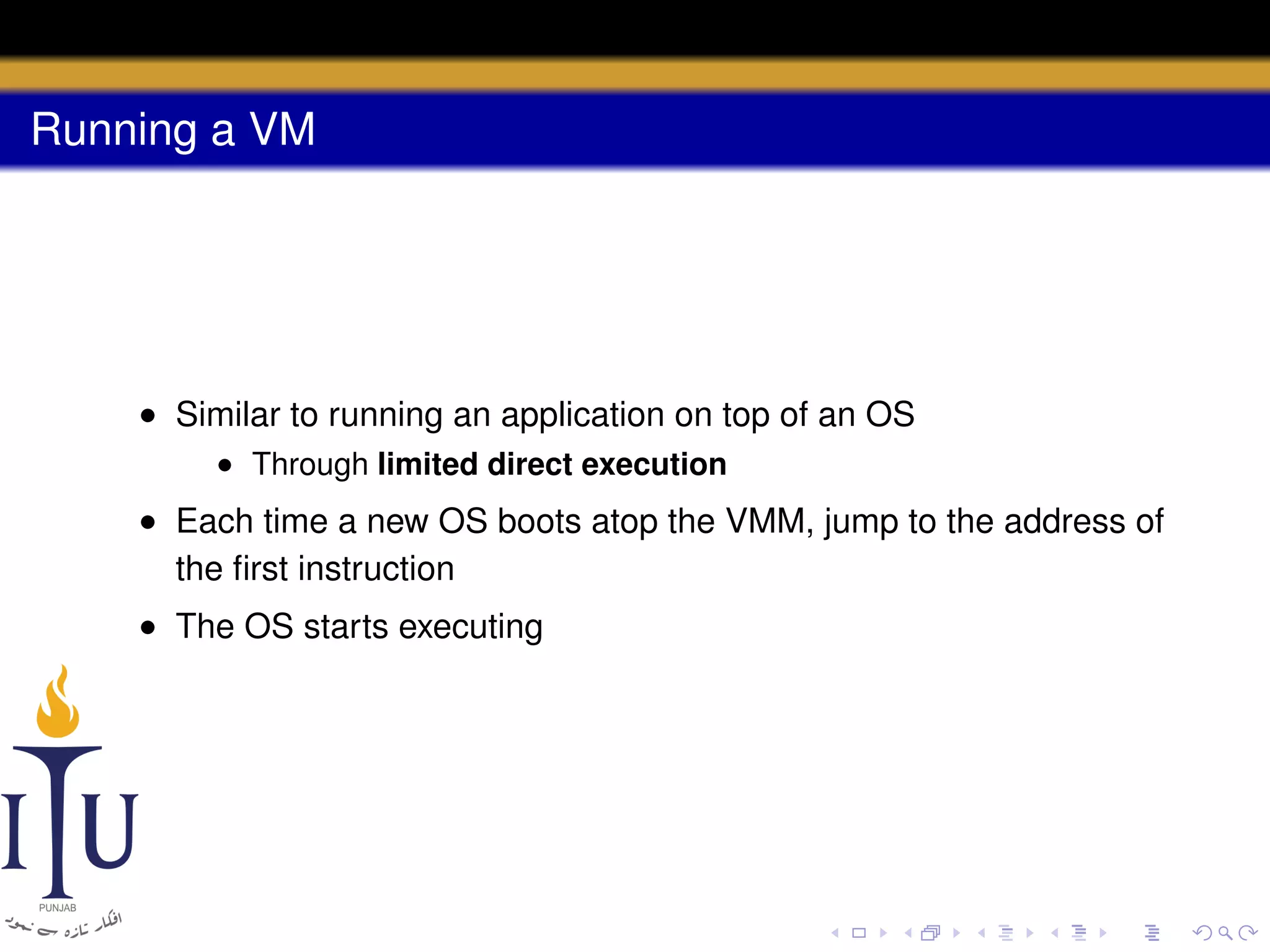

24. Running a VM
• Similar to running an application on top of an OS
• Through limited direct execution

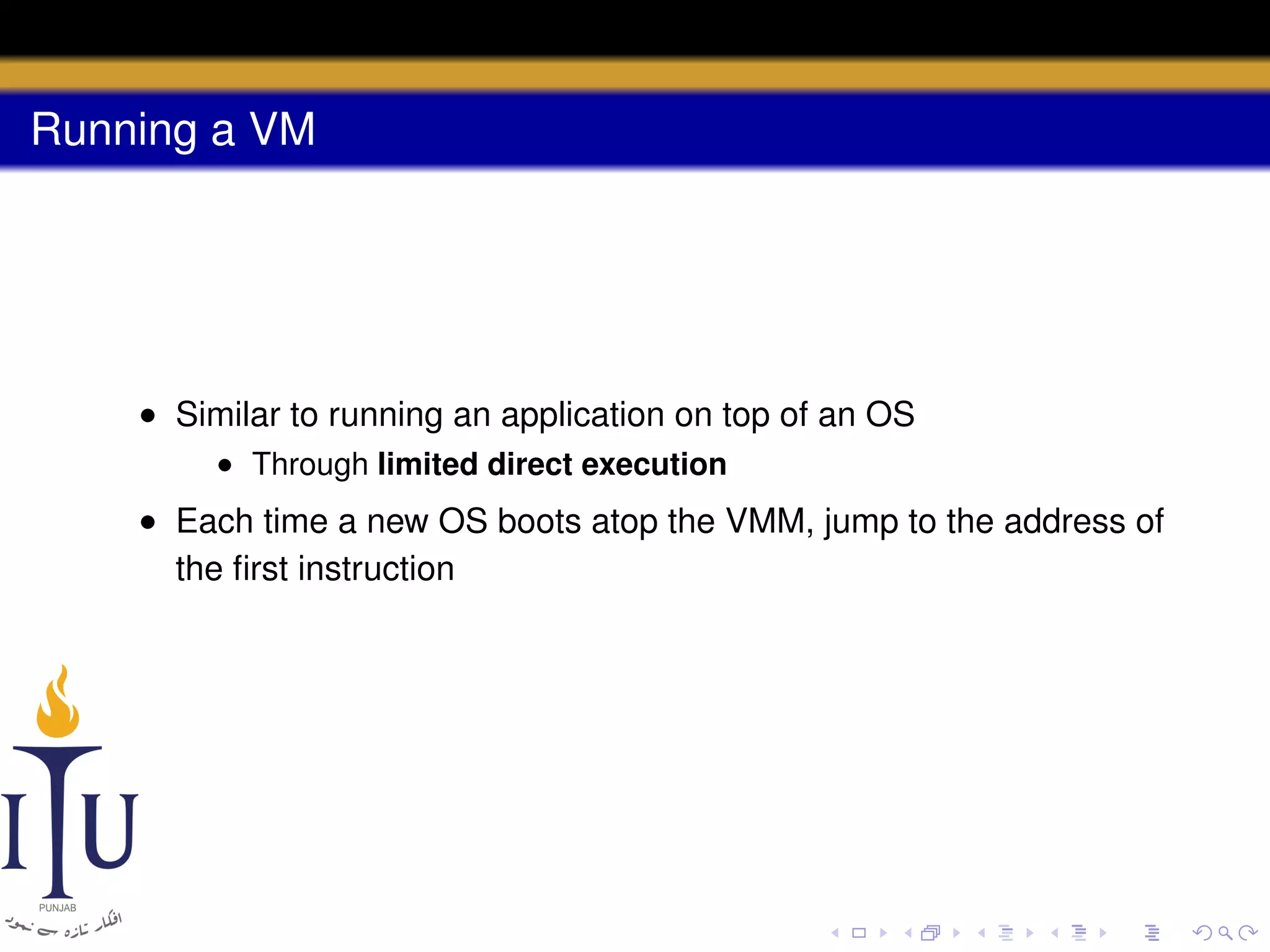

25. Running a VM
• Similar to running an application on top of an OS
• Through limited direct execution
• Each time a new OS boots atop the VMM, jump to the address of
the first instruction

26. Running a VM
• Similar to running an application on top of an OS
• Through limited direct execution
• Each time a new OS boots atop the VMM, jump to the address of
the first instruction
• The OS starts executing

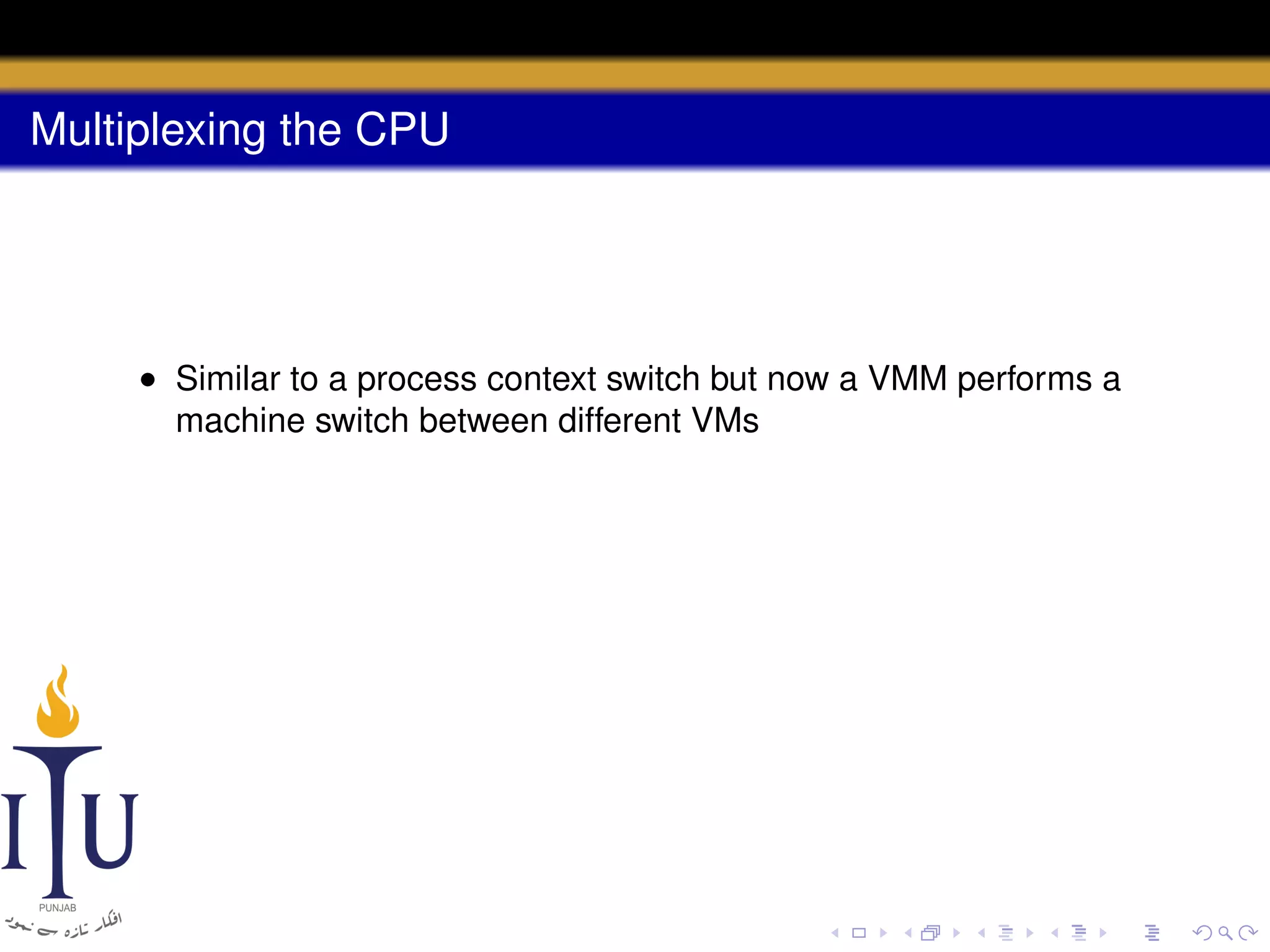

27. Multiplexing the CPU
• Similar to a process context switch but now a VMM performs a
machine switch between different VMs

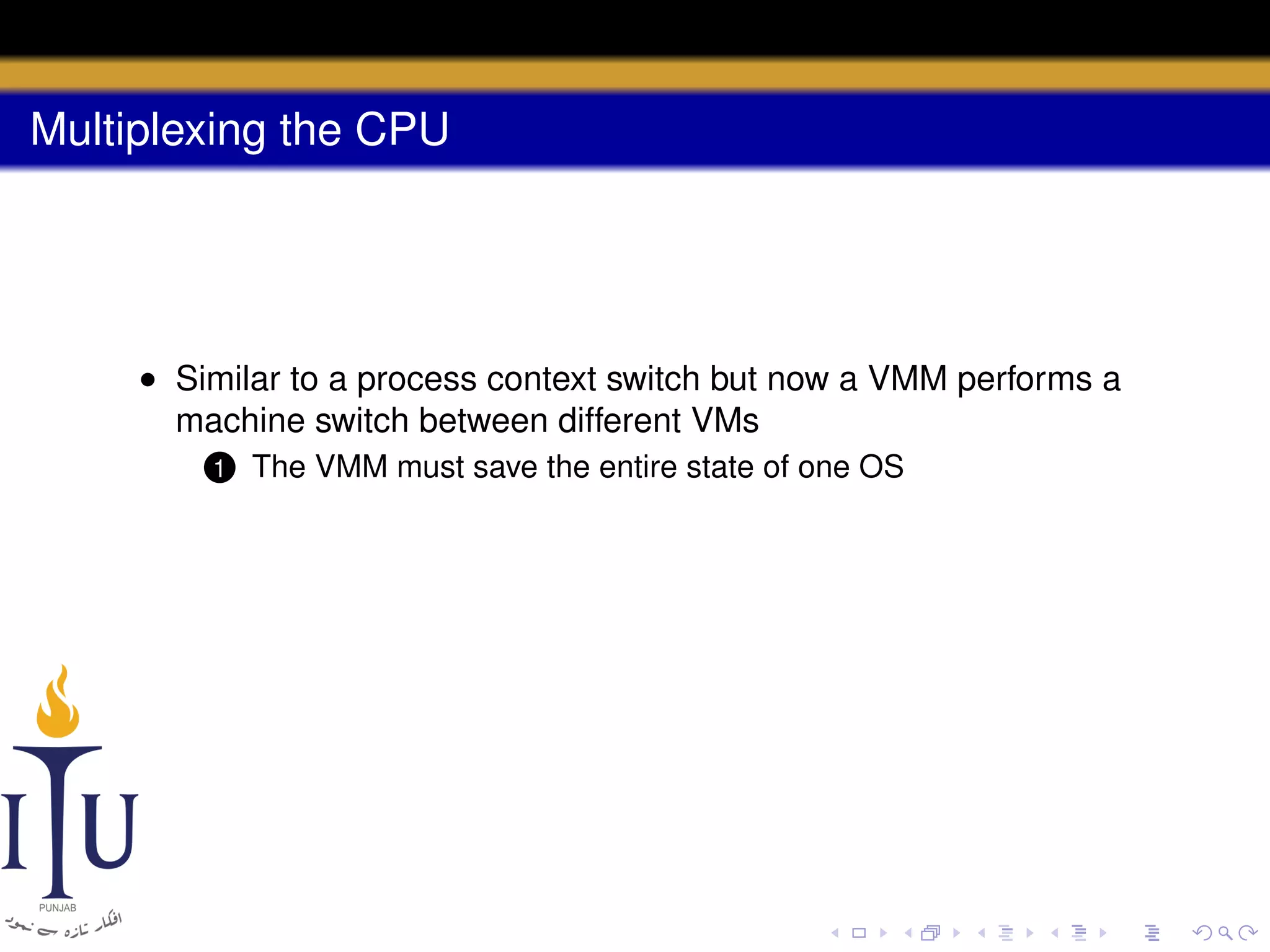

28. Multiplexing the CPU
• Similar to a process context switch but now a VMM performs a
machine switch between different VMs
1
The VMM must save the entire state of one OS

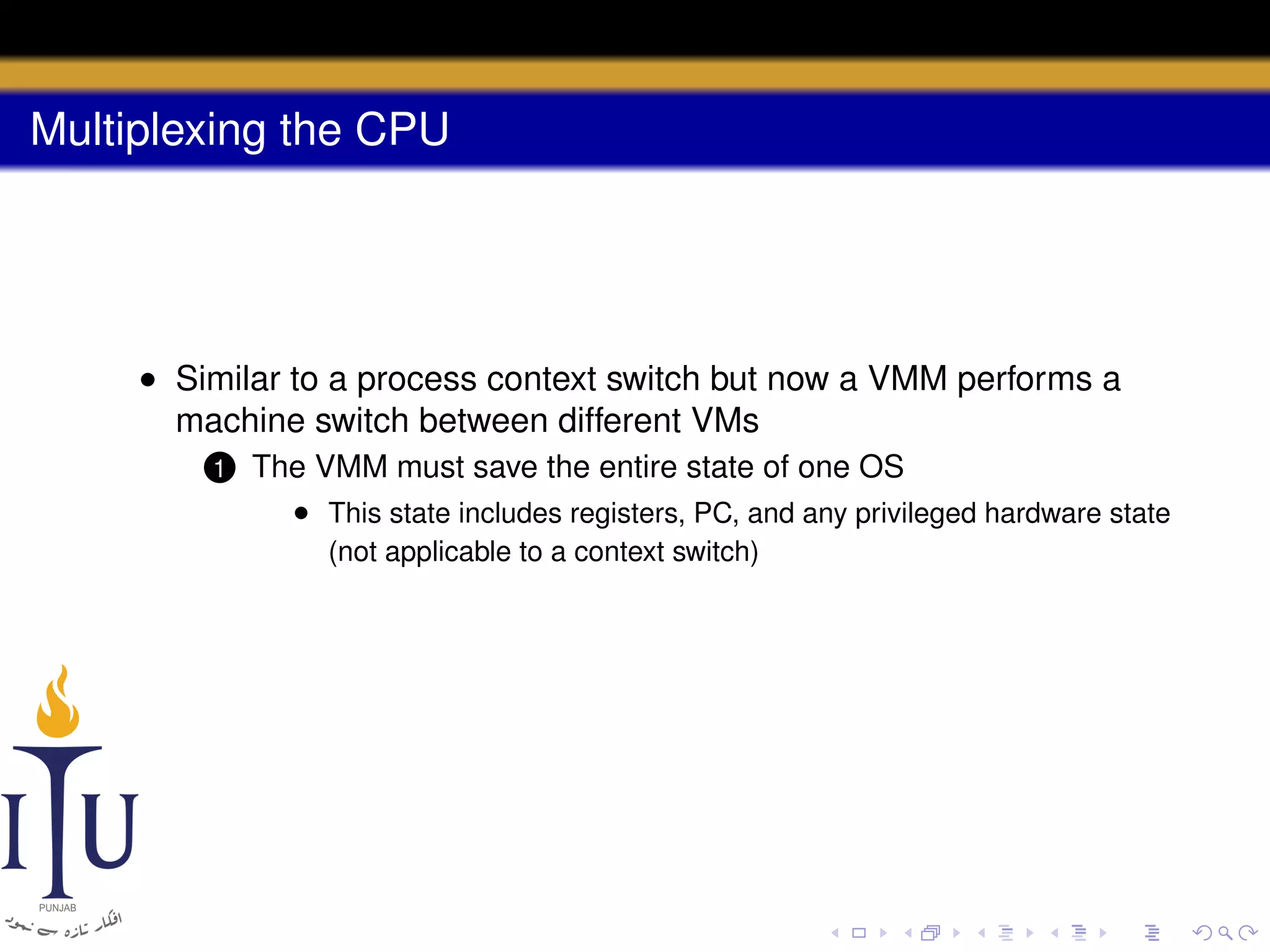

29. Multiplexing the CPU
• Similar to a process context switch but now a VMM performs a
machine switch between different VMs
1
The VMM must save the entire state of one OS
• This state includes registers, PC, and any privileged hardware state
(not applicable to a context switch)

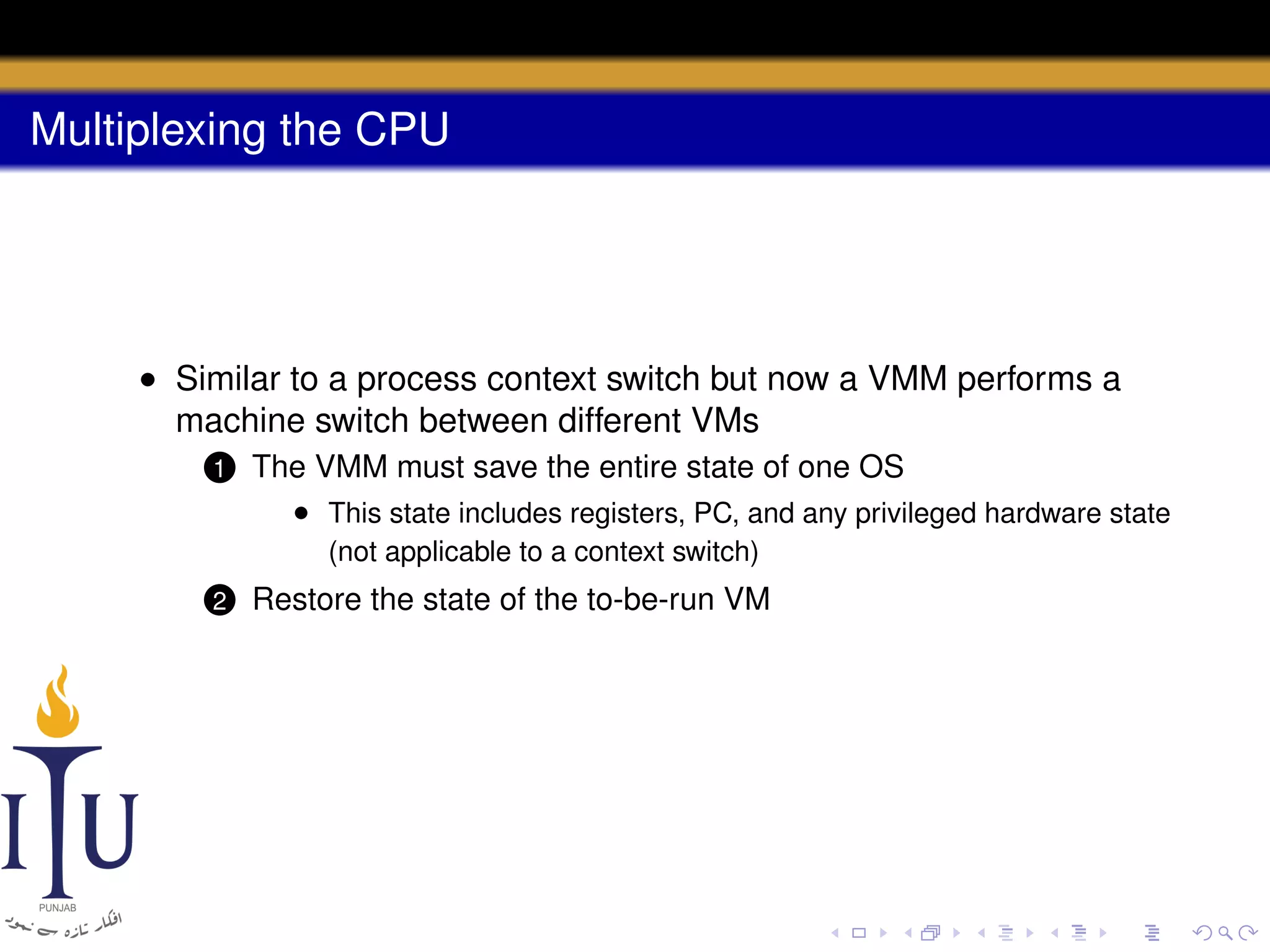

30. Multiplexing the CPU
• Similar to a process context switch but now a VMM performs a
machine switch between different VMs
1
The VMM must save the entire state of one OS
• This state includes registers, PC, and any privileged hardware state
2
Restore the state of the to-be-run VM
(not applicable to a context switch)

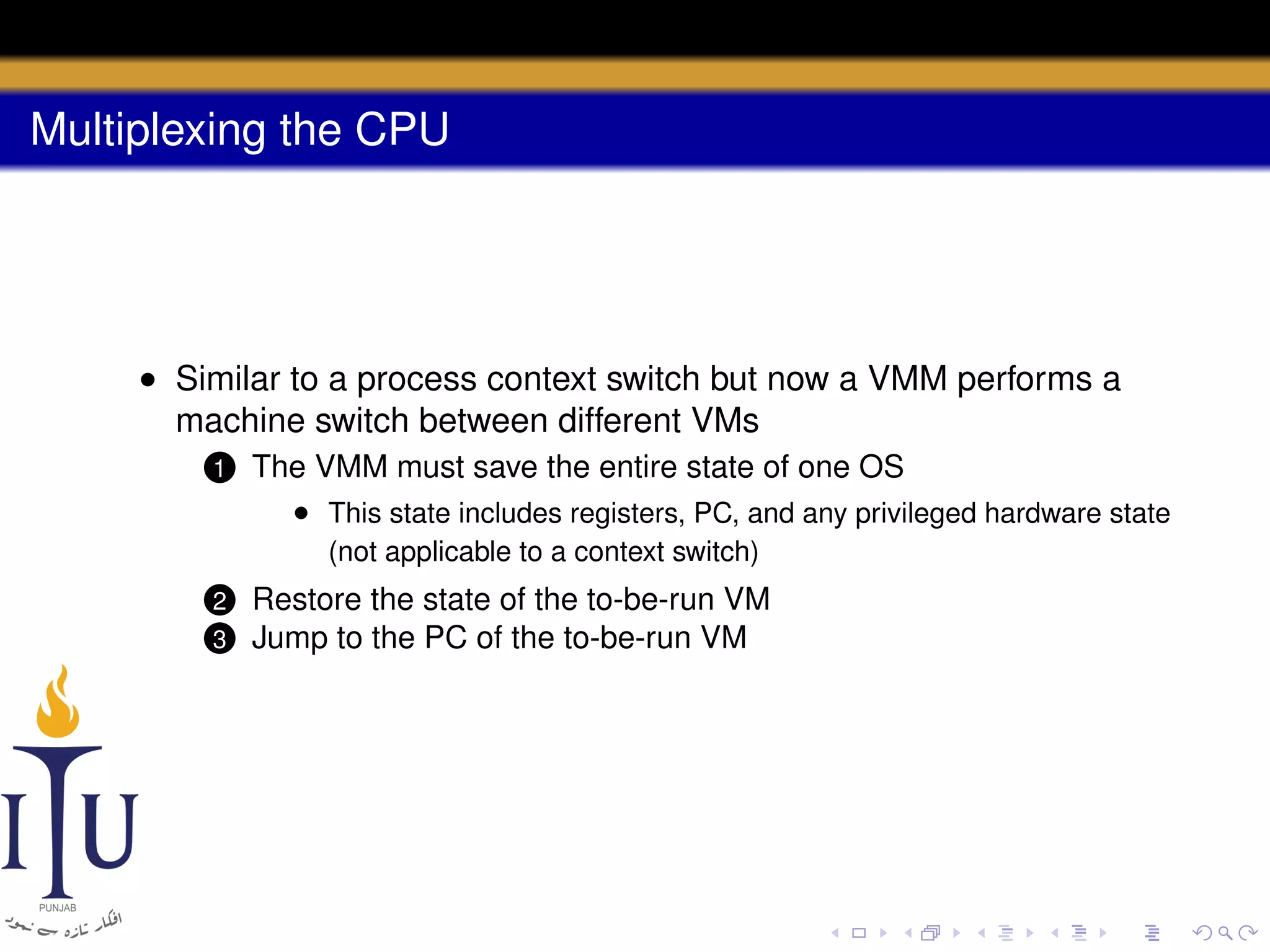

31. Multiplexing the CPU
• Similar to a process context switch but now a VMM performs a
machine switch between different VMs
1
The VMM must save the entire state of one OS
• This state includes registers, PC, and any privileged hardware state
(not applicable to a context switch)
Restore the state of the to-be-run VM
3 Jump to the PC of the to-be-run VM
2

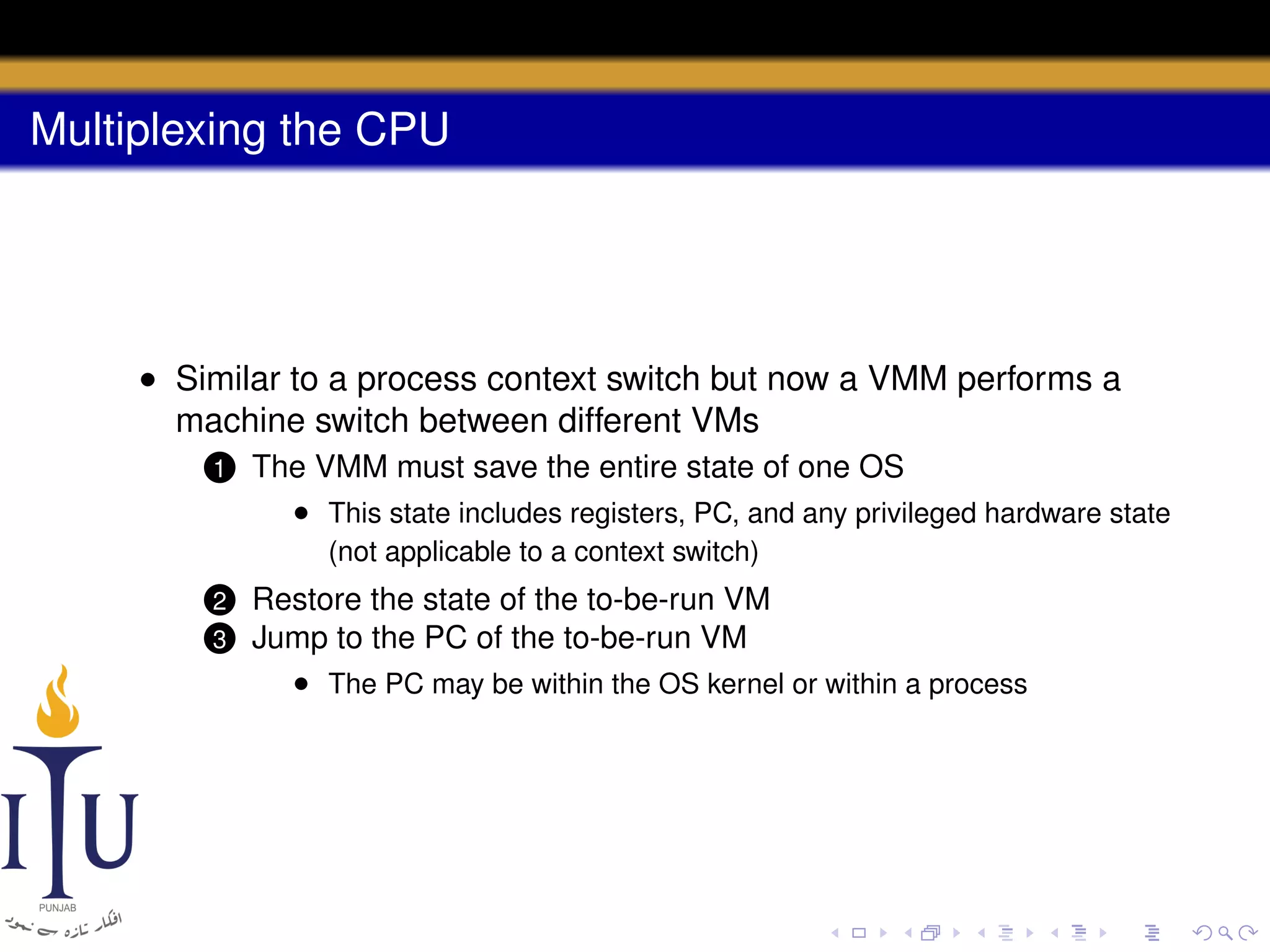

32. Multiplexing the CPU
• Similar to a process context switch but now a VMM performs a
machine switch between different VMs
1
The VMM must save the entire state of one OS
• This state includes registers, PC, and any privileged hardware state
(not applicable to a context switch)
Restore the state of the to-be-run VM
3 Jump to the PC of the to-be-run VM
• The PC may be within the OS kernel or within a process
2

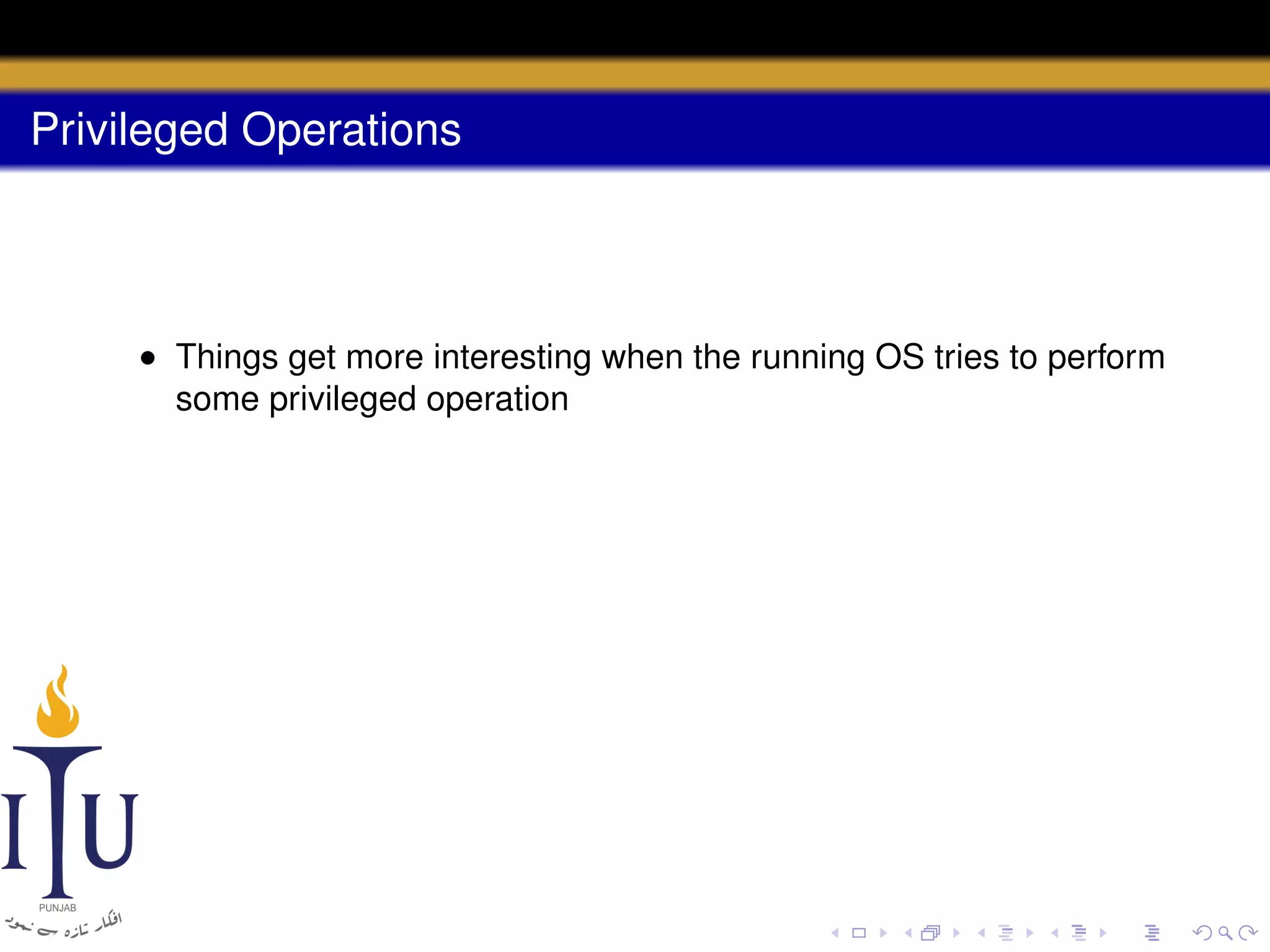

33. Privileged Operations
• Things get more interesting when the running OS tries to perform
some privileged operation

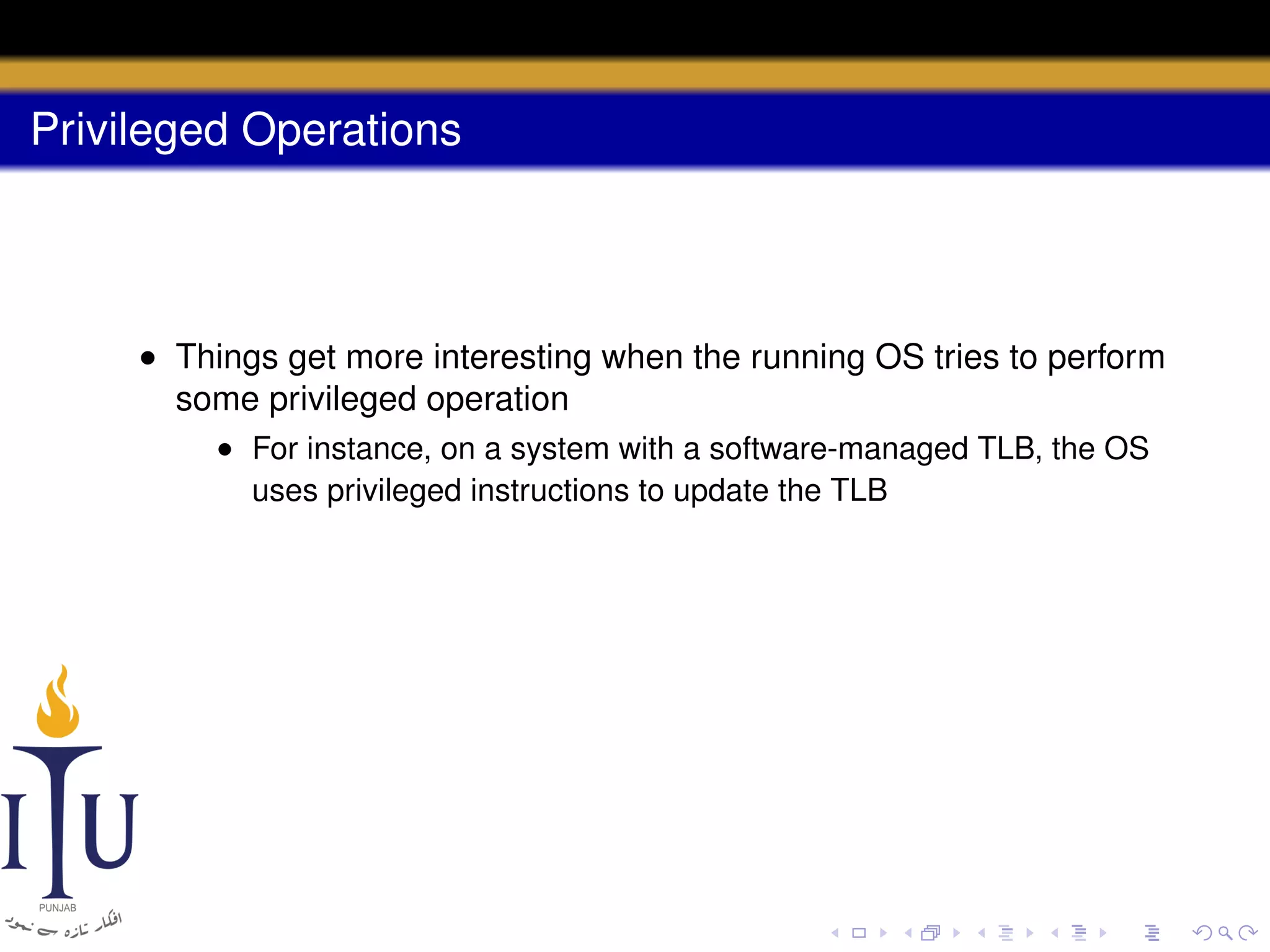

34. Privileged Operations
• Things get more interesting when the running OS tries to perform
some privileged operation
• For instance, on a system with a software-managed TLB, the OS
uses privileged instructions to update the TLB

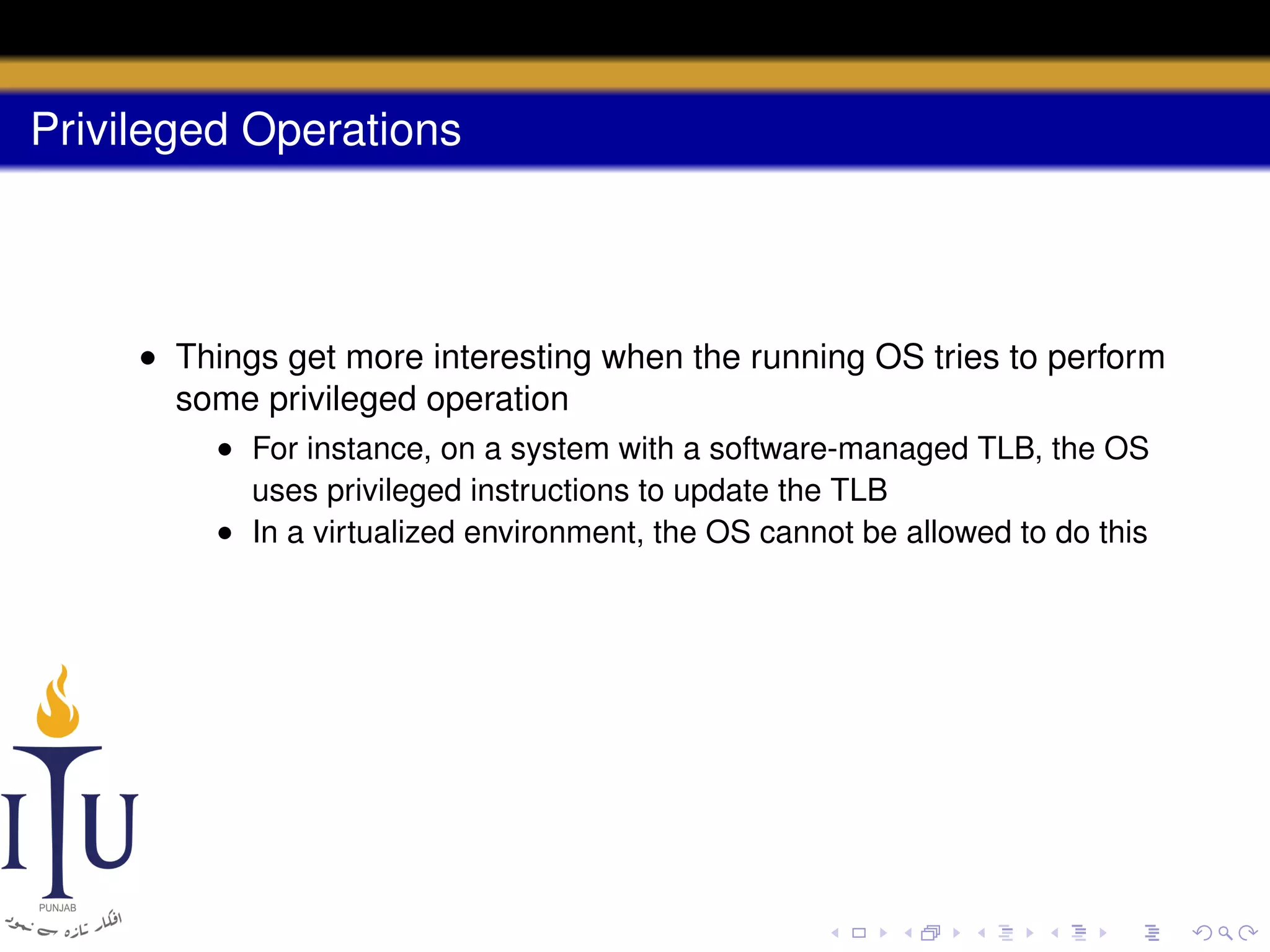

35. Privileged Operations
• Things get more interesting when the running OS tries to perform
some privileged operation
• For instance, on a system with a software-managed TLB, the OS
uses privileged instructions to update the TLB
• In a virtualized environment, the OS cannot be allowed to do this

36. Privileged Operations
• Things get more interesting when the running OS tries to perform
some privileged operation
• For instance, on a system with a software-managed TLB, the OS
uses privileged instructions to update the TLB
• In a virtualized environment, the OS cannot be allowed to do this
• If it is allowed to do so, the OS will control the underlying machine
rather than the VMM

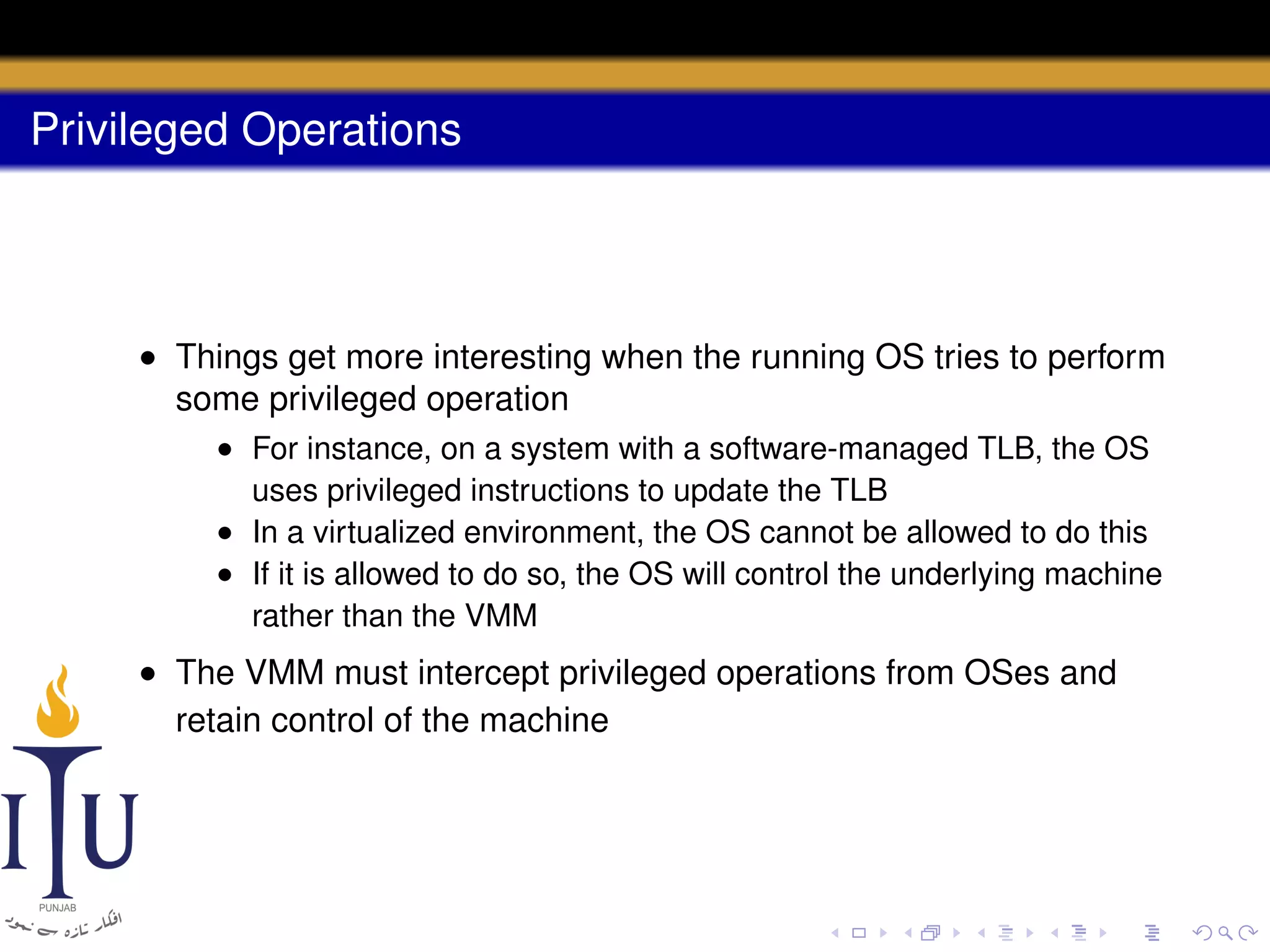

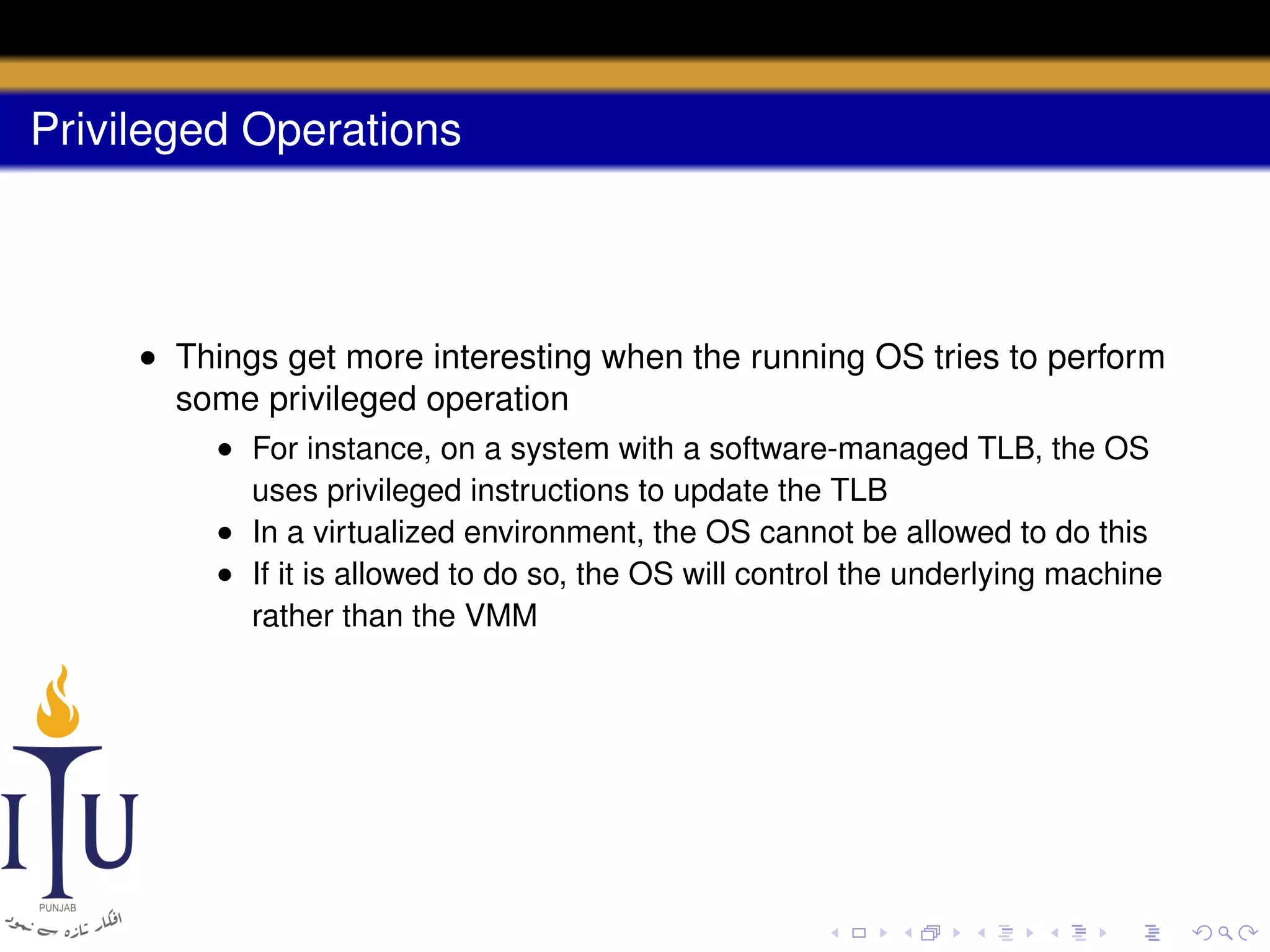

37. Privileged Operations
• Things get more interesting when the running OS tries to perform
some privileged operation
• For instance, on a system with a software-managed TLB, the OS
uses privileged instructions to update the TLB
• In a virtualized environment, the OS cannot be allowed to do this
• If it is allowed to do so, the OS will control the underlying machine
rather than the VMM
• The VMM must intercept privileged operations from OSes and
retain control of the machine

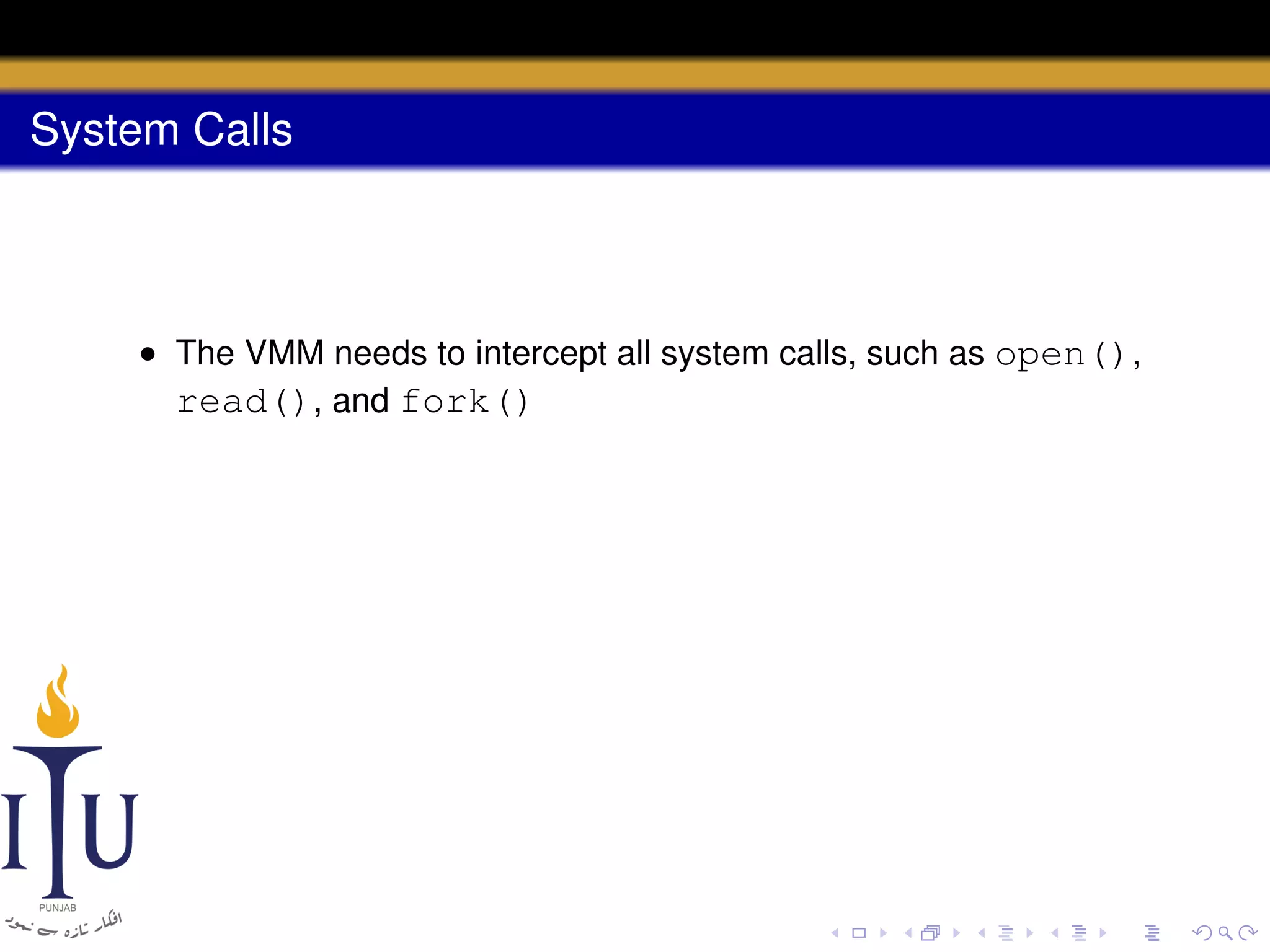

38. System Calls
• The VMM needs to intercept all system calls, such as open(),
read(), and fork()

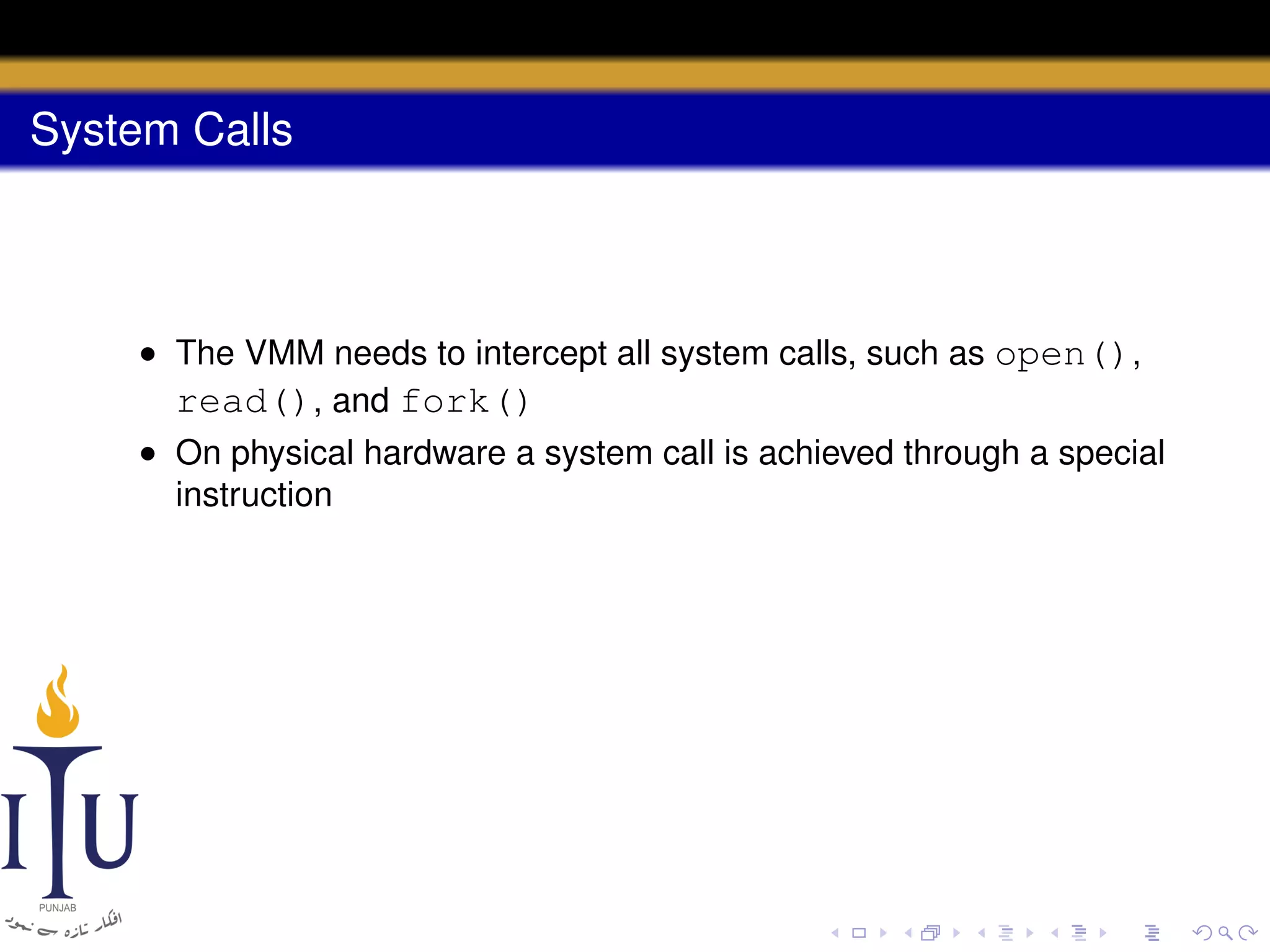

39. System Calls
• The VMM needs to intercept all system calls, such as open(),
read(), and fork()
• On physical hardware a system call is achieved through a special
instruction

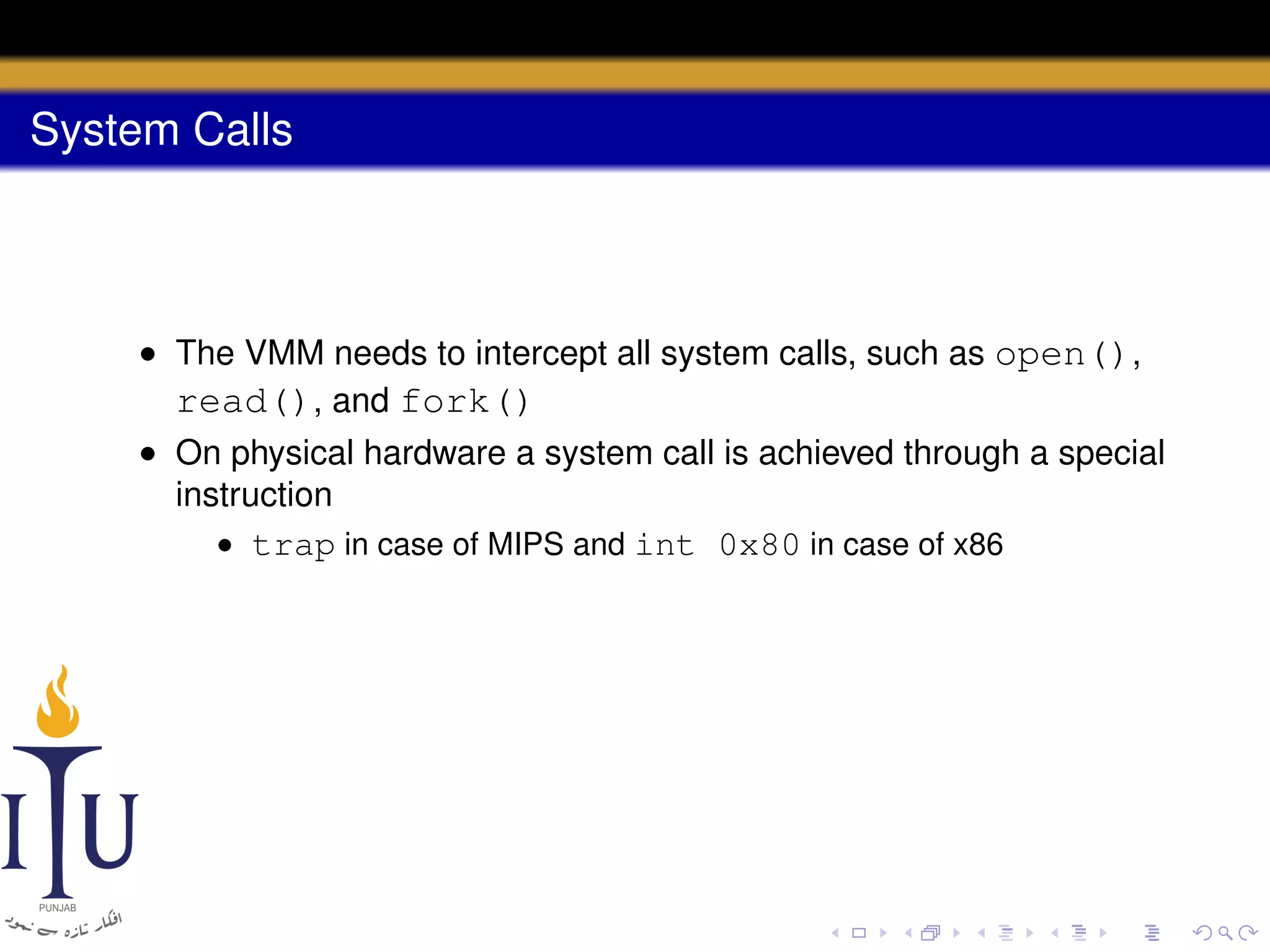

40. System Calls
• The VMM needs to intercept all system calls, such as open(),
read(), and fork()
• On physical hardware a system call is achieved through a special
instruction
• trap in case of MIPS and int 0x80 in case of x86

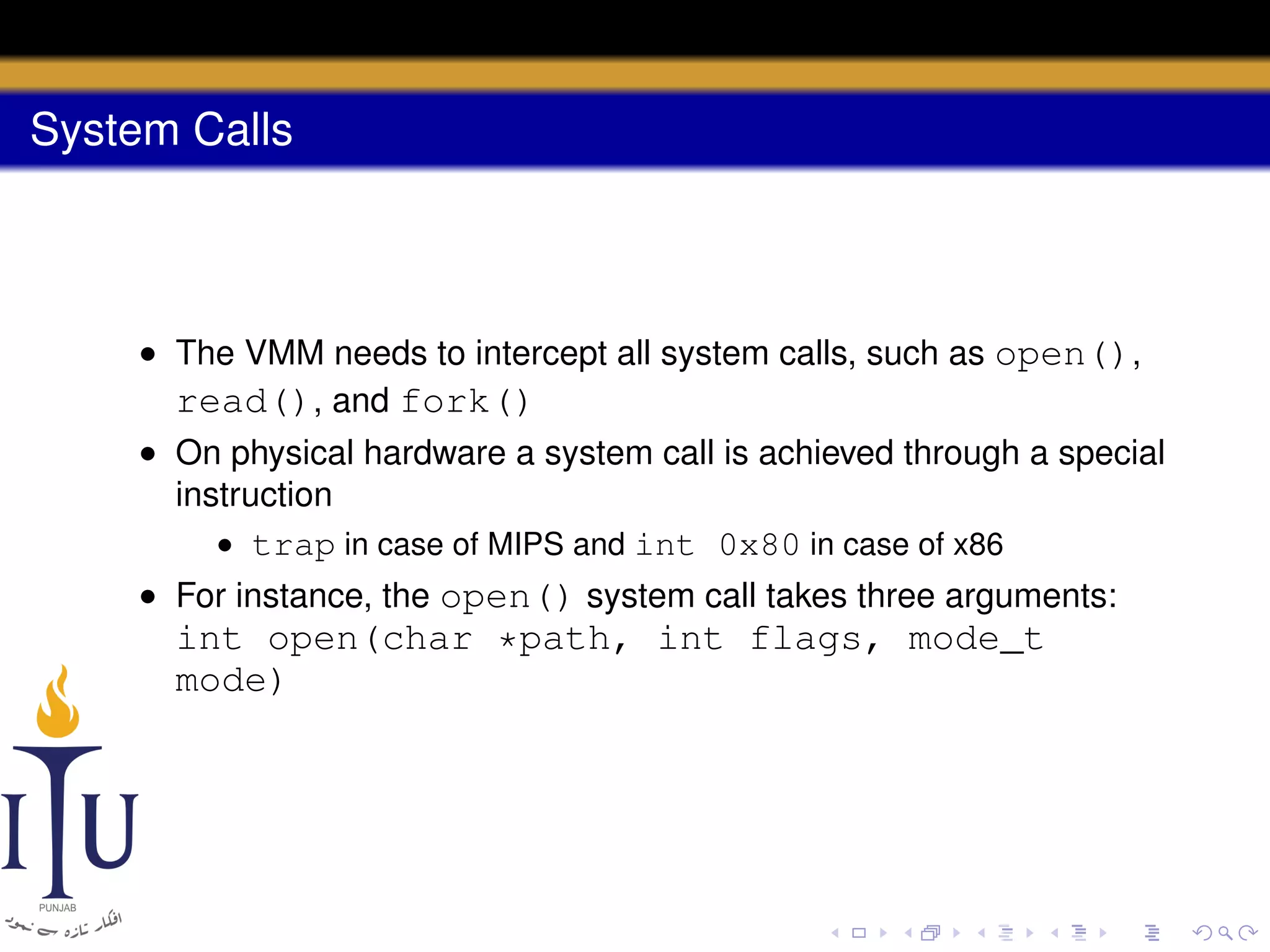

41. System Calls
• The VMM needs to intercept all system calls, such as open(),
read(), and fork()
• On physical hardware a system call is achieved through a special
instruction
• trap in case of MIPS and int 0x80 in case of x86
• For instance, the open() system call takes three arguments:
int open(char *path, int flags, mode_t
mode)

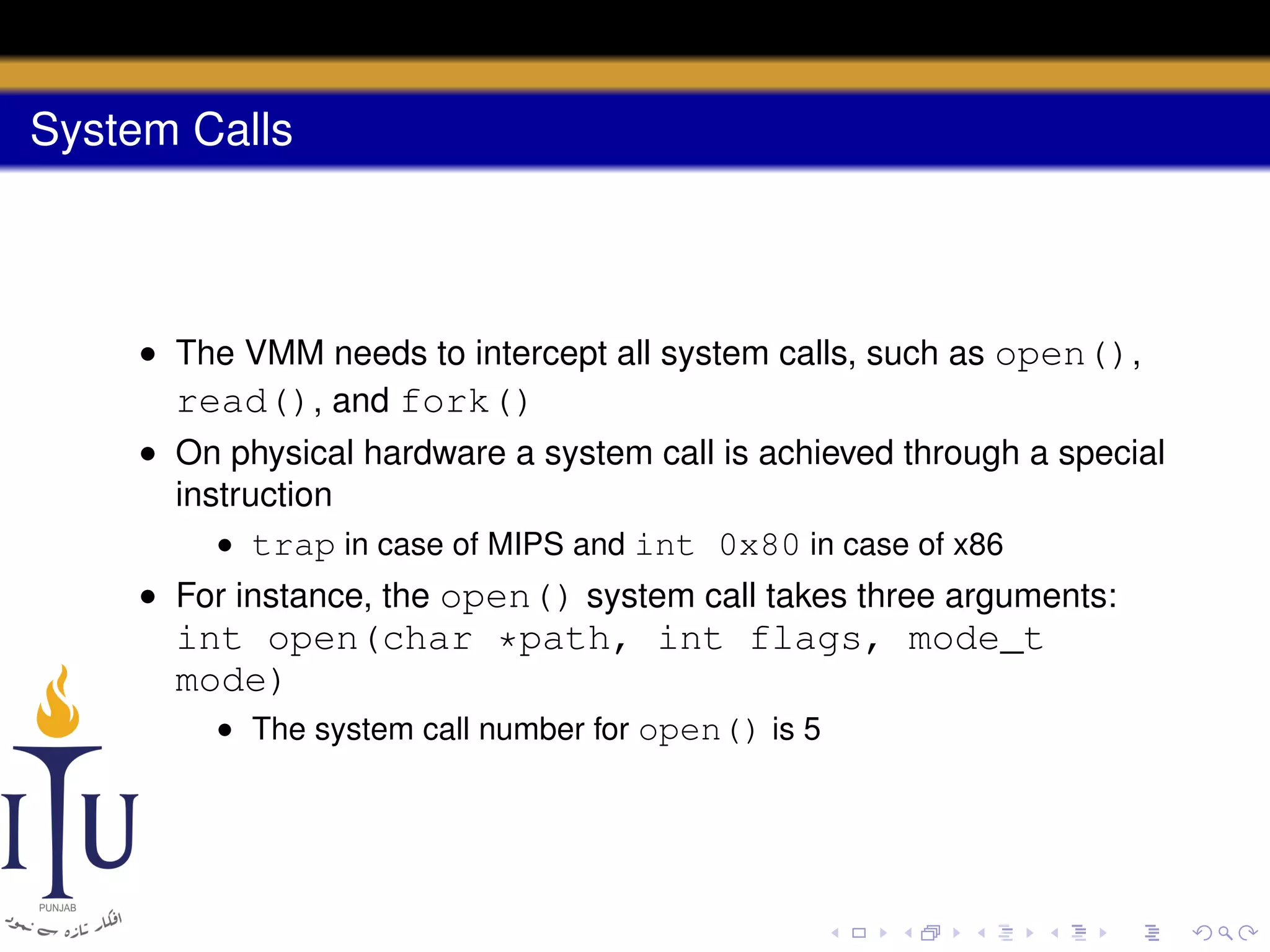

42. System Calls
• The VMM needs to intercept all system calls, such as open(),
read(), and fork()
• On physical hardware a system call is achieved through a special
instruction
• trap in case of MIPS and int 0x80 in case of x86
• For instance, the open() system call takes three arguments:
int open(char *path, int flags, mode_t
mode)
• The system call number for open() is 5

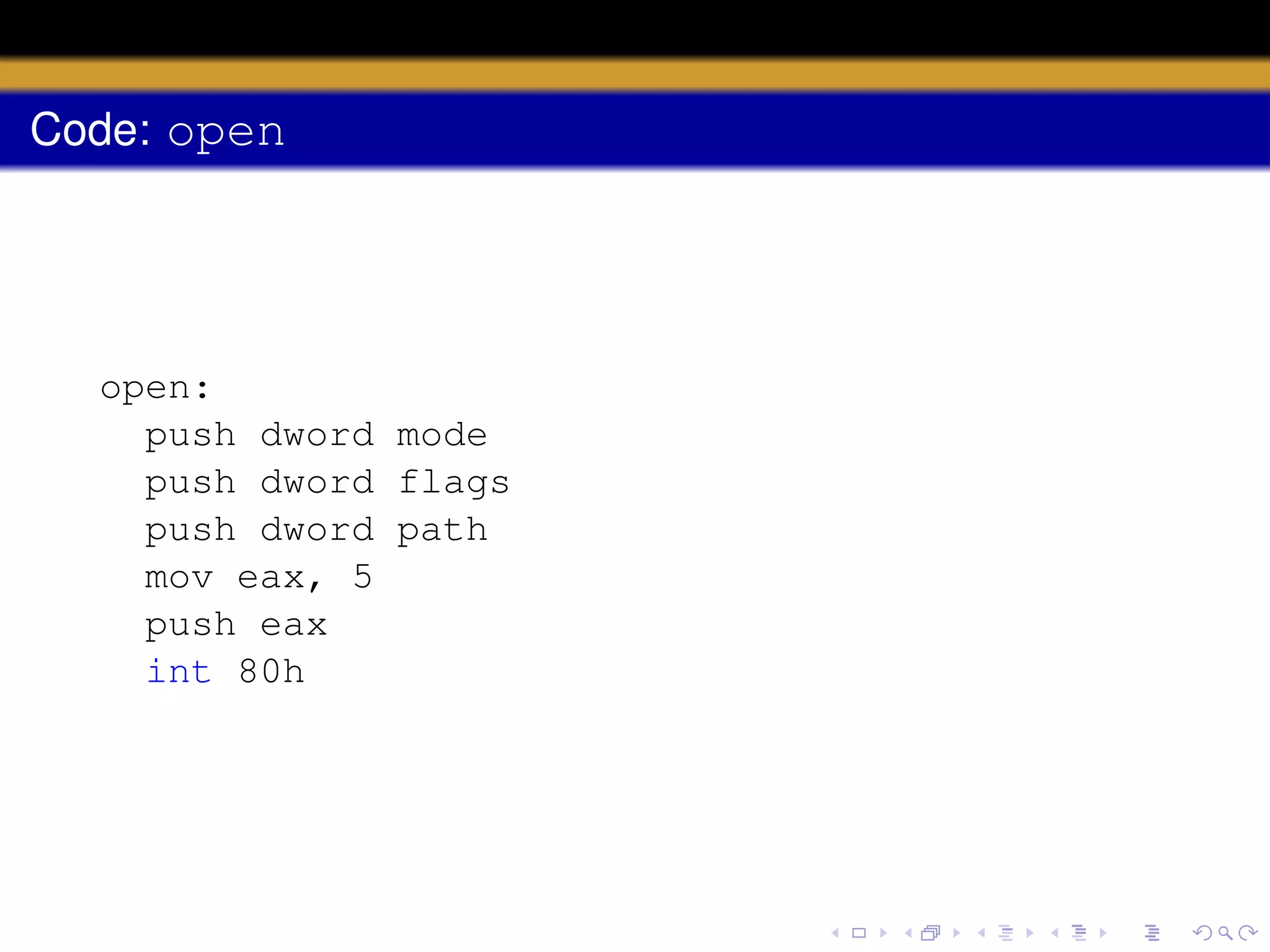

43. Code: open
open:
push dword mode
push dword flags
push dword path
mov eax, 5
push eax
int 80h

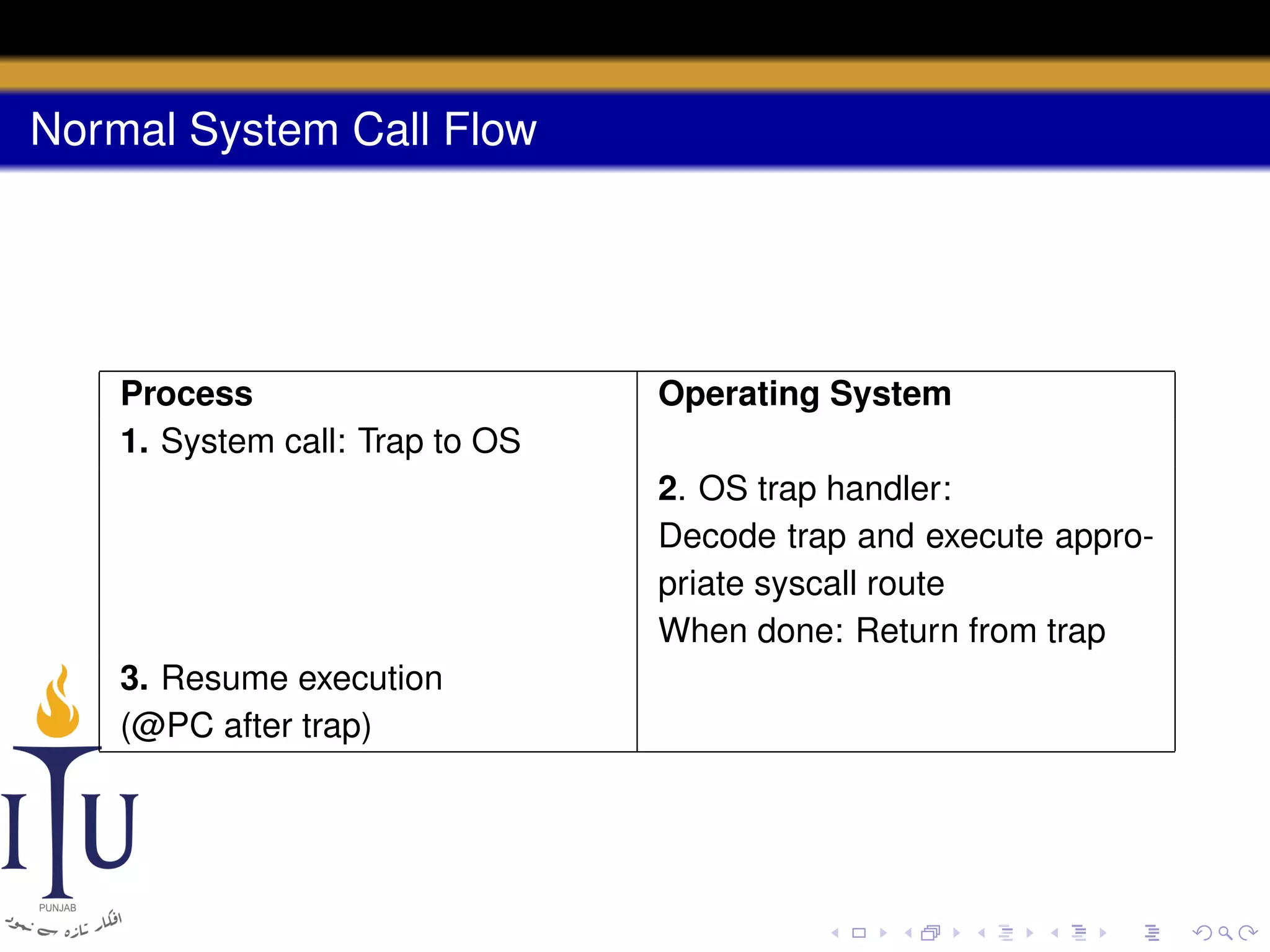

44. Normal System Call Flow
Process
1. System call: Trap to OS
Operating System
2. OS trap handler:
Decode trap and execute appropriate syscall route
When done: Return from trap
3. Resume execution
(@PC after trap)

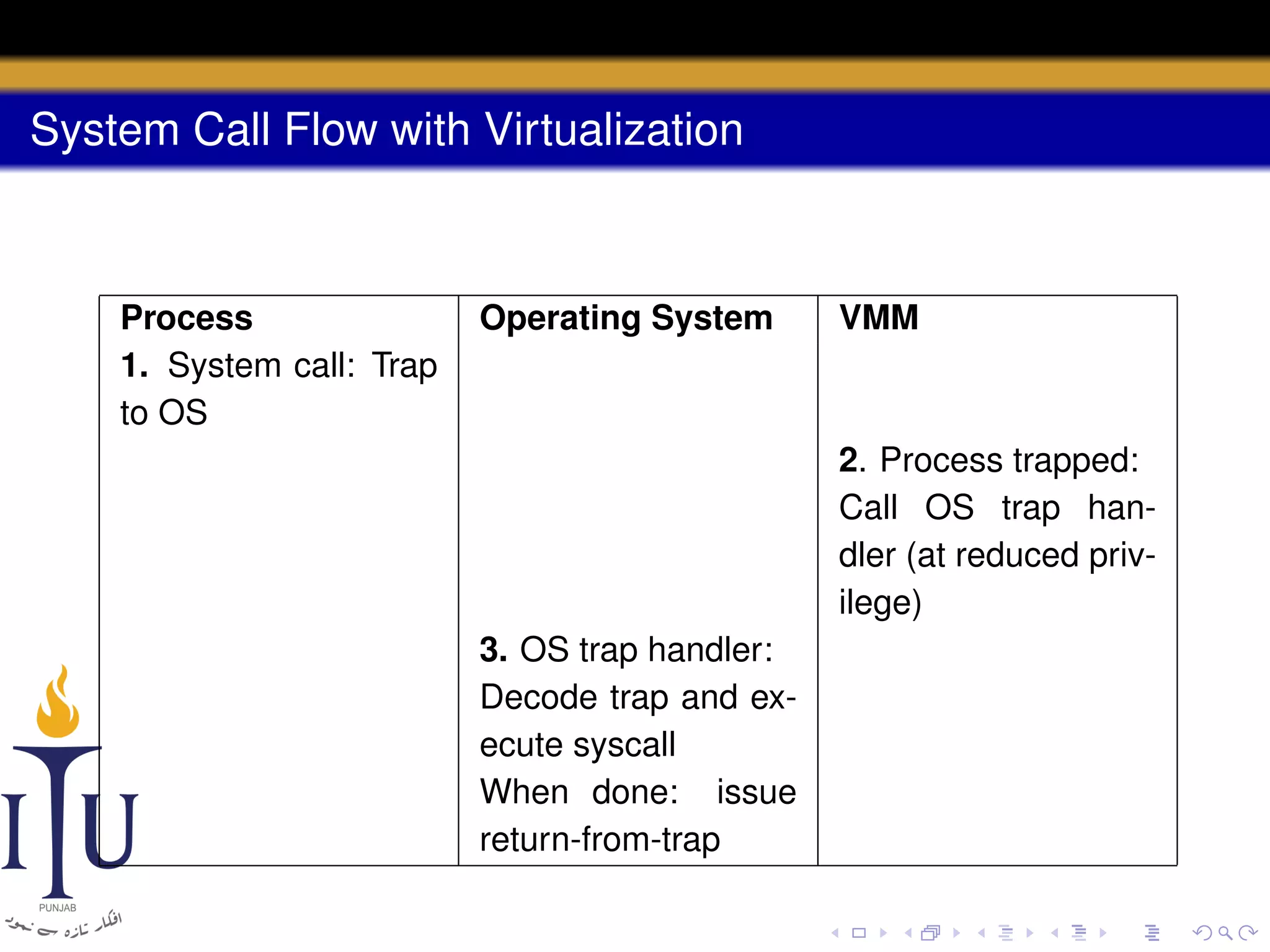

45. System Call Flow with Virtualization
Process
1. System call: Trap
to OS
Operating System
VMM
2. Process trapped:
Call OS trap handler (at reduced privilege)
3. OS trap handler:
Decode trap and execute syscall
When done: issue
return-from-trap

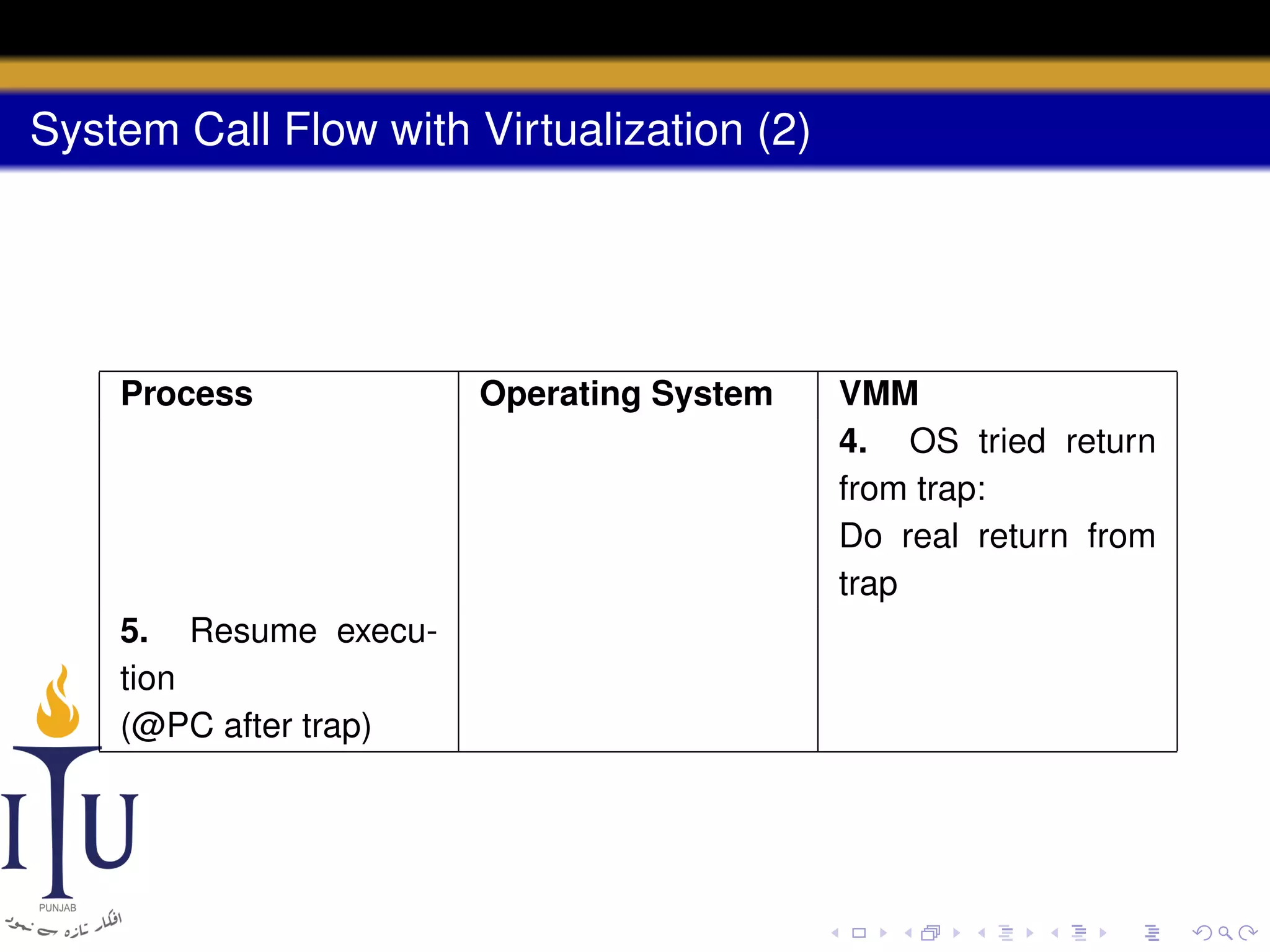

46. System Call Flow with Virtualization (2)
Process
5. Resume execution
(@PC after trap)
Operating System
VMM
4. OS tried return
from trap:
Do real return from
trap

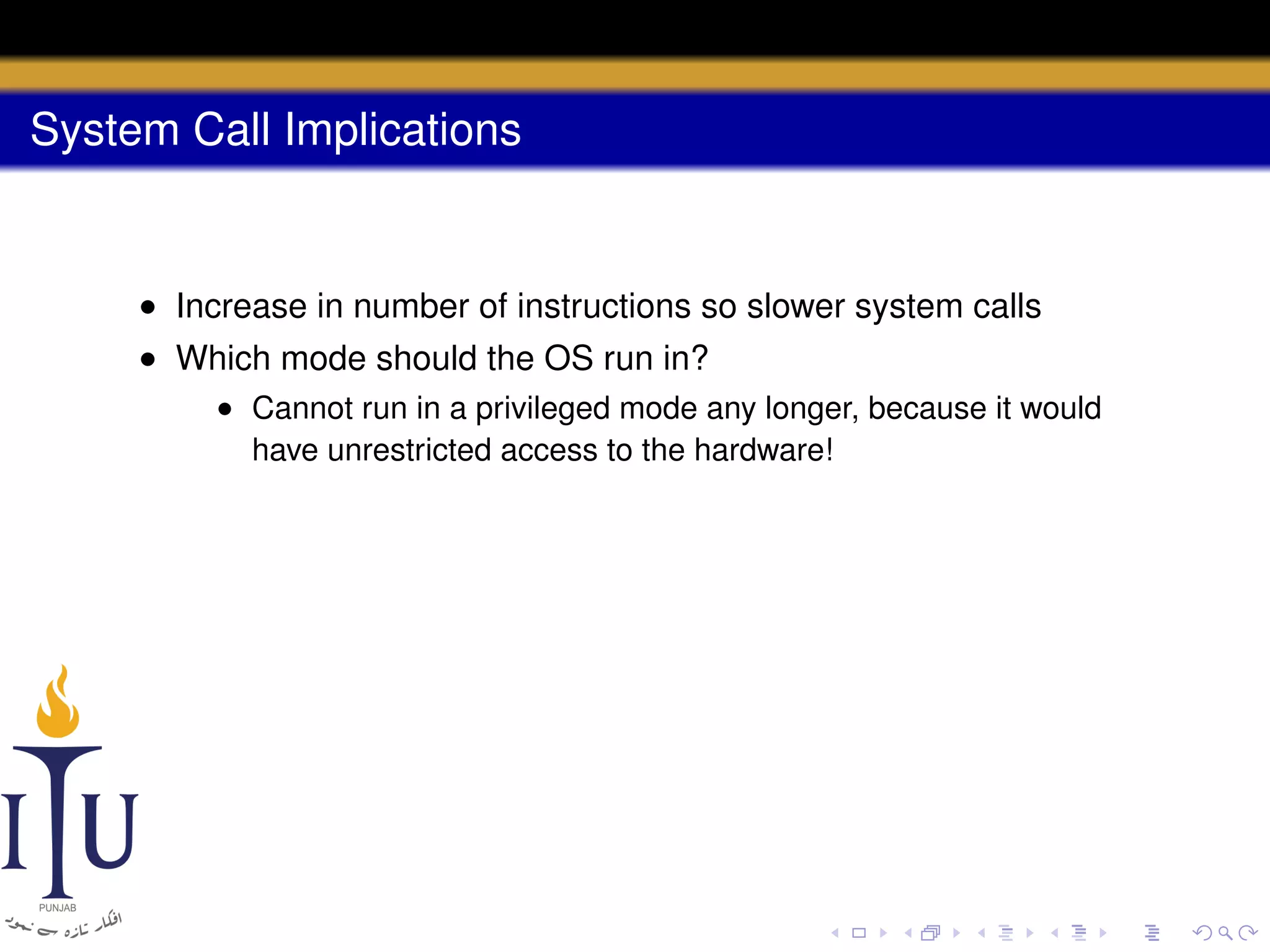

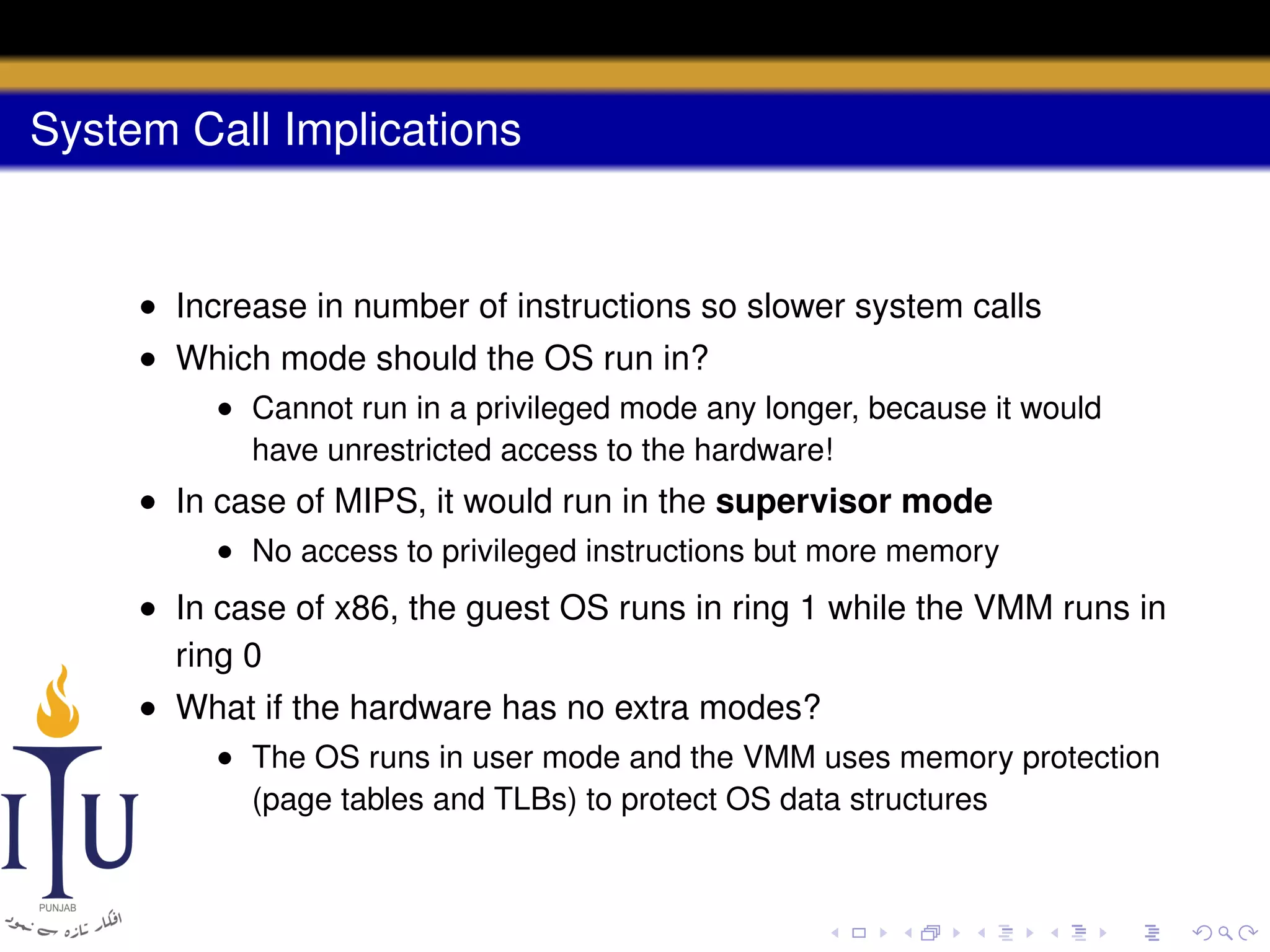

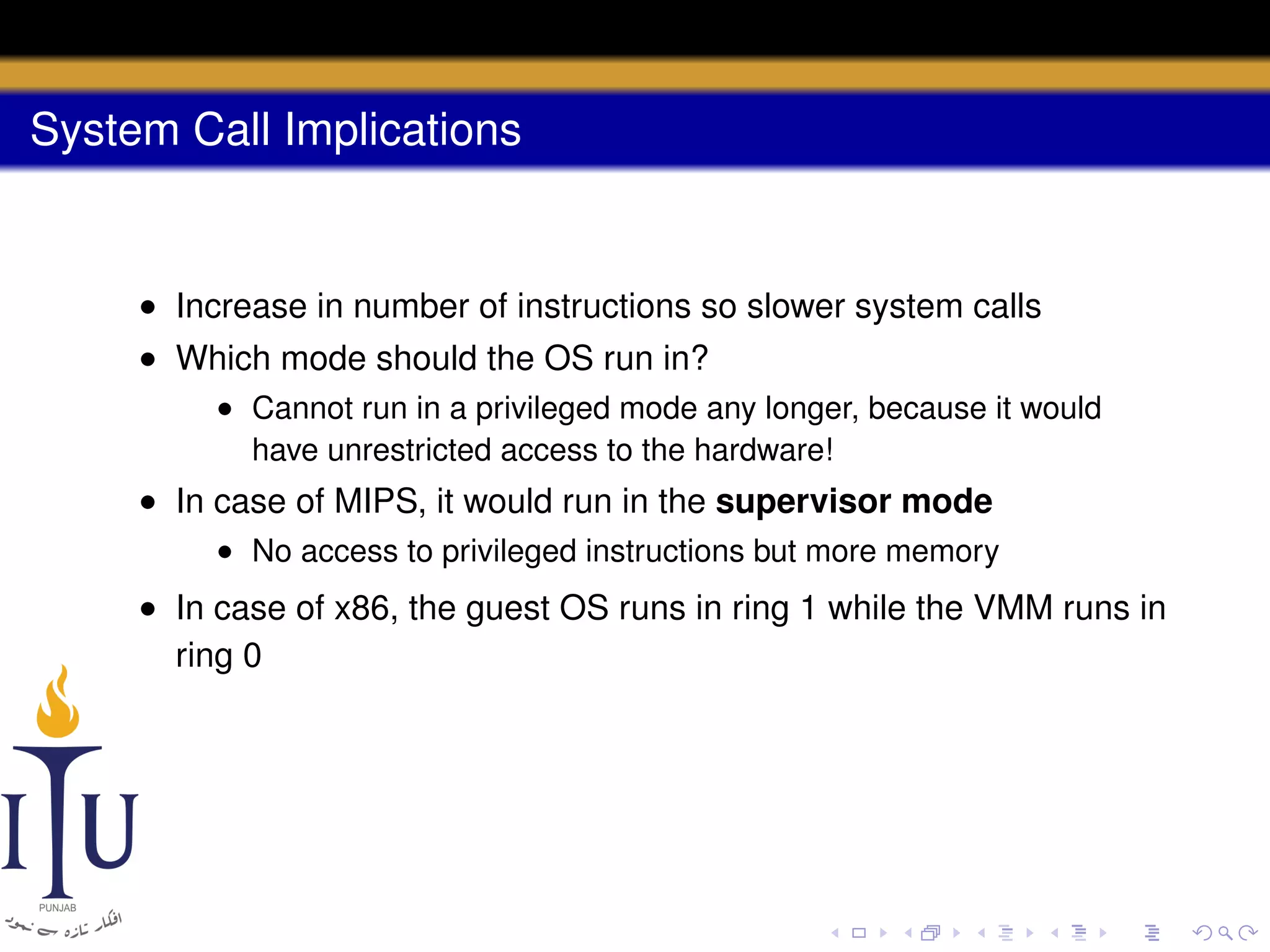

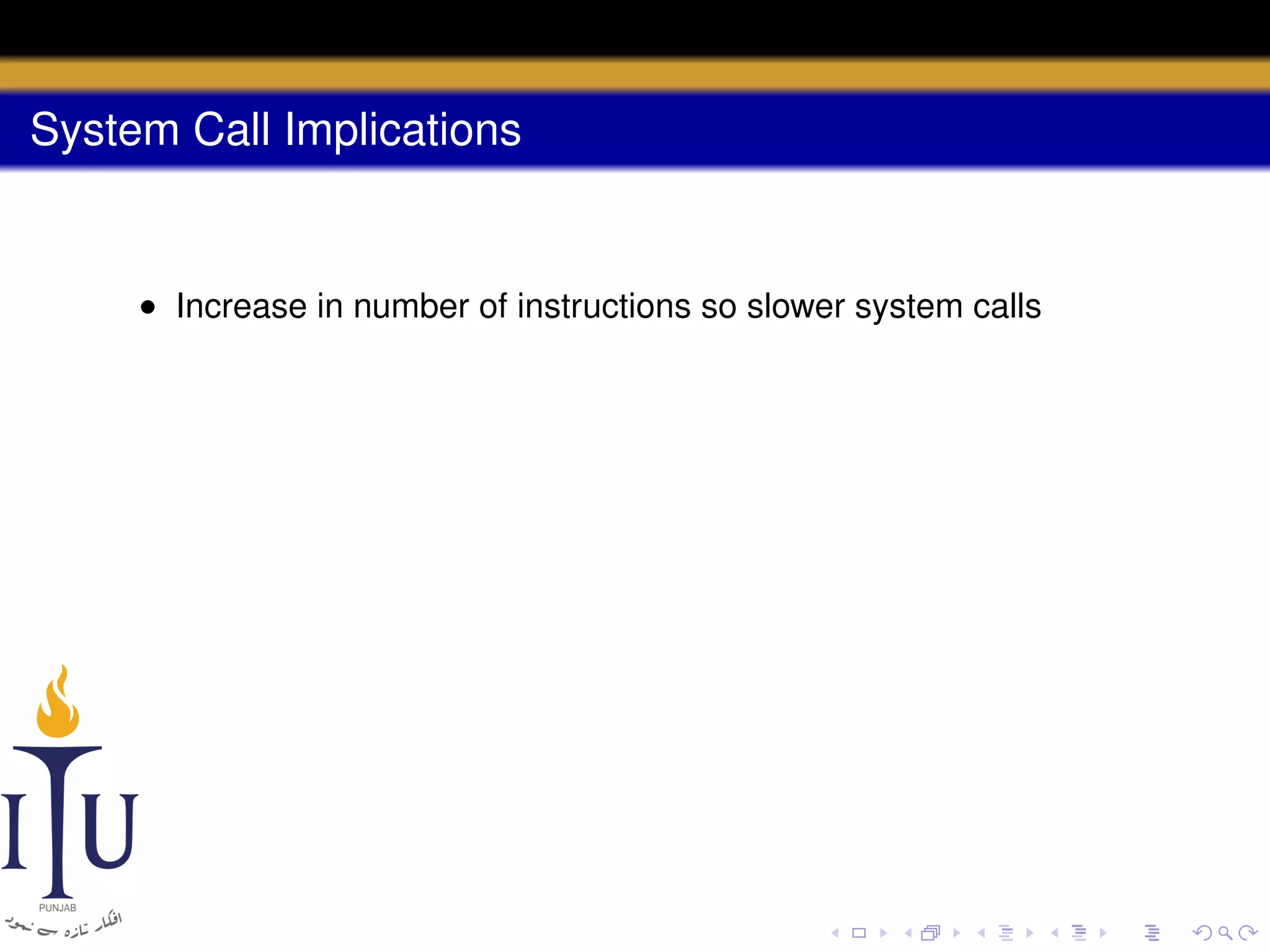

47. System Call Implications
• Increase in number of instructions so slower system calls

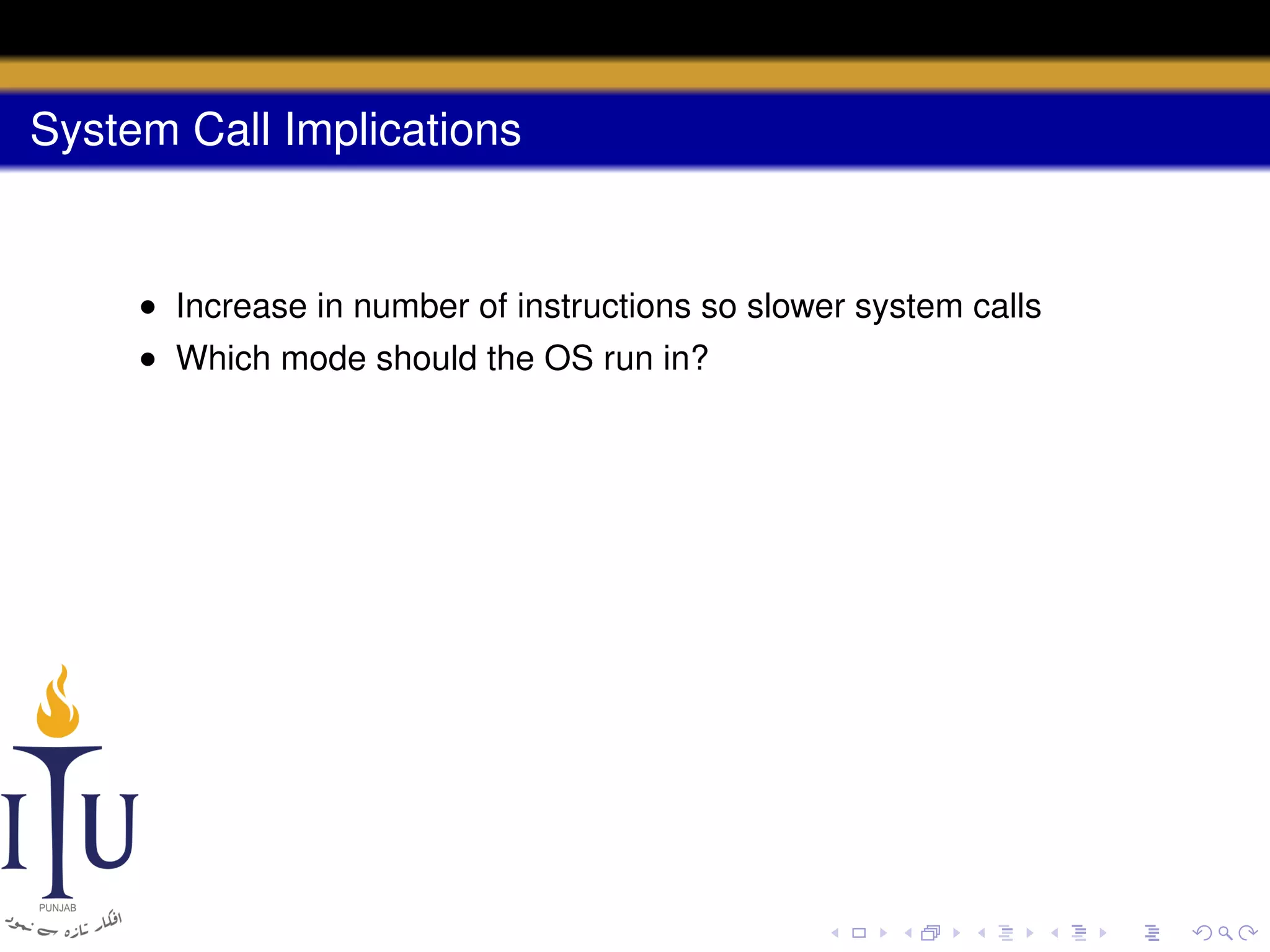

48. System Call Implications
• Increase in number of instructions so slower system calls
• Which mode should the OS run in?

49. System Call Implications
• Increase in number of instructions so slower system calls
• Which mode should the OS run in?
• Cannot run in a privileged mode any longer, because it would
have unrestricted access to the hardware!

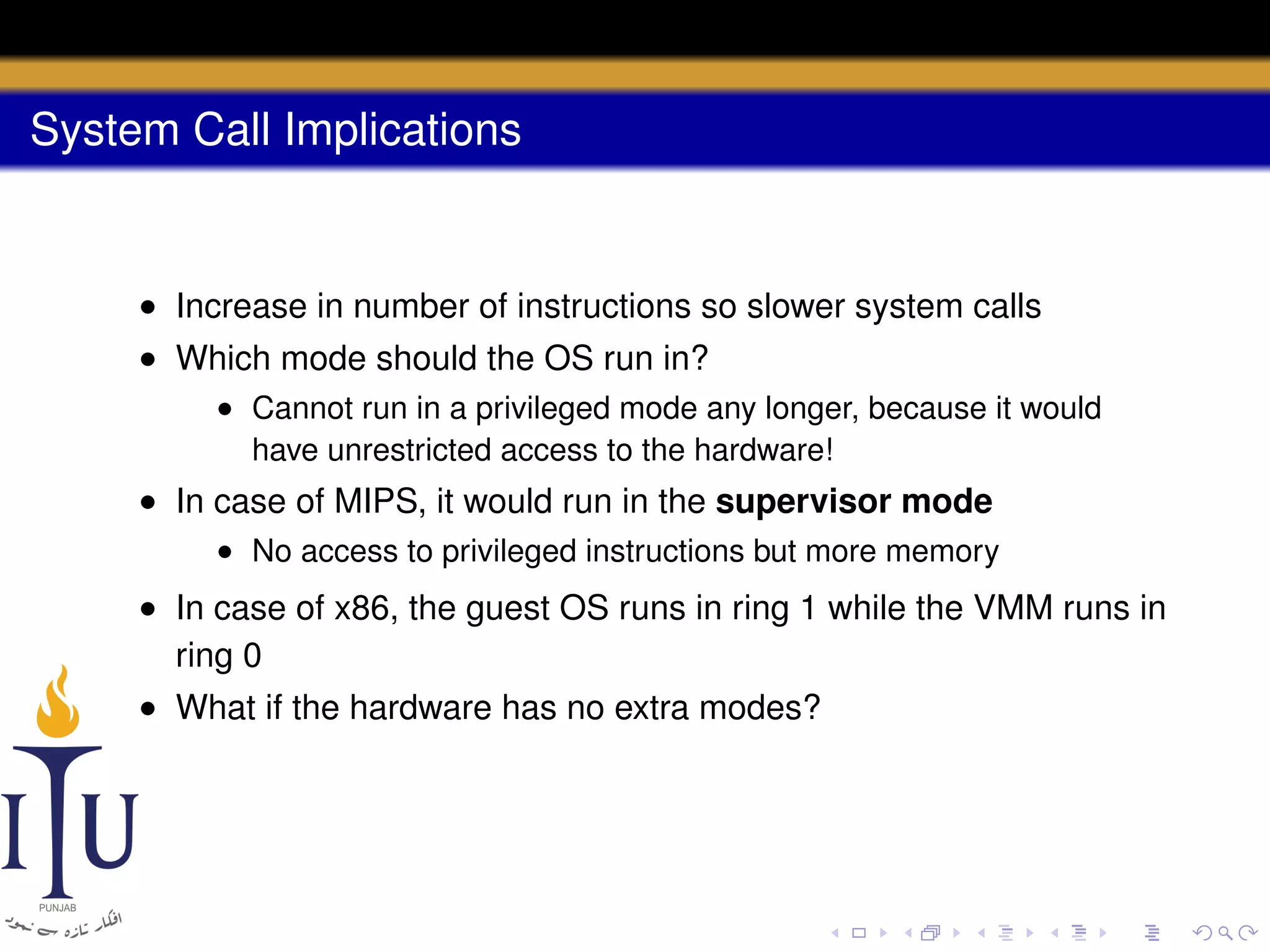

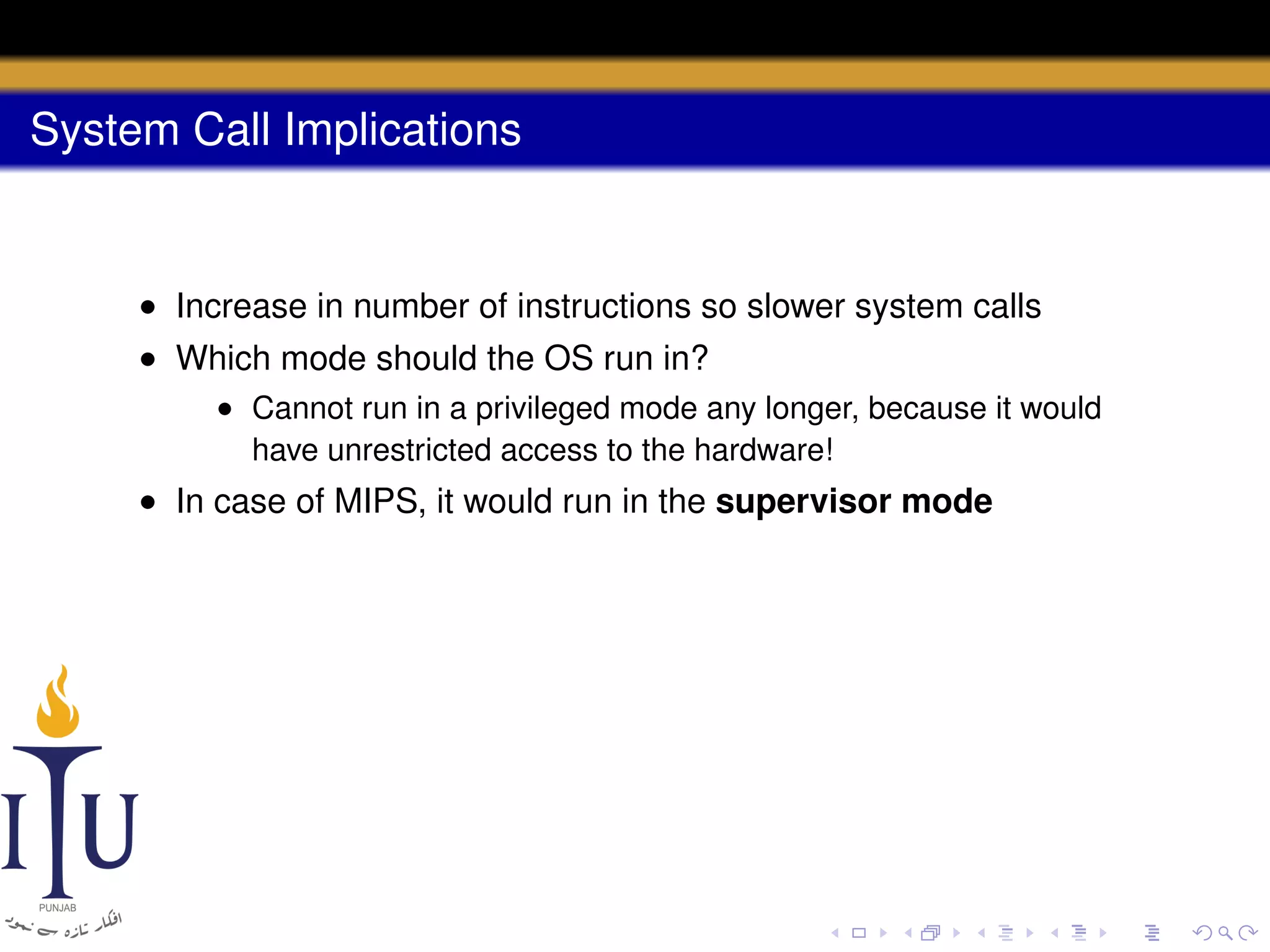

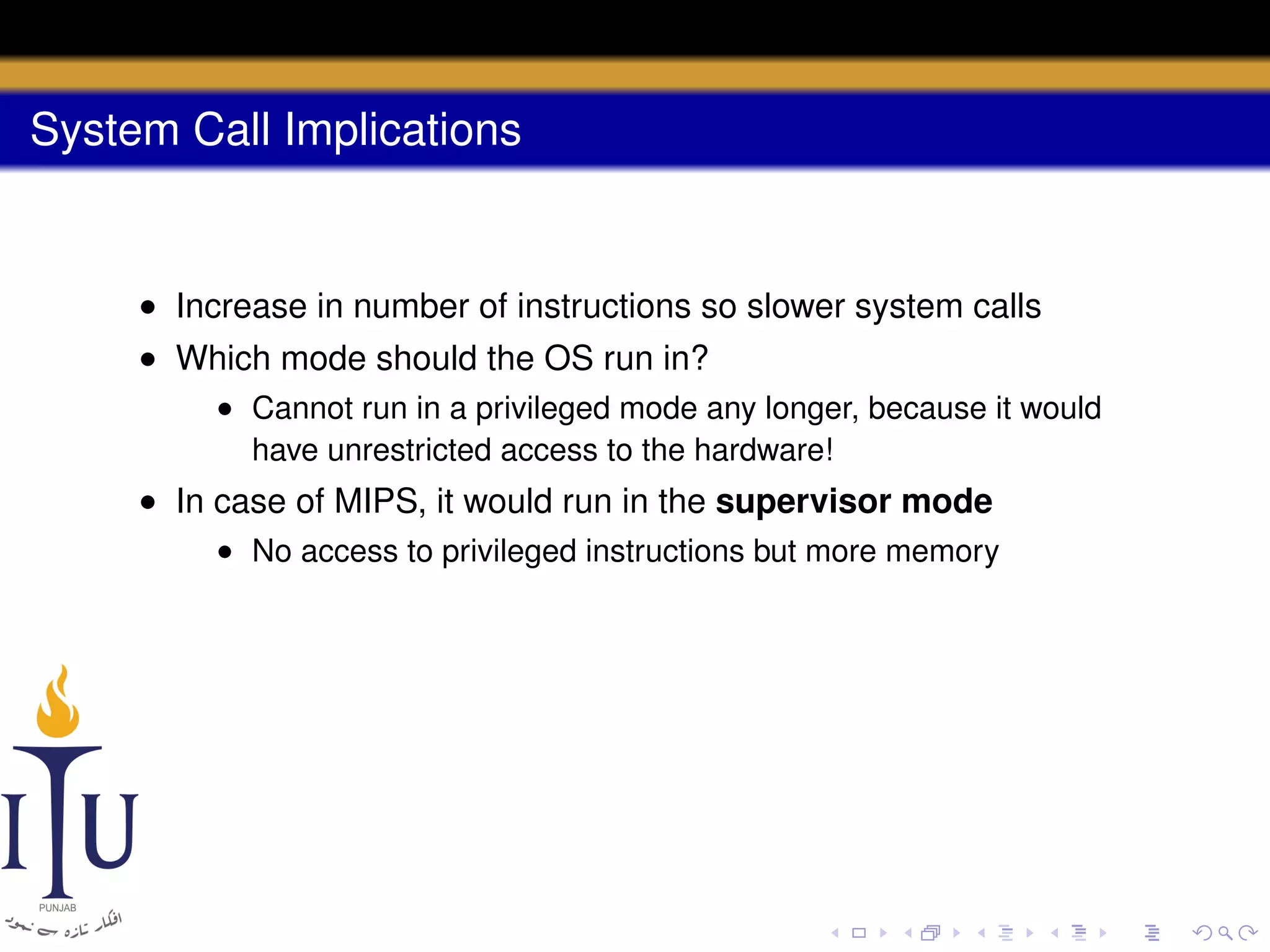

50. System Call Implications
• Increase in number of instructions so slower system calls
• Which mode should the OS run in?
• Cannot run in a privileged mode any longer, because it would
have unrestricted access to the hardware!
• In case of MIPS, it would run in the supervisor mode

51. System Call Implications
• Increase in number of instructions so slower system calls
• Which mode should the OS run in?
• Cannot run in a privileged mode any longer, because it would
have unrestricted access to the hardware!
• In case of MIPS, it would run in the supervisor mode
• No access to privileged instructions but more memory

52. System Call Implications
• Increase in number of instructions so slower system calls
• Which mode should the OS run in?
• Cannot run in a privileged mode any longer, because it would
have unrestricted access to the hardware!
• In case of MIPS, it would run in the supervisor mode
• No access to privileged instructions but more memory
• In case of x86, the guest OS runs in ring 1 while the VMM runs in
ring 0

53. System Call Implications
• Increase in number of instructions so slower system calls
• Which mode should the OS run in?
• Cannot run in a privileged mode any longer, because it would
have unrestricted access to the hardware!
• In case of MIPS, it would run in the supervisor mode
• No access to privileged instructions but more memory
• In case of x86, the guest OS runs in ring 1 while the VMM runs in
ring 0
• What if the hardware has no extra modes?

54. System Call Implications
• Increase in number of instructions so slower system calls
• Which mode should the OS run in?
• Cannot run in a privileged mode any longer, because it would
have unrestricted access to the hardware!
• In case of MIPS, it would run in the supervisor mode
• No access to privileged instructions but more memory
• In case of x86, the guest OS runs in ring 1 while the VMM runs in
ring 0
• What if the hardware has no extra modes?
• The OS runs in user mode and the VMM uses memory protection
(page tables and TLBs) to protect OS data structures

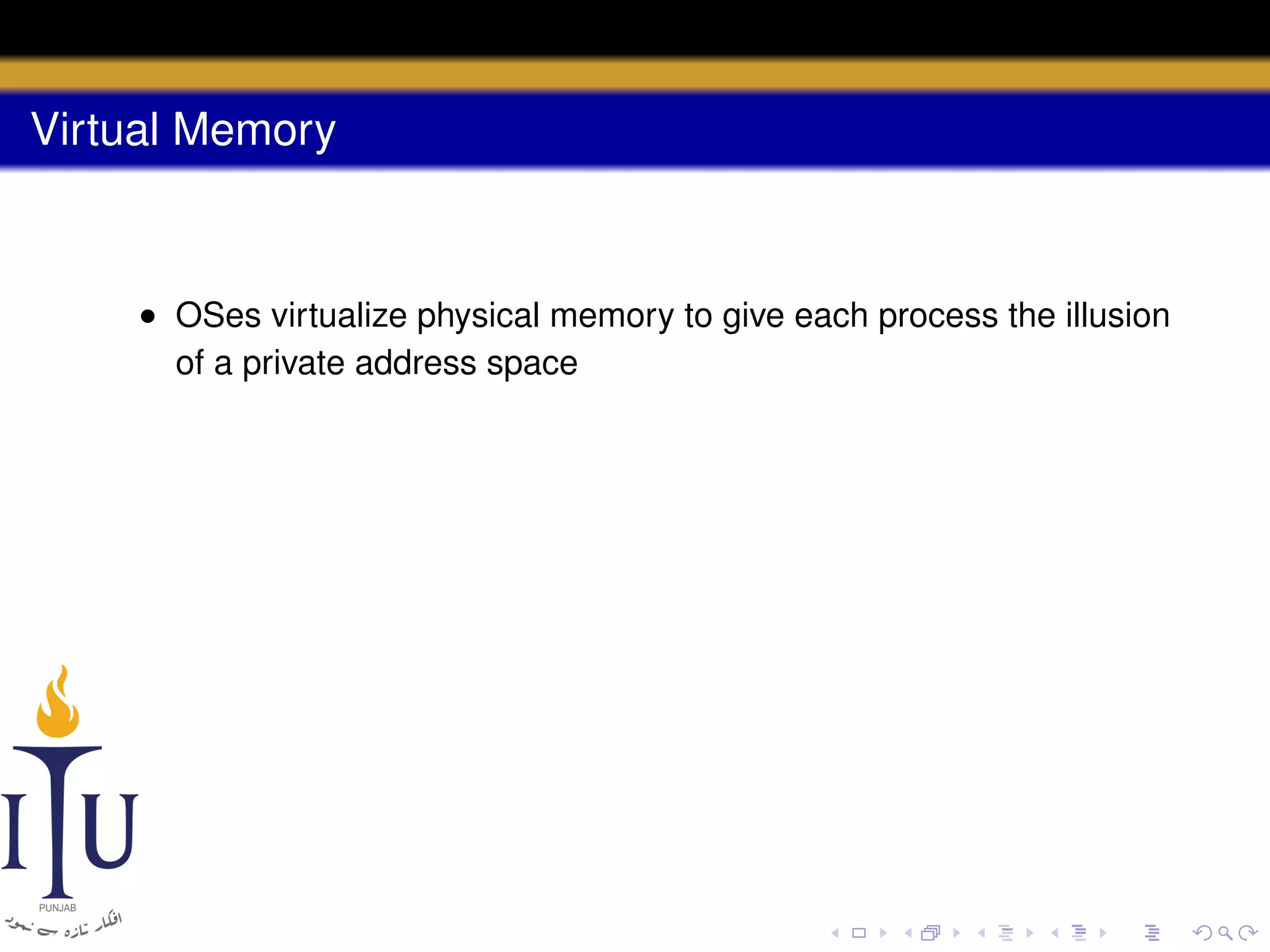

55. Virtual Memory
• OSes virtualize physical memory to give each process the illusion
of a private address space

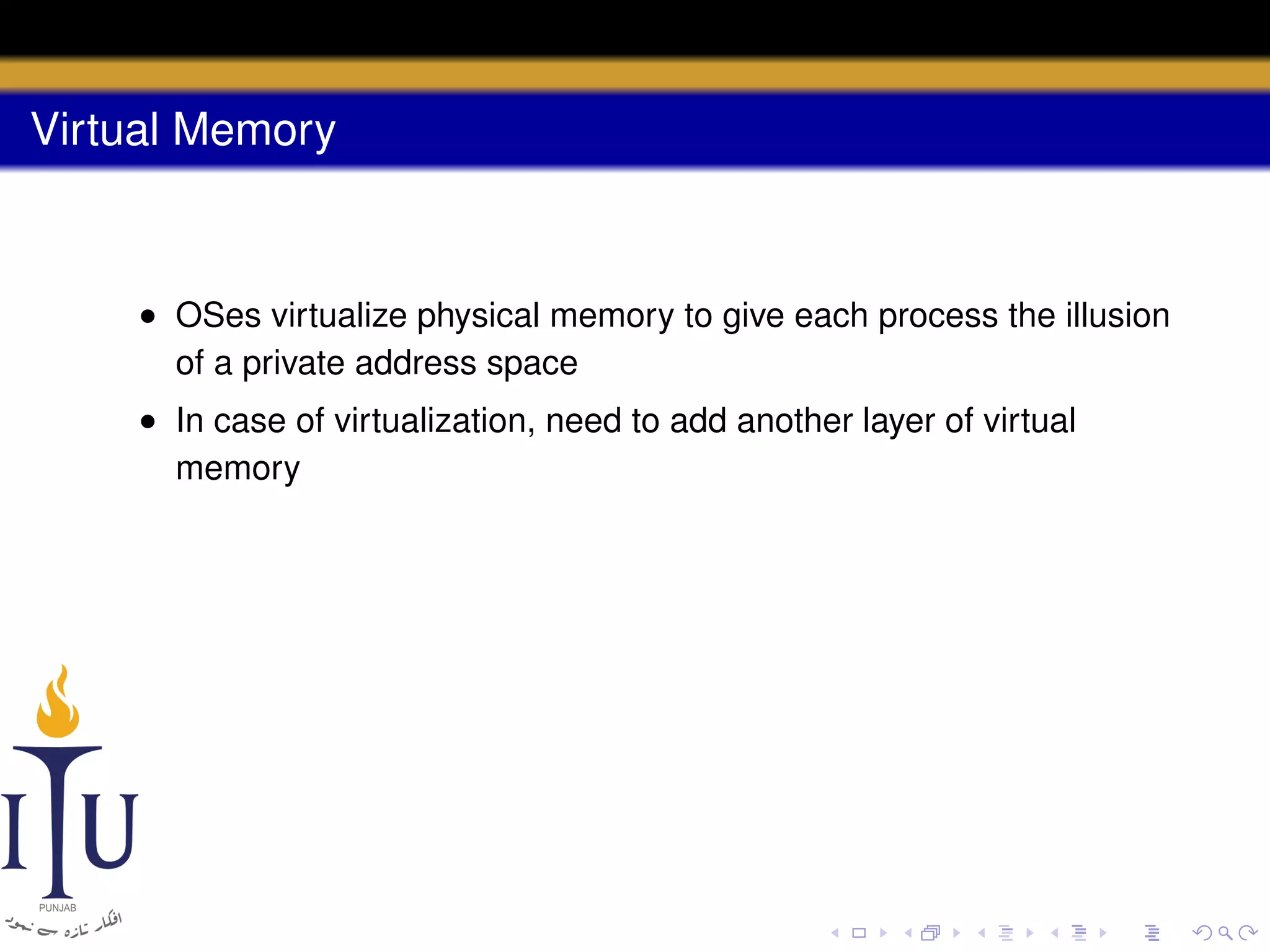

56. Virtual Memory
• OSes virtualize physical memory to give each process the illusion
of a private address space
• In case of virtualization, need to add another layer of virtual
memory

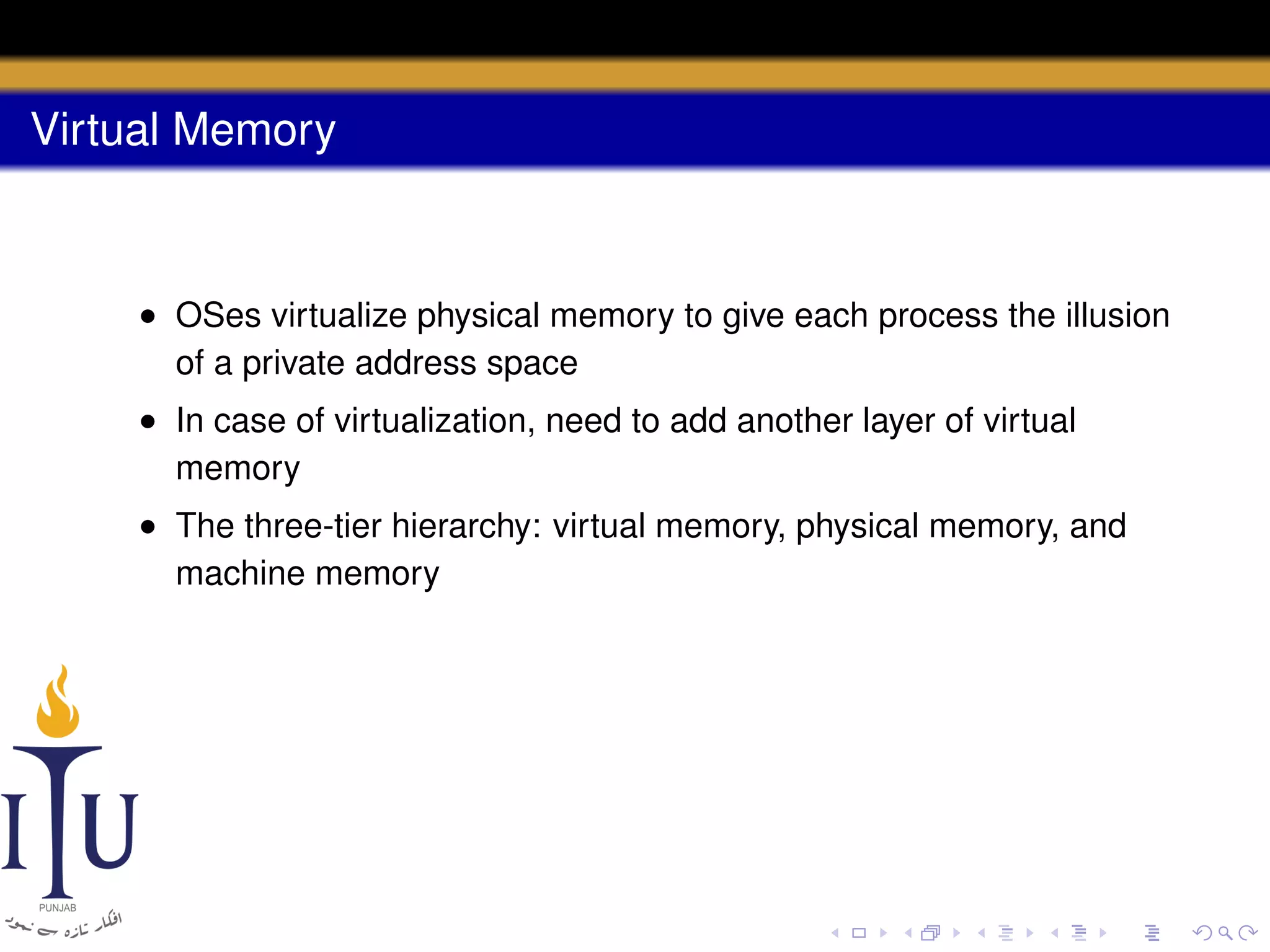

57. Virtual Memory
• OSes virtualize physical memory to give each process the illusion
of a private address space
• In case of virtualization, need to add another layer of virtual
memory
• The three-tier hierarchy: virtual memory, physical memory, and
machine memory

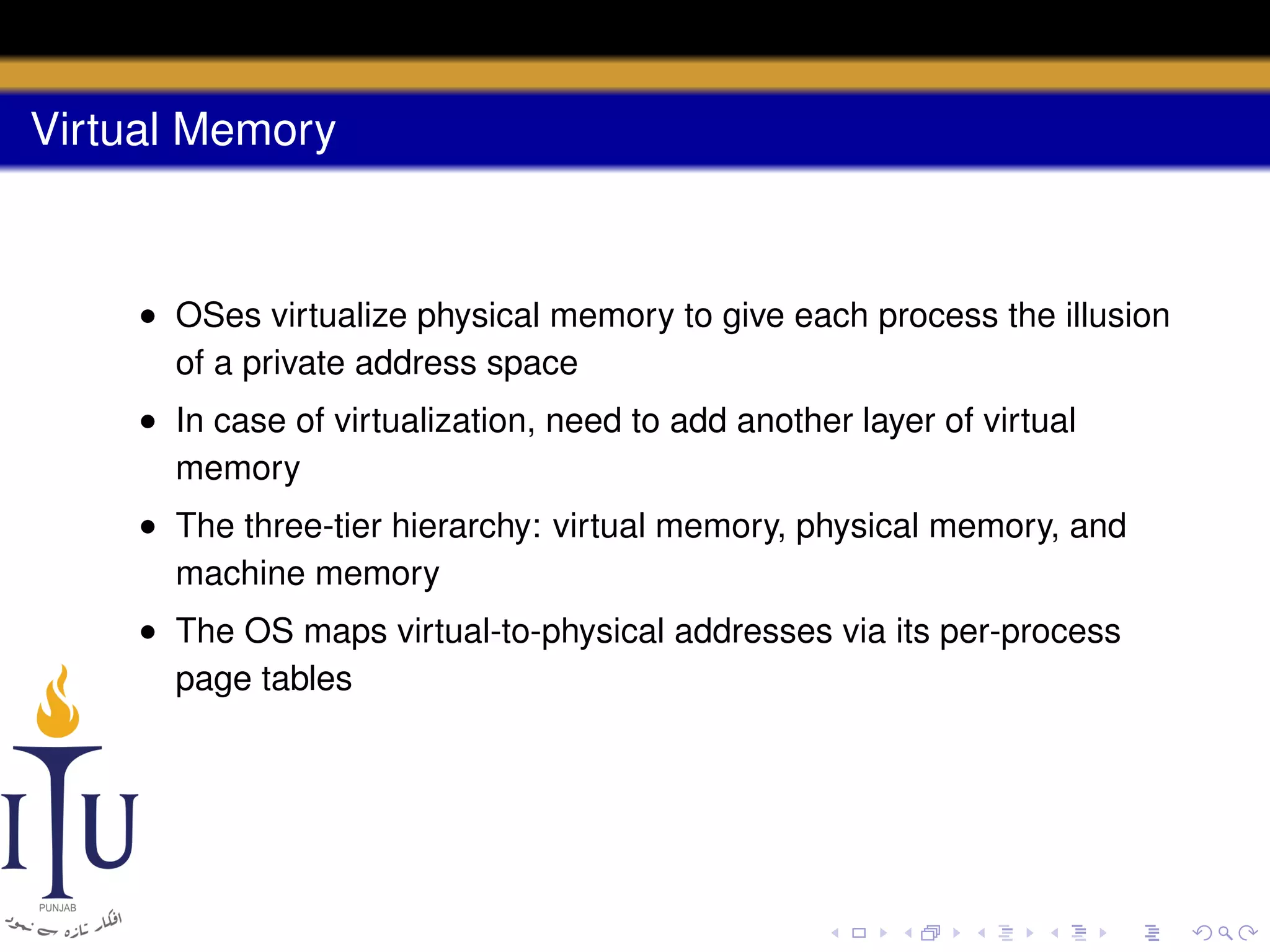

58. Virtual Memory
• OSes virtualize physical memory to give each process the illusion
of a private address space
• In case of virtualization, need to add another layer of virtual
memory
• The three-tier hierarchy: virtual memory, physical memory, and
machine memory
• The OS maps virtual-to-physical addresses via its per-process
page tables

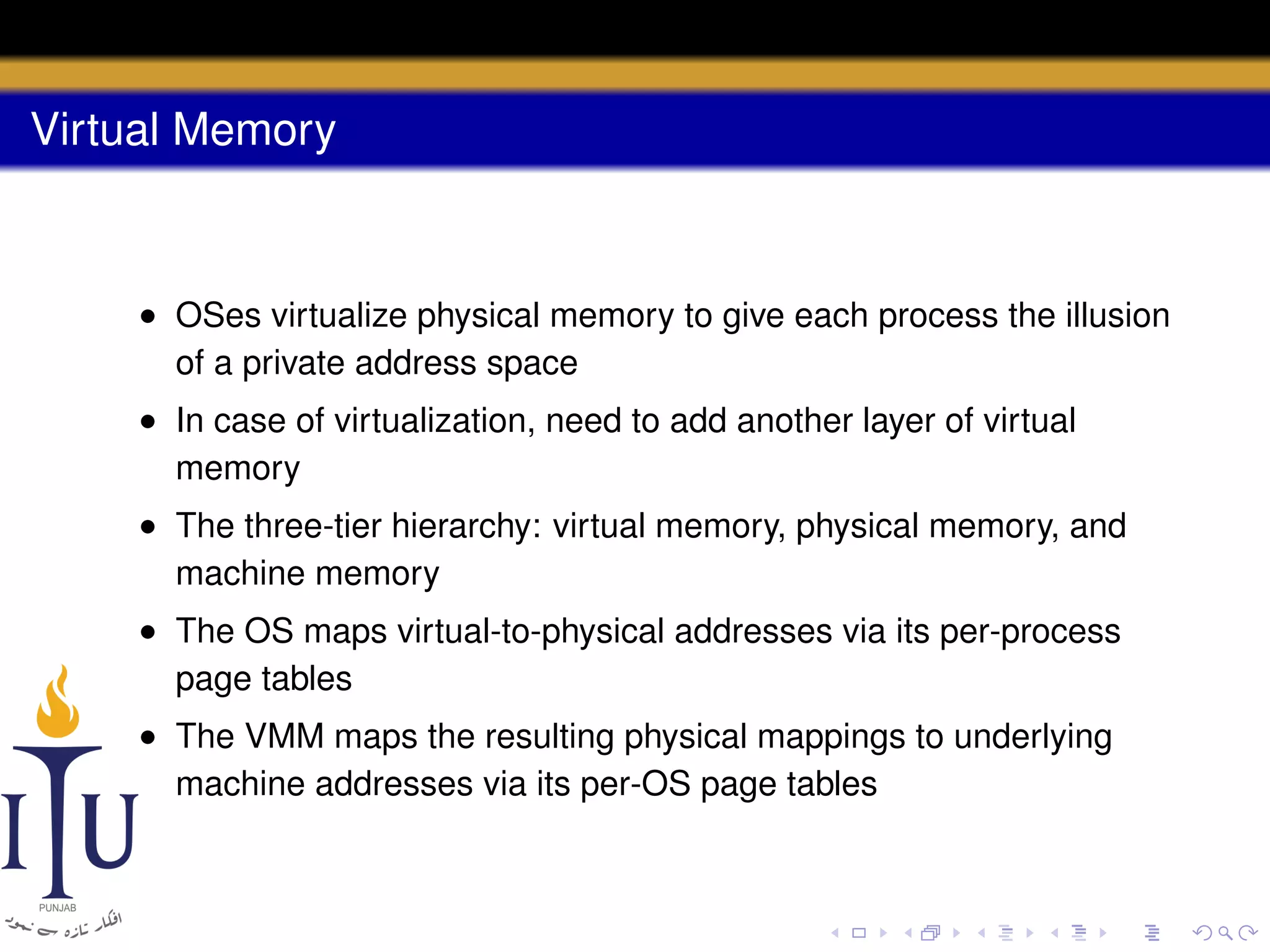

59. Virtual Memory
• OSes virtualize physical memory to give each process the illusion
of a private address space
• In case of virtualization, need to add another layer of virtual
memory
• The three-tier hierarchy: virtual memory, physical memory, and
machine memory
• The OS maps virtual-to-physical addresses via its per-process
page tables
• The VMM maps the resulting physical mappings to underlying
machine addresses via its per-OS page tables

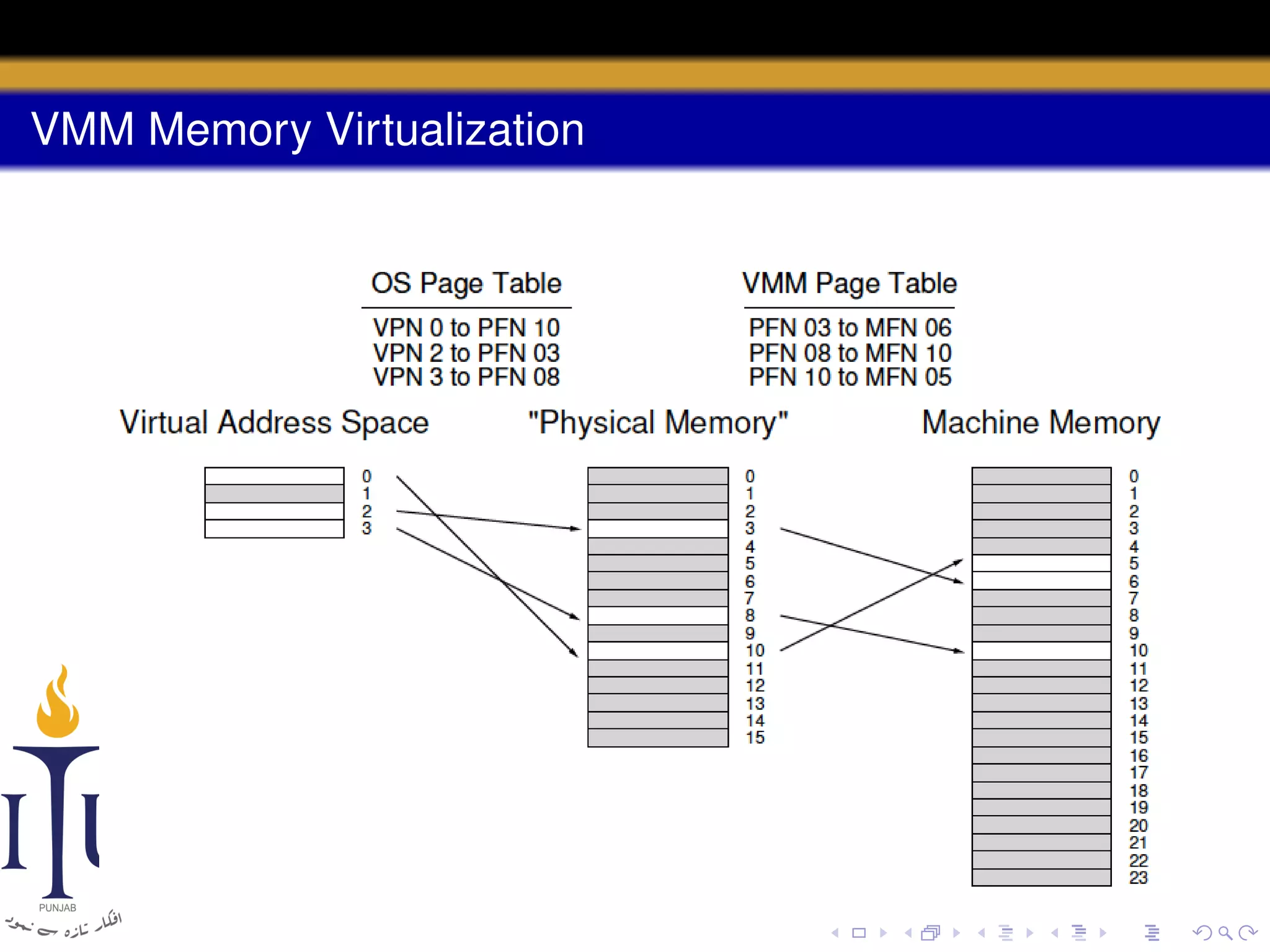

60. VMM Memory Virtualization

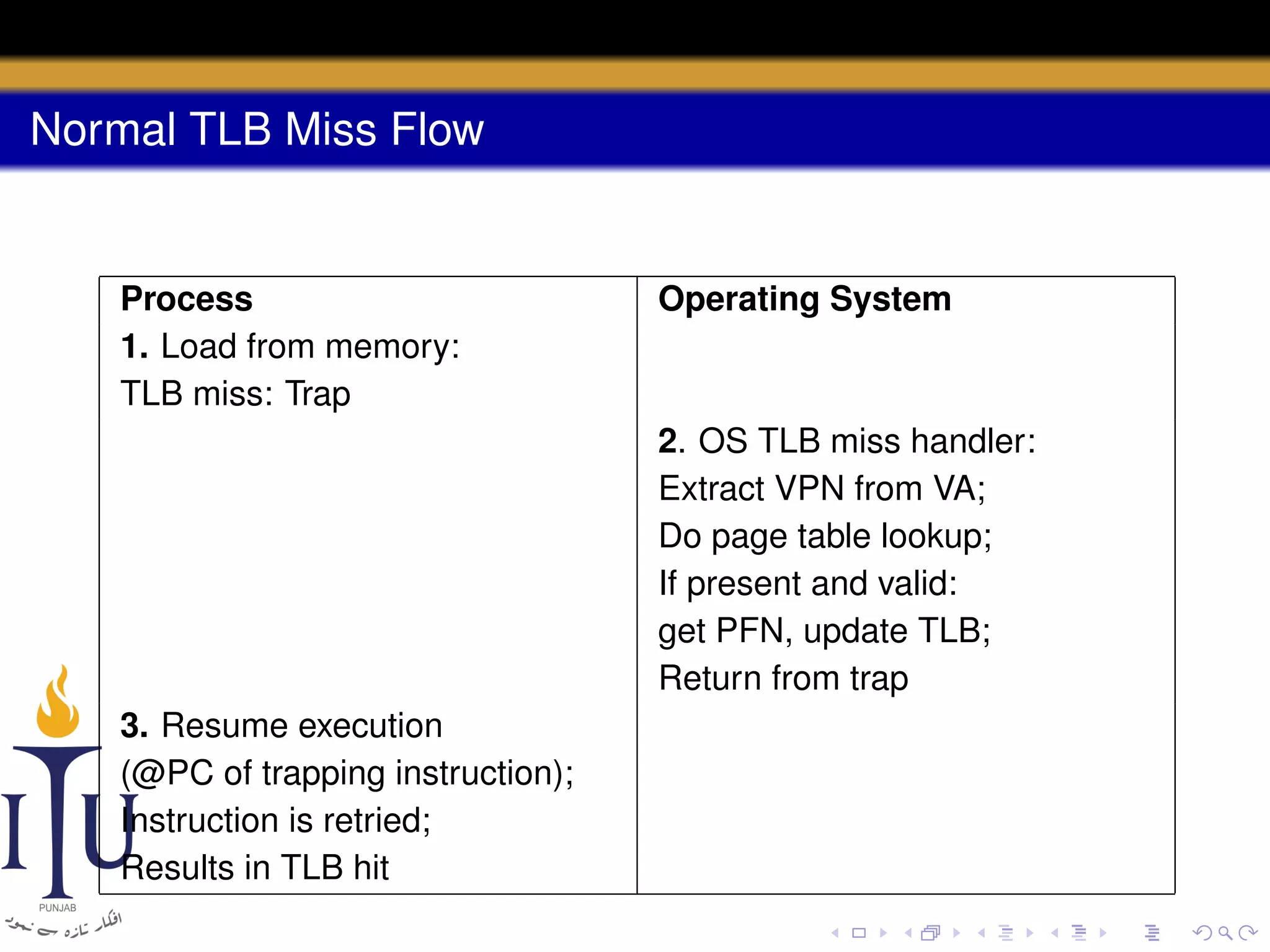

61. Normal TLB Miss Flow
Process
1. Load from memory:
TLB miss: Trap
Operating System
2. OS TLB miss handler:
Extract VPN from VA;
Do page table lookup;
If present and valid:
get PFN, update TLB;
Return from trap
3. Resume execution
(@PC of trapping instruction);
Instruction is retried;
Results in TLB hit

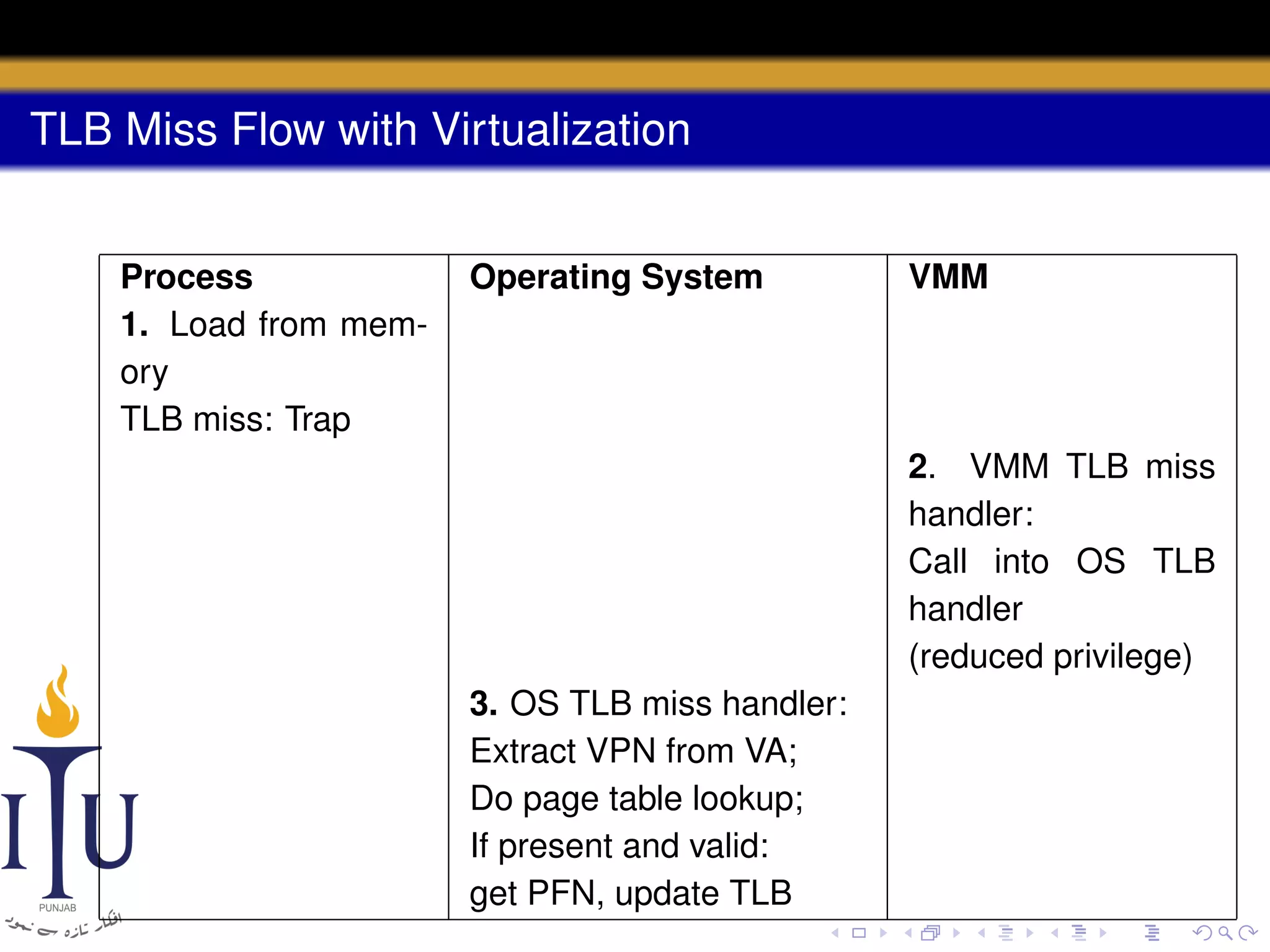

62. TLB Miss Flow with Virtualization
Process
1. Load from memory
TLB miss: Trap
Operating System
VMM
2. VMM TLB miss
handler:
Call into OS TLB
handler
(reduced privilege)
3. OS TLB miss handler:
Extract VPN from VA;
Do page table lookup;
If present and valid:
get PFN, update TLB

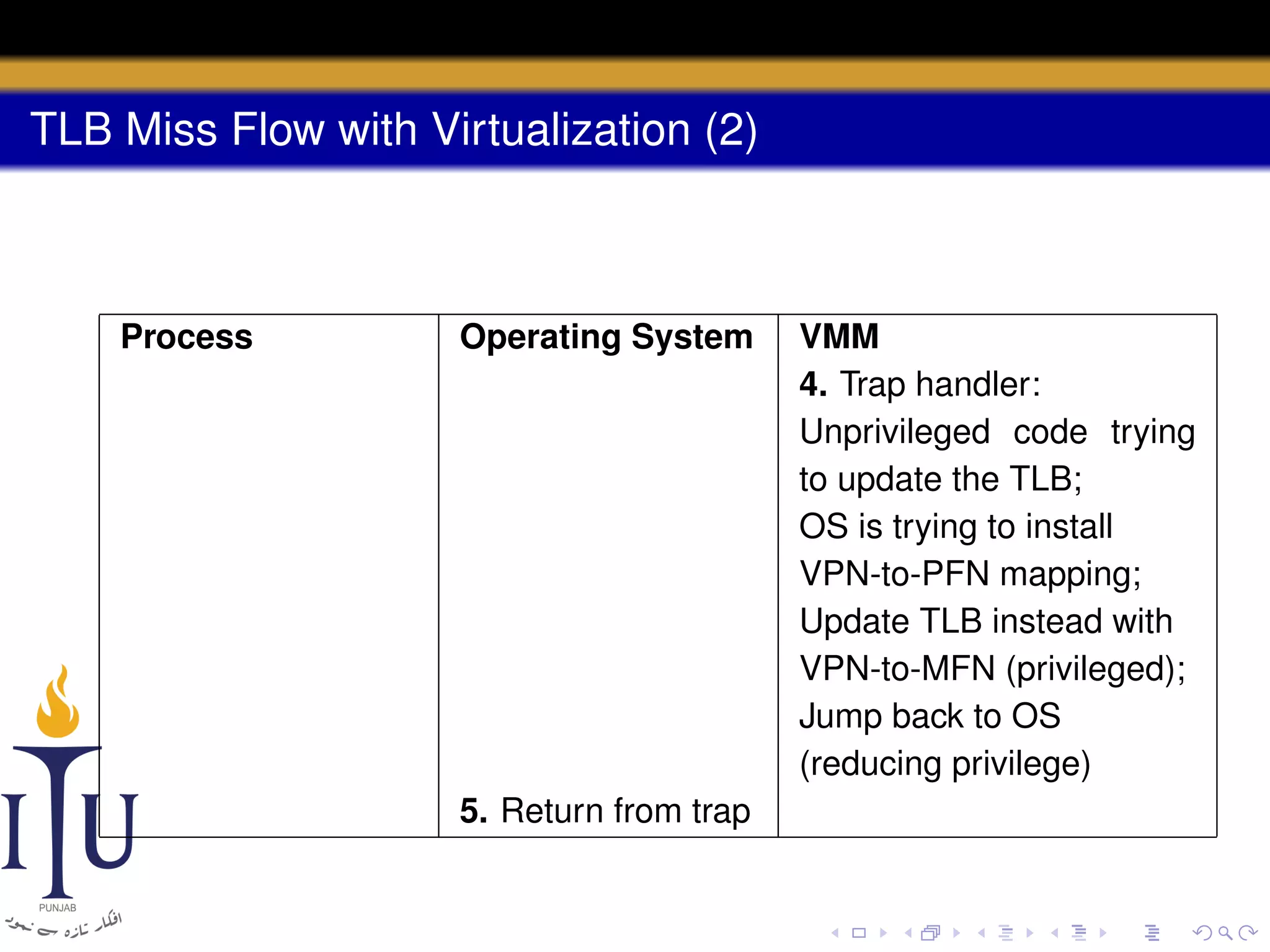

63. TLB Miss Flow with Virtualization (2)
Process
Operating System
5. Return from trap
VMM
4. Trap handler:
Unprivileged code trying
to update the TLB;
OS is trying to install
VPN-to-PFN mapping;
Update TLB instead with
VPN-to-MFN (privileged);
Jump back to OS
(reducing privilege)

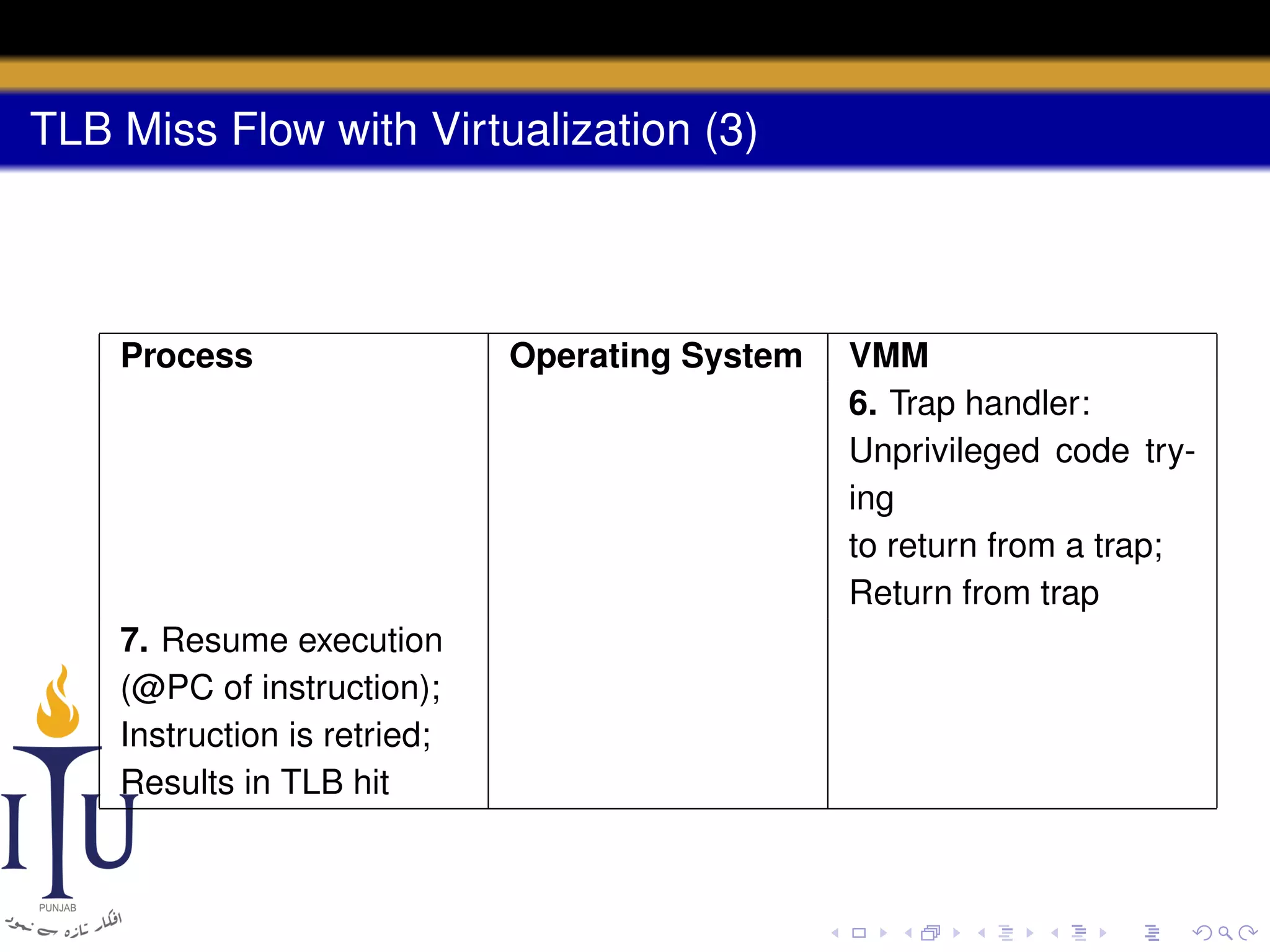

64. TLB Miss Flow with Virtualization (3)
Process
7. Resume execution
(@PC of instruction);
Instruction is retried;
Results in TLB hit
Operating System
VMM
6. Trap handler:
Unprivileged code trying
to return from a trap;
Return from trap

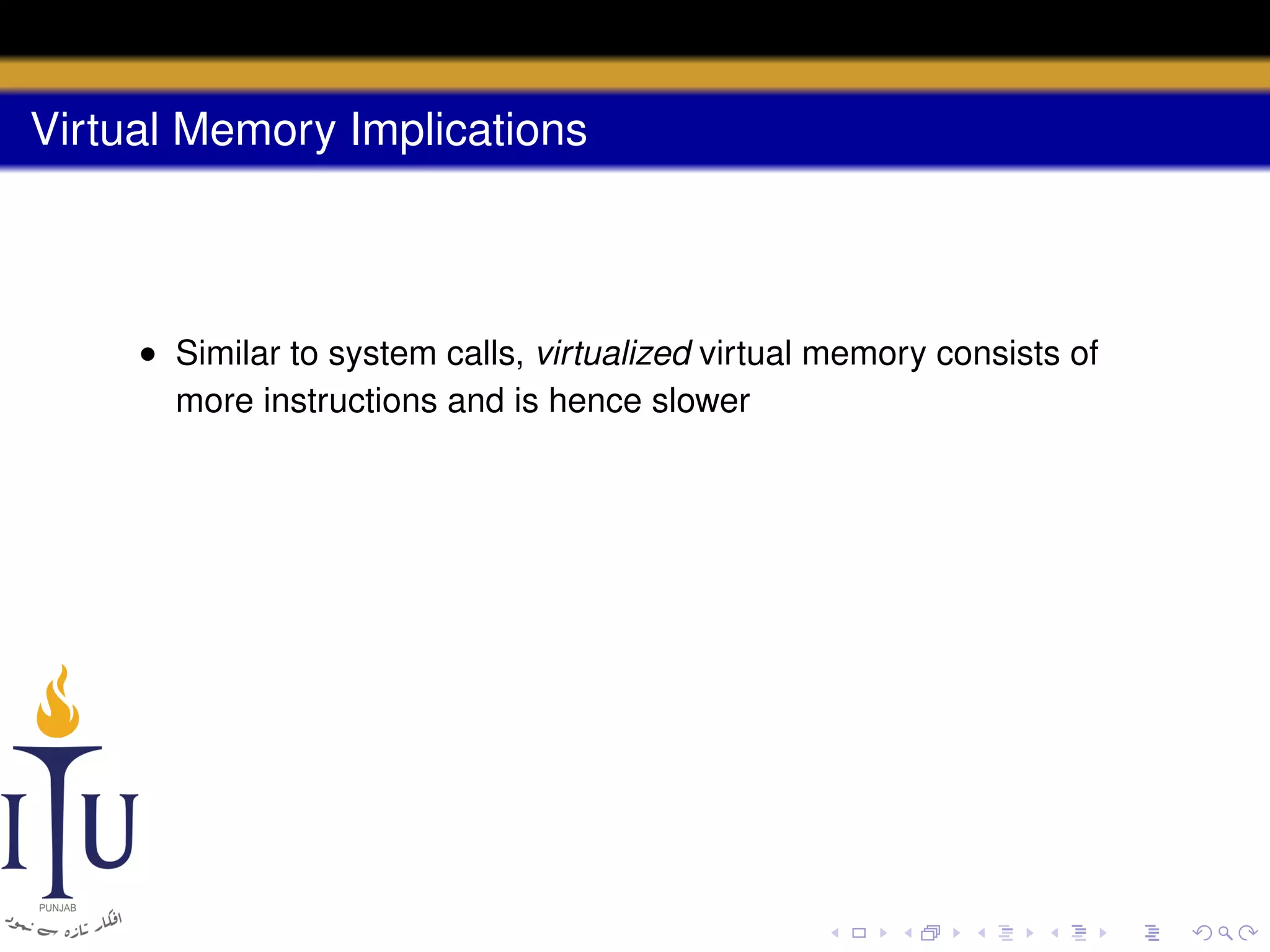

65. Virtual Memory Implications
• Similar to system calls, virtualized virtual memory consists of
more instructions and is hence slower

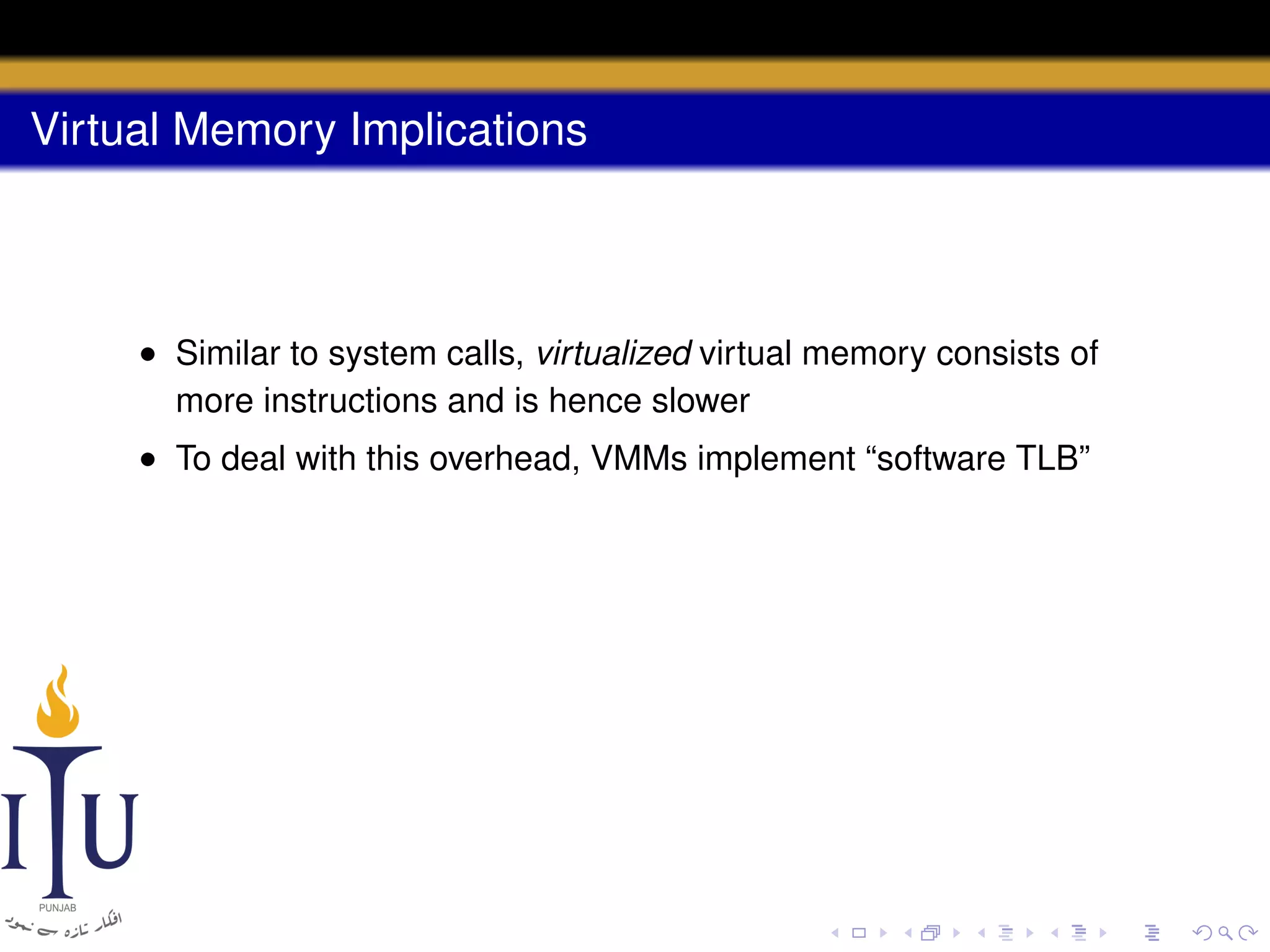

66. Virtual Memory Implications
• Similar to system calls, virtualized virtual memory consists of
more instructions and is hence slower
• To deal with this overhead, VMMs implement “software TLB”

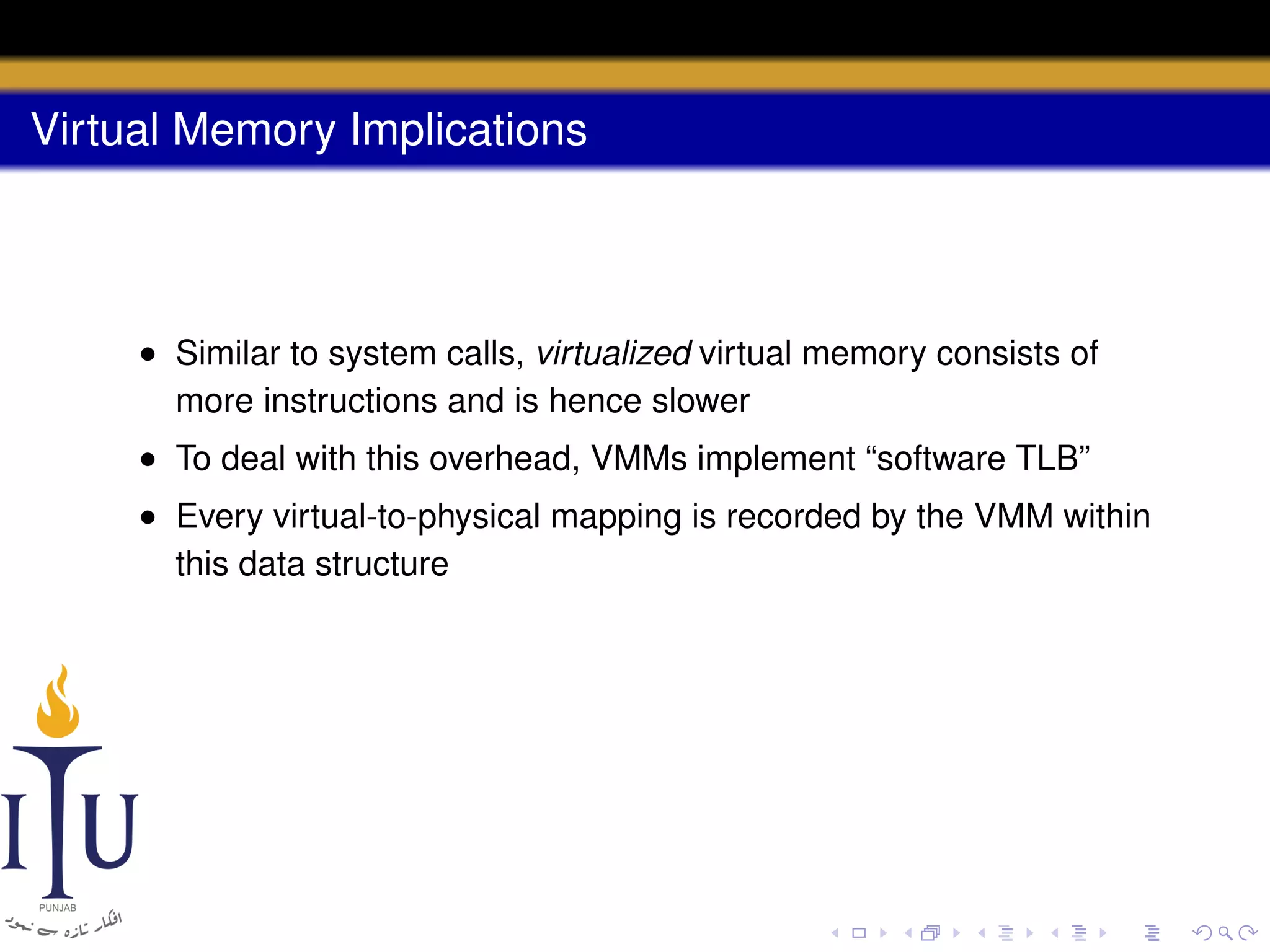

67. Virtual Memory Implications
• Similar to system calls, virtualized virtual memory consists of
more instructions and is hence slower
• To deal with this overhead, VMMs implement “software TLB”
• Every virtual-to-physical mapping is recorded by the VMM within
this data structure

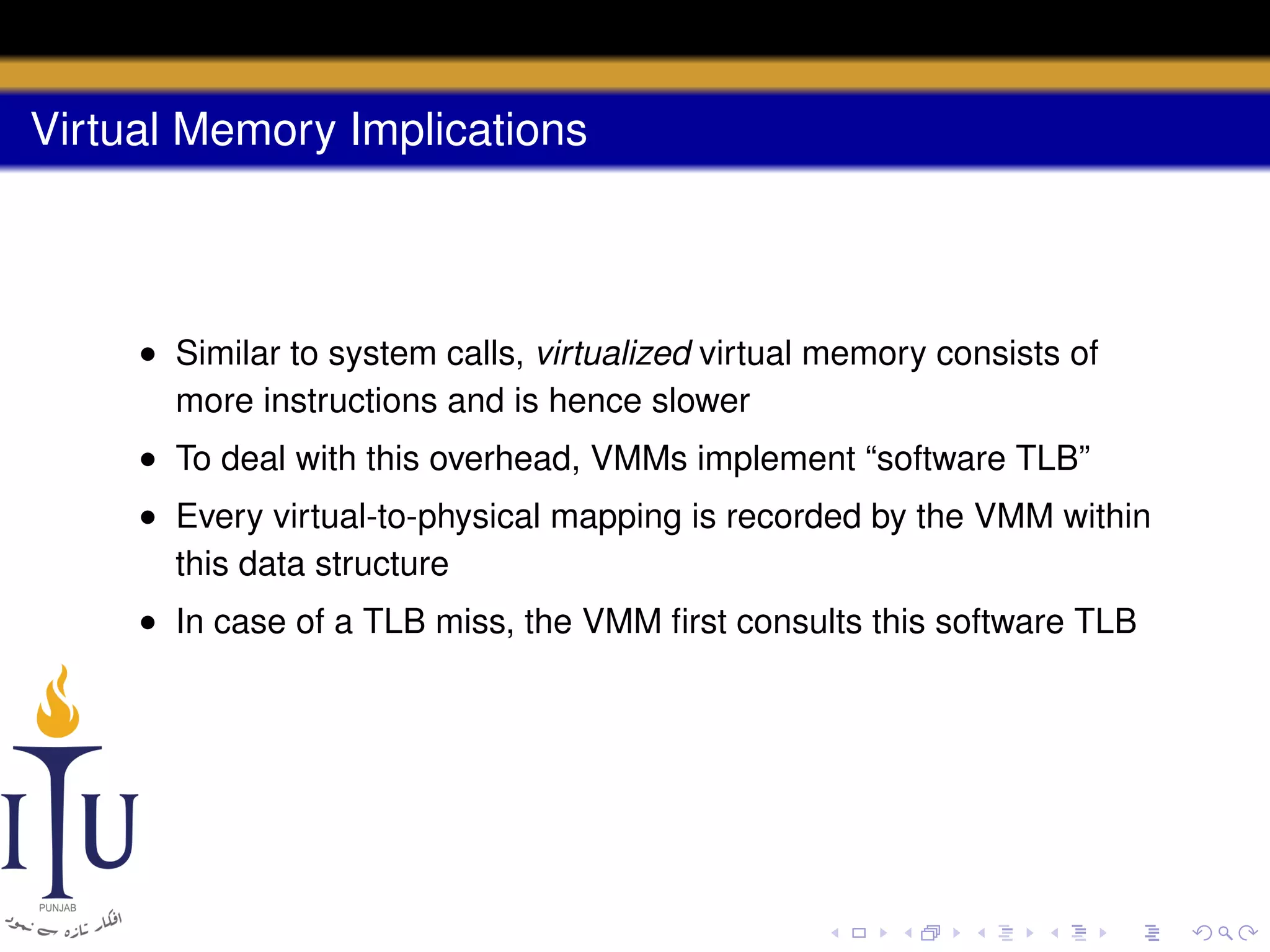

68. Virtual Memory Implications
• Similar to system calls, virtualized virtual memory consists of
more instructions and is hence slower
• To deal with this overhead, VMMs implement “software TLB”
• Every virtual-to-physical mapping is recorded by the VMM within
this data structure
• In case of a TLB miss, the VMM first consults this software TLB

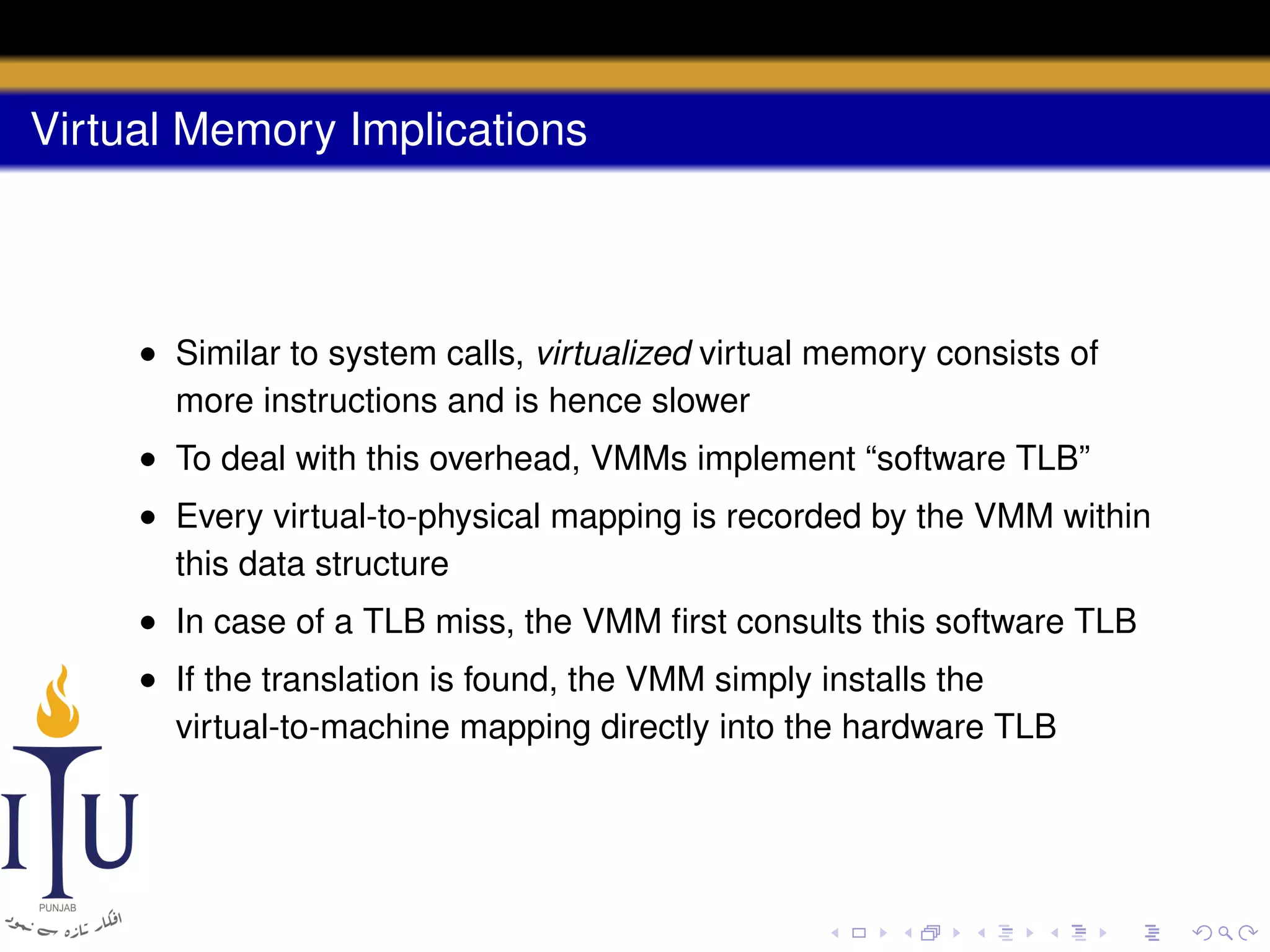

69. Virtual Memory Implications
• Similar to system calls, virtualized virtual memory consists of
more instructions and is hence slower
• To deal with this overhead, VMMs implement “software TLB”
• Every virtual-to-physical mapping is recorded by the VMM within
this data structure
• In case of a TLB miss, the VMM first consults this software TLB
• If the translation is found, the VMM simply installs the
virtual-to-machine mapping directly into the hardware TLB

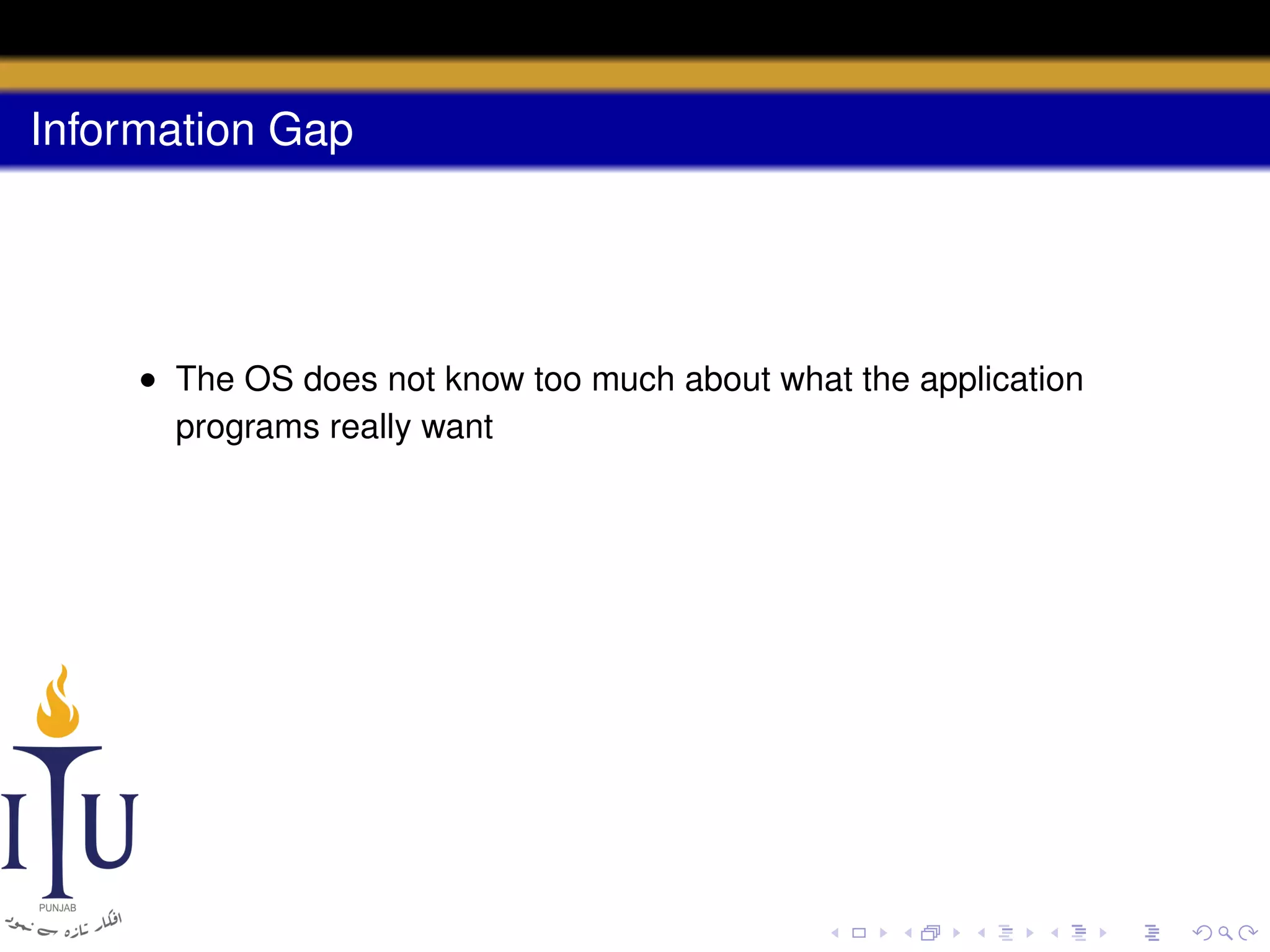

70. Information Gap
• The OS does not know too much about what the application
programs really want

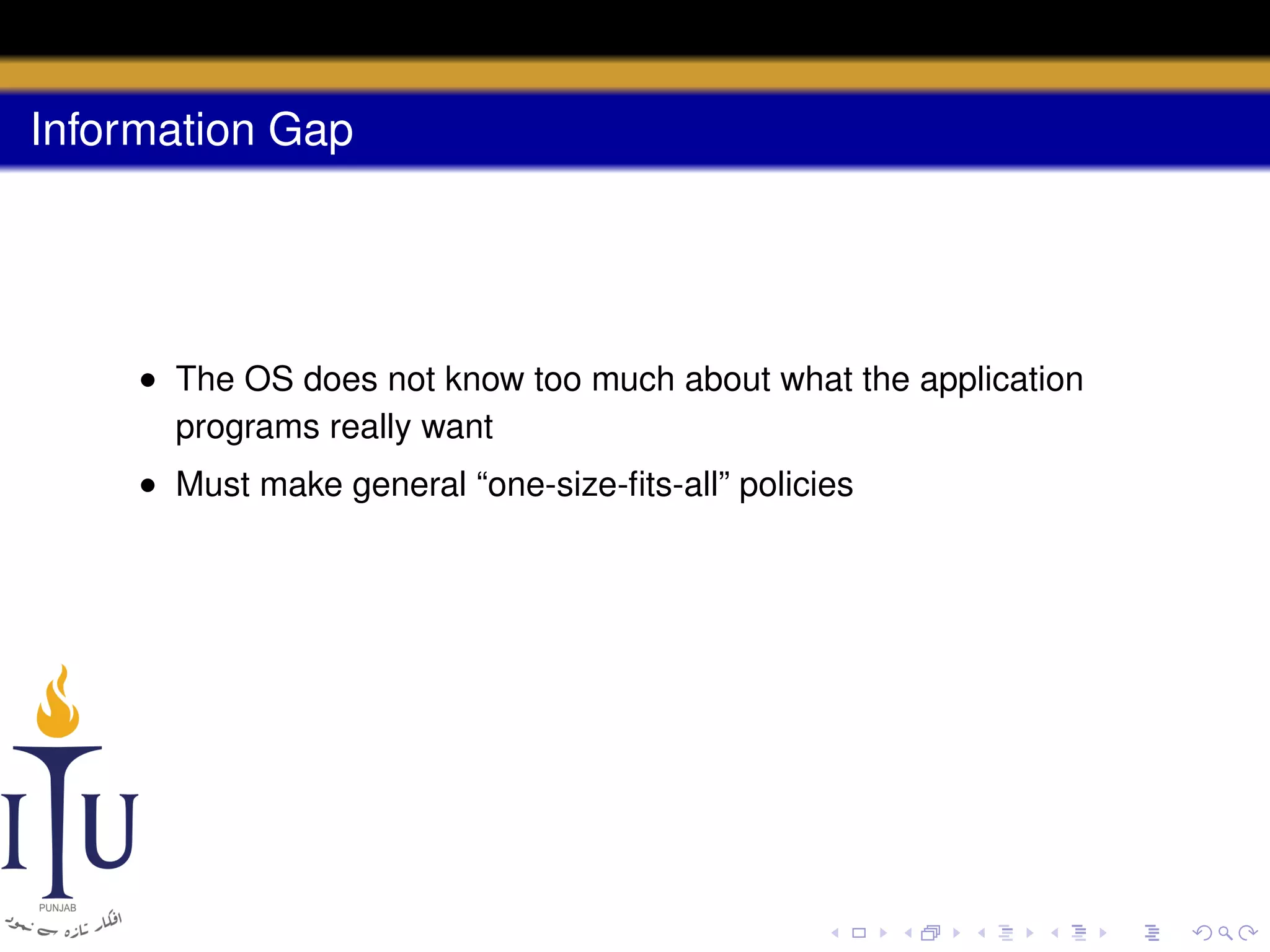

71. Information Gap
• The OS does not know too much about what the application
programs really want
• Must make general “one-size-fits-all” policies

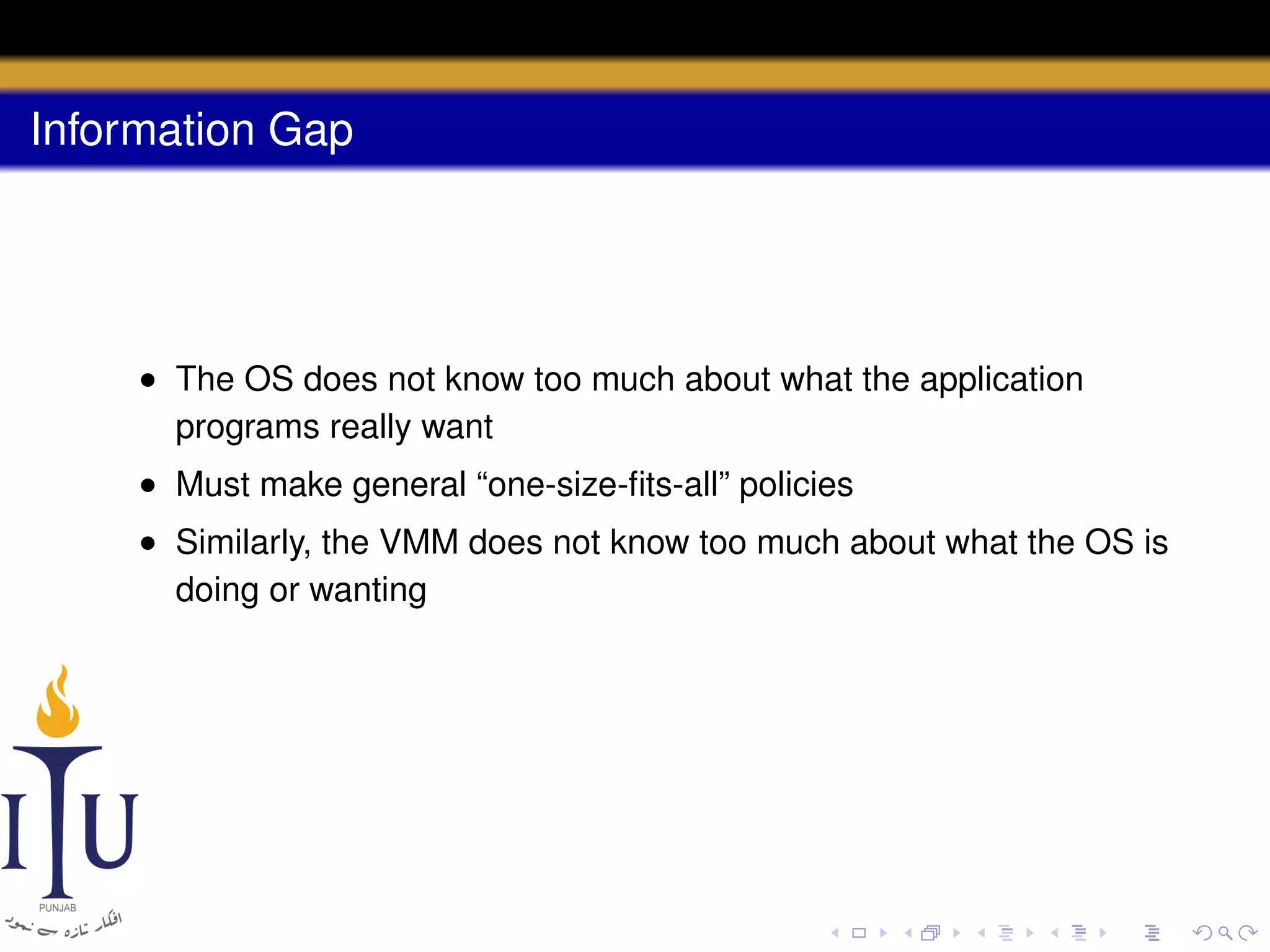

72. Information Gap
• The OS does not know too much about what the application
programs really want
• Must make general “one-size-fits-all” policies
• Similarly, the VMM does not know too much about what the OS is
doing or wanting

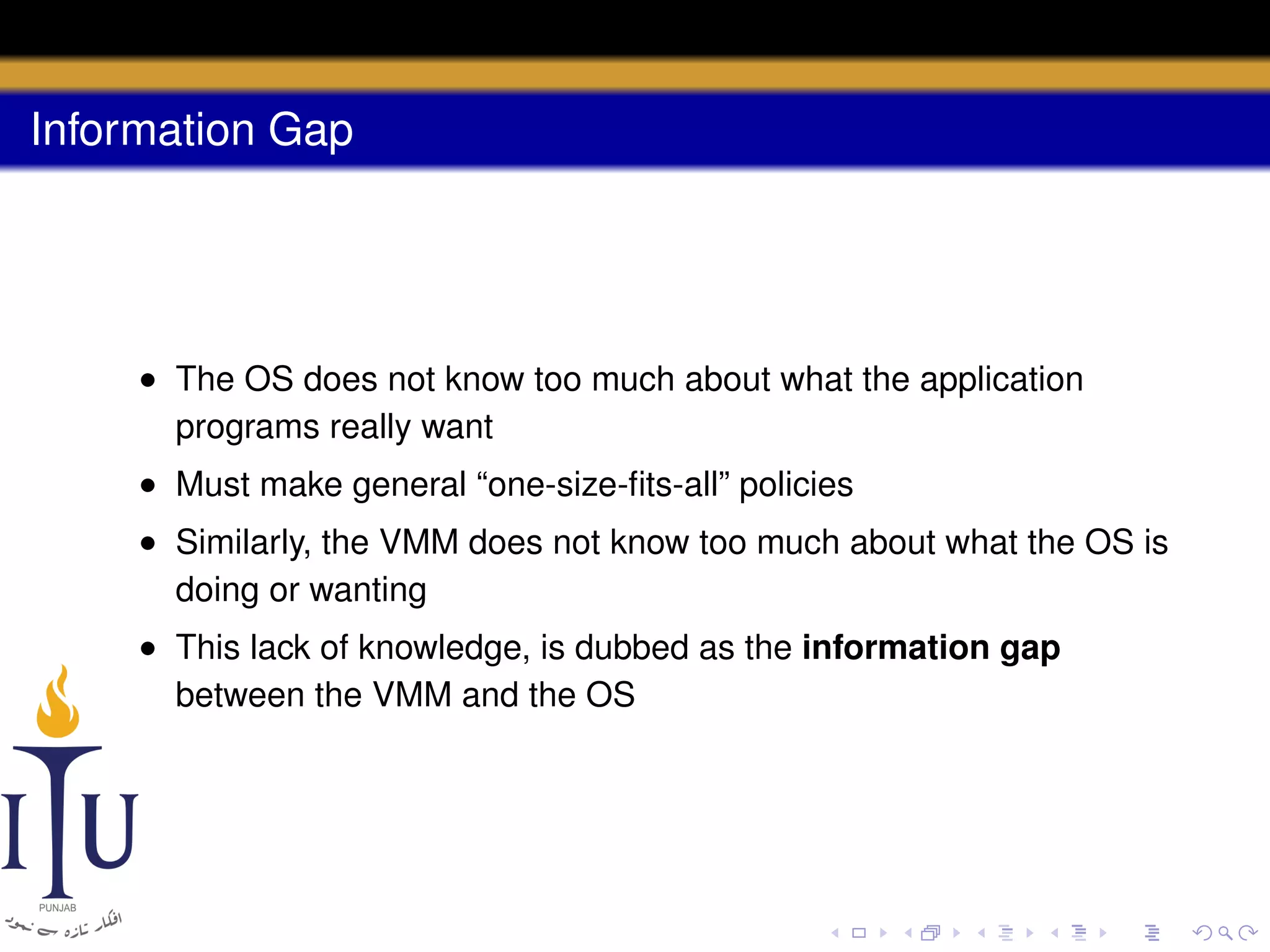

73. Information Gap
• The OS does not know too much about what the application
programs really want
• Must make general “one-size-fits-all” policies
• Similarly, the VMM does not know too much about what the OS is

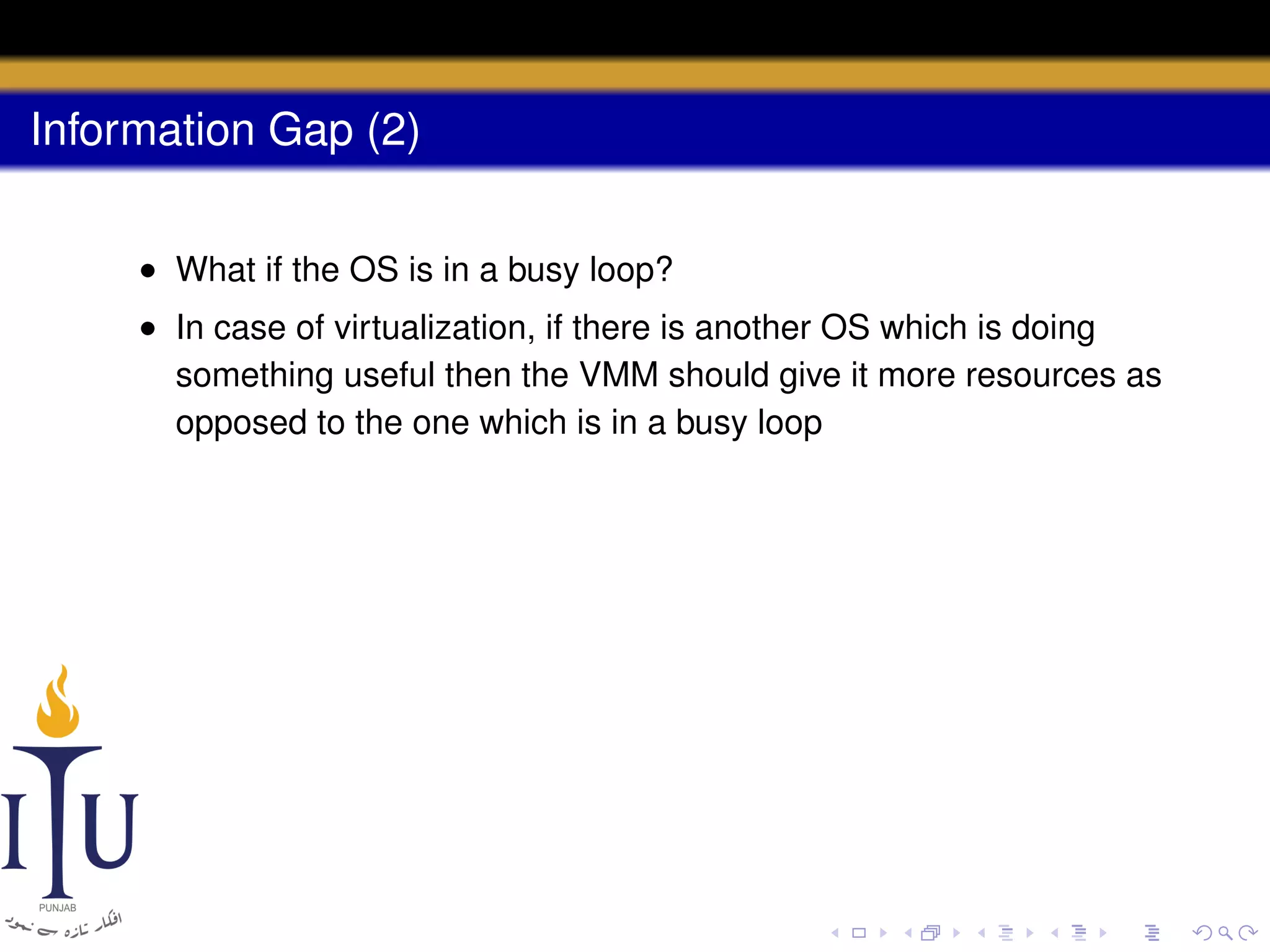

doing or wanting
• This lack of knowledge, is dubbed as the information gap
between the VMM and the OS

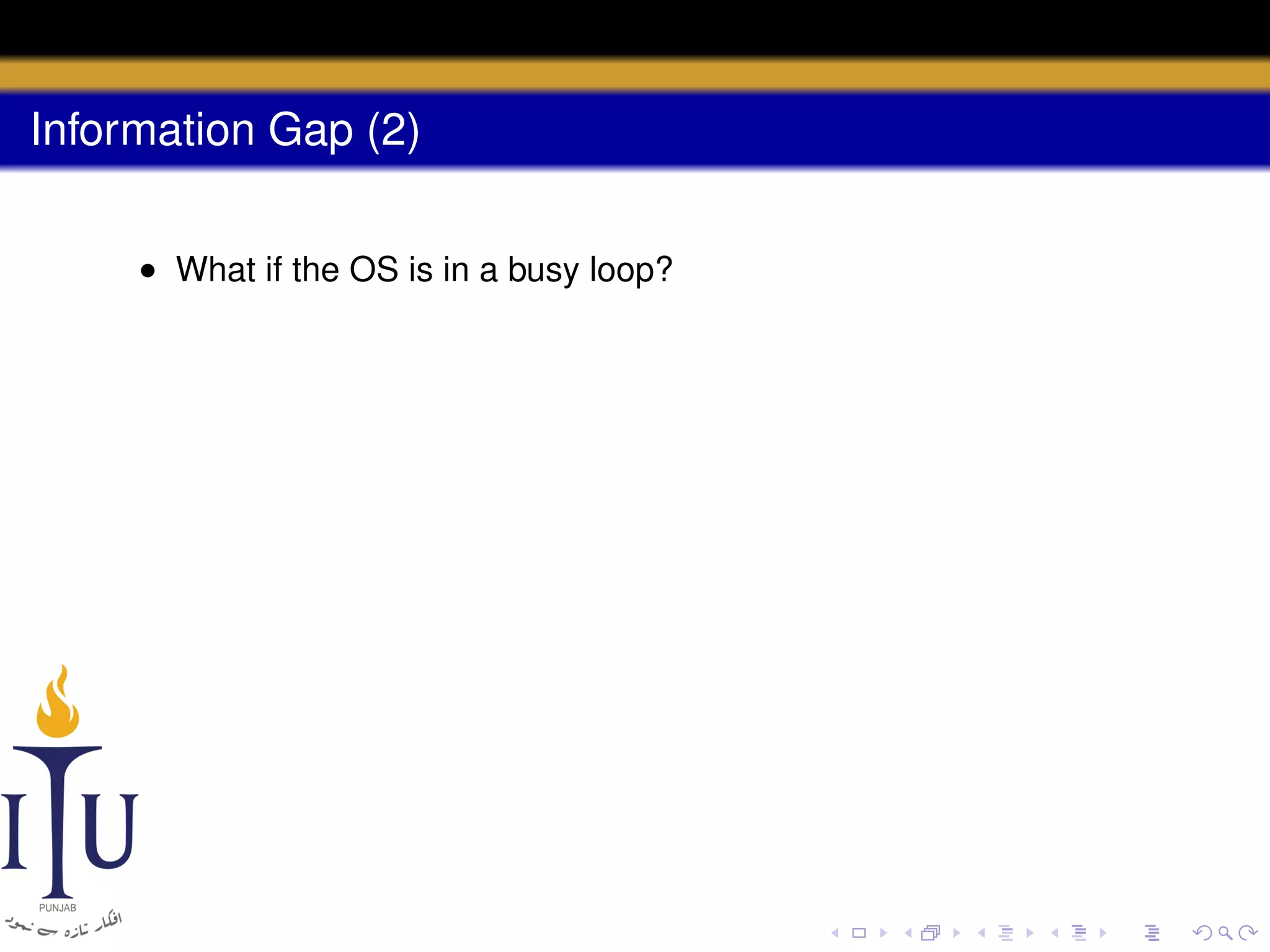

74. Information Gap (2)
• What if the OS is in a busy loop?

75. Information Gap (2)
• What if the OS is in a busy loop?
• In case of virtualization, if there is another OS which is doing
something useful then the VMM should give it more resources as
opposed to the one which is in a busy loop

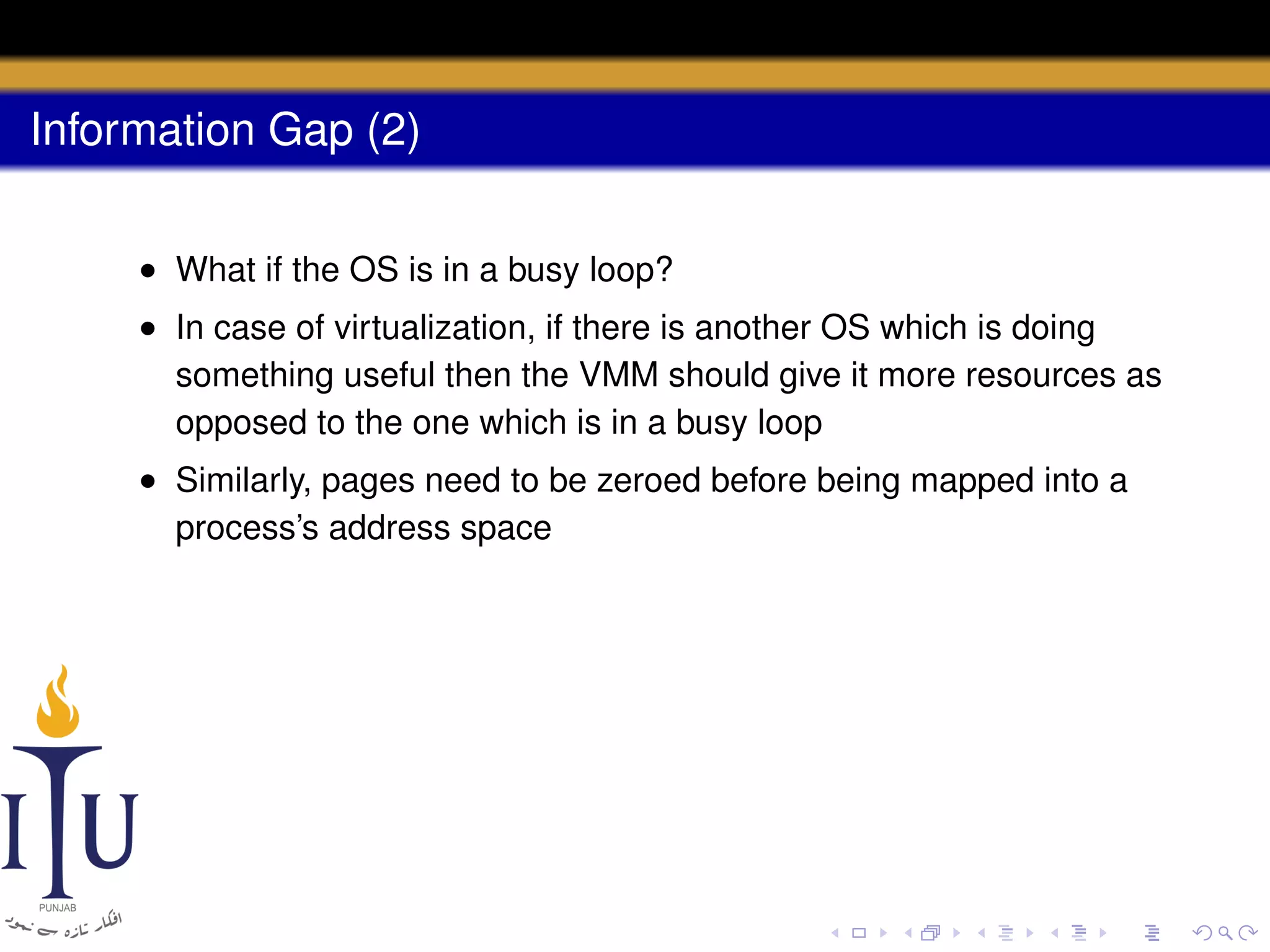

76. Information Gap (2)
• What if the OS is in a busy loop?
• In case of virtualization, if there is another OS which is doing
something useful then the VMM should give it more resources as
opposed to the one which is in a busy loop
• Similarly, pages need to be zeroed before being mapped into a
process’s address space

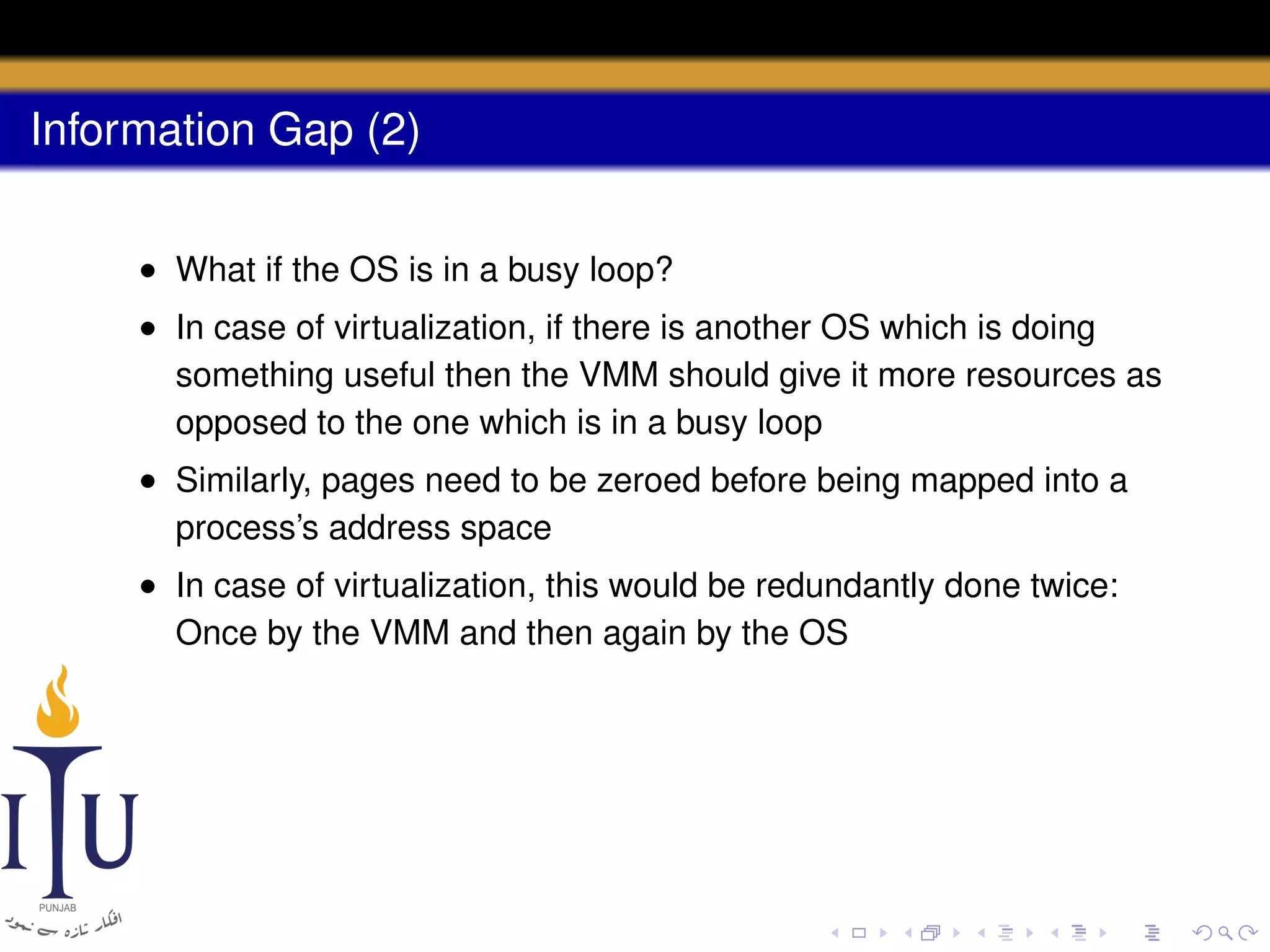

77. Information Gap (2)
• What if the OS is in a busy loop?
• In case of virtualization, if there is another OS which is doing
something useful then the VMM should give it more resources as
opposed to the one which is in a busy loop
• Similarly, pages need to be zeroed before being mapped into a
process’s address space
• In case of virtualization, this would be redundantly done twice:
Once by the VMM and then again by the OS

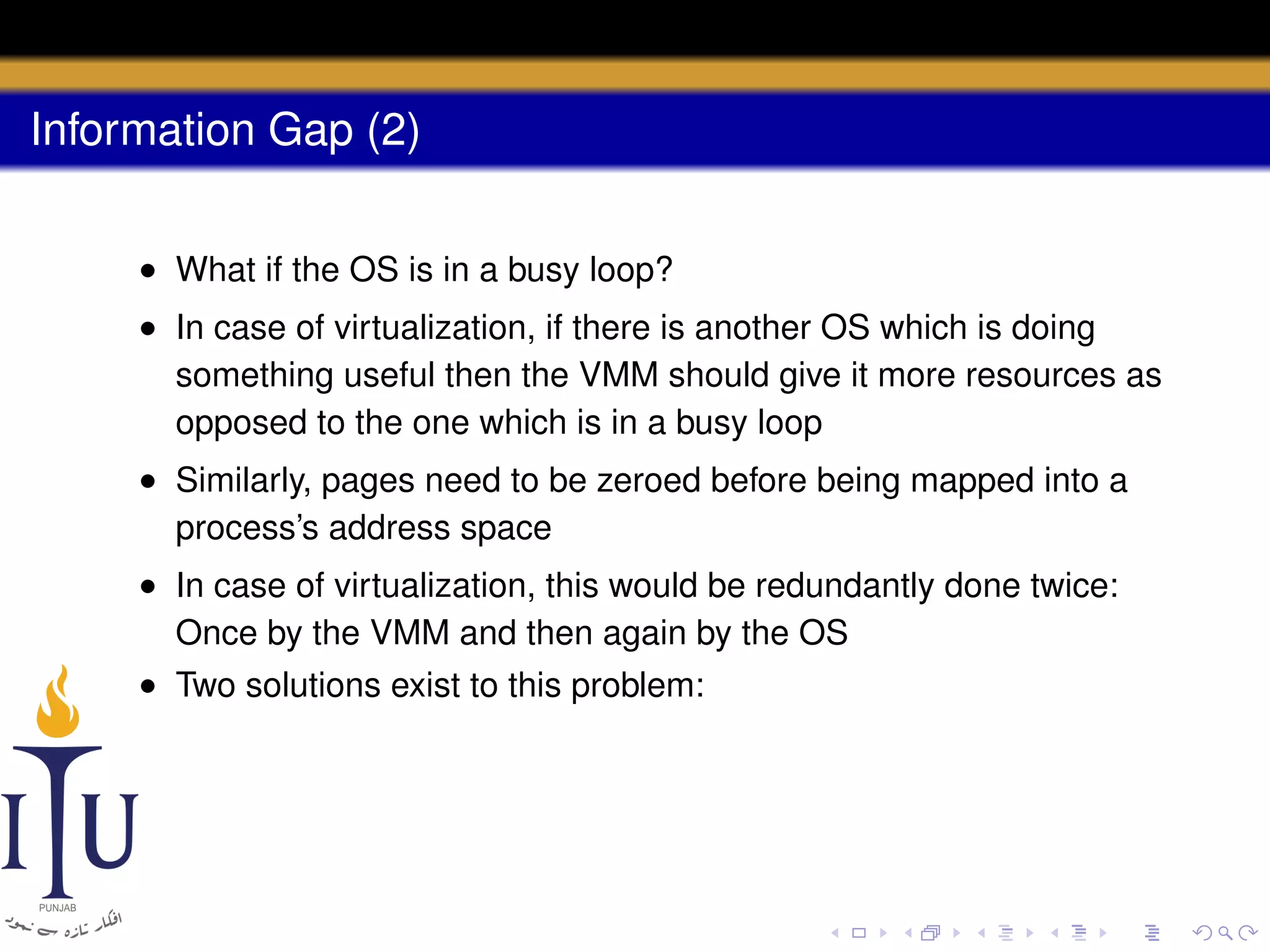

78. Information Gap (2)
• What if the OS is in a busy loop?
• In case of virtualization, if there is another OS which is doing
something useful then the VMM should give it more resources as
opposed to the one which is in a busy loop
• Similarly, pages need to be zeroed before being mapped into a
process’s address space
• In case of virtualization, this would be redundantly done twice:
Once by the VMM and then again by the OS
• Two solutions exist to this problem:

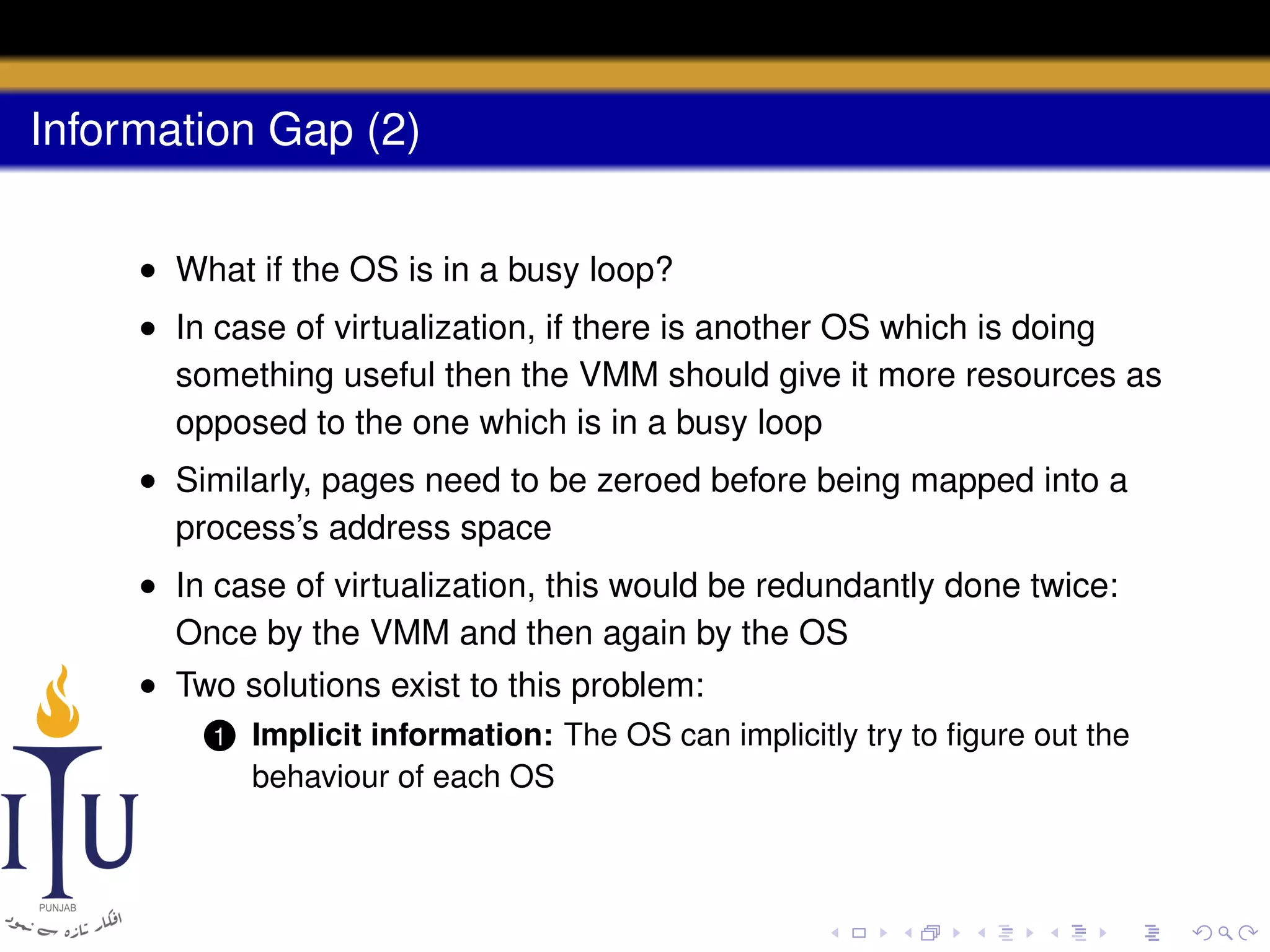

79. Information Gap (2)
• What if the OS is in a busy loop?
• In case of virtualization, if there is another OS which is doing
something useful then the VMM should give it more resources as
opposed to the one which is in a busy loop
• Similarly, pages need to be zeroed before being mapped into a
process’s address space
• In case of virtualization, this would be redundantly done twice:
Once by the VMM and then again by the OS
• Two solutions exist to this problem:
1
Implicit information: The OS can implicitly try to figure out the
behaviour of each OS

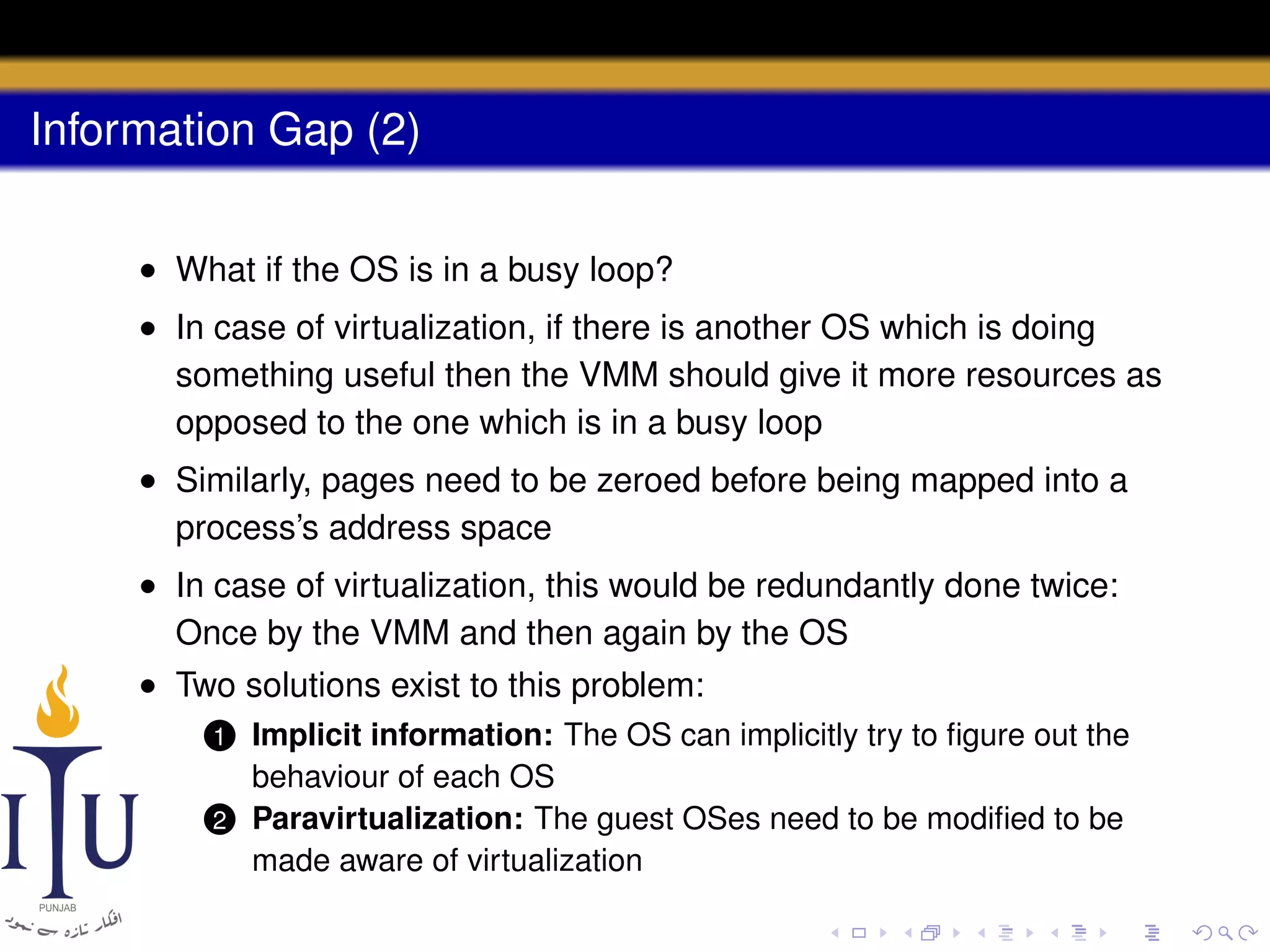

80. Information Gap (2)
• What if the OS is in a busy loop?
• In case of virtualization, if there is another OS which is doing
something useful then the VMM should give it more resources as
opposed to the one which is in a busy loop
• Similarly, pages need to be zeroed before being mapped into a
process’s address space
• In case of virtualization, this would be redundantly done twice:
Once by the VMM and then again by the OS
• Two solutions exist to this problem:
Implicit information: The OS can implicitly try to figure out the
behaviour of each OS
2 Paravirtualization: The guest OSes need to be modified to be
made aware of virtualization
1

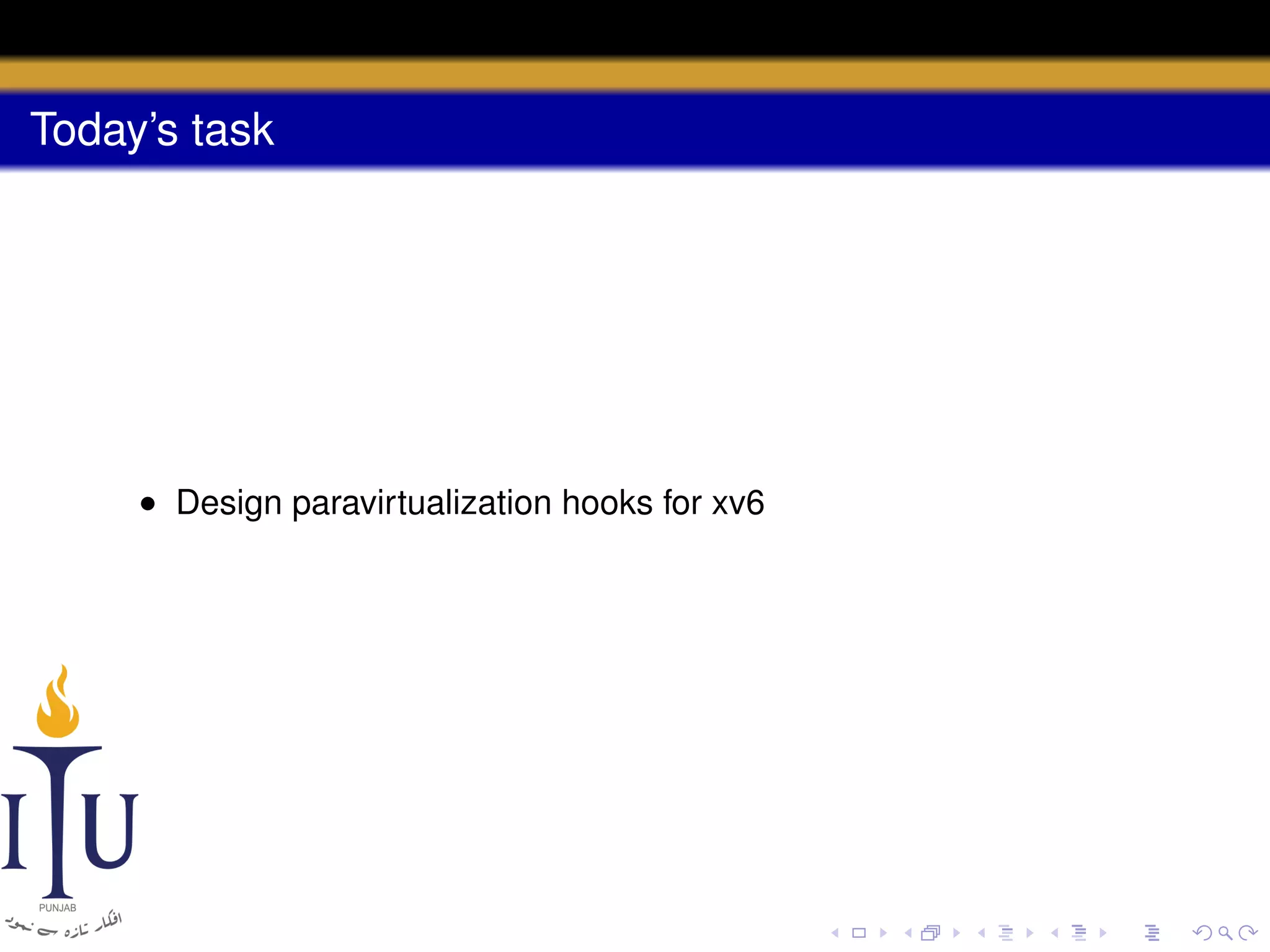

81. Today’s task
• Design paravirtualization hooks for xv6

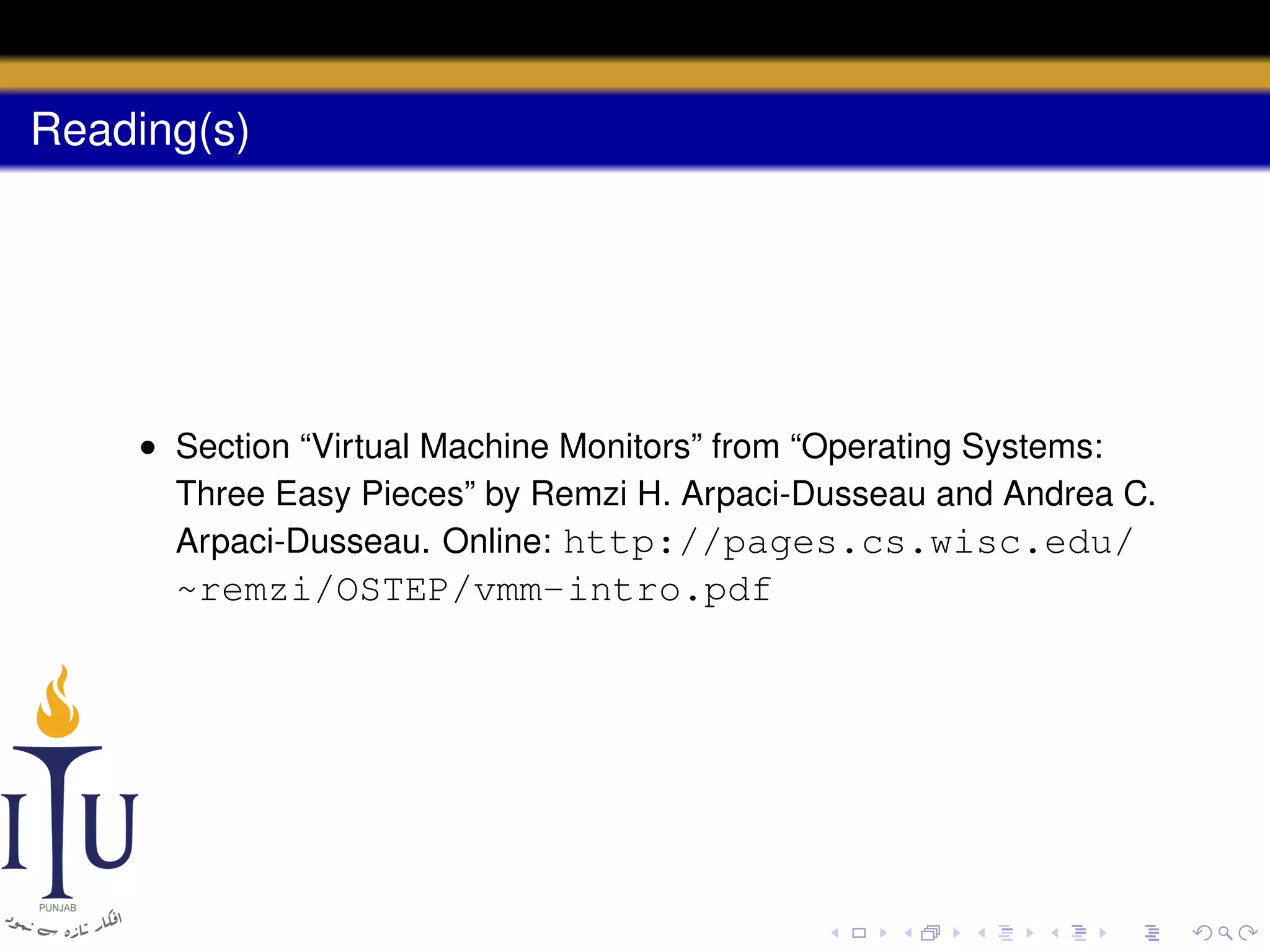

82. Reading(s)
• Section “Virtual Machine Monitors” from “Operating Systems:
Three Easy Pieces” by Remzi H. Arpaci-Dusseau and Andrea C.
Arpaci-Dusseau. Online: http://pages.cs.wisc.edu/
~remzi/OSTEP/vmm-intro.pdf
