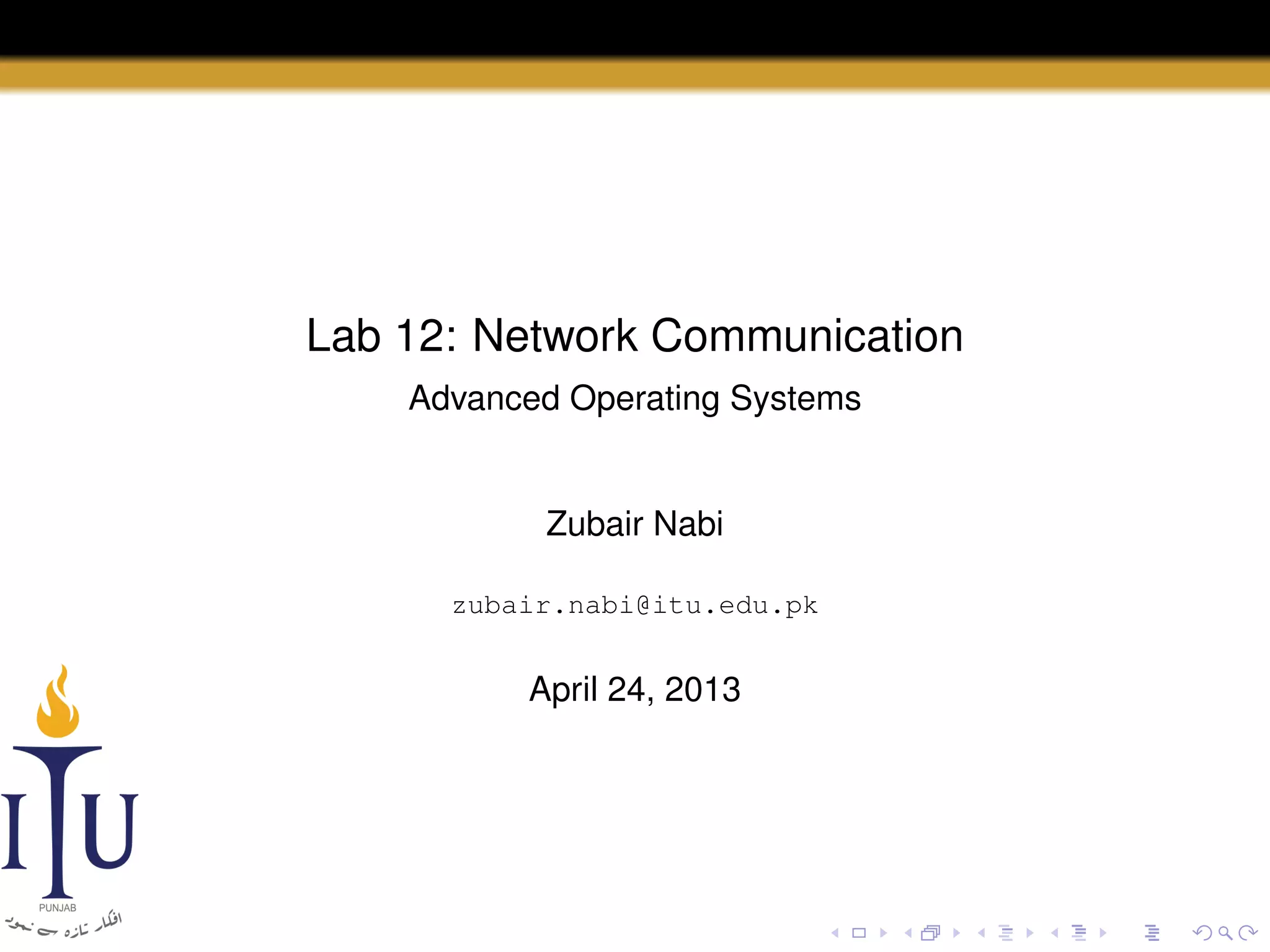

1. Lab 12: Network Communication
Advanced Operating Systems
Zubair Nabi
zubair.nabi@itu.edu.pk
April 24, 2013

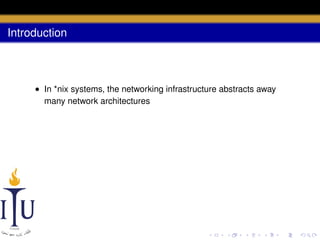

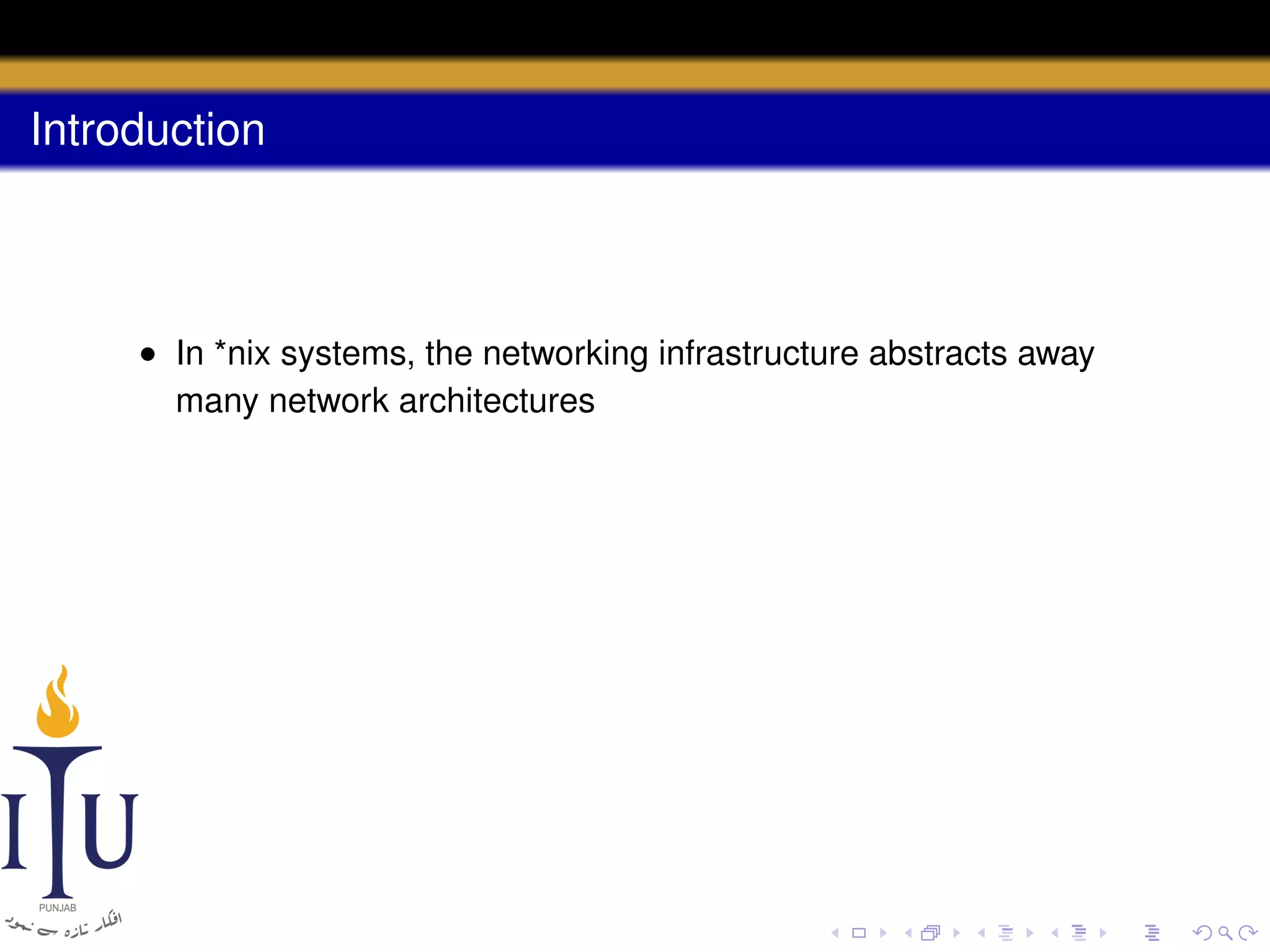

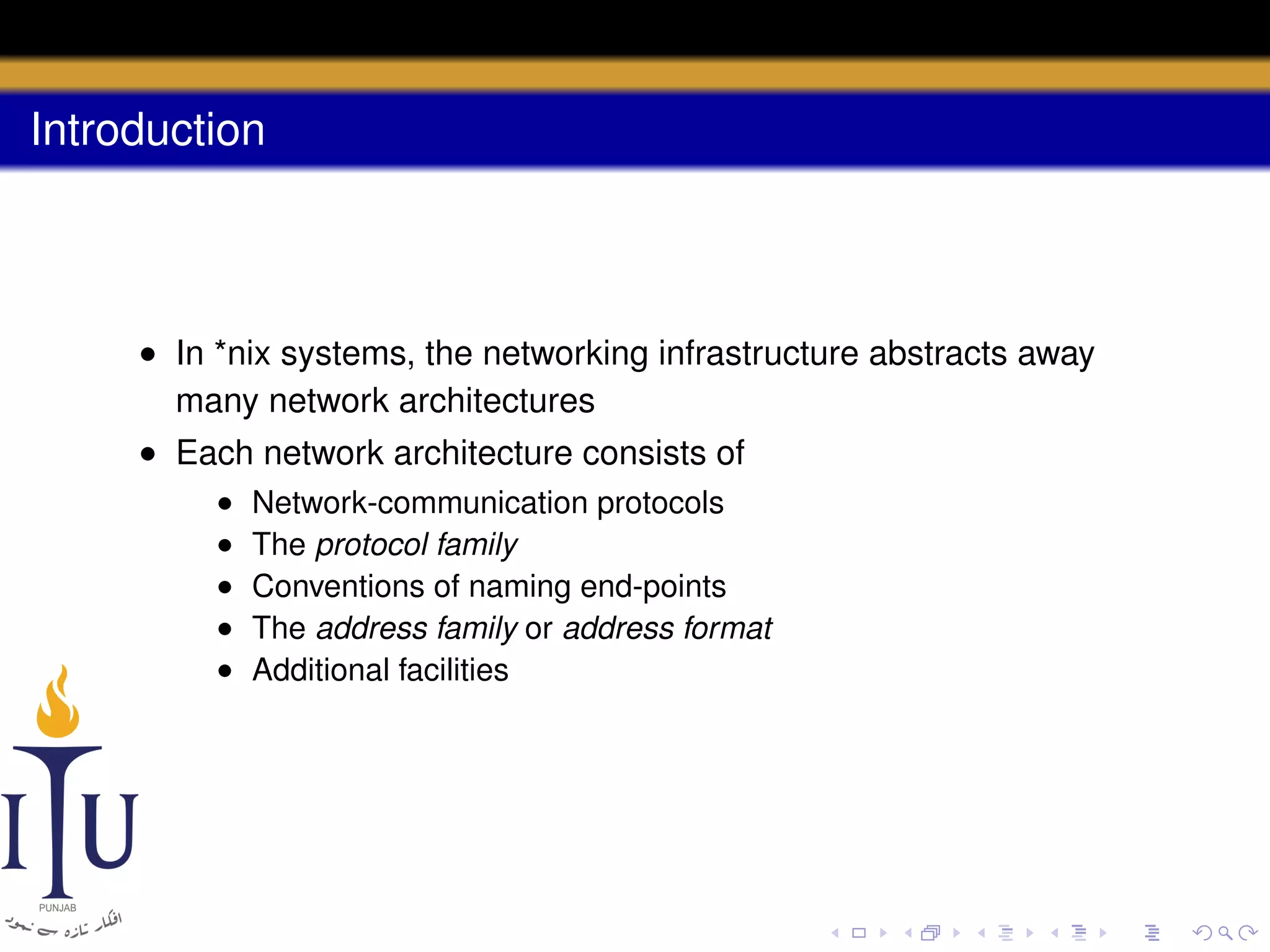

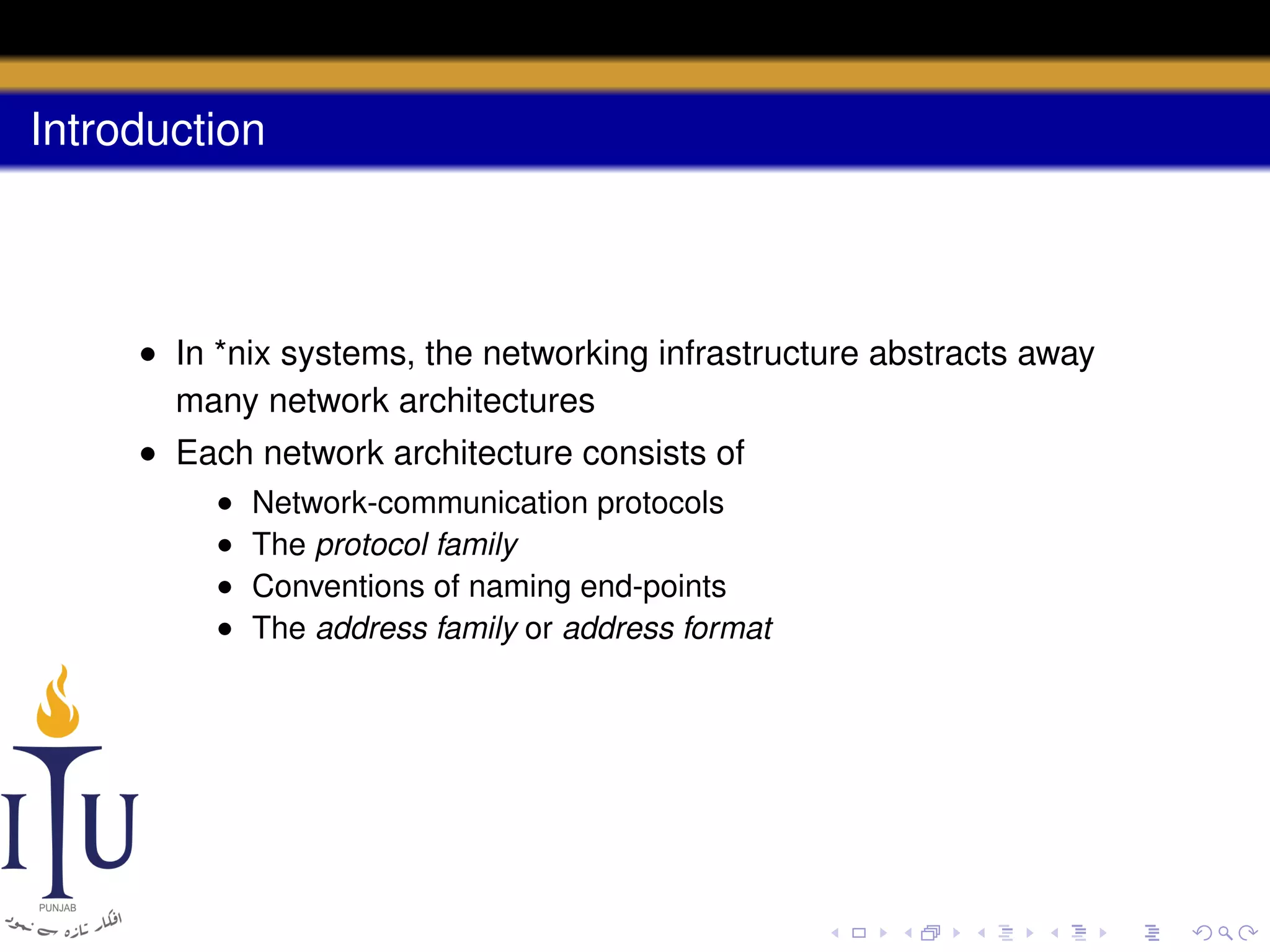

2. Introduction

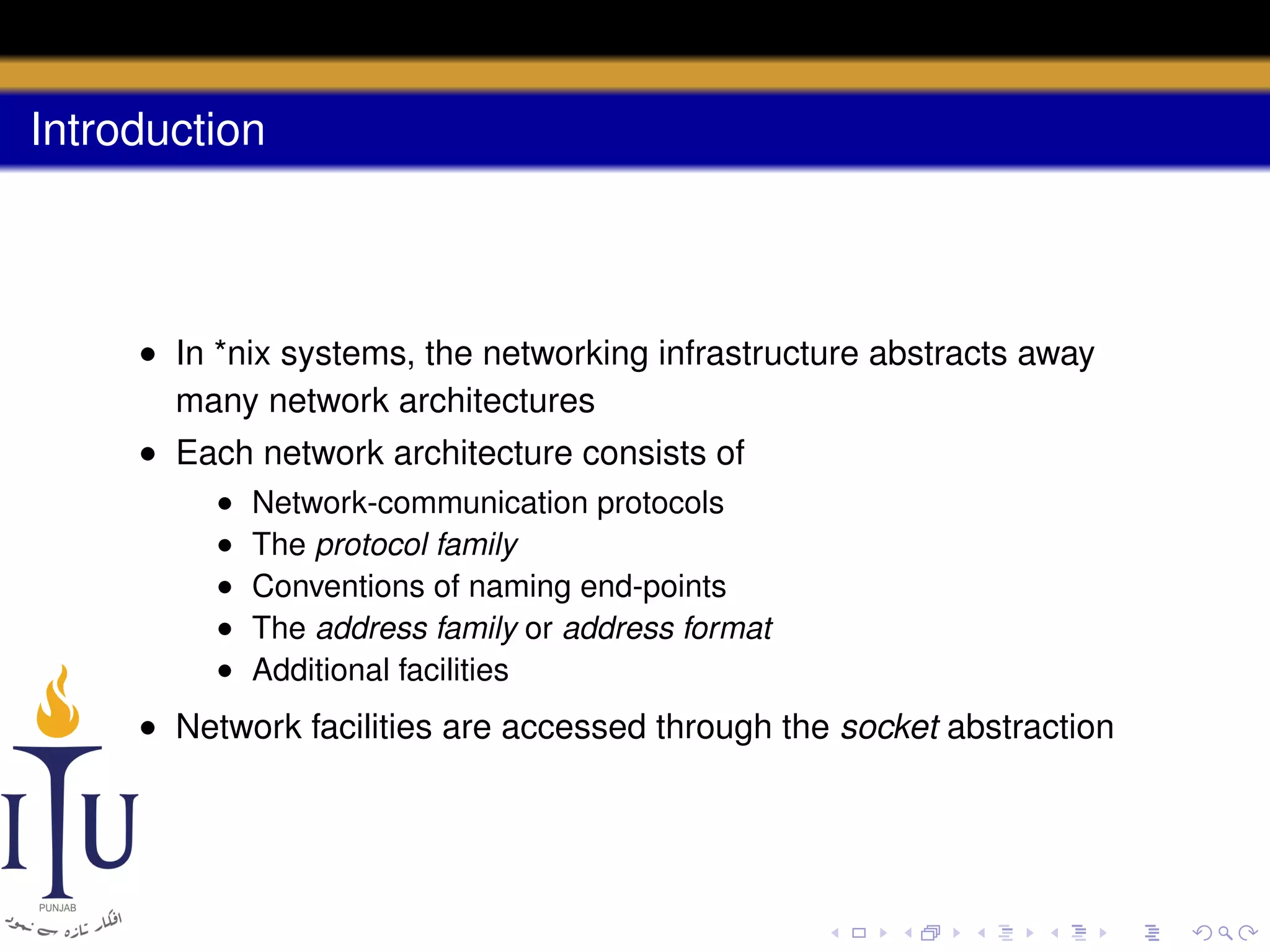

• In *nix systems, the networking infrastructure abstracts away
many network architectures

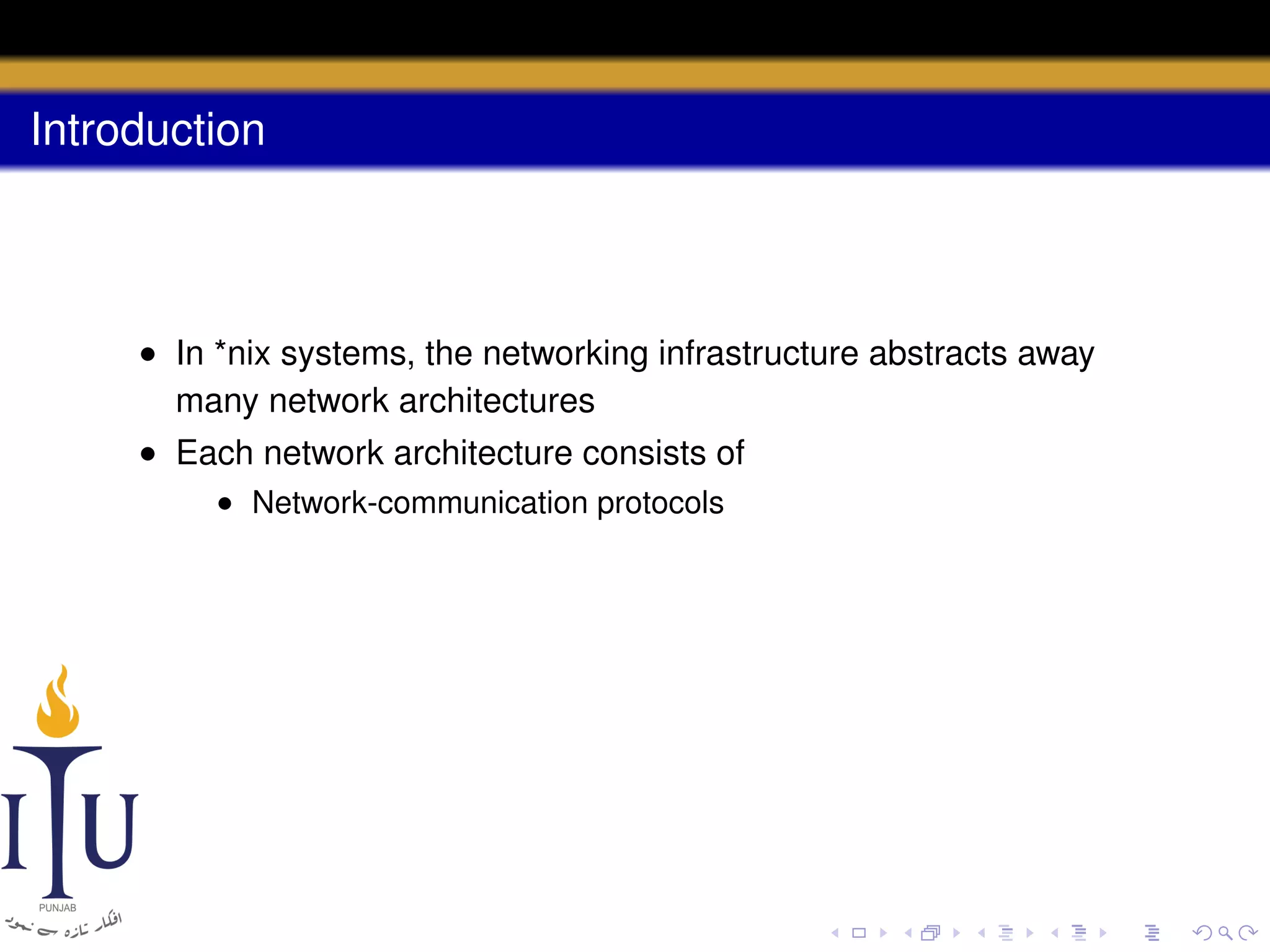

3. Introduction
• In *nix systems, the networking infrastructure abstracts away
many network architectures

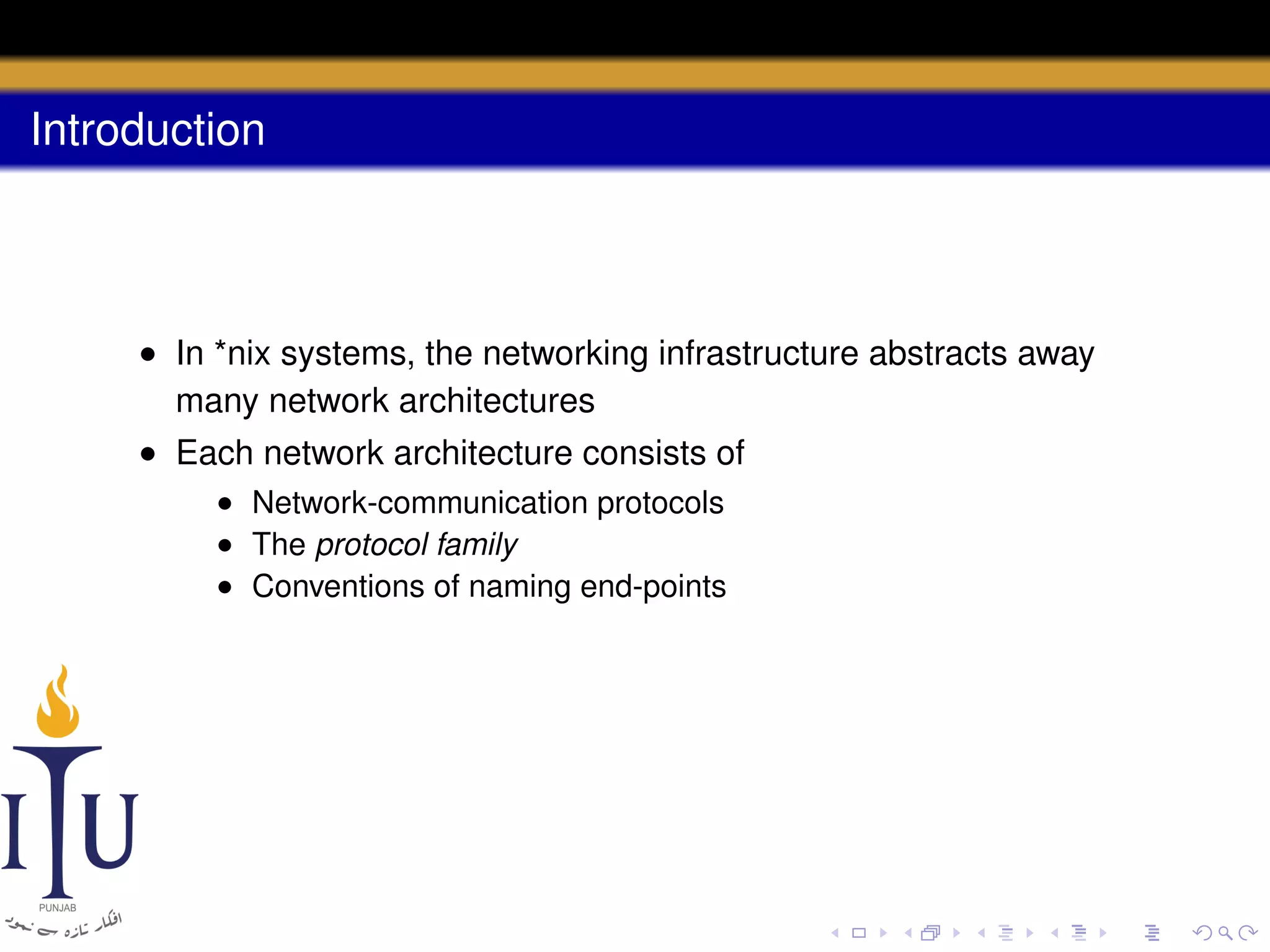

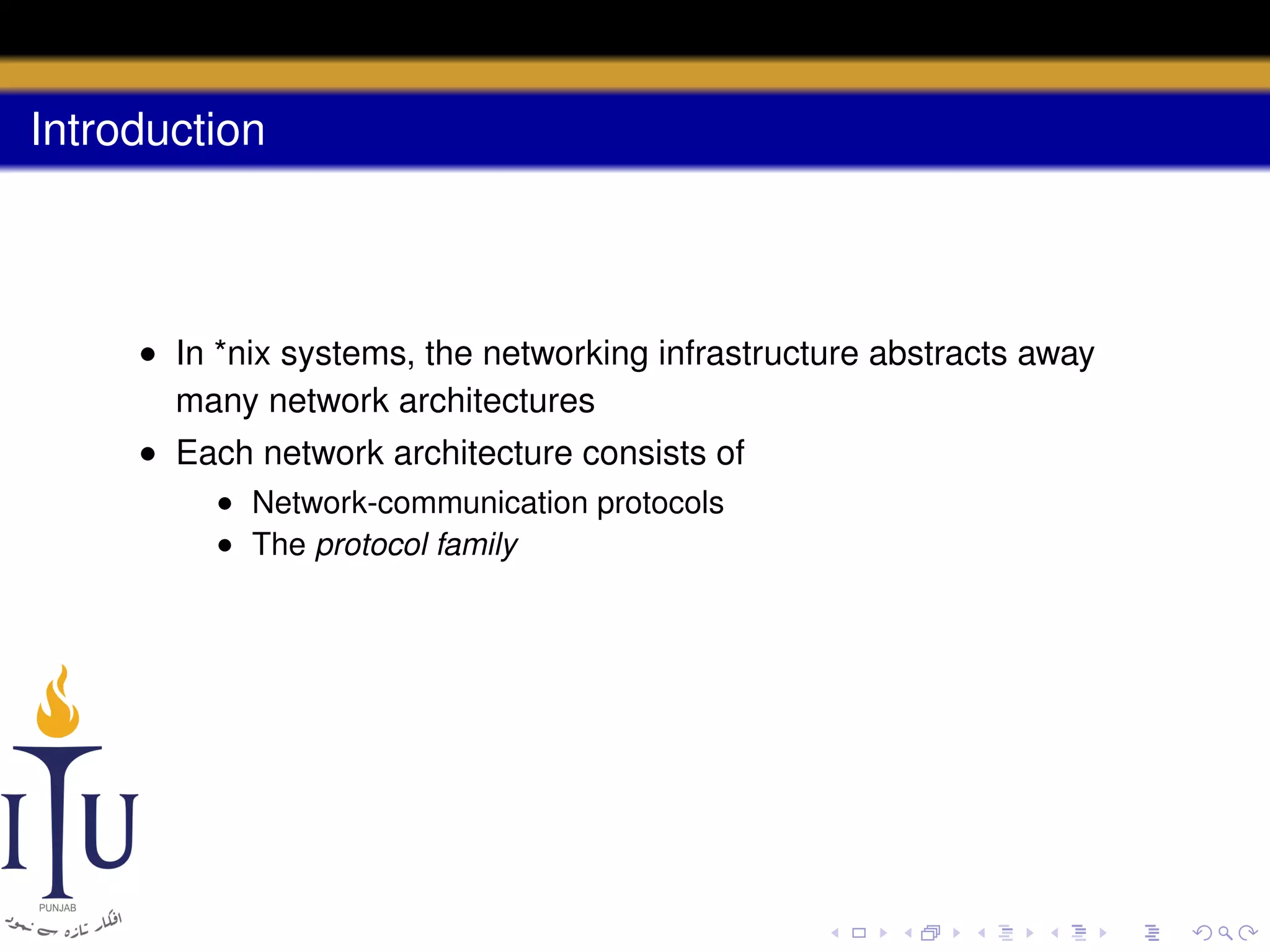

• Each network architecture consists of
• Network-communication protocols

4. Introduction
• In *nix systems, the networking infrastructure abstracts away
many network architectures
• Each network architecture consists of
• Network-communication protocols
• The protocol family

5. Introduction
• In *nix systems, the networking infrastructure abstracts away
many network architectures
• Each network architecture consists of
• Network-communication protocols
• The protocol family
• Conventions of naming end-points

6. Introduction
• In *nix systems, the networking infrastructure abstracts away
many network architectures
• Each network architecture consists of
•
•
•
•
Network-communication protocols
The protocol family
Conventions of naming end-points
The address family or address format

7. Introduction
• In *nix systems, the networking infrastructure abstracts away
many network architectures
• Each network architecture consists of
•
•
•
•
•
Network-communication protocols
The protocol family
Conventions of naming end-points
The address family or address format
Additional facilities

8. Introduction
• In *nix systems, the networking infrastructure abstracts away
many network architectures
• Each network architecture consists of
•
•
•
•
•
Network-communication protocols
The protocol family
Conventions of naming end-points
The address family or address format
Additional facilities
• Network facilities are accessed through the socket abstraction

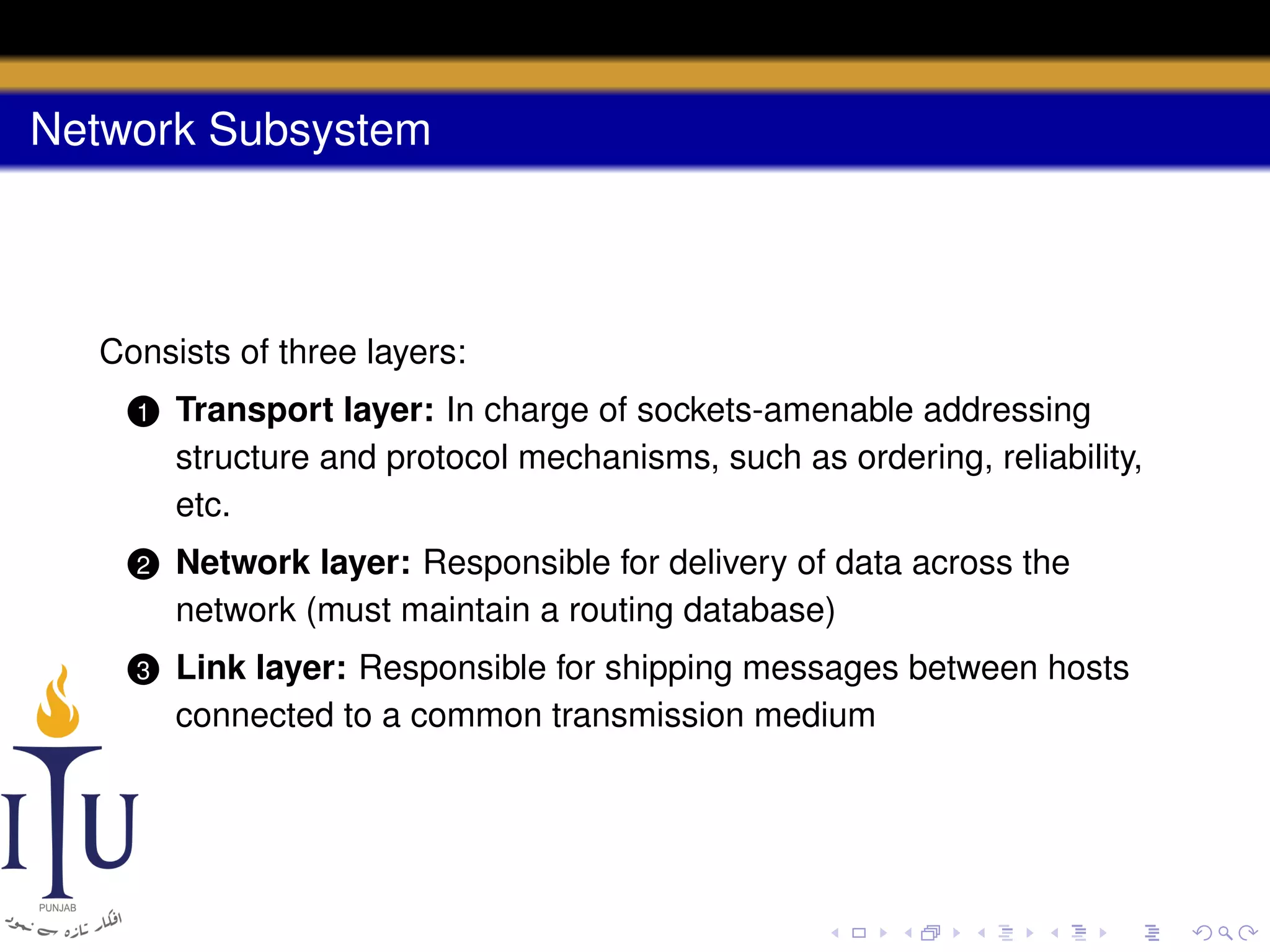

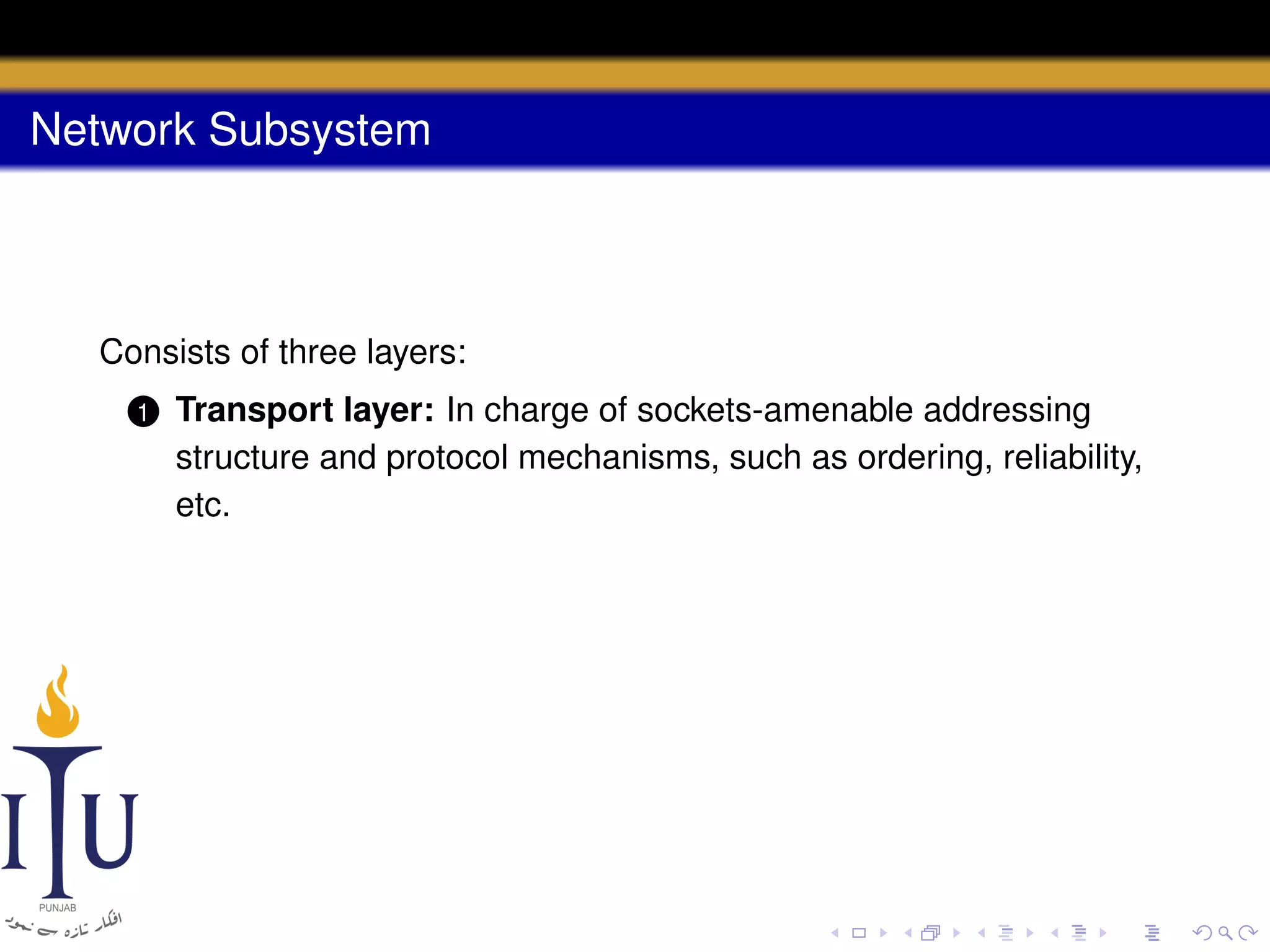

9. Network Subsystem
Consists of three layers:
1
Transport layer: In charge of sockets-amenable addressing
structure and protocol mechanisms, such as ordering, reliability,
etc.

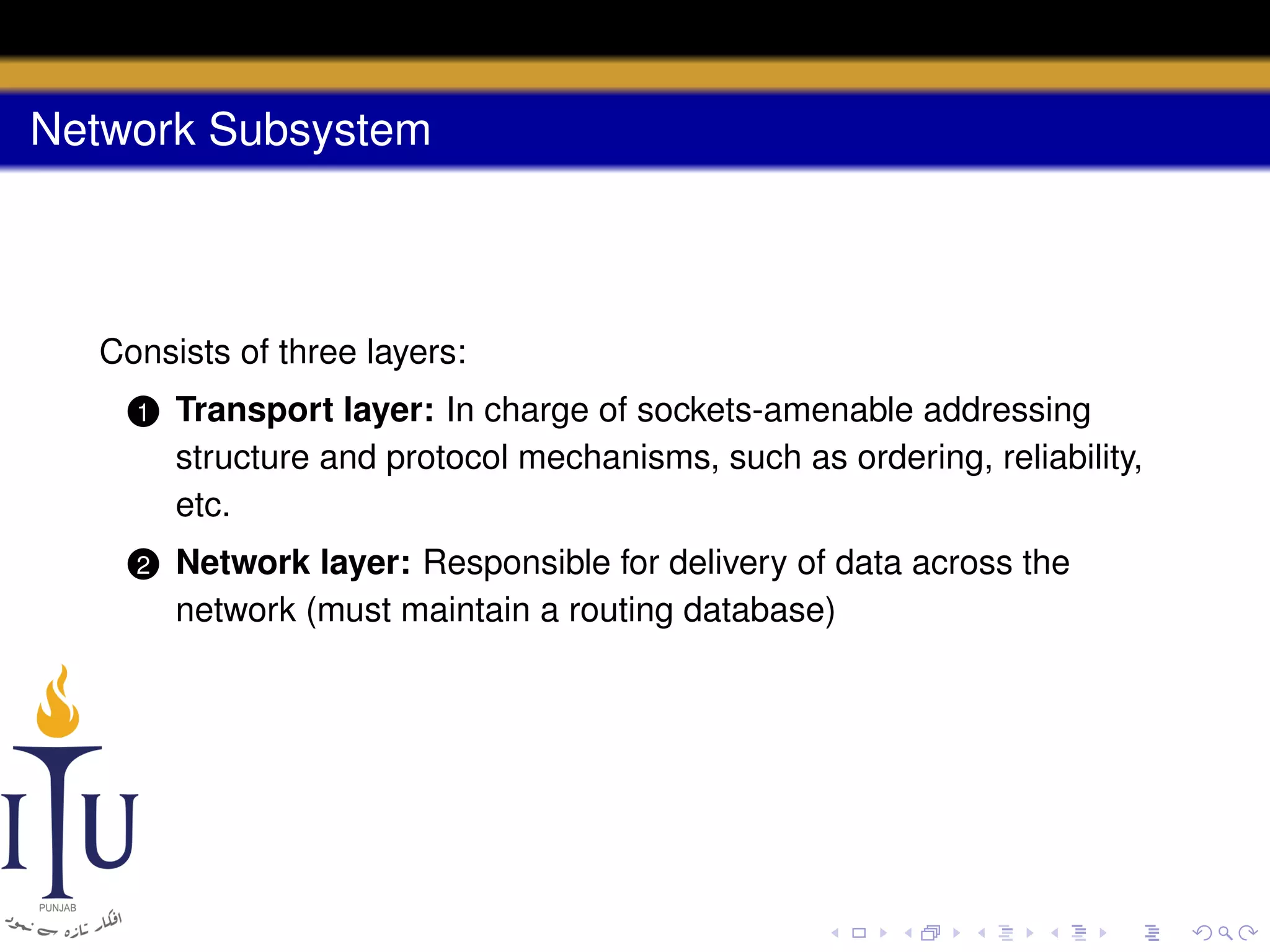

10. Network Subsystem
Consists of three layers:
1
Transport layer: In charge of sockets-amenable addressing
structure and protocol mechanisms, such as ordering, reliability,
etc.
2
Network layer: Responsible for delivery of data across the
network (must maintain a routing database)

11. Network Subsystem
Consists of three layers:
1
Transport layer: In charge of sockets-amenable addressing
structure and protocol mechanisms, such as ordering, reliability,
etc.
2
Network layer: Responsible for delivery of data across the
network (must maintain a routing database)
3
Link layer: Responsible for shipping messages between hosts
connected to a common transmission medium

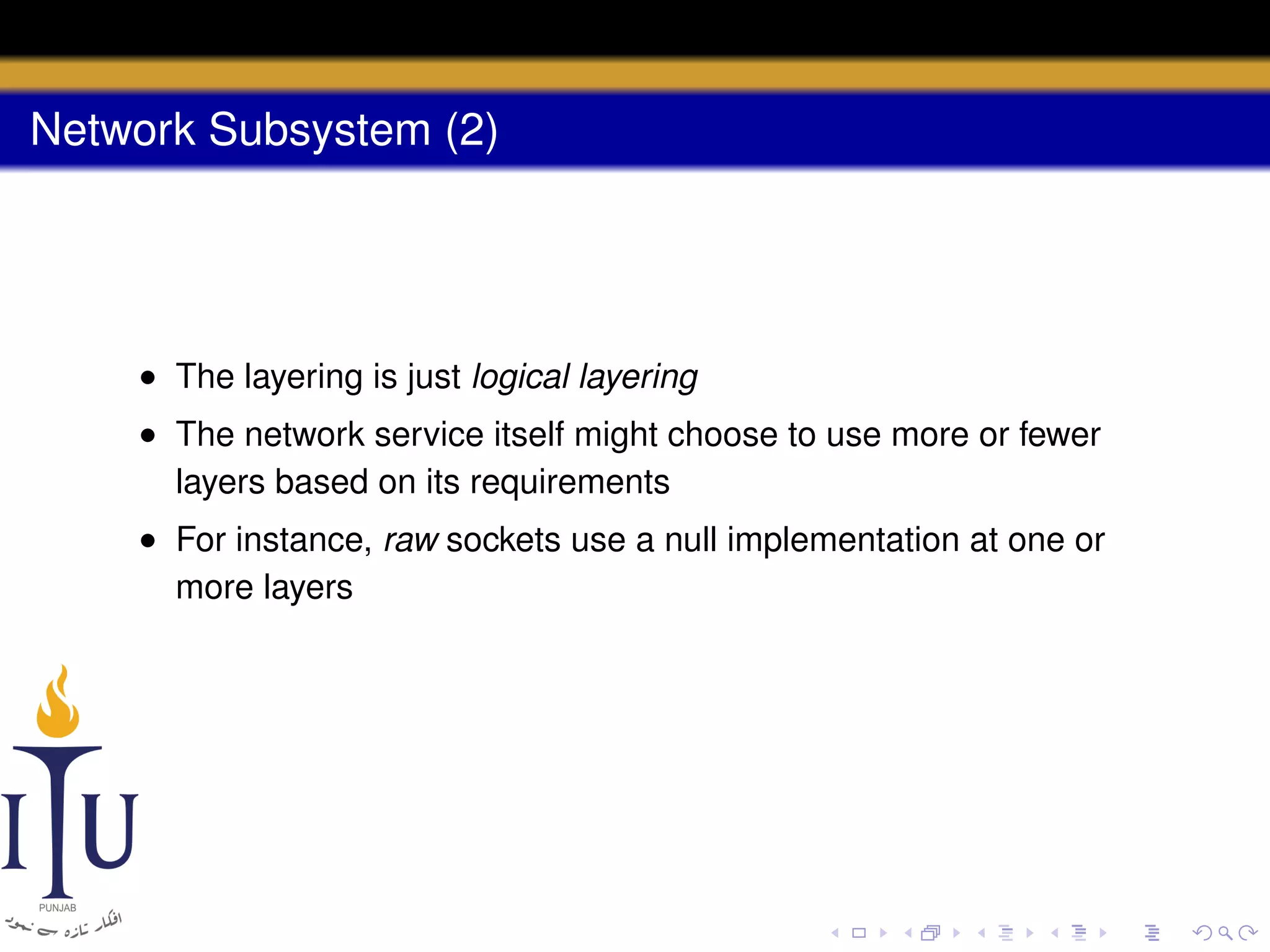

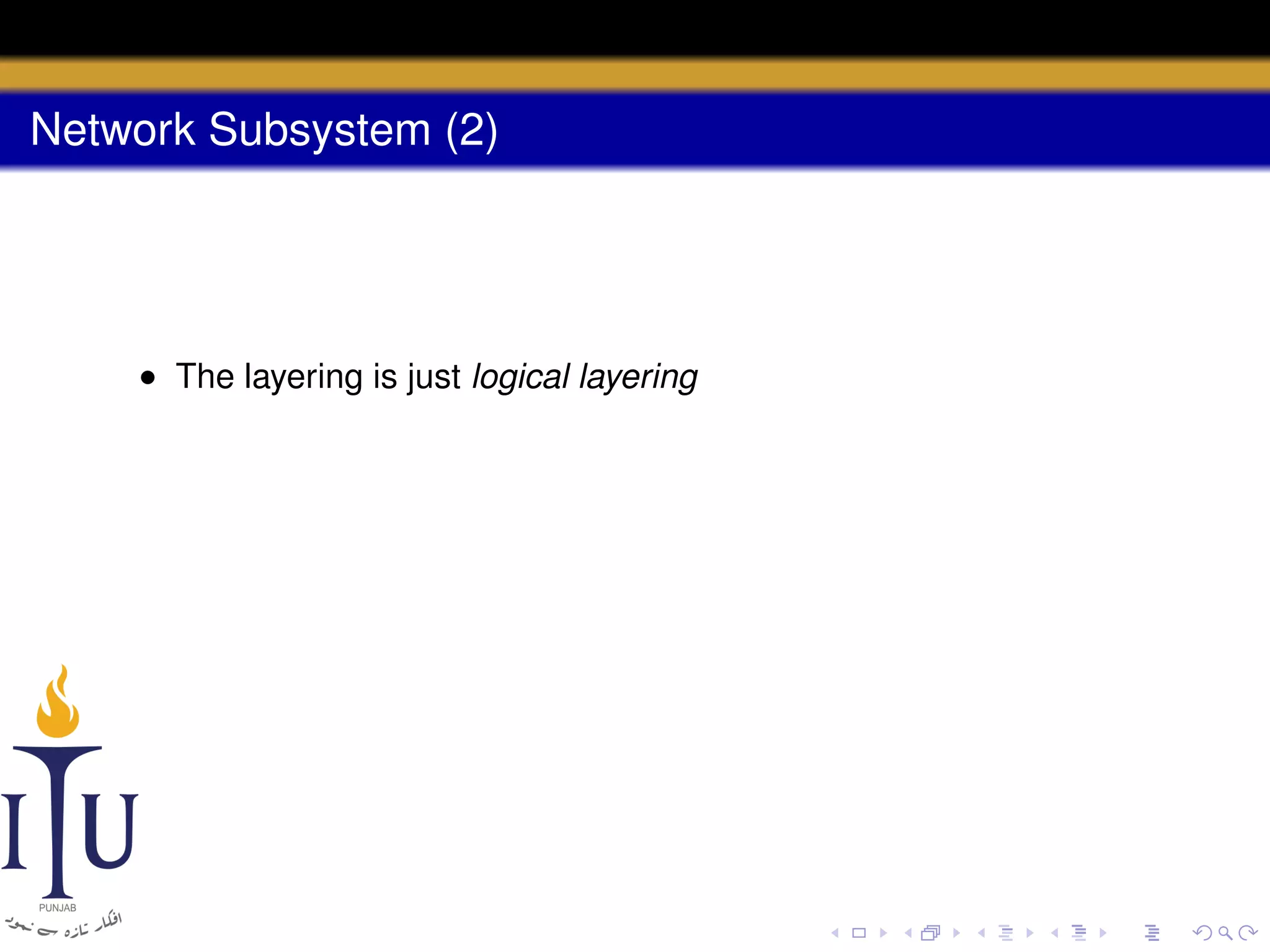

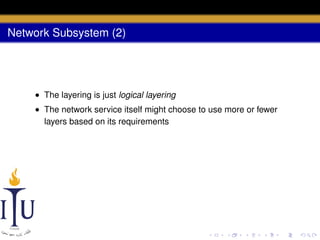

12. Network Subsystem (2)

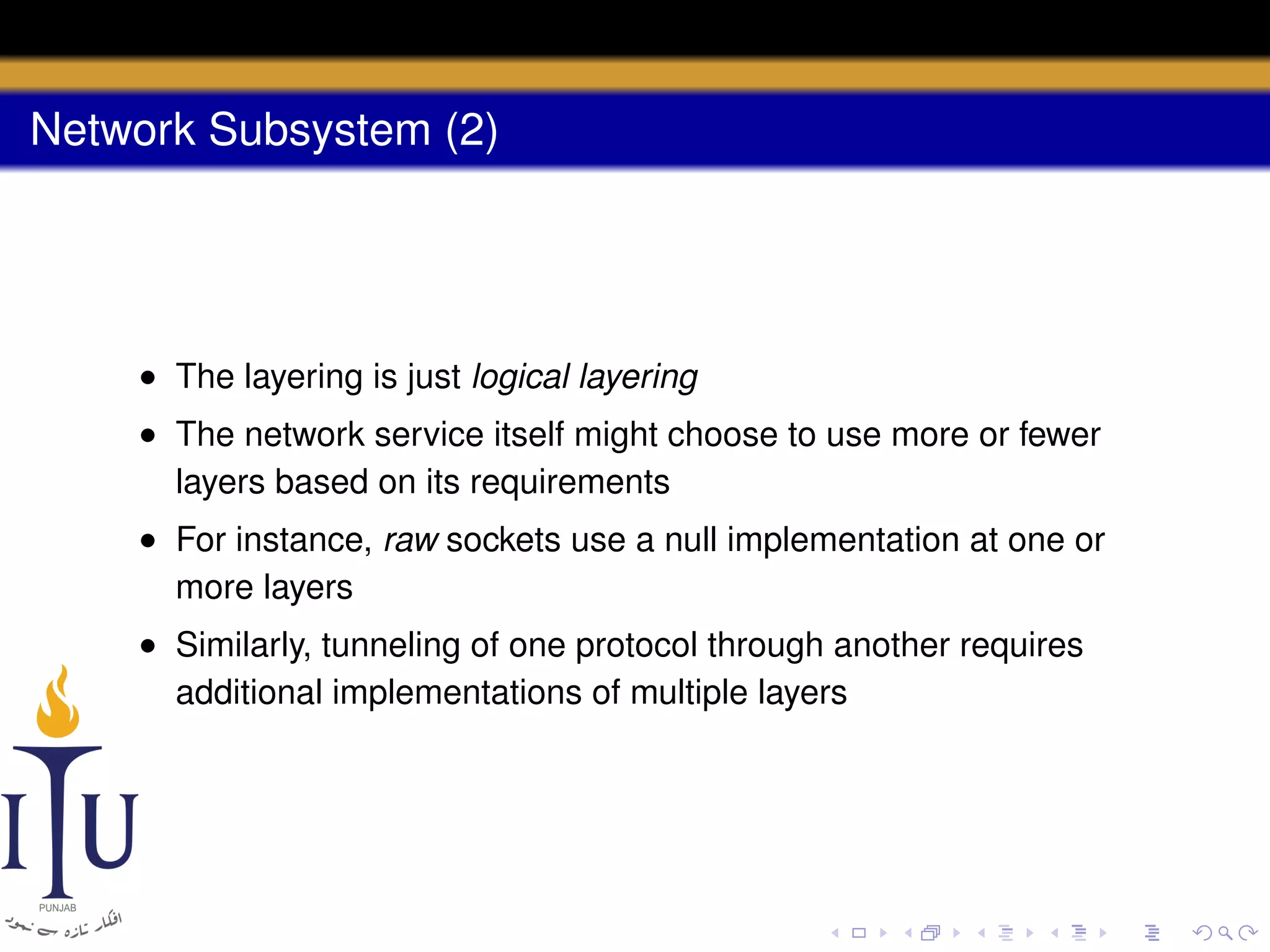

• The layering is just logical layering

13. Network Subsystem (2)
• The layering is just logical layering
• The network service itself might choose to use more or fewer
layers based on its requirements

14. Network Subsystem (2)
• The layering is just logical layering
• The network service itself might choose to use more or fewer
layers based on its requirements
• For instance, raw sockets use a null implementation at one or
more layers

15. Network Subsystem (2)
• The layering is just logical layering
• The network service itself might choose to use more or fewer
layers based on its requirements
• For instance, raw sockets use a null implementation at one or
more layers
• Similarly, tunneling of one protocol through another requires
additional implementations of multiple layers

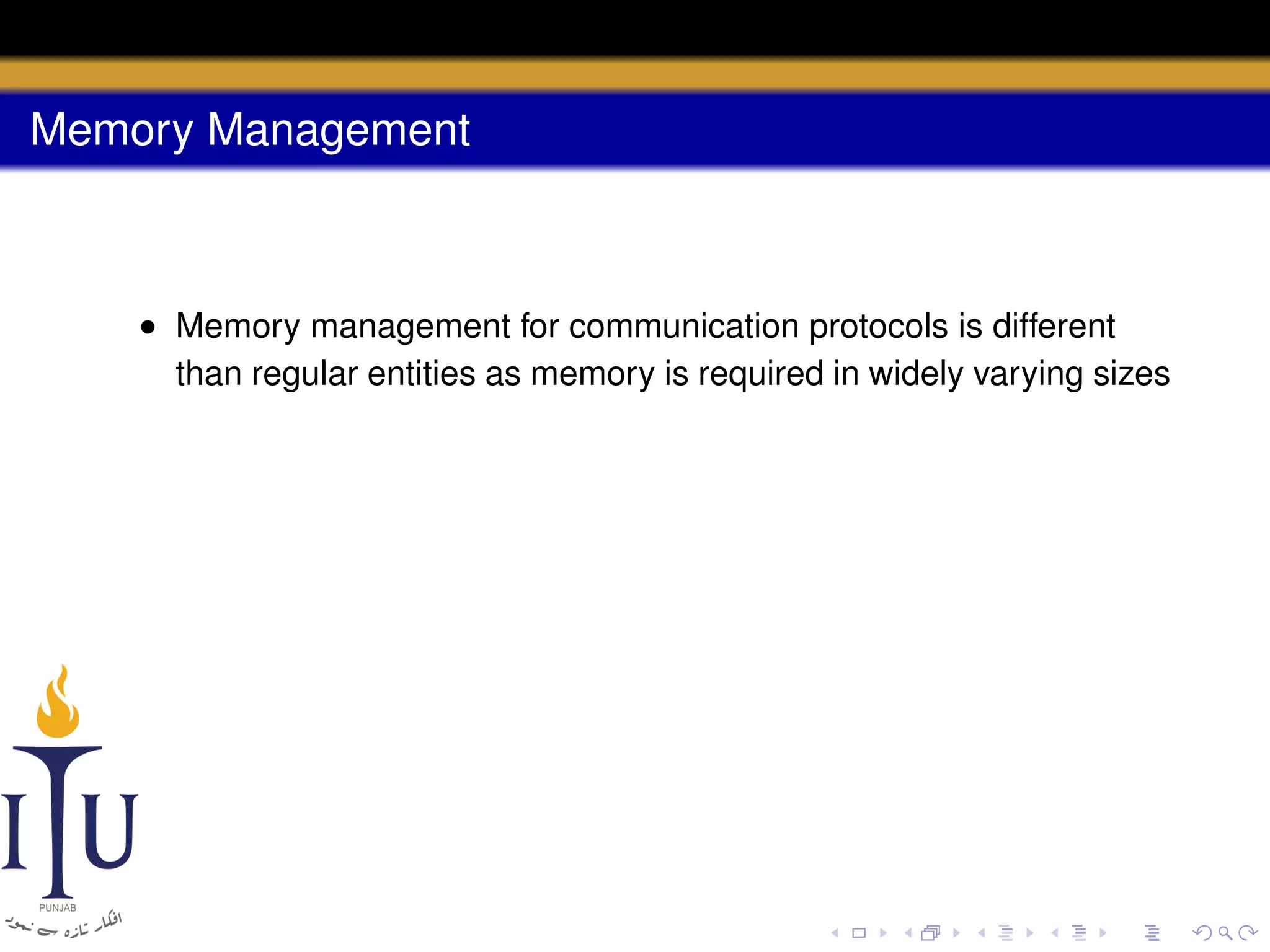

16. Memory Management
• Memory management for communication protocols is different
than regular entities as memory is required in widely varying sizes

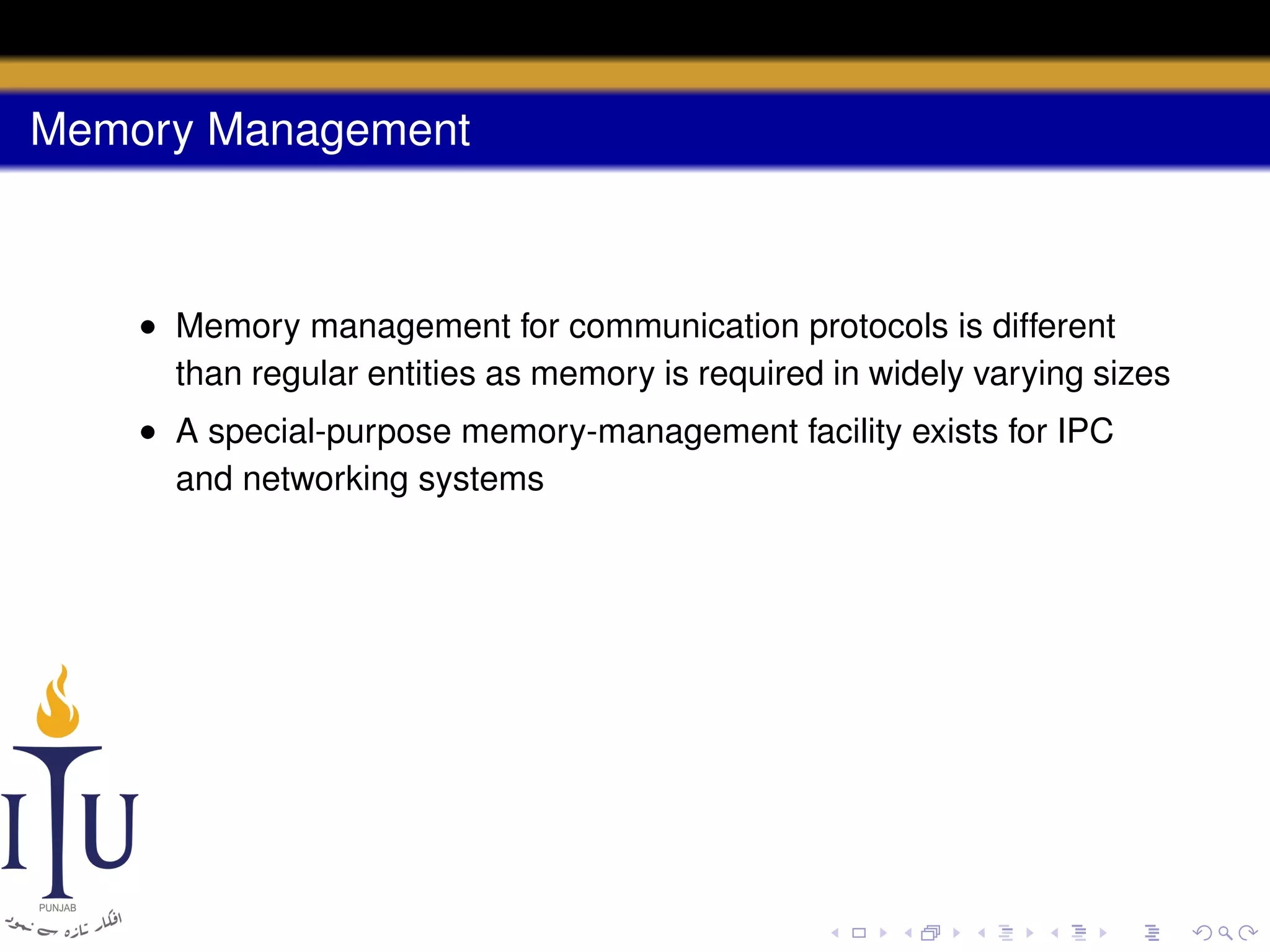

17. Memory Management
• Memory management for communication protocols is different
than regular entities as memory is required in widely varying sizes
• A special-purpose memory-management facility exists for IPC
and networking systems

18. Memory Management
• Memory management for communication protocols is different
than regular entities as memory is required in widely varying sizes
• A special-purpose memory-management facility exists for IPC
and networking systems
• The unit of allocation is an mbuf (skbuff in Linux), which is
128 bytes long with 100 or 108 bytes reserved for data

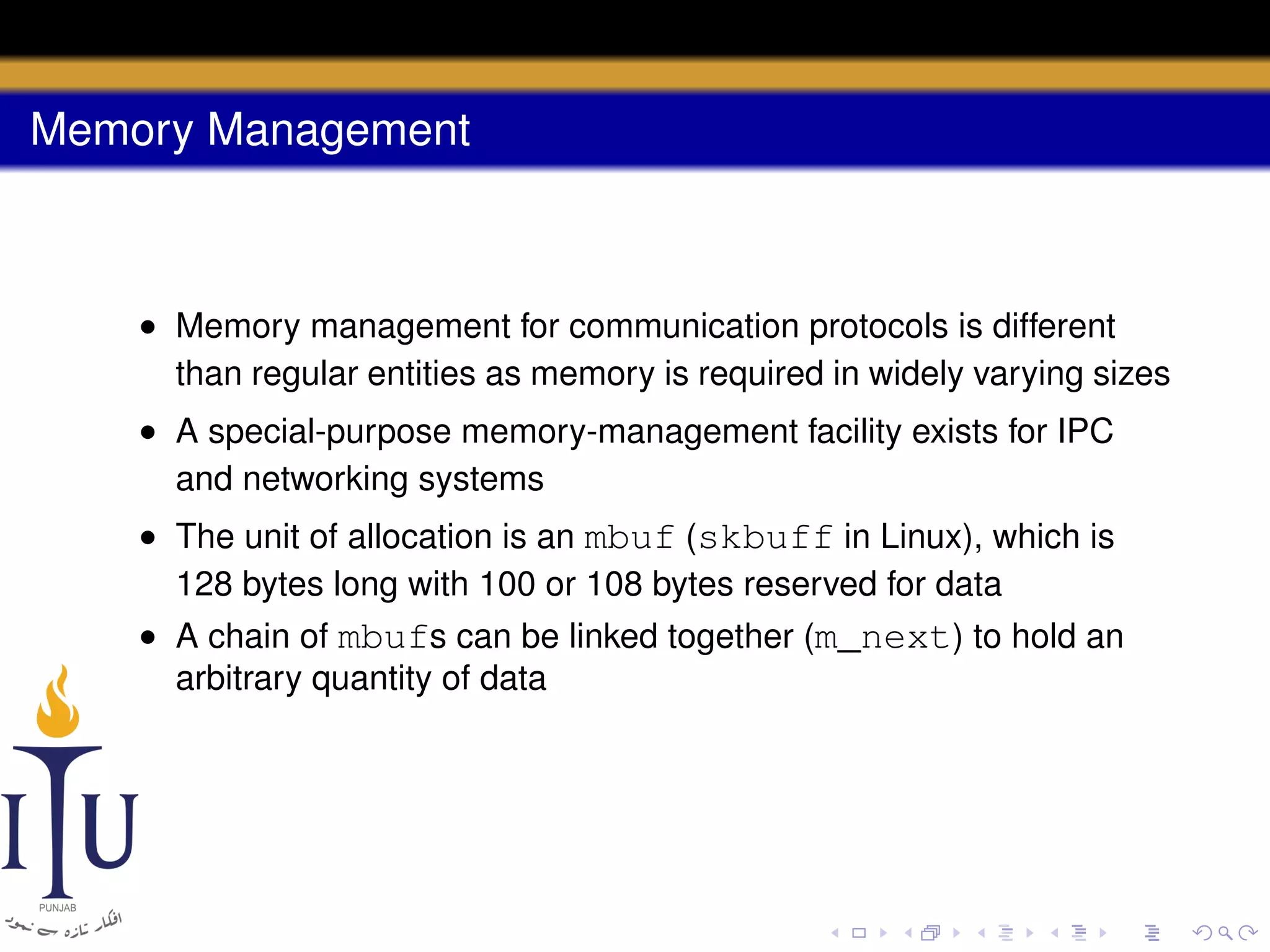

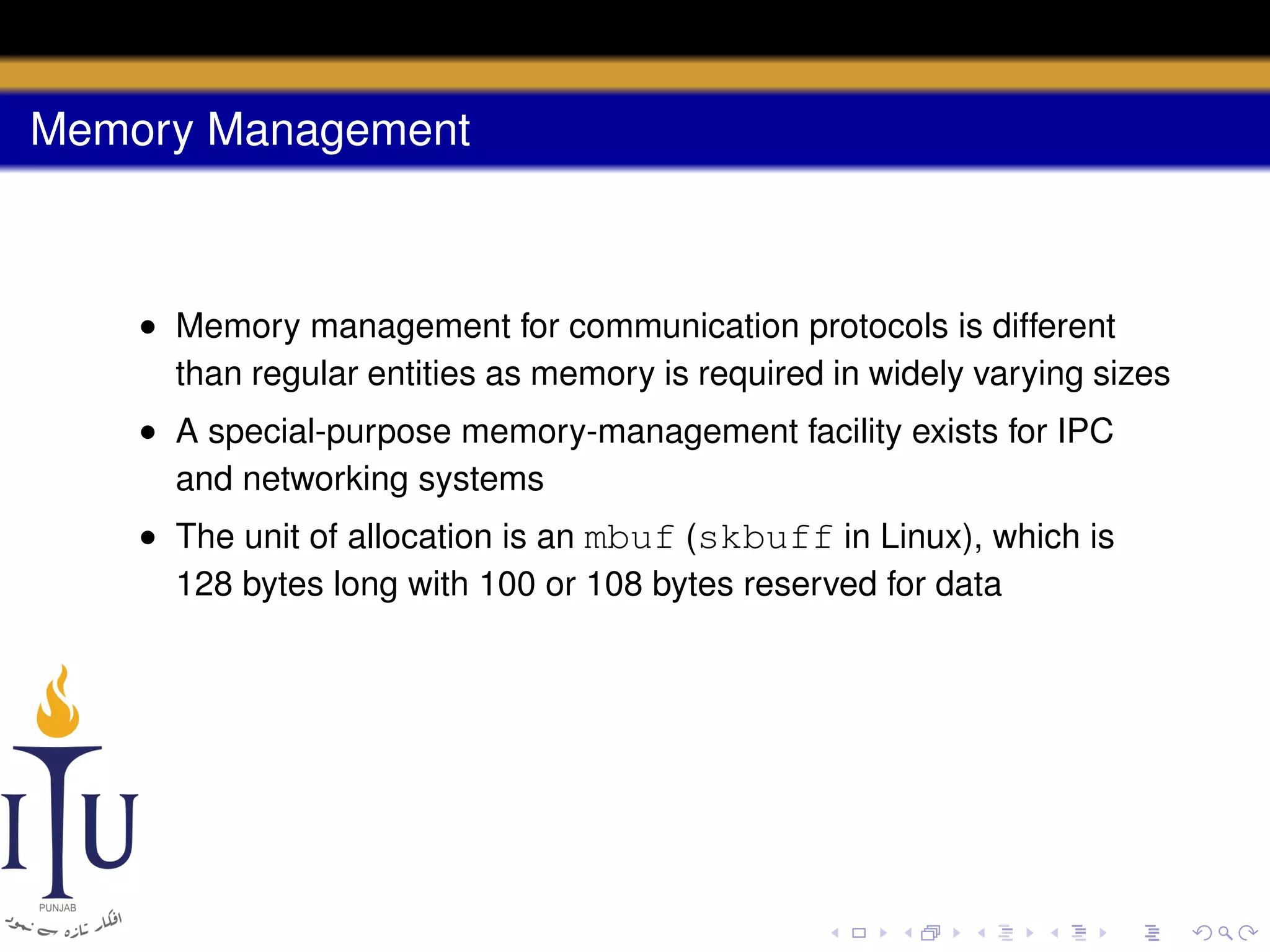

19. Memory Management
• Memory management for communication protocols is different
than regular entities as memory is required in widely varying sizes
• A special-purpose memory-management facility exists for IPC
and networking systems
• The unit of allocation is an mbuf (skbuff in Linux), which is
128 bytes long with 100 or 108 bytes reserved for data
• A chain of mbufs can be linked together (m_next) to hold an
arbitrary quantity of data

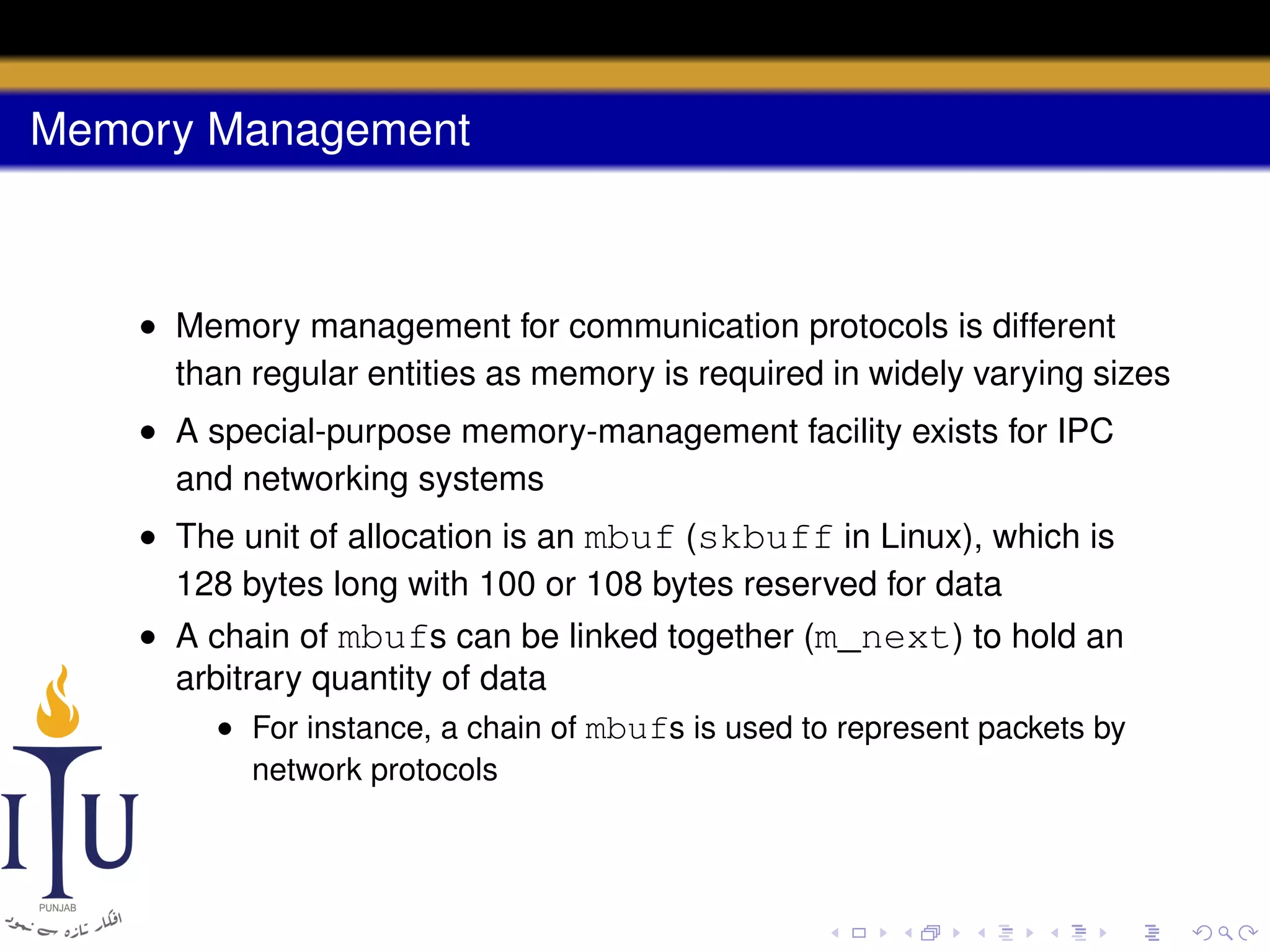

20. Memory Management
• Memory management for communication protocols is different
than regular entities as memory is required in widely varying sizes
• A special-purpose memory-management facility exists for IPC
and networking systems
• The unit of allocation is an mbuf (skbuff in Linux), which is
128 bytes long with 100 or 108 bytes reserved for data
• A chain of mbufs can be linked together (m_next) to hold an
arbitrary quantity of data
• For instance, a chain of mbufs is used to represent packets by
network protocols

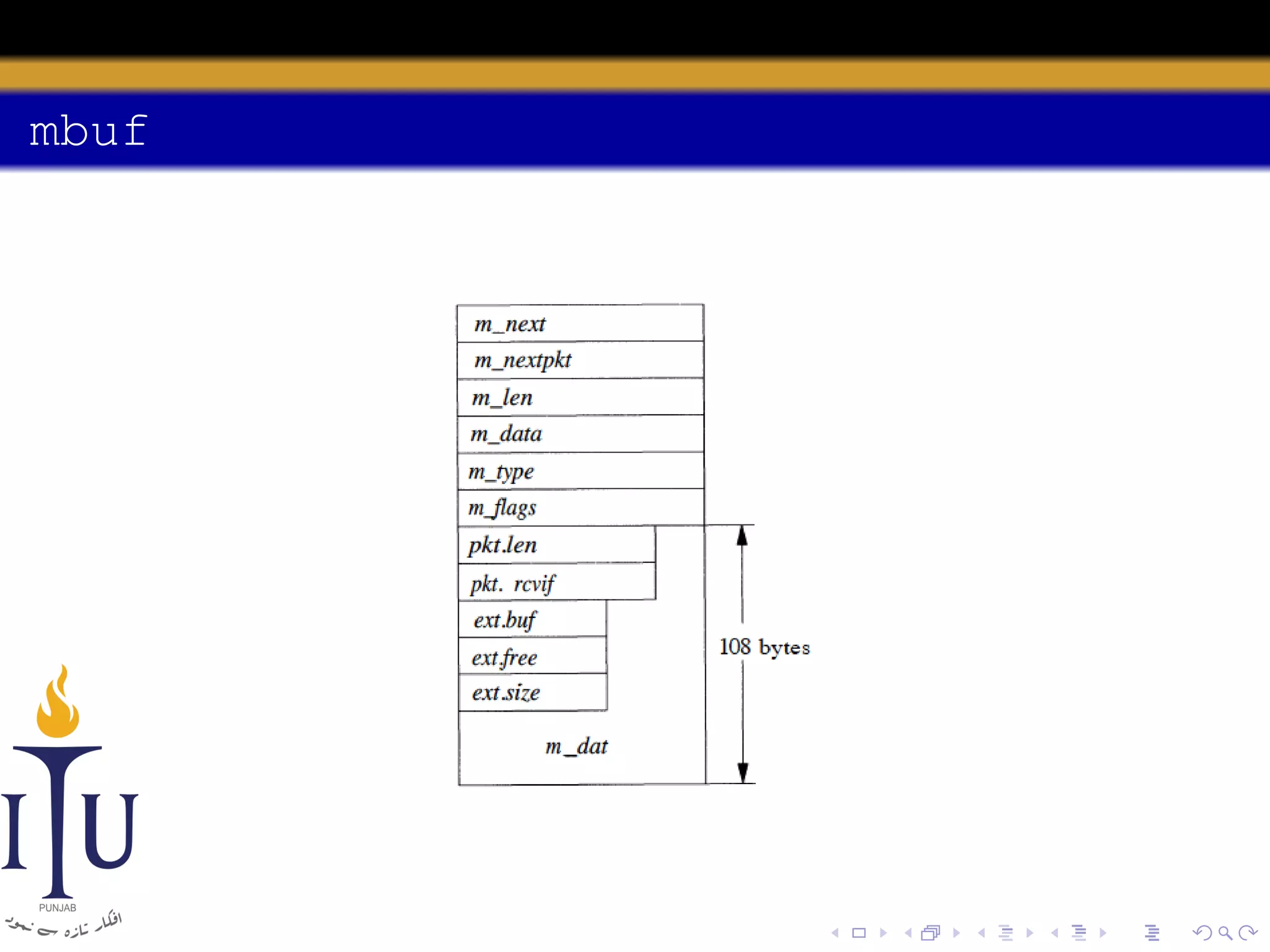

21. mbuf

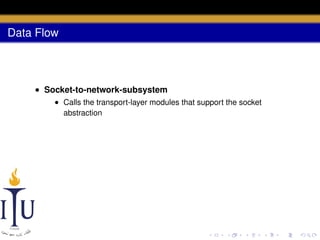

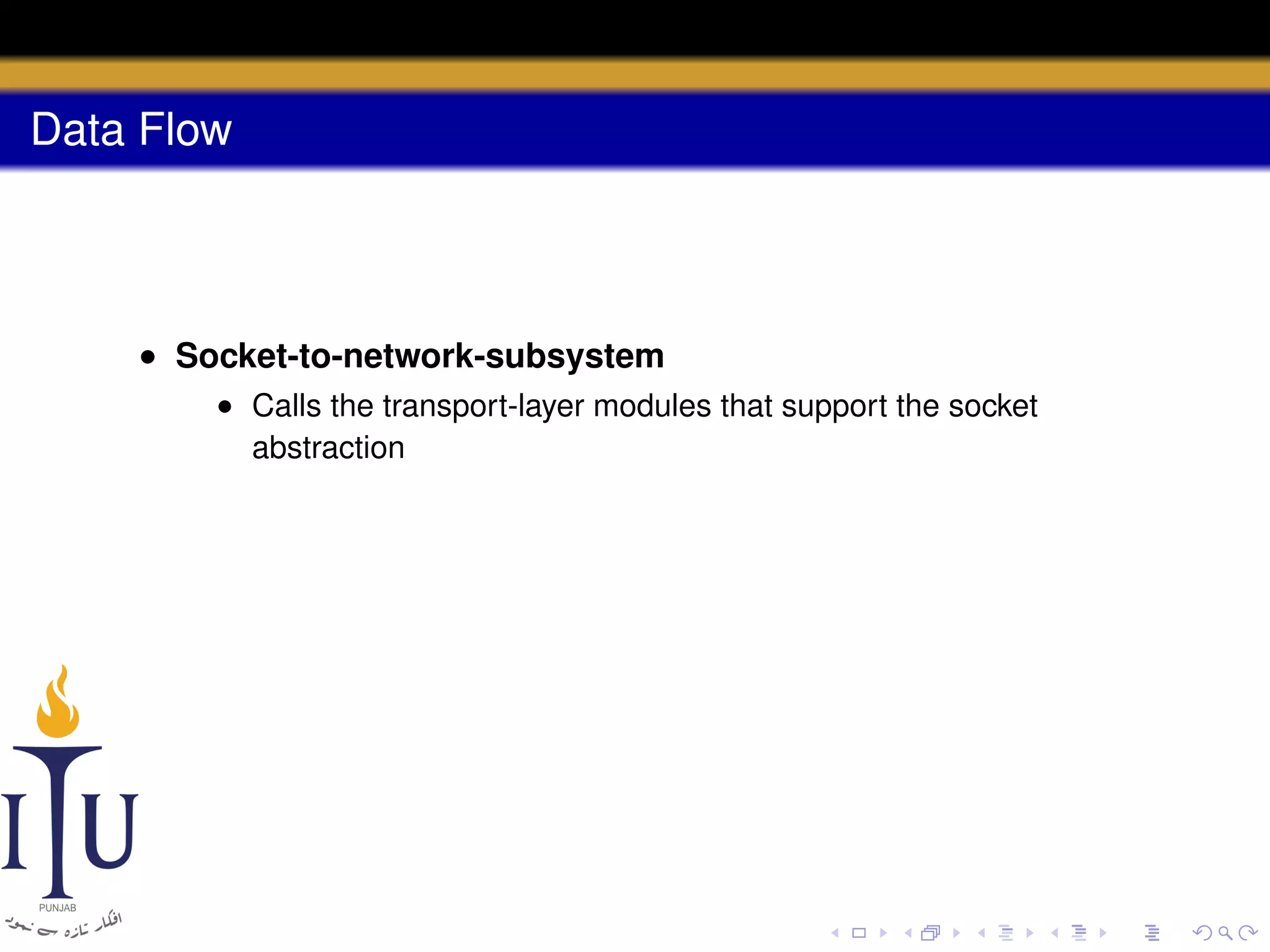

22. Data Flow
• Socket-to-network-subsystem
• Calls the transport-layer modules that support the socket
abstraction

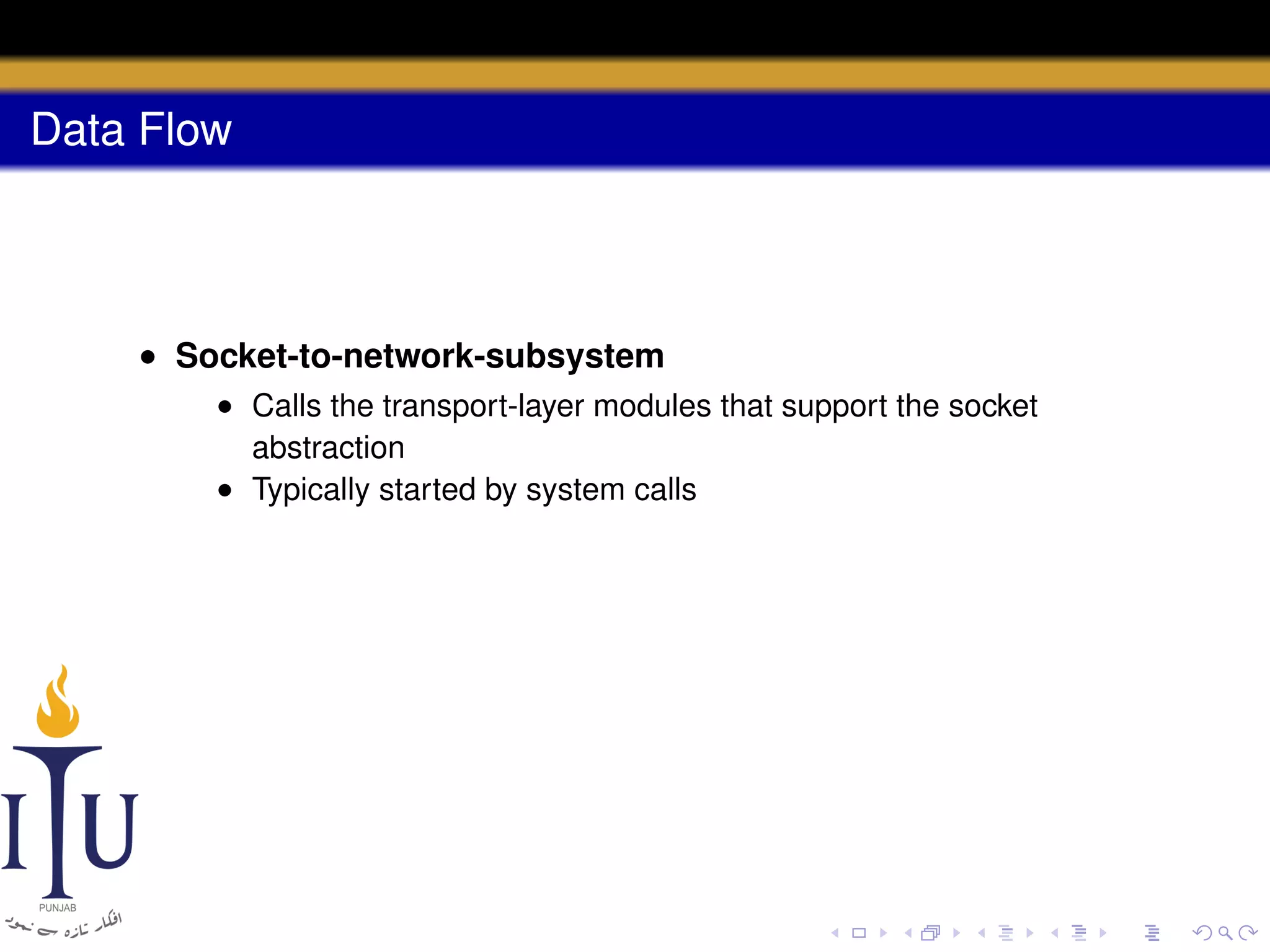

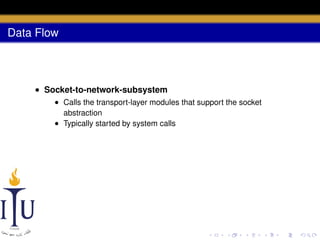

23. Data Flow
• Socket-to-network-subsystem
• Calls the transport-layer modules that support the socket
abstraction
• Typically started by system calls

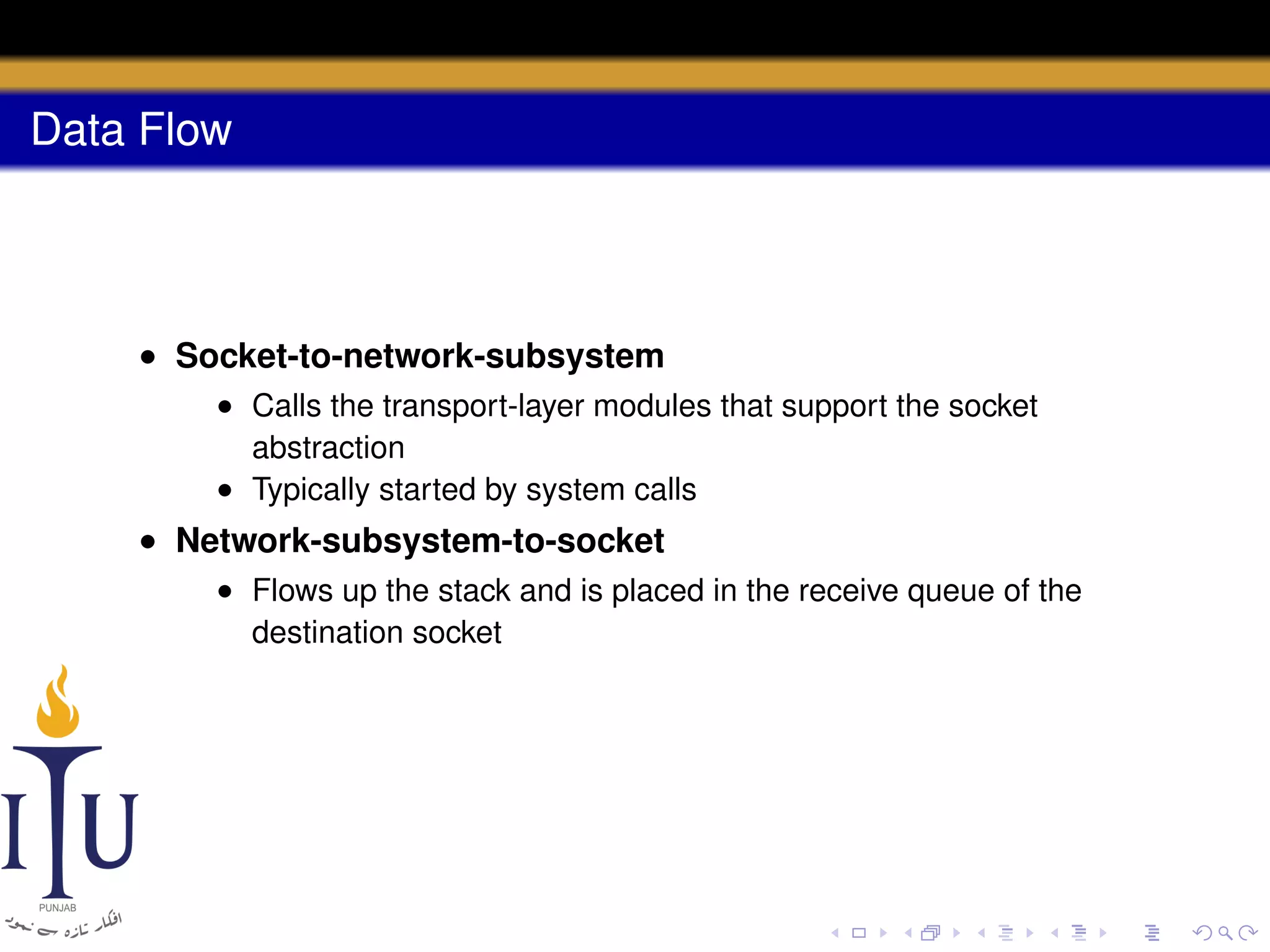

24. Data Flow
• Socket-to-network-subsystem
• Calls the transport-layer modules that support the socket
abstraction
• Typically started by system calls
• Network-subsystem-to-socket
• Flows up the stack and is placed in the receive queue of the
destination socket

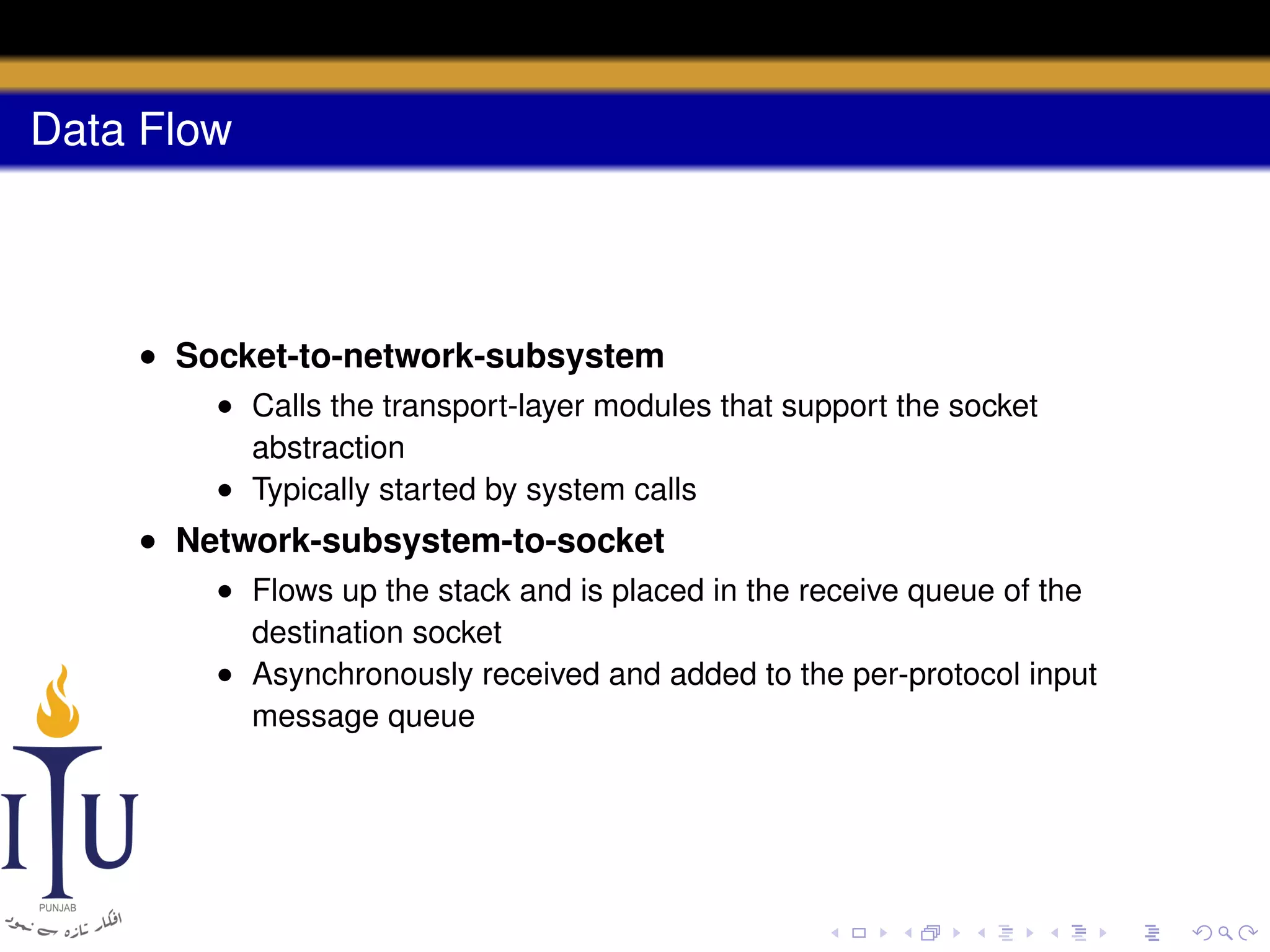

25. Data Flow
• Socket-to-network-subsystem
• Calls the transport-layer modules that support the socket
abstraction
• Typically started by system calls
• Network-subsystem-to-socket
• Flows up the stack and is placed in the receive queue of the
destination socket
• Asynchronously received and added to the per-protocol input
message queue

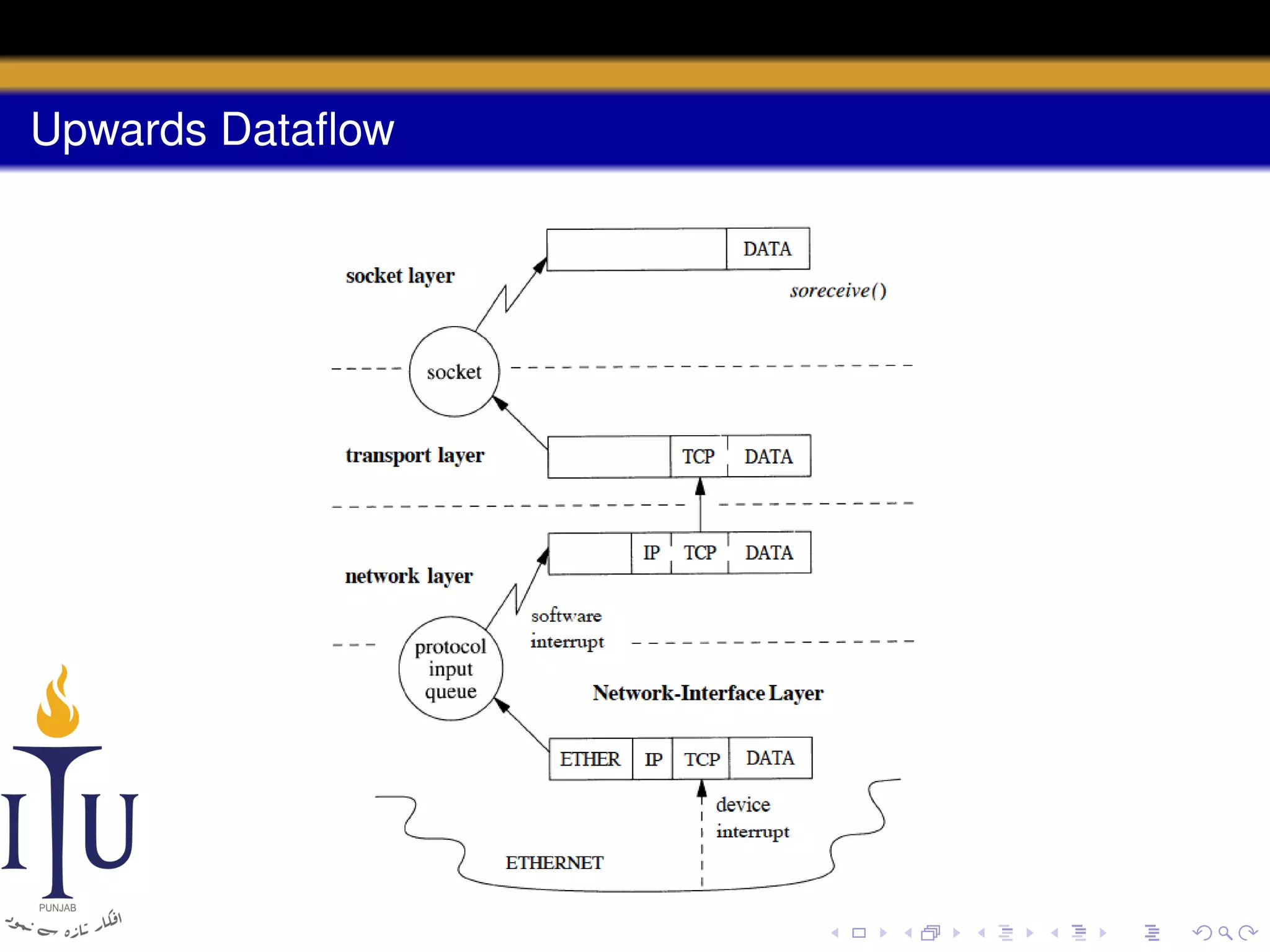

26. Upwards Dataflow

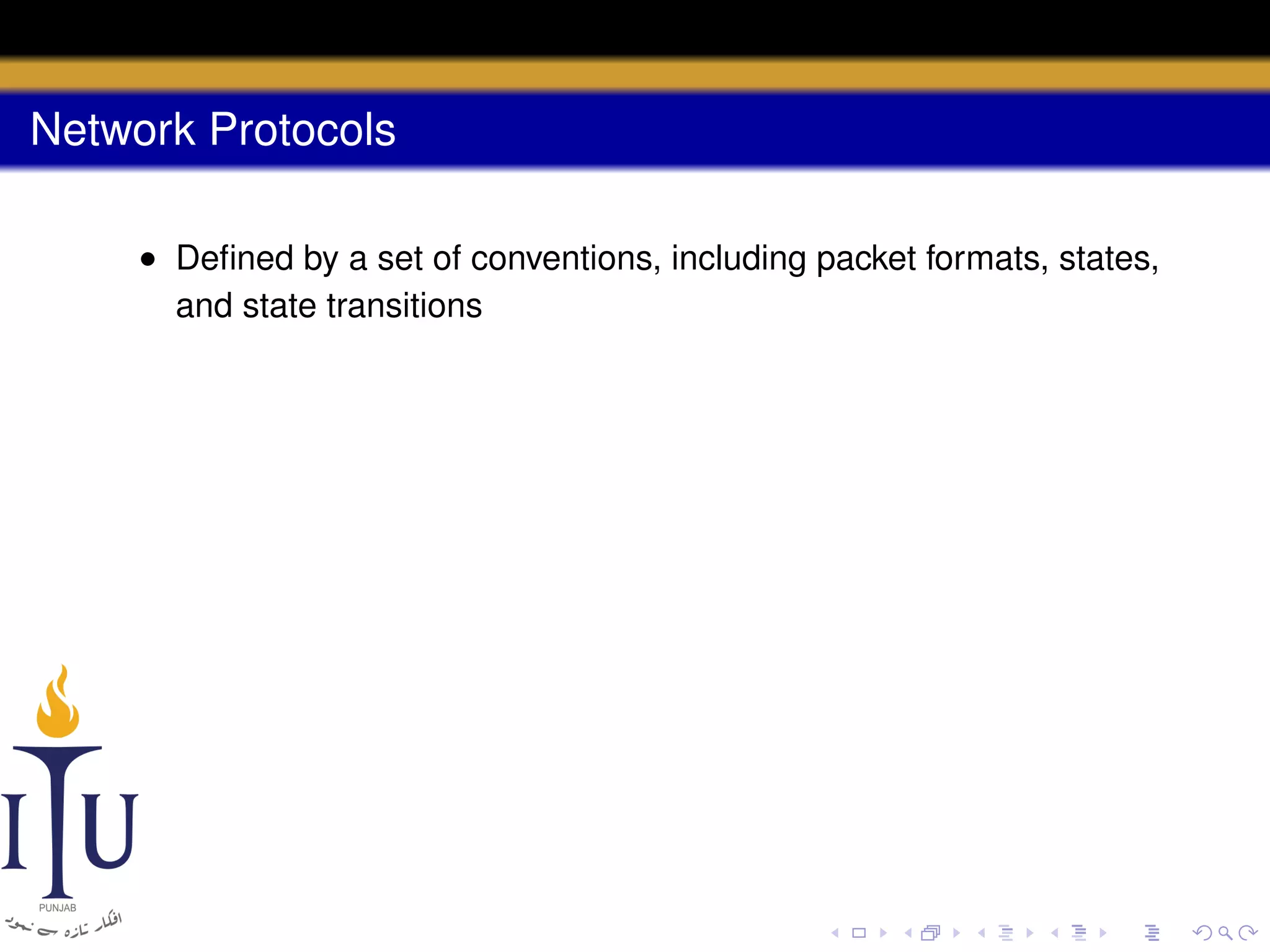

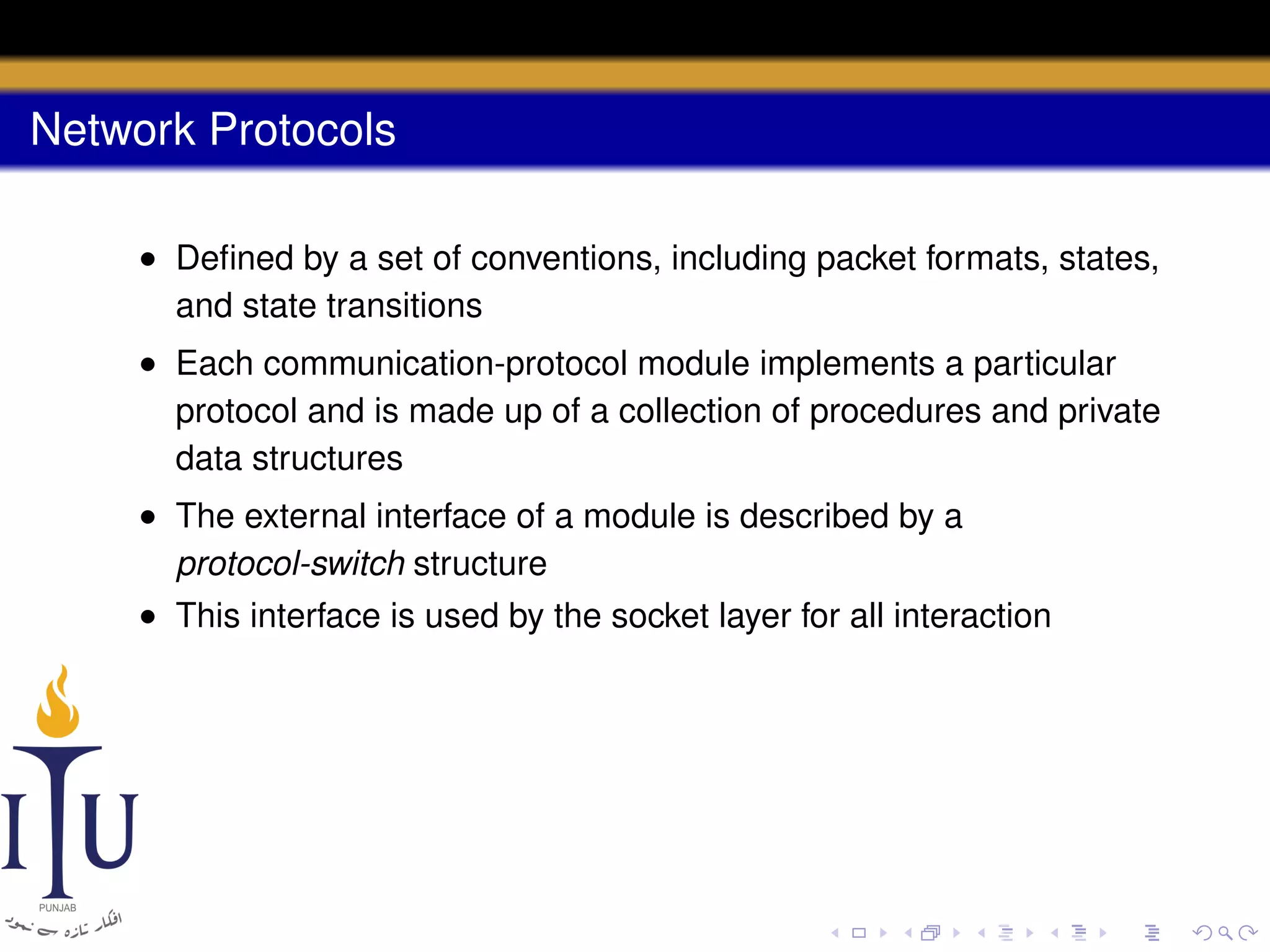

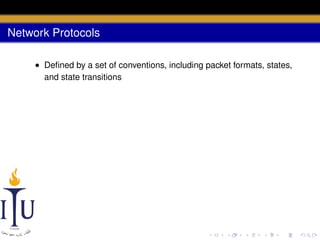

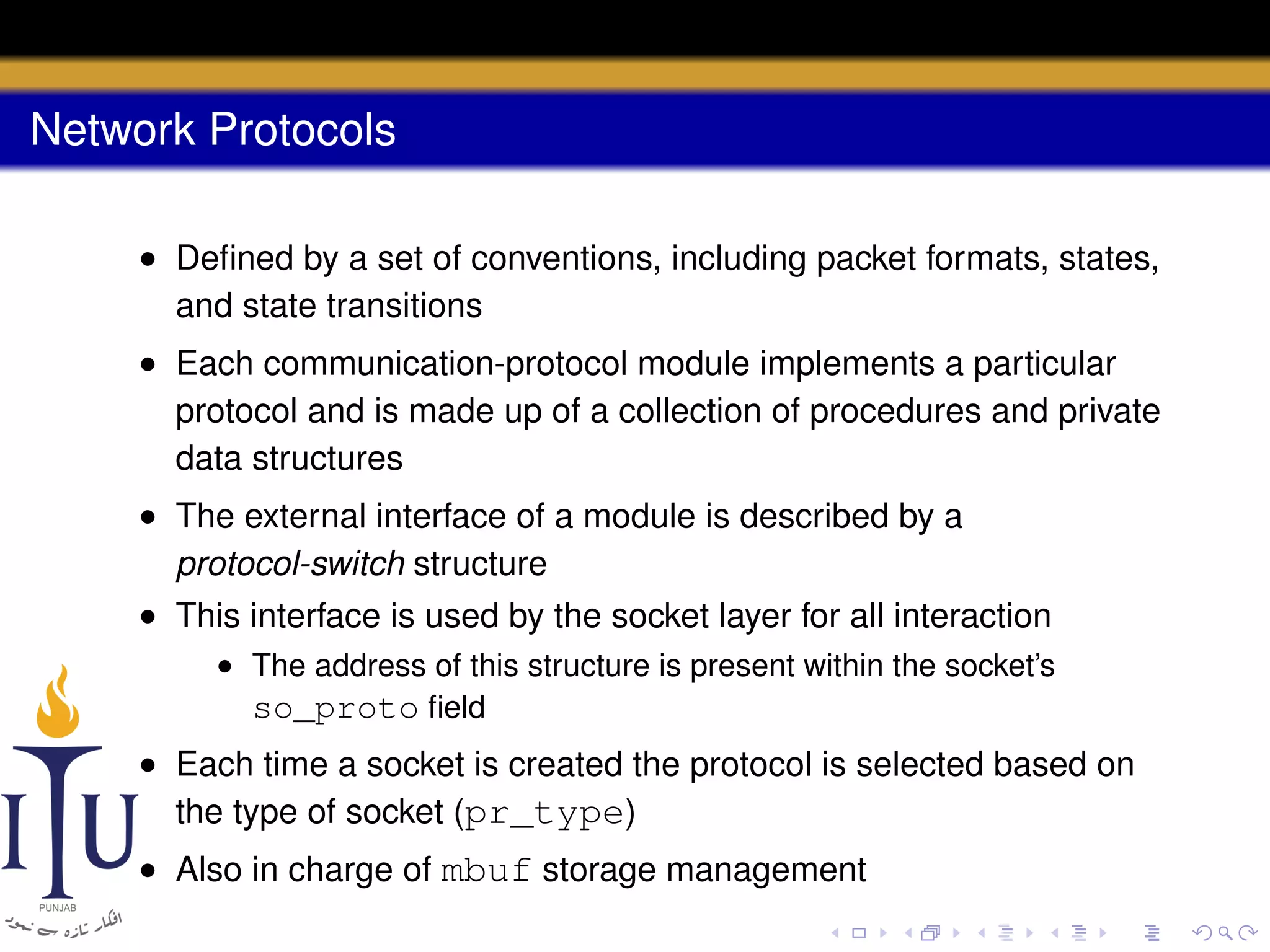

27. Network Protocols

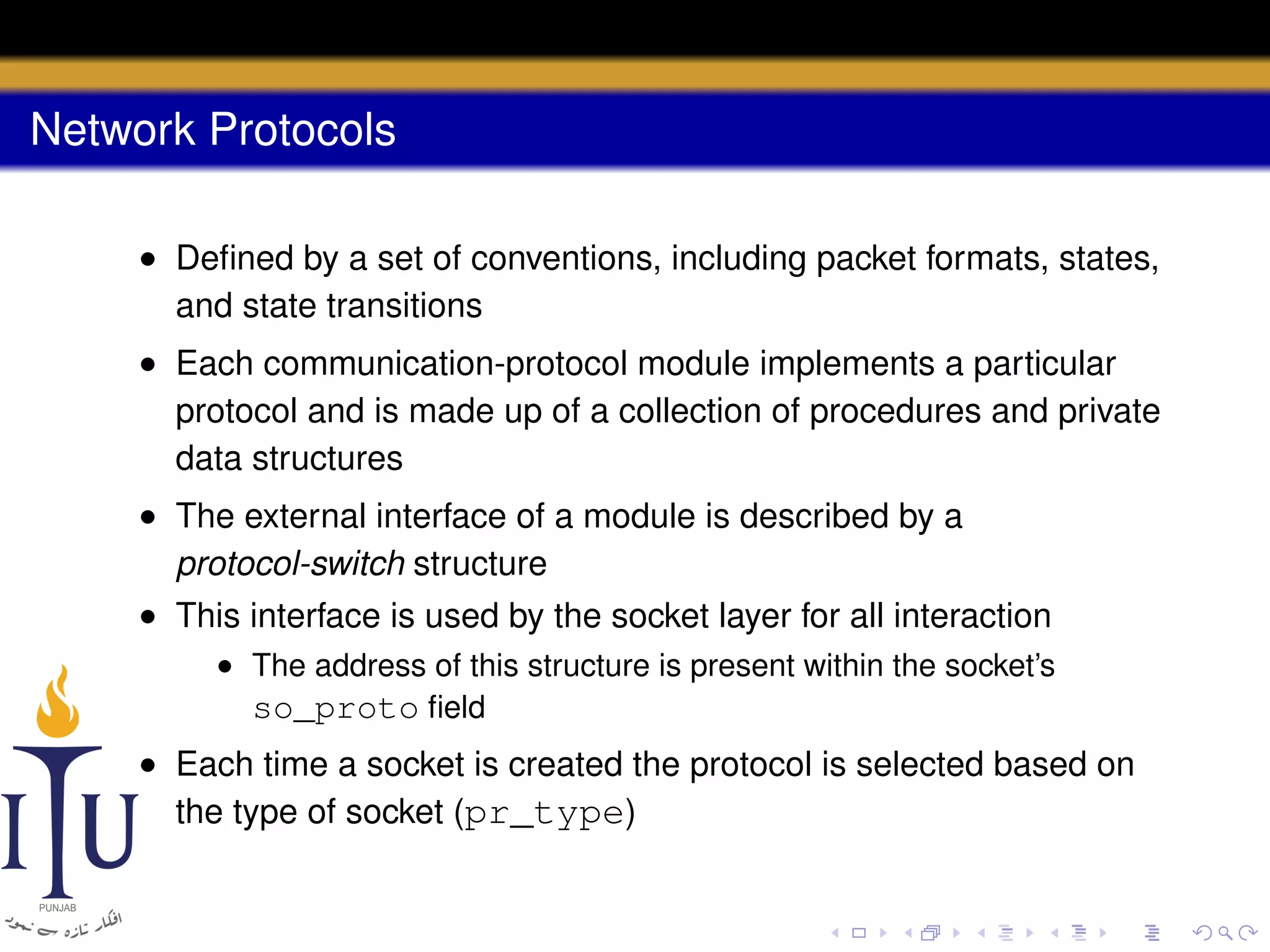

• Defined by a set of conventions, including packet formats, states,
and state transitions

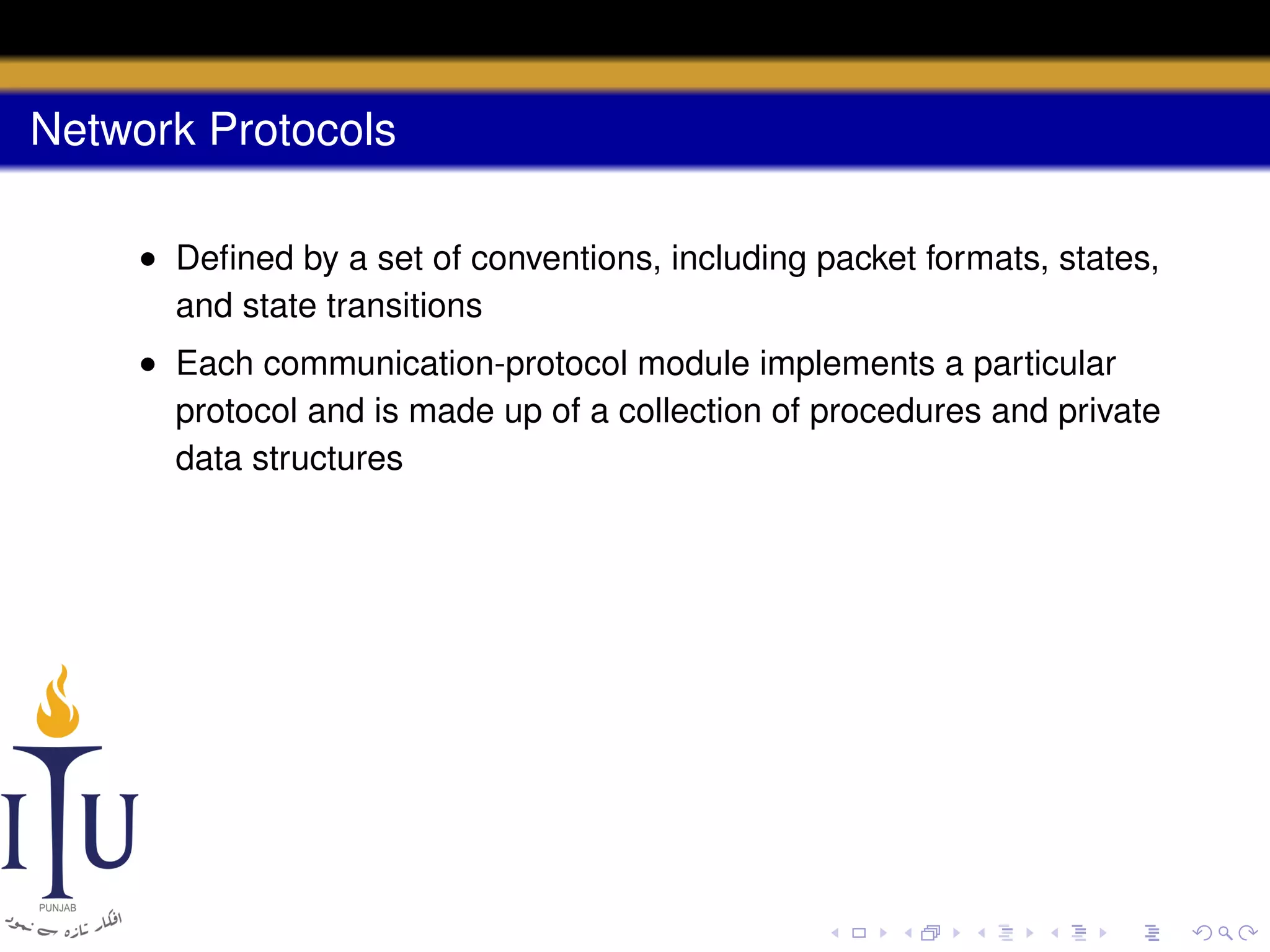

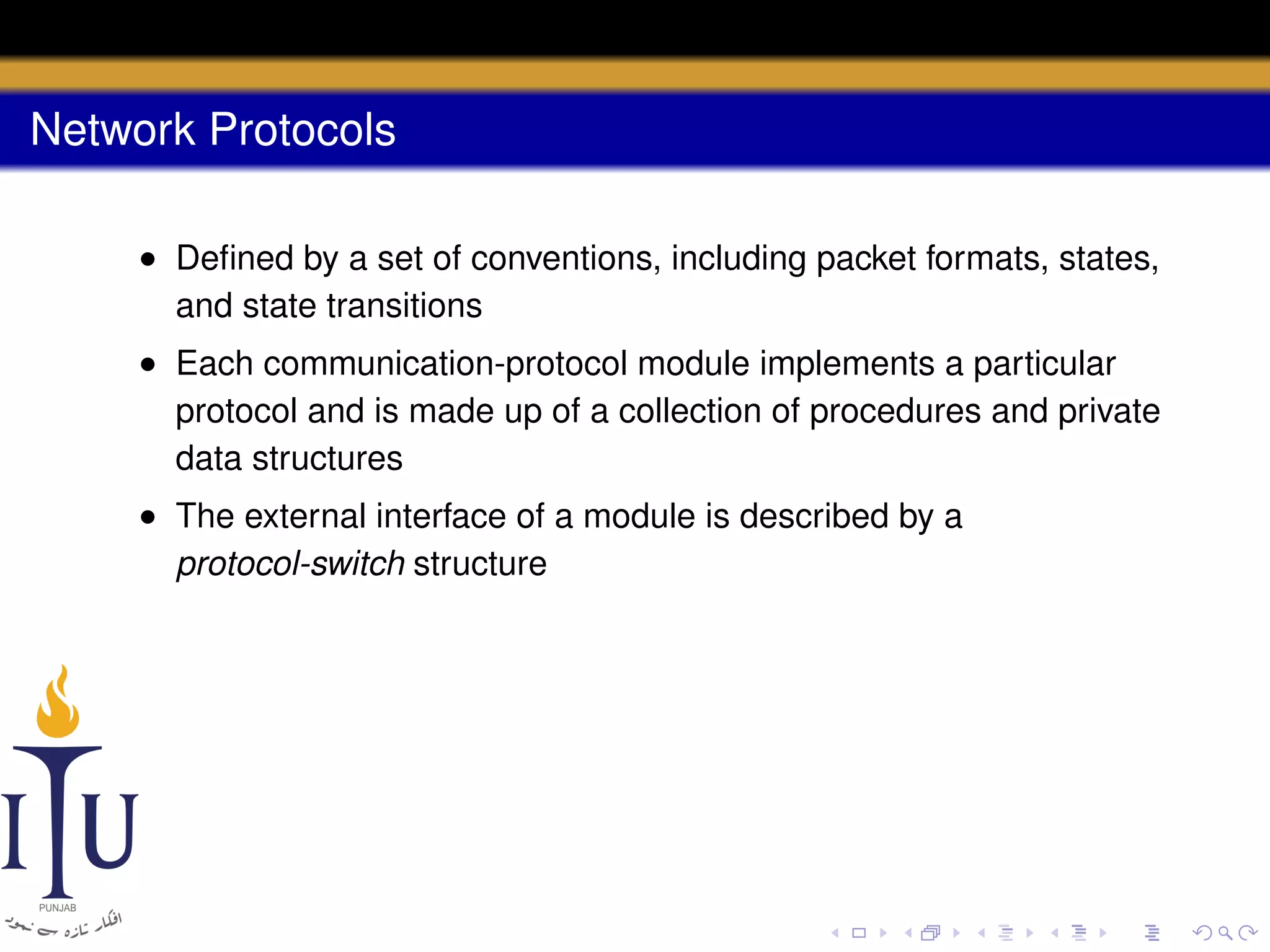

28. Network Protocols
• Defined by a set of conventions, including packet formats, states,
and state transitions
• Each communication-protocol module implements a particular
protocol and is made up of a collection of procedures and private
data structures

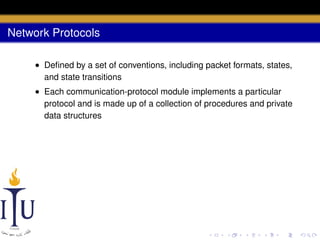

29. Network Protocols
• Defined by a set of conventions, including packet formats, states,
and state transitions
• Each communication-protocol module implements a particular
protocol and is made up of a collection of procedures and private
data structures
• The external interface of a module is described by a
protocol-switch structure

30. Network Protocols
• Defined by a set of conventions, including packet formats, states,
and state transitions
• Each communication-protocol module implements a particular
protocol and is made up of a collection of procedures and private
data structures
• The external interface of a module is described by a
protocol-switch structure
• This interface is used by the socket layer for all interaction

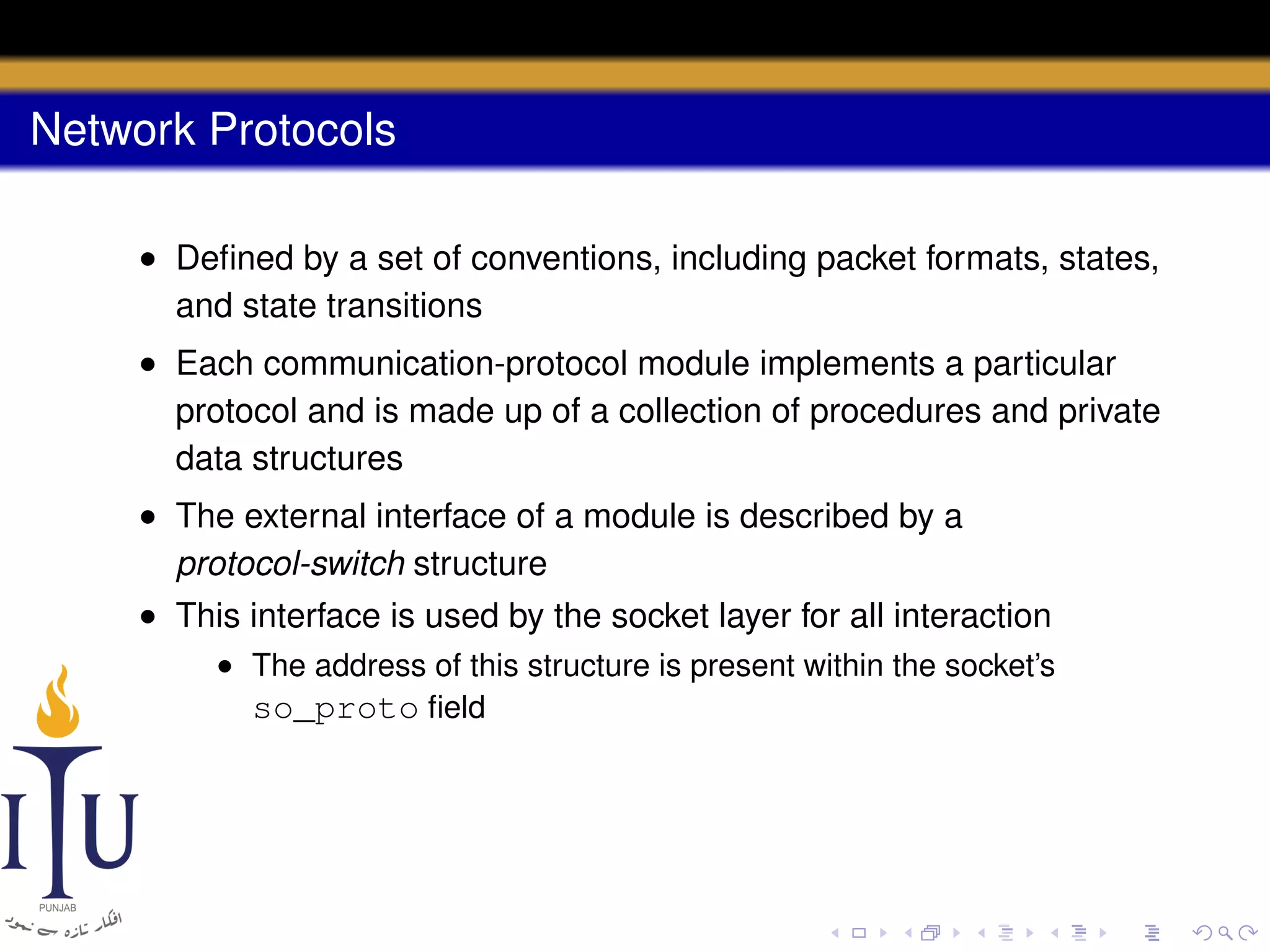

31. Network Protocols
• Defined by a set of conventions, including packet formats, states,
and state transitions
• Each communication-protocol module implements a particular
protocol and is made up of a collection of procedures and private
data structures
• The external interface of a module is described by a
protocol-switch structure
• This interface is used by the socket layer for all interaction
• The address of this structure is present within the socket’s
so_proto field

32. Network Protocols
• Defined by a set of conventions, including packet formats, states,
and state transitions
• Each communication-protocol module implements a particular
protocol and is made up of a collection of procedures and private
data structures
• The external interface of a module is described by a
protocol-switch structure
• This interface is used by the socket layer for all interaction
• The address of this structure is present within the socket’s
so_proto field
• Each time a socket is created the protocol is selected based on
the type of socket (pr_type)

33. Network Protocols
• Defined by a set of conventions, including packet formats, states,
and state transitions
• Each communication-protocol module implements a particular
protocol and is made up of a collection of procedures and private
data structures
• The external interface of a module is described by a
protocol-switch structure
• This interface is used by the socket layer for all interaction
• The address of this structure is present within the socket’s
so_proto field
• Each time a socket is created the protocol is selected based on
the type of socket (pr_type)
• Also in charge of mbuf storage management

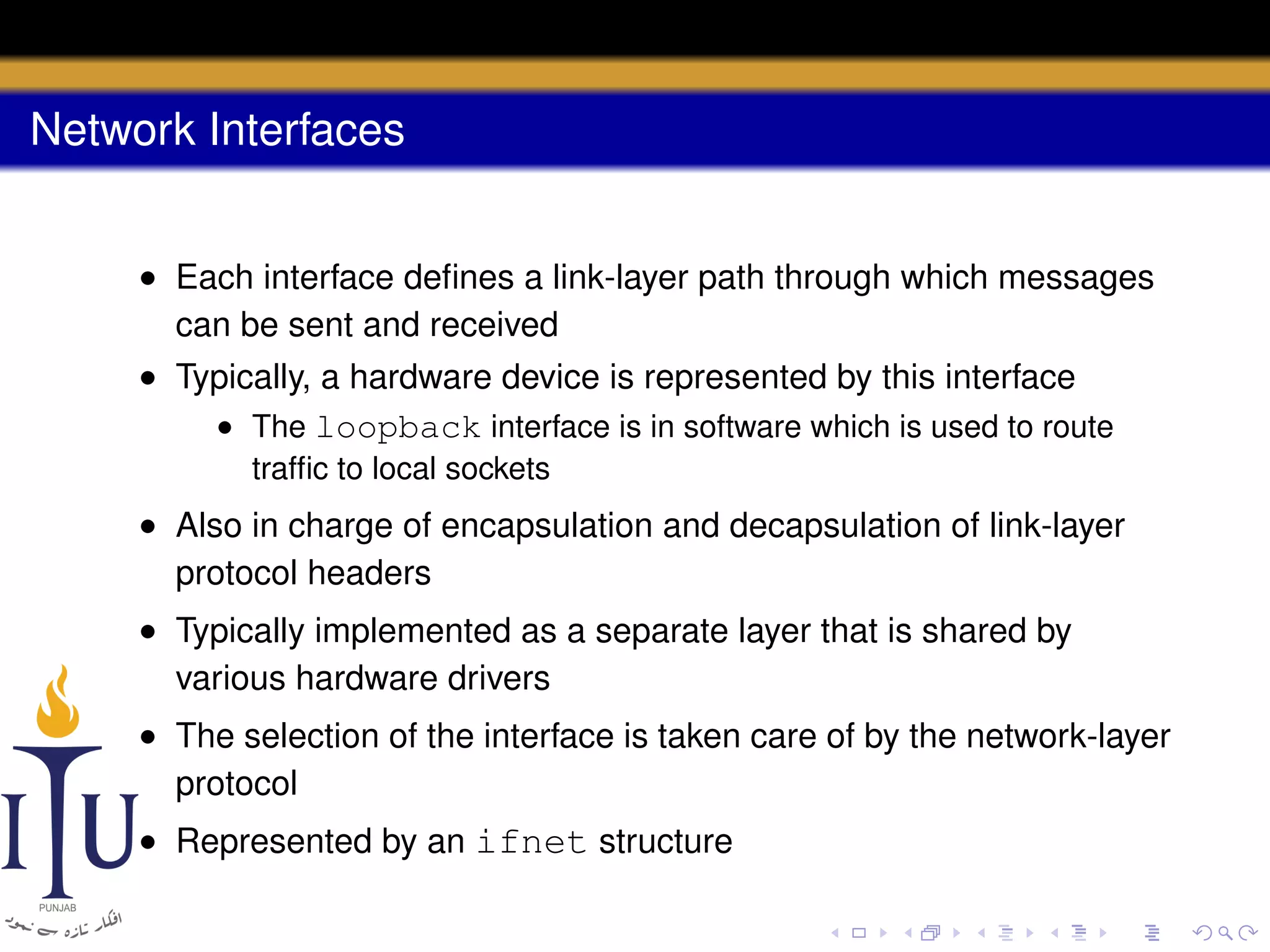

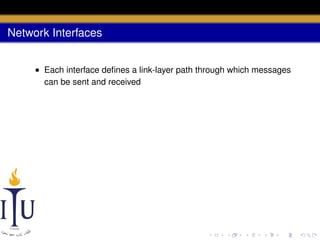

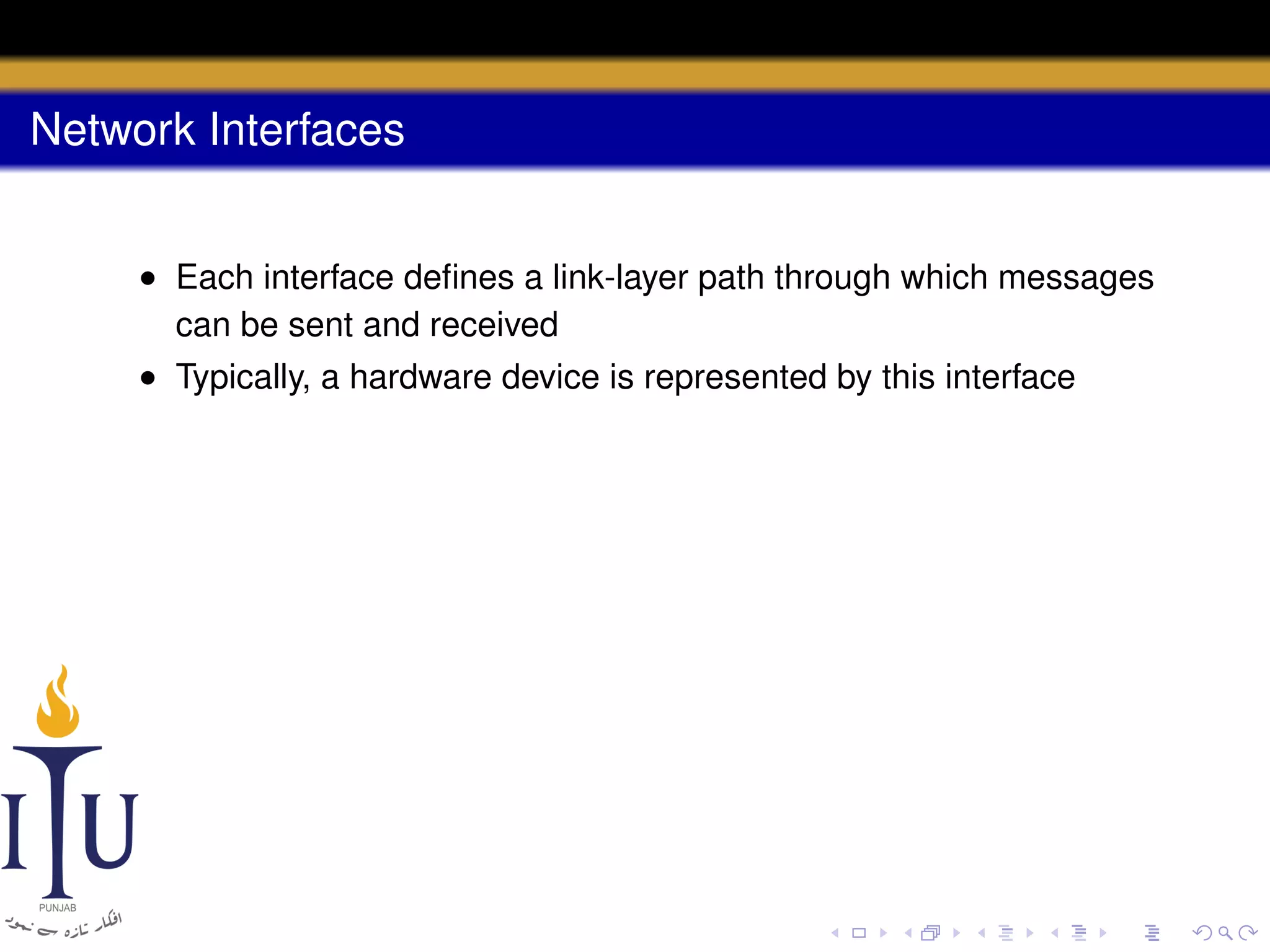

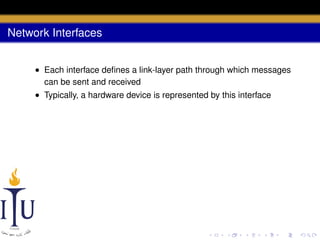

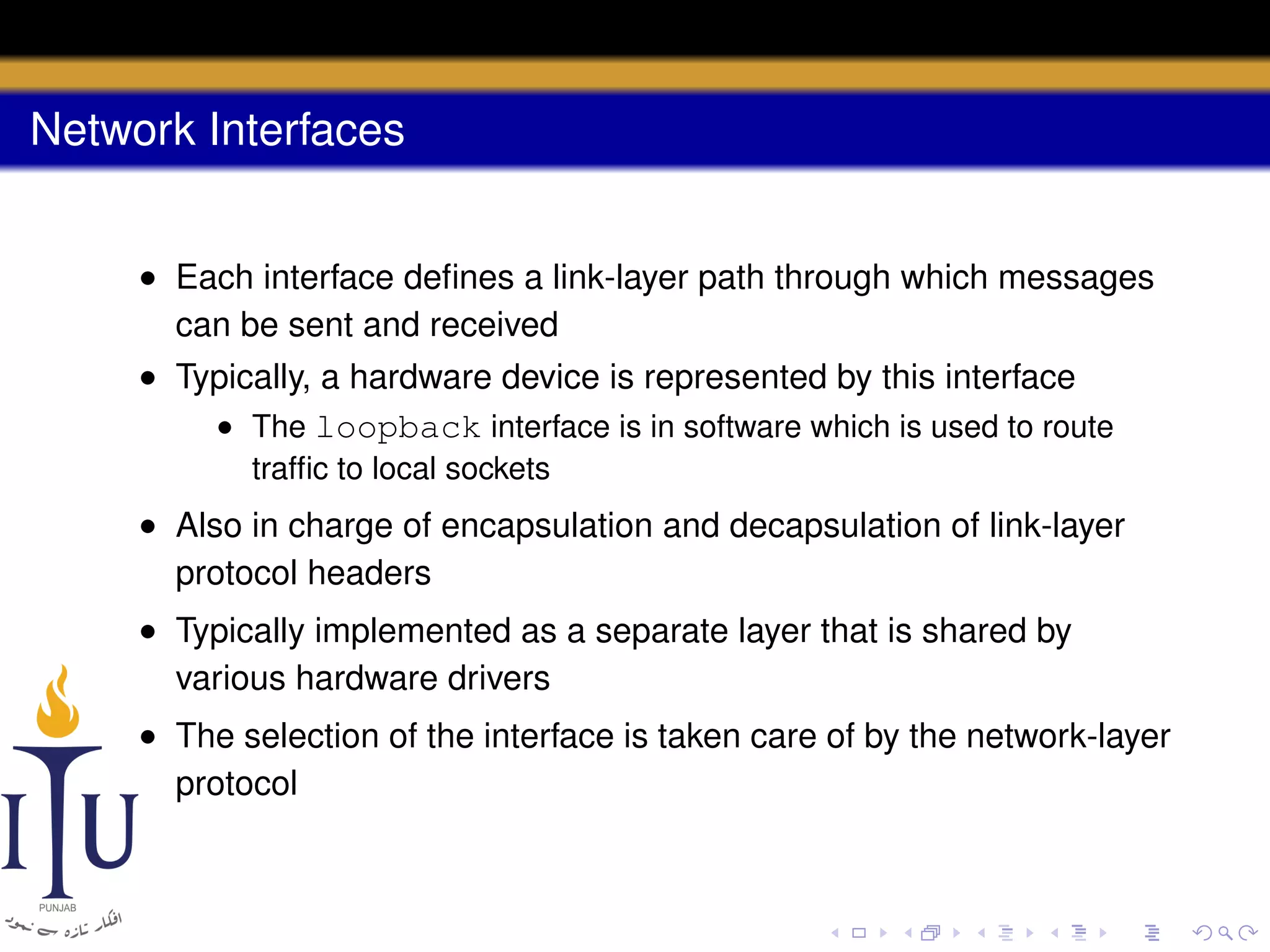

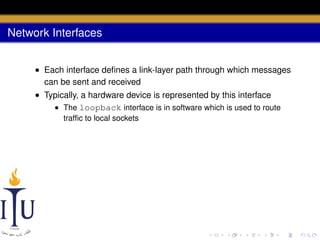

34. Network Interfaces
• Each interface defines a link-layer path through which messages
can be sent and received

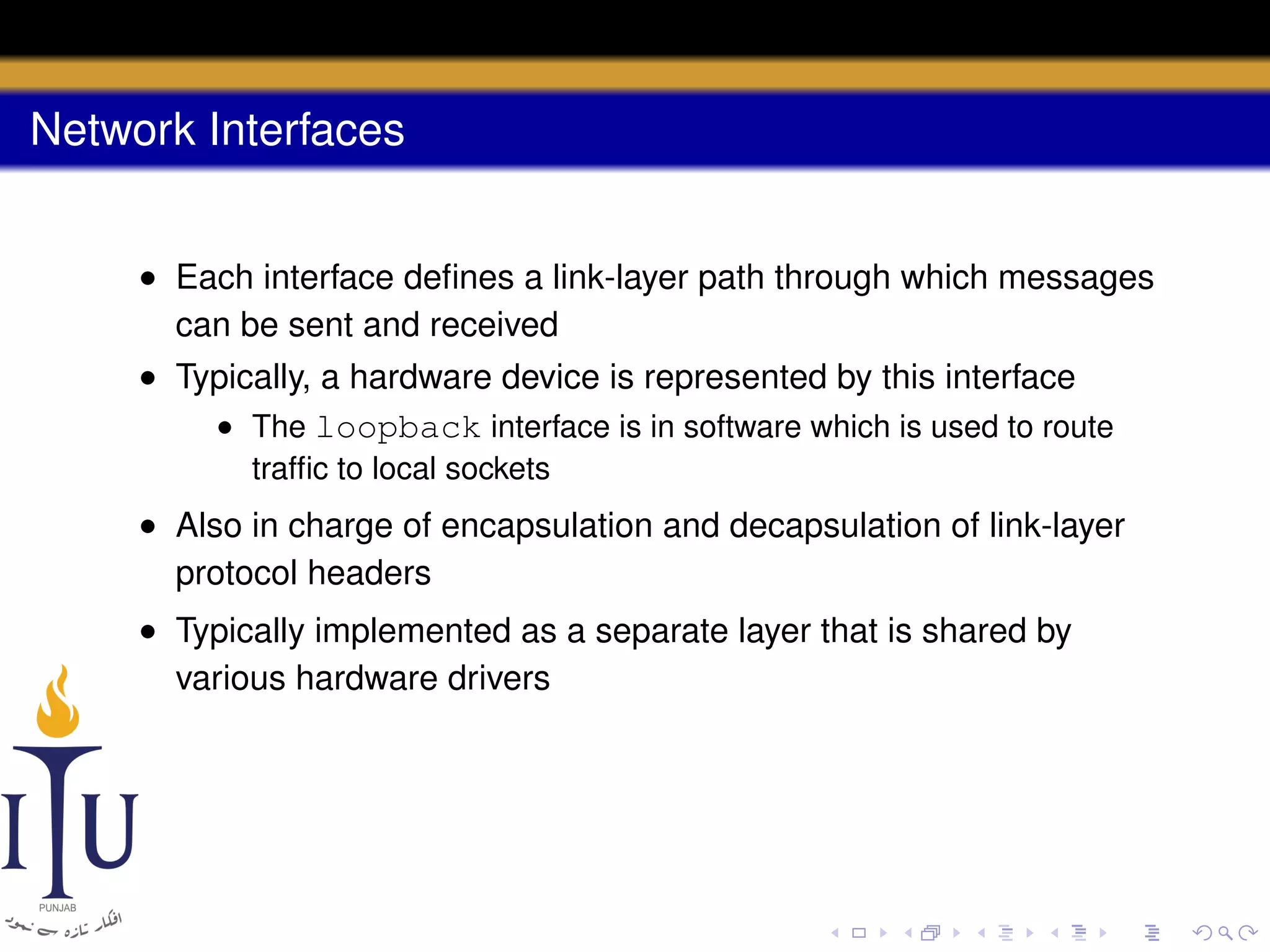

35. Network Interfaces
• Each interface defines a link-layer path through which messages
can be sent and received
• Typically, a hardware device is represented by this interface

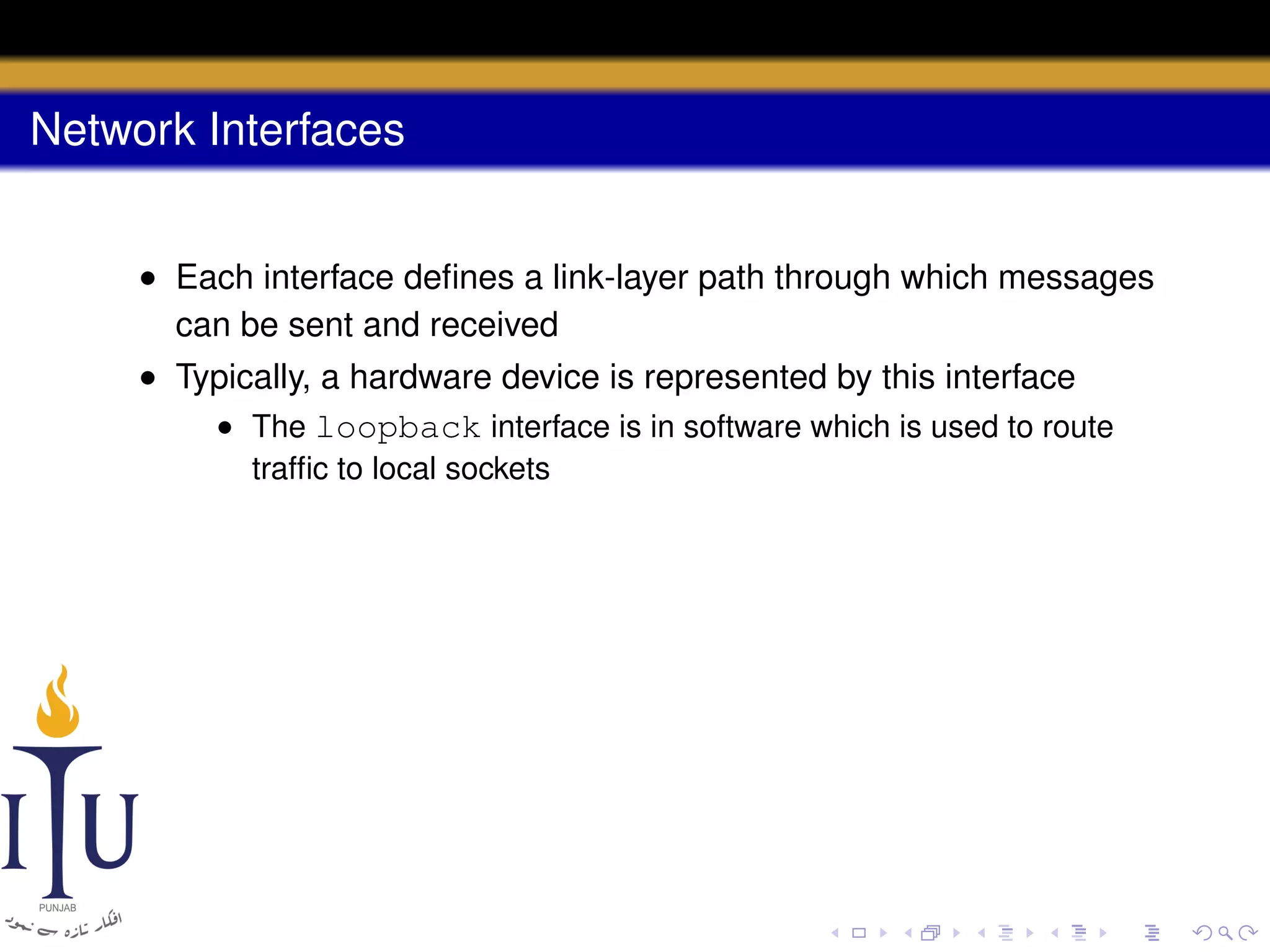

36. Network Interfaces
• Each interface defines a link-layer path through which messages
can be sent and received
• Typically, a hardware device is represented by this interface
• The loopback interface is in software which is used to route
traffic to local sockets

37. Network Interfaces
• Each interface defines a link-layer path through which messages
can be sent and received
• Typically, a hardware device is represented by this interface
• The loopback interface is in software which is used to route
traffic to local sockets
• Also in charge of encapsulation and decapsulation of link-layer
protocol headers

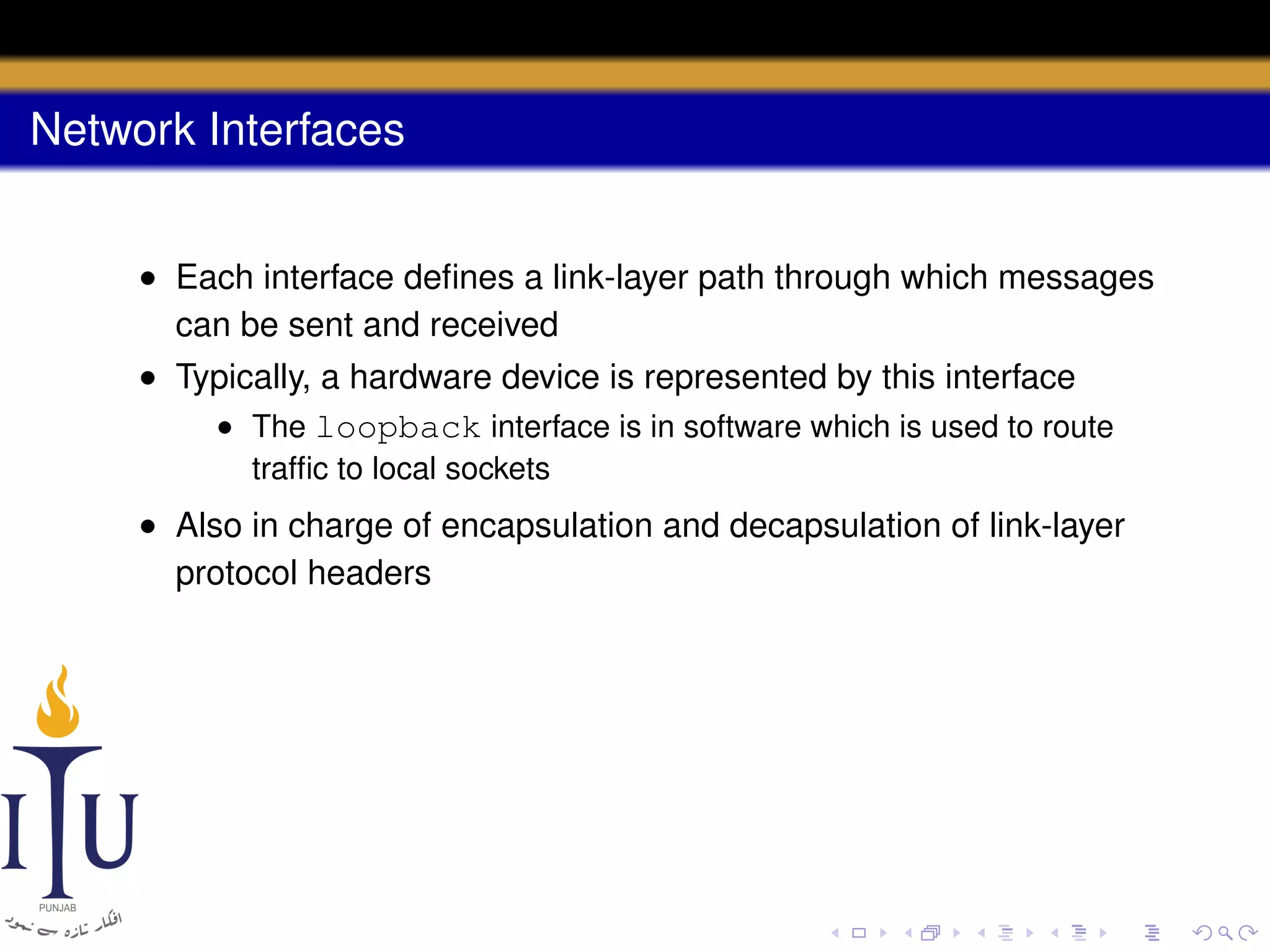

38. Network Interfaces
• Each interface defines a link-layer path through which messages
can be sent and received
• Typically, a hardware device is represented by this interface
• The loopback interface is in software which is used to route
traffic to local sockets
• Also in charge of encapsulation and decapsulation of link-layer
protocol headers
• Typically implemented as a separate layer that is shared by
various hardware drivers

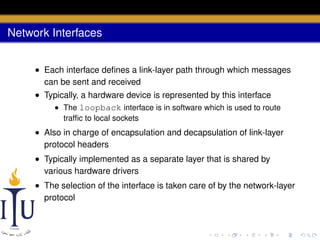

39. Network Interfaces
• Each interface defines a link-layer path through which messages
can be sent and received
• Typically, a hardware device is represented by this interface
• The loopback interface is in software which is used to route
traffic to local sockets
• Also in charge of encapsulation and decapsulation of link-layer
protocol headers
• Typically implemented as a separate layer that is shared by
various hardware drivers
• The selection of the interface is taken care of by the network-layer
protocol

40. Network Interfaces
• Each interface defines a link-layer path through which messages
can be sent and received
• Typically, a hardware device is represented by this interface
• The loopback interface is in software which is used to route
traffic to local sockets
• Also in charge of encapsulation and decapsulation of link-layer
protocol headers
• Typically implemented as a separate layer that is shared by
various hardware drivers
• The selection of the interface is taken care of by the network-layer
protocol
• Represented by an ifnet structure

41. Socket-to-Protocol Interface
• Enabled by two routines: 1) User request, pr_usrreq() and
2) Control output, pr_ctloutput()

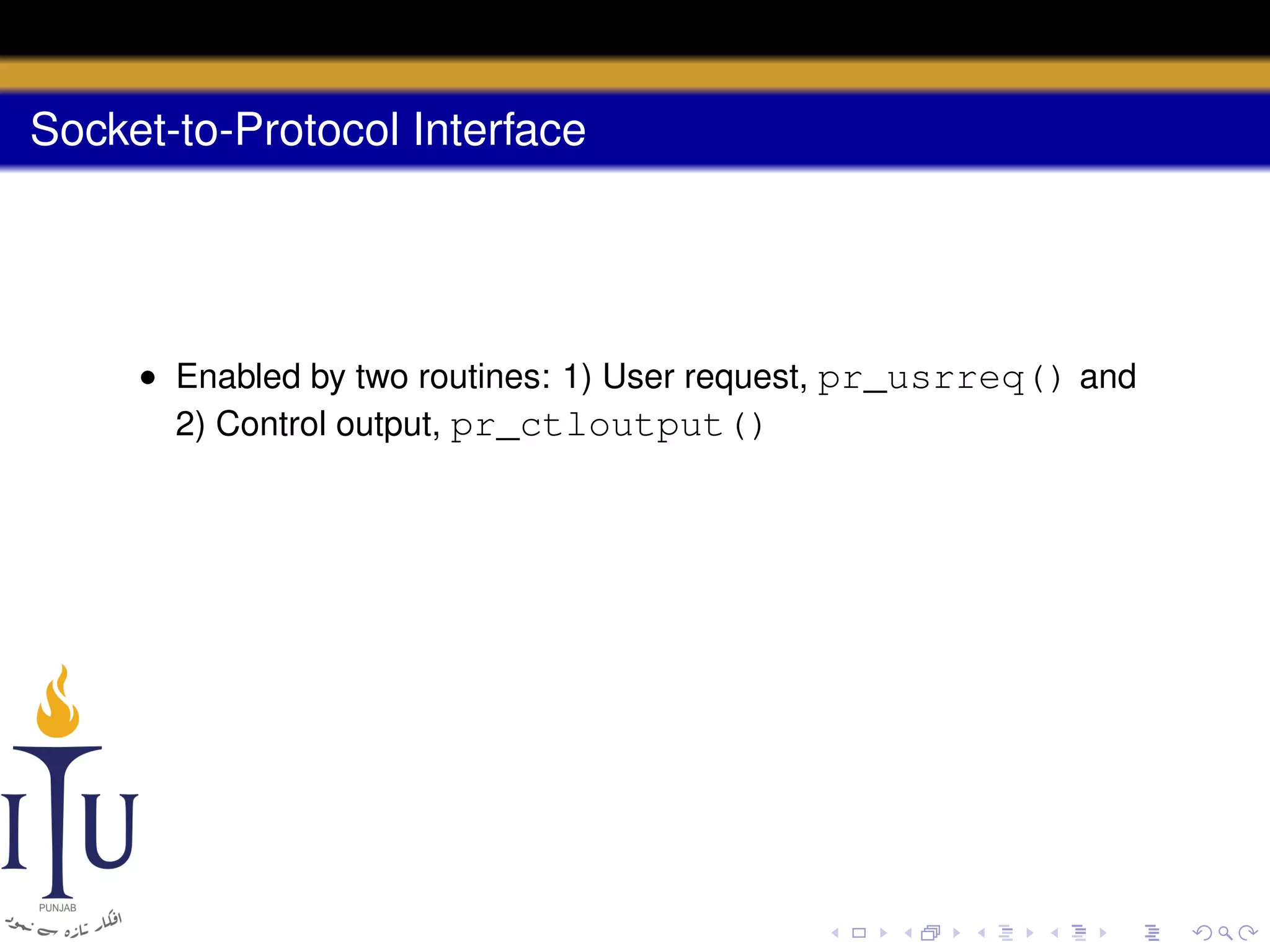

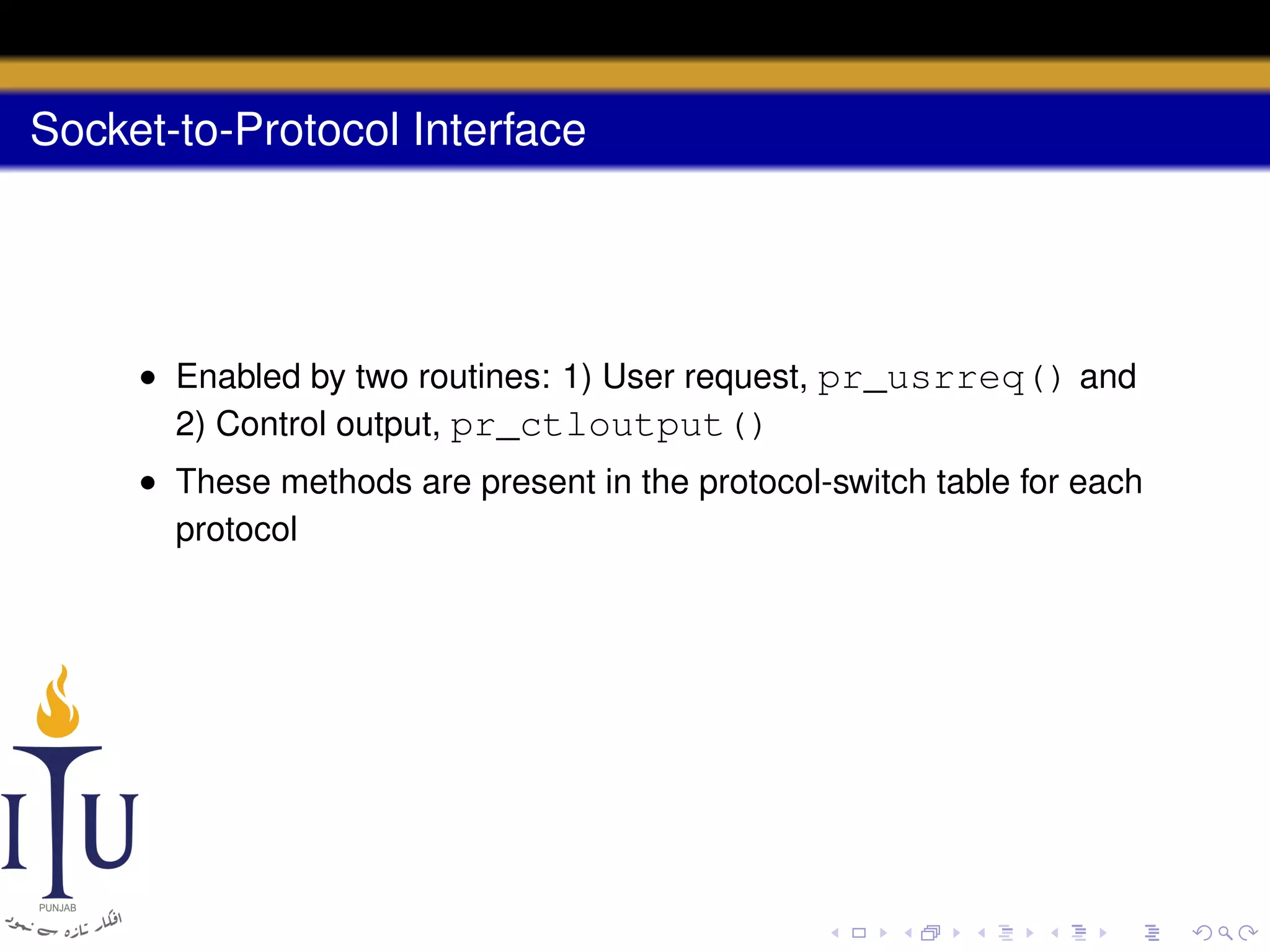

42. Socket-to-Protocol Interface
• Enabled by two routines: 1) User request, pr_usrreq() and
2) Control output, pr_ctloutput()
• These methods are present in the protocol-switch table for each
protocol

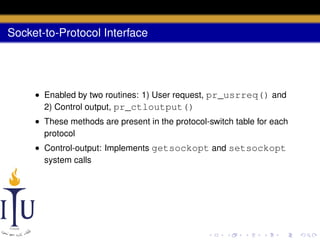

43. Socket-to-Protocol Interface
• Enabled by two routines: 1) User request, pr_usrreq() and
2) Control output, pr_ctloutput()
• These methods are present in the protocol-switch table for each
protocol
• Control-output: Implements getsockopt and setsockopt
system calls

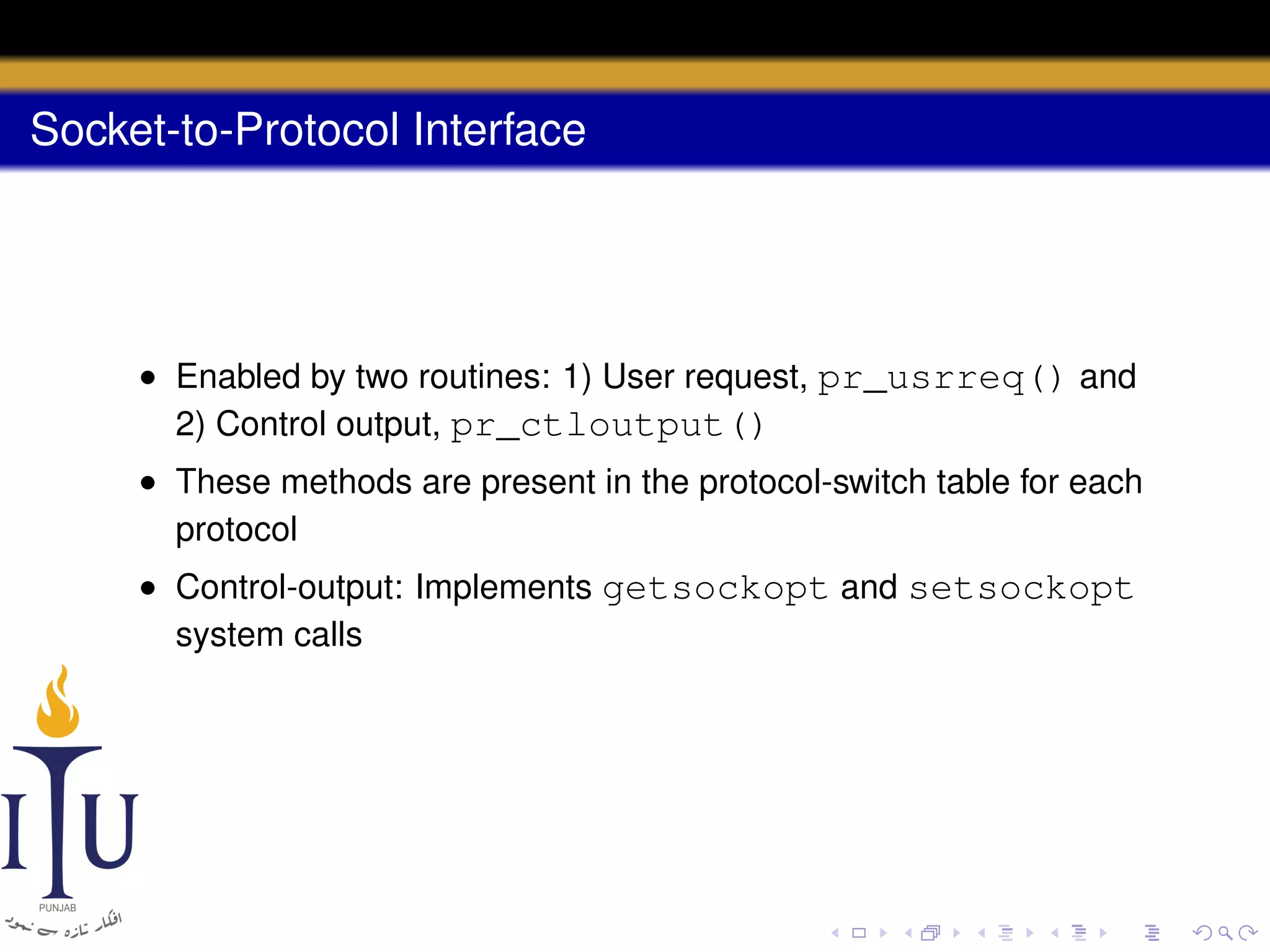

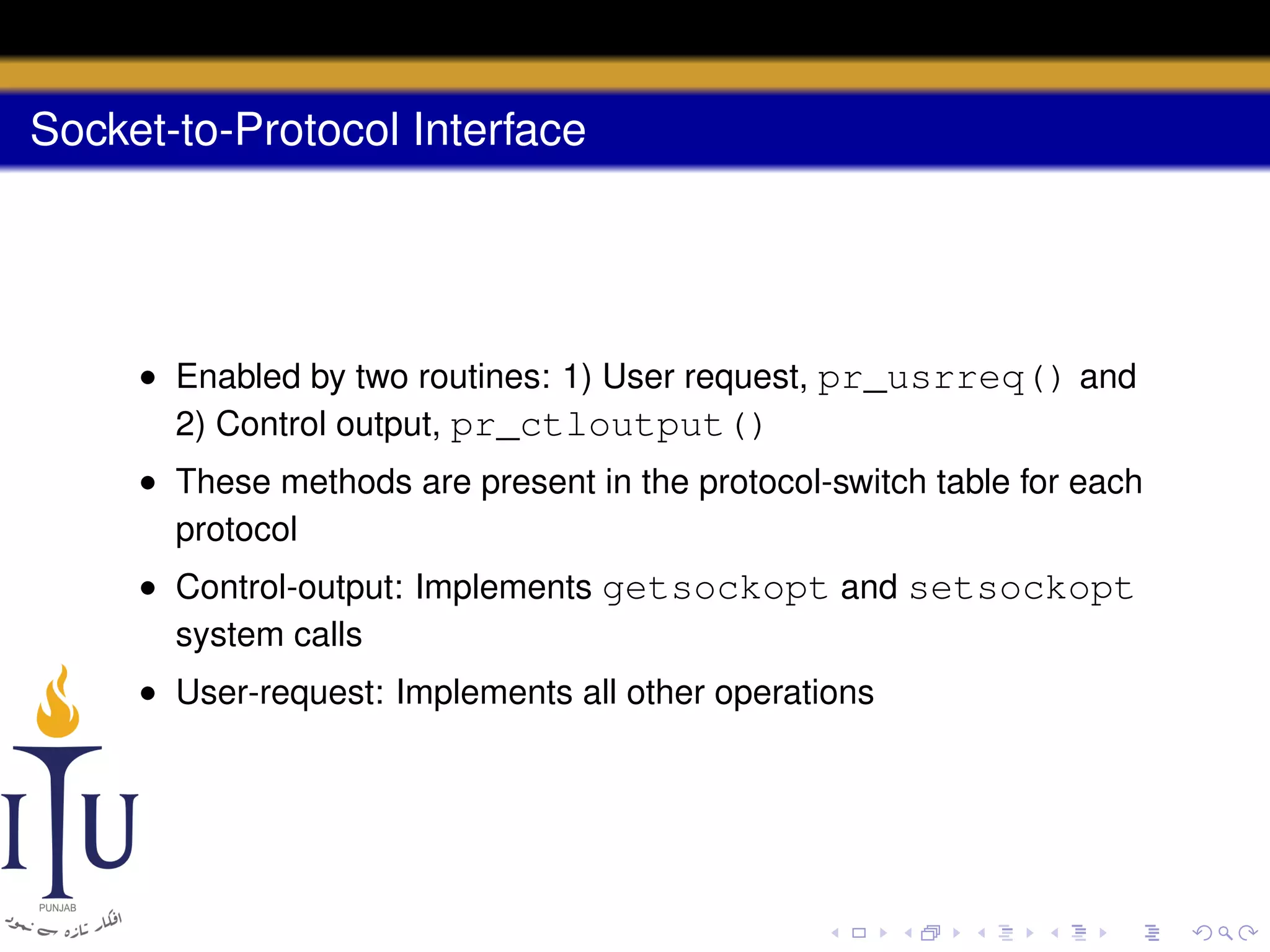

44. Socket-to-Protocol Interface
• Enabled by two routines: 1) User request, pr_usrreq() and
2) Control output, pr_ctloutput()
• These methods are present in the protocol-switch table for each
protocol
• Control-output: Implements getsockopt and setsockopt
system calls
• User-request: Implements all other operations

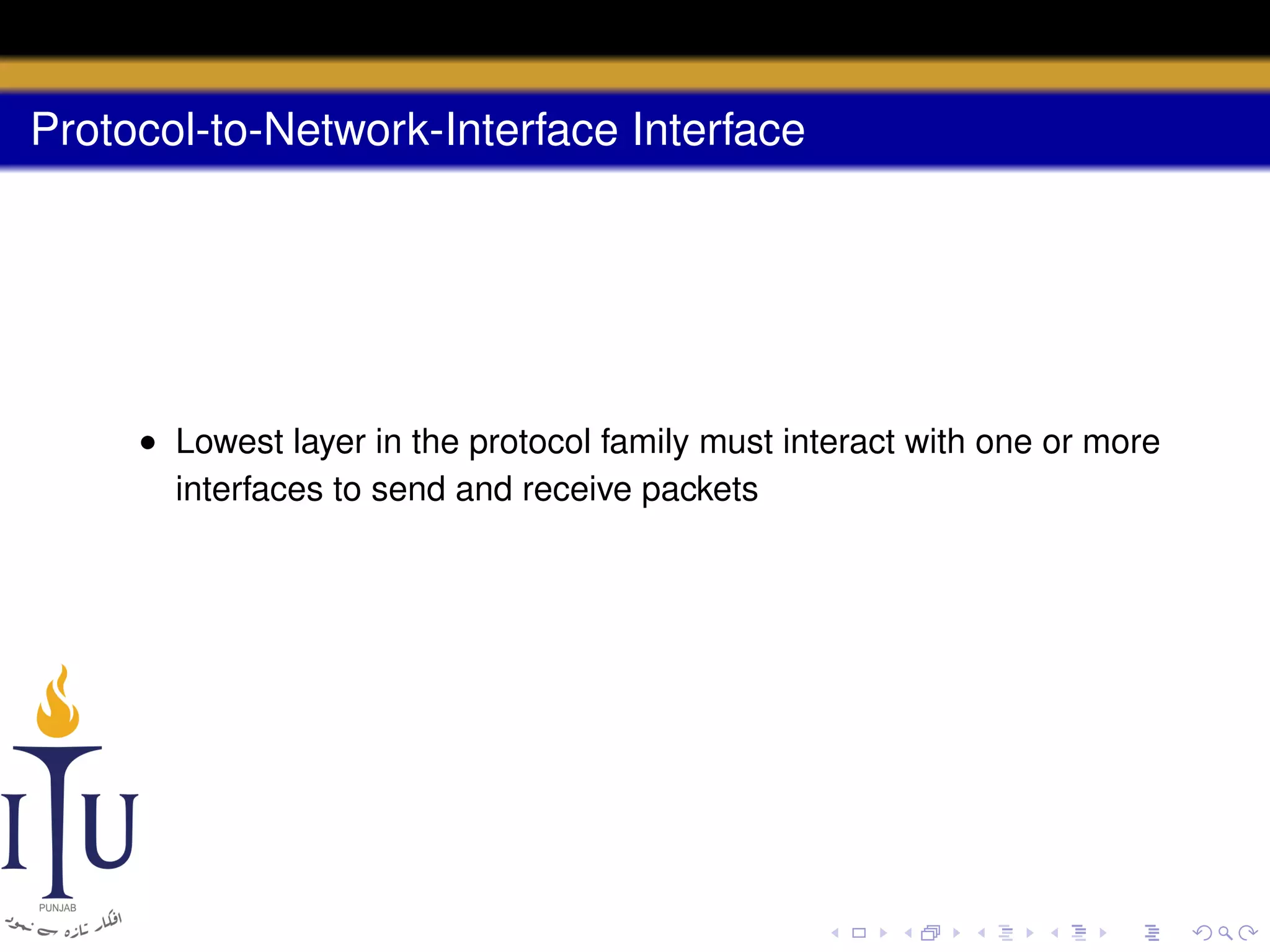

45. Protocol-to-Network-Interface Interface
• Lowest layer in the protocol family must interact with one or more
interfaces to send and receive packets

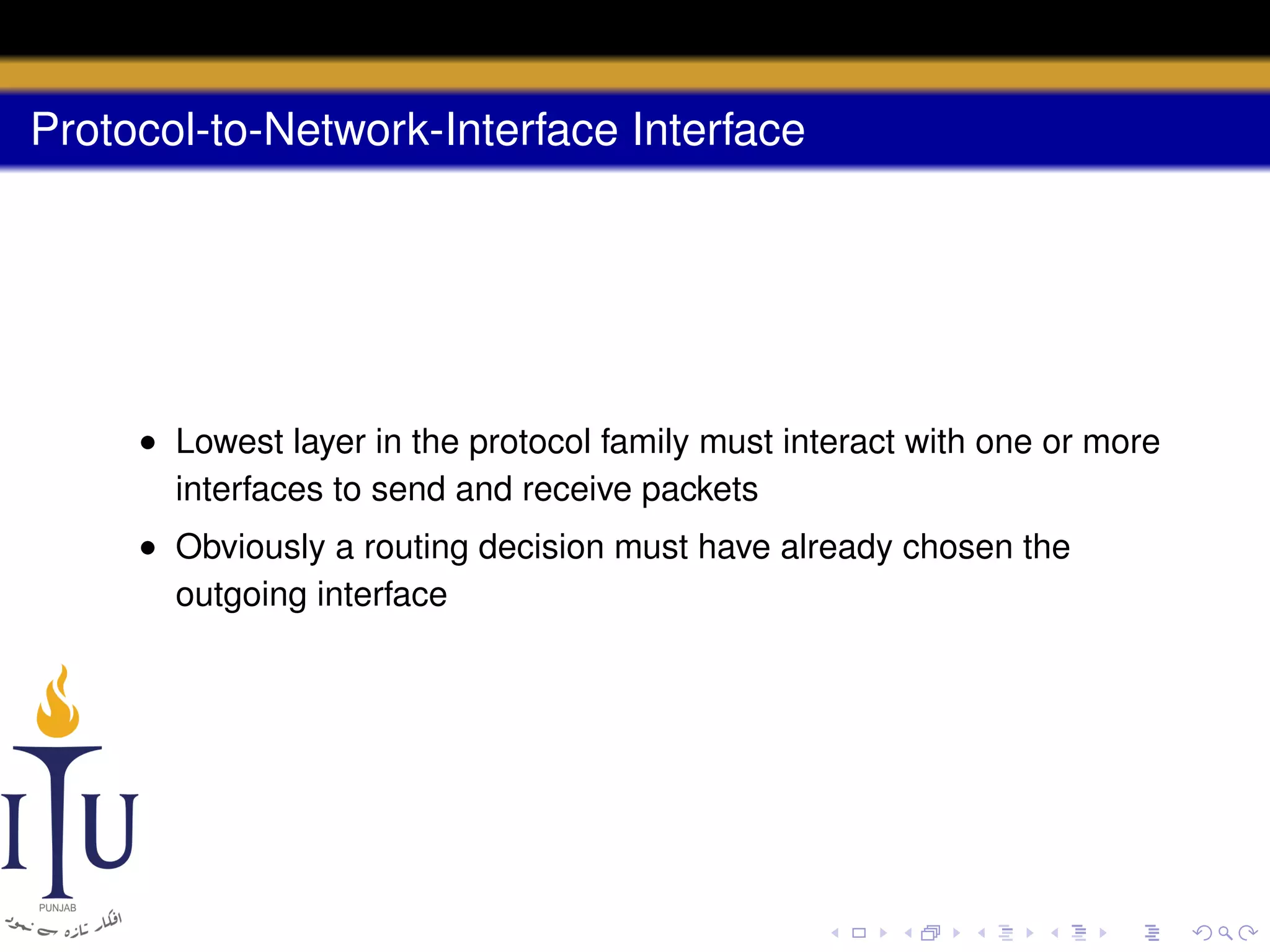

46. Protocol-to-Network-Interface Interface

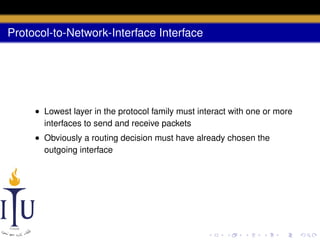

• Lowest layer in the protocol family must interact with one or more
interfaces to send and receive packets
• Obviously a routing decision must have already chosen the
outgoing interface

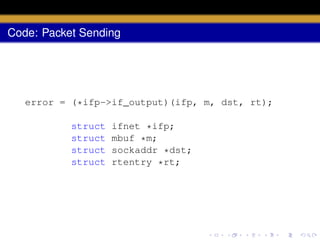

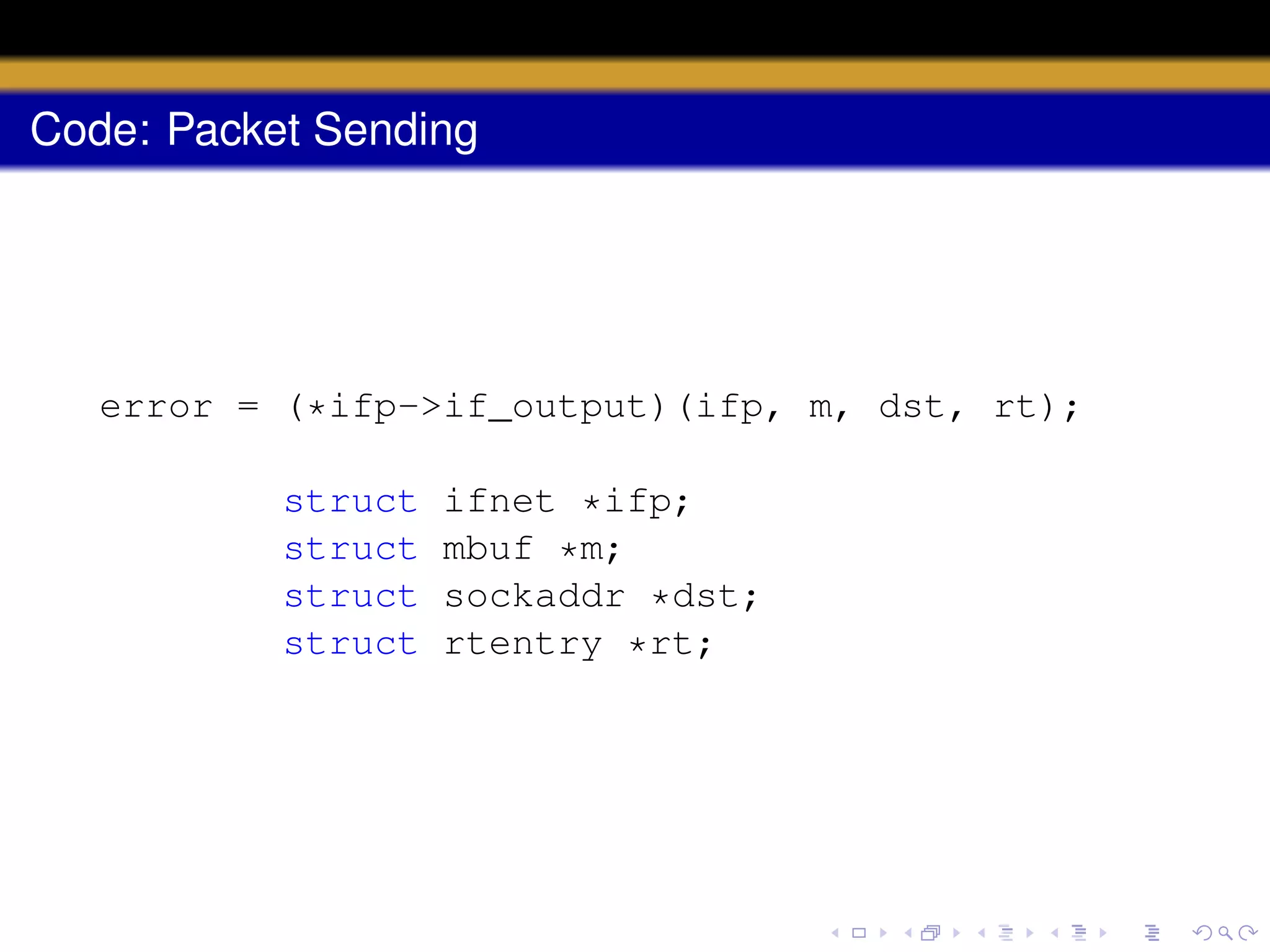

47. Code: Packet Sending
error = (*ifp->if_output)(ifp, m, dst, rt);
struct
struct
struct
struct
ifnet *ifp;
mbuf *m;
sockaddr *dst;
rtentry *rt;

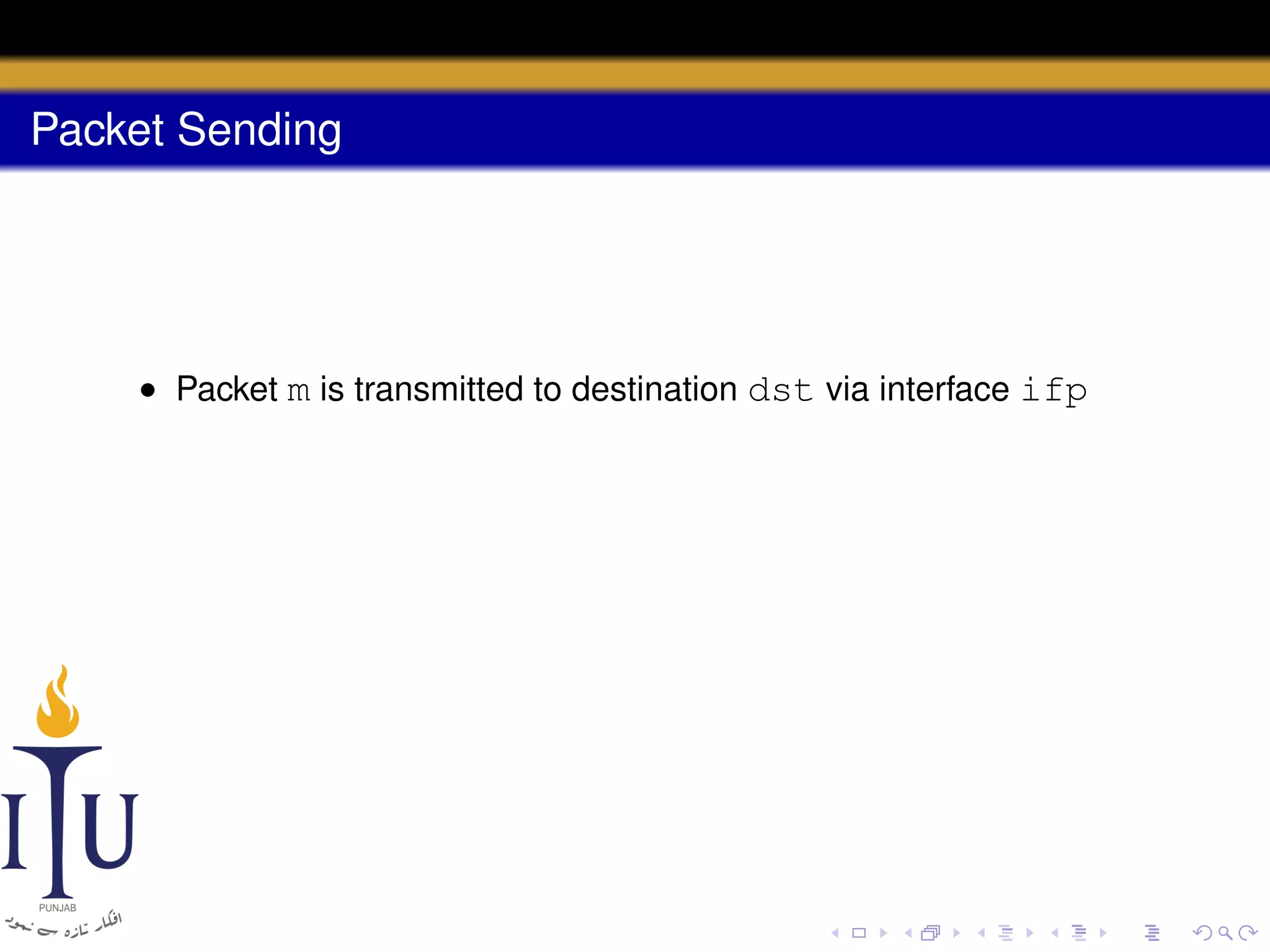

48. Packet Sending
• Packet m is transmitted to destination dst via interface ifp

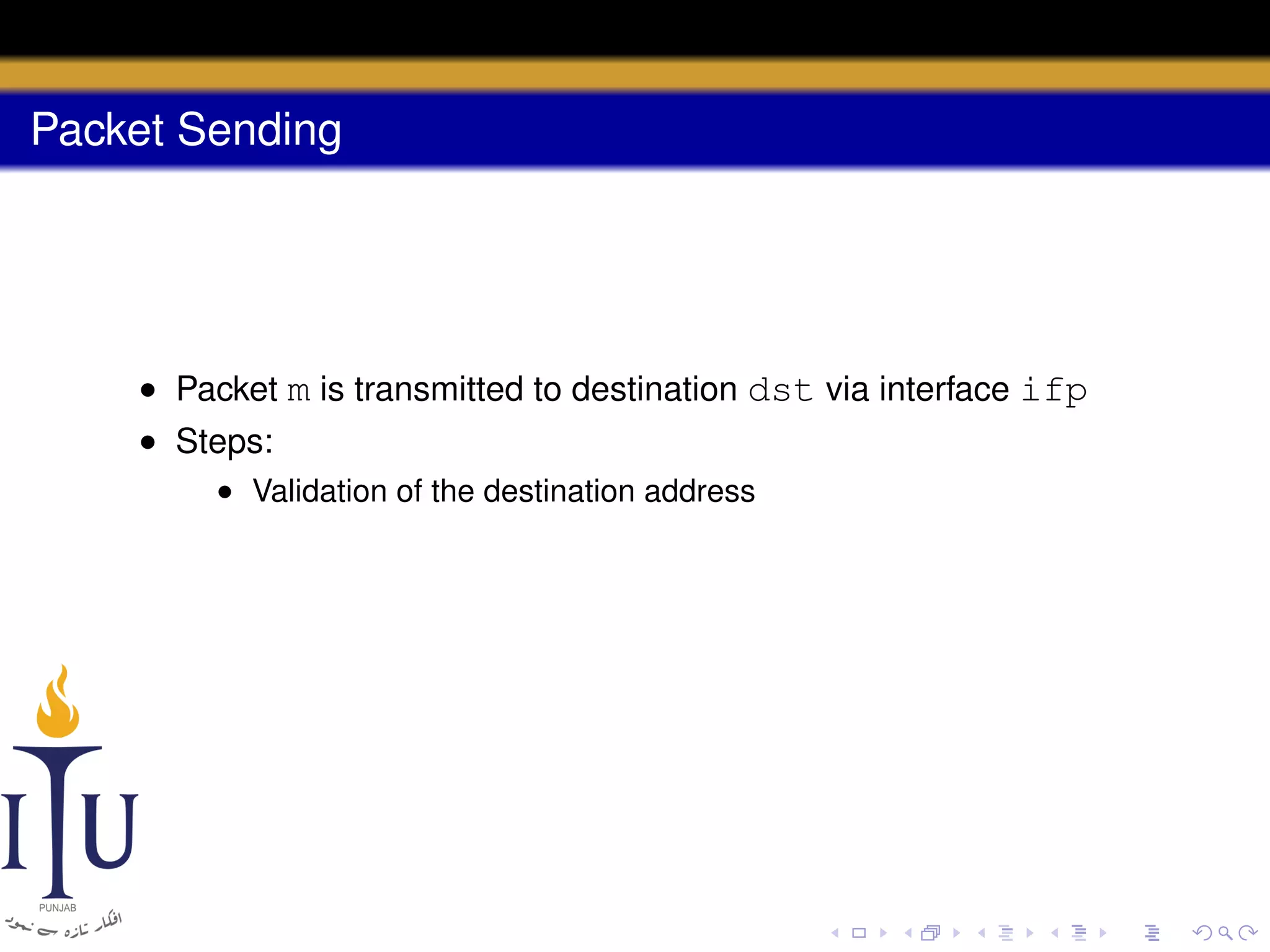

49. Packet Sending
• Packet m is transmitted to destination dst via interface ifp
• Steps:
• Validation of the destination address

50. Packet Sending
• Packet m is transmitted to destination dst via interface ifp
• Steps:
• Validation of the destination address
• Queuing of the packet on the send queue

51. Packet Sending
• Packet m is transmitted to destination dst via interface ifp
• Steps:
• Validation of the destination address
• Queuing of the packet on the send queue
• If the interface is not busy, using an interrupt-driven routine to
transmit the packet

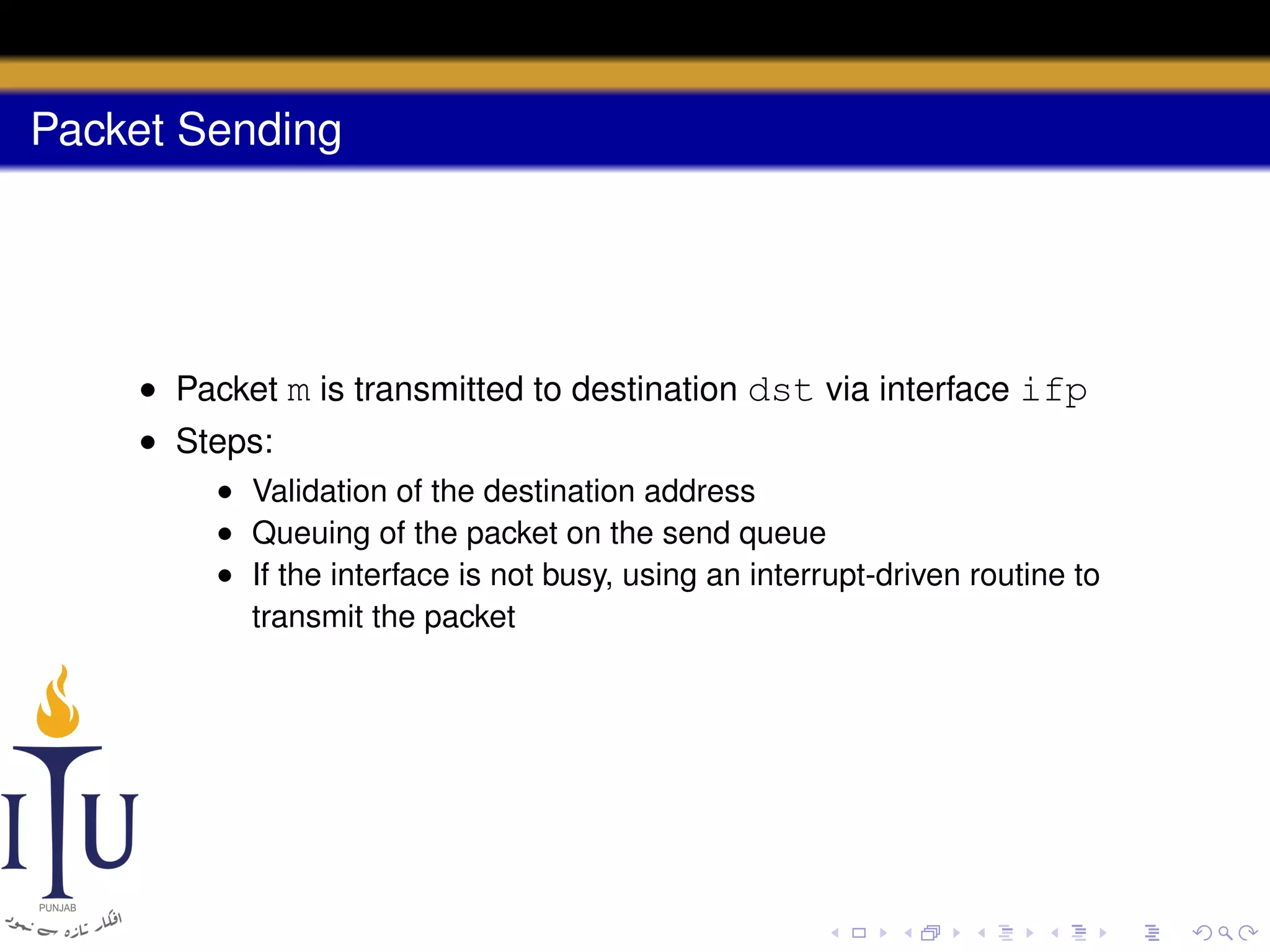

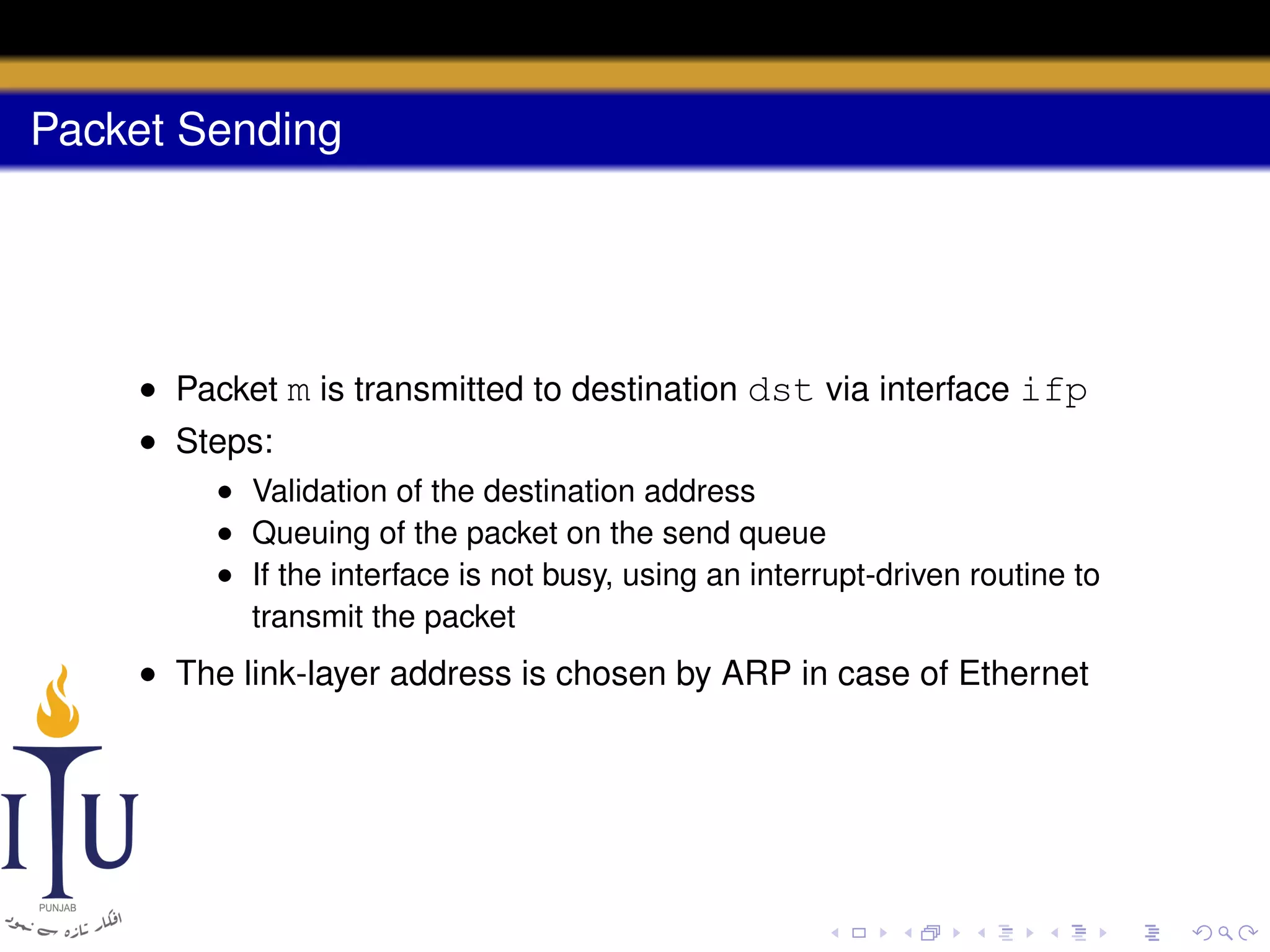

52. Packet Sending
• Packet m is transmitted to destination dst via interface ifp
• Steps:
• Validation of the destination address
• Queuing of the packet on the send queue
• If the interface is not busy, using an interrupt-driven routine to
transmit the packet
• The link-layer address is chosen by ARP in case of Ethernet

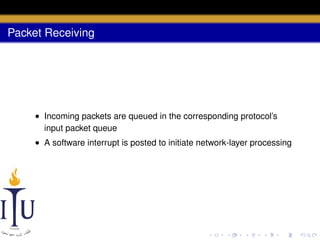

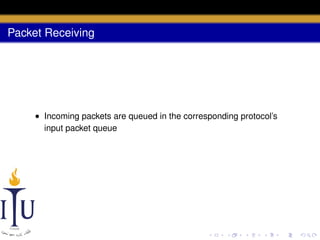

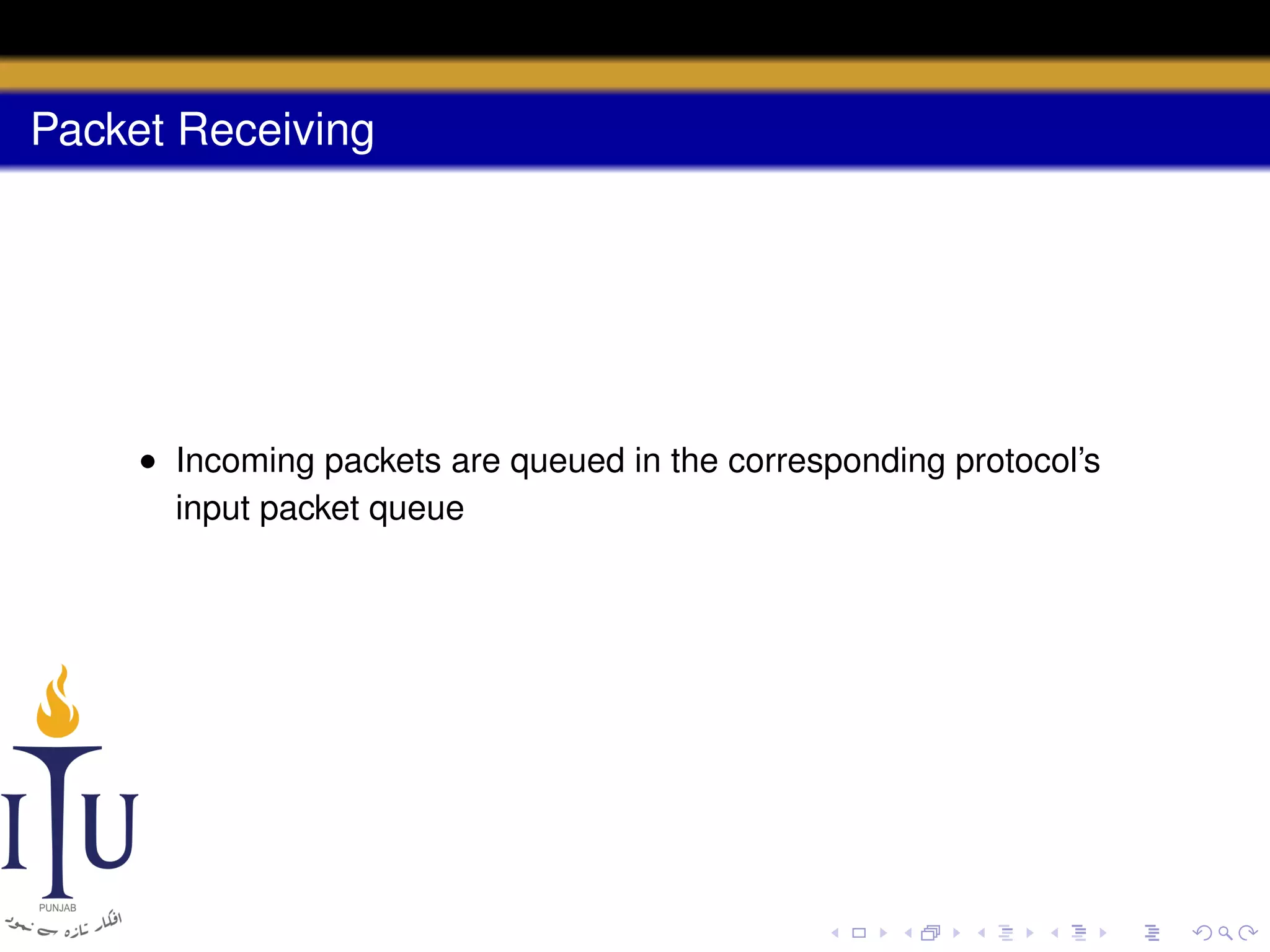

53. Packet Receiving
• Incoming packets are queued in the corresponding protocol’s
input packet queue

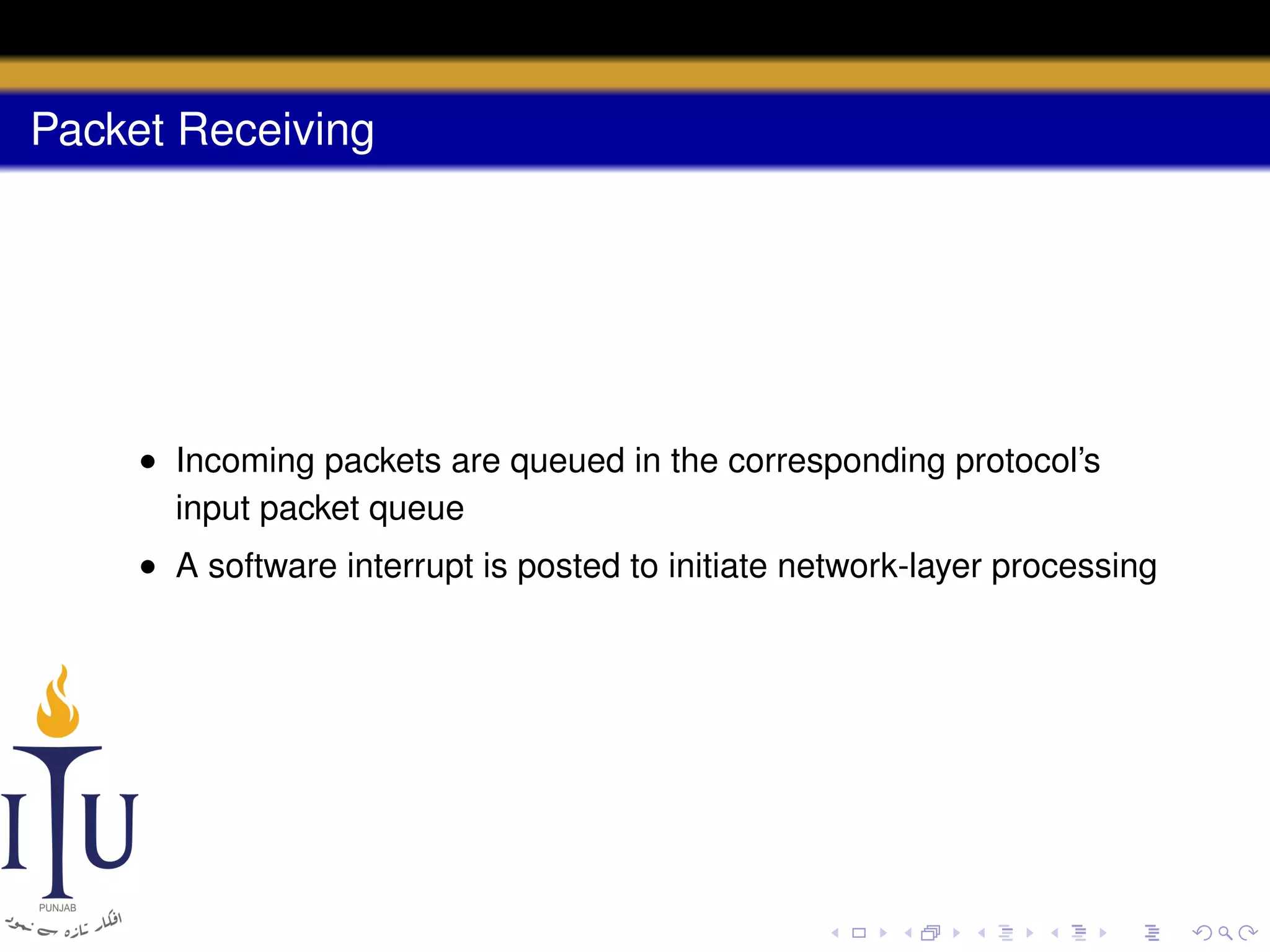

54. Packet Receiving
• Incoming packets are queued in the corresponding protocol’s
input packet queue
• A software interrupt is posted to initiate network-layer processing

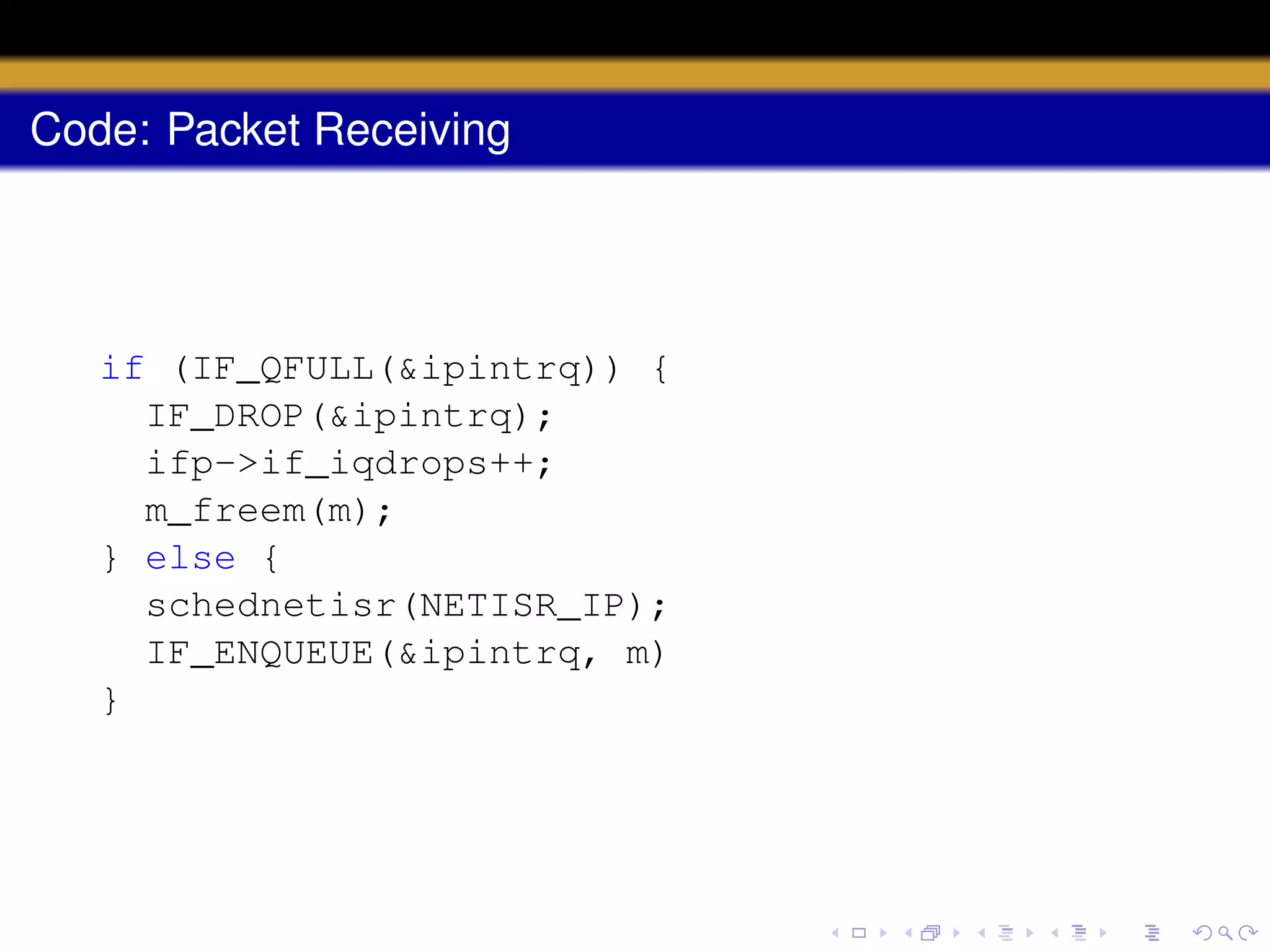

55. Code: Packet Receiving
if (IF_QFULL(&ipintrq)) {
IF_DROP(&ipintrq);
ifp->if_iqdrops++;
m_freem(m);
} else {
schednetisr(NETISR_IP);
IF_ENQUEUE(&ipintrq, m)
}

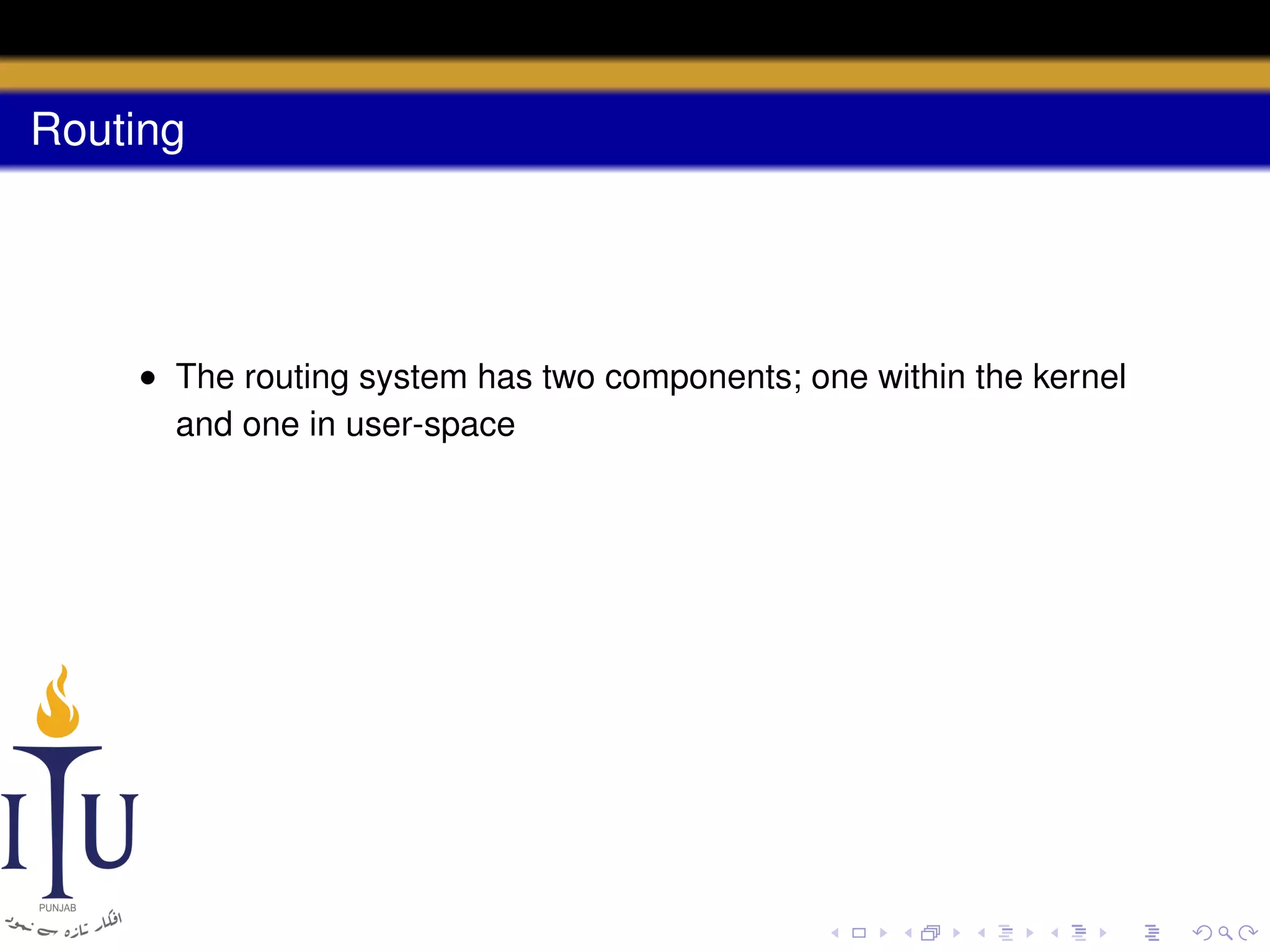

56. Routing
• The routing system has two components; one within the kernel
and one in user-space

57. Routing
• The routing system has two components; one within the kernel
and one in user-space
• The routing mechanism is present within the kernel while routing
policies are defined in user-space

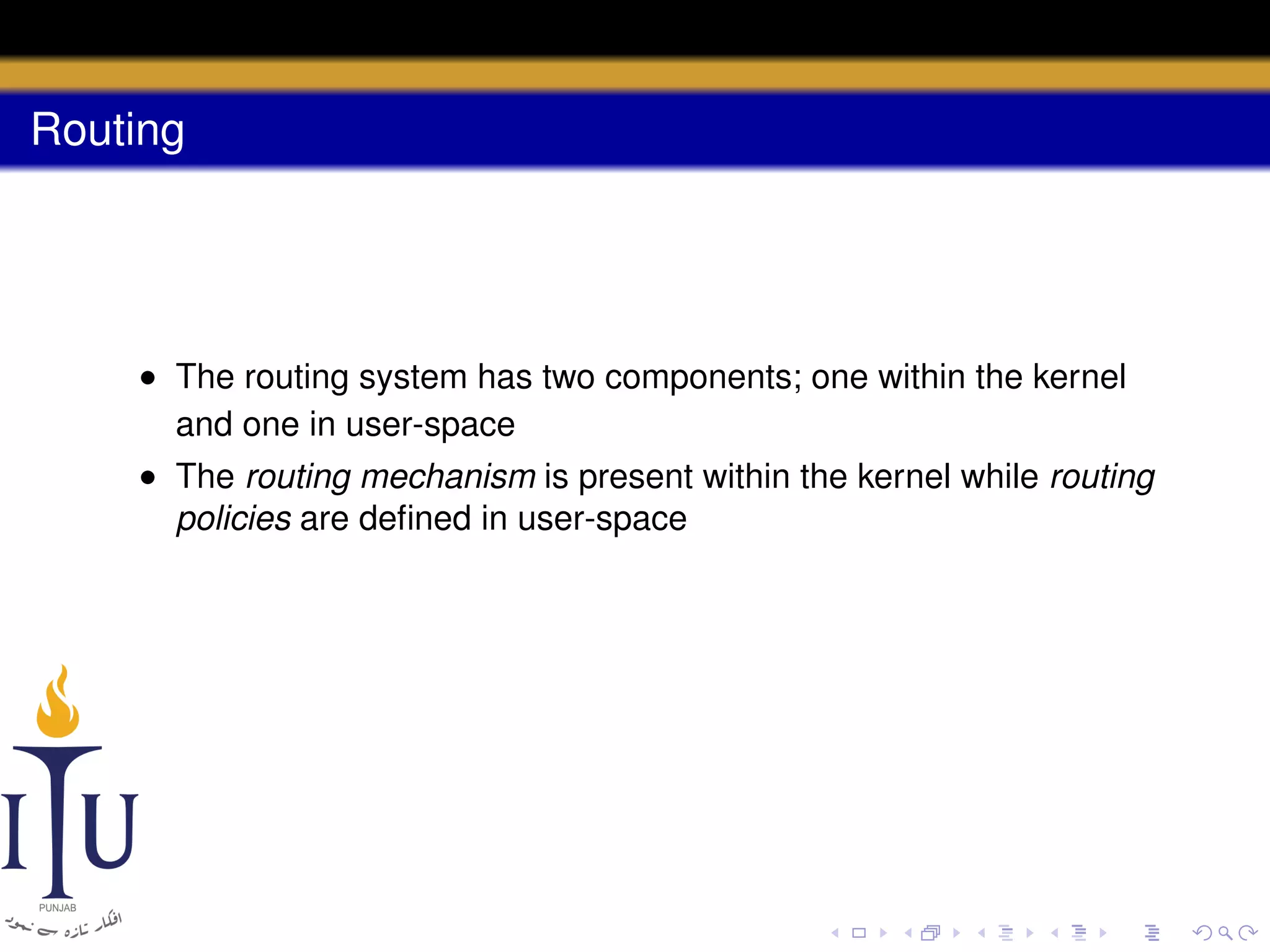

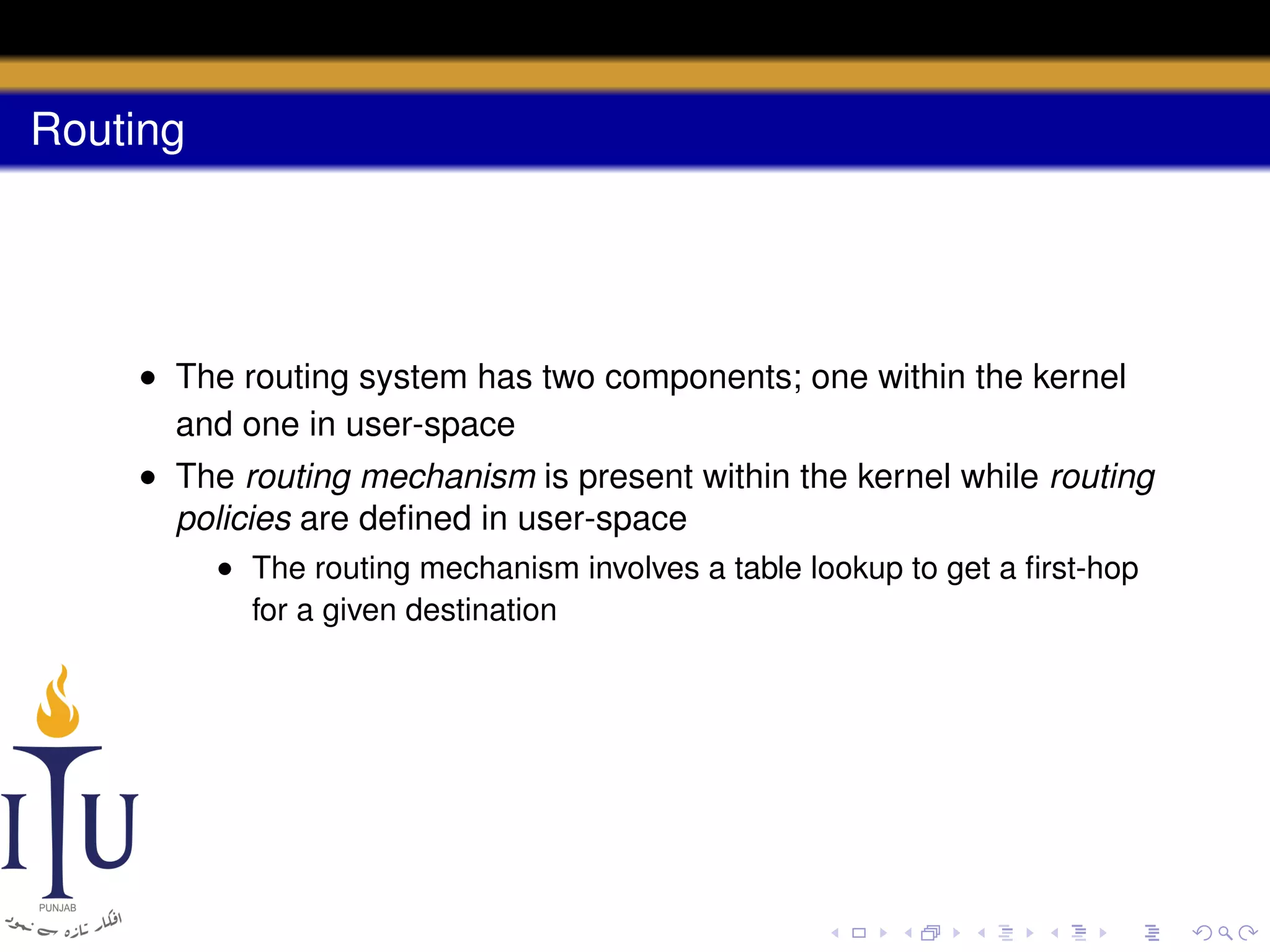

58. Routing
• The routing system has two components; one within the kernel
and one in user-space
• The routing mechanism is present within the kernel while routing
policies are defined in user-space
• The routing mechanism involves a table lookup to get a first-hop
for a given destination

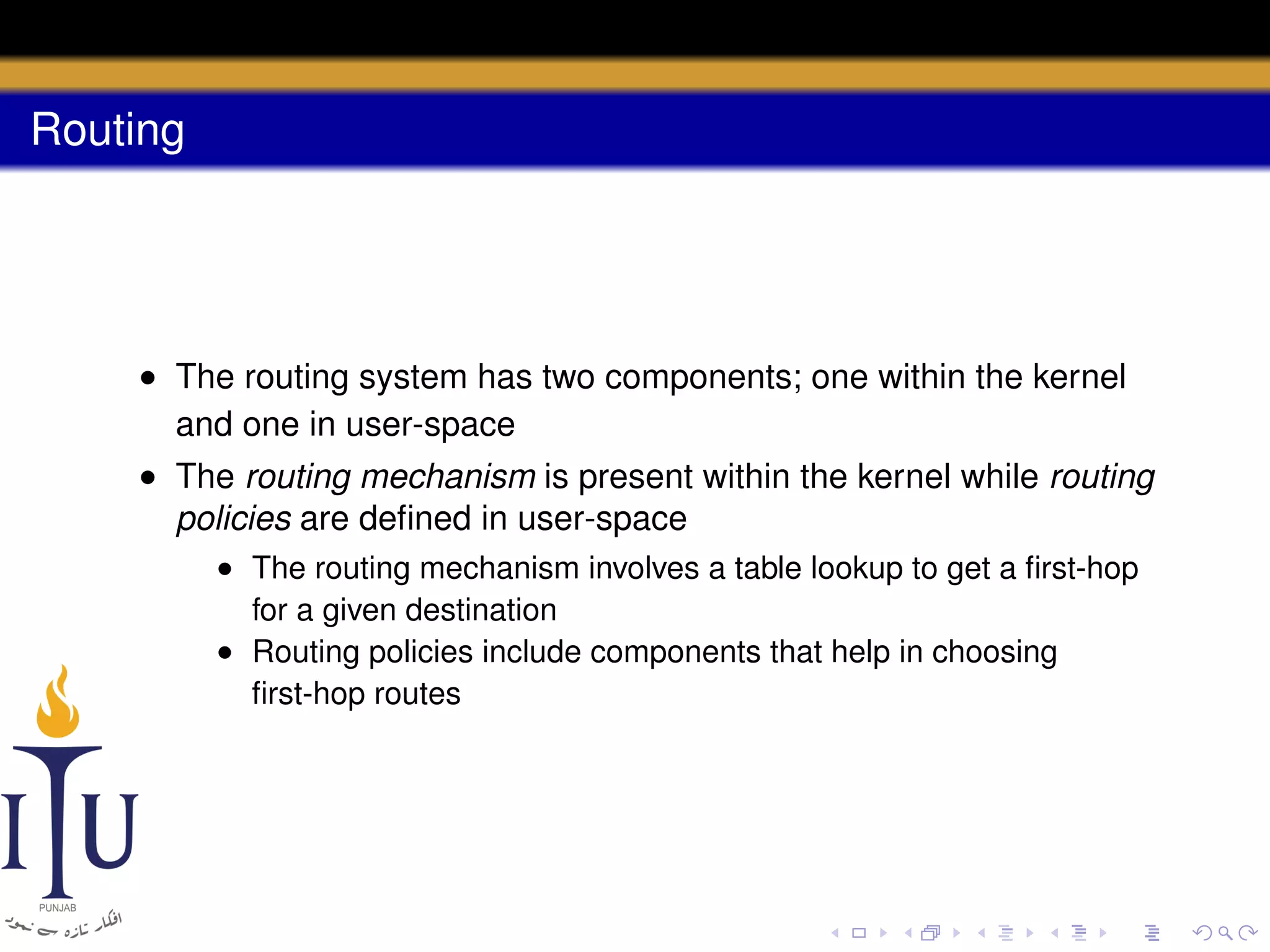

59. Routing
• The routing system has two components; one within the kernel
and one in user-space
• The routing mechanism is present within the kernel while routing
policies are defined in user-space
• The routing mechanism involves a table lookup to get a first-hop
for a given destination
• Routing policies include components that help in choosing
first-hop routes

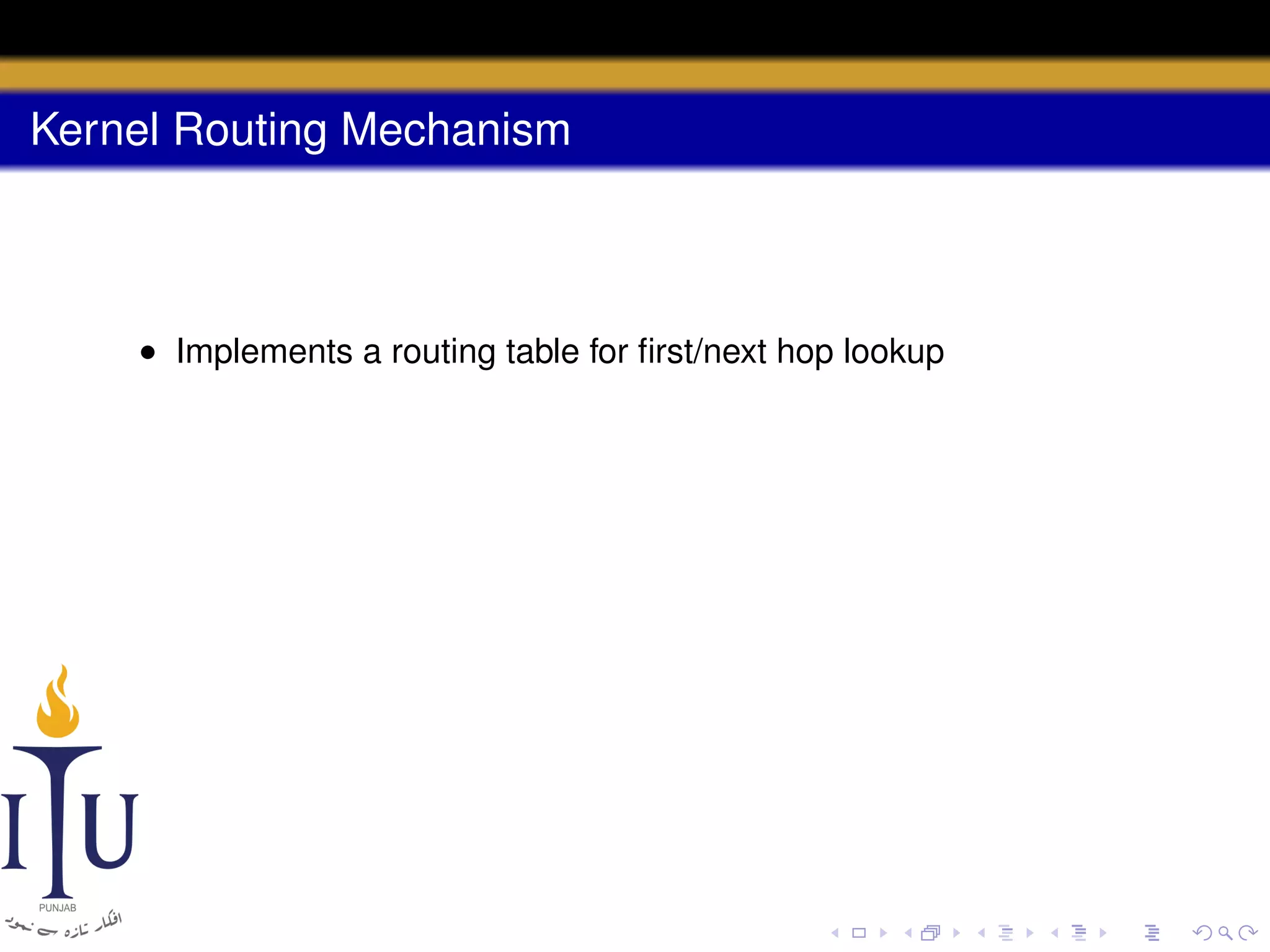

60. Kernel Routing Mechanism
• Implements a routing table for first/next hop lookup

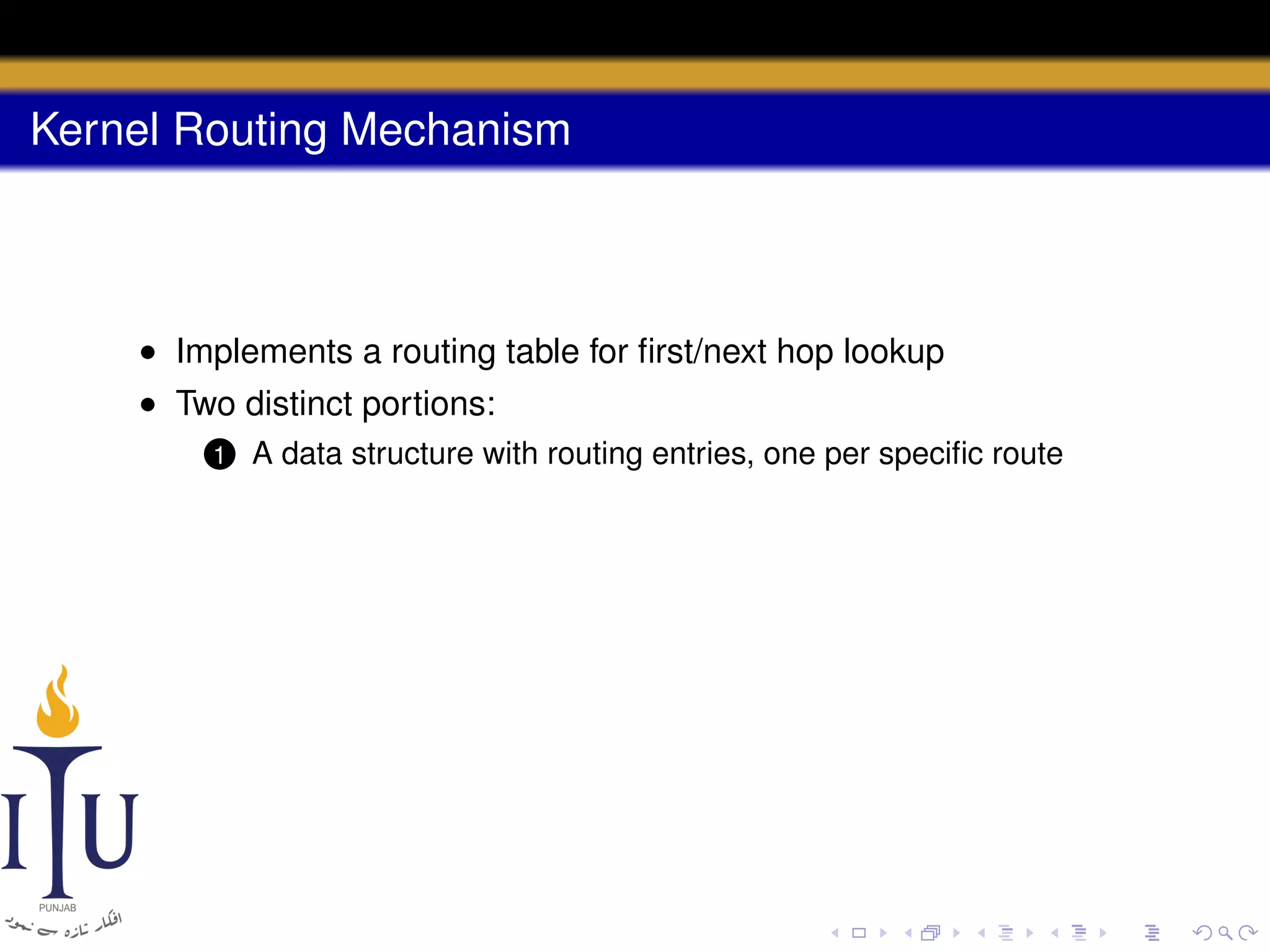

61. Kernel Routing Mechanism
• Implements a routing table for first/next hop lookup
• Two distinct portions:
1
A data structure with routing entries, one per specific route

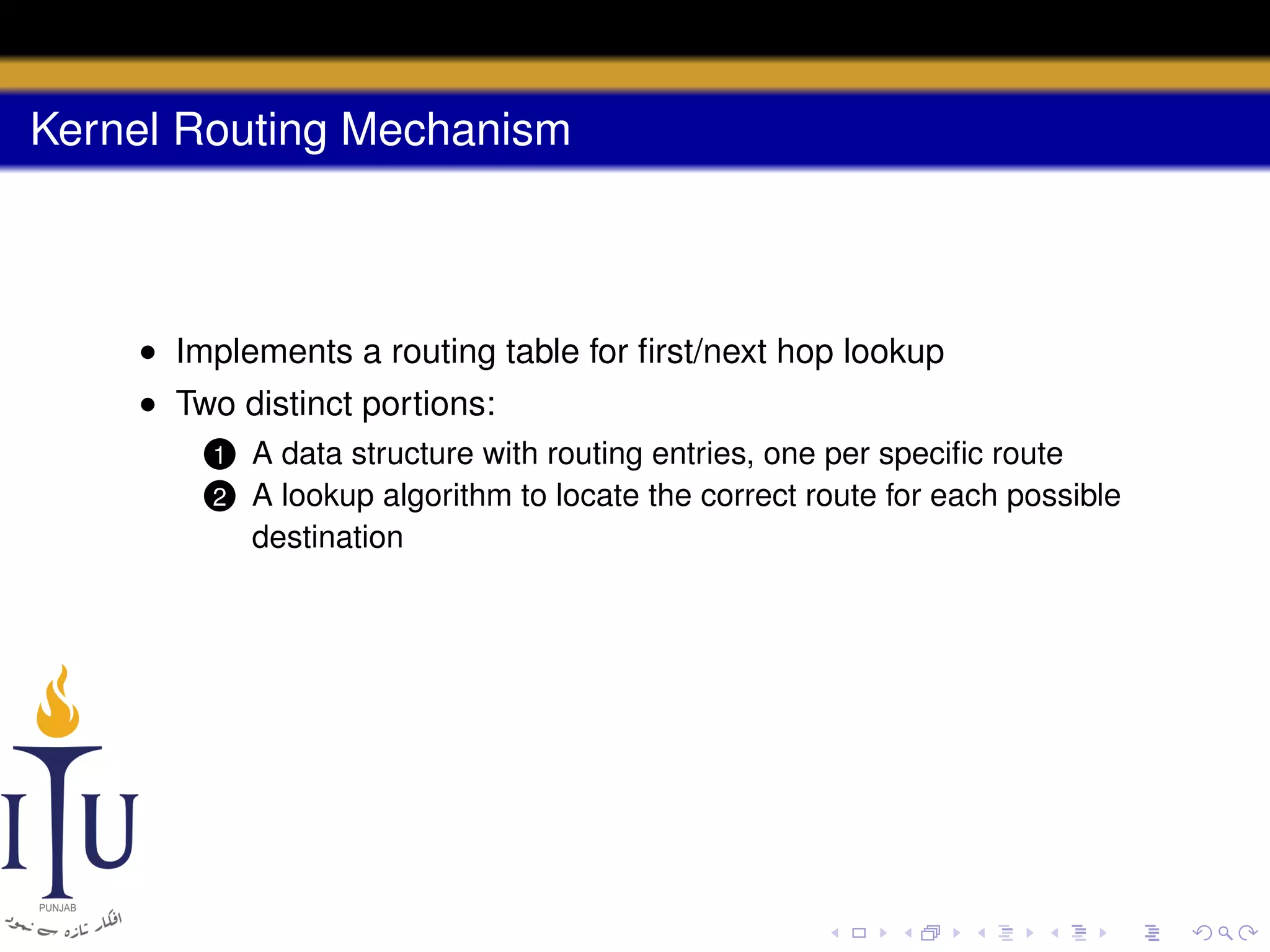

62. Kernel Routing Mechanism
• Implements a routing table for first/next hop lookup
• Two distinct portions:
1
2
A data structure with routing entries, one per specific route
A lookup algorithm to locate the correct route for each possible
destination

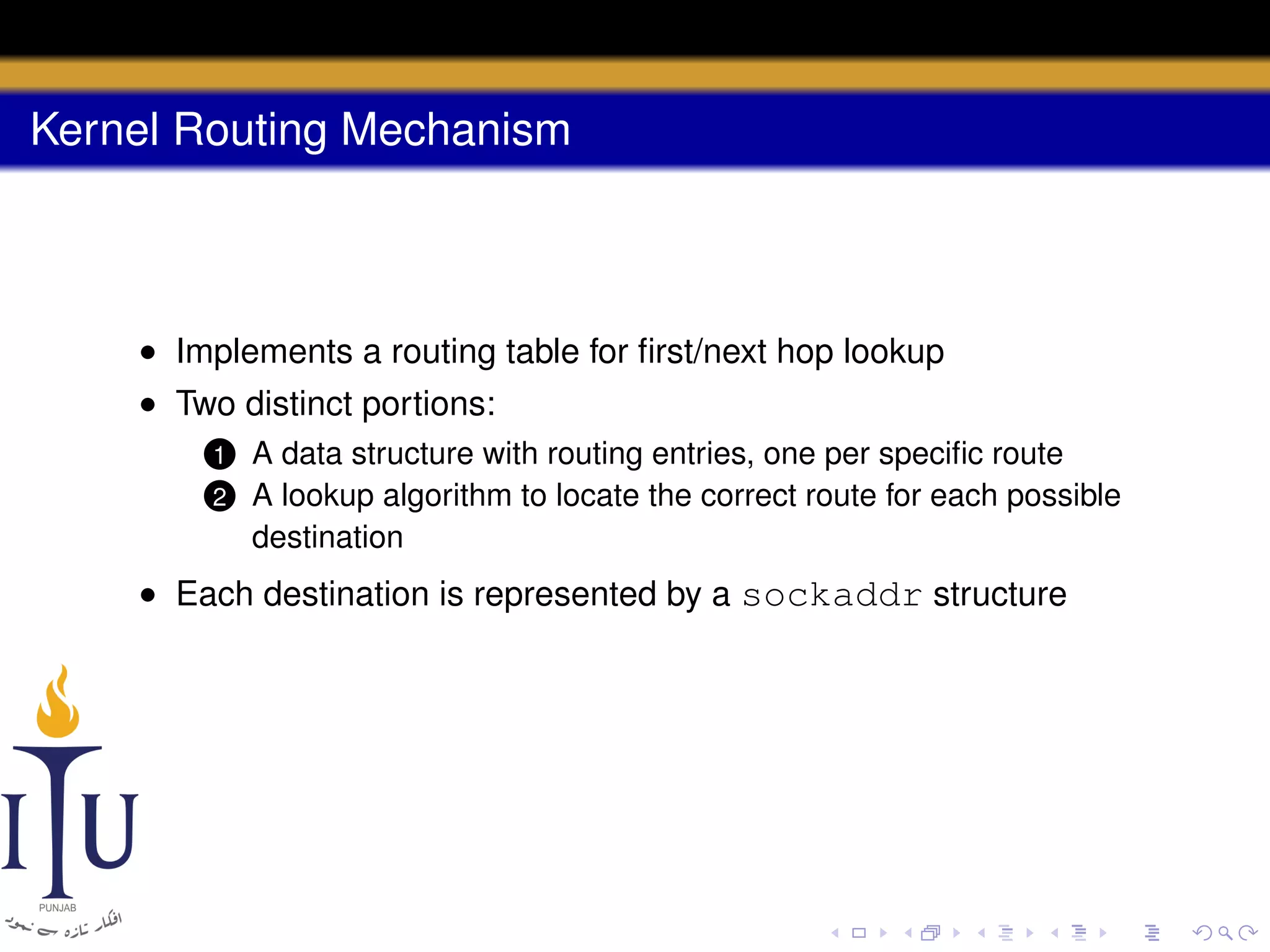

63. Kernel Routing Mechanism
• Implements a routing table for first/next hop lookup
• Two distinct portions:
1
2
A data structure with routing entries, one per specific route
A lookup algorithm to locate the correct route for each possible
destination
• Each destination is represented by a sockaddr structure

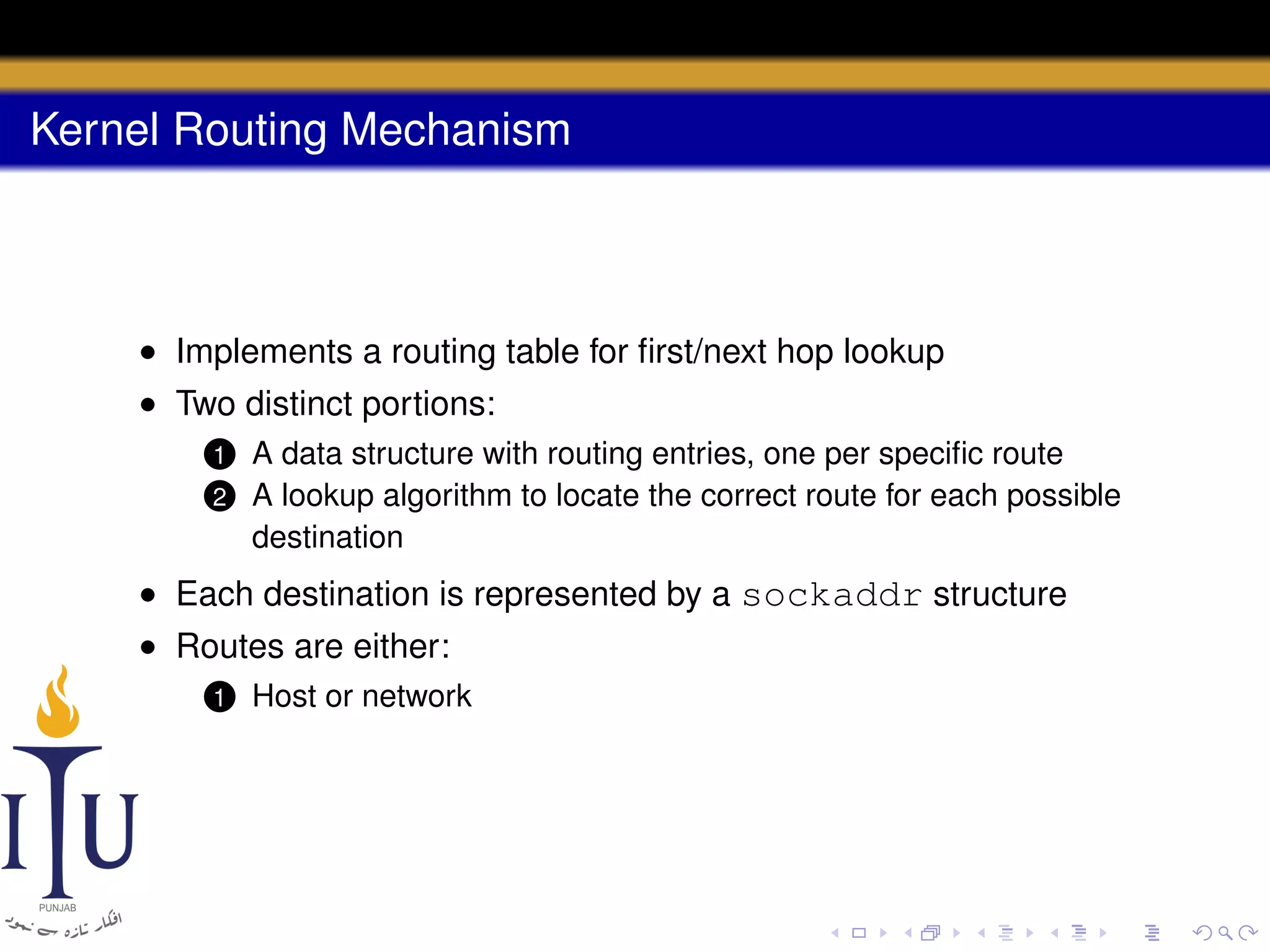

64. Kernel Routing Mechanism
• Implements a routing table for first/next hop lookup
• Two distinct portions:
1
2
A data structure with routing entries, one per specific route
A lookup algorithm to locate the correct route for each possible
destination
• Each destination is represented by a sockaddr structure
• Routes are either:
1
Host or network

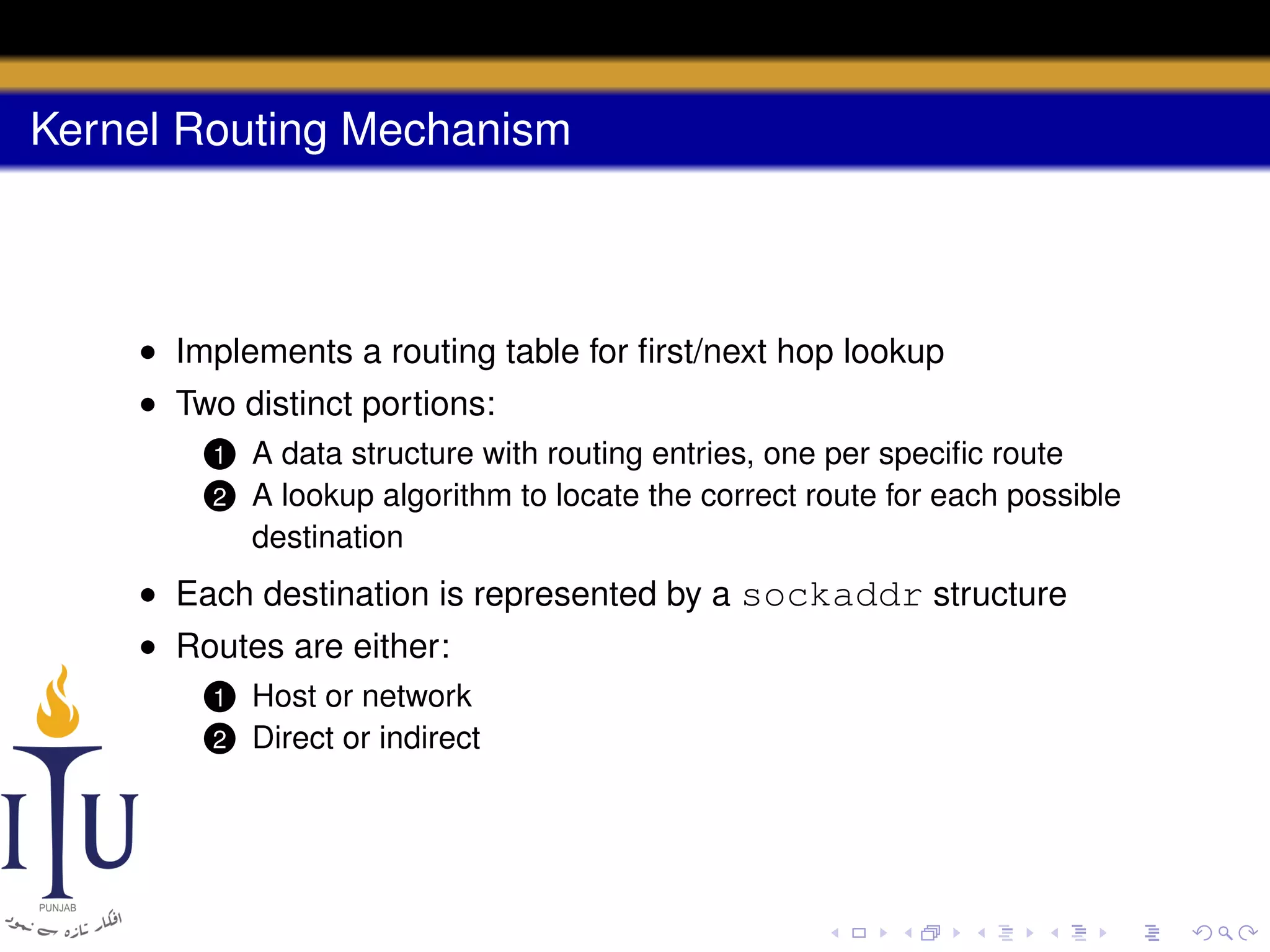

65. Kernel Routing Mechanism
• Implements a routing table for first/next hop lookup
• Two distinct portions:
1
2
A data structure with routing entries, one per specific route
A lookup algorithm to locate the correct route for each possible
destination
• Each destination is represented by a sockaddr structure
• Routes are either:
1
2
Host or network
Direct or indirect

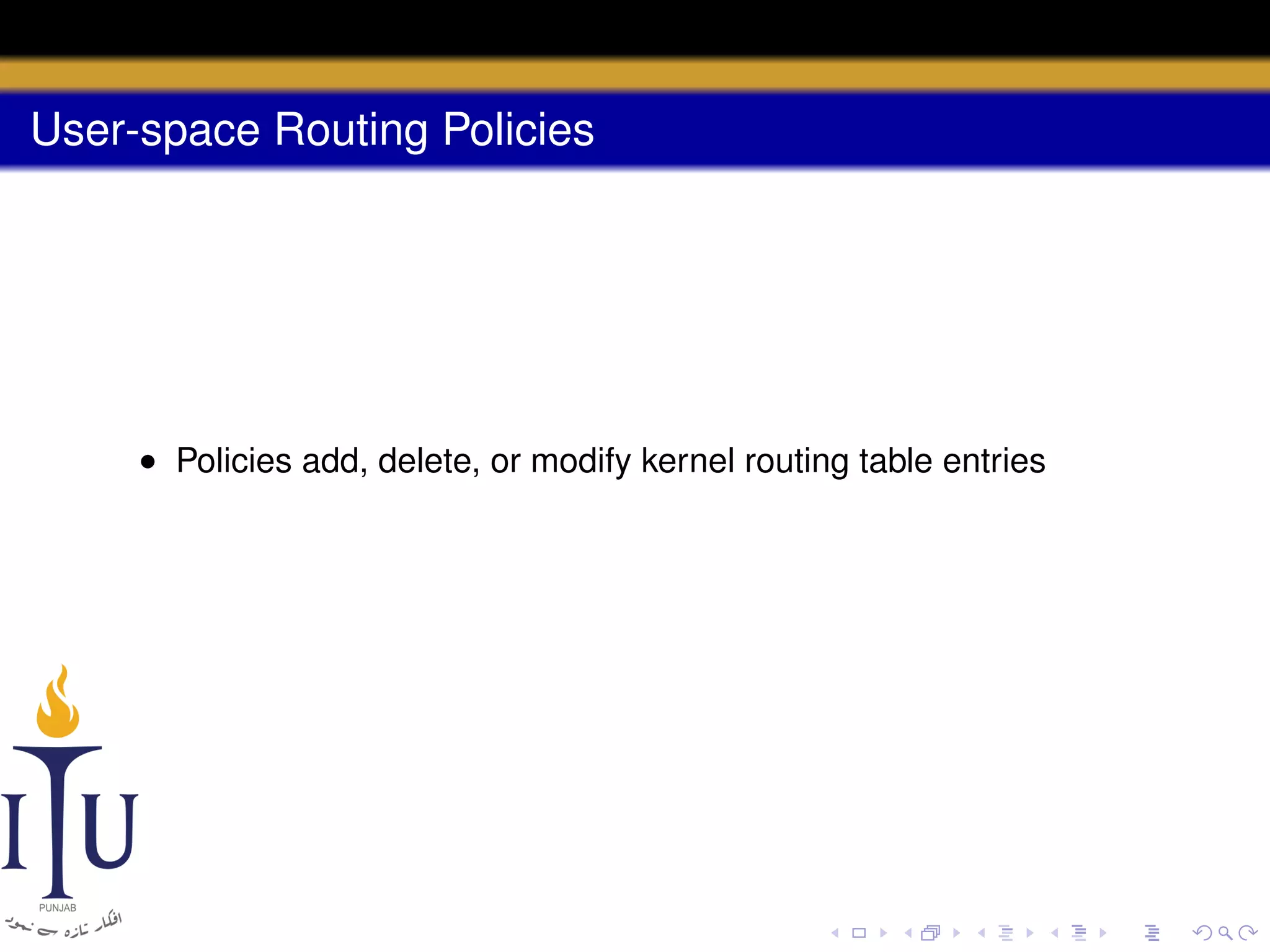

66. User-space Routing Policies
• Policies add, delete, or modify kernel routing table entries

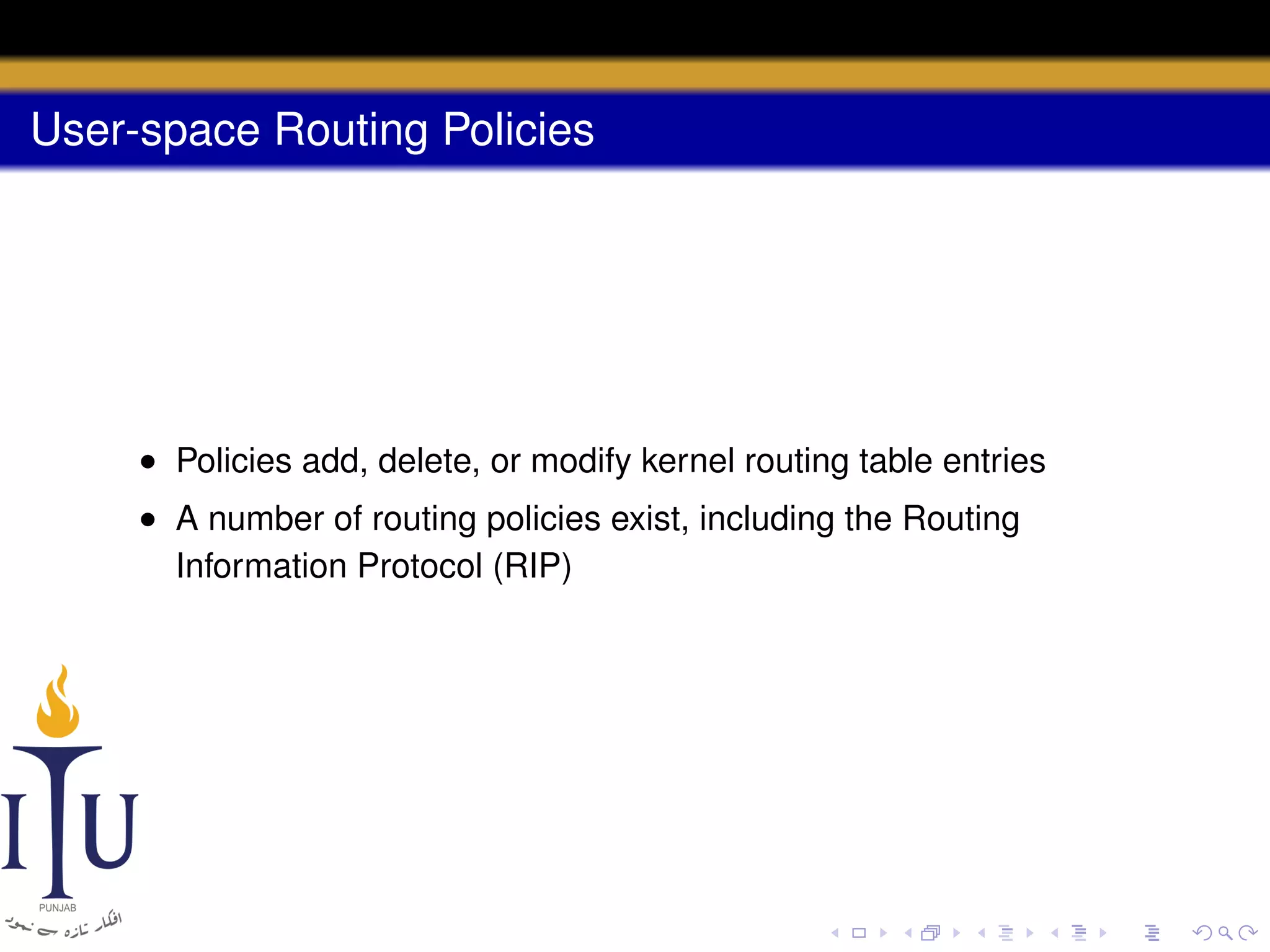

67. User-space Routing Policies
• Policies add, delete, or modify kernel routing table entries
• A number of routing policies exist, including the Routing
Information Protocol (RIP)

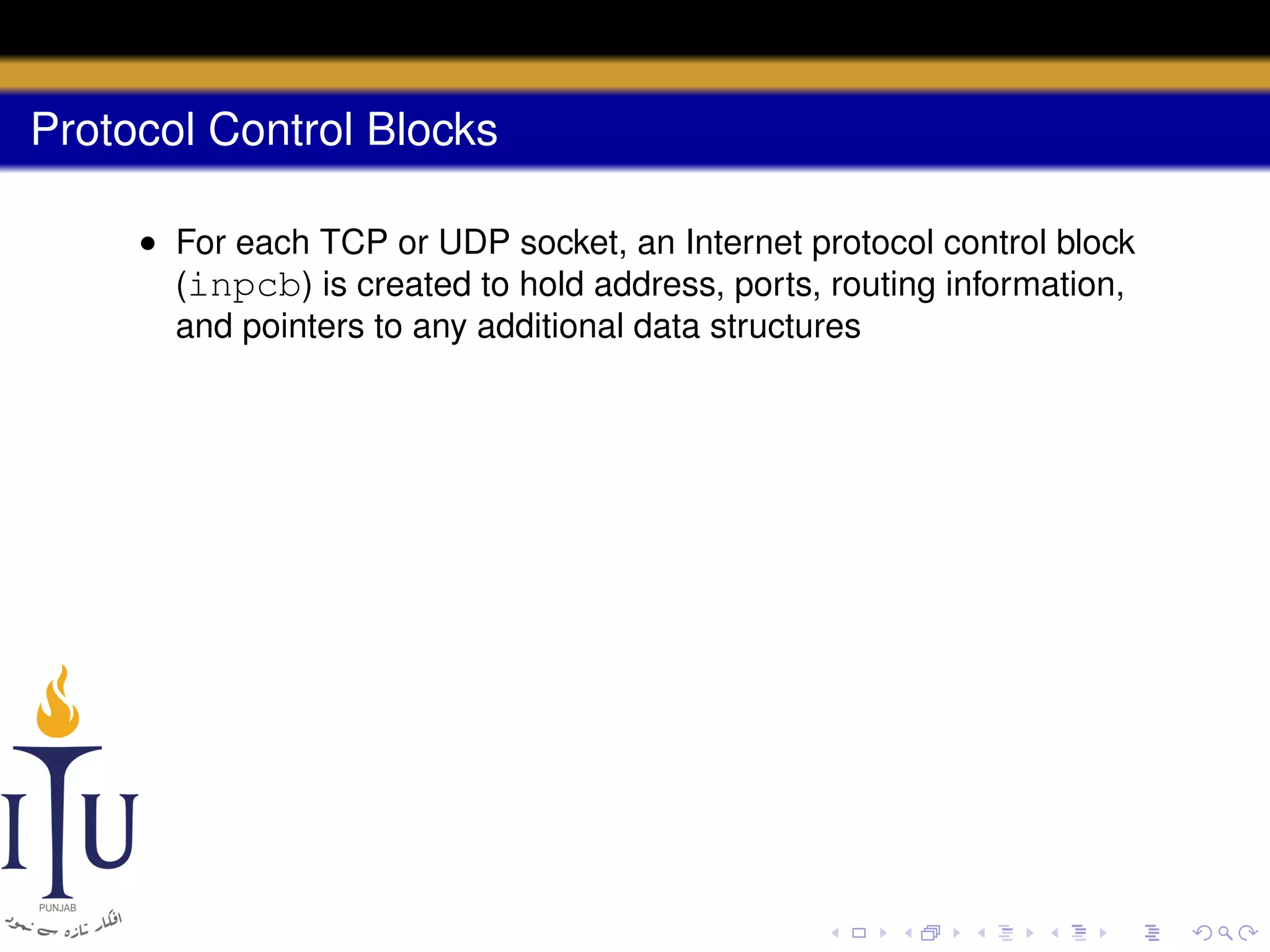

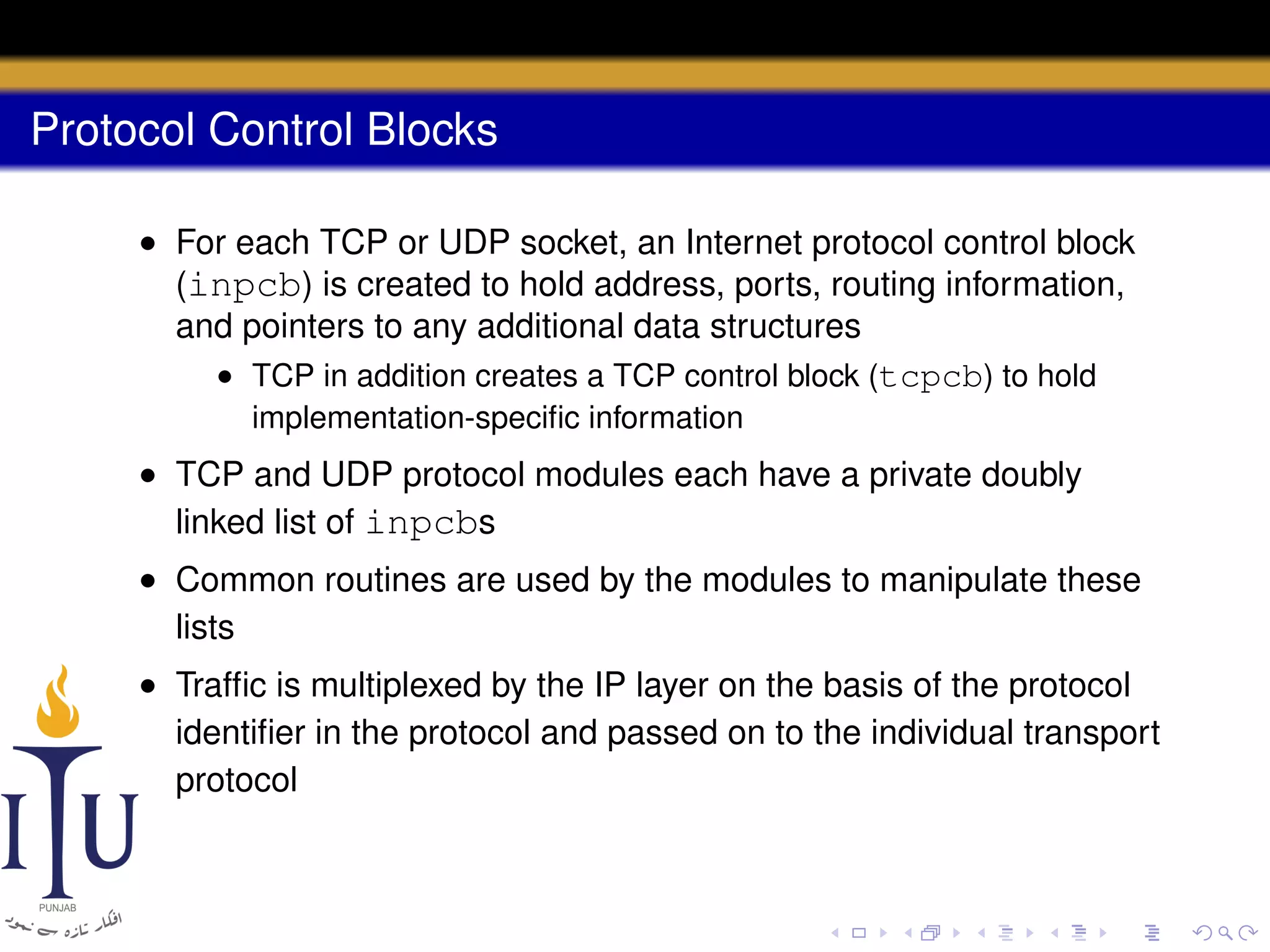

68. Protocol Control Blocks
• For each TCP or UDP socket, an Internet protocol control block
(inpcb) is created to hold address, ports, routing information,
and pointers to any additional data structures

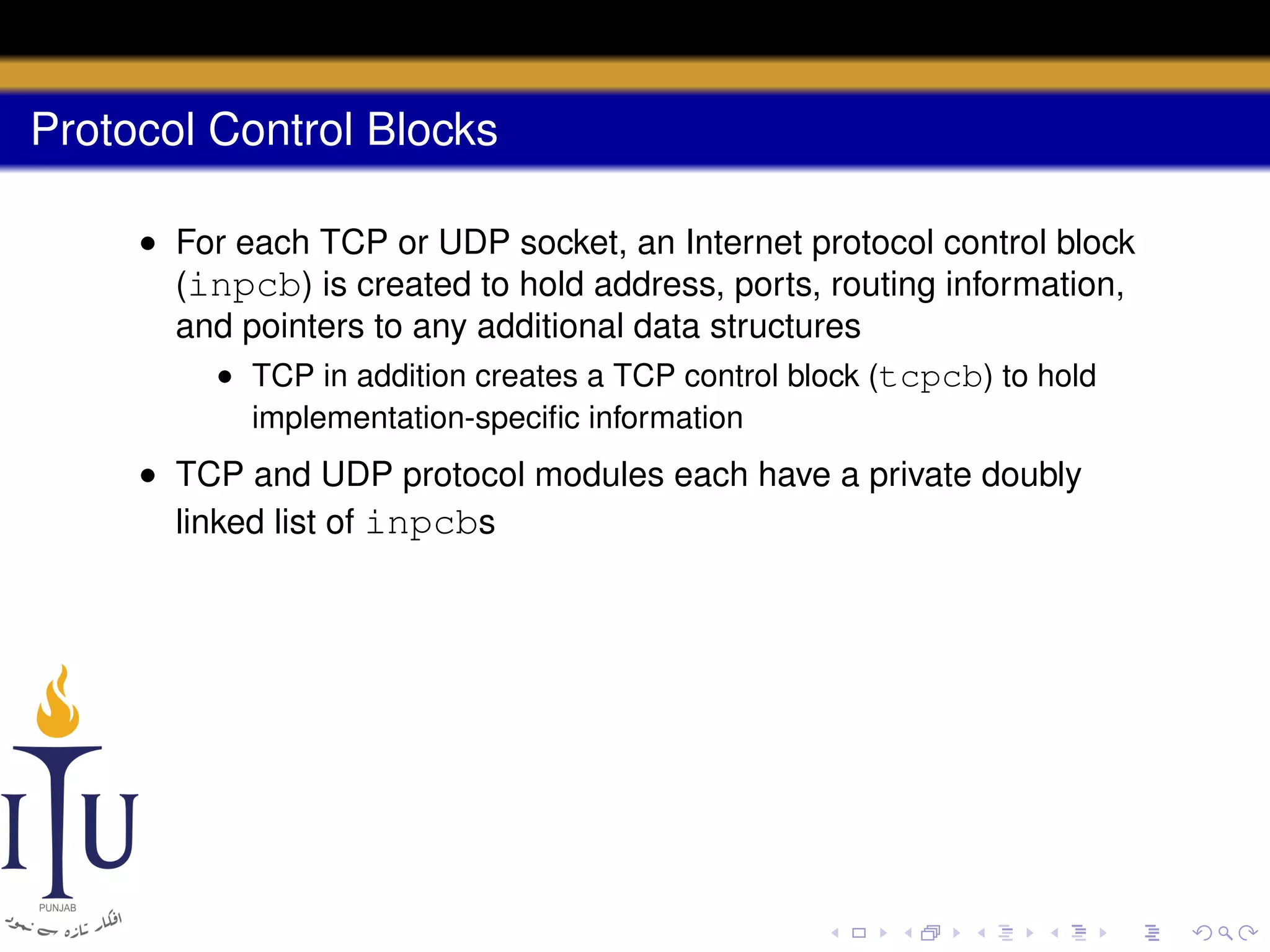

69. Protocol Control Blocks
• For each TCP or UDP socket, an Internet protocol control block
(inpcb) is created to hold address, ports, routing information,
and pointers to any additional data structures
• TCP in addition creates a TCP control block (tcpcb) to hold
implementation-specific information

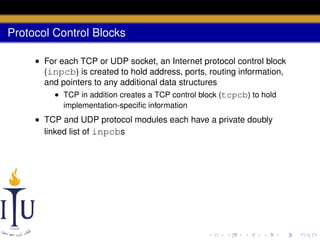

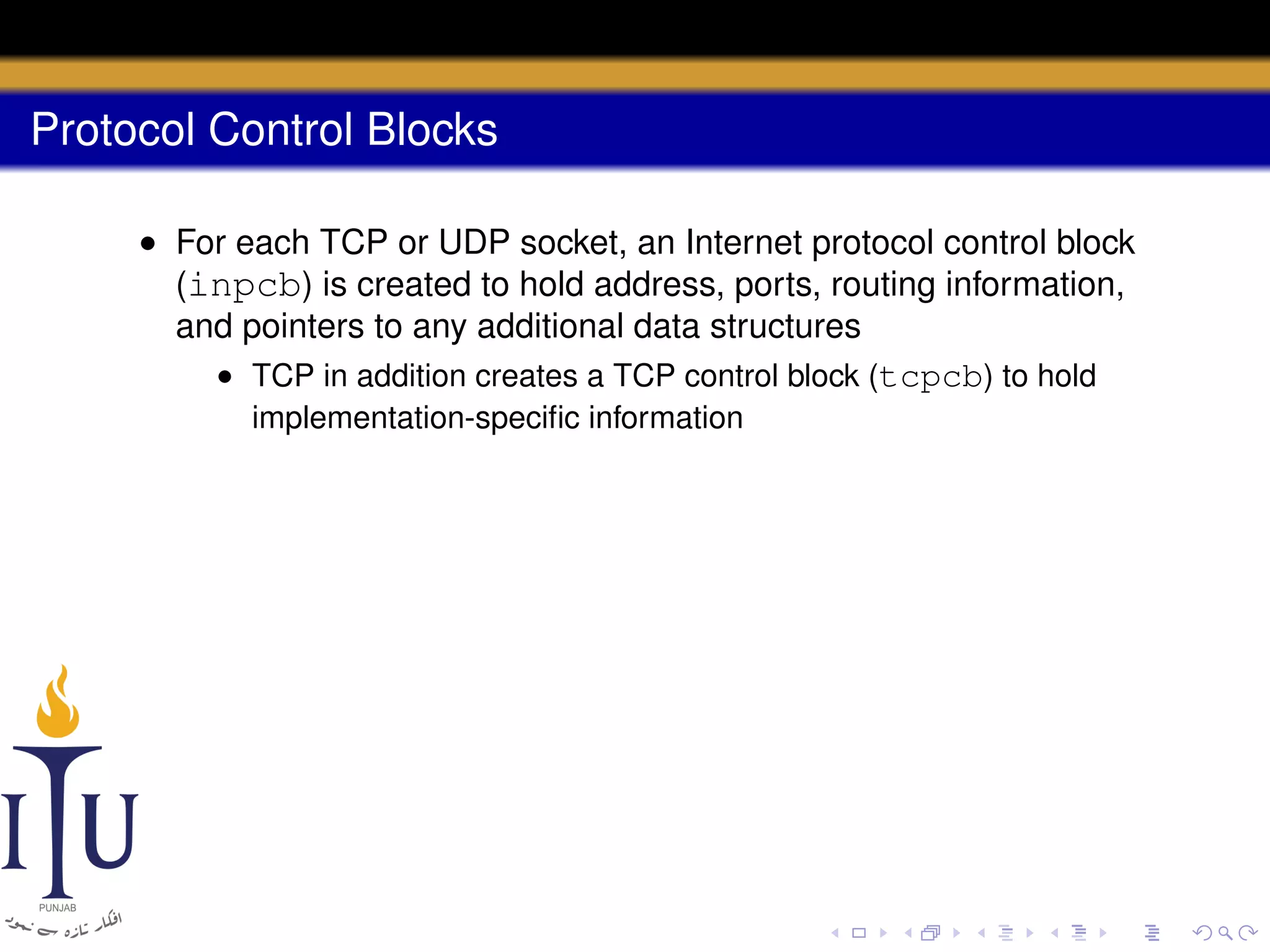

70. Protocol Control Blocks
• For each TCP or UDP socket, an Internet protocol control block
(inpcb) is created to hold address, ports, routing information,
and pointers to any additional data structures
• TCP in addition creates a TCP control block (tcpcb) to hold
implementation-specific information
• TCP and UDP protocol modules each have a private doubly
linked list of inpcbs

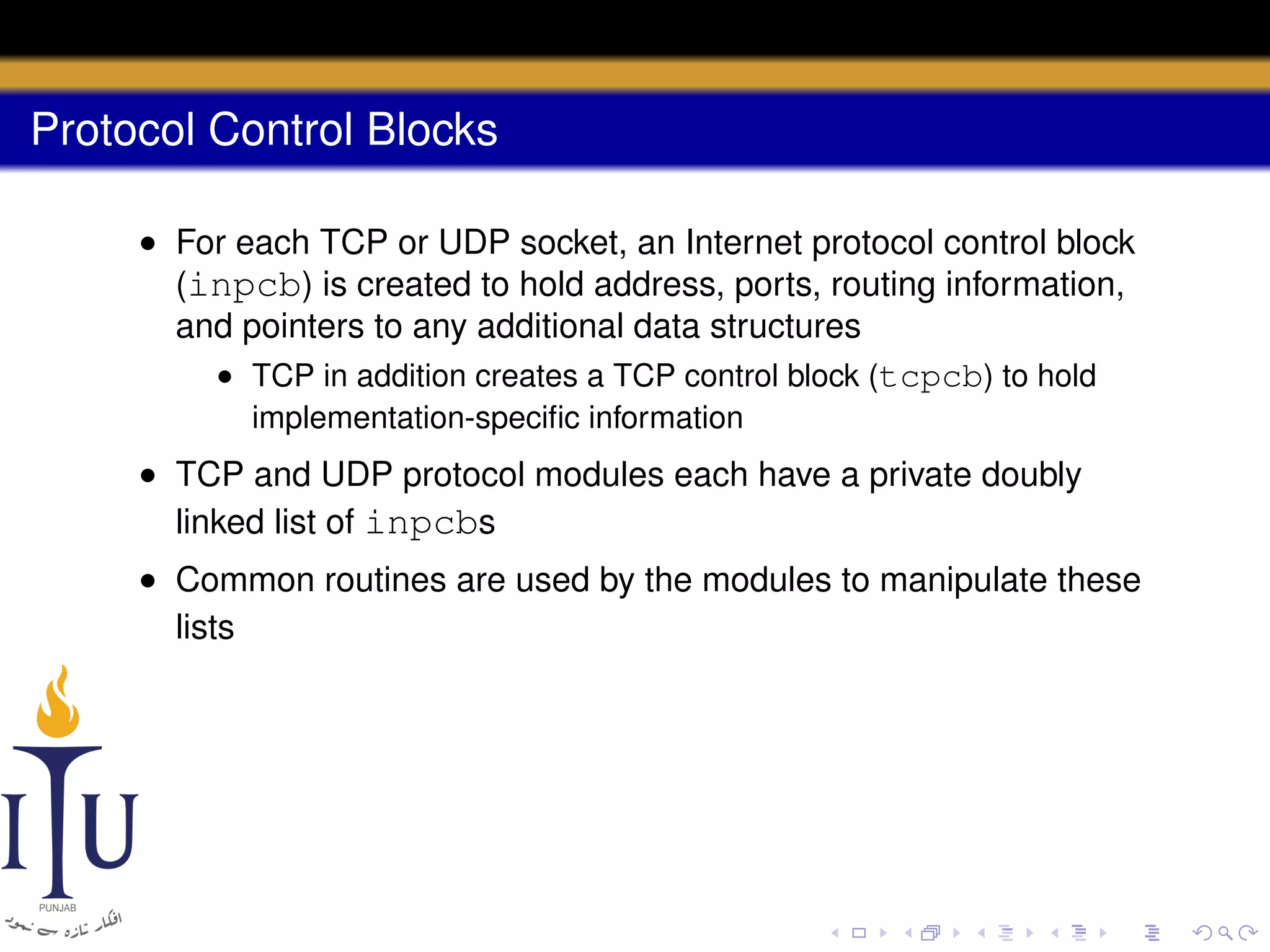

71. Protocol Control Blocks
• For each TCP or UDP socket, an Internet protocol control block
(inpcb) is created to hold address, ports, routing information,
and pointers to any additional data structures
• TCP in addition creates a TCP control block (tcpcb) to hold
implementation-specific information
• TCP and UDP protocol modules each have a private doubly
linked list of inpcbs
• Common routines are used by the modules to manipulate these
lists

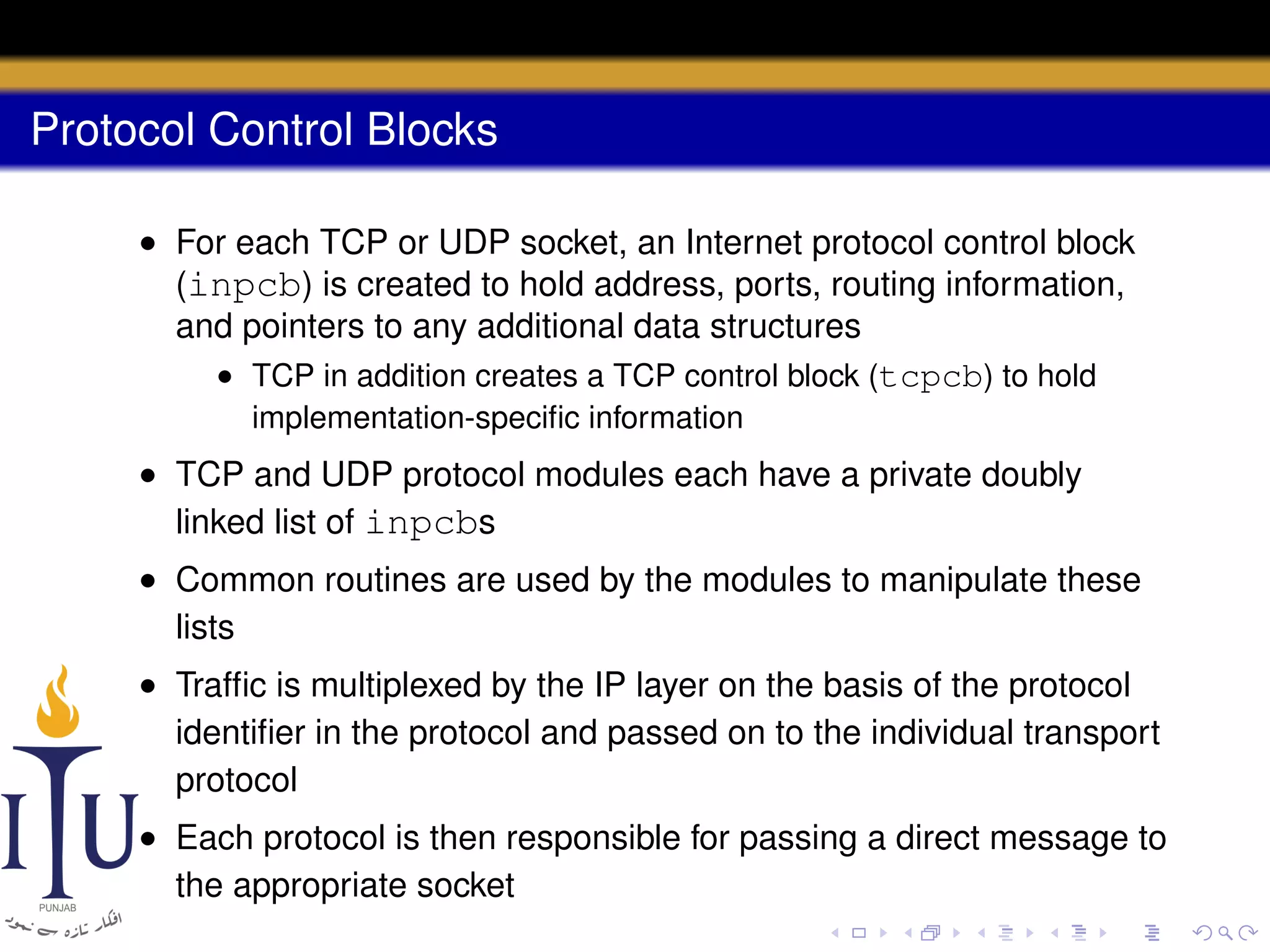

72. Protocol Control Blocks
• For each TCP or UDP socket, an Internet protocol control block
(inpcb) is created to hold address, ports, routing information,
and pointers to any additional data structures
• TCP in addition creates a TCP control block (tcpcb) to hold
implementation-specific information
• TCP and UDP protocol modules each have a private doubly
linked list of inpcbs
• Common routines are used by the modules to manipulate these
lists
• Traffic is multiplexed by the IP layer on the basis of the protocol
identifier in the protocol and passed on to the individual transport
protocol

73. Protocol Control Blocks
• For each TCP or UDP socket, an Internet protocol control block
(inpcb) is created to hold address, ports, routing information,
and pointers to any additional data structures
• TCP in addition creates a TCP control block (tcpcb) to hold
implementation-specific information
• TCP and UDP protocol modules each have a private doubly
linked list of inpcbs
• Common routines are used by the modules to manipulate these
lists
• Traffic is multiplexed by the IP layer on the basis of the protocol
identifier in the protocol and passed on to the individual transport
protocol
• Each protocol is then responsible for passing a direct message to
the appropriate socket

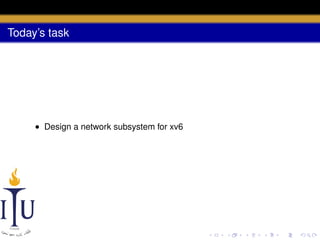

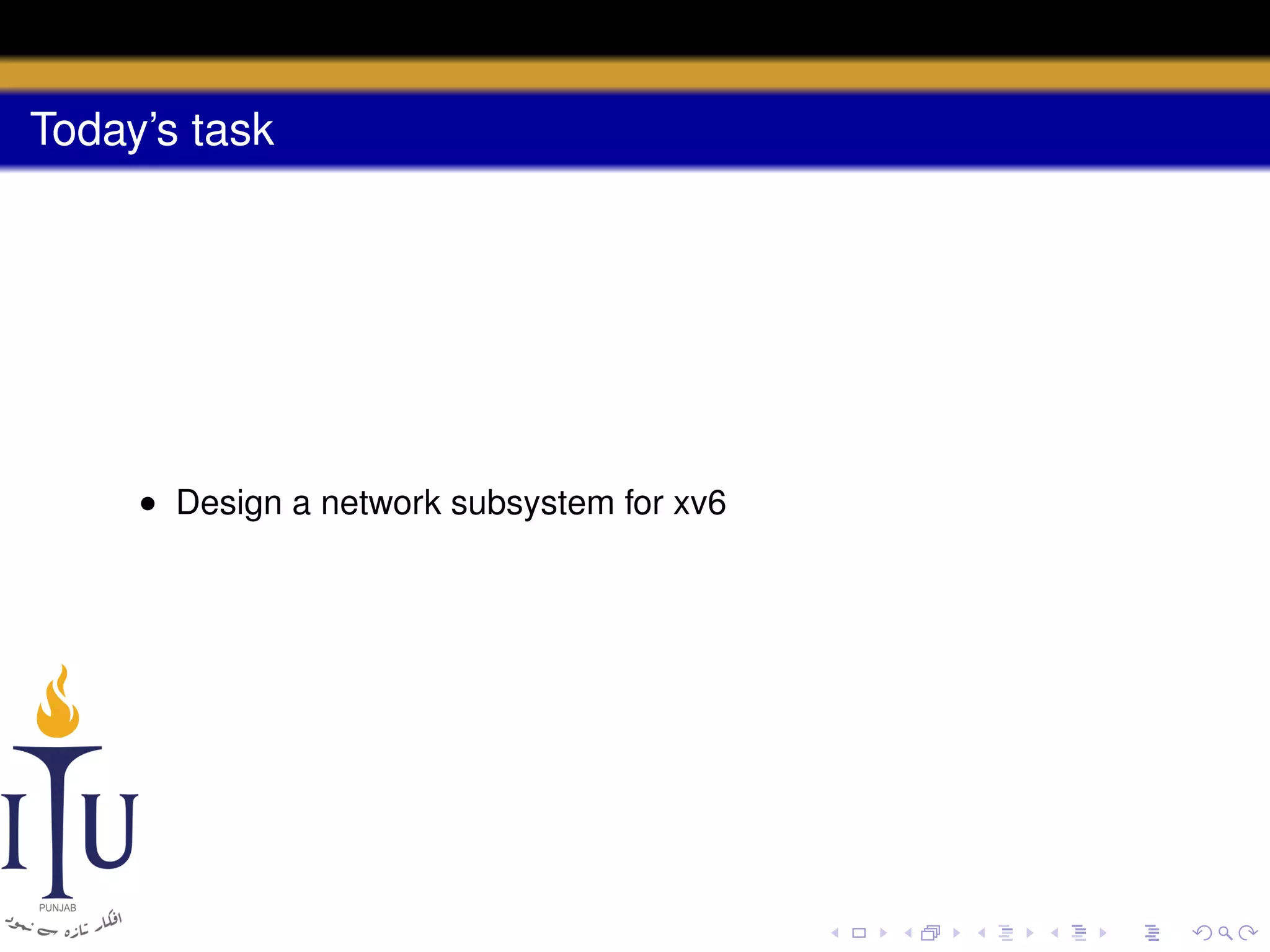

74. Today’s task
• Design a network subsystem for xv6

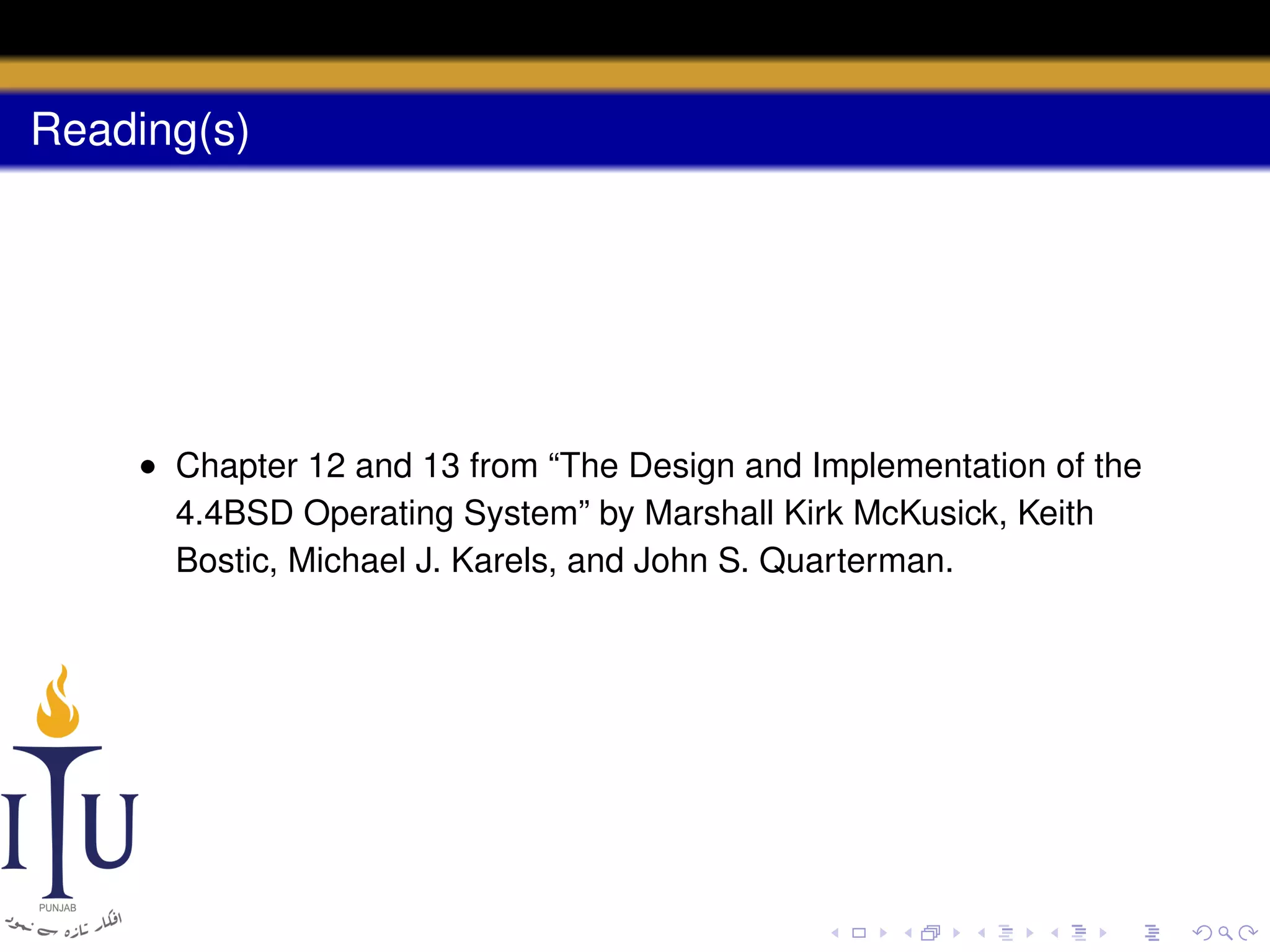

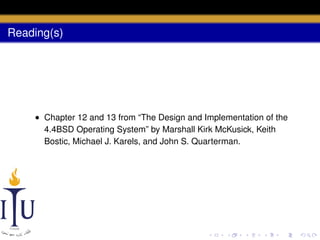

75. Reading(s)
• Chapter 12 and 13 from “The Design and Implementation of the
4.4BSD Operating System” by Marshall Kirk McKusick, Keith
Bostic, Michael J. Karels, and John S. Quarterman.
