This document discusses interfacing with the Cassandra database using Python. It introduces Cassandra as a column-based key-value store and describes how to create keyspaces and column families using the Cassandra CLI. It then explains how to interface with Cassandra from Python using the pycassa package, including connecting to Cassandra, performing insert, read, delete, batch, and slice operations on column families.

1. 4: Interfacing with Cassandra
Zubair Nabi
zubair.nabi@itu.edu.pk
April 20, 2013
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 1 / 16

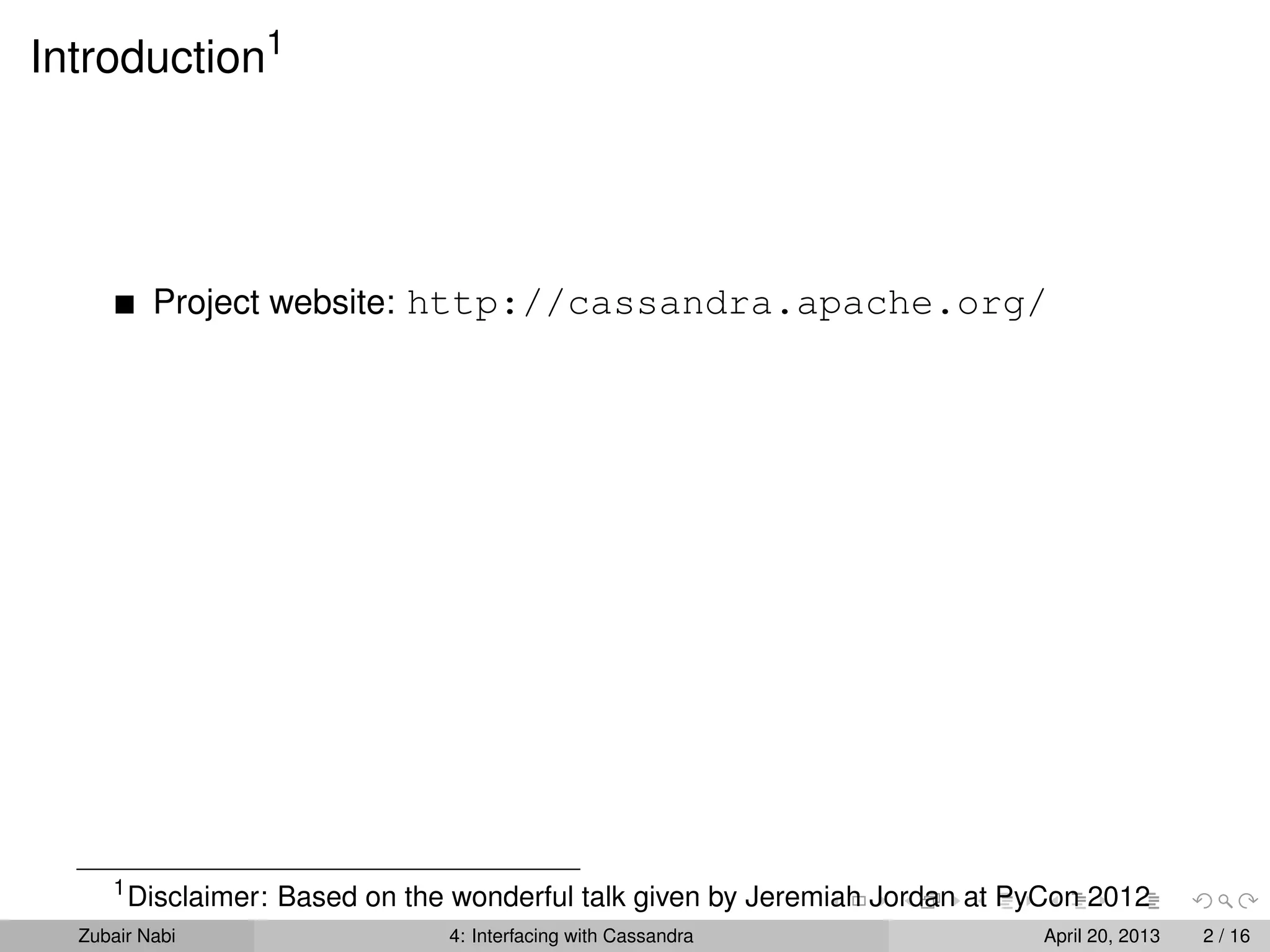

2. Introduction1
Project website: http://cassandra.apache.org/
1
Disclaimer: Based on the wonderful talk given by Jeremiah Jordan at PyCon 2012
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 2 / 16

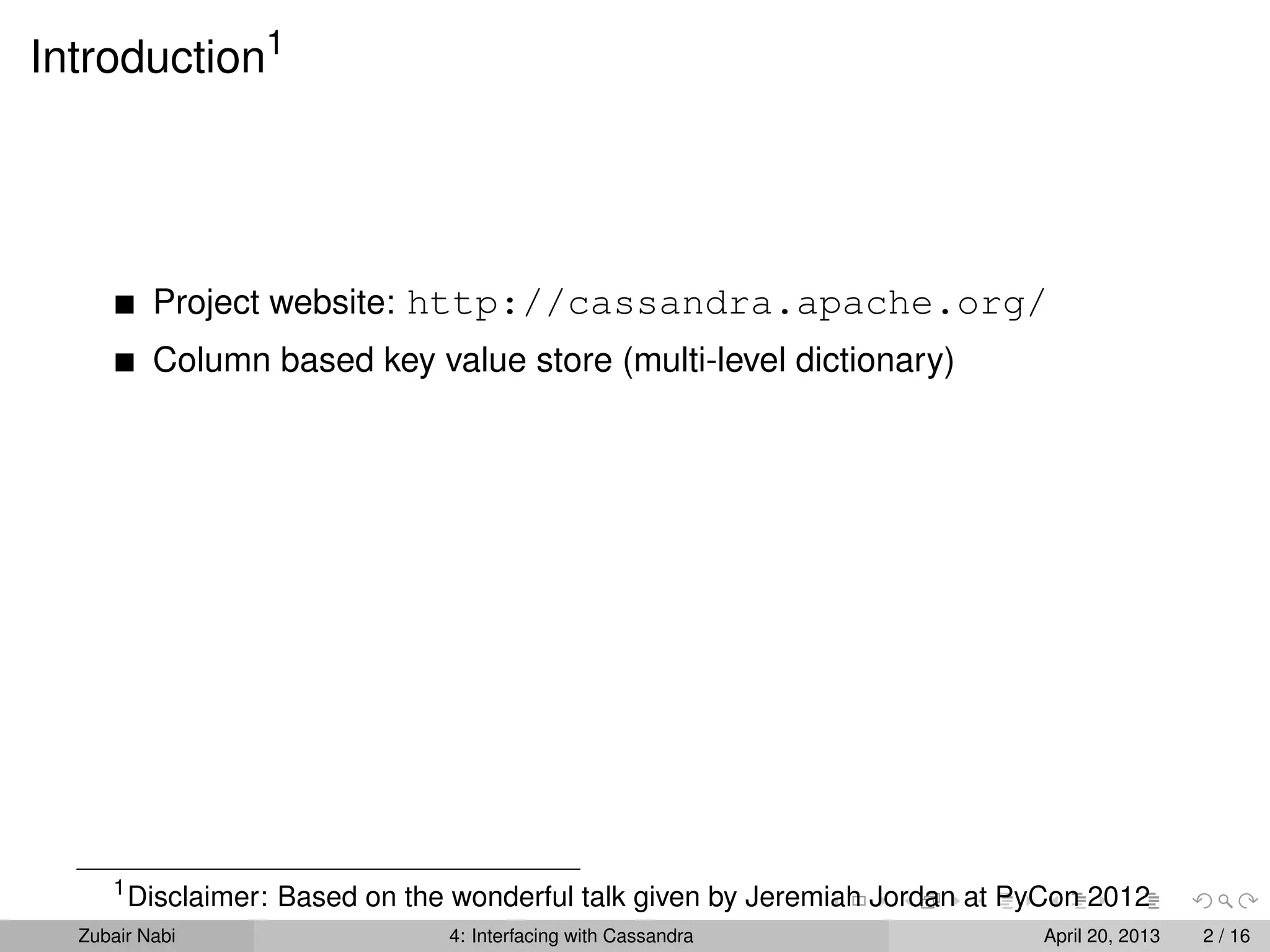

3. Introduction1
Project website: http://cassandra.apache.org/
Column based key value store (multi-level dictionary)
1
Disclaimer: Based on the wonderful talk given by Jeremiah Jordan at PyCon 2012
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 2 / 16

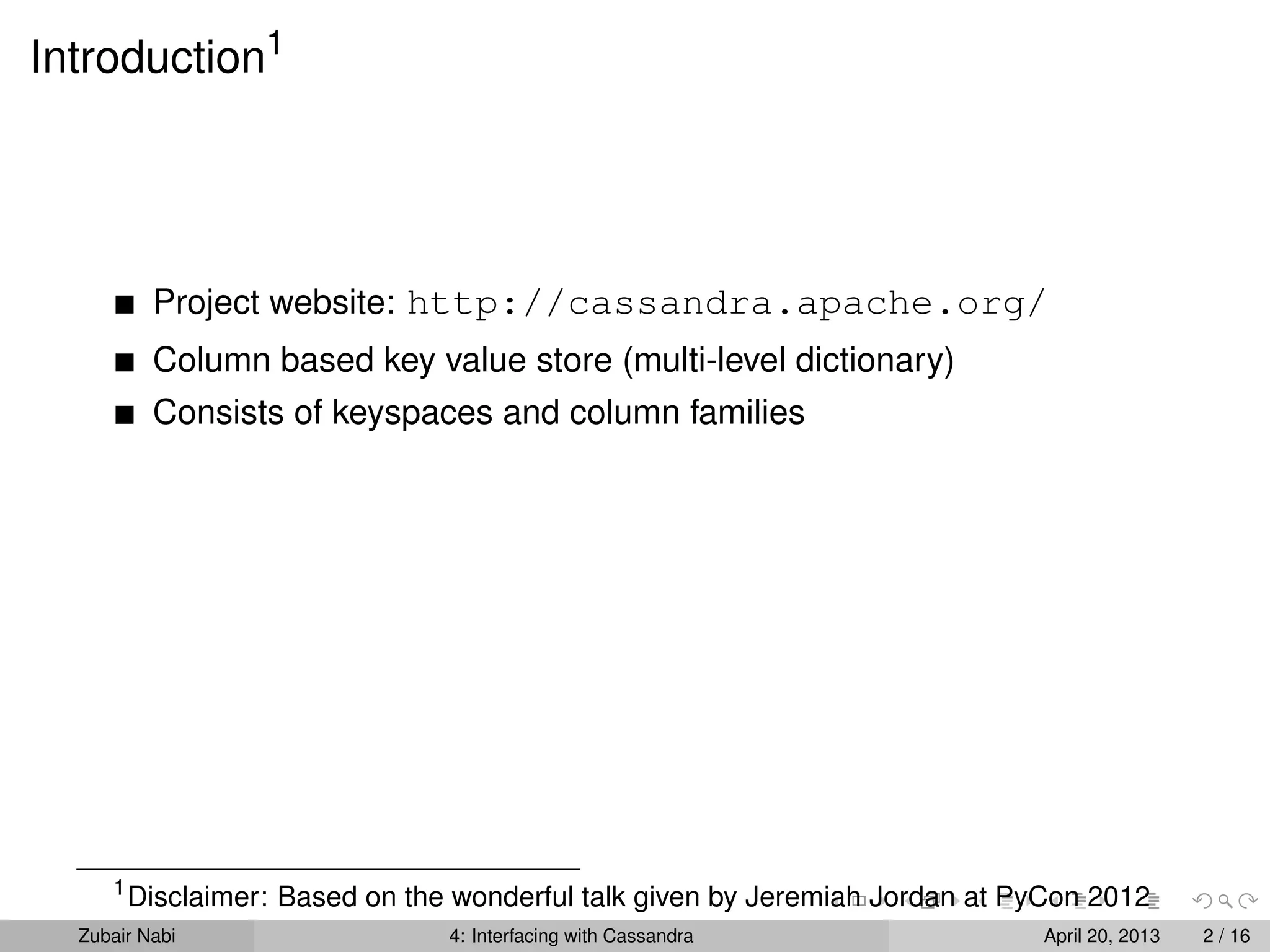

4. Introduction1
Project website: http://cassandra.apache.org/
Column based key value store (multi-level dictionary)
Consists of keyspaces and column families
1
Disclaimer: Based on the wonderful talk given by Jeremiah Jordan at PyCon 2012
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 2 / 16

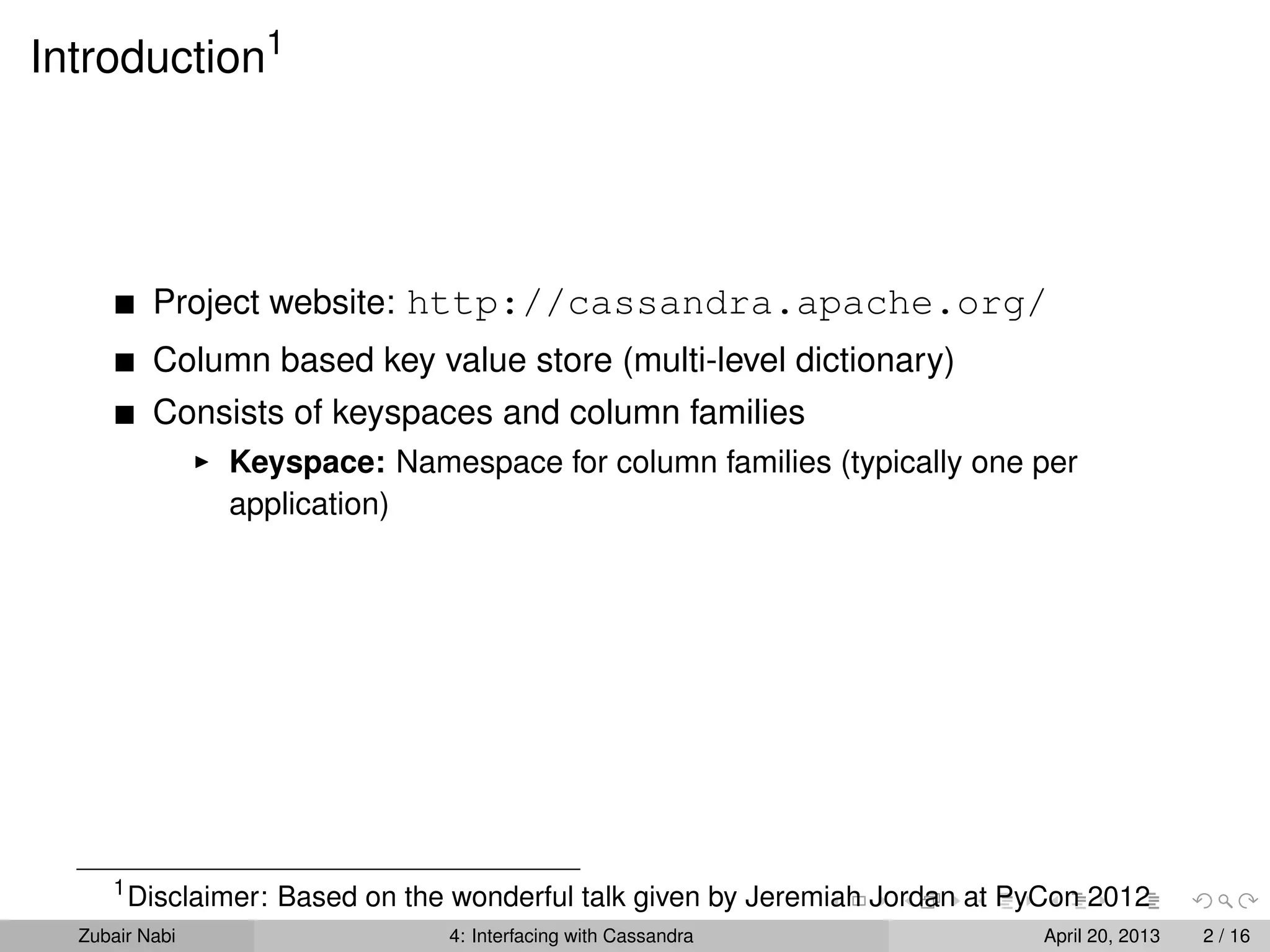

5. Introduction1
Project website: http://cassandra.apache.org/
Column based key value store (multi-level dictionary)
Consists of keyspaces and column families
Keyspace: Namespace for column families (typically one per
application)
1
Disclaimer: Based on the wonderful talk given by Jeremiah Jordan at PyCon 2012
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 2 / 16

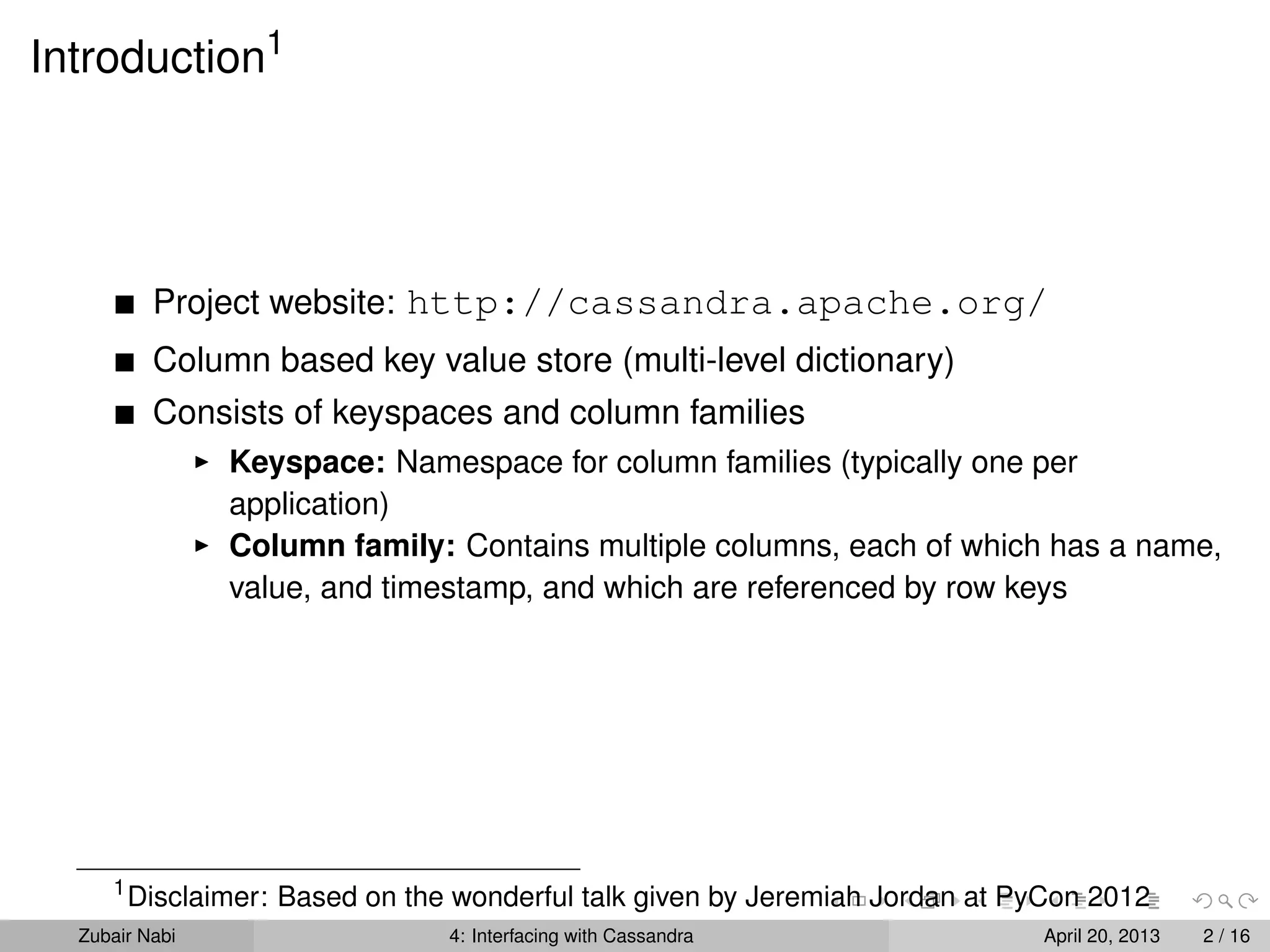

6. Introduction1
Project website: http://cassandra.apache.org/
Column based key value store (multi-level dictionary)
Consists of keyspaces and column families
Keyspace: Namespace for column families (typically one per
application)
Column family: Contains multiple columns, each of which has a name,
value, and timestamp, and which are referenced by row keys
1
Disclaimer: Based on the wonderful talk given by Jeremiah Jordan at PyCon 2012
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 2 / 16

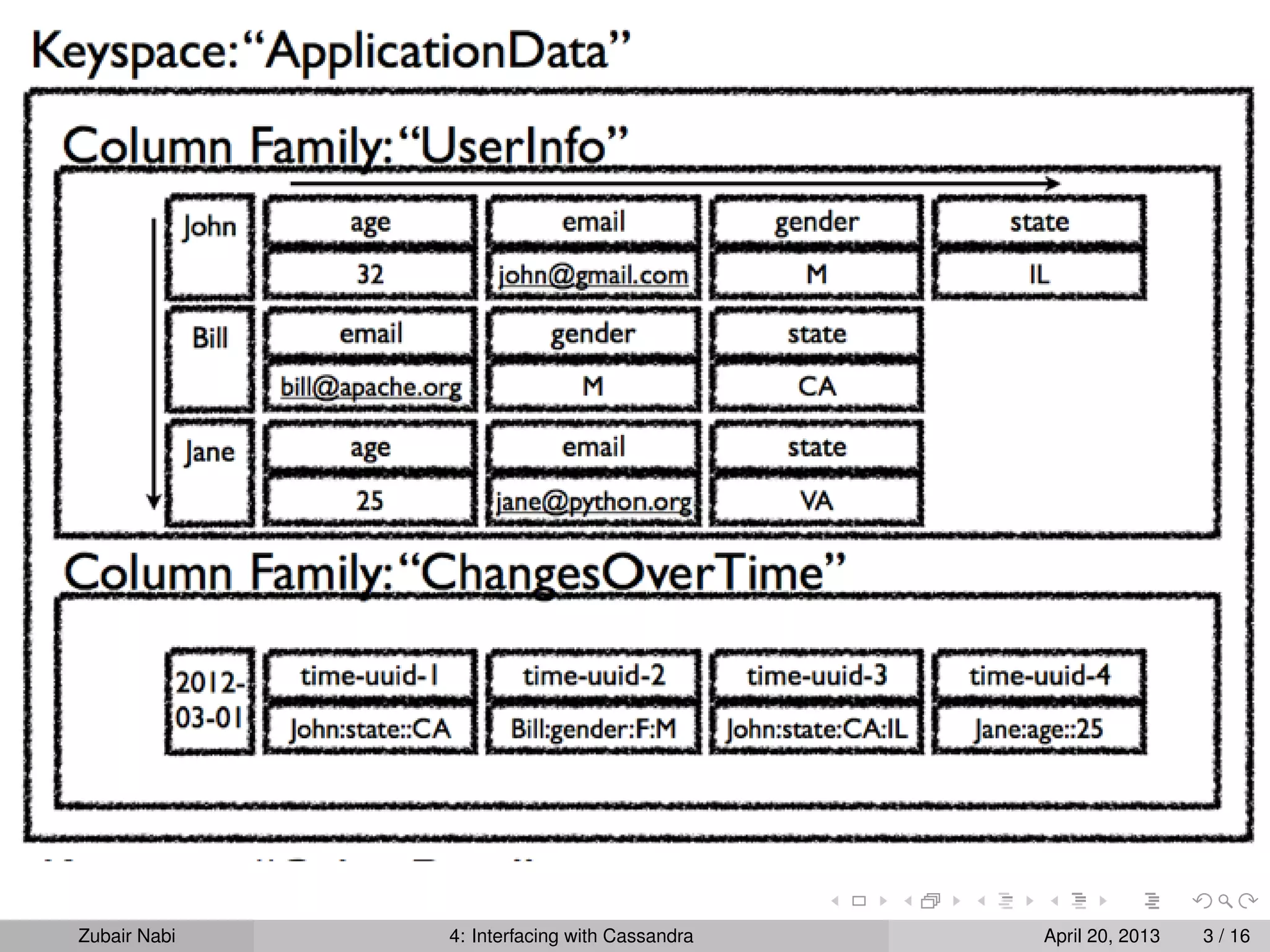

7. Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 3 / 16

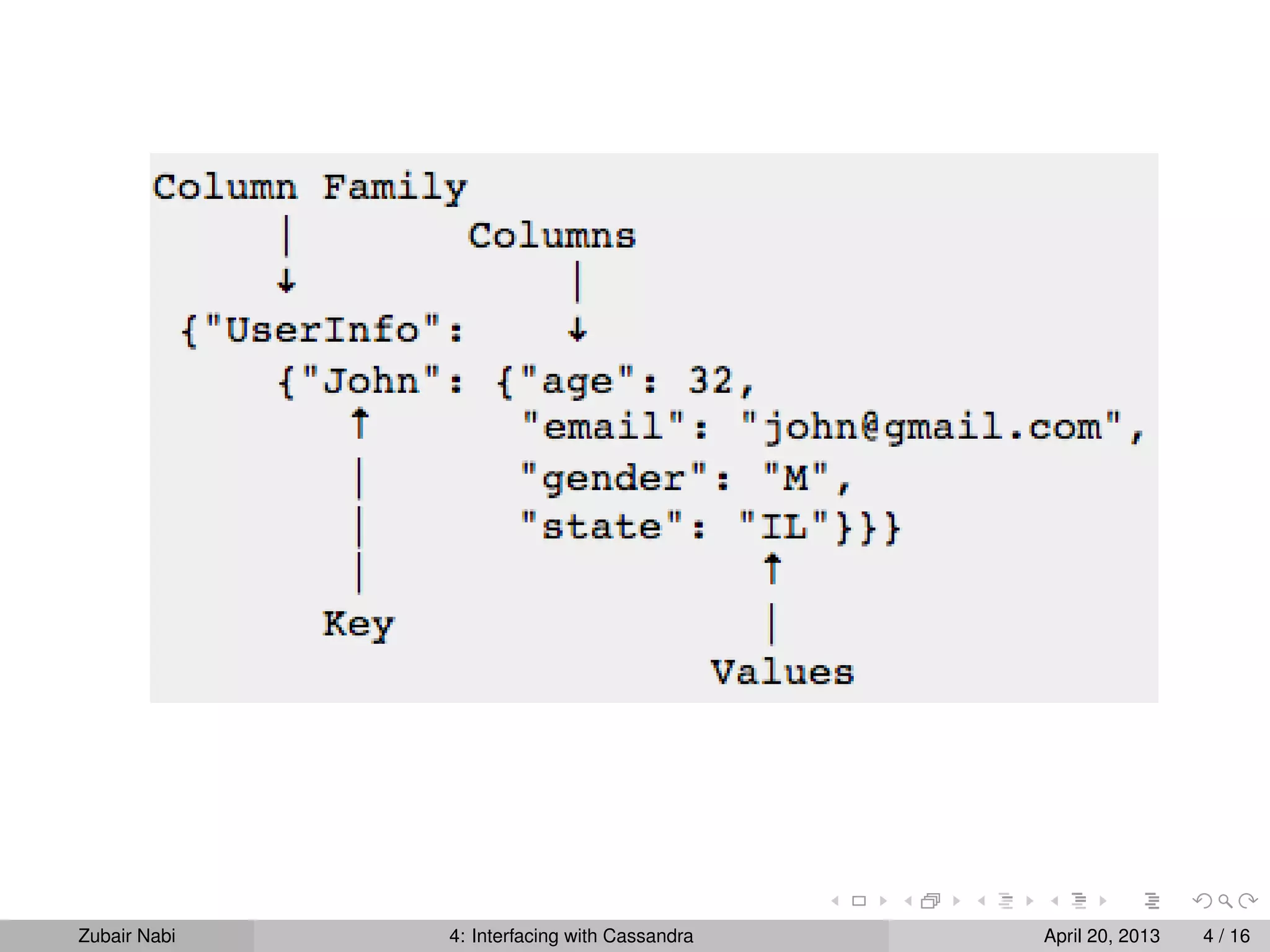

8. Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 4 / 16

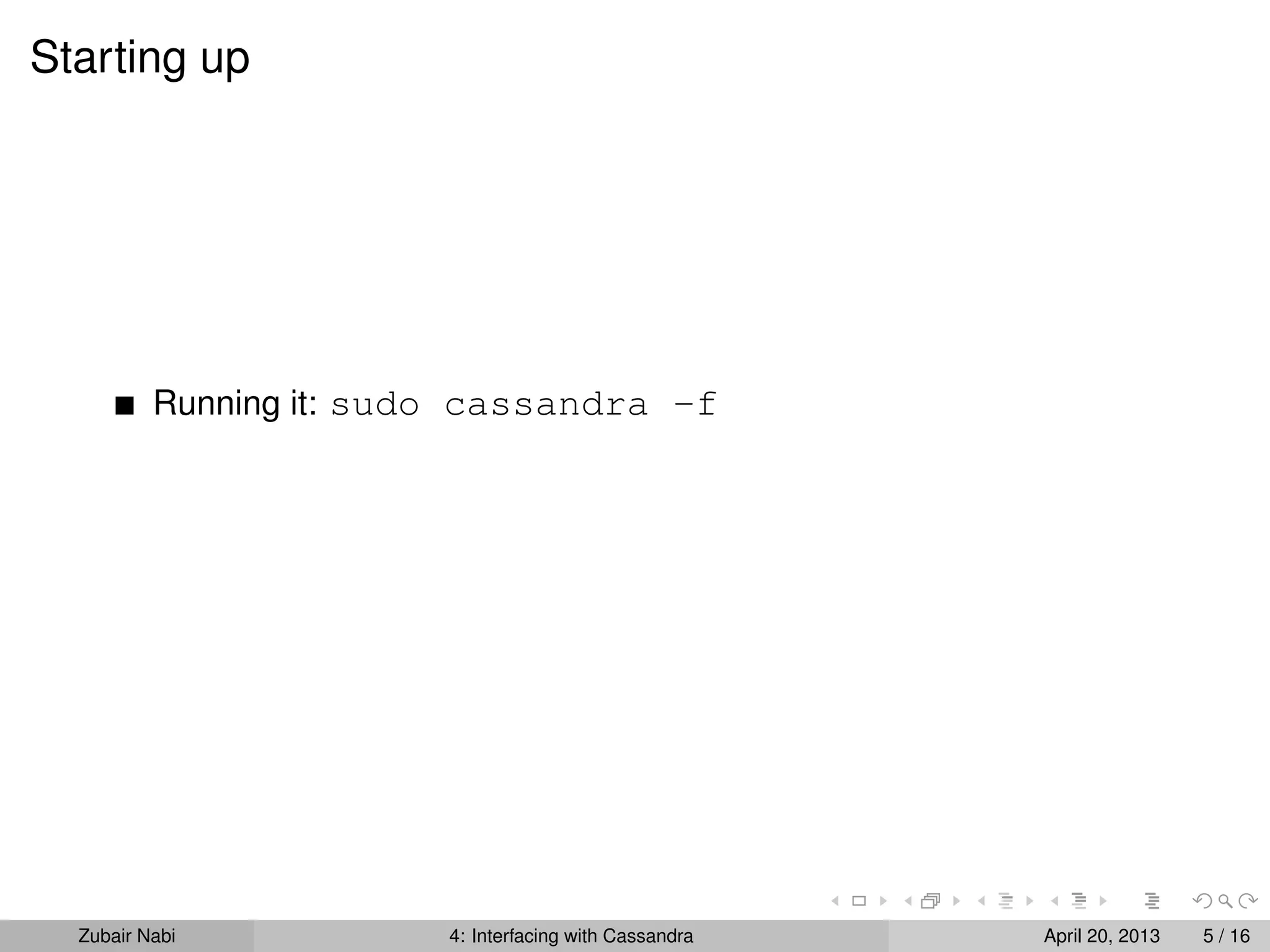

9. Starting up
Running it: sudo cassandra -f
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 5 / 16

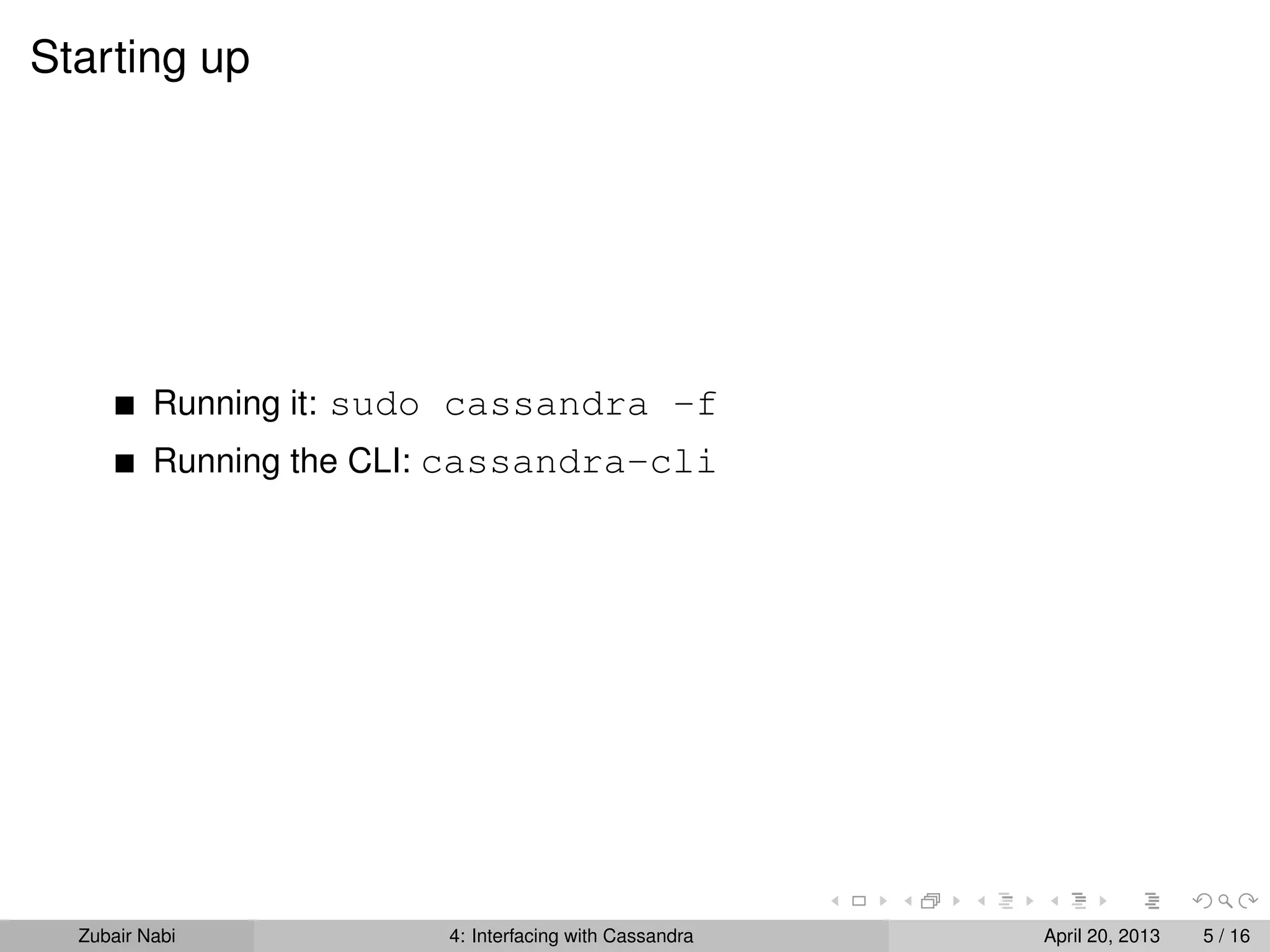

10. Starting up
Running it: sudo cassandra -f
Running the CLI: cassandra-cli
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 5 / 16

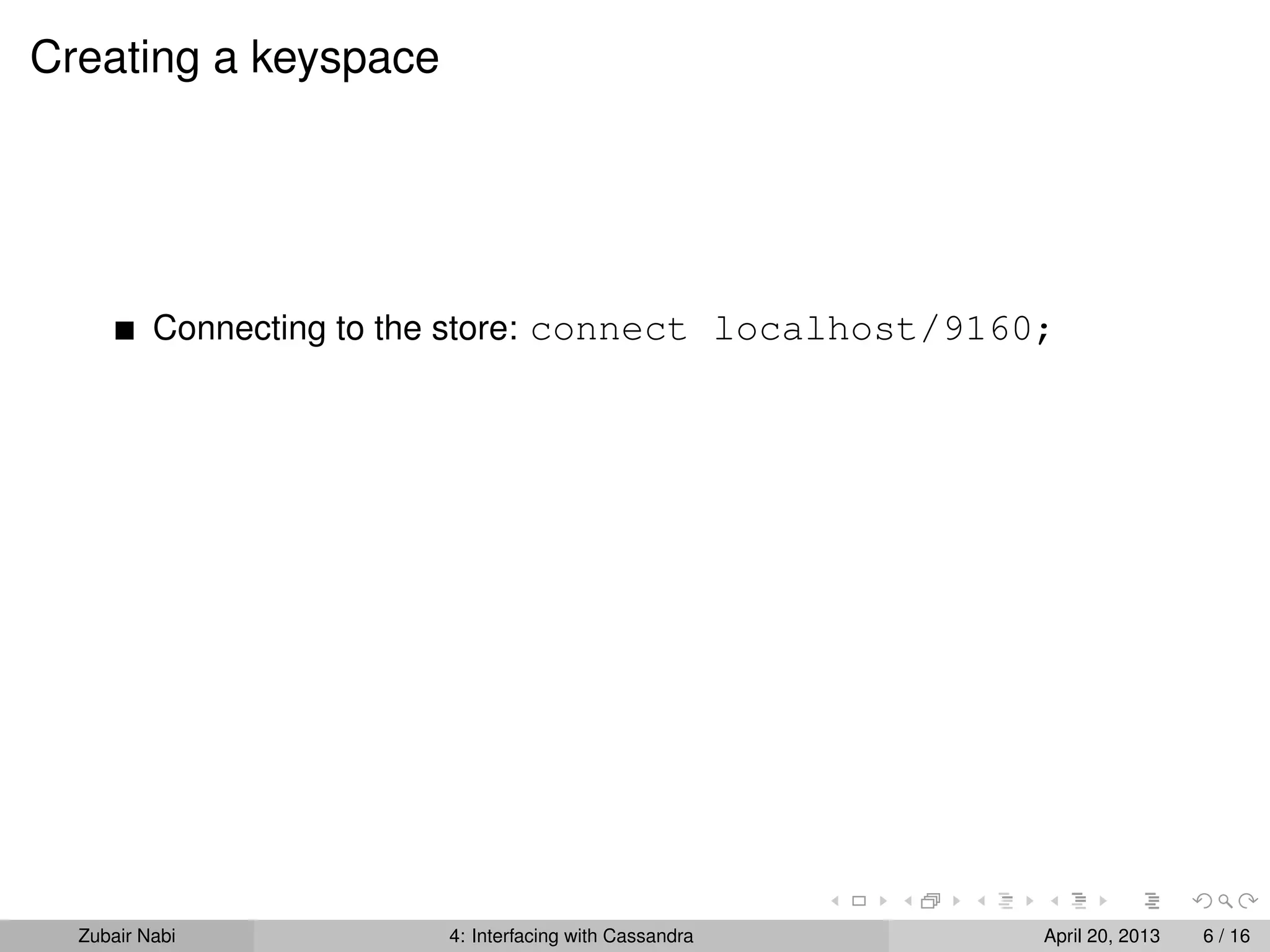

11. Creating a keyspace
Connecting to the store: connect localhost/9160;
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 6 / 16

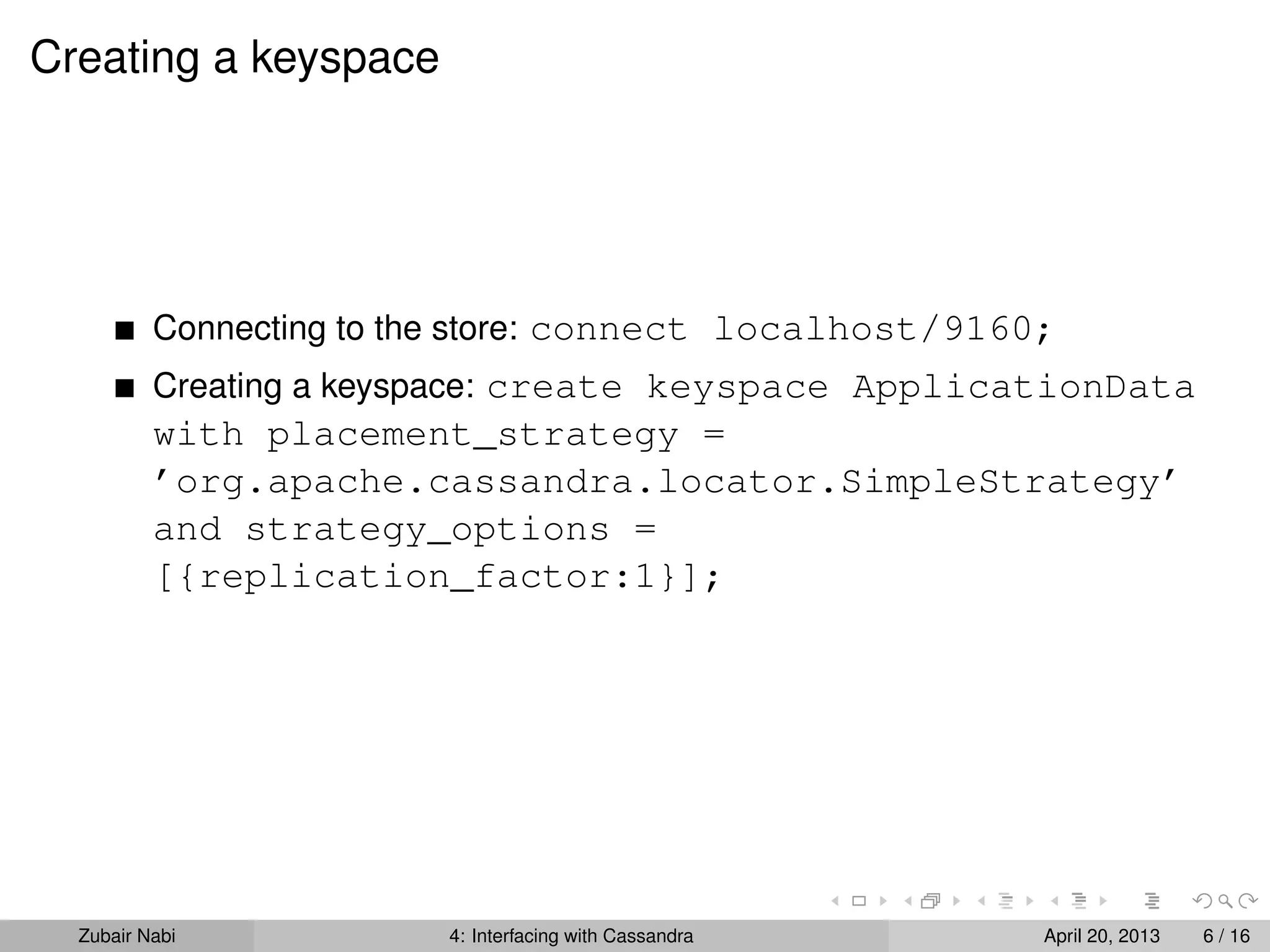

12. Creating a keyspace
Connecting to the store: connect localhost/9160;
Creating a keyspace: create keyspace ApplicationData
with placement_strategy =
’org.apache.cassandra.locator.SimpleStrategy’
and strategy_options =
[{replication_factor:1}];
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 6 / 16

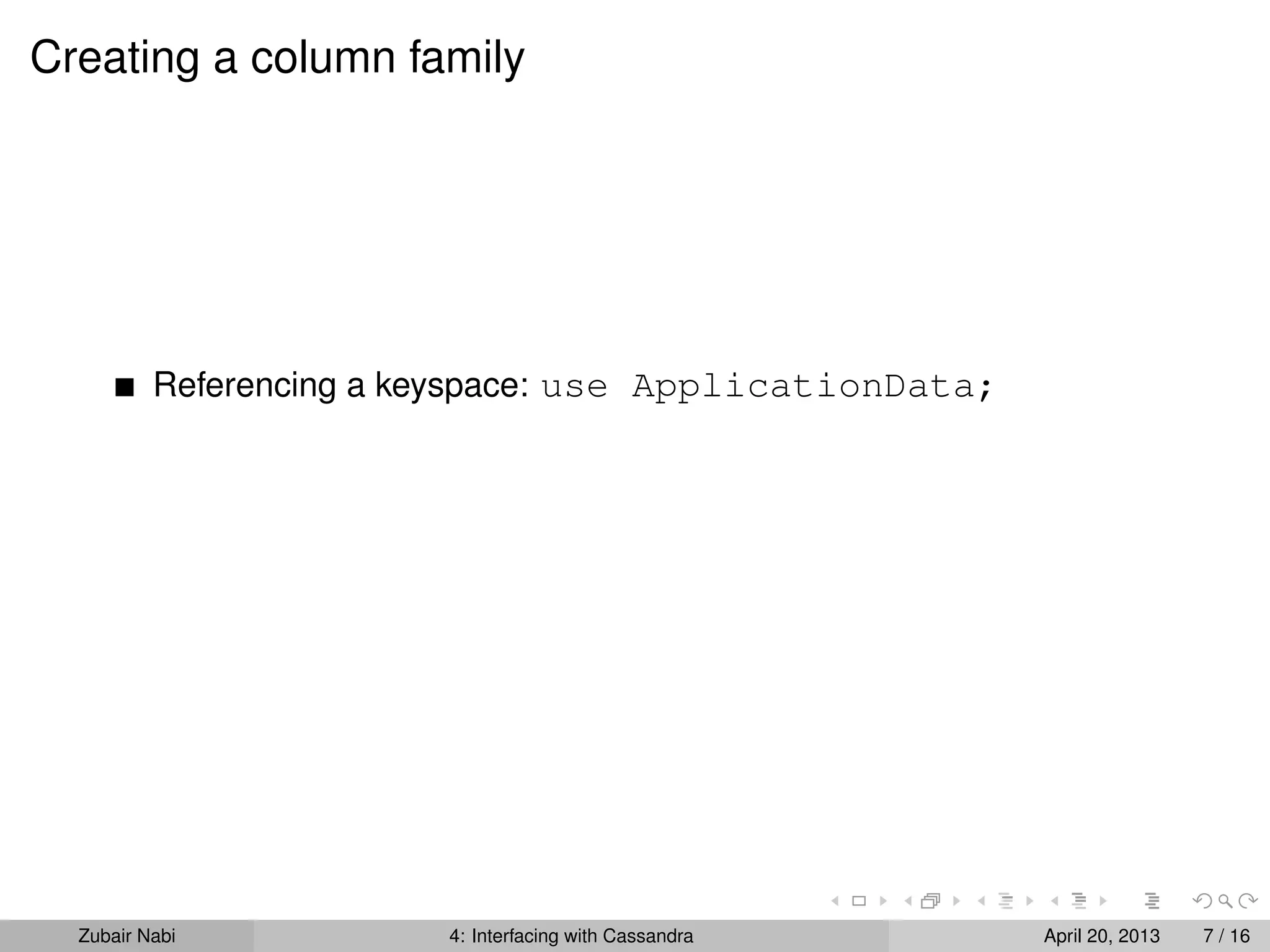

13. Creating a column family
Referencing a keyspace: use ApplicationData;
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 7 / 16

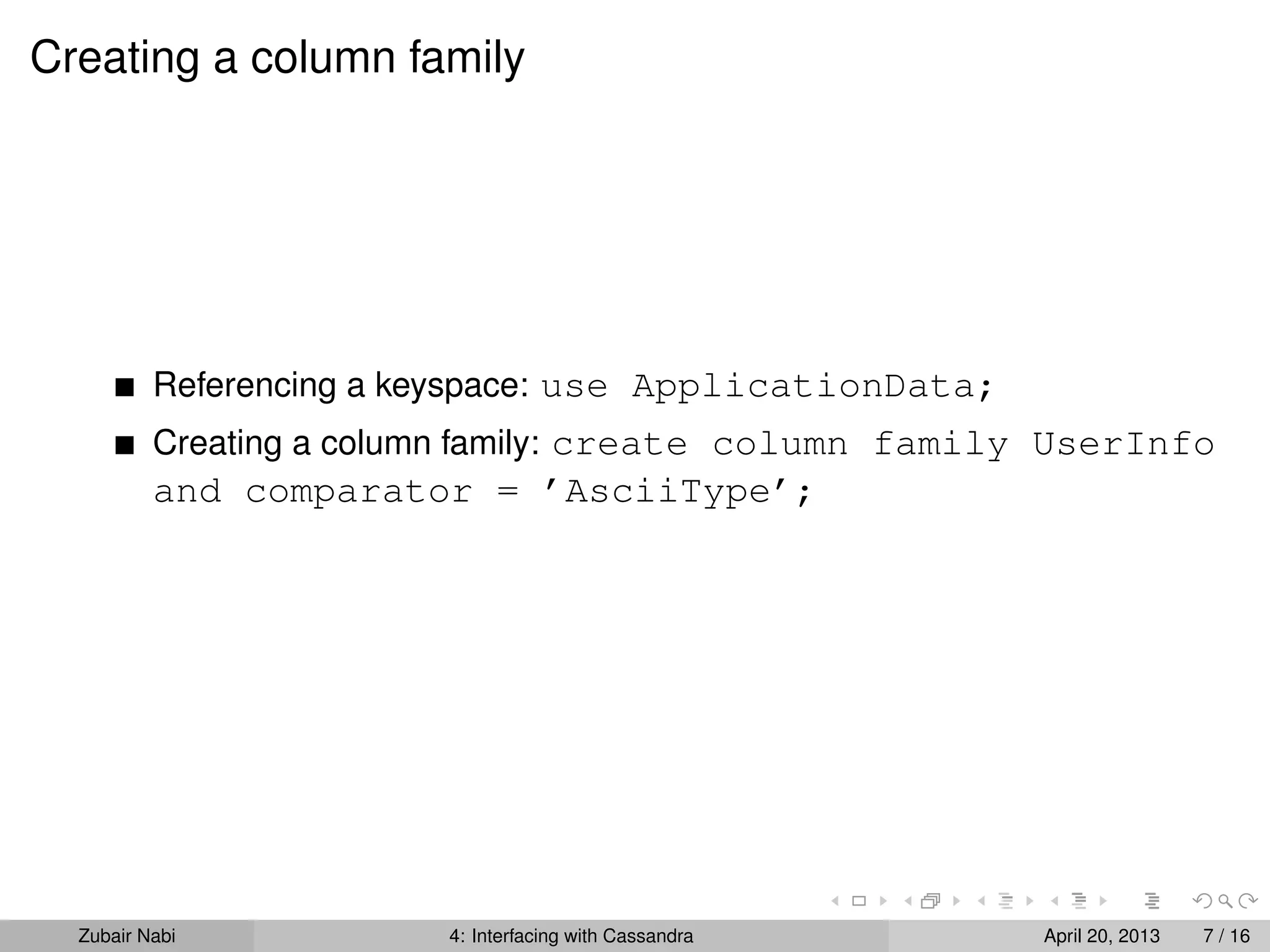

14. Creating a column family
Referencing a keyspace: use ApplicationData;
Creating a column family: create column family UserInfo
and comparator = ’AsciiType’;
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 7 / 16

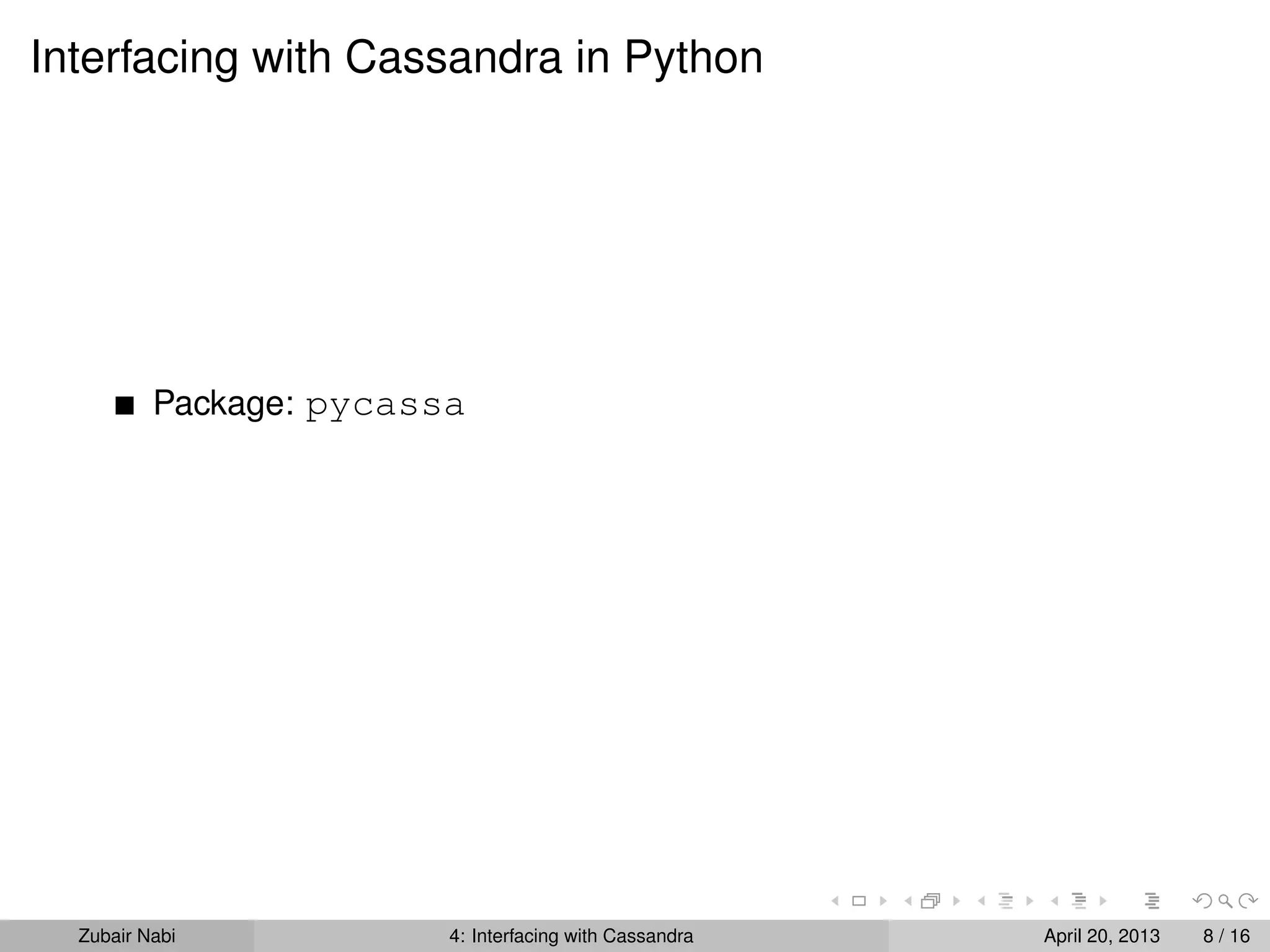

15. Interfacing with Cassandra in Python
Package: pycassa
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 8 / 16

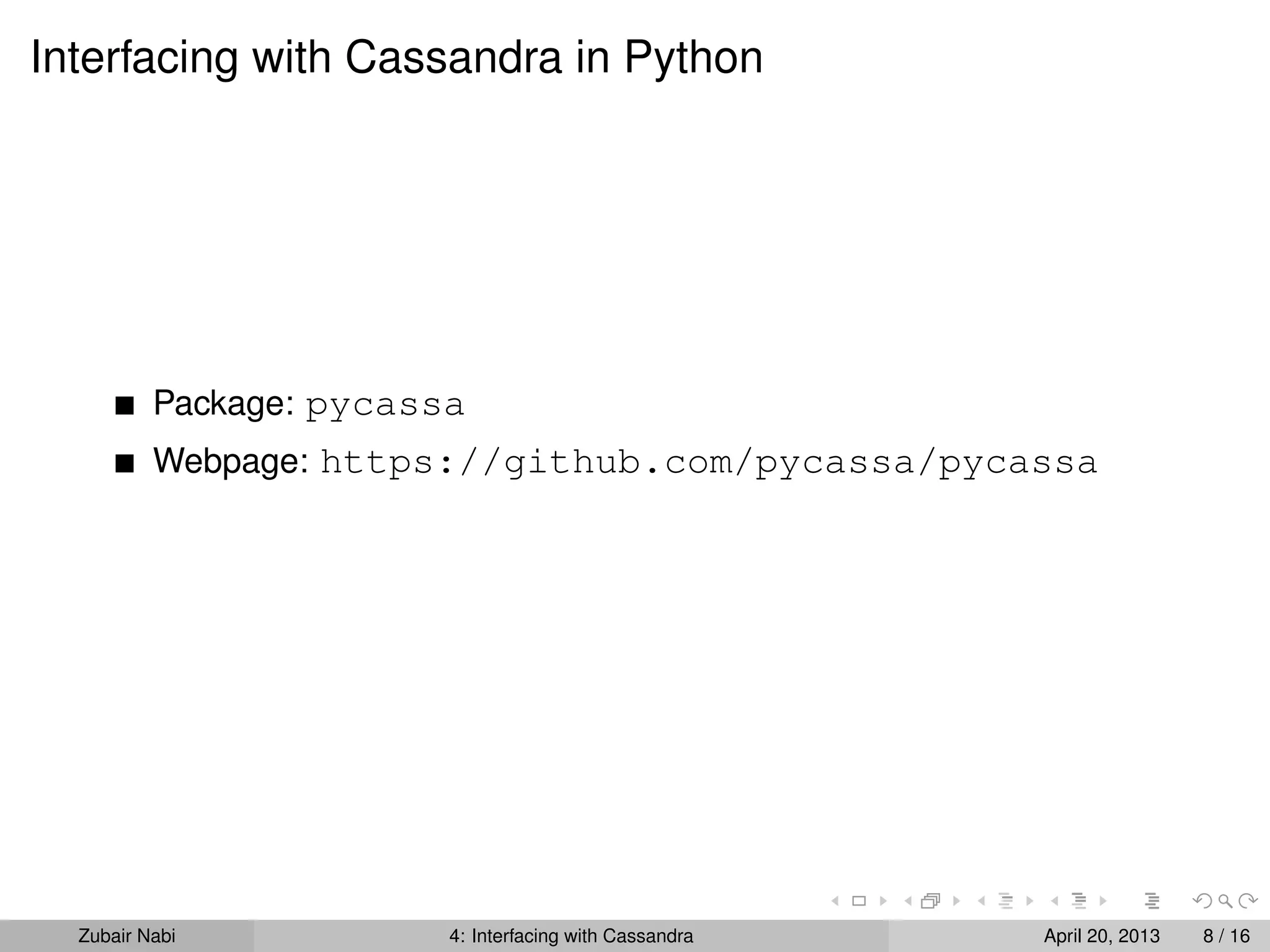

16. Interfacing with Cassandra in Python
Package: pycassa
Webpage: https://github.com/pycassa/pycassa
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 8 / 16

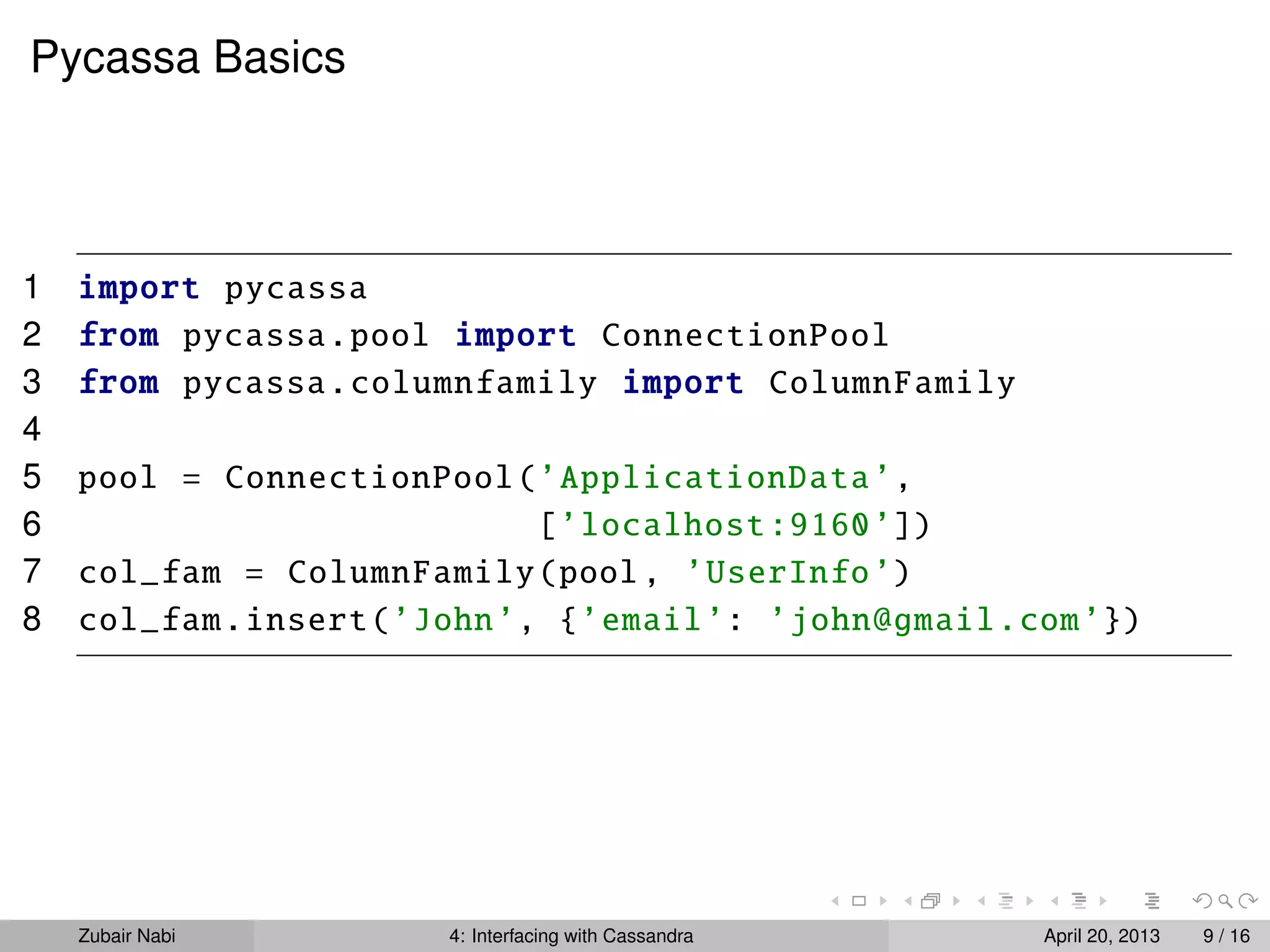

17. Pycassa Basics
1 import pycassa
2 from pycassa.pool import ConnectionPool
3 from pycassa.columnfamily import ColumnFamily
4
5 pool = ConnectionPool(’ApplicationData’,
6 [’localhost:9160’])
7 col_fam = ColumnFamily(pool, ’UserInfo’)
8 col_fam.insert(’John’, {’email’: ’john@gmail.com’})
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 9 / 16

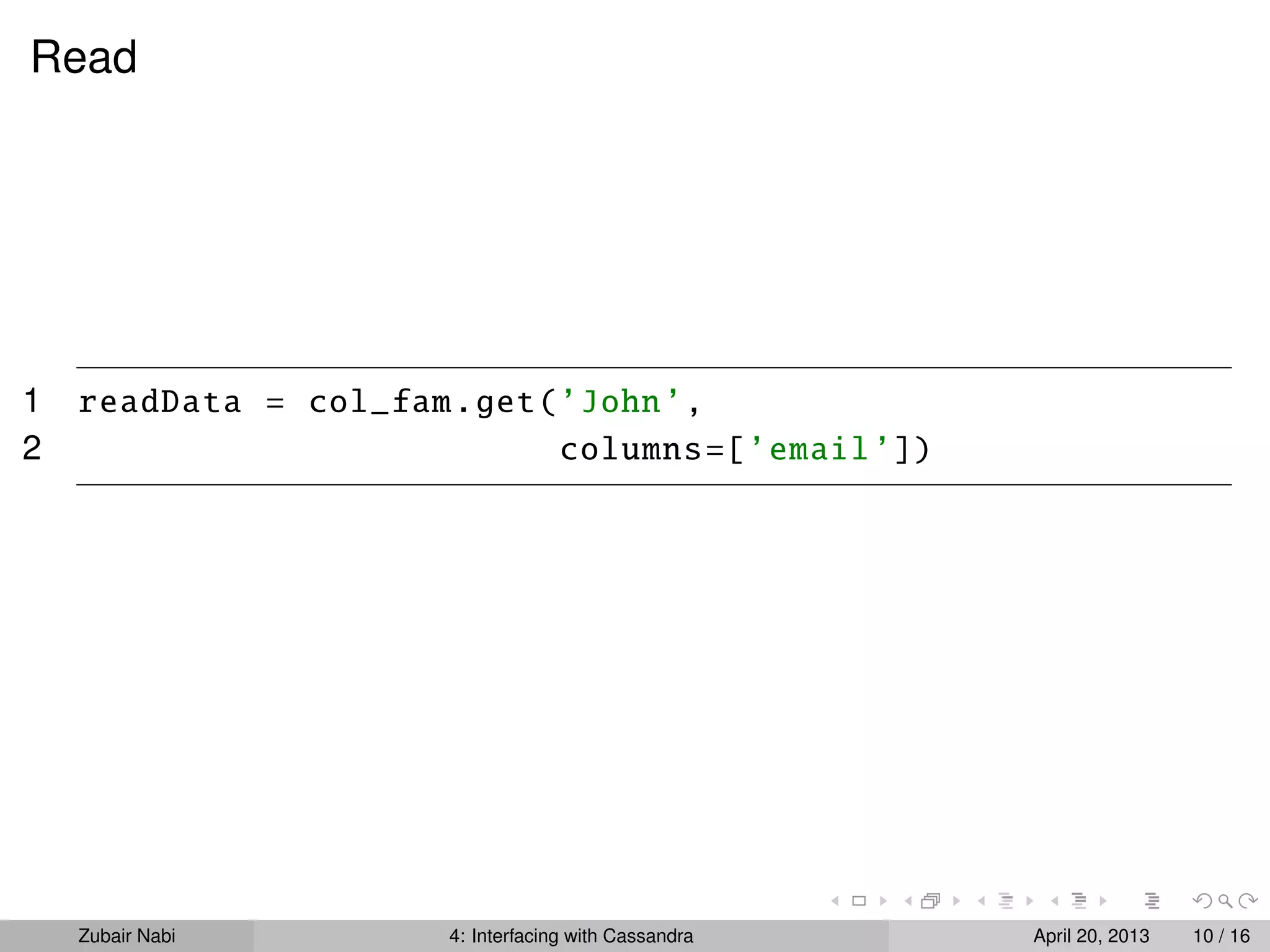

18. Read
1 readData = col_fam.get(’John’,
2 columns=[’email’])
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 10 / 16

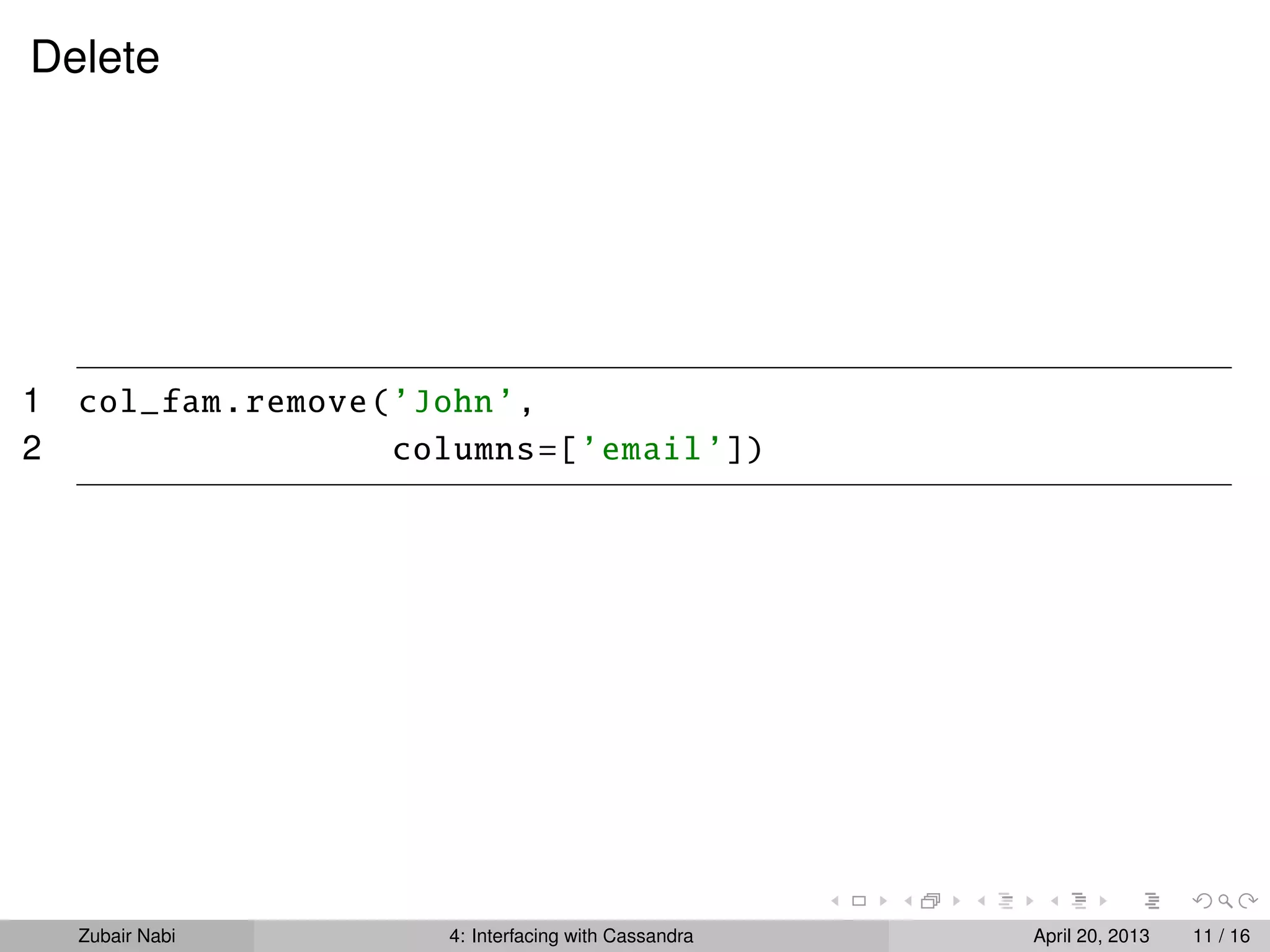

19. Delete
1 col_fam.remove(’John’,
2 columns=[’email’])
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 11 / 16

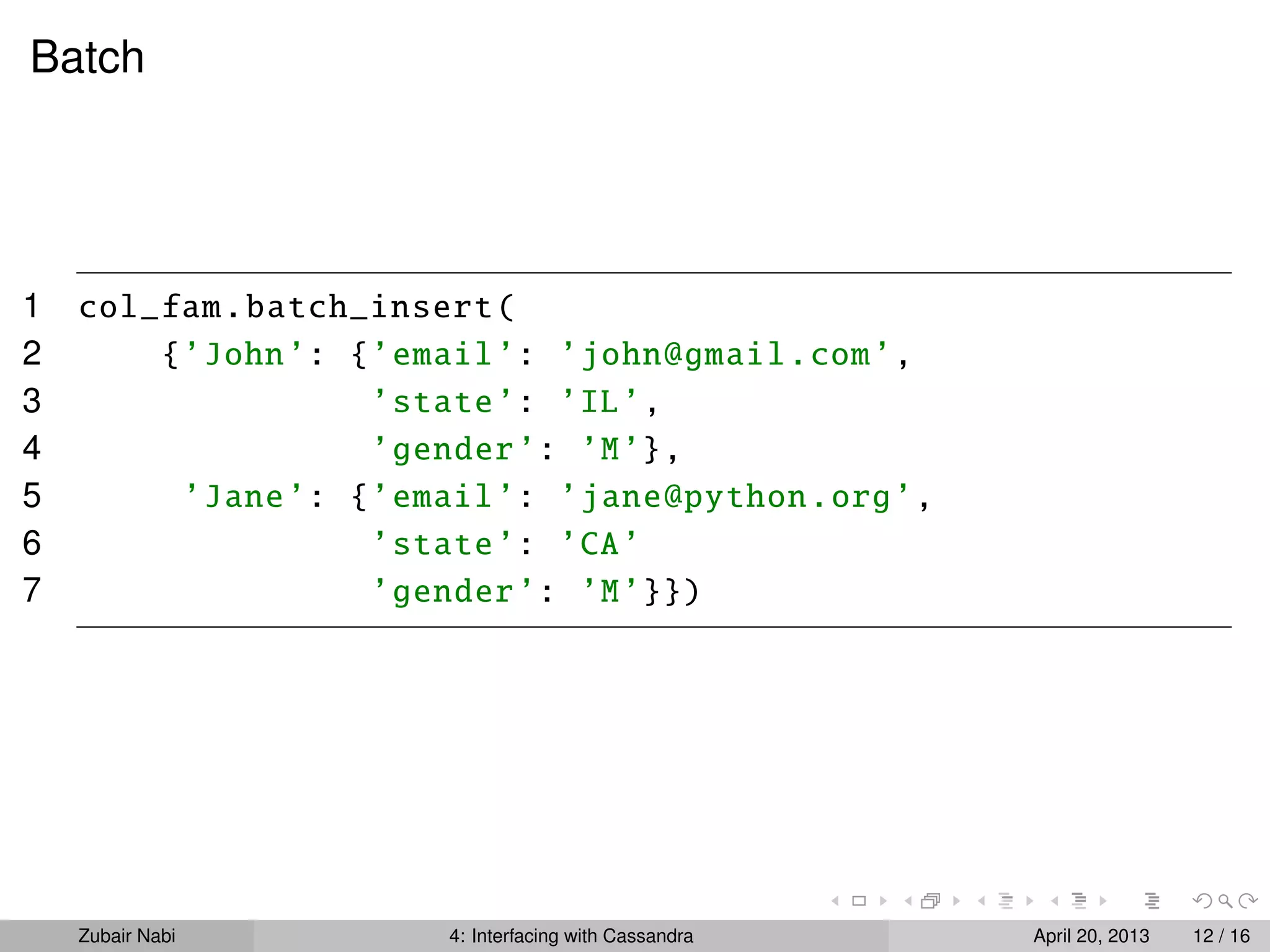

20. Batch
1 col_fam.batch_insert(
2 {’John’: {’email’: ’john@gmail.com’,
3 ’state’: ’IL’,
4 ’gender’: ’M’},
5 ’Jane’: {’email’: ’jane@python.org’,
6 ’state’: ’CA’
7 ’gender’: ’M’}})
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 12 / 16

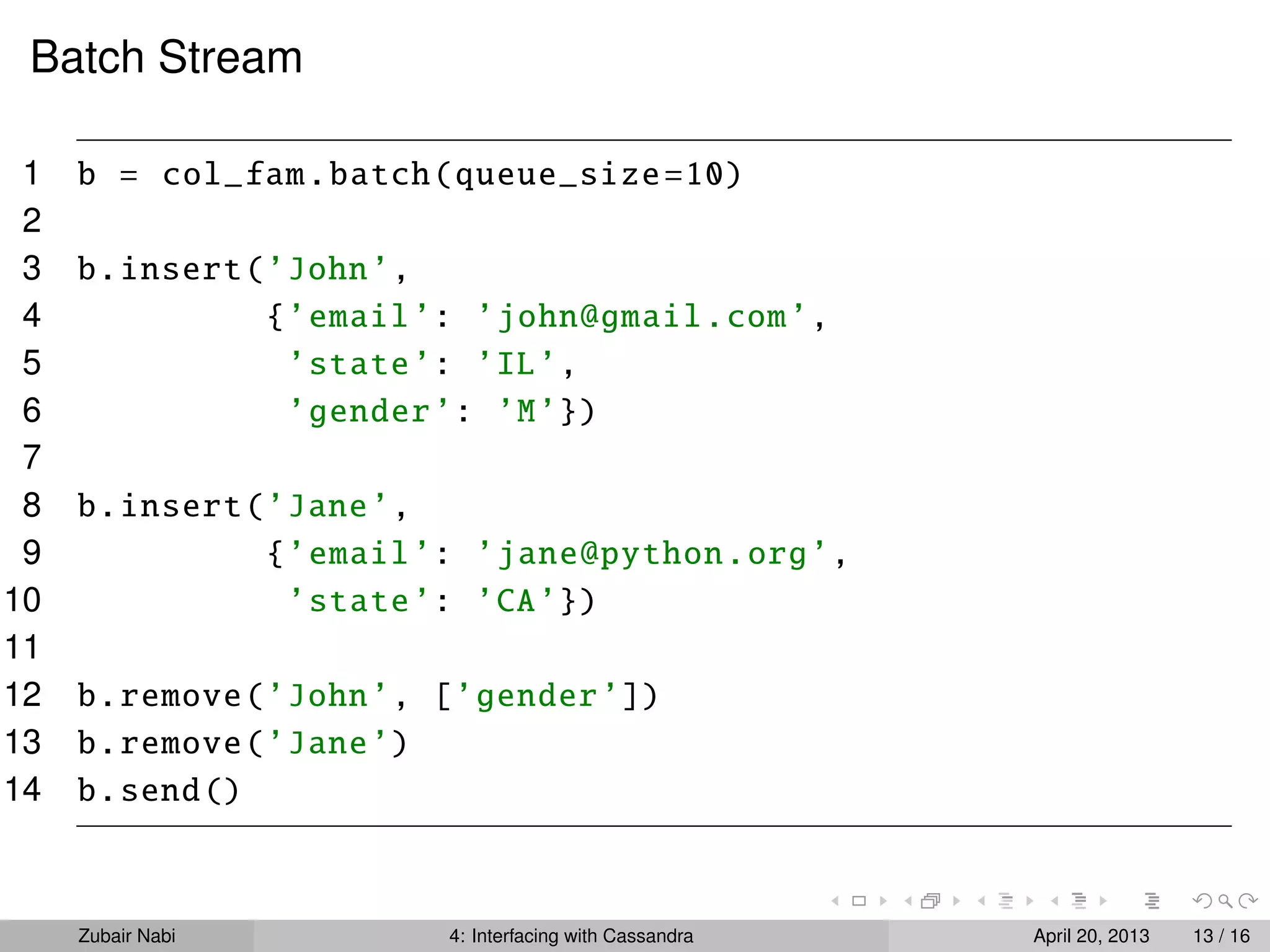

21. Batch Stream
1 b = col_fam.batch(queue_size=10)
2
3 b.insert(’John’,
4 {’email’: ’john@gmail.com’,
5 ’state’: ’IL’,
6 ’gender’: ’M’})
7
8 b.insert(’Jane’,
9 {’email’: ’jane@python.org’,
10 ’state’: ’CA’})
11
12 b.remove(’John’, [’gender’])
13 b.remove(’Jane’)
14 b.send()
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 13 / 16

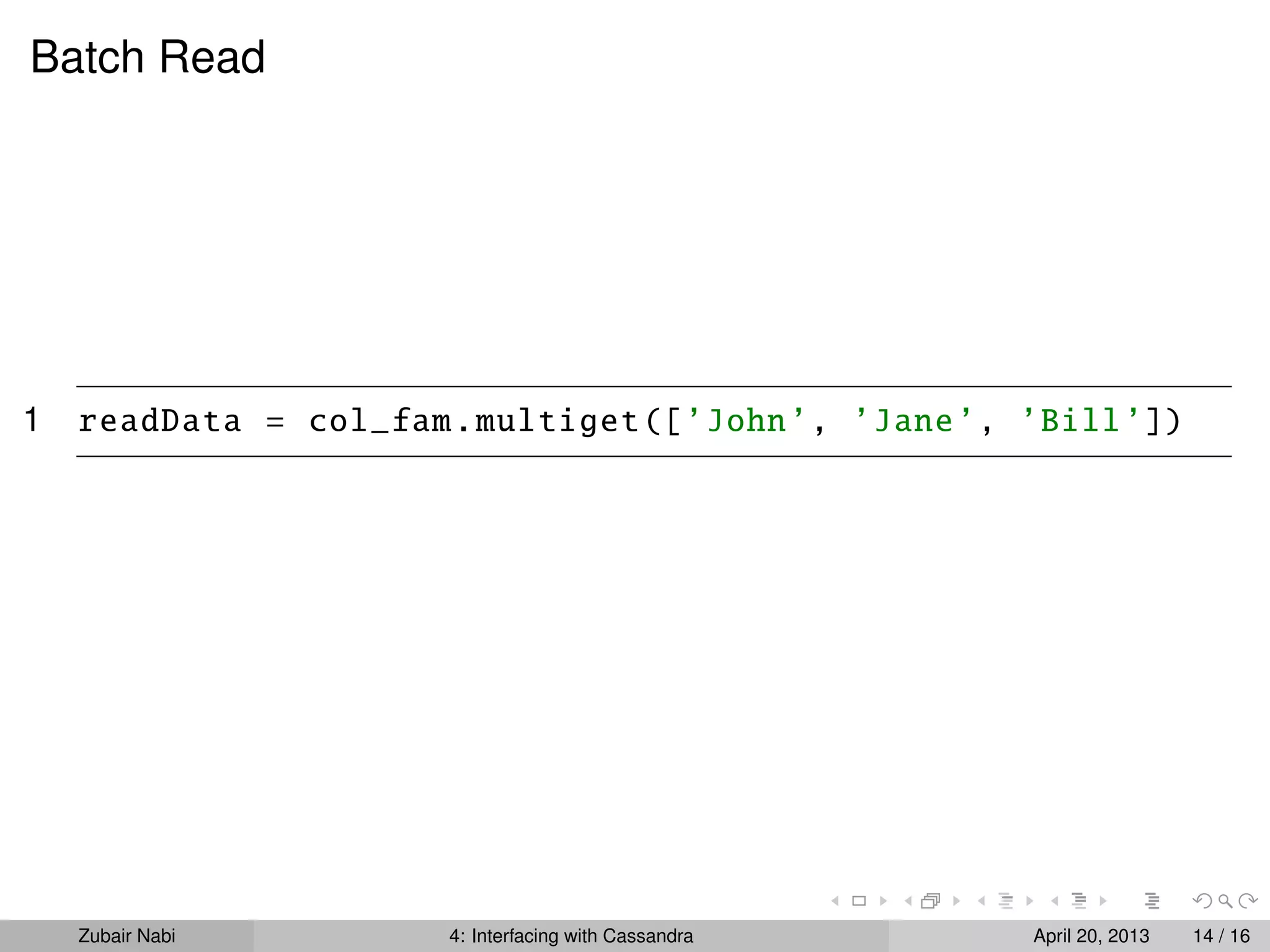

22. Batch Read
1 readData = col_fam.multiget([’John’, ’Jane’, ’Bill’])
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 14 / 16

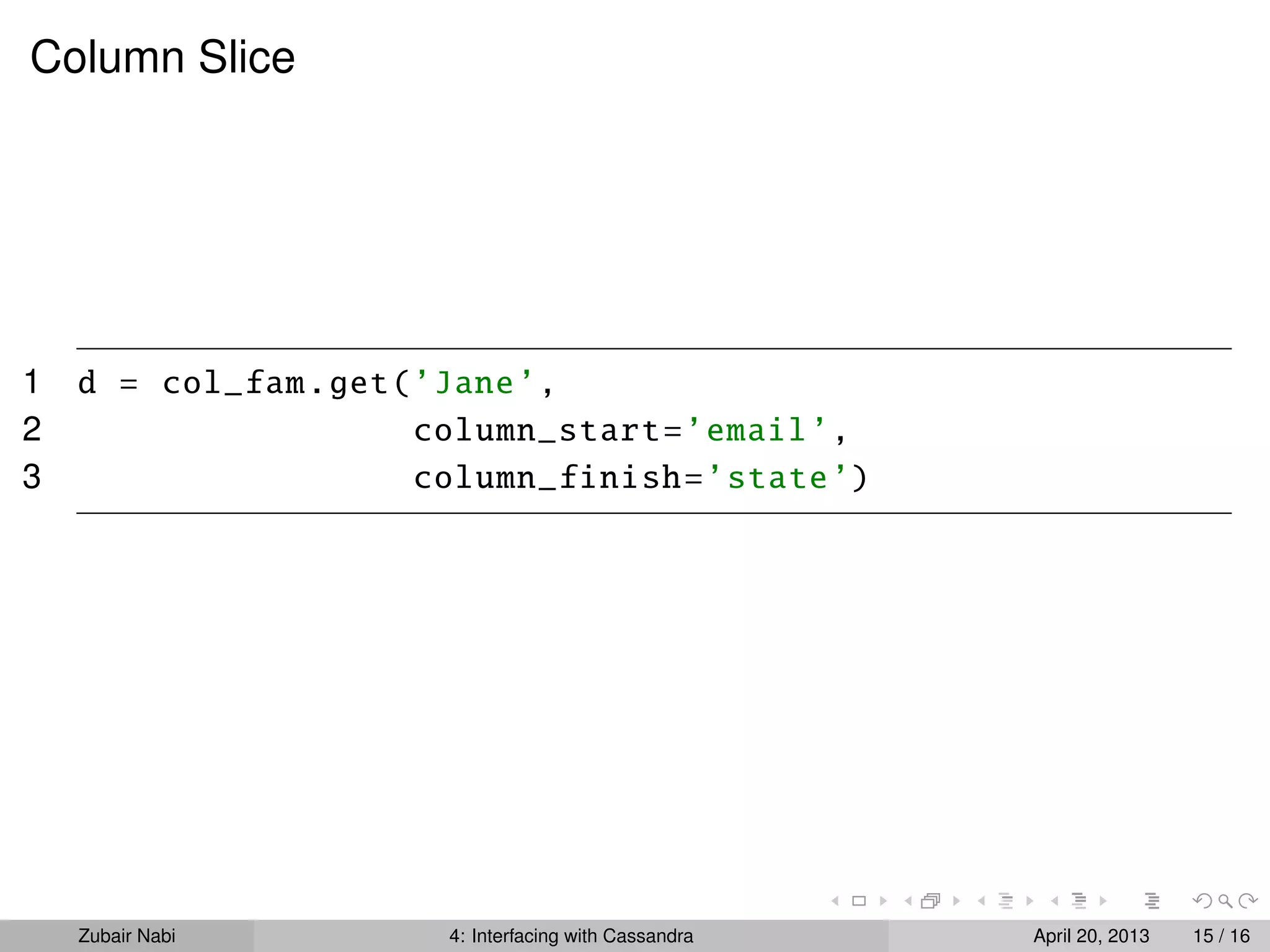

23. Column Slice
1 d = col_fam.get(’Jane’,
2 column_start=’email’,
3 column_finish=’state’)
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 15 / 16

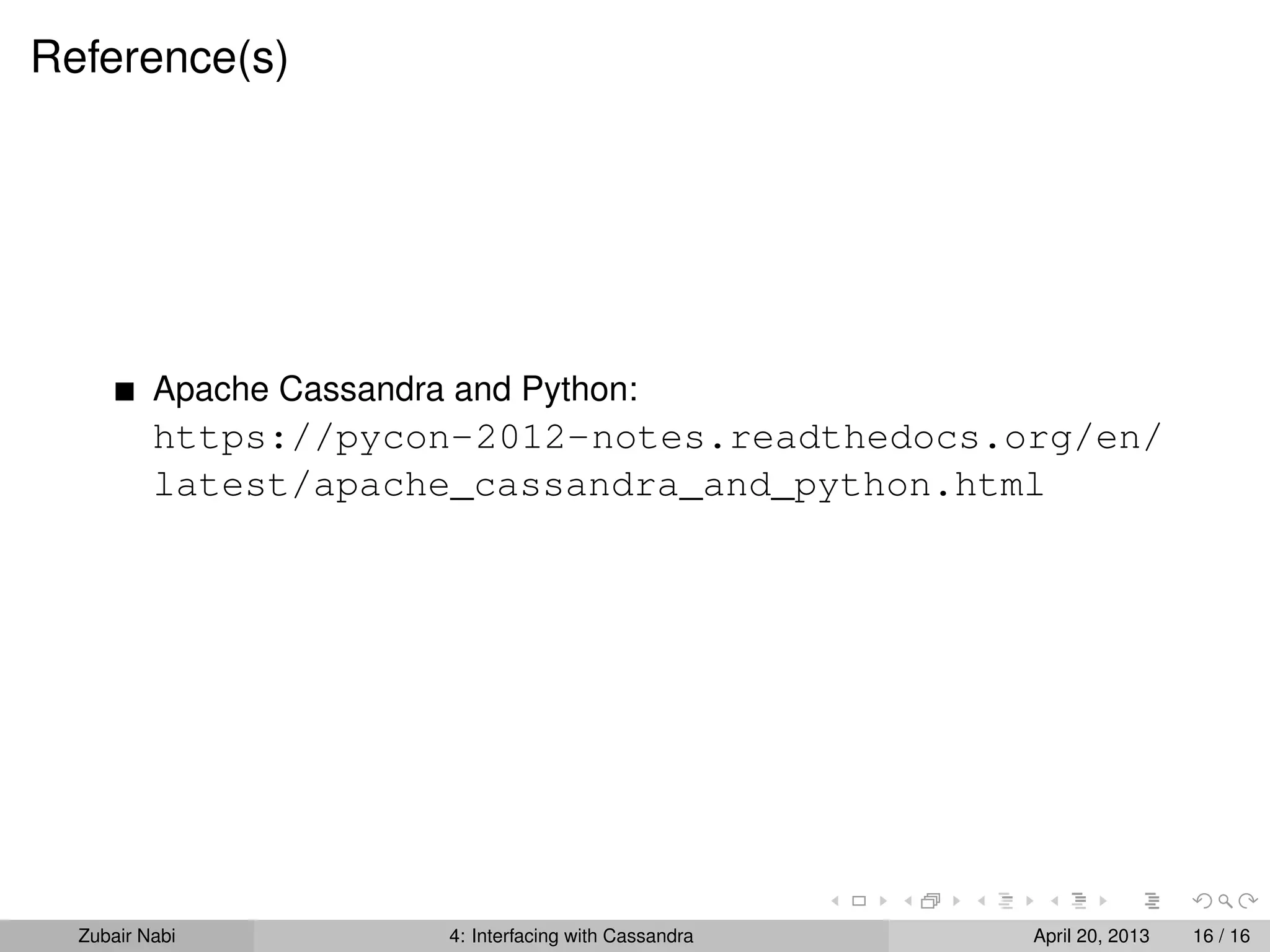

24. Reference(s)
Apache Cassandra and Python:
https://pycon-2012-notes.readthedocs.org/en/
latest/apache_cassandra_and_python.html
Zubair Nabi 4: Interfacing with Cassandra April 20, 2013 16 / 16
