This document provides an overview of Spark Catalyst including: - Catalyst trees and expressions represent logical and physical query plans - Expressions have datatypes and operate on Row objects - Custom expressions can be defined - Code generation improves expression evaluation performance by generating Java code via Janino compiler - Key concepts like trees, expressions, datatypes, rows, code generation and Janino compiler are explained through examples

1. Anatomy of Spark
Catalyst- Part 1
Deep dive into Spark Catalyst API
https://github.com/phatak-dev/anatomy-of-spark-catalyst

2. ● Madhukara Phatak
● Technical Lead at Tellius
● Consultant and Trainer at
datamantra.io
● Consult in Hadoop, Spark
and Scala
● www.madhukaraphatak.com

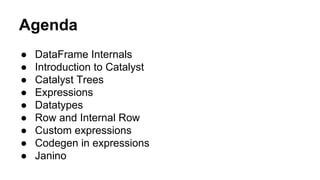

3. Agenda
● DataFrame Internals
● Introduction to Catalyst
● Catalyst Trees
● Expressions
● Datatypes
● Row and Internal Row
● Custom expressions
● Codegen in expressions
● Janino

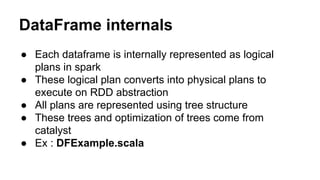

4. DataFrame internals
● Each dataframe is internally represented as logical
plans in spark
● These logical plan converts into physical plans to
execute on RDD abstraction
● All plans are represented using tree structure
● These trees and optimization of trees come from
catalyst
● Ex : DFExample.scala

5. Code organization of Spark SQL
● The code of spark sql is organized into below projects
○ Catalyst
○ Core
○ Hive
○ Hive-Thrift server
○ unsafe(external to spark sql)
● We are focusing on Catalyst code in this session
● Core depends on catalyst
● Catalyst depends upon unsafe for tungsten code

6. Introduction to Catalyst
● An implementation agnostic framework for manipulating
trees of relational operators and expressions
● It defines the all the expressions, logical plans and
optimizations API’s for spark SQL
● Catalyst API is independent of RDD evaluation. So
catalyst operators and expressions can be evaluated
without RDD abstraction
● Introduced in Spark 1.3 version

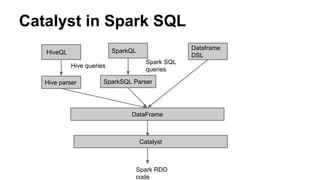

7. Catalyst in Spark SQL
HiveQL
Hive parser
Hive queries
SparkQL
SparkSQL Parser
Spark SQL
queries
Dataframe
DSL
DataFrame
Catalyst
Spark RDD
code

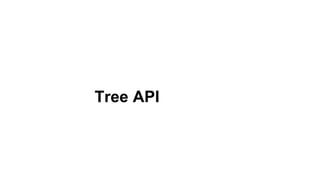

8. Tree API

9. Catalyst Trees
● Everything in catalyst is a tree
● Tree is a very powerful abstractions for defining
hierarchical operators and expressions
● The important abstraction defined is TreeNode
● Every TreeNode has its own type
● Catalyst defines many helpers functions like forall,
transform which provides collection like API’s for
TreeNode
● These trees can be used in user programs
● Ex: org.apache.spark.sql.catalyst.TreeNode

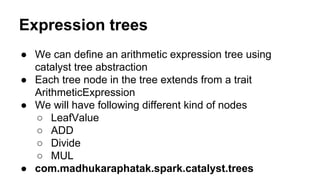

10. Expression trees
● We can define an arithmetic expression tree using
catalyst tree abstraction
● Each tree node in the tree extends from a trait
ArithmeticExpression
● We will have following different kind of nodes
○ LeafValue
○ ADD
○ Divide
○ MUL
● com.madhukaraphatak.spark.catalyst.trees

11. Creating Expression Trees
● In this example, we see how to use the earlier defined
tree
● Let’s take below expression 10+20
● It can be represented using the below tree
ADD(LeafValue(10), LeafValue(20))
● Calling evaluate on the root of tree gives us the result
● Ex : ExpressionExample

12. Traversing trees
● Catalyst provides collection like methods for traversing
trees
● Using these methods we can easily transverse our
expression trees
● Collection like API’s allows us to use scala pattern
matching for work with defined node.
● In our example, we will be using transform operation to
change the evaluation for the divide by 0 operation.
● Ex : ExpressionTransformation

13. Optimising expressions
● One of the nice property of collection like API’s are
ability to optimize the trees even before they are
evaluated
● In our example, we will use transform and transformUp
for optimizing tree in case of multiplication
● In this example, we optimize whenever there is
multiplication zero
● Ex : ExpressionOptimization

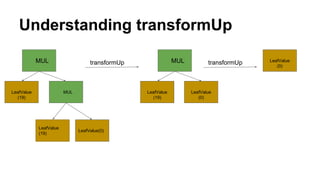

14. Understanding transformUp
MUL
LeafValue
(19)
MUL
LeafValue
(19)
LeafValue(0)
MUL
LeafValue
(19)
LeafValue
(0)
LeafValue
(0)
transformUp transformUp

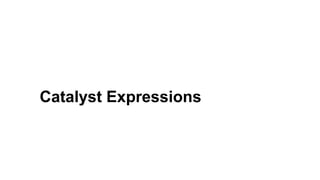

15. Catalyst Expressions

16. Catalyst Expression
● As we have discussed our simple expressions, catalyst
defines expressions for all different kinds of sql
operations
● The base trait is Expression which extends TreeNode
● Different kinds of expressions are
○ LeafExpression
○ UnaryExpression
○ BinaryExpression
○ MathExpression
● org.apache.spark.sql.catalyst.Expression

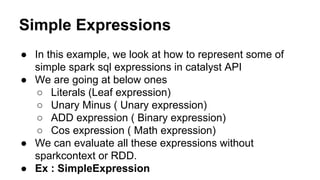

17. Simple Expressions
● In this example, we look at how to represent some of
simple spark sql expressions in catalyst API
● We are going at below ones
○ Literals (Leaf expression)
○ Unary Minus ( Unary expression)
○ ADD expression ( Binary expression)
○ Cos expression ( Math expression)
● We can evaluate all these expressions without
sparkcontext or RDD.
● Ex : SimpleExpression

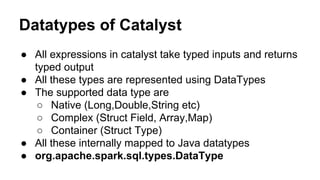

18. Datatypes of Catalyst
● All expressions in catalyst take typed inputs and returns
typed output
● All these types are represented using DataTypes
● The supported data type are
○ Native (Long,Double,String etc)
○ Complex (Struct Field, Array,Map)
○ Container (Struct Type)
● All these internally mapped to Java datatypes
● org.apache.spark.sql.types.DataType

19. Row
● Row is abstraction to represent the data operated by
expressions
● Row represents the sequence of values with order in
which schema is defined.
● There are multiple implementation of Row available
which is optimized for specific use cases
● Row plays a central role in moving from Dataframe
world to RDD world as DataFrame is represented as
RDD[Row]
● Ex : RowExample

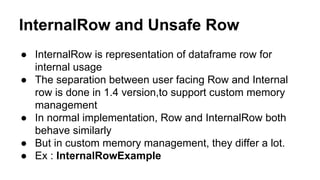

20. InternalRow and Unsafe Row
● InternalRow is representation of dataframe row for
internal usage
● The separation between user facing Row and Internal
row is done in 1.4 version,to support custom memory
management
● In normal implementation, Row and InternalRow both
behave similarly
● But in custom memory management, they differ a lot.
● Ex : InternalRowExample

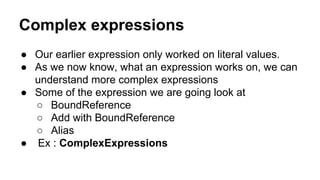

21. Complex expressions
● Our earlier expression only worked on literal values.
● As we now know, what an expression works on, we can
understand more complex expressions
● Some of the expression we are going look at
○ BoundReference
○ Add with BoundReference
○ Alias
● Ex : ComplexExpressions

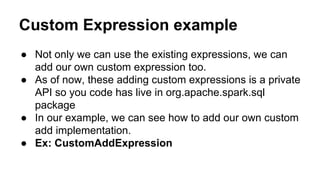

22. Custom Expression example
● Not only we can use the existing expressions, we can
add our own custom expression too.
● As of now, these adding custom expressions is a private
API so you code has live in org.apache.spark.sql
package
● In our example, we can see how to add our own custom
add implementation.
● Ex: CustomAddExpression

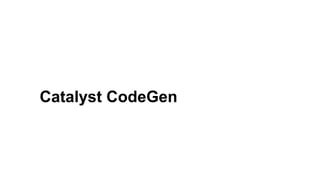

23. Catalyst CodeGen

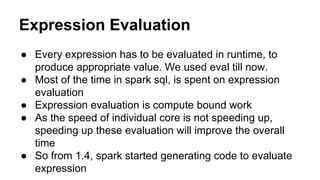

24. Expression Evaluation
● Every expression has to be evaluated in runtime, to
produce appropriate value. We used eval till now.
● Most of the time in spark sql, is spent on expression
evaluation
● Expression evaluation is compute bound work
● As the speed of individual core is not speeding up,
speeding up these evaluation will improve the overall
time
● So from 1.4, spark started generating code to evaluate
expression

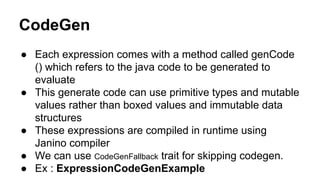

25. CodeGen
● Each expression comes with a method called genCode
() which refers to the java code to be generated to
evaluate
● This generate code can use primitive types and mutable
values rather than boxed values and immutable data
structures
● These expressions are compiled in runtime using
Janino compiler
● We can use CodeGenFallback trait for skipping codegen.
● Ex : ExpressionCodeGenExample

26. Janino
● Janino is super small super fast java compiler
● It’s a runtime library for compiling java code.
● Janino is used by many frameworks like Groovy,
LogBack etc
● Spark uses janino to compile the expression code into
byte code and uses that bytecode for evaluating the
expression
● In 2.0, this code generation is applied to whole stage
rather than single expression at a time
● Ex : JaninoExample

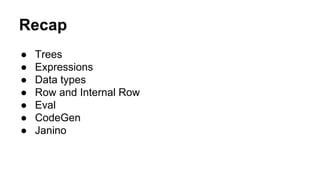

27. Recap
● Trees
● Expressions
● Data types
● Row and Internal Row
● Eval
● CodeGen
● Janino

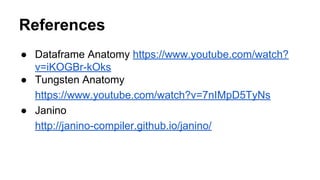

28. References
● Dataframe Anatomy https://www.youtube.com/watch?
v=iKOGBr-kOks
● Tungsten Anatomy
https://www.youtube.com/watch?v=7nIMpD5TyNs
● Janino
http://janino-compiler.github.io/janino/
