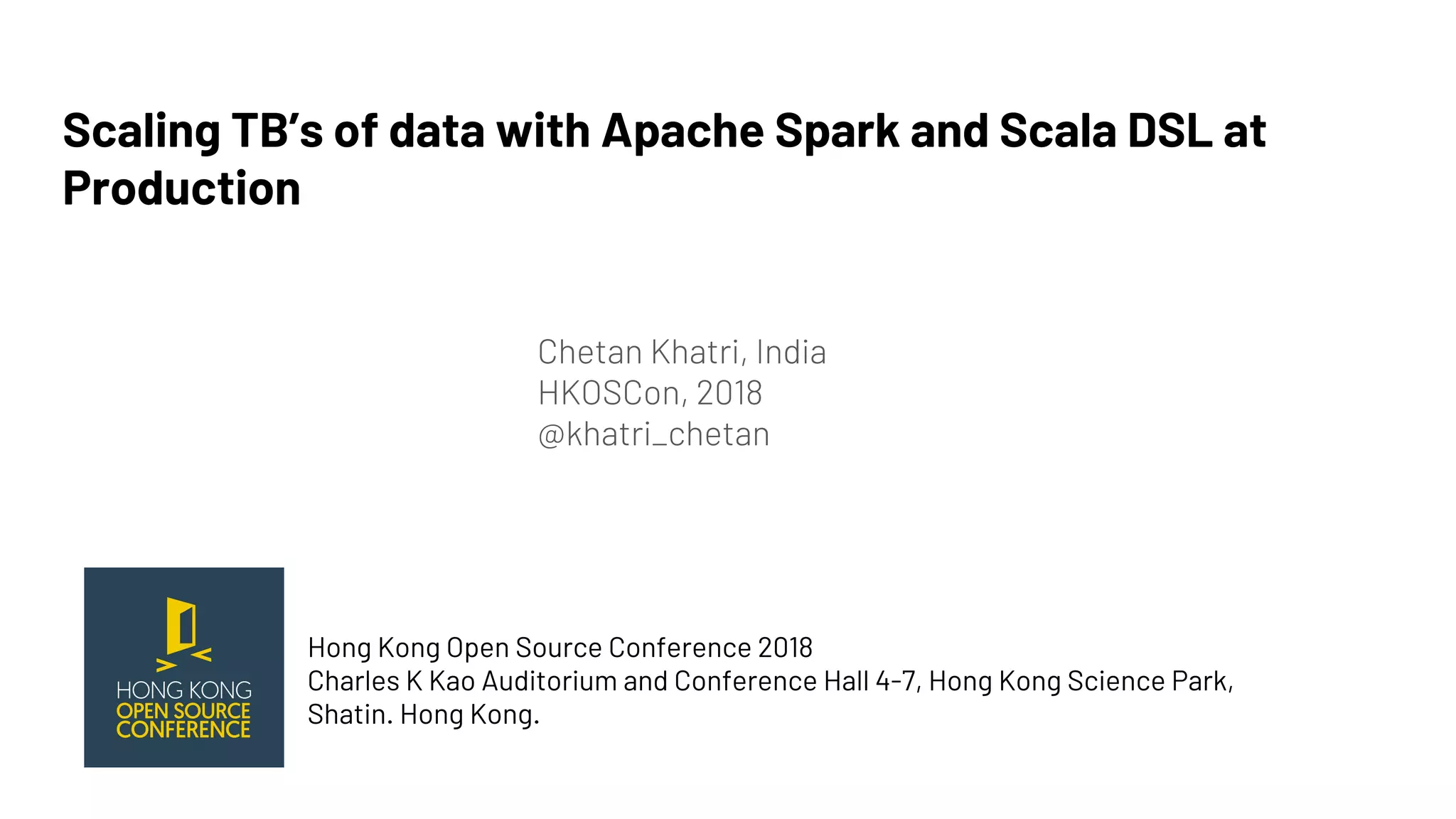

1. Scaling TB’s of data with Apache Spark and Scala DSL at
Production
Chetan Khatri, India
HKOSCon, 2018
@khatri_chetan
Hong Kong Open Source Conference 2018
Charles K Kao Auditorium and Conference Hall 4-7, Hong Kong Science Park,
Shatin. Hong Kong.

2.
Chetan Khatri
Lead - Data Science, Accionlabs Inc.
Open Source Contributor: Apache
Spark, Apache HBase, Elixir Lang.
Alumni - University of Kachchh.
HKOSCon 2018,
Hong Kong Science Park,
Shatin. Hong Kong

3. WHO AM I ?
Lead - Data Science, Technology Evangelist @ Accion labs India Pvt. Ltd.
Committer @ Apache Spark, Apache HBase, Elixir Lang.
Co-Authored University Curriculum @ University of Kachchh.
Data Engineering @: Nazara Games, Eccella Corporation.
M.Sc. - Computer Science from University of Kachchh.

4. Agenda
● Apache Spark and Scala
● Resilient Distributed Datasets (RDDs)
● DataFrames and Datasets
● Spark Operations
● Data Platform Components
● Re-engineering Data processing platform
● Rethink - Fast Data Architecture
● Parallelism & Concurrency at Spark

5. What is Apache Spark ?
Apache Spark is a fast and general-purpose cluster computing system / Unified Engine for massive data processing.
It provides high level API for Scala, Java, Python and R and optimized engine that supports general execution graphs.
Structured Data / SQL - Spark SQL Graph Processing - GraphX
Machine Learning - MLlib Streaming - Spark Streaming,
Structured Streaming

6. What is Scala ?
● Scala is a modern multi-paradigm programming language designed to express common programming patterns in a
concise, elegant, and type-safe way.
● Scala is object-oriented
● Scala is functional
● Strongly typed, Type Inference
● Higher Order Functions
● Lazy Computation

7. Data Structures in Apache Spark ?
● RDD
● DataFrame
● DataSet

8. What are RDDs ?

9. 1. Distributed Data Abstraction
RDD RDD RDD RDD
Logical Model Across Distributed Storage on Cluster
HDFS, S3

10. 2. Resilient & Immutable
RDD RDD RDD
T T
RDD -> T -> RDD -> T -> RDD
T = Transformation

11. 3. Compile-time Type Safe / Strongly type inference
Integer RDD
String or Text RDD
Double or Binary RDD

12. 4. Lazy evaluation
RDD RDD RDD
T T
RDD RDD RDD
T A
RDD - T - RDD - T - RDD - T - RDD - A - RDD
T = Transformation
A = Action

13. Apache Spark Operations
Operations
Transformation
Action

14. Essential Spark Operations
TRANSFORMATIONSACTIONS
General Math /
Statistical
Set Theory / Relational Data Structure / I/O
map
gilter
flatMap
mapPartitions
mapPartitionsWithIndex
groupBy
sortBy
sample
randomSplit
union
intersection
subtract
distinct
cartesian
zip
keyBy
zipWithIndex
zipWithUniqueID
zipPartitions
coalesce
repartition
repartitionAndSortWithinPartitions
pipe
reduce
collect
aggregate
fold
first
take
forEach
top
treeAggregate
treeReduce
forEachPartition
collectAsMap
count
takeSample
max
min
sum
histogram
mean
variance
stdev
sampleVariance
countApprox
countApproxDistinct
takeOrdered
saveAsTextFile
saveAsSequenceFile
saveAsObjectFile
saveAsHadoopDataset
saveAsHadoopFile
saveAsNewAPIHadoopDataset
saveAsNewAPIHadoopFile

15. When to use RDDs ?
● You care about control of dataset and knows how data looks like, you care
about low level API.
● Don’t care about lot’s of lambda functions than DSL.
● Don’t care about Schema or Structure of Data.
● Don’t care about optimization, performance & inefficiencies!
● Very slow for non-JVM languages like Python, R.
● Don’t care about Inadvertent inefficiencies.

16. Inadvertent inefficiencies in RDDs
parsedRDD.filter { case (project, sprint, numStories) => project == "finance" }.
map { case (_, sprint, numStories) => (sprint, numStories) }.
reduceByKey(_ + _).
filter { case (sprint, _) => !isSpecialSprint(sprint) }.
take(100).foreach { case (project, stories) => println(s"project: $stories") }

17. Structured in Spark
DataFrames
Datasets

18. Why Dataset ?
● Strongly Typing
● Ability to use powerful lambda functions.
● Spark SQL’s optimized execution engine (catalyst, tungsten)
● Can be constructed from JVM objects & manipulated using Functional
transformations (map, filter, flatMap etc)
● A DataFrame is a Dataset organized into named columns
● DataFrame is simply a type alias of Dataset[Row]

19. Structured APIs in Apache Spark
SQL DataFrames Datasets
Syntax Errors Runtime Compile Time Compile Time
Analysis Errors Runtime Runtime Compile Time
Analysis errors are caught before a job runs on cluster

20. Unification of APIs in Apache Spark 2.0
DataFrame
Dataset
Untyped API
Typed API
Dataset
(2016)
DataFrame = Dataset [Row]
Alias
Dataset [T]

21. DataFrame API Code
// convert RDD -> DF with column names
val parsedDF = parsedRDD.toDF("project", "sprint", "numStories")
//filter, groupBy, sum, and then agg()
parsedDF.filter($"project" === "finance").
groupBy($"sprint").
agg(sum($"numStories").as("count")).
limit(100).
show(100)
project sprint numStories
finance 3 20
finance 4 22

22. DataFrame -> SQL View -> SQL Query
parsedDF.createOrReplaceTempView("audits")
val results = spark.sql(
"""SELECT sprint, sum(numStories)
AS count FROM audits WHERE project = 'finance' GROUP BY sprint
LIMIT 100""")
results.show(100)
project sprint numStories
finance 3 20
finance 4 22

23. Why Structure APIs ?
// DataFrame
data.groupBy("dept").avg("age")
// SQL
select dept, avg(age) from data group by 1
// RDD
data.map { case (dept, age) => dept -> (age, 1) }
.reduceByKey { case ((a1, c1), (a2, c2)) => (a1 + a2, c1 + c2) }
.map { case (dept, (age, c)) => dept -> age / c }

24. Catalyst in Spark
SQL AST
DataFrame
Datasets
Unresolved
Logical Plan
Logical Plan
Optimized
Logical Plan
Physical
Plans
CostModel
Selected
Physical
Plan
RDD

25. Dataset API in Spark 2.x
val employeesDF = spark.read.json("employees.json")
// Convert data to domain objects.
case class Employee(name: String, age: Int)
val employeesDS: Dataset[Employee] = employeesDF.as[Employee]
val filterDS = employeesDS.filter(p => p.age > 3)
Type-safe: operate on domain
objects with compiled lambda
functions.

26. Example: DataFrame Optimization
employees.join(events, employees("id") === events("eid"))
.filter(events("date") > "2015-01-01")
events file
employees
table
join
filter
Logical Plan
scan
(employees)
filter
Scan
(events)
join
Physical Plan
Optimized
scan
(events)
Optimized
scan
(employees)
join
Physical Plan
With Predicate Pushdown
and Column Pruning

27. DataFrames are Faster than RDDs
Source: Databricks

28. Datasets takes less Memory than RDDs
Source: Databricks

29. Datasets are faster

30. Case Study

31. Components of your Data Platform
Data Warehouse
Fast Queries
Transactional Reliability
Data Lake
Low Cost
Massive Scale
Streaming Message Bus
(e.g. Kinesis, Apache Kafka)
Low Latency

32. How to make them talk?
DATA WAREHOUSE
Fast Queries
Transactional Reliability
DATA LAKE
Low Cost
Massive Scale
STREAMING MESSAGE BUS
(e.g. Kinesis, Apache Kafka)
Low Latency
Complex, Slow, ETL Process

33. Changing the Game with a Re-engineering Data Processing
Platform: Retail Business
Challenges
● Weekly Data refresh, Daily Data refresh batch Spark / Hadoop job execution failures with unutilized Spark Cluster.
● Linear / sequential execution mode with broken data pipelines.
● Joining ~17 billion transactional records with skewed data nature.
● Data deduplication - outlet, item at retail.
● Scalability of massive data:
● ~4.6 Billion events on every weekly data refresh.
● Processing historical data: one time bulk load ~30 TB of data / ~17 billion transactional records.
Business: explain the who, what, when, where, why and how of retailing.

34. Solution : Retail Business
● 5x performance improvements by re-engineering entire data lake to analytical engine pipeline’s.
● Proposed highly concurrent, elastic, non-blocking, asynchronous architecture to save customer’s ~22 hours
runtime (~8 hours from 30 hours) for 4.6 Billion events.
● 10x performance improvements on historical load by under the hood algorithms optimization on 17 Billion events
(Benchmarks ~1 hour execution time only)
● Master Data Management (MDM) - Deduplication and fuzzy logic matching on retails data(Item, Outlet) improved
elastic performance.

35. How ?
Source: https://www.caresearch.com.au

36. Event
Queuing
Kafka Batch
Transformations
Reporting
Tool
(Dashboard)
Processed DW -
Ad hoc Analysis
/ 1st level
aggregation
Data
Ingestion
Pipeline
RestfulAPI’s
Summarized DB -
KPI Reporting

37. Rethink - Fast Data Architectures
UNIFIED fast data processing engine that provides:
The
SCALE
of data lake
The
RELIABILITY &
PERFORMANCE
of data warehouse
The
LOW LATENCY
of streaming

38. #1: Sequential job execution to parallel job execution
Outlet
Item
Manufacturer
Transactions

39. #1: Sequential job execution to parallel job execution (...)
Outlets Items organization
Transactions
Files
Outlets-by-file
Transaction-by-day

40. #2: Spark / Hive Data processing: Hyper parameters tuning
Dynamic resource allocation and Yarn external shuffle service has been enabled
at YARN resource manager to allocate resources dynamically to other jobs on
yarn.
Overallocation of resources for small jobs: Those spark jobs were taking more
resources but they were less DISK volume intensive, Hyper-parameters -
executors, cores, memory on executor/ driver has been reduced to allow other
pending jobs to execute and not to block entire cluster.
i.e Job will run little slowly but utilize entire cluster with non-blocking approach
for other jobs.

41. #2: Spark / Hive Data processing: Hyper parameters tuning: Example
$SPARK_HOME/bin/spark-submit --class com.talk.chetan.SparkHistoricalJobSample --master yarn --deploy-mode cluster
--driver-memory 6g --executors 12
--conf spark.shuffle.service.enabled=true --conf spark.dynamicAllocation.enabled=true executor-memory 30g
--executor-cores 10 $SPARK_JAR_JOB_PATH
For number tasks spark is executing on cluster
Number of Parallel tasks = number of executors * cores
Ex. number of executors = 8, cores = 8 := 64 Parallel tasks

42. #2: Spark / Hive Data processing: Hyper parameters tuning (...)
Our optimization approaches:
1) Reduce memory / cores & increase executors: This can allow us to better utilize all the resources on the cluster without locking others
out.
2) Reduce executors and use the same memory / cores: This will run slower for that run, but will allow others to use the cluster box in
parallel.

43. #3: Physical Data Split up techniques for Analytical Engine (Hive)
Physical data split up: Spark map-reduce transformations generates small-small files on larger dataset
at some extents which led to increase Disk I/O, Memory I/O, File I/O, Bandwidth I/O etc. Also
Downstream Hive Queries, Spark Jobs get impacts on performance and sometime it also fails with disk
quota exceeded, container lost etc exceptions.
In accordance with business logic and optimized new data model design, physical data split up
techniques such as Partitioning, Re-partitioning, Coalesce applied on dimensions of data model with
highly optimized, tuned other spark internals techniques to reduce N numbers of files generation.
Which made drastic performance change at slice and dice on measures.
spark.sql.files.maxRecordsPerFile

44. #4: Not everything is Streaming at Data Lake ! (~>) Frequent batch mode
If you are going beyond few min’s, you should not be doing streaming at all, you should just kick-off
batch jobs very frequently.
If you run something long enough for example, streaming job runs for 4 months, eventually you can see
all possible problems network partition, hardware failures, GC, spike & traffic on appcache etc. All kinds
of things !
Kicking off batch job and immediately scale to right size it needs to be. It does it’s work & goes away.

45. #5: Historical Data Processing: Aggregation of data on ~17 Billion records
file_errors
Join
transaction_by_file
outlets_by_file
items_by_file
Hive External table with parquet partitioned
Redshift transactions_error
1
Failed:
* Disk quota exceeded
* Executor lost failure
* container killed by YARN on
exceeding memory limits
~27 TB of total historical
data
Hive
transactions_error (Managed table, parquet
format with non-partitioned data)
Success approach:
* Enable YARN external shuffle
service
* Enable Dynamic Resource
Allocation
* Tune hyper-parameters to utilize
cluster
* Apply business transformation here
* create temp view
* insert to hive managed table
2
Failed

46. ~1 TB of Output Data Shuffle All executors at entire cluster are utilized

47. Spark on Kubernetes: Scheduler
spark-submit
--deploy-mode cluster
--class org.apache.spark.examples.SparkPi
--master k8s://https://35.225.152.61:443
--conf spark.executor.instances=2
--conf spark.app.name=spark-pi
--conf spark.kubernetes.driver.docker.image=kubespark/spark-driver:v2.2.0-kubernetes-0.5.0
--conf spark.kubernetes.executor.docker.image=kubespark/spark-executor:v2.2.0-kubernetes-0.5.0
--conf spark.kubernetes.container.image=erkkel/eric:spark
local:///opt/spark/examples/jars/spark-examples_2.11-2.2.0-k8s-0.5.0.jar

48. Enabler ?

49. Questions ?

50. Thank you for your Time!
@khatri_chetan
https://github.com/chetkhatri
