This document provides an overview of Apache Spark modules including Spark SQL, GraphX, and Spark Streaming. Spark SQL allows querying structured data using SQL, GraphX provides APIs for graph processing, and Spark Streaming enables scalable stream processing. The document discusses Resilient Distributed Datasets (RDDs), SchemaRDDs, querying data with SQLContext, GraphX property graphs and algorithms, StreamingContext, and input/output operations in Spark Streaming.

1. Apache Spark
Concepts - Spark SQL, GraphX, Streaming
Petr Zapletal Cake Solutions

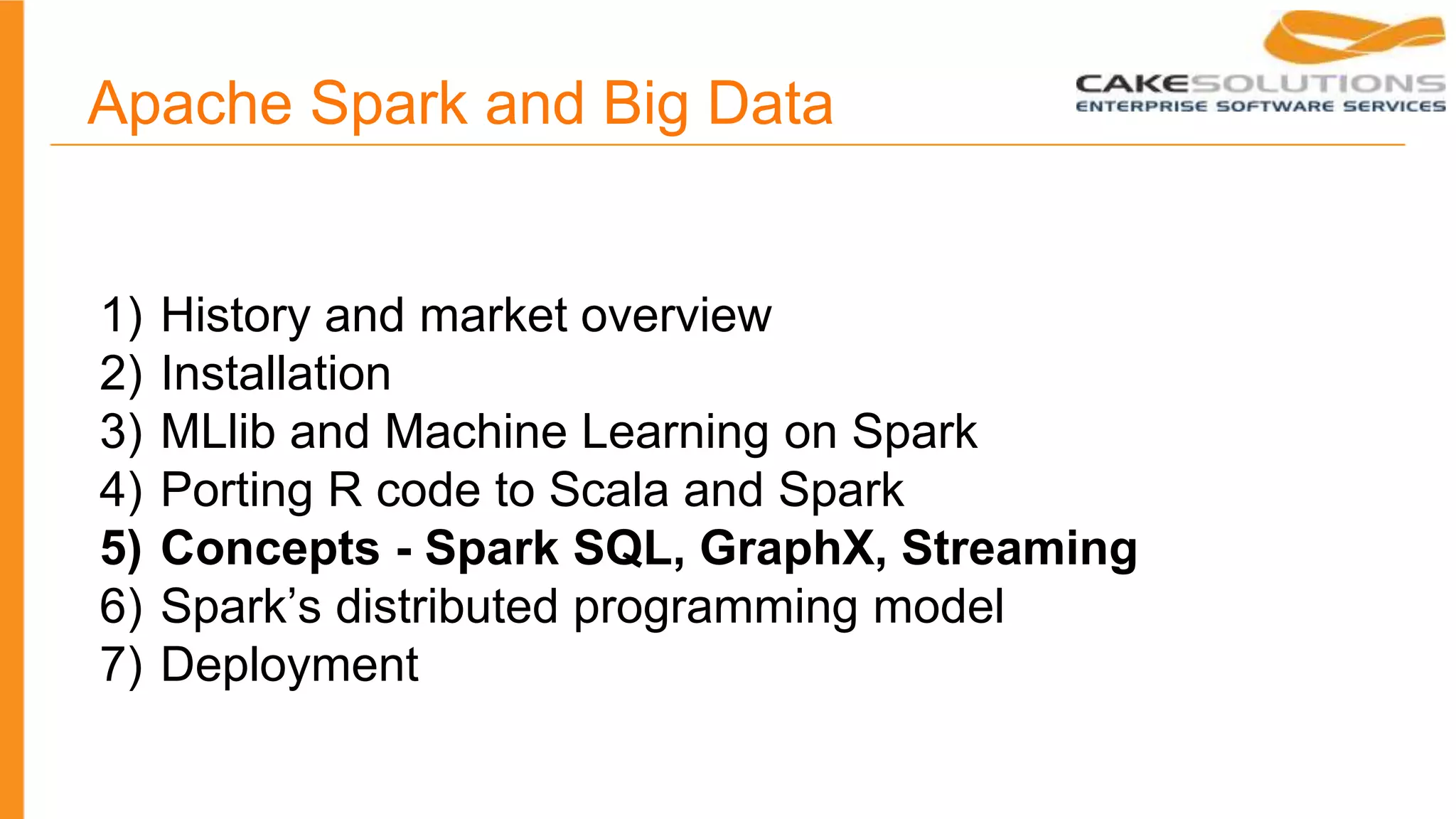

2. Apache Spark and Big Data
1) History and market overview
2) Installation
3) MLlib and Machine Learning on Spark
4) Porting R code to Scala and Spark
5) Concepts - Spark SQL, GraphX, Streaming
6) Spark’s distributed programming model
7) Deployment

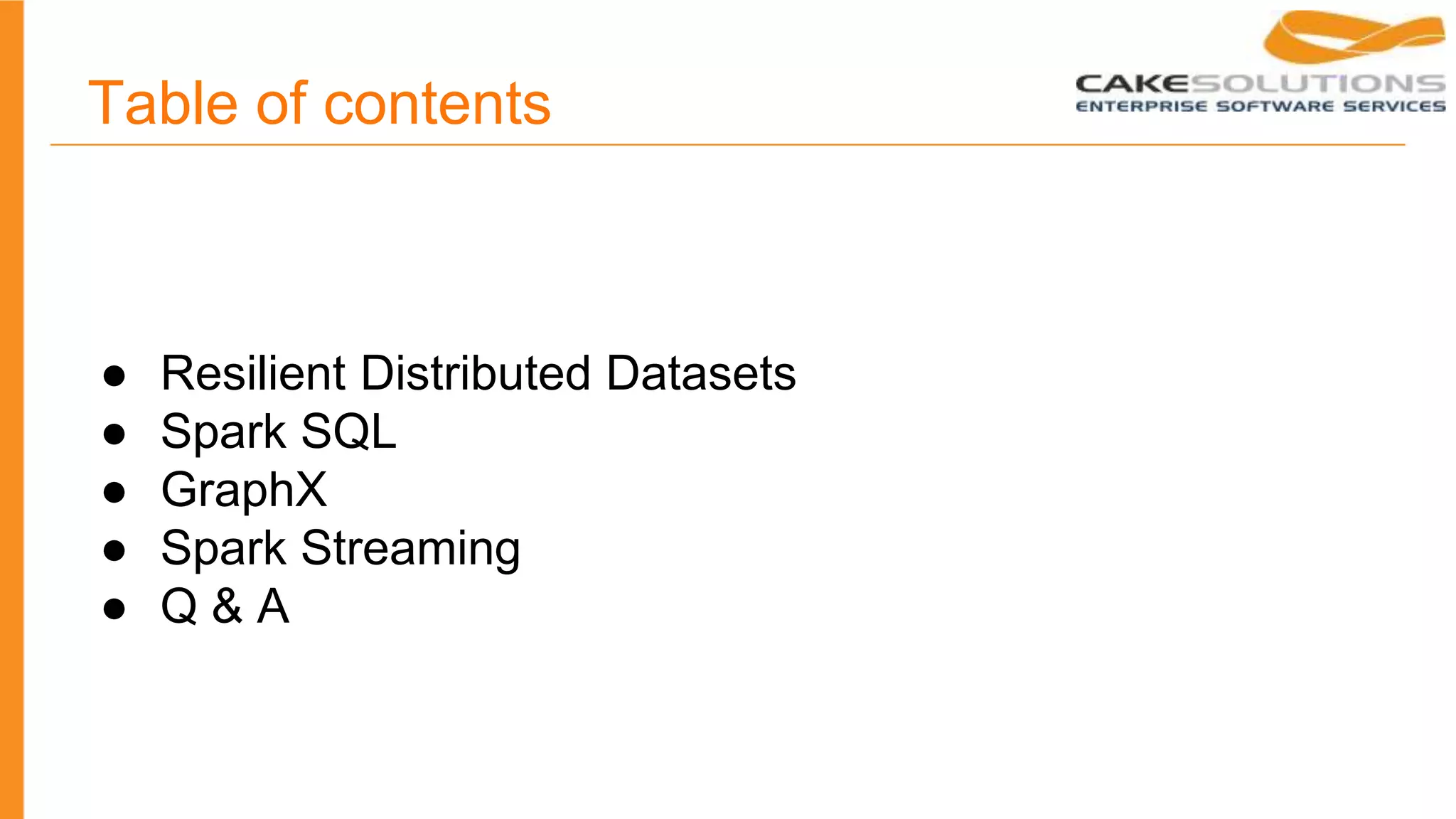

3. Table of contents
● Resilient Distributed Datasets
● Spark SQL
● GraphX
● Spark Streaming
● Q & A

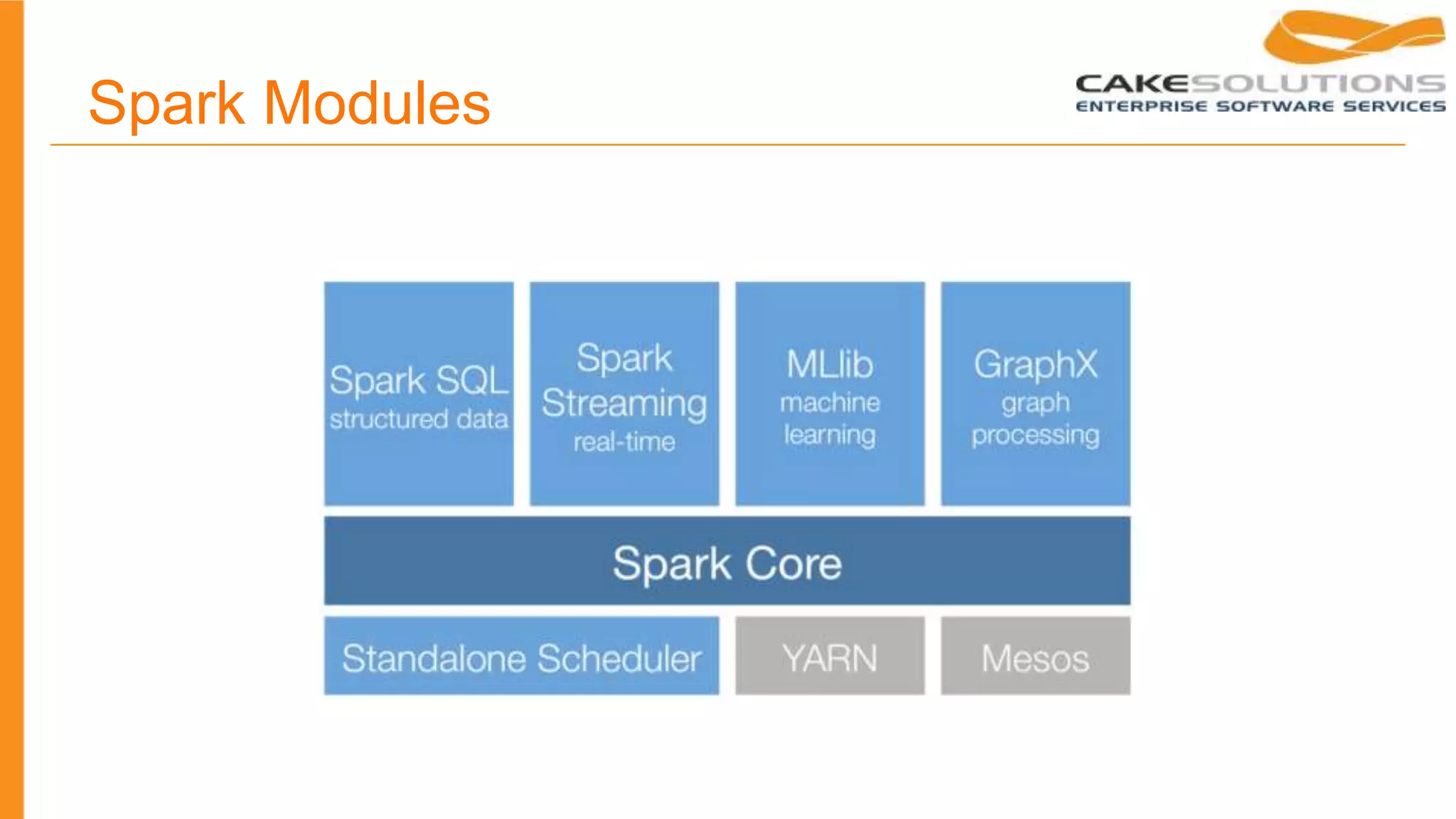

4. Spark Modules

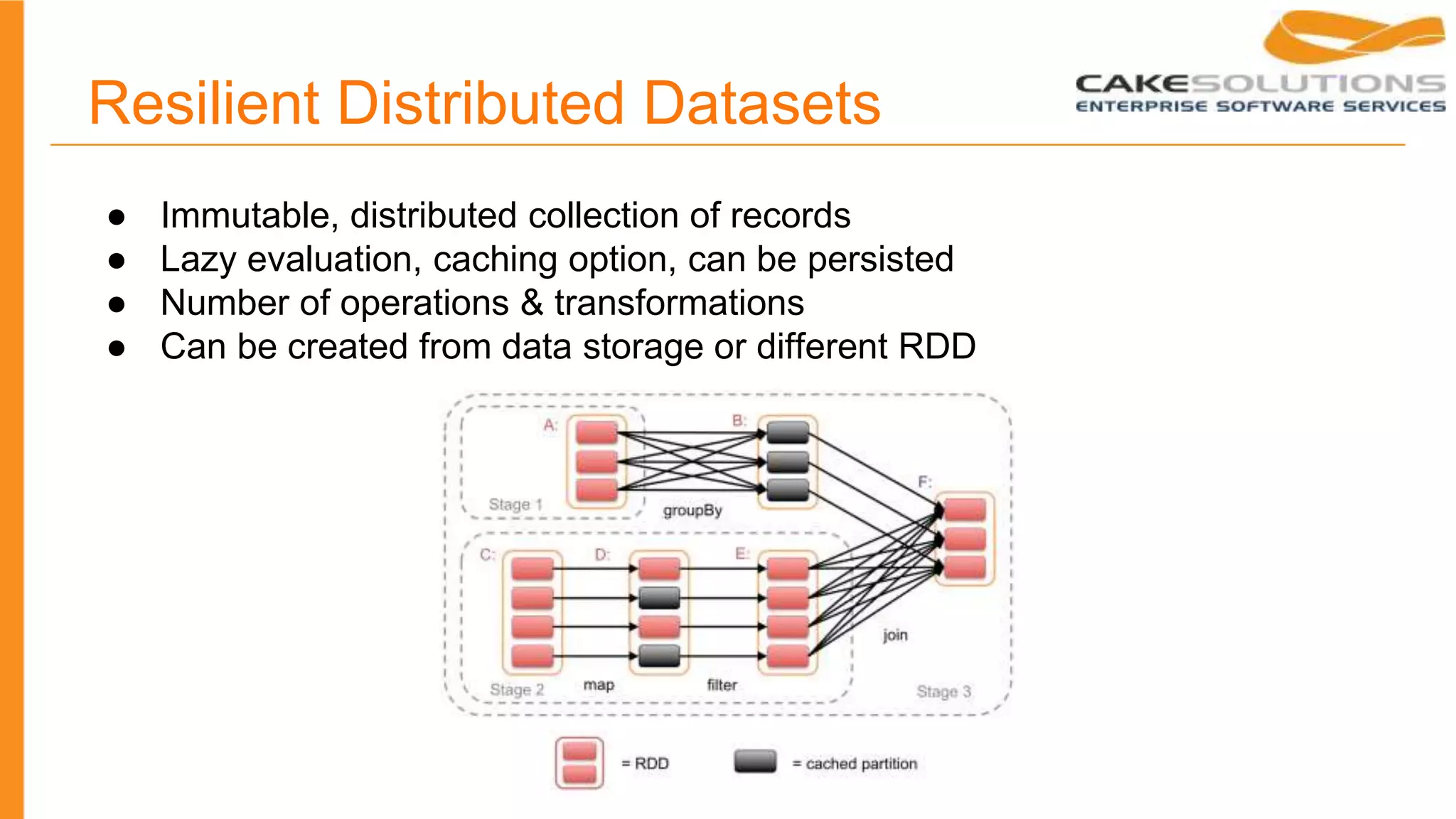

5. Resilient Distributed Datasets
● Immutable, distributed collection of records
● Lazy evaluation, caching option, can be persisted
● Number of operations & transformations
● Can be created from data storage or different RDD

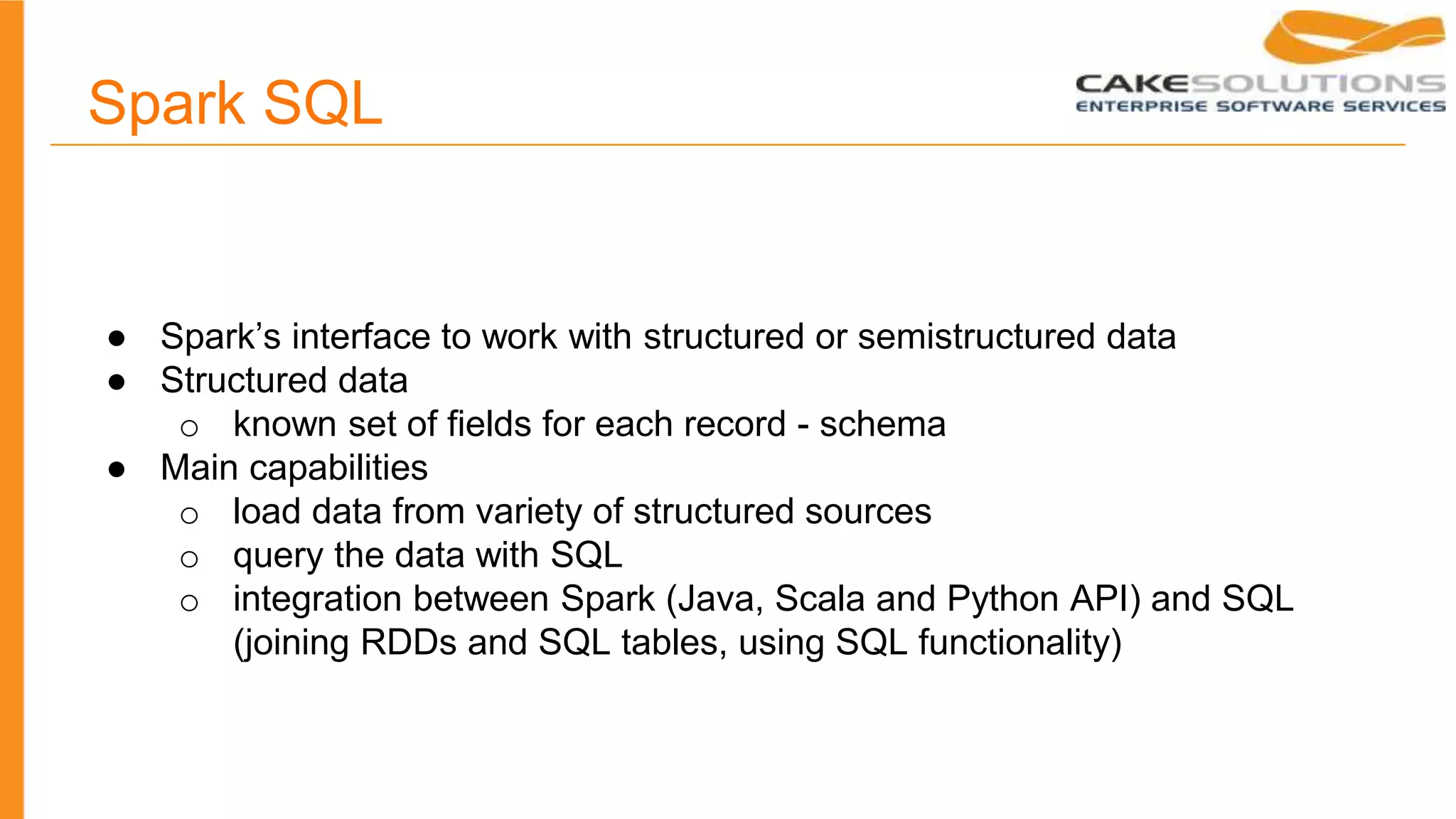

6. Spark SQL
● Spark’s interface to work with structured or semistructured data
● Structured data
o known set of fields for each record - schema
● Main capabilities
o load data from variety of structured sources
o query the data with SQL
o integration between Spark (Java, Scala and Python API) and SQL
(joining RDDs and SQL tables, using SQL functionality)

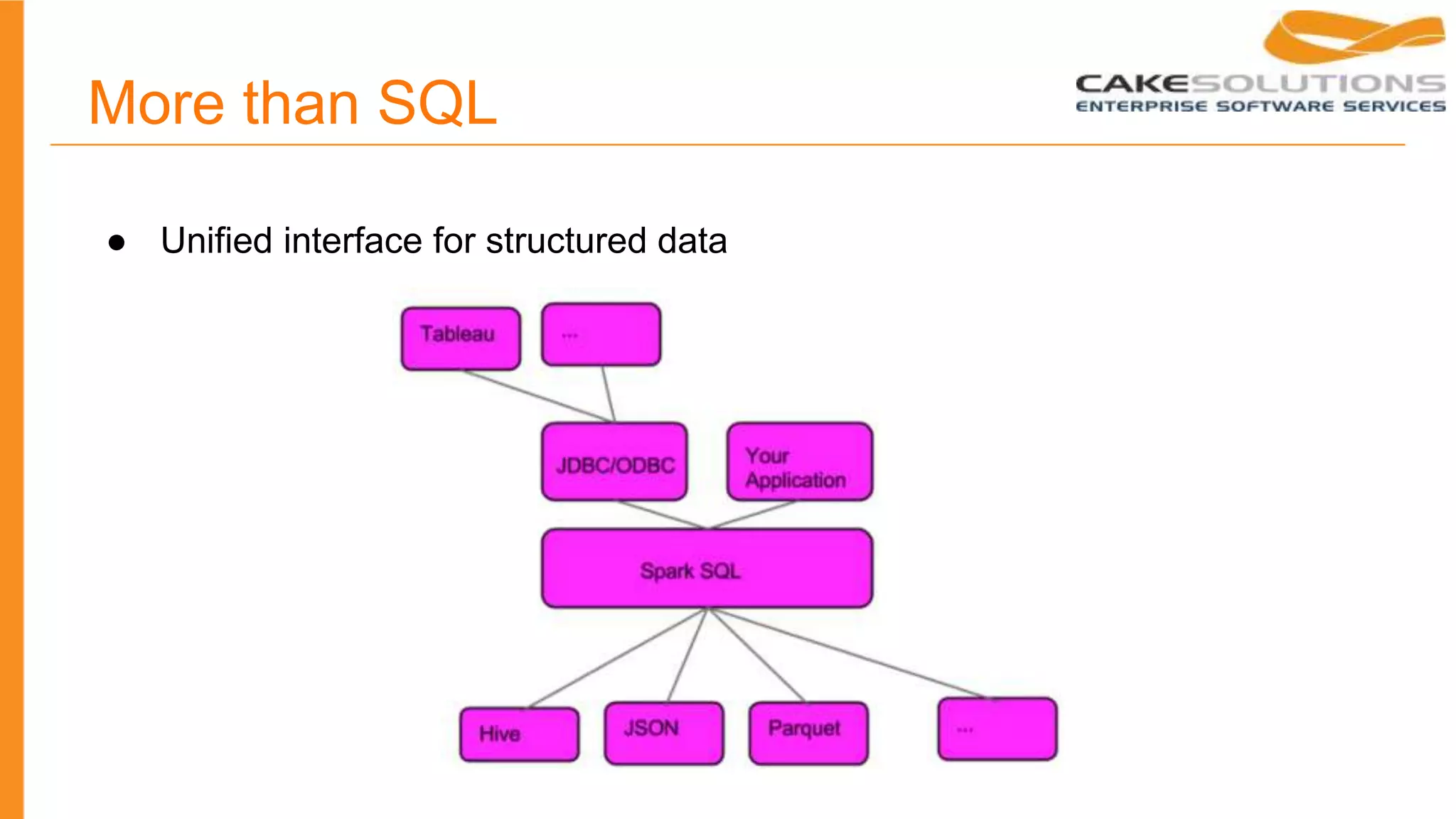

7. More than SQL
● Unified interface for structured data

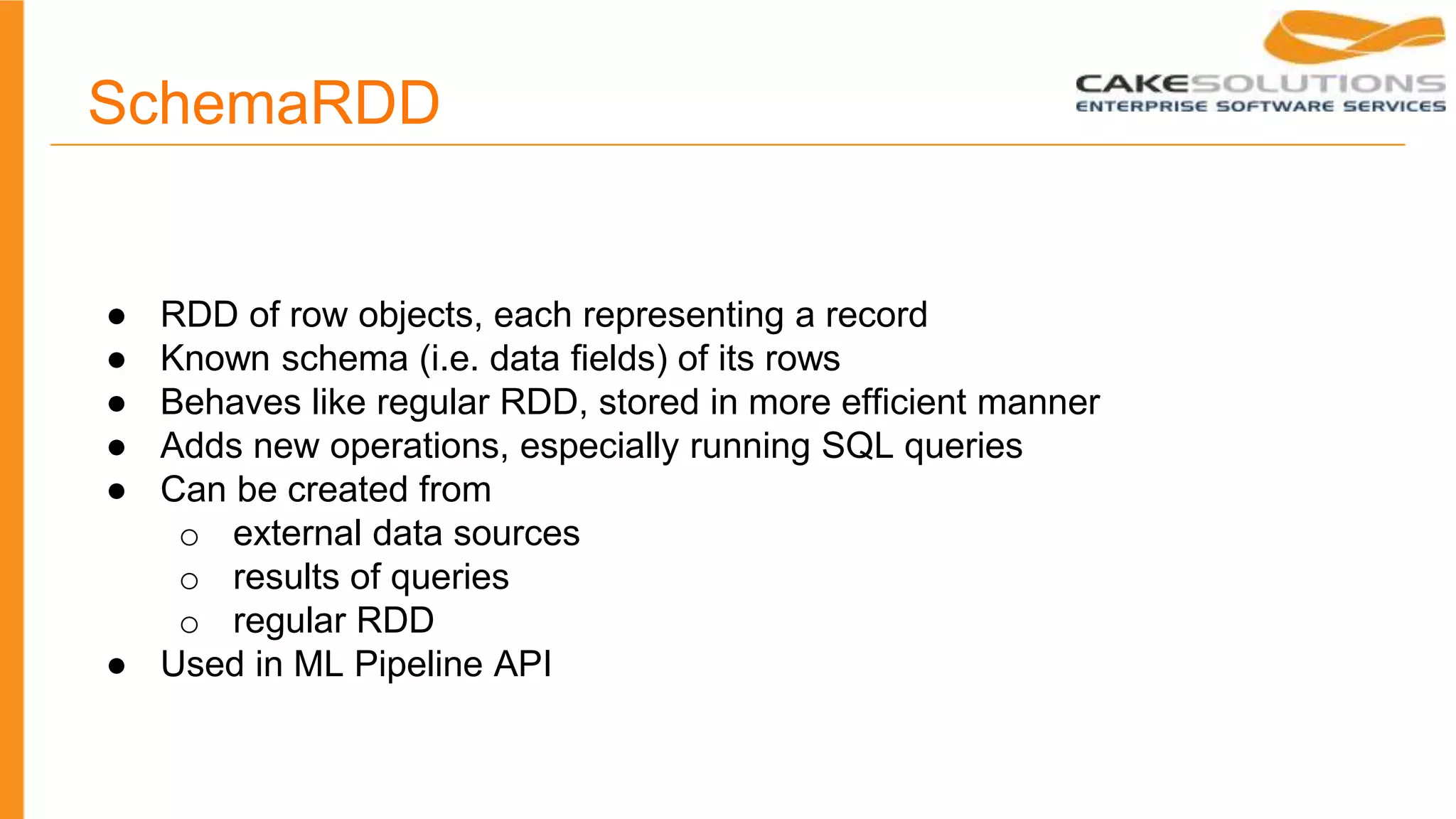

8. SchemaRDD
● RDD of row objects, each representing a record
● Known schema (i.e. data fields) of its rows
● Behaves like regular RDD, stored in more efficient manner
● Adds new operations, especially running SQL queries
● Can be created from
o external data sources
o results of queries
o regular RDD
● Used in ML Pipeline API

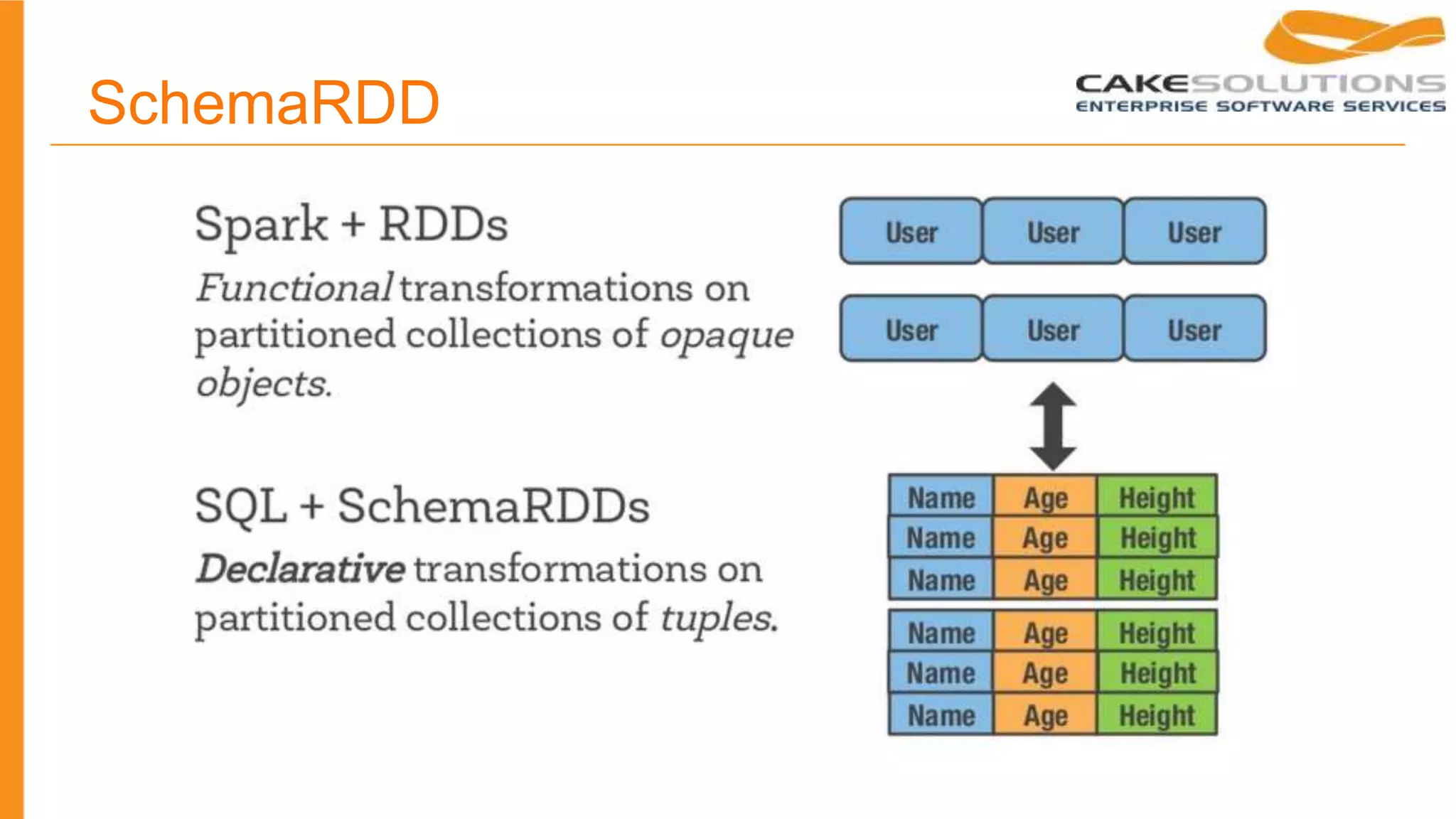

9. SchemaRDD

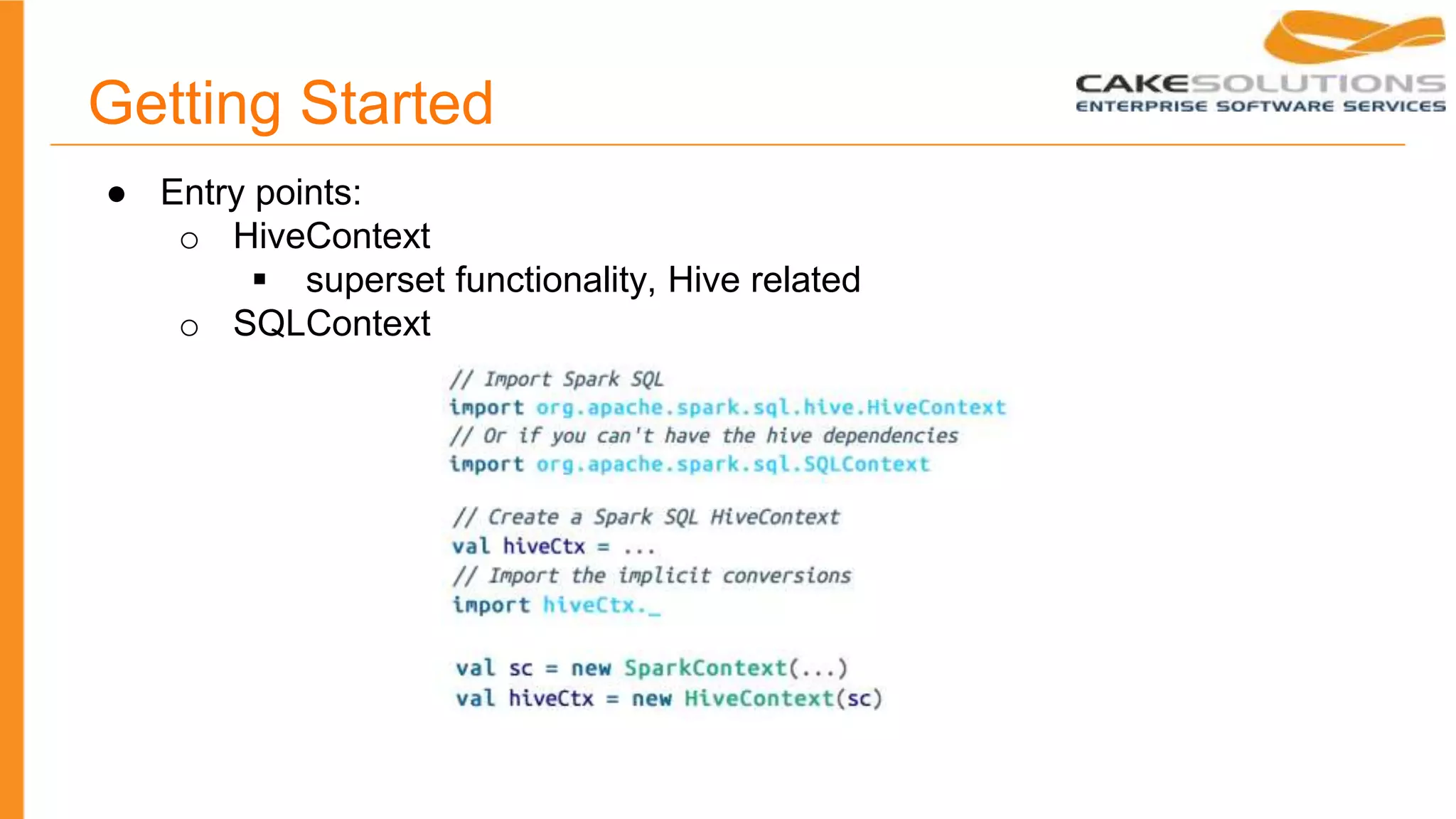

10. Getting Started
● Entry points:
o HiveContext
 superset functionality, Hive related
o SQLContext

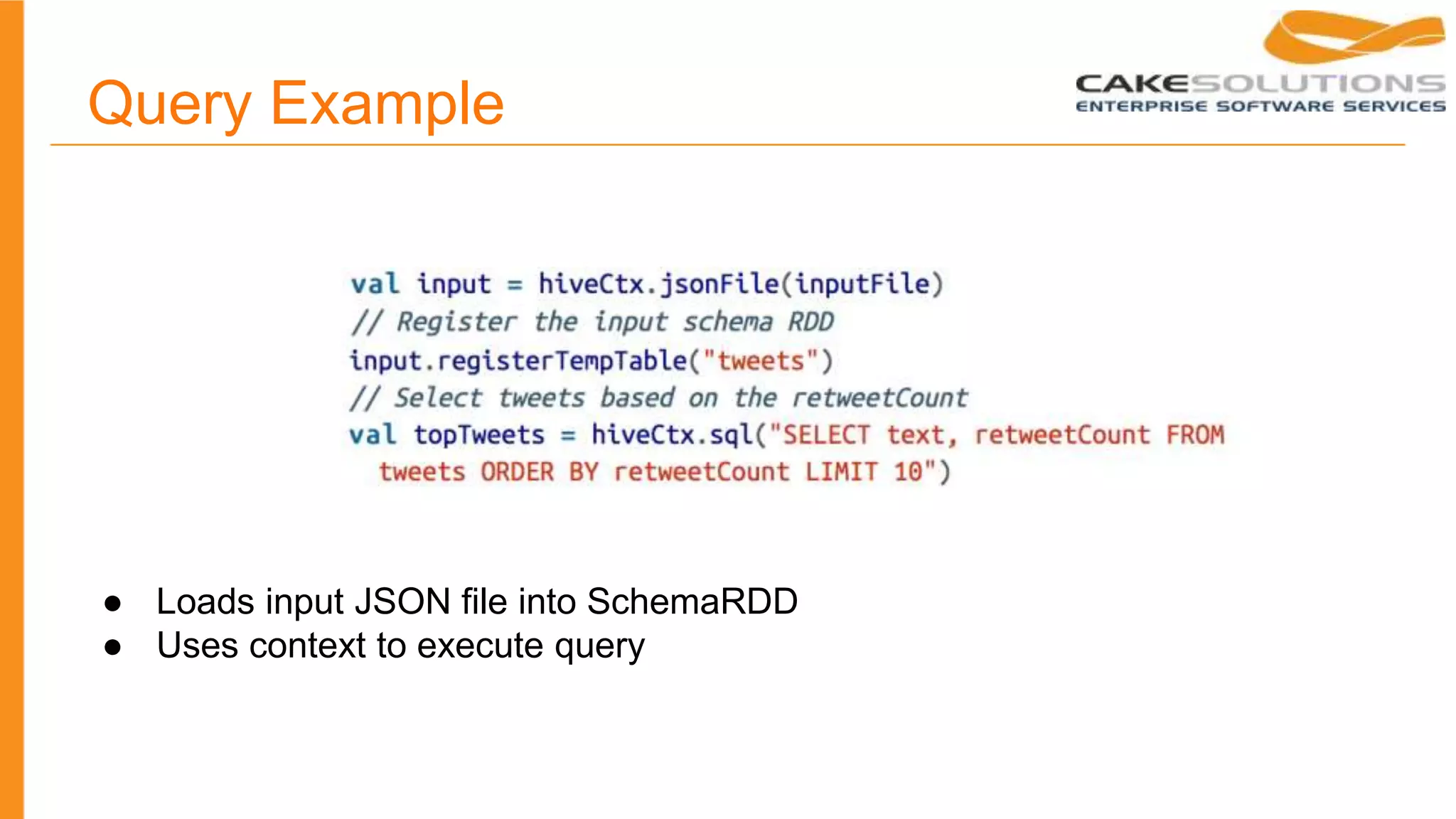

11. ● Loads input JSON file into SchemaRDD
● Uses context to execute query
Query Example

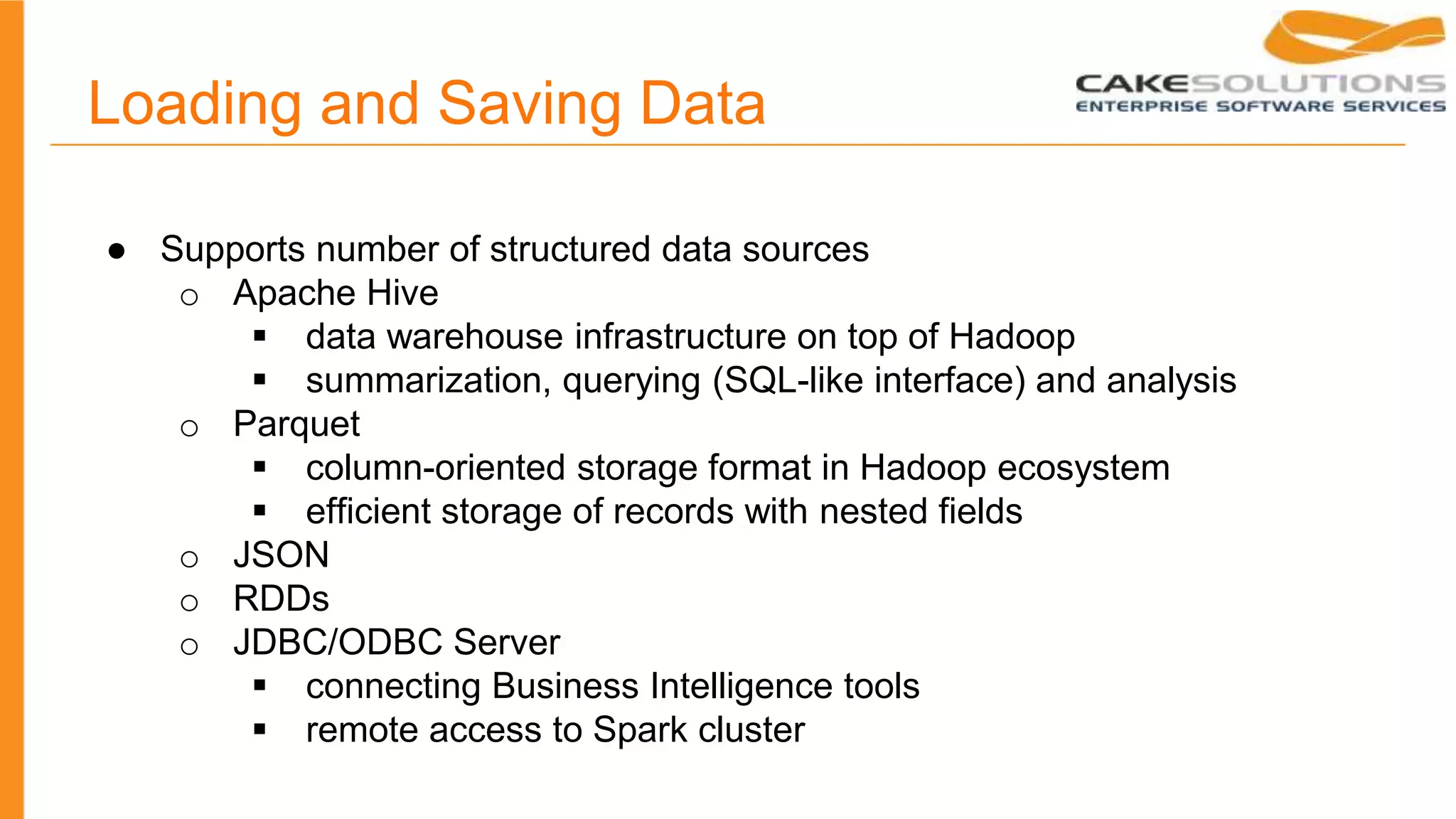

12. Loading and Saving Data
● Supports number of structured data sources
o Apache Hive
 data warehouse infrastructure on top of Hadoop
 summarization, querying (SQL-like interface) and analysis
o Parquet
 column-oriented storage format in Hadoop ecosystem
 efficient storage of records with nested fields
o JSON
o RDDs
o JDBC/ODBC Server
 connecting Business Intelligence tools
 remote access to Spark cluster

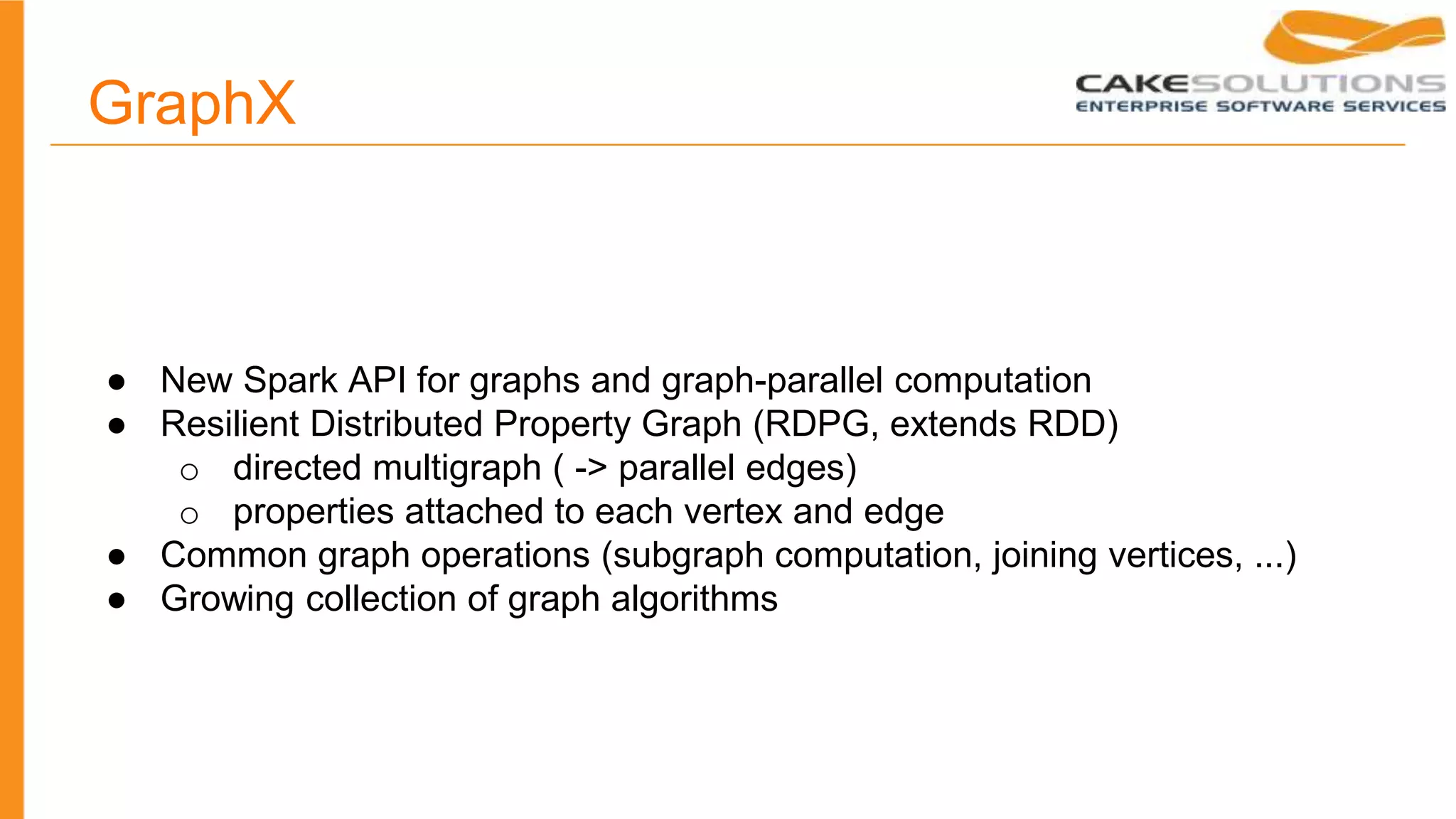

13. GraphX
● New Spark API for graphs and graph-parallel computation
● Resilient Distributed Property Graph (RDPG, extends RDD)
o directed multigraph ( -> parallel edges)
o properties attached to each vertex and edge
● Common graph operations (subgraph computation, joining vertices, ...)
● Growing collection of graph algorithms

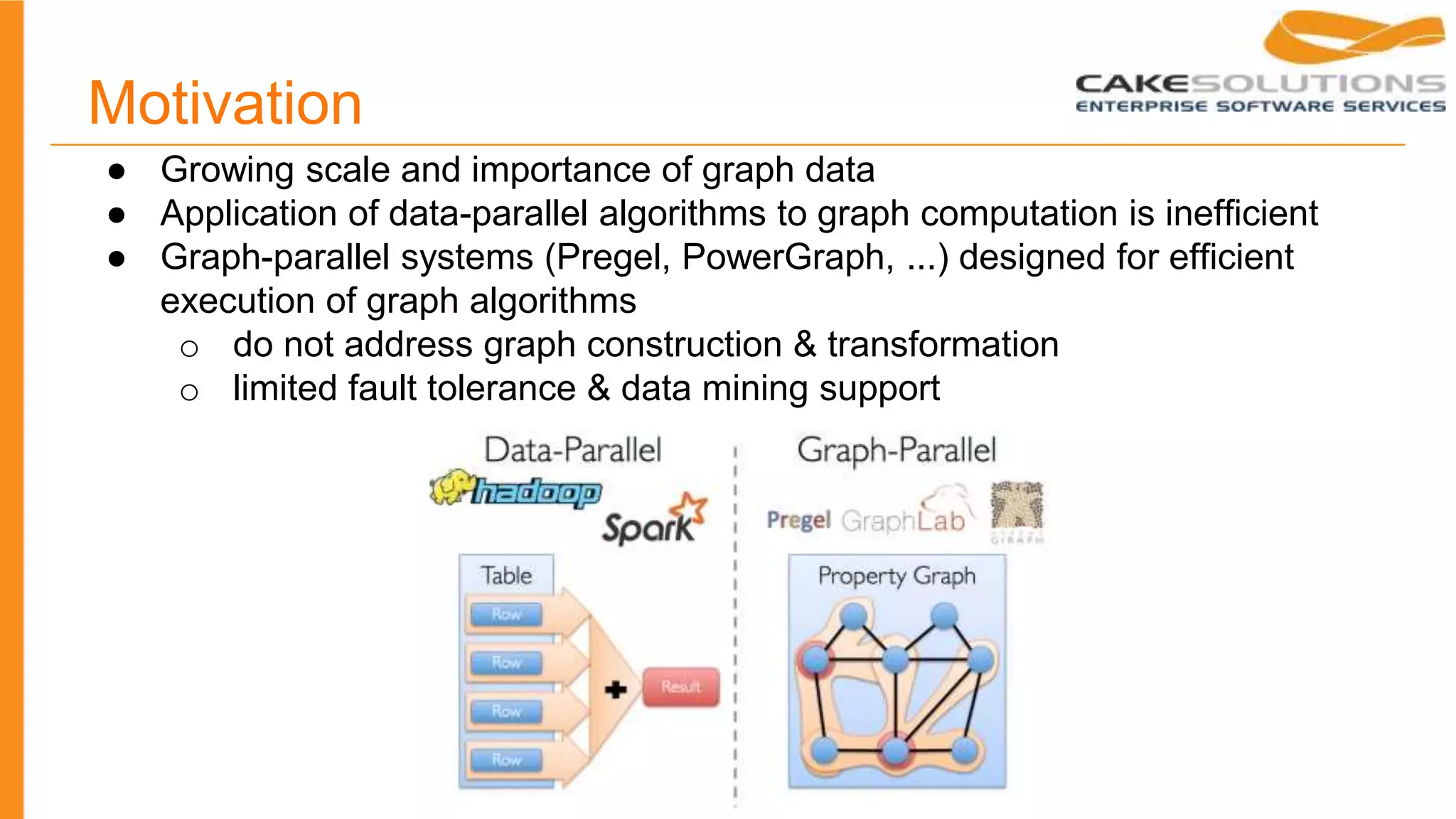

14. Motivation
● Growing scale and importance of graph data
● Application of data-parallel algorithms to graph computation is inefficient
● Graph-parallel systems (Pregel, PowerGraph, ...) designed for efficient
execution of graph algorithms
o do not address graph construction & transformation
o limited fault tolerance & data mining support

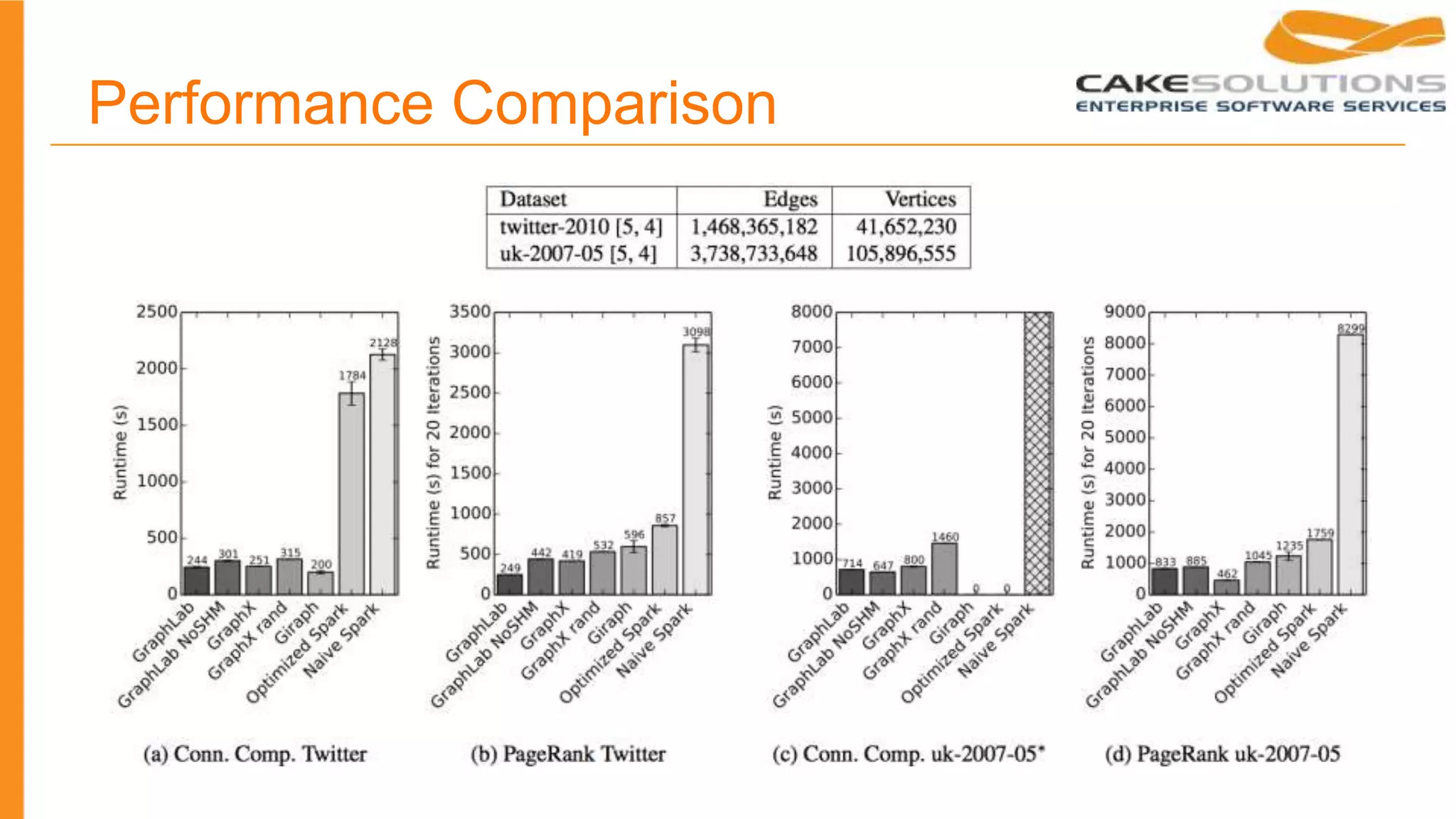

15. Performance Comparison

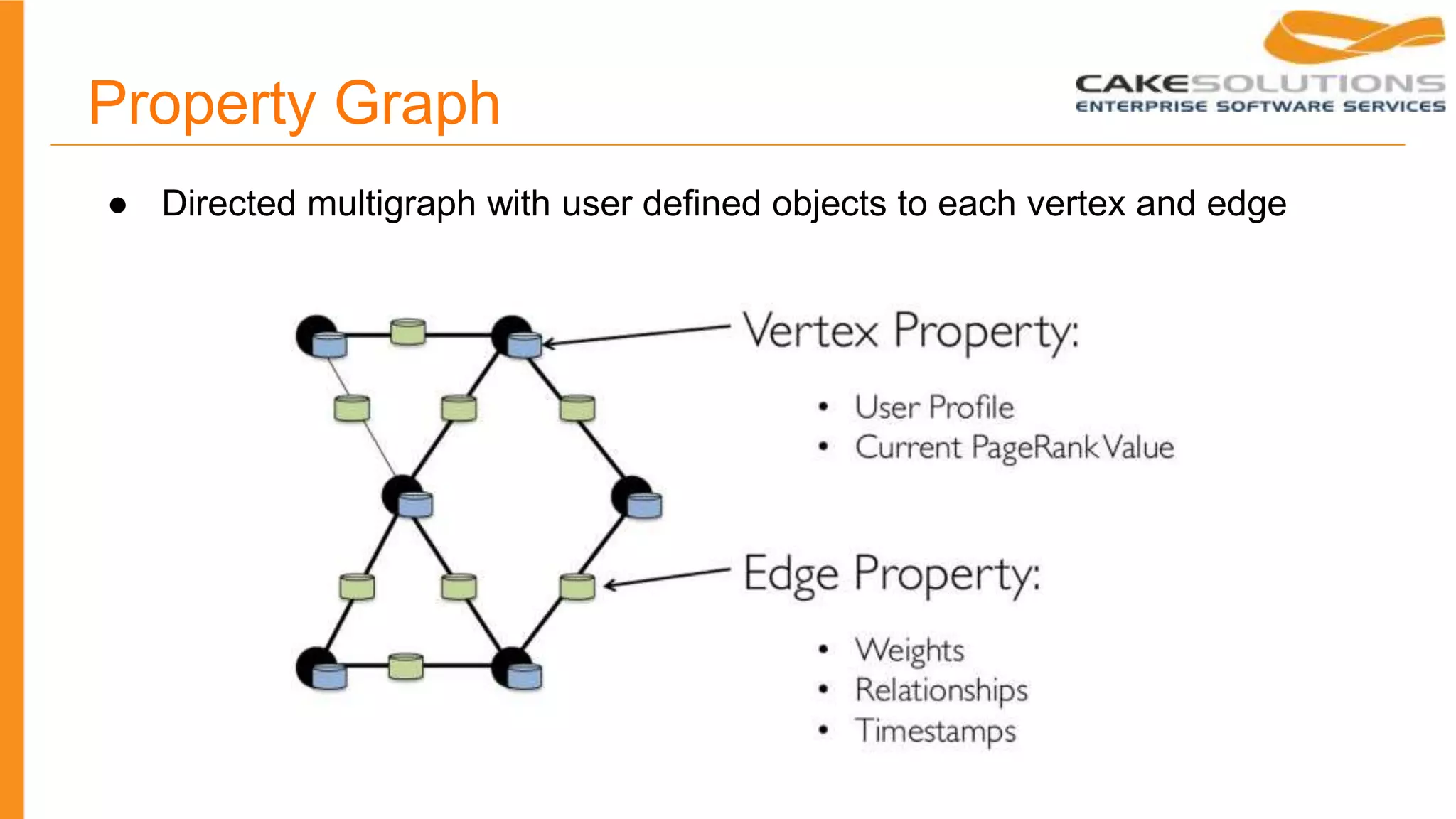

16. Property Graph
● Directed multigraph with user defined objects to each vertex and edge

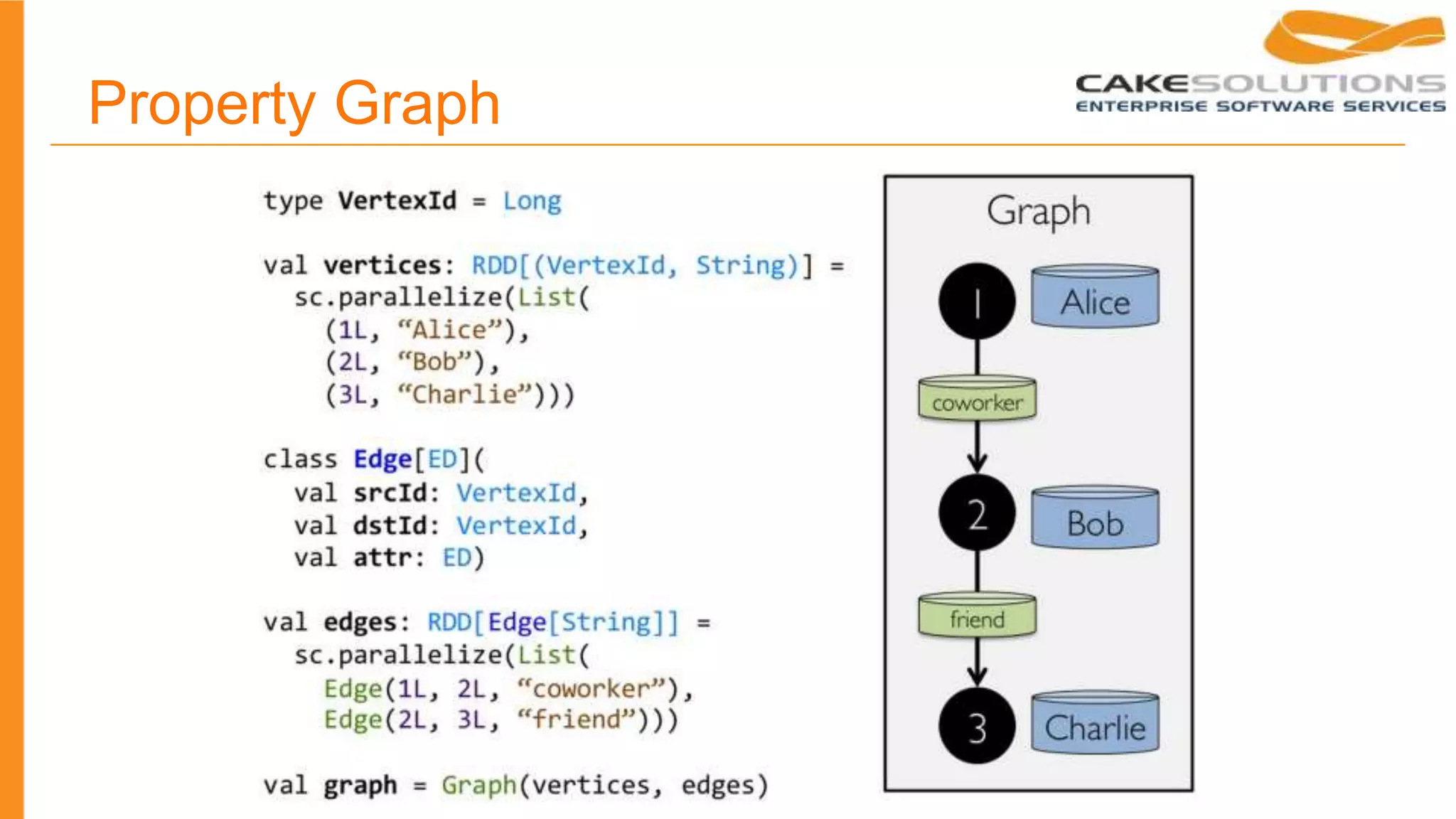

17. Property Graph

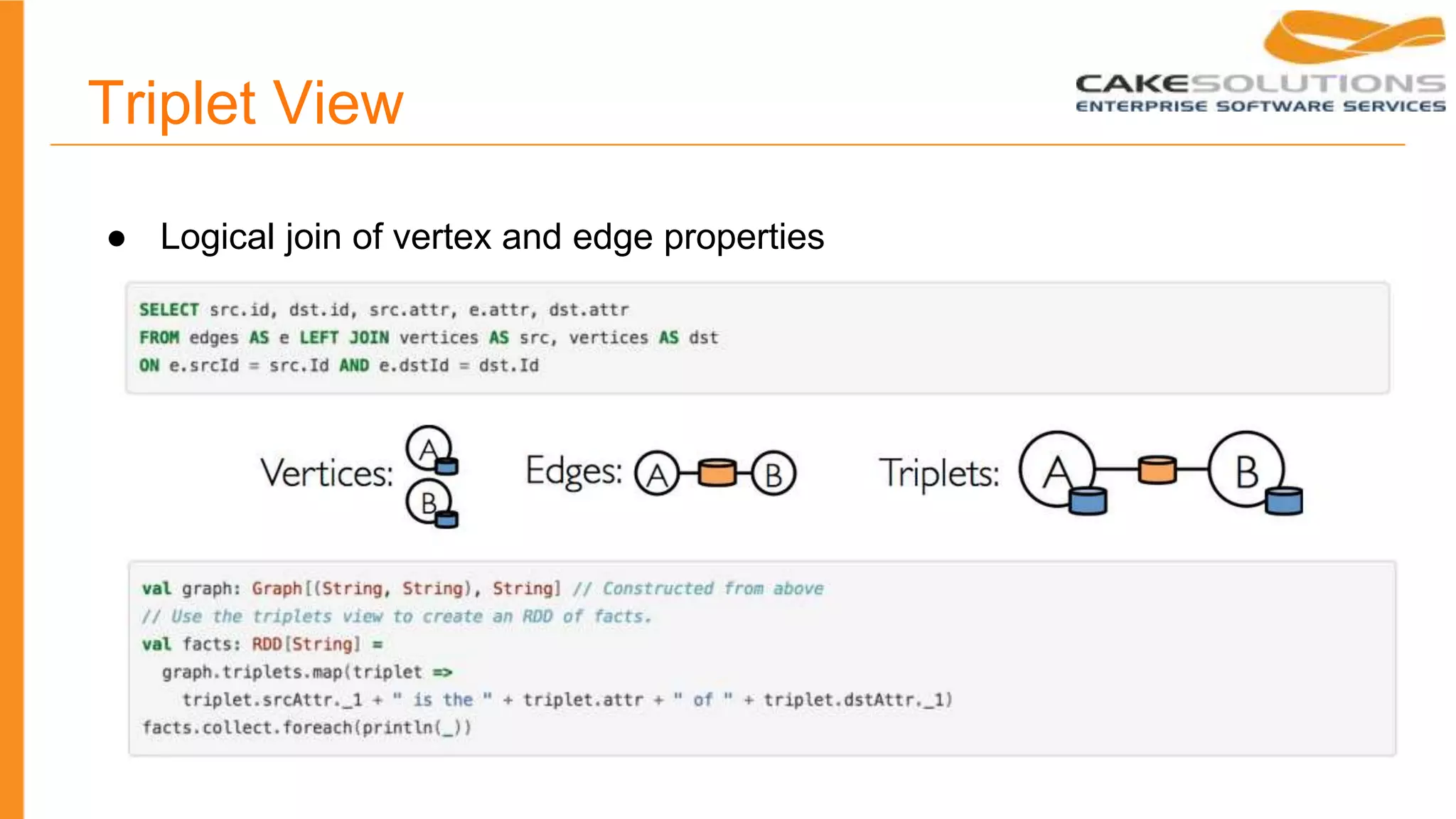

18. Triplet View
● Logical join of vertex and edge properties

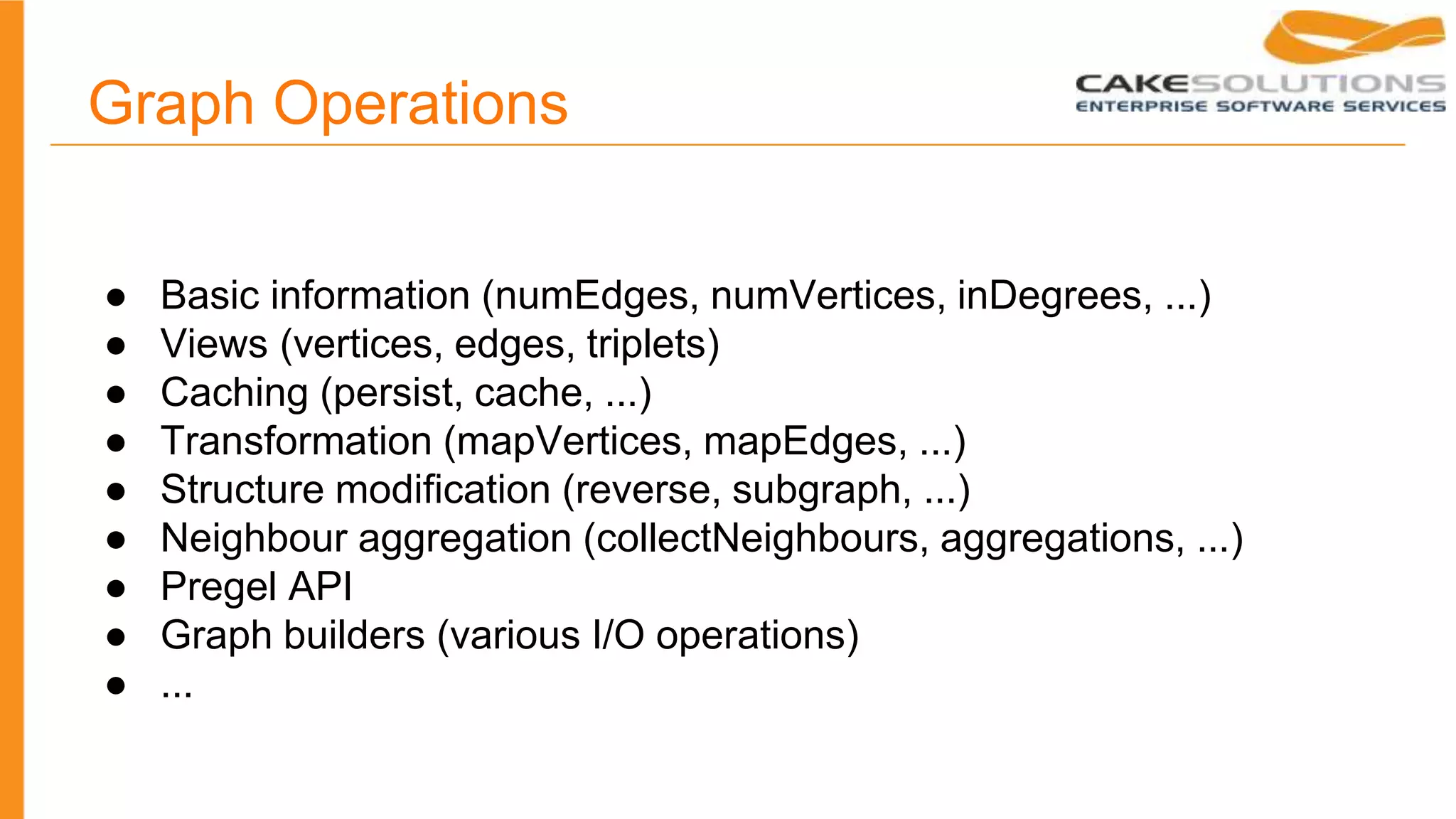

19. Graph Operations
● Basic information (numEdges, numVertices, inDegrees, ...)
● Views (vertices, edges, triplets)
● Caching (persist, cache, ...)
● Transformation (mapVertices, mapEdges, ...)
● Structure modification (reverse, subgraph, ...)
● Neighbour aggregation (collectNeighbours, aggregations, ...)
● Pregel API
● Graph builders (various I/O operations)
● ...

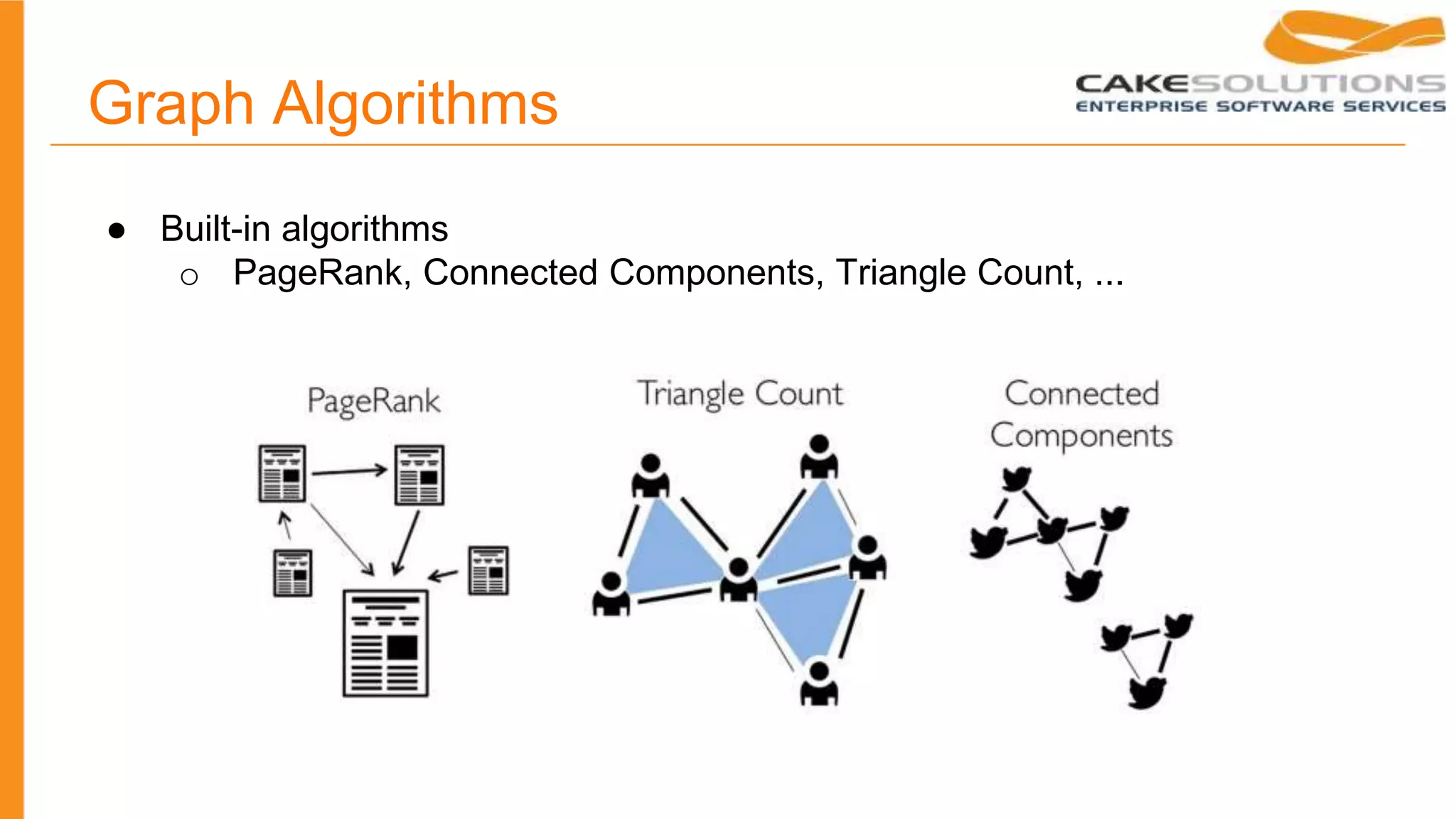

20. Graph Algorithms
● Built-in algorithms
o PageRank, Connected Components, Triangle Count, ...

21. Demo

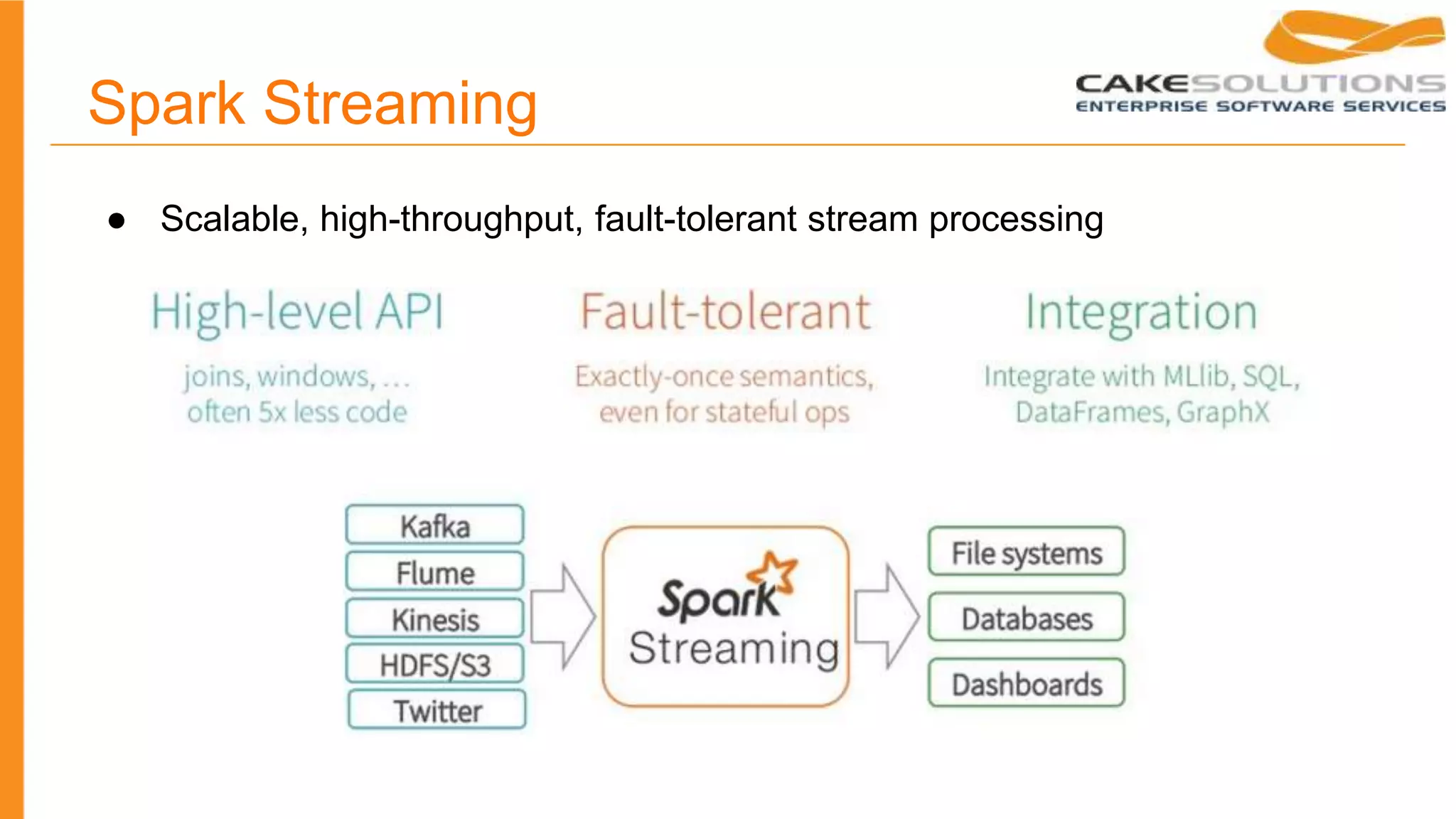

22. Spark Streaming
● Scalable, high-throughput, fault-tolerant stream processing

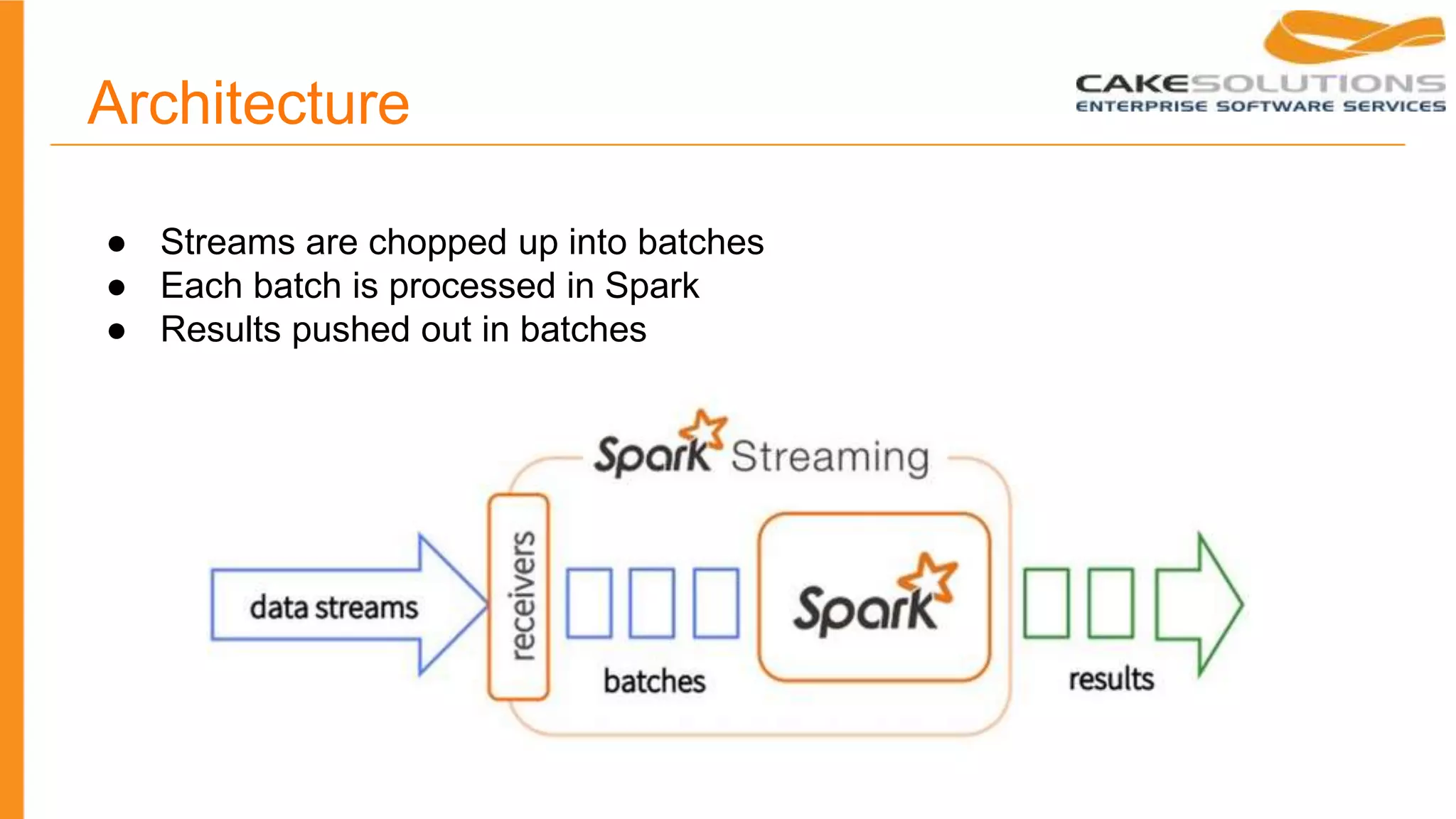

23. Architecture
● Streams are chopped up into batches
● Each batch is processed in Spark
● Results pushed out in batches

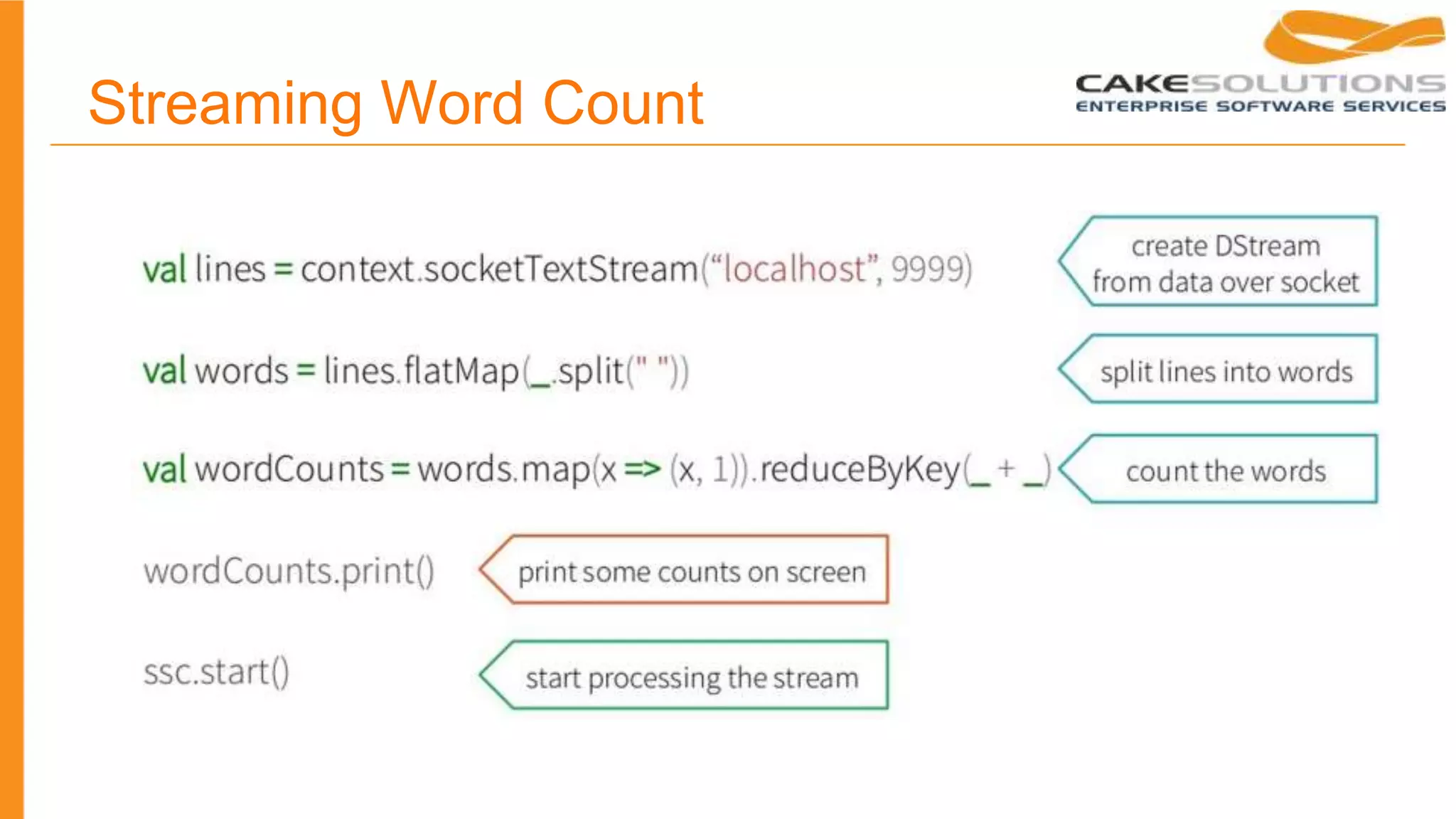

24. Streaming Word Count

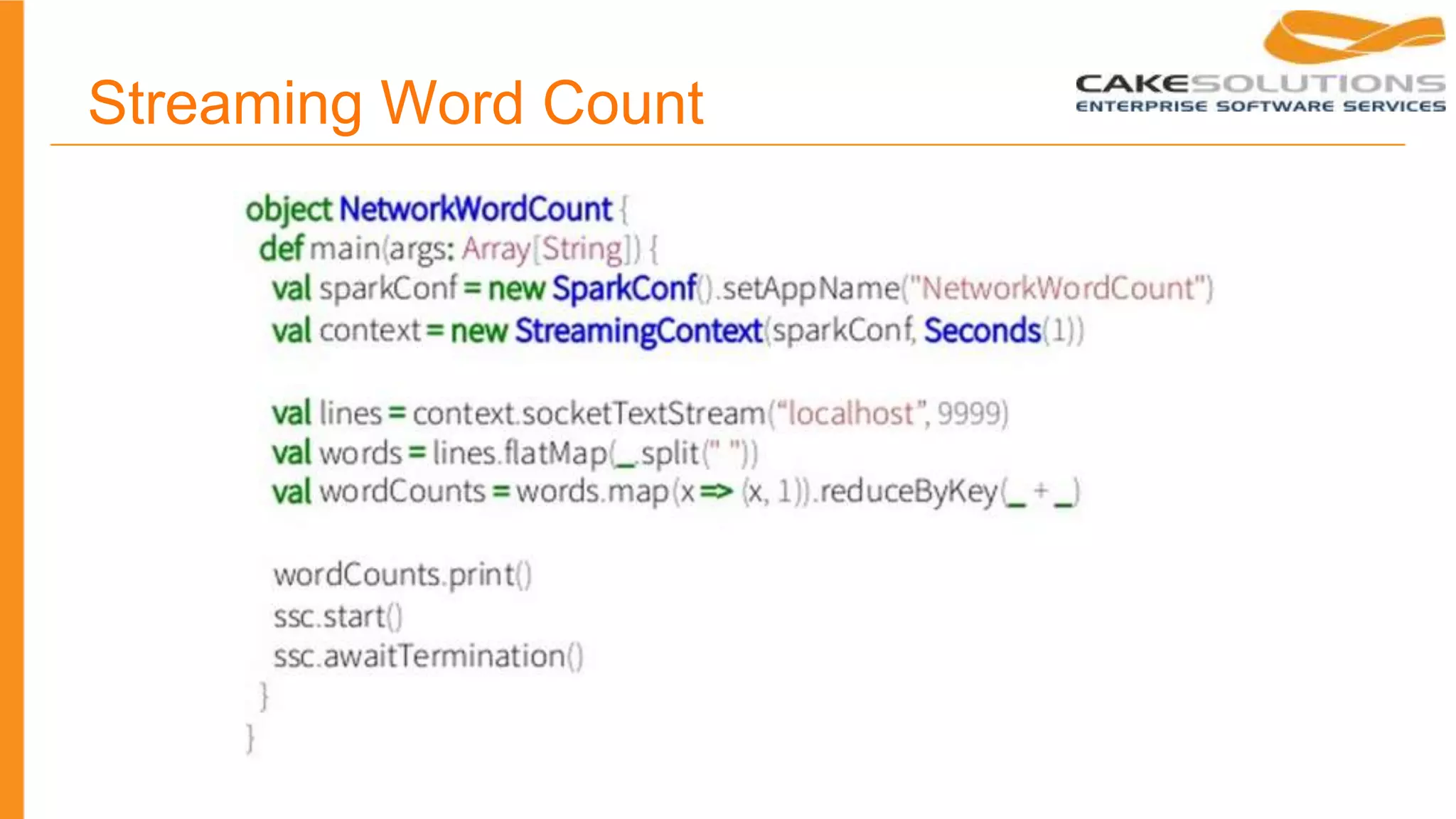

25. Streaming Word Count

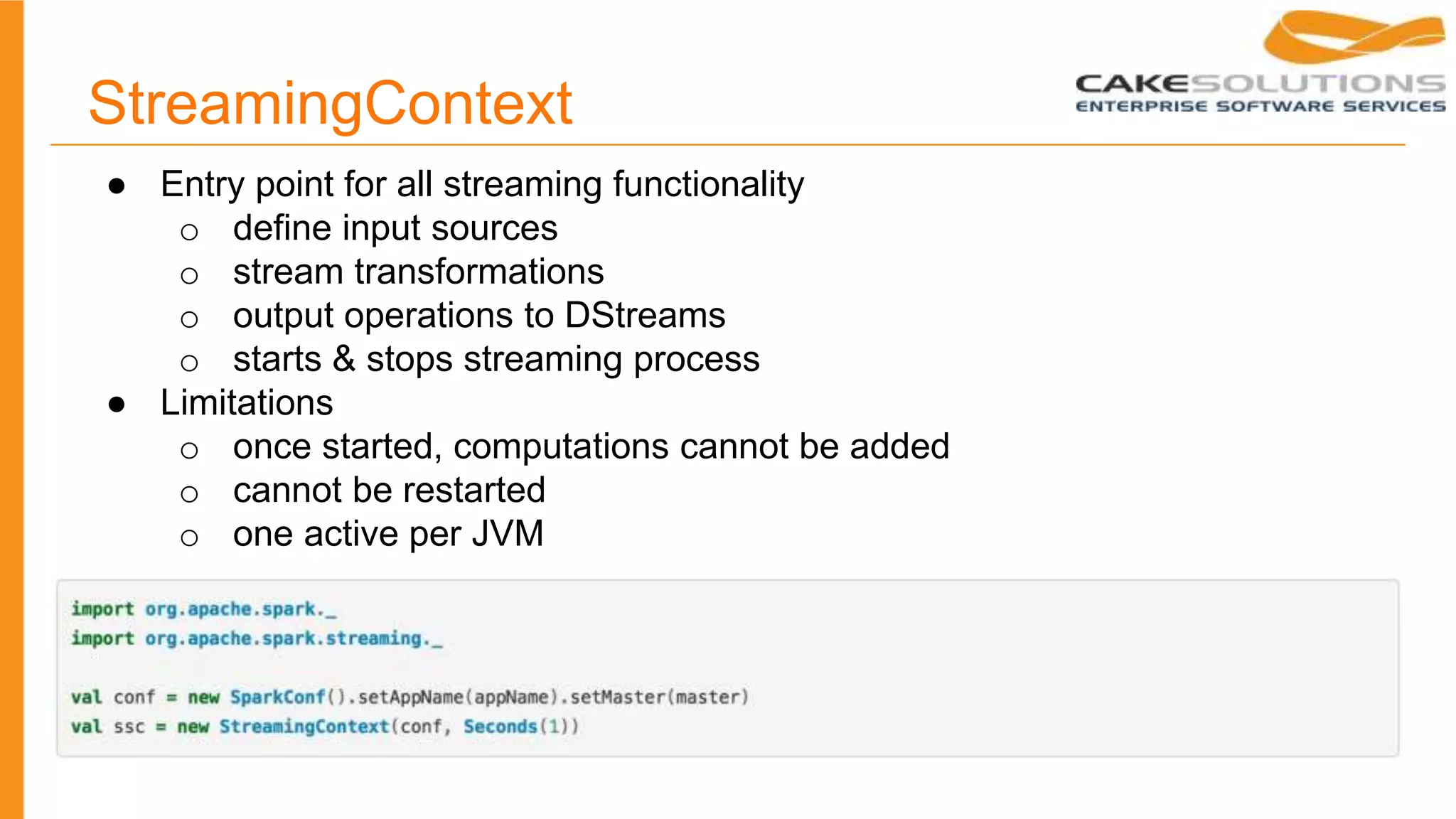

26. StreamingContext
● Entry point for all streaming functionality
o define input sources
o stream transformations
o output operations to DStreams
o starts & stops streaming process
● Limitations
o once started, computations cannot be added
o cannot be restarted
o one active per JVM

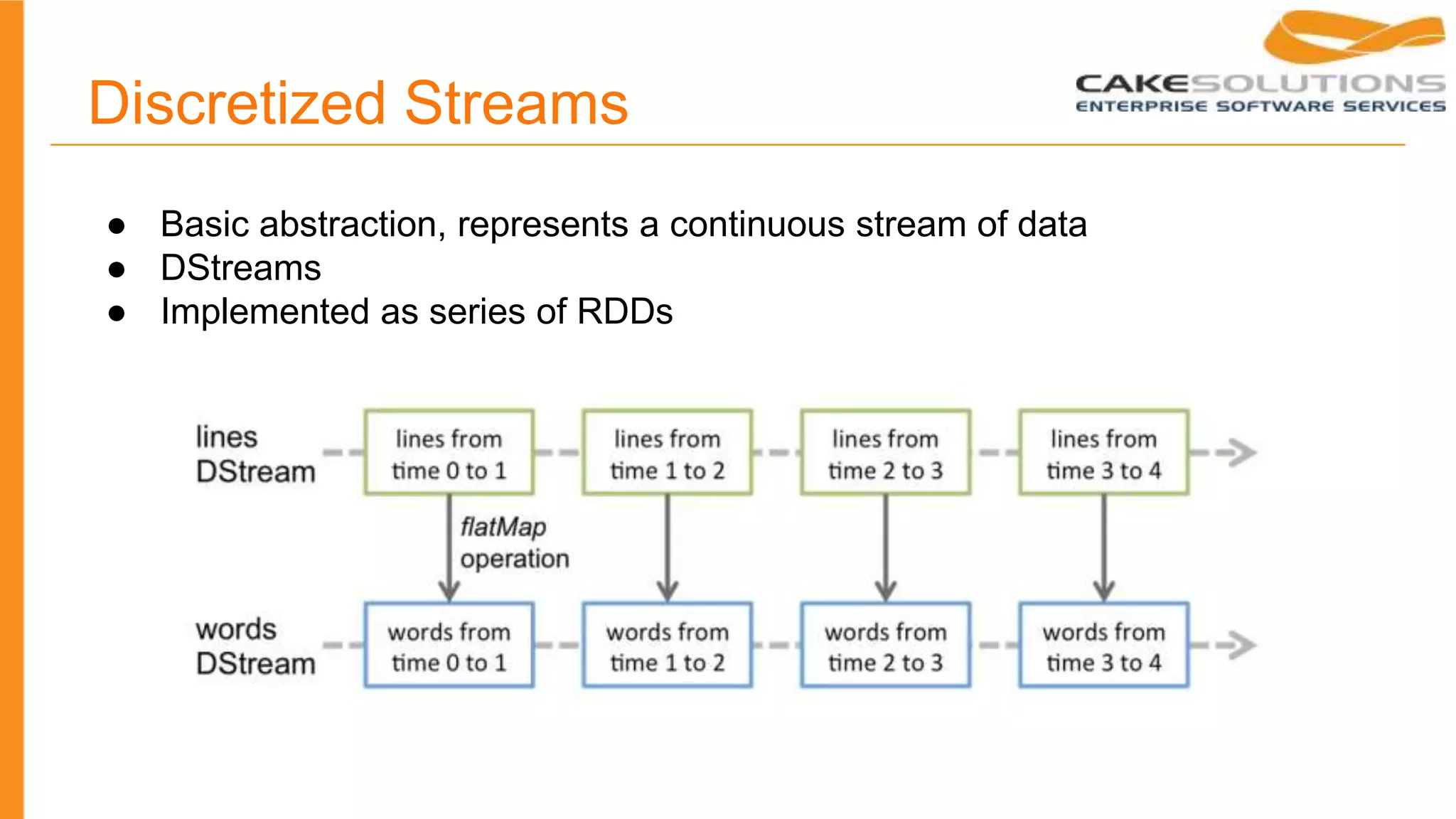

27. Discretized Streams
● Basic abstraction, represents a continuous stream of data
● DStreams
● Implemented as series of RDDs

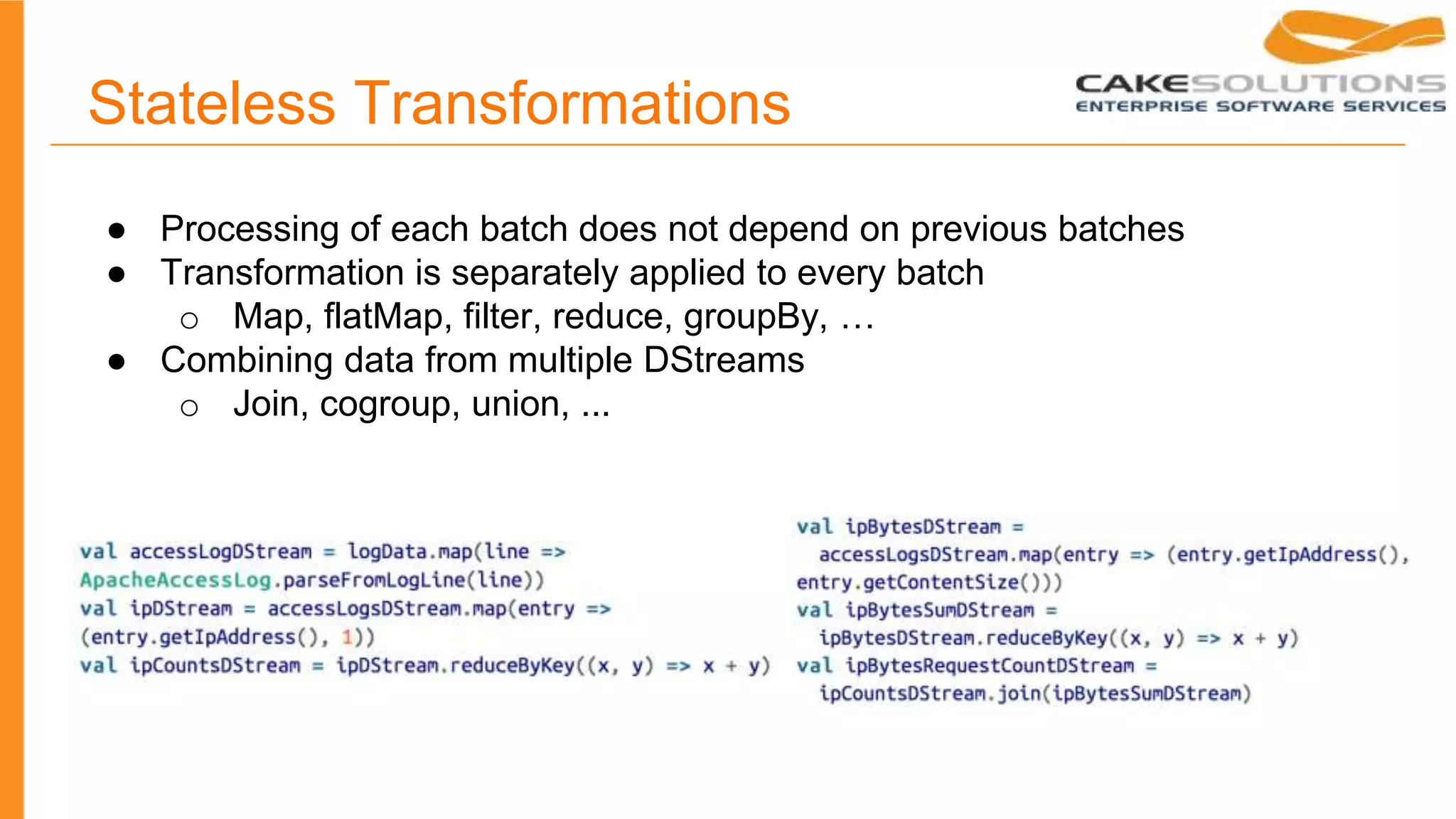

28. Stateless Transformations
● Processing of each batch does not depend on previous batches
● Transformation is separately applied to every batch
o Map, flatMap, filter, reduce, groupBy, …
● Combining data from multiple DStreams
o Join, cogroup, union, ...

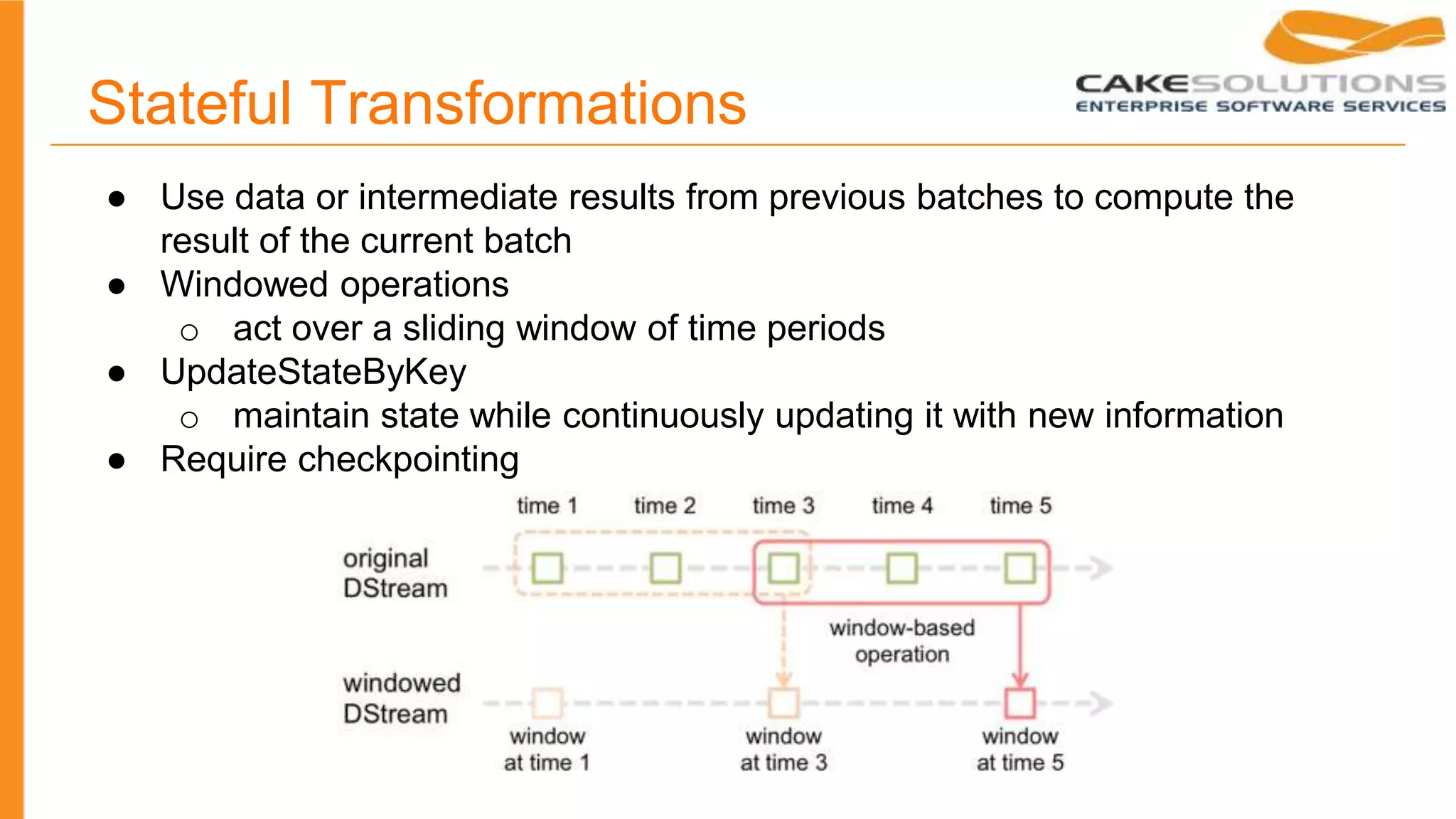

29. Stateful Transformations
● Use data or intermediate results from previous batches to compute the
result of the current batch
● Windowed operations
o act over a sliding window of time periods
● UpdateStateByKey
o maintain state while continuously updating it with new information
● Require checkpointing

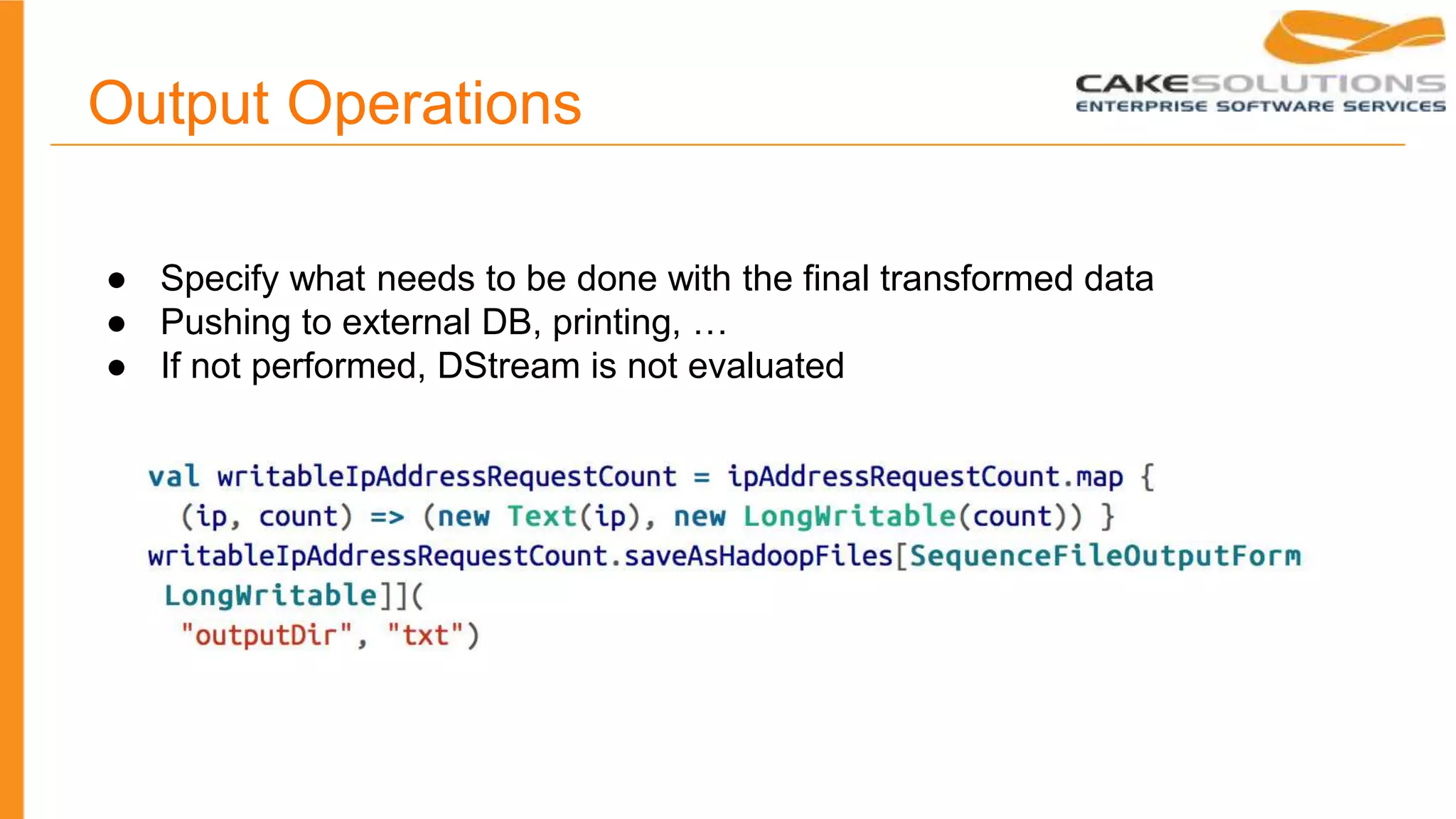

30. Output Operations
● Specify what needs to be done with the final transformed data
● Pushing to external DB, printing, …
● If not performed, DStream is not evaluated

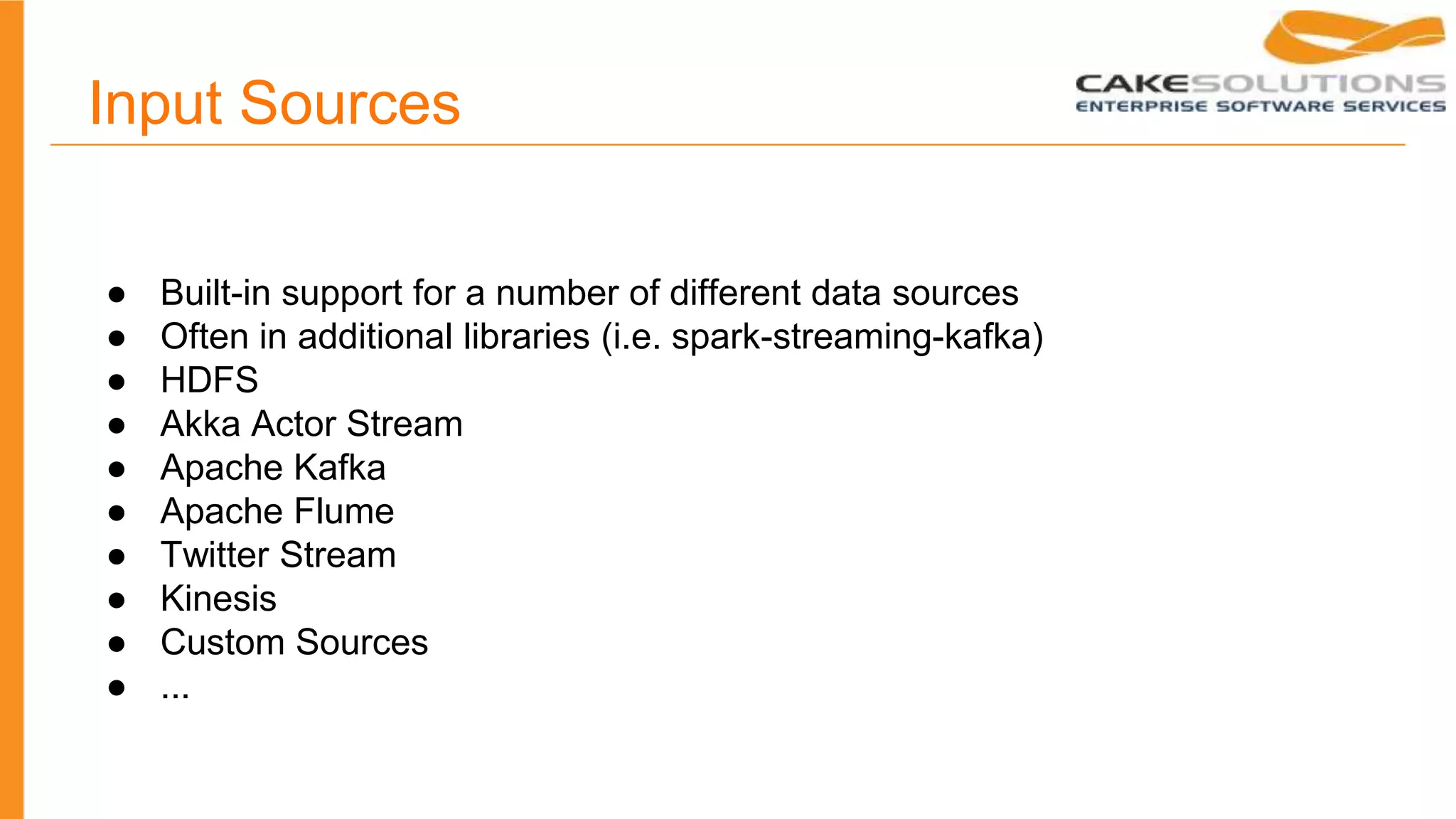

31. Input Sources
● Built-in support for a number of different data sources
● Often in additional libraries (i.e. spark-streaming-kafka)
● HDFS
● Akka Actor Stream
● Apache Kafka
● Apache Flume
● Twitter Stream
● Kinesis
● Custom Sources
● ...

32. Demo

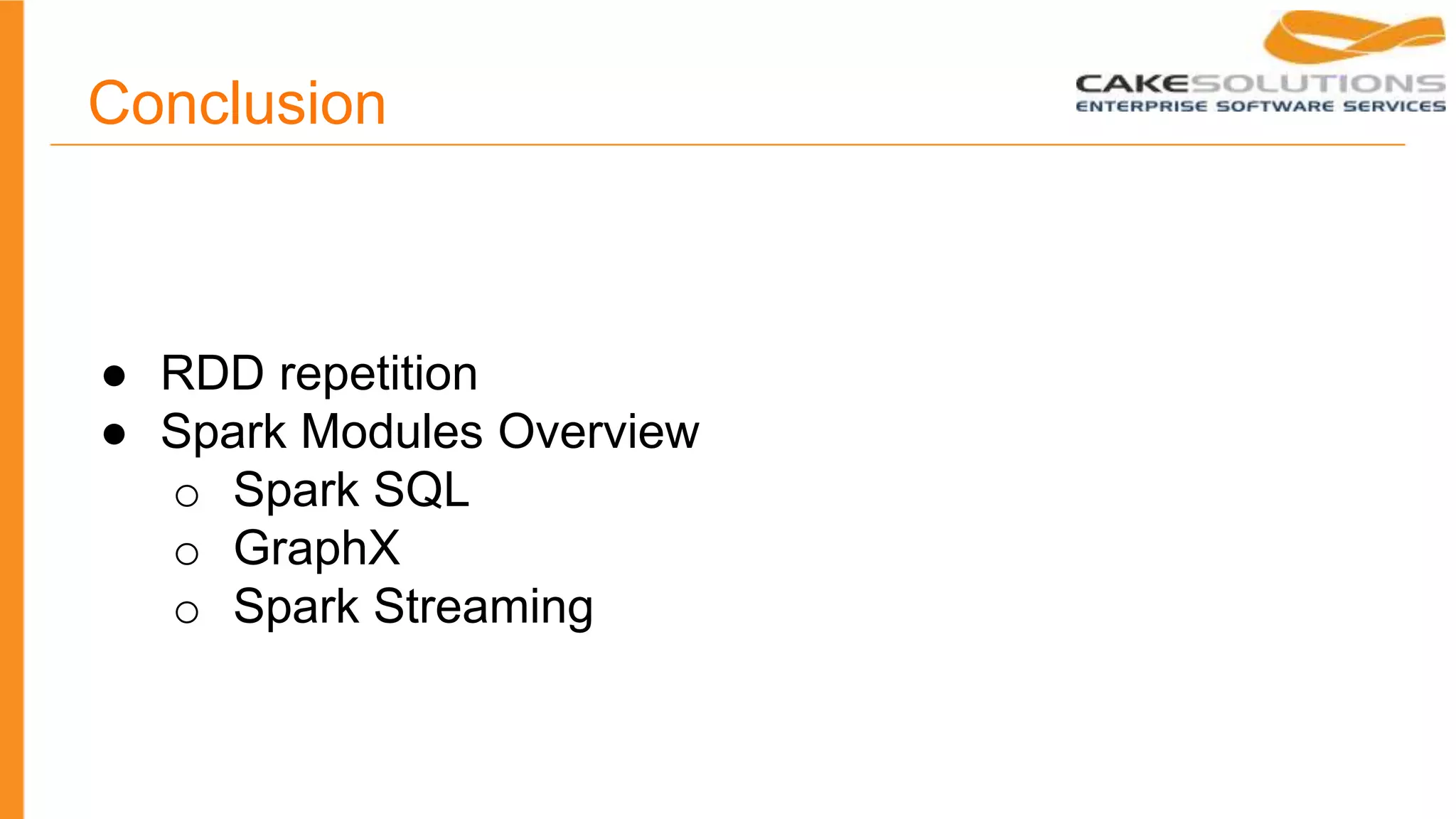

33. Conclusion
● RDD repetition
● Spark Modules Overview
o Spark SQL
o GraphX
o Spark Streaming

34. Questions
