Building real time data
pipeline
Challenges and solutions

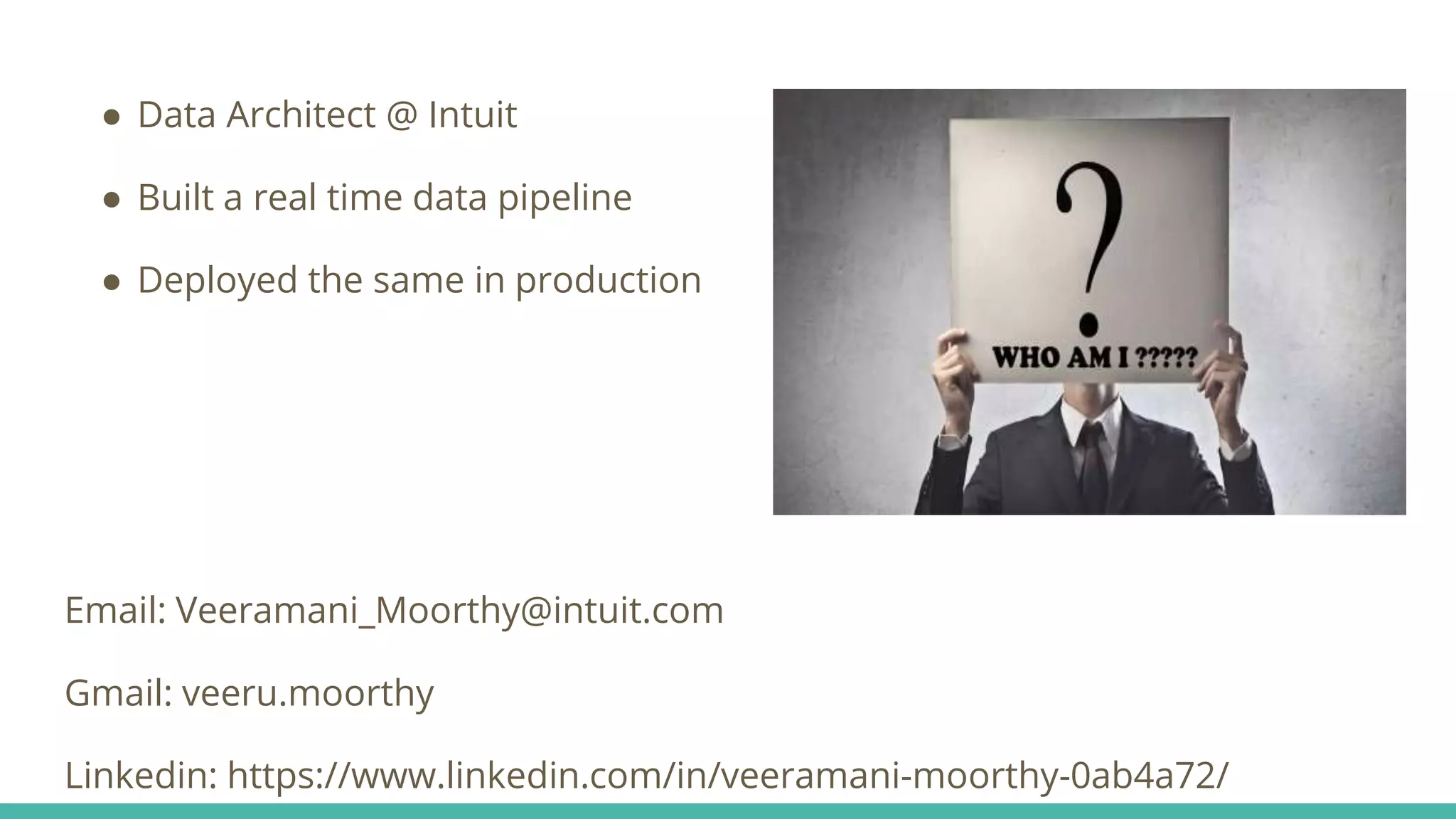

● Data Architect @ Intuit
● Built a real time data pipeline
● Deployed the same in production
Email: Veeramani_Moorthy@intuit.com
Gmail: veeru.moorthy
Linkedin: https://www.linkedin.com/in/veeramani-moorthy-0ab4a72/
● Business Goal
● NRT pipeline Architecture
● Challenges involved & solution
● Metrics & Monitoring Architecture
● Challenges involved & solution
● Q & A
● Build a low latency (1 min SLA) data pipe which can listen to database
changes, transform & publish the final outcome to Salesforce.
● Zero data loss
● Ordering guarantee
Building real time Data Pipeline using Spark Streaming
Technologies used
● Confluent 2.0.1
○ Kafka
○ Schema Registry
○ Kafka connect
○ Zoo keeper
● Spark Streaming 1.6.1
● Datomic 0.9
● DSE 4.2
CDC Schema
● Payload
○ Before record
○ After record
● Header
○ Frag number
○ Seq number
○ Table name
○ Shard id
Out of sequence events
● Will I be able to detect it?
● How do I handle it?
○ Single partition kafka topic
○ Multi partition w/ hash partition on PK
○ Read first, before writing
○ Go with EVAT data model w/ change history
Late Arrival
● Can we allow delayed events?
● Embrace eventual consistency
○ Eventual is ok
○ Never is not ok
Will maintain the state only for 5 mins.
Is that an option?
Spark streaming (throughput vs latency)
Especially in the context of updating a remote data store
● Foreach
● Mapreduce
Schema evolves over time
At time t1t2
Does downstream processing fail?
Use Schema registry which supports versioning
Kafka
Topic
Schema
Registry
When you go live
● It’s essential to bootstrap your system
● Built a bootstrap connector
● Due to huge data load, It takes few mins/hous
● During bootstrap, DB state might be getting changed
So, does it cause data loss?
Enable CDC, before you bootstrap
● Duplicates are okay, but data loss is not okay
● Ensure at least once guarantee
Good to support selective bootstrap
Published corrupted data for past N hour
● Defect in your code
● Mis-configuration
● Some system failure
You can fix the problem & push the fix.
But, will it fix the data retrospectively?
Answer: build replay
● Build replay at every stage of the pipeline
● If not, at least at the very first stage
● Now, how do you build replay?
○ Checkpoint (Topic, partition & offset)
○ Traceability
○ Re-start the pipe from given offset
Spark streaming: checkpointing
Pitfalls
● Spark checkpoints entire DAG (binary)
○ Till which offset it has processed?
○ To replay, Can you set offset to some older value?
● Will you be able to upgrade/re-configure your spark app easily?
● Also, it does auto-ack
Don’t rely on spark checkpointing, build your own
All kafka brokers went down, then?
● We usually re-start them one by one
● Noticed data loss at some topics
Does Kafka lose data?
Kafka broker setup
Kafka broker - Failover scenario
So, if all kafka brokers goes down
Re-start them in the reverse order of failures
Is it good enough?
What if followers are lagging behind?
● Again, this can cause data loss
● Min.insync.replica config to rescue
Kafka connect setup
● Standalone mode
● Distributed mode
Diagnosing data issues
● Data loss
● Data corruption
● SLA miss
How do you quickly diagnose the issue?
Diagnosing data issues quickly
● Need a mechanism to track each event uniquely end to end.
● Log aggregation
Batch vs Streaming
● In general, when do you choose to go for streaming?
○ Time critical data
○ Quick decision
● Lot of use cases: 30 mins batch processing will do good
● Both batch & real time streaming on same data
Batch & Streaming
Metrics & Monitoring Architecture
CDC
Connector
Reconciler
Transforme
r
JMS
Connector
CDC
EBS
Consumer
Audit events
Audit
Streaming
Job
SLA computation
● Source DB timestamp
● Stage timestamp
● SLA = stage TS – source TS
Use NTP to sync to all nodes
Are these the only challenges?
Questions?
