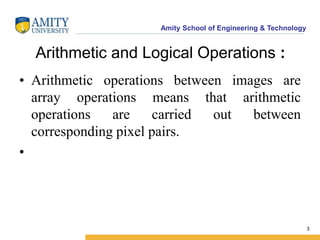

Arithmetic and Logical Operations :
• Arithmetic operations between images are
array operations means that arithmetic
operations are carried out between
corresponding pixel pairs.
•

4. Amity School of Engineering & Technology
Addition
• Useful for combining information
between two images
0 <= a <= 1

5. Amity School of Engineering & Technology
Averaging (see Example 2.5, page 75)
• Image quality can be improved by averaging a
number of images together (very useful in astronomy
applications).
5 10
20 50 100

6. Amity School of Engineering & Technology

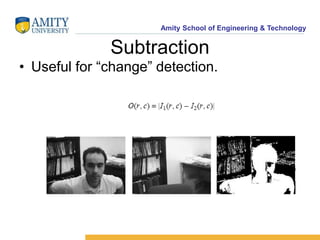

Subtraction
• Useful for “change” detection.

7. Amity School of Engineering & Technology
Subtraction (cont’d)

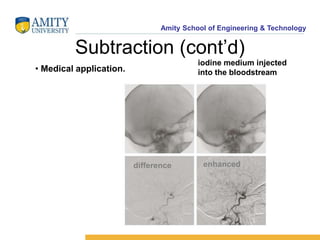

• Medical application.
iodine medium injected
into the bloodstream
difference enhanced

8. Amity School of Engineering & Technology
Multiplication/Division

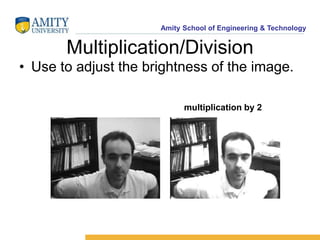

• Use to adjust the brightness of the image.
multiplication by 2

9. Amity School of Engineering & Technology
Multiplication/Division (cont’d)

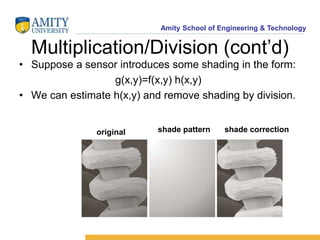

• Suppose a sensor introduces some shading in the form:
g(x,y)=f(x,y) h(x,y)
• We can estimate h(x,y) and remove shading by division.
original shade pattern shade correction

10. Amity School of Engineering & Technology
Comments

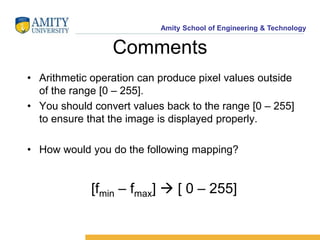

• Arithmetic operation can produce pixel values outside
of the range [0 – 255].
• You should convert values back to the range [0 – 255]
to ensure that the image is displayed properly.
• How would you do the following mapping?
[fmin – fmax]  [ 0 – 255]

11. Amity School of Engineering & Technology
Logical Operations

12. Amity School of Engineering & Technology
AND
• The AND operator is usually used to mask
out part of an image.

13. Amity School of Engineering & Technology

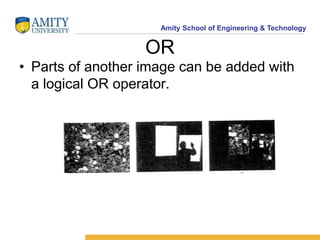

OR
• Parts of another image can be added with
a logical OR operator.

14. Amity School of Engineering & Technology

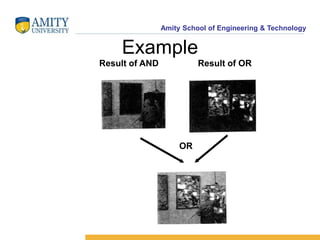

Example
Result of AND Result of OR
OR
