This document summarizes research conducted using supercomputers to enable artificial intelligence applications for analyzing large earth science data. It discusses two major functions: designing efficient simulations and developing intelligent data mining methods. Specific projects are described, including simulating climate models on the Sunway TaihuLight, simulating earthquakes, and using remote sensing data and deep learning to map land cover more accurately, detect oil palm trees, and create more accurate urban land use maps. The research enables digital earth modeling to simulate, analyze, understand, predict, and mitigate earth science issues.

1. SuperAI on Supercomputers
Haohuan Fu
haohuan@tsinghua.edu.cn
High Performance Geo-Computing (HPGC) Group
http://www.thuhpgc.org

2. n Create a digital earth,
so as to:
p simulate
p analyze
p understand
p predict and mitigate
Earth Science and Supercomputers
figure credit: Earth Simulator, JPN

3. Simulation Data Analysis
Two Major Functions
3

4. To design highly efficient and
highly scalable simulation
applications
To develop intelligent data
mining methods for the
analysis of BIG scientific DATA
Two Major Functions
4

5. To design highly efficient and
highly scalable simulation
applications
To develop intelligent data
mining methods for the
analysis of BIG scientific DATA
Two Major Functions
5

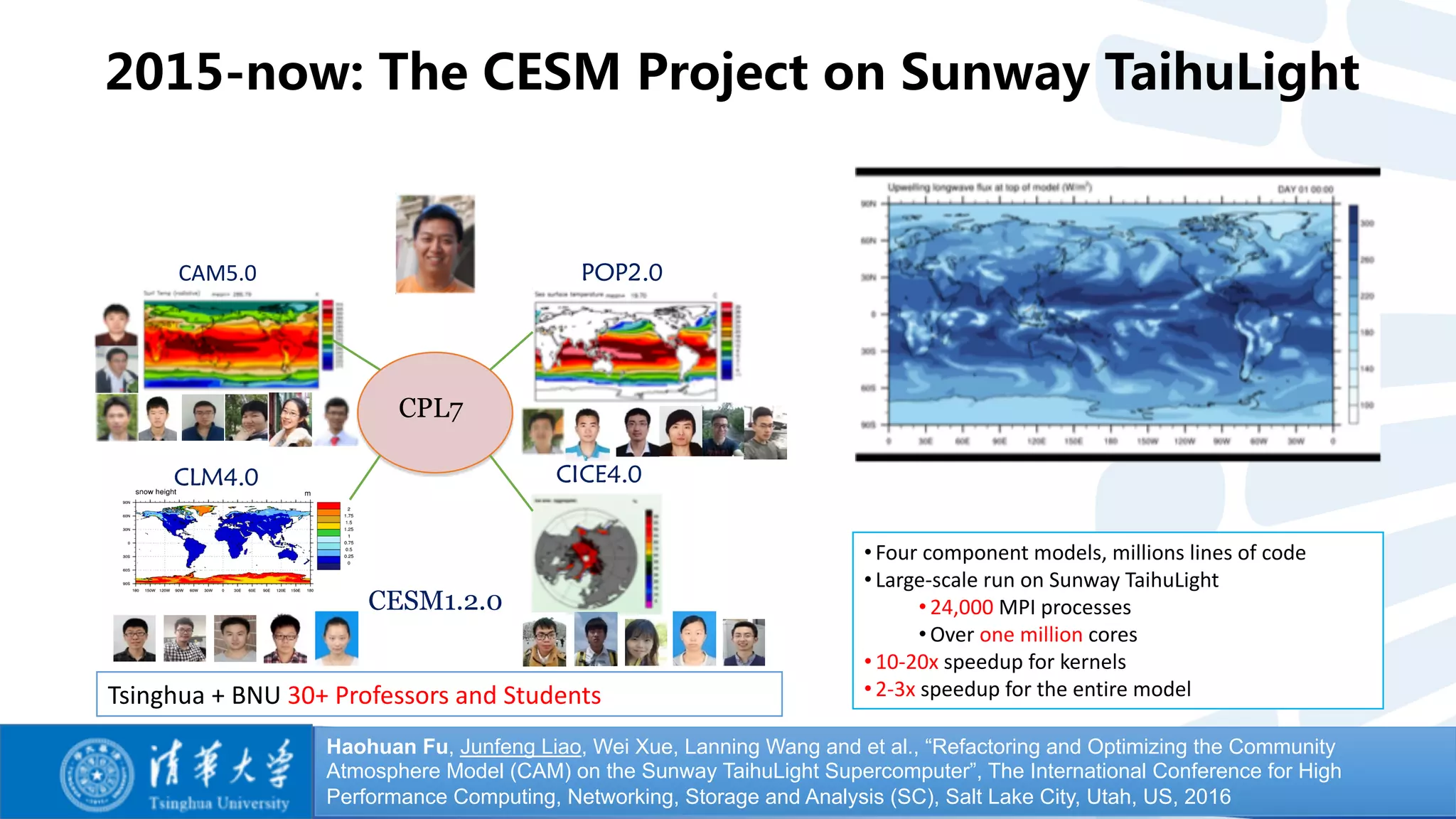

6. 2015-now: The CESM Project on Sunway TaihuLight
6
CAM5.0 POP2.0
CLM4.0 CICE4.0
CPL7
CESM1.2.0
Tsinghua + BNU 30+ Professors and Students
• Four component models, millions lines of code
• Large-scale run on Sunway TaihuLight
• 24,000 MPI processes
• Over one million cores
• 10-20x speedup for kernels
• 2-3x speedup for the entire model
Haohuan Fu, Junfeng Liao, Wei Xue, Lanning Wang and et al., “Refactoring and Optimizing the Community
Atmosphere Model (CAM) on the Sunway TaihuLight Supercomputer”, The International Conference for High
Performance Computing, Networking, Storage and Analysis (SC), Salt Lake City, Utah, US, 2016

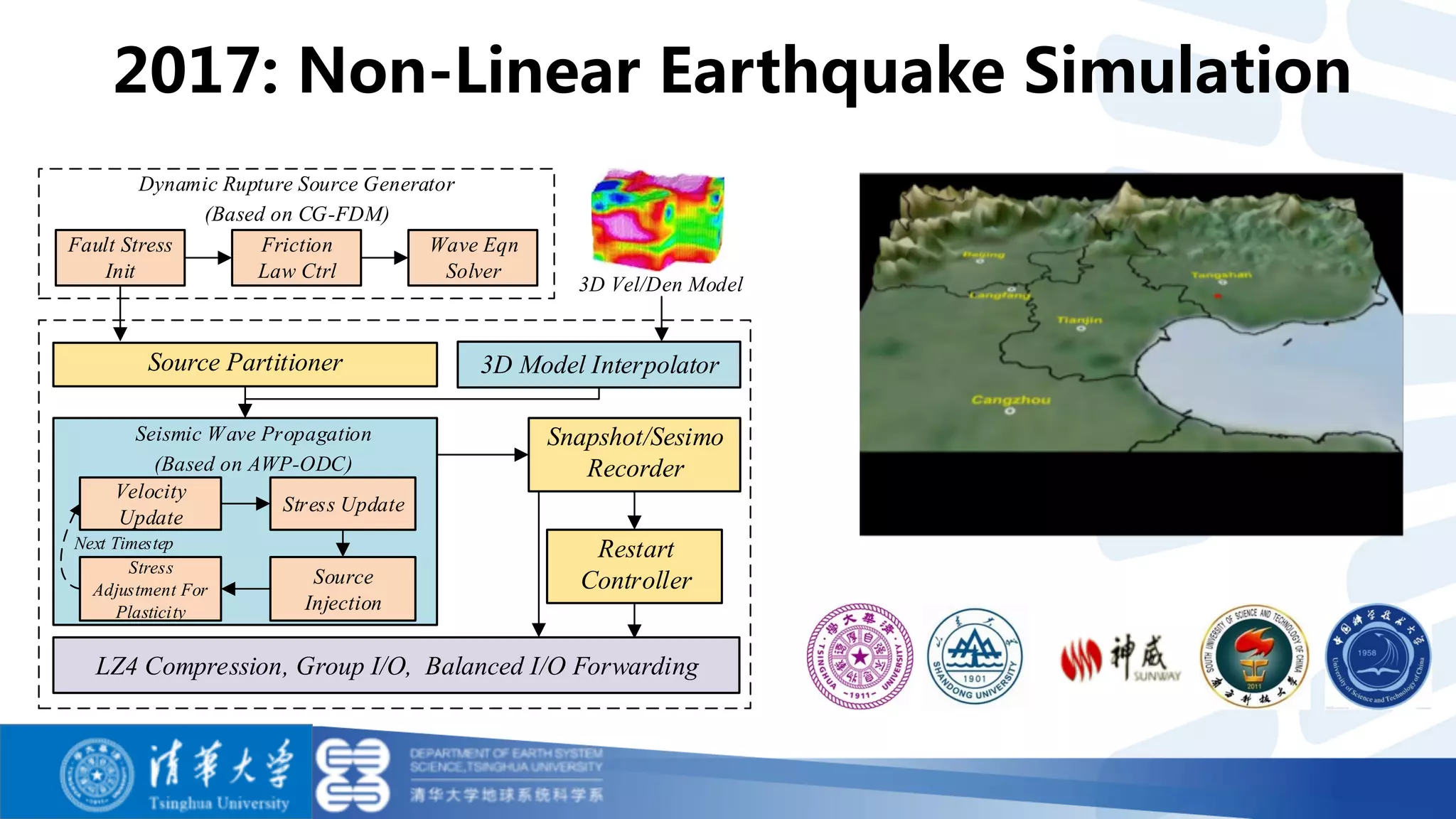

7. 2017: Non-Linear Earthquake Simulation
Source Partitioner
Restart
Controller
3D Model Interpolator
LZ4 Compression, Group I/O, Balanced I/O Forwarding
Snapshot/Sesimo
Recorder
Velocity
Update
Stress Update
Source
Injection
Stress
Adjustment For
Plasticity
Dynamic Rupture Source Generator
(Based on CG-FDM)
Seismic Wave Propagation
(Based on AWP-ODC)
Next Timestep
3D Vel/Den Model
Fault Stress
Init
Friction
Law Ctrl
Wave Eqn
Solver

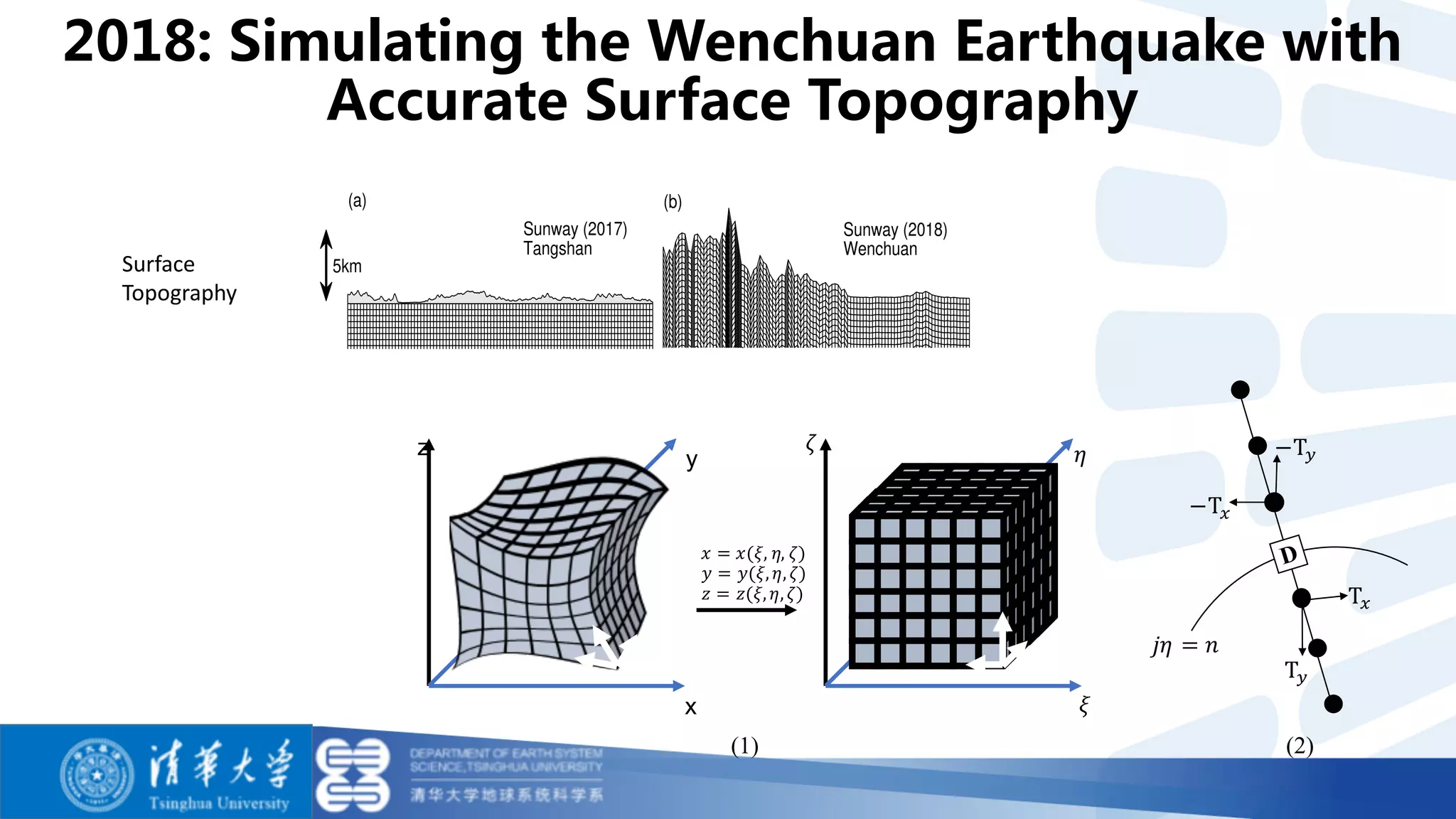

8. 2018: Simulating the Wenchuan Earthquake with
Accurate Surface Topography
Sunway (2017)
Tangshan
(a)
5km
Sunway (2018)
Wenchuan
(b)
Surface
Topography
x
yz
! = !($, &, ')
) = )($, &, ')
* = *($, &, ')
$
&'
(1) (2)
−T-
−T.
T.
T-
/& = 0

9. To design highly efficient and
highly scalable simulation
applications
To develop intelligent data
mining methods for the
analysis of BIG scientific DATA
Two Major Functions
9

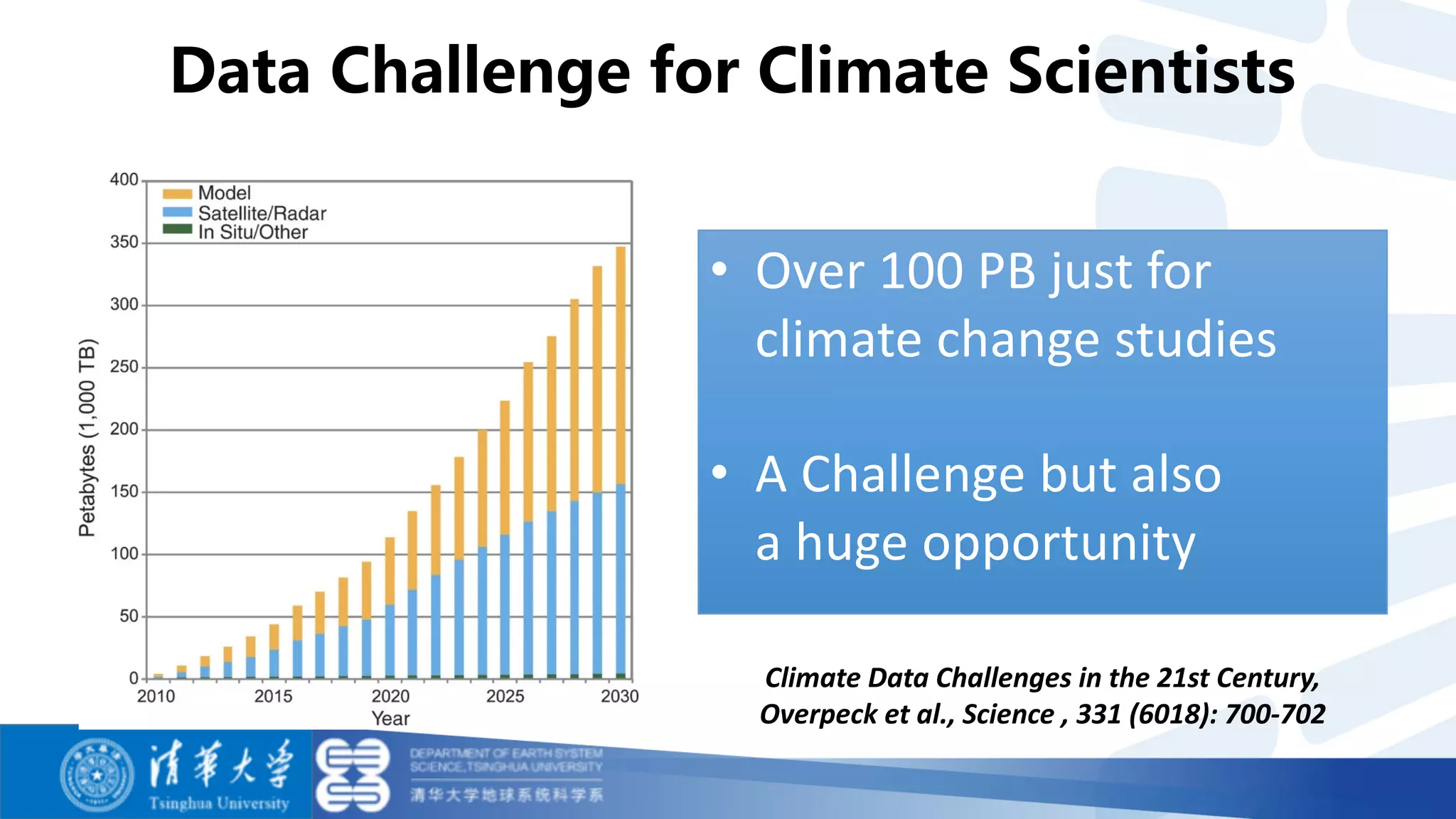

10. Data Challenge for Climate Scientists
Climate Data Challenges in the 21st Century,
Overpeck et al., Science , 331 (6018): 700-702
• Over 100 PB just for
climate change studies
• A Challenge but also
a huge opportunity

11. 11
Remote sensing data
- Recording what is happening on the earth for decades
- What issues can we solve based on these data?
UAV
Google earth images
1984-2018
UAV image
High-resolution imageSatellite

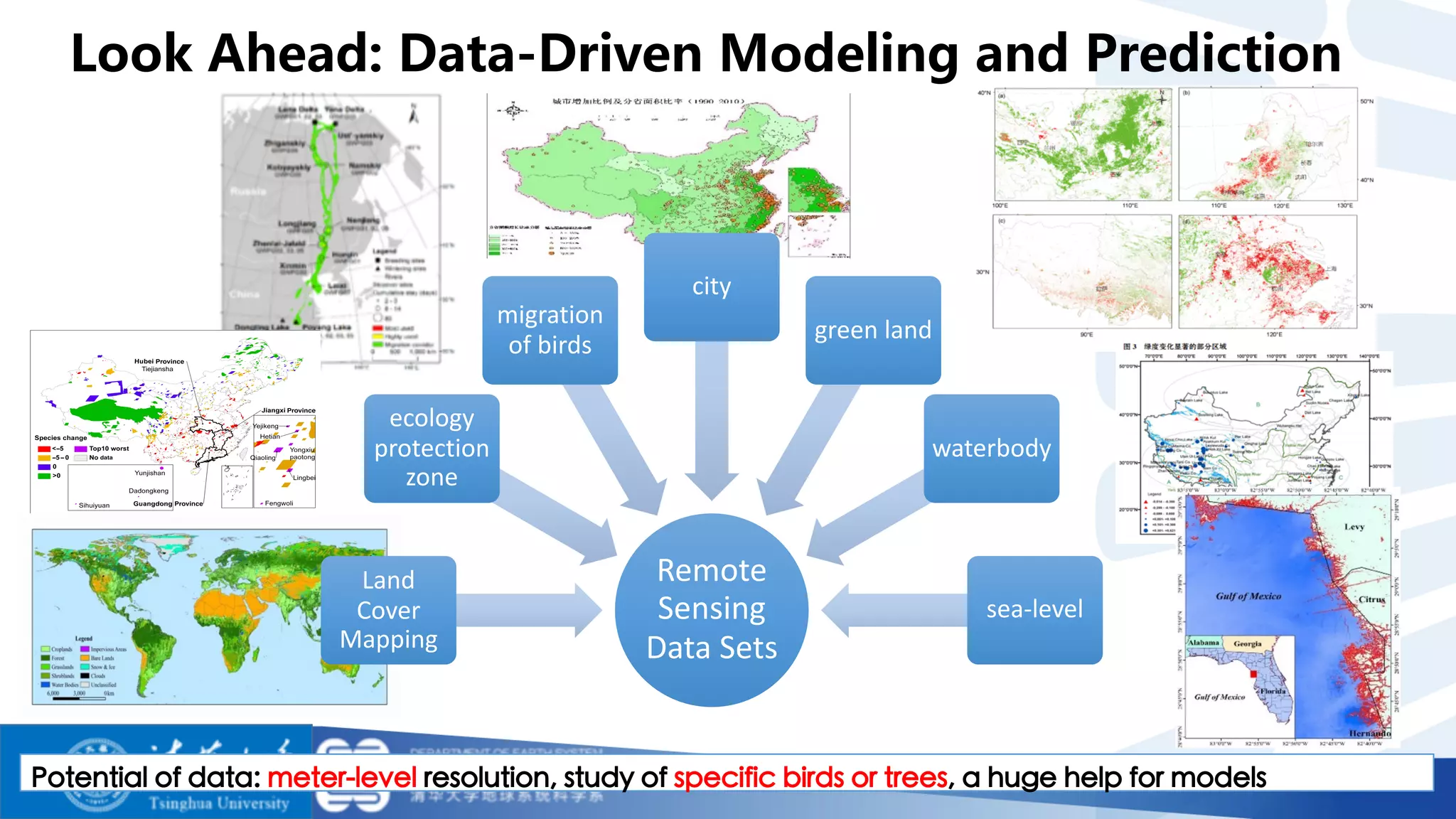

12. Look Ahead: Data-Driven Modeling and Prediction
Remote
Sensing
Data Sets
Land
Cover
Mapping
ecology
protection
zone
migration
of birds
city
green land
waterbody
sea-level

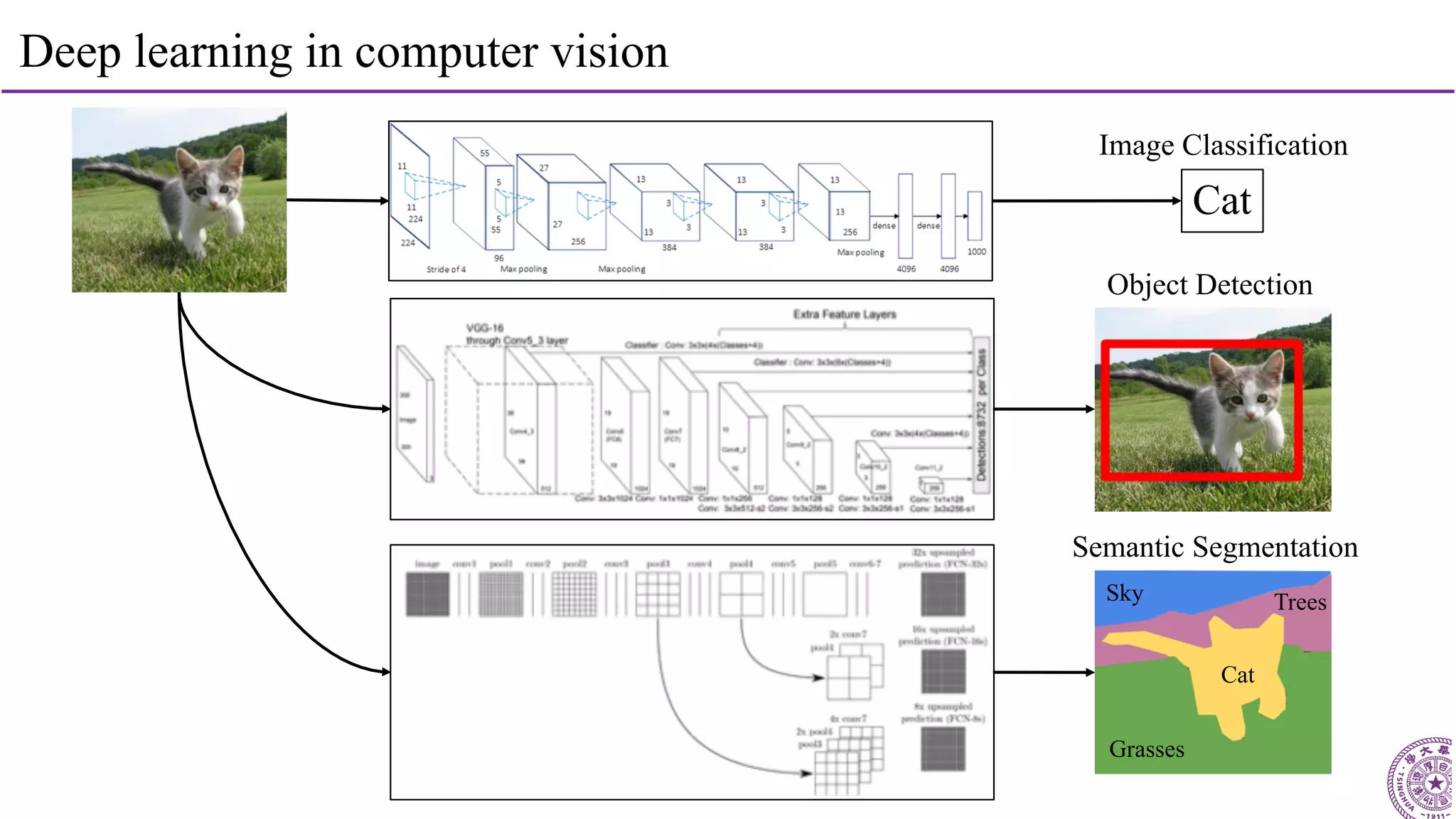

13. 13
Cat
Image Classification
Object Detection
Semantic Segmentation
Cat
Grasses
Sky Trees
Deep learning in computer vision

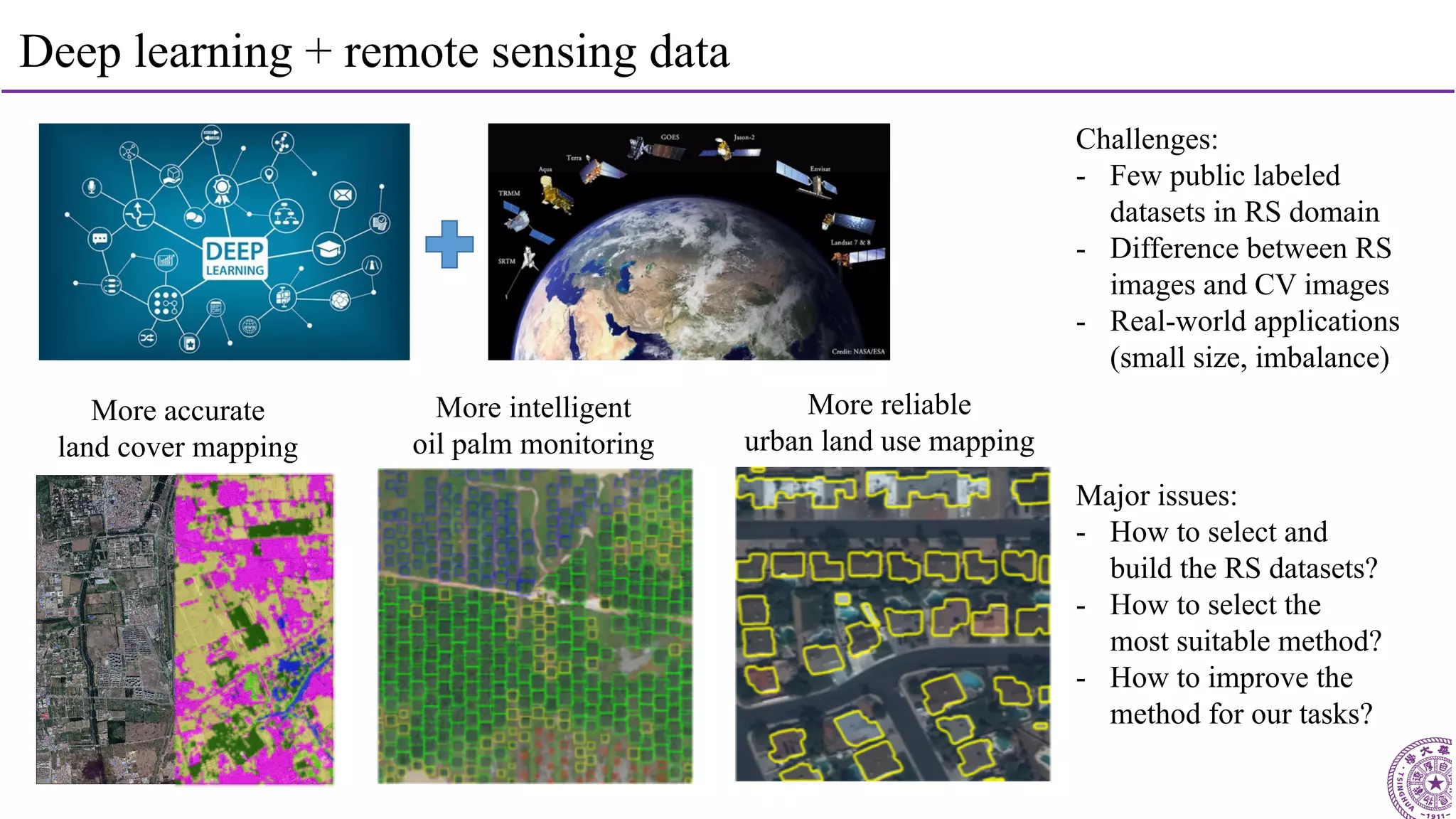

14. 14
More reliable
urban land use mapping
More intelligent
oil palm monitoring
More accurate
land cover mapping
Major issues:
- How to select and
build the RS datasets?
- How to select the
most suitable method?
- How to improve the
method for our tasks?
Challenges:
- Few public labeled
datasets in RS domain
- Difference between RS
images and CV images
- Real-world applications
(small size, imbalance)
Deep learning + remote sensing data

15. Case 1: More Accurate Land Cover Map

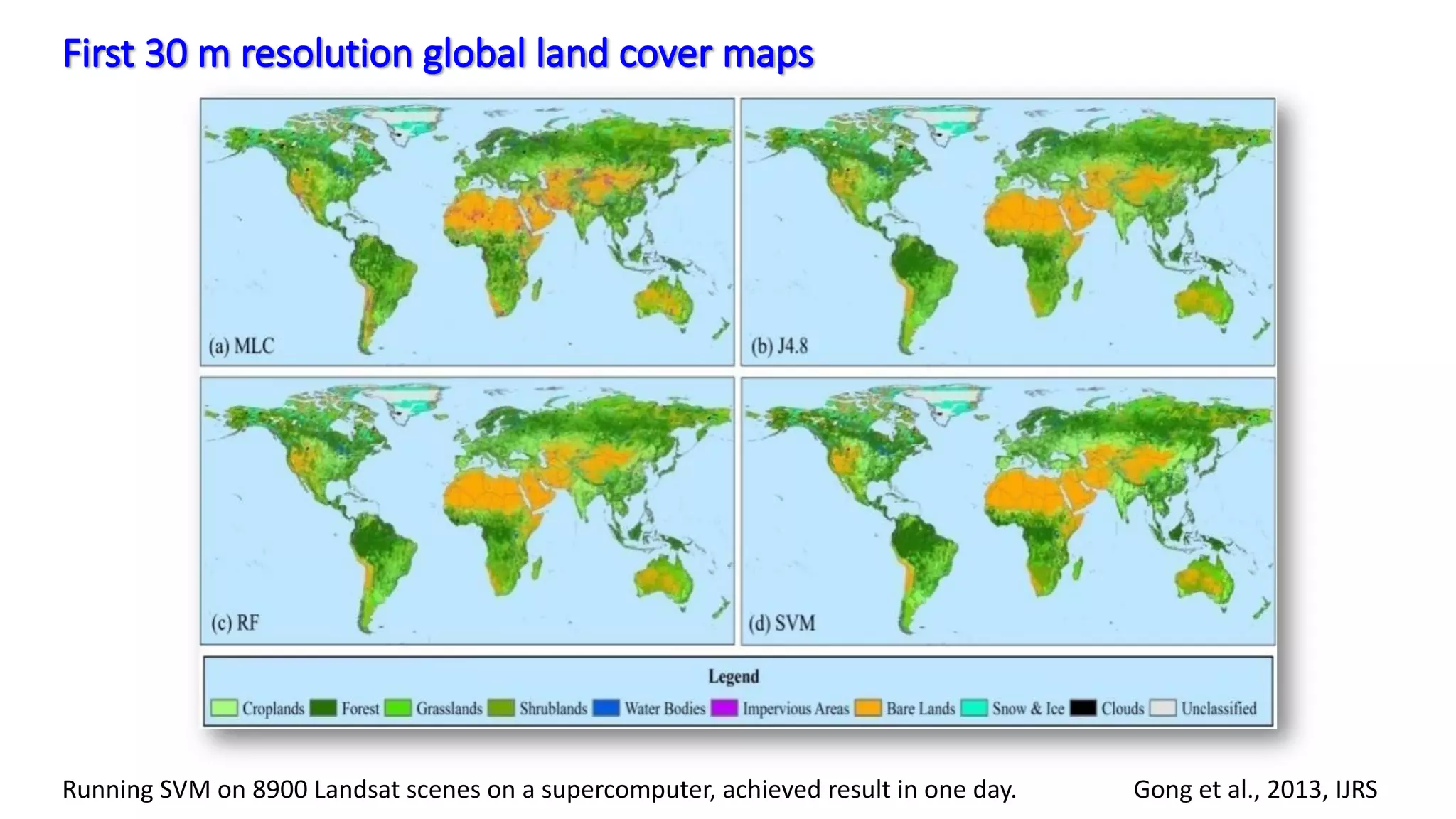

16. First 30 m resolution global land cover maps
Gong et al., 2013, IJRSRunning SVM on 8900 Landsat scenes on a supercomputer, achieved result in one day.

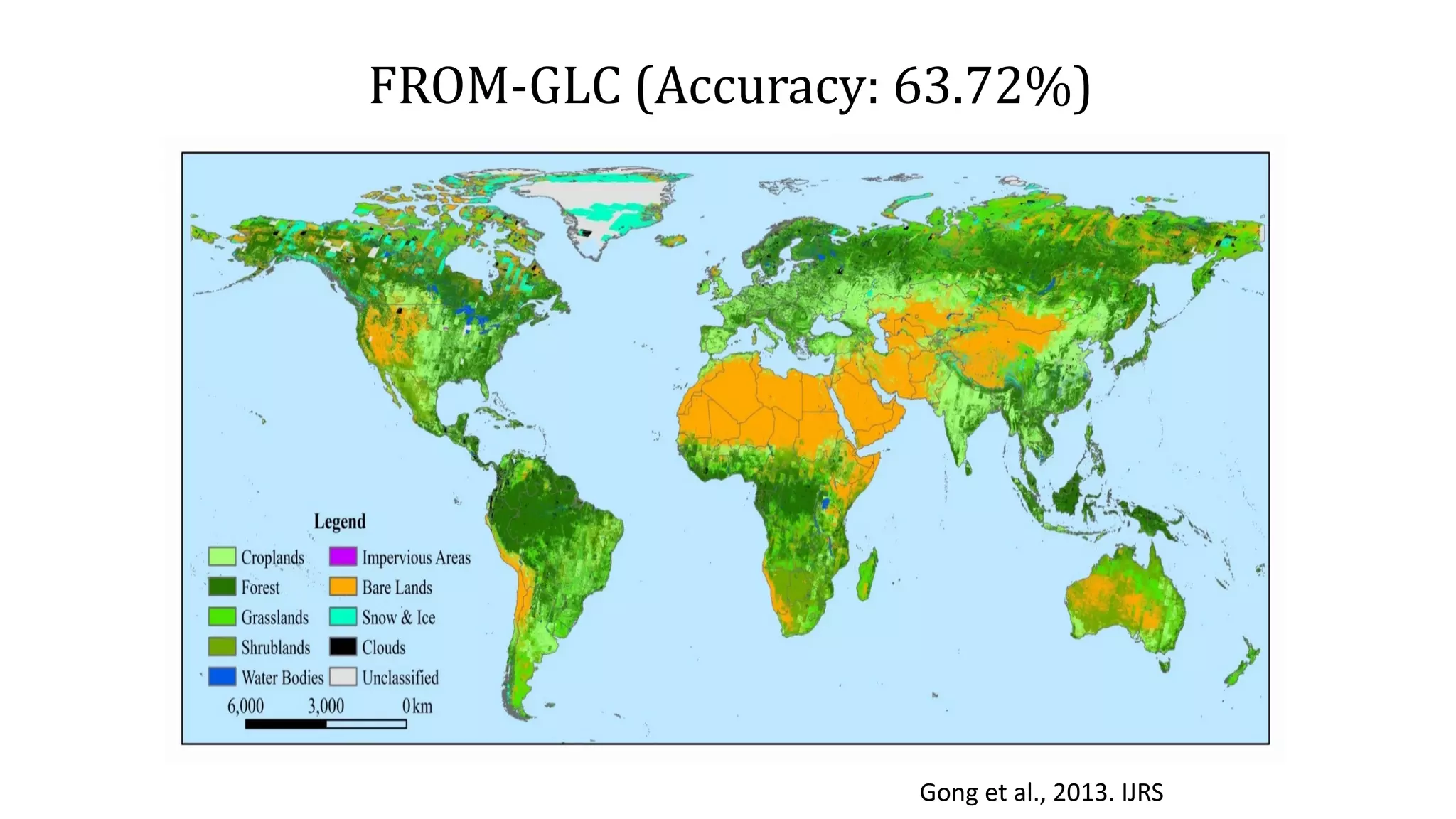

17. FROM-GLC (Accuracy: 63.72%)
Gong et al., 2013. IJRS

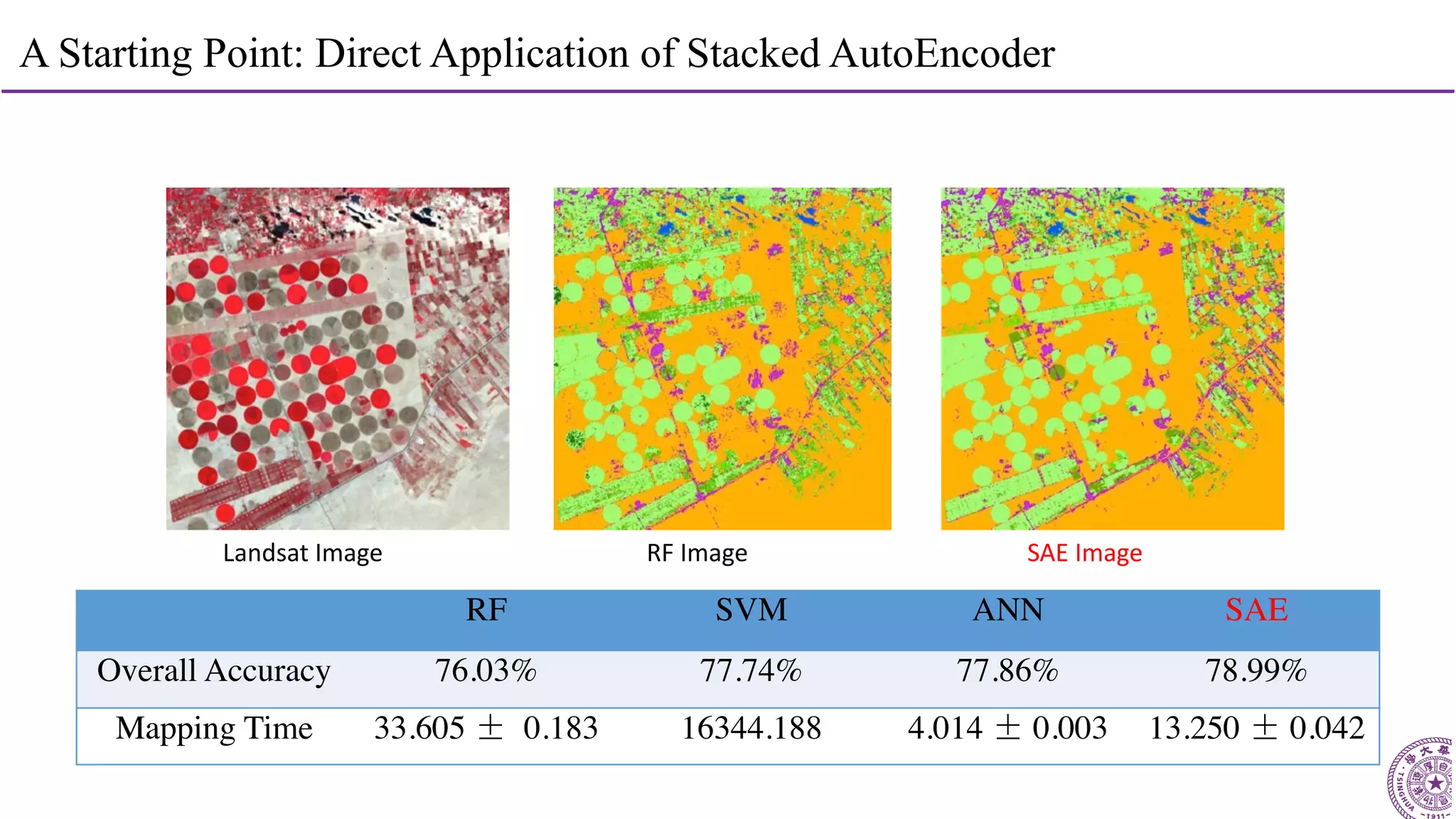

18. 18
A Starting Point: Direct Application of Stacked AutoEncoder
RF SVM ANN SAE
Overall Accuracy 76.03% 77.74% 77.86% 78.99%
Mapping Time 33.605 ± 0.183 16344.188 4.014 ± 0.003 13.250 ± 0.042
Landsat Image RF Image SAE Image

19. 19

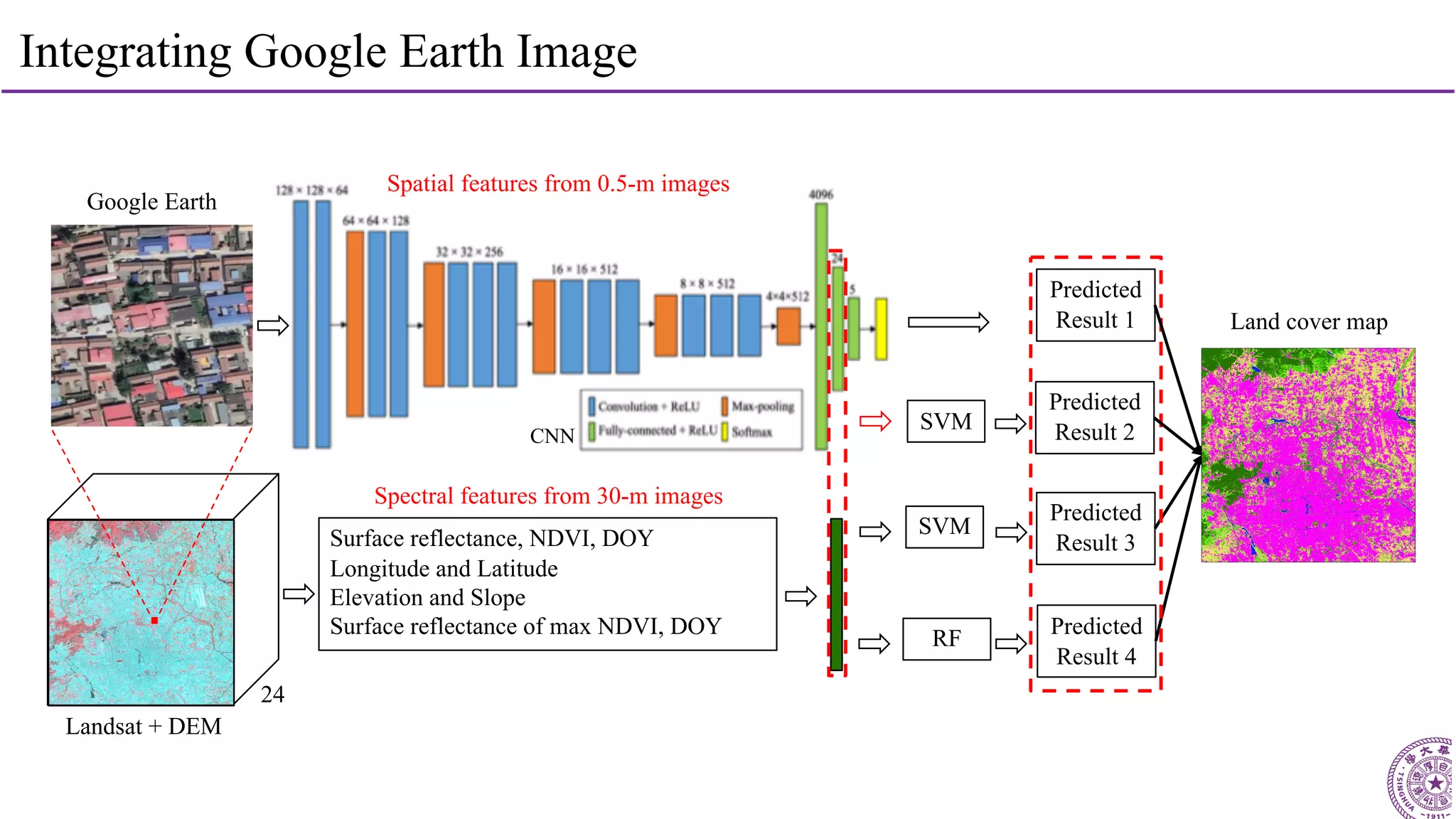

Integrating Google Earth Image
Surface reflectance, NDVI, DOY
Longitude and Latitude
Elevation and Slope
Surface reflectance of max NDVI, DOY
SVM
Predicted
Result 2
Predicted
Result 1
SVM
Predicted
Result 3
Google Earth
RF
Predicted
Result 4
Spatial features from 0.5-m images
Spectral features from 30-m images
Land cover map
Landsat + DEM
24
CNN

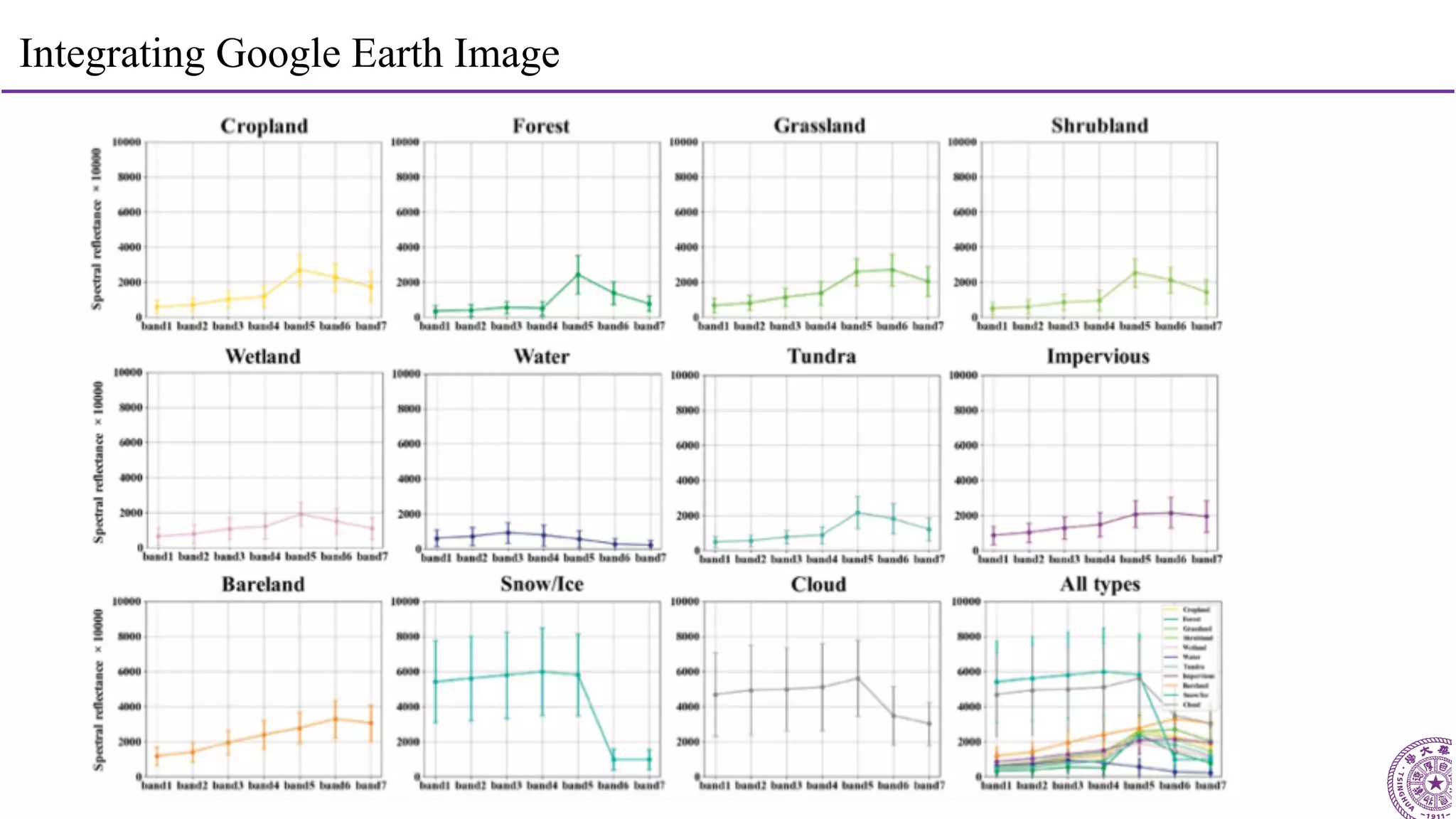

20. 20
Integrating Google Earth Image

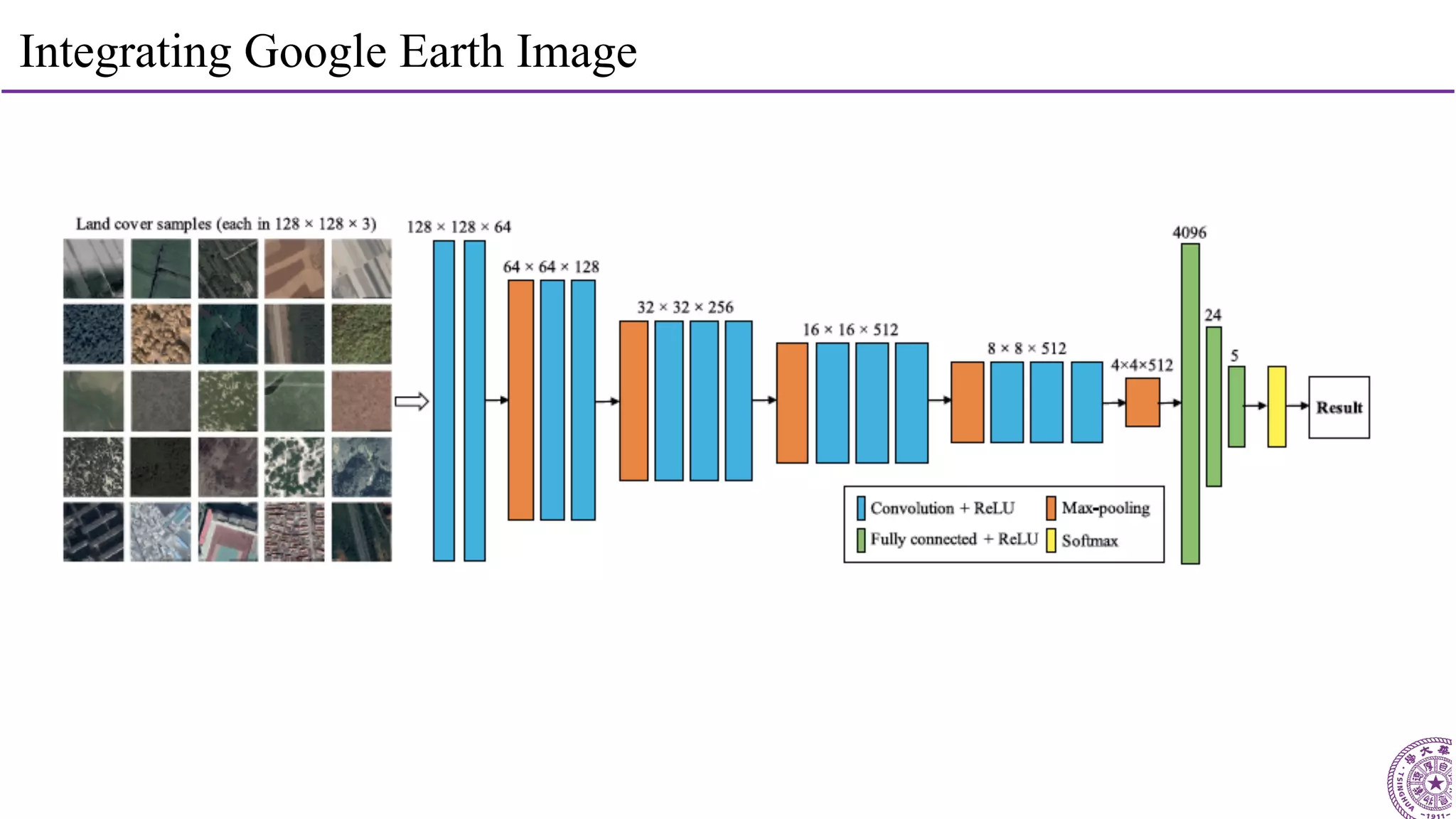

21. 21
Integrating Google Earth Image

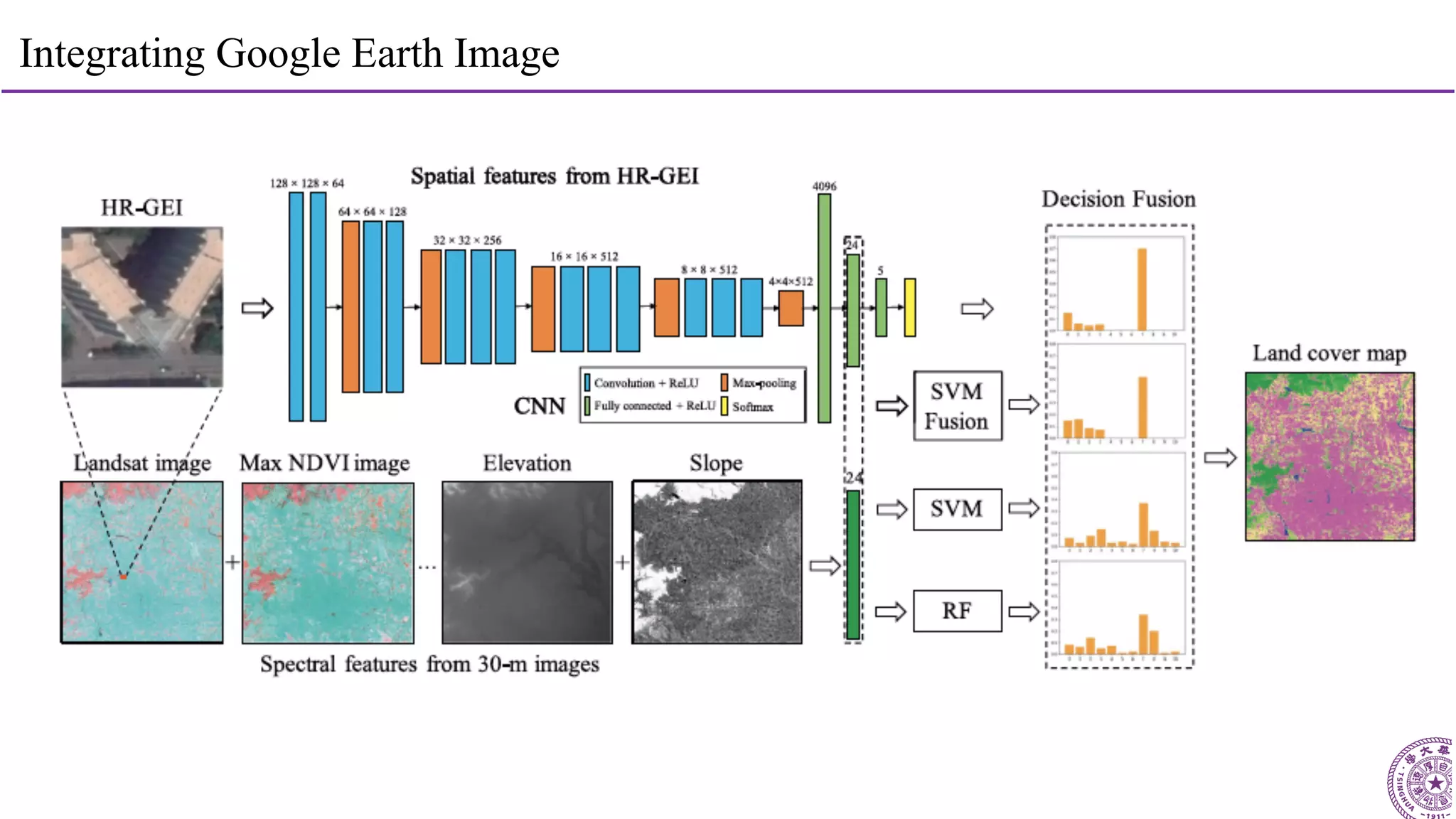

22. 22
Integrating Google Earth Image

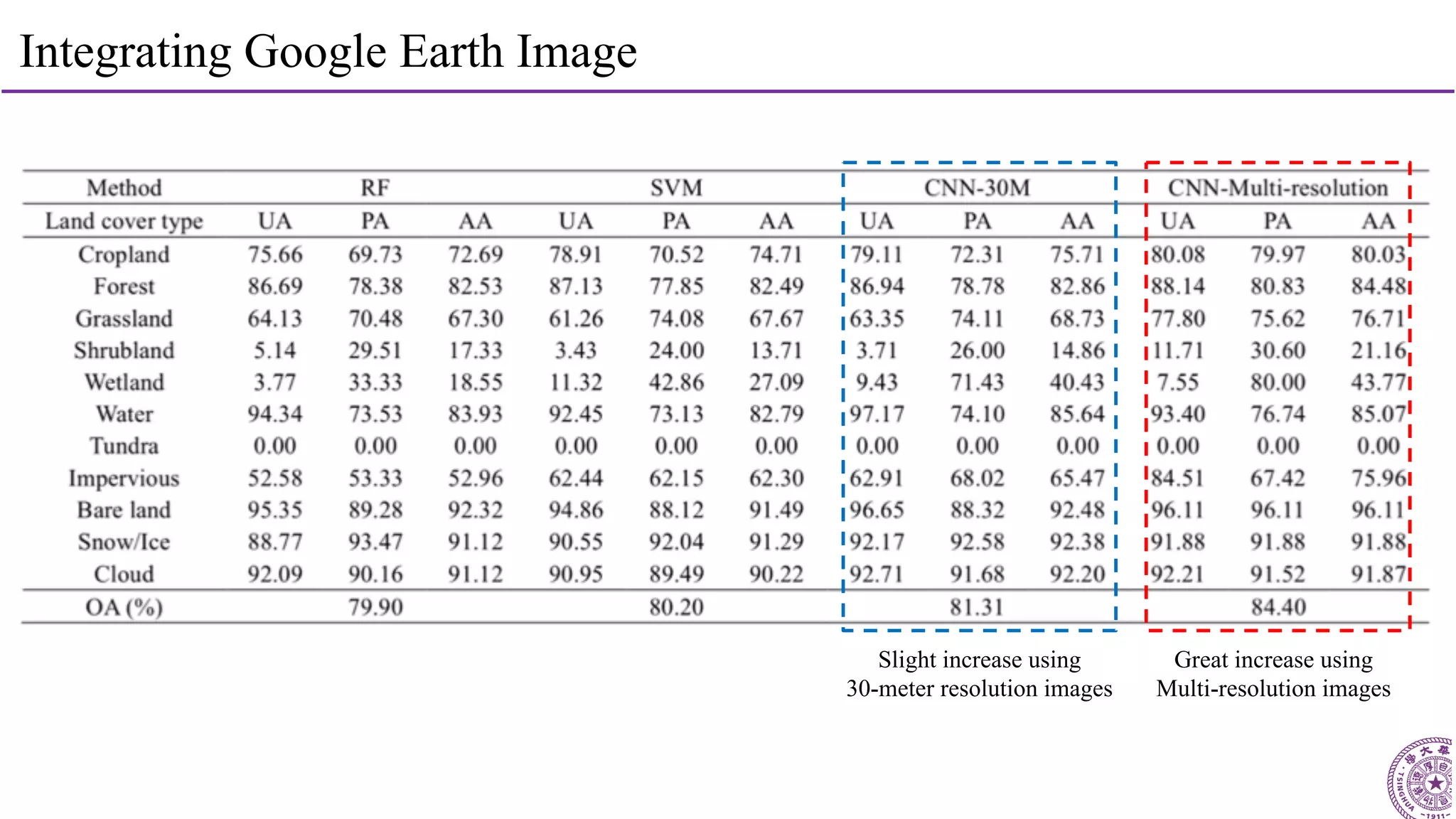

23. 23
Integrating Google Earth Image
Great increase using
Multi-resolution images
Slight increase using
30-meter resolution images

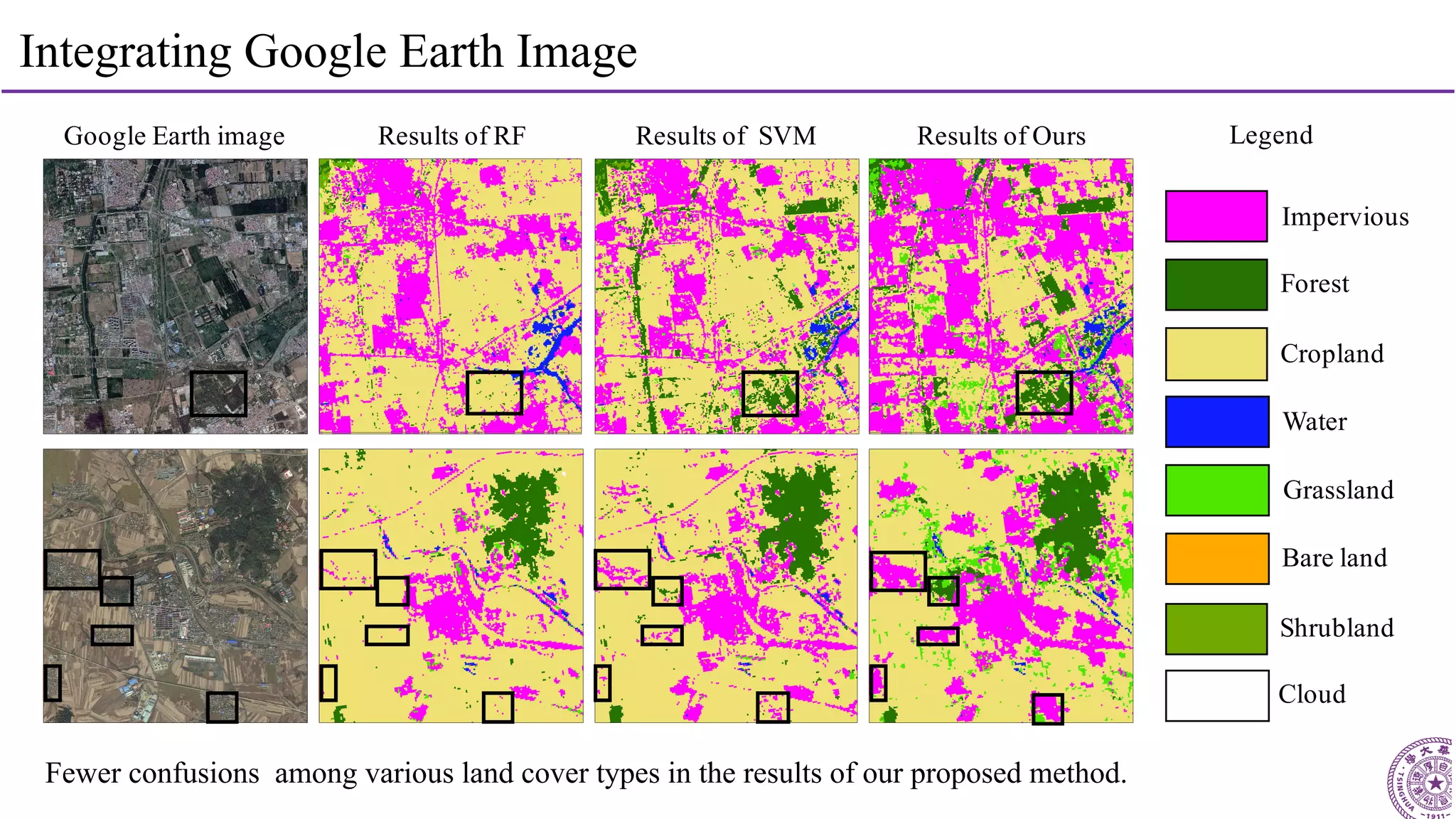

24. 24
Integrating Google Earth Image
Fewer confusions among various land cover types in the results of our proposed method.
Google Earth image Results of RF Results of SVM Results of Ours
Cropland
Forest
Grassland
Shrubland
Water
Impervious
Bare land
Cloud
Legend

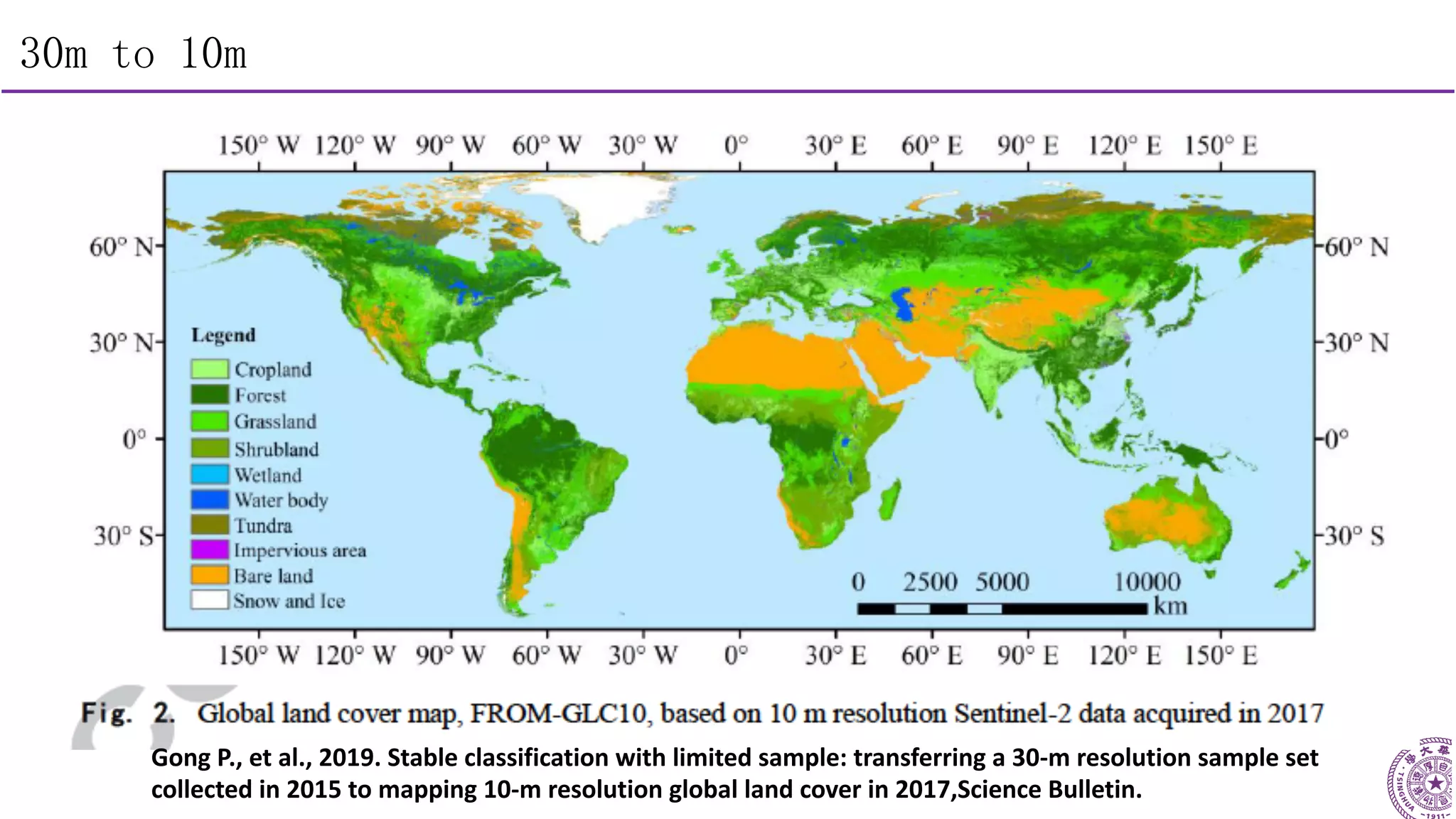

25. 25
30m to 10m
Gong P., et al., 2019. Stable classification with limited sample: transferring a 30-m resolution sample set
collected in 2015 to mapping 10-m resolution global land cover in 2017,Science Bulletin.

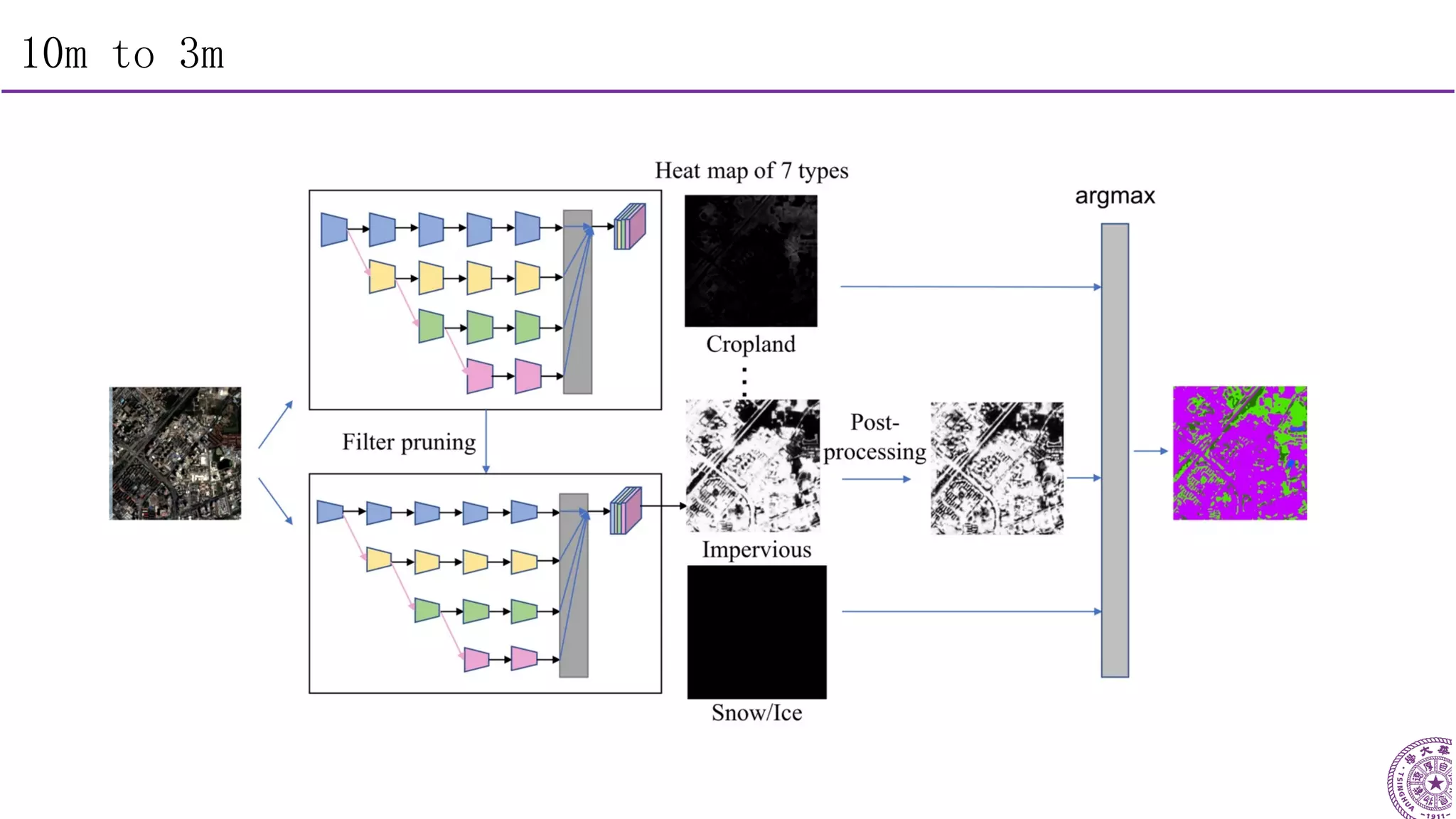

26. 26
10m to 3m

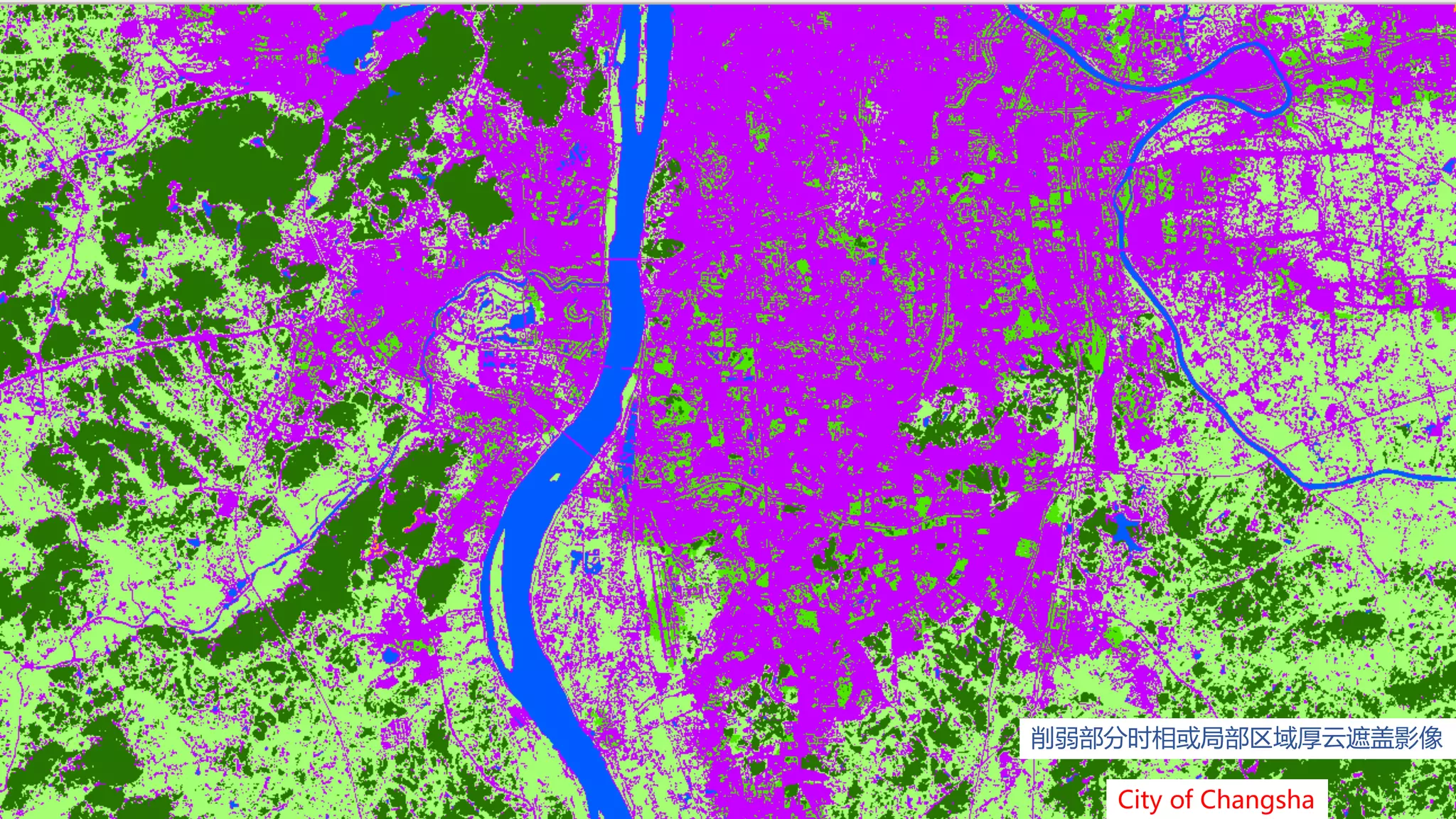

27. City of Changsha
削弱部分时相或局部区域厚云遮盖影像

28. Case 2: Detection of Oil Palm Trees

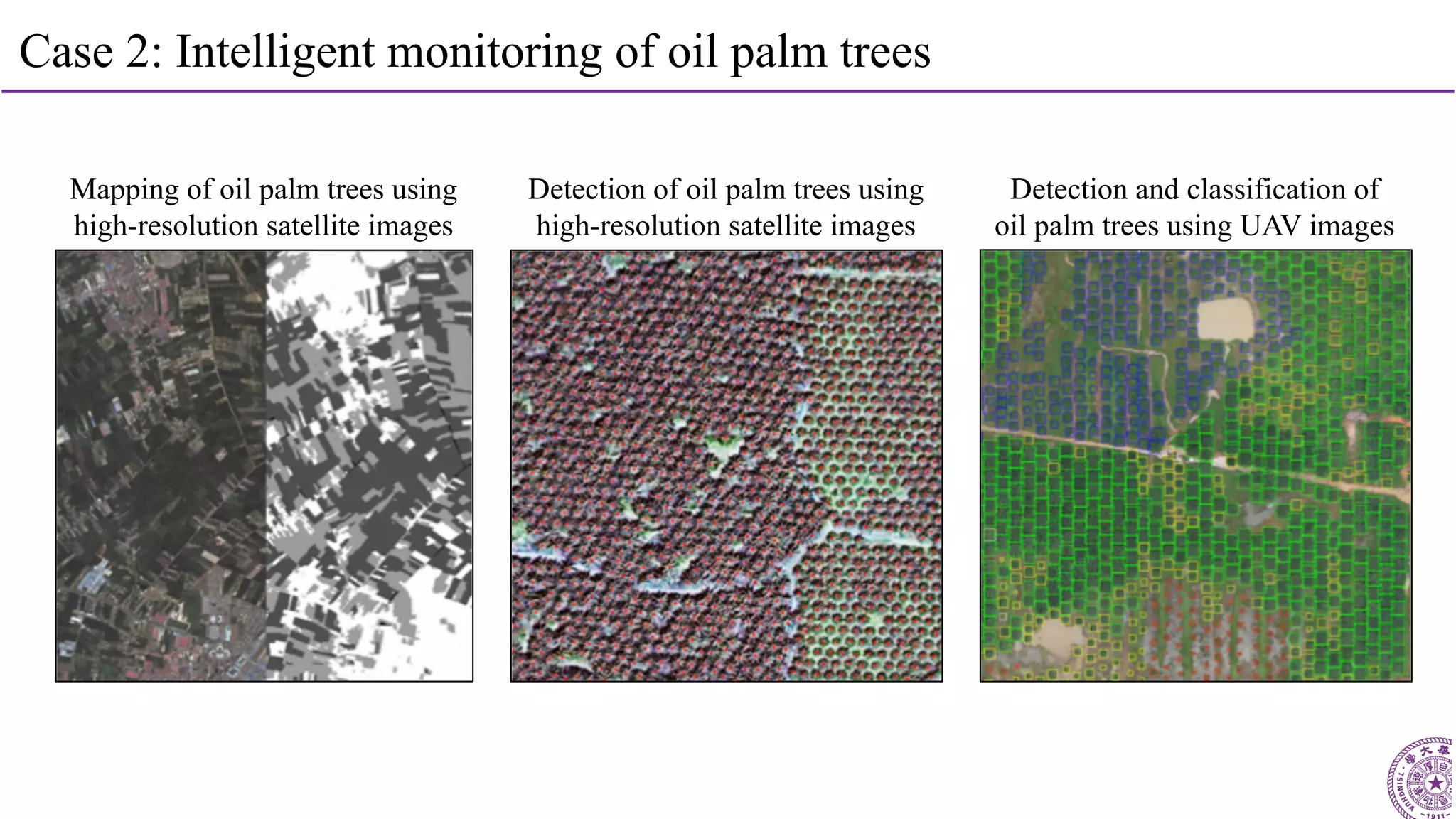

29. 29
Case 2: Intelligent monitoring of oil palm trees
Detection and classification of
oil palm trees using UAV images
Detection of oil palm trees using
high-resolution satellite images
Mapping of oil palm trees using
high-resolution satellite images

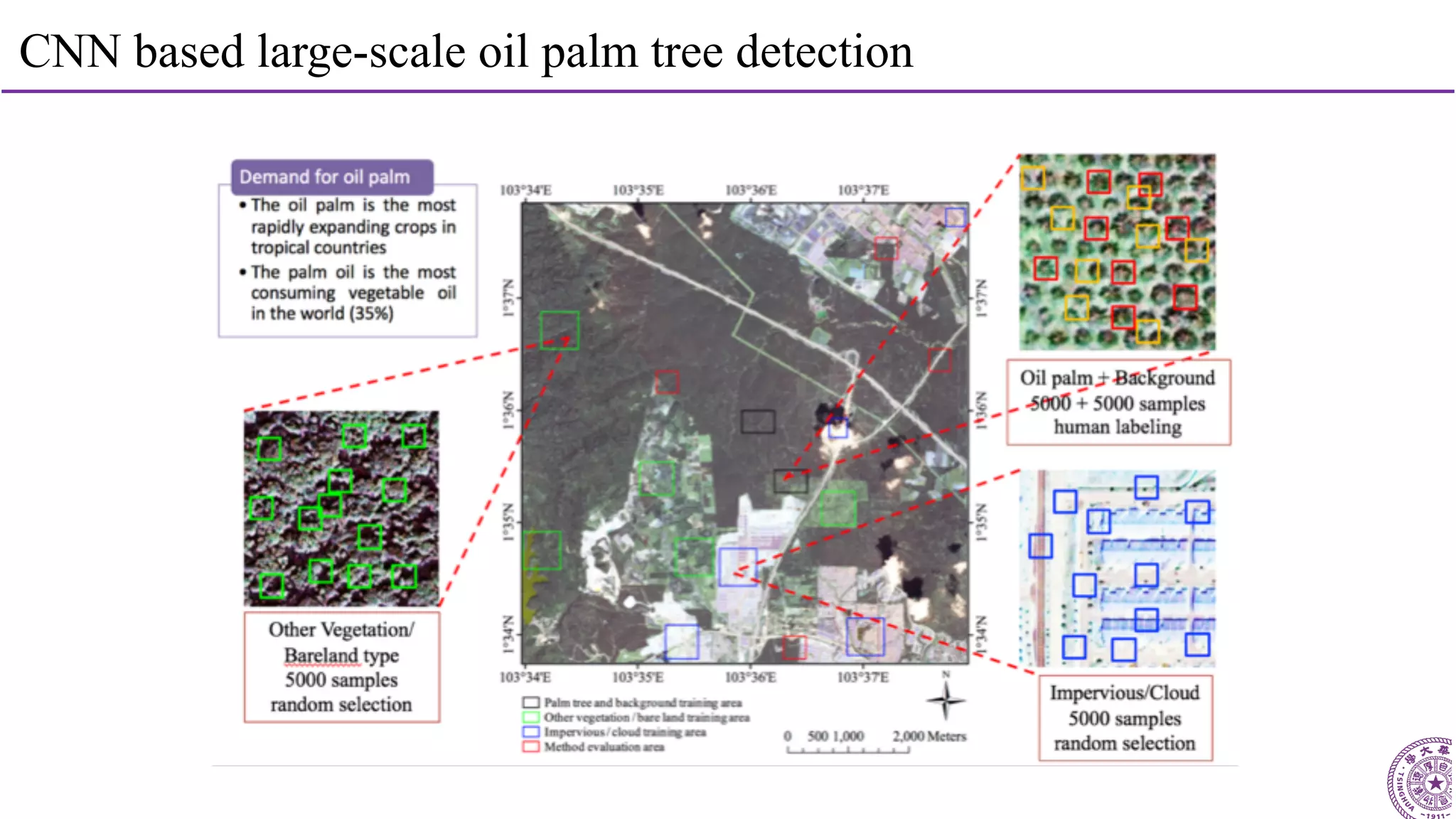

30. 30
CNN based large-scale oil palm tree detection

31. 31

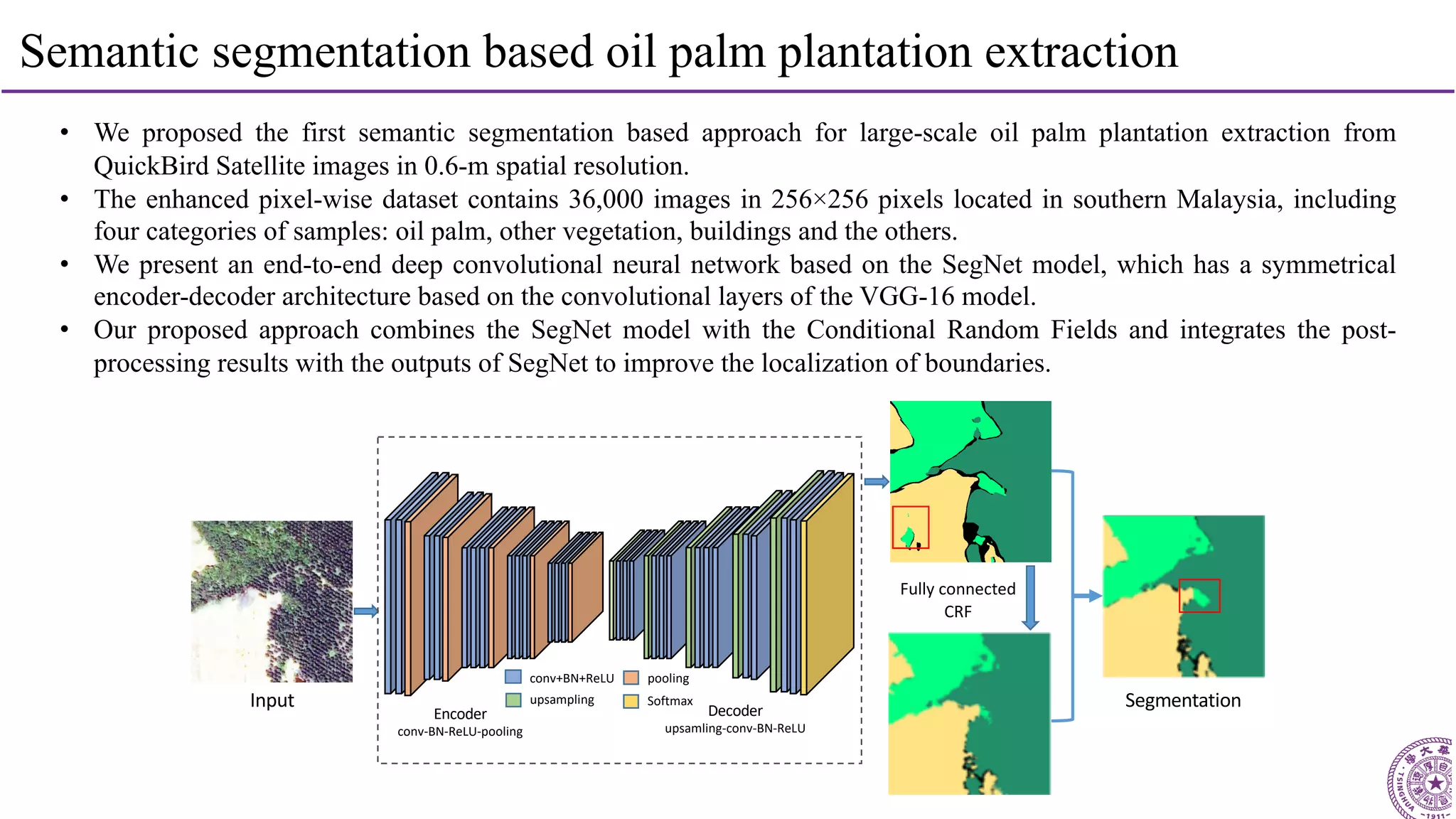

Semantic segmentation based oil palm plantation extraction
• We proposed the first semantic segmentation based approach for large-scale oil palm plantation extraction from
QuickBird Satellite images in 0.6-m spatial resolution.
• The enhanced pixel-wise dataset contains 36,000 images in 256×256 pixels located in southern Malaysia, including
four categories of samples: oil palm, other vegetation, buildings and the others.
• We present an end-to-end deep convolutional neural network based on the SegNet model, which has a symmetrical
encoder-decoder architecture based on the convolutional layers of the VGG-16 model.
• Our proposed approach combines the SegNet model with the Conditional Random Fields and integrates the post-
processing results with the outputs of SegNet to improve the localization of boundaries.
Input
Encoder
conv-BN-ReLU-pooling
Decoder
upsamling-conv-BN-ReLU
conv+BN+ReLU pooling
upsampling Softmax
Fully connected
CRF
Segmentation

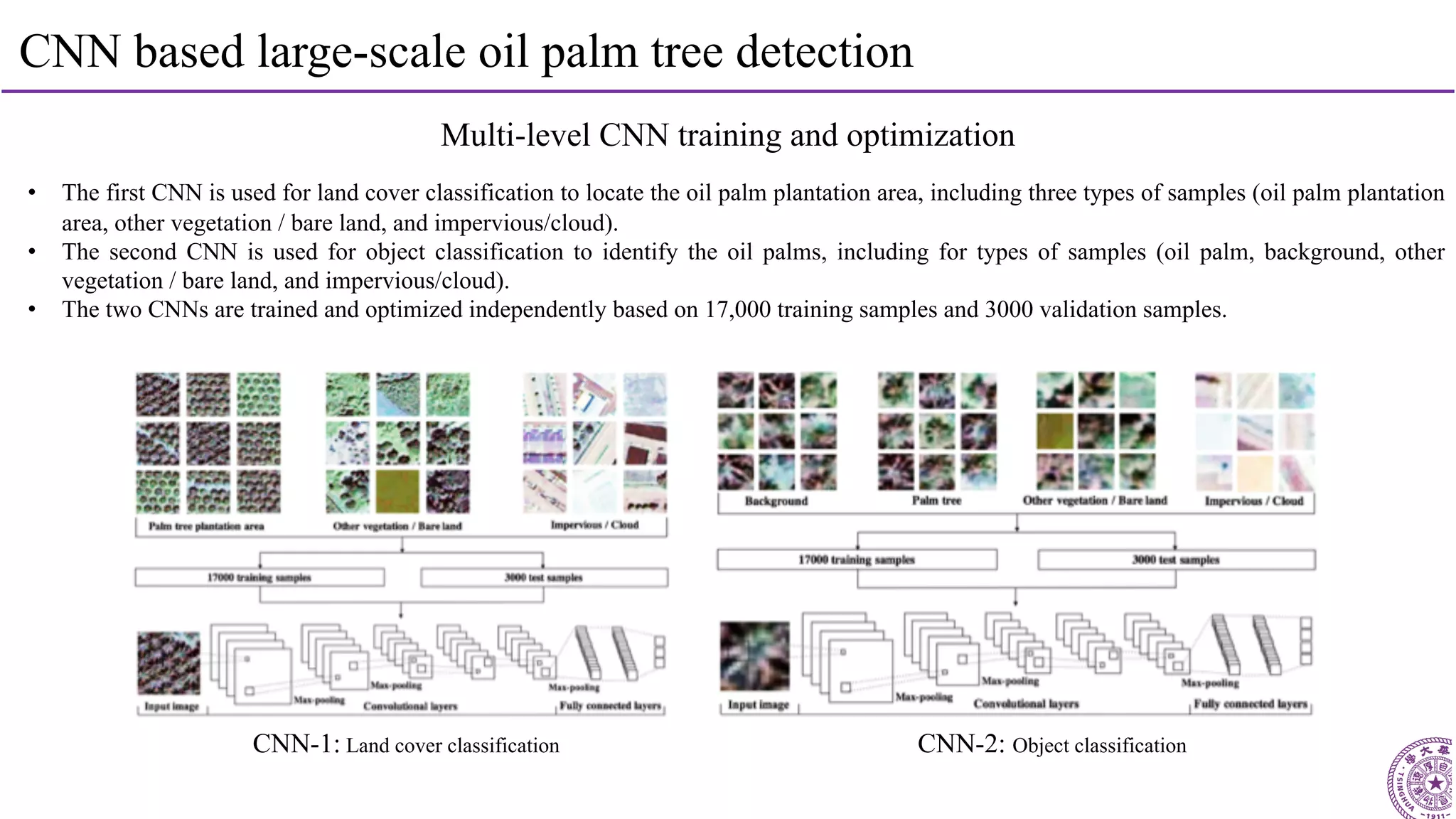

32. 32
CNN based large-scale oil palm tree detection
Multi-level CNN training and optimization
• The first CNN is used for land cover classification to locate the oil palm plantation area, including three types of samples (oil palm plantation
area, other vegetation / bare land, and impervious/cloud).
• The second CNN is used for object classification to identify the oil palms, including for types of samples (oil palm, background, other
vegetation / bare land, and impervious/cloud).
• The two CNNs are trained and optimized independently based on 17,000 training samples and 3000 validation samples.
CNN-2: Object classificationCNN-1: Land cover classification

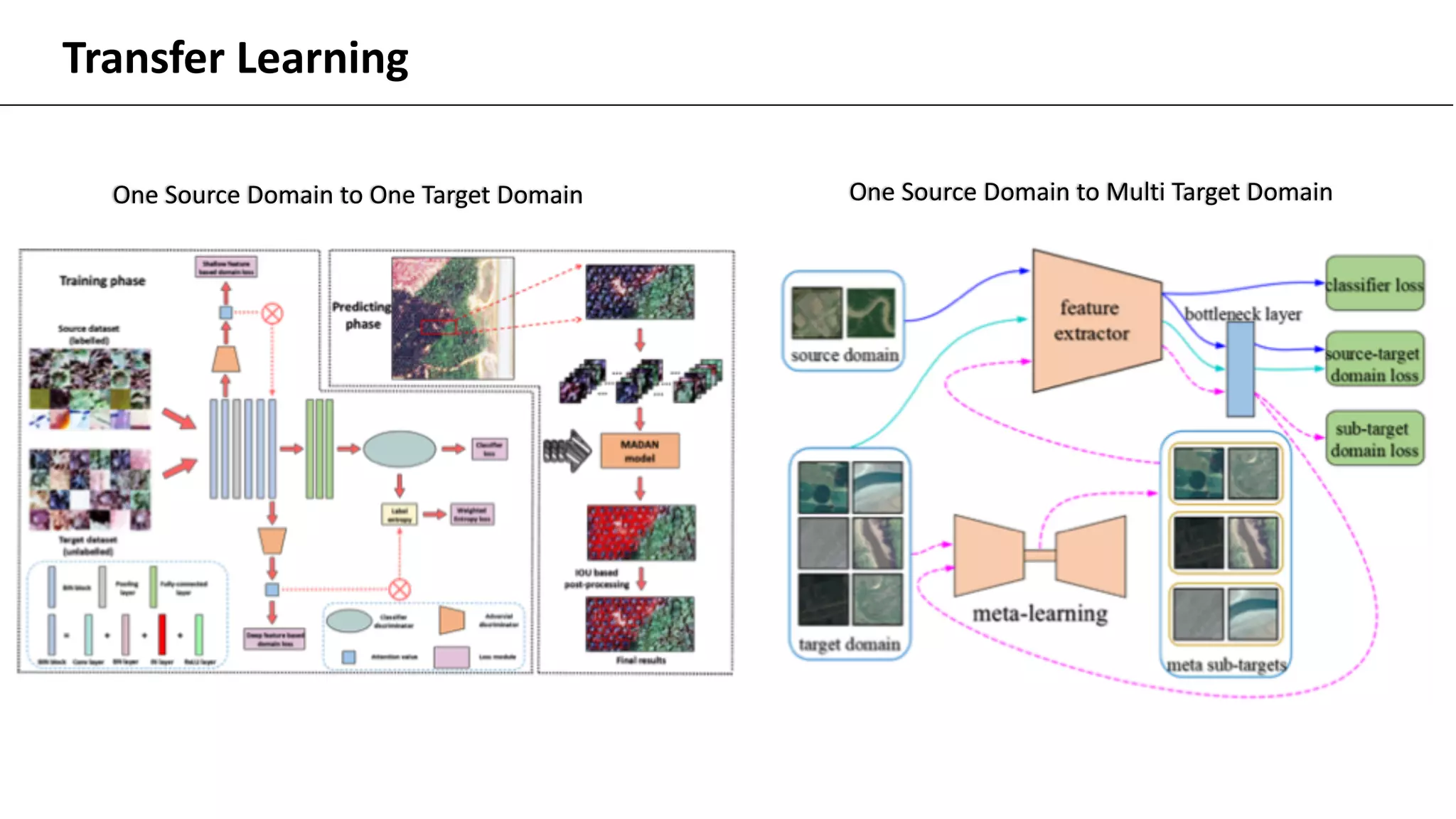

33. Transfer Learning
One Source Domain to One Target Domain One Source Domain to Multi Target Domain

34. Case 3: Urban Land Use Map

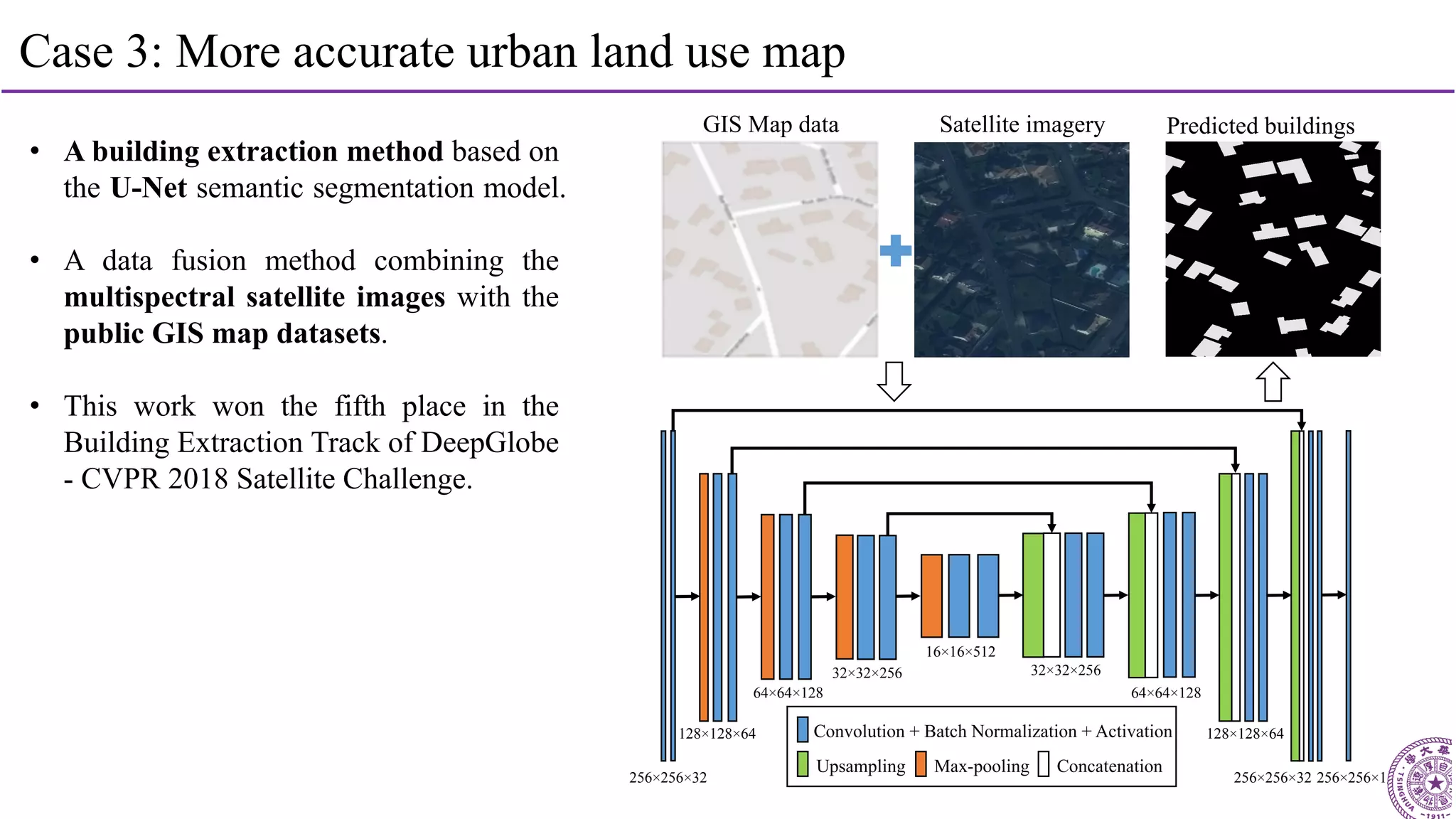

35. 35
Case 3: More accurate urban land use map
• A building extraction method based on
the U-Net semantic segmentation model.
• A data fusion method combining the
multispectral satellite images with the
public GIS map datasets.
• This work won the fifth place in the
Building Extraction Track of DeepGlobe
- CVPR 2018 Satellite Challenge.
256×256×32
128×128×64
64×64×128
32×32×256 32×32×256
16×16×512
64×64×128
128×128×64
256×256×32
Convolution + Batch Normalization + Activation
Max-poolingUpsampling Concatenation
256×256×1
GIS Map data Satellite imagery Predicted buildings

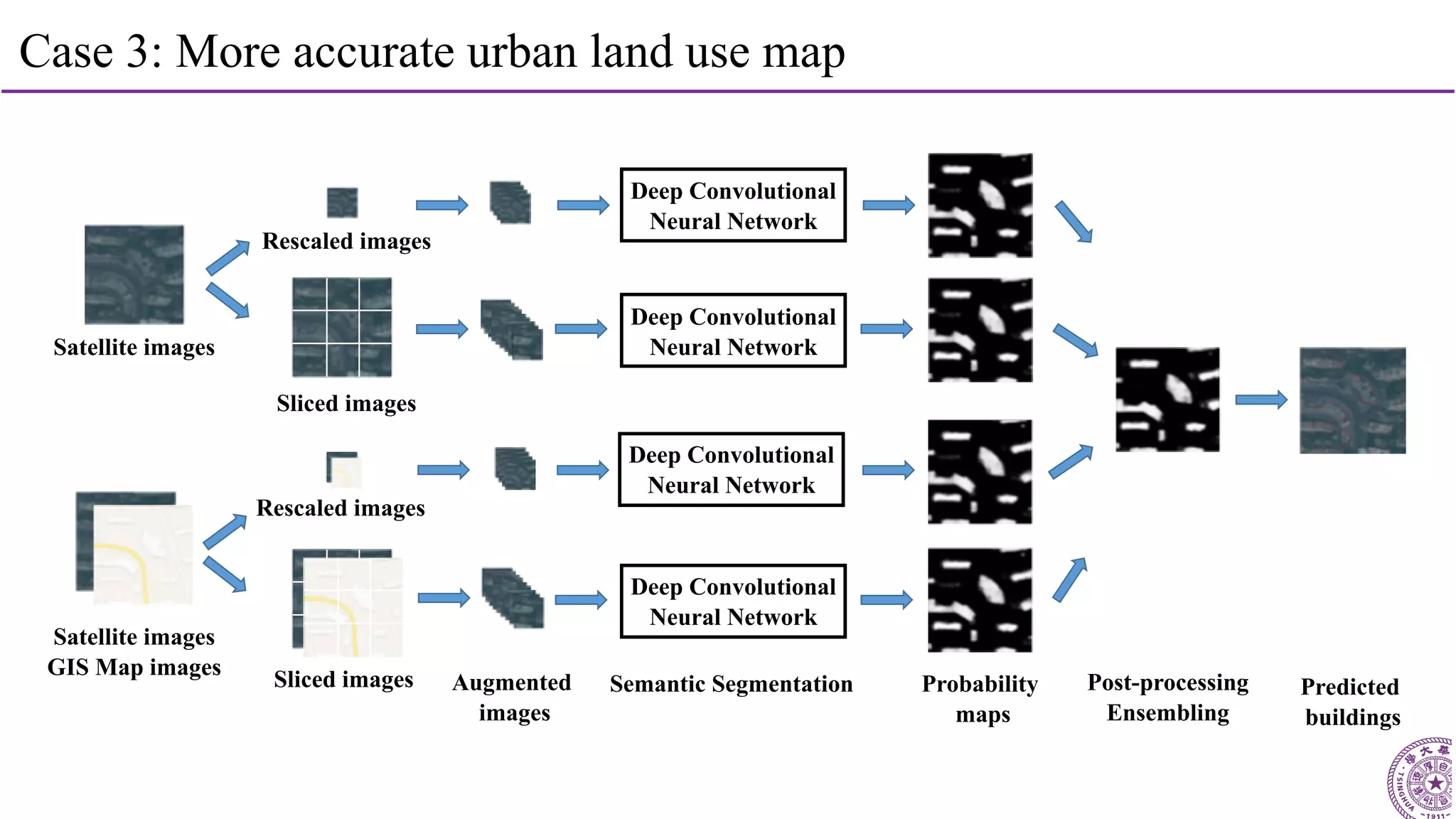

36. 36
Case 3: More accurate urban land use map
Satellite images
Satellite images
GIS Map images
Rescaled images
Sliced images
Rescaled images
Sliced images Augmented
images
Semantic Segmentation Post-processing
Ensembling
Predicted
buildings
Probability
maps
Deep Convolutional
Neural Network
Deep Convolutional
Neural Network
Deep Convolutional
Neural Network
Deep Convolutional
Neural Network

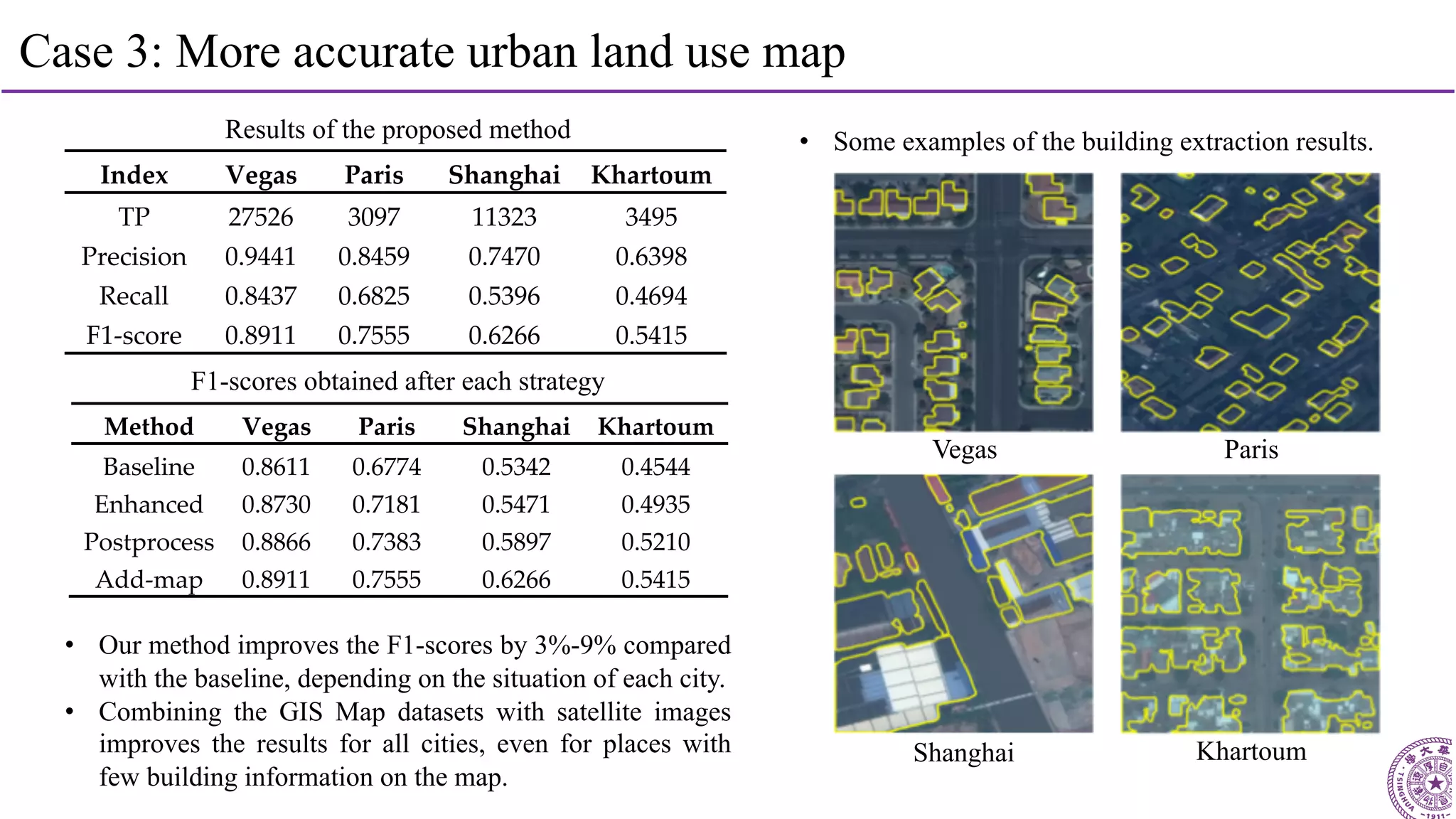

37. 37
Case 3: More accurate urban land use map
Results of the proposed method
Index Vegas Paris Shanghai Khartoum
TP 27526 3097 11323 3495
Precision 0.9441 0.8459 0.7470 0.6398
Recall 0.8437 0.6825 0.5396 0.4694
F1-score 0.8911 0.7555 0.6266 0.5415
Method Vegas Paris Shanghai Khartoum
Baseline 0.8611 0.6774 0.5342 0.4544
Enhanced 0.8730 0.7181 0.5471 0.4935
Postprocess 0.8866 0.7383 0.5897 0.5210
Add-map 0.8911 0.7555 0.6266 0.5415
• Our method improves the F1-scores by 3%-9% compared
with the baseline, depending on the situation of each city.
• Combining the GIS Map datasets with satellite images
improves the results for all cities, even for places with
few building information on the map.
F1-scores obtained after each strategy
KhartoumShanghai
ParisVegas
• Some examples of the building extraction results.

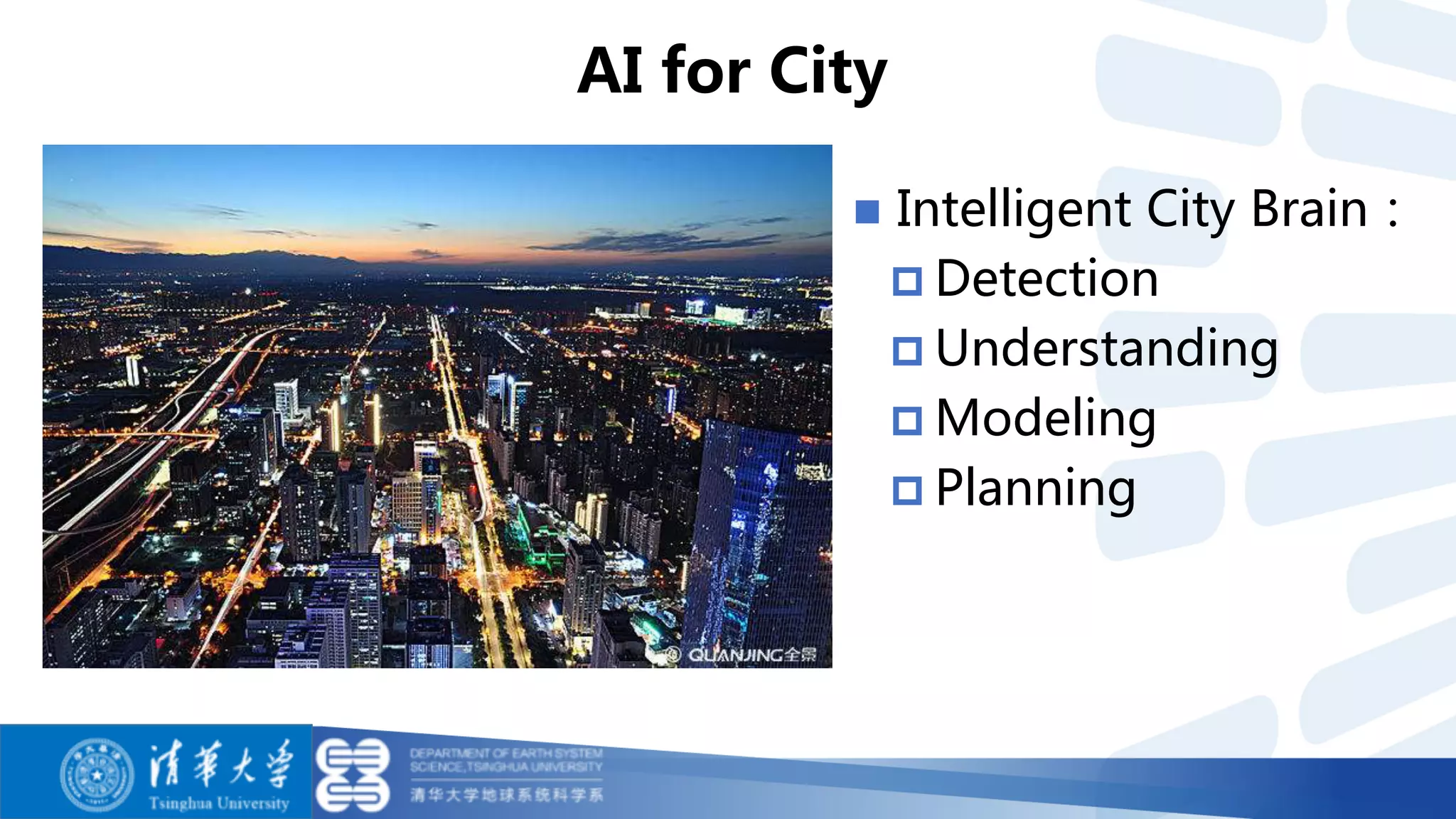

38. n Intelligent City Brain：
p Detection
p Understanding
p Modeling
p Planning
AI for City

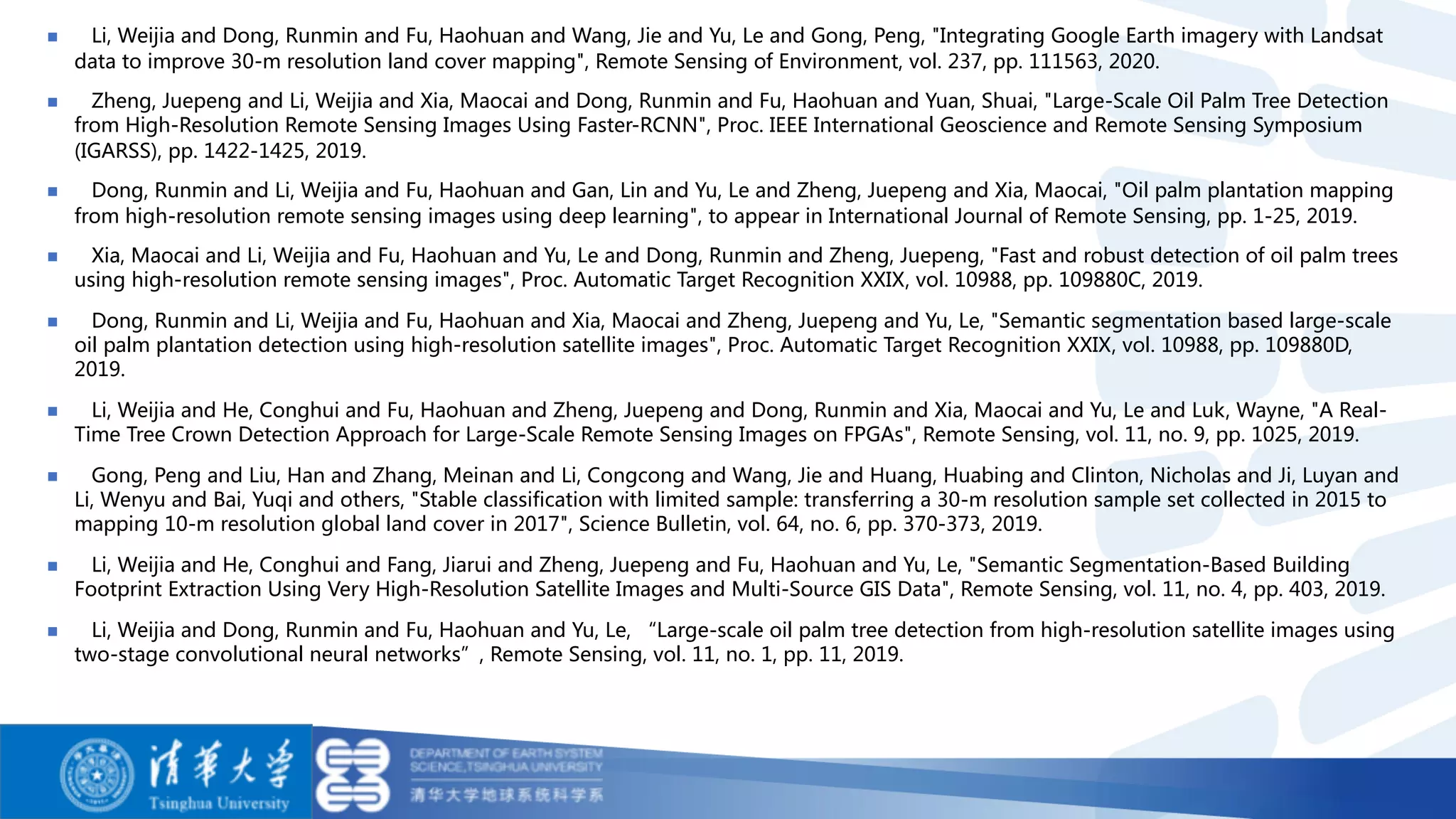

39. n Li, Weijia and Dong, Runmin and Fu, Haohuan and Wang, Jie and Yu, Le and Gong, Peng, "Integrating Google Earth imagery with Landsat
data to improve 30-m resolution land cover mapping", Remote Sensing of Environment, vol. 237, pp. 111563, 2020.
n Zheng, Juepeng and Li, Weijia and Xia, Maocai and Dong, Runmin and Fu, Haohuan and Yuan, Shuai, "Large-Scale Oil Palm Tree Detection
from High-Resolution Remote Sensing Images Using Faster-RCNN", Proc. IEEE International Geoscience and Remote Sensing Symposium
(IGARSS), pp. 1422-1425, 2019.
n Dong, Runmin and Li, Weijia and Fu, Haohuan and Gan, Lin and Yu, Le and Zheng, Juepeng and Xia, Maocai, "Oil palm plantation mapping
from high-resolution remote sensing images using deep learning", to appear in International Journal of Remote Sensing, pp. 1-25, 2019.
n Xia, Maocai and Li, Weijia and Fu, Haohuan and Yu, Le and Dong, Runmin and Zheng, Juepeng, "Fast and robust detection of oil palm trees
using high-resolution remote sensing images", Proc. Automatic Target Recognition XXIX, vol. 10988, pp. 109880C, 2019.
n Dong, Runmin and Li, Weijia and Fu, Haohuan and Xia, Maocai and Zheng, Juepeng and Yu, Le, "Semantic segmentation based large-scale
oil palm plantation detection using high-resolution satellite images", Proc. Automatic Target Recognition XXIX, vol. 10988, pp. 109880D,
2019.
n Li, Weijia and He, Conghui and Fu, Haohuan and Zheng, Juepeng and Dong, Runmin and Xia, Maocai and Yu, Le and Luk, Wayne, "A Real-
Time Tree Crown Detection Approach for Large-Scale Remote Sensing Images on FPGAs", Remote Sensing, vol. 11, no. 9, pp. 1025, 2019.
n Gong, Peng and Liu, Han and Zhang, Meinan and Li, Congcong and Wang, Jie and Huang, Huabing and Clinton, Nicholas and Ji, Luyan and
Li, Wenyu and Bai, Yuqi and others, "Stable classification with limited sample: transferring a 30-m resolution sample set collected in 2015 to
mapping 10-m resolution global land cover in 2017", Science Bulletin, vol. 64, no. 6, pp. 370-373, 2019.
n Li, Weijia and He, Conghui and Fang, Jiarui and Zheng, Juepeng and Fu, Haohuan and Yu, Le, "Semantic Segmentation-Based Building
Footprint Extraction Using Very High-Resolution Satellite Images and Multi-Source GIS Data", Remote Sensing, vol. 11, no. 4, pp. 403, 2019.
n Li, Weijia and Dong, Runmin and Fu, Haohuan and Yu, Le, “Large-scale oil palm tree detection from high-resolution satellite images using
two-stage convolutional neural networks”, Remote Sensing, vol. 11, no. 1, pp. 11, 2019.
