- 1. Particle Swarm Optimization Stelios Petrakis
- 2. Contents • Swarm Intelligence & Applications • Particle Swarm Optimization ▫ How it works? ▫ Algorithm / Pseudocode • Examples ▫ Applets / Demos ▫ Matlab Toolbox • References

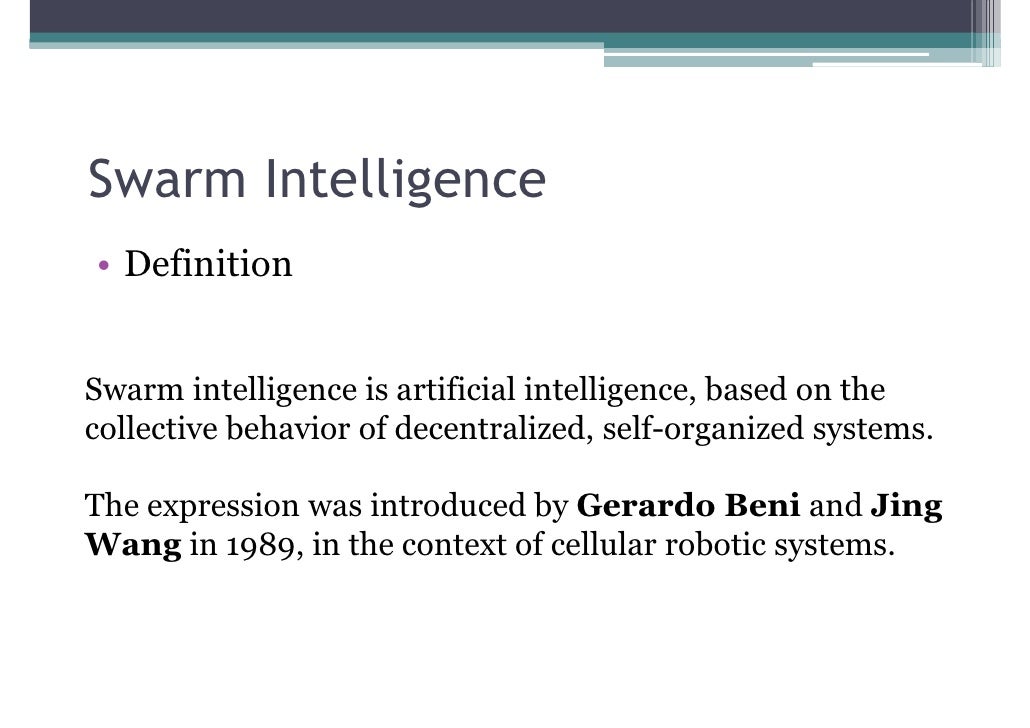

- 3. Swarm Intelligence • Definition Swarm intelligence is artificial intelligence, based on the collective behavior of decentralized, self-organized systems. The expression was introduced by Gerardo Beni and Jing Wang in 1989, in the context of cellular robotic systems.
- 4. Swarm Intelligence • Information Swarm intelligence systems are typically made up of a population of simple agents interacting locally with one another and with their environment. The agents follow very simple rules, and although there is no centralized control structure dictating how individual agents should behave, local interactions between such agents lead to the emergence of complex global behavior. Natural examples of SI include ant colonies, bird flocking, animal herding, bacterial growth, and fish schooling.
- 5. Swarm Intelligence Applications • U.S. military is investigating swarm techniques for controlling unmanned vehicles. • NASA is investigating the use of swarm technology for planetary mapping. • Tim Burton's Batman Returns was the first movie to make use of swarm technology for rendering, realistically depicting the movements of a group of penguins using the Boids system. • The Lord of the Rings film trilogy made use of similar technology, known as Massive, during battle scenes.
- 6. Particle swarm optimization The particle swarm optimization algorithm was first described in 1995 by James Kennedy and Russell C. Eberhart inspired by social behavior of bird flocking or fish schooling. Particle swarm optimization or PSO is a global optimization, population-based evolutionary algorithm for dealing with problems in which a best solution can be represented as a point or surface in an n-dimensional space. Hypotheses are plotted in this space and seeded with an initial velocity, as well as a communication channel between the particles.
- 7. How it works? [1/2] PSO is initialized with a group of random particles (solutions) and then searches for optima by updating generations. Particles move through the solution space, and are evaluated according to some fitness criterion after each timestep. In every iteration, each particle is updated by following two quot;bestquot; values.
- 8. How it works? [2/2] The first one is the best solution (fitness) it has achieved so far (the fitness value is also stored). This value is called pbest. Another quot;bestquot; value that is tracked by the particle swarm optimizer is the best value obtained so far by any particle in the population. This second best value is a global best and called gbest. When a particle takes part of the population as its topological neighbors, the second best value is a local best and is called lbest. Neighborhood bests allow parallel exploration of the search space and reduce the susceptibility of PSO to falling into local minima, but slow down convergence speed.
- 9. PSO Algorithm (General) • Searches Hyperspace of Problem for Optimum ▫ Define problem to search How many dimensions? Solution criteria? ▫ Initialize Population Random initial positions Random initial velocities ▫ Determine Best Position Global Best Position Personal Best Position ▫ Update Velocity and Position Equations
- 10. Particle Properties With Particle Swarm Optimization, a swarm of particles (individuals) in a n- dimensional search space G is simulated, where each particle p has a position p.g ∈ G ⊆ Rn and a velocity p.v ∈ Rn. The position p.g corresponds to the genotypes, and, in most cases, also to the solution candidates, i. e., p.x = p.g, since most often the problem space X is also the Rn and X = G. However, this is not necessarily the case and generally, we can introduce any form of genotype-phenotype mapping in Particle Swarm Optimization. The velocity vector p.v of an individual p determines in which direction the search will continue and if it has an explorative (high velocity) or an exploitive (low velocity) character.

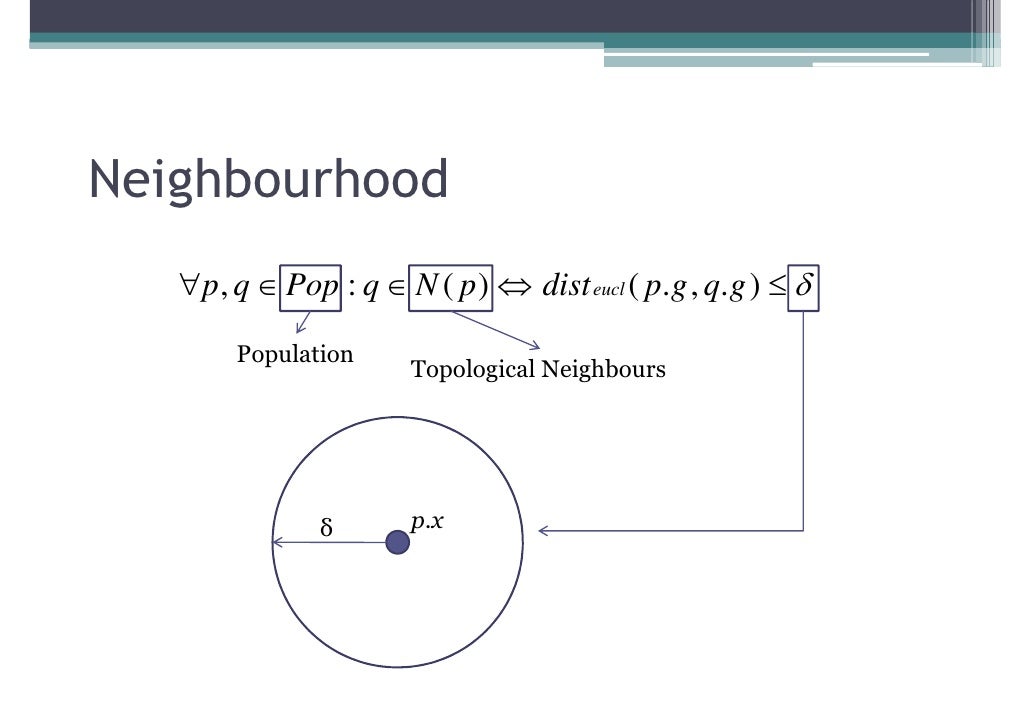

- 11. Neighbourhood ∀p , q ∈ Pop : q ∈ N ( p ) ⇔ dist eucl ( p.g , q.g ) ≤ δ Population Topological Neighbours δ p.x
- 12. Basic PSO algorithm • New Velocity vi(k+1) = vi(k) + γ1i(pi – xi(k)) + γ2i(G – xi(k)) • New Position xi(k + 1) = xi(k) + vi(k + 1) i – particle index k – discrete time index vi – velocity of ith particle xi – position of ith particle pi – best position found by ith particle (personal best) G – best position found by swarm (global best, best of personal bests) g(1,2)i – random numbers on the interval [0,1] applied to ith particle
- 13. The Common PSO Algorithm vi(k+1) = φ(k)vi(k) + α1[γ1i(pi-xi(k))]+α2[γ2i(G – xi(k))] φ - Inertia function α1,2– Acceleration constants As training progresses using a decreasing linear inertia function, the influence of past velocity becomes smaller.

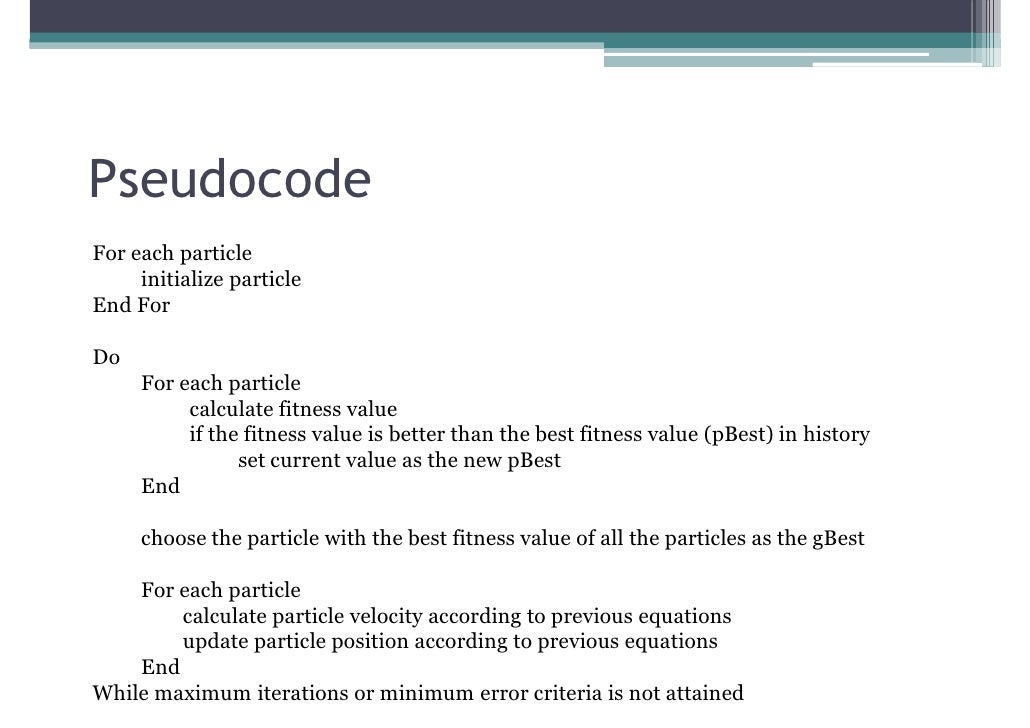

- 14. Pseudocode For each particle initialize particle End For Do For each particle calculate fitness value if the fitness value is better than the best fitness value (pBest) in history set current value as the new pBest End choose the particle with the best fitness value of all the particles as the gBest For each particle calculate particle velocity according to previous equations update particle position according to previous equations End While maximum iterations or minimum error criteria is not attained

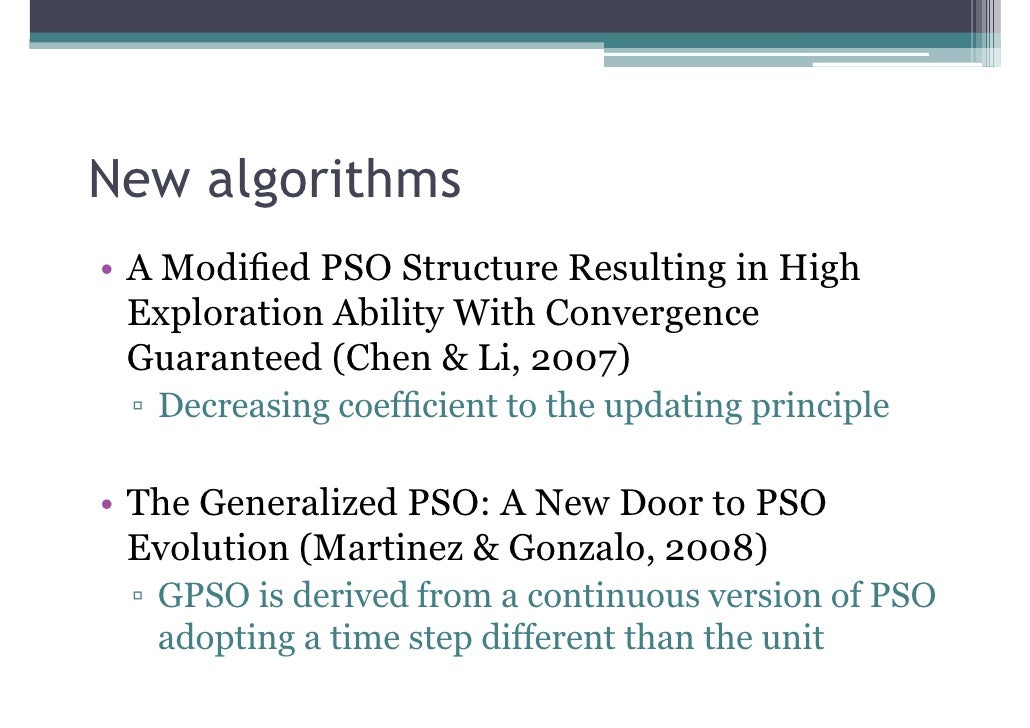

- 15. New algorithms • A Modiﬁed PSO Structure Resulting in High Exploration Ability With Convergence Guaranteed (Chen & Li, 2007) ▫ Decreasing coefﬁcient to the updating principle • The Generalized PSO: A New Door to PSO Evolution (Martinez & Gonzalo, 2008) ▫ GPSO is derived from a continuous version of PSO adopting a time step different than the unit
- 16. Applets / Examples • http://www.mathworks.com/matlabcentral/fileexchange/loadFile.do?objectId=7506 • http://www.borgelt.net//psopt.html • http://pages.cpsc.ucalgary.ca/%7Ekhemka/pso/download.html • http://www.projectcomputing.com/resources/psovis/index.html • http://www.particleswarm.info/Programs.html • http://clerc.maurice.free.fr/pso/ • http://www.red3d.com/cwr/boids/ • http://uk.geocities.com/markcsinclair/pso.html

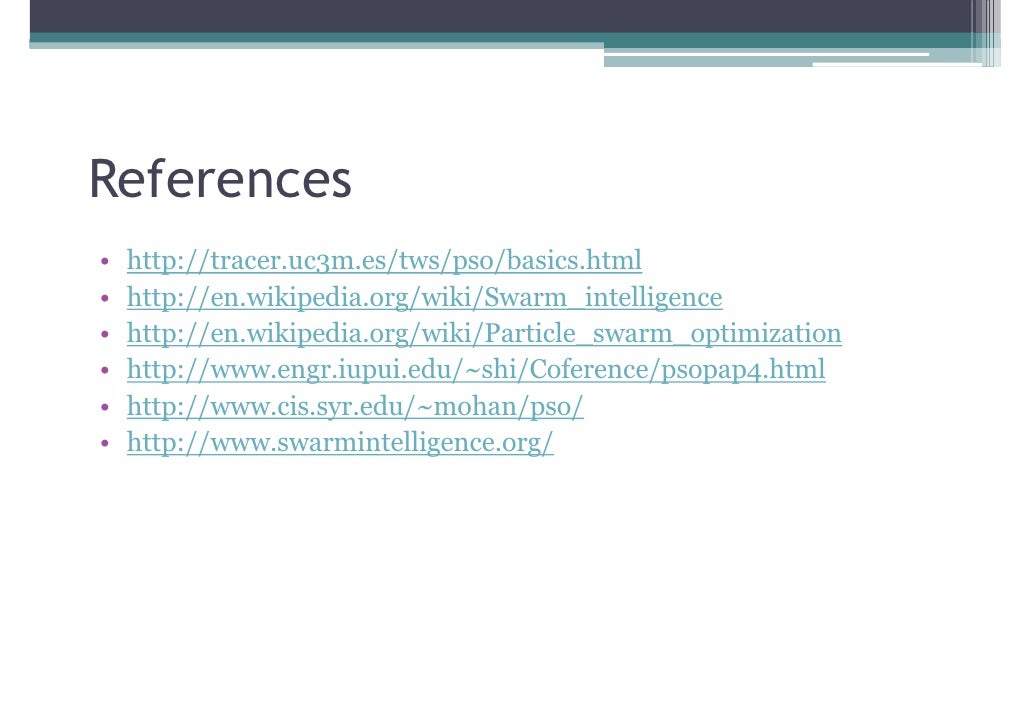

- 17. References • http://tracer.uc3m.es/tws/pso/basics.html • http://en.wikipedia.org/wiki/Swarm_intelligence • http://en.wikipedia.org/wiki/Particle_swarm_optimization • http://www.engr.iupui.edu/~shi/Coference/psopap4.html • http://www.cis.syr.edu/~mohan/pso/ • http://www.swarmintelligence.org/
- 18. Papers / Books • The Generalized PSO: A New Door to PSO Evolution (Martinez & Gonzalo, 2008) • A Modiﬁed PSO Structure Resulting in High Exploration Ability With Convergence Guaranteed (Chen & Li, 2007) • Emergent Social Structures in Cultural Algorithms (Reynolds, Peng & Whallon, 2005) • Global Optimization Algorithms, Theory and Application ( Thomas Weise, 2008)
- 19. Thanks!
