This document summarizes the Particle Swarm Optimization (PSO) algorithm. PSO is a population-based stochastic optimization technique inspired by bird flocking. It works by having a population of candidate solutions, called particles, that fly through the problem space, with the movements of each particle influenced by its local best known position as well as the global best known position. The document provides an overview of PSO and its applications, describes the basic PSO algorithm and several variants, and discusses parallel and structural optimization implementations of PSO.

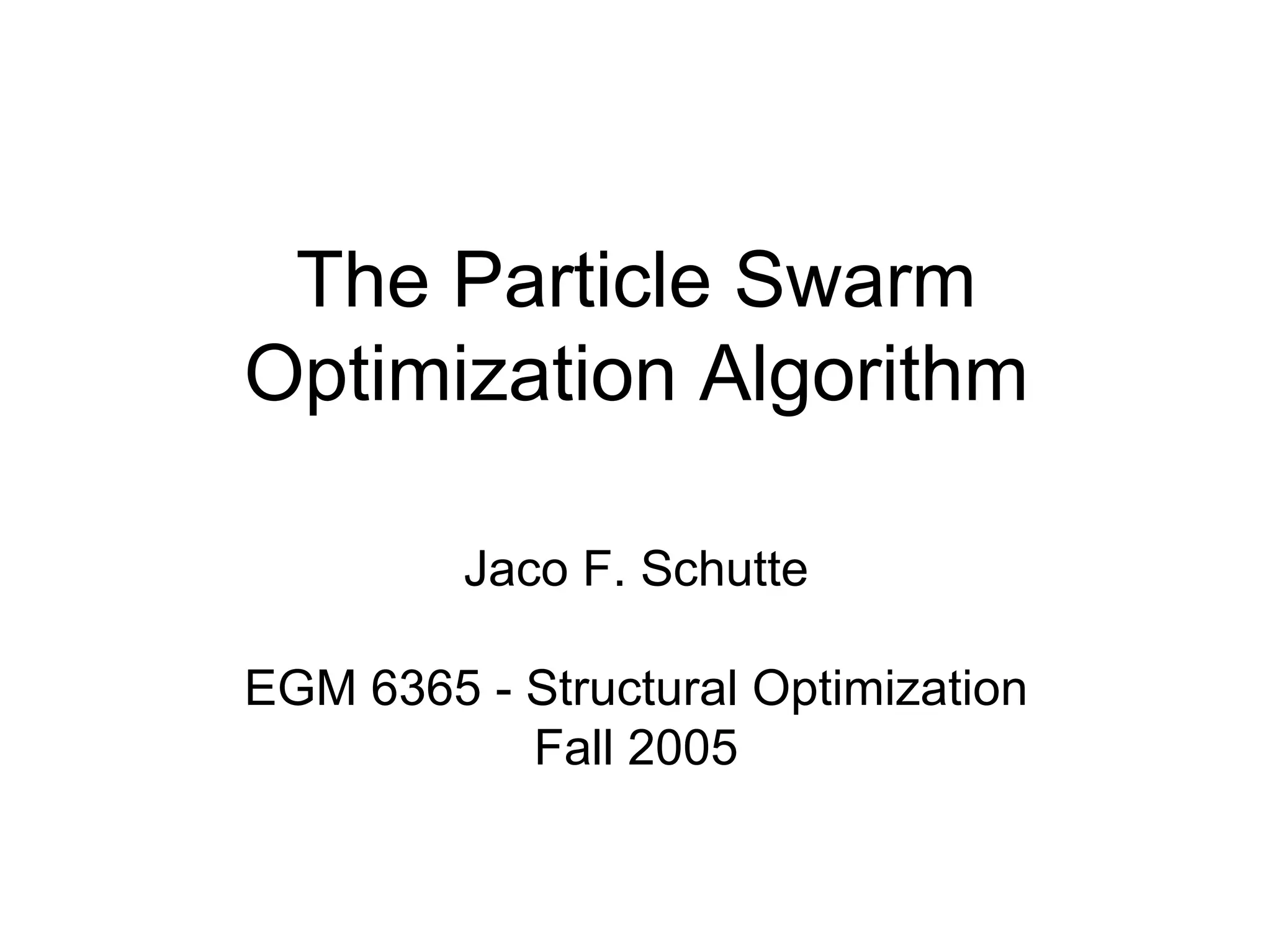

1. The Particle Swarm
Optimization Algorithm
Jaco F. Schutte
EGM 6365 - Structural Optimization
Fall 2005

2. Overview
• Introduction and background
• Applications
• Particle swarm optimization algorithm
• Algorithm variants
• Synchronous and asynchronous PSO
• Parallel PSO
• Structural optimization test set
• Concluding remarks
• References

3. Particle Swarm Optimizer
• Introduced by Kennedy & Eberhart 1995
• Inspired by social behavior and movement
dynamics of insects, birds and fish
• Global gradient-less stochastic search method
• Suited to continuous variable problems
• Performance comparable to Genetic algorithms
• Has successfully been applied to a wide variety
of problems (Neural Networks, Structural opt.,
Shape topology opt.)

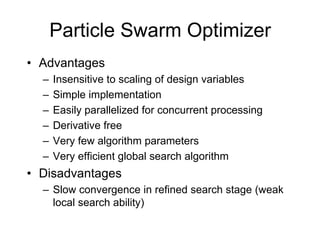

4. • Advantages
– Insensitive to scaling of design variables
– Simple implementation
– Easily parallelized for concurrent processing
– Derivative free
– Very few algorithm parameters
– Very efficient global search algorithm
• Disadvantages
– Slow convergence in refined search stage (weak
local search ability)
Particle Swarm Optimizer

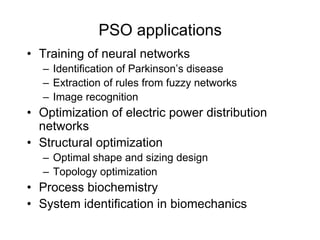

5. PSO applications
• Training of neural networks
– Identification of Parkinson’s disease
– Extraction of rules from fuzzy networks
– Image recognition
• Optimization of electric power distribution
networks
• Structural optimization
– Optimal shape and sizing design
– Topology optimization
• Process biochemistry
• System identification in biomechanics

6. Particle swarm optimization algorithm
Position of individual particles updated as follows:
with the velocity calculated as follows:
Basic algorithm as proposed by Kennedy and Eberhart (1995)
- Particle position
- Particle velocity
- Best "remembered" individual particle position
- Best "remembered" swarm position
- Cognitive and social parameters
- Random numbers between 0 and 1

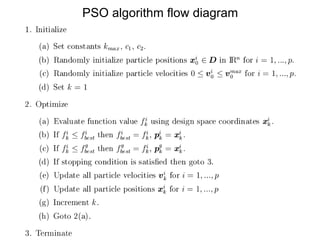

7. PSO algorithm flow diagram

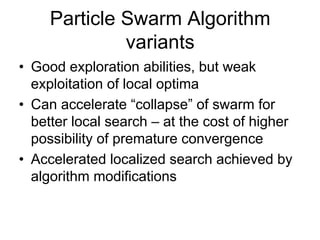

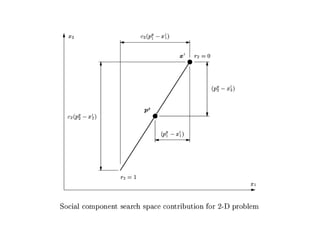

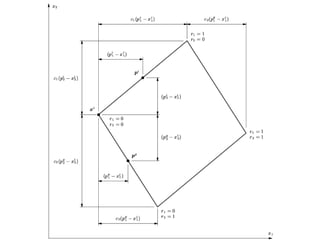

11. Particle Swarm Algorithm
variants
• Good exploration abilities, but weak
exploitation of local optima
• Can accelerate “collapse” of swarm for
better local search – at the cost of higher
possibility of premature convergence
• Accelerated localized search achieved by
algorithm modifications

12. Particle Swarm Algorithm variants
• Constant inertia weight
• Linear reduction of inertia weight
• Constriction factor
• Dynamic inertia and maximum velocity
reduction
• Tracking of time dependent minima
• Discrete optimization

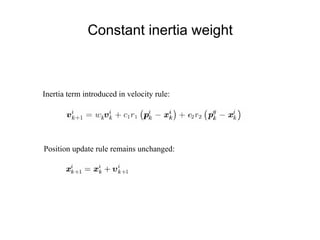

13. Constant inertia weight
Inertia term introduced in velocity rule:
Position update rule remains unchanged:

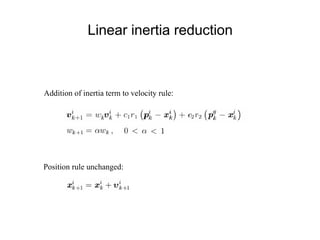

14. Linear inertia reduction
Addition of inertia term to velocity rule:
Position rule unchanged:

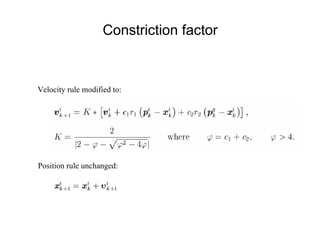

15. Constriction factor
Velocity rule modified to:
Position rule unchanged:

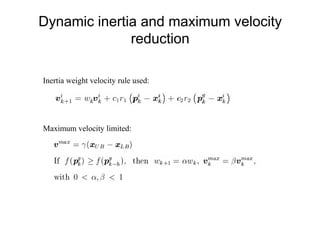

16. Dynamic inertia and maximum velocity
reduction
Inertia weight velocity rule used:
Maximum velocity limited:

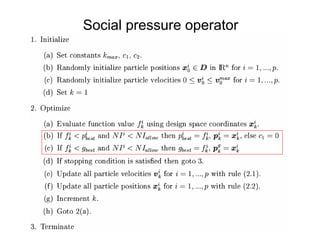

17. Social pressure operator

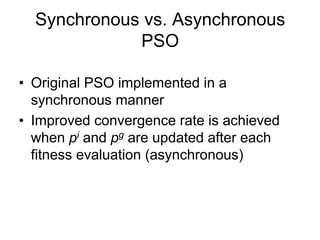

18. Synchronous vs. Asynchronous
PSO
• Original PSO implemented in a
synchronous manner
• Improved convergence rate is achieved
when pi and pg are updated after each
fitness evaluation (asynchronous)

19. Synchronous Particle Swarm Algorithm
(parallel processing)
1. Initialize population
2. Optimize
(a) Evaluate all fitness values fk
i (possibly using
parallel processes), at xi
(b) Barrier synchronization of all processes
(c) If fk
i < fbest
i then fbest
i = fk
i, pk
i = xk
i
(d) If fk
g < fbest
g then fbest
g = fk
g, pk
g = xk
i
(e) If stopping condition is satisfied go to 3
(f) Update particle velocity vk+1
i and position xk+1
i
(g) Increment k
(h) Go to 2(a)

20. Asynchronous Particle Swarm Algorithm
1. Initialize population
2. Optimize
(a) Evaluate fitness value fk
i at xi
(b) If fk
i < fbest
i then fbest
i = fk
i, pk
i = xk
i
(c) If fk
g < fbest
g then fbest
g = fk
g, pk
g = xk
i
(d) If stopping condition is satisfied go to 3
(e) Update particle velocity vk+1
i and position
vector xk+1
i
(f) Increment i. If i > p then increment k, i = 1
(g) Go to 2(a)
3. Report results and terminate

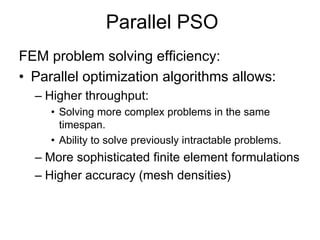

22. Parallel PSO
FEM problem solving efficiency:
• Parallel optimization algorithms allows:
– Higher throughput:
• Solving more complex problems in the same
timespan.
• Ability to solve previously intractable problems.
– More sophisticated finite element formulations
– Higher accuracy (mesh densities)

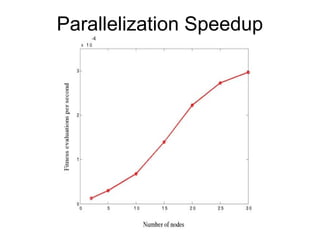

23. Parallelization Speedup

24. Parallel PSO Network
Communication
Time (hours)
Node

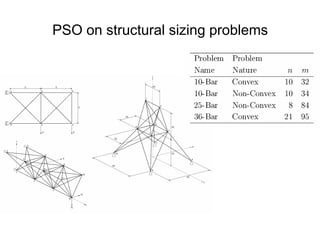

25. PSO on structural sizing problems

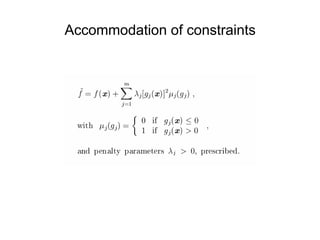

26. Accommodation of constraints

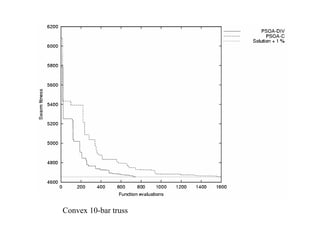

27. Convex 10-bar truss

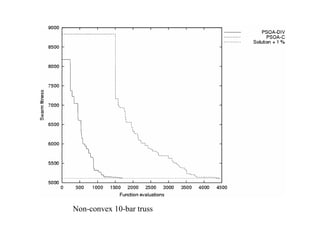

28. Non-convex 10-bar truss

29. Non-convex 25-bar truss

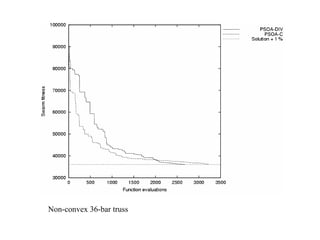

30. Non-convex 36-bar truss

31. Concluding remarks
• The PSO is a is an efficient global
optimizer for continuous variable
problems (structural applications)
• Easily implemented, with very little
parameters to fine-tune
• Algorithm modifications improve PSO
local search ability
• Can accommodate constraints by using
a penalty method

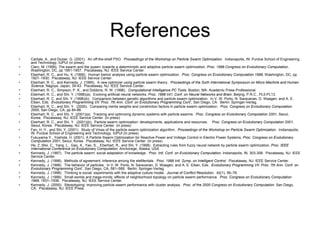

32. References
