XPATH, LDAP, and path traversal injections are common vulnerabilities that allow attackers to bypass authentication or access restricted files. XPATH injection occurs when untrusted user input is inserted into an XPATH query without validation, allowing an attacker to craft input that always returns true. LDAP injection works similarly by manipulating AND and OR clauses. Path traversal works by manipulating file paths to access files outside the intended directory, such as using "../../" to traverse up the file tree. Attackers first identify injectable parameters then test different encoding tricks to evade input validation.

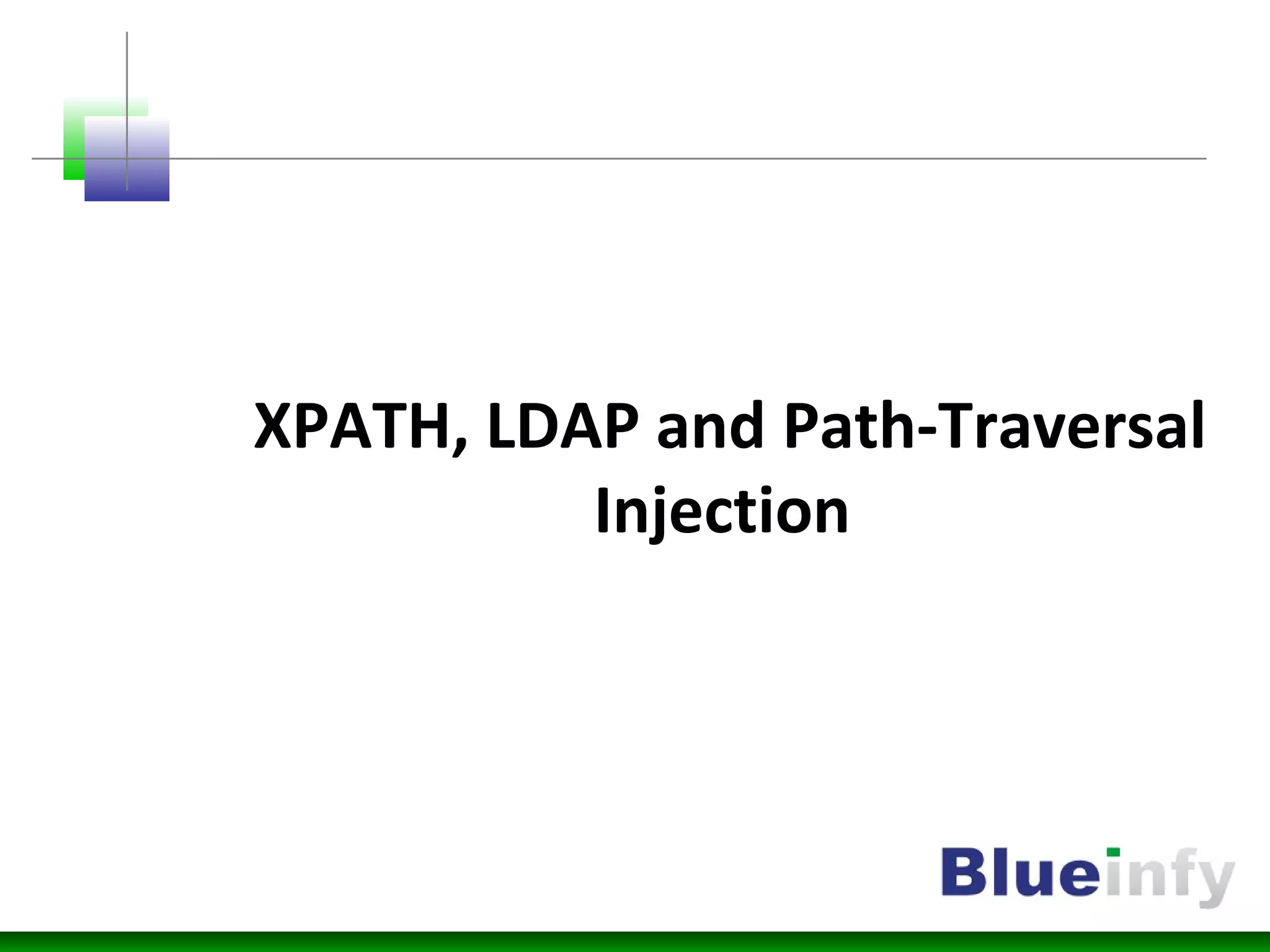

1. XPATH, LDAP and Path-Traversal
Injection

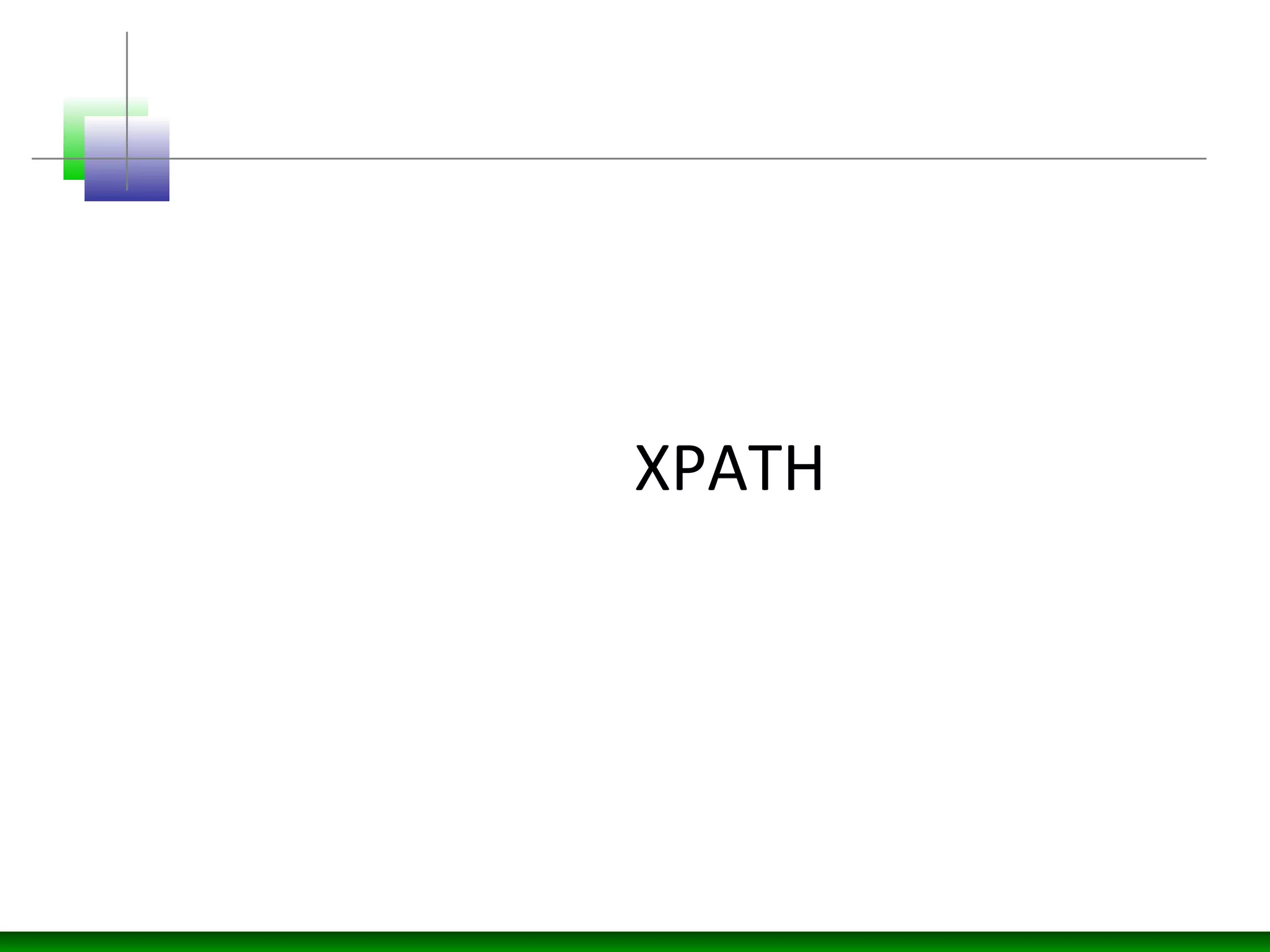

2. XPATH

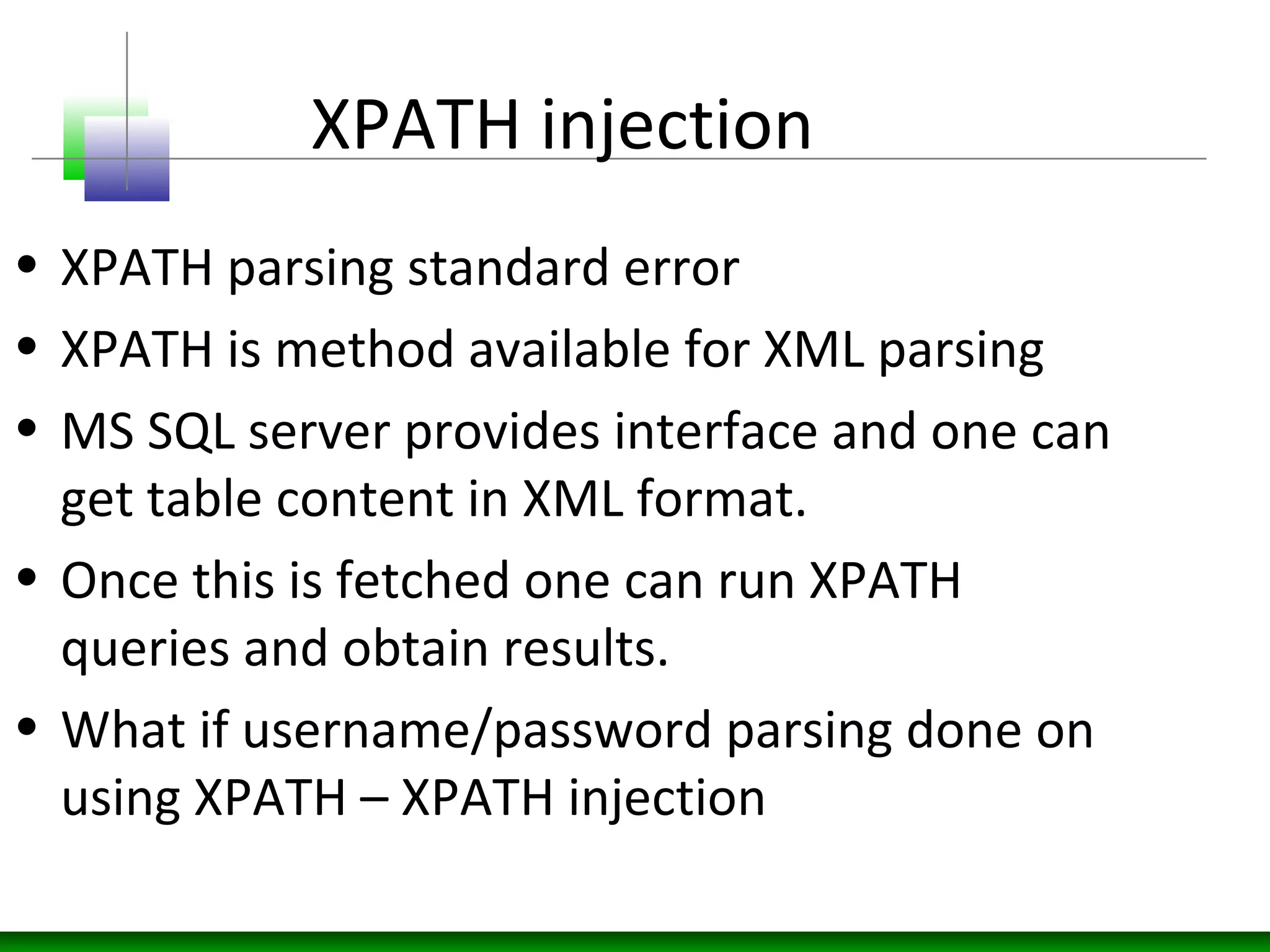

3. XPATH injection
• XPATH parsing standard error
• XPATH is method available for XML parsing
• MS SQL server provides interface and one can
get table content in XML format.
• Once this is fetched one can run XPATH
queries and obtain results.
• What if username/password parsing done on
using XPATH – XPATH injection

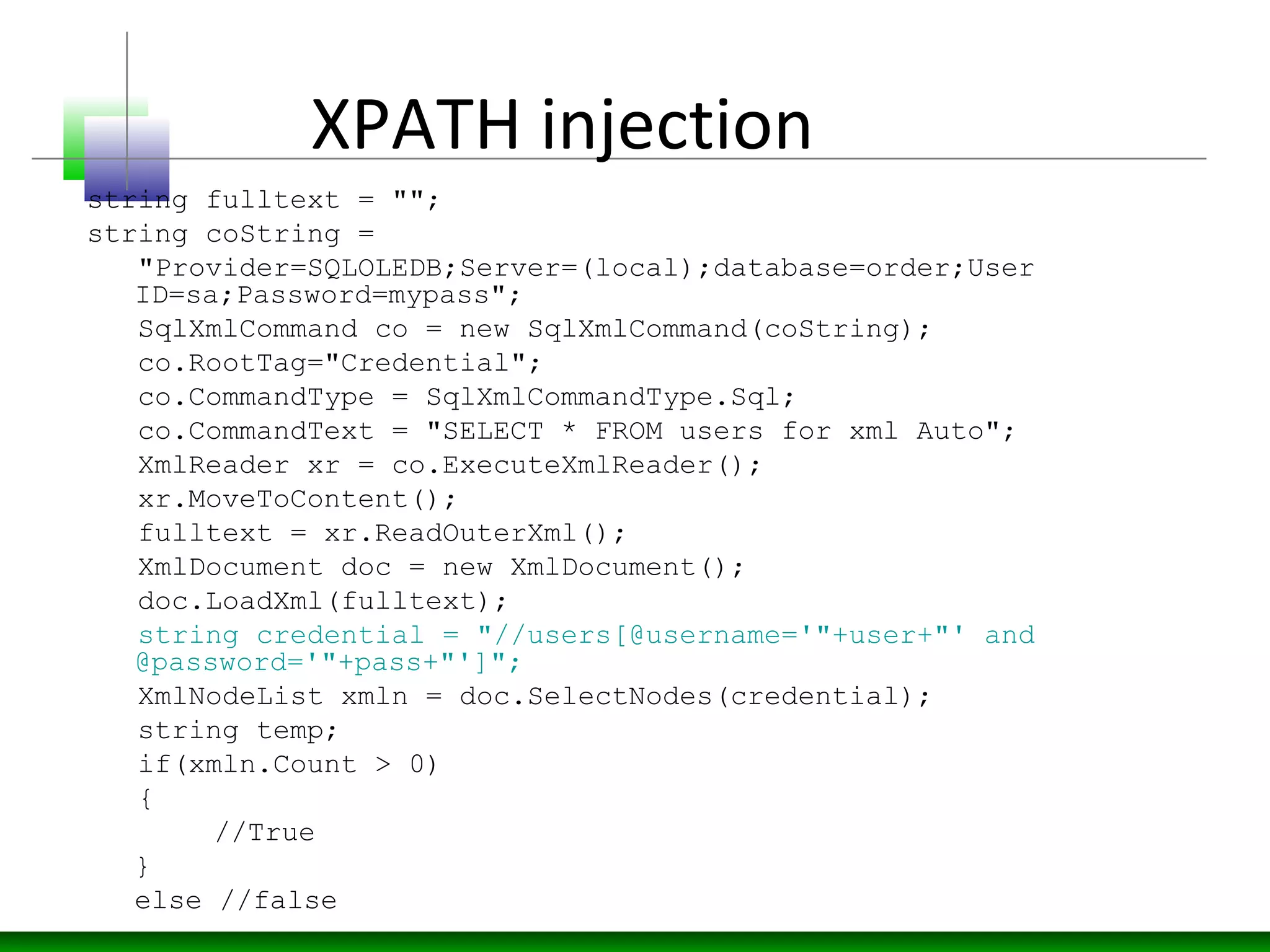

4. XPATH injection
string fulltext = "";
string coString =
"Provider=SQLOLEDB;Server=(local);database=order;User
ID=sa;Password=mypass";
SqlXmlCommand co = new SqlXmlCommand(coString);
co.RootTag="Credential";
co.CommandType = SqlXmlCommandType.Sql;
co.CommandText = "SELECT * FROM users for xml Auto";
XmlReader xr = co.ExecuteXmlReader();
xr.MoveToContent();
fulltext = xr.ReadOuterXml();
XmlDocument doc = new XmlDocument();
doc.LoadXml(fulltext);
string credential = "//users[@username='"+user+"' and
@password='"+pass+"']";
XmlNodeList xmln = doc.SelectNodes(credential);
string temp;
if(xmln.Count > 0)
{
//True
}
else //false

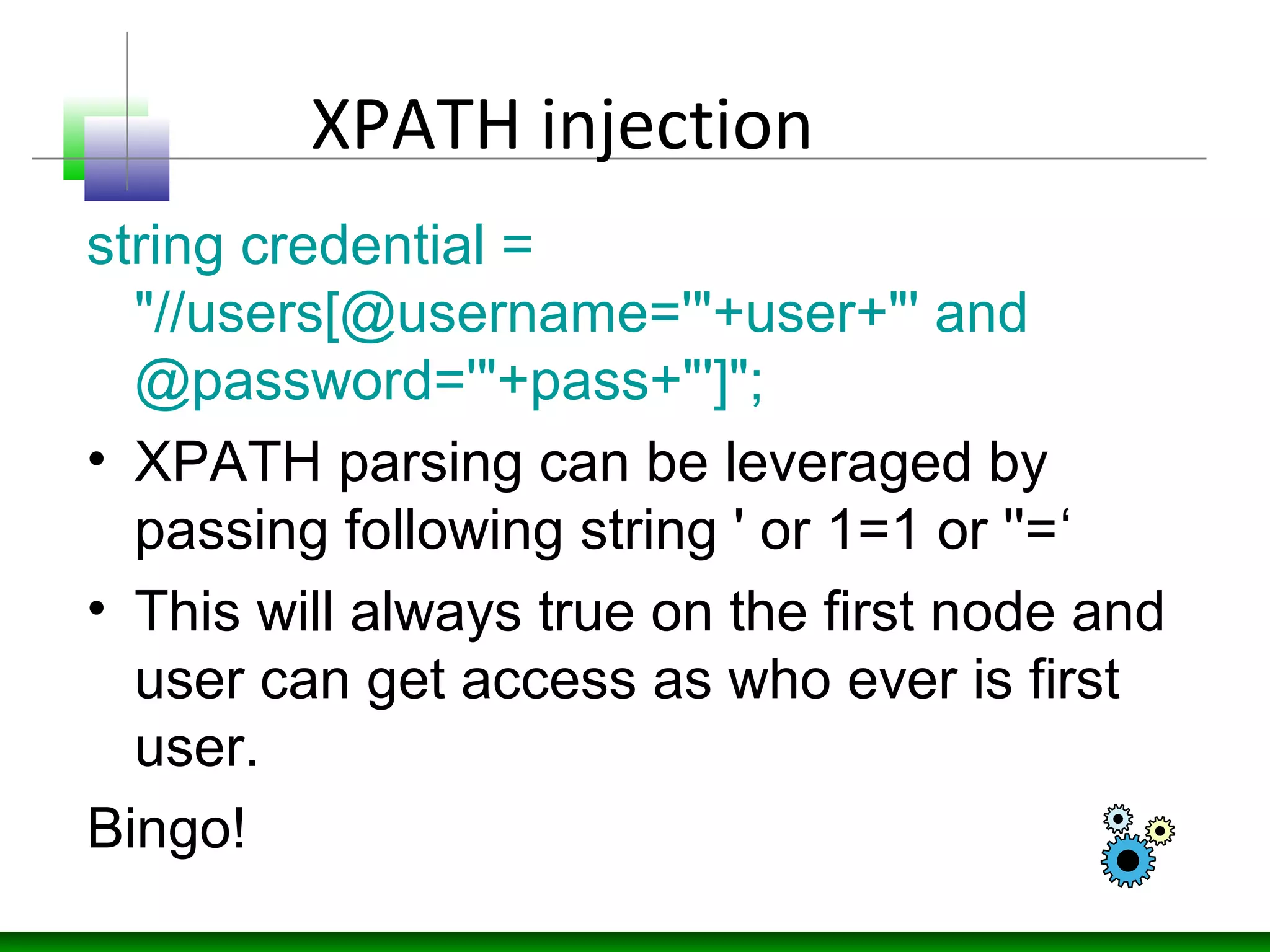

5. XPATH injection
string credential =
"//users[@username='"+user+"' and
@password='"+pass+"']";
• XPATH parsing can be leveraged by
passing following string ' or 1=1 or ''=‘
• This will always true on the first node and
user can get access as who ever is first
user.
Bingo!

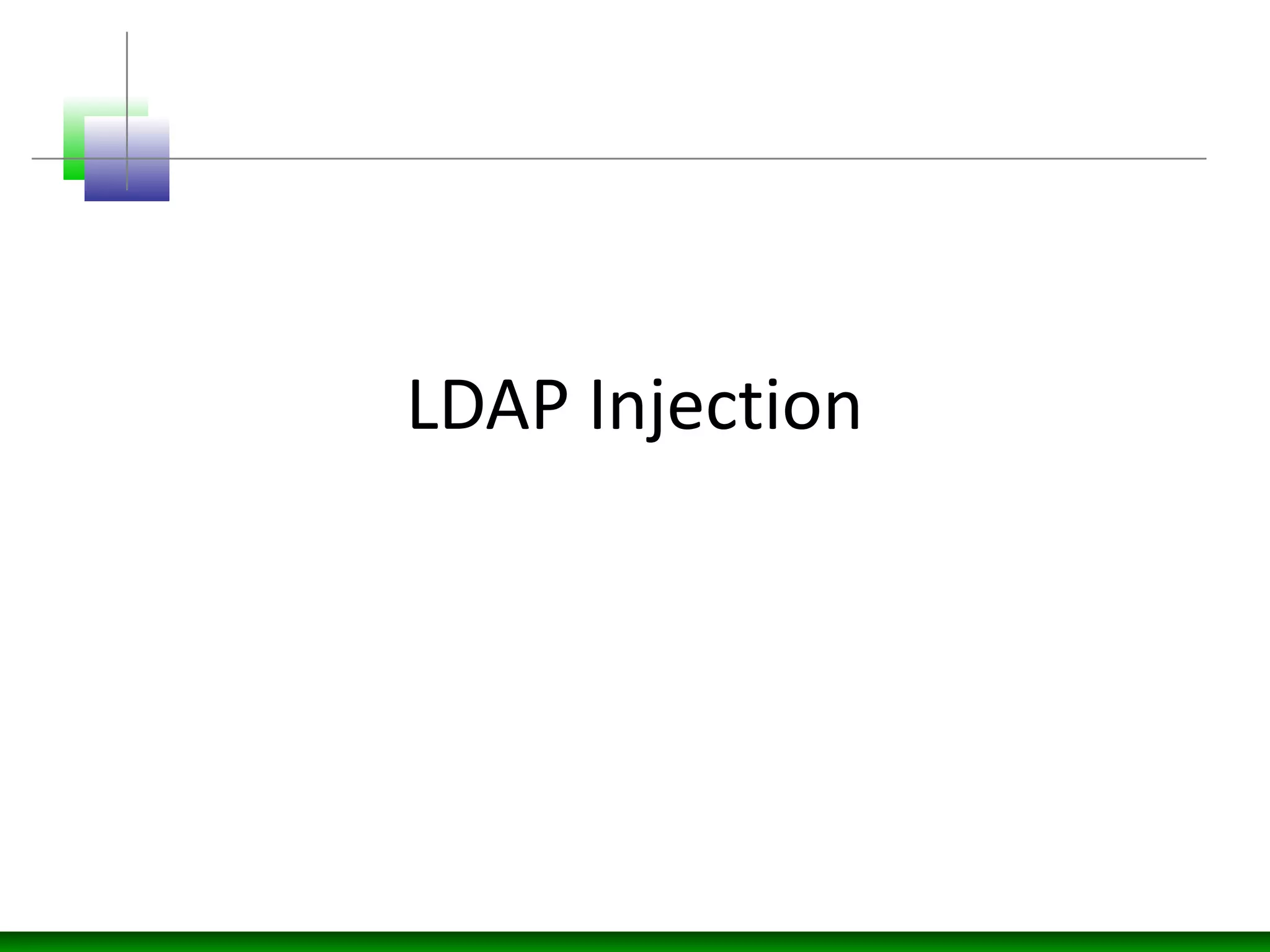

6. LDAP Injection

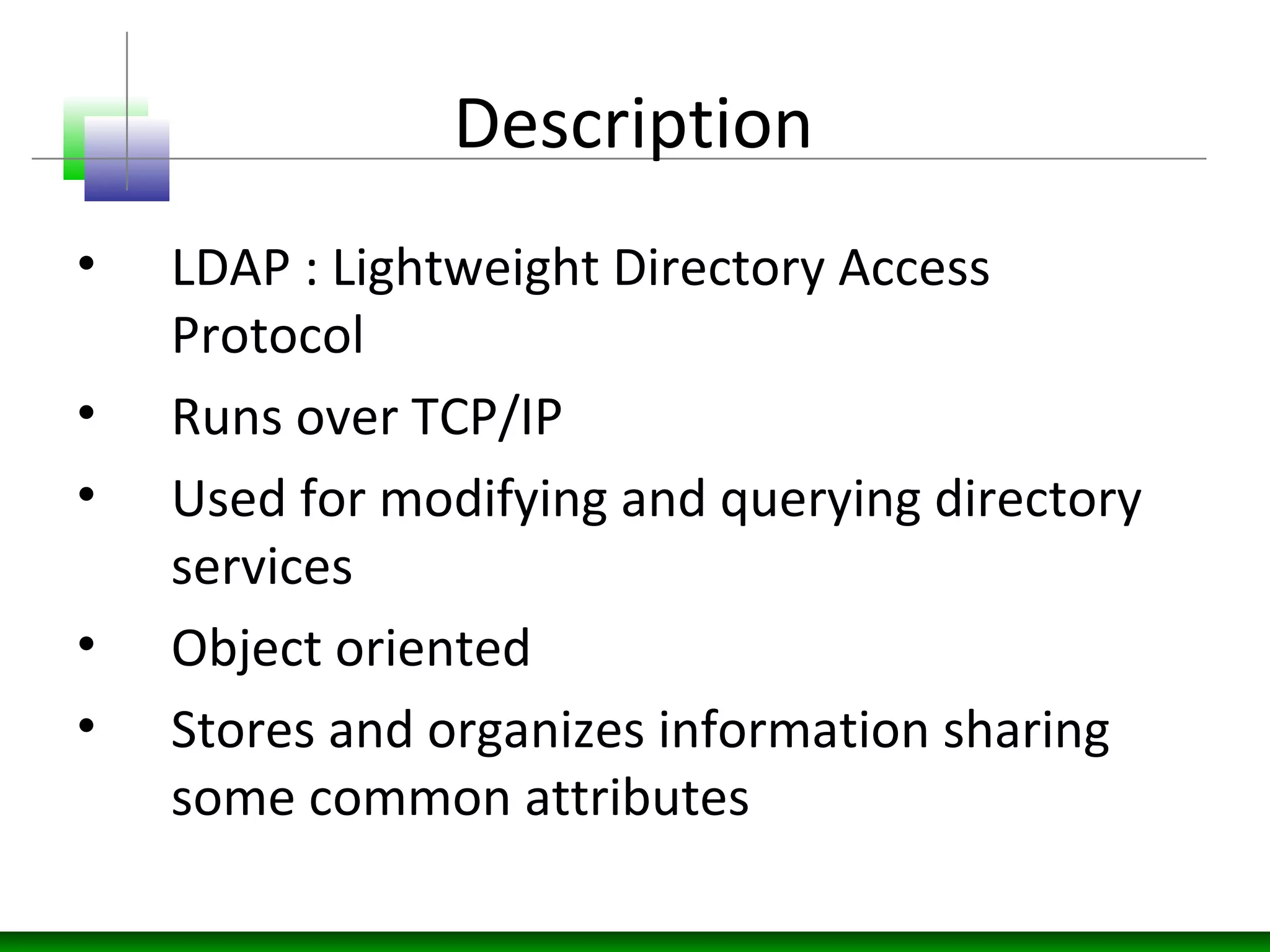

7. Description
• LDAP : Lightweight Directory Access
Protocol
• Runs over TCP/IP
• Used for modifying and querying directory
services
• Object oriented
• Stores and organizes information sharing
some common attributes

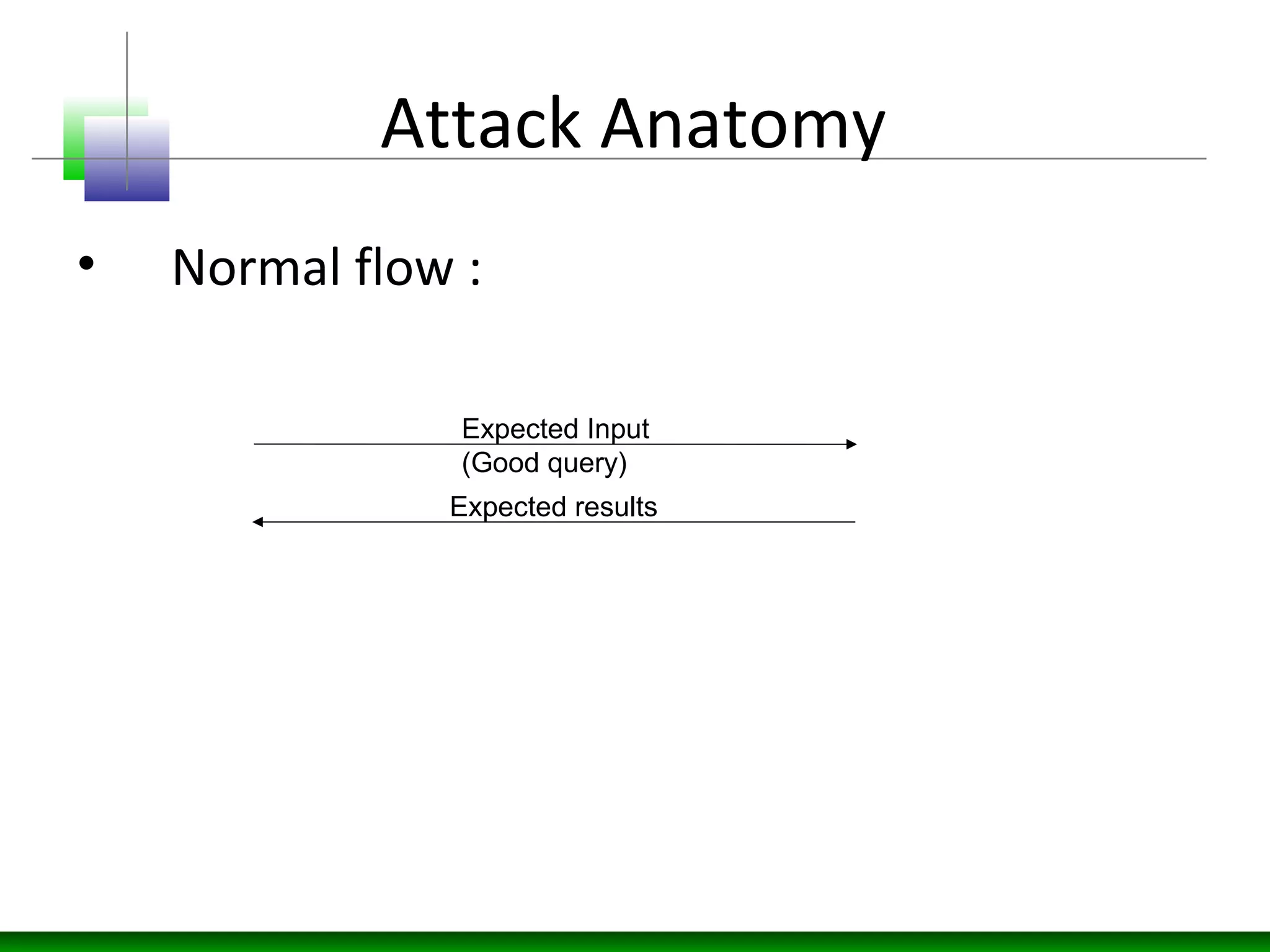

8. Attack Anatomy
• Normal flow :
Expected Input
(Good query)
Expected results

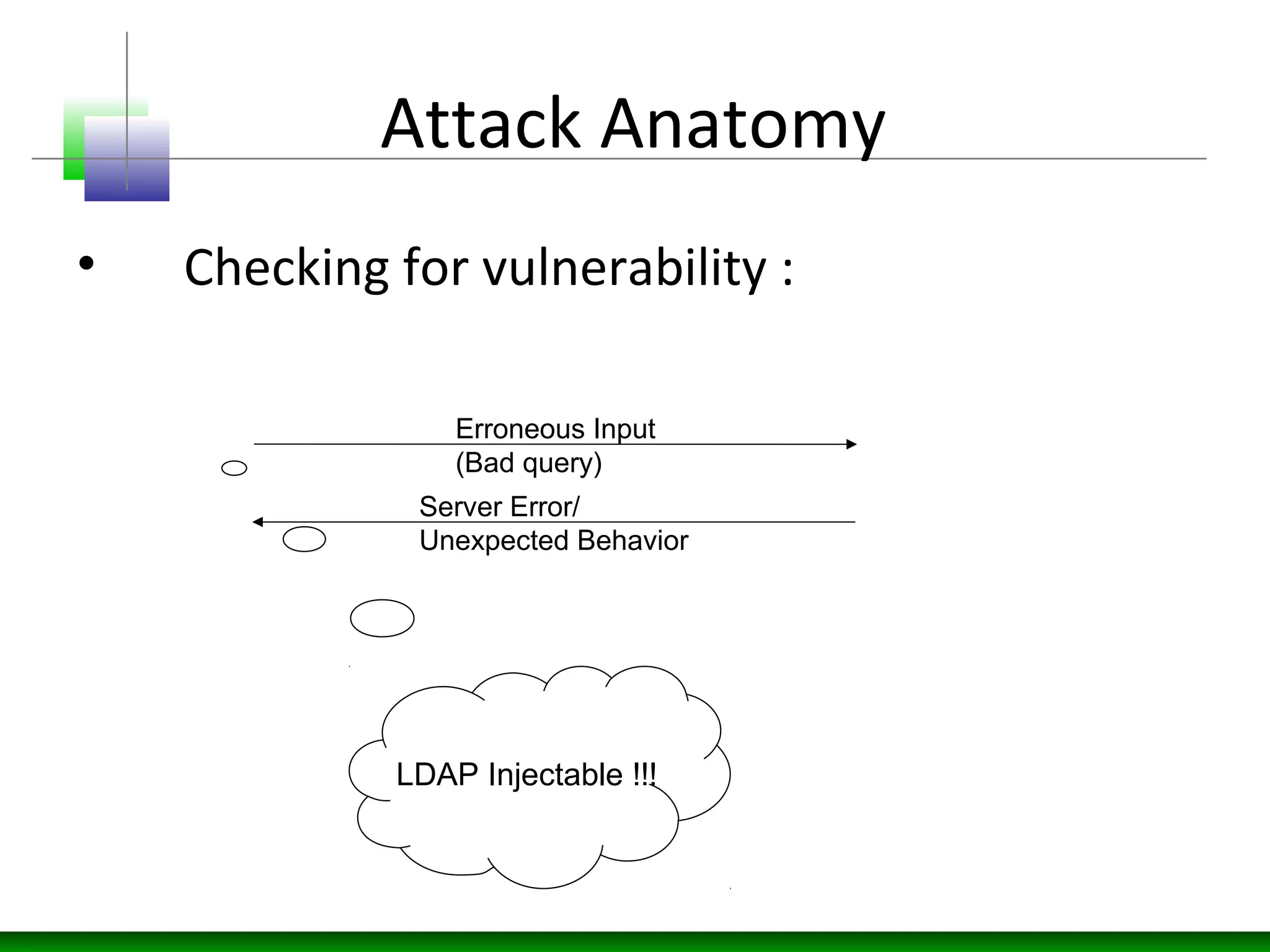

9. Attack Anatomy
• Checking for vulnerability :
Erroneous Input
(Bad query)
Server Error/
Unexpected Behavior
LDAP Injectable !!!

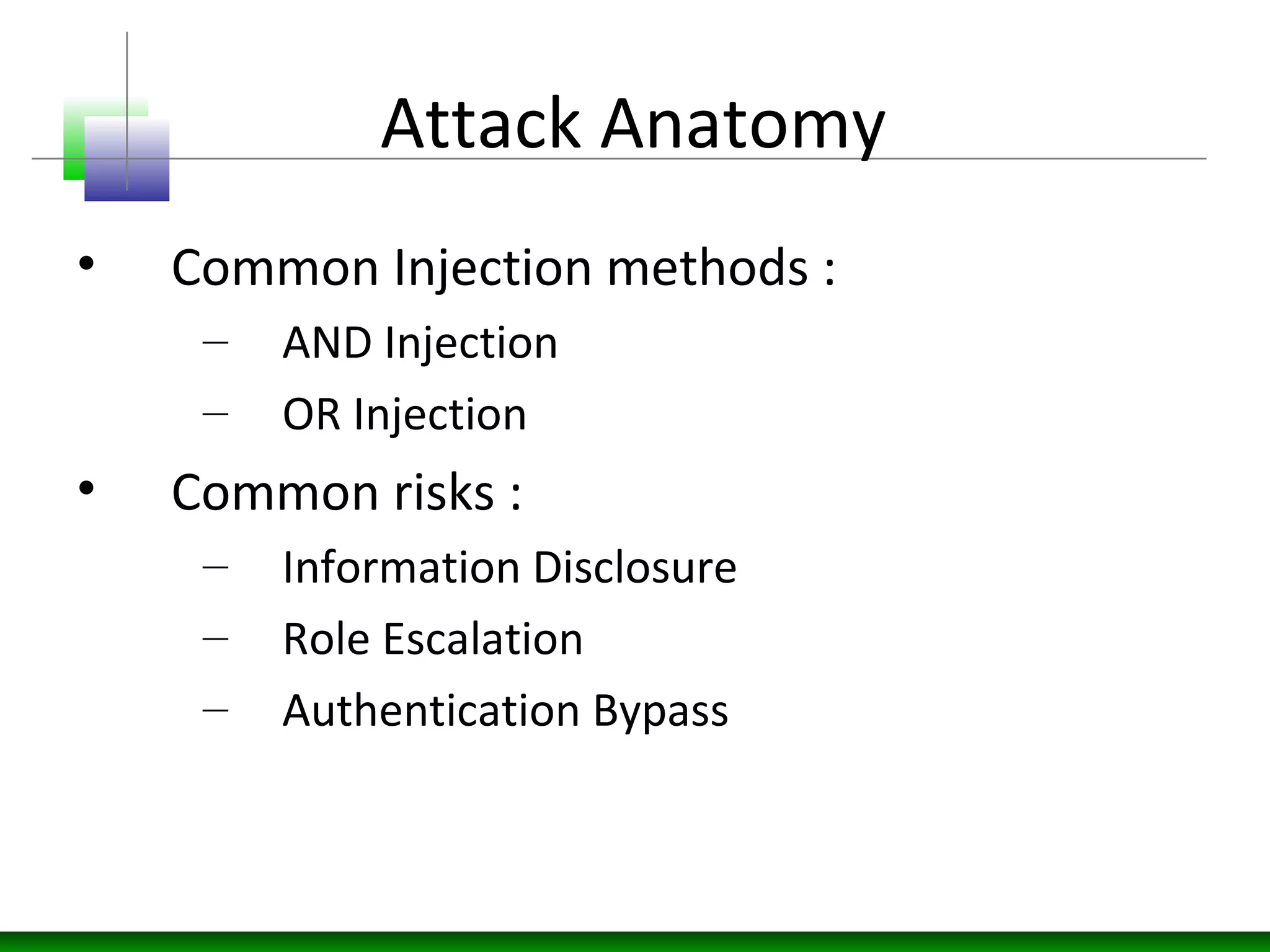

10. Attack Anatomy
• Common Injection methods :
– AND Injection
– OR Injection
• Common risks :
– Information Disclosure
– Role Escalation
– Authentication Bypass

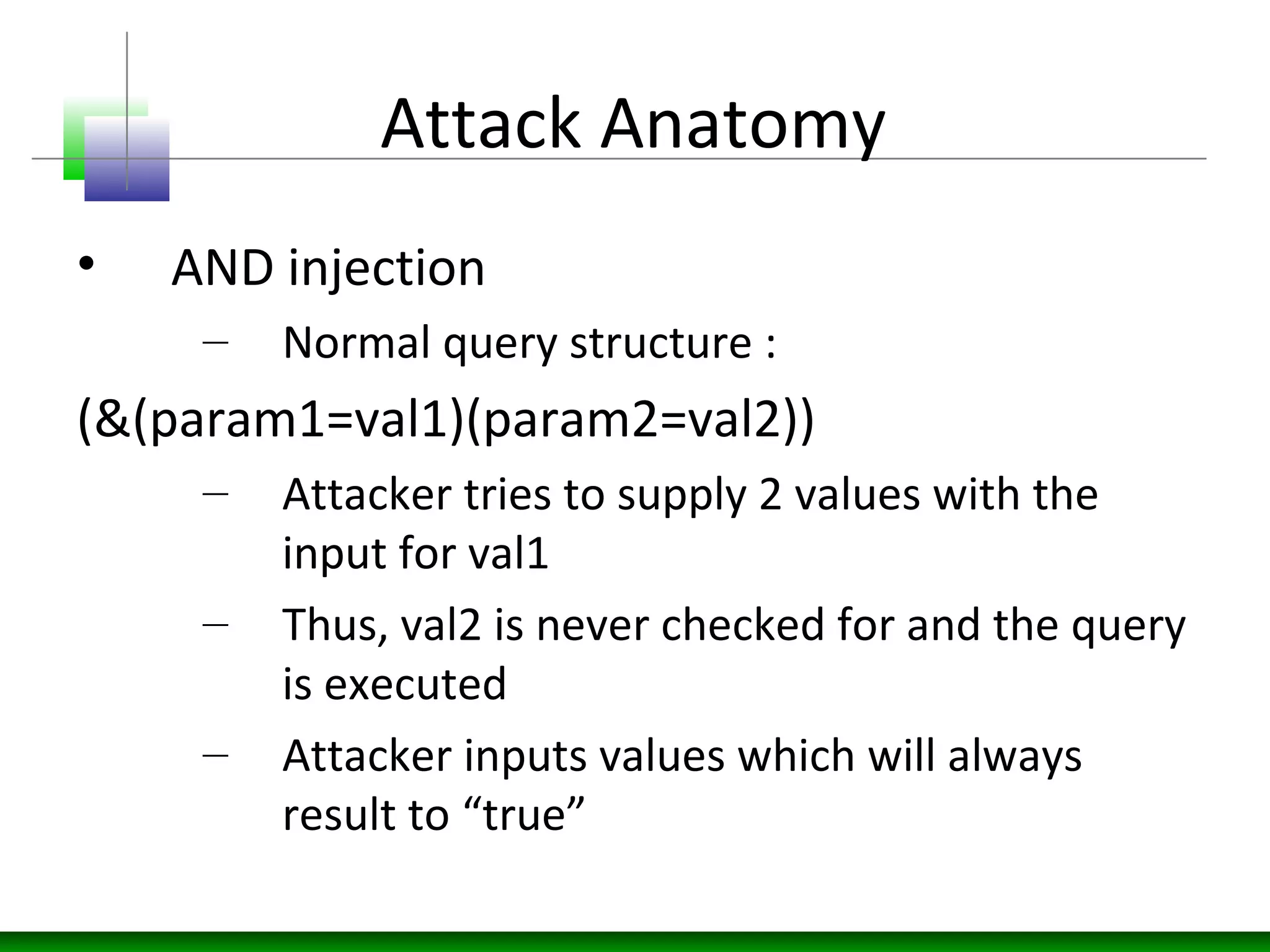

11. Attack Anatomy
• AND injection
– Normal query structure :
(&(param1=val1)(param2=val2))
– Attacker tries to supply 2 values with the
input for val1
– Thus, val2 is never checked for and the query
is executed
– Attacker inputs values which will always
result to “true”

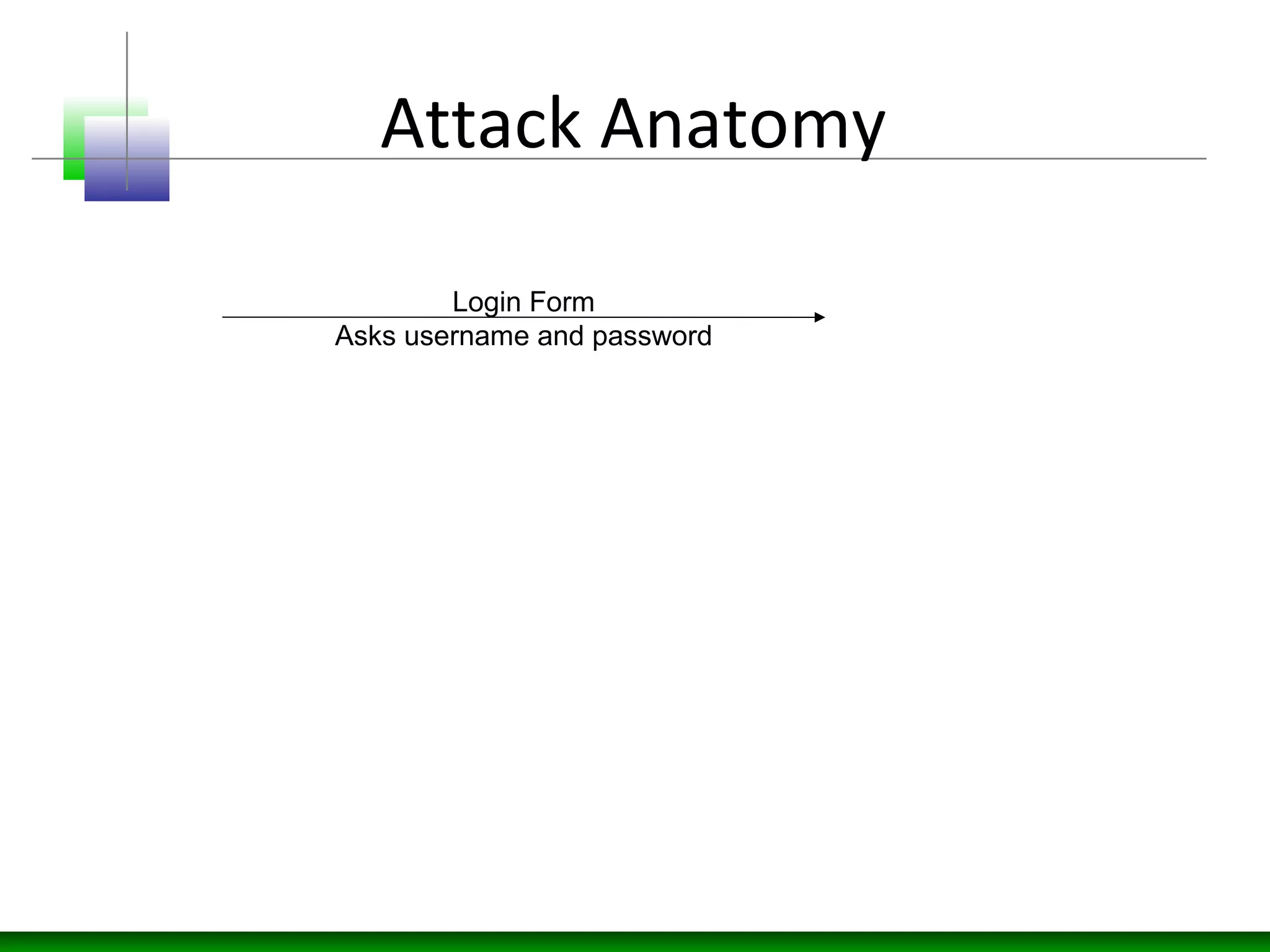

12. Attack Anatomy
Login Form
Asks username and password

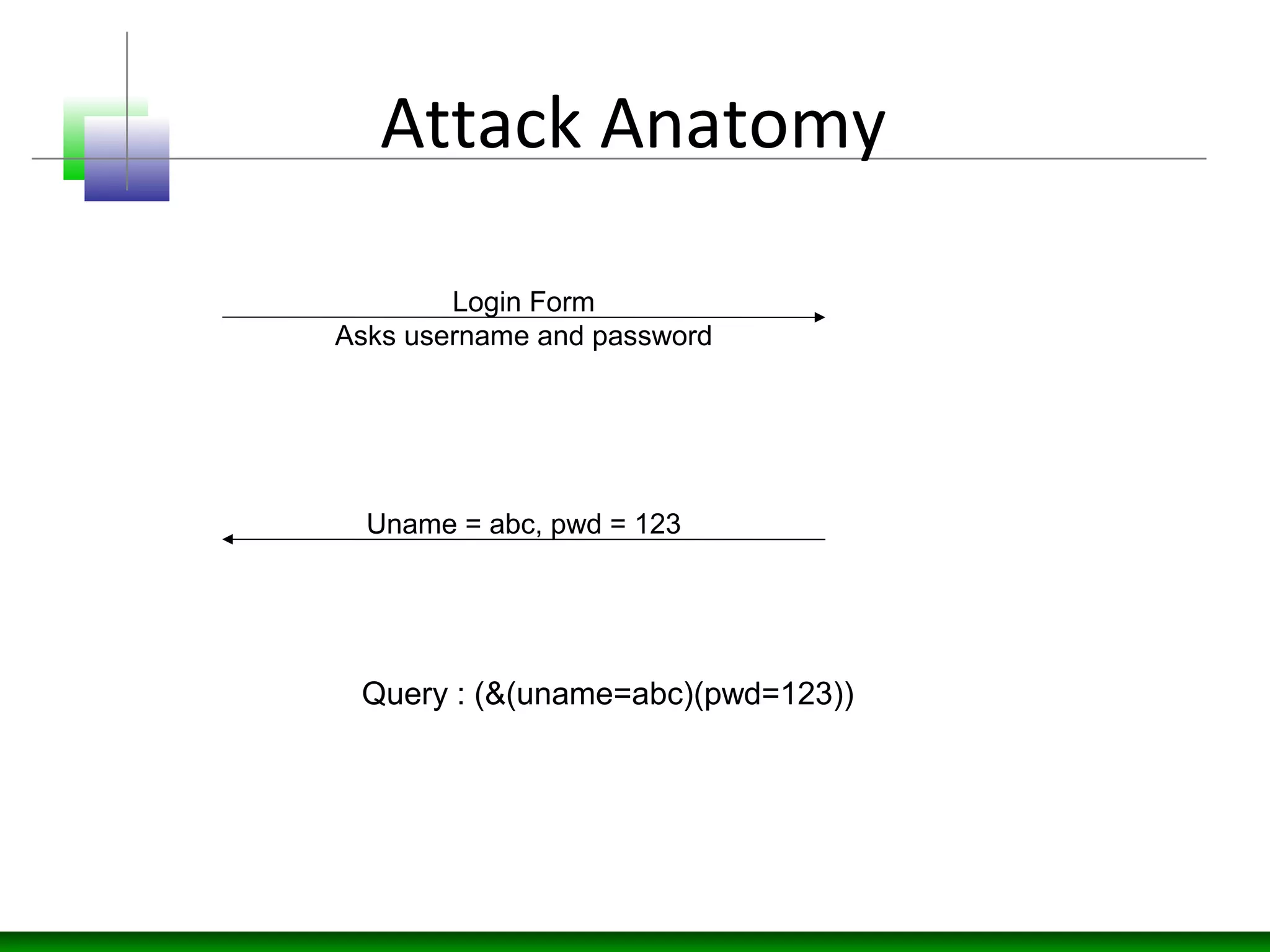

13. Attack Anatomy
Login Form
Asks username and password
Uname = abc, pwd = 123
Query : (&(uname=abc)(pwd=123))

14. Attack Anatomy
Login Form
Asks username and password
Uname = abc)(&), pwd =
Query : (&(uname=abc)(&))(pwd=))

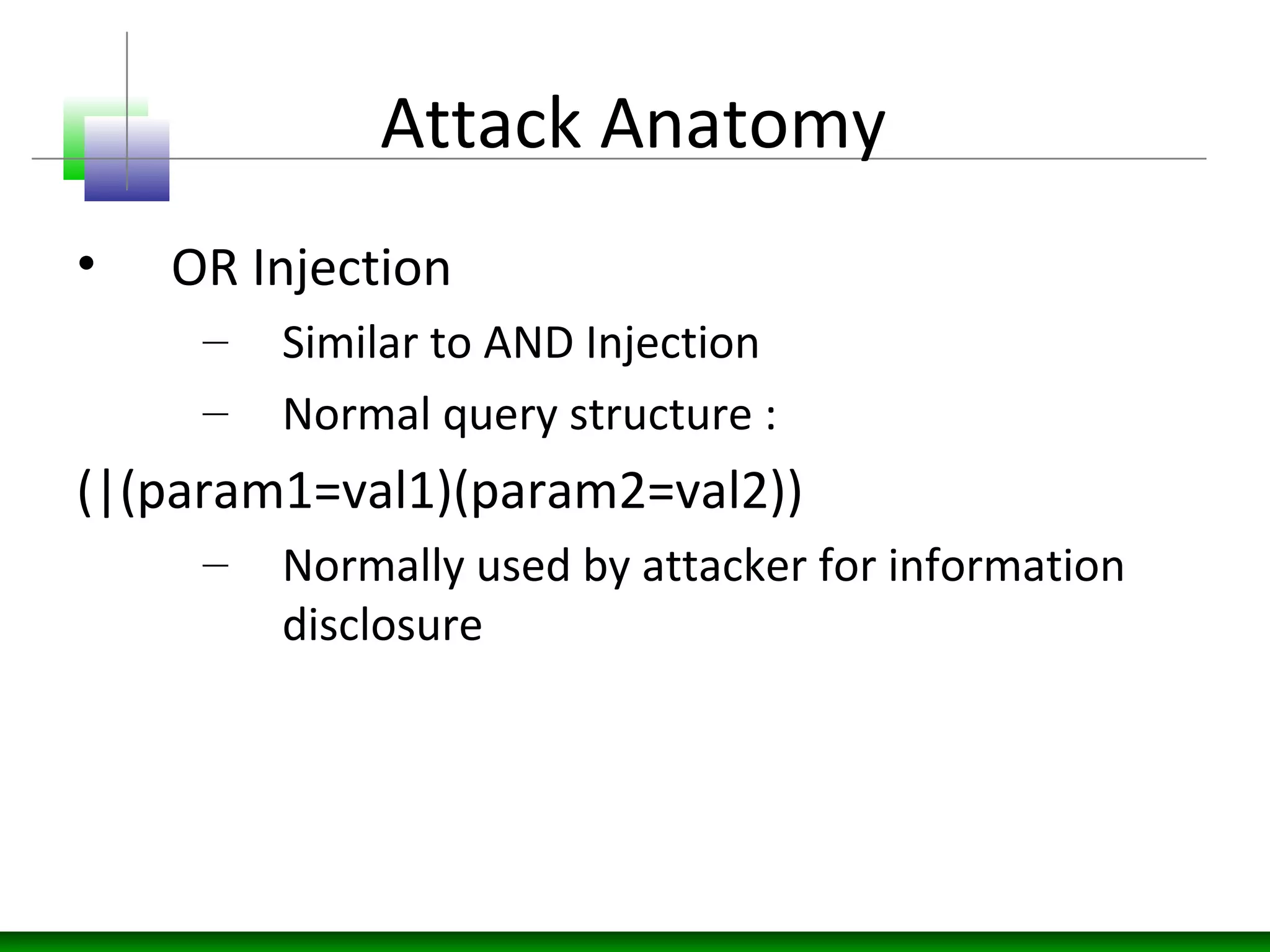

15. Attack Anatomy
• OR Injection
– Similar to AND Injection
– Normal query structure :
(|(param1=val1)(param2=val2))
– Normally used by attacker for information
disclosure

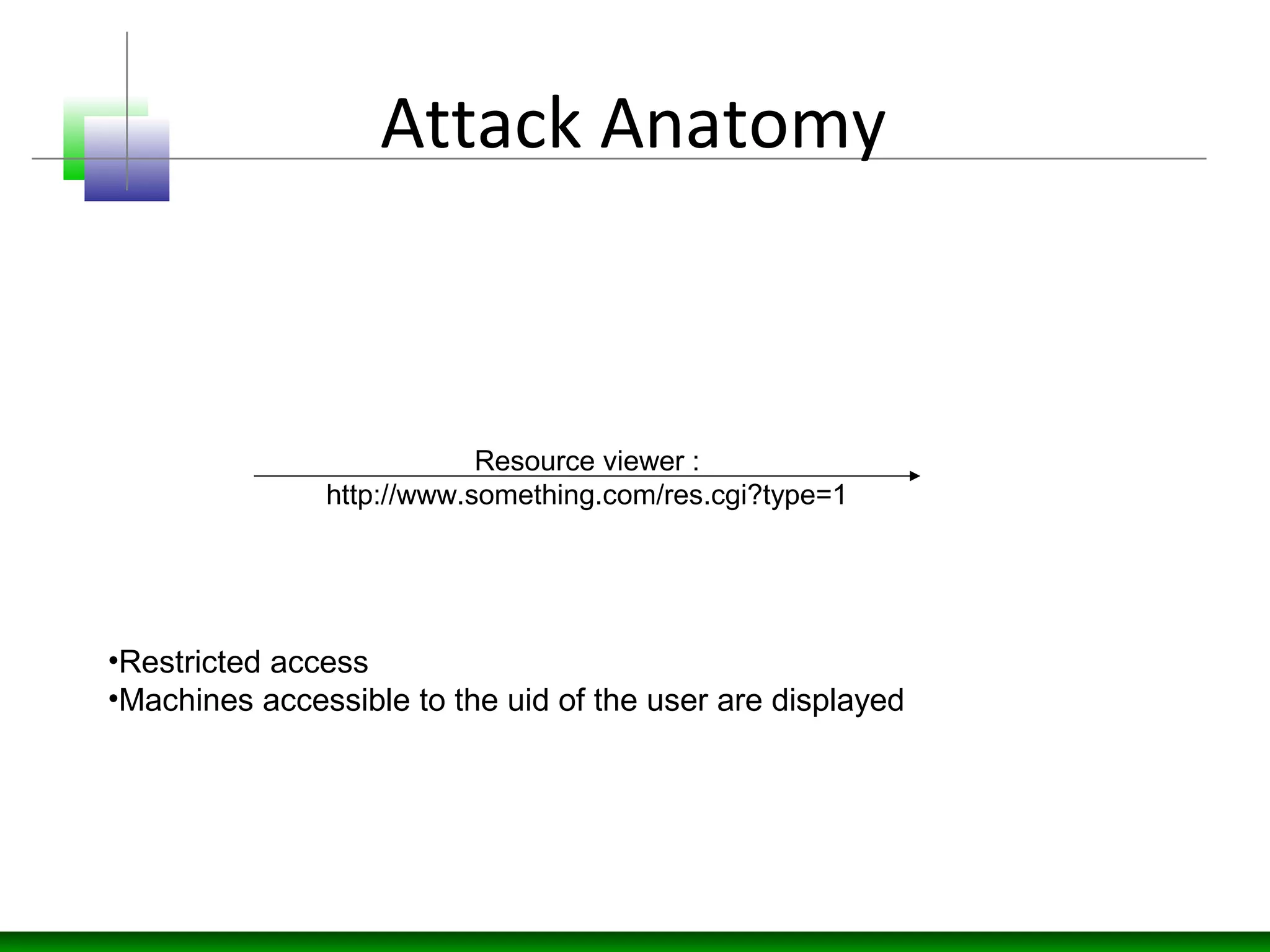

16. Attack Anatomy
Resource viewer :
http://www.something.com/res.cgi?type=1
•Restricted access
•Machines accessible to the uid of the user are displayed

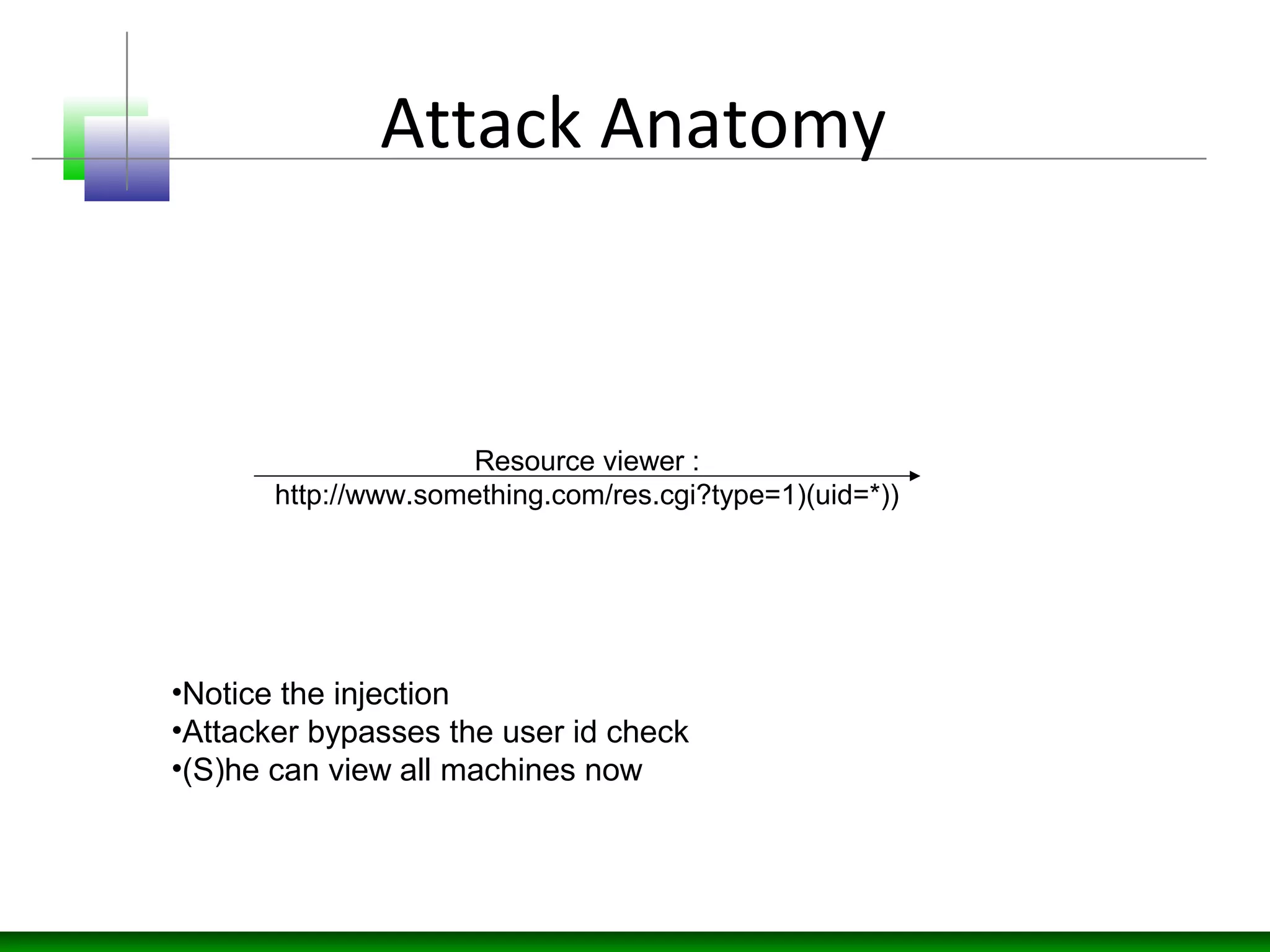

17. Attack Anatomy
Resource viewer :
http://www.something.com/res.cgi?type=1)(uid=*))
•Notice the injection
•Attacker bypasses the user id check
•(S)he can view all machines now

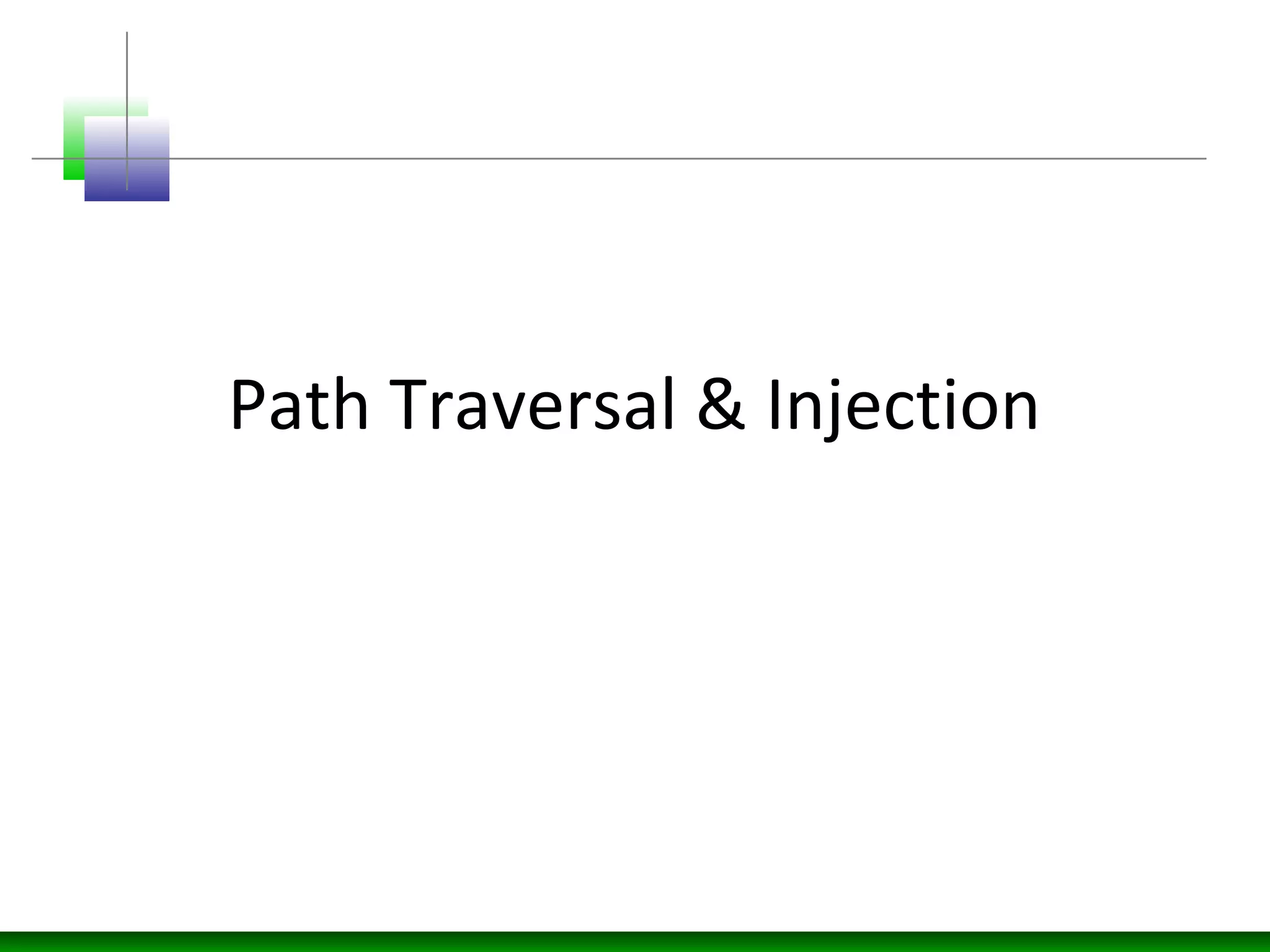

18. Path Traversal & Injection

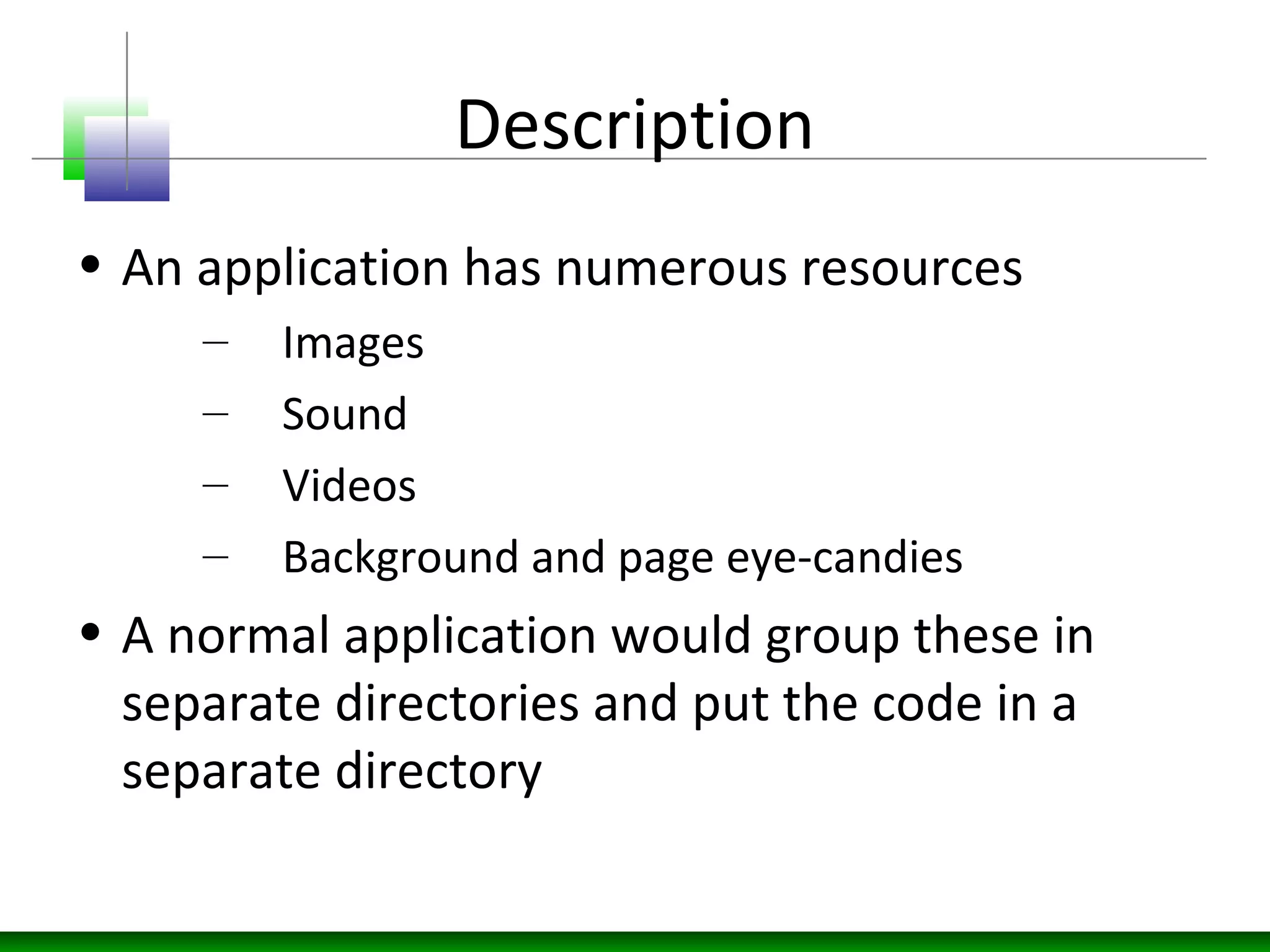

19. Description
• An application has numerous resources
– Images
– Sound
– Videos
– Background and page eye-candies
• A normal application would group these in
separate directories and put the code in a
separate directory

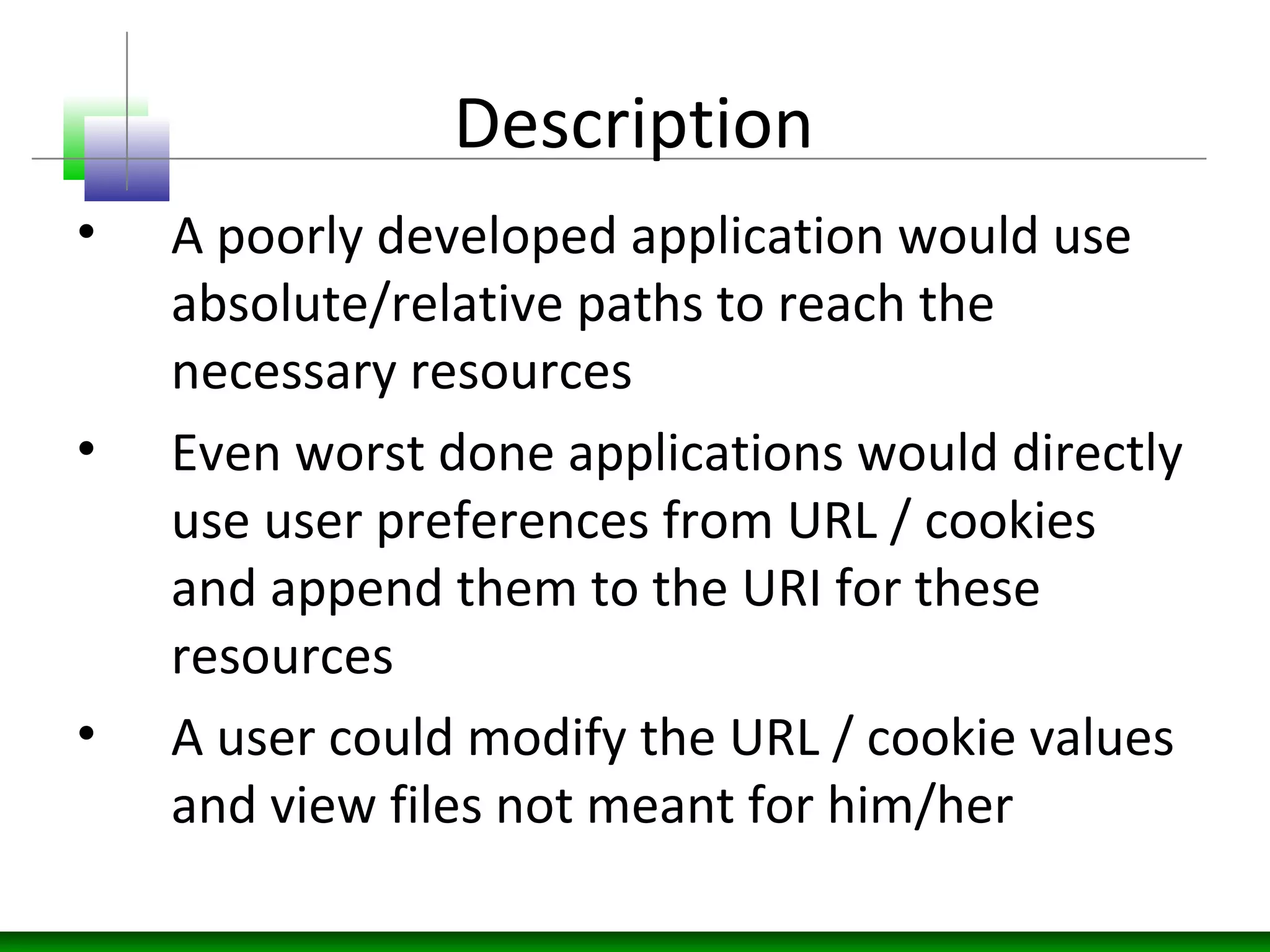

20. Description
• A poorly developed application would use
absolute/relative paths to reach the
necessary resources
• Even worst done applications would directly
use user preferences from URL / cookies
and append them to the URI for these
resources
• A user could modify the URL / cookie values
and view files not meant for him/her

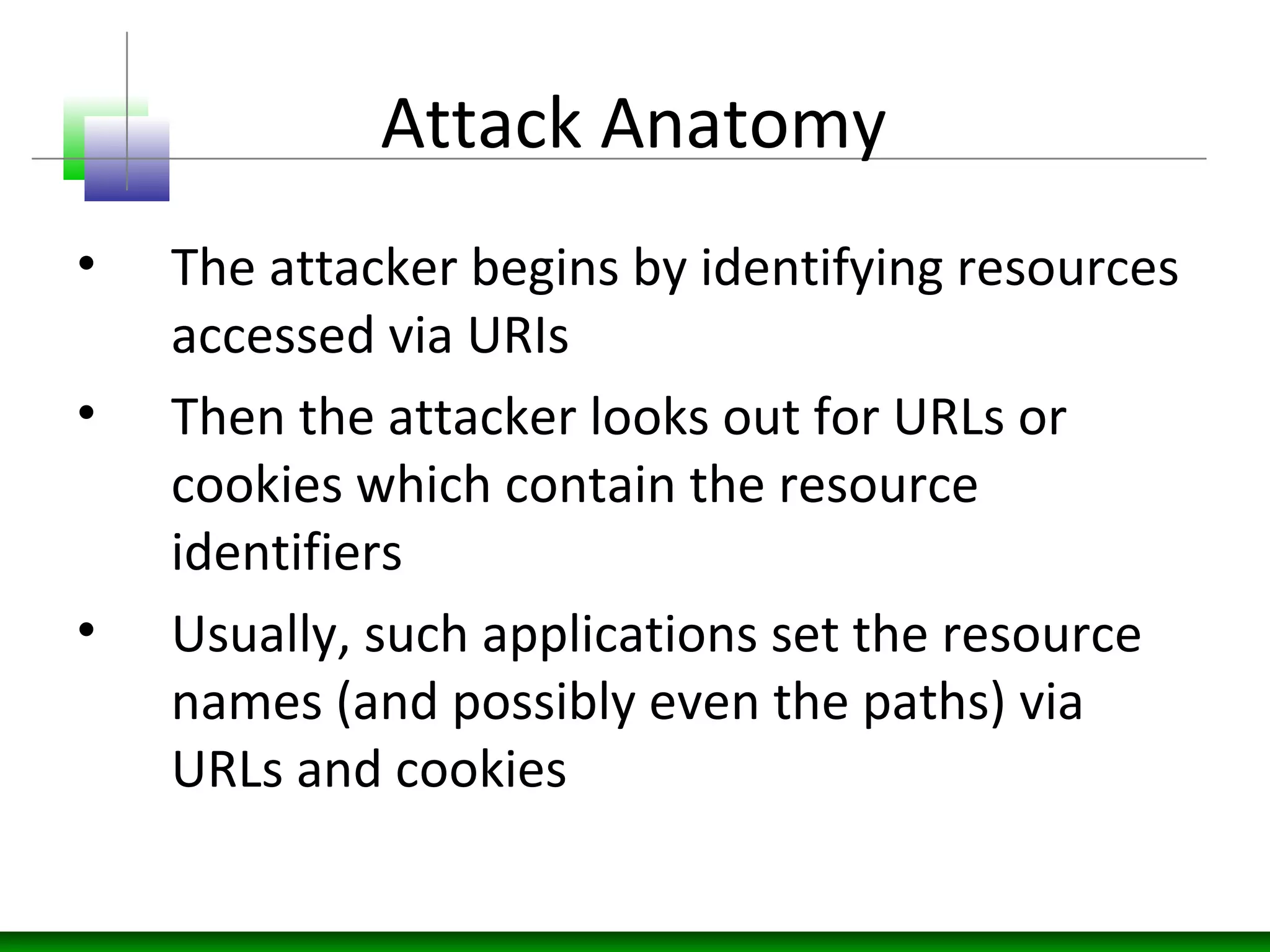

21. Attack Anatomy
• The attacker begins by identifying resources
accessed via URIs
• Then the attacker looks out for URLs or
cookies which contain the resource
identifiers
• Usually, such applications set the resource
names (and possibly even the paths) via
URLs and cookies

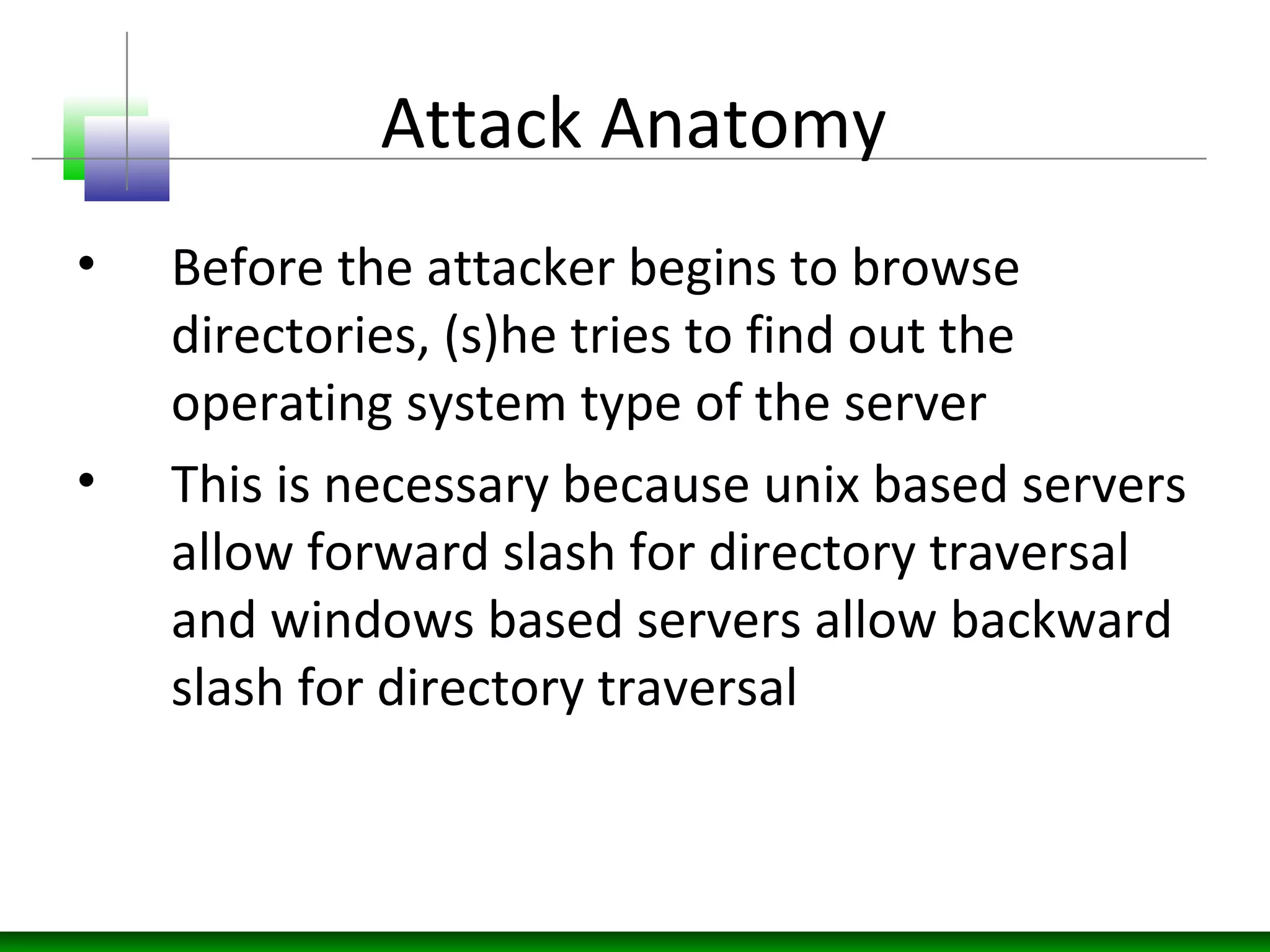

22. Attack Anatomy
• Before the attacker begins to browse
directories, (s)he tries to find out the
operating system type of the server
• This is necessary because unix based servers
allow forward slash for directory traversal
and windows based servers allow backward
slash for directory traversal

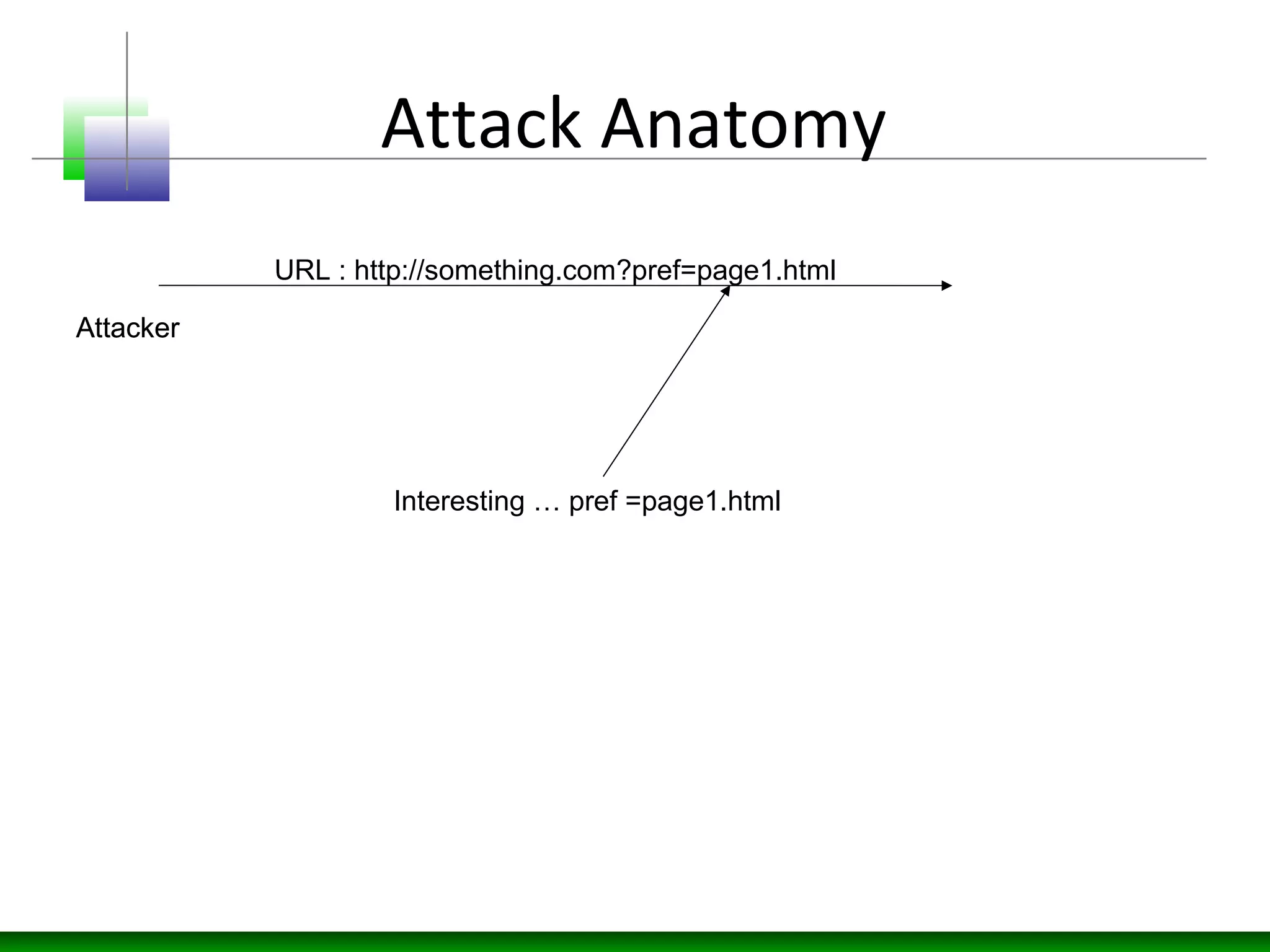

23. Attack Anatomy
Attacker
URL : http://something.com?pref=page1.html
Interesting … pref =page1.html
Attacker

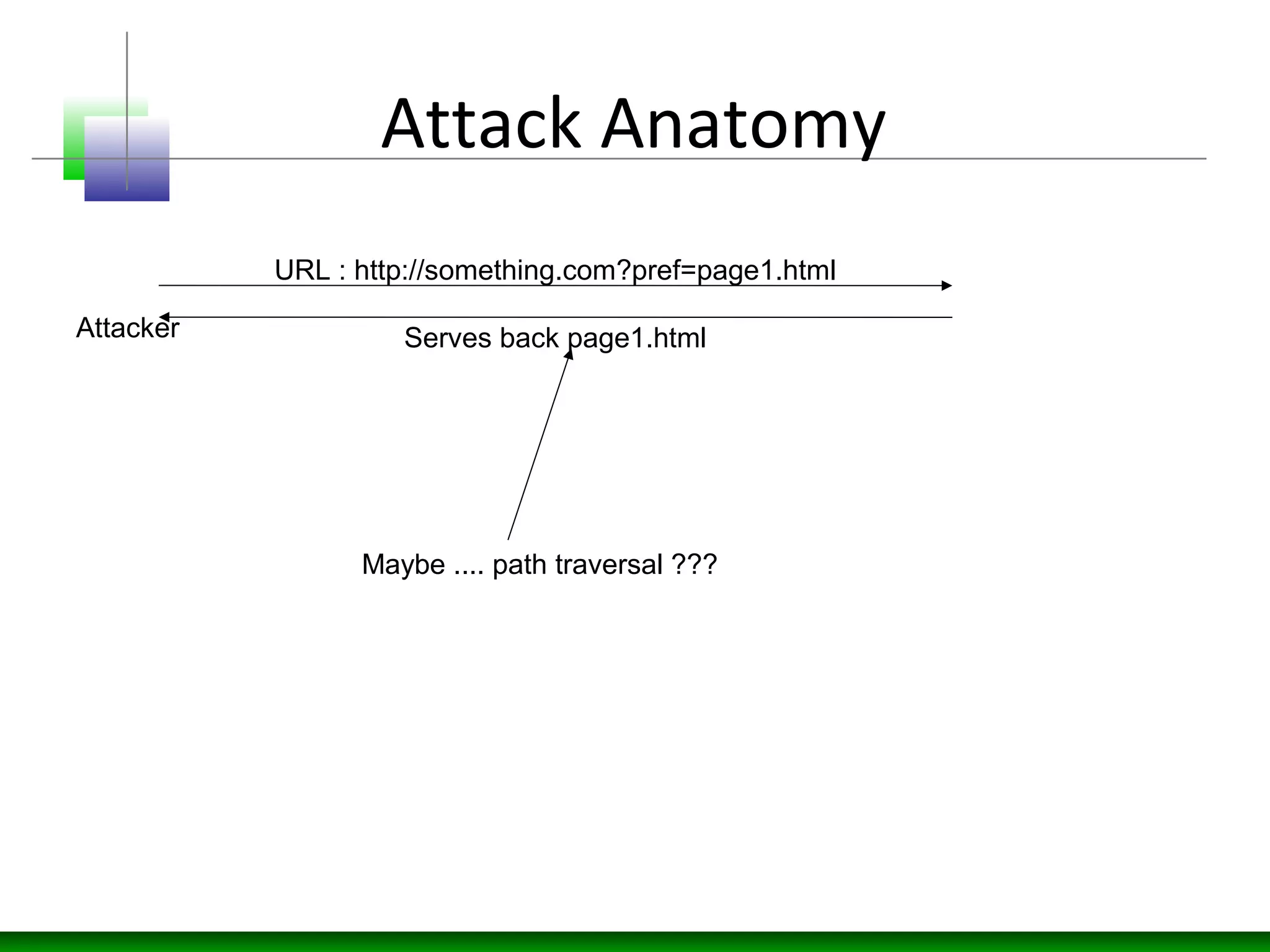

24. Attack Anatomy
URL : http://something.com?pref=page1.html
Serves back page1.html
Maybe .... path traversal ???
Attacker

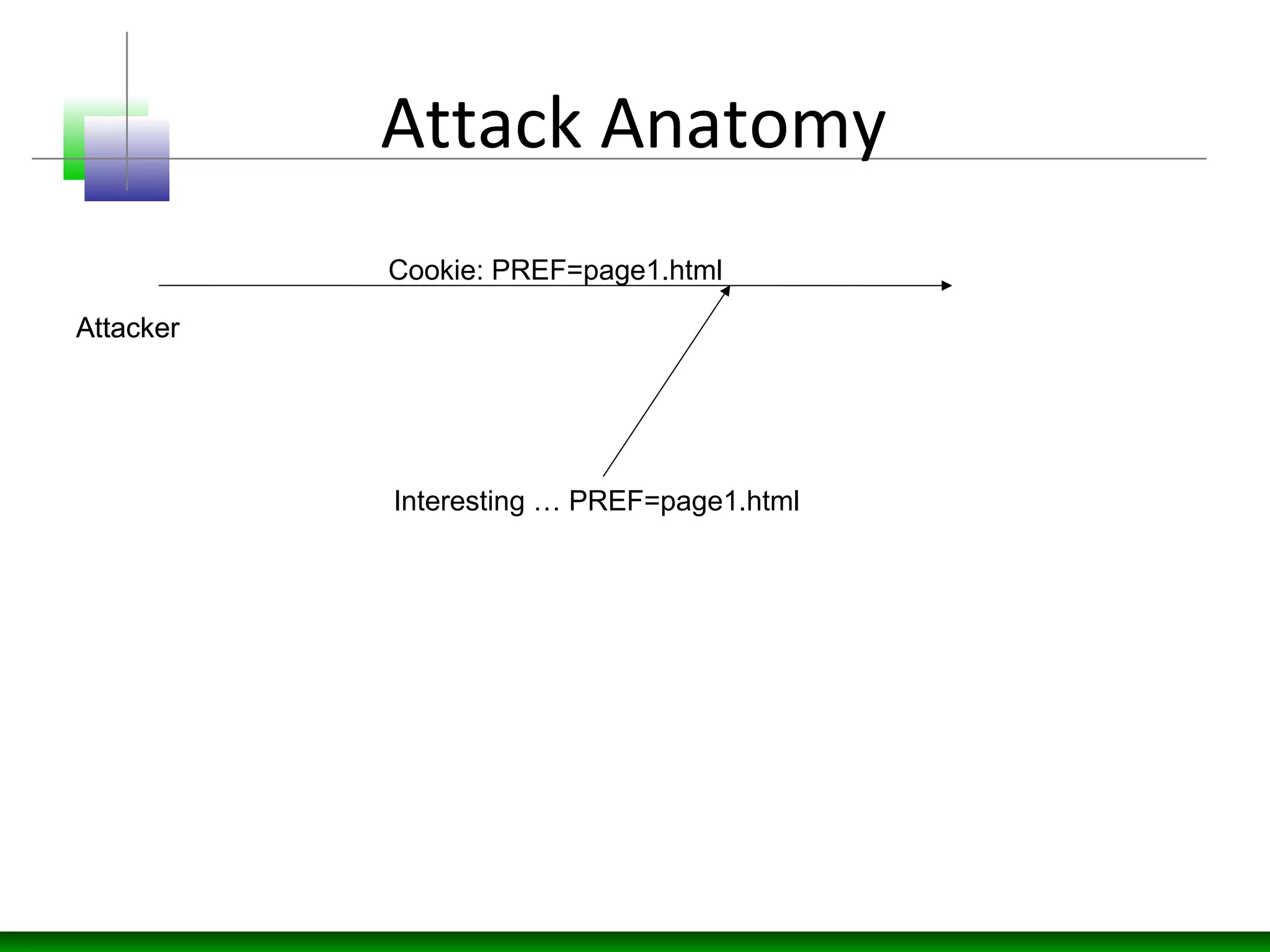

25. Attack Anatomy
Attacker
Cookie: PREF=page1.html
Interesting … PREF=page1.html
Attacker

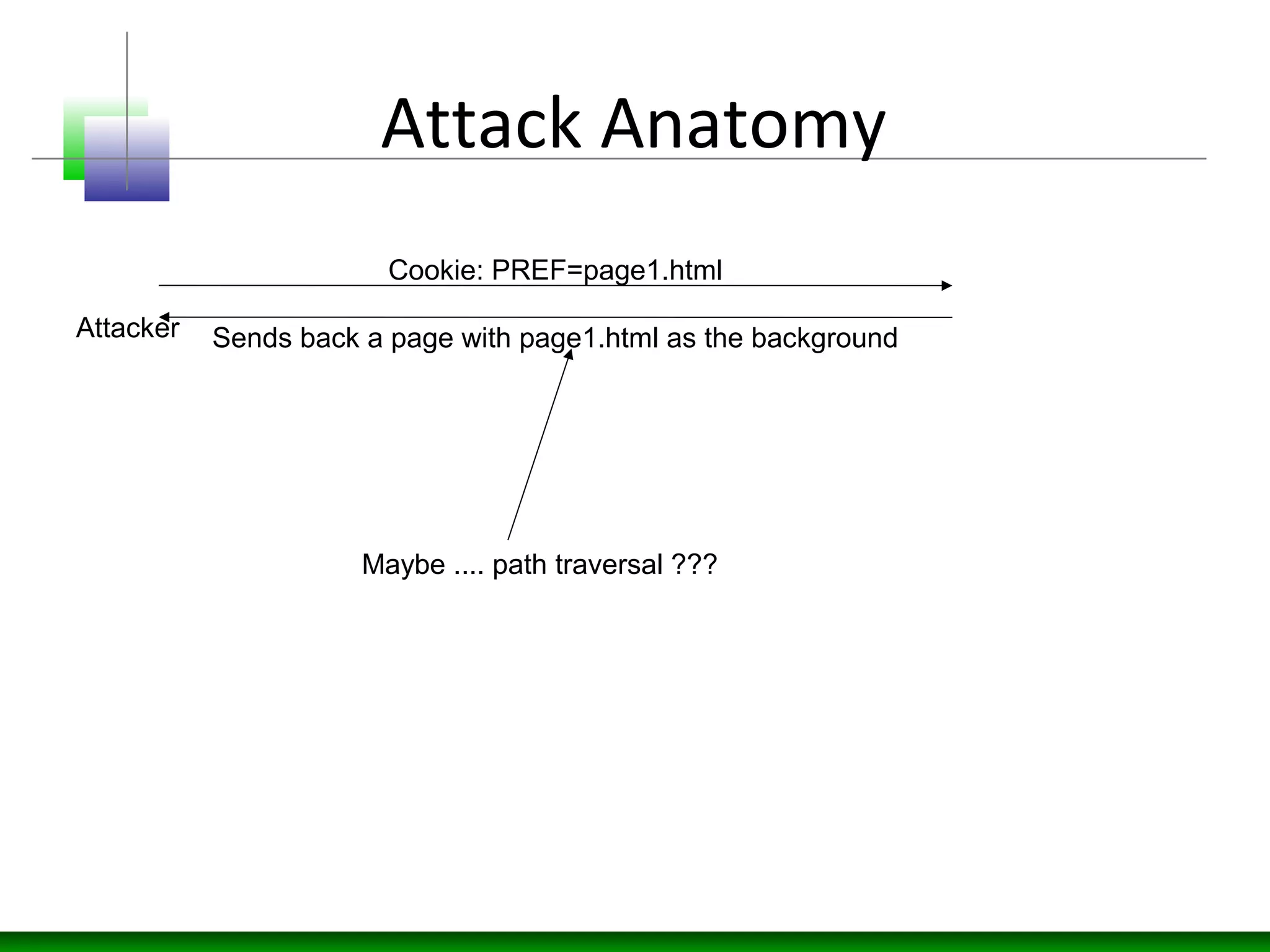

26. Attack Anatomy
Cookie: PREF=page1.html
Sends back a page with page1.html as the background
Maybe .... path traversal ???
Attacker

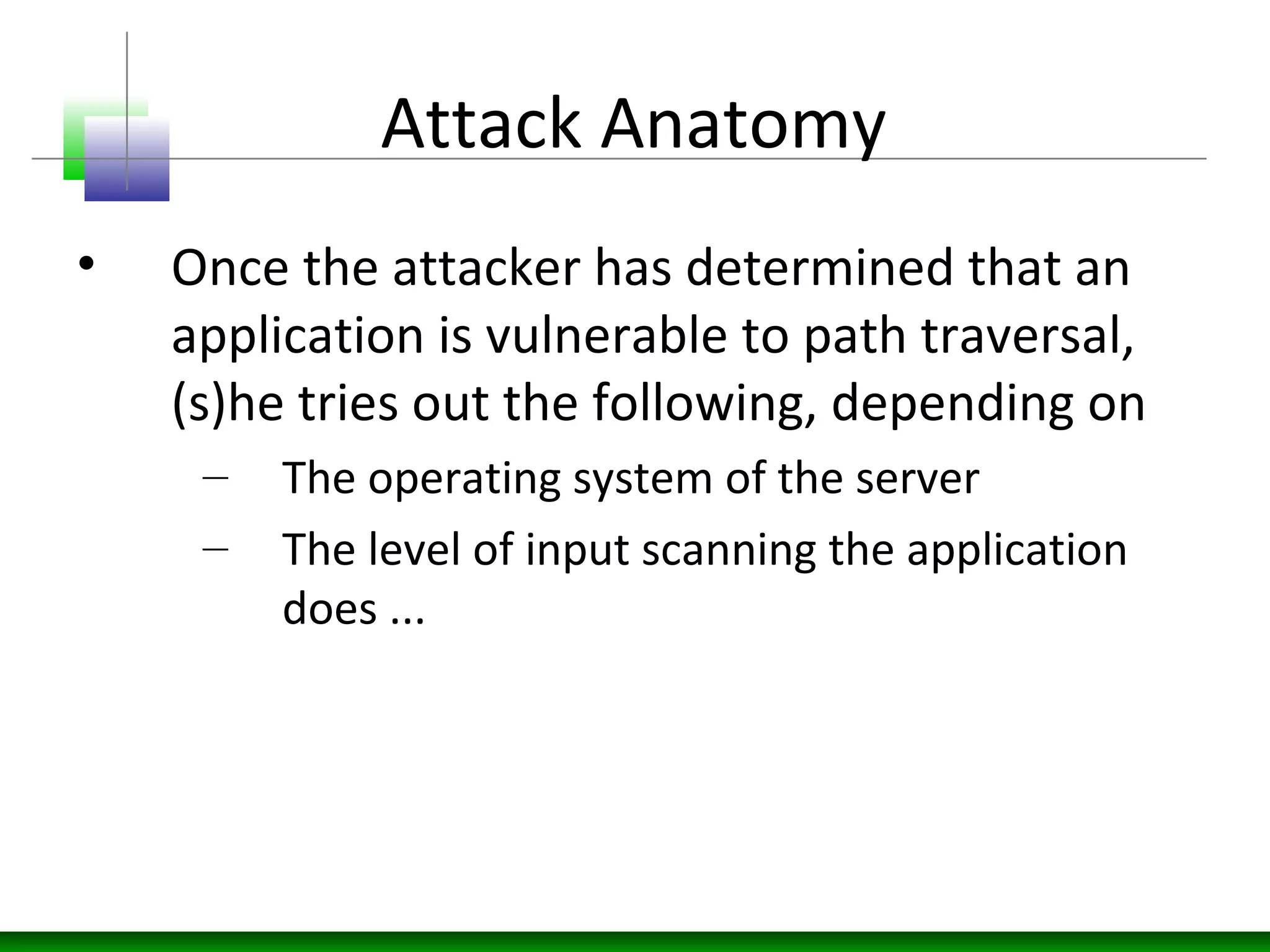

27. Attack Anatomy
• Once the attacker has determined that an
application is vulnerable to path traversal,
(s)he tries out the following, depending on
– The operating system of the server
– The level of input scanning the application
does ...

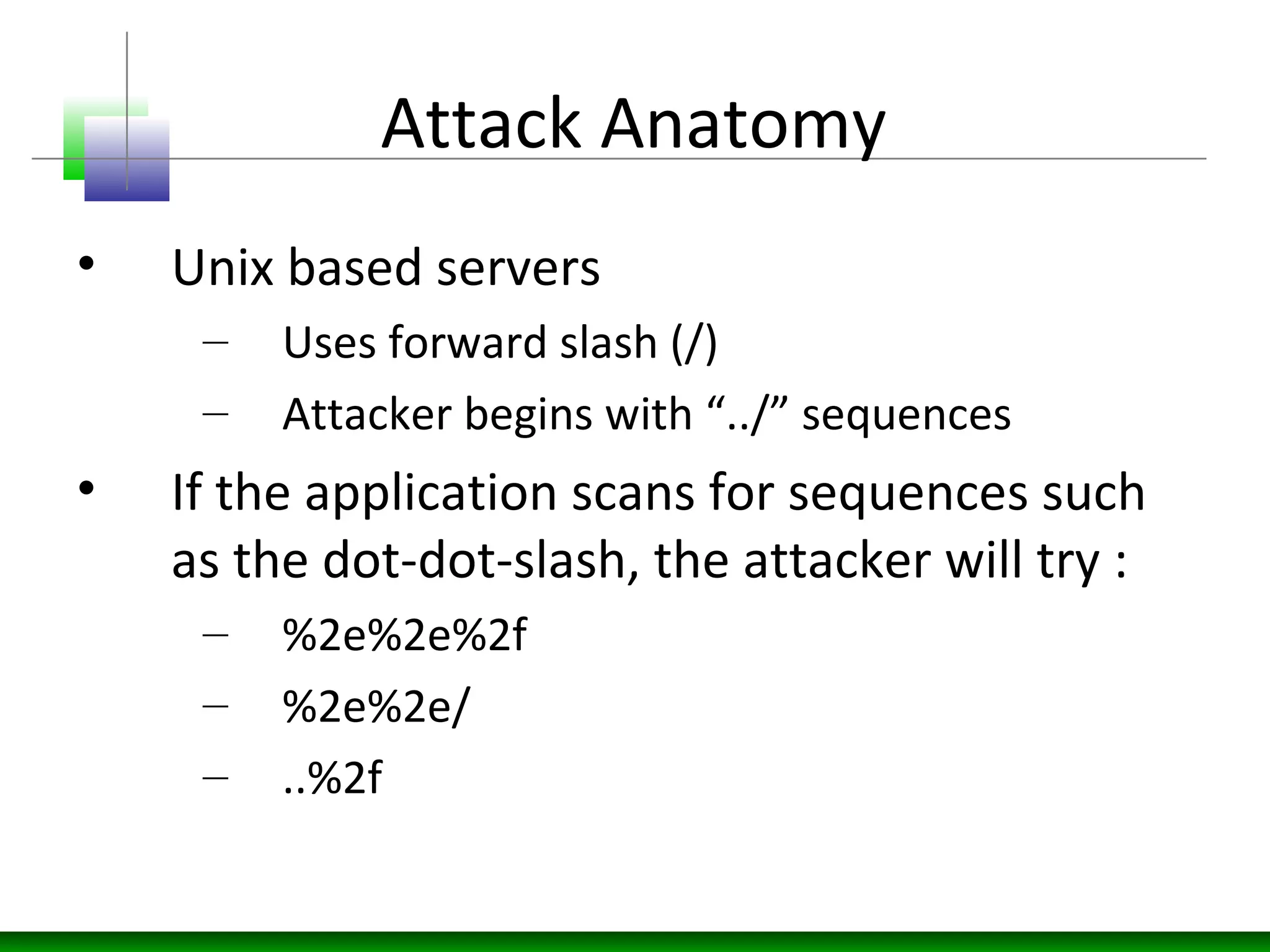

28. Attack Anatomy
• Unix based servers
– Uses forward slash (/)
– Attacker begins with “../” sequences
• If the application scans for sequences such
as the dot-dot-slash, the attacker will try :
– %2e%2e%2f
– %2e%2e/
– ..%2f

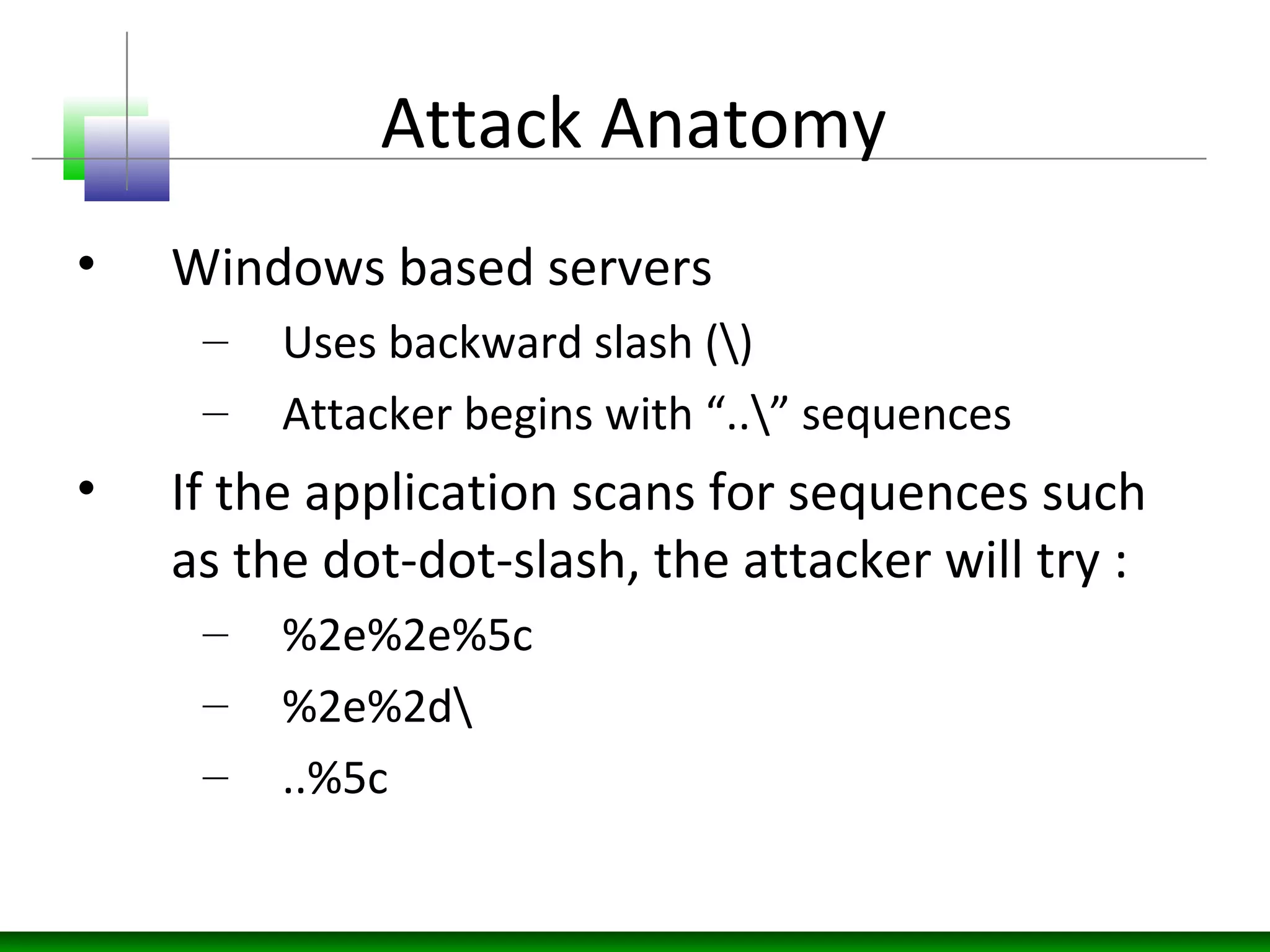

29. Attack Anatomy
• Windows based servers
– Uses backward slash ()
– Attacker begins with “..” sequences
• If the application scans for sequences such
as the dot-dot-slash, the attacker will try :
– %2e%2e%5c
– %2e%2d
– ..%5c

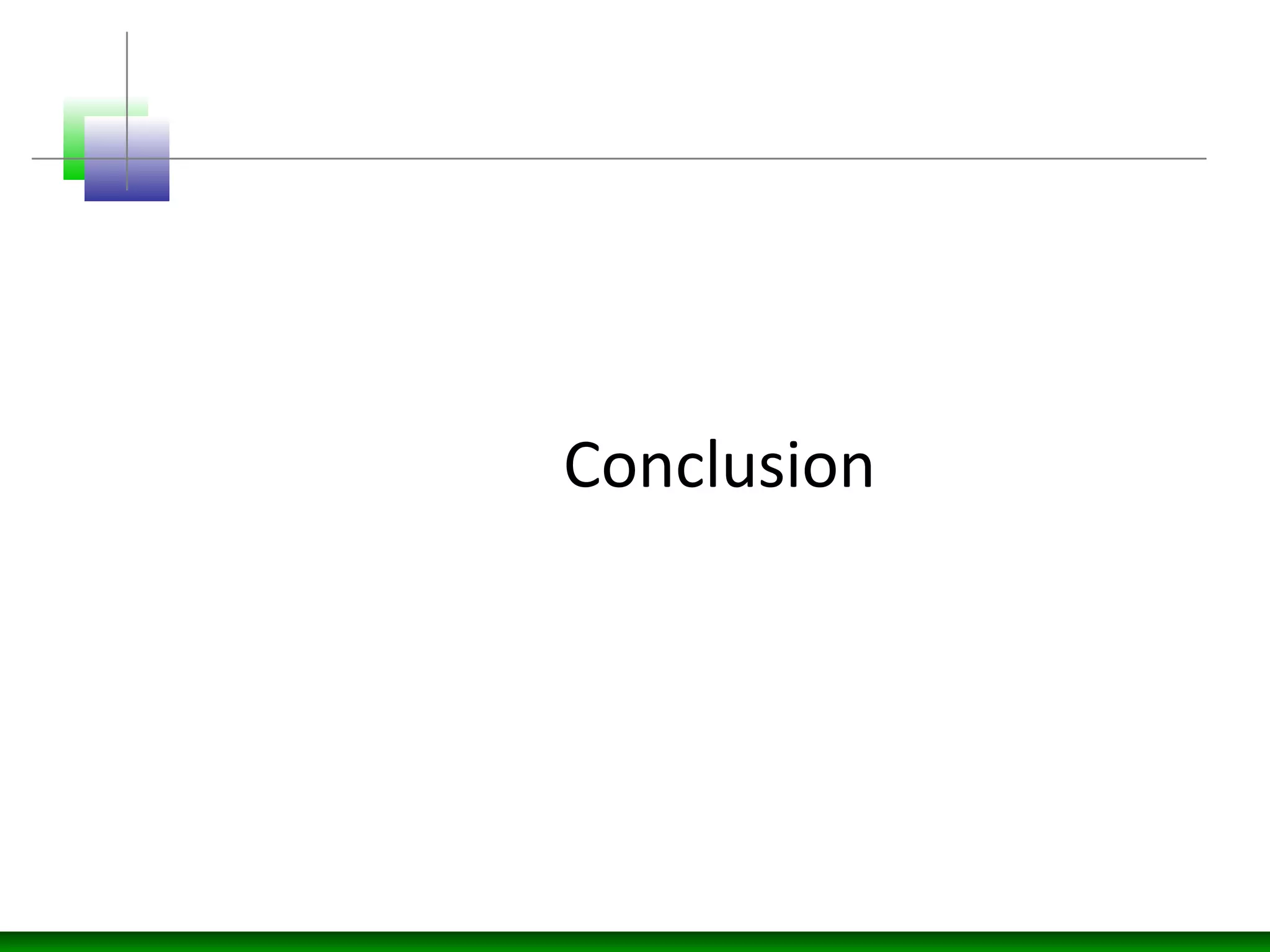

30. Conclusion
