This document discusses techniques for footprinting and profiling enterprise applications and networks. It covers identifying web application components, virtual hosts, and default applications using tools like nmap and nc. The document shows how to identify name servers and perform reverse lookups to discover additional hosts. Methods for profiling Ajax frameworks, web services, and entry points are presented. The goal of these techniques is to map assets to entry points to understand application architecture and potential vulnerabilities.

1. Footprinting, Discovery &
Profiling Applications

2. Enterprise footprints

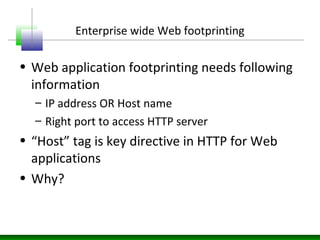

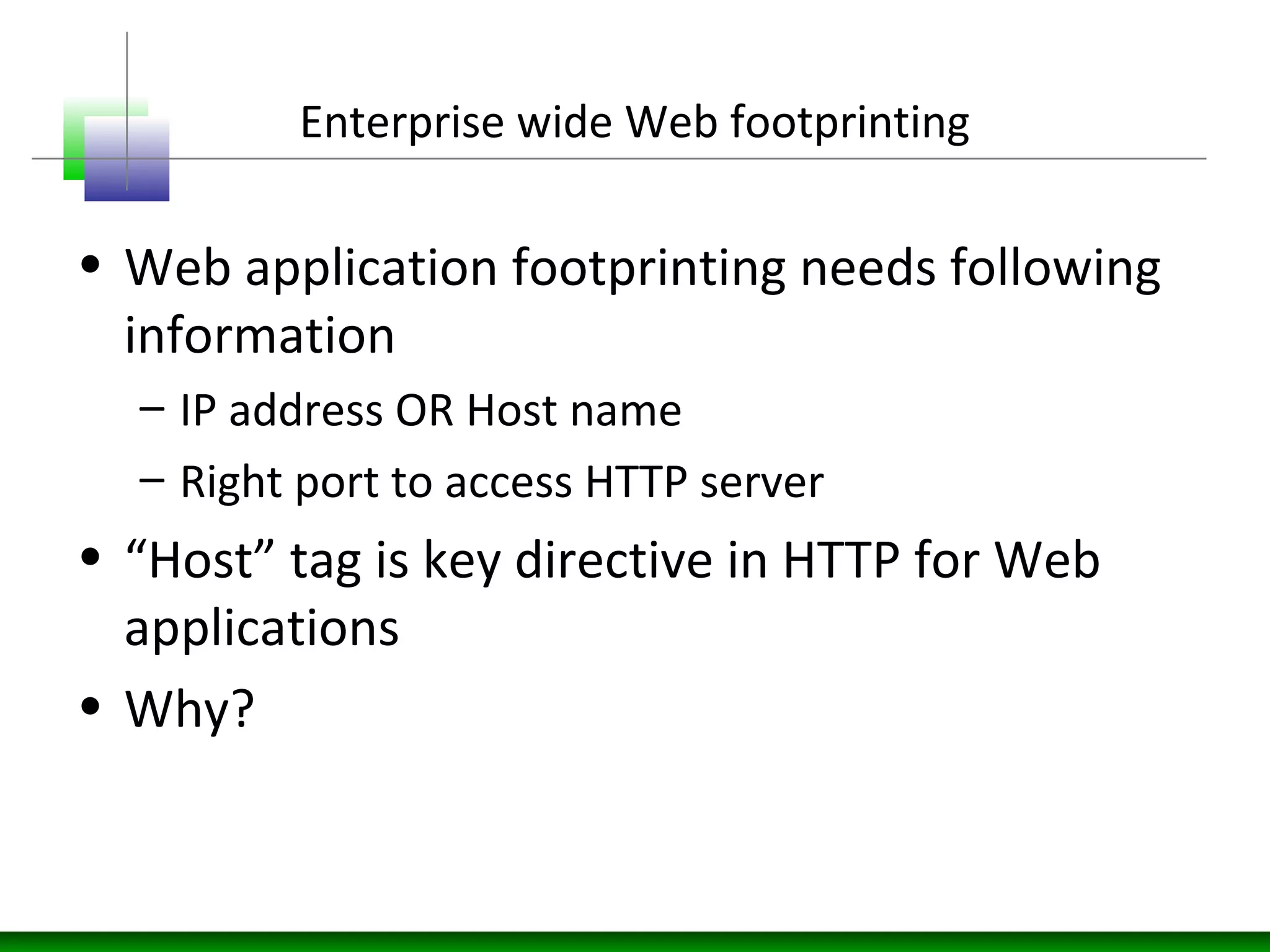

3. Enterprise wide Web footprinting
• Web application footprinting needs following
information
– IP address OR Host name
– Right port to access HTTP server
• “Host” tag is key directive in HTTP for Web
applications
• Why?

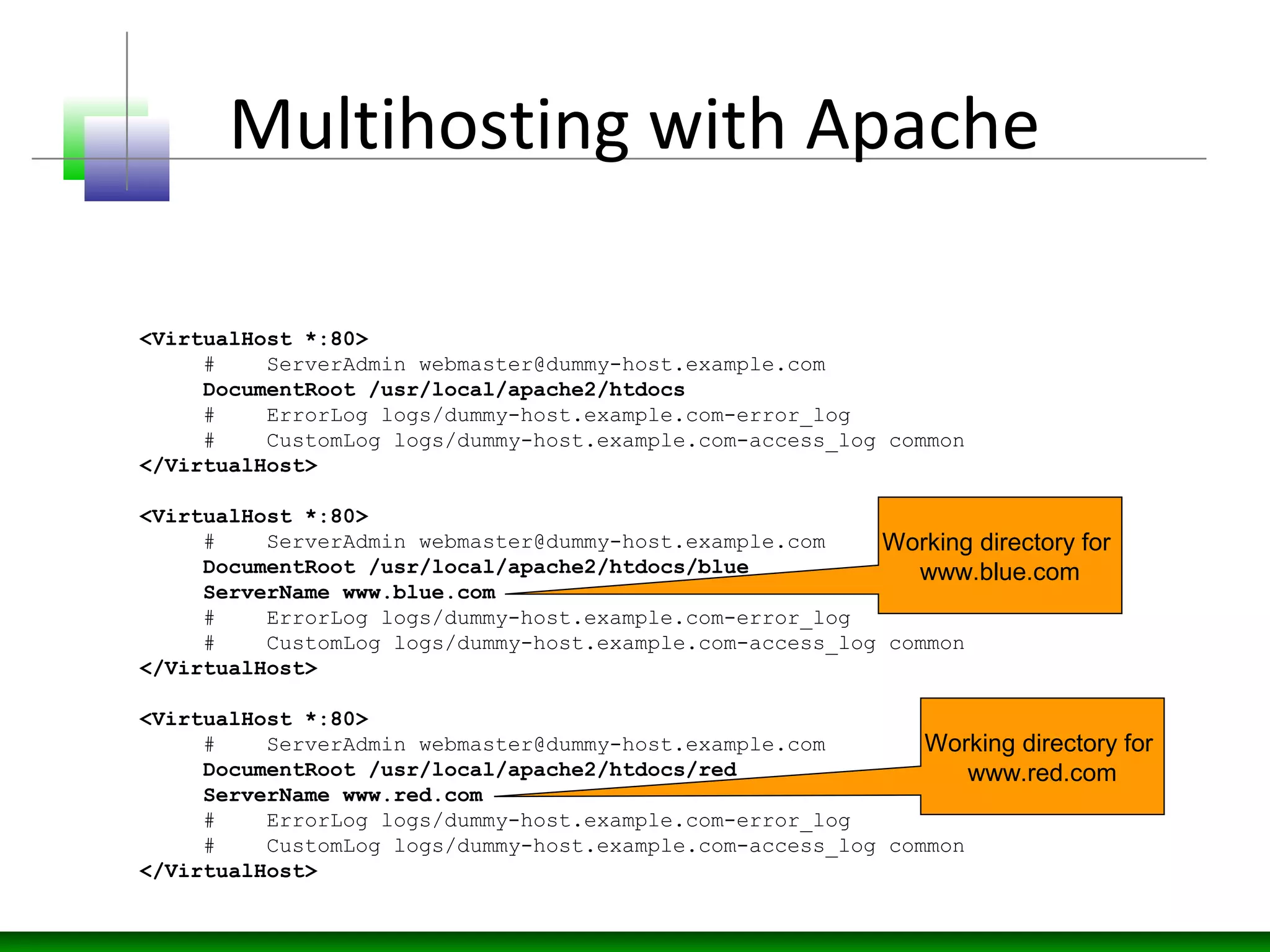

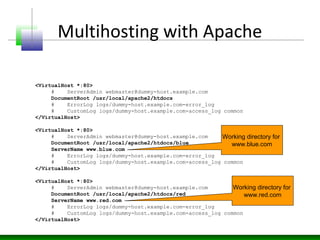

4. Multihosting with Apache
• Apache’s httpd.conf
<VirtualHost *:80>
# ServerAdmin webmaster@dummy-host.example.com
DocumentRoot /usr/local/apache2/htdocs
# ErrorLog logs/dummy-host.example.com-error_log
# CustomLog logs/dummy-host.example.com-access_log common
</VirtualHost>
<VirtualHost *:80>
# ServerAdmin webmaster@dummy-host.example.com
DocumentRoot /usr/local/apache2/htdocs/blue
ServerName www.blue.com
# ErrorLog logs/dummy-host.example.com-error_log
# CustomLog logs/dummy-host.example.com-access_log common
</VirtualHost>
<VirtualHost *:80>
# ServerAdmin webmaster@dummy-host.example.com
DocumentRoot /usr/local/apache2/htdocs/red
ServerName www.red.com
# ErrorLog logs/dummy-host.example.com-error_log
# CustomLog logs/dummy-host.example.com-access_log common
</VirtualHost>
Working directory for
www.blue.com
Working directory for
www.red.com

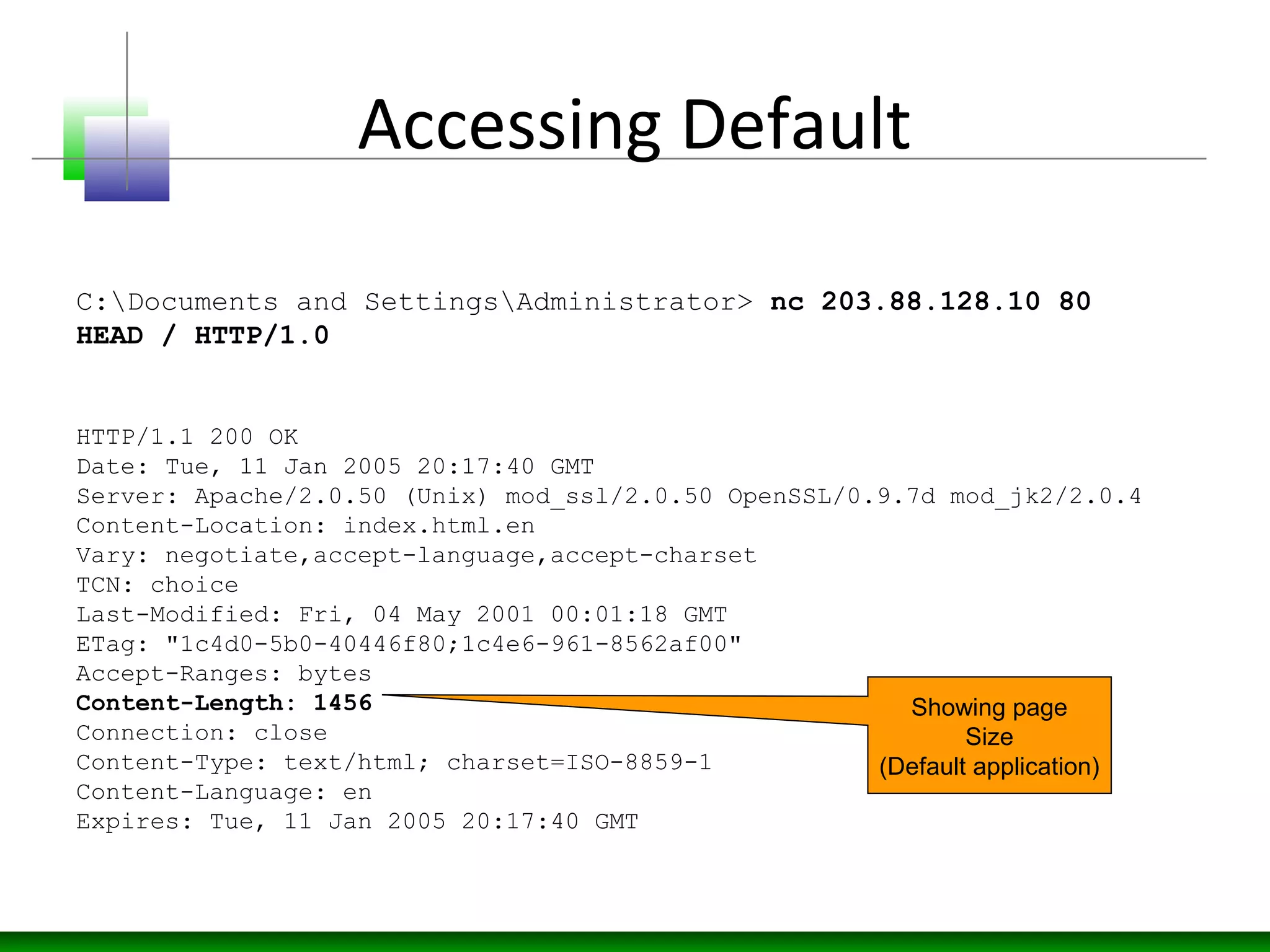

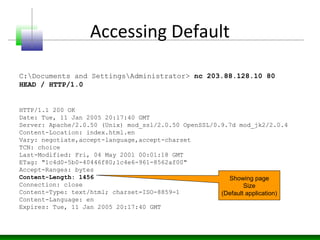

5. Accessing Default
HTTP/1.1 200 OK
Date: Tue, 11 Jan 2005 20:17:40 GMT
Server: Apache/2.0.50 (Unix) mod_ssl/2.0.50 OpenSSL/0.9.7d mod_jk2/2.0.4
Content-Location: index.html.en
Vary: negotiate,accept-language,accept-charset
TCN: choice
Last-Modified: Fri, 04 May 2001 00:01:18 GMT
ETag: "1c4d0-5b0-40446f80;1c4e6-961-8562af00"
Accept-Ranges: bytes
Content-Length: 1456
Connection: close
Content-Type: text/html; charset=ISO-8859-1
Content-Language: en
Expires: Tue, 11 Jan 2005 20:17:40 GMT
C:Documents and SettingsAdministrator> nc 203.88.128.10 80
HEAD / HTTP/1.0
Showing page
Size
(Default application)

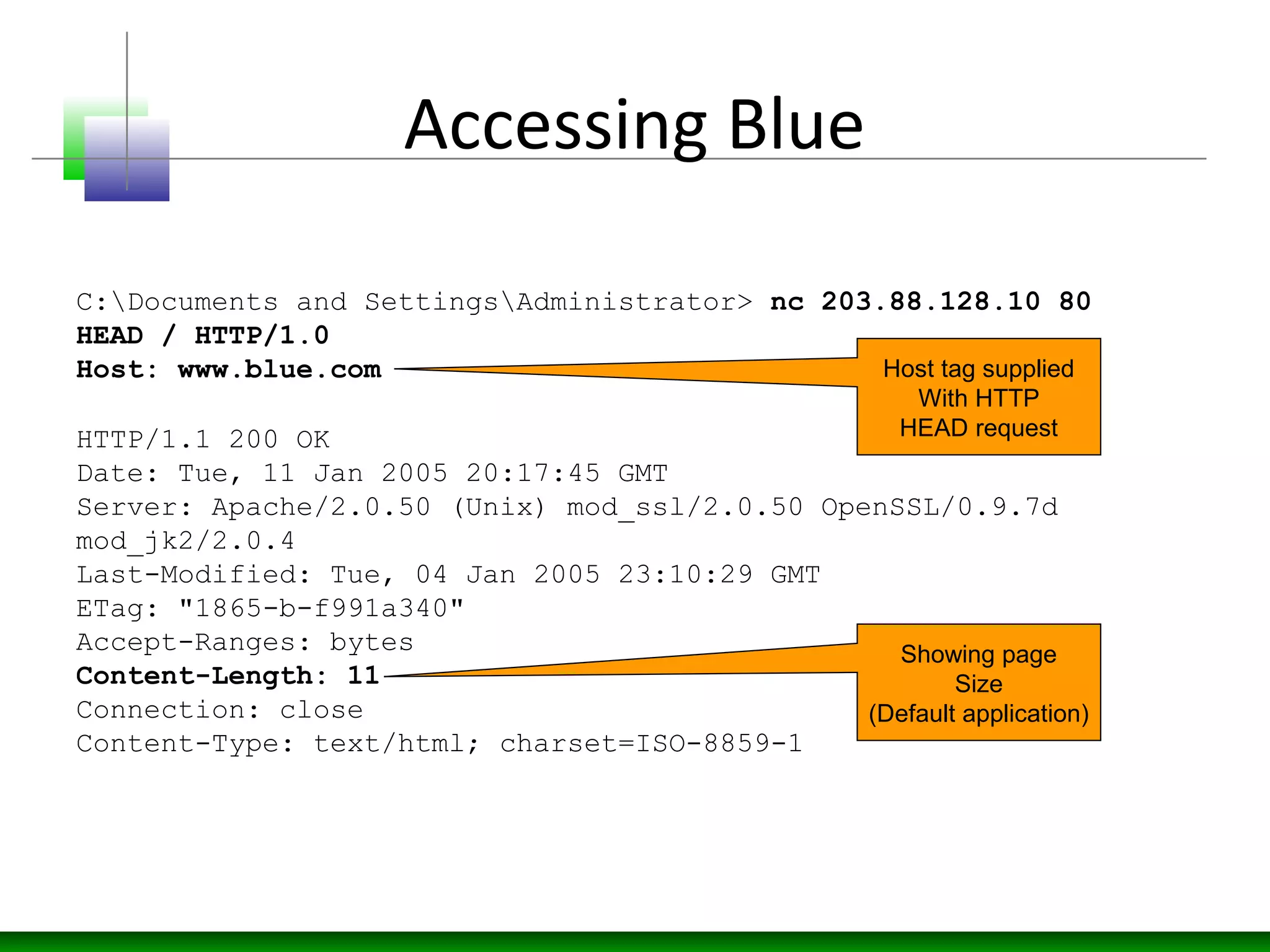

6. Accessing Blue
HTTP/1.1 200 OK
Date: Tue, 11 Jan 2005 20:17:45 GMT
Server: Apache/2.0.50 (Unix) mod_ssl/2.0.50 OpenSSL/0.9.7d
mod_jk2/2.0.4
Last-Modified: Tue, 04 Jan 2005 23:10:29 GMT
ETag: "1865-b-f991a340"
Accept-Ranges: bytes
Content-Length: 11
Connection: close
Content-Type: text/html; charset=ISO-8859-1
C:Documents and SettingsAdministrator> nc 203.88.128.10 80
HEAD / HTTP/1.0
Host: www.blue.com
Showing page
Size
(Default application)
Host tag supplied
With HTTP
HEAD request

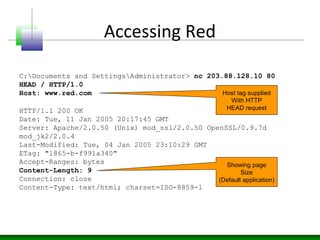

7. Accessing Red
HTTP/1.1 200 OK
Date: Tue, 11 Jan 2005 20:17:45 GMT
Server: Apache/2.0.50 (Unix) mod_ssl/2.0.50 OpenSSL/0.9.7d
mod_jk2/2.0.4
Last-Modified: Tue, 04 Jan 2005 23:10:29 GMT
ETag: "1865-b-f991a340"
Accept-Ranges: bytes
Content-Length: 9
Connection: close
Content-Type: text/html; charset=ISO-8859-1
C:Documents and SettingsAdministrator> nc 203.88.128.10 80
HEAD / HTTP/1.0
Host: www.red.com
Showing page
Size
(Default application)
Host tag supplied
With HTTP
HEAD request

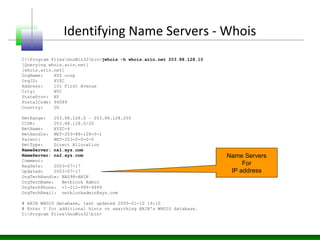

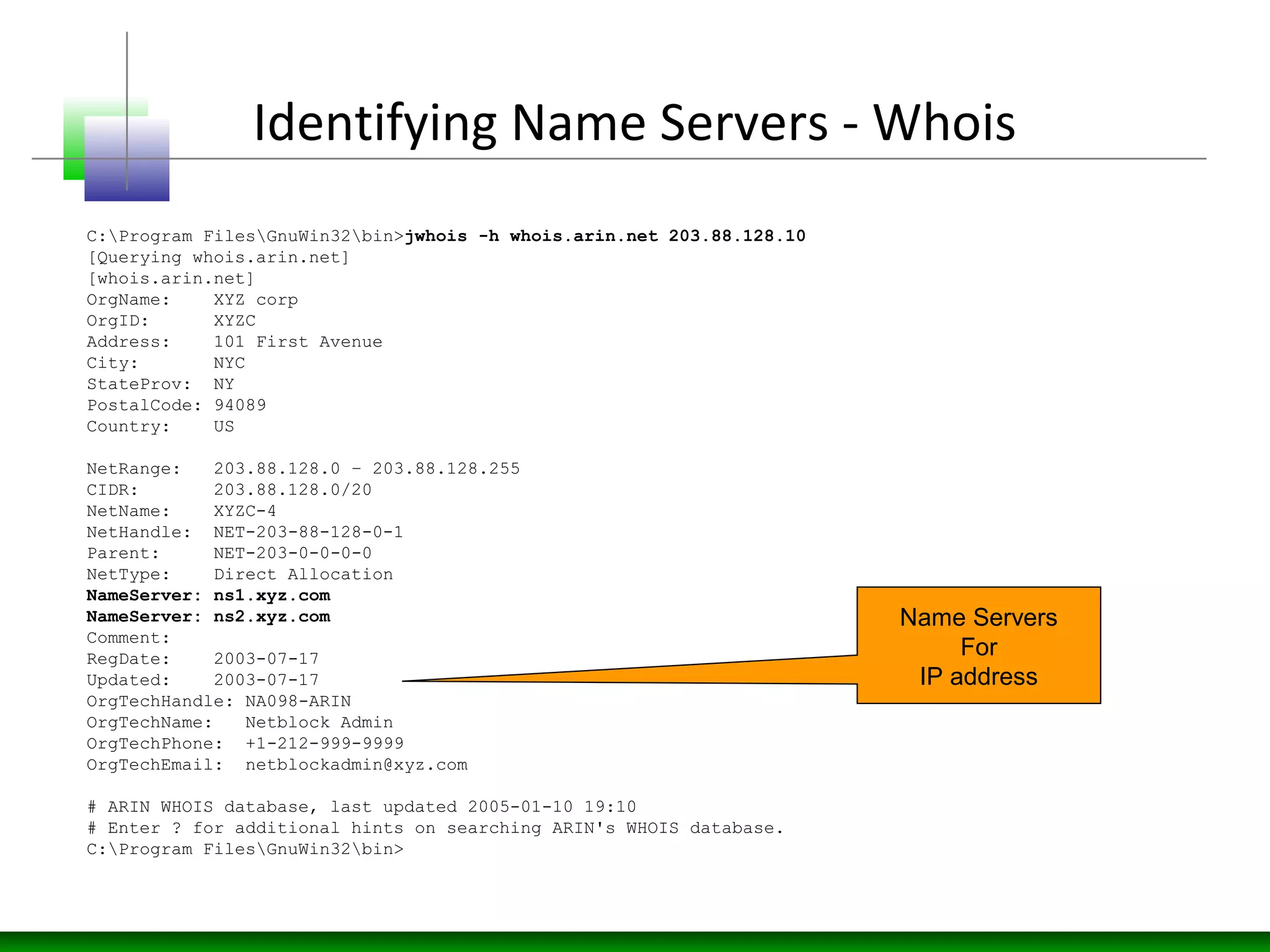

8. Identifying Name Servers - Whois
C:Program FilesGnuWin32bin>jwhois -h whois.arin.net 203.88.128.10
[Querying whois.arin.net]
[whois.arin.net]
OrgName: XYZ corp
OrgID: XYZC
Address: 101 First Avenue
City: NYC
StateProv: NY
PostalCode: 94089
Country: US
NetRange: 203.88.128.0 – 203.88.128.255
CIDR: 203.88.128.0/20
NetName: XYZC-4
NetHandle: NET-203-88-128-0-1
Parent: NET-203-0-0-0-0
NetType: Direct Allocation
NameServer: ns1.xyz.com
NameServer: ns2.xyz.com
Comment:
RegDate: 2003-07-17
Updated: 2003-07-17
OrgTechHandle: NA098-ARIN
OrgTechName: Netblock Admin
OrgTechPhone: +1-212-999-9999
OrgTechEmail: netblockadmin@xyz.com
# ARIN WHOIS database, last updated 2005-01-10 19:10
# Enter ? for additional hints on searching ARIN's WHOIS database.
C:Program FilesGnuWin32bin>
Name Servers
For
IP address

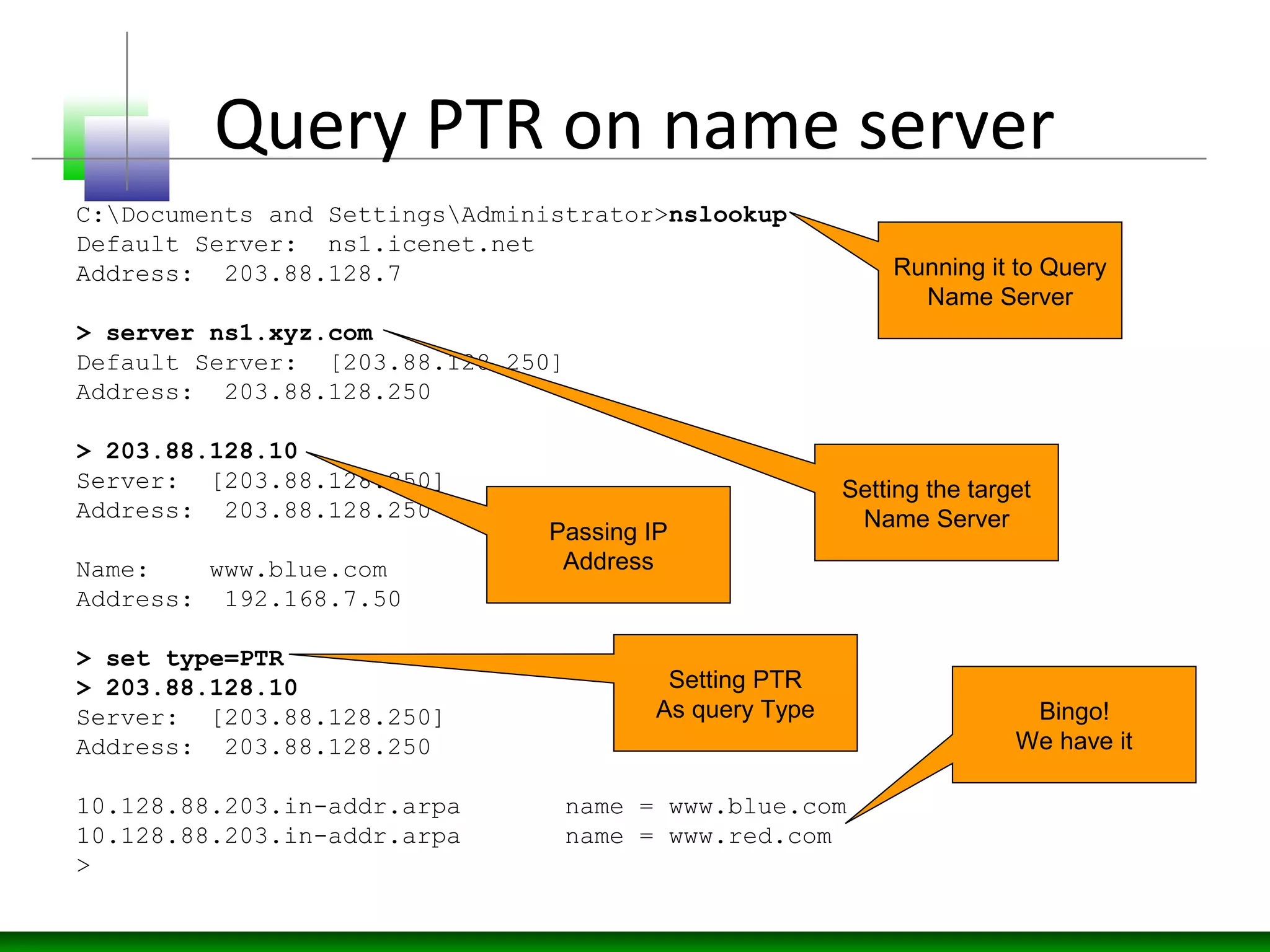

9. Query PTR on name server
C:Documents and SettingsAdministrator>nslookup
Default Server: ns1.icenet.net
Address: 203.88.128.7
> server ns1.xyz.com
Default Server: [203.88.128.250]
Address: 203.88.128.250
> 203.88.128.10
Server: [203.88.128.250]
Address: 203.88.128.250
Name: www.blue.com
Address: 192.168.7.50
> set type=PTR
> 203.88.128.10
Server: [203.88.128.250]
Address: 203.88.128.250
10.128.88.203.in-addr.arpa name = www.blue.com
10.128.88.203.in-addr.arpa name = www.red.com
>
Bingo!
We have it
Running it to Query
Name Server
Setting the target
Name Server
Passing IP
Address
Setting PTR
As query Type

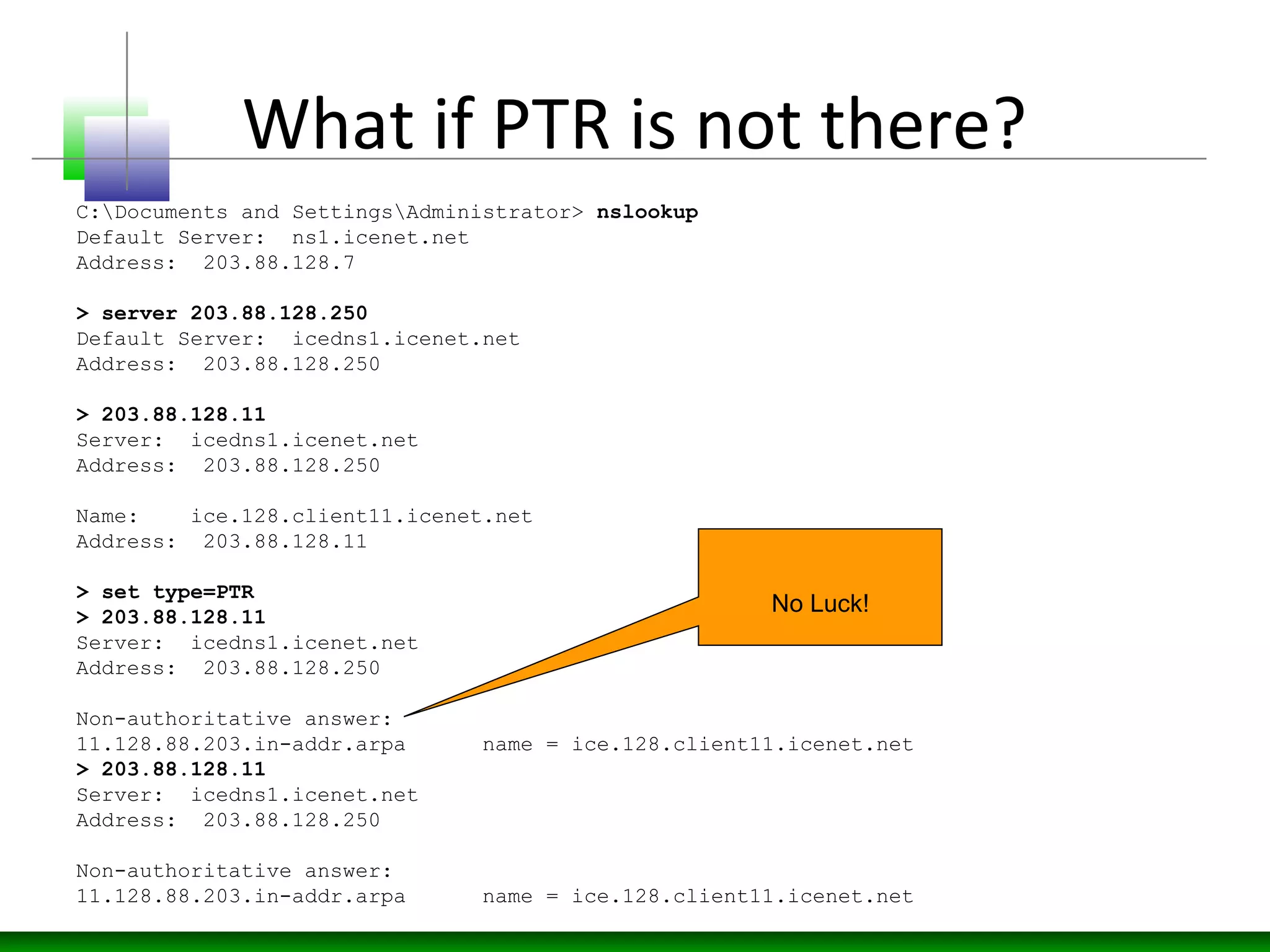

10. What if PTR is not there?
C:Documents and SettingsAdministrator> nslookup
Default Server: ns1.icenet.net
Address: 203.88.128.7
> server 203.88.128.250
Default Server: icedns1.icenet.net
Address: 203.88.128.250
> 203.88.128.11
Server: icedns1.icenet.net
Address: 203.88.128.250
Name: ice.128.client11.icenet.net
Address: 203.88.128.11
> set type=PTR
> 203.88.128.11
Server: icedns1.icenet.net
Address: 203.88.128.250
Non-authoritative answer:
11.128.88.203.in-addr.arpa name = ice.128.client11.icenet.net
> 203.88.128.11
Server: icedns1.icenet.net
Address: 203.88.128.250
Non-authoritative answer:
11.128.88.203.in-addr.arpa name = ice.128.client11.icenet.net
No Luck!

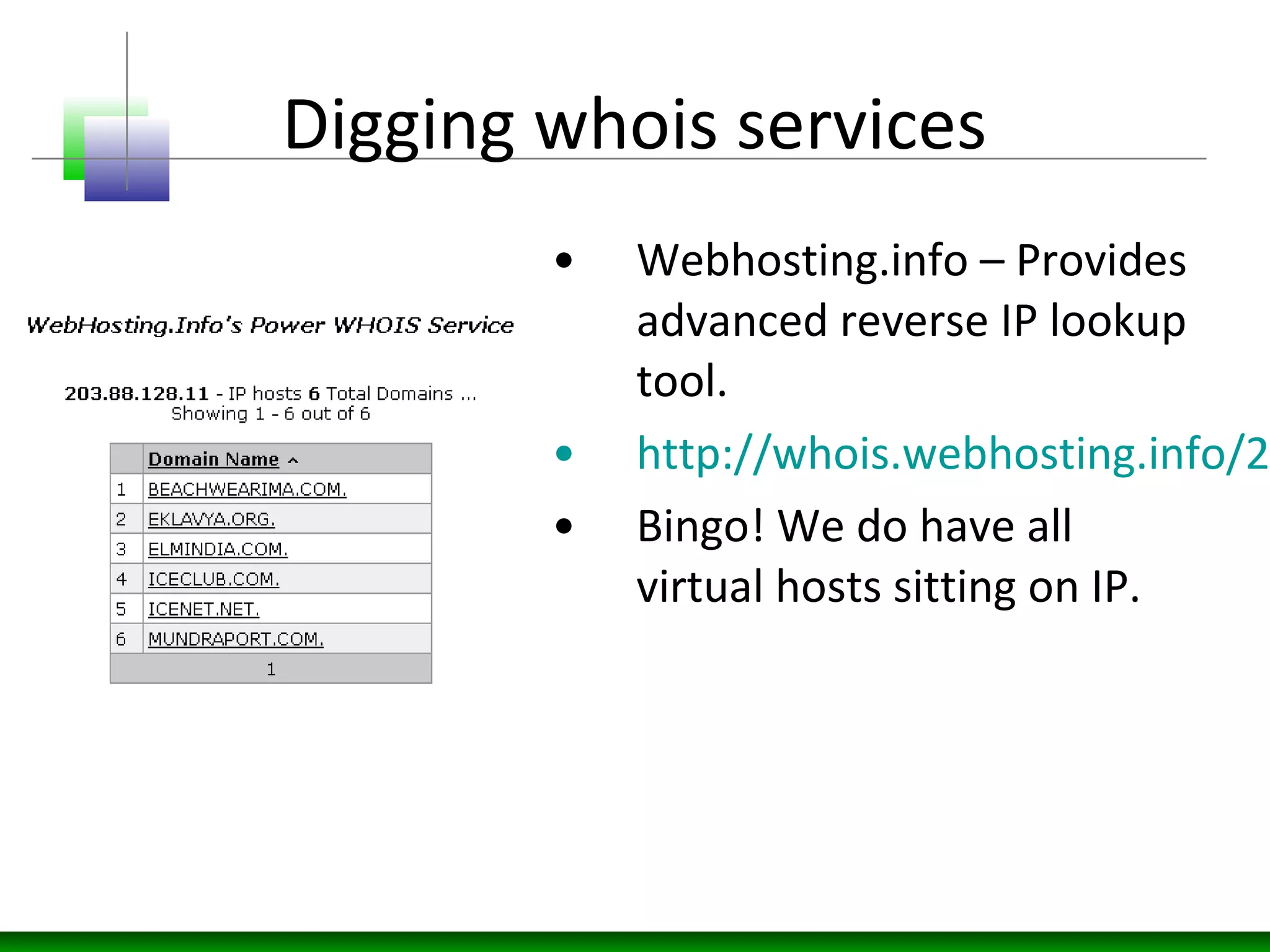

11. Digging whois services
• Webhosting.info – Provides
advanced reverse IP lookup
tool.
• http://whois.webhosting.info/2
• Bingo! We do have all
virtual hosts sitting on IP.

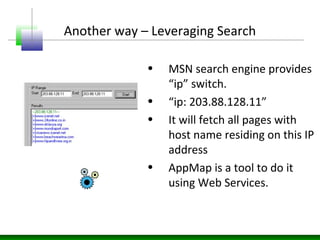

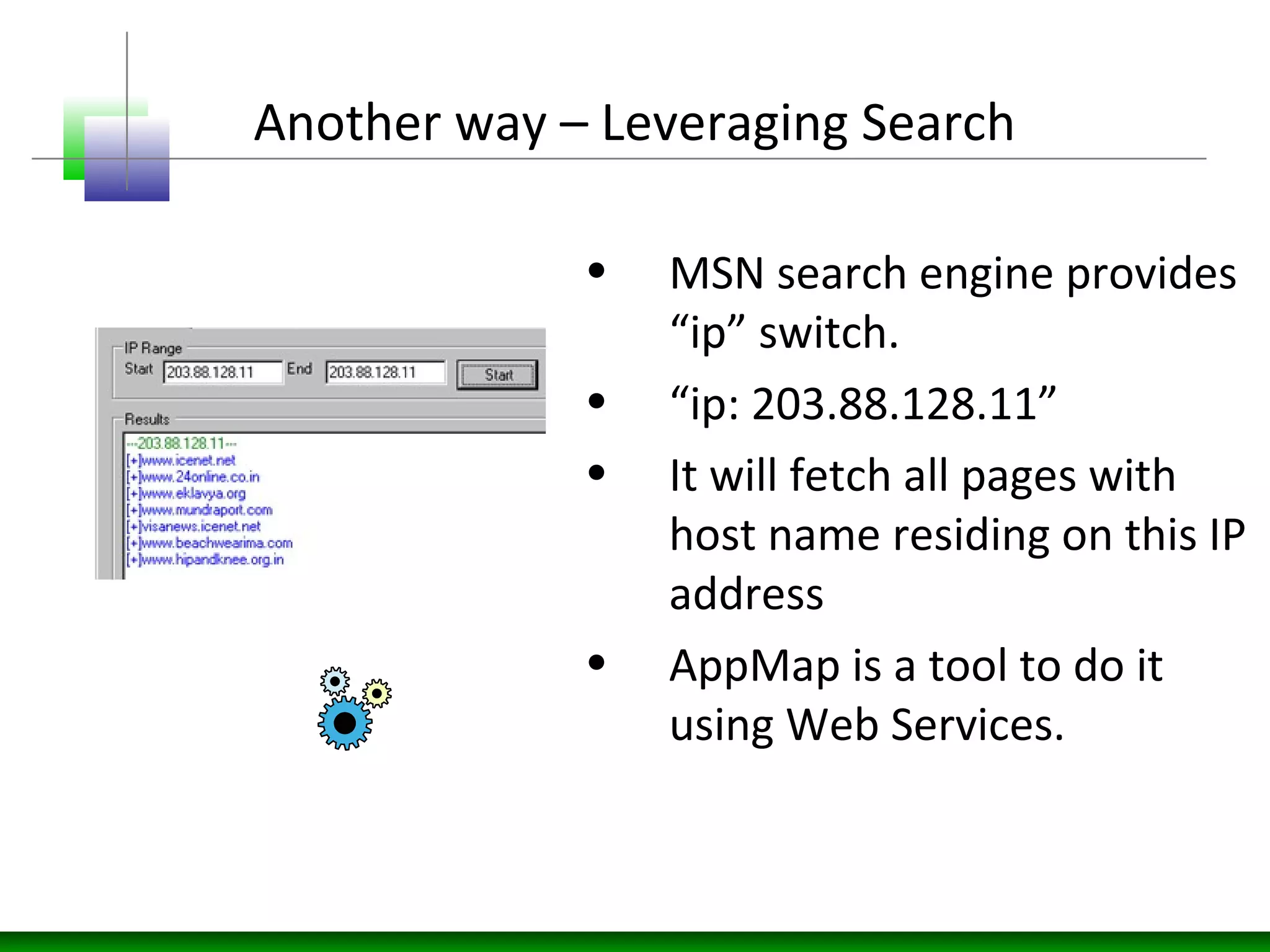

12. Another way – Leveraging Search
• MSN search engine provides
“ip” switch.
• “ip: 203.88.128.11”
• It will fetch all pages with
host name residing on this IP
address
• AppMap is a tool to do it
using Web Services.

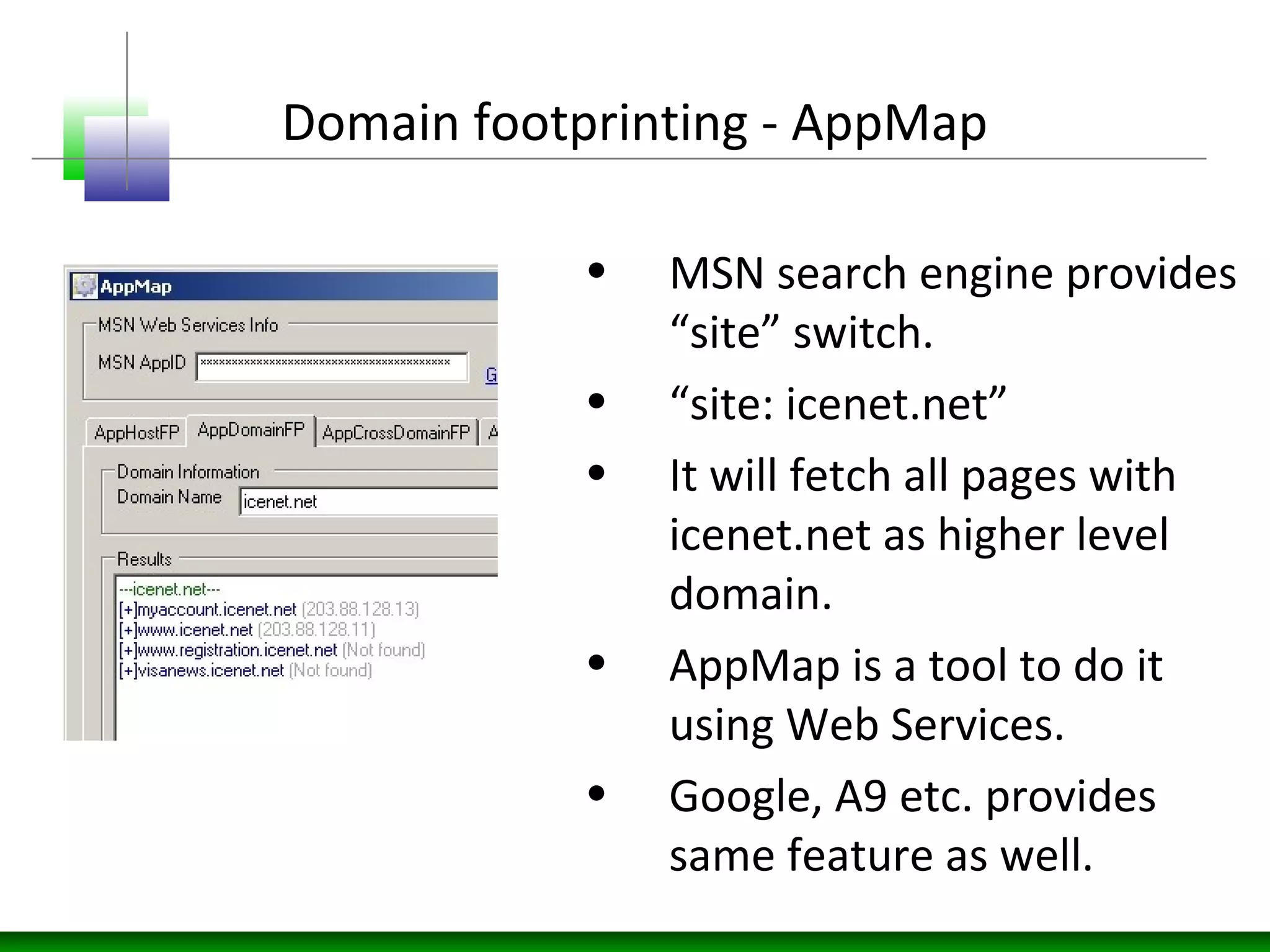

13. Domain footprinting - AppMap
• MSN search engine provides
“site” switch.
• “site: icenet.net”
• It will fetch all pages with
icenet.net as higher level
domain.
• AppMap is a tool to do it
using Web Services.
• Google, A9 etc. provides
same feature as well.

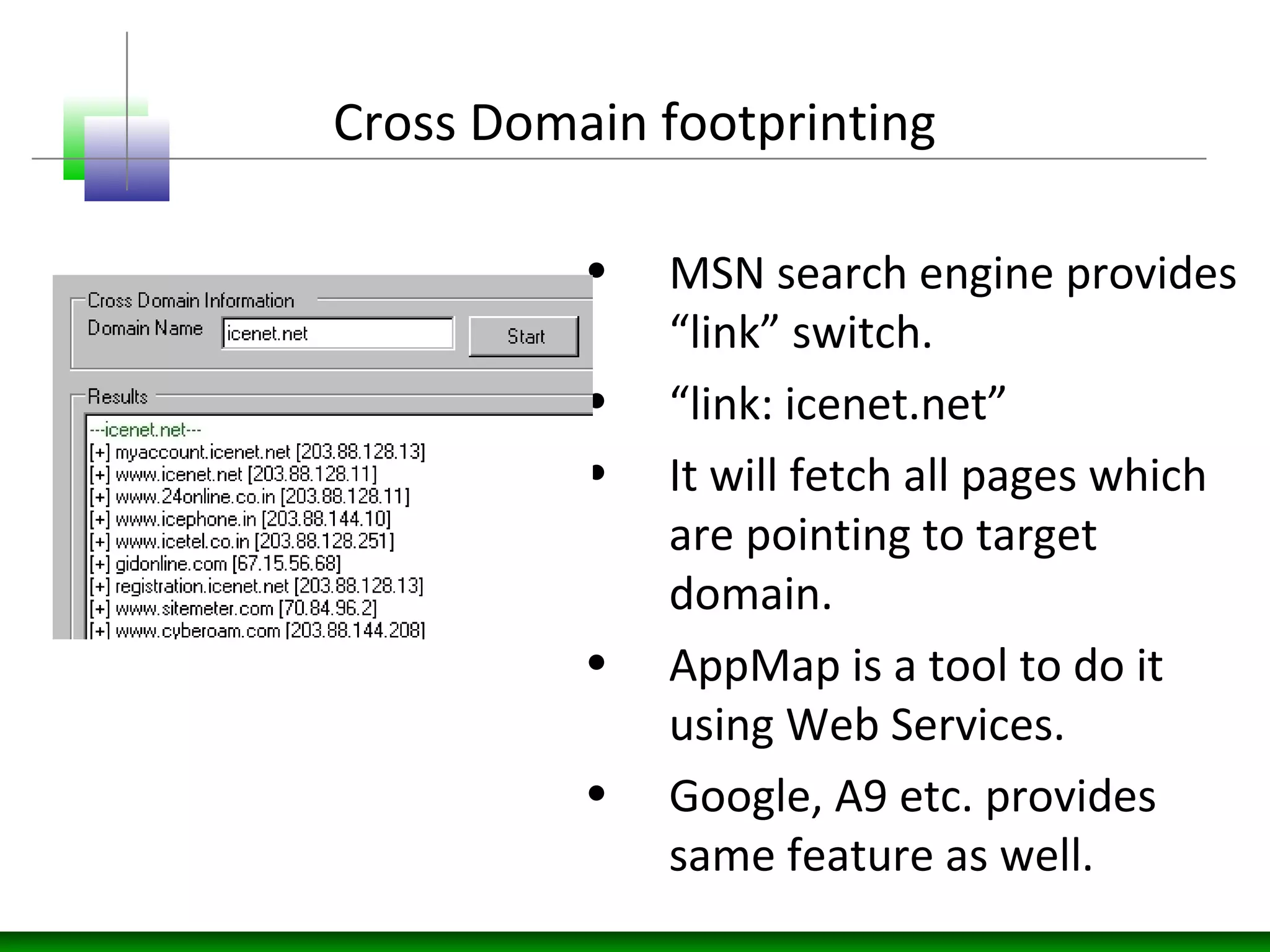

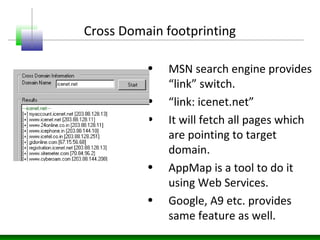

14. Cross Domain footprinting
• MSN search engine provides
“link” switch.
• “link: icenet.net”
• It will fetch all pages which
are pointing to target
domain.
• AppMap is a tool to do it
using Web Services.
• Google, A9 etc. provides
same feature as well.

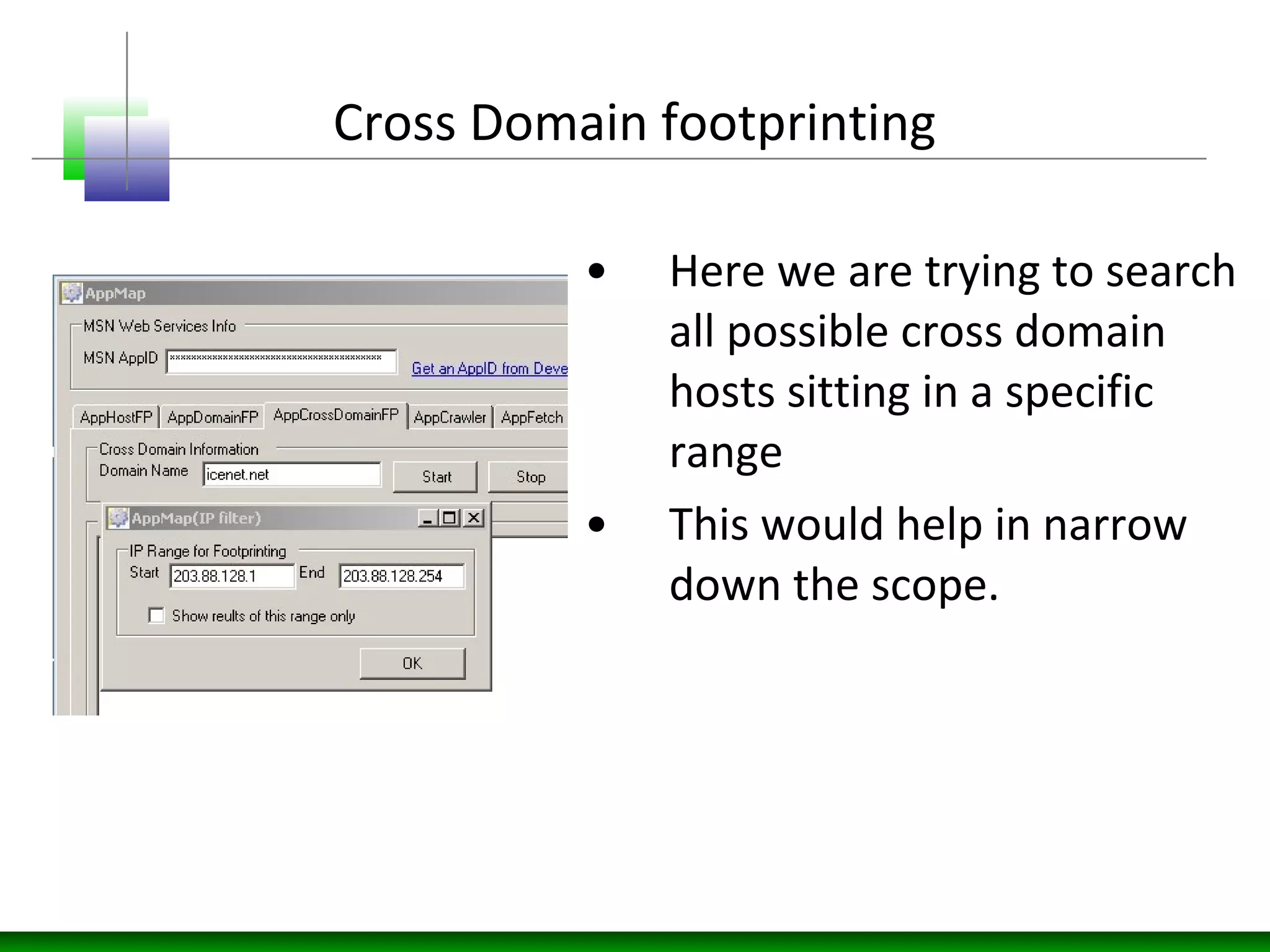

15. Cross Domain footprinting
• Here we are trying to search
all possible cross domain
hosts sitting in a specific
range
• This would help in narrow
down the scope.

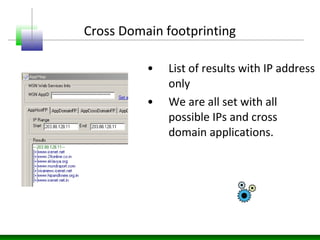

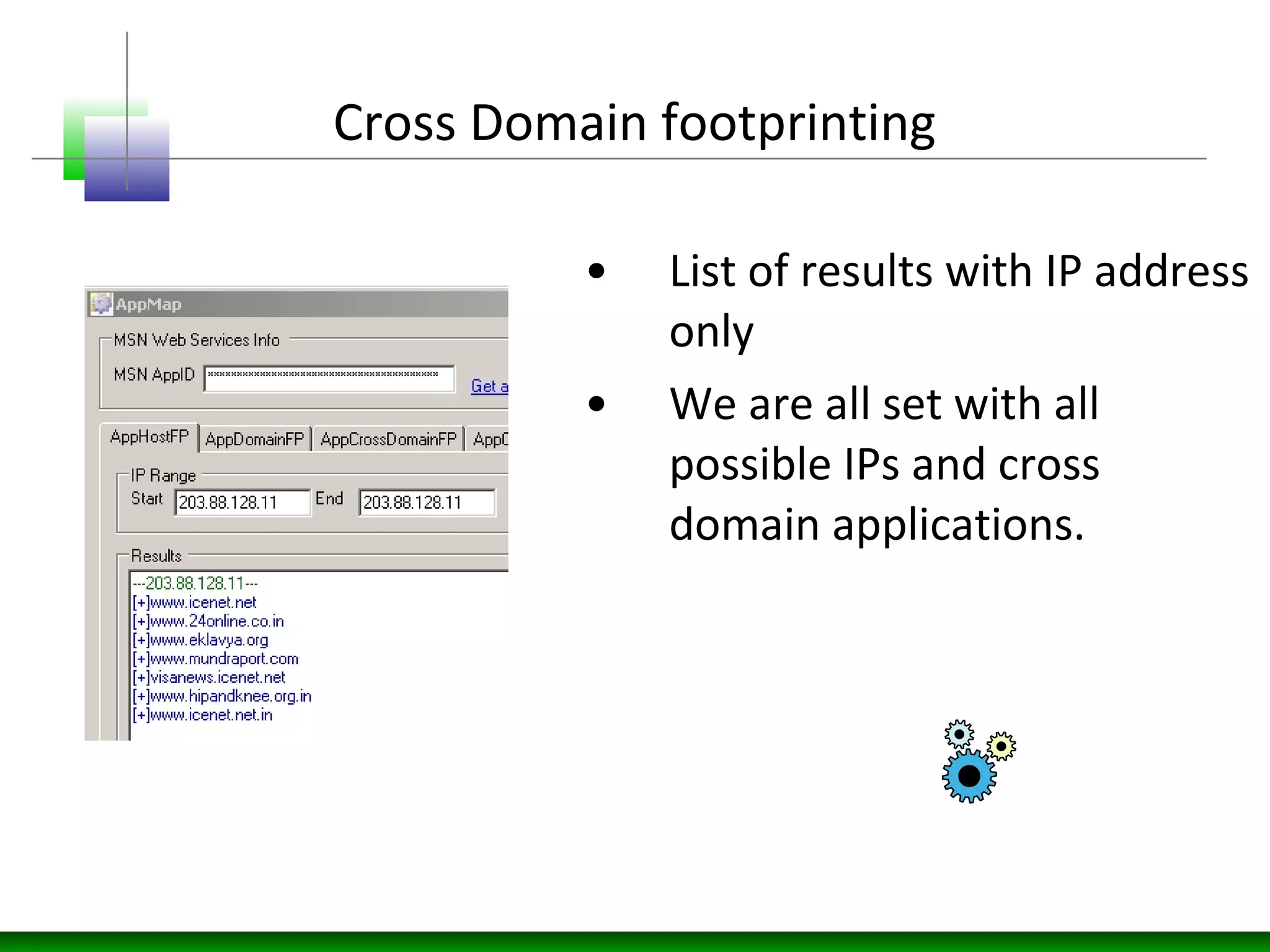

16. Cross Domain footprinting
• List of results with IP address
only
• We are all set with all
possible IPs and cross
domain applications.

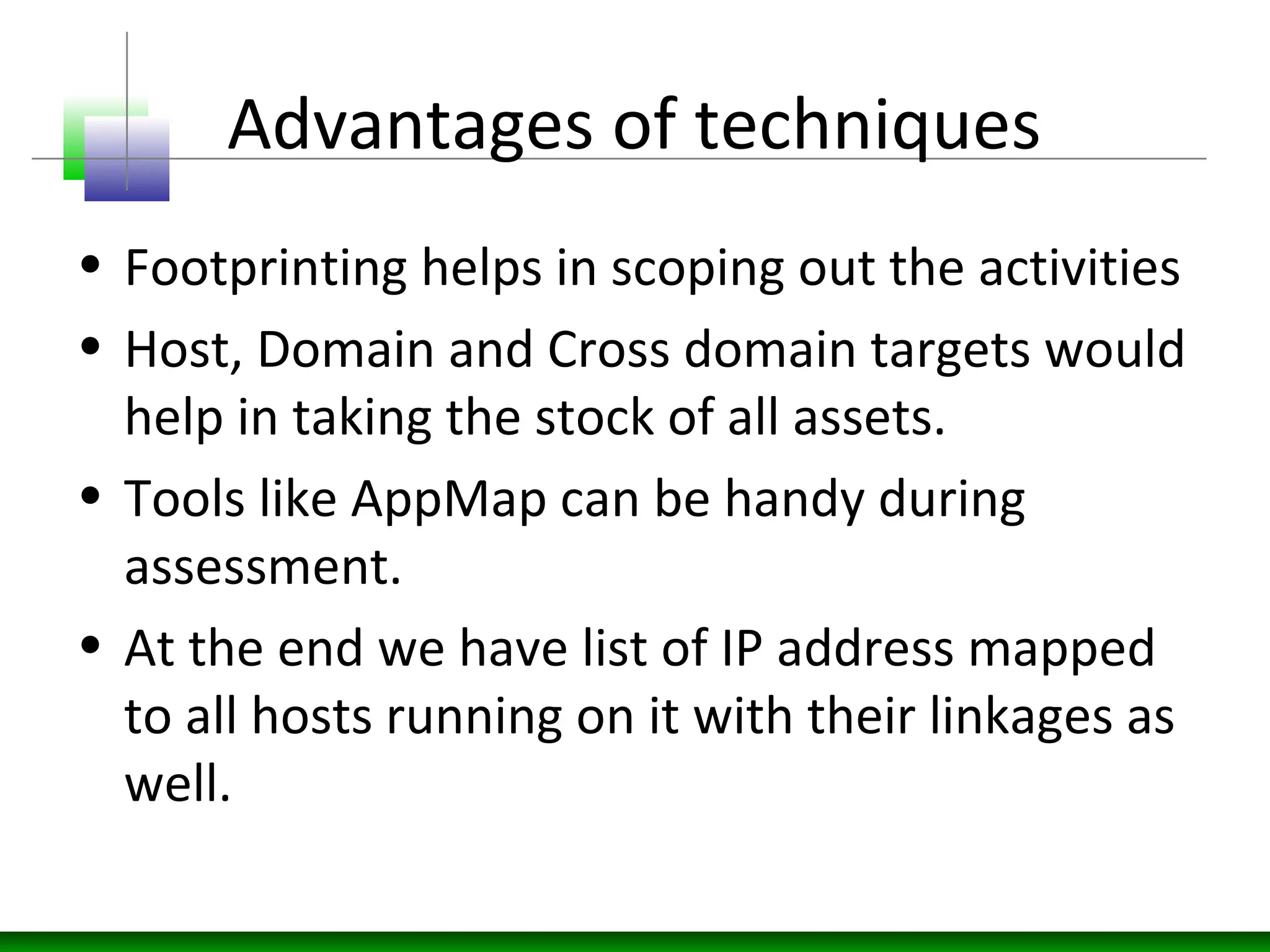

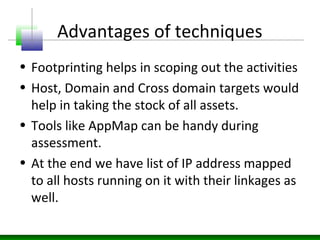

17. Advantages of techniques
• Footprinting helps in scoping out the activities
• Host, Domain and Cross domain targets would
help in taking the stock of all assets.
• Tools like AppMap can be handy during
assessment.
• At the end we have list of IP address mapped
to all hosts running on it with their linkages as
well.

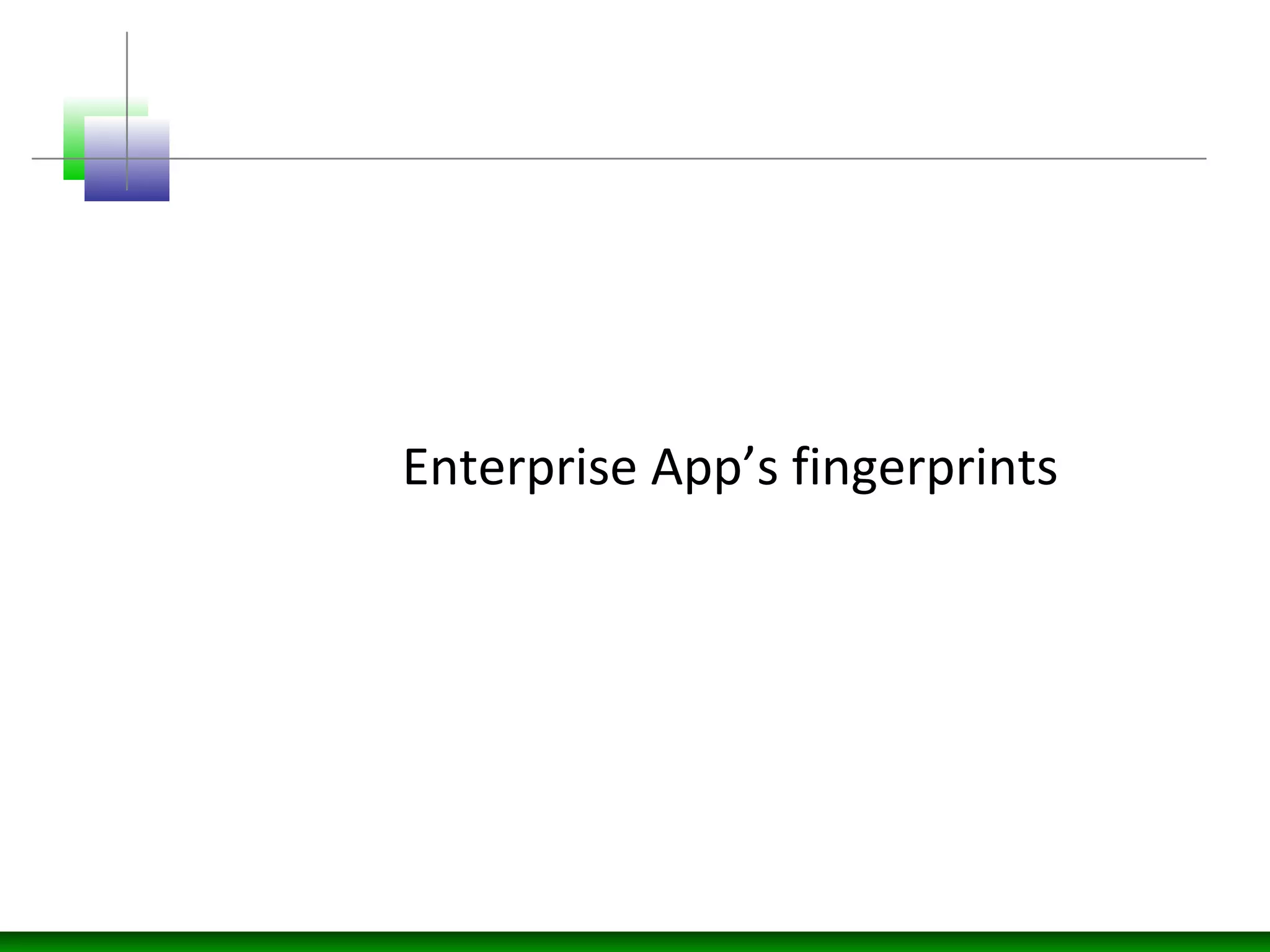

18. Enterprise App’s fingerprints

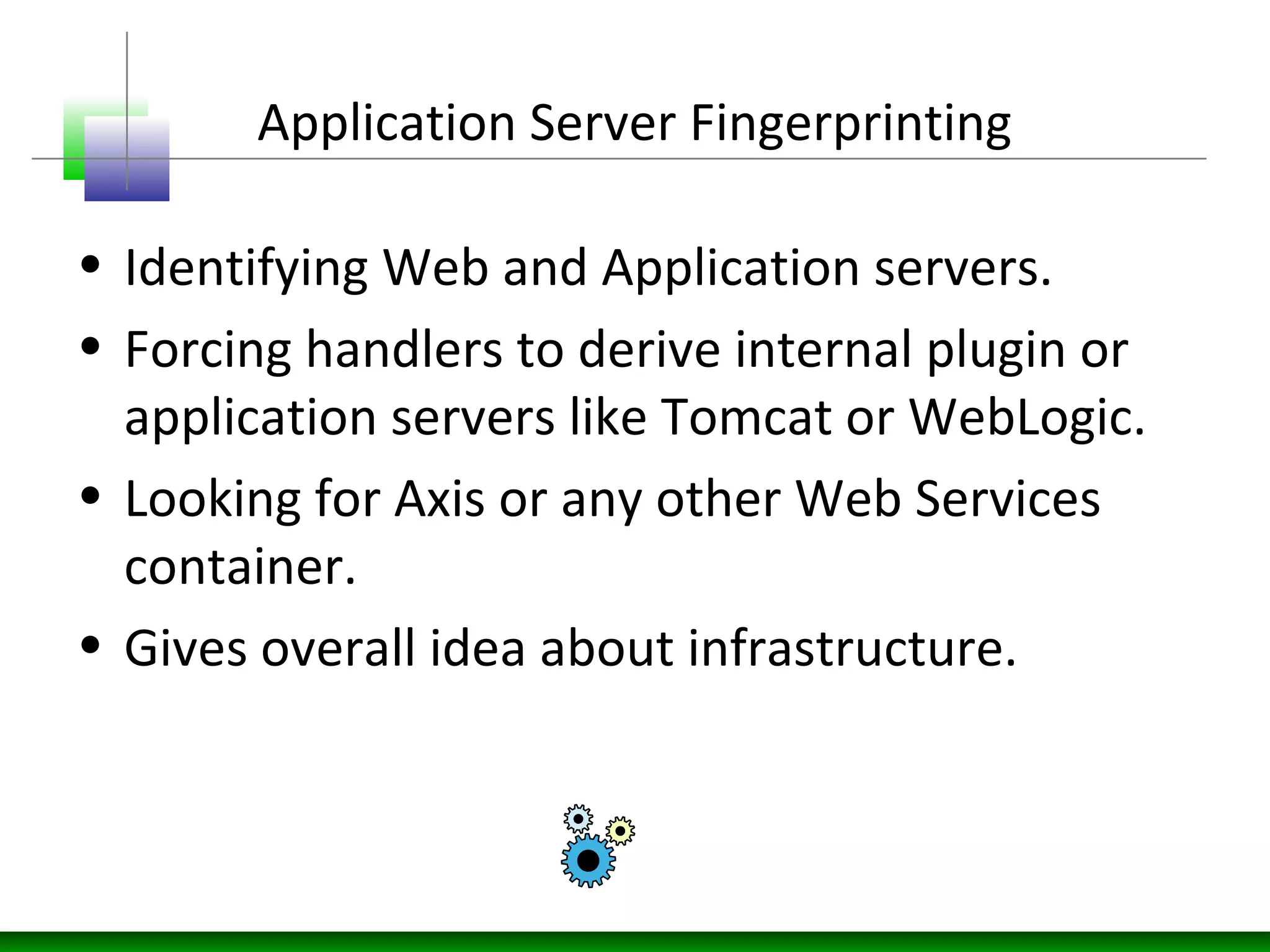

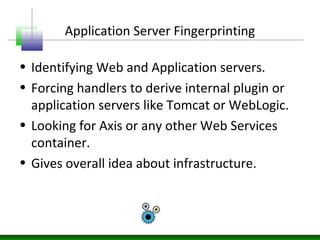

19. Application Server Fingerprinting
• Identifying Web and Application servers.
• Forcing handlers to derive internal plugin or
application servers like Tomcat or WebLogic.
• Looking for Axis or any other Web Services
container.
• Gives overall idea about infrastructure.

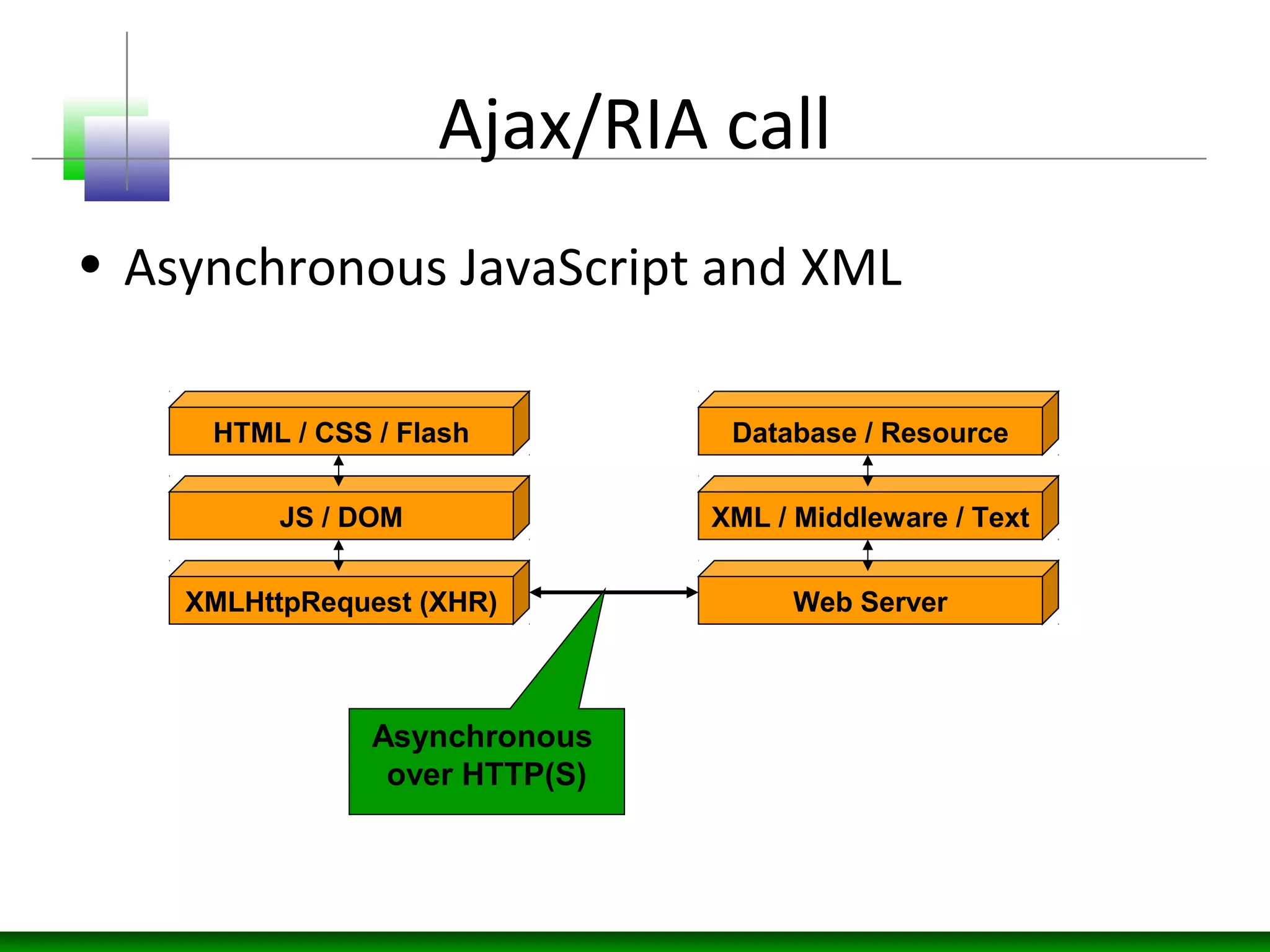

20. Ajax/RIA call
• Asynchronous JavaScript and XML
HTML / CSS / Flash
JS / DOM
XMLHttpRequest (XHR)
Database / Resource
XML / Middleware / Text
Web Server
Asynchronous
over HTTP(S)

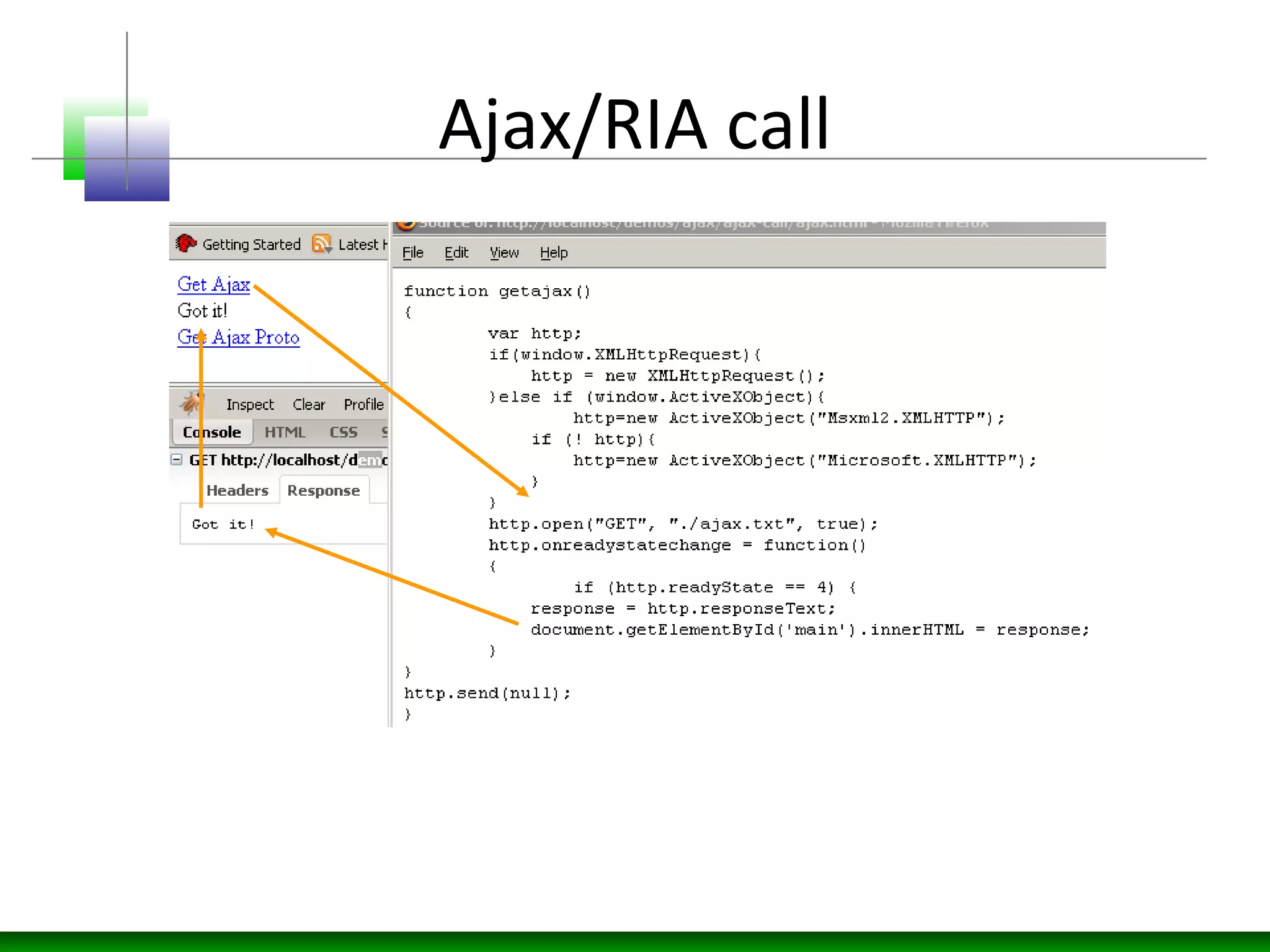

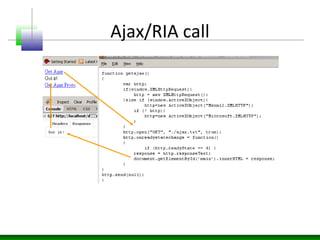

21. Ajax/RIA call

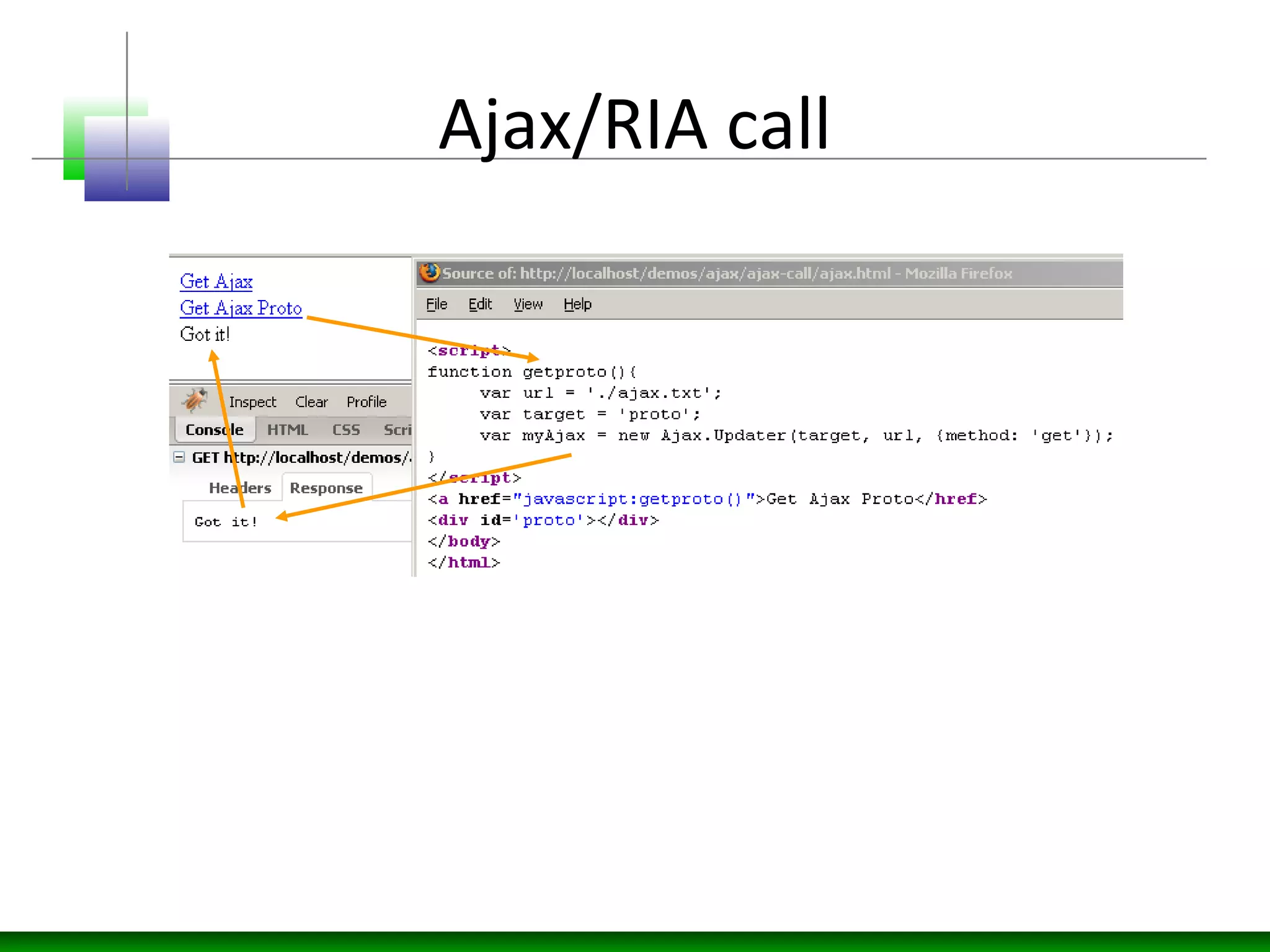

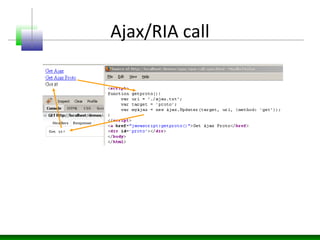

22. Ajax/RIA call

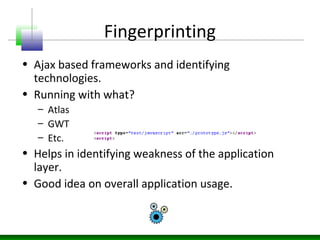

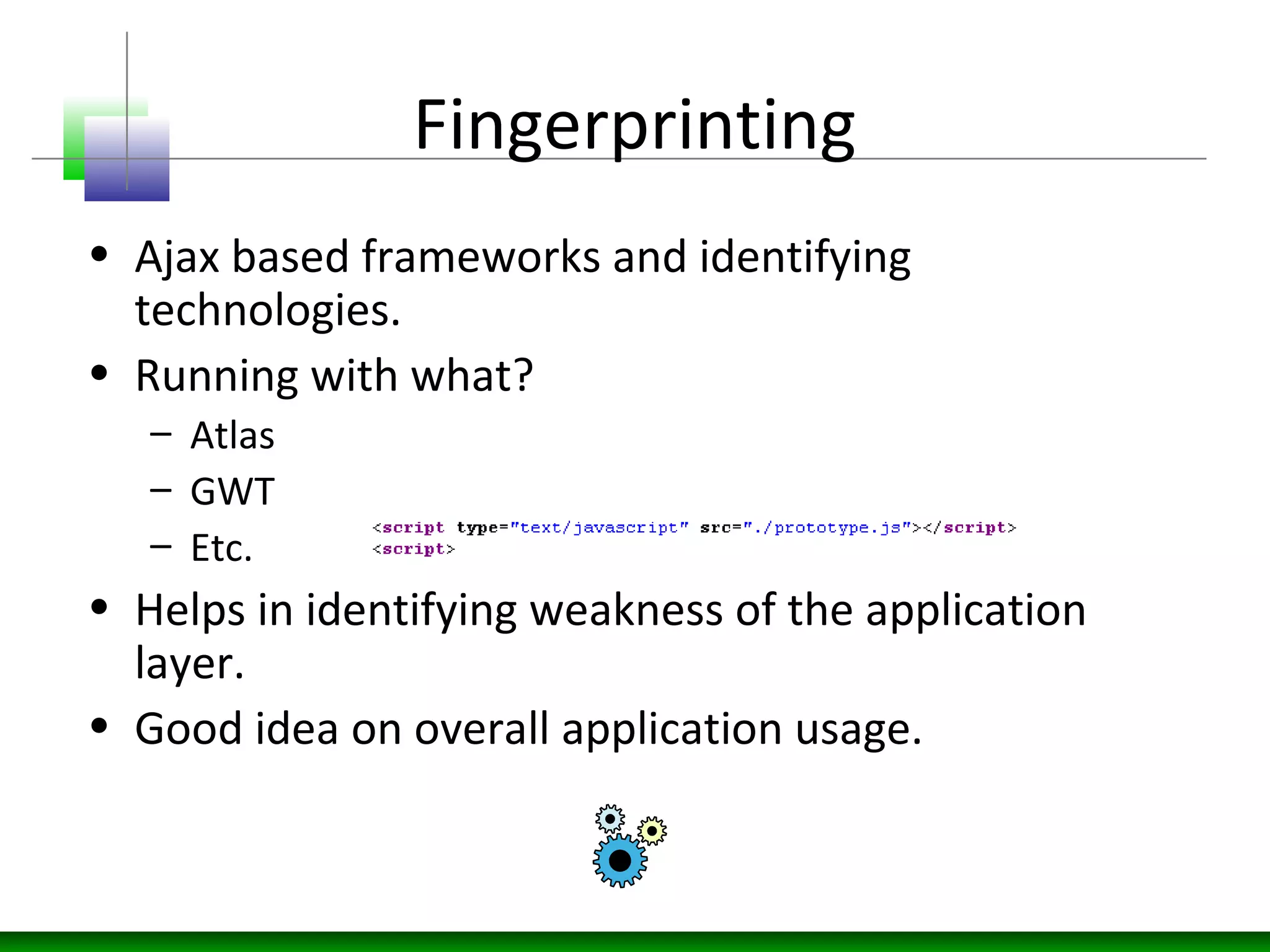

23. Fingerprinting
• Ajax based frameworks and identifying
technologies.
• Running with what?
– Atlas
– GWT
– Etc.
• Helps in identifying weakness of the application
layer.
• Good idea on overall application usage.

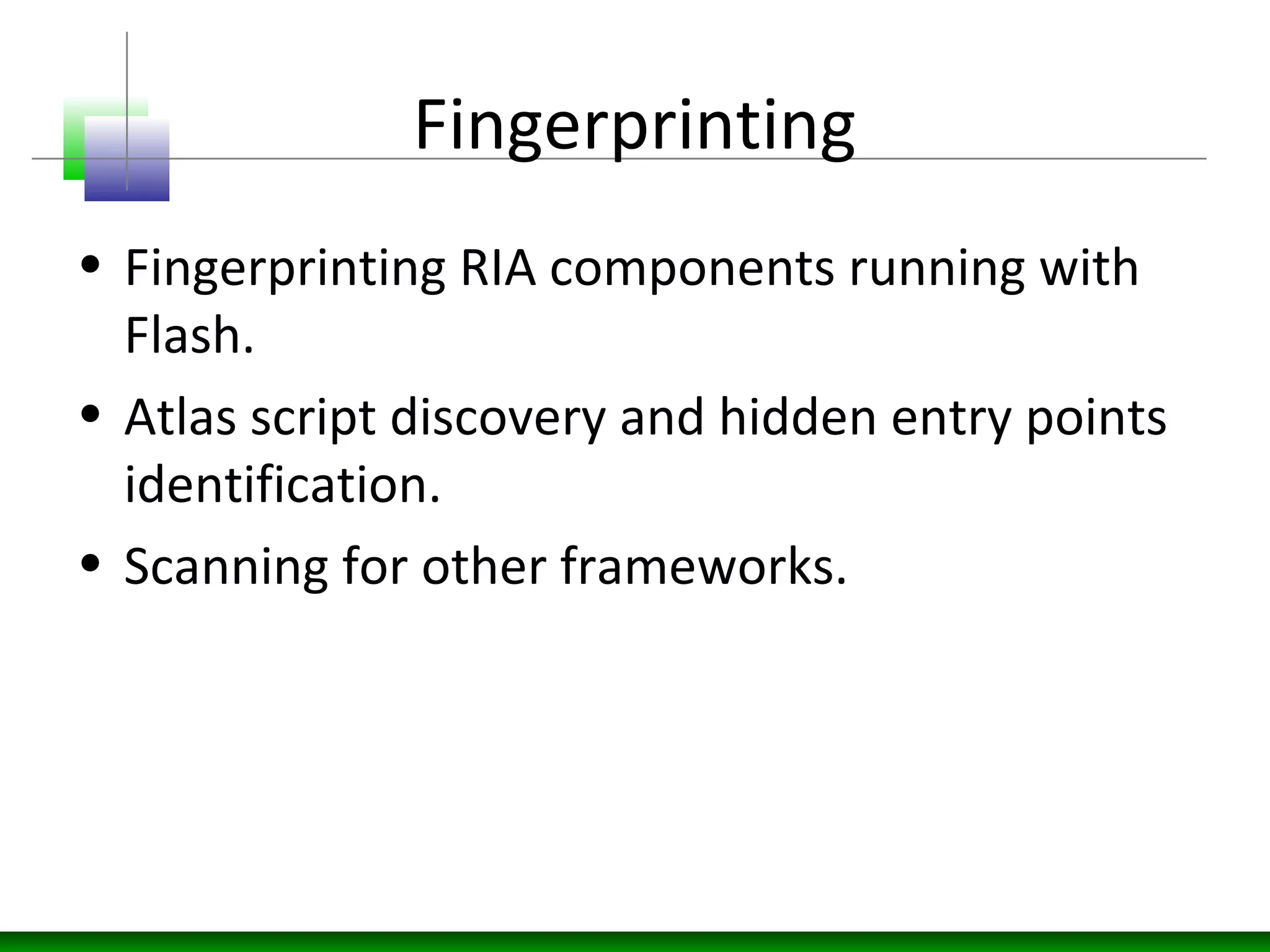

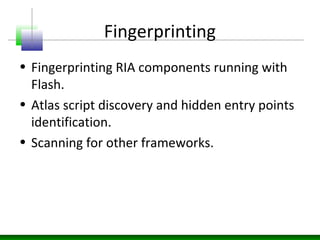

24. Fingerprinting
• Fingerprinting RIA components running with
Flash.
• Atlas script discovery and hidden entry points
identification.
• Scanning for other frameworks.

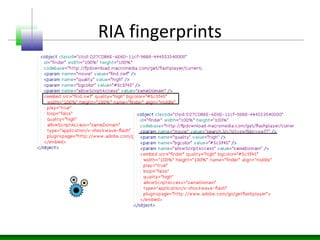

25. RIA fingerprints

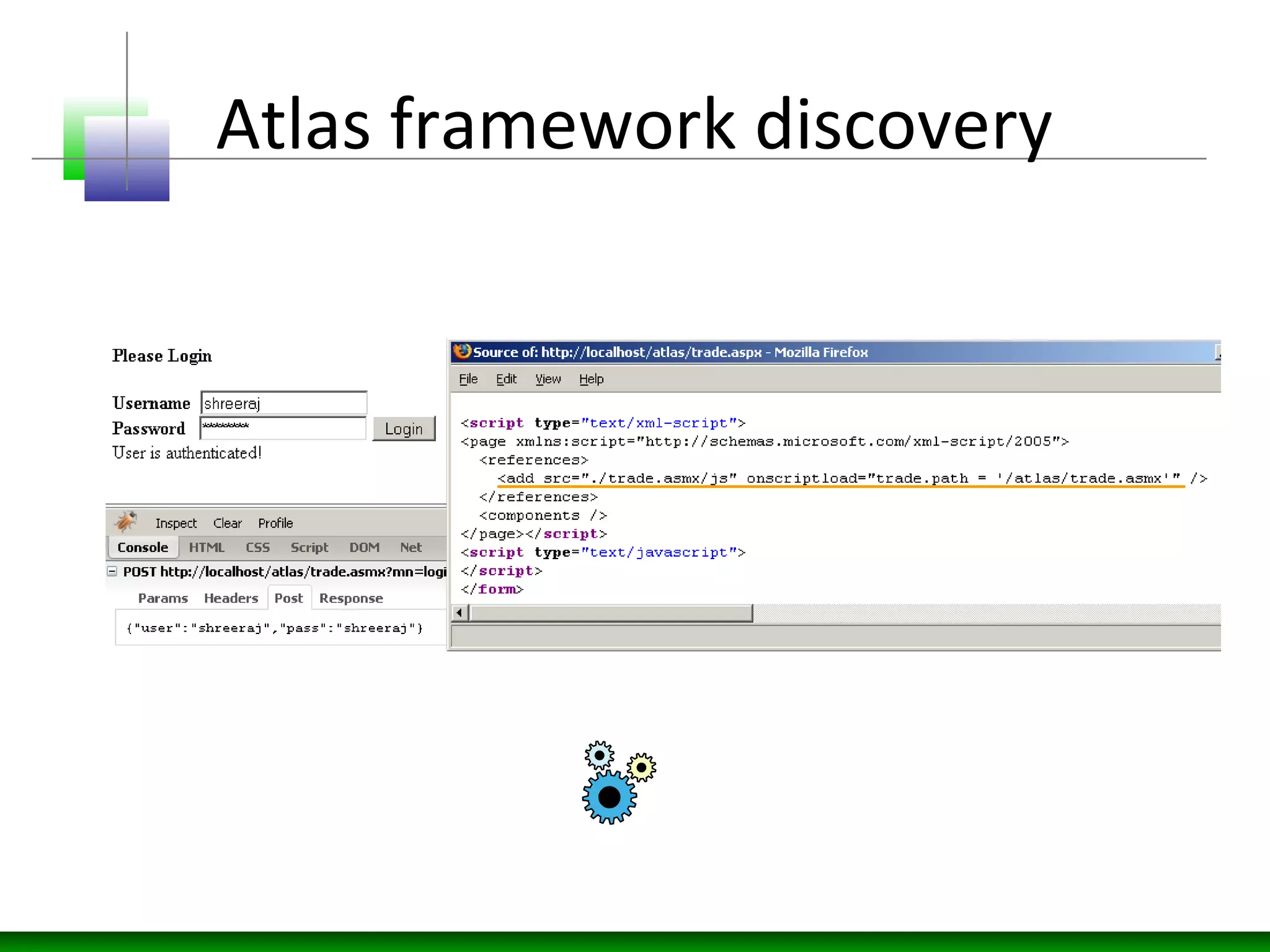

26. Atlas framework discovery

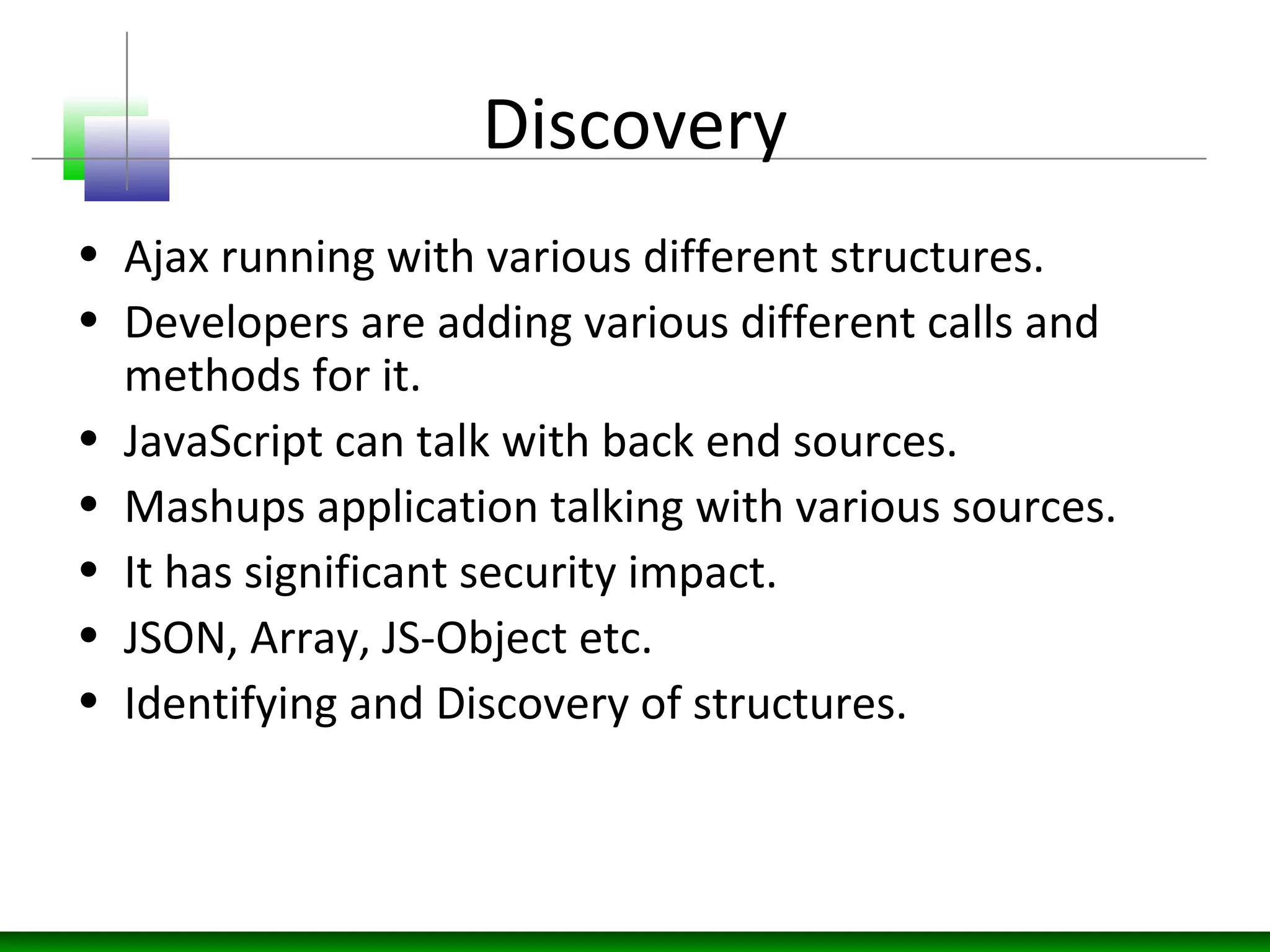

27. Discovery
• Ajax running with various different structures.
• Developers are adding various different calls and
methods for it.
• JavaScript can talk with back end sources.
• Mashups application talking with various sources.
• It has significant security impact.
• JSON, Array, JS-Object etc.
• Identifying and Discovery of structures.

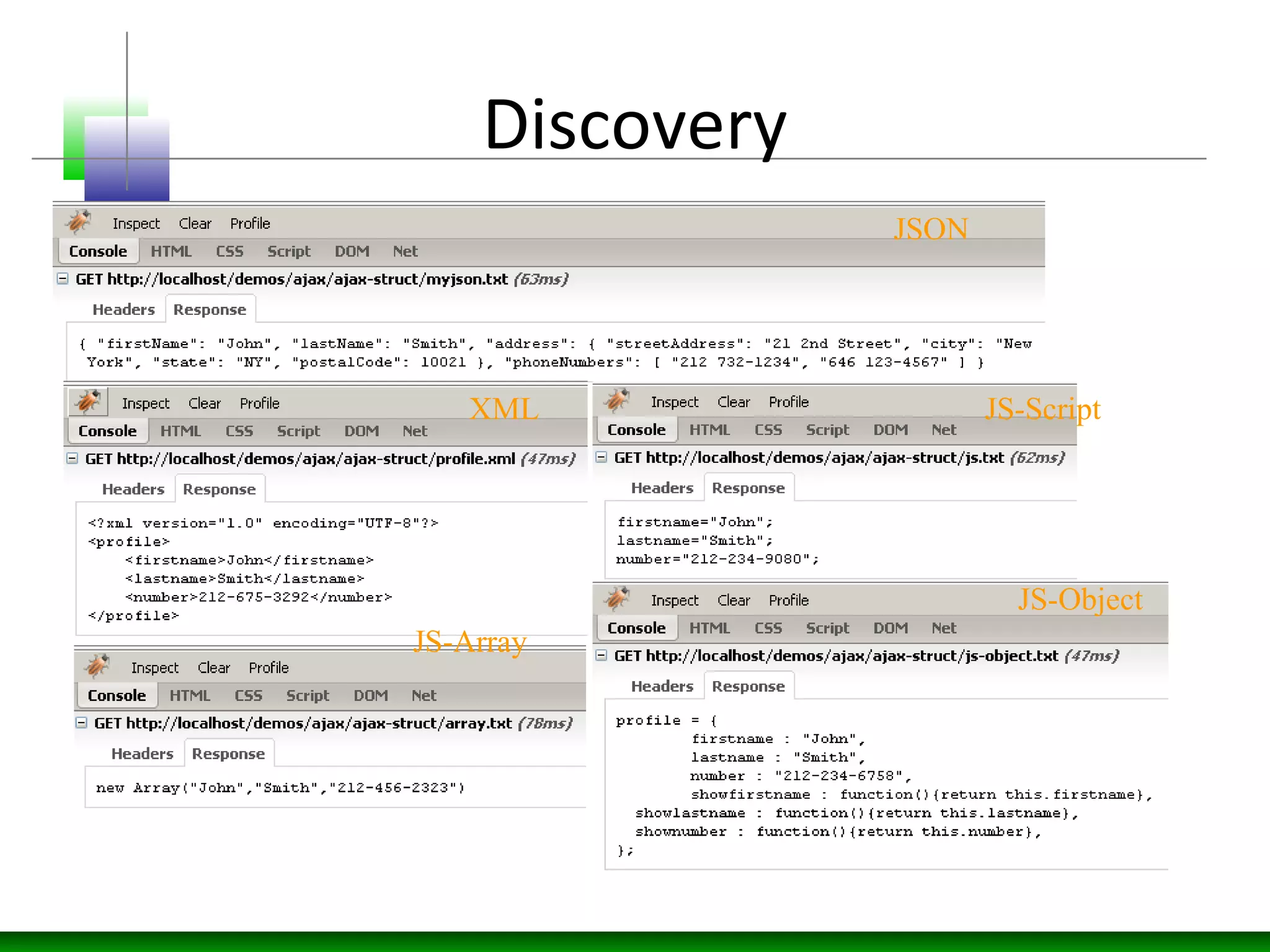

28. Discovery
JSON
XML JS-Script
JS-Array
JS-Object

29. Enterprise Asset Profiling

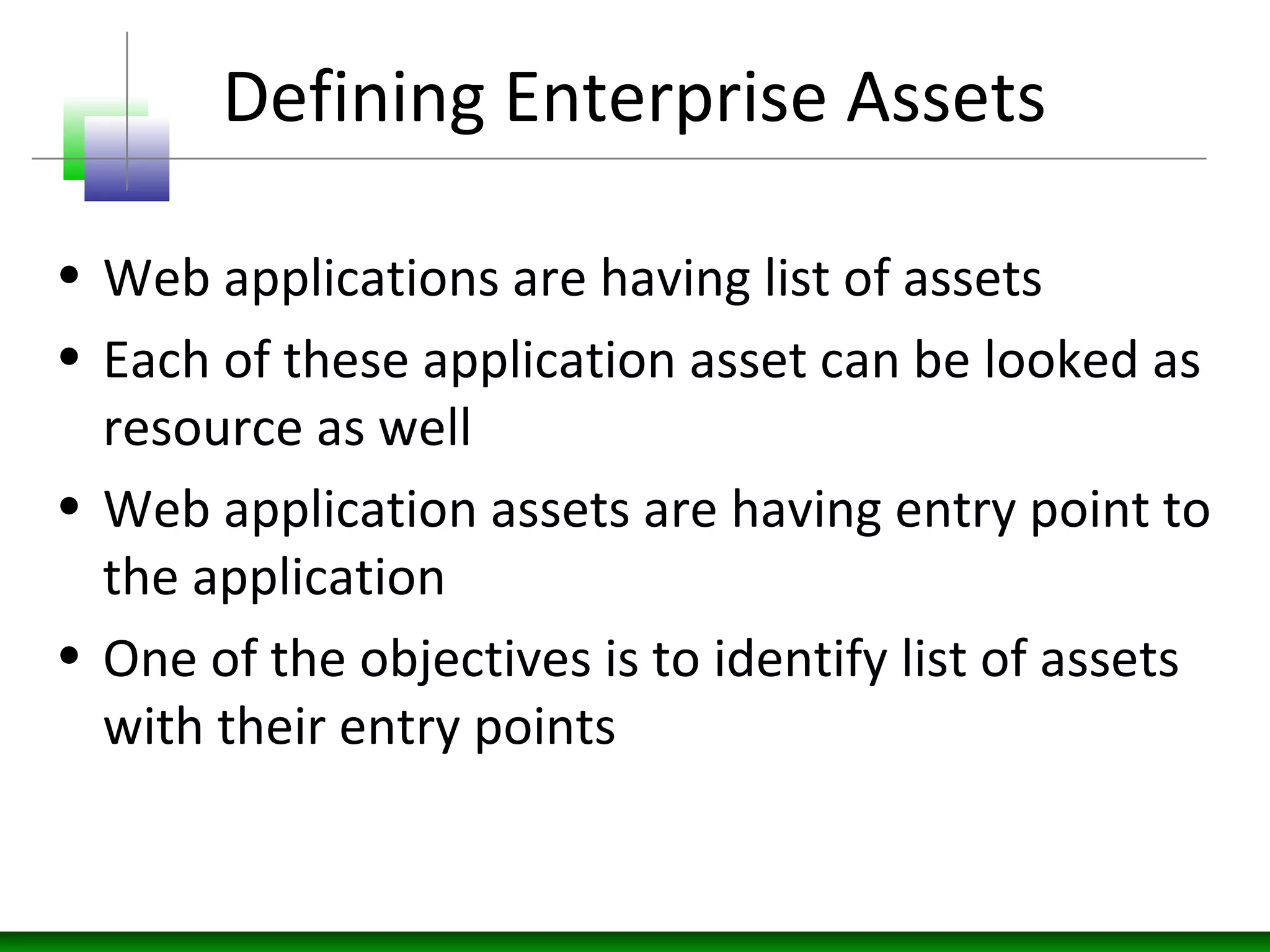

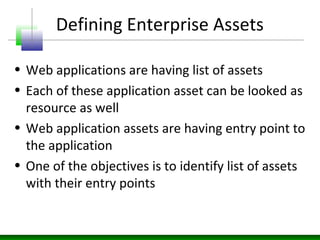

30. Defining Enterprise Assets
• Web applications are having list of assets
• Each of these application asset can be looked as
resource as well
• Web application assets are having entry point to
the application
• One of the objectives is to identify list of assets
with their entry points

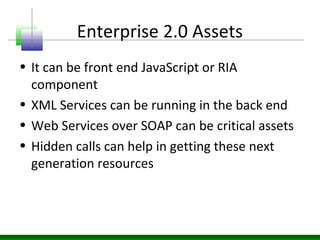

31. Enterprise 2.0 Assets
• It can be front end JavaScript or RIA
component
• XML Services can be running in the back end
• Web Services over SOAP can be critical assets
• Hidden calls can help in getting these next
generation resources

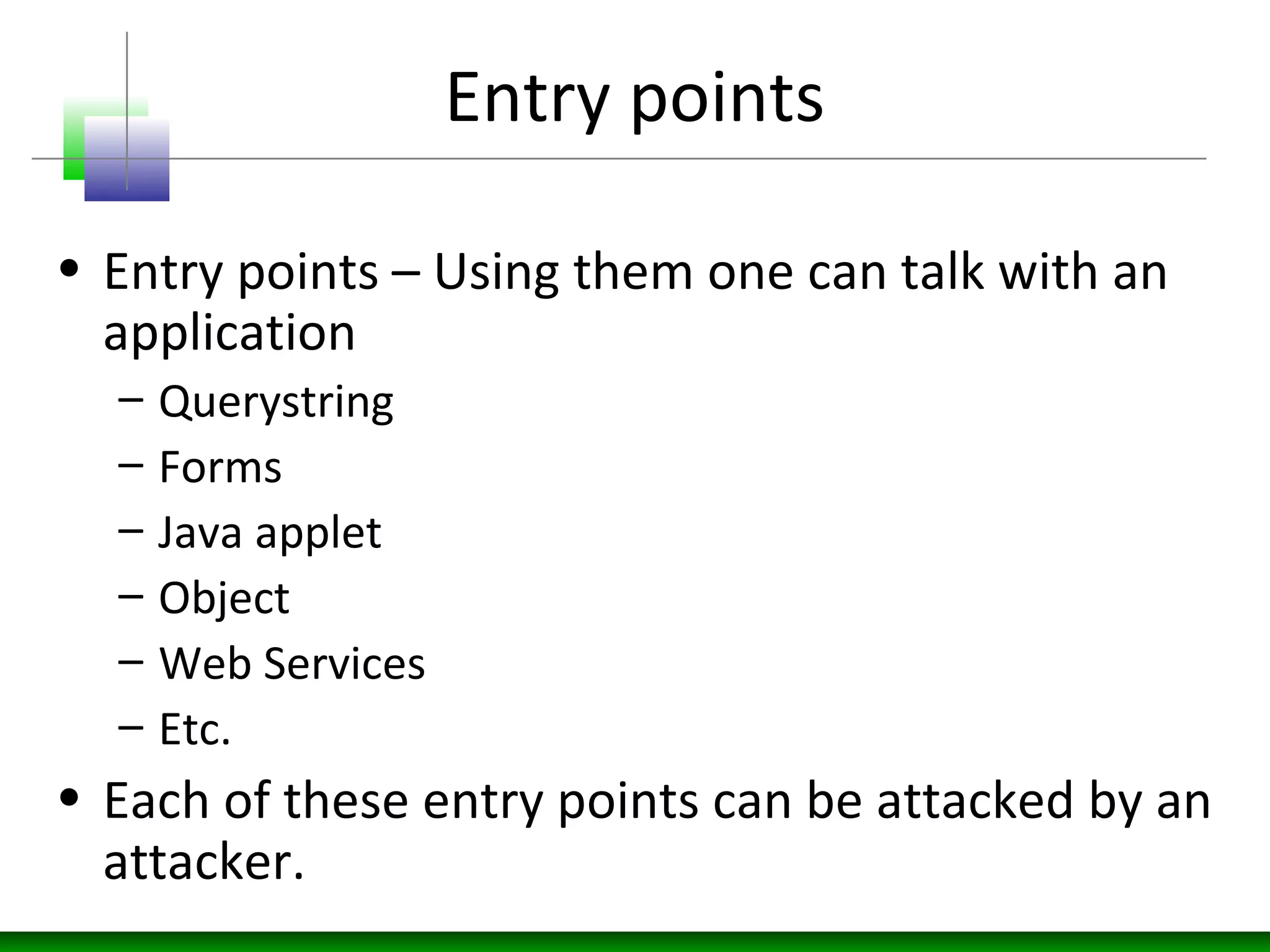

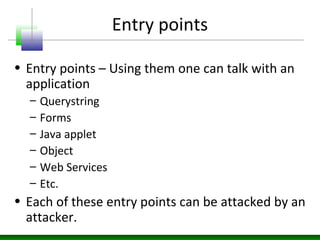

32. Entry points
• Entry points – Using them one can talk with an
application
– Querystring
– Forms
– Java applet
– Object
– Web Services
– Etc.
• Each of these entry points can be attacked by an
attacker.

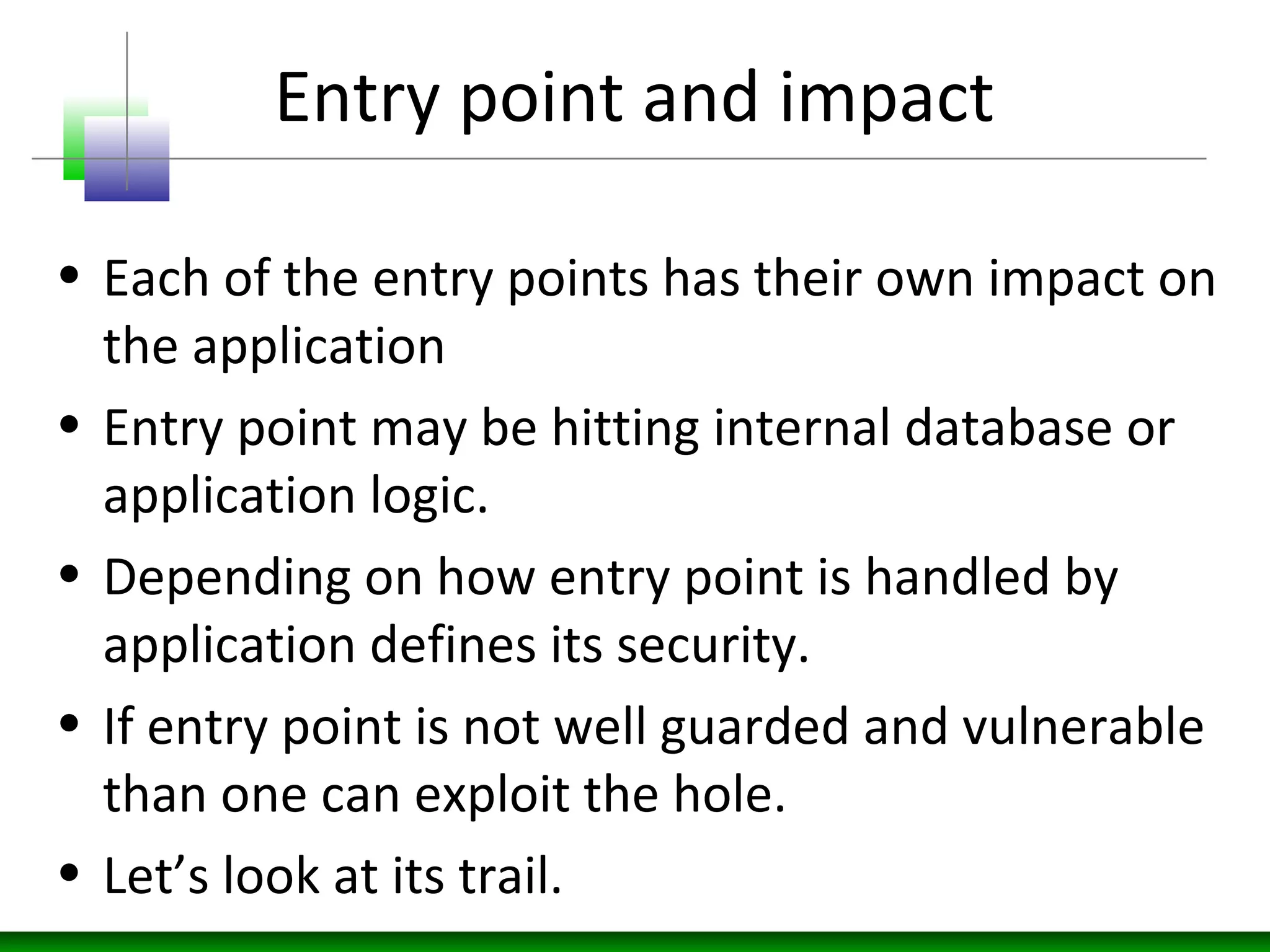

33. Entry point and impact
• Each of the entry points has their own impact on
the application
• Entry point may be hitting internal database or
application logic.
• Depending on how entry point is handled by
application defines its security.
• If entry point is not well guarded and vulnerable
than one can exploit the hole.
• Let’s look at its trail.

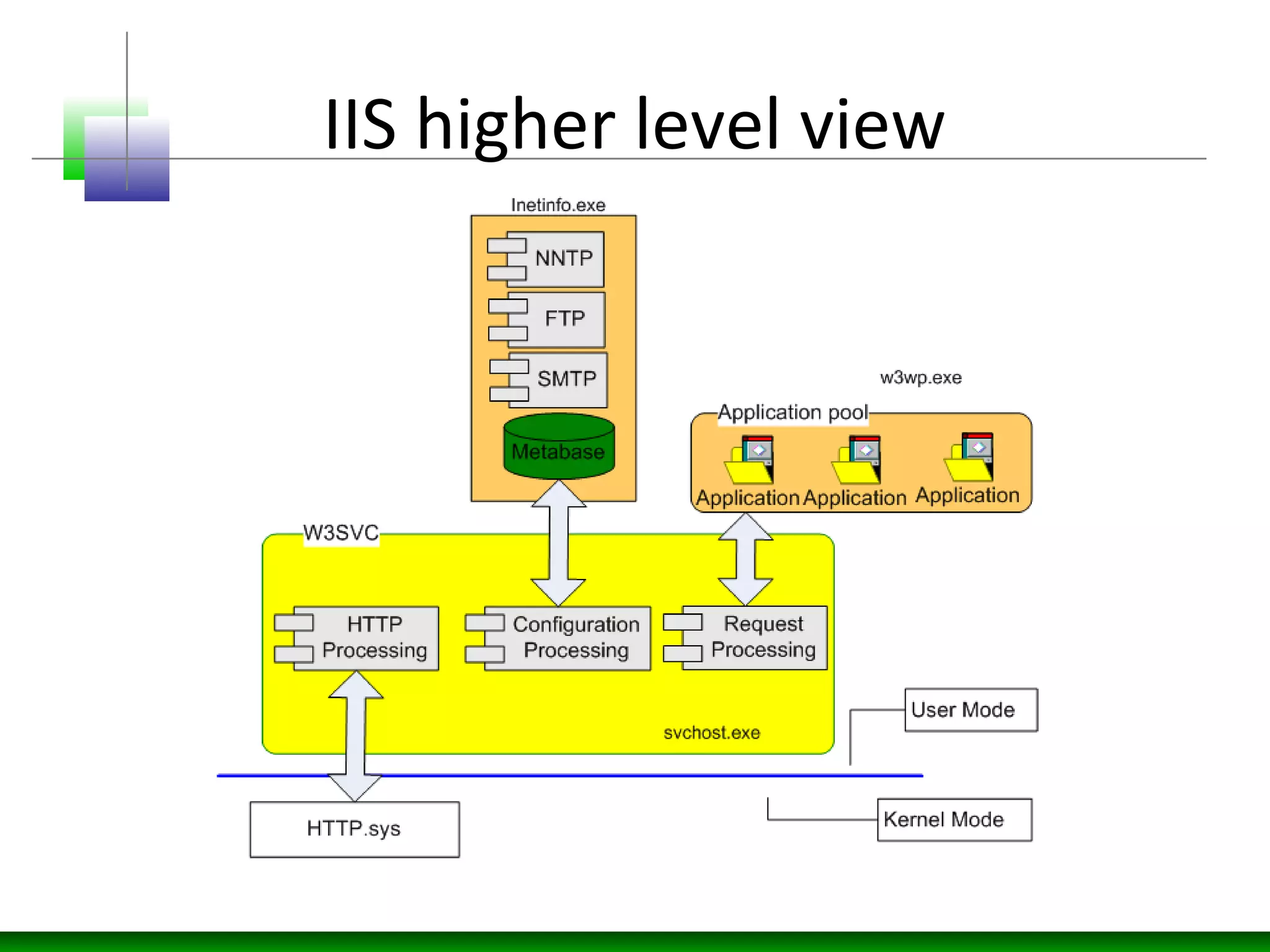

34. IIS higher level view

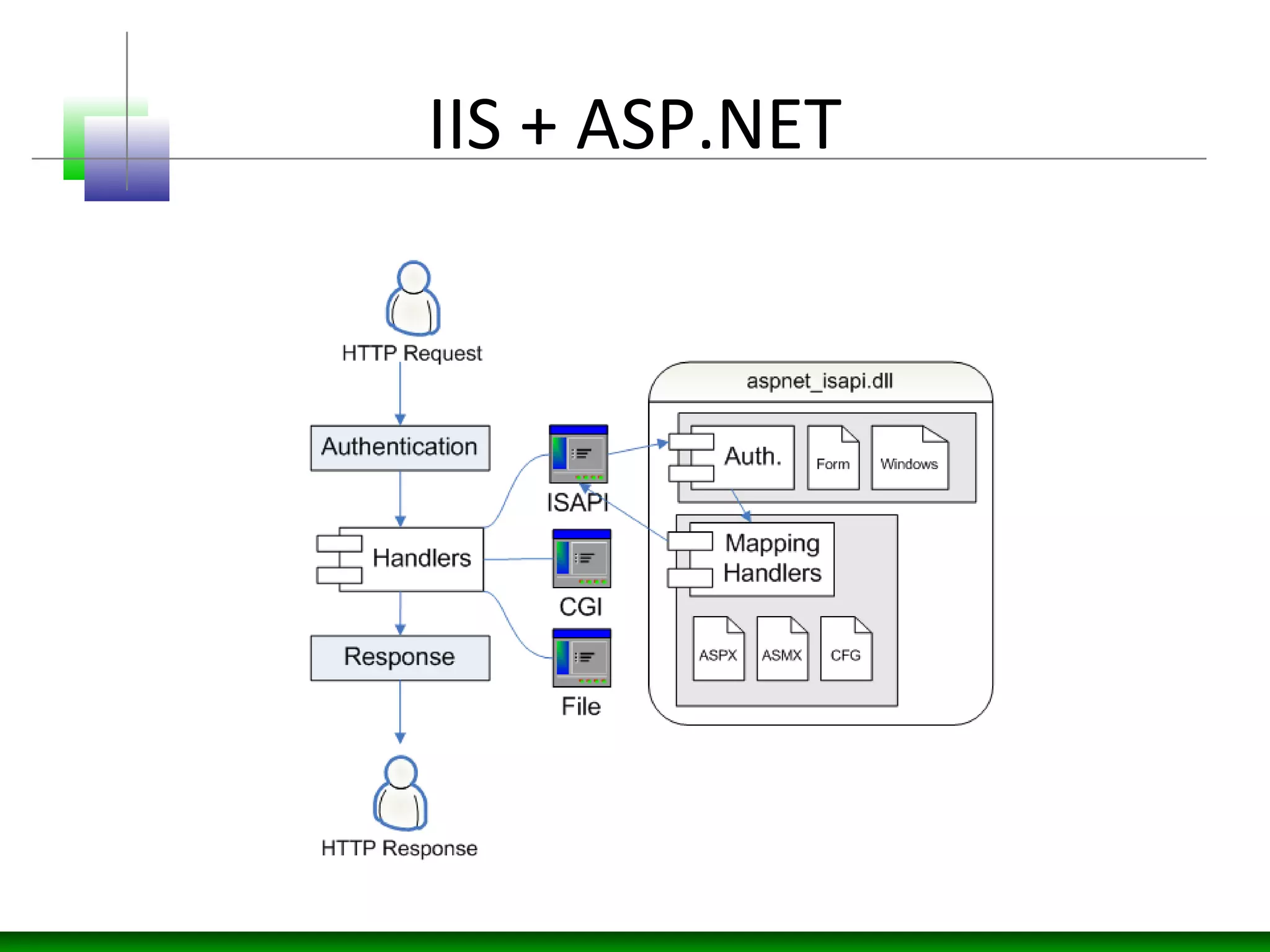

35. IIS + ASP.NET

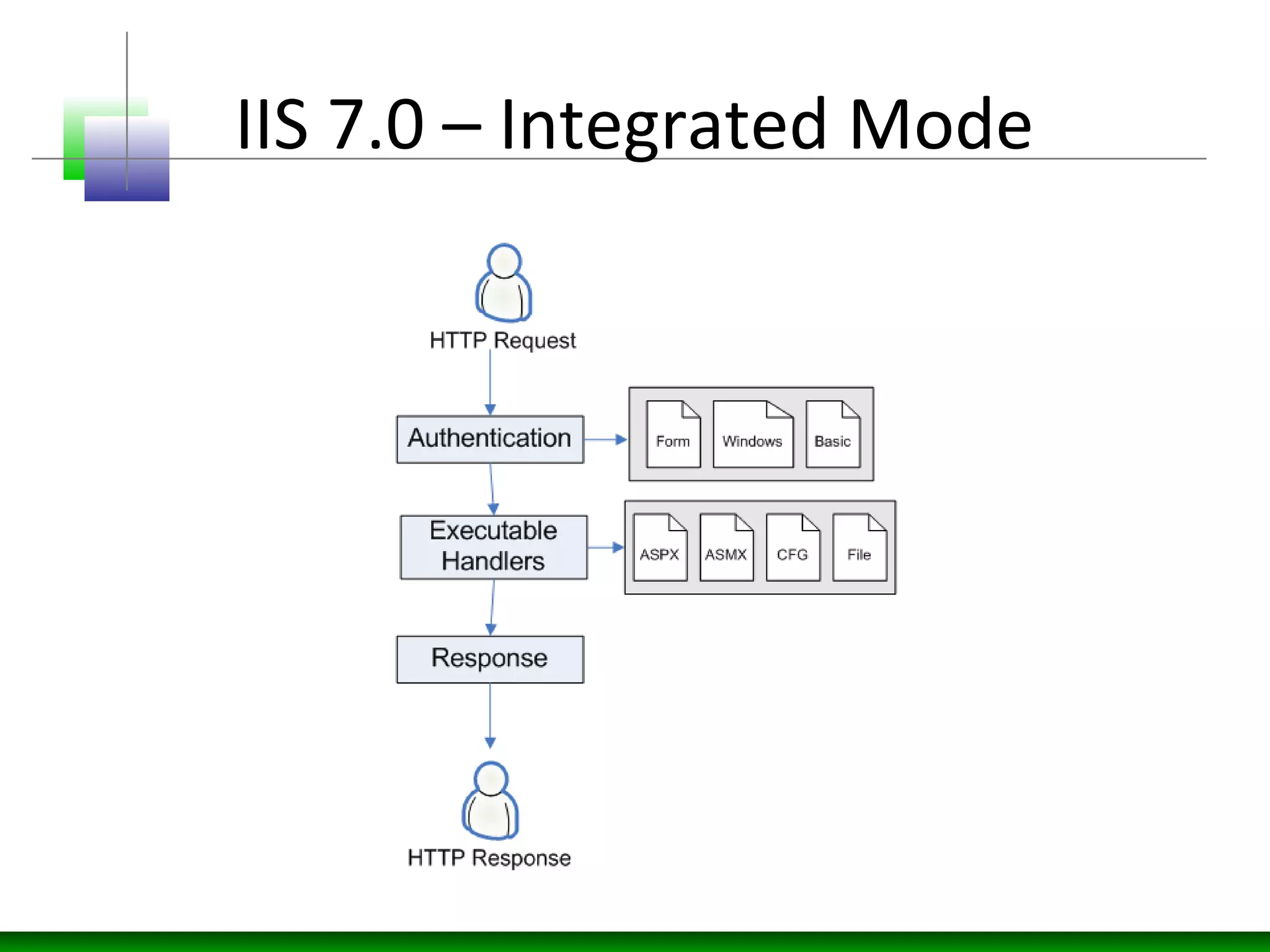

36. IIS 7.0 – Integrated Mode

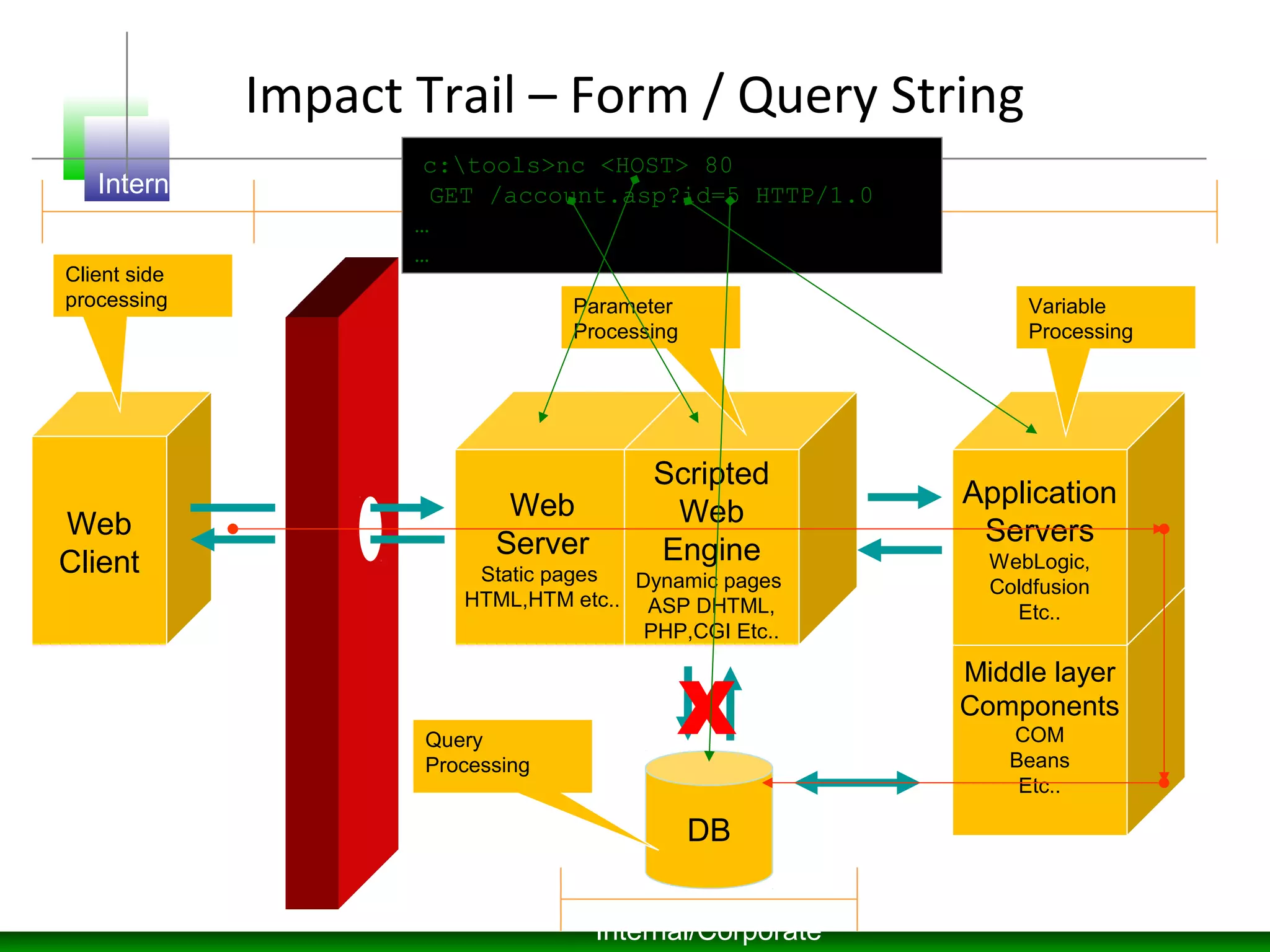

37. Impact Trail – Form / Query String
Web
Server
Static pages
HTML,HTM etc..
Web
Client
Scripted
Web
Engine
Dynamic pages
ASP DHTML,
PHP,CGI Etc..
DB
X
Middle layer
Components
COM
Beans
Etc..
Application
Servers
WebLogic,
Coldfusion
Etc..
Internet DMZ Trusted
Internal/Corporate
Parameter
Processing
Variable
Processing
Query
Processing
Client side
processing
c:tools>nc <HOST> 80
GET /account.asp?id=5 HTTP/1.0
…
…

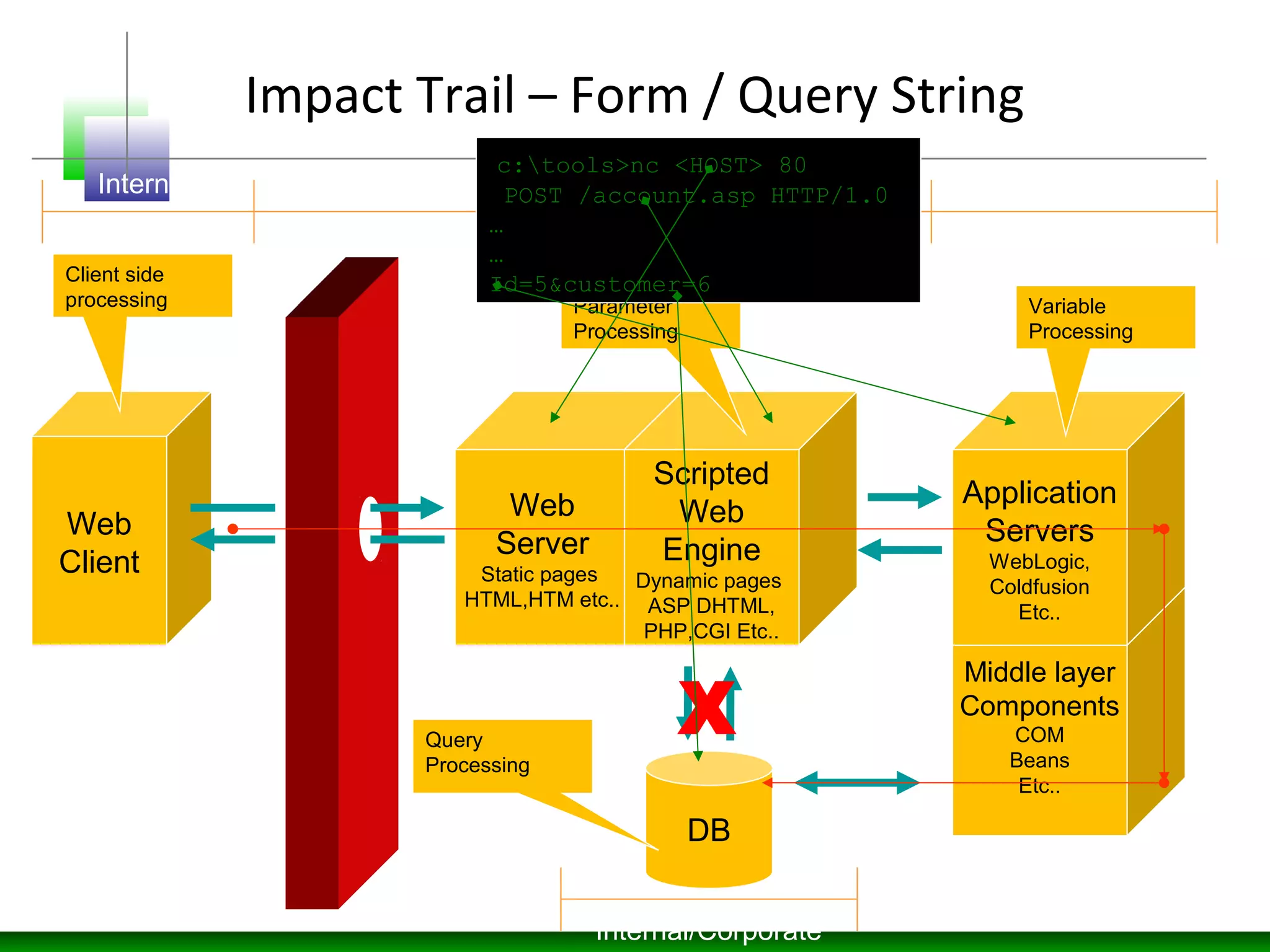

38. Impact Trail – Form / Query String
Web
Server
Static pages
HTML,HTM etc..
Web
Client
Scripted
Web
Engine
Dynamic pages
ASP DHTML,
PHP,CGI Etc..
DB
X
Middle layer
Components
COM
Beans
Etc..
Application
Servers
WebLogic,
Coldfusion
Etc..
Internet DMZ Trusted
Internal/Corporate
Parameter
Processing
Variable
Processing
Query
Processing
Client side
processing
c:tools>nc <HOST> 80
POST /account.asp HTTP/1.0
…
…
Id=5&customer=6

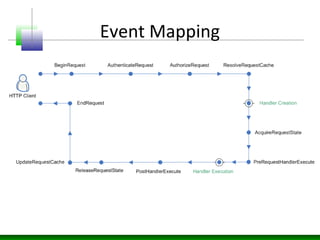

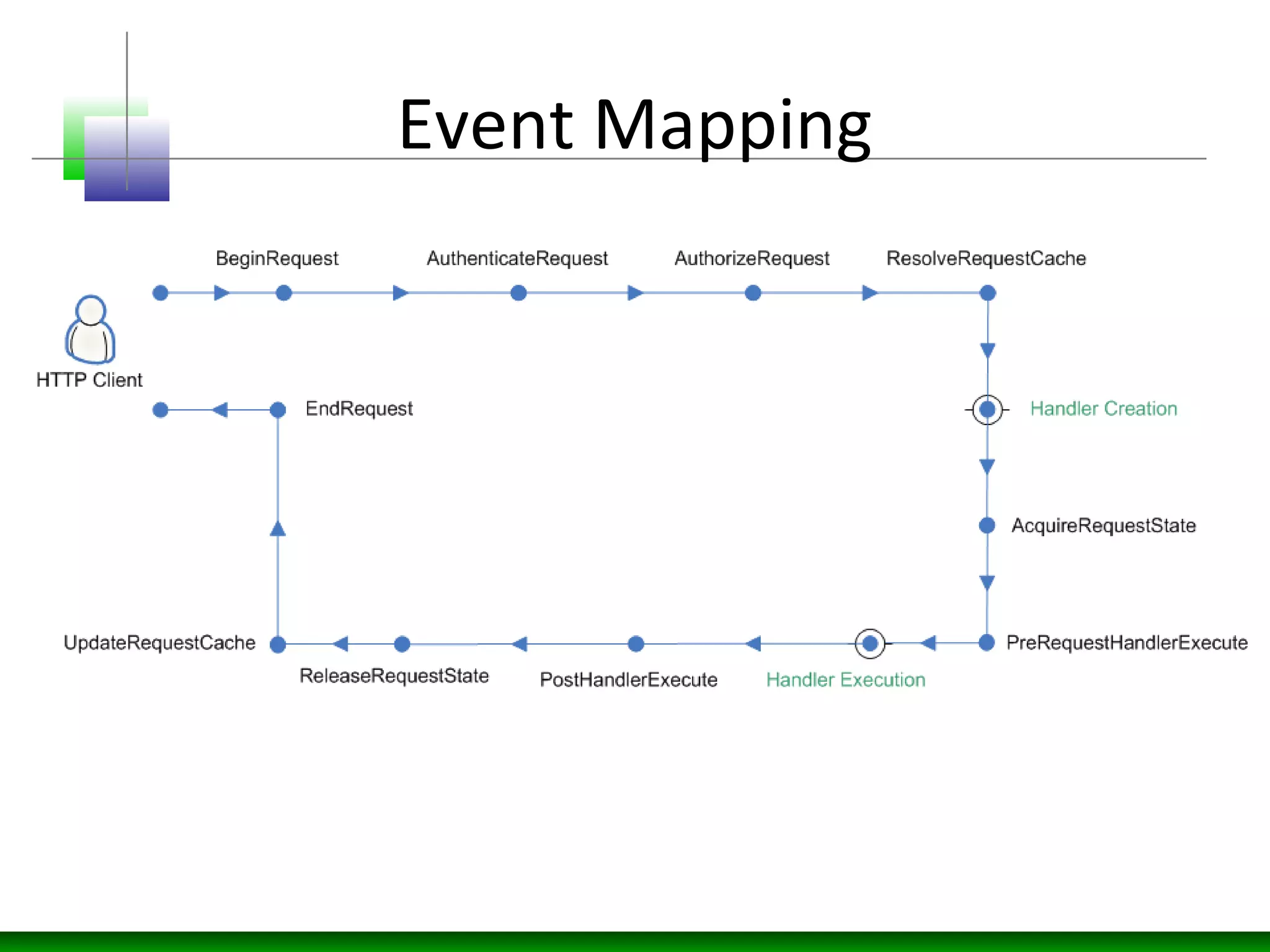

39. Event Mapping

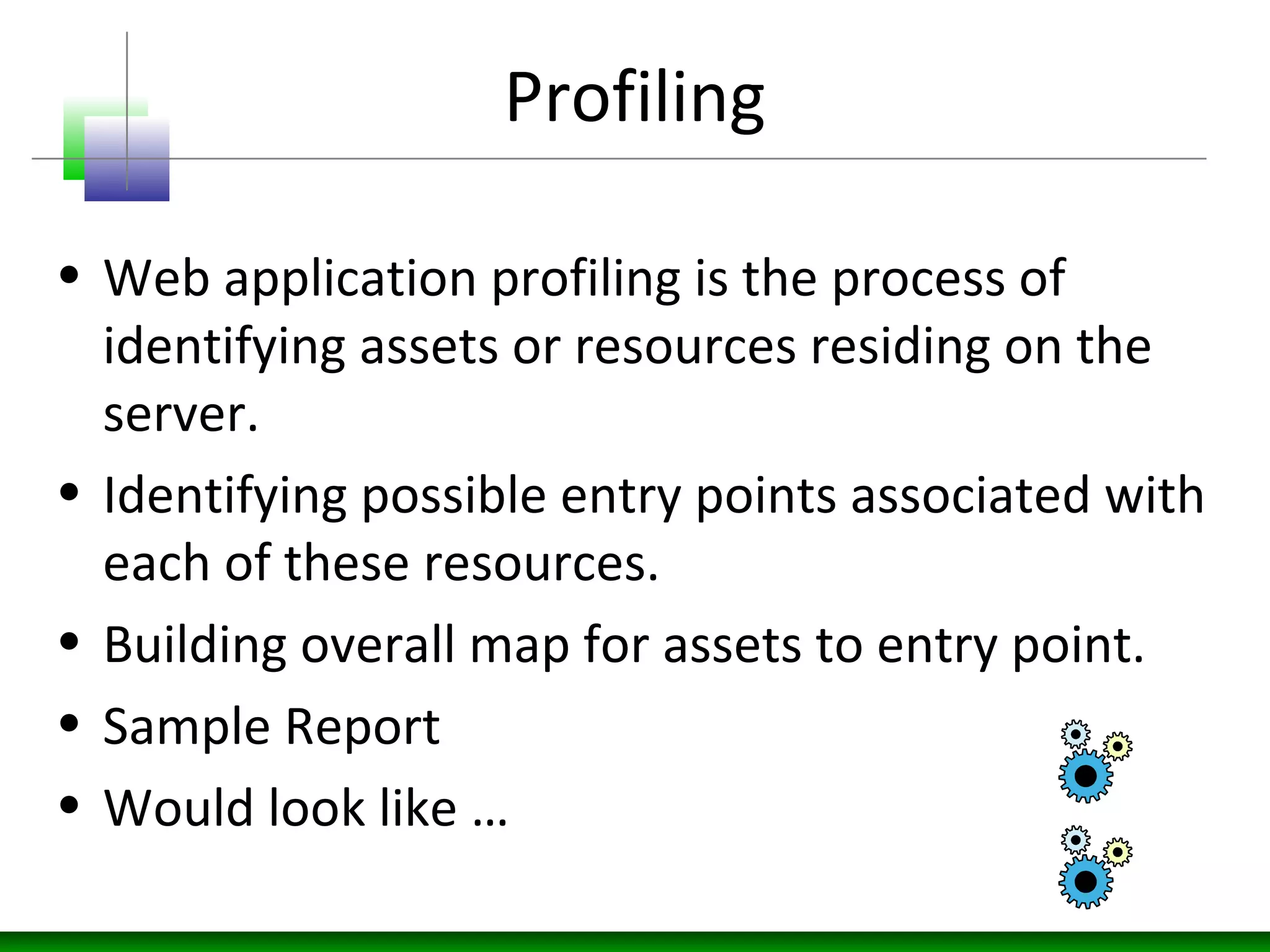

40. Profiling
• Web application profiling is the process of
identifying assets or resources residing on the
server.
• Identifying possible entry points associated with
each of these resources.
• Building overall map for assets to entry point.
• Sample Report
• Would look like …

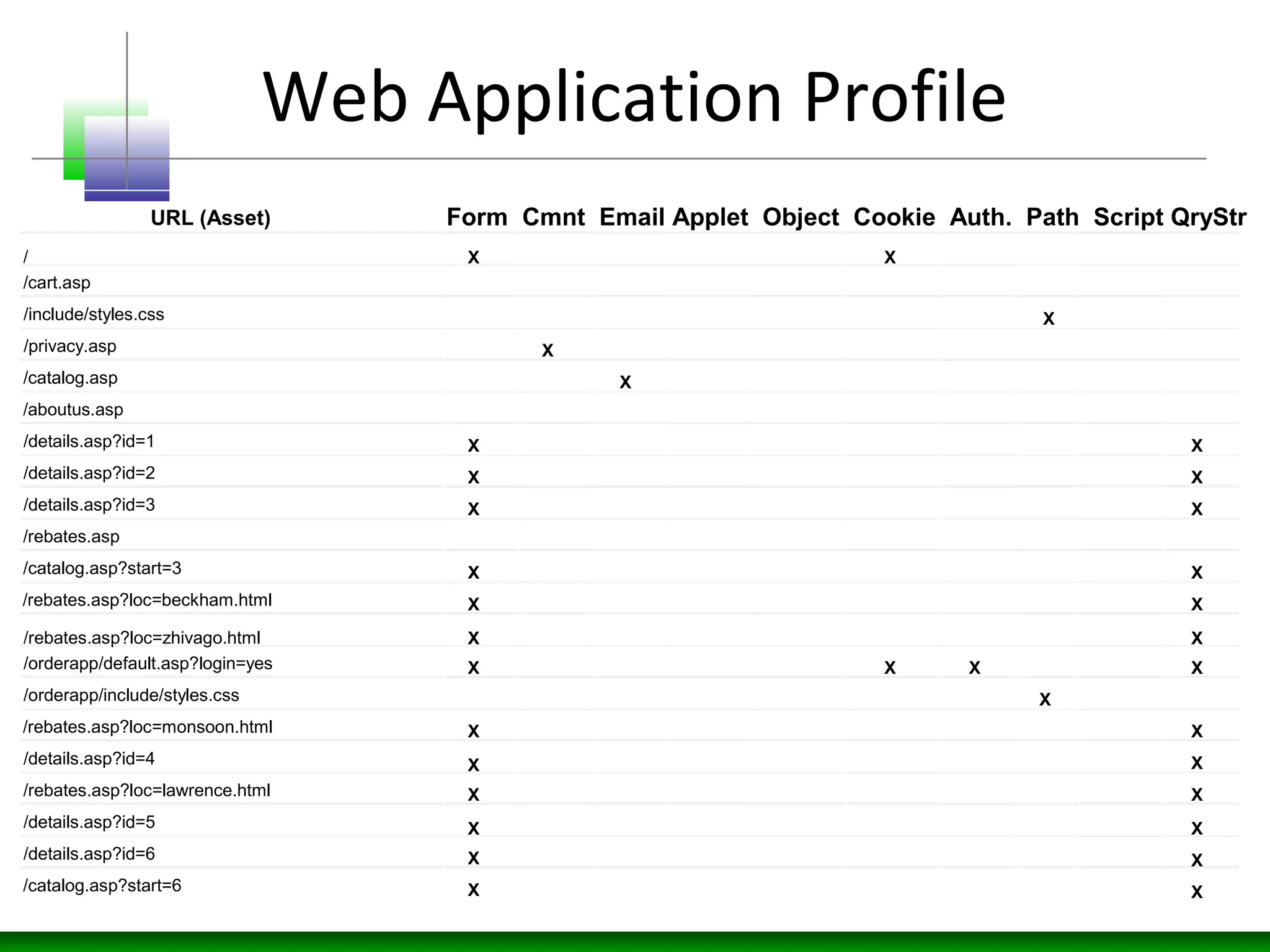

41. Web Application Profile
/
/cart.asp
/include/styles.css
/privacy.asp
/catalog.asp
/details.asp?id=1
/aboutus.asp
/rebates.asp
/details.asp?id=2
/details.asp?id=3
/catalog.asp?start=3
/rebates.asp?loc=beckham.html
/rebates.asp?loc=zhivago.html
/orderapp/default.asp?login=yes
/rebates.asp?loc=monsoon.html
/orderapp/include/styles.css
/details.asp?id=4
/rebates.asp?loc=lawrence.html
/details.asp?id=5
/details.asp?id=6
/catalog.asp?start=6
URL (Asset) Form Cmnt Email Applet Object Cookie Auth. Path Script QryStr
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X

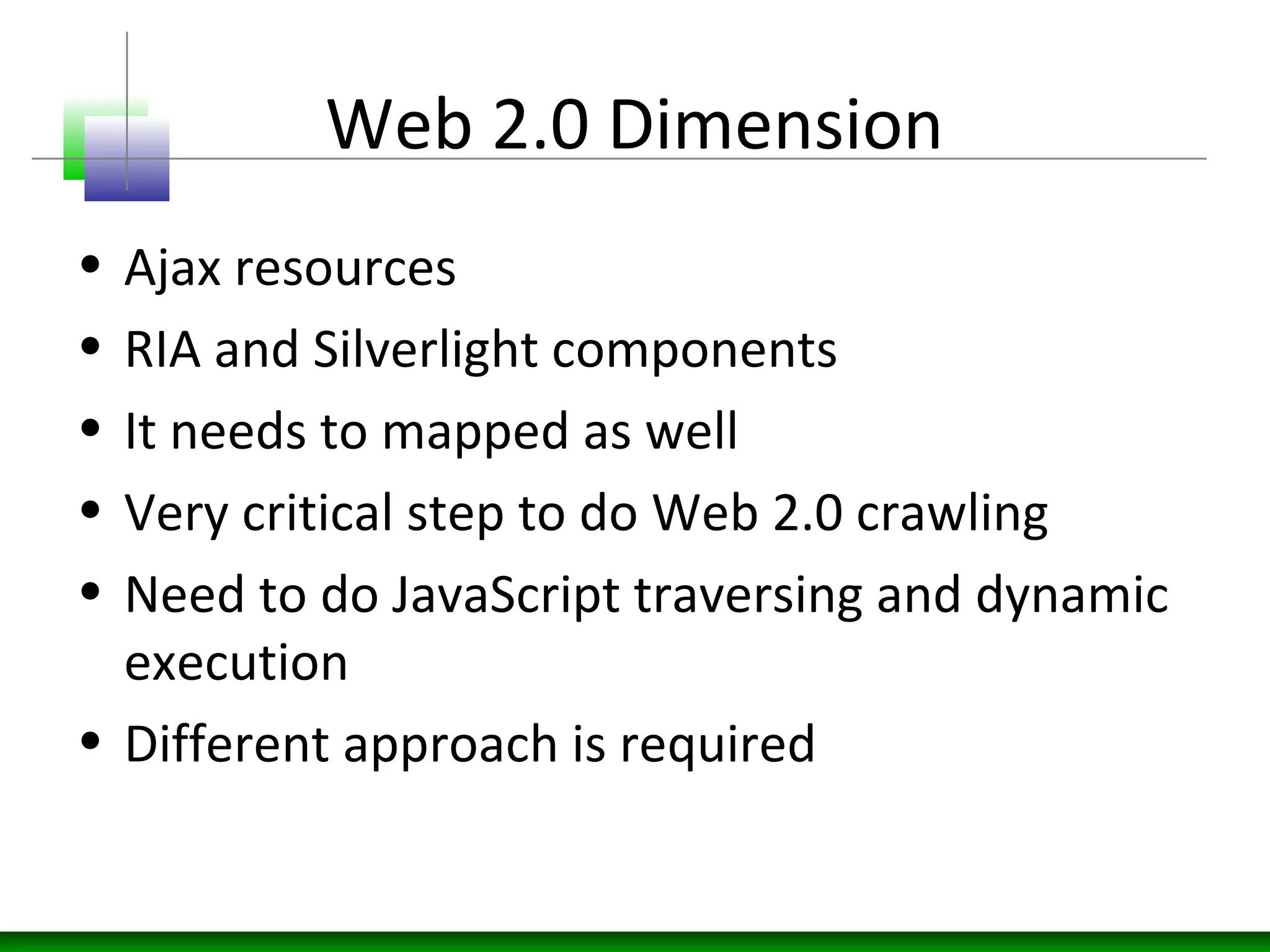

42. Web 2.0 Dimension
• Ajax resources
• RIA and Silverlight components
• It needs to mapped as well
• Very critical step to do Web 2.0 crawling
• Need to do JavaScript traversing and dynamic
execution
• Different approach is required

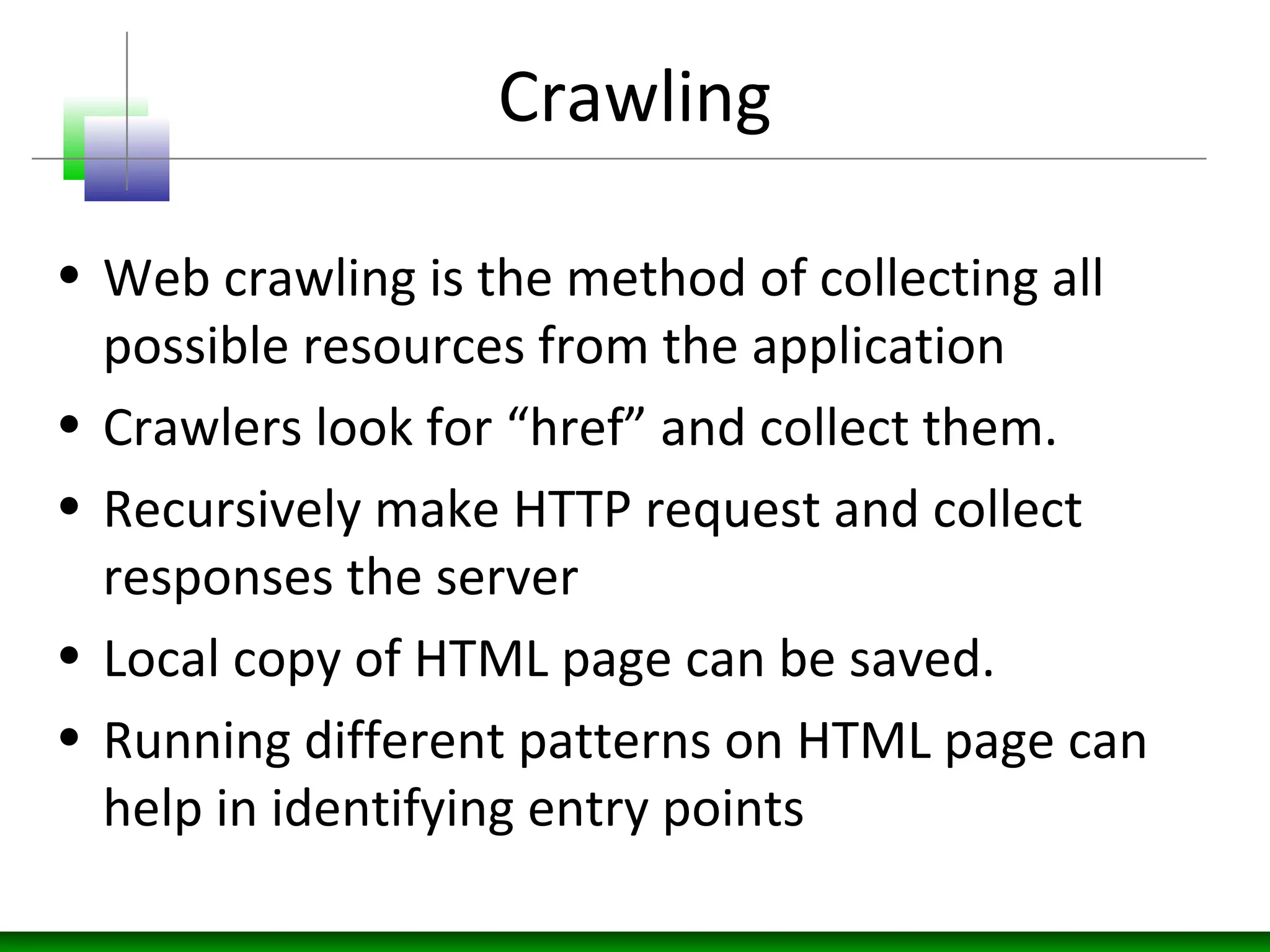

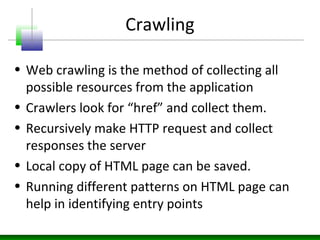

43. Crawling
• Web crawling is the method of collecting all
possible resources from the application
• Crawlers look for “href” and collect them.
• Recursively make HTTP request and collect
responses the server
• Local copy of HTML page can be saved.
• Running different patterns on HTML page can
help in identifying entry points

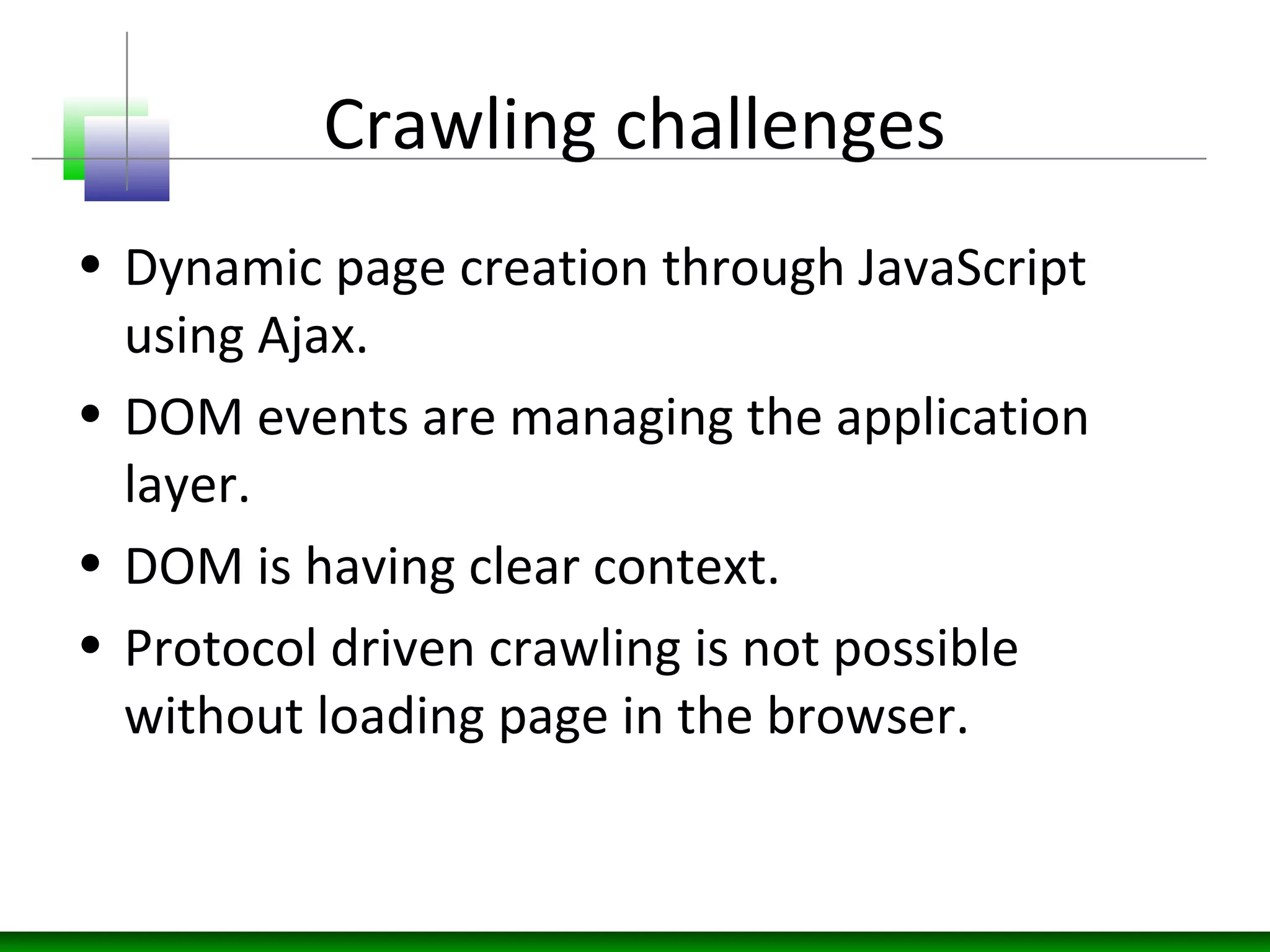

44. Crawling challenges
• Dynamic page creation through JavaScript
using Ajax.
• DOM events are managing the application
layer.
• DOM is having clear context.
• Protocol driven crawling is not possible
without loading page in the browser.

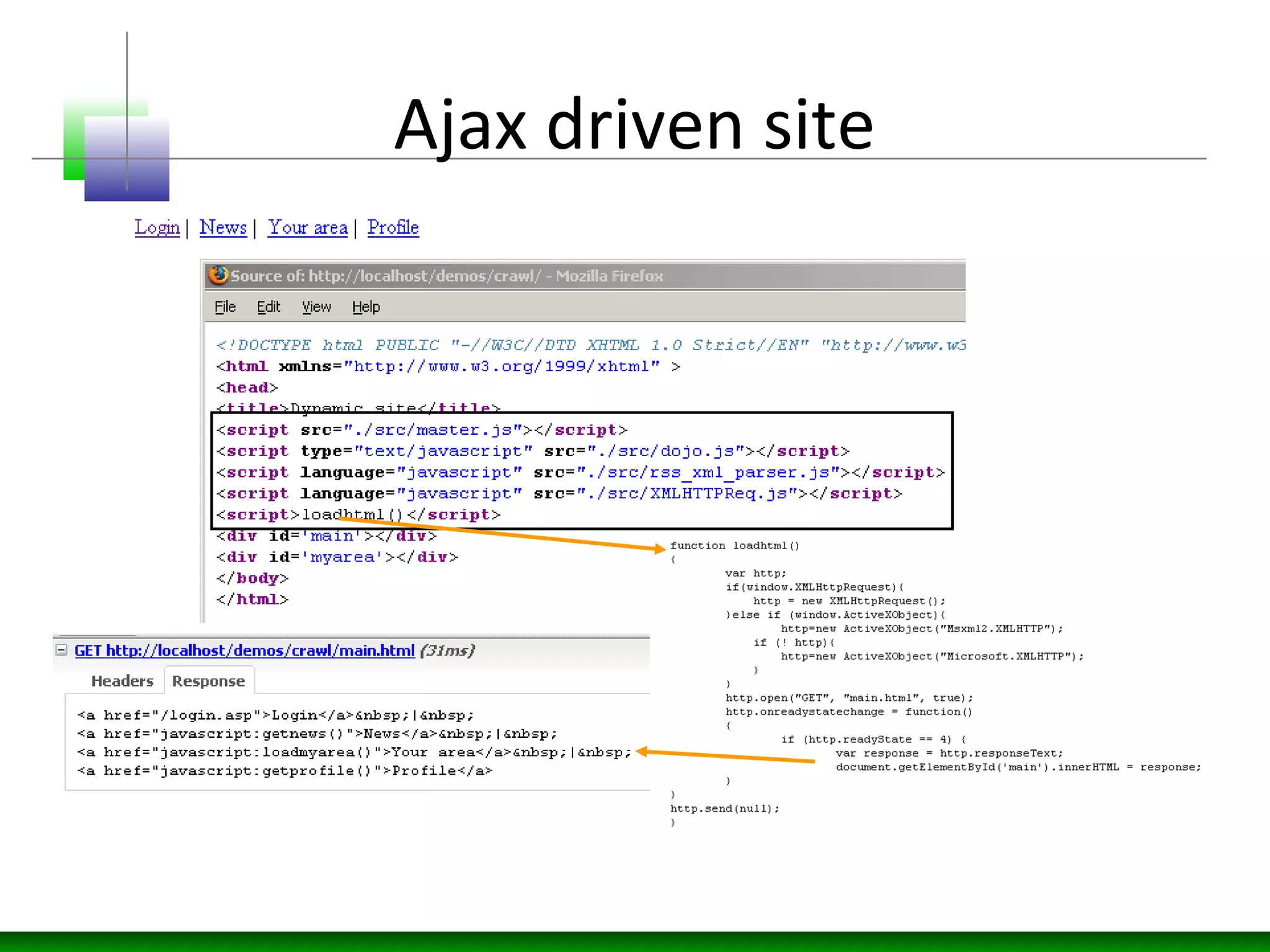

45. Ajax driven site

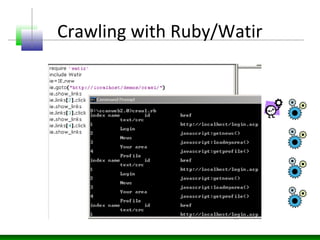

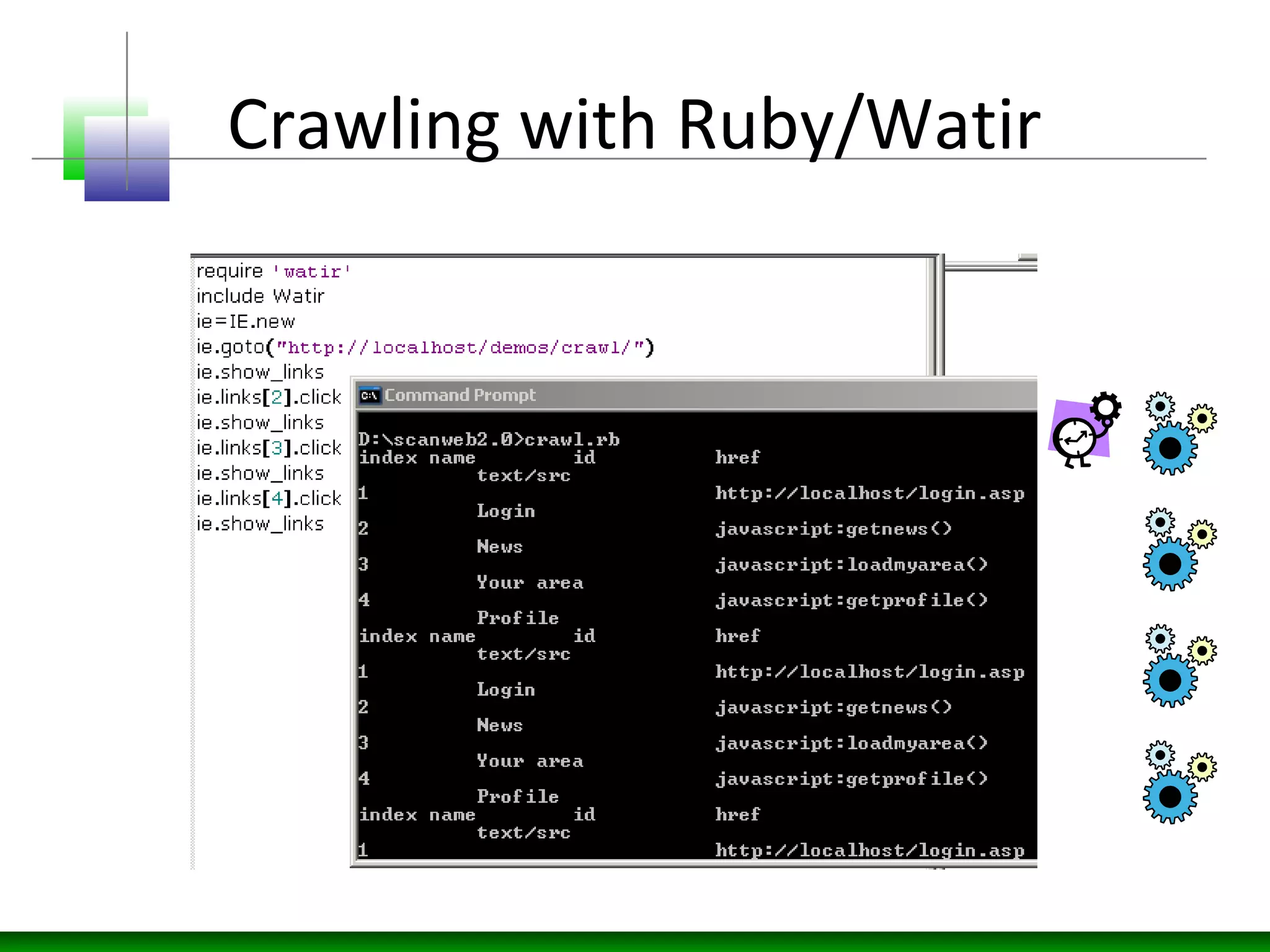

46. Crawling with Ruby/Watir

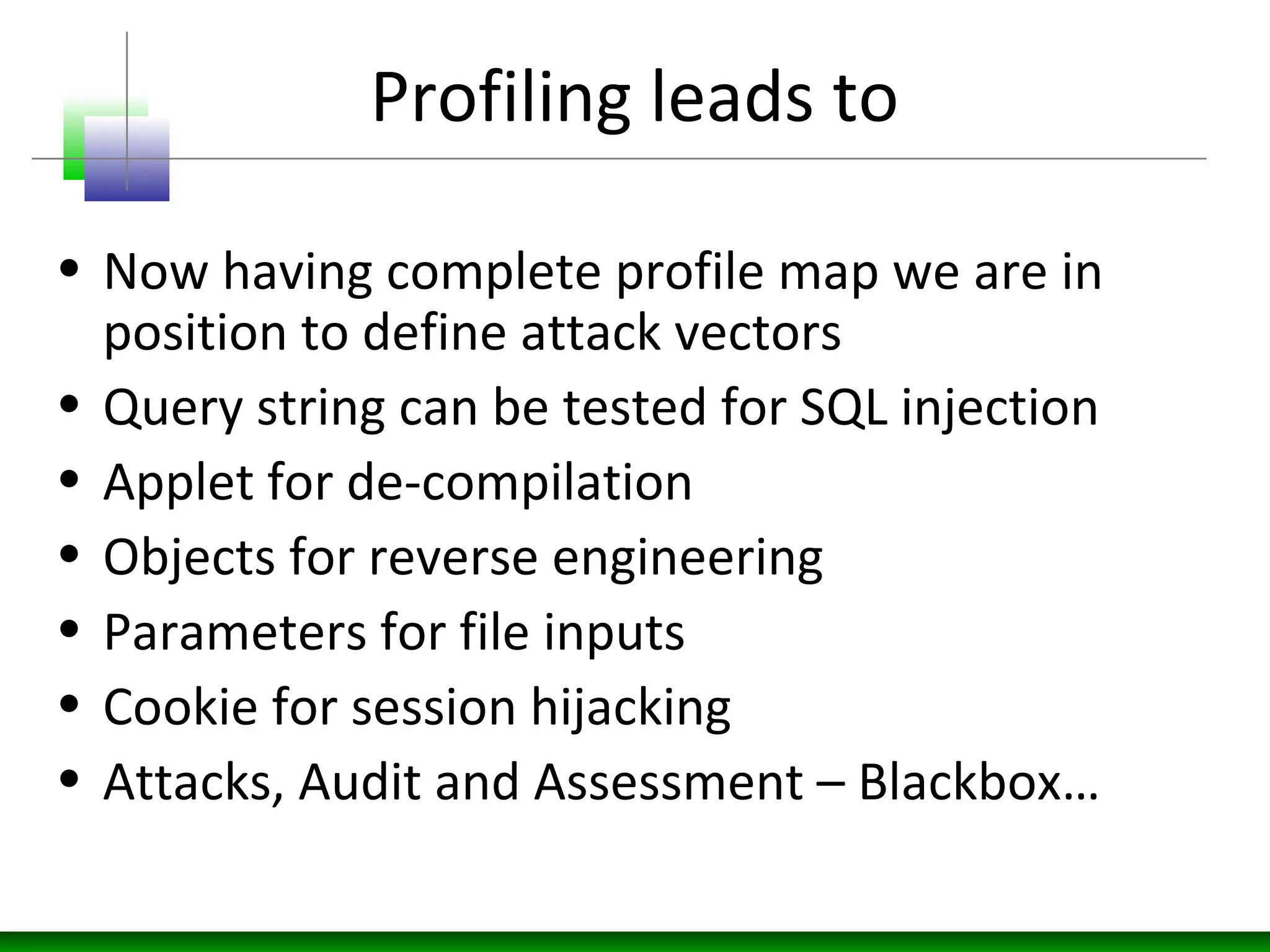

47. Profiling leads to
• Now having complete profile map we are in
position to define attack vectors
• Query string can be tested for SQL injection
• Applet for de-compilation
• Objects for reverse engineering
• Parameters for file inputs
• Cookie for session hijacking
• Attacks, Audit and Assessment – Blackbox…

48. Conclusion
