1. VHDL
 V-VHSIC- VERY HIGH SPEED INTERGRATED CIRCUIT
 HDL- HARD WARE DISCRIPTION LANGUAGE
*VHDL AND VERILOG HDL FOR DEVELOPMENT AND
DESIGN
SYSTEM VERILOG FOR VERIFICATION
It can be model a digital system at many level of
abstraction ranging from algorithmic level to gate level

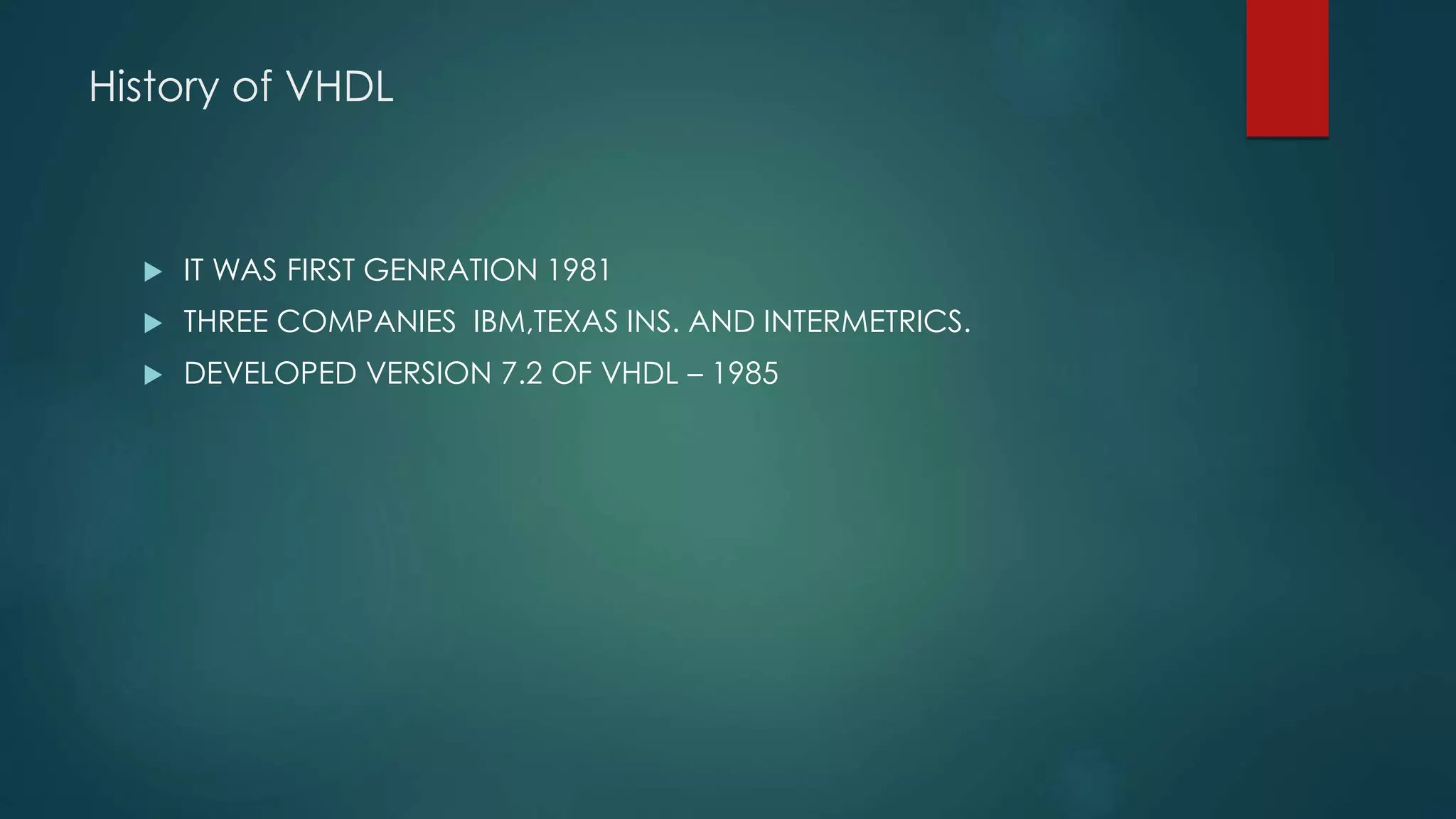

2. History of VHDL
 IT WAS FIRST GENRATION 1981
 THREE COMPANIES IBM,TEXAS INS. AND INTERMETRICS.
 DEVELOPED VERSION 7.2 OF VHDL – 1985

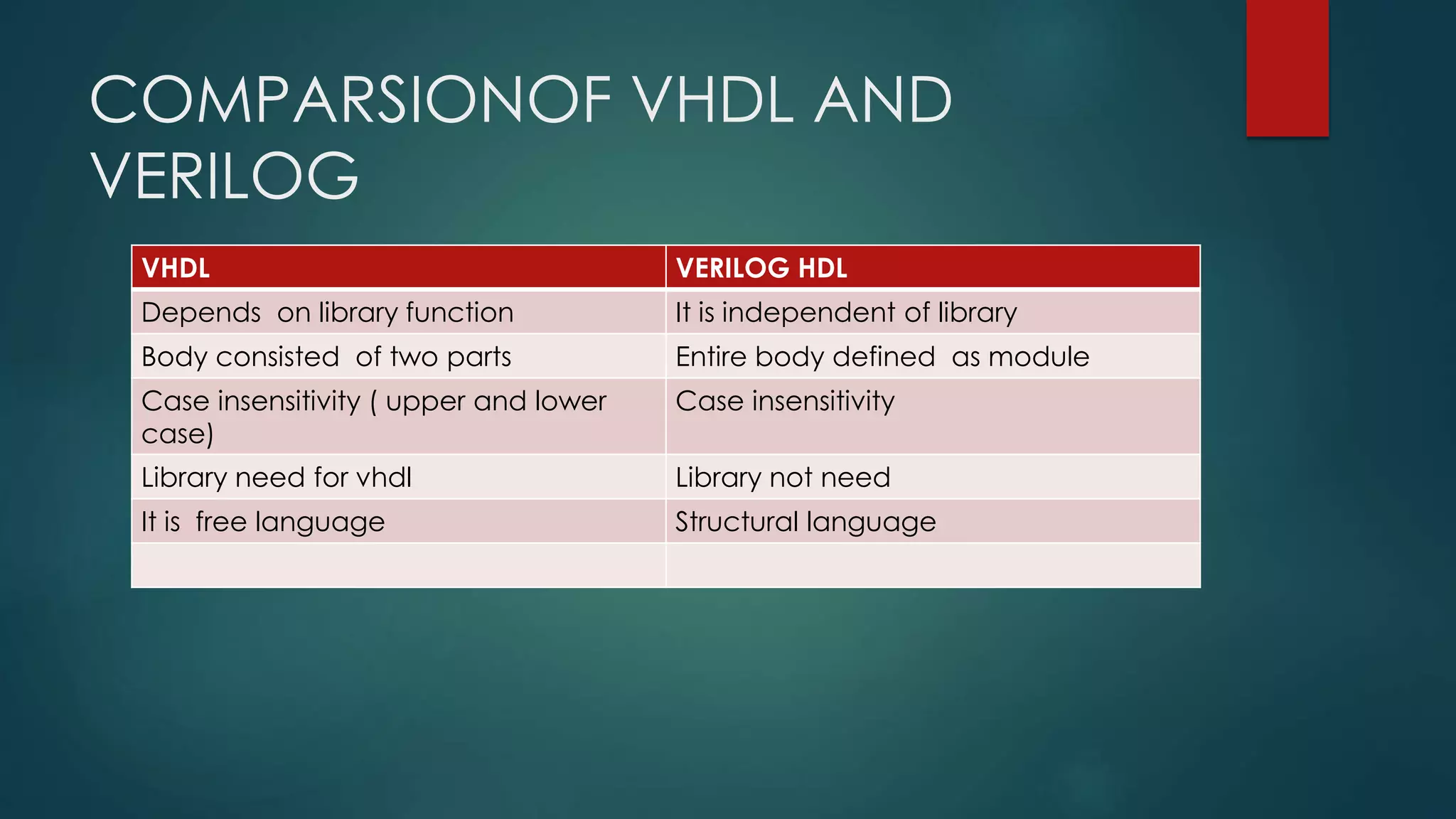

3. COMPARSIONOF VHDL AND
VERILOG
VHDL VERILOG HDL
Depends on library function It is independent of library
Body consisted of two parts Entire body defined as module
Case insensitivity ( upper and lower
case)
Case insensitivity
Library need for vhdl Library not need
It is free language Structural language

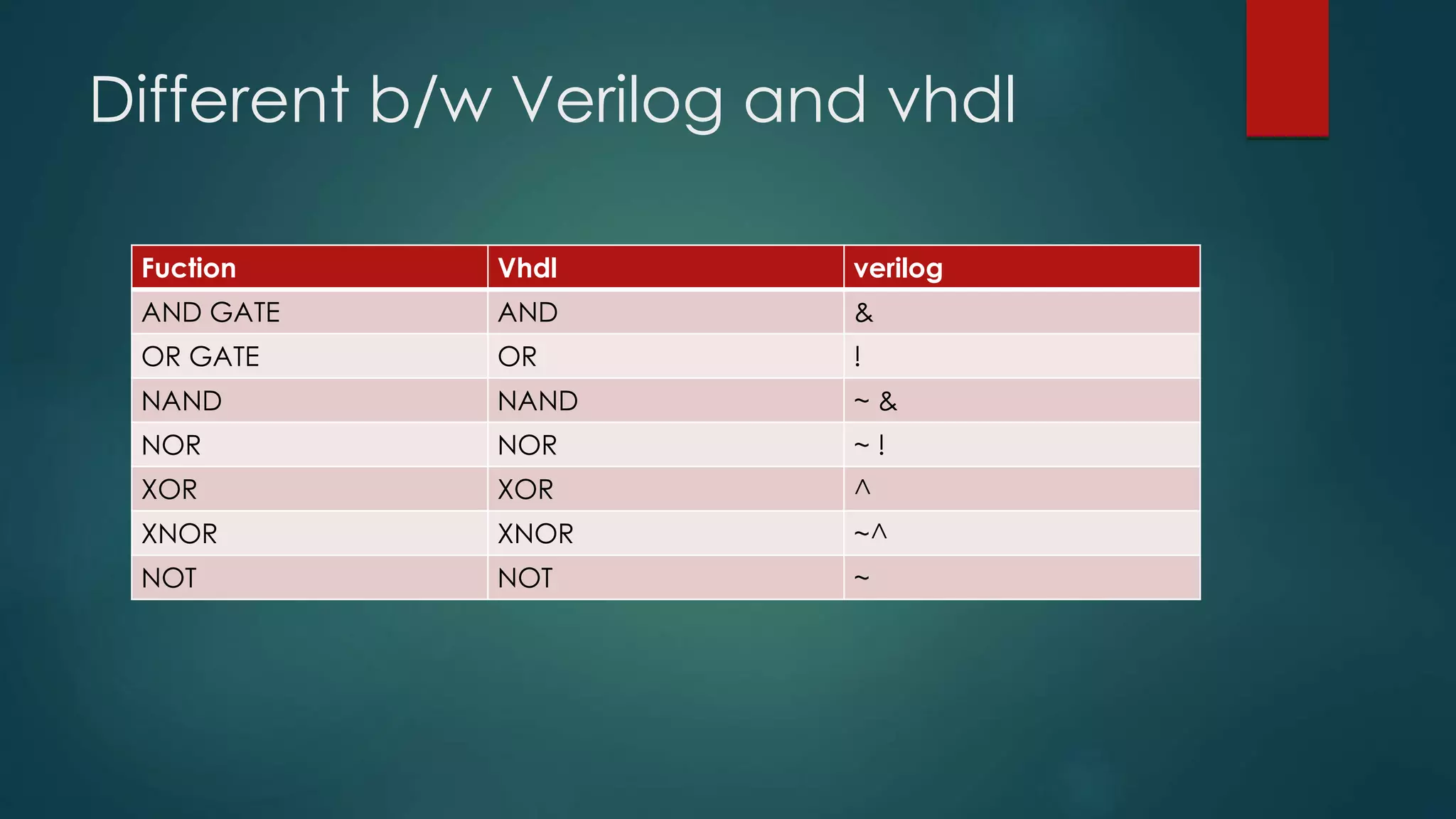

4. Different b/w Verilog and vhdl
Fuction Vhdl verilog
AND GATE AND &
OR GATE OR !
NAND NAND ~ &
NOR NOR ~ !
XOR XOR ^
XNOR XNOR ~^
NOT NOT ~

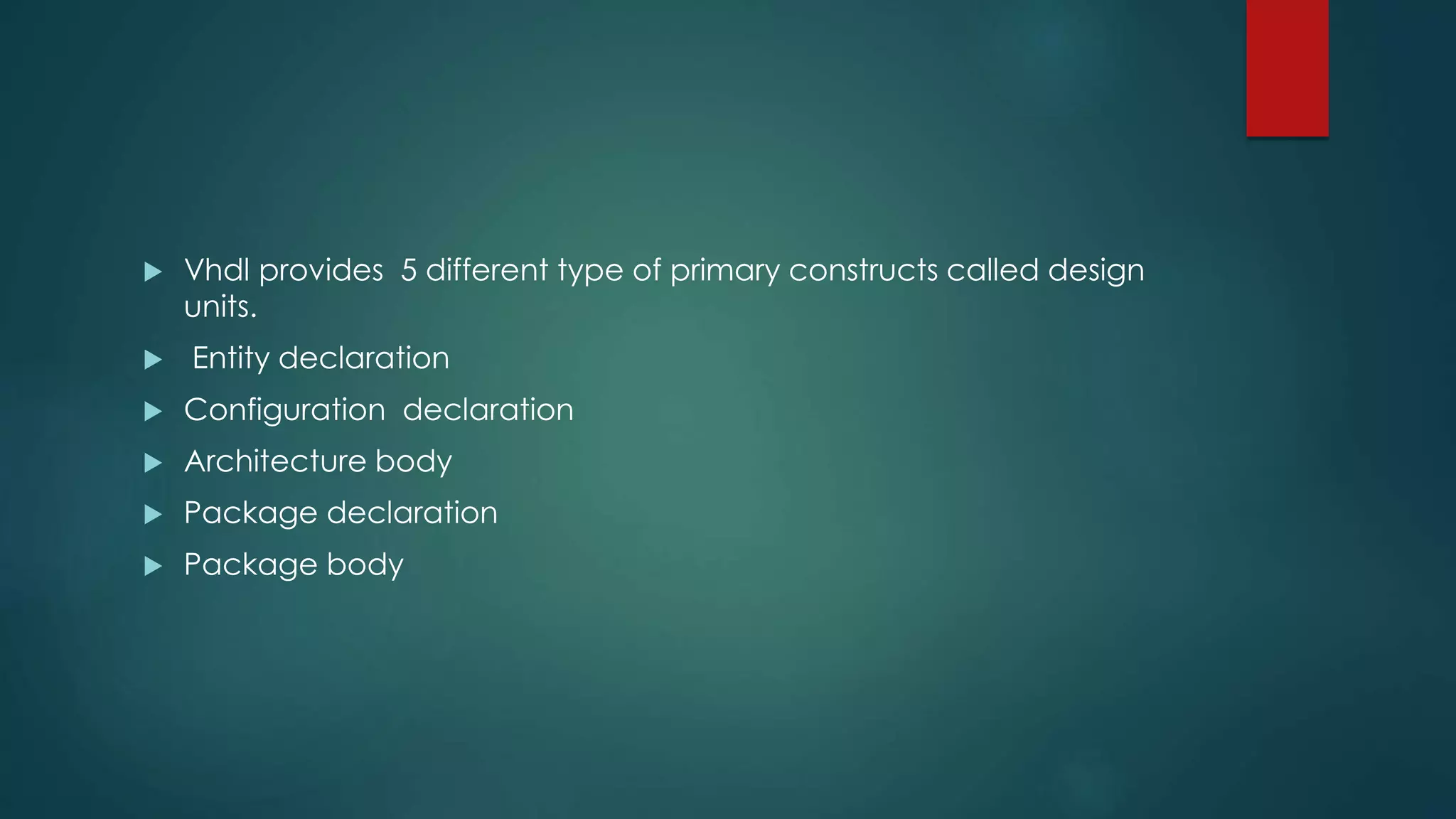

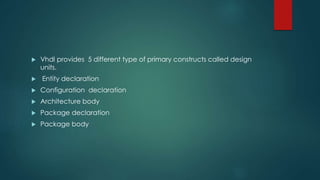

5.  Vhdl provides 5 different type of primary constructs called design
units.
 Entity declaration
 Configuration declaration
 Architecture body
 Package declaration
 Package body

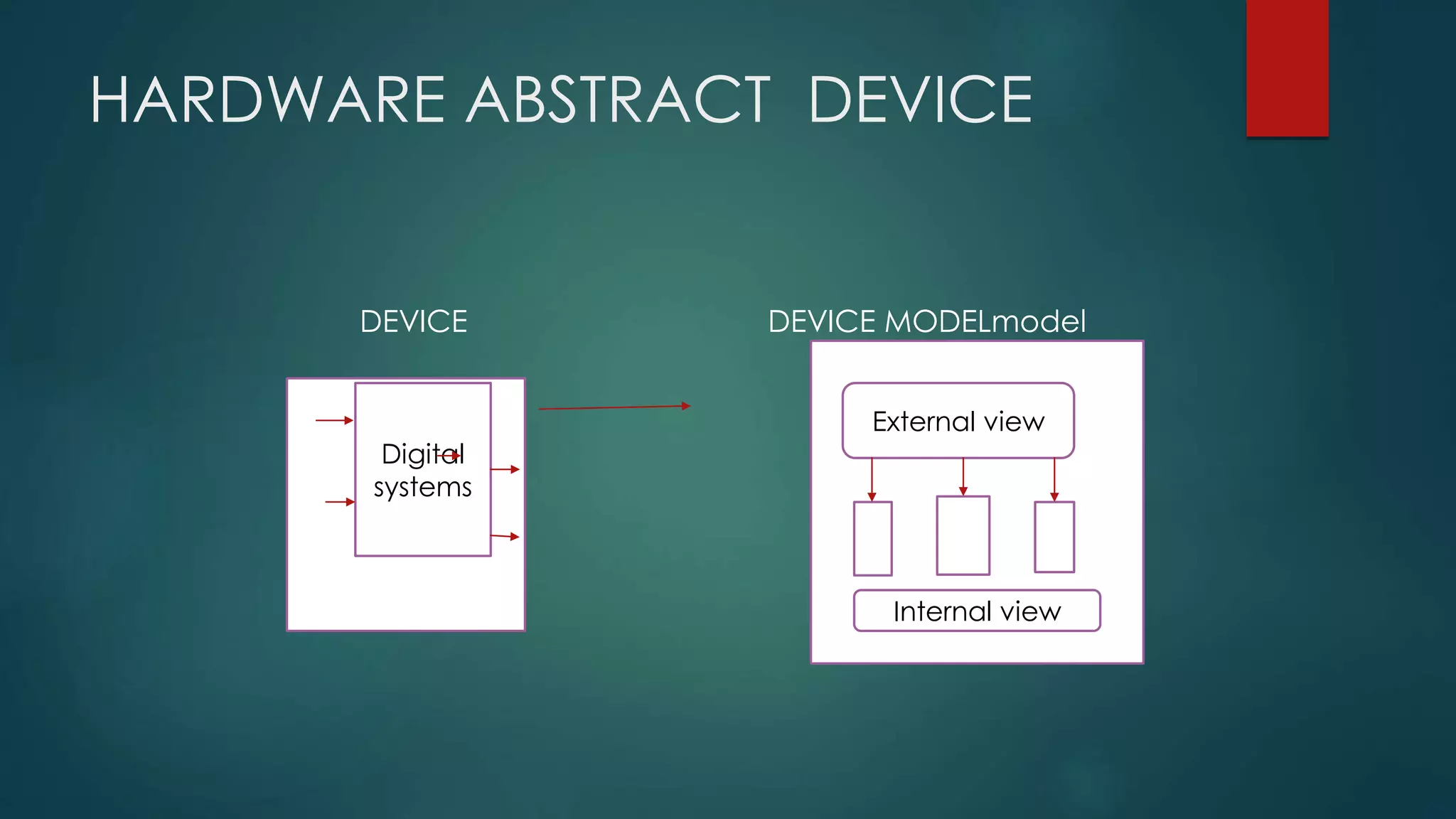

6. HARDWARE ABSTRACT DEVICE
DEVICE DEVICE MODELmodel
Digital
systems
External view
Internal view

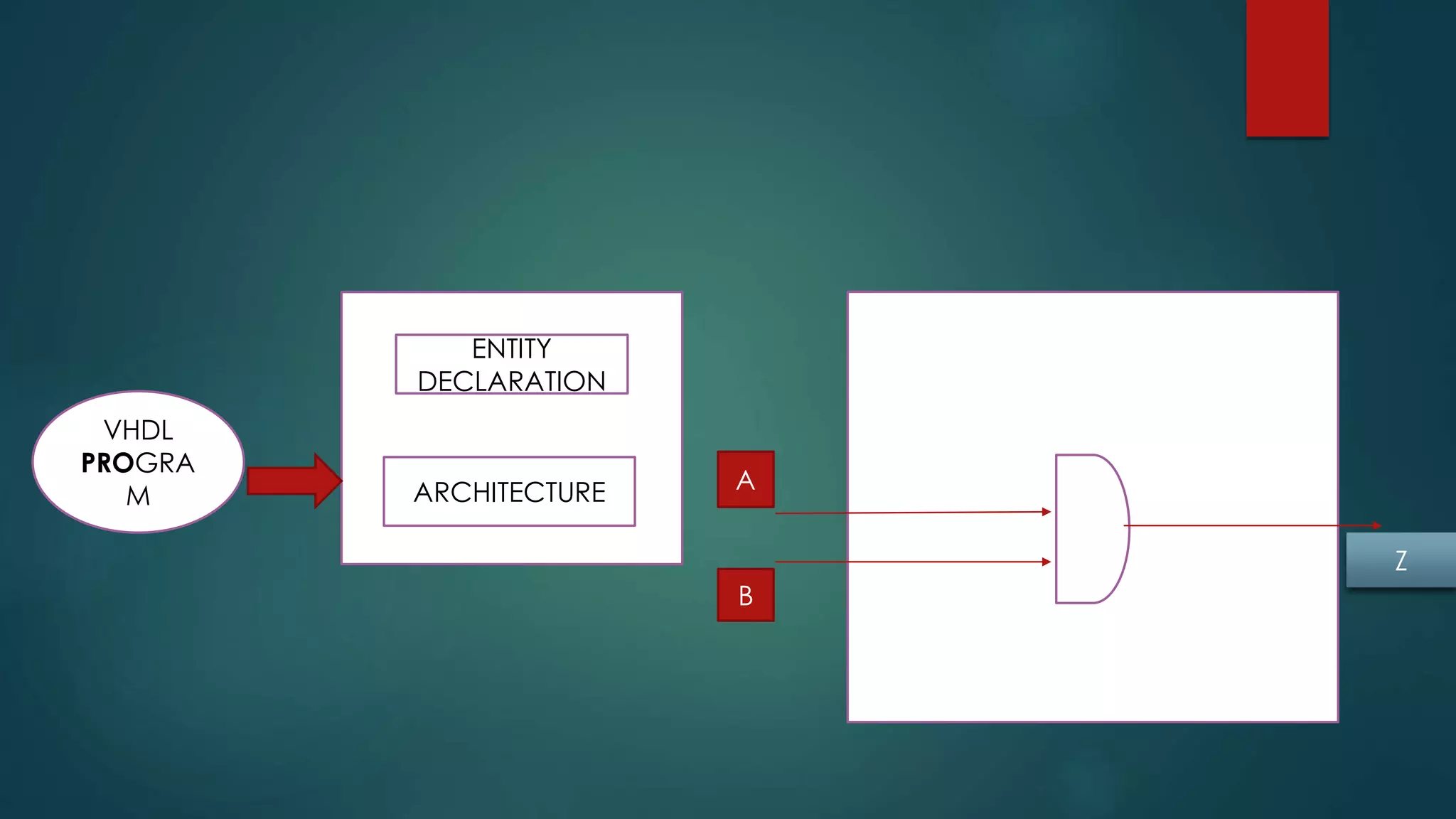

7. ENTITY
DECLARATION
ARCHITECTURE A
B
Z
VHDL
PROGRA
M

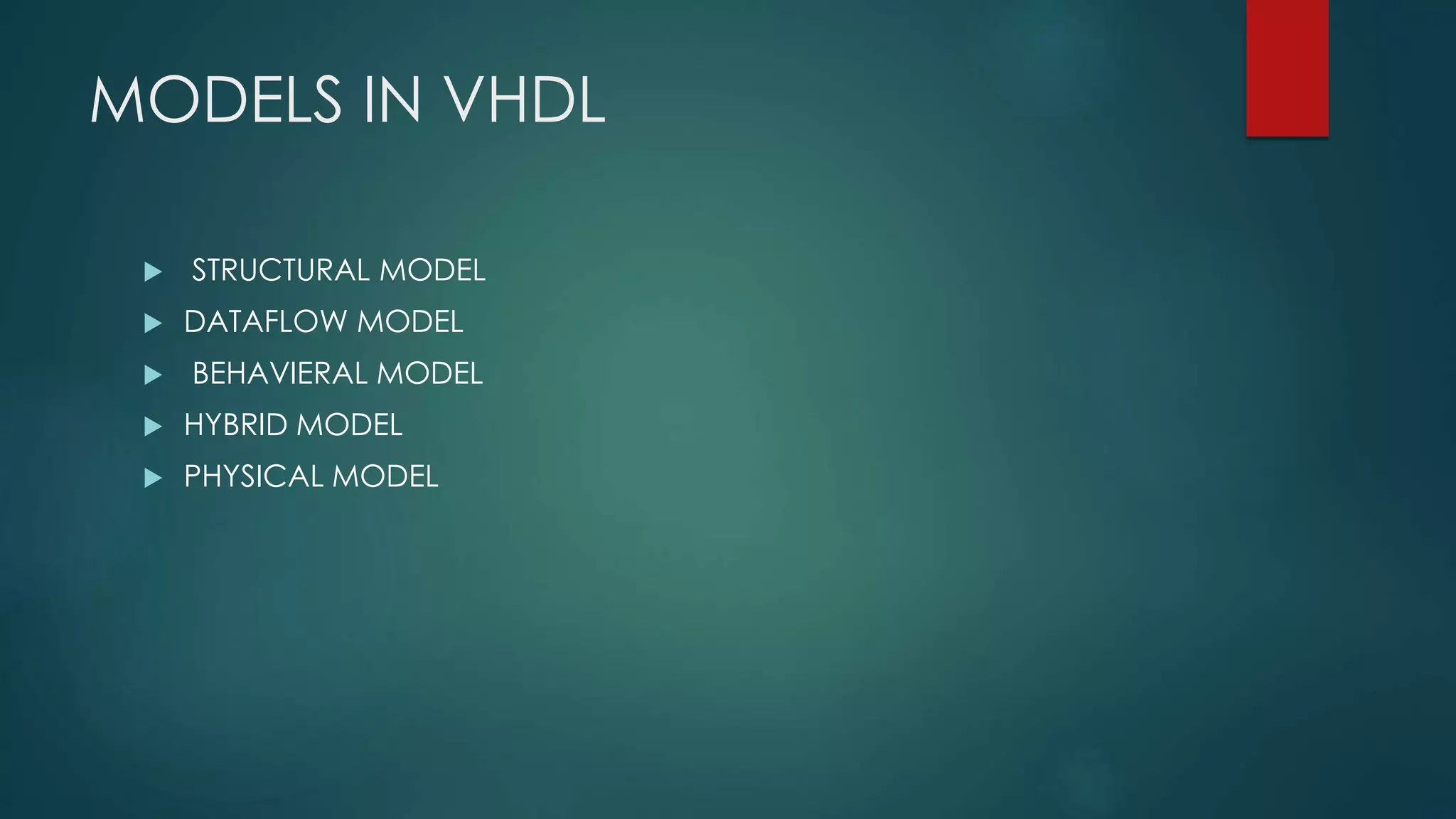

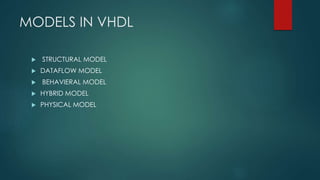

8. MODELS IN VHDL
 STRUCTURAL MODEL
 DATAFLOW MODEL
 BEHAVIERAL MODEL
 HYBRID MODEL
 PHYSICAL MODEL

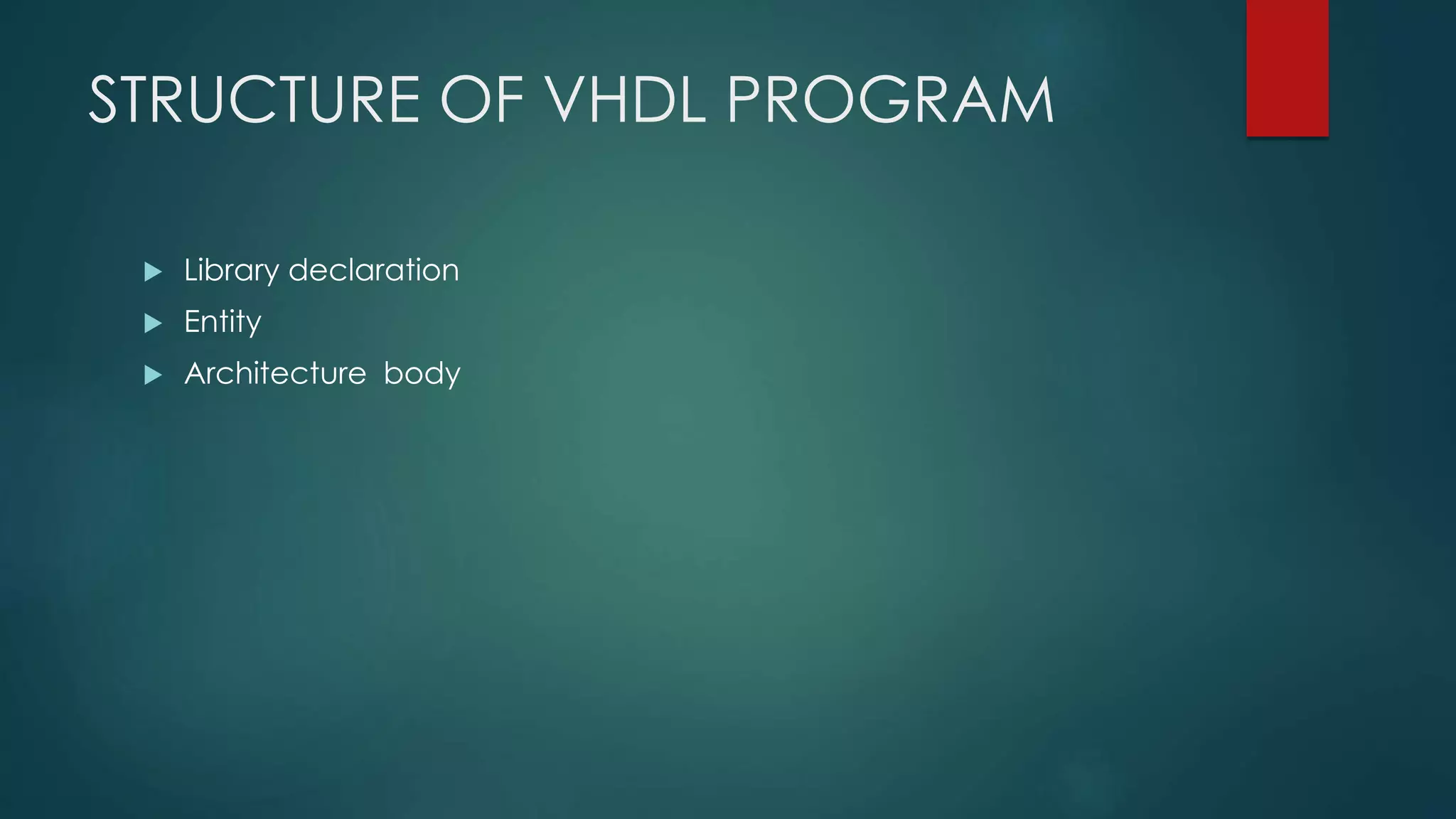

9. STRUCTURE OF VHDL PROGRAM
 Library declaration
 Entity
 Architecture body

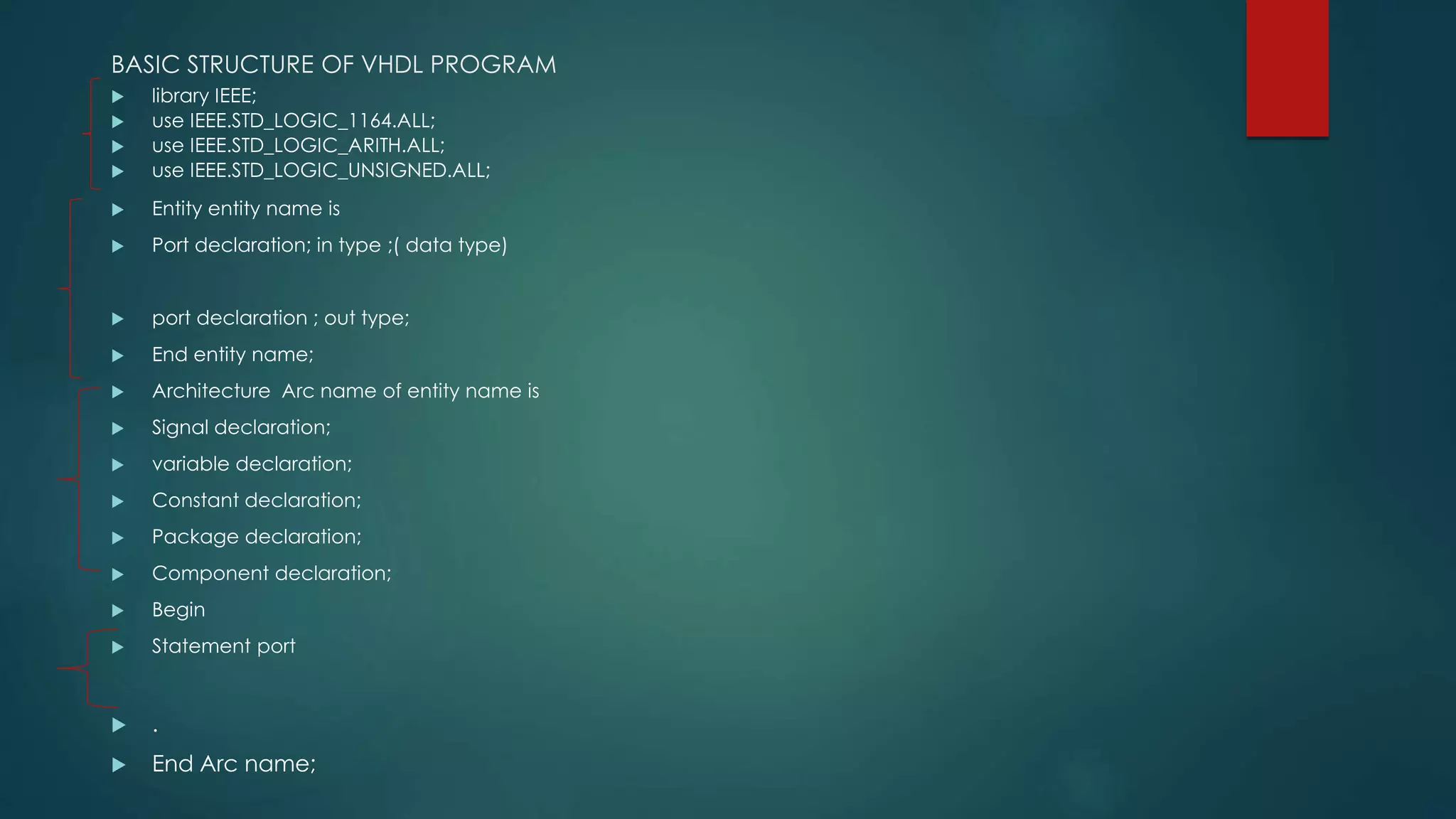

10. BASIC STRUCTURE OF VHDL PROGRAM
 library IEEE;
 use IEEE.STD_LOGIC_1164.ALL;
 use IEEE.STD_LOGIC_ARITH.ALL;
 use IEEE.STD_LOGIC_UNSIGNED.ALL;
 Entity entity name is
 Port declaration; in type ;( data type)
 port declaration ; out type;
 End entity name;
 Architecture Arc name of entity name is
 Signal declaration;
 variable declaration;
 Constant declaration;
 Package declaration;
 Component declaration;
 Begin
 Statement port
 .
 End Arc name;

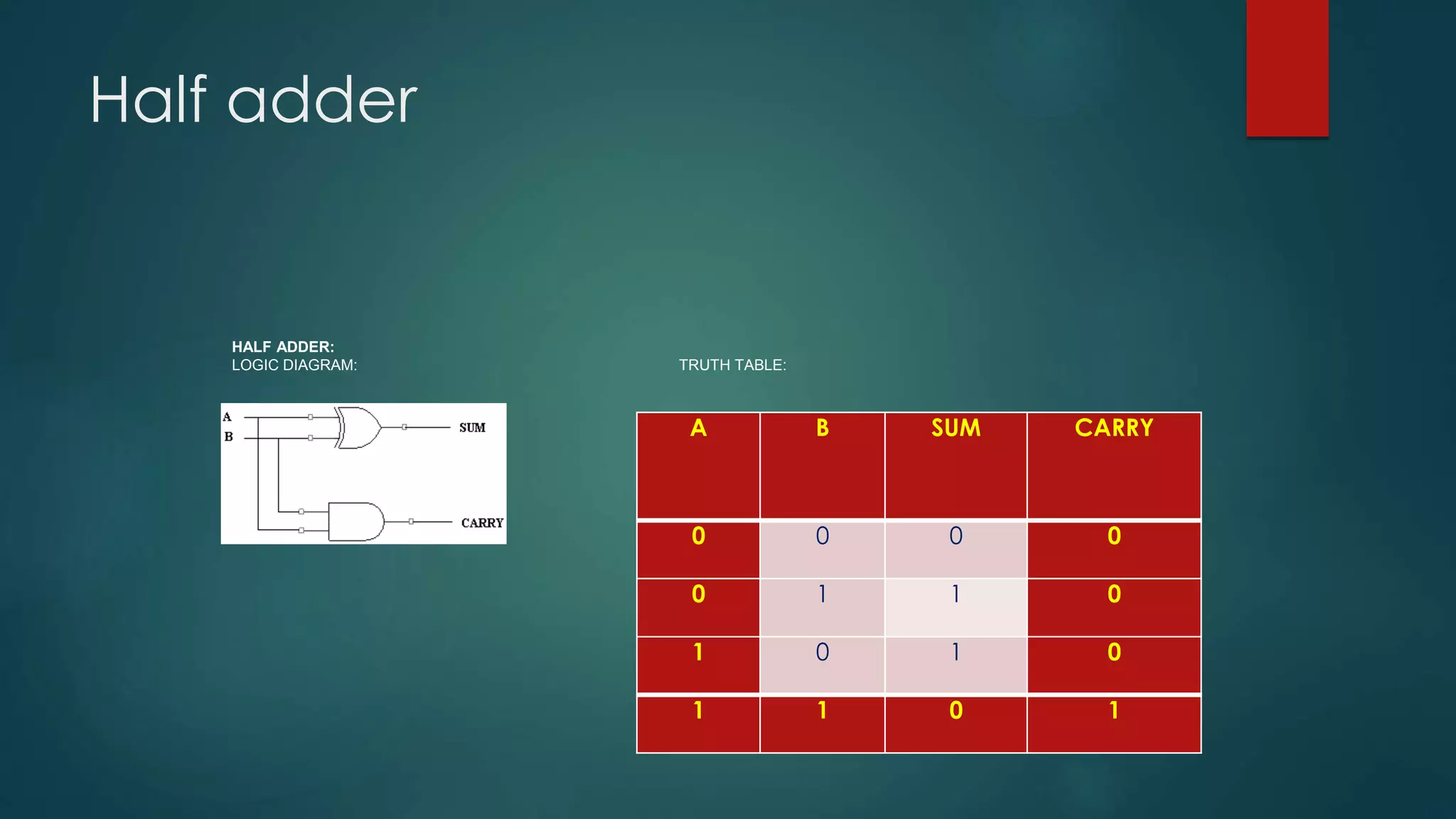

11. Half adder
A B SUM CARRY
0 0 0 0
0 1 1 0
1 0 1 0
1 1 0 1
HALF ADDER:
LOGIC DIAGRAM: TRUTH TABLE:

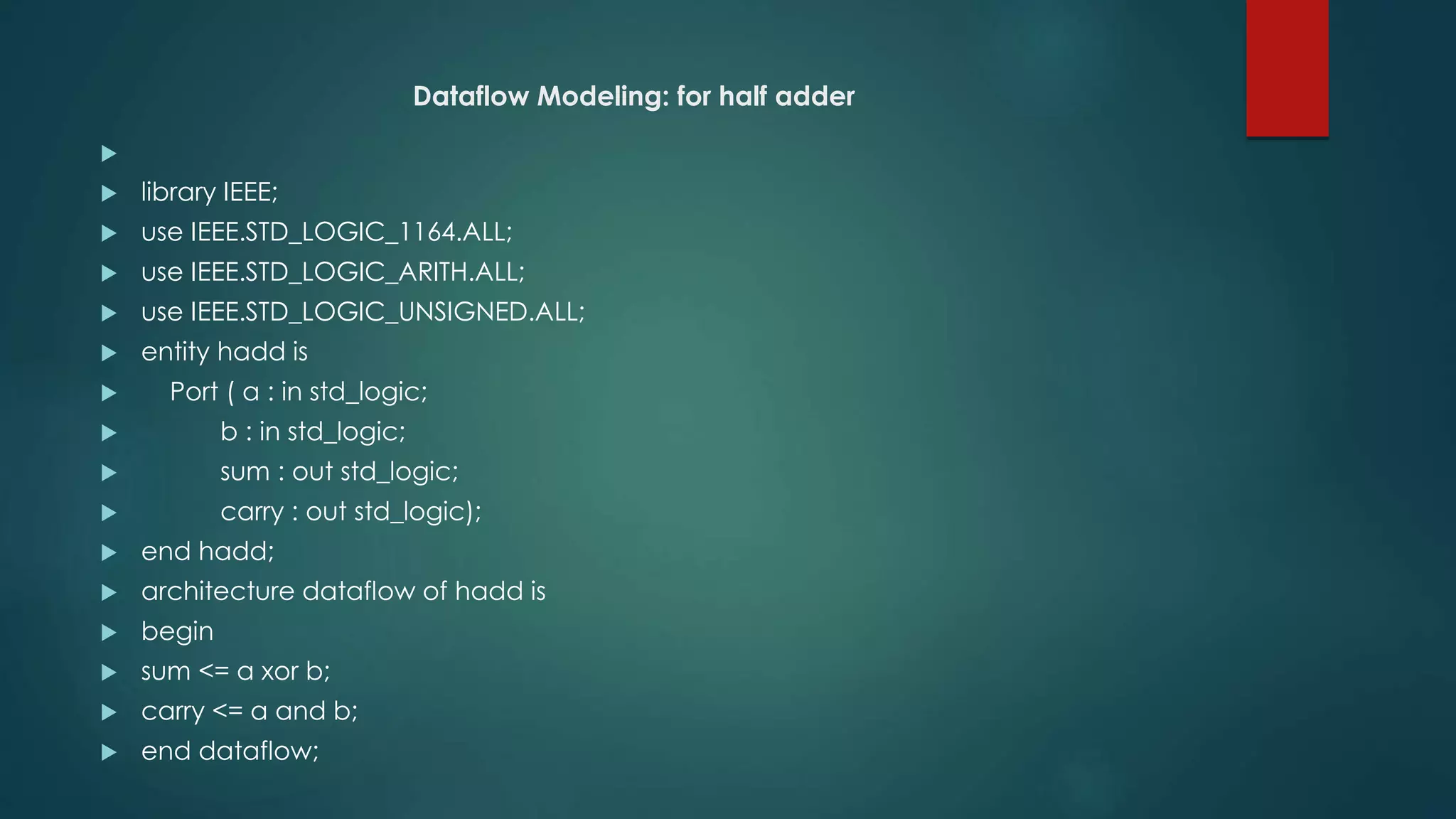

12. Dataflow Modeling: for half adder

 library IEEE;
 use IEEE.STD_LOGIC_1164.ALL;
 use IEEE.STD_LOGIC_ARITH.ALL;
 use IEEE.STD_LOGIC_UNSIGNED.ALL;
 entity hadd is
 Port ( a : in std_logic;
 b : in std_logic;
 sum : out std_logic;
 carry : out std_logic);
 end hadd;
 architecture dataflow of hadd is
 begin
 sum <= a xor b;
 carry <= a and b;
 end dataflow;

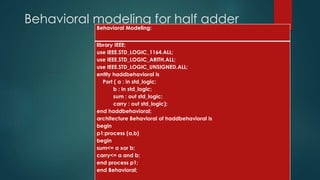

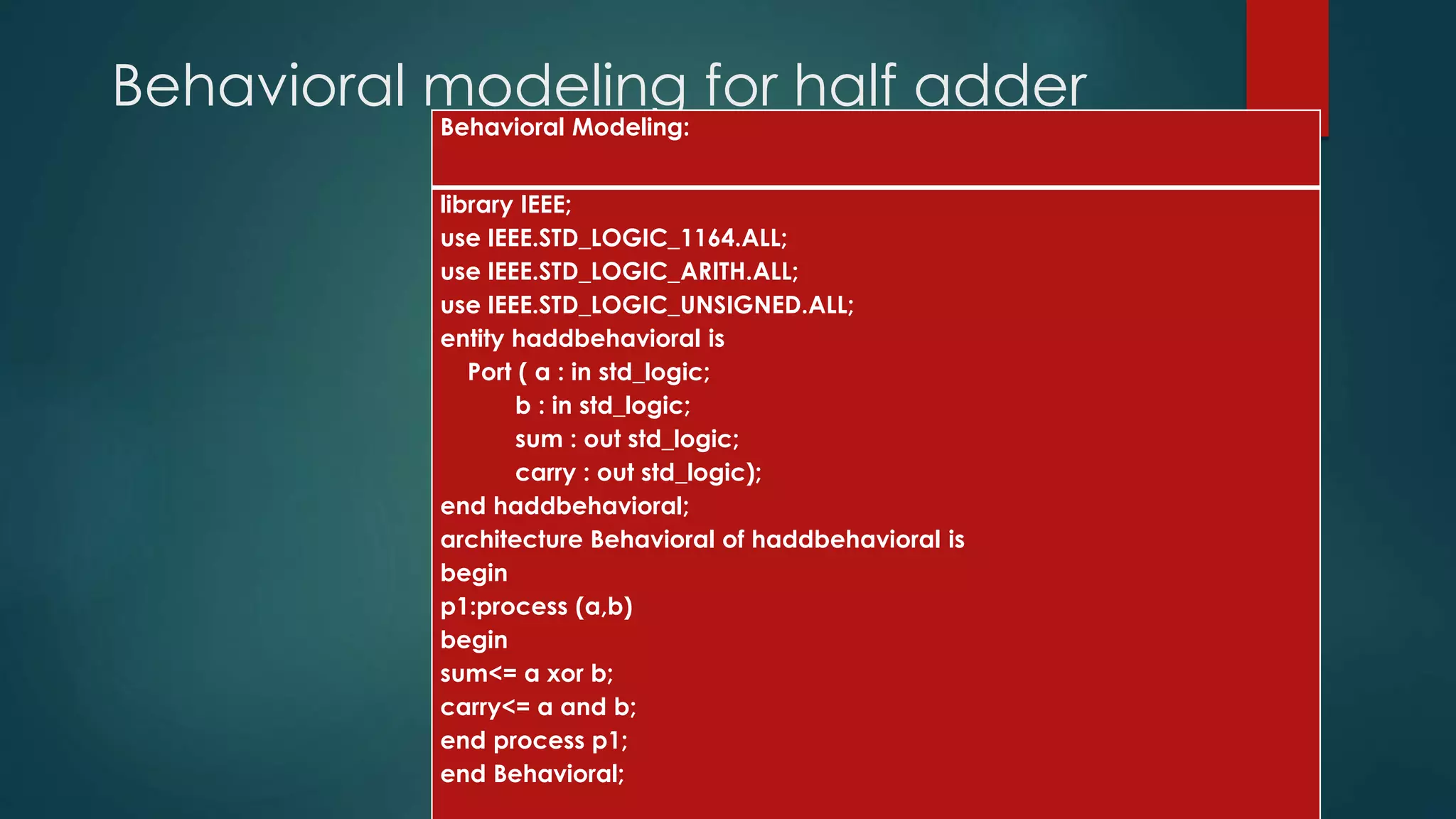

13. Behavioral modeling for half adder
Behavioral Modeling:
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity haddbehavioral is
Port ( a : in std_logic;
b : in std_logic;
sum : out std_logic;
carry : out std_logic);
end haddbehavioral;
architecture Behavioral of haddbehavioral is
begin
p1:process (a,b)
begin
sum<= a xor b;
carry<= a and b;
end process p1;
end Behavioral;

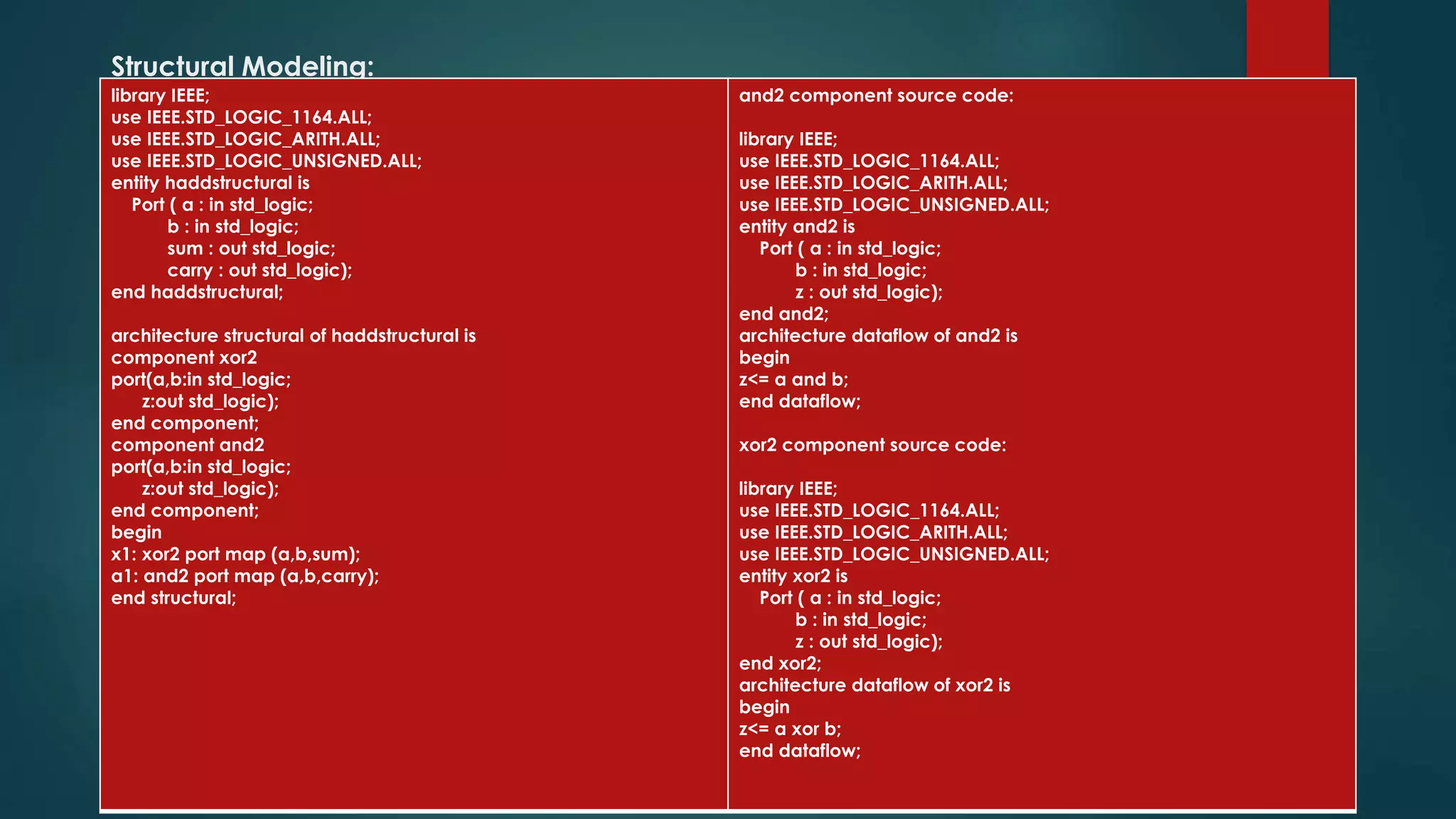

14. Structural Modeling:
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity haddstructural is
Port ( a : in std_logic;
b : in std_logic;
sum : out std_logic;
carry : out std_logic);
end haddstructural;
architecture structural of haddstructural is
component xor2
port(a,b:in std_logic;
z:out std_logic);
end component;
component and2
port(a,b:in std_logic;
z:out std_logic);
end component;
begin
x1: xor2 port map (a,b,sum);
a1: and2 port map (a,b,carry);
end structural;
and2 component source code:
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity and2 is
Port ( a : in std_logic;
b : in std_logic;
z : out std_logic);
end and2;
architecture dataflow of and2 is
begin
z<= a and b;
end dataflow;
xor2 component source code:
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity xor2 is
Port ( a : in std_logic;
b : in std_logic;
z : out std_logic);
end xor2;
architecture dataflow of xor2 is
begin
z<= a xor b;
end dataflow;

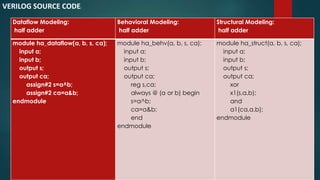

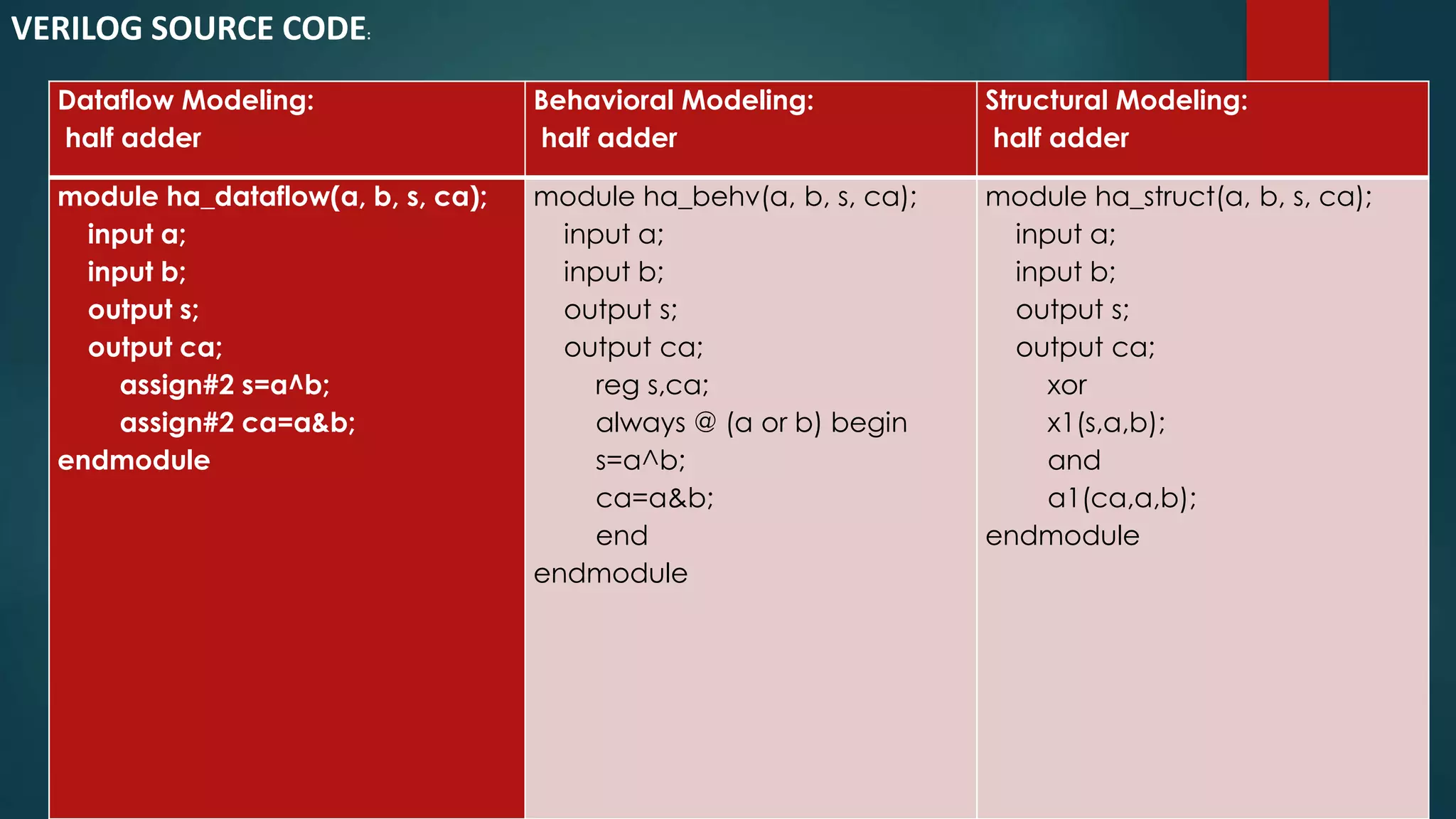

15. Dataflow Modeling:
half adder
Behavioral Modeling:
half adder
Structural Modeling:
half adder
module ha_dataflow(a, b, s, ca);
input a;
input b;
output s;
output ca;
assign#2 s=a^b;
assign#2 ca=a&b;
endmodule
module ha_behv(a, b, s, ca);
input a;
input b;
output s;
output ca;
reg s,ca;
always @ (a or b) begin
s=a^b;
ca=a&b;
end
endmodule
module ha_struct(a, b, s, ca);
input a;
input b;
output s;
output ca;
xor
x1(s,a,b);
and
a1(ca,a,b);
endmodule
VERILOG SOURCE CODE:

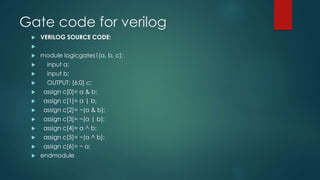

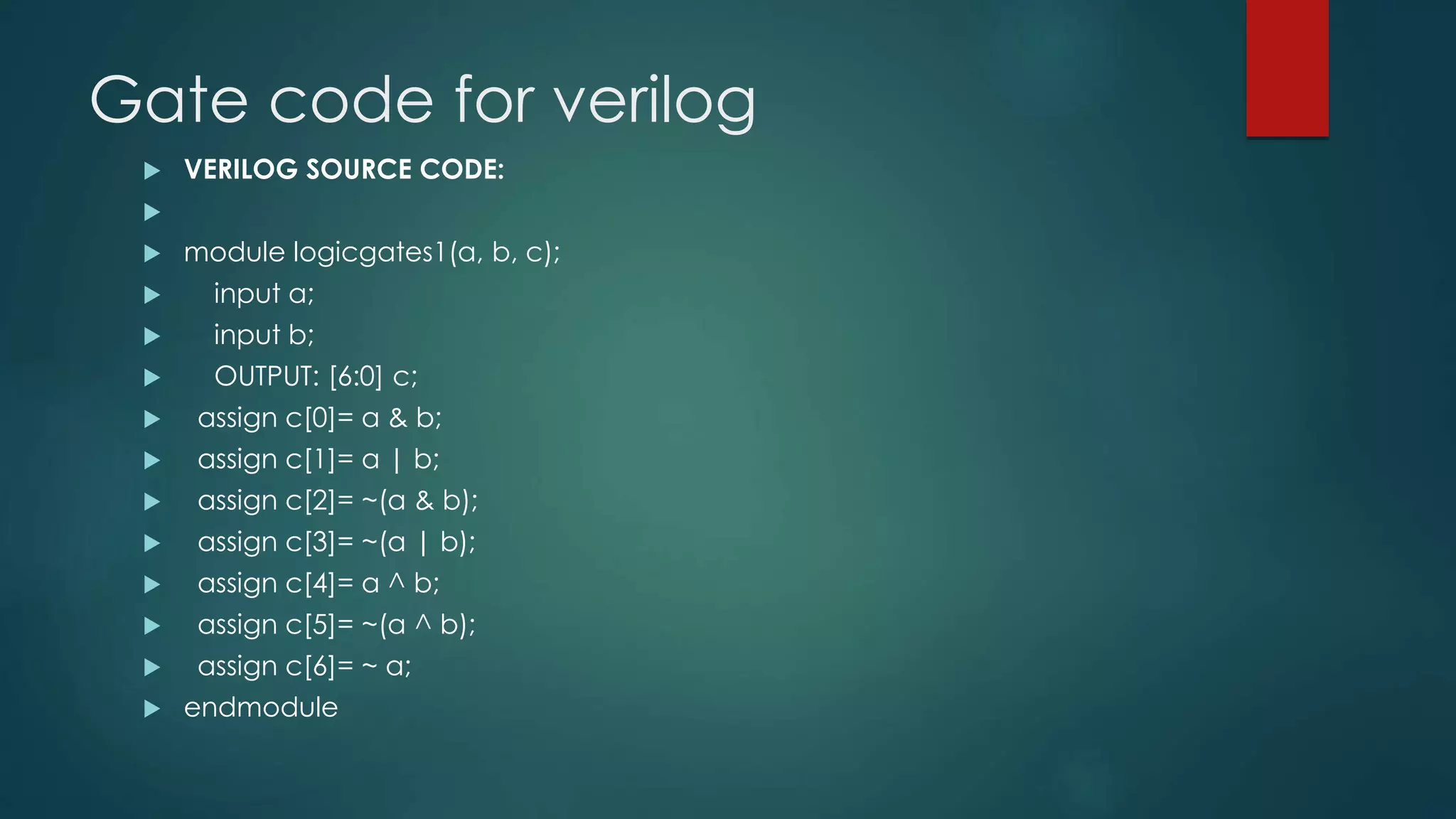

16. Gate code for verilog
 VERILOG SOURCE CODE:

 module logicgates1(a, b, c);
 input a;
 input b;
 OUTPUT: [6:0] c;
 assign c[0]= a & b;
 assign c[1]= a | b;
 assign c[2]= ~(a & b);
 assign c[3]= ~(a | b);
 assign c[4]= a ^ b;
 assign c[5]= ~(a ^ b);
 assign c[6]= ~ a;
 endmodule

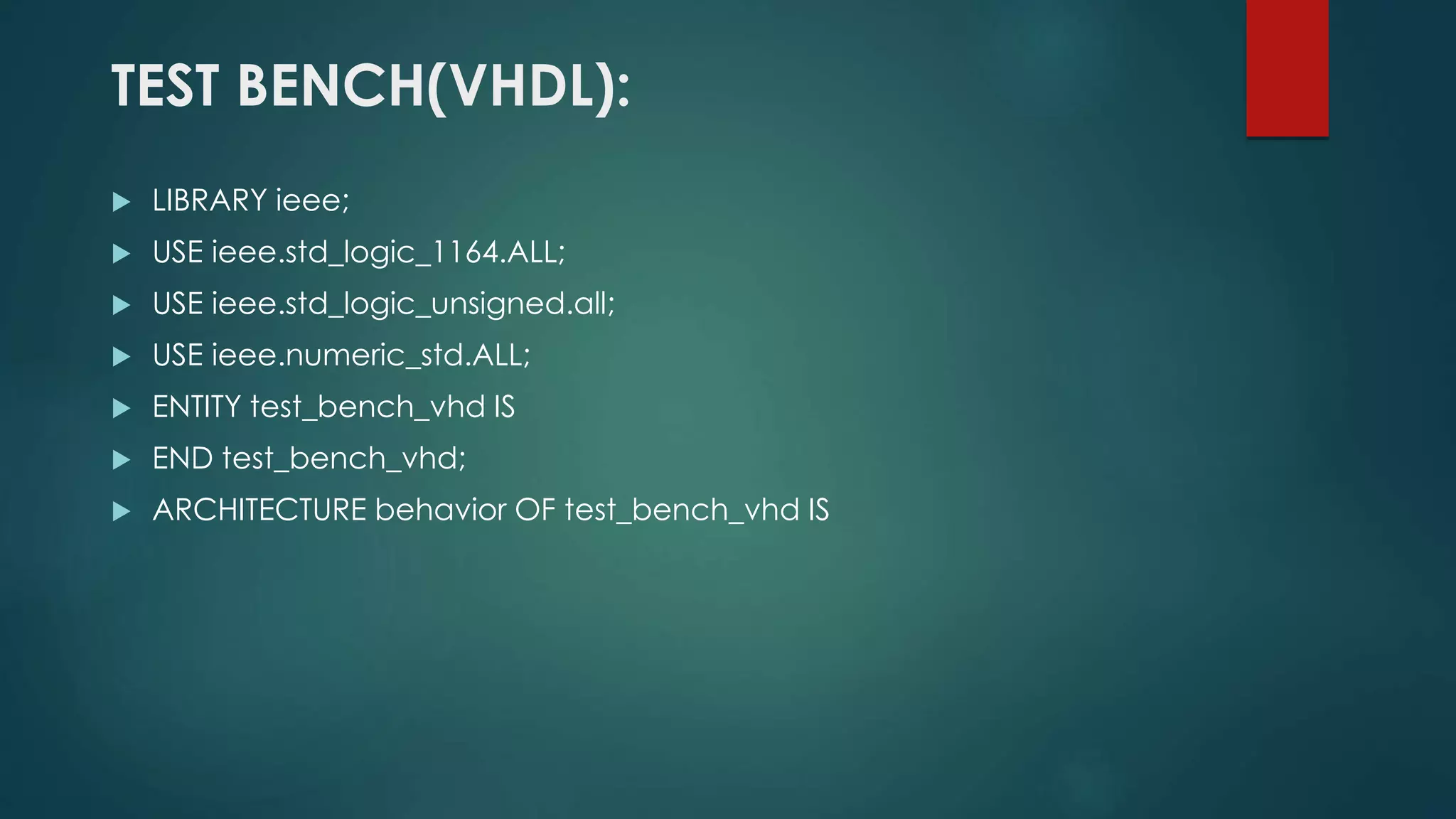

17. TEST BENCH(VHDL):
 LIBRARY ieee;
 USE ieee.std_logic_1164.ALL;
 USE ieee.std_logic_unsigned.all;
 USE ieee.numeric_std.ALL;
 ENTITY test_bench_vhd IS
 END test_bench_vhd;
 ARCHITECTURE behavior OF test_bench_vhd IS

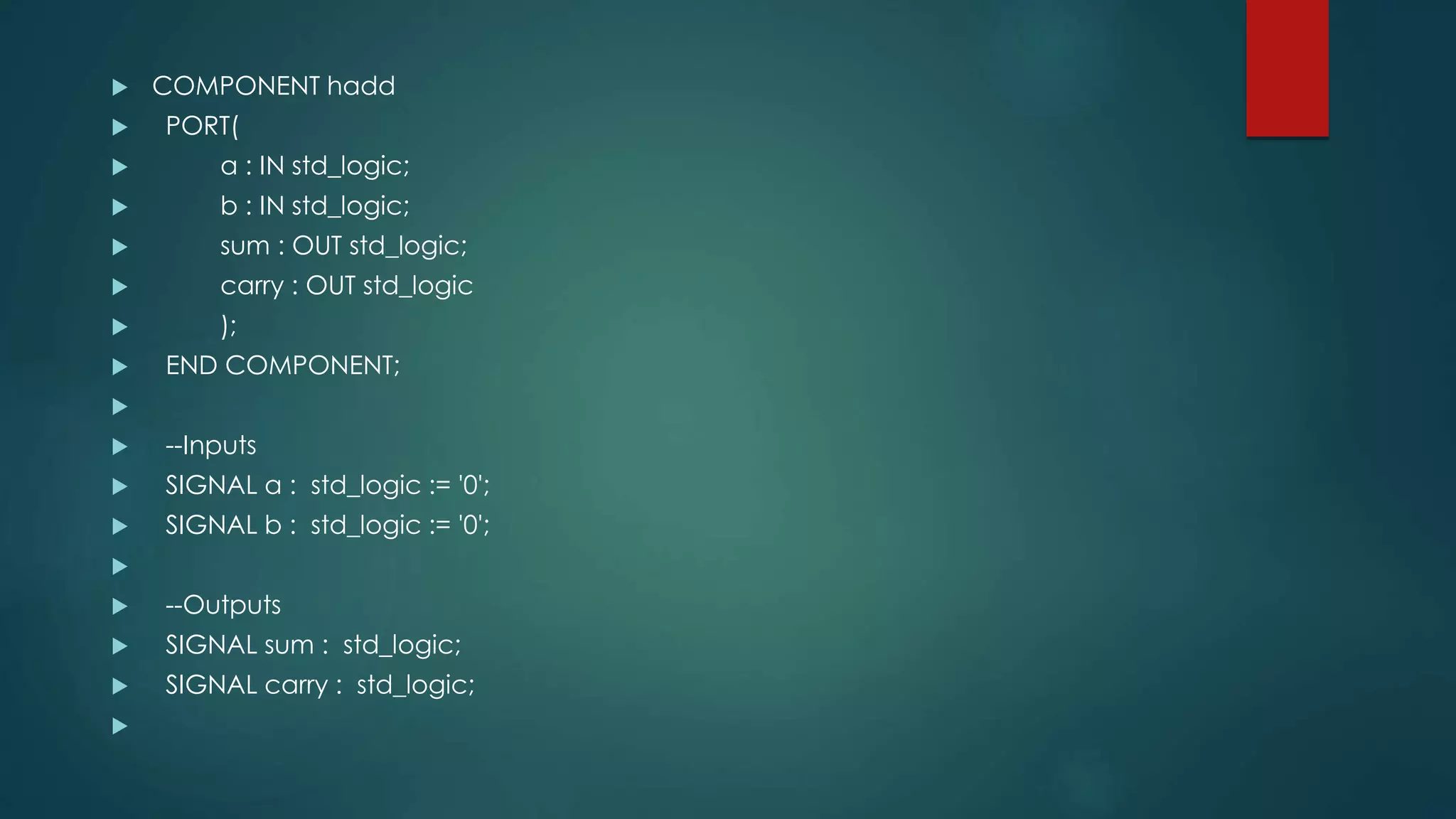

18.  COMPONENT hadd
 PORT(
 a : IN std_logic;
 b : IN std_logic;
 sum : OUT std_logic;
 carry : OUT std_logic
 );
 END COMPONENT;

 --Inputs
 SIGNAL a : std_logic := '0';
 SIGNAL b : std_logic := '0';

 --Outputs
 SIGNAL sum : std_logic;
 SIGNAL carry : std_logic;


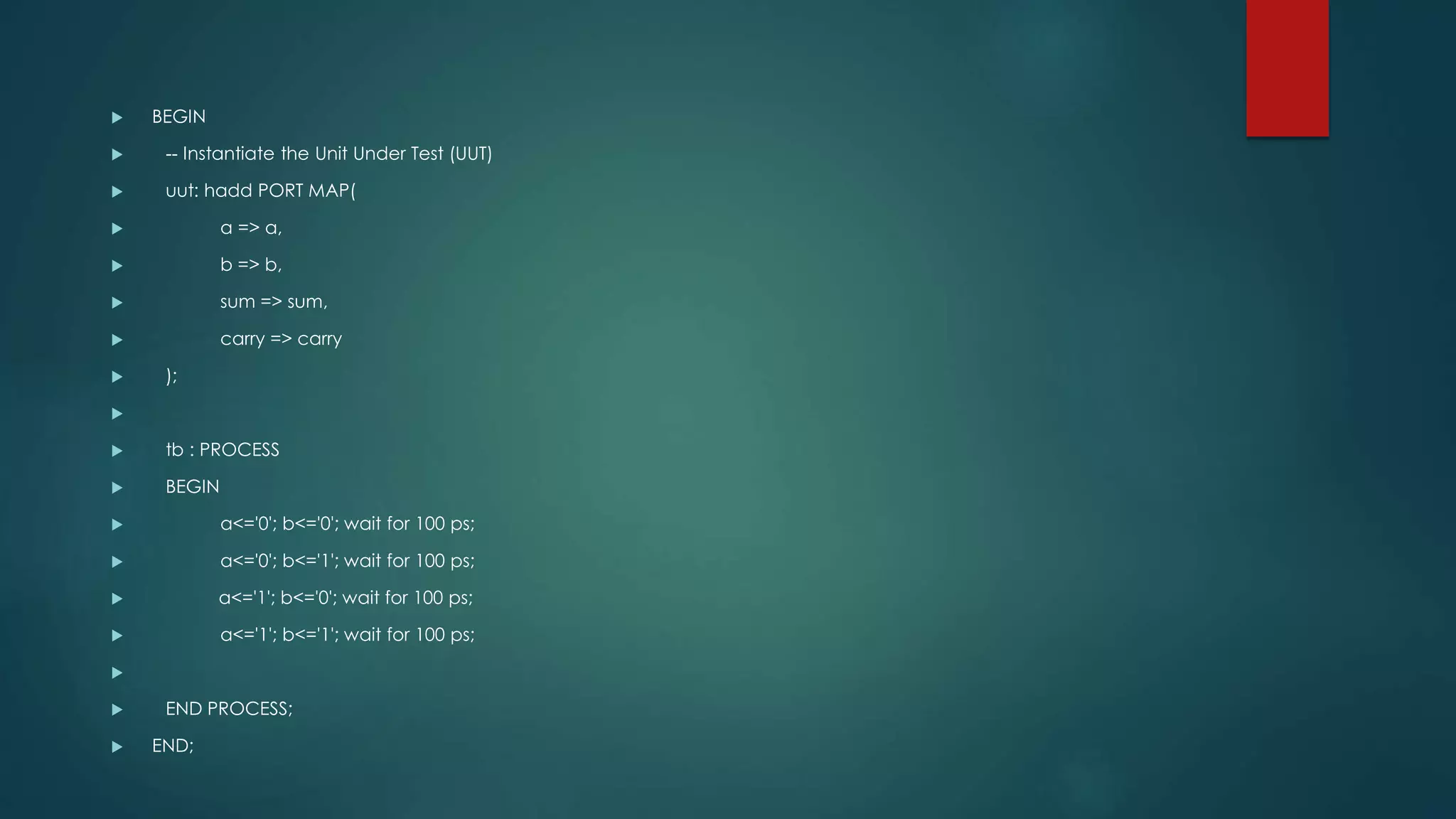

19.  BEGIN
 -- Instantiate the Unit Under Test (UUT)
 uut: hadd PORT MAP(
 a => a,
 b => b,
 sum => sum,
 carry => carry
 );

 tb : PROCESS
 BEGIN
 a<='0'; b<='0'; wait for 100 ps;
 a<='0'; b<='1'; wait for 100 ps;
 a<='1'; b<='0'; wait for 100 ps;
 a<='1'; b<='1'; wait for 100 ps;

 END PROCESS;
 END;

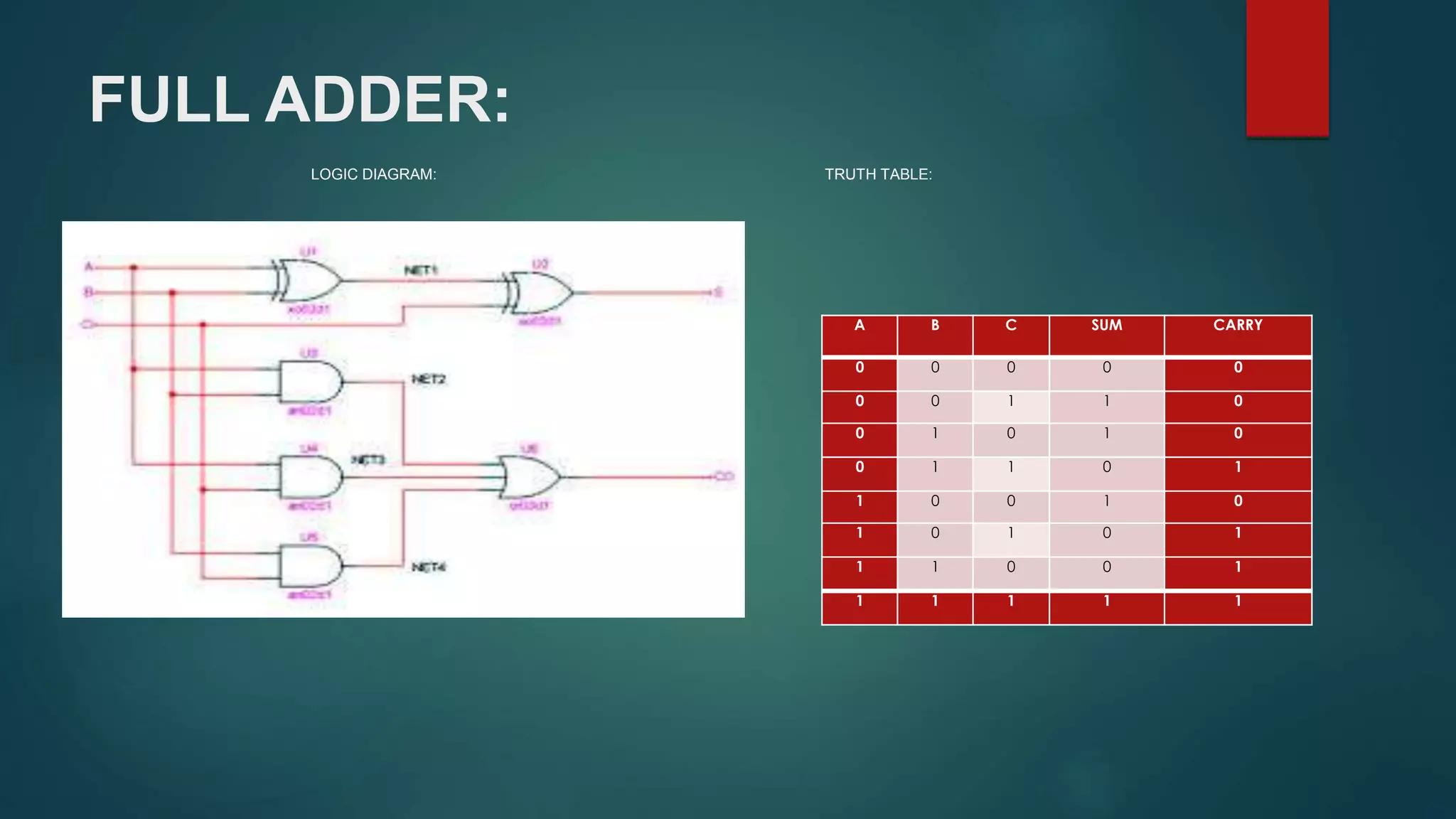

20. FULL ADDER:
A B C SUM CARRY
0 0 0 0 0
0 0 1 1 0
0 1 0 1 0
0 1 1 0 1
1 0 0 1 0
1 0 1 0 1
1 1 0 0 1
1 1 1 1 1
LOGIC DIAGRAM: TRUTH TABLE:

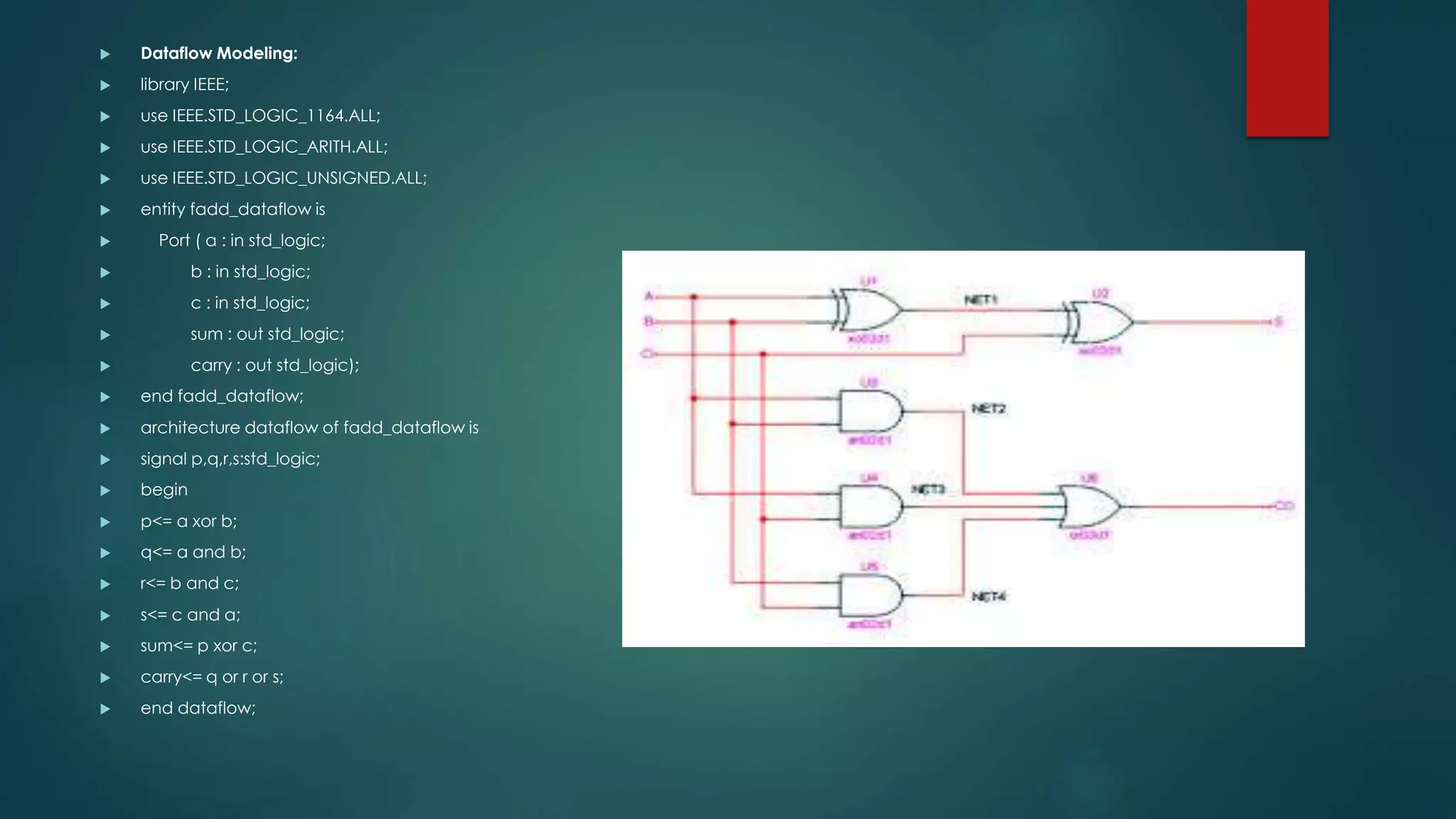

21.  Dataflow Modeling:
 library IEEE;
 use IEEE.STD_LOGIC_1164.ALL;
 use IEEE.STD_LOGIC_ARITH.ALL;
 use IEEE.STD_LOGIC_UNSIGNED.ALL;
 entity fadd_dataflow is
 Port ( a : in std_logic;
 b : in std_logic;
 c : in std_logic;
 sum : out std_logic;
 carry : out std_logic);
 end fadd_dataflow;
 architecture dataflow of fadd_dataflow is
 signal p,q,r,s:std_logic;
 begin
 p<= a xor b;
 q<= a and b;
 r<= b and c;
 s<= c and a;
 sum<= p xor c;
 carry<= q or r or s;
 end dataflow;

22.  Behavioral Modeling:
 library IEEE;
 use IEEE.STD_LOGIC_1164.ALL;
 use IEEE.STD_LOGIC_ARITH.ALL;
 use IEEE.STD_LOGIC_UNSIGNED.ALL;
 entity fadd_behv is
 Port ( a : in std_logic;
 b : in std_logic;
 c : in std_logic;
 sum : out std_logic;
 carry : out std_logic);
 end fadd_behv;
 architecture Behavioral of fadd_behv is
 begin
 p1:process(a,b,c)
 variable r,s,t:std_logic;
 begin
 r:= a and b;
 s:= b and c;
 t:= c and a;
 sum<= a xor b xor c;
 carry<= r or s or t;
 end process p1;
 end Behavioral;

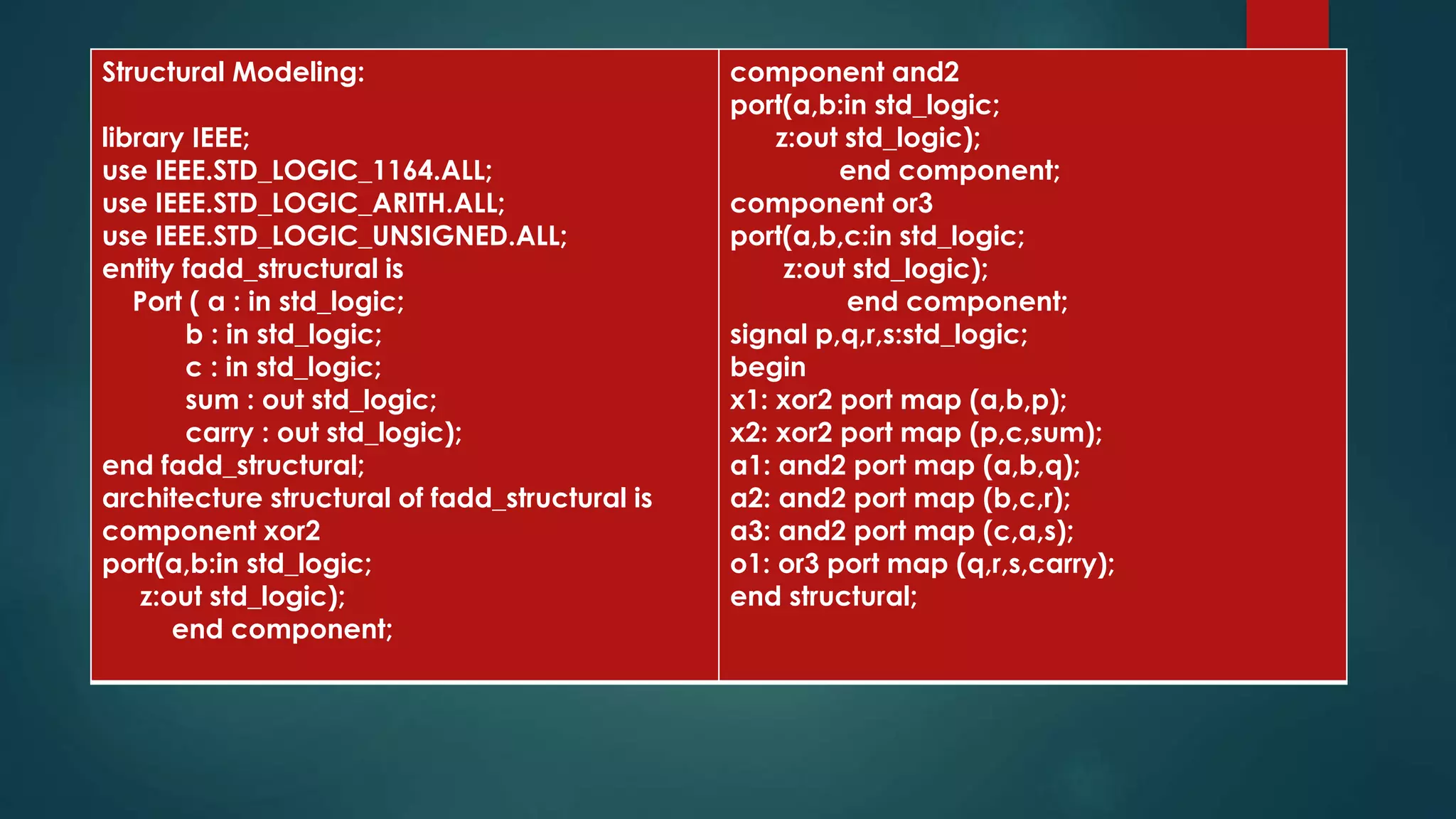

23. Structural Modeling:
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity fadd_structural is
Port ( a : in std_logic;
b : in std_logic;
c : in std_logic;
sum : out std_logic;
carry : out std_logic);
end fadd_structural;
architecture structural of fadd_structural is
component xor2
port(a,b:in std_logic;
z:out std_logic);
end component;
component and2
port(a,b:in std_logic;
z:out std_logic);
end component;
component or3
port(a,b,c:in std_logic;
z:out std_logic);
end component;
signal p,q,r,s:std_logic;
begin
x1: xor2 port map (a,b,p);
x2: xor2 port map (p,c,sum);
a1: and2 port map (a,b,q);
a2: and2 port map (b,c,r);
a3: and2 port map (c,a,s);
o1: or3 port map (q,r,s,carry);
end structural;

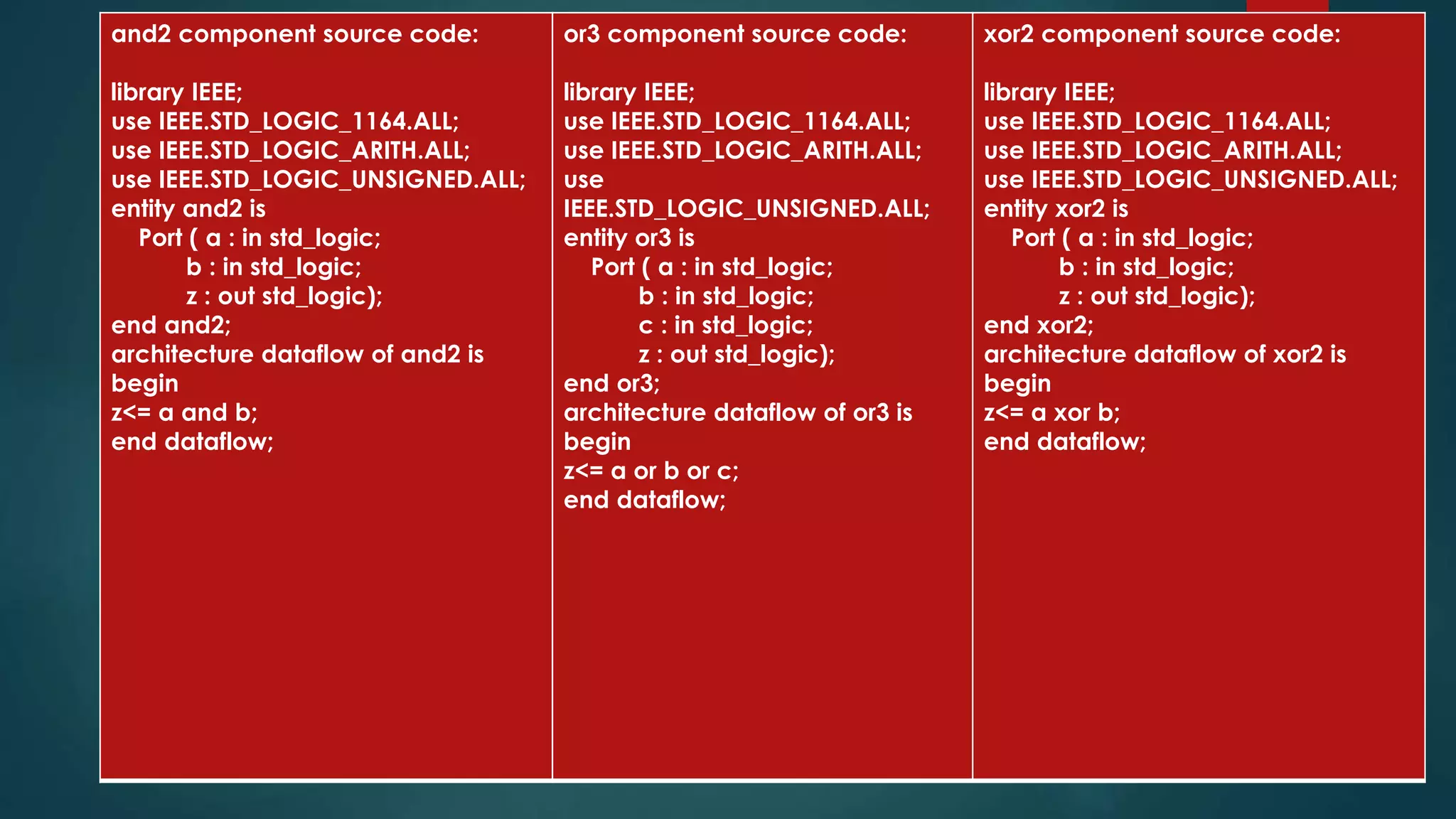

24. and2 component source code:
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity and2 is
Port ( a : in std_logic;
b : in std_logic;
z : out std_logic);
end and2;
architecture dataflow of and2 is
begin
z<= a and b;
end dataflow;
or3 component source code:
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use
IEEE.STD_LOGIC_UNSIGNED.ALL;
entity or3 is
Port ( a : in std_logic;
b : in std_logic;
c : in std_logic;
z : out std_logic);
end or3;
architecture dataflow of or3 is
begin
z<= a or b or c;
end dataflow;
xor2 component source code:
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity xor2 is
Port ( a : in std_logic;
b : in std_logic;
z : out std_logic);
end xor2;
architecture dataflow of xor2 is
begin
z<= a xor b;
end dataflow;
