1. Supriya P Kurlekar
Department of Electronics and Telecommunication
Engg.
(Sharad Institute of technology college of Engg.)

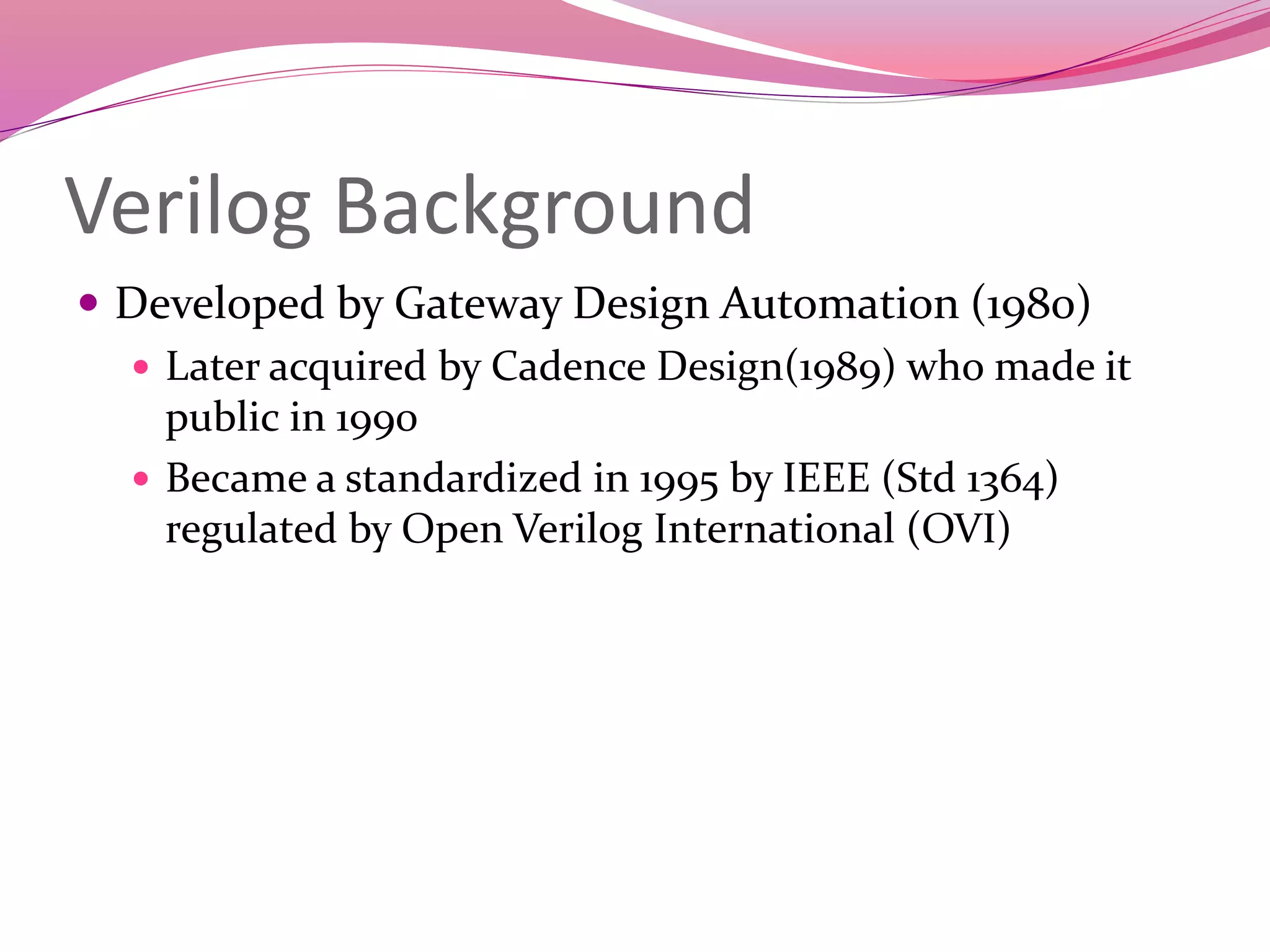

2. Verilog Background
Developed by Gateway Design Automation (1980)
Later acquired by Cadence Design(1989) who made it
public in 1990
Became a standardized in 1995 by IEEE (Std 1364)
regulated by Open Verilog International (OVI)

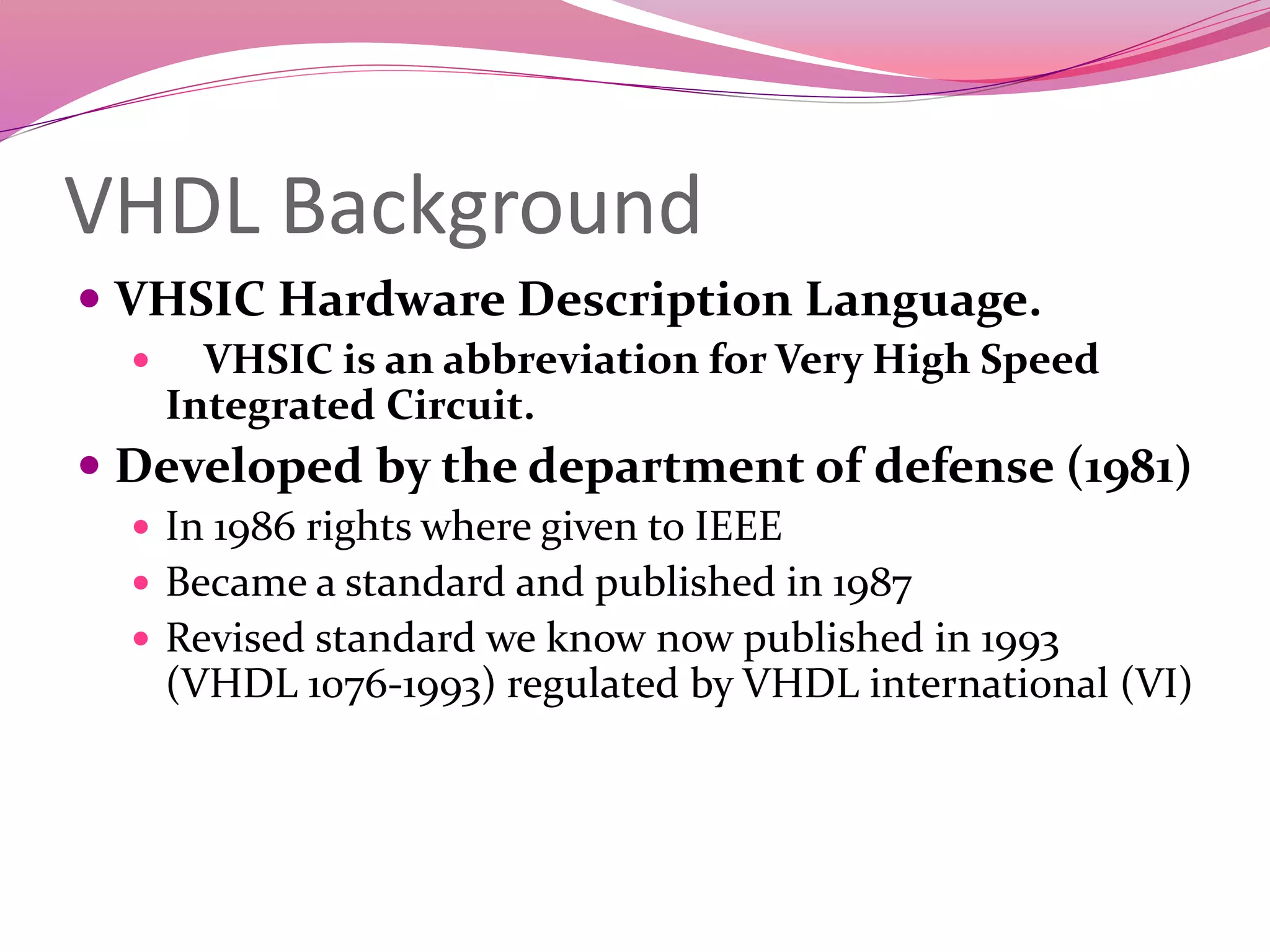

3. VHDL Background
VHSIC Hardware Description Language.
VHSIC is an abbreviation for Very High Speed
Integrated Circuit.
Developed by the department of defense (1981)
In 1986 rights where given to IEEE
Became a standard and published in 1987
Revised standard we know now published in 1993
(VHDL 1076-1993) regulated by VHDL international (VI)

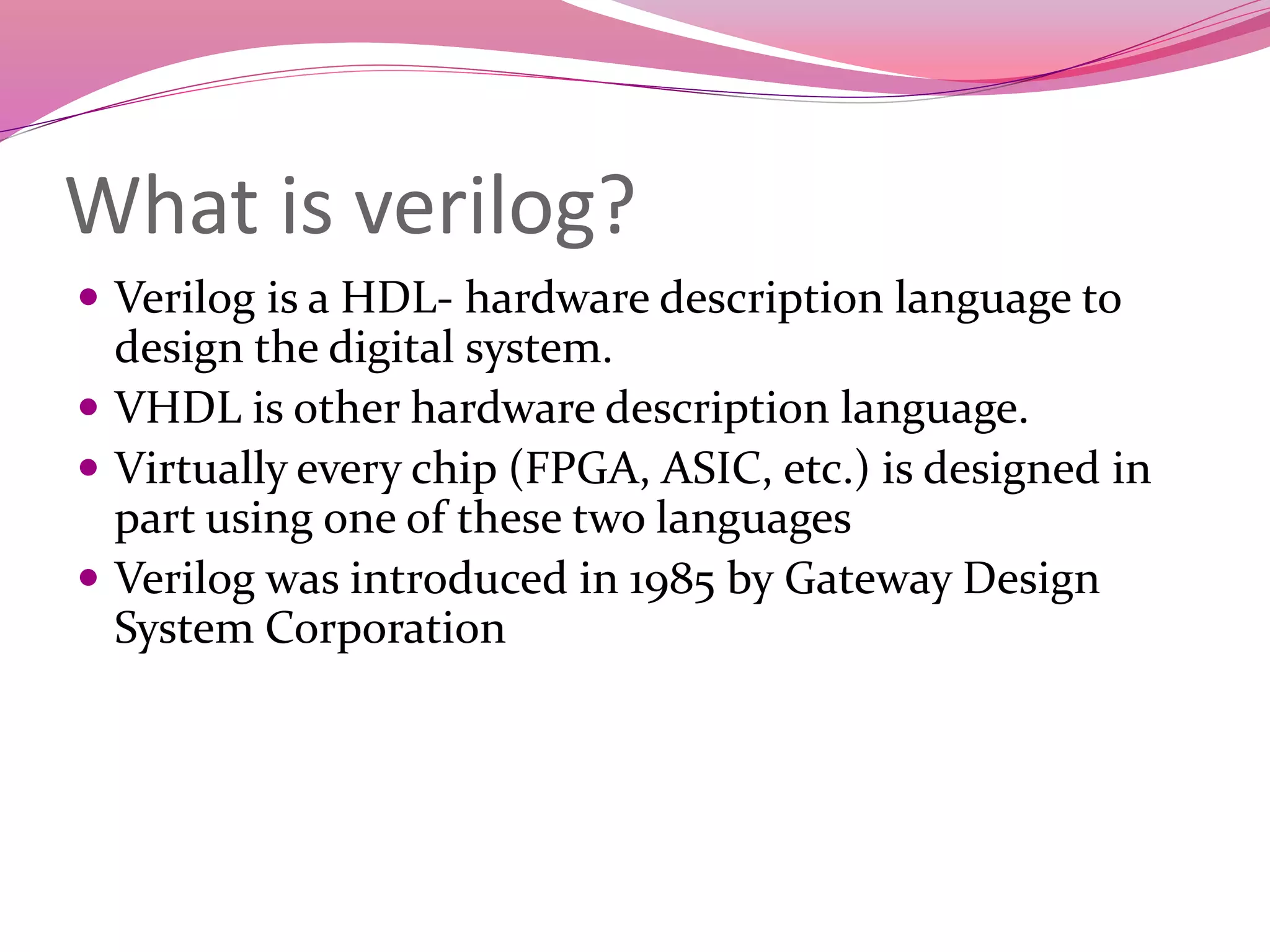

4. What is verilog?
Verilog is a HDL- hardware description language to
design the digital system.
VHDL is other hardware description language.
Virtually every chip (FPGA, ASIC, etc.) is designed in
part using one of these two languages
Verilog was introduced in 1985 by Gateway Design
System Corporation
5. verilog
IEEE 1364-2001 is the latest Verilog HDL standard
Verilog is case sensitive (Keywords are in lowercase)
The Verilog is both a behavioral and a structure
language
6. Difference between VERILOG and VHDL
Verilog is similar to c- language.
VHDL is similar to Ada- (ada is a structured, statically
typed, imperative, wide-spectrum, and object-oriented
high-level computer programming language, extended
from Pascal )
Many feel that Verilog is easier to learn and use than
VHDL.

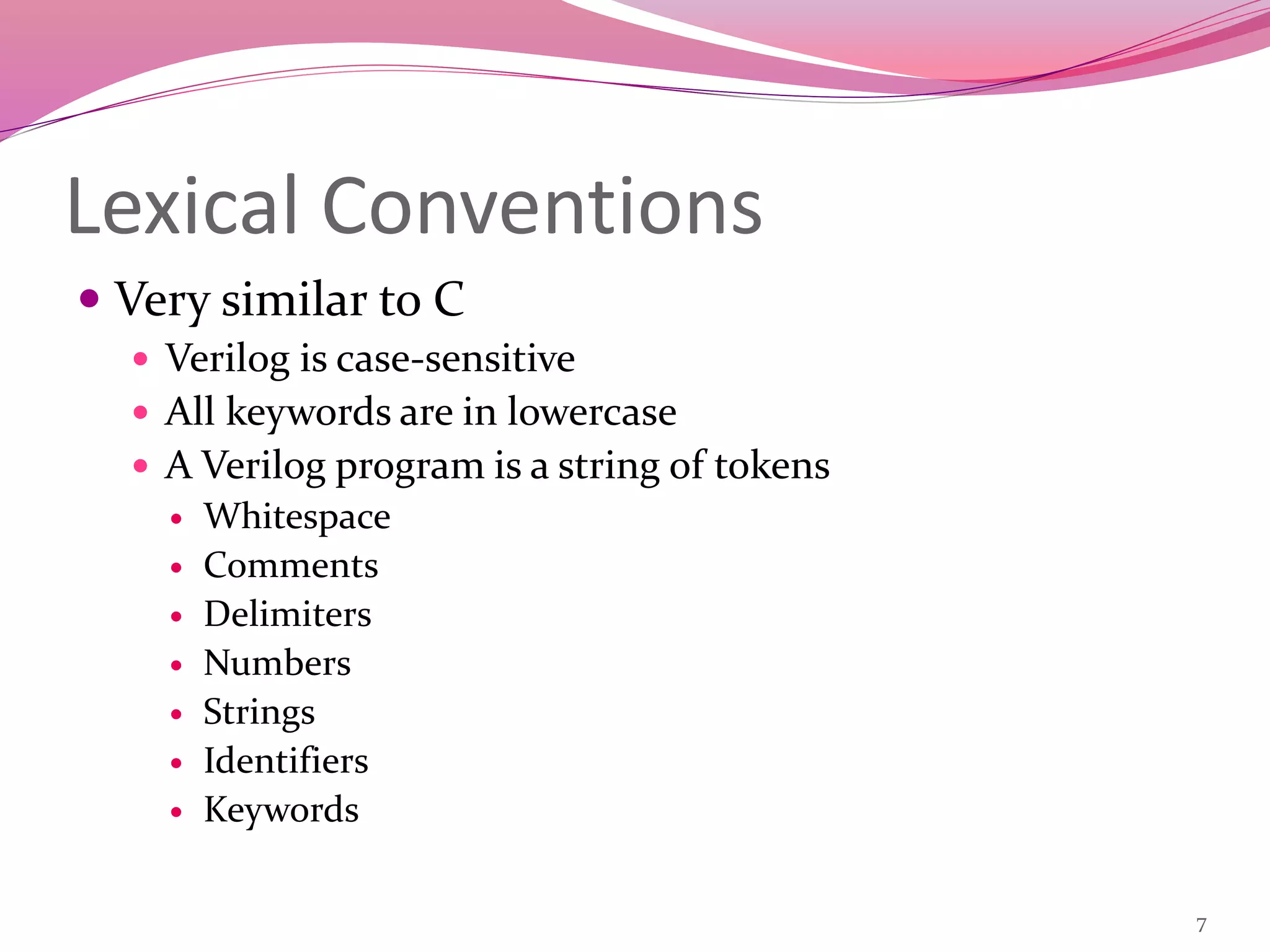

7. 7
Lexical Conventions
Very similar to C
Verilog is case-sensitive
All keywords are in lowercase
A Verilog program is a string of tokens
Whitespace
Comments
Delimiters
Numbers
Strings
Identifiers
Keywords
8. 8
Lexical Conventions (cont’d)
Whitespace
Blank space (b)
Tab (t)
Newline (n)
Whitespace is ignored in
Verilog except
In strings
When separating tokens
Comments
Used for readability and
documentation
Just like C:
// single line comment
/* multi-line
comment
*/
/* Nested comments
/* like this */ may not
be acceptable (depends
on Verilog compiler) */
9. Lexical Conventions (cont’d) Operators
Unary
a = ~b;
Binary
a = b && c;
Ternary
a = b ? c : d; // the only ternary operator
11. 2 Verilog HDL 11
Lexical Conventions (cont’d)
Sized numbers
General syntax:
<size>’<base><number>
<size> number of bits (in
decimal)
<number> is the number in
radix <base>
<base> :
d or D for decimal (radix 10)
b or B for binary (radix 2)
o or O for octal (radix 8)
h or H for hexadecimal (radix 16)
Examples:
4’b1111
12’habc
16’d255
Unsized numbers
Default base is decimal
Default size is at least 32
(depends on Verilog compiler)
Examples
23232
’habc
’o234
12. Verilog HDL 12
Lexical Conventions (cont’d) X or Z values
Unknown value: lowercase x
4 bits in hex, 3 bits in octal, 1 bit in binary
High-impedance value: lowercase z
4 bits in hex, 3 bits in octal, 1 bit in binary
Examples
12’h13x
6’hx
32’bz
Extending the most-significant part
Applied when <size> is bigger than the specified value
Filled with x if the specified MSB is x
Filled with z if the specified MSB is z
Zero-extended otherwise
Examples:
6’hx
13. Verilog HDL 13
Lexical Conventions (cont’d)
Negative numbers
Put the sign before the <size>
Examples:
-6’d3
4’d-2 // illegal
Two’s complement is used to store the value
Underscore character and question marks
Use ‘_’ to improve readability
12’b1111_0000_1010
Not allowed as the first character
‘?’ is the same as ‘z’ (only regarding numbers)
4’b10?? // the same as 4’b10zz

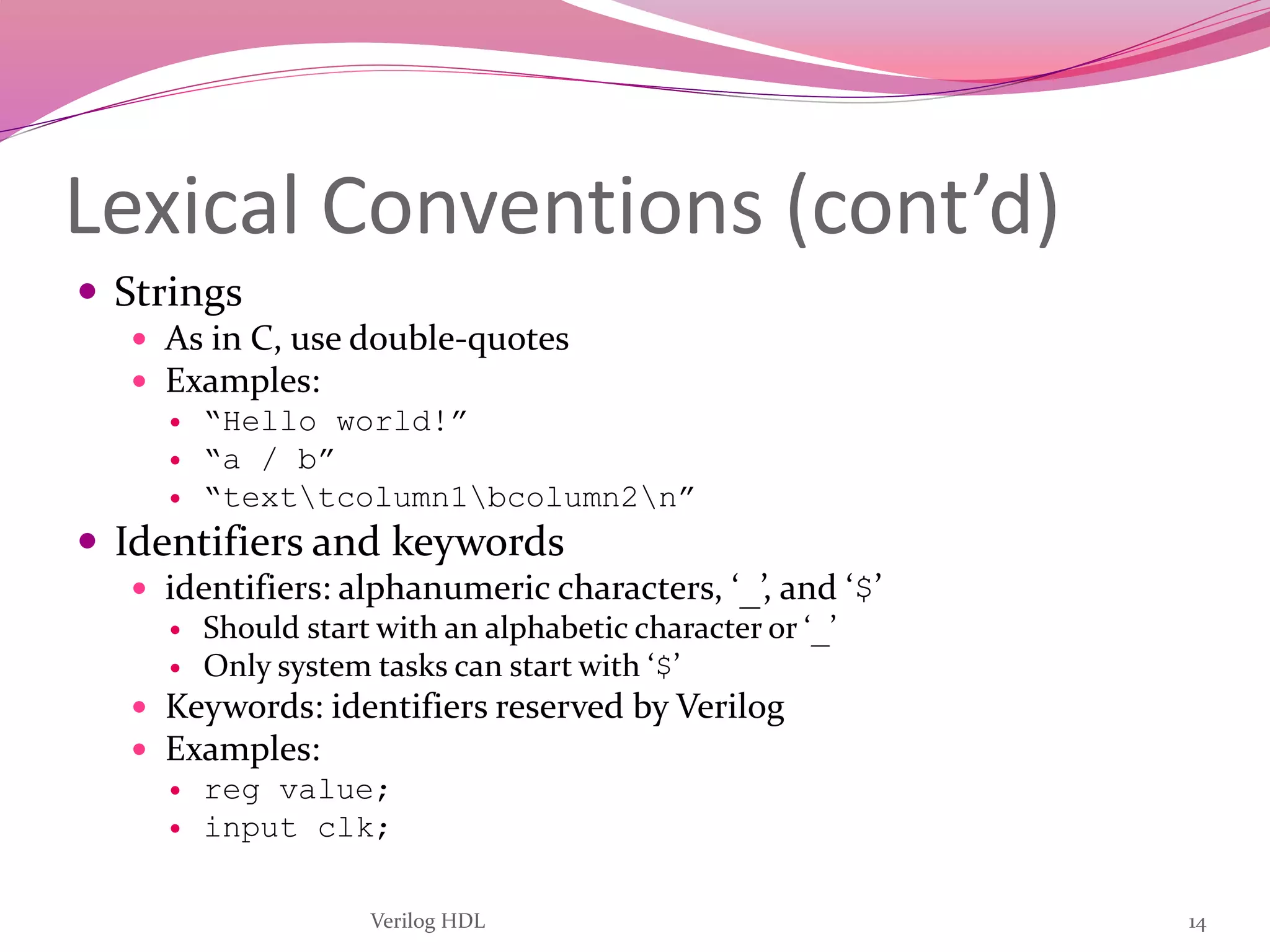

14. Verilog HDL 14
Lexical Conventions (cont’d)
Strings
As in C, use double-quotes
Examples:
“Hello world!”
“a / b”
“texttcolumn1bcolumn2n”
Identifiers and keywords
identifiers: alphanumeric characters, ‘_’, and ‘$’
Should start with an alphabetic character or ‘_’
Only system tasks can start with ‘$’
Keywords: identifiers reserved by Verilog
Examples:
reg value;
input clk;
15. Verilog HDL 15
Lexical Conventions (cont’d) Escaped identifiers
Start with ‘’
End with whitespace (space, tab, newline)
Can have any printable character between start and end
The ‘’ and whitespace are not part of the identifier
Examples:
a+b-c // a+b-c is the identifier
**my_name** // **my_name** is the identifier
Used as name of modules
17. Verilog HDL 17
Data Types
Value set and strengths
Nets and Registers
Vectors
Integer, Real, and Time Register Data Types
Arrays
Memories
Parameters
Strings
18. Verilog HDL 18
Value Set
Verilog concepts to model hardware circuits
Value level
Value strength
Used to accurately model
Signal contention
MOS devices
Dynamic MOS
Other low-level details
19. Verilog HDL 19
Value level HW Condition
0 Logic zero, false
1 Logic one, true
x Unknown
z High imp., floating
Strength level Type
supply Driving
strong Driving
pull Driving
large Storage
weak Driving
medium Storage
small Storage
highz High
Impedance
20. Elements of verilog-logic values
0: zero, logic low, false, ground
1: one, logic high, power
X: unknown
Z: high impedance, unconnected, tri-state
21. Elements of verilog- data type
Nets
Nets are physical connections between devices
Many types of nets, but all we care about is wire.
Declaring a net
wire [<range>] <net_name> ;
Range is specified as [MSb:LSb]. Default is one bit wide
Registers
Implicit storage-holds its value until a new value is assigned to it.
Register type is denoted by reg.
Declaring a register
reg [<range>] <reg_name>;
Parameters are not variables, they are constants.
22. Verilog Primitives
Basic logic gates only
and
or
not
buf
xor
nand
nor
xnor
bufif1, bufif0
notif1, notif0
23. Numbers in Verilog
<size>’<radix> <value>
8’h ax = 1010xxxx
12’o 3zx7 = 011zzzxxx111
No of
bits
Binary b or B
Octal o or O
Decimal d or D
Hexadecimal h or H
Consecutive chars
0-f, x, z
24. Logical Operators
&& logical AND
|| logical OR
! logical NOT
Operands evaluated to ONE bit value: 0, 1 or x
Result is ONE bit value: 0, 1 or x
A = 1; A && B 1 && 0 0
B = 0; A || !B 1 || 1 1
C = x; C || B x || 0 x
but C&&B=0

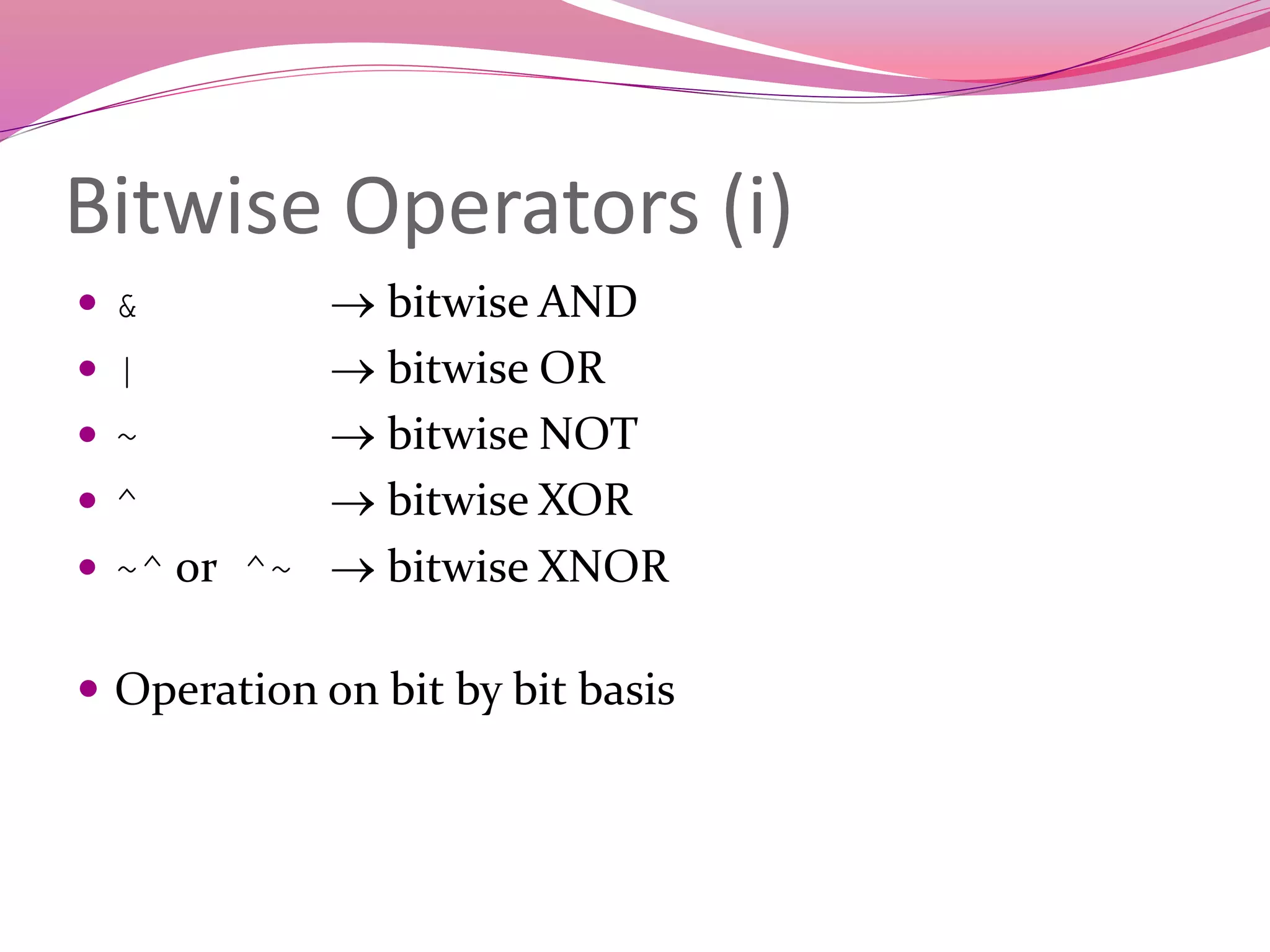

25. Bitwise Operators (i)
& bitwise AND
| bitwise OR
~ bitwise NOT
^ bitwise XOR
~^ or ^~ bitwise XNOR
Operation on bit by bit basis

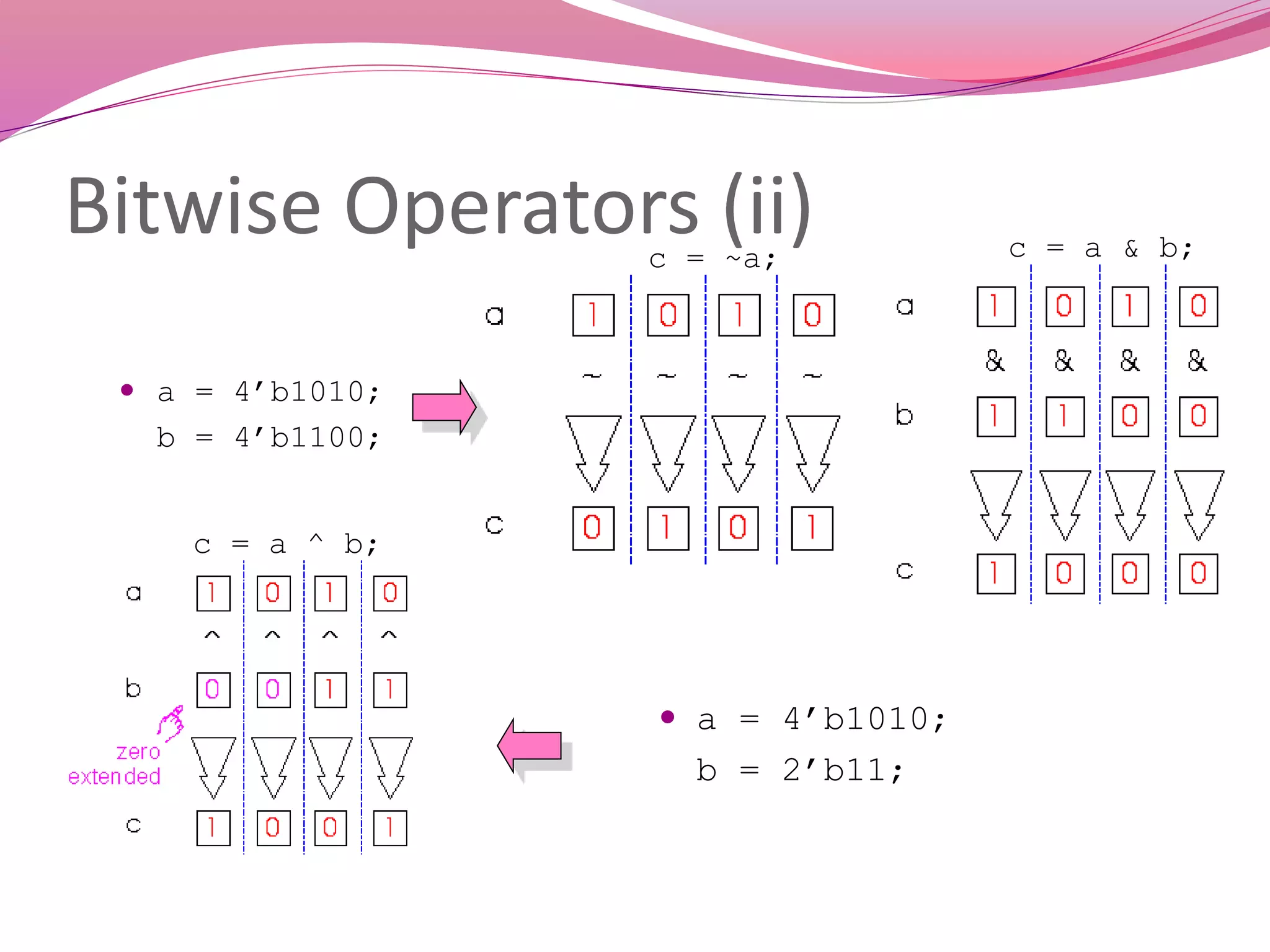

26. Bitwise Operators (ii)c = ~a; c = a & b;
a = 4’b1010;
b = 4’b1100;
a = 4’b1010;
b = 2’b11;
c = a ^ b;
27. >> shift right
<< shift left
a = 4’b1010;
d = a >> 2;// d = 0010,c = a << 1;// c =
0100
cond_expr ? true_expr : false_expr
A
B
Y
sel
Y = (sel)? A : B;
0
1

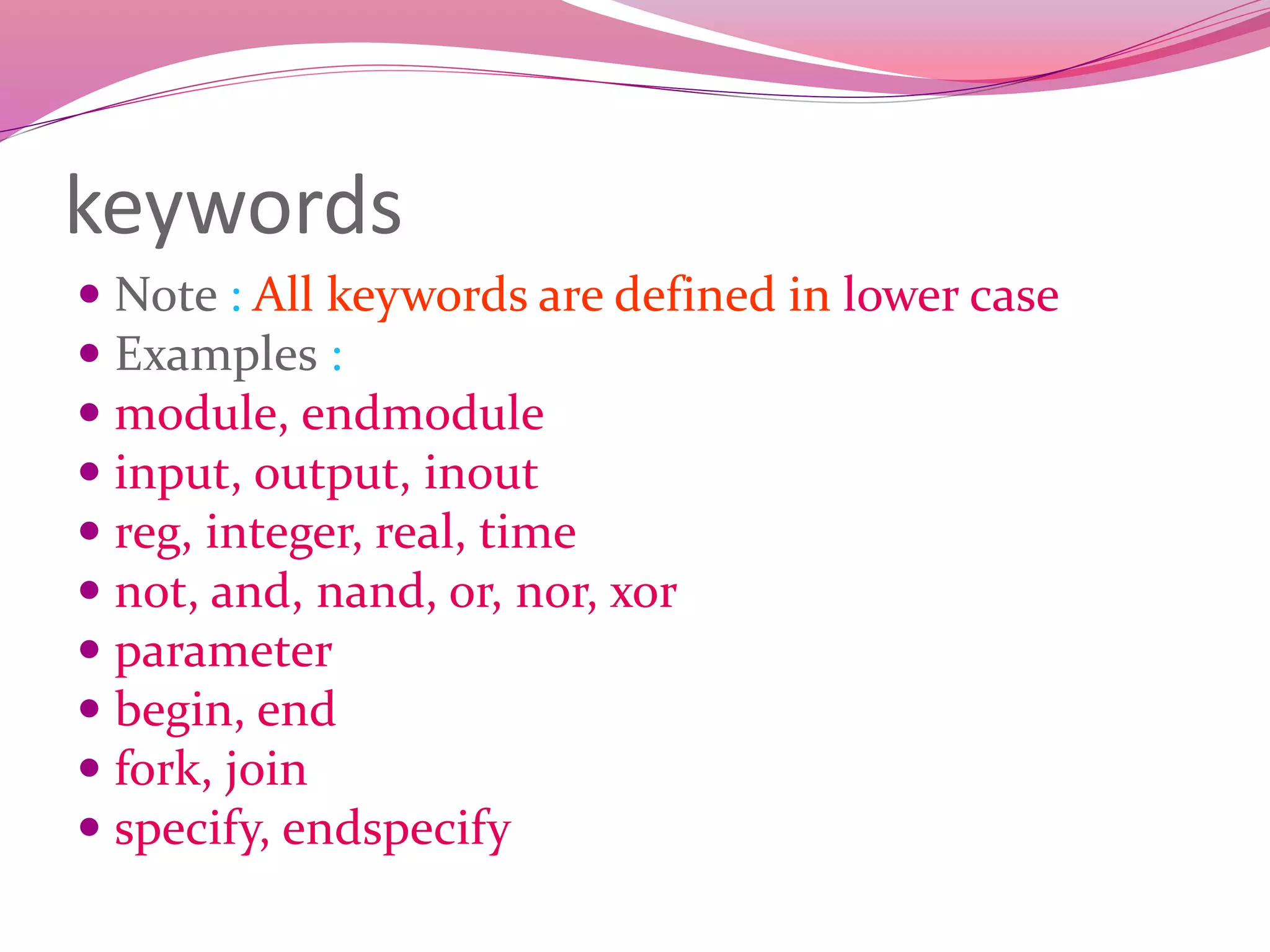

28. keywords
Note : All keywords are defined in lower case
Examples :
module, endmodule
input, output, inout
reg, integer, real, time
not, and, nand, or, nor, xor
parameter
begin, end
fork, join
specify, endspecify

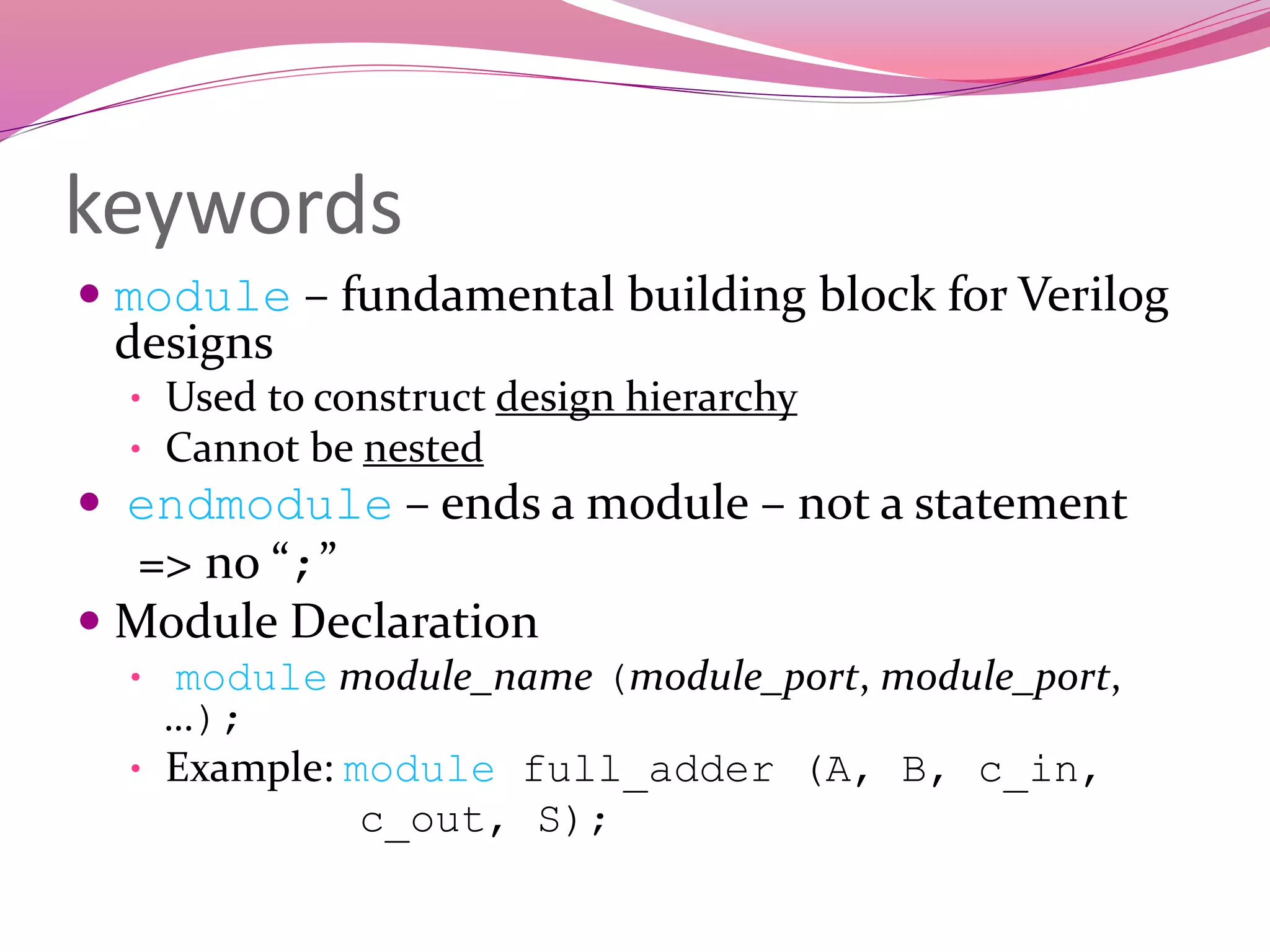

29. keywords

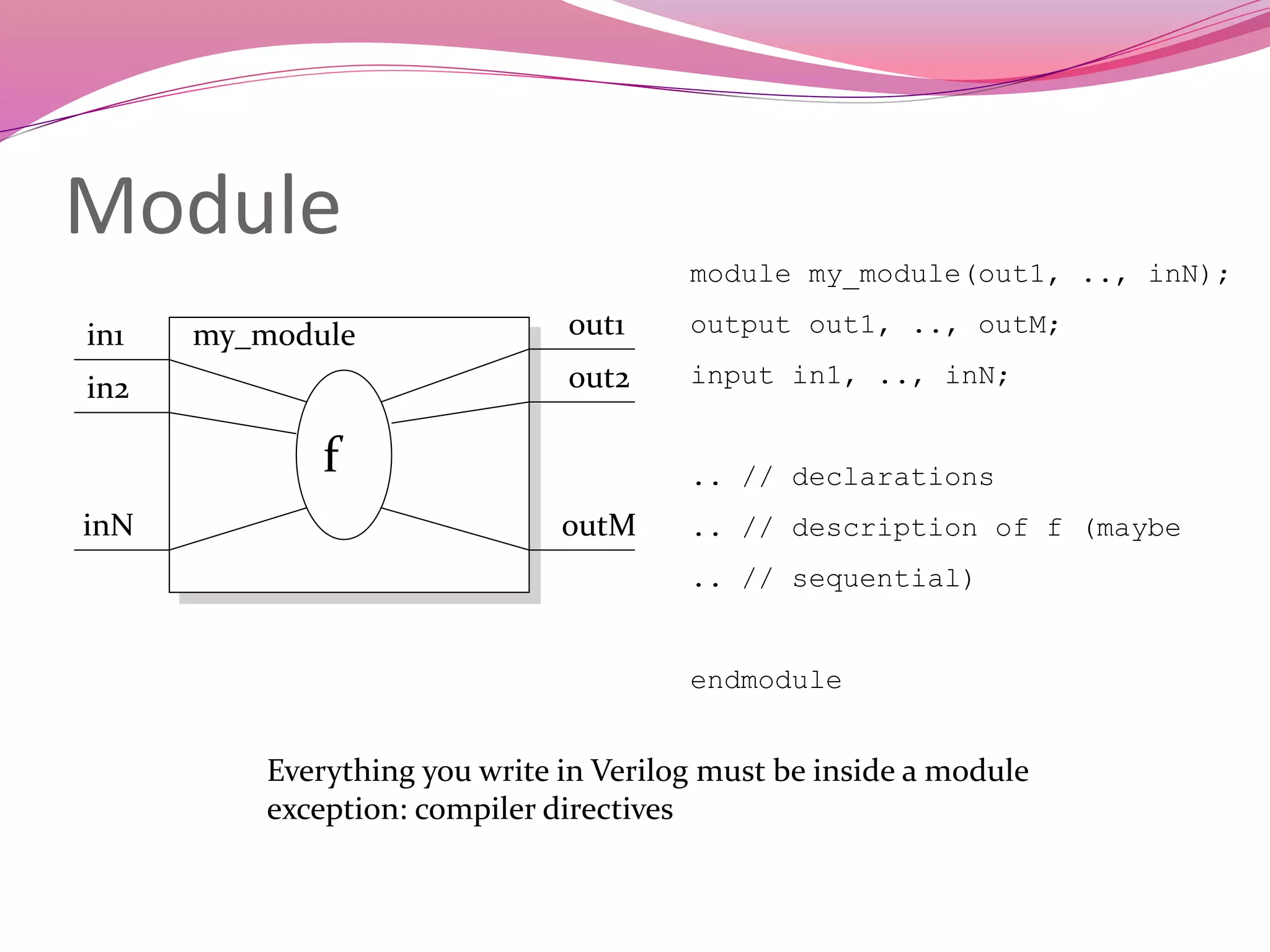

module – fundamental building block for Verilog
designs
• Used to construct design hierarchy
• Cannot be nested
endmodule – ends a module – not a statement
=> no “;”
Module Declaration
• module module_name (module_port, module_port,
…);
• Example: module full_adder (A, B, c_in,
c_out, S);

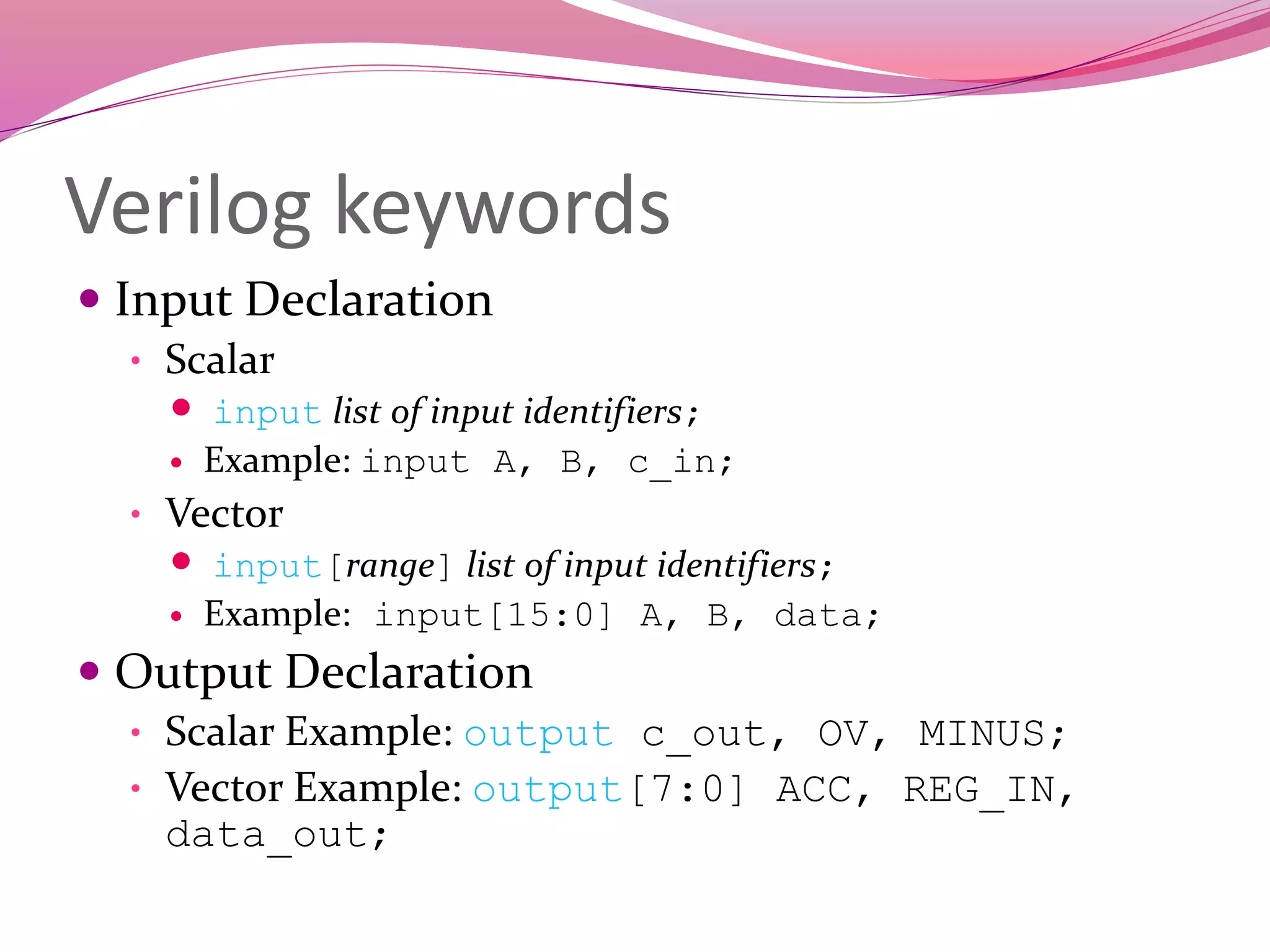

30. Verilog keywords
Input Declaration
• Scalar
input list of input identifiers;
Example: input A, B, c_in;
• Vector
input[range] list of input identifiers;
Example: input[15:0] A, B, data;
Output Declaration
• Scalar Example: output c_out, OV, MINUS;
• Vector Example: output[7:0] ACC, REG_IN,
data_out;

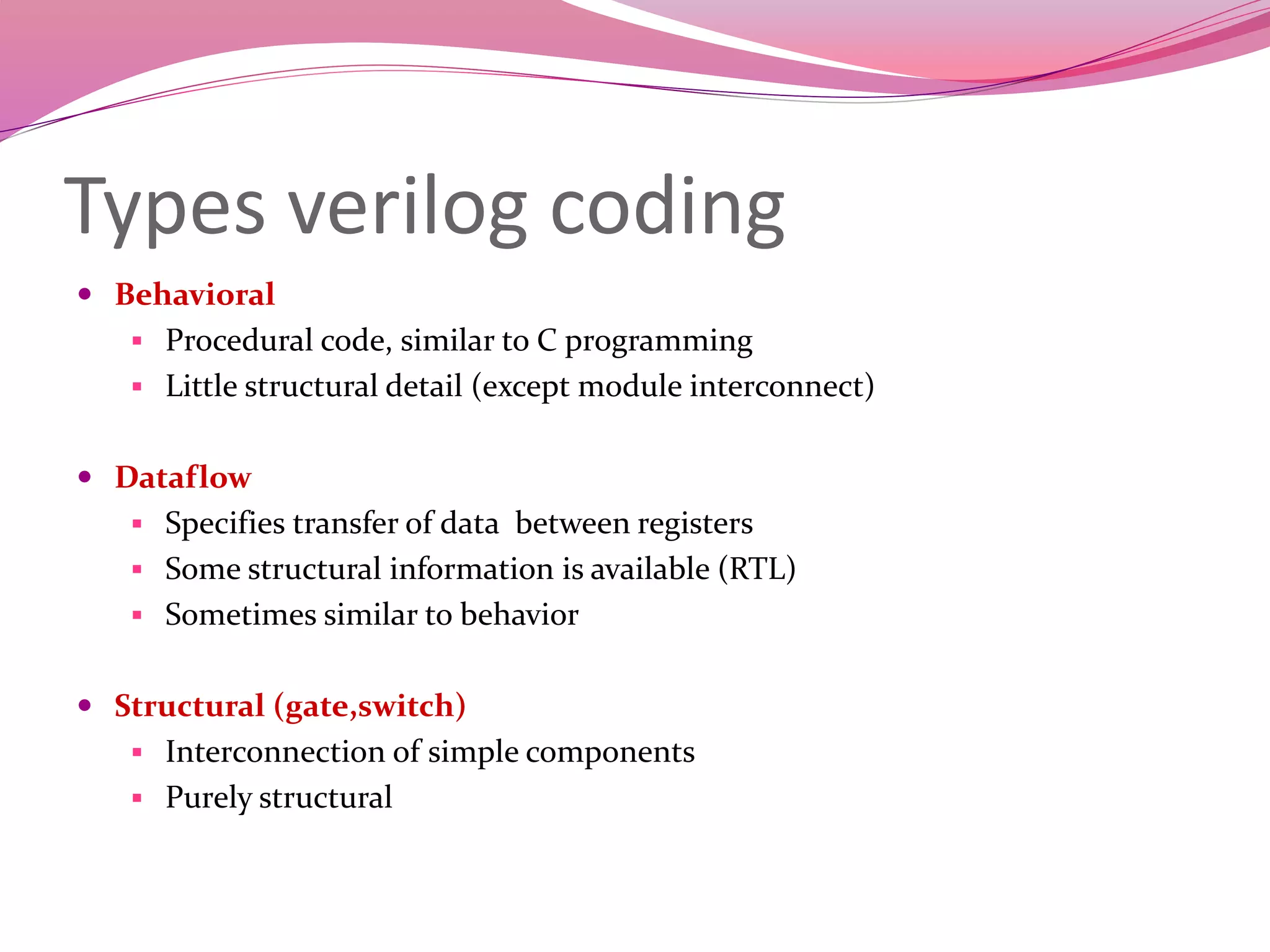

31. Types verilog coding
Behavioral
Procedural code, similar to C programming
Little structural detail (except module interconnect)
Dataflow
Specifies transfer of data between registers
Some structural information is available (RTL)
Sometimes similar to behavior
Structural (gate,switch)
Interconnection of simple components
Purely structural

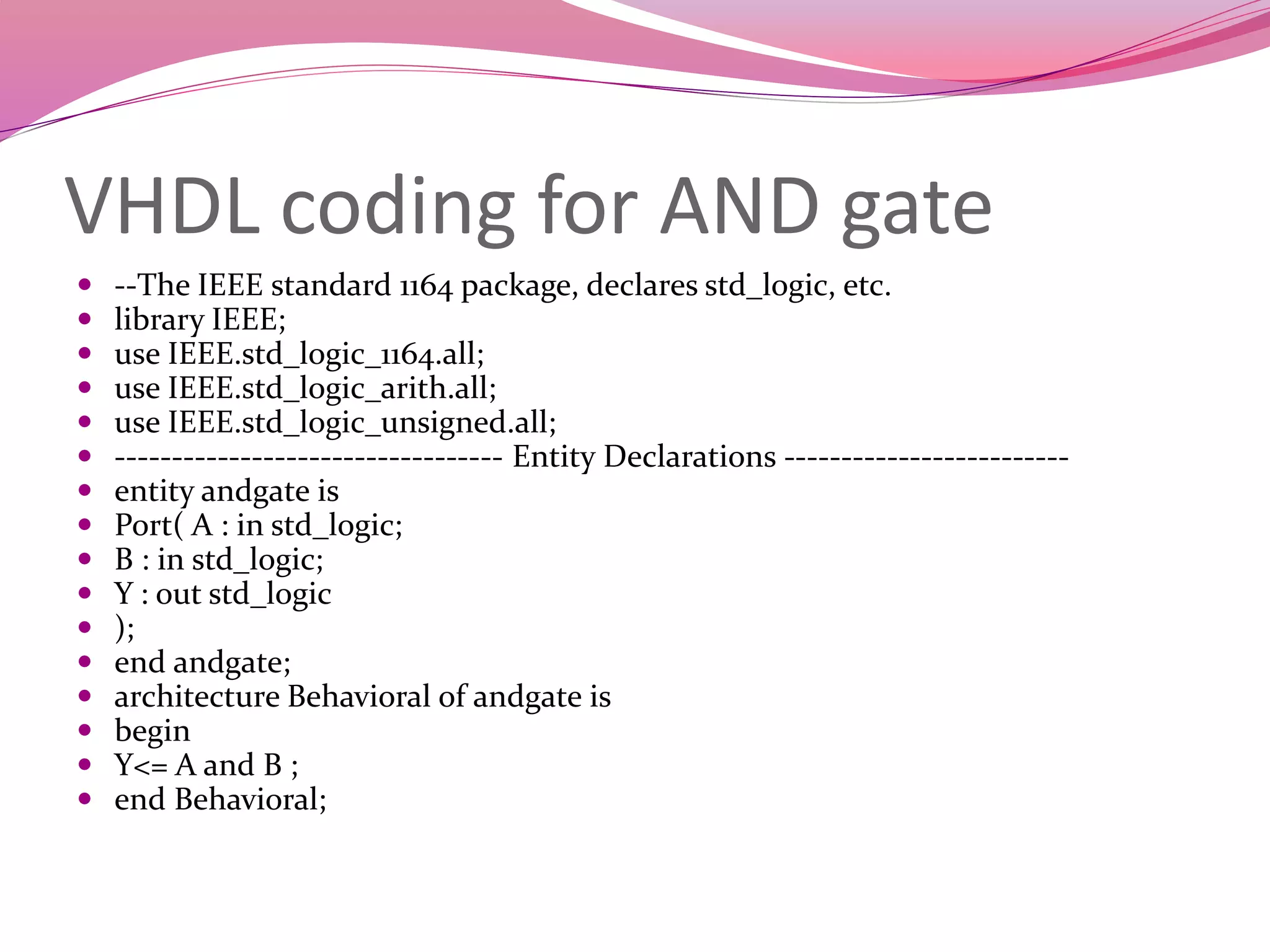

34. VHDL coding for AND gate
--The IEEE standard 1164 package, declares std_logic, etc.
library IEEE;
use IEEE.std_logic_1164.all;
use IEEE.std_logic_arith.all;
use IEEE.std_logic_unsigned.all;
---------------------------------- Entity Declarations -------------------------
entity andgate is
Port( A : in std_logic;
B : in std_logic;
Y : out std_logic
);
end andgate;
architecture Behavioral of andgate is
begin
Y<= A and B ;
end Behavioral;

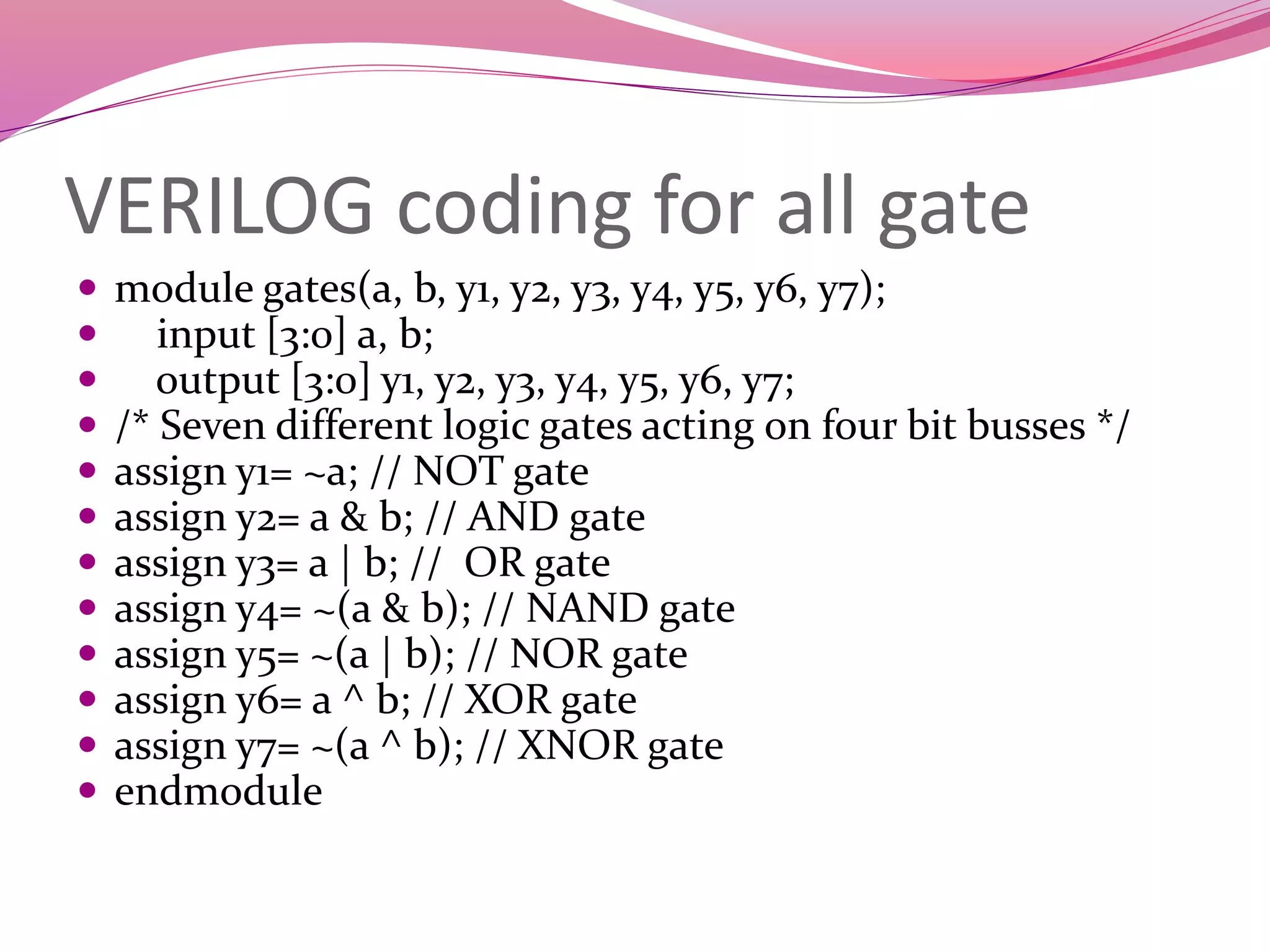

35. VERILOG coding for all gate
module gates(a, b, y1, y2, y3, y4, y5, y6, y7);
input [3:0] a, b;
output [3:0] y1, y2, y3, y4, y5, y6, y7;
/* Seven different logic gates acting on four bit busses */
assign y1= ~a; // NOT gate
assign y2= a & b; // AND gate
assign y3= a | b; // OR gate
assign y4= ~(a & b); // NAND gate
assign y5= ~(a | b); // NOR gate
assign y6= a ^ b; // XOR gate
assign y7= ~(a ^ b); // XNOR gate
endmodule

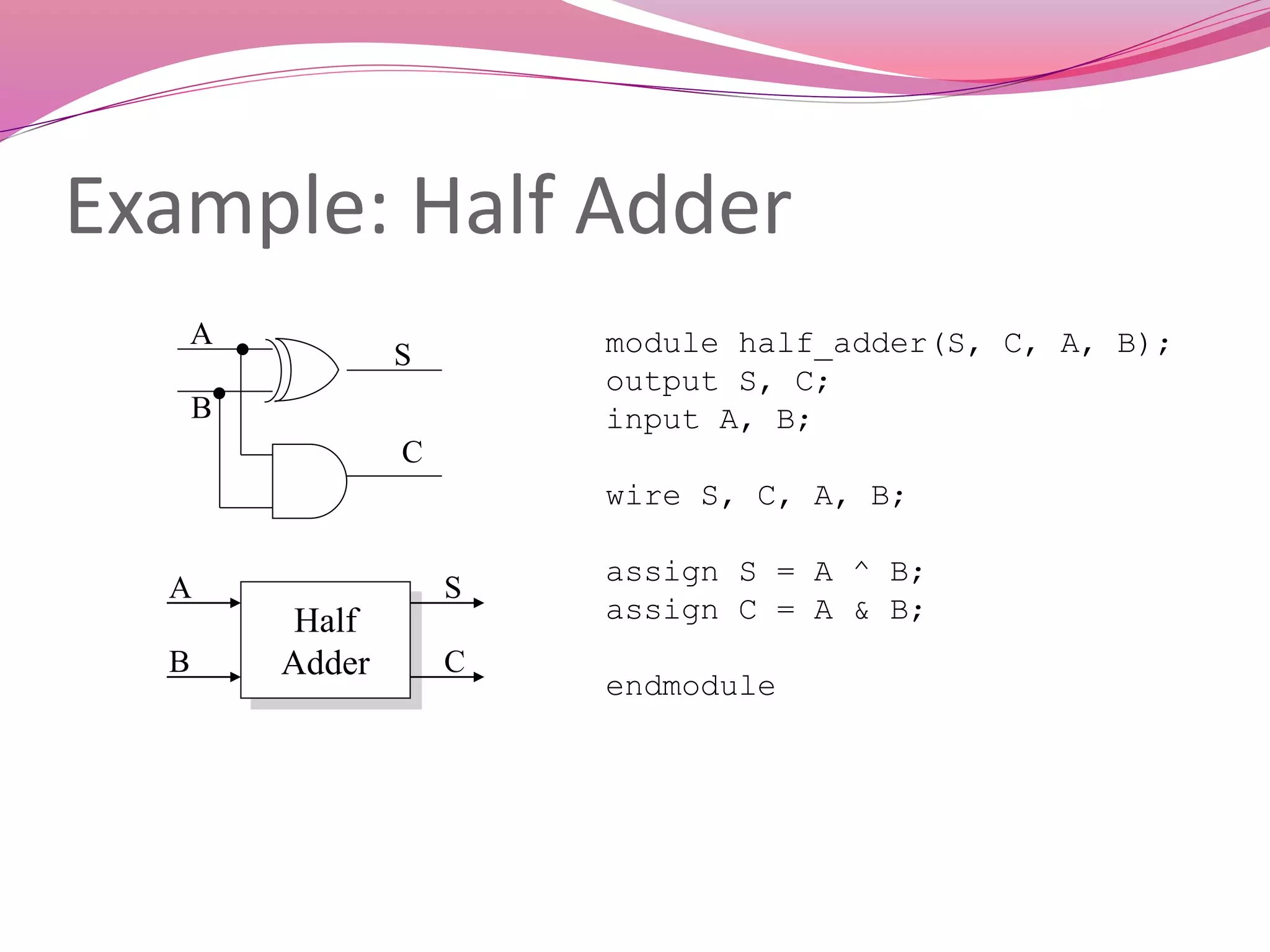

36. Example: Half Adder
module half_adder(S, C, A, B);
output S, C;
input A, B;
wire S, C, A, B;
assign S = A ^ B;
assign C = A & B;
endmodule
Half
Adder
A
B
S
C
A
B
S
C

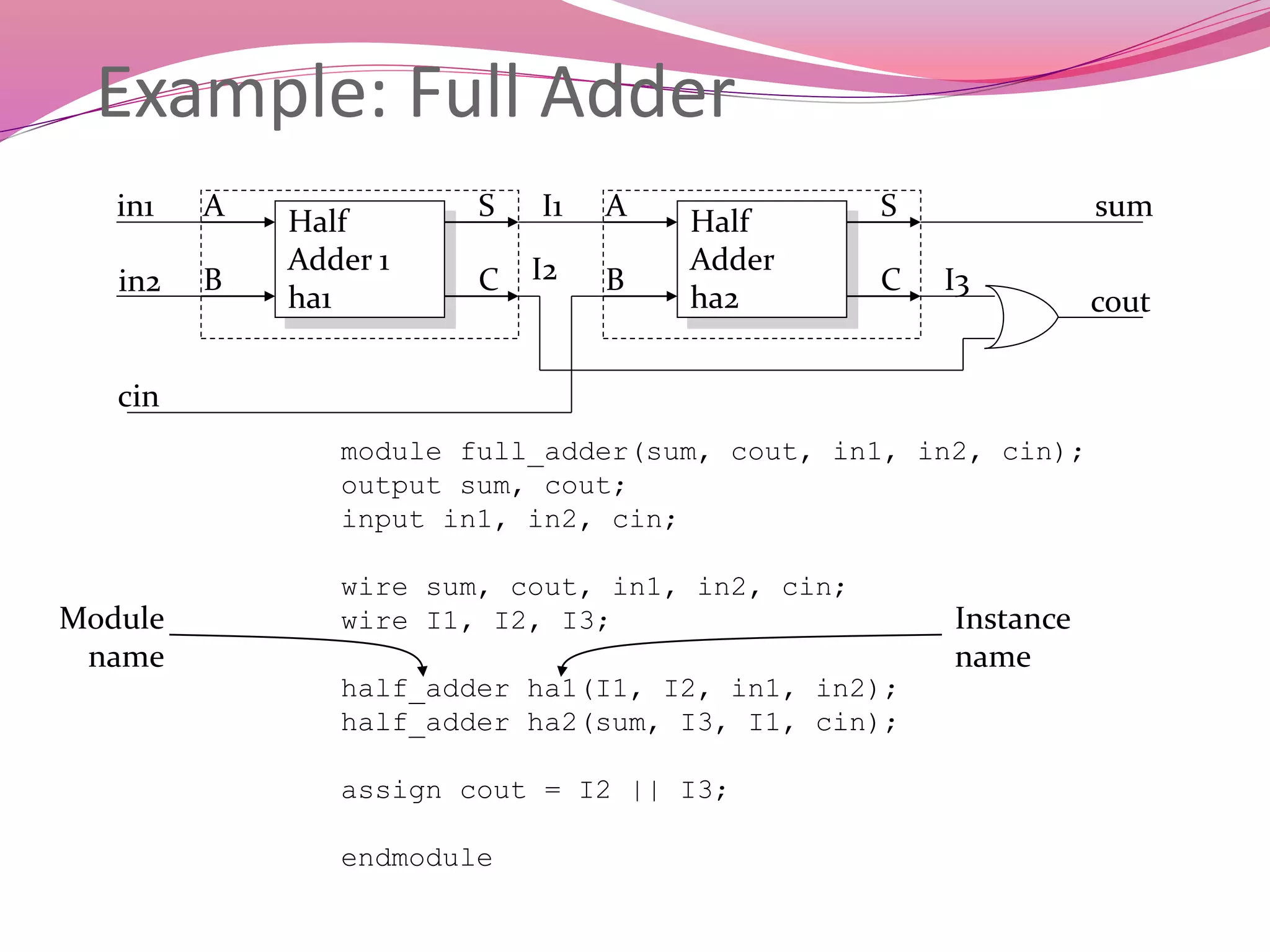

37. Example: Full Adder
module full_adder(sum, cout, in1, in2, cin);
output sum, cout;
input in1, in2, cin;
wire sum, cout, in1, in2, cin;
wire I1, I2, I3;
half_adder ha1(I1, I2, in1, in2);
half_adder ha2(sum, I3, I1, cin);
assign cout = I2 || I3;
endmodule
Instance
name
Module
name
Half
Adder
ha2
A
B
S
C
Half
Adder 1
ha1
A
B
S
C
in1
in2
cin
cout
sumI1
I2 I3

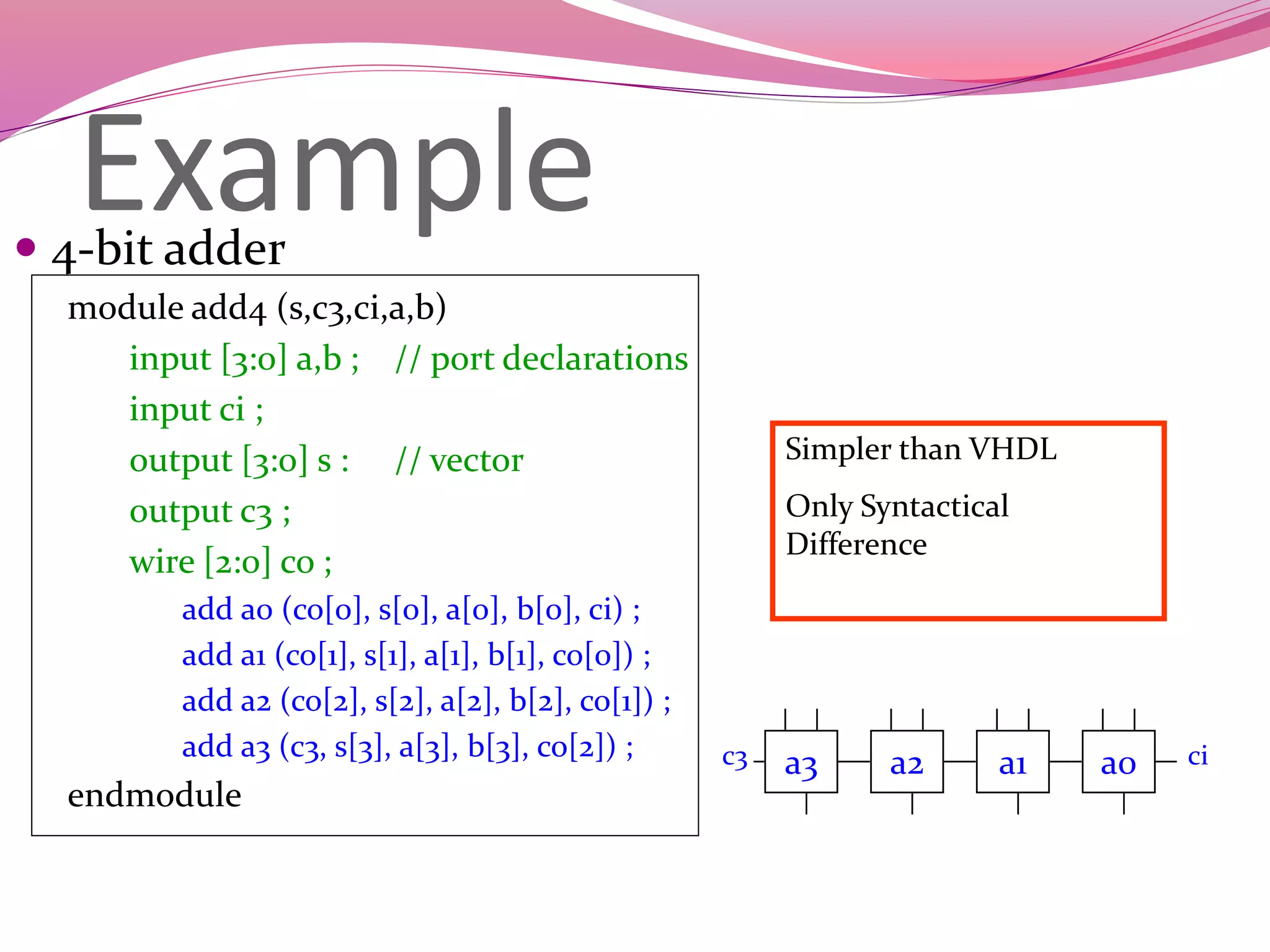

39. Assignments
Continuous assignments assign values to nets (vector and
scalar)
They are triggered whenever simulation causes the value
of the right-hand side to change
Keyword “assign”
e.g. assign out = in1 & in2;
Procedural assignments drive values onto registers (vector
and scalar)
They Occur within procedures such as always and initial
They are triggered when the flow of execution reaches them (like in
C)
Blocking and Non-Blocking procedural assignments
40. Assignments (cont.)
Procedural Assignments
Blocking assignment statement (= operator) acts
much like in traditional programming languages. The
whole statement is done before control passes on to the
next statement
Nonblocking assignment statement (<= operator)
evaluates all the right-hand sides for the current time
unit and assigns the left-hand sides at the end of the
time unit
41. Delay Control (#)
Expression specifies the time duration between initially
encountering the statement and when the statement
actually executes.
Delay in Procedural Assignments
Inter-Statement Delay
Intra-Statement Delay
For example:
Inter-Statement Delay
#10 A = A + 1;
Intra-Statement Delay
A = #10 A + 1;
Delay based Timing Control
42. Example: Half Adder,
2nd Implementation
Assuming:
• XOR: 2 t.u. delay
• AND: 1 t.u. delay
module half_adder(S, C, A, B);
output S, C;
input A, B;
wire S, C, A, B;
xor #2 (S, A, B);
and #1 (C, A, B);
endmodule
A
B
S
C

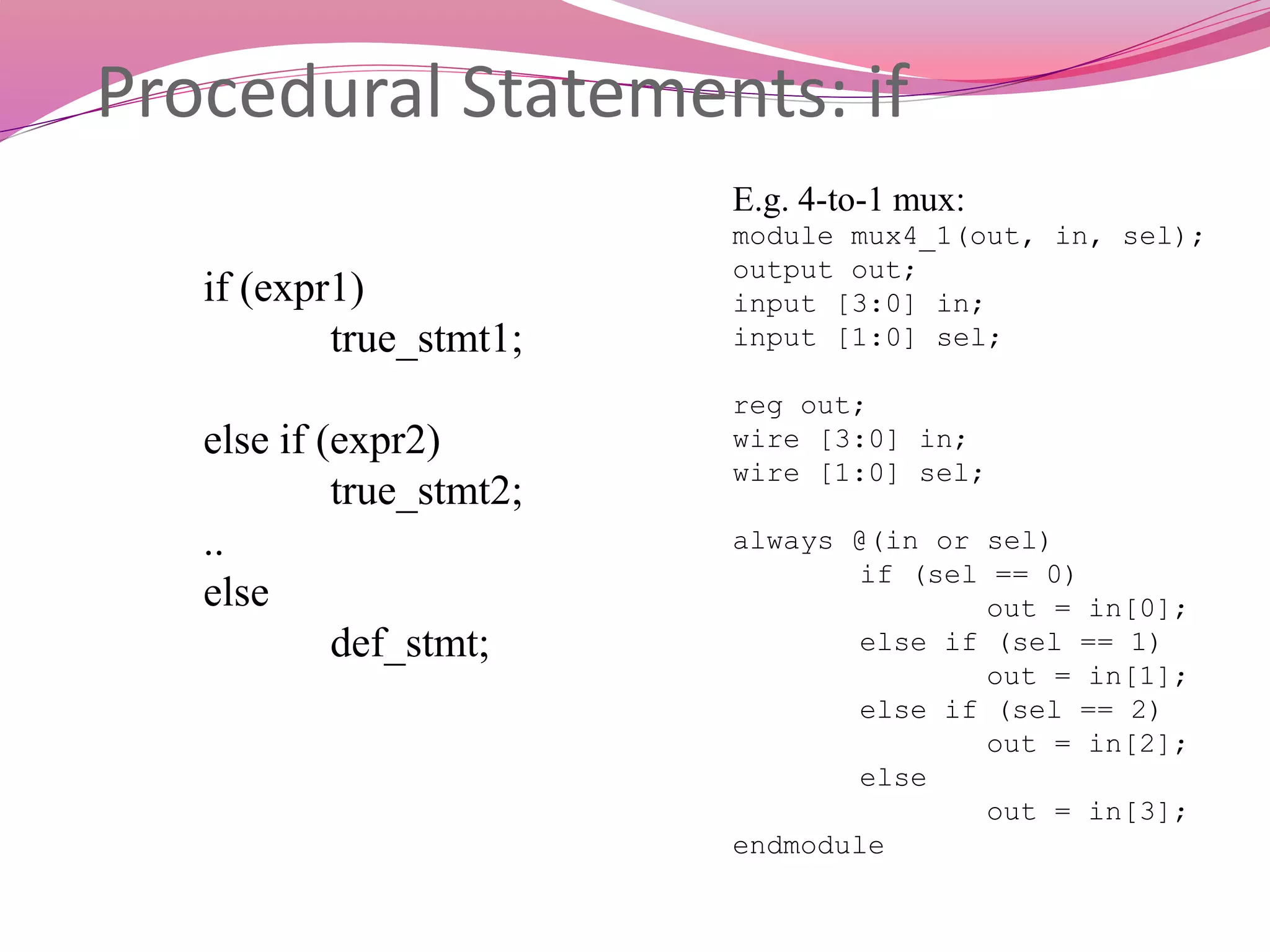

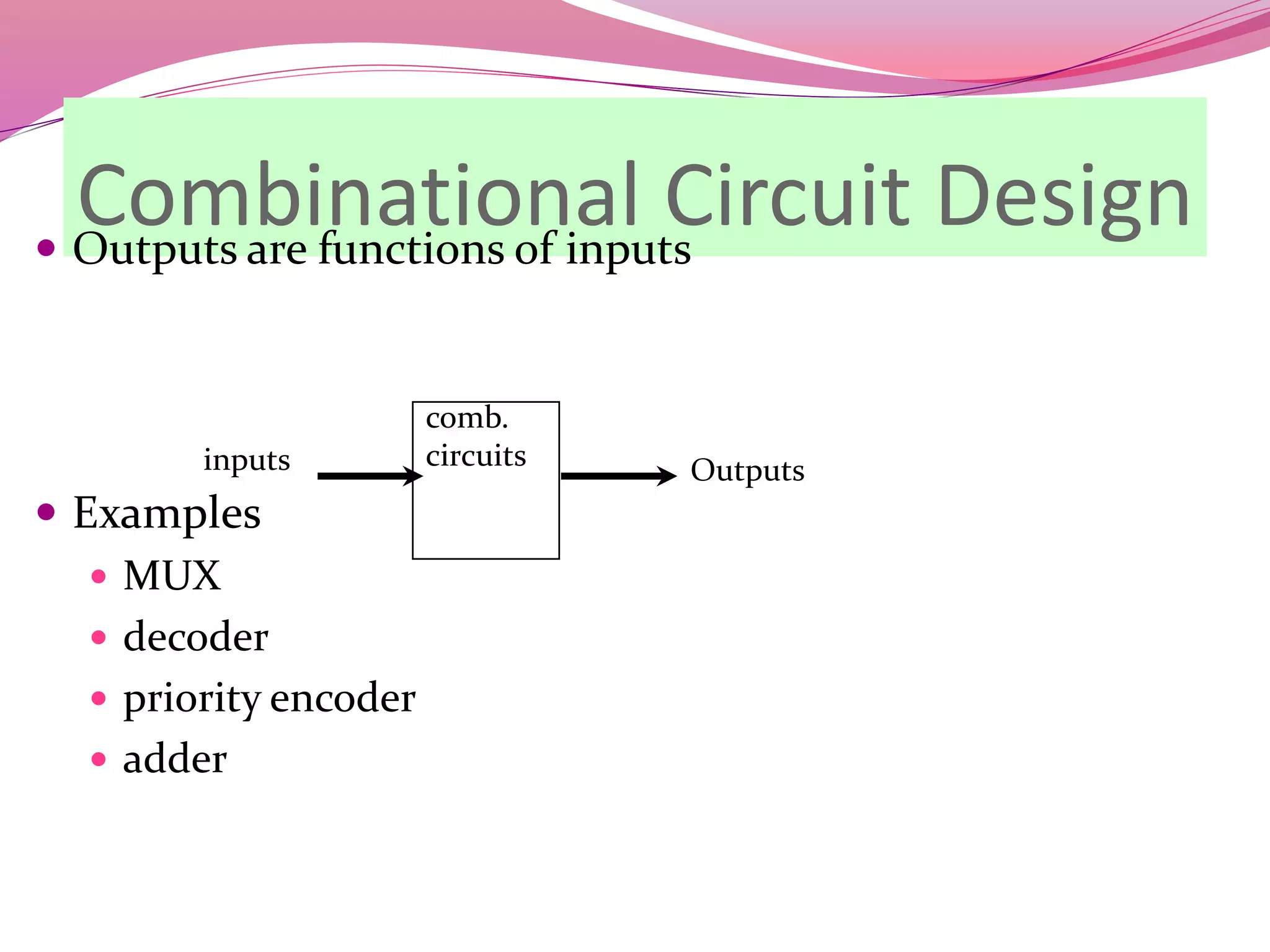

44. Procedural Statements: if
if (expr1)
true_stmt1;
else if (expr2)
true_stmt2;
..
else
def_stmt;
E.g. 4-to-1 mux:
module mux4_1(out, in, sel);
output out;
input [3:0] in;
input [1:0] sel;
reg out;
wire [3:0] in;
wire [1:0] sel;
always @(in or sel)
if (sel == 0)
out = in[0];
else if (sel == 1)
out = in[1];
else if (sel == 2)
out = in[2];
else
out = in[3];
endmodule

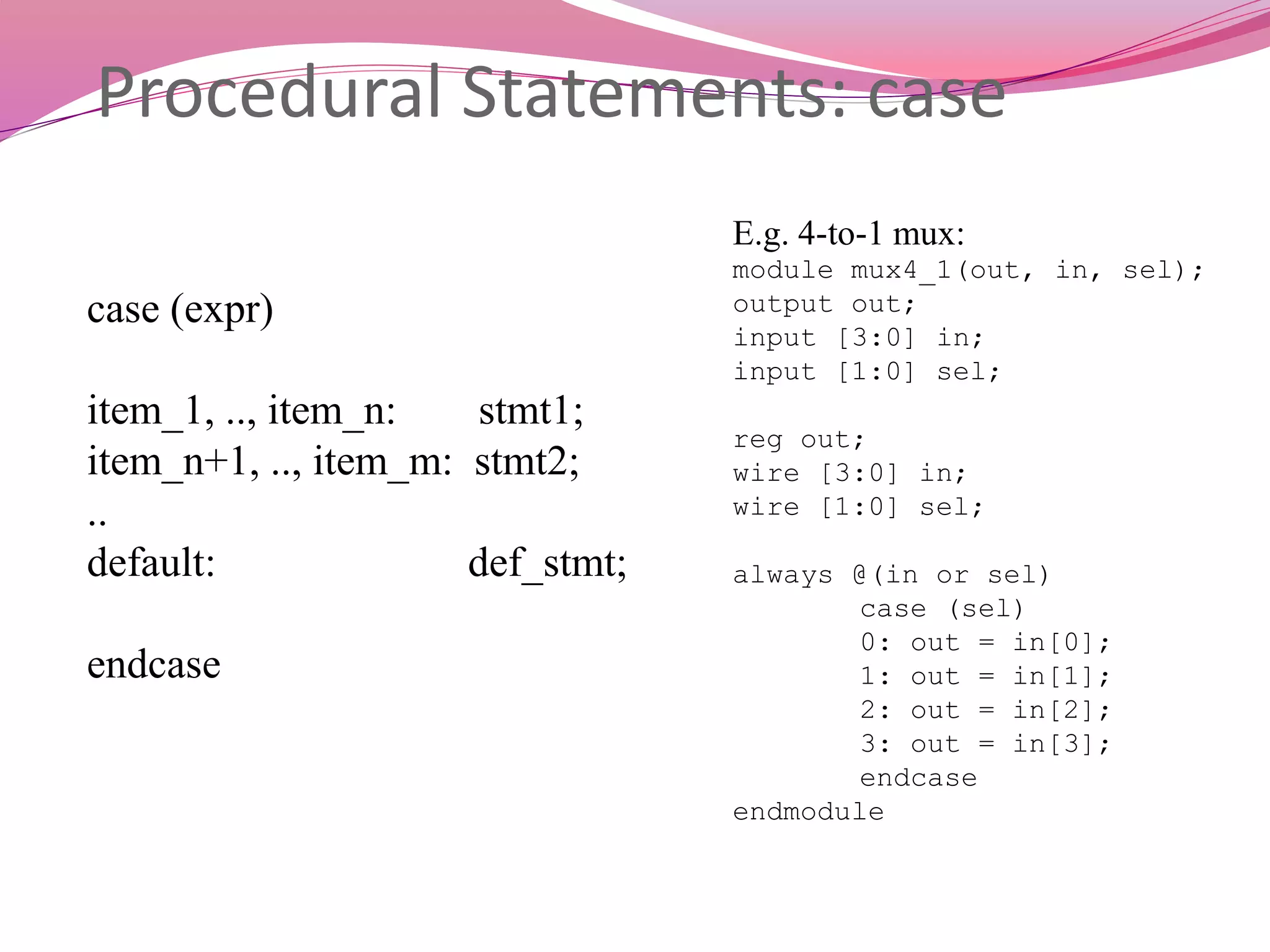

45. Procedural Statements: case
case (expr)
item_1, .., item_n: stmt1;
item_n+1, .., item_m: stmt2;
..
default: def_stmt;
endcase
E.g. 4-to-1 mux:
module mux4_1(out, in, sel);
output out;
input [3:0] in;
input [1:0] sel;
reg out;
wire [3:0] in;
wire [1:0] sel;
always @(in or sel)
case (sel)
0: out = in[0];
1: out = in[1];
2: out = in[2];
3: out = in[3];
endcase
endmodule

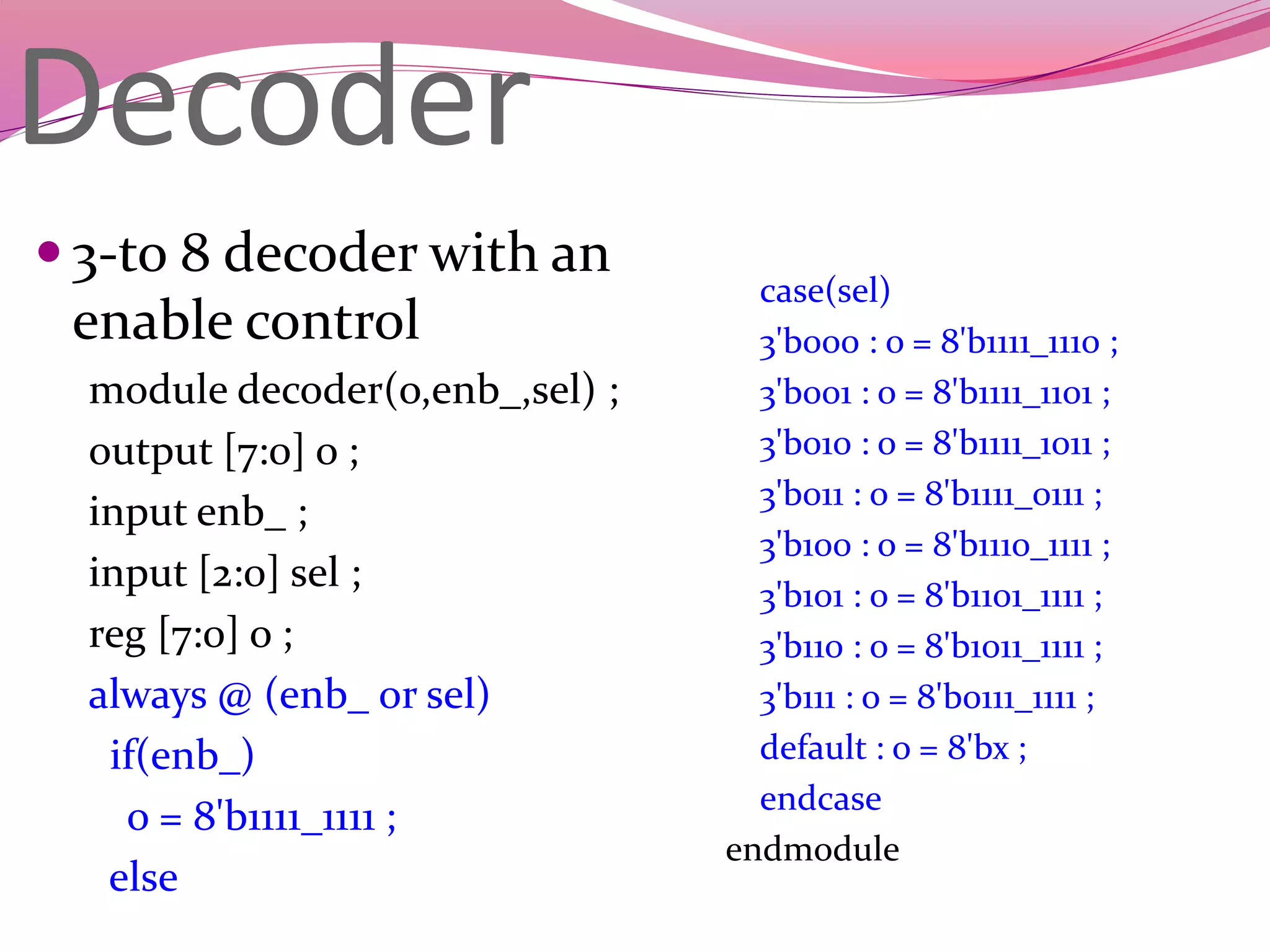

46. Decoder
3-to 8 decoder with an
enable control
module decoder(o,enb_,sel) ;
output [7:0] o ;
input enb_ ;
input [2:0] sel ;
reg [7:0] o ;
always @ (enb_ or sel)
if(enb_)
o = 8'b1111_1111 ;
else
case(sel)
3'b000 : o = 8'b1111_1110 ;
3'b001 : o = 8'b1111_1101 ;
3'b010 : o = 8'b1111_1011 ;
3'b011 : o = 8'b1111_0111 ;
3'b100 : o = 8'b1110_1111 ;
3'b101 : o = 8'b1101_1111 ;
3'b110 : o = 8'b1011_1111 ;
3'b111 : o = 8'b0111_1111 ;
default : o = 8'bx ;
endcase
endmodule

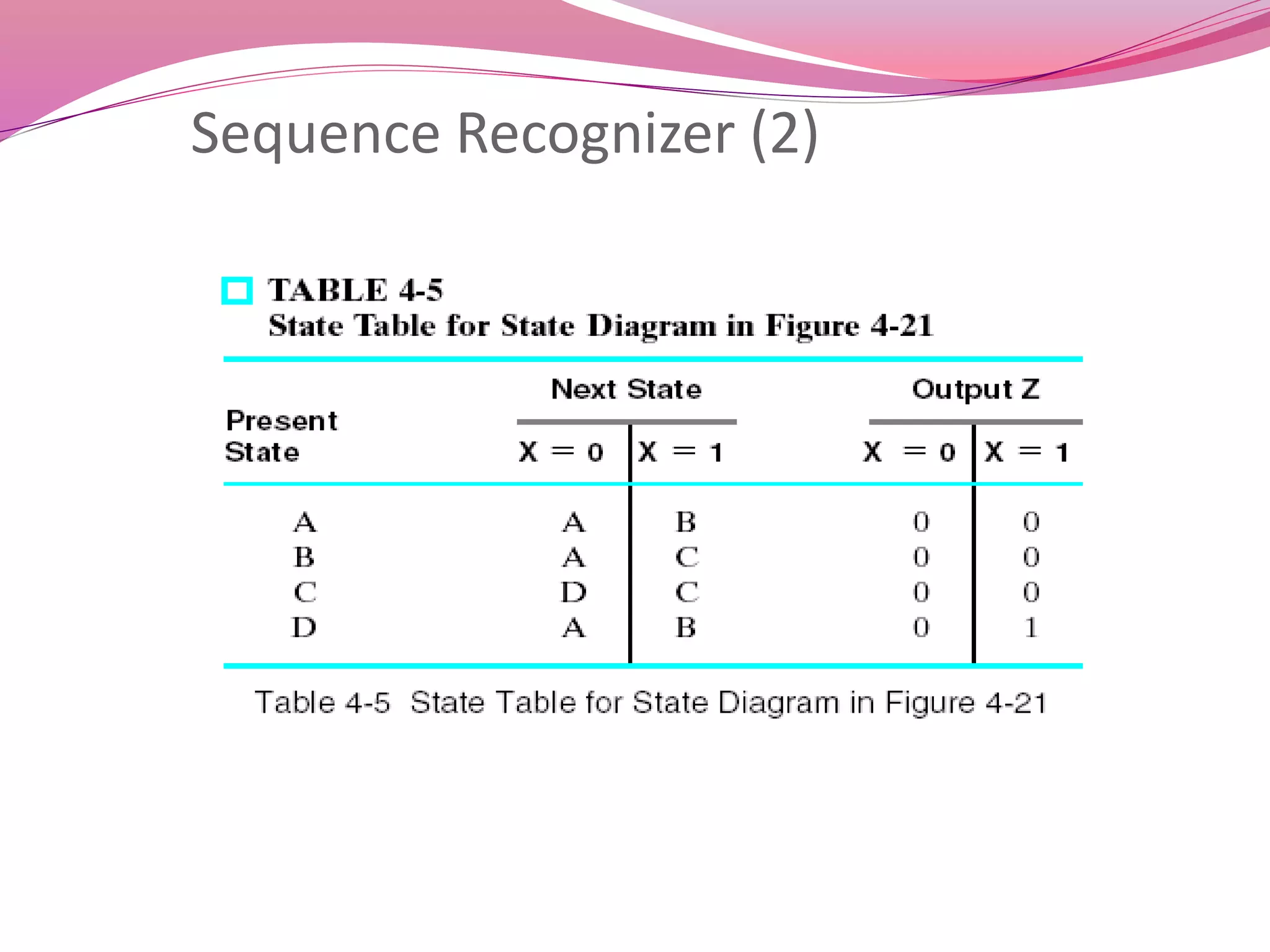

47. – a feedback path
– the state of the sequential circuits
– the state transition
synchronous circuits
asynchronous circuits

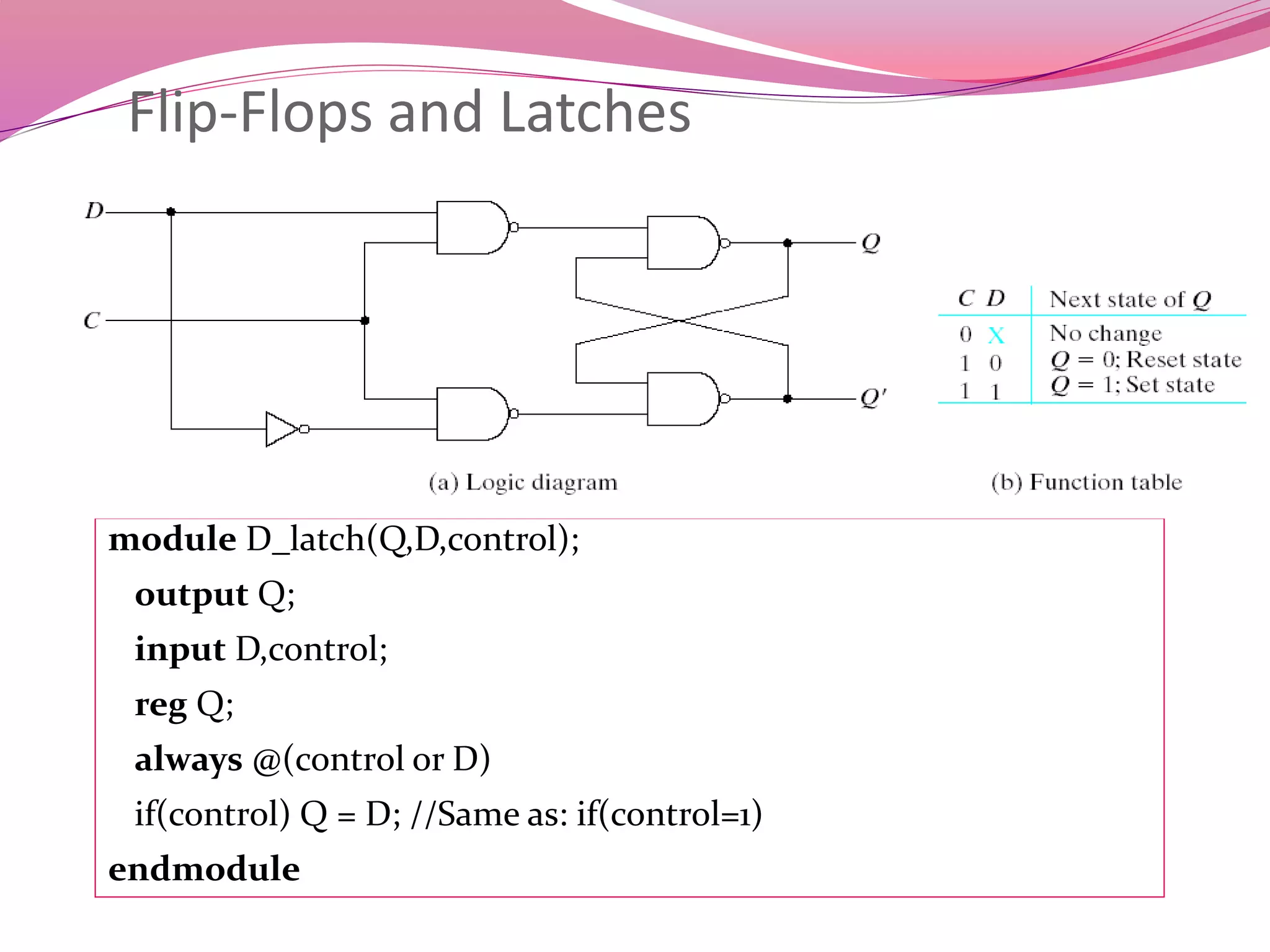

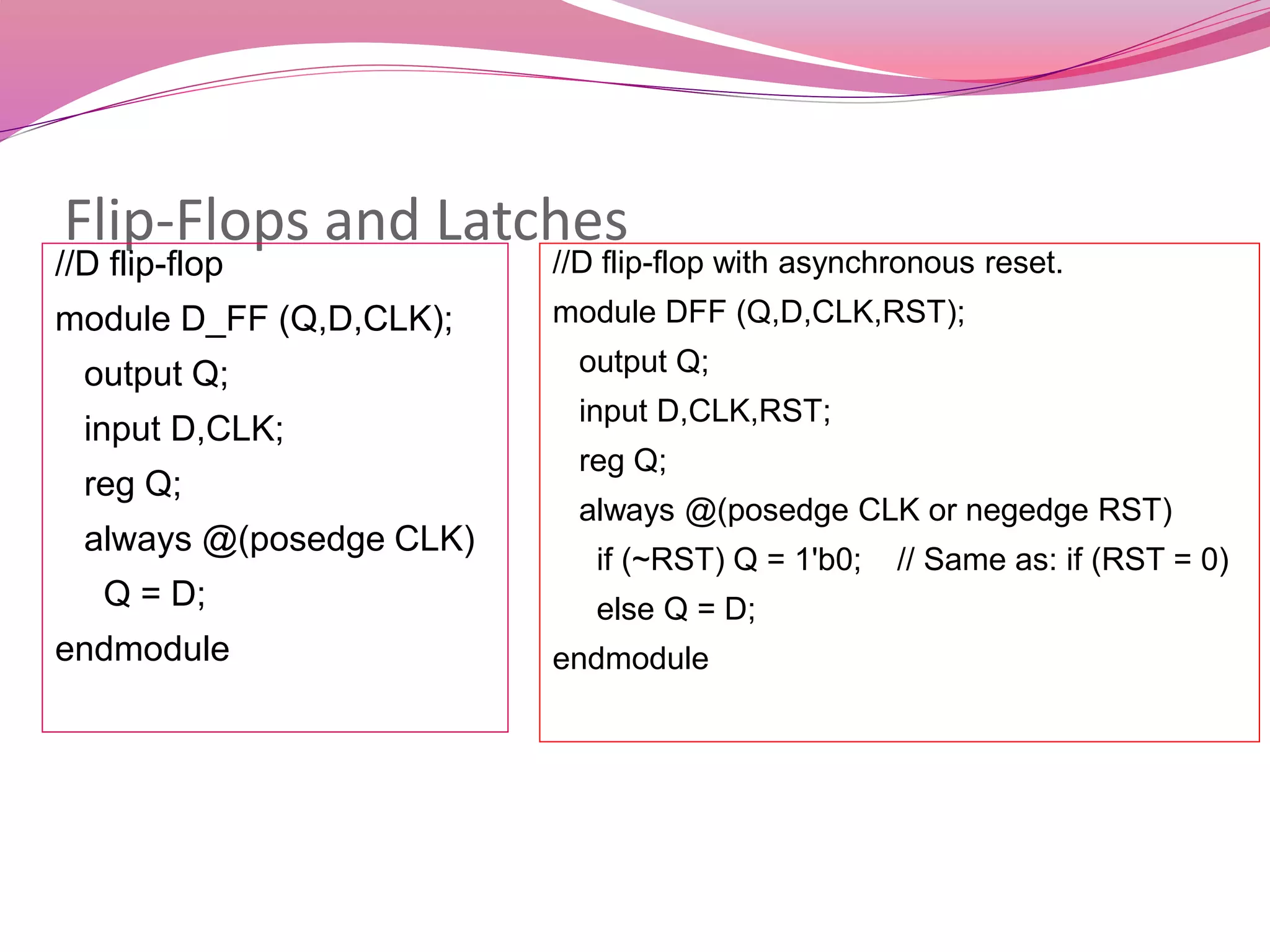

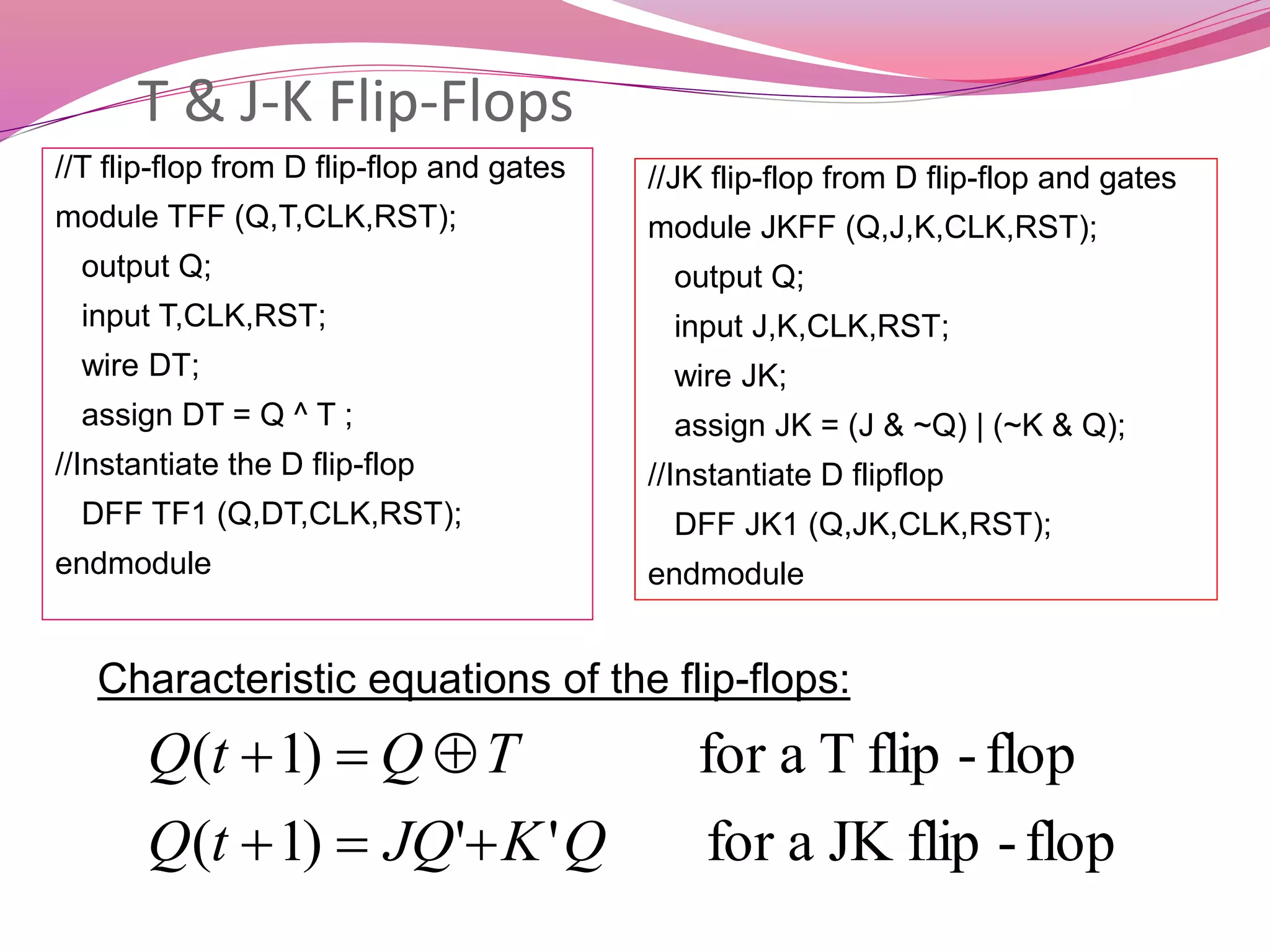

Examples-D latch
D flip-flop
register
Memory
elements
Combinational
circuit
Inputs Outputs

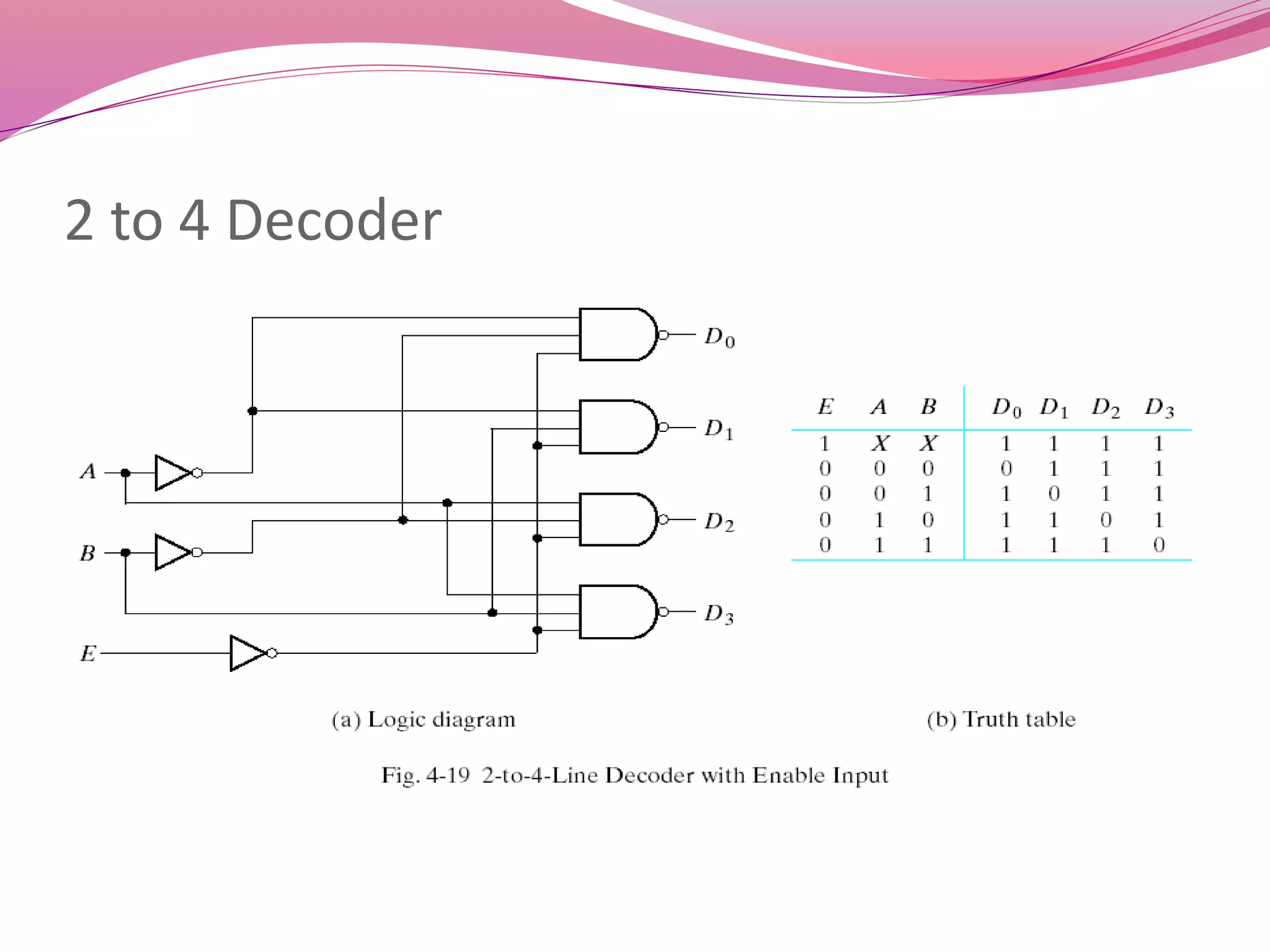

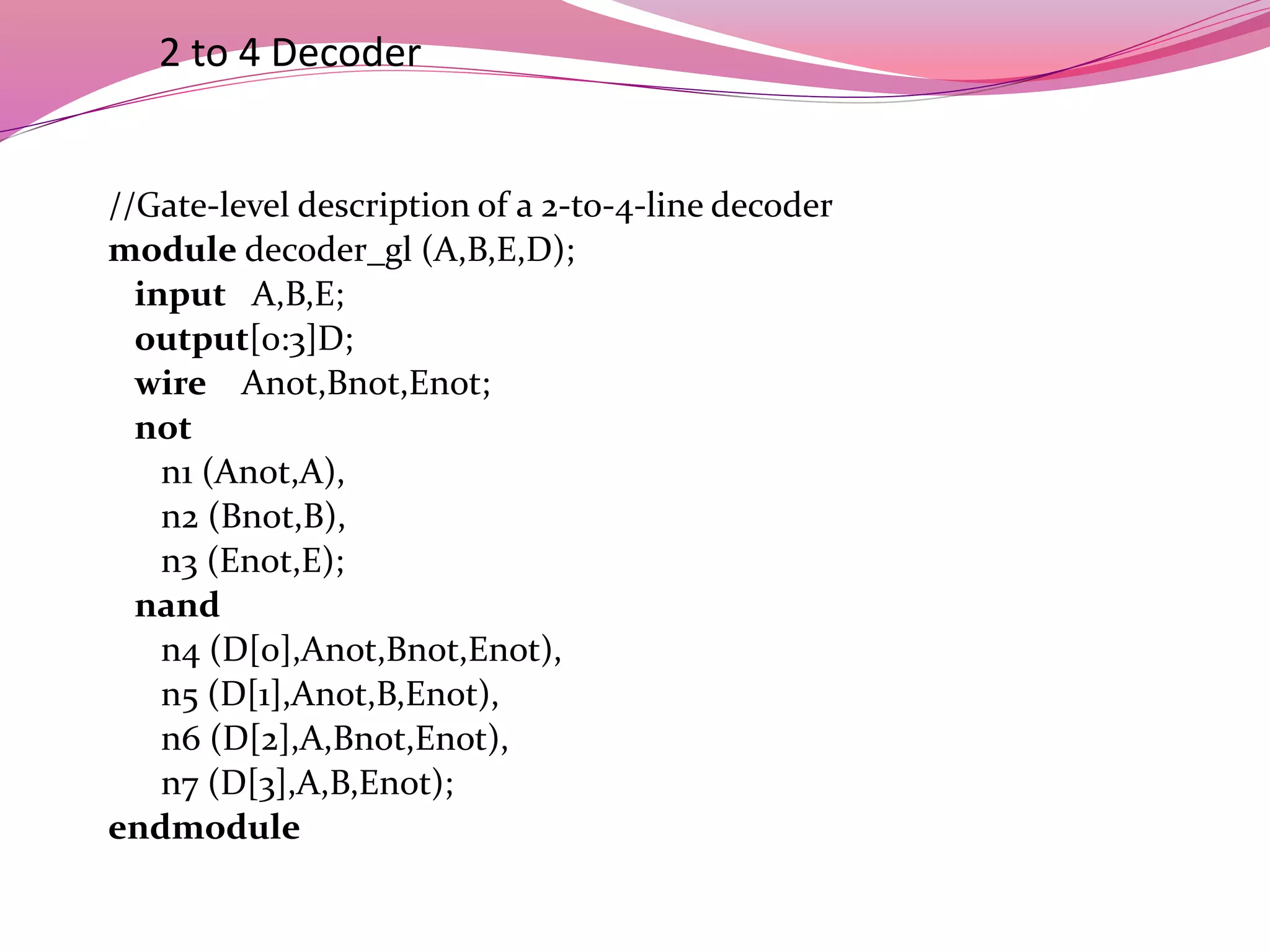

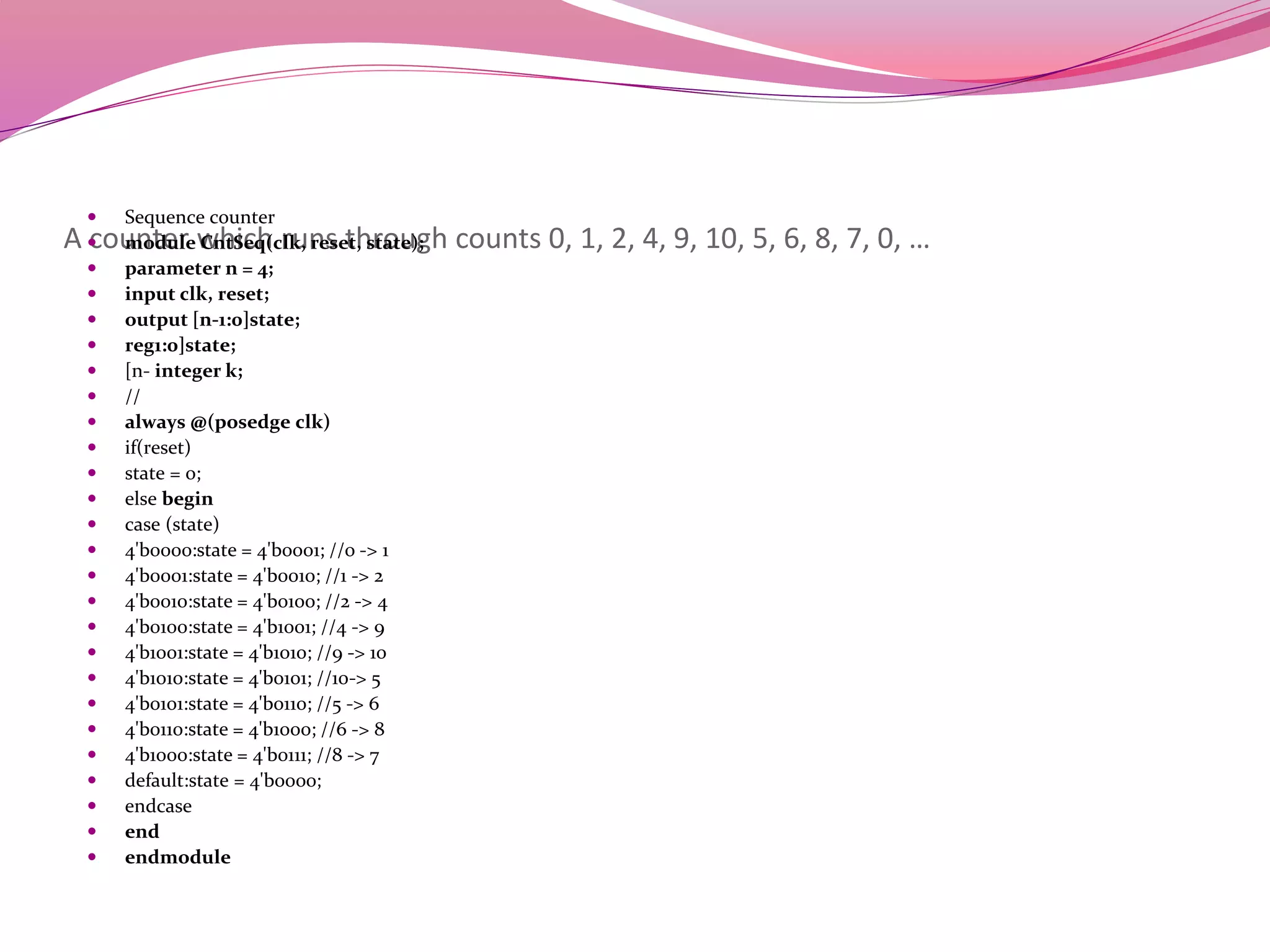

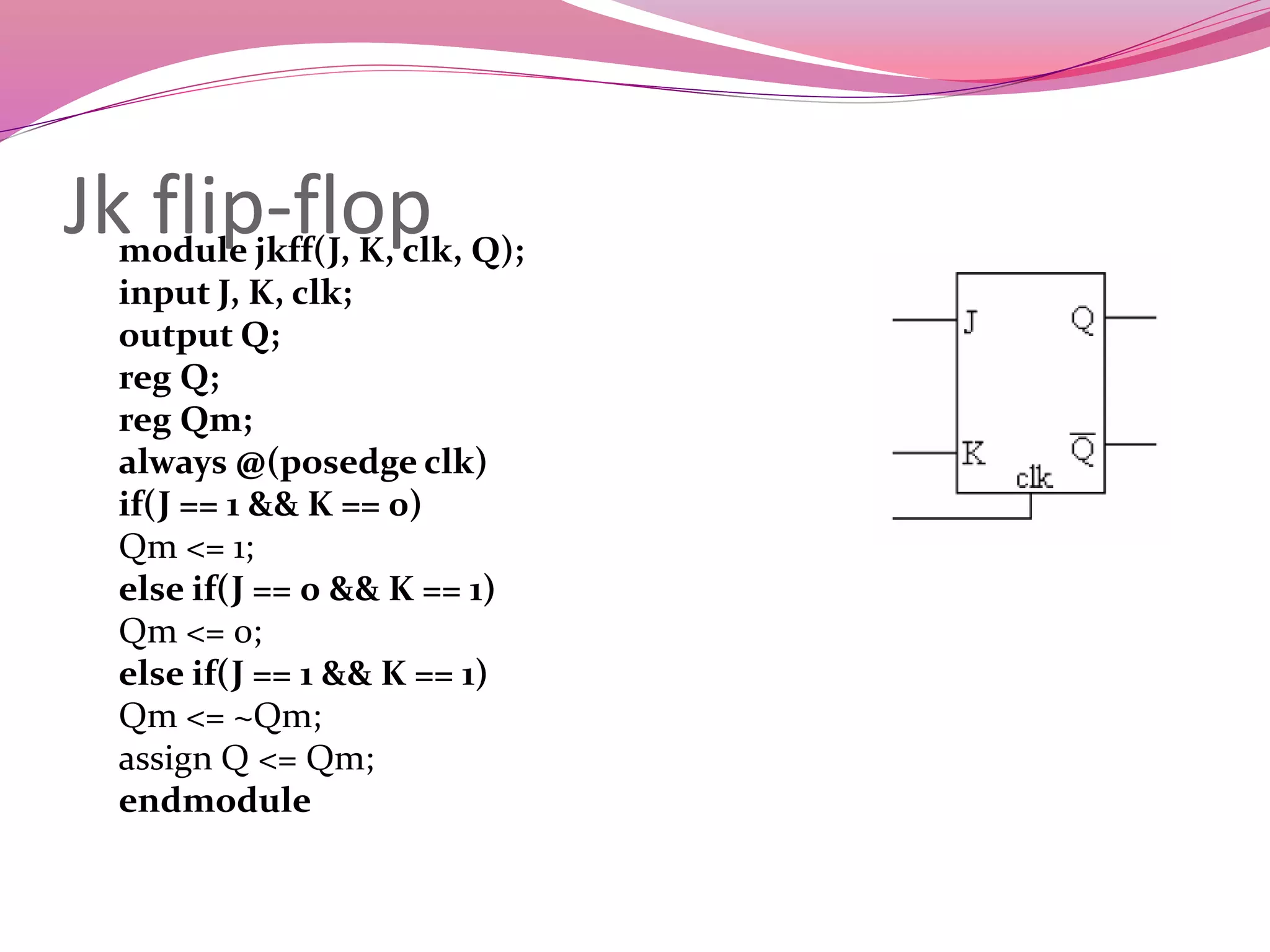

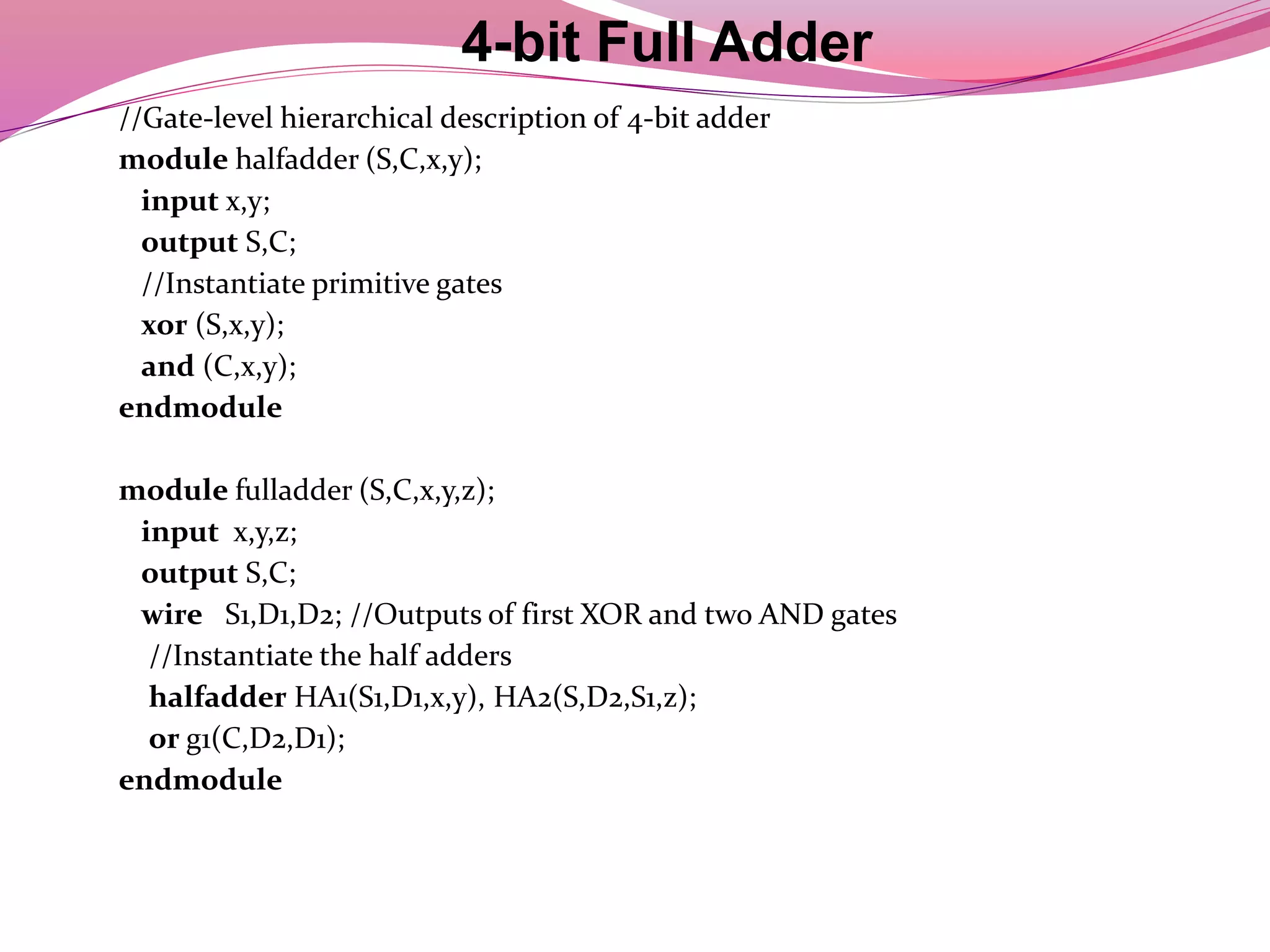

55. //Gate-level description of a 2-to-4-line decoder
module decoder_gl (A,B,E,D);
input A,B,E;
output[0:3]D;
wire Anot,Bnot,Enot;
not
n1 (Anot,A),
n2 (Bnot,B),
n3 (Enot,E);
nand
n4 (D[0],Anot,Bnot,Enot),
n5 (D[1],Anot,B,Enot),
n6 (D[2],A,Bnot,Enot),
n7 (D[3],A,B,Enot);
endmodule
2 to 4 Decoder

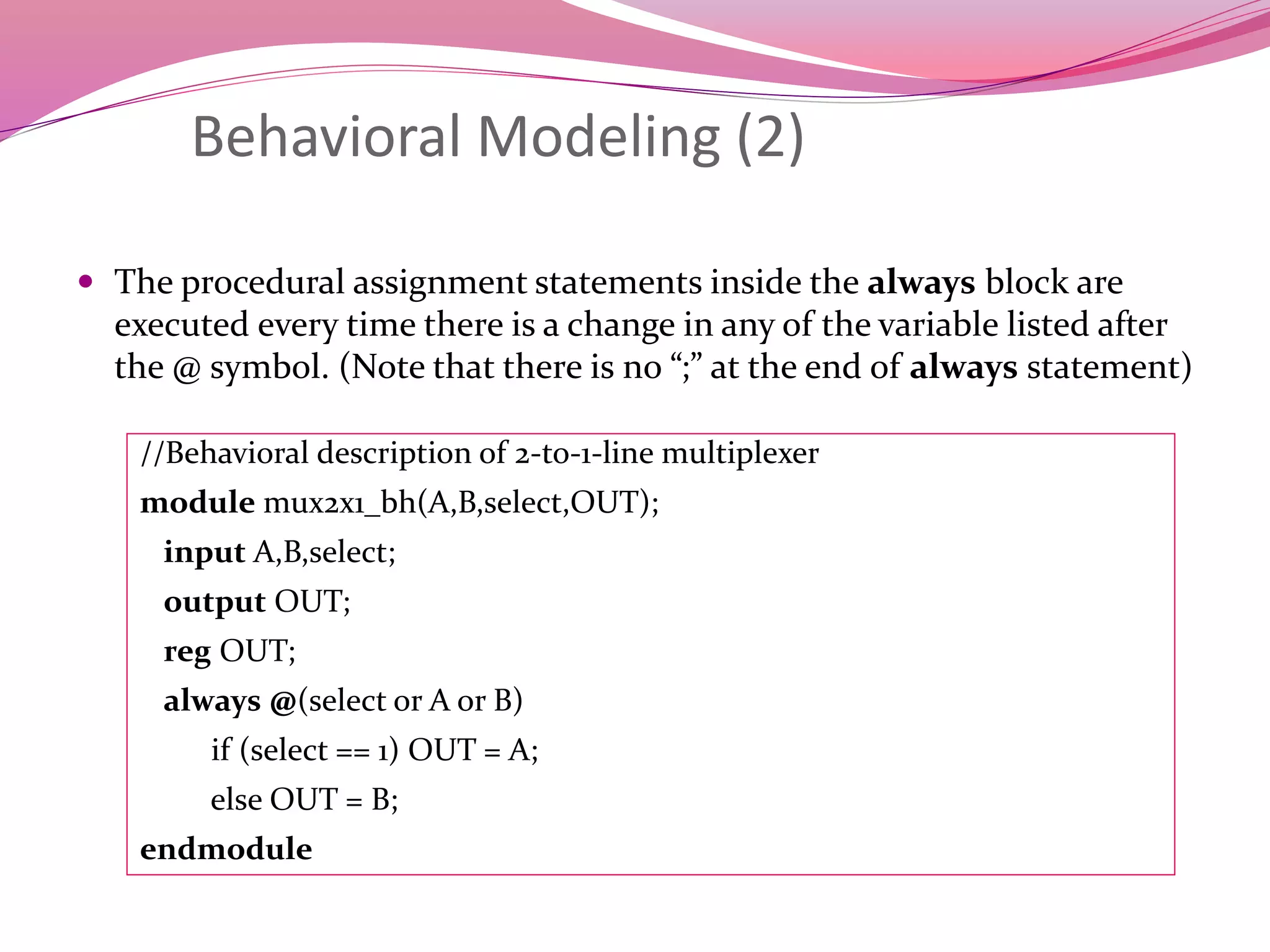

56. Behavioral Modeling (2)
The procedural assignment statements inside the always block are
executed every time there is a change in any of the variable listed after
the @ symbol. (Note that there is no “;” at the end of always statement)
//Behavioral description of 2-to-1-line multiplexer
module mux2x1_bh(A,B,select,OUT);
input A,B,select;
output OUT;
reg OUT;
always @(select or A or B)
if (select == 1) OUT = A;
else OUT = B;
endmodule

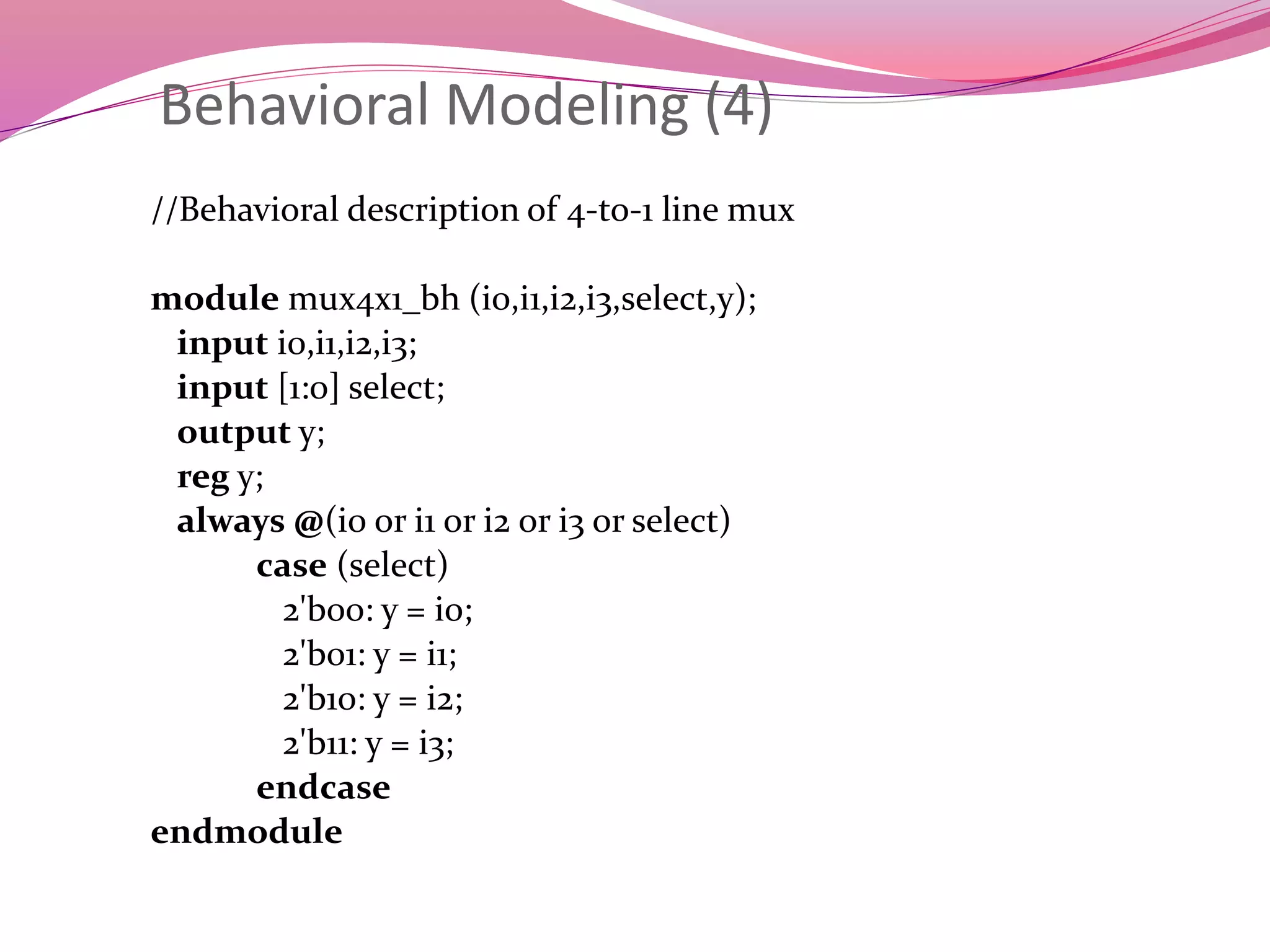

58. Behavioral Modeling (4)
//Behavioral description of 4-to-1 line mux
module mux4x1_bh (i0,i1,i2,i3,select,y);
input i0,i1,i2,i3;
input [1:0] select;
output y;
reg y;
always @(i0 or i1 or i2 or i3 or select)
case (select)
2'b00: y = i0;
2'b01: y = i1;
2'b10: y = i2;
2'b11: y = i3;
endcase
endmodule
