Unit 2a combinational circuits
1. www. cuchd.in Campus : Gharuan, Mohali
Digital Electronics
SUBJECT CODE : ECT-155
Embedded Systems and Robotics Research Group
Chandigarh University
#617, Block 6

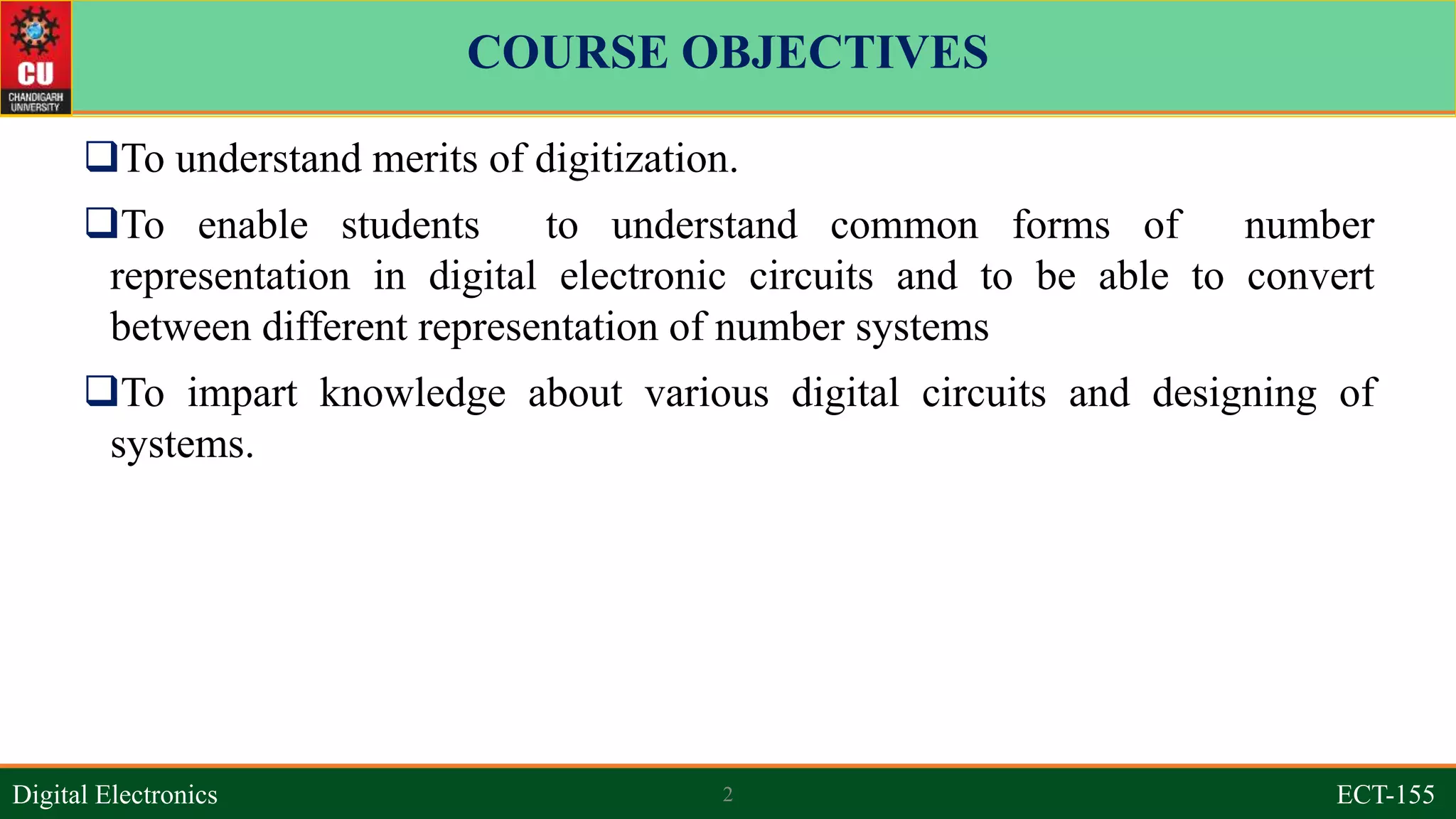

2. Digital Electronics ECT-155
COURSE OBJECTIVES
To understand merits of digitization.
To enable students to understand common forms of number
representation in digital electronic circuits and to be able to convert
between different representation of number systems
To impart knowledge about various digital circuits and designing of
systems.
2
3. Digital Electronics ECT-155
COURSE OUTCOMES
Unit I
Merits of digital systems, various number systems and their applications
Unit II
Combinational and Sequential Digital Designing and solution to basic digital
problems.
Unit III
Designing of sequential circuits and introduction to memory logic design
3
4. Digital Electronics ECT-155
SYLLABUS
UNIT - II
Combinational Circuits: Introduction to Combinational circuit design,
half adder, full adder, BCD Adder, Half Subtractor, Full Subtractor,
Multiplexer, Demultiplexer, encoder, decoder and magnitude comparator.
Sequential Circuits : Introduction to sequential circuits, latch & flip flop
(SR, JK, D and T), race around condition, conversion of various flip flops.
4
5. Digital Electronics ECT-155
DIGITAL
• Noise immune
• Flexibility
• No effect of aging on output
• Easy circuit design
• Expensive
• Deals with finite quantized levels of
signals
• Stores waveforms as bits
ANALOG
• Prone to noise
• Fixed task
• Output varies with aging and environment.
• Difficult to design
• Cheaper
• Continuous signals
• Stores signals as waveforms.
ANALOG VS DIGITAL ELECTRONICS
5
6. Digital Electronics ECT-155
NUMBER SYSTEM
Decimal10 (0-9)
Binary2 (0,1)
Octal8 (0-7)
Hexadecimals16(??)
Binary coded Decimal
Gray
Excess -3
6
Weighted Codes
7. Digital Electronics ECT-155
ALL CONVERSIONS
BINARY
{101101}
OCT
{55}
DEC
{45}
HEX
{2D}
DEC
{45}
7
RDB . RMB 𝐝𝐢 𝐛𝐢
Groups of 3
Groups of 4
8. Digital Electronics ECT-155
SIGNED AND UNSIGNED NUMBERS
SIGNED BINARY REPRESENTATION
{sign} {magnitude}
1’s complement
2’s complement
Signed number = sign bit | number
8
9. Digital Electronics ECT-155
SUBTRACTION BY 1’s COMPLEMENT
• Add 1’s complement of Subtrahend
to Minuend
• If No carry produced
• Result is negative
• Result = 1’s complement of addition
• If carry is produced
• drop it
• add 1 to last bit
SUBTRACTION BY 2’s COMPLEMENT
• Add 2’s complement of Subtrahend
to Minuend
• If No carry produced
• Result is negative
• Result = 2’s complement of addition
• If carry is produced
• drop it
SIGNED BINARYARITHMETIC
9
11. Digital Electronics ECT-155
LOGIC GATES
A B NOT AND NAND OR NOR XOR XNOR
𝐴 𝐴. 𝐵 𝐴. 𝐵 𝐴 + 𝐵 𝐴 + 𝐵 𝐴 ⊕ 𝐵 𝐴 ⨁ 𝐵
0 0 1 0 1 0 1 0 1
0 1 1 0 1 1 0 1 0
1 0 0 0 1 1 0 1 0
1 1 0 1 0 1 0 0 1
11
12. Digital Electronics ECT-155
LAWS OF BOOLEAN ALGEBRA
Commutative Laws
A+B = B+A
AB = BA
Associative Laws
A+(B+C) = (A+B)+C
A(BC) = (AB)C
Distributive Law
A(B+C) = AB + AC
12
DeMorgan’s Theorems
𝐗𝐘 = 𝑿 + 𝒀
𝐗 + 𝒀 = 𝑿 𝒀
A+0 = A
A+1 = 1
A . 0 = 0
A . 1 = A
A + A = A
A + A = 1
A . A = A
A . A = 0
A + AB = A
A + AB = A + B
(A+B)(A+C) = A + BC
13. Digital Electronics ECT-155
SUM OF PRODUCTS {SOP} FORM
General Expression : A(B + CD)
SOP Expression : AB + ACD
Standard/Canonical SOP Expression :
𝑨𝑩𝑪𝑫 + 𝑨 𝑩𝑪𝑫 + 𝑨𝑩 𝑪𝑫
A standard SOP expression is one in which all the variables in the domain
appear in each product term in the expression.
13
14. Digital Electronics ECT-155
PRODUCTS OF SUM {POS} FORM
General Expression : A(B + CD)
POS Expression : (A + B)(A + 𝐵 + C)
Standard POS Expression : ( 𝐴 + 𝐵 + 𝐶 + 𝐷)(𝐴 + 𝐵 + 𝐶 + 𝐷)
A standard POS expression is one in which all the variables in the domain
appear in each sum term in the expression.
14
17. Digital Electronics ECT-155
Combinational Logic Circuits
Combinational Logic
Logic level at the output depends upon the combination of logic levels
present at the inputs.
No memory characteristic
Output depends only on the current value of its inputs.
Combinational Logic Circuits
Circuits that are made up of logic gates, that are connected together to
produce a specified output for certain specified combinations of input
variables.
17
18. Digital Electronics ECT-155
Combinational Circuits - Uses
Analysis
Given a circuit, find out its function
Function may be expressed as
Boolean Function
Truth Table
Design
Given a desired function, determine its circuit
Function may be expressed as
Boolean Function
Truth Table
18
21. Digital Electronics ECT-155
Design Procedure
Given a problem statement:
Determine number of inputs and outputs
Derive the truth table
Simplify the Boolean expression for each output
Produce the required output
Example
Design a circuit to convert “BCD” code to “Excess-3” code.
21
22. Digital Electronics ECT-155
ADDERS
Adders are important in computers and also in other types of
digital systems in which numerical data are processed.
An understanding of the basic adder operation is fundamental to
the study of digital systems.
Two types of adders:
Half Adder
Full Adder
22
23. Digital Electronics ECT-155
HALF ADDER
Rules for binary addition are:
The half-adder accepts two binary digits on its inputs and produces
two binary digits on its outputs—a sum bit and a carry bit.
23
24. Digital Electronics ECT-155
HALF ADDER LOGIC
Truth Table
Expressions can be derived from
truth table as
𝑪 𝒐𝒖𝒕 = 𝑨. 𝑩
𝚺 = 𝑨. 𝑩 + 𝑨. 𝑩 = 𝑨⨁𝑩
Circuit Diagram
24
34. Digital Electronics ECT-155
FULLADDER
The full-adder accepts two input bits and an input carry and
generates a sum output and an output carry.
A full-adder has an input carry while the half-adder does not.
34
