• Presentation On: Transistor Fundamentals
• Guided By: ECE Dept.
Presented To: Prof. Vipul Patel
• Presented By:
Name Enrollnment No.
Jay Baria 150860111003
Vikas Choudhary 150860111004
Mohammed Khalifa 150860111007
Meet Mehta 150860111009

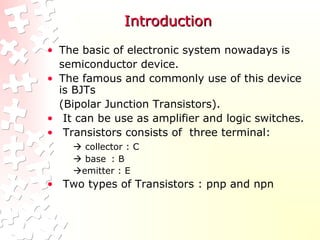

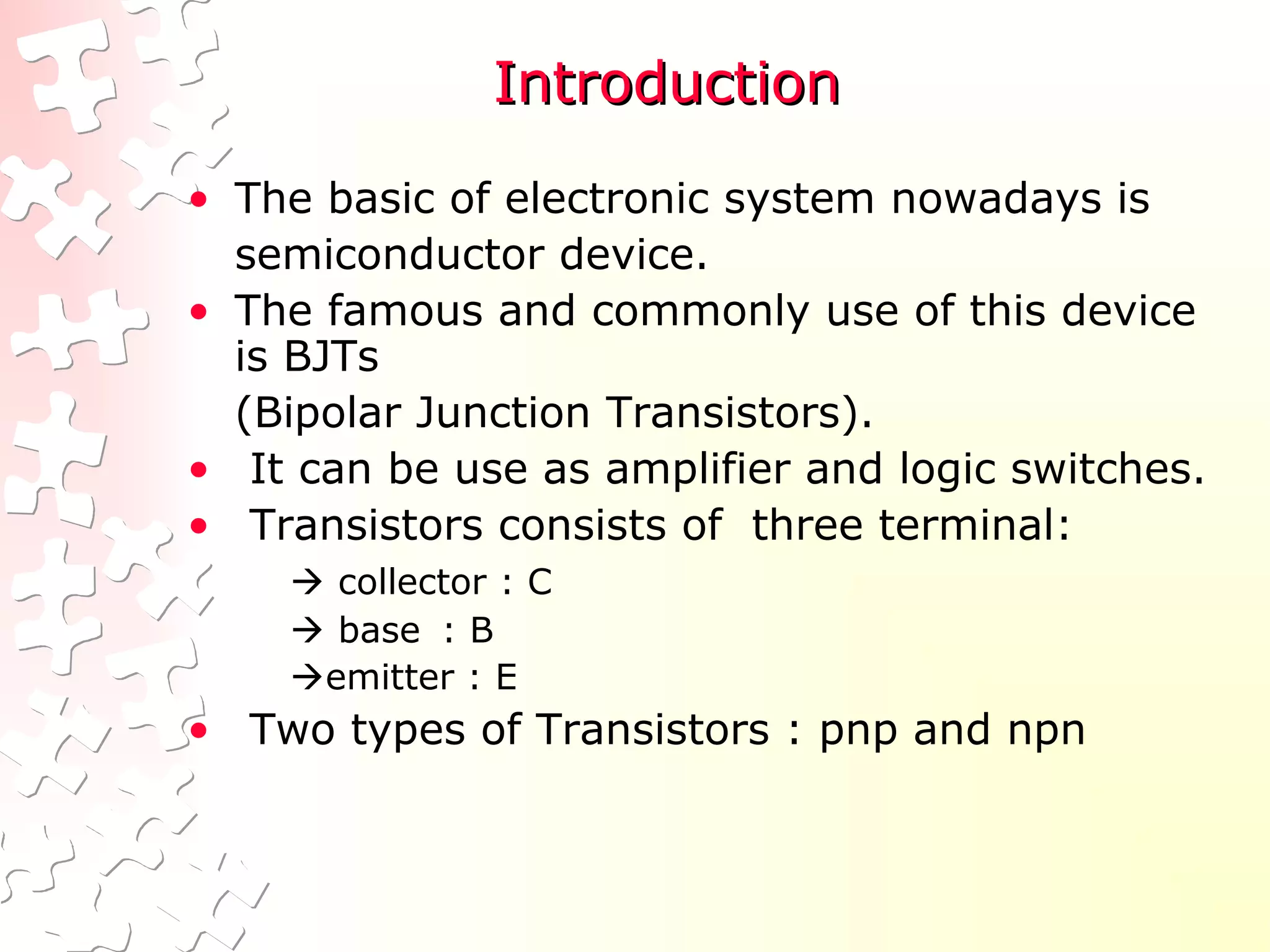

IntroductionIntroduction
• The basic of electronic system nowadays is
semiconductor device.
• The famous and commonly use of this device
is BJTs
(Bipolar Junction Transistors).
• It can be use as amplifier and logic switches.
• Transistors consists of three terminal:
 collector : C
 base : B
emitter : E
• Two types of Transistors : pnp and npn

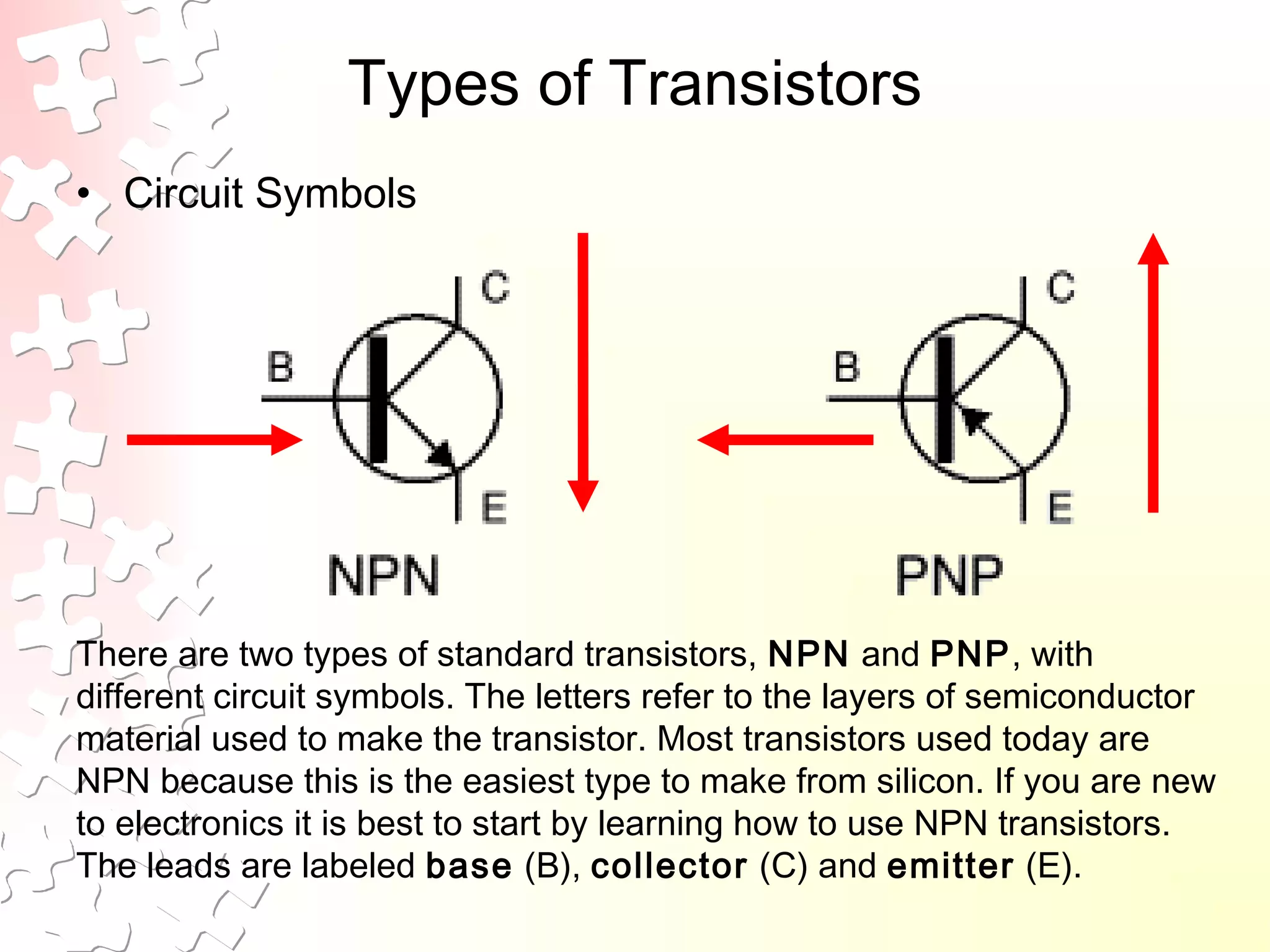

Types of Transistors
• Circuit Symbols
There are two types of standard transistors, NPN and PNP, with
different circuit symbols. The letters refer to the layers of semiconductor
material used to make the transistor. Most transistors used today are
NPN because this is the easiest type to make from silicon. If you are new
to electronics it is best to start by learning how to use NPN transistors.
The leads are labeled base (B), collector (C) and emitter (E).
Who Invented the Transistor?
• In the mid 1940’s a team of scientists working for Bell Telephone
Labs in Murray Hill, New Jersey, were working to discover a device
to replace the then present vacuum tube technology. Vacuum tubes
were the only technology available at the time to amplify signals or
serve as switching devices in electronics. The problem was that
they were expensive, consumed a lot of power, gave off too much
heat, and were unreliable, causing a great deal of maintenance.

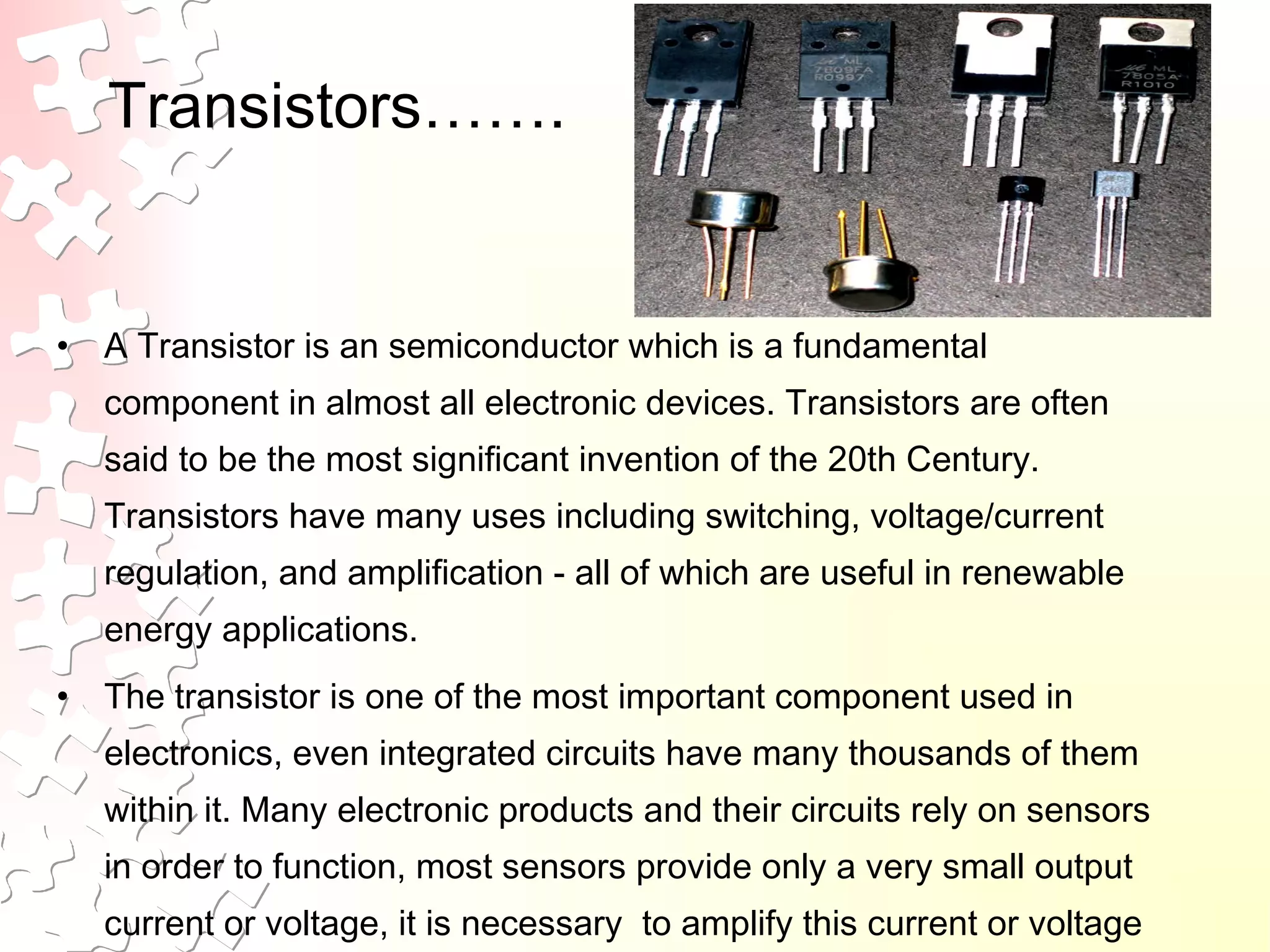

Transistors…….
• A Transistor is an semiconductor which is a fundamental
component in almost all electronic devices. Transistors are often
said to be the most significant invention of the 20th Century.
Transistors have many uses including switching, voltage/current
regulation, and amplification - all of which are useful in renewable
energy applications.
• The transistor is one of the most important component used in
electronics, even integrated circuits have many thousands of them
within it. Many electronic products and their circuits rely on sensors
in order to function, most sensors provide only a very small output
current or voltage, it is necessary to amplify this current or voltage

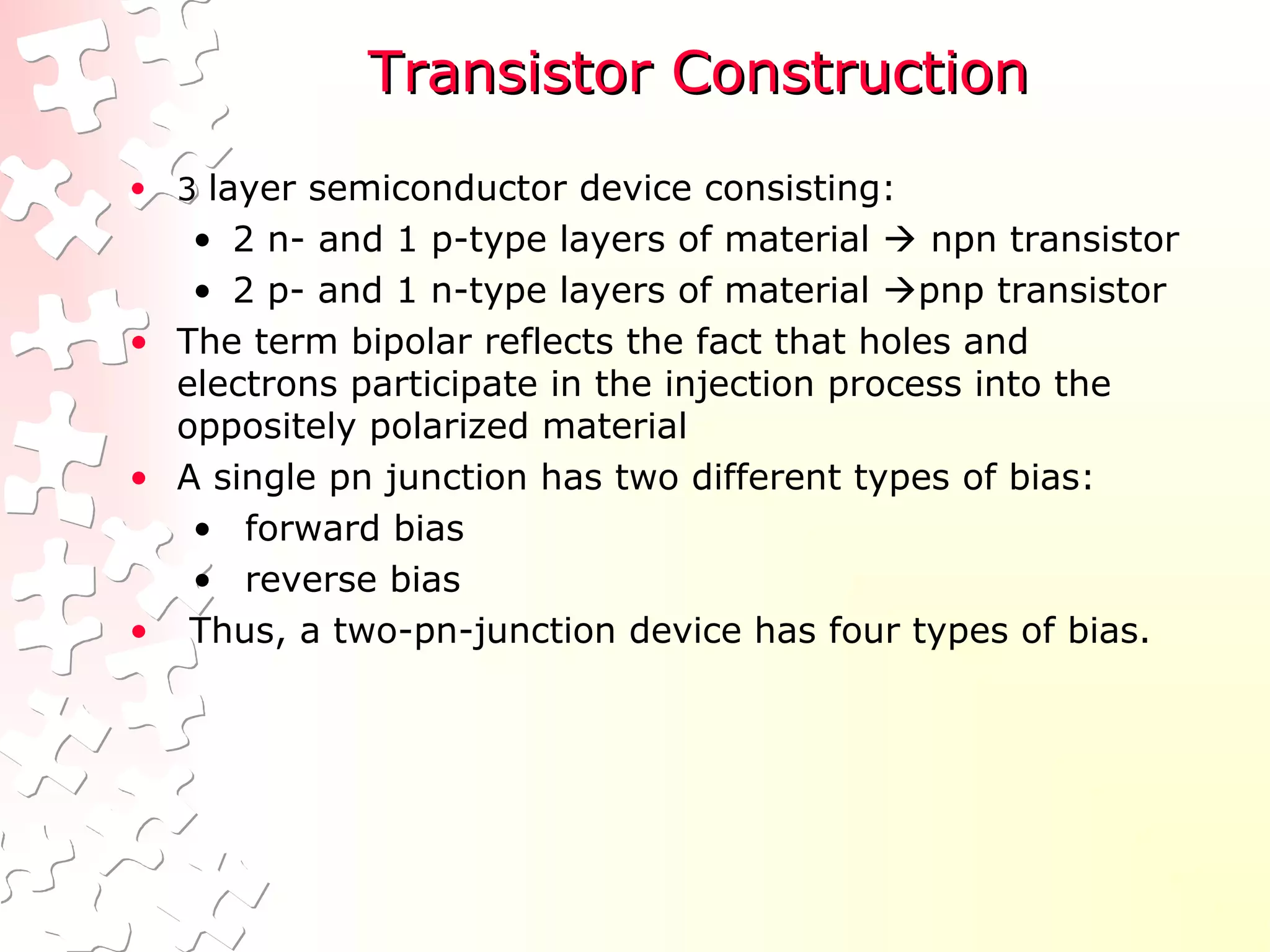

Transistor ConstructionTransistor Construction
• 3 layer semiconductor device consisting:
• 2 n- and 1 p-type layers of material  npn transistor
• 2 p- and 1 n-type layers of material pnp transistor
• The term bipolar reflects the fact that holes and
electrons participate in the injection process into the
oppositely polarized material
• A single pn junction has two different types of bias:
• forward bias
• reverse bias
• Thus, a two-pn-junction device has four types of bias.

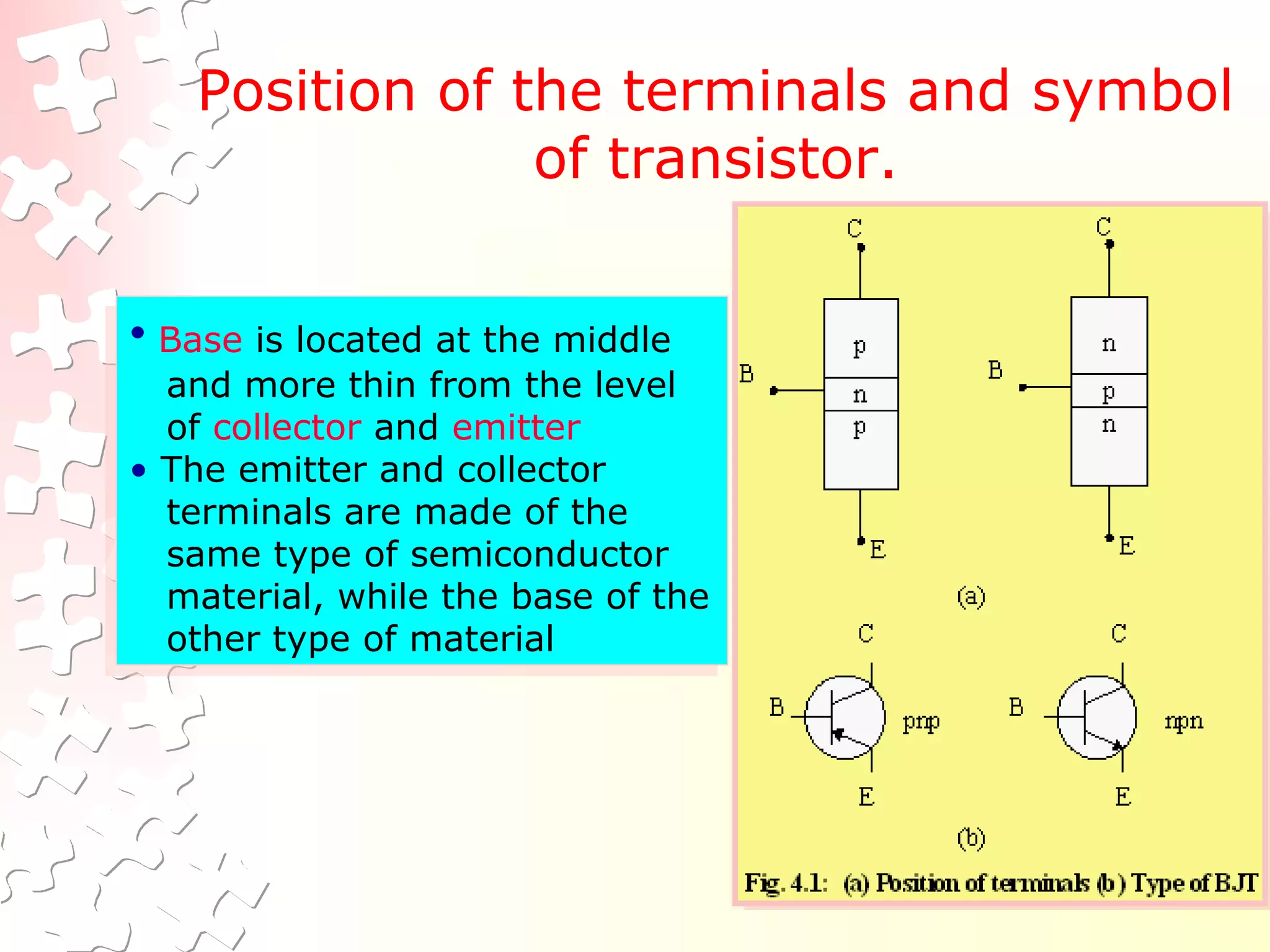

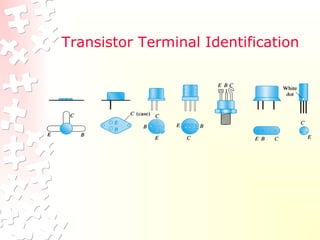

Position of the terminals and symbol
of transistor.
• Base is located at the middle
and more thin from the level
of collector and emitter
• The emitter and collector
terminals are made of the
same type of semiconductor
material, while the base of the
other type of material
• Base is located at the middle
and more thin from the level
of collector and emitter
• The emitter and collector
terminals are made of the
same type of semiconductor
material, while the base of the
other type of material

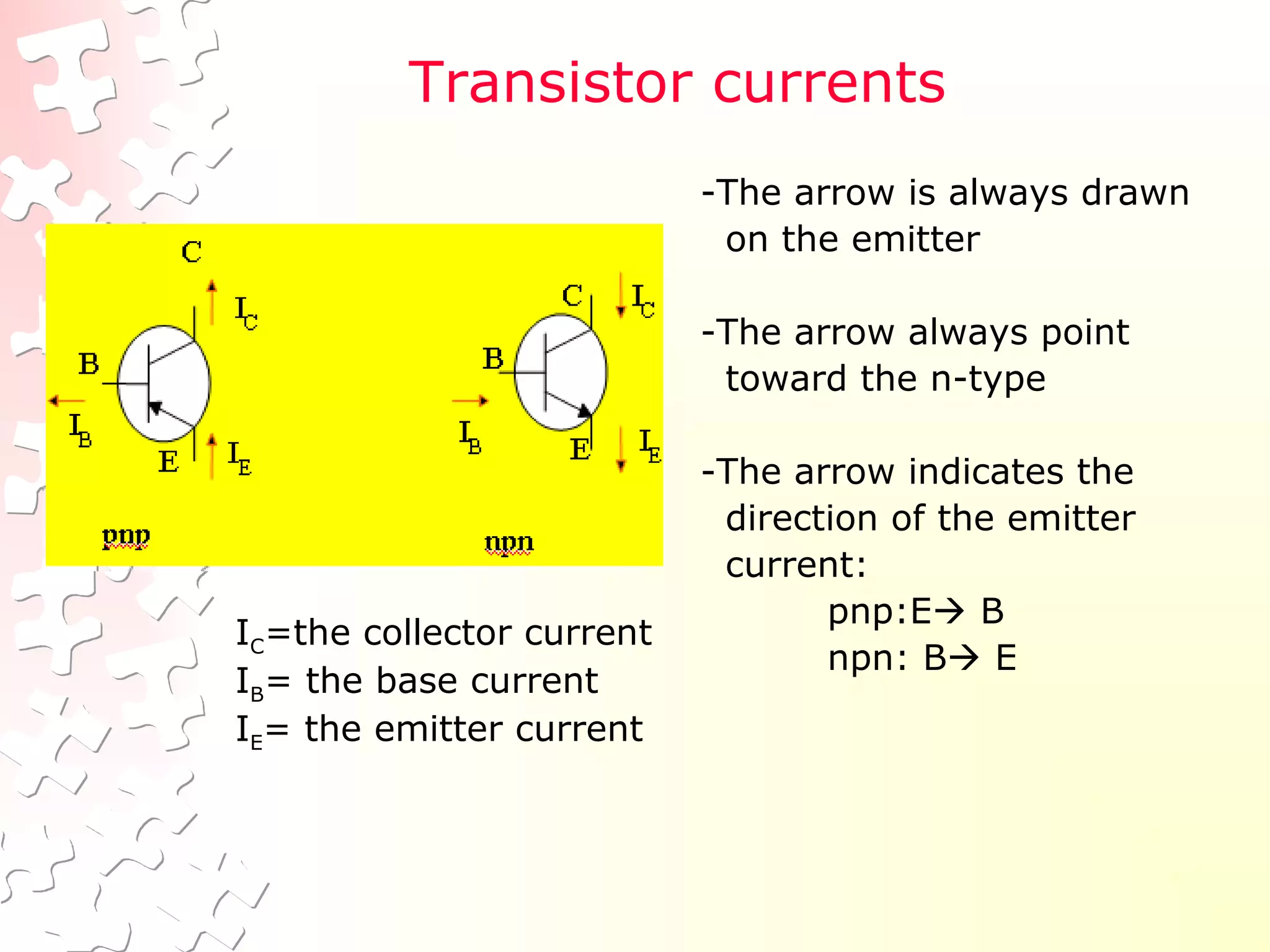

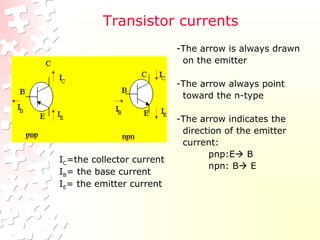

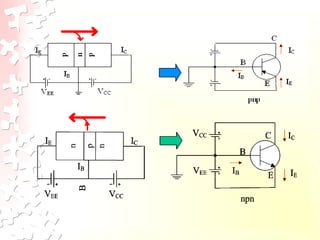

Transistor currents
-The arrow is always drawn
on the emitter
-The arrow always point
toward the n-type
-The arrow indicates the
direction of the emitter
current:
pnp:E B
npn: B E
IC=the collector current
IB= the base current
IE= the emitter current

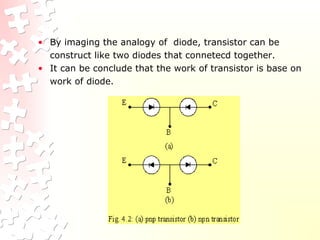

• By imaging the analogy of diode, transistor can be
construct like two diodes that connetecd together.
• It can be conclude that the work of transistor is base on
work of diode.

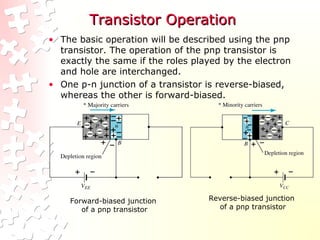

Transistor OperationTransistor Operation
• The basic operation will be described using the pnp
transistor. The operation of the pnp transistor is
exactly the same if the roles played by the electron
and hole are interchanged.
• One p-n junction of a transistor is reverse-biased,
whereas the other is forward-biased.
Forward-biased junction
of a pnp transistor
Reverse-biased junction
of a pnp transistor

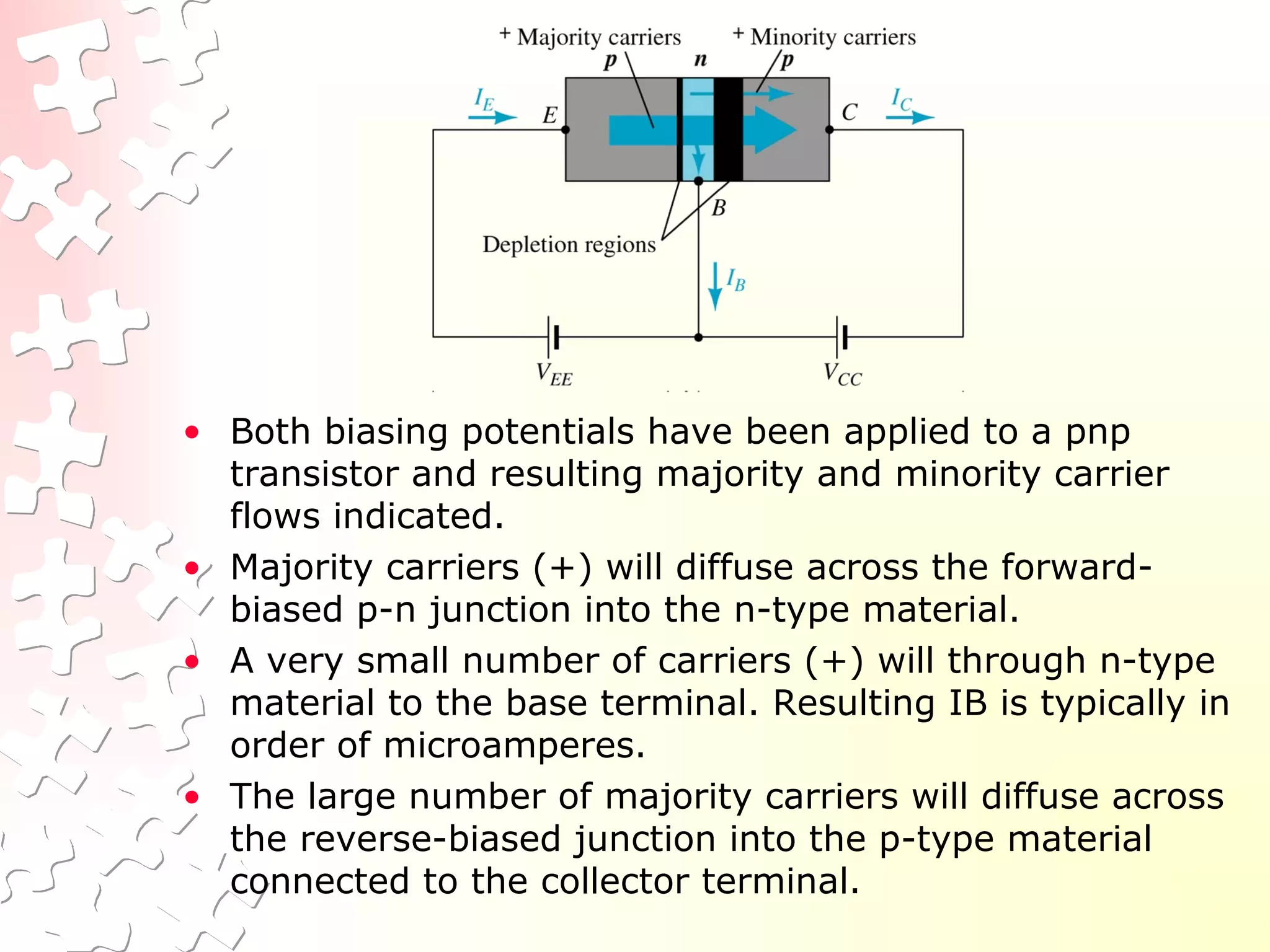

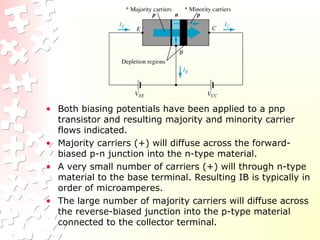

• Both biasing potentials have been applied to a pnp
transistor and resulting majority and minority carrier
flows indicated.
• Majority carriers (+) will diffuse across the forward-
biased p-n junction into the n-type material.
• A very small number of carriers (+) will through n-type
material to the base terminal. Resulting IB is typically in
order of microamperes.
• The large number of majority carriers will diffuse across
the reverse-biased junction into the p-type material
connected to the collector terminal.

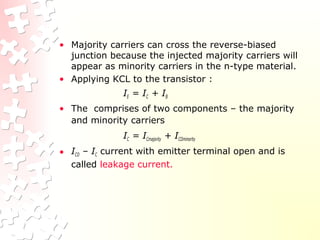

• Majority carriers can cross the reverse-biased
junction because the injected majority carriers will
appear as minority carriers in the n-type material.
• Applying KCL to the transistor :
IE = IC + IB
• The comprises of two components – the majority
and minority carriers
IC = ICmajority + ICOminority
• ICO – IC current with emitter terminal open and is
called leakage current.

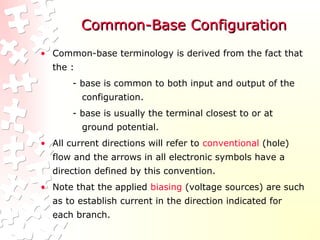

Common-Base ConfigurationCommon-Base Configuration
• Common-base terminology is derived from the fact that
the :
- base is common to both input and output of the
configuration.
- base is usually the terminal closest to or at
ground potential.
• All current directions will refer to conventional (hole)
flow and the arrows in all electronic symbols have a
direction defined by this convention.
• Note that the applied biasing (voltage sources) are such
as to establish current in the direction indicated for
each branch.

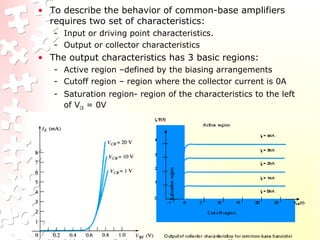

• To describe the behavior of common-base amplifiers
requires two set of characteristics:
- Input or driving point characteristics.
- Output or collector characteristics

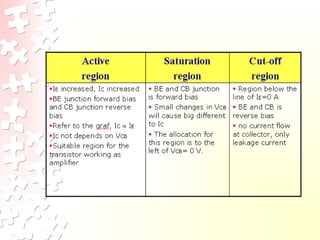

• The output characteristics has 3 basic regions:
- Active region –defined by the biasing arrangements
- Cutoff region – region where the collector current is 0A
- Saturation region- region of the characteristics to the left
of VCB = 0V

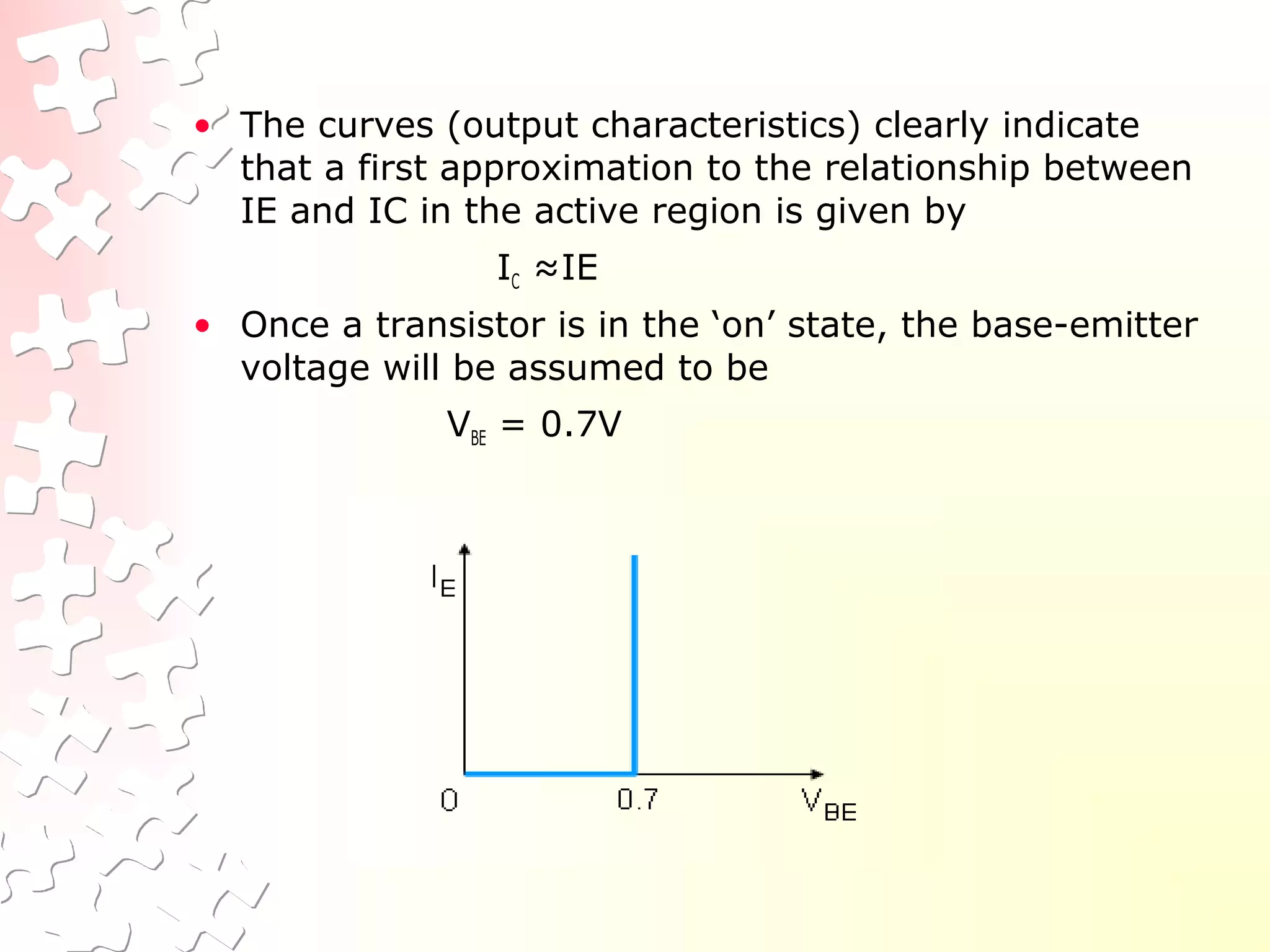

• The curves (output characteristics) clearly indicate
that a first approximation to the relationship between
IE and IC in the active region is given by
IC ≈IE
• Once a transistor is in the ‘on’ state, the base-emitter
voltage will be assumed to be
VBE = 0.7V

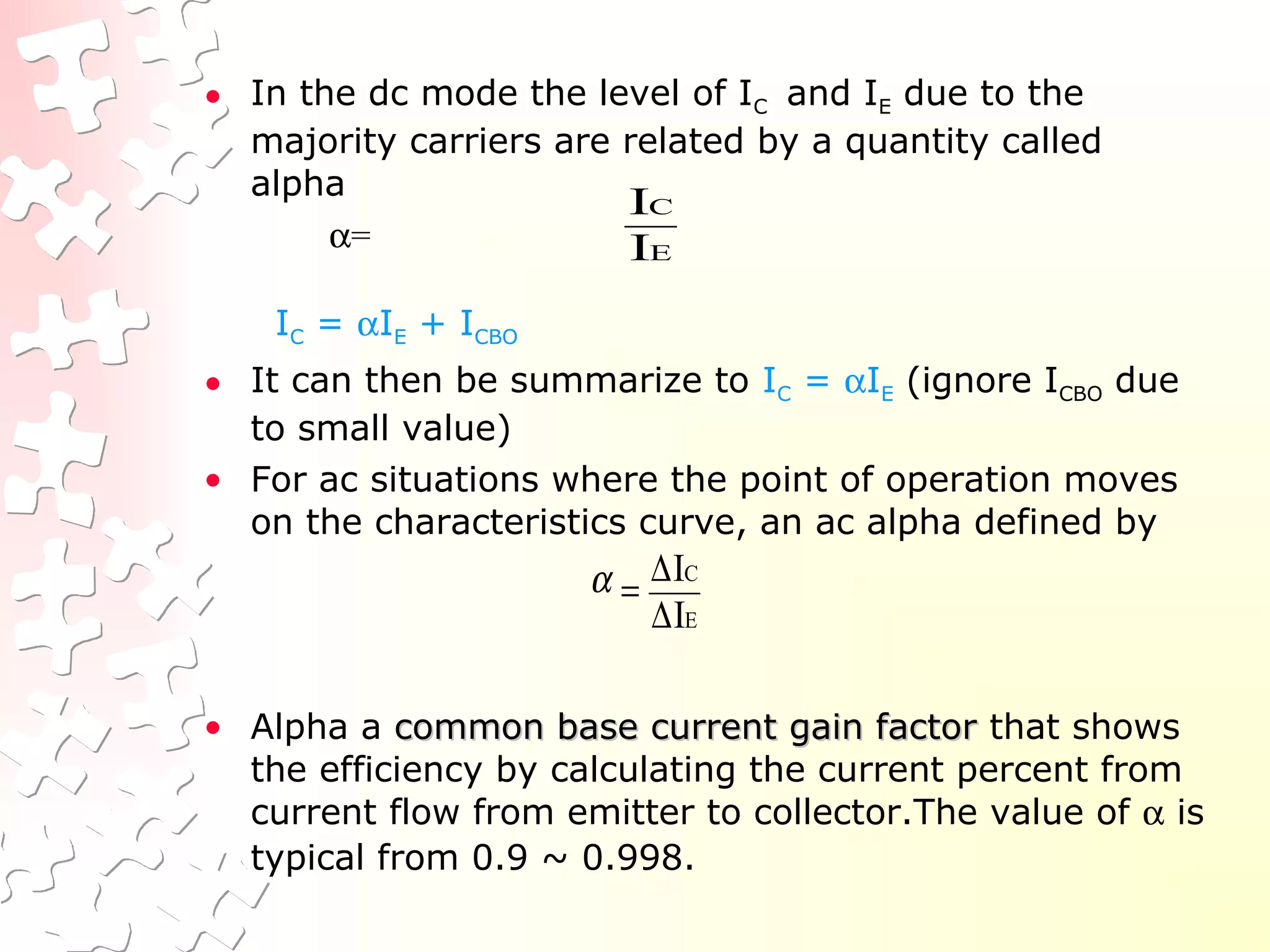

• In the dc mode the level of IC and IE due to the
majority carriers are related by a quantity called
alpha
α=
IC = αIE + ICBO
• It can then be summarize to IC = αIE (ignore ICBO due
to small value)
• For ac situations where the point of operation moves
on the characteristics curve, an ac alpha defined by
• Alpha a common base current gain factorcommon base current gain factor that shows
the efficiency by calculating the current percent from
current flow from emitter to collector.The value of α is
typical from 0.9 ~ 0.998.
E
C
I
I
E
C
I
I
∆
∆
=α

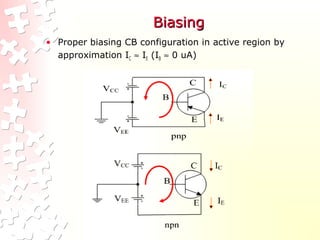

BiasingBiasing
• Proper biasing CB configuration in active region by
approximation IC ≈ IE (IB ≈ 0 uA)

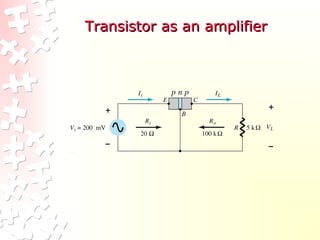

Transistor as an amplifierTransistor as an amplifier

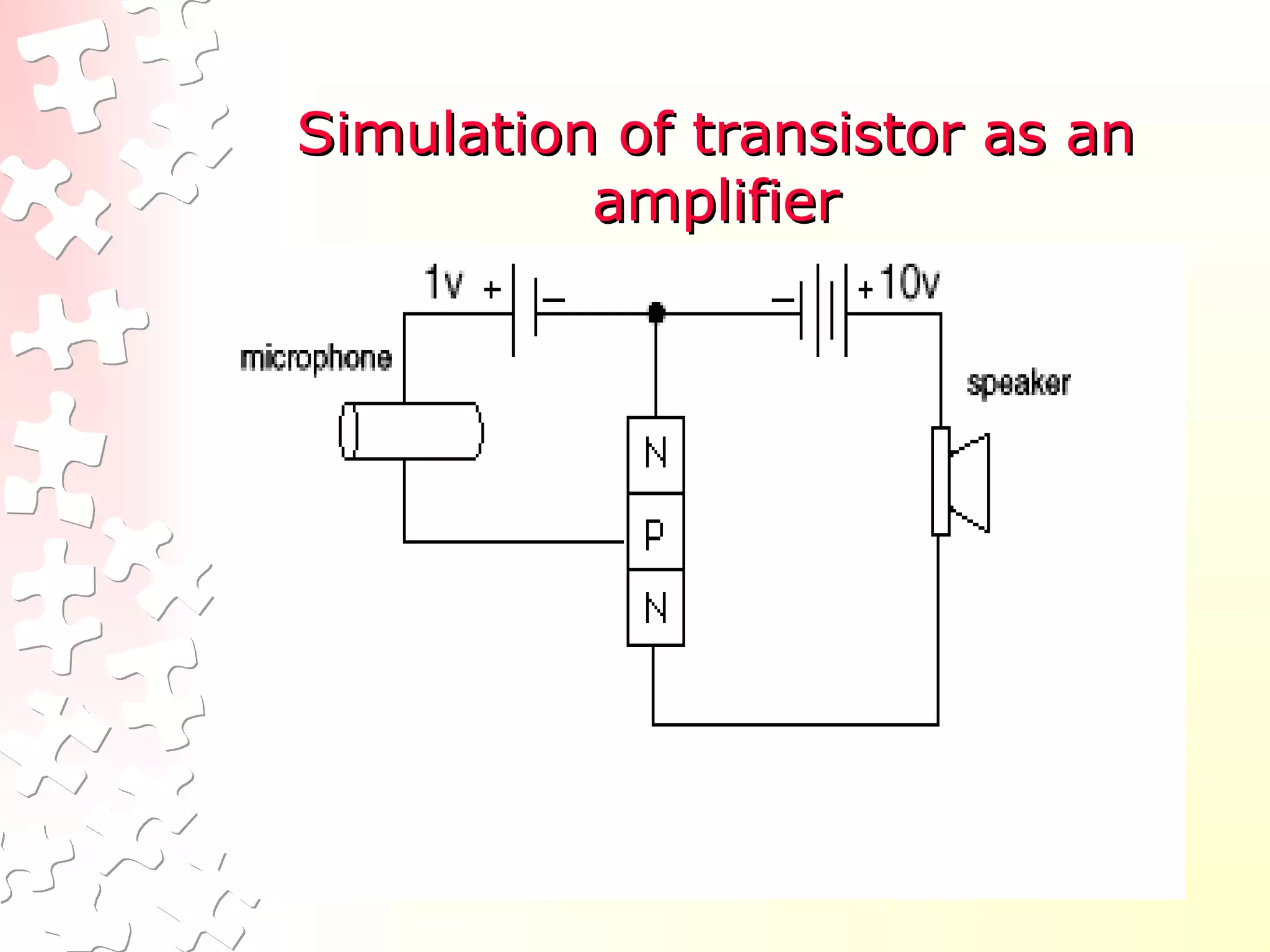

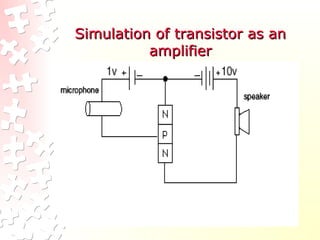

Simulation of transistor as anSimulation of transistor as an
amplifieramplifier

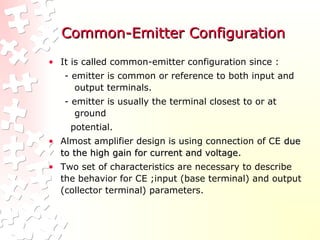

Common-Emitter ConfigurationCommon-Emitter Configuration
• It is called common-emitter configuration since :
- emitter is common or reference to both input and
output terminals.
- emitter is usually the terminal closest to or at
ground
potential.
• Almost amplifier design is using connection of CE duedue
to the high gain for current and voltageto the high gain for current and voltage.
• Two set of characteristics are necessary to describe
the behavior for CE ;input (base terminal) and output
(collector terminal) parameters.

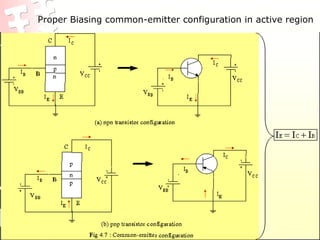

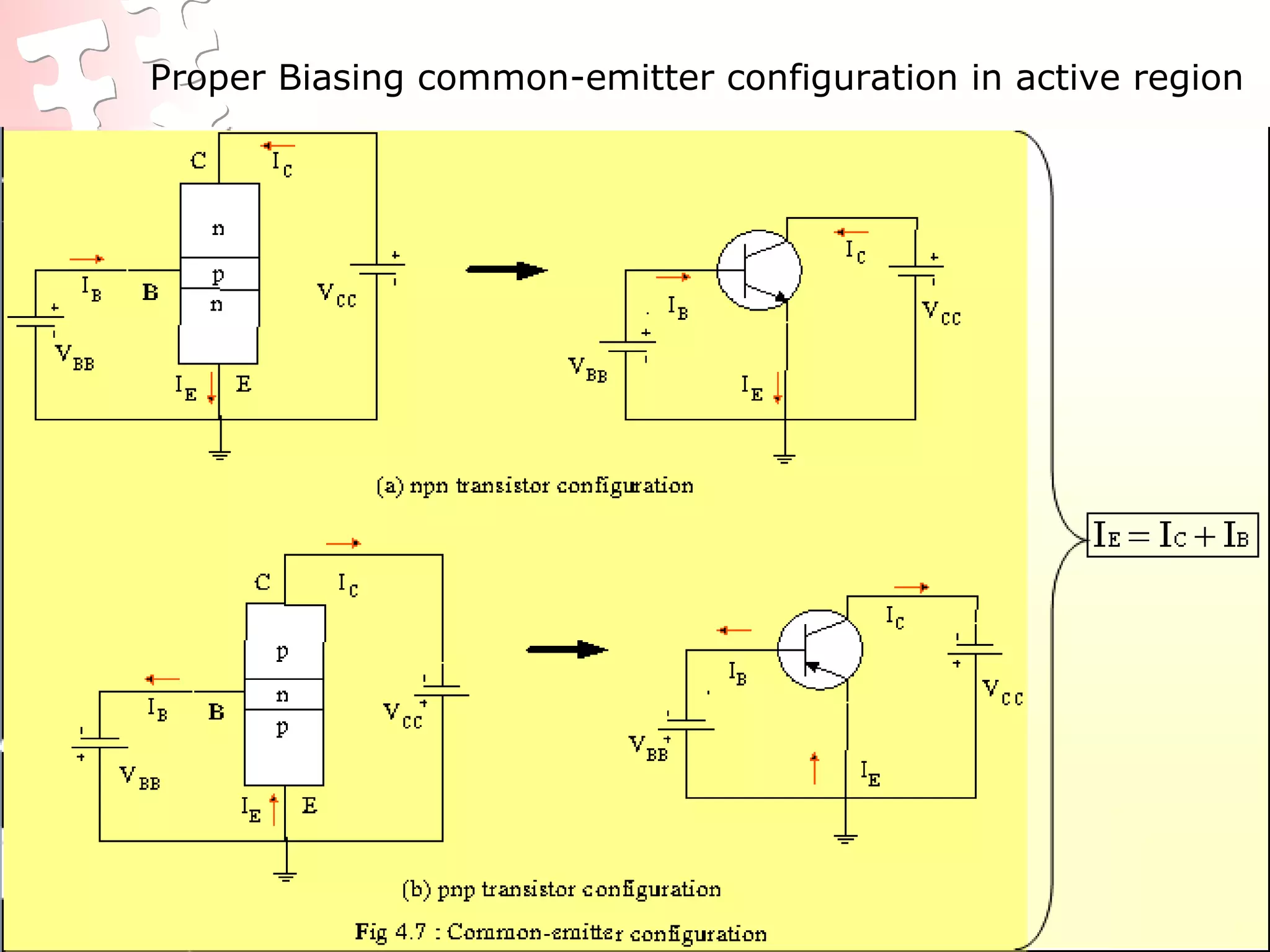

Proper Biasing common-emitter configuration in active region

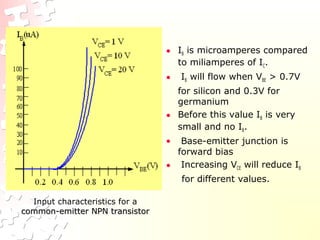

Input characteristics for a
common-emitter NPN transistorcommon-emitter NPN transistor
• IB is microamperes compared
to miliamperes of IC.
• IB will flow when VBE > 0.7V
for silicon and 0.3V for
germanium
• Before this value IB is very
small and no IB.
• Base-emitter junction is
forward bias
• Increasing VCE will reduce IB
for different values.

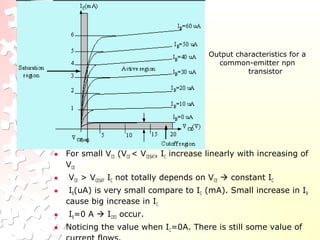

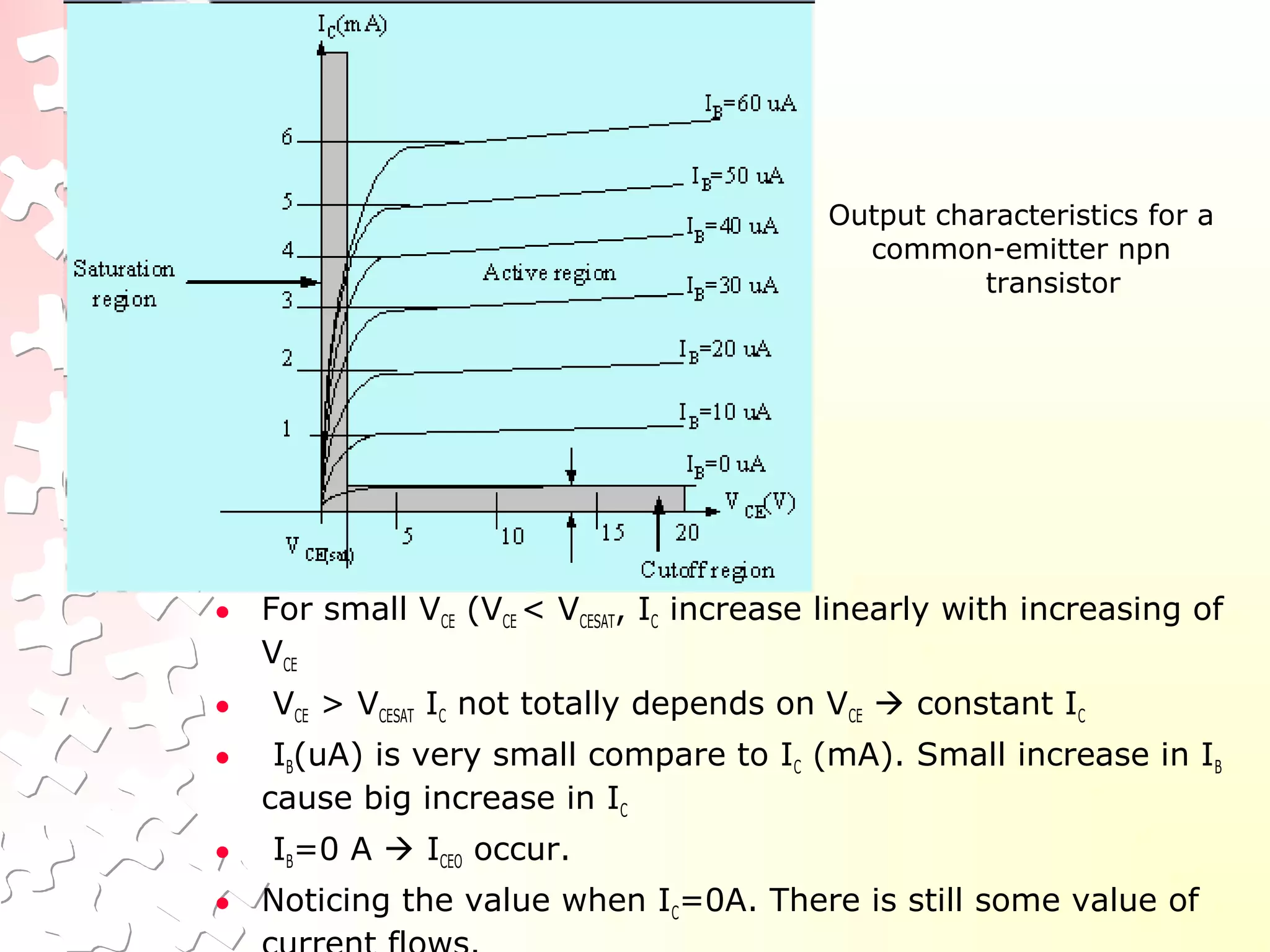

Output characteristics for a
common-emitter npn
transistor
• For small VCE (VCE < VCESAT, IC increase linearly with increasing of
VCE
• VCE > VCESAT IC not totally depends on VCE  constant IC
• IB(uA) is very small compare to IC (mA). Small increase in IB
cause big increase in IC
• IB=0 A  ICEO occur.
• Noticing the value when IC=0A. There is still some value of

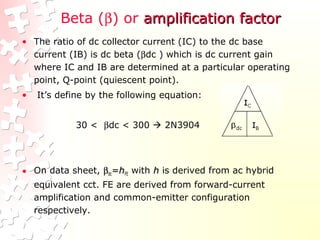

Beta (β) or amplification factoramplification factor
• The ratio of dc collector current (IC) to the dc base
current (IB) is dc beta (βdc ) which is dc current gain
where IC and IB are determined at a particular operating
point, Q-point (quiescent point).
• It’s define by the following equation:
30 < βdc < 300  2N3904

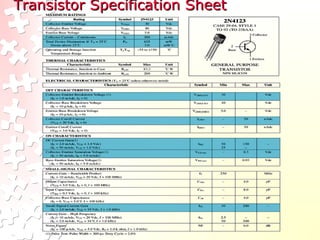

• On data sheet, ββdcdc==hhFEFE with hh is derived from ac hybrid
equivalent cct. FE are derived from forward-current
amplification and common-emitter configuration
respectively.

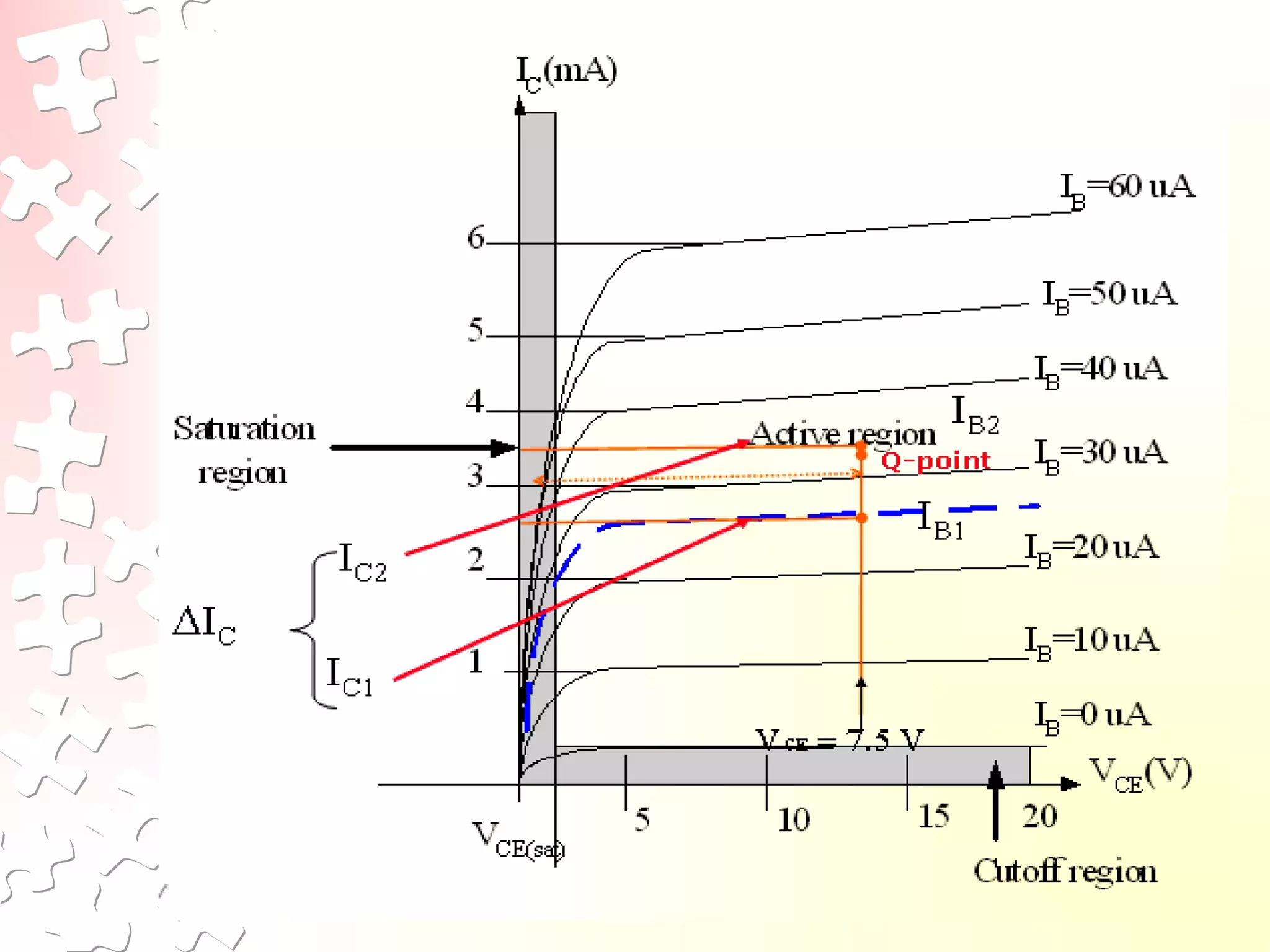

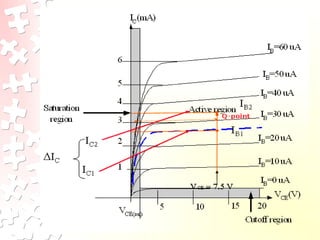

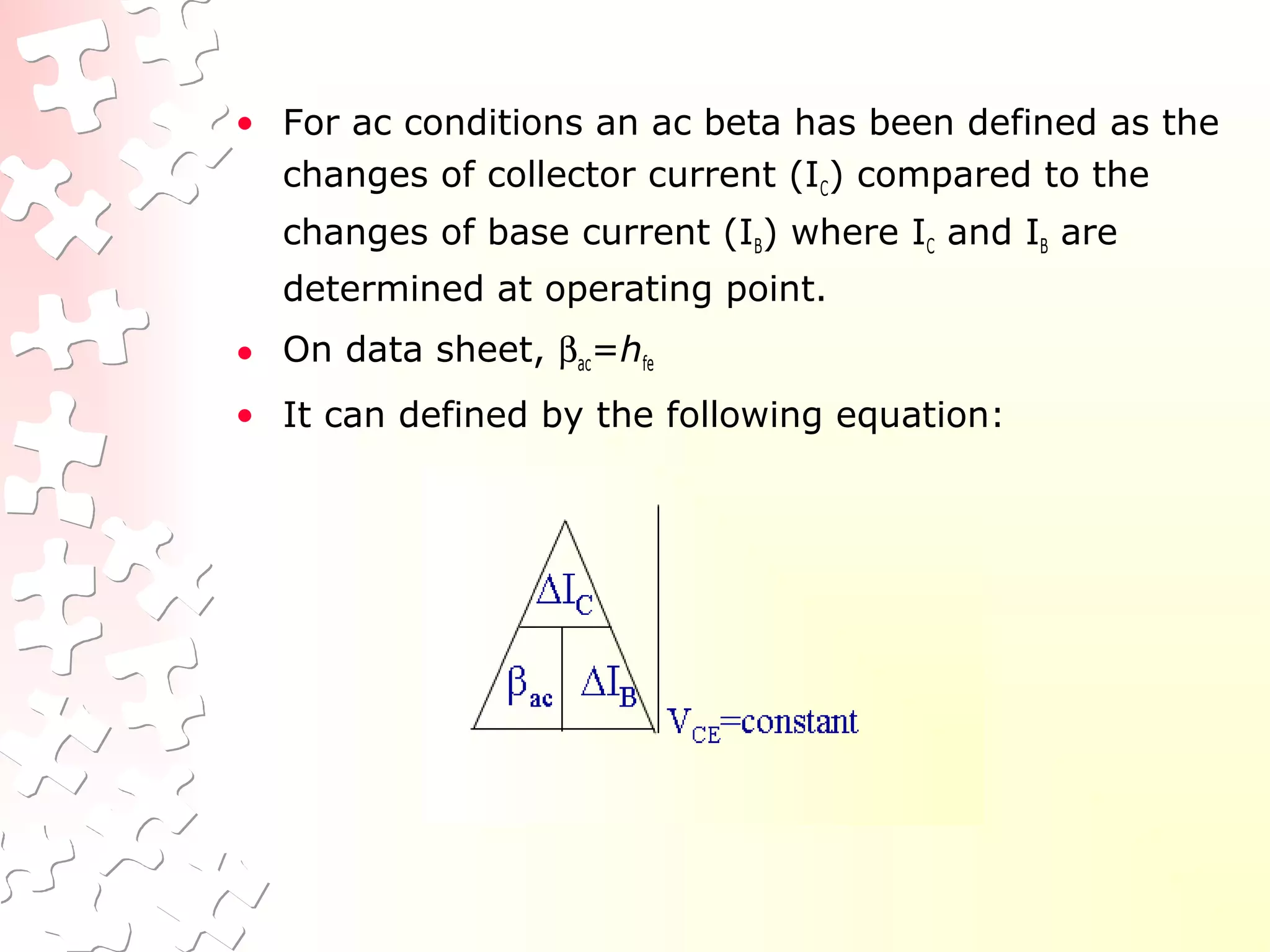

• For ac conditions an ac beta has been defined as the
changes of collector current (IC) compared to the
changes of base current (IB) where IC and IB are
determined at operating point.
• On data sheet, βac=hfe
• It can defined by the following equation:

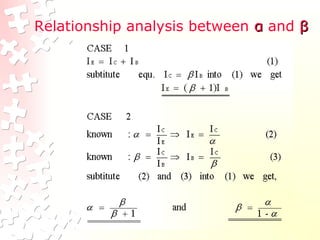

Relationship analysis between αα and ββ

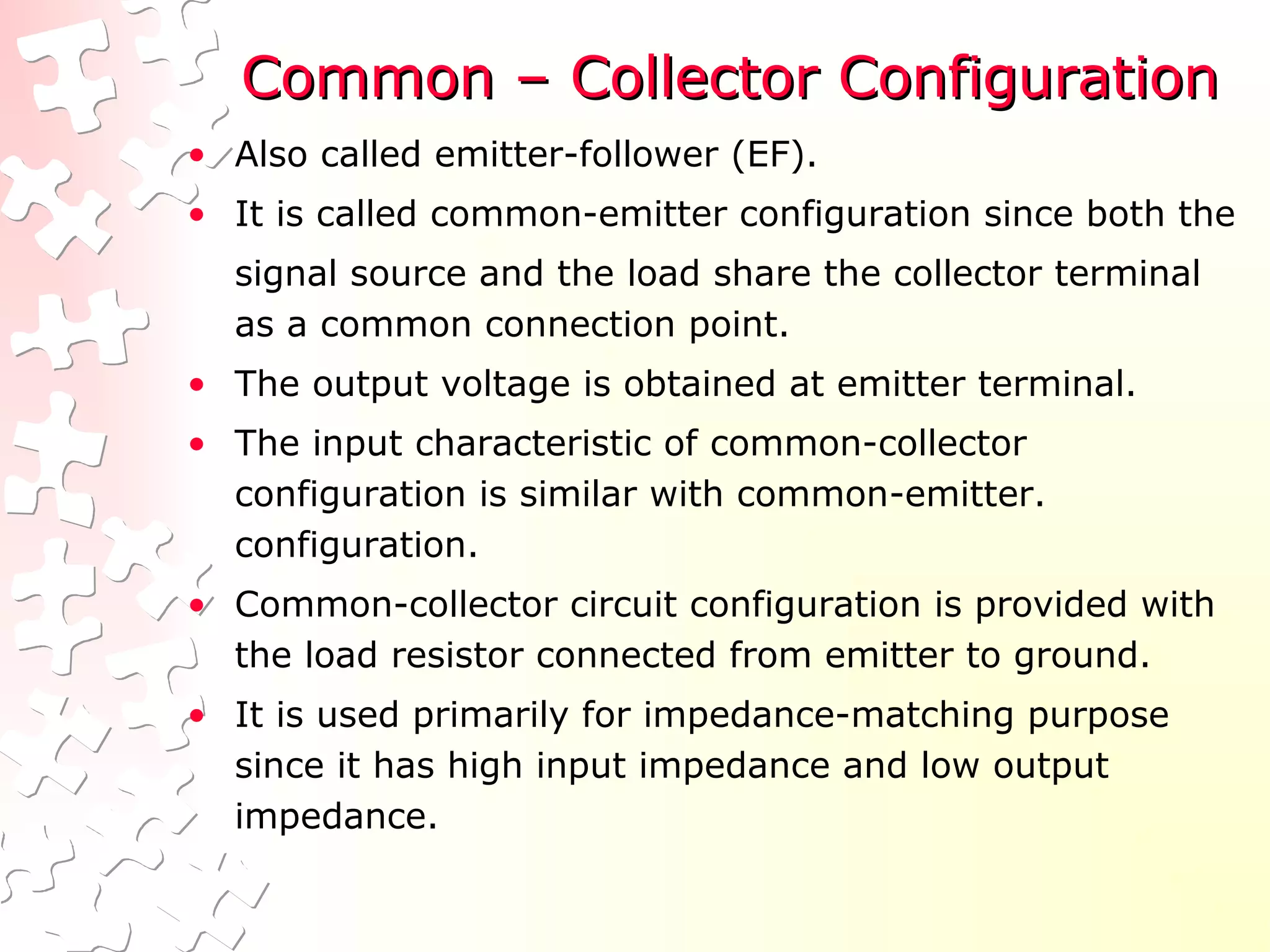

Common – Collector ConfigurationCommon – Collector Configuration
• Also called emitter-follower (EF).
• It is called common-emitter configuration since both the
signal source and the load share the collector terminal
as a common connection point.
• The output voltage is obtained at emitter terminal.
• The input characteristic of common-collector
configuration is similar with common-emitter.
configuration.
• Common-collector circuit configuration is provided with
the load resistor connected from emitter to ground.
• It is used primarily for impedance-matching purpose
since it has high input impedance and low output
impedance.

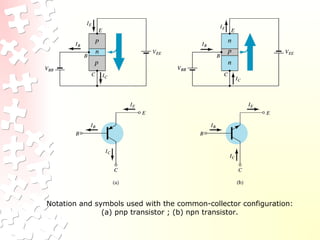

Notation and symbols used with the common-collector configuration:
(a) pnp transistor ; (b) npn transistor.

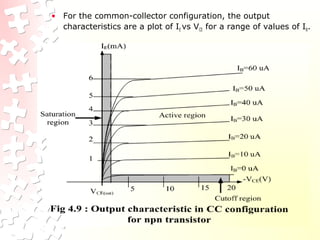

• For the common-collector configuration, the output
characteristics are a plot of IE vs VCE for a range of values of IB.

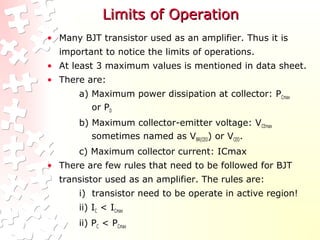

Limits of OperationLimits of Operation
• Many BJT transistor used as an amplifier. Thus it is
important to notice the limits of operations.
• At least 3 maximum values is mentioned in data sheet.
• There are:
a) Maximum power dissipation at collector: PCmax
or PD
b) Maximum collector-emitter voltage: VCEmax
sometimes named as VBR(CEO) or VCEO.
c) Maximum collector current: ICmax
• There are few rules that need to be followed for BJT
transistor used as an amplifier. The rules are:
i) transistor need to be operate in active region!
ii) IC < ICmax
ii) PC < PCmax

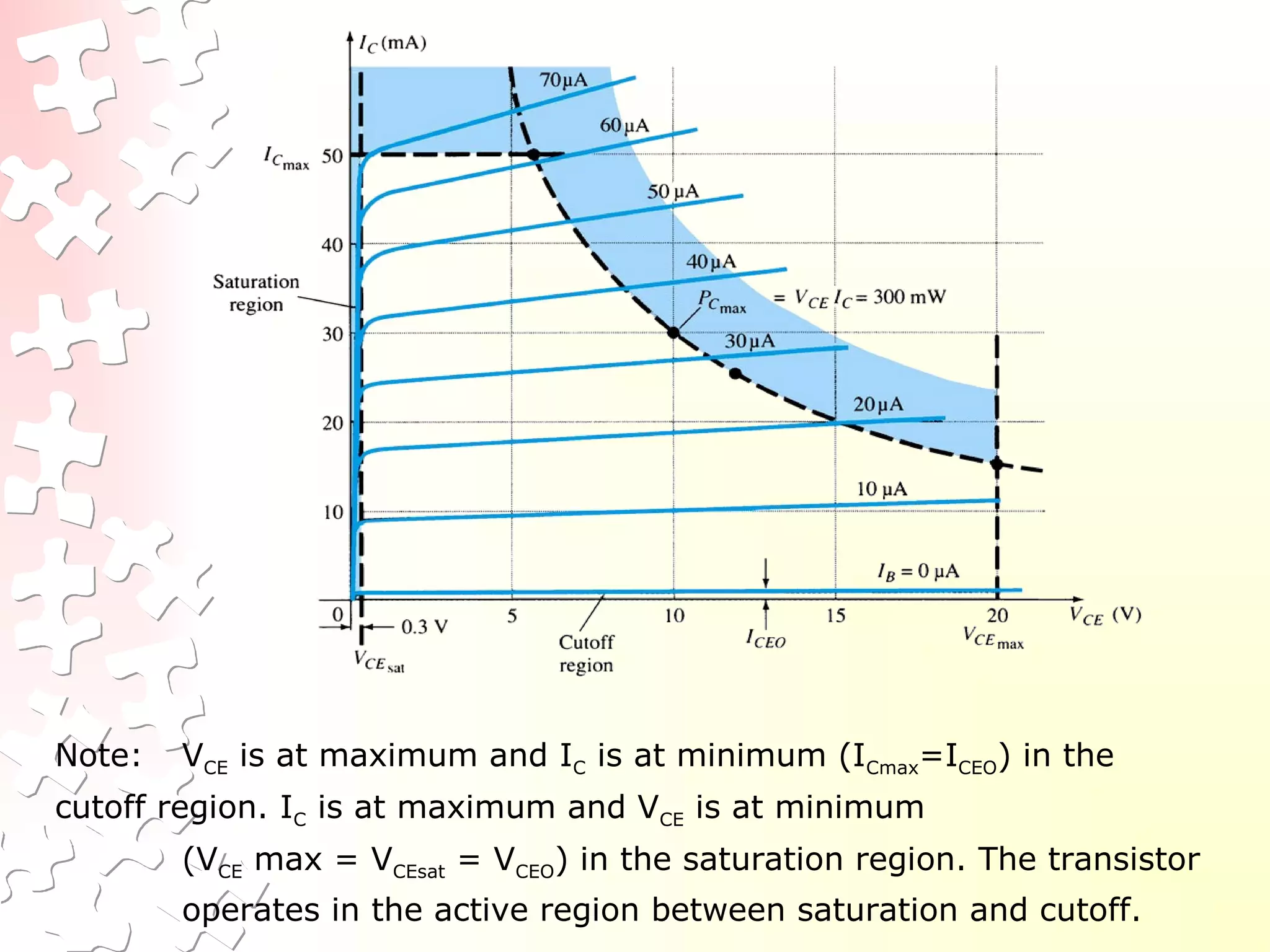

Note: VCE is at maximum and IC is at minimum (ICmax=ICEO) in the
cutoff region. IC is at maximum and VCE is at minimum
(VCE max = VCEsat = VCEO) in the saturation region. The transistor
operates in the active region between saturation and cutoff.

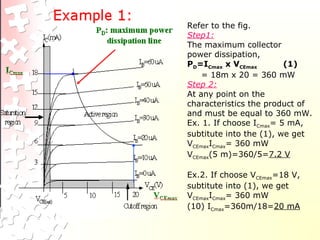

Refer to the fig.
Step1:
The maximum collector
power dissipation,
PD=ICmax x VCEmax (1)
= 18m x 20 = 360 mW
Step 2:
At any point on the
characteristics the product of
and must be equal to 360 mW.
Ex. 1. If choose ICmax= 5 mA,
subtitute into the (1), we get
VCEmaxICmax= 360 mW
VCEmax(5 m)=360/5=7.2 V
Ex.2. If choose VCEmax=18 V,
subtitute into (1), we get
VCEmaxICmax= 360 mW
(10) ICmax=360m/18=20 mA

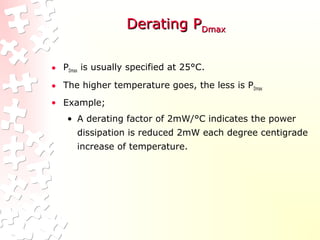

Derating PDerating PDmaxDmax
• PDmax is usually specified at 25°C.
• The higher temperature goes, the less is PDmax
• Example;
• A derating factor of 2mW/°C indicates the power
dissipation is reduced 2mW each degree centigrade
increase of temperature.
Transistor Specification SheetTransistor Specification Sheet

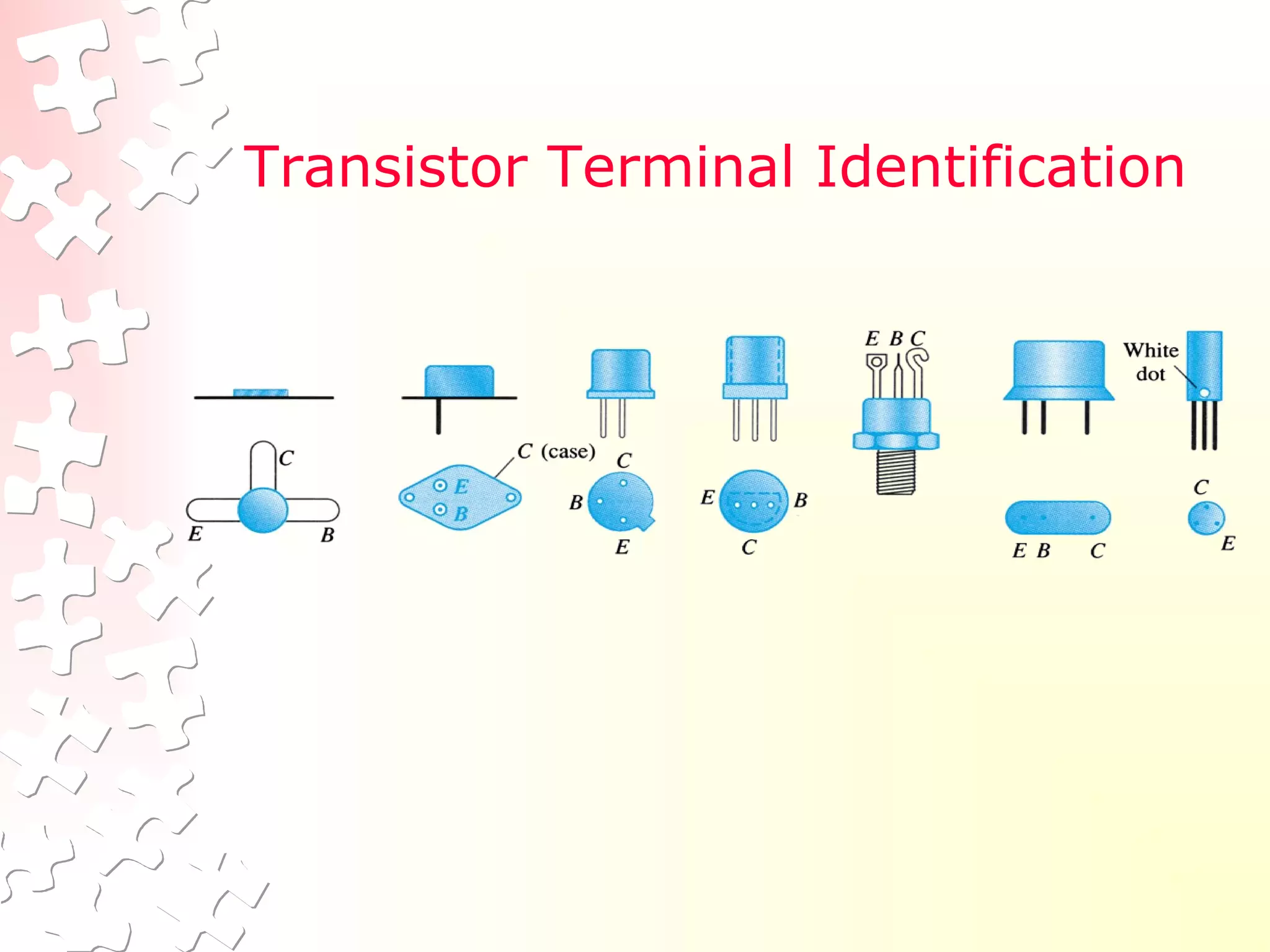

Transistor Terminal Identification

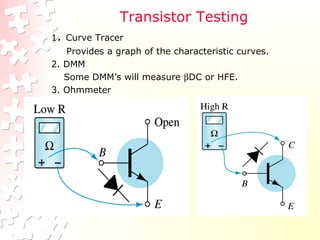

Transistor Testing
1. Curve Tracer
Provides a graph of the characteristic curves.
2. DMM
Some DMM’s will measure βDC or HFE.
3. Ohmmeter
Thank YouThank You

More Related Content

What's hot

differential amplifier for electronic
differential amplifier for electronicdifferential amplifier for electronic
differential amplifier for electronic
Faiz Yun

INSULATED GATE BIPOLAR JUNCTION TRANSISTOR-IGBT
INSULATED GATE BIPOLAR JUNCTION TRANSISTOR-IGBTINSULATED GATE BIPOLAR JUNCTION TRANSISTOR-IGBT
INSULATED GATE BIPOLAR JUNCTION TRANSISTOR-IGBT
arulbarathi kandhi


What's hot (20)

Ic voltage regulators
Ic voltage regulatorsIc voltage regulators
Ic voltage regulators

differential amplifier for electronic
differential amplifier for electronicdifferential amplifier for electronic
differential amplifier for electronic

4 Current Mirrors 2022.pptx
4 Current Mirrors 2022.pptx4 Current Mirrors 2022.pptx
4 Current Mirrors 2022.pptx

Multistage amplifier
Multistage amplifierMultistage amplifier
Multistage amplifier

Diode
DiodeDiode
Diode

Transistor history and types
Transistor history and typesTransistor history and types
Transistor history and types

Bipolar Junction Transistor
Bipolar Junction TransistorBipolar Junction Transistor
Bipolar Junction Transistor

POWER ELECTRONICS
POWER ELECTRONICSPOWER ELECTRONICS
POWER ELECTRONICS

Transistor
Transistor Transistor
Transistor

INSULATED GATE BIPOLAR JUNCTION TRANSISTOR-IGBT
INSULATED GATE BIPOLAR JUNCTION TRANSISTOR-IGBTINSULATED GATE BIPOLAR JUNCTION TRANSISTOR-IGBT
INSULATED GATE BIPOLAR JUNCTION TRANSISTOR-IGBT

Diode circuits
Diode circuitsDiode circuits
Diode circuits

Rectifier and Filter circuits (chapter14)
Rectifier and Filter circuits (chapter14)Rectifier and Filter circuits (chapter14)
Rectifier and Filter circuits (chapter14)

P n junction characteristics
P n junction characteristicsP n junction characteristics
P n junction characteristics

Differential amplifier
Differential amplifierDifferential amplifier
Differential amplifier

Bipolar Junction Transistor (BJT).pptx
Bipolar Junction Transistor (BJT).pptxBipolar Junction Transistor (BJT).pptx
Bipolar Junction Transistor (BJT).pptx

Types of transistors
Types of transistorsTypes of transistors
Types of transistors

Diode Applications & Transistor Basics
Diode Applications & Transistor BasicsDiode Applications & Transistor Basics
Diode Applications & Transistor Basics

Buck-Boost Converter
Buck-Boost ConverterBuck-Boost Converter
Buck-Boost Converter

Field Effect Biasing - Part 1
Field Effect Biasing - Part 1Field Effect Biasing - Part 1
Field Effect Biasing - Part 1

MOSFET AND JFET
MOSFET AND JFETMOSFET AND JFET
MOSFET AND JFET


Viewers also liked

Transformer Failure Due to Circuit Breaker Induced Switching Transients
Transformer Failure Due to Circuit Breaker Induced Switching TransientsTransformer Failure Due to Circuit Breaker Induced Switching Transients
Transformer Failure Due to Circuit Breaker Induced Switching Transients
michaeljmack


Viewers also liked (20)

Alido5
Alido5Alido5
Alido5

History of microprocessors
History of microprocessorsHistory of microprocessors
History of microprocessors

Spaser Amplifier for Small Signal Detection for Raman Scattering Measurements...
Spaser Amplifier for Small Signal Detection for Raman Scattering Measurements...Spaser Amplifier for Small Signal Detection for Raman Scattering Measurements...
Spaser Amplifier for Small Signal Detection for Raman Scattering Measurements...

PUT (industrial electronic)
PUT (industrial electronic)PUT (industrial electronic)
PUT (industrial electronic)

Sjh5 pt (1)
Sjh5 pt (1)Sjh5 pt (1)
Sjh5 pt (1)

What are and how are PNP NPN Transistor materials are made ?
What are and how are PNP NPN  Transistor materials  are made ?What are and how are PNP NPN  Transistor materials  are made ?
What are and how are PNP NPN Transistor materials are made ?

Microprocessor Fundamentals
Microprocessor FundamentalsMicroprocessor Fundamentals
Microprocessor Fundamentals

Bipolar Transistor Operation
Bipolar Transistor OperationBipolar Transistor Operation
Bipolar Transistor Operation

General: Power Quality Presentation
General: Power Quality PresentationGeneral: Power Quality Presentation
General: Power Quality Presentation

Chapter 2: Microprocessors
Chapter 2: MicroprocessorsChapter 2: Microprocessors
Chapter 2: Microprocessors

Ujt relaxation oscillators
Ujt relaxation oscillatorsUjt relaxation oscillators
Ujt relaxation oscillators

Bio-polar junction transistor (edc)
Bio-polar junction transistor  (edc)Bio-polar junction transistor  (edc)
Bio-polar junction transistor (edc)

Transformer Failure Due to Circuit Breaker Induced Switching Transients
Transformer Failure Due to Circuit Breaker Induced Switching TransientsTransformer Failure Due to Circuit Breaker Induced Switching Transients
Transformer Failure Due to Circuit Breaker Induced Switching Transients

Transformer
TransformerTransformer
Transformer

CE, CB, CC AMPLIFIERS
 CE, CB, CC AMPLIFIERS CE, CB, CC AMPLIFIERS
CE, CB, CC AMPLIFIERS

History of intel microprocessors ppt
History of intel microprocessors pptHistory of intel microprocessors ppt
History of intel microprocessors ppt

Generator basic concepts
Generator basic conceptsGenerator basic concepts
Generator basic concepts

TTL(Transistor Transistor Logic)
TTL(Transistor Transistor Logic)TTL(Transistor Transistor Logic)
TTL(Transistor Transistor Logic)

Evolution Of Microprocessor
Evolution Of MicroprocessorEvolution Of Microprocessor
Evolution Of Microprocessor

Logic families
Logic familiesLogic families
Logic families


Similar to Transistor Fundamentals

3.bipolar junction transistor (bjt)
3.bipolar junction transistor (bjt)3.bipolar junction transistor (bjt)
3.bipolar junction transistor (bjt)
firozamin

Transistor
TransistorTransistor
Transistor
Touqeer Jumani

Lecture UGYTYDRTYUBHYUJHBIUBH 10_BJT 1.pdf
Lecture UGYTYDRTYUBHYUJHBIUBH 10_BJT 1.pdfLecture UGYTYDRTYUBHYUJHBIUBH 10_BJT 1.pdf
Lecture UGYTYDRTYUBHYUJHBIUBH 10_BJT 1.pdf
premranjanv784

prestationonbipolarjunciontransistor-151128084200-lva1-app6891.pptx
prestationonbipolarjunciontransistor-151128084200-lva1-app6891.pptxprestationonbipolarjunciontransistor-151128084200-lva1-app6891.pptx
prestationonbipolarjunciontransistor-151128084200-lva1-app6891.pptx
ShruthiShillu1

Bipolar junction transisitors.ppt
Bipolar junction transisitors.pptBipolar junction transisitors.ppt
Bipolar junction transisitors.ppt
saba145


Similar to Transistor Fundamentals (20)

BJT.....pdf
BJT.....pdfBJT.....pdf
BJT.....pdf

3.bipolar junction transistor (bjt)
3.bipolar junction transistor (bjt)3.bipolar junction transistor (bjt)
3.bipolar junction transistor (bjt)

bjt1.ppt
bjt1.pptbjt1.ppt
bjt1.ppt

Bipolar Transistor
Bipolar TransistorBipolar Transistor
Bipolar Transistor

Bjt
BjtBjt
Bjt

bjt1.ppt
bjt1.pptbjt1.ppt
bjt1.ppt

bjt1.ppt
bjt1.pptbjt1.ppt
bjt1.ppt

BJT.ppt
BJT.pptBJT.ppt
BJT.ppt

Chapter 4 bjt
Chapter 4 bjtChapter 4 bjt
Chapter 4 bjt

Bjt(common base ,emitter,collector) from university of central punjab
Bjt(common base ,emitter,collector) from university of central punjabBjt(common base ,emitter,collector) from university of central punjab
Bjt(common base ,emitter,collector) from university of central punjab

BJT Basic and Biasing-Abridged(1).pptx
BJT Basic and Biasing-Abridged(1).pptxBJT Basic and Biasing-Abridged(1).pptx
BJT Basic and Biasing-Abridged(1).pptx

Transistor
TransistorTransistor
Transistor

Lecture UGYTYDRTYUBHYUJHBIUBH 10_BJT 1.pdf
Lecture UGYTYDRTYUBHYUJHBIUBH 10_BJT 1.pdfLecture UGYTYDRTYUBHYUJHBIUBH 10_BJT 1.pdf
Lecture UGYTYDRTYUBHYUJHBIUBH 10_BJT 1.pdf

prestationonbipolarjunciontransistor-151128084200-lva1-app6891.pptx
prestationonbipolarjunciontransistor-151128084200-lva1-app6891.pptxprestationonbipolarjunciontransistor-151128084200-lva1-app6891.pptx
prestationonbipolarjunciontransistor-151128084200-lva1-app6891.pptx

BJT - Bipolar Junction Transistor / Electron Devices
BJT -  Bipolar Junction Transistor /  Electron DevicesBJT -  Bipolar Junction Transistor /  Electron Devices
BJT - Bipolar Junction Transistor / Electron Devices

Unit 2.pdf
Unit 2.pdfUnit 2.pdf
Unit 2.pdf

Module II- Part 01.pptx
Module II- Part 01.pptxModule II- Part 01.pptx
Module II- Part 01.pptx

Presentation on bipolar junction transistor
Presentation on bipolar junction transistorPresentation on bipolar junction transistor
Presentation on bipolar junction transistor

Bipolar junction transisitors.ppt
Bipolar junction transisitors.pptBipolar junction transisitors.ppt
Bipolar junction transisitors.ppt

BJT CB Configuration
BJT CB ConfigurationBJT CB Configuration
BJT CB Configuration


More from Jay Baria

More from Jay Baria (7)

Remote sensing & Radiometers Systems
Remote sensing & Radiometers Systems Remote sensing & Radiometers Systems
Remote sensing & Radiometers Systems

Transmission system used for optical fibers
Transmission system used for optical fibers Transmission system used for optical fibers
Transmission system used for optical fibers

Various types of antenna used for transmitting and receiving
Various types of antenna used for transmitting and receivingVarious types of antenna used for transmitting and receiving
Various types of antenna used for transmitting and receiving

Blu Ray Disc
Blu Ray DiscBlu Ray Disc
Blu Ray Disc

IC 555 timer and its applications
IC 555 timer and its applications IC 555 timer and its applications
IC 555 timer and its applications

Signals & Systems PPT
Signals & Systems PPTSignals & Systems PPT
Signals & Systems PPT

Construction & E.M.F. eqn. of transformer
Construction & E.M.F. eqn. of transformerConstruction & E.M.F. eqn. of transformer
Construction & E.M.F. eqn. of transformer


Recently uploaded

Industrial Training Report- AKTU Industrial Training Report
Industrial Training Report- AKTU Industrial Training ReportIndustrial Training Report- AKTU Industrial Training Report
Industrial Training Report- AKTU Industrial Training Report
Avinash Rai


Recently uploaded (20)

Pragya Champions Chalice 2024 Prelims & Finals Q/A set, General Quiz
Pragya Champions Chalice 2024 Prelims & Finals Q/A set, General QuizPragya Champions Chalice 2024 Prelims & Finals Q/A set, General Quiz
Pragya Champions Chalice 2024 Prelims & Finals Q/A set, General Quiz

2024_Student Session 2_ Set Plan Preparation.pptx
2024_Student Session 2_ Set Plan Preparation.pptx2024_Student Session 2_ Set Plan Preparation.pptx
2024_Student Session 2_ Set Plan Preparation.pptx

How to Break the cycle of negative Thoughts
How to Break the cycle of negative ThoughtsHow to Break the cycle of negative Thoughts
How to Break the cycle of negative Thoughts

How to Manage Notification Preferences in the Odoo 17
How to Manage Notification Preferences in the Odoo 17How to Manage Notification Preferences in the Odoo 17
How to Manage Notification Preferences in the Odoo 17

[GDSC YCCE] Build with AI Online Presentation
[GDSC YCCE] Build with AI Online Presentation[GDSC YCCE] Build with AI Online Presentation
[GDSC YCCE] Build with AI Online Presentation

size separation d pharm 1st year pharmaceutics
size separation d pharm 1st year pharmaceuticssize separation d pharm 1st year pharmaceutics
size separation d pharm 1st year pharmaceutics

NCERT Solutions Power Sharing Class 10 Notes pdf
NCERT Solutions Power Sharing Class 10 Notes pdfNCERT Solutions Power Sharing Class 10 Notes pdf
NCERT Solutions Power Sharing Class 10 Notes pdf

The Last Leaf, a short story by O. Henry
The Last Leaf, a short story by O. HenryThe Last Leaf, a short story by O. Henry
The Last Leaf, a short story by O. Henry

Advances in production technology of Grapes.pdf
Advances in production technology of Grapes.pdfAdvances in production technology of Grapes.pdf
Advances in production technology of Grapes.pdf

Gyanartha SciBizTech Quiz slideshare.pptx
Gyanartha SciBizTech Quiz slideshare.pptxGyanartha SciBizTech Quiz slideshare.pptx
Gyanartha SciBizTech Quiz slideshare.pptx

Introduction to Quality Improvement Essentials
Introduction to Quality Improvement EssentialsIntroduction to Quality Improvement Essentials
Introduction to Quality Improvement Essentials

Instructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptxInstructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptx

How to Split Bills in the Odoo 17 POS Module
How to Split Bills in the Odoo 17 POS ModuleHow to Split Bills in the Odoo 17 POS Module
How to Split Bills in the Odoo 17 POS Module

Basic Civil Engg Notes_Chapter-6_Environment Pollution & Engineering
Basic Civil Engg Notes_Chapter-6_Environment Pollution & EngineeringBasic Civil Engg Notes_Chapter-6_Environment Pollution & Engineering
Basic Civil Engg Notes_Chapter-6_Environment Pollution & Engineering

Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXXPhrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX

MARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptxMARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptx

Sectors of the Indian Economy - Class 10 Study Notes pdf
Sectors of the Indian Economy - Class 10 Study Notes pdfSectors of the Indian Economy - Class 10 Study Notes pdf
Sectors of the Indian Economy - Class 10 Study Notes pdf

Industrial Training Report- AKTU Industrial Training Report
Industrial Training Report- AKTU Industrial Training ReportIndustrial Training Report- AKTU Industrial Training Report
Industrial Training Report- AKTU Industrial Training Report

Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345

INU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdf
INU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdfINU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdf
INU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdf


Transistor Fundamentals

  • 1. Laxmi Institute Of Technology, SarigamLaxmi Institute Of Technology, Sarigam • Presentation On: Transistor Fundamentals • Guided By: ECE Dept. Presented To: Prof. Vipul Patel • Presented By: Name Enrollnment No. Jay Baria 150860111003 Vikas Choudhary 150860111004 Mohammed Khalifa 150860111007 Meet Mehta 150860111009
  • 2. IntroductionIntroduction • The basic of electronic system nowadays is semiconductor device. • The famous and commonly use of this device is BJTs (Bipolar Junction Transistors). • It can be use as amplifier and logic switches. • Transistors consists of three terminal:  collector : C  base : B emitter : E • Two types of Transistors : pnp and npn
  • 3. Types of Transistors • Circuit Symbols There are two types of standard transistors, NPN and PNP, with different circuit symbols. The letters refer to the layers of semiconductor material used to make the transistor. Most transistors used today are NPN because this is the easiest type to make from silicon. If you are new to electronics it is best to start by learning how to use NPN transistors. The leads are labeled base (B), collector (C) and emitter (E).
  • 4. Who Invented the Transistor? • In the mid 1940’s a team of scientists working for Bell Telephone Labs in Murray Hill, New Jersey, were working to discover a device to replace the then present vacuum tube technology. Vacuum tubes were the only technology available at the time to amplify signals or serve as switching devices in electronics. The problem was that they were expensive, consumed a lot of power, gave off too much heat, and were unreliable, causing a great deal of maintenance.
  • 5. Transistors……. • A Transistor is an semiconductor which is a fundamental component in almost all electronic devices. Transistors are often said to be the most significant invention of the 20th Century. Transistors have many uses including switching, voltage/current regulation, and amplification - all of which are useful in renewable energy applications. • The transistor is one of the most important component used in electronics, even integrated circuits have many thousands of them within it. Many electronic products and their circuits rely on sensors in order to function, most sensors provide only a very small output current or voltage, it is necessary to amplify this current or voltage
  • 6. Transistor ConstructionTransistor Construction • 3 layer semiconductor device consisting: • 2 n- and 1 p-type layers of material  npn transistor • 2 p- and 1 n-type layers of material pnp transistor • The term bipolar reflects the fact that holes and electrons participate in the injection process into the oppositely polarized material • A single pn junction has two different types of bias: • forward bias • reverse bias • Thus, a two-pn-junction device has four types of bias.
  • 7. Position of the terminals and symbol of transistor. • Base is located at the middle and more thin from the level of collector and emitter • The emitter and collector terminals are made of the same type of semiconductor material, while the base of the other type of material • Base is located at the middle and more thin from the level of collector and emitter • The emitter and collector terminals are made of the same type of semiconductor material, while the base of the other type of material
  • 8. Transistor currents -The arrow is always drawn on the emitter -The arrow always point toward the n-type -The arrow indicates the direction of the emitter current: pnp:E B npn: B E IC=the collector current IB= the base current IE= the emitter current
  • 9. • By imaging the analogy of diode, transistor can be construct like two diodes that connetecd together. • It can be conclude that the work of transistor is base on work of diode.
  • 10. Transistor OperationTransistor Operation • The basic operation will be described using the pnp transistor. The operation of the pnp transistor is exactly the same if the roles played by the electron and hole are interchanged. • One p-n junction of a transistor is reverse-biased, whereas the other is forward-biased. Forward-biased junction of a pnp transistor Reverse-biased junction of a pnp transistor
  • 11. • Both biasing potentials have been applied to a pnp transistor and resulting majority and minority carrier flows indicated. • Majority carriers (+) will diffuse across the forward- biased p-n junction into the n-type material. • A very small number of carriers (+) will through n-type material to the base terminal. Resulting IB is typically in order of microamperes. • The large number of majority carriers will diffuse across the reverse-biased junction into the p-type material connected to the collector terminal.
  • 12. • Majority carriers can cross the reverse-biased junction because the injected majority carriers will appear as minority carriers in the n-type material. • Applying KCL to the transistor : IE = IC + IB • The comprises of two components – the majority and minority carriers IC = ICmajority + ICOminority • ICO – IC current with emitter terminal open and is called leakage current.
  • 13. Common-Base ConfigurationCommon-Base Configuration • Common-base terminology is derived from the fact that the : - base is common to both input and output of the configuration. - base is usually the terminal closest to or at ground potential. • All current directions will refer to conventional (hole) flow and the arrows in all electronic symbols have a direction defined by this convention. • Note that the applied biasing (voltage sources) are such as to establish current in the direction indicated for each branch.
  • 14.
  • 15. • To describe the behavior of common-base amplifiers requires two set of characteristics: - Input or driving point characteristics. - Output or collector characteristics • The output characteristics has 3 basic regions: - Active region –defined by the biasing arrangements - Cutoff region – region where the collector current is 0A - Saturation region- region of the characteristics to the left of VCB = 0V
  • 16.
  • 17. • The curves (output characteristics) clearly indicate that a first approximation to the relationship between IE and IC in the active region is given by IC ≈IE • Once a transistor is in the ‘on’ state, the base-emitter voltage will be assumed to be VBE = 0.7V
  • 18. • In the dc mode the level of IC and IE due to the majority carriers are related by a quantity called alpha α= IC = αIE + ICBO • It can then be summarize to IC = αIE (ignore ICBO due to small value) • For ac situations where the point of operation moves on the characteristics curve, an ac alpha defined by • Alpha a common base current gain factorcommon base current gain factor that shows the efficiency by calculating the current percent from current flow from emitter to collector.The value of α is typical from 0.9 ~ 0.998. E C I I E C I I ∆ ∆ =α
  • 19. BiasingBiasing • Proper biasing CB configuration in active region by approximation IC ≈ IE (IB ≈ 0 uA)
  • 20. Transistor as an amplifierTransistor as an amplifier
  • 21. Simulation of transistor as anSimulation of transistor as an amplifieramplifier
  • 22. Common-Emitter ConfigurationCommon-Emitter Configuration • It is called common-emitter configuration since : - emitter is common or reference to both input and output terminals. - emitter is usually the terminal closest to or at ground potential. • Almost amplifier design is using connection of CE duedue to the high gain for current and voltageto the high gain for current and voltage. • Two set of characteristics are necessary to describe the behavior for CE ;input (base terminal) and output (collector terminal) parameters.
  • 23. Proper Biasing common-emitter configuration in active region
  • 24. Input characteristics for a common-emitter NPN transistorcommon-emitter NPN transistor • IB is microamperes compared to miliamperes of IC. • IB will flow when VBE > 0.7V for silicon and 0.3V for germanium • Before this value IB is very small and no IB. • Base-emitter junction is forward bias • Increasing VCE will reduce IB for different values.
  • 25. Output characteristics for a common-emitter npn transistor • For small VCE (VCE < VCESAT, IC increase linearly with increasing of VCE • VCE > VCESAT IC not totally depends on VCE  constant IC • IB(uA) is very small compare to IC (mA). Small increase in IB cause big increase in IC • IB=0 A  ICEO occur. • Noticing the value when IC=0A. There is still some value of
  • 26.
  • 27. Beta (β) or amplification factoramplification factor • The ratio of dc collector current (IC) to the dc base current (IB) is dc beta (βdc ) which is dc current gain where IC and IB are determined at a particular operating point, Q-point (quiescent point). • It’s define by the following equation: 30 < βdc < 300  2N3904 • On data sheet, ββdcdc==hhFEFE with hh is derived from ac hybrid equivalent cct. FE are derived from forward-current amplification and common-emitter configuration respectively.
  • 28. • For ac conditions an ac beta has been defined as the changes of collector current (IC) compared to the changes of base current (IB) where IC and IB are determined at operating point. • On data sheet, βac=hfe • It can defined by the following equation:
  • 29.
  • 31. Common – Collector ConfigurationCommon – Collector Configuration • Also called emitter-follower (EF). • It is called common-emitter configuration since both the signal source and the load share the collector terminal as a common connection point. • The output voltage is obtained at emitter terminal. • The input characteristic of common-collector configuration is similar with common-emitter. configuration. • Common-collector circuit configuration is provided with the load resistor connected from emitter to ground. • It is used primarily for impedance-matching purpose since it has high input impedance and low output impedance.
  • 32. Notation and symbols used with the common-collector configuration: (a) pnp transistor ; (b) npn transistor.
  • 33. • For the common-collector configuration, the output characteristics are a plot of IE vs VCE for a range of values of IB.
  • 34. Limits of OperationLimits of Operation • Many BJT transistor used as an amplifier. Thus it is important to notice the limits of operations. • At least 3 maximum values is mentioned in data sheet. • There are: a) Maximum power dissipation at collector: PCmax or PD b) Maximum collector-emitter voltage: VCEmax sometimes named as VBR(CEO) or VCEO. c) Maximum collector current: ICmax • There are few rules that need to be followed for BJT transistor used as an amplifier. The rules are: i) transistor need to be operate in active region! ii) IC < ICmax ii) PC < PCmax
  • 35. Note: VCE is at maximum and IC is at minimum (ICmax=ICEO) in the cutoff region. IC is at maximum and VCE is at minimum (VCE max = VCEsat = VCEO) in the saturation region. The transistor operates in the active region between saturation and cutoff.
  • 36. Refer to the fig. Step1: The maximum collector power dissipation, PD=ICmax x VCEmax (1) = 18m x 20 = 360 mW Step 2: At any point on the characteristics the product of and must be equal to 360 mW. Ex. 1. If choose ICmax= 5 mA, subtitute into the (1), we get VCEmaxICmax= 360 mW VCEmax(5 m)=360/5=7.2 V Ex.2. If choose VCEmax=18 V, subtitute into (1), we get VCEmaxICmax= 360 mW (10) ICmax=360m/18=20 mA
  • 37. Derating PDerating PDmaxDmax • PDmax is usually specified at 25°C. • The higher temperature goes, the less is PDmax • Example; • A derating factor of 2mW/°C indicates the power dissipation is reduced 2mW each degree centigrade increase of temperature.
  • 40. Transistor Testing 1. Curve Tracer Provides a graph of the characteristic curves. 2. DMM Some DMM’s will measure βDC or HFE. 3. Ohmmeter
