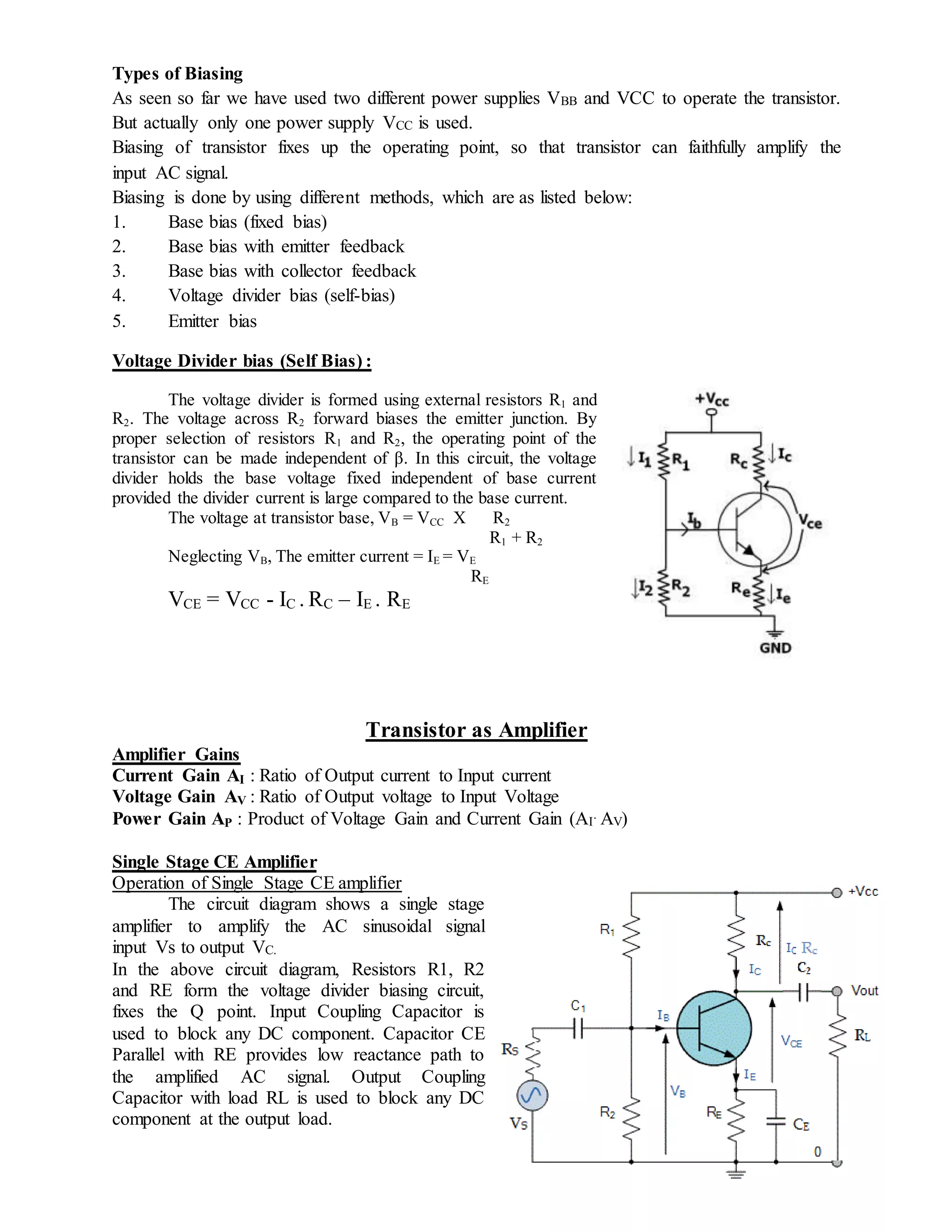

1. Types of Biasing
As seen so far we have used two different power supplies VBB and VCC to operate the transistor.
But actually only one power supply VCC is used.
Biasing of transistor fixes up the operating point, so that transistor can faithfully amplify the
input AC signal.
Biasing is done by using different methods, which are as listed below:
1. Base bias (fixed bias)
2. Base bias with emitter feedback
3. Base bias with collector feedback
4. Voltage divider bias (self-bias)
5. Emitter bias
Voltage Divider bias (Self Bias) :
The voltage divider is formed using external resistors R1 and
R2. The voltage across R2 forward biases the emitter junction. By
proper selection of resistors R1 and R2, the operating point of the
transistor can be made independent of β. In this circuit, the voltage
divider holds the base voltage fixed independent of base current
provided the divider current is large compared to the base current.
The voltage at transistor base, VB = VCC X R2
R1 + R2
Neglecting VB, The emitter current = IE = VE
RE
VCE = VCC - IC . RC – IE . RE
Transistor as Amplifier
Amplifier Gains
Current Gain AI : Ratio of Output current to Input current
Voltage Gain AV : Ratio of Output voltage to Input Voltage
Power Gain AP : Product of Voltage Gain and Current Gain (AI
. AV)
Single Stage CE Amplifier
Operation of Single Stage CE amplifier
The circuit diagram shows a single stage
amplifier to amplify the AC sinusoidal signal
input Vs to output VC.
In the above circuit diagram, Resistors R1, R2
and RE form the voltage divider biasing circuit,
fixes the Q point. Input Coupling Capacitor is
used to block any DC component. Capacitor CE
Parallel with RE provides low reactance path to
the amplified AC signal. Output Coupling
Capacitor with load RL is used to block any DC
component at the output load.

2. Consider +ve half cycle of sinusoidal signal as input. Collector current IC is  times IB .
As voltage increases, IC increases. Increase in IC increases drop across RC . Since VC = VCC - IC
. RC , VC decreases; hence for +ve half cycle, the output is –ve half cycle.This shows 180o phase
shifted waveform at the output of the transistor amplifier. This is called phase reversal.
Graphical Representation of Signals
Frequency Response
Frequency Response curve of the amplifier is a plot of voltage gain against the frequency of
input signal.The amplifier provides the same amplification for few frequency range which is as
shown below.
Bandwidth :The range of frequency over which the voltage gain of the amplifier is equal to or
greater than 70.7% of the maximum is known as 3db bandwidth of an amplifier.
Bandwidth = f2 – f1 .
Draw a line at 0.707 AVM , the points at which the line cuts the curve gives two frequencies.
Frequency response of Single stage Amplifier is as given below.
Cascading Amplifier
Connecting output of 1st stage as the input of the 2nd stage is called Cascading.
Need:

3.  Amplification of single stage is not sufficient.
 Output or input impedance is not of required values.
 This is done to get required voltage, current and power gain.
Types of Coupling
To cascade two stages of an amplifier, Coupling circuits are used.
Purpose:
 Transfers the AC output of one stage to the input of the next stage.
 Isolates the DC parameters of two consecutive stages.
Types :
1. RC coupling
2. Transformer Coupling
3. Direct Coupling
1. Two stage RC coupled CE Amplifier
Here, Voltage divider biasing circuit is used for each stage for stabilisation. Capacitors at
Emitter provides low reactance path. Capacitor CC provides DC isolation between the stages.
Frequency Response
Advantages :
 Most convenient and least expensive multistage amplifier
RC Coupling

4.  Shows wide frequency response
 Provides less frequency distortion
Disadvantages
 Provides less voltage gain due to loading effect.
 Has poor impedance matching
Applications
 Used in audio amplifiers
 Used in public address systems
2. Transformer coupled CE Amplifier
 Primary winding of transformer is connected in the collector circuit of one stage, as
collector load. Secondary winding is connected to the base of the next stage.
 Thus the AC signal developed across the primary winding induces the AC signal in the
secondary winding which couples this AC signal to the base of the next stage.
 The DC isolation is provided by the transformer.
Frequency Response
Advantages :
 No signal power loss in the collector or base resistor, because of low winding resistance
of transformer
 Provides higher voltage gain than RC coupled
 Provides excellent resistance matching between stages.
Disadvantages

5.  The coupling transformer is expensive and bulky, when operated at audio frequencies
 Poor frequency response
 At RF, produces reverse frequency distortion
 Produces ‘hum’ in the circuit
Applications
 Used for impedance matching
 Used as a voltage amplifier and generally used in the last stage of amplifier
 Used in amplification of radio frequency signals
3. Direct Coupled Amplifier
Here, The two stages are connected directly. It is also called as DC amplifier and used to amplify
very low frequency. (below 10Hz), including zero frequency or direct current. This is used since
capacitors, transformers cannot be used in very low frequency signals.
Operation: The signal to be amplified is applied directly to the input of the first stage. Due to the
transistor action, it appears in the amplified form across the collector resistor Q1. This voltage
thendrives the base of the second transistor Q2 and the amplified output is obtained across the
collector resistor of Q2.
Frequency Response
Advantages:
 Simple circuit design
 Less expensive
 Amplify very low frequency signals

6.  Excellent frequency response
Disadvantages:
 Cannot Amplify high frequency signals
 Poor thermal stability
 No DC isolation is provided
Applications
 Used in electronic systems that handle signals which change very slowly with time. Some
applications are
 Analog Computations
 Power supply regulators
 Bioelectric measurements
 Linear integrated circuits
Transistor as an Amplifier
Oscillator
Definition: An oscillator is a circuit that provides a constantly, varying amplified output signal of
any desired frequency.
Need:
When waveforms such as sine wave, square, pulse or triangular with specified frequency and
amplitude is to be used in electronic systems.
Range of frequency of oscillations
Audio Frequency (AF) Oscillators : 20Hz – 20KHz
Radio Frequency (RF) Oscillators : 20KHz – 30Mhz
Very High Frequency (VHF) Oscillators: 30 -300MHz
Ultra High frequency (UHF) Oscillators: 300MHz – 3GHz
Microwave oscillators:3 – 30GHz.
Feed Back Oscillator
A part of the output is fed back to the input in proper phase and magnitude such that the
effect of feedback increases the input signal. This is called Positive feedback. Feedback
sinusoidal oscillator consists of two essential components: an amplifier and a feedback circuit.
Feedback circuit samples a portion of the output voltage and mixes in phase with the input.
Barkhausen’s criterion
Considering an amplifier with feedback the gain can be defined as
A’v = Av
1 -  . Av
Where,
Av = Gain of an amplifier without feedback. Av = loop gain
If  . Av =1,
Hence the first condition.
The second condition states that phase of the loop gain should be zero or multiples of 360o.
These two conditions are called Barkhausen’s criterion.

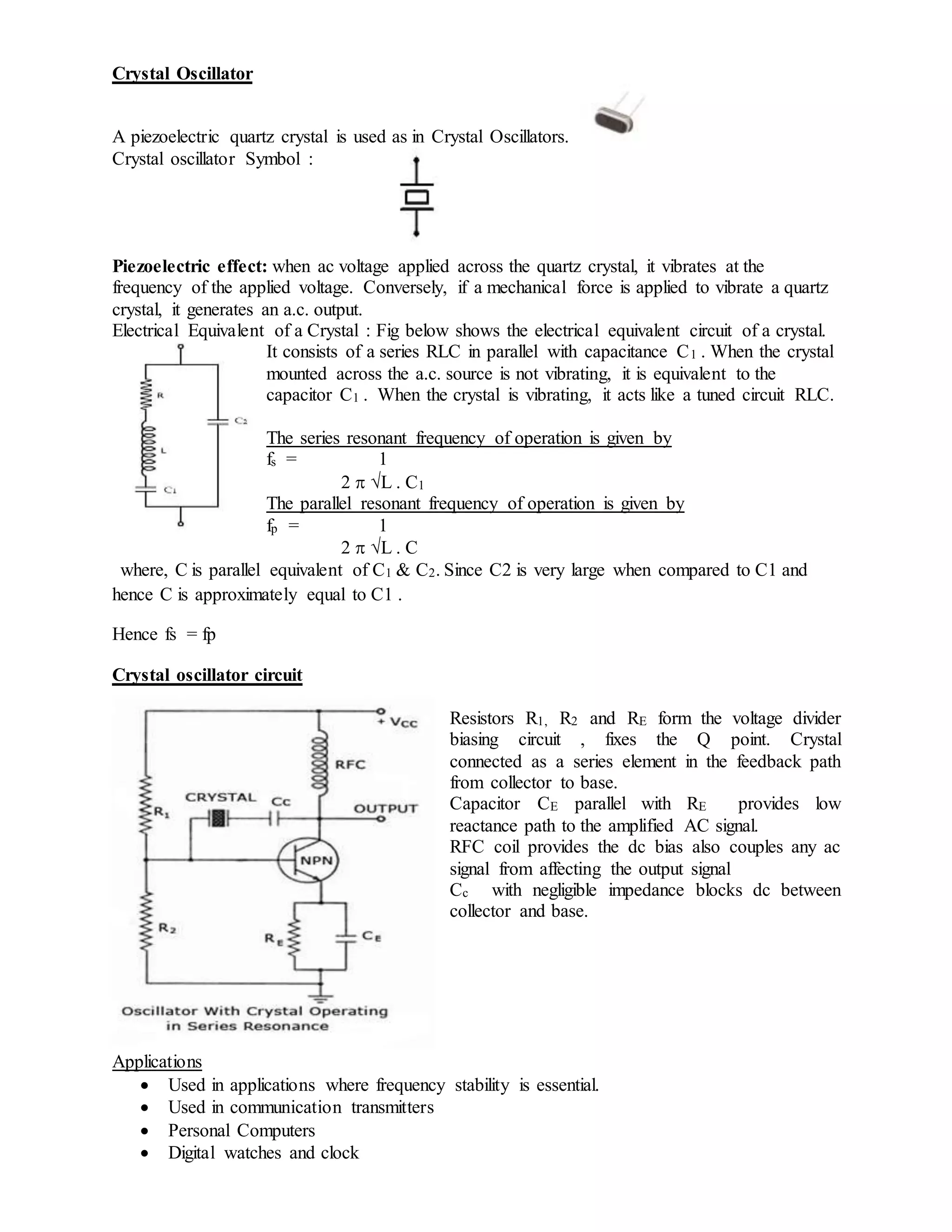

7. Crystal Oscillator
A piezoelectric quartz crystal is used as in Crystal Oscillators.
Crystal oscillator Symbol :
Piezoelectric effect: when ac voltage applied across the quartz crystal, it vibrates at the
frequency of the applied voltage. Conversely, if a mechanical force is applied to vibrate a quartz
crystal, it generates an a.c. output.
Electrical Equivalent of a Crystal : Fig below shows the electrical equivalent circuit of a crystal.
It consists of a series RLC in parallel with capacitance C1 . When the crystal
mounted across the a.c. source is not vibrating, it is equivalent to the
capacitor C1 . When the crystal is vibrating, it acts like a tuned circuit RLC.
The series resonant frequency of operation is given by
fs = 1
2  L . C1
The parallel resonant frequency of operation is given by
fp = 1
2  L . C
where, C is parallel equivalent of C1 & C2. Since C2 is very large when compared to C1 and
hence C is approximately equal to C1 .
Hence fs = fp
Crystal oscillator circuit
Resistors R1, R2 and RE form the voltage divider
biasing circuit , fixes the Q point. Crystal
connected as a series element in the feedback path
from collector to base.
Capacitor CE parallel with RE provides low
reactance path to the amplified AC signal.
RFC coil provides the dc bias also couples any ac
signal from affecting the output signal
Cc with negligible impedance blocks dc between
collector and base.
Applications
 Used in applications where frequency stability is essential.
 Used in communication transmitters
 Personal Computers
 Digital watches and clock
