1. Supporting Time-Sensitive
Applications on a Commodity OS
Ashvin Goel, Luca Abeni, Charles Krasic, Jim Snow
and Jonathan Walpole
Presenter : Namhyuk Ahn

2. Real-Time and Time-Sensitive Applications
§ Real-Time system
• Must meet an exact (or very nearly) deadline
• Failure to meet deadline means system failures
• e.g. space shuttle, air craft..
§ Time-sensitive applications
• Applications with real-time requirements
• e.g. media player
Distributed Shared Memory: Concepts and Systems 2

3. Motivation
§ Needs of time-sensitive application on commodity OS increase
§ However,
§ Most commodity OS aim to maximize system throughput
• These don’t consider real-time nor time-sensitive applications
§ Most real-time OS focus on hard real-time scenario
• System throughput is decreased and limited
§ Solution: General-purpose OS should offer both properties
• Time Sensitive Linux (TS-Linux)
Distributed Shared Memory: Concepts and Systems 3

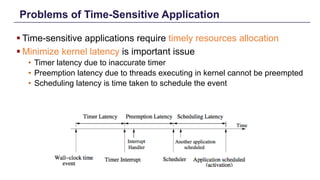

4. Problems of Time-Sensitive Application
§ Time-sensitive applications require timely resources allocation
§ Minimize kernel latency is important issue
• Timer latency due to inaccurate timer
• Preemption latency due to threads executing in kernel cannot be preempted
• Scheduling latency is time taken to schedule the event
Distributed Shared Memory: Concepts and Systems 4

5. Solutions

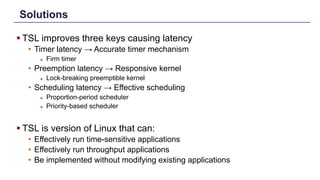

§ TSL improves three keys causing latency
• Timer latency → Accurate timer mechanism
► Firm timer
• Preemption latency → Responsive kernel
► Lock-breaking preemptible kernel
• Scheduling latency → Effective scheduling
► Proportion-period scheduler
► Priority-based scheduler
§ TSL is version of Linux that can:
• Effectively run time-sensitive applications
• Effectively run throughput applications
• Be implemented without modifying existing applications
Distributed Shared Memory: Concepts and Systems 5

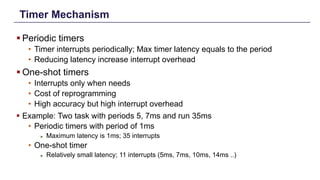

6. Timer Mechanism
§ Periodic timers
• Timer interrupts periodically; Max timer latency equals to the period
• Reducing latency increase interrupt overhead
§ One-shot timers
• Interrupts only when needs
• Cost of reprogramming
• High accuracy but high interrupt overhead
§ Example: Two task with periods 5, 7ms and run 35ms
• Periodic timers with period of 1ms
► Maximum latency is 1ms; 35 interrupts
• One-shot timer
► Relatively small latency; 11 interrupts (5ms, 7ms, 10ms, 14ms ..)
Distributed Shared Memory: Concepts and Systems 6

7. Timer Mechanism

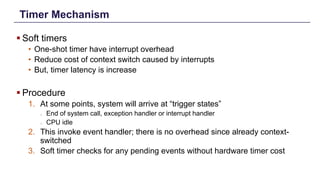

§ Soft timers
• One-shot timer have interrupt overhead
• Reduce cost of context switch caused by interrupts
• But, timer latency is increase
§ Procedure
1. At some points, system will arrive at “trigger states”
o End of system call, exception handler or interrupt handler
o CPU idle
2. This invoke event handler; there is no overhead since already context-
switched
3. Soft timer checks for any pending events without hardware timer cost
Distributed Shared Memory: Concepts and Systems 7

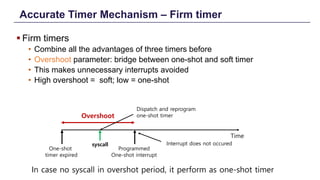

8. Accurate Timer Mechanism – Firm timer
§ Firm timers
• Combine all the advantages of three timers before
• Overshoot parameter: bridge between one-shot and soft timer
• This makes unnecessary interrupts avoided
• High overshoot = soft; low = one-shot
Distributed Shared Memory: Concepts and Systems 8
Time
One-shot
timer expired
Overshoot
syscall
Programmed
One-shot interrupt
Dispatch and reprogram
one-shot timer
Interrupt does not occured
In case no syscall in overshot period, it perform as one-shot timer

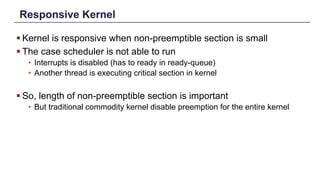

9. Responsive Kernel
§ Kernel is responsive when non-preemptible section is small
§ The case scheduler is not able to run
• Interrupts is disabled (has to ready in ready-queue)
• Another thread is executing critical section in kernel
§ So, length of non-preemptible section is important
• But traditional commodity kernel disable preemption for the entire kernel
Distributed Shared Memory: Concepts and Systems 9

10. Fine-grained Preemptible Kernel
§ Explicit preemption
• Explicit insertion of preemption points inside the kernel
• Kernel explicitly yields CPU to scheduler when meet preemption point
• Has to be manually placed preemption points
§ Anytime preemption
• Allow preemption anytime kernel not manipulating shared data structure
• Shared kernel data must be protected using mutex or spinlock
• High latency when spinlock are held long time
Distributed Shared Memory: Concepts and Systems 10

11. Fine-grained Preemptible Kernel

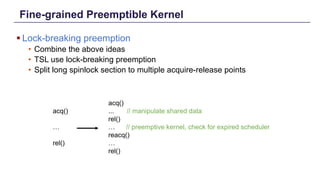

§ Lock-breaking preemption
• Combine the above ideas
• TSL use lock-breaking preemption
• Split long spinlock section to multiple acquire-release points
Distributed Shared Memory: Concepts and Systems 11
acq()
... // manipulate shared data
rel()
… // preemptive kernel, check for expired scheduler
reacq()
…
rel()
acq()
…
rel()

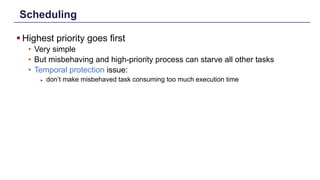

12. Scheduling
§ Highest priority goes first
• Very simple
• But misbehaving and high-priority process can starve all other tasks
• Temporal protection issue:
► don’t make misbehaved task consuming too much execution time
Distributed Shared Memory: Concepts and Systems 12

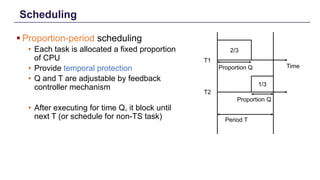

13. Scheduling
§ Proportion-period scheduling
• Each task is allocated a fixed proportion
of CPU
• Provide temporal protection
• Q and T are adjustable by feedback
controller mechanism
• After executing for time Q, it block until
next T (or schedule for non-TS task)
13
T1
T2
2/3
1/3
Proportion Q
Proportion Q
Time
Period T

14. Scheduling

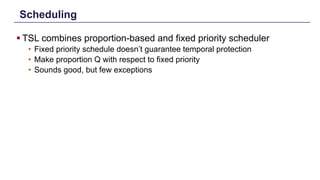

§ TSL combines proportion-based and fixed priority scheduler
• Fixed priority schedule doesn’t guarantee temporal protection
• Make proportion Q with respect to fixed priority
• Sounds good, but few exceptions
Distributed Shared Memory: Concepts and Systems 14

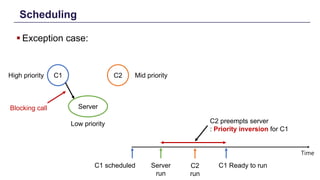

15. Scheduling
§ Exception case:
C1
Server
High priority
Low priority
Time
C1 scheduled Server
run
C2 Mid priority
Blocking call
C1 Ready to runC2
run
C2 preempts server
: Priority inversion for C1

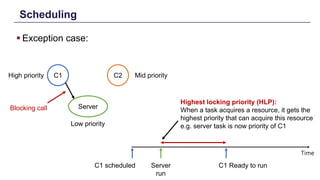

16. Scheduling
§ Exception case:
C1
Server
High priority
Low priority
Time
C1 scheduled Server
run
C2 Mid priority
Blocking call
C1 Ready to run
Highest locking priority (HLP):
When a task acquires a resource, it gets the
highest priority that can acquire this resource
e.g. server task is now priority of C1

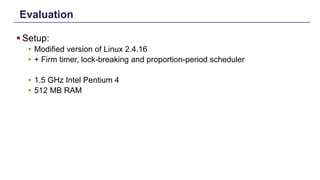

17. Evaluation
§ Setup:
• Modified version of Linux 2.4.16
• + Firm timer, lock-breaking and proportion-period scheduler
• 1.5 GHz Intel Pentium 4
• 512 MB RAM
Distributed Shared Memory: Concepts and Systems 17

18. Evaluation
§ Micro benchmarks
• Evaluate timer latency and preemption latency
• Measure time that process actually sleep in time-sensitive process using
nanosleep()
§ Timer latency
• Standard Linux: 10ms
• + firm timer: < 1ms
§ Preemption latency
• Evaluate when number of system loads are run in background
• Linux + firm timer: > 5ms
• + lock-break: < 1ms
Distributed Shared Memory: Concepts and Systems 18

19. Evaluation
§ Evaluation on real-world application
• Measure audio/video sync skew in Mplayer (media player)
§ Evaluate under three scenarios
1. Non-kernel CPU load
o User-level stress test is run in the background
2. Kernel CPU load
o Large memory buffer is copied to a file (user to kernel space)
3. File-system load
o Large directory is copied
Distributed Shared Memory: Concepts and Systems 19

20. Evaluation

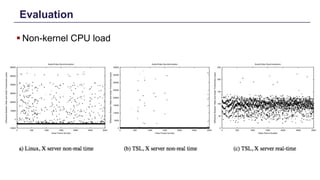

§ Non-kernel CPU load
Distributed Shared Memory: Concepts and Systems 20

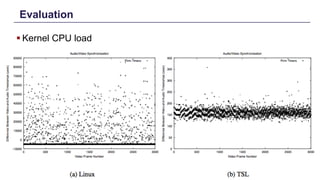

21. Evaluation
§ Kernel CPU load
Distributed Shared Memory: Concepts and Systems 21

22. Evaluation

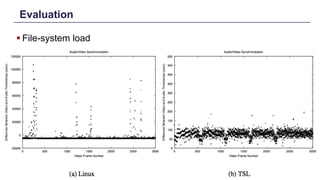

§ File-system load
Distributed Shared Memory: Concepts and Systems 22

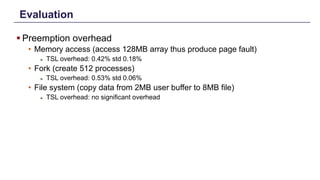

23. Evaluation
§ Preemption overhead
• Memory access (access 128MB array thus produce page fault)
► TSL overhead: 0.42% std 0.18%
• Fork (create 512 processes)
► TSL overhead: 0.53% std 0.06%
• File system (copy data from 2MB user buffer to 8MB file)
► TSL overhead: no significant overhead
Distributed Shared Memory: Concepts and Systems 23

24. Evaluation
§ Firm timer overhead
Distributed Shared Memory: Concepts and Systems 24

25. Conclusion

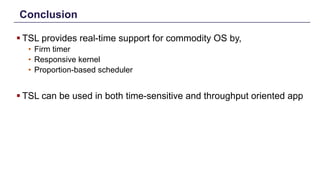

§ TSL provides real-time support for commodity OS by,
• Firm timer
• Responsive kernel
• Proportion-based scheduler
§ TSL can be used in both time-sensitive and throughput oriented app
Distributed Shared Memory: Concepts and Systems 25

26. Discussion topics
§ Rethinking the Real-time
• Requirements for RT system
► What are needed to ensure exact (or near-exact) timing?
• Example of time-sensitive applications have to run in commodity OS
• How to bring RT concept to commodity OS efficiently?
Distributed Shared Memory: Concepts and Systems 26

27. Discussion topics

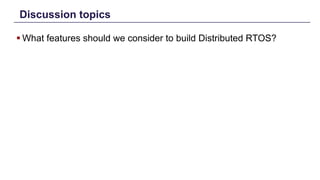

§ What features should we consider to build Distributed RTOS?
Distributed Shared Memory: Concepts and Systems 27
