2. 2
Contents
– Introduction
– Characteristic of RTOS
– Real-Time task scheduling
• Clock-driven
• Event-driven
– Scheduling of real-time task on a uniprocessor
• Rate Monotonic Analysis (RMA)
• Earliest Deadline First (EDF)
• Scheduling with limited priority levels
– Features of RTOS
– Commercial real-time operating systems
• RT Linux, PSOS, VRTX, WinCE
3. 3
Real Time System
• A system is said to be Real Time if it is
required to complete it’s work & deliver it’s
services on time.

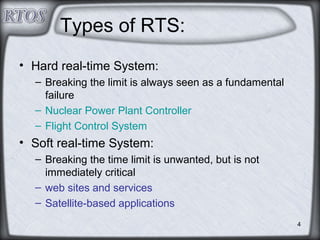

4. 4
Types of RTS:
• Hard real-time System:
– Breaking the limit is always seen as a fundamental
failure
– Nuclear Power Plant Controller
– Flight Control System
• Soft real-time System:
– Breaking the time limit is unwanted, but is not
immediately critical
– web sites and services
– Satellite-based applications
5. 5
• Firm Real-Time Systems
– If a deadline is missed occasionally, the system does
not fail
– The results produced by a task after the deadline are
rejected
– Video Conferencing
– Satellite Based Tracking
of enemy movement
Utility
D Time
7. 7
Characteristic of RTOS
• Time constraints
• Correctness criterion (not only logical but also
time)
• Safety-Critically (safety + reliability)
• Task Criticality (cost of failure of task)
• Custom Hardware
• Reactive
• Stability
• Exception Handling
8. 8
OS Real-Time Extensions
• Extension of an OS by real-time
components
• Cooperation between RT- and non-RT
parts
• Advantages: rich functionality
• Disadvantage:
– Computing and memory resources
• Example: RT-Linux, Solaris, Windows NT
9. 9
Components of a RTOS
• Process (task) management
– Scheduler
– Synchronization mechanism
• Interprocess communication (IPC)
• Semaphores
• Memory management
• Interrupt service mechanism
• I/O management
• Hardware abstraction layer
• Development Environments
• Board Support Packages (BSP)
10. 10
Real-Time Task Scheduling
• Scheduling of tasks is the primary means
by which the operating system meets task
deadlines.
• So, scheduling is an important problem.
• Lot of work has been done in developing
appropriate schedulers for real-time tasks
– Scheduling on uniprocessors
– Scheduling on multiprocessors and distributed
systems
11. 11
Real Time Task Scheduling
1.Clock Driven:
- Table-driven & Cyclic
2. Event Driven:
- Simple Priority Based
- Rate Monotonic Analysis (RMA)
- Earliest Deadline First (EDF)
3. Hybrid:
- Round-robin
12. 12
Clock-driven Scheduling
• Table-driven scheduling
• Decision regarding which job to run next is made
at specific time instants
– Timers are used to trigger the decision point
– The job-list along with information regarding
which task to be run for how long are stored in
a table
14. 14
Clock-Driven Scheduling
• The scheduler develops a permanent schedule
for a period (P1,P2,...,Pn) and stores in a table.
• Round robin scheduling is an example of clock-
driven scheduling
• Clock-driven schedulers are
– Simple: used in low cost applications
– Efficient: very little runtime overhead
– Inflexible: Very difficult to accommodate dynamically
changing task set or task characteristics.

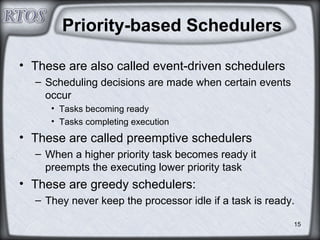

15. 15
Priority-based Schedulers
• These are also called event-driven schedulers
– Scheduling decisions are made when certain events
occur
• Tasks becoming ready
• Tasks completing execution
• These are called preemptive schedulers
– When a higher priority task becomes ready it
preempts the executing lower priority task
• These are greedy schedulers:
– They never keep the processor idle if a task is ready.

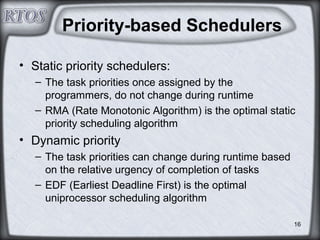

16. 16
Priority-based Schedulers
• Static priority schedulers:
– The task priorities once assigned by the
programmers, do not change during runtime
– RMA (Rate Monotonic Algorithm) is the optimal static
priority scheduling algorithm
• Dynamic priority
– The task priorities can change during runtime based
on the relative urgency of completion of tasks
– EDF (Earliest Deadline First) is the optimal
uniprocessor scheduling algorithm

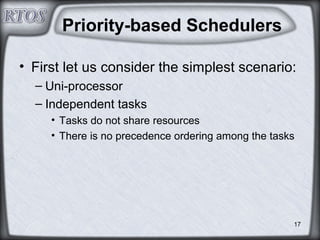

17. 17
Priority-based Schedulers
• First let us consider the simplest scenario:
– Uni-processor
– Independent tasks
• Tasks do not share resources
• There is no precedence ordering among the tasks
18. 18
Priority-based Scheduling
• Independent tasks executed on a
uniprocessor
– Two algorithms pretty much summarise the
important results in this scenario
• EDF (Earliest Deadline First)
• RMA (Rate Monotonic Analysis )
19. 19
EDF
• EDF is the optimal uniprocessor scheduling
algorithm
– If EDF cannot feasibly schedule a set of tasks, there
exists no other scheduling algorithms to do that.
• Can schedule both periodic and aperiodic tasks
• Schedulability check:
– Sum of utilization due to tasks is less than one.

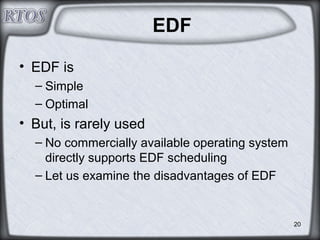

20. 20
EDF
• EDF is
– Simple
– Optimal
• But, is rarely used
– No commercially available operating system
directly supports EDF scheduling
– Let us examine the disadvantages of EDF

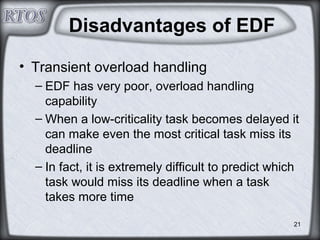

21. 21
Disadvantages of EDF
• Transient overload handling
– EDF has very poor, overload handling
capability
– When a low-criticality task becomes delayed it
can make even the most critical task miss its
deadline
– In fact, it is extremely difficult to predict which
task would miss its deadline when a task
takes more time

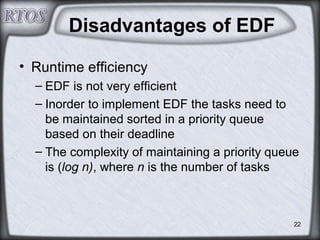

22. 22
Disadvantages of EDF
• Runtime efficiency
– EDF is not very efficient
– Inorder to implement EDF the tasks need to
be maintained sorted in a priority queue
based on their deadline
– The complexity of maintaining a priority queue
is (log n), where n is the number of tasks

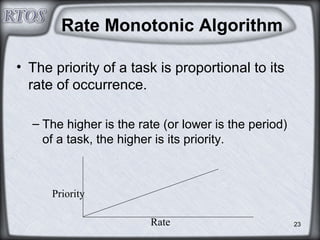

23. 23
Rate Monotonic Algorithm
• The priority of a task is proportional to its
rate of occurrence.
– The higher is the rate (or lower is the period)
of a task, the higher is its priority.
Rate
Priority

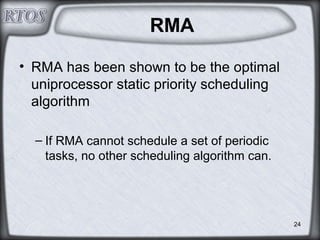

24. 24
RMA
• RMA has been shown to be the optimal
uniprocessor static priority scheduling
algorithm
– If RMA cannot schedule a set of periodic
tasks, no other scheduling algorithm can.

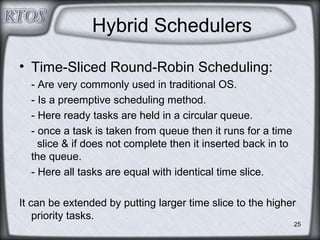

25. 25
Hybrid Schedulers
• Time-Sliced Round-Robin Scheduling:
- Are very commonly used in traditional OS.
- Is a preemptive scheduling method.
- Here ready tasks are held in a circular queue.
- once a task is taken from queue then it runs for a time
slice & if does not complete then it inserted back in to
the queue.
- Here all tasks are equal with identical time slice.
It can be extended by putting larger time slice to the higher
priority tasks.

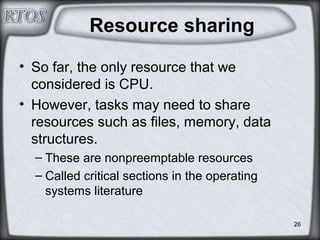

26. 26
Resource sharing
• So far, the only resource that we
considered is CPU.
• However, tasks may need to share
resources such as files, memory, data
structures.
– These are nonpreemptable resources
– Called critical sections in the operating
systems literature

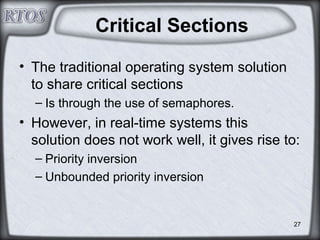

27. 27
Critical Sections
• The traditional operating system solution
to share critical sections
– Is through the use of semaphores.
• However, in real-time systems this
solution does not work well, it gives rise to:
– Priority inversion
– Unbounded priority inversion

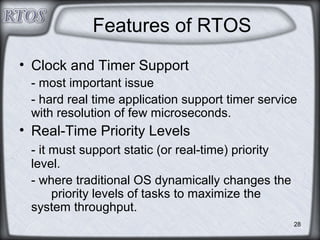

28. 28
Features of RTOS
• Clock and Timer Support
- most important issue
- hard real time application support timer service
with resolution of few microseconds.
• Real-Time Priority Levels
- it must support static (or real-time) priority
level.
- where traditional OS dynamically changes the
priority levels of tasks to maximize the
system throughput.
29. 29

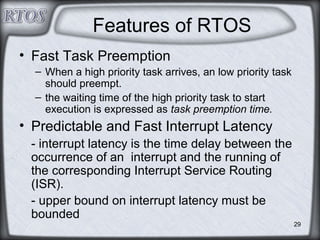

Features of RTOS
• Fast Task Preemption
– When a high priority task arrives, an low priority task
should preempt.
– the waiting time of the high priority task to start
execution is expressed as task preemption time.
• Predictable and Fast Interrupt Latency
- interrupt latency is the time delay between the
occurrence of an interrupt and the running of
the corresponding Interrupt Service Routing
(ISR).
- upper bound on interrupt latency must be
bounded
30. 30

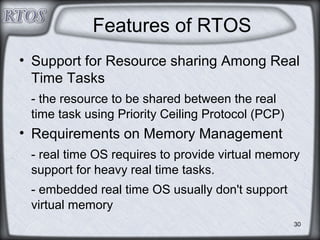

Features of RTOS
• Support for Resource sharing Among Real
Time Tasks
- the resource to be shared between the real
time task using Priority Ceiling Protocol (PCP)
• Requirements on Memory Management
- real time OS requires to provide virtual memory
support for heavy real time tasks.
- embedded real time OS usually don't support
virtual memory
31. 31

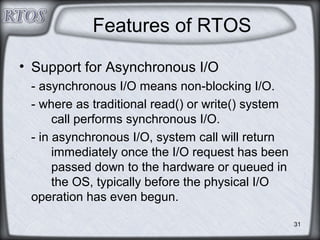

Features of RTOS
• Support for Asynchronous I/O
- asynchronous I/O means non-blocking I/O.
- where as traditional read() or write() system
call performs synchronous I/O.
- in asynchronous I/O, system call will return
immediately once the I/O request has been
passed down to the hardware or queued in
the OS, typically before the physical I/O
operation has even begun.
32. 32

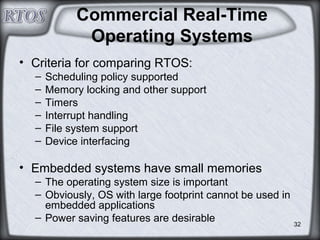

Commercial Real-Time
Operating Systems
• Criteria for comparing RTOS:
– Scheduling policy supported
– Memory locking and other support
– Timers
– Interrupt handling
– File system support
– Device interfacing
• Embedded systems have small memories
– The operating system size is important
– Obviously, OS with large footprint cannot be used in
embedded applications
– Power saving features are desirable
33. 33
Other RTOS issues
• Interrupt Latency should be very small
– Kernel has to respond to real time events
– Interrupts should be disabled for minimum
possible time
• For embedded applications Kernel Size
should be small
– Should fit in ROM
• Sophisticated features can be removed
– No Virtual Memory
34. 34

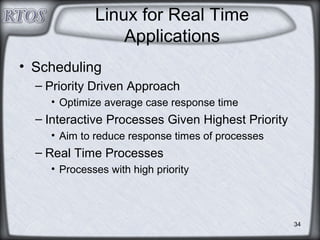

Linux for Real Time
Applications
• Scheduling
– Priority Driven Approach
• Optimize average case response time
– Interactive Processes Given Highest Priority
• Aim to reduce response times of processes
– Real Time Processes
• Processes with high priority
35. 35
RT Linux
• RT kernel intercepts and attends to all
interrupts
– If an interrupt is to cause a RT task to run, the
RT kernel preempts Linux (if Linux is running
that time) and lets the RT task run
Hard-
ware
RT Kernel
Linux
36. 36
References:
1. Real-Time Systems Theory and Practice
Rajib Mall
2. Real-Time Systems,
Jane W.S. Liu
3. Real-Time Operating System,
Frank Kolnick
