![Mandatory Digital Certificates
CA issues Digital Certificates to
the Issuing Bank or ‘The Issuer’ (CERTISS = Sign(SKCA)[PKISS])
the Acquiring Bank or ‘The Acquirer’ (CERTACC = Sign(SKCA)[PKACC])
Customer gets its own Digital Certificate from the Issuing Bank
CERTCUS = Sign(SKISS)[PKCUS]
Merchant gets its own Digital Certificate from the Acquiring bank
CERTMER = Sign(SKISS)[PKMER]](https://image.slidesharecdn.com/secureelectronictransactionset-160116162229/75/Secure-Electronic-Transaction-SET-14-2048.jpg)

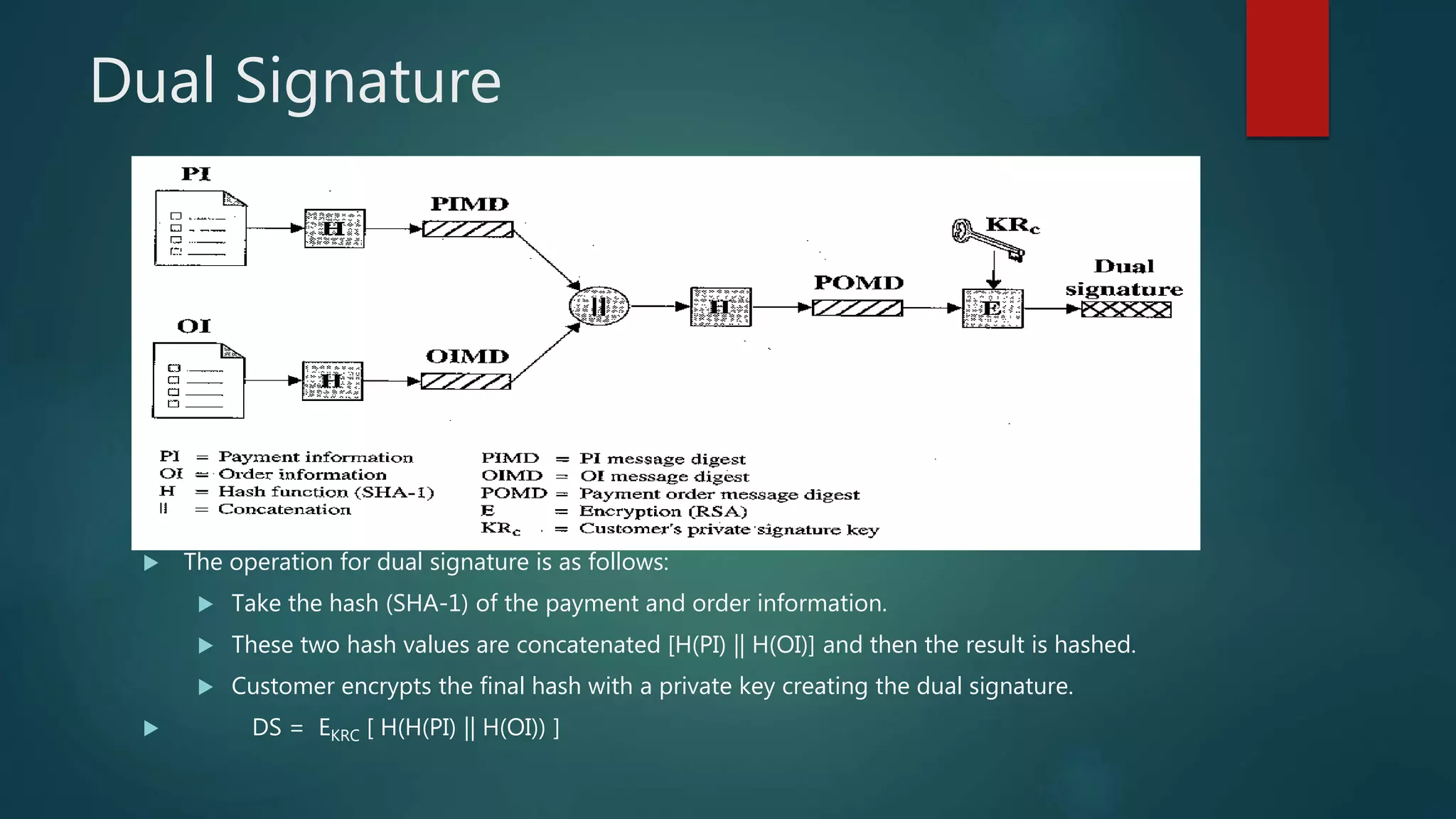

![Dual Signature
The operation for dual signature is as follows:
Take the hash (SHA-1) of the payment and order information.
These two hash values are concatenated [H(PI) || H(OI)] and then the result is hashed.
Customer encrypts the final hash with a private key creating the dual signature.
DS = EKRC [ H(H(PI) || H(OI)) ]](https://image.slidesharecdn.com/secureelectronictransactionset-160116162229/75/Secure-Electronic-Transaction-SET-17-2048.jpg)

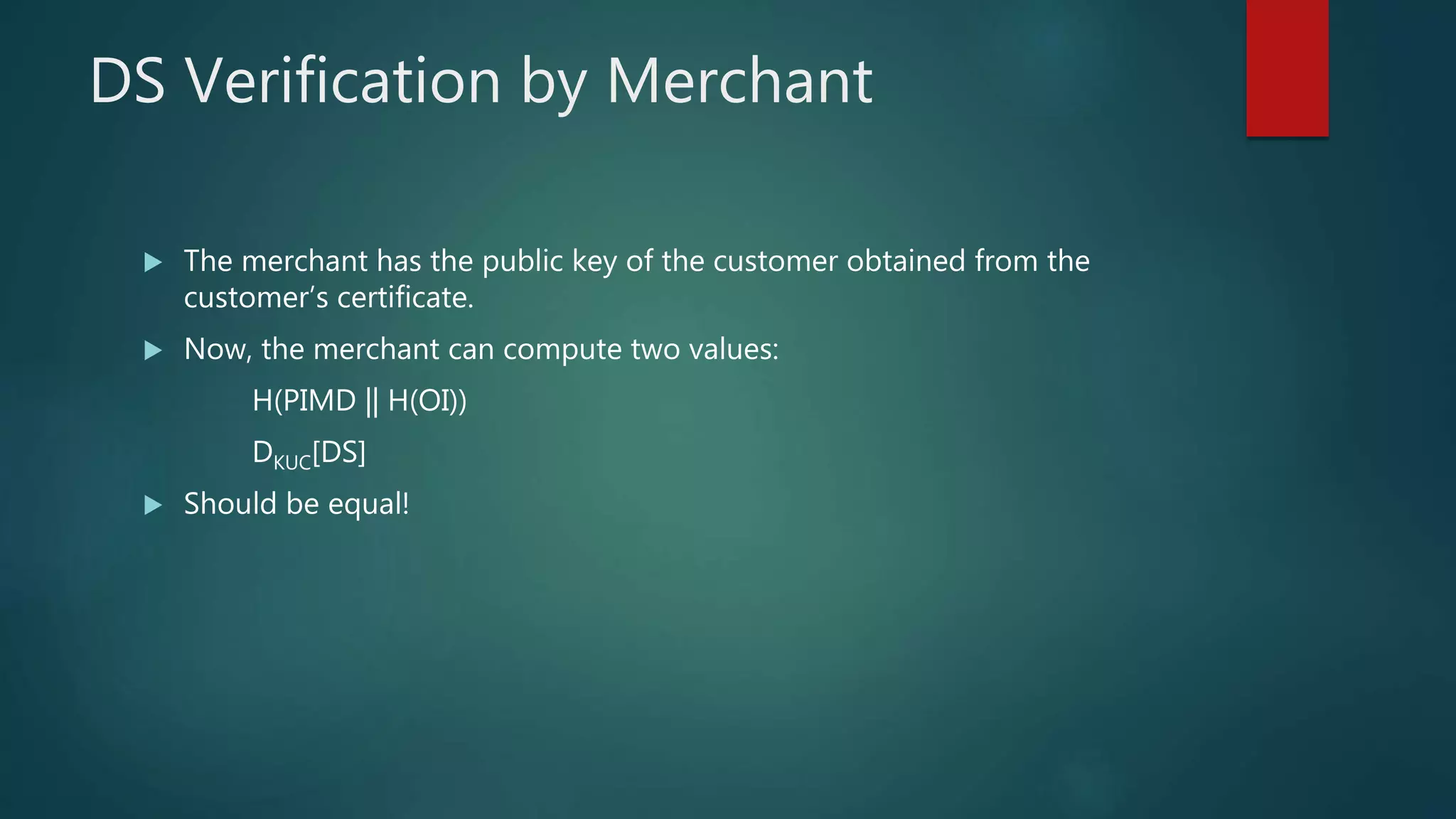

![DS Verification by Merchant
The merchant has the public key of the customer obtained from the
customer’s certificate.
Now, the merchant can compute two values:
H(PIMD || H(OI))
DKUC[DS]
Should be equal!](https://image.slidesharecdn.com/secureelectronictransactionset-160116162229/75/Secure-Electronic-Transaction-SET-18-2048.jpg)

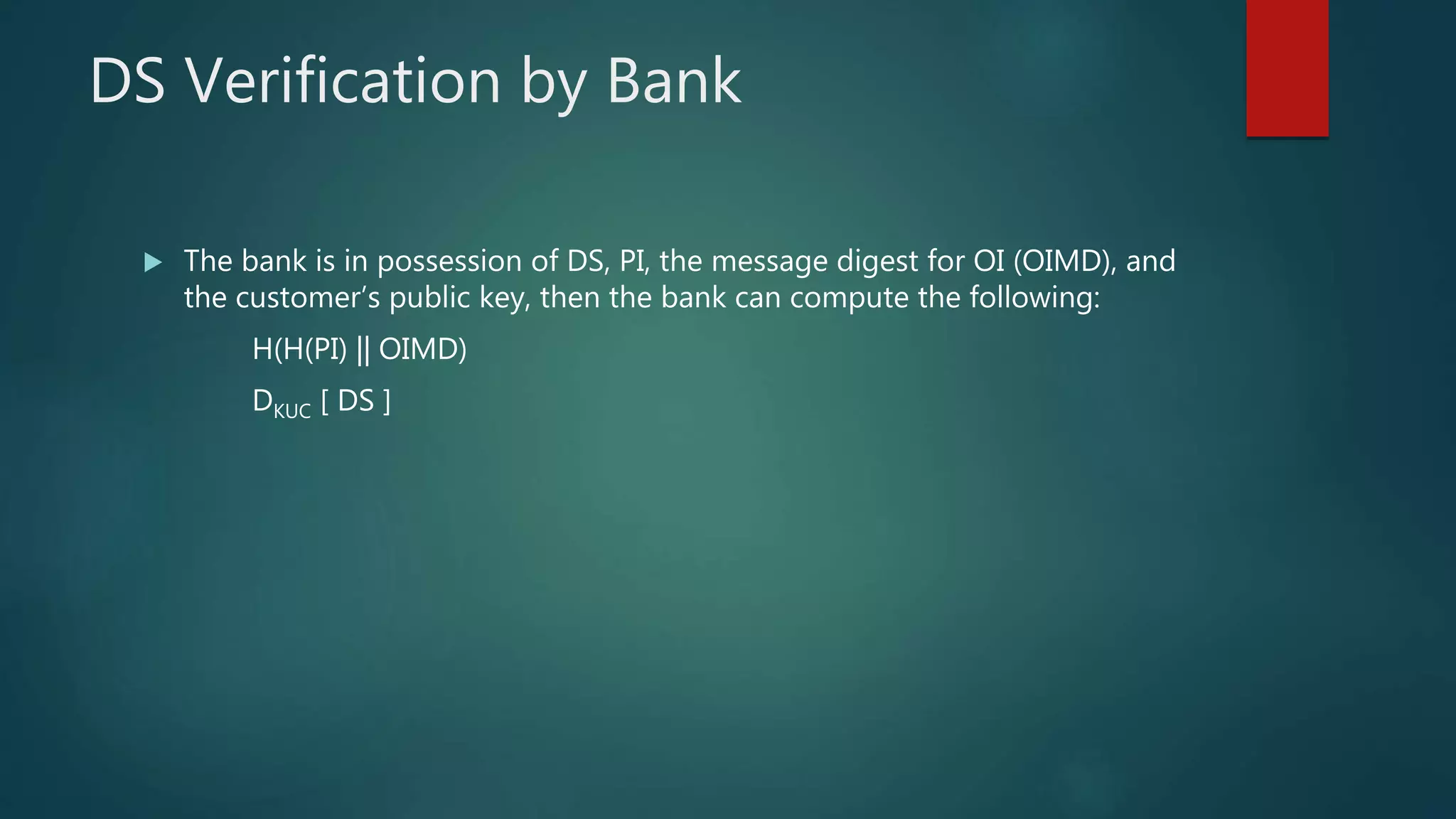

![DS Verification by Bank
The bank is in possession of DS, PI, the message digest for OI (OIMD), and
the customer’s public key, then the bank can compute the following:
H(H(PI) || OIMD)
DKUC [ DS ]](https://image.slidesharecdn.com/secureelectronictransactionset-160116162229/75/Secure-Electronic-Transaction-SET-19-2048.jpg)

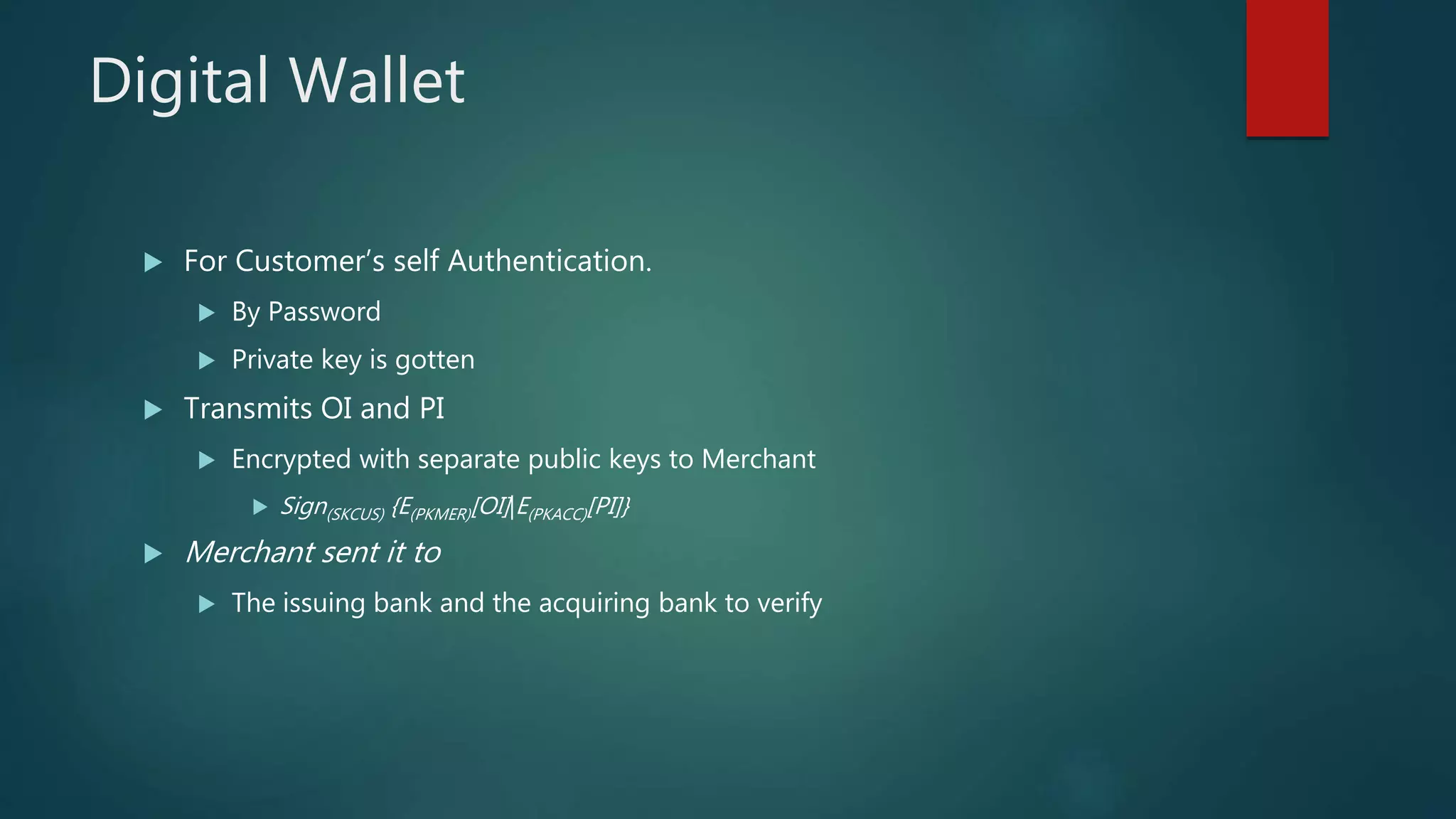

![Digital Wallet
For Customer’s self Authentication.
By Password
Private key is gotten
Transmits OI and PI
Encrypted with separate public keys to Merchant
Sign(SKCUS) {E(PKMER)[OI]|E(PKACC)[PI]}
Merchant sent it to
The issuing bank and the acquiring bank to verify](https://image.slidesharecdn.com/secureelectronictransactionset-160116162229/75/Secure-Electronic-Transaction-SET-20-2048.jpg)

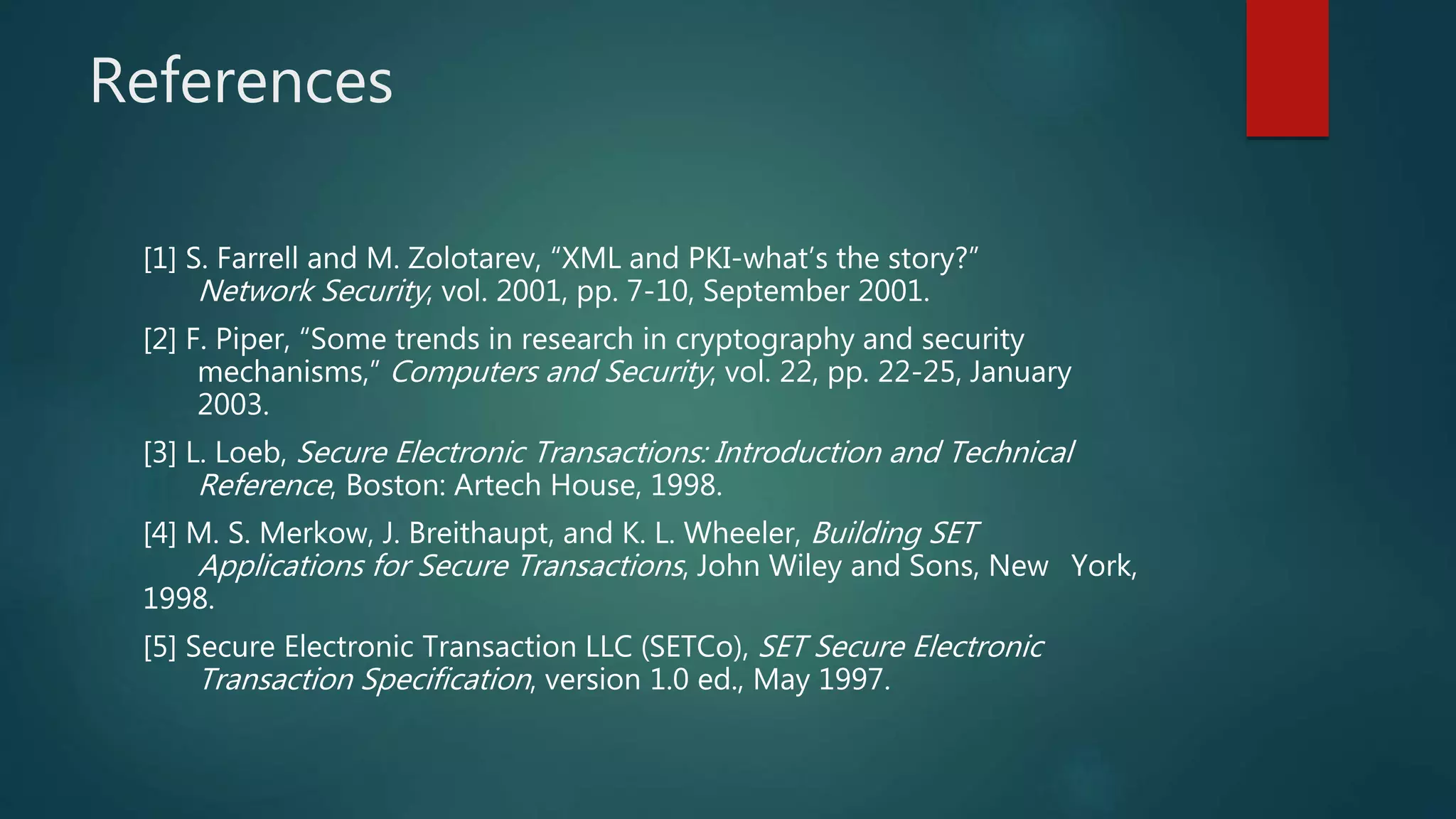

![References
[1] S. Farrell and M. Zolotarev, “XML and PKI-what’s the story?”
Network Security, vol. 2001, pp. 7-10, September 2001.
[2] F. Piper, “Some trends in research in cryptography and security
mechanisms,” Computers and Security, vol. 22, pp. 22-25, January
2003.
[3] L. Loeb, Secure Electronic Transactions: Introduction and Technical
Reference, Boston: Artech House, 1998.
[4] M. S. Merkow, J. Breithaupt, and K. L. Wheeler, Building SET
Applications for Secure Transactions, John Wiley and Sons, New York,
1998.
[5] Secure Electronic Transaction LLC (SETCo), SET Secure Electronic
Transaction Specification, version 1.0 ed., May 1997.](https://image.slidesharecdn.com/secureelectronictransactionset-160116162229/75/Secure-Electronic-Transaction-SET-32-2048.jpg)
![References
[6] K. Chen, H. Lee, and B. Mayer, “The impact of security control on
business-to-consumer electronic commerce,” Human Systems
Management, vol. 20, no. 2, pp. 139,147, 2001.
[7] D. Birch, “Secure electronic commerce – i: The certificate business
public key infrastructure will be big business,” Computer Law &
Security Review, vol. 13, no. 6, pp. 454-456, 1997.
[8] http://www.informit.com/articles/article.aspx?p=26857
[9] http://www.slideshare.net/HARRY-MEHTA/secure-electronics-transaction
[10] E. Bellis, Beautiful Security, ch. Beautiful Trade: Rethinking
E-Commerce Security, Sebastopol: O’Reilly, 2009.](https://image.slidesharecdn.com/secureelectronictransactionset-160116162229/75/Secure-Electronic-Transaction-SET-33-2048.jpg)
![References
[11] G. W. Treese and L. C. Stewart, Designing Systems for Internet
Commerce, Massachusetts: Addison-Wesley, 1998.
[12] J. Lieb, “Getting secure online-an overview,” Commerce Net-The
Strategies Report, vol. 1, pp. 1-4, July 1999.
[13] Ford and M. S. Baum, Secure Electronic Commerce, Prentice Hall,
2001.
[14] Secure Electronic Transaction LLC (SETCo), Common Chip Extension- Application for
SETCo Approval, version 1.0 ed., September 1999.
[15] Secure Electronic Transaction LLC (SETCo), Online PIN Extensions
to SET Secure Electronic Transaction, version 1.0 ed., May 1999.](https://image.slidesharecdn.com/secureelectronictransactionset-160116162229/75/Secure-Electronic-Transaction-SET-34-2048.jpg)
![References
[16] P. Jarupunphol and C. J. Mitchell, “Measuring SSL and SET against
e-commerce consumer requirements,” in Proceedings of the
International Network Conference (INC 2002), Plymouth University
Press, pp. 323-330, July 2002.
[17] P. Jarupunphol and C. J. Mitchell, “The future of SET,” in Proceedings of UKAIS 2002, Leeds
Metropolitan University, pp. 9-17, April 2002.
[18] IBM e-business, Internet Wallet Choices and Answers for Business and Technical Managers, 1999
[19] P. Jarupunphol, “A critical analysis of 3-D Secure,” in Proceedings of
the 3rd Electronic Commerce Research and Development (E-COM-03),
Gdansk, Poland, pp. 87-94, October 2003.
[20] R. Anderson, Security Engineering-A Guide to Building Dependable
Distributed Systems. John Wiley and Sons, 2001.](https://image.slidesharecdn.com/secureelectronictransactionset-160116162229/75/Secure-Electronic-Transaction-SET-35-2048.jpg)

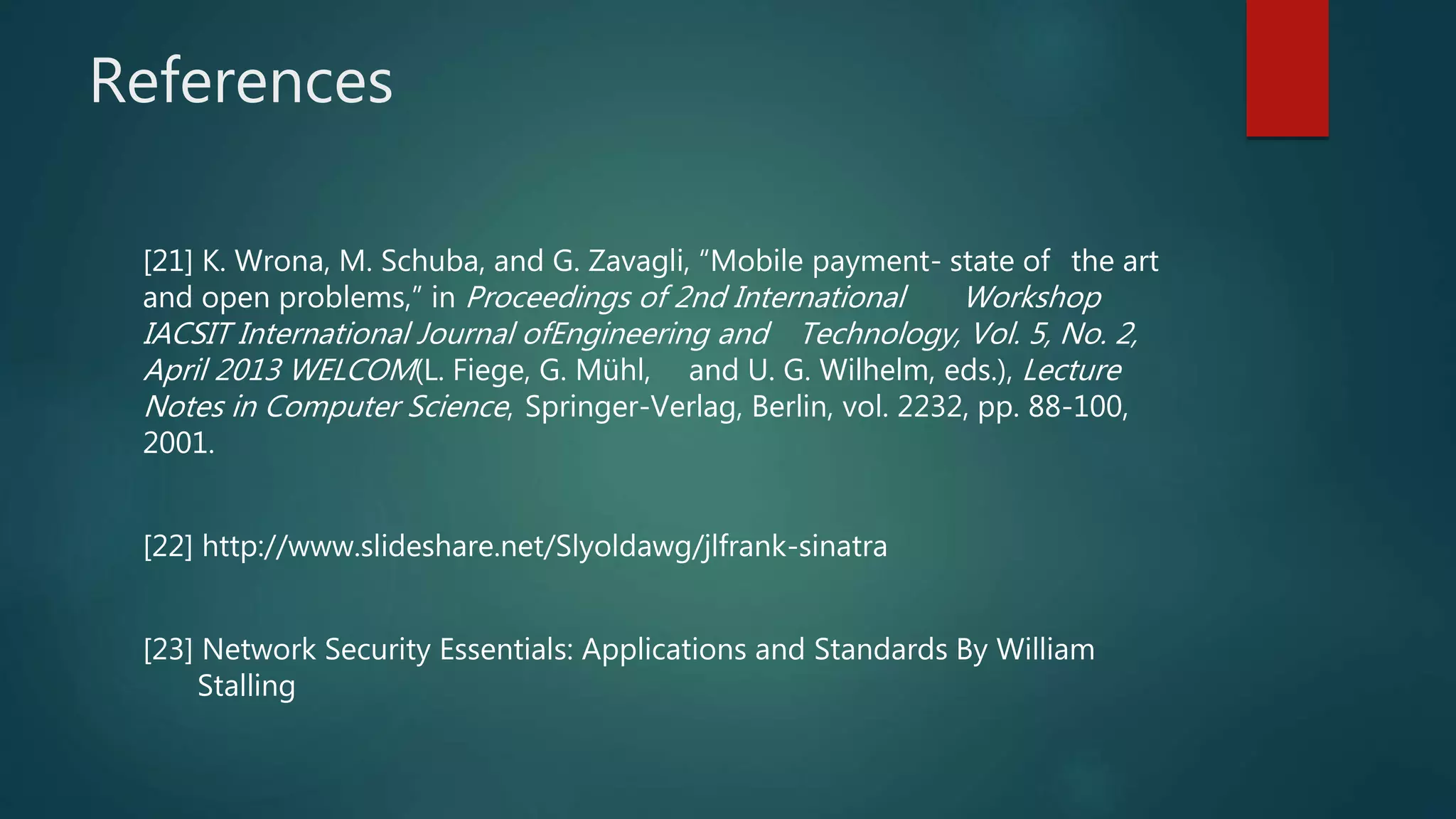

![References
[21] K. Wrona, M. Schuba, and G. Zavagli, “Mobile payment- state of the art
and open problems,” in Proceedings of 2nd International Workshop
IACSIT International Journal ofEngineering and Technology, Vol. 5, No. 2,
April 2013 WELCOM(L. Fiege, G. Mühl, and U. G. Wilhelm, eds.), Lecture
Notes in Computer Science, Springer-Verlag, Berlin, vol. 2232, pp. 88-100,
2001.
[22] http://www.slideshare.net/Slyoldawg/jlfrank-sinatra
[23] Network Security Essentials: Applications and Standards By William
Stalling](https://image.slidesharecdn.com/secureelectronictransactionset-160116162229/75/Secure-Electronic-Transaction-SET-36-2048.jpg)
Uploaded bySyed Taimoor Hussain Shah
Secure Electronic Transaction (SET)
The document discusses Secure Electronic Transactions (SET), highlighting its background, security architecture, and the roles of participants including cardholders, merchants, issuers, and acquirers. It addresses the complexities of SET and explores solutions such as dual signatures and digital wallets, as well as the evolution to 3-D SET for enhanced security and functionality. The conclusion suggests that while SET faced challenges, it offers a potentially effective architecture for secure e-commerce transactions.
More Related Content
Similar to Secure Electronic Transaction (SET)
Secure Electronic Transaction (SET)
- 1.
- 2. “Use your mentality,Wake up to reality” ---From the song, “I've got you under my skin” by Cole Porter
- 3. Ctrl-V Members TaimoorHussain (Roll No. 59) Wajid Ali (Roll No. 58) Shahid Iqbal (Roll No. 22)

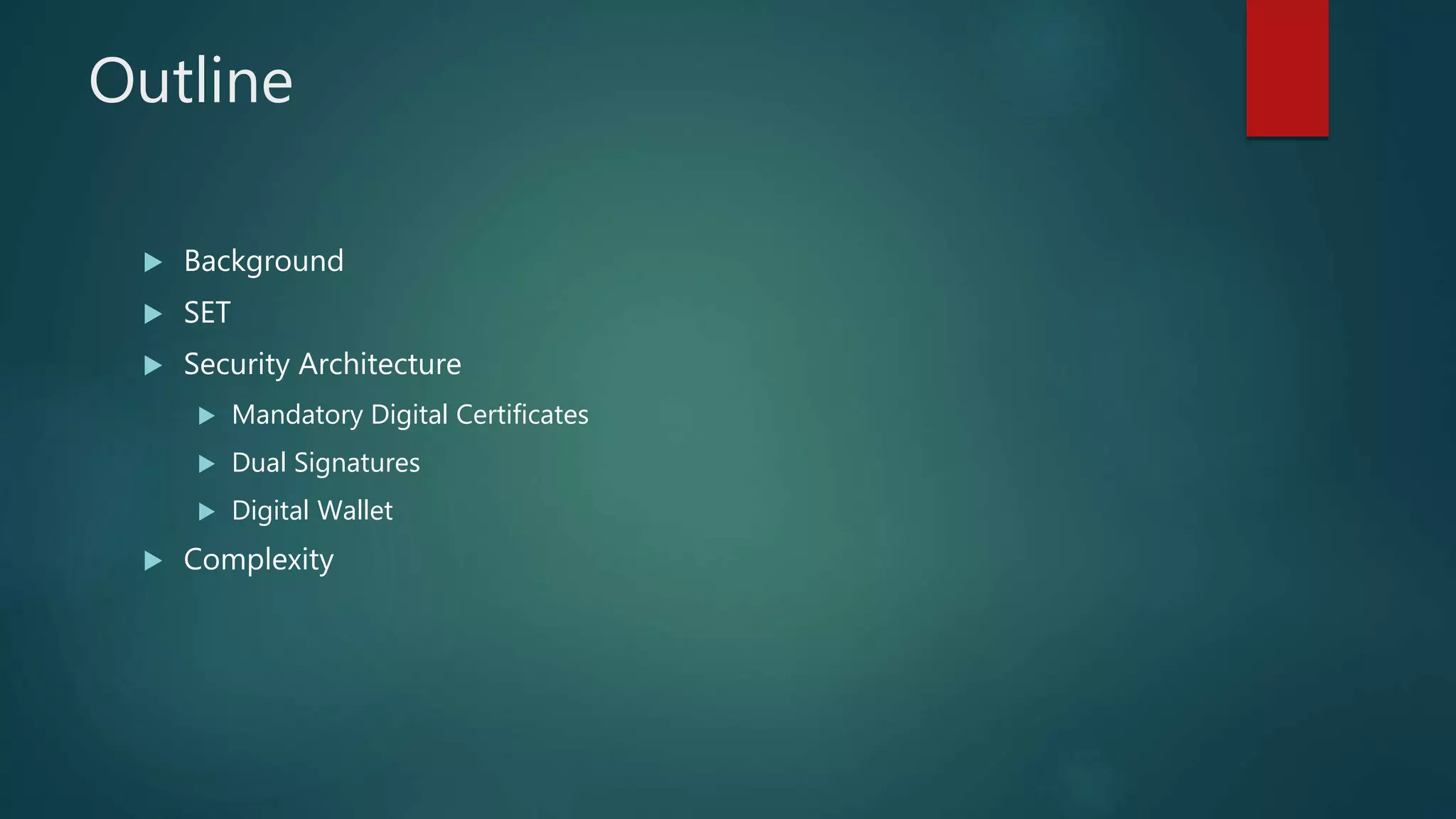

- 4. Outline Background SET Security Architecture Mandatory Digital Certificates Dual Signatures Digital Wallet Complexity

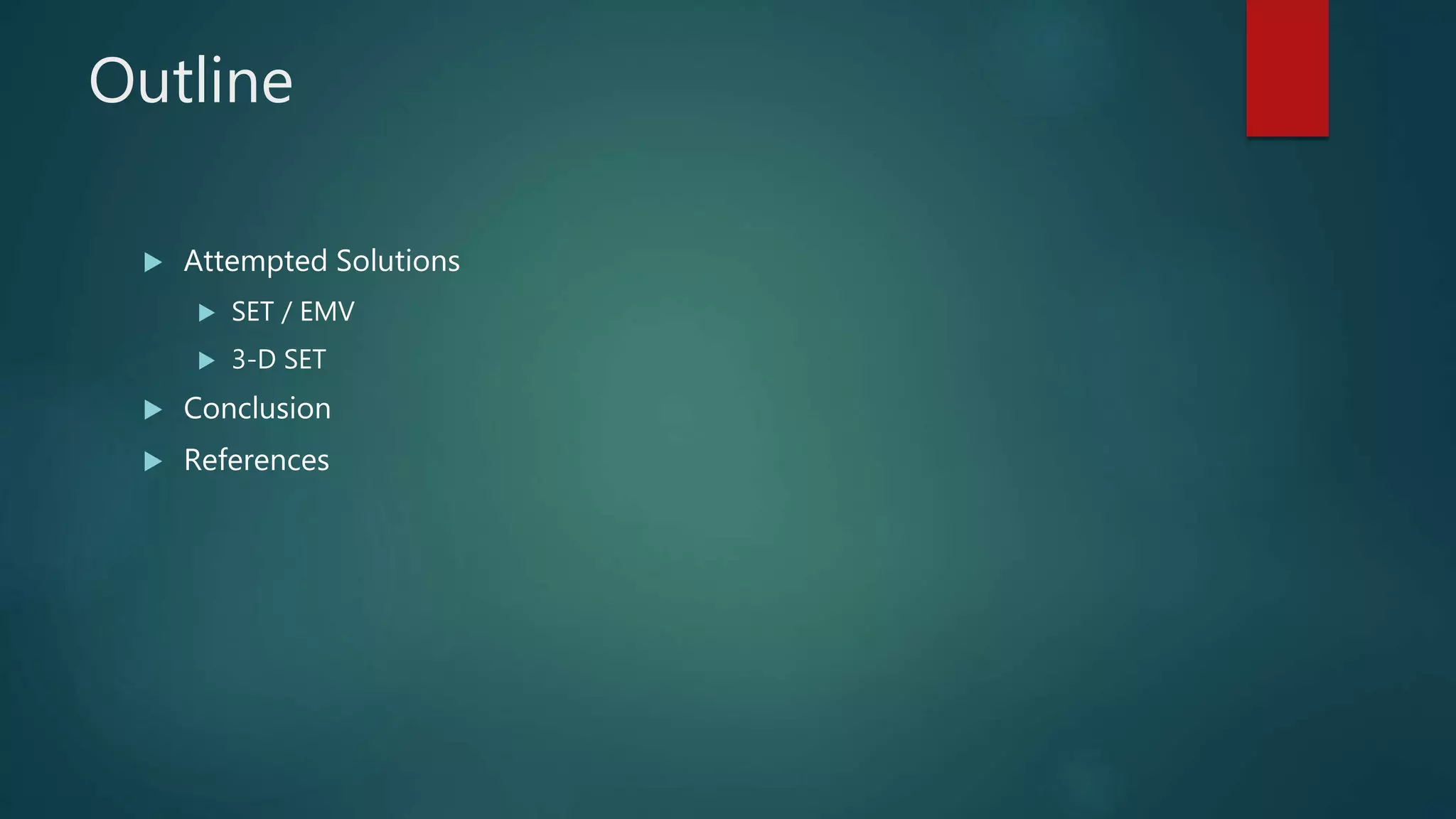

- 5. Outline Attempted Solutions SET / EMV 3-D SET Conclusion References

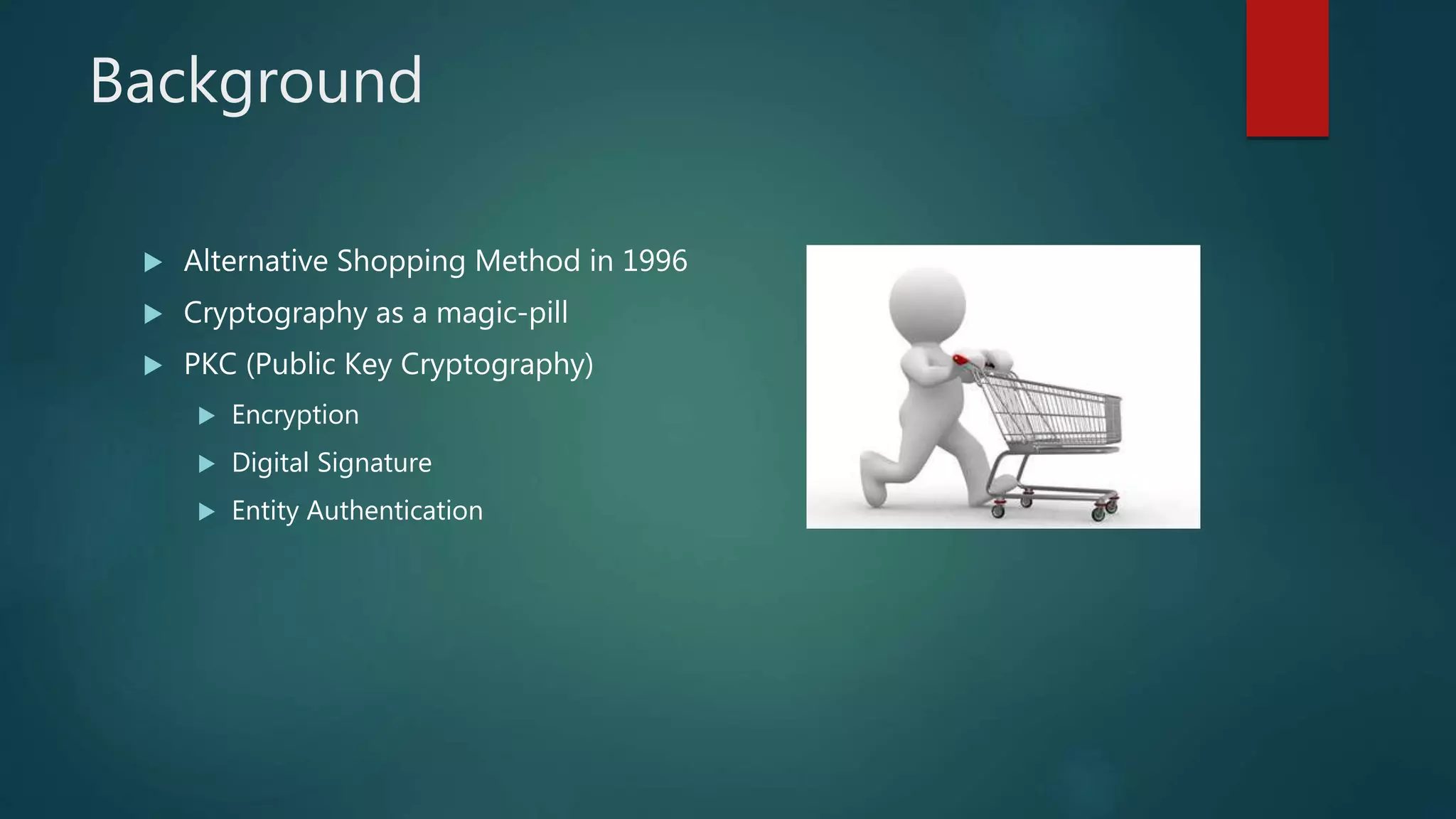

- 6. Background Alternative ShoppingMethod in 1996 Cryptography as a magic-pill PKC (Public Key Cryptography) Encryption Digital Signature Entity Authentication

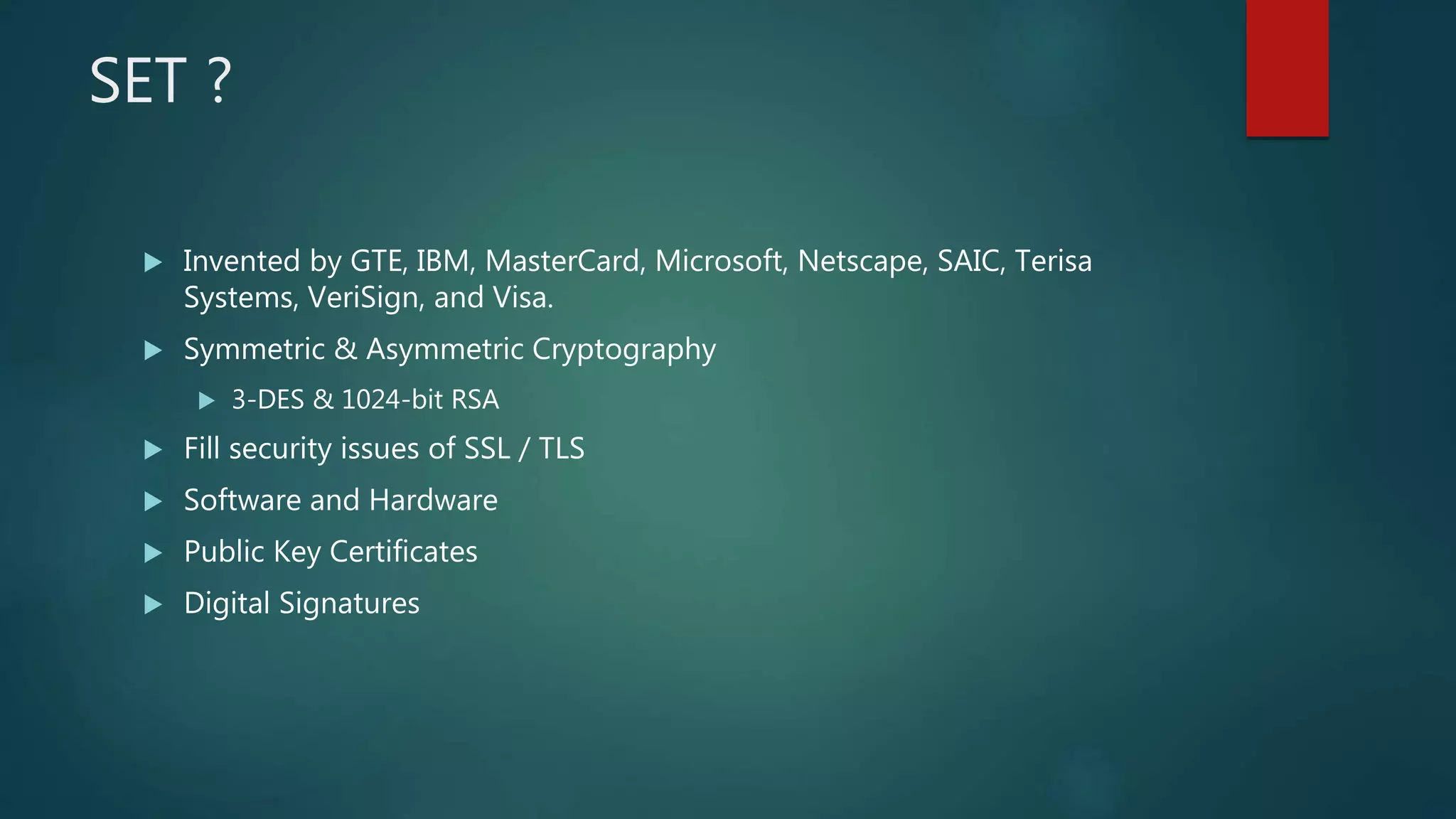

- 7. SET ? Inventedby GTE, IBM, MasterCard, Microsoft, Netscape, SAIC, Terisa Systems, VeriSign, and Visa. Symmetric & Asymmetric Cryptography 3-DES & 1024-bit RSA Fill security issues of SSL / TLS Software and Hardware Public Key Certificates Digital Signatures

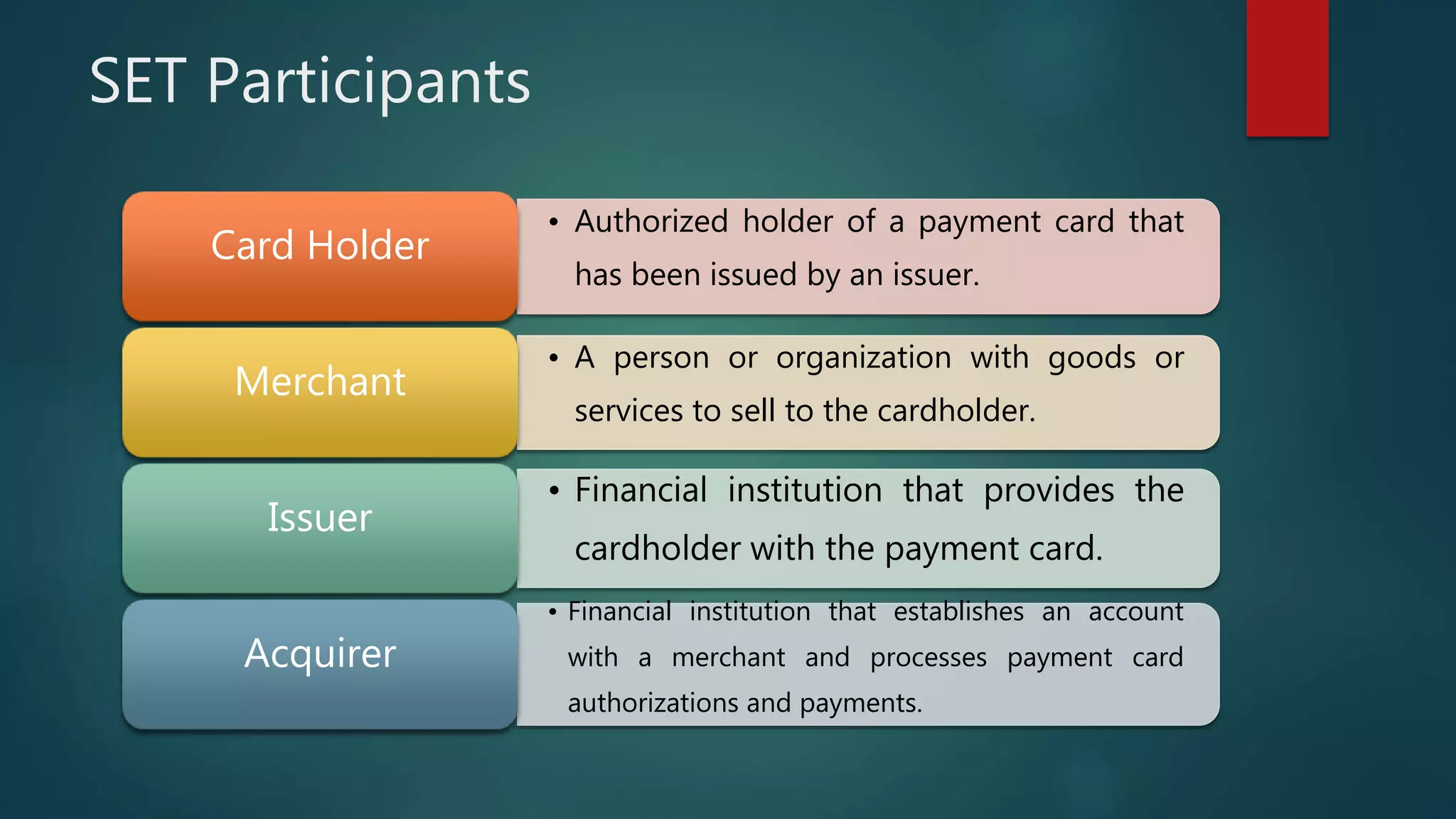

- 8. SET Participants • Authorizedholder of a payment card that has been issued by an issuer. Card Holder • A person or organization with goods or services to sell to the cardholder. Merchant • Financial institution that provides the cardholder with the payment card. Issuer • Financial institution that establishes an account with a merchant and processes payment card authorizations and payments. Acquirer

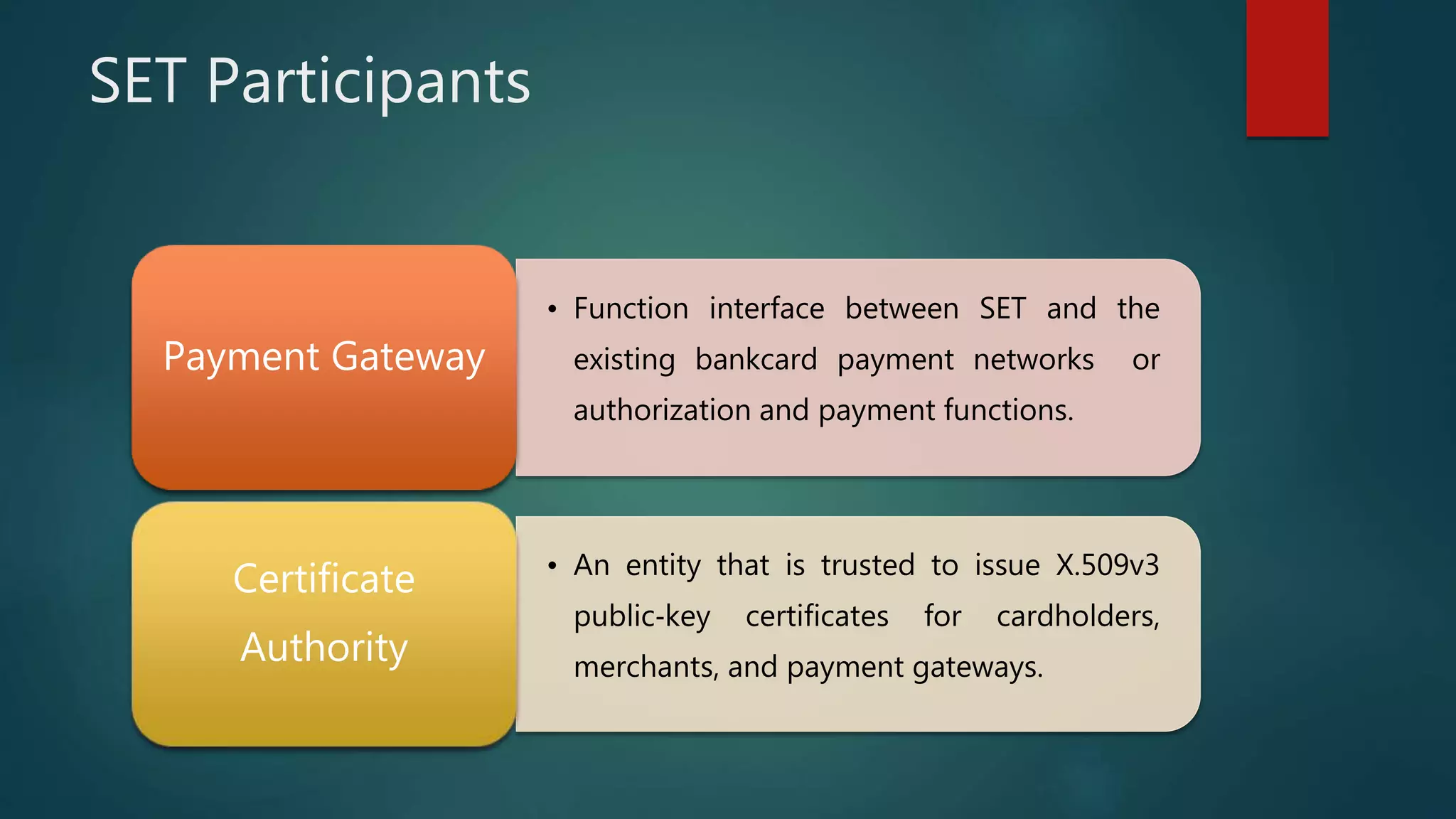

- 9. SET Participants • Functioninterface between SET and the existing bankcard payment networks or authorization and payment functions. Payment Gateway • An entity that is trusted to issue X.509v3 public‐key certificates for cardholders, merchants, and payment gateways. Certificate Authority

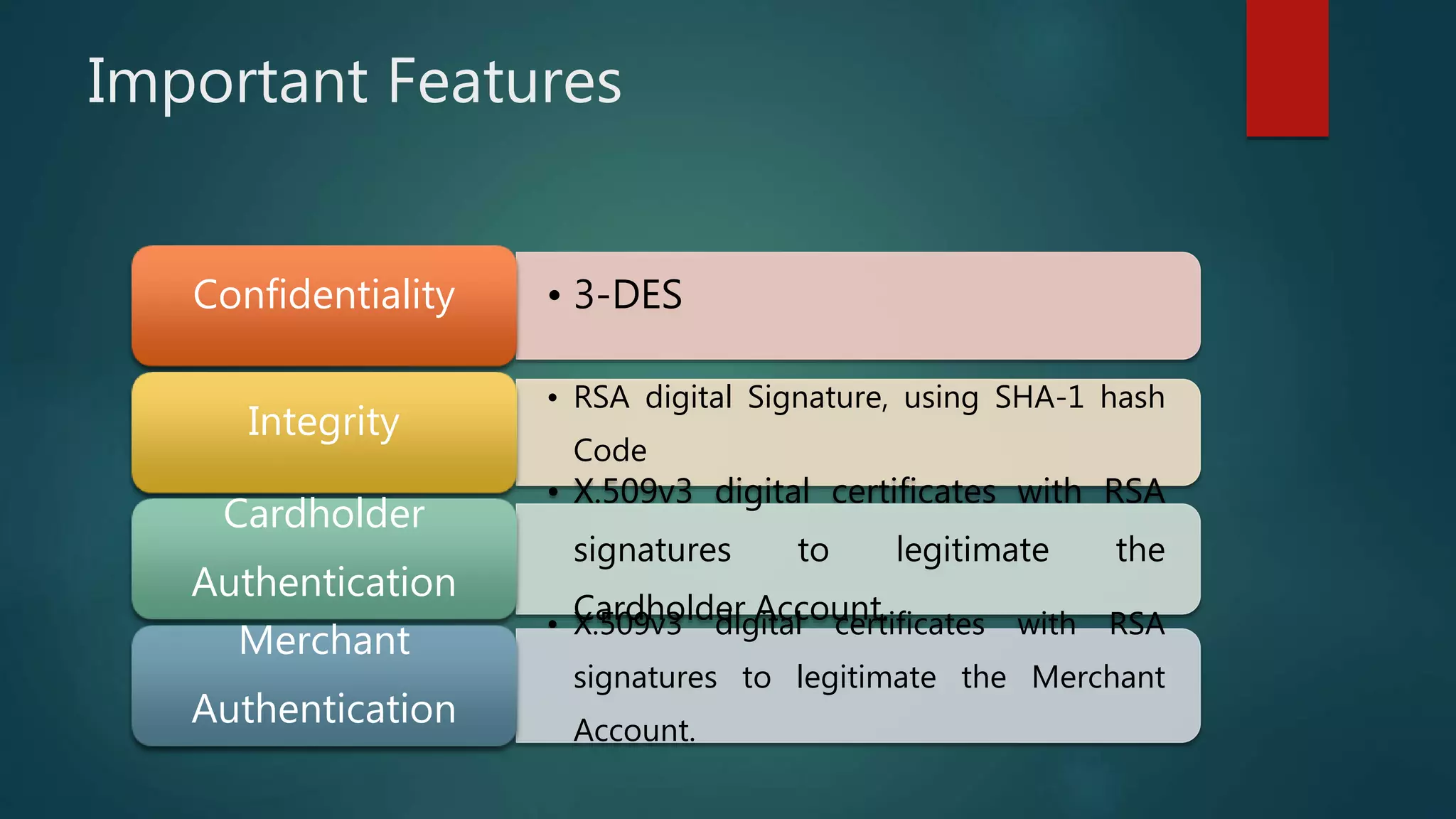

- 10. Important Features • 3-DESConfidentiality •RSA digital Signature, using SHA-1 hash Code Integrity • X.509v3 digital certificates with RSA signatures to legitimate the Cardholder Account. Cardholder Authentication • X.509v3 digital certificates with RSA signatures to legitimate the Merchant Account. Merchant Authentication

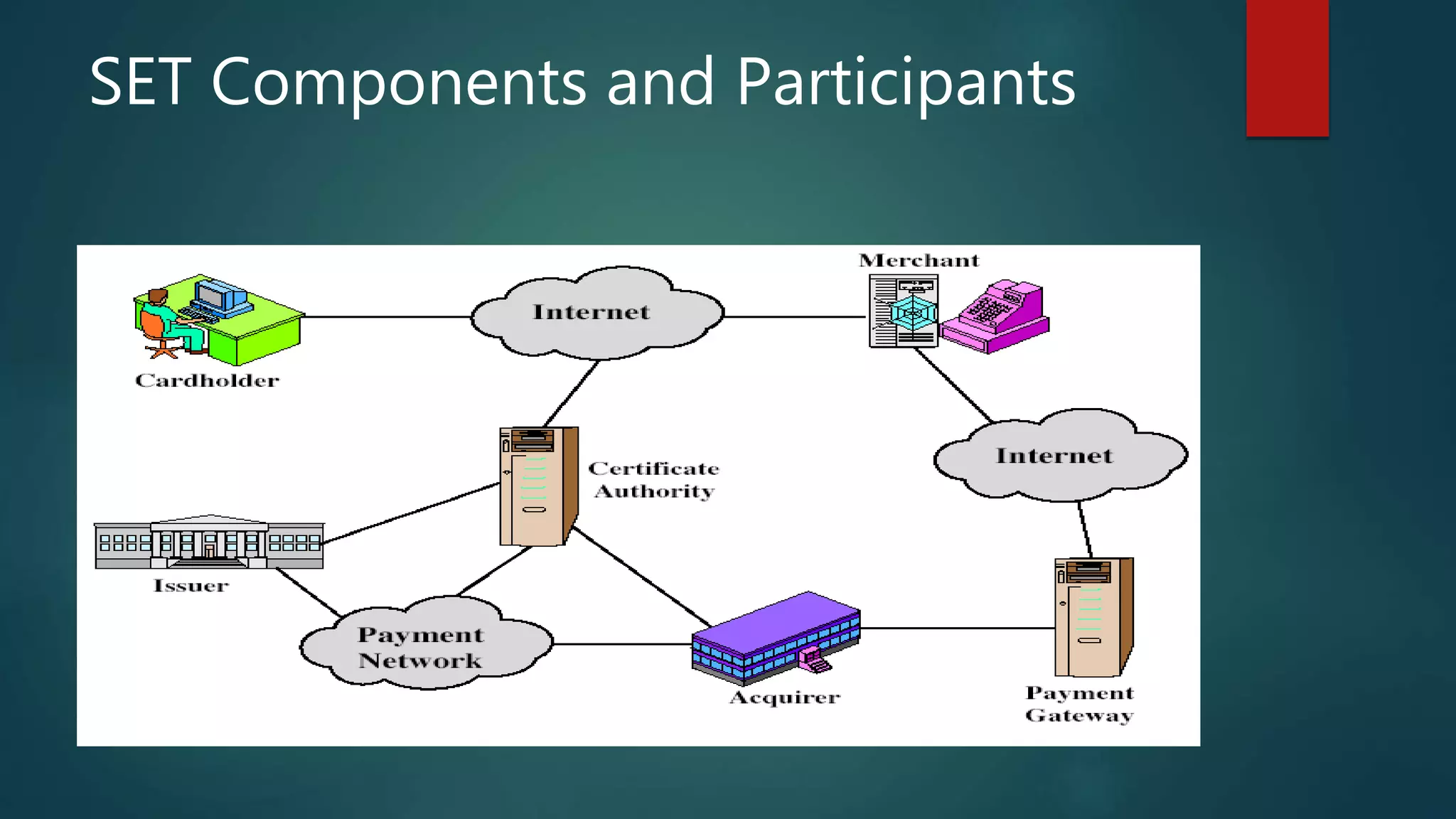

- 11. SET Components andParticipants
- 12. Security Architecture UtilizesPKI to address limitations found in SSL/TLS.

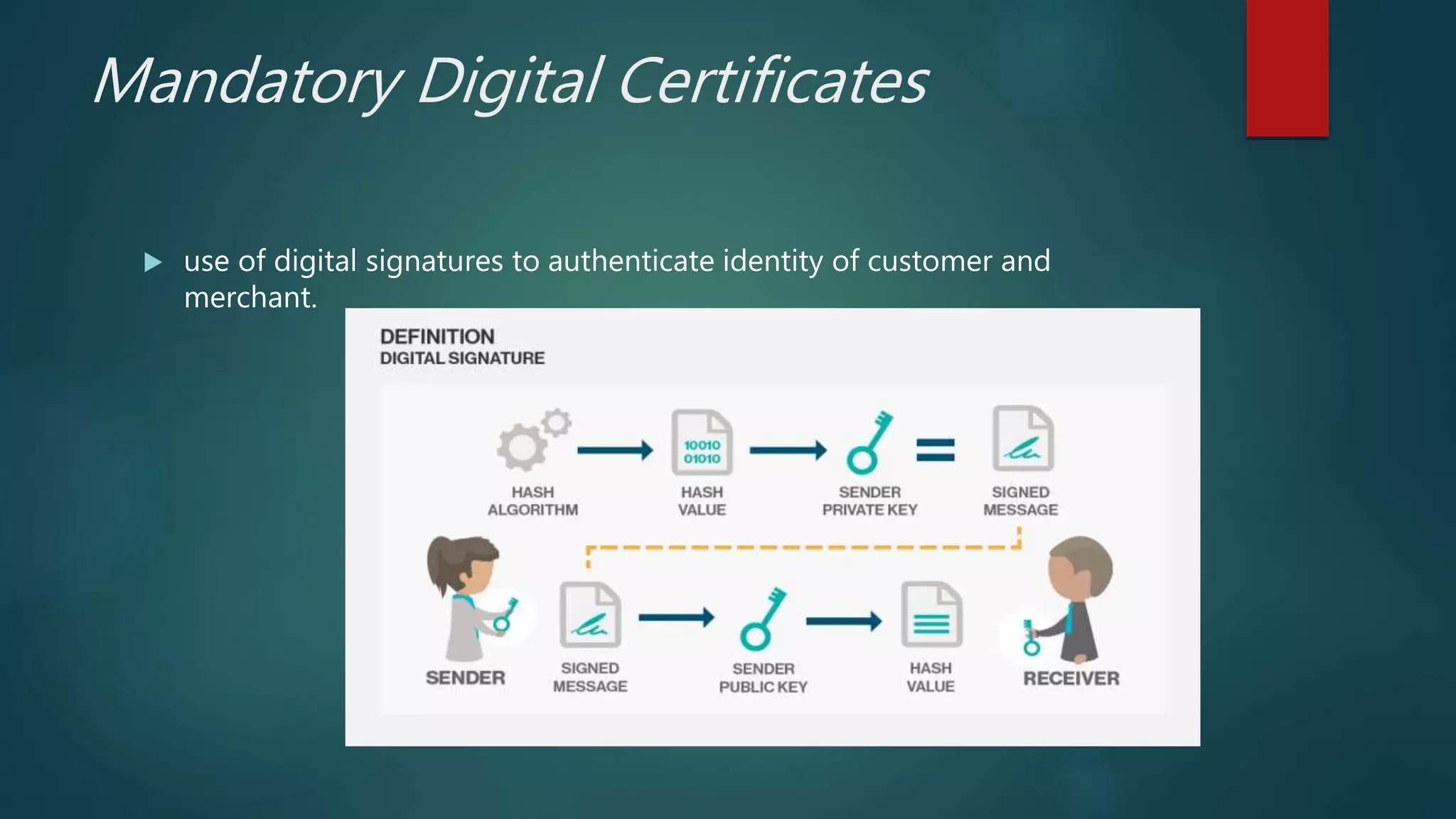

- 13. Mandatory Digital Certificates use of digital signatures to authenticate identity of customer and merchant.

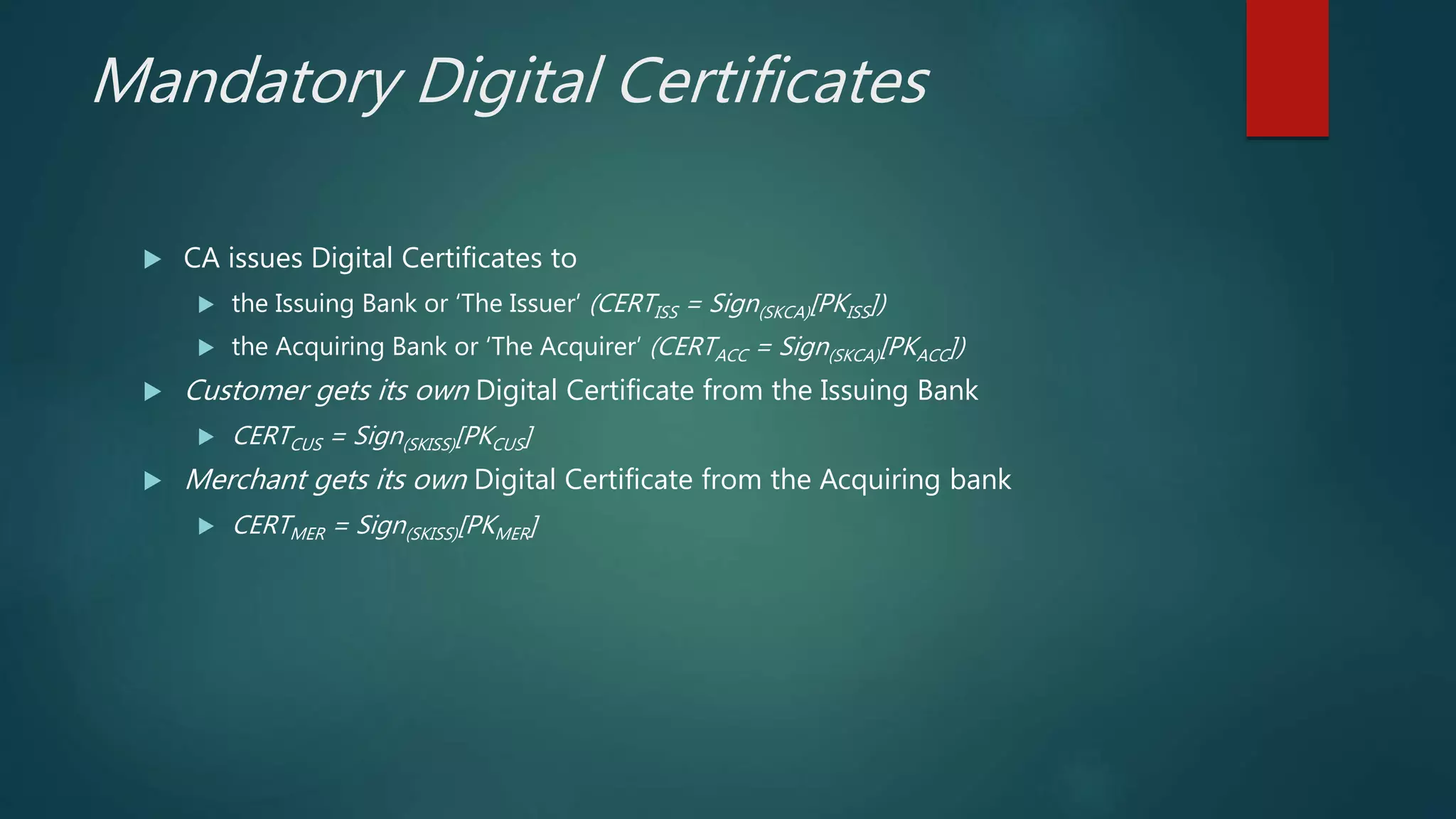

- 14. Mandatory Digital Certificates CA issues Digital Certificates to the Issuing Bank or ‘The Issuer’ (CERTISS = Sign(SKCA)[PKISS]) the Acquiring Bank or ‘The Acquirer’ (CERTACC = Sign(SKCA)[PKACC]) Customer gets its own Digital Certificate from the Issuing Bank CERTCUS = Sign(SKISS)[PKCUS] Merchant gets its own Digital Certificate from the Acquiring bank CERTMER = Sign(SKISS)[PKMER]

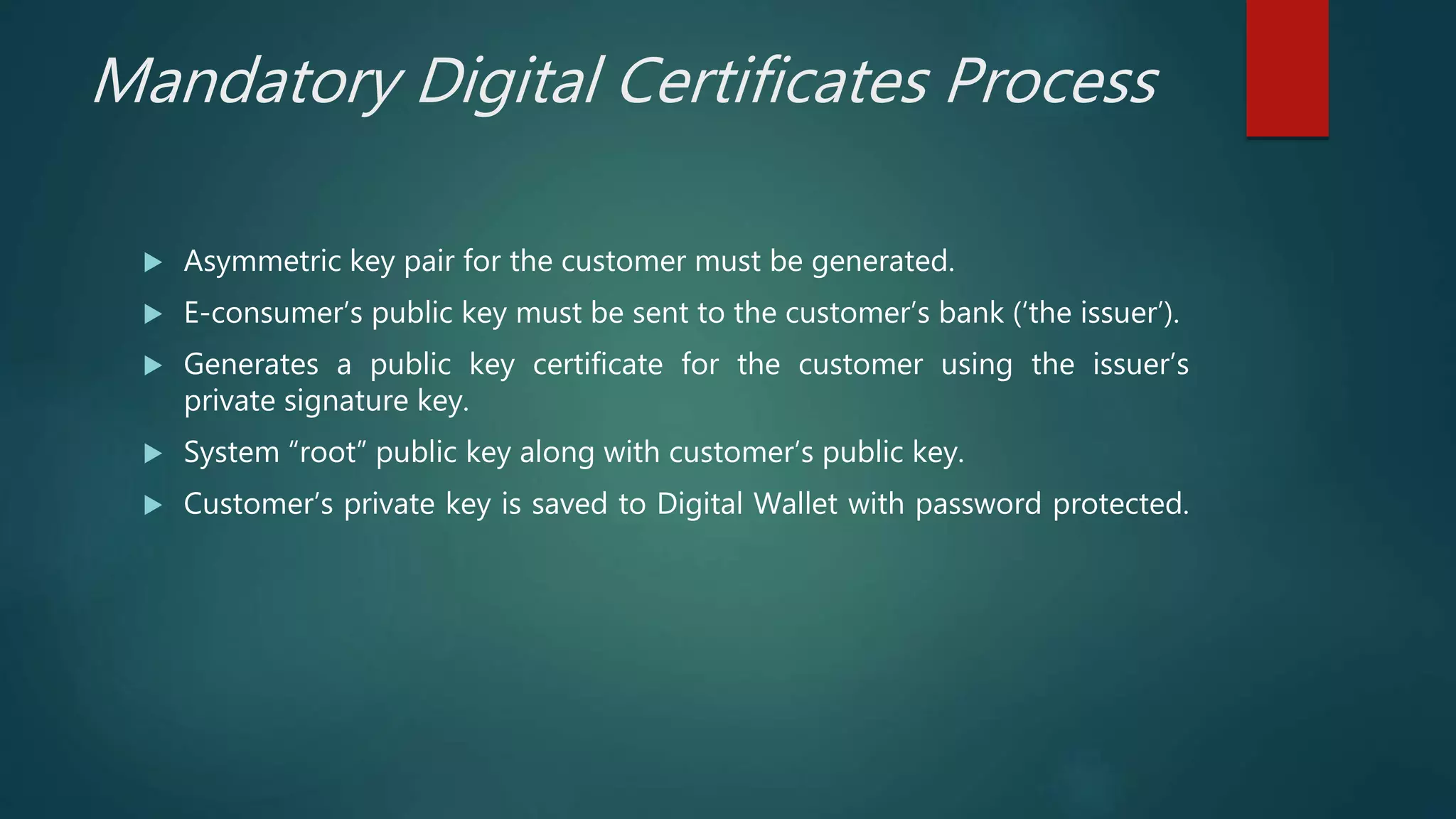

- 15. Mandatory Digital CertificatesProcess Asymmetric key pair for the customer must be generated. E-consumer’s public key must be sent to the customer’s bank (‘the issuer’). Generates a public key certificate for the customer using the issuer’s private signature key. System “root” public key along with customer’s public key. Customer’s private key is saved to Digital Wallet with password protected.

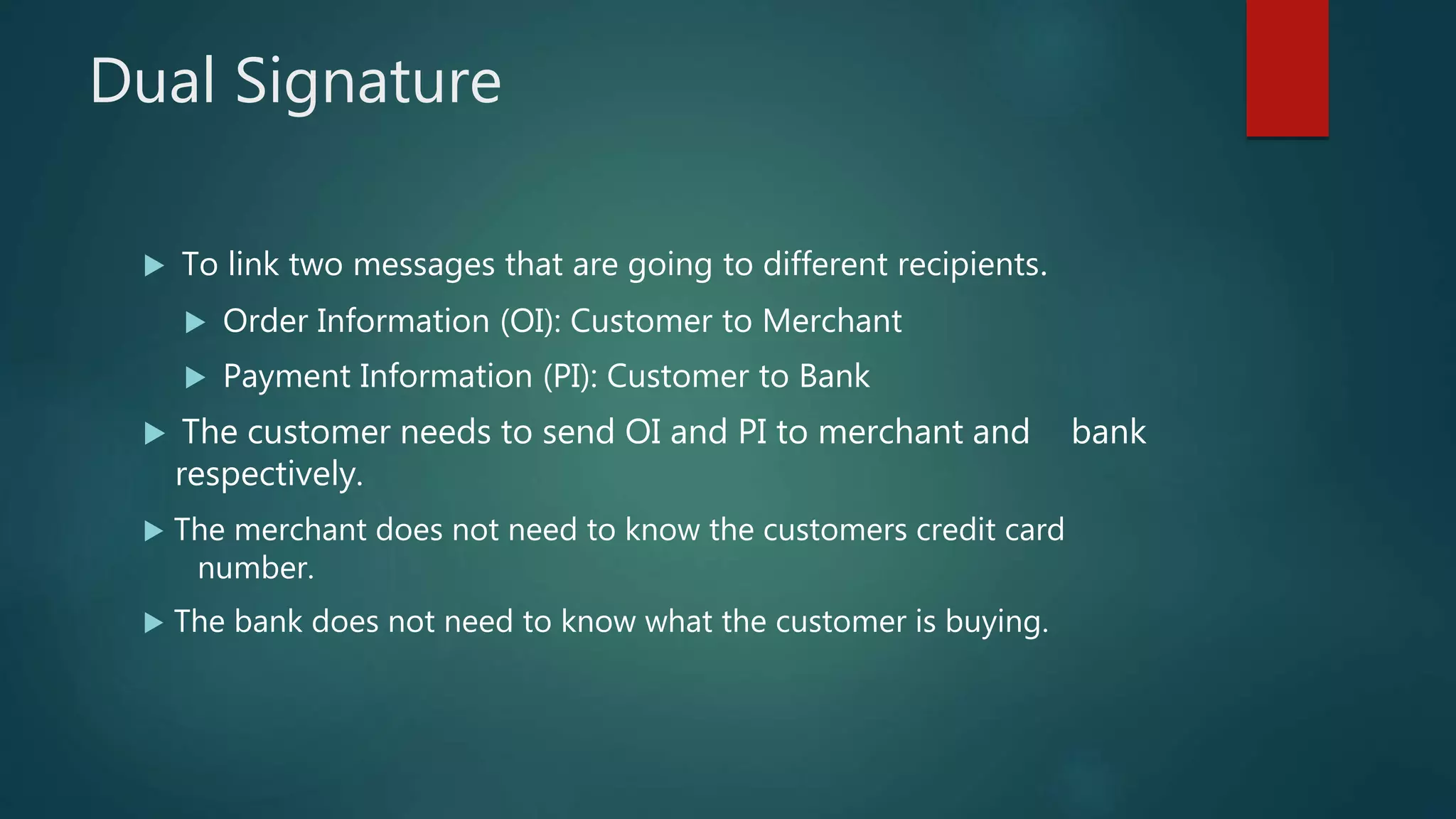

- 16. Dual Signature Tolink two messages that are going to different recipients. Order Information (OI): Customer to Merchant Payment Information (PI): Customer to Bank The customer needs to send OI and PI to merchant and bank respectively. The merchant does not need to know the customers credit card number. The bank does not need to know what the customer is buying.
- 17. Dual Signature Theoperation for dual signature is as follows: Take the hash (SHA-1) of the payment and order information. These two hash values are concatenated [H(PI) || H(OI)] and then the result is hashed. Customer encrypts the final hash with a private key creating the dual signature. DS = EKRC [ H(H(PI) || H(OI)) ]
- 18. DS Verification byMerchant The merchant has the public key of the customer obtained from the customer’s certificate. Now, the merchant can compute two values: H(PIMD || H(OI)) DKUC[DS] Should be equal!
- 19. DS Verification byBank The bank is in possession of DS, PI, the message digest for OI (OIMD), and the customer’s public key, then the bank can compute the following: H(H(PI) || OIMD) DKUC [ DS ]
- 20. Digital Wallet ForCustomer’s self Authentication. By Password Private key is gotten Transmits OI and PI Encrypted with separate public keys to Merchant Sign(SKCUS) {E(PKMER)[OI]|E(PKACC)[PI]} Merchant sent it to The issuing bank and the acquiring bank to verify

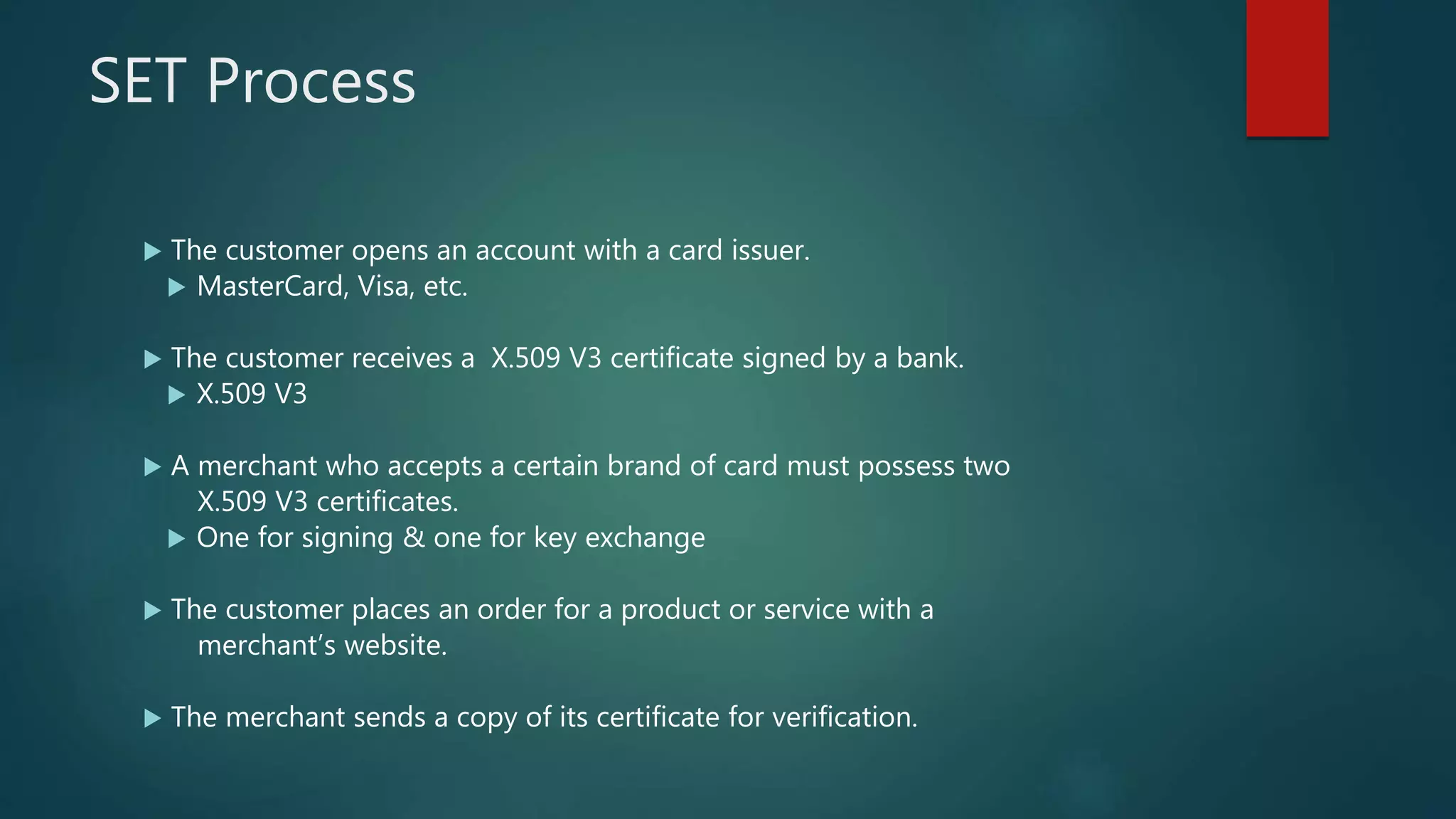

- 21. SET Process Thecustomer opens an account with a card issuer. MasterCard, Visa, etc. The customer receives a X.509 V3 certificate signed by a bank. X.509 V3 A merchant who accepts a certain brand of card must possess two X.509 V3 certificates. One for signing & one for key exchange The customer places an order for a product or service with a merchant’s website. The merchant sends a copy of its certificate for verification.

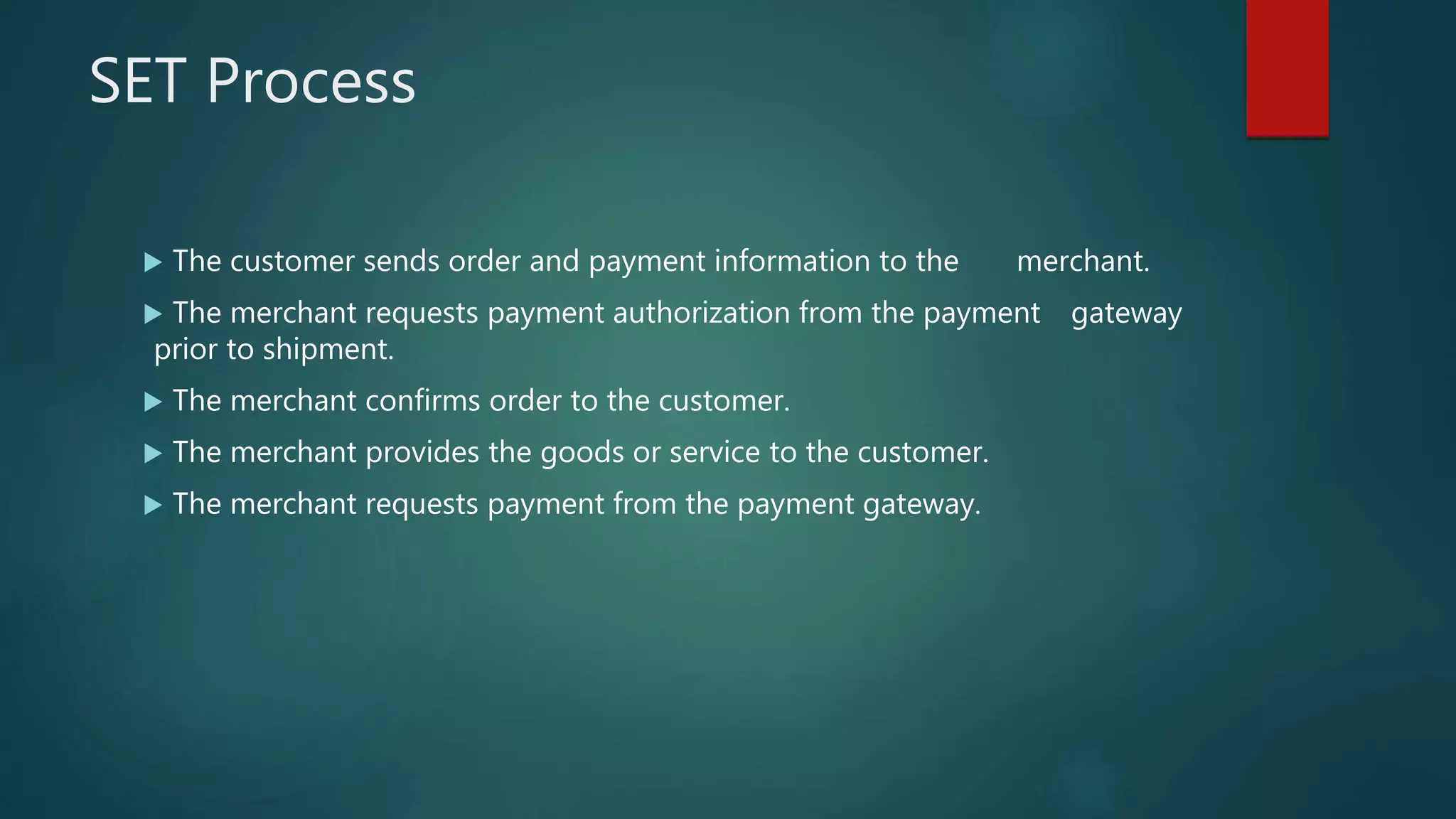

- 22. SET Process Thecustomer sends order and payment information to the merchant. The merchant requests payment authorization from the payment gateway prior to shipment. The merchant confirms order to the customer. The merchant provides the goods or service to the customer. The merchant requests payment from the payment gateway.

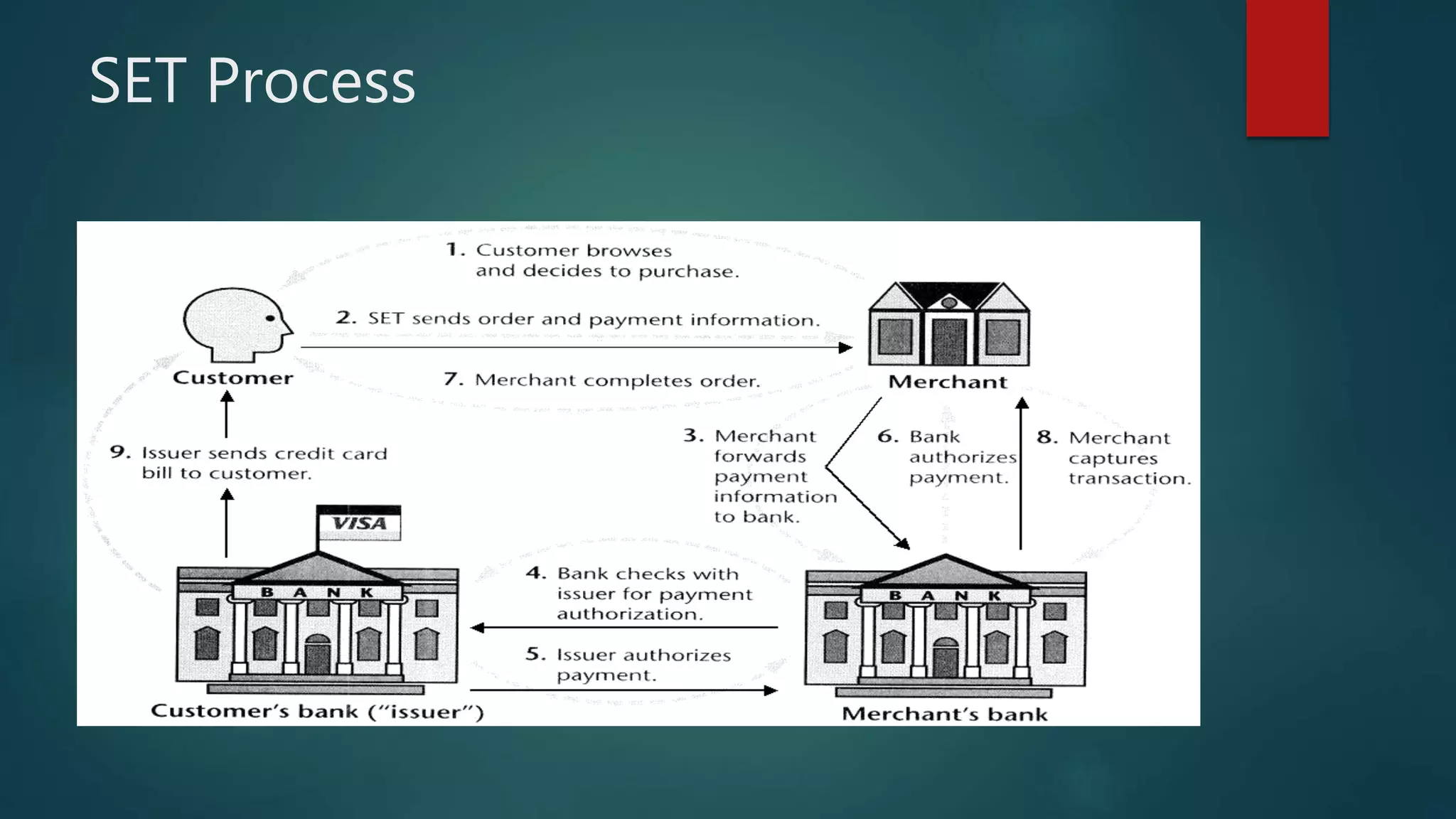

- 23.

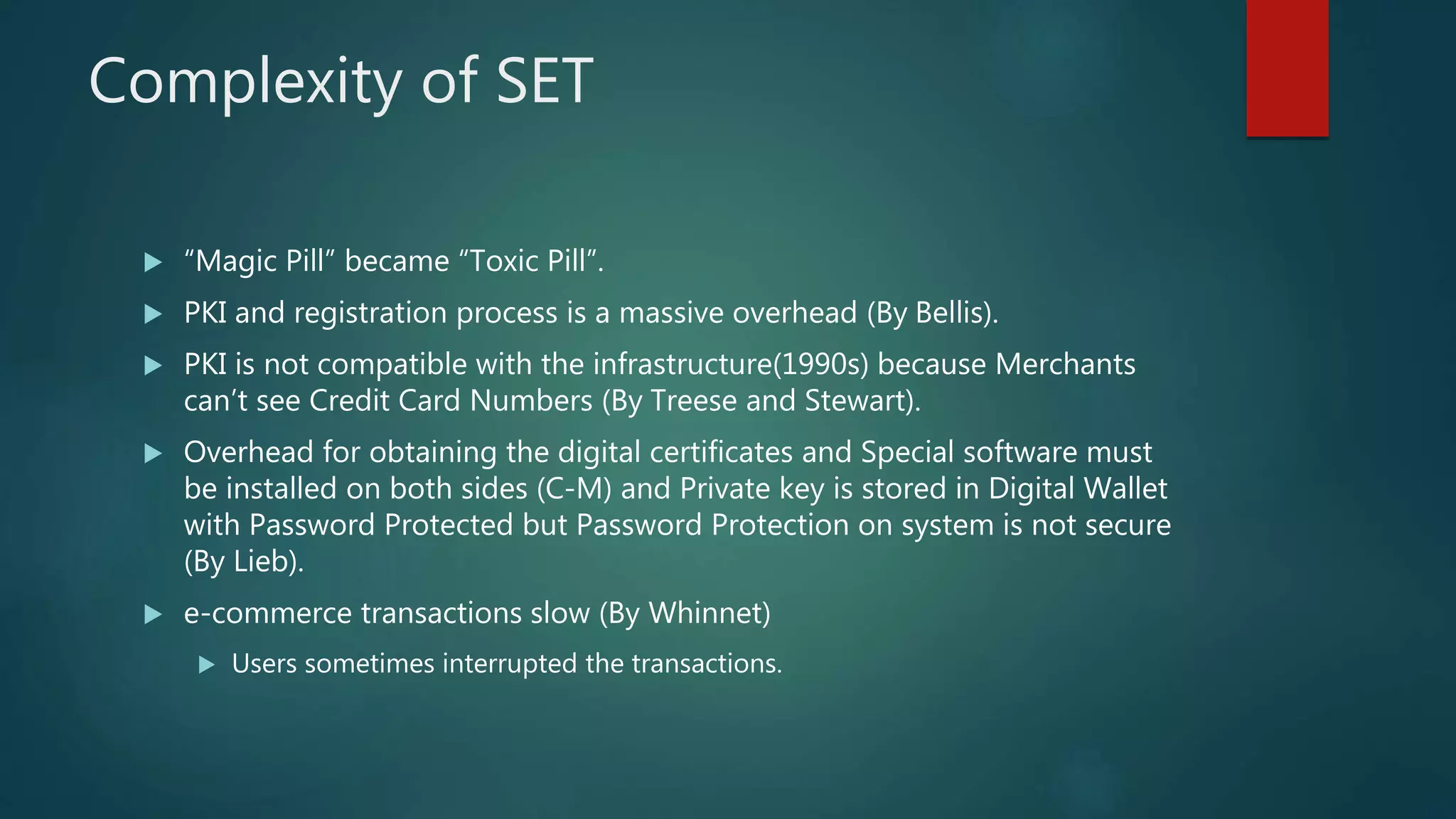

- 24. Complexity of SET “Magic Pill” became “Toxic Pill”. PKI and registration process is a massive overhead (By Bellis). PKI is not compatible with the infrastructure(1990s) because Merchants can’t see Credit Card Numbers (By Treese and Stewart). Overhead for obtaining the digital certificates and Special software must be installed on both sides (C-M) and Private key is stored in Digital Wallet with Password Protected but Password Protection on system is not secure (By Lieb). e-commerce transactions slow (By Whinnet) Users sometimes interrupted the transactions.
- 25. ATTEMPTED SOLUTIONS TOSET PROBLEMS Included in SET PIN Chip Server Based Digital Wallet

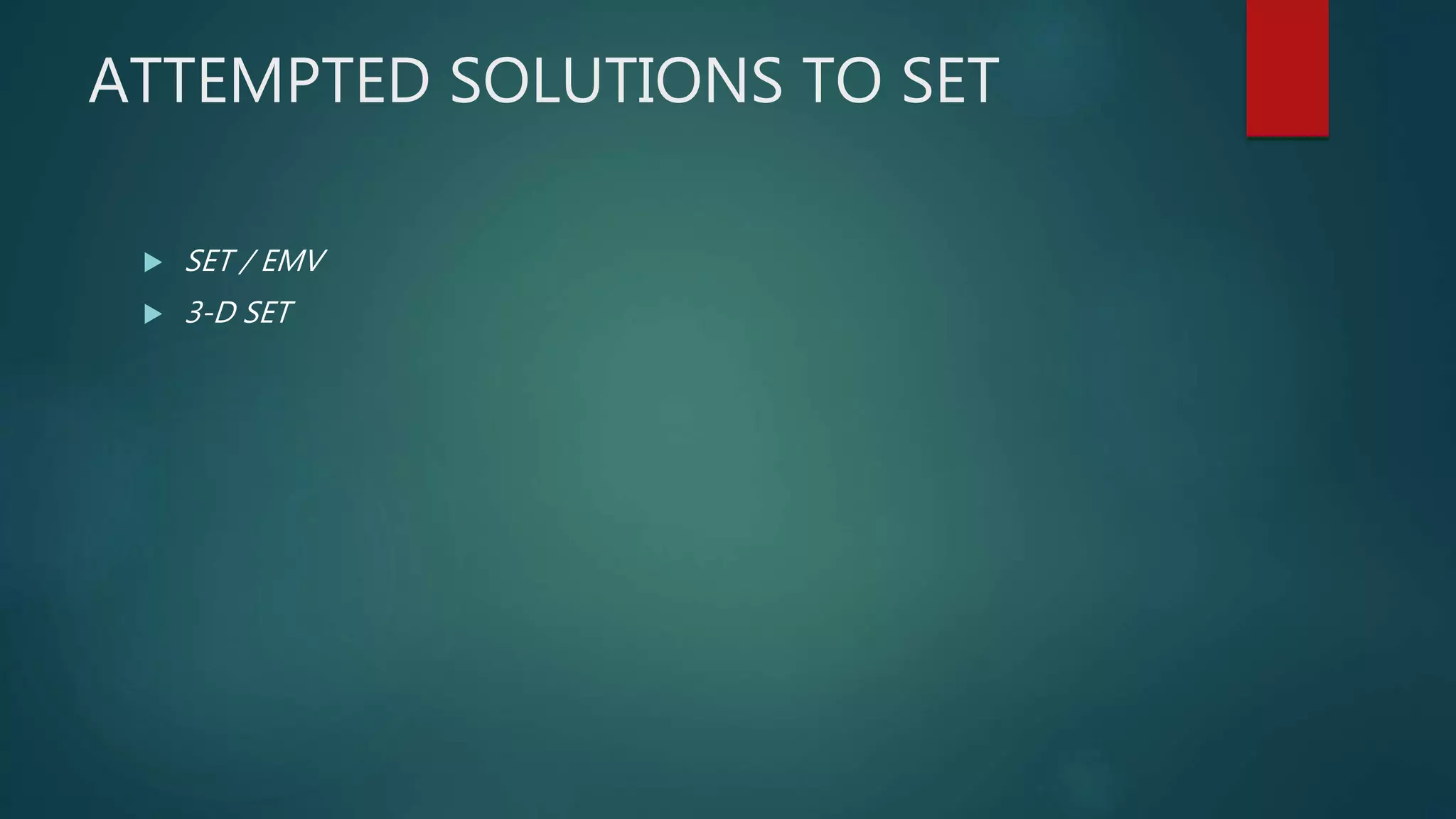

- 26. ATTEMPTED SOLUTIONS TOSET SET / EMV 3-D SET

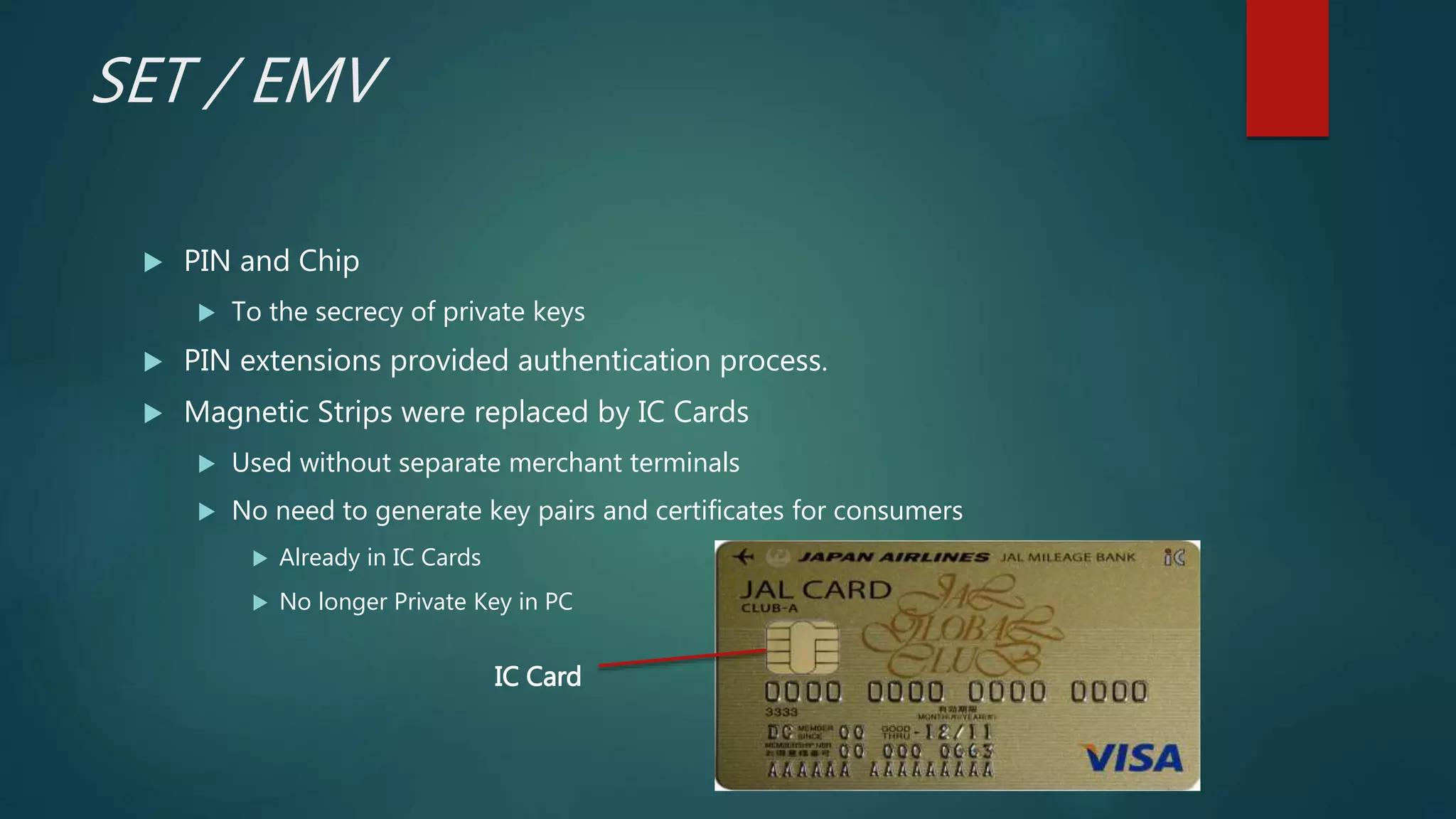

- 27. SET / EMV PIN and Chip To the secrecy of private keys PIN extensions provided authentication process. Magnetic Strips were replaced by IC Cards Used without separate merchant terminals No need to generate key pairs and certificates for consumers Already in IC Cards No longer Private Key in PC IC Card

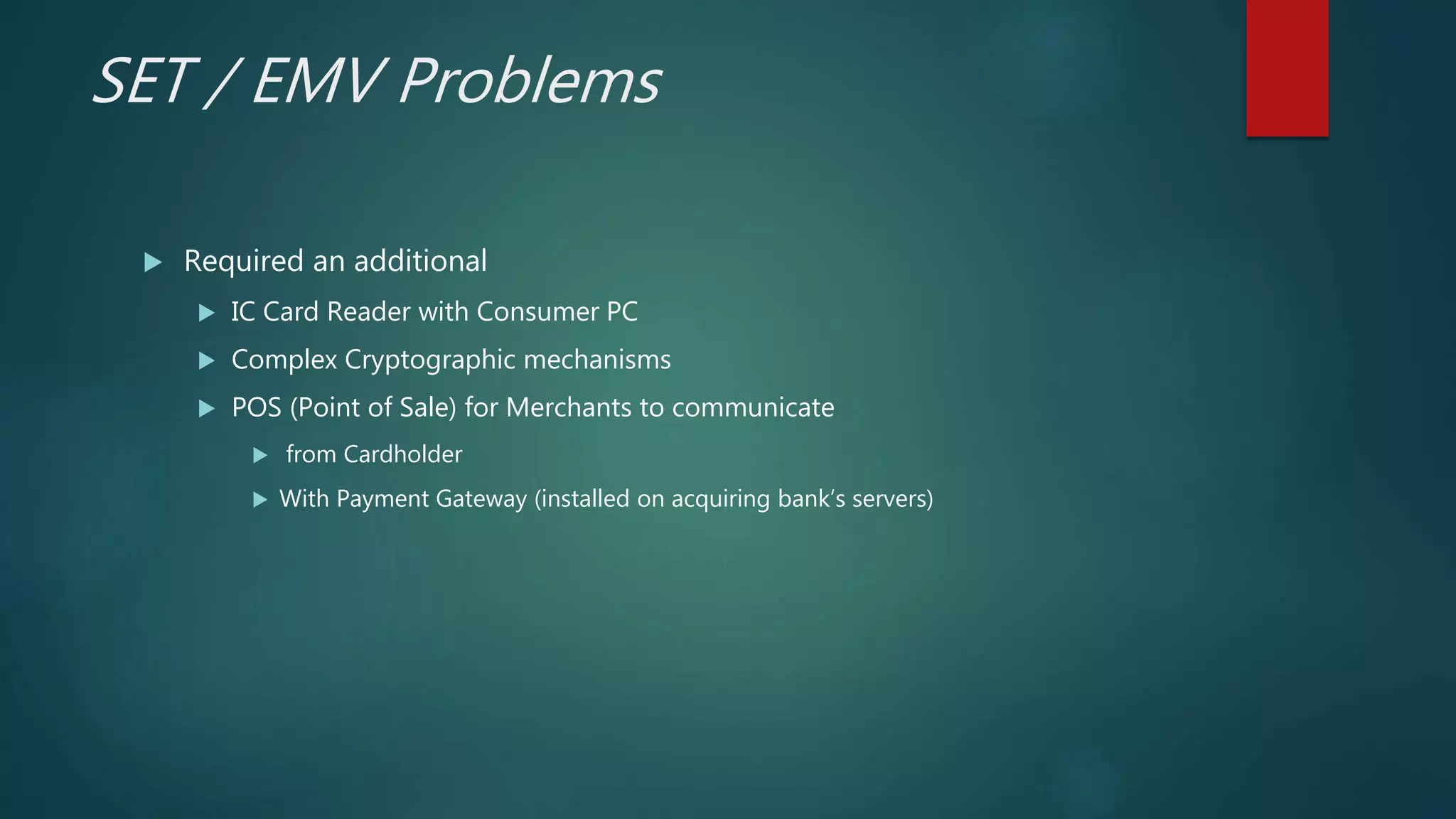

- 28. SET / EMVProblems Required an additional IC Card Reader with Consumer PC Complex Cryptographic mechanisms POS (Point of Sale) for Merchants to communicate from Cardholder With Payment Gateway (installed on acquiring bank’s servers)
- 29. 3-D SET Server-basedwallet extensions based on three-domain (3D) architecture Digital wallet software and the digital certificate on issuer’s server Enabled the payment gateway and merchant certificates to be kept at an acquirer server 3D SET was built upon the relationships between three ‘domains’ : acquirer (the relationship between the merchant and the acquiring’s bank) Issuer (the relationship between the cardholder/consumer and the issuer) Interoperability (the acquirer and issuer domains are supported by the inter- operability domain)

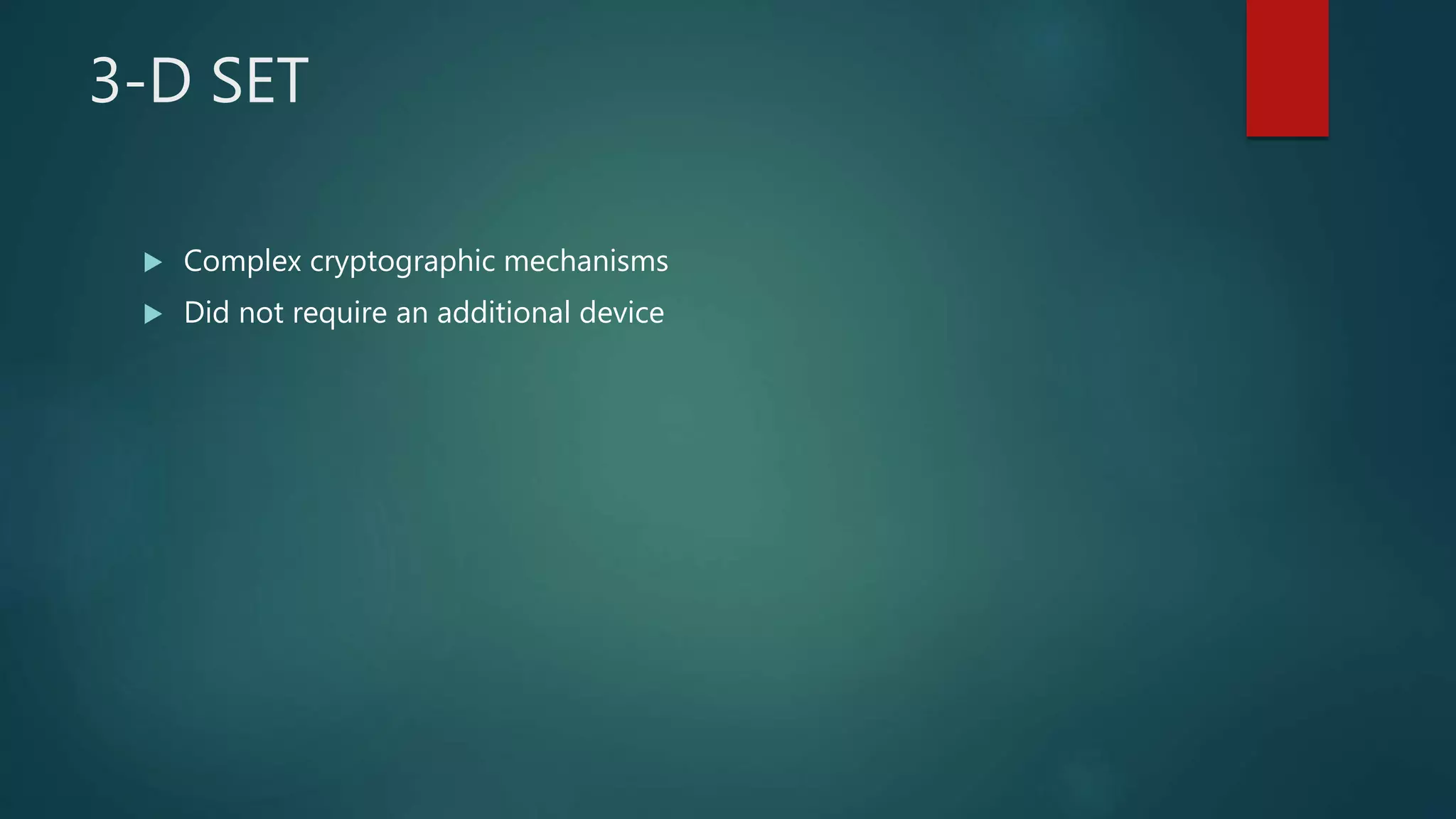

- 30. 3-D SET Complexcryptographic mechanisms Did not require an additional device
- 31. Conclusion SET wasnot rejected if It had the same architecture like 3-D SET 3-D SET was the new Design as a Magic Pill
- 32. References [1] S. Farrelland M. Zolotarev, “XML and PKI-what’s the story?” Network Security, vol. 2001, pp. 7-10, September 2001. [2] F. Piper, “Some trends in research in cryptography and security mechanisms,” Computers and Security, vol. 22, pp. 22-25, January 2003. [3] L. Loeb, Secure Electronic Transactions: Introduction and Technical Reference, Boston: Artech House, 1998. [4] M. S. Merkow, J. Breithaupt, and K. L. Wheeler, Building SET Applications for Secure Transactions, John Wiley and Sons, New York, 1998. [5] Secure Electronic Transaction LLC (SETCo), SET Secure Electronic Transaction Specification, version 1.0 ed., May 1997.
- 33. References [6] K. Chen,H. Lee, and B. Mayer, “The impact of security control on business-to-consumer electronic commerce,” Human Systems Management, vol. 20, no. 2, pp. 139,147, 2001. [7] D. Birch, “Secure electronic commerce – i: The certificate business public key infrastructure will be big business,” Computer Law & Security Review, vol. 13, no. 6, pp. 454-456, 1997. [8] http://www.informit.com/articles/article.aspx?p=26857 [9] http://www.slideshare.net/HARRY-MEHTA/secure-electronics-transaction [10] E. Bellis, Beautiful Security, ch. Beautiful Trade: Rethinking E-Commerce Security, Sebastopol: O’Reilly, 2009.
- 34. References [11] G. W.Treese and L. C. Stewart, Designing Systems for Internet Commerce, Massachusetts: Addison-Wesley, 1998. [12] J. Lieb, “Getting secure online-an overview,” Commerce Net-The Strategies Report, vol. 1, pp. 1-4, July 1999. [13] Ford and M. S. Baum, Secure Electronic Commerce, Prentice Hall, 2001. [14] Secure Electronic Transaction LLC (SETCo), Common Chip Extension- Application for SETCo Approval, version 1.0 ed., September 1999. [15] Secure Electronic Transaction LLC (SETCo), Online PIN Extensions to SET Secure Electronic Transaction, version 1.0 ed., May 1999.
- 35. References [16] P. Jarupunpholand C. J. Mitchell, “Measuring SSL and SET against e-commerce consumer requirements,” in Proceedings of the International Network Conference (INC 2002), Plymouth University Press, pp. 323-330, July 2002. [17] P. Jarupunphol and C. J. Mitchell, “The future of SET,” in Proceedings of UKAIS 2002, Leeds Metropolitan University, pp. 9-17, April 2002. [18] IBM e-business, Internet Wallet Choices and Answers for Business and Technical Managers, 1999 [19] P. Jarupunphol, “A critical analysis of 3-D Secure,” in Proceedings of the 3rd Electronic Commerce Research and Development (E-COM-03), Gdansk, Poland, pp. 87-94, October 2003. [20] R. Anderson, Security Engineering-A Guide to Building Dependable Distributed Systems. John Wiley and Sons, 2001.
- 36. References [21] K. Wrona,M. Schuba, and G. Zavagli, “Mobile payment- state of the art and open problems,” in Proceedings of 2nd International Workshop IACSIT International Journal ofEngineering and Technology, Vol. 5, No. 2, April 2013 WELCOM(L. Fiege, G. Mühl, and U. G. Wilhelm, eds.), Lecture Notes in Computer Science, Springer-Verlag, Berlin, vol. 2232, pp. 88-100, 2001. [22] http://www.slideshare.net/Slyoldawg/jlfrank-sinatra [23] Network Security Essentials: Applications and Standards By William Stalling
