1. SCREENING OF
ANALGESICS
Prepared by: ASMA M A
First M. Pharm Pharmacology

2. INTRODUCTION
• Pain is an unpleasant sensory and emotional experience
associated with actual and potential tissue damage.
• Various types of pains seen in humans are:
• Somatic pain (arising from skin, muscles, joints, ligaments
and bones)
• Visceral pain
• Referred pain
• Neuropathic pain
• Cancer pain etc.

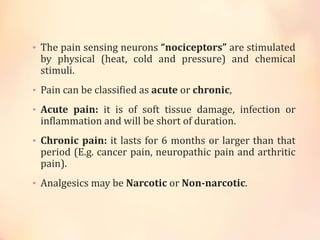

3. • The pain sensing neurons “nociceptors” are stimulated
by physical (heat, cold and pressure) and chemical
stimuli.
• Pain can be classified as acute or chronic,
• Acute pain: it is of soft tissue damage, infection or
inflammation and will be short of duration.
• Chronic pain: it lasts for 6 months or larger than that
period (E.g. cancer pain, neuropathic pain and arthritic
pain).
• Analgesics may be Narcotic or Non-narcotic.

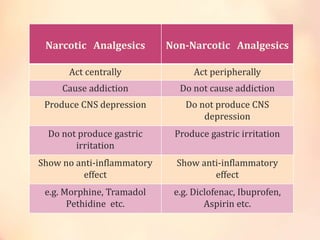

4. Narcotic Analgesics Non-Narcotic Analgesics
Act centrally Act peripherally
Cause addiction Do not cause addiction
Produce CNS depression Do not produce CNS
depression
Do not produce gastric
irritation
Produce gastric irritation
Show no anti-inflammatory
effect
Show anti-inflammatory
effect
e.g. Morphine, Tramadol
Pethidine etc.
e.g. Diclofenac, Ibuprofen,
Aspirin etc.

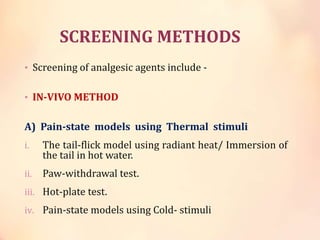

5. SCREENING METHODS
• Screening of analgesic agents include -
• IN-VIVO METHOD
A) Pain-state models using Thermal stimuli
i. The tail-flick model using radiant heat/ Immersion of
the tail in hot water.
ii. Paw-withdrawal test.
iii. Hot-plate test.
iv. Pain-state models using Cold- stimuli

6. B) Pain-state models using Mechanical stimuli
i. Strain gauges.
ii. Von-Frey filaments.
iii. Inclined-plane test.
C) Pain-state models using Electrical stimuli
i. Electrical stimulation of the tail.
ii. Grid-shock test.
iii. Stimulation of the tooth pulp.
iv. Monkey-shock titration test.
v. Stimulation of the limbs.

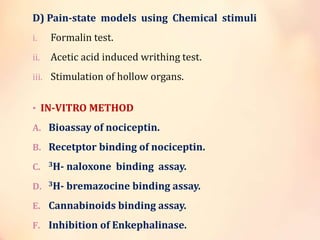

7. D) Pain-state models using Chemical stimuli
i. Formalin test.
ii. Acetic acid induced writhing test.
iii. Stimulation of hollow organs.
• IN-VITRO METHOD
A. Bioassay of nociceptin.
B. Recetptor binding of nociceptin.
C. 3H- naloxone binding assay.
D. 3H- bremazocine binding assay.
E. Cannabinoids binding assay.
F. Inhibition of Enkephalinase.

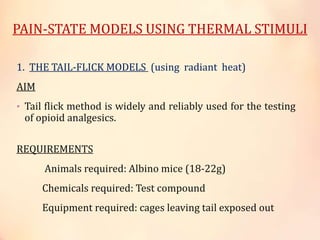

8. PAIN-STATE MODELS USING THERMAL STIMULI
1. THE TAIL-FLICK MODELS (using radiant heat)
AIM
• Tail flick method is widely and reliably used for the testing
of opioid analgesics.
REQUIREMENTS
Animals required: Albino mice (18-22g)
Chemicals required: Test compound
Equipment required: cages leaving tail exposed out

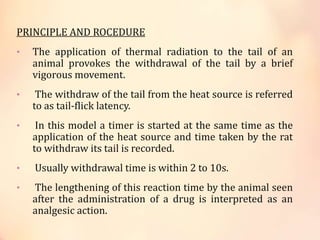

10. PRINCIPLE AND ROCEDURE
• The application of thermal radiation to the tail of an
animal provokes the withdrawal of the tail by a brief
vigorous movement.
• The withdraw of the tail from the heat source is referred
to as tail-flick latency.
• In this model a timer is started at the same time as the
application of the heat source and time taken by the rat
to withdraw its tail is recorded.
• Usually withdrawal time is within 2 to 10s.
• The lengthening of this reaction time by the animal seen
after the administration of a drug is interpreted as an
analgesic action.

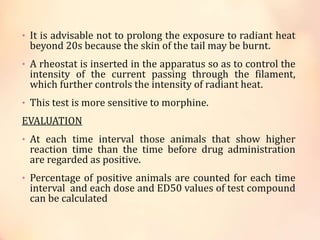

11. • It is advisable not to prolong the exposure to radiant heat
beyond 20s because the skin of the tail may be burnt.
• A rheostat is inserted in the apparatus so as to control the
intensity of the current passing through the filament,
which further controls the intensity of radiant heat.
• This test is more sensitive to morphine.
EVALUATION
• At each time interval those animals that show higher
reaction time than the time before drug administration
are regarded as positive.
• Percentage of positive animals are counted for each time
interval and each dose and ED50 values of test compound
can be calculated

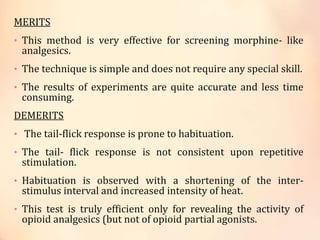

12. MERITS
• This method is very effective for screening morphine- like
analgesics.
• The technique is simple and does not require any special skill.
• The results of experiments are quite accurate and less time
consuming.
DEMERITS
• The tail-flick response is prone to habituation.
• The tail- flick response is not consistent upon repetitive
stimulation.
• Habituation is observed with a shortening of the inter-
stimulus interval and increased intensity of heat.
• This test is truly efficient only for revealing the activity of
opioid analgesics (but not of opioid partial agonists.

13. 2. HOT PLATE MODEL
AIM
• Hot plate method has been widely used to evaluate opioid
analgesics.
REQUIREMENTS
Animals required: Albino mice
Chemicals required: Test compound
Equipment requirement: Hot plate at 55-66 C
(electrically heated late)

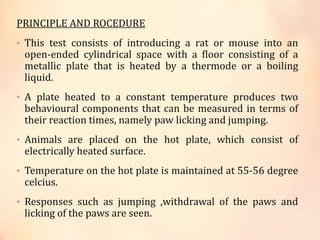

15. PRINCIPLE AND ROCEDURE
• This test consists of introducing a rat or mouse into an
open-ended cylindrical space with a floor consisting of a
metallic plate that is heated by a thermode or a boiling
liquid.
• A plate heated to a constant temperature produces two
behavioural components that can be measured in terms of
their reaction times, namely paw licking and jumping.
• Animals are placed on the hot plate, which consist of
electrically heated surface.
• Temperature on the hot plate is maintained at 55-56 degree
celcius.
• Responses such as jumping ,withdrawal of the paws and
licking of the paws are seen.

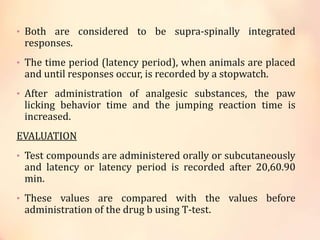

16. • Both are considered to be supra-spinally integrated
responses.
• The time period (latency period), when animals are placed
and until responses occur, is recorded by a stopwatch.
• After administration of analgesic substances, the paw
licking behavior time and the jumping reaction time is
increased.
EVALUATION
• Test compounds are administered orally or subcutaneously
and latency or latency period is recorded after 20,60.90
min.
• These values are compared with the values before
administration of the drug b using T-test.

17. DEMERIT
• The sedatives, muscle relaxants or psychomimetics
yield false positive results, while partial opiate agonist-
antagonists produce unreliable results.

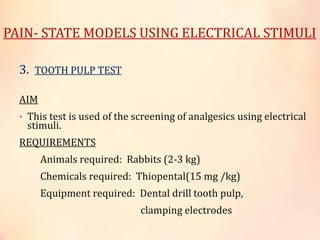

18. PAIN- STATE MODELS USING ELECTRICAL STIMULI
3. TOOTH PULP TEST
AIM
• This test is used of the screening of analgesics using electrical
stimuli.
REQUIREMENTS
Animals required: Rabbits (2-3 kg)
Chemicals required: Thiopental(15 mg /kg)
Equipment required: Dental drill tooth pulp,
clamping electrodes

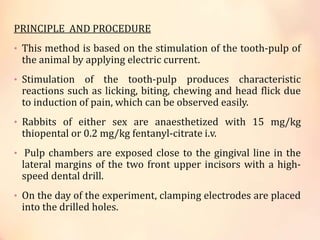

20. PRINCIPLE AND PROCEDURE
• This method is based on the stimulation of the tooth-pulp of
the animal by applying electric current.
• Stimulation of the tooth-pulp produces characteristic
reactions such as licking, biting, chewing and head flick due
to induction of pain, which can be observed easily.
• Rabbits of either sex are anaesthetized with 15 mg/kg
thiopental or 0.2 mg/kg fentanyl-citrate i.v.
• Pulp chambers are exposed close to the gingival line in the
lateral margins of the two front upper incisors with a high-
speed dental drill.
• On the day of the experiment, clamping electrodes are placed
into the drilled holes.

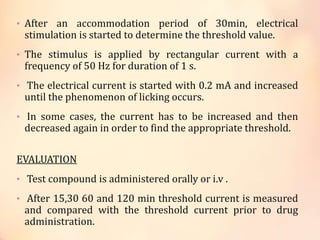

21. • After an accommodation period of 30min, electrical
stimulation is started to determine the threshold value.
• The stimulus is applied by rectangular current with a
frequency of 50 Hz for duration of 1 s.
• The electrical current is started with 0.2 mA and increased
until the phenomenon of licking occurs.
• In some cases, the current has to be increased and then
decreased again in order to find the appropriate threshold.
EVALUATION
• Test compound is administered orally or i.v .
• After 15,30 60 and 120 min threshold current is measured
and compared with the threshold current prior to drug
administration.

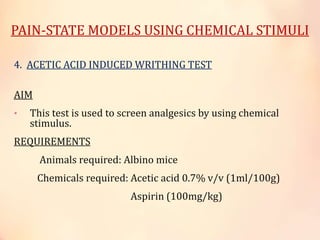

22. PAIN-STATE MODELS USING CHEMICAL STIMULI
4. ACETIC ACID INDUCED WRITHING TEST
AIM
• This test is used to screen analgesics by using chemical
stimulus.
REQUIREMENTS
Animals required: Albino mice
Chemicals required: Acetic acid 0.7% v/v (1ml/100g)
Aspirin (100mg/kg)

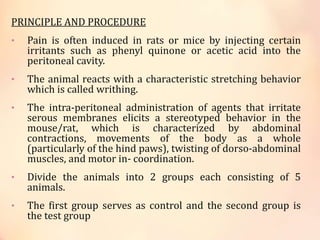

24. PRINCIPLE AND PROCEDURE
• Pain is often induced in rats or mice by injecting certain
irritants such as phenyl quinone or acetic acid into the
peritoneal cavity.
• The animal reacts with a characteristic stretching behavior
which is called writhing.
• The intra-peritoneal administration of agents that irritate
serous membranes elicits a stereotyped behavior in the
mouse/rat, which is characterized by abdominal
contractions, movements of the body as a whole
(particularly of the hind paws), twisting of dorso-abdominal
muscles, and motor in- coordination.
• Divide the animals into 2 groups each consisting of 5
animals.
• The first group serves as control and the second group is
the test group

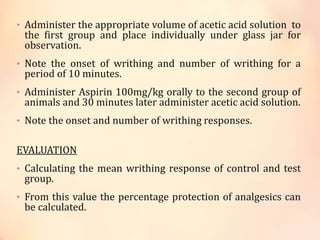

25. • Administer the appropriate volume of acetic acid solution to
the first group and place individually under glass jar for
observation.
• Note the onset of writhing and number of writhing for a
period of 10 minutes.
• Administer Aspirin 100mg/kg orally to the second group of
animals and 30 minutes later administer acetic acid solution.
• Note the onset and number of writhing responses.
EVALUATION
• Calculating the mean writhing response of control and test
group.
• From this value the percentage protection of analgesics can
be calculated.

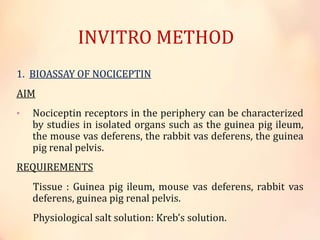

26. INVITRO METHOD
1. BIOASSAY OF NOCICEPTIN
AIM
• Nociceptin receptors in the periphery can be characterized
by studies in isolated organs such as the guinea pig ileum,
the mouse vas deferens, the rabbit vas deferens, the guinea
pig renal pelvis.
REQUIREMENTS
Tissue : Guinea pig ileum, mouse vas deferens, rabbit vas
deferens, guinea pig renal pelvis.
Physiological salt solution: Kreb’s solution.

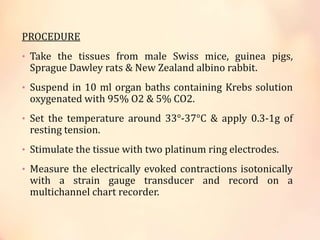

27. PROCEDURE
• Take the tissues from male Swiss mice, guinea pigs,
Sprague Dawley rats & New Zealand albino rabbit.
• Suspend in 10 ml organ baths containing Krebs solution
oxygenated with 95% O2 & 5% CO2.
• Set the temperature around 33°-37°C & apply 0.3-1g of
resting tension.
• Stimulate the tissue with two platinum ring electrodes.
• Measure the electrically evoked contractions isotonically
with a strain gauge transducer and record on a
multichannel chart recorder.

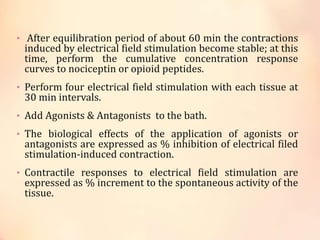

28. • After equilibration period of about 60 min the contractions
induced by electrical field stimulation become stable; at this
time, perform the cumulative concentration response
curves to nociceptin or opioid peptides.
• Perform four electrical field stimulation with each tissue at
30 min intervals.
• Add Agonists & Antagonists to the bath.
• The biological effects of the application of agonists or
antagonists are expressed as % inhibition of electrical filed
stimulation-induced contraction.
• Contractile responses to electrical field stimulation are
expressed as % increment to the spontaneous activity of the
tissue.

29. EVALUATION
• Data are expressed as means of n experiments and
statistically analyzed and recorded.

30. 2. 3H- NALOXONE BINDING ASSAY
AIM
This test is used for the study of opiate agonist and antagonist.
REQUIREMENTS
Animal required: Wistar rat
Physiological salt solution: Tris buffer

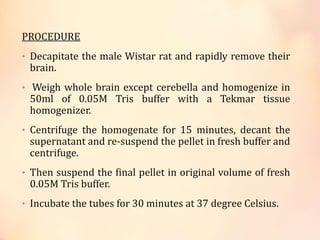

31. PROCEDURE
• Decapitate the male Wistar rat and rapidly remove their
brain.
• Weigh whole brain except cerebella and homogenize in
50ml of 0.05M Tris buffer with a Tekmar tissue
homogenizer.
• Centrifuge the homogenate for 15 minutes, decant the
supernatant and re-suspend the pellet in fresh buffer and
centrifuge.
• Then suspend the final pellet in original volume of fresh
0.05M Tris buffer.
• Incubate the tubes for 30 minutes at 37 degree Celsius.

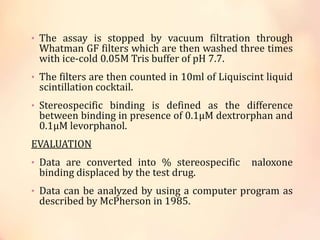

32. • The assay is stopped by vacuum filtration through
Whatman GF filters which are then washed three times
with ice-cold 0.05M Tris buffer of pH 7.7.
• The filters are then counted in 10ml of Liquiscint liquid
scintillation cocktail.
• Stereospecific binding is defined as the difference
between binding in presence of 0.1μM dextrorphan and
0.1μM levorphanol.
EVALUATION
• Data are converted into % stereospecific naloxone
binding displaced by the test drug.
• Data can be analyzed by using a computer program as
described by McPherson in 1985.

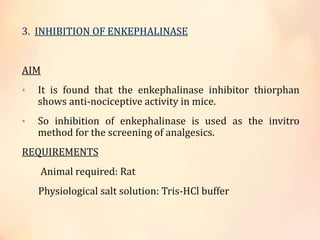

33. 3. INHIBITION OF ENKEPHALINASE
AIM
• It is found that the enkephalinase inhibitor thiorphan
shows anti-nociceptive activity in mice.
• So inhibition of enkephalinase is used as the invitro
method for the screening of analgesics.
REQUIREMENTS
Animal required: Rat
Physiological salt solution: Tris-HCl buffer

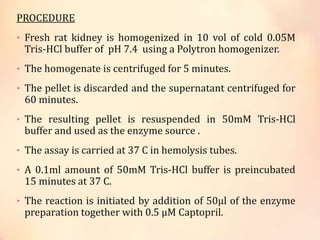

34. PROCEDURE
• Fresh rat kidney is homogenized in 10 vol of cold 0.05M
Tris-HCl buffer of pH 7.4 using a Polytron homogenizer.
• The homogenate is centrifuged for 5 minutes.
• The pellet is discarded and the supernatant centrifuged for
60 minutes.
• The resulting pellet is resuspended in 50mM Tris-HCl
buffer and used as the enzyme source .
• The assay is carried at 37 C in hemolysis tubes.
• A 0.1ml amount of 50mM Tris-HCl buffer is preincubated
15 minutes at 37 C.
• The reaction is initiated by addition of 50μl of the enzyme
preparation together with 0.5 μM Captopril.

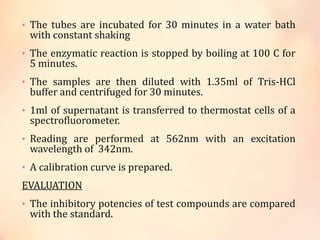

35. • The tubes are incubated for 30 minutes in a water bath
with constant shaking
• The enzymatic reaction is stopped by boiling at 100 C for
5 minutes.
• The samples are then diluted with 1.35ml of Tris-HCl
buffer and centrifuged for 30 minutes.
• 1ml of supernatant is transferred to thermostat cells of a
spectrofluorometer.
• Reading are performed at 562nm with an excitation
wavelength of 342nm.
• A calibration curve is prepared.
EVALUATION
• The inhibitory potencies of test compounds are compared
with the standard.
