The document summarizes three common frequency bands used in satellite communication: C-band, Ku-band, and Ka-band. C-band uses frequencies between 3.7 to 6.425 GHz and is used by many commercial satellites. Ku-band uses frequencies between 11.7 to 14.5 GHz and is primarily used for satellite communications and television broadcasting from remote locations. Ka-band has the highest frequency range of 26.5 to 40 GHz and is used by communications satellites and military targeting radars.

1. FREQUENCY BANDS IN SATELLITE COMMUNICATION PRESENTED BY:- M.ADEEL FAROOQUI

2. FREQUENCY BANDS AVAILABLE FOR SATELLITE COMMUNICATION

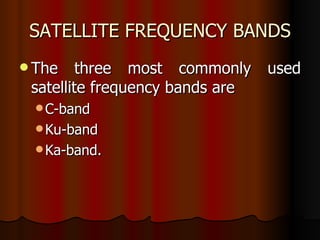

3. SATELLITE FREQUENCY BANDS The three most commonly used satellite frequency bands are C-band Ku-band Ka-band.

4. C-BAND C band is a name given to certain portions of the electromagnetic spectrum , as well as a range of wavelengths of light , used for communications. Most commercial satellites use this Band. The bandwidth allocated is limited to 500 MHz. Known as 4 / 6 GHz band.

5. C-BAND (Cont…) Up / Down Links (W.R.T Satellite) 3.7 to 4.2 GHz forms the down-link (transmit) frequency 5.925 to 6.425 GHz the up-link (receive) frequency. It’s used for certain satellite television broadcasts, and by some WIFI devices, cordless phones , and weather radars .

6. KU-BAND Ku band is primarily used for satellite communications . The Ku band ( pronounced "kay-yoo" ) is a portion of the electromagnetic spectrum in the microwave range of frequencies. This symbol refers to "K-under" (in the original German, "Kurz-unten", with the same meaning)—in other words.

7. KU-BAND (Cont…) Future satellites are being designed for the Ku-Band. Known as 12 / 14 GHz. Up / Down Links (W.R.T. Satellite) Either 11.7 to 12.2 GHz or 10.95 to 11.2 or 11.45 to 11.7 GHz down Link. 14.0 to 14.5 GHz; up-link frequency. Ku band satellites are also used for backhauls and particularly for satellite from remote locations back to a television network's studio for editing and broadcasting .

8. Ka-BAND The Ka band (Pronounced: "Kay-A Band") covers the frequencies of 26.5-40GHz. The Ka band is part of the K band of the microwave band of the electromagnetic spectrum . The so-called 30/20 GHz band is used in communications satellites , uplink in either the 27.5 GHz and 31 GHz bands, and high-resolution, close-range targeting radars aboard military airplanes. Some frequencies in this radio band are used for vehicle speed detection by law enforcement.

9. THANK YOU !
