This document discusses the applications of different radar frequency bands, ranging from HF to mm bands. It provides examples of common uses for each band, such as military communication in HF bands, air traffic control in VHF bands, weather radar and ship radar in S bands, Wi-Fi and satellite TV in C bands, and satellite communication, vehicle detection, and astronomy in Ku, K, Ka, V, W, and mm bands. The applications described indicate how specific frequency ranges are utilized for different wireless technologies and radar systems.

1. Radar frequency bands

2. Table of frequency bands

3. Application of different types
of frequency bands

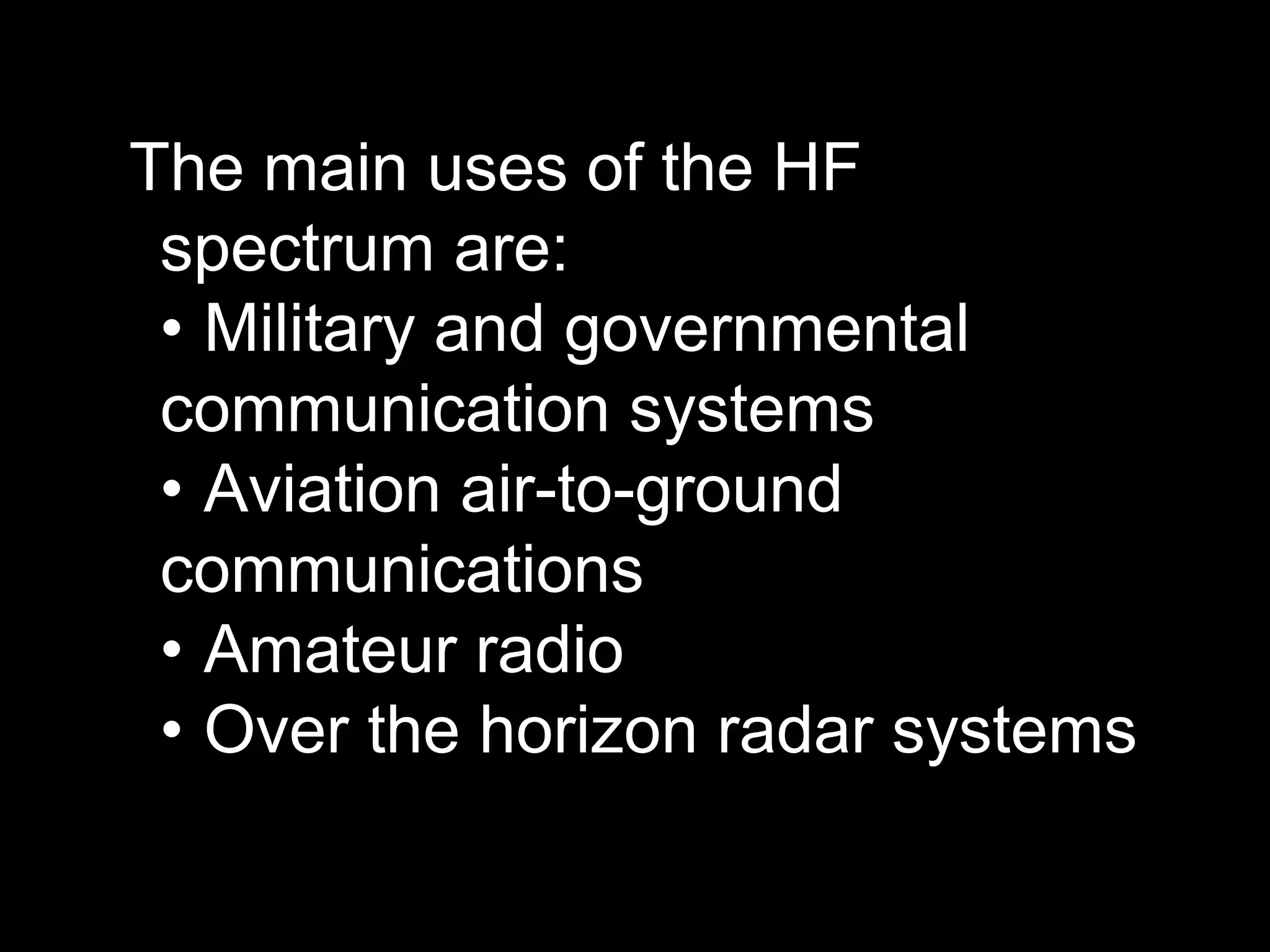

4. The main uses of the HF
spectrum are:
• Military and governmental
communication systems
• Aviation air-to-ground
communications
• Amateur radio
• Over the horizon radar systems

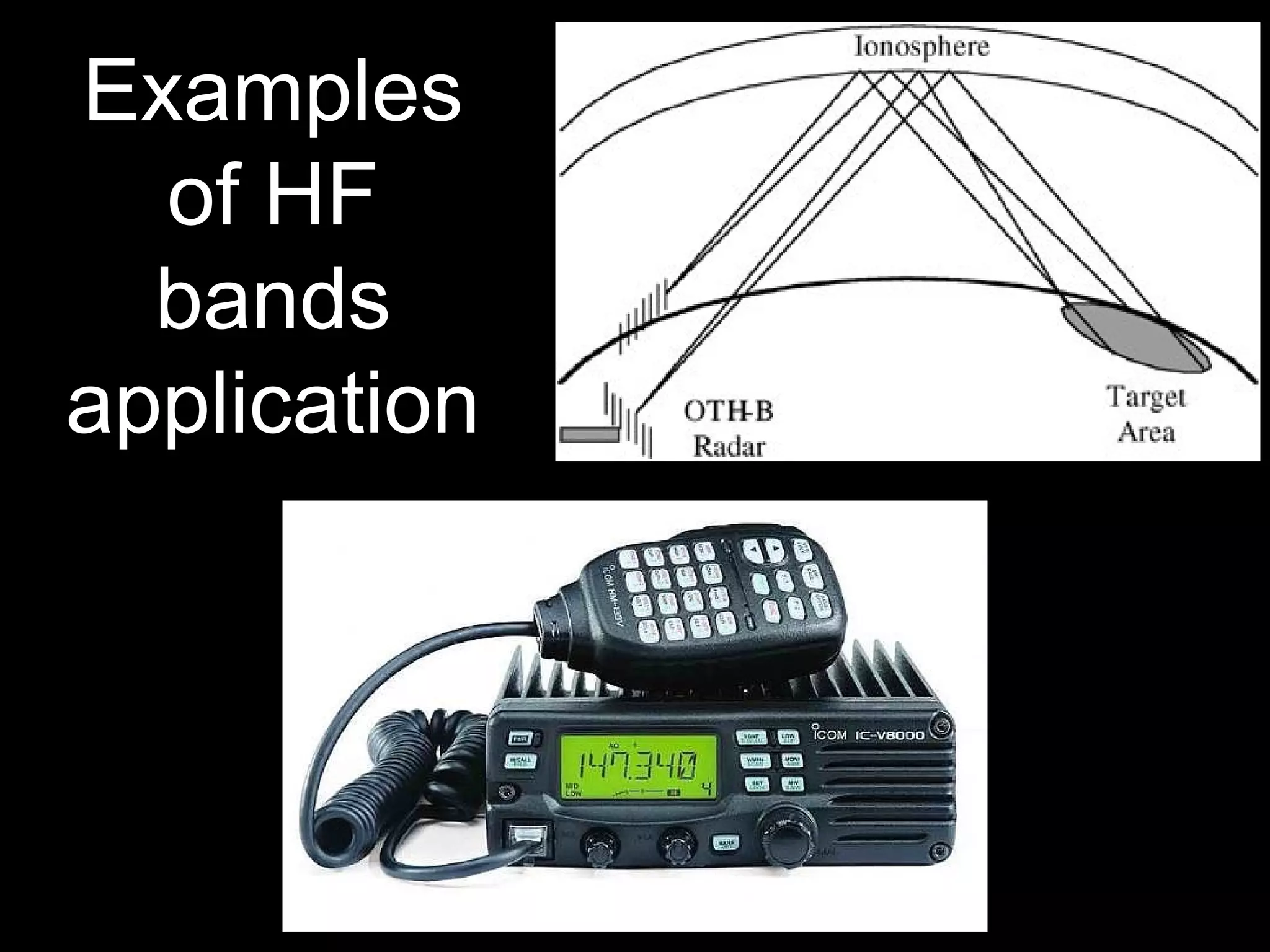

5. Examples
of HF
bands
application

6. Application of VHF band
87-108 MHz: Radio broadcast
108–118 MHz: Air navigation beacons VOR
and Instrument Landing System localiser.
118–137 MHz: Airband for air traffic control,
AM, 121.5 MHz is emergency frequency
144–146 MHz: Amateur radio. In some
countries 144–148 MHz.

7. Application of UHF band
300 – 420 MHz: Meteorology and
federal two-way use
420 – 450 MHz: Government
radiolocation and 70cm ham radio band
450 – 470 MHz: UHF Business Band,
GMRS, FRS, public safety

8. Examples of UHF band application

9. Application of L band
Astronomy
Digital Audio Broadcasting
Satellite navigation
Mobile service

10. Examples of L band
application

11. Application of S band
Weather radar
Surface ship radar
Some communications satellites.

12. Examples of S band
application

13. Application of C band
Microwave radio relay chains
Television receive-only satellite
reception systems
802.11a Wi-Fi
Cordless telephone applications

14. Examples of C band
application

15. Application of X band
Motion detector
Space communication
Terrestrial network

16. Examples of X band
application
DSN-deep space network

17. Application of Ku band
Satellite communication
Vehicle speed detection

18. Examples of Ku band
application

19. Application of K band
Infrared astronomy
Amateur radio

20. Examples of K band
application

21. Application of Ka band
Close-range targeting radars
Kepler mission

22. Examples of Ka band
application

24. Application of V band
Absorption band of oxygen
Telecommunications

25. Examples of V band
application

26. Application of W band
satellite communications
millimeter-wave radar
research
military radar targeting

27. Examples of W band
application

28. Application of mm band
Almost all modern
electronic devices

29. Examples of mm band
application

30. Thanks for watching!
