Root Cause Analysis
Investigating causes of failures & mishaps Stop and ask yourself… Did you really find the causes of the failure? Like icebergs, most of the problem is usually below the surface!
This is NOT Root Cause Analysis

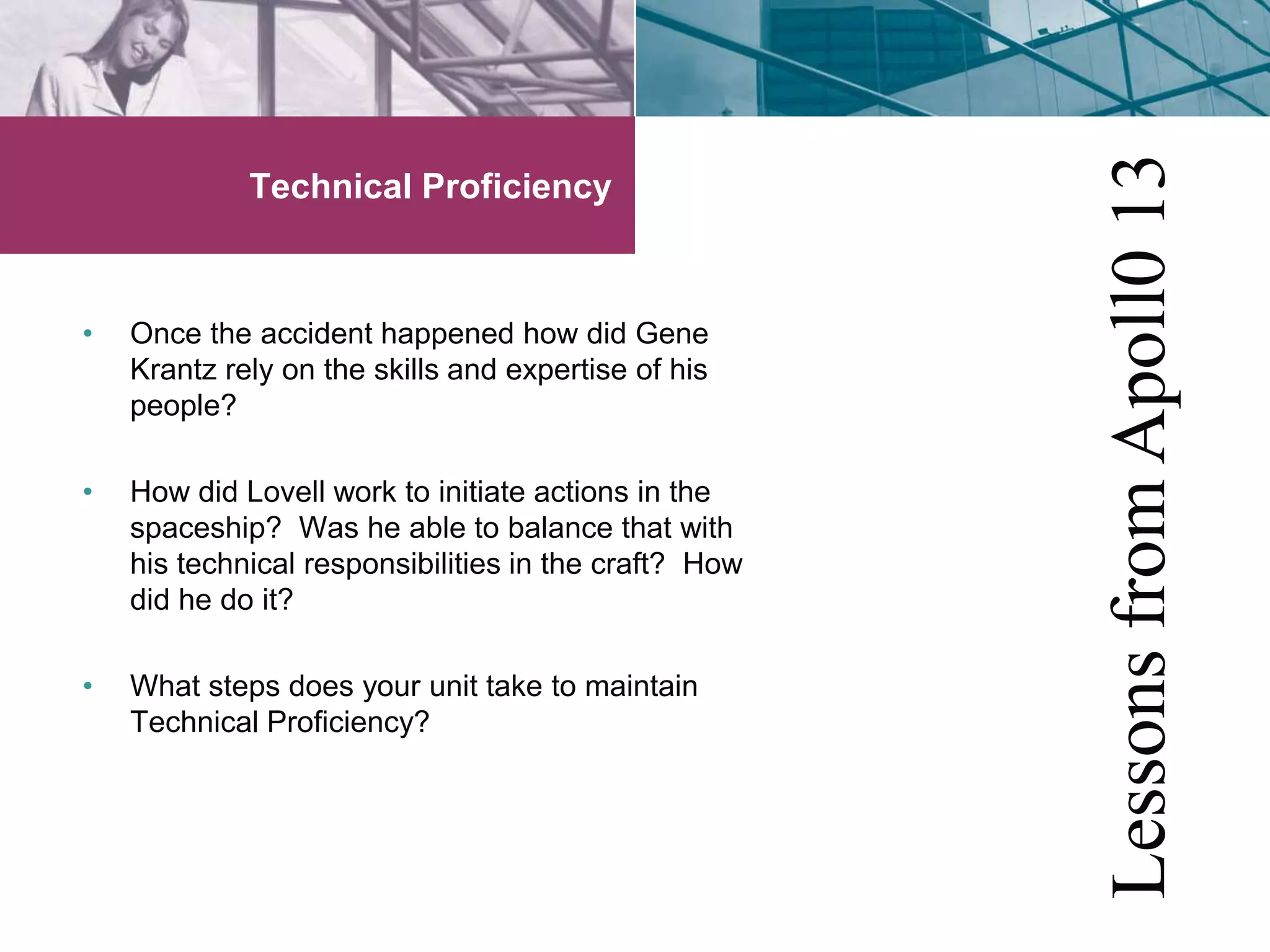

Technical Proficiency • Once the accident happened how did Gene Krantz rely on the skills and expertise of his people? • How did Lovell work to initiate actions in the spaceship? Was he able to balance that with his technical responsibilities in the craft? How did he do it? • What steps does your unit take to maintain Technical Proficiency? Lessons from Apoll0 13

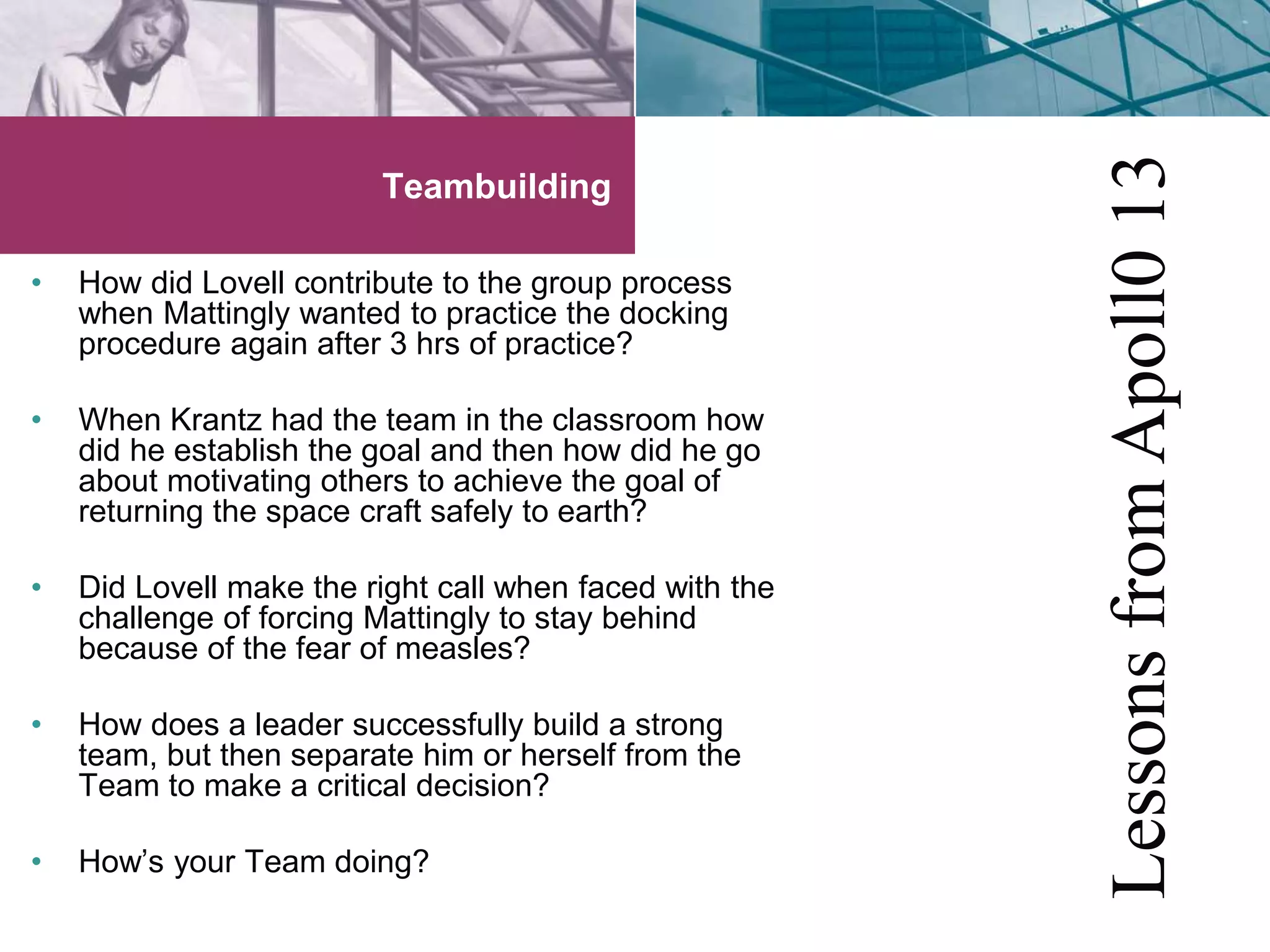

Teambuilding • How did Lovell contribute to the group process when Mattingly wanted to practice the docking procedure again after 3 hrs of practice? • When Krantz had the team in the classroom how did he establish the goal and then how did he go about motivating others to achieve the goal of returning the space craft safely to earth? • Did Lovell make the right call when faced with the challenge of forcing Mattingly to stay behind because of the fear of measles? • How does a leader successfully build a strong team, but then separate him or herself from the Team to make a critical decision? • How’s your Team doing? Lessons from Apoll0 13

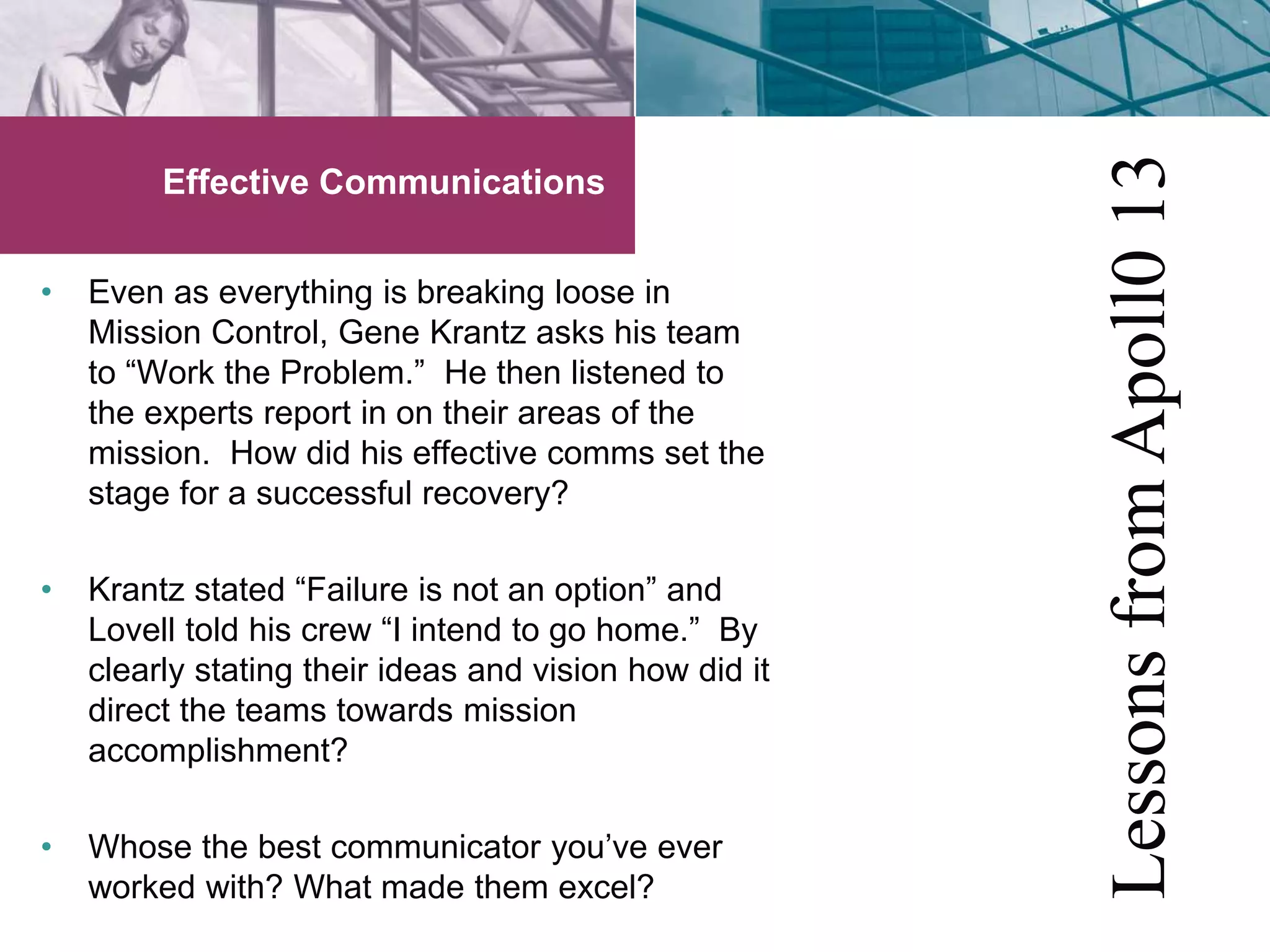

Effective Communications • Even as everything is breaking loose in Mission Control, Gene Krantz asks his team to “Work the Problem.” He then listened to the experts report in on their areas of the mission. How did his effective comms set the stage for a successful recovery? • Krantz stated “Failure is not an option” and Lovell told his crew “I intend to go home.” By clearly stating their ideas and vision how did it direct the teams towards mission accomplishment? • Whose the best communicator you’ve ever worked with? What made them excel? Lessons from Apoll0 13

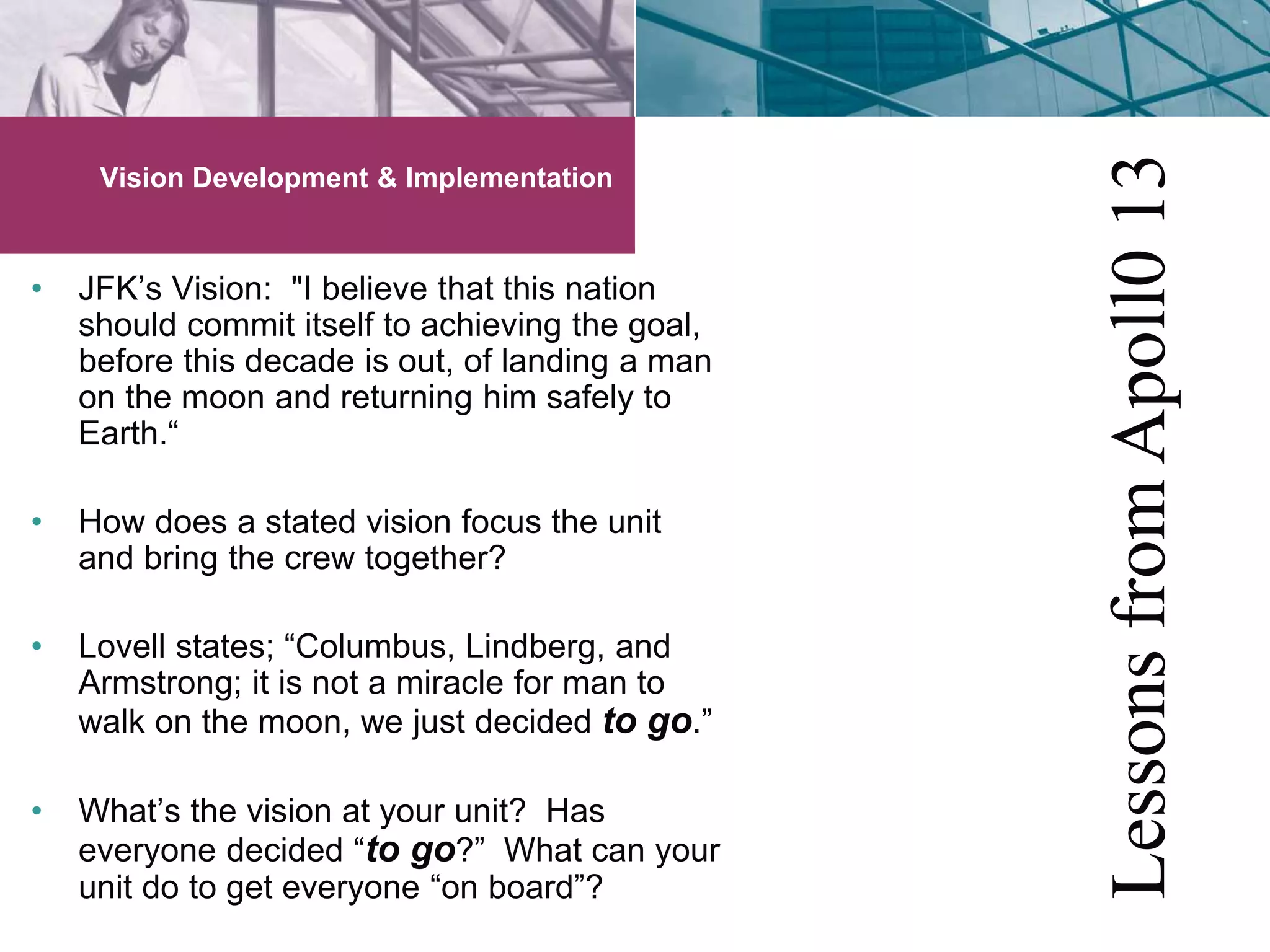

Vision Development & Implementation • JFK’s Vision: "I believe that this nation should commit itself to achieving the goal, before this decade is out, of landing a man on the moon and returning him safely to Earth.“ • How does a stated vision focus the unit and bring the crew together? • Lovell states; “Columbus, Lindberg, and Armstrong; it is not a miracle for man to walk on the moon, we just decided to go.” • What’s the vision at your unit? Has everyone decided “to go?” What can your unit do to get everyone “on board”? Lessons from Apoll0 13

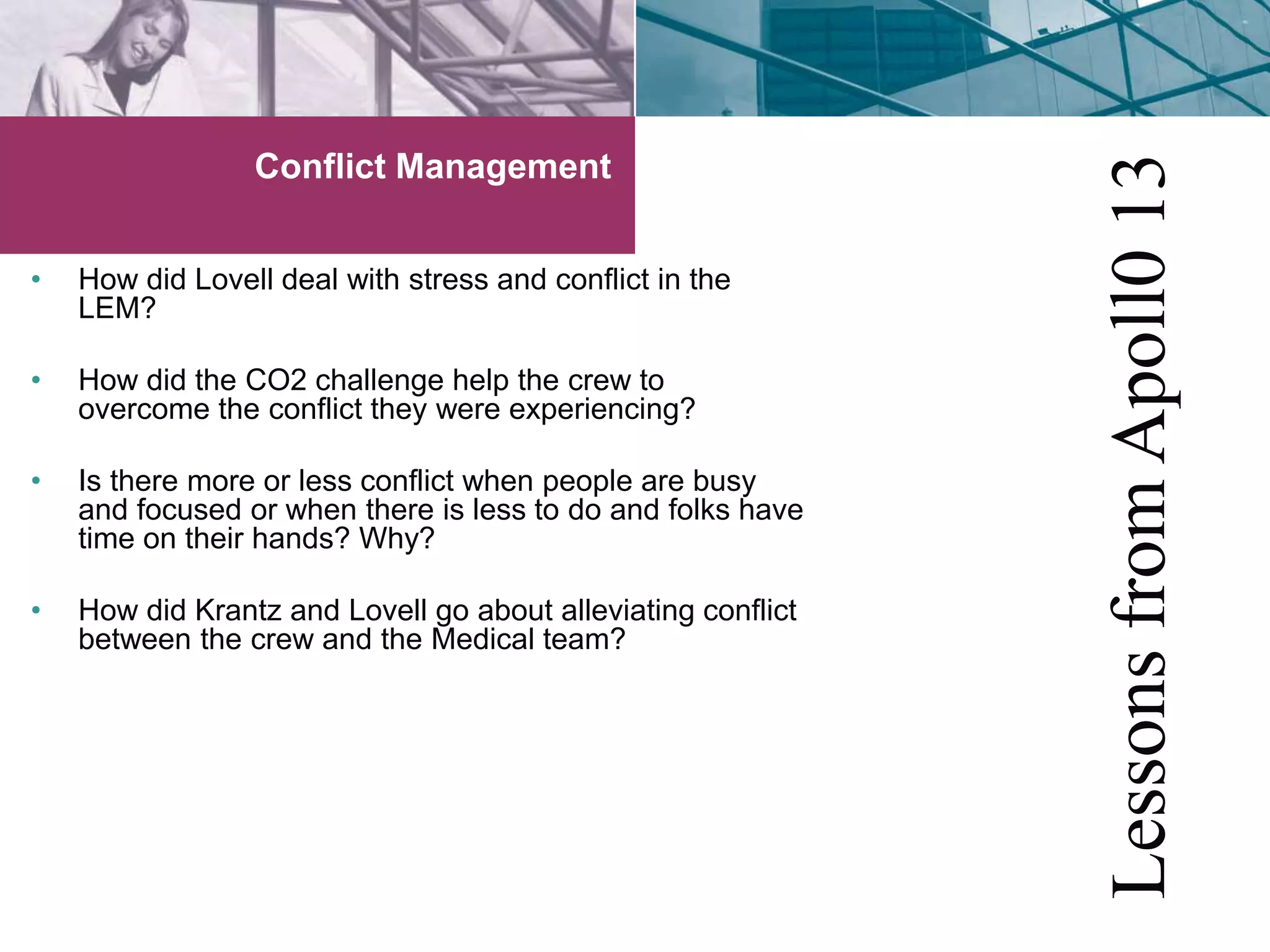

Conflict Management • How did Lovell deal with stress and conflict in the LEM? • How did the CO2 challenge help the crew to overcome the conflict they were experiencing? • Is there more or less conflict when people are busy and focused or when there is less to do and folks have time on their hands? Why? • How did Krantz and Lovell go about alleviating conflict between the crew and the Medical team? Lessons from Apoll0 13

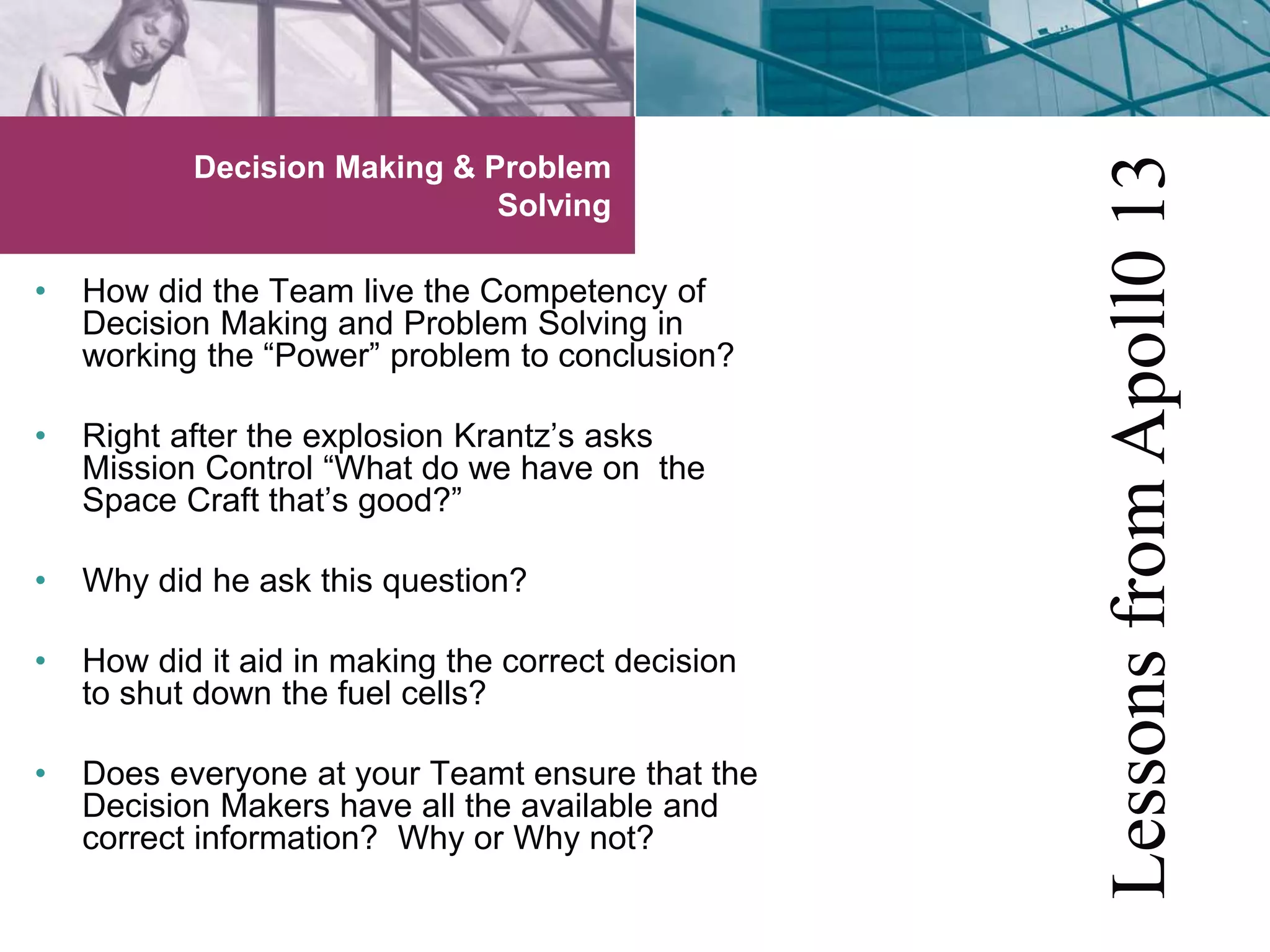

Decision Making & Problem Solving • How did the Team live the Competency of Decision Making and Problem Solving in working the “Power” problem to conclusion? • Right after the explosion Krantz’s asks Mission Control “What do we have on the Space Craft that’s good?” • Why did he ask this question? • How did it aid in making the correct decision to shut down the fuel cells? • Does everyone at your Teamt ensure that the Decision Makers have all the available and correct information? Why or Why not? Lessons from Apoll0 13

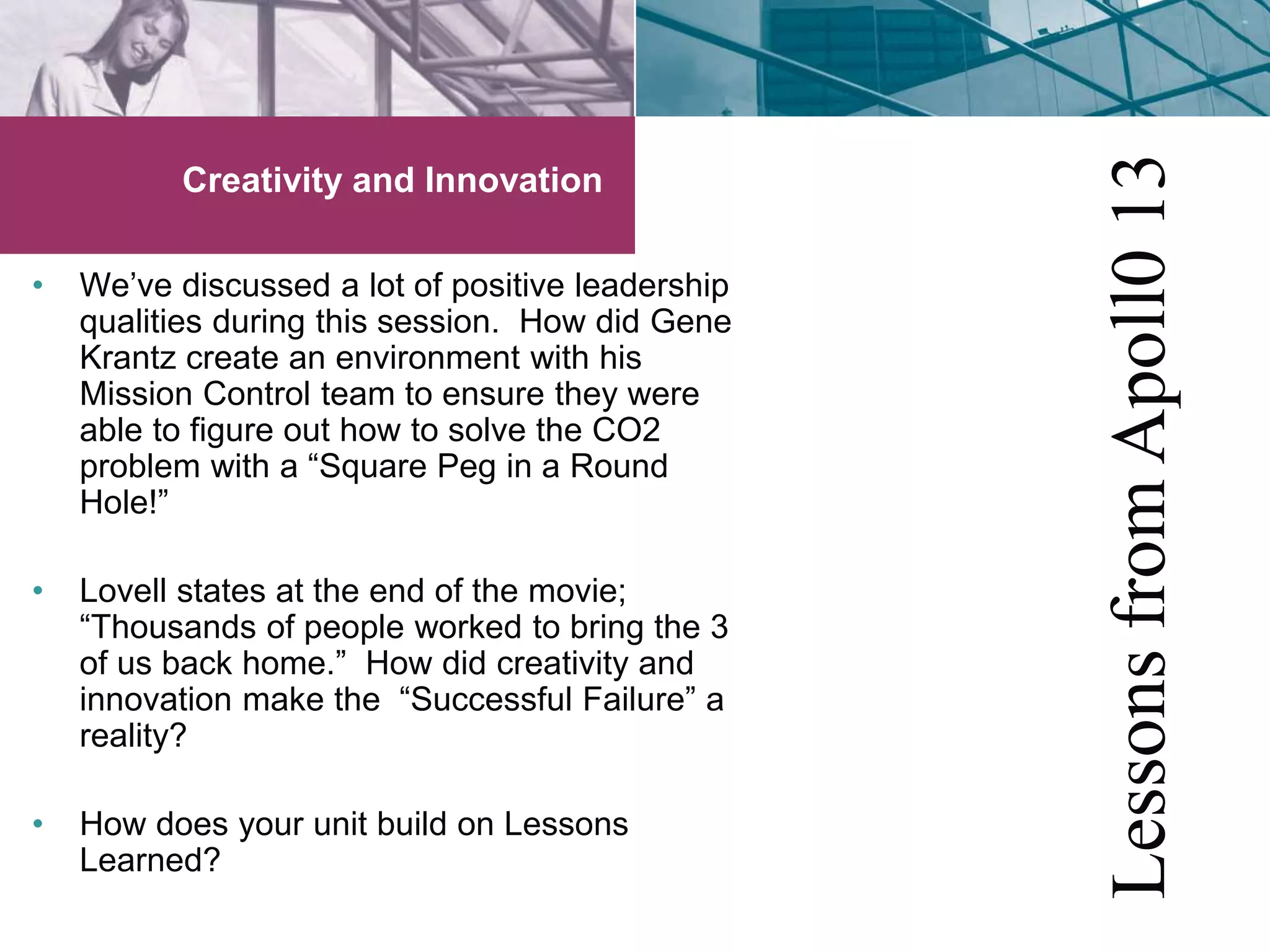

Creativity and Innovation • We’ve discussed a lot of positive leadership qualities during this session. How did Gene Krantz create an environment with his Mission Control team to ensure they were able to figure out how to solve the CO2 problem with a “Square Peg in a Round Hole!” • Lovell states at the end of the movie; “Thousands of people worked to bring the 3 of us back home.” How did creativity and innovation make the “Successful Failure” a reality? • How does your unit build on Lessons Learned? Lessons from Apoll0 13
Apollo 13 Questions on homework

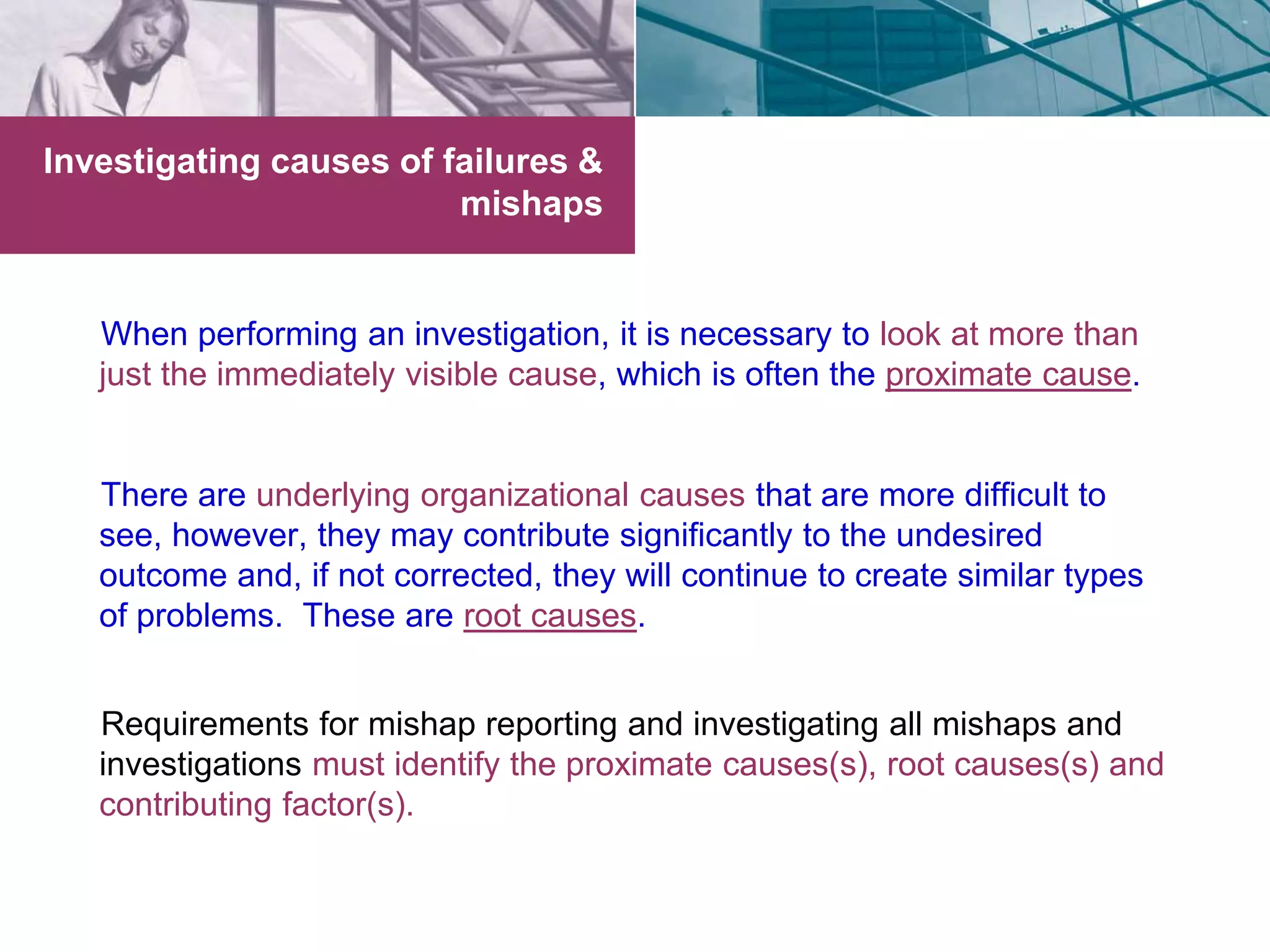

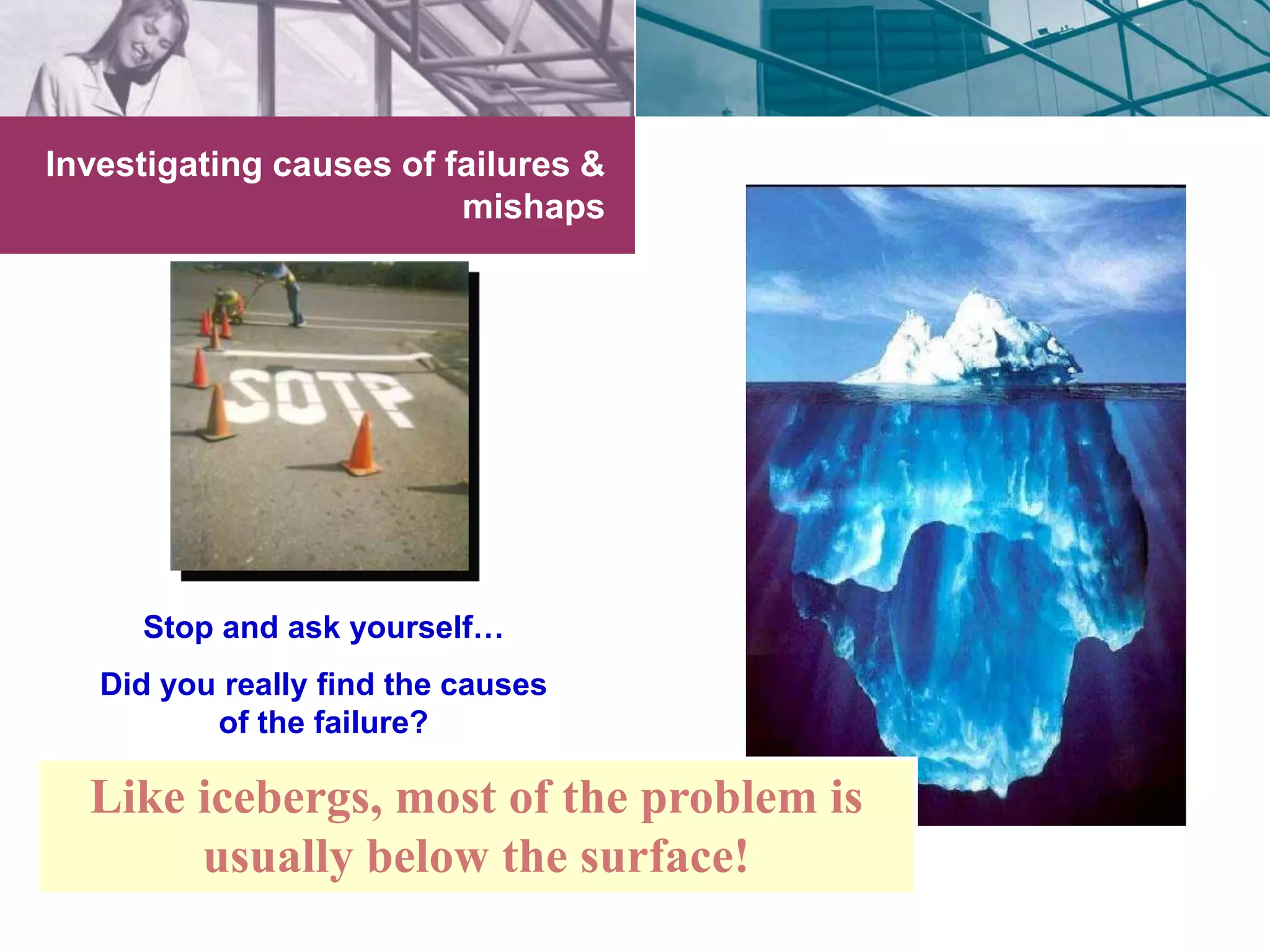

Investigating causes of failures & mishaps When performing an investigation, it is necessary to look at more than just the immediately visible cause, which is often the proximate cause. There are underlying organizational causes that are more difficult to see, however, they may contribute significantly to the undesired outcome and, if not corrected, they will continue to create similar types of problems. These are root causes. Requirements for mishap reporting and investigating all mishaps and investigations must identify the proximate causes(s), root causes(s) and contributing factor(s).

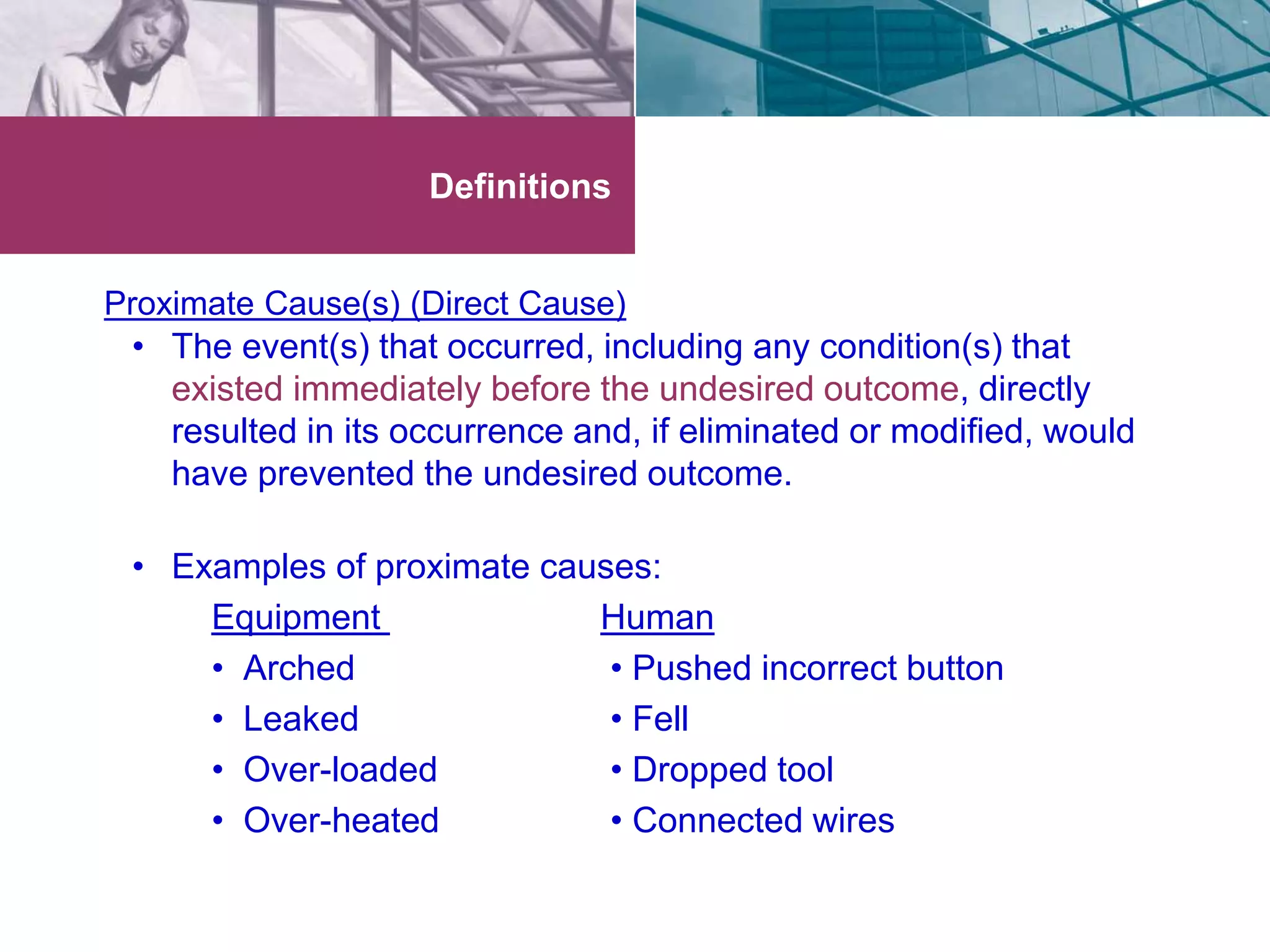

Definitions Proximate Cause(s) (Direct Cause) • The event(s) that occurred, including any condition(s) that existed immediately before the undesired outcome, directly resulted in its occurrence and, if eliminated or modified, would have prevented the undesired outcome. • Examples of proximate causes: Equipment Human • Arched • Pushed incorrect button • Leaked • Fell • Over-loaded • Dropped tool • Over-heated • Connected wires

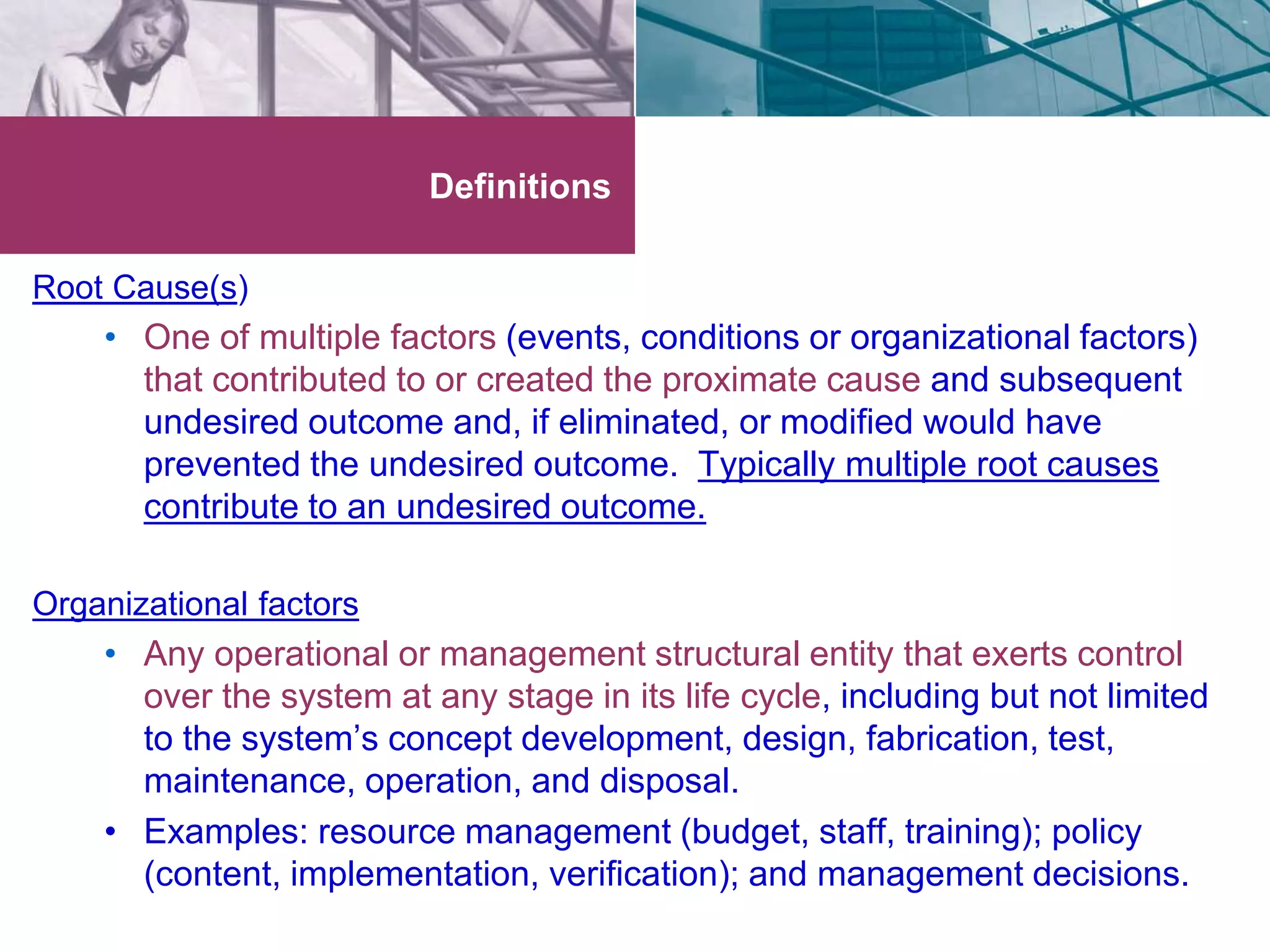

Root Cause(s) Definitions • One of multiple factors (events, conditions or organizational factors) that contributed to or created the proximate cause and subsequent undesired outcome and, if eliminated, or modified would have prevented the undesired outcome. Typically multiple root causes contribute to an undesired outcome. Organizational factors • Any operational or management structural entity that exerts control over the system at any stage in its life cycle, including but not limited to the system’s concept development, design, fabrication, test, maintenance, operation, and disposal. • Examples: resource management (budget, staff, training); policy (content, implementation, verification); and management decisions.

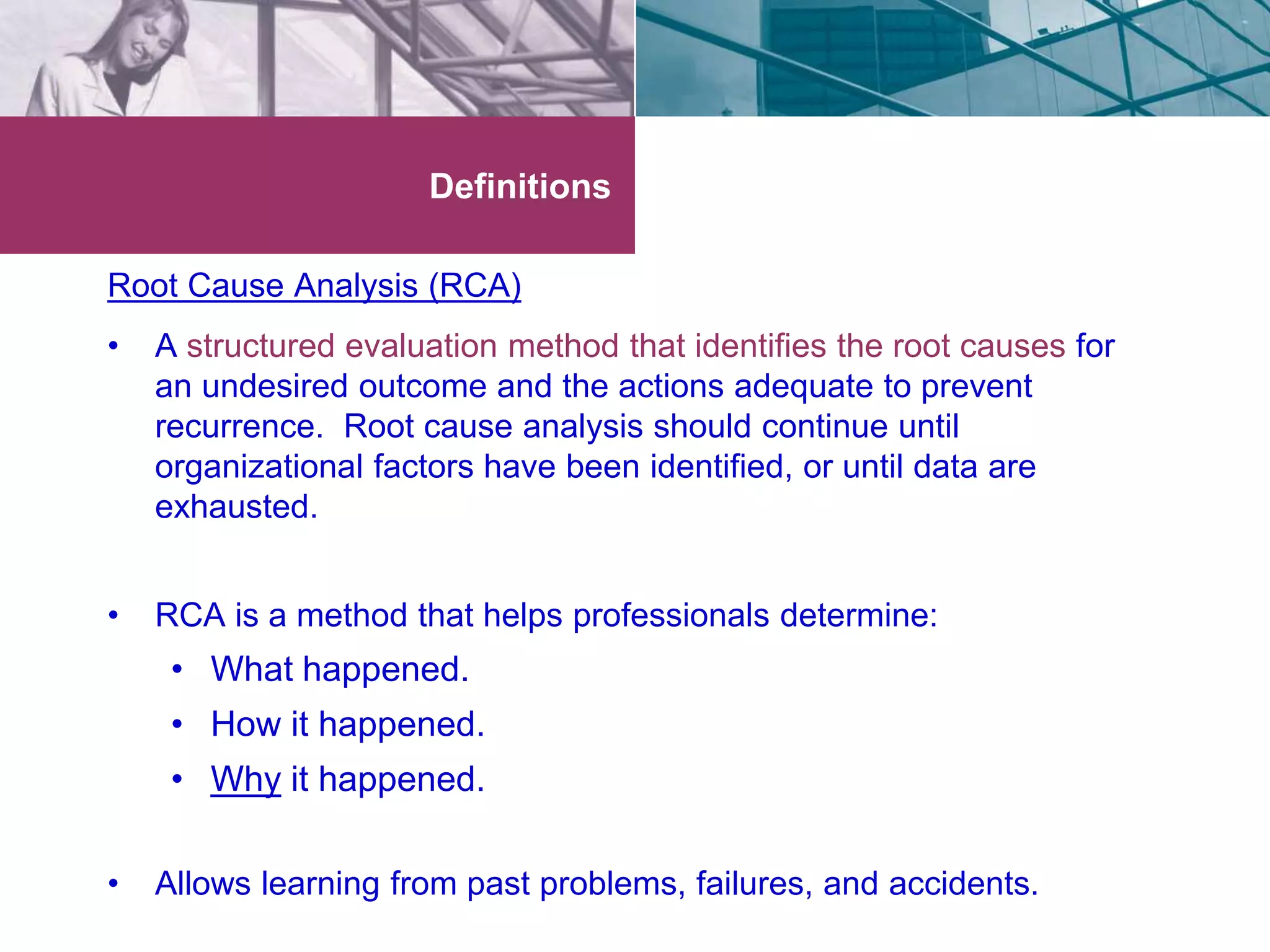

Definitions Root Cause Analysis (RCA) • A structured evaluation method that identifies the root causes for an undesired outcome and the actions adequate to prevent recurrence. Root cause analysis should continue until organizational factors have been identified, or until data are exhausted. • RCA is a method that helps professionals determine: • What happened. • How it happened. • Why it happened. • Allows learning from past problems, failures, and accidents.

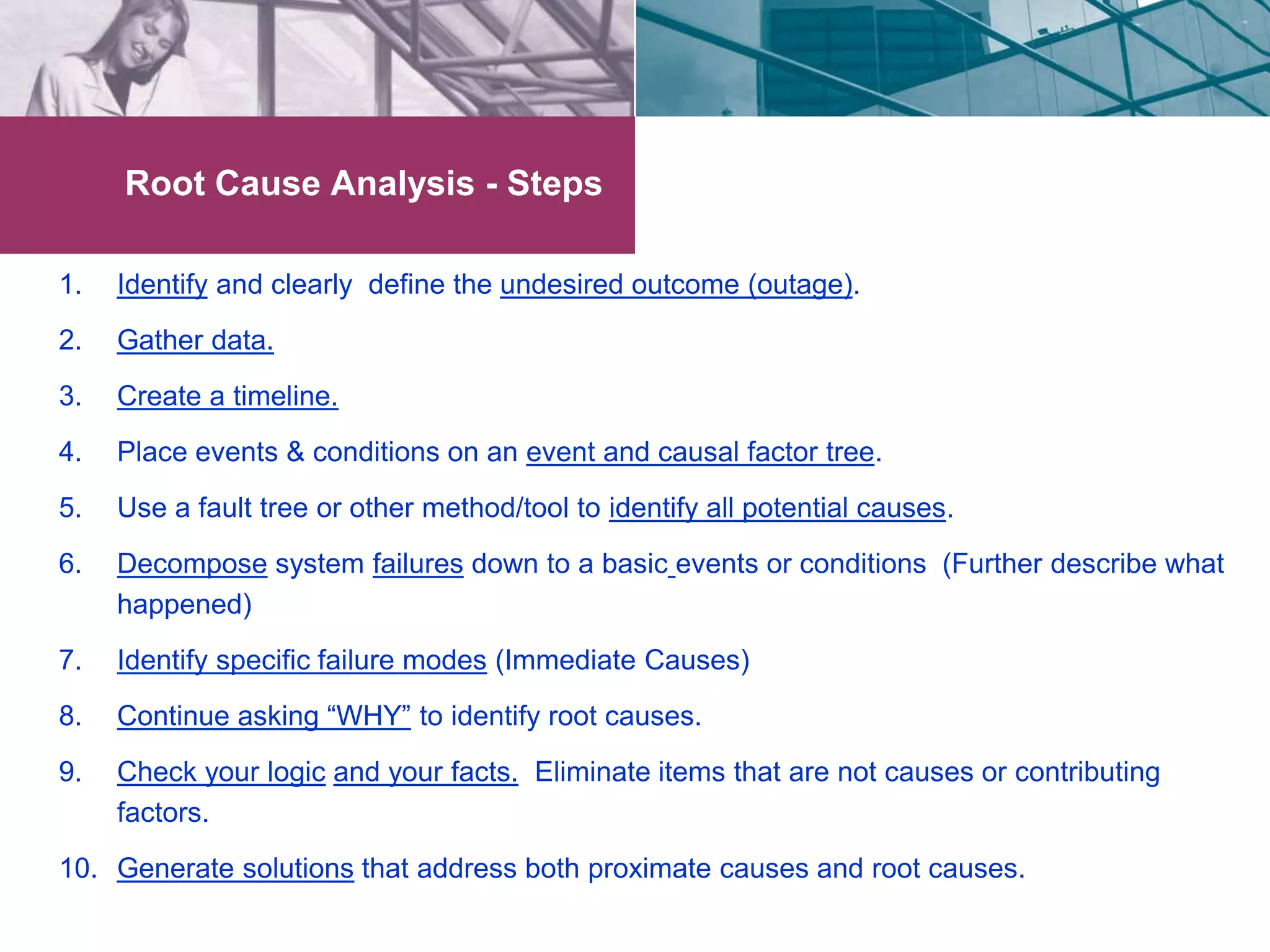

Root Cause Analysis - Steps 1. Identify and clearly define the undesired outcome (outage). 2. Gather data. 3. Create a timeline. 4. Place events & conditions on an event and causal factor tree. 5. Use a fault tree or other method/tool to identify all potential causes. 6. Decompose system failures down to a basic events or conditions (Further describe what happened) 7. Identify specific failure modes (Immediate Causes) 8. Continue asking “WHY” to identify root causes. 9. Check your logic and your facts. Eliminate items that are not causes or contributing factors. 10. Generate solutions that address both proximate causes and root causes.

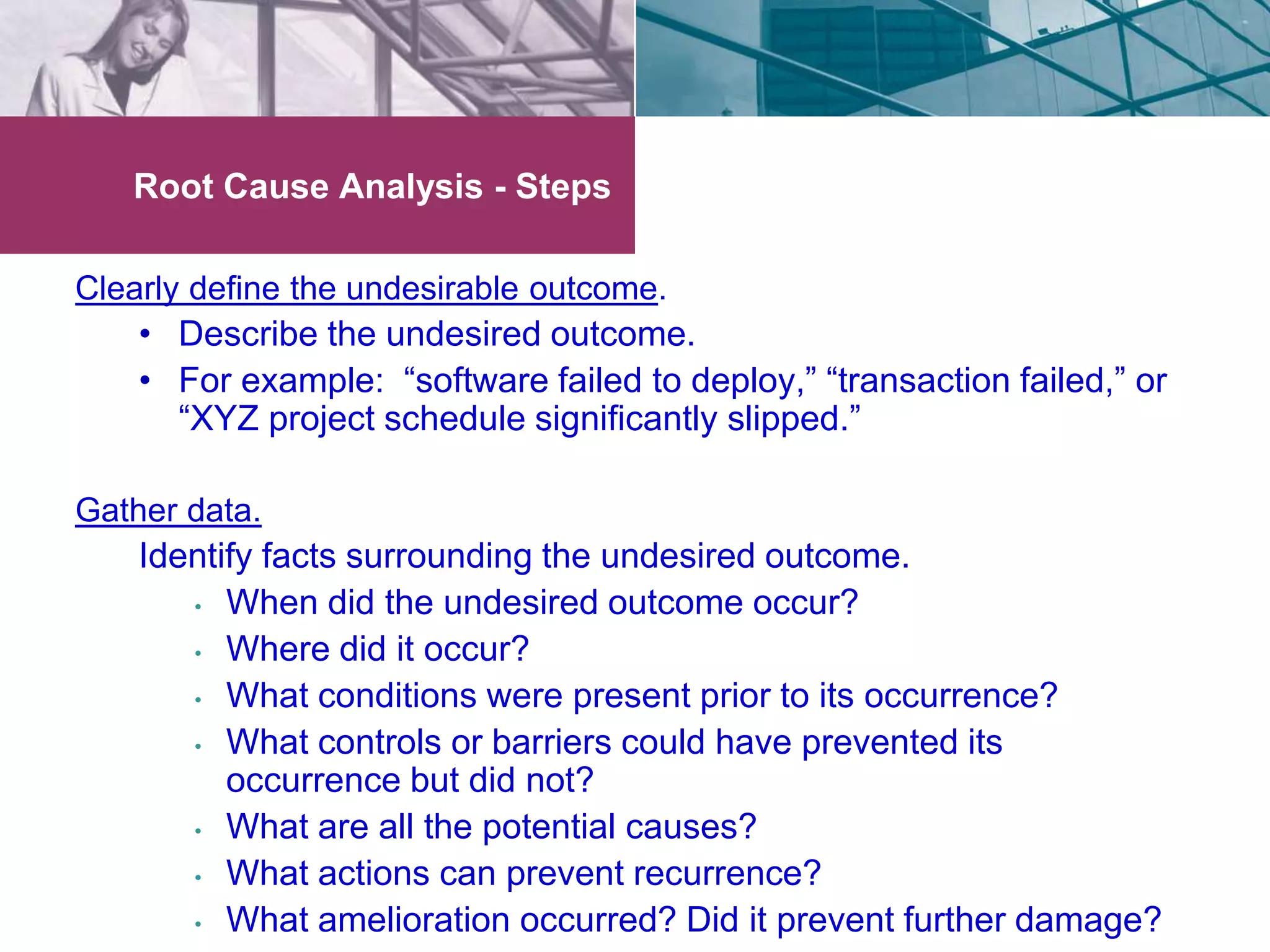

Root Cause Analysis - Steps Clearly define the undesirable outcome. • Describe the undesired outcome. • For example: “software failed to deploy,” “transaction failed,” or “XYZ project schedule significantly slipped.” Gather data. Identify facts surrounding the undesired outcome. • When did the undesired outcome occur? • Where did it occur? • What conditions were present prior to its occurrence? • What controls or barriers could have prevented its occurrence but did not? • What are all the potential causes? • What actions can prevent recurrence? • What amelioration occurred? Did it prevent further damage?

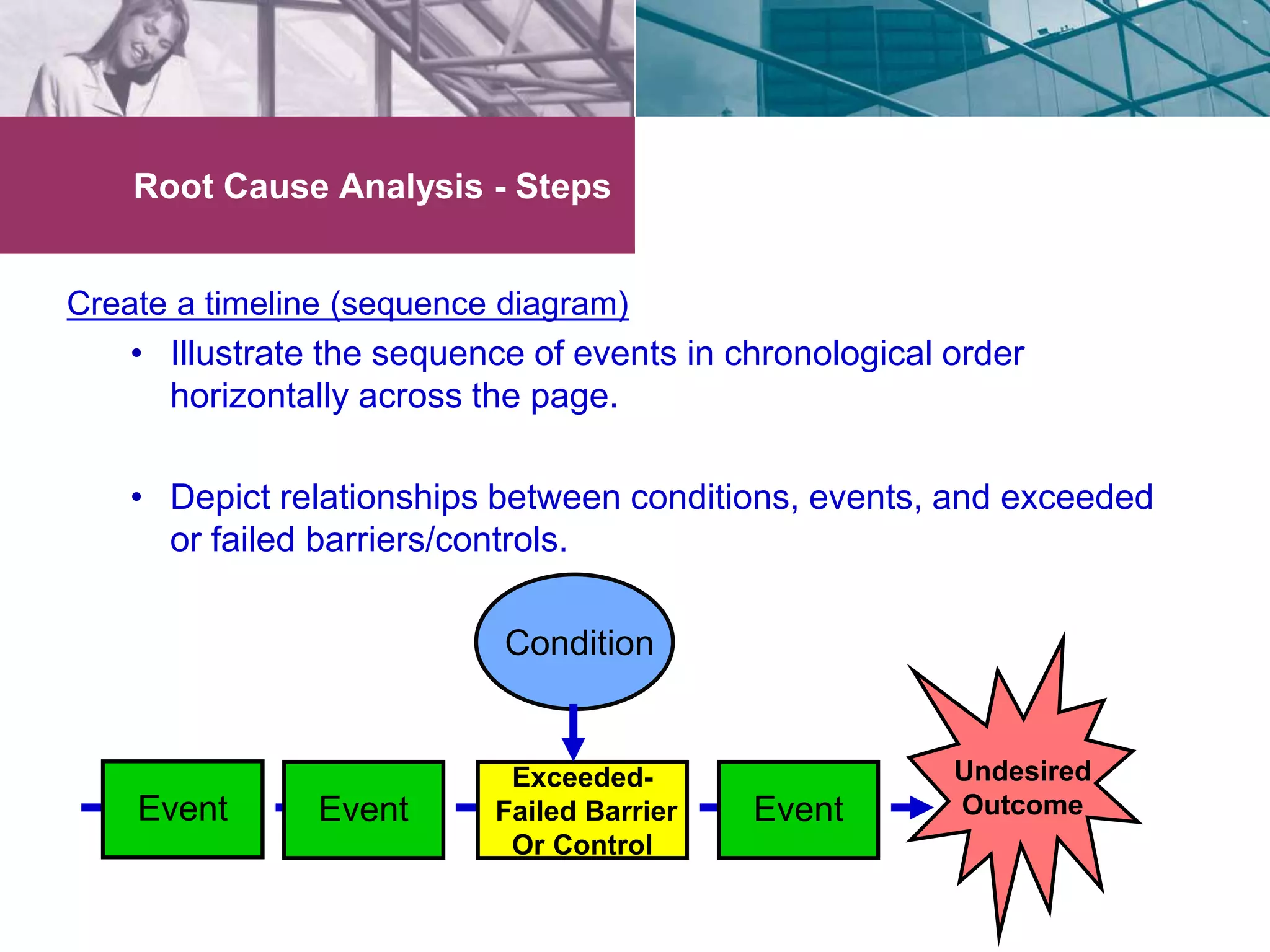

Root Cause Analysis - Steps Create a timeline (sequence diagram) • Illustrate the sequence of events in chronological order horizontally across the page. • Depict relationships between conditions, events, and exceeded or failed barriers/controls. Exceeded- Failed Barrier Or Control Event Undesired Outcome Condition Event Event

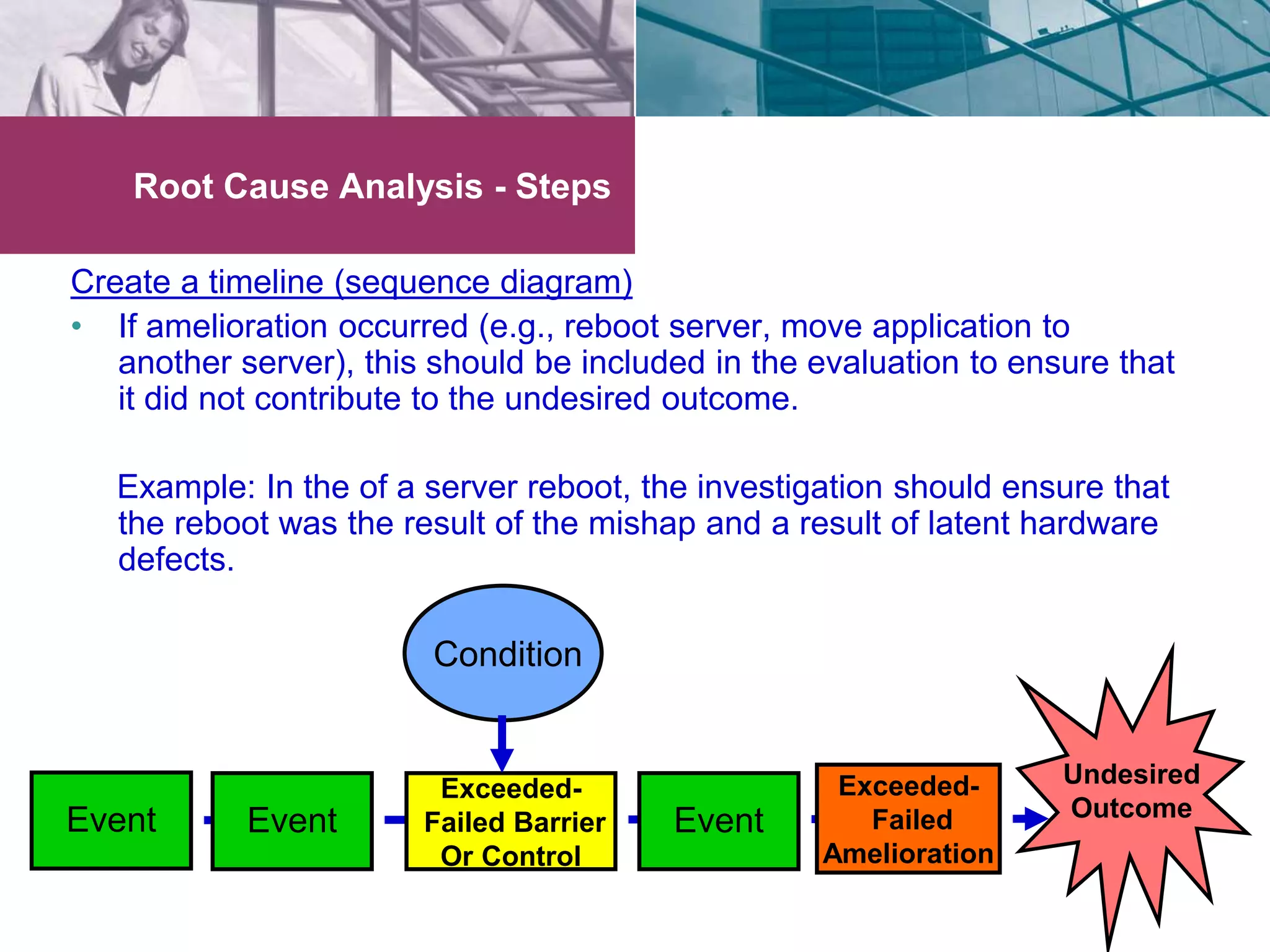

Root Cause Analysis - Steps Create a timeline (sequence diagram) • If amelioration occurred (e.g., reboot server, move application to another server), this should be included in the evaluation to ensure that it did not contribute to the undesired outcome. Example: In the of a server reboot, the investigation should ensure that the reboot was the result of the mishap and a result of latent hardware defects. Exceeded- Failed Barrier Or Control Event Undesired Outcome Condition Event Event Exceeded- Failed Amelioration
Root Cause Analysis - Steps Example: simple timeline. Application failed to Go Live Operating system started up Lost transactions (Penalties paid) Tech. Used Wrong Method To Correct Server Powered Up Switch port in wrong VLAN

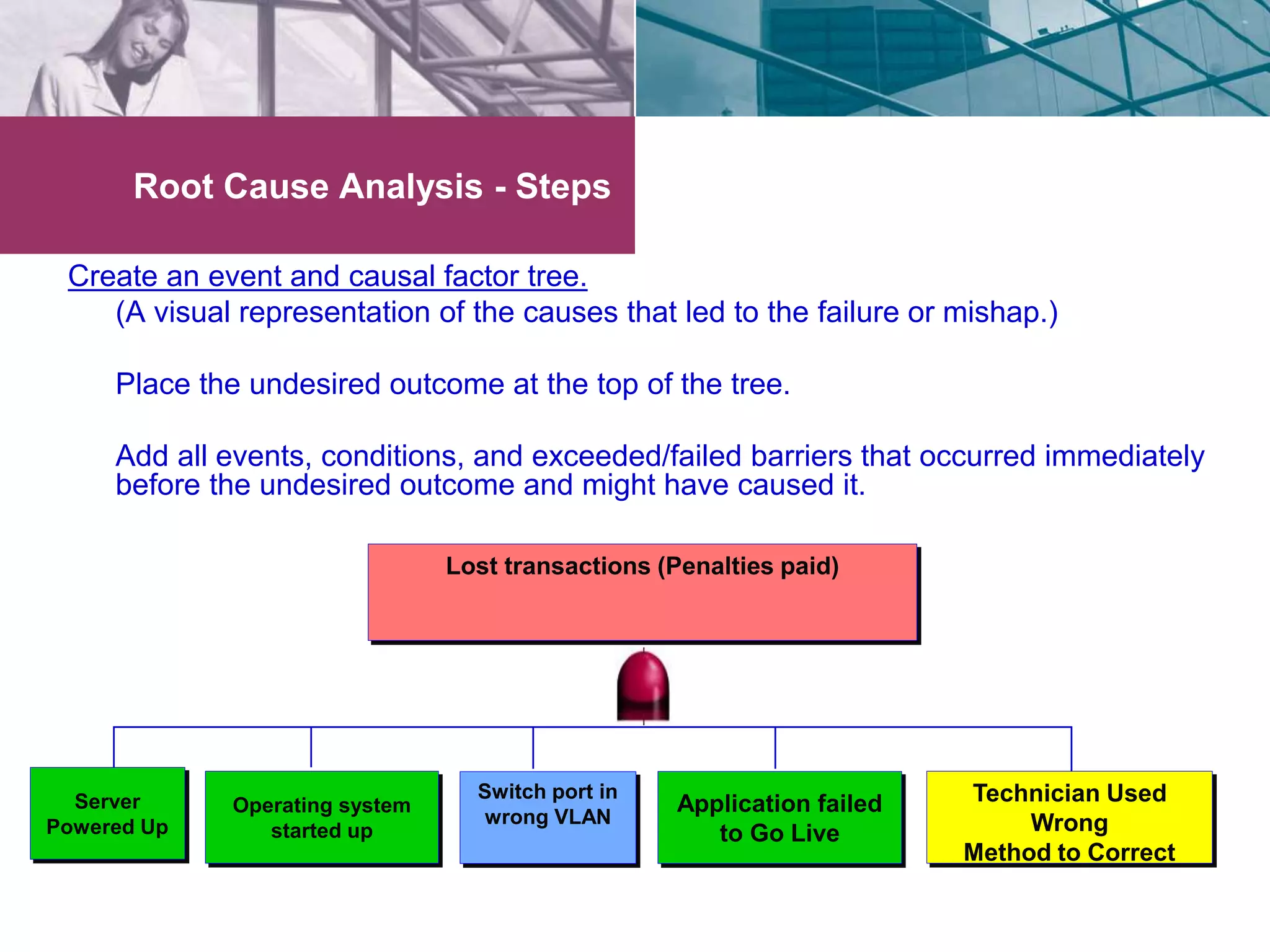

Root Cause Analysis - Steps Create an event and causal factor tree. (A visual representation of the causes that led to the failure or mishap.) • Place the undesired outcome at the top of the tree. • Add all events, conditions, and exceeded/failed barriers that occurred immediately before the undesired outcome and might have caused it. Application failed to Go Live Operating system started up Technician Used Wrong Method to Correct Lost transactions (Penalties paid) Server Powered Up Switch port in wrong VLAN

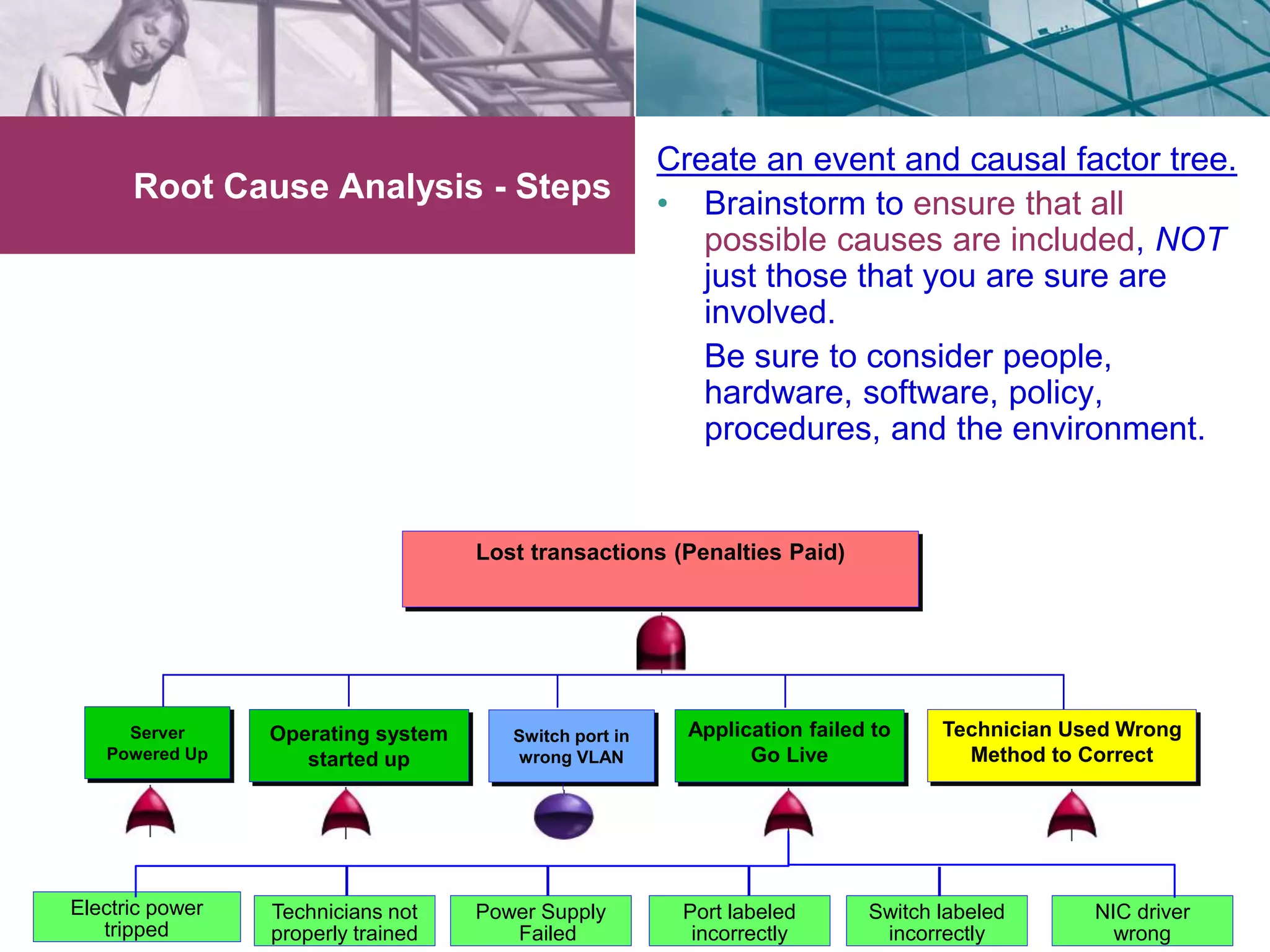

Root Cause Analysis - Steps Create an event and causal factor tree. • Brainstorm to ensure that all possible causes are included, NOT just those that you are sure are involved. • Be sure to consider people, hardware, software, policy, procedures, and the environment. Electric power tripped Application failed to Go Live Operating system started up Technician Used Wrong Method to Correct Lost transactions (Penalties Paid) Server Powered Up Switch port in wrong VLAN Technicians not properly trained Power Supply Failed Port labeled incorrectly Switch labeled incorrectly NIC driver wrong

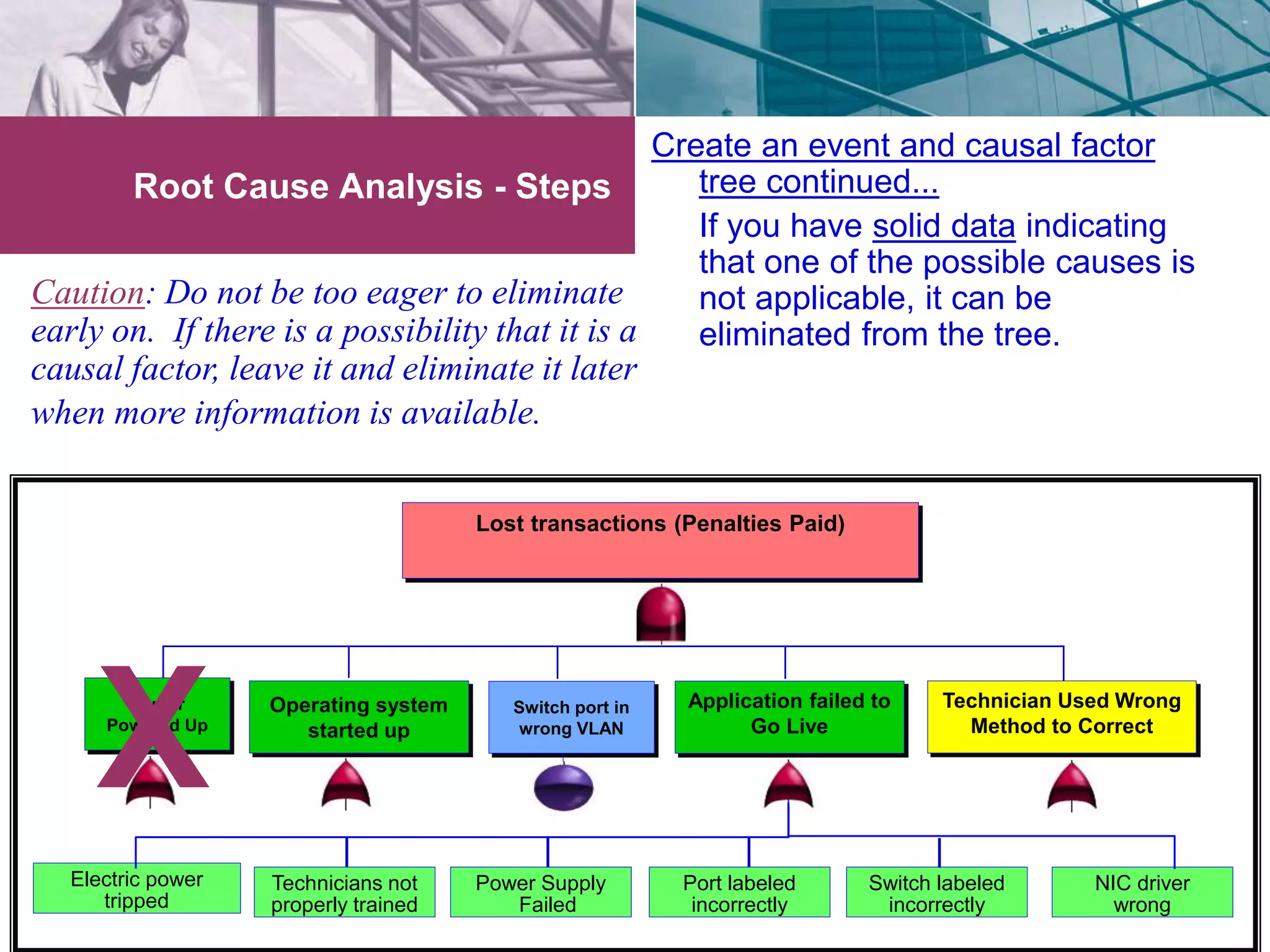

Root Cause Analysis - Steps Create an event and causal factor tree continued... • If you have solid data indicating that one of the possible causes is not applicable, it can be eliminated from the tree. Caution: Do not be too eager to eliminate early on. If there is a possibility that it is a causal factor, leave it and eliminate it later when more information is available. Electric power tripped Application failed to Go Live Operating system started up Technician Used Wrong Method to Correct Lost transactions (Penalties Paid) Server Powered Up Switch port in wrong VLAN Technicians not properly trained Power Supply Failed Port labeled incorrectly Switch labeled incorrectly NIC driver wrong X

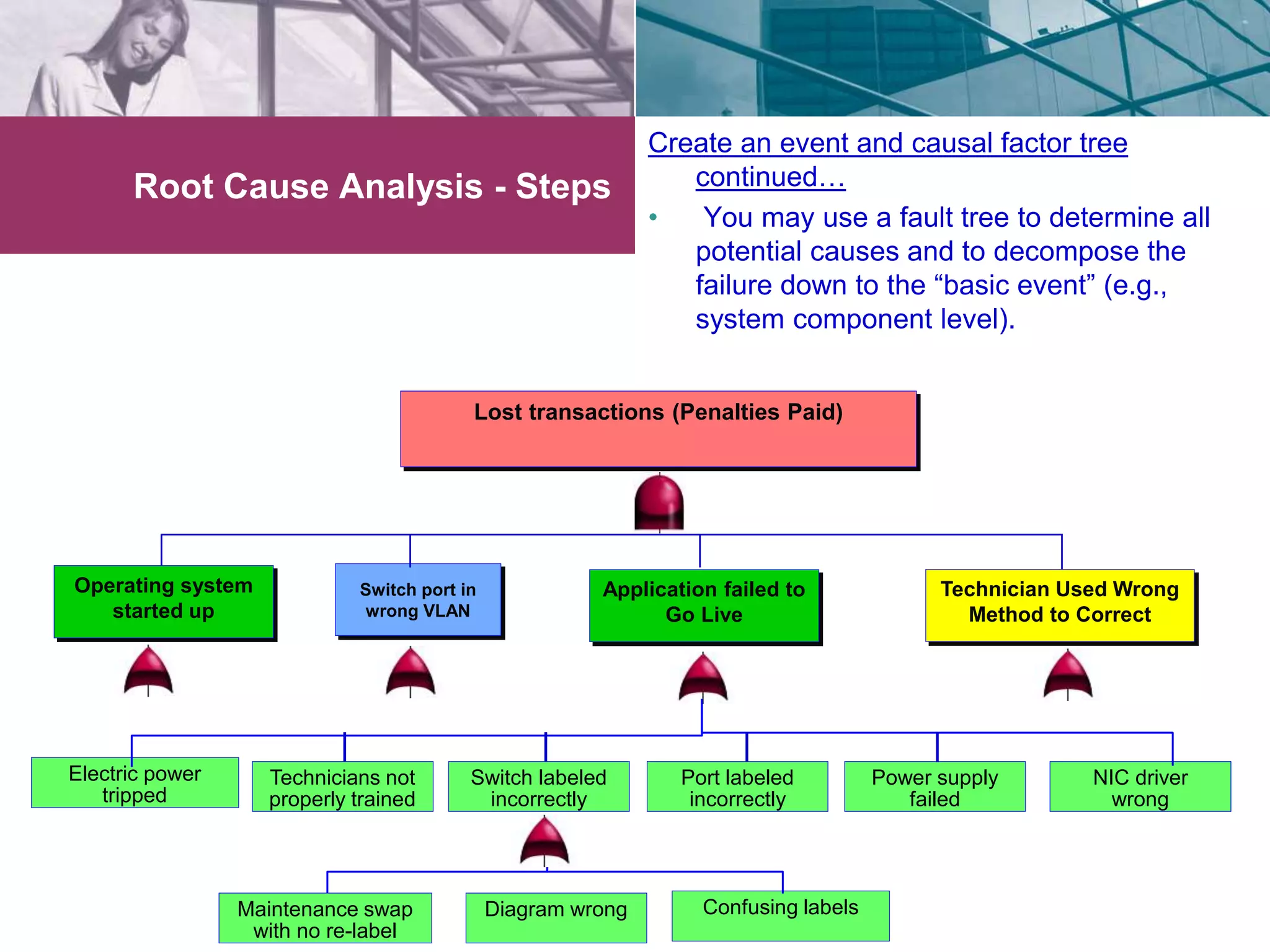

Root Cause Analysis - Steps Create an event and causal factor tree continued… • You may use a fault tree to determine all potential causes and to decompose the failure down to the “basic event” (e.g., system component level). Electric power tripped Application failed to Go Live Technician Used Wrong Method to Correct Lost transactions (Penalties Paid) Switch port in wrong VLAN Technicians not properly trained Switch labeled incorrectly Port labeled incorrectly Power supply failed NIC driver wrong Maintenance swap Diagram wrong with no re-label Confusing labels Operating system started up

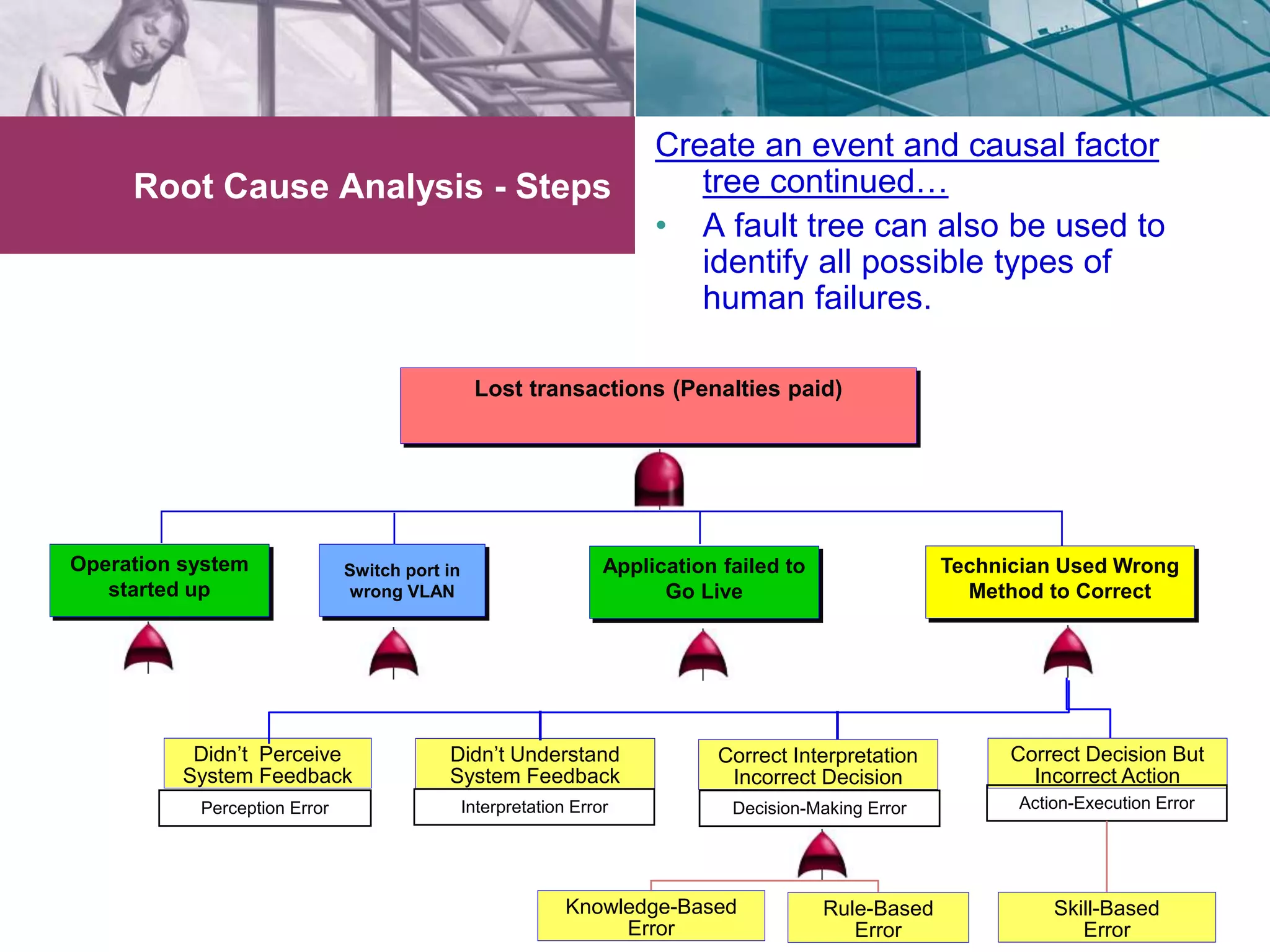

Root Cause Analysis - Steps Create an event and causal factor tree continued… • A fault tree can also be used to identify all possible types of human failures. Didn’t Perceive System Feedback Application failed to Go Live Technician Used Wrong Method to Correct Lost transactions (Penalties paid) Switch port in wrong VLAN Didn’t Understand System Feedback Operation system started up Correct Interpretation Incorrect Decision Correct Decision But Incorrect Action Perception Error Interpretation Error Decision-Making Error Action-Execution Error Rule-Based Error Knowledge-Based Error Skill-Based Error

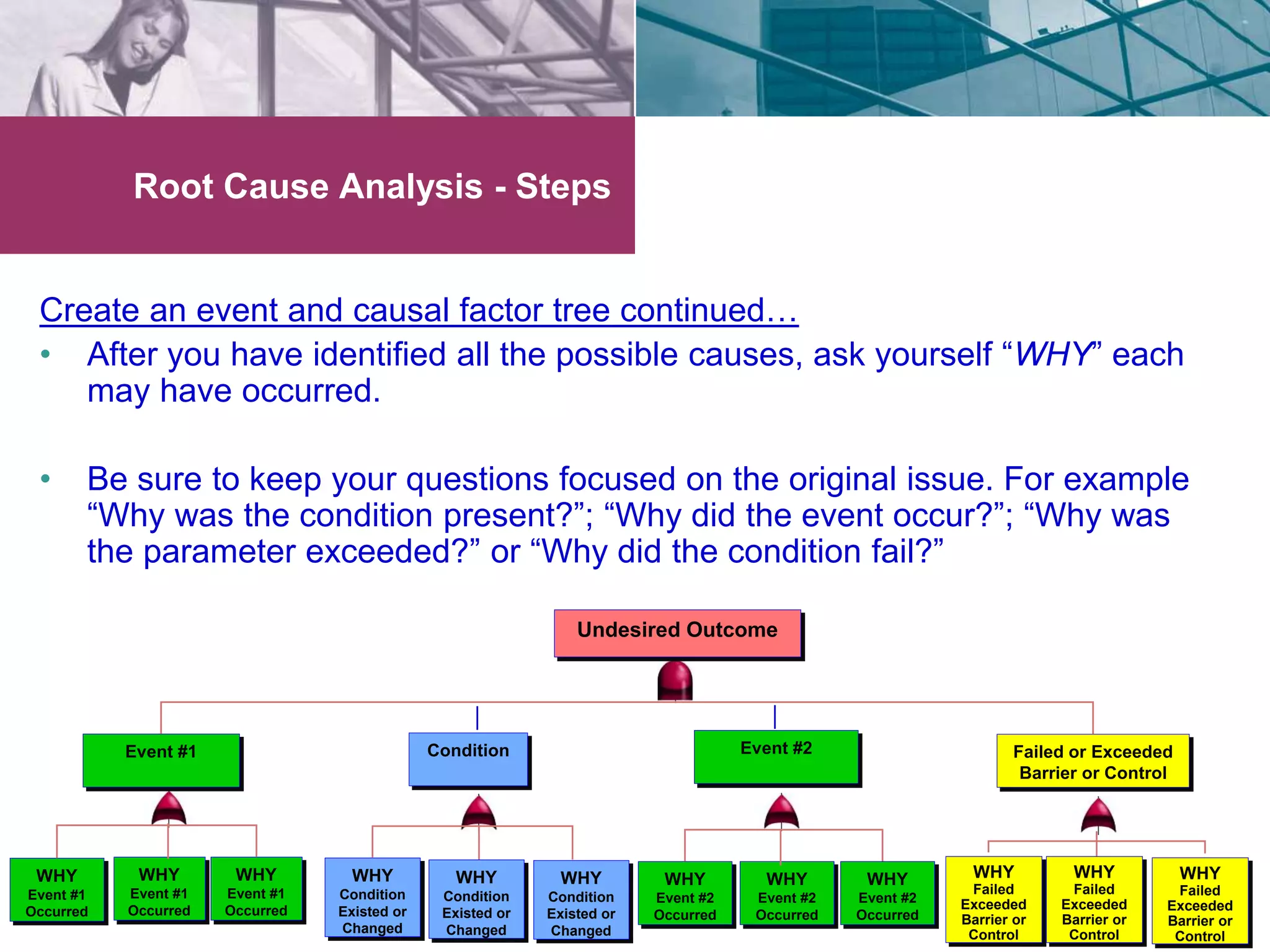

Root Cause Analysis - Steps Create an event and causal factor tree continued… • After you have identified all the possible causes, ask yourself “WHY” each may have occurred. • Be sure to keep your questions focused on the original issue. For example “Why was the condition present?”; “Why did the event occur?”; “Why was the parameter exceeded?” or “Why did the condition fail?” Event #2 Failed or Exceeded Barrier or Control Undesired Outcome Event #1 Condition WHY Event #1 Occurred WHY Event #1 Occurred WHY Event #1 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Event #2 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Condition Existed or Changed WHY Failed Exceeded Barrier or Control WHY Failed Exceeded Barrier or Control WHY Failed Exceeded Barrier or Control

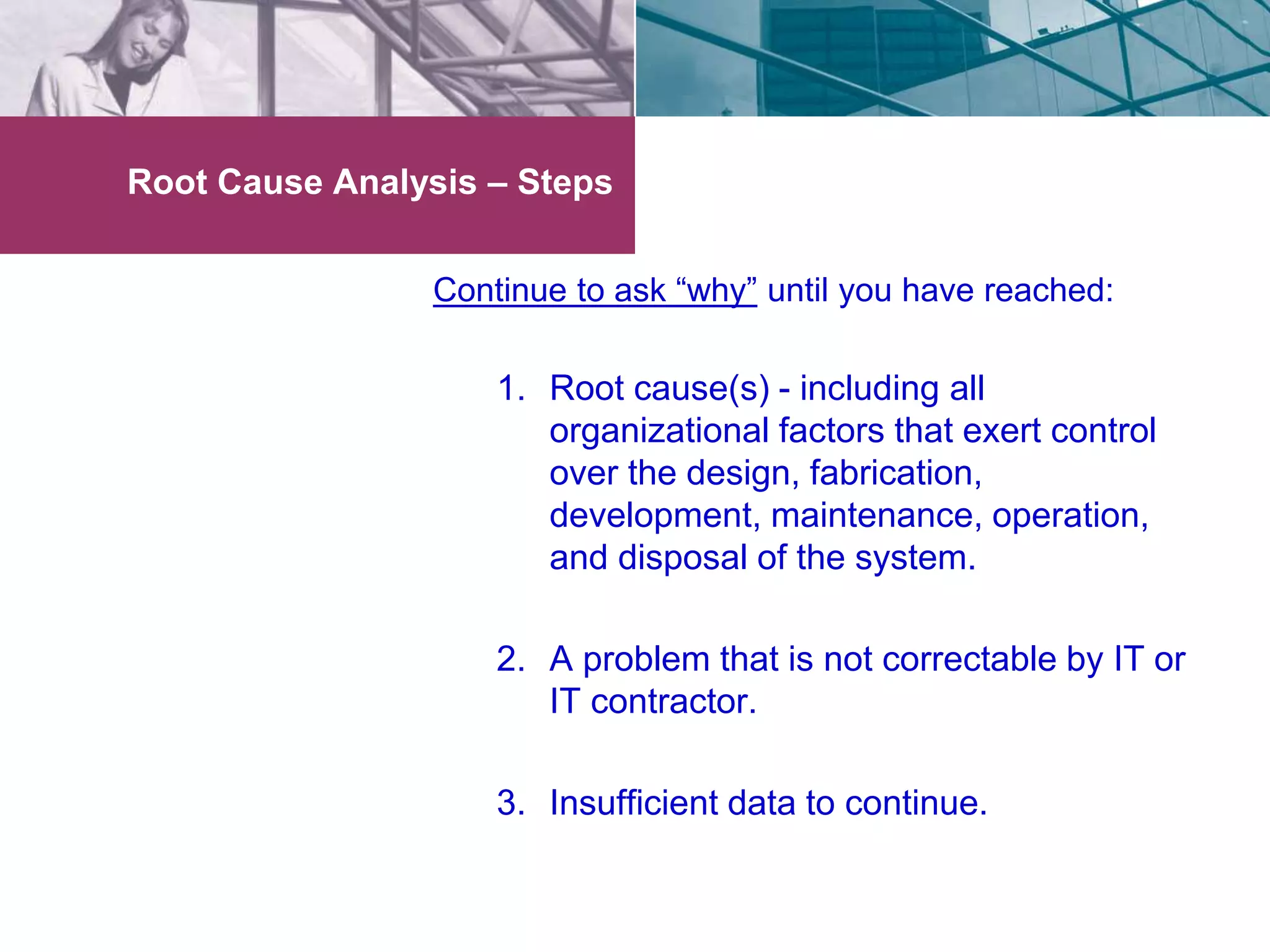

Root Cause Analysis – Steps Continue to ask “why” until you have reached: 1. Root cause(s) - including all organizational factors that exert control over the design, fabrication, development, maintenance, operation, and disposal of the system. 2. A problem that is not correctable by IT or IT contractor. 3. Insufficient data to continue.

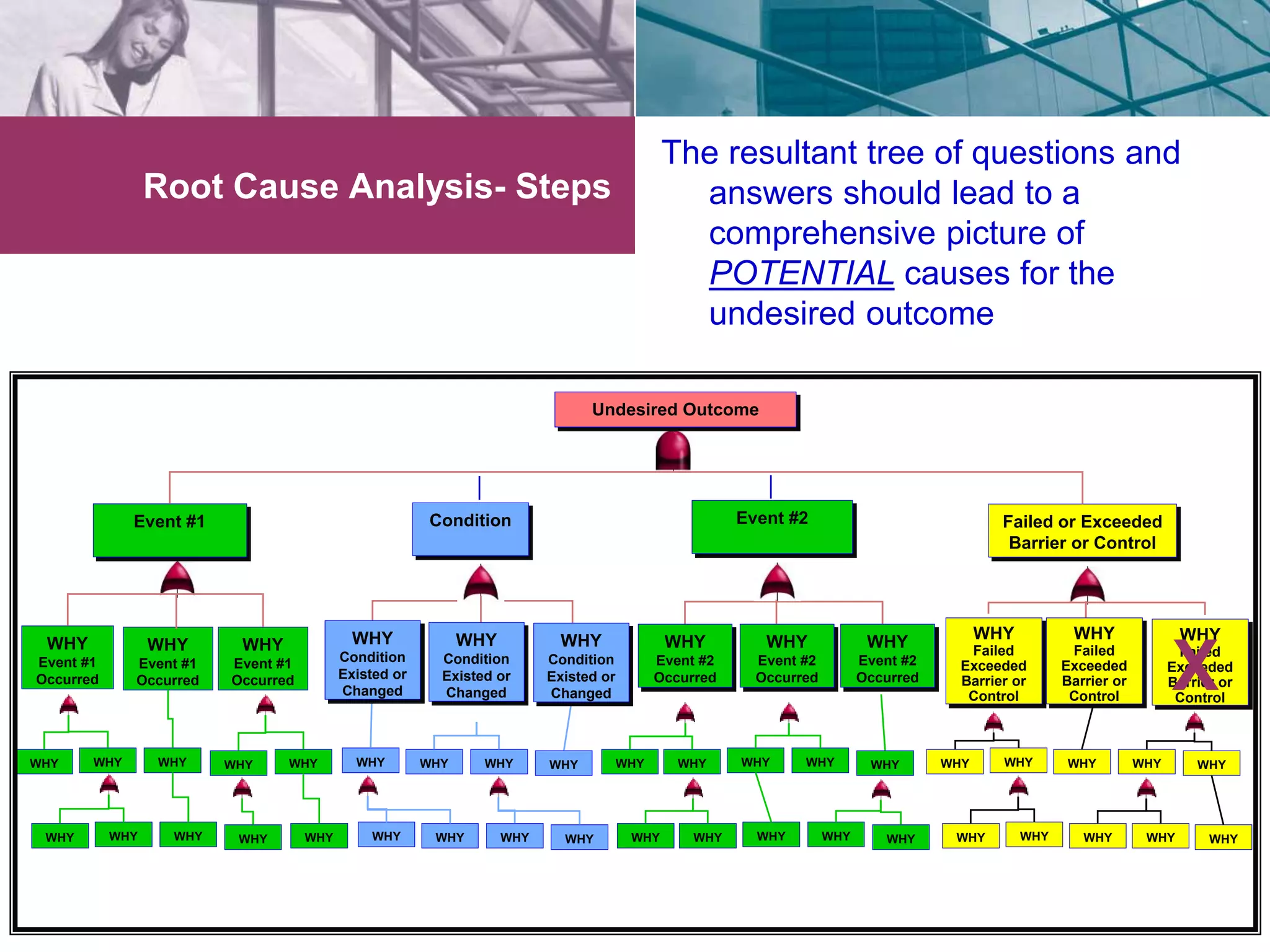

Root Cause Analysis- Steps The resultant tree of questions and answers should lead to a comprehensive picture of POTENTIAL causes for the undesired outcome Event #2 Failed or Exceeded Barrier or Control Undesired Outcome Event #1 Condition WHY Event #1 Occurred WHY Event #1 Occurred WHY Event #1 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Event #2 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Condition Existed or Changed WHY Failed Exceeded Barrier or Control X WHY Failed Exceeded Barrier or Control WHY Failed Exceeded Barrier or Control WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY
X X WHY WHY Failed Exceeded Barrier or Control WHY Event #2 Occurred WHY Condition Existed or Changed WHY Failed Exceeded Barrier or Control WHY Event #2 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Condition Existed or Changed Check your logic with a detailed review of each potential cause. • Verify it is a contributor or cause. • If the action, deficiency, or decision in question were corrected, eliminated or avoided, would the undesired outcome be prevented or avoided? > If no, then eliminate it from the tree. Root Cause Analysis- Steps Event #2 Failed or Exceeded Barrier or Control Undesired Outcome Event #1 Condition WHY Event #1 Occurred WHY Event #1 Occurred WHY Event #1 Occurred X Failed Exceeded Barrier or Control X X X X X X X X WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY X X X X X X X X X WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY

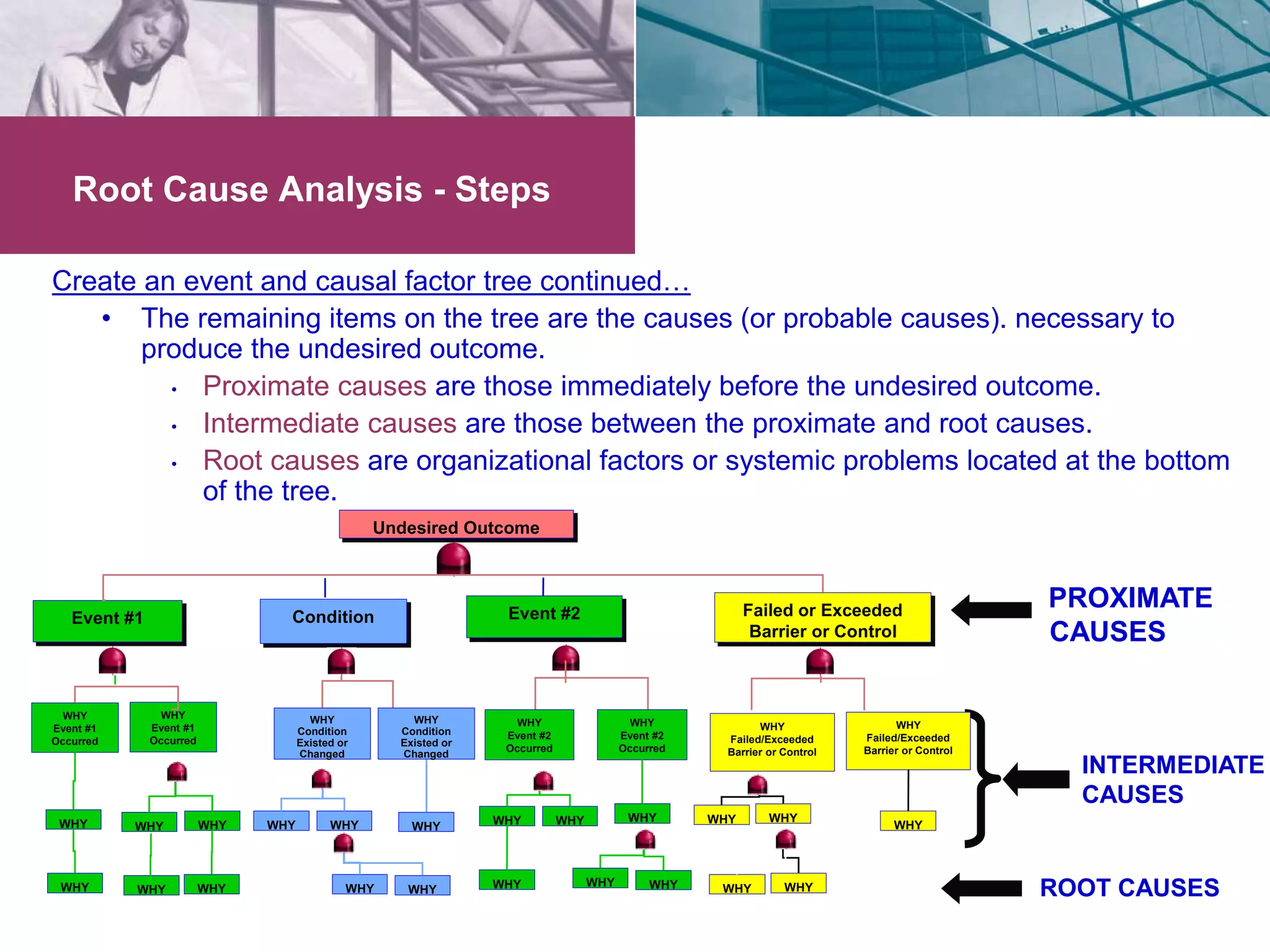

Root Cause Analysis - Steps Create an event and causal factor tree continued… • The remaining items on the tree are the causes (or probable causes). necessary to produce the undesired outcome. • Proximate causes are those immediately before the undesired outcome. • Intermediate causes are those between the proximate and root causes. • Root causes are organizational factors or systemic problems located at the bottom of the tree. PROXIMATE CAUSES INTERMEDIATE CAUSES ROOT CAUSES Event #2 Failed or Exceeded Barrier or Control Undesired Outcome Event #1 Condition WHY Event #1 Occurred WHY Event #1 Occurred WHY Failed/Exceeded Barrier or Control WHY Event #2 Occurred WHY Event #2 Occurred WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY Condition Existed or Changed WHY Condition Existed or Changed WHY Failed/Exceeded Barrier or Control

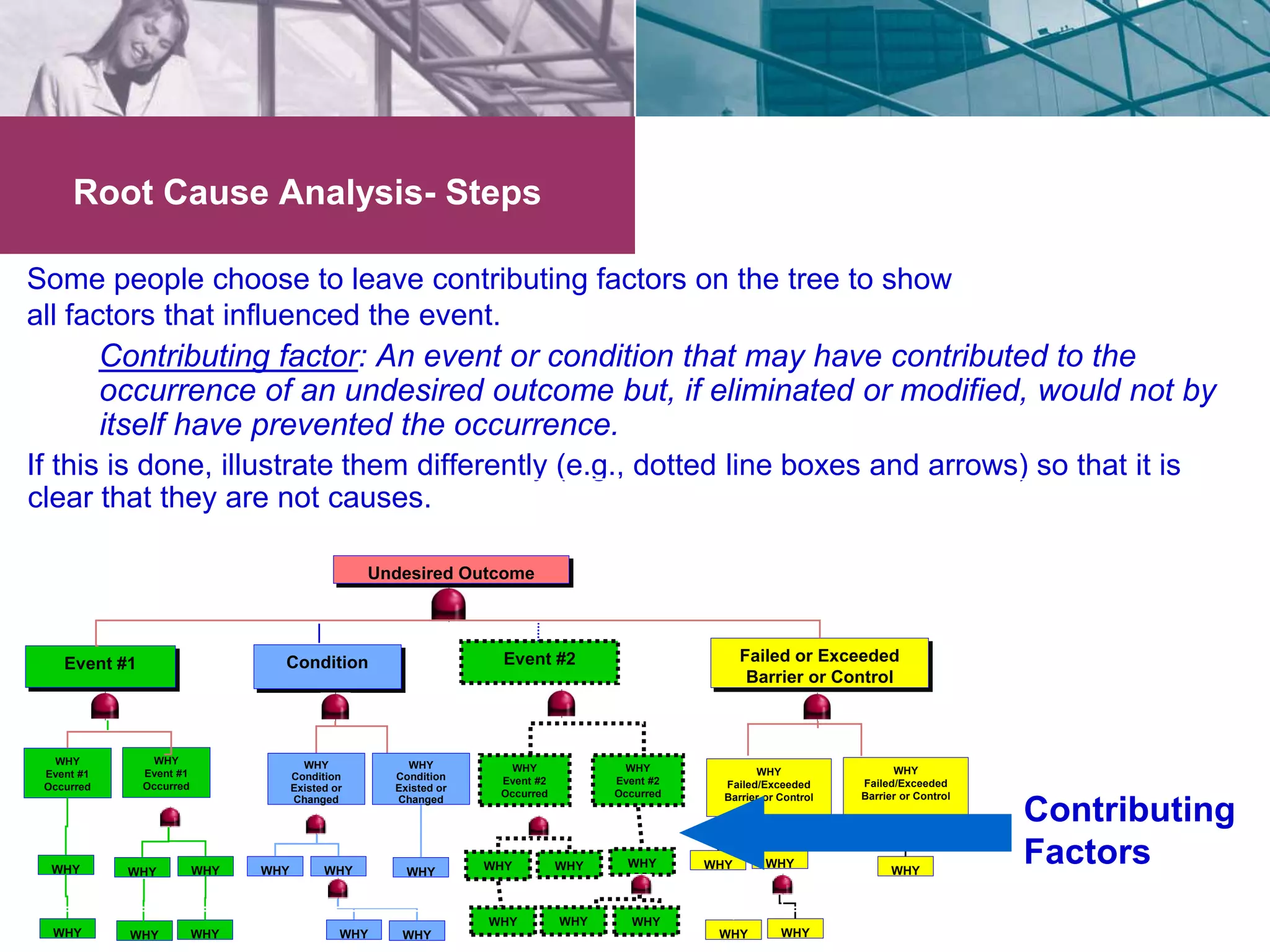

Root Cause Analysis- Steps Some people choose to leave contributing factors on the tree to show all factors that influenced the event. Contributing factor: An event or condition that may have contributed to the occurrence of an undesired outcome but, if eliminated or modified, would not by itself have prevented the occurrence. If this is done, illustrate them differently (e.g., dotted line boxes and arrows) so that it is clear that they are not causes. Contributing Factors Event #2 Failed or Exceeded Barrier or Control Undesired Outcome Event #1 Condition WHY Event #1 Occurred WHY Event #1 Occurred WHY Failed/Exceeded Barrier or Control WHY Event #2 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Condition Existed or Changed WHY Failed/Exceeded Barrier or Control WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY
No IP connection to VLAN assigned Incorrect server static address used incorrectly Engineer did not read correct label network Root Cause is Much Deeper Keep Asking Why Investigating Causes of Failures & Mishaps Application failed to Go Live Technician Used Wrong Method to Correct Lost transaction (Penalties paid) Switch port in wrong VLAN Operation system started up

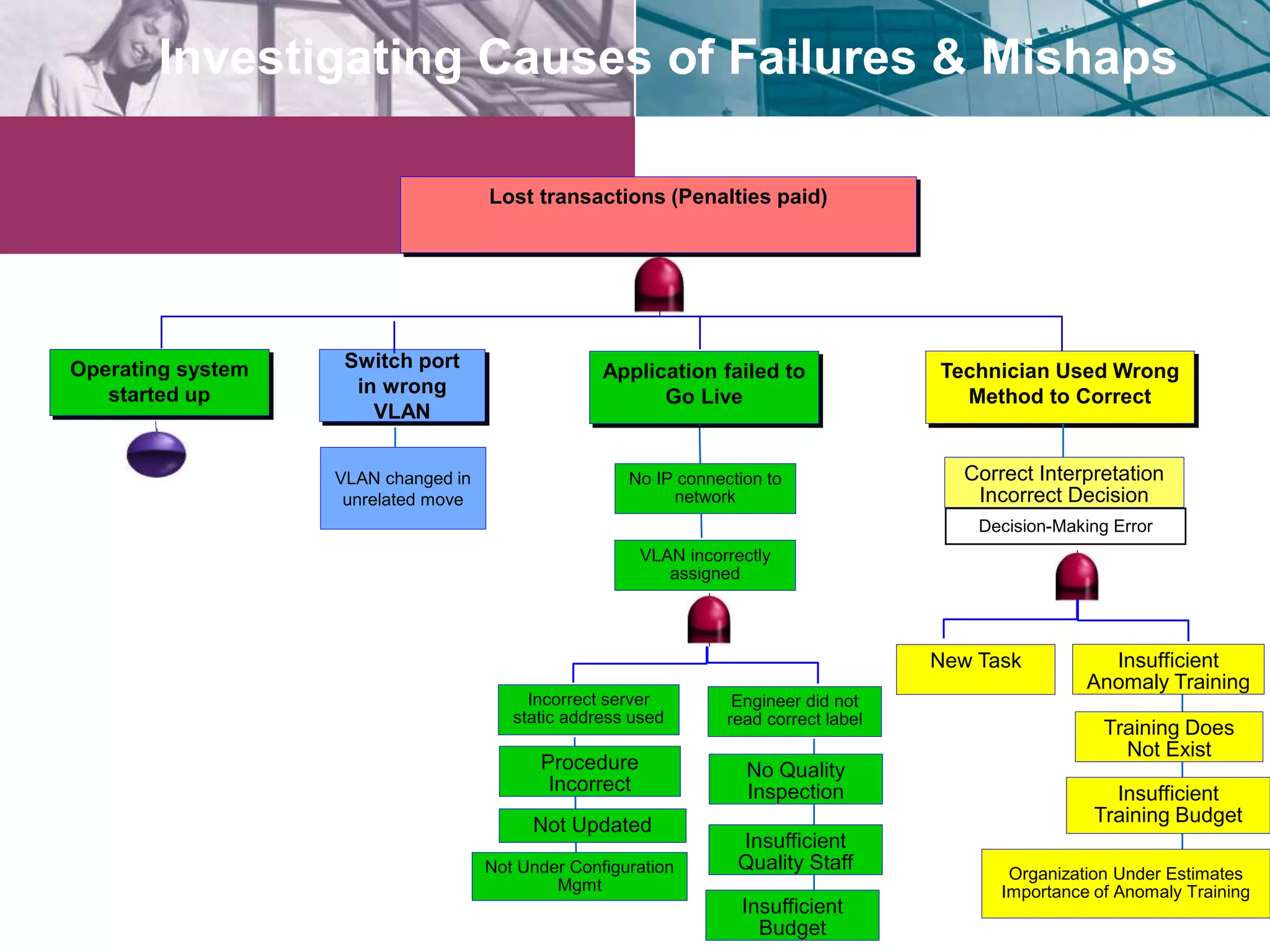

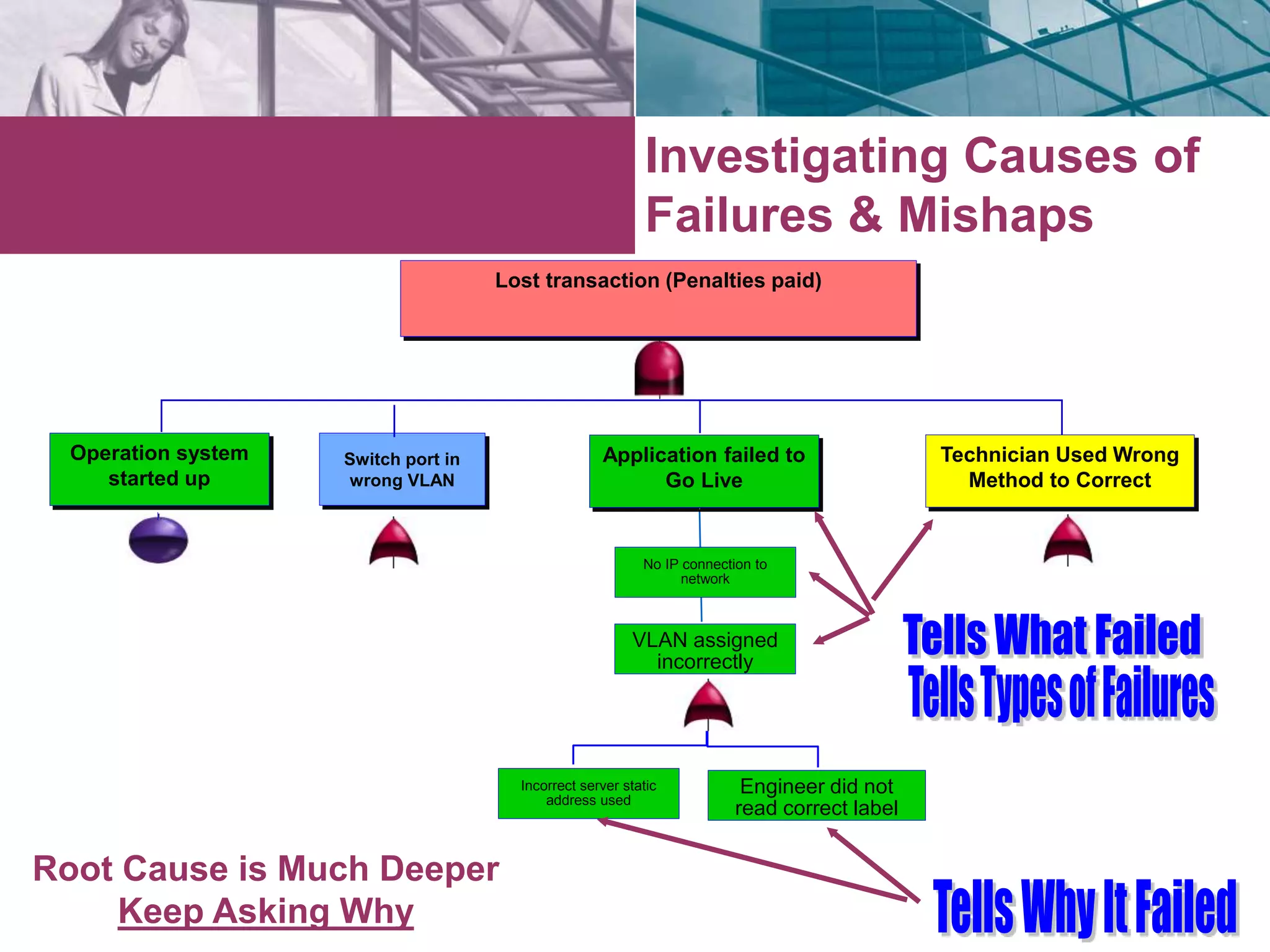

Investigating Causes of Failures & Mishaps VLAN changed in unrelated move Application failed to Go Live No IP connection to network VLAN incorrectly Incorrect server static address used assigned Engineer did not read correct label Technician Used Wrong Method to Correct Lost transactions (Penalties paid) Switch port in wrong VLAN Operating system started up No Quality Inspection Insufficient Quality Staff Insufficient Budget Procedure Incorrect Not Updated Correct Interpretation Incorrect Decision Decision-Making Error New Task Insufficient Anomaly Training Training Does Not Exist Not Under Configuration Mgmt Insufficient Training Budget Organization Under Estimates Importance of Anomaly Training

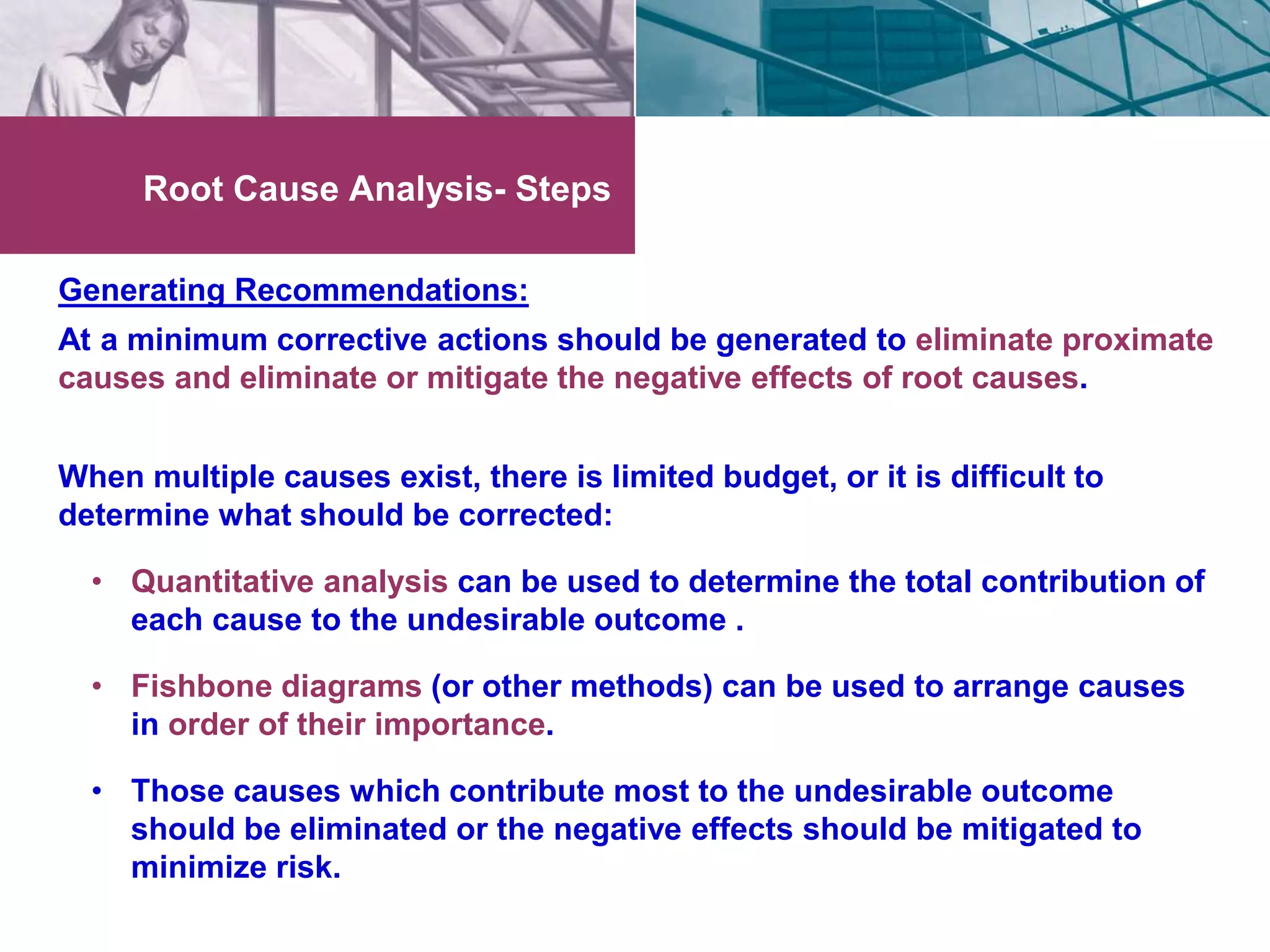

Root Cause Analysis- Steps Generating Recommendations: At a minimum corrective actions should be generated to eliminate proximate causes and eliminate or mitigate the negative effects of root causes. When multiple causes exist, there is limited budget, or it is difficult to determine what should be corrected: • Quantitative analysis can be used to determine the total contribution of each cause to the undesirable outcome . • Fishbone diagrams (or other methods) can be used to arrange causes in order of their importance. • Those causes which contribute most to the undesirable outcome should be eliminated or the negative effects should be mitigated to minimize risk.

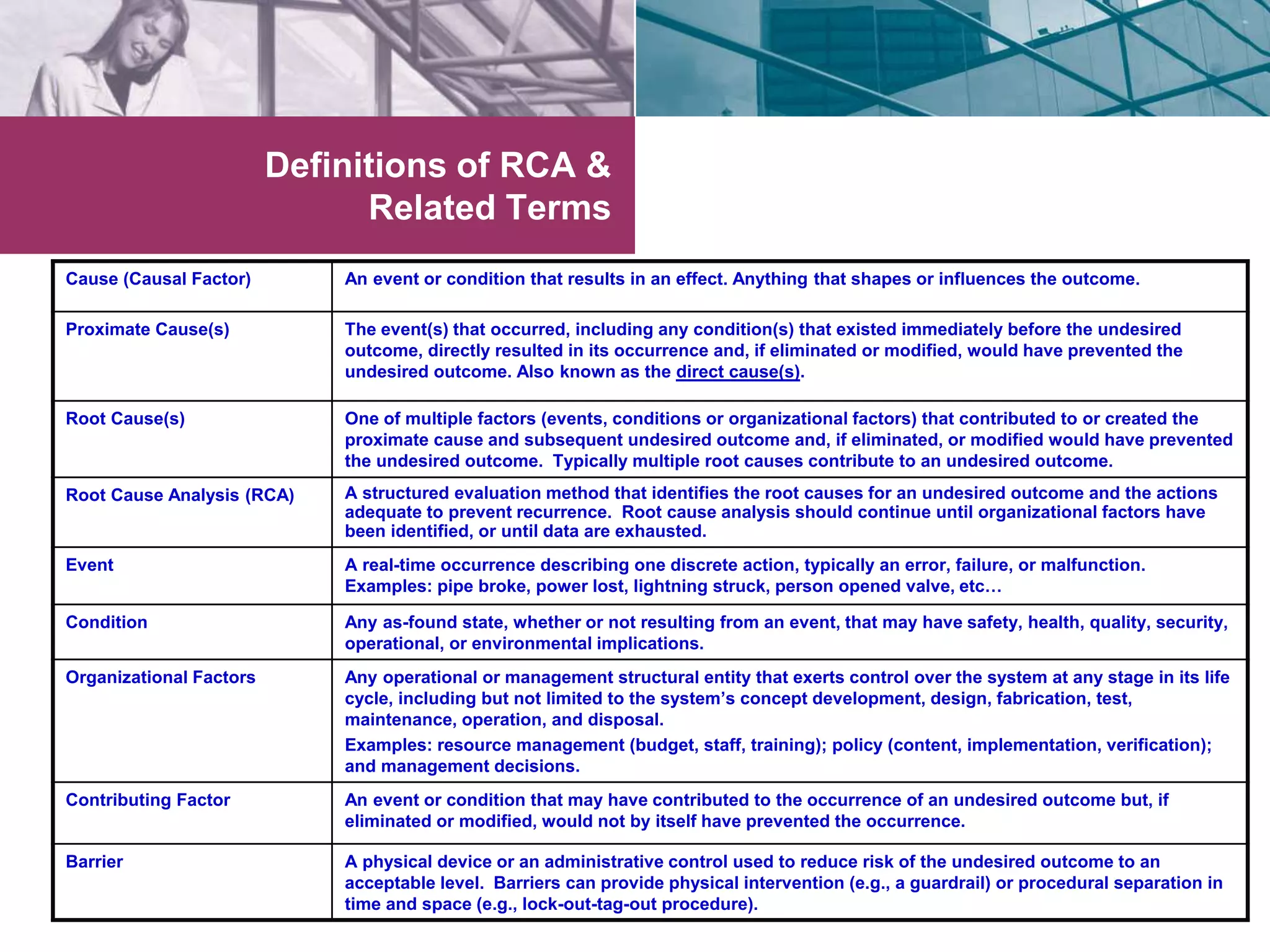

Definitions of RCA & Related Terms Cause (Causal Factor) An event or condition that results in an effect. Anything that shapes or influences the outcome. Proximate Cause(s) The event(s) that occurred, including any condition(s) that existed immediately before the undesired outcome, directly resulted in its occurrence and, if eliminated or modified, would have prevented the undesired outcome. Also known as the direct cause(s). Root Cause(s) One of multiple factors (events, conditions or organizational factors) that contributed to or created the proximate cause and subsequent undesired outcome and, if eliminated, or modified would have prevented the undesired outcome. Typically multiple root causes contribute to an undesired outcome. Root Cause Analysis (RCA) A structured evaluation method that identifies the root causes for an undesired outcome and the actions adequate to prevent recurrence. Root cause analysis should continue until organizational factors have been identified, or until data are exhausted. Event A real-time occurrence describing one discrete action, typically an error, failure, or malfunction. Examples: pipe broke, power lost, lightning struck, person opened valve, etc… Condition Any as-found state, whether or not resulting from an event, that may have safety, health, quality, security, operational, or environmental implications. Organizational Factors Any operational or management structural entity that exerts control over the system at any stage in its life cycle, including but not limited to the system’s concept development, design, fabrication, test, maintenance, operation, and disposal. Examples: resource management (budget, staff, training); policy (content, implementation, verification); and management decisions. Contributing Factor An event or condition that may have contributed to the occurrence of an undesired outcome but, if eliminated or modified, would not by itself have prevented the occurrence. Barrier A physical device or an administrative control used to reduce risk of the undesired outcome to an acceptable level. Barriers can provide physical intervention (e.g., a guardrail) or procedural separation in time and space (e.g., lock-out-tag-out procedure).

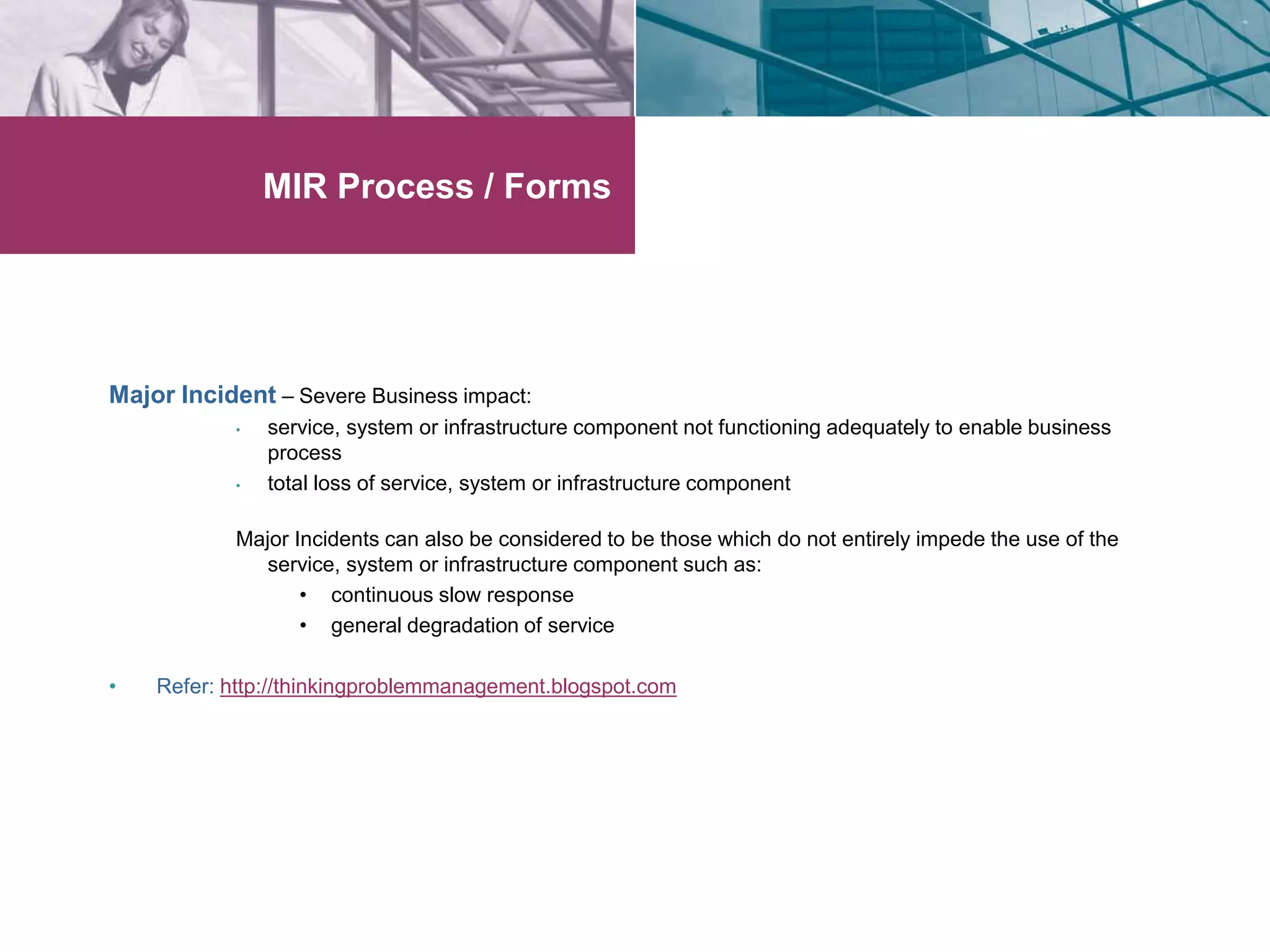

MIR Process / Forms Major Incident – Severe Business impact: • service, system or infrastructure component not functioning adequately to enable business process • total loss of service, system or infrastructure component Major Incidents can also be considered to be those which do not entirely impede the use of the service, system or infrastructure component such as: • continuous slow response • general degradation of service • Refer: http://thinkingproblemmanagement.blogspot.com

More Related Content

PDF
Root Cause Analysis
bymtalhausmani

PPT
#8 Root Cause Analysis
bysuman_purumandla

PPT
Root Cause Analysis
bygatelyw396

PPTX
Root cause analysis
byWayne Ahlquist

PPTX
Root cause analysis
byRental Solutions and Services

PDF
Root cause analysis
byManal Elsayed CPPS, CPHQ, CLSSBB, FISQua, DTQM

PPTX
Root cause analysis using 5 whys
byFahmi Ramadhan Putra

PPTX
Root Cause Analysis
bymahmoudradwan25

Root Cause Analysis
bymtalhausmani

#8 Root Cause Analysis
bysuman_purumandla

Root Cause Analysis
bygatelyw396

Root cause analysis
byWayne Ahlquist

Root cause analysis
byRental Solutions and Services

Root cause analysis
byManal Elsayed CPPS, CPHQ, CLSSBB, FISQua, DTQM

Root cause analysis using 5 whys
byFahmi Ramadhan Putra

Root Cause Analysis
bymahmoudradwan25


What's hot

PPTX
Root Cause Analysis - Tools, Tips and Tricks to Get to the Bottom of Root Cause
byCraig Thornton

PPT
Root cause analysis arg sc
byManish Chaurasia

PPT
Root cause analysis training
byVISCAR INDUSTRIAL CAPACITY

PPTX
CAPA Training Presentation
byNancy Watts

PDF
5 why training_presentation
byMd.Aminul Islam ,CMRP,CSSBB

PDF
Mini-Training: Using root-cause analysis for problem management
byBetclic Everest Group Tech Team

PPTX
Introduction to Root Cause Analysis
byCarmel Khan

PPTX
Root Cause Analysis - methods and best practice
byMedgate Inc.

PPS
Root Cause Analysis Presentation
byE&H Pacheco Consultoria e Assessoria Empresarial Ltda

PPTX
5 why’s technique and cause and effect analysis
byBhagya Silva

PPTX
Root Cause Analysis
byAnwarrChaudary

PDF
Global 8D Problem Solving Process Training Module
byFrank-G. Adler

PPTX
Root cause analysis - tools and process
byCharles Cotter, PhD

PPTX
Root cause analysis 1
byThandiwe Kgagabi

PPTX
5 Why Training Slides Oct 14, 2009
byExerciseLeanLLC

PPTX
5 why analysis training presentaion
byDharmesh Panchal

PPTX
Root Cause Analysis and Corrective Actions
byHannah Stewart

PPT
Root Cause Analysis
bytqmdoctor

PPTX
8D Problem Solving - Automotive Industry
byGestion Projet Auto

PPT
5-Why Training
byRanita Kaur

Root Cause Analysis - Tools, Tips and Tricks to Get to the Bottom of Root Cause
byCraig Thornton

Root cause analysis arg sc
byManish Chaurasia

Root cause analysis training
byVISCAR INDUSTRIAL CAPACITY

CAPA Training Presentation
byNancy Watts

5 why training_presentation
byMd.Aminul Islam ,CMRP,CSSBB

Mini-Training: Using root-cause analysis for problem management
byBetclic Everest Group Tech Team

Introduction to Root Cause Analysis
byCarmel Khan

Root Cause Analysis - methods and best practice
byMedgate Inc.

Root Cause Analysis Presentation
byE&H Pacheco Consultoria e Assessoria Empresarial Ltda

5 why’s technique and cause and effect analysis
byBhagya Silva

Root Cause Analysis
byAnwarrChaudary

Global 8D Problem Solving Process Training Module
byFrank-G. Adler

Root cause analysis - tools and process
byCharles Cotter, PhD

Root cause analysis 1
byThandiwe Kgagabi

5 Why Training Slides Oct 14, 2009
byExerciseLeanLLC

5 why analysis training presentaion
byDharmesh Panchal

Root Cause Analysis and Corrective Actions
byHannah Stewart

Root Cause Analysis
bytqmdoctor

8D Problem Solving - Automotive Industry
byGestion Projet Auto

5-Why Training
byRanita Kaur


Viewers also liked

PDF
Root cause analysis by: ICG Team
byInnovation Centric Group

PPTX
Structural collapse awareness hmm
byDr. H.M.A. Mahzuz

PPT
Apollo13
bypmayhew1958

PDF
Concrete Repair: Bridges and Tunnels--Epoxies
byjbors

PPTX
Chapter 2 seviceability and durability
byAnkit Patel

PDF
Structural concrete, theory and design,4th ed
bySarmed Shukur

PPTX
Ferrocement roof
byamity school of architecture and planning

PPT
polymers for concrete repair
byKris Kiran

PDF
Ensayo Apolo 13
byJuan Ska

PDF
Reinforced concrete
bykhadime NIANG

PPTX
Proof loading of existing bridges
byEva Lantsoght

PPT
Ch 10 Fire-Resistive Construction
bysnoshoesam

PDF
Dissertation
bySyed Rizvi

PPTX
Strengthening of RC Arches
byFinal year Btech civil engineering student at viswajyothi college of engineering & technology

PPTX
Apollo 13
byShobhit Jain

PPTX
Atelectasis and collapse in CXR
byMarco Wu

PPTX
Conference ppt
byHaider Mohiuddin Ahmed

PPT
Extending service life of existing bridges
byEva Lantsoght

PPTX
Prolonging the service life of existing reinforced concrete slab bridges
byEva Lantsoght

Root cause analysis by: ICG Team
byInnovation Centric Group

Structural collapse awareness hmm
byDr. H.M.A. Mahzuz

Apollo13
bypmayhew1958

Concrete Repair: Bridges and Tunnels--Epoxies
byjbors

Chapter 2 seviceability and durability
byAnkit Patel

Structural concrete, theory and design,4th ed
bySarmed Shukur

Ferrocement roof
byamity school of architecture and planning

polymers for concrete repair
byKris Kiran

Ensayo Apolo 13
byJuan Ska

Reinforced concrete
bykhadime NIANG

Proof loading of existing bridges
byEva Lantsoght

Ch 10 Fire-Resistive Construction
bysnoshoesam

Dissertation
bySyed Rizvi

Strengthening of RC Arches
byFinal year Btech civil engineering student at viswajyothi college of engineering & technology

Apollo 13
byShobhit Jain

Atelectasis and collapse in CXR
byMarco Wu

Conference ppt
byHaider Mohiuddin Ahmed

Extending service life of existing bridges
byEva Lantsoght

Prolonging the service life of existing reinforced concrete slab bridges
byEva Lantsoght


Similar to Root cause analysis

PPTX
RCA - Root Cause Analysis
byAbhishek Agnihotry

PDF
Root cause analysis master plan
byGlen Alleman

PPT
Incident investigation and Root Cause Analysis
byHeatherawarens

PDF
Incident Investigation (RCA)
byBalkrishna Jadhav

PPT
Causal Tree Analysis (Root Cause)
byferbor

PPTX
Root cause analysis - Methodology
bySandeep Gupta

PPT
RCA QHSE Presentation 2007 how to solve recurrant issues .ppt
bybmsalah64

PPT
root cause analyse
byAbdou El

PDF
A3 Toyota-on-Root-Cause-Analysis-and-the-5-Whys.pdf
byssuser28d124

PPT
2 5 root cause
byFranklin Galido

PPT
2 5 root cause
byCindy White

PPTX
World class solution for root cause and corrective actions
bykruxepvp

DOC
root-cause-analysis-checklist
bydfritzke

PPTX
1315 wed katrine grint &amp.pptx; holt
byNHSScotlandEvent

PPTX
Learning From Failure Finish2
byaigleazure

PPT
2 5 root cause
bymahadevpawase

PPTX
Lecture 4 Root Cause Analysis in Company
byRyan Olaybal

PPTX
Root cause Methodology for evaluating different techniques
byAhmed Attyub

PDF
Module 3 Causes of Failure
bycaniceconsulting

PPTX
Draft root cause analysis continuous improvement and blameless culture
byManjunatha Gopalakrishna

RCA - Root Cause Analysis
byAbhishek Agnihotry

Root cause analysis master plan
byGlen Alleman

Incident investigation and Root Cause Analysis
byHeatherawarens

Incident Investigation (RCA)
byBalkrishna Jadhav

Causal Tree Analysis (Root Cause)
byferbor

Root cause analysis - Methodology
bySandeep Gupta

RCA QHSE Presentation 2007 how to solve recurrant issues .ppt
bybmsalah64

root cause analyse
byAbdou El

A3 Toyota-on-Root-Cause-Analysis-and-the-5-Whys.pdf
byssuser28d124

2 5 root cause
byFranklin Galido

2 5 root cause
byCindy White

World class solution for root cause and corrective actions
bykruxepvp

root-cause-analysis-checklist
bydfritzke

1315 wed katrine grint &amp.pptx; holt
byNHSScotlandEvent

Learning From Failure Finish2
byaigleazure

2 5 root cause
bymahadevpawase

Lecture 4 Root Cause Analysis in Company
byRyan Olaybal

Root cause Methodology for evaluating different techniques
byAhmed Attyub

Module 3 Causes of Failure
bycaniceconsulting

Draft root cause analysis continuous improvement and blameless culture
byManjunatha Gopalakrishna


More from Ronald Bartels

PPTX
Problem management foundation - Tiger teams
byRonald Bartels

PPTX
Problem management foundation - Lifecycle
byRonald Bartels

PPTX
Problem management foundation - Overview
byRonald Bartels

PDF
Implementing a modern Fusion Centre
byRonald Bartels

PPTX
Problem management foundation - Mission control
byRonald Bartels

PDF
NSA advisory about state sponsored cybersecurity threats
byRonald Bartels

PDF
The reasons why your business cannot afford to be offline
byRonald Bartels

PDF
Infrastructure management presented to GPNOG (Updated)
byRonald Bartels

PPTX
Problem management foundation - IT risk
byRonald Bartels

PPTX
Problem management foundation - Analysing
byRonald Bartels

PPTX
Problem management foundation - Significant havoc in technology
byRonald Bartels

PPTX
Problem management foundation - Tools
byRonald Bartels

PPTX
Problem management foundation - Introduction
byRonald Bartels

PPTX
Problem management foundation - Continious improvement
byRonald Bartels

PPTX
Problem management foundation Simulation
byRonald Bartels

PPTX
Problem management foundation - Perceptions
byRonald Bartels

PPTX
Problem management foundation - Engineering
byRonald Bartels

PPTX
Problem management foundation Budget
byRonald Bartels

PDF
RADWIN, software defined wide area network, Press Release
byRonald Bartels

PPTX
Infrastructure management using a VPN Concentrator
byRonald Bartels

Problem management foundation - Tiger teams
byRonald Bartels

Problem management foundation - Lifecycle
byRonald Bartels

Problem management foundation - Overview
byRonald Bartels

Implementing a modern Fusion Centre
byRonald Bartels

Problem management foundation - Mission control
byRonald Bartels

NSA advisory about state sponsored cybersecurity threats
byRonald Bartels

The reasons why your business cannot afford to be offline
byRonald Bartels

Infrastructure management presented to GPNOG (Updated)
byRonald Bartels

Problem management foundation - IT risk
byRonald Bartels

Problem management foundation - Analysing
byRonald Bartels

Problem management foundation - Significant havoc in technology
byRonald Bartels

Problem management foundation - Tools
byRonald Bartels

Problem management foundation - Introduction
byRonald Bartels

Problem management foundation - Continious improvement
byRonald Bartels

Problem management foundation Simulation
byRonald Bartels

Problem management foundation - Perceptions
byRonald Bartels

Problem management foundation - Engineering
byRonald Bartels

Problem management foundation Budget
byRonald Bartels

RADWIN, software defined wide area network, Press Release
byRonald Bartels

Infrastructure management using a VPN Concentrator
byRonald Bartels


Recently uploaded

PDF
Digit Expo 2025 - EICC Edinburgh 27th November
byRay Bugg

PDF
Knowing and Doing: Knowledge graphs, AI, and work
bymarainglezakis1

PDF
Recursive Self Improvement vs Continuous Learning
byBob Marcus

PPTX
Combining Induction and Transduction for Abstract Reasoning.pptx
byallen578468

PDF
TrustArc Webinar - Assessing AI Risk with Confidence
byTrustArc

PDF
eResource Scheduler Enterprise Resource Management and Scheduling Software.pdf
byeResource Scheduler

PDF
Igniting the Future: Copilot trends, agentic transformation and product roadm...
byUni Systems S.M.S.A.

PDF
Incident Response Planning with a Foundation Model
byKim Hammar

PPTX
Ethics in AI - Artificial Intelligence Fundamentals.pptx
byemenyiblessing

PDF
The major tech developments for 2026 by Pluralsight, a research and training ...
byChris Skinner

PPTX
THIS IS CYBER SECURITY NOTES USED IN CLASS ON VARIOUS TOPICS USED IN CYBERSEC...
byMelissaGblinwon

PDF
Accelerating Responsible AI Adoption in Public Sector and Private Organizations.
byYasir Naveed Riaz

PDF
Making Sense of Raster: From Bit Depth to Better Workflows
bySafe Software

PPTX
Basics of Identity Access Management In mordern Infrastructure
byPrinceXavier18

PPTX
The Future of IT Service Management AI Automation & Beyond.pptx
byChetu

PDF
ElyriaSoftware — Powering the Future with Blockchain Innovation
byElyria Software

PDF
Zero Trust & Defense-in-Depth: The Future of Critical Infrastructure Security
byYasir Naveed Riaz

PDF
Safeguarding AI-Based Financial Infrastructure
byYasir Naveed Riaz

DOCX
Introduction to the World of Computers (Hardware & Software)
byALIABBAS ABASOV

PDF
Top Cybersecurity Threats 2025 Guide by Sureshdas
byPrintersassist

Digit Expo 2025 - EICC Edinburgh 27th November
byRay Bugg

Knowing and Doing: Knowledge graphs, AI, and work
bymarainglezakis1

Recursive Self Improvement vs Continuous Learning
byBob Marcus

Combining Induction and Transduction for Abstract Reasoning.pptx
byallen578468

TrustArc Webinar - Assessing AI Risk with Confidence
byTrustArc

eResource Scheduler Enterprise Resource Management and Scheduling Software.pdf
byeResource Scheduler

Igniting the Future: Copilot trends, agentic transformation and product roadm...
byUni Systems S.M.S.A.

Incident Response Planning with a Foundation Model
byKim Hammar

Ethics in AI - Artificial Intelligence Fundamentals.pptx
byemenyiblessing

The major tech developments for 2026 by Pluralsight, a research and training ...
byChris Skinner

THIS IS CYBER SECURITY NOTES USED IN CLASS ON VARIOUS TOPICS USED IN CYBERSEC...
byMelissaGblinwon

Accelerating Responsible AI Adoption in Public Sector and Private Organizations.
byYasir Naveed Riaz

Making Sense of Raster: From Bit Depth to Better Workflows
bySafe Software

Basics of Identity Access Management In mordern Infrastructure
byPrinceXavier18

The Future of IT Service Management AI Automation & Beyond.pptx
byChetu

ElyriaSoftware — Powering the Future with Blockchain Innovation
byElyria Software

Zero Trust & Defense-in-Depth: The Future of Critical Infrastructure Security
byYasir Naveed Riaz

Safeguarding AI-Based Financial Infrastructure
byYasir Naveed Riaz

Introduction to the World of Computers (Hardware & Software)
byALIABBAS ABASOV

Top Cybersecurity Threats 2025 Guide by Sureshdas
byPrintersassist

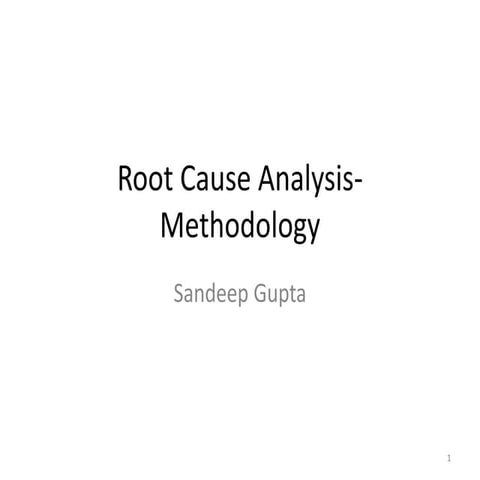

Root cause analysis

  • 1.
  • 2.
    Investigating causes offailures & mishaps Stop and ask yourself… Did you really find the causes of the failure? Like icebergs, most of the problem is usually below the surface!
  • 3.
    This is NOTRoot Cause Analysis
  • 4.
    Technical Proficiency •Once the accident happened how did Gene Krantz rely on the skills and expertise of his people? • How did Lovell work to initiate actions in the spaceship? Was he able to balance that with his technical responsibilities in the craft? How did he do it? • What steps does your unit take to maintain Technical Proficiency? Lessons from Apoll0 13
  • 5.
    Teambuilding • Howdid Lovell contribute to the group process when Mattingly wanted to practice the docking procedure again after 3 hrs of practice? • When Krantz had the team in the classroom how did he establish the goal and then how did he go about motivating others to achieve the goal of returning the space craft safely to earth? • Did Lovell make the right call when faced with the challenge of forcing Mattingly to stay behind because of the fear of measles? • How does a leader successfully build a strong team, but then separate him or herself from the Team to make a critical decision? • How’s your Team doing? Lessons from Apoll0 13
  • 6.
    Effective Communications •Even as everything is breaking loose in Mission Control, Gene Krantz asks his team to “Work the Problem.” He then listened to the experts report in on their areas of the mission. How did his effective comms set the stage for a successful recovery? • Krantz stated “Failure is not an option” and Lovell told his crew “I intend to go home.” By clearly stating their ideas and vision how did it direct the teams towards mission accomplishment? • Whose the best communicator you’ve ever worked with? What made them excel? Lessons from Apoll0 13
  • 7.
    Vision Development &Implementation • JFK’s Vision: "I believe that this nation should commit itself to achieving the goal, before this decade is out, of landing a man on the moon and returning him safely to Earth.“ • How does a stated vision focus the unit and bring the crew together? • Lovell states; “Columbus, Lindberg, and Armstrong; it is not a miracle for man to walk on the moon, we just decided to go.” • What’s the vision at your unit? Has everyone decided “to go?” What can your unit do to get everyone “on board”? Lessons from Apoll0 13
  • 8.
    Conflict Management •How did Lovell deal with stress and conflict in the LEM? • How did the CO2 challenge help the crew to overcome the conflict they were experiencing? • Is there more or less conflict when people are busy and focused or when there is less to do and folks have time on their hands? Why? • How did Krantz and Lovell go about alleviating conflict between the crew and the Medical team? Lessons from Apoll0 13
  • 9.
    Decision Making &Problem Solving • How did the Team live the Competency of Decision Making and Problem Solving in working the “Power” problem to conclusion? • Right after the explosion Krantz’s asks Mission Control “What do we have on the Space Craft that’s good?” • Why did he ask this question? • How did it aid in making the correct decision to shut down the fuel cells? • Does everyone at your Teamt ensure that the Decision Makers have all the available and correct information? Why or Why not? Lessons from Apoll0 13
  • 10.
    Creativity and Innovation • We’ve discussed a lot of positive leadership qualities during this session. How did Gene Krantz create an environment with his Mission Control team to ensure they were able to figure out how to solve the CO2 problem with a “Square Peg in a Round Hole!” • Lovell states at the end of the movie; “Thousands of people worked to bring the 3 of us back home.” How did creativity and innovation make the “Successful Failure” a reality? • How does your unit build on Lessons Learned? Lessons from Apoll0 13
  • 11.
  • 12.
    Investigating causes offailures & mishaps When performing an investigation, it is necessary to look at more than just the immediately visible cause, which is often the proximate cause. There are underlying organizational causes that are more difficult to see, however, they may contribute significantly to the undesired outcome and, if not corrected, they will continue to create similar types of problems. These are root causes. Requirements for mishap reporting and investigating all mishaps and investigations must identify the proximate causes(s), root causes(s) and contributing factor(s).
  • 13.
    Definitions Proximate Cause(s)(Direct Cause) • The event(s) that occurred, including any condition(s) that existed immediately before the undesired outcome, directly resulted in its occurrence and, if eliminated or modified, would have prevented the undesired outcome. • Examples of proximate causes: Equipment Human • Arched • Pushed incorrect button • Leaked • Fell • Over-loaded • Dropped tool • Over-heated • Connected wires
  • 14.
    Root Cause(s) Definitions • One of multiple factors (events, conditions or organizational factors) that contributed to or created the proximate cause and subsequent undesired outcome and, if eliminated, or modified would have prevented the undesired outcome. Typically multiple root causes contribute to an undesired outcome. Organizational factors • Any operational or management structural entity that exerts control over the system at any stage in its life cycle, including but not limited to the system’s concept development, design, fabrication, test, maintenance, operation, and disposal. • Examples: resource management (budget, staff, training); policy (content, implementation, verification); and management decisions.
  • 15.
    Definitions Root CauseAnalysis (RCA) • A structured evaluation method that identifies the root causes for an undesired outcome and the actions adequate to prevent recurrence. Root cause analysis should continue until organizational factors have been identified, or until data are exhausted. • RCA is a method that helps professionals determine: • What happened. • How it happened. • Why it happened. • Allows learning from past problems, failures, and accidents.
  • 16.
    Root Cause Analysis- Steps 1. Identify and clearly define the undesired outcome (outage). 2. Gather data. 3. Create a timeline. 4. Place events & conditions on an event and causal factor tree. 5. Use a fault tree or other method/tool to identify all potential causes. 6. Decompose system failures down to a basic events or conditions (Further describe what happened) 7. Identify specific failure modes (Immediate Causes) 8. Continue asking “WHY” to identify root causes. 9. Check your logic and your facts. Eliminate items that are not causes or contributing factors. 10. Generate solutions that address both proximate causes and root causes.
  • 17.
    Root Cause Analysis- Steps Clearly define the undesirable outcome. • Describe the undesired outcome. • For example: “software failed to deploy,” “transaction failed,” or “XYZ project schedule significantly slipped.” Gather data. Identify facts surrounding the undesired outcome. • When did the undesired outcome occur? • Where did it occur? • What conditions were present prior to its occurrence? • What controls or barriers could have prevented its occurrence but did not? • What are all the potential causes? • What actions can prevent recurrence? • What amelioration occurred? Did it prevent further damage?
  • 18.
    Root Cause Analysis- Steps Create a timeline (sequence diagram) • Illustrate the sequence of events in chronological order horizontally across the page. • Depict relationships between conditions, events, and exceeded or failed barriers/controls. Exceeded- Failed Barrier Or Control Event Undesired Outcome Condition Event Event
  • 19.
    Root Cause Analysis- Steps Create a timeline (sequence diagram) • If amelioration occurred (e.g., reboot server, move application to another server), this should be included in the evaluation to ensure that it did not contribute to the undesired outcome. Example: In the of a server reboot, the investigation should ensure that the reboot was the result of the mishap and a result of latent hardware defects. Exceeded- Failed Barrier Or Control Event Undesired Outcome Condition Event Event Exceeded- Failed Amelioration
  • 20.
    Root Cause Analysis- Steps Example: simple timeline. Application failed to Go Live Operating system started up Lost transactions (Penalties paid) Tech. Used Wrong Method To Correct Server Powered Up Switch port in wrong VLAN
  • 21.
    Root Cause Analysis- Steps Create an event and causal factor tree. (A visual representation of the causes that led to the failure or mishap.) • Place the undesired outcome at the top of the tree. • Add all events, conditions, and exceeded/failed barriers that occurred immediately before the undesired outcome and might have caused it. Application failed to Go Live Operating system started up Technician Used Wrong Method to Correct Lost transactions (Penalties paid) Server Powered Up Switch port in wrong VLAN
  • 22.
    Root Cause Analysis- Steps Create an event and causal factor tree. • Brainstorm to ensure that all possible causes are included, NOT just those that you are sure are involved. • Be sure to consider people, hardware, software, policy, procedures, and the environment. Electric power tripped Application failed to Go Live Operating system started up Technician Used Wrong Method to Correct Lost transactions (Penalties Paid) Server Powered Up Switch port in wrong VLAN Technicians not properly trained Power Supply Failed Port labeled incorrectly Switch labeled incorrectly NIC driver wrong
  • 23.
    Root Cause Analysis- Steps Create an event and causal factor tree continued... • If you have solid data indicating that one of the possible causes is not applicable, it can be eliminated from the tree. Caution: Do not be too eager to eliminate early on. If there is a possibility that it is a causal factor, leave it and eliminate it later when more information is available. Electric power tripped Application failed to Go Live Operating system started up Technician Used Wrong Method to Correct Lost transactions (Penalties Paid) Server Powered Up Switch port in wrong VLAN Technicians not properly trained Power Supply Failed Port labeled incorrectly Switch labeled incorrectly NIC driver wrong X
  • 24.
    Root Cause Analysis- Steps Create an event and causal factor tree continued… • You may use a fault tree to determine all potential causes and to decompose the failure down to the “basic event” (e.g., system component level). Electric power tripped Application failed to Go Live Technician Used Wrong Method to Correct Lost transactions (Penalties Paid) Switch port in wrong VLAN Technicians not properly trained Switch labeled incorrectly Port labeled incorrectly Power supply failed NIC driver wrong Maintenance swap Diagram wrong with no re-label Confusing labels Operating system started up
  • 25.
    Root Cause Analysis- Steps Create an event and causal factor tree continued… • A fault tree can also be used to identify all possible types of human failures. Didn’t Perceive System Feedback Application failed to Go Live Technician Used Wrong Method to Correct Lost transactions (Penalties paid) Switch port in wrong VLAN Didn’t Understand System Feedback Operation system started up Correct Interpretation Incorrect Decision Correct Decision But Incorrect Action Perception Error Interpretation Error Decision-Making Error Action-Execution Error Rule-Based Error Knowledge-Based Error Skill-Based Error
  • 26.
    Root Cause Analysis- Steps Create an event and causal factor tree continued… • After you have identified all the possible causes, ask yourself “WHY” each may have occurred. • Be sure to keep your questions focused on the original issue. For example “Why was the condition present?”; “Why did the event occur?”; “Why was the parameter exceeded?” or “Why did the condition fail?” Event #2 Failed or Exceeded Barrier or Control Undesired Outcome Event #1 Condition WHY Event #1 Occurred WHY Event #1 Occurred WHY Event #1 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Event #2 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Condition Existed or Changed WHY Failed Exceeded Barrier or Control WHY Failed Exceeded Barrier or Control WHY Failed Exceeded Barrier or Control
  • 27.
    Root Cause Analysis– Steps Continue to ask “why” until you have reached: 1. Root cause(s) - including all organizational factors that exert control over the design, fabrication, development, maintenance, operation, and disposal of the system. 2. A problem that is not correctable by IT or IT contractor. 3. Insufficient data to continue.
  • 28.
    Root Cause Analysis-Steps The resultant tree of questions and answers should lead to a comprehensive picture of POTENTIAL causes for the undesired outcome Event #2 Failed or Exceeded Barrier or Control Undesired Outcome Event #1 Condition WHY Event #1 Occurred WHY Event #1 Occurred WHY Event #1 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Event #2 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Condition Existed or Changed WHY Failed Exceeded Barrier or Control X WHY Failed Exceeded Barrier or Control WHY Failed Exceeded Barrier or Control WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY
  • 29.
    X X WHY WHY Failed Exceeded Barrier or Control WHY Event #2 Occurred WHY Condition Existed or Changed WHY Failed Exceeded Barrier or Control WHY Event #2 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Condition Existed or Changed Check your logic with a detailed review of each potential cause. • Verify it is a contributor or cause. • If the action, deficiency, or decision in question were corrected, eliminated or avoided, would the undesired outcome be prevented or avoided? > If no, then eliminate it from the tree. Root Cause Analysis- Steps Event #2 Failed or Exceeded Barrier or Control Undesired Outcome Event #1 Condition WHY Event #1 Occurred WHY Event #1 Occurred WHY Event #1 Occurred X Failed Exceeded Barrier or Control X X X X X X X X WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY X X X X X X X X X WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY
  • 30.
    Root Cause Analysis- Steps Create an event and causal factor tree continued… • The remaining items on the tree are the causes (or probable causes). necessary to produce the undesired outcome. • Proximate causes are those immediately before the undesired outcome. • Intermediate causes are those between the proximate and root causes. • Root causes are organizational factors or systemic problems located at the bottom of the tree. PROXIMATE CAUSES INTERMEDIATE CAUSES ROOT CAUSES Event #2 Failed or Exceeded Barrier or Control Undesired Outcome Event #1 Condition WHY Event #1 Occurred WHY Event #1 Occurred WHY Failed/Exceeded Barrier or Control WHY Event #2 Occurred WHY Event #2 Occurred WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY Condition Existed or Changed WHY Condition Existed or Changed WHY Failed/Exceeded Barrier or Control
  • 31.
    Root Cause Analysis-Steps Some people choose to leave contributing factors on the tree to show all factors that influenced the event. Contributing factor: An event or condition that may have contributed to the occurrence of an undesired outcome but, if eliminated or modified, would not by itself have prevented the occurrence. If this is done, illustrate them differently (e.g., dotted line boxes and arrows) so that it is clear that they are not causes. Contributing Factors Event #2 Failed or Exceeded Barrier or Control Undesired Outcome Event #1 Condition WHY Event #1 Occurred WHY Event #1 Occurred WHY Failed/Exceeded Barrier or Control WHY Event #2 Occurred WHY Event #2 Occurred WHY Condition Existed or Changed WHY Condition Existed or Changed WHY Failed/Exceeded Barrier or Control WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY WHY
  • 32.
    No IP connectionto VLAN assigned Incorrect server static address used incorrectly Engineer did not read correct label network Root Cause is Much Deeper Keep Asking Why Investigating Causes of Failures & Mishaps Application failed to Go Live Technician Used Wrong Method to Correct Lost transaction (Penalties paid) Switch port in wrong VLAN Operation system started up
  • 33.
    Investigating Causes ofFailures & Mishaps VLAN changed in unrelated move Application failed to Go Live No IP connection to network VLAN incorrectly Incorrect server static address used assigned Engineer did not read correct label Technician Used Wrong Method to Correct Lost transactions (Penalties paid) Switch port in wrong VLAN Operating system started up No Quality Inspection Insufficient Quality Staff Insufficient Budget Procedure Incorrect Not Updated Correct Interpretation Incorrect Decision Decision-Making Error New Task Insufficient Anomaly Training Training Does Not Exist Not Under Configuration Mgmt Insufficient Training Budget Organization Under Estimates Importance of Anomaly Training
  • 34.
    Root Cause Analysis-Steps Generating Recommendations: At a minimum corrective actions should be generated to eliminate proximate causes and eliminate or mitigate the negative effects of root causes. When multiple causes exist, there is limited budget, or it is difficult to determine what should be corrected: • Quantitative analysis can be used to determine the total contribution of each cause to the undesirable outcome . • Fishbone diagrams (or other methods) can be used to arrange causes in order of their importance. • Those causes which contribute most to the undesirable outcome should be eliminated or the negative effects should be mitigated to minimize risk.
  • 35.
    Definitions of RCA& Related Terms Cause (Causal Factor) An event or condition that results in an effect. Anything that shapes or influences the outcome. Proximate Cause(s) The event(s) that occurred, including any condition(s) that existed immediately before the undesired outcome, directly resulted in its occurrence and, if eliminated or modified, would have prevented the undesired outcome. Also known as the direct cause(s). Root Cause(s) One of multiple factors (events, conditions or organizational factors) that contributed to or created the proximate cause and subsequent undesired outcome and, if eliminated, or modified would have prevented the undesired outcome. Typically multiple root causes contribute to an undesired outcome. Root Cause Analysis (RCA) A structured evaluation method that identifies the root causes for an undesired outcome and the actions adequate to prevent recurrence. Root cause analysis should continue until organizational factors have been identified, or until data are exhausted. Event A real-time occurrence describing one discrete action, typically an error, failure, or malfunction. Examples: pipe broke, power lost, lightning struck, person opened valve, etc… Condition Any as-found state, whether or not resulting from an event, that may have safety, health, quality, security, operational, or environmental implications. Organizational Factors Any operational or management structural entity that exerts control over the system at any stage in its life cycle, including but not limited to the system’s concept development, design, fabrication, test, maintenance, operation, and disposal. Examples: resource management (budget, staff, training); policy (content, implementation, verification); and management decisions. Contributing Factor An event or condition that may have contributed to the occurrence of an undesired outcome but, if eliminated or modified, would not by itself have prevented the occurrence. Barrier A physical device or an administrative control used to reduce risk of the undesired outcome to an acceptable level. Barriers can provide physical intervention (e.g., a guardrail) or procedural separation in time and space (e.g., lock-out-tag-out procedure).
  • 36.
    MIR Process /Forms Major Incident – Severe Business impact: • service, system or infrastructure component not functioning adequately to enable business process • total loss of service, system or infrastructure component Major Incidents can also be considered to be those which do not entirely impede the use of the service, system or infrastructure component such as: • continuous slow response • general degradation of service • Refer: http://thinkingproblemmanagement.blogspot.com
