- 1. 4. engineering to avoida crisis

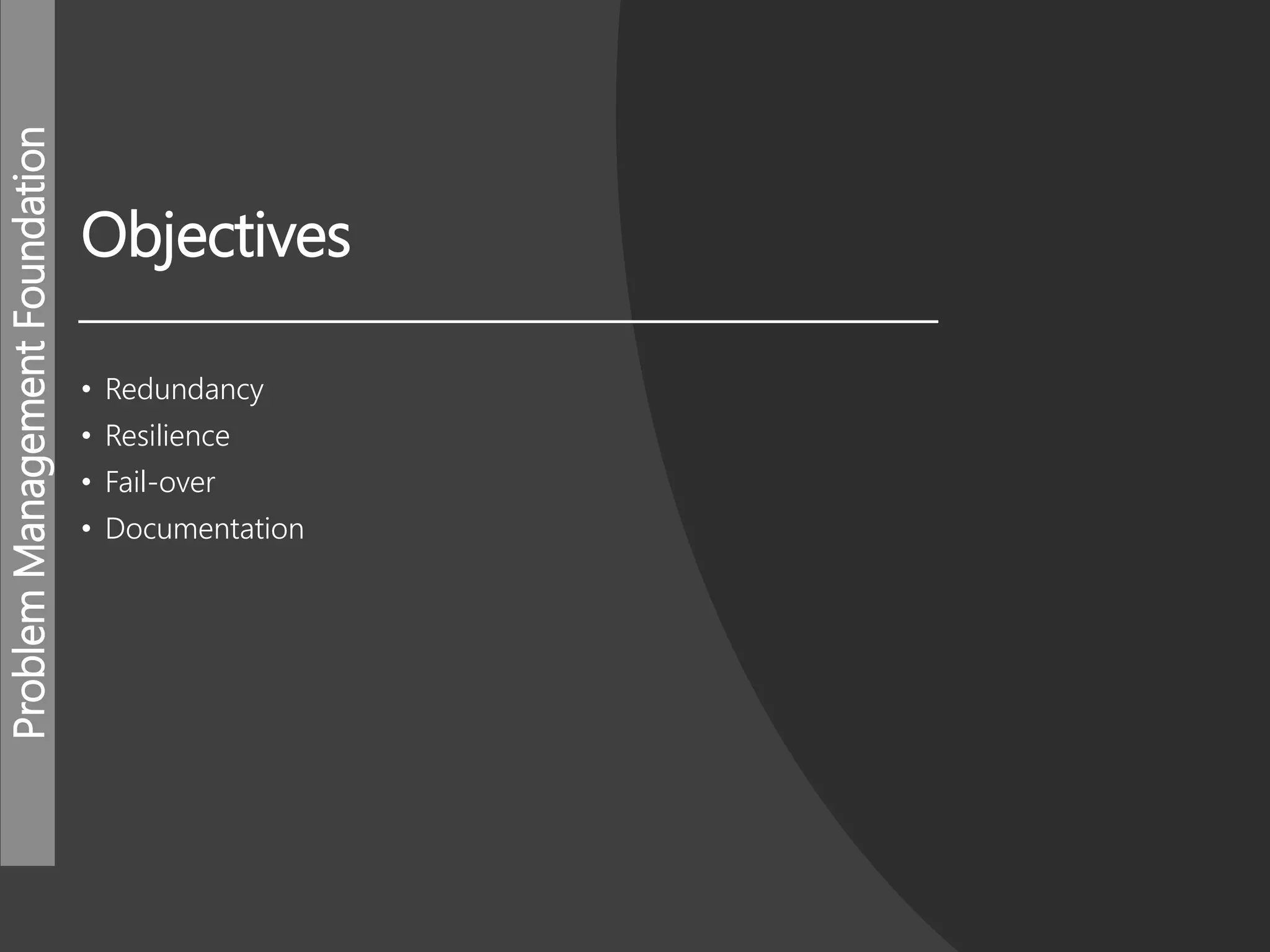

- 2. ProblemManagementFoundation Objectives • Redundancy • Resilience •Fail-over • Documentation
- 3. ProblemManagementFoundation Avoidance elements • Resilience- can deal with errors • Redundancy - can deal with failures • Fail-over - can deal with loss • Documentation cannot be created in a crisis. Needs to be available in advance • Correct implementation

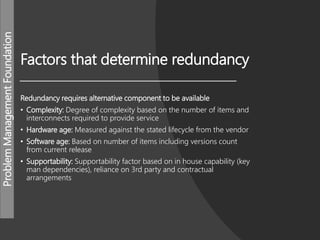

- 4. ProblemManagementFoundation Factors that determineredundancy Redundancy requires alternative component to be available • Complexity: Degree of complexity based on the number of items and interconnects required to provide service • Hardware age: Measured against the stated lifecycle from the vendor • Software age: Based on number of items including versions count from current release • Supportability: Supportability factor based on in house capability (key man dependencies), reliance on 3rd party and contractual arrangements

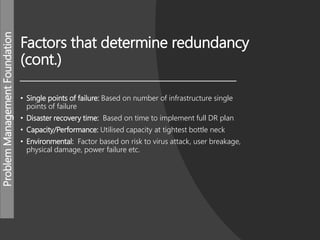

- 5. ProblemManagementFoundation Factors that determineredundancy (cont.) • Single points of failure: Based on number of infrastructure single points of failure • Disaster recovery time: Based on time to implement full DR plan • Capacity/Performance: Utilised capacity at tightest bottle neck • Environmental: Factor based on risk to virus attack, user breakage, physical damage, power failure etc.
- 6. ProblemManagementFoundation Example for redundancy •Spare tyre in car • If a type punctures it is possible to stop the car, replace the type with a spare from the boot and continue the journey. • A full working alternative of the failed component is available.

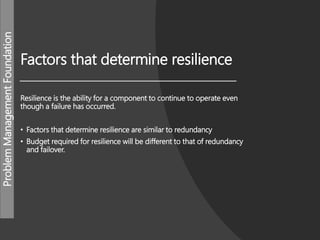

- 7. ProblemManagementFoundation Factors that determineresilience Resilience is the ability for a component to continue to operate even though a failure has occurred. • Factors that determine resilience are similar to redundancy • Budget required for resilience will be different to that of redundancy and failover.
- 8. ProblemManagementFoundation Example of resilience •A BMW car with run flats • A MTB with gel that self seals a hole – commonly known as sludge or slime • The radials in tubeless tyres

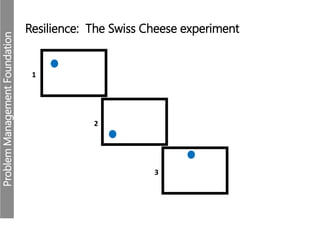

- 9. ProblemManagementFoundation Resilience: The SwissCheese experiment 1 2 3
- 10. Internet Peering partners JINX/CINX Transits S P S P Tiered SPs Gateways Peeringdistribution SiSi SiSi Primary data centre Secondary data centre Core Core Caches Caches Network Management Systems PDSN PPPOE PDSN PPPOE OSS/BSS systems Overview of an ISP Fibre rings RFrings Satellite RF high sites Customer CPEs Value Added ServicesValue Added ServicesTelkom IPC ADSL Fixed line Mobile Interconnects VVVV VVVV MetroethernetMetroethernet
- 11. ProblemManagementFoundation Factors that determinefail-over Component is able to swop over to another component without interruption. • Similar to redundancy and resilience • Budget required would be different to resilience and redundancy

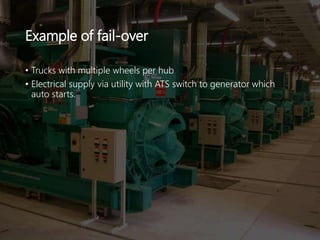

- 12. ProblemManagementFoundation Example of fail-over •Trucks with multiple wheels per hub • Electrical supply via utility with ATS switch to generator which auto starts.

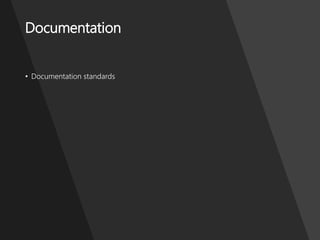

- 13. ProblemManagementFoundation Documentation • Why doyou need documentation? • Advantages of having documentation before a crisis • Types of documentation required • Impact of lack of documentation • Keeping documents updated • Documentation standards
- 14. ProblemManagementFoundation Documentation • Advantages ofhaving documentation before a crisis • When a crisis occurs it is time consuming to start the diagnosis if documentation of the systems is not available • An understanding of the system needs to be created and there should be a set of up-to-date, fully documented procedures and processes that are available and easy to implement • New staff members require a reference for processes. A process can only be as good as its documentation. Correctly used processes avoid errors. In the event of a crisis, uncertainty is reduced and time to resolution increased. • When a failure occurs, processes and documentation need to be changed to avoid a re-occurrence. It could be as simple as a more detailed sanity check before running that process that nukes some part of the system.
- 15. ProblemManagementFoundation Documentation • Types ofdocumentation required • Inventory listings • Rack and floor plan capacity • Rack layout diagrams • Patch panel connections • Network switch connections • Power strip connections • Network diagrams • Storage diagrams • Domain diagrams • Capacity reports • Change audit trails

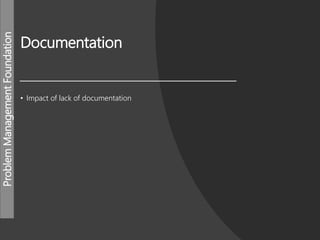

- 16. ProblemManagementFoundation Documentation • Impact oflack of documentation
- 17.
- 18.
- 19. ProblemManagementFoundation Correct implementation • Usea structured approach and plan, no “fly by the seat of your pants”. • Understand the deliverables and measure/gauge progress to the target. • David Allen, a productivity guru, frequently asserts that anything that takes more than two steps and two minutes to accomplish is a project. • David Ruiz, director of IT at DIC Entertainment Corp, states that nine out of 10 times taking the extra time to create a plan will save you time and money. • Refer to Appendix for project management resources.

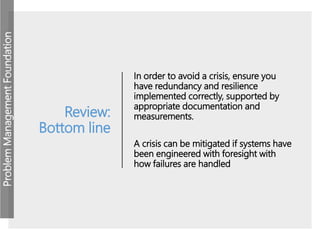

- 20. ProblemManagementFoundation Review: Bottom line In orderto avoid a crisis, ensure you have redundancy and resilience implemented correctly, supported by appropriate documentation and measurements. A crisis can be mitigated if systems have been engineered with foresight with how failures are handled
Editor's Notes
- #2 Crisis engineering
- #3 Objectives <Insert notes>
- #4 Crisis engineering Component Failure Impact Analysis - http://www.itsmsolutions.com/newsletters/DITYvol1iss4.htm ITIL suggests “Component Failure Impact Analysis” aka ‘single point of failure’ analysis
- #5 Complexity: Degree of complexity based on the number of items and interconnects required to provide service Hardware age: Measured against the stated lifecycle from the vendor Software age: Based on number of items including versions count from current release Supportability: Supportability factor based on in house capability (key man dependencies), reliance on 3rd party and contractual arrangements Single points of failure: Based on number of infrastructure single points of failure Disaster recovery time: Based on time to implement full DR plan Capacity/Performance Utilised capacity at tightest bottle neck Environmental: Factor based on risk to virus attack, user breakage, physical damage, power failure etc.
- #6 Complexity: Degree of complexity based on the number of items and interconnects required to provide service Hardware age: Measured against the stated lifecycle from the vendor Software age: Based on number of items including versions count from current release Supportability: Supportability factor based on in house capability (key man dependencies), reliance on 3rd party and contractual arrangements Single points of failure: Based on number of infrastructure single points of failure Disaster recovery time: Based on time to implement full DR plan Capacity/Performance Utilised capacity at tightest bottle neck Environmental: Factor based on risk to virus attack, user breakage, physical damage, power failure etc.
- #7 Example of redundancy
- #8 Complexity: Degree of complexity based on the number of items and interconnects required to provide service Hardware age: Measured against the stated lifecycle from the vendor Software age: Based on number of items including versions count from current release Supportability: Supportability factor based on in house capability (key man dependencies), reliance on 3rd party and contractual arrangements Single points of failure: Based on number of infrastructure single points of failure Disaster recovery time: Based on time to implement full DR plan Capacity/Performance Utilised capacity at tightest bottle neck Environmental: Factor based on risk to virus attack, user breakage, physical damage, power failure etc.
- #10 Demonstrate The Swiss cheese experiment Three pieces of paper and punching a random hole in the paper with a pen. Each paper is a system with multiple components. This illustrates the principle of resilience i.e if you line the systems up together, the dots wont align, and until they do, you wont have services that fail. This demonstrates the concept of resilience in systems.

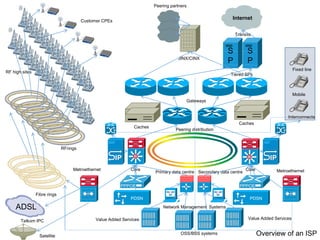

- #11 Best practice network design for a service provider The diagram is an example of engineering a solution for redundancy, resilience and failover.
