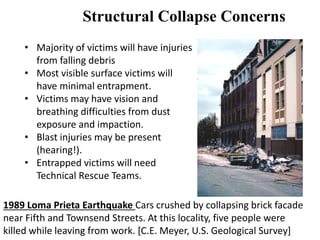

![Structural Collapse Concerns
• Majority of victims will have injuries
from falling debris
• Most visible surface victims will
have minimal entrapment.
• Victims may have vision and
breathing difficulties from dust
exposure and impaction.
• Blast injuries may be present
(hearing!).
• Entrapped victims will need
Technical Rescue Teams.
1989 Loma Prieta Earthquake Cars crushed by collapsing brick facade
near Fifth and Townsend Streets. At this locality, five people were
killed while leaving from work. [C.E. Meyer, U.S. Geological Survey]](https://image.slidesharecdn.com/structuralcollapseawarenesshmm-141207123351-conversion-gate01/75/Structural-collapse-awareness-hmm-58-2048.jpg)
Uploaded byDr. H.M.A. Mahzuz
Structural collapse awareness hmm
This document provides guidance on structural collapse management and rescue operations. It outlines procedures for various phases including pre-disaster avoidance of unengineered construction, in-disaster response, and post-disaster relief. Details are given on size-up, search and rescue stages, locating and extracting victims, safety considerations, hazards, and the roles of concerned authorities like the army, fire brigade, and NGOs in Bangladesh. Case studies from the 2005 Savar building collapse are also described.
More Related Content
Similar to Structural collapse awareness hmm
More from Dr. H.M.A. Mahzuz
Structural collapse awareness hmm
- 1. Some measures forStructural Collapse Management Composed by H.M.A. Mahzuz Assistant Professor (PhD Fellow), Department of Civil and Environmental Engineering, Shahjalal University of Science & Technology, Sylhet, Bangladesh. E-mail: mahzuz_211@ yahoo.com

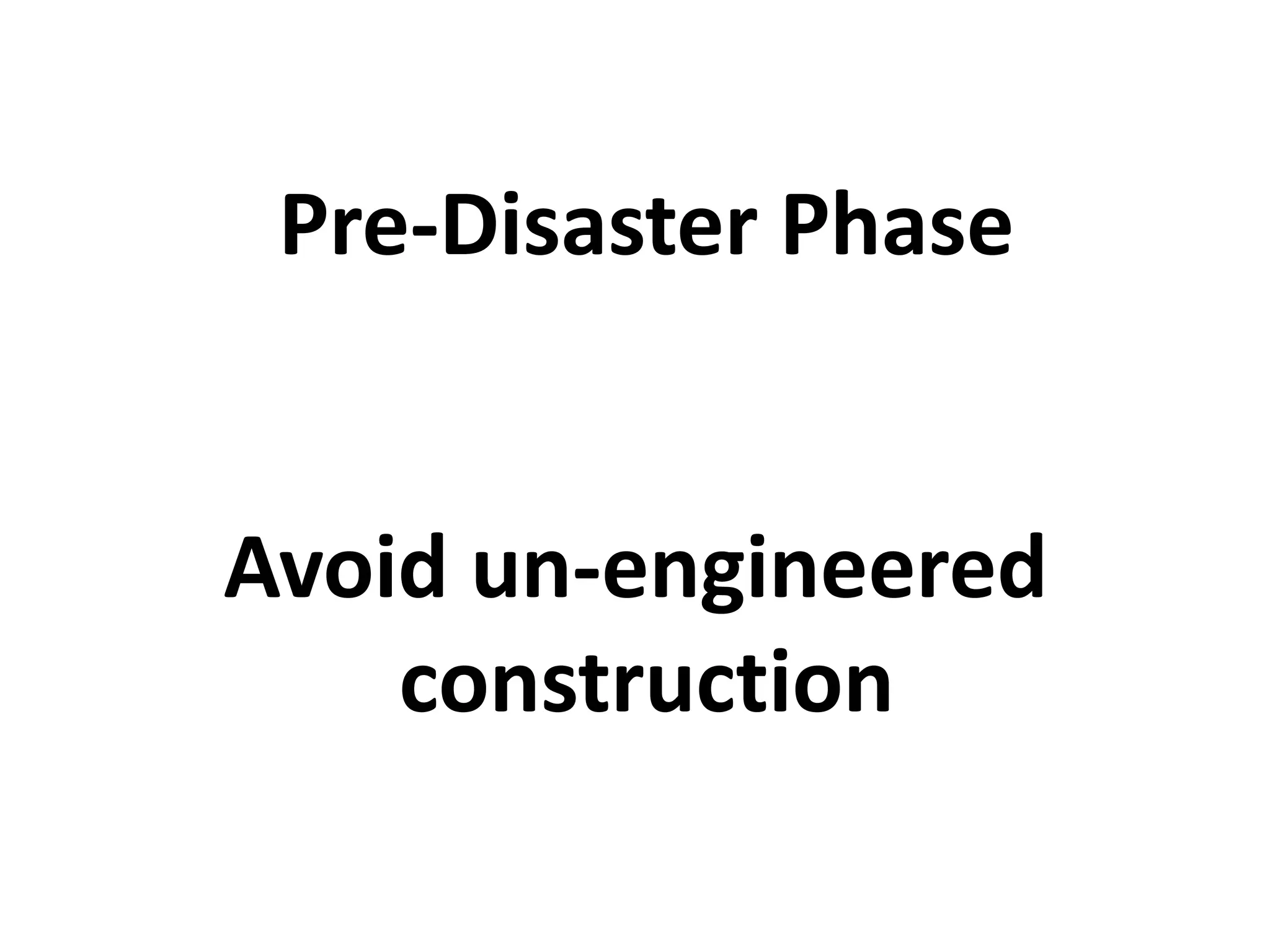

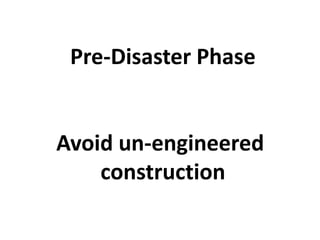

- 2. Pre-Disaster Phase Avoidun-engineered construction

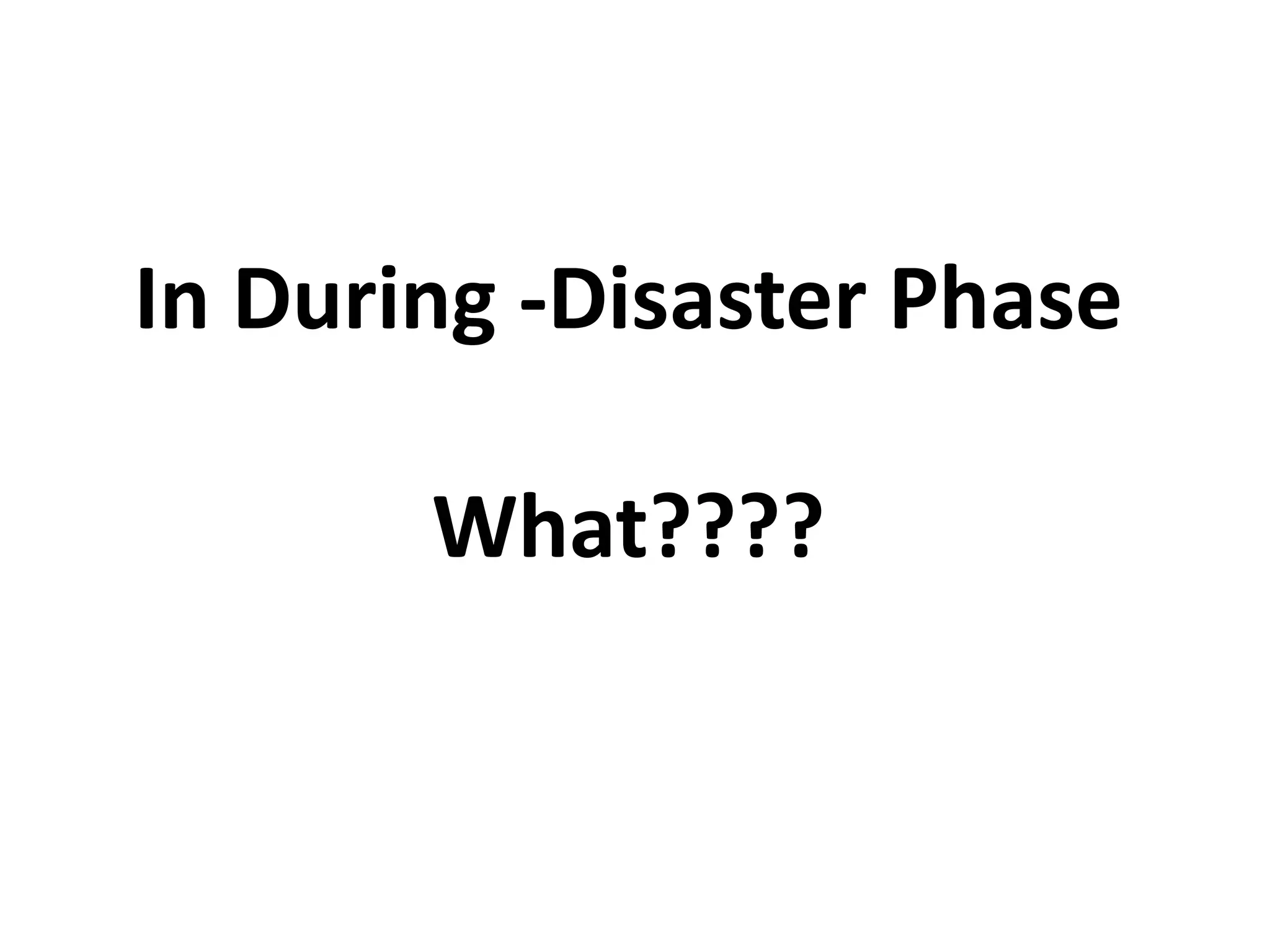

- 3. In During -DisasterPhase What????

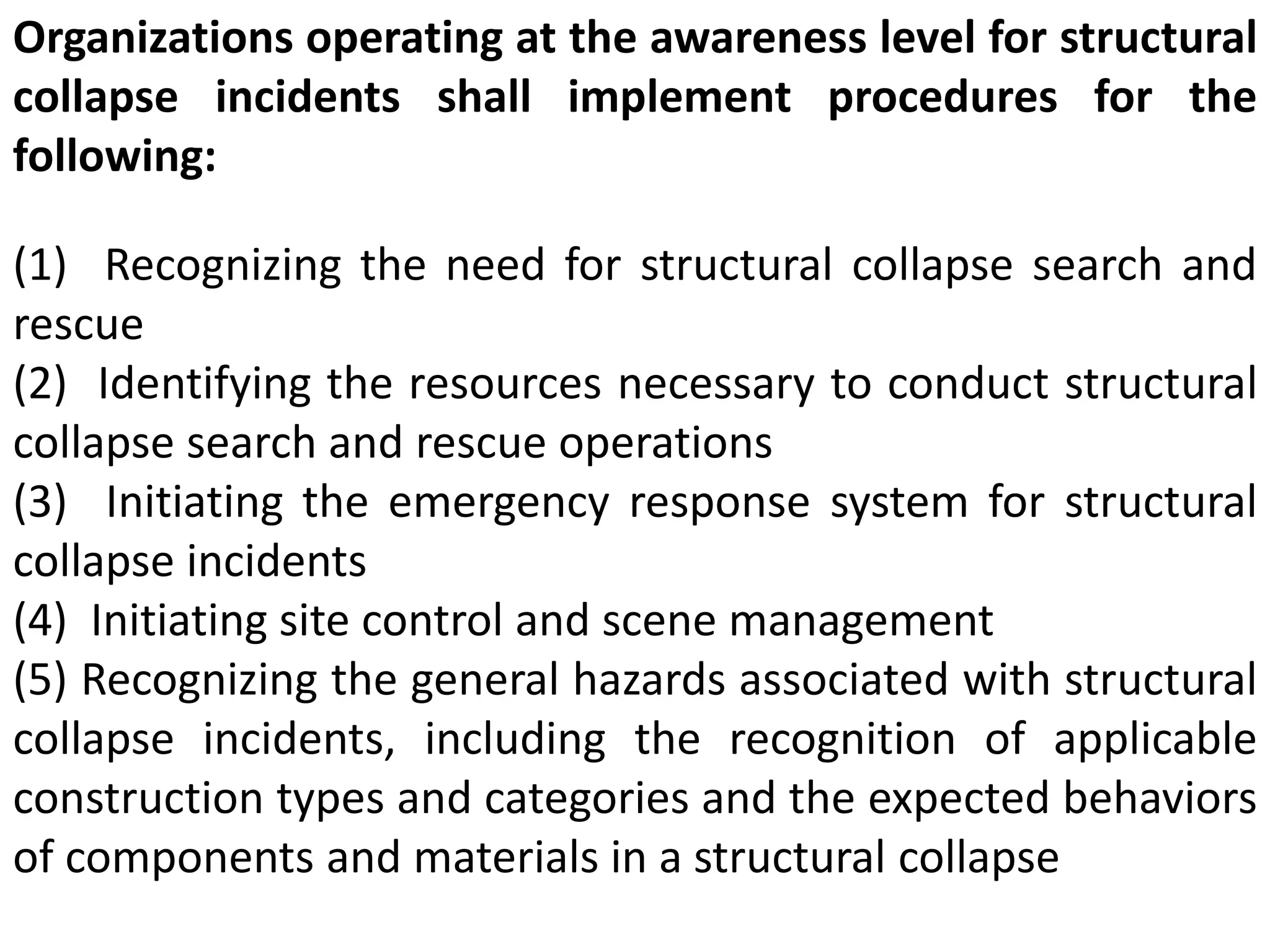

- 4. Organizations operating atthe awareness level for structural collapse incidents shall implement procedures for the following: (1) Recognizing the need for structural collapse search and rescue (2) Identifying the resources necessary to conduct structural collapse search and rescue operations (3) Initiating the emergency response system for structural collapse incidents (4) Initiating site control and scene management (5) Recognizing the general hazards associated with structural collapse incidents, including the recognition of applicable construction types and categories and the expected behaviors of components and materials in a structural collapse
- 5. (6) Identifying thetypes of collapse patterns and potential victim locations (7) Recognizing the potential for secondary collapse (8) Conducting visual and verbal searches at structural collapse incidents, while using approved methods for the specific type of collapse (9) Recognizing and implementing a search and rescue/search assessment marking system, building marking system (structure/hazard evaluation), victim location marking system, and structure marking system (structure identification within a geographic area). (10) Removing readily accessible victims from structural collapse incidents (11) Identifying and establishing a collapse safety zone (12) Conducting reconnaissance (recon) of the structure(s) and surrounding area.

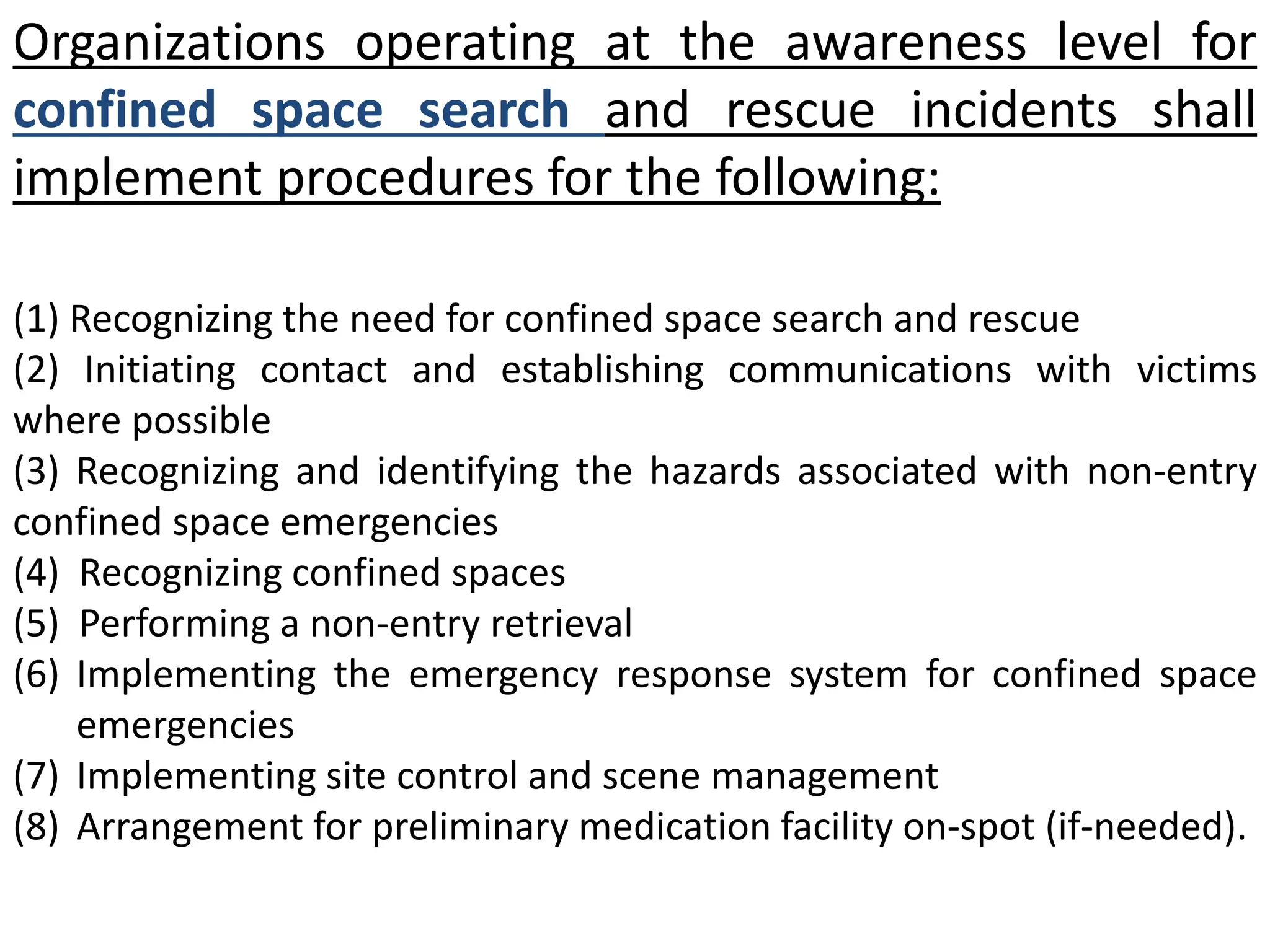

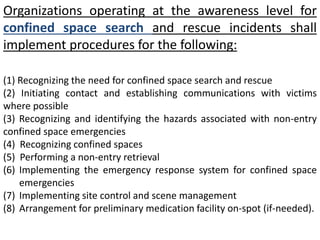

- 6. Organizations operating atthe awareness level for confined space search and rescue incidents shall implement procedures for the following: (1) Recognizing the need for confined space search and rescue (2) Initiating contact and establishing communications with victims where possible (3) Recognizing and identifying the hazards associated with non-entry confined space emergencies (4) Recognizing confined spaces (5) Performing a non-entry retrieval (6) Implementing the emergency response system for confined space emergencies (7) Implementing site control and scene management (8) Arrangement for preliminary medication facility on-spot (if-needed).

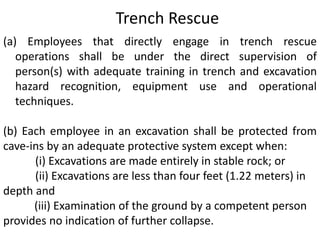

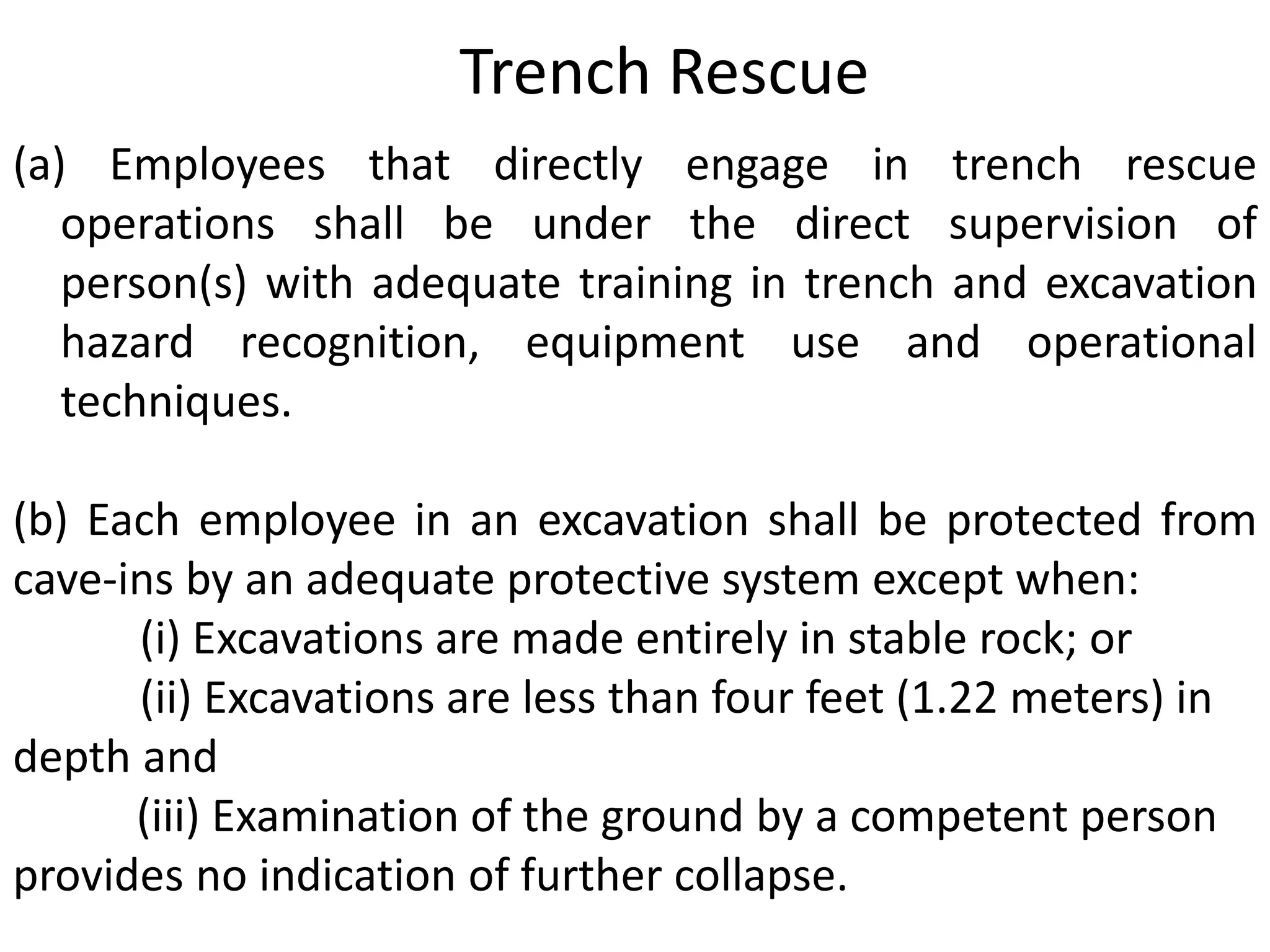

- 7. Trench Rescue (a)Employees that directly engage in trench rescue operations shall be under the direct supervision of person(s) with adequate training in trench and excavation hazard recognition, equipment use and operational techniques. (b) Each employee in an excavation shall be protected from cave-ins by an adequate protective system except when: (i) Excavations are made entirely in stable rock; or (ii) Excavations are less than four feet (1.22 meters) in depth and (iii) Examination of the ground by a competent person provides no indication of further collapse.

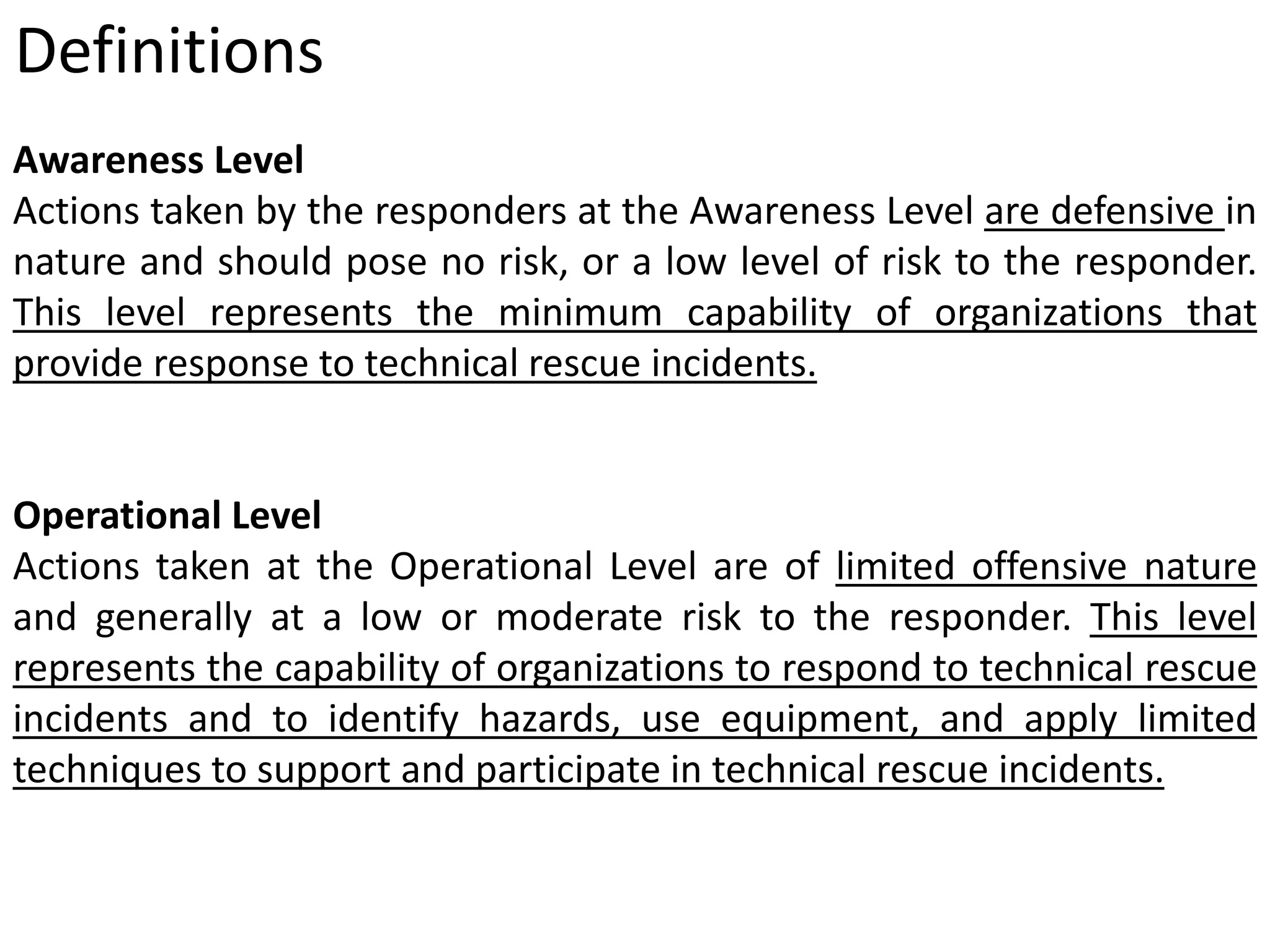

- 8. Definitions Awareness Level Actions taken by the responders at the Awareness Level are defensive in nature and should pose no risk, or a low level of risk to the responder. This level represents the minimum capability of organizations that provide response to technical rescue incidents. Operational Level Actions taken at the Operational Level are of limited offensive nature and generally at a low or moderate risk to the responder. This level represents the capability of organizations to respond to technical rescue incidents and to identify hazards, use equipment, and apply limited techniques to support and participate in technical rescue incidents.

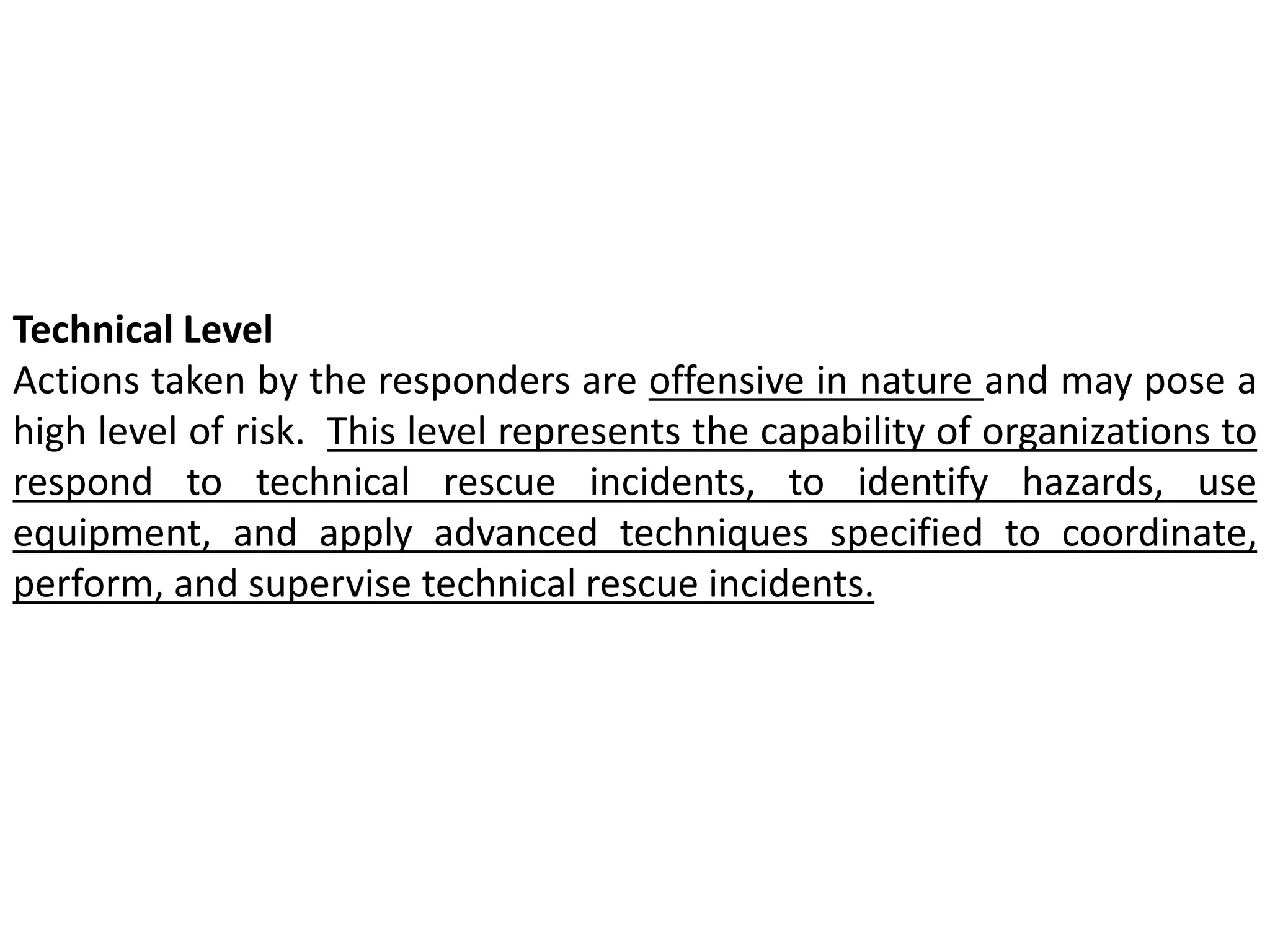

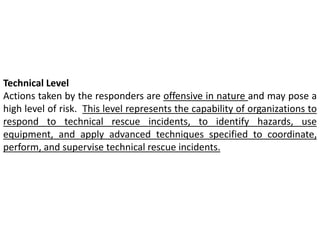

- 9. Technical Level Actionstaken by the responders are offensive in nature and may pose a high level of risk. This level represents the capability of organizations to respond to technical rescue incidents, to identify hazards, use equipment, and apply advanced techniques specified to coordinate, perform, and supervise technical rescue incidents.

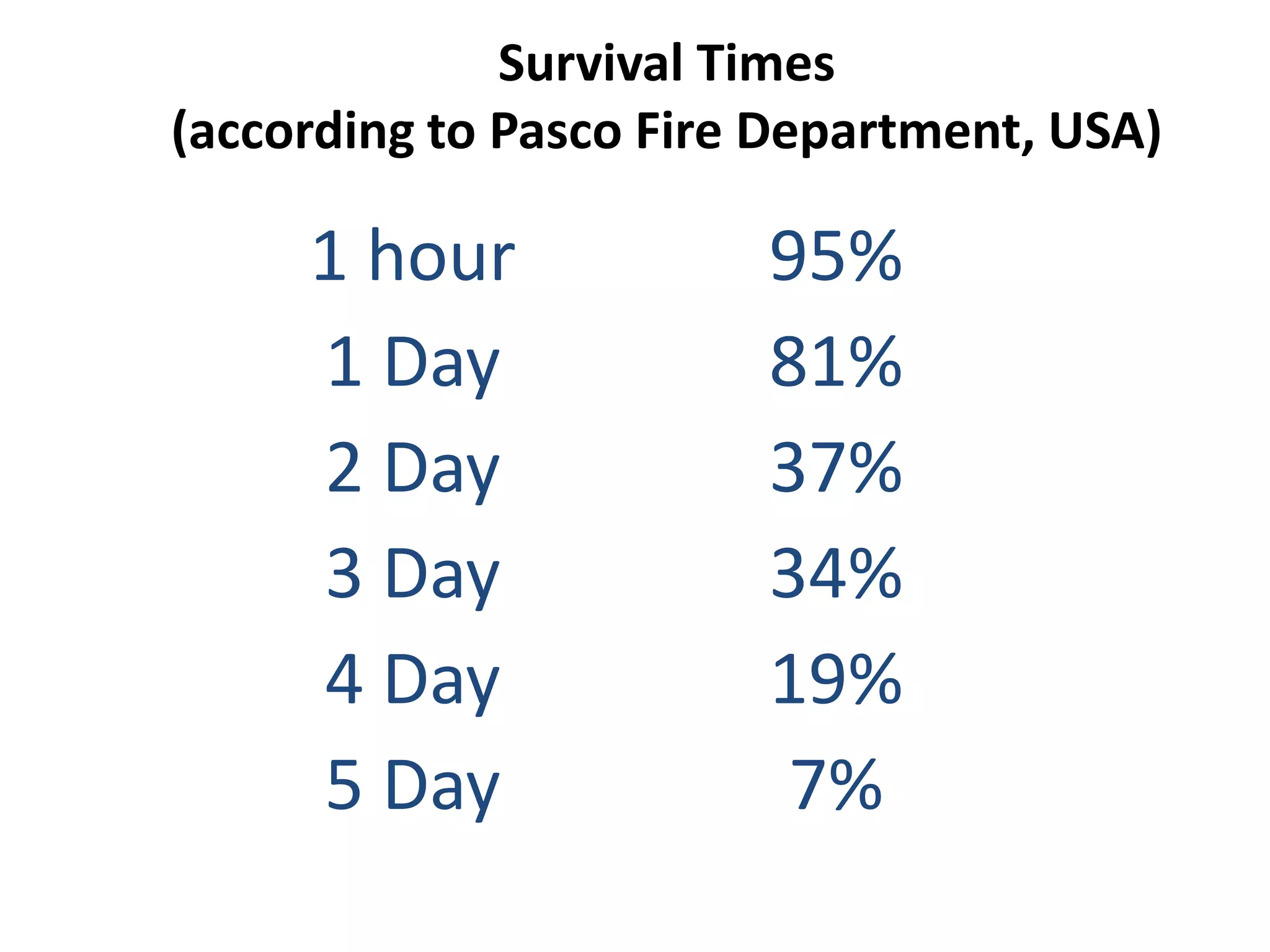

- 10. Survival Times (accordingto Pasco Fire Department, USA) 1 hour 95% 1 Day 81% 2 Day 37% 3 Day 34% 4 Day 19% 5 Day 7%

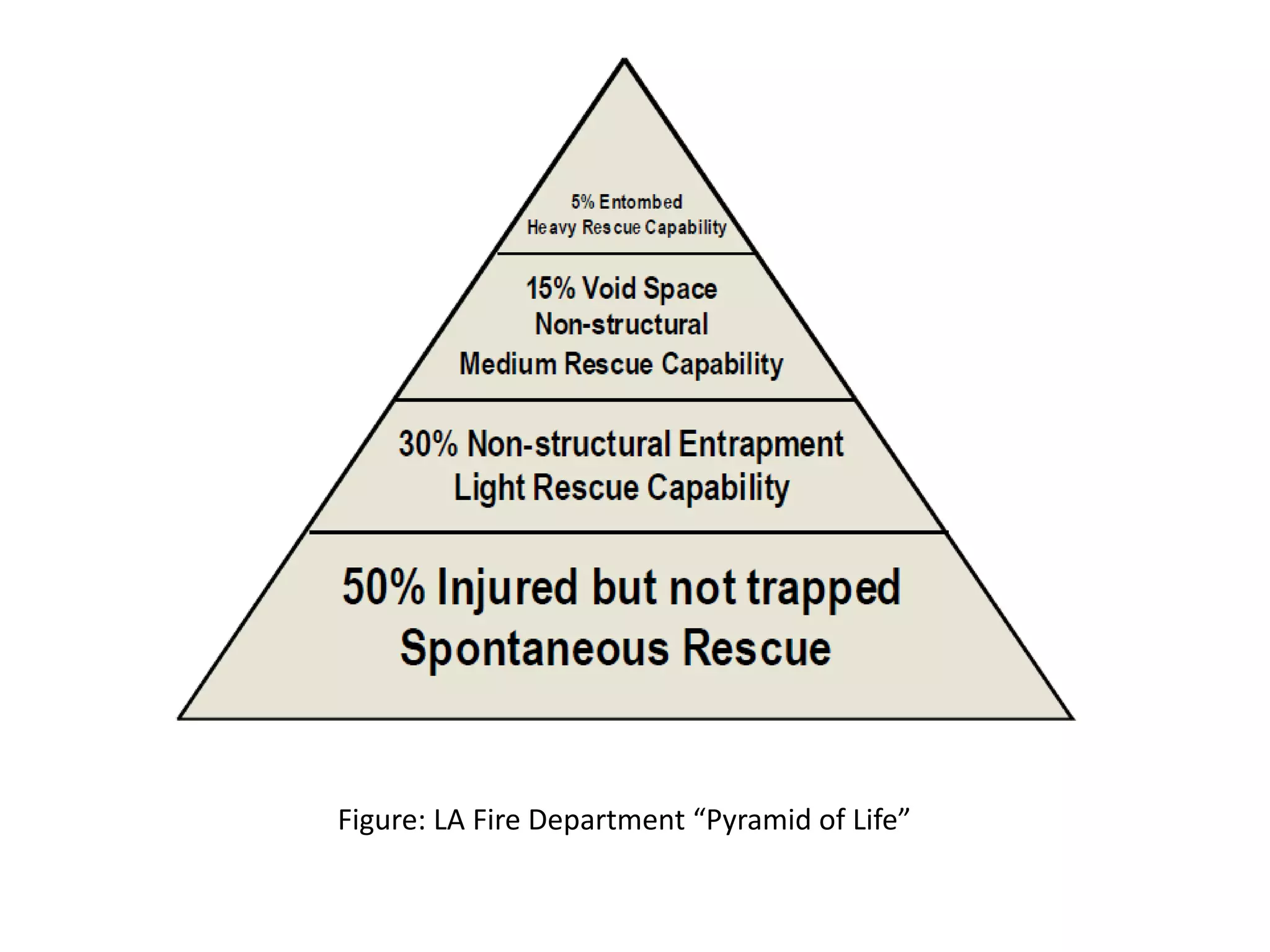

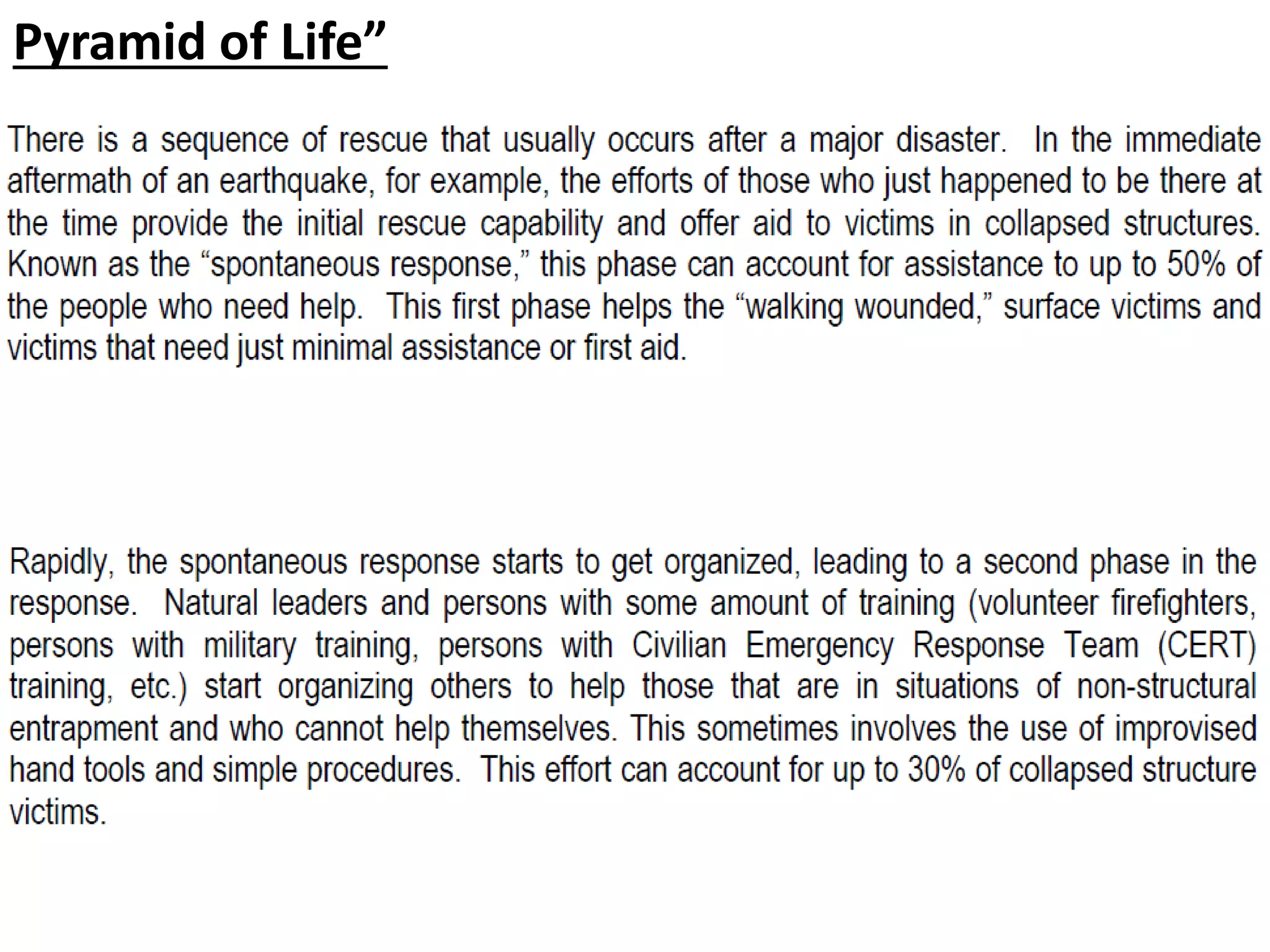

- 11. Figure: LA FireDepartment “Pyramid of Life”
- 12.

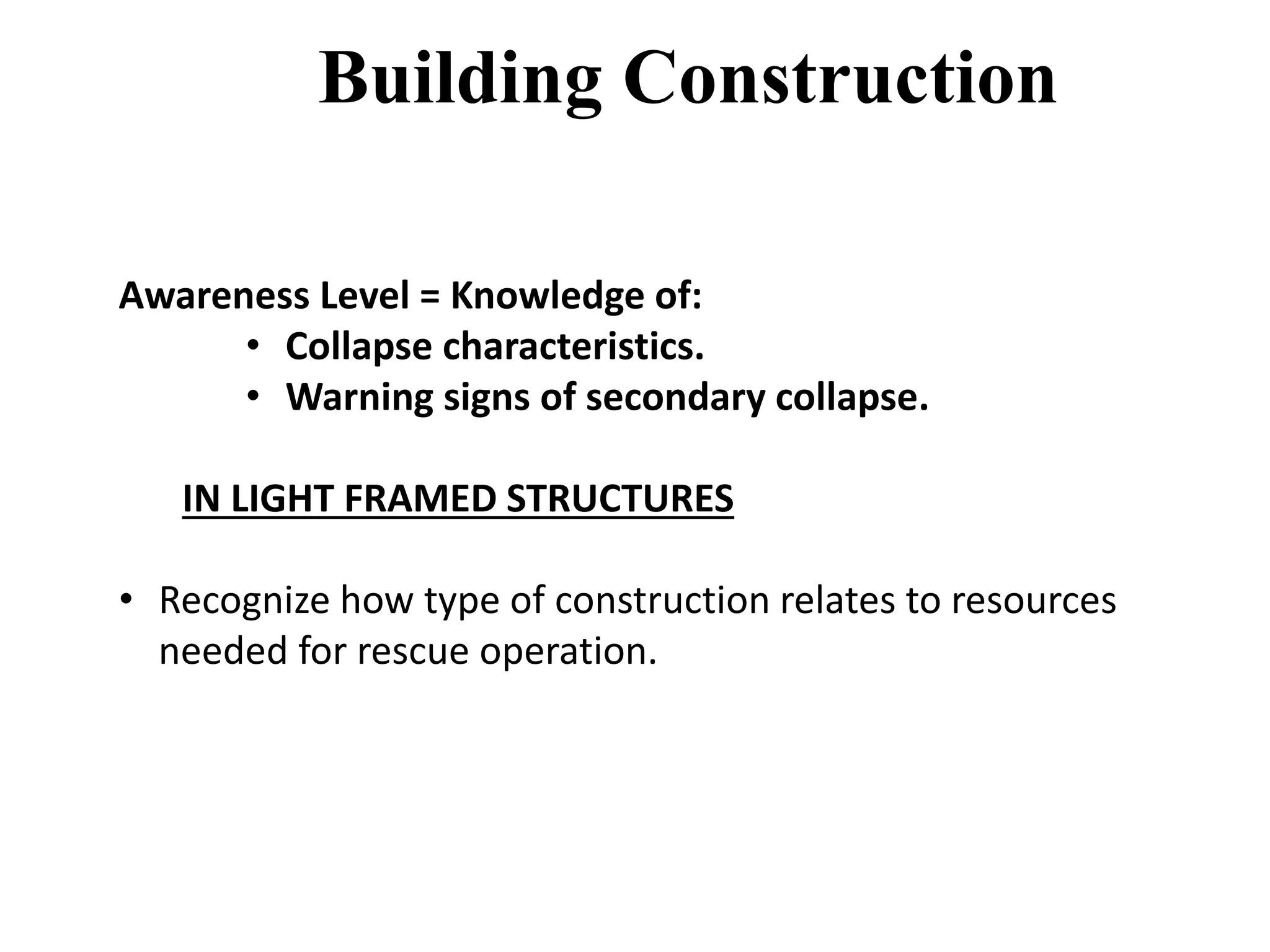

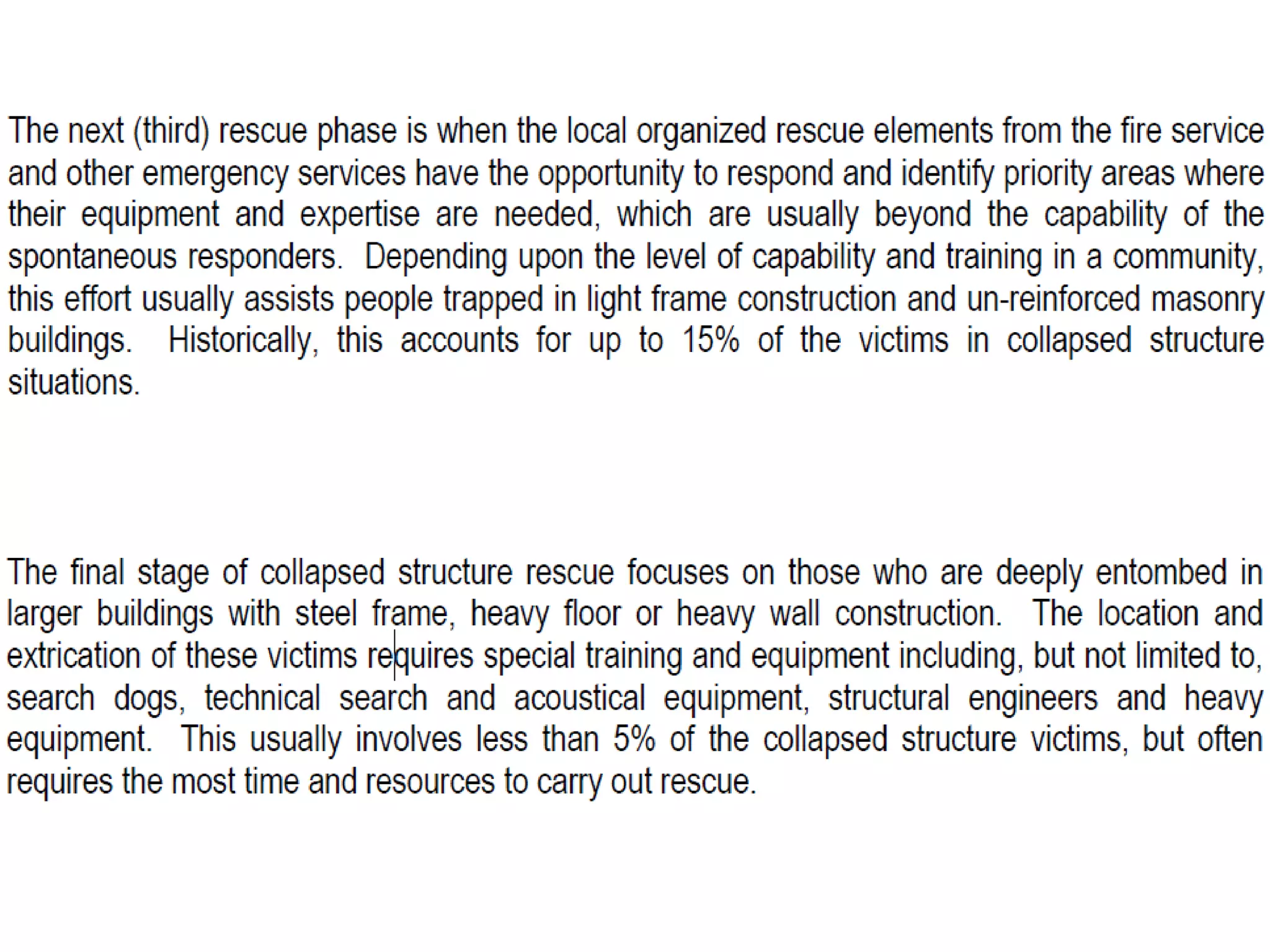

- 14. Building Construction AwarenessLevel = Knowledge of: • Collapse characteristics. • Warning signs of secondary collapse. IN LIGHT FRAMED STRUCTURES • Recognize how type of construction relates to resources needed for rescue operation.

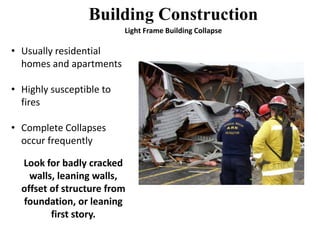

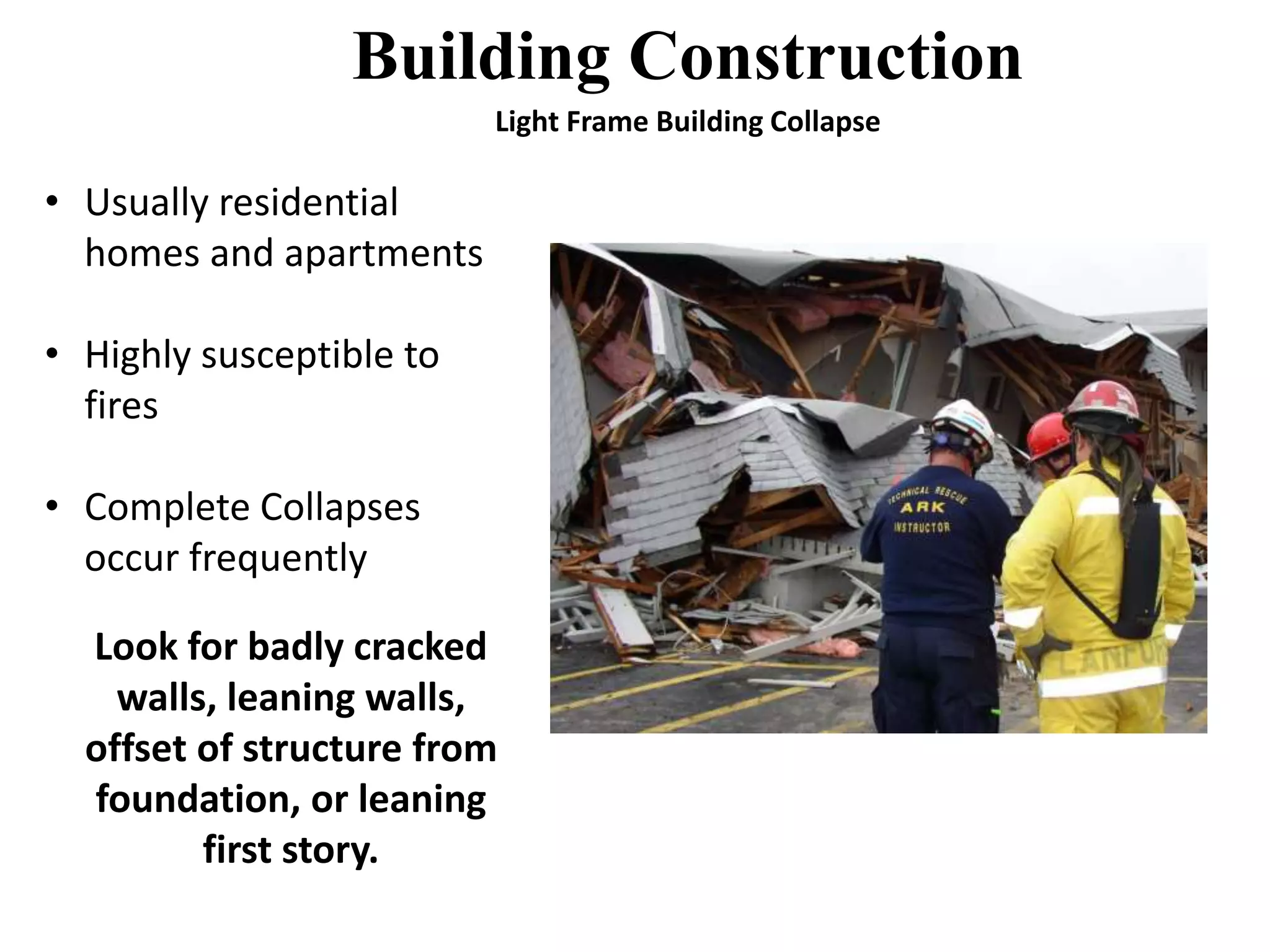

- 15. Building Construction •Usually residential homes and apartments • Highly susceptible to fires • Complete Collapses occur frequently Look for badly cracked walls, leaning walls, offset of structure from foundation, or leaning first story. Light Frame Building Collapse

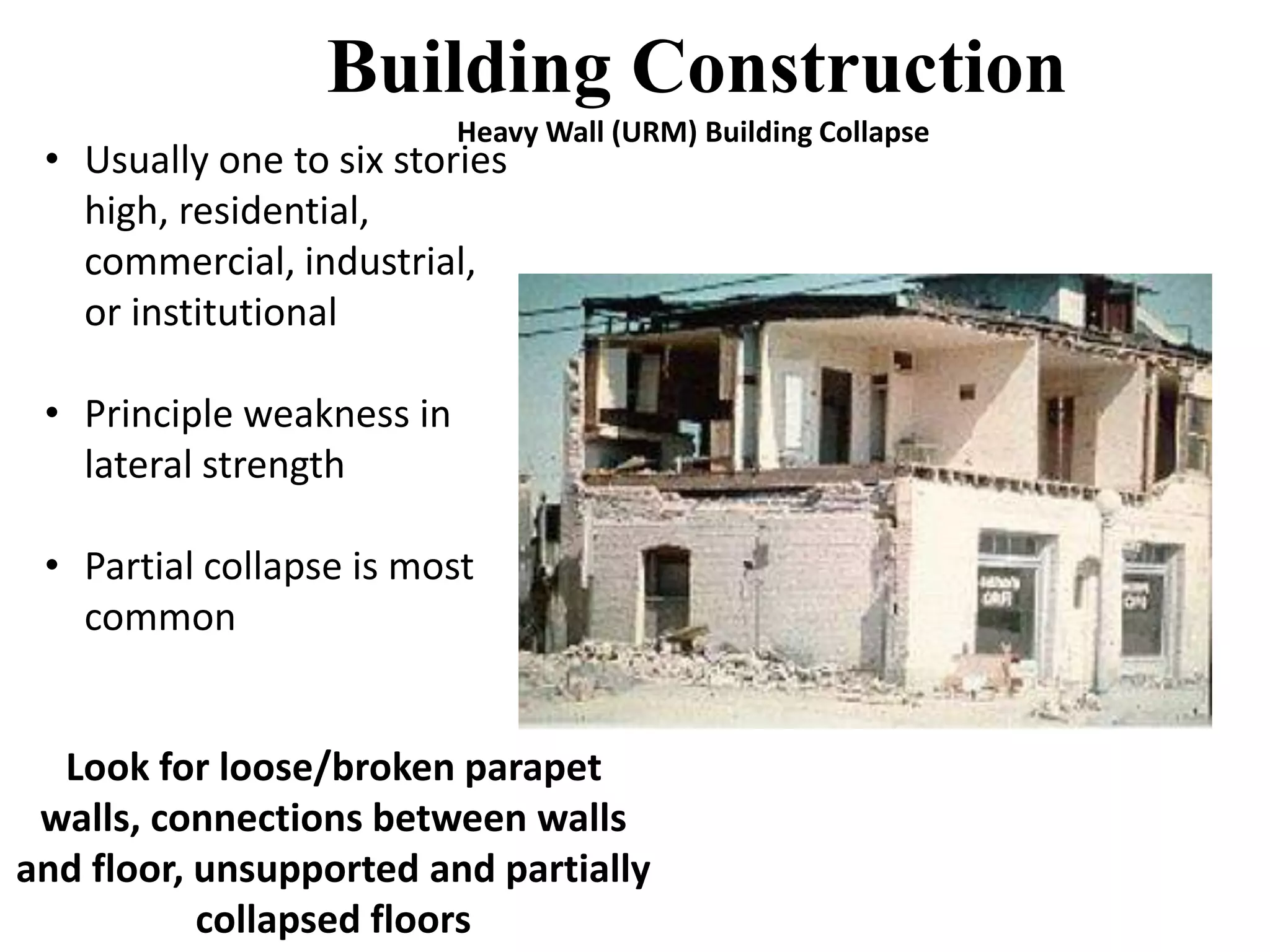

- 16. Building Construction HeavyWall (URM) Building Collapse • Usually one to six stories high, residential, commercial, industrial, or institutional • Principle weakness in lateral strength • Partial collapse is most common Look for loose/broken parapet walls, connections between walls and floor, unsupported and partially collapsed floors

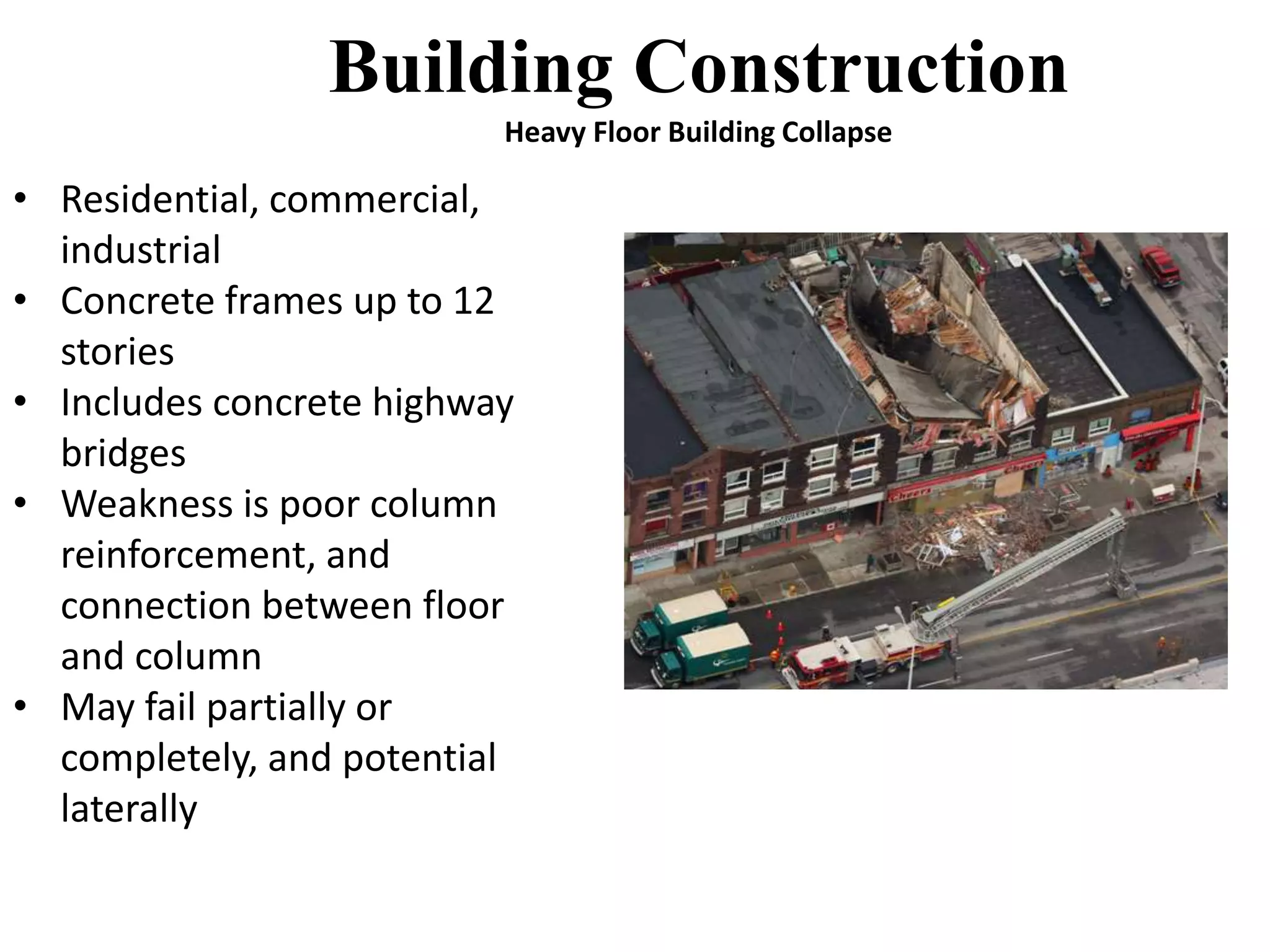

- 17. Building Construction HeavyFloor Building Collapse • Residential, commercial, industrial • Concrete frames up to 12 stories • Includes concrete highway bridges • Weakness is poor column reinforcement, and connection between floor and column • May fail partially or completely, and potential laterally

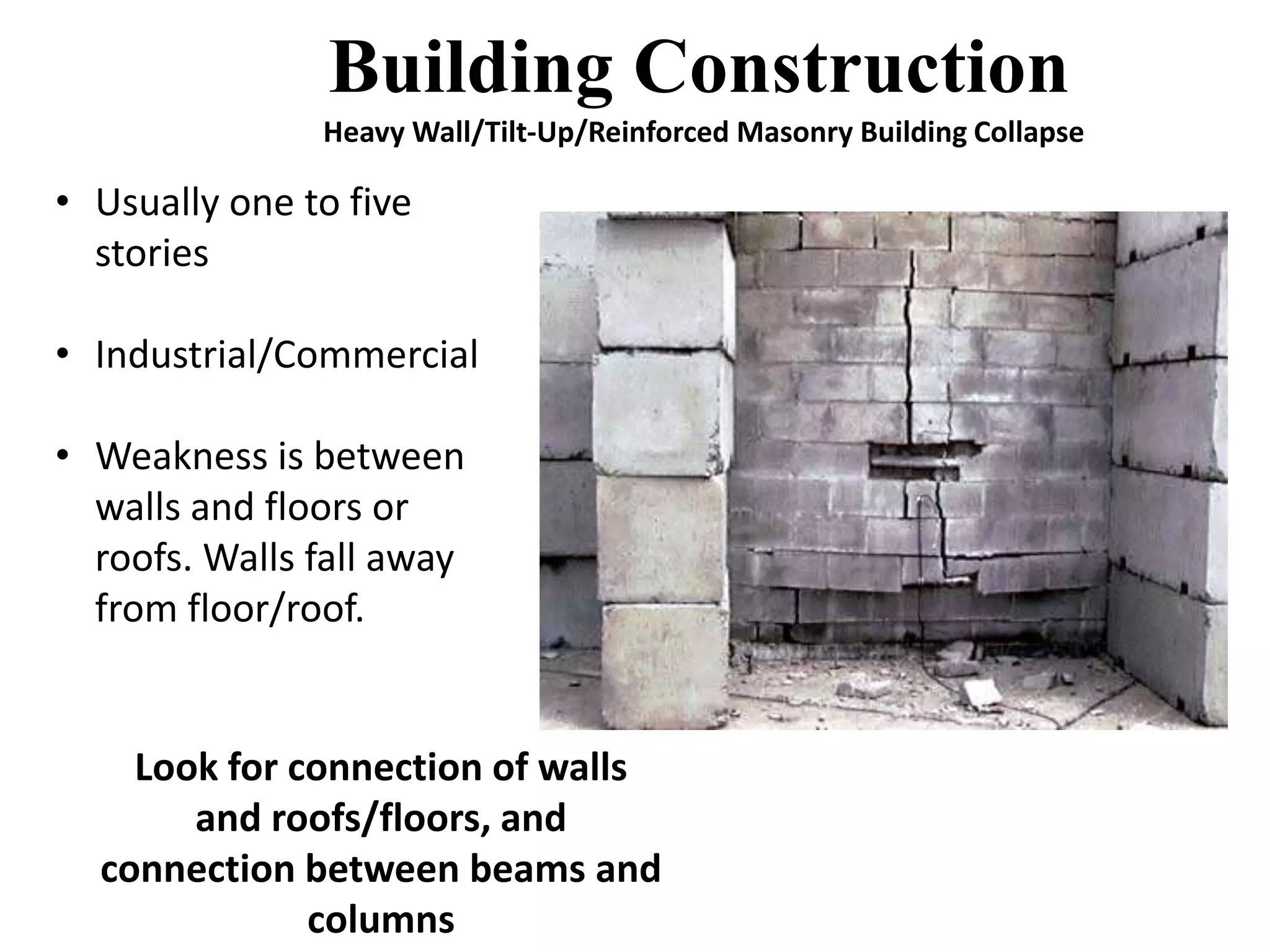

- 18. Building Construction HeavyWall/Tilt-Up/Reinforced Masonry Building Collapse • Usually one to five stories • Industrial/Commercial • Weakness is between walls and floors or roofs. Walls fall away from floor/roof. Look for connection of walls and roofs/floors, and connection between beams and columns

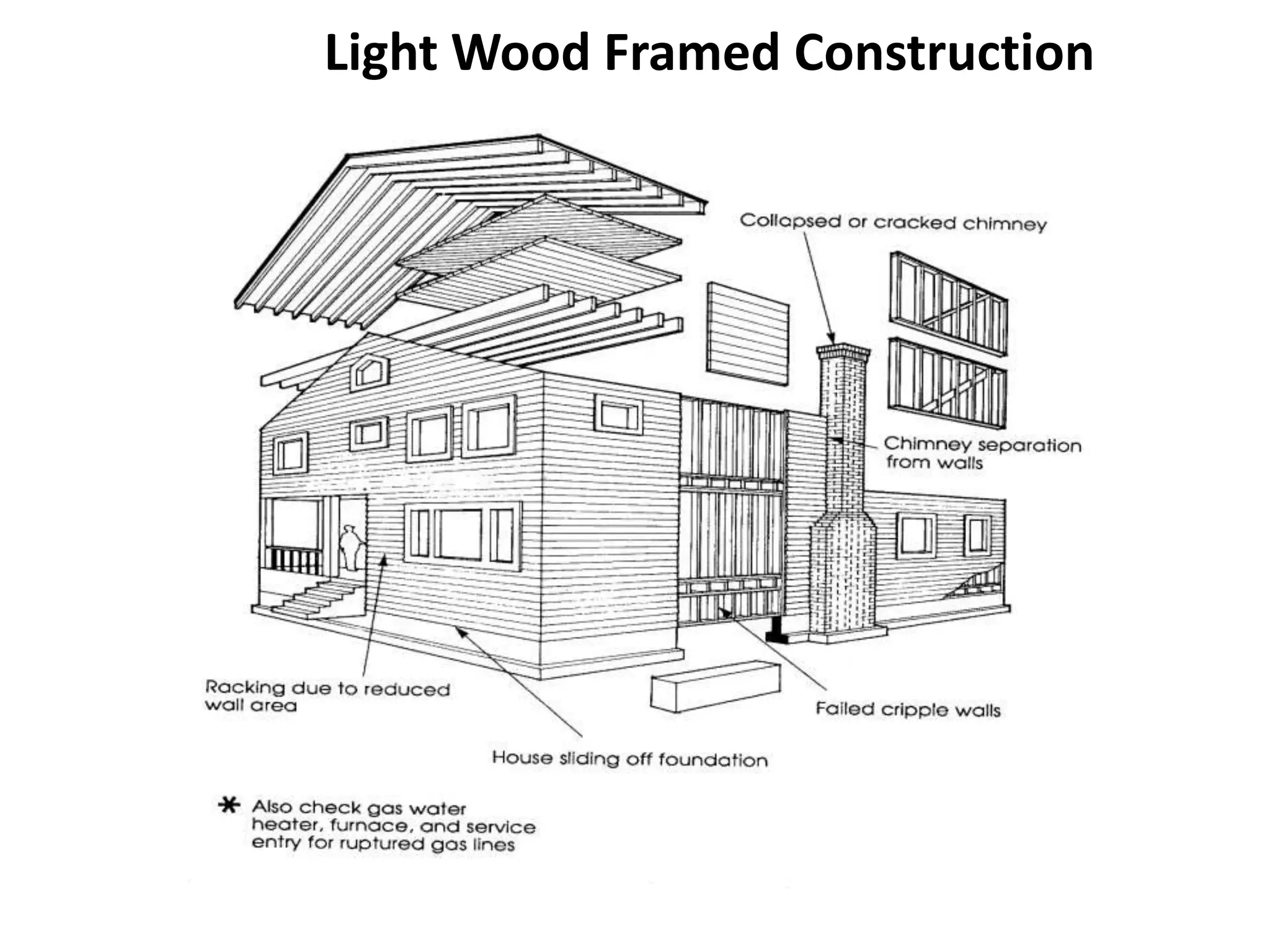

- 19. Light Wood FramedConstruction

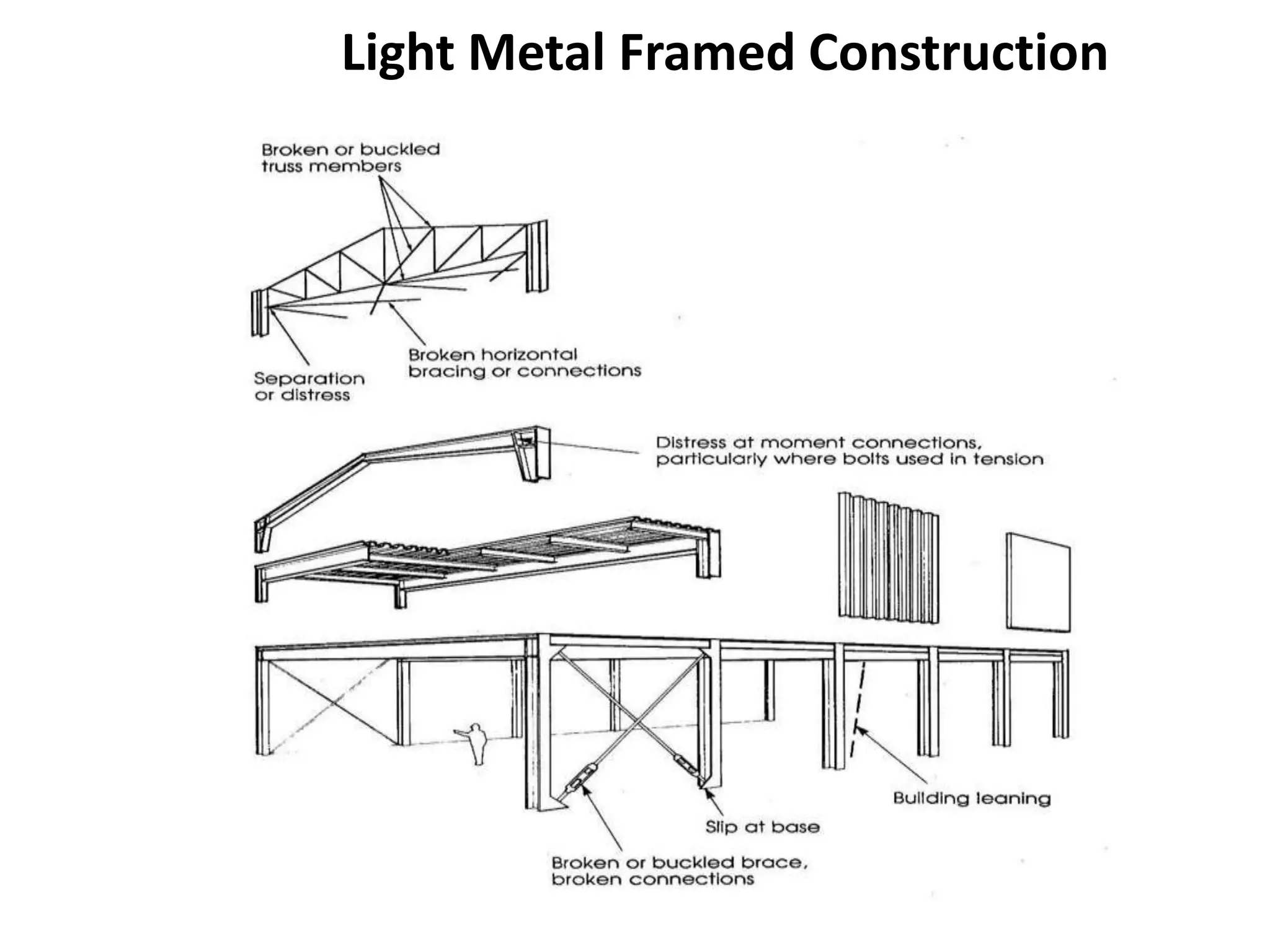

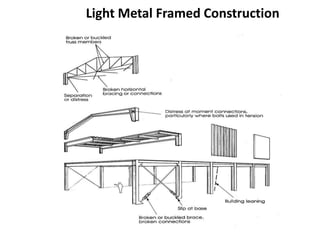

- 20. Light Metal FramedConstruction

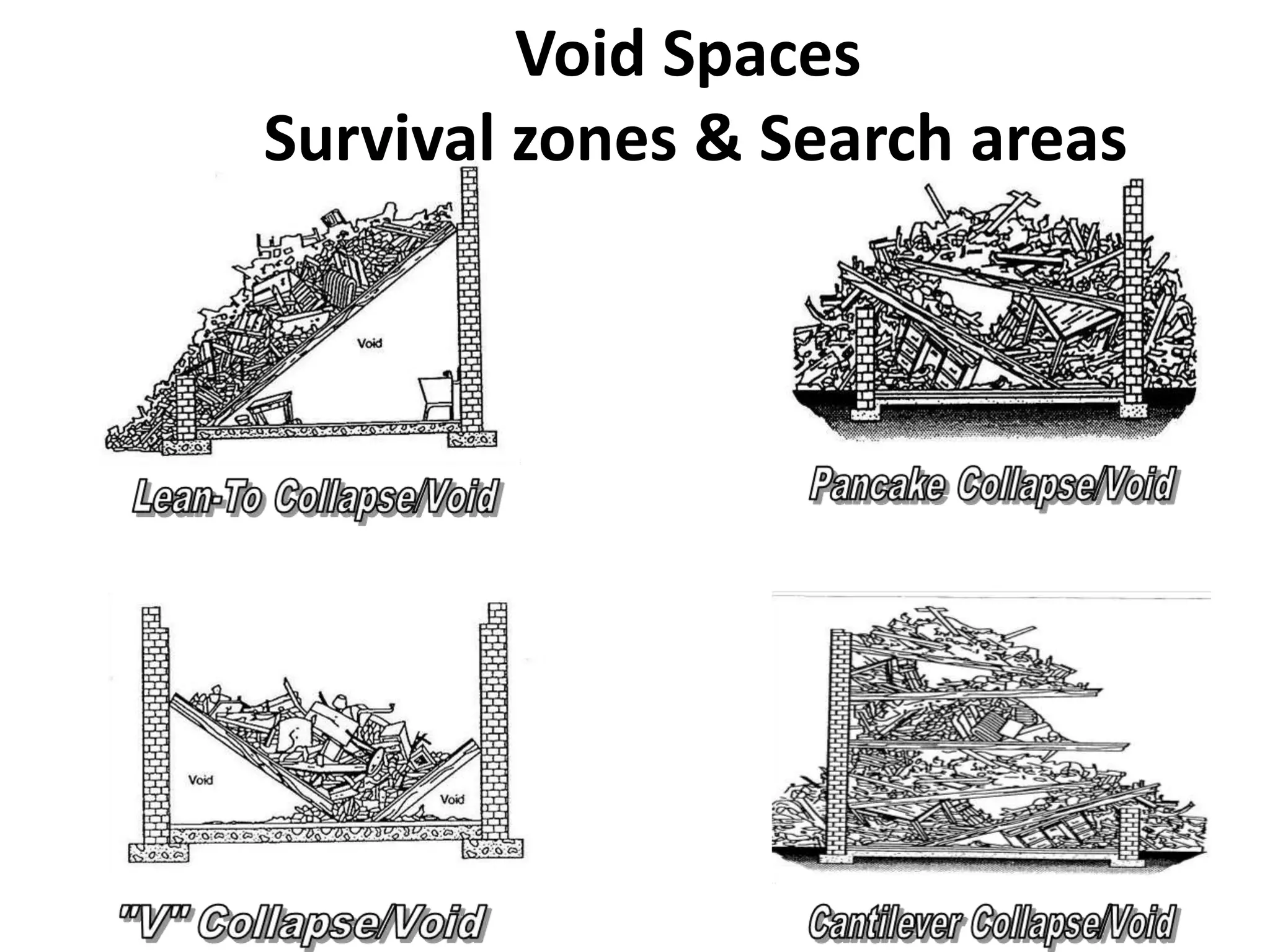

- 21. Void Spaces Survivalzones & Search areas

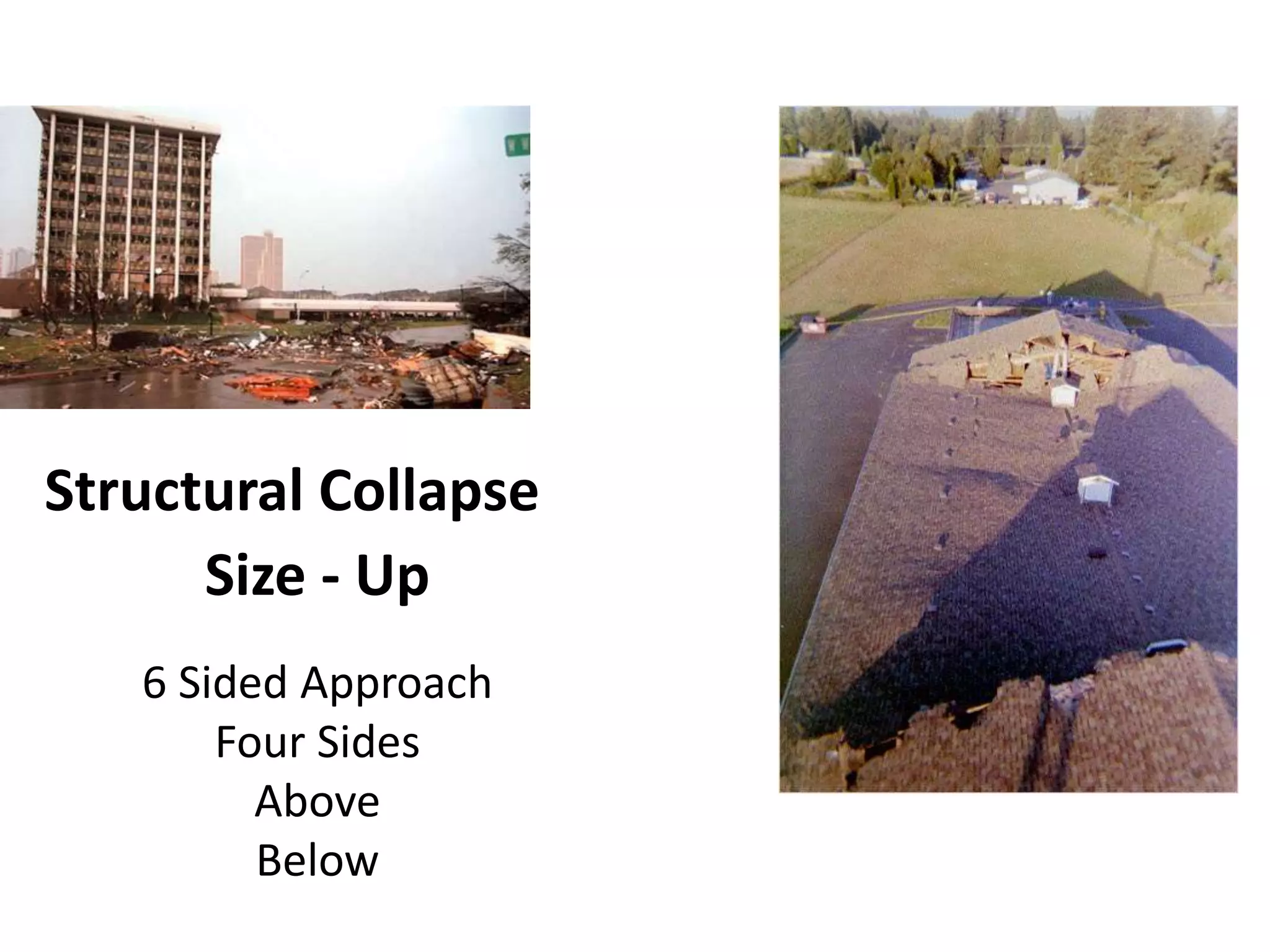

- 22. Structural Collapse Size- Up 6 Sided Approach Four Sides Above Below

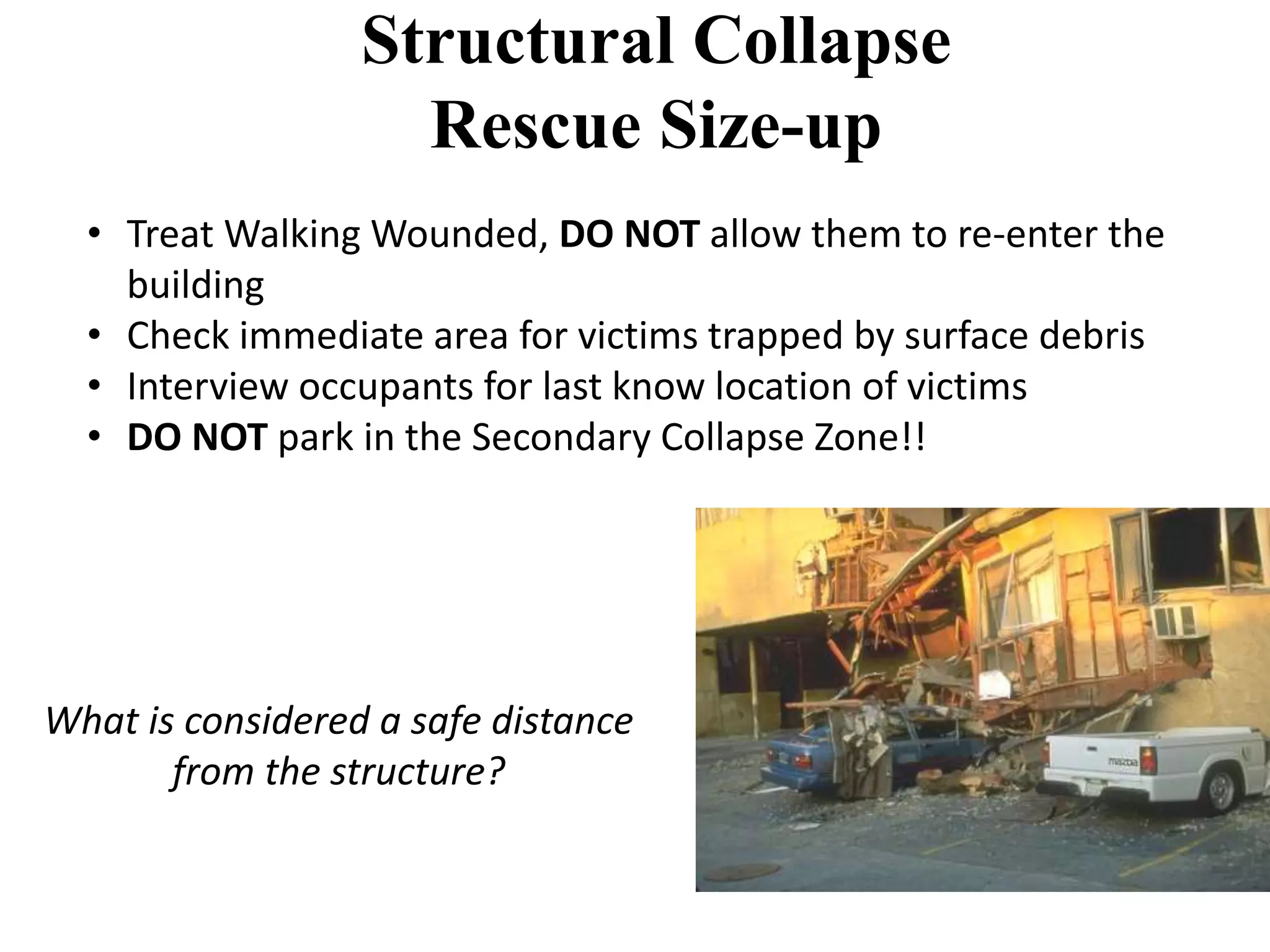

- 23. Structural Collapse RescueSize-up • Treat Walking Wounded, DO NOT allow them to re-enter the building • Check immediate area for victims trapped by surface debris • Interview occupants for last know location of victims • DO NOT park in the Secondary Collapse Zone!! What is considered a safe distance from the structure?

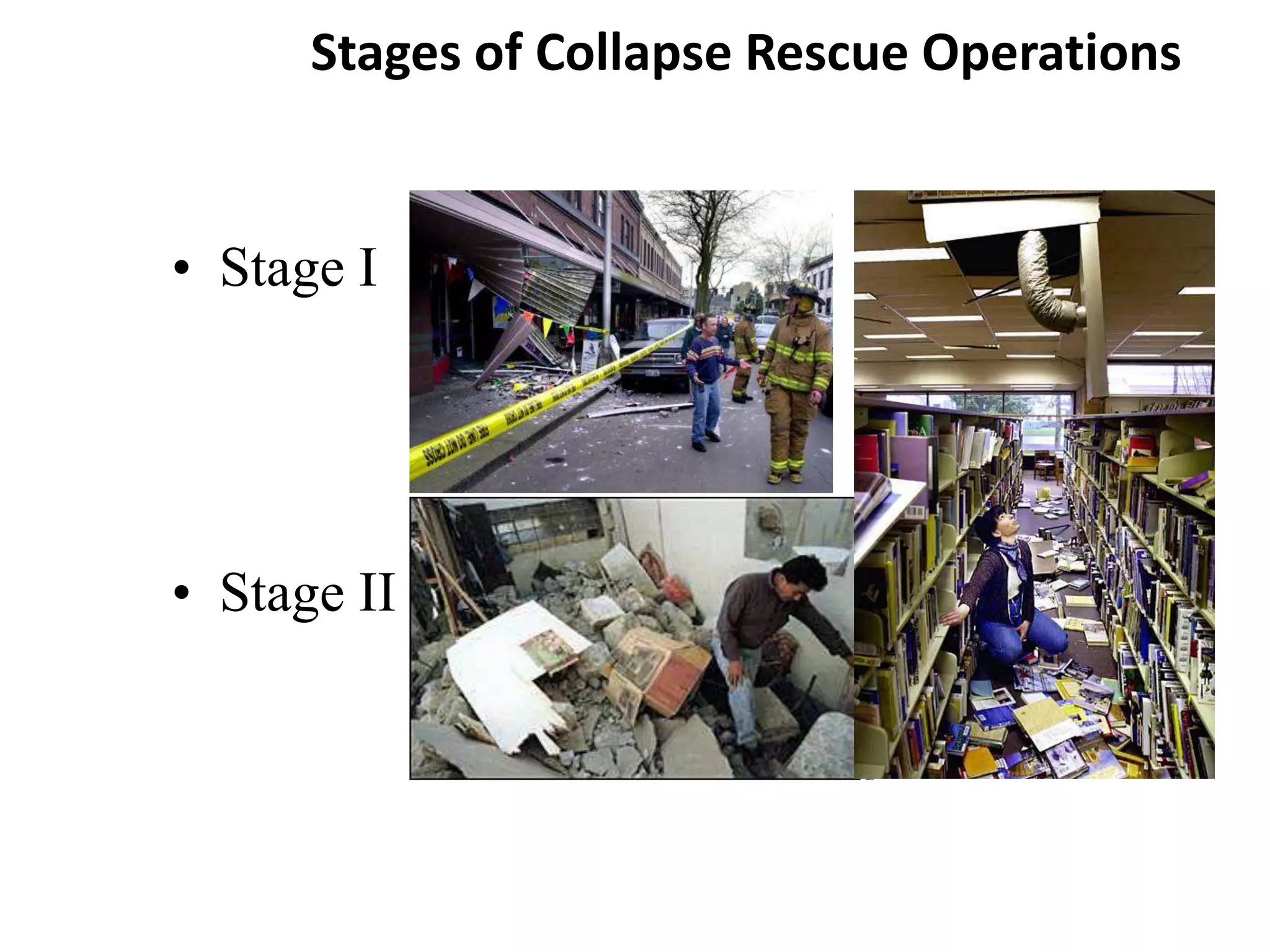

- 24. Stages of CollapseRescue Operations • Stage I • Stage II

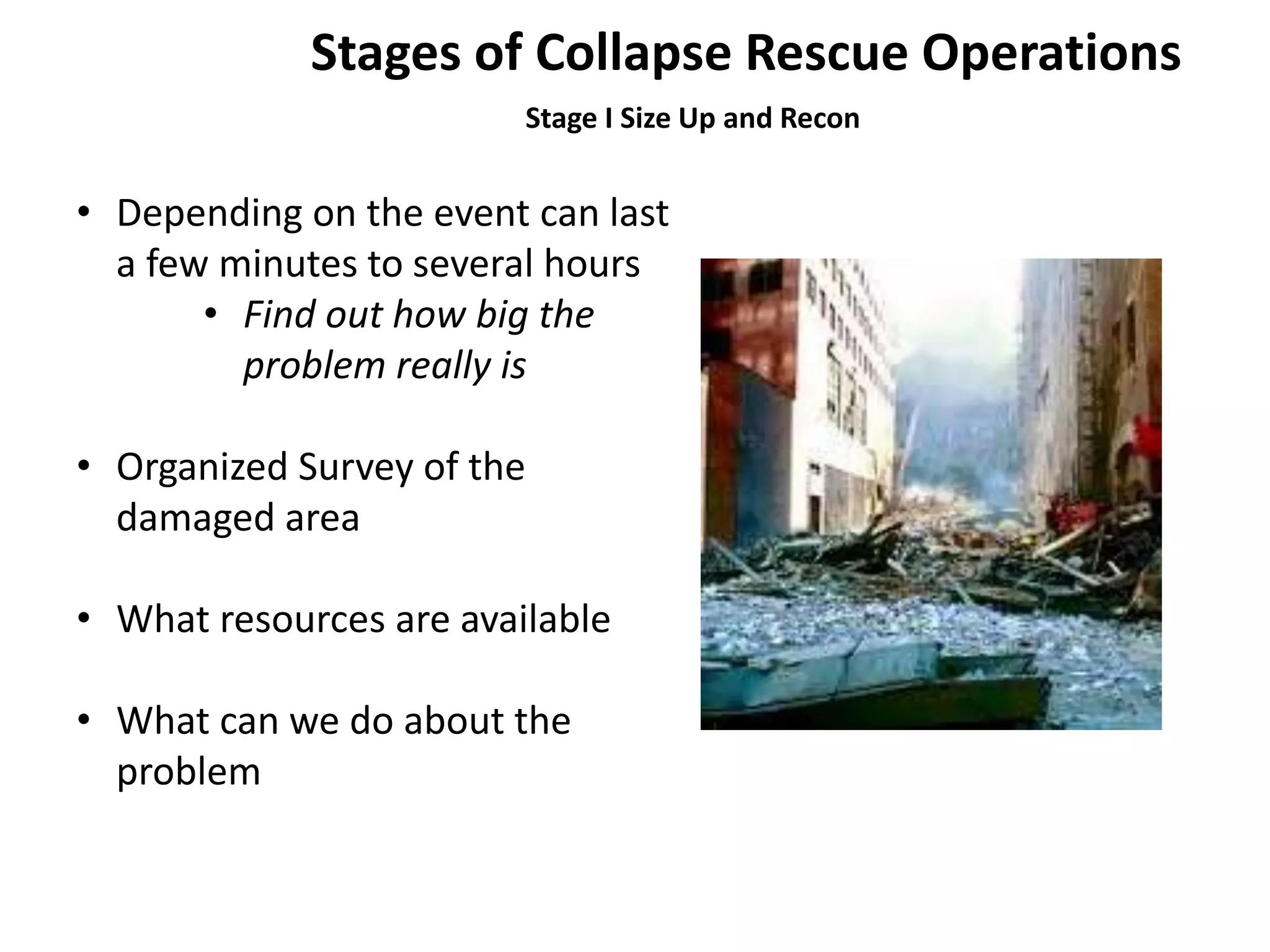

- 25. Stages of CollapseRescue Operations Stage I Size Up and Recon • Depending on the event can last a few minutes to several hours • Find out how big the problem really is • Organized Survey of the damaged area • What resources are available • What can we do about the problem

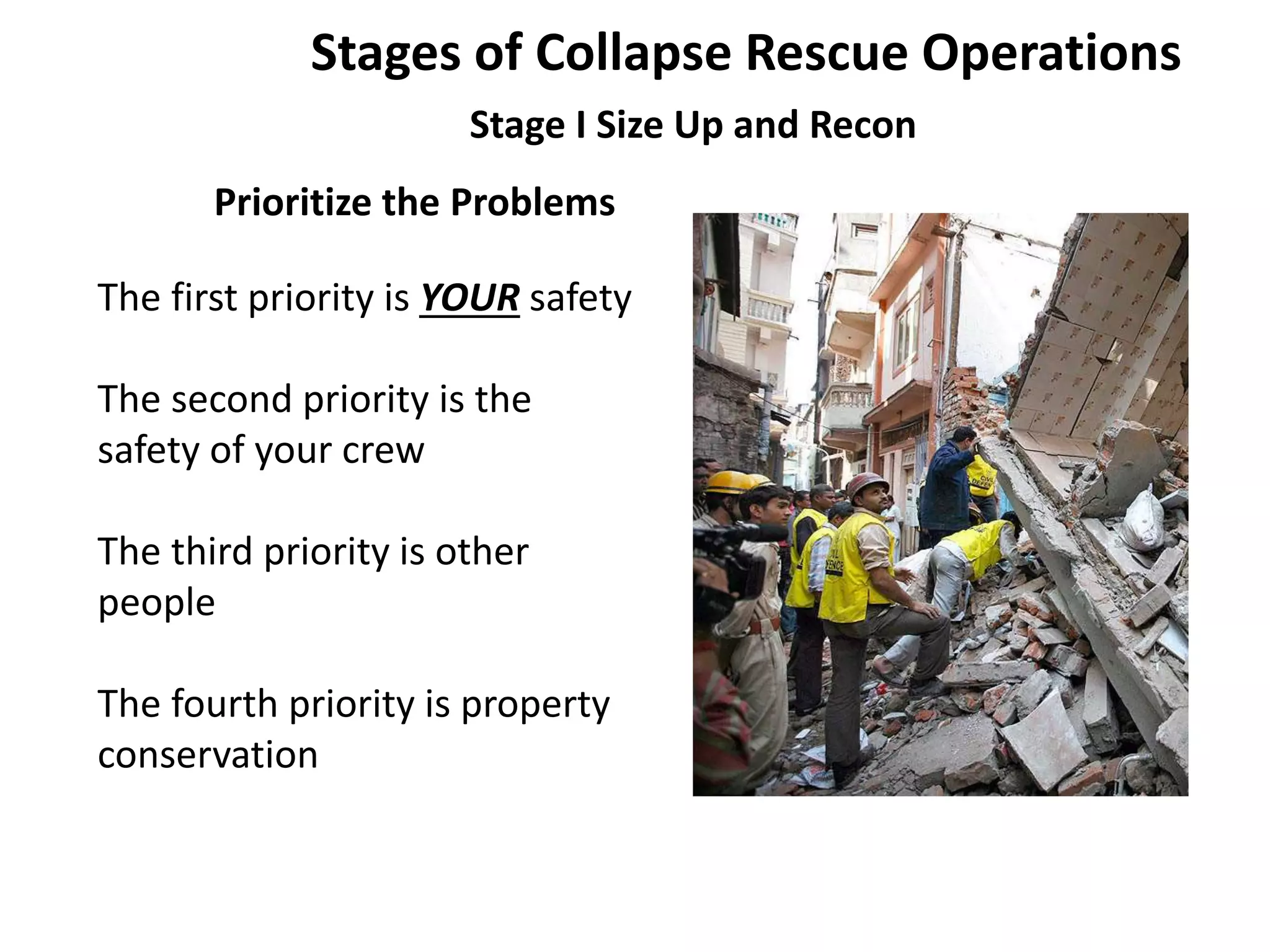

- 26. Stages of CollapseRescue Operations Stage I Size Up and Recon Prioritize the Problems The first priority is YOUR safety The second priority is the safety of your crew The third priority is other people The fourth priority is property conservation

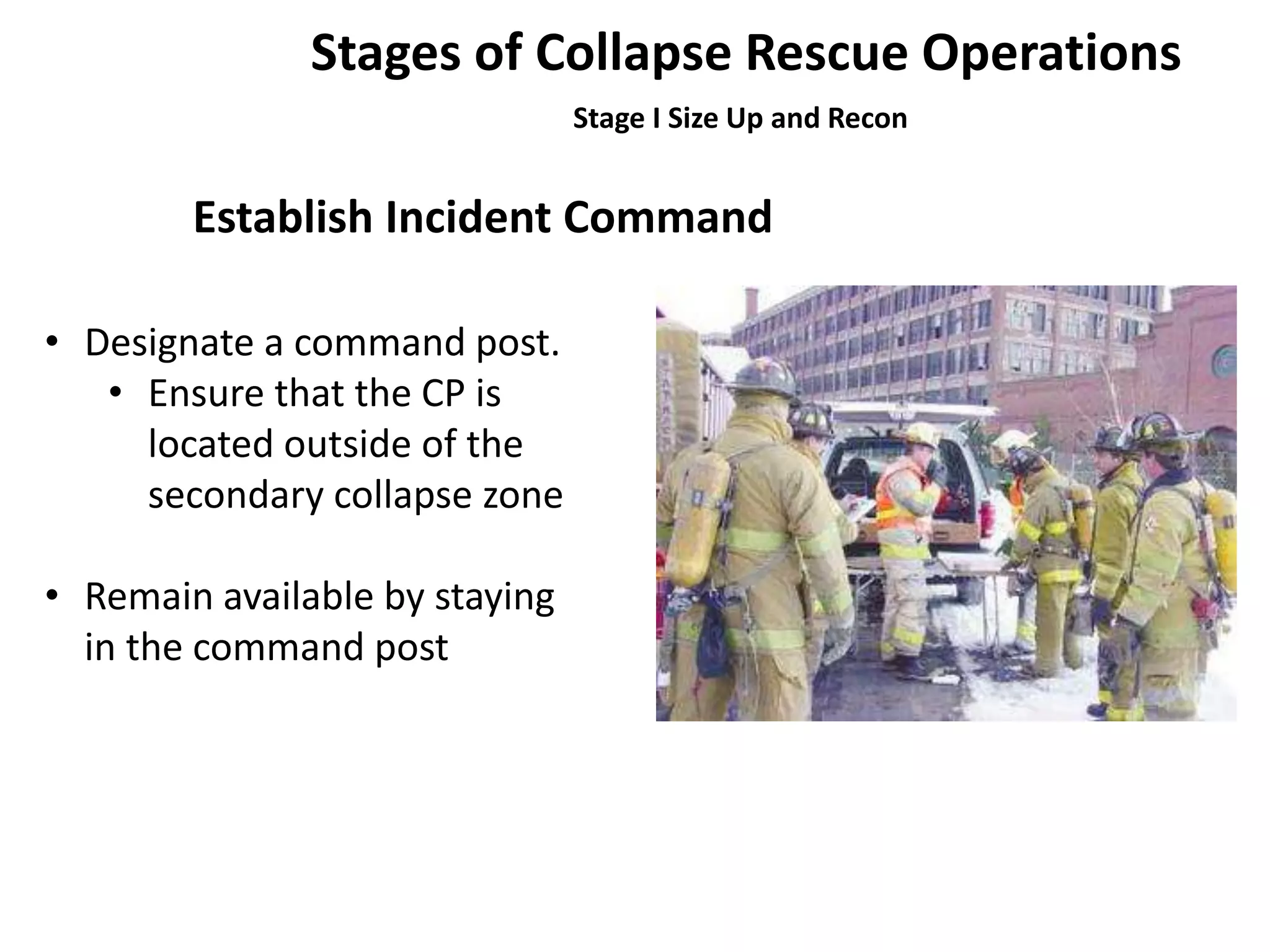

- 27. Stages of CollapseRescue Operations Stage I Size Up and Recon Establish Incident Command • Designate a command post. • Ensure that the CP is located outside of the secondary collapse zone • Remain available by staying in the command post

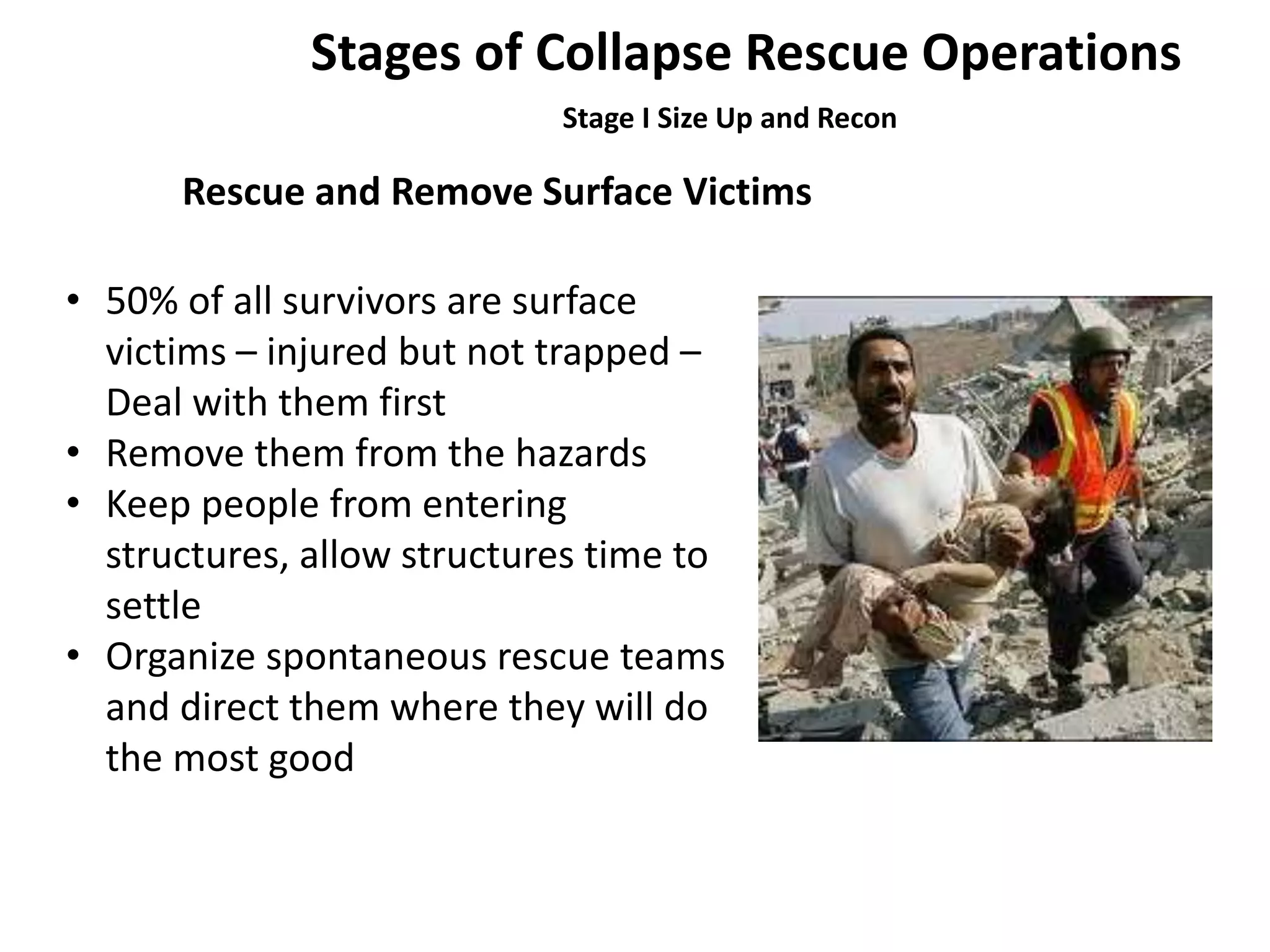

- 28. Stages of CollapseRescue Operations Stage I Size Up and Recon Rescue and Remove Surface Victims • 50% of all survivors are surface victims – injured but not trapped – Deal with them first • Remove them from the hazards • Keep people from entering structures, allow structures time to settle • Organize spontaneous rescue teams and direct them where they will do the most good

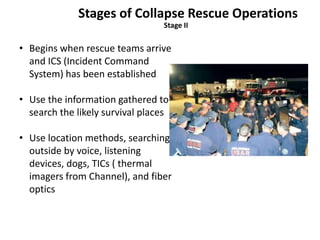

- 29. Stages of CollapseRescue Operations Stage II • Begins when rescue teams arrive and ICS (Incident Command System) has been established • Use the information gathered to search the likely survival places • Use location methods, searching outside by voice, listening devices, dogs, TICs ( thermal imagers from Channel), and fiber optics

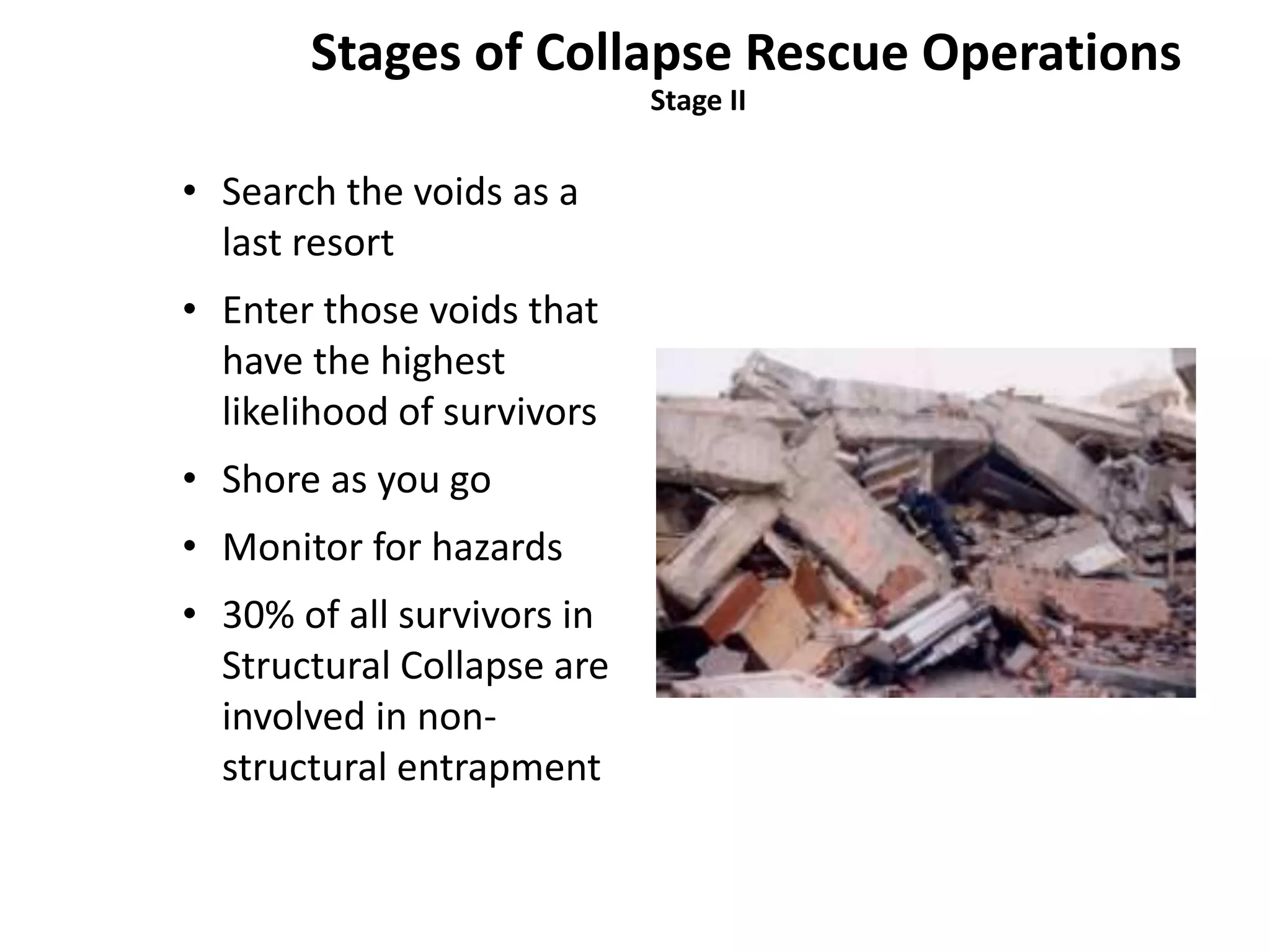

- 30. Stages of CollapseRescue Operations Stage II • Search the voids as a last resort • Enter those voids that have the highest likelihood of survivors • Shore as you go • Monitor for hazards • 30% of all survivors in Structural Collapse are involved in non-structural entrapment

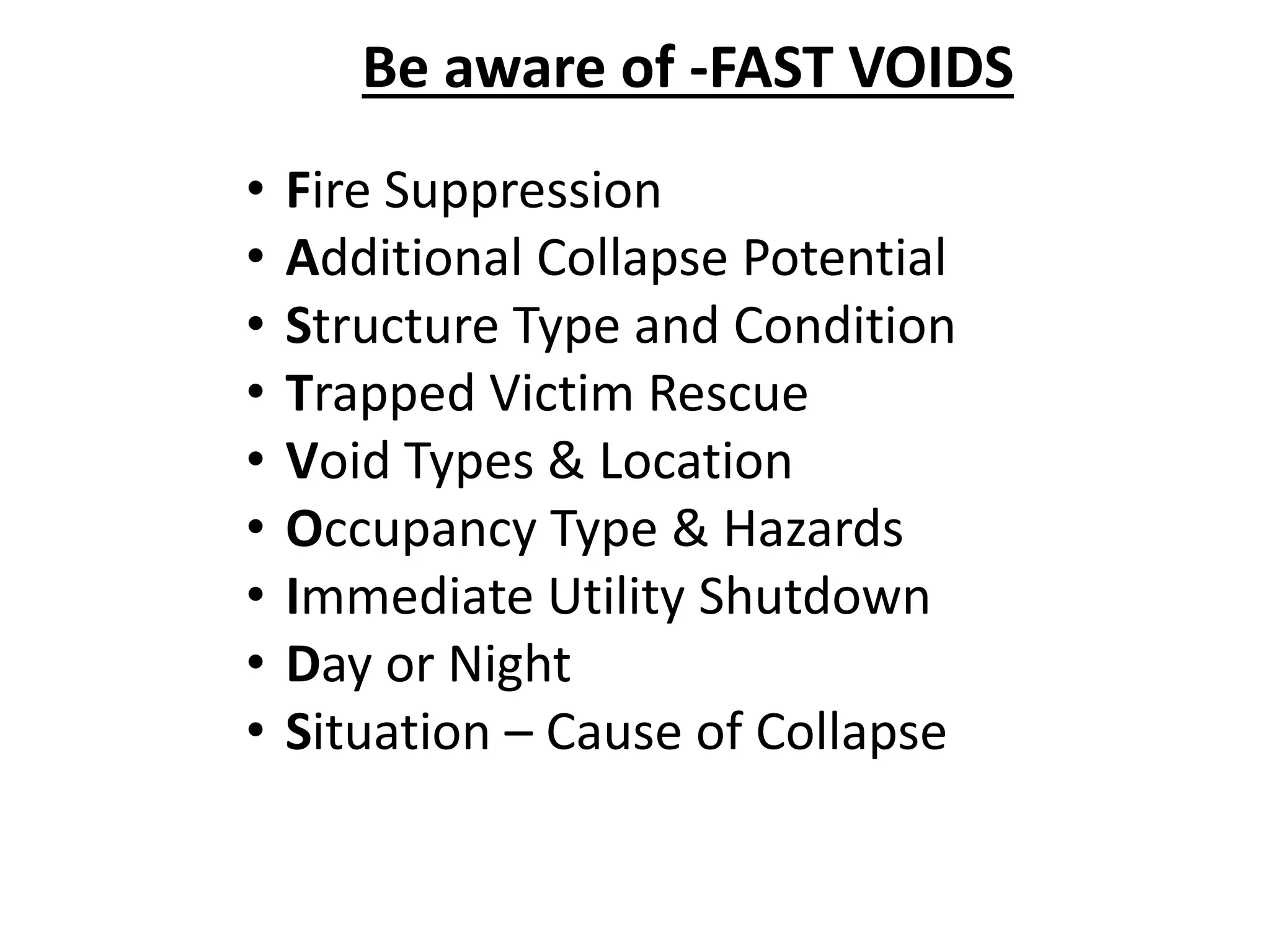

- 31. Be aware of-FAST VOIDS • Fire Suppression • Additional Collapse Potential • Structure Type and Condition • Trapped Victim Rescue • Void Types & Location • Occupancy Type & Hazards • Immediate Utility Shutdown • Day or Night • Situation – Cause of Collapse

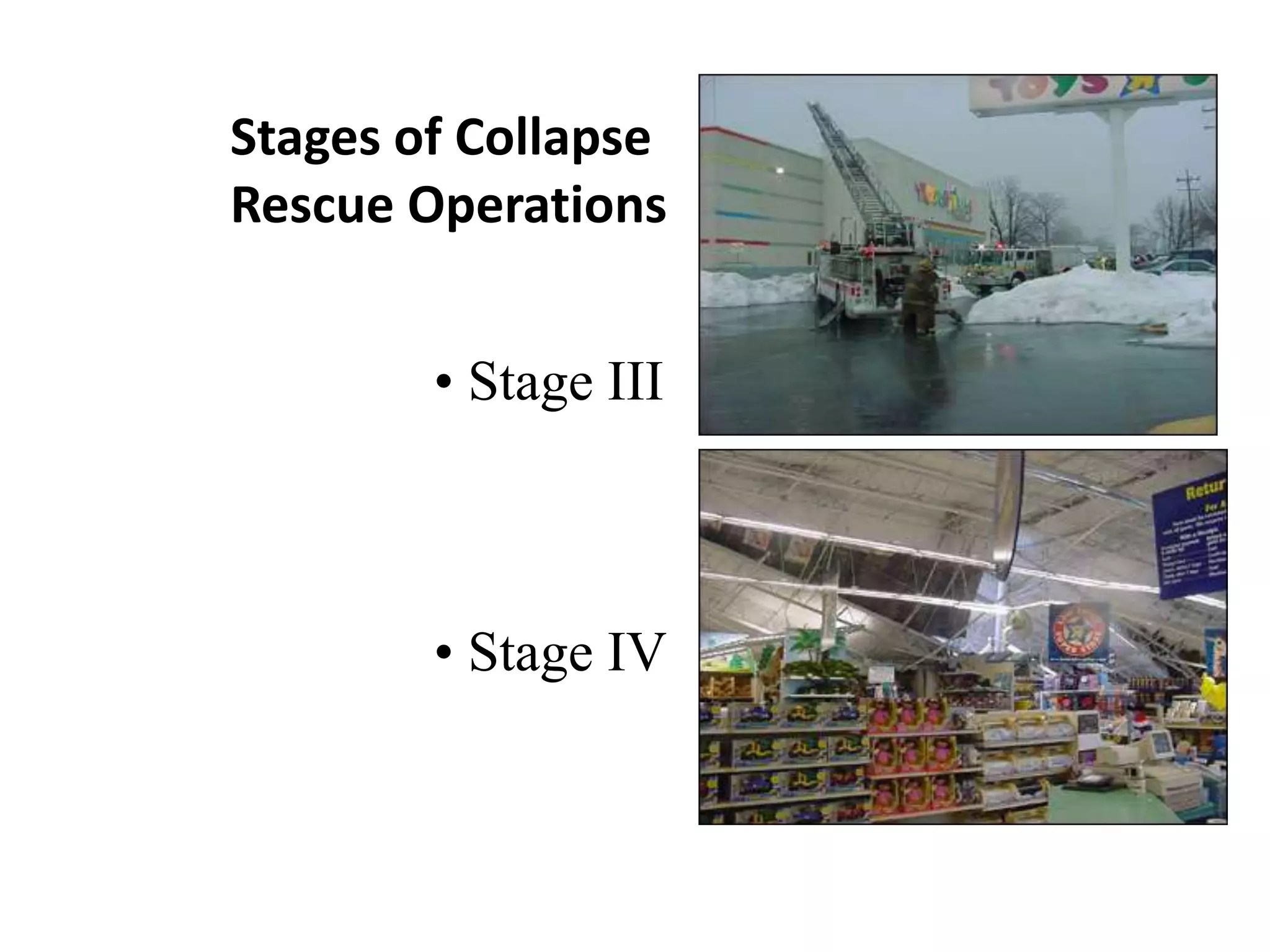

- 32. Stages of Collapse Rescue Operations • Stage III • Stage IV

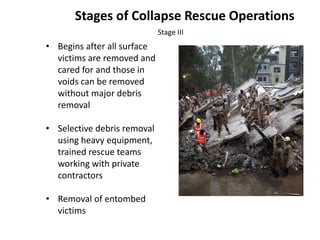

- 33. Stages of CollapseRescue Operations Stage III • Begins after all surface victims are removed and cared for and those in voids can be removed without major debris removal • Selective debris removal using heavy equipment, trained rescue teams working with private contractors • Removal of entombed victims

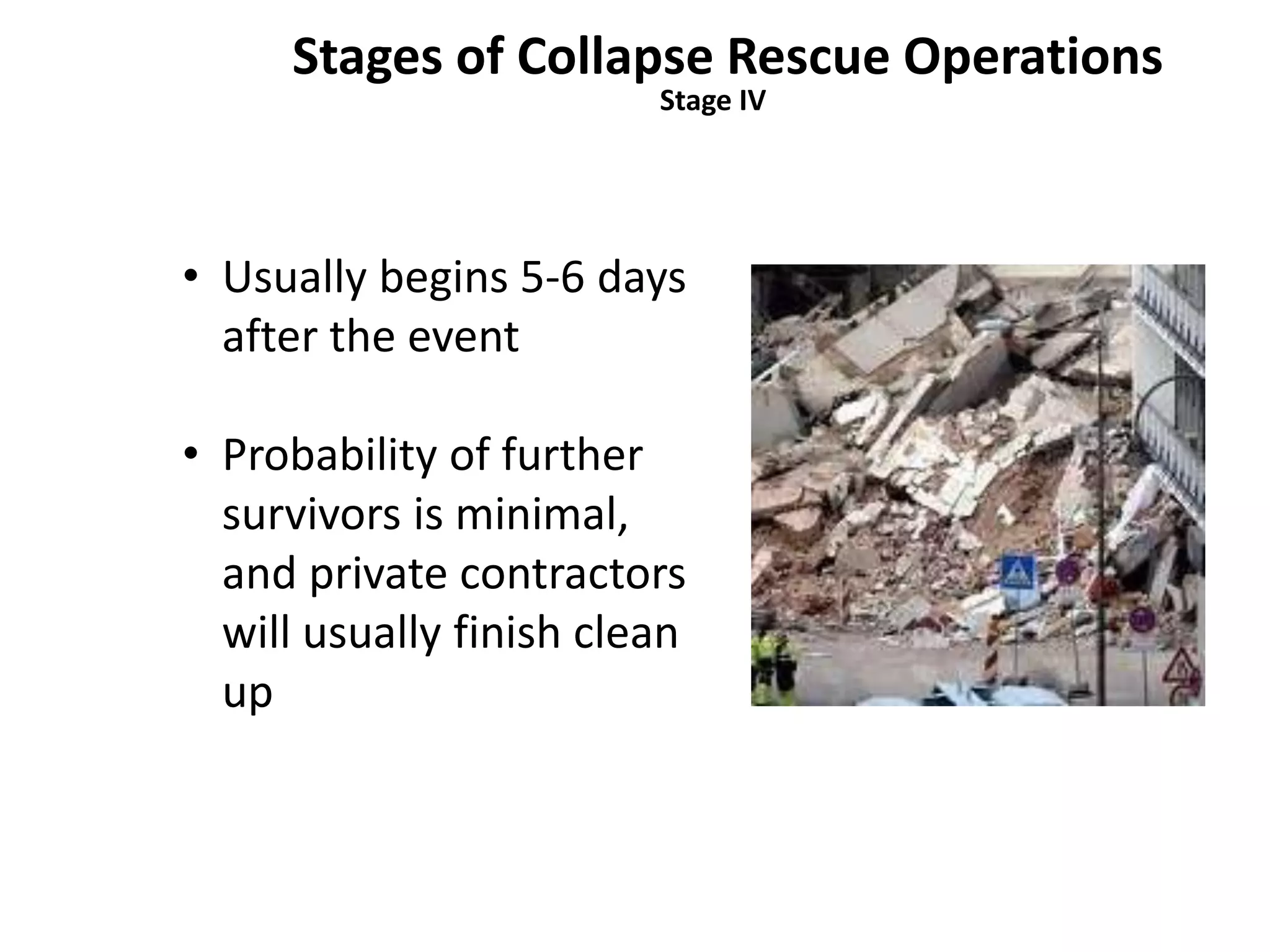

- 34. Stages of CollapseRescue Operations Stage IV • Usually begins 5-6 days after the event • Probability of further survivors is minimal, and private contractors will usually finish clean up

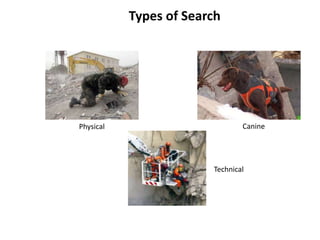

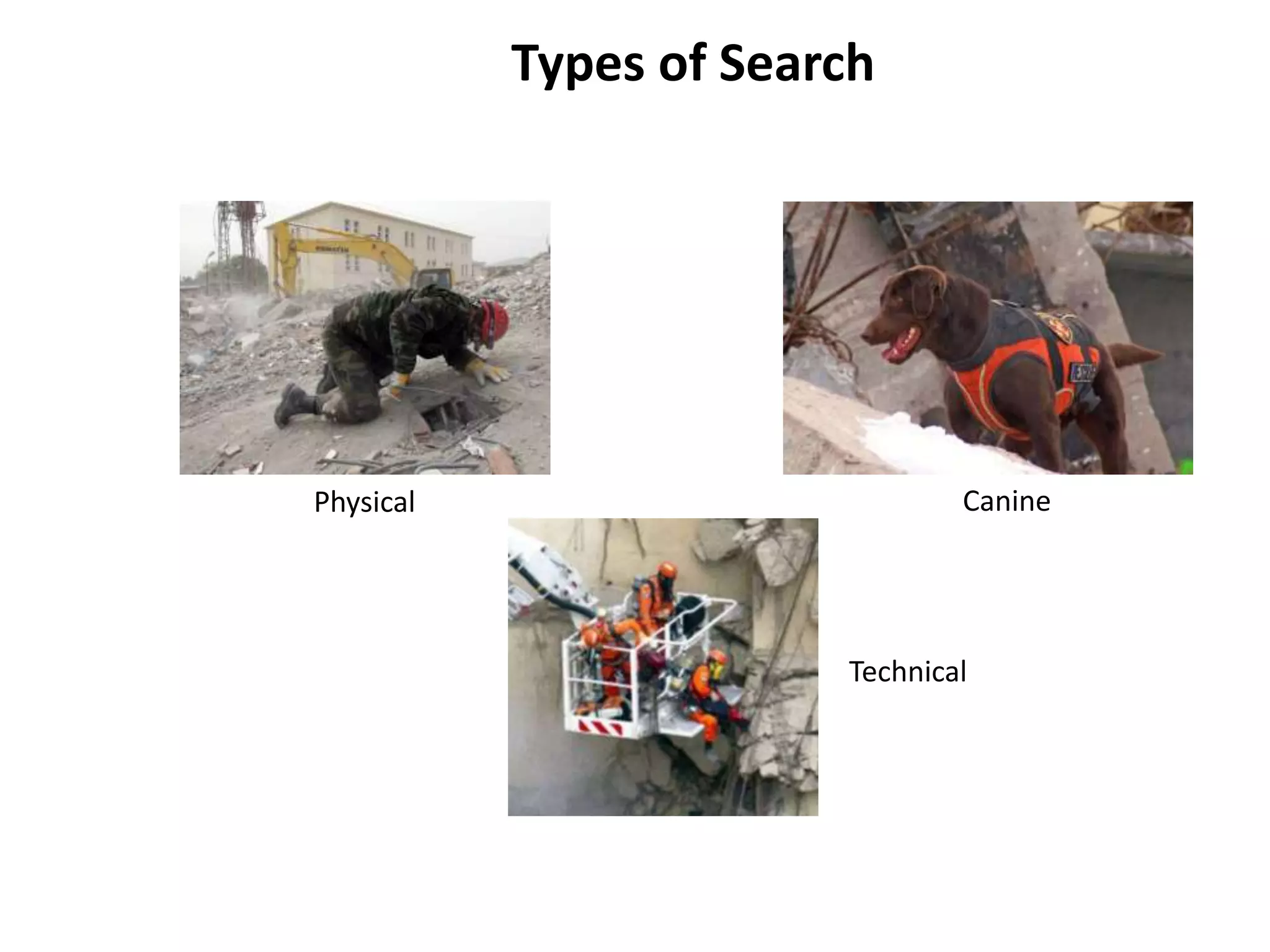

- 35. Types of Search Physical Canine Technical

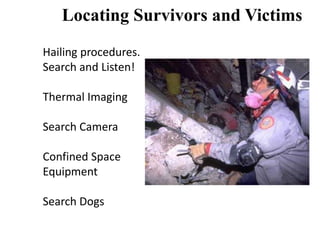

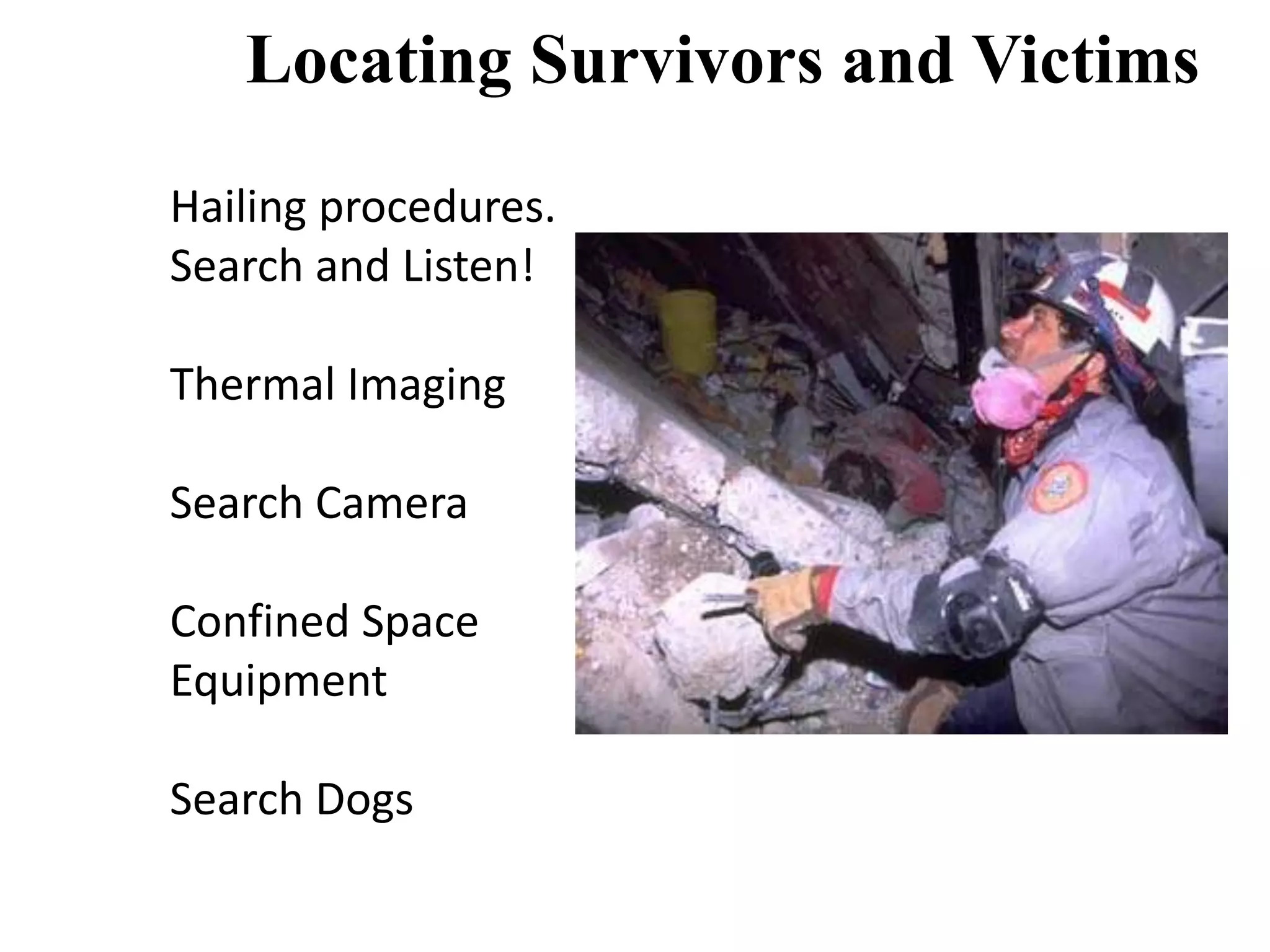

- 36. Locating Survivors andVictims Hailing procedures. Search and Listen! Thermal Imaging Search Camera Confined Space Equipment Search Dogs

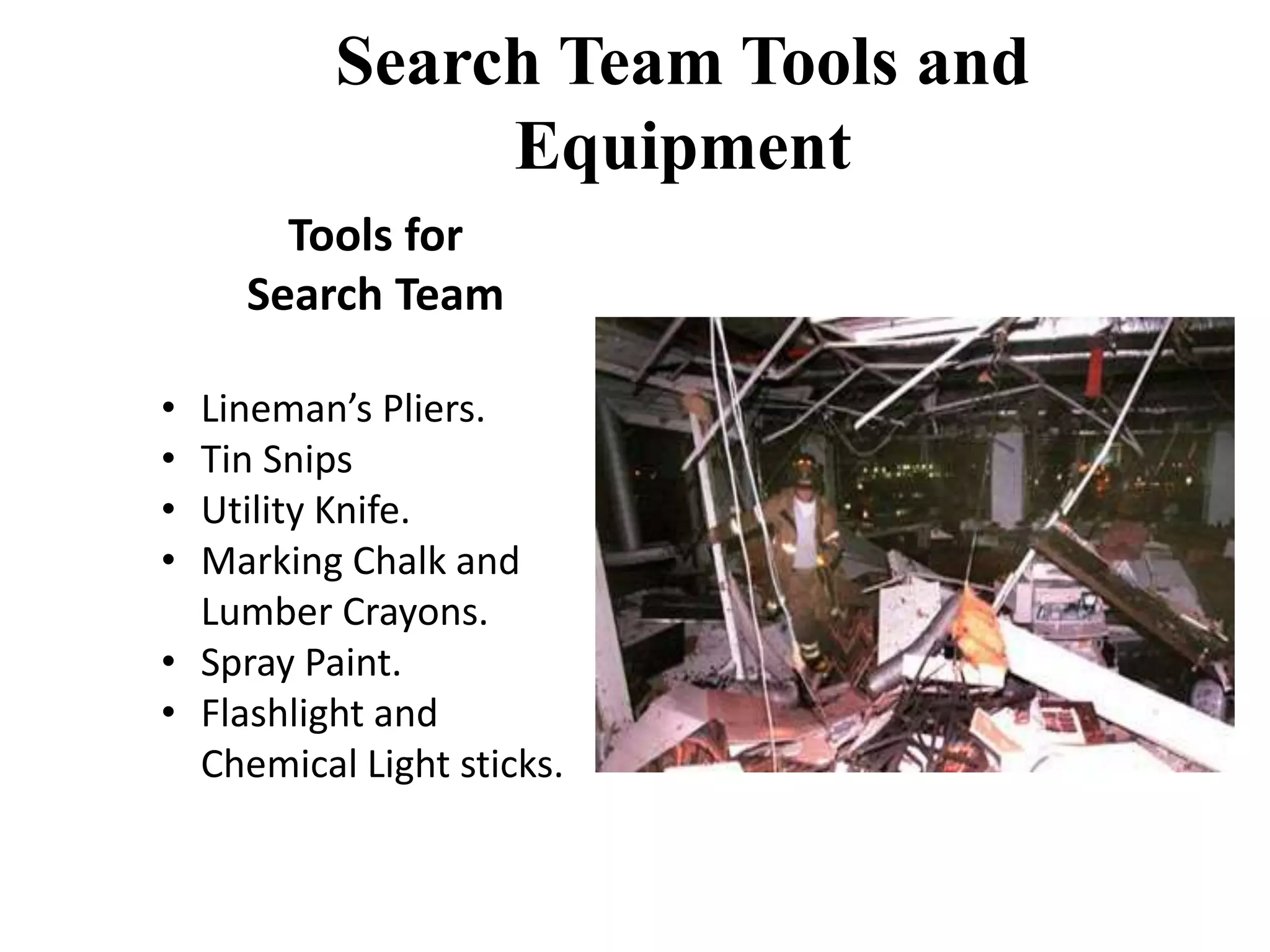

- 37. Search Team Toolsand Equipment Tools for Search Team • Lineman’s Pliers. • Tin Snips • Utility Knife. • Marking Chalk and Lumber Crayons. • Spray Paint. • Flashlight and Chemical Light sticks.

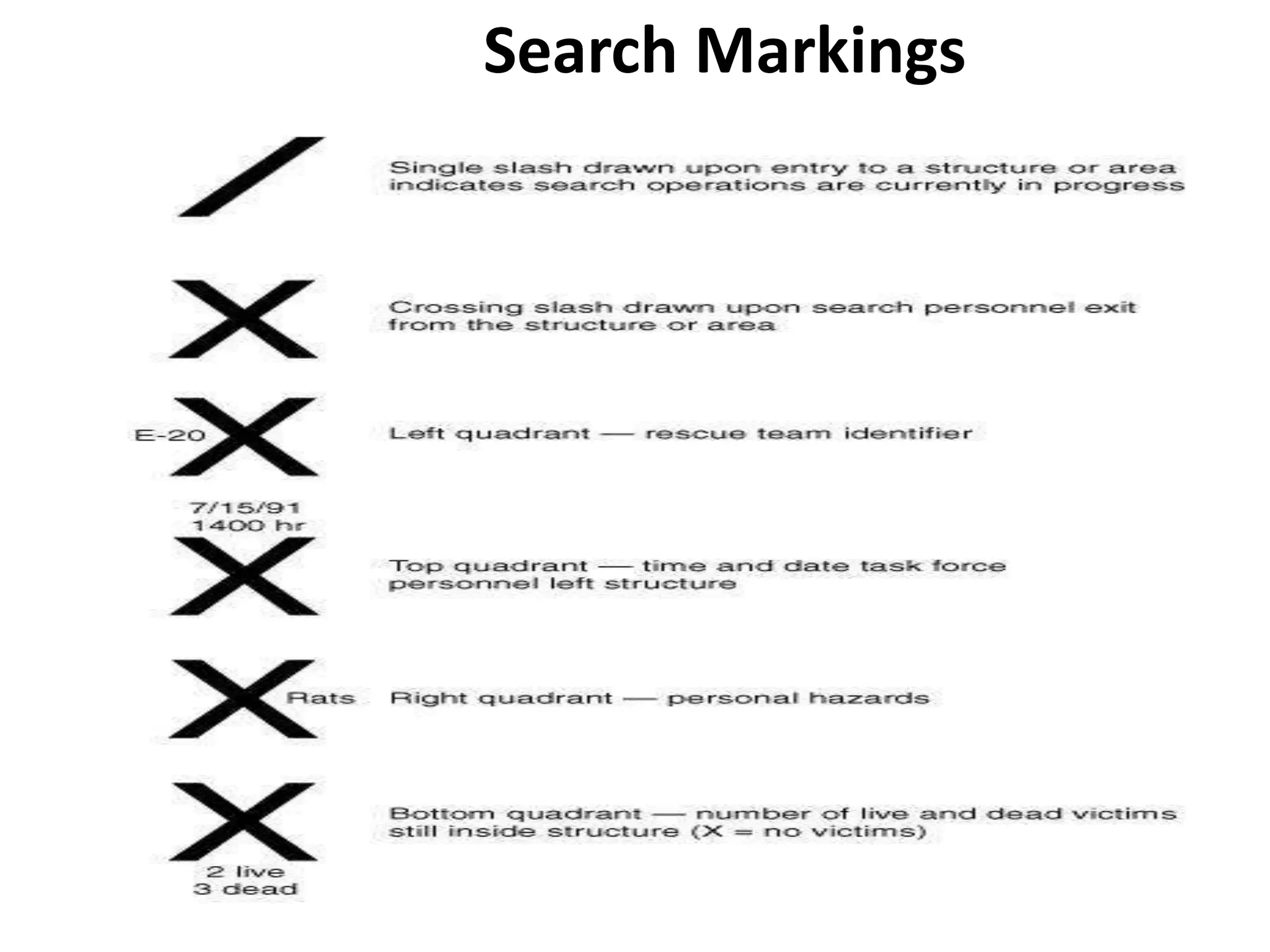

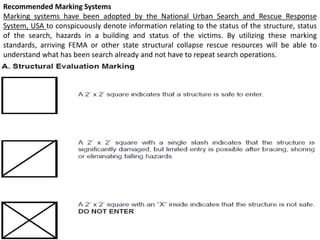

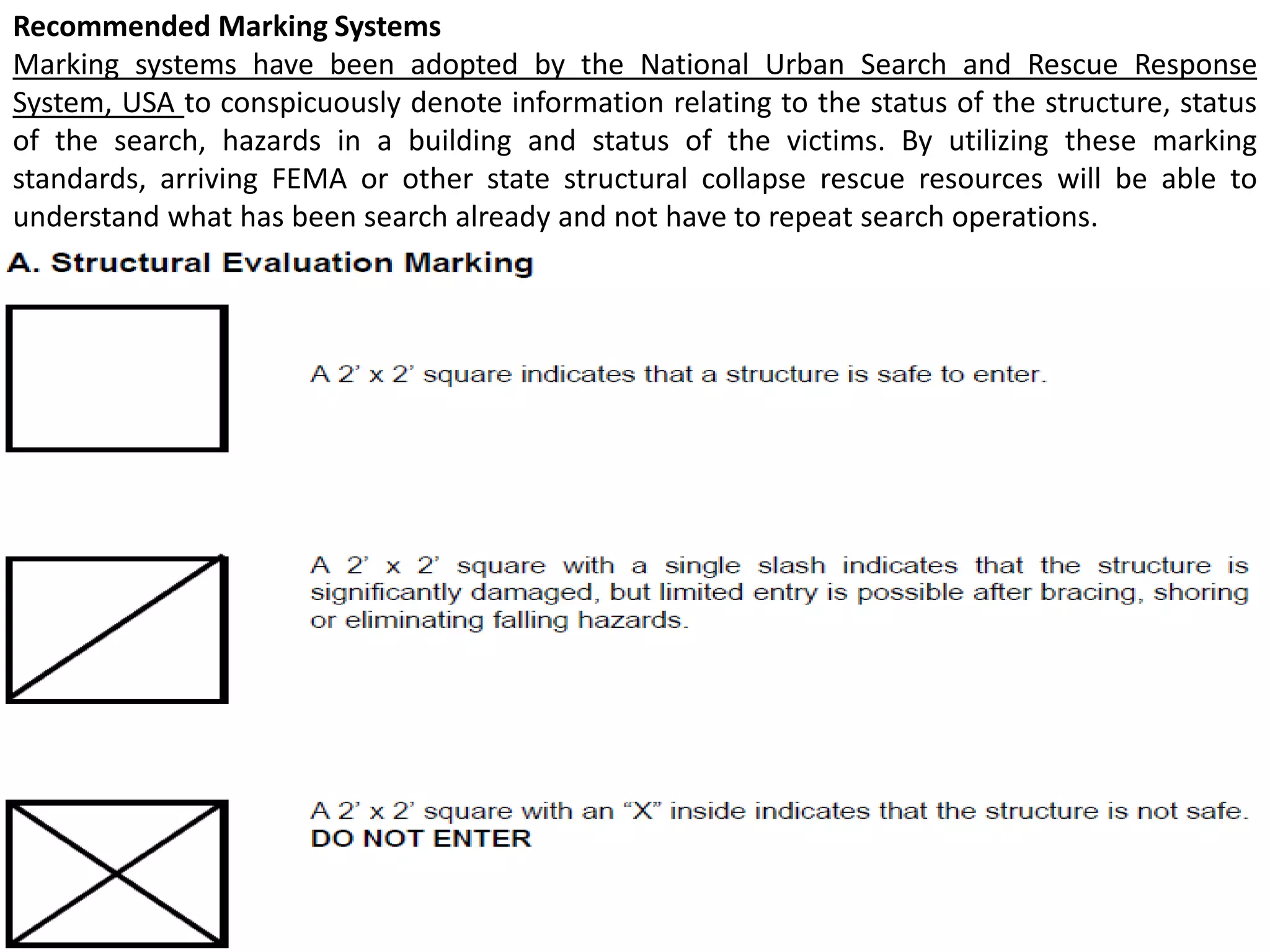

- 38. Recommended Marking Systems Marking systems have been adopted by the National Urban Search and Rescue Response System, USA to conspicuously denote information relating to the status of the structure, status of the search, hazards in a building and status of the victims. By utilizing these marking standards, arriving FEMA or other state structural collapse rescue resources will be able to understand what has been search already and not have to repeat search operations.

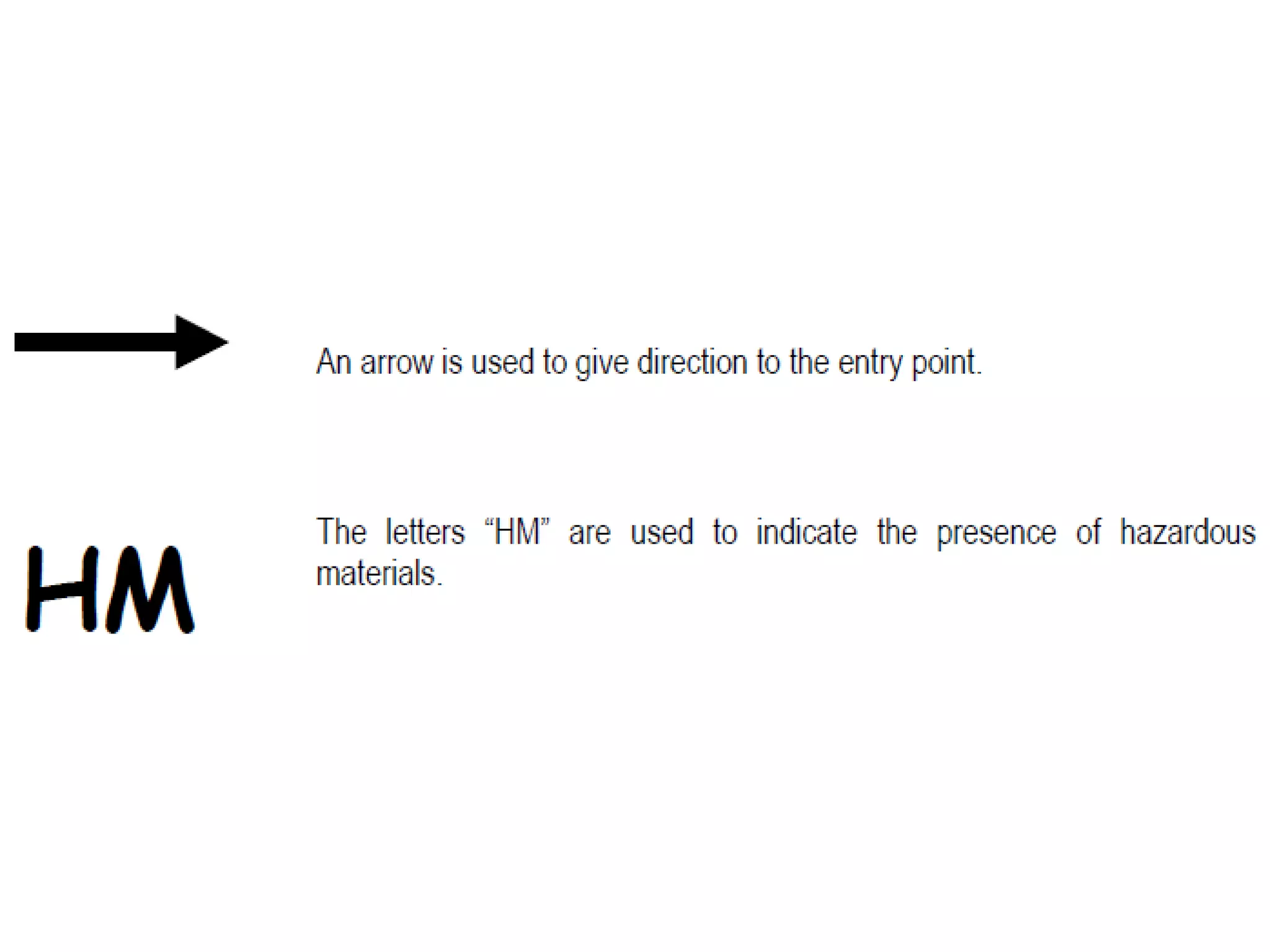

- 40.

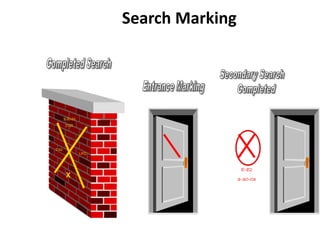

- 41. 3-30-03 2120 T-82 LPG X E-82 3-30-03 Search Marking

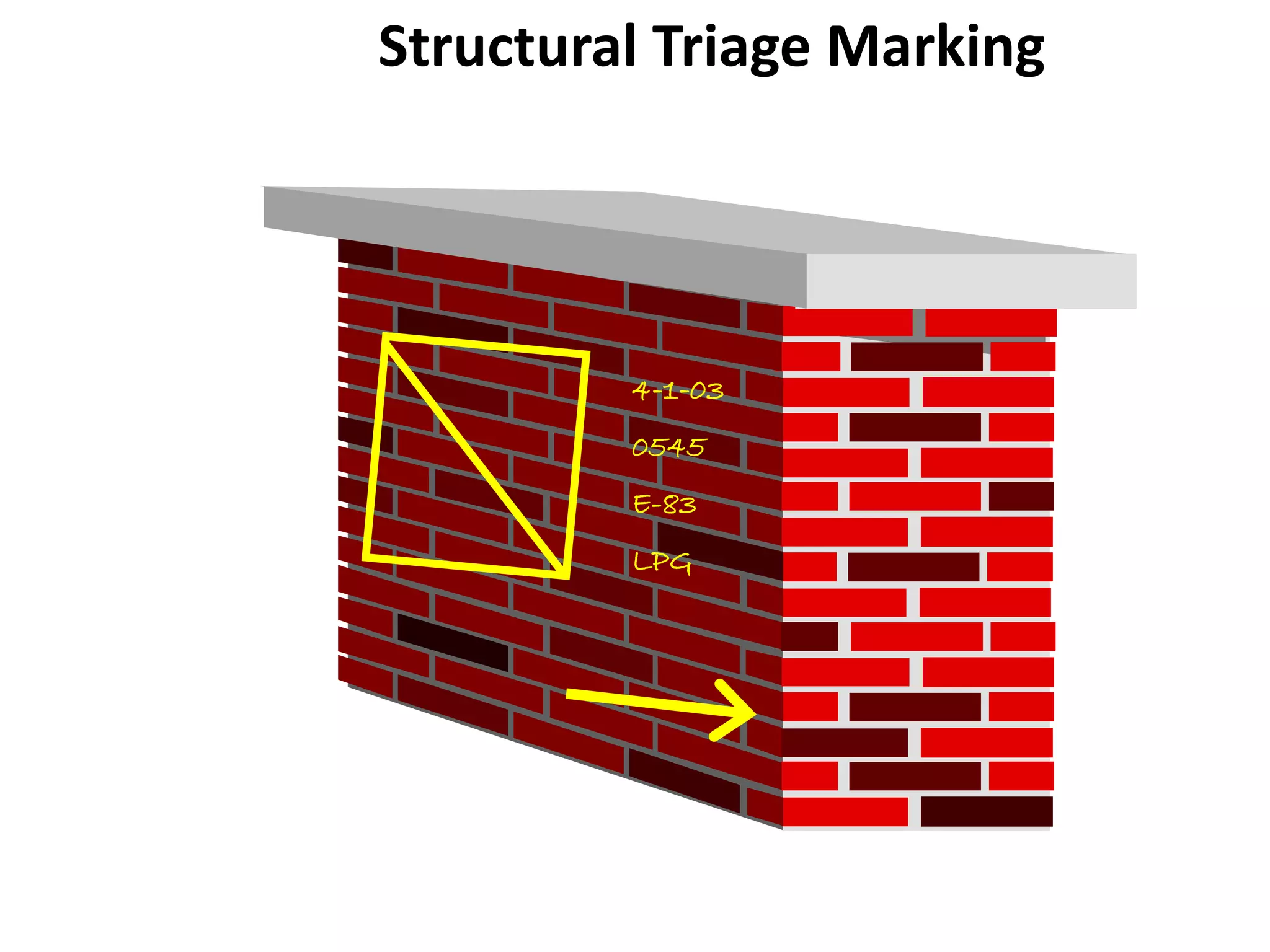

- 42. Structural Triage Marking 4-1-03 0545 E-83 LPG

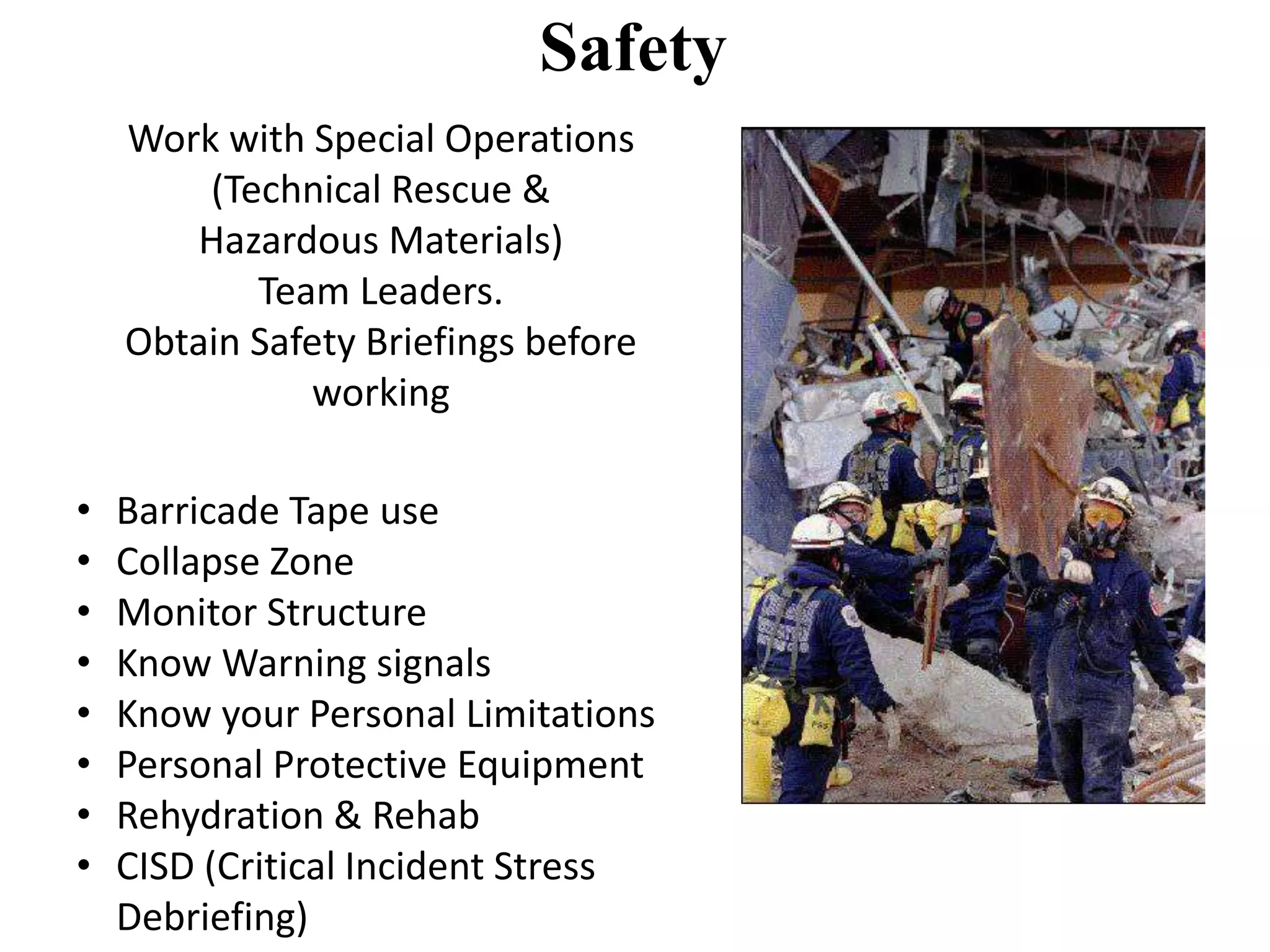

- 43. Safety Work withSpecial Operations (Technical Rescue & Hazardous Materials) Team Leaders. Obtain Safety Briefings before working • Barricade Tape use • Collapse Zone • Monitor Structure • Know Warning signals • Know your Personal Limitations • Personal Protective Equipment • Rehydration & Rehab • CISD (Critical Incident Stress Debriefing)

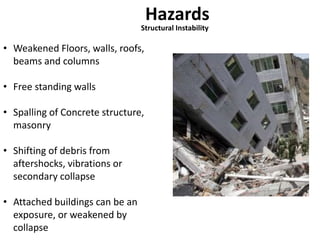

- 44. Hazards Structural Instability • Weakened Floors, walls, roofs, beams and columns • Free standing walls • Spalling of Concrete structure, masonry • Shifting of debris from aftershocks, vibrations or secondary collapse • Attached buildings can be an exposure, or weakened by collapse

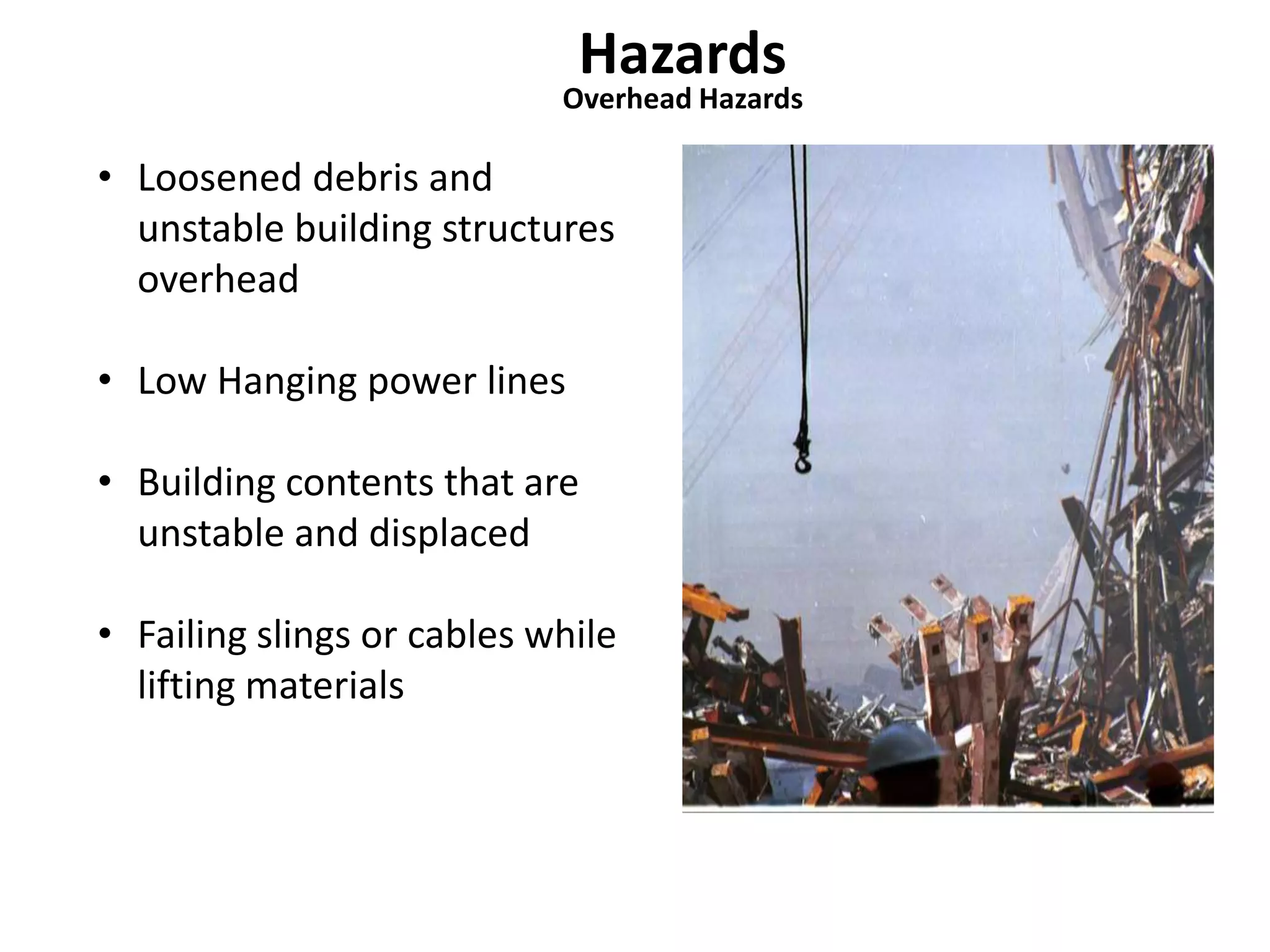

- 45. Hazards Overhead Hazards • Loosened debris and unstable building structures overhead • Low Hanging power lines • Building contents that are unstable and displaced • Failing slings or cables while lifting materials

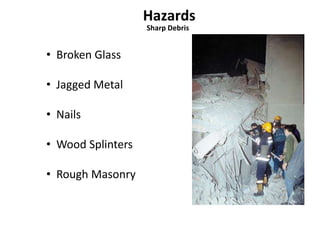

- 46. Sharp Debris •Broken Glass • Jagged Metal • Nails • Wood Splinters • Rough Masonry

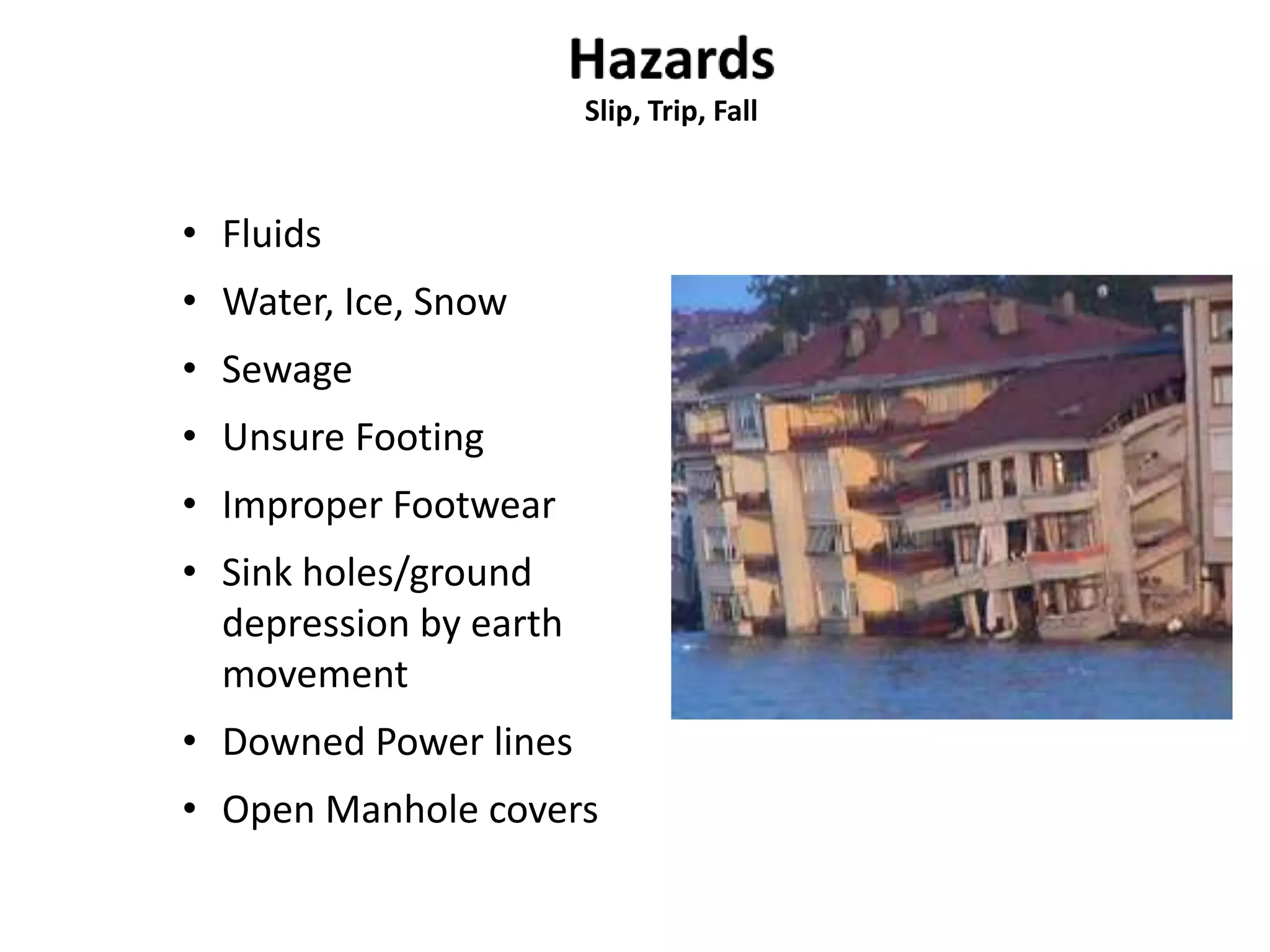

- 47. Slip, Trip, Fall • Fluids • Water, Ice, Snow • Sewage • Unsure Footing • Improper Footwear • Sink holes/ground depression by earth movement • Downed Power lines • Open Manhole covers

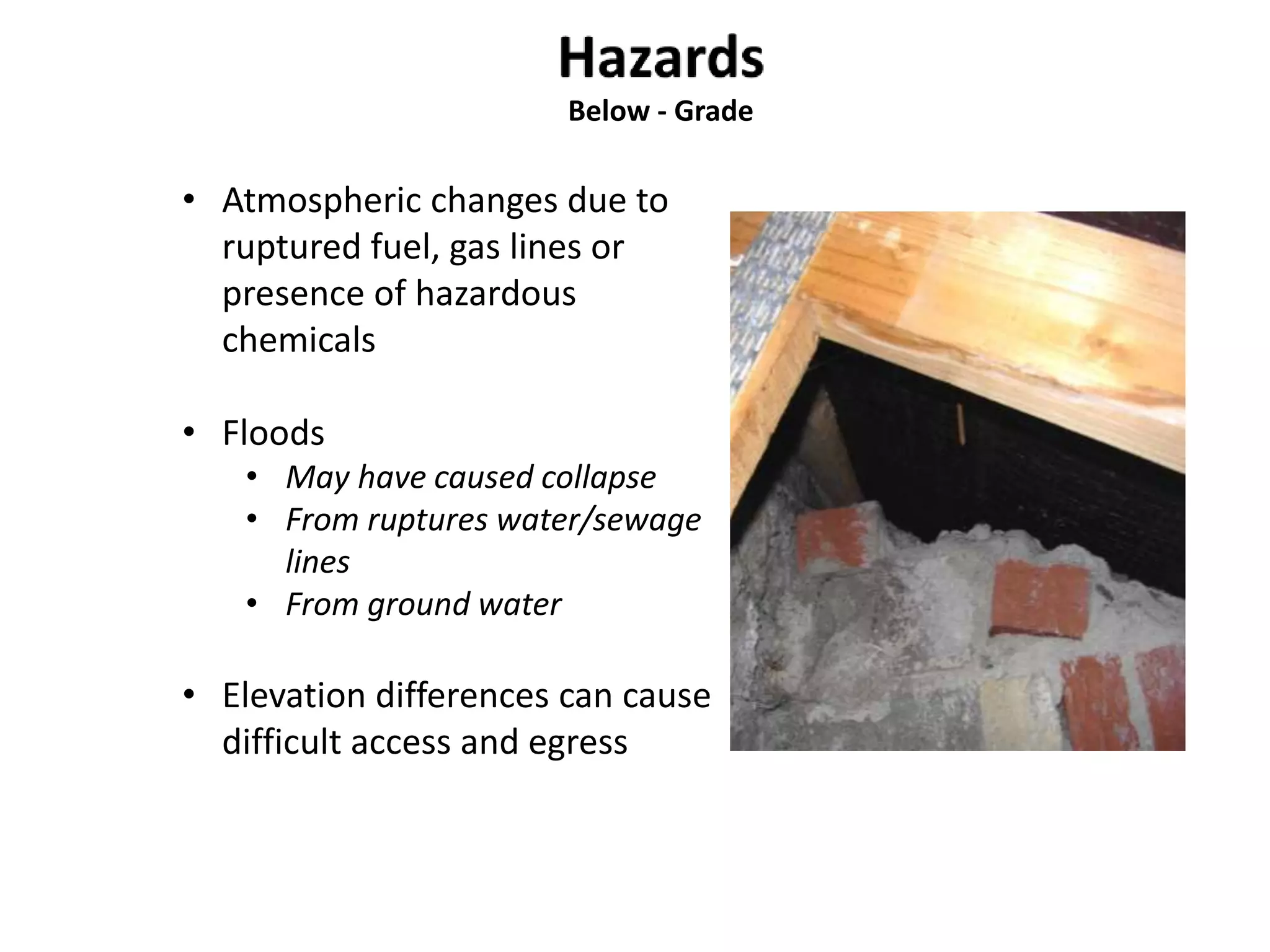

- 48. Below - Grade • Atmospheric changes due to ruptured fuel, gas lines or presence of hazardous chemicals • Floods • May have caused collapse • From ruptures water/sewage lines • From ground water • Elevation differences can cause difficult access and egress

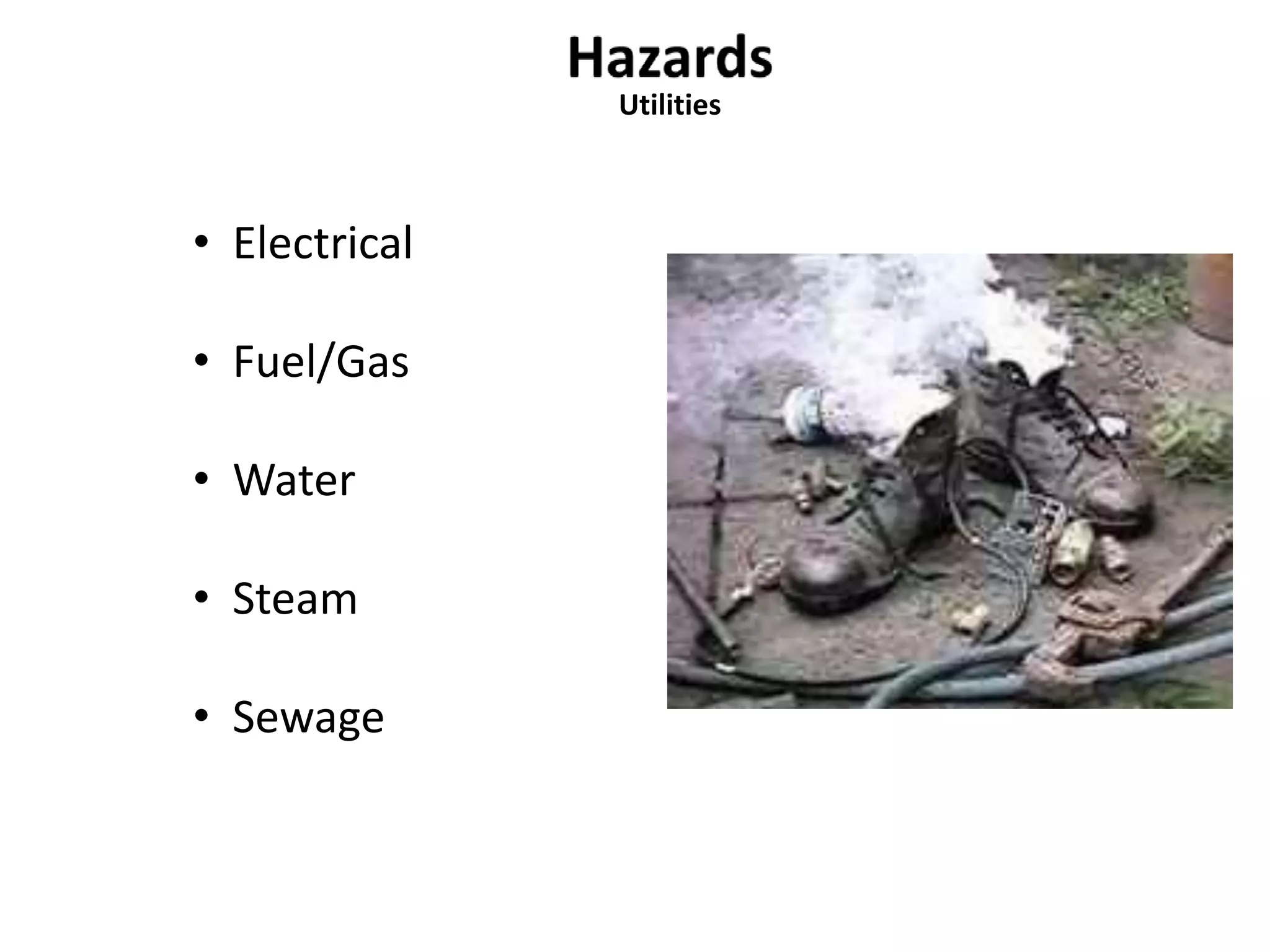

- 49. Utilities • Electrical • Fuel/Gas • Water • Steam • Sewage

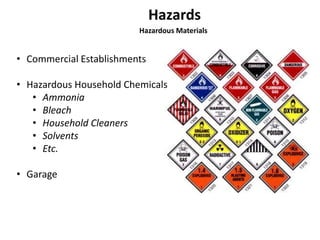

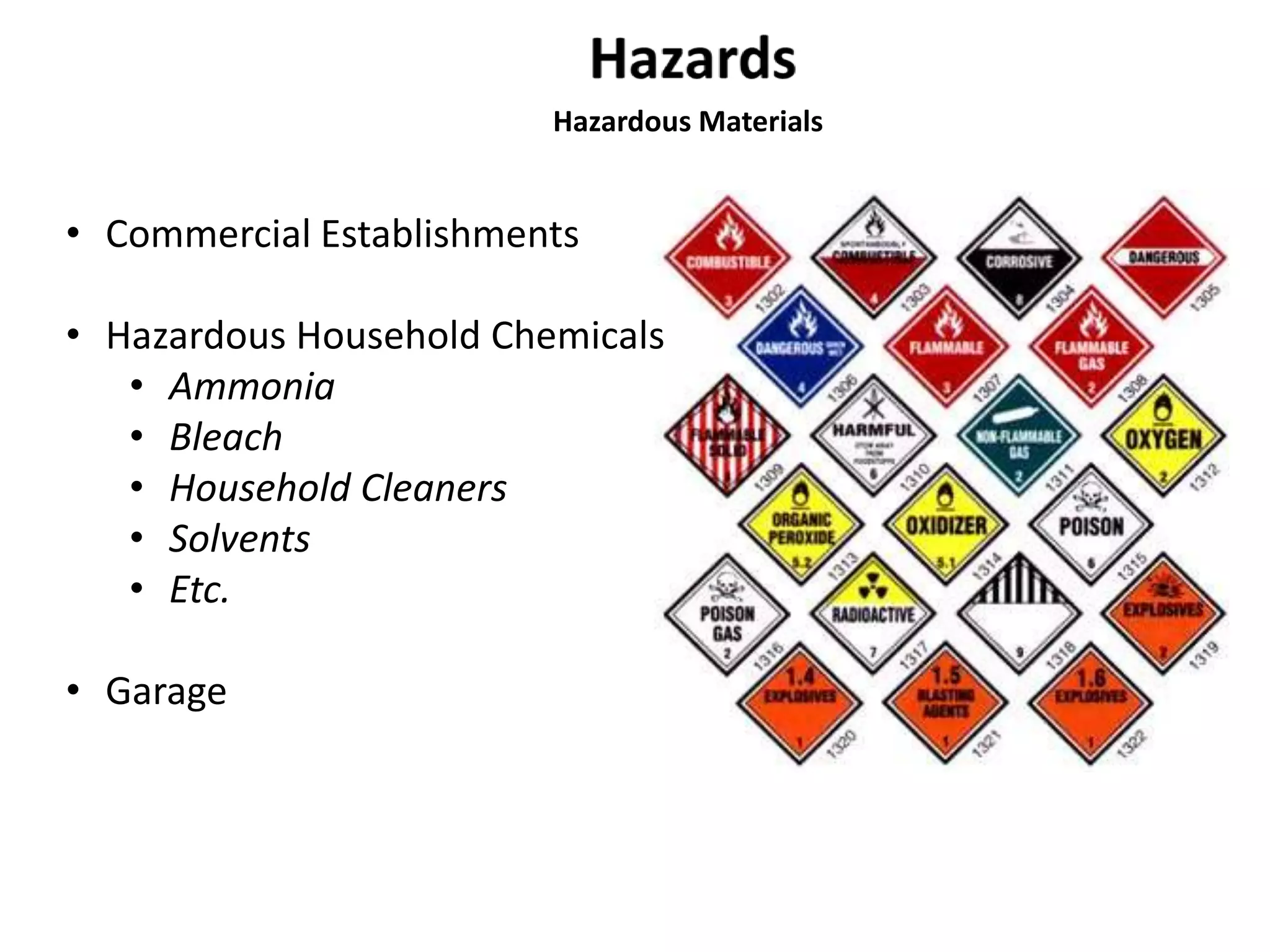

- 50. Hazardous Materials •Commercial Establishments • Hazardous Household Chemicals • Ammonia • Bleach • Household Cleaners • Solvents • Etc. • Garage

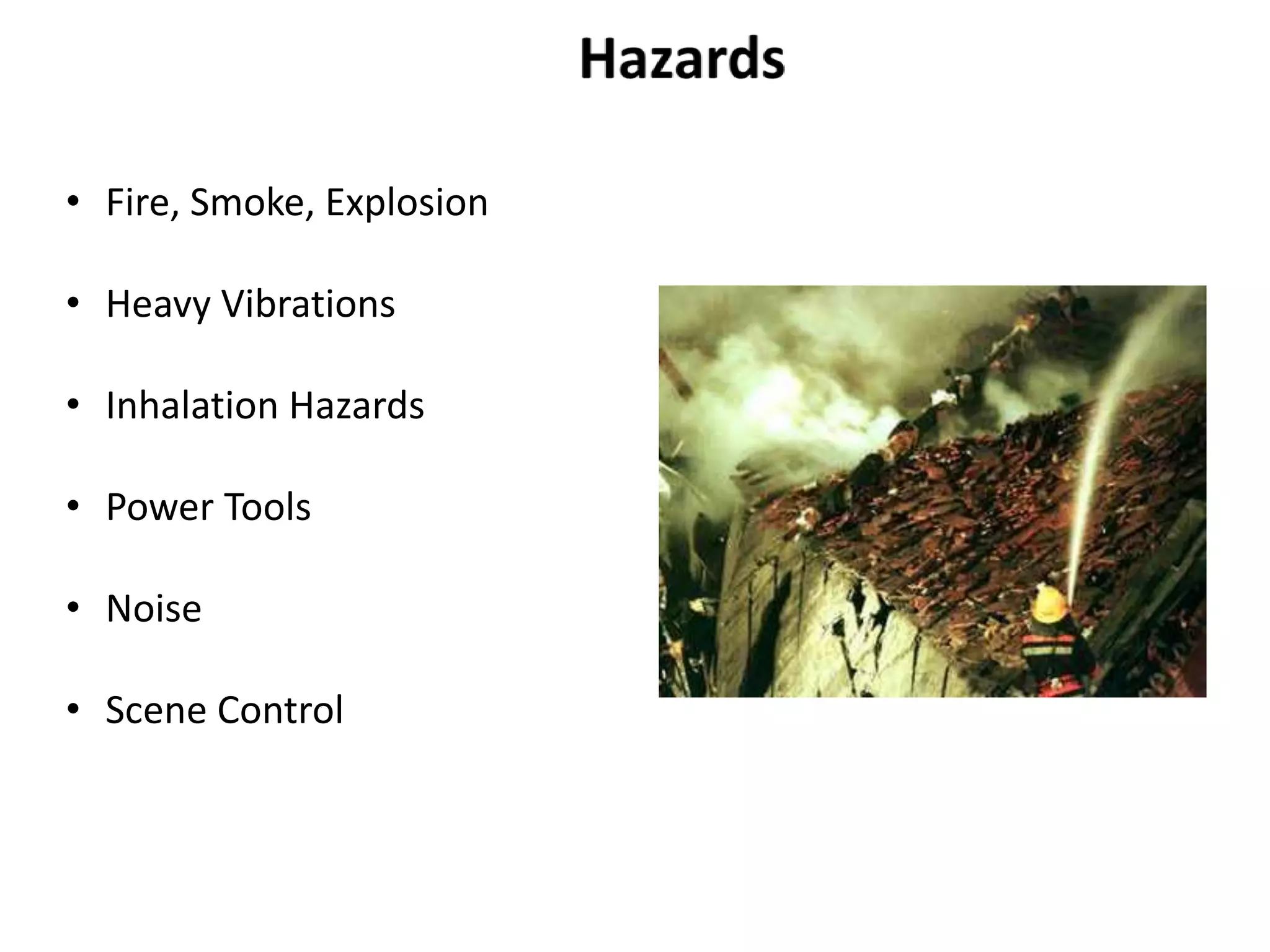

- 51. • Fire, Smoke,Explosion • Heavy Vibrations • Inhalation Hazards • Power Tools • Noise • Scene Control

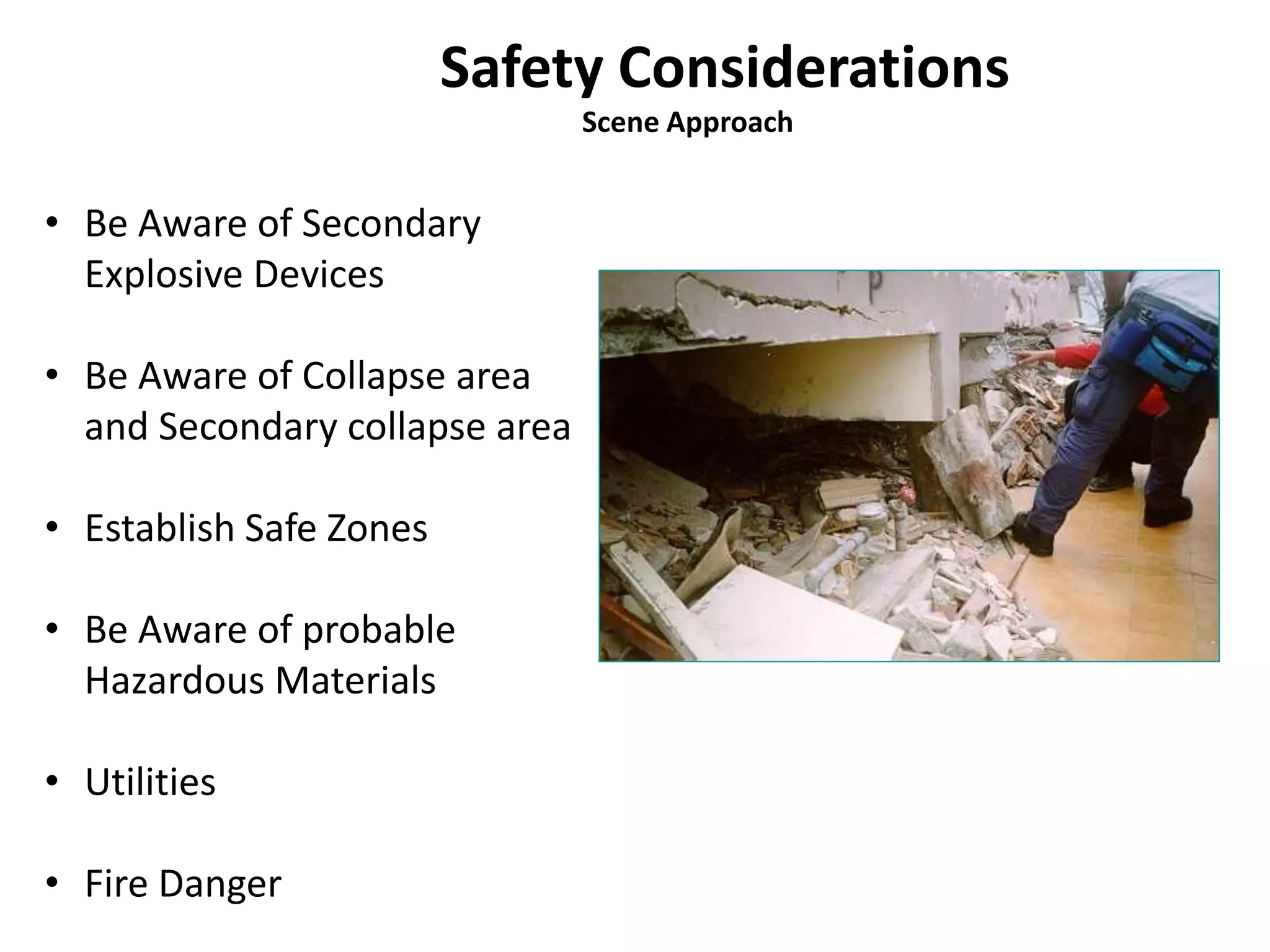

- 52. Safety Considerations SceneApproach • Be Aware of Secondary Explosive Devices • Be Aware of Collapse area and Secondary collapse area • Establish Safe Zones • Be Aware of probable Hazardous Materials • Utilities • Fire Danger

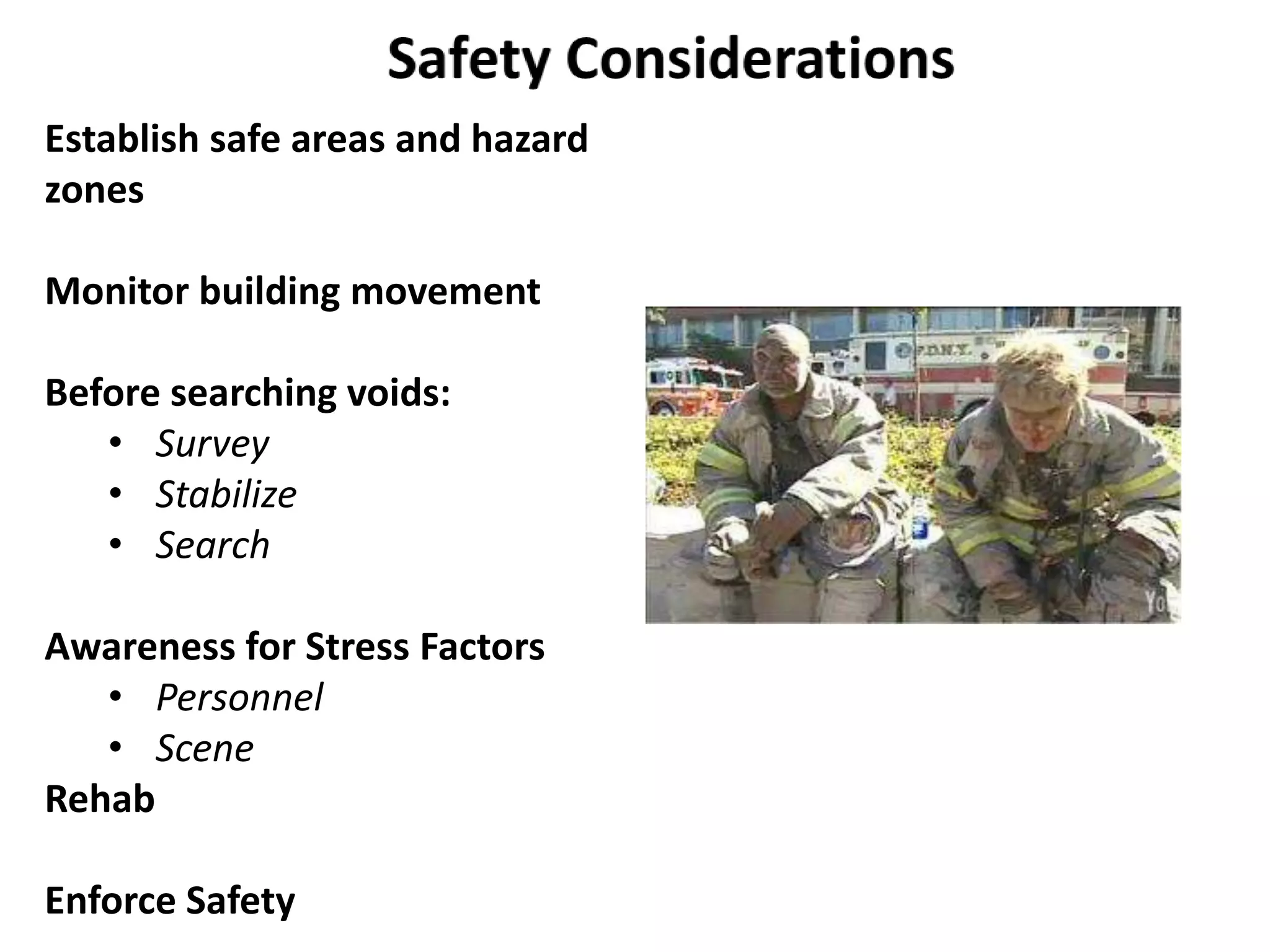

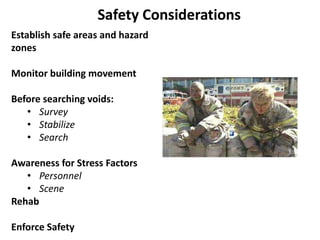

- 53. Establish safe areasand hazard zones Monitor building movement Before searching voids: • Survey • Stabilize • Search Awareness for Stress Factors • Personnel • Scene Rehab Enforce Safety

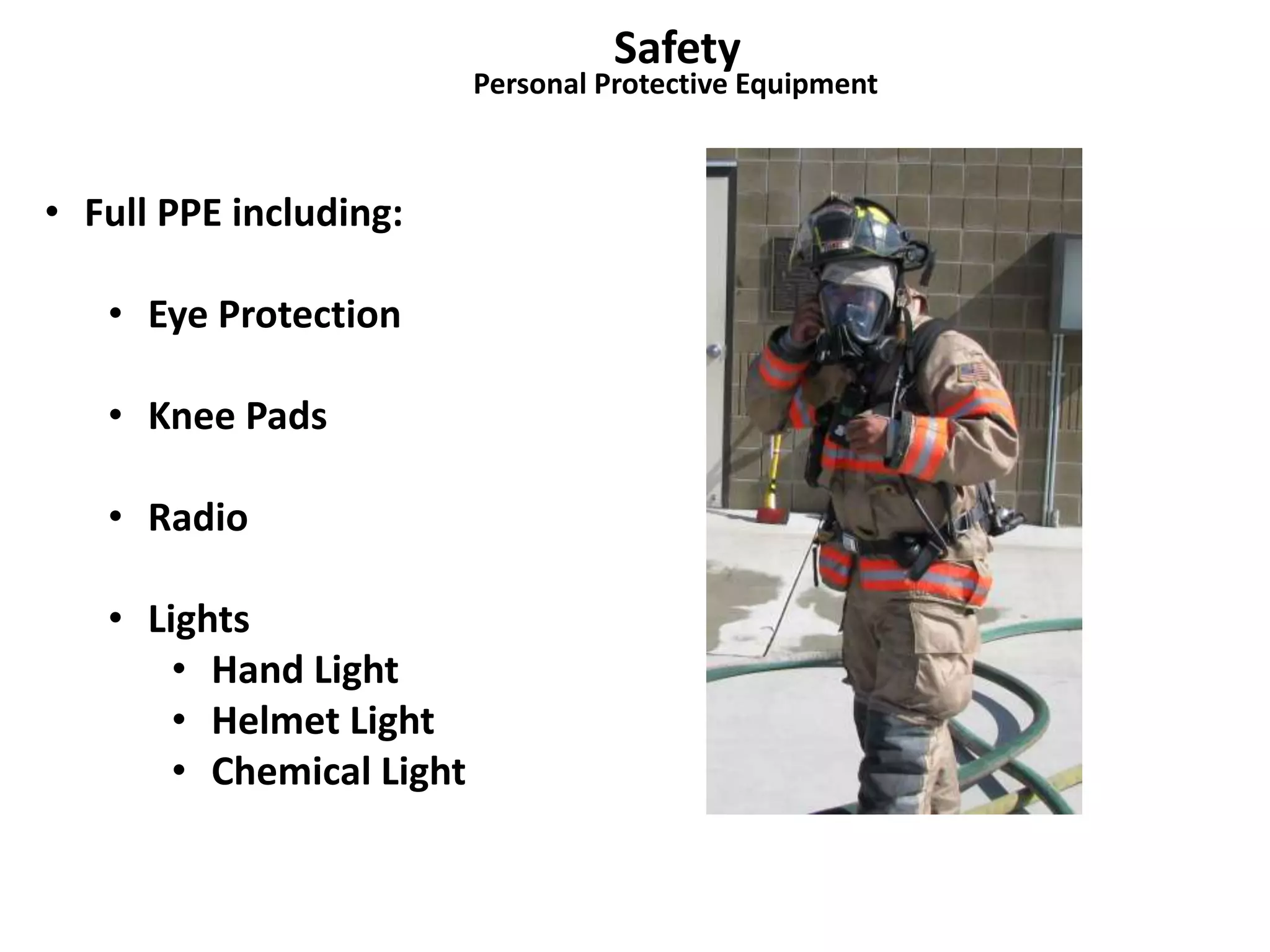

- 54. Safety Personal ProtectiveEquipment • Full PPE including: • Eye Protection • Knee Pads • Radio • Lights • Hand Light • Helmet Light • Chemical Light

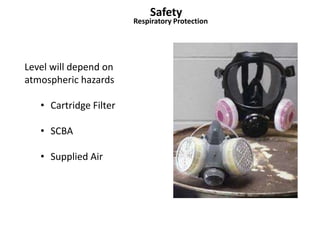

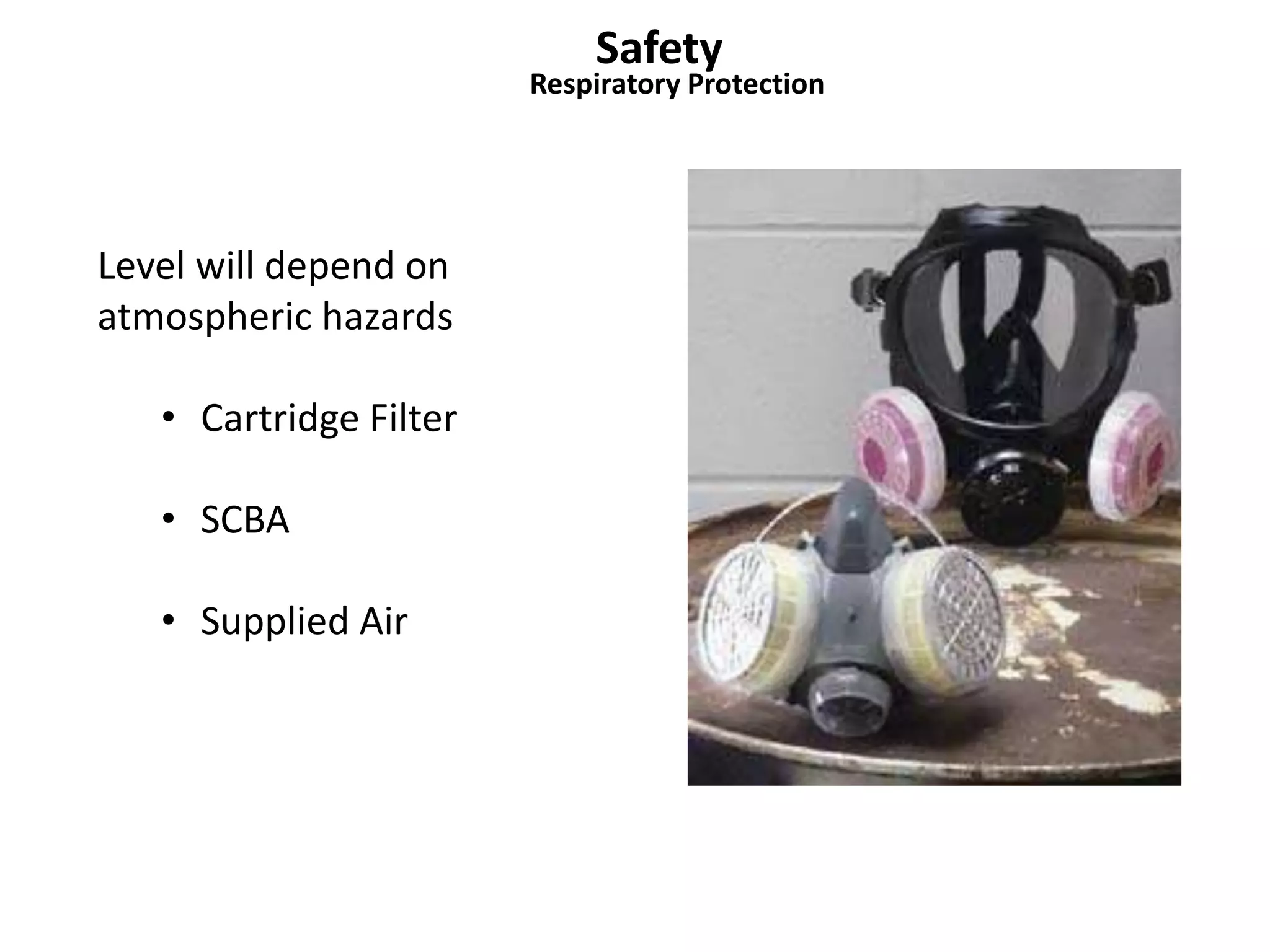

- 55. Safety Respiratory Protection Level will depend on atmospheric hazards • Cartridge Filter • SCBA • Supplied Air

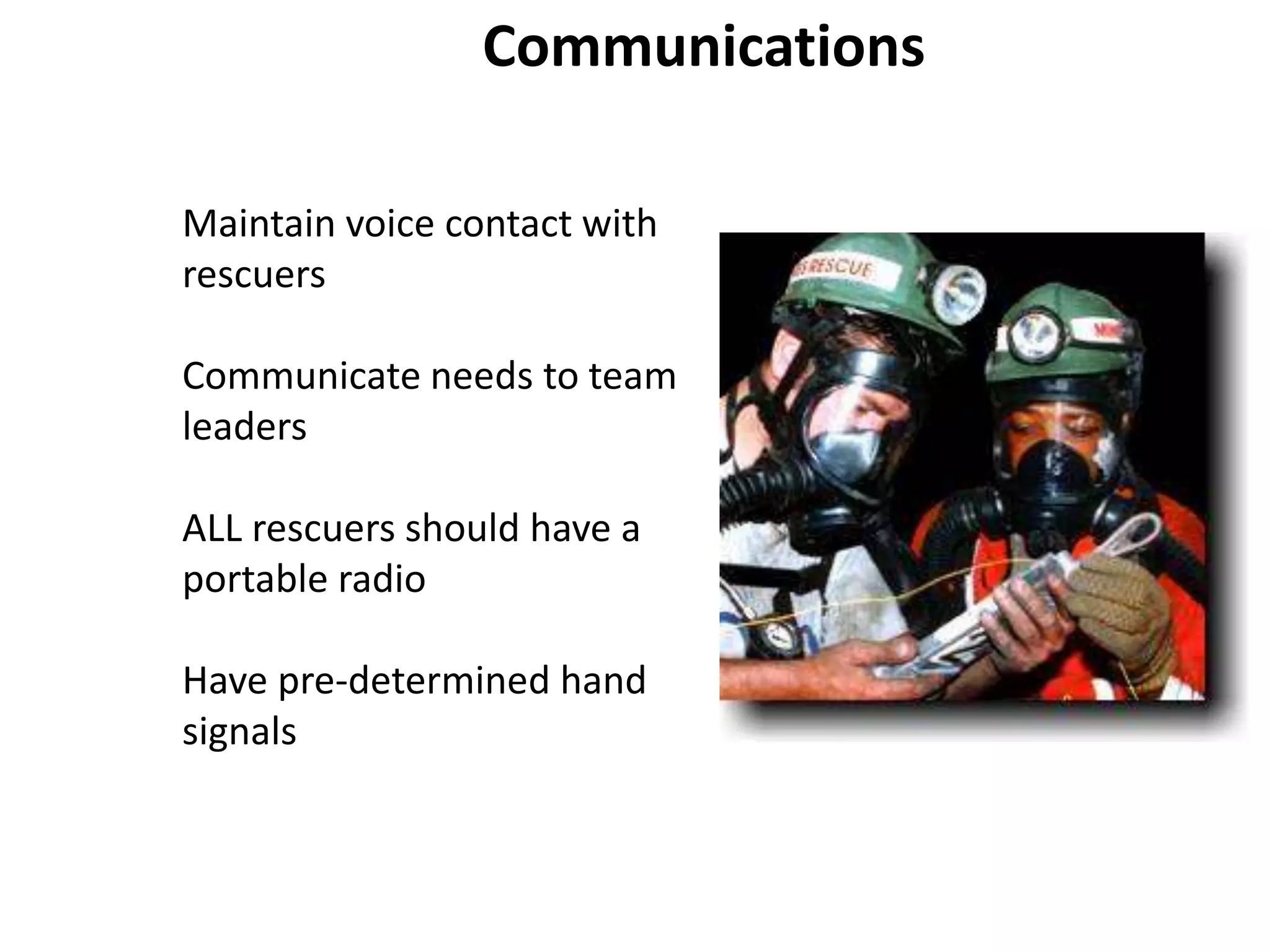

- 56. Communications Maintain voicecontact with rescuers Communicate needs to team leaders ALL rescuers should have a portable radio Have pre-determined hand signals

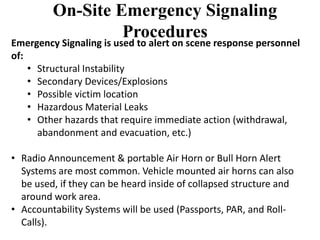

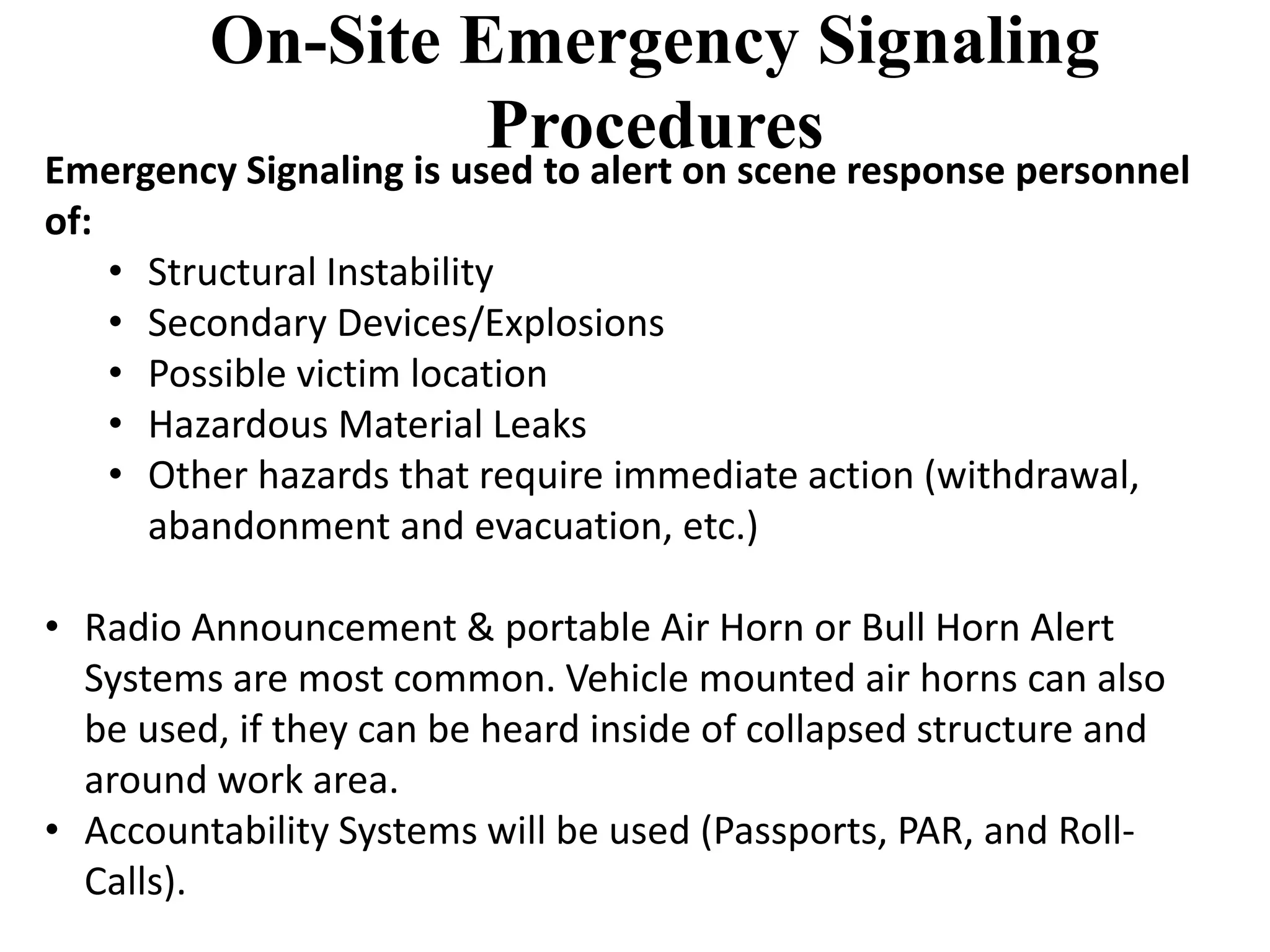

- 57. On-Site Emergency Signaling Procedures Emergency Signaling is used to alert on scene response personnel of: • Structural Instability • Secondary Devices/Explosions • Possible victim location • Hazardous Material Leaks • Other hazards that require immediate action (withdrawal, abandonment and evacuation, etc.) • Radio Announcement & portable Air Horn or Bull Horn Alert Systems are most common. Vehicle mounted air horns can also be used, if they can be heard inside of collapsed structure and around work area. • Accountability Systems will be used (Passports, PAR, and Roll- Calls).
- 58. Structural Collapse Concerns • Majority of victims will have injuries from falling debris • Most visible surface victims will have minimal entrapment. • Victims may have vision and breathing difficulties from dust exposure and impaction. • Blast injuries may be present (hearing!). • Entrapped victims will need Technical Rescue Teams. 1989 Loma Prieta Earthquake Cars crushed by collapsing brick facade near Fifth and Townsend Streets. At this locality, five people were killed while leaving from work. [C.E. Meyer, U.S. Geological Survey]

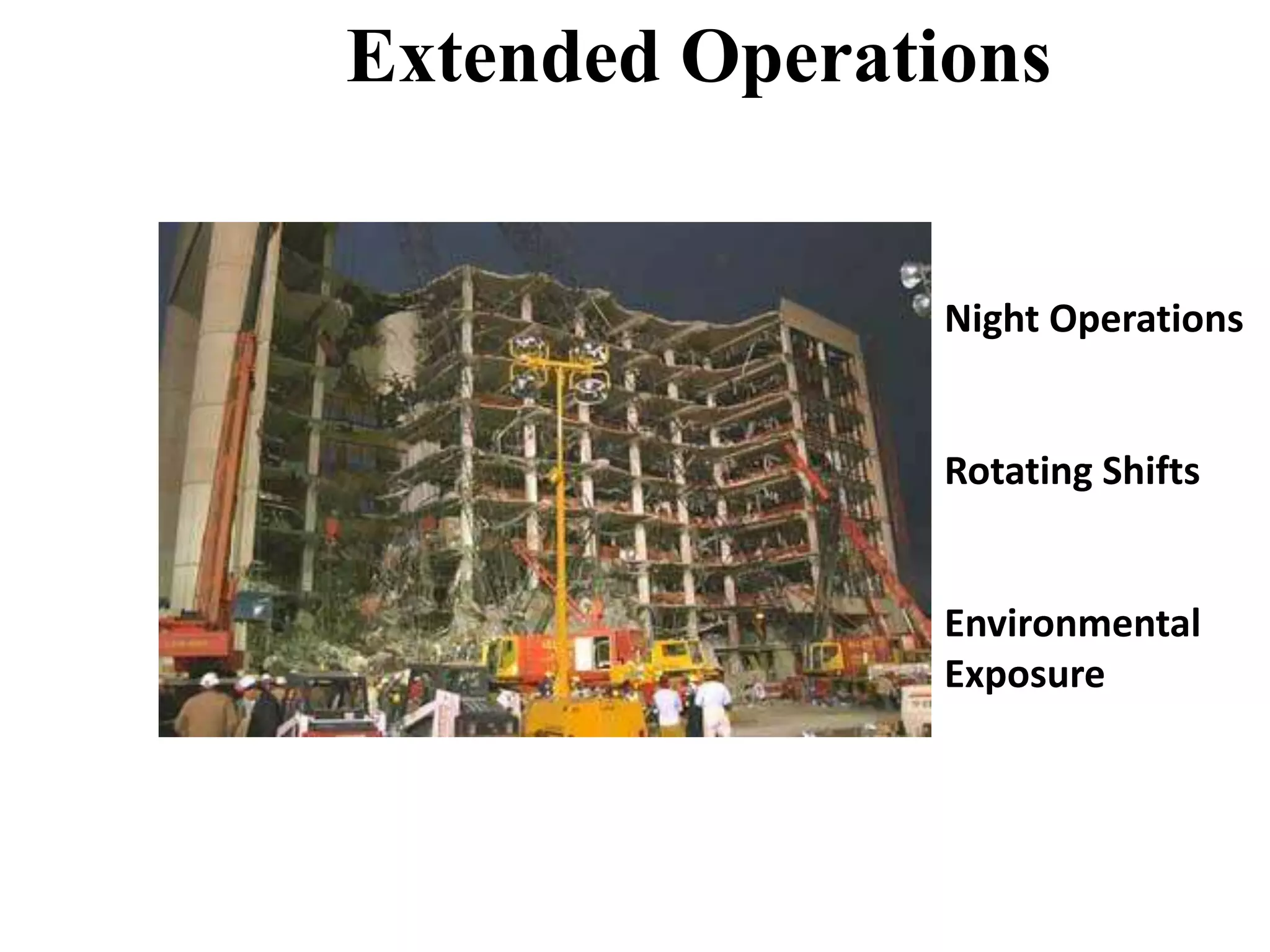

- 59. Extended Operations NightOperations Rotating Shifts Environmental Exposure

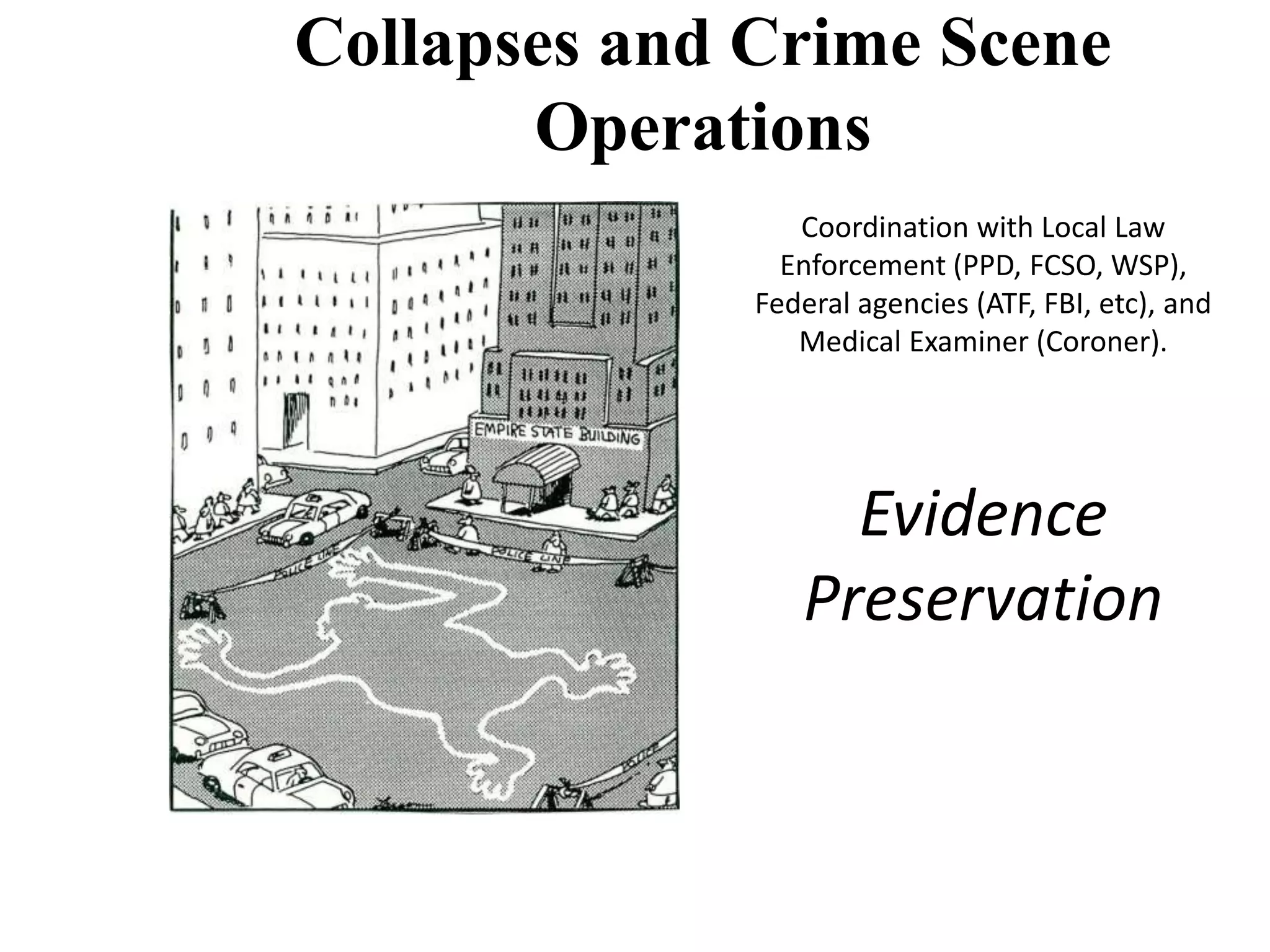

- 60. Collapses and CrimeScene Operations Coordination with Local Law Enforcement (PPD, FCSO, WSP), Federal agencies (ATF, FBI, etc), and Medical Examiner (Coroner). Evidence Preservation

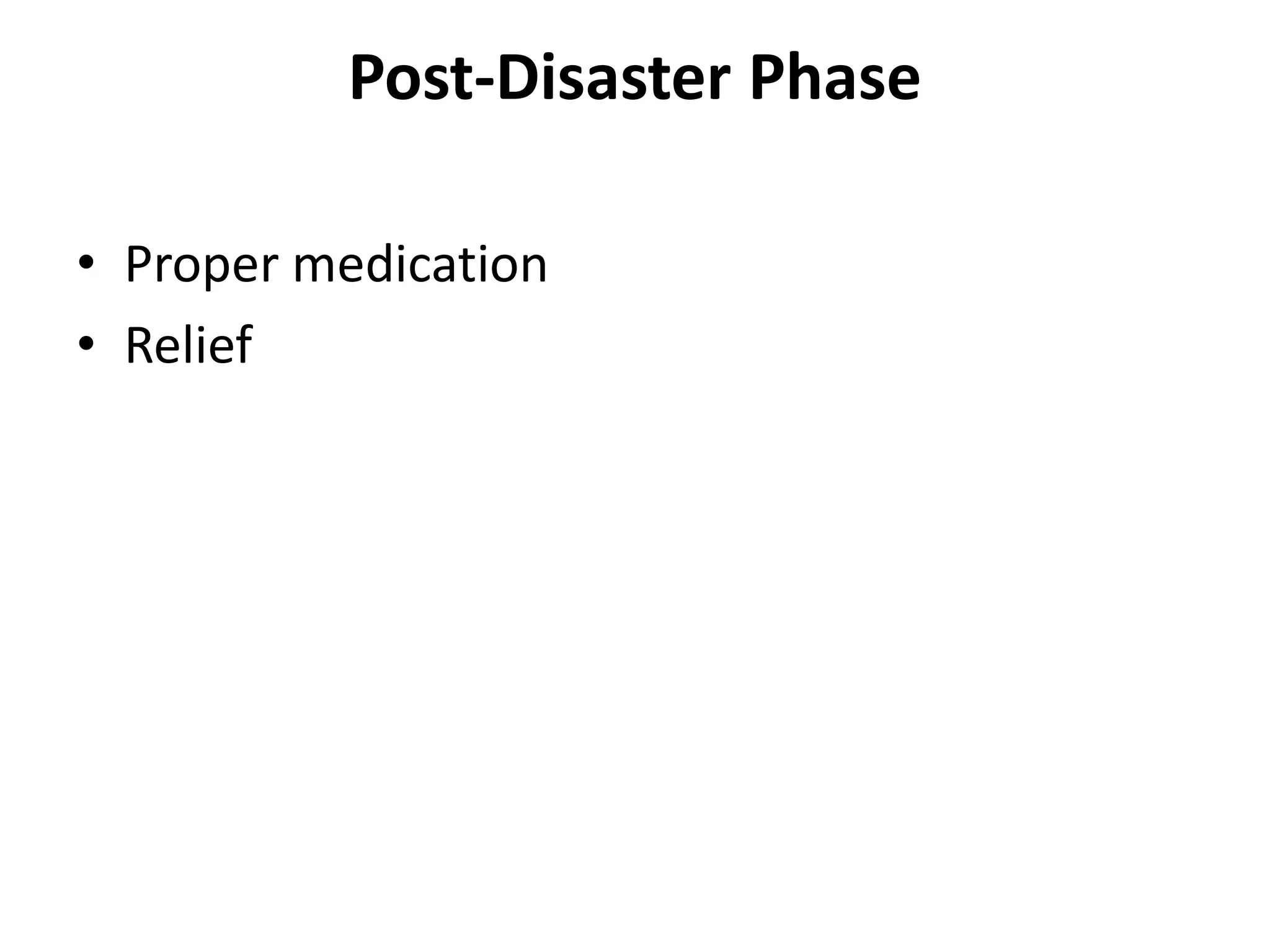

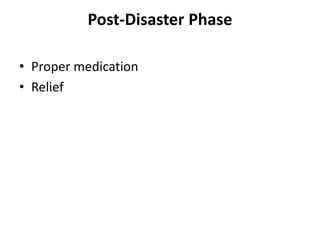

- 61. Post-Disaster Phase •Proper medication • Relief

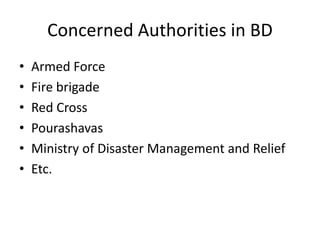

- 62. Concerned Authorities inBD • Armed Force • Fire brigade • Red Cross • Pourashavas • Ministry of Disaster Management and Relief • Etc.

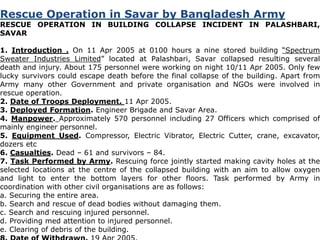

- 63. Rescue Operation inSavar by Bangladesh Army RESCUE OPERATION IN BUILDING COLLAPSE INCIDENT IN PALASHBARI, SAVAR 1. Introduction . On 11 Apr 2005 at 0100 hours a nine stored building “Spectrum Sweater Industries Limited” located at Palashbari, Savar collapsed resulting several death and injury. About 175 personnel were working on night 10/11 Apr 2005. Only few lucky survivors could escape death before the final collapse of the building. Apart from Army many other Government and private organisation and NGOs were involved in rescue operation. 2. Date of Troops Deployment. 11 Apr 2005. 3. Deployed Formation. Engineer Brigade and Savar Area. 4. Manpower. Approximately 570 personnel including 27 Officers which comprised of mainly engineer personnel. 5. Equipment Used. Compressor, Electric Vibrator, Electric Cutter, crane, excavator, dozers etc 6. Casualties. Dead – 61 and survivors – 84. 7. Task Performed by Army. Rescuing force jointly started making cavity holes at the selected locations at the centre of the collapsed building with an aim to allow oxygen and light to enter the bottom layers for other floors. Task performed by Army in coordination with other civil organisations are as follows: a. Securing the entire area. b. Search and rescue of dead bodies without damaging them. c. Search and rescuing injured personnel. d. Providing med attention to injured personnel. e. Clearing of debris of the building. 8. Date of Withdrawn. 19 Apr 2005.
- 64.
